LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

55

LCN ELECTROMECHANICAL POWERED SYSTEMS

GENERAL ELECTRICAL DATA

1. Input power 115 volt, 3 wire, single phase, 60Hz, fused, 15 amp supply.

2. UL approved type flexible conduit is recommended for the 115 volt power line.

3. The 115 volt power supply must be a dedicated circuit from the main circuit breaker panel and must not be

connected into a building lighting system operating fluorescent lights.

4. Location of conduits determined by mounting. See installation instructions for location.

2800, 9500 Series

ELECTRICAL DATA

1. 120 VAC input @ 2.5 amps (2800, and 9500 Series).

2. 24 V AC output @ 1.5 amps (protected by self-resetting thermal fuse).

3. 24 V DC available with SO kit included.

9100 Series

ELECTRICAL DATA

1. 120 VAC input @ 1 amp.

2. 24 VDC output @ 2.5 amps on premium control box.

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

56

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

Notes

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

57

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

Dual Independent Program Memories

Each unit is pre-programmed to factory default settings. The

installer can adjust the unit to meet the job site requirements.

These field settings are locked into the computer’s memory. Any

subsequent field adjustments replace the original field

adjustments. The factory settings are always retained in memory

and can be recalled to replace the field settings in just seconds,

restoring the unit to its original programming.

On-Board Power Supply

Provides 24V DC output to power card readers, manual actuators

and other peripherals.

Electronic Circuit Protection

Fused input circuit protection and fused output protection for 24

VDC peripherals

Visual Function Indicators

There are 2 LED s for installation and trouble shooting feedback.

The motor LED will illuminate when the motor drive circuit

energizes this is when the operator is activated it will remain on

only during the opening of the door and the power LED this will

illuminate when power is applied to the board and remains

illuminated as long as there is power applied to the board.

Programming Mode

Allows tailoring the following functions to meet specific site

conditions:

Power Boost

Opening Speed

Backcheck Speed

Hold Open Time Delay

Backcheck Position

Closing Speed

Latch Position

Push ‘N Go

Delayed Activation

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

LCN BENCHMARK UNIQUE FEATURES

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

58

Notes

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

59

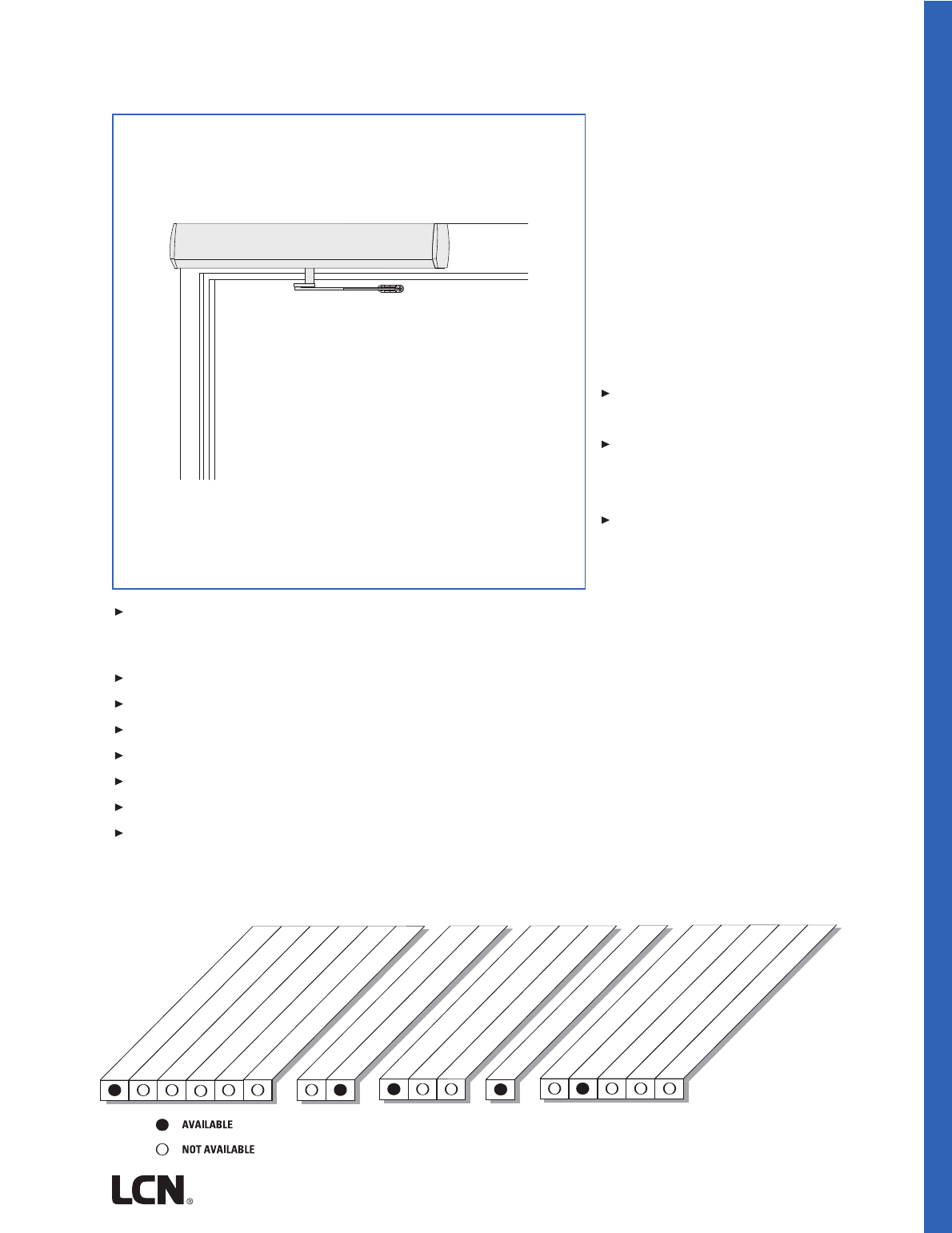

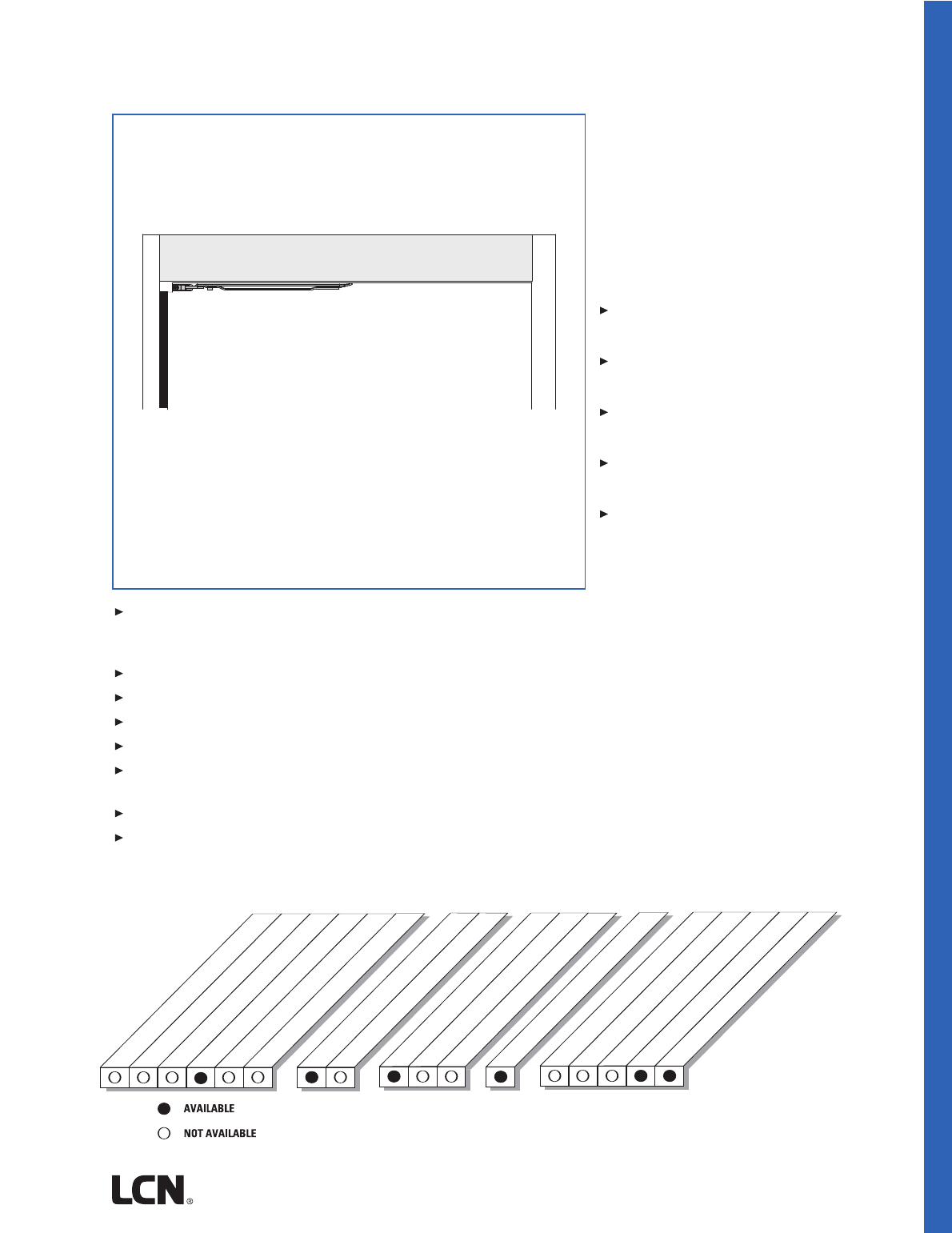

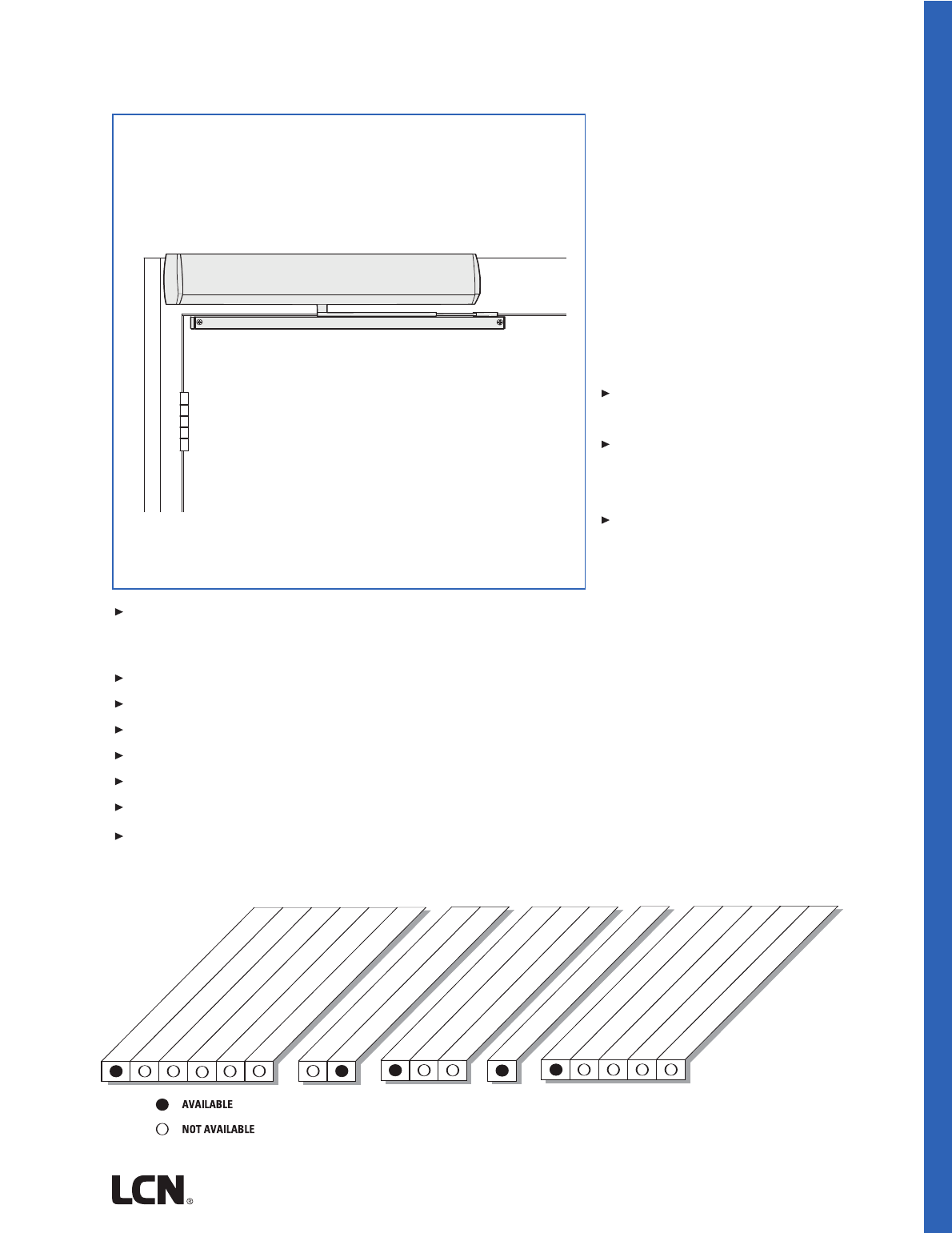

LCN 9130 SERIES

STANDARD ANODIZED

CUSTOM ANODIZED

CUSTOM PAINT

FINISH

HANDING

HANDED

NON-HANDED

COVER

METAL

ARM FUNCTION

STANDARD (SINGLE)

REGULAR (DOUBLE)

OFFSET PIVOT ARM

CENTER PIVOT ARM

DOUBLE EGRESS (PUSH/PULL)

MOUNTING

SURFACE MOUNT SINGLE DOOR

SURFACE MOUNT SIMULTANEOUS PAIR

SURFACE MOUNT INDEPENDENT PAIR

CONCEALED SINGLE DOOR

CONCEALED INDEPENDENT PAIR

CONCEALED SIMULTANEOUS PAIR

The 9130 BENCHMARK by LCN is an

electrically powered low-energy

operator. It provides easy access for

people with disabilities, the elderly or

the frail. Designed primarily for

automatic opening applications that

occasionally require manual opening.

The BENCHMARK is a cost-effective

solution for retrofitting an activated or

manual door.

Push ‘N Go permits non-switch

activation

Microprocessor control box ensures

reliability and maintains customer

settings

Power Boost allows for increased

closing force near latch

9130 Series is fully compliant with UL

325 and meets the provisions of ANSI

A156.19. The 9130 Series is UL listed

for fire-rated applications. The 9130

Series also meets the provisions of the

Americans with Disabilities Act.

9130 series operator is shipped with motor gearbox, control box,

mounting plate, standard arm, metal cover, standard track, wood and

machine screws. Actuators available separately, see page 121.

Single interior door, surface mounted.

ADA compliant.

On/Off switch included as standard.

Non-handed for either right or left swinging door.

27” cover is standard, 36” optional.

All potentiometers clearly labeled with their functions.

LED lights indicate power to control box and motor gearbox.

SINGLE DOOR, SURFACE MOUNT (PULL)

OFFSET PIVOT/BUTT HINGE

FEATURES

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

60

Butt Hinges should not exceed 5” (127 mm) in width.

Reveal should not exceed 1/8” (3 mm).

Head Frame minimum 2” (51 mm).

Top Rail minimum 2” (51 mm).

Opening and Closing Time are variable by adjustments to the

electronic control module located on the operator assembly. Maximum

hold open time adjustable up to approximately 30 seconds.

System Diagram see “AUTOMATIC OPERATORS” section pages 52-54

for typical system wiring and page 55 for electrical data.

Please consult your local SSC representative or LCN for assistance with

specific installations and material requirements.

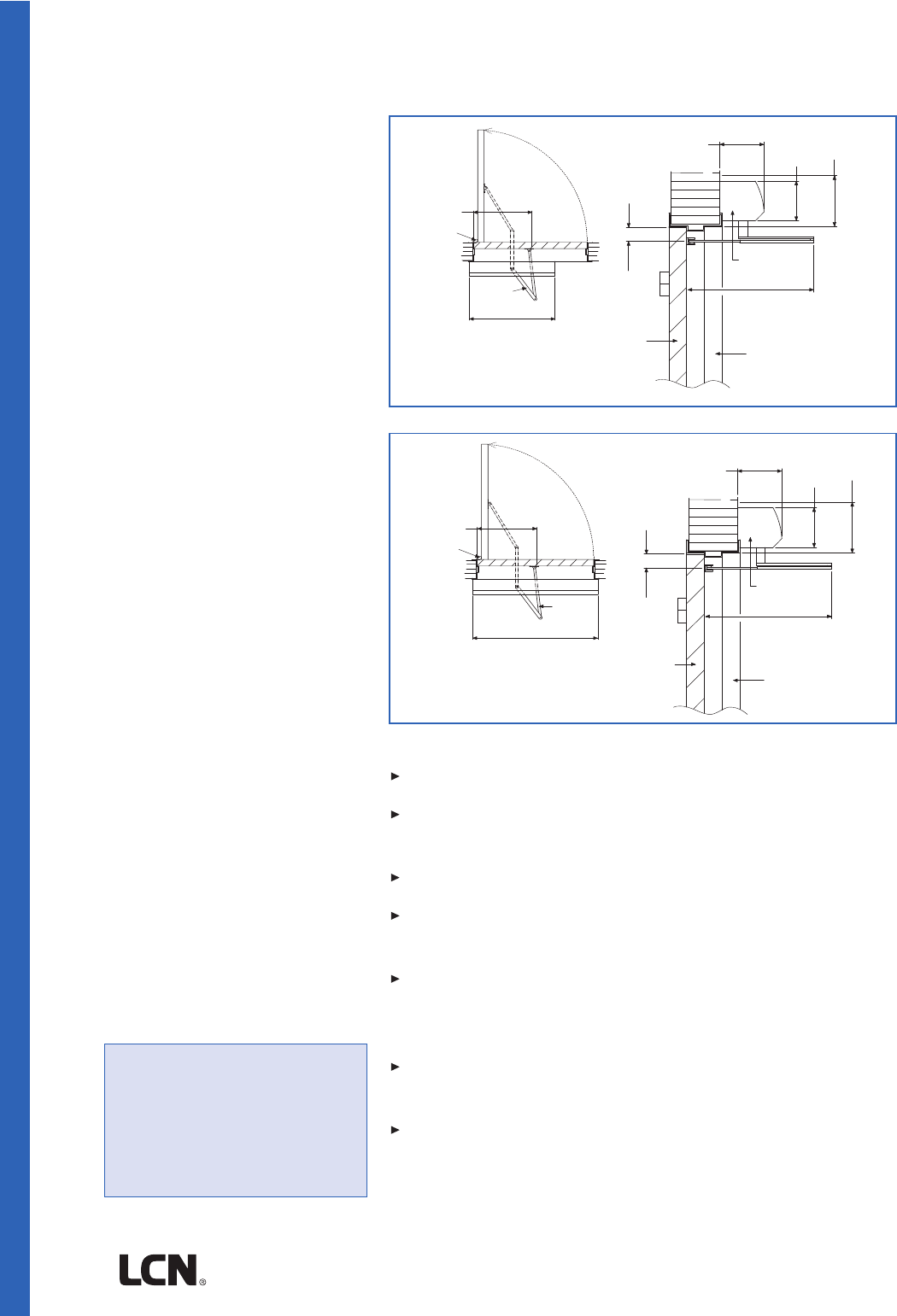

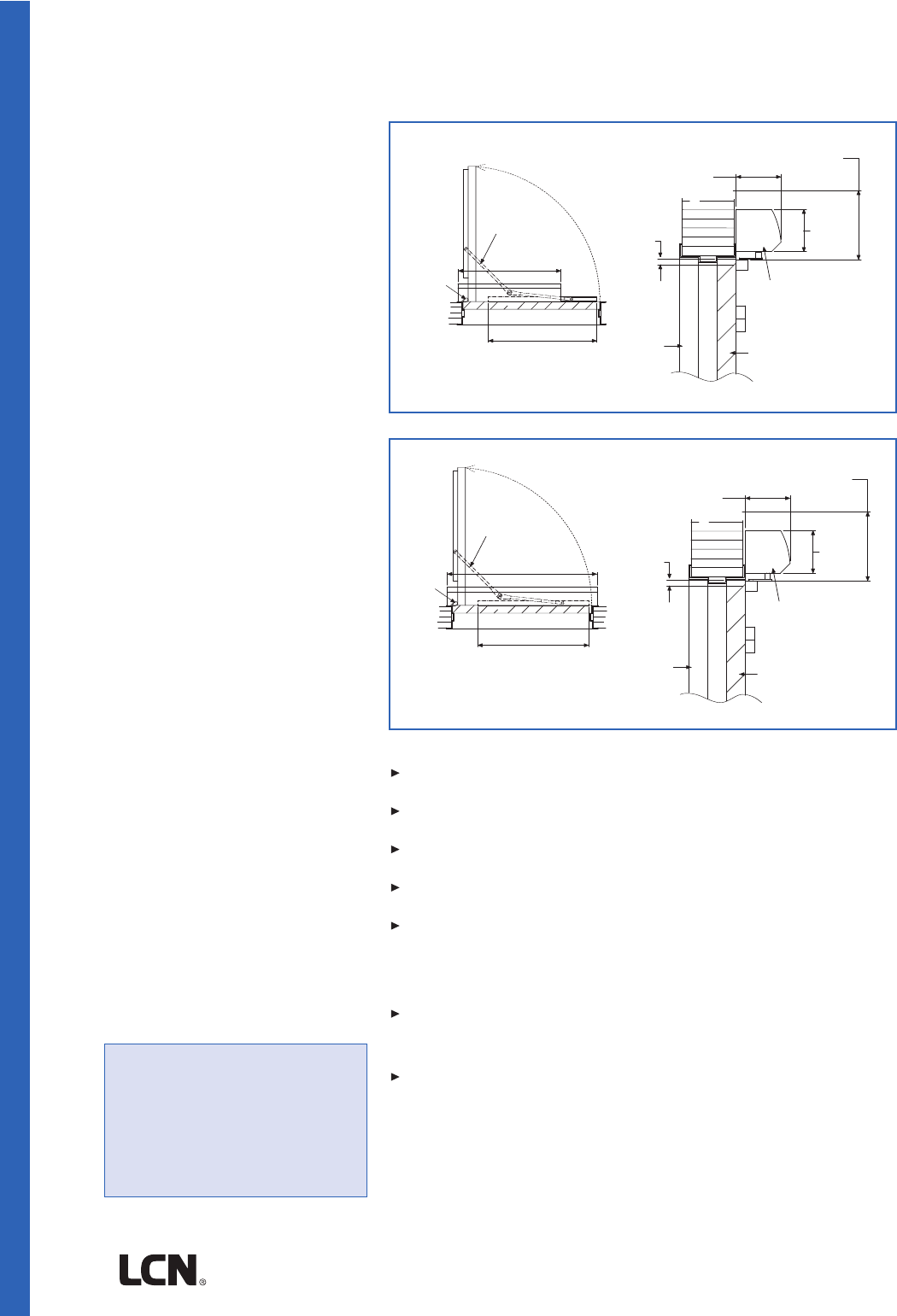

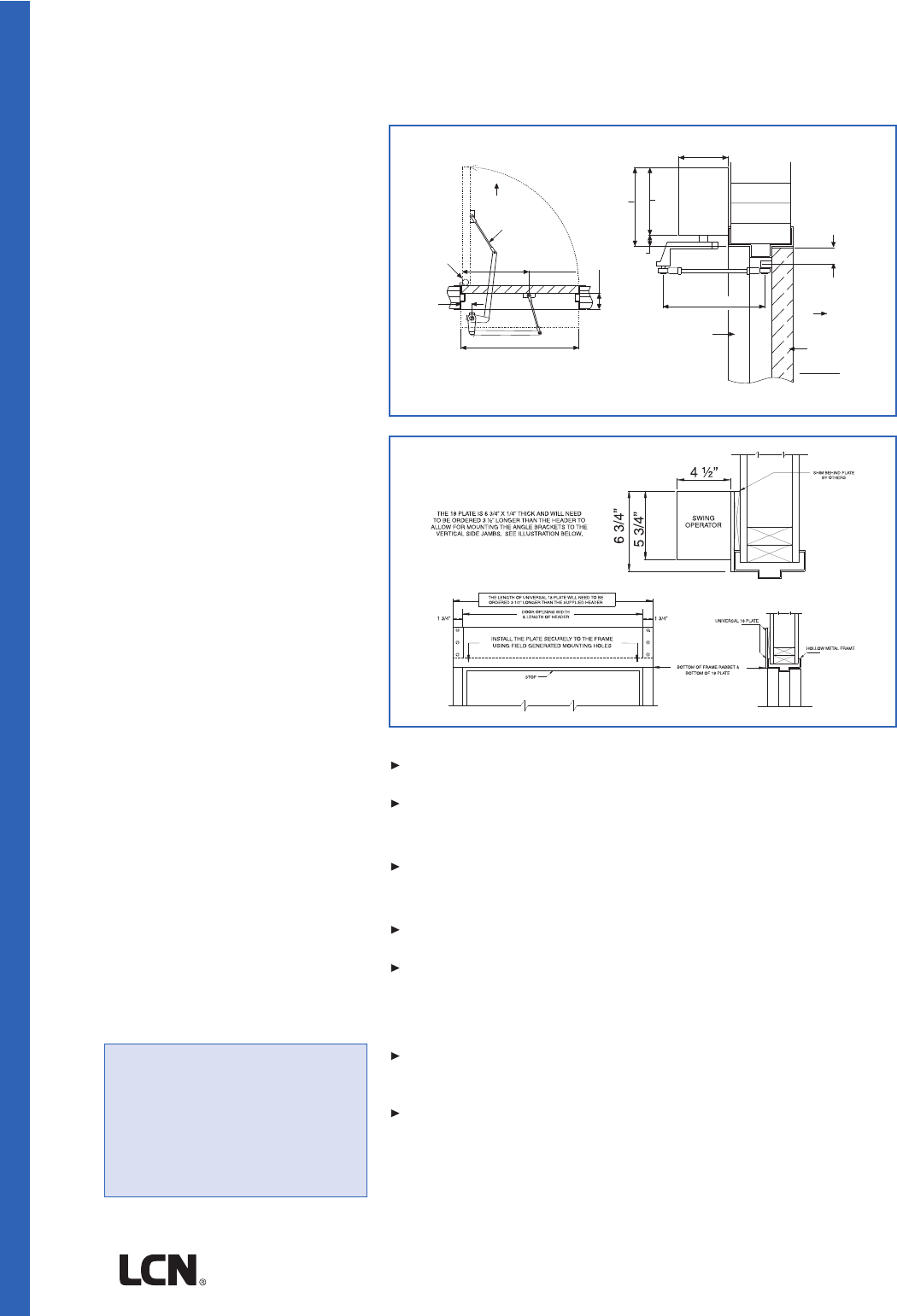

TOP JAMB SINGLE DOOR

(OFFSET/BUTT HINGE, CENTER

PIVOT, PULL, STANDARD

COVER) MOUNTING

TOP JAMB SINGLE DOOR

(OFFSET/BUTT HINGE, CENTER

PIVOT, PULL, FULL COVER)

MOUNTING

MAXIMUM OPENING

Template allows 90 degree power

opening and 90 degree manual

opening.

LCN 9130 SERIES

Special Templates

Customized installation templates

or products may be available to

solve unusual applications.

Contact LCN for assistance.

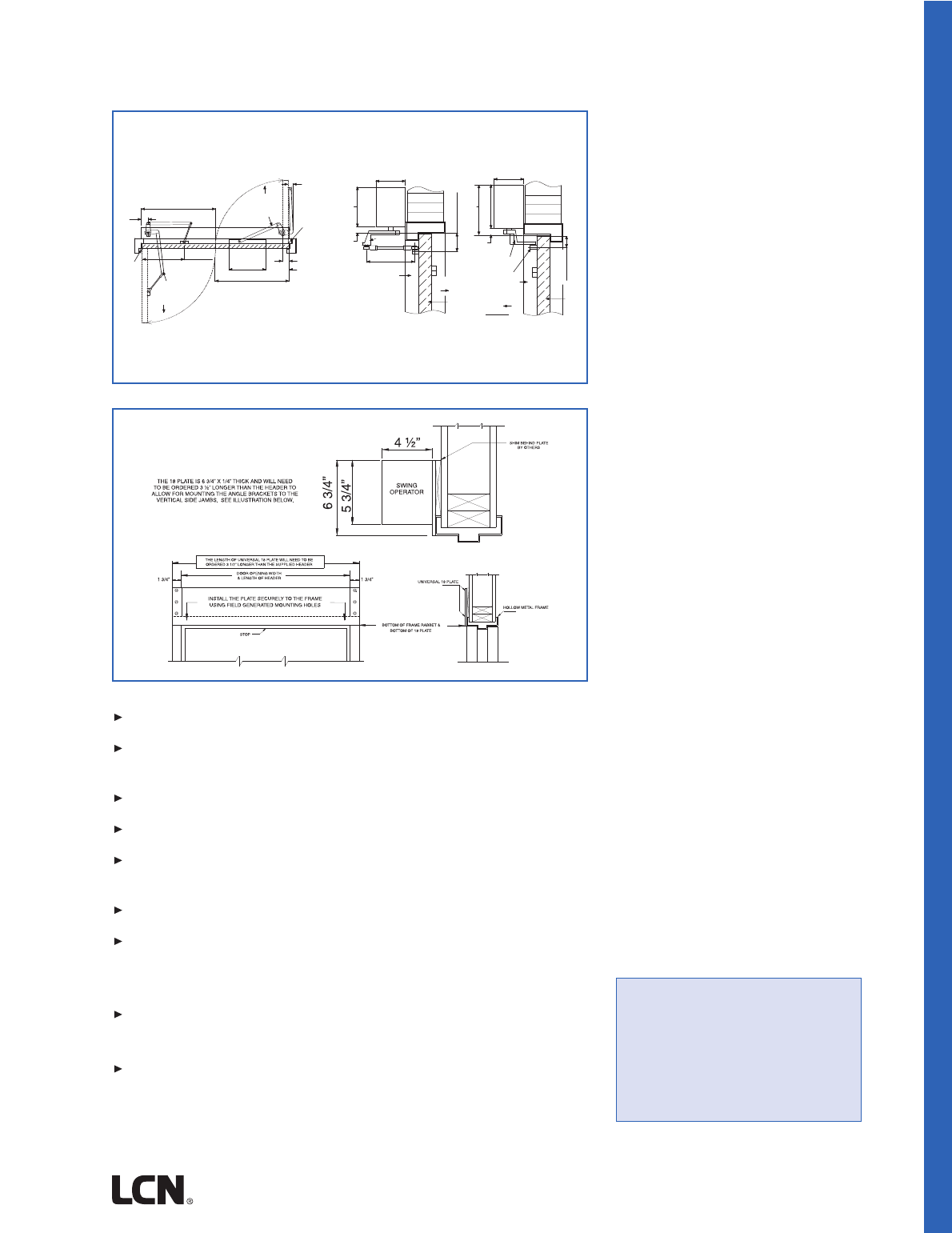

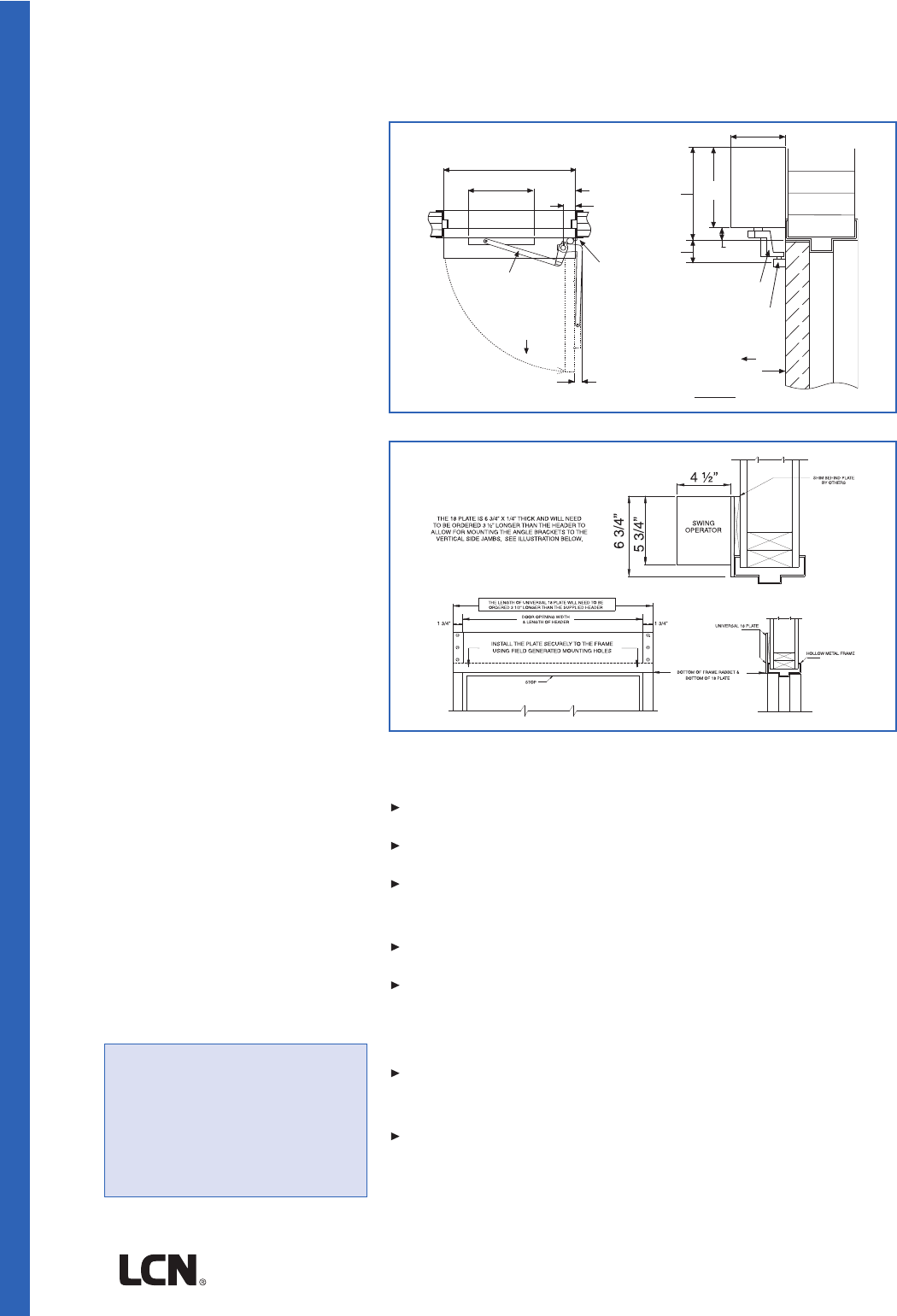

MOUNTING DETAILS

PULL ARM

ASS'Y

OFFSET

PIVOT

OR

BUTT

HINGES

5/8" FROM

TOP OF DOOR

DOOR

FRAME

4

3/4

"

121 MM

6" MIN.

152 MM

OPERATOR

4

1/2

"

114 MM

27" OPERATOR

28

1/2

" PULL CHANNEL

FROM TOP OF DOOR

OPENING TO CEILING

DOOR

5/8" FROM

TOP OF DOOR

DOOR

FRAME

43/4"

121 MM

6" MIN.

152 MM

OPERATOR

41/2"

114 MM

FROM TOP OF DOOR

OPENING TO CEILING

DOOR

PULL ARM

ASS'Y

OFFSET

PIVOT

OR

BUTT

HINGES

FULL LENGTH OPERATOR

28 1/2" PULL CHANNEL

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

61

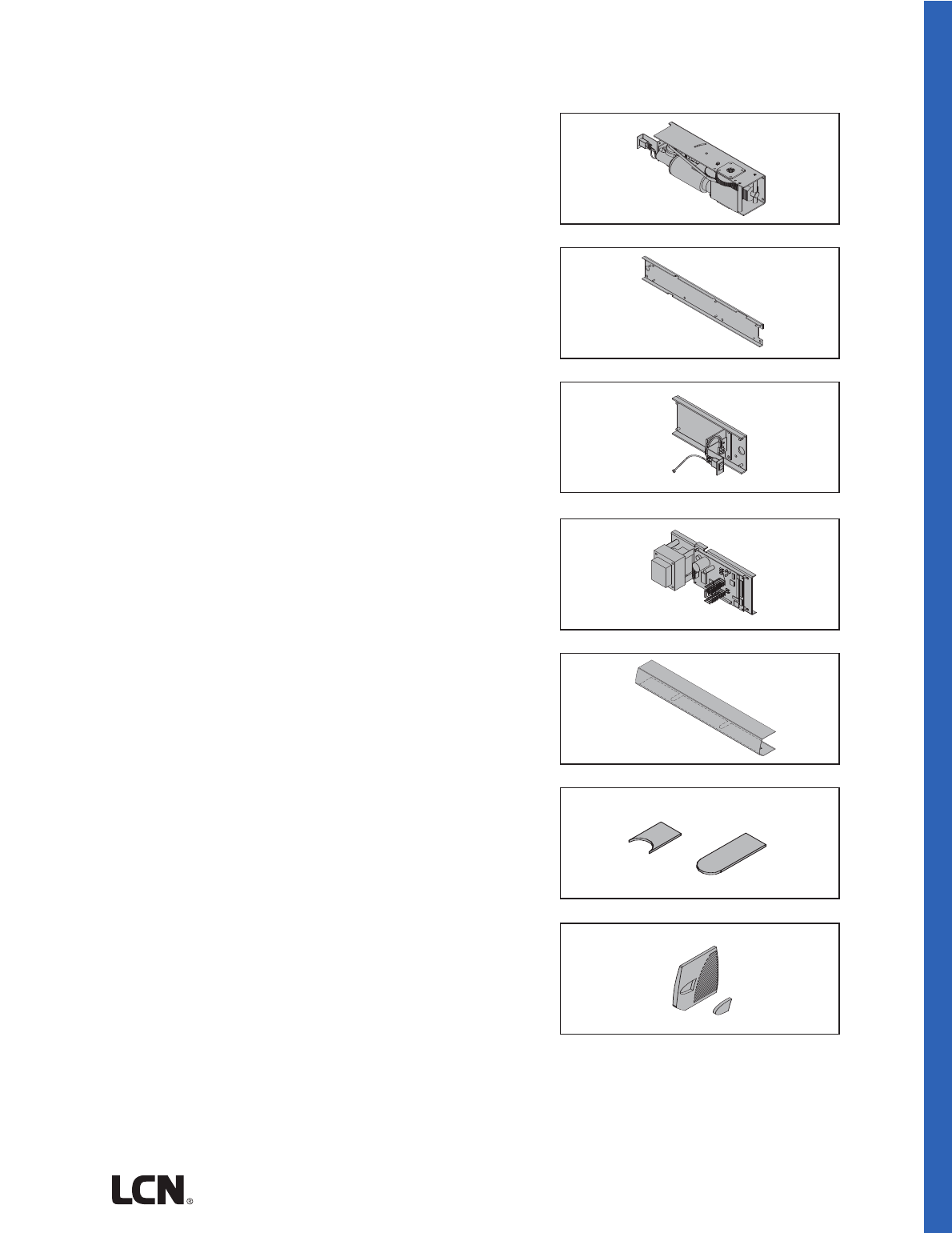

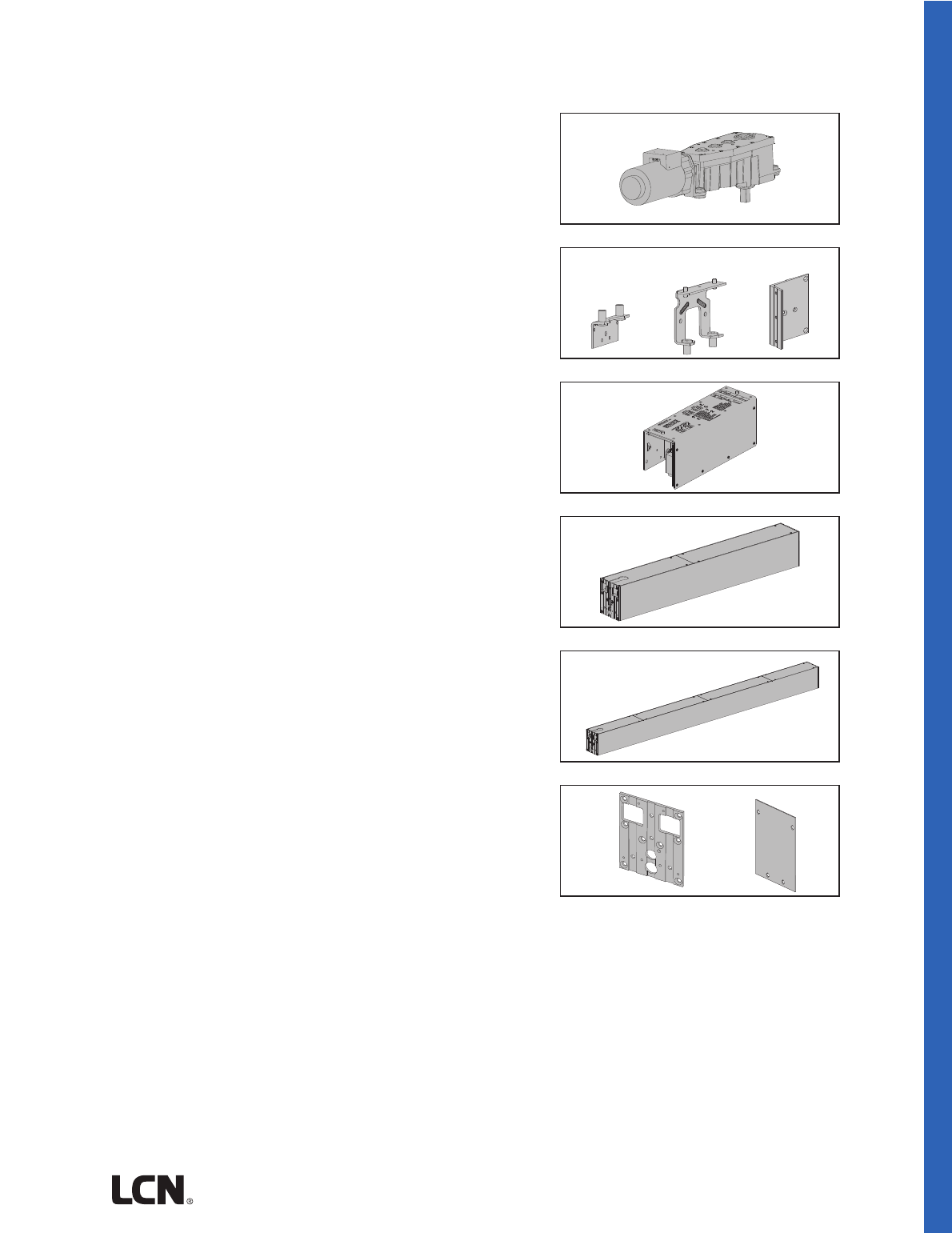

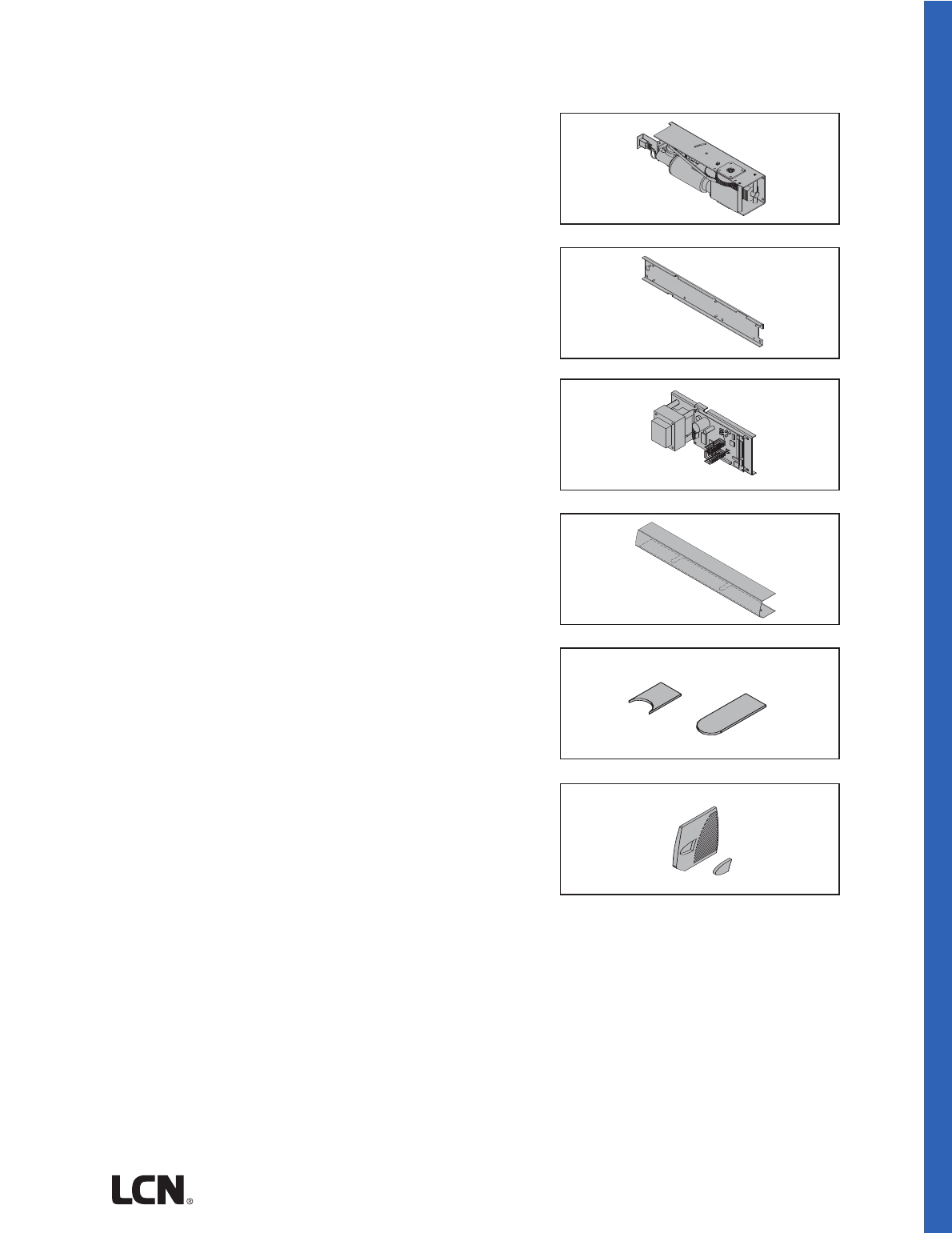

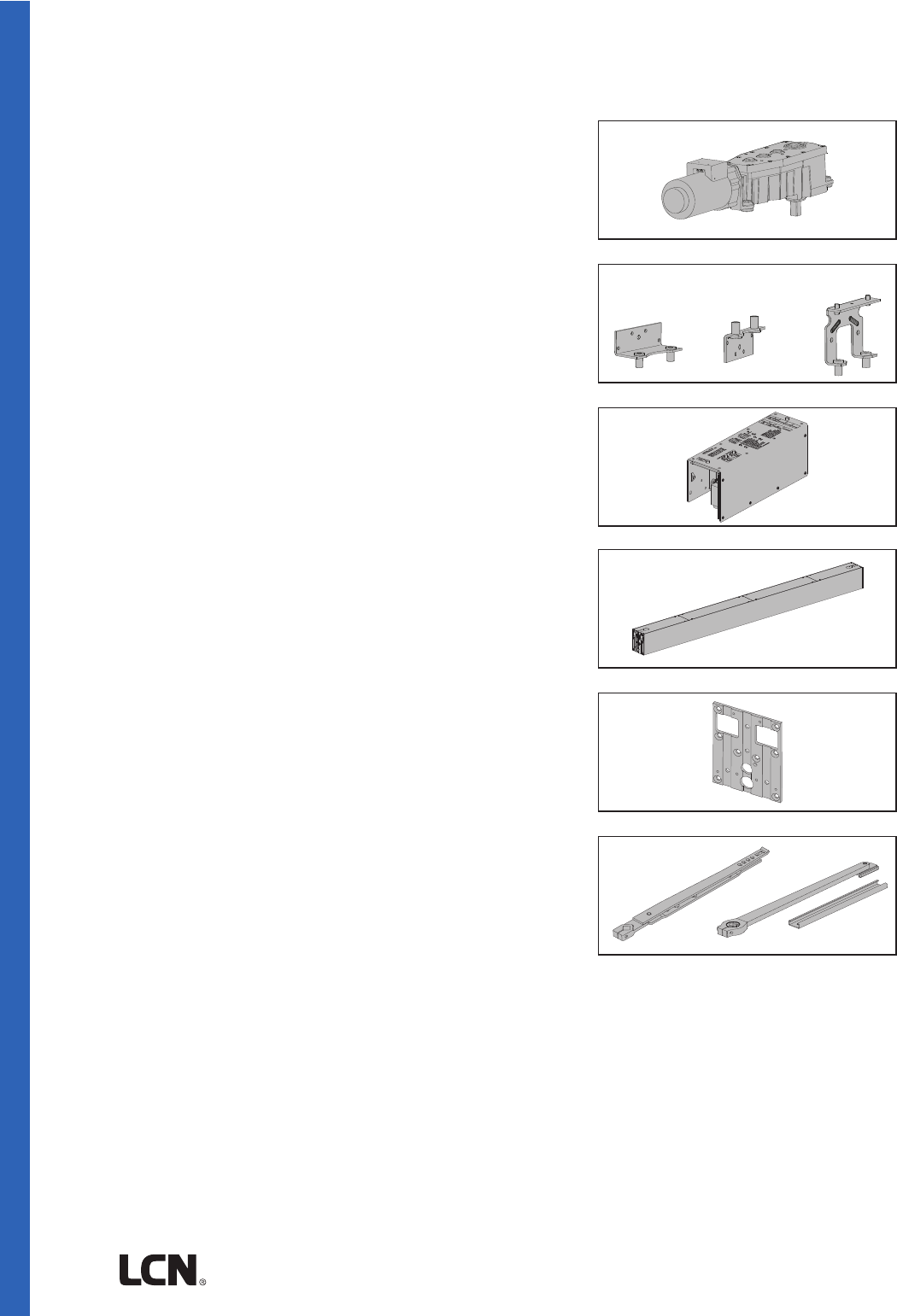

LCN 9130 SERIES

MOTOR GEARBOX

MOTOR GEARBOX ASSEMBLY (W/O SWITCH), 9130-3454

Driving mechanism for operator. For full length unit. Switch not

included.

MOTOR GEARBOX ASSEMBLY, 9130-3454S

Driving mechanism for operator. For 27” unit. Switch included.

BRACKETS

MOUNTING BRACKET, 9130-3018

Standard mounting bracket.

SWITCH BRACKET – 29” CABLE, 9130-3351-1

Bracket used to locate switch at end of cover on full length unit.

SWITCH BRACKET – 41” CABLE, 9130-3351-2

Bracket used to locate switch at end of cover on full length unit.

SWITCH BRACKET – 51” CABLE, 9130-3351-3

Bracket used to locate switch at end of cover on full length unit.

CONTROL BOXES

CONTROL BOX, (120v), 9130-3462

Electronic controlling device with power supply output and power

boost feature for Benchmark.

COVERS

METAL COVER, 9130-72MC

Standard, 27”,non-handed, extruded aluminum cover.

FULL METAL COVER, 9130-72FC

36”, non-handed, extruded aluminum cover.

COVER INSERT 9130-163

Used to cover operator shaft opening.

COVER END CAP INSERT, 9130-163-1

Used to cover switch hole opening.

COVER END CAP, 9130-334

Black plastic end caps.

ACCESSORIES

3454

3454S

3018

3351-1

3351-2

3351-3

3462

72MC

72FC

163

334

163-1

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

62

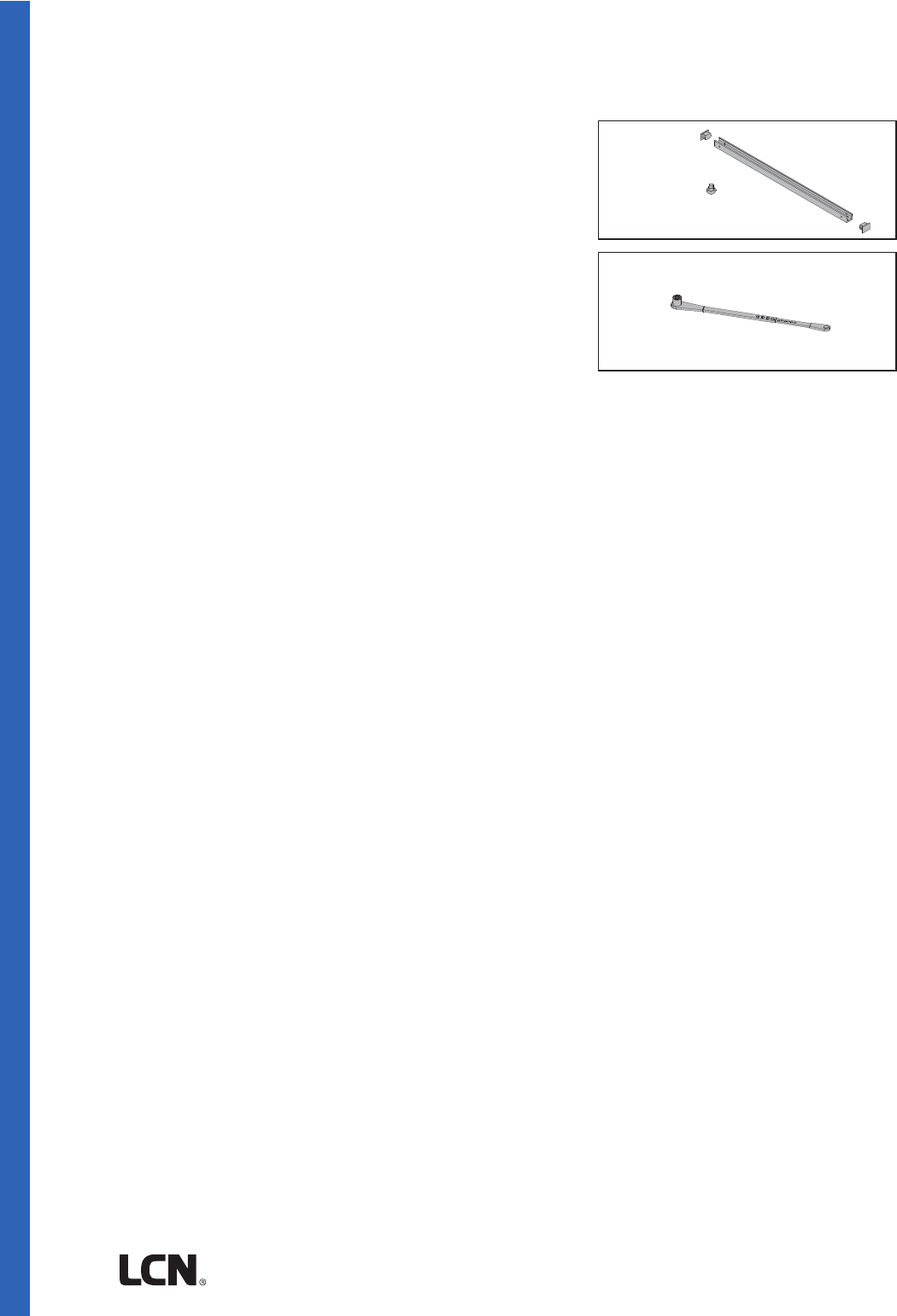

TRACKS

STANDARD TRACK, 9130-3038

Standard, non-handed track.

TRACK END CAP, 9130-73

Black plastic end caps.

ROLLER, 9130-3034

Quiet low friction roller assembly.

ARMS

STANDARD ARM, 9130-3077T

Non-handed arm. Track roller not included.

ACCESSORIES

LCN 9130 SERIES

3038

73

3034

3077T

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

63

TABLE OF SIZES

Indicates recommended range of door width for operator.

Note: For All Benchmark Series

30” minimum door width for 27” pull operator

36” minimum door width for full length pull operator

LCN 9130 SERIES

DOOR WIDTH

30"

762mm

48"

1219mm

9131

Minimum

Door

Width

HOW-TO-ORDER

9130 SERIES OPERATORS

1. SPECIFY FINISH.

Standard Anodized Finish __________

Aluminum or Dark Bronze

Operator will be shipped with:

-STANDARD MOTOR GEARBOX (SF)

-STANDARD CONTROL BOX (SC)

-MOUNTING BRACKET

-27” METAL COVER (CL27)

-STANDARD ARM (3077T)

-STANDARD TRACK w/TRACK ROLLER

-WOOD and MACHINE SCREW PACK

Unless options listed below are selected.

OPERATOR OPTIONS

COVER

36” Full Cover

SPECIAL TEMPLATE

ST-_________

ORDERING INFORMATION

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

64

Notes

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

65

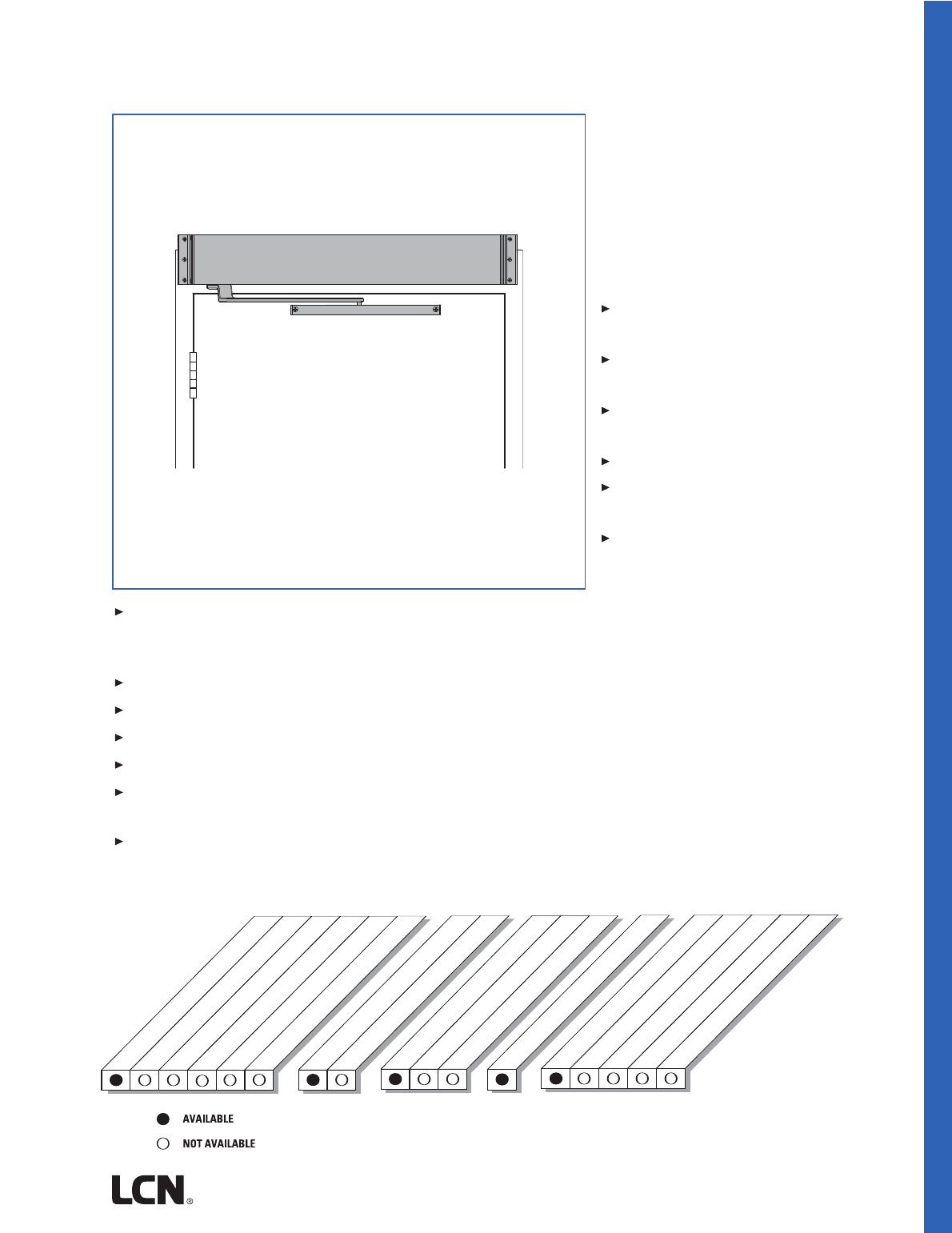

LCN 9140 SERIES

STANDARD ANODIZED

CUSTOM ANODIZED

CUSTOM PAINT

FINISH

HANDING

HANDED

NON-HANDED

COVER

METAL

ARM FUNCTION

STANDARD (SINGLE)

REGULAR (DOUBLE)

OFFSET PIVOT ARM

CENTER PIVOT ARM

DOUBLE EGRESS (PUSH/PULL)

MOUNTING

SURFACE MOUNT SINGLE DOOR

SURFACE MOUNT SIMULTANEOUS PAIR

SURFACE MOUNT INDEPENDENT PAIR

CONCEALED SINGLE DOOR

CONCEALED INDEPENDENT PAIR

CONCEALED SIMULTANEOUS PAIR

The 9140 BENCHMARK by LCN is an

electrically powered low-energy

operator. It provides easy access for

people with disabilities, the elderly or

the frail. Designed primarily for

automatic opening applications that

occasionally require manual opening.

The BENCHMARK is a cost-effective

solution for retrofitting an activated or

manual door.

Push ‘N Go permits non-switch

activation

Microprocessor control box ensures

reliability and maintains customer

settings

Power Boost allows for increased

closing force near latch

9140 Series is fully compliant with UL 325

and meets the provisions of ANSI A156.19.

The 9140 Series is UL listed for fire-rated

applications. The 9140 Series also meets

the provisions of the Americans with

Disabilities Act.

9140 series operator is shipped with motor gearbox, control box,

mounting plate, regular arm, metal cover, standard track, wood and

machine screw pack. Actuators available separately, see page121.

Single interior door, surface mounted.

ADA compliant.

On/Off switch included as standard.

Non-handed for either right or left swinging door.

27” cover is standard, 36” optional.

All potentiometers clearly labeled with their functions.

LED lights indicate power to control box and motor gearbox.

SINGLE DOOR, SURFACE MOUNT (PUSH)

OFFSET PIVOT/BUTT HINGE

FEATURES

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

66

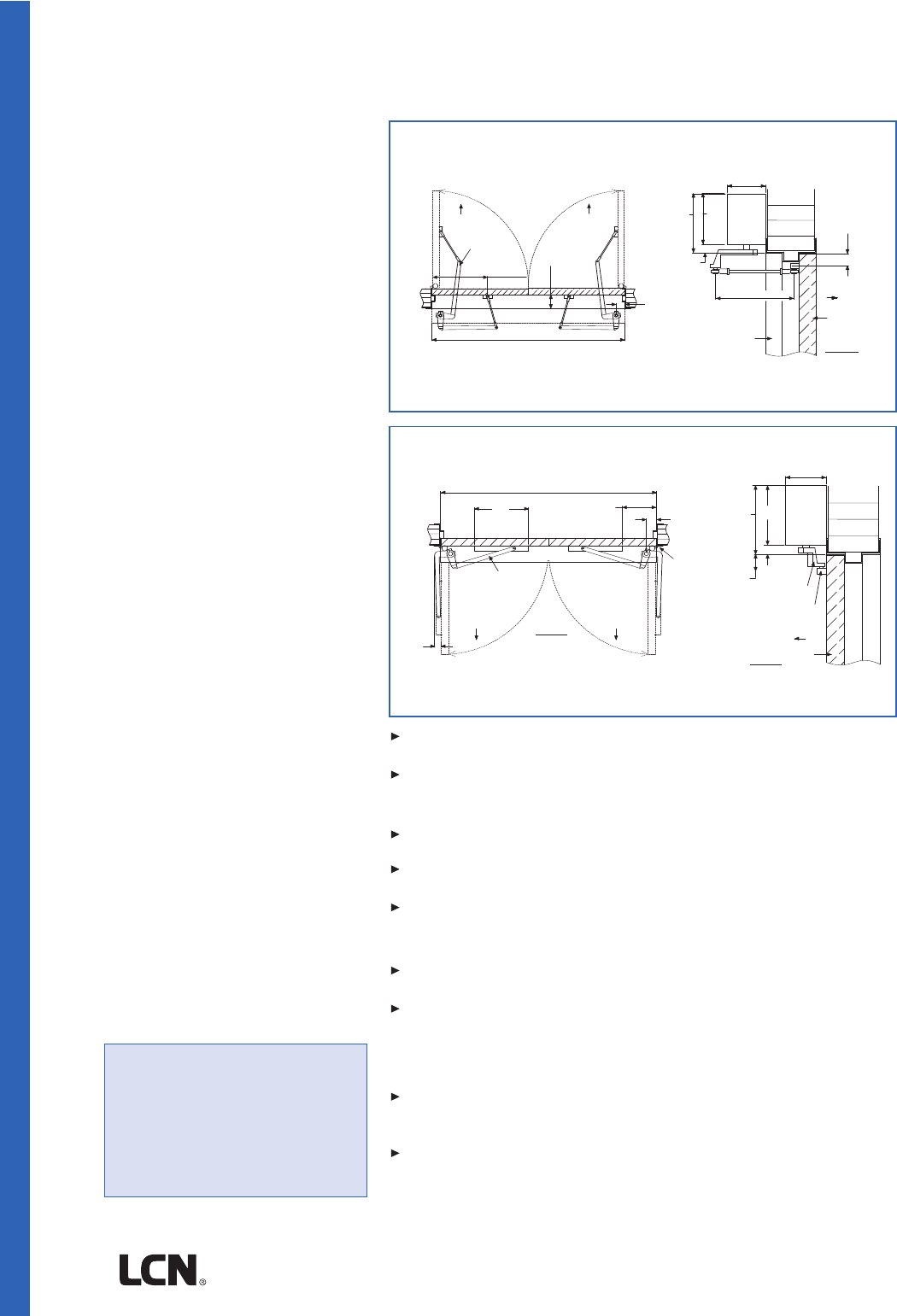

Butt Hinges should not exceed 5” (127 mm) in width.

Reveal for push installations should not exceed 6” (152 mm) for

REGULAR ARM and 9 3/4” (248 mm) for LONG ARM.

Head Frame minimum 2” (51 mm).

Top Rail minimum 2” (51 mm). Flush ceiling installation requires 5 1/4”

(133 mm) minimum.

Opening and Closing Time are variable by adjustments to the

electronic control module located on the operator assembly. Maximum

hold open time adjustable up to approximately 30 seconds.

System Diagram see “AUTOMATIC OPERATORS” section pages 52-54

for typical system wiring and page 55 for electrical data.

Please consult your local SSC representative or LCN for assistance with

specific installations and material requirements.

TOP JAMB SINGLE DOOR

(OFFSET/BUTT HINGE, CENTER

PIVOT, PULL, STANDARD

COVER) MOUNTING

TOP JAMB SINGLE DOOR

(OFFSET/BUTT HINGE, CENTER

PIVOT, PULL, FULL COVER)

MOUNTING

MAXIMUM OPENING

Template allows 90 degree power

opening and 90 degree manual

opening.

LCN 9140 SERIES

Special Templates

Customized installation templates

or products may be available to

solve unusual applications.

Contact LCN for assistance.

MOUNTING DETAILS

PUSH ARM

ASS'Y

18

1/4

" FROM

EDGE OF DOOR

OFFSET

PIVOT

OR

BUTT

HINGES

27" OPERATOR

1

7/16

" FROM

TOP OF DOOR

DOOR

FRAME

4

3/4

"

121 MM

5

9/16

" MIN.

141 MM

OPERATOR

19

1/2

" MAX.

495 MM

4

1/2

"

114 MM

DOOR

PUSH ARM

ASS'Y

18

1/4

" FROM

EDGE OF DOOR

OFFSET

PIVOT

OR

BUTT

HINGES

1

7/16

" FROM

TOP OF DOOR

DOOR

FRAME

4

3/4

"

121 MM 5

9/16

" MIN.

141 MM

OPERATOR

19

1/2

" MAX.

495 MM

4

1/2

"

114 MM

FULL LENGTH OPERATOR

DOOR

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

67

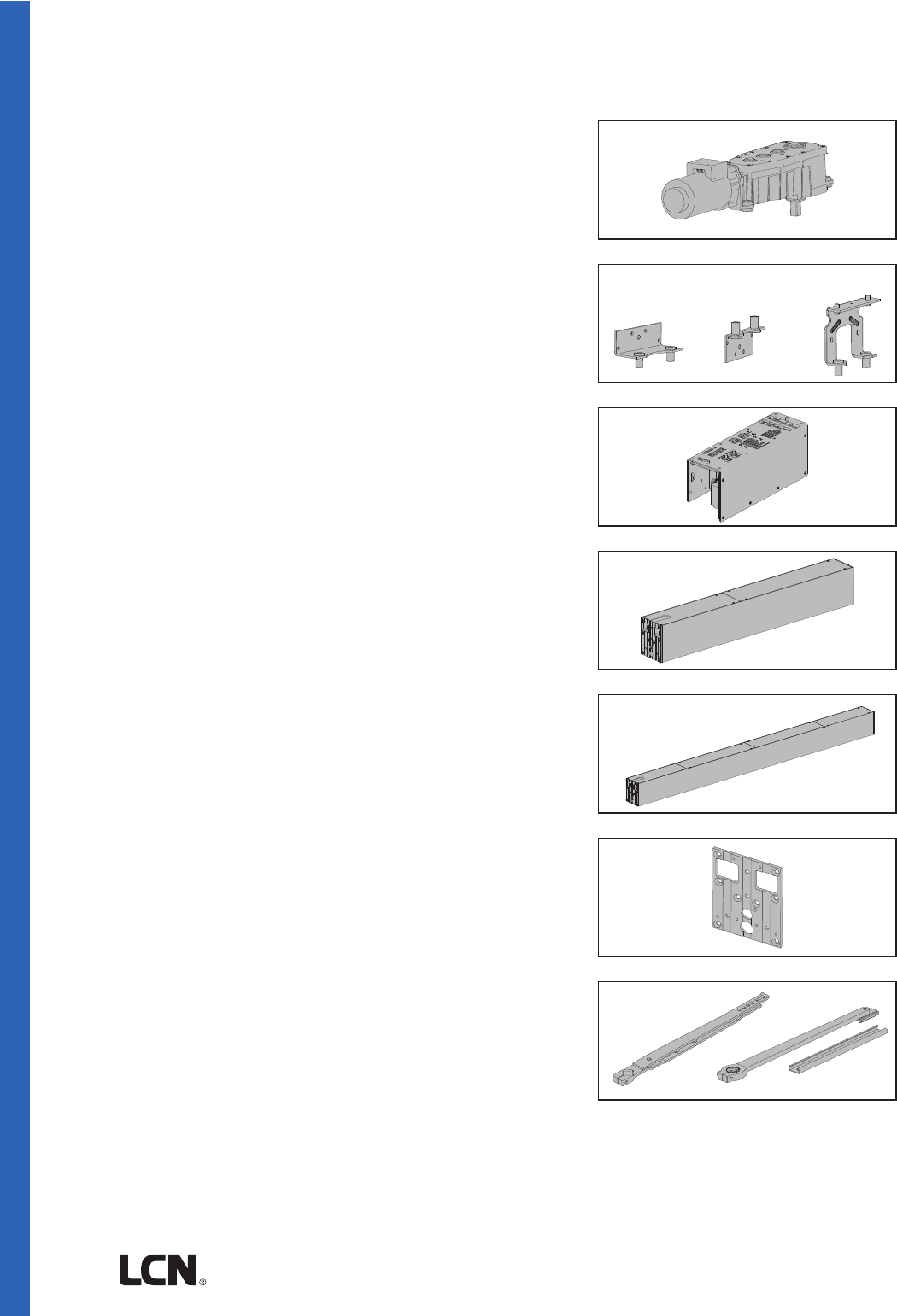

LCN 9140 SERIES

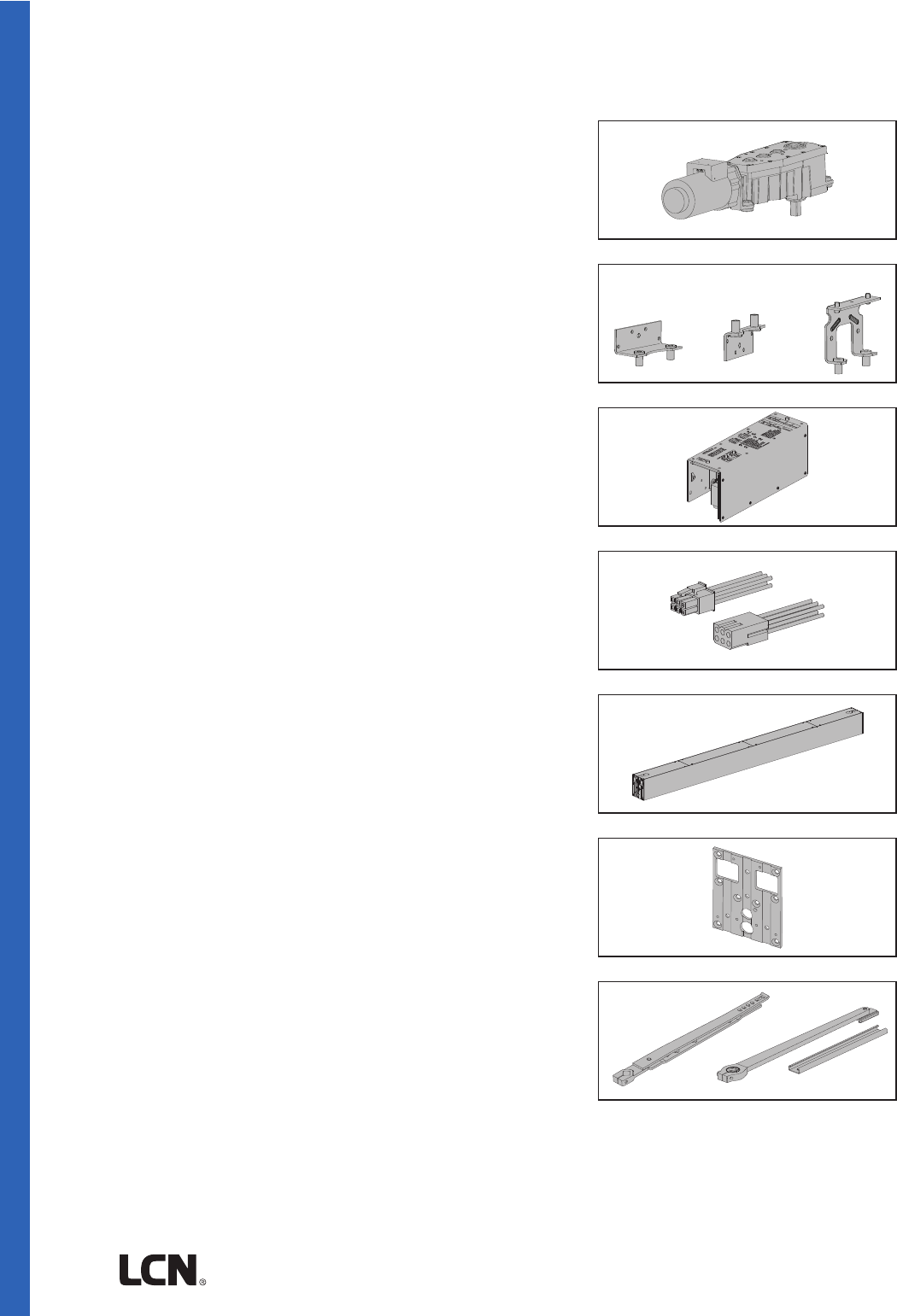

MOTOR GEARBOX

MOTOR GEARBOX ASSEMBLY, 9140-3454S

Driving mechanism for operator. For 27” unit. Switch included.

MOTOR GEARBOX ASSEMBLY (W/O SWITCH), 9140-3454

Driving mechanism for operator. For full length unit. Switch not

included.

BRACKETS

MOUNTING BRACKET, 9140-3018

Standard mounting bracket.

SWITCH BRACKET – 29” CABLE, 9140-3351-1

Bracket used to locate switch at end of cover on full length unit.

SWITCH BRACKET – 41” CABLE, 9140-3351-2

Bracket used to locate switch at end of cover on full length unit.

SWITCH BRACKET – 51” CABLE, 9140-3351-3

Bracket used to locate switch at end of cover on full length unit.

CONTROL BOXES

CONTROL BOX, (120v), 9140-3462

Electronic controlling device with power supply output and power

boost feature for Benchmark.

COVERS

METAL COVER, 9140-72MC

Standard, 27”,non-handed, extruded aluminum cover.

FULL METAL COVER, 9140-72FC

36” Full length, non-handed, extruded aluminum cover.

COVER INSERT 9140-163

Used to cover operator shaft opening.

COVER END CAP INSERT, 9140-163-1

Used to cover switch hole opening.

COVER END CAP, 9140-334

Black plastic end caps.

ACCESSORIES

3454

3454S

3018

3351-1

3351-2

3351-3

3462

72MC

72FC

163

334

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

68

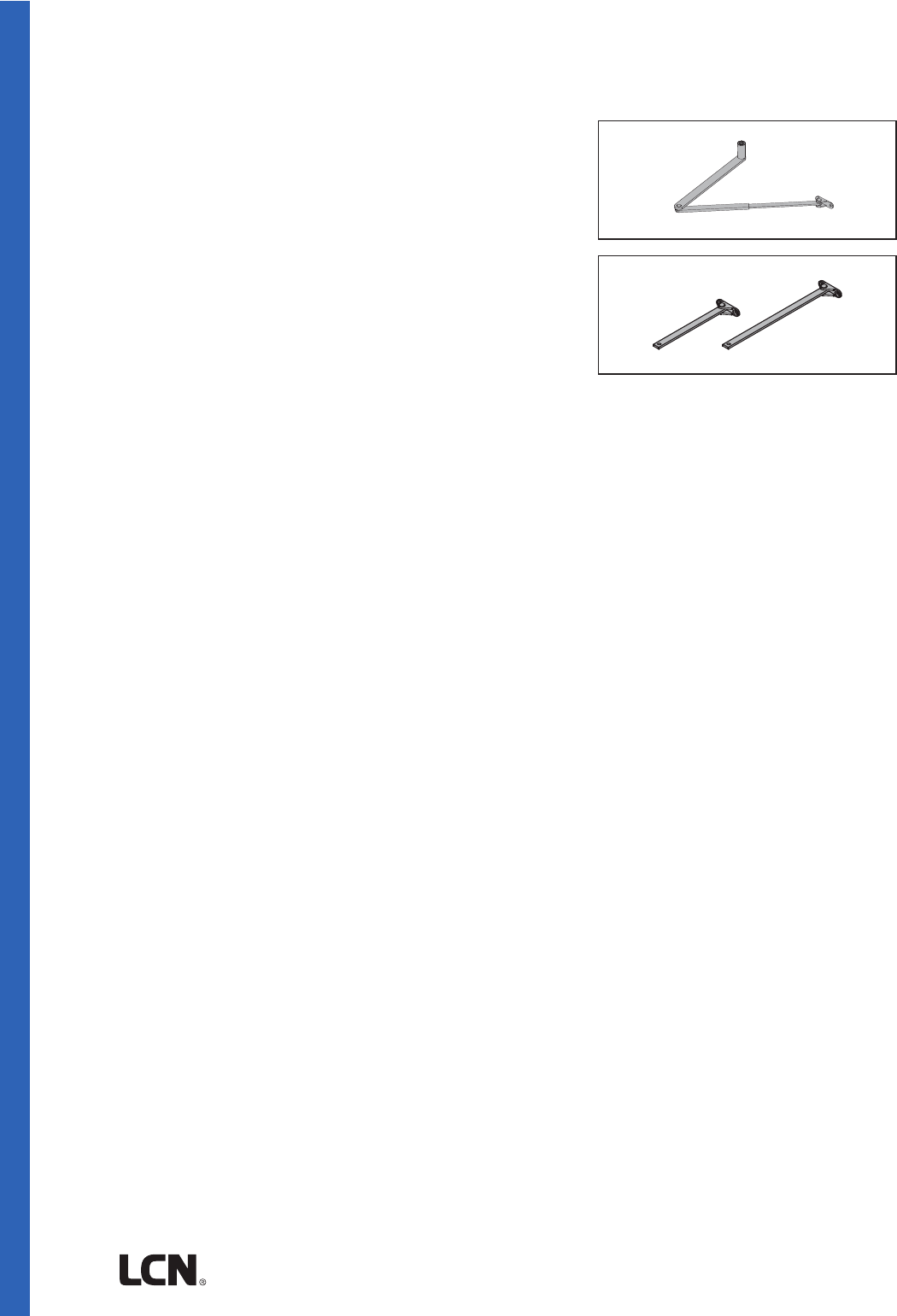

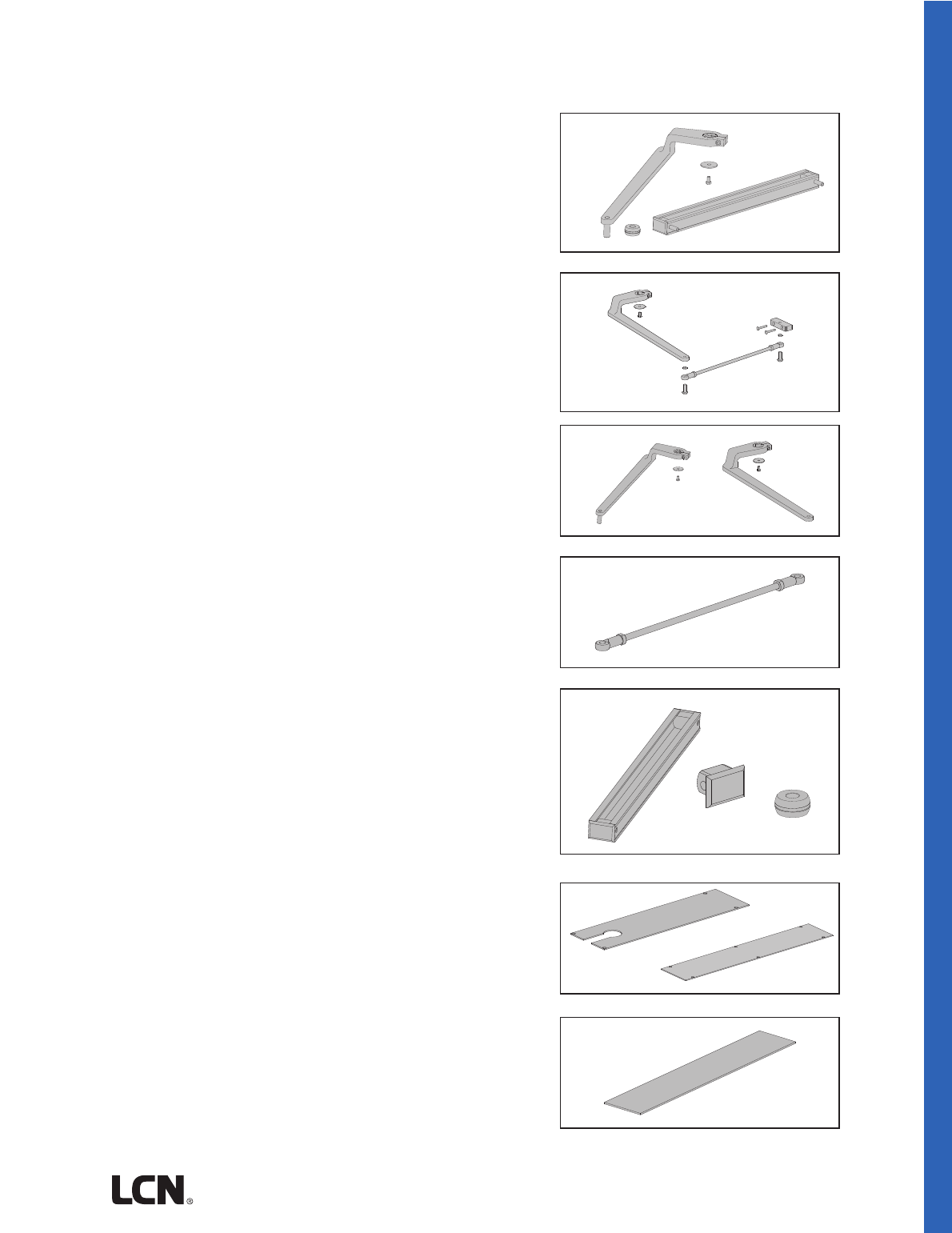

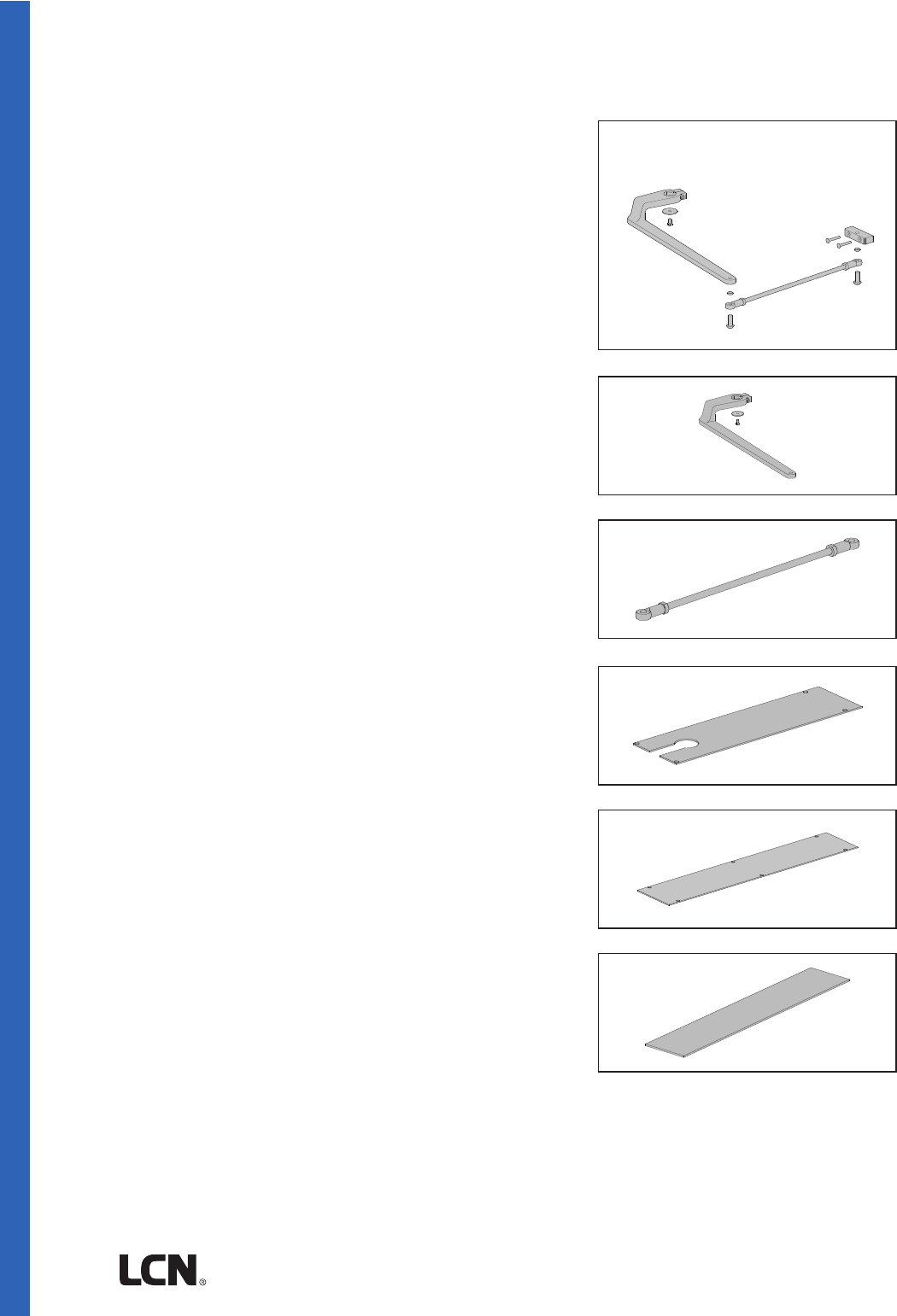

ARMS

REGULAR ARM, 9140-3077

Non-handed arm.

LONG PUSH ARM, 9140-3077L

Non-handed long arm.

ROD & SHOE, 9140-79

Rod for use with regular arm.

LONG ROD & SHOE, 9140-79LR

Long rod for use with long arm.

ACCESSORIES

LCN 9140 SERIES

3077

3077L

79LR

79

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

69

TABLE OF SIZES

Indicates recommended range of door width for operator.

Note: For All Benchmark Series

26” minimum door width for 27” push operator

36” minimum door width for full length push operator

LCN 9140 SERIES

DOOR WIDTH

26"

762mm

48"

1219mm

9142

Minimum

Door

Width

HOW-TO-ORDER

9140 SERIES OPERATORS

1. SPECIFY FINISH.

Standard Anodized Finish __________

Aluminum or Dark Bronze

Operator will be shipped with:

-STANDARD MOTOR GEARBOX (SF)

-STANDARD CONTROL BOX (SC)

-MOUNTING BRACKET

-27” METAL COVER (CL27)

-REGULAR ARM (3077)

-WOOD and MACHINE SCREW PACK

Unless options listed below are selected.

OPERATOR OPTIONS

COVER

36” Full Cover

ARM

Long Arm (3077L)

(reveals 6” to 9 3/4”)

SPECIAL TEMPLATE

ST-_________

ORDERING INFORMATION

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

70

Notes

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

71

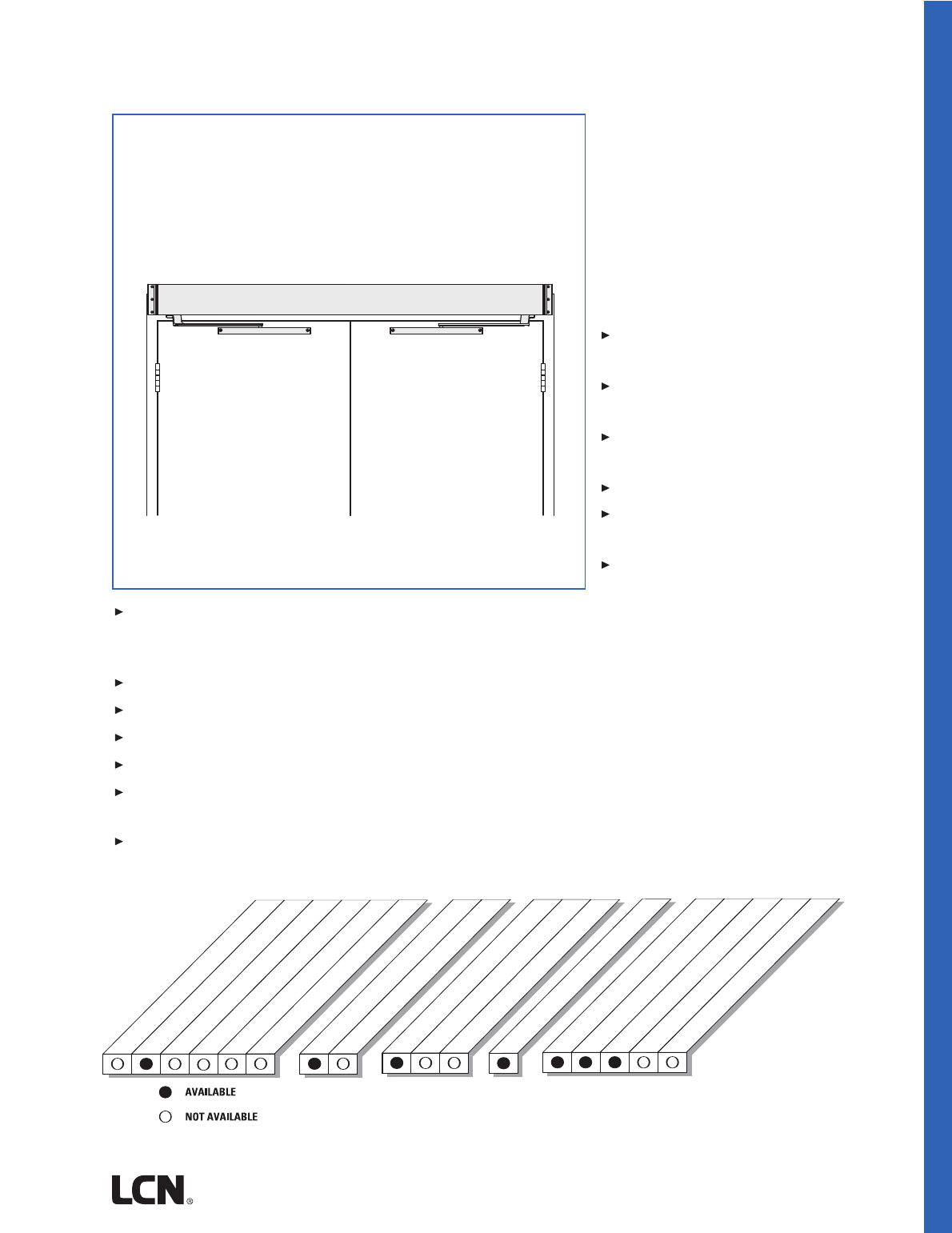

LCN 9150 SERIES

STANDARD ANODIZED

CUSTOM ANODIZED

CUSTOM PAINT

FINISH

HANDING

HANDED

NON-HANDED

COVER

METAL

ARM FUNCTION

STANDARD (SINGLE)

REGULAR (DOUBLE)

OFFSET PIVOT ARM

CENTER PIVOT ARM

DOUBLE EGRESS (PUSH/PULL)

MOUNTING

SURFACE MOUNT SINGLE DOOR

SURFACE MOUNT SIMULTANEOUS PAIR

SURFACE MOUNT INDEPENDENT PAIR

CONCEALED SINGLE DOOR

CONCEALED INDEPENDENT PAIR

CONCEALED SIMULTANEOUS PAIR

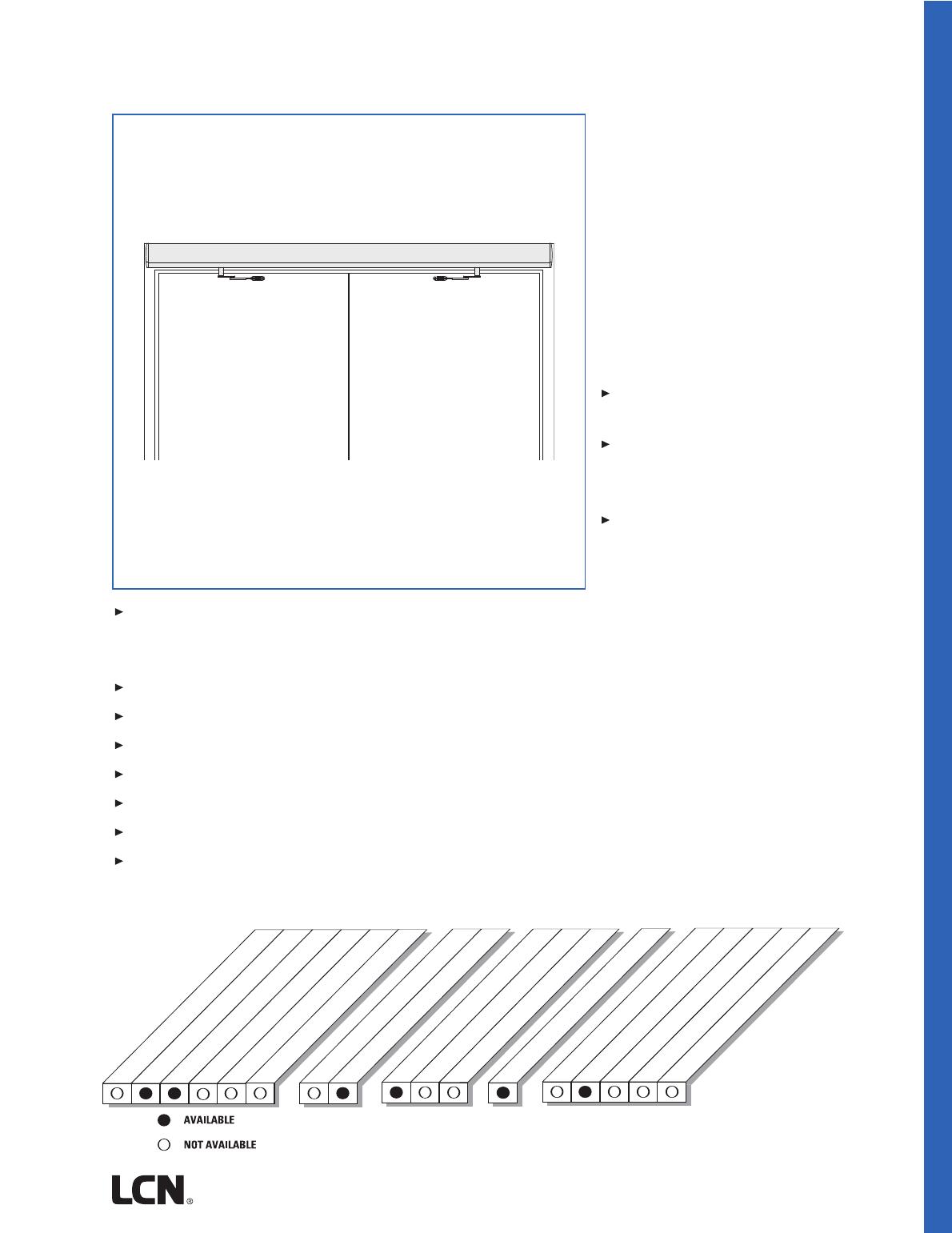

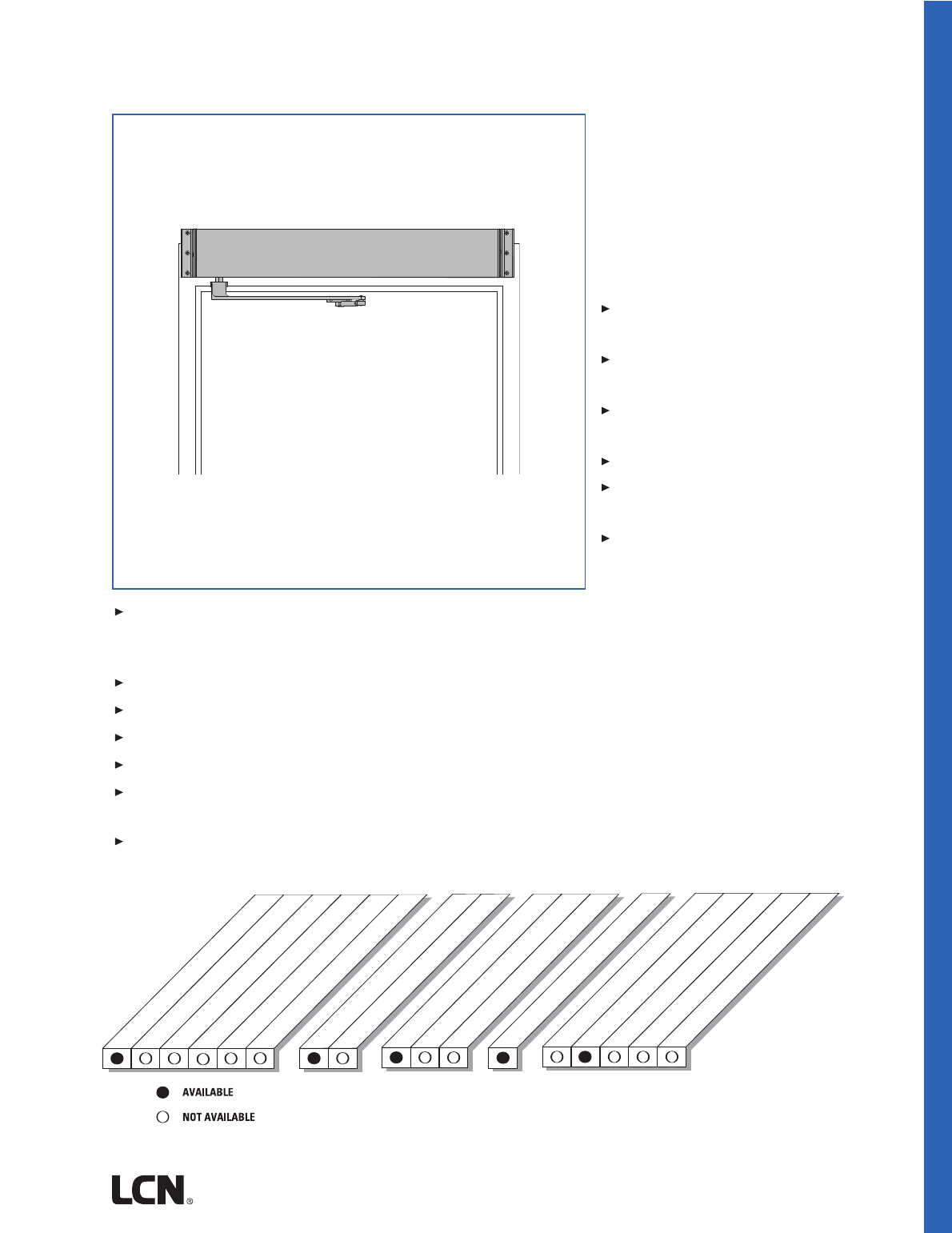

The 9150 BENCHMARK by LCN is an

electrically powered low-energy

operator. It provides easy access for

people with disabilities, the elderly or

the frail. Designed primarily for

automatic opening applications that

occasionally require manual opening.

The BENCHMARK is a cost-effective

solution for retrofitting an activated or

manual door.

Push ‘N Go permits non-switch

activation

Microprocessor control box ensures

reliability and maintains customer

settings

Power Boost allows for increased

closing force near latch

9150 Series is fully compliant with UL 325

and meets the provisions of ANSI A156.19.

The 9150 Series is UL listed for fire-rated

applications. The 9150 Series also meets

the provisions of the Americans with

Disabilities Act.

9150 series operator is shipped with motor gearboxes, control boxes,

mounting plate, regular arms, metal cover, wood and machine screw

packs. Actuators available separately, see page 121.

Pair of interior doors, surface mounted.

ADA compliant.

On/Off switch included as standard.

Non-handed for either right or left swinging door.

72” cover is standard, 96” is optional.

All potentiometers clearly labeled with their functions.

LED lights indicate power to control box and motor gearbox.

PAIR DOOR, SURFACE MOUNT (PUSH)

OFFSET PIVOT/BUTT HINGE

FEATURES

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

72

Butt Hinges should not exceed 5” (127 mm) in width.

Reveal for push installations should not exceed 6” (152 mm) for

REGULAR ARM and 9 3/4” (248 mm) for LONG ARM.

Head Frame minimum 2” (51 mm).

Top Rail minimum 2” (51 mm). Flush ceiling installation requires 5 1/4”

(133 mm) minimum.

Opening and Closing Time are variable by adjustments to the

electronic control module located on the operator assembly. Maximum

hold open time adjustable up to approximately 30 seconds.

System Diagram see “AUTOMATIC OPERATORS” section pages 52-54

for typical system wiring and page 55 for electrical data.

Please consult your local SSC representative or LCN for assistance with

specific installations and material requirements.

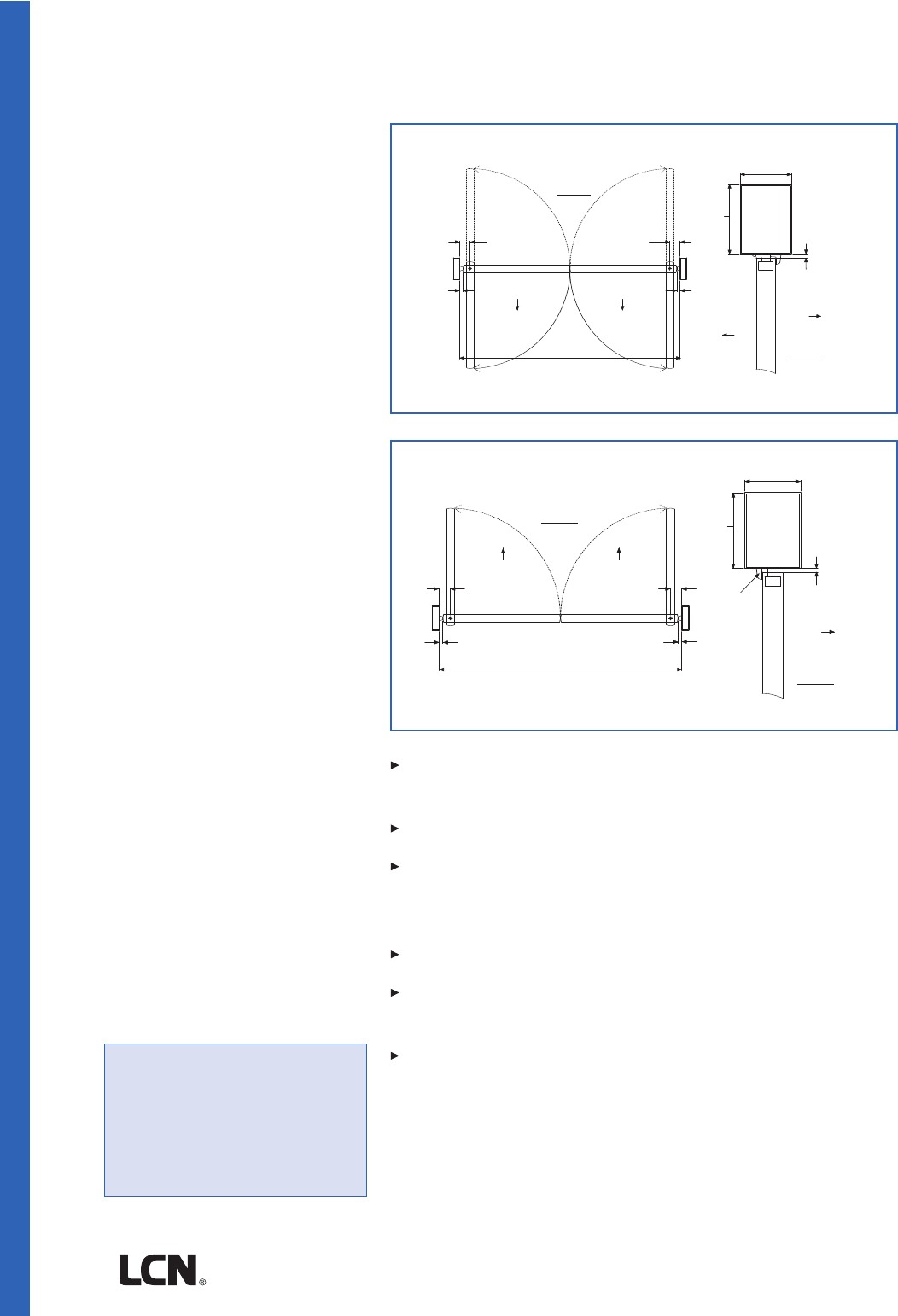

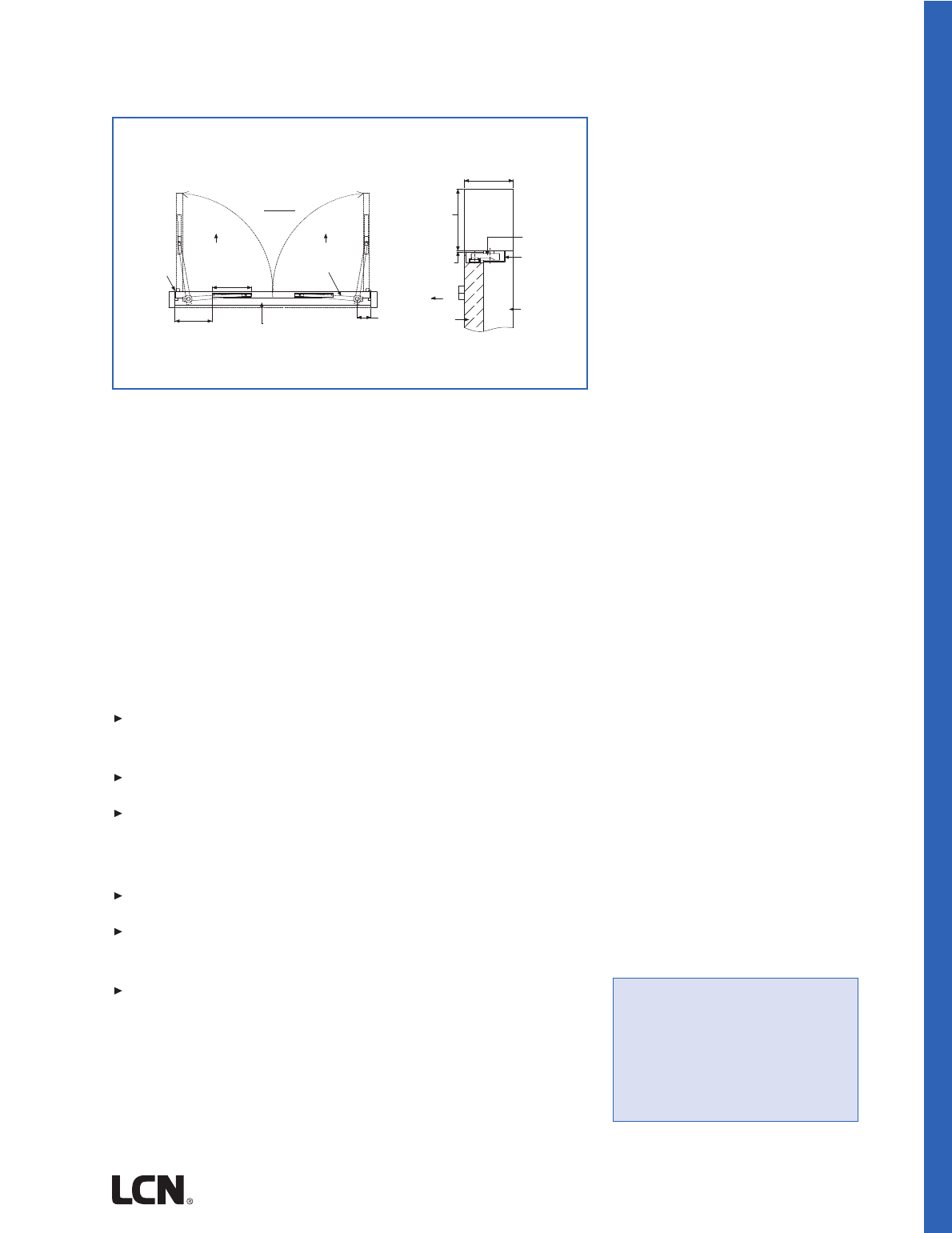

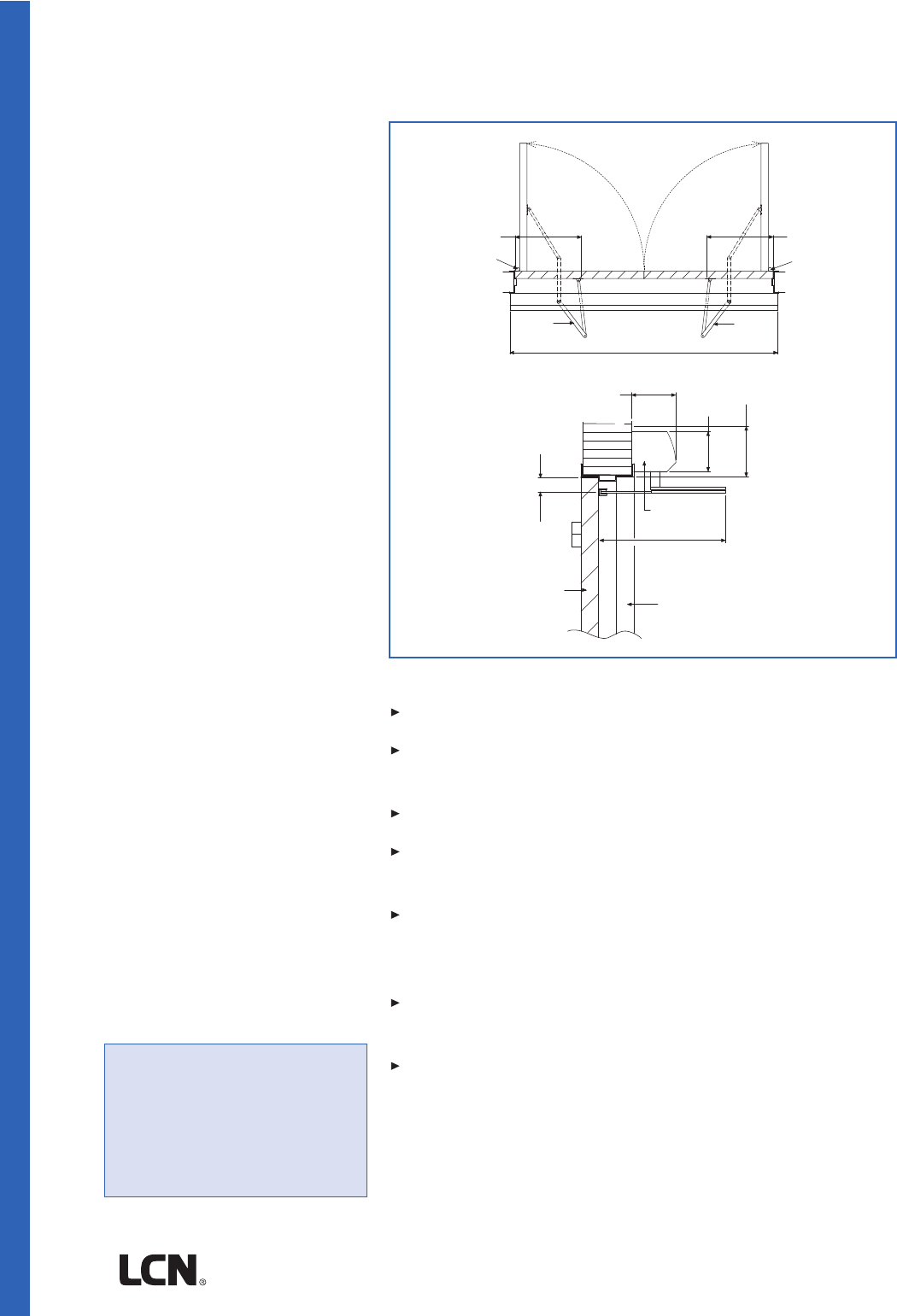

TOP JAMB,

INDEPENDENT/SIMULTANEOU

S PAIR (OFFSET PIVOT/BUTT

HINGE, CENTER PIVOT, PUSH)

MOUNTING

Determined by wiring method

during installation.

MAXIMUM OPENING

Template allows 90 degree power

opening and 90 degree manual

opening.

LCN 9150 SERIES

18

1/4

" FROM

EDGE OF DOOR

OFFSET

PIVOT

OR

BUTT

HINGES

1

7/16

" FROM

TOP OF DOOR

DOOR

FRAME

4

3/4

"

121 MM

5

9/16

" MIN.

141 MM

OPERATOR

19

1/2

" MAX.

495 MM

4

1/2

"

114 MM

FULL LENGTH OPERATOR

18

1/4

" FROM

EDGE OF DOOR

OFFSET

PIVOT

OR

BUTT

HINGES

PUSH ARM

ASS'Y PUSH ARM

ASS'Y

DOOR

Special Templates

Customized installation templates

or products may be available to

solve unusual applications.

Contact LCN for assistance.

MOUNTING DETAILS

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

73

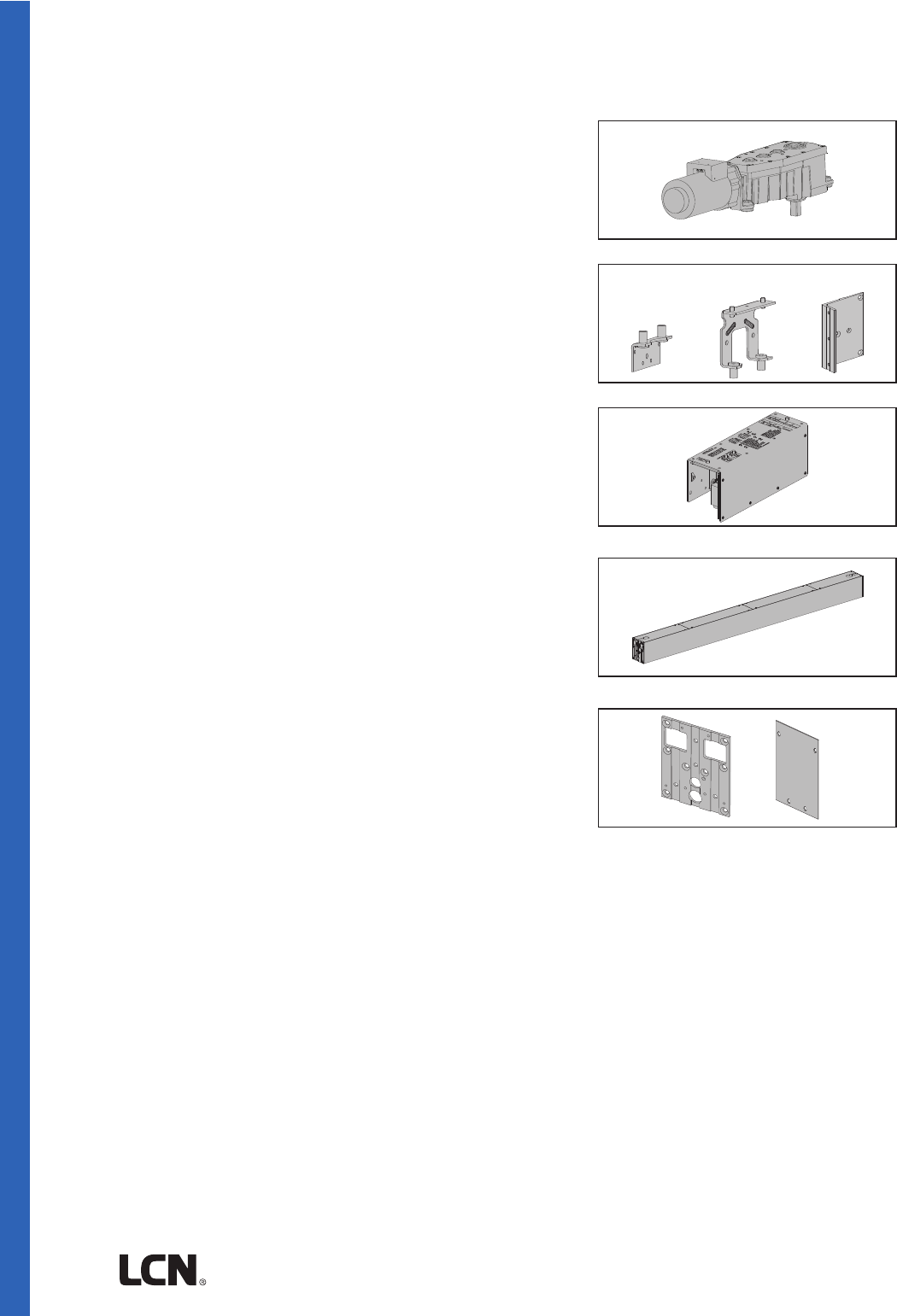

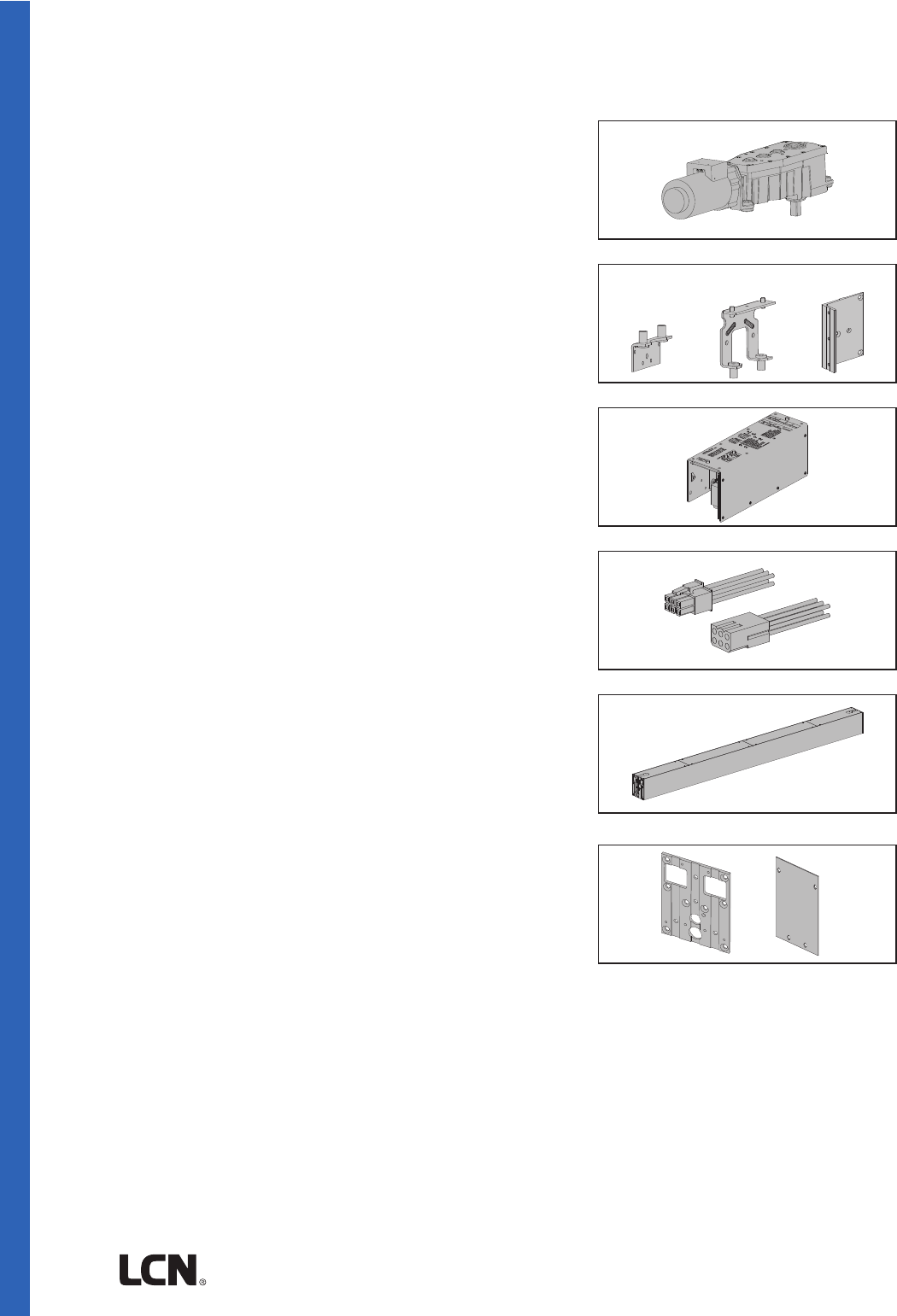

LCN 9150 SERIES

MOTOR GEARBOX

MOTOR GEARBOX ASSEMBLY, 9150-3454S

Driving mechanism for operator. For 27” unit. Switch included.

MOTOR GEARBOX ASSEMBLY (W/O SWITCH), 9150-3454

Driving mechanism for operator. For full length unit. Switch not

included.

BRACKETS

MOUNTING BRACKET, 9150-3018

Standard mounting bracket.

CONTROL BOXES

CONTROL BOX, (120v), 9150-3462

Electronic controlling device with power supply output and power

boost feature for Benchmark.

COVERS

METAL COVER, 9150-72MC

Standard, 72”,non-handed, extruded aluminum cover.

FULL METAL COVER, 9150-72FC

96” Full length, non-handed, extruded aluminum cover.

COVER INSERT 9150-163

Used to cover operator shaft opening.

COVER END CAP INSERT, 9150-163-1

Used to cover switch hole opening.

COVER END CAP, 9150-334

Black plastic end caps.

ACCESSORIES

3454

3454S

3018

3462

72MC

72FC

163

334

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

74

ARMS

REGULAR ARM, 9140-3077

Non-handed arm.

LONG ARM, 9140-3077L

Non-handed long arm.

ROD & SHOE, 9140-79

Rod for use with regular arm.

LONG ROD & SHOE, 9140-79LR

Long rod for use with long arm.

ACCESSORIES

LCN 9150 SERIES

3077

3077L

79LR

79

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

75

TABLE OF SIZES

Indicates recommended range of door width for operator.

Note: For All Benchmark Series

52” minimum door width for full length push double door operator.

LCN 9150 SERIES

DOOR WIDTH

52"

1321mm

96"

2438mm

9153

Minimum

Door

Width

HOW-TO-ORDER

9150 SERIES OPERATORS

1. SPECIFY FINISH.

Standard Anodized Finish __________

Aluminum or Dark Bronze

Operator will be shipped with:

-STANDARD MOTOR GEARBOX (2 ea) (SF)

-STANDARD CONTROL BOX (2 ea.) (SC)

-MOUNTING BRACKET (2 ea.)

-72” METAL COVER (CL72)

-REGULAR ARMS (2 ea.) (3077)

-WOOD and MACHINE SCREW PACK

Unless options listed below are selected.

OPERATOR OPTIONS

COVER

96” Full Length Cover

ARM

Long Arm (3077L)

(reveals 6” to 9 3/4”)

SPECIAL TEMPLATE

ST-_________

ORDERING INFORMATION

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

76

Notes

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

77

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

LCN SENIOR SWING UNIQUE FEATURES

Digital Control Suite

Provides exceptionally precise control of a large range of built- in

functions combined with superior durability and performance.

Visual indications and digital readouts of all control function

settings and activity make adjustments easy, fast and accurate.

Dual Independent Program Memories

Each unit is pre-programmed to factory default settings. The

installer can adjust the unit to meet the job site requirements.

These field settings are locked into the computer’s memory. Any

subsequent field adjustments replace the original field

adjustments. The factory settings are always retained in memory

and can be recalled to replace the field settings in just seconds,

restoring the unit to its original programming.

On-Board Diagnostics

Sophisticated built-in diagnostics program monitors the system

microprocessor, power supplies, drive systems and actuator and

safety circuits. Reduces the time required to make sure the

installation is complete and correct.

On-Board Power Supply

Provides 24V AC output or 24V DC output with rectifier to power

card readers, manual actuators and other peripherals.

Plug and Play Sensors

Motion sensors and safety sensors feature a “plug and play”

concept allowing fast and accurate wiring connections in only

seconds.

Electronic Circuit Protection

High voltage (primary AC Input) is protected by replaceable fuse.

Low voltage (secondary AC input) is protected by self-resetting

fuses.

Visual Function Indicators

LED’s allow direct observation of these inputs while in visual

function indicator mode:

Key switch- set to Auto, OFF or HOLD

Activate

DMSS approach

DMSS safety

Bodyguard

Power Boost Disable

Programming Mode

Allows tailoring the following functions to meet specific site

conditions

Opening Speed

Backcheck Speed

Backcheck Position

Hold Open Delay

Latch Position

Auto Reverse- Closing

Electric Lock Delay

Power Boost

Push N’ Go

Alternate Action

Safety Slow/Stop

Slow Down Disable

Push ‘N Go

Allows pedestrians to walk up to the door and push it open as if

it were a manual door. After the door is manually opened

approximately 5 degrees, the Push ‘N Go feature takes over and

continues to open the door – slowly and automatically to the full

open position. With Push ‘N Go, the door will stay fully open

from one to 32 seconds, depending on the time delay chosen.

Auto Reverse

A safety feature that reverses the direction of the door when it

comes into contact with an object during either opening or

closing.

Safety Slow/Stops Function

Once the door starts opening, any person or object entering the

swing area will cause the door to go into a safety slow speed.

This function can be set to allow for a short stop once a person

or object is sensed.

Power Boost

Adds an additional latching force to ensure secure latching in

severe wind or stack conditions. Power Boost is also ideal for

overcoming slowing obstacles such as electric strikes. Provides

approximately 25 lbs. of additional closing force.

Microprocessor

Control unit allows for quiet efficiency in operation. Combined

with the all electromechanical unit, it eliminates unnecessary

wear and prolongs the life of the unit.

Electric Lock Delay

Causes a 1 second delay between activate signal and door

opening to allow time for most electric locks to disengage before

operator opens door.

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

78

Notes

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

79

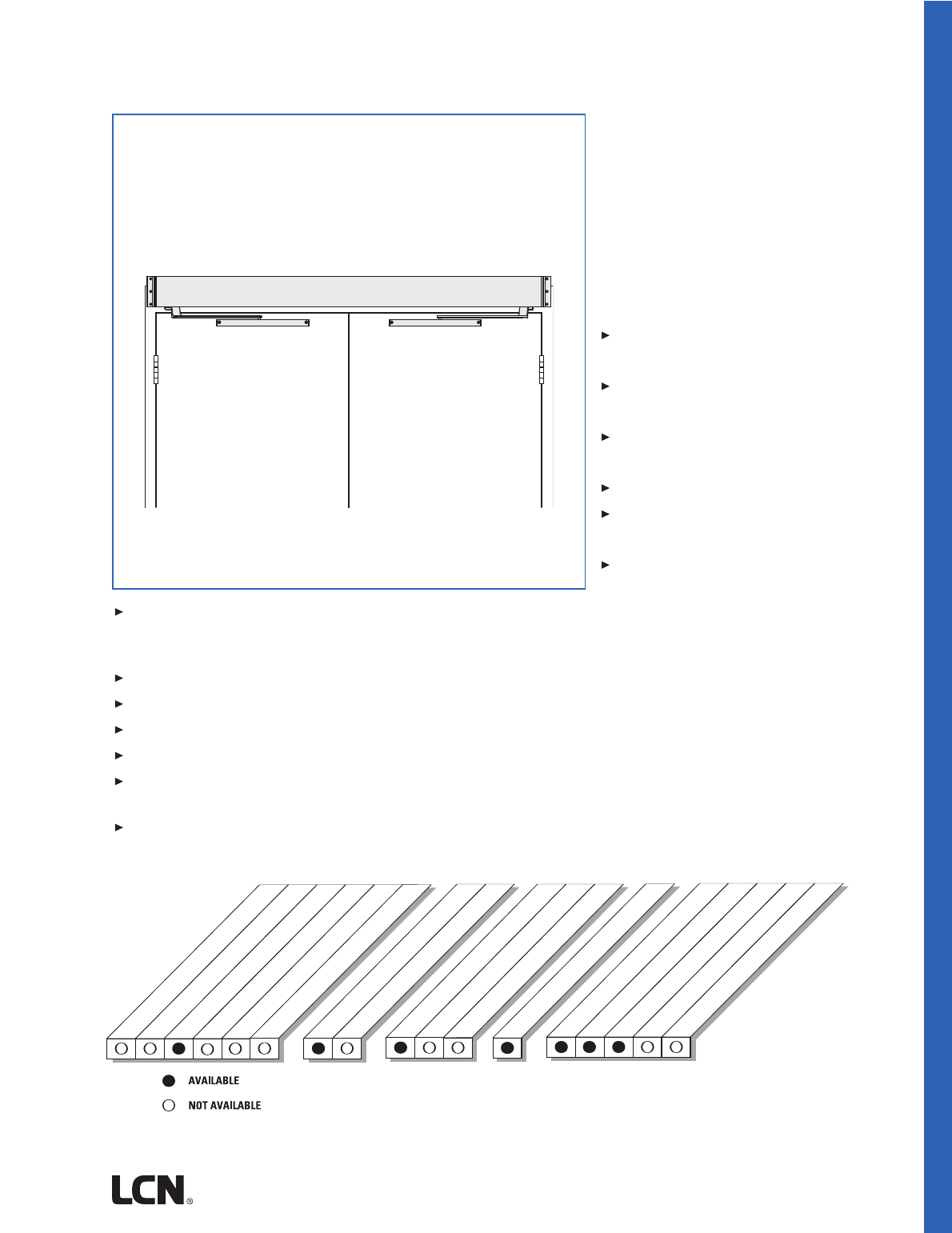

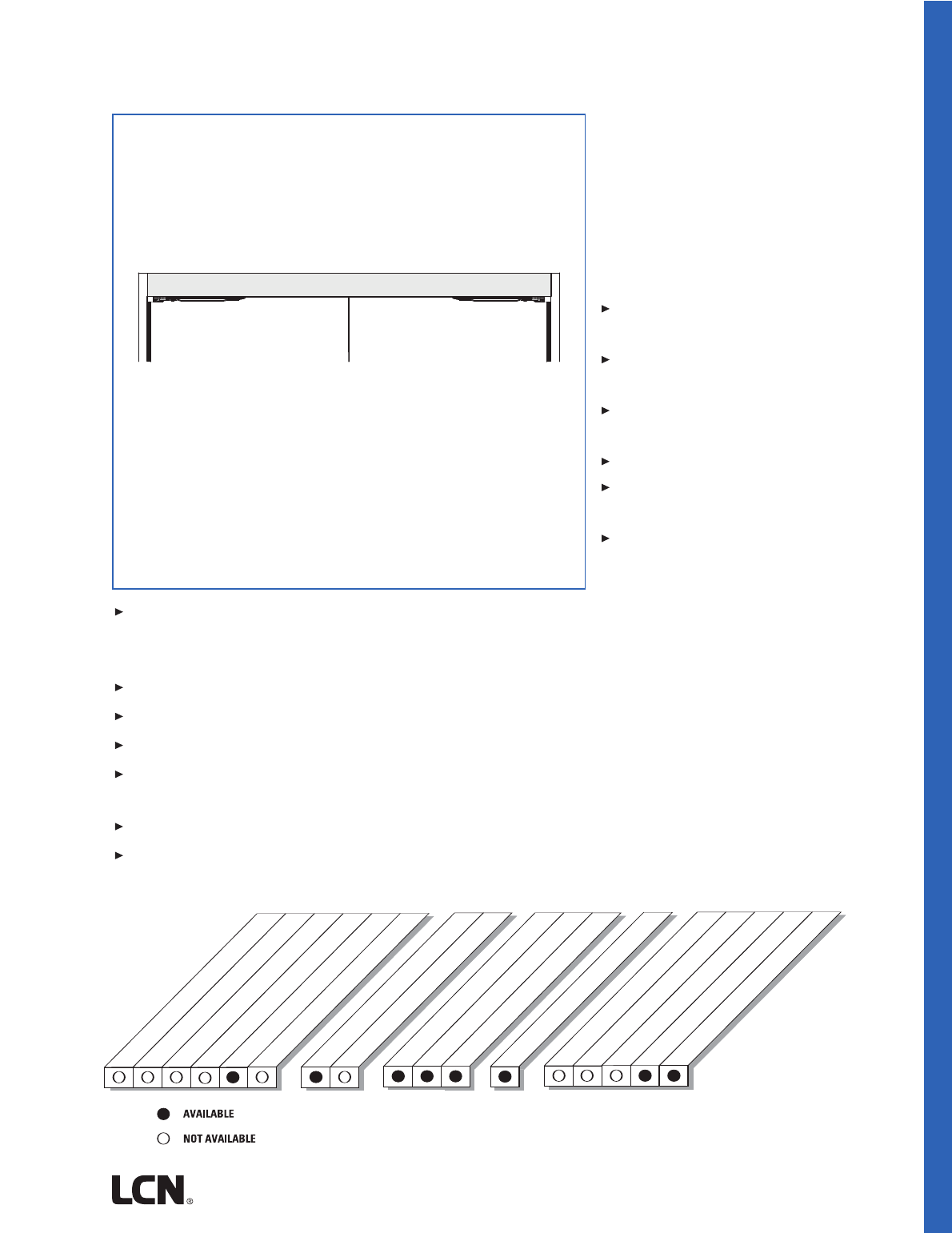

LCN 2810 SERIES

STANDARD ANODIZED

CUSTOM ANODIZED

CUSTOM PAINT

FINISH

HANDING

HANDED

NON-HANDED

COVER

METAL

ARM FUNCTION

STANDARD (SINGLE)

REGULAR (DOUBLE)

OFFSET PIVOT ARM

CENTER PIVOT ARM

DOUBLE EGRESS (PUSH/PULL)

MOUNTING

SURFACE MOUNT SINGLE DOOR

SURFACE MOUNT SIMULTANEOUS PAIR

SURFACE MOUNT INDEPENDENT PAIR

CONCEALED SINGLE DOOR

CONCEALED INDEPENDENT PAIR

CONCEALED SIMULTANEOUS PAIR

The 2810 SENIOR SWING by LCN is an

ADA door operator that is a two-in-one

swing door operator. SENIOR SWING

operator when activated, opens doors

automatically for wheelchair access,

yet allows for manual operation for

regular pedestrian traffic.

Push ‘N Go permits non-switch

activation

Power Boost provides additional

latching force

Electromechanical unit with

microprocessor control

Meets International Building Code

requirements and ANSI A156.19

UL approved for fire doors

2810 Series is fully compliant with UL

325 & UL 1998 and meets the

provisions of ANSI A156.19. The 2810

Series is UL listed for fire-rated

applications. The 2810 Series also

meets the provisions of the Americans

with Disabilities Act.

2810 series operator is shipped with motor gearbox, control box, arm,

bottom pivot, header, and mounting hardware. Actuators available

separately, see page 121.

Single door, overhead concealed.

Meets ADA, requirements (power mode only).

Handed product.

36” header length is standard. Specify length 33” to 49” max.

Double door header available up to 98”, specify length 49” to 98” max.

Consult factory regarding this option.

Fixed or breakaway stop available with center pivot arm.

Adjustable hold open period of 1 to 32 seconds in automatic or manual

mode.

OPERATOR MOUNTS

SINGLE DOOR, OVERHEAD CONCEALED

*CENTER PIVOT

OFFSET PIVOT/BUTT HINGE

FEATURES

*CENTER PIVOT arm shown

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

80

Head Frame minimum 36” (L) x 5 3/4” (H) x 4 1/2” (W) ”

(914 mm x 146 mm x 114 mm).

Top Rail minimum 2” (51 mm).

Opening & Closing Time are variable by adjustments to the electronic

control box. Maximum hold open time adjustable up to approximately

32 seconds.

Door Stop required for each door panel.

System Diagram see “AUTOMATIC OPERATORS” section pages 52-54

for typical system wiring and page 55 for electrical data.

Please consult your local SSC representative or LCN for assistance with

specific installations and material requirements.

CONCEALED SINGLE DOOR

(CENTER PIVOT, EMERGENCY

BREAKOUT, PULL) MOUNTING

Minimum header length 36”.

CONCEALED SINGLE DOOR

(CENTER PIVOT, FIXED STOP,

PUSH) MOUNTING

Minimum header length 36”.

MAXIMUM OPENING

Template allows 90 degree power

opening and 90 degree manual

opening.

LCN 2810 SERIES

Special Templates

Customized installation templates

or products may be available to

solve unusual applications.

Contact LCN for assistance.

MOUNTING DETAILS

4

1/2

"

114 MM

5

3/4

"

146 MM

SWING

DIRECTION

3

3/4

"

95 MM

SWING

OPERATOR

48" DOOR OPENING (MAX.)

3/16"

5 MM

1"

25 MM

INCOMING

EMERGENCY

BREAKOUT

1/8"

3 MM

BREAKOUT

STOP

BREAKOUT

DIRECTION

EXTERIOR

OUTGOING

3

3/4

"

95 MM

48" DOOR OPENING (MAX.)

1"

25 MM 3/16"

5 MM

SWING

OPERATOR

4

1/2

"

114 MM

5

3/4

"

146 MM

SWING

DIRECTION

EXTERIOR

FIXED

STOP

1/8"

3 MM

Shown w/ 3 3/4” pivot

Shown w/ 3 3/4” pivot

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

81

Head Frame minimum 33” (L) x 5 3/4” (H) x 4 1/2” (W) ”

(838 mm x 146 mm x 114 mm).

Top Rail minimum 2” (51 mm).

Opening & Closing Time are variable by adjustments to the electronic

control box. Maximum hold open time adjustable up to approximately

32 seconds.

Door Stop required for each door panel.

System Diagram see “AUTOMATIC OPERATORS” section pages 52-54

for typical system wiring and page 55 for electrical data.

Please consult your local SSC representative or LCN for assistance with

specific installations and material requirements.

CONCEALED SINGLE DOOR

(OFFSET PIVOT OR BUTT HINGE,

SLIDE ARM, PUSH) MOUNTING

Minimum header length 33”.

Installations require bottom pivot and

two intermediate pivots.

MAXIMUM OPENING

Template allows 90 degree power

opening and 90 degree manual

opening.

LCN 2810 SERIES

Special Templates

Customized installation templates

or products may be available to

solve unusual applications.

Contact LCN for assistance.

MOUNTING DETAILS

SWING

OPERATOR

4

1/2

"

114 MM

5

3/4

"

146 MM

DOOR

SWING

DIRECTION

DOOR

FRAME

EXTERIOR

1/8"

3 MM

SLIDE ARM

ASS'Y

CONCEALING

CHANNEL

3

3/4

"

95 MM

OUTGOING

10

1/2

"

257 MM

11"

SLIDE

CHANNEL

SLIDE ARM ASS'Y

WITH SLIDE BLOCK

CONCEALING

CHANNEL

OFFSET

PIVOTS

or

BUTT

HINGES

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

82

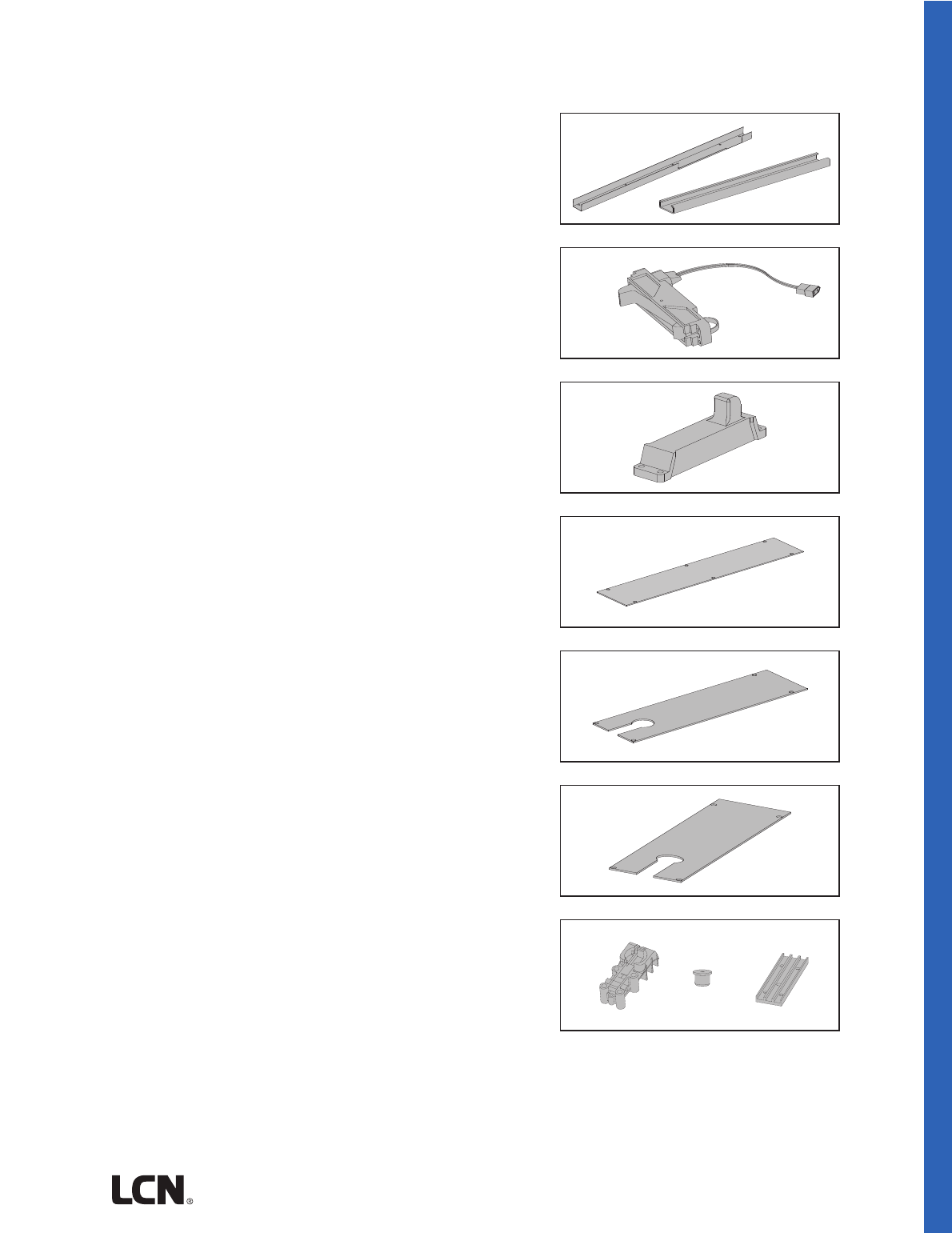

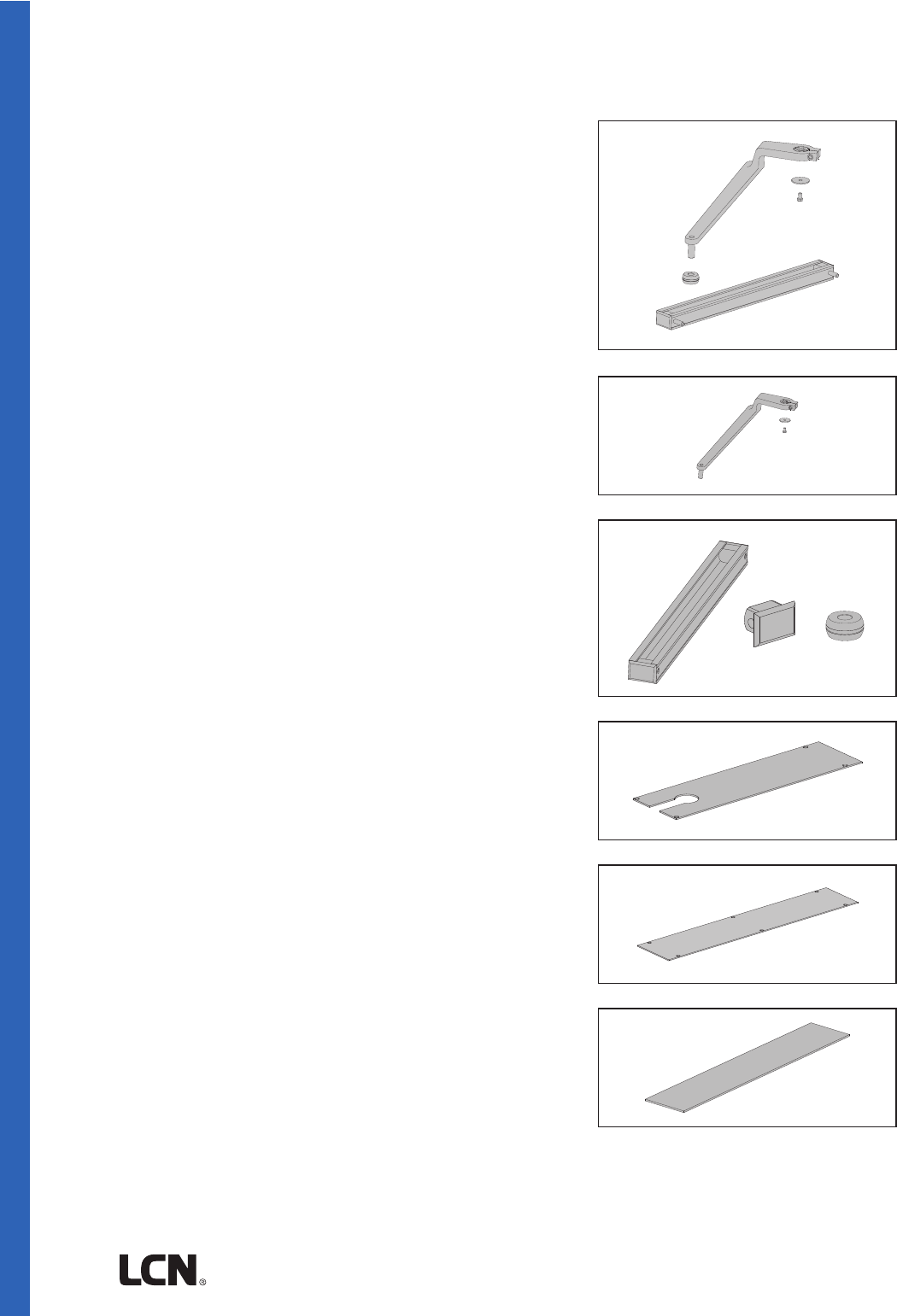

LCN 2810 SERIES

MOTOR GEARBOX

MOTOR GEARBOX (STANDARD FORCE) – SENIOR SWING,

2810-3454

Driving mechanism for operator. Provides 15lbs opening force.

Handed.

MOUNTING BRACKET

MOUNTING BRACKET – 3 3/4”, 2810-375

Motor gearbox mounting bracket for 3 3/4" center, offset pivot,

butt hinge installations. Front bracket.

MOUNTING BRACKET – 2 3/4”, 2810-275

Motor gearbox mounting bracket for 2 3/4" center pivot

installations. Front bracket.

REAR MOUNT BRACKET, 2810-3018

Motor gearbox mounting bracket. Rear bracket.

CONTROL BOXES

CONTROL BOX- SENIOR SWING, 2810-3462

Electronic controlling device for Senior Swing.

HEADERS

Header, 2810-3572HL

Standard, mounting header. Single door, single operator. Specify

length 30”to 49” maximum.

Header, 2810-3572DD

Standard, mounting header. Double door, single operator.

Specify length 49”to 98” maximum.

END CAPS

HEADER END CAPS, 2810-334

End cap with openings for wiring.

ARMS

CENTER PIVOT ARM, 2810-3077CP

(CENTER PIVOT INSTALLATIONS ONLY)

Used with overhead concealed operators and center pivoted

doors.

OFFSET PIVOT ARM, 2810-3077OP

(OFFSET PIVOT OR BUTT HUNG INSTALLATIONS ONLY)

Handed arm. Used with overhead concealed operators.

ACCESSORIES

3454

375 275 3018

3462

3572HL

3572DD

334

3077CP 3077OP

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

83

CHANNELS

CONCEALING CHANNEL, 2810-3072

Used to conceal arm in overhead concealed applications. For

offset pivot and butt hinges installations. If ordering separately

specify length and hand.

SLIDE CHANNEL, 2810-168

(OFFSET PIVOT or BUTT HINGE INSTALLATIONS ONLY)

Mounts in concealing channel. Allows arm to slide.

INSTALLATION ACCESSORIES

DOOR STOP BREAKAWAY, 2810-384B

Allows in swinging door to swing out in case of emergency

(Pull installations). For center pivoted installations only.

DOOR STOP FIXED, 2810-384F

Prevents out swinging door from swinging in (Push

installations). For center pivoted installations only.

FILLER PLATE BLANK, 2810-12

Completes length of header box.

SPINDLE PLATE – 2 3/4”, 2810-11A

Hides bottom of motor gearbox. Completes header box. Cutout

allows for motor gearbox shaft. For 2 3/4" offset pivot/butt

hinge installations.

SPINDLE PLATE – 3 3/4”, 2810-11B

Hides bottom of motor gearbox. Completes header box. Cutout

allows for motor gearbox shaft. For 3 3/4" center pivot

installations.

PIVOTS

BOTTOM PIVOT ASSEMBLY, 2810-3107

Includes pivot body, pivot post and bottom pivot plate. For

overhead concealed, center pivoted installations. Includes;

2810-107, 2810-110 and 2810-117.

PIVOT BODY, 2810-107

Bottom pivot body for center pivoted installations.

PIVOT POST, 2810-110

Connects pivot body to bottom pivot plate for center pivoted

installations.

BOTTOM PIVOT PLATE, 2810-117

Applied to floor for center pivoted installations.

ACCESSORIES

LCN 2810 SERIES

3072 168

384B

384F

12

11A

11B

3107

107 110 117

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

84

TABLE OF SIZES

Indicates recommended range of door width for operator.

Note: For all Senior Swing Series

Single Door - Width per leaf 36” minimum, 48” maximum

LCN 2810 SERIES

DOOR WIDTH

36"

914mm

48"

1219mm

2811

Minimum

Door

Width

HOW-TO-ORDER

2810 SERIES OPERATORS

1. SELECT INSTALLATION TYPE

2811

2. ARMS

Standard 3 3/4” (Offset pivoted) Arm (3077OP)

Standard 2 3/4” (Center pivoted) Arm (3077CP)

Standard 3 3/4” (Center pivoted) Arm (3077CP)

3. SPECIFY HAND

RH

LH

4. SPECIFY FINISH.

Standard Anodized Finish _____________

Aluminum or Dark Bronze

Operator will be shipped with:

-STANDARD MOTOR GEARBOX (SF)

-STANDARD CONTROL BOX (SC)

-36” HEADER (36HL)

-2 3/4” PIVOT POINT

-WOOD and MACHINE SCREW PACK

Unless options listed below are selected.

OPERATOR OPTIONS

HEADER

HL__ (Specify length 33” to 49” offset pivot)

HL__ (Specify length 36” to 49” center pivot)

DD__ (Specify length 49” to 98”)

STOPS*

Positive Mechanical Stop (POS)

Panic Breakaway Stop (BKY)

*Available with Center Pivoted installations only.

SPECIAL TEMPLATE

ST-_________

ORDERING INFORMATION

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

85

LCN 2850 SERIES

STANDARD ANODIZED

CUSTOM ANODIZED

CUSTOM PAINT

FINISH

HANDING

HANDED

NON-HANDED

COVER

METAL

ARM FUNCTION

STANDARD (SINGLE)

REGULAR (DOUBLE)

OFFSET PIVOT ARM

CENTER PIVOT ARM

DOUBLE EGRESS (PUSH/PULL)

MOUNTING

SURFACE MOUNT SINGLE DOOR

SURFACE MOUNT SIMULTANEOUS PAIR

SURFACE MOUNT INDEPENDENT PAIR

CONCEALED SINGLE DOOR

CONCEALED INDEPENDENT PAIR

CONCEALED SIMULTANEOUS PAIR

The 2850 SENIOR SWING by LCN is an

ADA door operator that is a two-in-

one swing door operator. SENIOR

SWING operator when activated,

opens doors automatically for

wheelchair access, yet allows for

manual operation for regular

pedestrian traffic.

Push ‘N Go permits non-switch

activation

Power Boost provides additional

latching force

Electromechanical unit with

microprocessor control

Digital keypad for easy setup

Meets International Building Code

requirements and ANSI A156.19

UL approved for fire doors

2850 Series is fully compliant with UL

325 & UL 1998 and meets the

provisions of ANSI A156.19. The 2850

Series is UL listed for fire-rated

applications. The 2850 Series also

meets the provisions of the Americans

with Disabilities Act.

2850 series operator is shipped with motor gearbox, control box, arm,

bottom pivot, header, and mounting hardware. Actuators available

separately, see page 121.

Simultaneous pair, overhead concealed.

Meets ADA, requirements (power mode only).

Handed product.

72” header length is standard. Specify other length 60” to 98” max.

Consult factory regarding this option.

Fixed or breakaway stop available (center pivot arm).

Adjustable hold open period of 1 to 32 seconds in automatic or manual

mode.

OPERATOR MOUNTS

SIMULTANEOUS PAIR, OVERHEAD CONCEALED

*CENTER PIVOT

OFFSET PIVOT/BUTT HINGE

FEATURES

*CENTER PIVOT arm shown

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

86

Head Frame minimum 60” (L) x 5 3/4” (H) x 4 1/2” (W) ”

(1524 mm x 146 mm x 114 mm).

Top Rail minimum 2” (51 mm).

Opening & Closing Time are variable by adjustments to the electronic

control box. Maximum hold open time adjustable up to approximately

32 seconds.

Door Stop required for each door panel.

System Diagram see “AUTOMATIC OPERATORS” section pages 52-54

for typical system wiring and page 55 for electrical data.

Please consult your local SSC representative or LCN for assistance with

specific installations and material requirements.

CONCEALED SIMULTANEOUS

PAIR (CENTER PIVOT,

EMERGENCY BREAK OUT, PULL)

MOUNTING

Minimum header length 60” and 70”

with stops.

CONCEALED SIMULTANEOUS

PAIR (CENTER PIVOT, FIXED

STOP, PUSH) MOUNTING

Minimum header length 60” and 70”

with stops.

MAXIMUM OPENING

Template allows 90 degree power

opening and 90 degree manual

opening.

LCN 2850 SERIES

Special Templates

Customized installation templates

or products may be available to

solve unusual applications.

Contact LCN for assistance.

MOUNTING DETAILS

3

3/4

"

95 MM

8'-0" DOOR OPENING (MAX.)

SWING

OPERATOR

4

1/2

"

114 MM

5

3/4

"

146 MM

SWING

DIRECTION

EXTERIOR

INCOMING

INCOMING

3

3/4

"

95 MM

1"

25 MM

1"

25 MM

EXTERIOR

EMERGENCY

BREAKOUT

EMERGENCY

BREAKOUT

1/8"

3 MM

BREAKOUT

DIRECTION

BREAKOUT

STOP

3

3/4

"

95 MM

8'-0" DOOR OPENING (MAX.)

SWING

OPERATOR

4

1/2

"

114 MM

5

3/4

"

146 MM

SWING

DIRECTION

EXTERIOR

3

3/4

"

95 MM

1"

25 MM

1"

25 MM

EXTERIOR

1/8"

3 MM

OUTGOING

OUTGOING

FIXED

STOP

Shown w/ 3 3/4” pivot

Shown w/ 3 3/4” pivot

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

87

Head Frame minimum 60” (L) x 5 3/4” (H) x 4 1/2” (W) ”

(1524 mm x 146 mm x 114 mm).

Top Rail minimum 2” (51 mm).

Opening & Closing Time are variable by adjustments to the electronic

control box. Maximum hold open time adjustable up to approximately

32 seconds.

Door Stop required for each door panel.

System Diagram see “AUTOMATIC OPERATORS” section pages 52-54

for typical system wiring and page 55 for electrical data.

Please consult your local SSC representative or LCN for assistance with

specific installations and material requirements

CONCEALED SIMULTANEOUS

PAIR (OFFSET PIVOT/BUTT

HINGE, PUSH) MOUNTING

Installations require bottom pivot and

two intermediate pivots.

MAXIMUM OPENING

Template allows 90 degree power

opening and 90 degree manual

opening.

LCN 2850 SERIES

Special Templates

Customized installation templates

or products may be available to

solve unusual applications.

Contact LCN for assistance.

MOUNTING DETAILS

SWING

OPERATOR

4

1/2

"

114 MM

5

3/4

"

146 MM

SWING

DIRECTION

1/8"

3 MM

OUTGOING OUTGOING

3

3/4

"

95 MM

10

1/2

"

267 MM

11"

SLIDE

CHANNEL

OFFSET

PIVOTS

or

BUTT

HINGES

SLIDE ARM ASS'Y

WITH SLIDE BLOCK

EXTERIOR

CONCEALING

CHANNEL

DOOR

DOOR

FRAME

SLIDE ARM

ASS'Y

CONCEALING

CHANNEL

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

88

LCN 2850 SERIES

MOTOR GEARBOX

MOTOR GEARBOX (STANDARD FORCE) –

SENIOR SWING, 2850-3454

Driving mechanism for operator. Provides 15lbs opening force.

Handed.

MOUNTING BRACKET

MOUNTING BRACKET – 3 3/4”, 2850-375

Motor gearbox mounting bracket for 3 3/4" center, offset pivot, butt

hinge installations. Front bracket.

MOUNTING BRACKET – 2 3/4”, 2850-275

Motor gearbox mounting bracket for 2 3/4" center pivot installations.

Front bracket.

REAR MOUNT BRACKET, 2850-3018

Motor gearbox mounting bracket. Rear bracket.

CONTROL BOXES

CONTROL BOX- SENIOR SWING, 2850-3462

Electronic controlling device for Senior Swing.

COMPANION CABLE, 2850-982

Cable that allows one control box to run two motor gearboxes.

For use with Senior Swing.

HEADERS

HEADER, 2850-3572HL

Standard, mounting header. Pair door, two operators. Specify length

60”to 98” maximum.

END CAPS

HEADER END CAPS, 2850-334

End cap with openings for wiring.

ARMS

CENTER PIVOT ARM, 2810-3077CP

(CENTER PIVOT INSTALLATIONS ONLY)

Used with overhead concealed operators and center pivoted doors.

OFFSET PIVOT ARM, 2810-3077OP

(OFFSET PIVOT OR BUTT HUNG INSTALLATIONS ONLY)

Handed arm. Used with overhead concealed operators.

ACCESSORIES

3454

375 275 3018

3462

982

3572HL

334

3077CP 3077OP

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

89

CHANNELS

CONCEALING CHANNEL, 2850-3072

Used to conceal arm in overhead concealed applications. For

offset pivot and butt hinges installations. If ordering separately

specify length and hand.

SLIDE CHANNEL, 2810-168

(OFFSET PIVOT or BUTT HINGE INSTALLATIONS ONLY)

Mounts in concealing channel. Allows arm to slide.

INSTALLATION ACCESSORIES

DOOR STOP BREAKAWAY, 2850-384B

Allows in swinging door to swing out in case of emergency

(Pull installations). For center pivoted installations only.

DOOR STOP FIXED, 2850-384F

Prevents out swinging door from swinging in (Push

installations). For center pivoted installations only.

FILLER PLATE BLANK, 2850-12

Completes length of header box.

SPINDLE PLATE – 2 3/4”, 2850-11A

Hides bottom of motor gearbox. Completes header box. Cutout

allows for motor gearbox shaft. For 2 3/4" offset pivot/butt

hinge installations.

SPINDLE PLATE – 3 3/4”, 2850-11B

Hides bottom of motor gearbox. Completes header box. Cutout

allows for motor gearbox shaft. For 3 3/4" center pivot

installations.

PIVOTS

BOTTOM PIVOT ASSEMBLY, 2850-3107

Includes pivot body, pivot post and bottom pivot plate. For

overhead concealed, center pivoted installations. Includes;

2850-107, 2850-110 and 2850-117.

PIVOT BODY, 2850-107

Bottom pivot body for center pivoted installations.

PIVOT POST, 2850-110

Connects pivot body to bottom pivot plate for center pivoted

installations.

BOTTOM PIVOT PLATE, 2850-117

Applied to floor for center pivoted installations.

ACCESSORIES

LCN 2850 SERIES

3072 168

384B

384F

12

11A

11B

3107

107 110 117

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

90

TABLE OF SIZES

Indicates recommended range of door width for operator.

Note: For all Senior Swing Series

Simultaneous Pair – Width per leaf 30” minimum to 48” maximum

LCN 2850 SERIES

DOOR WIDTH

60"

1524mm

96"

2438mm

2853

Minimum

Door

Width

HOW-TO-ORDER

2850 SERIES OPERATORS

1. SELECT INSTALLATION TYPE

2853

2. ARMS

Standard 3 3/4” (Offset pivoted) Arm (3077OP)

Standard 2 3/4” (Center pivoted) Arm (3077CP)

Standard 3 3/4” (Center pivoted) Arm (3077CP)

3. SPECIFY FINISH.

Standard Anodized Finish _____________

Aluminum or Dark Bronze

Operator will be shipped with:

-STANDARD MOTOR GEARBOX (SF) (1 LH & 1 RH)

-STANDARD CONTROL BOX (SC)

-COMPANION CABLE

-72” HEADER (72HL)

-2 3/4” PIVOT POINT

-WOOD and MACHINE SCREW PACK

Unless options listed below are selected.

OPERATOR OPTIONS

HEADER

HL__ (Specify length 60” to 98”)

STOPS*

Pair Positive Mechanical Stop (POS)

Pair Panic Breakaway Stop (BKY)

*Available with Center Pivoted installations only.

SPECIAL TEMPLATE

ST-_________

ORDERING INFORMATION

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

91

LCN 2860 SERIES

STANDARD ANODIZED

CUSTOM ANODIZED

CUSTOM PAINT

FINISH

HANDING

HANDED

NON-HANDED

COVER

METAL

ARM FUNCTION

STANDARD (SINGLE)

REGULAR (DOUBLE)

OFFSET PIVOT ARM

CENTER PIVOT ARM

DOUBLE EGRESS (PUSH/PULL)

MOUNTING

SURFACE MOUNT SINGLE DOOR

SURFACE MOUNT SIMULTANEOUS PAIR

SURFACE MOUNT INDEPENDENT PAIR

CONCEALED SINGLE DOOR

CONCEALED INDEPENDENT PAIR

CONCEALED SIMULTANEOUS PAIR

The 2860 SENIOR SWING by LCN is an

ADA door operator that is a two-in-

one swing door operator. SENIOR

SWING operator when activated,

opens doors automatically for

wheelchair access, yet allows for

manual operation for regular

pedestrian traffic.

Push ‘N Go permits non-switch

activation

Power Boost provides additional

latching force

Electromechanical unit with

microprocessor control

Digital keypad for easy setup

Meets International Building Code

requirements and ANSI A156.19

UL approved for fire doors

2860 Series is fully compliant with UL

325 & UL 1998 and meets the

provisions of ANSI A156.19. The 2860

Series is UL listed for fire-rated

applications. The 2860 Series also

meets the provisions of the Americans

with Disabilities Act.

2860 series operator is shipped with motor gearbox, control boxes,

bottom pivots, arms, header, and mounting hardware. Actuators

available separately, see page 121.

Independent pair of doors, overhead concealed.

Meets ADA, requirements (power mode only).

Handed product.

72” header length is standard. Specify other length 65” to 98” max.

Consult factory regarding this option.

Fixed or breakaway stop available (center pivot arm).

Adjustable hold open period of 1 to 32 seconds in automatic or manual

mode.

OPERATOR MOUNTS

INDEPENDENT PAIR, OVERHEAD CONCEALED

*CENTER PIVOT

OFFSET PIVOT/BUTT HINGE

FEATURES

*CENTER PIVOT arm shown

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

92

Head Frame minimum 65” (L) x 5 3/4” (H) x 4 1/2” (W) ”

(1651 mm x 146 mm x 114 mm).

Top Rail minimum 2” (51 mm).

Opening & Closing Time are variable by adjustments to the electronic

control box. Maximum hold open time adjustable up to approximately

32 seconds.

Door Stop required for each door panel.

System Diagram see “AUTOMATIC OPERATORS” section pages 52-54

for typical system wiring and page 55 for electrical data.

Please consult your local SSC representative or LCN for assistance with

specific installations and material requirements

CONCEALED INDEPENDENT

PAIR (CENTER PIVOT,

EMERGENCY BREAK OUT, PULL)

MOUNTING

Minimum header length 65” and 70”

with stops.

CONCEALED INDEPENDENT

PAIR (CENTER PIVOT, FIXED

STOP, PUSH) MOUNTING

Minimum header length 65” and 70”

with stops.

MAXIMUM OPENING

Template allows 90 degree power

opening and 90 degree manual

opening.

LCN 2860 SERIES

Special Templates

Customized installation templates

or products may be available to

solve unusual applications.

Contact LCN for assistance.

MOUNTING DETAILS

3

3/4

"

95 MM

8'-0" DOOR OPENING (MAX.)

SWING

OPERATOR

4

1/2

"

114 MM

5

3/4

"

146 MM

SWING

DIRECTION

EXTERIOR

INCOMING

INCOMING

3

3/4

"

95 MM

1"

25 MM

1"

25 MM

EXTERIOR

EMERGENCY

BREAKOUT

EMERGENCY

BREAKOUT

1/8"

3 MM

BREAKOUT

DIRECTION

BREAKOUT

STOP

3

3/4

"

95 MM

8'-0" DOOR OPENING (MAX.)

SWING

OPERATOR

4

1/2

"

114 MM

5

3/4

"

146 MM

SWING

DIRECTION

EXTERIOR

3

3/4

"

95 MM

1"

25 MM

1"

25 MM

EXTERIOR

1/8"

3 MM

OUTGOING

OUTGOING

FIXED

STOP

Shown w/ 3 3/4” pivot

Shown w/ 3 3/4” pivot

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

93

Head Frame minimum 65” (L) x 5 3/4” (H) x 4 1/2” (W) ”

(1651 mm x 146 mm x 114 mm).

Top Rail minimum 2” (51 mm).

Opening & Closing Time are variable by adjustments to the electronic

control box. Maximum hold open time adjustable up to approximately

32 seconds.

Door Stop required for each door panel.

System Diagram see “AUTOMATIC OPERATORS” section pages 52-54

for typical system wiring and page 55 for electrical data.

Please consult your local SSC representative or LCN for assistance with

specific installations and material requirements

CONCEALED INDEPENDENT

PAIR (OFFSET PIVOT/BUTT

HINGE, PUSH) MOUNTING

Installations require bottom pivot and

two intermediate pivots.

MAXIMUM OPENING

Template allows 90 degree power

opening and 90 degree manual

opening.

LCN 2860 SERIES

Special Templates

Customized installation templates

or products may be available to

solve unusual applications.

Contact LCN for assistance.

MOUNTING DETAILS

SWING

OPERATOR

4

1/2

"

114 MM

5

3/4

"

146 MM

SWING

DIRECTION

1/8"

3 MM

OUTGOING OUTGOING

3

3/4

"

95 MM

10

1/2

"

267 MM

11"

SLIDE

CHANNEL

OFFSET

PIVOTS

or

BUTT

HINGES

SLIDE ARM ASS'Y

WITH SLIDE BLOCK

EXTERIOR

CONCEALING

CHANNEL

DOOR

DOOR

FRAME

SLIDE ARM

ASS'Y

CONCEALING

CHANNEL

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

94

LCN 2860 SERIES

MOTOR GEARBOX

MOTOR GEARBOX (STANDARD FORCE) –

SENIOR SWING, 2860-3454

Driving mechanism for operator. Provides 15lbs opening force.

Handed.

MOUNTING BRACKET

MOUNTING BRACKET – 3 3/4”, 2860-375

Motor gearbox mounting bracket for 3 3/4" center, offset pivot, butt

hinge installations. Front bracket.

MOUNTING BRACKET – 2 3/4”, 2860-275

Motor gearbox mounting bracket for 2 3/4" center pivot installations.

Front bracket.

REAR MOUNT BRACKET, 2860-3018

Motor gearbox mounting bracket. Rear bracket.

CONTROL BOXES

CONTROL BOX- SENIOR SWING, 2860-3462

Electronic controlling device for Senior Swing.

HEADERS

HEADER, 2860-3572HL

Standard, mounting header. Pair door, two operators. Specify length

65”to 98” maximum.

END CAPS

HEADER END CAPS, 2860-334

End cap with openings for wiring.

ARMS

CENTER PIVOT ARM, 2810-3077CP

(CENTER PIVOT INSTALLATIONS ONLY)

Used with overhead concealed operators and center pivoted doors.

OFFSET PIVOT ARM, 2810-3077OP

(OFFSET PIVOT OR BUTT HUNG INSTALLATIONS ONLY)

Handed arm. Used with overhead concealed operators.

ACCESSORIES

3454

375 275 3018

3462

3572HL

334

3077CP 3077OP

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

95

CHANNELS

CONCEALING CHANNEL, 2860-3072

Used to conceal arm in overhead concealed applications. For

offset pivot and butt hinges installations. If ordering separately

specify length and hand.

SLIDE CHANNEL, 2810-168

(OFFSET PIVOT or BUTT HINGE INSTALLATIONS ONLY)

Mounts in concealing channel. Allows arm to slide.

INSTALLATION ACCESSORIES

DOOR STOP BREAKAWAY, 2860-384B

Allows in swinging door to swing out in case of emergency

(Pull installations). For center pivoted installations only.

DOOR STOP FIXED, 2860-384F

Prevents out swinging door from swinging in (Push

installations). For center pivoted installations only.

FILLER PLATE BLANK, 2860-12

Completes length of header box.

SPINDLE PLATE – 2 3/4”, 2860-11A

Hides bottom of motor gearbox. Completes header box. Cutout

allows for motor gearbox shaft. For 2 3/4" offset pivot/butt

hinge installations.

SPINDLE PLATE – 3 3/4”, 2860-11B

Hides bottom of motor gearbox. Completes header box. Cutout

allows for motor gearbox shaft. For 3 3/4" center pivot

installations.

PIVOTS

BOTTOM PIVOT ASSEMBLY, 2860-3107

Includes pivot body, pivot post and bottom pivot plate. For

overhead concealed, center pivoted installations. Includes;

2860-107, 2860-110 and 2860-117.

PIVOT BODY, 2860-107

Bottom pivot body for center pivoted installations.

PIVOT POST, 2860-110

Connects pivot body to bottom pivot plate for center pivoted

installations.

BOTTOM PIVOT PLATE, 2860-117

Applied to floor for center pivoted installations.

ACCESSORIES

LCN 2860 SERIES

3072 168

384B

384F

12

11A

11B

3107

107 110 117

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

96

TABLE OF SIZES

Indicates recommended range of door width for operator.

Note: For all Senior Swing Series

Independent Pair – Width per leaf 32 1/2” minimum to 48” maximum

LCN 2860 SERIES

DOOR WIDTH

65"

1651mm

96"

2438mm

2863

Minimum

Door

Width

HOW-TO-ORDER

2860 SERIES OPERATORS

1. SELECT INSTALLATION TYPE

2863

2. ARMS

Standard 3 3/4” (Offset pivoted) Arm (3077OP)

Standard 2 3/4” (Center pivoted) Arm (3077CP)

Standard 3 3/4” (Center pivoted) Arm (3077CP)

3. SPECIFY FINISH.

Standard Anodized Finish _____________

Aluminum or Dark Bronze

Operator will be shipped with:

-STANDARD MOTOR GEARBOX (SF) (1 LH & 1 RH)

-STANDARD CONTROL BOX (SC) (2 ea)

-72” HEADER (72HL)

-2 3/4” PIVOT POINT

-WOOD and MACHINE SCREW PACK

Unless options listed below are selected.

OPERATOR OPTIONS

HEADER

HL__ (Specify length 65” to 98”)

STOPS*

Pair Positive Mechanical Stop (POS)

Pair Panic Breakaway Stop (BKY)

*Available with Center Pivoted installations only.

SPECIAL TEMPLATE

ST-_________

ORDERING INFORMATION

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

97

LCN 9530 SERIES

STANDARD ANODIZED

CUSTOM ANODIZED

CUSTOM PAINT

FINISH

HANDING

HANDED

NON-HANDED

COVER

METAL

ARM FUNCTION

STANDARD (SINGLE)

REGULAR (DOUBLE)

OFFSET PIVOT ARM

CENTER PIVOT ARM

DOUBLE EGRESS (PUSH/PULL)

MOUNTING

SURFACE MOUNT SINGLE DOOR

SURFACE MOUNT SIMULTANEOUS PAIR

SURFACE MOUNT INDEPENDENT PAIR

CONCEALED SINGLE DOOR

CONCEALED INDEPENDENT PAIR

CONCEALED SIMULTANEOUS PAIR

The 9530 SENIOR SWING by LCN is an

ADA door operator that is a two-in-

one swing door operator. SENIOR

SWING operators when activated,

opens doors automatically for

wheelchair access, yet allows for

manual operation for regular

pedestrian traffic.

Push ‘N Go permits non-switch

activation

Power Boost provides additional

latching force

Electromechanical unit with

microprocessor control

Digital keypad for easy setup

Meets International Building Code

requirements and ANSI A156.19

UL approved for fire doors

9530 Series is fully compliant with UL

325 & UL 1998 and meets the

provisions of ANSI A156.19. The 9530

Series is UL listed for fire-rated

applications. The 9530 Series also

meets the provisions of the Americans

with Disabilities Act.

9530 series operator is shipped with motor gearbox, control box,

standard arm, header, and mounting hardware. Actuators available

separately, see pages 121.

Single door, surface mounted.

Meets ADA requirements (power mode only).

Handed product.

36” header length is standard. Specify length 33” to 49” max.

Double door header available up to 98”, specify other length 49” to 98”

max. Consult factory regarding this option.

Adjustable hold open period of 1 to 32 seconds in automatic or manual

mode.

SINGLE DOOR, SURFACE MOUNT (PULL)

OFFSET PIVOT/BUTT HINGE

FEATURES

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

98

Butt Hinges should not exceed 5” (127 mm) in width.

Reveal should not exceed 4” (102 mm).

Head Frame minimum 1 3/4” (44 mm). Face frame 6 3/4” (171 mm)

total operator clearance.

Top Rail minimum 2 3/4” (70 mm).

Opening & Closing Time are variable by adjustments to the electronic

control box. Maximum hold open time adjustable up to approximately

32 seconds.

System Diagram see “AUTOMATIC OPERATORS” section pages 52-54

for typical system wiring and page 55 for electrical data.

Please consult your local SSC representative or LCN for assistance with

specific installations and material requirements.

TOP JAMB SINGLE DOOR

(OFFSET PIVOT/BUTT HINGE,

CENTER PIVOT, PULL)

MOUNTING

HOLLOW METAL FRAME

Suggested Installation

MAXIMUM OPENING

Template allows 90 degree power

opening and 90 degree manual

opening.

LCN 9530 SERIES

PULL ARM

ASS'Y

OFFSET

PIVOT

or

BUTT

HINGES

2

3/4

"

70 MM

SWING

OPERATOR

48" DOOR OPENING (MAX.)

INCOMING

LEFT HAND

PULL CHANEL

1

3/4

"

44 MM

SWING

OPERATOR

4

1/2

"

114 MM

6

3/4

"

171 MM

5

3/4

"

146 MM

DOOR

SWING

DIRECTION

INTERIOR

PULL

CHANEL

PULL ARM

ASS'Y

1"

25 MM

1

15/16

"

49 MM

17

3/8

"11

1/2

"

292 MM

Special Templates

Customized installation templates

or products may be available to

solve unusual applications.

Contact LCN for assistance.

MOUNTING DETAILS

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

99

LCN 9530 SERIES

MOTOR GEARBOX

MOTOR GEARBOX (STANDARD FORCE) –

SENIOR SWING, 9530-3454

Driving mechanism for operator. Provides 15lbs opening force.

Handed.

MOUNTING BRACKET

MOUNTING BRACKET – 2 3/4”, 9530-275

Motor gearbox mounting bracket for 2 3/4" offset pivot or butt hinge

installations. Front bracket.

REAR MOUNT BRACKET, 9530-3018

Motor gearbox mounting bracket. Rear bracket.

ANGLED BRACKET, 9530-334-1

Mounting bracket for surface applications.

CONTROL BOXES

CONTROL BOX – SENIOR SWING, 9530-3462

Electronic controlling device for Senior Swing.

HEADERS

Header, 9530-3572HL

Standard, mounting header. Single door, single operator.

Specify length 30”to 49” maximum.

Header, 9530-3572DD

Standard, mounting header. Double door, single operator.

Specify length 49”to 98” maximum.

END CAPS

HEADER END CAPS, 9530-334

End cap with openings for wiring.

END DRESS PLATE, 9530-334-2

Metal finish end cap.

ACCESSORIES

3454

275 3018 344-1

3462

3572HL

3572DD

334 334-2

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

100

ARMS

STANDARD ARM ASSEMBLY, 9530-3077PLCM

Handed arm.

STANDARD ARM, 9530-3077T

Handed arm. Track roller not included.

TRACKS

TRACK 9530-3038

Standard non-handed track.

TRACK END CAP 9530-73

Black plastic end caps.

ROLLER, 9530-3034

Quiet low friction roller assembly.

INSTALLATION ACCESSORIES

SPINDLE PLATE – 2 3/4”, 9530-11A

Hides bottom of motor gearbox. Completes header box. Cutout

allows for motor gearbox shaft. For 2 3/4" offset pivot or butt

hinge installations.

FILLER PLATE BLANK, 9530-12

Completes length of header box. (Specify Length)

MOUNTING PLATE, 9530-18

Optional mounting plate for standard hollow metal door

frames. Specify length 33” to 98” maximum.

NOTE: The length of a universal 18 plate will need to be

ordered 3 1/2” longer than the supplied header.

ACCESSORIES

LCN 9530 SERIES

3077PLCM

3077T

3038 3034

11A

73

12

18

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

101

TABLE OF SIZES

Indicates recommended range of door width for operator.

Note: For all Senior Swing Series

Single Door - Width per leaf 36” minimum, 48” maximum

LCN 9530 SERIES

DOOR WIDTH

36"

914mm

48"

1219mm

9531

Minimum

Door

Width

HOW-TO-ORDER

9530 SERIES OPERATORS

1. SPECIFY HAND

RH

LH

2. SPECIFY FINISH.

Standard Anodized Finish _____________

Aluminum or Dark Bronze

Operator will be shipped with:

-STANDARD MOTOR GEARBOX (SF)

-STANDARD CONTROL BOX (SC)

-36” HEADER (36HL)

-STANDARD ARM (3077T)

-2 3/4” PIVOT POINT

-STANDARD TRACK w/TRACK ROLLER

-MACHINE SCREW PACK

Unless options listed below are selected.

OPERATOR OPTIONS

HEADER

HL __ (Specify length 36” to 49”)

DD__ (Specify length 49” to 98”)

MOUNTING PLATE

Plate, ____ (Specify Length 30” to 98”)

SPECIAL TEMPLATE

ST-_________

ORDERING INFORMATION

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

102

Notes

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

103

LCN 9540 SERIES

STANDARD ANODIZED

CUSTOM ANODIZED

CUSTOM PAINT

FINISH

HANDING

HANDED

NON-HANDED

COVER

METAL

ARM FUNCTION

STANDARD (SINGLE)

REGULAR (DOUBLE)

OFFSET PIVOT ARM

CENTER PIVOT ARM

DOUBLE EGRESS (PUSH/PULL)

MOUNTING

SURFACE MOUNT SINGLE DOOR

SURFACE MOUNT SIMULTANEOUS PAIR

SURFACE MOUNT INDEPENDENT PAIR

CONCEALED SINGLE DOOR

CONCEALED INDEPENDENT PAIR

CONCEALED SIMULTANEOUS PAIR

The 9540 SENIOR SWING by LCN is an

ADA door operator that is a two-in-

one swing door operator. SENIOR

SWING operators when activated,

opens doors automatically for

wheelchair access, yet allows for

manual operation for regular

pedestrian traffic.

Push ‘N Go permits non-switch

activation

Power Boost provides additional

latching force

Electromechanical unit with

microprocessor control

Digital keypad for easy setup

Meets International Building Code

requirements and ANSI A156.19

UL approved for fire doors

9540 Series is fully compliant with UL

325 & UL 1998 and meets the

provisions of ANSI A156.19. The 9540

Series is UL listed for fire-rated

applications. The 9540 Series also

meets the provisions of the Americans

with Disabilities Act.

9540 series operator is shipped with motor gearbox, control box, regular

arm, header, and mounting hardware. Actuators available separately,

see page 121.

Single door, surface mounted.

Meets ADA requirements (power mode only).

Handed product.

36” header length is standard. Specify length 33” to 49” max.

Double door header available up to 98”, specify other length 49” to 98”

max. Consult factory regarding this option.

Adjustable hold open period of 1 to 32 seconds in automatic or manual

mode.

SINGLE DOOR, SURFACE MOUNT (PUSH)

OFFSET PIVOT/BUTT HINGE

FEATURES

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

104

Butt Hinges should not exceed 5” (127 mm) in width.

Reveal for push installations should not exceed 10” (254 mm) for

REGULAR ARM and 20” (508 mm) for LONG ARM.

Head Frame minimum 1 3/4” (44 mm). Face frame 6 3/4” (171 mm)

total operator clearance.

Top Rail minimum 2 3/4” (70 mm).

Opening & Closing Time are variable by adjustments to the electronic

control box. Maximum hold open time adjustable up to approximately

32 seconds.

System Diagram see “AUTOMATIC OPERATORS” section pages 52-54

for typical system wiring and page 55 for electrical data.

Please consult your local SSC representative or LCN for assistance with

specific installations and material requirements.

TOP JAMB SINGLE DOOR

(OFFSET PIVOT/BUTT HINGE,

CENTER PIVOT, PUSH) MOUNTI

Consult factory for all balance

door installations.

HOLLOW METAL FRAME

Suggested Installation

MAXIMUM OPENING

Template allows 90 degree power

opening and 90 degree manual

opening.

LCN 9540 SERIES

Special Templates

Customized installation templates

or products may be available to

solve unusual applications.

Contact LCN for assistance.

MOUNTING DETAILS

OUTGOING

PUSH ARM

ASS'Y

17" From

edge of door

OFFSET

PIVOT

or

BUTT

HINGES

2

3/4

"

70 MM

SWING

OPERATOR

48" DOOR OPENING (MAX.)

REVEAL

SWING

OPERATOR

4

1/2

"

114 MM

6

3/4

"

171 MM

5

3/4

"

146 MM

1"

25 MM

DOOR

SWING

DIRECTION

DOOR

FRAME

EXTERIOR

1

7/16

" From

top of door

SECONDARY LINK

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

105

LCN 9540 SERIES

MOTOR GEARBOX

MOTOR GEARBOX (STANDARD FORCE) –

SENIOR SWING, 9540-3454

Driving mechanism for operator. Provides 15lbs opening force.

Handed.

MOUNTING BRACKET

MOUNTING BRACKET – 2 3/4”, 9540-275

Motor gearbox mounting bracket for 2 3/4" offset pivot or butt hinge

installations. Front bracket.

REAR MOUNT BRACKET, 9540-3018

Motor gearbox mounting bracket. Rear bracket.

ANGLED BRACKET, 9540-334-1

Mounting bracket for surface applications.

CONTROL BOXES

CONTROL BOX – SENIOR SWING, 9540-3462

Electronic controlling device for Senior Swing.

HEADERS

Header, 9540-3572HL

Standard, mounting header. Single door, single operator.

Specify length 30”to 49” maximum.

Header, 9540-3572DD

Standard, mounting header. Double door, single operator.

Specify length 49”to 98” maximum.

END CAPS

HEADER END CAPS, 9540-334

End cap with openings for wiring.

END DRESS PLATE, 9540-334-2

Metal finish end cap.

ACCESSORIES

3454

275 3018 344-1

3462

3572HL

3572DD

334 334-2

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

106

ARMS

REGULAR ARM ASSEMBLY, 9540-3077

Handed arm.

REGULAR LONG ARM ASSEMBLY, 9540-3077L

Handed arm.

MAIN ARM, 9540 -77

Handed arm attaches to motor gearbox.

LINKAGE ASSEMBLY – 15”, 9540-79

Threaded rod attaches to door. Extends from main arm.

LINKAGE ASSEMBLY – 32”, 9540-79LR

Threaded long rod attaches to door. Extends from main arm.

Used for reveal 10” to 20”.

INSTALLATION ACCESSORIES

SPINDLE PLATE – 2 3/4”, 9540-11A

Hides bottom of motor gearbox. Completes header box. Cutout

allows for motor gearbox shaft. For 2 3/4" offset pivot or butt

hinge installations.

FILLER PLATE BLANK, 9540-12

Completes length of header box. (Specify Length)

MOUNTING PLATE, 9540-18

Optional mounting plate for standard hollow metal door

frames. Specify length 33” to 98” maximum.

NOTE: The length of a universal 18 plate will need to be

ordered 3 1/2” longer than the supplied header.

ACCESSORIES

LCN 9540 SERIES

3077

3077L

77

79

79LR

11A

12

18

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

107

TABLE OF SIZES

Indicates recommended range of door width for operator.

Note: For all Senior Swing Series

Single Door - Width per leaf 36” minimum, 48” maximum

LCN 9540 SERIES

DOOR WIDTH

36"

914mm

48"

1219mm

9542

Minimum

Door

Width

HOW-TO-ORDER

9540 SERIES OPERATORS

1. SPECIFY HAND

RH

LH

2. SPECIFY FINISH.

Standard Anodized Finish _____________

Aluminum or Dark Bronze

Operator will be shipped with:

-STANDARD MOTOR GEARBOX (SF)

-STANDARD CONTROL BOX (SC)

-36” HEADER (36HL)

-REGULAR ARM (3077)

-2 3/4” PIVOT POINT

-WOOD and MACHINE SCREW PACK

Unless options listed below are selected.

OPERATOR OPTIONS

HEADER

HL __ (Specify length 36” to 49”)

DD__ (Specify length 49” to 98”)

MOUNTING PLATE

Plate, ____ (Specify Length 30” to 98”)

ARM

Long Arm (3077L)

FINISH

SPECIAL TEMPLATE

ST-_________

ORDERING INFORMATION

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

108

Notes

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

109

LCN 9550 SERIES

STANDARD ANODIZED

CUSTOM ANODIZED

CUSTOM PAINT

FINISH

HANDING

HANDED

NON-HANDED

COVER

METAL

ARM FUNCTION

STANDARD (SINGLE)

REGULAR (DOUBLE)

OFFSET PIVOT ARM

CENTER PIVOT ARM

DOUBLE EGRESS (PUSH/PULL)

MOUNTING

SURFACE MOUNT SINGLE DOOR

SURFACE MOUNT SIMULTANEOUS PAIR

SURFACE MOUNT INDEPENDENT PAIR

CONCEALED SINGLE DOOR

CONCEALED INDEPENDENT PAIR

CONCEALED SIMULTANEOUS PAIR

The 9550 SENIOR SWING by LCN is an

ADA door operator that is a two-in-

one swing door operator. SENIOR

SWING operators when activated,

opens doors automatically for

wheelchair access, yet allows for

manual operation for regular

pedestrian traffic.

Push ‘N Go permits non-switch

activation

Power Boost provides additional

latching force

Electromechanical unit with

microprocessor control

Digital keypad for easy setup

Meets International Building Code

requirements and ANSI A156.19

UL approved for fire doors

9550 Series is fully compliant with UL

325 & UL 1998 and meets the

provisions of ANSI A156.19. The 9550

Series is UL listed for fire-rated

applications. The 9550 Series also

meets the provisions of the Americans

with Disabilities Act.

9550 series operator is shipped with motor gearboxes, control box,

arms, header, and mounting hardware. Actuators available separately,

see pages 121.

Simultaneous pair, surface mounted.

Meets ADA requirements (power mode only).

Handed product.

Pull, Push or Double Egress applications available.

72” header length is standard. Specify other length 60” to 98”. Consult

factory regarding this option.

Adjustable hold open period of 1 to 32 seconds in automatic or manual

mode.

OPERATOR MOUNTS

SIMULTANEOUS PAIR, SURFACE MOUNT

*PULL SIDE

PUSH SIDE

DOUBLE EGRESS

FEATURES

*PULL SIDE mount shown

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

110

Butt Hinges should not exceed 5” (127 mm) in width.

Reveal for push installations should not exceed 10” (254 mm) for

REGULAR ARM and 20” (508 mm) for LONG ARM.

Reveal for pull installations should not exceed 4” (102 mm).

Reveal for double egress installations should not exceed 4” (102 mm).

Head Frame minimum 1 3/4” (44 mm). Face frame 6 3/4” (171 mm)

total operator clearance.

Top Rail minimum 2 3/4” (70 mm).

Opening & Closing Time are variable by adjustments to the electronic

control box. Maximum hold open time adjustable up to approximately

32 seconds.

System Diagram see “AUTOMATIC OPERATORS” section pages 52-54

for typical system wiring and page 55 for electrical data.

Please consult your local SSC representative or LCN for assistance with

specific installations and material requirements.

TOP JAMB SIMULTANEOUS

PAIR (OFFSET PIVOT/BUTT

HINGE, CENTER PIVOT, PUSH)

MOUNTING

TOP JAMB SIMULTANEOUS

PAIR (OFFSET PIVOT/BUTT

HINGE, CENTER PIVOT, PULL)

MOUNTING

MAXIMUM OPENING

Template allows 90 degree power

opening and 90 degree manual

opening.

LCN 9550 SERIES

Special Templates

Customized installation templates

or products may be available to

solve unusual applications.

Contact LCN for assistance.

MOUNTING DETAILS

OUTGOING

PUSH ARM

ASS'Y

17" From

edge of door

OFFSET

PIVOT

or

BUTT

HINGES

2

3/4

"

70 MM

SWING

OPERATOR

8'-0" DOOR OPENING (MAX.)

REVEAL

OUTGOING

SWING

OPERATOR

4

1/2

"

114 MM

6

3/4

"

171 MM

5

3/4

"

146 MM

1"

25 MM

DOOR

SWING

DIRECTION

DOOR

FRAME

EXTERIOR

1

7/16

" From

top of door

SECONDARY LINK

PULL ARM

ASS'Y

OFFSET

PIVOT

or

BUTT

HINGES

2

3/4

"

70 MM

SWING

OPERATOR

8'-0" DOOR OPENING (MAX.)

INCOMING

INCOMING

PULL CHANNEL

INTERIOR

17

3/8

"

441 MM

1

3/4

"

44 MM

11

1/2

"

291 MM

SWING

OPERATOR

4

1/2

"

114 MM

6

3/4

"

171 MM

5

3/4

"

146 MM

1"

25 MM

DOOR

SWING

DIRECTION

PULL ARM

ASS'Y

INTERIOR

PULL

CHANNEL

1

15/16

"

49 MM

Butt Hinges should not exceed 5” (127 mm) in width.

Reveal for push installations should not exceed 10” (254 mm) for

REGULAR ARM and 20” (508 mm) for LONG ARM.

Reveal for pull installations should not exceed 4” (102 mm).

Reveal for double egress installations should not exceed 4” (102 mm).

Head Frame minimum 1 3/4” (44 mm). Face frame 6 3/4” (171 mm)

total operator clearance.

Top Rail minimum 2 3/4” (70 mm).

Opening & Closing Time are variable by adjustments to the electronic

control box. Maximum hold open time adjustable up to approximately

32 seconds.

System Diagram see “AUTOMATIC OPERATORS” section pages 52-54

for typical system wiring and page 55 for electrical data.

Please consult your local SSC representative or LCN for assistance with

specific installations and material requirements.

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

111

TOP JAMB SIMULTANEOUS

PAIR (RH DOUBLE EGRESS)

MOUNTING

Consult factory for all balance

door installations.

HOLLOW METAL FRAME

Suggested Installation

MAXIMUM OPENING

Template allows 90 degree power

opening and 90 degree manual

opening.

LCN 9550 SERIES

Special Templates

Customized installation templates

or products may be available to

solve unusual applications.

Contact LCN for assistance.

MOUNTING DETAILS

SWING

OPERATOR

4

1/2

"

114 MM

INTERIOR

PUSH ARM

ASS'Y

PULL ARM

ASS'Y

SWING

OPERATOR

SWING

OPERATOR

48" DOOR OPENING (MAX.)

2

3/4

"

70 MM

48" DOOR OPENING (MAX.)

2

3/4

"

70 MM

1

3/4

"

44 MM

17" From

edge of door

BUTT

HINGES

11

1/2

"

292 MM

17

3/8

"

PULL CHANNEL

SWING

OPERATOR

4

1/2

"

114 MM

5

3/4

"

146 MM

5

3/4

"

146 MM

6

3/4

"

171 MM

SECONDARY LINK

DOOR

FRAME

SWING

DIRECTION

SWING

DIRECTION

DOOR

FRAME

DOOR

DOOR

1"

25 MM

1"

25 MM

2 3/18" FROM BOTTOM

OF DOOR STOP

PULL ARM

ASS'Y

PUSH ARM

ASS'Y

1 15/16" FROM

TOP OF DOOR

PULL

CHANNEL

BUTT

HINGES

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

112

LCN 9550 SERIES

MOTOR GEARBOX

MOTOR GEARBOX (STANDARD FORCE)

– SENIOR SWING, 9550-3454

Driving mechanism for operator. Provides 15lbs opening force. Handed.

MOUNTING BRACKETS

MOUNTING BRACKET – 2 3/4”, 9550-275

Motor gearbox mounting bracket for 2 3/4" offset pivot

or butt hinge installations. Front bracket.

REAR MOUNT BRACKET, 9550-3018

Motor gearbox mounting bracket. Rear bracket.

ANGLED BRACKET, 9550-334-1

Mounting bracket for surface applications.

CONTROL BOXES

CONTROL BOX – SENIOR SWING, 9550-3462

Electronic controlling device for Senior Swing.

COMPANION CABLE, 9550-982

Cable that allows one control box to run two motor gear boxes.

Companion cable. For use with Senior Swing.

HEADERS

HEADER, 9550-3572HL

Standard, mounting header. Pair door, two operators.

Specify length 60”to 98” maximum.

END CAPS

HEADER ENDCAPS, 9550-334

End cap with openings for wiring.

END DRESS PLATE, 9550-334-2

Metal finish end cap.

ACCESSORIES

3454

275 3018 344-1

3462

982

3572HL

334 334-2

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

113

ARMS

STANDARD ARM ASSEMBLY, 9550-3077PLCM

Handed arm.

REGULAR ARM ASSEMBLY, 9550-3077

Handed arm.

REGULAR LONG ARM ASSEMBLY, 9550-3077L

Handed arm.

STANDARD ARM, 9550-3077T

Handed arm. Track roller not included.

MAIN ARM, 9550 -77

Handed arm attaches to motor gearbox

LINKAGE ASSEMBLY – 15”, 9550-79

Threaded rod attaches to door. Extends from main arm.

LINKAGE ASSEMBLY – 32”, 9550-79LR

Threaded long rod attaches to door. Extends from main arm.

Used for reveal 10” to 20”.

TRACKS

TRACK 9550-3038

Standard non-handed track.

TRACK END CAP 9550-73

Black plastic end caps.

ROLLER, 9550-3034

Quiet low friction roller assembly.

INSTALLATION ACCESSORIES

SPINDLE PLATE – 2 3/4”, 9550-11A

Hides bottom of motor gearbox. Completes header box. Cutout

allows for motor gearbox shaft. For 2 3/4" offset pivot or butt

hinge installations.

FILLER PLATE BLANK, 9550-12

Completes length of header box. (Specify Length)

MOUNTING PLATE, 9550-18

Optional mounting plate for standard hollow metal door

frames. Specify length 33” to 98” maximum.

NOTE: The length of a universal 18 plate will need to be

ordered 3 1/2” longer than the supplied header.

ACCESSORIES

LCN 9550 SERIES

3077PLCM

3077

3077L

3077T 77

3038 3034

79

79LR

73

11A 12

18

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

114

TABLE OF SIZES

Indicates recommended range of door width for operator.

Note: For All Senior Swing Series

Simultaneous Pair – Width per leaf 30” minimum to 48” maximum

LCN 9550 SERIES

DOOR WIDTH

60"

1524mm

96"

2438mm

9553

Minimum

Door

Width

HOW-TO-ORDER

9550 SERIES OPERATORS

1. SPECIFY HAND

RH

LH

2. SPECIFY FINISH.

Standard Anodized Finish __________

Aluminum or Dark Bronze

Operator will be shipped with:

-STANDARD MOTOR GEARBOX (SF) (2 ea)

-STANDARD CONTROL BOX (SC)

-72” METAL COVER (72HL)

-REGULAR ARM (2 ea)

-2 3/4” PIVOT POINT

-MACHINE SCREW PACK

OPERATOR OPTIONS

HEADER

HL__ (Specify length 60” to 98”)

MOUNTING PLATE

Plate, ____ (Specify Length 30” to 98”)

ARM

Standard Arm (2 ea)

w/Standard Track (2 ea)

Double Egress

Includes Standard Arm w/Track (1 ea)

& Regular Arm (1 ea)

Long Arm (3077L)

SPECIAL TEMPLATE

ST-_________

ORDERING INFORMATION

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

115

LCN 9560 SERIES

STANDARD ANODIZED

CUSTOM ANODIZED

CUSTOM PAINT

FINISH

HANDING

HANDED

NON-HANDED

COVER

METAL

ARM FUNCTION

STANDARD (SINGLE)

REGULAR (DOUBLE)

OFFSET PIVOT ARM

CENTER PIVOT ARM

DOUBLE EGRESS (PUSH/PULL)

MOUNTING

SURFACE MOUNT SINGLE DOOR

SURFACE MOUNT SIMULTANEOUS PAIR

SURFACE MOUNTINDEPENDENT PAIR

CONCEALED SINGLE DOOR

CONCEALED INDEPENDENT PAIR

CONCEALED SIMULTANEOUS PAIR

The 9560 SENIOR SWING by LCN is an

ADA door operator that is a two-in-

one swing door operator. SENIOR

SWING operators when activated,

opens doors automatically for

wheelchair access, yet allows for

manual operation for regular

pedestrian traffic.

Push ‘N Go permits non-switch

activation

Power Boost provides additional

latching force

Electromechanical unit with

microprocessor control

Digital keypad for easy setup

Meets International Building Code

requirements and ANSI A156.19

UL approved for fire doors

9560 Series is fully compliant with UL

325 & UL 1998 and meets the

provisions of ANSI A156.19. The 9560

Series is UL listed for fire-rated

applications. The 9560 Series also

meets the provisions of the Americans

with Disabilities Act.

9560 series operator is shipped with motor gearboxes, control boxes,

arms, header, and mounting hardware. Actuators available separately,

see page121.

Independent pair, surface mounted.

Meets ADA requirements (power mode only).

Handed product.

Pull, Push or Double Egress applications available.

72” header length is standard. Specify other length 60” to 98”. Consult

factory regarding this option.

Adjustable hold open period of 1 to 32 seconds in automatic or manual

mode.

OPERATOR MOUNTS

INDEPENDENT PAIR, SURFACE MOUNT

*PULL SIDE

PUSH SIDE

DOUBLE EGRESS

FEATURES

*PULL SIDE mount shown

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

116

Butt Hinges should not exceed 5” (127 mm) in width.

Reveal for push installations should not exceed 10” (254 mm) for

REGULAR ARM and 20” (508 mm) for LONG ARM.

Reveal for pull installations should not exceed 4” (102 mm).

Reveal for double egress installations should not exceed 4” (102 mm).

Head Frame minimum 1 3/4” (44 mm). Face frame 6 3/4” (171 mm)

total operator clearance.

Top Rail minimum 2 3/4” (70 mm).

Opening & Closing Time are variable by adjustments to the electronic

control box. Maximum hold open time adjustable up to approximately

32 seconds.

System Diagram see “AUTOMATIC OPERATORS” section pages 52-54

for typical system wiring and page 55 for electrical data.

Please consult your local SSC representative or LCN for assistance with

specific installations and material requirements.

TOP JAMB INDEPENDENT PAIR

(OFFSET PIVOT/BUTT HINGE,

CENTER PIVOT, PUSH)

MOUNTING

TOP JAMB INDEPENDENT PAIR

(OFFSET PIVOT/BUTT HINGE,

CENTER PIVOT, PULL)

MOUNTING

MAXIMUM OPENING

Template allows 90 degree power

opening and 90 degree manual

opening.

LCN 9560 SERIES

Special Templates

Customized installation templates

or products may be available to

solve unusual applications.

Contact LCN for assistance.

MOUNTING DETAILS

OUTGOING

PUSH ARM

ASS'Y

17" From

edge of door

OFFSET

PIVOT

or

BUTT

HINGES

2

3/4

"

70 MM

SWING

OPERATOR

8'-0" DOOR OPENING (MAX.)

REVEAL

OUTGOING

SWING

OPERATOR

4

1/2

"

114 MM

6

3/4

"

171 MM

5

3/4

"

146 MM

1"

25 MM

DOOR

SWING

DIRECTION

DOOR

FRAME

EXTERIOR

1

7/16

" From

top of door

SECONDARY LINK

PULL ARM

ASS'Y

OFFSET

PIVOT

or

BUTT

HINGES

2

3/4

"

70 MM

SWING

OPERATOR

8'-0" DOOR OPENING (MAX.)

INCOMING

INCOMING

PULL CHANNEL

INTERIOR

17

3/8

"

441 MM

1

3/4

"

44 MM

11

1/2

"

291 MM

SWING

OPERATOR

4

1/2

"

114 MM

6

3/4

"

171 MM

5

3/4

"

146 MM

1"

25 MM

DOOR

SWING

DIRECTION

PULL ARM

ASS'Y

INTERIOR

PULL

CHANNEL

1

15/16

"

49 MM

Butt Hinges should not exceed 5” (127 mm) in width.

Reveal for push installations should not exceed 10” (254 mm) for

REGULAR ARM and 20” (508 mm) for LONG ARM.

Reveal for pull installations should not exceed 4” (102 mm).

Reveal for double egress installations should not exceed 4” (102 mm).

Head Frame minimum 1 3/4” (44 mm). Face frame 6 3/4” (171 mm)

total operator clearance.

Top Rail minimum 2 3/4” (70 mm).

Opening & Closing Time are variable by adjustments to the electronic

control box. Maximum hold open time adjustable up to approximately

32 seconds.

System Diagram see “AUTOMATIC OPERATORS” section pages 52-54

for typical system wiring and page 55 for electrical data.

Please consult your local SSC representative or LCN for assistance with

specific installations and material requirements.

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

117

TOP JAMB INDEPENDENT PAIR

(RH DOUBLE EGRESS)

MOUNTING

Consult factory for all balance door

installation.

HOLLOW METAL FRAME

Suggested Installation

MAXIMUM OPENING

Template allows 90 degree power

opening and 90 degree manual

opening.

LCN 9560 SERIES

Special Templates

Customized installation templates

or products may be available to

solve unusual applications.

Contact LCN for assistance.

MOUNTING DETAILS

SWING

OPERATOR

4

1/2

"

114 MM

INTERIOR

PUSH ARM

ASS'Y

PULL ARM

ASS'Y

SWING

OPERATOR

SWING

OPERATOR

48" DOOR OPENING (MAX.)

2

3/4

"

70 MM

48" DOOR OPENING (MAX.)

2

3/4

"

70 MM

1

3/4

"

44 MM

17" From

edge of door

BUTT

HINGES

11

1/2

"

292 MM

17

3/8

"

PULL CHANNEL

SWING

OPERATOR

4

1/2

"

114 MM

5

3/4

"

146 MM

5

3/4

"

146 MM

6

3/4

"

171 MM

SECONDARY LINK

DOOR

FRAME

SWING

DIRECTION

SWING

DIRECTION

DOOR

FRAME

DOOR

DOOR

1"

25 MM

1"

25 MM

2 3/18" FROM BOTTOM

OF DOOR STOP

PULL ARM

ASS'Y

PUSH ARM

ASS'Y

1 15/16" FROM

TOP OF DOOR

PULL

CHANNEL

BUTT

HINGES

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

118

LCN 9560 SERIES

MOTOR GEARBOX

MOTOR GEARBOX (STANDARD FORCE)

–SENIOR SWING, 9560-3454

Driving mechanism for operator. Provides 15lbs opening force.

Handed.

MOUNTING BRACKETS

MOUNTING BRACKET – 2 3/4”, 9560-275

Motor gearbox mounting bracket for 2 3/4" offset pivot or butt

hinge installations. Front bracket.

REAR MOUNT BRACKET, 9560-3018

Motor gearbox mounting bracket. Rear bracket.

ANGLED BRACKET, 9560-334-1

Mounting bracket for surface applications.

CONTROL BOXES

CONTROL BOX – SENIOR SWING, 9560-3462

Electronic controlling device for Senior Swing

HEADERS

HEADER, 9560-3572HL

Standard, mounting header. Pair door, two operators.

Specify length 60”to 98” maximum.

END CAPS

HEADER END CAPS, 9560-334

End cap with openings for wiring.

END DRESS PLATE, 9560-334-2

Metal finish end cap.

ACCESSORIES

3454

275 3018 344-1

3462

3572HL

334 334-2

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

119

ACCESSORIES

LCN 9560 SERIES

ARMS

STANDARD ARM ASSEMBLY, 9560-3077PLCM

Handed arm.

REGULAR ARM ASSEMBLY, 9560-3077

Handed arm.

REGULAR LONG ARM ASSEMBLY, 9560-3077L

Handed arm.

STANDARD ARM, 9560-3077T

Handed arm. Track roller not included.

MAIN ARM, 9560 -77

Handed arm attaches to motor gearbox

LINKAGE ASSEMBLY – 15”, 9560-79

Threaded rod attaches to door. Extends from main arm.

LINKAGE ASSEMBLY – 32”, 9560-79LR

Threaded long rod attaches to door. Extends from main arm.

Used for reveal 10” to 20”.

TRACKS

TRACK 9560-3038

Standard non-handed track.

TRACK END CAP 9560-73

Black plastic end caps.

ROLLER, 9560-3034

Quiet low friction roller assembly.

INSTALLATION ACCESSORIES

SPINDLE PLATE – 2 3/4”, 9560-11A

Hides bottom of motor gearbox. Completes header box. Cutout

allows for motor gearbox shaft. For 2 3/4" offset pivot or butt

hinge installations.

FILLER PLATE BLANK, 9560-12

Completes length of header box. (Specify Length)

MOUNTING PLATE, 9560-18

Optional mounting plate for standard hollow metal door

frames. Specify length 33” to 98” maximum.

NOTE: The length of a universal 18 plate will need to be

ordered 3 1/2” longer than the supplied header.

3077PLCM

3077

3077L

3077T 77

3038 3034

79

79LR

73

11A 12

18

LCN CLOSERS

121 W. RAILROAD AVE.

P.O. BOX 100

PRINCETON, IL, USA 61356-0100

PHONE 800-526-2400

FAX 800-248-1460

www.lcn.ingersollrand.com

3/10

120

TABLE OF SIZES

Indicates recommended range of door width for operator.

Note: For all Senior Swing Series

Independent Pair – Width per leaf 30” minimum to 48” maximum

LCN 9560 SERIES

DOOR WIDTH

60"

914mm

96"

1219mm

9563

Minimum

Door

Width

HOW-TO-ORDER

9560 SERIES OPERATORS

1. SPECIFY HAND

RH

LH

2. SPECIFY FINISH.

Standard Anodized Finish _____________

Aluminum or Dark Bronze

Operator will be shipped with:

-STANDARD MOTOR GEARBOX (SF) (2 ea)

-STANDARD CONTROL BOX (SC) (2 ea)

-72” METAL COVER (72HL)

-REGULAR ARM (2 ea)

-2 3/4” PIVOT POINT

-MACHINE SCREW PACK

Unless options listed below are selected.

OPERATOR OPTIONS

HEADER

HL__ (Specify length 60” to 98”)

MOUNTING PLATE

Plate, ____ (Specify Length 30” to 98”)

ARM

Standard Arm (2 ea)

w/Standard Track (2 ea)

Double Egress

Includes Standard Arm w/Track (1 ea)

& Regular Arm (1 ea)

Long Arm (3077L)

SPECIAL TEMPLATE

ST-_________

ORDERING INFORMATION
