LENNOX

';_2002 Lennox Industries inc.

Dallas, Texas

INSTALLATION

INSTRUCTIONS

HPXA12 SERIES UNITS

HEAT PUMP UNITS

504,777M _ Technical

05/04 IlI_.LU_Publications

Supersedes 02/04 Lithe U.S.A.

HPXA12 Elite®outdoor units use R410A, which is an ozone

friendly HFC refrigerant, This unit must be installed with a

matching indoor blower coil and line set as outlined in the

Lennox Engineering Handbook. HPXA12 outdoor units are

designed for use in expansion valve systems only. They

are not designed to be used with other refrigerant flow con-

trol devices, An expansion valve approved for use with

R410A must be ordered separately and must be installed

prior to operating the unit,

,&IMPORTANT

HPXA12 Outdoor Unit ........................... 1

Shipping & Packing List ......................... 1

General Information ............................. 1

Unit Dimensions ................................ 2

Setting the Unit ................................. 3

Electrical ...................................... 4

Refrigerant Piping .............................. 5

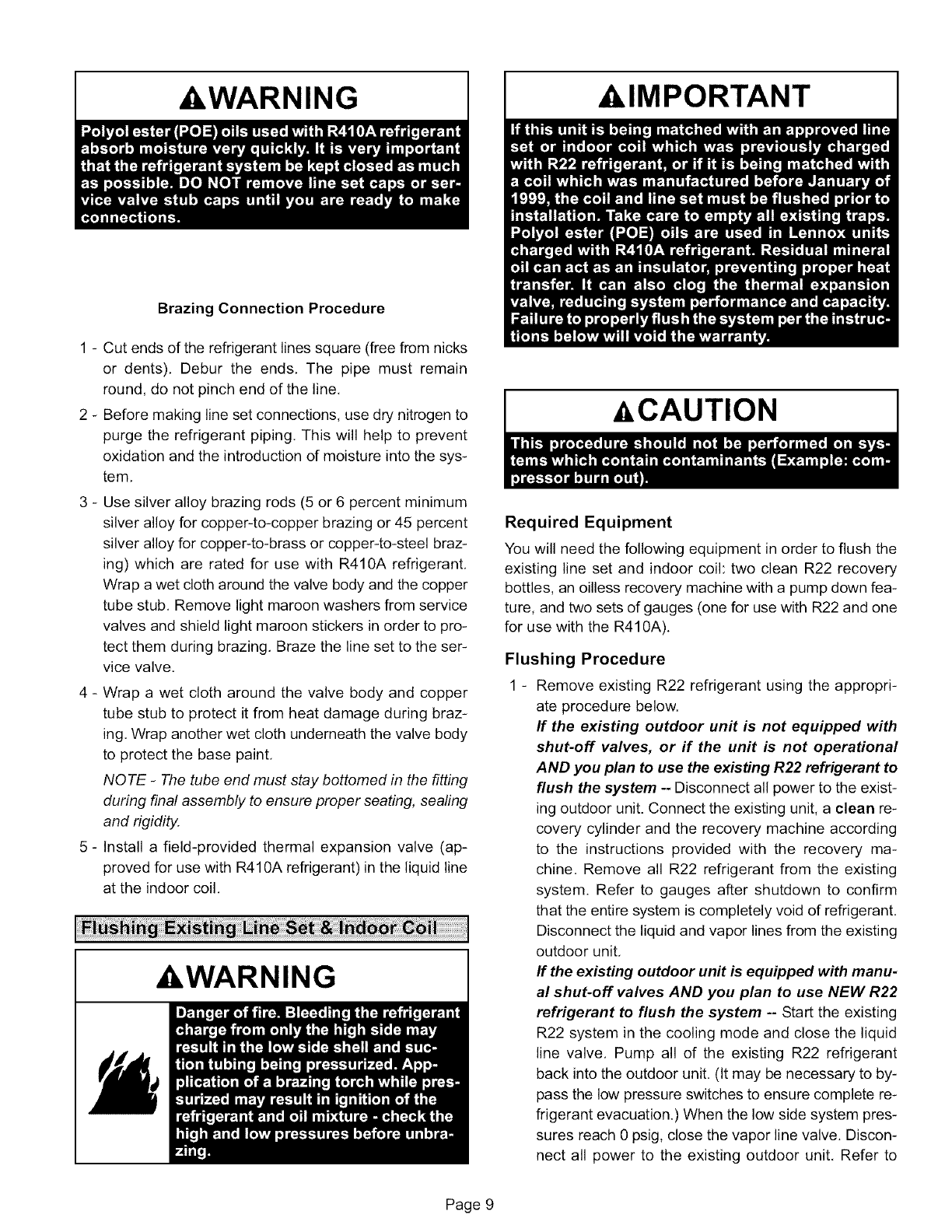

Flushing Existing Line Set & Indoor Coil ........... 6

Refrigerant Metering Device ..................... 7

Manifold Gauge Set ............................. 8

Service Valves ................................. 8

Leak Testing ................................... 9

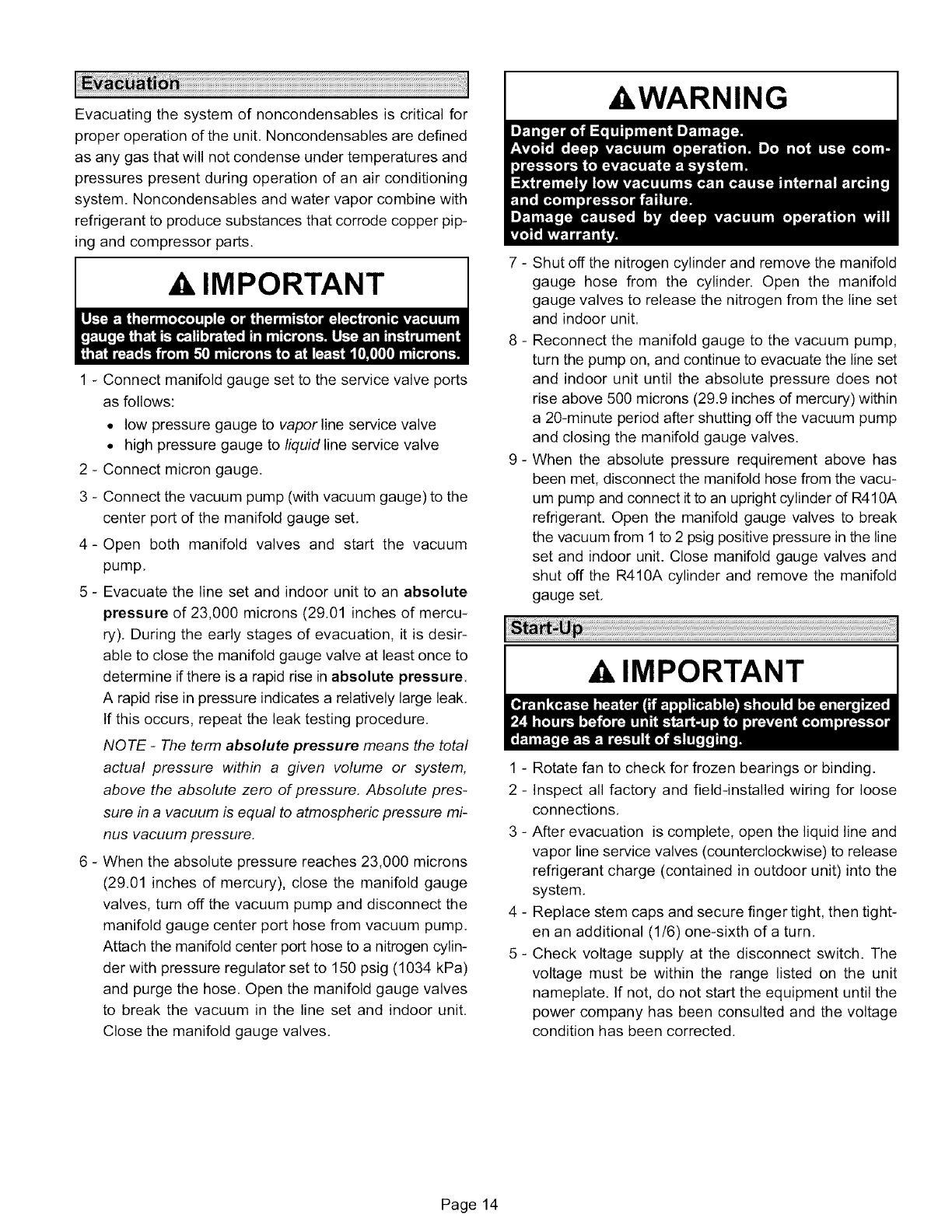

Evacuation ................................... 10

Start-Up ...................................... 11

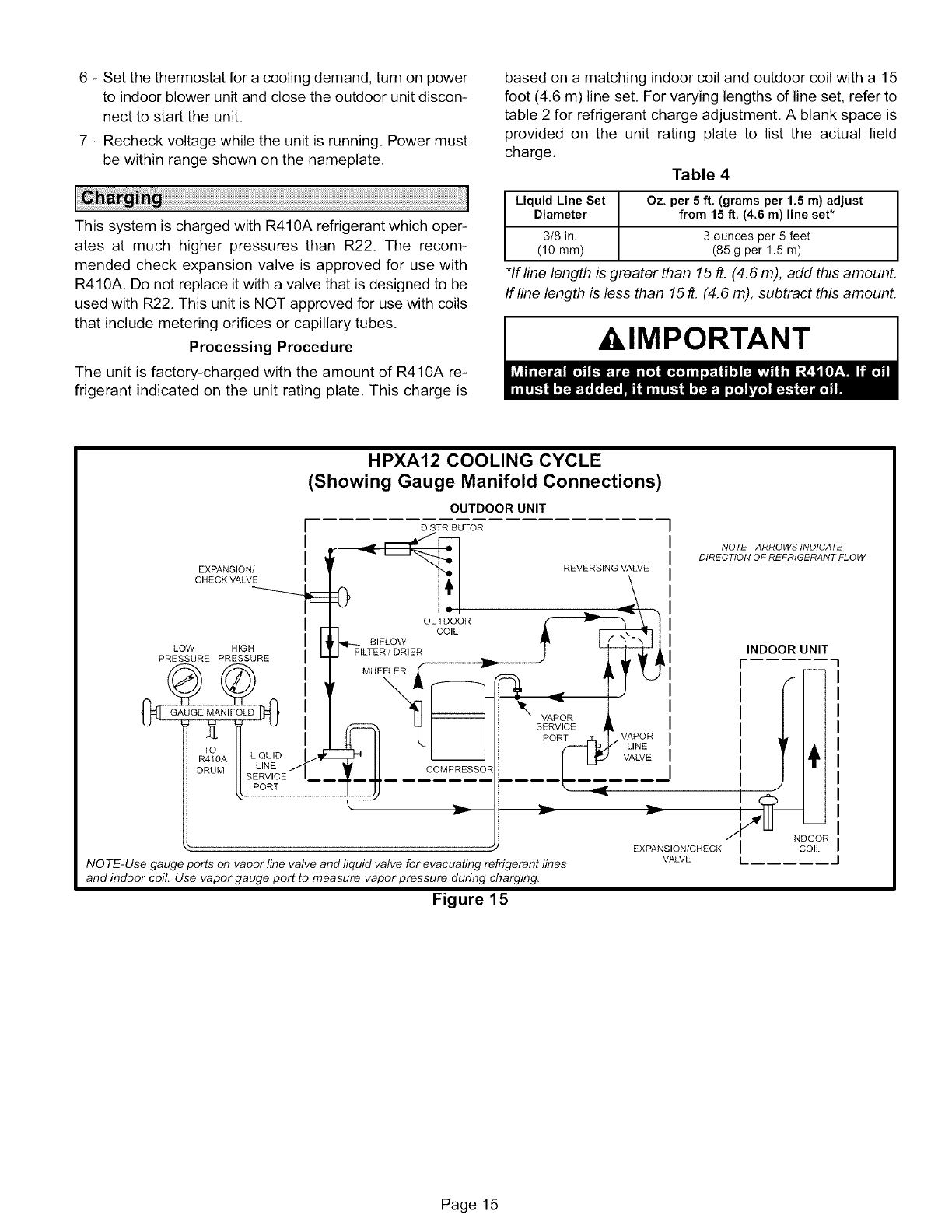

Charging .................................... 11

System Operation ............................. 14

Defrost System ............................... 15

Maintenance .................................. 18

Optional Accessories .......................... 18

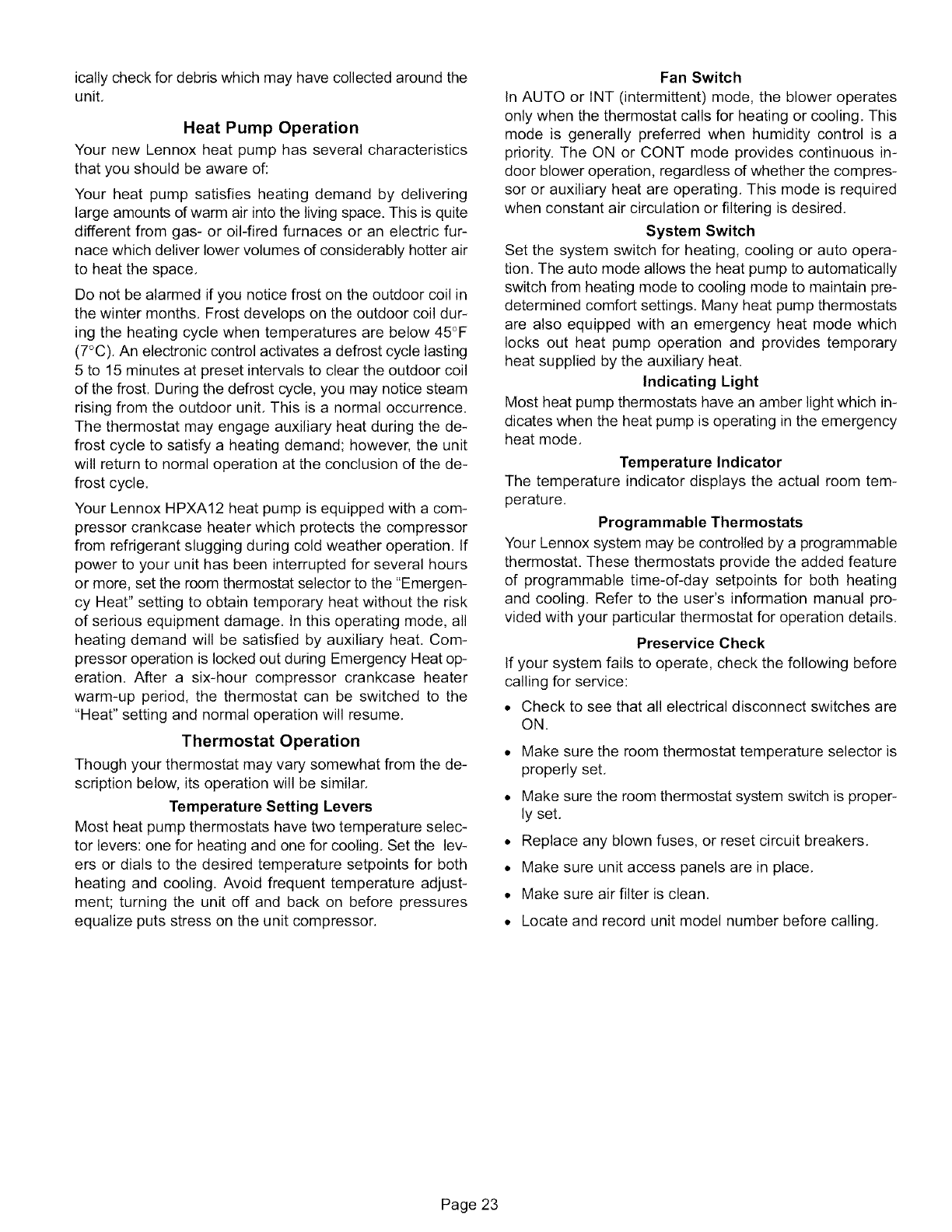

Homeowner Information ........................ 18

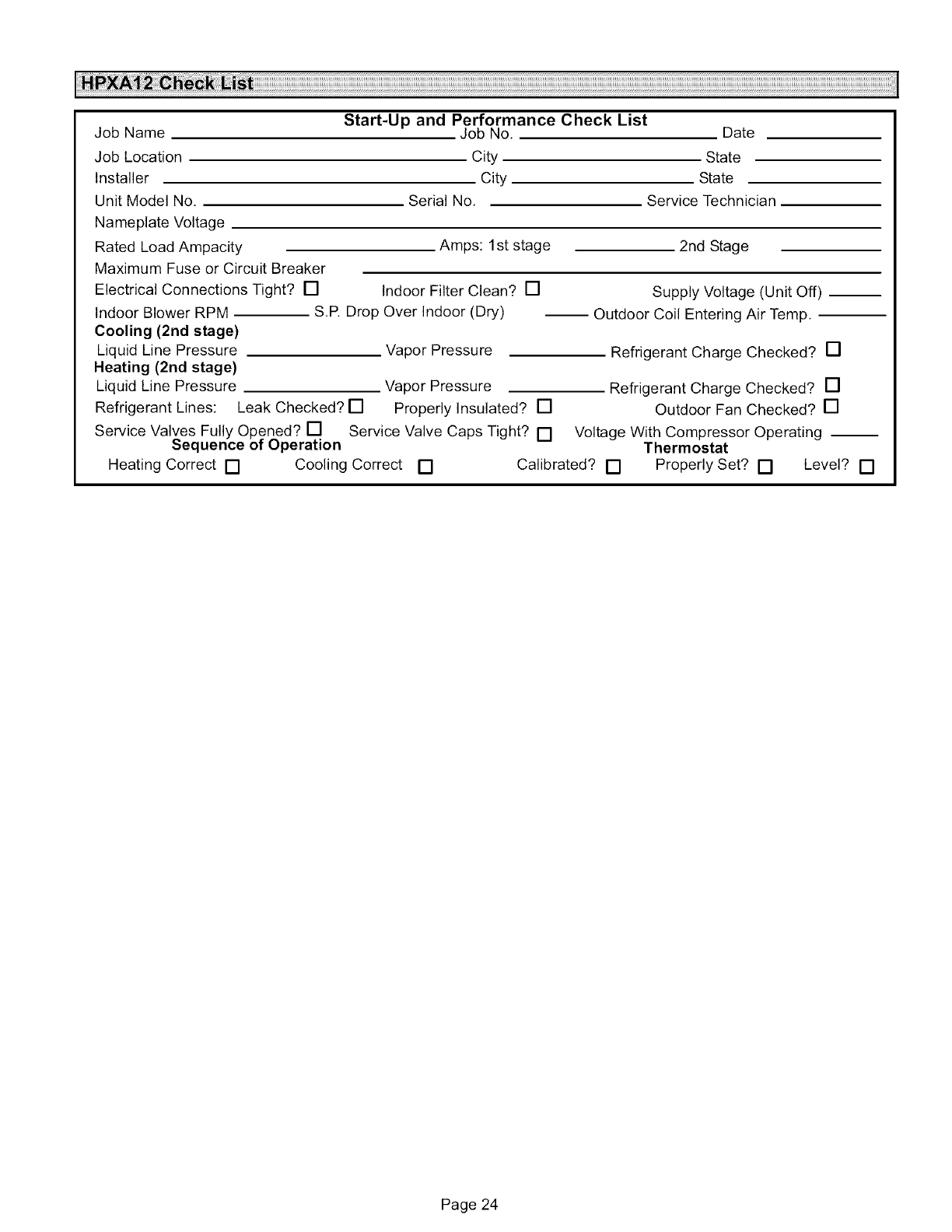

HPXA12 Check List ............................ 20

RETAIN THESE INSTRUCTIONS

FOR FUTURE REFERENCE

These instructions are intended as a general guide and do

not supersede local codes in any way, Consult authorities

having jurisdiction before installation.

1 - Assembled HPXA12 outdoor unit

Check the unit components for shipping damage. Ifyou find

any damage, immediately contact the last carrier,

,&IMPORTANT

WARNING

,&WARNING

05/04

IIIHIIIIIIIIIIIIIflll,lll,llllllf 504,777M

IIIHIIIIIIII,III,III,III,III,IIIIIIIIIIIII

INLET

AIR

INLET_N 7AIR

INLET'_ AIR

Top View

INLET

AIR

VAPOR LINE

CONNECTION

LIQUID LINE

CONNECTION

Model No.

HPXA12-018 in.

HPXA12-024

HPXA12-030

HPXA12-036 mm

HPXA12-042

HPXA12-048 in.

HPXA12-060 mm

24-1/4

616

28-1/4

718

33-1/4

845

37-1/4

946

32-1/2

826

36-1/2

927

A h..J

IIC B

Side View

_" ELECTRICAL

INLETS

OUTDOOR

COIL FAN

COMPRESSOR_

VAPOR &

LIQUID LINE

CONNECTION

2-3/4 (70)

3/74, '_

OPTIONAL UNIT

(19) STAND-OFFKIT

(Field Installed)

Side View

Page 2

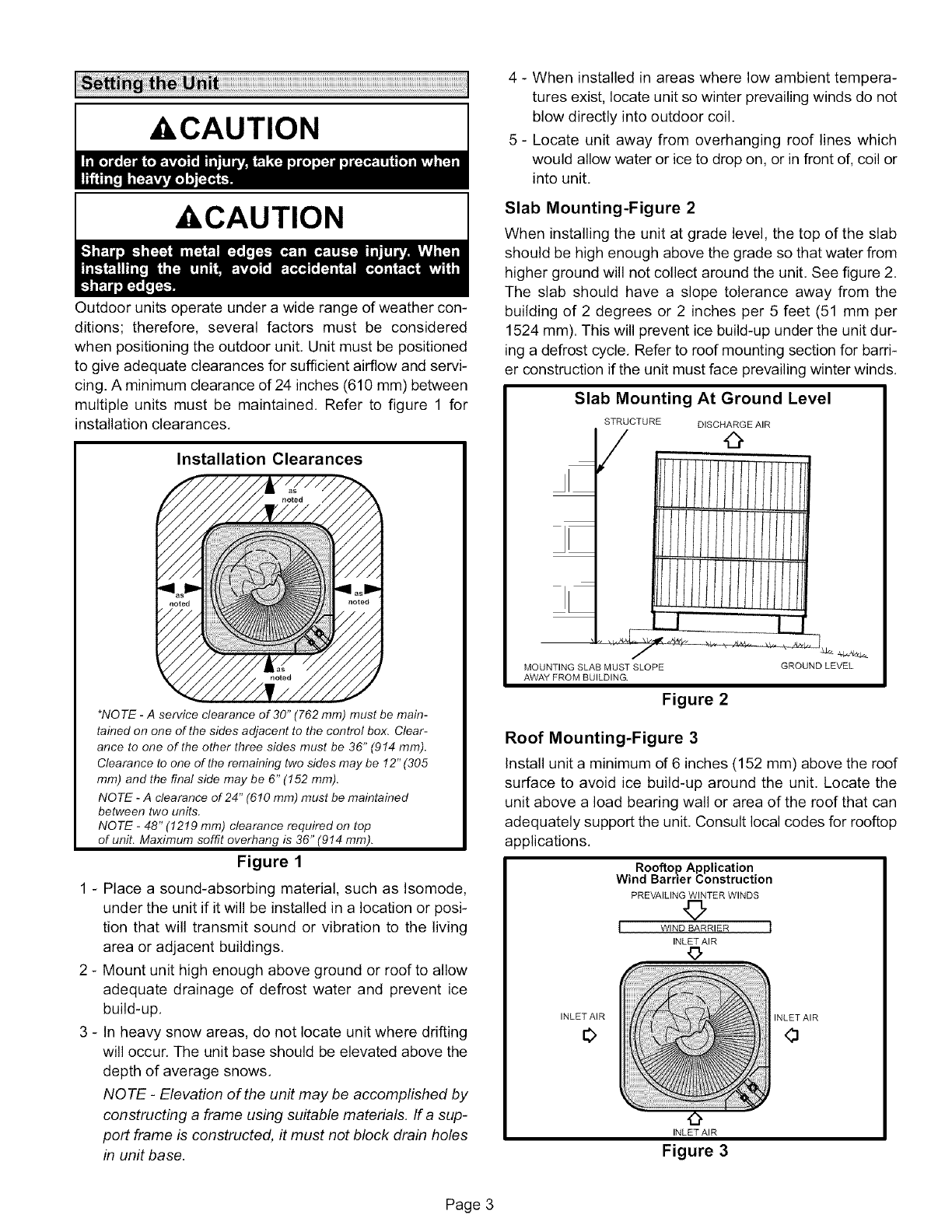

&CAUTION

Outdoor units operate under a wide range of weather con-

ditions; therefore, several factors must be considered

when positioning the outdoor unit. Unit must be positioned

to give adequate clearances for sufficient airflow and servi-

cing. A minimum clearance of 24 inches (610 mm) between

multiple units must be maintained. Refer to figure 1 for

installation clearances.

Installation Clearances

*NO TE -A service clearance of 30" (762 mm) must be main-

tained on one of the sides adjacent to the control box. Clear-

ance to one of the other three sides must be 36" (914 mm).

Clearance to one of the remaining two sides may be 12" (305

mm) and the final side may be 6" (152 mm).

NOTE -A clearance of 24" (610 mm) must be maintained

between two units.

NOTE -48" (1219 mm) clearance required on top

of unit. Maximum soffit overhang is 36" (914 mm).

Figure 1

1 - Place a sound-absorbing material, such as Isomode,

under the unit if it will be installed in a location or posi-

tion that will transmit sound or vibration to the living

area or adjacent buildings.

2 - Mount unit high enough above ground or roof to allow

adequate drainage of defrost water and prevent ice

build-up.

3 - In heavy snow areas, do not locate unit where drifting

will occur. The unit base should be elevated above the

depth of average snows.

NOTE- Elevation of the unit may be accomplished by

constructing a frame using suitable materials. Ira sup-

port frame is constructed, it must not block drain holes

in unit base.

4 - When installed in areas where low ambient tempera-

tures exist, locate unit so winter prevailing winds do not

blow directly into outdoor coil.

5 - Locate unit away from overhanging roof lines which

would allow water or ice to drop on, or in front of, coil or

into unit.

Slab Mounting-Figure 2

When installing the unit at grade level, the top of the slab

should be high enough above the grade so that water from

higher ground will not collect around the unit. See figure 2.

The slab should have a slope tolerance away from the

building of 2 degrees or 2 inches per 5 feet (51 mm per

1524 mm). This will prevent ice build-up under the unit dur-

ing a defrost cycle. Refer to roof mounting section for barri-

er construction if the unit must face prevailing winter winds.

Slab Mounting At Ground Level

STRUCTURE DISCHARGE AIR

MOUNTING SLAB MUST SLOPE

AWAY FROM BUILDING.

GROUNDLEVEL

Figure 2

Roof Mounting-Figure 3

Install unit a minimum of 6 inches (152 mm) above the roof

surface to avoid ice build-up around the unit. Locate the

unit above a load bearing wall or area of the roof that can

adequately support the unit, Consult local codes for rooftop

applications.

Rooftop Application

Wind Barrier Construction

PREVAILING WINTER WINDS

I WINDBARRIER I

INLET AIR

Figure 3

INLET AIR

Page 3

Ifunitcoilcannotbemountedawayfromprevailingwinter

winds,constructa windbarrier.Sizebarrierat leastthe

sameheightandwidthastheoutdoorunit,Mountbarrier24

inches(610mm)fromthesidesoftheunitinthedirectionof

prevailingwinds.

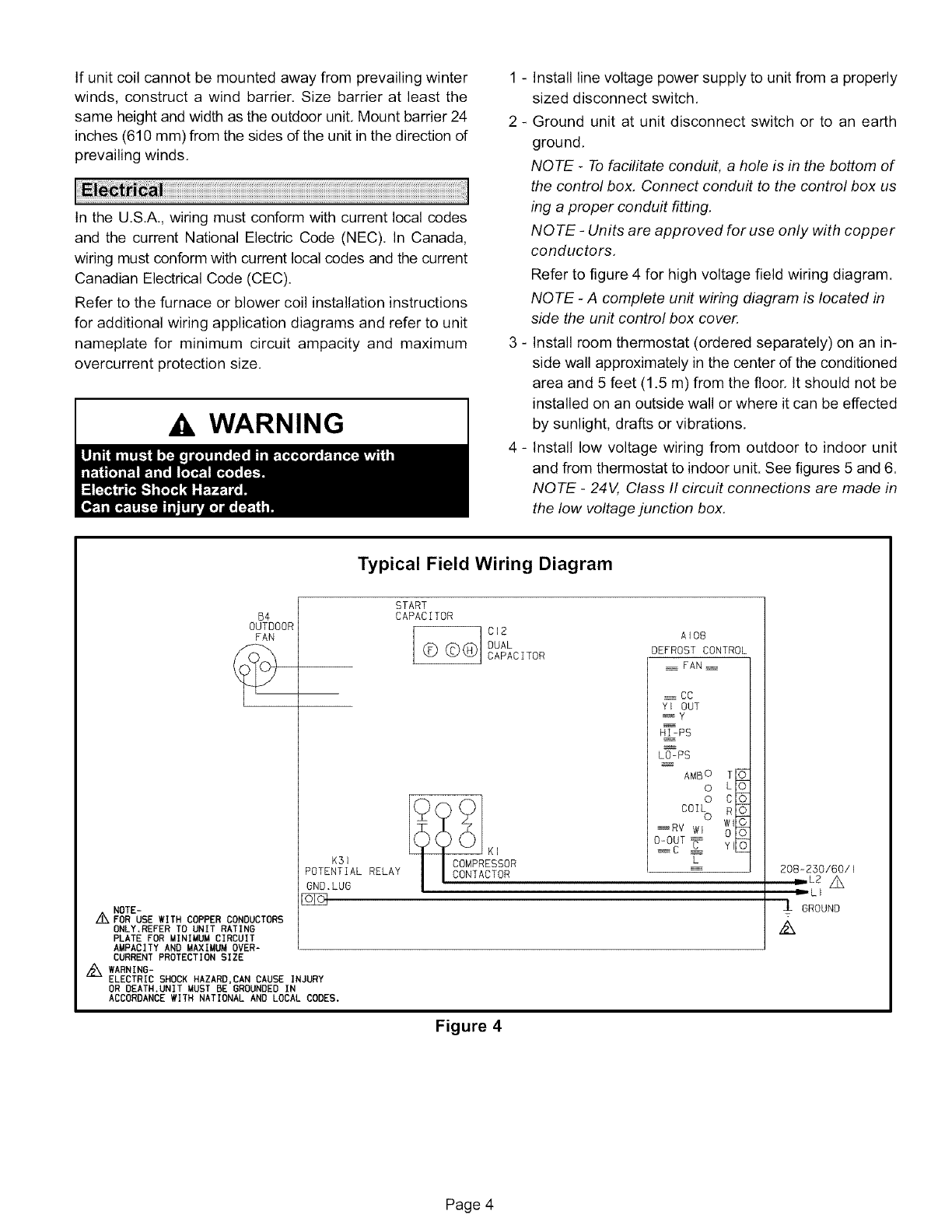

IntheU,S,A.,wiringmustconformwithcurrentlocalcodes

andthecurrentNationalElectricCode(NEC).In Canada,

wiringmustconformwithcurrentlocalcodesandthecurrent

CanadianElectricalCode(CEC).

Refertothefurnaceorblowercoilinstallationinstructions

foradditionalwiringapplicationdiagramsandrefertounit

nameplatefor minimumcircuitampacityand maximum

overcurrentprotectionsize.

WARNING

1 - Install line voltage power supply to unit from a properly

sized disconnect switch,

2 - Ground unit at unit disconnect switch or to an earth

ground,

NOTE -To facilitate conduit, a hole is in the bottom of

the control box, Connect conduit to the control box us

ing a proper conduit fitting,

NO TE -Units are approved for use only with copper

conductors,

Refer to figure 4 for high voltage field wiring diagram.

NOTE -A complete unit wiring diagram is located in

side the unit control box cover,

3 - Install room thermostat (ordered separately) on an in-

side wall approximately in the center of the conditioned

area and 5 feet (1.5 m) from the floor. It should not be

installed on an outside wall or where it can be effected

by sunlight, drafts or vibrations,

4 - Install low voltage wiring from outdoor to indoor unit

and from thermostat to indoor unit. See figures 5 and 6.

NOTE - 24V, Class II circuit connections are made in

the low voltage junction box,

Typical Field Wiring Diagram

OUTDOOR

FAN

KSI

POTENTIAL RELAY

GND.LUG

NOTE-

/_kFOR USE WITH COPPER CONDUCTORS

ONLY,REFER TO UNIT RATING

PLATE FOR MINIMUM CIRCUIT

AMPADITY AND MAXIMUM OVER-

CURRENT PROTECTION SIZE

/_ WARNING-

ELECTRIC SHOCK HAZARD,CAN CAUSE INJURY

OR DEATH.UNIT MUST BE GROUNDED IN

ACCORDANCE WITH NATIONAL AND LOCAL CODES.

START

CAPACITOR

(_ D12

@ DUAL

CAPACITOR

AI08

DEFROST CONTROL

_FAN_

Y l OUT

HI -PS

AMBO T

o L

o C

_RV WI I

O-OUT

Figure 4

208-230/60/I

m. L2 Z_

DLLI

IGROUND

Page 4

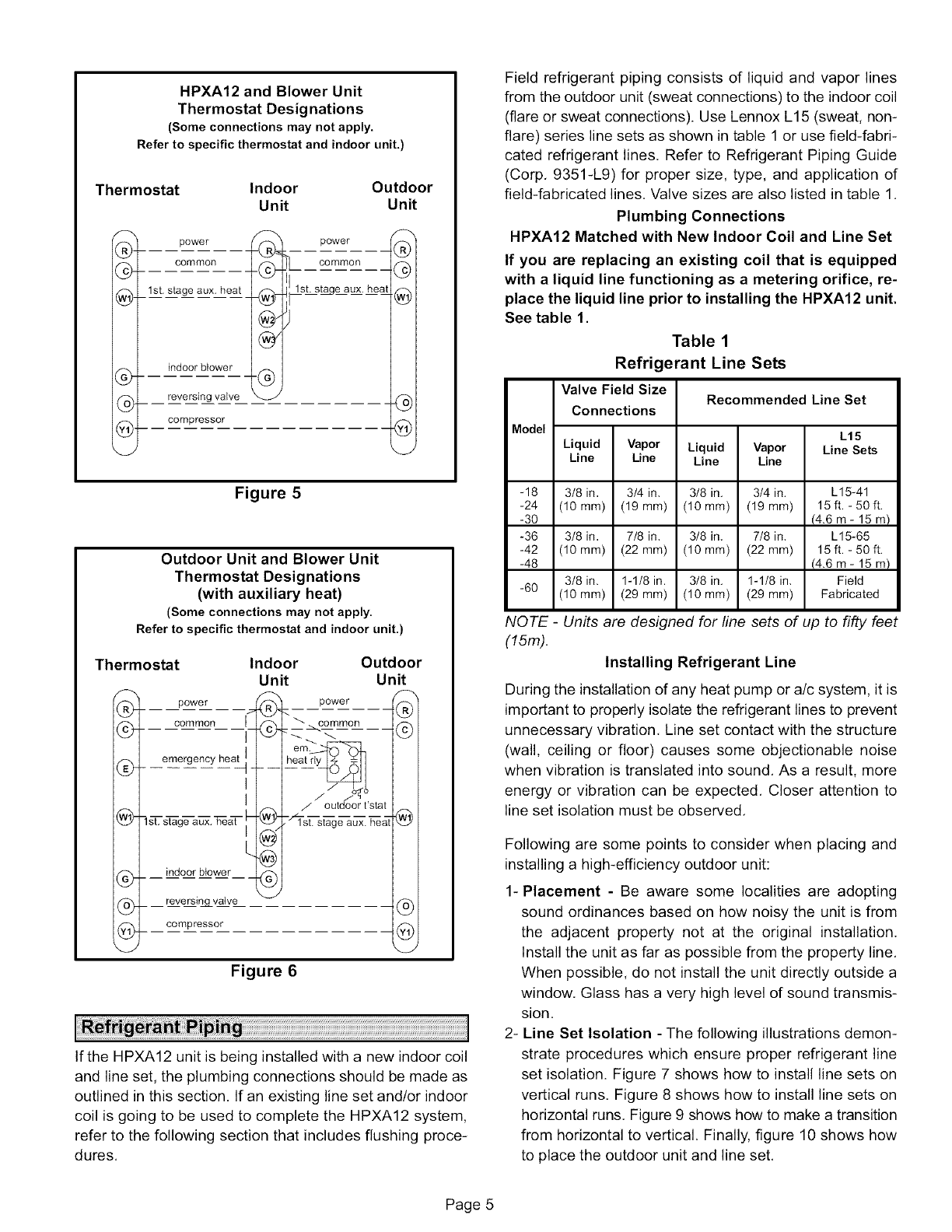

HPXA12 and Blower Unit

Thermostat Designations

(Some connections may not apply.

Refer to specific thermostat and indoor unit.)

Thermostat Indoor Outdoor

Unit Unit

®4

(b+

power __

common _(__

1st. stage aux. heat @

indoor blower -@

reversing valve

power

common

1st. stage aux. hea_t

compressor

Figure 5

Outdoor Unit and Blower Unit

Thermostat Designations

(with auxiliary heat)

(Some connections may not apply.

Refer to specific thermostat and indoor unit.)

Thermostat

_)-

power 1_

common I

emergency heat I -

1st. stage aux. 7T&aq-

indoor blower

reversinq.vatve

Indoor

Unit

__. power

he_m "_"e_ rnat _lyj_

1sTst_-g _. _at

®1

compressor

Outdoor

Unit

®1

Figure 6

If the HPXA12 unit is being installed with a new indoor coil

and line set, the plumbing connections should be made as

outlined in this section. If an existing line set and/or indoor

coil is going to be used to complete the HPXA12 system,

refer to the following section that includes flushing proce-

dures.

Field refrigerant piping consists of liquid and vapor lines

from the outdoor unit (sweat connections) to the indoor coil

(flare or sweat connections). Use Lennox L15 (sweat, non-

flare) series line sets as shown in table 1 or use field-fabri-

cated refrigerant lines, Refer to Refrigerant Piping Guide

(Corp, 9351-L9) for proper size, type, and application of

field-fabricated lines, Valve sizes are also listed in table 1.

Plumbing Connections

HPXA12 Matched with New Indoor Coil and Line Set

If you are replacing an existing coil that is equipped

with a liquid line functioning as a metering orifice, re-

place the liquid line prior to installing the HPXA12 unit.

See table 1.

Table 1

Refrigerant Line Sets

Valve Field Size Recommended Line Set

Connections

Model L15

Liquid Vapor Liquid Vapor Line Sets

Line Line Line Line

-18 3/8 in, 3/4 in, 3/8 in. 3/4 in. L15-41

-24 (10 ram) (19 ram) (10 ram) (19 ram) 15 ft. - 50 ft.

-30 (4.6 m - 15 m)

-36 3/8 in, 7/8 in, 3/8 in. 7/8 in. L15-65

-42 (10 mm) (22 ram) (10 ram) (22 ram) 15 ft. - 50 ft.

-48 (4.6 m - 15 m)

3/8 in. 1-1/8 in. 3/8 in. 1-1/8 in, Field

-60 (10 ram) (29 ram) (10 ram) (29 ram) Fabricated

NOTE -Units are designed for line sets of up to fifty feet

(15m).

Installing Refrigerant Line

During the installation of any heat pump or a/c system, it is

important to properly isolate the refrigerant lines to prevent

unnecessary vibration, Line set contact with the structure

(wall, ceiling or floor) causes some objectionable noise

when vibration is translated into sound, As a result, more

energy or vibration can be expected, Closer attention to

line set isolation must be observed,

Following are some points to consider when placing and

installing a high-efficiency outdoor unit:

1-Placement - Be aware some localities are adopting

sound ordinances based on how noisy the unit is from

the adjacent property not at the original installation.

Install the unit as far as possible from the property line,

When possible, do not install the unit directly outside a

window, Glass has a very high level of sound transmis-

sion.

2- Line Set Isolation - The following illustrations demon-

strate procedures which ensure proper refrigerant line

set isolation. Figure 7 shows how to install line sets on

vertical runs. Figure 8 shows how to install line sets on

horizontal runs, Figure 9 shows how to make a transition

from horizontal to vertical. Finally, figure 10 shows how

to place the outdoor unit and line set,

Page 5

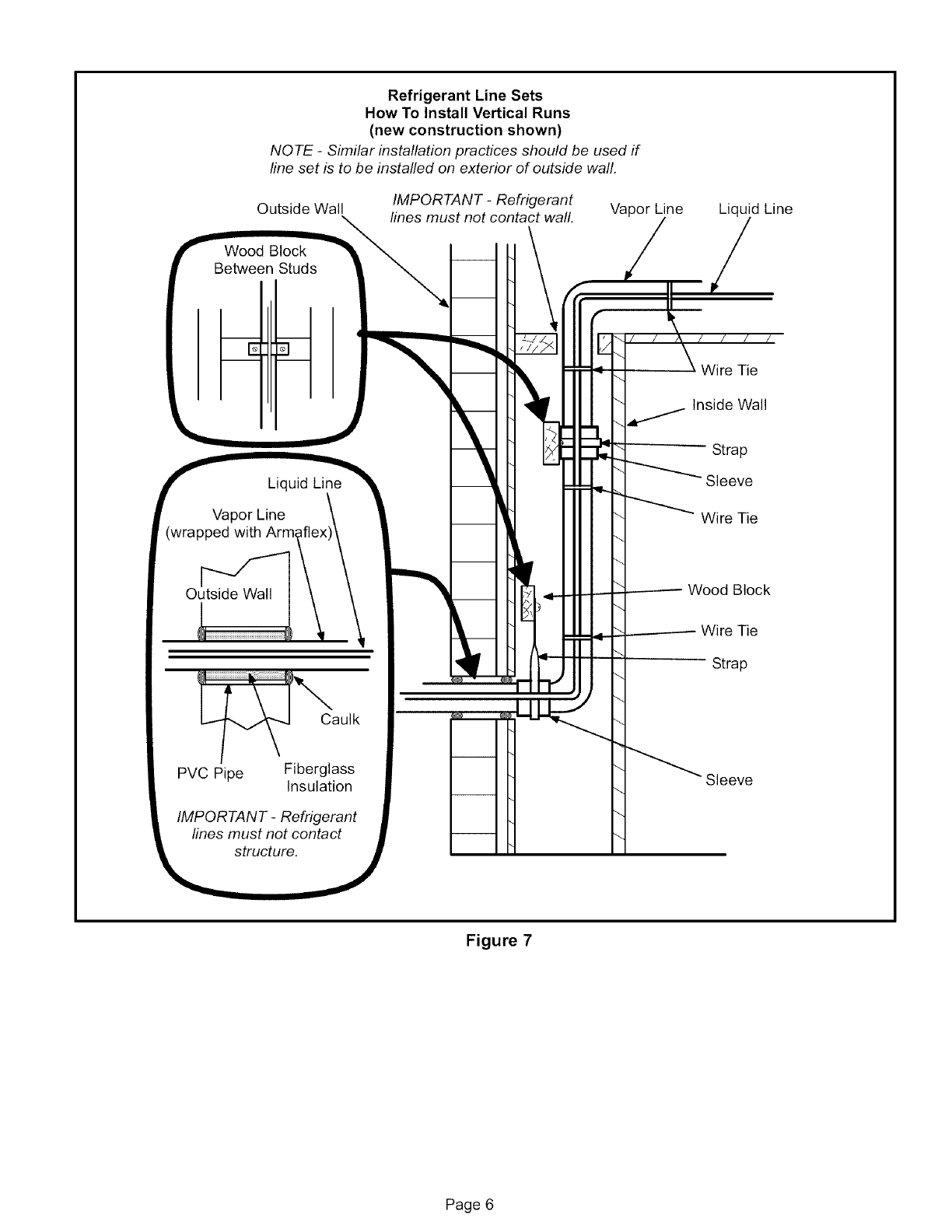

Refrigerant Line Sets

How To Install Vertical Runs

(new construction shown)

NOTE -Similar installation practices should be used if

line set is to be installed on exterior of outside waft.

Outside Wall

Wood Block

Between Studs

UquidLin2

Vapor Line

(wrapped with

Outside Wall

_Caulk

PVC Pipe Fiberglass

Insulation

IMPORTANT- Refrigerant

lines must not contact j

structure, j

IMPORTANT- Refrigerant

lines must not contact wall. Vapor Line Liquid Line

Wire Tie

\ Inside Wall

\ Strap

_ Sleeve

_- Wire Tie

--_------- Wood Block

_-.-------- Wire Tie

Strap

\_ Sleeve

Figure 7

Page 6

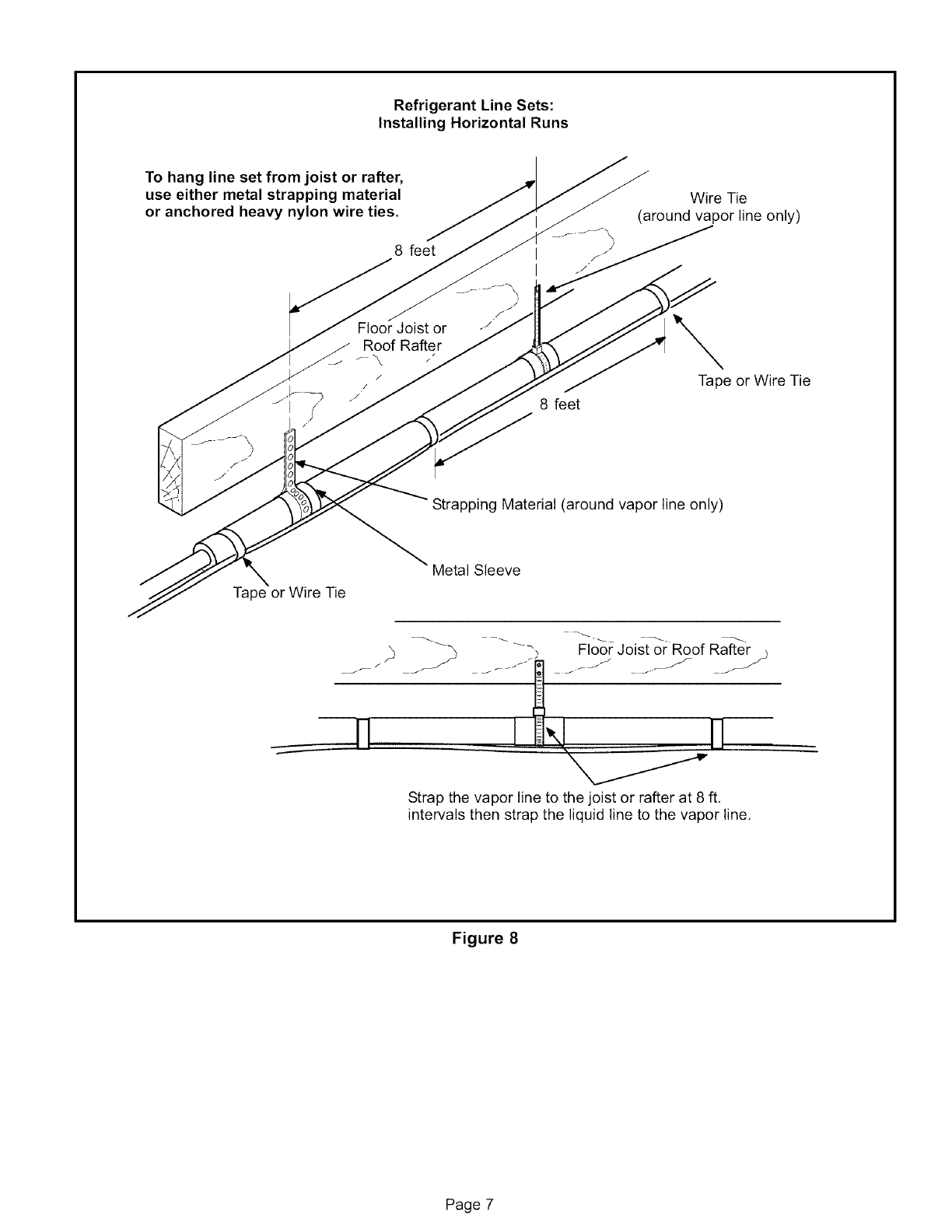

Refrigerant Line Sets:

Installing Horizontal Runs

To hang line set from joist or rafter,

use either metal strapping material

or anchored heavy nylon wire ties.

8 feet

Floor Joist or

Roof Rafter

8 feet

Wire Tie

(around vapor line only)

Tape or Wire Tie

Strapping Material (around vapor line only)

Tape or Wire Tie

Metal Sleeve

jr _ _ Floor: Joist or: Roof Rafter)

Strap the vapor line to the joist or rafter at 8 ft.

intervals then strap the liquid line to the vapor line.

Figure 8

Page 7

AnchoredHeavy

NylonWireTie

Refrigerant Line Sets:

Transition From Vertical To Horizontal

Automotive

Muffler-Type

Hanger

Wall

Stud Strap Liquid Line

To Vapor Line

Wall

Stud

Strap Liquid Line

To Vapor Line

Liquid Line

Metal

Sleeve

Vapor Line

Wrapped in

Armaflex Liquid Line

Figure 9

Metal

Sleeve

Vapor Line

Wrapped in

Armaflex

Outside Unit Placement and Installation

Install unit away from windows.

Two 90° elbows

installed in line set

will reduce line set

vibration.

Figure 10

Page 8

AWARNING AIMPORTANT

Brazing Connection Procedure

1 - Cut ends of the refrigerant lines square (free from nicks

or dents), Debur the ends, The pipe must remain

round, do not pinch end of the line,

2 - Before making line set connections, use dry nitrogen to

purge the refrigerant piping. This will help to prevent

oxidation and the introduction of moisture into the sys-

tem,

3 - Use silver alloy brazing rods (5 or 6 percent minimum

silver alloy for copper-to-copper brazing or 45 percent

silver alloy for copper-to-brass or copper-to-steel braz-

ing) which are rated for use with R410A refrigerant,

Wrap a wet cloth around the valve body and the copper

tube stub. Remove light maroon washers from service

valves and shield light maroon stickers in order to pro-

tect them during brazing, Braze the line set to the ser-

vice valve,

4 - Wrap a wet cloth around the valve body and copper

tube stub to protect it from heat damage during braz-

ing, Wrap another wet cloth underneath the valve body

to protect the base paint,

NOTE -The tube end must stay bottomed in the fitting

during final assembly to ensure proper seating, sealing

and rigidity.

5- Install a field-provided thermal expansion valve (ap-

proved for use with R410A refrigerant) in the liquid line

at the indoor coil.

AWARNING

_&CAUTION

Required Equipment

You will need the following equipment in order to flush the

existing line set and indoor coil: two clean R22 recovery

bottles, an oilless recovery machine with a pump down fea-

ture, and two sets of gauges (one for use with R22 and one

for use with the R410A).

Flushing Procedure

1 - Remove existing R22 refrigerant using the appropri-

ate procedure below.

ff the existing outdoor unit is not equipped with

shut-off valves, or if the unit is not operational

AND you plan to use the existing R22 refrigerant to

flush the system -- Disconnect all power to the exist-

ing outdoor unit. Connect the existing unit, a clean re-

covery cylinder and the recovery machine according

to the instructions provided with the recovery ma-

chine. Remove all R22 refrigerant from the existing

system. Refer to gauges after shutdown to confirm

that the entire system is completely void of refrigerant.

Disconnect the liquid and vapor lines from the existing

outdoor unit.

If the existing outdoor unit is equipped with manu-

al shut-off valves AND you plan to use NEW R22

refrigerant to flush the system -- Start the existing

R22 system in the cooling mode and close the liquid

line valve, Pump all of the existing R22 refrigerant

back into the outdoor unit, (It may be necessary to by-

pass the low pressure switches to ensure complete re-

frigerant evacuation.) When the low side system pres-

sures reach 0 psig, close the vapor line valve. Discon-

nect all power to the existing outdoor unit, Refer to

Page 9

gaugesaftershutdownto confirmthatthevalvesare

notallowingrefrigeranttoflowbackintothelowsideof

thesystem.Disconnecttheliquidandvaporlinesfrom

theexistingoutdoorunit.

2 - Removetheexistingoutdoorunit,SetthenewR410A

unitand followthe brazingconnectionprocedure

whichbeginson thepreviouspageto makelineset

connections,DO NOT install provided R410A

check/expansion valve at this time.

Make low voltage and line voltage connections to the

new outdoor unit. DO NOT turn on power to the unit

or open the outdoor unit service valves at this

time.

3 - Remove the existing refrigerant flow control orifice or

thermal expansion/check valve before continuing with

flushing procedures. The existing devices are not ap-

proved for use with R410A refrigerant and may pre-

vent proper flushing, Use a field-provided fitting to re-

connect the lines.

AIMPORTANT

EXISTING

INDOOR COIL

RECOVERY

CYLINDER

INVERTED R22

CYLINDER

(Contains clean

R22 to be used for

flushing)

EXISTING VAPOR LINE

EXISTING LIQUID LINE

Flushing Connections

SERVICE VALVE

LIQUID LINE !

SERVICE VALVE

TANK RETURN

INLET

DISCHARGE

RECOVERY MACHINE

HPXA12 UNIT

LOW HIGH

PRESSURE PRESSURE

NOTE -The inverted R22 cylin-

der must contain at least the

same amount of refrigerant as

was recovered from the existing

system.

Figure 11

Page 10

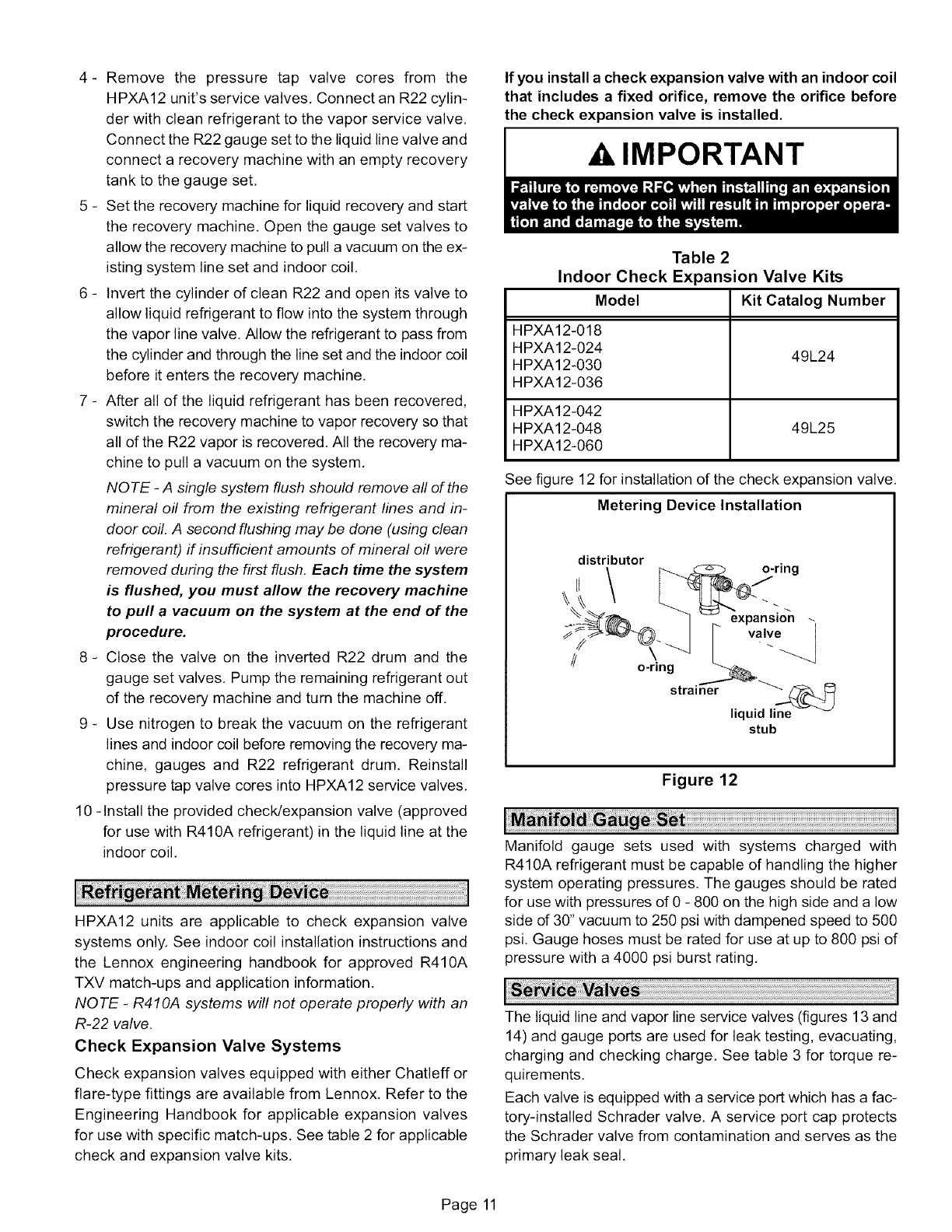

4- Removethe pressuretap valve coresfrom the

HPXA12unit'sservicevalves,ConnectanR22cylin-

derwithcleanrefrigeranttothevaporservicevalve.

ConnecttheR22gaugesettotheliquidlinevalveand

connectarecoverymachinewithanemptyrecovery

tanktothegaugeset,

5- Settherecoverymachineforliquidrecoveryandstart

therecoverymachine,Openthegaugesetvalvesto

allowtherecoverymachinetopullavacuumontheex-

istingsystemlinesetandindoorcoil,

6 - InvertthecylinderofcleanR22andopenitsvalveto

allowliquidrefrigeranttoflowintothesystemthrough

thevaporlinevalve,Allowtherefrigerantto passfrom

thecylinderandthroughthelinesetandtheindoorcoil

beforeitenterstherecoverymachine,

7- Afteralloftheliquidrefrigeranthasbeenrecovered,

switchtherecoverymachinetovaporrecoverysothat

alloftheR22vaporisrecovered,Alltherecoveryma-

chinetopullavacuumonthesystem,

NQ TE -A single system flush should remove all of the

mineral oil from the existing refrigerant lines and in-

door coil. A second flushing may be done (using clean

refrigerant) if insufficient amounts of mineral oil were

removed during the first flush. Each time the system

is flushed, you must allow the recovery machine

to pull a vacuum on the system at the end of the

procedure.

8- Close the valve on the inverted R22 drum and the

gauge set valves, Pump the remaining refrigerant out

of the recovery machine and turn the machine off,

9 - Use nitrogen to break the vacuum on the refrigerant

lines and indoor coil before removing the recovery ma-

chine, gauges and R22 refrigerant drum, Reinstall

pressure tap valve cores into HPXA12 service valves,

10-Install the provided check/expansion valve (approved

for use with R410A refrigerant) in the liquid line at the

indoor coil,

HPXA12 units are applicable to check expansion valve

systems only. See indoor coil installation instructions and

the Lennox engineering handbook for approved R410A

TXV match-ups and application information,

NOTE -R410A systems will not operate properly with an

R-22 valve.

Check Expansion Valve Systems

Check expansion valves equipped with either Chatleff or

flare-type fittings are available from Lennox, Refer to the

Engineering Handbook for applicable expansion valves

for use with specific match-ups, See table 2 for applicable

check and expansion valve kits,

If you install a check expansion valve with an indoor coil

that includes a fixed orifice, remove the orifice before

the check expansion valve is installed.

IMPORTANT

Table 2

Indoor Check Expansion Valve Kits

Model Kit Catalog Number

HPXA12-018

HPXA12-024 49L24

HPXA12-030

HPXA12-036

HPXA 12-042

HPXA12-048 49L25

HPXA12-060

See figure 12 for installation of the check expansion valve,

Metering Device Installation

distributor

o-ring

strainer

o-ring

expansion

valve _

liquid line_

stub

Figure 12

Manifold gauge sets used with systems charged with

R410A refrigerant must be capable of handling the higher

system operating pressures. The gauges should be rated

for use with pressures of 0 - 800 on the high side and a low

side d30" vacuum to 250 psi with dampened speed to 500

psi. Gauge hoses must be rated for use at up to 800 psi of

pressure with a 4000 psi burst rating,

The liquid line and vapor line service valves (figures 13 and

14) and gauge ports are used for leak testing, evacuating,

charging and checking charge, See table 3 for torque re-

quirements,

Each valve is equipped with a service port which has a fac-

tory-installed Schrader valve. A service port cap protects

the Schrader valve from contamination and serves as the

primary leak seal,

Page 11

Table 3

Torque Requirements

Part Recommended Torque

Service valve cap 8 ft.- lb. 11 NM

Sheet metal screws 16 in.- lb. 2 NM

Machine screws #10 28 in.-lb. 3 NM

Compressor bolts 90 in.- lb. 10 NM

Gauge port seal cap 8 ft.- lb. 11 NM

IMPORTANT

To Access Schrader Port:

1 - Remove service port cap with an adjustable wrench.

2 - Connect gauge to the service port.

3- When testing is completed, replace service port cap.

Tighten finger tight, then an additional 1/6 turn.

To Open Service Valve:

1 - Remove stem cap using an adjustable wrench,

2 - Use a service wrench with a hex head extension to back

the stem out counterclockwise as far as it will go,

NOTE- Use a 3/16" hex head extension for liquid line

sizes or a 5/16" extension for vapor line sizes,

3- Replace stem cap, and tighten it firmly, Tighten finger

tight, then tighten an additional 1/6 turn.

Service Valve

(Valve Closed)

serviceport _,_m

insert hex

to outdoor coil wrench here

service

port cap

cap

Schrader valve open

to line set when valve is

closed (front seated) (valve front seated)

coil

Service Valve

(Valve Open)

insert hex

wrench here \

service

port

to outdoor coil

stem cap

service port to indoor coil

cap Schrader

valve

Figure 13

Page 12

ToCloseServiceValve:

1- Removestemcapwithanadjustablewrench.

2 - Useaservicewrenchwithahexheadextensiontoturn

thestemclockwisetoseatthevalve,Tightenfirmly,

NOTE -Use a 3/16" hex head extension for liquid line

sizes or a 5/16" extension for vapor line sizes.

3- Replace stem cap. Tighten finger tight, then tighten an

additional 1/6 turn.

Bali-Type Vapor Valve

Vapor line service valves function the same way as the oth-

er valves, the difference is in the construction, These

valves are not rebuildable, If a valve has failed, you must

replace it. A ball valve valve is illustrated in figure 14,

The ball valve is equipped with a service port with a factory-

installed Schrader valve, A service port cap protects the

Schrader valve from contamination and assures a leak-

free seal,

Vapor Line (Ball Type) Service Valve

(Valve Open)

Use adjustable wrench

To open: Rotate stem counter-clockwise 90%

To close: Rotate stem clockwise 90%

to outdoor coil j_ stem cap

ste m

ball

shown open)

to indoor coil

service port

cap service port

Schrader valve

Figure 14

After the line set has been connected to the indoor and

outdoor units, check the line set connections and indoor

unit for leaks,

AWARNING

WARNING

Using an Electronic Leak Detector

1 - Connect a cylinder of R410A to the center port of the

manifold gauge set.

2 - With both manifold valves closed, open the valve on

the R410A cylinder (vapor only),

3 - Open the high pressure side of the manifold to allow

the R410A into the line set and indoor unit, Weigh in a

trace amount of R410A, [A trace amount is a maximum

of 2 ounces (57 g) or 3 pounds (31 kPa) pressure,]

Close the valve on the R410A cylinder and the valve

on the high pressure side of the manifold gauge set,

Disconnect the R410A cylinder.

4 - Connect a cylinder of nitrogen with a pressure regulat-

ing valve to the center port of the manifold gauge set,

5 - Connect the manifold gauge set high pressure hose to

the vapor valve service port. (Normally, the high pres-

sure hose is connected to the liquid line port; however,

connecting it to the vapor port better protects the man-

ifold gauge set from high pressure damage.)

6 - Adjust the nitrogen pressure to 150 psig (1034 kPa),

Open the valve on the high side of the manifold gauge

set which will pressurize line set and indoor unit,

7 - After a few minutes, open a refrigerant port to ensure

the refrigerant you added is adequate to be detected,

(Amounts of refrigerant will vary with line lengths.)

Check all joints for leaks. Purge nitrogen and R410A

mixture, Correct any leaks and recheck.

WARNING ,IMPORTANT

Page 13

Evacuatingthesystemof noncondensablesis criticalfor

properoperationoftheunit.Noncondensablesaredefined

asanygasthatwillnotcondenseundertemperaturesand

pressurespresentduringoperationofanairconditioning

system.Noncondensablesandwatervaporcombinewith

refrigeranttoproducesubstancesthatcorrodecopperpip-

ingandcompressorparts.

IMPORTANT

1 - Connect manifold gauge set to the service valve ports

as follows:

• low pressure gauge to vapor line service valve

• high pressure gauge to liquid line service valve

2 - Connect micron gauge,

3 - Connect the vacuum pump (with vacuum gauge) to the

center port of the manifold gauge set,

4-Open both manifold valves and start the vacuum

pump,

5 - Evacuate the line set and indoor unit to an absolute

pressure of 23,000 microns (29.01 inches of mercu-

ry). During the early stages of evacuation, it is desir-

able to close the manifold gauge valve at least once to

determine if there is a rapid rise in absolute pressure.

A rapid rise in pressure indicates a relatively large leak.

If this occurs, repeat the leak testing procedure,

NOTE -The term absolute pressure means the total

actual pressure within a given volume or system,

above the absolute zero of pressure. Absolute pres-

sure in a vacuum is equal to atmospheric pressure mi-

nus vacuum pressure.

6 - When the absolute pressure reaches 23,000 microns

(29.01 inches of mercury), close the manifold gauge

valves, turn off the vacuum pump and disconnect the

manifold gauge center port hose from vacuum pump.

Attach the manifold center port hose to a nitrogen cylin-

der with pressure regulator set to 150 psig (1034 kPa)

and purge the hose. Open the manifold gauge valves

to break the vacuum in the line set and indoor unit.

Close the manifold gauge valves.

AWARNING

7 - Shut off the nitrogen cylinder and remove the manifold

gauge hose from the cylinder. Open the manifold

gauge valves to release the nitrogen from the line set

and indoor unit.

8 - Reconnect the manifold gauge to the vacuum pump,

turn the pump on, and continue to evacuate the line set

and indoor unit until the absolute pressure does not

rise above 500 microns (29.9 inches of mercury) within

a 20-minute period after shutting off the vacuum pump

and closing the manifold gauge valves.

9 - When the absolute pressure requirement above has

been met, disconnect the manifold hose from the vacu-

um pump and connect it to an upright cylinder dR410A

refrigerant. Open the manifold gauge valves to break

the vacuum from 1 to 2 psig positive pressure in the line

set and indoor unit. Close manifold gauge valves and

shut off the R410A cylinder and remove the manifold

gauge set,

,& IMPORTANT

1 - Rotate fan to check for frozen bearings or binding.

2 - Inspect all factory and field-installed wiring for loose

connections.

3 - After evacuation is complete, open the liquid line and

vapor line service valves (counterclockwise) to release

refrigerant charge (contained in outdoor unit) into the

system.

4 - Replace stem caps and secure finger tight, then tight-

en an additional (1/6) one-sixth of a turn.

5- Check voltage supply at the disconnect switch. The

voltage must be within the range listed on the unit

nameplate. If not, do not start the equipment until the

power company has been consulted and the voltage

condition has been corrected.

Page 14

6 - Setthethermostatforacoolingdemand,turnonpower

toindoorblowerunitandclosetheoutdoorunitdiscon-

necttostarttheunit.

7- Recheckvoltagewhiletheunitisrunning.Powermust

bewithinrangeshownonthenameplate.

ThissystemischargedwithR410Arefrigerantwhichoper-

atesat muchhigherpressuresthan R22.Therecom-

mendedcheckexpansionvalveis approvedfor usewith

R410A.Donotreplaceitwitha valvethatisdesignedtobe

usedwithR22.ThisunitisNOTapprovedforusewithcoils

thatincludemeteringorificesorcapillarytubes.

Processing Procedure

The unit is factory-charged with the amount of R410A re-

frigerant indicated on the unit rating plate. This charge is

based on a matching indoor coil and outdoor coil with a 15

foot (4.6 m) line set. For varying lengths of line set, refer to

table 2 for refrigerant charge adjustment. A blank space is

provided on the unit rating plate to list the actual field

charge.

Table 4

Liquid Line Set Oz. per 5 ft. (grams per 1.5 m) adjust

Diameter from 15 ft. (4.6 m) line set*

3/8 in, 3 ounces per 5 feet

(10 ram) (85 g per 1.5 m)

*If line length is ,mater than 15 ft. (4.6 m), add this amount.

If line length is less than 15 ft. (4.6 m), subtract this amount.

,IMPORTANT

HPXA12 COOLING CYCLE

(Showing Gauge Manifold Connections)

OUTDOOR UNIT

r DISTRIBUTOR

EXPANSION/ REVERSING VALVE

CHECK VALVE__

OUT ,COR

,I I$1"*-- BIFLOW

LOW HIGH FILTER /DRIER

PRESSURE PRESSURE ILid

_ I I MOFFLERI"%

0:(IGA_UGE_A_ I10 SERVICEpoRT

_°OAHLIQUIDI..._E:::;H II_H

c° ss°ll

NOTE-Use gauge ports on vapor line valve and fiquid valve for evacuating refrigerant lines

and indoor coil. Use vapor gauge port to measure vapor pressure during charging.

NOTE - ARROWS INDICATE

DIRECTION OF REFRIGERANT FLOW

INDOOR UNIT

EXPANSION/CHECK

VALVE

OOR

I COIL

Figure 15

Page 15

Theoutdoorunitshouldbechargedduringwarmweather.

However,applicationsariseinwhichchargingmustoccur

inthe coldermonths.The method of charging is deter-

mined by the unit's refrigerant metering device and the

outdoor ambient temperature.

Measure the liquid line temperature and the outdoor ambi-

ent temperature as outlined below:

1 - Connect the manifold gauge set to the service valves:

• low pressure gauge to vapor valve service port

• high pressure gauge to liquid valve service port

Close manifold gauge set valves. Connect the center

manifold hose to an upright cylinder of R410A. See fig-

ure 15.

2 - Set the room thermostat to call for heat. This will create

the necessary load for properly charging the system in

the cooling cycle.

3 - Use a digital thermometer to record the outdoor ambi-

ent temperature.

4 - When the heating demand has been satisfied, switch

the thermostat to cooling mode with a set point of 68_F

(20_%). When pressures have stabilized, use a digital

thermometer to record the liquid line temperature.

5 - The outdoor temperature will determine which charg-

ing method to use. Proceed with the appropriate charg-

ing procedure.

Weighing in the Charge TXV Systems-

Outdoor Temp < 65°F (18°C)

If the system is void of refrigerant, or if the outdoor ambient

temperature is cool, the refrigerant charge should be

weighed into the unit. Do this after any leaks have been re-

paired.

1 - Recover the refrigerant from the unit.

2- Conduct a leak check, then evacuate as previously

outlined.

3 - Weigh in the unit nameplate charge.

If weighing facilities are not available or if you are charging

the unit during warm weather, follow one of the other proce-

dures outlined below.

Subcooling Method

Outdoor Temp. < 65°F (18°C)

When the outdoor ambient temperature is below 65°F

(18°C), use the subcooling method to charge the unit. It

may be necessary to restrict the air flow through the out-

door coil to achieve pressures in the 325-375 psig

(2240-2585 kPa) range. These higher pressures are nec-

essary for checking the charge. Block equal sections of air

intake panels and move obstructions sideways until the liq-

uid pressure is in the 325-375 psig (2240-2585 kPa) range.

See figure 16.

Blocking Outdoor Coil

*Outdoor coil should be

blocked one side

at a time with cardboard

or plastic sheet until proper

testing pressures

are reached.

cardboard or *four-sided

plastic sheet unit shown

Figure 16

1 - With the manifold gauge hose still on the liquid service

port and the unit operating stably, use a digital ther-

mometer to record the liquid line temperature.

2 - At the same time, record the liquid line pressure reading.

3 - Read the liquid line pressure from the gauge and convert

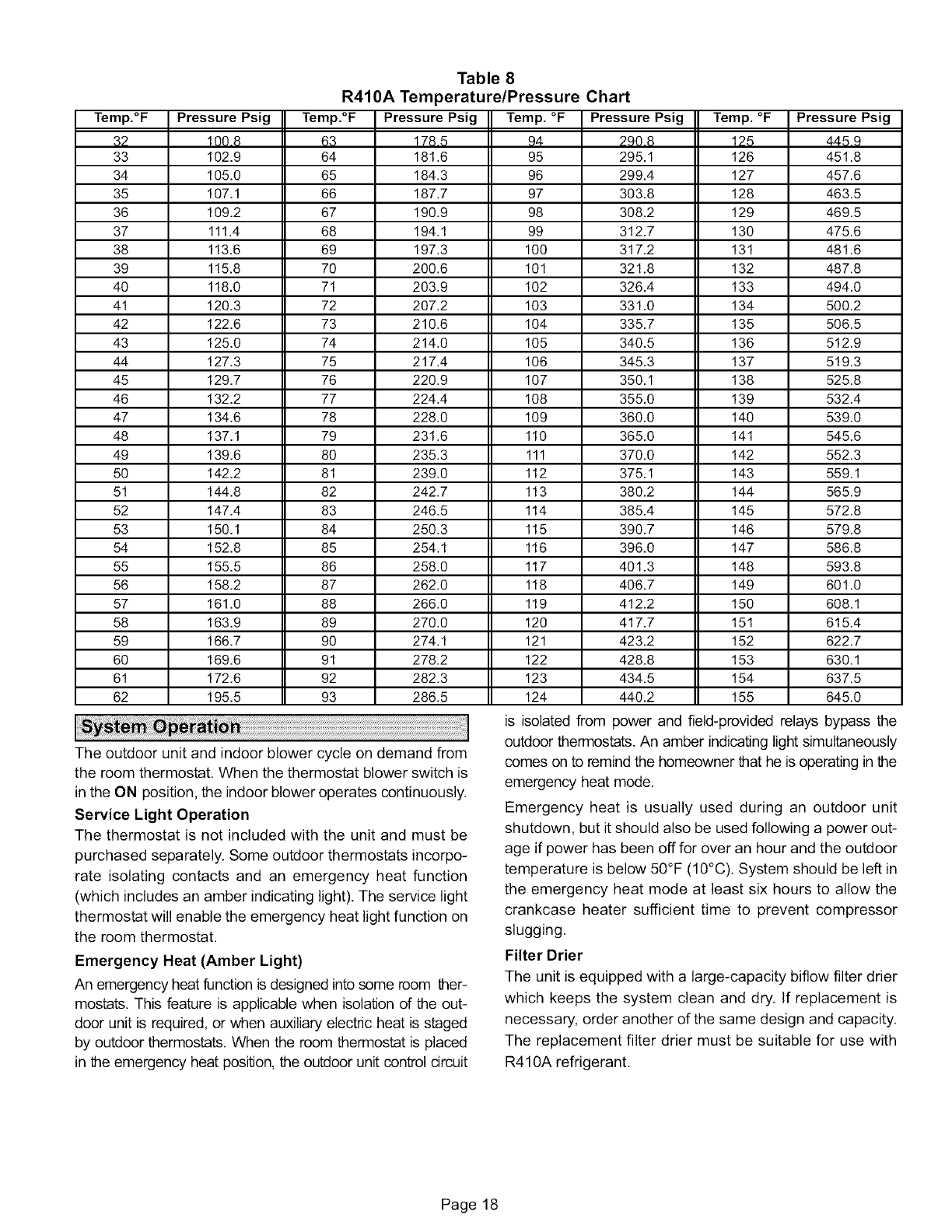

it to heat pump temperature using the temperature/pres-

sure chart for R410A refrigerant provided in table 8,

4 - Subtract the liquid line temperature from the saturation

temperature (according to the chart) to determine sub-

cooling. (Saturation temperature - Liquid line tem-

perature = Subcooling)

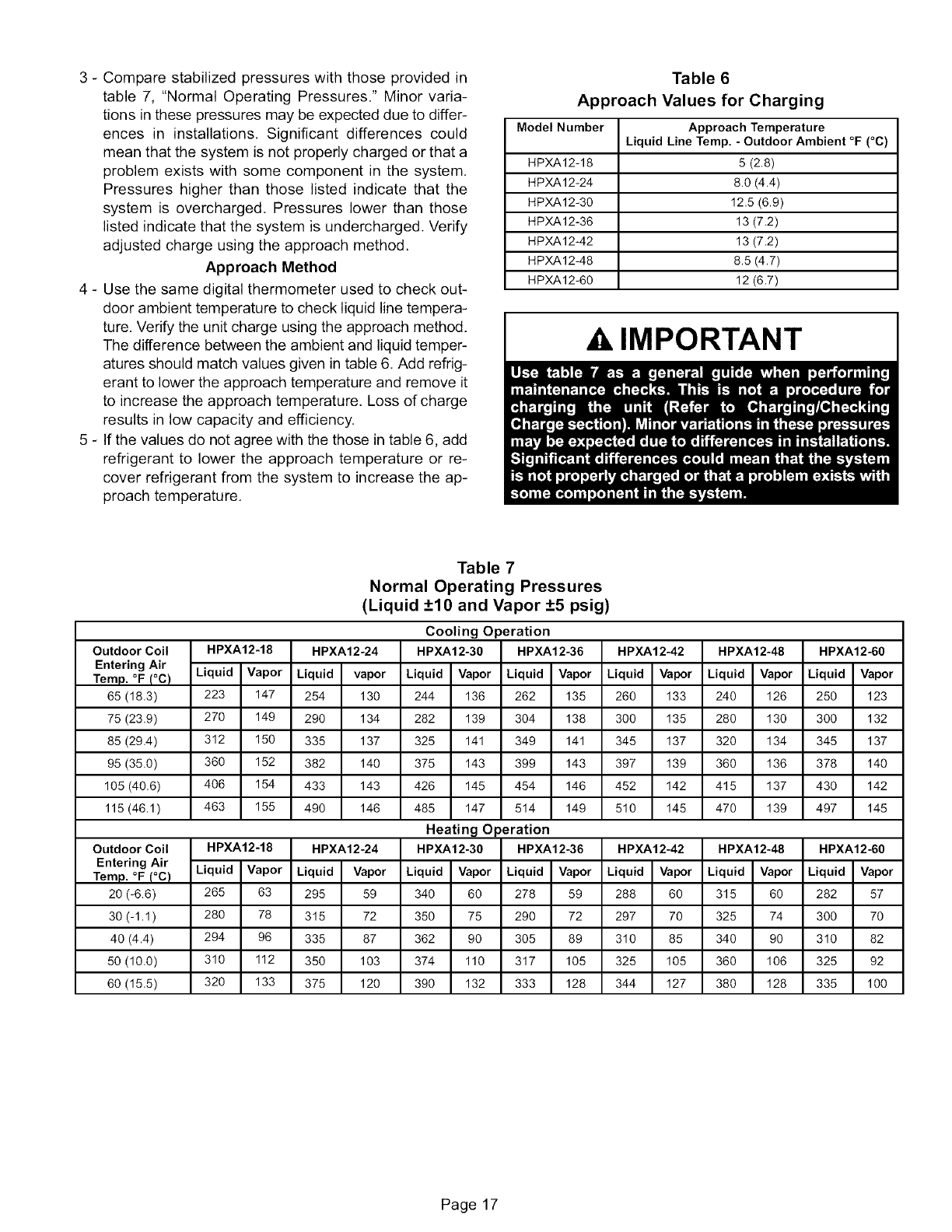

5 - Compare the subcooling value with those in table 5, If

subcooling is greater than shown, recover some refrig-

erant. If subcooling is less than shown, add some re-

frigerant, Some R410A cylinders are equipped with

a dip tube which allows you to draw liquid refriger-

ant from the bottom of the cylinder without turning

the cylinder upside-down. The cylinder will be

marked if it is equipped with a dip tube.

Table 5

Subcooling Values for Charging

Model Number Subcooling Values

Conversion Temp. - Liquid Line Temp. °F (°C)

HPXA12-18 85 (4.7)

HPXA12-24 125 (6.9)

HPXA12-30 5.5 (3.1)

HPXA12-36 8.5 (4.7)

HPXA12-42 8.5 (4.7)

HPXA12-48 7 (3.9)

HPXA12-60 7 (3.9)

Charging Using Normal Operating Pressures

and the Approach Method

Outdoor Temp. >_65°F (18°C)

The following procedure is intended as a general guide and

is for use on expansion valve systems only. For best results,

indoor temperature should be 70°F (21°C) to 80°F (26°C).

Monitor system pressures while charging.

1 - Record outdoor ambient temperature using a digital

thermometer.

2 - Attach high pressure gauge set and operate unit for

several minutes to allow system pressures to stabilize.

Page 16

3- Comparestabilizedpressureswiththoseprovidedin

table7, "NormalOperatingPressures."Minorvaria-

tionsinthesepressuresmaybeexpectedduetodiffer-

encesin installations,Significantdifferencescould

meanthatthesystemisnotproperlychargedorthata

problemexistswithsomecomponentinthesystem.

Pressureshigherthanthoselistedindicatethatthe

systemis overcharged.Pressureslowerthanthose

listedindicatethatthesystemisundercharged.Verify

adjustedchargeusingtheapproachmethod.

ApproachMethod

4 - Usethesamedigitalthermometerusedtocheckout-

doorambienttemperaturetocheckliquidlinetempera-

ture.Verifytheunitchargeusingtheapproachmethod.

Thedifferencebetweentheambientandliquidtemper-

aturesshouldmatchvaluesgivenintable6.Addrefrig-

eranttolowertheapproachtemperatureandremoveit

toincreasetheapproachtemperature,Lossofcharge

resultsinlowcapacityandefficiency.

5- Ifthevaluesdonotagreewiththethoseintable6,add

refrigerantto lowertheapproachtemperatureor re-

coverrefrigerantfromthesystemto increasetheap-

proachtemperature.

Table 6

Approach Values for Charging

Model Number Approach Temperature

Liquid Line Temp. -Outdoor Ambient °F (°C)

HPXA12-18 5 (2.8)

HPXA12-24 8.0 (4.4)

HPXA12-30 12.5 (6.9)

HPXA12-36 13 (7.2)

HPXA12-42 13 (7.2)

HPXA12-48 8.5 (4.7)

HPXA12-60 12 (6.7)

AIMPORTANT

Table 7

Normal Operating Pressures

(Liquid +10 and Vapor +5 psig)

Cooling Operation

Outdoor Coil HPXA12-18 HPXA12-24 HPXA12-30 HPXA12-36 HPXA12-42 HPXA12-48 HPXA12-60

Entering Air Liquid Vapor Liquid vapor Liquid Vapor Liquid Vapor Liquid Vapor Liquid Vapor Liquid Vapor

Temp. °F (°C)

65 (18.3) 223 147 254 130 244 136 262 135 260 133 240 126 250 123

75 (23.9) 270 149 290 134 282 139 304 138 300 135 280 130 300 132

85 (29.4) 312 150 335 137 325 141 349 141 345 137 320 134 345 137

95 (35.0) 360 152 382 140 375 143 399 143 397 139 360 136 378 140

105 (40.6) 406 154 433 143 426 145 454 146 452 142 415 137 430 142

115 (46.1) 463 155 490 146 485 147 514 149 510 145 470 139 497 145

Heating Operation

Outdoor Coil HPXA12-18 HPXA12-24 HPXA12-30 HPXA12-36 HPXA12-42 HPXA12-48 HPXA12-60

Entering Air

Temp. °F (°C) Liquid Vapor Liquid Vapor Liquid Vapor Liquid Vapor Liquid Vapor Liquid Vapor Liquid Vapor

20 (-6.6) 265 63 295 59 340 60 278 59 288 60 315 60 282 57

30 (-1.1) 280 78 315 72 350 75 290 72 297 70 325 74 300 70

40 (4.4) 294 96 335 87 362 90 305 89 310 85 340 90 310 82

50 (10.0) 310 112 350 103 374 110 317 105 325 105 360 106 325 92

60 (15.5) 320 133 375 120 390 132 333 128 344 127 380 128 335 100

Page 17

Temp.°F

Pressure Psig

100.8

102.9

105.0

107.1

109.2

111.4

113.6

115.8

118.0

120.3

122.6

125.0

127.3

129.7

132.2

134.6

137.1

139.6

142.2

144.8

147.4

150.1

152.8

155.5

158.2

161.0

163.9

166.7

169.6

172.6

195.5

Table 8

R410A Temperature/Pressure Chart

Temp.°F Pressure Psig Temp. °F Pressure Psig Temp.

178.5

181.6

184.3

187.7

190.9

194.1

197.3

200.6

203.9

207.2

210.6

214.0

217.4

220.9

224.4

228.0

231.6

235.3

239.0

242.7

246.5

250.3

254.1

258.0

262.0

266.0

270.0

274.1

278.2

282.3

286.5

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

290.8 125

295.1 126

299.4 127

303.8 128

308.2 129

312.7 130

317.2 131

321.8 132

326.4 133

331.0 134

335.7 135

340.5 136

345.3 137

350.1 138

355.0 139

360.0 140

365.0 141

370.0 142

375.1 143

380.2 144

385.4 145

390.7 146

396.0 147

401.3 148

406.7 149

412.2 150

417.7 151

423.2 152

428.8 153

434.5 154

440.2 155

°F Pressure Psig

445.9

451.8

457.6

463.5

469.5

475.6

481.6

487.8

494.0

500.2

506.5

512.9

519.3

525.8

532.4

539.0

545.6

552.3

559.1

565.9

572.8

579.8

586.8

593.8

601.0

608.1

615.4

622.7

630.1

637.5

645.0

is isolated from power and field-provided relays bypass the

outdoor thermostats, An amber indicating light simultaneously

The outdoor unit and indoor blower cycle on demand from

the room thermostat. When the thermostat blower switch is

in the ON position, the indoor blower operates continuously.

Service Light Operation

The thermostat is not included with the unit and must be

purchased separately, Some outdoor thermostats incorpo-

rate isolating contacts and an emergency heat function

(which includes an amber indicating light). The service light

thermostat will enable the emergency heat light function on

the room thermostat,

Emergency Heat (Amber Light)

An emergency heat function is designed into some room ther-

mostats. This feature is applicable when isolation of the out-

door unit is required, or when auxiliary electric heat is staged

by outdoor thermostats, When the room thermostat is placed

in the emergency heat position, the outdoor unit control circuit

comes on to remind the homeowner that he is operating in the

emergency heat mode,

Emergency heat is usually used during an outdoor unit

shutdown, but it should also be used following a power out-

age if power has been off for over an hour and the outdoor

temperature is below 50°F (10°C). System should be left in

the emergency heat mode at least six hours to allow the

crankcase heater sufficient time to prevent compressor

slugging,

Filter Brier

The unit is equipped with a large-capacity biflow filter drier

which keeps the system clean and dry, If replacement is

necessary, order another of the same design and capacity,

The replacement filter drier must be suitable for use with

R410A refrigerant,

Page 18

LowPressureSwitch

TheHPXA12isequippedwithanauto-resetlowpressure

switchwhichislocatedonthevaporline.Theswitchshuts

offthecompressorwhenthevaporpressurefallsbelowthe

factorysetting.Thisswitchisignoredduringdefrostopera-

tionandwhentheoutdoortemperaturegoesbelow15°F.

Theswitchcloseswhenitisexposedto60psigandopens

at25psig,Itisnotadjustable,

HighPressureSwitch

TheHPXA12isequippedwithanauto-resethighpressure

switch(single-pole,single-throw)whichislocatedonthe

liquidline,Theswitchshutsoffthecompressorwhendis-

chargepressurerisesabovethefactorysetting.Theswitch

is normallyclosedand is permanentlyadjustedto trip

(open)at640+ 10psig(4412+69kPa).

NOTE -A Schrader core is under the pressure switches.

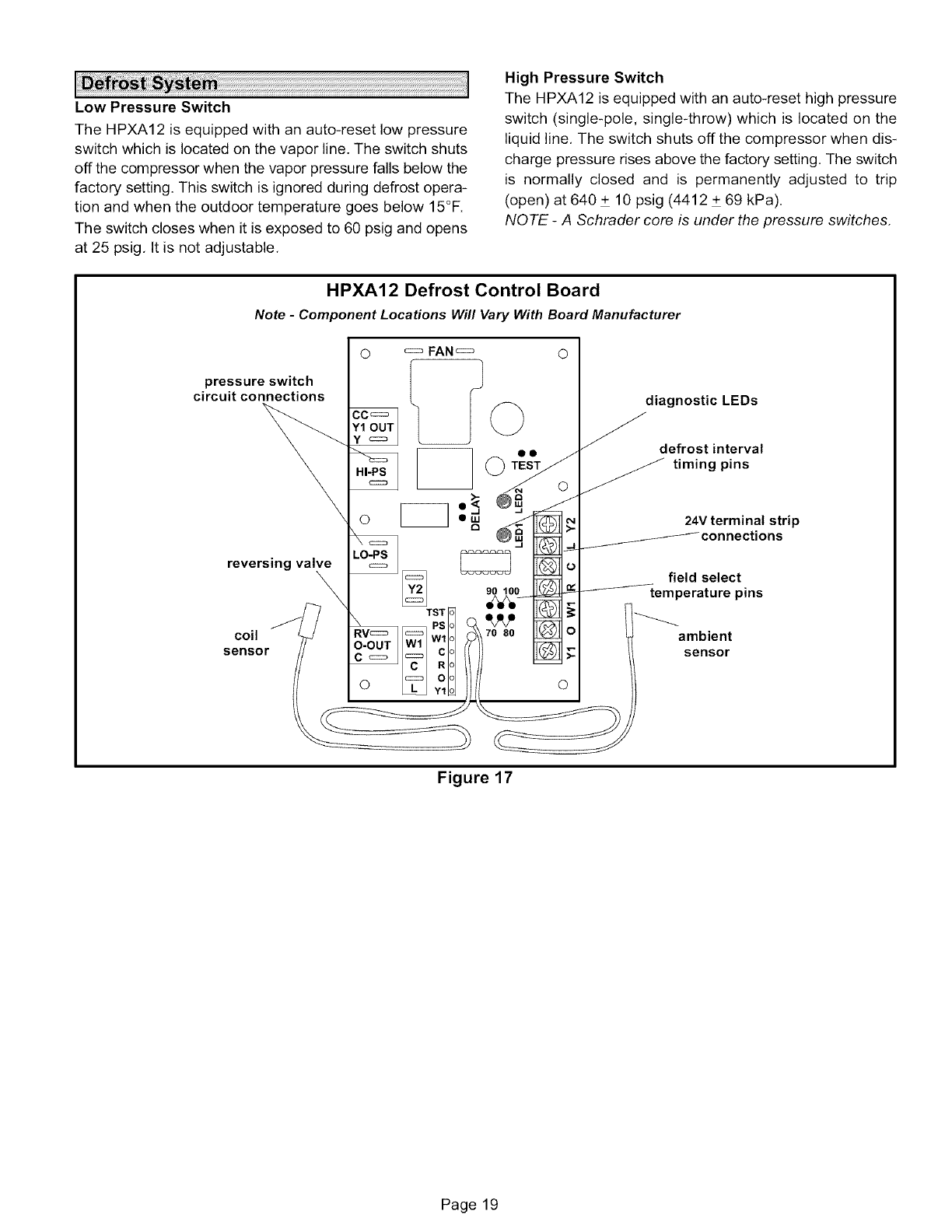

HPXA12 Defrost Control Board

Note -Component Locations Will Vary With Board Manufacturer

Figure 17

Page 19

Demand Defrost System

The demand defrost controller uses basic differential tem-

perature means to detect when the system performs poor-

ly because of ice build-up on the outdoor coil. The control-

ler also uses "self-calibrating" principles to calibrate itself

when the system starts and after every time the system

defrosts. The control board has the following compo-

nents: defrost relays, anti-short cycle timed-off control,

pressure switch/safety control, 5-trip lockout circuit,

manufacturing test mode, ambient and coil temperature

sensors, field selectable termination temperature pins, and

a field low voltage connection terminal strip. See figure 17.

The control monitors ambient temperature, outdoor coil

temperature and total run time to determine when a de-

frost cycle is required. Two temperature probes are per-

manently attached to the control. The coil temperature

probe is designed with a spring clip to allow mounting to

the outside coil tubing. The location of the coil sensor is

important for proper defrost operation.

NOTE -The logic of the demand defrost board accurately

measures the performance of the system as frost accumu-

lates on the outdoor coil. This typically will translate into

longer running time between defrost cycles as more frost

accumulates on the outdoor coil before the board initiates

defrost cycles.

The temperature probes cannot be removed from the con-

trol. The control and the attached probes MUST be re-

placed as a unit. Do not attempt to cut or splice probe wires.

Diagnostic LEDs

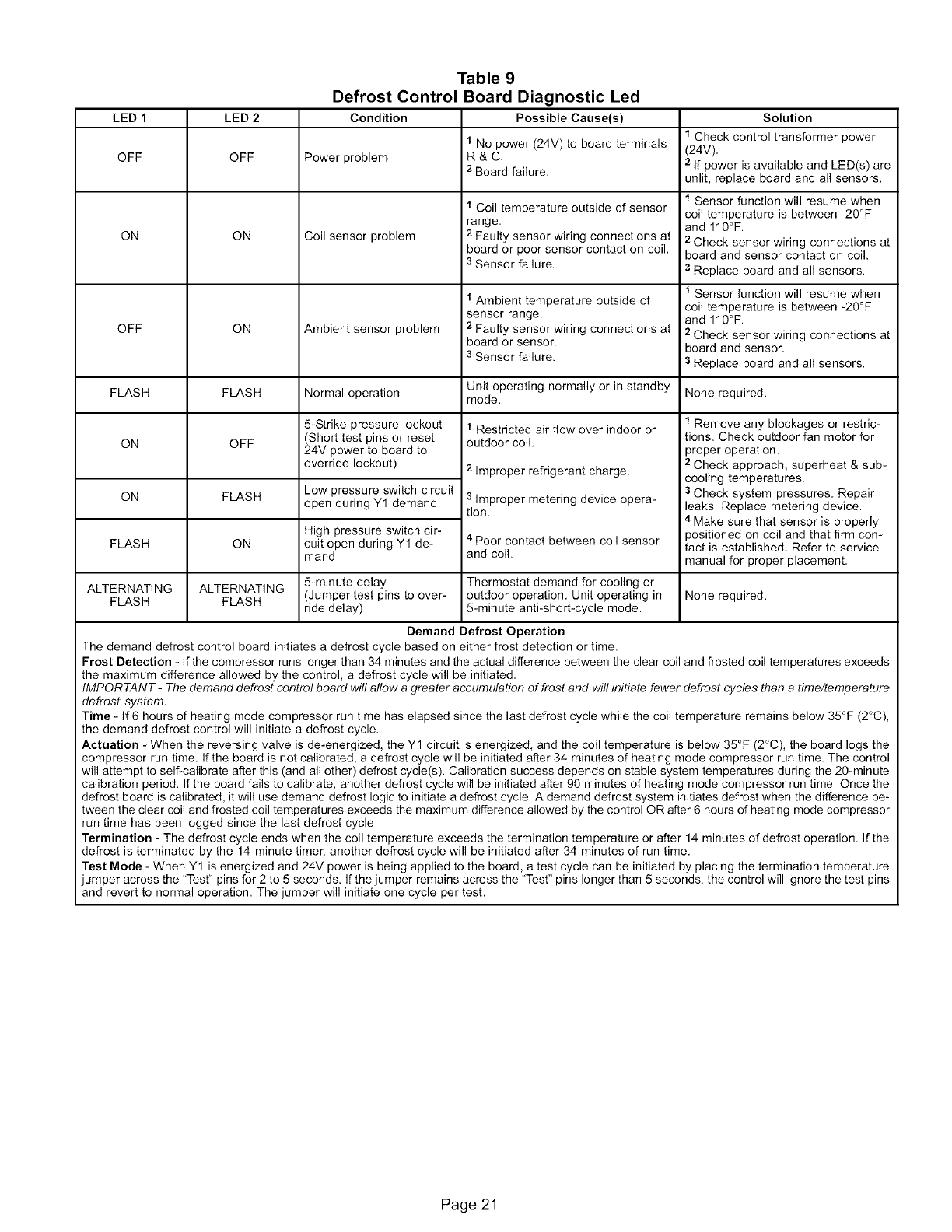

The defrost board uses two LEDs for diagnostics. The

LEDs flash a specific sequence according to the diagnos-

tic condition, See table 9,

HI-PS/LO-PS Terminals

The unit's automatic reset pressure switches are wired to

the PS terminals. The high-pressure switch is factory

wired to the HI-PS terminal, and the low-pressure switch

is factory-wired to LO-PS terminal.

The path between Y1 (input) and Y1 Out is interlocked

through the pressure switches. When one of the pressure

switches trip, the board will cycle off the compressor and

the 5-strike counter in the board will count one strike.

5-Strike Lockout Feature

• The internal control logic of the board counts the pres-

sure switch trips only while the Y1 (Input) line is active, If

a pressure switch opens and closes twice during a Y1

(Input), the control logic will reset the pressure switch

trip counter to zero at the end of the Y1 (Input), If the

pressure switch opens for a fifth time during the current

Y1 (Input), the control will enter a lockout condition,

• The 5-strike pressure switch lockout condition can be

reset by cycling OFF the 24-volt power to the control

board or by shorting the TEST pins, All timer functions

(run times) will also be reset,

• If a pressure switch opens while the Y1 Out line is en-

gaged, a 5-minute short cycle will occur after the switch

closes,

Delay Mode

The defrost board has a field-selectable function to reduce

occasional sounds that may occur while the unit is cycling

in and out of the defrost mode. When a jumper is installed

on the DELAY pins, the compressor will be cycled off for 30

seconds going in and out of the defrost mode, Units are

shipped with jumper installed on DELAY pins.

NOTE -The 30 second off cycle is not functional when jum-

pering the TEST pins.

Operational Description

The defrost control board has three basic operational

modes: normal, defrost, and calibration,

Normal Mode

The demand defrost board monitors the O line, to deter-

mine the system operating mode (heat/cool), outdoor am-

bient temperature, coil temperature (outdoor coil) and

compressor run time to determine when a defrost cycle is

required,

Defrost Mode

Refer to table 9 for demand defrost operation,

Calibration Mode

The board is considered uncalibrated when power is ap-

plied to the board, after cool mode operation, or if the coil

temperature exceeds the termination temperature when it

is in heat mode. Calibration of the board occurs after a de-

frost cycle to ensure that there is no ice on the coil. During

calibration, the temperature of both the coil and the ambi-

ent sensor are measured to establish the temperature dif-

ferential which is required to allow a defrost cycle,

Page 20

Table 9

Defrost Control Board Diagnostic Led

LED 1 LED 2 Condition Possible Cause(s) Solution

1 No power (24V) to board terminals 1 Check control transformer power

OFF OFF Power problem R & C. (24V).

2 Board failure. 2 If power is available and LED(s) are

unlit, replace board and all sensors.

1 Sensor function will resume when

I Coil temperature outside of sensor coil temperature is between -20°F

range, and 110°F.

ON ON Coil sensor problem 2 Faulty sensor wiring connections at 2 Check sensor wiring connections at

board or poor sensor contact on coil. board and sensor contact on coil.

3 Sensor failure. 3 Replace board and all sensors.

1 Sensor function will resume when

1 Ambient temperature outside of coil temperature is between -20°F

sensor range, and 110°F.

OFF ON Ambient sensor problem 2 Faulty sensor wiring connections at 2Check sensor wiring connections at

board or sensor, board and sensor.

3 Sensor failure. 3 Replace board and all sensors.

Unit operating normally or in standby None required.

Normal operation mode.

1 Restricted air flow over indoor or

outdoor coil.

FLASH

ALTERNATING

FLASH

OFF

FLASH

ALTERNATING

FLASH

5-Strike pressure lockout

(Short test pins or reset

24V power to board to

override lockout)

Low pressure switch circuit

open during Y1 demand

High pressure switch cir-

cuit open during Y1 de-

mand

2Improper refrigerant charge.

3 Improper metering device opera-

tion.

4 Poor contact between coil sensor

and coil.

1 Remove any blockages or restric-

tions. Check outdoor fan motor for

proper operation.

2 Check approach, superheat & sub-

cooling temperatures.

3 Check system pressures. Repair

leaks. Replace metering device.

4 Make sure that sensor is properly

positioned on coil and that firm con-

tact is established. Refer to service

manual for proper placement.

5-minute delay Thermostat demand for cooling or

(Jumper test pins to over- outdoor operation. Unit operating in None required.

ride delay) 5-minute anti-short-cycle mode.

Demand Defrost Operation

The demand defrost control board initiates a defrost cycle based on either frost detection or time.

Frost Detection - If the compressor runs longer than 34 minutes and the actual difference between the clear coil and frosted coil temperatures exceeds

the maximum difference allowed by the control, a defrost cycle will be initiated.

IMPORTANT- The demand defrost control board will allow a greater accumulation of frost and will initiate fewer defrost cycles than a time/temperature

defrost system.

Time - If 6 hours of heating mode compressor run time has elapsed since the last defrost cycle while the coil temperature remains below 35°F (2°C),

the demand defrost control will initiate a defrost cycle.

Actuation - When the reversing valve is de-energized, the Y1 circuit is energized, and the coil temperature is below 35°F (2°C), the board logs the

compressor run time. Ifthe board is not calibrated, a defrost cycle will be initiated after 34 minutes of heating mode compressor run time. The control

will attempt to self-calibrate after this (and all other) defrost cycle(s). Calibration success depends on stable system temperatures during the 2g-minute

calibration period. If the board fails to calibrate, another defrost cycle will be initiated after 90 minutes of heating mode compressor run time. Once the

defrost board is calibrated, it will use demand defrost logic to initiate a defrost cycle. A demand defrost system initiates defrost when the difference be-

tween the clear coil and frosted coil temperatures exceeds the maximum difference allowed by the control OR after 6 hours of heating mode compressor

run time has been logged since the last defrost cycle.

Termination - The defrost cycle ends when the coil temperature exceeds the termination temperature or after 14 minutes of defrost operation. If the

defrost is terminated by the 14-minute timer, another defrost cycle will be initiated after 34 minutes of run time.

Test Mode - When Y1 is energized and 24V power is being applied to the board, a test cycle can be initiated by placing the termination temperature

lumper across the 'Test" pins for 2 to 5 seconds. If the jumper remains across the 'Test" pins longer than 5 seconds, the control will ignore the test pins

and revert to normal operation. The jumper will initiate one cycle per test.

Page 21

kWARNING

Maintenance and service must be performed by a qualified

installer or service agency. At the beginning of each cooling

season, the system should be checked as follows:

Outdoor Unit

1 - Clean and inspect outdoor coil (may be flushed with a

water hose). Ensure power is off before cleaning.

2 - Outdoor unit fan motor is pre-lubricated and sealed, No

further lubrication is needed.

3 - Visually inspect all connecting lines, joints and coils for

evidence of oil leaks.

4 - Check all wiring for loose connections,

5 - Check for correct voltage at unit (unit operating),

6 - Check amp draw on outdoor fan motor.

Unit nameplate Actual

7 - Inspect drain holes in coil compartment base and clean

if necessary,

NOTE -If insufficient heating or cooling occurs, the unit

should be gauged and refrigerant charge should be

checked,

Indoor Coil

1 - Clean coil if necessary,

2 - Check connecting lines, joints and coil for evidence of

oil leaks,

3 - Check condensate line and clean if necessary,

Indoor Unit

1 - Clean or change filters,

2 - Lennox blower motors are prelubricated and permanent-

ly sealed, No more lubrication is needed.

3 - Adjust blower speed for cooling, Measure the pressure

drop over the coil to determine the correct blower CFM.

Refer to the unit information service manual for pressure

drop tables and procedure,

4 - Belt Drive Blowers - Check belt for wear and proper

tension,

5 - Check all wiring for loose connections,

6- Check for correct voltage at unit, (blower operating)

7 - Check amp draw on blower motor.

Motor nameplate Actual

Refer to the Engineering Handbook for optional accesso-

ries that may apply to this unit, The following may or may

not apply:

• Loss of Charge Kit

• High Pressure Switch Kit

• Compressor Monitor

• Compressor Crankcase Heater

• Hail Guards

• Mounting Bases

• Stand-off Kit

• Sound Cover

• LowAmbient Kit

• Monitor Kit

• Mild Weather Kit

In order to ensure peak performance, your system must be

properly maintained. Clogged filters and blocked airflow

prevent your unit from operating at its most efficient level,

Ask your Lennox dealer to show you where your indoor

unit's filter is located. It will be either at the indoor unit

(installed internal or external to the cabinet) or behind a re-

turn air grille in the wall or ceiling. Check the filter monthly

and clean or replace it as needed,

Disposable filters should be replaced with a filter of the

same type and size. If you are unsure about the filter you

need for your system, call your Lennox dealer for assis-

tance.

IMPORTANT

Many indoor units are equipped with reusable foam fil-

ters, These filters can be cleaned with a mild soap and

water solution. Rinse the filter thoroughly and let it dry

completely before it is returned to the unit or grille,

The filter and all access panels must be in place any

time the unit is in operation.

Your system may be equipped with an electronic air clean-

er which will provide respiratory relief by removing up to 90

percent of all airborne particles which pass through it. If it

is, ask your dealer to instruct you on its maintenance.

Your indoor coil is equipped with a drain pan to collect con-

densate formed as your system removes humidity from the

inside air. Have your dealer show you where the main con-

densate drain (and auxiliary drain, if applicable) runs and

how to check the drain for any obstruction.

It is also very important to provide unrestricted airflow to the

outdoor unit. Leaves, trash or shrubs crowding the unit

cause the outdoor unit to work harder and use more ener-

gy. Keep shrubbery trimmed away from the unit and period-

Page 22

icallycheckfordebriswhichmayhavecollectedaroundthe

unit,

Heat Pump Operation

Your new Lennox heat pump has several characteristics

that you should be aware of:

Your heat pump satisfies heating demand by delivering

large amounts of warm air into the living space. This is quite

different from gas- or oil-fired furnaces or an electric fur-

nace which deliver lower volumes of considerably hotter air

to heat the space,

Do not be alarmed if you notice frost on the outdoor coil in

the winter months, Frost develops on the outdoor coil dur-

ing the heating cycle when temperatures are below 45°F

(7°C). An electronic control activates a defrost cycle lasting

5 to 15 minutes at preset intervals to clear the outdoor coil

of the frost. During the defrost cycle, you may notice steam

rising from the outdoor unit, This is a normal occurrence.

The thermostat may engage auxiliary heat during the de-

frost cycle to satisfy a heating demand; however, the unit

will return to normal operation at the conclusion of the de-

frost cycle.

Your Lennox HPXA12 heat pump is equipped with a com-

pressor crankcase heater which protects the compressor

from refrigerant slugging during cold weather operation. If

power to your unit has been interrupted for several hours

or more, set the room thermostat selector to the "Emergen-

cy Heat" setting to obtain temporary heat without the risk

of serious equipment damage, In this operating mode, all

heating demand will be satisfied by auxiliary heat, Com-

pressor operation is locked out during Emergency Heat op-

eration. After a six-hour compressor crankcase heater

warm-up period, the thermostat can be switched to the

"Heat" setting and normal operation will resume,

Thermostat Operation

Though your thermostat may vary somewhat from the de-

scription below, its operation will be similar.

Temperature Setting Levers

Most heat pump thermostats have two temperature selec-

tor levers: one for heating and one for cooling. Set the lev-

ers or dials to the desired temperature setpoints for both

heating and cooling. Avoid frequent temperature adjust-

ment; turning the unit off and back on before pressures

equalize puts stress on the unit compressor.

Fan Switch

In AUTO or INT (intermittent) mode, the blower operates

only when the thermostat calls for heating or cooling. This

mode is generally preferred when humidity control is a

priority. The ON or CONT mode provides continuous in-

door blower operation, regardless of whether the compres-

sor or auxiliary heat are operating. This mode is required

when constant air circulation or filtering is desired.

System Switch

Set the system switch for heating, cooling or auto opera-

tion. The auto mode allows the heat pump to automatically

switch from heating mode to cooling mode to maintain pre-

determined comfort settings. Many heat pump thermostats

are also equipped with an emergency heat mode which

locks out heat pump operation and provides temporary

heat supplied by the auxiliary heat.

Indicating Light

Most heat pump thermostats have an amber light which in-

dicates when the heat pump is operating in the emergency

heat mode.

Temperature Indicator

The temperature indicator displays the actual room tem-

perature.

Programmable Thermostats

Your Lennox system may be controlled by a programmable

thermostat. These thermostats provide the added feature

of programmable time-of-day setpoints for both heating

and cooling. Refer to the user's information manual pro-

vided with your particular thermostat for operation details.

Preservice Check

If your system fails to operate, check the following before

calling for service:

• Check to see that all electrical disconnect switches are

ON,

• Make sure the room thermostat temperature selector is

properly set.

• Make sure the room thermostat system switch is proper-

ly set.

• Replace any blown fuses, or reset circuit breakers.

• Make sure unit access panels are in place.

• Make sure air filter is clean.

• Locate and record unit model number before calling.

Page 23

JobName Start-Up and Performance Check List

Job No. Date

Job Location City

Installer City

Unit Model No. Serial No.

State

Service Technician

Nameplate Voltage

Rated Load Ampacity

Maximum Fuse or Circuit Breaker

Electrical Connections Tight? []

Indoor Blower RPM

Cooling (2nd stage)

Liquid Line Pressure Vapor Pressure

Heating (2nd stage)

Liquid Line Pressure Vapor Pressure

Refrigerant Lines: Leak Checked? [] Properly Insulated? []

Service Valves Fully Opened? [] Service Valve Caps Tight? []

Sequence of Operation

Heating Correct [] Cooling Correct []

Amps: 1st stage

Indoor Filter Clean? []

S,R Drop Over Indoor (Dry)

2nd Stage

Supply Voltage (Unit Off) --

-- Outdoor Coil Entering Air Temp.

Refrigerant Charge Checked? []

Outdoor Fan Checked? []

Voltage With Compressor Operating --

Thermostat

Calibrated? [] Properly Set? [] Level? []

Page 24

LENNOX Air Conditioner/heat Pump(outside Unit) Manual L0806495

Navigation menu

Versions of this User Manual:

Views

Navigation
