Introduction
Thank you for purchasing the USB Drive. Read this Manual carefully to use the
USB Drive product you purchased faster and more efficiently.
安全 Warning
Don’t try to dismantle the product or remove its parts.
To avoid electric shock, don’t hold the product with a wet hand.
Don’t put the product in water or any fluid. Don’t use the product right away
whenever this happens, otherwise its system and devices may be damaged.
Don’t put the product in a highly magnetic place, otherwise there will be a great
chance of damage of product or data loss.
Don’t put the product in a high-temperature or high-heat-source place.
LG USB Drive
User Manual
![](/img.php?id=505008&img=bg3.png)
L
LG
G
U
US
SB
B
D
Dr
ri
iv
v
e
e
![](/img.php?id=505008&img=bg4.png)
L
LG
G
U
US
SB
B
D
Dr
ri
iv
v
e
e
Copyright 2004 LG Electronics Inc.
LG Electronics Inc. owns the copyright of both this User’s Manual. The product is
subject to change for improvement without advance notification, and the contents of
the actual installation and use of the product can be somewhat different from those
outlined in the User’s Manual.
Registered Trademark
![](/img.php?id=505008&img=bg5.png)
L
LG
G
U
US
SB
B
D
Dr
ri
iv
v
e
e
LG XTICK USB Drive is a registered trademark of LG Electronics Inc. Microsoft,
Windows 98, 98SE, ME, 2000, and XP are official registered trademarks of Microsoft
Corporation. Company names and product names other than the registered
trademarks are the trademarks of their corresponding owners.
![](/img.php?id=505008&img=bg6.png)
L
LG
G
U
US
SB
B
D
Dr
ri
iv
v
e
e
Contents
About Hi-Speed USB Drive
A. Functions
B. System Requirements
C. Product Specifications
How to Use Hi-Speed USB Drive
A. Connecting Hi-Speed USB Drive
B. Reading / Writing Data or Files
C. Removing Hi-Speed USB Drive
Main Functions
The secure privacy function of DiskSafe
A. Creating a secure privacy zone
B. Using a secure privacy zone
C. Changing a password
D. Altering the capacity of a secure privacy zone
E. Privacy function
Frequently Asked Questions
![](/img.php?id=505008&img=bg7.png)
L
LG
G
U
US
SB
B
D
Dr
ri
iv
v
e
e
About Hi-Speed USB Drive
Hi-Speed USB Drive is a high-speed USB 2.0 storage device in line with modern
technological trend, applicable to USB 2.0 and backward compatible with USB 1.1. Hi-Speed
USB Drive has multiple powerful functions, namely retrieval, copying and deletion of files of any
format, fast transmission and exchange of data and files, unlimited application of functions, and
a highly secure privacy function. Since Hi-Speed USB Drive is not a heavy burden on you at all,
you can always bring it along, to use it readily wherever you go, have access to every computer
located anywhere, and always have important data at hand to let you be ahead of your rivals. In
short, Hi-Speed USB Drive is an innovative storage device indispensable to daily life.
A. Functions
Totally conforms to the general standards of USB 2.0 and 1.1.
Offers a choice of capacity, i.e. 32MB, 64MB, 128MB, 256MB, 512MB, 1GB, and 2GB.
Highly efficient writing / reading speed.
Supports plug and play.
External power not required; supports USB Bus Power.
Data retention up to 10 years.
No driver has to be installed in operating systems like Windows 98*, ME, 2000, and XP,.
* Windows 98 requires drivers
B. System Requirements
IBM PC/AT compatible
Microsoft Windows 98/SE, ME & Windows 2000 and Windows XP
32MB RAM (64MB recommended)
USB Port
![](/img.php?id=505008&img=bg8.png)
L
LG
G
U
US
SB
B
D
Dr
ri
iv
v
e
e
C. Product Specifications
Product Specifications
PC system with USB ports IBM PC / AT & Notebook & Sub-Notebook
Operating System *Win98SE, Me, 2000, XP
Memory 16, 32, 64, 128, 256, 512MB, 1GB, 2GB
Interface USB 2.0 Compliant and USB 1.1 Compatible
Data Retention Up to 10 Years
Suspend Current <300uA, compliant to USB spec. of <500uA
Operating Current <40mA
LED built-in Active LED
Data Read/Write speed Up to 7MB/sec (read)** - Up to 6MB/sec (write)**
Storage Temperature -10°C - 70°C
Operating Temperature 0°C - 60°C
Relative Humidity under storage 5% - 95%
Weight 1 ounce

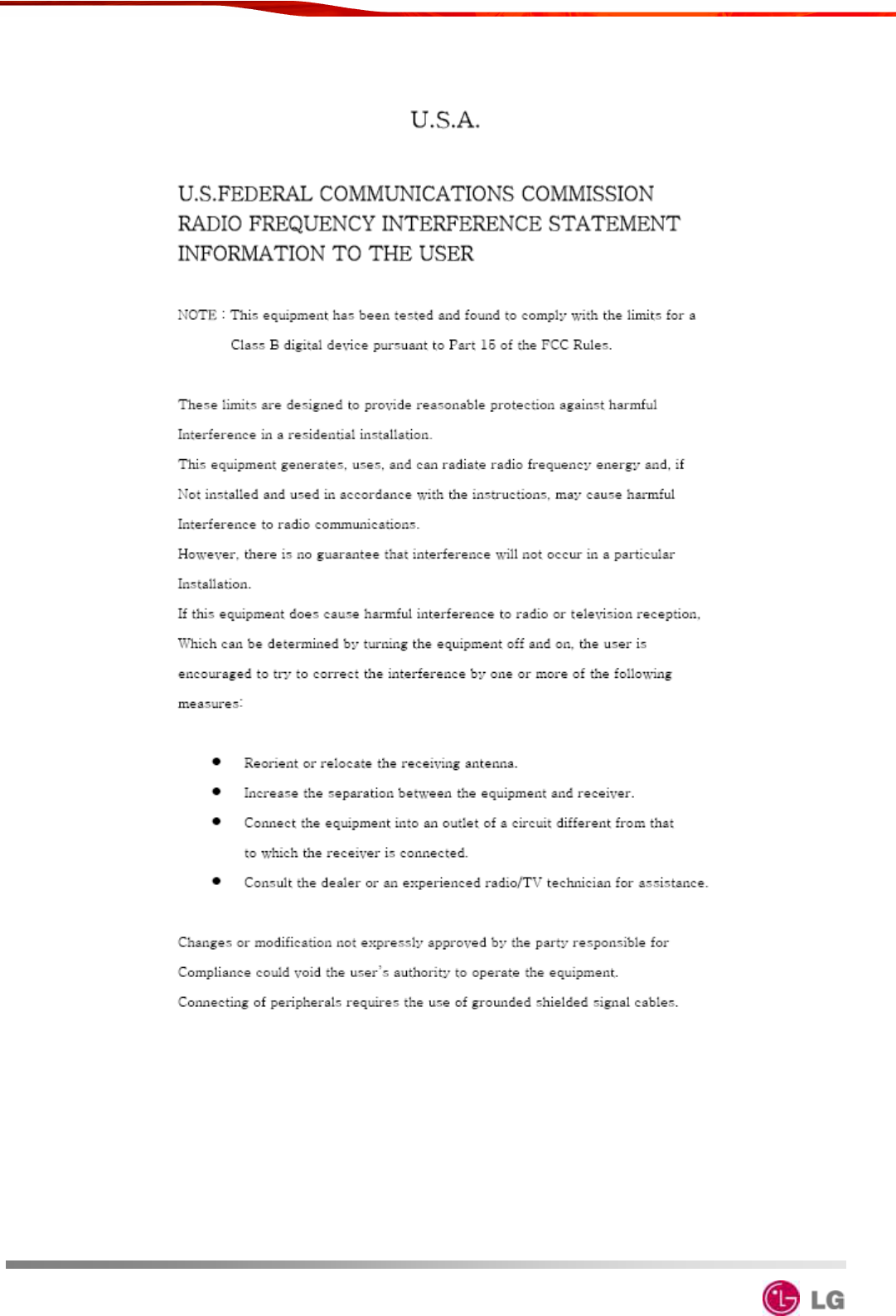

EMI Compliance FCC, CE, MIC
Power Supply USB bus-powered (2.7V - 3.3V)
*Drivers required for Windows 98SE
**Performance varies depending on testing environment and flash memory
How to Use Hi-Speed USB Drive
To use Hi-Speed USB Drive, all you need to do is to connect the product to a USB port of
your PC; you don’t need to restart your computer, as it automatically detect and identify
this drive (Windows ME, 2000, XP and versions above these support USB-based mass
storage devices). You have to install a driver whenever your operating system is Windows
98.
A. Connecting Hi-Speed USB Drive

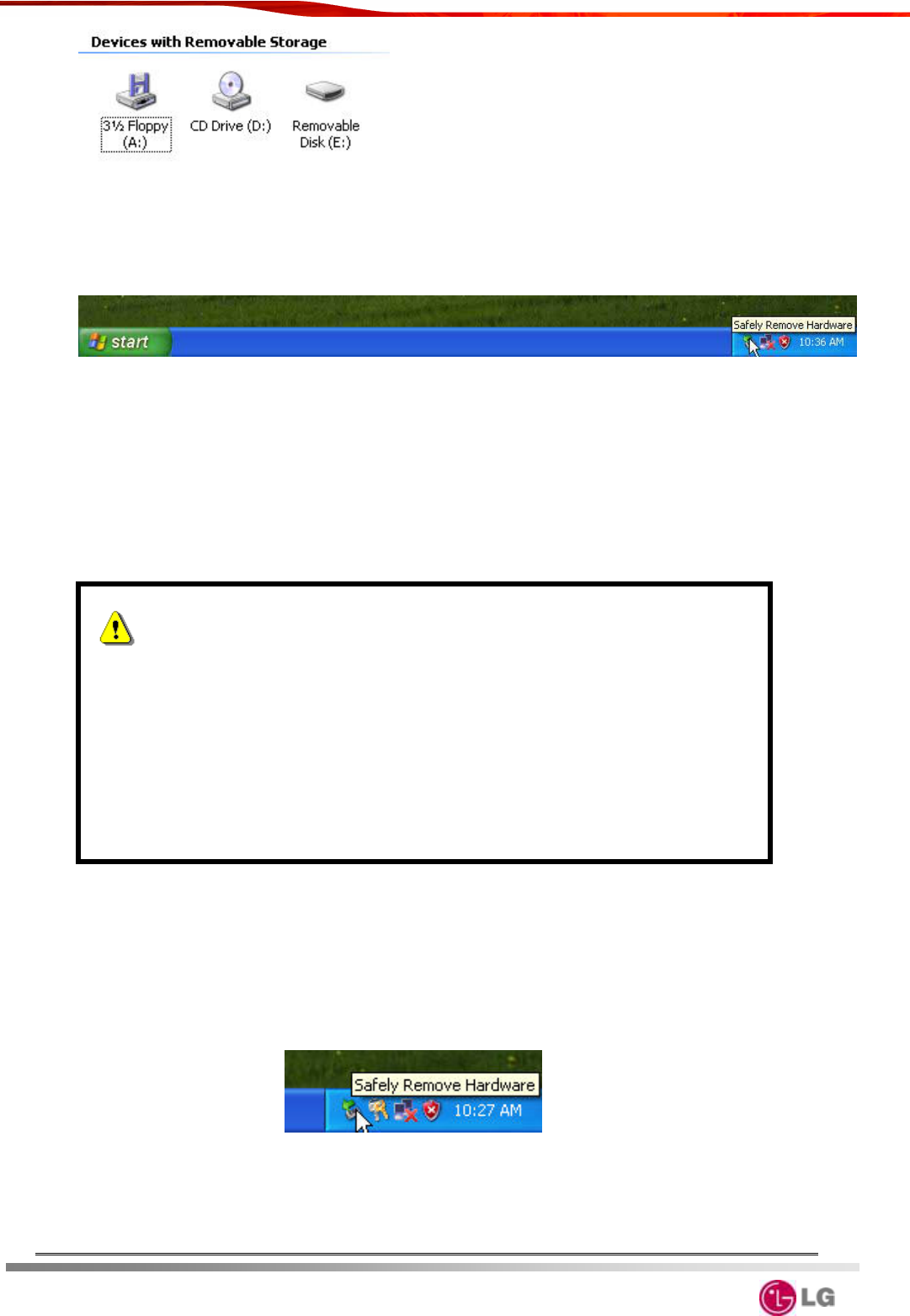

After you plugged Hi-Speed USB Drive into your PC, Windows automatically creates a
letter for your drive and indicates that it is a removable drive. Then, you may begin using
the drive just like you use the other drives or floppy disk drive.
![](/img.php?id=505008&img=bg9.png)
L
LG
G
U
US
SB
B
D
Dr
ri
iv
v
e
e
After you correctly plug Hi-Speed USB Drive in, the ”removing hardware safely” icon
appears in the tool bar at the bottom of the window.
B. Reading / Writing Data or Files
Hi-Speed USB Drive is a light, thin, and small portable storage device. With functions similar
to those of a hard disk, it allows you to read, write, copy or delete any data or file. But, unlike
a hard disk, Hi-Speed USB Drive is so small that you can bring it with you wherever you go.
C. Removing Hi-Speed USB Drive
Warning!
Don’t pull out Hi-Speed USB Drive or remove it from the system while the write /
read indicator is flashing. You should do this only when the indicator is off. Under
a Window ME or Windows 2000 operating system, you should perform a safe
procedure for removal of device before you remove the Hi-Speed USB Drive. If
you pull it out or make it exit before it stops, damage may be done to your
computer or data stored on your computer may get lost.
After you finished using Hi-Speed USB Drive, you may pull it out. However, under Windows
ME、Windows 2000 or Windows XP, you have to perform a safe procedure for removal of device
before you remove the Hi-Speed USB Drive. Find a “safe removal of device” icon in the tool bar
at the bottom of the window and carry out the safe removal procedure.
![](/img.php?id=505008&img=bga.png)
L
LG
G
U
US
SB
B
D
Dr
ri
iv
v
e
e

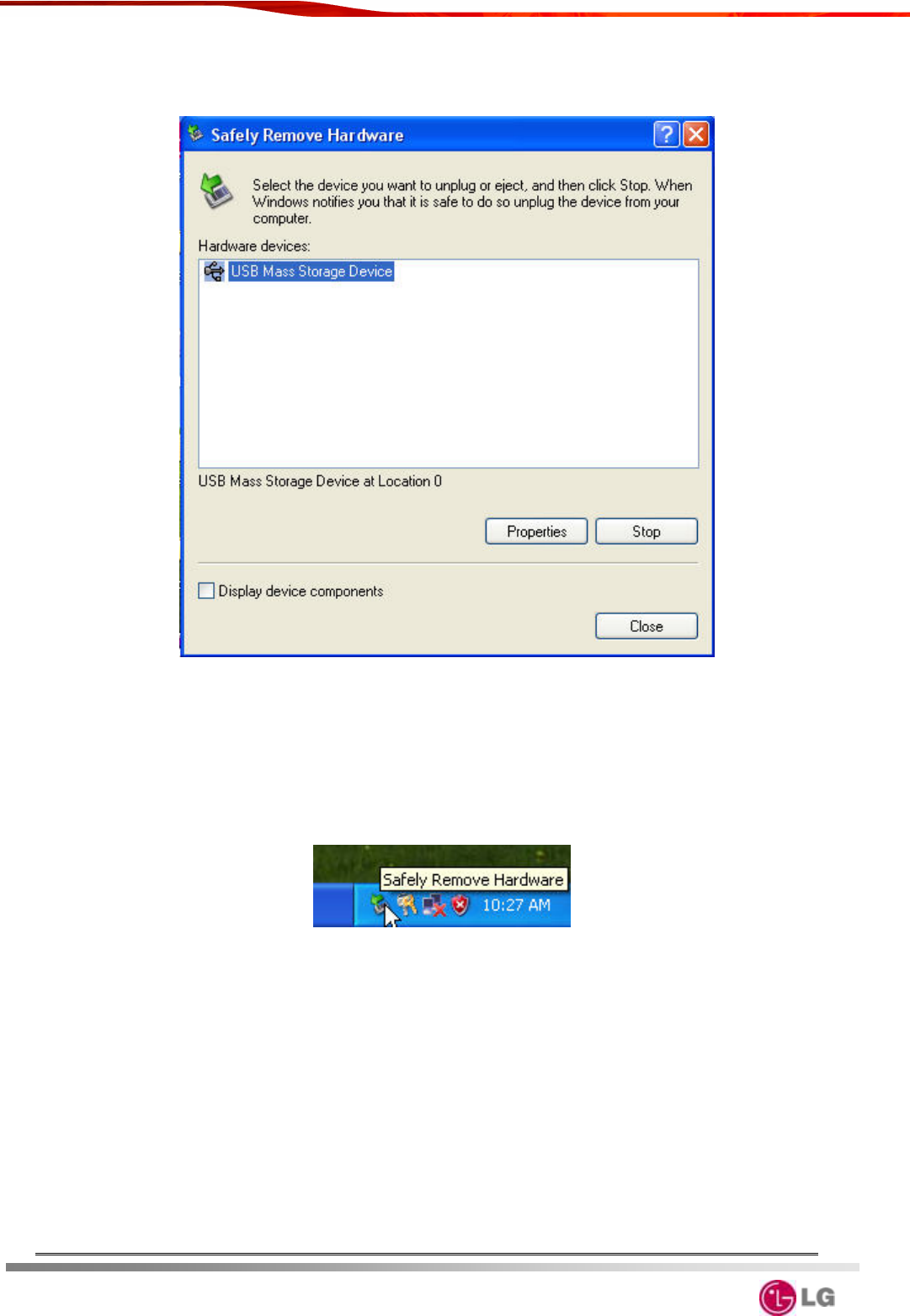

Double click on the ”removing hardware safely” icon on the right hand side of the tool bar
to bring a ”removing hardware safely” window. To remove a device safely, select the device
you want to remove and then click on the Stop button.
After you safely remove the device, a message will appear above the tool bar to inform you
that USB Mass Storage Device is safely removed”, then you may remove the device from
the USB port with ease.
![](/img.php?id=505008&img=bgb.png)
L
LG
G
U
US
SB
B
D
Dr
ri
iv
v
e
e
Main Functions
The Secure Privacy Function of DiskSafe

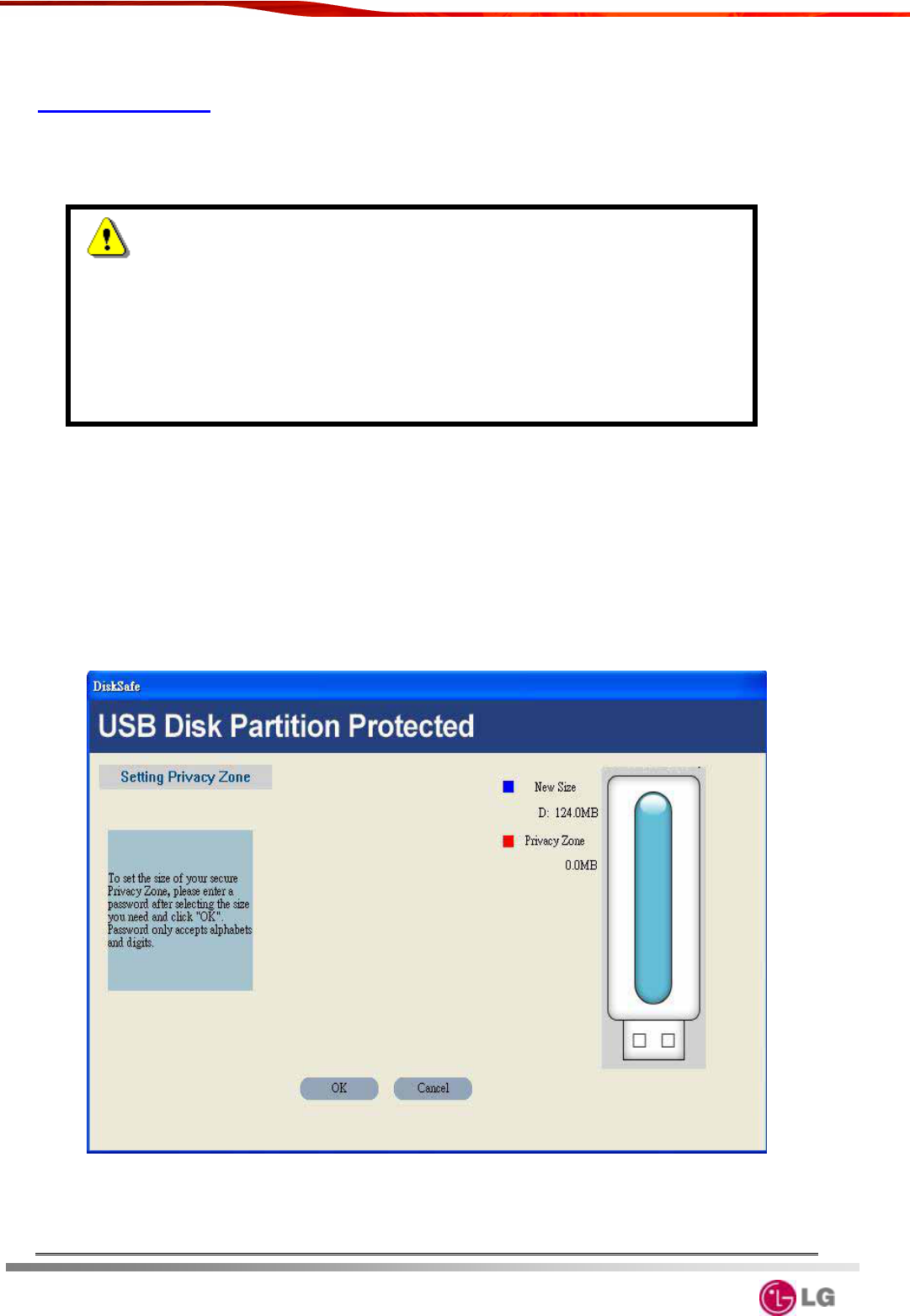

A. Creating a Secure Privacy Zone
Warning!
Before you proceed to create a secure privacy zone, the computer
automatically formats Hi-Speed USB Drive, resulting in the disappearance
of all the data you previously stored on the device. Please backup
important data stored on the device, before you begin to create the secure
privacy zone.
1. Select the secure privacy application of DiskSafe in Hi-Speed USB Drive.
2. When you see the welcome page of DiskSafe, drag the blue block on the Hi-Speed USB
Drive upward or downward to set the size of your intended secure privacy zone. The red
area indicates the private secure privacy zone, whereas the blue area indicates the
unprotected public use zone. After setting the size you need, the next window appears.
![](/img.php?id=505008&img=bgc.png)
L
LG
G
U
US
SB
B
D
Dr
ri
iv
v
e
e
3. Enter related data into the window that appears. Click “OK” when finished.
A. New Password (required)
B. Confirmed Password (required)
C. Password Hint (optional)
4. A message appears, saying that a password is set and, on removal of the device, the
secure privacy zone will be locked automatically. Then, you should click “OK”.
5. After setting the secure privacy zone, you should click “OK” to confirm the configuration
and then you should remove the device and re-plug it into the computer.
![](/img.php?id=505008&img=bgd.png)
L
LG
G
U
US
SB
B
D
Dr
ri
iv
v
e
e
B. Using a Secure Privacy Zone
1. To enter a secure privacy zone you created, select DiskSafe software and DiskSafe will
generate a Login dialogue box. Enter a password and click “OK” to confirm the
password you enter.

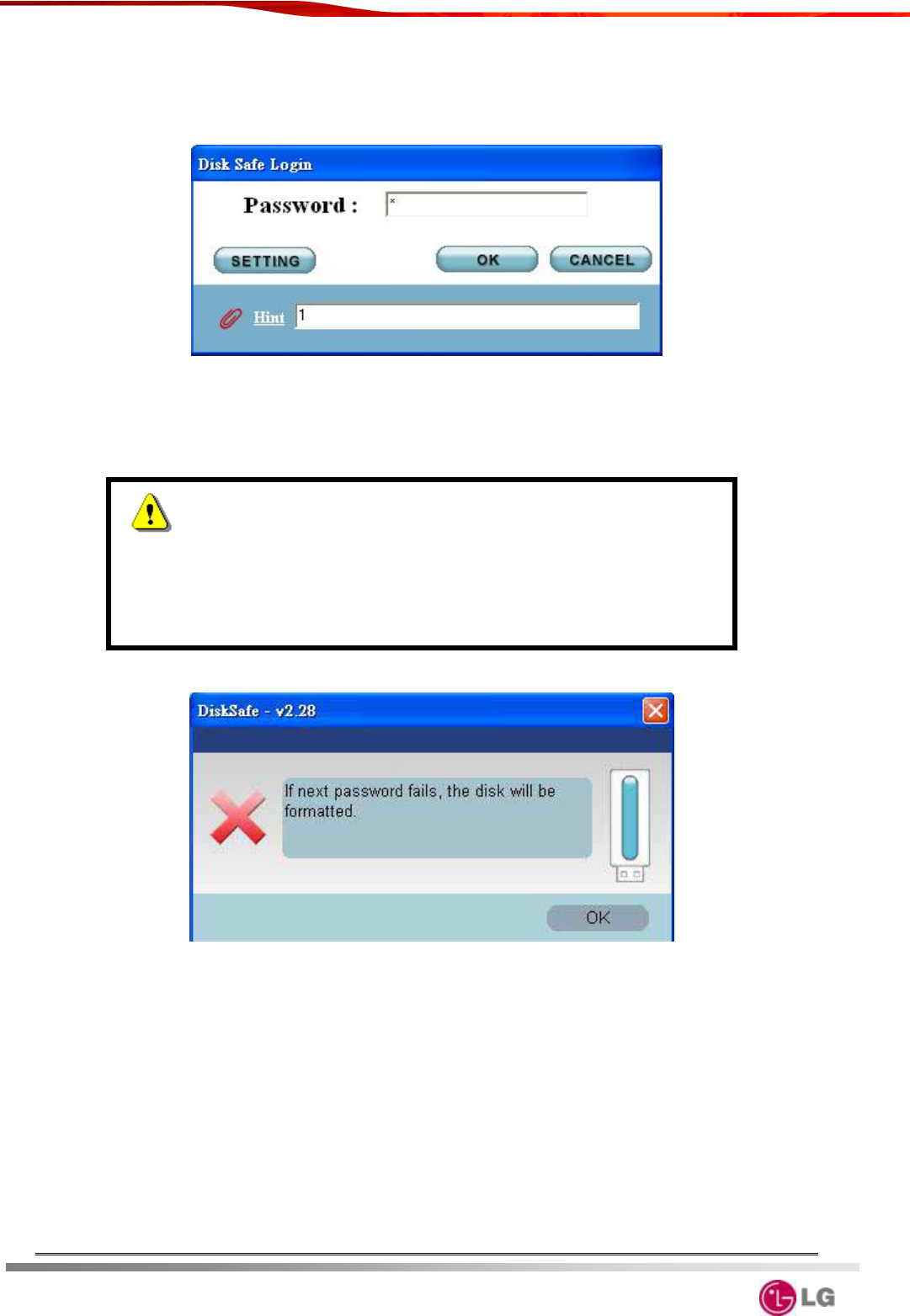

2. If you enter a wrong password, a warning message will appear.
![](/img.php?id=505008&img=bge.png)
L
LG
G
U
US
SB
B
D
Dr
ri
iv
v
e
e
If you forget the password you set earlier on, you may click on the Hint button at the
lower left corner of the Login dialog box to help you recall the password.
3. After successful login, the secure privacy zone springs up automatically. On removal of
the device, the secure privacy zone will be locked again.
Warning!
If an incorrect password is entered six times, Hi-Speed USB Drive
will be automatically formatted to lose all the stored data.
C. Changing a Password
The Button for Changing a Password
1. To change a password you set earlier on, enter the password and click on the Setting
button. Before the window for changing a password is displayed, a prompt message
appears to tell you that all the data in the disk will be destroyed, and that, if you do not
want so, you will have to close the window. Click “OK” to confirm your intention to do
so.
![](/img.php?id=505008&img=bgf.png)
L
LG
G
U
US
SB
B
D
Dr
ri
iv
v
e
e

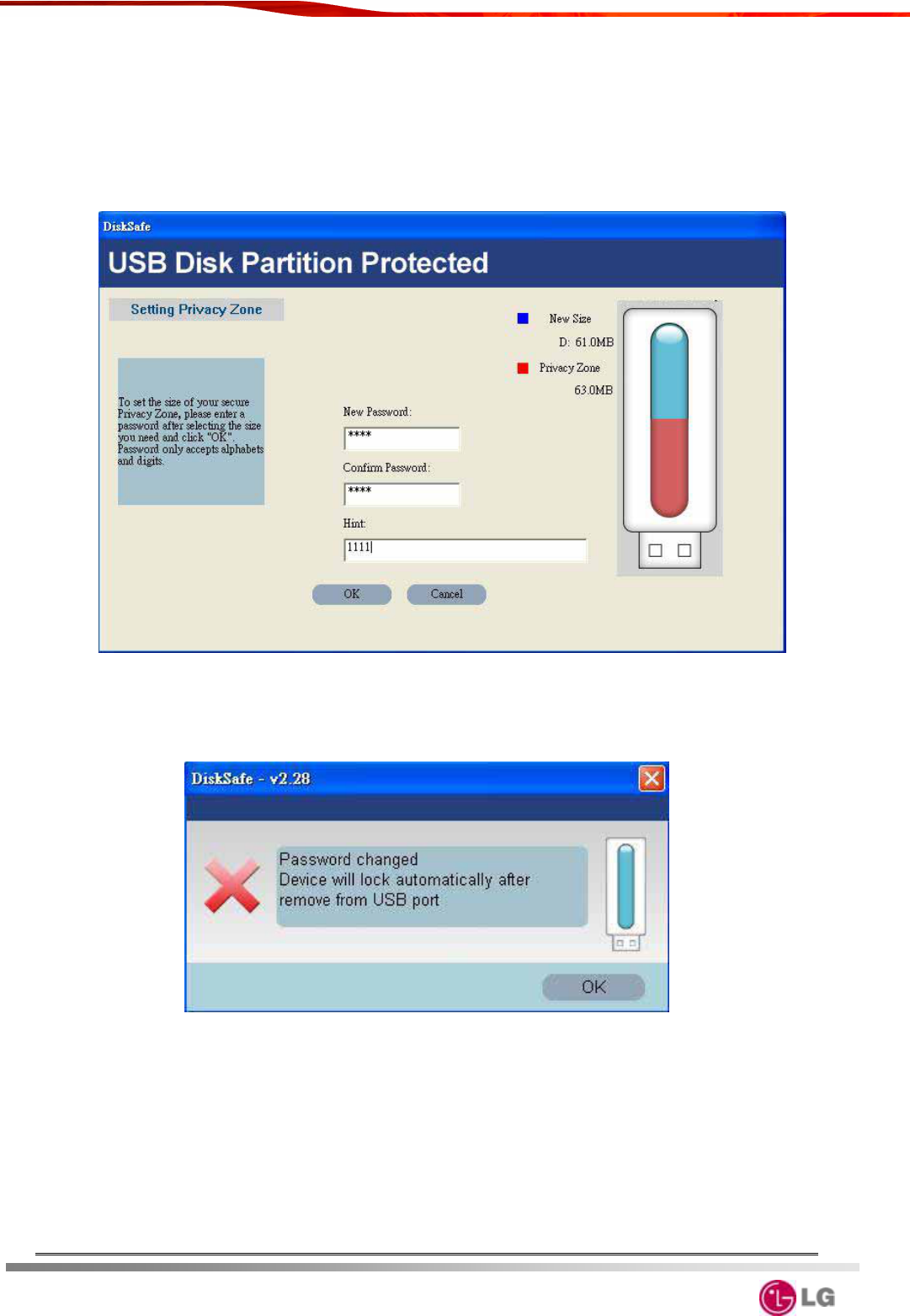

2. Enter related data into the window displayed. After entering related data, you should
click “OK”.
A. Password (required)
A. New Password (required)
B. Confirmed Password (required)
C. Password Hint (optional)

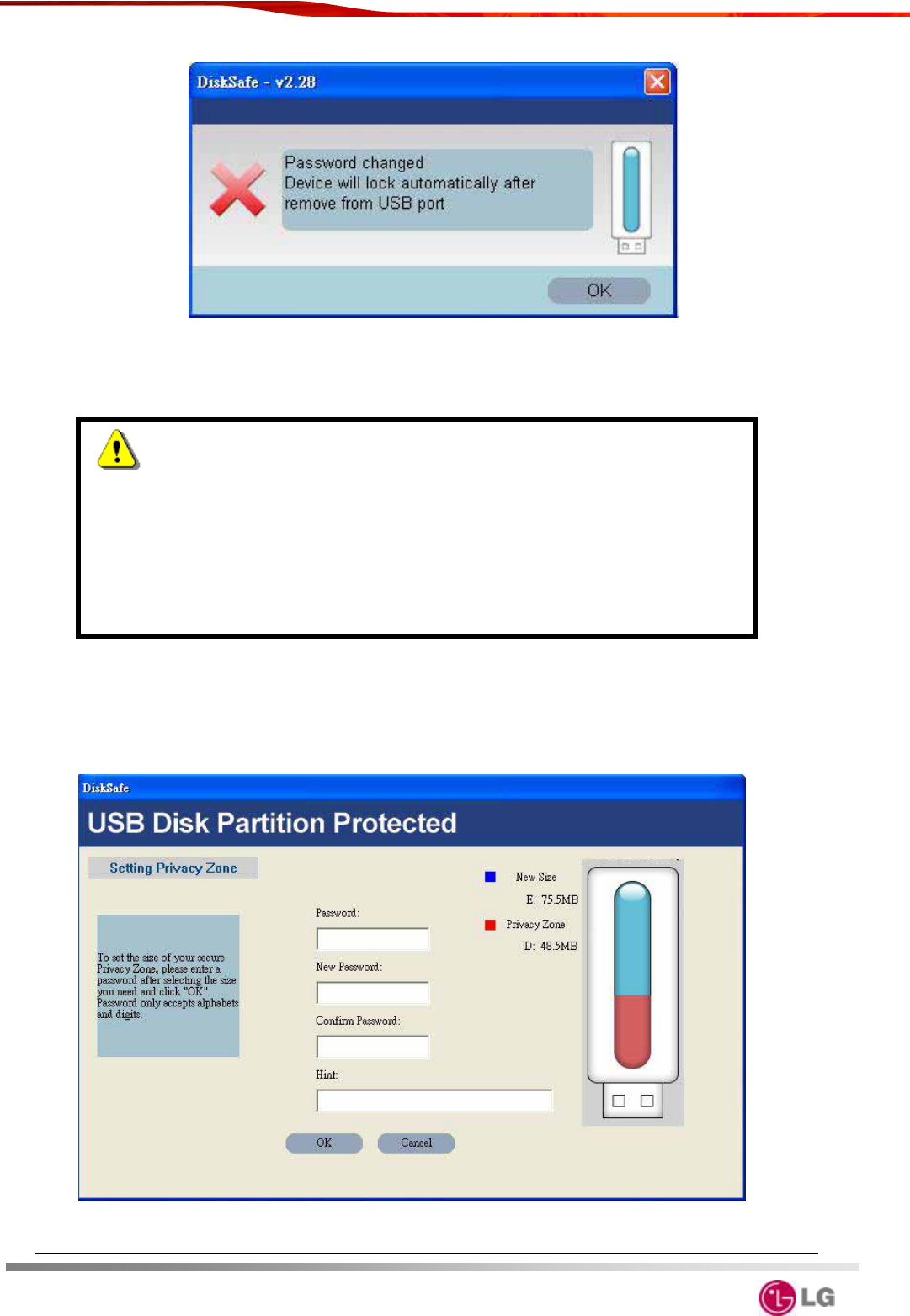

3. A dialog box springs up to inform you that the password has been changed. Click “OK”
to confirm the change. On removal of the device, the secure privacy zone is
automatically locked.
![](/img.php?id=505008&img=bg10.png)
L
LG
G
U
US
SB
B
D
Dr
ri
iv
v
e
e
D. Setting the Size of a Secure Privacy Zone
Warning!
Once you re-set the size of a secure privacy zone, the computer will
automatically format Hi-Speed USB Drive and all the data you
previously stored on the device will disappear. Please backup
important data stored on the device, before you begin to create the
secure privacy zone.
Re-setting the Size of a Secure Privacy Zone
1. Enter a password and click on the Setting button to go to the DiskSafe main window.
![](/img.php?id=505008&img=bg11.png)
L
LG
G
U
US
SB
B
D
Dr
ri
iv
v
e
e
2. Use the dragging bar to set the intended size of a secure privacy zone.
A. Password (required)
B. New Password (required)
C. Confirmed Password (required)
D. Password Hint (optional)
3. Click “OK”. A prompt message springs up to ask you whether you want to perform
configuration zone by zone.
4. Click “OK”. The updating of the size allocation of Hi-Speed USB Drive begins.
Removing a Secure Privacy Zone
1. Repeat the above-mentioned steps 1 and 2.
2. Use the dragging bar to set the size of the secure privacy zone to zero and remember to
enter a password to confirm your identity.
3. Click “OK”. A prompt message appears.
4. Click “OK” and the configuration is done..
E. Privacy Function
Users may set passwords by themselves.
Users may set their hints to avoid forgetting their passwords.
Hi-Speed USB Drive will be automatically formatted to lose all the stored data.
![](/img.php?id=505008&img=bg12.png)
L
LG
G
U
US
SB
B
D
Dr
ri
iv
v
e
e
Important Matters
While using Hi-Speed USB Drive and a secure privacy application of DiskSafe, you should
use only one Hi-Speed USB Drive product on each occasion, and you should not use
two Hi-Speed USB Drive products or more simultaneously.
For Windows 2000 Users’ Attention
Since Windows 2000 supports one removable drive only, to use Hi-Speed USB Drive, you
have to install the updating software, that is, Windows Service Pack 3 or a later version
to ensure that you will see the two sectors you created, that is, the secure privacy zone
and public use zone simultaneously while you are using a secure privacy application of
DiskSafe.
Frequently Asked Questions
1. Will a driver have to be installed in order to use Hi-Speed USB Drive?
No, you will not have to install any driver. But, you will, if your operating system is
WIN98/98SE.
2. What are the “Do Nots” of using Hi-Speed USB Drive?
Like any electronic digital product with which you are familiar, Hi-Speed USB Drive is
vulnerable to damp and strong vibration. You should not remove your Hi-Speed USB Drive
from a computer while your Hi-Speed USB Drive is working, otherwise you may lose or
destroy your data. We shall not assume any liability for any damage done to your Hi-Speed
USB Drive for the above reason or because you try to repair it on your own.
3. What operating systems allow the use of Hi-Speed USB Drive?
At present, Hi-Speed USB Drive always supports WIN98. However, Hi-Speed USB Drive is
unable to work under WIN NT and WIN95, as neither of them supports a USB interface.
4. What files can be stored on Hi-Speed USB Drive?
Like a general storage device, Hi-Speed USB Drive can store files of any kind, from general
documents to audiovisual files. We recommend that you should use anti-virus software to
prevent infection.
5. Is it necessary to shut down my computer before installing Hi-Speed USB Drive?
No, it is not necessary. Since Hi-Speed USB Drive is a plug and play device, you may plug it
in or pull it out, whether your computer is on.
![](/img.php?id=505008&img=bg13.png)
L
LG
G
U
US
SB
B
D
Dr
ri
iv
v
e
e
6. What computers can use Hi-Speed USB Drive?
You can use Hi-Speed USB Drive, provided that you computer is equipped with a USB slot.
(After 1997, computers are mostly equipped with USB slots, and a USB slot is indispensable
to a computer in recent years.)
7. Why the operating temperature of the Hi-Speed USB Drive I purchased is particularly
high?
The Hi-Speed USB Drive you purchased must be of the latest model, i.e.USB2.0 compliant.
The transmission speed of USB2.0 compliant Hi-Speed USB Drive is 40 times that of
USB1.1 compliant Hi-Speed USB Drive, thus the operating temperature of the former is
greater than that of the latter. Hence, the Hi-Speed USB Drive you purchased is functioning
normally.
