User manual 1 of 2
Please read this manual carefully before operating
your set and retain it for future reference.
Write the model number and serial number from the
label on the back cabinet on the front or back of
this manual.
LCD TV
OWNER’S MANUAL
26LG40
32LG40
P/NO : SAC31712401 (0802-REV00)
www.lgusa.com / www.lg.ca
As an ENERGY STAR
Partner LGE U. S. A.,Inc.
has determined that this
product meets the
ENERGY STAR guidelines
for energy efficiency.
ENERGY STAR is a set of power-saving
guidelines issued by the U.S.
Environmental Protection Agency(EPA).
1
WARNING / CAUTION
WARNING / CAUTION
To prevent fire or shock hazards, do not expose
this product to rain or moisture.
FCC NOTICE
Class B digital device
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
Any changes or modifications not expressly approved
by the party responsible for compliance could void
the user’s authority to operate the equipment.
CAUTION
Do not attempt to modify this product in any way
without written authorization from LG Electronics.
Unauthorized modification could void the user’s
authority to operate this product
The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the litera-
ture accompanying the appliance.
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED SERVICE PERSONNEL.
WARNING/CAUTION
TO REDUCE THE RISK OF FIRE AND ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guidelines for
proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system
of the building, as close to the point of the cable entry
as practical.
2

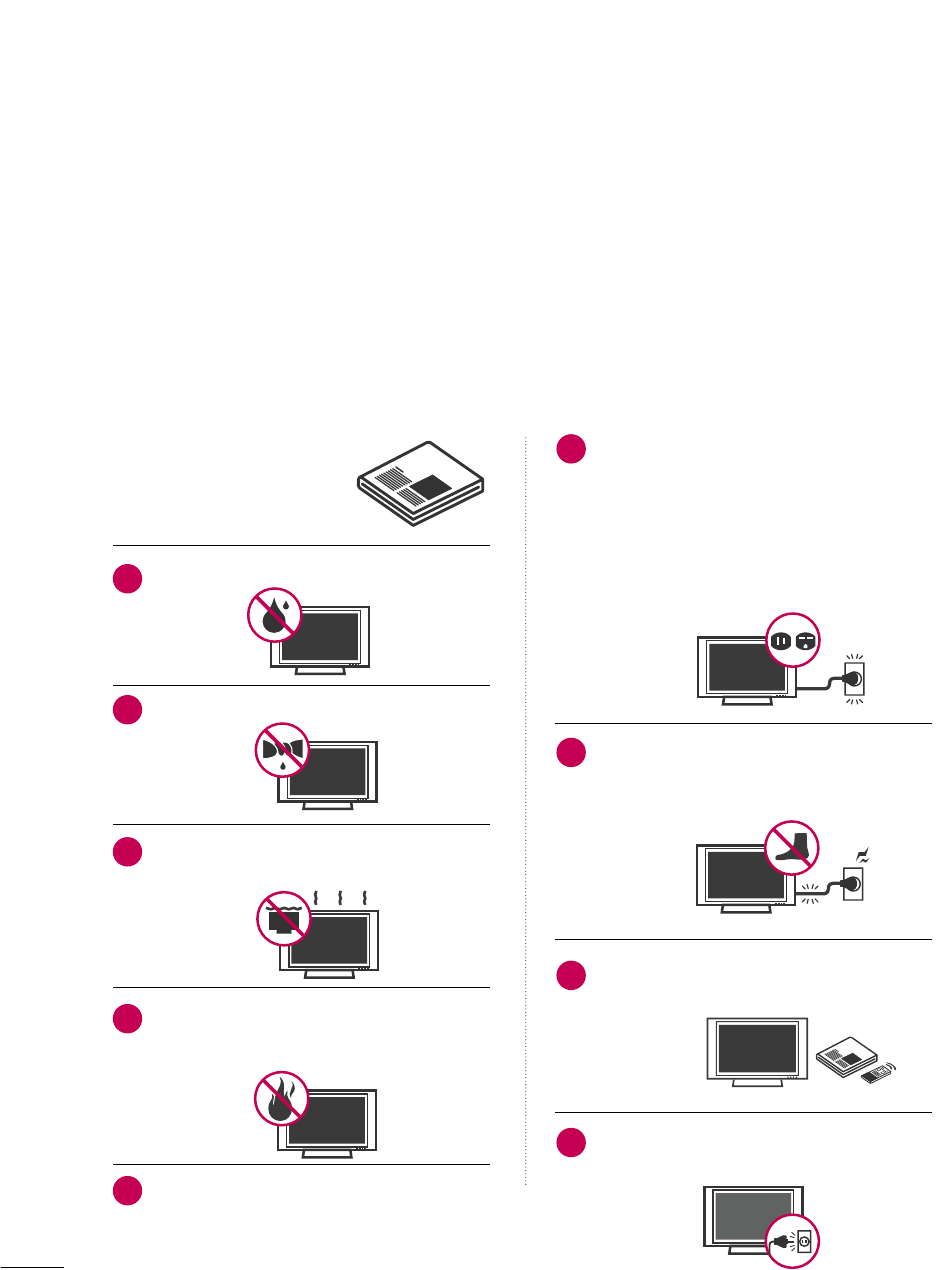

IMPORTANT SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
Important safety instructions shall be provided with each apparatus. This information shall be given in a separate
booklet or sheet, or be located before any operating instructions in an instruction for installation for use and
supplied with the apparatus.
This information shall be given in a language acceptable to the country where the apparatus is intended to be used.
The important safety instructions shall be entitled “Important Safety Instructions”. The following safety
instructions shall be included where applicable, and, when used, shall be verbatim as follows. Additional safety
information may be included by adding statements after the end of the following safety instruction list. At the
manufacturer’s option, a picture or drawing that illustrates the intent of a specific safety instruction may be
placed immediately adjacent to that safety instruction:
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers)that produce heat.
When mounting a TV it on the wall, make sure
not to install TV by the hanging power and sig-
nal cables on the back of the TV.
Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has
two blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong, The wide blade or the third
prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
Only use attachments/accessories specified by
the manufacturer.
Unplug this apparatus when unused for long
periods of time.
1
2
3
4
5
6
7
8
9
3

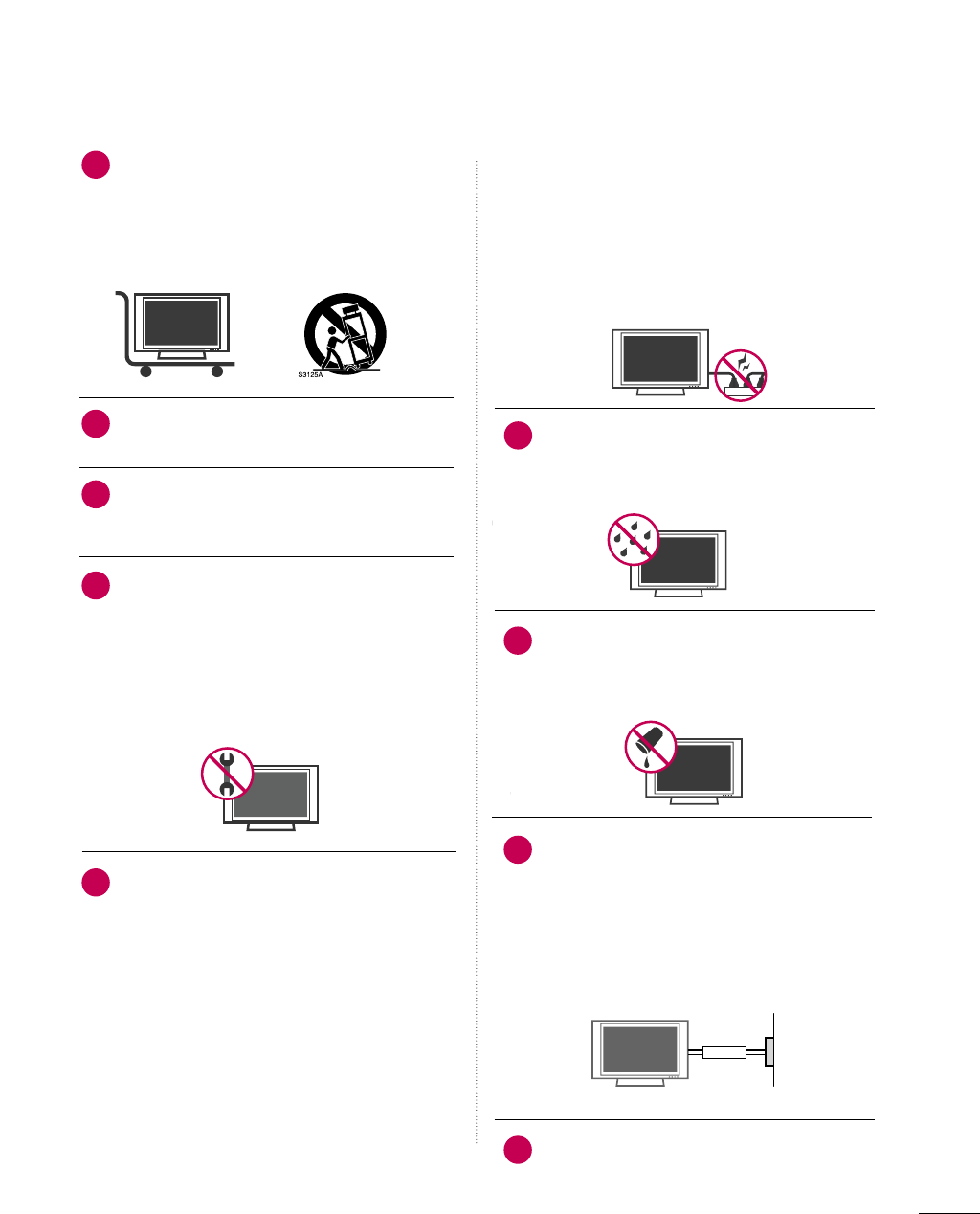

Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Never touch this apparatus or antenna during
a thunder or lighting storm.
Do not allow a impact shock or any objects to
fall into the product, and do not drop onto the
screen with something.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus,
the apparatus has exposed to rain or moisture,
does not operate normally, or has been
dropped.
CAUTION concerning the Power Cord :
Most appliances recommend they be placed
upon a dedicated circuit; that is, a single outlet
circuit which powers only that appliance and
has no additional outlets or branch circuits.
Check the specification page of this owner's
manual to be certain.
Do not overload wall outlets. Overloaded wall
outlets, loose or damaged wall outlets, extension
cords, frayed power cords, or damaged or
cracked wire insulation are dangerous. Any of
these conditions could result in electric shock
or fire. Periodically examine the cord of your
appliance, and if its appearance indicates dam-
age or deterioration, unplug it, discontinue use
of the appliance, and have the cord replaced
with an exact replacement part by an authorized
servicer. Protect the power cord from physical
or mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked
upon. Pay particular attention to plugs, wall
outlets, and the point where the cord exits the
appliance.
Outdoor use marking :
WARNING - To reduce the risk of fire or elec-
tric shock, do not expose this appliance to rain
or moisture.
Wet Location Marking : Apparatus shall not be
exposed to dripping or splashing and no
objects filled with liquids, such as vases, shall
be placed on or over apparatus.
GROUNDING
Ensure that you connect the earth ground wire
to prevent possible electric shock. If grounding
methods are not possible, have a qualified
electrician install a separate circuit breaker.
Do not try to ground the unit by connecting it
to telephone wires, lightening rods, or gas pipes.
DISCONNECTING DEVICE FROM MAINS
Mains plug is the disconnecting device. The
plug must remain readily operable.
12
10
11
14
13
15
16
17
18
Power
Supply
Short-circuit
Breaker
4
CONTENTS
WARNING / CAUTION
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SAFETY INSTRUCTIONS
. . . . . . . . . . . . . . . . . . . . . . . . . . 2
PREPARATION
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

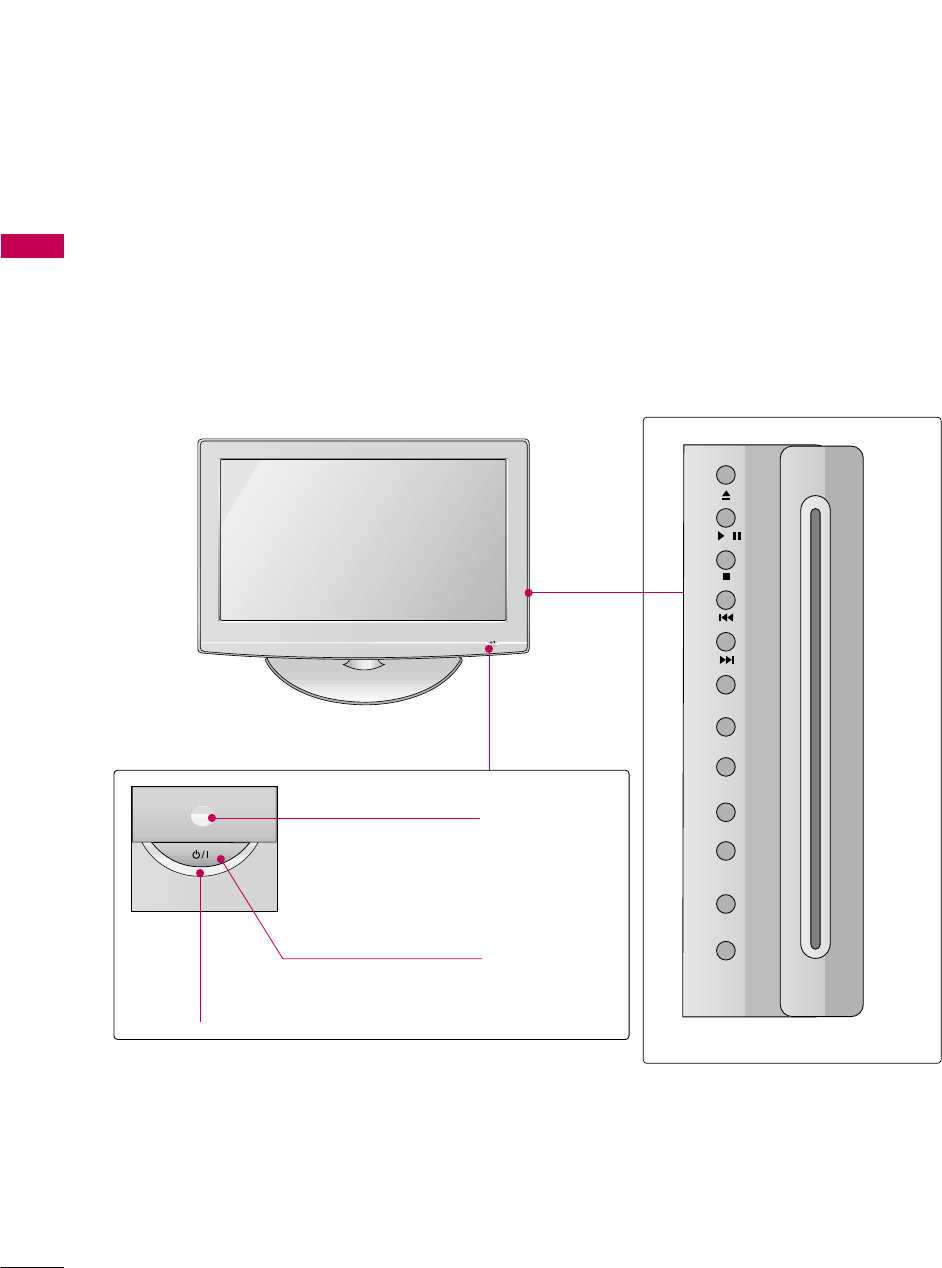

Front Panel Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

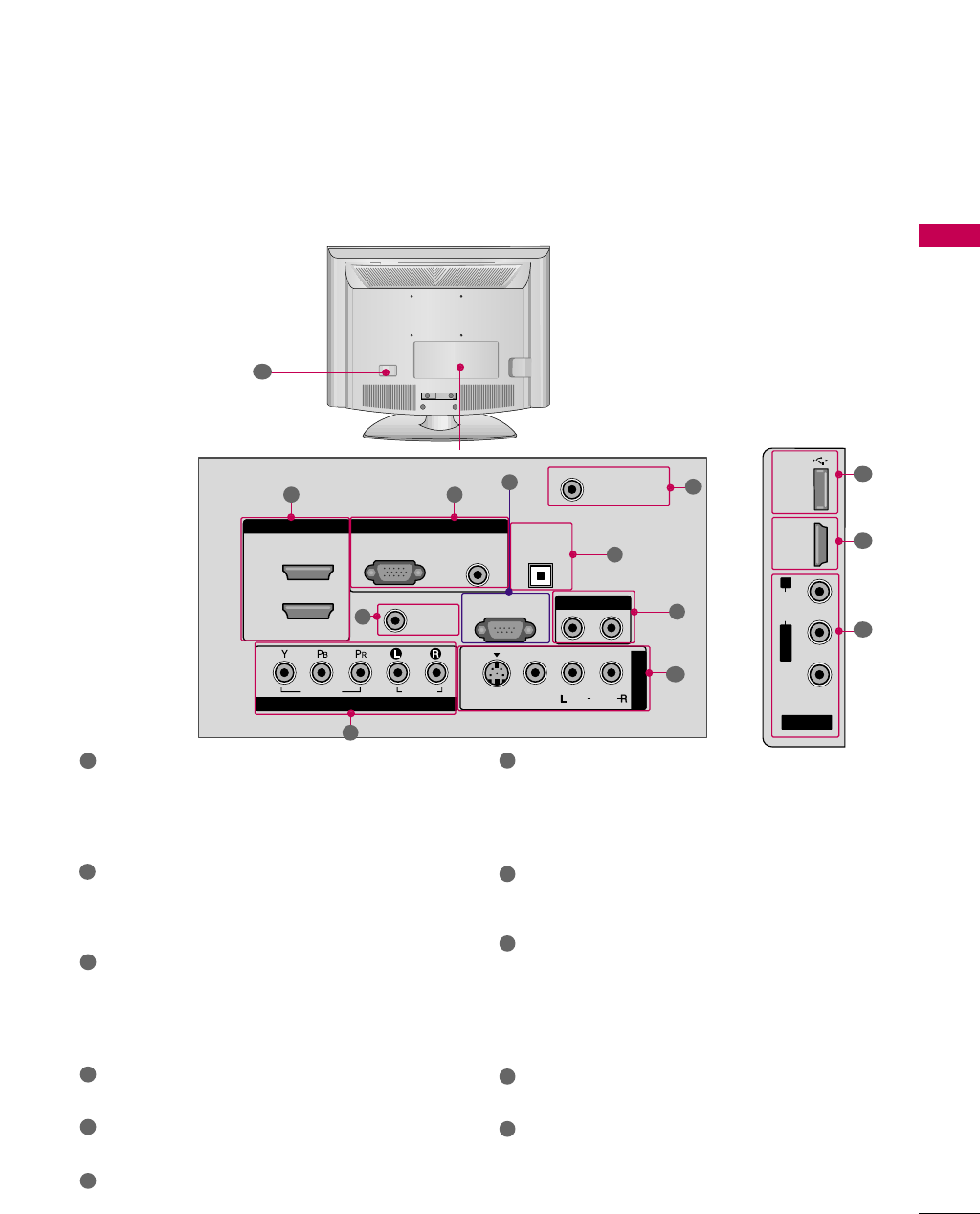

Back Panel Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Stand Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

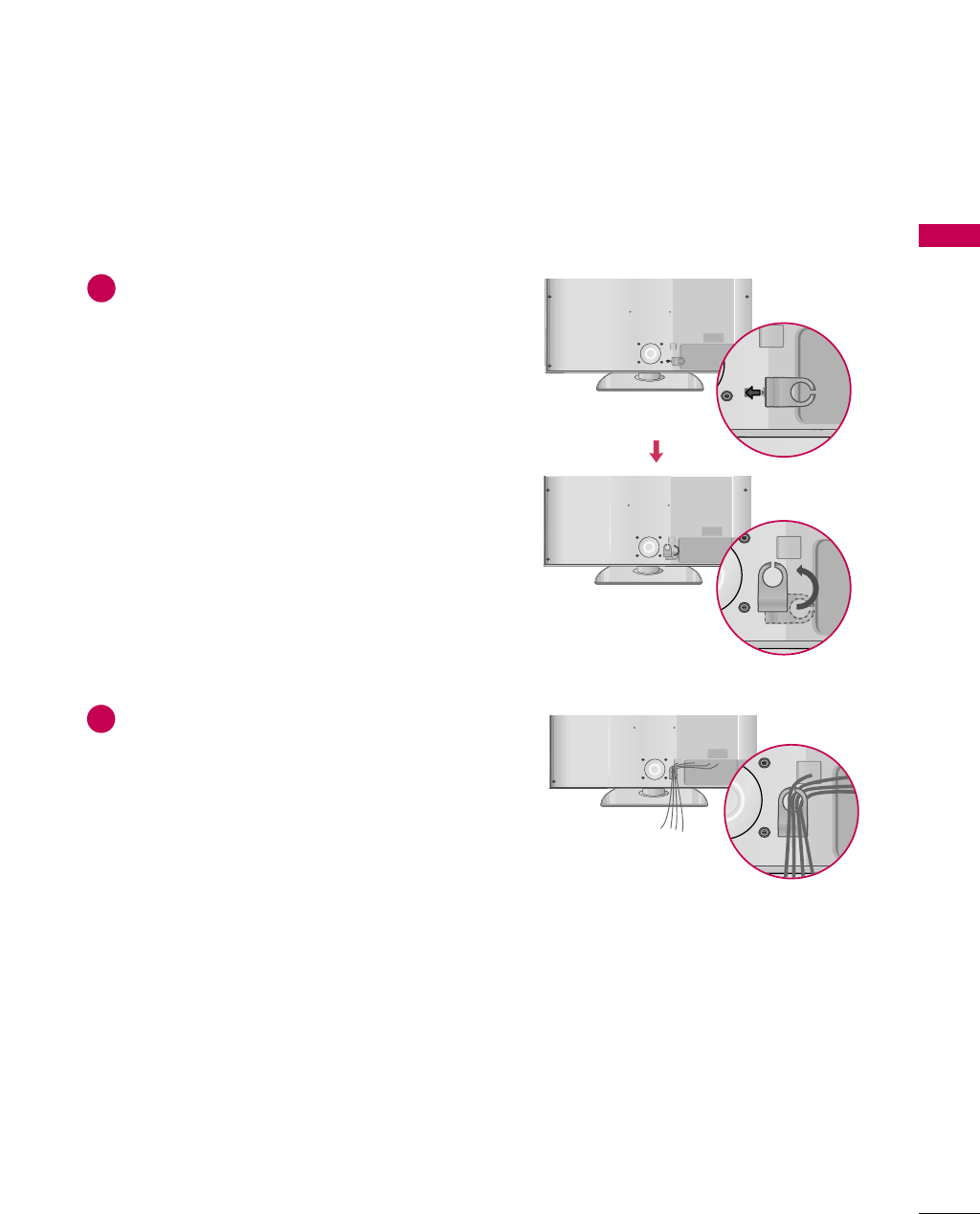

Cable Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Desktop Pedestal Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Swivel Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
VESA Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Protection Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

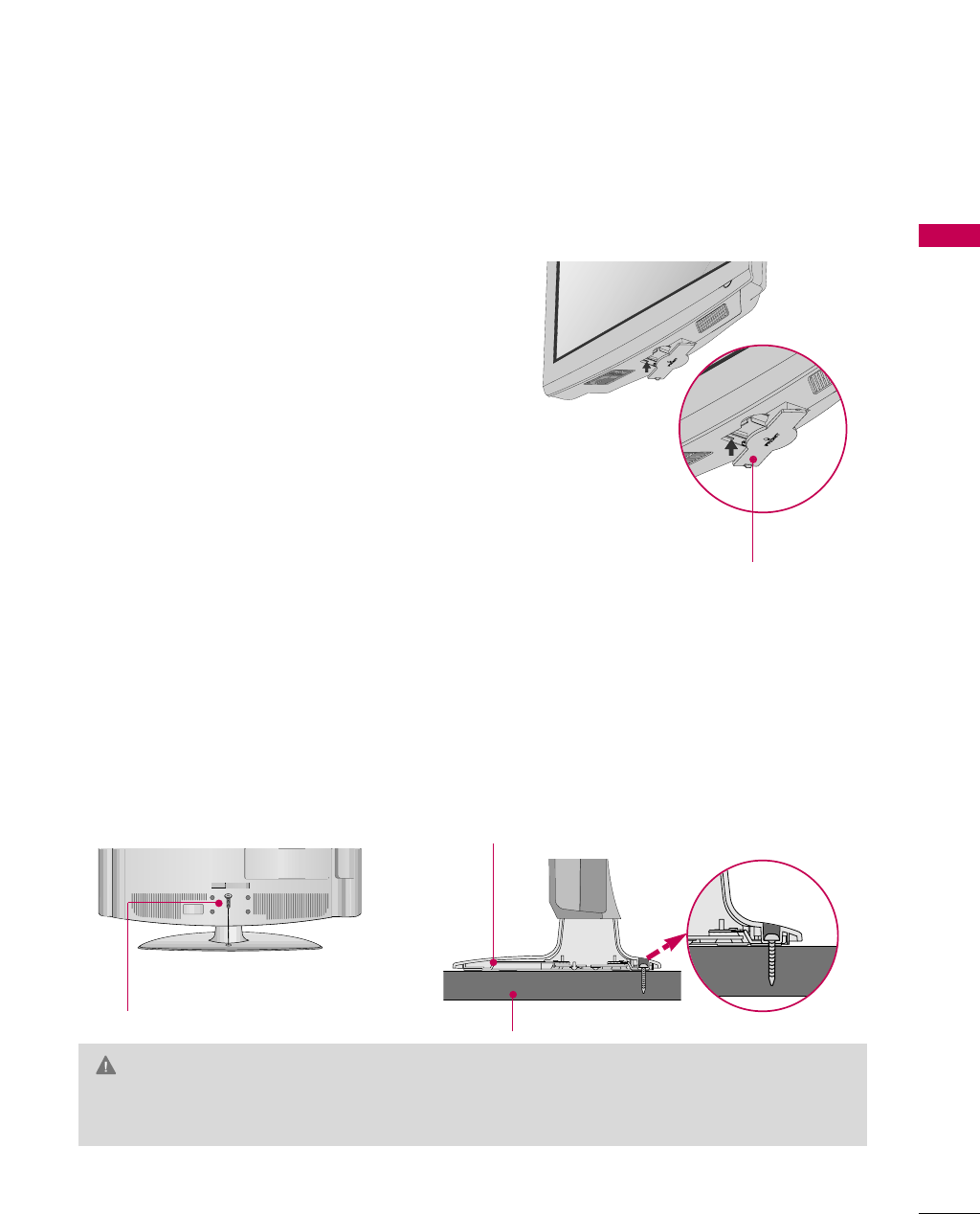

Attaching the TV to a Desk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

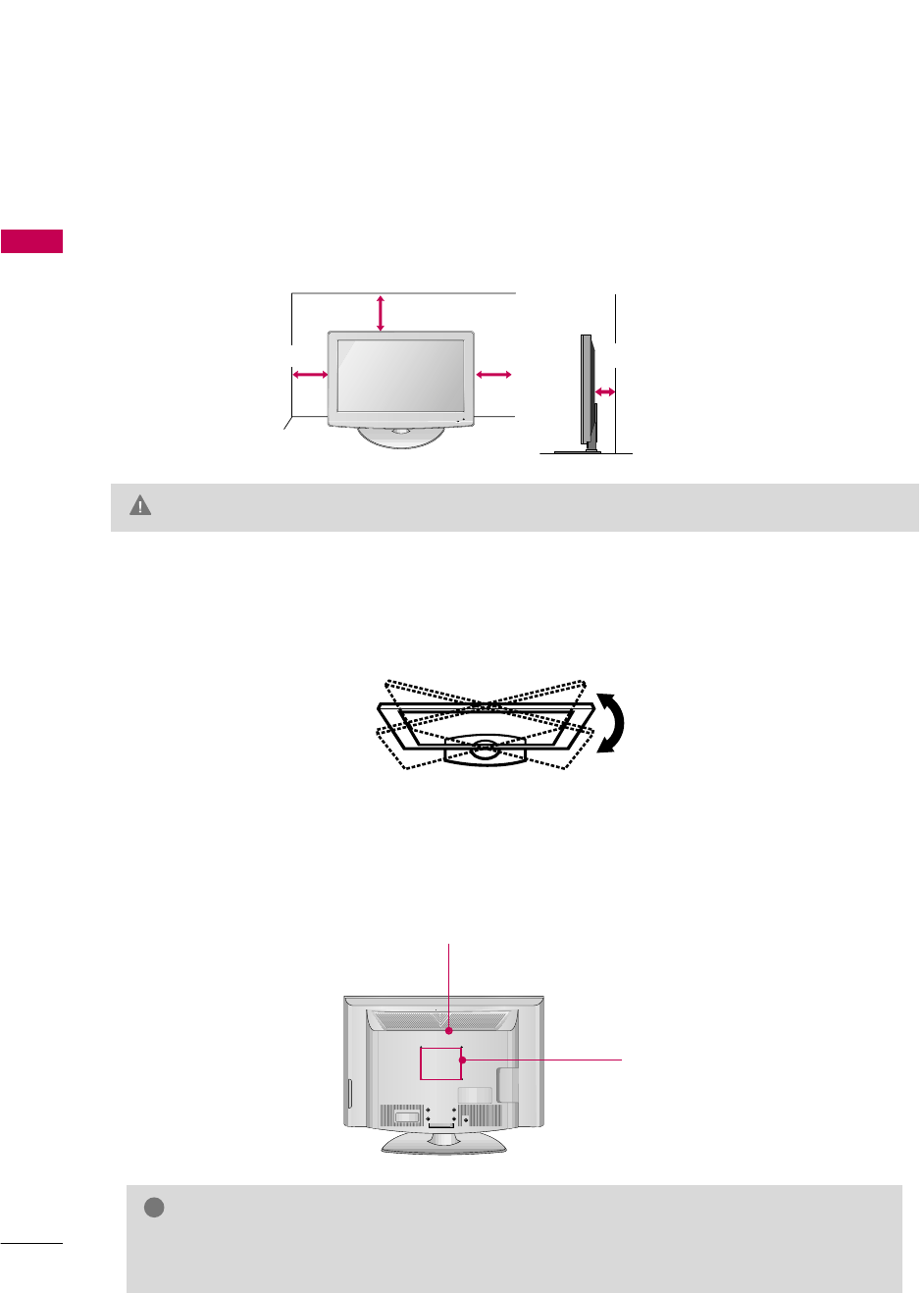

Positioning your Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Kensington Security System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

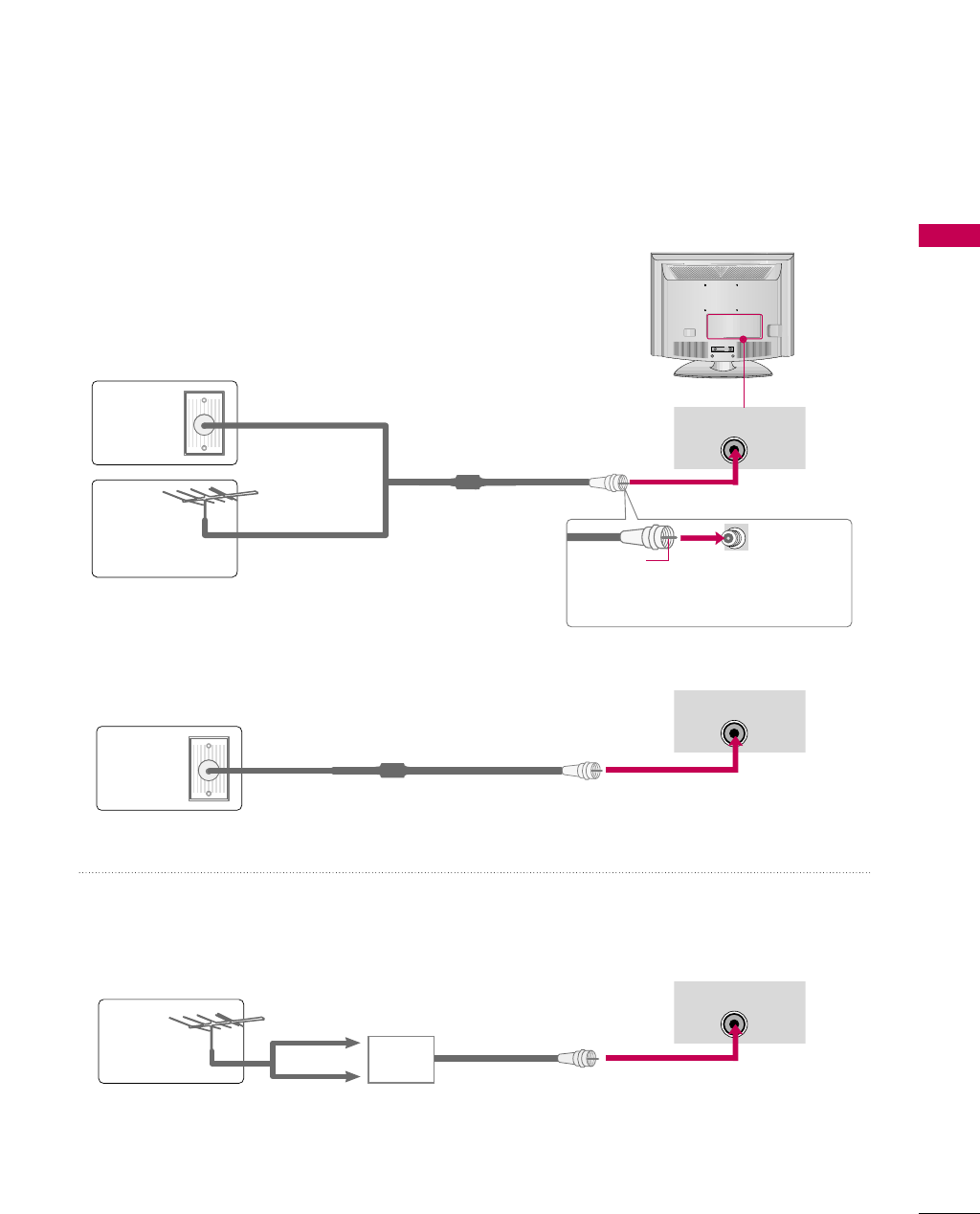

Antenna or Cable Connection . . . . . . . . . . . . . . . . . . . . . . . . . . 17
EXTERNAL EQUIPMENT SETUP

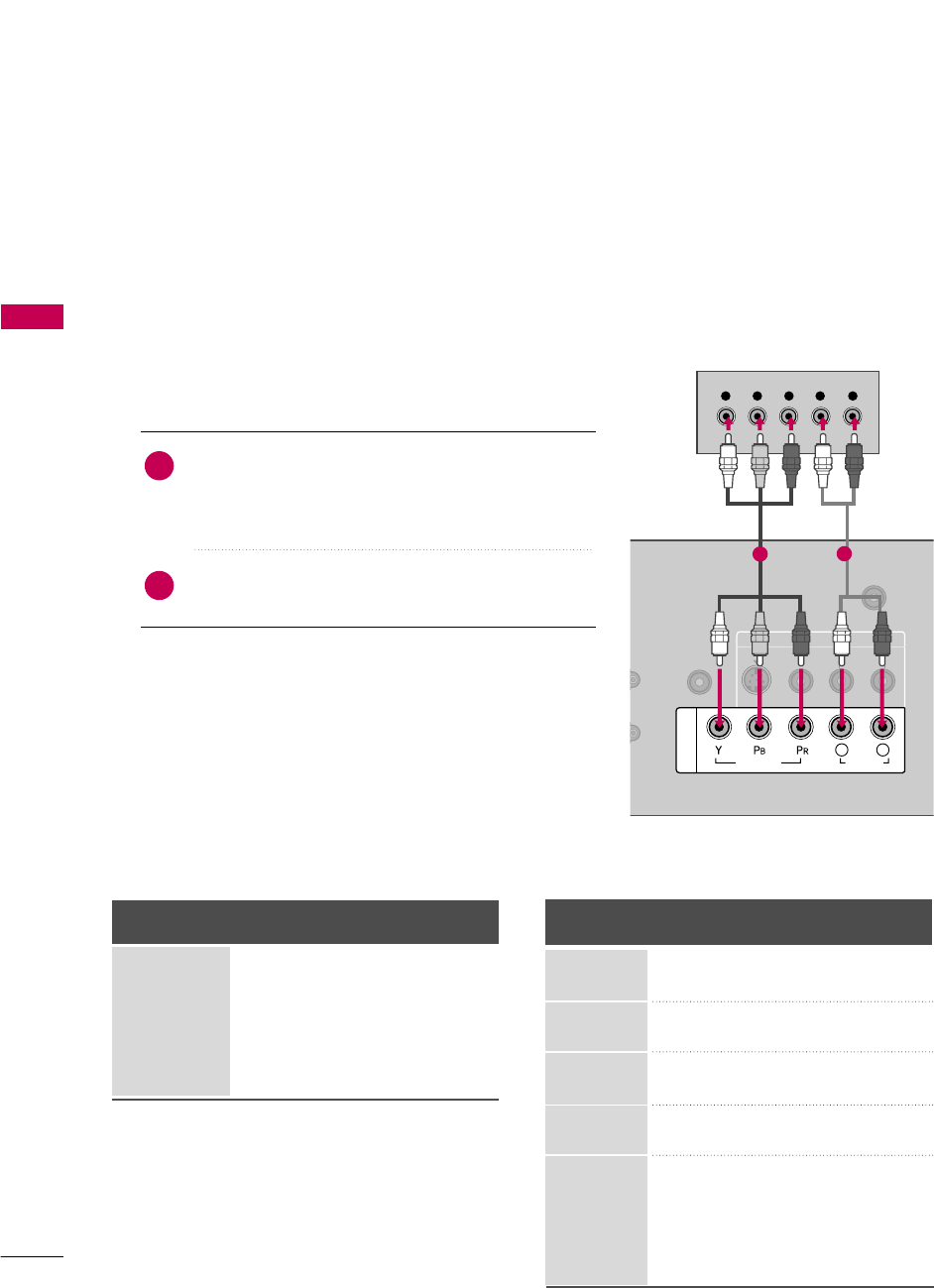

HD Receiver Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

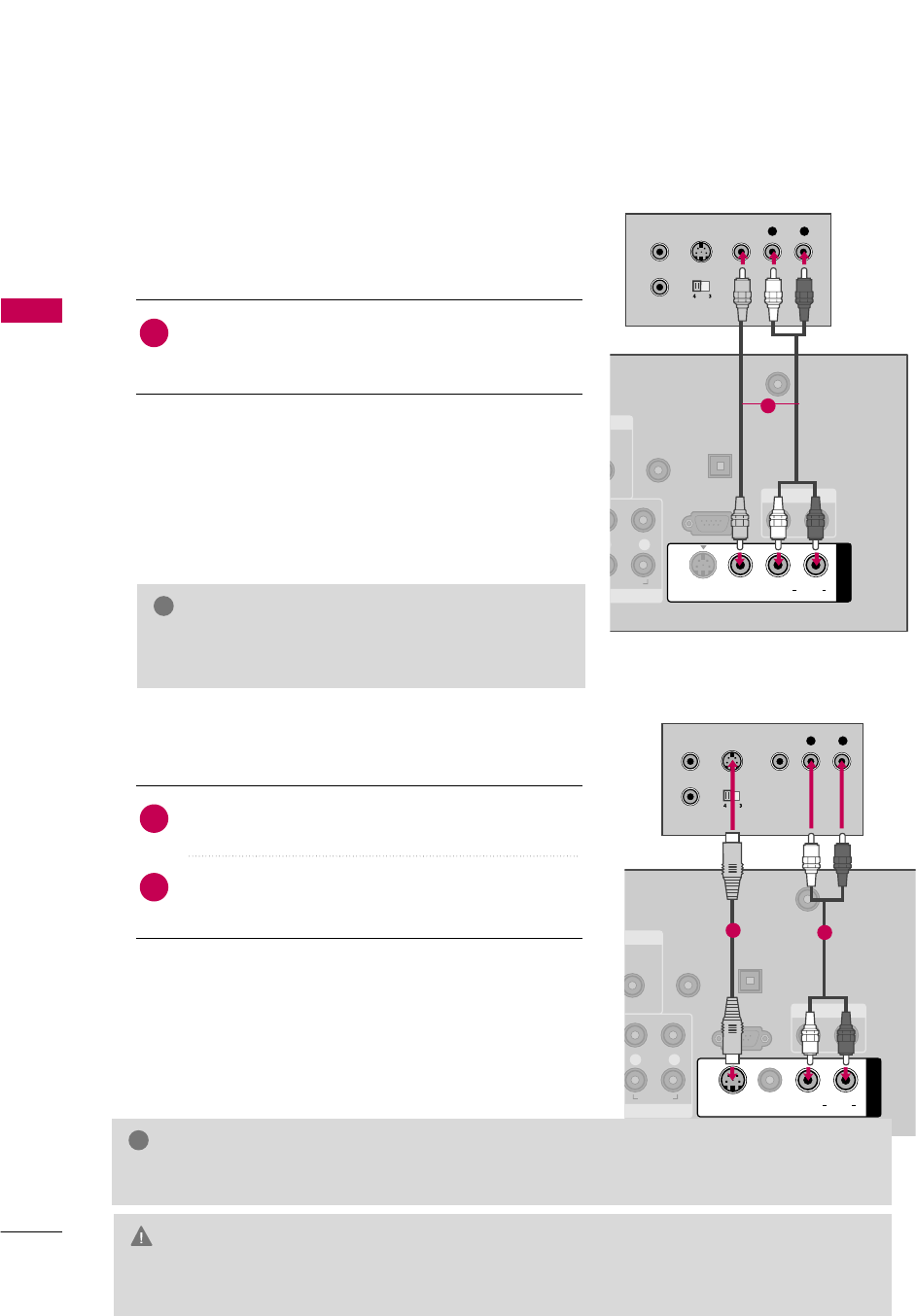

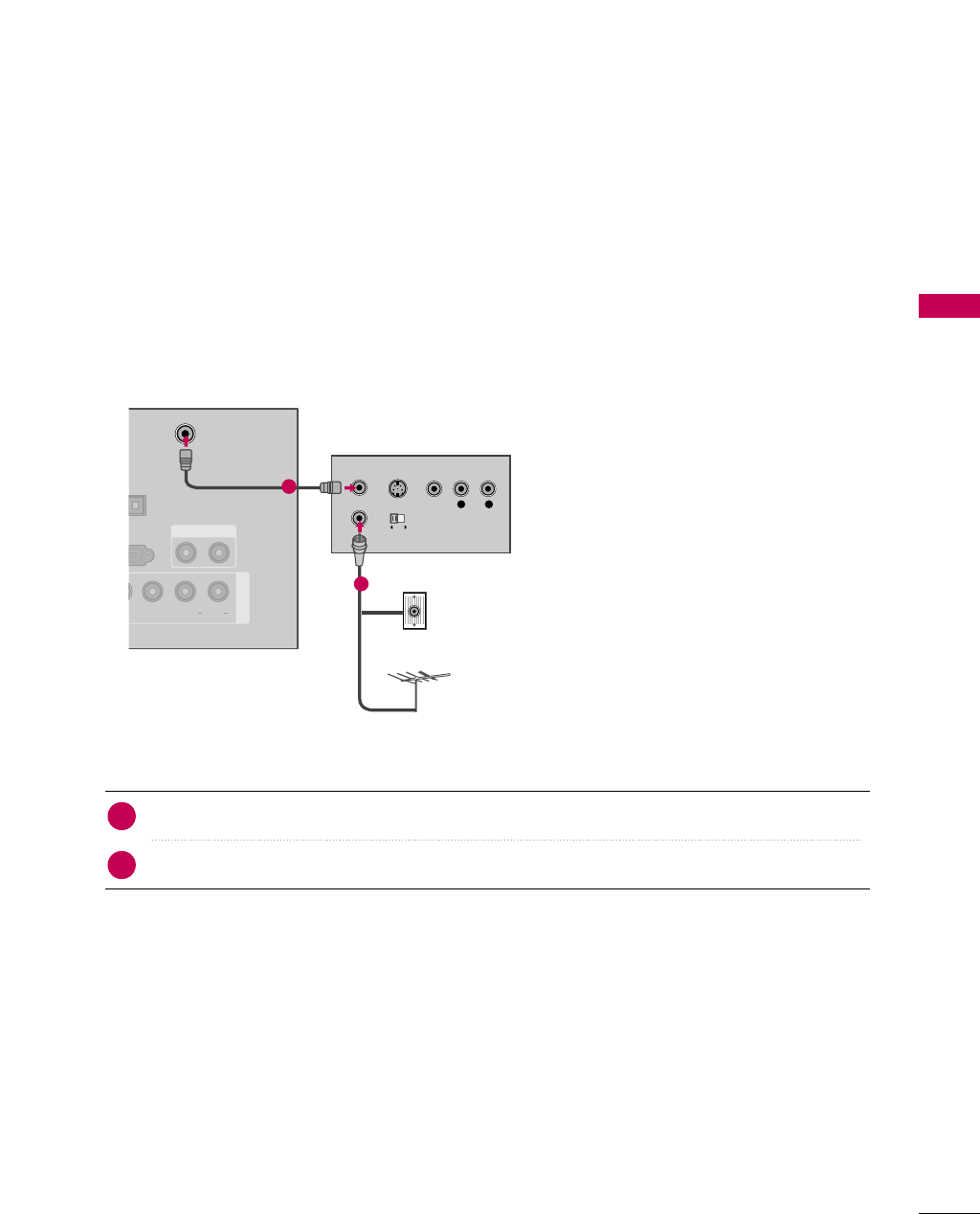

VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Headphone Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

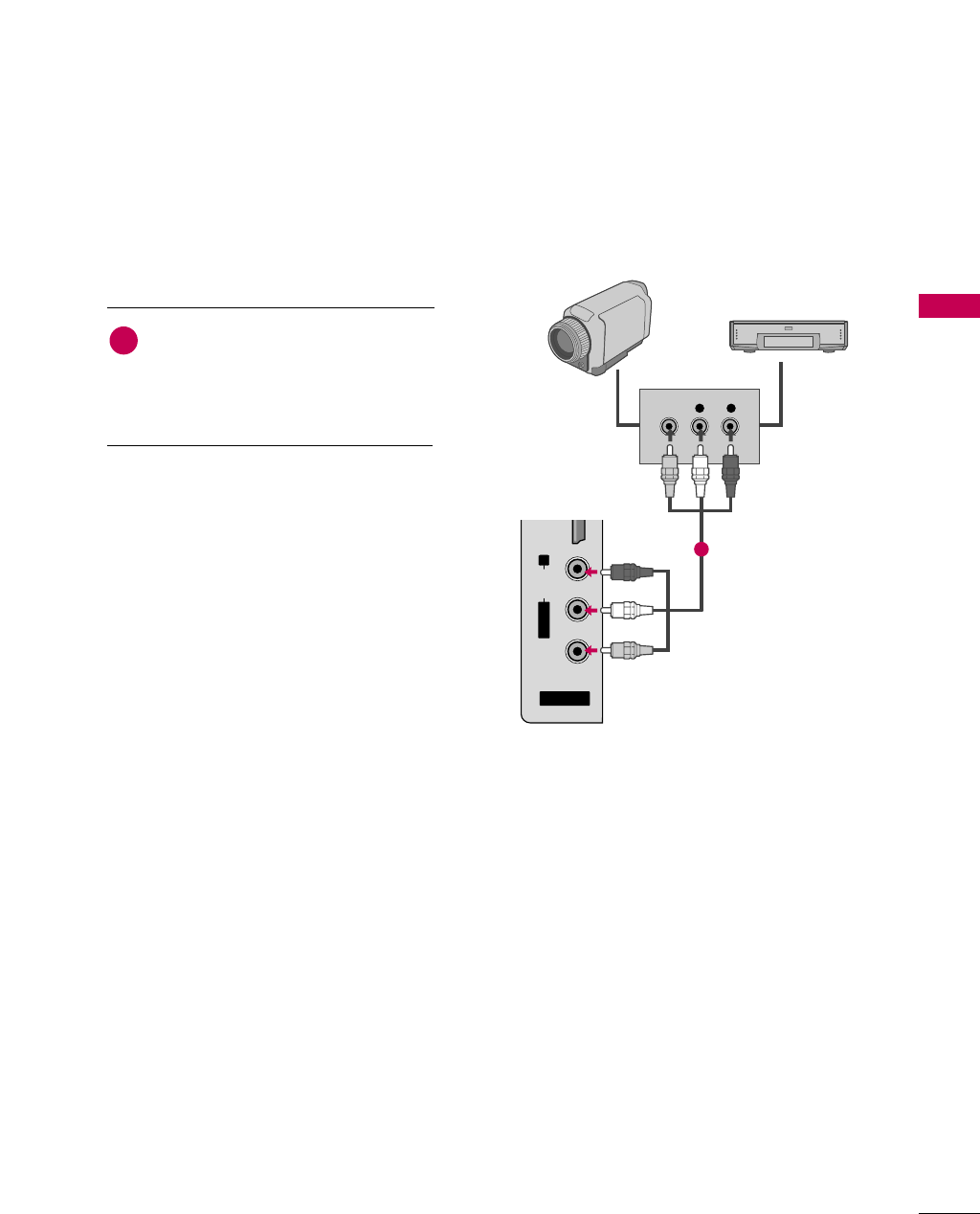

Other A/V Source Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Audio out Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

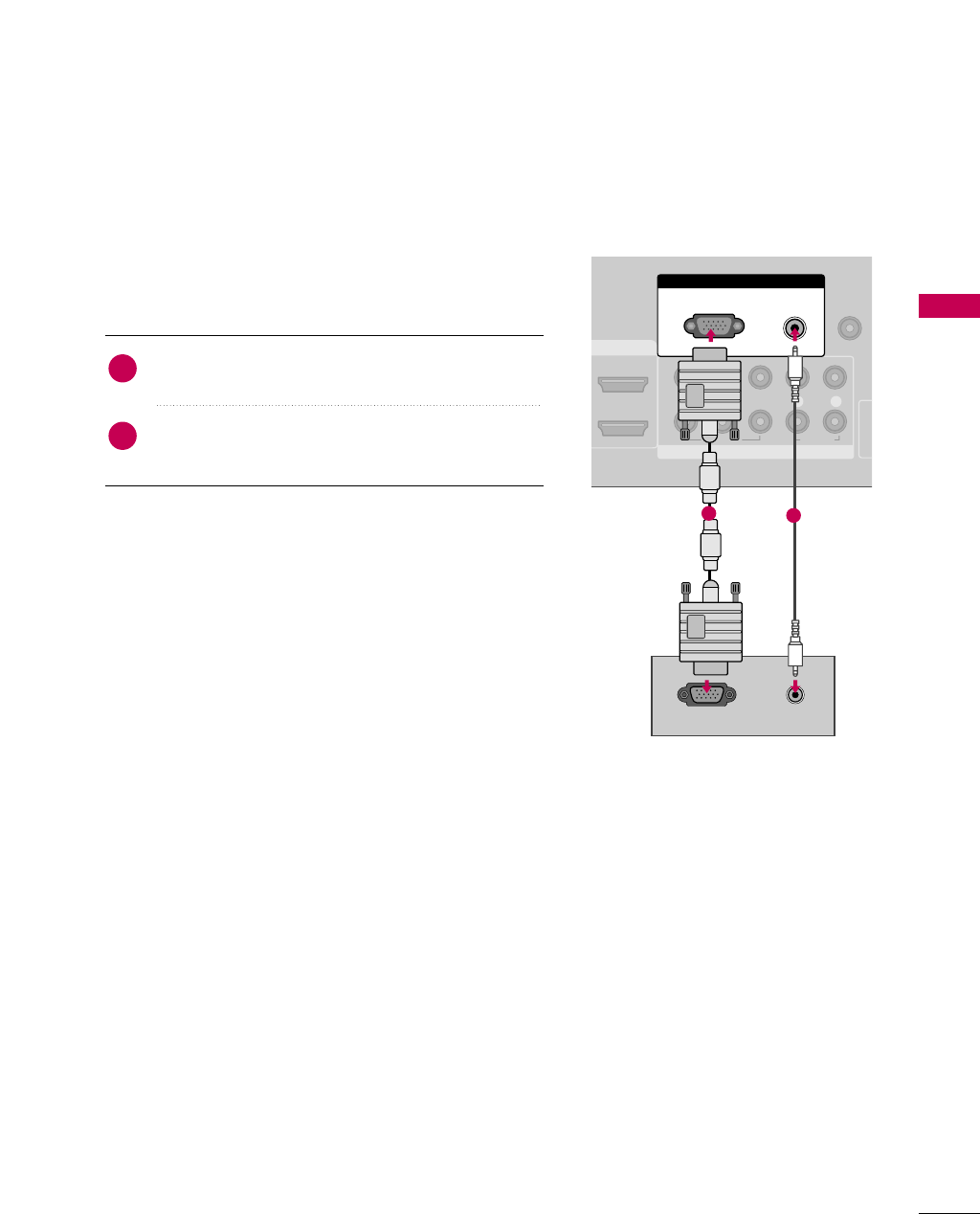

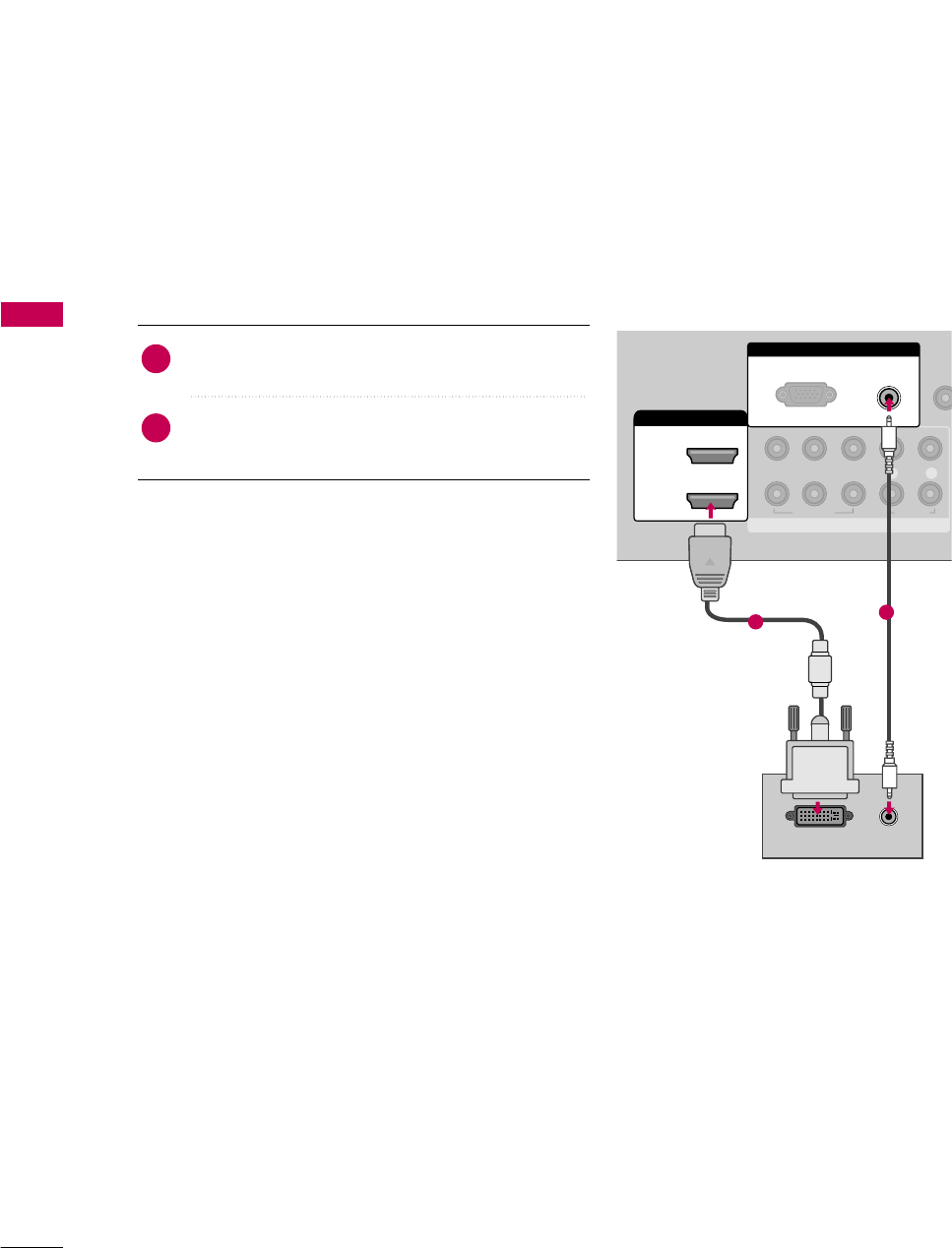

PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
WATCHING TV / CHANNEL CONTROL

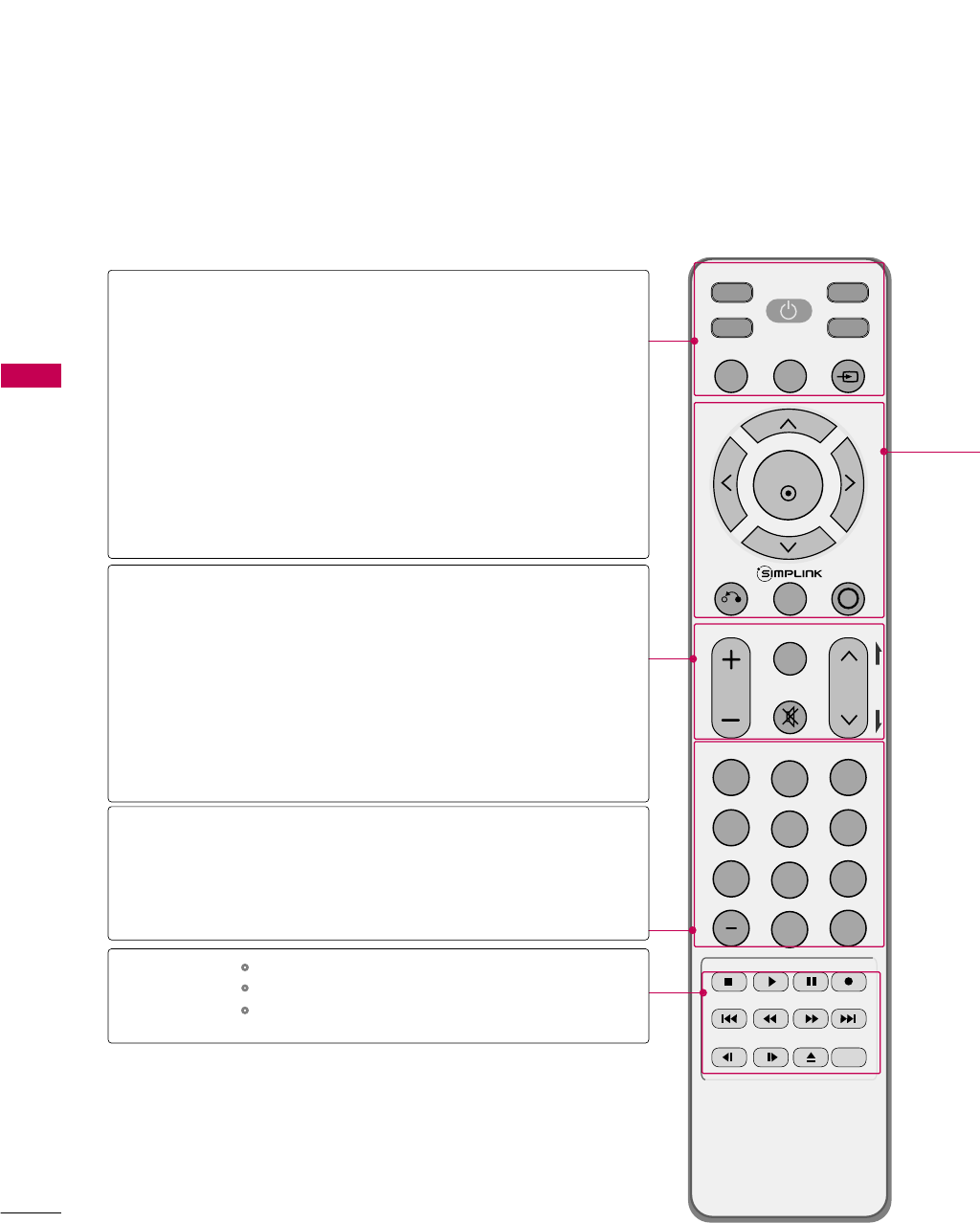

Remote Control Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Turning On TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

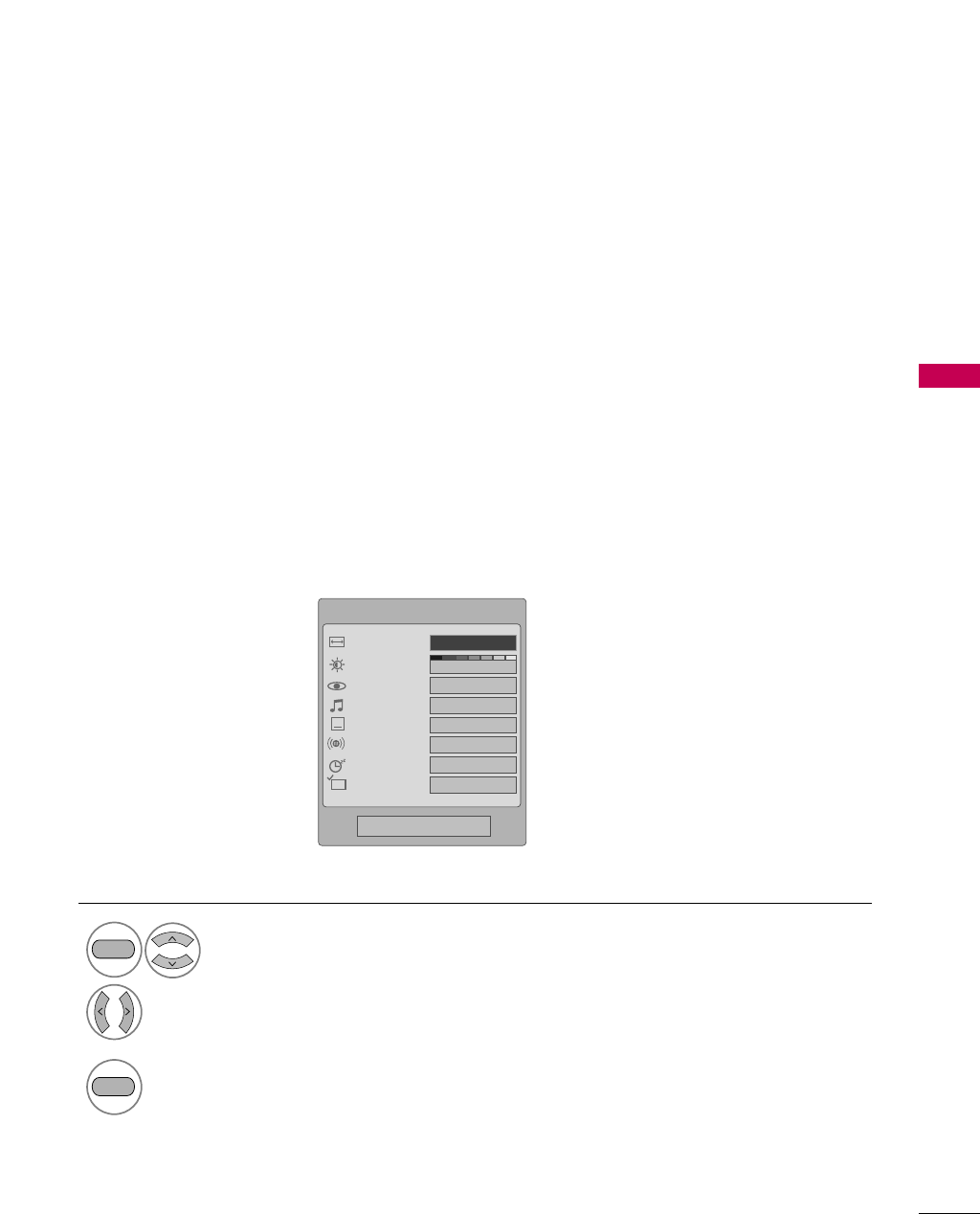

Quick Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Initial Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

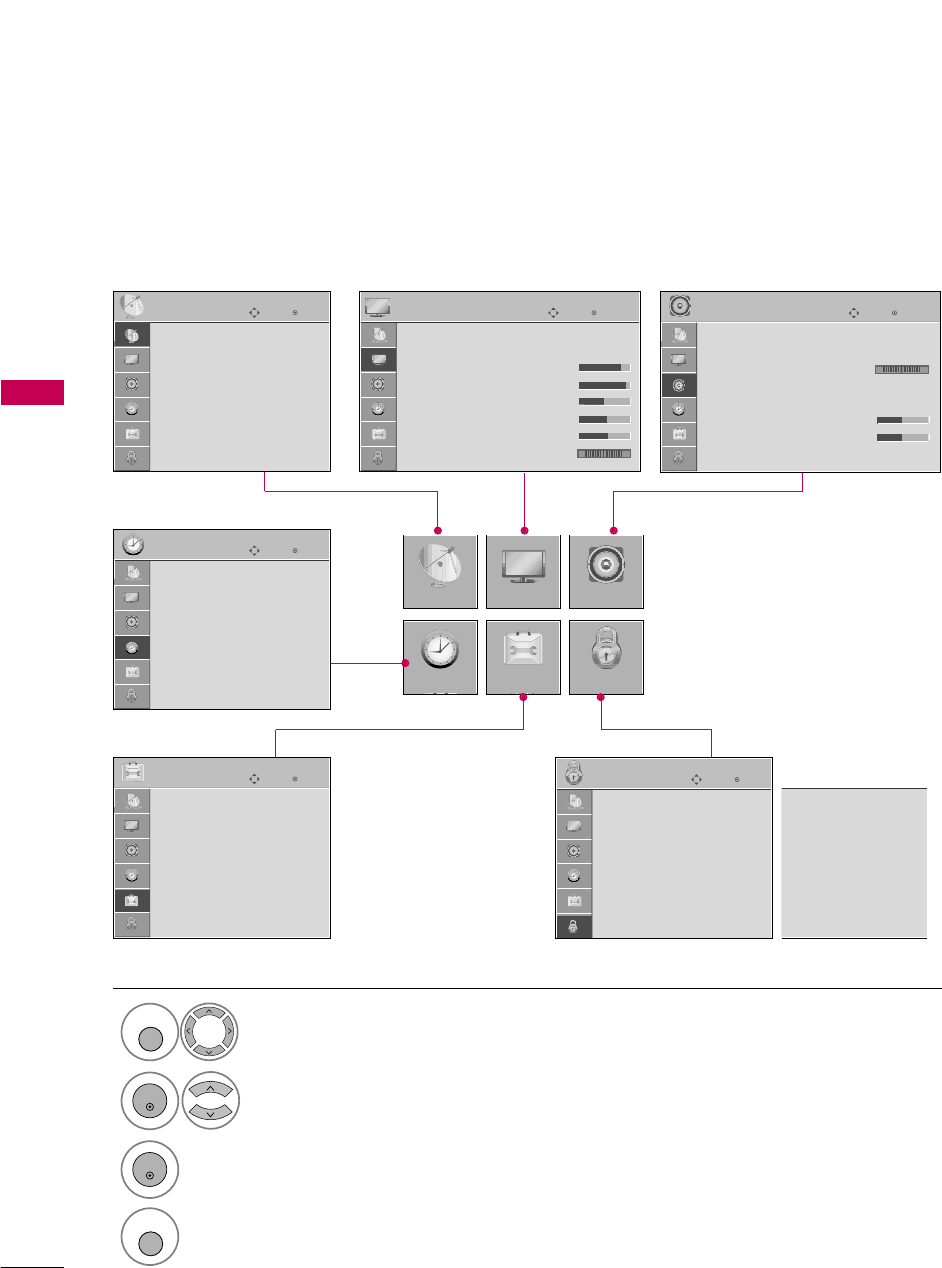

On-Screen Menus Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Channel Setup

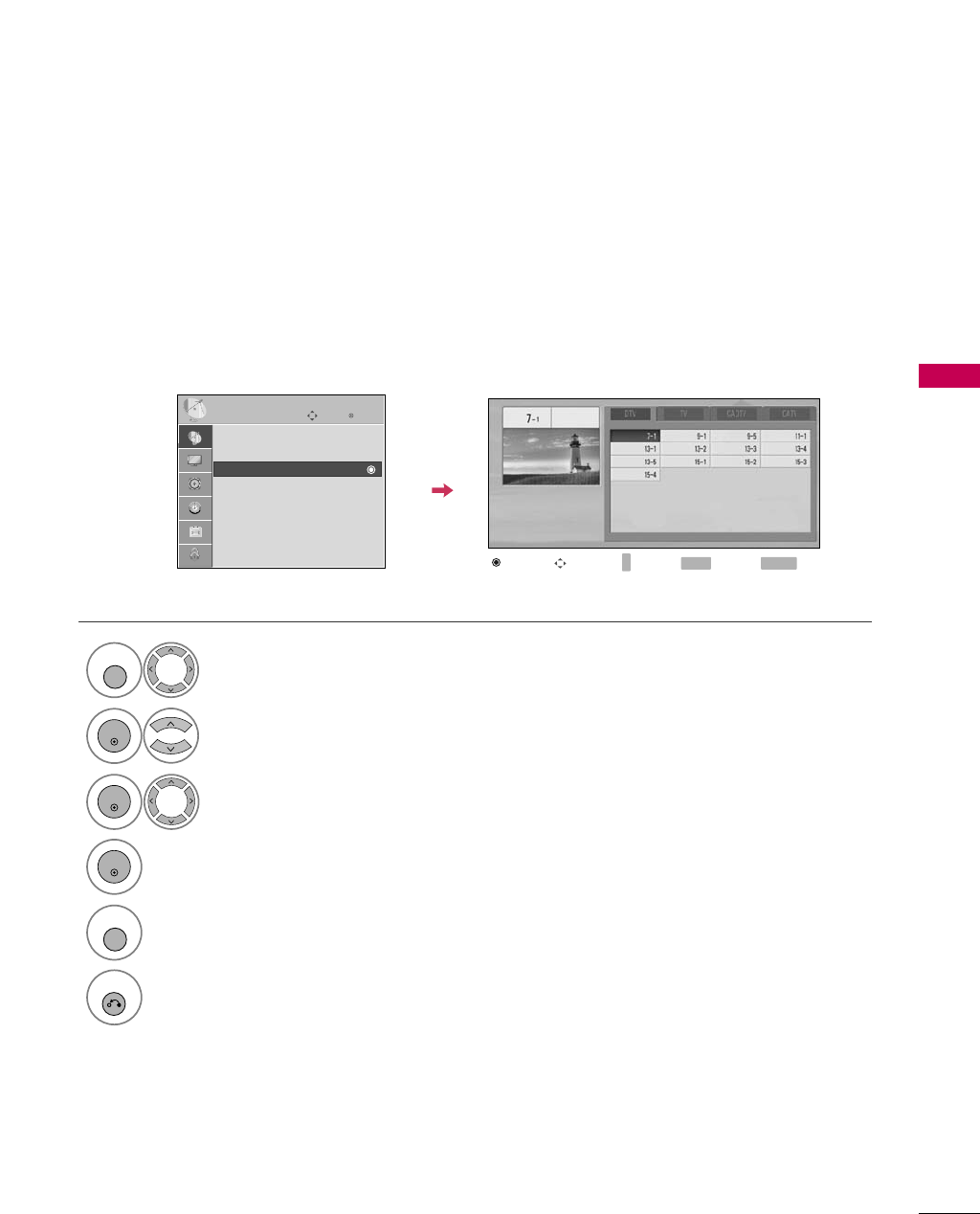

- Auto Scan (Auto Tuning) . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
- Add / Delete Channel (Manual Tuning) . . . . . . 46
- Channel Editing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

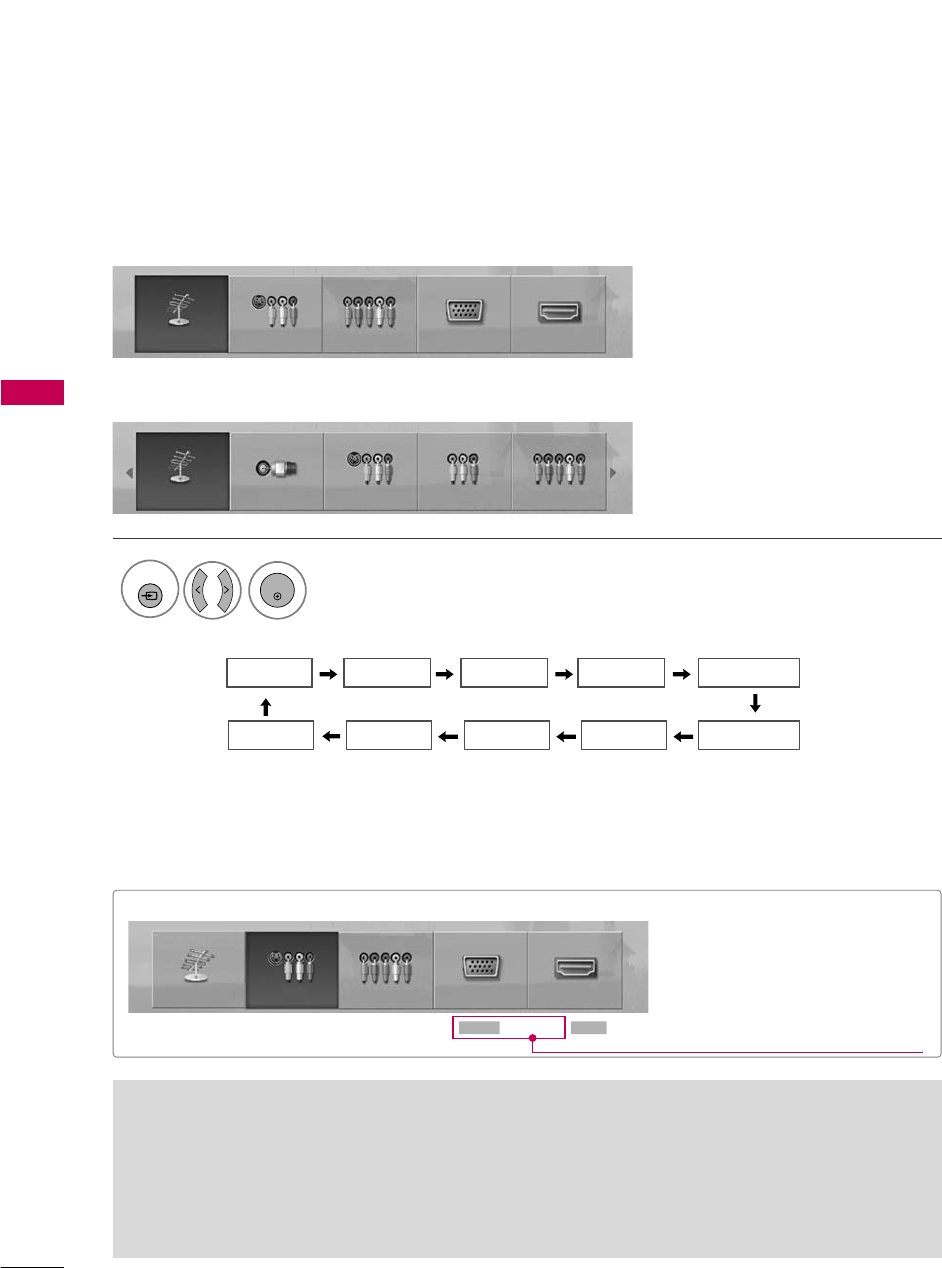

Input List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Input Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
PICTURE CONTROL
Picture Size (Aspect Ratio) Control . . . . . . . . . . . . . . . . . . 50
Preset Picture Settings
- Picture Mode - Preset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
- Color Tone - Preset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Manual Picture Adjustment
- Picture Mode - User Mode . . . . . . . . . . . . . . . . . . . . . . . . 54
Picture Improvement Technology . . . . . . . . . . . . . . . . . . . . . 55
Advanced Control - Black (Darkness) Level . . . . . . . 56
Advanced Control - Eye Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Advanced Control - Real Cinema . . . . . . . . . . . . . . . . . . . . . . 58
Picture Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
SOUND & LANGUAGE CONTROL
Auto Volume Leveler (Auto Volume) . . . . . . . . . . . . . . . . . 61
Preset Sound Setting (Sound Mode) . . . . . . . . . . . . . . . . 62
Sound Setting Adjustment - User Mode . . . . . . . . . . . 63
Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
TV Speakers On/Off Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Audio Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Stereo/SAP Broadcasts Setup . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Audio Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
On-Screen Menus Language Selection . . . . . . . . . . . . . 69
Caption Mode
- Analog Broadcasting System Captions . . . . . . . 70
- Digital Broadcasting System Captions . . . . . . . . 71
- Caption Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
5
TIME SETTING
Clock Setting
- Auto Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
- Manual Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Auto On/Off Time Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Sleep Timer Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Auto Shut-off Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
PARENTAL CONTROL / RATINGS
Set Password & Lock System . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Channel Blocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Movie & TV Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Downloadable Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
External Input Blocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
APPENDIX
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
External Control Through RS-232C . . . . . . . . . . . . . . . . . .94
Open Source License . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 0
6
■
If the TV feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is
nothing wrong with TV.
■
Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they
have no adverse effect on the monitor's performance.
■
Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce
some temporary distortion effects on the screen.
On Disposal
The fluorescent lamp used in this product contains a small amount of mercury.Do not dispose of this product with
general household waste. Disposal of this product must be carried out in accordance to the regulations of your local
authority.

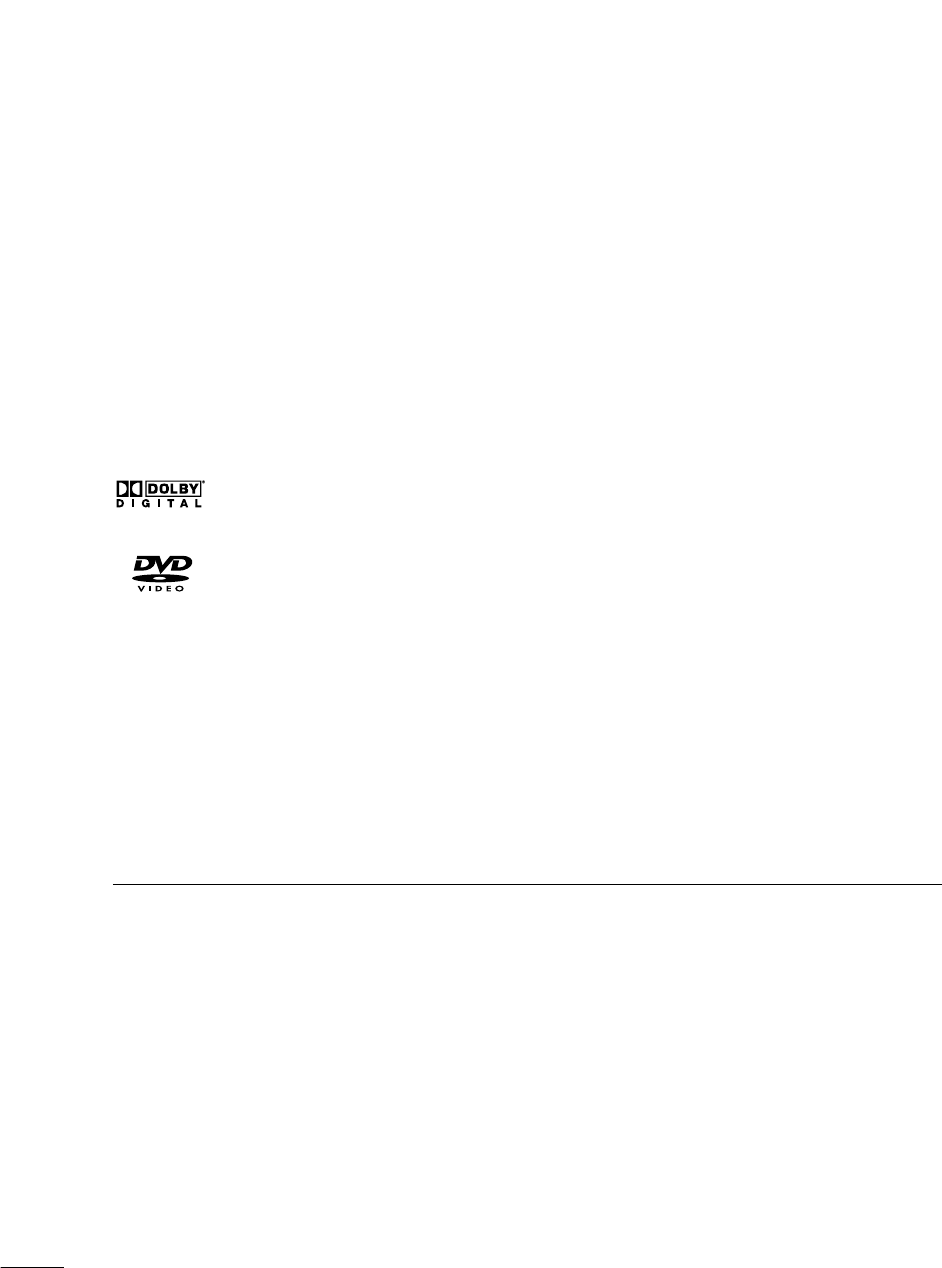

Manufactured under license from Dolby Laboratories. “
Dolby
“and the double-D symbol are trademarks of Dolby Laboratories.
This product incorporates copy protection technology that is protected by U.S. and foreign patents, including patent number 5,3
15 , 4 4 8 a n d
6,836,549, and other intellectual property rights. The use of Macrovision's copy protection technology in the product must be authorized by
Macrovision. Reverse engineering or disassembly is prohibited."
is a trademark of DVD format/Logo Licensing Corporation.
PREPARATION
7
PREPARATION

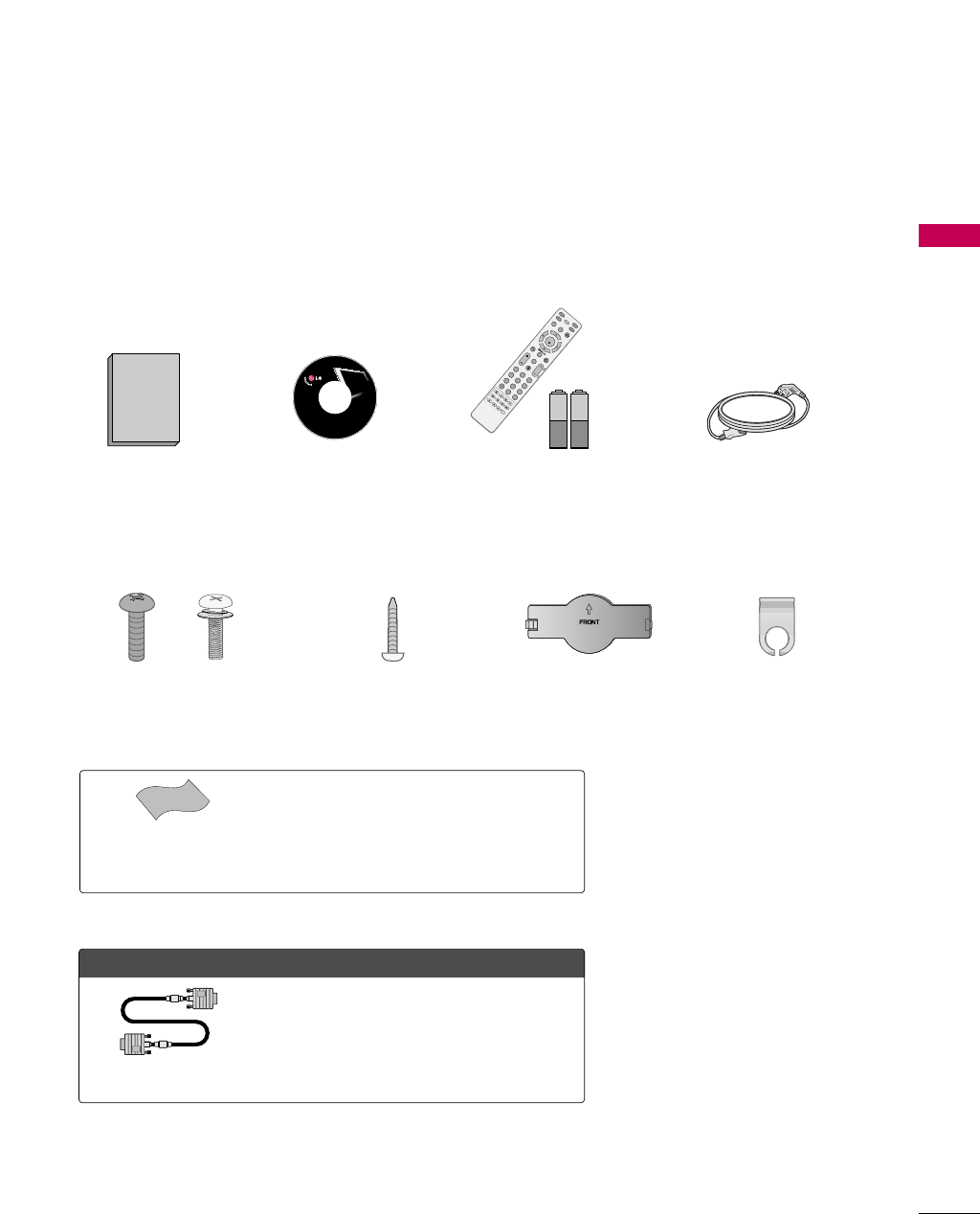

ACCESSORIES
Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the
dealer where you purchased the TV.
The accessories included may differ from the images below.
Copyright© 2007 LGE,
All Rights Reserved.
1.5V 1.5V
Owner’s Manual Power Cord
Remote Control,
Batteries
INPUT
FAV
MUTE
MARK
DISPLAYZOOM
SUBTITLE
SKIP -
SLOW-
SKIP+
EJECT
SLOW+
AUDIO
ANGLE
PBCRETURN
REPEATA-B
TITLE MENU
TV
STB
POWER
Q.MENU
BUILT-IN
MENU/
SETUP
AVMODE
RETURN
ENTER
VOLCH
123
456
78
0
9
FLASHBK
P
A
G
E
DVD
VCR
R
O
T
A
T
E
+
R
O
T
A
T
E
-
DISC MENU
CD Manual
Option Extras
* Wipe spots on the exterior only with the polishing cloth.
* Do not wipe roughly when removing stain. Please be
cautions of that excessive pressure may cause scratch or
discoloration.
Polishing Cloth
(This feature is not available
for all models.)
D-sub 15 pin Cable
When using the VGA (D-sub 15 pin cable)
PC connection, the user must use shielded
signal interface cables with ferrite cores to
maintain standards compliance.
Bolts for stand assembly
(Refer to P.12)
Screw for stand fixing
(Refer to P.16)
Protection Cover
x 4 x 4
Cable Management
Clip
PREPARATION
8
FRONT PANEL INFORMATION
PREPARATION
■
Image shown may differ from your TV.
■
NOTE: If your TV has a protection tape attached, remove the tape.
And then wipe the TV with a cloth (If a polishing cloth is included with your product, use it).
POWER Button
Power/Standby Indicator
Illuminates red in standby mode.
Illuminates blue when the TV is switched on.
(Can be adjusted Power Indicator in the
OPTION menu. GGp.60)
MENU
INPUT
ENTER
/
CH
VOL
Remote Control Sensor
PREPARATION
9
BACK PANEL INFORMATION
■
Image shown may differ from your TV.
COMPONENT IN
AUDIO
(RGB/DVI)
RGB(PC)
REMOTE
CONTROL IN
ANTENNA/
CABLE IN
RS-232C IN
(CONTROL & SERVICE)
VIDEO
AUDIO
DIGITAL
AUDIO OUT
OPTICAL
AUDIO OUT
AV IN 1
VIDEO
MONO
( )
AUDIO
S-VIDEO
2
1
RGB IN
HDMI/DVI IN
31
4
6
7
8
2
9
5
AV IN 2
L/MONO
R
AUDIO
VIDEO
USB
SERVUCE ONLY
HDMI IN 3
9
10
1
11

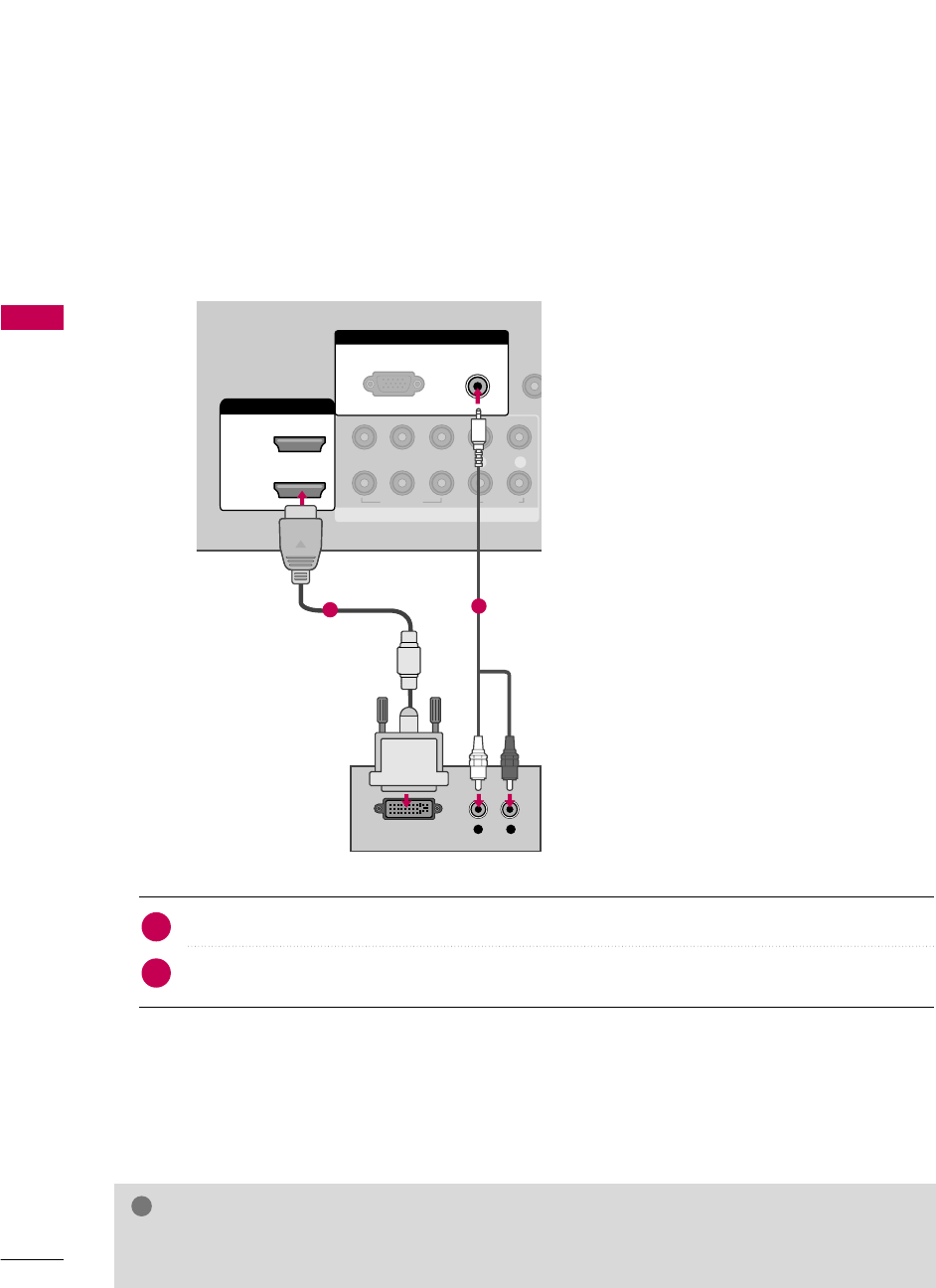

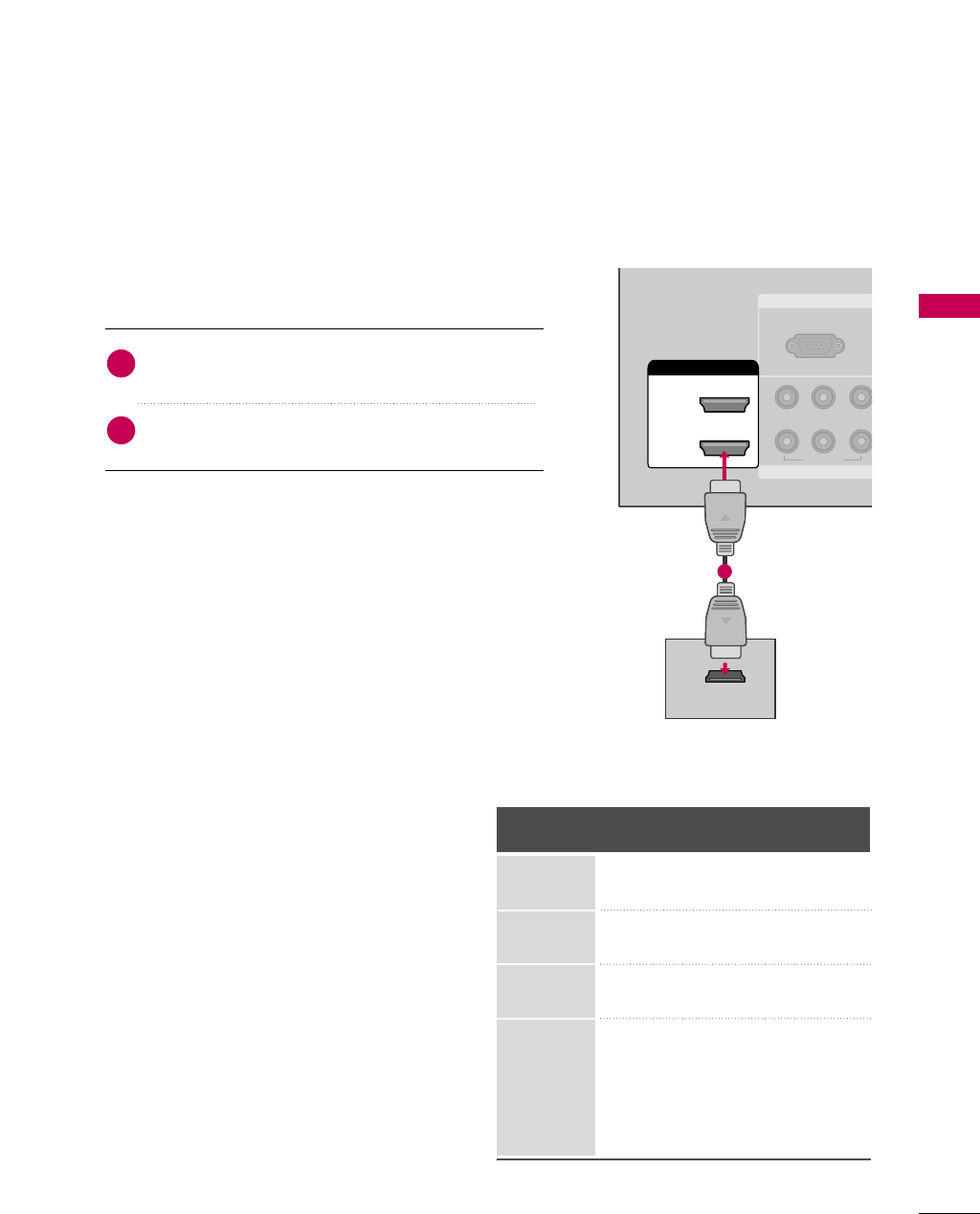

HDMI/DVI IN, HDMI IN
Digital Connection. Supports HD video and Digital
audio. Doesn’t support 480i.
Accepts DVI video using an adapter or HDMI to
DVI cable (not included)
COMPONENT IN
Analog Connection. Supports HD.
Uses a red, green, and blue cable for video & red
and white for audio.
RGB (PC)
Analog PC Connection. Uses a D-sub 15 pin cable
(VGA cable).
AUDIO (RGB/DVI)
1/8” headphone jack for analog PC audio input.
REMOTE CONTROL PORT
For a wired remote control.
RS-232C IN (CONTROL & SERVICE) PORT
Used by third party devices.
ANTENNA/CABLE IN
Connect over-the air signals to this jack.
Connect cable signals to this jack.
DIGITAL AUDIO OUT OPTICAL
Digital audio output for use with amps and home
theater systems.
Includes an optical connection.
Note: In standby mode, these ports do not work.
AUDIO OUT
Analog audio output for use with amps and home
theater systems.
AV (Audio/Video) IN
Analog composite connection. Supports standard
definition video only (480i).
S-VIDEO
Better quality than standard composition.
Supports standard definition video only (480i).
USB SERVICE ONLY
Used for software updates.
Power Cord Socket
For operation with AC power.
Caution: Never attempt to operate the TV on DC
power.
1
2
3
4
5
6
9
10
11
7
8
PREPARATION
10
PREPARATION
STAND INSTALLATION
■
Image shown may differ from your TV
Assemble the parts of the STAND BODY
with COVER BASE of the TV.
2
Assemble the TV as shown.
3
Fix the 4 bolts securely using the holes in the
back of the TV.
4
Carefully place the TV screen side down on a
cushioned surface to protect the screen from
damage.
1
STAND BODY
COVER BASE
PREPARATION
11
CABLE MANAGEMENT
■
Image shown may differ from your TV
Align the hole with the tab on the CABLE
MANAGEMENT CLIP.
Turn the CABLE MANAGEMENT CLIP as
shown.
Note: This cable management can be broken
by excessive pressure.
Connect the cables as necessary.
To connect additional equipment, see the
EXTERNAL EQUIPMENT SETUP section.
1
2
PREPARATION
12
DESKTOP PEDESTAL INSTALLATION
PREPARATION
GEnsure adequate ventilation by following the clearance recommendations.
CAUTION
4 inches
4 inches
4 inches 4 inches
For proper ventilation, allow a clearance of 4 inches on all four sides from the wall.
■
Image shown may differ from your TV.
SWIVEL STAND
After installing the TV, you can adjust the TV set manually to the left or right direction by 20 degrees to suit
your viewing position.
VESA WALL MOUNTING
200 mm
100 mm
This TV accepts VESA FDMI compliant mounts via the four screw holes on the back of the TV. These
mounts are sold by third parties and not available from LG. Refer to the instructions included with the
mount for more info.
GScrew length needed depends on the wall mount used. For further information, refer to the instructions
included with the mount.
NOTE
!
PREPARATION
13
PROTECTION COVER
ATTACHING THE TV TO A DESK
■
Image shown may differ from your TV.
You can remove the stand before installing the TV
on a wall mount by performing the previous stand
instructions in reverse. After removing the stand,
install the included protection cover over the
hole for the stand.
Insert the PROTECTION COVER into the TV until
clicking sound.
PROTECTION COVER
The TV must be attached to a desk so it cannot be pulled in a forward/backward direction, potentially causing
injury or damaging the product.
GTo prevent TV from falling over, the TV should be securely attached to the floor/wall per installation
instructions. Tipping, shaking, or rocking the machine may cause injury.
WARNING
1-Screw
(provided as parts of the product)
Desk
Stand
PREPARATION
14

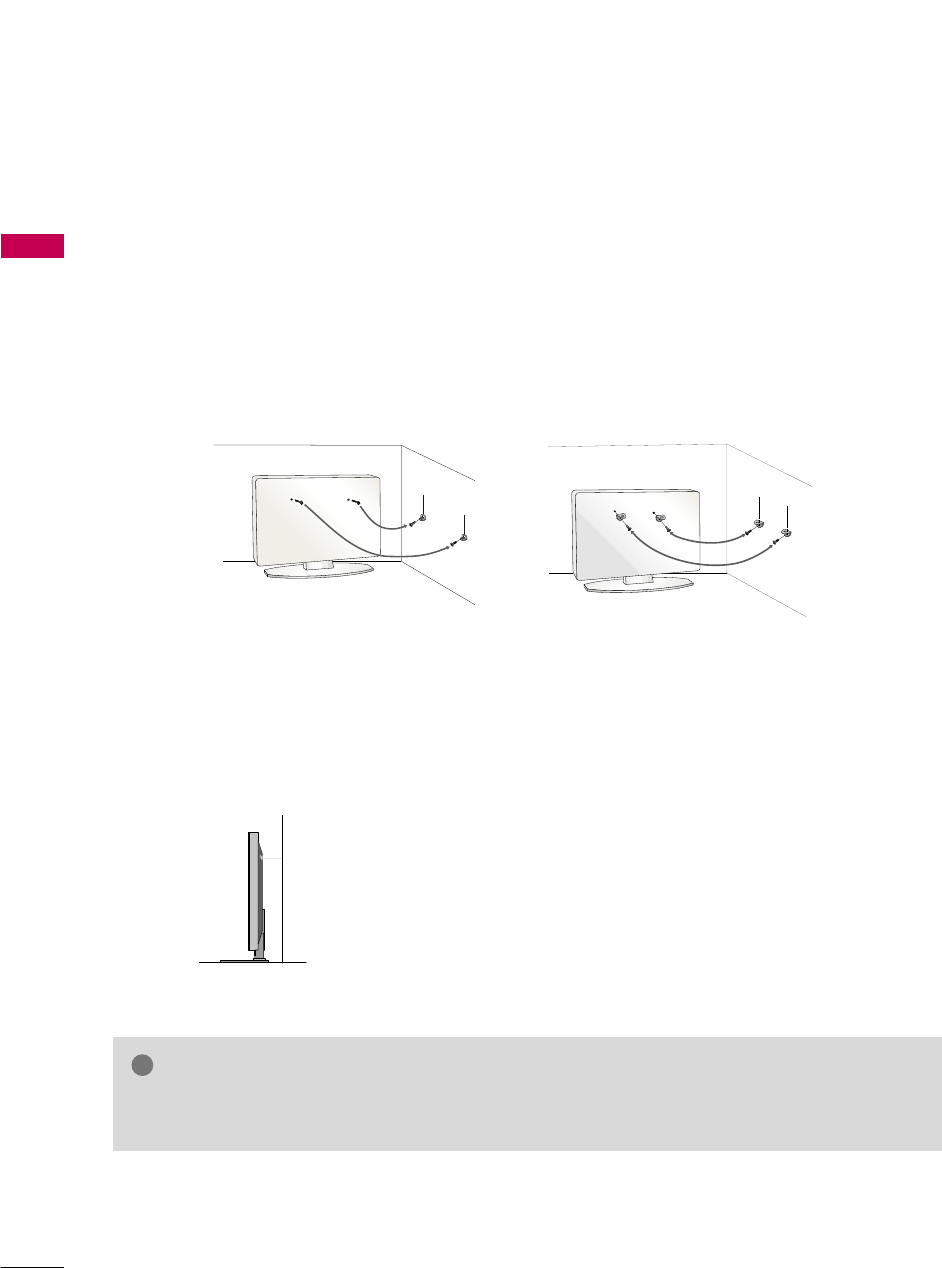

SECURING THE TV TO THE WALL TO PREVENT FALLING
PREPARATION
We recommend that you set up the TV close to a wall so it cannot fall over if pushed backwards.
Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward direction,
potentially causing injury or damaging the product.
Caution: Please make sure that children don’t climb on or hang from the TV.
■Insert the eye-bolts (or TV brackets and bolts) to tighten the product to the wall as shown in the picture.
*If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the bolts.
* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.
Secure the wall brackets with the bolts (not provided as parts of the product, must purchase separately) to
the wall. Match the height of the bracket that is mounted on the wall to the holes in the product.
Ensure the eye-bolts or brackets are tightened securely.
■Use a sturdy rope (not provided as parts of the product, must pur-
chase separately) to tie the product. It is safer to tie the rope so it
becomes horizontal between the wall and the product.
■
You should purchase necessary components to prevent TV from falling off of the stand.
■
Image shown may differ from your TV.
GUse a platform or cabinet strong enough and large enough to support the size and weight of the TV.
GTo use the TV safely make sure that the height of the bracket on the wall and the one on the TV are the same.
NOTE
!
PREPARATION
15
ANTENNA OR CABLE CONNECTION
1. Antenna (Analog or Digital)
Wall Antenna Socket or Outdoor Antenna without a Cable Box
Connections.
For optimum picture quality, adjust antenna direction if needed.
2. Cable
Wall
Antenna
Socket
Outdoor
Antenna
(VHF, UHF)
Cable TV
Wall Jack
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
RF Coaxial Wire (75 ohm)
RF Coaxial Wire (75 ohm)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Be careful not to bend the bronze wire
when connecting the antenna.
Copper Wire
■To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.
■If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter.
■If the antenna is not installed properly, contact your dealer for assistance.
Antenna
UHF
Signal
Amplifier
VHF
ANTENNA/CABLE IN
ANTENNA/CABLE IN
ANTENNA/CABLE IN
■
To prevent damage do not connect to the power outlet until all connections are made between the devices.
■
Image shown may differ from your TV.
EXTERNAL EQUIPMENT SETUP
16
EXTERNAL EQUIPMENT SETUP
HD RECEIVER SETUP
This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do
receive digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.

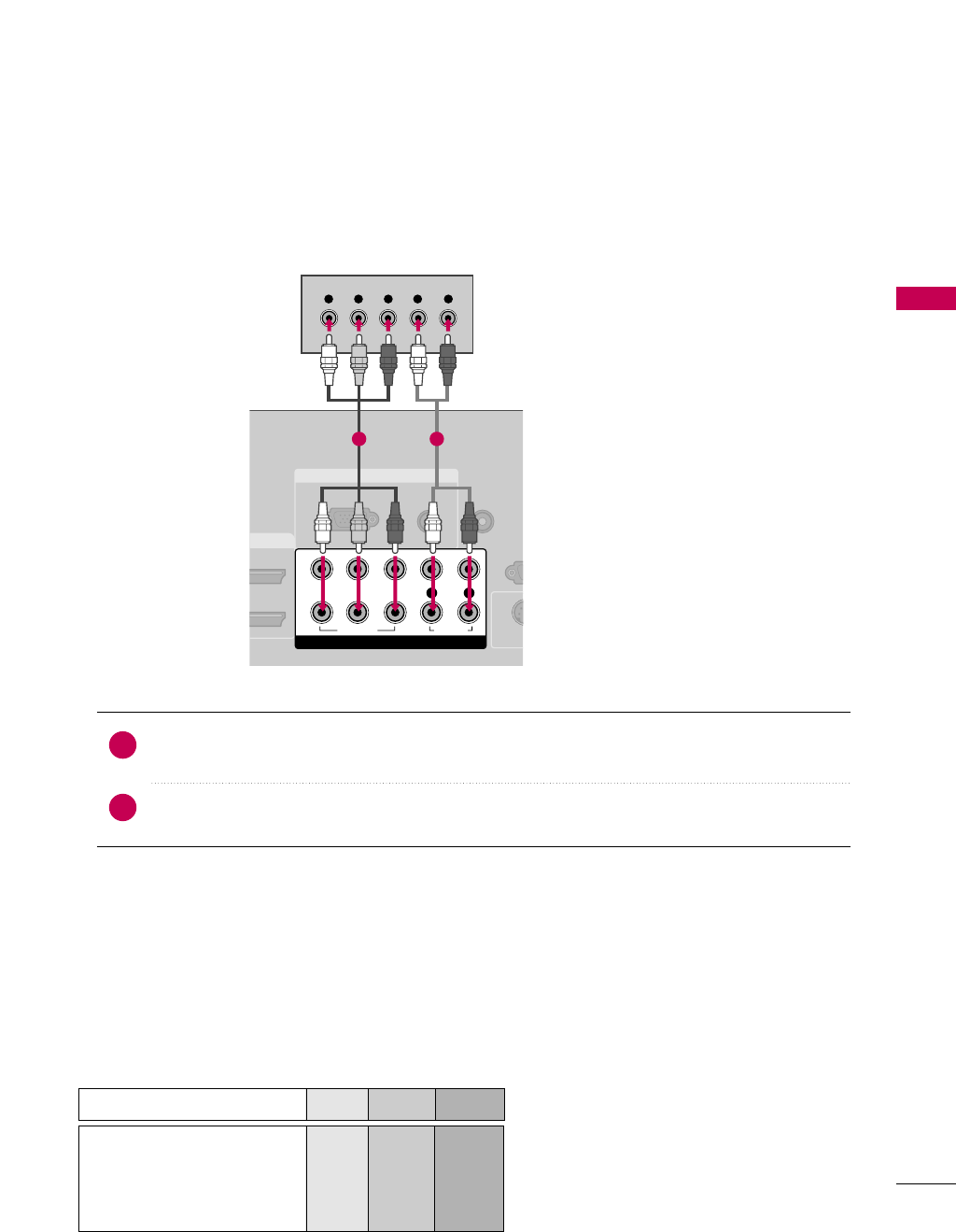

Component Connection
1. How to connect
Connect the video outputs (Y, PB, PR)of the digital set-
top box to the COMPONENT IN VIDEO jacks on
the TV. Match the jack colors (Y = green, PB= blue, and
PR= red).
Connect the audio output of the digital set-top box to
the COMPONENT IN AUDIO jacks on the TV.
2
1
2. How to use
■Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box. operation)
■Select the Component input source on the TV using the
INPUT button on the remote control.
■To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
ANTENNA/CABLE IN
IN
NLY)
AUDIO IN
(RGB/DVI)
IN
AV IN
VIDEO
L(MONO)
R
AUDIO
S-VIDEO
VIDEO
AUDIO
L R
COMPONENT IN
Y L RP
B
P
R
12
Y, CB/PB, CR/PR
Horizontal Vertical
Frequency(KHz)Frequency(Hz)
15.73 59.94
15.73 60.00
31.47 59.94
31.50 60.00
44.96 59.94
45.00 60.00
33.72 59.94
33.75 60.00
26.97 23.94
27.00 24.00
33.71 29.97
33.75 30.00
67.43 59.94
67.50 60.00
Resolution
720x480i
720x480p
1280x720p
1920x1080i
1920x1080p
Signal
480i
480p
720p
108 0 i
108 0 p
Component
Yes
Yes
Yes
Yes
Yes
HDMI
No
Yes
Yes
Yes
Yes
Supported Resolutions
EXTERNAL EQUIPMENT SETUP
17
Connect the digital set-top box to HDMI/DVI IN1,
2, or 3 jack on the TV.
No separate audio connection is necessary.
HDMI supports both audio and video.
1. How to connect
2. How to use
■Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)
■Select the HDMI1, HDMI2, or HDMI3 input source on the
TV using the INPUT button on the remote control.
2
1
HDMI-DTV
Horizontal Vertical
Frequency(KHz)Frequency(Hz)
31.47 59.94
31.50 60.00
44.96 59.94
45.00 60.00
33.72 59.94
33.75 60.00
26.97 23.976
27.00 24.00
33.71 29.97
33.75 30.00
67.432 59.939
67.50 60.00
Resolution
720x480p
1280x720p
1920x1080i
1920x1080p
RGB IN
COMPONE
RGB(PC)
1
2
VIDEO
YP
B
P
R
HDMI/DVI IN
2
1
HDMI-DTV OUTPUT
1
HDMI Connection
EXTERNAL EQUIPMENT SETUP
18
EXTERNAL EQUIPMENT SETUP
DVI to HDMI Connection
RGB IN
COMPONENT IN
AUDIO
(RGB/DVI)
RGB(PC)
REMO
CONTRO
1
2
VIDEO
LYP
B
P
R
R
AUDIO
HDMI/DVI IN
2
1
L R
DVI-DTV OUTPUT
12
Connect the DVI output of the digital set-top box to the HDMI/DVI IN or HDMI/DVI IN 1/2/3 jack on the TV.
Connect the PC audio output to the AUDIO IN (RGB/DVI)
or
AUDIO (RGB/DVI)jack on the TV.
1. How to connect
2. How to use
■Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)
■Select the HDMI or HDMI1/2/3 input source on the TV using the INPUT button on the remote control.
2
1
GA DVI to HDMI cable or adapter is required for this connection. DVI doesn't support audio, so a separate
audio connection is necessary.
NOTE
!
EXTERNAL EQUIPMENT SETUP
19
DVD SETUP
Component Connection
Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the TV
YPBPR
Video output ports
on DVD player
Y
Y
Y
Y
PB
B-Y
Cb
Pb
PR
R-Y
Cr
Pr
Connect the video outputs (Y, PB, PR)of the DVD to the COMPONENT IN VIDEO or COMPONENT
IN VIDEO1 jacks on the TV. Match the jack colors (Y = green, PB= blue, and PR= red).
Connect the audio outputs of the DVD to the COMPONENT IN AUDIO or COMPONENT IN
AUDIO1 jacks on the TV.
1. How to connect
2. How to use
■Turn on the DVD player, insert a DVD.
■Select the Component or Component 1 input source on the TV using the INPUT button on the
remote control.
■If connected to COMPONENT IN 2 input, select the Component 2 input source on the TV.
■Refer to the DVD player's manual for operating instructions.
2
1
RGB IN
AUDIO
(RGB/DVI)
RGB(PC)
REMOTE
CONTROL IN
RS
(CONTR
VI IN
S-V
COMPONENT IN
1
2
VIDEO
LYP
B
P
R
R
AUDIO
Y L RP
B
P
R
AO
1 2
EXTERNAL EQUIPMENT SETUP
20
EXTERNAL EQUIPMENT SETUP

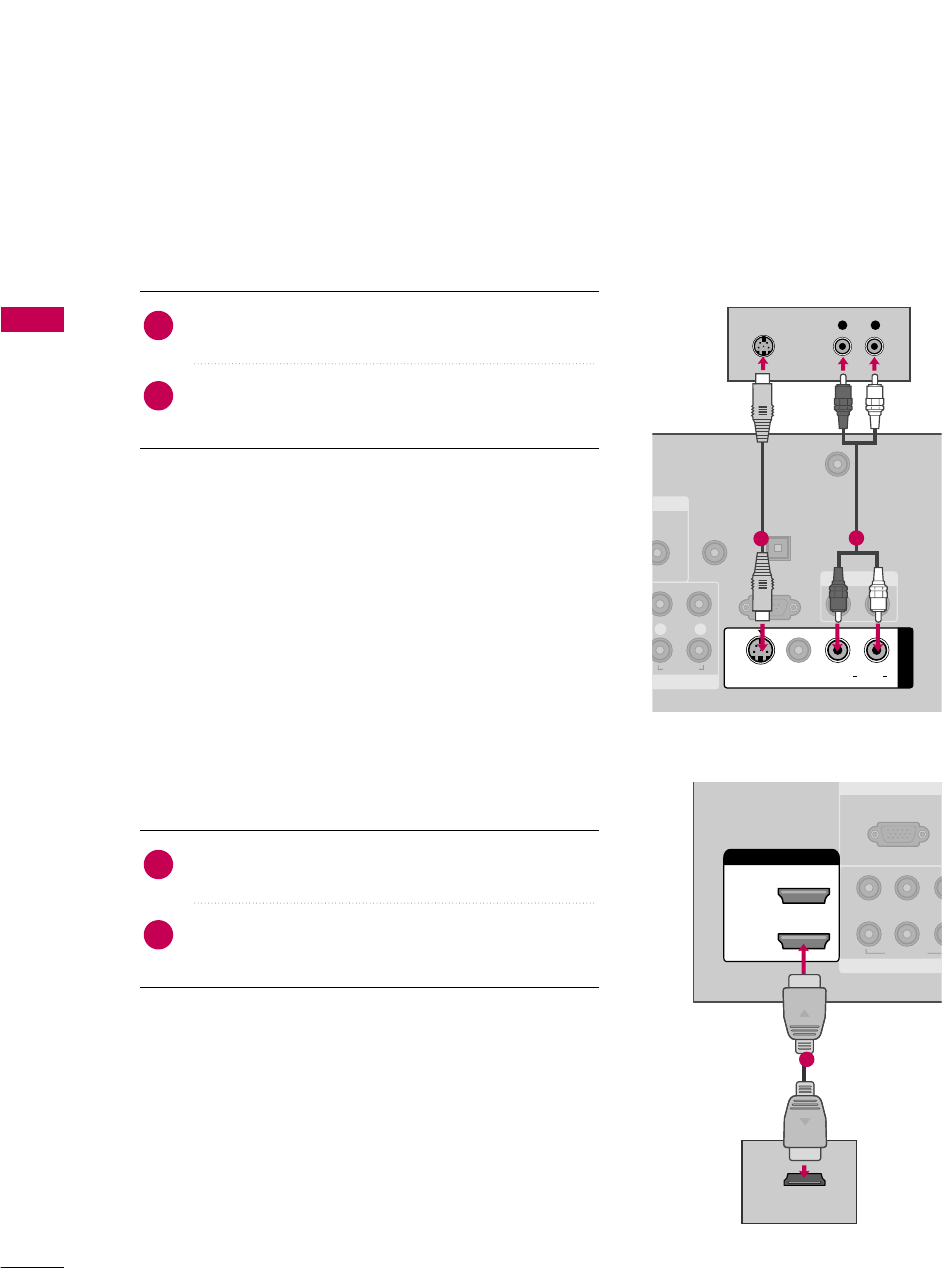

S-Video Connection
N
UDIO
B/DVI)
REMOTE
CONTROL IN
ANTENNA/
CABLE IN
RS-232C IN
(CONTROL & SERVICE)
LR
AUDIO
AUDIO OUT
AV IN 1
VIDEO LR
(MONO)
AUDIO
S-VIDEO
L R
S-VIDEO
AUDIO
DIGITAL
AUDIO OUT
OPTICAL
12
HDMI Connection
RGB IN
COMPON
RGB(PC)
1
2
VIDEO
YP
B
HDMI/DVI IN
2
1
HDMI-DVD OUTPUT
1
1. How to connect
Connect the S-VIDEO output of the DVD to the S -
VIDEO input on the TV.
Connect the audio outputs of the DVD to the AUDIO
input jacks on the TV.
2
1
2. How to use
■Turn on the DVD player, insert a DVD.
■Select the A V or AV1 input source on the TV using the
INPUT button on the remote control.
■Refer to the DVD player's manual for operating instructions.
1. How to connect
Connect the HDMI output of the DVD to the
HDMI/DVI IN or HDMI/DVI IN 1/2/3
jack on the TV.
No separated audio connection is necessary.
HDMI supports both audio and video.
2
1
2. How to use
■Select the HDMI or HDMI1/2/3 input source on the TV
using the INPUT button on the remote control.
■Refer to the DVD player's manual for operating instructions.
EXTERNAL EQUIPMENT SETUP
21
VCR SETUP
Antenna Connection
■To avoid picture noise (interference), leave an adequate distance between the VCR and TV.
■If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the screen.
This phenomenon is common to all TVs and is not covered by warranty.
Connect the RF antenna out socket of the VCR to the ANTENNA/CABLE IN socket on the TV.
Connect the antenna cable to the RF antenna in socket of the VCR.
1. How to connect
■Set VCR output switch to 3 or 4 and then tune TV to the same channel number.
■Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner’s manual.)
2. How to use
2
1
ANTENNA/
CABLE IN
32C IN
& SERVICE)
AUDIO OUT
AV IN 1
VIDEO L R
(MONO)
AUDIO
EO
L R
S-VIDEO VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
GITAL
DIO OUT
PTICAL
Wall Jack
Antenna
1
2
EXTERNAL EQUIPMENT SETUP
22
EXTERNAL EQUIPMENT SETUP
Composite (RCA) Connection
GIf you have a mono VCR, connect the audio cable from
the VCR to the AUDIO L/MONO jack of the TV.
NOTE
!
IO
DVI)
REMOTE
CONTROL IN
ANTENNA/
CABLE IN
RS-232C IN
(CONTROL & SERVICE)
R
AUDIO
AUDIO OUT
AV IN 1
VIDEO L R
(MONO)
AUDIO
S-VIDEO
DIGITAL
AUDIO OUT
OPTICAL
L R
S-VIDEO VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
1
1. How to connect
Connect the AUDIO/VIDEO jacks between TV and
VCR. Match the jack colors (Video = yellow, Audio Left
= white, and Audio Right = red)
1
2. How to use
■Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner’s manual.)
■Select the A V or AV1 input source on the TV using the
INPUT button on the remote control.
■If connected to AV IN2, select AV2 input source on the TV.
S-Video Connection
IN
AUDIO
GB/DVI)
REMOTE
CONTROL IN
ANTENNA/
CABLE IN
RS-232C IN
(CONTROL & SERVICE)
LR
AUDIO
AUDIO OUT
AV IN 1
VIDEO LR
(MONO)
AUDIO
S-VIDEO
DIGITAL
AUDIO OUT
OPTICAL
L R
S-VIDEO VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
12
1. How to connect
Connect the S-VIDEO output of the VCR to the S -
VIDEO input on the TV.
Connect the audio outputs of the VCR to the AUDIO
input jacks on the TV.
2
1
2. How to use
■Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner’s manual.)
■Select the A V or AV1 input source on the TV using the
INPUT button on the remote control.
GThe picture quality is improved: compared to normal composite (RCA cable) input.
NOTE
!
GDo not connect to both Video and S-Video at the same time. In the event that you connect both
Video and the S-Video cables, only the S-Video will work.
CAUTION
EXTERNAL EQUIPMENT SETUP
23
OTHER A/V SOURCE SETUP
AV IN 2
L/MONO
R
AUDIO
VIDEO
HDMI IN 3 USB IN
L R
VIDEO
Camcorder
Video Game Set
Connect the AUDIO/VIDEO jacks
between TV and external equipment.
Match the jack colors
.
(Video = yellow, Audio Left = white, and
Audio Right = red)
1. How to connect
2. How to use
■Select the AV2 input source on the TV using
the INPUT button on the remote control.
■If connected to AV IN1 input, select the A V1
input source on the TV.
■Operate the corresponding external equipment.
1
1
EXTERNAL EQUIPMENT SETUP
24
AUDIO OUT CONNECTION
EXTERNAL EQUIPMENT SETUP
Send the TV’s audio to external audio equipment via the Audio Output port.
RS-232C IN
(CONTROL & SERVICE)
R
AUDIO
AUDIO OUT
AV IN 1
VIDEO L R
(MONO)
AUDIO
S-VIDEO
L R
AUDIO
1
DIO
/DVI)
REMOTE
CONTROL IN
ANTENNA/
CABLE IN
RS-232C IN
(CONTROL & SERVICE)
R
AUDIO
AUDIO OUT
AV IN 1
VIDEO L R
(MONO)
AUDIO
S-VIDEO
DIGITAL
AUDIO OUT
OPTICAL
1
2
GWhen connecting with external audio equipments, such as
amplifiers or speakers, you can turn the TV speakers off in
the menu. (G p.65)
NOTE
!
GDo not look into the optical output port. Looking at the
laser beam may damage your vision.
GGBlock the SPDIF out (optical) about the contents with
ACP(Audio Copy Protection) function.
CAUTION
Connect one end of the optical or coaxial cable to the
TV’s OPTICAL port of DIGITAL AUDIO OUT.
Connect the other end of the optical cable to the digital
audio input on the audio equipment.
Set the “TV Speaker option - Off” in the AUDIO menu. (G
p.65). See the external audio equipment instruction manu-
al for operation.
1. How to connect
2
3
1
Connect audio outputs to the TV’s AUDIO OUT jacks.
Set the “TV Speaker option - Off” in the AUDIO menu.
(Gp.65). See the external audio equipment instruction
manual for operation.
1. How to connect
2
1
Analog
Digital
EXTERNAL EQUIPMENT SETUP
25
PC SETUP
This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.
VGA (D-Sub 15 pin) Connection
COMPONENT IN
REMOTE
CONTROL I
1
2
(CO
VIDEO
LYP
B
P
R
R
AUDIO
MI/DVI IN
RGB IN
AUDIO
(RGB/DVI)
RGB(PC)
RGB OUTPUT AUDIO
12
1. How to connect
Connect the VGA output of the PC to the RGB (P C)
jack on the TV.
Connect the PC audio output to the AUDIO
(RGB/DVI)jack on the TV.
2
1
2. How to use
■Turn on the PC and the TV.
■Select the RGB-PC input source on the TV using the
INPUT button on the remote control.
EXTERNAL EQUIPMENT SETUP
26
EXTERNAL EQUIPMENT SETUP
1. How to connect
Connect the DVI output of the PC to the
HDMI/DVI
I N 1 or 2
jack on the TV.
Connect the PC audio output to the AUDIO
(RGB/DVI)jack on the TV.
2
1
2. How to use
■Turn on the PC and the TV.
■Select the HDMI1, 2or 3 input source on the TV using the
INPUT button on the remote control.
DVI to HDMI Connection
COMPONENT IN
REMO
CONTR
1
2
VIDEO
LYP
B
P
R
R
AUDIO
HDMI/DVI IN
2
1
RGB IN
AUDIO
(RGB/DVI)
RGB(PC)
DVI-PC OUTPUT AUDIO
12
EXTERNAL EQUIPMENT SETUP
27
GTo get the the best picture quality, adjust the PC
graphics card to 1360x768 (26LG30).
GDepending on the graphics card, DOS mode may
not work if a HDMI to DVI Cable is in use.
GIn PC mode, there may be noise associated with
the resolution, vertical pattern, contrast or bright-
ness. If noise is present, change the PC output to
another resolution, change the refresh rate to
another rate or adjust the brightness and contrast
on the PICTURE menu until the picture is clear.
GAvoid keeping a fixed image on the screen for a
long period of time. The fixed image may become
permanently imprinted on the screen.
GThe synchronization input form for Horizontal and
Vertical frequencies is separate.
NOTES
!
Supported Display Specifications (RGB-PC, HDMI-PC)
Horizontal Vertical
Frequency(KHz)Frequency(Hz)
31.469 70.08
31.469 70.08
31.469 59.94
37.879 60.31
48.363 60.00
47.776 59.87
47.720 59.799
47.130 59.65
Resolution
720x400
1360x768
640x350
640x480
800x600
1024x768
1280x768
1366x768
* Only RGB-PC mode
EXTERNAL EQUIPMENT SETUP
28
EXTERNAL EQUIPMENT SETUP

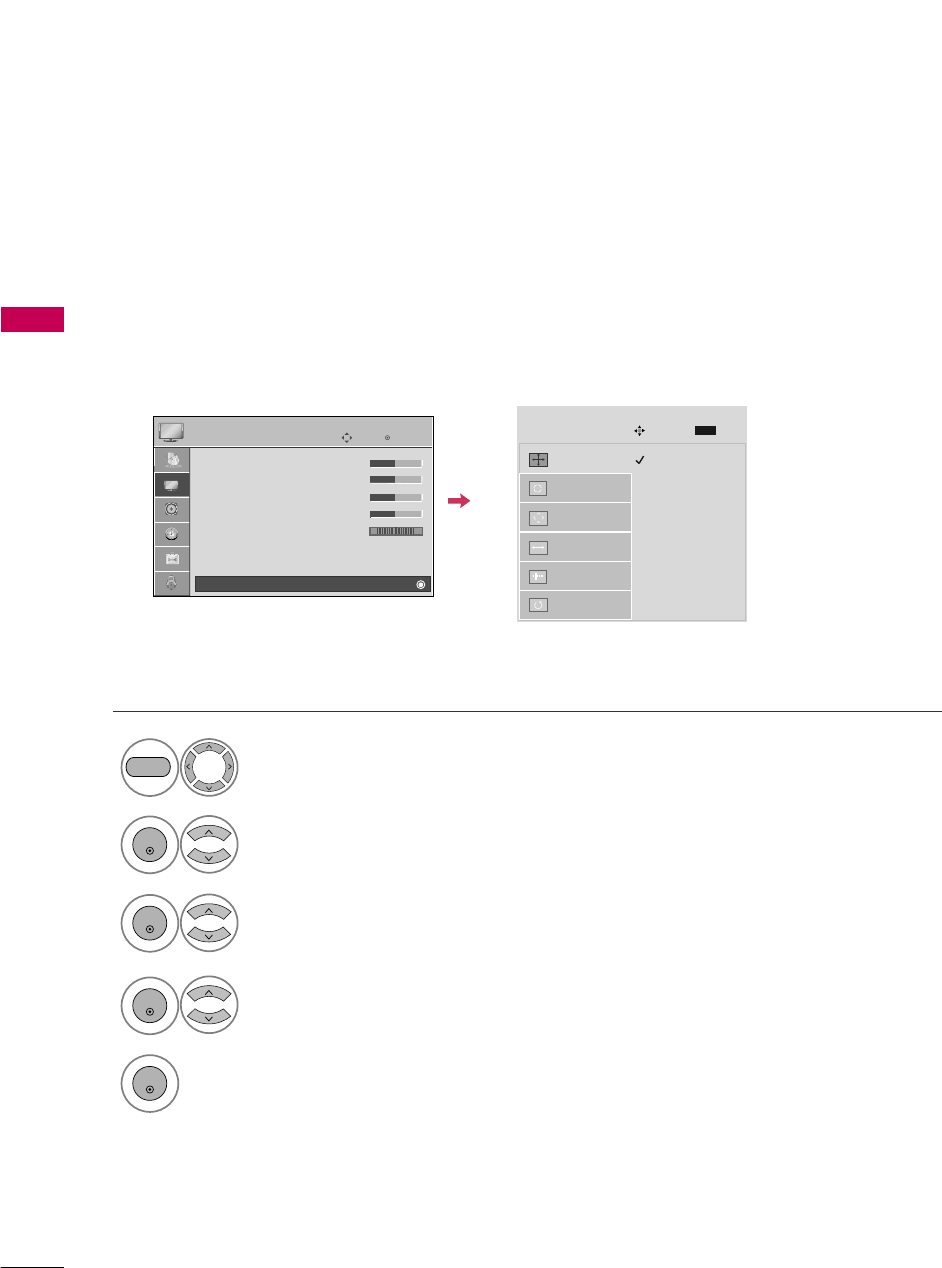

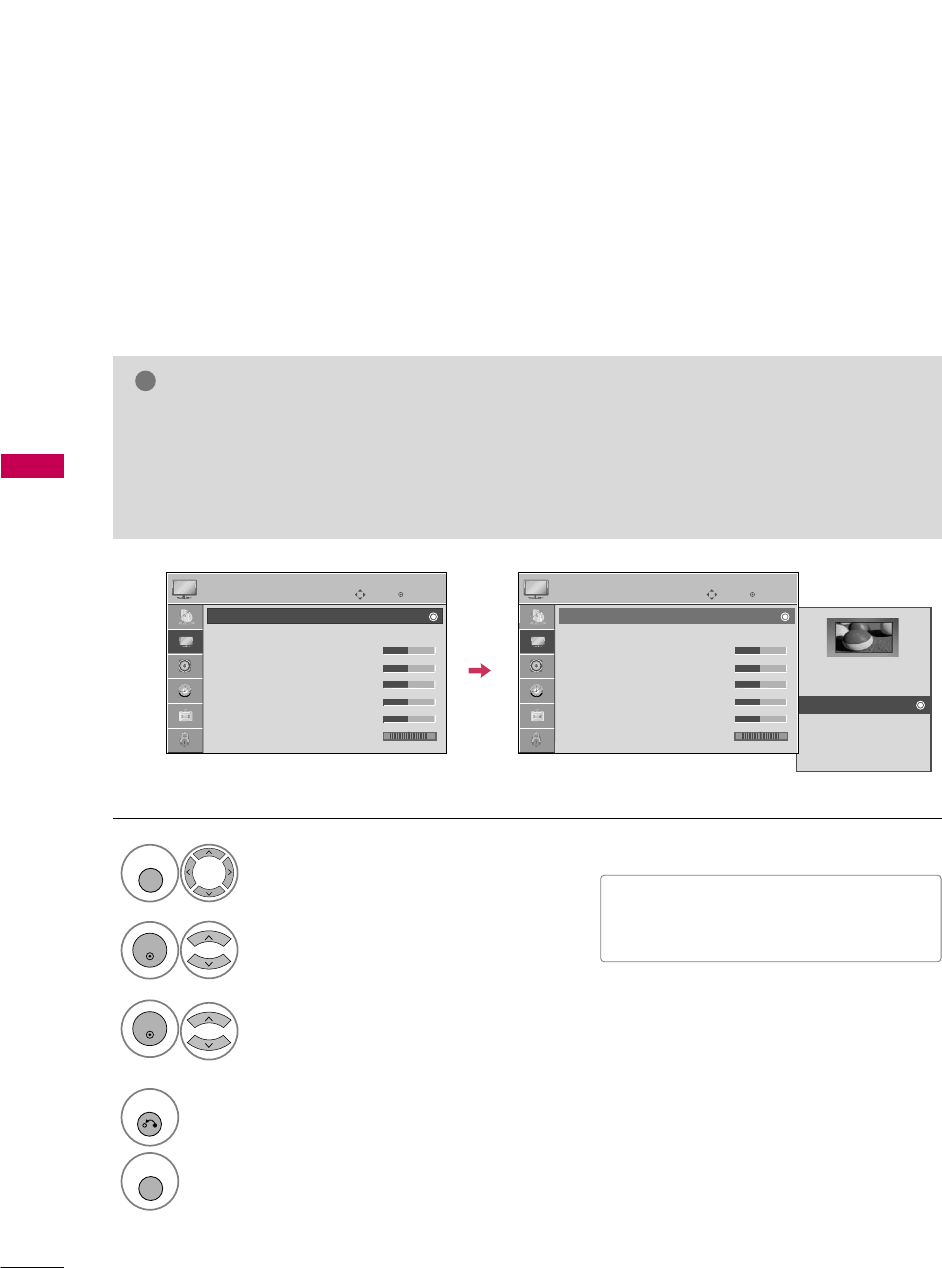

Screen Setup for PC mode
Selecting Resolution
You can choose the resolution in RGB-PC mode.
The Position, Phase, and Size can also be adjusted.
Select PICTURE.
Select Screen (RGB-PC).
Select Resolution.
Select the desired resolution.
1024 x 768
1280 x 768
1360 x 768
1366 x 768
Auto config.
Resolution
G
Position
Size
Phase
Reset
SCREEN
Move
Prev.
MENU
1
MENU
3
4
2
ENTER
ENTER
ENTER
5
ENTER
Enter
Move
• Contrast 50
• Brightness 50
• Sharpness 50
• Color 50
• Tint 0
• Advanced Control
• Reset
Screen (RGB-PC)
RG
E
EXTERNAL EQUIPMENT SETUP
29
Auto Configure
Automatically adjusts picture position and minimizes image instability. After adjustment, if the image is still
not correct, try using the manual settings or a different resolution or refresh rate on the PC.
Select Screen (RGB-PC).
Select Auto config..
Auto config. G
Resolution
Position
Size
Phase
Reset
SCREEN
Move
Prev.
MENU
To Set
3
2
ENTER
ENTER
Select Yes.
4
ENTER
Start Auto Configuration.
5
ENTER
Select PICTURE.
1
MENU
■If the position of the image is still not
correct, try Auto adjustment again.
■If picture needs to be adjusted again
after Auto adjustment in RGB-PC, you
can adjust the Position, Size or
Phase.
Enter
Move
• Contrast 50
• Brightness 50
• Sharpness 50
• Color 50
• Tint 0
• Advanced Control
• Reset
Screen (RGB-PC)
RG
E
Yes No
EXTERNAL EQUIPMENT SETUP
30
EXTERNAL EQUIPMENT SETUP
Adjustment for screen Position, Size, and Phase
If the picture is not clear after auto adjustment and especially if characters are still trembling, adjust the picture
phase manually.
This feature operates only in RGB-PC mode.
Select Position, Size, or Phase.
Make appropriate adjustments.
Auto config.
Resolution
Position
G
Size
Phase
Reset
GF
D
E
SCREEN
Move
Prev.
MENU
3
ENTER
4
ENTER
■Position: This function is to adjust pic-
ture to left/right and up/down as you
prefer.
■Size: This function is to minimize any
vertical bars or stripes visible on the
screen background. And the horizontal
screen size will also change.
■Phase: This function allows you to
remove any horizontal noise and clear
or sharpen the image of characters.
Select PICTURE.
Select Screen (RGB-PC).
1
MENU
2
ENTER
Enter
Move
• Contrast 50
• Brightness 50
• Sharpness 50
• Color 50
• Tint 0
• Advanced Control
• Reset
Screen (RGB-PC)
RG
E
5
ENTER
EXTERNAL EQUIPMENT SETUP
31

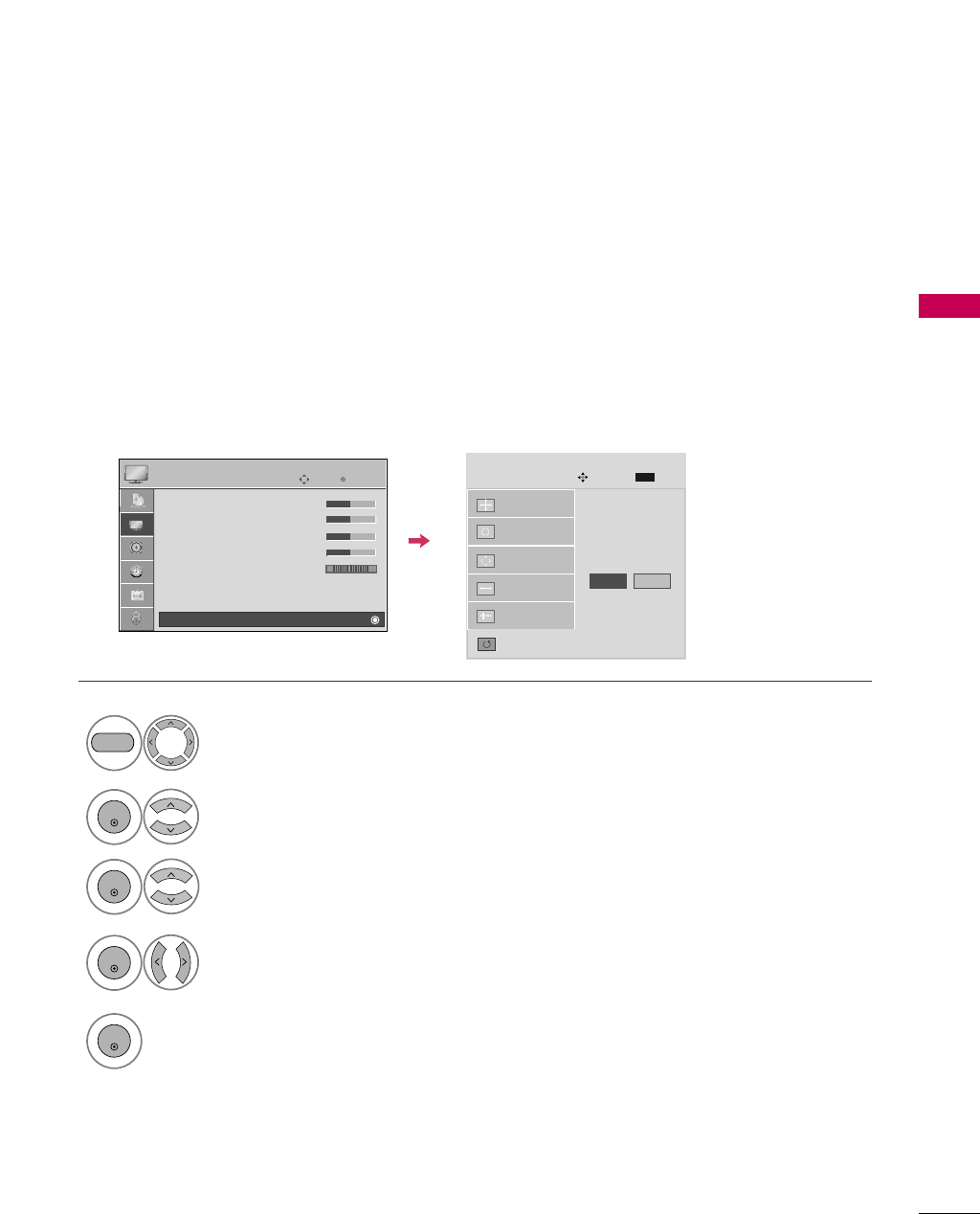

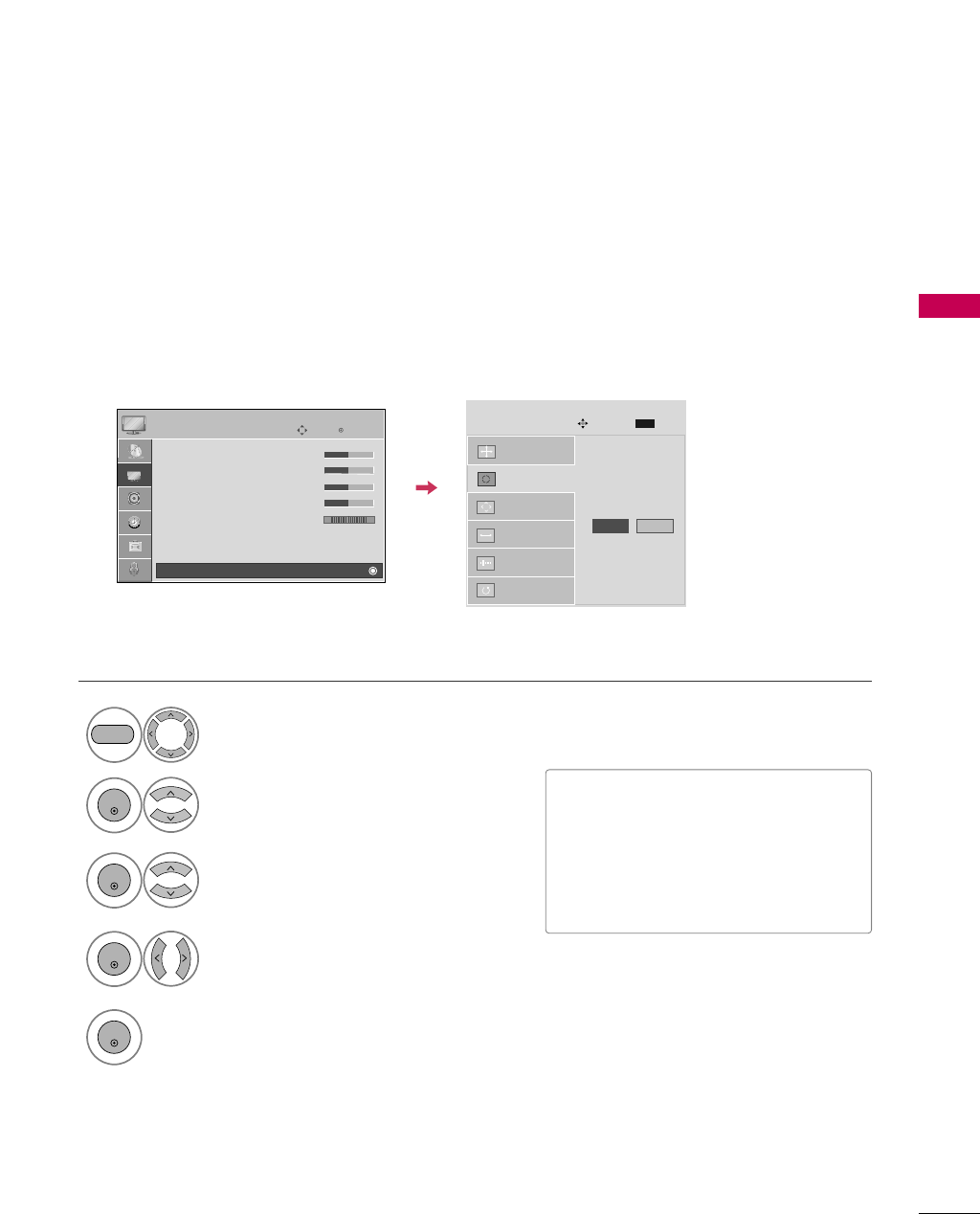

Screen Reset (Reset to original factory values)
Returns Position, Size, and Phase to the default factory settings.
This feature operates only in RGB-PC mode.
Auto config.
Position
Resolution
Size
Phase
Reset
G
SCREEN
Move
Prev.
MENU
To s et
Select Reset.
3
ENTER
Select PICTURE.
Select Screen (RGB-PC).
1
MENU
2
ENTER
Select Yes.
4
ENTER
5
ENTER
Enter
Move
• Contrast 50
• Brightness 50
• Sharpness 50
• Color 50
• Tint 0
• Advanced Control
• Reset
Screen (RGB-PC)
RG
E
Yes No
WATCHING TV / CHANNEL CONTROL
32
REMOTE CONTROL FUNCTIONS
WATCHING TV / CHANNEL CONTROL
When using the remote control, aim it at the remote control sensor on the TV.
INPUT
FAV
MUTE
MARK
DISPLAY ZOOM
SUBTITLE
SKIP -
SLOW -
SKIP +
EJECT
SLOW +
AUDIO
ANGLE
PBC RETURN
REPEAT A-B
TITLE MENU
TV
STB
POWER
Q. MENU
BUILT-IN
MENU/
SETUP
AV MODERETURN
ENTER
VOL CH
123
456
78
0
9
FLASHBK
P
A
G
E
DVD
VCR
R
O
T
A
T
E
+
R
O
T
A
T
E
-
DISC MENU
TV/STB/DVD/VCR
POWER
Q.MENU
MENU
INPUT
VOLUME UP
/DOWN
FAV
MUTE
CHANNEL
UP/DOWN
PAGE
UP/DOWN
— (DASH)
FLASHBK
Select the remote operating mode: TV, STB, DVD, or VCR.
Turns your TV or any other programmed equipment on or
off, depending on the mode.
Select the desired quick menu source. Gp.51
Displays the main menu.
Clear all on-screen displays and return to TV viewing from
any menu.
External input modes rotate in regular sequence.
Increase/decrease the sound level.
Scroll through the programmed Favorite channels. Gp.51
Switch the sound on or off. Gp.50
Select available channels.
Move from one full set of screen information to the next one.
Used to enter a program number for multiple
program channels such as 2-1, 2-2, etc.
Tune to the last channel viewed.
Control video cassette recorders or DVD players.
Control USB menu (PHOTO LIST and MUSIC LIST.)

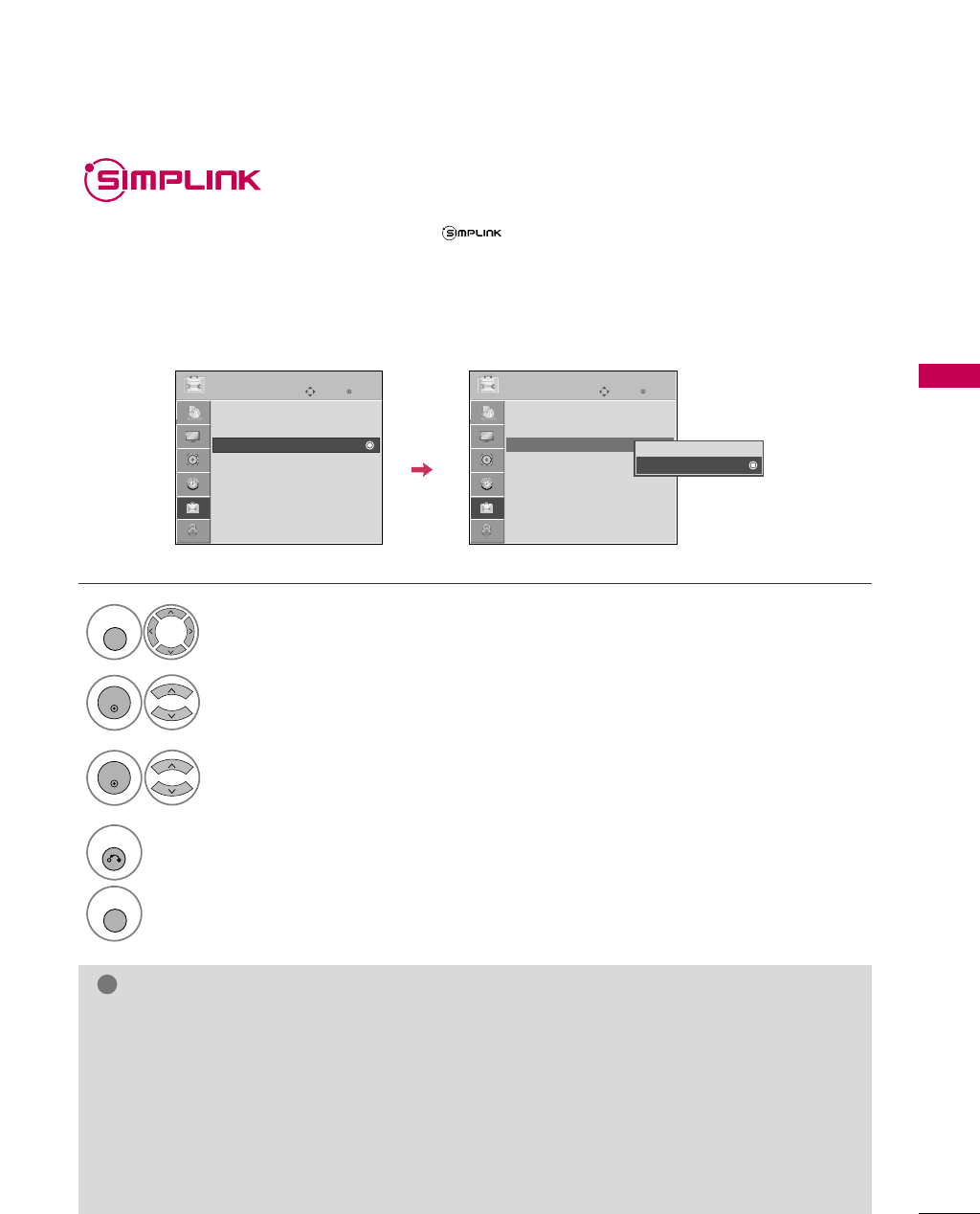

Control the SIMPLINK compatible devices.
NUMBER button
VCR/DVD, USB,
SIMPLINK
Control buttons
WATCHING TV / CHANNEL CONTROL
33

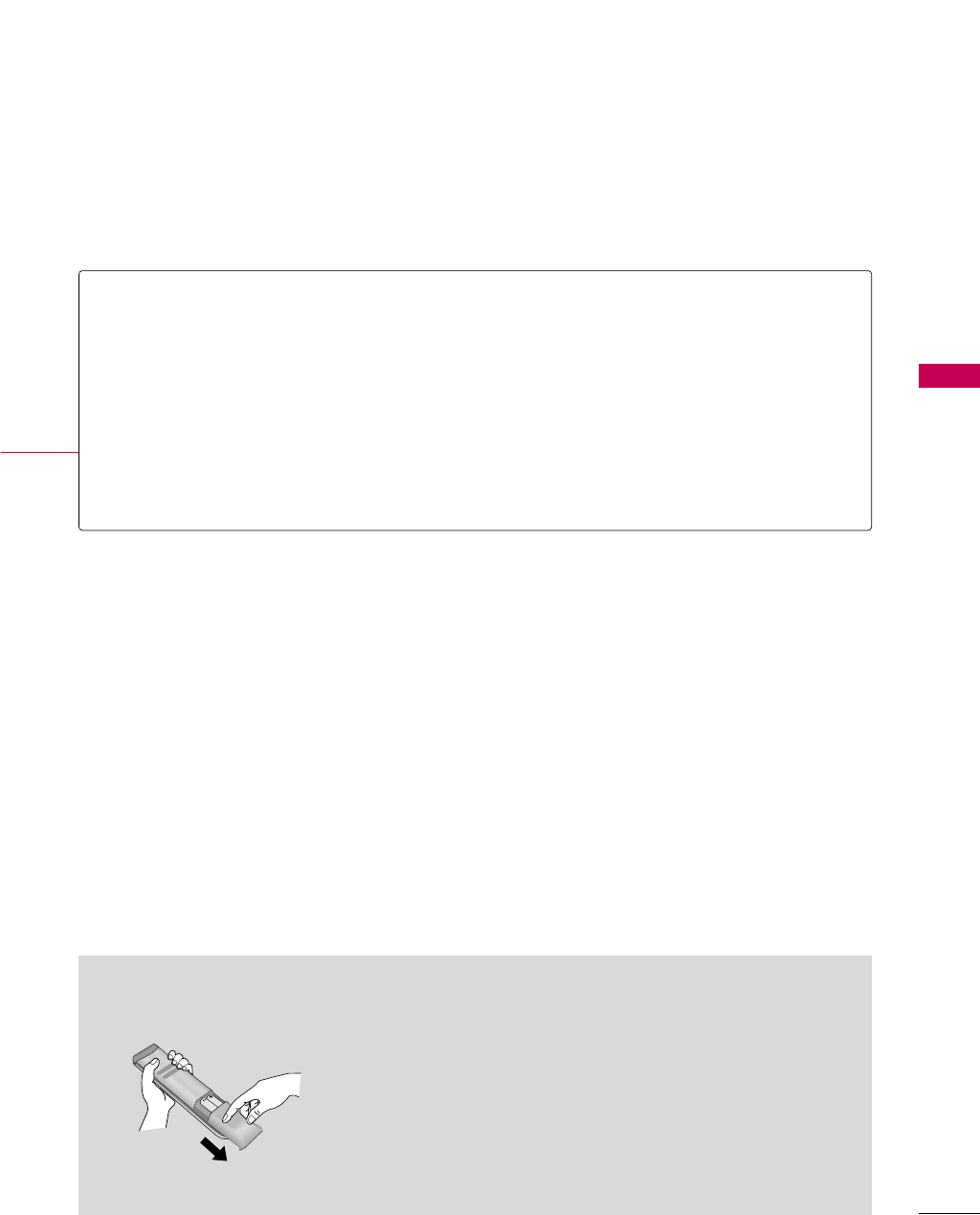

Installing Batteries
■
Open the battery compartment cover on the back side and install
the batteries matching correct polarity (+with +,-with -).
■
Install two 1.5V AAA batteries. Don’t mix old or used batteries with
new ones.
■
Close cover.
THUMBSTICK
(Up/Down/Left
Right/ENTER)
RETURN
SIMPLINK
AV MODE
Navigate the on-screen menus and adjust the system settings to your preference.
Allows the user to move return one step in an interactive application or other user interaction
function.

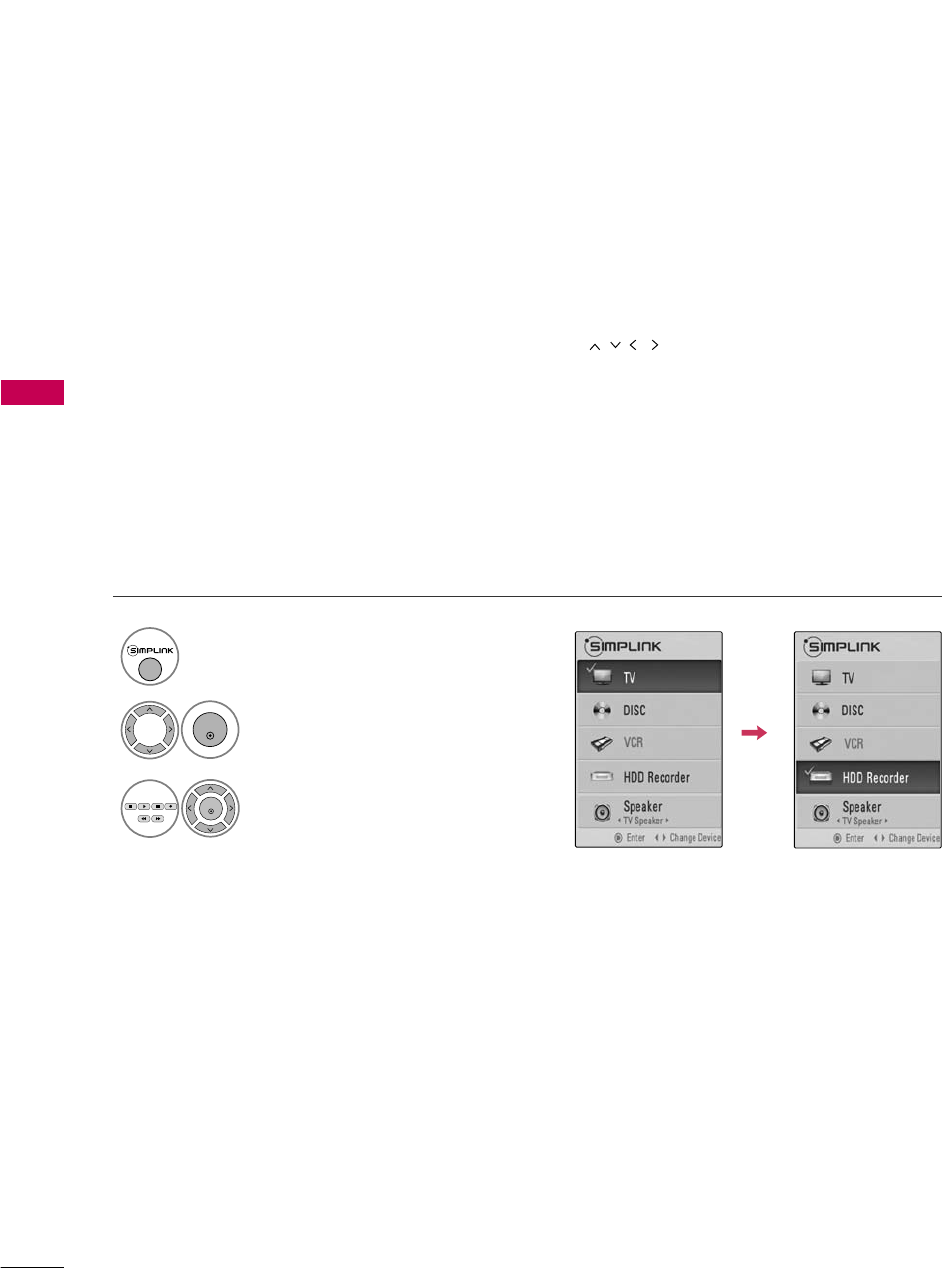

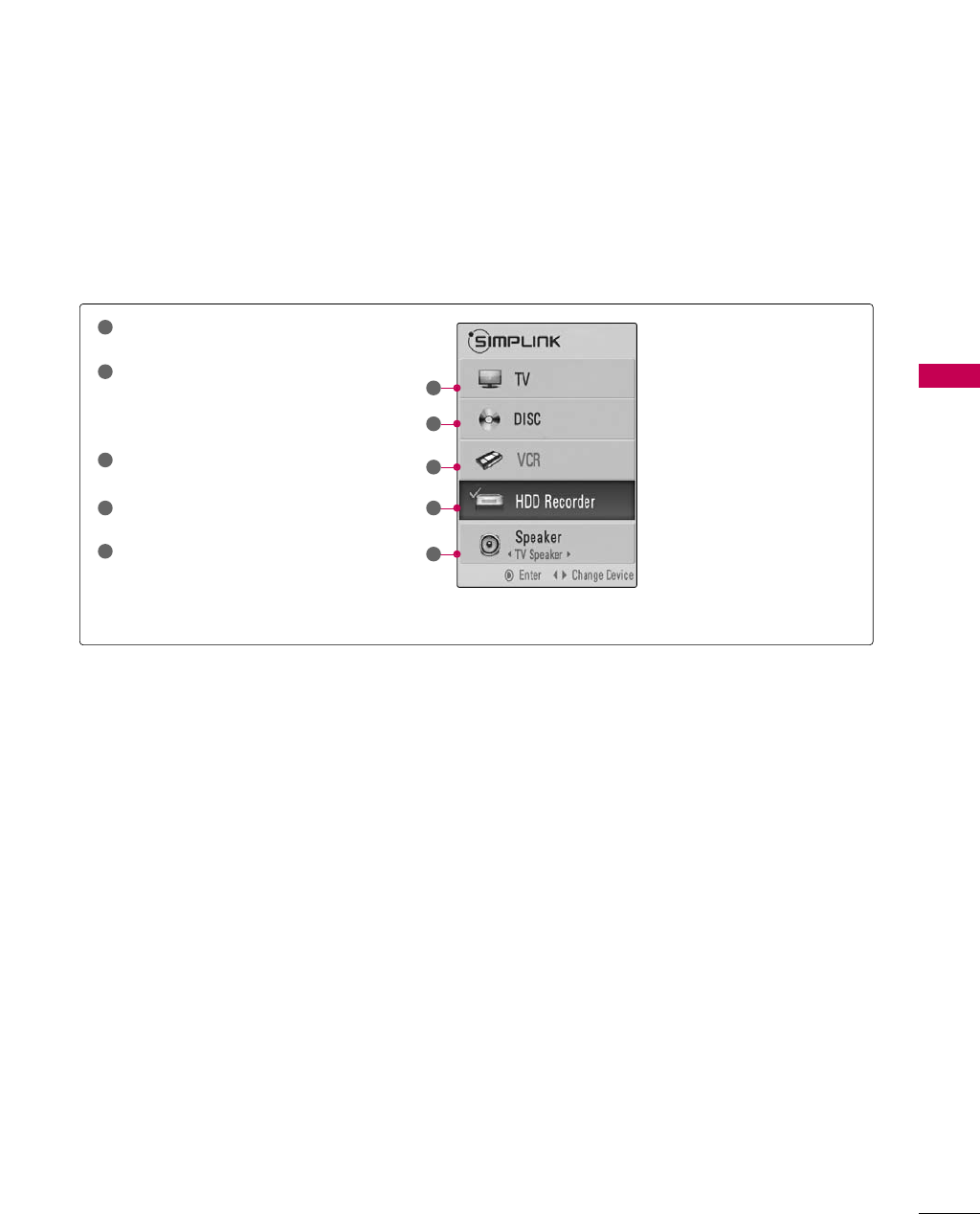

See a list of AV devices connected to TV.
When you toggle this button, the SIMPLINK menu appears at the screen. Gp.62-63
It helps you select and set images and sounds. Gp.61
WATCHING TV / CHANNEL CONTROL
34
TURNING ON TV
WATCHING TV / CHANNEL CONTROL
NOTE
!
GIf you intend to be away on vacation, disconnect the power plug from the wall power outlet.
First, connect power cord correctly.
At this moment, the TV switches to standby mode.
■In standby mode to turn TV on, press the , INPUT,CH (+or -)
button on the TV or press the POWER, INPUT, TV, CH (+or -),
Number (0~9) button on the remote control.
Select the viewing source by using the INPUT button on the remote con-
trol.
■This TV is programmed to remember which power state it was last set
to, even if the power cord is out.
When finished using the TV, press the POWER button on the remote
control. The TV reverts to standby mode.
1
2
3
Press the CH (+or -)or NUMBER buttons to select a channel number.
1
VOLUME ADJUSTMENT
CHANNEL SELECTION
Press the VOL (+ or -) button to adjust the volume.
If you want to switch the sound off, press the MUTE button.
You can cancel the Mute function by pressing the MUTE or VOL (+ or -)
button.
Adjust the volume to suit your personal preference.
1
2
3
WATCHING TV / CHANNEL CONTROL
35
QUICK MENU
Display each menu.
Make appropriate adjustments.
■Aspect Ratio: Selects your desired picture format.
■Backlight: Adjust the brightness of LCD panel to
control the brightness of the screen.
■Picture Mode: Selects the factory preset picture
depend on the viewing environment.
■Sound Mode: Selects the factory preset sound for
type of program.
■Caption: Select on or off.
■Multi Audio: Changes the audio language (Digital
signal).
SAP: Selects MTS sound (Analog signal).
■Sleep Timer: Select the amount of time before
your TV turns off automatically.
■Del/Add/Fav: Select channel you want to add/delete
or add the channel to the Favorite List.
Your TV's OSD (On Screen Display) may differ slightly from what is shown in this manual.
Q.Menu (Quick Menu) is a menu of features which users might use frequently.
1
Q.MENU
2
3
Q.MENU
Return to TV viewing
Q.Menu
3
F16:9 G
Standard
Vivid
Off
English
Off
Add
Aspect Ratio
Backlight
Picture Mode
Sound Mode
Caption
Multi Audio
Sleep Timer
Del/Add/Fav
CH
Close
WATCHING TV / CHANNEL CONTROL
36

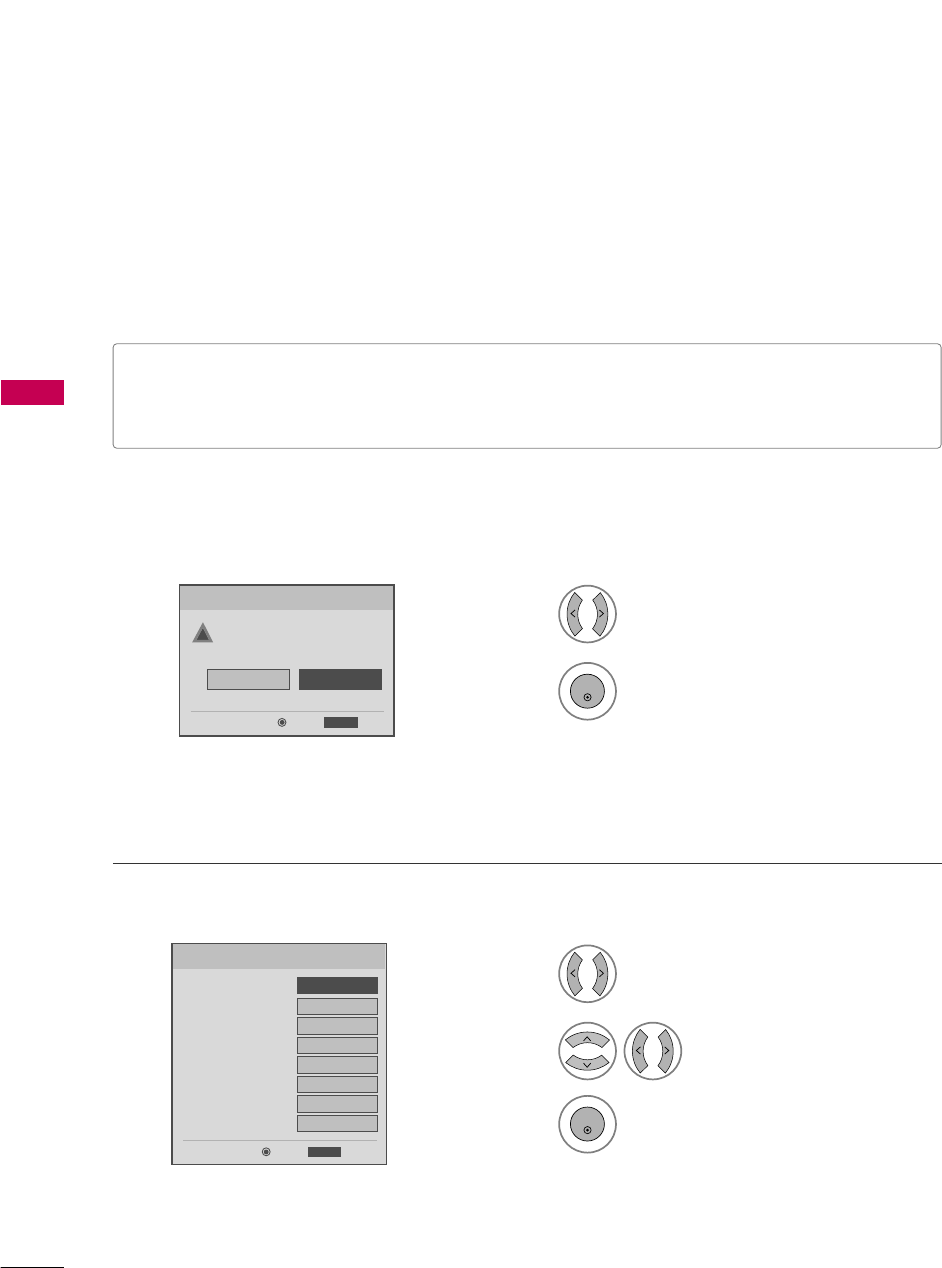

INITIAL SETTING
WATCHING TV / CHANNEL CONTROL
This Function guides the user to easily set the essential items for viewing the TV for the first time when pur-
chasing the TV. If will be displayed on the screen when turning the TV on for the first time. It can also be acti-
vated from the user menus.
Select Home Mode.
1
2
ENTER
Select Auto or Manual.
Select desired time option.
1
3
ENTER
2
Year
Current Time Setting
2007
Month 11
Date 15
Hour 5 PM
Minute 52
Time Zone Eastern
Daylight Saving
Off
F Auto G
ExitEnter
RETURN
Step2. Time Setting
It sets a use environment.
Select the set where mode.
In Store
Home
ExitEnter
RETURN
Step1. Mode Setting
Step1. Mode setting
Step2. Time setting
■In-Store Mode: Picture mode is set to “Vivid”. Customers can adjust the “Picture Mode” manually while
inspecting the TV, but the TV will automatically return to Vivid preset after 5 minutes.
■Home Mode: Picture mode is set to “Vivid” and user can change it to whatever they wish.
!
WATCHING TV / CHANNEL CONTROL
37

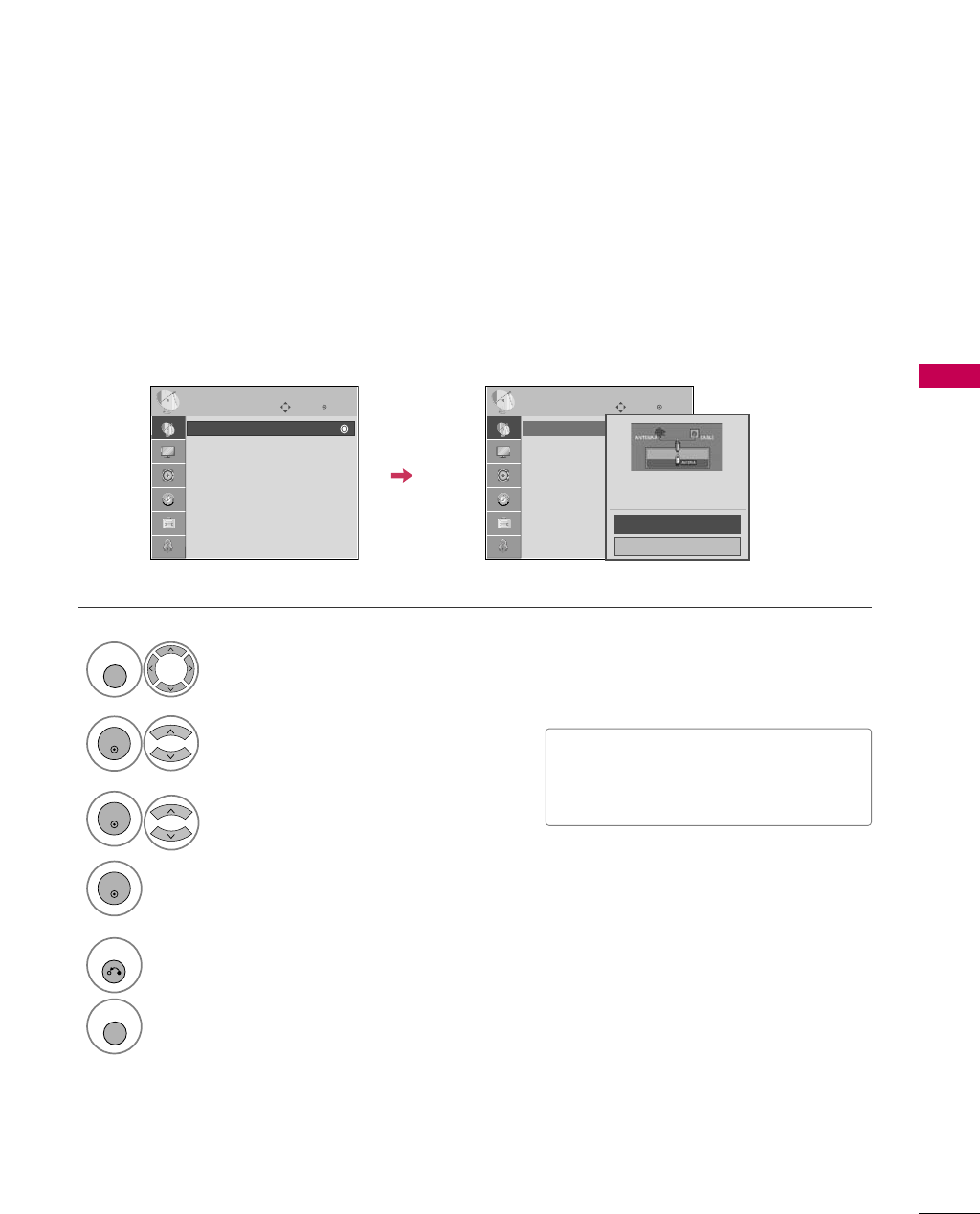

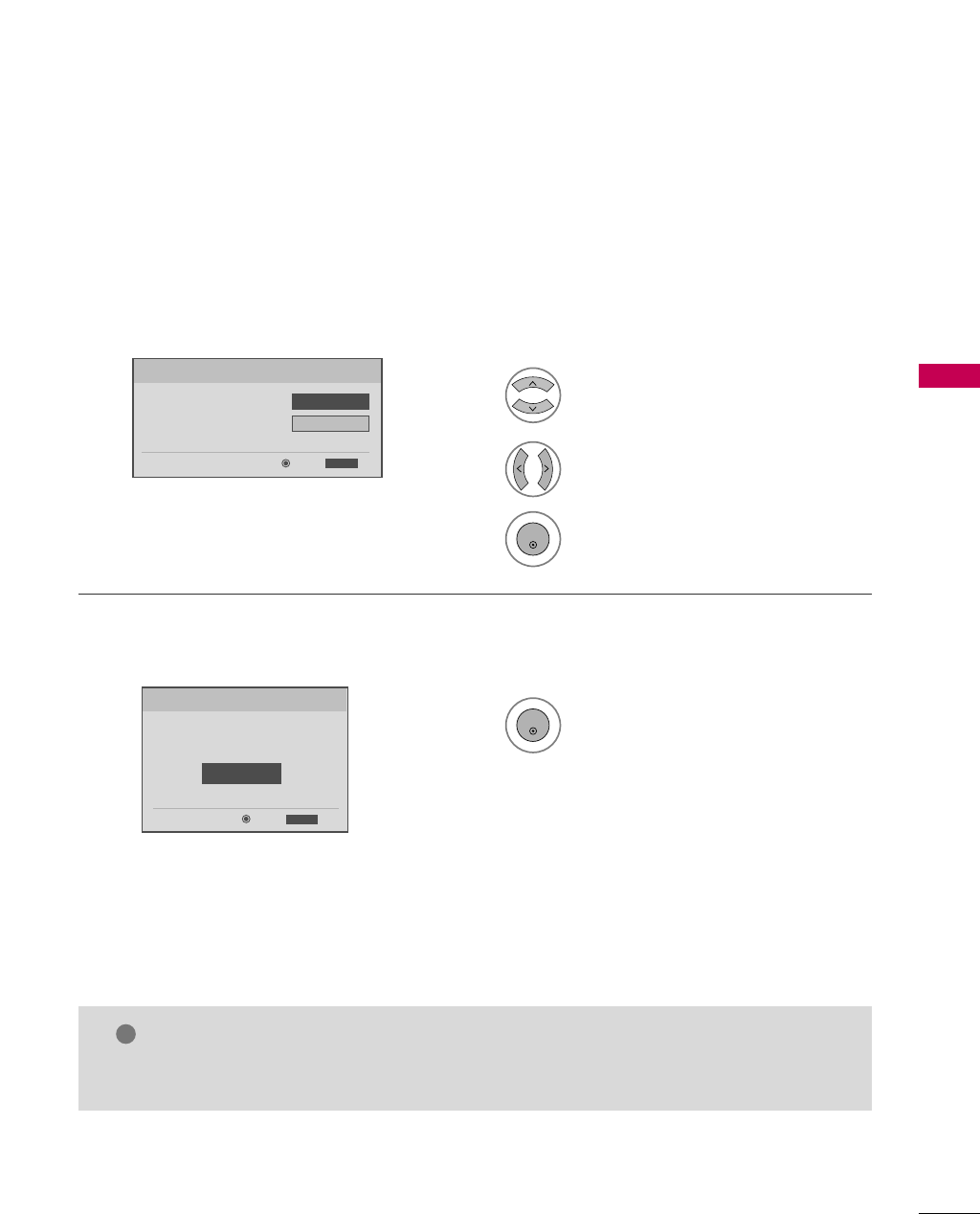

• You can also adjust Initial Setting in the OPTION menu.
NOTE
!
Select OSD Language Setting or
Audio Language Setting.
Start Auto Tuning.
Select your desired language.
1
3
ENTER
1
ENTER
2
Auto Tuning can change channel map.
Do you want to start Auto Tuning?
Enter
Exit
Enter
RETURN
Step4. Auto Tuning
ExitEnter
RETURN
Step3. Option Setting
1. OSD Language Setting
FEnglish G
2. Audio Language Setting French
Step3. Option setting
Step4. Auto Tuning
WATCHING TV / CHANNEL CONTROL
38
ON-SCREEN MENUS SELECTION
WATCHING TV / CHANNEL CONTROL
Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
Display each menu.
Select a menu item.
Enter to the pop up menu.
1
MENU
3
2
ENTER
ENTER
Return to TV viewing.
4
MENU
Enter
Move
Auto Tuning
Manual Tuning
Channel Edit
CHANNEL
CHANNEL
TIME
OPTION
AUDIO
LOCK
Enter
Move
Clock :
Feb/21/2008 2:10 AM
Off Time : Off
On Time : Off
Sleep Timer : Off
Auto Sleep : Off
TIME
Enter
Move
Lock System : Off
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Downloadable Rating
Input Block
LOCK
Enter
Move
Language : English
Input Label
SIMPLINK : On
Key Lock : Off
Caption : Off
Set ID : 1
Power Indicator
Initial Setting : Home
OPTION
Lock System : Off
Set Password
Block Channel
TV Rating-English
TV Rating-French
Downloadable Rating
Input Block
For USA For Canada
Enter
Move
Aspect Ratio : 16:9
Picture Mode : Standard
• Backlight 80
• Contrast 90
• Brightness 50
• Sharpness 60
• Color 60
• Tint 0
E
RG
Enter
Move
Auto Volume : Off
Clear Voice : On
Balance 0
Sound Mode : Standard
•
SRS TruSurround XT:
Off
• Treble 50
• Bass 50
• Reset
AUDIO
E
LR
WATCHING TV / CHANNEL CONTROL
39
CHANNEL SETUP
Auto Scan (Auto Tuning)
Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the
channel list.
Run Auto Tuning again after any Antenna/Cable connection changes.
Select CHANNEL.
Select Auto Tuning.
Select Yes.
Run Auto tuning.
1
MENU
3
2
ENTER
ENTER
4
ENTER
■A password is required to gain access to
Auto Tuning menu if the Lock System is
turned on.
5
RETURN
Return to the previous menu.
MENU
Return to TV viewing.
Enter
Move
CHANNEL
Auto Tuning
Manual Tuning
Channel Edit
Enter
Move
CHANNEL
Auto Tuning
Manual Tuning
Channel Edit
Press ‘Yes’ button to begin
auto tuning.
Yes
No
WATCHING TV / CHANNEL CONTROL
40
WATCHING TV / CHANNEL CONTROL
Select CHANNEL.
1
MENU
2
ENTER
If selecting DTV or CADTV input signal, you can view the on-screen signal strength monitor to see the quality
of the signal being received.

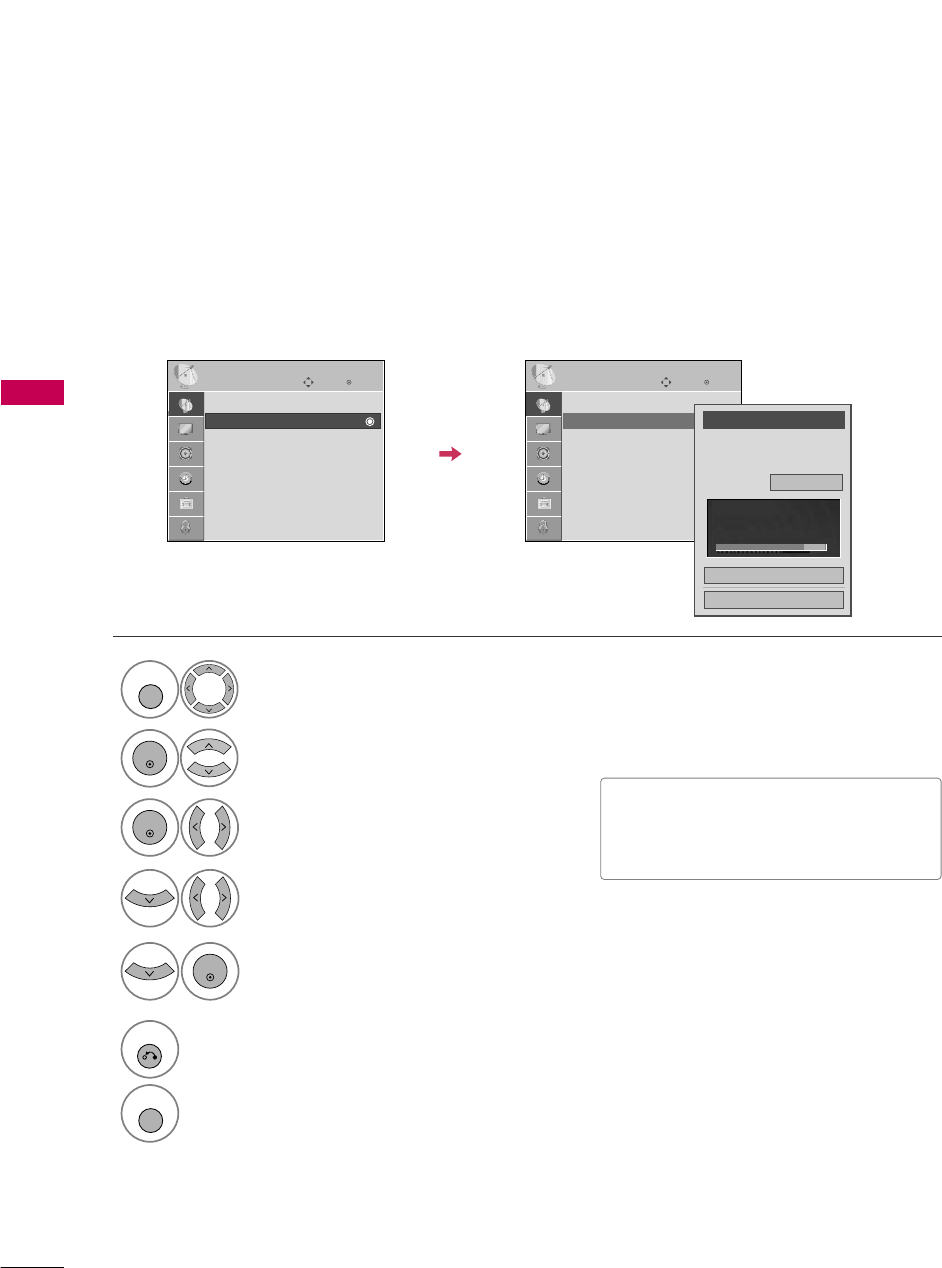

Add/Delete Channel (Manual Tuning)
Select Manual Tuning.
Select DTV, T V, CADTV, or CATV.
Select channel you want to add
or delete.
3
ENTER
4
Select Add or Delete.
5
ENTER
■A password is required to gain access to
Manual Tuning menu if the Lock System
is turned on.
6
RETURN
Return to the previous menu.
MENU
Return to TV viewing.
Enter
Move
CHANNEL
Auto Tuning
Manual Tuning
Channel Edit
Enter
Move
CHANNEL
Auto Tuning
Manual Tuning
Channel Edit
Channel
Select channel type and
RF-channel number.
F
DTV
G
2
Close
Delete
DTV 2-1
Bad Normal Good
WATCHING TV / CHANNEL CONTROL
41
A custom list can be created by toggling each channel on or off with ENTER button. The channels in the Custom
List are displayed in black and the channels deleted from the Custom List are displayed in gray.
Once a channel is highlighted you can add or delete the channel by referring to the small window at the top-
right corner of the screen.
Channel Editing
Select a channel.
Select channel you want to add or
delete.
3
ENTER
4
ENTER
Select CHANNEL.
1
MENU
2
ENTER
Select Channel Edit.
RETURN
Return to TV viewing.
Return to the previous menu.
5
MENU
Enter
Move
CHANNEL
Auto Tuning
Manual Tuning
Channel Edit
Add/Delete Move Page
CH
Move Previous
MENU Exit
RETURN
+
-
WATCHING TV / CHANNEL CONTROL
42
INPUT LIST
WATCHING TV / CHANNEL CONTROL
■Antenna: Select it to watch over-the-air broadcasts.
■Cable: Select it to watch cable and digital cable.
■T V: Select it to watch over-the-air, cable and dig-
ital cable broadcasts.
■A V: Select them to watch a VCR or other external
equipment.
■Component: Select them to watch DVD or a
Digital set-top box.
■RGB-PC: Select it to view PC input.
■HDMI: Select them to watch high definition
devices.
19/22LG30
26LG30
Antenna Cable AV1 AV2 Component1
HDMI3 HDMI2 HDMI1 RGB-PC Component2
Select the desired input source.
1
INPUT
ENTER
TV AV Component RGB-PC HDMI
Input Label
Q.MENU Exit
RETURN
Select a desired input source (except
Antenna, Cable or T V). Then, you can
select your desired Input Label with using
Q.MENU button. Gp.49
ie)
Antenna Cable AV1 AV2 Component1
TV AV Component RGB-PC HDMI
WATCHING TV / CHANNEL CONTROL
43

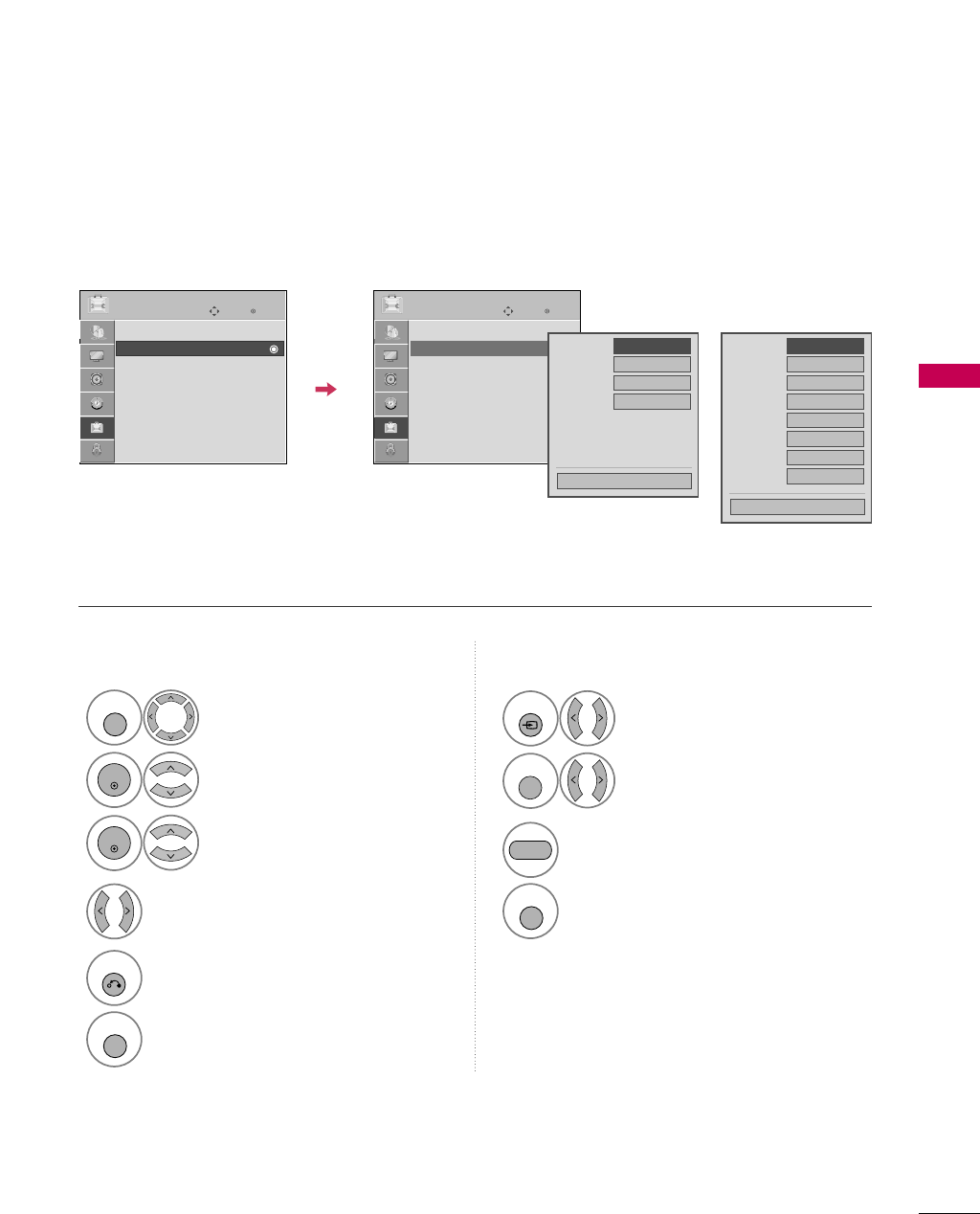

INPUT LABEL
You can set a label for each input source when it's not in use.
Enter
Move
OPTION
Language : English
Input Label
SIMPLINK : On
Key Lock : Off
Caption : Off
Set ID : 1
Power Indicator
Initial Setting : Home
Enter
Move
OPTION
Language : English
Input Label
SIMPLINK : On
Key Lock : Off
Caption : Off
Set ID : 1
Power Indicator
Initial Setting : Home
AV
Component
RGB-PC
HDMI
F G
Close
AV1
AV2
Component1
Component2
RGB-PC
HDMI1
HDMI2
HDMI3
F G
Close
Select OPTION.
Select Input Label.
Select the label.
1
MENU
2
ENTER
Select the source.
3
ENTER
4
5
RETURN
Return to the previous menu.
MENU
Return to TV viewing
With using OPTION menu
Select the source.
Select the label.
1
INPUT
2
Q. MENU
3
RETURN
Return to the previous menu.
MENU
Return to TV viewing
With using INPUT button
WATCHING TV / CHANNEL CONTROL
44
AV MODE
WATCHING TV / CHANNEL CONTROL
You can select the optimal images and sounds.
1
AV MODE
2
Off Cinema
Game Sport
Press the AV MODE button repeatedly to select the desired source.
ENTER
■If you select “Cinema” in AV mode,
Cinema will be selected both for “PIC-
TURE menu - Picture Mode” and “AUDIO
menu - Sound Mode” respectively.
■If you select “Off” in AV mode, the
“Picture Mode” and “Sound Mode”
return to previous selected value.
WATCHING TV / CHANNEL CONTROL
45
This function operates only with devices with the logo.
The TV might not function properly when using it with other products with HDMI-CEC function.
This allows you to control and play other AV devices connected with HDMI cable without additional cables and
settings.
To start using SIMPLINK, turn it on in the user menus.
Select OPTION.
Select SIMPLINK.
Select On or O ff.
1
MENU
3
2
ENTER
ENTER
NOTE
!
GConnect the HDMI/DVI IN or HDMI IN terminal of the TV to the rear terminal (HDMI terminal) of the SIM-
PLINK device with the HDMI cable.
GWhen you switch the Input source with the INPUT button on the remote control, the SIMPLINK device will
stop.
GWhen you select a device with home theater functionality, the sound output automatically switches to the
home theater speakers.
GIf a connected SIMPLINK home theater system doesn't play the audio from the TV, connect the DIGITAL
AUDIO OUT terminal on the back of the TV to the DIGITAL AUDIO IN terminal on the back of the SIM-
PLINK device with an OPTICAL cable.
4
RETURN
Return to the previous menu.
MENU
Return to TV viewing.
Enter
Move
OPTION
Language : English
Input Label
SIMPLINK : On
Key Lock : Off
Caption : Off
Set ID : 1
Power Indicator
Initial Setting : Home
Enter
Move
OPTION
Language : English
Input Label
SIMPLINK : On
Key Lock : Off
Caption : Off
Set ID : 1
Power Indicator
Initial Setting : Home
Off
On
WATCHING TV / CHANNEL CONTROL
46
WATCHING TV / CHANNEL CONTROL
■Direct Play: After connecting AV devices to the TV, you can directly control the devices and play media with-
out additional settings.
■Select AV device: Enables you to select one of the AV devices connected to TV.
■Disc playback: Control connected AV devices by pressing the ,
ENTER,
G
,
A
, l l
,
FF and GG buttons.
■Power off all devices: When you power off the TV, all connected devices are turned off.
■Switch audio-out: Offers an easy way to switch audio-out.
■Sync Power on: When you play the connected AV device, TV will automatically turn on.
(A device, which is connected to the TV through a HDMI cable but does not support SIMPLINK, does not provide
this function)
Note: To operate SIMPLINK, an HDMI cable over Version 1.2 with *CEC function should be used. (*CEC: Consumer
Electronics Control).
SIMPLINK Functions
Display SIMPLINK menu.
Select the desired device.
Control connected AV devices.
1
3
2
ENTER
ENTER
WATCHING TV / CHANNEL CONTROL
47
SIMPLINK Menu
TV viewing: Switch to the previous TV
channel regardless of the current mode.
DISC playback: Select and play discs.
When multiple discs are available, the titles
of discs are conveniently displayed at the
bottom of the screen.
VCR playback: Control the connected
VCR.
HDD Recordings playback: Control
recordings stored in HDD.
Audio Out to Home Theater speak-
er/Audio Out to TV: Select Home
Theater speaker or TV speaker for Audio
Out.
1
2
3
4
5
G
When no device is connected
(displayed in gray)
G
Selected Device
G
When a device is connected
(displayed in bright color)
1
2
3
4
5
DVD OPERATION
48
DVD OPERATION
Symbol Used in this Manual
DVD and finalized DVD±R/RW
Video CDs
Audio CDs
MP3 Discs
WMA Discs
JPEG Discs
DivX Discs
may appear on your TV display during operation and
indicates that the function explained in this owner’s
manual is not available on that specific DVD video
disc.

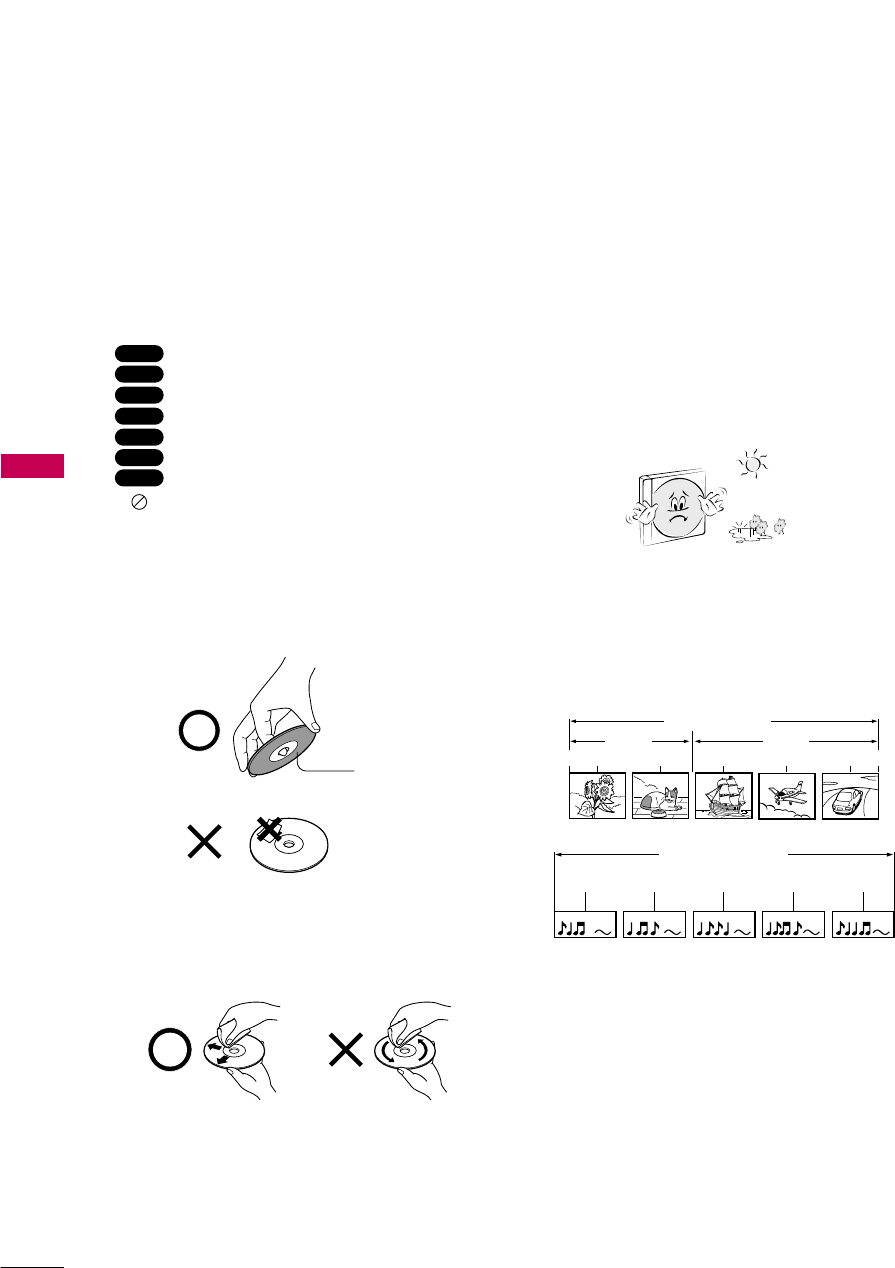

On handling discs
vDo not touch the playback side of the disc.
vDo not attach paper or tape to discs.
On cleaning discs
vFingerprints and dust on the disc cause picture and sound
deterioration. Wipe the disc from the center outwards with a
soft cloth. Always keep the disc clean.
vDo not use any type of solvent such as thinner, benzine, com-
mercially available cleaners or antistatic spray for vinyl LPs. It
may damage the disc.
On storing discs
vDo not store discs in a place subject to direct sunlight or near
heat sources.
vDo not store discs in places subject to moisture and dust such
as a bathroom or near a humidifier.
vStore discs vertically in a case. Stacking or placing objects on
discs outside of their case may cause warping.
Structure of disc contents
Normally, DVD video discs are divided into titles, and the titles
are sub-divided into chapters. Video CDs and Audio CDs are
divided into tracks.
DVD video disc
Video CD/Audio CD
Each title, chapter or track is assigned a number, which is called
“title number”, “chapter number” or “track number” respectively.
There may be discs that do not have these numbers.
•Title: When two or more movies are recorded on a disc, the
disc is divided into two or more parts. Each part is called
a “TITLE”.
•Chapter: The titles can be subdivided into many sections.
Each section is called a “CHAPTER”.
•Track: An audio CD can contain several items. These are
assigned to the tracks.
Note
• If an MP3 or JPEG file CD is created using an incorrect
method, the player may not be able to recognize it. If this hap-
pens, try reburning another CD after setting up the disc writing
parameters correctly on your PC.
Video CD/Audio CD
Track 1 Track 2 Track 3 Track 4 Track 5
Playback side
DVD video disc
Title 1 Title 2
Chapter 1 Chapter 2 Chapter 3 Chapter 4 Chapter 5
DVD-V
VCD
CD
MP3
WMA
JPEG
DivX
Notes on Discs
Notes on Discs
DVD operation
DVD operation
DVD OPERATION
49
Types of Playable Discs
• DVD (8 cm / 12 cm disc)
• Video CD (VCD) (8 cm / 12 cm disc)
• Audio CD (8 cm / 12 cm disc)
In addition, this unit plays DivX file, DVD -R, DVD +R, DVD -RW,
DVD +RW, Kodak Picture CDs, SVCD, and CD-R / CD-RW that
contains audio titles, MP3, WMA, and/or JPEG files.
Note
• Depending on the conditions of the recording equipment or the
CD-R/RW (or DVD -R, DVD +R, DVD -RW, DVD +RW) disc
itself, some CD-R/RW (or DVD -R, DVD +R, DVD -RW, DVD
+RW) discs cannot be played on the unit.
Regional code of the DVD player and DVDs
This DVD player is designed and manufactured
for playback of region “2” encoded DVD software.
The region code on the labels of some DVD discs
indicates which type of player can play those
discs. This unit can play only DVD discs labeled “2” or
“ALL”. If you try to play any other discs, the message
“Check Regional Code” will appear on the TV screen.
Some DVD discs may not have a region code label even
though their playback is prohibited by area limits.
Manufactured under license from Dolby
Laboratories. “Dolby” and the double-D symbol
are trademarks of Dolby Laboratories.
“DTS” and “DTS Digital Surround” are trademarks
of Digital Theater System, Inc.
CAUTION:
This Digital Video Disc Player employs a Laser System.
To ensure proper use of this product, please read this
owner’s manual carefully and retain for future reference
should the unit require maintenance, contact an authorized
service location (see service procedure).
Use of controls, adjustments, or the performance of proce-
dures other than those specified herein may result in haz-
ardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open
the enclosure. Visible laser radiation when open. DO NOT
STARE INTO BEAM.
CAUTION: The apparatus should not be exposed to water
(dripping or splashing) and no objects filled with liquids, such
as vases, should be placed on the apparatus.
Screen Saver
The screen saver appears when you leave the DVD player in
Stop mode for about five minutes. If the Screen Saver is dis-
played for five minutes, the DVD Player automatically turns
itself off.
Last Scene Memory
This player memorizes last scene from the last disc that is
viewed. The last scene remains in memory even if you remove
the disc from the player or turn off the set. If you load a disc
that has the scene memorized, the scene is automatically
recalled.
Note:
This player does not memorize the scene of a disc if you
switch off the player before commencing to play the disc.
Note
• Except DVD mode the PLAY button must be pressed
after inserting the disk to switch to DVD mode.
DVD OPERATION
50
DVD OPERATION

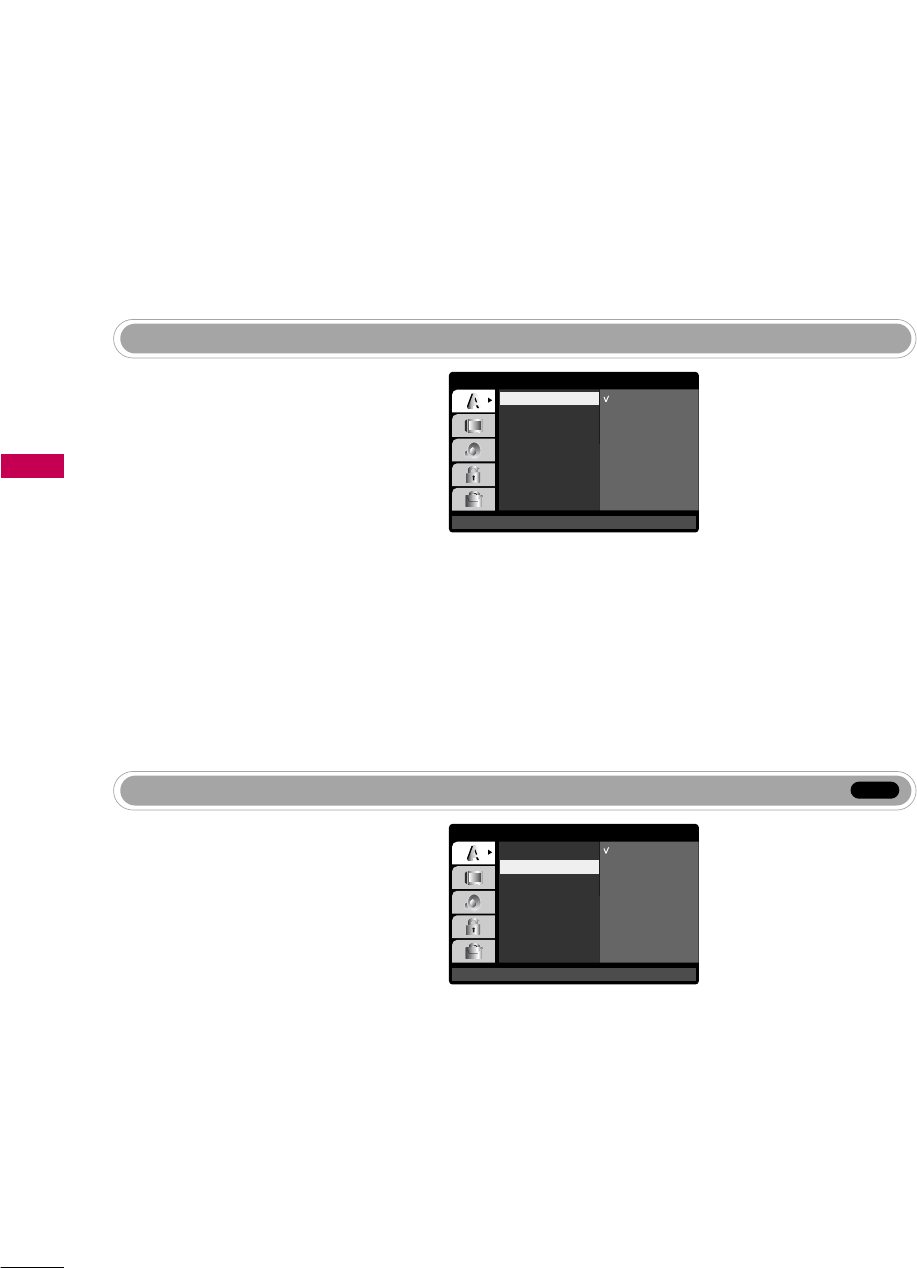

- Select your preferred language for the
DVD menus and on screen displays
messages.

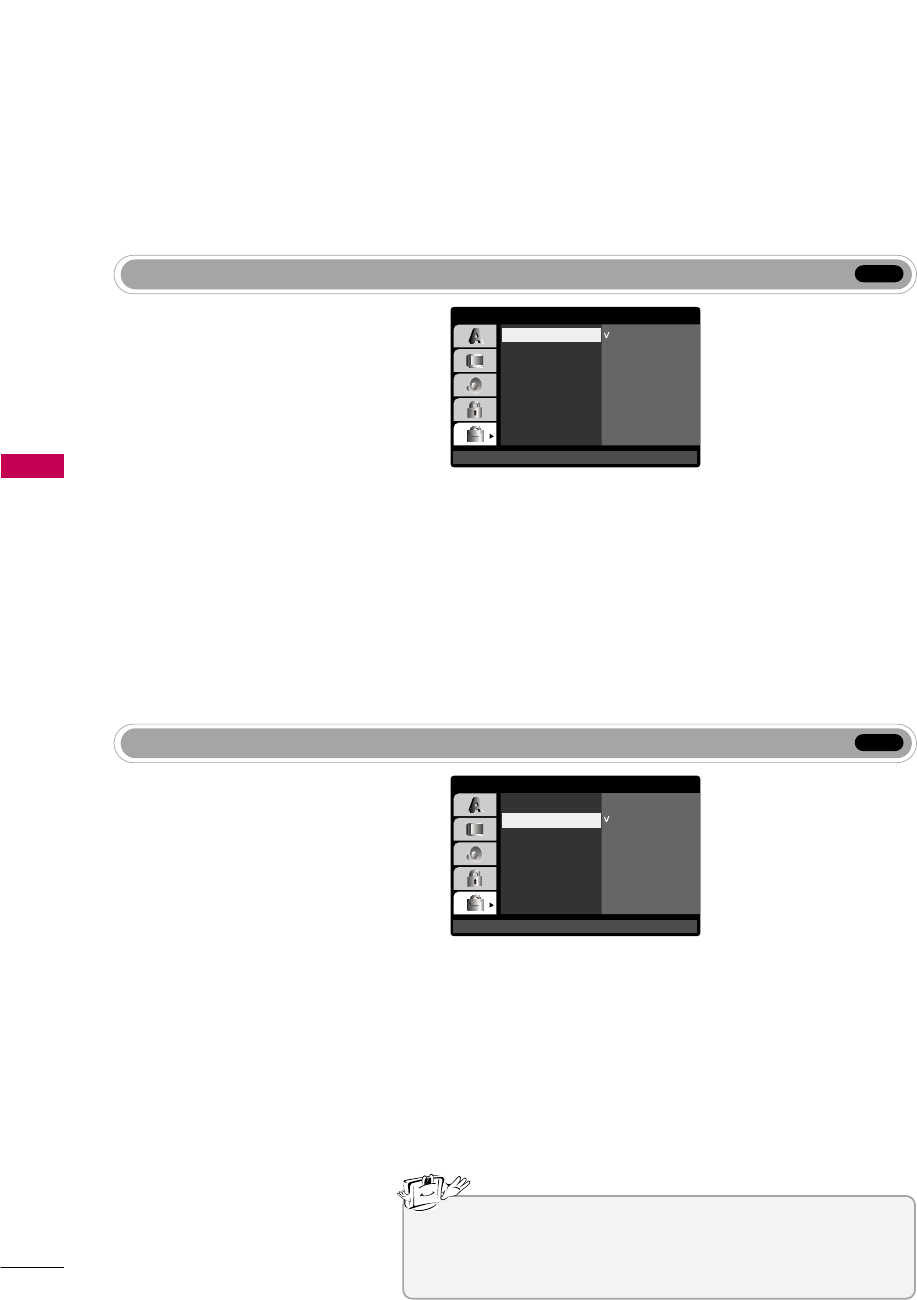

Menu Language
Press the MENU button twice and then use the D /Ebutton to select
Language.
Press the Gbutton and then use D /E button to select Menu Language.
Press the Gbutton and then use D /E button to select your desired language.
Press the OK button.
The menus and on screen displays will appear in the selected language.
Press the EXIT button to exit the menu.
Menu Language
Disc Audio
Disc Subtitle
Disc Menu
English
Spanish
French
German
Italian
Dutch
1
2
3
4
5
LANGUAGE
Move
G
Select
F
Prev.
D
E
Menu Language G
- Select the language you prefer for the
Disc Audio /Disc Subtitle /Disc
Menu.
•Original: Refers to the original lan-
guage in which the disc was recorded.
•Other: To select another language,
press number buttons then OK button
to enter the corresponding 4-digit num-
ber according to the language code list
in the REFERENCE chapter. (Refer to
P.62) If you enter the wrong language
code, press CLEAR button.
Disc Audio / Disc Subtitle / Disc Menu
Press the MENU button twice and then use the D /Ebutton to select
Language.
Press the Gbutton and then use D /E button to select Disc Audio /Disc
Subtitle /Disc Menu.
Press the Gbutton and then use D /E button to select your desired lan-
guage.
Press the OK button.
Press the EXIT button to exit the menu.
Menu Language
Disc Audio
Disc Subtitle
Disc Menu
Original
English
Spanish
French
German
Italian
Dutch
Polish E
1
2
3
4
5
LANGUAGE
Move
G
Select
F
Prev.
D
E
Disc Audio G
DVD-V
DVD Menu options - LANGUAGE
DVD Menu options - LANGUAGE
By using the DVD menu, you can make various adjustments to items such as picture and sound. You can also
set a language for the subtitles and the DVD menu, among other things.
DVD OPERATION
51

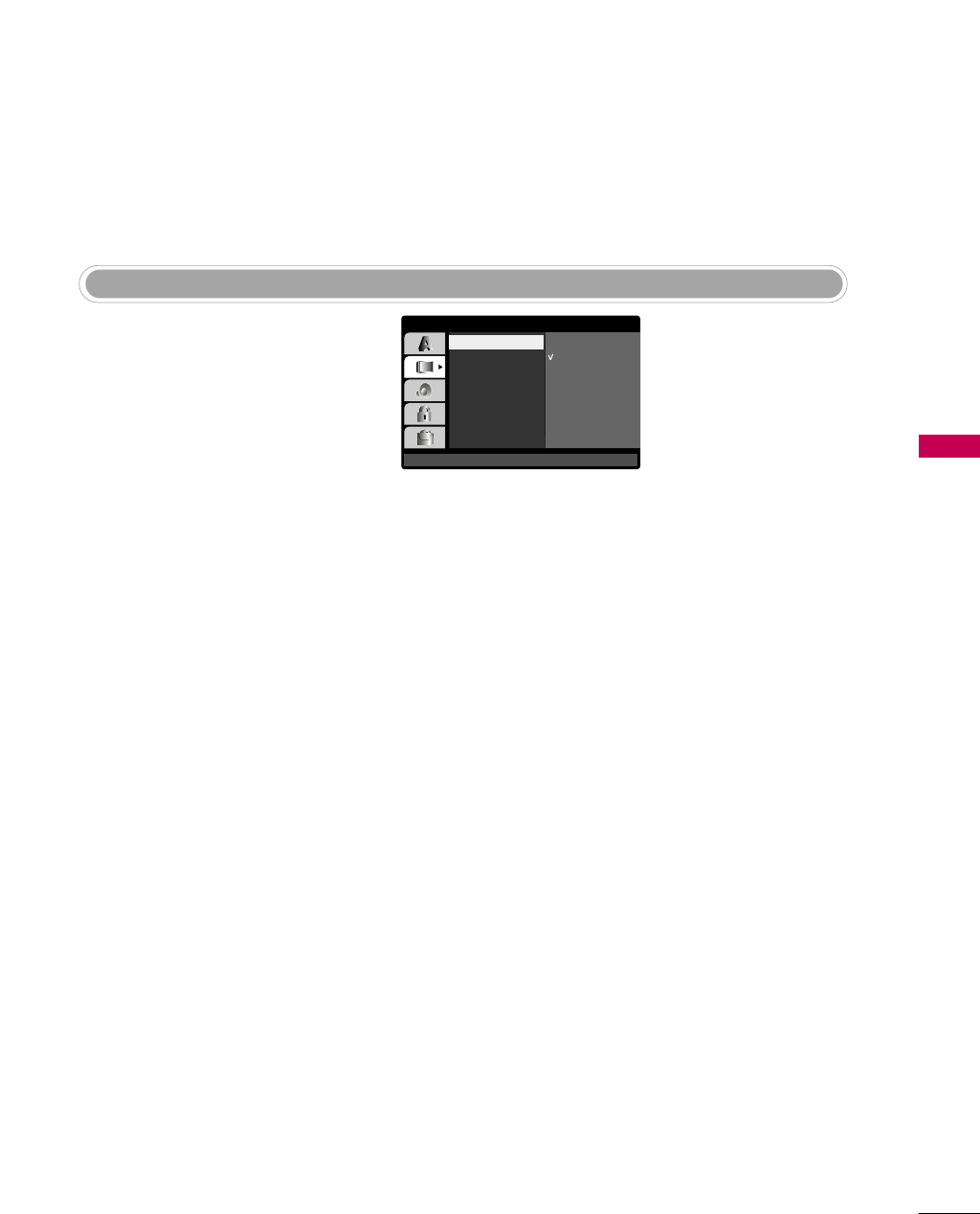

- Progressive Scan Video provides the
highest quality pictures with less flick-
ering. Set Progressive Scan to On.
Progressive Scan
Press the MENU button twice and then use the D /Ebutton to select DISPLAY.
Press the Gbutton to select Progressive Scan.
Press the Gbutton and then use D /E button to select On or Off.
Press the OK button.
Press the EXIT button to exit the menu.
Progressive Scan On
Off
1
2
3
4
5
DISPLAY
Move
G
Select
F
Prev.
D
E
Progressive Scan G
DVD Menu options - DISPLA
DVD Menu options - DISPLAY
Y
DVD OPERATION
52
DVD OPERATION
•Bitstream: Select Bitstream if you
connect the DVD Player’s DIGITAL
OUT jack to an amplifier or other
equipment with a Dolby Digital, DTS or
MPEG decoder.
•PCM (Pulse Code Modulation):
Select when connected to a two-chan-
nel digital stereo amplifier. DVDs
encoded in Dolby Digital, DTS or
MPEG will be automatically down-
mixed to two-channel PCM audio.
Each DVD disc has a variety of audio output options.
Set the player’s AUDIO options according to the type of audio system you use.

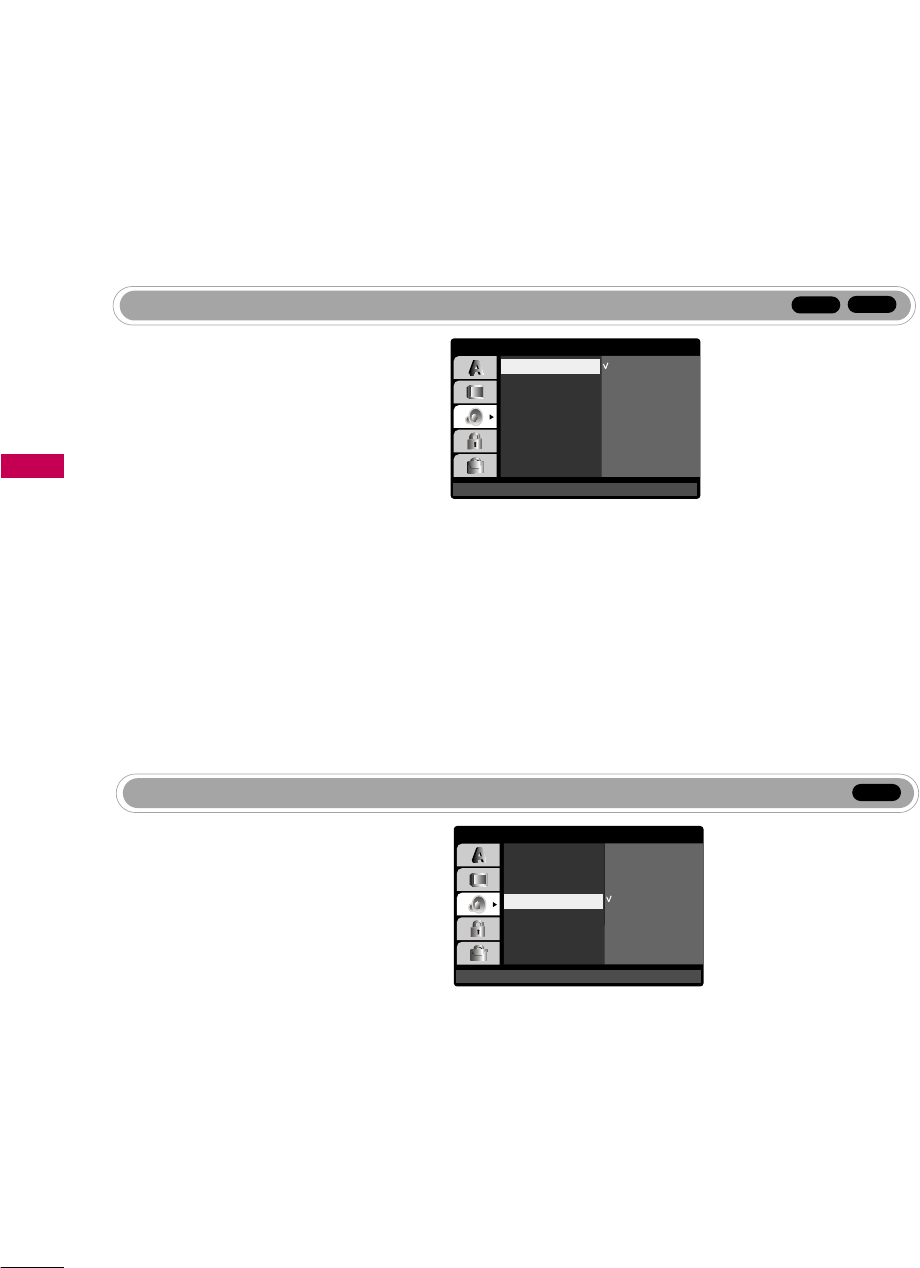

Dolby Digital / DTS / MPEG
Press the MENU button twice and then use the D /Ebutton to select
AUDIO.
Press the Gbutton and then use D /E button to select Dolby Digital / DTS
/ MPEG.
Press the Gbutton and then use D /E button to select Bitstream or PCM.
Press the OK button.
Press the EXIT button to exit the menu.
Dolby Digital
DTS
MPEG
Sample Freq.
DRC
Vocal
Bitstream
PCM
1
2
3
4
5
AUDIO
Move
G
Select
F
Prev.
D
E
Dolby Digital G
DVD-V DivX
- If your receiver or amplifier is NOT
capable of handling 96 kHz signals,
select 48 kHz. When this choice is
made, this unit automatically converts
any 96 kHz signals to 48 kHz so your
system can decode them.
If your receiver or amplifier is capable
of handling 96 kHz signals, select 96
kHz. When this choice is made, this
unit passes each type of signal
through without any further process-
ing.
Check the documentation for your
amplifier to verify its capabilities.
Sample Freq. (Frequency)
Press the MENU button twice and then use the D /Ebutton to select
AUDIO.
Press the Gbutton and then use D /E button to select Sample Freq..
Press the Gbutton and then use D /E button to select 48KHz or 96KHz.
Press the OK button.
Press the EXIT button to exit the menu.
Dolby Digital
DTS
MPEG
Sample Freq.
DRC
Vocal
48KHz
96KHz
1
2
3
4
5
AUDIO
Move
G
Select
F
Prev.
D
E
Sample Freq. G
DVD-V
DVD Menu options -
DVD Menu options - AUDIO
AUDIO
DVD OPERATION
53
- With the DVD format, you can hear a
program’s soundtrack in the most
accurate and realistic presentation
possible, thanks to digital audio tech-
nology. However, you may wish to
compress the dynamic range of the
audio output (the difference between
the loudest sounds and the quietest
ones).
This allows you to listen to a movie at
a lower volume without losing clarity
of sound. Set DRC to On for this
effect.
DRC (Dynamic Range Control)
Press the MENU button twice and then use the D /Ebutton to select
AUDIO.
Press the Gbutton and then use D /E button to select DRC.
Press the Gbutton and then use D /E button to select On or Off.
Press the OK button.
Press the EXIT button to exit the menu.
Dolby Digital
DTS
MPEG
Sample Freq.
DRC
Vocal
On
Off
1
2
3
4
5
AUDIO
Move
G
Select
F
Prev.
D
E
DRC G
DVD-V DivX
- Set to On only when a multi-channel
karaoke DVD is playing. The karaoke
channels on the disc mix into normal
stereo sound.
-Vocal setting works when the Dolby
Digital mode is set to “PCM” in the
DVD menu.
Vocal
Press the MENU button twice and then use the D /Ebutton to select
AUDIO.
Press the Gbutton and then use D /E button to select Vocal.
Press the Gbutton and then use D /E button to select On or Off.
Press the OK button.
Press the EXIT button to exit the menu.
Dolby Digital
DTS
MPEG
Sample Freq.
DRC
Vocal On
Off
1
2
3
4
5
AUDIO
Move
G
Select
F
Prev.
D
E
Vocal G
DVD-V
DVD OPERATION
54
DVD OPERATION
- Some movies contain scenes that
may not be suitable for children to
view. Many of these discs contain
parental control information that
applies to the complete disc or to cer-
tain scenes on the disc. Movies and
scenes are rated from 1 to 8, depend-
ing on the country. Some discs offer
more suitable scenes as an alterna-
tive.
The parental control feature allows
you to block access to scenes below
the rating you input, thereby prevent-
ing your children from being able to
view material you believe is unsuit-
able.

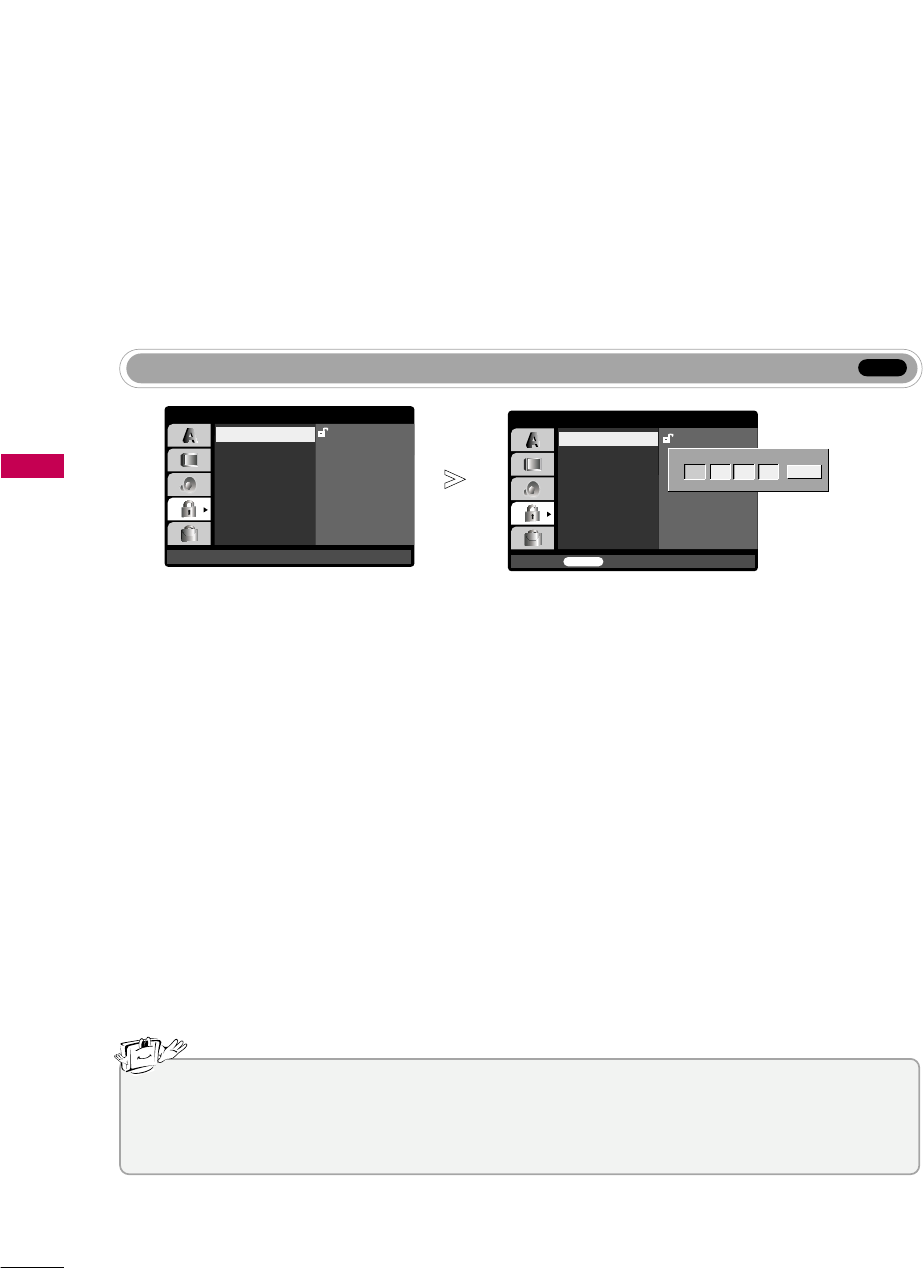

Rating
Press the MENU button twice and then use the D /Ebutton to select
LOCK.
Press the Gbutton and then use D /E button to select Rating.
Press the Gbutton.
To access the Rating, you must input the 4-digit password you created. If
you have not yet entered a password you are prompted to do so.
Input a 4-digit password and press OK button. Enter it again and press OK
button to verify. If you make a mistake before pressing OK button, press
CLEAR button.
Select a rating from 1to 8using the D /Ebutton.
Rating 1-8: Rating 1has the most restrictions and rating 8is the least
restrictive.
Unlock : If you select unlock, parental control is not active and the disc
plays in full.
Press the OK button.
Press the EXIT button to exit the menu.
Rating
Password
Area Code
Unlock
8 (Adult)
7
6
5
4
3
2
1 (Kids)
1
2
3
4
5
6
LOCK
Move
G
Select
F
Prev.
D
E
Rating GRating
Password
Area Code
Unlock
8 (Adult)
7
6
5
4
3
2
1 (Kids)
LOCK
0-9 Input
F
Delete
Rating G
DVD-V
Note
a. If you set a rating for the player, all disc scenes with the same rating or lower are played. Higher rated
scenes are not played unless an alternate scene is available on the disc. The alternative must have the
same rating or a lower one. If no suitable alternative is found, playback stops. You must enter the 4-digit
password or change the rating level in order to play the disc.
DVD Menu options - LOCK
DVD Menu options - LOCK
OK
Password
CLEAR Clear
DVD OPERATION
55
- You can enter or change password.

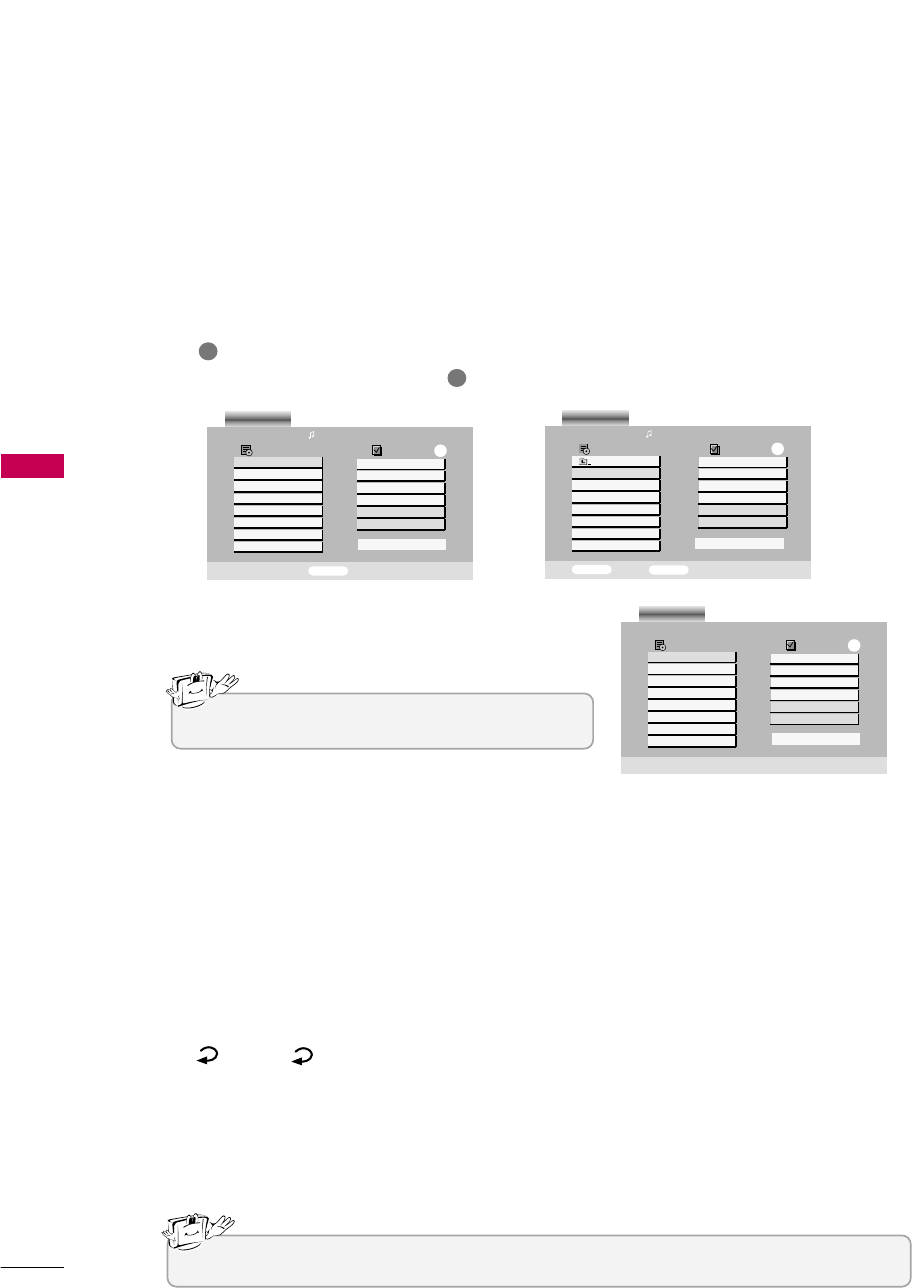

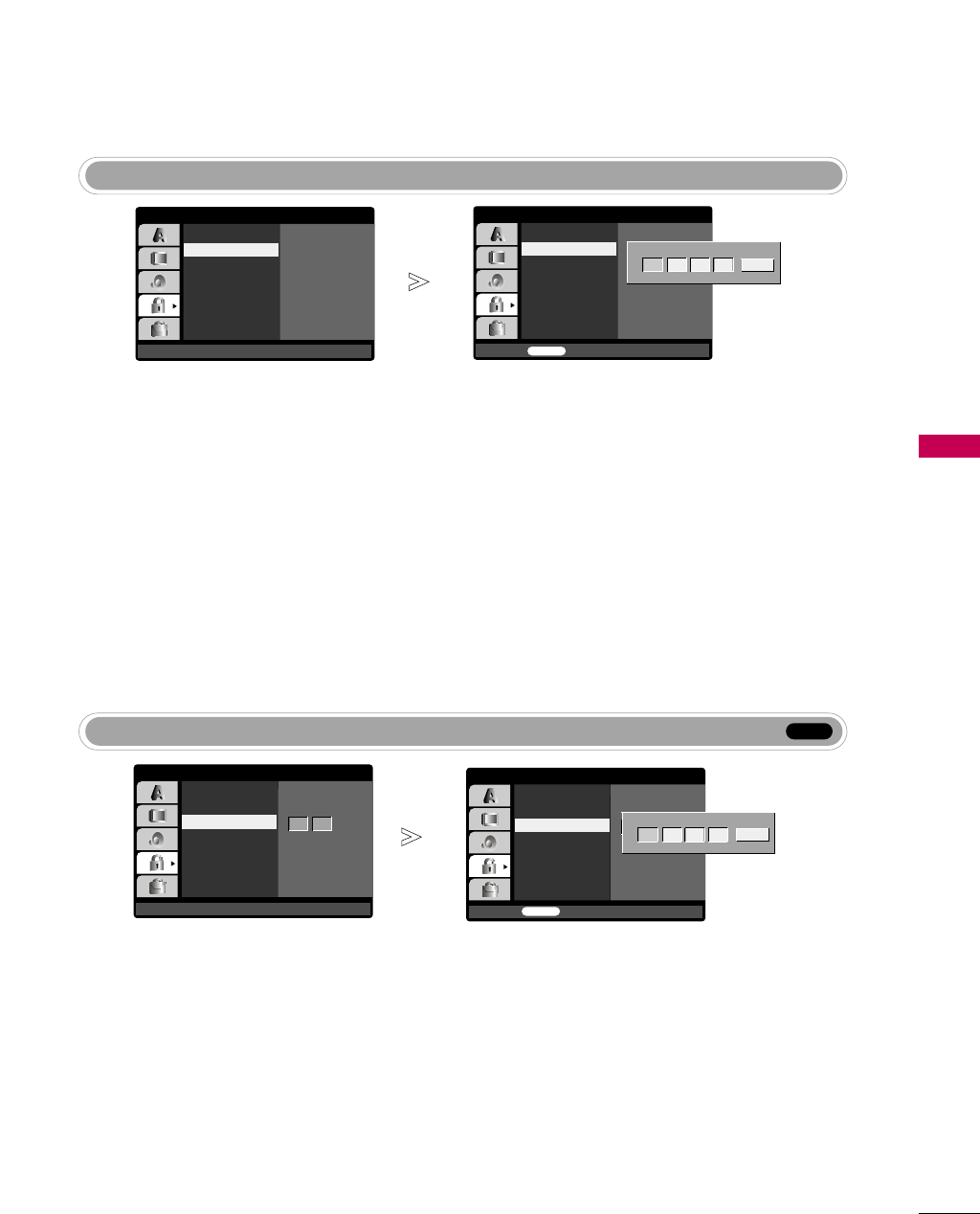

Password (Security Code)
Press the MENU button twice and then use the D /Ebutton to select
LOCK.
Press the Gbutton and then use D /E button to select Password.
Press the Gand OK button.
In case of “New”
Input a 4-digit password and press OK button. Enter it again and press OK button to ver-
ify. If you make a mistake before pressing OK button, press CLEAR button.
In case of “Change”
1. Input the 4-digit password you created.
2. Input the new 4-digit password and press OK button. Enter it again and press OK but-
ton to verify. If you make a mistake before pressing OK button, press CLEAR button.
Press the EXIT button to exit the menu.
If you forget your Password
If you forget your password you can clear it using the following steps:
1. Press the MENU button twice to display the DVD menu.
2. Input the 6-digit number “210499” and the password is cleared.
3. Enter a new password as described above.
Rating
Password
Area Code
Change
1
2
3
4
LOCK
Move
G
Select
F
Prev.
D
E
Password G
Rating
Password
Area Code
New
LOCK
Password
- Enter the code of the country/area
whose standards were used to rate
the DVD video disc, based on the list
in the “REFERENCE” chapter. (Refer
to P.62)
Area Code
Press the MENU button twice and then use the D /Ebutton to select
LOCK.
Press the Gbutton and then use D /E button to select Area Code.
Press the Gbutton.
To access the Area Code, you must input the 4-digit password you created. If you
have not yet entered a password you are prompted to do so.
Input a 4-digit password and press OK button. Enter it again and press OK button
to verify. If you make a mistake before pressing OK button, press CLEAR button.
Select the first character using D /Ebutton and press OK button.
Select the second character using D /Ebutton and press OK button to con-
firm your country code selection.
Press the EXIT button to exit the menu.
Rating
Password
Area Code
1
2
3
4
5
6
LOCK
Move
G
Select
F
Prev.
D
E
Area Code GU S
Rating
Password
Area Code
LOCK
Area Code GU S
0-9 Input
F
Delete
OK
Password
CLEAR Clear
0-9 Input
F
Delete
OK
Password
CLEAR Clear
DVD-V
DVD OPERATION
56
DVD OPERATION

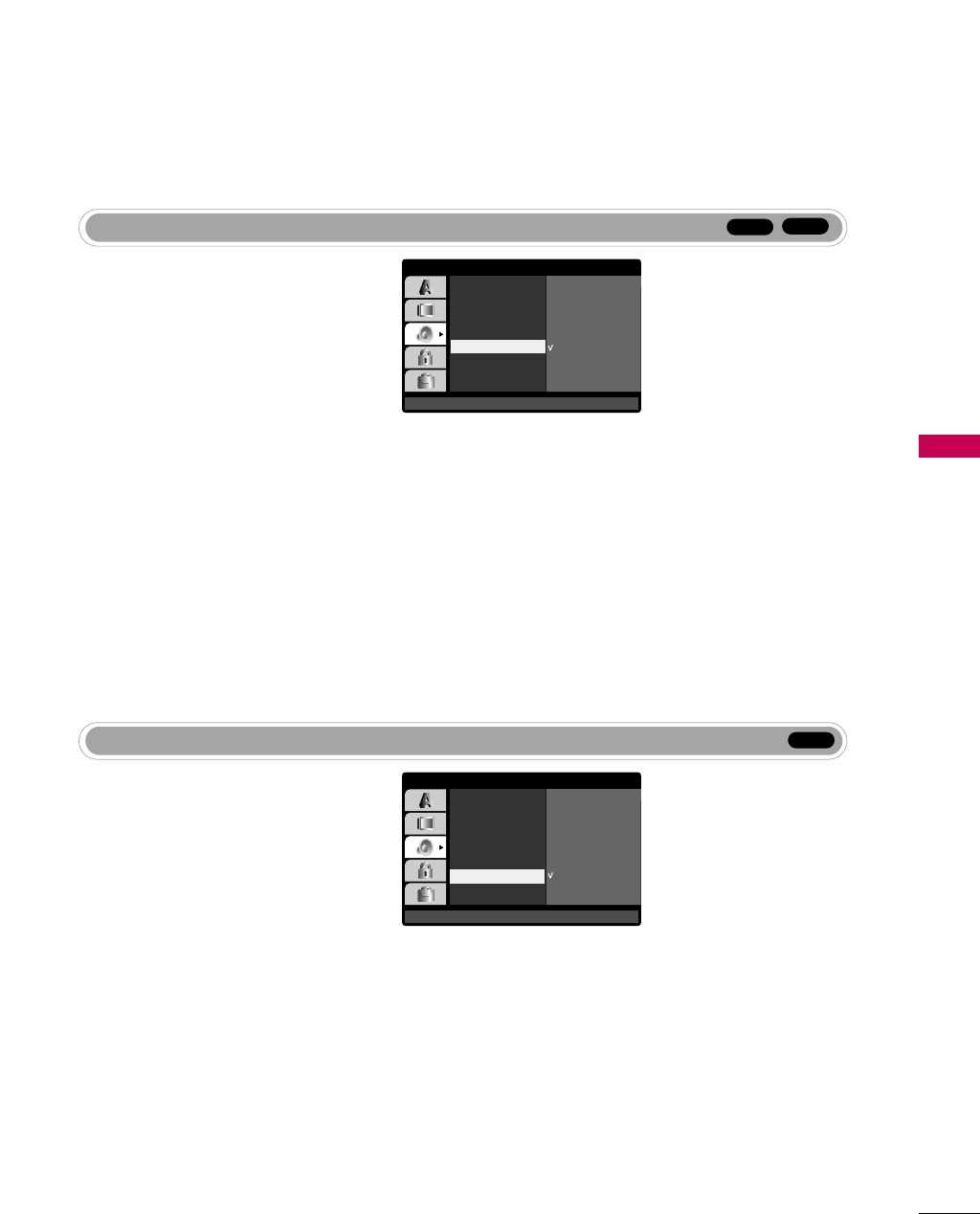

- Set Playback Control (PBC) to On or
Off.
On: Video CDs with PBC are played
according to the PBC.
Off: Video CDs with PBC are played
the same way as Audio CDs.
PBC
Press the MENU button twice and then use the D /Ebutton to select OTHERS.
Press the Gbutton and then use D /E button to select PBC.
Press the Gbutton and then use D /E button to select On or Off.
Press the OK button.
Press the EXIT button to exit the menu.
PBC
Auto Play
DivX(R) VOD
On
Off
1
2
3
4
5
OTHERS
Move
G
Select
F
Prev.
D
E
PBC G
VCD
- You can set up the DVD Player so a
DVD disc automatically starts playing
whenever the DVD is inserted.
If Auto Play mode is set to On, this
DVD player will search for title that
has the longest playback time and
then play back the title automatically.
AUTO PLAY
Press the MENU button twice and then use the D /Ebutton to select OTHERS.
Press the Gbutton and then use D /E button to select Auto Play.
Press the Gbutton and then use D /E button to select On or Off.
Press the OK button.
Press the EXIT button to exit the menu.
PBC
Auto Play
DivX(R) VOD
On
Off
1
2
3
4
5
OTHERS
Move
G
Select
F
Prev.
D
E
Auto Play G
DVD-V
Note
a. The Auto Play function may not work for some DVDs.
b. When you load and play back again the same disc in the tray,
Playback starts from the location where you stopped playback
because Last scene memory function works prior to
Auto Play
function.
DVD Menu options - OTHERS
DVD Menu options - OTHERS
DVD OPERATION
57

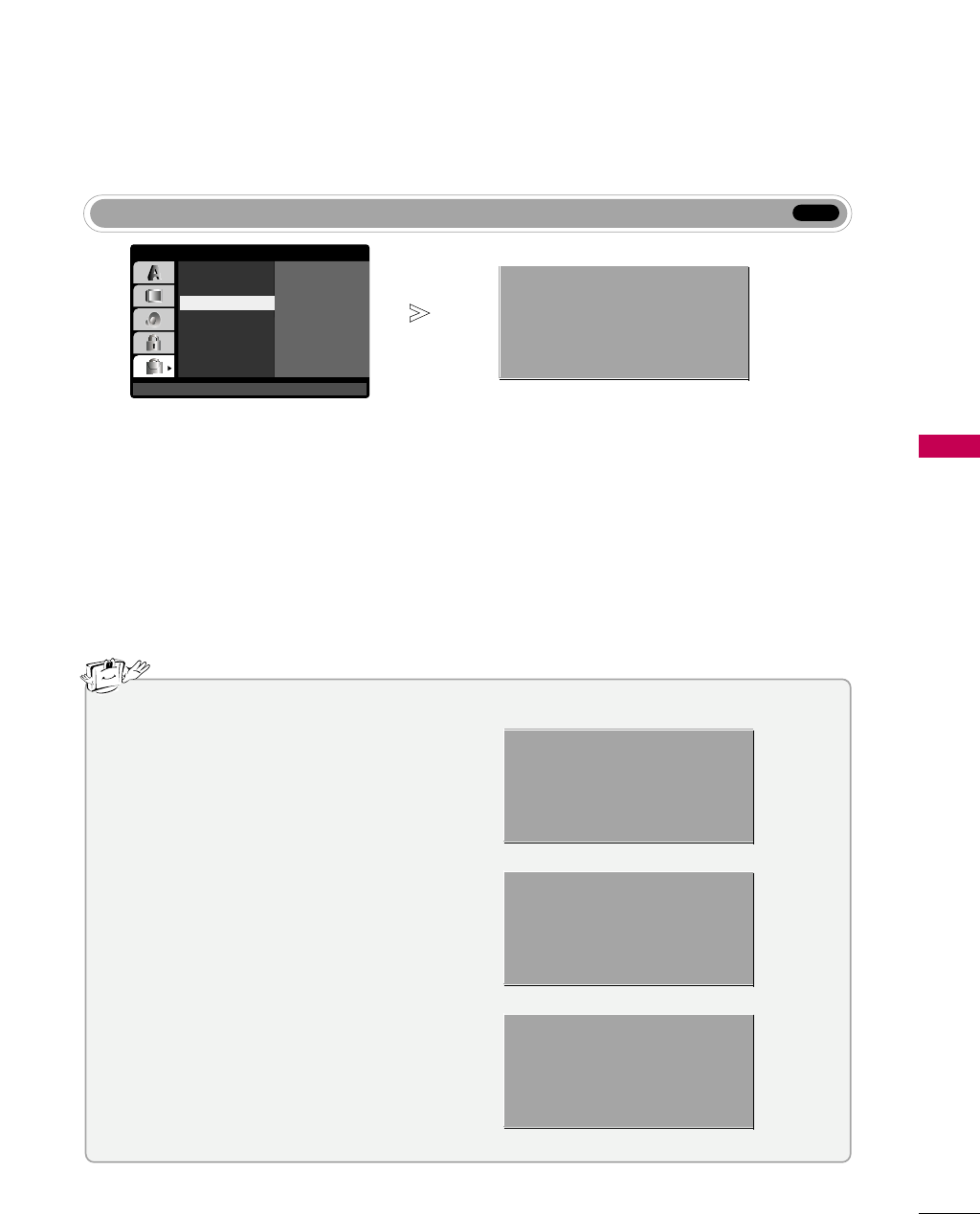

- You can show the DivX DRM (Digital
Right Management) Registration code
for your unit only.
The Registration code is used for
VOD (Video-On-Demand) service
agent. You can purchase or rental an
encrypt movie file.
DivX(R) VOD
Press the MENU button twice and then use the D /Ebutton to select OTHERS.
Press the Gbutton and then use D /E button to select DivX(R) VOD.
Press the Gand OK button.
Press the EXIT button to exit the menu.
PBC
Auto Play
DivX(R) VOD Select
1
2
3
4
OTHERS
Move
G
Select
F
Prev.
D
E
DivX(R) VOD G
Div-X
DivX(R) Video on demand
Your registration code is : XXXXXXXX
To lern more visit
www.divx.com.vod
(Done)
Note
a. If you rent the DivX VOD file, it has several options of viewing limits as show below.
• Display the number which you can watch the file.
• The rental has been expired.
• Display the authorization error.
View DivX(R) VOD Rental
This rental has 3 view left
Do you want to use one
of you 3 views now?
(Yes) (No)
Rental Expired
(Done)
Authorization Error
This player is not authorized
to play this video
(Done)
DVD OPERATION
58
DVD OPERATION
Basic Playback
1
2
3
Press the POWER button to turn the unit on.
Press OPEN/CLOSE button to open the disc tray and load your chosen disc in the
tray, with the playback side down.
Press OPEN/CLOSE button to close the tray. Playback starts automatically. If play-
back does not start, press
G
PLAY button.
Stop Playback
1
2
Press the A STOP button to stop playback. At this time the DVD video player stops
playback temporarily and maintains the current playback position.
If you
G
PLAY button is pressed, playback will resume from the location where
you stopped playback.
Press the A STOP button again to stop playback fully.
At this time if you press
G
PLAY button, the disc playback starts from the beginning.

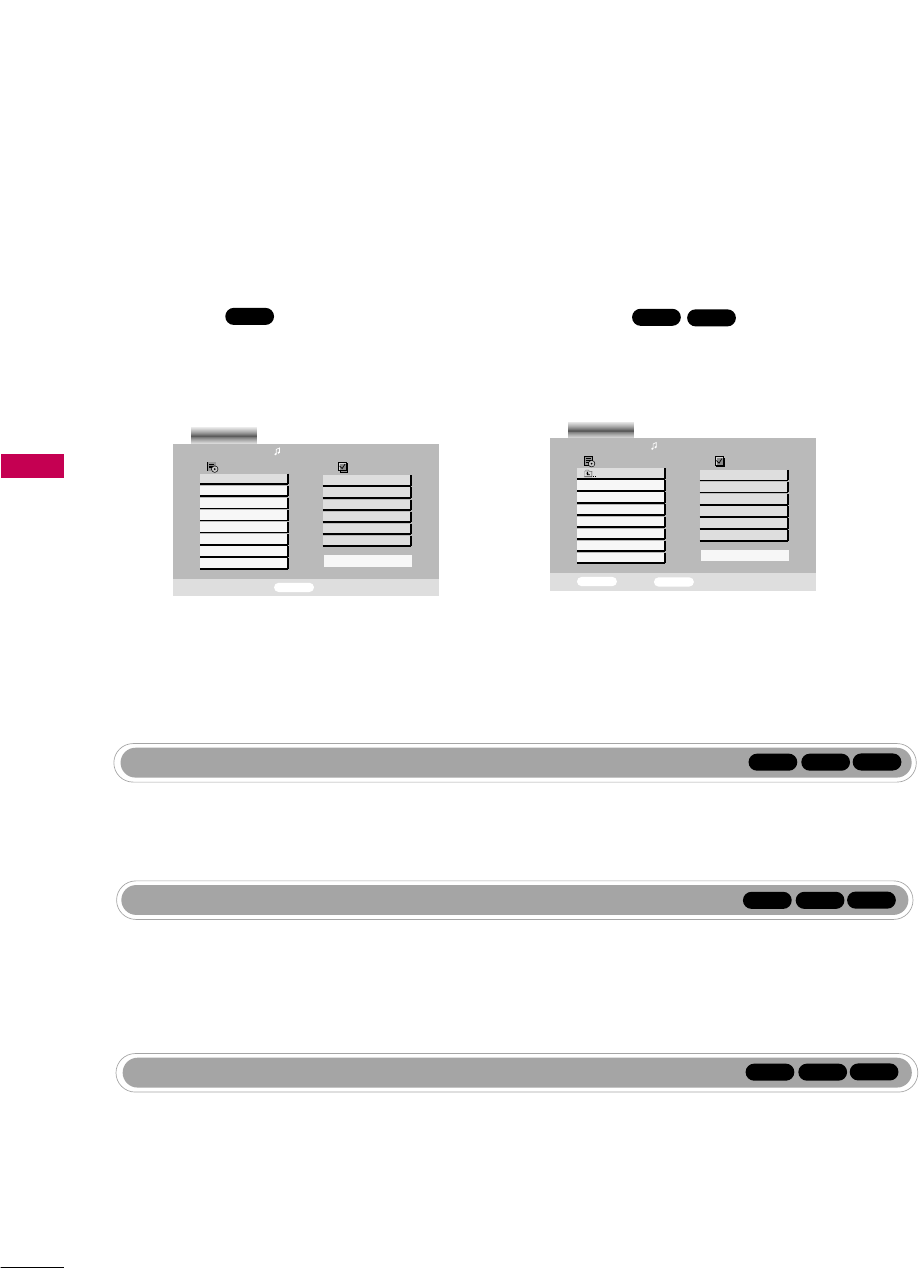

Playing a DVD or V
Playing a DVD or Video CD
ideo CD
Pause Playback (Still mode)
1
2
Press II PAUSE/STEP button during playback.
Press the
G
PLAY button again to return to normal playback.
VCD
DVD-V DivX
VCD
DVD-V DivX
VCD
DVD-V DivX
Fast Forward/Backward
1
2
3
Press FF SCAN or GG SCAN button during playback.
Press FF SCAN or GG SCAN button repeatedly to select the required speed.
•DVD, DivX disc: X2, X4, X16 or X100
•Video CD: X2, X4 or X8
Press the
G
PLAY button again to return to normal playback.
VCD
DVD-V DivX
Still Picture and Frame-by-Frame Playback
1
2
Press II PAUSE/STEP button on the remote control during playback. Advance the
picture frame-by-frame by pressing II PAUSE/STEP button repeatedly.
To exit still motion mode, press
G
PLAY button.
VCD
DVD-V DivX
DVD OPERATION
59
Slow Motion
1
2
3
Press II PAUSE/STEP button on the remote control during playback.
The DVD player will now go into PAUSE mode.
Use the FF SCAN or GG SCAN button to select the required speed: F I1/16, F I
1/8, F I1/4, or F I1/2 (backward), or IG1/16, IG 1/8, IG1/4, or IG1/2 (forward).
With a DivX Disc and Video CD, the Slow speed changes: IG1/16, IG1/8, IG1/4
or IG1/2 (forward).
To exit Slow Motion mode, press G PLAY button.
VCD
DVD-V DivX
Note
a.
There is no sound during fast or slow playback for DVDs or Video CDs.
b. Slow motion playback in reverse is not possible with Video CDs and
DivX Discs.
Moving to another CHAPTER/TRACK
1
When a title on a disc has more than one chapter or a disc has more than one
track, you can move to another chapter/track as follows:
• Press IFF SKIP or GGI SKIP button briefly during playback to select the next
chapter/track or to return to the beginning of the current chapter/track.
• Press IFF SKIP button twice briefly to step back to the previous chapter/track.
• To go directly to any chapter during DVD playback, press DISPLAY button and
press D /Eto select the chapter/track icon. Then, input the chapter/track num-
ber or use F /G.
VCD
DVD-V DivX
Repeat Playback
1
- You can play a specific title, chapter, or track repeatedly.
Press the GIFREPEAT button during playback.
Each time you press the GIFREPEAT button, the repeat mode changes as fol-
lows.
• DVD Video Discs : Chapter
→
Title
→
Off
• Video CDs, DivX discs : Track
→
All
→
Off
VCD
DVD-V DivX
Note
a. On a Video CD with PBC, you must set PBC to Off on the DVD menu
to use the repeat function.
b. If you press
GGI SKIP button
once during Repeat Chapter (Track)
playback, the repeat playback cancels.
DVD OPERATION
60
DVD OPERATION
Playing a DVD or V
Playing a DVD or Video CD
ideo CD
Disc Menu
1
2
Press the DISC MENU button during playback.
Use the D /E/F /G button or OK button to select the desired menu option.
DVD-V
Title Menu
1
2
Press the TITLE button during playback.
Use the D /E/F /G button or OK button to select the desired item.
DVD-V
Note
a.
The unit may not be able to select the disc or title menu depend-
ing on a sort of DVD disc.
DVD OPERATION
61

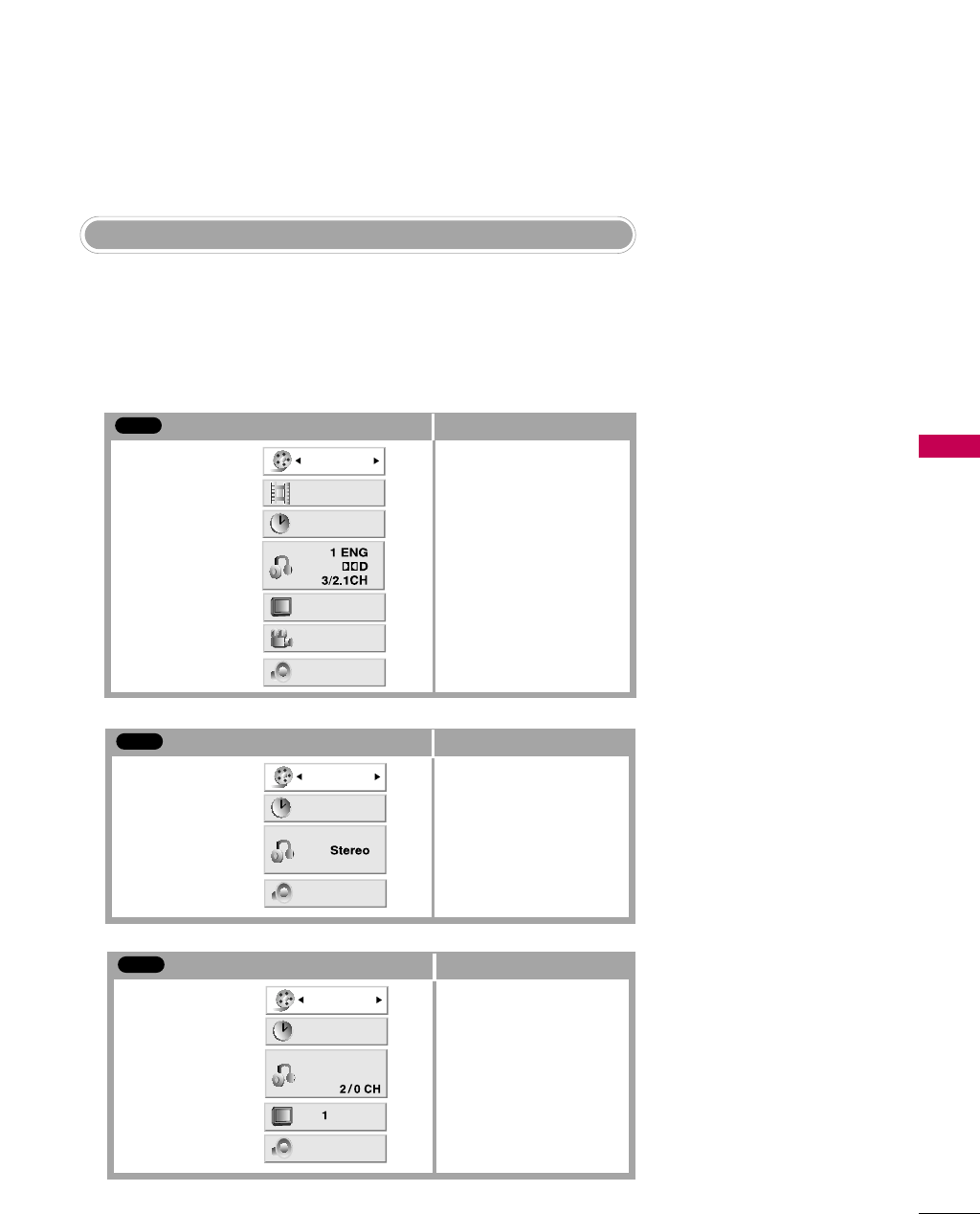

• Track Number
(or PBC mode)
• Time search
• Audio Channel
• Sound
•F /G, Numbers → OK
• Numbers → OK
•F /Gor AUDIO
•F /G
Items Selection Method
1 / 3
0:20:09
3D SUR
VCD
• Track Number
• Time search
• Audio language and
Digital Audio Output
mode
• Subtitle language
• Sound
•F /G, Numbers → OK
• Numbers → OK
•F /Gor AUDIO
•F /Gor SUB_T
•F /G
Items Selection Method
1 / 3
0:20:09
MP3
1
ABC
ENG
3D SUR
DivX
On-Screen Display
1
2
3
Press DISPLAY button during playback.
Use D /Ebutton to select an item.
Press F /Gbutton to change the setting. You can also use the number buttons if
appropriate (e.g. inputting the title number). For some functions, press OK to execute
the setting.
Some discs may not provide all of the features shown below.
• Title Number
• Chapter Number
• Time search
• Audio language and
Digital Audio Output
mode
• Subtitle language
• Angle
• Sound
•F /G, Numbers → OK
•F /G, Numbers → OK
• Numbers → OK
•F /Gor AUDIO
•F /Gor SUB_T
•F /Gor ANGLE
•F /G
Items Selection Method
1 / 3
1 / 12
0:20:09
ABC
1 ENG
1 / 3
3D SUR
DVD-V
DVD OPERATION
62
DVD OPERATION
Playing a DVD or V
Playing a DVD or Video CD
ideo CD
Random Playback
1
2
Press RANDOM button during playback. The unit automatically begins random
playback and RANDOM appears on the TV screen.
Press RANDOM button again to normal.
•
By pressing GGI SKIP button during random playback, the unit selects another title
(track) and resumes random playback.
VCD
Note
a. On a Video CD with PBC, You must set PBC to Off on the DVD menu to
use the random function
Camera Angle
1
2
- If the scene was recorded from multiple angles, you can easily change the
camera angle of the scene you are currently watching.
Press the ANGLE button during playback.
Repeatedly press the ANGLE button to select the desired angle.
Note
a. You can only change the angle for DVDs that provide multiple
angles of scenes.
b. The angle function will not work on DVD video discs that do not
contain scenes recorded at different angles.
c. The number of angles varies from disc to disc.
A-B Repeat Playback
1
2
3
-A-B repeat playback allows you to repeat material between two selected
points.
Press the A-B button to select the start point during playback. “ A * ” is dis-
played on the TV screen and the starting point of your selected segment is
set up.
Press the A-B button again to select the end point. “ A B ” is displayed on
the TV screen and the ending point is set up.
Playback starts at the point that you selected. Playback stops at the end point,
returns to Point Aautomatically, then starts again.
Repeatedly press the A-B button again to resume normal playback.
“Off” appears on the screen.
VCD
DVD-V DivX
DVD-V
DVD OPERATION
63
Note
a. Zoom may not work on some DVDs.
b. Screen fit mode is available for playing the DVD disc, VR disc and movie file.
Subtitles
1
Press SUB_T button repeatedly during playback to see the different subtitle lan-
guages.
If a subtitle language is selected, the selected subtitle language is played whenev-
er you start a new disc playback. (The disc must contain the selected language)
DVD-V DivX
Marker Search
- You can start playback from up to nine memorized points.
A To enter a Marker
Press MARKER button during playback at the desired point on the disc . The MARKER
icon appears on the TV screen briefly. Repeat to enter up to nine markers.
A To Recall or Clear a Marked Scene
1. During disc playback, press SEARCH button. The MARKER SEARCH menu
appears on the screen.
2. Within 10 seconds, press F /Gbutton to select a marker number that you
want to recall or clear.
3. Press OK button and playback starts from the marked scene. Or, Press
CLEAR button and the marker number is erased from the list.
4. You can play any marker by inputting its number on the MARKER SEARCH
menu.
Note
a. The subtitle file of the DivX file is displayed only smi, srt and sub.
b. If there is no information or there is a code that can not read in the
DivX file, “ 1 ” etc are displayed.
VCD
DVD-V DivX
1 / 9
MARKER SEARCH
Zoom
1
2
3
4
- Use zoom to enlarge the video image.
Press ZOOM button during playback or still playback. The square frame appears
briefly in the right bottom of the picture.
Each press of the ZOOM button changes the TV screen in the sequence:
100% → 400% → 1600% → Screen fit mode → 100%
•
Screen fit mode :
You can change the way the image appears on the screen when you’re playing a
DVD movie. Press D /Ebutton to select between Normal, Enhanced, and
Maximum.
Use the D /E/F /Gbutton to move through the zoomed picture.
To resume normal playback, press CLEAR button.
VCD
DVD-V DivX
DVD OPERATION
64
DVD OPERATION

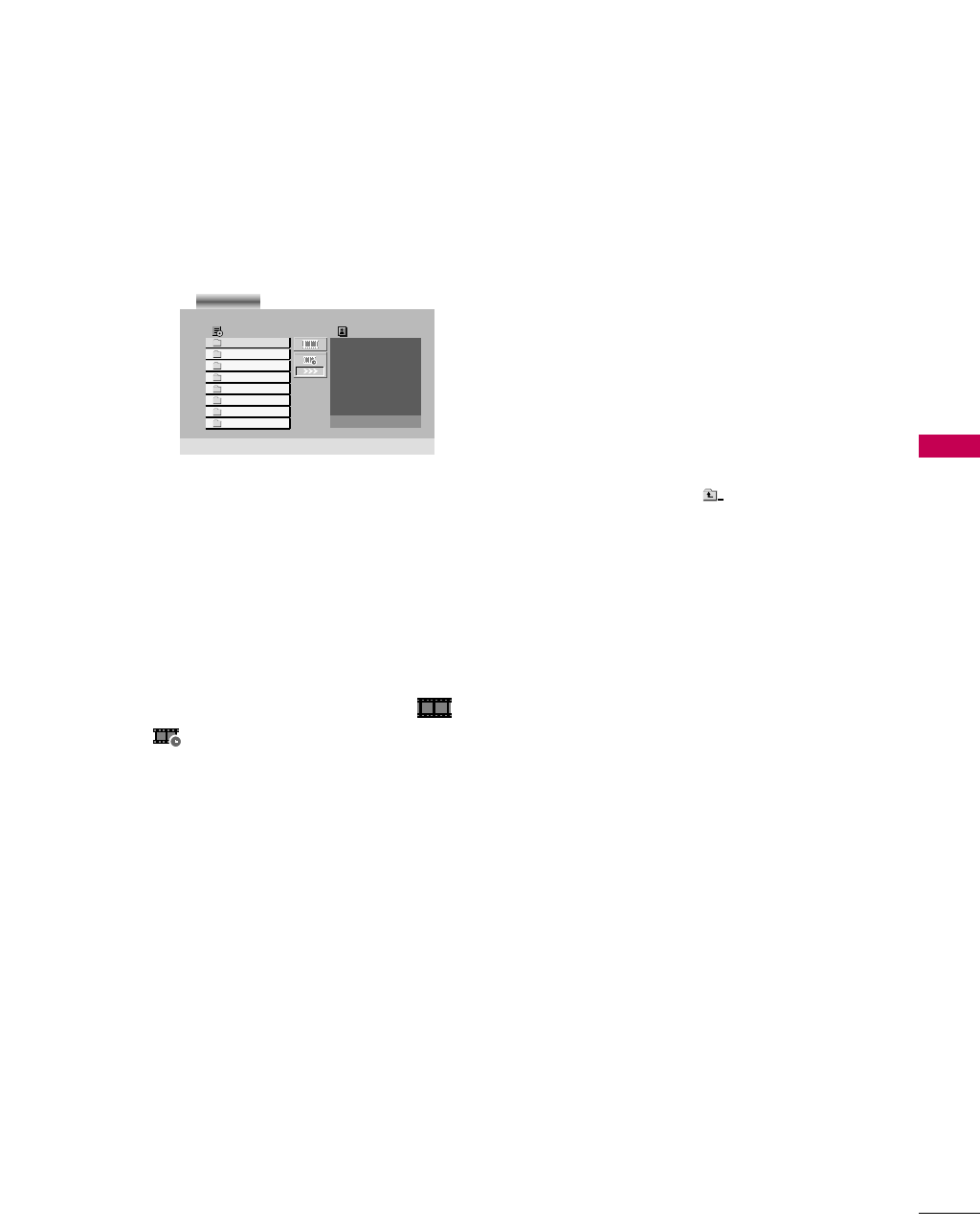

Playing an
Playing an Audio CD or MP3/WMA
Audio CD or MP3/WMA Disc
Disc
- The DVD player can play MP3/WMA formatted recordings on CD-ROM, CD-R, or CD-RW discs.
A MP3 / WMA
1. Press D /Ebutton to select a folder, and press OK
button to see the folder contents.
2. Press D /Ebutton to select a track then press
G
PLAY or OK button. Playback starts.
A Audio CD
1. Once you insert an audio CD a menu appears on
the TV screen.
2. Press D /Ebutton to select a track then press
G
PLAY or OK button. Playback starts.
CD WMA
MP3
A ID3 TAG
• When playing a file containing information such as track titles,
you can see the information by pressing DISPLAY button.
[Title, Artist, Album, Year, Comment ]
• If there is no information, NO ID3 TAG appear on the display.
Pause Playback (Still mode)
1
2
Press II PAUSE/STEP button during playback.
To return to playback, press G PLAY,OK or press II PAUSE/STEP button again.
MP3CD WMA
Moving to another Track
1
2
3
Press IFF SKIP or GGI SKIP button briefly during playback to go to the next track or to return to the beginning of
the current track.
Press IFF SKIP button twice briefly to go back to the previous track.
You can play any track by inputting its number.
Fast Forward/Backward
1
2
3
Press FF SCAN or GG SCAN button during playback.
Press FF SCAN or GG SCAN button repeatedly to select the required speed.
• X2, X4 or X8
Press the G PLAY button again to return to normal playback.
MP3CD WMA
MP3CD WMA
E
List
AUDIO CD
Track 1
Track 2
Track 3
Track 4
Track 5
Track 6
Track 7
Track 8 Clear All
Program
1/12
PROGRAM Edit
A 0 : 52 : 07
E
List
MUSIC
1-Music 1
2-Music 2
3-Music 3
4-Music 4
5-Music 5
6-Music 6
7-Music 7 Clear All
Program
1/12
PROGRAM Edit
DISPLAY Info
A 0 : 00 : 00
DVD OPERATION
65
-
You can play a track/all on a disc.
Press the GIFREPEAT button during playback.
Each time you press the GIFREPEAT button, the repeat mode changes as follows.
Track
→
All
→
(Off)
• If you press
GGI SKIP button
once during repeat track playback, the repeat playback cancels.
A MP3 / WMA disc compatibility with this player is limited as follows:
• Sampling frequency: within 8 - 48 kHz (MP3), within 32 - 48kHz (WMA)
• Bit rate: within 8 - 320kbps (MP3), 32 - 192kbps (WMA)
• The player cannot read an MP3/WMA file that has a file extension other than “.mp3” / “.wma”.
• CD-R physical format should be ISO 9660 or JOLIET file.
• If you record MP3 / WMA files using software that cannot create a file system (eg. Direct-CD) it is impossible to play-
back MP3 / WMA files. We recommend that you use Easy-CD Creator, which creates an ISO 9660 file system.
• File names should have a maximum of 8 letters and must incorporate an .mp3 or .wma extension.
• They should not contain special letters such as / ? * : “ < > l etc.
• The total number of files on the disc should be less than 650.
• Play a MP3 file that made by user for personal purpose. Use other MP3 Player if an MP3 file is protected by copyright.
Repeat Playback
1
2
A-B Repeat Playback
1
2
3
-A-B repeat playback allows you to repeat material between two selected points.
Press the A-B button to select the start point during playback. “ A ” is displayed on the TV screen and the starting point
of your selected segment is set up.
Press the A-B button again to select the end point. “ A B ” is displayed on the TV screen and the ending point is set up.
Playback starts at the point that you selected. Playback stops at the end point, returns to Point Aautomatically, then starts
again.
To exit the sequence and return to normal play, press A-B button again. The Repeat icon disappears from the menu screen.
MP3CD WMA
CD
Random Playback
1
2
Press RANDOM button during playback. The unit automatically begins random playback and RANDOM button
appears on the TV screen.
Press RANDOM button again to normal.
•
By pressing GGI SKIP button during random playback, the unit selects another track and resumes random playback.
MP3CD WMA
3D Surround
1
2
To produce a 3D surround effect that simulates multi-channel audio from two stereo speakers (instead of the five+
speakers normally required for multi-channel audio from a home theater system).
Press AUDIO button during playback. “3D SUR.” appears on the menu screen.
To return to normal playback, press AUDIO button repeatedly until “3D SUR.” disappears from the menu screen.
CD
DVD OPERATION
66
DVD OPERATION
Programmed Playback
Programmed Playback
- The program function enables you to store your favorite tracks from any disc in the player memory. A program can contain
30 tracks.
Insert a disc.
Press PROGRAM button.
The mark will appear to the right of the word Program on the right side of the menu screen.
• Press PROGRAM button again, then the mark will disappear to exit the Program Edit mode.
Audio CD Menu MP3/WMA Menu
•Video CD: Press PROGRAM button while playback is stopped.
The program menu appears. Press PROGRAM button again and
hold it down for a few seconds to exit the menu.
Select a track on the List, then press OK button to place the selected track on the Program list. Repeat to place
additional tracks on the list.
Press Gbutton.
Select the track you want to start playing on the Program list.
Press PLAY or OK button to start.
Playback begins in the order in which you programmed the tracks. Playback stops after all of the tracks on the
Program list have played once.
To resume normal playback from programmed playback, select a track on the List and then press PLAY button.
A Repeat Programmed Tracks
1. Press the GIFREPEAT button during playback.
2. Each time you press the GIFREPEAT button, the repeat mode changes as follows.
Track
→
All
→
(Off)
A Erasing a Track from Program list
1. Use D /E/Gbutton to select the track that you wish to erase from the Program list.
2. Press CLEAR button. Repeat to erase additional tracks on the list.
A Erasing the Complete Program list
1. Press
G
button to move to the Program list.
2. Use D /Ebutton to select Clear All, then press OK button .
1
2
3
4
5
6
E
E
Note
a. On a Video CD with PBC, you must set PBC to Off on
the setup menu to use the programmed playback.
Note
a.
The programs are also cleared when the disc is removed.
E
List
AUDIO CD
Track 1
Track 2
Track 3
Track 4
Track 5
Track 6
Track 7
Track 8 Clear All
Program
1/12
PROGRAM Edit
A 0 : 52 : 07
Track 5
Track 7
Track 1
Track 4
E
E
List
MUSIC
1-Music 1
2-Music 2
3-Music 3
4-Music 4
5-Music 5
6-Music 6
7-Music 7 Clear All
Program
1/12
PROGRAM Edit
DISPLAY Info
A 0 : 00 : 00
2-Music 2
4-Music 4
6-Music 6
1-Music 1
E
List
VIDEO CD
Track 1
Track 2
Track 3
Track 4
Track 5
Clear All
Program
Track 5
Track 3
Track 1
Track 2
E
DVD OPERATION
67
V
Viewing a JPEG Disc
iewing a JPEG Disc
- Using this DVD Player you can view Kodak PICTURE CDs and discs with JPEG files.
Insert a disc and close the tray. The PHOTO menu appears on the TV screen.
Press D /Ebutton to select a folder, and press OK button. A list of files in the folder appears. If you are in a file list
and want to return to the previous Folder list, use the D /Ebutton on the remote to highlight and press OK but-
ton.
• Press DISC MENU
button
to move to the next page
• On a disc with MP3/WMA and JPEG you can switch MP3/WMA and JPEG. Press TITLE button and MUSIC or
PHOTO word on top of the menu is highlighted.
If you want to view a particular file, press D /Ebutton to highlight a file and press OK or G PLAY button.
Viewing the file proceeding starts.
•
While viewing a file, you can press A STOP button to move to the previous PHOTO menu.
•
While viewing a file,
If you press RETURN button, information of file is hidden.
A Slide Show
1. Use
D
/
E
/F/Gbutton to highlight the (Slide Show) then press OK button.
A
Slide Speed
There are three slide speed options :
>>> (Fast)
→
>> (Normal)
→
>(Slow)
1. Use D
/
E
/F/Gbutton
to highlight the Speed. Then, use
F/Gbutton
to select the option you want to use
then press OK
button
.
A Still Picture
1. Press II PAUSE/STEP button during slide show. The player will now go into PAUSE mode.
2. To return to the slide show, press G PLAY or press II PAUSE/STEP button again.
A Moving to another File
1. Press IFF SKIP ,GGI SKIP,For Gbutton once while viewing a picture to advance to the next or previous file.
A Zoom
1. Press ZOOM button during playback or still playback. The square frame appears briefly in the right bottom of
the picture.
2. Each press of the ZOOM button changes the TV screen in the sequence:
100% → 400% → 1600% → 100%
3. Use the
D
/
E
/F/Gbuttons to move through the zoomed picture.
4. To resume normal playback, press CLEAR button.
A To rotate picture
1. Press
D
/
E
button during showing a picture to rotate the picture clockwise or counter clockwise.
1
2
3
E
List
JPEG Folder 1
JPEG Folder 2
JPEG Folder 3
JPEG Folder 4
JPEG Folder 5
JPEG Folder 6
JPEG Folder 7
JPEG Folder 8
Preview
DVD OPERATION
68
DVD OPERATION
V
Viewing a JPEG Disc
iewing a JPEG Disc
A To listen to MP3/WMA music watching picture
You can display files while listening to MP3/WMA music files recorded on the same disc.
1. Insert the disc containing the two types of file in the player.
2. Press TITLE button to display PHOTO menu.
3. Press
D
/
E
button to select a photo file.
4. Use Gbutton to select icon then press OK button.
Playback starts. The playback will continue until A STOP button is pressed.
• To listen to only the desired music watching picture, programmed the desired tracks from the MUSIC menu and
then proceed as above.
A JPEG disc compatibility with this player is limited as follows:
• Depending upon the size and number of JPEG files, it could take a long time for the DVD player to read the disc’s
contents. If you don’t see an on-screen display after several minutes, some of the files may be too large — reduce
the resolution of the JPEG files to less than 2M pixels as 2760 x 2048 pixels and burn another disc.
• The total number of files and folders on the disc should be less than 650.
• Some discs may be incompatible due to a different recording format or the condition of disc.
• Ensure that all the selected files have the “.jpg” extensions when copying into the CD layout.
• If the files have “.jpe” or “.jpeg” extensions, please rename them as “.jpg” file.
• File names without “.jpg” extension will not be able to be read by this DVD player. Even though the files are shown
as JPEG image files in Windows Explorer.
Insert a disc and close the tray. The DVD-VR menu appears on the TV screen.
Press
D
/
E
button to select a track then press G PLAY or OK button and playback starts.
•
What is ‘CPRM’?
CPRM is a copy protection system (with scramble system) only allowing the recording of ‘copy once’ broadcast pro-
grams. CPRM stands for Content Protection for Recordable Media.
This player is CPRM compatible, which means that you can record copy-once broadcast programs, but you cannot
then make a copy of those recordings. CPRM recordings can only be made on DVD-RW discs formatted in VR
mode, and CPRM recordings can only be played on players that are specifically compatible with CPRM.
1
2
Playing a DVD VR format Disc
Playing a DVD VR format Disc
- This unit will play DVD-R/RW discs recorded using the DVD-Video format that have been finalized using a DVD-recorder.
- This unit will play DVD-RW discs recorded using the Video Recording (VR) format.
Note
a.
Unfinalized DVD-R/RW discs cannot be played in this player.
b
Some DVD-VR disc are made with CPRM data by DVD RECORDER. Player does not support
these kinds of discs and display the CHECK DISC.
E
List Data Duration
DVD-VR
01 2005/01/01 SAT TV 07 SP 1/7 0:25
02 2005/01/05 WED TV 11 XP 1/8 9:25
03 2005/01/06 THU TV 13 XP 1/9 1:22
04 2005/01/07 THU TV 04 XP 1/9 27:13
05 2005/01/07 THU TV 04 XP 1/9 25:21
DVD OPERATION
69
Playing a DivX Movie Disc
Playing a DivX Movie Disc
- Using this DVD Player you can play DivX (Digital Internet Video eXpress) disc.
Insert a disc and close the tray. The MOVIE menu appears on the TV screen.
Press
D
/
E
button to select a folder, and press OK button. A list of files in the folder appears. If you are in a file list
and want to return to the Folder list, use the
D
/
E
button on the remote to highlight and press OK button.
If you want to view a particular file, press
D
/
E
button to highlight a file and press OK or G PLAY button.
Press A STOP button to exit.
• On a CD with MP3/WMA, JPEG and MOVIE file, you can switch MUSIC,PHOTO and MOVIE menu. Press TITLE
button and MUSIC,PHOTO and MOVIE word on top of the menu is highlighted.
A DivX disc compatibility with this player is limited as follows:
• Available resolution size of the DivX file is under 720x576 (W x H) pixel.
• The file name of the DivX subtitle is available by 56 characters.
• If there is impossible code to express in the DivX file, it may be displayed as " _ " mark on the display.
• If the number of the screen frame is over 30 per 1 second, this unit may not operate normally.
• If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.
• If the file is recorded with GMC, the unit supports only 1-point of the record level.
What is ‘GMC’?
GMC is the acronym for Global Motion Compensation. It is an encoding tool specified in MPEG4 standard. Some
MPEG4 encoders, like DivX or Xvid, have this option. There are different levels of GMC encoding, usually called
1-point, 2-point, or 3-point GMC.
• Playable DivX file : ".avi ", ".mpg ", ".mpeg "
• Playable Codec format
"DIVX3.xx ", "DIVX4.xx ", "DIVX5.xx ", "XVID ", "MP43 ", "3IVX ".
• Playable Audio format
"AC3 ", "DTS ", "PCM ", "MP3 ", "WMA ".
- Sampling frequency: within 8 - 48 kHz (MP3), within 32 - 48kHz (WMA)
- Bit rate: within 8 - 320kbps (MP3), 32 - 192kbps (WMA)
1
2
3
4
E
List Data Duration
MOVIE
Movie Folder 1
Movie Folder 2
Movie Folder 3
Movie Folder 4
Movie Folder 5
Movie Folder 6
Movie Folder 7
Movie Folder 8
A 0 : 00 : 00
PICTURE CONTROL
70
PICTURE SIZE (ASPECT RATIO) CONTROL
PICTURE CONTROL
This feature lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV.
■ RGB-PC input source use 4:3 or 16:9 aspect ratio.
NOTE
!
GIf a fixed image is displayed on the screen for a long time, the image could become imprinted on the
screen and remain visible.
This phenomenon is common to all manufacturers and is not covered by warranty. Although, after watch-
ing video that did not fill the screen, any after-image from the black bars will normally dissipate after a few
minutes.
■You can also adjust Aspect Ratio in
the Q-Menu.
Set By Program
4:3
16:9
Zoom1
Zoom2
Just Scan
Select PICTURE.
Select Aspect Ratio.
Select the desired picture format.
1
MENU
3
2
ENTER
ENTER
4
RETURN
Return to the previous menu.
MENU
Return to TV viewing.
Enter
Move
E
RG
Aspect Ratio : 16:9
Picture Mode : Standard
• Backlight 80
• Contrast 90
• Brightness 50
• Sharpness 60
• Color 60
• Tint 0
Enter
Move
E
RG
Aspect Ratio : 16:9
Picture Mode : Standard
• Backlight 80
• Contrast 90
• Brightness 50
• Sharpness 60
• Color 60
• Tint 0
