Users Manual

Order Number : GETEC-C1-10-053 FCC Part 15 subpart B

Test Report Number : GETEC-E3-10-026 Page 1 / 1

EUT Type: LED LCD TV/Monitor

FCC ID.: BEJ32LE5300UC

APPENDIX G

: USER’S MANUAL

OWNER’S MANUAL

LED LCD TV / LCD TV

Please read this manual carefully before operating

your set and retain it for future reference.

P/NO : SAC34134204 (1001-REV00) www.lge.com

WARNING / CAUTION

The lightning flash with arrowhead

symbol, within an equilateral trian-

gle, is intended to alert the user to

the presence of uninsulated “dan-

gerous voltage” within the product’s enclo-

sure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

The exclamation point within an equi-

lateral triangle is intended to alert

the user to the presence of important oper-

ating and maintenance (servicing) instruc-

tions in the literature accompanying the

appliance.

TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR

BACK). NO USER SERVICEABLE PARTS

INSIDE. REFER TO QUALIFIED SERVICE

PERSONNEL.

WARNING/CAUTION

TO REDUCE THE RISK OF FIRE AND

ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE.

NOTE TO CABLE/TV INSTALLER

This reminder is provided to call the CATV system

installer’s attention to Article 820-40 of the National

Electric Code (U.S.A.). The code provides guide-

lines for proper grounding and, in particular, speci-

fies that the cable ground shall be connected to the

grounding system of the building, as close to the

point of the cable entry as practical.

WARNING / CAUTION

To prevent fire or shock hazards, do not expose

this product to rain or moisture.

FCC Notice

Class B digital device

This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable pro-

tection against harmful interference in a residen-

tial installation. This equipment generates, uses

and can radiate radio frequency energy and, if not

installed and used in accordance with the

instructions, may cause harmful interference to

radio communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or television

reception, which can be determined by turning

the equipment off and on, the user is encour-

aged to try to correct the interference by one or

more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equip-

ment and receiver.

- Connect the equipment to an outlet on a circuit

different from that to which the receiver is con-

nected.

- Consult the dealer or an experienced radio/TV

technician for help.

This device complies with part 15 of the FCC

Rules.

Operation is subject to the following two condi-

tions: (1) This device may not cause (harmful)

interference, and (2) this device must accept

any interference received, including interference

that may cause undesired operation (of the

device).

Any changes or modifications in construction of

this device which are not expressly approved by

the party responsible for compliance could void

the user’s authority to operate the equipment.

CAUTION

Do not attempt to modify this product in any

way without written authorization from LG

Electronics.

Unauthorized modification could void the user’s

authority to operate this product.

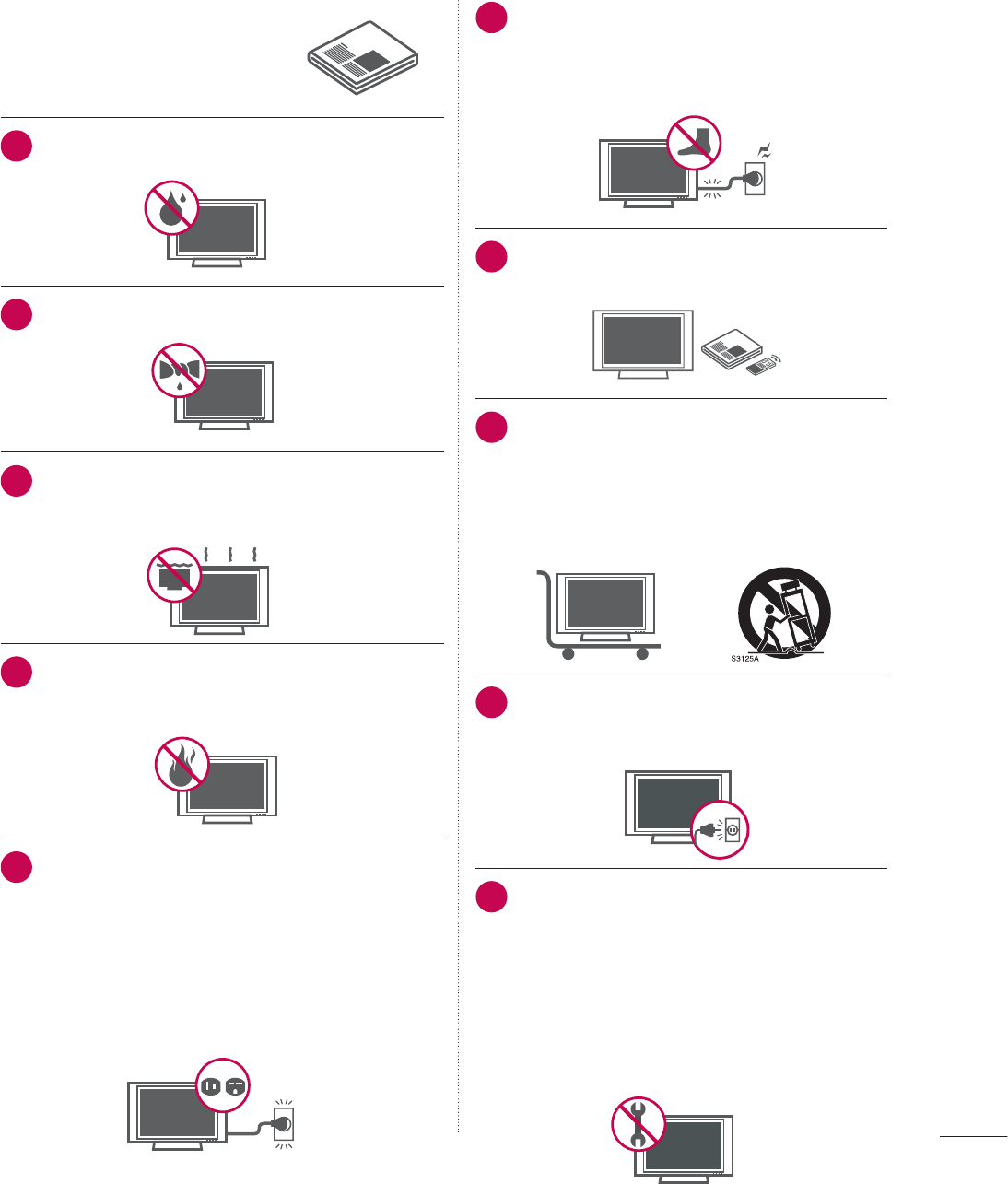

IMPORTANT SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

1Do not use this apparatus near water.

2Clean only with dry cloth.

3Do not block any ventilation openings. Install in

accordance with the ma nufacturer’s instruc-

tions.

Do not install near any heat sources such as

radiators, heat registers, stoves, or other appa-

ratus (including amplifiers) that produce heat.

Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has

two blades with one wider than the other. A

grounding type plug has two blades and a third

grounding prong, The wide blade or the third

prong are provided for your safety. If the provided

plug does not fit into your outlet, consult an elec-

trician for replacement of the obsolete outlet.

6Protect the power cord from being walked

on or pinched particularly at plugs, conve-

nience receptacles, and the point where

they exit from the apparatus.

7Only use attachments/accessories speci-

fied by the manufacturer.

8Use only with the cart, stand, tripod, bracket,

or table specified by the manufacturer, or

sold with the apparatus. When a cart is

used, use caution when moving the cart/

apparatus combination to avoid injury from

tip-over.

9Unplug this apparatus during lighting

storms or when unused for long periods

of time.

Refer all servicing to qualified service per-

sonnel. Servicing is required when the

apparatus has been damaged in any way,

such as power-supply cord or plug is dam-

aged, liquid has been spilled or objects

have fallen into the apparatus, the appara-

tus has been exposed to rain or moisture,

does not operate normally, or has been

dropped.

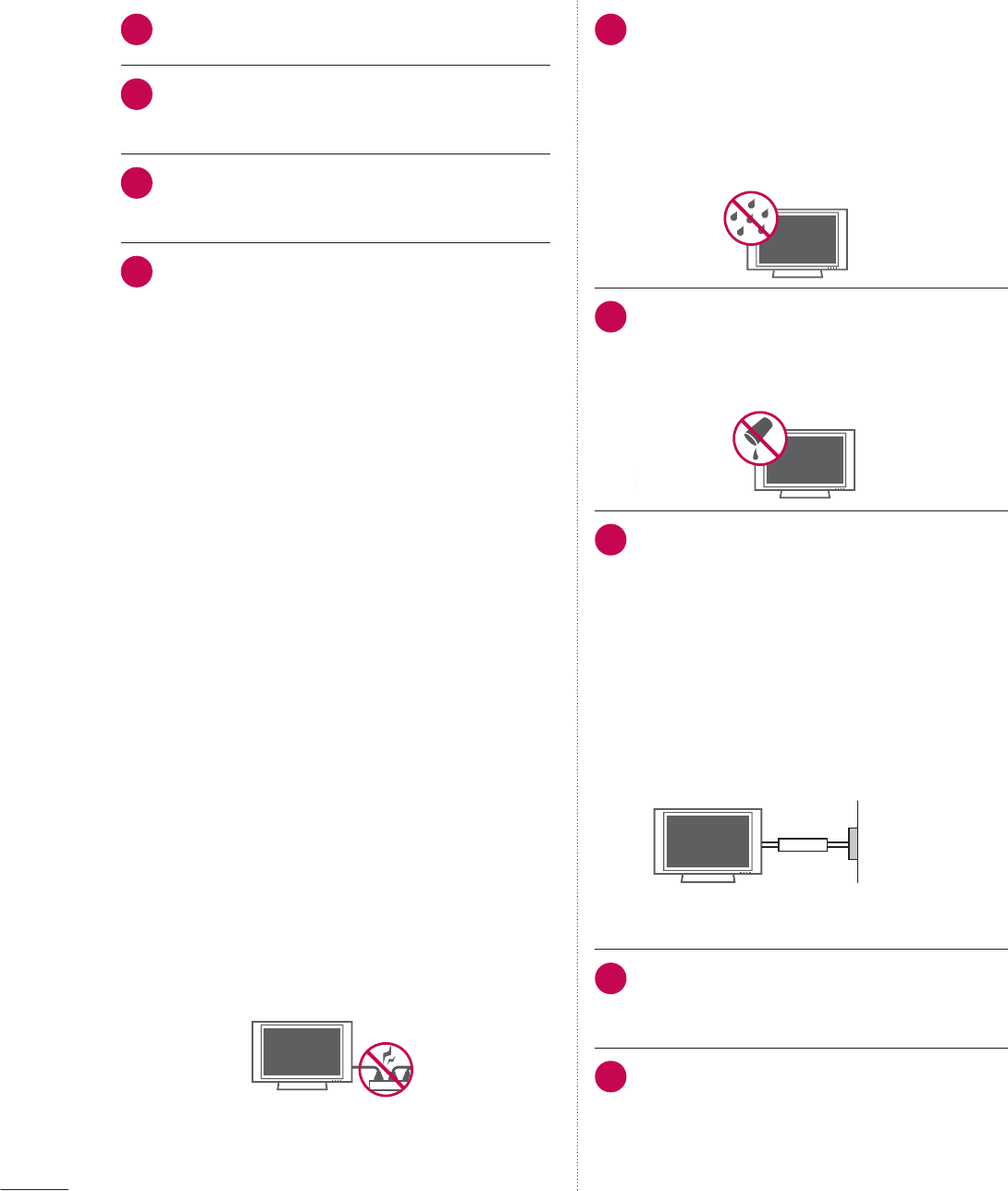

SAFETY INSTRUCTIONS

Never touch this apparatus or antenna during

a thunder or lighting storm.

When mounting a TV on the wall, make sure

not to install the TV by the hanging power

and signal cables on the back of the TV.

Do not allow an impact shock or any objects

to fall into the product, and do not drop onto

the screen with something.

CAUTION concerning the Power Cord:

It is recommend that appliances be placed

upon a dedicated circuit; that is, a single

outlet circuit which powers only that appli-

ance and has no additional outlets or

branch circuits. Check the specification page

of this owner's manual to be certain.

Do not connect too many appliances to the

same AC power outlet as this could result in

fire or electric shock.

Do not overload wall outlets. Overloaded wall

outlets, loose or damaged wall outlets, exten-

sion cords, frayed power cords, or damaged

or cracked wire insulation are dangerous . Any

of these conditions could result in electric

shock or fire. Periodically examine the cord of

your appliance, and if its appearance indicates

damage or deterioration, unplug it, discon-

tinue use of the appliance, and have the cord

replaced with an exact replacement part by

an authorized servicer. Protect the power cord

from physical or mechanical abuse, such as

being twisted, kinked, pinched, closed in a

door, or walked upon. Pay particular attention

to plugs, wall outlets, and the point where the

cord exits the appliance.

Do not use a damaged or loose power cord.

Do not pull on the power cord to unplug the

TV. Grasp the plug when unplugging the

power cord.

WARNING - To reduce the risk of fire or elec-

trical shock, do not expose this product to

rain, moisture or other liquids. Do not touch

the TV with wet hands. Do not install this

product near flammable objects such as

gasoline or candles or expose the TV to

direct air conditioning.

Do not expose to dripping or splashing and

do not place objects filled with liquids, such

as vases, cups, etc. on or over the appara-

tus (e.g. on shelves above the unit).

GROUNDING

Ensure that you connect the earth ground

wire to prevent possible electric shock (i.e. a

TV with a three-prong grounded AC plug

must be connected to a three-prong ground-

ed AC outlet). If grounding methods are not

possible, have a qualified electrician install a

separate circuit breaker.

Do not try to ground the unit by connecting it

to telephone wires, lightening rods, or gas

pipes.

Power

Supply

Short-circuit

Breaker

DISCONNECTING DEVICE FROM MAINS

Mains plug is the disconnecting device. The

plug must remain readily operable.

As long as this unit is connected to the AC

wall outlet, it is not disconnected from AC

power even if you turn off the power switch

on the unit.

ANTENNAS

Outdoor antenna grounding

If an outdoor antenna is installed, follow the

precautions below. An outdoor antenna sys-

tem should not be located in the vicinity of

overhead power lines or other electric light or

power circuits, or where it can come in contact

with such power lines or circuits as death or

serious injury can occur.

Be sure the antenna system is grounded so as

to provide some protection against voltage

surges and built-up static charges.

Section 810 of the National Electrical Code

(NEC) in the U.S.A. provides information with

respect to proper grounding of the mast and

supporting structure, grounding of the lead-in

wire to an antenna discharge unit, size of

grounding conductors, location of antenna

discharge unit, connection to grounding elec-

trodes and requirements for the grounding

electrode.

Antenna grounding according to the National

Electrical Code, ANSI/NFPA 70

Antenna Lead in Wire

Antenna Discharge Unit

(NEC Section 810-20)

Grounding Conductor

(NEC Section 810-21)

Ground Clamps

Power Service Grounding

Electrode System (NEC

Art 250, Part H)

Ground Clamp

Electric Service

Equipment

NEC: National Electrical Code

Cleaning

When cleaning, unplug the power cord and

rub gently with a soft cloth to prevent

scratching. Do not spray water or other liquids

directly on the TV as electric shock may occur.

Do not clean with chemicals such as alcohol,

thinners or benzene.

Moving

Make sure the product is turned off, unplugged

and all cables have been removed. It may take

2 or more people to carry larger TVs. Do not

press against or put stress on the front panel

of the TV.

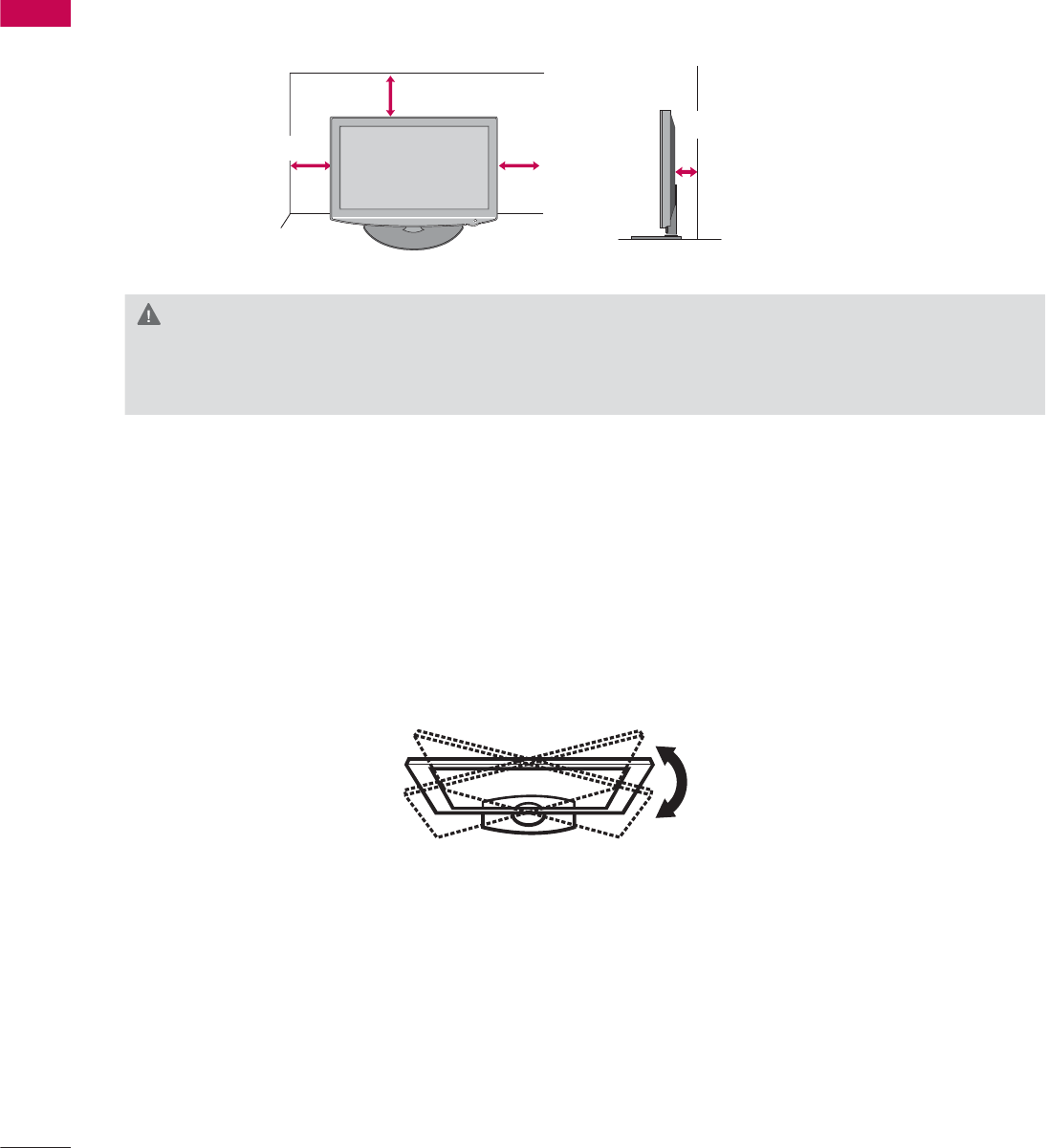

Ventilation

Install your TV where there is proper ventila-

tion. Do not install in a confined space such

as a bookcase. Do not cover the product

with cloth or other materials (e.g.) plastic

while plugged in. Do not install in exces-

sively dusty places.

Take care not to touch the ventilation open-

ings. When watching the TV for a long

period, the ventilation openings may

become hot.

If you smell smoke or other odors coming

from the TV or hear strange sounds, unplug

the power cord contact an authorized service

center.

Do not press strongly upon the panel with

hand or sharp object such as nail, pencil or

pen, or make a scratch on it.

Keep the product away from direct sunlight.

If the TV feels cold to the touch, there may be

a small “flicker” when it is turned on. This is

normal, there is nothing wrong with TV.

Some minute dot defects may be visible on

the screen, appearing as tiny red, green, or

blue spots. However, they have no adverse

effect on the monitor's performance.

Avoid touching the LCD screen or holding

your finger(s) against it for long periods of

time. Doing so may produce some tempo-

rary distortion effects on the screen.

ON DISPOSAL

(Only Hg lamp used LCD TV)

The fluorescent lamp used in this product

contains a small amount of mercury. Do not

dispose of this product with general house-

hold waste. Disposal of this product must be

carried out in accordance to the regulations of

your local authority.

CONTENTS

WARNING / CAUTION

............................... 2

SAFETY INSTRUCTIONS

Important Safety Instructions.............................. 3

FEATURE OF THIS TV

................................ 8

PREPARATION

Accessories.............................................................9

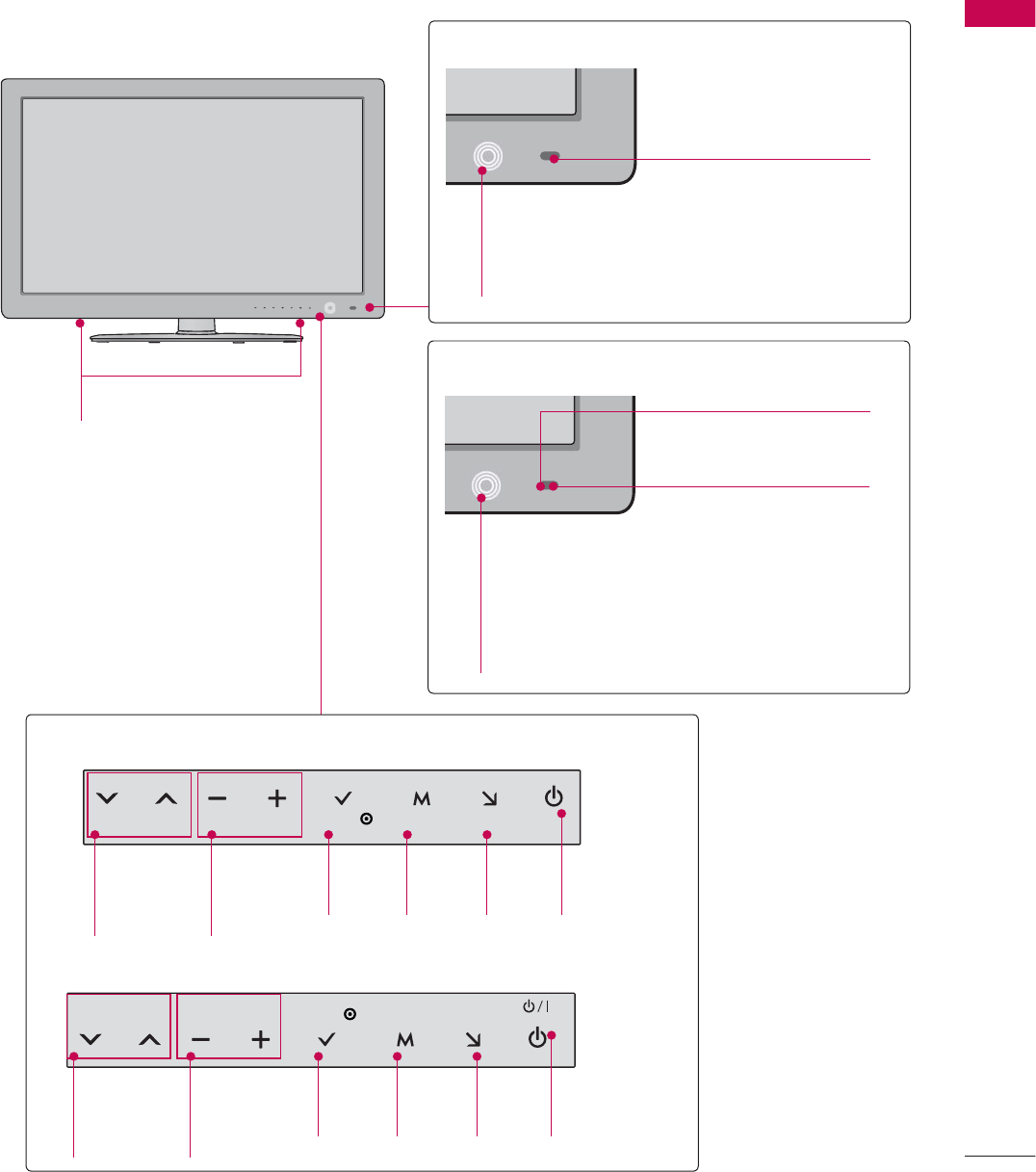

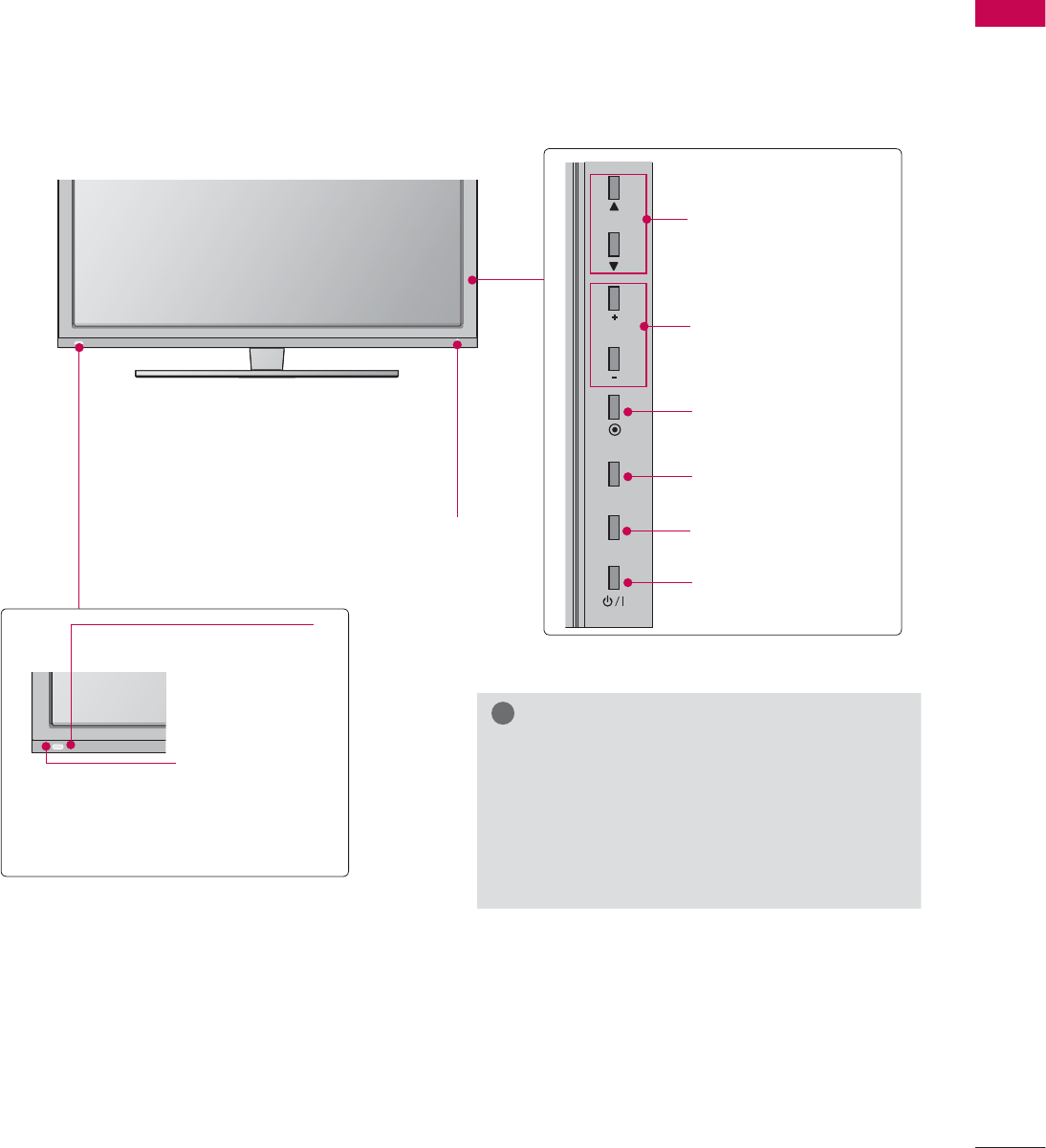

Front Panel Information ..................................... 11

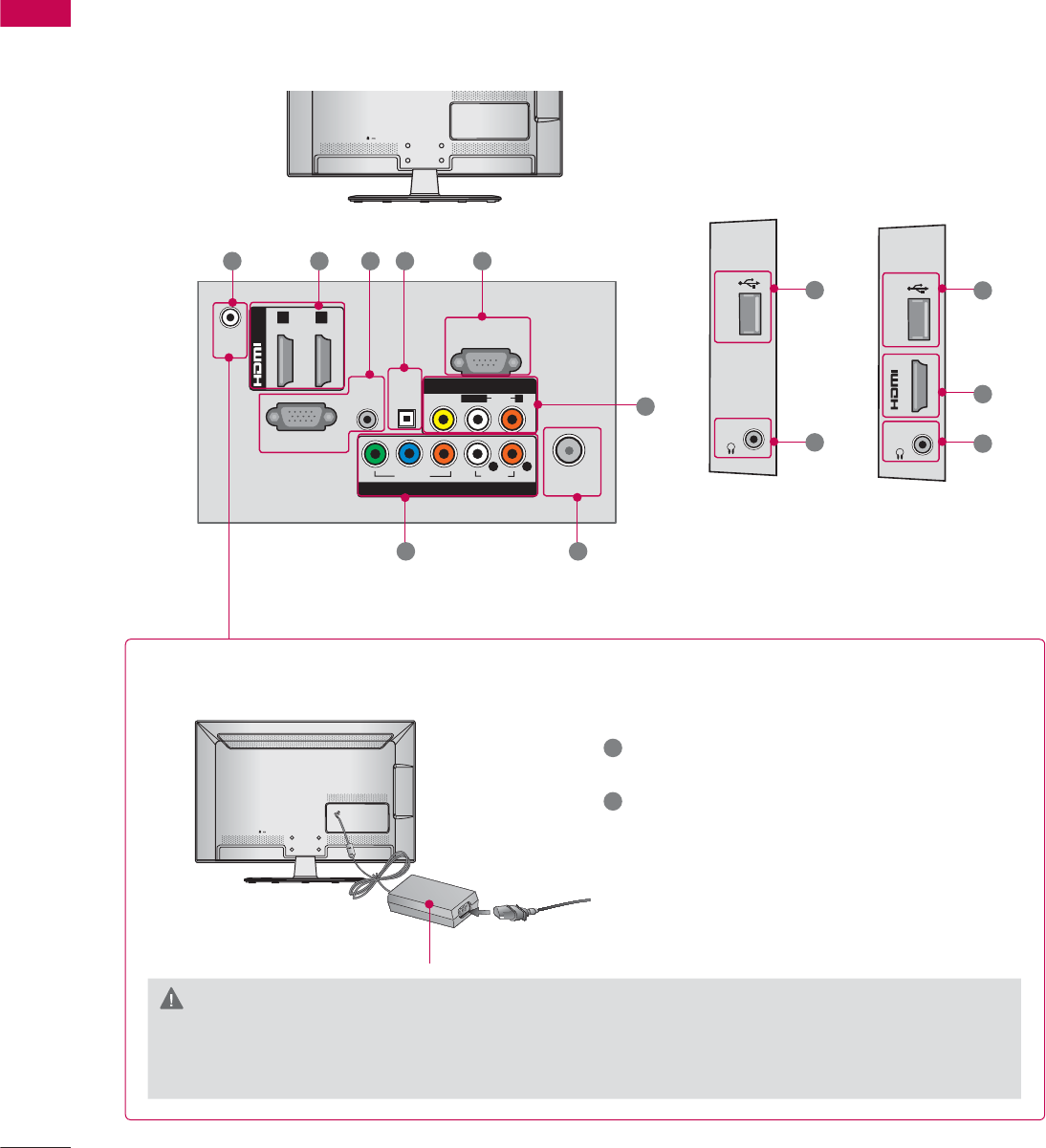

Back Panel Information..................................... 16

Stand Instructions

...............................................20

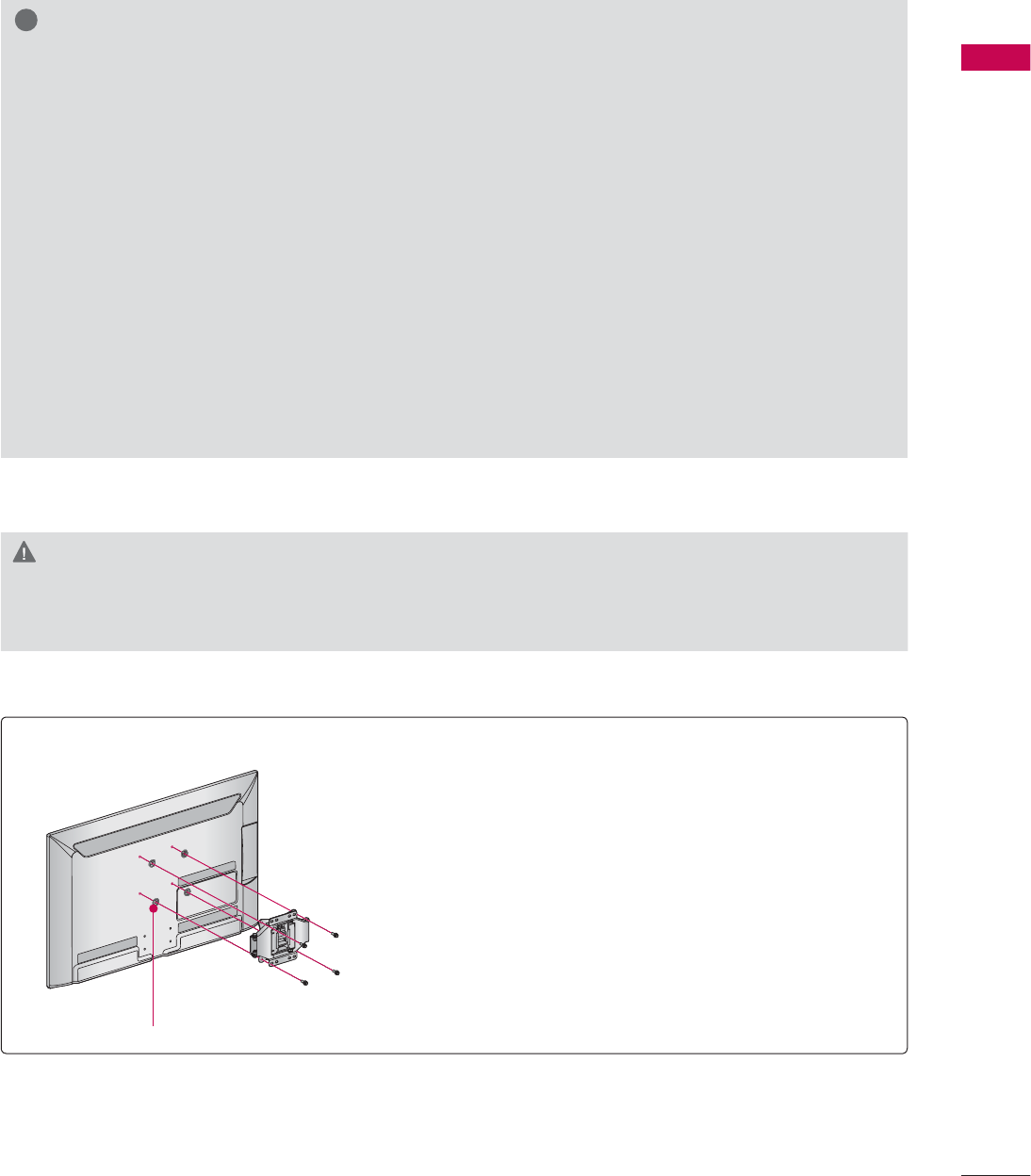

VESA wall mounting .........................................28

Cable Management ..........................................30

Desktop Pedestal Installation .........................32

Swivel Stand

........................................................32

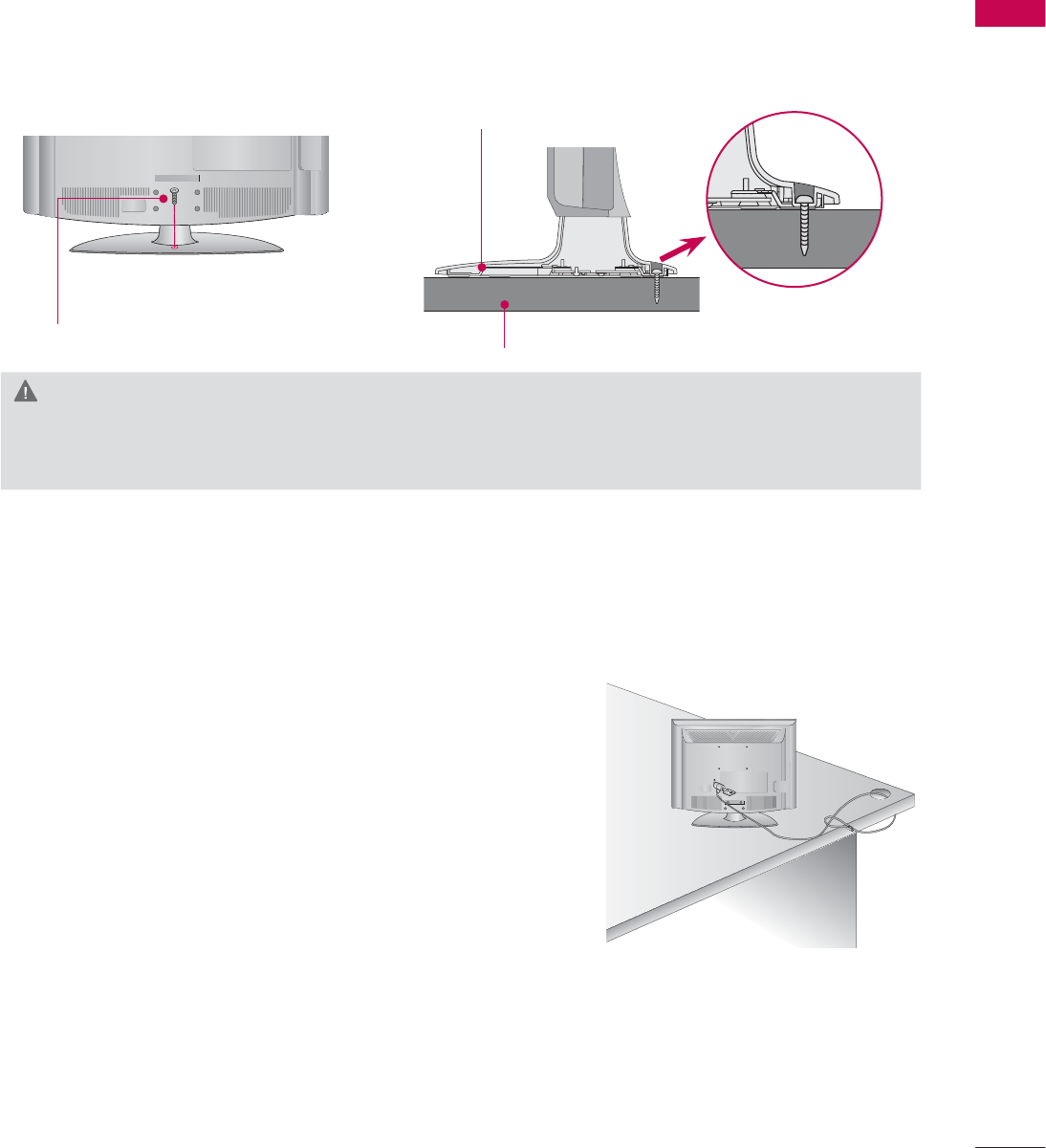

Attaching the TV to a Desk ............................33

Kensington Security System ..........................33

Securing the TV to the Wall to Prevent Falling

when the TV is used on a stand ...................34

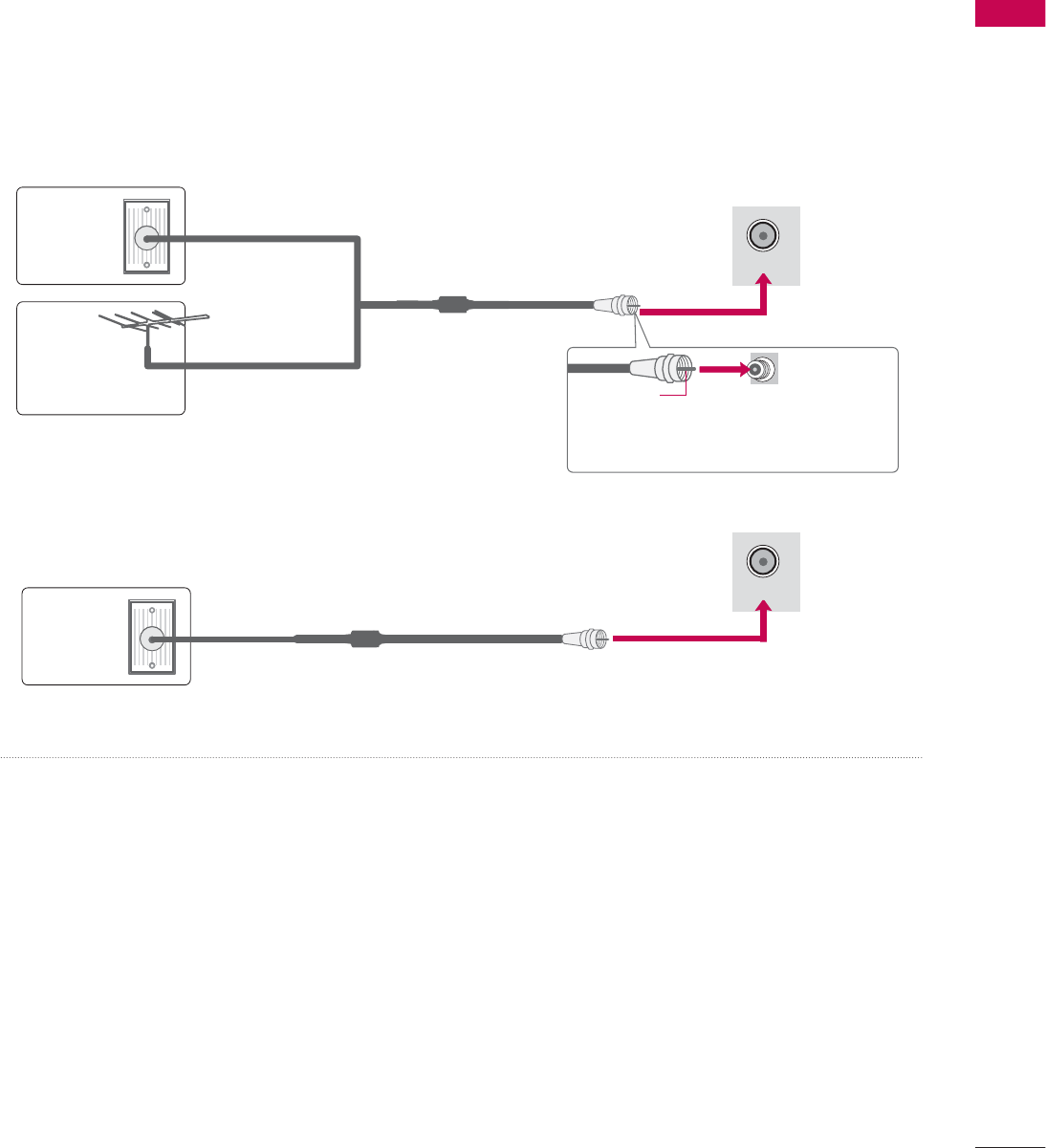

Antenna or Cable Connection.......................35

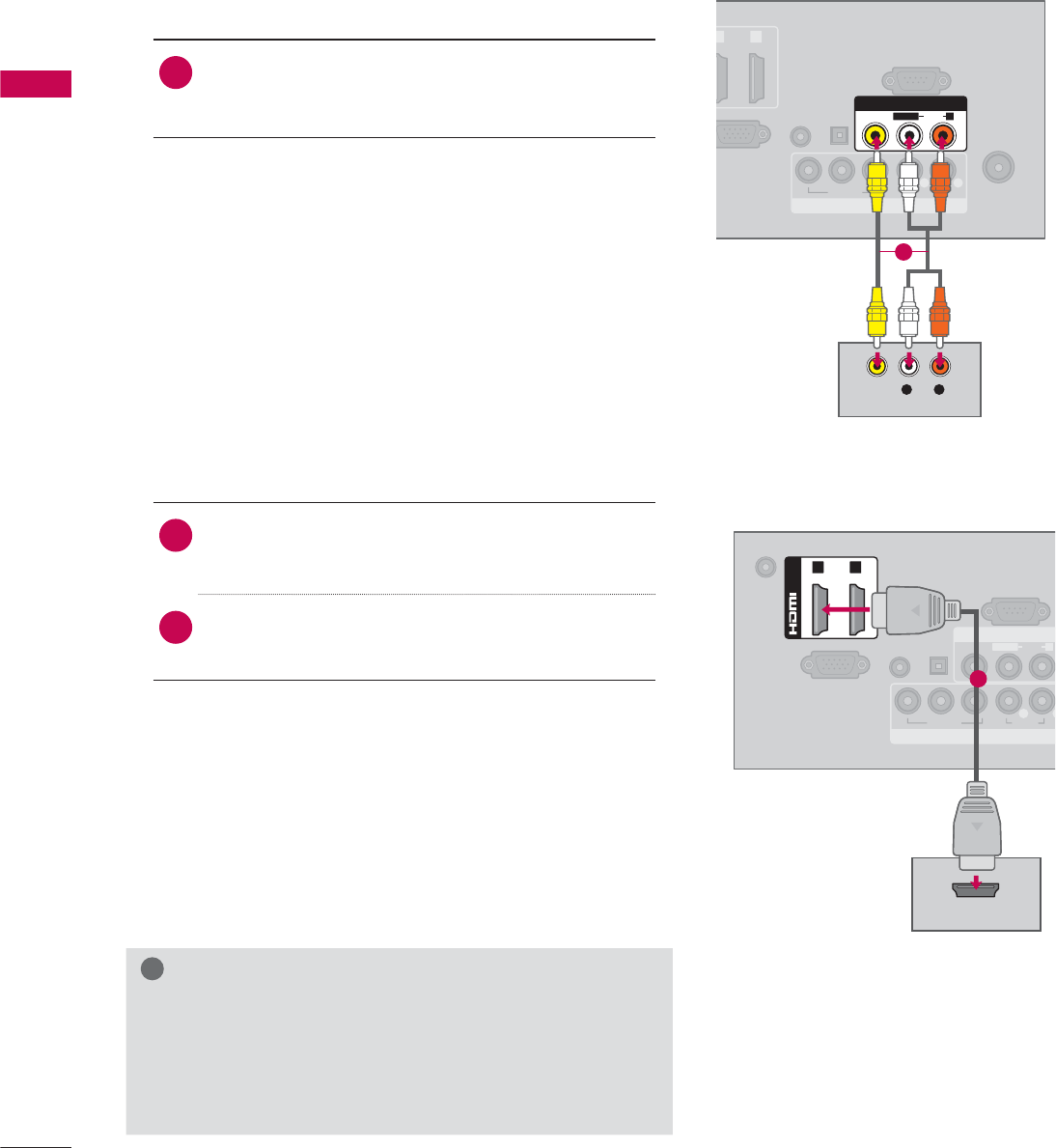

EXTERNAL EQUIPMENT SETUP

HD Receiver setup.............................................36

DVD setup............................................................39

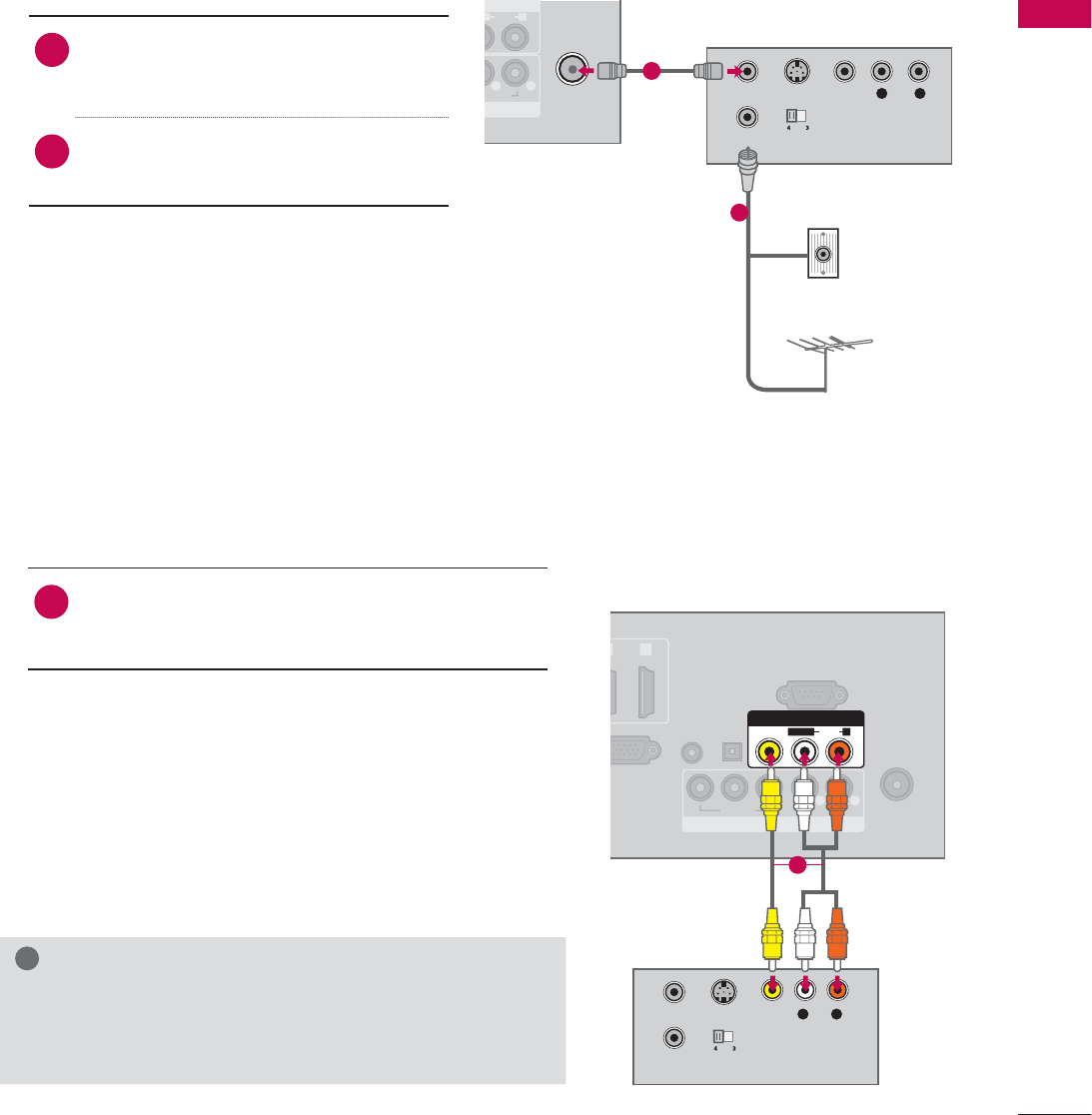

VCR SETUP.......................................................... 41

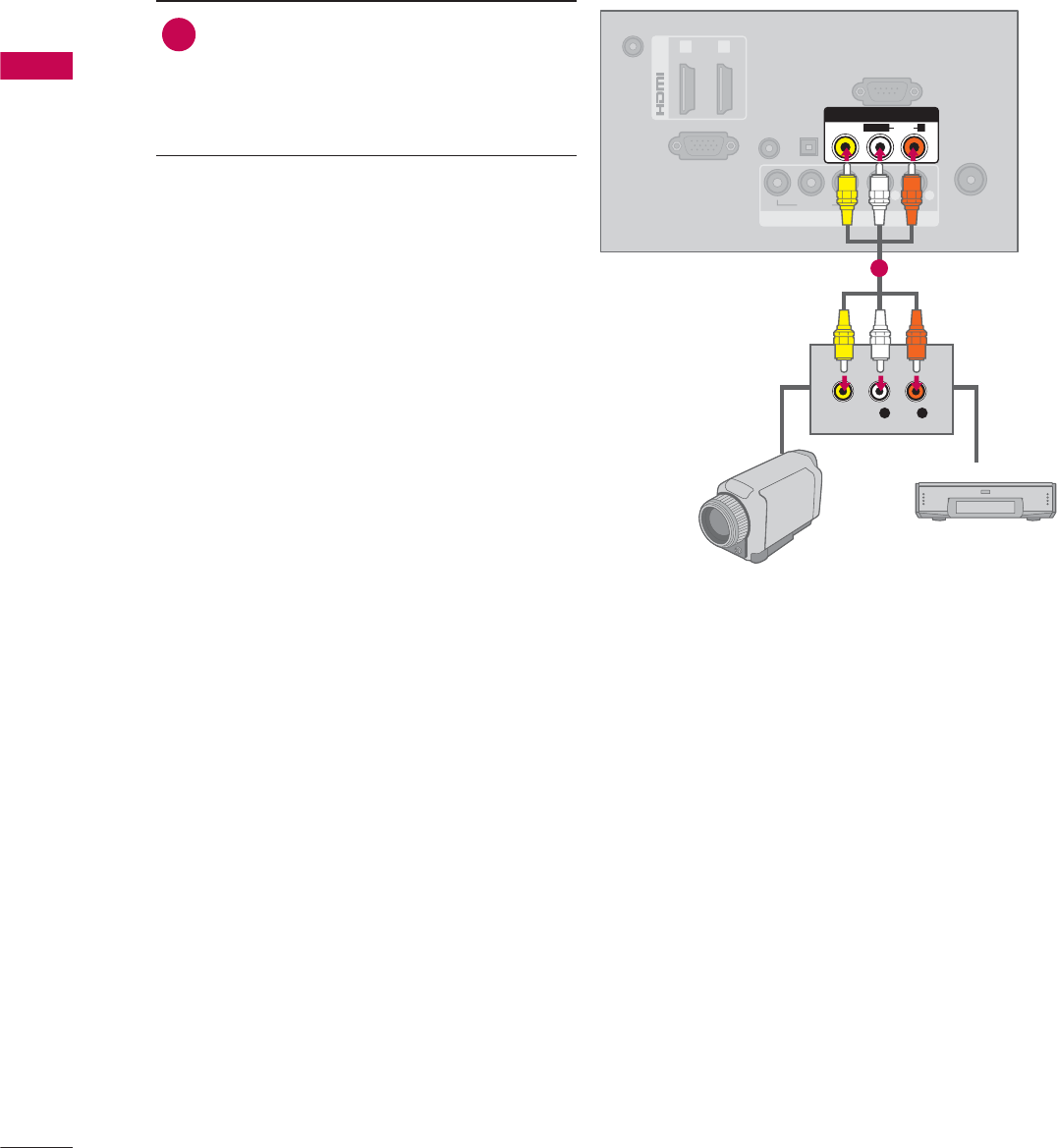

Other A/V Source Setup.................................42

USB Connection ................................................43

Headphone Setup ............................................43

Audio out Connection......................................44

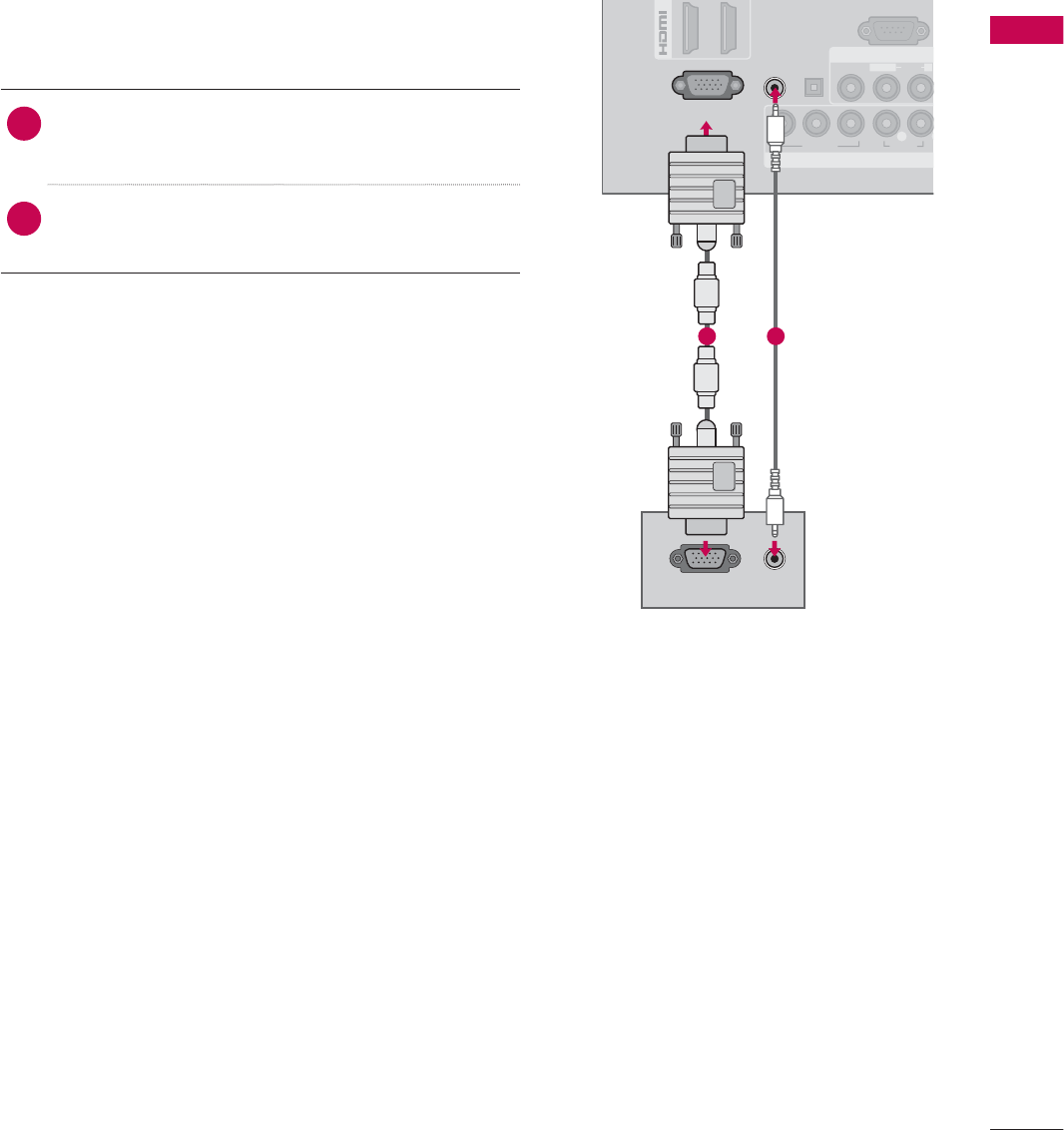

PC Setup..............................................................45

WATCHING TV / CHANNEL CONTROL

Remote Control Functions ..............................52

Turning on the TV..............................................54

Channel Selection..............................................54

Volume Adjustment ..........................................54

Initial Setting .......................................................55

On-Screen Menus Selection.......................... 57

Quick menu.........................................................59

Customer Support

- Picture Test / Sound Test ...........................60

- Product/Service Info....................................... 61

Simple Manual....................................................62

Channel Setup

- Auto Scan (Auto Tuning)..............................63

- Add/Delete Channel (Manual Tuning) .....64

- Channel Editing...............................................65

Favorite Channel Setup....................................66

Favorite Channel List ........................................66

Channel List ........................................................ 67

Channel Information .........................................68

Channel Brief Information...............................69

Input List .............................................................. 70

Input Label............................................................ 71

Reset to factory default (Initial Setting) ...... 72

Mode Setting ...................................................... 73

Demo Mode ........................................................ 74

AV Mode............................................................... 75

SIMPLINK............................................................. 76

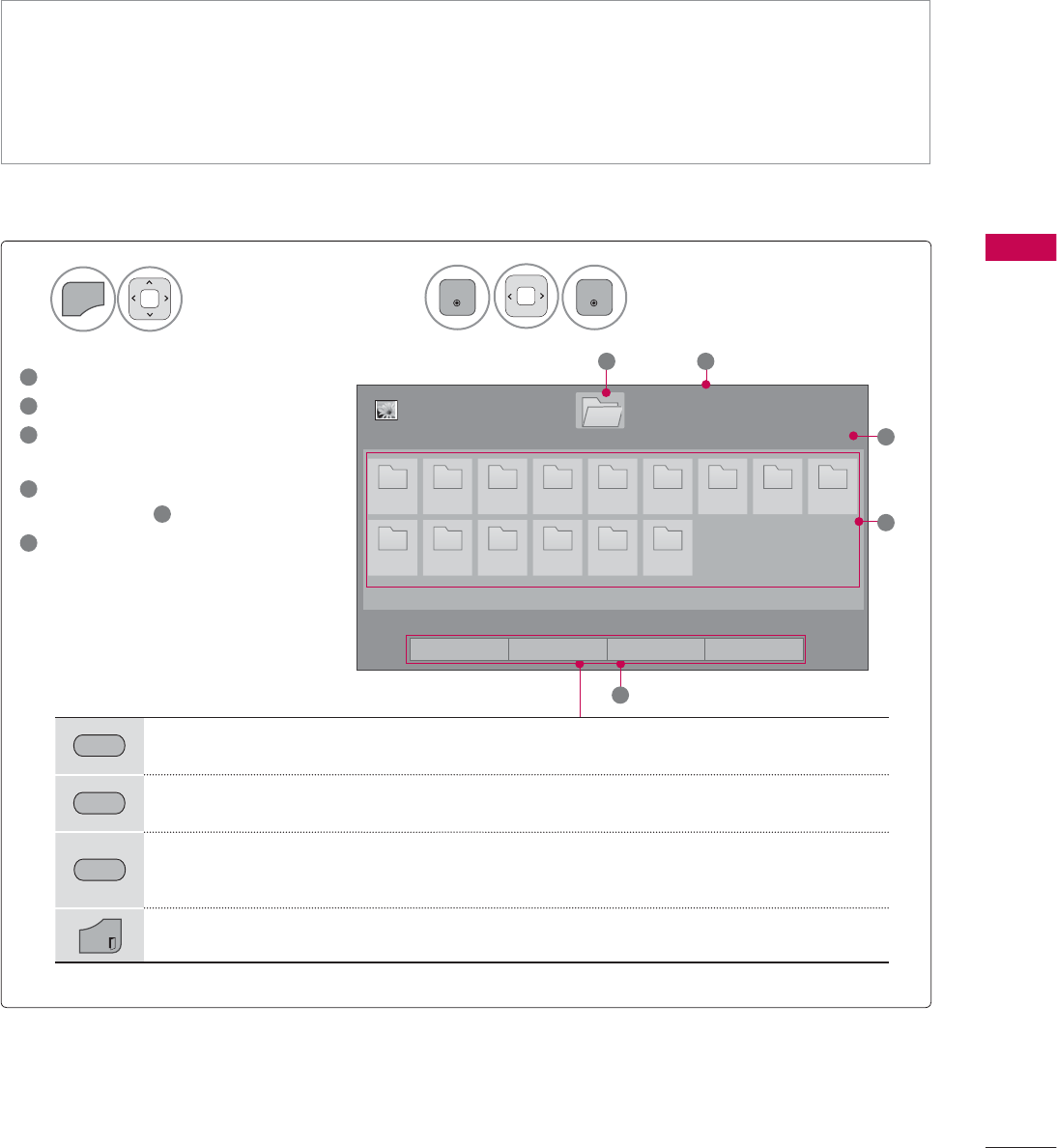

MY MEDIA

Connection Method .......................................... 78

Entry Mode .......................................................... 79

Movie List ............................................................ 80

Photo List............................................................. 87

Music List.............................................................93

DivX Registration Code....................................98

Deactivation .........................................................99

PICTURE CONTROL

Picture Size (Aspect Ratio) Control............100

Picture Wizard................................................... 102

ᰚEnergy Saving ............................................104

Preset Picture Settings (Picture mode).....105

Manual Picture Adjustment - User Mode 106

Picture Improvement Technology (Advanced

Control) ................................................................107

Expert Picture Control....................................108

Picture Reset........................................................111

Power Indicator ....................................................111

TruMotion ............................................................ 112

SOUND & LANGUAGE CONTROL

Auto Volume....................................................... 113

Clear Voice II ...................................................... 114

Balance ................................................................ 115

Preset Sound Settings (Sound Mode) ....... 116

Sound Setting Adjustment - User Mode...117

Audio Reset........................................................ 118

TV Speakers On/Off Setup ........................... 119

Stereo/SAP Broadcast Setup ...................... 120

Audio Language .............................................. 121

On-screen Menus Language Selection.... 122

Caption Mode

- Analog Broadcasting System Captions. 123

- Digital Broadcasting System Captions... 124

- Caption Option.............................................. 125

TIME SETTING

Clock Setting

- Auto Clock Setup ......................................... 126

- Manual Clock Setup .....................................127

Auto On/Off Time Setting............................ 128

Sleep Timer Setting ........................................ 129

PARENTAL CONTROL / RATINGS

Set Password & Lock System

- Setting up Your Password.......................... 130

- Set Password .................................................. 131

- Lock System................................................... 132

Channel Blocking............................................. 133

Movie & TV Rating .......................................... 134

Downloadable Rating...................................... 139

External Input Blocking ..................................140

Key Lock .............................................................. 141

APPENDIX

Troubleshooting................................................ 142

Maintenance...................................................... 145

Product Specifications ................................... 146

IR Code................................................................ 151

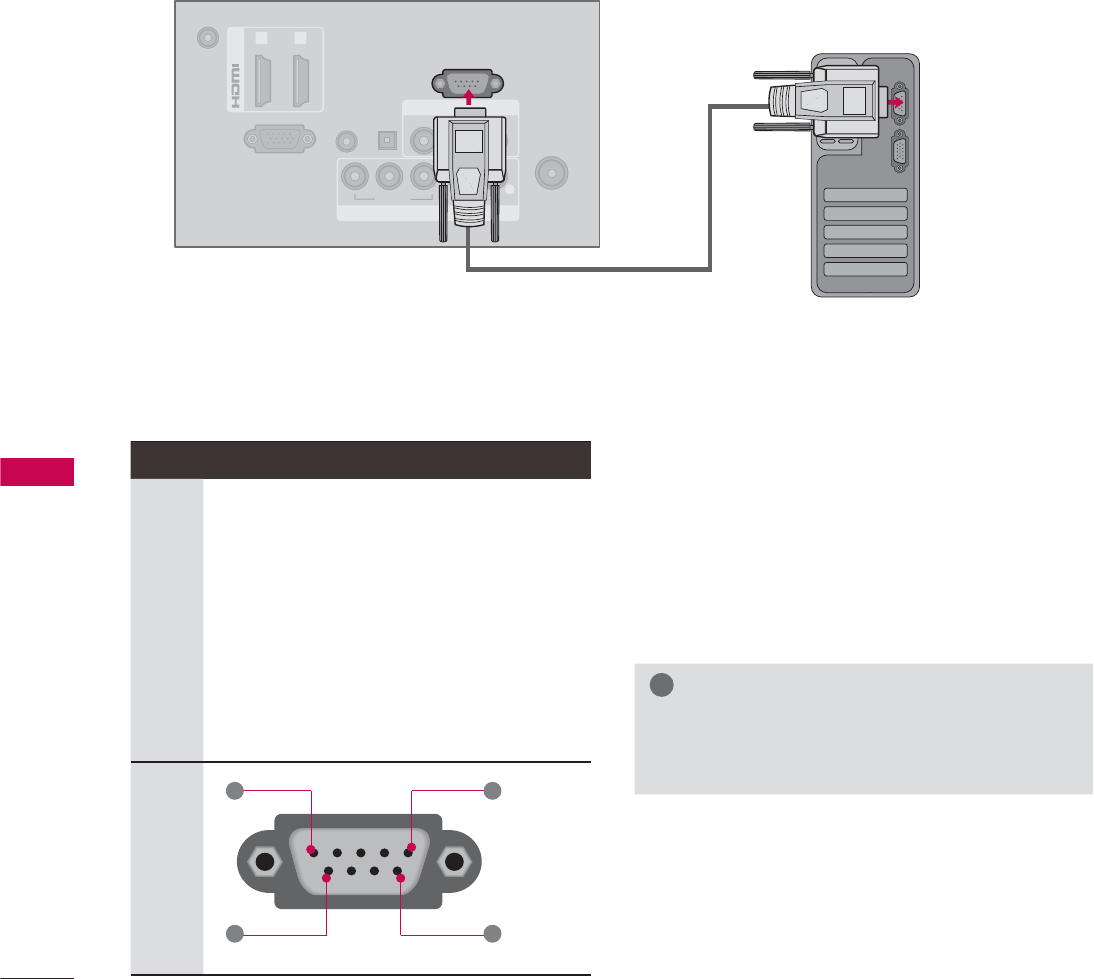

External Control through RS-232C ........... 152

Open Source License..................................... 158

FEATURE OF THIS TV

ᯫ

Some of these features are not available on all models.

IMPORTANT INFORMATION TO PREVENT “IMAGE

BURN / BURN-IN” ON YOUR TV SCREEN

ᯫ

When a fixed image (e.g. logos, screen menus, video game, and computer display) is displayed

on the TV for an extended period, it can become permanently imprinted on the screen. This

phenomenon is known as “image burn” or “burn-in.” Image burn is not covered under the man-

ufacturer’s warranty.

ᯫ

In order to prevent image burn, avoid displaying a fixed image on your TV screen for a prolonged

period (2 or more hours for LCD, 1 or more

hours for Plasma).

ᯫ

Image burn can also occur on the letter-

boxed areas of your TV if you use the 4:3

aspect ratio setting for an extended period.

Manufactured under license from Dolby

Laboratories. “Dolby “and the double-D

symbol are trademarks of Dolby

Laboratories.

HDMI, the HDMI logo and High-

Definition Multimedia Interface are

trademarks or registered trademarks of

HDMI Licensing LLC."

Displays HDTV programs in full 1920 x

1080p resolution for a more detailed

picture.

View videos and photos and listen to

music on your TV through USB 2.0

(‘videos’ dependent on model).

ABOUT DIVX VIDEO: DivX® is a digital

video format created by DivX,Inc. This is

an official DivX Certified device that

plays DivX video. Visit www.divx.com for

more information and software tools to

convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND:

This DivX Certified® device must be

registered in order to play DivX Video-

on-Demand (VOD) content. To gener-

ate the registration code, locate the

DivX VOD section in the device setup

menu. Go to vod.divx.com with this

code to complete the registration pro-

cess and learn more about DivX VOD.

“DivX Certified to play DivX video up to

HD 1080p, including premium con-

tent”

“Pat. 7,295,673; 7,460,688;7,519,274”

High-definition television. High-

resolution digital television broadcast

and playback system composed of

roughly a million or more pixels, 16:9

aspect-ratio screens, and AC3 digital

audio. A subset of digital television,

HDTV formats include 1080i and 720p

resolutions.

AV Mode is three preset picture and

audio settings. It allows the viewer to

quickly switch between common set-

tings. It includes Cinema, Sports, and

Game Modes.

A unique invisible speaker system

tuned by renowned audio expert, Mr.

Mark Levinson. Speakers are embed-

ded in strategic spots behind the front

cabinet and use minute vibrations to

turn the entire front bezel into the

speaker system. The result s a clean,

polished look, and enhanced audio by

increasing the “sweet spot”, giving a

wider and richer sound field.

Automatically enhances and amplifies

the sound of human voice frequency

range to help keep dialogue audible

when background noise swells.

Unlike other sensors which can only

sense brightness of ambient light, LG’s

“Intelligent Sensor” uses 4,096 sens-

ing steps to evaluate its surroundings.

Using a sophisticated algorithm, the LG

processes picture quality elements

including brightness, contrast, color,

sharpness and white balance. The result

is a picture optimized for it’s surround-

ings, more pleasing to watch and which

can also save up to 50% in power con-

sumption.

PREPARATION

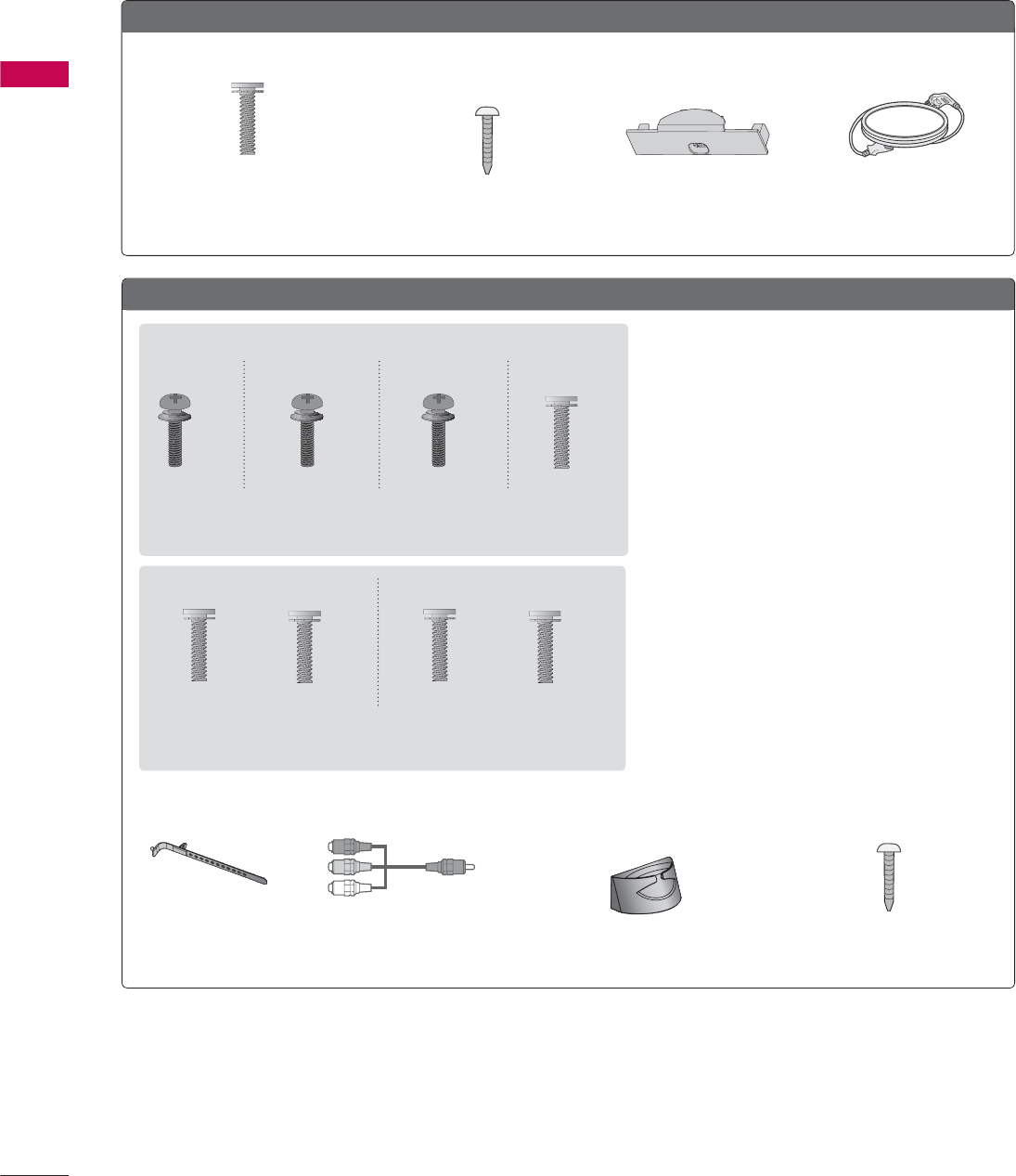

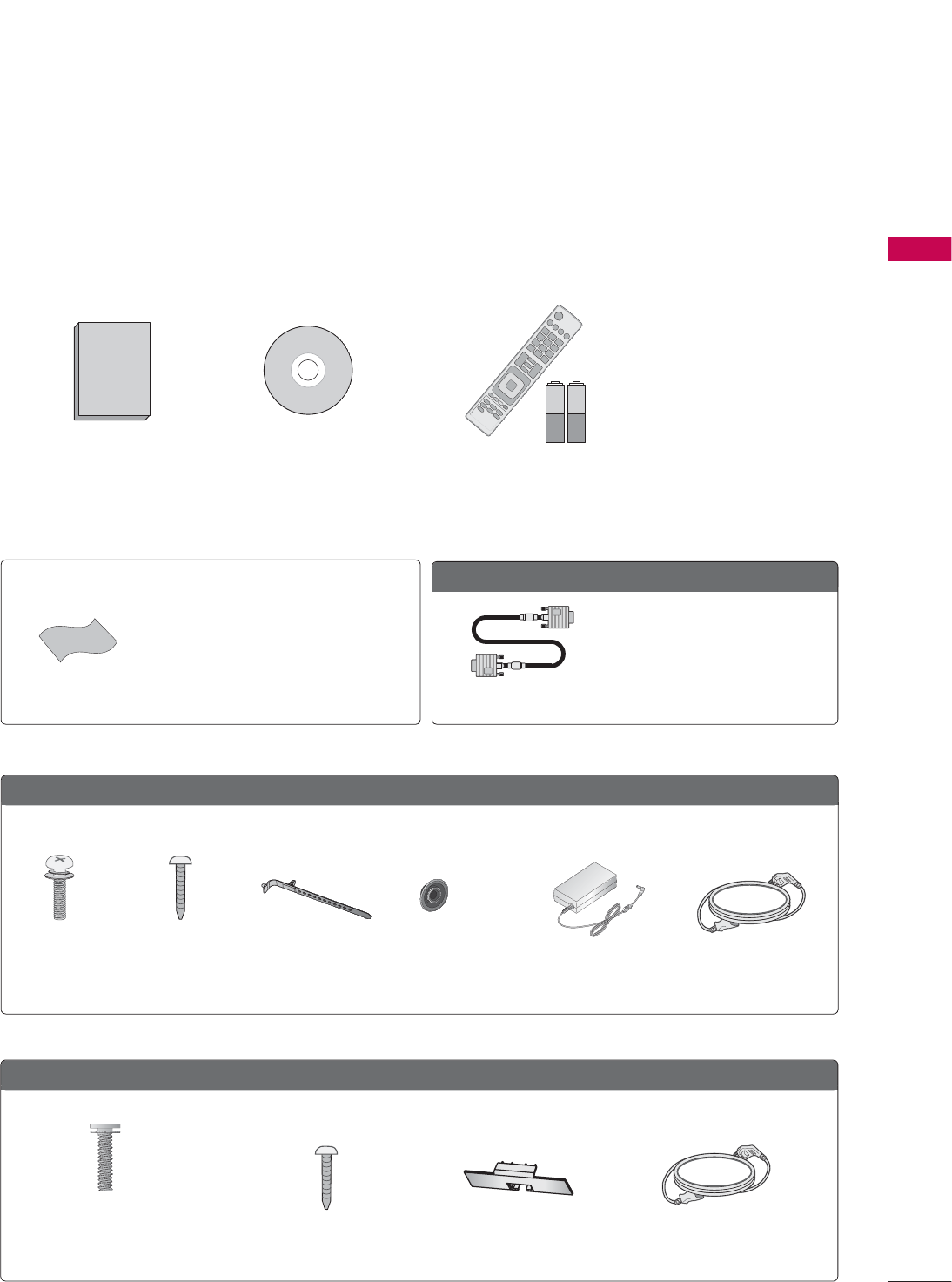

ACCESSORIES

Ensure that the following accessories are included with your TV. If an accessory is missing, please con-

tact the dealer where you purchased the TV.

The accessories included may differ from the images below.

1.5V 1.5V

Owner’s Manual CD Manual

Remote Control,

Batteries (AAA)

19/22/26LE5300, 22/26LE5500

Cable Holder

(Refer to p.31)

Screws for stand assembly

(Refer to P.20, 22)

x 4 x 4

(M4 x 14) (M4 x 20)

AC/DC AdapterRing spacers

(Refer to p.29)

(For 26LE5300,

26LE5500)

x 4

Power Cord

32/37/42/47LD450, 42/47/55LD630

(M4 x 20)

Screws for stand assembly

(Refer to P.24)

Screw for stand fixing

(Refer to P.33)

x 8

Protection Cover

(Refer to P.25)

(For 32/37/42LD450,

42LD630)

Power Cord

(For 26LE5300,

26LE5500)

Option Extras

* Wipe spots on the exterior only with the

polishing cloth.

* Do not wipe roughly when removing

stains. Excessive pressure may cause

scratches or discoloration.

Polishing Cloth

Not included with all models

D-sub 15 pin Cable

When using the VGA (D-sub 15

pin cable) PC connection, the user

must use shielded signal interface

cables with ferrite cores to main-

tain standards compliance.

PREPARATION

32/42/47LD420, 32/42/47/55LD520

Protection Cover

(Refer to P.27)

Power Cord

(M4 x 24)

Screws for stand assembly

(Refer to P.26)

Screw for stand fixing

(Refer to P.33)

x 4

(Except 47LD420,

47/55LD520)

(Except 55LD520)

32/37/42/47/55LE5300, 42/47/55LE7300

Screw for stand fixing

(Refer to P.33)

(For 32LE5300)

(For 42/47/55LE7300)

Cable Holder

(Refer to p.31)

Cable Management Clip

(Refer to p.31)

Component gender cable,

AV gender cable

Screws for stand assembly

(Refer to P.22)

x 4x 4x 4 x 4

x 2

(M4 x 22) (M4 x 26) (M4 x 16)(M4 x 24)

(32LE5300) (47/55LE5300)(37/42LE5300)

(32/37/42/47/55LE5300)

Screws for stand assembly

(Refer to P.21)

x 4 x 4x 3 x 3

(M4 x 12) (M4 x 16)(M4 x 20) (M4 x 26)

(42/47LE7300) (55LE7300)

PREPARATION

ᯫ

Image shown may differ from your TV.

FRONT PANEL INFORMATION

19/22/26/32/37/42/47/55LE5300,

22/26LE5500

SPEAKER

Power/Standby Indicator

(Can be adjusted using the Power Indicator

in the OPTION menu.Źp.111)

Remote Control Sensor

19/22LE5300, 22LE5500

Power/Standby Indicator

(Can be adjusted using the Power Indicator

in the OPTION menu.Źp.111)

Remote Control Sensor

Intelligent Sensor

Adjusts picture according to

the surrounding conditions

26/32/37/42/47/55LE5300, 26LE5500

VOL ENTERCH MENU INPUT

CHANNEL

(ᰝ,ᰜ)

Buttons

VOLUME

(-, +)

Buttons

ENTER

Button

INPUT

Button

POWER

Button

VOL ENTERCH MENU INPUT

CHANNEL

(ᰝ,ᰜ)

Buttons

VOLUME

(-, +)

Buttons

ENTER

Button

INPUT

Button

POWER

Button

19/22/26LE5300, 22/26LE5500

32/37/42/47/55LE5300

PREPARATION

42/47/55LE7300

Power/Standby Indicator

(Can be adjusted using the

Power Indicator in the OPTION

menu.Źp.111)

INPUT

ENTER

VOL

Remote Control Sensor

Intelligent Sensor

Adjusts picture according to

the surrounding conditions.

NOTE

ŹDo not step on the glass stand or subject it

to any impact.It may break, causing possible

injury from fragments of glass, or the TV

may fall.

ŹDo not drag the TV. The floor or the product

may be damaged.

CHANNEL

(ۻ,ۿ) Buttons

VOLUME (+, -)

Buttons

ENTER Button

MENU Button

INPUT Button

POWER Button

PREPARATION

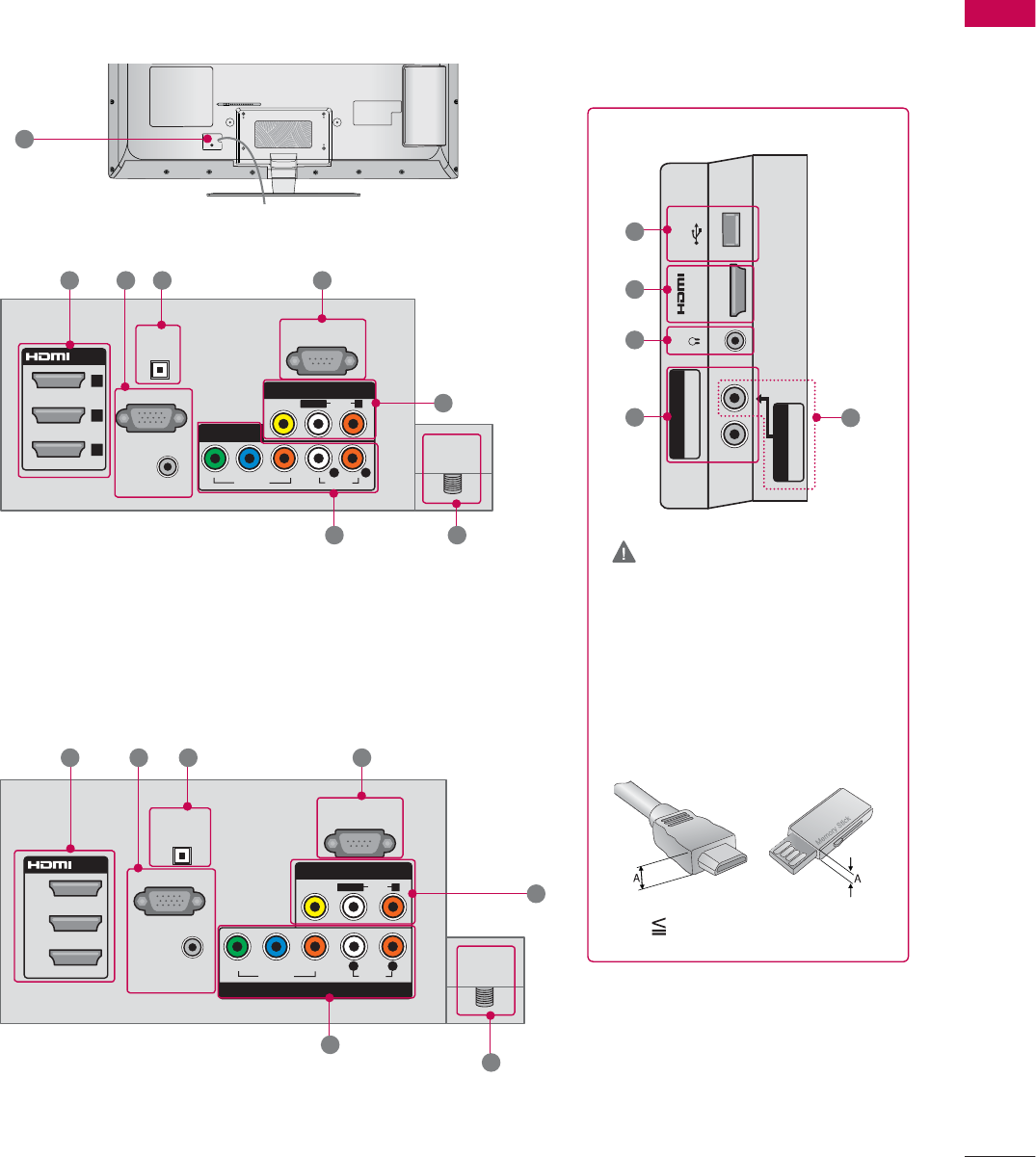

BACK PANEL INFORMATION

ᯫ

Image shown may differ from your TV.

19/22/26LE5300, 22/26LE5500

19/22LE5300,

22LE5500

26LE5300,

26LE5500

H/P USB IN

IN 3

ANTENNA/

CABLE IN

DC-IN

RGB IN (PC)

AUDIO IN

RGB/DVI

(DVI)

OPTICAL

DIGITAL

AUDIO OUT

/DVI IN

VIDEO

AUDIO

L(MONO)

VIDEO AUDIO

L R

COMPONENT IN

AV IN

RS-232C IN

(

CONTROL&SERVICE)

1 2

11 1 32 4

Power Connection

1Connect the AC/DC adapter plug to the

power input jack on the TV.

2Connect the power cord to the AC/DC

adapter first, then plug the power cord into

the wall power outlet.

CAUTION

ŹPlease be sure to connect the TV to the AC/DC power adapter before connecting the TV’s

power plug to a wall power outlet.

DC IN

AC/DC Adaptor

PREPARATION

32/37/42/47/55LE5300

42/47/55LE7300

ANTENNA/

CABLE IN

(RGB/DVI)

(DVI)

/DVI IN

AUDIO IN

RGB IN (PC)

RS-232C IN

(CONTROL &

SERVICE)

OPTICAL

DIGITAL

AUDIO OUT

VIDEO

AUDIO

L/MONO

VIDEO AUDIO

COMPONENT IN 1

AV IN 1

L R

RGB IN (PC)

AUDIO IN

(RGB/DVI)

RS-232C IN

(CONTROL &

SERVICE)

OPTICAL

DIGITAL

AUDIO OUT

VIDEO

AUDIO

L/MONO

VIDEO AUDIO

COMPONENT IN 1

AV IN 1

L R

/DVI IN

1(DVI)

ANTENNA/

CABLE IN

1 2 3 4

7 6

1 2 3 4

COMPONENT IN2

Y P

/ AUDIO

IN 4

H/P USB IN

AV IN2

VIDEO / AUDIO

CAUTION

For HDMI IN 4 and USB IN

ŹFor an optimal connection,

HDMI cables and USB

devices should have bezels

less than 10 mm (0.39

inches) thick.

*A 10 mm (0.39 inches)

PREPARATION

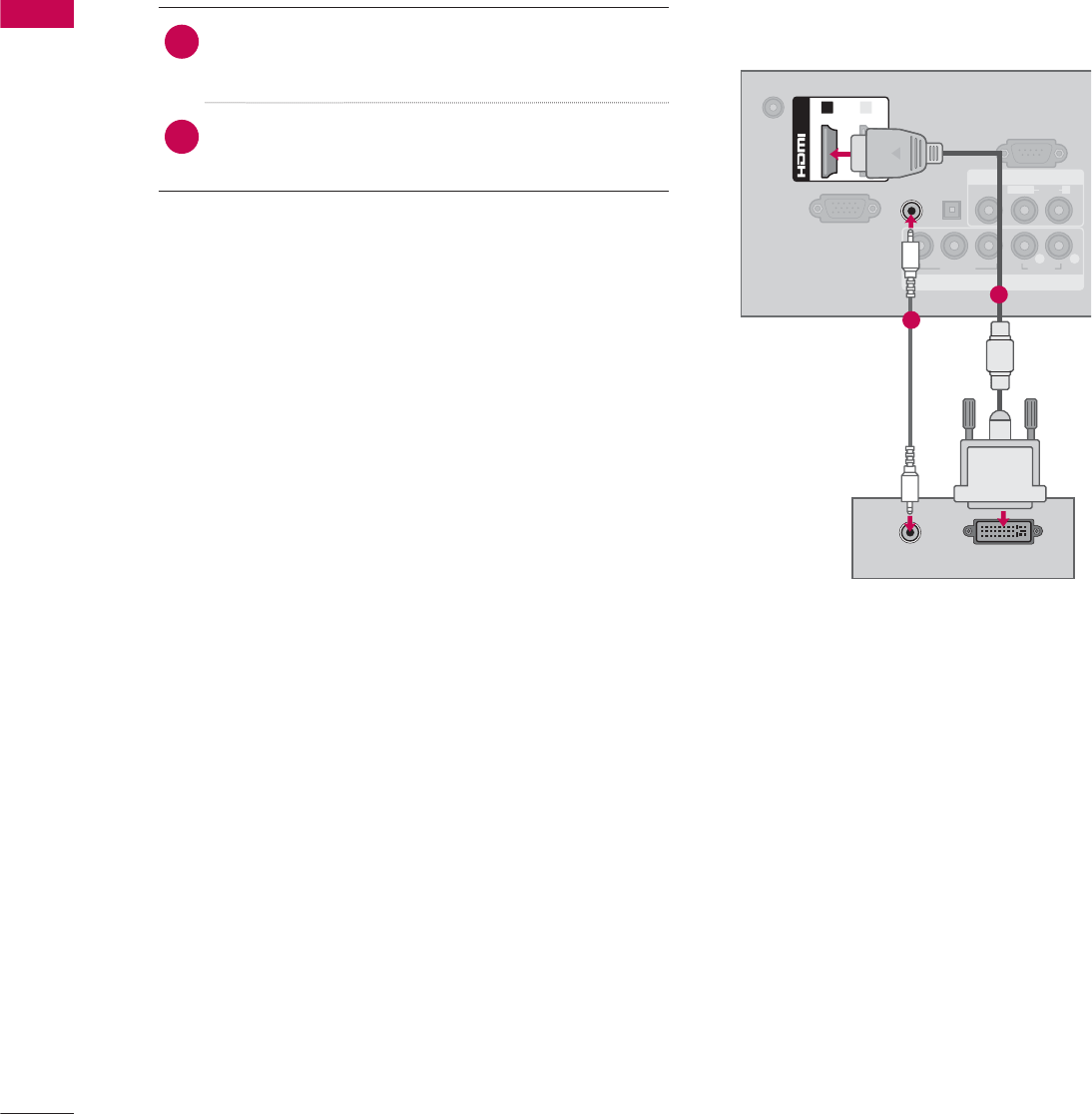

1HDMI/DVI IN, HDMI IN

Digital Connection.

Supports HD video and Digital audio. Doesn’t

support 480i.

Accepts DVI video using an adapter or HDMI

to DVI cable (not included).

2RGB IN (PC)

Analog PC Connection. Uses a D-sub 15 pin

cable (VGA cable).

AUDIO IN (RGB/DVI)

0.32 cm (1/8 inch) headphone jack for analog

PC audio input.

3OPTICAL DIGITAL AUDIO OUT

Digital optical audio output for use with amps

and home theater systems.

Note: In standby mode, this port doesn’t work.

4RS-232C IN (CONTROL & SERVICE)

Used by third party devices.

This port is used for service or Hotel mode.

5AV (Audio/Video) IN

Analog composite connection. Supports stan-

dard definition video only (480i).

6ANTENNA/CABLE IN

Connect over-the-air or cable signals to this

jack.

7COMPONENT IN

Analog Connection.

Supports HD.

Uses a red, green, and blue cable for video &

red and white for audio.

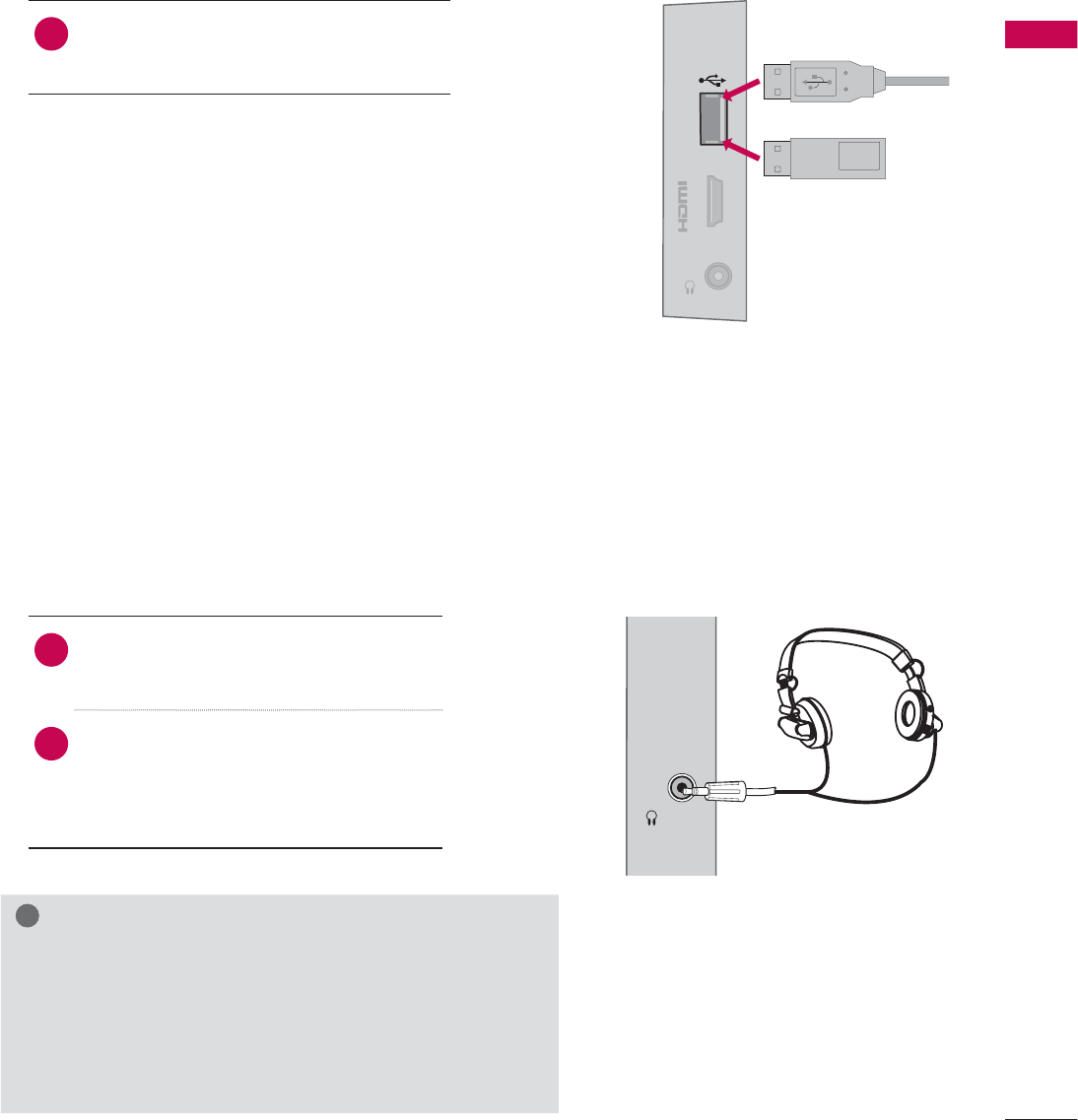

8USB INPUT

Used for viewing videos, photos and listening

to MP3s.

9HEADPHONE

0.32 cm (1/8 inch) headphone jack

Impedance 16 Ω , Maximum audio out 15 mW

10 Power Cord or Socket

For operation with AC power.

Caution: Never attempt to operate the TV on

DC power.

11 DC-IN

PREPARATION

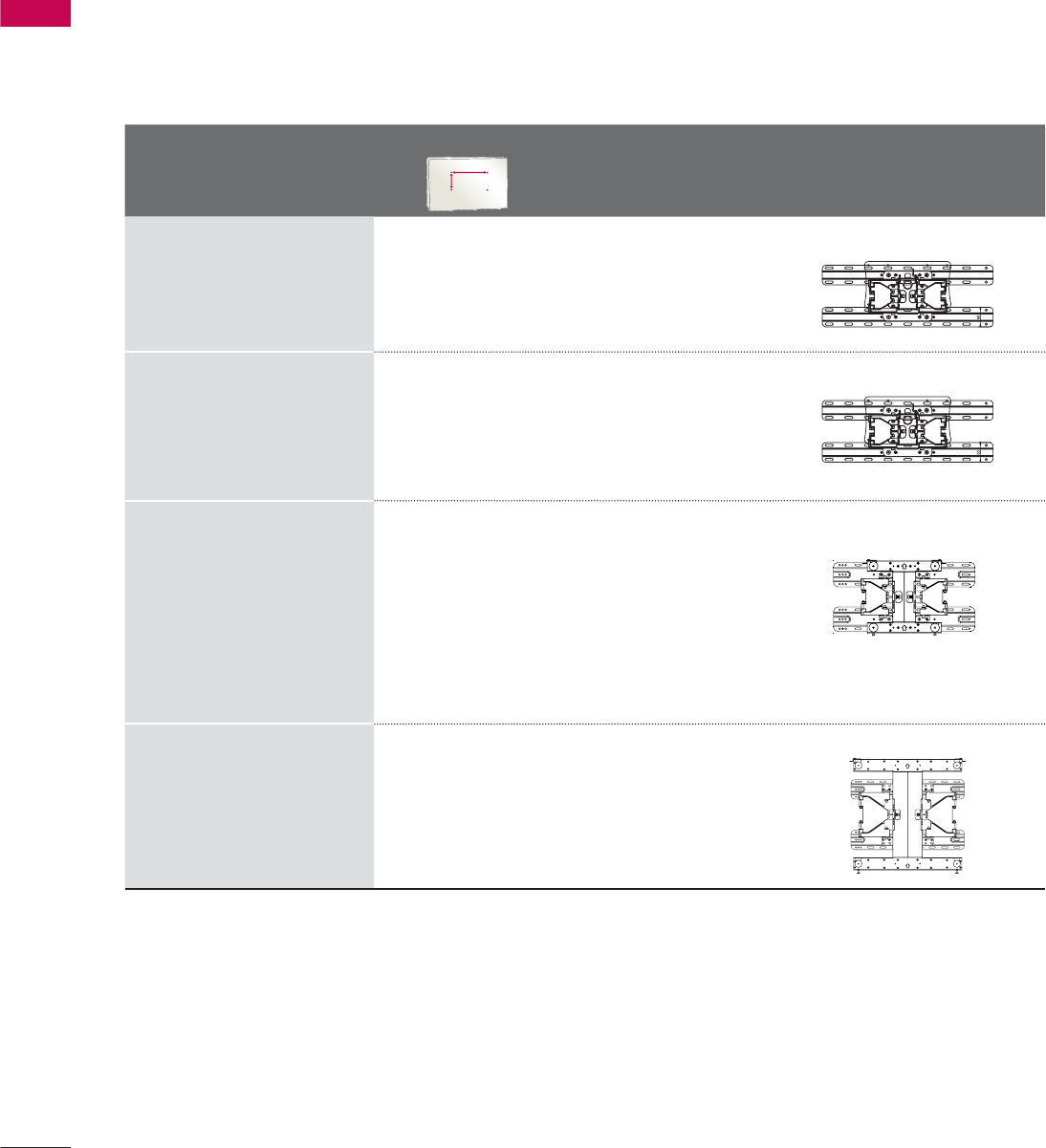

VESA WALL MOUNTING

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building mate-

rials, please contact your nearest installer.

If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

We recommend that you use an LG brand wall mount when mounting the TV to a wall.

LG recommends that wall mounting be performed by a qualified professional installer.

Model

VESA (A * B)

Standard

Screw Quantity Wall Mounting Bracket

(sold separately)

19LE5300,

22LE5300,

22LE5500,

26LE5300,

26LE5500

100 * 100 M4 4

LSW100B, LSW100BG

32LE5300,

32LD420,

32LD450,

32LD520

200 * 100 M4 4

LSW100B, LSW100BG

37LE5300, 42LE5300,

47LE5300,

37LD450,

42LE7300, 47LE7300

42LD450, 47LD450,

42LD420, 47LD420,

42LD520, 47LD520,

42LD630, 47LD630

200 * 200 M6 4

LSW200B, LSW200BG

55LE5300,

55LE7300,

55LD520,

55LD630

400 * 400 M6 4

LSW400B, LSW400BG

PREPARATION

CAUTION

ŹDo not install your wall mount kit while your TV is turned on. It may result in personal injury due to

electric shock.

NOTE

ŹScrew length needed depends on the wall

mount used. For further information, refer to

the instructions included with the mount.

ŹStandard dimensions for wall mount kits are

shown in the table.

ŹWhen purchasing our wall mount kit, a detailed

installation manual and all parts necessary for

assembly are provided.

ŹDo not use screws longer than the standard

dimension, as they may cause damage to the

inside to the TV.

ŹFor wall mounts that do not comply with the

VESA standard screw specifications, the length

of the screws may differ depending on their

specifications.

ŹDo not use screws that do not comply with the

VESA standard screw specifications.

Do not use fasten the screws too strongly, this

may damage the TV or cause the TV to a fall,

leading to personal injury. LG is not liable for

these kinds of accidents.

ŹLG is not liable for TV damage or personal

injury when a non-VESA or non specified wall

mount is used or the consumer fails to follow

the TV installation instructions.

Place the ring spacers on the set before installing the wall

mounting bracket so that the inclination of the backside

of the set can be adjusted perpendicularly.

For 26LE5300, 26LE5500

4-RING SPACERS

PREPARATION

DESKTOP PEDESTAL INSTALLATION

SWIVEL STAND

(Except

19/22LE5300, 22LE5500

)

After installing the TV, you can adjust the TV set manually to the left or right direction by 20 º to suit

your viewing position.

ᯫ

Image shown may differ from your TV.

For proper ventilation, allow a clearance of 10.1 cm (4 inch) on all four sides from the wall.

10.1 cm (4 inch)

CAUTION

ŹEnsure adequate ventilation by following the clearance recommendations.

ŹDo not mount near or above any type of heat source.

PREPARATION

ATTACHING THE TV TO A DESK

(For 32/42LD420, 32/37/42LD450

, 32/42LD520, 42LD630, 32LE5300

)

The TV must be attached to a desk so it cannot be pulled in a forward/backward direction, poten-

tially causing injury or damaging the product.

1-Screw

(provided as parts of the product)

Desk

Stand

KENSINGTON SECURITY SYSTEM

ᯫ

This feature is not available for all models.

- The TV is equipped with a Kensington Security System con-

nector on the back panel. Connect the Kensington Security

System cable as shown below.

- For the detailed installation and use of the Kensington Security

System, refer to the user’s guide provided with the Kensington

Security System.

For further information, contact http://www.kensington.com,

the internet homepage of the Kensington company. Kensington

sells security systems for expensive electronic equipment such

as notebook PCs and LCD projectors.

NOTE: The Kensington Security System is an optional accessory.

WARNING

ŹTo prevent TV from falling over, the TV should be securely attached to the floor/wall per installa-

tion instructions. Tipping, shaking, or rocking the machine may cause injury.

ᯫ

Image shown may differ from your TV.

PREPARATION

SECURING THE TV TO THE WALL TO PREVENT FALLING

WHEN THE TV IS USED ON A STAND

We recommend that you set up the TV close to a wall so it cannot fall over if pushed backwards.

Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward

direction, potentially causing injury or damaging the product.

Caution: Please make sure that children don’t climb on or hang from the TV.

ᯫ

Insert the eye-bolts (or TV brackets and bolts) to tighten the product to the wall as shown in the

picture.

* If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the

bolts.

* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.

Secure the wall brackets with the bolts (sold separately) to the wall. Match the height of the bracket

that is mounted on the wall to the holes in the product.

Ensure the eye-bolts or brackets are tightened securely.

ᯫ

Use a sturdy rope (sold separately) to tie the product. It is safer to tie the

rope so it becomes horizontal between the wall and the product.

ᯫ

You should purchase necessary components to prevent the TV from tipping over (when not using a

wall mount).

ᯫ

Image shown may differ from your TV.

NOTE

ŹUse a platform or cabinet strong enough and large enough to support the size and weight of

the TV.

ŹTo use the TV safely make sure that the height of the bracket on the wall and the one on the TV are

the same.

PREPARATION

ANTENNA OR CABLE CONNECTION

ᯫ

To prevent damage do not connect to the power outlet until all connections are made between the

devices.

ᯫ

Image shown may differ from your TV.

1. Antenna (Analog or Digital)

Wall Antenna Socket or Outdoor Antenna without a Cable Box

Connections.

For optimum picture quality, adjust antenna direction if needed.

2. Cable

Wall

Antenna

Socket

Outdoor

Antenna

(VHF, UHF)

Cable TV

Wall Jack

Multi-family Dwellings/Apartments

(Connect to wall antenna socket)

RF Coaxial Wire (75 Ω)

Single-family Dwellings /Houses

(Connect to wall jack for outdoor antenna)

Be careful not to bend the copper wire

when connecting the antenna.

Copper Wire

ᯫ

If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter.

ᯫ

For much more information about antennas visit our Knowledgebase at http://lgknowledgebase.

com. Search for antenna.

ANTENNA/

CABLE IN

ANTENNA/

CABLE IN

EXTERNAL EQUIPMENT SETUP

HD RECEIVER SETUP

ᯫ

To prevent the equipment damage, never plug in any power cords until you have finished connecting all

equipment.

ᯫ

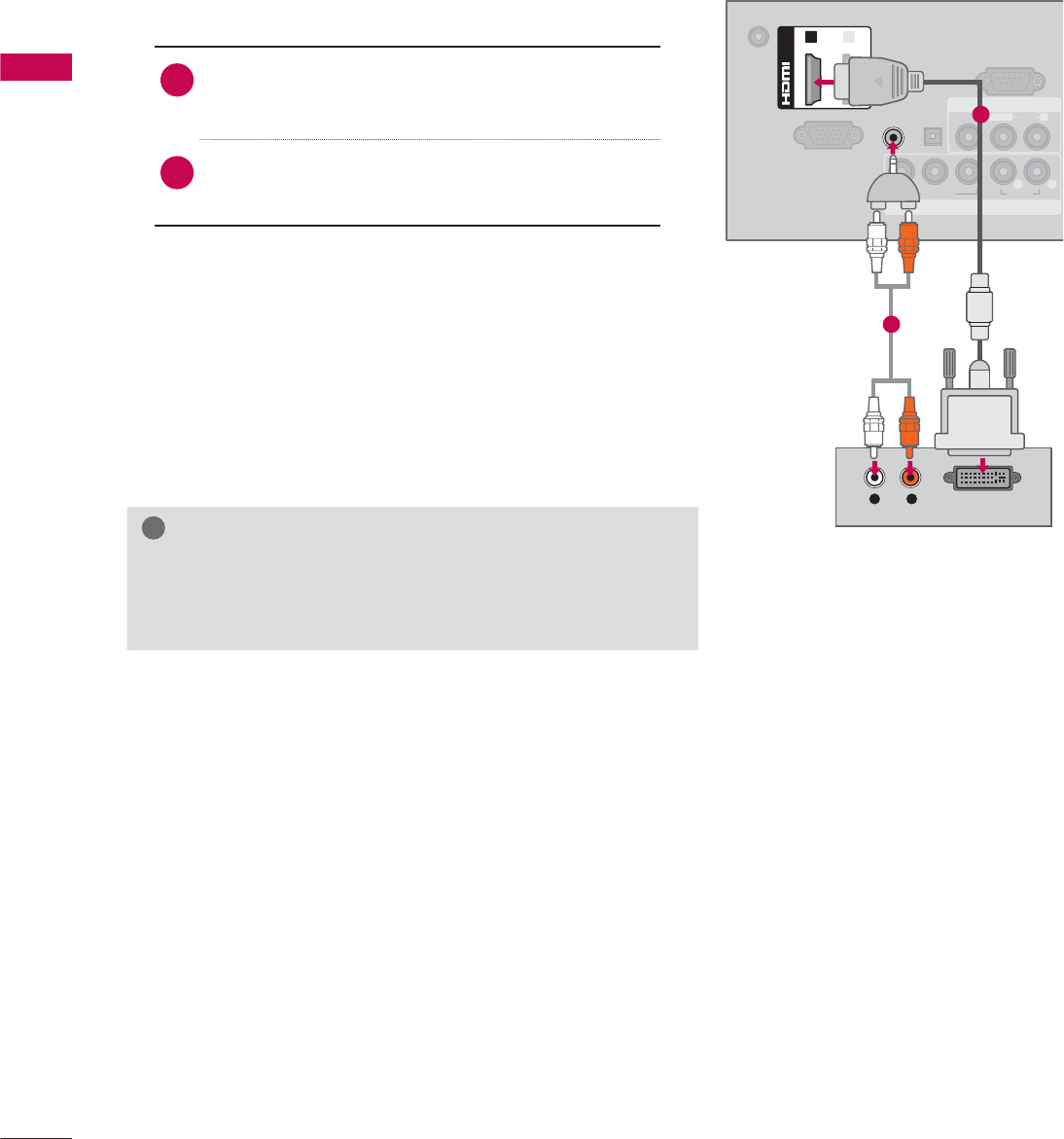

This part of EXTERNAL EQUIPMENT SETUP mainly use picture of for 26LE5300/26LE5500.

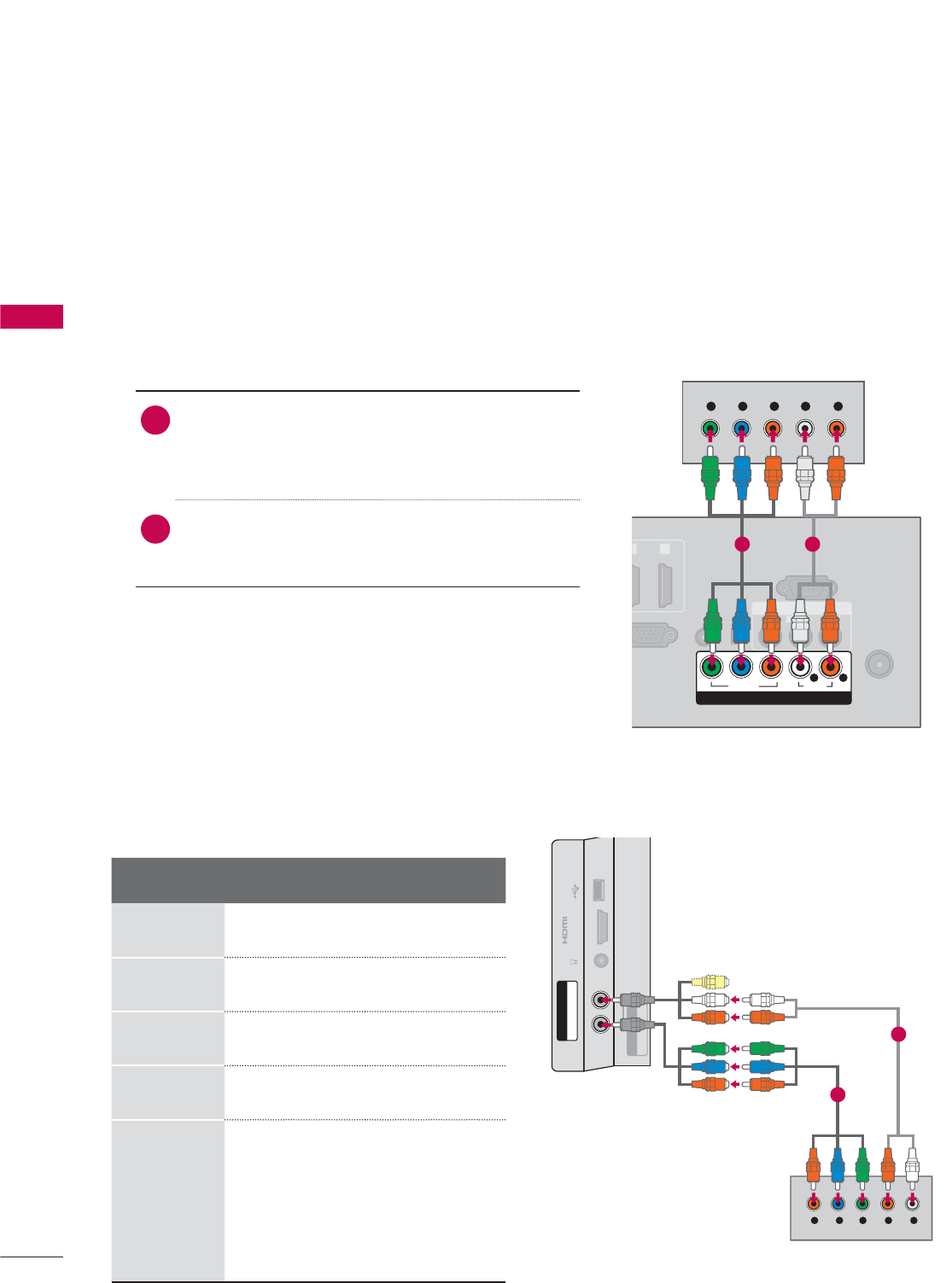

Y, C B/PB, CR/PR

1. How to connect

1Connect the video outputs (Y, P B, PR) of the

digital set-top box to the COMPONENT IN

VIDEO or 1/2* jacks on the TV. Match the jack

colors (Y = green, PB = blue, and PR = red).

2Connect the audio output of the digital set-top

box to the COMPONENT IN AUDIO or 1/2*

jacks on the TV.

2. How to use

ᯫ

Turn on the digital set-top box.

(Refer to the owner’s manual for the digital set-

top box operation.)

ᯫ

Select the Component or Component1/2* input

source on the TV using the INPUT button on the

remote control.

Component Connection

This TV can receive digital over-the-air/digital cable signals without an external digital set-top box.

However, if you do receive digital signals from a digital set-top box or other digital external device.

Resolution Horizontal

Frequency(KHz)Vertical

Frequency(Hz)

720x480i 15.73 59.94

15.73 60.00

720x480p 31.47 59.94

31.50 60.00

1280x720p 44.96 59.94

45.00 60.00

1920x1080i

33.72 59.94

33.75 60.00

1920x1080p

26.97 23.976

27.00 24.00

33.71 29.97

33.75 30.00

67.432 59.94

67.50 60.00

EXTERNAL EQUIPMENT SETUP

ANTENNA/

CABLE IN

GB IN (PC)

AUDIO IN

RGB/DVI

)

OPTICAL

DIGITAL

AUDIO OUT

AV IN

RS-232C IN

(

CONTROL&SERVICE)

VIDEO

AUDIO

L(MONO)

VIDEO AUDIO

RL R

COMPONENT IN

Y L RP

1 2

* Component2: For 32/37/42/47/55LE5300, 42/47/55LE7300

USB IN

IN 4

H/P

AV IN2

VIDEO / AUDIO

Y P

/ AUDIO

COMPONENT IN2

Y LRP

For 32/37/42/47/55LE5300,

42/47/55LE7300

EXTERNAL EQUIPMENT SETUP

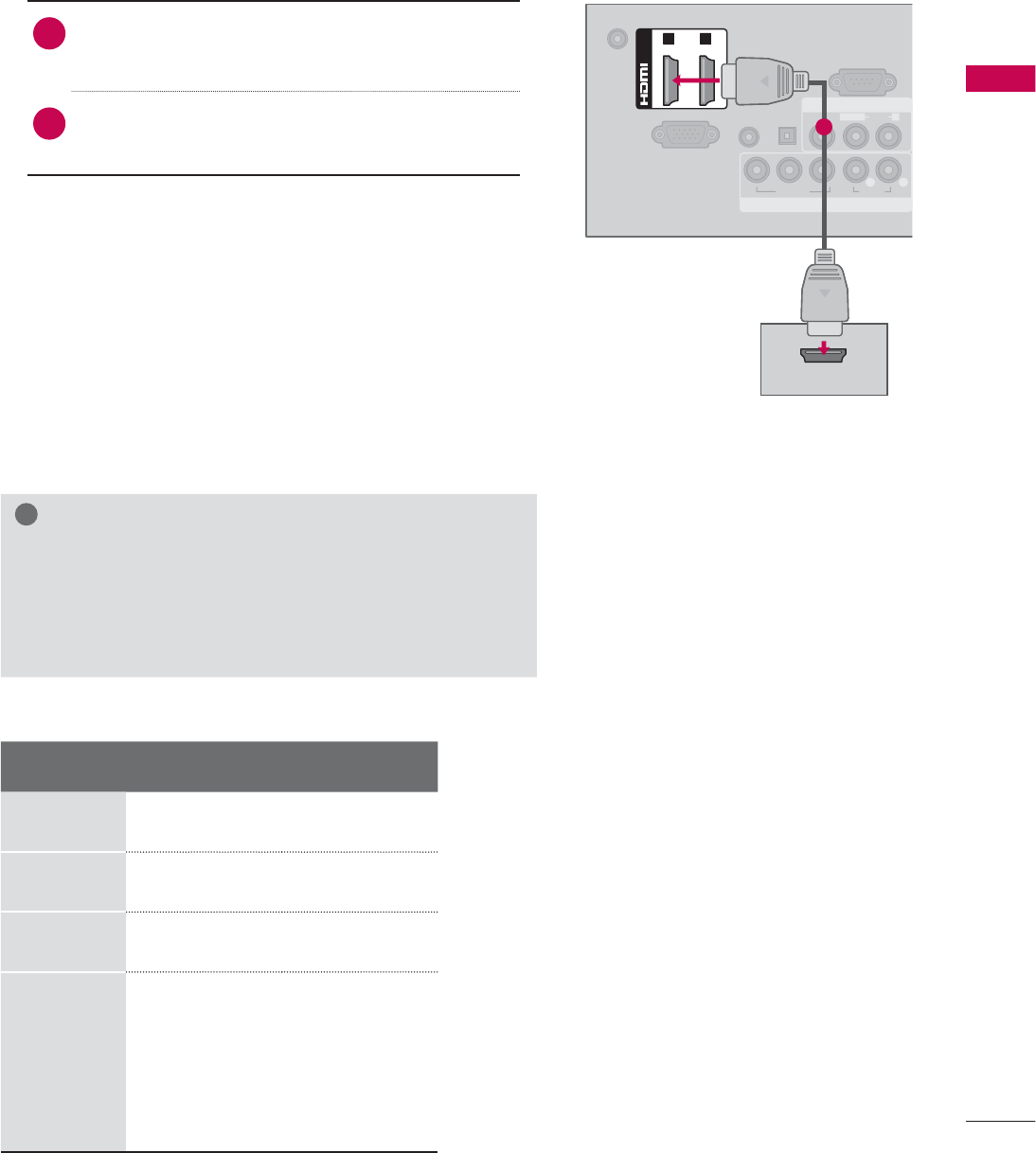

HDMI Connection

1. How to connect

1Connect the digital set-top box to HDMI/DVI IN

1,2,3*, or 4** jack on the TV.

2No separate audio connection is necessary.

HDMI supports both audio and video.

2. How to use

ᯫ

Turn on the digital set-top box.

(Refer to the owner’s manual for the digital set-

top box.)

ᯫ

Select the HDMI1,HDMI2,HDMI3*, or HDMI4**

input source on the TV using the INPUT button

on the remote control.

NOTE

ŹIf an HDMI cable doesn’t support High Speed HDMI,

it can cause flickers or no screen display. In this case

use the latest cables that support High Speed HDMI.

ŹHDMI Audio Supported Format: Dolby Digital (32 KHz, 44.1

KHz, 48 KHz), Linear PCM (32 KHz, 44.1 KHz, 48 KHz)

HDMI-DTV

Resolution Horizontal

Frequency(KHz)Vertical

Frequency(Hz)

720x480p 31.47 59.94

31.50 60.00

1280x720p 44.96 59.94

45.00 60.00

1920x1080i

33.72 59.94

33.75 60.00

1920x1080p

26.97 23.976

27.00 24.00

33.71 29.97

33.75 30.00

67.432 59.94

67.50 60.00

DC-IN

RGB IN (PC)

AUDIO IN

RGB/DVI

OPTICAL

DIGITAL

AUDIO OUT

COMPONENT IN

AV IN

RS-232C IN

(

CONTROL&SERVICE)

VIDEO

AUDIO

L(MONO)

VIDEO AUDIO

RL R

(DVI)

/DVI IN

1 2

HDMI OUTPUT

* HDMI3: For 26LE5300/5500, 32/42/47/55LD520, 42/47/55LD630

** HDMI4: For 32/37/42/47/55LE5300, 42/47/55LE7300

EXTERNAL EQUIPMENT SETUP

DVI to HDMI Connection

1. How to connect

1Connect the DVI output of the digital set-top

box to the HDMI/DVI IN 1 or 2* jack on the TV.

2Connect the digital set-top box audio output to

the AUDIO IN (RGB/DVI) jack on the TV.

2. How to use

ᯫ

Turn on the digital set-top box.

(Refer to the owner’s manual for the digital set-

top box.)

ᯫ

Select the HDMI1 or HDMI2* input source on the

TV using the INPUT button on the remote control.

NOTE

ŹA DVI to HDMI cable or adapter is required for this con-

nection. DVI doesn't support audio, so a separate audio

connection is necessary.

DC-IN

RGB IN (PC)

AUDIO IN

RGB/DVI

OPTICAL

DIGITAL

AUDIO OUT

COMPONENT IN

AV IN

RS-232C IN

(

CONTROL&SERVICE)

VIDEO

AUDIO

L(MONO)

VIDEO AUDIO

RL R

(DVI)

/DVI IN

L R DVI OUTPUT

AUDIO

* HDMI2: For 32/42/47/55LD520, 42/47/55LD630

EXTERNAL EQUIPMENT SETUP

DVD SETUP

Component Input ports

To get better picture quality, connect a DVD

player to the component input ports as shown

below.

1. How to connect

1Connect the video outputs (Y, P B, PR) of the

DVD to the COMPONENT IN VIDEO or 1/2*

jacks on the TV. Match the jack colors (Y =

green, PB = blue, and PR = red).

2Connect the audio outputs of the DVD to the

COMPONENT IN AUDIO or 1/2* jacks on the

TV.

2. How to use

ᯫ

Turn on the DVD player, insert a DVD.

ᯫ

Select the Component or Component1/2* input

source on the TV using the INPUT button on the

remote control.

ᯫ

Refer to the DVD player’s manual for operating

instructions.

Component Connection

Component ports on

the TV

YPBPR

Video output ports

on DVD player

YPBPR

YB-YR-Y

YCbCr

YPbPr

ANTENNA/

CABLE IN

GB IN (PC)

AUDIO IN

RGB/DVI

(DVI)

OPTICAL

DIGITAL

AUDIO OUT

AV IN

RS-232C IN

(

CONTROL&SERVICE)

1 2

VIDEO

AUDIO

L(MONO)

VIDEO AUDIO

RL R

COMPONENT IN

Y L RP

USB IN

IN 4

H/P

AV IN2

VIDEO / AUDIO

Y P

/ AUDIO

COMPONENT IN2

Y LRP

For 32/37/42/47/55LE5300,

42/47/55LE7300

* Component2: For 32/37/42/47/55LE5300, 42/47/55LE7300

EXTERNAL EQUIPMENT SETUP

Composite (RCA) Connection

1. How to connect

1Connect the AUDIO/VIDEO jacks between TV

and DVD. Match the jack colors (Video = yellow,

Audio Left = white, and Audio Right = red)

2. How to use

ᯫ

Turn on the DVD player, insert a DVD.

ᯫ

Select the AV or AV1/2* input source on the TV

using the INPUT button on the remote control.

ᯫ

Refer to the DVD player's manual for operating

instructions.

ANTENNA/

CABLE IN

GB IN (PC)

AUDIO IN

RGB/DVI

DVI

)

OPTICAL

DIGITAL

AUDIO OUT

COMPONENT IN

RS-232C IN

(

CONTROL&SERVICE)

VIDEO AUDIO

RL R

AV IN

VIDEO

AUDIO

L(MONO)

L R

VIDEO

AUDIO

DC-IN

RGB IN (PC)

AUDIO IN

RGB/DVI

OPTICAL

DIGITAL

AUDIO OUT

COMPONENT IN

AV IN

RS-232C IN

(

CONTROL&SERVICE)

VIDEO

AUDIO

L(MONO)

VIDEO AUDIO

(DVI)

/DVI IN

1 2

HDMI OUTPUT

HDMI Connection

1. How to connect

1Connect the HDMI output of the DVD to the

HDMI/DVI IN 1,2,3*, or 4** jack on the TV.

2No separate audio connection is necessary.

HDMI supports both audio and video.

2. How to use

ᯫ

Select the HDMI1,HDMI2,HDMI3*, or HDMI4** input

source on the TV using the INPUT button on the

remote control.

ᯫ

Refer to the DVD player's manual for operating

instructions.

NOTE

ŹIf an HDMI cable doesn’t support High Speed HDMI,

it can cause flickers or no screen display. In this case

use the latest cables that support High Speed HDMI.

ŹHDMI Audio Supported Format: Dolby Digital (32 KHz, 44.1

KHz, 48 KHz), Linear PCM (32 KHz, 44.1 KHz, 48 KHz)

* AV2: Except 19/22/26LE5300, 22/26LE5500

* HDMI3: For 26LE5300/5500, 32/42/47/55LD520, 42/47/55LD630

** HDMI4: For 32/37/42/47/55LE5300, 42/47/55LE7300

EXTERNAL EQUIPMENT SETUP

VCR SETUP

Antenna Connection

AUDIO

)

AUDIO

L R

ANTENNA/

CABLE IN

L R

S-VIDEO VIDEO

AUDIO

OUTPUT

SWITCH

ANT IN

ANT OUT

Wall Jack

Antenna

1. How to connect

1Connect the RF antenna out socket

of the VCR to the ANTENNA/CABLE

IN socket on the TV.

2Connect the antenna cable to the RF

antenna in socket of the VCR.

2. How to use

ᯫ

Set VCR output switch to 3 or 4 and

then tune TV to the same channel num-

ber.

ᯫ

Insert a video tape into the VCR and

press PLAY on the VCR (Refer to the

VCR owner’s manual).

Composite (RCA) Connection

ANTENNA/

CABLE IN

IN (PC)

AUDIO IN

RGB/DVI

OPTICAL

DIGITAL

AUDIO OUT

COMPONENT IN

RS-232C IN

(

CONTROL&SERVICE)

VIDEO AUDIO

RL R

AV IN

VIDEO

AUDIO

L(MONO)

S-VIDEO

OUTPUT

SWITCH

ANT IN

ANT OUT

L R

VIDEO

AUDIO

1. How to connect

1Connect the AUDIO/VIDEO jacks between TV

and VCR. Match the jack colors (Video = yellow,

Audio Left = white, and Audio Right = red)

2. How to use

ᯫ

Insert a video tape into the VCR and press PLAY

on the VCR. (Refer to the VCR owner’s manual.)

ᯫ

Select the AV or AV1/2* input source on the TV

using the INPUT button on the remote control.

NOTE

ŹIf you have a mono VCR, connect the audio cable

from the VCR to the AUDIO L(MONO) jack of the TV.

* AV2: Except 19/22/26LE5300, 22/26LE5500

EXTERNAL EQUIPMENT SETUP

OTHER A/V SOURCE SETUP

ANTENNA/

CABLE IN

DC-IN

RGB IN (PC)

AUDIO IN

RGB/DVI

(DVI)

OPTICAL

DIGITAL

AUDIO OUT

/DVI IN

COMPONENT IN

RS-232C IN

(

CONTROL&SERVICE)

1 2

VIDEO AUDIO

RL R

AV IN

VIDEO

AUDIO

L(MONO)

L R

VIDEO

Camcorder

Video Game Set

1. How to connect

1Connect the AUDIO/VIDEO jacks

between TV and external equipment.

Match the jack colors

(Video = yellow, Audio Left = white, and

Audio Right = red)

2. How to use

ᯫ

Select the AV or AV1/2* input source on

the TV using the INPUT button on the

remote control.

ᯫ

Operate the corresponding external

equipment.

* AV2: Except 19/22/26LE5300, 22/26LE5500

EXTERNAL EQUIPMENT SETUP

USB CONNECTION

USB IN

IN 3

H/P

Memory Key

1. How to connect

1Connect the USB device to the USB

IN jack on the side of TV.

2. How to use

ᯫ

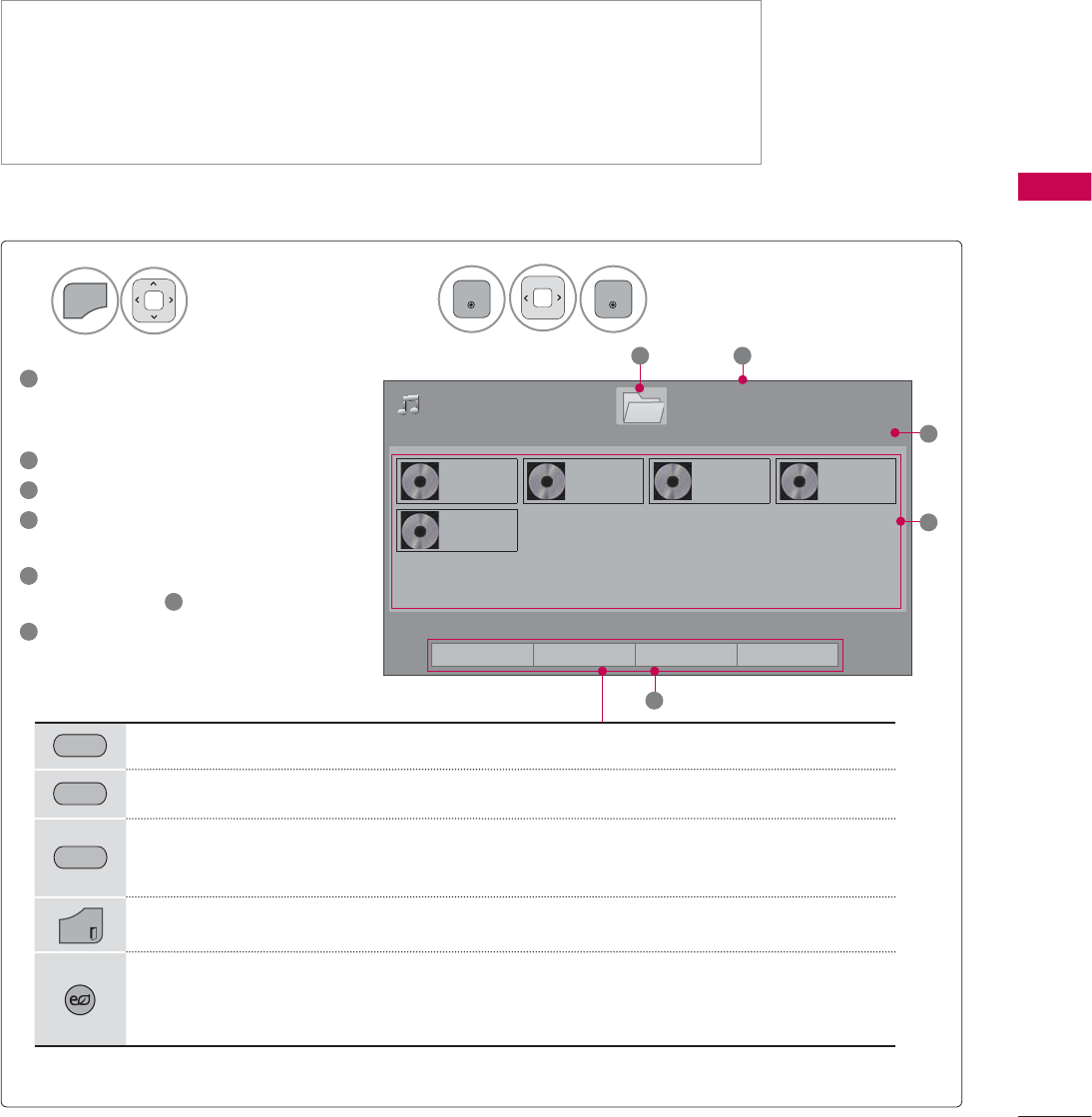

After connecting the USB IN jack, you

use the USB function. (Źp.78)

HEADPHONE SETUP

H/P

You can listen to the sound through the headphone.

1. How to connect

1Plug the headphone into the head-

phone socket.

2To adjust the headphone volume,

press the VOL +/- button. If you

press the MUTE button, the sound

from the headphone is switched off.

NOTE

ŹAUDIO menu options are disabled when connecting a

headphone.

ŹWhen changing AV MODE with a headphone con-

nected, the change is applied to video but not to audio.

ŹOptical Digital Audio Out is not available when con-

necting a headphone.

EXTERNAL EQUIPMENT SETUP

ANTENNA/

CABLE IN

RGB IN (PC)

AUDIO IN

RGB/DVI

(DVI)

DVI IN

COMPONENT IN

AV IN

RS-232C IN

(

CONTROL&SERVICE)

1 2

VIDEO

AUDIO

L(MONO)

VIDEO AUDIO

RL R

OPTICAL

DIGITAL

AUDIO OUT

AUDIO OUT CONNECTION

Send the TV’s audio to external audio equipment via the Audio Output port.

If you want to enjoy digital broadcasting through 5.1-channel speakers, connect the OPTICAL DIGITAL

AUDIO OUT terminal on the back of TV to a Home Theater (or amp).

NOTE

ŹWhen connecting with external audio equipment, such

as amplifiers or speakers, you can turn the TV speakers

off in the menu. (Źp.119)

CAUTION

ŹDo not look into the optical output port. Looking at

the laser beam may damage your vision.

ŹAudio with ACP (Audio Copy Protection) function may

block digital audio output.

1. How to connect

1Connect one end of the optical cable to the

TV port of OPTICAL DIGITAL AUDIO OUT.

2Connect the other end of the optical cable to

the digital audio input on the audio equip-

ment.

3Set the “TV Speaker option - Off” in the

AUDIO menu. (Źp.119). See the external audio

equipment instruction manual for operation.

EXTERNAL EQUIPMENT SETUP

DC-IN

(DVI)

OPTICAL

DIGITAL

AUDIO OUT

COMPONENT IN

AV IN

RS 232C

(

CONTROL&SERVICE)

VIDEO

AUDIO

L(MONO)

VIDEO AUDIO

RGB IN (PC)

AUDIO IN

RGB/DVI

RGB OUTPUT AUDIO

PC SETUP

This TV provides Plug and Play capability, meaning that a PC adjusts automatically to the TV’s set-

tings.

1. How to connect

1Connect the VGA output of the PC to the

RGB IN (PC)jack on the TV.

2Connect PC audio output to the AUDIO IN

(RGB/DVI)jack on the TV.

2. How to use

ᯫ

Turn on the PC and the TV.

ᯫ

Select the RGB-PC input source on the TV using

the INPUT button on the remote control.

VGA (D-Sub 15 Pin) Connection

1 2

EXTERNAL EQUIPMENT SETUP

DVI to HDMI Connection

1. How to connect

1Connect the DVI output of the PC to the

HDMI/DVI IN 1 or 2* jack on the TV.

2Connect the PC audio output to the AUDIO IN

(RGB/DVI) jack on the TV.

2. How to use

ᯫ

Turn on the PC and the TV.

ᯫ

Select the HDMI1 or HDMI2* input source on the

TV using the INPUT button on the remote control.

DC-IN

RGB IN (PC)

AUDIO IN

RGB/DVI

OPTICAL

DIGITAL

AUDIO OUT

COMPONENT IN

AV IN

RS-232C IN

(

CONTROL&SERVICE)

VIDEO

AUDIO

L(MONO)

VIDEO AUDIO

RL R

(DVI)

/DVI IN

DVI OUTPUT

AUDIO

* HDMI2: For 32/42/47/55LD520, 42/47/55LD630

EXTERNAL EQUIPMENT SETUP

Supported Display Specifications (RGB-PC, HDMI-PC)

NOTE

ŹTo get the the best picture quality, adjust the PC graphics card to 1360 x 768 (19/22/26LE5300)

or 1920 x 1080 (Other models).

ŹDepending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use.

ŹIn PC mode, there may be noise associated with the resolution, vertical pattern, contrast or bright-

ness. If noise is present, change the PC output to another resolution, change the refresh rate to

another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.

ŹAvoid keeping a fixed image on the screen for a long period of time. The fixed image may become

permanently imprinted on the screen.

ŹThe synchronization input form for Horizontal and Vertical frequencies is separate.

ŹDepending on the graphics card, some resolution settings may not allow the image to be posi-

tioned on the screen properly.

ŹWhen selecting HDMI-PC, set the “Input Label - PC” in the OPTION menu.

Resolution Horizontal

Frequency(KHz)Vertical

Frequency(Hz)

640x350 31.468 70.09

720x400 31.469 70.08

640x480 31.469 59.94

800x600 37.879 60.31

1024x768 48.363 60.00

1280x768 47.776 59.87

1360x768

47.712 60.015

1280x1024

63.981 60.02

1600x1200

75.00 60.00

1920x1080

RGB-PC

66.587 59.934

1920x1080

HDMI-PC

67.50 60.00

Except 19/22/26LE5300

Except 32/37/42/47/55LE5300,

42/47/55LE7300, 22/26LE5500

MY MEDIA

CONNECTION METHOD

MY MEDIA

USB Connection

Connect the USB device to the USB IN jack on the side of TV.

USB IN

N 3

Memory Key

Precautions when using the USB device

ŹOnly a USB storage device is recognizable.

ŹConnecting a USB storage device through a USB hub is not supported.

ŹA USB storage device which uses its own driver may not be recognized.

ŹThe recognition speed of a USB storage device may depend on each device.

ŹPlease do not turn off the TV or unplug the USB device when the connected USB storage device

is working. When such device is suddenly separated or unplugged, the stored files or the USB

storage device may be damaged.

ŹOnly use a USB storage device which has normal music files, image files, or movie files.

ŹPlease use only a USB storage device which was formatted as a FAT 32 or NTFS file system pro-

vided with the Windows operating system. Others may not be recognized.

ŹSome USB storage devices require a power adapter. The power adapter must be connected in

order to be seen by the TV.

ŹIf a device is not recognized by the TV, try a different cable. Excessively long cables are not sup-

ported.

ŹSome USB storage devices may not be supported or operate properly.

ŹPlease backup important files because data on USB device could be damaged. Data management

is consumer's responsibility and as a result, the manufacturer does not cover data damage.

ŹIf your USB memory device has multiple partitions, or if you use a USB multi-card reader, you can

use up to 4 partitions or USB memory devices.

ŹIn case of USB storage devices formatted as NTFS, deletion is not supported.

ŹFile alignment method of USB storage device is similar to Window XP and file names can be up

to 100 English characters.

ŹThe recommended capacity is 1TB or less for a USB external hard disk and 32 GB or less for USB

memory.

ŹIf a USB external hard disk with a “Energy Saving” function doesn’t work, turn the hard disk off and

on again to make it work properly. Refer to the user manual of the USB external hard disk.

ŹUSB storage devices below USB 2.0 are supported as well. But they may not work properly in the

movie list.

MY MEDIA

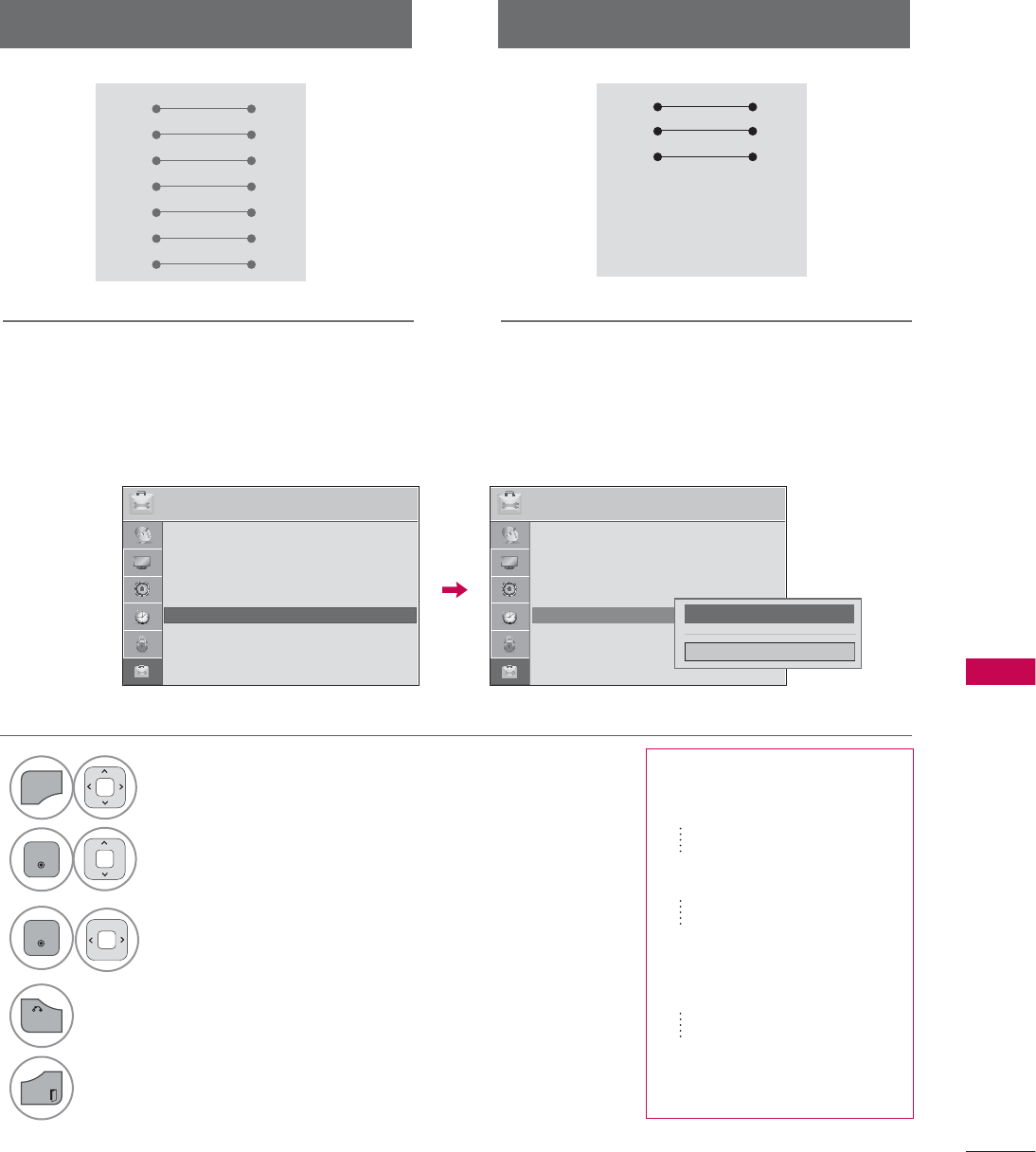

ENTRY MODE

The My Media menu will open automatically when you insert a USB drive. My Media can also be

accessed by choosing My Media in the user menu.

On USB device, you can not add a new folder or delete the existing folder.

When removing the USB device

Select the USB Device menu before

removing the USB device.

ᯫ

This TV can view JPG image files, HD DivX

files or play MP3 audio files.

Q.MENU

Select USB Device.

ENTER

Select Eject.

Select MY MEDIA.

ENTER

Select Movie List, Photo List

or Music List.

ENTER

Movie List

MY MEDIA

Photo List Music List

Except 32/42/47LD420,

32/37/42/47LD450,

32/42/47/55LD520,

MY MEDIA

MOVIE LIST

(Except 32/42/47LD420, 32/37/42/47LD450, 32/42/47/55LD520)

Precautions when playing the video files

ŹSome user-created subtitles may not work properly.

ŹSome special characters are not supported in subtitles.

ŹHTML tags are not supported in subtitles.

ŹTime information in an external subtitle file should be arranged in ascending order to be played.

ŹThe screen may suffer temporary interruptions (image stoppage, faster playback, etc.) when the

audio language is changed.

ŹA damaged video file may not be played correctly, or some functions may not be usable.

ŹVideo files produced with some encoders may not be played correctly.

ŹIf the video and audio structure of recorded file is not interleaved, the file not playback properly.

ŹVideo with resolution higher than maximum resolution supported for each frame, cannot be guar-

anteed for smooth playback.

ŹVideo files other than the specified types and formats may not work properly.

ŹThe movie file encoded by the GMC (Global Motion Compensation) is not supported.

ŹOnly 250 Korean characters, 500 letters and 500 numbers are supported for each line of the

subtitle.

ŹOnly 10000 sync blocks are supported within the subtitle file.

ŹWe do not guarantee smooth playback of profiles encoded level 4.1 or higher in H.264/AVC.

ŹDTS Audio codec is not supported.

ŹA video file more than 30GB in file size is not supported for playback.

ŹPlaying a video via a USB connection that doesn’t support high speed may not work properly.

ŹUSB storage devices below USB 2.0 are supported as well. But they may not work properly in the

movie list.

ŹThe video file and its subtitle file must be located in the same folder.

At this time, a video file name and its subtitle file name must be identical for it to be displayed.

ŹWhen you are watching a movie via the Movie List function, you can adjust the picture with the

ENERGY SAVING and AV MODE button on the remote control. User setup for each picture mode

is not supported.

The movie list is activated once a USB drive is detected. It is used when playing movie files on the TV.

It displays all of the video files it recognizes.

The On-Screen Display on your model may be slightly different.

Supported movie file

ᯫ

Resolution: under 1920 pixel (width) x 1080 pixel (height)

ᯫ

Frame Rate: under 30 frame/sec (1920x1080), under 60 frame/sec (1280x720)

ᯫ

Max bitrate of playable video file: 20 Mbps (Mega bit per second)

ᯫ

Bit rate : within 32 kbps to 320 kbps (MP3)

ᯫ

Supported external subtitle format: *.smi/*.srt/*.sub (MicroDVD,Subviewer1.0/2.0)/*.ass/*.ssa/*.txt

(TMPlayer)/*.psb (PowerDivX)

ᯫ

Supported Internal subtitle format: only, XSUB (It is the subtitle format used in DivX6 files)

MY MEDIA

Supported Video Formats

File

Extension name Video Decoder Audio Codec Max Resolution

mpg, mpeg MPEG1, MPEG2 MP2, MP3, Dolby Digital, LPCM

1920 x 1080 @ 30p

(Only Motion JPEG

640x480@30p)

dat MPEG1 MP2

ts, trp, tp MPEG2, H.264, AVS, VC1 MP2, MP3, Dolby Digital, AAC,

HE-AAC

vob MPEG1, 2 MP2, MP3, Dolby Digital, LPCM

mp4, mov

MPEG4,DivX 3.11, DivX 4.12, DivX 5.x,

DivX 6, Xvid 1.00, Xvid 1.01, Xvid 1.02,

Xvid 1.03, Xvid 1.10-beta1/2H.264

AAC, HE-AAC, MP3

mkv H.264, MPEG-1,2,4 MP2, MP3, Dolby Digital, AAC

HE-AAC, LPCM

divx, avi

MPEG2, MPEG4, DivX 3.11, DivX 4,

DivX 5, DivX 6, Xvid 1.00, Xvid 1.01,

Xvid 1.02, Xvid 1.03, Xvid

1.10-beta1/2H.264

MP2, MP3, Dolby Digital,

LPCM,

ADPCM, AAC, HE-AAC

Motion JPEG

(avi, mp4, mkv) JPEG LPCM, ADPCM

asf, wmv VC1 WMA

flv Sorenson H.263, H264 MP3, AAC

MY MEDIA

The On-Screen Display on your model may be slightly different.

PHOTO LIST

Screen Components

Supported photo file: *.JPG

ᯫ

Baseline: 64 pixel (width) x 64 pixel (height) to 15360 pixel (width) x 8640 pixel (height)

ᯫ

Progressive: 64 pixel (width) x 64 pixel (height) to 1920 pixel (width) x 1440 pixel (height)

ᯫ

You can play JPEG files only.

ᯫ

Non-supported files are displayed in the form of predefined icon.

Select MY MEDIA.Select Photo List.

ENTER

1Moves to upper level folder

2Current page/total pages

3Corresponding buttons on the

remote control

4Contents under the folder

focused on 1

5Current page/total pages of

contents

Page 1/1

Photo List

Page 1/1

Drive1

1.EMF

10_1_Top 100

BBB723

20090711 20090810

200942_Top100

20091010 20091011

Basic Test Kit

(QWDO FHD HD MV Photo TS

USB 1 XTICK

ᯒMove ᯙ9LHZ᱇3DJH&KDQJH᱅ Mark

ᯕ7R0XVLF/LVW ᯕ&KDQJH1XPEHUV ᯕ0DUN0RGH ᰿ Exit

GREEN Move to Music List or Movie List.

YELLOW

Change Numbers: Changes the number or thumbnails displayed at a time.

BLUE Allows you to mark certain files.

EXIT

Return to TV viewing.

MY MEDIA

MUSIC LIST

This TV cannot play back copy-protected files.

The On-Screen Display on your model may be slightly different.

MUSIC (*.MP3) supporting file

Bit rate 32 Kbps - 320 Kbps

ţ4BNQMJOHSBUF.1&(-BZFSL)[L)[L)[

ţ4BNQMJOHSBUF.1&(-BZFSL)[L)[L)[

ţ4BNQMJOHSBUF.1&(-BZFSL)[L)[L)[

Screen Components

Select MY MEDIA.Select Music List.

ENTER

1Preview: If any album jacket for

the file (Album Art Image)

exists, this picture is displayed.

2Moves to upper level folder

3Current page/Total pages

4Corresponding buttons on the

remote control

5Contents under the folder

focused on 1

6Current page/total pages of

contents

Page 1/1

Music List

Page 1/1

'LHWIHDWPS
