LG Electronics USA 47WV30MS MONITOR SIGNAGE User Manual EMISSION TEST REPORT
LG Electronics USA MONITOR SIGNAGE EMISSION TEST REPORT
Users Manual
Order Number
: GETEC-C1-12-093
FCC Part 15 subpart B
Test Report Number
: GETEC-E3-12-040
Page 1 / 1
EUT Type: MONITOR SIGNAGE
FCC ID.: BEJ47WV30MS
APPENDIX G
: USER’S MANUAL
www.lg.com
OWNER’S MANUAL
MONITOR SIGNAGE
47WV30MS
47WV30BR
47WV30BS
47WV30-BAAM
47WV30-BAAL
Please read this manual carefully before operating the your set and
retain it for future reference.
MONITOR SIGNAGE MODELS
ENG
ENGLISH
2
ENG
ENGLISH
TABLE OF CONTENTS
CONTENTS
4 LICENSE
5 ASSEMBLING AND
PREPARING
5 Unpacking
6 Parts
7 To install in a Portrait Layout
7 Remove L-brackets before Installation
8 Moving Handles
8 - Moving the device in a vertical position
8 - Moving the device in a horizontal
position
9 STORAGE METHOD FOR PANEL
PROTECTION
9 - Correct Method
9 - Incorrect Method
10 Installing on a wall
11 EXTERNAL EQUIPMENT SETUP
11 - IR RECEIVER
12 Tiling Displays
12 - How to Join Sets - Installing Set 1
13 - How to Join Sets - Installing Set 2
14 - How to Join Sets - Installing Set 3
15 - How to Join Sets - Installing Set 4

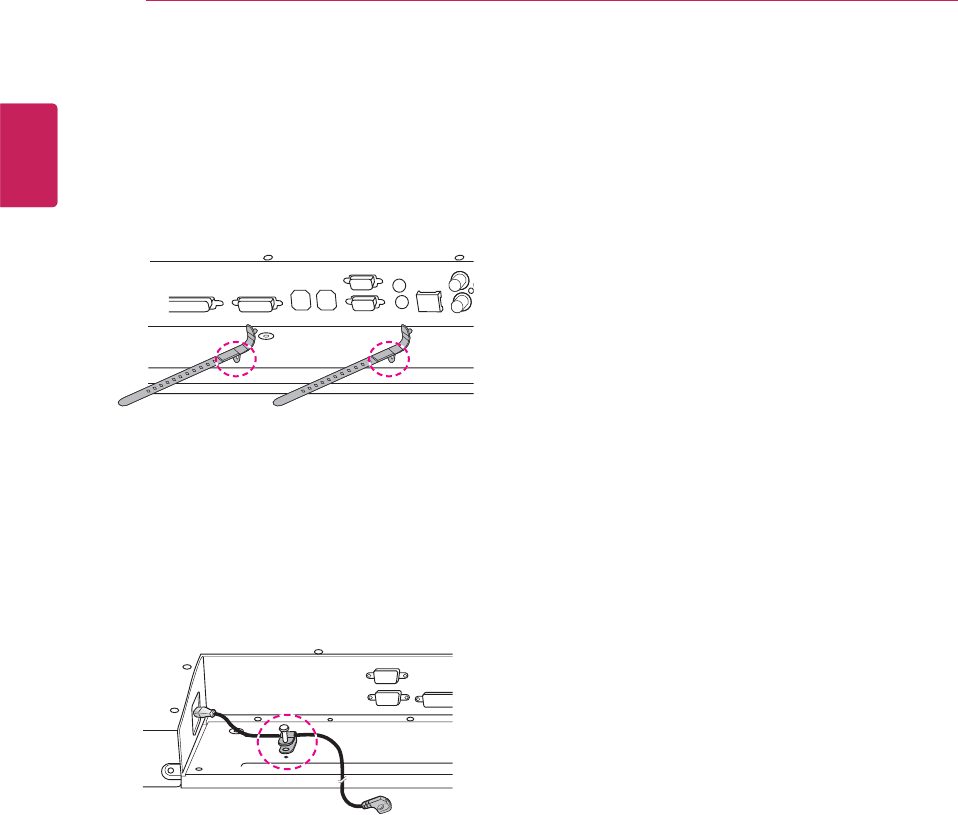

16 Inserting the Cable Holder

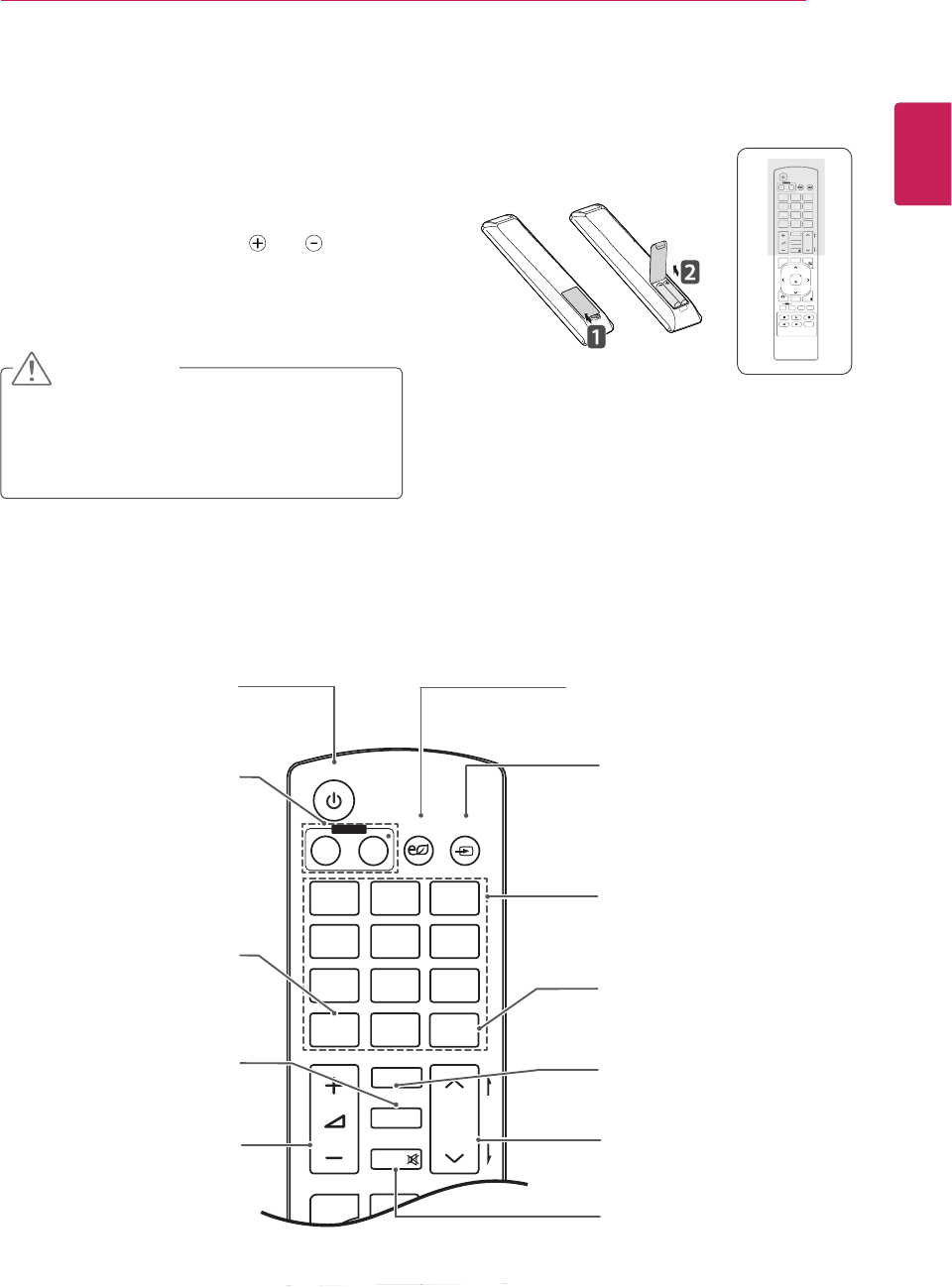

17 REMOTE CONTROL

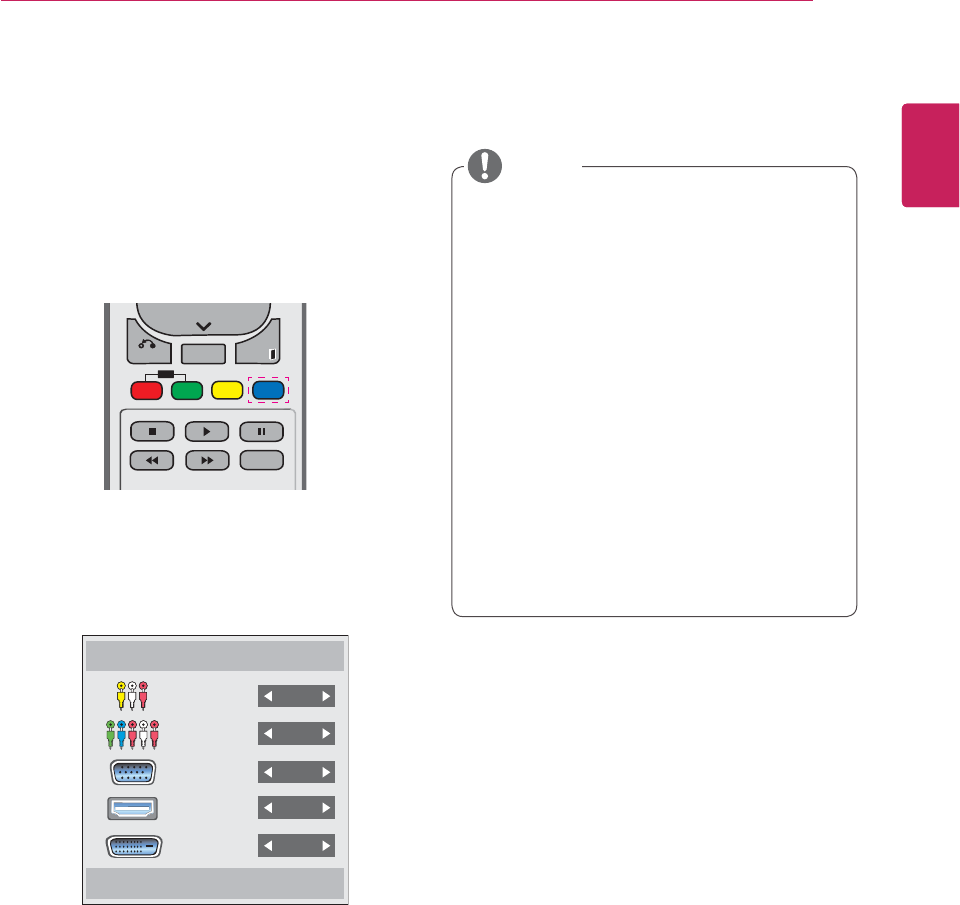

19 Displaying the device name connected to
an input port
20 Picture ID
21 USING THE MONITOR SET
21 Connecting to a PC
21 - RGB connection

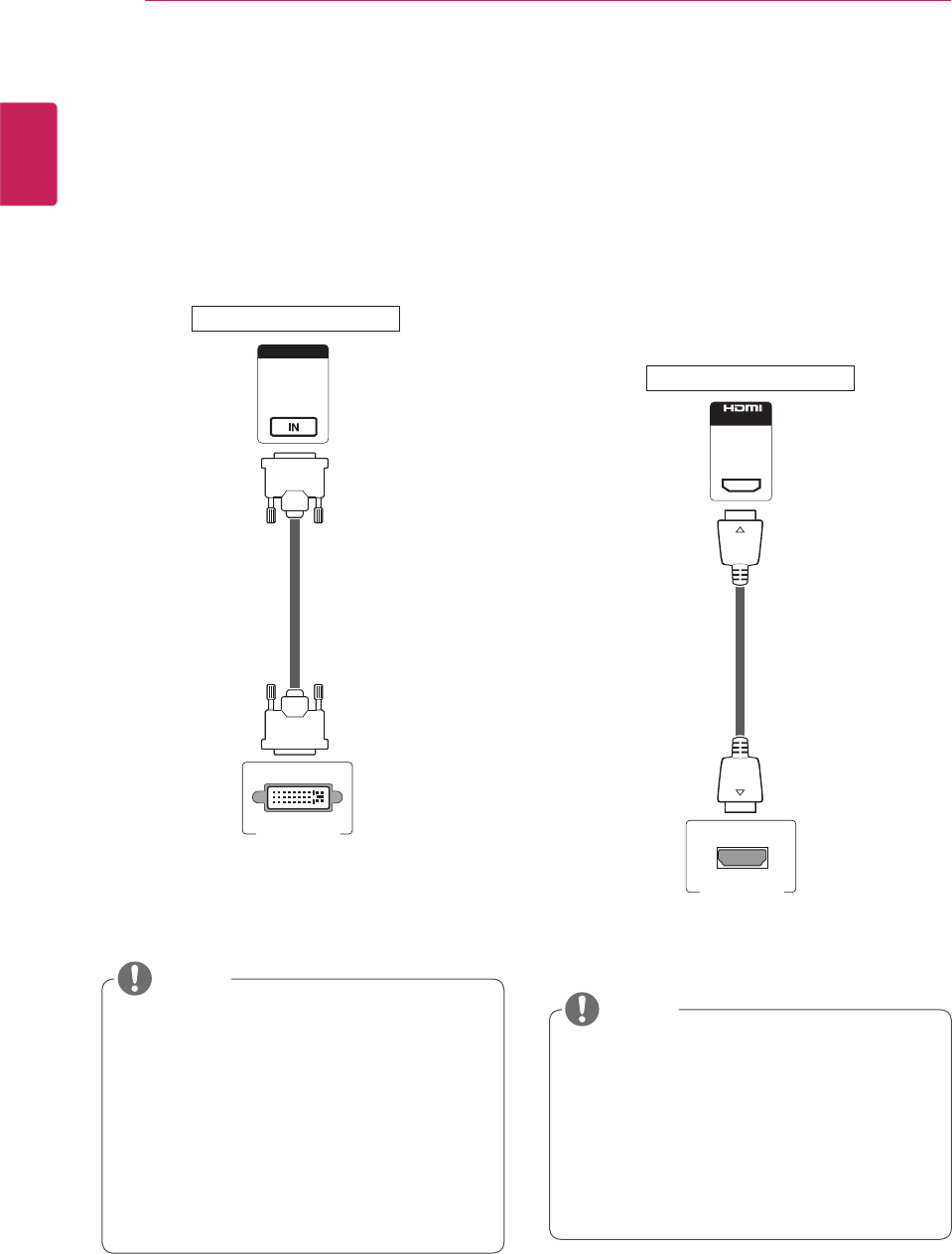

22 - DVI connection
22 - HDMI connection
23 - Audio connection
23 - IR Receiver connection
24 Adjusting the screen
24 - Selecting an image mode
24 - Customizing image options
25 - Customizing PC display options
25 Adjusting the sound
25 - Selecting an sound mode
26 - Customizing sound options
26 Using additional options

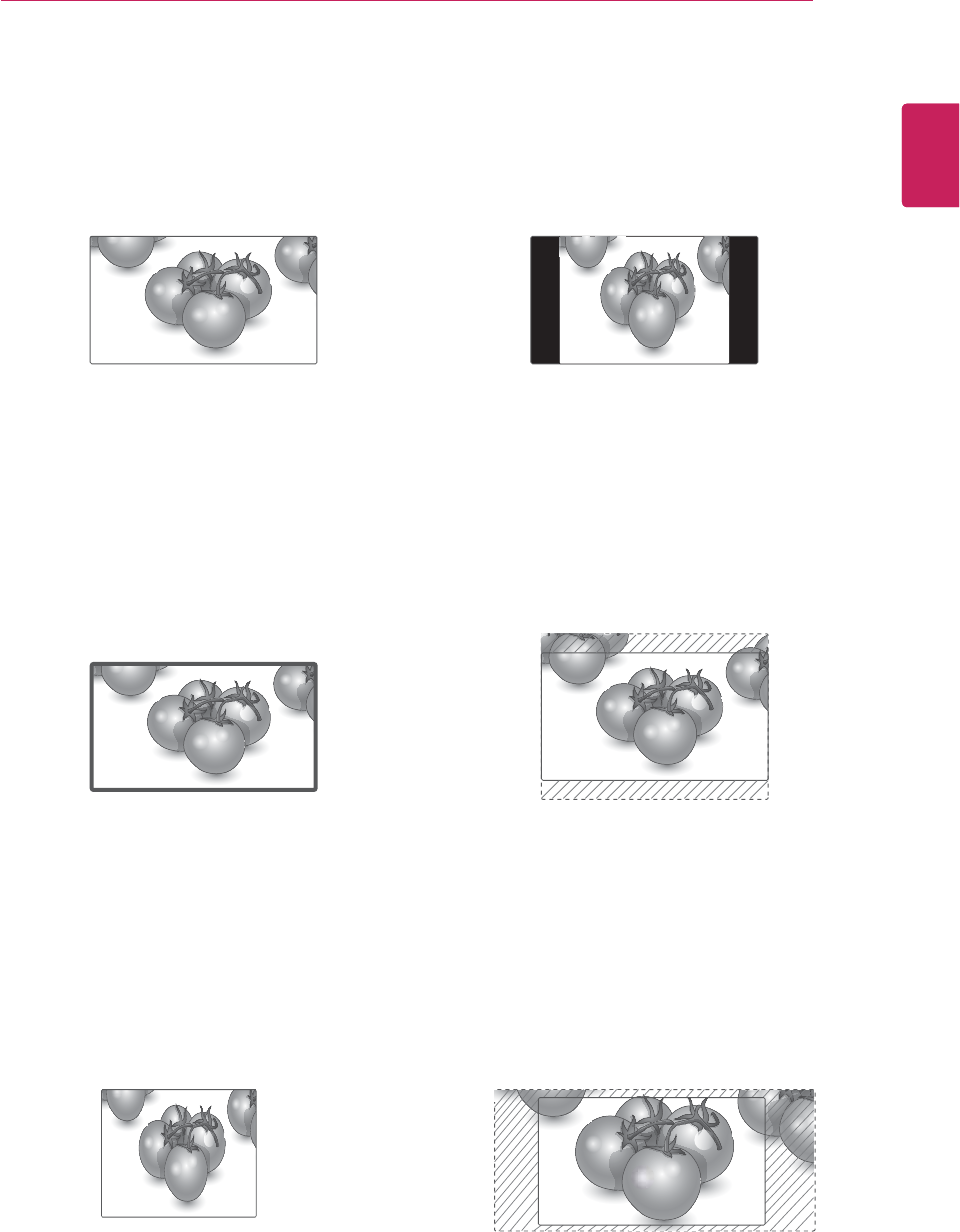

26 - Adjusting aspect ratio
28 ENTERTAINMENT
28 - Connecting to a wired network
29 - Network Status
30 - Connecting USB storage devices
31 - Browsing files
33 - Viewing movies
36 - Viewing photos
39 - Listening to music
42 - DivX® VOD Guide
43 CUSTOMIZING SETTINGS
43 Accessing main menus
44 - PICTURE settings
47 - AUDIO settings
48 - TIME settings

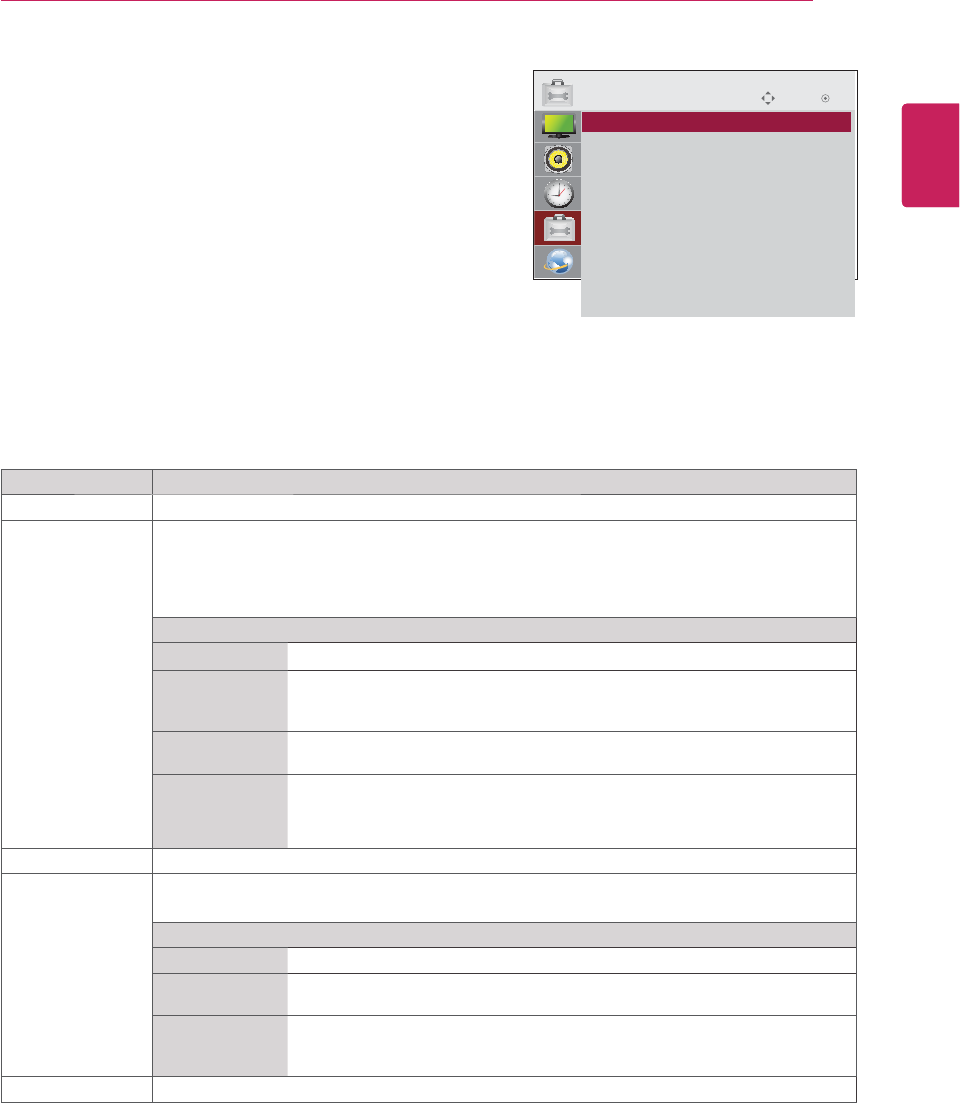

49 - OPTION settings
52 - NETWORK settings

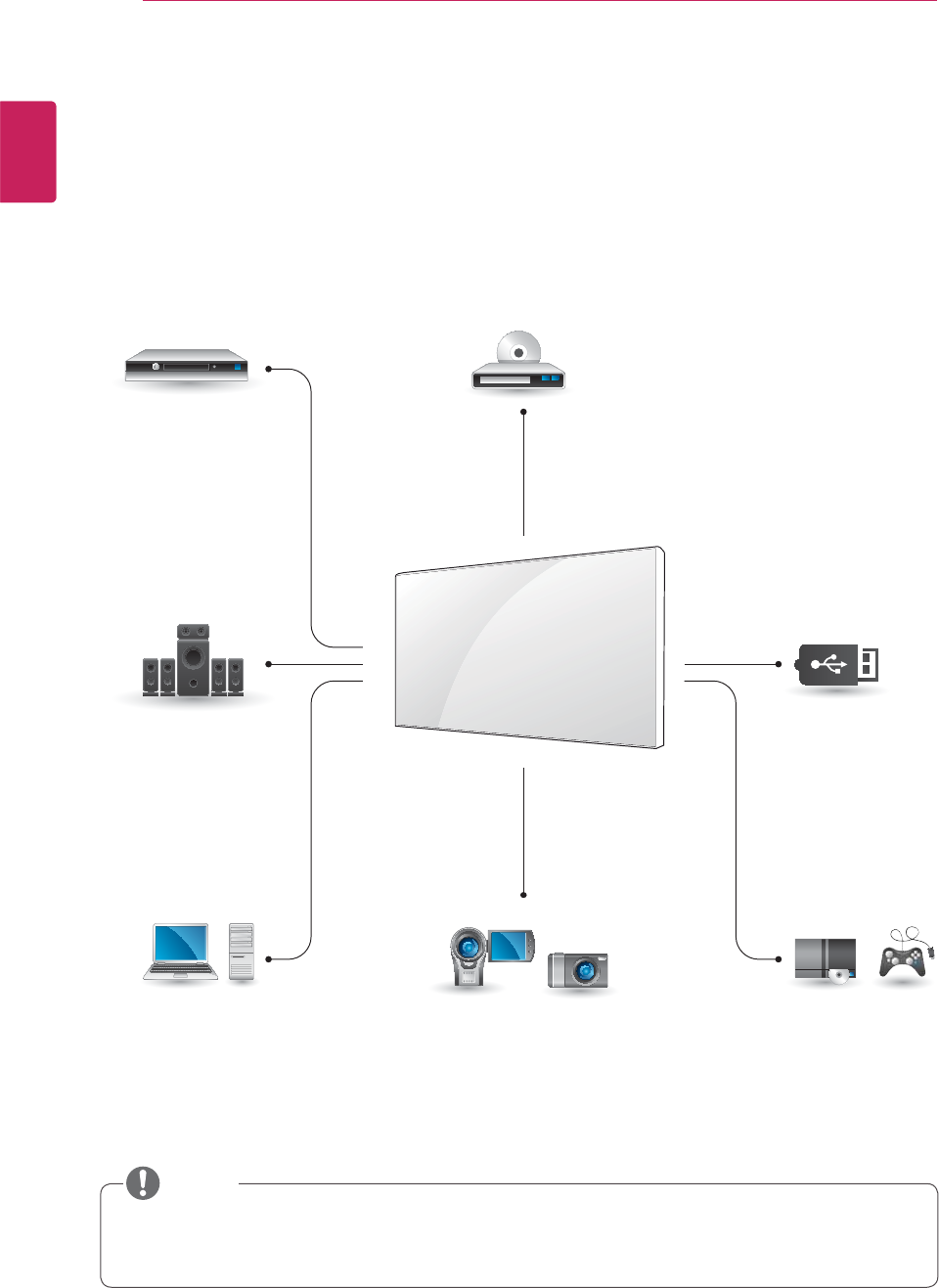

53 MAKING CONNECTIONS

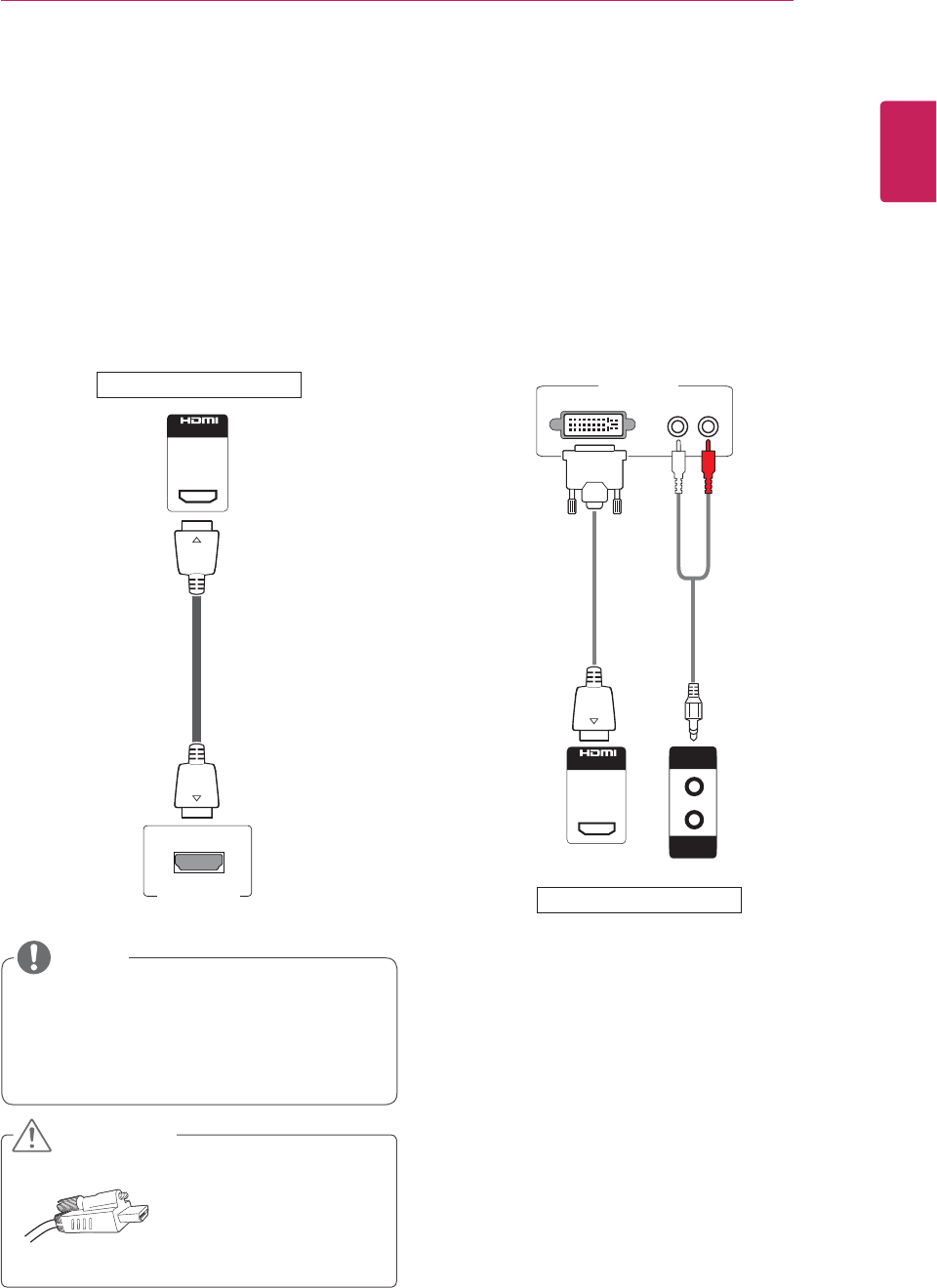

54 Connecting to a HD receiver, DVD or
VCR player
54 - HDMI connection
54 - DVI - HDMI connection

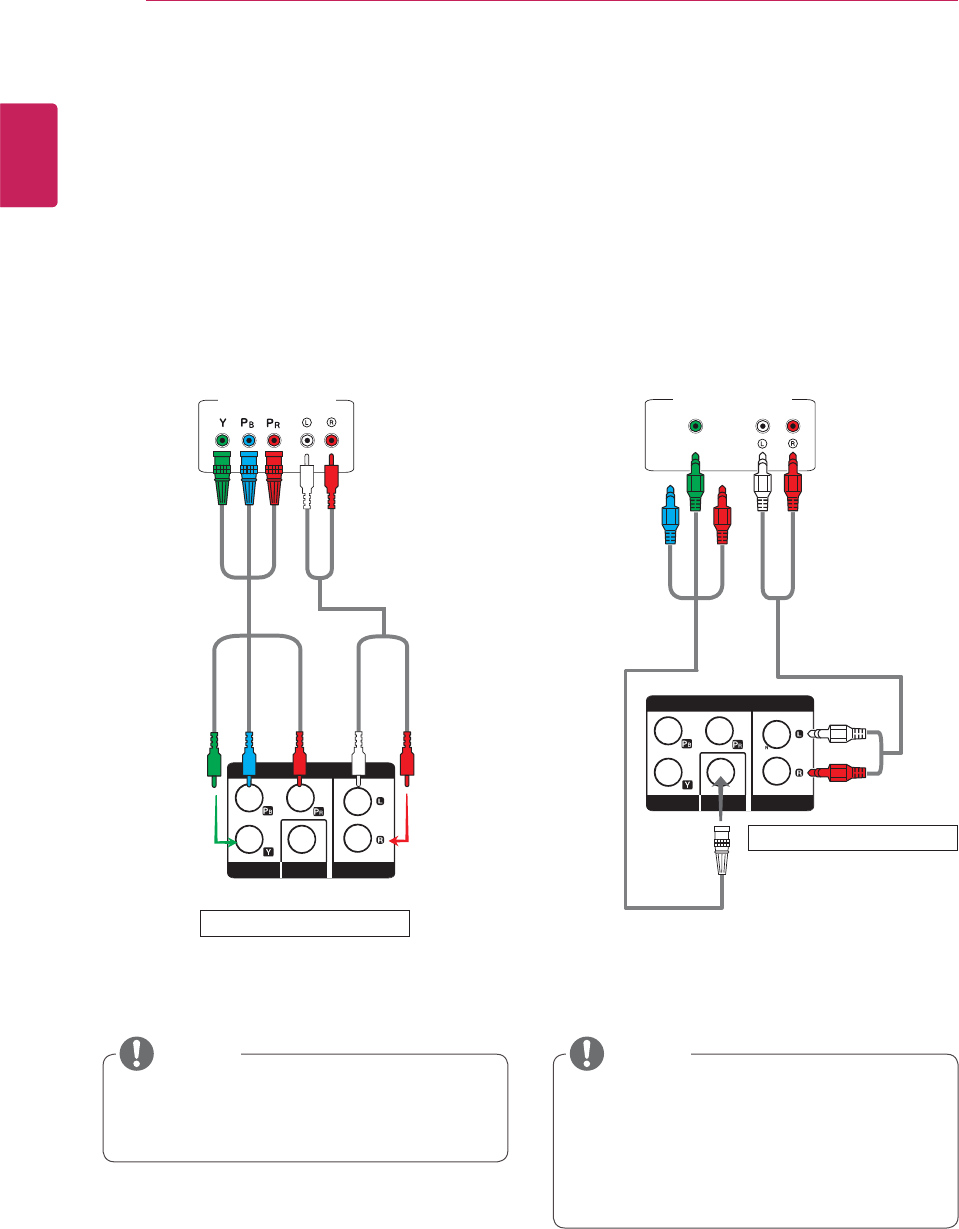

55 - Component connection
55 - AV connection (Only 47WV30BR and
47WV30MS)
3
ENG
ENGLISH
TABLE OF CONTENTS
56 Connecting to the LAN
56 - LAN connection

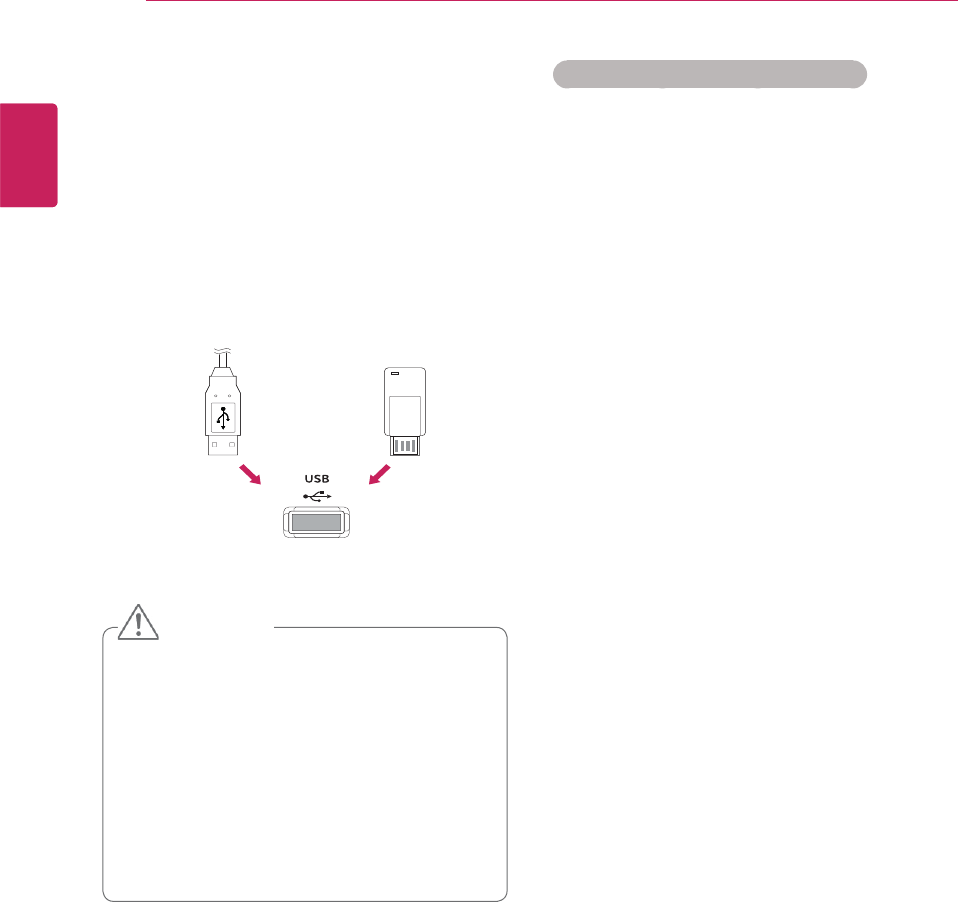

56 Connecting to a USB

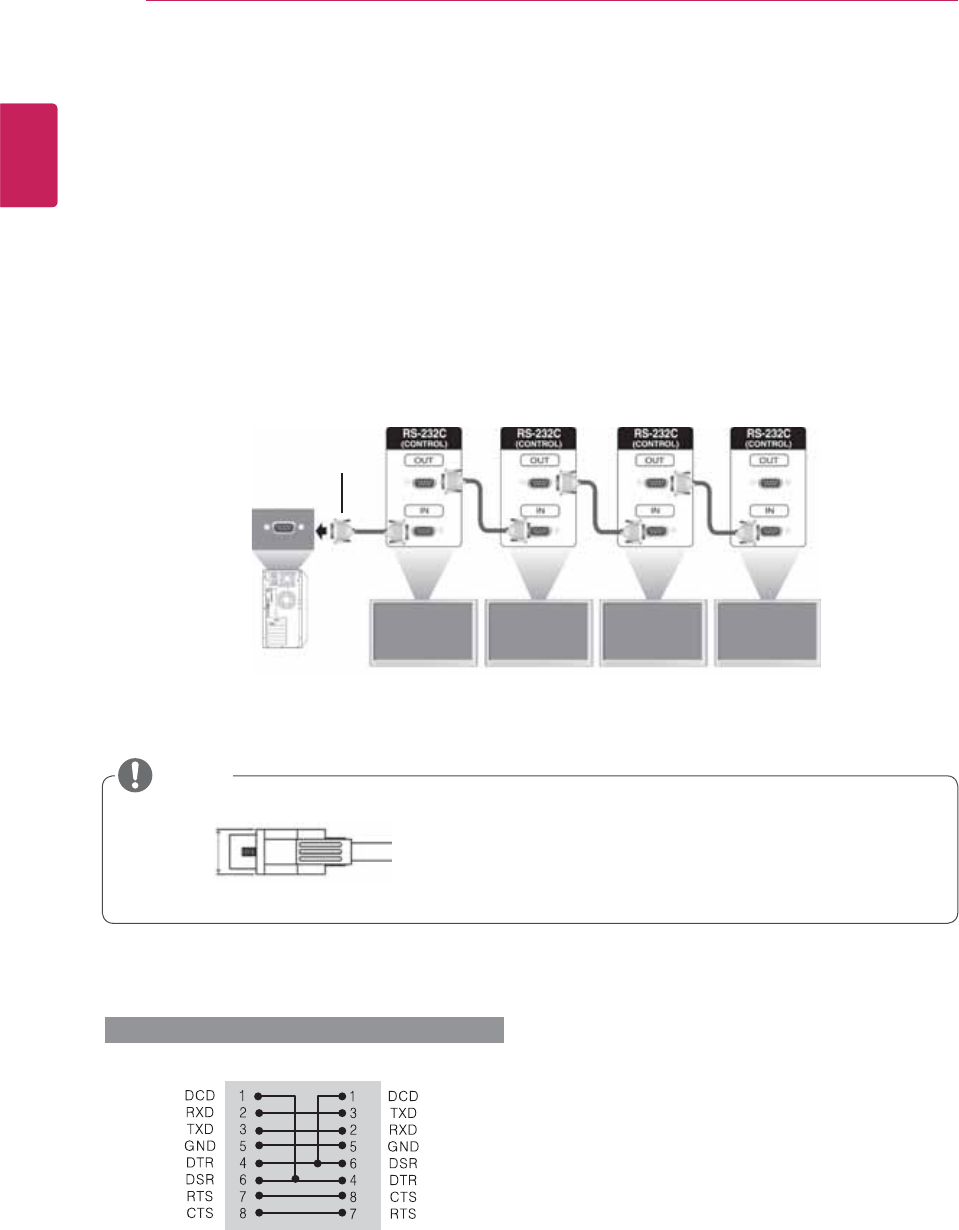

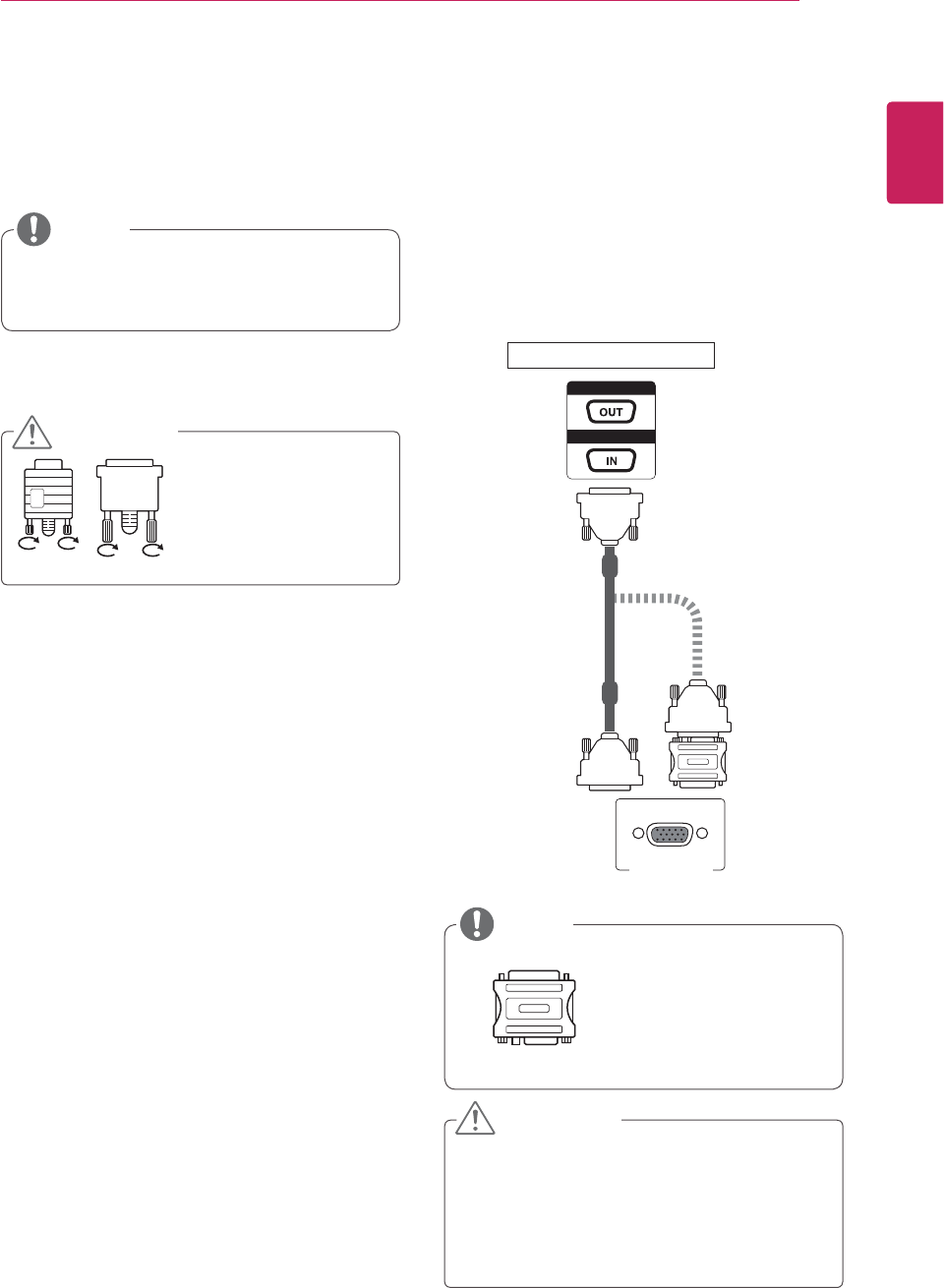

57 Daisy Chain Monitors
57 - RGB Cable
57 - DVI Cable
58 TROUBLESHOOTING
61 SPECIFICATIONS
63 RS-232 CONTROL
y The following three phenomena may occur due to the characteristics of the Super Narrow Bezel
LCD. They are not related to the display's performance.
1. The edges of the screen may become darker or shadows may appear.
2. Light leakage may occur depending on the viewing angle.
3. Some components such as the guide boss or clip may be visible on the edges of the screen.
NOTE
4
ENG
ENGLISH
LICENSE
LICENSE
A different license is supported depending on the model. Visit www.lg.com for more information on the
license.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D
symbol are trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified® device that
plays DivX video. Visit divx.com for more information and software tools to
convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be
registered in order to play purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete your
registration.
DivX Certified® to play DivX® video up to HD 1080p, including premium content.
DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation
or its subsidiaries and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274
5
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING

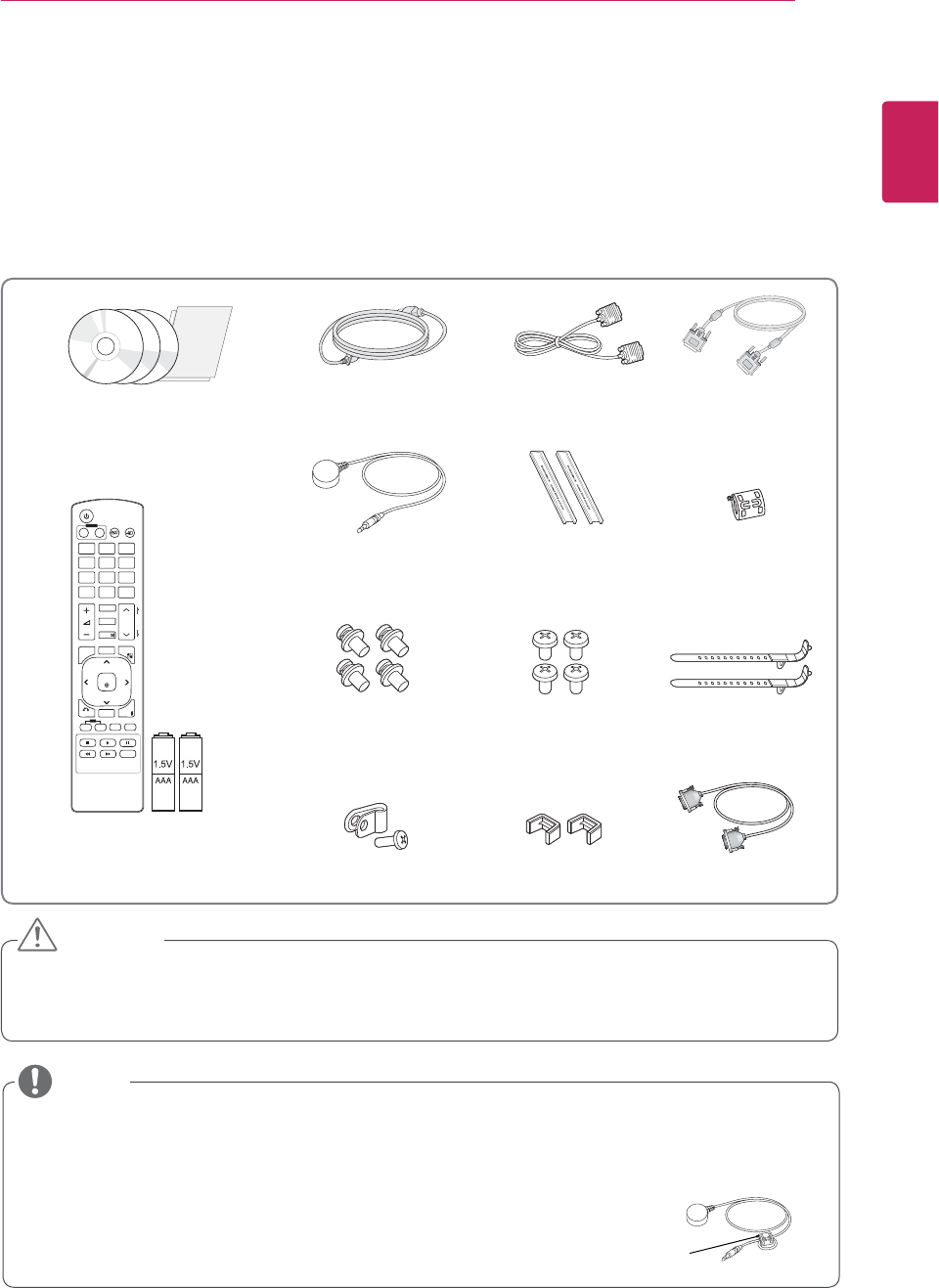

Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
y Do not use any pirated items to ensure the safety and product life span.
y Any damages or injuries by using pirated items are not covered by the warranty.
y The accessories supplied with your product may vary depending on the model.
y Product specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
y How to Use a Ring Core
A ring core reduces electromagnetic waves emitted from the IR receiver.
Loop the cable through the core once, before using it as illustrated.
CAUTION
NOTE
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
POWER
OK
S.MENU
ID
BACK TILE
ON OFF
EXIT
Remote control and Batteries
Power Cord DVI Cable
IR Receiver Guide bracket
M4 x 10L
Screw (4ea)
Power cable holder U-shaped fixture RS-232C Cable
M6
Screw (4ea)
Ring Core
Cable holder
(2ea)
RGB Cable
Ring Core
CD (Owner's Manual, SuperSign
Program, SuperSign Manual) /
Card
6
ENG
ENGLISH
ASSEMBLING AND PREPARING

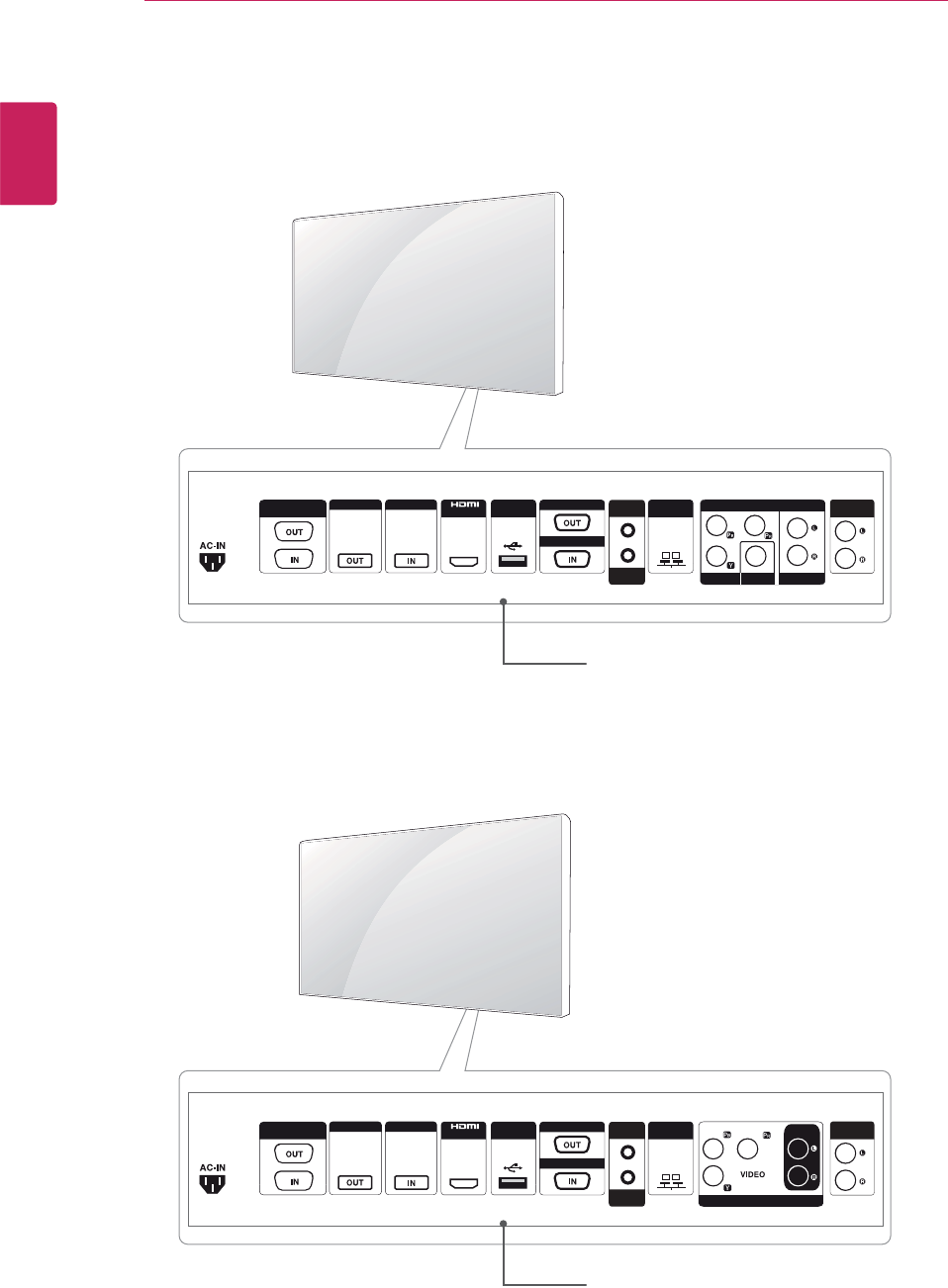

Parts
Connection panel
Connection panel
DVI OUT DVI IN COMPONENT IN
VIDEO AV IN AUIDO
RGB OUT
RGB IN
SPEAKER
(8Ω)
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
USB LAN
RS-232C
(CONTROL)
/DVI
DVI OUT DVI IN
COMPONENT IN
RGB OUT
RGB IN
SPEAKER
(8Ω)
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
USB LAN AUDIO
RS-232C
(CONTROL)
/DVI
< 47WV30MS/47WV30BR >
< 47WV30BS/47WV30-BAAM/47WV30-BAAL >
7
ENG
ENGLISH
ASSEMBLING AND PREPARING
To install in a Portrait Layout
When installing in a Portrait Layout, rotate the monitor clockwise 90 degrees (when facing the screen).
Remove L-brackets before Installation
Remove the L-brackets from each corner of the monitor before installing it.
Keep the removed L-brackets and use them when moving the monitor later.
NOTE
8
ENG
ENGLISH
ASSEMBLING AND PREPARING

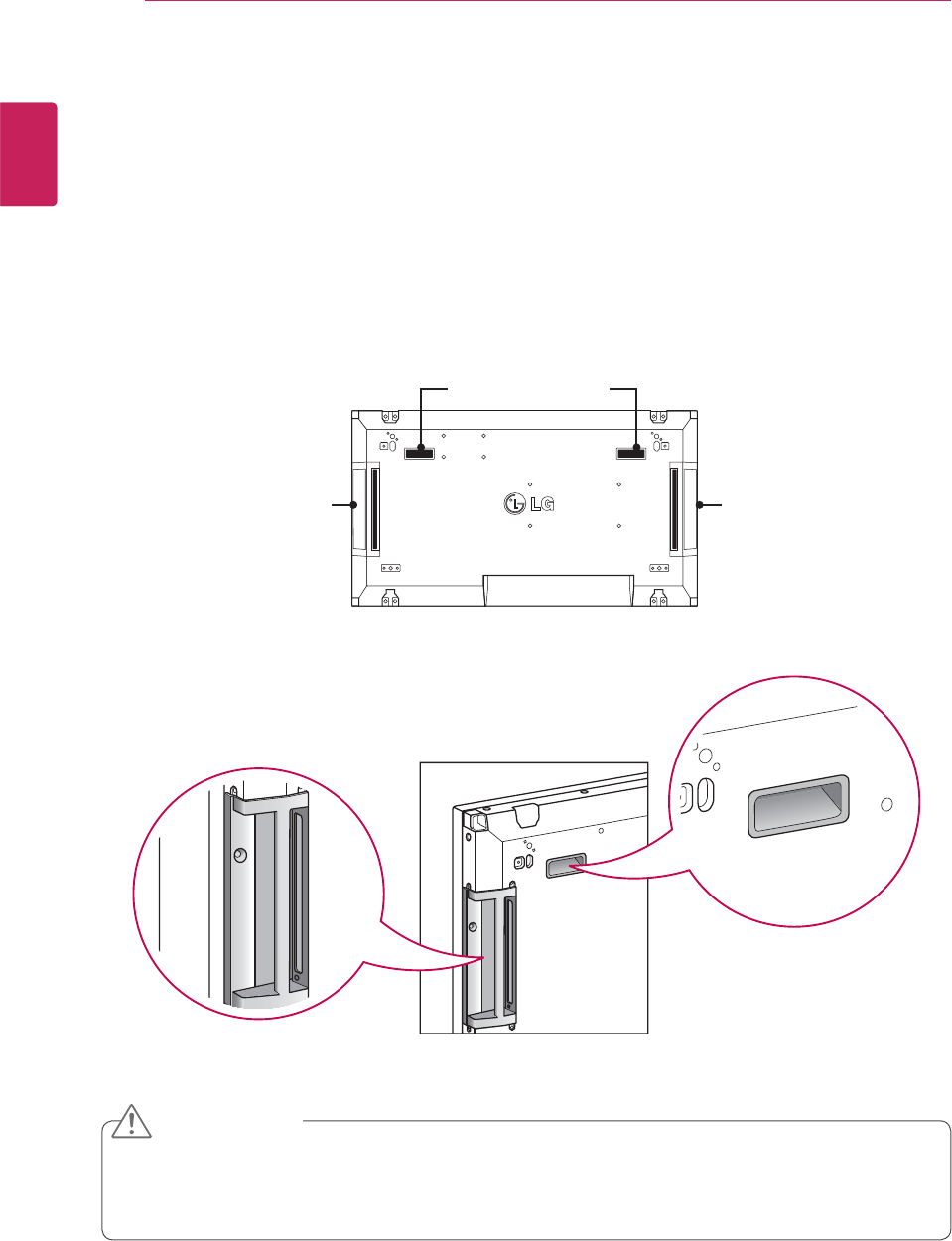

Moving the device in a vertical
position
Moving Handles
Moving the device in a horizontal
position
Hold the vertical handles on the left and right
sides or the left and right handles on the back of
the display.
Have the screen facing down and hold the vertical
handles on the left and right sides.
Left and right handles
at the back
Vertical handle
on the side
Vertical handle
on the side
y Be careful not to directly touch the panel or expose it to shock when moving the monitor.
y Hold the monitor with the handles as the corners of the front panel are sharp, which may cause an
injury.
CAUTION
9
ENG
ENGLISH
ASSEMBLING AND PREPARING

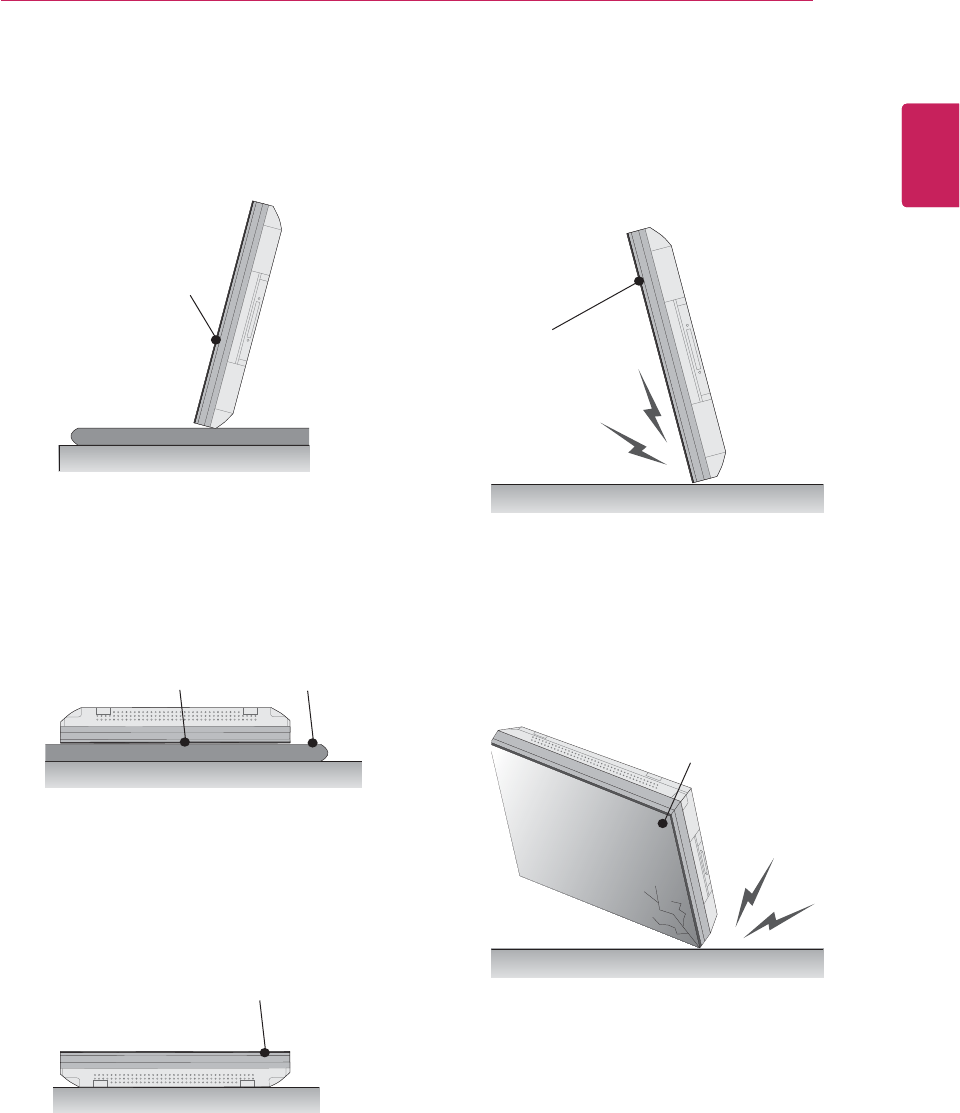

Correct Method Incorrect Method
STORAGE METHOD FOR PANEL PROTECTION
Panel
Panel
Cushion
If the product needs to be set upright, hold both
sides of the product, and tilt backward carefully
for. Do not let the panel not to touch the floor.
When laying down the product, lay a cushion on a
flat floor. Put the product on it with the panel of
the product facing down.
If there is not a cushion available, ensure the floor is
clean and then lay the product down carefully with the
panel facing either upward or downward.
At this time,
be careful for objects not to fall on the panel.
Panel
Panel
Panel
If the product is tilted onto the bezel, the bottom of
the panel may be damaged.
If the product is tilted onto the edge of the panel,
the panel may be damaged.
10
ENG
ENGLISH
ASSEMBLING AND PREPARING
y Disconnect the power cord first, and then
move or install the Monitor set. Otherwise
electric shock may occur.
y If you install the Monitor set on a ceiling or
slanted wall, it may fall and result in severe
injury. Use an authorized LG wall mount
and contact the local dealer or qualified
personnel.
y Do not over tighten the screws as this may
cause damage to the Monitor set and void
your warranty.
y Use the screws and wall mounts that
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
y Use the screws that are listed on the VESA
standard screw specifications.
y The wall mount kit includes an installation
manual and necessary parts.
y The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
y The length of screws may differ depending
on the wall mount. Be sure to use the proper
length.
y For more information, refer to the
instructions supplied with the wall mount.
CAUTION
NOTE
NOTE
y Do not install the product in a place with
no ventilation (e.g., on a bookshelf or in a
closet) or on a carpet or cushion. If there is
no other option but to mount the product on
the wall, make sure that sufficient ventilation
is provided before installation.
- Failure to do so may result in a fire due to
the increase in the internal temperature.
If you want to mount the monitor on the wall (op-
tional), attach the wall mounting bracket to the rear
of the monitor.
Make sure that the wall mounting bracket is se-
curely fixed to the monitor and to the wall.
Use the wall mount plate and screws that comply
with the VESA standard.
Use the wall mount plate and screws conforming
to the VESA standard.

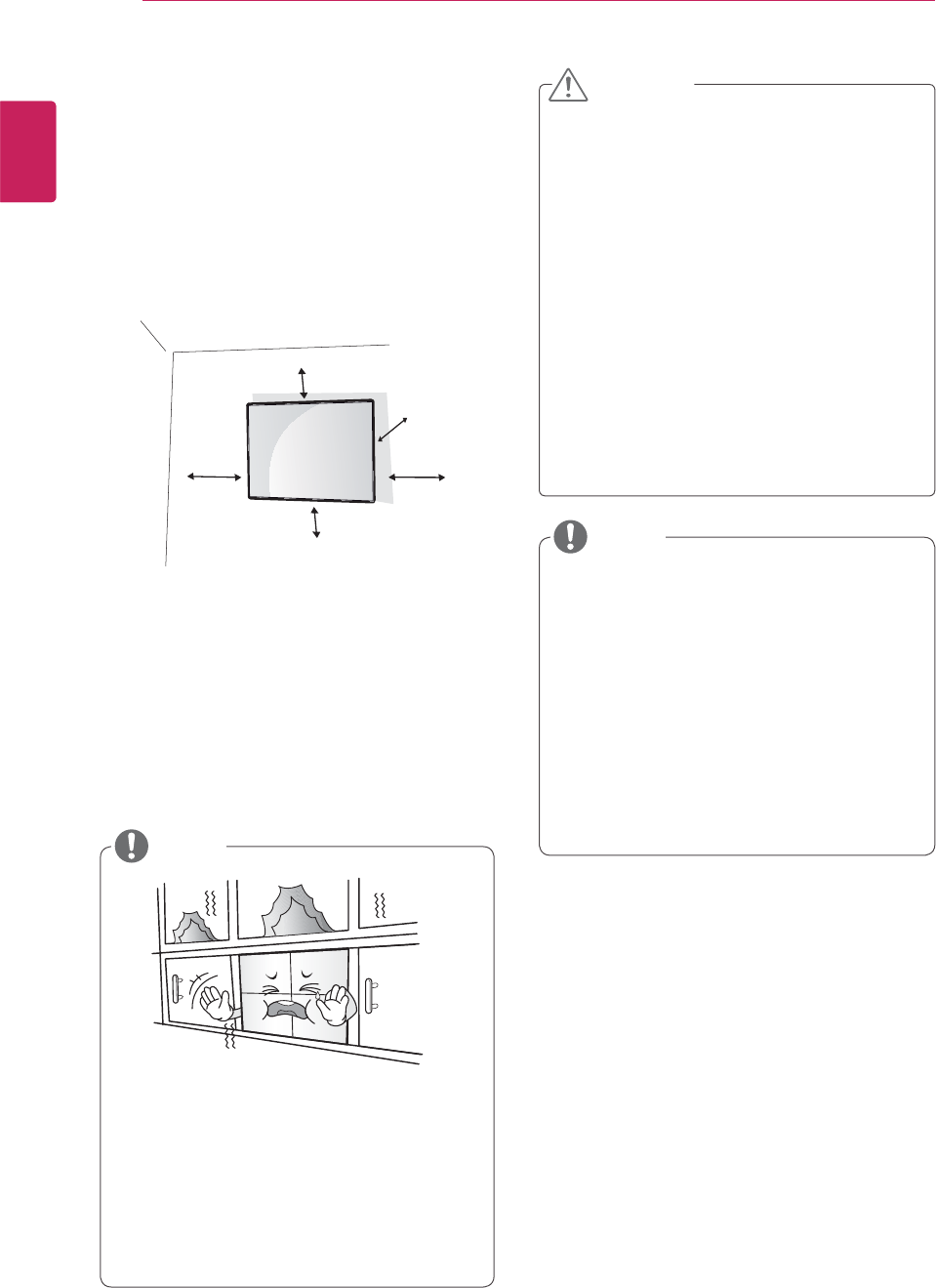

Installing on a wall
Install the monitor at least 10 cm away from the
wall and leave about 10 cm of space at each side
of the monitor to ensure sufficient ventilation. De-
tailed installation instructions can be obtained from
your local retail store. Please refer to the manual
to install and set up a tilting wall mounting bracket.
10 cm
10 cm
10 cm 10 cm
20 cm
11
ENG
ENGLISH
ASSEMBLING AND PREPARING
EXTERNAL EQUIPMENT SETUP

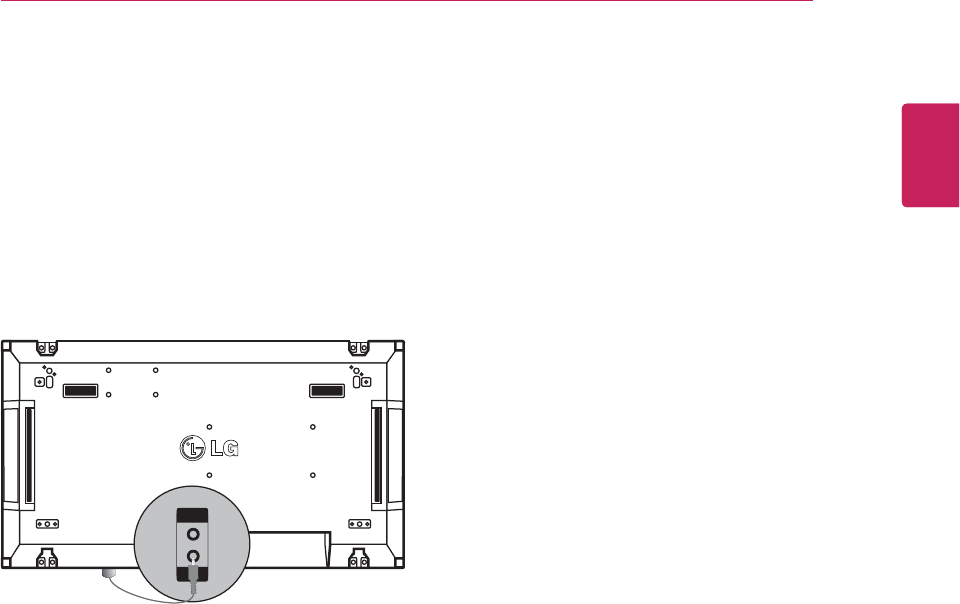

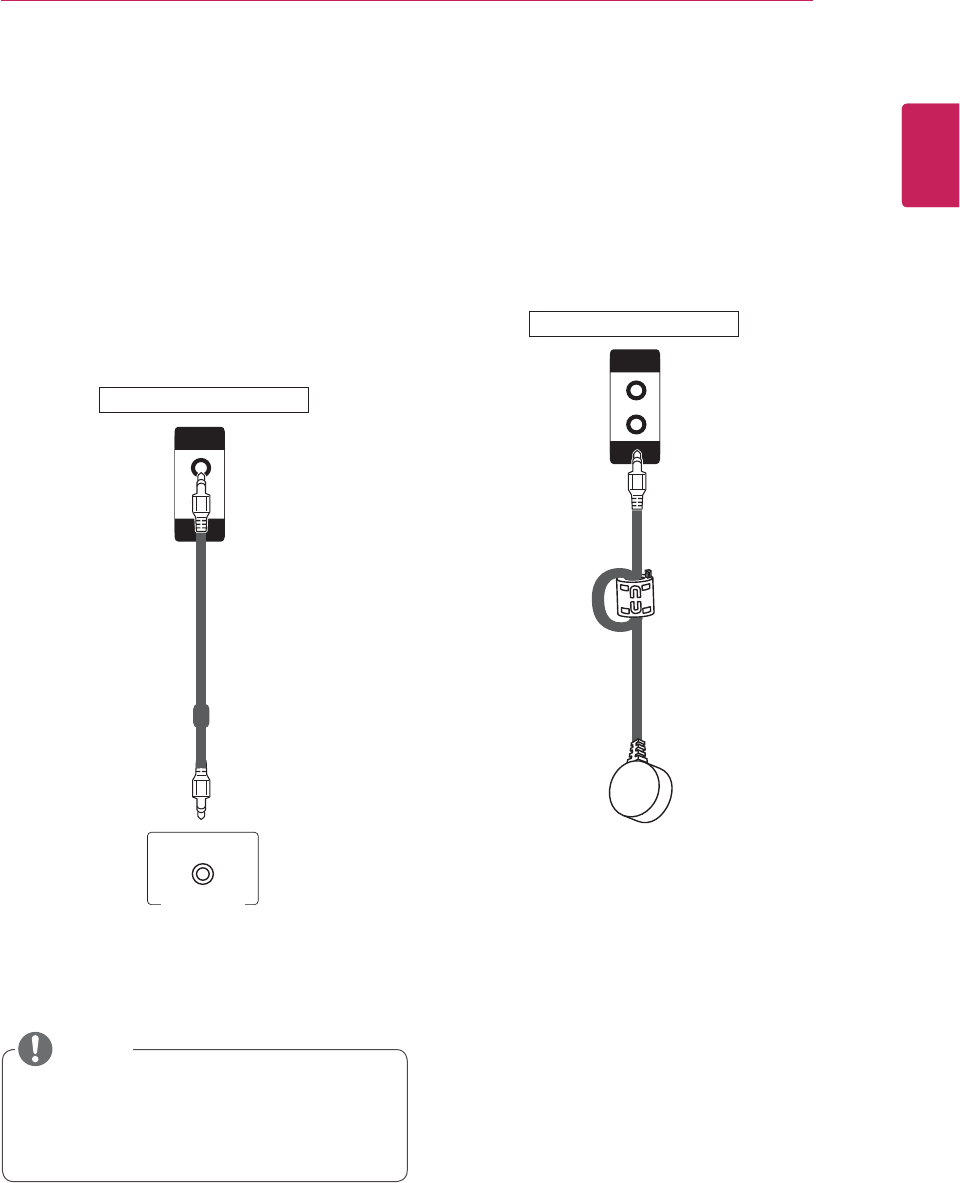

IR RECEIVER
This allows a remote control sensor to be placed
in a custom location. Then that display can control
other displays via an RS-232 cable. Refer to page
19 for more information.
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
12
ENG
ENGLISH
ASSEMBLING AND PREPARING

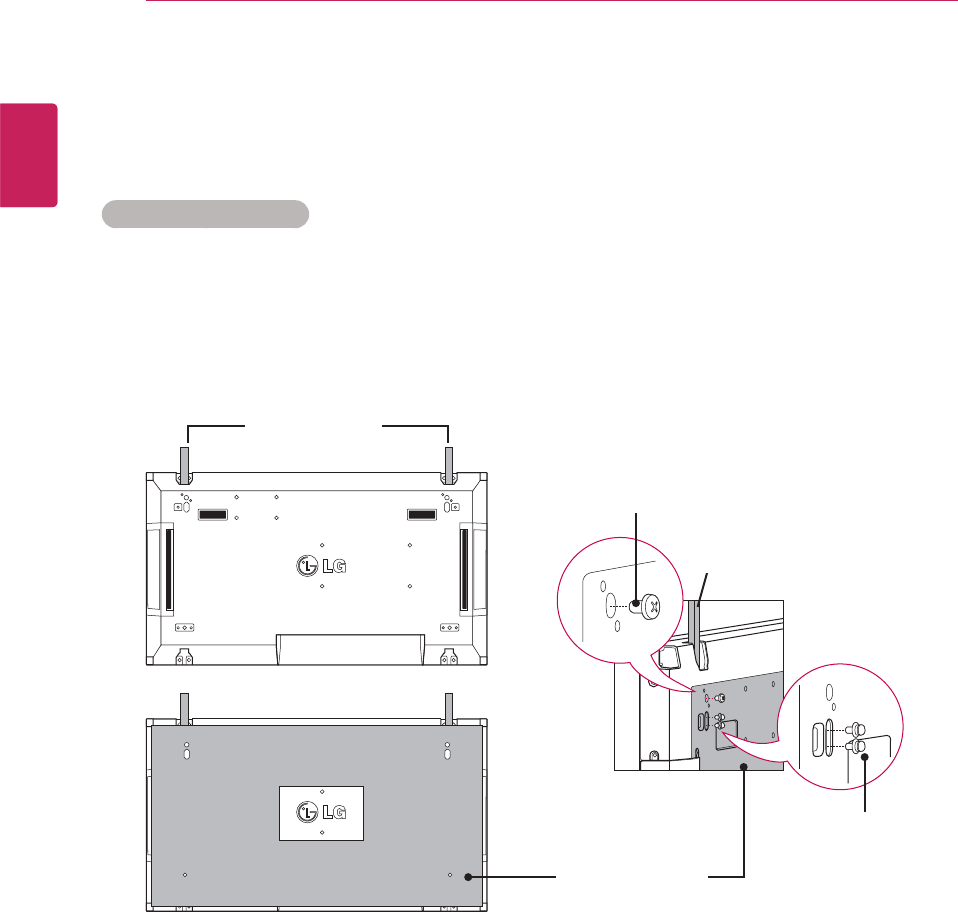

How to Join Sets - Installing Set 1
Tiling Displays
*Example of 2 x 2 tiling
* The numbers assigned in this example (#1, #2, #3, #4) are used to demonstrate the installation procedure
to ensure it is easy to follow. These numbers have nothing to do with the Set ID that is used to operate the
remote control. Set the guide bracket into the bracket groove using screws and mount the set to the wall
mount plate or the wall.
* The wall mount plate is shaded in gray in the illustration to help you see it.
Guide bracket
Guide bracket
VESA wall mount
Wall mount plate
Screws for fixing
the guide bracket
<Rear view of the set with the wall mount plate>
13
ENG
ENGLISH
ASSEMBLING AND PREPARING
<The sets joined with the guide brackets> <The sets after removing the guide brackets>
<Removing the guide bracket through
the side gap>
How to Join Sets - Installing Set 2
How to remove the guide brackets
* Unscrew the guide bracket screws from the rear of the set and remove the guide brackets.
* Once the screws are removed, the guide brackets will drop. You need to remove them through the gap
on the sides of the set.
* This can be done only when there is enough space between the set and the wall mount plate or the wall
to unscrew the screws. (Please check whether there is enough space to remove the screws before fixing
the guide brackets.)
Join Set 2 to Set 1 using the guide brackets on the top side of Set 1 and mount the two sets to the wall
mount plate or the wall.
Remove the guide brackets after mounting the sets.
Guide bracket
<Rear view of the set with the wall mount plate>
Remove the
guide brackets
14
ENG
ENGLISH
ASSEMBLING AND PREPARING
<Joined Sets 1 and 2> <Set 3 to be joined>
Fix the guide brackets to Set 3 following the steps above, and loosely mount the set to the wall mount
plate or the wall.
Minimize the space between the sides of the sets using the U-shaped fixture.
mount plate or the wall.
When the sets are firmly mounted to the wall, remove the U-shaped fixtures.
How to Join Sets - Installing Set 3
#2
#1 #3
15
ENG
ENGLISH
ASSEMBLING AND PREPARING
Set 4 joined to the rest of the sets
(2 x 2 tiling)
Wall mount plate or wall
Display set
Loosely mount Set 4 to the wall mount plate or the wall and minimize the space between the sets using
the U-shaped fixtures.
When Set 4 is firmly mounted to the wall, remove the U-shaped fixtures.
Remove the guide brackets. See <How to Join Sets - Installing Set2,3>.
Now the 2 x 2 tiling is complete.
You can tile in various combinations, such as 3 x 3.
How to Join Sets - Installing Set 4
y The guide brackets for tiling should only be used to join sets and should be removed once they are joined.
y The guide brackets should only be used as the assisting tool when tiling sets. The load applied to each set
should be supported by the wall mount plate or the wall using a VESA wall mount (800 x 400).
y (Each set must be firmly mounted to the wall mount plate or the wall.)
y The guide brackets must be removed once the sets are joined. When joining the sets without removing the
guide brackets, extra caution is required to prevent damage due to the set weight.
y The U-shaped fixtures must also be removed after mounting the set to the wall mount plate or the wall.
y
performance of the device.
NOTE
16
ENG
ENGLISH
ASSEMBLING AND PREPARING
As illustrated, insert two cable holders into the
holes at the bottom rear of the set to organize the
cable bundles.
As illustrated, screw the power cable holder into
the hole on the bottom rear of the set to hold the
power cables together. (This is to put the power
cables inside the holder.)
Inserting the Cable Holder
17
ENG
ENGLISH
REMOTE CONTROL
REMOTE CONTROL
The descriptions in this manual are based on the buttons of the remote control. Please
read this manual carefully and use the Monitor set correctly.
To replace batteries, open the battery cover, replace
batteries (1.5 V AAA) matching and ends to the
label inside the compartment, and close the battery
cover. To remove the batteries, perform the installation
actions in reverse.
Make sure to point the remote control to the remote control sensor on the Monitor set.
CAUTION
y Do not mix old and new batteries, as this
may damage the remote control.
y Make sure to point the remote control at the
remote control sensor on the Monitor.
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK TILE
ON OFF
EXIT
POWER
P
A
G
E
INPUT
ENERGY
S
AVIN
G
MARK
ARC
. , !
ABC
DEF
G
HI
J
KL
MN
O
PQ
RS
TUV
1/a/A
-
*
#
WXYZ
C
LEA
R
O
N
OF
F
MONITOR
MONITOR
PSM
MU
TE
BRI
G
H
T
NESS
POWE
R
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
POWER
Power On / Off
Switches the set on from
standby or off to standby.
Monitor On / Off
Turn off the monitor and then
turn it back on.
1/a/A
This button selection is not
applicable.
Energy Saving
Adjust the Energy Saving
mode of the SET.
INPUT
If you press the button once, the
following Input Signal Window
will appear. Select the signal
type you want using the button.
Number and Alphabet
Type numbers.
The alphabet selection is not
applicable.
Clear
This button selection is not
applicable.
PSM
Selects the Picture Status
Mode.
Volume Up/Down
Adjusts the volume.
ARC
Selects the Aspect Ratio Mode.
BRIGHTNESS
Moves to the previous or next
screen.
MUTE
Switches the sound on or off.
18
ENG
ENGLISH
REMOTE CONTROL
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK TILE
ON OFF
EXIT
POWER
OK
S
.MEN
U
AUTO
MENU
ID
BA
C
K
T
IL
E
ON
OFF
E
XIT
E
OK
S.MENU
AUTO
MUTE
NESS
MENU
ID
BACK TILE
ON OFF
EXIT

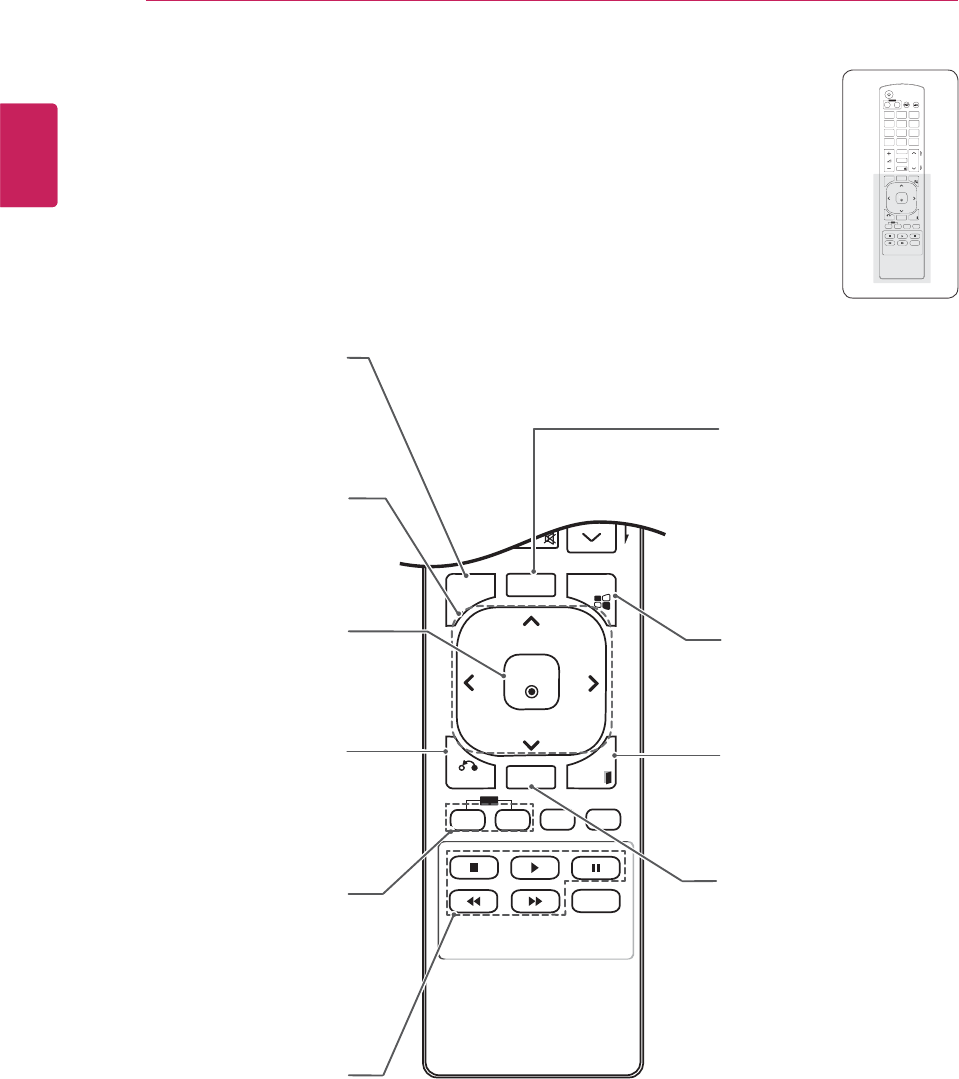

S.MENU
(SuperSign Menu Key)
This button selection is not
applicable.
EXIT
Clears all on-screen displays
and returns to Monitor set
viewing.
TILE
Selects the TILE Mode.
MENU(See p.43)
Selects a menu.
Clears all on-screen displays
and returns to Set viewing
from any menu.
Up/Down/Left/Right
Allows you to navigate the
on-screen menus and adjust
the system settings to your
preference.
OK
Accepts your selection or
displays the current mode.
BACK
Allows the user to move
back one step in an interactive
application.
USB Menu control
Controls media playback.
ID ON/OFF
Allows you to set the Picture
ID or turn it off. Use this
button to control the individual
monitors connected in RS-
232C mode. (It works properly
only when Set IDs are
assigned.)
AUTO
Automatically adjusts picture
position and minimizes image
instability.(RGB input only)
19
ENG
ENGLISH
REMOTE CONTROL
Displaying the device name connected to an input port
Display which devices are connected to which
external input ports.
ID
BACK TILE
ON OFF
EXIT
1 Access the Input list screen and press the blue
(input label) button on the remote control.
2 You can assign an input label for every input
except USB.
Input Label
Close
Component
AV
RGB
HDMI
DVI-D
y External inputs supported: AV, Component,
RGB, HDMI, DVI-D. (AV only support 47WV-
30BR and 47WV30MS)
y Labels available : VCR, DVD, Set top box,
Satellite, Game, PC, Blue-ray, HD-DVD
y The input labels are displayed on the Input
Label screen or at the top left of the screen
when you change the external input setting.
y For DTV/PC-compatible signals, such as
1080p 60 Hz, the screen settings may
change according to the input label. The Just
Scan option is available if a PC is connected
as an external device. (1080p only support
47WV30BR and 47WV30MS)
y 47WV30-BAAL/47WV30-BAAM/47WV30BS
does not support AV input.
NOTE
20
ENG
ENGLISH
REMOTE CONTROL
Picture ID
Picture ID is used to change the settings of a
specific set (display) using a single IR receiver for
multi-vision. The set receiving the IR signal com-
municates with another set via the RS232 connec-
tor. Each set is identified by a Set ID. If you as-
sign the Picture ID using the remote control, only
displays with the same Picture ID and Set ID can
be controlled remotely.
1 Press the ID On (Red) button on the remote con-
trol.
2 If you press the left/right buttons or press the
ON button repeatedly, the Picture ID cycles
through OFF and 1 to 4.Assign the ID you
want.
y If you assign the Set ID to each set with
multi-vision, and then assign the Picture ID
using the red button on the remote control,
the key command is displayed for the set
with the same Set ID and Picture ID. A set
with different Set IDs and Picture IDs cannot
be controlled by IR signals.
y Refer to the Set ID on page 46 for assigning
a Set ID.
y The maximum value of the Picture ID can be
set in the Total Set ID menu.
y Please refer to the Installation Manual for
more information on the assignment of a
Total Set ID.
ID
BACK TILE
ON OFF
EXIT
y For example, if the Picture ID is assigned
to 2, the upper right display (Set ID: 2) can
be controlled by IR signals.
y For each set, you can change the settings
for the PICTURE, AUDIO, TIME, OPTION,
NETWORK and MY MEDIA menus or the
hot keys on the remote control.
y If you press the ID OFF (Green) button,
the Picture IDs for all sets are turned off. If
you then press any button on the remote
control, all sets will start working again.
y The Picture ID function may not work dur-
ing MY MEDIA operating.
NOTE
Picture ID
Close
Off
2X2 Multi-Vision (Total Set ID: 4)
Set IDs are assigned as shown in the picture.
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
Ỏぎ LG=4
Slfwxuh#LG
vGGGGG
Forvh
pyGy
y z Y ZYj
Ỏぎ LG=5
Ỏぎ LG=6 Ỏぎ LG=7
Picture ID
Close
Off
21
ENG
ENGLISH
USING THE MONITOR SET
USING THE MONITOR SET
Connecting to a PC
y It is recommended to you use an HDMI
connection for the best image quality.
NOTE
RGB connection
Transmits an analog video signal from your PC to
the Monitor set. Connect the PC and the Monitor
set with the D-sub 15 pin cable as shown the
following illustrations. Select RGB input source on
the monitor.
RGB OUT
RGB IN
PC
y Do not press the screen with your finger for
this damage the screen.
y Avoid displaying a fixed image on the
screen for a long period of time to prevent
image burn. Use a screensaver if possible.
CAUTION
y Apple computers may
require an adapter
to connect to this
monitor. Call or visit
their web site for more
information.
NOTE
y Connect the signal
input cable and tighten
it by turning the screws
clockwise.
CAUTION
Back of the Monitor Set
22
ENG
ENGLISH
USING THE MONITOR SET
/DVI
y If you do not use an optional external
speaker, connect the PC to the Monitor set
with audio cable.
y Use a shielded signal interface cable, such
as D-sub 15 pin signal cable and DVI to
HDMI cable, with a ferrite core to maintain
standard compliance for the product.
y If you want to use HDMI-PC mode, you must
set the input label to PC mode.
NOTE
HDMI connection
Transmits the digital video and audio signals from
your PC to the Monitor set. Connect the PC and
the Monitor set with the HDMI cable as shown
in the following illustrations. Select HDMI input
source on the monitor.
DVI connection
Transmits the digital video signal from your PC to
the Monitor set. Connect the PC and the Monitor
set with the DVI cable as shown the following
illustrations.
Select DVI-D input source on the monitor.
y Use a High Speed HDMI™ Cable.
y Please check the PC environment if you
cannot hear the sound in HDMI mode.
y If you want to use HDMI-PC mode, you must
set the input label to PC mode.
y It may not be compatible if you use HDMI-PC
mode.
NOTE
PC
DVI IN
PC
(not included)
Back of the Monitor Set
Back of the Monitor Set
23
ENG
ENGLISH
USING THE MONITOR SET
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
NOTE
Audio connection
Transmits the audio signals from your PC to the
Monitor set. Connect the PC and the Monitor set
with the Audio cable as shown in the following
illustrations. You should set PC as an input label
to connect the PC to the Monitor set with an Audio
connection.
IR Receiver connection
Allows the use of a wired remote or IR receiver
extension.
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
PC
(not included)
y To ensure the best sound quality and
minimize noise, keep the cable as short as
possible.
Back of the Monitor Set
Back of the Monitor Set
24
ENG
ENGLISH
USING THE MONITOR SET
Adjusting the screen
Selecting an image mode
Display images using optimized settings by
selecting one of the preset image modes.
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to
PICTURE and press OK.
3 Press the Navigation buttons to scroll to
Picture Mode and press OK.
4 Press the Navigation buttons to scroll to an
image mode you want and press OK.
Customizing image options
Customize basic and advanced options of each
image mode for the best screen performance.
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to
PICTURE and press OK.
3 Press the Navigation buttons to scroll to
Picture Mode and press OK.
4 Press the Navigation buttons to scroll to an
image mode you want and press OK.
5 Select and adjust following options, and then
press OK.
Mode Description
Vivid Adjusts the video image for the retail
environment by enhancing the Contrast,
Brightness, Color, and Sharpness.
Standard Adjusts the image for the normal
environment.
Cinema Optimizes the video image for the
cinematic look and enjoy movies as if you
are in a movie theater.
Sports Optimizes the video image for high and
dynamic actions by emphasizing primary
Colors such as white, grass, or sky blue.
Game Optimizes the video image for a fast
gaming screen such as PCs or games.
5 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Option Description
Backlight Adjusts the brightness of the screen
by controlling the LCD backlight. If
you decrease the brightness level,
the screen becomes darker and the
power consumption will be reduced
without any video signal loss.
Contrast Increases or decreases the gradient
of the video signal. You may use
Contrast when the bright part of the
image is saturated.
Brightness Adjusts the base level of the signal in
the image. You may use Brightness
when the dark part of the image is
saturated.
Sharpness Adjusts the level of crispness in the
edges between the light and dark
areas of the picture. The lower the
level, the softer the image.
Color Adjusts the balance between Red
and Green levels.
Tint Adjusts intensity of all Colors.
Color
Temperature
Set to warm to enhance hotter Colors
such as red, or set to cool to make
picture bluish.
25
ENG
ENGLISH
USING THE MONITOR SET
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Advanced
Control
Customizes the advanced options.
See more information about advanced
options See p.46.
Reset
Restores the options to the default
setting.
Customizing PC display options
Customize options of each image mode for the
best image quality.
y This function works in the following mode:
RGB[PC] mode.
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to
PICTURE and press OK.
3 Press the Navigation buttons to scroll to
Screen and press OK.
4 Select and adjust following options, and then
press OK.
Option Description
Resolution Selects a proper Resolution.
Auto
Configure
Sets to adjust the screen Position, Size
and Phase automatically. The displayed
image may be unstable for a few seconds
while the configuration is in progress.
Position/
Size/Phase
Adjusts the options when the image is
not clear, especially when characters are
shaky, after the auto configuration.
Reset Restores the options to the default
setting.
5 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Adjusting the sound
Selecting an sound mode
Play the sound in its optimized settings by
selecting one of the preset sound modes.
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to
AUDIO and press OK.
3 Press the Navigation buttons to scroll to Sound
Mode and press OK.
4 Press the Navigation buttons to scroll to a
sound mode you want and press OK.
Mode Description
Standard Selects when you want standard-quality
sound.
Music Selects when you listen to music.
Cinema Selects when you watch movies.
Sports Selects when you watch sports events.
Game Selects when you play games.
5 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
26
ENG
ENGLISH
USING THE MONITOR SET
Customizing sound options
Customize options of each sound mode for the
best sound quality.
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to
AUDIO and press OK.
3 Press the Navigation buttons to scroll to Sound
Mode and press OK.
4 Press the Navigation buttons to scroll to a
sound mode you want and press OK.
5 Select and adjust following options, and then
press OK.
Option Description
Infinite
Sound
LG's Infinity Sound option provides
5.1 channel stereo sound from two
speakers.
Treble Controls the dominant sounds in the
output. When you turn up the treble, it
will increase the output to the higher
frequency range.
Bass Controls the softer sounds in the
output. When you turn up the bass, it
will increase the output to the lower
frequency range.
Reset Resets the sound mode to the default
setting.
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Using additional options
Adjusting aspect ratio
Resize the image to view the image at its optimal
size by pressing ARC while you are watching
Monitor set.
y If a fixed image displays on the screen for a
long period of time, it will be imprinted and
become a permanent disfigurement on the
screen. This is “image burn” or “burn-in” and
not covered by the warranty.
y If the aspect ratio is set to 4:3 for a long
period of time, image burn may occur on
the letterboxed area of the screen.
CAUTION
You can also change the image size by
accessing the main menus.
NOTE
MODE
ARC
AV Component RGB DVI-D HDMI
PC DTV PC DTV PC
16:9 o o o oooo
Just Scan xo xoxox
1:1 xx oxoxo
4:3 o o o oooo
Zoom oo xoxox
Cinema
Zoom
oo xoxox
27
ENG
ENGLISH
USING THE MONITOR SET
- 4:3 : This selection will allow you to view a
picture with an original 4:3 aspect ratio, black
bars will appear on both the left and right of the
screen.
- Zoom : This selection will allow you to view the
picture without any alteration, while filling the
entire screen. However, the top and bottom of
the picture will be cropped.
- Cinema Zoom : Choose Cinema Zoom when
you want to enlarge the picture in correct
proportion. Note: When enlarging or reducing
the picture, the image may become distorted.
- 16:9 : This selection will allow you to adjust the
picture horizontally, in linear proportion, to fill the
entire screen(useful for viewing 4:3 formatted
DVDs).
- Just Scan : This Selection will allow you view
the picture of best quality without loss of original
picture in high resolution image. Note: If there is
noise in original Picture, You can see the noise
at the edge.
- 1:1 : The aspect ratio is not adjusted from the
original. (Only HDMI PC, DVI-D PC, RGB PC)
* Pictures with resolution higher than 1366X768
are adjusted to the 1366x768 while maintaining
the original aspect ratio.
Just Scan
28
ENG
ENGLISH
ENTERTAINMENT
ENTERTAINMENT
Connecting to a wired network
(Depending on model)
Connect the display to a local area network (LAN)
via the LAN port as shown on the following illustra-
tion and set up the network settings.
Only supports wired network connection.
After making a physical connection, a small
number of netmworks may require the display net-
work settings to be adjusted. For most netmworks,
the display will connect to automatically without
any adjustments.
For detailed information, contact your internet
provider or router manual.
y Do not connect a modular phone cable to
the LAN port.
y Since there are various connection meth-
ods, please follow the specifications of
your telecommunication carrier or internet
service provider.
y Network setting menu will not be availa-
ble until the display connected to physical
network.
y Since there are various connection meth-
ods, please follow the specifications of
your telecommunication carrier or internet
service provider.
CAUTION CAUTION
To set up the network seetings: (Even if your dis-
play has already connected automatically, running
setup again will not harm anything),
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to NET-
WORK and press OK.
3 Press the Navigation buttons to select Net-
work Setting and press OK.
4 If you already set Network Setting, select
Resetting. The new connection settings resets
the current network settings.
5 Select IP Auto Setting or IP Manual Setting.
- If selecting IP Manual Setting, press the
Navigation and Number buttons. IP address-
es will need to be input manually.
- IP Auto Setting: Select this if there is a
DHCP server (Router) on the local area net-
work (LAN) via wired connection, the display
will automatically be allocated an IP address.
If you’re using a broadband router or broad-
band modem that has a DHCP (Dynamic
Host Configuration Protocol) server function.
The IP address will automatically be deter-
mined.
6 When you are finished, press EXIT.
LAN
Router
LAN WAN
Cable modem
ETHERNET
@
Internet
Internet
Cable modem
Router
29
ENG
ENGLISH
ENTERTAINMENT
y If you want to access the Internet directly
on your display, the internet connection
should always be on.
y If you cannot access the Internet, check
the network conditions from a PC on your
network.
y When you use Network Setting, check
the LAN cable or check if DHCP in the
router is turned on.
y If you do not complete the network set-
tings, the network may not work properly.
NOTE
Tips for Network setting
y Use a standard LAN cable with this display. Cat5
or better with a RJ45 connector.
y Many network connection problems during set
up can often be fixed by re-setting the router
or modem. After connecting the display to the
netmwork, quickly power off and/or disconnect
the power cable of the netmwork router or cable
modem. Then power on and/or connect the
power cable again.
y Depending on the internet service provider
(ISP), the number of devices that can receive
internet service may be limited by the applicable
terms of service. For details, contact your ISP.
y LG is not responsible for any malfunction of the
display and/or the internet connection feature
due to communication errors/malfunctions as-
sociated with your internet connection, or other
connected equipment.
y LG is not responsible for problems within your
internet connection.
y You may experience undesired results if the
network connection speed does not meet the
requirements of the content being accessed.
y Some internet connection operations may not
be possible due to certain restrictions set by the
Internet service provider (ISP) supplying your
Internet connection.
y Any fees charged by an ISP including, without
limitation, connection charges are your respon-
sibility.
y A 10 Base-T or 100 Base-TX LAN port is
required when using a wired connection to this
display. If your internet service does not allow for
such a connection, you will not be able to con-
nect the display.
y A DSL modem is required to use DSL service
and a cable modem is required to use cable
modem service. Depending on the access
method of and subscriber agreement with your
ISP, you may not be able to use the internet
connection feature contained in this display or
you may be limited to the number of devices you
can connect at the same time. (If your ISP limits
sub-scription to one device, this display may
not be allowed to connect when a PC is already
connected.)
y The use of a “Router” may not be allowed or its
usage may be limited depending on the policies
and restrictions of your ISP. For details, contact
your ISP directly.
Network Status
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to NET-
WORK and press OK.
3 Press the Navigation buttons to select Net-
work Status.
4 Press OK to check the network status.
5 When you are finished, press EXIT.
Option Description
Setting Return to the network setting menu.
Test Test the current network status after set-
ting the network.
Close Return to the previous menu.
30
ENG
ENGLISH
ENTERTAINMENT
Tips for using USB storage devices
y Only a USB storage device is recognizable.
y If the USB storage device is connected
through a USB hub, the device is not recog-
nizable.
y A USB storage device using an automatic
recognition program may not be recognized.
y A USB storage device which uses its own
driver may not be recognized.
y The recognition speed of a USB storage
device may depend on each device.
y Please do not turn off the display or unplug
the USB device when the connected USB
storage device is working. When such device
is suddenly separated or unplugged, the
stored files or the USB storage device may
be damaged.
y Please use only a USB storage device which
was formatted as a FAT32 file system or
NTFS file system provided with the Win-
dows operating system. In case of a storage
device formatted as a different utility program
which is not supported by Windows, it may
not be recognized.
y Please connect power to a USB storage
device(over 0.5 A) which requires an external
power supply. If not, the device may not be
recognized.
y Please connect a USB storage device with
the cable provided by the device maker.
y Some USB storage devices may not be sup-
ported or operated smoothly.
y File alignment method of USB storage
device is similar to Window XP and filename
support of up to 100 English characters.
y Be sure to back up important files since data
stored in a USB memory device may be
damaged. We will not be responsible for any
data loss.
Connecting USB storage de-
vices
Connect USB storage devices such as a USB
flash memory, external hard drive to the display
and use multimedia features (See "Browsing files"
on page 31).
Connect a USB flash memory or USB memory
card reader to the Display as shown on the follow-
ing illustration. The My media screen appears.
y Do not turn the display off or remove a
USB storage device while my media-
Menu is activated, as this could result in
loss of files or damage to the USB stor-
age device.
y Back up your files saved on a USB stor-
age device frequently, as you may lose
or damage the files and this may be not
covered by the warranty.
CAUTION
or
31
ENG
ENGLISH
ENTERTAINMENT
y If the USB HDD does not have an external
power source, the USB device may not be
detected. So be sure to connect the external
power source.
- Please use a power adaptor for an external
power source. We do not guarantee an USB
cable for an external power source.
y If your USB memory device has multiple
partitions, or if you use a USB multi-card
reader, you can use up to 4 partitions or USB
memory devices.
y If a USB memory device is connected to a
USB multi-card reader, its volume data may
not be detected.
y If the USB memory device does not work
properly, disconnect and reconnect it.
y How fast a USB memory device is detected
differs from device to device.
y If the USB is connected in Standby Mode,
specific hard disk will automatically be
loaded when the display is turned on.
y The recommended capacity is 1 TB or less
for a USB external hard disk and 32 GB or
less for USB memory.
y Any device with more than the recommended
capacity may not work properly.
y If a USB external hard disk with a “Energy
Saving” function does not work, turn the
hard disk off and on again to make it work
properly.
y USB storage devices below USB 2.0 are
supported as well. But they may not work
properly in the movie list.
y Maximum of 999 folders or files can be rec-
ognized under one folder.
Browsing files
Access the photo, music, or movie lists and browse
files.
1 Connect a USB storage device.
2 Press MENU to access the main menus.
3 Press the Navigation buttons to scroll to My
Media and press OK.
4 Press Navigation buttons to scroll to MUSIC
LIST, PHOTO LIST or MOVIE LIST and press
OK.
No. Description
1Moves to upper level folder
2Current page/Total pages
3Corresponding buttons on the
remote control
4
Current page/ total pages of
contents under the folder
focused on 1
5Contents under the folder
focused on 1
Buttom Description
Green
button
Repeatedly, press the GREEN button to
converted to Photo List->Music List,
Music List->Movie List or Movie List-
>Photo List.
Yellow
button
A method to view in 5 large thumbnail
or simple list.
Blue
button Convert to Mark Mode.
Page 1/1
Photo List
Drive1 Page 1/1
USB External
001
010 011 012 013 014 015
002 003 004 005 006 007 008 009
To Music List Change Numbers
Mark Mode
Exit
View
Move
11 2
3
4
5
PAGE Page Change
Movie List Music ListPhoto List
32
ENG
ENGLISH
ENTERTAINMENT
Supported file format
Type Supported file format
Movie DAT,MPG,MPEG,VOB,AVI,DIVX,MP4,MKV,
TS,TRP,TP,ASF,WMV,FLV)
Movie(*.mpg/*.mpeg/*dat/*.ts/*.trp/*.tp/*.
vob/*.mp4/*.mov/*.mkv/*.divx/*.avi/*.asf/*.
wmv/*.flv/*.avi(motion-jpeg)/*.
mp4(motion-jpeg)/*.mkv(motion-jpeg))sup-
porting file
Video format : DivX3.11, DivX4.12,
DivX5.x, DivX6, Xvid1.00, Xvid1.01,
Xvid1.02, Xvid1.03, Xvid1.10 beta-1/beta-2,
Mpeg-1, Mpeg-2, Mpeg-4, H.264/AVC, VC1,
JPEG, Sorenson H.263
Audio format : Dolby Digital, AAC, Mpeg,
MP3, LPCM, HE-AAC, ADPCM, WMA
Bit rate : within 32 kbps to 320 kbps(MP3)
External Subtitle format : *.smi/*.srt/*.sub
(MicroDVD,Subviewer1.0/2.0)/*.ass/*.ssa/*.
txt(TMPlayer)/*.psb(PowerDivX)
Internal Subtitle format : only, XSUB (It is
the subtitle format used in DivX6 files)
Photo JPEG
Baseline : 64 x 64 to 15360 x 8640
Progressive : 64 x 64 to 1920 x 1440
yYou can play JPEG files only.
yNon-supported files are displayed in the
form of predefined icon.
Only 3D Models
File
Extensions
Item Profile
2D jpeg
jpg
jpe
supported
file format
ySOF0:
baseline
ySOF1:
Extend
Sequential
ySOF2:
Progressive
photo size
yMin:
64 X 64
yMax-Normal
Type:
15360
(W) X 8640 (H)
yProgressive
Type:
1920
(W) X 1440 (H)
3D mpo supported
file format
mpo
photo size
y4:3 size:
3,648 x 2,736
2,592 x 1,944
2,048 x 1,536
y3:2 size:
3,648 x 2,432
Music MP3
Bit rate 32 to 320
ySampling rate MPEG1 Layer3 : 32 kHz,
44.1 kHz, 48 kHz
ySampling rate MPEG2 Layer3 : 16 kHz,
22.05 kHz, 24 kHz
ySampling rate MPEG2.5 Layer3 : 8 kHz,
11.025 kHz, 12 kHz
33
ENG
ENGLISH
ENTERTAINMENT

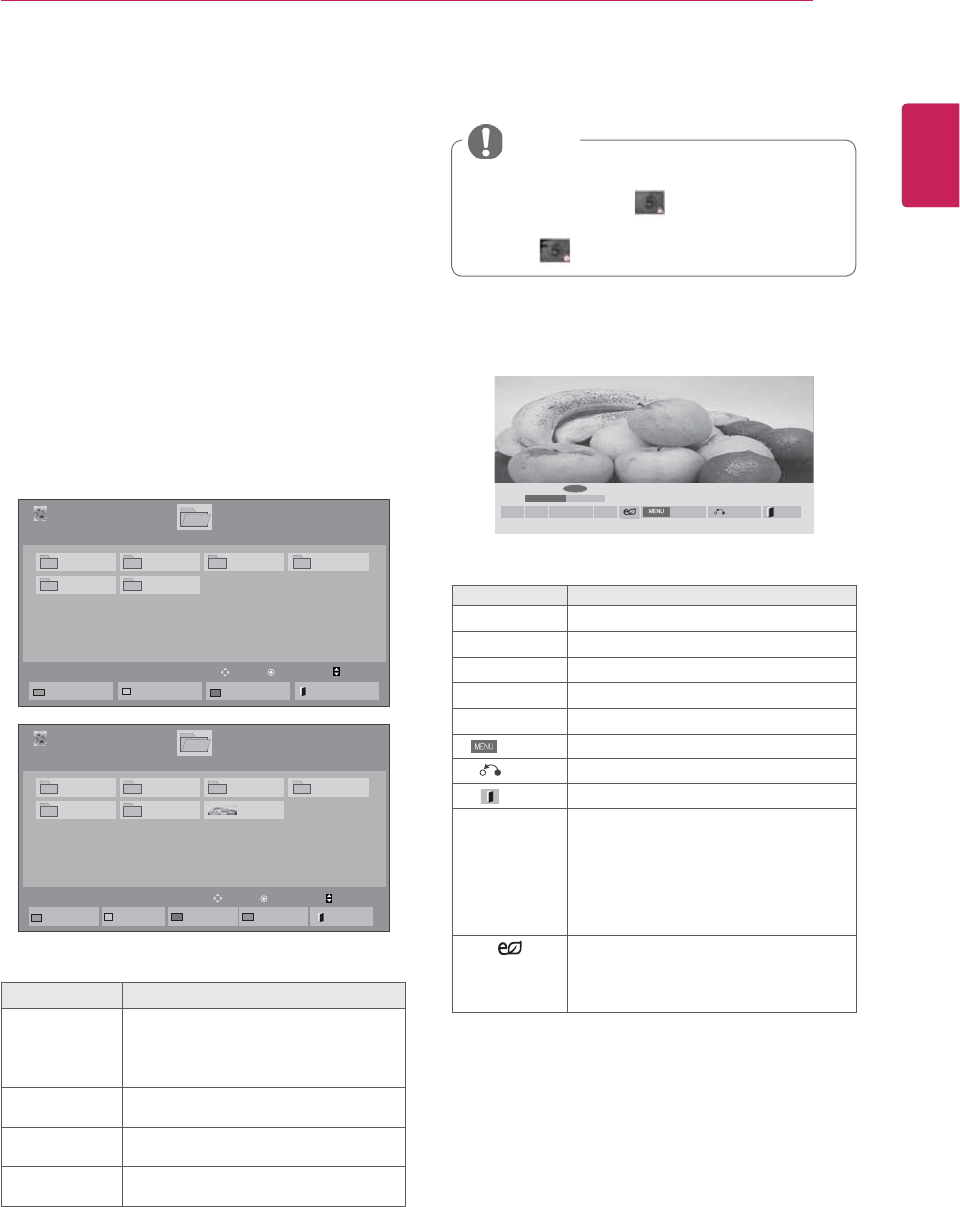

Viewing movies
This display will play media files from a USB drive
or a DLNA server on your network.
1 Press the Navigation buttons to scroll to My
Media and press OK.
2 Press the Navigation buttons to scroll to Movie
List and press OK.
3 Press the Navigation buttons to scroll to a
folder you want and press OK.
4 Press the Navigation buttons to scroll to a file
you want and press OK.
Menu Description
Play Marked Play the selected movie file.
Once a movie file finishes playing,
the next selected one will be played
automatically.
Mark All Mark all movie files on the screen.
Unmark All Deselect all marked movie files.
Exit Mark Mode Exit the Mark Mode.
Page 1/1
Movie List
USB External Drive1 Page 1/1
To Photo list Change Numbers
Mark Mode
Exit
003
001 002 004
005 006
View
Move PAGE Page Change
Page 1/1
Movie List
USB External Drive1 Page 1/1
Play Marked Mark All
Unmark All
Exit
003
001 002 004
005 006
Mark Mode
Exit Mark Mode
051. Apple_ ......
02:30:25
View
Move PAGE Page Change
5 Play a movie.
NOTE
y Non-supported files are displayed the preview
image by icon only .
y Abnormal files are displayed in the form of
bitmap .
6 Control playback by using the following buttons.
01:02:30 / 02:30:25
Option
II Hide Exit
Button Description
rStops the playback
sPlays a video
tPauses or resumes the playback
vScans backward in a file
wScans forward in a file
Option Show the Option menu.
Hide Hide the menu on the full-sized screen.
EXIT Return to Movie List.
< or >
Skips to specific points in a file dur-
ing playback. The time of a specific
point will appear on the status bar. In
some files, this function may not work
properly.
ENERGY
SAVING
Press the ENERGY SAVING button
repeatedly to increase the brightness
of your screen.
34
ENG
ENGLISH
ENTERTAINMENT
Video options
1 Press MENU to access the Pop-Up menus.
2 Press the Navigation buttons to scroll to Set
Video Play., Set Video. or Set Audio. and
press OK.
y Option values changed in Movie List does
not affect Photo List and Music List.
y Option value changed in Photo List and Mu-
sic List are changed likewise in Photo List
and Music List excluding Movie List.
y When replaying the video file after stopping,
you can play from where it stopped previ-
ously.
NOTE
Tips for using playing video files
y Some user-created subtitles may not work
properly.
y Some special characters are not supported
in subtitles.
y HTML tags are not supported in subtitles.
y Subtitles in languages other than the sup-
ported languages are not available.
y The screen may suffer temporary interrup-
tions (image stoppage, faster playback, etc.)
when the audio language is changed.
y A damaged movie file may not be played
correctly, or some player functions may not
be usable.
y Movie files produced with some encoders
may not be played correctly.
y If the video and audio structure of recorded
file is not interleaved, either video or audio is
outputted.
y Videos with resolution higher than
1920X1080 at 25/30P may not play properly
depending on the frame.
y Movie files other than the specified types and
formats may not work properly.
y Max bitrate of playable movie file is 20 Mbps.
(only, Motion JPEG : 10 Mbps)
y We do not guarantee smooth playback of
profiles encoded level 4.1 or higher in H.264/
AVC.
y DTS Audio codec is not supported.
y A movie file more than 30 GB in file size is
not supported for playback.
y A DivX movie file and its subtitle file must be
located in the same folder.
y A video file name and its subtitle file name
must be identical for it to be displayed.
y Playing a video via a USB connection that
doesn’t support high speed may not work
properly.
y Files encoded with GMC(Global Motion
Compensation) may not be played.
y When you are watching the movie by Movie
List function, you can adjust an image by
Energy Saving key on the remote control.
User setup for each image mode does not
operate.
35
ENG
ENGLISH
MAINTENANCE
Code Page Support Language
Latin1 English, Spanish, French,
German, Italian, Swedish, Finnish,
Dutch, Portuguese, Danish, Roma-
nian, Norwegian, Albanian, Gaelic,
Welsh, Irish, Catalan,Valencian
Latin2 Bosnian, Polish, Croatian, Czech,
Slovak, Slovenian, Serbian,
Hungarian
Latin4 Estonian, Latvian, Lithuanian
Cyrillic Bulgarian, Macedonian, Russian,
Ukrainian, Kazakh
Greek Greek
Turkish Turkish
y Only 10,000 of sync blocks can be supported
within the subtitle file.
y When playing a video, you can adjust the
Picture Size by pressing the RATIO button.
y Subtitles in your language are only sup-
ported when the OSD menu is also in this
language.
y The code page options may be disabled de-
pending on the language of the subtitle files.
y Select the appropriate code page for the
subtitle files.
NOTE
When you select the Set Video Play,,
1 Press the Navigation buttons to scroll to show
the Picture Size, Audio Language, Subtitle
Language or Repeat.
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
Menu Description
Picture Size Selects your desired picture
format during movie play.
Audio
Language
Changes the Language Group of the
audio during movie play. Files
with a single audio track cannot be
selected.
Subtitle Lan-
guage
Turn on/off the subtitle.
Language Activated for SMI subtitle and
can select the language within the
subtitle.
Code Page Can select the font for subtitle.
When set to default, same font as
general menu will be used.
Sync Adjusts the time synchronisation of
the subtitle from -10 secs to +10 secs
by steps of 0.5 secs during movie
play.
Position Changes the position of the
subtitle either up or down during
movie play.
Size Selects your desired Subtitle size
during movie play.
Repeat Turn on/off repeat function of
movie playback. When turned on, the
file within the folder will be played
back repeatedly. Even when the
repeated playback
is turned off, it can run the playback if
the file name is similar to the previous
file.
36
ENG
ENGLISH
MAINTENANCE
When you select the Set Video,,
1 Press the Navigation buttons to scroll to make
appropriate adjustments.
When you select the Set Audio,,
1 Press the Navigation buttons to scroll to show
the Sound Mode, Clear Voice II or Balance.
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
Viewing photos
View image files saved in a USB storage device.
The displays on the screen may differ from the
model.
1 Press the Navigation buttons to scroll to My
Media and press OK.
2 Press the Navigation buttons to scroll to Photo
List and press OK.
3 Press the Navigation buttons to scroll to a
folder you want and press OK.
4 Press the Navigation buttons to scroll to a file
you want and press OK.
5 View photos.
NOTE
y Non-supported files are displayed the pre-
view image by icon only .
y Abnormal files are displayed in the form of
bitmap .
Menu Description
View Marked Display the selected photo file.
Mark All Mark all photo files on the screen.
Unmark All Deselect all marked photo files.
Exit Mark Mode Exit the Mark Mode.
Page 1/1
Photo List
Drive1 Page 1/1
USB External
001
010 011 012 013 014 015
002 003 004 005 006 007 008 009
To Music List Change Numbers
Mark Mode
Exit
Page 1/1
Photo List
Drive1 Page 1/1
USB External
001
010 011 012 013 014 015
002 003 004 005 006 007 008 009
Mark Mode
View Marked Mark All
Unmark All
Exit
Exit Mark Mode
View
Move PAGE Page Change
View
Move PAGE Page Change
37
ENG
ENGLISH
MAINTENANCE
Photo options
1 Press MENU to show the Option menus.
2 Press the Navigation buttons to scroll to Set
Photo View., Set Video. or Set Audio. and
press OK.
y Option values changed in Movie List does
not affect Photo List and Music List.
y Option value changed in Photo List and Mu-
sic List are changed likewise in Photo List
and Music List excluding Movie List.
Option Description
Slideshow Starts or stops a slideshow with selected
photos.
If there are no selected photos, all pho-
tos saved in the current folder display
during a slideshow.
Select Option to set the speed and view
mode of the slideshow.
BGM Turns the background music on or off.
To set the background music folder,
select Option.
You can adjust Option by MENU button
on the remote control.
Rotate Rotates photos clockwise (90°, 180°,
270°, 360°).
Zoom Enlarges the image to 200% or 400%.
Number of selected photosOptions
ENER-
GY SAVING
Press the ENERGY SAVING button
repeatedly to change the brightness of
your screen.
Option ySlide Speed: Selects a slideshow
speed (Fast, Medium, Slow).
yTransitionEffect: Set the view mode
of the slideshow.
yBGM: Selects a music folder for the
background music.
Hide Hides the option window.
To display the options, press OK.
EXIT Return to Photo List.
Using photo options
Use the following options while viewing photos.
2/13
Slideshow BGM Hide
Option Exit
y The supported photo size is
limited. You cannot rotate a
photo if the resolution of the
rotated width is larger than the
supported resolution size.
NOTE
y You cannot change the music
folder while the background
music is playing.
y You can only select the MP3
folder saved on the device that
currently displays the photo.
NOTE
NOTE
NOTE
y Zoom to 200% or 400% only
work for image of 1372×772
pixel size or larger.
y For image of 960×540 pixel
size or larger, only zoom to
400% works properly.
38
ENG
ENGLISH
MAINTENANCE
When you select the Set Photo View,
1 Press the Navigation buttons to scroll to select Slide Speed,Transition Effect or BGM.
2 Press the Navigation buttons to scroll to make appropriate adjustments.

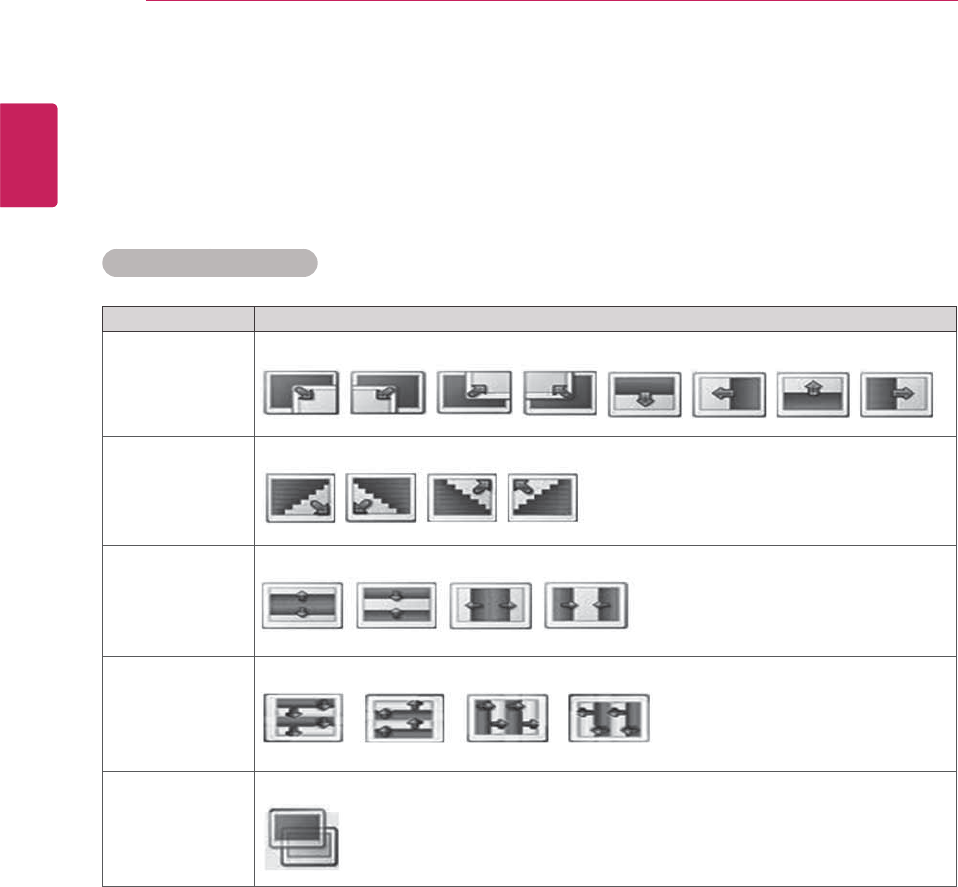

Transition Effect Option
Option Description
Sliding Pushes the current slide out of view as it plays to the next slide.
Stairs Pushes the current slide in a staircase shape as it plays to the next slide.
Door Open
/Close
Pushes the current slide like opening or closing the door as it plays to the next slide.
Shutter Pushes the current slide like drawing or pulling down the blind as it plays to the next slide
Fade In Fades the slide out slowly before playing to the next slide.
39
ENG
ENGLISH
MAINTENANCE
When you select the Set Video,
1 Press the Navigation buttons to scroll to make
appropriate adjustments.
When you select the Set Audio,
1 Press the Navigation buttons to scroll to show
the Sound Mode, Clear Voice II or Balance.
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
5 Play music.

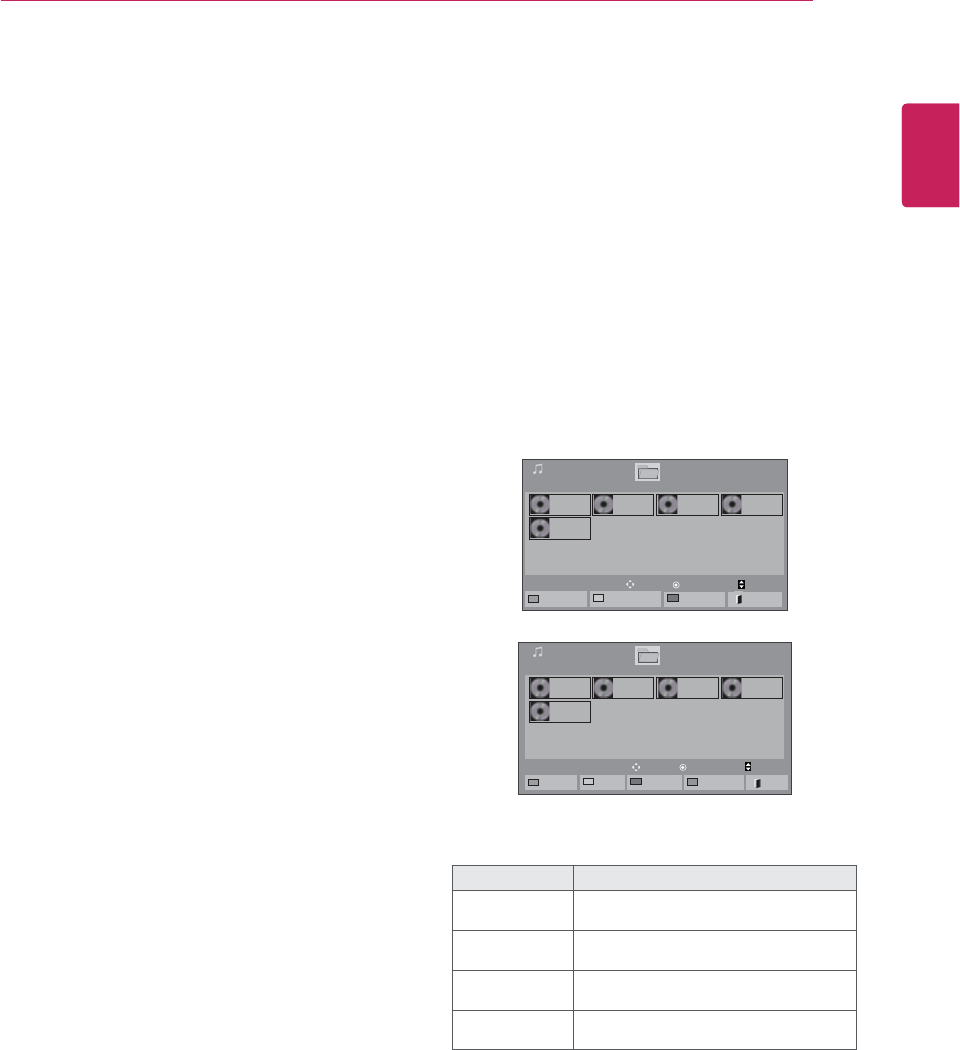

Listening to music
1 Press the Navigation buttons to scroll to My Me-
dia and press OK.
2 Press the Navigation buttons to scroll to Music
List and press OK.
3 Press the Navigation buttons to scroll to a folder
you want and press OK.
4 Press the Navigation buttons to scroll to a file
you want and press OK.
Menu Description
Play Marked Display the selected music file.
Mark All Mark all music files on the screen.
Unmark All Deselect all marked music files.
Exit Mark Mode Exit the Mark Mode.
Page 1/1
Music List
Drive1 Page 1/1
001. - B01.mp3
00:00
002. -B02.mp3
00:00
003. B03.mp3
00:00
004. - B04.mp3
00:00
005. - B05.mp3
00:00
USB External
To Movie List
Change Numbers
Mark Mode
Exit
View
Move PAGE Page Change
Page 1/1
Music List
Drive1 Page 1/1
001. - B01.mp3
00:00
002. -B02.mp3
00:00
003. B03.mp3
00:00
004. - B04.mp3
00:00
005. - B05.mp3
00:00
USB External
Play Marked
Mark All
Unmark All
Exit
Mark Mode
Exit Mark Mode
View
Move PAGE Page Change
40
ENG
ENGLISH
MAINTENANCE
002. B02.mp3
Time elapsed /Duration
file name
y Non-supported files are displayed the pre-
view image by icon only .
y Abnormal files are displayed in the form of
bitmap .
y A damaged or corrupted music does not play
but displays 00:00 in playtime.
y A music downloaded from a paid service with
copyright protection does not start but dis-
plays inappropriate information in playtime.
y If you press OK, r buttons, screen saver is
stopped.
y The PLAY(s), Pause(t), r , w, v but-
tons on the remote control are also available
in this mode.
y You can use the w button to select the next
music and the v button to select the previ-
ous music.
NOTE

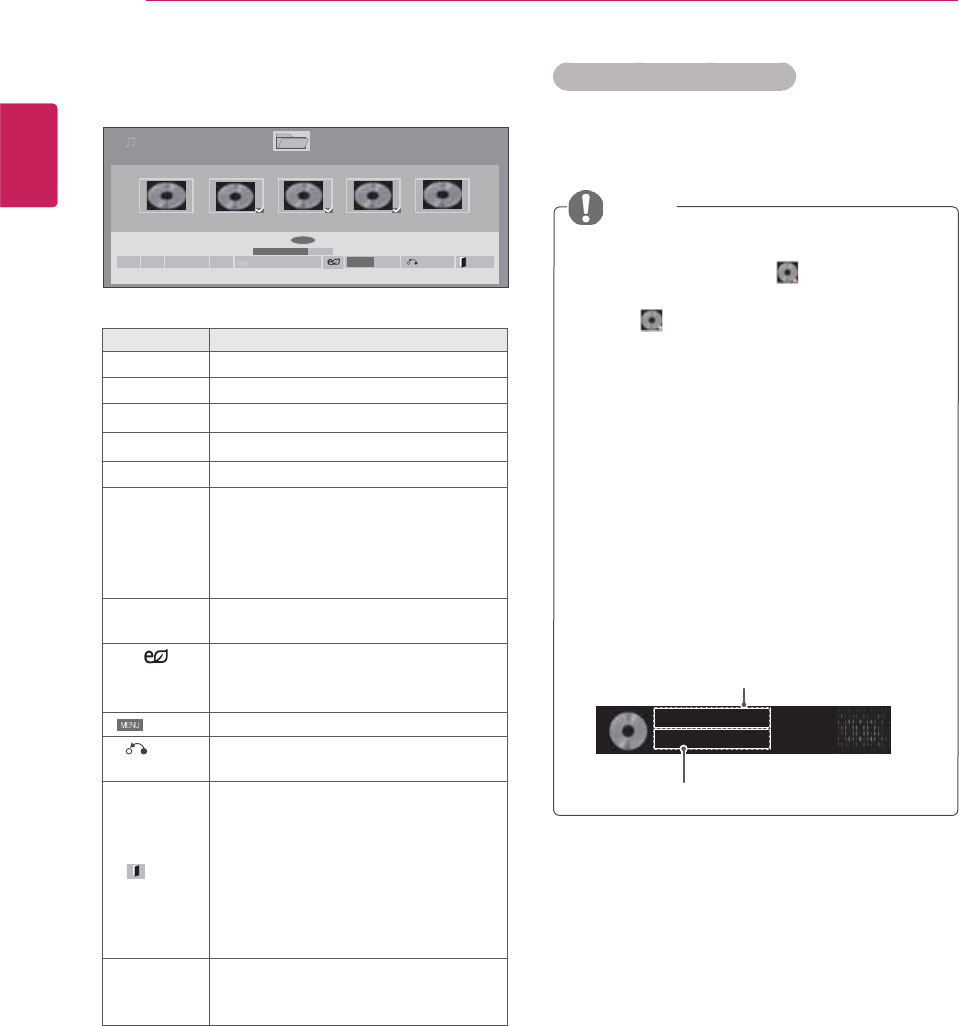

6 Control playback by using the following buttons.
Page 1/1
Music List
Drive1 Page 1/1
004. - B04.mp3
00:00
005. - B05.mp3
00:00
006. - B06.mp3
00:00
007. - B07.mp3
00:00
008. - B08.mp3
00:00
005. - B05.mp3 02:30 / 03:25
Hide Exit
Option
MENU
Play with Photo
II
Button Description
rStops playback
sPlays a music file
tPauses or resumes playback
wSkips to the next file
vSkips to the previous file
v or wWhen playing,
When you press the v button, the previ-
ous music file will be played.
When you press the w button, the next
music file will be played.
Green
button
Start playing the selected music files and
then move to the Photo List.
ENERGY
SAVING
Press the ENERGY SAVING button re-
peatedly to change the brightness of
your screen.
Option Show the Option menu.
Hide Hides the option window.
To display the options, press OK.
EXIT
When you press the EXIT button while
the Music player is displayed, only the
music will be stopped and the player will
not return to normal viewing.
When you press the EXIT button while
the music is stopped or while the music
player is hidden, the player will return to
normal viewing.
< or >
When using the < or > button during
playback a cursor indicating the position
can be played.
Tips for playing music files
y This unit cannot support the ID3 Tag
embedded MP3 files.
41
ENG
ENGLISH
MAINTENANCE
1 Press MENU to access the Pop-Up menus.
2 Press the Navigation buttons to scroll to Set Au-
dio Play. or Set Audio. and press OK.
Music options
y Option values changed in Movie List does
not affect Photo List and Music List.
y Option value changed in Photo List and Mu-
sic List are changed likewise in Photo List
and Music List excluding Movie List.
NOTE
When you select the Set Audio Play.,
1 Press the Navigation buttons to scroll to select
the Repeat or Random.
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
When you select the Set Audio,,
1 Press the Navigation buttons to scroll to select
the Sound Mode, Clear Voice II or Balance.
2 Press the Navigation buttons to scroll to make
appropriate adjustments.
42
ENG
ENGLISH
MAINTENANCE
y Once the deregistration is executed, you
must register your device again to see
DivX® VOD contents.
NOTE
DivX® VOD Deregistration
You should deregister your device with 8 digit DivX
deregistration code from your device at www.divx.
com/vod.
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to MY
MEDIA and press OK.
3 Press the Blue button.
4 Press the Navigation buttons to scroll to Deacti-
vation and press OK.
5 Press the Navigation buttons to select Yes to
confirm.
Deregistration code :
********
Deregister at http://vod.divx.com
Continue with registration?
Yes No
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
DivX® VOD Guide
DivX® VOD Registration
In order to play purchased or rented DivX® VOD
contents, you should register your device with 10
digit DivX registration code from your device at
www.divx.com/vod.
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to MY
MEDIA and press OK.
3 Press the Blue button.
4 Press the Navigation buttons to scroll to DivX
Reg. Code and press OK.
5 View the registration code of your display.
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
y While you are checking the registration
code, some buttons may not work.
y If you use the DivX registration code
of another device, you cannot play the
rented or purchased DivX file. Make sure
to use the DivX registration code as-
signed to your TV.
y The video or audio files that are not con-
verted by the standard DivX codec may
be corrupted or not be played.
y The DivX VOD code allows you to acti-
vate up to 6 devices under one account.
NOTE
You must register your device to
play DivX protected videos.
Registration code : **********
Register at http://vod.divx.com
Close
43
ENG
ENGLISH
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
Accessing main menus
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to one of the following menus and press OK.
3 Press the Navigation buttons to scroll to the setting or option you want and press OK.
4 When you are finished, press EXIT.
When you return to the previous menu, press BACK.
OPTION
AUDIO
NETWORK
TIME
MY MEDIA
OPTION (See p.49)
Customizes the general settings
AUDIO (See p.47)
Adjusts the sound quality,
effect, or volume level
PICTURE (See p.44)
Adjusts the image size,
quality, or effect
TIME (See p.48)
Sets the time, date or
Timer feature
MY MEDIA
(See p.30)
Display and play
movie, photo and
music content
stored on your USB
NETWORK (See p.53)
Sets up the network
setting.
44
ENG
ENGLISH
CUSTOMIZING SETTINGS

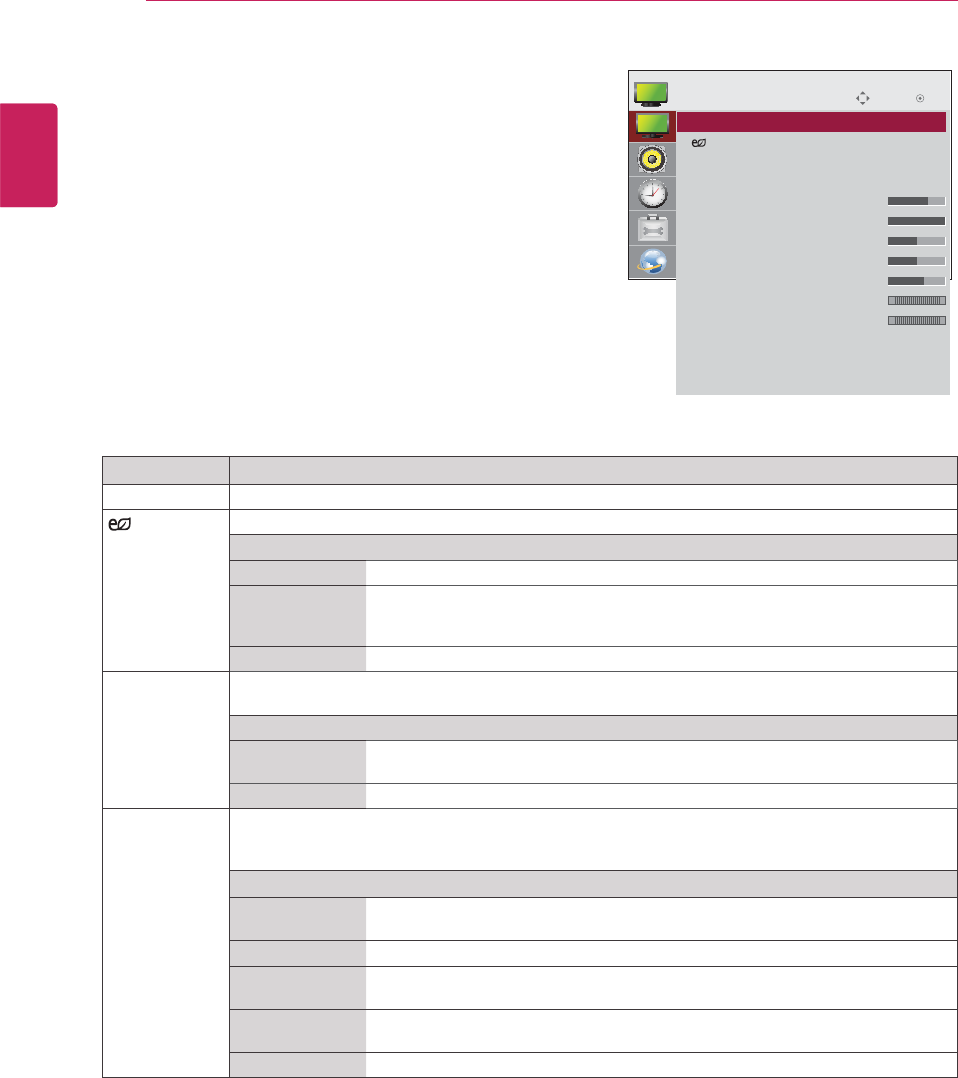

PICTURE settings
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to PICTURE and
press OK.
3 Press the Navigation buttons to scroll to the setting or
option you want and press OK.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
When you return to the previous menu, press BACK.
The available picture settings are described in the following:
Setting Description
Aspect Ratio Changes the image size to view images at its optimal size (See p.26).
Energy
Saving
Sets to automatically adjust the screen brightness corresponding to the surroundings.
Option
Off The backlight is off.
Minimum/
Medium/
Maximum
Selects the brightness level of the backlight.
Screen off The screen turns off in 3 seconds.
Smart Energy
Saving
Adjusts the backlight and contrast depending on the screen brightness.
* 47WV30-BAAL does not support this function.
Level
On Enables the Smart Energy Saving function to save power consumption as much
as the value set in the smart energy saving rate.
Off Disables the Smart Energy Saving function.
Picture Mode Selects one of the preset image or customizes options in each mode for the best Monitor set screen
performance. You are also able to customize advanced options of each mode.
The available preset picture modes vary depending on the Monitor set .
Mode
Vivid Adjusts the video image for the retail environment by enhancing the contrast,
brightness, Color, and sharpness.
Standard Adjusts the image for the normal environment.
Cinema Optimizes the video image for a cinematic look to enjoy movies as if you are in a
movie theater.
Sport Optimizes the video image for high and dynamic actions by emphasizing primary
Colors such as white, grass, or sky blue.
Game Optimizes the video image for a fast gaming screen such as PCs or games.
Move OK
Energy Saving : Off
RG
WC
45
ENG
ENGLISH
CUSTOMIZING SETTINGS
Basic image options
Setting Description
Backlight Adjusts the brightness of the screen by controlling the LCD backlight. If you decrease the
brightness level, the screen becomes darker and the power consumption will be reduced
without any video signal loss.
Contrast Increases or decreases the gradient of the video signal. You may use Contrast when the
bright part of the picture is saturated.
Brightness Adjusts the base level of the signal in the picture. You may use Brightness when the dark
part of the picture is saturated.
Sharpness Adjusts the level of crispness in the edges between the light and dark areas of the picture.
The lower the level, the softer the image.
Color Adjusts the balance between red and green levels.
Tint Adjusts intensity of all Colors.
Color Temperature Set to warm to enhance hotter Colors such as red, or set to cool to make picture bluish.
Advanced Control Customizes the advanced options.
Picture Reset Restores the options to the default setting.
Setting Description
SCREEN
(In RGB-PC
Mode Only)
Customizes the PC display options in RGB mode.
Option
Resolution Selects a proper resolution. See "Specification" See p.62 for the recommended
resolution for each model.
Auto Configure Sets to adjust the screen position, clock, and phase automatically.
The displayed image may be unstable for a few seconds while the configuration is
in progress.
Position/Size/
Phase
Adjusts the options when the picture is not clear, especially when characters are
shaky, after the auto configuration.
Reset Restores the options to the default setting.
y If the 'Picture Mode' setting in the Picture menu is set to Vivid, Standard, Cinema, Sport or Game the subsequent
menus will be automatically set.
y You cannot adjust color and tint in the RGB-PC / HDMI-PC mode.
y When using the Smart Energy Saving function, the screen may look saturated in the white area of a still image.
y If Energy Saving is set to Minimum, Medium, or Maximum, the Smart Energy Saving function is disabled.
NOTE
46
ENG
ENGLISH
CUSTOMIZING SETTINGS
Advanced image options
Setting Description
Dynamic Contrast
(Off/Low/Medium/
High)
Optimizes the contrast automatically according to the brightness of the reflection.
(This function can be used only under Component.)
Dynamic Color
(Off/Low/High)
Adjusts the Color of the reflection automatically to reproduce natural colurs as close as
possible.(This function can be used only under Component.)
Clear White
(Off/Low/High)
Make the white area of screen brighter and more white.
Skin Color It detects the skin area of video and adjusts it to express a natural skin color.
Noise Reduction
(Off/Low/Medium/High)
Removing the noise up to the point where it does not damage the original picture. (This
function can be used only under Component.)
Digital Noise
Reduction
(Off/Low/Medium/High)
This option reduces the noise produced while creating digital video signals.
Gamma
(Low/Medium/High)
Set your own gamma value.
On the monitor, high gamma values display whitish images and low gamma values display
high contrast images.
Black Level
Low/High
yLow: The reflection of the screen gets darker.
yHigh: The reflection of the screen gets brighter.
Function works in the following mode - Component, HDMI, DVI-D adjusts the contrast and the
brightness of the screen using the black level of the screen.
47
ENG
ENGLISH
CUSTOMIZING SETTINGS

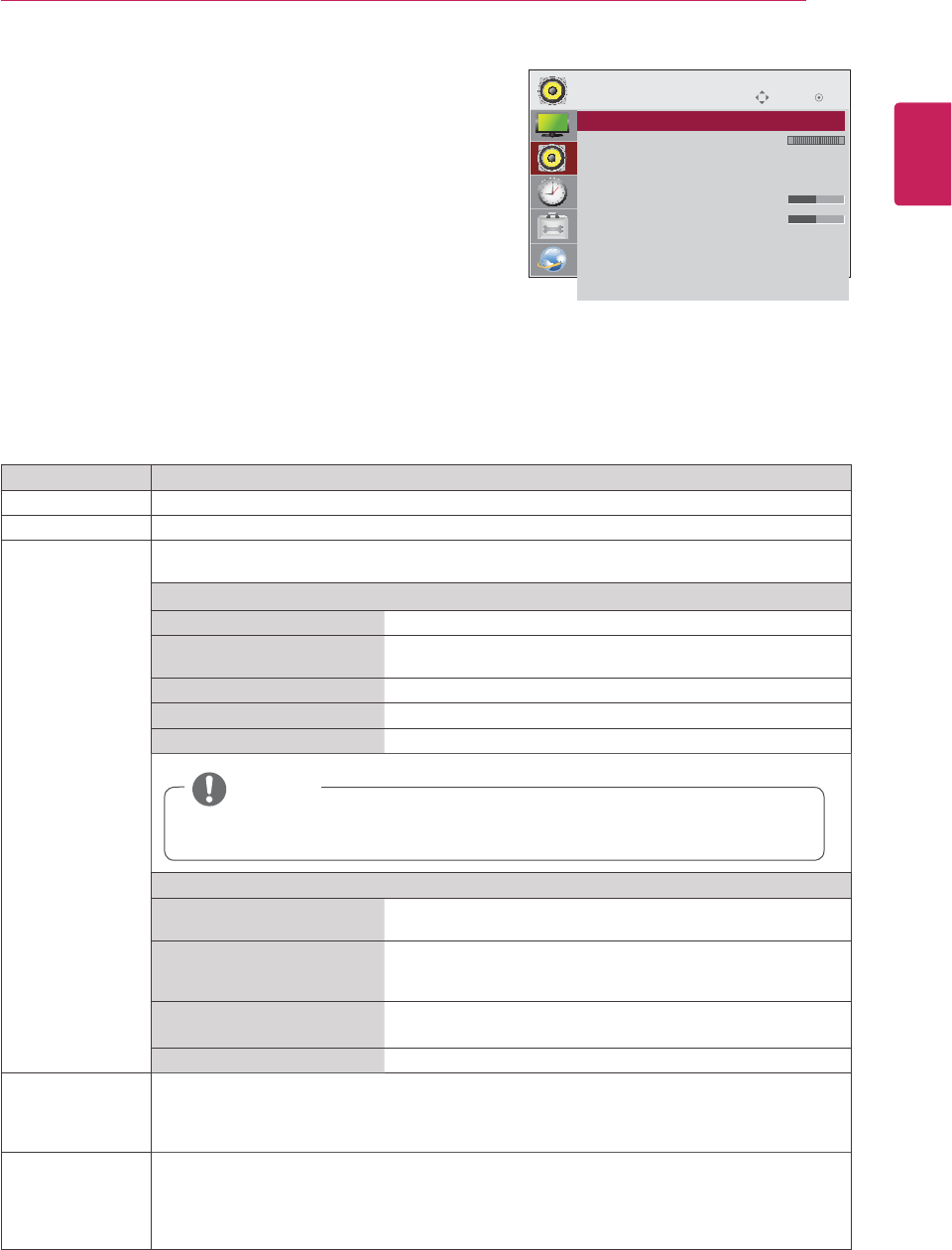

AUDIO settings
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to AUDIO and press
OK.
3 Press the Navigation buttons to scroll to the setting or
option you want and press OK.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
When you return to the previous menu, press BACK.
The available audio options are described in the following:
Setting Description
Clear Voice ll By differentiating the human sound range from others, it helps users listen to human voices better.
Balance Use this function to balance sound from the left and right speakers.
Sound Mode The best sound tone quality will be selected automatically depending on the video type that you're
currently watching.
Mode
Standard The most commanding and natural audio.
Music Select this option to enjoy the original sound when listening to
the music.
Cinema Select this option to enjoy sublime sound.
Sports Select this option to watch sports broadcasting.
Game To enjoy dynamic sound when playing a game.
Option
Infinite Sound LG's Infinity Sound option provides 5.1 channel stereo sound
from two speakers.
Treble Controls the dominant sounds in the output. When you turn up
the treble, it will increase the output to the higher frequency
range.
Bass Controls the softer sounds in the output. When you turn up the
bass, it will increase the output to the lower frequency range.
Reset Resets the sound mode to the default setting.
Digital Audio
Input
HDMI: Outputs the sound of digital signals in digital input (HDMI) mode through the external
monitor speaker connected to the speaker out port of the monitor.
Audio In: Outputs the sound received from the Audio In port in digital input (HDMI) mode through
the external speaker connected to the speaker out port of the monitor.
Speaker *The speaker is sold separately.
On: Outputs the sound through the external speaker connected to the speaker out port of the
monitor.
Off: Outputs the sound through the external speaker connected to the speaker out port of the
monitor. Use this option when using an external sound device.
NOTE
If sound quality or volume is not at the level you want, it is recommended to use a separate home
Move OK
AUDIO
LR
48
ENG
ENGLISH
CUSTOMIZING SETTINGS
TIME settings
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to TIME and press OK.
3 Press the Navigation buttons to scroll to the setting or option
you want and press OK.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
When you return to the previous menu, press BACK.
The available time settings are described in the following:
Move OK
TIME
Setting Description
Clock Sets the time feature.
On/Off Time Sets the time to turn on or off the Monitor set.
Sleep Timer Sets the length of time until the Monitor set to turns off. When you turn the Monitor set off and
turn it on again, the Sleep Timer will be set to off.
Power on delay When connecting multiple monitors and turning the power on, the monitors are turned on
individually to prevent overload.
Auto off If Auto off is active and there is no input signal, the set switches to off mode automatically after 15
minutes.
Automatic
Standby
If you do not use the monitor for more than 4 hours, it will be in standby mode automatically.
y Once the on or off time is set, these functions operate daily at the preset time.
y The scheduled power-off function works properly only when the device time is set correctly.
y When the scheduled power-on and power-off times are the same, the power-off time has priority over the power-on time
if the set is turned on, and vice versa if the set is turned off.
NOTE
49
ENG
ENGLISH
CUSTOMIZING SETTINGS
OPTION settings
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to OPTION and press
OK.
3 Press the Navigation buttons to scroll to the setting or
option you want and press OK.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
The available option settings are described in the following:
Move OK
OPTION
Setting Description
Language To choose the language in which the control names are displayed.
ISM Method Leaving a fixed image on the screen for a long time may cause damage to the screen and cause
image burn-in. To use the product for a long period of time, use a screen saver on the PC or utilize
the residual image prevention function on the product, and when the product is not used, turn off
the power. Burn-in and related problems are not covered by the warranty on this product.
Setting
Normal Sets it if image sticking is never a problem
Orbiter May help prevent ghost images. However, it is best not to allow any fixed
image to remain on the screen. To avoid a permanent image on the screen,
the screen will move every 2 minutes.
Inversion This function inverts the panel color of the screen. The panel color is
automatically inverted every 30 minutes.
White wash Removes a ghost image on the screen.
Use sparingly. Watch the sets normally for a while before using this feature to
see if the ghost image disappears on its own.
DPM Select A user can choose to turn the power saving mode on / off.
Fail Over If there is no input signal, it automatically switches to another input with signal.
* 47WV30-BAAL does not support this function.
Setting
Off Stops auto switch of the input source.
Auto Switches to another input source with video signal if no video signal comes
from the current input source.
Manual Selects the priority of input source for auto switch.
When several input sources are found, the input source with a higher priority
will be selected.
Factory Reset Select this option to return to the default factory settings.
50
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Set ID You can assign a unique Set ID NO (name assignment) to each product when several products
are connected for display. Specify the number (1 to 255) using the button and exit. Use the
assigned Set ID to individually control each product using the Product Control Program.
Tile Mode Setting
Tile Mode You can display the image on multiple sets and view it in a larger size. To use
the Tile Mode on multiple sets with same signal.
Auto Config. This option optimizes the screen when you connect the set to a new computer
or change to a different mode. If you are not satisfied with the adjustment, you
can manually change the "Position" or "Size".
Position You can set the position.
Size You can set the size.
Natural The image is omitted by the distance between the screens to be naturally
shown.
Reset Function to initialize and release Tile.
All Tile setting are released when selecting Tile recall and the screen returns to
Full screen.
Portrait mode Rotate OSD clockwise (Off, 90°,270°)
Option
Off Do not rotate OSD
90° Rotate OSD clockwise 90°.
270° Rotate OSD clockwise 270°.
Pryh RN
8-1)
ח͑ʹΝΠΔΜ
ח͑ΗΗ͑΅ΚΞΖ͑͑ ͫ͑ ΗΗ
ח͑Ο͑΅ΚΞΖ͑͑ ͫ͑ ΗΗ
ח͑΄ΝΖΖΡ͑΅ΚΞΖΣ͑͑ ͫ͑ ΗΗ
ח͑ΠΨΖΣ͑Ο͑͵ΖΝΒΪ͑ ͑ ͫ͑ΗΗ
ח͑ͲΦΥΠ͑ΗΗ͑͑ ͫ͑ ΗΗ
ח͑ͲΦΥΠΞΒΥΚΔ͑΄ΥΒΟΕΓΪ͑͑ ͫ͑ ΗΗ
90°
Pryh RN
8-1)
ח͑ʹΝΠΔΜ
ח͑ΗΗ͑΅ΚΞΖ͑͑ ͫ͑ ΗΗ
ח͑Ο͑΅ΚΞΖ͑͑ ͫ͑ ΗΗ
ח͑΄ΝΖΖΡ͑΅ΚΞΖΣ͑͑ ͫ͑ ΗΗ
ח͑ΠΨΖΣ͑Ο͑͵ΖΝΒΪ͑ ͑ ͫ͑ΗΗ
ח͑ͲΦΥΠ͑ΗΗ͑͑ ͫ͑ ΗΗ
ח͑ͲΦΥΠΞΒΥΚΔ͑΄ΥΒΟΕΓΪ͑͑ ͫ͑ ΗΗ
270°
NOTE
If you change SET ID No, the value of ‘Power On Delay’ will be set to (SET ID No)/3(sec)
to prevent power consumption overload.
ex) SET ID No = 31 䮫 Power On Delay = 10(=31/3)
51
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Fan Setting
Mode This option indicates the monitor's internal temperature and controls the fan.
Hysteresis The difference in temperature between when the fan is switched on and when
it is off.
Set Temperature Set the temperature at which the fan is switched on.
Current
Temperature
Current temperature inside the set.
Product/Service
Info.
Displays the model name, software version, serial number, IP address, MAC address and home
page.
NOTE
y We recommend that you use the Auto mode to prevent any malfunctions resulting from
incorrect fan settings.
y If the interior temperature of the set exceeds 80°C, the set will be turned off
automatically for safety reasons.
52
ENG
ENGLISH
CUSTOMIZING SETTINGS
Tile Mode
This monitor can be tiled with additional monitors to create a large tiled display.
Tile Mode - Natural mode
When active, the part of the image that would normally be displayed in the gap between the monitors is
omitted.
ID 1 ID 2
ID 3 ID 4
ID 1 ID 2
ID 4 ID 5
ID 3
ID 6
ID 7 ID 8 ID 9
3X3
When using 9 monitors
ID 1 ID 2
ID 5 ID 6
ID 3
ID 7
ID 9 ID 10 ID 11
ID 4
ID 8
ID 12
ID 13 ID 14 ID 15 ID 16
ID 1 ID 2
ID 6 ID 7
ID 3
ID 8
ID 11 ID 12 ID 13
ID 4 ID 5
ID 9 ID 10
ID 14 ID 15
ID 16
ID 21
ID 17
ID 22
ID 18
ID 23
ID 19
ID 24
ID 20
ID 25
Off
When the Tile Mode
option is disabled
2X1
When using 2 monitors
2X2
When using 4 monitors
5X5
When using 25 monitors
4X4
When using 16 monitors
ID 1 ID 2
Tile ID
Before After
53
ENG
ENGLISH
CUSTOMIZING SETTINGS
NETWORK settings
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to NETWORK and
press OK.
3 Press the Navigation buttons to scroll to the setting or
option you want and press OK.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
When you return to the previous menu, press BACK.
The available option settings are described in the following:
Move OK
NETWORK
y Network setting menu will not be available until the display connected to physical network.
Setting Description
Player Name
Setting
Sets the player name used in SuperSign Elite-W Lite server.(Up to 20 characters)
Network Setting Configure the network settings.
Network Status Display the network status.
- Internet is connected : Extermally connected
- Netmwork is connected : Only internally connected
- Not connected : When there is no network connection
Server IP Setting Sets the IP address of the computer (server) on which SuperSign Elite-W Lite server is installed.
Server IP Status Displays the connection status with the server.
- Not connected : When there is no network connection with SuperSign Elite-W Lite server
- Waiting for approval : When network connection with SuperSign Elite-W Lite server has been
made, but access to server has not been approved by the server
- Rejected : When network connection with SuperSign Elite-W Lite server has been made, but
access to server has been rejected by the server
- Internet is connected : When network connection with SuperSign Elite-W Lite server has been
made and access to server has also been approved by the server
NOTE
54
ENG
ENGLISH
MAKING CONNECTIONS
y If you connect a gaming device to the Monitor set, use the cable supplied with the gaming device.
y AV(CVBS) can be supported only in 47WV30BR and 47WV30MS models.
HD Receiver
Speaker
PC Gaming device
USB
Camcorder/Camera
DVD
HDMI - (See p.55)
Component - (See p.56)
AV - (See p.56)
HDMI - (See p.22)
DVI - (See p.22)
RGB - (See p.21)
HDMI - (See p.55)
Component - (See p.56)
AV - (See p.56)
HDMI - (See p.55)
Component - (See p.56)
AV - (See p.56)
Memory storage
- (See p.57)
HDMI - (See p.55)
Component - (See p.56)
AV - (See p.56)
MAKING CONNECTIONS
Connect various external devices to the ports on the Monitor set’s back panel.
1 Find an external device you want to connect to your Monitor set shown in the following illustration.
2 Check the connection type of the external device.
3 Go to the appropriate illustration and check the connection details.
NOTE
55
ENG
ENGLISH
MAKING CONNECTIONS
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
/DVI
Peripheral
Connecting to a HD receiver,
DVD or VCR player
Connect a HD receiver, DVD, or VCR player to the
Monitor set and select an appropriate input mode.
HDMI connection
Transmits the digital video and audio signals from
an external device to the Monitor set. Connect the
external device and the Monitor set with the HDMI
cable as shown on the following illustration.
DVI - HDMI connection
Transmits the digital video signal from an external
device to the Monitor set. Connect the external
device and the Monitor set with the DVI-HDMI
cable as shown in the following illustration. To
transmit an audio signal, connect an optional audio
cable.
y Use a High Speed HDMI™ Cable.
y High Speed HDMI™ Cables are tested to
carry an HD signal up to 1080p and higher.
y Dolby Digital is not supported.
NOTE
y When connecting
an HDMI cable as
illustrated, remove
the screw on the
HDMI connector first.
CAUTION
(not included)
(not included) (not included)
/DVI
Peripheral
Back of the Monitor Set
Back of the Monitor Set
56
ENG
ENGLISH
MAKING CONNECTIONS
COMPONENT IN
VIDEO AV IN AUIDO
Peripheral
COMPONENT IN
VIDEO AV IN AUIDO
AV (CVBS)
AV connection (Only 47WV30BR
and 47WV30MS)
Transmits the analog video and audio signals from
an external device to the Monitor set. Connect the
external device and the Monitor set with the RCA
cable as shown on the following illustration. To
transmit an audio signal, connect an optional audio
cable.
(not included) (not included)
Component connection
Transmits the analog video and audio signals from
an external device to the Monitor set. Connect
the external device and the Monitor set with a
component cable as shown on the following
illustration. To transmit an audio signal, connect an
optional audio cable.
Back of the Monitor Set
NOTENOTE
y For AV (CVBS) connection, the red and blue
cables in a shared interface are not in use.
y AV(CVBS) can be supported only in 47WV-
30BR and 47WV30MS models.
y AV(CVBS) can be supported only in 47WV-
30BR and 47WV30MS models.
Peripheral
(not included) (not included)
Back of the Monitor Set
57
ENG
ENGLISH
MAKING CONNECTIONS
Connecting to the LAN
LAN connection
Connect the LAN cable.
A Using a router(Switching Hub)
PC
Product
LAN Switching Hub
B Using the Internet.
Connecting to a USB
Connect a USB storage device such as s USB
flash memory, external hard drive, MP3 player or
a USB memory card reader to the Monitor set and
access the USB menu to use various multimedia
files. "Connecting USB storage devices" on See
p.30 and “Browsing files” on See p.31
or
58
ENG
ENGLISH
MAKING CONNECTIONS
Daisy Chain Monitors
Use this function to share the RGB video signal with other monitors without having to use a separate signal
splitter box.
D-Sub Signal Cable) to the RGB OUT connector of product 1 and connect the other end to the RGB IN
connector of other products
RGB Cable
15-pin D-Sub Signal Cable
(Max 3m)
Set 1 Set 2 Set 3 Set 4
DVI-INDVI-OUT DVI-INDVI-OUTDVI-INDVI-OUT
DVI Cable
Set 1 Set 2 Set 3
DVI Cable
(Max 3m)
y "Input signal may be degraded or lost when multiple monitors are connected. For DVI, in general, up
to 12 monitors can be connected via the DVI Out port (at the recommended resolution) if the signal
is stable and there is no cable loss. (If you want to connect more than this number of monitors, we
recommended that you use a distributor.)
y When the tile mode is configured via DVI cables, only the monitor that receives first signals can play
HDCP-encrypted content. (The DVI Out port does not support HDCP).
y If the signal cable between the product and your PC is too long, make sure to use the DVI (RGB)
booster or DVI (RGB) optical cable.
y If input signals are received through the HDMI/DP cable, multiple monitors cannot be connected via
the DVI Out port"
NOTE
59
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
No image is displayed
Problem Resolution
Is the product power cord
connected?
y See if the power cord is properly connected to the outlet.
Power is on, power indicator
is blue but the screen appears
extremely dark.
y Adjust brightness and contrast again.
y Backlight may need repair.
Does the 'Invalid Format'
message appear?
y The signal from the PC (video card) is out of the vertical or horizontal
frequency range of the product. Adjust the frequency range by
referring to the Specifications in this manual.
* Maximum resolution (47WV30MS,47WV30BR)
RGB : 1920 X 1080 @ 60 Hz
HDMI/DVI : 1920 X 1080 @ 60 Hz
* Maximum resolution (47WV30BS,47WV30-BAAM,47WV30-BAAL)
RGB : 1366 X 768 @ 60 Hz
HDMI/DVI : 1366 X 768 @ 60 Hz
Does the 'No Signal' message
appear?
y The signal cable between PC and product is not connected. Check
the signal cable.
y Press the 'INPUT' menu in the remote Control to check the input
signal.
'Unknown Product' message appears when the product is connected.
Problem Resolution
Did you install the driver?
y See if the plug&play function is supported by referring to the video
card user manual.
60
ENG
ENGLISH
TROUBLESHOOTING
The screen image looks abnormal.
Problem Resolution
Is the screen position wrong?
yD-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select the optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use the Position OSD
menu.
ySee if the video card resolution and frequency are supported by the
product. If the frequency is out of range, set to the recommended
resolution in the Control Panel "Display" Setting menu.
Do thin lines appear on the
background screen?
y D-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use the Clock OSD
menu.
Horizontal noise appears or the
characters look blurred.
yD-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use the Phase OSD
menu.
The screen is displayed
abnormally.
y The proper input signal is not connected to the signal port. Connect
the signal cable that matches with the source input signal.
After-image appears on the product.
Problem Resolution
After-image appears when the
product is turned off.
yIf you use a fixed image for a long time, the pixels may be damaged
quickly. Use the ISM mode.
The audio function does not work.
Problem Resolution
No sound?
ySee if the audio cable is connected properly.
yAdjust the volume.
y See if the sound is set properly.
Sound is too dull.
ySelect the appropriate equalize sound.
Sound is too low.
y Adjust the volume.
61
ENG
ENGLISH
TROUBLESHOOTING
Screen color is abnormal.
Problem Resolution
Screen has poor color resolution
(16 colors).
y Set the number of colors to more than 24 bits (true color) Select
Control Panel - Display - Settings - Color Table menu in Windows.
Screen color is unstable or
mono-colored.
yCheck the connection status of the signal cable. Or, re-insert the PC
video card.
Do black spots appear on the
screen?
y Several pixels (red, green, white or black color) may appear on the
screen, which can be attributable to the unique characteristics of the
LCD panel. It is not a malfunction of the LCD.
The operation does not work normally.
Problem Resolution
The power suddenly turned off.
yIs the sleep timer set?
y Check the power control settings. Power interrupted.
Remote controller doesn’t work.
yRemote controller will not work in case SET ID and Picture ID are
different.
62
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
LCD Panel Screen Type 1192.8 mm Wide (46.96 inch) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel.
Visible diagonal size : 1192.8 mm
Pixel Pitch 0.5415 mm (H) x 0.5415 mm (V)
Video Signal Max. Resolution
(47WV30MS,47WV30BR)
RGB : 1920 X 1080 @ 60 Hz
HDMI/DVI : 1920 X 1080 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Max. Resolution
(47WV30BS,47WV30-BAAM,
47WV30-BAAL)
RGB : 1366 X 768 @ 60 Hz
HDMI/DVI : 1366 X 768 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Recommended Resolution RGB : 1366 X 768 @ 60 Hz
HDMI/DVI : 1366 X 768 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Horizontal Frequency RGB : 30 kHz to 68 kHz
HDMI/DVI : 30kHz to 68 kHz
Vertical Frequency RGB : 56 Hz to 75 Hz
HDMI/DVI : 56 Hz to 63 Hz
Synchronization Type Separate Sync, Composite Sync, Digital, SOG
Input Connector 15-pin D-Sub type(RGB), Component, HDMI/DVI(digital),
AV(CVBS), RS-232C, LAN, USB
* AV(CVBS) can be supported only in 47WV30BR and
47WV30MS models.
Power Rated Voltage AC 100-240 V~ 50 / 60 Hz 2.2 A
Power Consumption On Mode : 220 W Max.
Dimensions
(Width x Height x
Depth) / Weight * Wall Bracket available VESA dimensions:
800 mm x 400 mm
1047 mm x 592 mm x 91.1 mm / 29 kg
Environmental
conditions
Operating Temperature
Operating Humidity
0 °C to 40 °C
10 % to 80 %
Storage Temperature
Storage Humidity
-20 °C to 60 °C
5 % to 95 %
* Applicable only for models that support the speakers
Audio RMS Audio Output 10 W + 10 W (R + L)
Input Sensitivity 0.7 Vrms
Speaker Impedance
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
63
ENG
ENGLISH
SPECIFICATIONS
DTV Mode
Resolution AV/Component HDMI(DTV)
480i o x
576i o x
480p o o
576p o o
720p o o
1080i o o
1080p x o
1 to 10: RGB Mode
* : HDMI/DVI mode
PC supported mode
Resolution Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
*1 720 x 400 31.468 70.8
*2 640 x 480 31.469 59.94
*3 800 x 600 37.879 60.317
4832 x 624 49.725 74.55
*5 1024 x 768 48.363 60
*6 1280 x 720 44.772 59.855
*7 1366 x 768 47.71 59.79
*8 1280 x 1024 63.981 60.02
*9 1360 X 768 47.72 59.799
*10 1920 X 1080 67.5 60 (Only 47WV30BR, 47WV30MS)
64
ENG
ENGLISH
RS-232 CONTROL
RS-232 CONTROL
y You can control several products at a time by connecting them to a single PC.
y In the Option menu, Set ID must be between 1 and 255 without being duplicated.
Connecting the cable
Connect the RS-232C cable as shown in the picture.
y The RS-232C protocol is used for communication between the PC and product. You can turn the
product on/off, select an input source or adjust the OSD menu from your PC. This monitor features
two RS-232 ports. One input and one output. This allows you to daisy-chain monitors without having
to use a splitter box.
Set 1 Set 2 Set 3 Set 4
PC
RS-232C Cable
NOTE
15 mm or
less
Communication Parameter
y Baud Rate : 9600 buad Rate (UART)
y Data Length : 8 bit
y Parity Bit : None
y Stop Bit : 1bit
y Flow Control : None
y Communication Code : ASCII code
y Use a crossed (reverse) cable
RS-232C Configurations
8-Wire Configurations (Cross-over RS-232C cable)
y Use RS-232C cables as shown in the picture.
y If a cable bigger than the ones shown in the picture is used
in the connector, the connection may not be flawless due to
interference between the cables.
y Pin 1 of RS-232C Out should be connected with Pin 4 of RS-
232C In.
PC Set
D-Sub 9
(Female)
D-Sub 9
(Female)
65
ENG
ENGLISH
RS-232 CONTROL
Command Reference List
COMMAND DATA
(Hexadecimal)
1 2
01 Power k a 00H to 01H
02 Input Select x b Refer to ‘02. Input Select’
03 Aspect Ratio k c Refer to ‘03. Aspect Ratio’
04 Energy Saving j q Refer to ‘04. Energy Saving’
05 Picture mode d x 00H to 04H
06 Contrast k g 00H to 64H
07 Brightness k h 00H to 64H
08 Sharpness k k 00H to 64H
09 Color k i 00H to 64H
10 Tint k j 00H to 64H
11 Color Temperature x u 00H to 64H
12 H Position f q 00H to 64H
13 V Position f r 23H to 41H
14 H Size f s 00H to 64H
15 Auto configuration j u 01H
16 Balance k t 00H to 64H
17 Sound mode d y 01H to 05H
18 Treble k r 00H to 64H
19 Bass k s 00H to 64H
20 Speaker d v 00H to 01H
21 Volume Mute k e 00H to 01H
22 Volume Control k f 00H to 64H
23 Time 1(Years/ Months/ Days) f g Refer to ’23. Time 1’
24 Time 2(Hours/ Minutes/Seconds) f x Refer to ’24. Time 2’
25 Off Timer(Repeat mode/ Time) f d Refer to ‘25. Off Timer’
26 On Timer(Repeat Mode/ Time) f e Refer to ’26. On Timer’
27 On Timer Input f u Refer to ’27. On Timer Input’
28 Sleep Time f f 00H to 08H
29 Power On Delay f h 00H to 64H
30 Automatic Standby m n 00H to 01H
31 Auto Off f g 00H to 01H
32 Language f i 00H to 0AH
33 ISM mode j p Refer to ‘33. ISM Method’
34 DPM Select f j 00H to 01H
35 Fail Over Select m i 00H to 02H
36 Fail Over Input Select m j Refer to ’36. Fail Over Input Select’
37 Reset f k 00H to 03H
38 Tile Mode d d Refer to ’38. Tile Mode’
39 Tile Mode Check d z FFH
40 Tile ID d i Refer to ’40. Tile ID’
66
ENG
ENGLISH
RS-232 CONTROL
COMMAND DATA
(Hexadecimal)
1 2
41 Tile H Position d e 00H to 64H
42 Tile V Position d f 23H to 41H
43 Tile H Size d g 00H to 64H
44 Natural Mode (In Tile mode) d j 00H to 01H
45 FAN Control d o 00H to 02H
46 FAN Fault check d w FFH
47 Temperature Value d n FFH
48 Key m c Refer to ‘48. Key’
49 OSD Select k l 00H to 01H
50 Elapsed time return d l FFH
51 Serial No. Check f y FFH
52 S/W Version f z FFH
53 White Balance Red Gain j m 00H to FEH
54 White Balance Green Gain j n 00H to FEH
55 White Balance Blue Gain j o 00H to FEH
y Note : During USB operations such as Dvix or EMF, all commands except Power(ka) and Key(mc) are
not executed and treated as NG.
67
ENG
ENGLISH
RS-232 CONTROL
Transmission / Receiving Protocol
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data][x]
y In a like manner, if other functions transmit ‘FF’ data based on this format, Acknowledgement data
feedback presents status about each function.
y Note: In this mode, display will send the acknowledgement after power on processing completion.
There might be a time delay between command and acknowledgement.
y Refer to ‘Real data mapping’ for hexadecimal data to decimal data.
y No acknowledgement signal will be sent from display, if Set ID in transmission signal is set to
‘00’(=0x00).
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
y [Command1]: First command to control the set.
y [Command2]: Second Command to control the set.
y [Set ID]: Set ID wants to communicate with the set. Command for test is 00.
y [DATA]: Information passed to the set.
y [Cr]: Carriage Return. ASCII code ‘0x0D’.
y [ ]: White Space. ASCII code ‘0x20’.
Supports
Model
Data
47WV30-BAAL
47WV30BS
47WV30-BAAM
47WV30BR
47WV30MS
20H xo
40H ox
90H oo
y This table displays the models which the command supports(O: Supports, X: Not supports)
y The command does not have this table supports all displays.
68
ENG
ENGLISH
RS-232 CONTROL
01. Power (Command: k a)
- To control power On/Off the display.
Transmission
[k][a][ ][Set ID][ ][Data][Cr]
Data
00: Power Off
01: Power On
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data][x]
* Note: In this mode, display will send the
acknowledgement after power on processing
completion. There might be a time delay between
command and acknowledgement.
04. Energy Saving (Command: j q)
- To control the energy saving function.
Transmission
[j][q][ ][Set ID][ ][Data][Cr]
Data
00: Off
01: Minimum
02: Medium
03. Maximum
05. Screen Off
Acknowledgement
[q][ ][Set ID][ ][OK/NG][Data][x]
05. Picture Mode (Comman : d x)
- To select the picture mode.
Transmission
[d][x][ ][Set ID][ ][Data][Cr]
Data
00: Vivid
01: Standard
02. Cinema
03. Sport
04: Game
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
02. Input Select (Command: x b)
- To select input source for display.
Transmission
[x][b][ ][Set ID][ ][Data][Cr]
Data
20: AV
40: Component
60: RGB PC
70: DVI-D(PC)
80: DVI-D(DTV)
90: HDMI(DTV)
A0: HDMI(PC)
Acknowledgement
[b][ ][Set ID][ ][OK/NG][Data][x]
* Use this feature depending on your model
Supports
Model
Data
47WV30BS
47WV30-BAAM
47WV30-BAAL
47WV30BR
47WV30MS
20H xo
40H oo
60H oo
70H oo
80H oo
90H oo
A0H oo
03. Aspect Ratio (Command: k c)
- To adjust the screen format.
Transmission
[k][c][ ][Set ID][ ][Data][Cr]
Data
01: 4:3
02: 16:9
04: Zoom
09: Just Scan(720p or higher)/ 1:1
10~1F: Cinema Zoom 1~16
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
69
ENG
ENGLISH
RS-232 CONTROL
07. Brightness (Command: k h)
- To adjust screen brightness.
Transmission
[k][h][ ][Set ID][ ][Data][Cr]
Data
00~64: Brightness 0~100
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
08. Sharpness (Command: k k)
- To adjust screen sharpness.
* Only available for AV/ Component input.
Transmission
[k][k][ ][Set ID][ ][Data][Cr]
Data
00~64: Sharpness 0~100
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
09. Color (Command: k i)
- To adjust screen color.
* Only available for AV/ Component input.
Transmission
[k][i][ ][Set ID][ ][Data][Cr]
Data
00~64: Color 0~100
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
10. Tint (Command: k j)
- To adjust screen tint.
* Only available for AV/ Component input.
Transmission
[k][j][ ][Set ID][ ][Data][Cr]
Data
00~64: Tint 0~100 (R50 ~ G50)
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
11. Color Temperature (Command: x u)
- To adjust color temperature.
Transmission
[x][u][ ][Set ID][ ][Data][Cr]
Data
00~64: Warm 50~Cool 50
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
06. Contrast (Command: k g)
- To adjust screen contrast.
Transmission
[k][g][ ][Set ID][ ][Data][Cr]
Data
00~64: Contrast 0~100
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
70
ENG
ENGLISH
RS-232 CONTROL
16. Balance (Command: k t)
- To adjust sound balance.
Transmission
[k][t][ ][Set ID][ ][Data][Cr]
Data
00~64: Left 50~Right 50
Acknowledgement
[t][ ][Set ID][ ][OK/NG][Data][x]
17. Sound Mode (Comman : d y)
- To select the sound mode.
Transmission
[d][y][ ][Set ID][ ][Data][Cr]
Data
01: Standard
02: Music
03: Cinema
04: Sport
05. Game
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
15. Auto Configuration (Command: j u)
- To adjust picture position and minimize image
shaking automatically.
* Only available for RGB input.
Transmission
[j][u][ ][Set ID][ ][Data][Cr]
Data
01: Set
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
13. V Position (Command: f r)
- To set the Vertical position.
* Only available for Tile Off mode.
Transmission
[f][r][ ][Set ID][ ][Data][Cr]
Data
23~41: Bottom 15~Top 15
Acknowledgement
[r][ ][Set ID][ ][OK/NG][Data][x]
14. H Size (Command: f s)
- To set the Horizontal size.
* Only available for Tile Off mode.
Transmission
[f][s][ ][Set ID][ ][Data][Cr]
Data
00~64: Size -50 ~ +50
Acknowledgement
[s][ ][Set ID][ ][OK/NG][Data][x]
12. H Position (Command: f q)
- To set the Horizontal position.
* Only available for Tile Off mode.
Transmission
[f][q][ ][Set ID][ ][Data][Cr]
Data
00~64: Left 50 ~ Right 50
Acknowledgement
[q][ ][Set ID][ ][OK/NG][Data][x]
71
ENG
ENGLISH
RS-232 CONTROL
23. Time 1(Year/ Month/ Day) (Command: f a)
- To set the Time 1(Year/ Month/ Day values.
Transmission
[f][a][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
00~14: 2010 ~ 2030
Data2
01~0C: January ~ December
Data3
01~1F: 1 ~ 31
* Enter “fa [Set ID] ff” for checking Time 1 values.
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
22. Volume Control (Command: k f)
- To adjust volume.
Transmission
[k][f][ ][Set ID][ ][Data][Cr]
Data
00~64: Volume 0~100
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
20. Speaker (Command: d v)
- To select speaker on/off.
Transmission
[d][v][ ][Set ID][ ][Data][Cr]
Data
00: Speaker Off
01. Speaker On
Acknowledgement
[v][ ][Set ID][ ][OK/NG][Data][x]
21. Volume Mute (Command: k e)
- To select volume mute on/off.
Transmission
[k][e][ ][Set ID][ ][Data][Cr]
Data
00: Volume mute on(volume off)
01: Volume mute off(volume on)
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data][x]
19. Bass (Command: k s)
- To adjust bass.
Transmission
[k][s][ ][Set ID][ ][Data][Cr]
Data
00~64: Bass 0~100
Acknowledgement
[s][ ][Set ID][ ][OK/NG][Data][x]
18. Treble (Command: k r)
- To adjust treble.
Transmission
[k][r][ ][Set ID][ ][Data][Cr]
Data
00~64: Treble 0~100
Acknowledgement
[r][ ][Set ID][ ][OK/NG][Data][x]
72
ENG
ENGLISH
RS-232 CONTROL
25. Off Timer(Repeat Mode/ Time) (Command: f e)
- To set the Off Timer(Repeat Mode/ Time) function.
Transmission
[f][e][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
00: Repeat Off
01: Repeat Once
02. Repeat Daily
03: Repeat from Monday to Friday
04: Repeat from Monday to Saturday
05: Repeat from Saturday to Sunday
06. Repeat on Sunday
Data2
00~17: 00 ~ 23 Hours
Data3
00~3B: 00 ~ 59 Minutes
* Enter “fe [Set ID] ff” for checking Off Timer(Repeat
mode/ Time) values.
* Check if Time1 and Time2 have been set before
setting this function.
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
26. On Timer(Repeat Mode/ Time) (Command: f d)
- To set the On Timer(Repeat Mode/ Time) function.
Transmission
[f][d][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
00: Repeat Off
01: Repeat Once
02. Repeat Daily
03: Repeat from Monday to Friday
04: Repeat from Monday to Saturday
05: Repeat from Saturday to Sunday
06. Repeat on Sunday
Data2
00~17: 00 ~ 23 Hours
Data3
00~3B: 00 ~ 59 Minutes
* Enter “fd [Set ID] ff” for checking On Timer(Repeat
mode/ Time) values.
* Check if Time1 and Time2 have been set before
setting this function.
* On Timer Input command should be executed
followed just after executing this command to set On
Timer schedule properly.
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
24. Time 2(Hour/ Minute/ Second) (Command: f x)
- To set the Time 2(Hour/ Minute/ S) values.
Transmission
[f][x][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
00~17: 00 ~ 23 hours
Data2
01~3B: 00 ~ 59 minutes
Data3
01~3B: 00 ~ 59 seconds
* Enter “fx [Set ID] ff” for checking Time 2 values.
* This command won’t work if Time 1 has not been
set in advance.
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
73
ENG
ENGLISH
RS-232 CONTROL
30. Automatic Standby (Command: m n)
- To set the Automatic Standby function
Transmission
[m][n][ ][Set ID][ ][Data][Cr]
Data
00: Off
01: 4 Hours Off
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
28. Sleep Time (Command: f f)
- To set sleep time.
Transmission
[f][f][ ][Set ID][ ][Data][Cr]
Data
00: Off
01: 10min.
02: 20min.
03: 30min.
04: 60min.
05: 90min.
06: 120min.
07: 180min.
08: 240min.
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
29. Power On Delay (Command: f h)
- To set the schedule delay when the power is turned
on(unit: second).
Transmission
[f][h][ ][Set ID][ ][Data][Cr]
Data
00~64: 0~100sec.
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
27. On Timer Input (Command: f u)
- To set the On Timer Input function.
Transmission
[f][u][ ][Set ID][ ][Data][Cr]
Data
20: AV
40: Component
60. RGB
70: DVI
90: HDMI
* Check if Time1, Time2, and On Timer(Repeat
Mode/ Time) functions have been set before setting
this function.
* On Timer(Repeat Mode/ Time) command should
be executed in advance this command to set On
Timer schedule properly.
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
Supports
Model
Data
47WV30BS
47WV30-BAAM
47WV30-BAAL
47WV30BR
47WV30MS
20H xo
40H oo
60H oo
70H oo
90H oo
74
ENG
ENGLISH
RS-232 CONTROL
34. DPM Select (Command: f j)
- To select DPM(Display Power Management) to
save evergy.
Transmission
[f][j][ ][Set ID][ ][Data][Cr]
Data
00: DPM Off
01: DPM On
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
35. Fail Over Select (Command: m i)
- To select Fail Over mode.
* 47WV30-BAAL does not support Fail Over Select
command.
Transmission
[m][i][ ][Set ID][ ][Data][Cr]
Data
00: Off
01: Auto
02: Manual
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
33. ISM Method (Command: j p)
- To select ISM method for avoiding having a fixed
image remain on screen.
Transmission
[j][p][ ][Set ID][ ][Data][Cr]
Data
01: Inversion
02: Orbiter
04: White Wash
08. Normal
Acknowledgement
[p][ ][Set ID][ ][OK/NG][Data][x]
31. Auto Off (Command: f g)
- To set the Auto Off function
Transmission
[f][g][ ][Set ID][ ][Data][Cr]
Data
00: Auto Off Off
01: Auto Off On
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
32. Language (Command: f i)
- To set language for OSD.
Transmission
[f][i][ ][Set ID][ ][Data][Cr]
Data
00: Korean
01: Chinese
02: Japanese
03: English
04: French
05: German
06: Italian
07: Portuguese
08: Spanish(EU)
09: Russian
0A: Persian
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
75
ENG
ENGLISH
RS-232 CONTROL
37. Reset (Command: f k)
- To execute the Picture, Screen and Factory reset
function,
Transmission
[f][k][ ][Set ID][ ][Data][Cr]
Data
00: Picture Reset
01: Screen Reset
02: Factory Reset
03: Audio Reset
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
40. Tile ID (Command: d i)
- To set Tile ID.
Transmission
[d][i][ ][Set ID][ ][Data][Cr]
Data
01 ~ E1:Tile ID 01 ~ 225**
FF: Read Tile ID
** Data could not be set over (Tile Row) x (Tile
Column)
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
38. Tile mode (Command: d d)
- To select a Tile Mode Off/ On and Tile Row/
Column size.
Transmission
[d][d][ ][Set ID][ ][Data][Cr]
Data
00 ~ FF: 1st byte - Tile Column value
2nd byte - Tile Row value
*00, 01, 10, 11 means Tile Mode Off.
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data][x]
39. Tile Mode Check (Command: d z)
- To check Tile Mode status.
Transmission
[d][i][ ][Set ID][ ][Data][Cr]
Data
FF: Check Tile Mode status
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
Data1
00: Tile Mode Off
01: Tile Mode On
Data2
01~0F: Tile Column Value
Data3
01~0F: Tile Row Value
36. Fail Over Input Select (Command: m j)
- To select fail over mode.
* Only available in Fail Over manual mode.
* 47WV30-BAAL does not support Fail Over Select
command.
Transmission
[m][j][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data
60: RGB
70: DVI-D*
90: HDMI*
* Use 0x70 as data for DVI-D input, 0x90 as data for
HDMI input, regardless their input lables.
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
Data
1~3(Priority 1~3)
60: RGB
70: DVI-D**
90: HDMI**
** Returns 0x70 as Data for DVI-D port, 0x90 as
Data for HDMI port, regardless their input labels.
76
ENG
ENGLISH
RS-232 CONTROL
41. Tile H Position (Command: d e)
- To set the Horizontal position
* Only available when Tile Mode On.
Transmission
[d][e][ ][Set ID][ ][Data][Cr]
Data
00~64: -50 ~ 50
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data][x]
42. Tile V Position (Command: d f)
- To set the Vertical Position.
* Only available when Tile Mode On.
Transmission
[d][f][ ][Set ID][ ][Data][Cr]
Data
23~41: -15 ~ 15 (for RGB)
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
46. FAN Fault Check (Command: d w)
- To set Fan control on/off.
Transmission
[d][w][ ][Set ID][ ][Data][Cr]
Data
FF: Data should be always ff in hexadecimal.
Acknowledgement
[w][ ][Set ID][ ][OK/NG][Data][x]
43. Tile H Size (Command: d g)
- To set the Horizontal size.
* Only available when Tile Mode On.
Transmission
[d][g][ ][Set ID][ ][Data][Cr]
Data
00~64: -50 ~ 50
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
44. Natural Mode (in Tile Mode) (Comman : d j)
- To assign the Tile Natural mode for Tiling function.
Transmission
[d][j][ ][Set ID][ ][Data][Cr]
Data
00: Off
01: On
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
45. FAN Control (Command: d o)
- To set Fan control on/off.
Transmission
[d][o][ ][Set ID][ ][Data][Cr]
Data
00: Auto
01: On
02: Manual
Acknowledgement
[o][ ][Set ID][ ][OK/NG][Data][x]
77
ENG
ENGLISH
IR CODES
49. OSD Select (Command: k l)
- To select OSD(On Screen Display) on/off
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Data
00: OSD off
01: OSD on
Acknowledgement
[l][ ][Set ID][ ][OK/NG][Data][x]
52. S/W Version (Command: f z)
- To read the software version.
Transmission
[f][z][ ][Set ID][ ][Data][Cr]
Data
FF: Data should be always ff in hexadecimal.
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data][x]
50. Elapsed Time Return (Command: d l)
- To read the panel used time.
Transmission
[d][l][ ][Set ID][ ][Data][Cr]
Data
FF: Data should be always ff in hexadecimal.
Acknowledgement
[l][ ][Set ID][ ][OK/NG][Data][x]
* Returned data means used hours in hexadecimal.
51. Serial No. Check (Command: f y)
- To read the serial numbers.
Transmission
[f][y][ ][Set ID][ ][Data][Cr]
Data
FF: Data should be always ff in hexadecimal.
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
48. Key (Command: m c)
- To send IR remote control code.
Transmission
[m][c][ ][Set ID][ ][Data][Cr]
Data
IR_KEY_CODE
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
When display is in the standby mode, display will
turn on by Power button of remote control only.
47. Temperature Value (Command: d n)
- To read the inside temperature of the display.
Transmission
[d][n][ ][Set ID][ ][Data][Cr]
Data
FF: Data should be always ff in hexadecimal.
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
ENG
ENGLISH
IR CODES
78
55. White Balance Blue Gain (Command: j o)
- To adjust white balance blue gain.
Transmission
[j][o][ ][Set ID][ ][Data][Cr]
Data 00~FE: Blue gain 0~254
Acknowledgement
[o][ ][Set ID][ ][OK/NG][Data][x]
54. White Balance Green Gain (Command: j n)
- To adjust white balance green gain.
Transmission
[j][n][ ][Set ID][ ][Data][Cr]
Data 00~FE: Green gain 0~254
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
53. White Balance Red Gain (Command: j m)
- To adjust white balance red gain.
Transmission
[j][m][ ][Set ID][ ][Data][Cr]
Data 00~FE: Red gain 0~254
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data][x]
79
ENG
ENGLISH
IR CODES
IR CODE (Hex) Function Remark
08 POWER Remocon Botton
C4 MONITOR ON Remocon Botton
C5 MONITOR OFF Remocon Botton
95 Evergy Saving Remocon Botton
0B INPUT Remocon Botton
10 Number 0 Remocon Botton
11 Number 1 Remocon Botton
12 Number 2 Remocon Botton
13 Number 3 Remocon Botton
14 Number 4 Remocon Botton
15 Number 5 Remocon Botton
16 Number 6 Remocon Botton
17 Number 7 Remocon Botton
18 Number 8 Remocon Botton
19 Number 9 Remocon Botton
02 VOL+ Remocon Botton
03 VOL- Remocon Botton
E0 BRIGHTNESS 䯁 (Page Up) Remocon Botton
E1 BRIGHTNESS 䯂 (Page Down) Remocon Botton
79 ARC (MARK) Remocon Botton
4D PSM Remocon Botton
09 MUTE Remocon Botton
43 MENU Remocon Botton
99 AUTO Remocon Botton
40 䯁Remocon Botton
41 䯂Remocon Botton
06 > Remocon Botton
07 < Remocon Botton
44 OK Remocon Botton
28 BACK Remocon Botton
7B TILE Remocon Botton
5B EXIT Remocon Botton
72 ID ON(Red) Remocon Botton
71 ID OFF(Green) Remocon Botton
63 Yellow Remocon Botton
61 Blue Remocon Botton
B1 Remocon Botton
B0 Remocon Botton
BA ll Remocon Botton
8F Remocon Botton
8E Remocon Botton
Make sure to read the Safety Precautions
before using the product.
Keep the Owner's Manual(CD) in an
accessible place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service.
MODEL
SERIAL
Temporary noise is normal when powering ON or
OFF this device.
NOTE
y ENERGY STAR(EPA) can not be supported
in 47WV30-BAAL model.
ENERGY STAR(EPA)
support
47WV30MS o
47WV30BR o
47WV30BS o
47WV30-BAAM o
47WV30-BAAL x
Regulatory Information cont.
FCC Compliance Statement
This equipment has been tested and found to comply
within the limits of a Class B digital device pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio
frequency energy and if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio
or television reception (which can be determined by
turning the equipment on and off), the user is encouraged
to try to correct the interference by using one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
the receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Caution: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user's (or your) authority to operate the equipment. Only
peripherals (digital input/output devices, terminals, printers,
etc.) certified to comply with the Class B limits may be
attached to this monitor. Operation with non-certified
peripherals is likely to result in interference to radio and TV
reception. Only shielded signal cables may be used with
this System.
Canadian DOC Notice
This Class B digital apparatus meets all requirements of
the Canadian Interference-Causing Equipment
Regulations. Cet appareil numérique de la classe B
respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
CE Conformity Notice
(for Europe)
Products with the “CE” Marking comply with the EMC
Directive(89/336/EEC) and LOW VOLTAGE Directive
(73/23/EEC) issued by the Commission of the European
Community.
Compiance with these directives implies conformity to the
following European Norms :
• EN 55022 ; Radio Frequency Interference
• EN 55024 ; Electromagnetic Immunity
• EN 61000-3-2 ; Power Line Harmonics
• EN 61000-3-3 ; Voltage Fluctuations
• EN 60950-1 ; Product Safety
Low Radiation Compliance (MPR II)
This monitor meets one of the strictest guidelines available
today for low radiation emissions, offering the user extra
shielding and an antistatic screen coating. These
guidelines, set forth by a government agency in Sweden,
limit the amount of emission allowed in the Extremely Low
Frequency (ELF) and Very Low Frequency (VLF)
electromagnetic range.
01
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
TCO'99 (TCO'99 applied model only)
Congratulations!
You have just purchased a TCO’99 approved and labelled
product! Your choice has provided you with a product
developed for professional use. Your purchase has also
contributed to reducing the burden on the environment and
also to the further development of environmentally
adapted electronics products.
Regulatory Information cont.
02
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an
established method for encouraging the adaptation of
goods and services to the environment. With the growing
manufacture and usage of electronic equipment
throughout the world, there is a recognized concern for the
materials and substances used by electronic products
with regards to their eventual recycling and disposal. By
proper selection of these materials and substances, the
impact on the environment can be minimized.
There are also other characteristics of a computer, such as
energy consumption levels, that are important from the
viewpoints of both the work (internal) and natural (external)
environments. Electronic equipment in offices is often left
running continuously, resulting in unnecessary
consumption of large amounts of energy and additional
power generation. From the standpoint of carbon dioxide
emissions alone, it is vital to save energy.
What does labelling involve?
The product meets the requirements for the TCO’99
scheme which provides for international and environmental
labelling of personal computers and/or displays.
The labelling scheme was developed as a joint effort by the
TCO (The Swedish Confederation of Professional
Employees), Svenska Naturskyddsforeningen
(The Swedish Society for Nature Conservation) and
Statens Energimyndighet (The Swedish National
Energy Administration).
Approval requirements cover a wide range of issues:
ecology, ergonomics, emission of electrical and magnetical
fields, energy consumption and electrical safety.
Ecological criteria impose restrictions on the presence and
use of heavy metals, brominated and chlorinated flame
retardants, and other substances. The product must be
prepared for recycling and the manufacturing site(s) shall
be certified according to ISO14001 or EMAS registered.
Energy requirements include a demand that the system
unit and/or display, after a certain period of inactivity,
shall reduce its power consumption to a lower level in one
or more stages. The length of time to reactivate the system
unit shall be reasonable for the user.
Labelled products must meet strict environmental
demands, for example, in respect of the reduction of
electrical and magnetical fields as well as work load and
visual ergonomics.
Below you will find a brief summary of the ecological
requirements met by this product. The complete
ecological criteria document can be found at TCO
Development’s website http://www.tcodevelopment.com
or may be ordered from:
TCO Development
SE-114 94 STOCKHOLM, Sweden
Fax: +46 8 782 92 07
Email : development@tco.se
Information regarding TCO’99 approved and labelled
products may also be obtained at
http://www.tcodevelopment.com
Ecological requirements
Flame retardants
Flame retardants may be present in printed wiring board
laminates, cables, and housings. Their purpose is to
prevent, or at least to delay the spread of fire. Up to 30%
by weight of the plastic in a computer casing can consist of
flame retardant substances. Many flame retardants
contain bromine or chlorine, and these flame retardants
are chemically related to PCBs (polychlorinated
biphenyls). Both the flame retardants containing bromine
or chlorine and the PCBs are suspected of giving rise to
health effects, including reproductive damage in fish-
eating birds and mammals, due to the bio-accumulative*
processes when not disposed of in accordance with strict
standards for disposal.
TCO’99 requires that plastic components weighing more
than 25 grams shall not contain flame retardants with
organically bound bromine or chlorine. Flame retardants
are allowed in the printed wiring board laminates due to
the lack of commercially available alternatives.
Cadmium**
Cadmium is present in rechargeable batteries and in the
colour-generating layers of certain computer displays.
TCO’99 requires that batteries, the colour-generating
layers of display screens, and the electrical or electronics
components shall not contain any cadmium.
Mercury**
Mercury is sometimes found in batteries, relays and
switches. TCO’99 requires that batteries shall not contain
any mercury. It also demands that mercury is not present
in any of the electrical or electronics components
associated with the labelled unit. There is however one
Regulatory Information cont.
03
exception. Mercury is, for the time being, permitted in the
back light system of flat panel monitors as there today is
no commercially available alternative. TCO aims on
removing this exception when a mercury free alternative is
available.
Lead**
Lead can be found in picture tubes, display screens,
solders and capacitors. TCO’99 permits the use of lead
due to the lack of commercially available alternatives, but
in future requirements TCO Development aims at
restricting the use of lead.
_____________________________________________
* Bio-accumulative is defined as substances which
accumulate in living organisms.
**Lead, Cadmium and Mercury are heavy metals
which are bio-accumulative.
TCO’03
(TCO’03 applied model only)
Congratulations!
The display you have just purchased carries the TCO’03
Displays label.
This means that your display is designed,manufactured
and tested according to some of the strictest quality and
environmental requirements in the world. This makes for a
high performance product, designed with the user in focus
that also minimizes the impact on our natural environment.
Some of the features of the TCO’03 Display requirements:
Ergonomics
• Good visual ergonomics and image quality in order to
improve the working environment for the user and to
reduce sight and strain problems. Important
parameters are luminance, contrast, resolution,
reflectance, colour rendition and image stability.
Energy
• Energy-saving mode after a certain time – beneficial
both for the user and the environment
• Electrical safety
Emissions
• Electromagnetic fields
• Noise emissions
Ecology
• The product must be prepared for recycling and the
manufacturer must have a certified environmental
management system such as EMAS or ISO 14 001
• Restrictions on
chlorinated and brominated flame retardants and
polymers
heavy metals such as cadmium, mercury and lead.
The requirements included in this label have been
developed by TCO Development in co-operation with
scientists, experts, users as well as manufacturers all over
the world. Since the end of the 1980s TCO has been
involved in influencing the development of IT equipment in
a more user-friendly direction. Our labelling system started
with displays in 1992 and is now requested by users and
IT-manufacturers all over the world.
For more information, please visit
www.tcodevelopment.com
Information for Environmental Preservation
LGE. announced the 'LG Declaration for a Cleaner
Environment' in 1994, and this ideal has served as a
guiding managerial principle ever since. The Declaration is
a foundation that has allowed us to undertake
environmentally friendly activities in careful consideration
of economic, environmental, and social aspects.
We promote activities for environmental preservation, and
we specifically develop our products to embrace the
concept of environment-friendly.
We minimize the hazardous materials contained in our
products. For example, there is no cadmium to be found in
our monitors.
Information for recycling
This monitor may contain parts which could be hazardous
to the environment. It is important that this monitor be
recycled after use.
LGE. handles all waste monitors through an
environmentally acceptable recycling method. There are
several take-back and recycling systems currently in
English
Regulatory Information cont.
04
operation worldwide. Many parts will be reused and
recycled, while harmful substances and heavy metals are
treated by an environmentally friendly method.
If you want to find out more information about our
recycling program, please contact your local LG vendor or
a corporate representative of LG.
We set our vision and policies on a cleaner world by
selecting the issue of the global environment as a task for
corporate improvement. Please visit our website for more
information about our ‘green’ policies.
http://www.lge.com/about/environment/html/Recycling.jsp
Informationen zur Erhaltung der Umwelt
Im Jahr 1994 verkündete LGE die 'LG Declaration for a
Cleaner Environment' (LG Erklärung für eine sauberere
Umwelt). Seitdem dient dieses Ideal als führendes Prinzip
des Unternehmens. Diese Erklärung war die Basis für die
Durchführung von
umweltfreundlichen Aktivitäten, wobei wirtschaftliche,
umweltbezogene und soziale Aspekte in die
Überlegungen mit einbezogen wurden.
Wir fördern Aktivitäten zum Schutz der Umwelt und die
Entwicklung unserer Produkte ist darauf ausgerichtet,
unserem Konzept bezüglich Umweltfreundlichkeit gerecht
zu werden.
Wir sind darauf bedacht, den Anteil der in unseren
Produkten enthaltenen schädlichen Materialien zu
minimieren. So ist in unseren Monitoren beispielsweise
kein Kadmium zu finden.
Informationen zum Thema Recycling
Dieser Monitor enthält Teile, die umweltschädlich sein
können. Es ist unbedingt erforderlich, dass der Monitor
recycelt wird, nachdem er außer Dienst gestellt wurde.
Bei LGE. werden alle ausrangierten Monitore in einem
unter umweltbezogenen Aspekten geeigneten Verfahren
recycelt. Augenblicklich sind weltweit mehrere
Rücknahme- und Recyclingsysteme im Einsatz. Viele
Teile werden wieder verwendet und recycelt. Schädliche
Substanzen und Schwermetalle werden durch
umweltverträgliche Verfahren behandelt.
Falls Sie mehr über unser Recyclingprogramm erfahren
möchten, wenden Sie sich bitte an Ihren lokalen LG-
Händler oder einen Unternehmensvertreter von LG.
Wir richten unsere Firmenpolitik auf eine sauberere
Umwelt hin aus, indem wir umweltspezifische Aspekte als
wichtigen Punkt in die Weiterentwicklung unseres
Unternehmens einfließen lassen. Zusätzliche
Informationen über unsere ‘grüne’ Firmenpolitik erhalten
Sie auf unserer Website.
http://www.lge.com/about/environment/html/Recycling.jsp
Information sur la protection del’environnement
LGE. a publié sa 'Déclaration en faveur d’un
environnement plus propre' en 1994 et celle-ci est restée,
depuis lors, un principe directeur de notre entreprise.
Cette déclaration a servi de base à notre réflexion et nous
a permis de prendre en compte à la fois les aspects
économiques et sociaux de nos activités, tout en
respectant l’environnement.
Nous encourageons les activités en faveur de la
préservation de l’environnement et c’est dans cet esprit
que nous développons nos produits : nous réduisons au
minimum les matières dangereuses qui entrent dans leur
composition et l’on ne trouve pas de cadmium, par
exemple, dans nos moniteurs.
Information sur le recyclage
Ce moniteur peut contenir des composants qui présentent
un risque pour l’environnement. Il est donc important que
celui-ci soit recyclé après usage.
LGE. traite les moniteurs en fin de cycle conformément à
une méthode de recyclage respectueuse de
l’environnement. Nous reprenons nos produits et les
recyclons dans plusieurs sites répartis dans le monde
entier. De nombreux composants sont réutilisés et
recyclés, et les matières dangereuses, ainsi que les
métaux lourds, sont traités selon un procédé écologique.
Si vous souhaitez plus de renseignements sur notre
programme de recyclage, veuillez contacter votre
revendeur LG ou un l’un de nos représentants.
Nous voulons agir pour un monde plus propre et croyons
au rôle de notre entreprise dans l’amélioration de
l’environnement. Pour plus de renseignements sur notre
politique “verte”, rendez visite à notre site :
http://www.lge.com/about/environment/html/Recycling.jsp
Deutsch
Français
05
Regulatory Information cont.
Informazioni per la tutela dell’ambiente
La LGE. ha annunciato nel 1994 la cosiddetta 'LG
Declaration for a Cleaner Environment' (Dichiarazione di
LG a favore di un ambiente più pulito), un ideale che da
allora funge da principio ispiratore della gestione
aziendale. La dichiarazione rappresenta il fondamento che
consente di intraprendere attività a favore dell'ambiente
tenendo conto degli aspetti economici, ambientali e
sociali.Noi della LG, promuoviamo attività a favore della
tutela dell'ambiente sviluppando appositamente i nostri
prodotti per cogliere il concetto del rispetto dell’ambiente
riducendo i materiali dannosi presenti nei nostri prodotti.
Ad esempio nei nostri monitor non è presente il cadmio.
Informazioni per il riciclaggio
Il monitor può presentare componenti che potrebbero
risultare eventualmente dannosi per l'ambiente. È
importante che il monitor sia riciclato al termine del suo
utilizzo.
La LGE. gestisce tutti i monitor di rifiuto con un metodo di
riciclaggio soddisfacente dal punto di vista ambientale. In
tutto il mondo sono attualmente in funzione numerosi
sistemi di riciclaggio e recupero. I diversi componenti sono
riutilizzati e riciclati, mentre le sostanze dannose e i metalli
pesanti vengono trattati con un metodo rispettoso
dell’ambiente.
Se si desiderano maggiori informazioni in merito al
programma di riciclaggio, è consigliabile rivolgersi al
proprio rivenditore LG o ad un rappresentante aziendale
della LG.
Noi della LG impostiamo la nostra visione e le nostre
politiche a favore di un mondo più pulito ponendo la
questione dell'ambiente dal punto di vista globale come
una mansione rivolta al miglioramento della nostra
azienda. Vi invitiamo a visitare il nostro sito internet per
ulteriori informazioni sulla nostra politica “verde”.
http://www.lge.com/about/environment/html/Recycling.jsp
Información para la conservación
medioambiental
LGE. presentó la 'Declaración para un entorno más limpio
de LG' en 1994 y este ideal ha servido para guiar nuestros
principios empresariales desde entonces. La Declaración
es la base que nos ha permitido llevar a cabo tareas que
respetan el medio ambiente siempre teniendo en cuenta
aspectos sociales,
económicos y medioambientales.
Promocionamos actividades orientadas a la conservación
del medio ambiente y desarrollamos nuestros productos
específicamente para que se ajusten a la filosofía que
protege el entorno.
Reducimos al máximo el uso de materiales de riesgo en
nuestros productos. Un ejemplo de ello es la ausencia
total de cadmio en nuestros monitores.
Información para el reciclaje
Este monitor puede contener piezas que entrañen riesgos
medioambientales. Es importante reciclar este monitor
después de su utilización.
LGE. trata todos los monitores usados siguiendo un
método de reciclaje que no daña al entorno. Contamos
con diversos sistemas de recuperación y reciclaje que
funcionan a nivel mundial en la actualidad. Es posible
reciclar y reutilizar muchas de las piezas, mientras que las
sustancias dañinas y los metales pesados se tratan
siguiendo un método que no perjudique al medio
ambiente. Si desea obtener más información acerca del
programa de reciclaje, póngase en contacto con su
proveedor local de LG o con un representante empresarial
de nuestra marca.
Basamos nuestra visión y nuestras políticas en un mundo
más limpio y para ellos optamos por un entorno global
como tarea principal de nuestra evolución como empresa.
Visite nuestra página Web para obtener más información
sobre nuestras políticas ecológicas.
http://www.lge.com/about/environment/html/Recycling.jsp
Informações relacionadas à preservação
ambiental
A LGE. anunciou a 'LG Declaration for a Cleaner
Environment' (Declaração da LG para um ambiente mais
limpo) em 1994 e esse ideal tem servido desde então
como um princípio administrativo de orientação. A
Declaração é a base que nos tem permitido realizar
atividades favoráveis ao ambiente com consideração
atenta aos aspectos econômicos, ambientais e sociais.
Promovemos atividades de preservação ambiental e
desenvolvemos nossos produtos para englobar
Italiano
Espanõl
Português
06
Regulatory Information cont.
especificamente o conceito de favorável ao ambiente.
Reduzimos os materiais perigosos contidos em nossos
produtos. Por exemplo, não há cádmio em nossos
monitores.
Informações relacionadas à reciclagem
Este monitor pode conter peças que podem representar
riscos ao ambiente. É importante que ele seja reciclado
após o uso.
A LGE. cuida de todos os monitores descartados através
de um método de reciclagem agradável ao ambiente. Há
vários sistemas de devolução e reciclagem atualmente
em operação no mundo. Muitas peças serão reutilizadas
e recicladas e as substâncias nocivas e os metais
pesados passarão por tratamento através de um método
favorável ao ambiente.
Para obter mais informações sobre nosso programa de
reciclagem, entre em contato com seu fornecedor LG
local ou com um representante corporativo da LG.
Definimos nossa visão e nossas políticas relacionadas a
um mundo mais limpo selecionando a questão do
ambiente global como uma tarefa de aprimoramento
corporativo. Visite nosso site para obter mais informações
sobre nossas políticas de meio ambiente.
http://www.lge.com/about/environment/html/Recycling.jsp
Informatie met betrekking tot het behoud van
het milieu
LGE. publiceerde in 1994 de 'LG Declaration for a Cleaner
Environment' (de LG-verklaring met betrekking tot een
schoner milieu). Deze verklaring en het ideaal van een
schoner milieu fungeren sindsdien als een bestuurlijke
leidraad voor onze onderneming. Op basis van deze
verklaring ontplooien wij milieuvriendelijke activiteiten,
waarbij er zowel met sociale en economische aspecten,
als met milieuaspecten zorgvuldig rekening wordt
gehouden.
Wij ondersteunen activiteiten die zijn gericht op het
behoud van het milieu en wij houden bij het ontwikkelen
onze producten specifiek rekening met de
milieuvriendelijkheid van onze producten.
Wij minimaliseren het gebruik van schadelijke stoffen in
onze producten. Er wordt bijvoorbeeld geen cadmium
verwerkt in onze monitors.
Nederlands
Informatie met betrekking tot recycling
Deze monitor bevat materialen die schadelijk zouden
kunnen zijn voor het milieu. Het is belangrijk dat deze
monitor aan het einde van zijn levensduur wordt
gerecycled.
LGE. verwerkt alle afvalmonitors via een milieuvriendelijke
recyclingmethode. Hiervoor worden er momenteel
wereldwijd verscheidene inname- en recyclingsystemen
gehanteerd. Een groot aantal onderdelen wordt opnieuw
gebruikt en gerecycled, waarbij schadelijke stoffen en
zware metalen volgens een milieuvriendelijke methode
worden verwerkt.
Voor meer informatie over ons recyclingprogramma kunt u
contact opnemen met uw plaatselijke LG-
vertegenwoordiger of een LG-vestiging.
Onze visie en ons beleid met betrekking tot een schonere
wereld vloeien voort uit het feit dat wij het milieu hebben
aangemerkt als een onderwerp dat speciale aandacht
verdient binnen onze onderneming. Bezoek onze website
voor meer informatie over ons 'groene' beleid.
http://www.lge.com/about/environment/html/Recycling.jsp
»ÌÙÓχˆËˇ ÔÓ Óı‡Ì ÓÍÛʇ˛˘ÂÈ Ò‰˚
¬ 1994 „Ó‰Û ÍÓÔÓ‡ˆËˇ LGE ÓÔÛ·ÎËÍÓ‚‡Î‡
'ƒÂÍ·‡ˆË˛ LG ÔÓ Óı‡Ì ÓÍÛʇ˛˘ÂÈ Ò‰˚',
ÍÓÚÓ‡ˇ Ò ÚÂı ÔÓ ÒÎÛÊËÚ ÓÒÌÓ‚Ì˚Ï ÔË̈ËÔÓÏ
ÛÔ‡‚ÎÂÌˡ. Õ‡ ÓÒÌÓ‚Â ˝ÚÓÈ ‰ÂÍ·‡ˆËË Ï˚ ÒÏÓ„ÎË
Ô‰ÔËÌˇÚ¸ ‰ÂÈÒڂˡ, Ó·ÂÒÔ˜˂‡˛˘ËÂ
·ÂÁÓÔ‡ÒÌÓÒÚ¸ ÓÍÛʇ˛˘ÂÈ Ò‰˚, Û‰ÂΡˇ ÔË ˝ÚÓÏ
‰ÓÎÊÌÓ ‚ÌËχÌË ˝ÍÓÌÓÏ˘ÂÒÍËÏ, ˝ÍÓÎӄ˘ÂÒÍËÏ Ë
ÒӈˇθÌ˚Ï ‡ÒÔÂÍÚ‡Ï.
Ã˚ ÒÚËÏÛÎËÛÂÏ ‰ÂˇÚÂθÌÓÒÚ¸ ÔÓ Óı‡ÌÂ
ÓÍÛʇ˛˘ÂÈ Ò‰˚, Û‰ÂΡˇ ÓÒÓ·Ó ‚ÌËχÌËÂ
‡Á‡·ÓÚÍ ̇¯ÂÈ ÔÓ‰Û͈ËË ‚ ÒÓÓÚ‚ÂÚÒÚ‚ËË Ò
ÍÓ̈ÂÔˆËÂÈ ˝ÍÓÎӄ˘ÂÒÍÓÈ ·ÂÁÓÔ‡ÒÌÓÒÚË.
Ã˚ Ò‚Ó‰ËÏ Í ÏËÌËÏÛÏÛ ÒÓ‰ÂʇÌË ÓÔ‡ÒÌ˚ı
‚¢ÂÒÚ‚ ‚ ̇¯ÂÈ ÔÓ‰Û͈ËË. Õ‡ÔËÏÂ, ‚ ̇¯Ëı
ÏÓÌËÚÓ‡ı ‚˚ Ì ̇ȉÂÚ ͇‰Ïˡ.
»ÌÙÓχˆËˇ ÔÓ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚
›ÚÓÚ ÏÓÌËÚÓ ÏÓÊÂÚ ÒÓ‰Âʇڸ ÍÓÏÔÓÌÂÌÚ˚,
ÍÓÚÓ˚ ÏÓ„ÛÚ Ì‡ÌÂÒÚË Û˘Â· ÓÍÛʇ˛˘ÂÈ Ò‰Â.
Russian
07
Regulatory Information cont.
EPA
(EPA applied model only)
ENERGY STAR
is a set of power-saving guidelines
issued by the U.S. Environmental Protection
Agency(EPA).
NOM MARK (Mexico only)
ÕÂÓ·ıÓ‰ËÏÓ ÛÚËÎËÁËÓ‚‡Ú¸ ÏÓÌËÚÓ ÔÓÒÎÂ
ËÒÔÓθÁÓ‚‡Ìˡ.
KÓÔÓ‡ˆËˇ LGE Ô‡·‡Ú˚‚‡ÂÚ ‚Ò ·‡ÍÓ‚‡ÌÌ˚Â
ÏÓÌËÚÓ˚ Ò ÔÓÏÓ˘¸˛ ˝ÍÓÎӄ˘ÂÒÍË ÔËÂÏÎÂÏÓ„Ó
ÏÂÚÓ‰‡ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚. œÓ ‚ÒÂÏÛ ÏËÛ
‰ÂÈÒÚ‚Û˛Ú ÒËÒÚÂÏ˚ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚ Ë ‚ÓÁ‚‡Ú‡
ËÒÔÓθÁÓ‚‡ÌÌÓÈ ÔÓ‰Û͈ËË. ÃÌÓ„Ë ÍÓÏÔÓÌÂÌÚ˚
·Û‰ÛÚ ‚ÚÓ˘ÌÓ ËÒÔÓθÁÓ‚‡Ì˚ Ë ÛÚËÎËÁËÓ‚‡Ì˚, ‚ ÚÓ
‚ÂÏˇ Í‡Í ‚‰Ì˚ ‚¢ÂÒÚ‚‡ Ë ÚˇÊÂÎ˚ ÏÂÚ‡ÎÎ˚
·Û‰ÛÚ Ó·‡·ÓÚ‡Ì˚ Ò ÔÓÏÓ˘¸˛ ˝ÍÓÎӄ˘ÂÒÍË
ÔËÂÏÎÂÏÓ„Ó ÏÂÚÓ‰‡.
«‡ ·ÓΠÔÓ‰Ó·ÌÓÈ ËÌÙÓχˆËÂÈ ÔÓ Ì‡¯ÂÈ
ÔÓ„‡ÏÏ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚ Ó·‡˘‡ÈÚÂÒ¸ Í
ÏÂÒÚÌÓÏÛ ÔÓÒÚ‡‚˘ËÍÛ ËÎË Ô‰ÒÚ‡‚ËÚÂβ
ÍÓÔÓ‡ˆËË LG.
Ã˚ ÓËÂÌÚËÛÂÏÒˇ ̇ Ó·ÂÒÔ˜ÂÌË ˝ÍÓÎӄ˘ÂÒÍÓÈ
·ÂÁÓÔ‡ÒÌÓÒÚË, ÒÚ‡‚ˇ Ò· ˆÂθ˛ „ÎÓ·‡Î¸ÌÛ˛ Á‡˘ËÚÛ
ÓÍÛʇ˛˘ÂÈ Ò‰˚. ƒÓÔÓÎÌËÚÂθÌÛ˛ ËÌÙÓχˆË˛
Ó Ì‡¯ÂÈ ÔÓÎËÚËÍ ÔÓ Óı‡Ì ÓÍÛʇ˛˘ÂÈ Ò‰˚ ‚˚
ÏÓÊÂÚ ̇ÈÚË Ì‡ ̇¯ÂÏ Ò‡ÈÚÂ:
http://www.lge.com/about/environment/html/Recycling.jsp
As an ENERGY STAR Partner LGE U. S.
A.,Inc. has determined that this product
meets the ENERGY STAR guidelines for
energy efficiency.
08
Regulatory Information cont.
1.When this crossed-out wheeled bin symbol is attached
to a product it means the product is covered by the
European Directive 2002/96/EC.
2.All electrical and electronic products should be
disposed of separately from the municipal waste
stream via designated collection facilities appointed by
the government or the local authorities.
3.The correct disposal of your old appliance will help
prevent potential negative consequences for the
environment and human health.
4.For more detailed information about disposal of your
old appliance, please contact your city office, waste
disposal service or the shop where you purchased the
product.
Disposal of your old appliance
1.Quando su un prodotto è riportato il simbolo di
1.När den här symbolen med en överkryssad
soptunna på hjul sitter på en produkt innebär det
att den regleras av European Directive
2002/96/EC.
2.Alla elektriska och elektroniska produkter bör
kasseras via andra vägar än de som finns för
hushållsavfall, helst via för ändamålet avsedda
uppsamlingsanläggningar som myndigheterna
utser.
3.Om du kasserar din gamla apparat på rätt sätt
så bidrar du till att förhindra negativa
konsekvenser för miljön och människors hälsa.
4.Mer detaljerad information om kassering av din
gamla apparat kan får av kommunen,
renhållningsverket eller den butik där du köpte
produkten.
1.Als het symbool met de doorgekruiste verrijdbare
afvalbak op een product staat, betekent dit dat
het product valt onder de Europese Richtlijn
2002/96/EC.
2.Elektrische en elektronische producten mogen
niet worden meegegeven met het huishoudelijk
afval, maar moeten worden ingeleverd bij
speciale inzamelingspunten die door de lokale of
landelijke overheid zijn aangewezen.
3.De correcte verwijdering van uw oude toestel
helpt negatieve gevolgen voor het milieu en de
menselijke gezondheid voorkomen.
Smaltimento delle apparecchiature obsolete
Kassering av din gamla apparat
Uw oude toestel wegdoen
1.Ce symbole, représentant une poubelle sur
roulettes barrée d'une croix, signifie que le
produit est couvert par la directive européenne
2002/96/EC.
2.Les éléments électriques et électroniques
doivent être jetés séparément, dans les vide-
ordures prévus à cet effet par votre municipalité.
3.Une élimination conforme aux instructions aidera
à réduire les conséquences négatives et risques
éventuels pour l'environnement et la santé
humaine.
4.Pour plus d'information concernant l'élimination
de votre ancien appareil, veuillez contacter votre
mairie, le service des ordures ménagères ou
encore la magasin où vous avez acheté ce
produit.
Élimination de votre ancien appareil
un bidone della spazzatura barrato da una croce
significa che il prodotto è coperto dalla direttiva
europea 2002/96/EC.
2.Tutti i prodotti elettrici ed elettronici dovrebbero
essere smaltiti separatamente rispetto alla
raccolta differenziata municipale, mediante
impianti di raccolta specifici designati dal
governo o dalle autorità locali.
3.Il corretto smaltimento delle apparecchiature
obsolete contribuisce a prevenire possibili
conseguenze negative sulla salute umana e
sull'ambiente.
4.Per informazioni più dettagliate sullo smaltimento
delle apparecchiature obsolete, contattare il
comune, il servizio di smaltimento rifiuti o il
negozio in cui è stato acquistato il prodotto.
English
French
Italian
Swedish
Dutch
WEEE (for Europe )
Regulatory Information cont.
09
1.Wenn dieses Symbol eines durchgestrichenen
Abfalleimers auf einem Produkt angebracht ist,
unterliegt dieses Produkt der europäischen
Richtlinie 2002/96/EC.
2.Alle Elektro- und Elektronik-Altgeräte müssen
getrennt vom Hausmüll über dafür staatlich
vorgesehenen Stellen entsorgt werden.
3.Mit der ordnungsgemäßen Entsorgung des alten
Geräts vermeiden Sie Umweltschäden und eine
Gefährdung der persönlichen Gesundheit.
4.Weitere Informationen zur Entsorgung des alten
Geräts erhalten Sie bei der Stadtverwaltung,
beim Entsorgungsamt oder in dem Geschäft, wo
Sie das Produkt erworben haben.
1.ŸÙ·Ó ¤Ó· ÚÔ˚fiÓ ‰È·ı¤ÙÂÈ ÙÔ ‰‡Ì‚ÔÏÔ ÂÓfi˜
‰È·ÁÚ·Ì̤ÓÔ˘ οϷıÔ˘ ·ÔÚÚÈÌÌ¿ÙˆÓ, ÙfiÙ ÙÔ ÚÔ˚fiÓ
ηχÙÂÙ·È ·fi ÙËÓ E˘Úˆ·˚΋ O‰ËÁ›· 2002/96/EOK.
2.H ·fiÚÚÈ„Ë fiÏˆÓ ÙˆÓ ËÏÂÎÙÚÈÎÒÓ Î·È ËÏÂÎÙÚÔÓÈÎÒÓ
ÚÔ˚fiÓÙˆÓ Ú¤ÂÈ Ó· Á›ÓÂÙ·È ¯ˆÚÈÛÙ¿ ·fi Ù· ÁÂÓÈο
ÔÈÎȷο ·ÔÚÚ›ÌÌ·Ù· ̤ۈ ηıÔÚÈṲ̂ӈÓ
ÂÁηٷÛÙ¿ÛÂˆÓ Û˘ÏÏÔÁ‹˜ ·ÔÚÚÈÌÌ¿ÙˆÓ, ÔÈ Ôԛ˜
¤¯Ô˘Ó ‰ËÌÈÔ˘ÚÁËı› ›Ù ·fi ÙËÓ Î˘‚¤ÚÓËÛË ‹ ·fi ÙȘ
ÙÔÈΤ˜ ·Ú¯¤˜.
3.H ÛˆÛÙ‹ ·fiÚÚÈ„Ë Ù˘ ·ÏÈ¿˜ Û·˜ Û˘Û΢‹˜ ı·
‚ÔËı‹ÛÂÈ ÛÙËÓ ·ÔÙÚÔ‹ Èı·ÓÒÓ ·ÚÓËÙÈÎÒÓ Û˘ÓÂÈÒÓ
ˆ˜ ÚÔ˜ ÙÔ ÂÚÈ‚¿ÏÏÔÓ Î·È ÙËÓ ˘Á›· ÙÔ˘ ·ÓıÚÒÔ˘.
4.°È· ÈÔ ÏÂÙÔÌÂÚ›˜ ÏËÚÔÊÔڛ˜ Û¯ÂÙÈο Ì ÙËÓ
·fiÚÚÈ„Ë Ù˘ ·ÏÈ¿˜ Û·˜ Û˘Û΢‹˜, ÂÈÎÔÈÓˆÓ‹ÛÙ ÌÂ
ÙÔ ·ÚÌfi‰›Ô ÙÔÈÎfi ÁÚ·Ê›Ô, ˘ËÚÂÛ›· ‰È¿ıÂÛ˘ ÔÈÎÈ·ÎÒÓ
·ÔÚÚÈÌÌ¿ÙˆÓ ‹ ÙÔ Ì·Á·Í› ·fi ÙÔ ÔÔ›Ô ·ÁÔÚ¿Û·ÙÂ ÙÔ
ÚÔ˚fiÓ.
1.Tämä merkki tuotteessa tarkoittaa, että tuote
kuuluu sähkö- ja elektroniikkalaiteromusta
annetun EU-direktiivin 2002/96/EY
soveltamisalaan.
2.Kaikki elektroniset laitteet ovat ongelmajätettä,
joten ne on toimitettava paikalliseen
keräyspisteeseen.
3.Vanhan laitteen asianmukainen hävittäminen
ehkäisee mahdollisia ympäristöön ja
terveyteen kohdistuvia haittavaikutuksia.
4.Lisätietoa vanhan laitteen hävittämisestä saat
ottamalla yhteyden paikallisiin viranomaisiin,
kierrätyskeskukseen tai myymälään, josta ostit
laitteen.
1.Når der er et tegn med et kryds over en
skraldespand, betyder det, at produktet er
omfattet af EU-direktiv 2002/96/EC.
2.Alle elektriske og elektroniske produkter skal
smides ud et andet sted end gennem den
kommunale affaldsordning ved hjælp af specielle
indsamlingsfaciliteter, der er organiseret af staten
1.Si en un producto aparece el símbolo de un contenedor
de basura tachado, significa que éste se acoge a la
Directiva 2002/96/CE.
2.Todos los aparatos eléctricos o electrónicos se deben
desechar de forma distinta del servicio municipal de
recogida de basura, a través de puntos de recogida
designados por el gobierno o las autoridades locales.
3.La correcta recogida y tratamiento de los dispositivos
inservibles contribuye a evitar riesgos potenciales para el
medio ambiente y la salud pública.
4.Para obtener más información sobre cómo deshacerse de
sus aparatos eléctricos y electrónicos viejos, póngase en
contacto con su ayuntamiento, el servicio de recogida de
basuras o el establecimiento donde adquirió el producto.
Vanhojen laitteiden hävittäminen
Entsorgung von Altgeräten
Sådan smider du dit gamle apparat ud
∞fiÚÚÈ„Ë Ù˘ ·ÏÈ¿˜ Û·˜ Û˘Û΢‹˜
Cómo deshacerse de aparatos eléctricos y
electrónicos viejos
eller de lokale myndigheder.
3.Korrekt bortskaffelse af dit gamle apparat er med
til at forhindre mulige skadevirkninger på miljøet
og menneskelig sundhed.
4.Mere detaljerede oplysninger om bortskaffelse af
dit gamle apparat kan fås ved at kontakte dit
lokale kommunekontor, renovationsselskab eller
den butik, hvor du købte produktet.
Finnish
German
Danish
Greek
Spanish
4.Wilt u meer informatie over de verwijdering van
uw oude toestel? Neem dan contact op met uw
gemeente, de afvalophaaldienst of de winkel
waar u het product hebt gekocht.
Regulatory Information cont.
10
Portuguese
Slovak
Czech
Croatian
Hungarian
Polish
Regulatory Information cont.
11
Estonian
Latvian
Lithuanian
