User Manual 3
![](/img.php?id=1214556&img=bg1.png)
59
EXTERNAL EQUIPMENT SETUP
AP 없이, 통신하고자 하는 기계와 직접(direct) 연결하여 통신하는 방법
마치 크로스케이블로 2 대의 PC 를 연결하는 것과 동일함
AD-hoc Mode
If a network may not operate, cre-
ate a new server, using the
YELLOW button.
7Enter the ad-hoc mode.
8
ENTER
Select ENTER.
YELLOW
![](/img.php?id=1214556&img=bg2.png)
WATCHING TV / CHANNEL CONTROL
WATCHING TV / CHANNEL CONTROL
60
ENERGY
CHVOL
1 2 ABC 3 DEF
4 GHI 5 JKL 6
MNO
7
PQRS
8 TUV
0
9
WXYZ
P
A
G
E
SAVING
TV
AV MODE
INPUT
FAV
RATIO
MUTE
BACK EXIT
WIDGETS
ENTER
MARK
DELETE
CHAR/NUM
LIST
FLASHBK
MENU
FREEZE
Q.MENU
INFO
REMOTE CONTROL FUNCTIONS
When using the remote control, aim it at the remote control sensor on the TV.
WATCHING TV / CHANNEL CONTROL
POWER Turns the TV on from standby or off to standby.
ENERGY SAVING
Adjusts the Energy Saving setting. ►p.138
AV MODE Toggles through preset Video and Audio modes.
►p.64
INPUT Rotates through inputs.
Also switches the TV on from standby. ►p.62
TV Returns to the last TV channel.
NUMBER button
— (DASH) Used to enter a program number for multiple
program channels such as 2-1, 2-2, etc.
LIST Displays the channel table. ►p.
FLASHBK Tunes to the last channel viewed.
MENU Displays the main menu or clears all on-screen
displays and return to TV viewing.
NETCAST
Select the desired NETCAST menu source. (Yahoo!
TV Widgets, Netflix, Vudu, YouTube, My Media etc.)
Q.MENU Opens the list of Quick Menu options. ►p.
THUMBSTICK
(Up/Down/Left
Right/ENTER)
Navigates the on-screen menus and adjusts the
system settings to your preference.
BACK Allows the user to move return one step in an
interactive application or other user interaction
function.

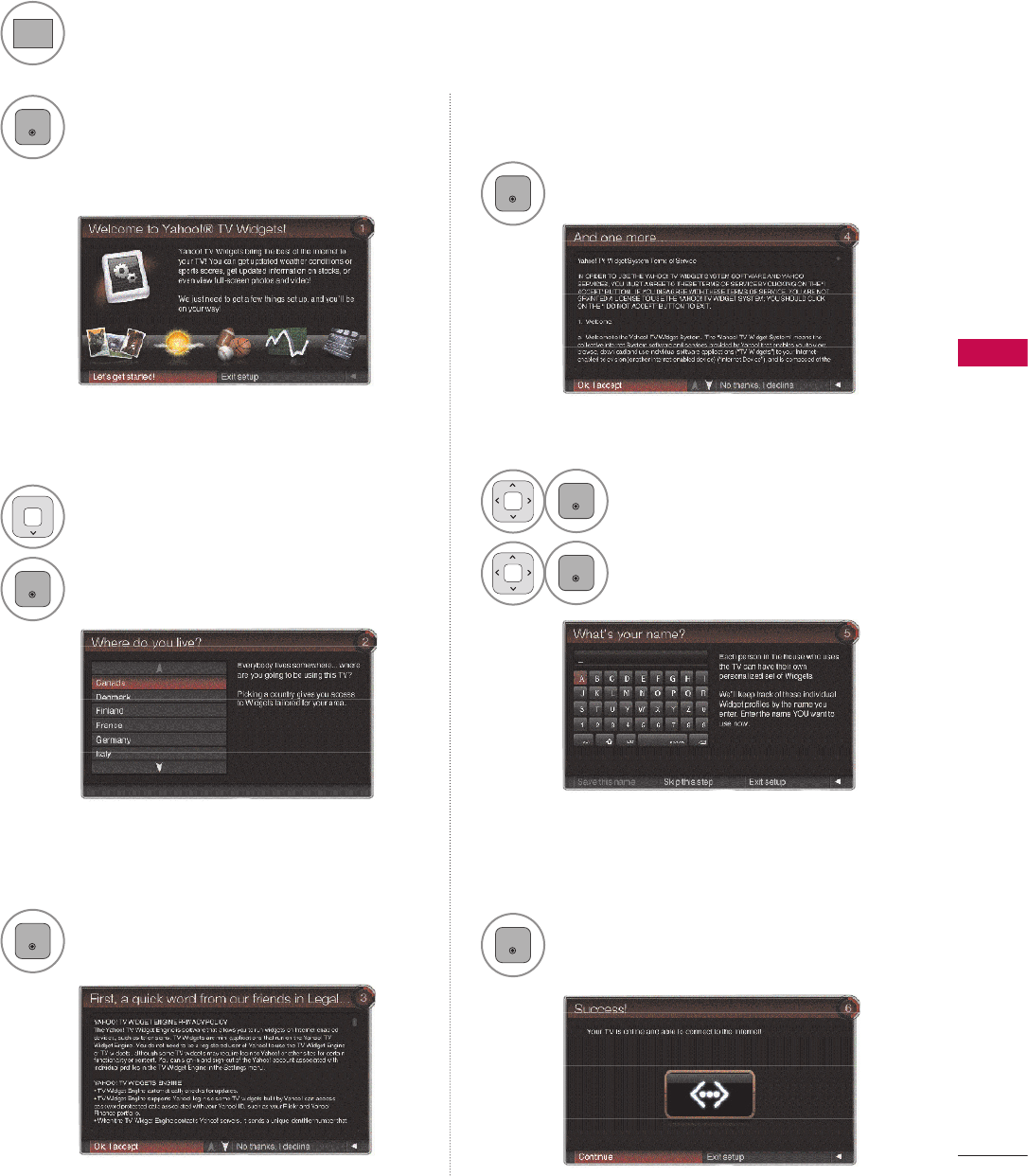

WIDGETS WIDGETS for showing or hiding the Yahoo! Dock
and accessing the Yahoo! TV Widgets user expe-
rience. ►p.70-77
EXIT Clears all on-screen displays and return to TV
viewing.
![](/img.php?id=1214556&img=bg3.png)
MY MEDIA
MY MEDIA
92
Viewing Files on the Network
You can view the photos or listen to music files from folders shared on the network.
RGB IN (PC)
WIRELESS
CONTROL
(RGB/DVI)
RS-232C IN
(
CONTROL&SERVICE)
OPTICAL
DIGITAL
/DVI IN
2
3
1
VIDEO
AUDIO
L(MONO)
R
VIDEO AUDIO
COMPONENT INAV IN 1
Y PBPRL R
AUDIO IN
AUDIO OUT
2
1
LAN
► Connect the PC and TV using a shar-
ing device so that you can see the PC’s
shared files on the TV.
► How to set a share folder may differ
depending on the Windows version.
► The speed may be slow or it may cause
an error if you try to access a folder
from two TVs at the same time.
► Because files could be deleted from a
shared PC, set the user access level to
Read Only.
► Do not share any important personal
documents as it may be accessed by a
different PC.
►
If you rename or disable a shared
folder on the PC after mounting, you
cannot mount it again.
►
If the status of the network or a share
folder on the PC is changed, search is
run again when entering the highest
folder in the menu.
► A maximum of 20 of shared folders on
4 computers are supported.
► When using file sharing from a com-
puter, it is recommended you use a
wired port of the hub.
► When using the wireless port of the
hub to share the file on the PC, some
functions can be limited.
► Because the TV does not support the
wireless function using the USB don-
gle, My Media function only supports
the wired environment.
i.e) LCD TV
Broadband
modem
Broadband modem
Router
Broadband Service
Broadband Service
MY MEDIA
Exit
3
MENU
Select MY MEDIA.
4
ENTER
Select Movie List, Photo List
or Music List.
1Set a share folder (CIFS: Common Internet File System) on the PC (Refer to P.?).
2Connect the LAN port of the Modem or Router to the LAN port on the TV.
![](/img.php?id=1214556&img=bg4.png)
93
MY MEDIA
DLNA
About DLNA
This TV is a DLNA Certified digital media product that can display and play movie, photo and music
content from your DLNA Certified network device and DLNA server.
The Digital Living Network Alliance (DLNA) is a cross-industry organization of consumer electronics,
computing industry and mobile device companies.
Digital Living provides consumers with easy sharing of digital media through a wired or wireless net-
work in the home.
The DLNA certification logo makes it easy to find products that comply with the DLNA
Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5. When a PC
running DLNA server software or other DLNA compatible device is connected to this player, some
setting changes of software or other devices may be required. Please refer to the operating instruc-
tions for the software or device for more information.
!
?
!
?
NOTE
►The supplied Nero MediaHome 4 Essentials CD-ROM is a customized software edition only for
sharing files and folders to this player.
►The supplied Nero MediaHome 4 Essentials software does not support following functions:
Transcoding, Remote UI, TV control, Internet services and Apple iTunes
►This manual explains operations with the English version of Nero MediaHome 4 Essentials as
examples. Follow the explanation referring to the actual operations of your language version.
![](/img.php?id=1214556&img=bg5.png)
MY MEDIA
MY MEDIA
94
Installing Nero MediaHome 4 Essentials
Nero MediaHome 4 Essentials is a software for sharing movie, music and photo files stored on your
computer to this TV.
Requirement PC system before you install Nero MediaHome 4 Essentials
Windows® XP (Service Pack 2 or higher), Windows Vista® (no Service Pack required), Windows® XP
Media Center Edition 2005 (Service Pack 2 or higher), Windows Server® 2003
Windows Vista® 64-bit edition (application runs in 32-bit mode)
Hard drive space: 200 MB hard drive space for a typical installation of Nero MediaHome stand-
alone
1.2 GHz Intel® Pentium® III or AMD Sempron™ 2200+ processors
Memory: 256 MB RAM
Graphics card with at least 32 MB video memory, minimum resolution of 800 x 600 pixels, and
16-bit color settings
Windows® Internet Explorer® 6.0 or higher
DirectX® 9.0c revision 30 (August 2006) or higher
Network environment: 100 Mb Ethernet, WLAN (IEEE 802.11b/g/n)
1Start up your computer, and insert the Nero MediaHome 4 Essentials CD-ROM into your compu-
ter’s CD-ROM drive.
An installation wizard will walk you through the quick and uncomplicated installation process.
2Close all Microsoft Windows programs and exit any anti-virus software that may be running.
3Insert the Nero MediaHome 4 Essentials CD-ROM into your computer’s CD-ROM drive.
4Click Nero MediaHome 4 Essentials. The installation is prepared and the installation wizard appears.
5Click the Next button to display the serial number input screen.
Click Next to go to the next step.
6If you accept all conditions, click I accept the License Conditions check box and click Next.
Installation is not possible without this agreement.
7Click Typical and click Next. The installation process is started.
8If you want to take part in the anonymous collection of data, select the check box and click the
Next button.
9Click the Exit button to complete the installation.
![](/img.php?id=1214556&img=bg6.png)
95
MY MEDIA
Sharing files and folders
You must share the folder contained movie, music and/or photo content to play them using MY
MEDIA features.
This parts explains the procedure for selecting the shared folders on your computer.
1Double-click the Nero MediaHome 4 Essentials icon on the desktop.
2Click Network icon on the left and define your network name in the Network name field. The
Network name you enter will be recognized by your player.
3Click Shares icon on the left.
4Click Local Folders tab on the Shared screen.
5Click Add icon to open the Browse Folder window.
6Select the folder containing the files you want to share. The selected folder is added to the list of
shared folders.
7Click Start Server icon to start the server.
!
?
!
?
NOTE
►If the shared folders or files are not displayed on the TV, click the folder on the Local Folders
tab and click Rescan Folder at the More button.
►Visit www.nero.com for more information and software tools.
![](/img.php?id=1214556&img=bg7.png)
97
MY MEDIA
File requirements
(
“.jpg”, “.jpeg”, “.png”, “.avi”, “.divx”, “.mpg”, “.mpeg”, “.mp3”, “.wma”, “.pcm” (LPCM))
Available file extensions differ depending on the serves.
Music Files
Sampling frequency within 8 - 48 kHz (WMA), within 11 - 48 kHz (MP3), 44.1 and 48 kHz
(LPCM)
Bit rate Bit rate: within 8 - 320 kbps (WMA, MP3), 768Kbps and 1.536Mbps
(LPCM)
Movie files
Available resolution
size 1920 x1080 (W x H) pixels
Playable subtitle
SubRip (.srt / .txt), SAMI (.smi), SubStation Alpha (.ssa/.txt), MicroDVD (.
sub/.txt), SubViewer 1.0 (.sub), SubViewer 2.0 (.sub/.txt), TMPlayer (.txt),
DVD Subtitle System (.txt)
Playable Codec format DIVX3.xx”, “DIVX4.xx”, “DIVX5.xx”, “XVID”, “DIVX6.xx” (Standard playback
only), DIVX-HD, MPEG1 SS, MPEG2 PS, MPEG2 TS
Audio format Dolby Digital”, “DTS”, “MP3”, “WMA”, “AAC”, “AC3
Sampling frequency within 32 - 48 kHz (WMA), within 16 - 48 kHz (MP3)
Bit rate within 20 - 320 kbps (WMA), within 32 - 320 kbps (MP3)
Photo files
Recommended photo
size
Less than 4,000 x 3,000 x 24 bit/pixel
Less than 3,000 x 3,000 x 32 bit/pixel
!
?
!
?
NOTE
►Maximum Files/Folder: Less than 2000 (total number of files and folders)
►The subtitle files are not displayed on the [My Media] menu.
►If there are more than 1 subtitle files at a folder, displaying priority is as follow:
►The movie file and subtitle names are limited to 128 characters.
►Not all the WMA and AAC Audio format is compatible with this unit.
►The movie file encoded by the GMC (Global Motion Compensation) and Qpel (Quarter pixel) is not
supported. Those are video encoding techniques in MPEG4 standard, like DivX or XVID have.
![](/img.php?id=1214556&img=bg8.png)
99
MY MEDIA
File
Extension
name
Video Decoder Audio Codec Max
Resolution
mpg, mpeg MPEG1, MPEG2 MP2, MP3, AC3, LPCM
1920x1080P
@30P
dat MPEG1 MP2
tp, trp, ts MPEG2, H.264, AVS, VC1 MP2,MP3,AC3,AAC,HEAAC
vob MPEG1, 2 MP2,MP3,AC3,LPCM
mp4, mov
MPEG4,Divx 3.11, Divx 4.12, Divx 5.x,
Divx 6, Xvid 1.00, Xvid 1.01, Xvid 1.02,
Xvid 1.03, Xvid 1.10-beta1/2H.264
AAC,HEAAC,MP3
mkv H.264, MPEG-1,2,4 MP2,MP3,AC3,AAC
HEAAC,LPCM
divx, avi
MPEG2, MPEG4,DivX 3.11, DivX 4.DivX
5, DivX 6, Xvid 1.00, Xvid 1.01, Xvid
1.02, Xvid 1.03, Xvid 1.10-beta1/2H.264
MP2,MP3,AC3,LPCM,ADPCM
,AAC,HEAAC
Motion JPEG
(avi, mp4,
mkv)
JPEG LPCM, ADPCM
asf, wmv VC1 WMA
flv Sorenson H.263, H264 MP3, AAC
Supported DivX file
(
*.mpg/*.mpeg/*dat/*.ts/*.trp/*.tp/*.vob/*.mp4/*.mov/*.mkv/*.dvix/*.avi/*.asf/*.wmv/*/*.flv/*.avi(motion-
jpeg)/*.mp4(motion-jpeg)/*.mkv(motion-jpeg)
Max bitrate of playable
movie file 20Mbps (Mega bit per second)
Bit rate of audio format within 32 - 320 kbps (MP3)
Supported external
subtitle format
*.smi/*.srt/*.sub (MicroDVD,Subviewer1.0/2.0)/*.ass/*.ssa/*.txt (TMPlayer)/*.
psb (PowerDivX)
Supported Iinternal
subtitle format only XSUB (It is the subtitle format used in DivX6 files)
![](/img.php?id=1214556&img=bg9.png)
NETWORK
NETWORK
118
LEGAL NOTICE
NETWORK
1
MENU
Select Customer Support.
2
ENTER
Select Legal Notice.
3
ENTER
Check Legal notice.
4
EXIT
Return to TV viewing.
BLUE
NETWORK ꔂ Move ꔉ Enter
• Network Type : Wired
• Network Setting
• Network Status
• Legal Notice
• ESN
NETWORK ꔂ Move ꔉ Enter
• Network Type : Wired
• Network Setting
• Network Status
• Legal Notice
• ESN
ꔀ
ꔉꔀ
ꔉ
Legal Notice
ꔍ
Close
IMPORTANT NOTICE RELATING TO NETWORK
SERVICE All content and services accessible
through this device belong to third parties and are
protected by copyright, patent, trademark and/or
other intellectual property laws. Such content and
services are provided solely for your personal
noncommercial use. You may not use any content
or services in a manner that has not been
authorized by the content owner or service
01/08 page
![](/img.php?id=1214556&img=bga.png)
119
NETWORK
IMPORTANT NOTICE RELATING TO NETWORK SERVICE
All content and services accessible through this device belong to third parties and are protected by
copyright, patent, trademark and/or other intellectual property laws. Such content and services are
provided solely for your personal noncommercial use. You may not use any content or services in a
manner that has not been authorized by the content owner or service provider. Without limiting the
foregoing, unless expressly authorized by the applicable content owner or service provider, you may
not copy, upload, post, transmit, translate, sell, modify, create derivative works, or distribute in any
manner or medium any content or services displayed through this device.
YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT THE DEVICE AND ALL THIRD PARTY
CONTENT AND SERVICES ARE PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED. LG ELECTRONICS EXPRESSLY DISCLAIMS ALL WARRANTIES AND
CONDITIONS WITH RESPECT TO ANY CONTENT AND SERVICES, EITHER EXPRESS OR, IMPLIED,
INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY, OF SATISFACTORY
QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY
RIGHTS. LG DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR
COMPLETENESS OF ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE
AND DOES NOT WARRANT THAT THE DEVICE OR SERVICES WILL MEET YOUR REQUIREMENTS,
OR THAT OPERATION OF THE DEVICE OR SERVICES WILL BE UNINTERRUPTED OR ERROR-
FREE. UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL LG BE LIABLE, WHETHER
IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES, OR ANY OTHER DAMAGES ARISING OUT OF, ANY INFORMATION CONTAINED IN, OR
ANY CONTENT OR SERVICE ACCESSED BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES.
Third party services may be changed, suspended, removed, terminated or interrupted, or access may
be disabled at any time, without notice, and LG makes no representation or warranty that any content
or service will remain available for any period of time. Content and services are transmitted by third
parties by means of networks and transmission facilities over which LG has no control. LG may
impose limits on the use of or access to certain services or content, in any case and without notice
or liability. LG EXPRESSLY DISCLAIMS ANY RESPONSIBILITY OR LIABILITY FOR ANY CHANGE,
INTERRUPTION, DISABLING, REMOVAL OF OR SUSPENSION OF ANY CONTENT OR SERVICE
MADE AVAILABLE THROUGH THIS DEVICE.
LG is neither responsible nor liable for customer service related to the content and services. Any
question or request for service relating to the content or services should be made directly to the
respective content and service providers.
![](/img.php?id=1214556&img=bgb.png)
NETWORK
NETWORK
120
NETFLIX ESN (ELECTRONIC SERIAL NUMBER)
We provide you the Netflix ESN (Electronic Serial Number) that allows you to watch videos using the
Netflix website.
For more information, please visit: www.netflix.com
NETWORK ꔂ Move ꔉ Enter
• Network Type : Wired
• Network Setting
• Network Status
• Legal Notice
• ESN
NETWORK ꔂ Move ꔉ Enter
• Network Type : Wired
• Network Setting
• Network Status
• Legal Notice
• ESN
ꔉ
ꔠꔉ
ꔠ
Close
ESN Number : LGE-xxxxxxxxxxxxxxxxxxxx
1
MENU
Select NETWORK.
2
ENTER
Select ESN.
3
ENTER
See the ESN serial number.
![](/img.php?id=1214556&img=bgc.png)
121
Netcast
NETCAST
NETCAST MENU
YAHOO! Picasa
1
NETCAST
Select NETCAST menu option.
2
ENTER
Enjoy the Yahoo!, NETFLIX, Vudu, Picasa, or
YouTube.
These services are provided by the Content Provider.
All the services are dependent on appropriate Content Provider. Please check about page of each
contents for Terms of service.
ꔛ
Yahoo!
Yahoo! TV Widgets give you the best of the Internet in perfect harmony with the simplicity and reli-
ability of your TV. TV Widgets deliver a Cinematic internetTM experience by converting your favorite
web services for viewing on the TV.
ꔛ
Netflix
You can instantly watch movies (quite a few new releases) & TV episodes from Netflix streamed over
the internet to your TV.
To become a Netflix member visit: www.netflix.com/LG
Note that this service is provided by the Content Provider, Netflix. It is dependent on Netflix to
provide the data.
ꔛ
Vudu
In order to make rental/purchase transactions on the Vudu service, a user must create an account
on vudu.com.
That account is linked to a specific device, via a process called “activation”. It is possible to have
multiple devices associated with a single Vudu account.
Note that this service is provided by the Content Provider, Vudu. It is dependent on Vudu to provide
the data.
ꔛ
Picasa?
ꔛ
YouTube?
![](/img.php?id=1214556&img=bgd.png)
NETCAST
Netcast
122
YAHOO! TV WIDGETS
You can enjoy the best of the Internet in perfect harmony with the simplicity and reliability of your TV.
Yahoo! TV Widgets provide an integrated Internet TV experience powered by the Yahoo!® Connected
TV platform. You can monitor financial stocks, share photos with friends and family, track news and
weather and much more, all through the Yahoo! TV Widgets service on your TV.
Note that these services are provided by the Content Provider, using Yahoo! Widget Platform provided
by Yahoo!. All the services are dependent on appropriate Content Provider. Please check about page
of each widgets for Terms of service.
Note If you have any question or need any help for the widgets which is not covered in this manual,
please contact web site for further help which shall be listed in about page of each widget, or Yahoo!
help site http://conntectedtv.yahoo.com/help.
Using the Remote Control
When Yahoo! TV Widgets are displayed, you can use the following remote control buttons.
Getting Started Out of the Box
Once your television is powered up and your network is operational, the Yahoo! TV Widgets software
guides you through its step-by-step on-screen wizard the first time you startup. These setup steps are
designed to provide you with the information and settings you’ll need to start using the Yahoo! TV
Widgets user interface.
WIDGETS
Begin using Yahoo! TV Widgets. Press
it again to go back to just watching TV.
ENTER
Select the focused item.
Highlight and focus on buttons in the
Yahoo! TV Widgets user interface.
MENU
Go to the TV Menu.
Move the focus selection up. RED Close the open widget and return to
watching TV.
Move the focus selection down. GREEN Change the open widget’s settings.
Move the focus selection to the left.
YELLOW
Add, move, or delete your snippets.
Move the focus selection to the right. BLUE Resize the video to fit onscreen, or to
make it fullscreen.
What is a TV Widget?
A TV Widget is an Internet application designed to run on your TV.
What is a Snippet?
A Snippet is a shortcut used to open a TV Widget, as a dynamic bookmark to TV Widget content.
![](/img.php?id=1214556&img=bge.png)
123
Netcast
Guided Setup
WIDGETS
Activate Yahoo! TV Widgets. The first time you use Yahoo! TV Widgets the step-by-step
wizard begins with the Welcome Screen.
1
ENTER
Select Let’s get started!. If you select
Exit Setup now, this step will be
resumed the next time you press
WIDGETS.
Navigate to your location.
ENTER
Select your country.
ENTER
Select Ok, I accept.
ENTER
Select Ok, I accept.
ENTER
Select Continue and review the tutorial.
Select Exit setup to start using Yahoo!
Widgets now.
2Choosing your country allows the use of
localized content.
3Accepting the Yahoo! Privacy Policy is required
to use Yahoo! Widgets.
4Accepting Yahoo! Terms of Service is also
required to use Yahoo! TV Widgets.
6Test your network connection. After setup is
completed, a tutorial on how to use Yahoo! TV
Widgets will come up next.
5Enter your name to setup your profile.
ENTER
Select letters and spell your
name.
ENTER
Select Save this name and
create your profile.
