LG Electronics USA 9QK-CX8703IB JukeBlox Networked Media Module User Manual

LG Electronics USA JukeBlox Networked Media Module

User Manual

SMSC CX860/CX870 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
JukeBlox Networked Media Module
CX Series
Datasheet
Complete audio networking system on a small module
Integrated Ethernet + USB 2.0
WiFi-certified 802.11b/g
([WHUQDOantenna 1RWVXSSRUWLQJWKHPLFURVWULSDQWHQQD
Optional Diversity Antenna
Glueless audio, video and control ports
FCC certified
Ideal for enabling network and USB audio playback for iPod docks, audio
systems, AV Receivers, active speaker systems, internet radios, network
playback adaptors
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 2 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
80 ARKAY DRIVE, HAUPPAUGE, NY 11788 (631) 435-6000 or 1 (800) 443-SEMI
Copyright © 2011 SMSC or its subsidiaries. All rights reserved.
Circuit diagrams and other information relating to SMSC products are included as a means of illustrating typical applications. Consequently, complete information sufficient for
construction purposes is not necessarily given. Although the information has been checked and is believed to be accurate, no responsibility is assumed for inaccuracies. SMSC
reserves the right to make changes to specifications and product descriptions at any time without notice. Contact your local SMSC sales office to obtain the latest specifications
before placing your product order. The provision of this information does not convey to the purchaser of the described semiconductor devices any licenses under any patent
rights or other intellectual property rights of SMSC or others. All sales are expressly conditional on your agreement to the terms and conditions of the most recently dated
version of SMSC's standard Terms of Sale Agreement dated before the date of your order (the "Terms of Sale Agreement"). The product may contain design defects or errors
known as anomalies which may cause the product's functions to deviate from published specifications. Anomaly sheets are available upon request. SMSC products are not
designed, intended, authorized or warranted for use in any life support or other application where product failure could cause or contribute to personal injury or severe property
damage. Any and all such uses without prior written approval of an Officer of SMSC and further testing and/or modification will be fully at the risk of the customer. Copies of this
document or other SMSC literature, as well as the Terms of Sale Agreement, may be obtained by visiting SMSC’s website at http://www.smsc.com. SMSC is a registered
trademark of Standard Microsystems Corporation (“SMSC”). Product names and company names are the trademarks of their respective holders.
SMSC DISCLAIMS AND EXCLUDES ANY AND ALL WARRANTIES, INCLUDING WITHOUT LIMITATION ANY AND ALL IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND AGAINST INFRINGEMENT AND THE LIKE, AND ANY AND ALL WARRANTIES ARISING
FROM ANY COURSE OF DEALING OR USAGE OF TRADE. IN NO EVENT SHALL SMSC BE LIABLE FOR ANY DIRECT, INCIDENTAL, INDIRECT, SPECIAL, PUNITIVE,
OR CONSEQUENTIAL DAMAGES; OR FOR LOST DATA, PROFITS, SAVINGS OR REVENUES OF ANY KIND; REGARDLESS OF THE FORM OF ACTION, WHETHER
BASED ON CONTRACT; TORT; NEGLIGENCE OF SMSC OR OTHERS; STRICT LIABILITY; BREACH OF WARRANTY; OR OTHERWISE; WHETHER OR NOT ANY
REMEDY OF BUYER IS HELD TO HAVE FAILED OF ITS ESSENTIAL PURPOSE, AND WHETHER OR NOT SMSC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 3 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
Table of Contents
1INTRODUCTION...............................................................................................................4
2BLOCK DIAGRAM ............................................................................................................. 4
3BOARD PICTURES............................................................................................................5
3.1TOP VIEW OF CX870 ...................................................................................................... 5
3.2BOTTOM VIEW OF CX870 ................................................................................................. 6
3.2.1CX870 Bottom View with 64-pin Low Density Connector............................................. 6
3.2.2CX870 Bottom View with 120-pin Media Connector.................................................... 6
3.3PRODUCTION MODULE WITH TOP AND RF SHIELDS IN PLACE – TOP VIEW............................................. 7
3.4PRODUCTION MODULE WITH 64-PIN CONNECTOR OPTION – SIDE VIEW.............................................. 7
3.5EXAMPLE PRODUCTION MODULE SHOWING SOLDERED RF SHIELD..................................................... 8
4ORDERING GUIDE ...........................................................................................................9
4.1PART NUMBER SYNTAX ..................................................................................................... 9
5ELECTRICAL SPECIFICATIONS....................................................................................... 10
5.1ABSOLUTE MAXIMUM RATINGS............................................................................................11
5.2OPERATING CONDITIONS..................................................................................................11
5.3WIFI SPECIFICATION (CX870 ONLY) ...................................................................................12
6REGULATORY COMPLIANCE AND QUALITY .................................................................... 13
6.0.1 Antenna Considerations ..........................................................................................14
6.1ROHS.......................................................................................................................15
6.2ENVIRONMENTAL TEST.....................................................................................................15
6.3ESD AND TRANSIENT TEST (APPLIES TO LAN AND USB EXTERNAL CONNECTIONS ONLY)..........................15
6.4MAGNETIC FIELD TEST ....................................................................................................15
6.5MTBF.......................................................................................................................15
6.6MECHANICAL SPECIFICATIONS............................................................................................15
6.7MODULE QUALITY ..........................................................................................................15
7BOARD DIMENSIONS AND WEIGHT............................................................................... 16
7.1TOP & BOTTOM VIEW OF CX870 MODULE..............................................................................16
7.2SIDE VIEW OF CX870 MODULE ..........................................................................................16

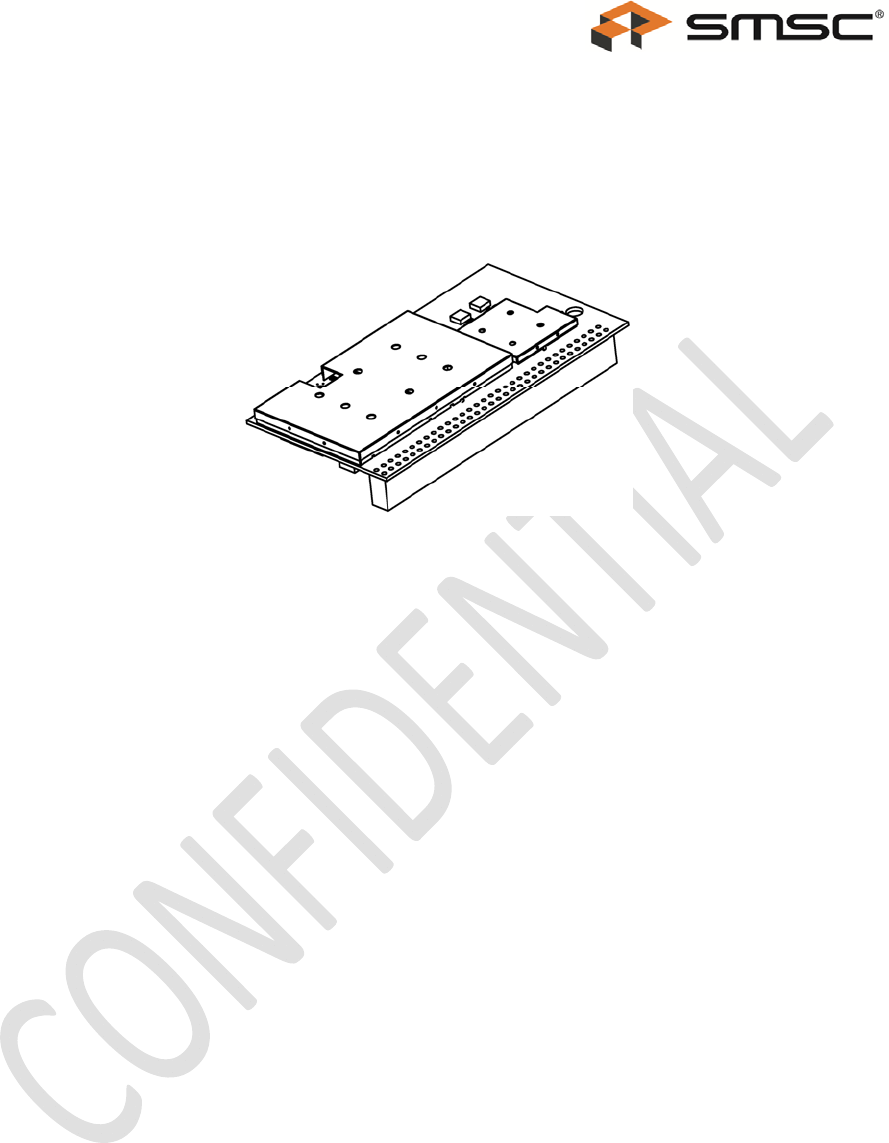

7.33D VIEW OF CX870 MODULE............................................................................................17
7.4MODULE WEIGHT ..........................................................................................................17
8CONNECTORS AND CONNECTIONS ................................................................................ 18
8.1WLAN UFL ANTENNA CONNECTOR (OPTIONAL)........................................................................18
8.2MODULE CONNECTORS ....................................................................................................18
8.2.1Pin Descriptions ..................................................................................................19
8.2.2Connector PIN Assignments ..................................................................................24
8.2.3GPIO Assignments...............................................................................................26
9APPLICATION GUIDELINES ........................................................................................... 26
9.1POWER SUPPLY SEQUENCING AND RESET TIMING.......................................................................26

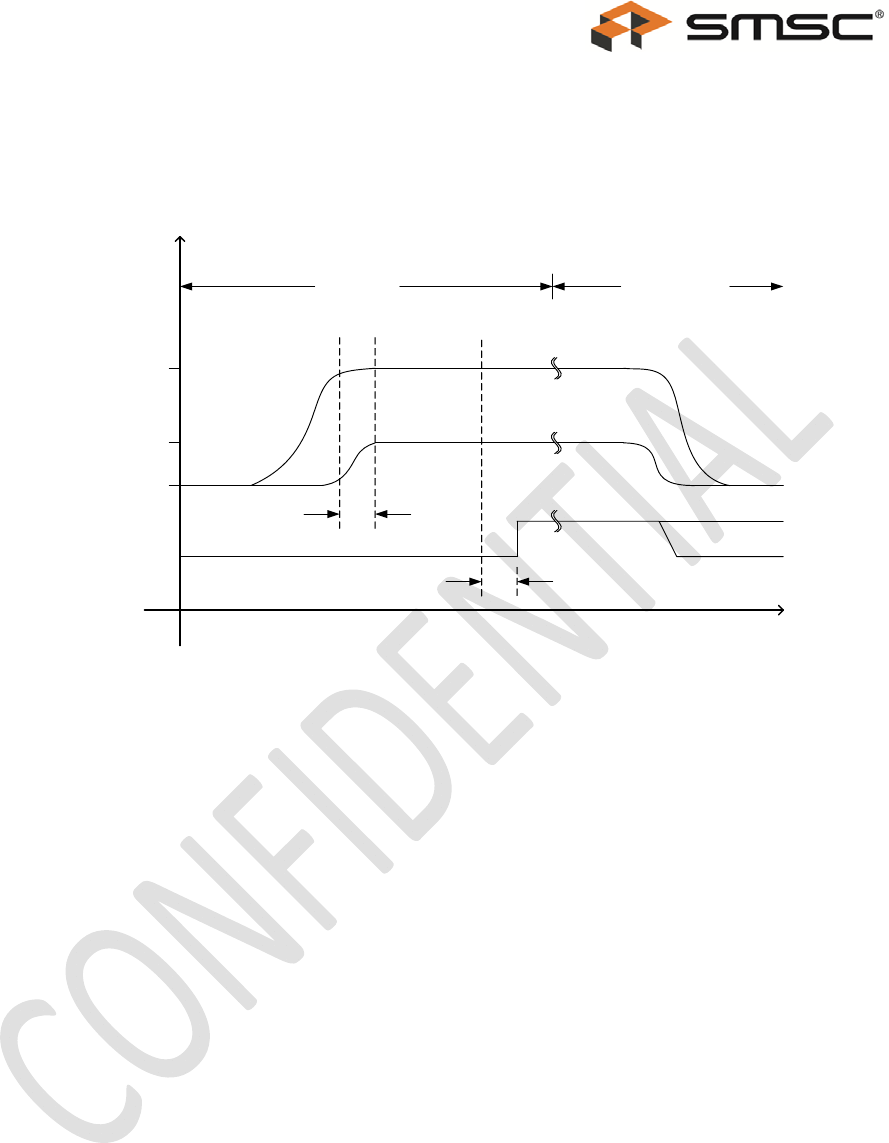

9.1.1Power up, Reset and Power Down Timing................................................................27
9.2RF CONSIDERATIONS......................................................................................................27
10REVISION CONTROL.................................................................................................... 28
11APPENDIX 1: CERTIFICATION NOTICES ...................................................................... 34
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 4 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
1 Introduction
The CX-series module is a single-board networked media player module, based on SMSC’s DM860 and DM870
media processors, and enables fast product developments with Ethernet, USB and optional WiFi connectivity. The
module connects to standard legacy components in various audio, video/LCD and control formats.
2 Block Diagram
Ethernet
Transceiver
DM860
or
DM870
256 Mbit
SDRAM
RJ-45
+
Transformer Mem.
Bus
USB
GPIO
24.000 MHz
NAND-Flash
2.4 GHz RF
transceiver
802.11
RMII
I2C
USB
Type-A
UART
3.3V
JukeBlox Networked Media Module – CX Series
1.2V
UART
GPIO
DAC
1$
RF Amp. ANT
switch
Ext.
Antenna
PWM DAC
1.9V
Flash
NOR-Flash
I2C
Apple Co-
processor
I2C
JTAG
I2C
JTAG
LCD
3x6bit RGB
Display
SSM
4/8bit MMC
SD-Card
RST
Reset In
Video Out
Audio I/O
A/D, D/A
S/PDIF
CCIR-656 AV
Ports
SPI
SPI Ctrl.
Host
Controller/
LCD setup
1$
Ext.
Antenna
.
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 5 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
3 Board Pictures
Please note that all production modules include the RF and top shield. The below top view has the shields
temporarily removed to show the components. Also, please note that the 64-pin connector mounted on the module is
the male gender.
3.1 Top View of CX870
PCB antenna1$
External Antenna
Connectors SMSC processor Ethernet PHY
PCB antenna1$
SDRAM
802.11b/g
front-end
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 6 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
3.2 Bottom View of CX870
3.2.1 CX870 Bottom View with 64-pin Low Density Connector
3.2.2 CX870 Bottom View with 120-pin Media Connector
LCD connector
FLASH
Media
connector
LCD
connector FLASH
Low density
connector
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 7 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
3.3 Production Module with Top and RF shields in place
– Top View
3.4 Production Module with 64-pin Connector Option –
Side View
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 8 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
3.5 Example Production Module Showing Soldered RF
Shield
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 9 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
4 Ordering Guide
Note: Please note that the Apple Authentication Coprocessor will not be provided on the CX module.
The Apple Authentication Coprocessor should be provided on the product motherboard, connected to
the SDA, SCL signals from the CX module.
Note: Shaded rows indicate Custom or Obsolete configuration - NOT TO BE USED FOR
NEW/STANDARD MP DESIGNS.
* Connector on board, but requires board modification to enable the connector.
+ The position of the X in the One Ant. column indicates that there is one external antenna connector
provided. The position of the X in the Two Ant. column indicates that there are two external antenna
connectors provided. Do not use a module which has two external antenna connectors with only one
external antenna connected. Leaving one antenna socket open will degrade WiFi performance. SMSC
recommends always using modules with two external antennas for best performance.
4.1 Part Number Syntax
CX870-3A
Product Family
Revision
1: DVT1
2: DVT2
3: MP
Configuration
Part Number SMSC IC’s
WiFi
(on-module
PCB
diversity)
Ext. Diversity
Antennas (UFL
Conn.)+ Ethernet USB
Host
Low
density 64-
pin Conn.
Media
120-pin
Conn.
LCD
Conn. 32MByte
SDRAM 16MByte
SDRAM
1Gbit
NAND
FLASH
8MByte
NOR
FLASH
Top
Module
Shield
One
Ant. Two
Ant.
CX870-3A DM870+T6201 X (X)* X X X X X X X
CX870-3B DM870+T6201 X X X X X X X
CX870-3D DM870+T6201 X X X X X X X
CX870-3F DM870+T6201 X X X X X X X
CX870-3G DM870+T6201 X X X X X X
CX870-3H DM870+T6201 X X X X X X X
CX870-3I DM870+T6201 X X X X X X
CX870-3J DM870+T6201 X X X X X X
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 10 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
5 Electrical Specifications
Parameter State Model Voltage Symbol min. typ. max. Units
Power Supply Input Voltage
VIN
3.0
1.08
1.8
3.3
1.2
1.9
3.6
1.32
2.0
V
V
V
Logic Input high voltage VIH 1.7 5.5 V
Logic Input low voltage VIL -0.3 0.7 V
Logic Input threshold voltage VIT 1.29 1.39 1.5 V
Schmitt-trigger input low to
high threshold voltage VIT+ 1.58 1.65 1.71 V
Schmitt-trigger input high to
low threshold voltage VIT- 0.95 1.01 1.06 V
Logic Output high voltage VOH 2.4 V
Logic Output low voltage VOL 0.4 V
Logic Low-level output
current
(VOL=0.4V)
IOL -9.6 -15.6 -19.3 mA
Logic High-level output
current
(VOH=2.4V)
IOH 11.1 22.5 35.3 mA
3.3 I3.3 60 78 mA
1.2 I1.2 32 42 mA
Reset State
1.9 I1.9 18 23 mA
3.3 I3.3 185 241 mA
1.2 I1.2 337 438 mA
Operating in
idle state
1.9 I1.9 257 334 mA
3.3 I3.3 240 312 mA
1.2 I1.2 347 451 mA
Current Consumption
Playback over
WiFi high mips
& rate
condition
CX870
1.9 I1.9 258 335 mA
Note: The maximum current values are 30% larger than the typical values. The maximum
values are intended to be used for power supply sizing calculations.
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 11 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
5.1 Absolute Maximum Ratings
Parameter Component Min Max Units
3.3V Supply Voltage -0.5 4.6 V
1.2V Supply Voltage -0.5 1.8 V
1.9V Supply Voltage -0.5 2.2 V
Logic Input Voltage -0.5 6 V
Logic Output Voltage
Main
-0.5 4.6 V
5.2 Operating Conditions
Parameter Min Max Units
Operating Temperature 0 +70 °C
Operating Humidity 10 90 (non condensing) %RH
Storage Temperature -10 +75 °C
Storage Humidity 10 95 (non condensing) %RH
Storage Temperature Cycle Test 24 hrs -10 +75 °C
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 12 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
5.3 WiFi Specification (CX870 only)
Feature Description
WLAN Standards IEEE 802.11b
IEEE 802.11g
Frequency Band 2.412 – 2.472 GHz (2.4GHz ISM Band, 13 Channels)
Channel 1 - Channel 13
North America, Japan Telec, Europe ETSI
Modulation 802.11b mode (DS-SS: IEEE 802.11b)
802.11g mode (OFDM: IEEE 802.11g)
Transmission Speed 802.11b mode
11Mbps, 5.5Mbps, 1Mbps
802.11g mode
54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps, 6Mbps
Tx Power 802.11b mode: 17.5dBm, +2dB/-3dBm, using nominal MIB settings
802.11g mode: 16.0dBm +/-2.5dBm, using nominal MIB settings
Power-on Ramp < 2us
RF Carrier Suppression < 15dBc
TX EVM < -9dB @ 6MHz
< -25dB @ 54Mbps
Rx Sensitivity
(incl. CE2 Mother board)
802.11b mode:
<=-86dBm @ 1Mbps, <=-83dBm @ 5.5Mbps, <=-81dBm @ 11Mbps
(<10%PER)
802.11g mode:
<=-86dBm @ 6Mbps, <=-75dBm @ 36Mbps, <=-69dBm @ 54Mbps (<10%
PER)
Throughput Rate
(measured for each
module) See factory test specification
Note: About Tx Power, different (higher/lower) RF output power settings may be used for
specific regions, antennas and/or enclosures, in which case re-certification may be
required.
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 13 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
6 Regulatory Compliance and Quality
Description Country Compliance Module Versions Passed
Electromagnetic Compatibility
(Prescan)
USA
Europe
FCC CFR47 Part15B
EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN 61000-4-11
Radio Regulations (CX870
only) USA
Japan
Canada
Europe
New Zealand/Australia
China
Korea
FCC Part 15C
Telec
IC RSS-210
CE
CE
SRRC
KCC
B, D, F, H, I, J
B
B, D, F, H, I, J
B
SMSC does not certify all module variants for all countries. Please see above table for those module versions for
which certain certifications have already been done.
Please contact your SMSC sales office for the latest information about which modules are certified for which
countries, and arranging for additional certification for your chosen module if needed. Any additional certifications will
need to be paid for by the customer.
Product manufacturers are responsible for the end product certification.
SMSC can help manufacturers to prepare for the WiFi Alliance tests by providing an example test plan and the
required commands to enable special test modes. Please contact your SMSC sales office about WiFi Alliance logo
certification assistance.
The CX module has received Limited Module Approval (LMA) from FCC. This is because the CX module does not
have a built-in +1.9V regulator circuit. SMSC recommends that customers follow the +1.9V supply voltage
requirements given in this data sheet, and follow the +1.9V power supply design given in “CX Module Power
Supply_V1.1.pdf” document or later version. If the power supply recommendations are followed, then customers will
not need to go through formal certification of the product for WiFi related RF behavior for FCC. It is the product
manufacturers responsibility to make sure that the power supply recommendations are followed, and that the RF
behavior meets the certification requirements when the module is installed in the final product.
Please check the SMSC/BridgeCo Customer Portal at https://portal.bridgeco.net/ for documents about WiFi
certification and recommended interfacing and power supply schematics.
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 14 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
6.0.1 Antenna Considerations
Here are the antennas used for certification:
CX870-3B 1$
Dipole, WINiZEN, WIE-WO-08, 3.2 dBi for 2.4GHz
CX870-3D1$
FCC&IC: Inverted-F, Tyco Electronics, 2174241, 2.19 dBi for 2.4 GHz
CE: Wanshih 01S0940-00, dipole, 1.59dBi@2.4GHz, 2.65dBi@2.45GHz, 1.76dBi@2.5GHz
CX870-3F1$
Printed on PCB, Lite-On, N/A, 3.91 dBi for 2.4 GHz
CX870-3H 1$
Dipole, MAG.LAYERS, EDA-8709-2G4C1-A66, 2 dBi for 2.4GHz
CX870-3I 1$
Dipole, MAG.LAYERS, EDA-8709-2G4C1-A66, 2 dBi for 2.4GHz
CX870-3J 1$
Dipole, MAG.LAYERS, EDA-8709-2G4C1-A66, 2 dBi for 2.4GHz
)RUWKLVGHYLFH01&;,%)&&,'%(-4.&;,%XVHVRQO\EHORZDQWHQQD
3,)$$QWHQQD%ODFN/,7(2106$*&$G%LIRU*+]
3,)$$QHQQD*UD\/,7(2106$*&$G%LIRU*+]


Notes about antenna changes:
1) Equivalent antennas from other manufacturers may be substituted, and then marketed
without a Class II permissive change
2) Equivalent antennas must be of the same type (e.g. dipole, PIFA, etc.), must be of
equal or less gain than the antennas listed and previously authorized under the same FCC
ID, and must have similar in band and out of band characteristics (consult specification
sheet for cutoff frequencies).
3) In case of new antenna types, or higher gain antennas, a Class II permissive change is
required and compliance with FCC section 15.203 must be met.
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 15 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
6.1 RoHS
Uses only RoHS compliant components
6.2 Environmental Test
Withstands 4 hours at 70°C, 90% RH
6.3 ESD and Transient Test (Applies to LAN and
USB external connections only)
ESD: +/- 2kV operation, +/- 4kV no destruction (part of CE test)
Fast electrical transients: +/- 500V operation, +/- 1000V no destruction (part of CE test)
6.4 Magnetic Field Test
Passes EN55022 and EN55024 (part of CE test)
6.5 MTBF
>10000 hours
6.6 Mechanical Specifications
Passes drop test according to I.E.C. 68-2-32, height 100 cm, 1 corner, 6 faces.
Passes vibration test with sine, vertical, 60 minutes, 600 to 18000 cpm, 1G
6.7 Module Quality
Defect Rate: < 1%
AQL CR=0, MA=0.4, MI=0.4
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 16 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
7 Board Dimensions and Weight
7.1 Top & Bottom View of CX870 Module
7.2 Side View of CX870 module
Note:
1. All dimensions are measured in millimetres (mm).
2. PCB’s thickness: 1.00 +/- 0.10mm
3. Tolerance: +/-0.10mm
4. Outline Tolerance: +/-0.10mm
5. NPTH Hole: +/-0.05mm
6. PTH Hole: +/-0.075mm
7. Connector positions, board dimensions, mounting
hole positions and sizes are the same for all module
variants.
8. Connector position tolerance: +/- 0.38mm
9. The 64-pin connector mounted on the module along
one edge is the male gender.
10. Not all module variants have all connectors. Please
see the Ordering Guide table for details of connector
options.
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 17 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
7.3 3D View of CX870 Module
7.4 Module Weight
CX860: 20g
CX870: 20g
Note: Module weight applies to all versions of the module.
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 18 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
8 Connectors and Connections
8.1 WLAN UFL Antenna Connector (optional)
The module includes two PCB strip antennas operated in diversity mode. Alternatively, one or two coaxial antenna
connectors are provided for connecting external (to the module) antennas. The choice between using the strip
antenna or using the coaxial sockets is a build option, determined by the position of surface mount capacitors on the
module PCB. If the PCB antennas are chosen, then diversity mode is always used. If external (to the module)
antenna sockets are used, then two external antennas should be used to provide 2X diversity operation.
If external antenna is used, please choose the proper part number indicating two external antenna sockets. Do not
use a module which has two external antenna sockets with only one external antenna connected; this will result in
reduced WiFi performance.
Please see ordering guide for build option details.
The surface-mount antenna socket used in the CX module is:
UF.L type Ultra Small Surface Mount Coaxial Connector
8.2 Module Connectors
The CX860/870 module uses 3 board-to-board connectors as interfaces to the product main board. The part numbers
for the connectors needed on the product main board, which mate with the connectors on the CX module, are shown
in the table below.
Connector
Number
Connector
Purpose Connector
Type
Number
of Pins Pin
Configuration Mating Connector Part Numbers
J1 LCD 30 2 x 15 x 0.5mm 14-5046-030-145-829+ (Kyocera)
J2 Media 120 2 x 60 x 0.5mm 14-5046-120-145-829+ (Kyocera)
J3 Low Density
B2B
Connector
64 2 x 32 x 2.54mm CSHA201-3202A001A1AB
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 19 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
The pinout and signal names are shown on the next page. The following table provides an overview for the most
important control and interface signals.
8.2.1 Pin Descriptions
Signal(s) Type Description
POWER
VIN(+3.3V) P Power supply input ; +3.3V.
VIN (+1.2V) P Power supply input ; +1.2V.
VIN (+1.9V) P Power Supply input; +1.9V for powering RF section. Make sure this is a clean supply.
3V3RTC P The RTC function is no longer supported. This pin should be left open.
GND P Ground (GND) connection for power supply 0V, signal returns and shielding.
SPI
SPI_DOUT O SPI data from DM870 to host controller.
SPI_DIN I SPI data from host controller to DM870.
SPI_CLK I SPI clock from host controller to DM870. Maximum recommended frequency is 2MHz,
typical frequency is 1MHz. See Note 2 below.
SPI_NCS0 I SPI chip select from host controller to DM870.
PDOUT1 O This signal is used as SPI_REQ, SPI request signal, from DM870 to host controller for
eDMP applications. Logic 1 indicates that there is an SPI message waiting to be read, the
host controller should start the SPI clock and read any changed registers. Logic 0
indicates that all changed register messages have been read and the message buffer is
empty. Also GPIO-06.
SPI_NCS1 I Not used. Leave open.
UART
RXD1 I UART1 input to the DM870, used for shell access. SMSC recommends providing a
connection to an external RS-232 transceiver and DB9 connector to connect to a PC COM
port. Such a connection can be used for product development debugging, and for module
programming control on the product manufacturing line and for module control during
certification procedures.
TXD1 O UART1 output from the DM870, used for shell access. SMSC recommends providing a
connection to an external RS-232 transceiver and DB9 connector to connect to a PC COM
port. Such a connection can be used for product development debugging, and for module
programming control on the product manufacturing line and for module control during
certification procedures.
RXD0 I UART0 input. Optionally used for controlling an iPod via UART.
TXD0 O UART0 output. Optionally used for controlling an iPod via UART.
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 20 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
AUDIO
AV2DATA0 O I2S or left justified audio data output. Typically connected to external D/A converter input
or to external DSP for further audio processing. Used for main left and right channel audio
output data. See Note 3.
AV2CTRL0 O LRCK, audio data word clock at the audio sample rate (Fs). Maximum currently supported
frequency is 192kHz.
AV2CTRL1 O MCLK, audio master clock at 256Fs. This can be used to clock an external D/A converter
or DSP.
AV2CLK O SCLK, audio data bit clock at 64Fs. Allows for up to 32 audio data bits per sample word.
AV4DATA1 O SPDIF format output. Can support samples rates up to 192kHz, so the maximum
instantaneous frequency on this pin is 24.576MHz.
AV4DATA0 I SPDIF input. Not used at present. Leave open.
AV2DATA1 O I2S or left justified audio data output. Not used at present. Leave open.
AOUTLP/AOUTLN,
AOUTRP/AOUTRN O Differential stereo output from PWM-DAC, right and left channels. These signals require
analog low pass filtering. SMSC is not recommending using the PWM-DAC outputs
because of the potential for high out-of-band noise and uncharacterized audio quality.
SMSC recommends using an external D/A converter connected to AV2DATA0.
AV2DATA2 I I2S or left justified audio data input. Can be driven from an optional external A/D
converter used to interface to iPod analog output or other analog audio sources. If not
used, leave open.
AV2DATA3 I I2S or left justified audio data input. Not used at present. Leave open.
CONTROL
NCS3 I This signal is configured as GPIO-17 and is currently not used. DM870-internal pull-up.
Leave this pin open.
PDOUT0 I Factory Reset. GPIO-04. Return the CnE to factory settings. High-active input, DM870-
internal pull-down. Pull to GND with a 10kohm resistor, unless return to factory settings
from a hardware control is needed. Normally, return to factory settings is controlled from
the host controller via SPI register. This pin is only monitored during the boot up process.
VCO0 I Infrared sensor input. GPIO-05. This is a Schmitt-Trigger input and can handle inputs with
slow slopes. Used for aDMP firmware builds for infrared remote control sensor output
connection to DM870. For applications with a host controller, pull this pin to +3.3V via a
10kohm resistor.
AV3CLK O ETH_NRESET Low-active reset for the on-board ethernet PHY. This output is driven by
the DM870. GPIO-12. Leave this pin open.
AV3CTRL0,
AV3CTRL1 I/O I2C_SCL, I2C_SDA bus created by GPIO-13 and GPIO-14.
No internal pull-ups; Use 4.7kohm pull up resistor on each pin to +3.3V. Maximum
frequency is 400kHz.
NRESET_MOD I Low-active input to reset the module. This signal must be driven by an external reset
generator, or by a GPIO output from a host controller. See the application section of this
data sheet for the timing requirements for NRESET_MOD. Includes internal 10K pull-up
resistor to +3.3V.
NPD_RF I Active low input to shut down the power for the 802.11 RF section. Internal 10kohm pull-
up resistor to +3.3V. Leave open if powering down the RF section is not required.
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 21 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
ETHERNET
ETH_RXN, ETH_RXP,
ETH_TXN, ETH_TXP M Ethernet signals between the PHY on the module and the external magnetics
(transformer). See Note 4. Maximum bit rate is 100Mbps.
ETH_LED_SPEED,
ETH_LED_ACT
O
3.3V push-pull outputs (max. ±12mA) to drive the ethernet LEDs.
100Mbps speed mode and activity are indicated by the outputs being low. Connect to
LEDs through 220ohm resistors.
USB
USB_DN, USB_DP M USB data signals, normally connected to type A connector, USB switch or iPod dock
connector. Maximum bit rate is USB High Speed at 480Mbps.
USB_VBUS M Analog input for monitoring USB type A connector power. Connect to the +5V power which
is driving the USB type A connector power pins. If this pin drops below 4.6V, then the
DM870 will drive the USBVBUSDRV signal low to control an external power MOSFET to
disconnect +5V power from the USB type A connector. See Note 5.
USBVBUSDRV O Logic output to control an external MOSFET that is in series with USB type A connector
power. See USB_VBUS above and Note 5.
JTAG
TMS,TCK,TDI, TDO I/O JTAG port for DM870. Leave open.
SSM
SSMD4, SSMD5,
SSMD6, SSMD7 I/O Can be used to drive external shift registers to make extended GPIO signals (see Note 6),
or as individual GPIO signals, or to make an SD card interface. SD card firmware is not
supported at present in JB2. Can be mapped to GPIO #s 08,09,10,11. Leave open if not
used.
SSMD0, SSMD1,
SSMD2, SSMD3,
SSMCLK, SSMCP,
SSMCMD, SSMWP
I/O Used to make an SD card interface. SD card firmware is not supported at present in JB2.
Leave open.
VIDEO
AV0CLK, AV0CTRL0,
AV0CTRL1,
AV0CTRL2,
AV0DATA0,
AV0DATA1,
AV0DATA2,
AV0DATA3,
AV1DATA0,
AV1DATA1,
AV1DATA2,
AV1DATA3
O ITU-R BT.656 digital video output signals. Optionally used to make a TVout menu display,
or to display decoded album art. Can be connected to video D/A converter (see Note 7), or
connected to a video DSP.
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 22 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
GPIO (not already
mentioned elsewhere
in this table)
A22 O GPIO18 Reserved for NOR flash address A22. Leave open.
A23 O GPIO-16 Reserved for NOR flash address A23. Leave open.
NWAIT I/O GPIO-15 Not currently assigned. Leave open.
NCS2 I GPIO-19 Assigned to iPod dock connector iPod NDETECT. See Note 8.
VCO1 I/O GPIO-07 Not currently assigned. Leave open.
MMIICRS I/O GPIO-00 Not currently assigned. Leave open.
MIICOL I/O GPIO-01 Not currently assigned. Leave open.
MIITXER I/O GPIO-02 Not currently assigned. Leave open.
MIITXCLK I/O GPIO-03 iPod dock connector Accessory Power signal. See Note 8.
MII
MIITXD0, MIITXD1,
MIIRXD0, MIIRXD1 I/O Can be used, with GPIO signals above, to drive an external ethernet PHY. This is not
supported by JB2 firmware. Leave open.
LCD
LCDD0, LCDD1,
LCDD2, LCDD3,
LCDD4, LCDD5,
LCDD6, LCDD7,
LCDD8, LCDD9,
LCDD10, LCDD11,
LCDD12, LCDD13,
LCDD14, LCDD15,
LCD16, LCDD17,
LCDCLK, LCDCTRL0,
LCDCTRL1,
LCDCTRL2,
LCDCTRL3
O Uses optional J1 LCD connector. Connect to local LCD display. See Note 9. Leave open if
not used.
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 23 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
Notes:
1. Signal type codes:
I – 3.3V level Digital Logic Input into the DM870
O – 3.3V level Digital Logic Output from the DM870
IO – 3.3V level Digital Logic Input and Output (bi-directional) signal
M – Miscellaneous, see text for description
P – Power Supply
2. For SPI timing diagram for eDMP applications, please see:
BridgeCo_JB2x - DeviceControlProtocol_Registers_v_2_1.pdf, or later version.
For detailed setup and hold timing details, see DM870 IC data sheet:
dat_DM870_16_datasheet.pdf, or later version.
3. For audio port timing diagrams, and for detailed setup and hold timing, please see DM870 IC data
sheet:
dat_DM870_16_datasheet.pdf, or later version.
4. For example ethernet external schematic, see:
CX Module Ethernet (RJ45 + Ext.Magnetics)_V1.2.pdf, or later version.
5. For example USB schematics, see:
CX Module USB_V1.2.pdf, or later version.
6. For example use of extended GPIO shift registers, see CE2 schematic:
A EVMCE2-4_schematic.pdf, or later version.
7. For example connection to a video D/A converter, see CE2 schematic:
A EVMCE2-4_schematic.pdf, or later version.
8. iPod dock connector pin and GPIO assignments are under discussion. Please contact SMSC for
recommendations for iPod dock connections to CX870 module.
9. For example connection to an LCD display, see CE2 schematic:
A EVMCE2-4_schematic.pdf, or later version.
10. All the above signals are brought out to J2 pins. Not all the above signals are brought out to J3, the
64-pin low density connector. The J3 pin assignments table shows which signals are brought out to
the J3 pins.
11. SMSC has a set of example motherboard schematics that shows example external circuitry that is
typically connected to the module. Please check the SMSC/BridgeCo customer portal at
https://portal.bridgeco.net/ for a copy of these example schematics.
12. Please check the SMSC/BridgeCo Customer Portal Download area for the latest version of the
SMSC documents. Go to https://portal.bridgeco.net/. If you do not have an account, please contact
SMSC.
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 24 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
8.2.2 Connector PIN Assignments
J2 – Media Connector
Function GPIO IC PIN Signal Signal IC PIN GPIO Function
GND 1 2 GND
VIN (+3.3V) 3 4 VIN (+3.3V)
VIN (+3.3V) 5 6 VIN (+3.3V)
GND 7 8 GND
VIN (+1.2V) 9 10 VIN (+1.2V)
VIN (+1.2V) 11 12 VIN (+1.2V)
GND 13 14 GND
VIN (+1.9V) 15 16 VIN (+1.9V)
GND 17 18 GND
F4 3V3RTC 19 20 GND
GND 21 22 TMS B20
GND 23 24 TCK A20
E17 SPI_DOUT 25 26 TDI B19
F17 SPI_DIN 27 28 TDO A19
D17 SPI_CLK 29 30 SPI_NCS0 D16
C17 TXD0 31 32 SPI_NCS1 D15
A18 RXD0 33 34 NRESET_MOD Module reset input
B17 RXD1 35 36 SSMD6 B16 GPIO-10 SPI_E_CLK
A17 TXD1 37 38 SSMD4 C15 GPIO-08 SPI_E_SDO
GND 39 40 SSMD2 A15
SPI_E_NCS GPIO-11 C16 SSMD7 41 42 SSMD1 C14
SPI_E_SDI GPIO-09 A16 SSMD5 43 44 SSMCMD A14
B15 SSMD3 45 46 SSMWP C11
B14 SSMD0 47 48 NCS3 M18 GPIO-17 BIST activate
C13 SSMCLK 49 50 NCS2 L18 GPIO-19 iPod NDETECT
C12 SSMCP 51 52 GND
GND 53 54 USB_VBUS
A1 USB_DN 55 56 GND
B1 USB_DP 57 58 AOUTRN K2
USBVBUSDRV 59 60 AOUTRP J2
GND 61 62 GND
H3 AOUTLP 63 64 PDOUT1 L1 GPIO-06 SPI_REQ
J3 AOUTLN 65 66 VCO1 L2 GPIO-07
GND 67 68 PDOUT0 M1 GPIO-04 Factory reset
GPIO-16 K20 A23 69 70
V
CO0 M2 GPIO-05 IR input
GPIO-18 K19 A22 71 72
A
V3CLK U3 GPIO-12 ETH NRESET
I2C SDA GPIO-14 V1 AV3CTRL1 73 74 AV0CTRL0 M3
I2C SCL GPIO-13 V2 AV3CTRL0 75 76 AV1DATA3 P3
K3 AV0CTRL2 77 78 AV1DATA2 R1
L3 AV0CTRL1 79 80 AV1DATA1 R2
N1 AV0CLK 81 82 AV1DATA0 R3
N2 AV0DATA3 83 84 GND
N3 AV0DATA2 85 86 AV2CTRL1 T1 MCLK
P1 AV0DATA1 87 88 GND
P2 AV0DATA0 89 90 AV2CLK R4 SCLK
GND 91 92 GND
LRCK T2 AV2CTRL0 93 94 AV4DATA1 W2 SPDIF output
A/D data 1 T3 AV2DATA3 95 96 AV4DATA0 Y1 SPDIF input
A/D data 0 T4 AV2DATA2 97 98 GND
D/A data 1 U1 AV2DATA1 99 100 ETH_LED_ACT
D/A data 0 U2 AV2DATA0 101 102 ETH_LED_SPEED
GND 103 104 MIICRS Y14 GPIO-00
ETH_RXN 105 106 MIICOL W14 GPIO-01
ETH_RXP 107 108 MIITXER V10 GPIO-02
109 110 MIITXCLK V11 GPIO-03 iPod Access Power
ETH_TXN 111 112 MIITXD0 W10
ETH_TXP 113 114 MIITXD1 Y10
GND 115 116 MIIRXD0 W12
GPIO-15 N18 NWAIT 117 118 MIIRXD1 Y12
NPD_RF 119 120 GND
PIN Number
SPI
Debug UART
JTAG
SPI
USB
Video Output
Ethernet
USB
Video Output
Ethernet
Note: The IC PIN column indicates the pin number on the DM860 or DM870 integrated circuit. This
allows for easy cross-reference to the DM860 or DM870 data sheet information.
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 25 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
J1 – LCD Connector
Function GPIO IC PIN Signal Signal IC PIN GPIO Function
GND 12
GND
Y7 LCDD0 34
LCDD1 W7
V7 LCDD2 56
LCDD3 Y6
W6 LCDD4 78
LCDD5 V6
U6 LCDD6 910
LCDD7 Y5
W5 LCDD8 11 12 LCDD9 V5
U5 LCDD10 13 14 LCDD11 Y4
W4 LCDD12 15 16 LCDD13 V4
U4 LCDD14 17 18 LCDD15 Y3
W3 LCDD16 19 20 LCDD17 Y2
GND 21 22 GND
Y9 LCDCLK 23 24 LCDCTRL0 W9
Y8 LCDCTRL1 25 26 LCDCTRL2 W8
V8 LCDCTRL3 27 28 GND
GND 29 30 GND
PIN Number
LCD Interface
LCD Interface
LCD Interface
LCD Interface
Note: The IC PIN column indicates the pin number on the DM860 or DM870 integrated circuit. This
allows for easy cross-reference to the DM860 or DM870 data sheet information.
J3 – Low Density Connector
Function GPIO IC PIN Signal Signal IC PIN GPIO Function
GND 12GND
VIN (+3.3) 34RXD0
VIN (+3.3) 56TXD0
GND 78GND
VIN (+1.9) 910VIN (+1.2)
VIN (+1.9) 11 12 VIN (+1.2)
GND 13 14 GND
Free GPIO-15 N18 NWAIT 15 16 RXD1 B17
iPod NDETECT GPIO-19 L18 NCS2 17 18 TXD1 A17
NRESET 19 20 GND
F4 3V3RTC 21 22 AV2CTRL1 T1 MCLK
GND 23 24 AV2CTRL0 T2 LRCK
F17 SPI_DIN 25 26 AV2CLK R4 SCLK
E17 SPI_DOUT 27 28 AV2DATA2 T4 A/D data 0
D17 SPI_CLK 29 30 AV2DATA0 U2 D/A data 0
D16 SPI_NCS0 31 32 AV4DATA1 W2 SPDIF output
Free GPIO-17 D15 NCS3 33 34 AV4DATA0 Y1 SPDIF input
GND 35 36 GND
E-GPIO_NCS/TBA GPIO-11 C16 SSMD7 37 38 USB_DN A1
I2C SDA GPIO-14 V1 AV3CTRL1 39 40 USB_DP B1
I2C SCL GPIO-13 V2 AV3CTRL0 41 42 USBVBUSDRV
GND 43 44 USB_VBUS
SPI_REQ GPIO-06 L1 PDOUT1 45 46 GND
Factory Reset GPIO-04 M1 PDOUT0 47 48 SSMD5 K20 GPIO-09 E-GPIO_SDI/TBA
IR input GPIO-05 M2 VCO0 49 50 SSMD4 C15 GPIO-08 E-GPIO_SDO/TBA
GND 51 52 GND
ETH_LED_SPEED 53 54 ETH_LED_ACT
iPod Access Power GPIO-03 V11 MIITXCLK 55 56 SSMD6 B16 GPIO-10 E-GPIO_CLK/TBA
ETH_RXN 57 58 ETH_RXP
ETH_TXN 59 60 ETH_TXP
Free GPIO-00 MMIICRS 61 62 MIICOL GPIO-01 Free
GND 63 64 GND
PIN Number
Debug UART
USB
SPI
Ethernet
EthernetEthernet
Ethernet
Note: The IC PIN column indicates the pin number on the DM860 or DM870 integrated circuit. This
allows for easy cross-reference to the DM860 or DM870 data sheet information.
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 26 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
8.2.3 GPIO Assignments
GPIO Assignments for J3 64-pin Low Density Connector
GPIO PIN Name PIN Number Function
00 MMIICRS 61 Free
01 MIICOL 62 Free
03 MIITXCLK 55 iPOD Access Power
04 PDOUT0 47 Factory Reset
05 VCO0 49 IR Input
06 PDOUT1 45 Host NIREQ
08 SSMD4 50 E_GPIO_SDO/TBA
09 SSMD5 48 E_GPIO_SDI/TBA
10 SSMD6 56 E_GPIO_CLK/TBA
11 SSMD7 37 E_GPIO_NCS/TBA
13 AV3CTRL0 41 I2C_SCL
14 AV3CTRL1 39 I2C_SDA
15 NWAIT 15 Free
17 NCS3 33 Free
19 NCS2 17 IPOD NDETECT
Note: Not all 20 GPIO signals are brought out to J3 64-pin low density connector.
9 Application Guidelines
9.1 Power Supply sequencing and Reset Timing
There are strict power sequencing and reset timing requirements.
Power up the I/O voltage (3.3V) first and hold NRESET_MOD low.
The core voltage (1.2V) must never be higher than (I/O voltage +0.5 V).
The core voltage (1.2V) must be within the specified core voltage limits less than 300ms after the I/O voltage
(3.3V) reaches the specified I/O voltage limits.
Throughout the power down process, the 3.3V supply must maintain a higher voltage than the 1.2V supply,
until both have reached ground potential.
To assure a proper IC reset, the power supplies must be present for a minimum time of 2ms before
NRESET_MOD is de-asserted.
Please see the power and reset timing figure in Section 9.1.1 below.
About 1.9V, the arrival of 1.9V supply should lag behind the arrival of the 3.3V. The delay between the 1.9V and the
3.3V is not critical. Typical delay is approximately 10ms, for example using 10kohm resistor and 0.1uF capacitor on
the enable pin of a 1.9V dc-to-dc converter.
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 27 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
9.1.1 Power up, Reset and Power Down Timing
Time
Voltage
NRESET_MOD
0V
+1.2V
+3.3V
< 300ms
>= 2ms
Power Up Power Down
9.2 RF Considerations
Note that overall system, RF and WiFi performance is significantly affected by the product design, environment and
the application. It is the responsibility of the product designer to ensure proper system level shielding (if required) and
to verify performance and fitness for the given product features and applications.
The WiFi performance will be affected by the RF environment surrounding the CX module. Please ensure that the CX
module is positioned in a “quiet” RF environment, as far away as possible from high frequency clock signals and any
other sources of RF energy. Also, make sure the antenna is not shielded by any metal objects, for example
loudspeakers or other metal parts. Please make sure that the power supplies, in particular the +1.9V supply, are quiet
and free from noise.
SMSC recommends that systems implementing AirPlay should use a module configuration that includes on-module
shielding, as well as paying particular attention to system configuration and shielding.
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 28 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
10 Revision Control
Revision Date / Author Details of Change Reason for Change
Updated title of Section 6.1 from “1 RoHS” to
“RoHS”. Correcting typo.
In Section 10 Revision Control table, updated
an entry for V2.0 b in the Reason for Change
column from “RTV” to “RTC”
Correcting typo.
Removed “Preliminary Datasheet” from the
footer. CX module is in production, so the datasheet is
no longer preliminary.
V2.1
(100711) October 7,
2011 / SHs
Removed the word “Preliminary” from the title
page. CX module is in production, so the datasheet is
no longer preliminary.
Updated Section 5.3 WiFi Specification “TX
Power” entry for 802.11g Correspond to actual production test limits.
Updated Section 6.0.1 Antenna Considerations
with updated module numbering scheme Revert to original module numbering scheme.
Updated Section 6.7 Module Quality with new
Defect Rate Data is now available.
Updated Section 4.1 Part Number Syntax with
removal of Antenna Configuration number and
Note
Revert to original part numbering scheme.
V2.0
(100211) October 2,
2011 / SHs
Updated Section 10 Revision Control with new
Reason for Change column Corporate standard.
Change from BridgeCo logos and disclaimer
text to SMSC logos and disclaimer text Corporate standard.
Updated location of red boxes in Section 3.2.1
CX870 Bottom View with 64-pin Low density
connector
Improve alignment of red box to photo.
Updated location of red boxes in Section 3.2.2
CX870 Bottom View with 120-pin Media
connector
Improve alignment of red box to photo.
Moved Section 5.3 WiFi Specification on to one
page Improve readability.
Updated Customer Portal information in Section
6 Regulatory Compliance and Quality Easier to access URL directly.
Reverted Antenna Considerations back to
Section 6.0.1; subsequently all subsections in
Section 6 reverted back to original numbering
Decided to keep original part numbering
scheme to avoid unnecessary paper work and
the need to redo certifications.
Updated Notes 11 & 12 in Section 8.2.1 Pin
Descriptions with updated Customer Portal
information
Easier to access URL directly.
V2.0
(092611) Sept. 26,
2011 / SHs
Updated Table of Contents Keep TOC aligned with actual content.
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 29 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
Revision Date / Author Details of Change Reason for Change
Updated font styling of Table of Contents Easier to read.
Update Section 2 Block Diagram : moved
RJ45+Transformer & USB Type A boxes inside
the drawing boundary
Improve accuracy of drawing.
Updated Section 5.3 WiFi Specification (CX870
only) TX Power Description entry Align data with test limits.
Updated Section 5.3 WiFi Specification (CX870
only) Rx Sensitivity Description entry Align data with test limits.
Updated Section 5.3 WiFi Specification (CX870
only) : add a Note underneath the table Clarification of the possible effect of changing
the TX Power setting.
Updated Section 4 Ordering Guide : changed
CX870-3D row Two Ant entry from (X)* to X Change to match final CX870-3D configuration.
V2.0 c Sept. 14,
2011 / SHs
Updated Section 4 Ordering Guide : removed
the two blank rows Improve readability.
Updated the Description for pin NCS3 in Section
8.2.1 Pin Descriptions Update to align with actual use.
Updated Section 4 Ordering Guide : added gray
background to CX870-3F & CX870-3G Internal antenna versions are not available until
performance issues are resolved.
Updated Section 4 Ordering Guide : removed
the 2 from A, H, I & J version Part Numbers Decided to keep original part numbering
scheme to avoid unnecessary paper work and
the need to redo certifications.
Updated Section 4 Ordering Guide : split Ext.
Diversity Antennas column into two, added two
sub-columns “One Ant.” & “Two Ant.”, moved Xs
to correspond with correct sub-column
Show the number of external antenna
connections.
Updated Section 4 Ordering Guide : CX870-3D :
removed X from WiFi column CX870-3D is not configured for internal
antenna.
Updated Section 4 Ordering Guide : updated +
Note text Explained about one or two external antenna
options.
Updated Section 4 Ordering Guide : moved the
+ from Part Numbers column to Ext. Diversity
Antennas column
Proper link for "+" Note.
Updated Section 4 Ordering Guide : removed #
Note completely Content now covered by "+" Note
Updated Section 4.1 Part Number Syntax :
Updated graphic Explain antenna configuration field
Updated Section 4.1 Part Number Syntax :
Updated Note text Explain about one or two antenna configuration.
Updated text in Section 8.1 WLAN UFL Antenna
Connector Remove references to part numbering scheme
which includes the number of antennas, and
repeat advice to use two external antennas.
Removed RTC elements from Section 2 Block
Diagram Support for RTC is removed.
V2.0 b Sept. 10,
2011 / SHs
Updated the Description for pin 3V3RTC in
Section 8.2.1 Pin Descriptions Support for RTC is removed.
V2.0 a August 22,
2011 / SHs Added Section 3.5 Example Production Module
Showing Soldered RF Shield Photo shows that RF shield is soldered, needed
for Japan Telec certification.
Updated Note Section 4.1 Part number syntax Highlighted that CX870-3D does not follow the
new part numbering scheme. This Note was
subsequently deleted, so this is not relevant any
more.
V2.0 August 12,
2011 / SHs
Updated all Section 3 Board Pictures to new
versions + inserted new Sections 3.2.1 & 3.2.2
which show two different bottom views
Improve accuracy of data sheet photos.
V1.9 c August 2,
2011 / SHs
Updated Key Features on Title page:
removed (optional) from “WiFi-certified
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 30 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
Revision Date / Author Details of Change Reason for Change
802.11b/g” entry
Updated Antenna Configuration entry in
Section 4.1 Part number syntax
V1.9 b July 28, 2011
/ SHs
Updated Section 4.1 Part number syntax
o Updated graphic
o Added a Note
Changed intro text in Section 3 Board
Pictures
Updated Section 4 Ordering Guide
o Changed CX870-3B1 to CX870-
3B
o Updated the text for + note
o Added a note to CX870-3B Ext.
Diversity Antenna column
o Added a new # note
Added Section 6.0.1 Antenna
Considerations
V1.9 a July 25, 2011
/ SHs
Inserted new photo for Section 3.1 Top
View of CX870
Inserted new photo for Section 3.2 Bottom
View of CX870
Added new Section 3.3 Production Module
with Top & RF shields
Added new Section 3.4 Production Module
with 64-pin Connector Option
Updated Section 4 Ordering Guide
o Added gray background to
CX870-3D
o Changed CX870-3A to CX870-
3A2
o Changed CX870-3B to CX870-
3B1
o Changed CX870-3H to CX870-
3H2
o Changed CX870-3I to CX870-
3I2
o Changed CX870-3J to CX870-
3J2
o Added a Note to the Part
Number title
Updated Section 8.1 WLAN UFL Antenna
Connector with new text
Updated Section 5.3 WiFi Specification TX
EVM entry to
-9dB@6MHz
Updated Section 6 Regulatory Compliance
& Quality with Module Versions Passed for
Radio Regulations entries
Replaced the Note in Section 6 to be main
body text and updated the text.
Added new Section 4.1 Part number
syntax
Updated module weight to 20g
V1.8 a July 10, 2011
/ SHs
Update section 8.1 WLAN UFL Antenna
Connector
Deleted section 8.1.1 Coaxial antenna
connector dimensions
V1.8 July 5, 2011 /
SHs
Updated the acceptable surface-mount
receptacle parts in Section 8.1 WLAN UFL
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 31 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
Revision Date / Author Details of Change Reason for Change
Antenna Connector
Added Appendix 1: Certification Notices
V1.7 c May 13, 2011
/ SHs
Updated “Module Quality” Defect Rate
field entry
Updated “Board Dimensions & Weight”
drawings
Updated the “Electrical Specifications”
table
Added another Note to the “Pin
Descriptions” section
V1.7 b May 11, 2011
/ SHs
Updated Note 8 in “Pin Descriptions” table
Re-imported “Board Dimensions &
Weight” drawings
Updated “Board Pictures” images
Updated board photo on Cover page
Updated the Feature list on Cover page
Updated J1, J2 & J3 “Connector PIN
Assignments” tables: removed Power
column & re-organised columns
Changed “Application Notes” title to
“Application Guidelines”
Updated Copyright date to “2011”
Updated Table of Contents font styling
V1.7 a May 6, 2011 /
SHs
Re-imported Block Diagram as a wmf file
Updated “Power up, Reset & Power down
Timing” figure
Updated “Pin Descriptions” table
Re-organised text in “Power Supply
sequencing & Reset Timing”
Re-imported J2 & J3 Connector PIN
Assignment tables
V1.7 May 4, 2011 /
SHs
Added note to Module Weight section
Updated the Ordering Guide – Part
Numbers & added new J version
Added new text to the Board Pictures
section
Updated all Mechanical Drawings and
added & removed Notes
Updated the J3 Low Density Connector
table
Updated the GPIO Assignment table
Added new Power Supply & Timing figure
Updated the text in the “Power Supply
sequencing and Reset Timing” section
Updated the Key Connections table
Updated “Key Connections” section title to
“Pin Descriptions”
Updated “Detailed Connector PIN
Descriptions” section title to “Connector
PIN Assignments”
Updated J2 Media Connector table
V1.6 d March 3,
2011 / SHs
Updated J3 Low Density Connector table
Update GPIO Assignments section and
table
V1.6 c February 24,
2011 / SHs
Updated all mechanical drawings in
“Board Dimensions and Weights” section
Deleted warning note in “Board
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 32 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
Revision Date / Author Details of Change Reason for Change
Dimensions and Weights” section
V1.6 b February 23,
2011 / SHs
Updated “J3-Low density connector” pin
description table
Updated “GPIO Assignments” table
V1.6 February 11,
2011 / SHs
Entirely updated the “Ordering Guide”
Added a Note to the “Ordering Guide”
Updated the subsection titles for the
“Board Pictures” section
Updated the Block Diagram – changed
‘WiFi Antenna’ to ‘Ext. Antenna’
V1.5 b January 27,
2011 / SHs
Added Note to “Board Dimensions and
Weight” section
V1.5 a January 24,
2011 / SHs
Updated the “Ordering Guide” – removed
Mfg column and consolidated into one
table
Updated the Header to reflect Preliminary
nature of datasheet
V1.5 January 22,
2011 / SHs
Updated the datasheet to be a Preliminary
Datasheet
Added new feature to Summary on Front
Page
Updated “J3 - Low Density Connector”
table
Updated “GPIO Assignments” table
Added note to “Board Dimensions &
Weight – Side Views of CX870 module”
section
Updated text in “Application Notes –
Power Supply Sequencing & Reset
Timing” section
Updated “Block Diagram”
Updated text in “Connectors &
Connections – WLAN UFL Antenna
Connector” section
V1.4 b January 11,
2011 / SHs
Updated the Application Notes, RF
Considerations section
V1.4 January 3,
2011 / SHs
Updated the module photo on the Title
page
Updated the Application Notes, RF
Considerations section
V1.3 December 23,
2010 / SHs
Updated Ordering Guide
Added Notes to Ordering Guide
Updated Block Diagram
Updated “J3 – Low Density Connector”
table
Updated “Electrical Specifications” table
Added Power Consumption data to
“Electrical Specifications” table
Updated the Board Dimensions and
Weight images
Updated the “GPIO Assignments” table
Added another Application Note
Added titles to Application Notes
V1.2 December 19,
2010 / SHs
Inserted CX860 and CX870 Module
Weights
Updated module image on Front Page
JukeBlox Networked Media Modules – CX Series
Datasheet
SMSC CX860/CX870 33 Revision 2.1 (10-07-11)
SMSC CONFIDENTIAL
Revision Date / Author Details of Change Reason for Change
V1.1 December 13,
2010 / SHs
Added the Ordering Guide.
Updated the Block Diagram.
Updated the “Electrical Specifications”
table
Updated the “Absolute Maximum Ratings”
table
Updated the Notes for “Regulatory
Compliance and Quality” section
Updated “Key Connections” table
Updated “J2 – Media Connector” table
Updated “J3 – Low Density Connector”
table
Updated “GPIO Assignments” table
Added Board Pictures
Replaced Mechanical Drawings in “Board
Dimensions and Weight” section
V1.0 October 18,
2010 / SHs
Initial Version
Approval Statements
CE approval
Hereby, we declare that this device is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC.
Restrictions of use: In France, this device must not be used outdoors.
FCC approval
This device complies with Part 15 of the FCC`s Rules. Operation is subject to the following two Conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesirable operation.
To satisfy FCC exterior labeling requirements, the following text must be placed on the exterior of the end product.
Contains Transmitter module FCC ID: BEJ9QK-CX8703IB
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.　
Increase the separation between the equipment and receiver.　
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.　
Consult the dealer 　or an experienced radio/ TV technician for help.
IC approval
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Cet appareil est conforme avec Industrie Canada exempts de licence standard RSS (s). L'opération est soumise aux deux conditions
suivantes: (1) cet appareil ne peut causer d'interférences, et (2) cet appareil doit accepter toute interférence, y compris les interférences qui
peuvent causer un mauvais fonctionnement de l'appareil.
The host device must be labeled to display the Industry Canada certification number of the module.
Contains transmitter module IC: 2703H- CX8703IB
Le dispositif d'accueil doivent être étiquetés pour afficher le numéro de certification d'Industrie Canada du module.
Contient module émetteur IC : 2703H- CX8703IB
User information
Caution: Any changed or modifications not expressly approved by the party responsible for compliance could void the user`s
authority to operate this equipment.
Attention: Toute changé ou modifications non expressément approuvés par la partie responsable de la conformité pourraient
annuler l'utilisateur `autorité de faire fonctionner cet équipement.
IMPORTANT NOTE
This device complies with FCC & IC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and
operated with minimum distance 20cm between the radiating element of this device and the user. This device must not be co-located or
operating in conjunction with any other antenna or transmitter.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20cm is maintained between the antenna and users.
2) This module may not be co-located with any other transmitters or antennas.
As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for
testing their end-product for any additional compliance requirements with this module installed.
In the event that these conditions cannot be met, then the FCC & IC authorizations are no longer considered valid and the FCC ID cannot
be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product including this
module and obtaining separate FCC & IC authorizations.
NOTE IMPORTANTE
Cet appareil est conforme aux limites de la FCC et IC exposition aux radiations dans un environnement non contrôlé. Cet appareil doit être
installé et utilisé avec distance minimum de 20cm entre l'élément rayonnant de cet appareil et l'utilisateur. Cet appareil ne doit pas être co-
localisés ou fonctionnant en conjonction avec une autre antenne ou transmetteur.
Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes :
1) L'antenne doit être installée de telle sorte que 20cm est maintenue entre l'antenne et les utilisateurs
2) Ce module ne peut pas être co-localisés avec les autres émetteurs ou les antennes.
Aussi longtemps que deux conditions précitées sont remplies, le test du transmetteur supplémentaires ne seront pas tenus. Toutefois,
l'intégrateur OEM est toujours responsable de tester leurs produits finis pour toutes les exigences de conformité supplémentaires avec ce
module installé.
Dans le cas où ces conditions ne peuvent pas être remplies, alors la FCC et IC autorisations ne sont plus considérés comme valides et l'ID
de la FCC ne peut pas être utilisé sur le produit final. Dans ces circonstances, l'intégrateur OEM sera responsable de réévaluer le produit
final, y compris l'obtention de ce module et séparée de la FCC et IC autorisations

Navigation menu
