User Manual(1101)
19-1, Cheongho-ri Jinwi-myeon, Pyeongtaek-si,Gyeonggi-do, 451-713, Korea
PW-MN5275
WLAN Adapter Card
User Guide
Version 1.1
OCT., 2012
19-1, Cheongho-ri Jinwi-myeon, Pyeongtaek-si,Gyeonggi-do, 451-713, Korea
Revision History
Release Date Revision Initials
1.1 2012-10-31 First release.
19-1, Cheongho-ri Jinwi-myeon, Pyeongtaek-si,Gyeonggi-do, 451-713, Korea
STATEMENT and Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
5150-5250MHz is limited “indoor use only”.
FCC RF Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
IC
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the
device.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.
French:
Cet appareil radio est conforme au CNR-210 d’Industrie Canada. L’utilisation de ce dispositif est
autorisée seulement aux deux conditions suivantes : (1) il ne doit pas produire de brouillage, et (2)
l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce
brouillage est susceptible de compromettre le fonctionnement du dispositif.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20
cm de distance entre la source de rayonnement et votre corps.
19-1, Cheongho-ri Jinwi-myeon, Pyeongtaek-si,Gyeonggi-do, 451-713, Korea
Japan
NCC
「依據低功率電波輻射性電機管理辦法
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均
不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干
擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機
設備之干擾。」
任一平台若裝置本模組，其平台標籤須標示 “內建 WiFi 模組 NCC:XXXXXXXXXXX”
This device is intended only for OEM integrators under the following conditions:
The antenna must be installed such that 20 cm is maintained between the antenna
and users, and
The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain
laptop configurations or co-location with another transmitter), then the FCC authorization is no
longer considered valid and the FCC ID cannot be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
19-1, Cheongho-ri Jinwi-myeon, Pyeongtaek-si,Gyeonggi-do, 451-713, Korea
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed
such that 20 cm may be maintained between the antenna and users. The final end product
must be labeled in a visible area with the following: “Contains FCC ID:
BEJ9QK-DMPWMN5275”, “contains IC: 2703H-DMPWMN5275”. The grantee's FCC ID can be
used only when all FCC/ IC compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this
module.
CE
Hereby declares that this WiFi module is in compliance with the essential requirements and
other relevant provisions of R&TTE Directive 1999/5/EC. The standards for complying are as
following:
ETSI EN 301 489-1 V1.9.2: 2011-09
ETSI EN 301 489-17 V2.1.1: 2009-05
ETSI EN 300 328 V1.7.1:2006-10
ETSI EN 301 893 V1.6.1: 2011-11
EN 62311: 2008
EN 60950-1: 2006 +A11:2009
This is a class B product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
National Restrictions
This device is intended for home and office use in all EU countries (and other countries following
the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:
19-1, Cheongho-ri Jinwi-myeon, Pyeongtaek-si,Gyeonggi-do, 451-713, Korea
Country Restriction Reason/remark
Bulgaria None General authorization required for outdoor use and
public service
Italy None If used outside of own premises, general authorization is
required
Luxembourg None General authorization required for network and service
supply(not for spectrum)
Norway Implemented This subsection does not apply for the geographical area
within a radius of 20 km from the centre of Ny-Ålesund
Russian Federation None Only for indoor applications
To reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent is tropically radiated power (e.i.r.p.) is not more than that permitted for
successful communication.
CONTENTS
Package Contents .................................................................................................... 8
Chapter 1Introduction ........................................................................................... 9
1.1Overview of the Product ............................................................................................ 9
1.2Features ..................................................................................................................... 9
Chapter 2Linux Installation Guide (For Consumer Electronics) ..................... 10
2.1Hardware Installation ............................................................................................... 10
2.2Software Installation ................................................................................................ 10
Appendix A: Specifications ................................................................................... 11
PW-MN5275 WLAN Adapter Card
8
Package Contents
The following items should be found in your package:
PW-MN5275 WLAN Adapter Card
Conventions:
The ‘Module’ mentioned in this user guide stands for PW-MN5275 WLAN Adapter Card without
any explanation.
PW-MN5275 WLAN Adapter Card
9
Chapter 1 Introduction
Thank you for choosing the PW-MN5275 WLAN Adapter Card!
1.1 Overview of the Product
The module is an IEEE802.11 a/b/g/n client device. It is mainly designed to provide a high-speed
and unrivaled wireless performance for wireless embedded system application. With a faster
wireless connection, you can get a better Internet experience without the cost of running network
cables.
With the 802.11n technology, the PW-MN5275 auto-sensing capability allows high packet transfer
rate of up to 300Mbps for maximum throughput. It has good capability on anti-jamming, and it can
also interoperate with other wireless (802.11 a/b/g/n) products. The module supports WEP, WPA
and WPA2 encryption to prevent outside intrusion and protect your personal information from being
exposed.
With unmatched wireless performance, reception, and security protection, it is easily to be used in
different kinds of wireless embedded system for its size.
Note:
The PW-MN5275 is designed to be used inside consumer electronic products, such as TV,
Blue-Ray, Home Theater, etc.
It’s a 2T2R product. So both of the antennas installed on the PCB will be in use at the same time.
1.2 Features
Complies with IEEE802.11a, IEEE802.11b, IEEE802.11g, IEEE802.11n standards
Supports WPA/WPA2 data security, IEEE802.1x authentication, TKIP/AES encryption,
64/128-bit WEP encryption
Supports high rate of up to 300Mbps for maximum throughput, supports automatically adjust
to lower speeds due to distance or other operating limitations
Provides USB 2.0 interface
Good capability on anti-jamming
Supports roaming between access points when configured in Infrastructure mode
Ease to configure and provides monitoring information
PW-MN5275 WLAN Adapter Card
10
Chapter 2 Linux Installation Guide (For Consumer Electronics)
2.1 Hardware Installation
For the Consumer Electronics products which use PW-MN5275, it must provide a corresponding
connector for the module. After connecting the module to the device, the hardware installation is
finished.
2.2 Software Installation
For the Consumer Electronics products, the Linux Driver of PW-MN5275 is embedded in default.
So the module is a plug and play device. After connecting the module to the device, PW-MN5275
will work well.

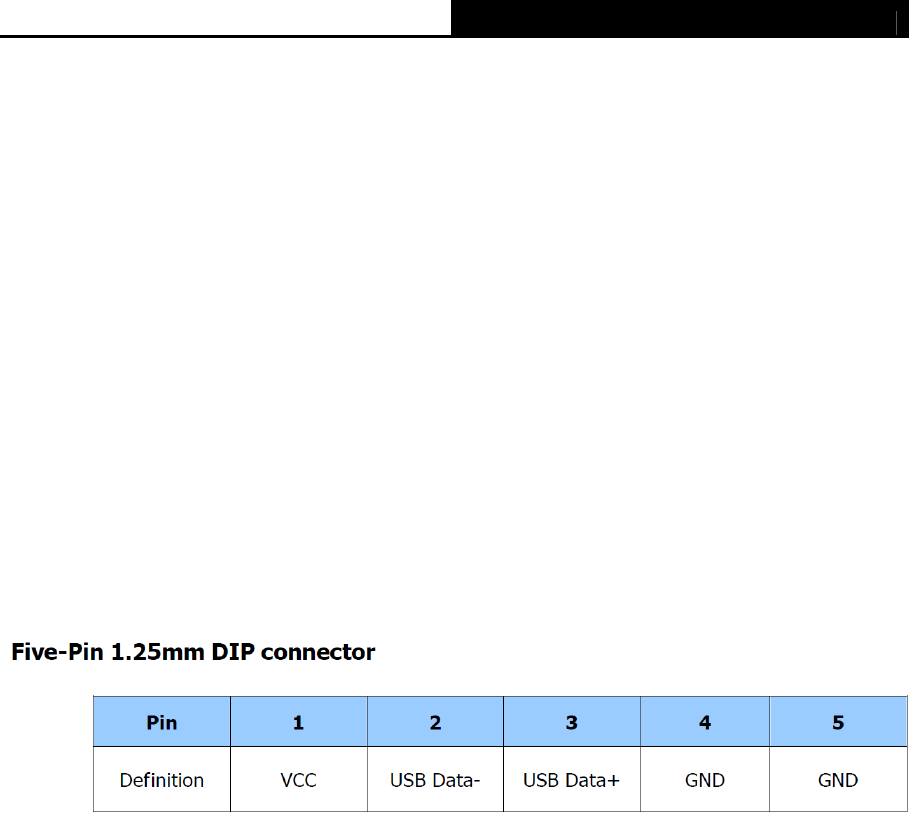

2.3 Pin Definitions
PW-MN5275 WLAN Adapter Card
11
Appendix A: Specifications
Normal
Interface USB 2.0 Interface
Standards IEEE802.11a; IEEE802.11b; IEEE802.11g; IEEE802.11n
Operating System Windows XP, Vista, 7, Linux
Throughput 300Mbps (Max)
Radio Data Rate
11a: up to 54Mbps(Dynamic)
11b: up to11Mbps (Dynamic)
11g: up to 54Mbps (Dynamic)
11n: up to 300Mbps (Dynamic)
Modulation
11a:OFDM
11b:CCK,QPSK,BPSK
11g:OFDM
11n: QPSK,BPSK,16-QAM,64-QAM
Media Access Protocol CSMA/CA with ACK
Data Security WPA/WPA2; 64/128-bit WEP; TKIP/AES
Frequency
2.400 ~ 2.4835GHz
5.15 ~ 5.25GHz (Taiwan is not applicable)
5.725 ~ 5.850GHz
Spread Spectrum Direct Sequence Spread Spectrum (DSSS)
Safety & Emissions FCC/ IC/ NCC, CE, Japan
* 1. Only 2.412GHz~2.462GHz is allowed to be used in USA, which means only channel 1~11 is
available for American users to choose.
2. Rules on the use of 5GHz band channels may vary according to different national laws.
Environmental and Physical
Operating Temp. 0℃~60℃
Storage Temp. -20℃~ 70℃
Humidity 10% ~ 90% RH, Non-condensing
Product Dimensions 45.0* 20.0* 10.7 mm
