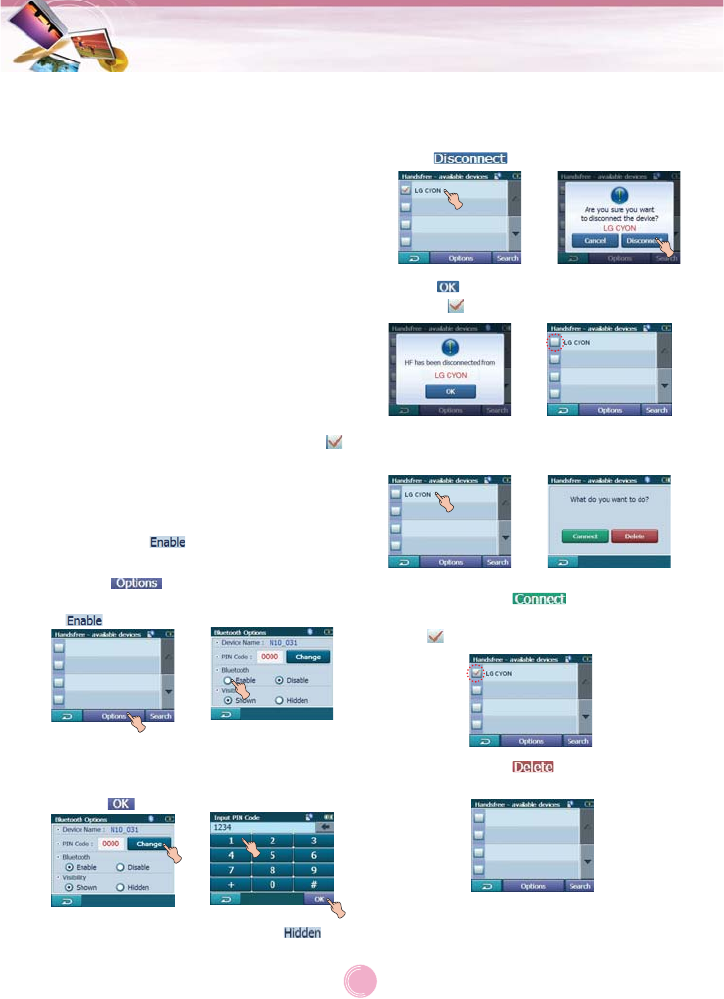

To connect using the phone settings

Your phone’s Bluetooth feature may be set to

off by default. To use the Bluetooth feature,

Bluetooth must be turned on in your phone.

Refer to your phone’s user guide.

1. Enable the phone’s Bluetooth component.

This might be in a menu called Settings,

Bluetooth, Connections, or Hands-free.

2. Initiate a search for Bluetooth devices.

These settings might be located in a menu

called Bluetooth, Connections, or Hands-

free.

3. Select the your device from the list of

phone.

4. Input the PIN code (0000) in your phone.

When it is successfully connected, the

mark is displayed in the "Handsfree -

available devices" screen.

Setting the Bluetooth

You must select to connect successfully

your unit and bluetooth phone.

1. Touch in the “Handsfree -

available devices” screen. And then touch

2. Check the PIN code. Change the PIN

code using the number buttons if you

want to change the PIN code. And then

touch .

3. If the visibility option has set as .

Other Bluetooth devices can’t find your

device.

Disconnecting/Deleting/Connect

-ing again the bluetooth phone

1. Touch the connected phone. And then

touch .

Touch . Your phone is disconnected

and the mark disappears.

2. Touch the disconnected phone again to

connect again or delete your phone.

When you touch , the disconnect-

ed phone is connected again to the unit.

The mark appears again.

When you touch , the disconnected

phone is deleted.

Bluetooth

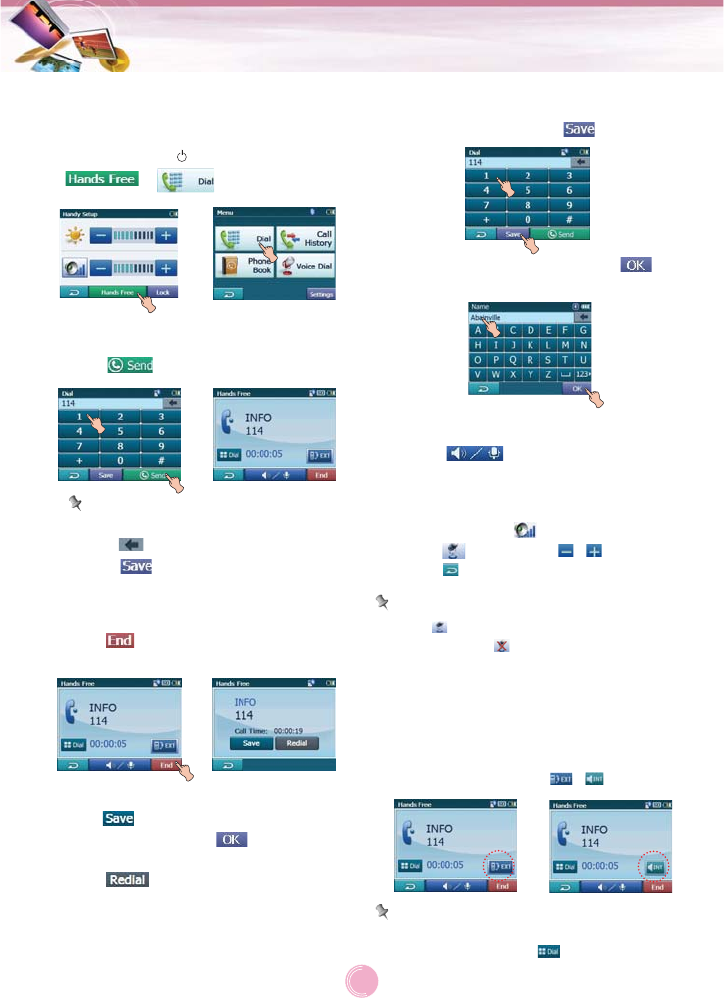

Making a call with phone number

Connect your unit and bluetooth phone before

you make a call.

1. Press POWER ( ) briefly. And then touch

> .

2. Input the phone number you want to call,

by touching the number buttons. And then

touch .

Note

•If you make a mistake while dialling,

touch to erase one digit at a time.

•Touch if you want to store the

phone number. It is stored in the phone

book.

3. Touch to finish the telephone

conversations.

If you want to store the phone number,

touch , then input the name using key

board. And then touch and it is stored

in the phone book.

Touch if you want to make a call

again.

If there is not any touch for about 10 sec-

onds, the screen moves to the “MENU”

screen.

Storing the phone number

1. Input the phone number in the “Dial”

screen. And then touch .

2. Input the name. And then touch .

It is stored in the phone book.

Adjusting the Volume/Microphone level

1. Touch

during a call.

The “Volume & Microphone” screen

appears.

2. Set the volume ( ) and microphone

level ( ) by touching / and then

touch .

Note

•Touch to cut the microphone sound .To

cancel it, touch again.

•If there is not any touch for about 5 sec-

onds, the screen moves to the previous

screen.

Switching the sound path during a call

You can hear sound through the speaker of

unit or phone by touching / .

Note

If you want to send the DTMF (Dual Tone

Multi-Frequency), touch .

Bluetooth

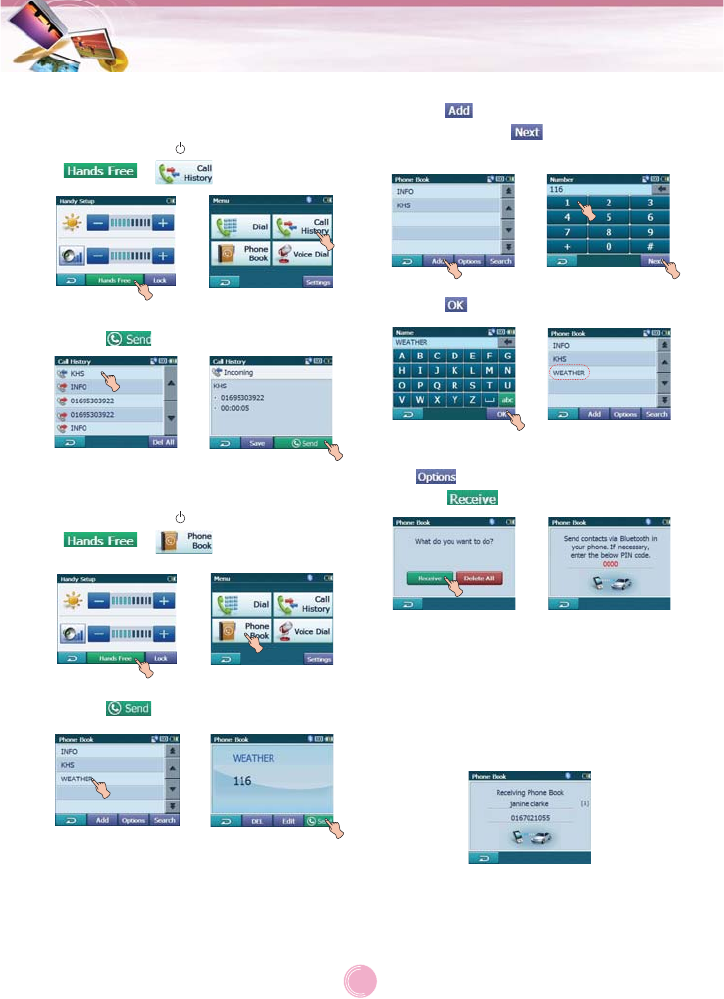

Call History

Your unit keeps a record of your recently

received and dialling calls.

1. Press POWER ( ) briefly. And then touch

> .

2. Touch the list you want to call. And then

touch .

Using your phone book

1. Press POWER ( ) briefly. And then touch

> .

2. Touch the list you want to call. And then

touch .

Adding the phone number

1. Touch in the “Phone Book” screen.

And then Touch after inputting the

number buttons.

2. Touch after changing the name.

Receiving all list in your phone

Touch in the “Phone Book” screen. And

then touch .

- Your device will receive the contact(s) via

Bluetooth in your phone. If your phone is

not connected, it needs to enter the PIN

code in the phone.

- With receiving phone book from your

phone, and the data will be stored in the

resident memory of your device.

Bluetooth

Getting all list from you phone

If your phone supports the synchronization of

phone book, you can get all list from the

phone.

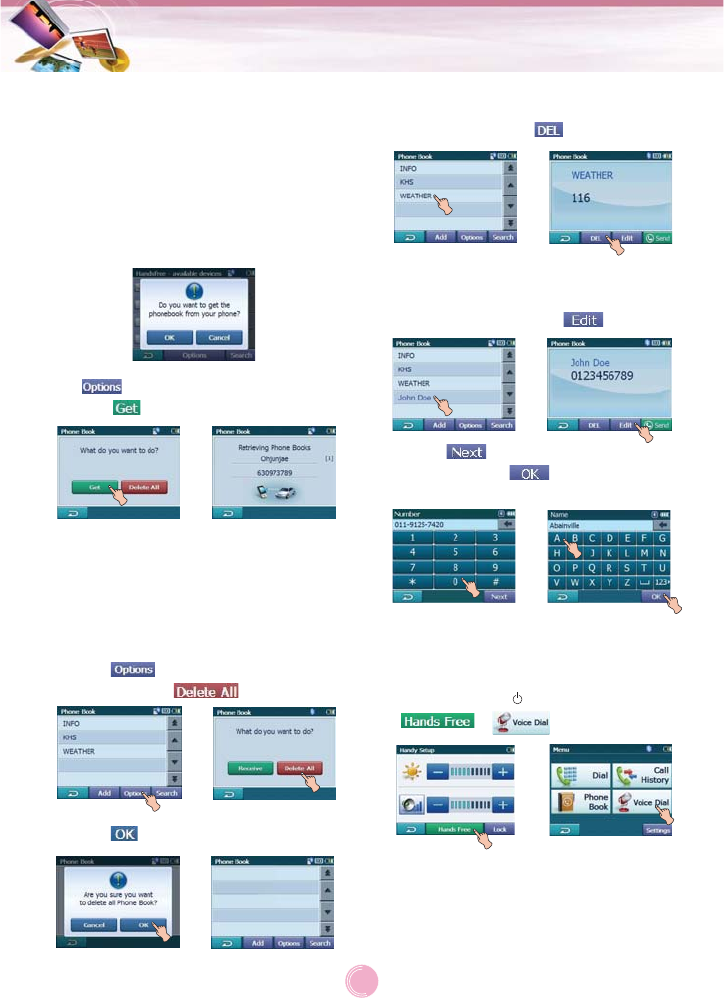

* If the phone hasn't been registered to avail-

able list on your device, you will meet the

below pop-up, "Do you want to get the

phonebook from your phone?", after con-

necting your phone with the your device.

Touch in the “Phone Book” screen. And

then touch .

The synchronisation with your phone book will

begin automatically, the data will be stored in

the resident memory of your device. (It will

takes a few minutes according to the number

of phone book in your phone.)

Deleting all list in the phone book

1. Touch in the “Phone Book” screen.

And then touch .

2. Touch .

Deleting the phone number

Touch the list to delete in the “Phone Book”

screen. And then touch .

Editing the phone number

1. Touch the list to edit in the “Phone Book”

screen. And then touch .

2. Touch after changing the number.

And then touch after changing the

name.

Using voice Dial

You can make a call by speaking the contact’s

name.

1. Press POWER ( ) briefly. And then touch

> .

Bluetooth

2. Speak the contact name from your phone.

And then follow up the instruction from

your phone.

3. Touch to finish the telephone

conversations.

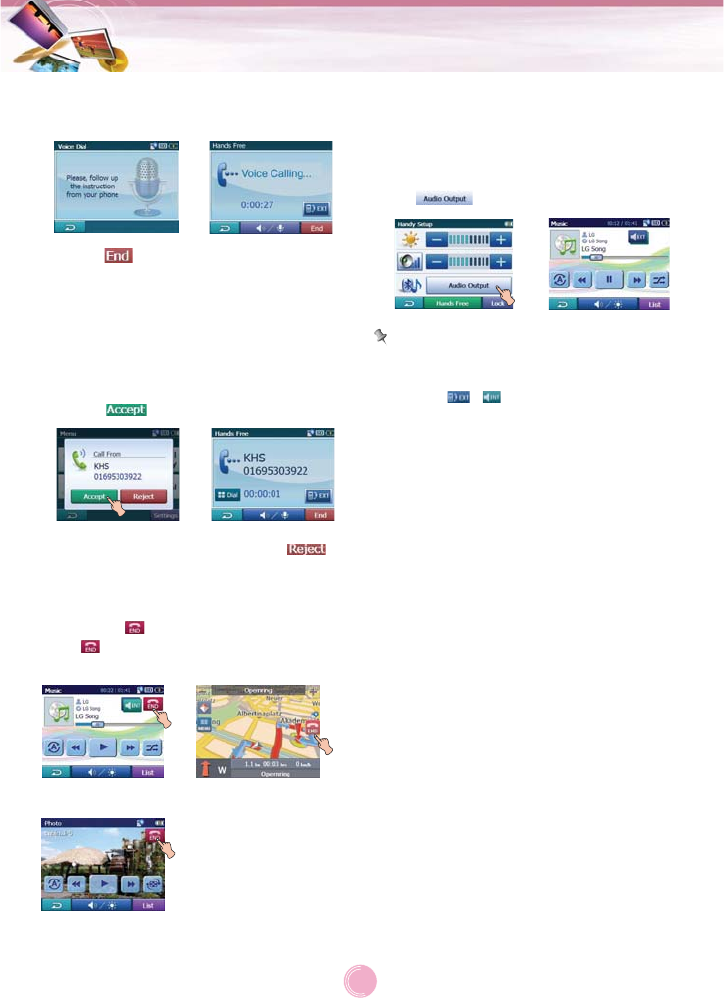

Incoming calls

1. If there is an incoming call, your phone

rings and the “Call from” pop-up screen is

displayed on the screen.

2. Touch to answer the call.

If you want to reject a call, touch .

Ending calls

When you are calling on the map, music, or

photo mode, appears in the screen.

Touch to finish the telephone conversa-

tions.

Listening to music files

You can control and hear the music (especial-

ly, mp3) files saved on your device via the

your stereo headset with Bluetooth wireless

technology.

Touch in the “Handy Setup” screen.

Notes

•You can hear the sound through the speak-

er of unit or Bluetooth stereo headsets by

touching / .

•The sound quality depends on Radio

Frequency (RF) conditions and the sam-

pling rate of audio.

•Sampling rate of MP3 file that can hear the

music using Bluetooth stereo headset

16 KHz , 32 KHz , 44.1 KHz , and 48 KHz

- The sound quality may be poor on the

sampling rate of 16 KHz , 32 KHz.

Bluetooth

Map modeMusic mode

Photo mode

Installing the Navigator “PC

Portal”

Installation the Microsoft .Net Framework 2.0

for computer can be done by following the

instructions.

1. Insert the Navigator CD into the PC's CD-

ROM drive. The “PC Portal” Installation

wizard prompts you to select the language

used for the installation process. When you

have selected a language, click “OK”.

2. Read the Welcome message and click

“Next”.

3. From the Select Directory screen, either

accept the recommended default directory

or browse to a different directory to install

the “PC Portal”.

Click “Next”.

4. If you want to change the directory location

before installing, click “Back”. When you

are ready to install the “PC Portal”, click

“Next”.

The installation status box displays the

progress of the installation process.

5. When the installation is complete, click the

“Finish” button.

6. After finishing installing PC Portal, install

the “Maps installer’ program. This proce-

dures is simillar to PC Portal install.

7. When the installation is complete, click the

“Finish”button, The Select Language box

appears.

8. From the Select Language dialog box, you

can select the display language for the “PC

Portal”. Select the Launch “PC Portal”

checkbox for “PC Portal” to immediately

start and click “OK”. Alternatively, you can

start the “PC Portal” from the Microsoft®

Windows® Programs menu.

9. Select from up to two connected devices.

(N10)

Note

Please pay close attention to all the programs

before installing the CD to your personal

computer.

Please pay close attention especially for anti-

virus programs like spyware.

Recommended PC System

Requirements

Please review the following system require-

ments before installing “PC Portal”:

• CPU: AMD/Intel® Processor 300 MHz or

faster

• Operating System: Windows® 2000/XP/Vista

• Memory: 128 MB RAM (minimum)

• Hard drive free space: 500 MB (minimum)

• CD-ROM: 4x drive or higher

• ActiveSync Version 3.8 to 4.2 supported

under Windows 2000 and XP

• USB Version 1.1 or 2.0 connection (compati-

ble 2.0)

• Microsoft .Net Framework 2.0

Installation

Starting the “PC Portal” Wizard

The first time you start the “PC Portal”, the

“PC Portal” Wizard automatically starts, letting

you install navigator software, supported lan-

guages and voice prompts, and maps.

For a complete description of the “PC Portal”,

see Using the “PC Portal” on the page 42-43.

1. Click the Microsoft® Windows® Start but-

ton.

2. Click the Programs > LGE > “PC Portal”.

The “LGE PC Portal for N10” appears.

3. If this is your first time using “PC Portal”,

the “PC Portal” wizard automatically starts

and displays the Welcome screen.

4. Make sure that your device is connected by

USB cable to a port on your PC. You will

see Connected on the “PC Portal” screen.

5. Click the buttons to move to

the previous or next screen.

6. Select software components to install to

your device.

Note

• If you want to start the wizard, click

from the “PC Portal” Main screen.

• If you want to stop the wizard, click

The “PC Portal” Main screen is displayed.

• If after selecting component, software, and

voice options, you want to return to the origi-

nal selections, click .

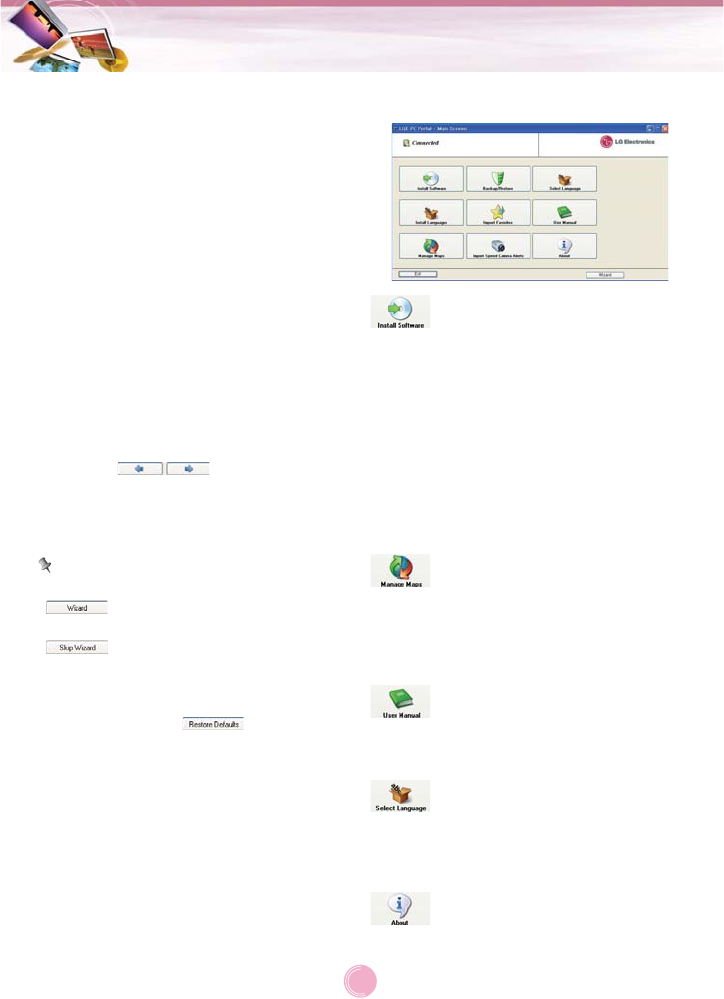

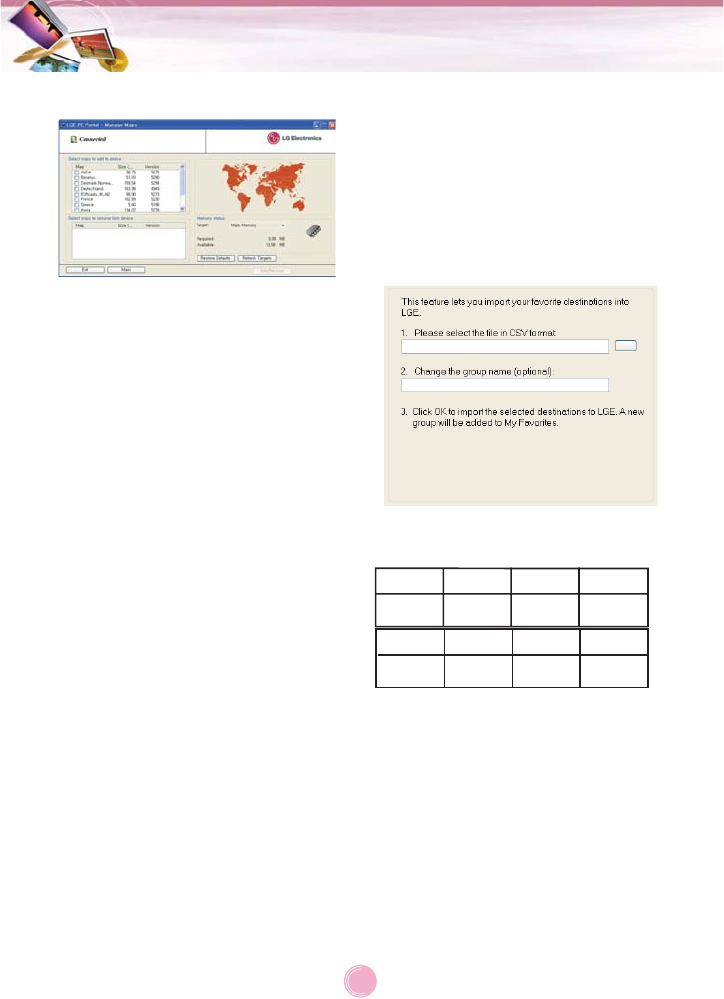

Using the “PC Portal”

Click “Install Software” and select from the fol-

lowing components to install to your device:

• LGE: GPS navigation software

• Tutorial: Tutorial guide

To install navigator components:

1. From the Install Software screen, select

from the list of components, as described

above.

2. Click the Install button.

3. Navigator “PC Portal” installs the selected

components to the device’s main memory.

Click “Manage Maps” to install or remove a

map.

For more information, see “Installing Maps” on

the page 44.

Click the “User Manual” button to see a user

manual.

Click the “Select Language” button to show a

list of languages that you can choose from to

display the “PC Portal”.

Click the “About” button to check software

version.

Installation/Using software

Click “Import Speed Camera Alerts” to update

the Speed Cam. You can visit the Speed Cam

Update site.

Click the “Backup/Restore” button to backup

the following Navigator items:

• Favorites: All locations that are displayed in

Navigator’s Favorites screens.

• Trips: All locations that appear in Navigator’s

Multistops screens.

• LGE Settings: Setting configurations, such

as map views (2D/3D and Day/Night),

prompts, units of measurement, and map

and route setting preferences.

When you select Backup, “PC Portal” makes

a copy and stores the information to your

computer.

To backup Navigator data to your PC:

1. From the Backup/Restore screen, select

Backup.

2. Select the items that you want to make a

copy of and save to your computer.

3. Click the “Backup” button.

4. “PC Portal” saves the selected items to

your computer.

Click the Backup/Restore button to restore

Favorites, Multistops, and My Navigator data

to a navigation device. When you select

Restore, “”PC Portal” recovers the information

stored on your computer.

To restore stored Navigator data to a naviga-

tion device:

1. From the Backup/Restore screen, select

Restore.

2. Select the items that you want to restore.

3. Click the “Restore” button.

4. “PC Portal” restores the selected items.

Click to import favorite locations from your PC

to the selected My Favorites group on your

device.

For more information, see “Importing Favorite

Locations” on page 44.

Click Install Languages to install a language

to your device.

To install languages:

1. From the Install Languages screen, select

the languages to be installed to the device.

2. Click the Install button.

3. Navigator PC Portal installs the selected

languages to the device’s main memory.

4. You can display the Navigator interface in

the language of your choice by tapping the

Language Settings button on the Setup

menu and selecting the language in

Navigator.

Using software

Installing Maps

1. From the Desktop Maps pane, select a

map.

2. From the “Target” context box, select the

main memory.

3. When you select a Target option (Storage

Card, Main Memory) the “PC Portal” dis-

plays the following information:

• Required: The amount of free space nec-

essary to install the map on the selected

Target option.

• Available: The amount of free space avail-

able for the selected Target option.

Note: If the free space required is equal or

greater than the free space available, “PC

Portal” will not install the selected map.

4. Select a map to add or remove.

5. Click the “Add/Remove” button.

6. The selected map is installed and displayed

in the Device Maps panel.

Removing Maps

You can remove a map by selecting a map in

the Device Maps pane and clicking the

“Add/Remove” button.

Importing Favorite Locations

Import Favorites lets you import content creat-

ed externally as a new Favorites category.

You can download a category of favorite desti-

nations from your PC to your device.

Destination data must be contained in a

comma-separated values (.csv) file. You can

import favorites to your device by following

the procedure as displayed on the Import

Favorites screen.

The .csv file contains the following fields:

• The longitude, latitude, and altitude are

numerical values. All other fields

contain string values.

• Even if the .csv file does not contain longi-

tude, latitude, and altitude values, the sepa-

rating commas must still be included.

• The .csv file contains the values in a table

as a series of ASCII text lines, organized so

that each column value is separated by a

comma from the next column's value and

each row starts a new line.

Using software

Fav. Name Notes Longitude Latitude

Fav.place 1 Comm. 1 39.21370 38.78903

Altitude City Street Address

8033 Munich Adaloweg 173

General Warning Messages

The following warning messages can appear

when you’re working with navigator “PC

Portal”.

Lost connection transfer

If at any point during the installation or data

transfer, the connection to the device is lost,

the following message is displayed:

"Connection to the device has been lost.

Please check your connection."

Uninstalling Navigator Console

When a version of navigator programme (ver-

sions prior to the “PC Portal”) is located on

your computer, the following message is dis-

played:

"A previous version of “PC Portal” was found.

Do you wish to uninstall?"

It is recommended to uninstall the previous

progam before installing “PC Portal”.

Uninstalling “PC Portal”

When an earlier version of navigator “PC

Portal” is located on your computer, the fol-

lowing message is displayed:

"A previous version of “PC Portal” was found.

Do you wish to uninstall? "

It is recommended to uninstall a previous ver-

sion of “PC Portal” before installing the cur-

rent version.

Updates to “PC Portal”

If there are updates in navigator, you are

prompted to download them in the following

message:

"There are updates to “PC Portal”, do you

wish to download and install them?"

Previous maps

If maps from a previous version are located

on your computer, the following message is

displayed:

"Existing maps data found. Do you want to

keep it?"

Clicking “Yes” lets you install maps from previ-

ous versions.

Remove maps

The following message appears when you

have selected an installed map and clicked

the Actions

button:

"Selected maps shall be removed from your

device. Are you sure you wish to continue?"

Data Transfer

If you close the PC Portal while install naviga-

tor software, a map, importing or exporting a

Favorite location, or backing up data. the fol-

lowing message appears. : “if you will close

the PC Portal now, the [process] shall not be

completed. Are you sure you wish to close?”.

Backup Data

If stored data is located on your computer, the

following message appears:

"Navigator Backup data found. Do you want to

keep it?" It is recommended to keep backup

data.

Using software

Navigation program and map data

protection

• If you want to operate this product properly,

navigation program and map data provided by

LGE should be in LGE folder on your naviga-

tion device.

• Don't erase or modify any contents in the LGE

folder using USB mass storage connection.

(All contents are important to operate

navigation. Deleting this data may cause navi-

gation to lead to malfunction.)

Audio streaming

To enjoy high quality music using Bluetooth

stereo headsets, we recommend over 16-bit

audio with sampling rates of 48 KHz and 44.1

KHz. (The sound quality depends on sampling

rates of audio and your headset.)

Picture format

JPG: Image file size should be less than 1600

MP (megapixels).

Cannot identify the current location. (GPS

not receiving)

GPS cannot be used indoors and must be con-

nected to the power with ACC to a vehicle in a

location where the sky can be seen well.

When initially connecting the GPS, it usually

takes about 10 minutes to operate normally, but

the connection speed can differ depending on

the weather condition, and surrounding obsta-

cles.

If the GPS connection is unstable for a long peri-

od of time, try the following.

• Check if the power is connected to the product.

• Check if the back of the GPS product is in a

location where the sky can be seen well.

• If there are high buildings or if you are under a

tree, move to a location where there aren’t any

obstacles.

• Check the GPS receiving condition from the

GPS menu.

Cannot hear the voice guide.

You can hear the voice guide when you select

“Guidance” in “Setup”.

But during actual driving, the voice guide is pro-

vided.

If the volume is too low, adjust the volume on

the right unit.

Cannot see the map.

This is when you cannot see the map even

when you have executed the navigation

menu.

This happens when the data within the

memory is damaged. Delete all the data

within the memory and reinstall the data.

If the problem persists after the installation,

contact the Customer Service Center.

Map data and dangerous area information

are not updated.

You must periodically update the map data.

Refer to the homepage for details on how to

update the data.

The path guide can be different from the

actual path. (Path guide error)

• When the road is closely parallel.

• When the splitting road angle is very small.

• When there is an adjacent road when

turning.

• When driving on a road that is narrowing

fast.

• When driving through the mountain or where

the road is too curvy.

• When the starting, passing and arriving

locations are too close within 10 km.

• When you have set the starting, passing or

arriving location more than 1 km away from

the road.

• When driving through the tunnel.

• When driving through high buildings.

Troubleshooting

There is a difference between the driving

road and the road on the map in the product.

Even though GPS is usually very accurate, it

has an error range.

When GPS receiver is installed, there can be an

error of about 5 to 15m. But for newly construct-

ed roads, the problem could be from the data

update to the map.

What is GPS?

The Global Positioning System (GPS) is a

satellite-based navigation system made up of

a network of 24 satellites placed into orbit by

the U.S.

Department of Defence. GPS was originally

intended for military applications, but in the

1980s, the government made the system

available for civilian use.

GPS works in any weather conditions, any-

where in the world, 24 hours a day.

There are no subscription fees or setup

charges to use GPS.

Map matching

The GPS used by this Mobile Navigation

System is susceptible to certain errors. Their

calculations may on occasion place you in a

location on the map where no road exists. In

this situation, the processing system

understands that vehicles travel only on

roads, and is able to correct your

position by adjusting it to a near road. This is

called map matching.

Basic operation tips

1.After charging or connecting to a power

source, turn the unit on.

2.Make sure you are stopped (not moving) in

a location with a clear view of the sky.

3.You will see your current location within a

few minutes and then you can start navigat-

ing.

4.If the correct location is not found within 6

minutes, restart the unit using the ON/OFF

button on the side of the unit.

Troubleshooting

GPS

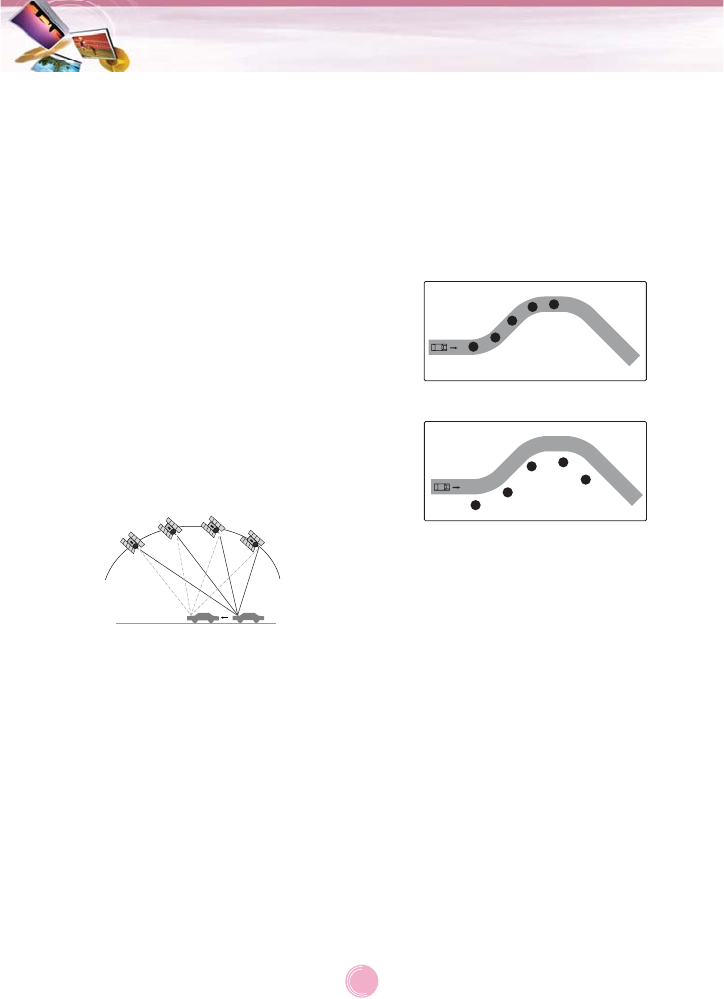

GPS GPS

GPS

With map matching.

With no map matching.

Bluetooth phone compatibility list

• If even a phone as described in this list meets requirements of Bluetooth Hand-free Profile

1.5 and Object Push Profile 1.1, it can operate. However, it is noted that we cannot assure

for operation by function.

• As difference in functional operation by model is mainly resulted from feature of a hand-free

phone, consult manufacturer of a phone if you have any question.

• There may be restrictions on using Bluetooth technology depending on some locations or

wireless environment. Due to the variety of Bluetooth phones and their firmware version, your

device may respond differently when performing over Bluetooth.

Manufacturer

BLACK BERRY

MOTOROLA

NOKIA

Model

8100

8800

H6315

HW6915

CU500

CU575

KE500

KE850

KE970

KG245

KG290

KG800

KU380

KU580

KU970

M4410

ME970

MG280

MG320

U890

A1000

E1000

E550

KRZR K1

RAZR V3i

RIZR Z80

ROKR E2

ROKR E6

SLVR L7

V195

V360

V525

V600

3230

3650

5300

5500

Year

2007

2005

2007

2006

2007

2006

2007

2006

2007

2006

2004

2005

2004

2006

2007

2006

2007

2006

2004

2006

2004

2005

2004

2006

Hansfree

Calling

YES

Display

Caller ID

YES

Voice

Dial

YES

Phone Book

Sync

YES

Object Push

(vCard)

YES

Bluetooth phone compatibility list

Manufacturer

NOKIA

PALM

SAMSUNG

SHARP

SIEMENS

SONY

Model

6103

6131

6230

6280

6600

6670

6680

7370

7380

7610

8600

9500

6230i

6820a

8910i

E50

E60

E61

E62

E70

N70

N73

N77

N80

N91

N92

N95

N-GAGE

TREO750V

A707

D600

D820

D900

i600

T509

Z540V

GX15

S65

SK65

SX1

K700i

K750i

S700i

T610

V800

W710i

Z600

Year

2006

2004

2006

2004

2006

2005

2006

2004

2007

2004

2005

2004

2006

2007

2006

2007

2006

2007

2004

2007

2006

2007

2006

2004

2005

2006

2005

2004

2005

2006

2004

Hansfree

Calling

YES

Display

Caller ID

YES

Voice

Dial

YES

Phone Book

Sync

YES

Object Push

(vCard)

YES

Specifications

ITEM SPECIFICATION

CPU

MEMORY

Win CE 5.0

ARM9 400 MHz

512MB/1GB/2GB (It depends

on models.)

DISPLAY 3.5 inch TFT LCD

Resolution 320 X 240

LED type Backlight

Touch Screen

AUDIO Mono, Internal Speaker

REMARK

Built-in Memory

Analog resisitive type

Typical 1.0W (1EA)

GPS SiRF star III,

Internal Antenna

NAVI EU (It depends on models.)

(TMC : FM Traffic Receiver)

Voice Guidance

MAP Navteq

POWER DC 5V/1A Vehicle Power

Cigar-jack Input

(12-24V)

TEMPERATURE Operating : -10 °C to 60 °C

Storing : -30 °C to 80 °C

Built-in BATTERY DC 3.7 V (Li-Ion), 1100mAh

- MP3:

5 hours [Brightness: Minimum, Volume: 5 (Center)]

- Navigation:

4.5 hours [Brightness: 5 (Center) , Volume: 5 (Center)]

- Photo:

5 hours [Brightness: 5 (Center) , Volume: 5 (Center)]

INTERFACE Mini-USB Port

External GPS Jack

USB 2.0

Multimedia Image

Audio

JPG

MP3

“The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such

marks by LG Electronics is under license. Other trademarks and trade names are those of their

respective owners.”

P/N: AFN32793967-1

Bluetooth

LG Electronics USA 9QK-N10 Portable Navigation User Manual N10 3

LG Electronics USA Portable Navigation N10 3

Contents

User manual 3of 3

Navigation menu

Namespaces

Views

Navigation
