LG Electronics USA 9QK-TWFMB008D WLAN Module User Manual

LG Electronics USA WLAN Module Users Manual

Users Manual

Users manual
PRODUCT NAME : WLAN Module
MODEL NAME : TWFM-B008D
The information contained herein is the exclusive property of LG Innotek
and shall not be distributed, reproduced or disclosed in whole or no in part
without prior written permission of LG Innotek.
(00)-0073
User Manual
PAGE :
REG. DATE : 2014.05.30
REV. DATE : 2014.05.30
REV.NO : 1.0
MODEL NAME : TWFM-B008D 1 / 9
Index
No Description Page
1
F
2
1
F
eatures
2
2 Product photo 2
3 Installation 3
4 Block Diagram 4
5 Storage Conditions 4
6 Operating Conditions 5
7 Test Conditions 5
8 Pin Description 6
9 Outline Drawing 7
10 Packing Information 8
Copyrightⓒ. 2013. All Rights Reserved.
User Manual
PAGE :
REG. DATE : 2014.05.30
REV. DATE : 2014.05.30
REV.NO : 1.0
MODEL NAME : TWFM-B008D 2 / 9
1. Features
TWFM-B008D is the small size and low power module for IEEE 802.11a/b/g/n wireless
LAN. TWFM-B006D is based on Broadcom BCM43236B solution..
IEEE 802.11 a/b/g/n Dual Band WLAN infrastructure
Size : 48.0mm x 30.0mm x 6.7mm
2.4GHz and 5GHz Internal PA
Two stream spatial multiplexing up to 300Mbps(802.11n)
Use on-chi
p
OTP (One-Time Pro
g
rammable)
p
g
USB 2.0
Supports drivers for Linux, Windows
Security : WPA,WPA2,AES(TKIP), IEEE 802.1X
• Application: DTV, DVR, HD DVD Player, Blue-ray Disk Player, STB

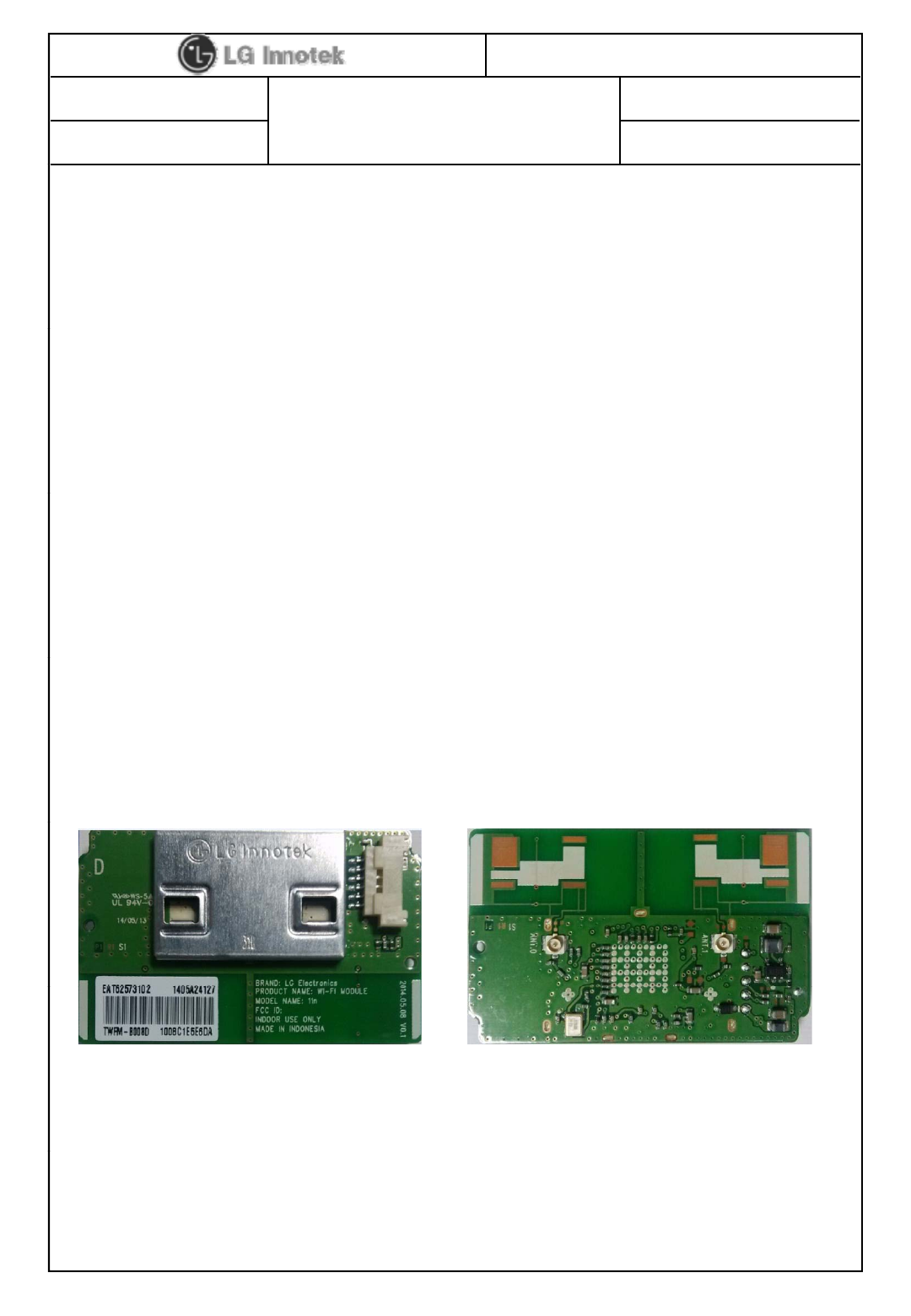

2. Module Photo
Copyrightⓒ. 2013. All Rights Reserved.
User Manual
PAGE :
REG. DATE : 2014.05.30
REV. DATE : 2014.05.30
REV.NO : 1.0
MODEL NAME : TWFM-B008D 3 / 9

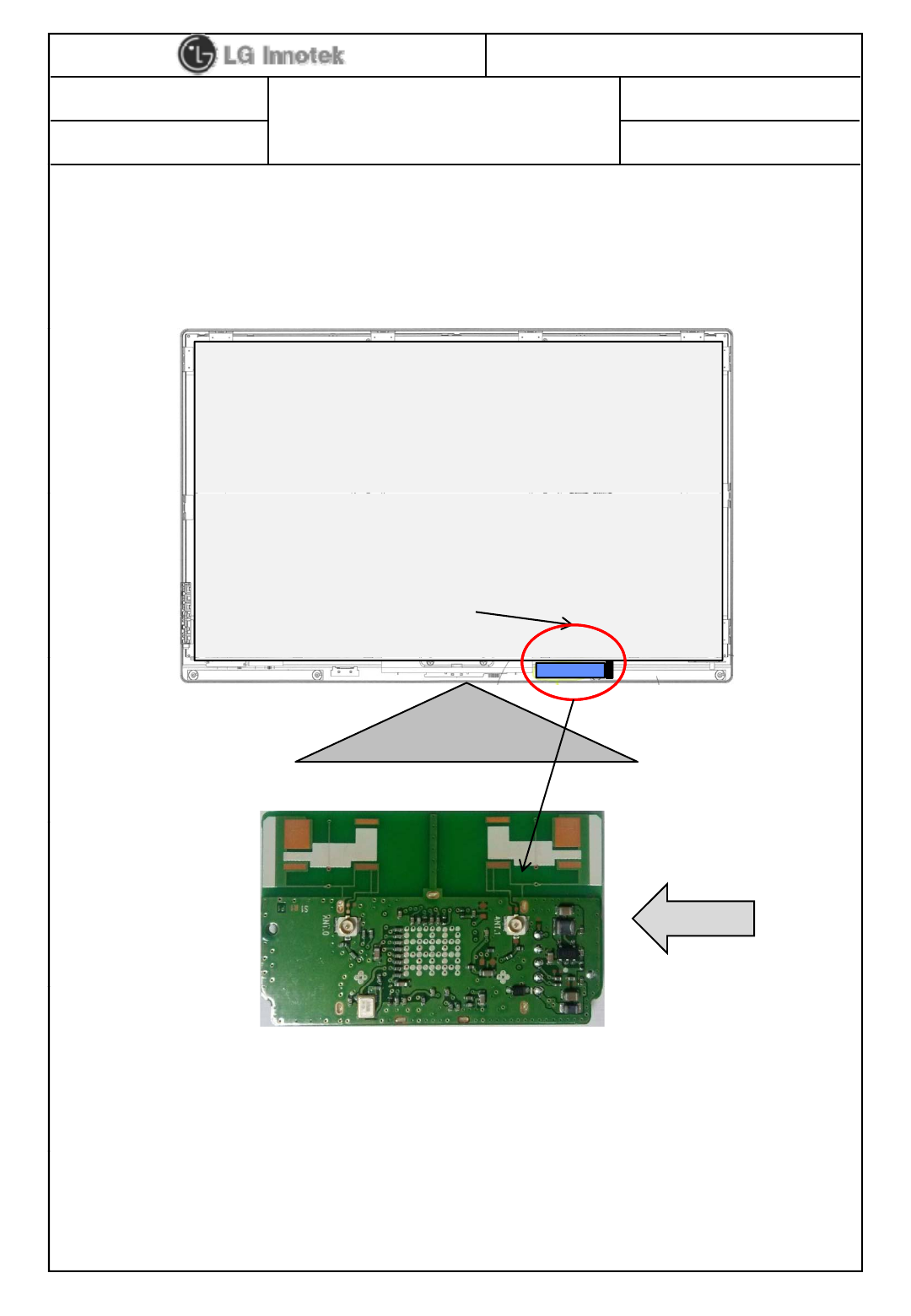

3. Installation
This Wi-Fi module will be installed inside TV.
TV R P l
TV
R
ear
P
ane
l
installed position
Cable
Copyrightⓒ. 2013. All Rights Reserved.
User Manual
PAGE :
REG. DATE : 2014.05.30
REV. DATE : 2014.05.30
REV.NO : 1.0
MODEL NAME : TWFM-B008D 4 / 9

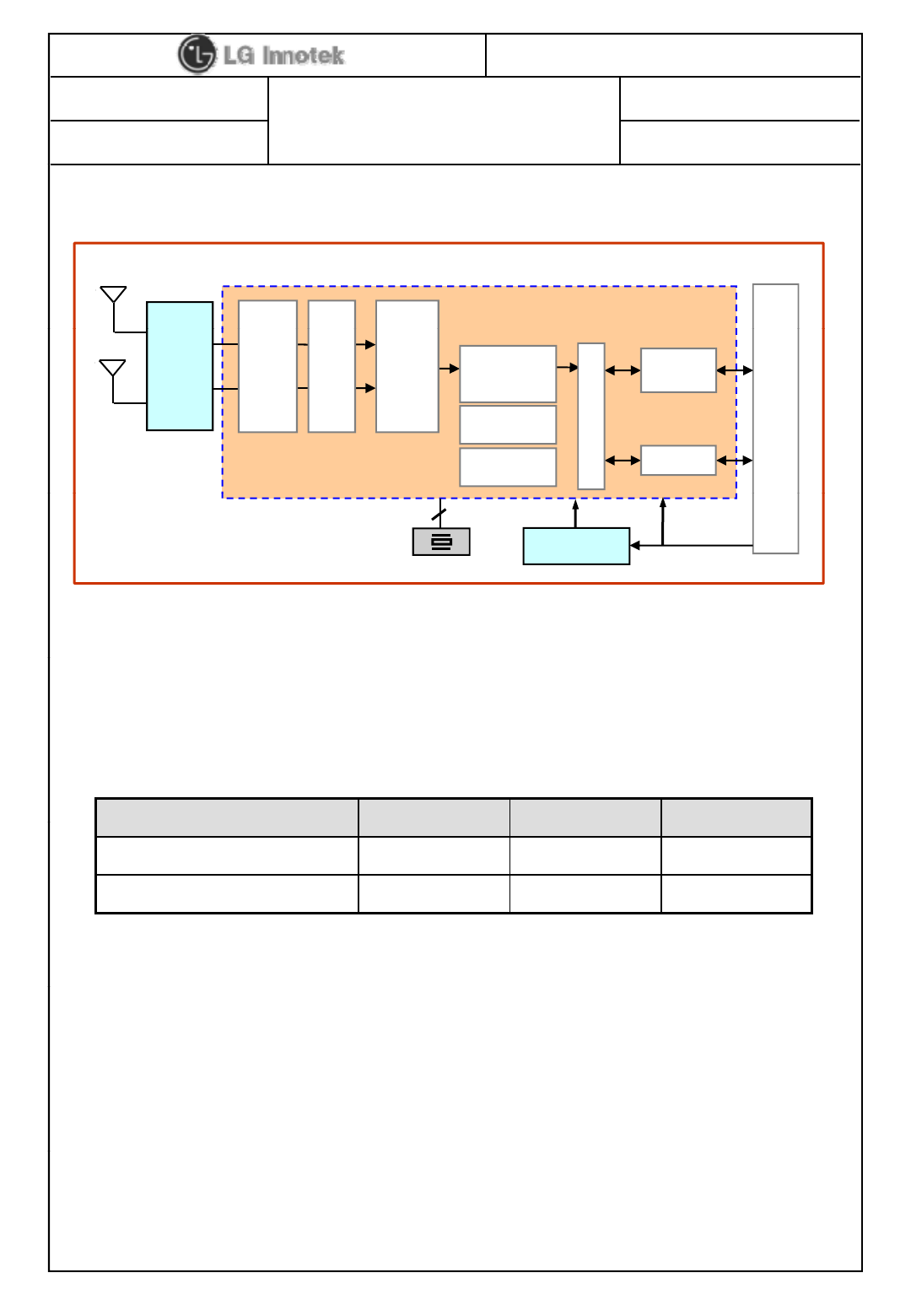

4. Block Diagram
BCM43236B
ANT1
USB Connector
RF
Switch+
Diplexer
ANT2
802.11n
MAC
2.4GHz
5GHz
PA
2 x 2
Radio 802.11n
PHY
Security
OTP
(2K bits)
Internal Bus
GPIO
USB 2.0
5. Storage Conditions
Main Clock(20MHz)
1.2V
DC-DC
(1.5MHz)
3.5V
Parameter
Min
Max
Unit
Caution : The specifications above the Table define levels at which permanent damage
to the device can occur. Function operation is not guaranteed under these conditions.
Operating at absolute maximum conditions for extend periods can adversely affect the
long-term reliability of the device.
Parameter
Min
Max
Unit
Storage Temperature -10 +80 ℃
Storage Humidity (@ 40℃)-90%
• Other conditions
,
gas, sulfide gas, acid, alkali, salt or the like are contained.
Also, avoid exposure to moisture.
2) Store the modules where the temperature
and relative humidity do not exceed 5 to 40℃and 20 to 60%.
3) Assemble the modules within 6 months.
Copyrightⓒ. 2013. All Rights Reserved.
Check the soldering ability in case of 6 months over.
User Manual
PAGE :
REG. DATE : 2014.05.30
REV. DATE : 2014.05.30
REV.NO : 1.0
MODEL NAME : TWFM-B008D 5 / 9
6. Operating Conditions
Parameter Min Typ Max Unit
Operating Temperature 0 - +60 ℃
Operating Humidity (40℃)--85 %
Supply Voltage 3.325 3.5 3.675 Vdc
7. Test conditions
7-1. Macro-environment
Temperature 25 ±5℃
Humidity 65 ±5%
In
p
ut volta
g
eVolta
g
e ran
g
e
7-2. Voltage conditions
pg
gg
VDD_3.3V +3.5V ±0.175V
Copyrightⓒ. 2013. All Rights Reserved.
User Manual
PAGE :
REG. DATE : 2014.05.30
REV. DATE : 2014.05.30
REV.NO : 1.0
MODEL NAME : TWFM-B008D 6 / 9

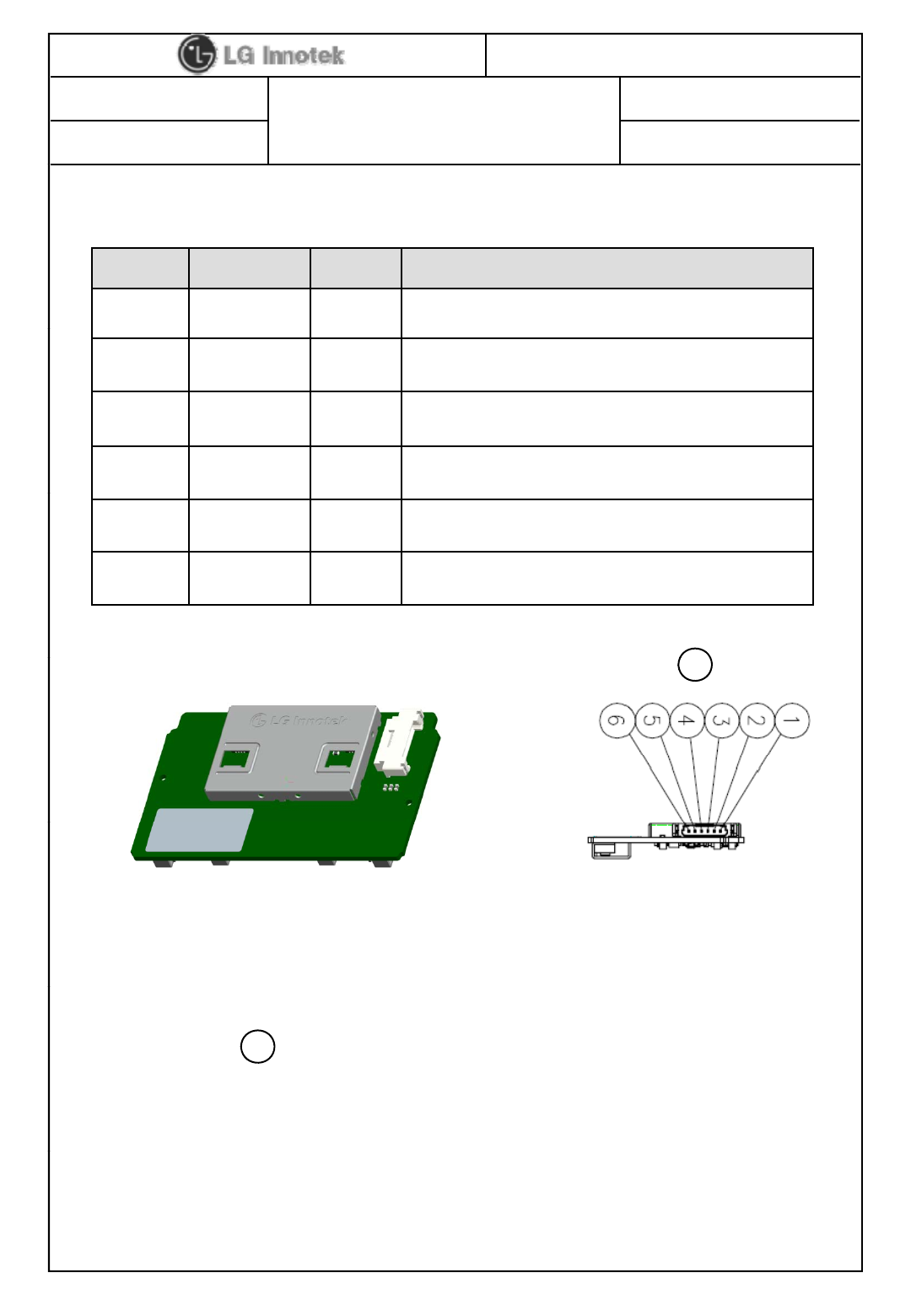

8. Pin Description
Pin No. Pin Name I/O Pin Description
1 VCC I VDD 3.5V
2 D- I/O USB Communication signal USB_DN
3 D+ I/O USB Communication signal USB_DP
4 GND - GND
5 WOW I Wake On WLAN
6NCI NC
< TOP View > A
Note.
1) Recommend a Module install sequence for prevent USB device failure
- Supply 3.5V power
Cttdtil(USBDPUSBDN)
-
C
onnec
t
t
o
d
a
t
a s
i
gna
l
(USB
_
DP
,
USB
_
DN)
2) If remove the module, proceed in reveres sequence
3) Connector : (CONN 12507WR-06L, YEONHO ELECTRONICS CO., LTD.)
A
Copyrightⓒ. 2013. All Rights Reserved.
User Manual
PAGE :
REG. DATE : 2014.05.30
REV. DATE : 2014.05.30
REV.NO : 1.0
MODEL NAME : TWFM-B008D 7 / 9

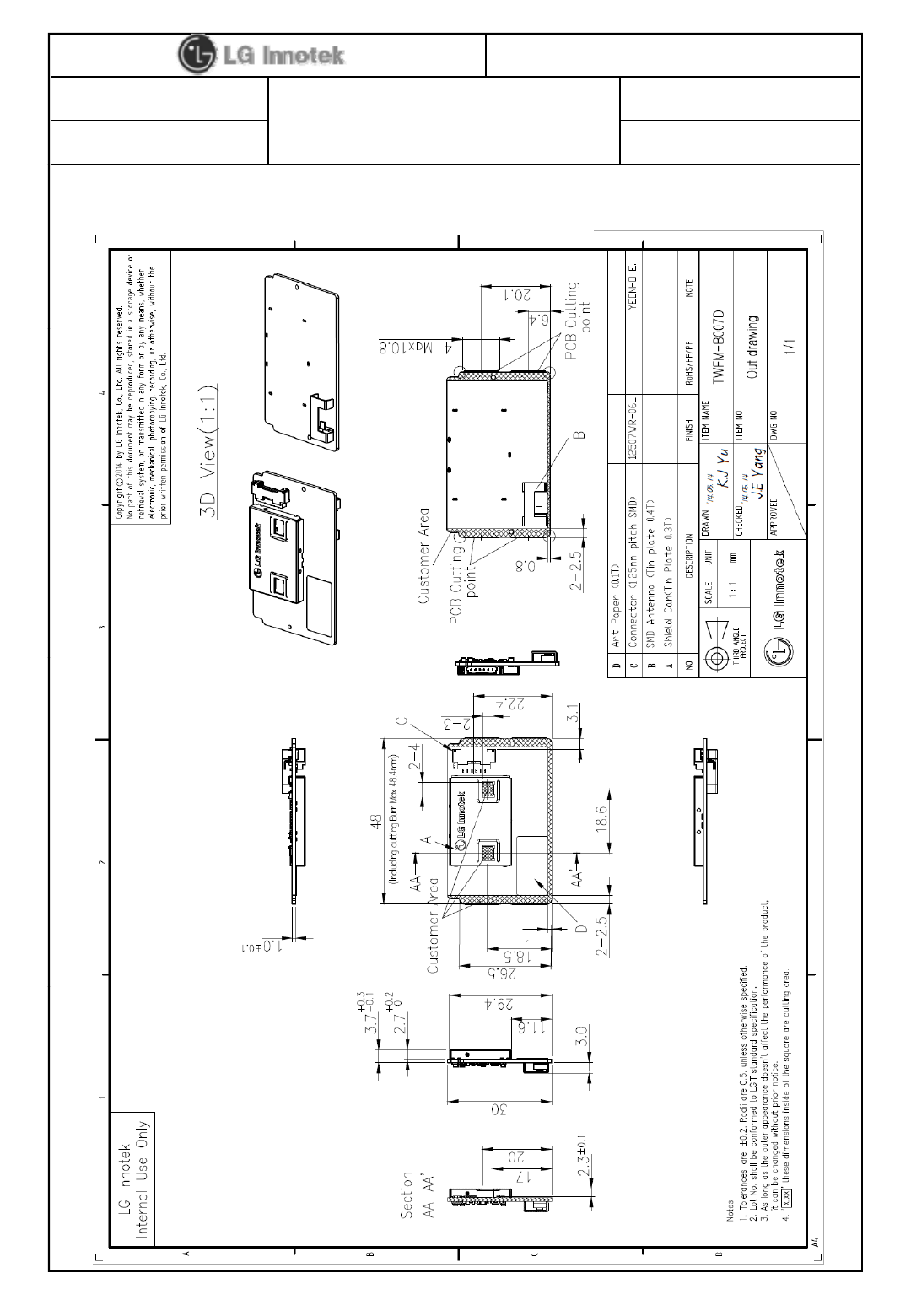

9. Outline Drawing
Copyrightⓒ. 2013. All Rights Reserved.
User Manual
PAGE :
REG. DATE : 2014.05.30
REV. DATE : 2014.05.30
REV.NO : 1.0
MODEL NAME : TWFM-B008D 8 / 9

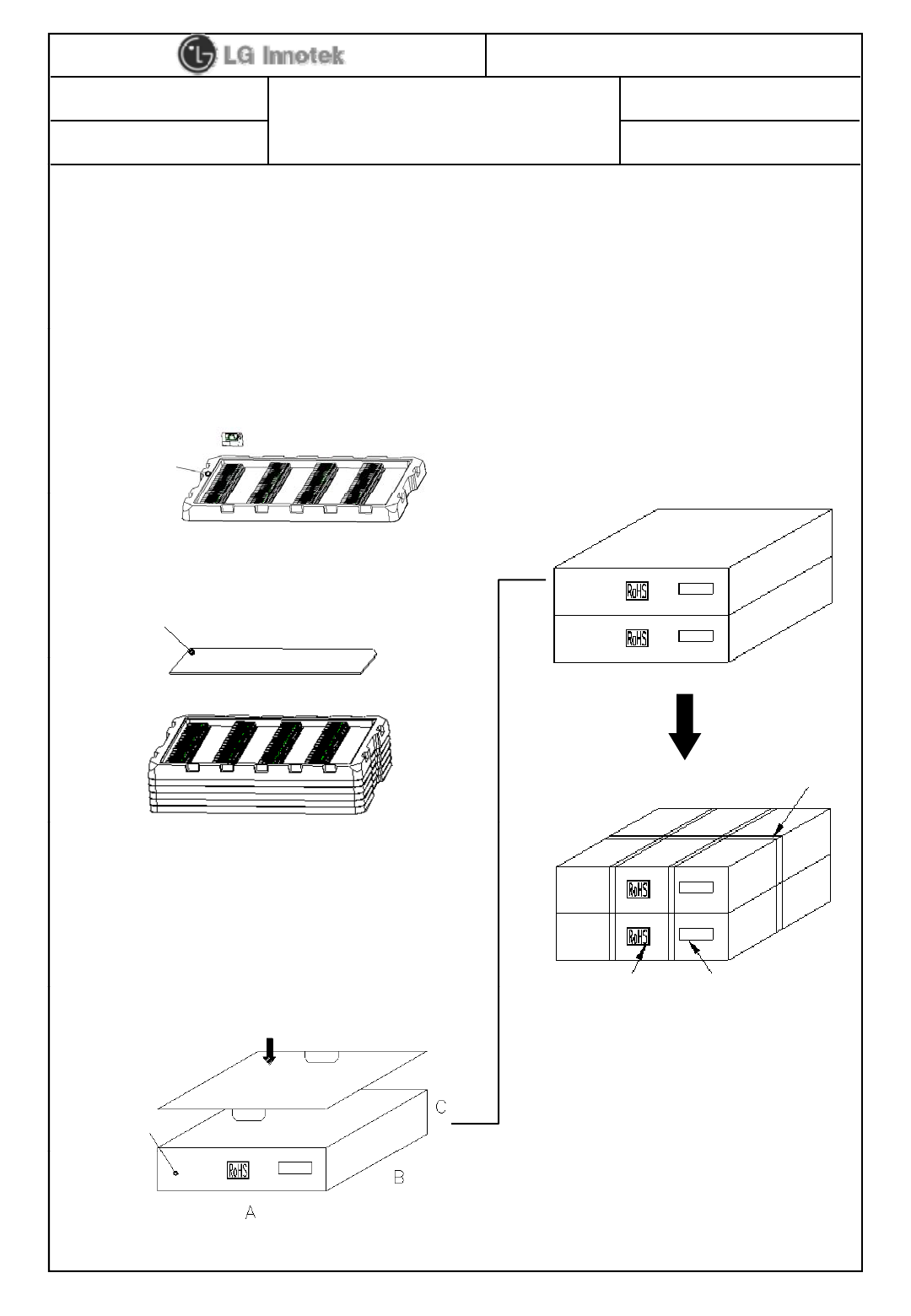

10. Packing Information
• 1 Tray Package Q’ty : 120EA
• Tray Material : Antistatic PET or Antistatic PS
• 1 Tray Weight : 0.2kg
(1 Module Weight : 6.4 ±0.5g)
Tray
• Total Packing Q’ty : 1,440EA
• Total Packing Weight : 12.6±0.8kg
• Tray Stacking Q’ty :6 Stack(Zigzag stack)
Corrugated Fibreboard
PP Band
• 1 Box Package Q’ty : 720EA
• Box Size : A x B x C (512 x 377 x 121.5)
• Box Material : Corrugated Fibreboards
• 1 Box Packing Weight : 6.3 ±0.4kg
Barcode Label
RoHS Marking
Inner Box
Barcode
Label
RoHS
Marking
• RoHS Marking :
Label, Stamp, Printing
• Marking Color :
G Rdf St Lbl
Copyrightⓒ. 2013. All Rights Reserved.
G
ray or
R
e
d
f
or
St
amp,
L
a
b
e
l
,
Printing on the board and etc.
Black only for Printing on Label.
User Manual
PAGE :
REG. DATE : 2014.05.30
REV. DATE : 2014.05.30
REV.NO : 1.0
MODEL NAME : TWFM-B008D 9 / 9

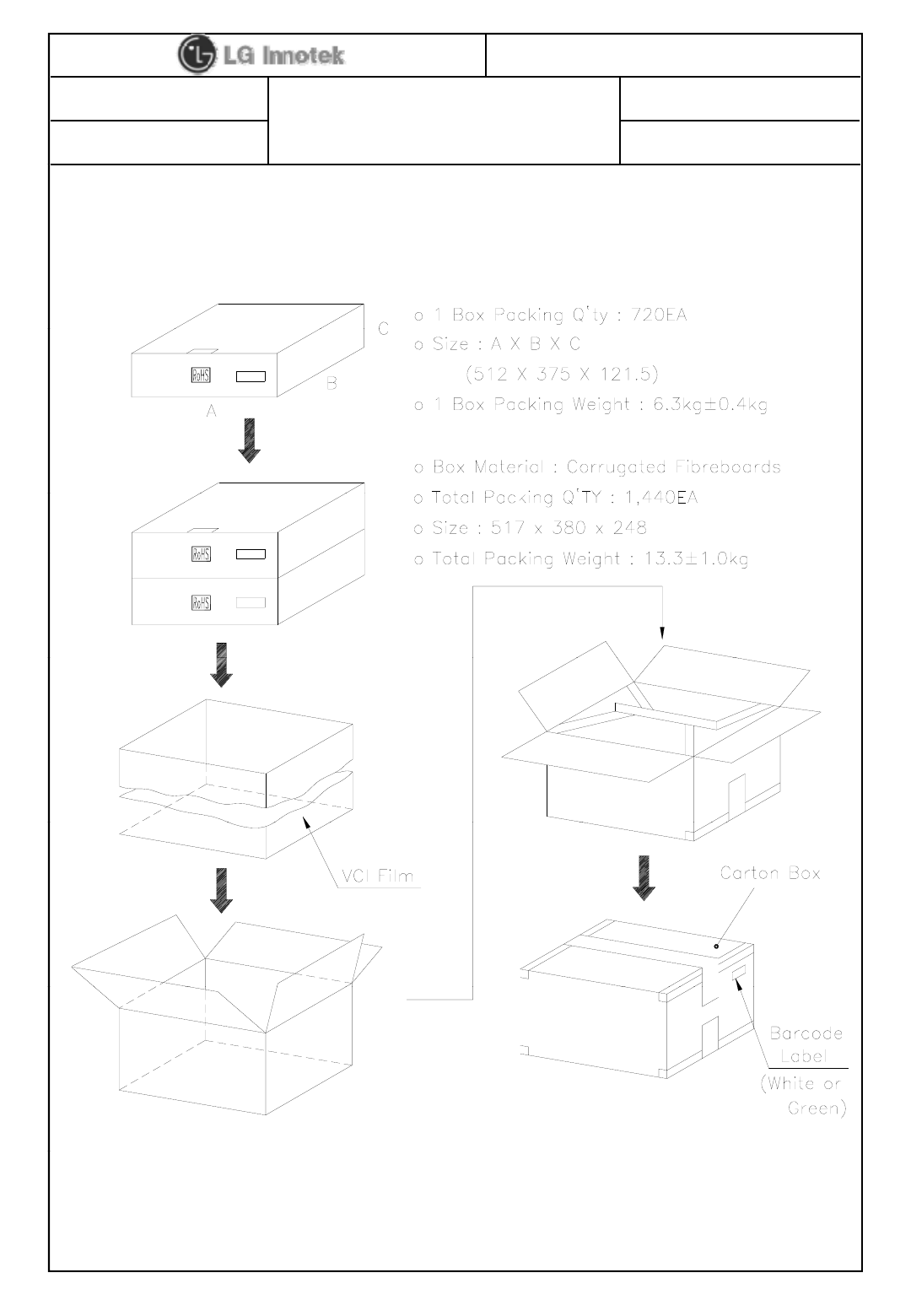

10. Packing Information
Copyrightⓒ. 2013. All Rights Reserved.
FCC (Regulatory information/warning)
§15.19
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
§15.21
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
§15.105
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
§2.1091
The antenna(s) must be installed such that a minimum separation distance of at least 20 cm is
maintained between the radiator (antenna) and all persons at all times. This device must not be
co-located or operating in conjunction with any other antenna or transmitter.
IC (Regulatory information/warning)
RSS-GEN Section 7.1.3
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:(1) l'appareil ne doit
pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
RSS-102 RF Exposure
L’antenne (ou les antennes) doit être installée de façon à maintenir à tout instant une distance
minimum de au moins 20 cm entre la source de radiation (l’antenne) et toute personne physique.
Cet appareil ne doit pas être installé ou utilisé en conjonction avec une autre antenne ou
émetteur.
