Contents

User Manual

IEEE 802.11a/b/g/n Wireless
WLAN Adapter Card
Model # WN8522D2
October 2010
Trademarks:
Other product and company names are trademarks or registered trademarks
of their respective holders.
i
Table of Contents
Table of Contents
Wireless Dual-band Network Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

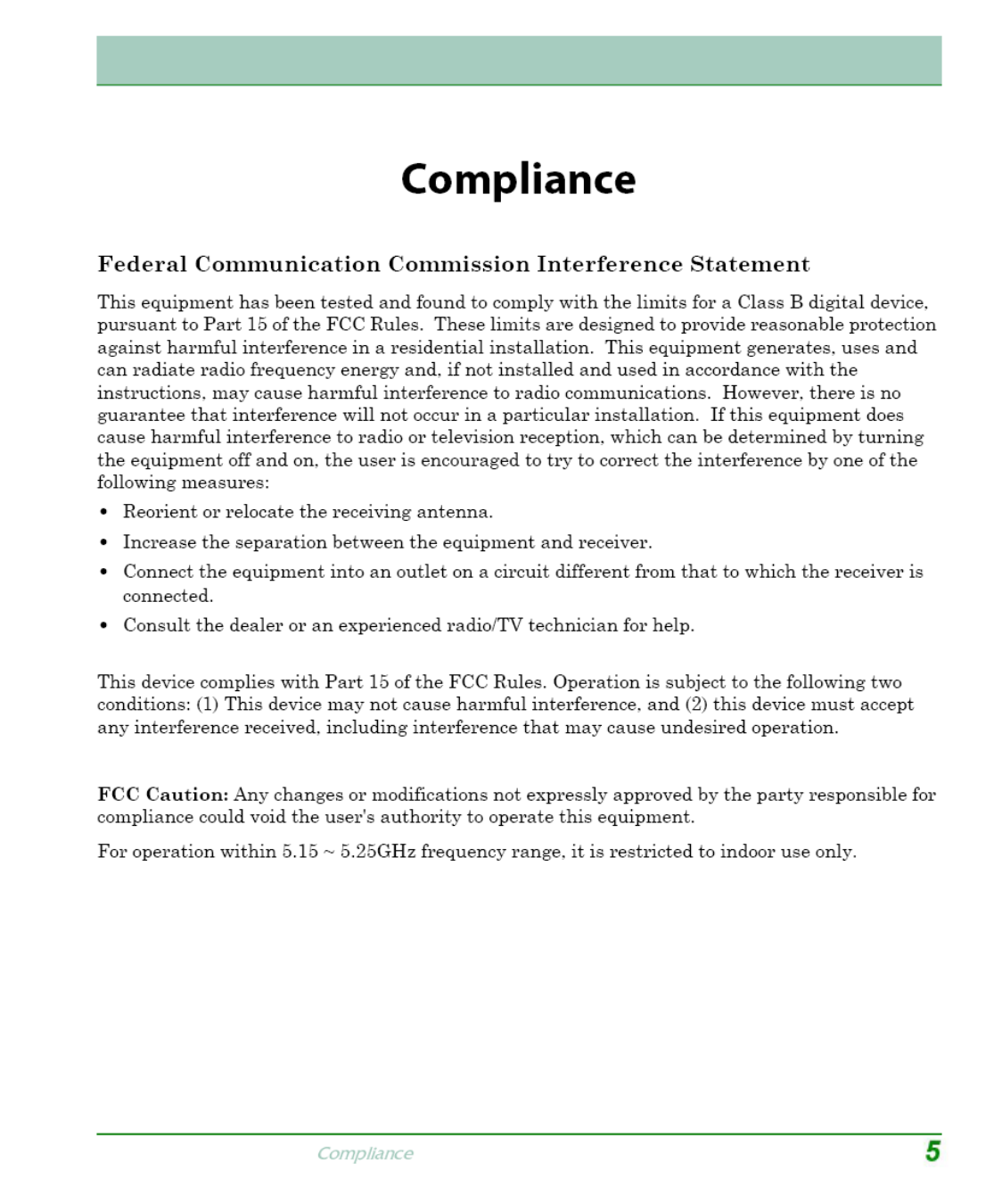

Federal Communication Commission Interference Statement . . . . . . . . . . . . . . . . . . . . .5

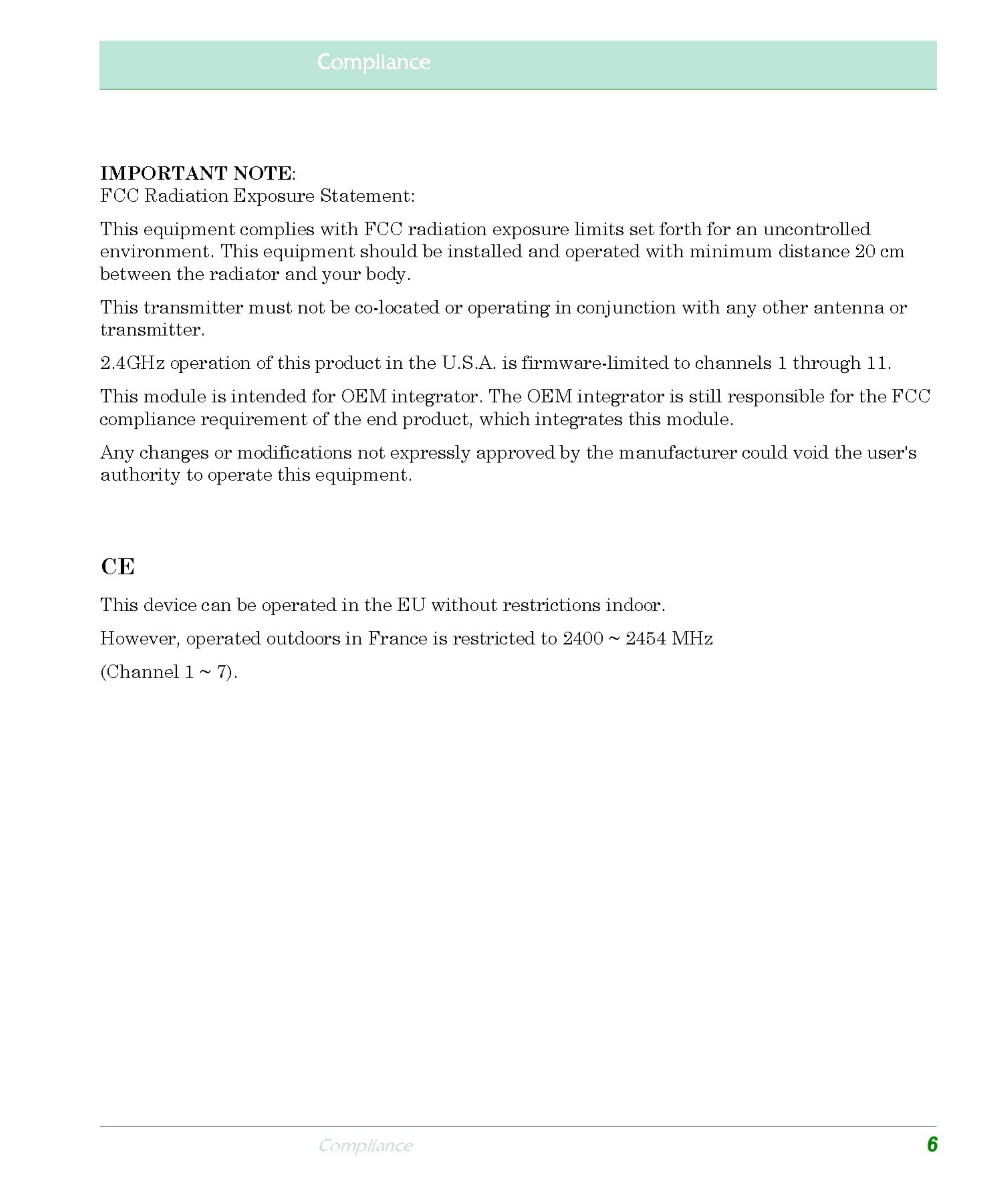

CE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Introduction
1
Wireless Dual-band Network Adapter
Introduction
The Wireless Dual-band Network Adapter (WN8522D2) is another
cutting edge introduction in both 5GHz and 2.4GHz wireless
communication for desktop and notebook computers. Designed for both
your home and office, this wireless network adapter provides the speed,
coverage and security expected by today’s wireless users.
WN8522D2 is IEEE 802.11n compliant while maintaining full
backwards compatibility with the 802.11a, 802.11b and 802.11g
standards. It utilizes advanced MIMO (Multiple-In, Multiple-Out)
technology to deliver incredible speed and range. The Wireless Dual-
band Network Adapter provides better performance than existing
802.11g technology. Upgrading to wireless 11n network provides an
excellent solution for sharing an Internet connection and files such as
video, music, photos, and documents.
Wireless Dual-band Network Adapter
Hardware Description
2
Features and Benefits
•IEEE802.11n,g,b compliant
•IEEE802.11a compliant
•Wireless speeds up to 300 Mbps
•Increased speed and coverage - up to 5 times the speed of IEEE
802.11g
•Fully backwards compatible with 802.11b/g wireless networks
•Replaces wired LANs at dramatically lower cost than wired
alternatives
•Orthogonal Frequency Division Multiplexing (OFDM) and advanced
MIMO (Multiple-In, Multiple-Out) technology provides high speed
connection

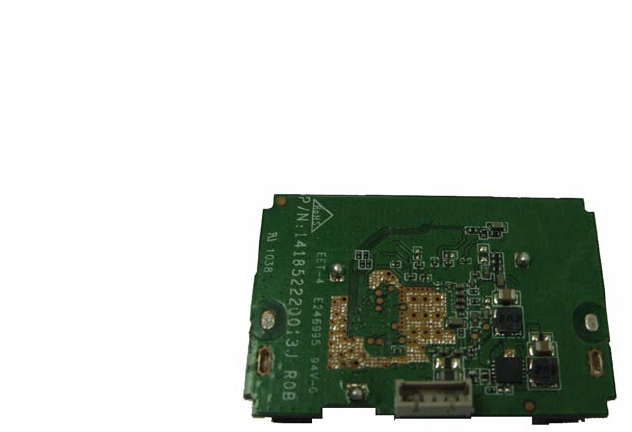

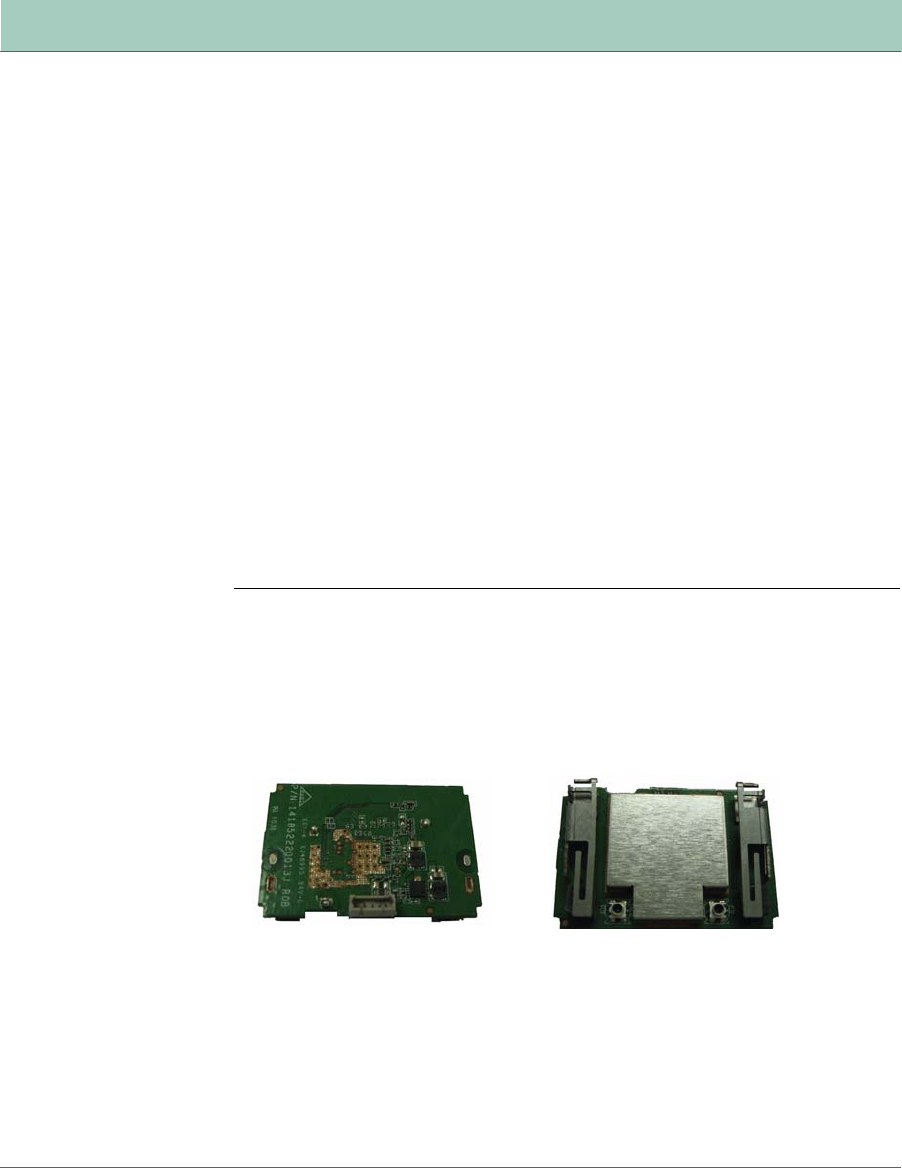

Hardware Description
The WN8522D2 adapter provides 300 Mbps connections. It is fully
compliant with the specification of the IEEE 802.11a/b/g/n standards.
Refer to the user’s manual of your media device for configuration
details.
Product Specifications
3
Product Specifications
Wireless Network
IEEE802.11a: up to 54 Mbps
IEEE802.11b: up to 11 Mbps
IEEE 802.11g: up to 54 Mbps
IEEE802.11n: up to 300 Mbps
Operating Range
Outdoor: Up to 300 m (984 ft)
Indoor: Up to 100 m (328 ft)
Radio Signal
Signal Type
Direct Sequence Spread-Spectrum (DSSS)
Modulation: CCK, OFDM, MIMO
Operating Frequency
NCC (FCC) and Canada (IC): 2.412 ~ 2.462 GHz
NCC (FCC) and Canada (IC): 5.159 ~ 5.250 GHz, 5.725 ~ 5.825 GHz
Japan (STD-T66/STD-33): 2.412 ~ 2.484 GHz
Operating Channels
NCC (FCC) and Canada (IC): 11 channels
NCC (FCC) and Canada (IC): 5 channels
Japan (STD-T66/STD-33): 14 channels

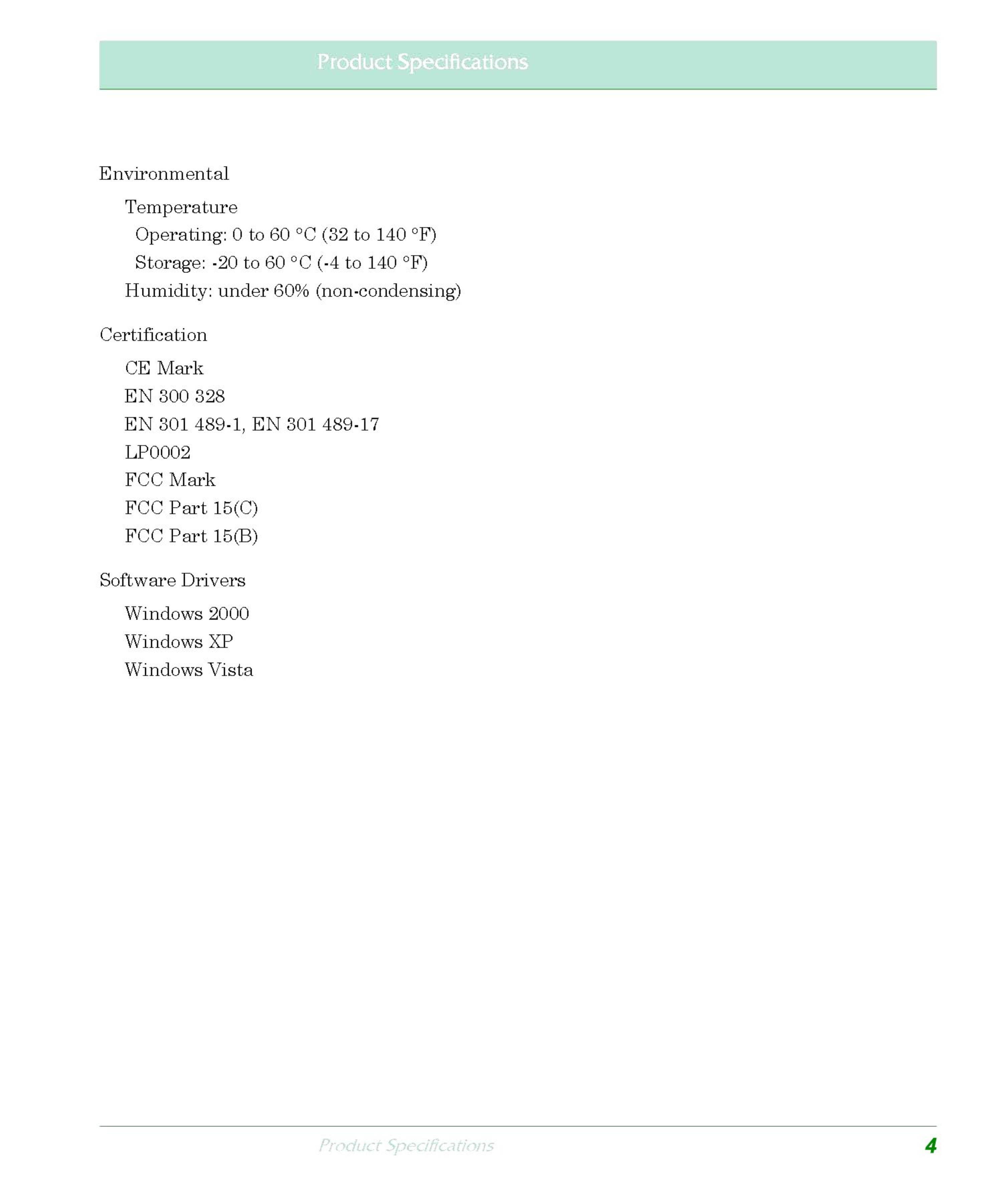

Module User Requirements
When the module be installed into new host and a separation distance of more than 20cm
from the human body. However if the module is placed into the host that is RF category
portable, the FCC RF exposure requirements of the portable host must be properly
\addressed. The label shall include following message:
Contains FCC ID: BEJ9QK-WN8522D2
