© Copyright 2002, Zenith Electronics Corporation
Installation and Operating Guide | Warranty
Model Number | XBV243 | DVD Player + Video Cassette Recorder
2
Safety Precautions
This lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to
the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
product.
NOTE TO CABLE/TV INSTALLER: This reminder is provided to
call the cable TV system installer’s attention to Article 820-40 of
the National Electric Code (U.S.A.). The code provides guidelines
for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the
building, as close to the point of the cable entry as practical.
CAUTION:
This DVD+VCR employs a Laser System.
To ensure proper use of this product, please read this owner’s
manual carefully and retain for future reference, should the unit
require maintenance, contact an authorized service location-
see service procedure.
Use of controls, adjustments or the performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
To prevent direct exposure to laser beam, do not try to open
the enclosure. Visible laser radiation when open. DO NOT
STARE INTO BEAM.
CAUTION: The apparatus shall not be exposed to water,
dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
FCC WARNING: This equipment may generate or use radio
frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the modifi-
cations are expressly approved in the instruction manual. The
user could lose the authority to operate this equipment if an
unauthorized change or modification is made.
REGULATORY INFORMATION: FCC Part 15
This product has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the product is
operated in a residential installation. This product generates,
uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this product does cause harmful
interference to radio or television reception, which can be
determined by turning the product off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the product and
receiver.
Connect the product into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
FCC COMPLIANCE: The responsible party for this product’s
compliance is:
Zenith Electronics Corporation, 2000 Millbrook Drive,
Lincolnshire, IL 60069, USA.
Phone: 1-847-391-7000
Notes on copyrights:
It is forbidden by law to copy, broadcast, show, broadcast
via cable, play in public, or rent copyright material without
permission.
This product features the copy protection function developed
by Macrovision. Copy protection signals are recorded on some
discs. When recording and playing the pictures of these discs
on a VCR, the picture noise will appear.
This product incorporates copyright protection technology that
is protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation
and other rights owners. Use of this copyright protection tech-
nology must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
SERIAL NUMBER: The serial number is found on the back of
this unit. This number is unique to this unit and not available to
others. You should record requested information here and
retain this guide as a permanent record of your purchase.
Model No. ___________________________________
Serial No. ___________________________________
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE
DANS LA BORNE CORRESPONDANTE DE LA PRISE ET
POUSSER JUSQU’AU FOND.
WARNING: TO REDUCE THE RISK OF FIRE OR ELEC-
TRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK
OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
CLASSE 1 PRODUIT LASER
INTRODUCTION
3
IMPORTANT SAFETY INSTRUCTIONS
1. Read owner’s manual
After unpacking this product, read the owner’s manual
carefully, and follow all the operating and other instructions.
2. Power Sources
This product should be operated only from the type of
power source indicated on the marking label. If you are not
sure of the type of power supply in your home, consult
your product dealer or local power company. For products
intended to operate from battery power, or other sources,
refer to the operating instructions.
3. Grounding or Polarization
This product is equipped with a polarized alternating cur-
rent line plug (a plug having one blade wider than the
other). This plug will fit into the power outlet only one way.
This is a safety feature. If you are unable to insert the plug
fully into the outlet, try reversing the plug. If the plug should
still fail to fit, contact your electrician to replace your obso-
lete outlet. Do not defeat the safety purpose of the polar-
ized plug.
4. Ventilation
Slots and openings in the cabinet are provided for ventila-
tion and to ensure reliable operation of the product and to
protect it from overheating. These openings must not be
blocked or covered. The openings should never be blocked
by placing the product on a bed, sofa, rug or other similar
surface. This product should not be placed in a built-in
installation such as a bookcase or rack unless proper ven-
tilation is provided or the manufacturer’s instructions have
been adhered to.
5. Heat
The product should be situated away from heat sources
such as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat.
6. Water and Moisture
Do not use this product near water. For example: Near a
bath tub, wash bowl, kitchen sink, laundry tub, in a wet
basement; or near swimming pools and the like.
7. Cleaning
Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
8. Power-Cord Protection
Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or
against them, playing particular attention to cords at plugs,
convenience receptacles, and the point where they exit
from the product.
9. Overloading
Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire
or electric shock.
10. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the
product, be sure the antenna or cable system is grounded
so as to provide some protection against voltage surges
and built-up static charges. Article 810 of the National
Electrical Code (U.S.A), ANSI/NFPA 70 provides informa-
tion with regard to proper grounding of the mast and sup-
porting structure, grounding of the lead-in wire to an anten-
na discharge unit, size of grounding conductors, location of
antenna-discharge unit, connection to grounding elec-
trodes, and requirements for the grounding electrode.
11. Lightning
For added protection of this product during storms, or
when it is left unattended and unused for long periods of
time, unplug it from the wall outlet.
This will prevent damage to the product due to lightning
and power-line surges.
12. Power Lines
An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines or
circuits. When installing an outside antenna system,
extreme care should be taken to keep from touching such
power lines or circuits as contact with them might be fatal.
13. Object and Liquid Entry
Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
14. Attachments
Do not use attachments not recommended by the product
manufacturer as they may cause hazards.

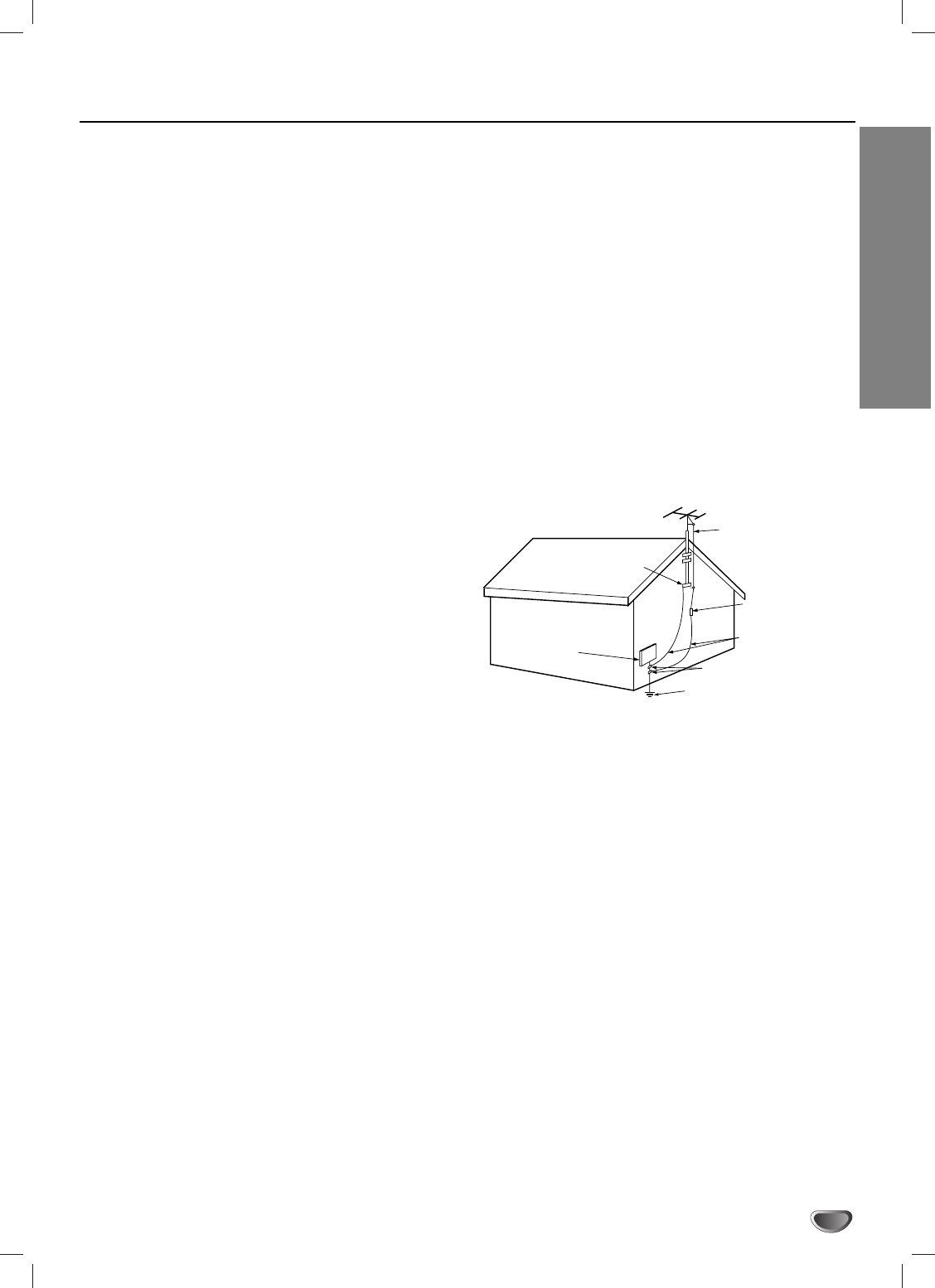

Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductors
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System
(NEC Art 250, Part H)
Ground
Clamp
Electric Service
Equipment
NEC - NATIONAL ELECTRICAL CODE
EXAMPLE OF GROUNDING ACCORDING TO
NATIONAL ELECTRICAL CODE INSTRUCTIONS
CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANUAL AND THOSE
MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The
safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing.
This unit is fully transistorized and does not contain any parts that can be repaired by the user.
DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL ONLY.
15. Accessories
Do not place this product on an unsta-
ble cart, stand, tripod, bracket, or table.
The product may fall, causing serious
injury to a child or adult, and serious
damage to the product. Use only with a
cart, stand, tripod, bracket, or table rec-
ommended by the manufacturer, or sold
with the product. Any mounting of the
product should follow the manufacturer’s instructions, and
should use a mounting accessory recommended by the
manufacturer. A product and cart combination should be
moved with care. Quick stops, excessive force, and
uneven surfaces may cause the product and cart combina-
tion to overturn.
16. Disc Tray
Keep your fingers well clear of the disc tray as it is closing.
It may cause serious personal injury.
17. Burden
Do not place a heavy object on or step on the product. The
object may fall, causing serious personal injury and serious
damage to the product.
18. Connecting
When you connect the product to other equipment, turn off
the power and unplug all of the equipment from the wall
outlet. Failure to do so may cause an electric shock and
serious personal injury. Read the owner’s manual of the
other equipment carefully and follow the instructions when
making any connections.
19. Sound Volume
Reduce the volume to the minimum level before you turn
on the product. Otherwise, sudden high volume sound may
cause hearing or speaker damage.
20. Sound Distortion
Do not allow the product to output distorted sound for a
longtime. It may cause speaker overheating and fire.
21. Earphone
When you use the earphone, keep the volume at a moder-
ate level. If you use the earphone continuously with high
volume sound, it may cause hearing damage.
22. Laser Beam
Do not look into the opening of the disc tray or ventilation
opening of the product to see the source of the laser
beam. It may cause sight damage.
23. Disc
Do not use a cracked, deformed, or repaired disc. These
discs are easily broken and may cause serious personal
injury and product malfunction.
24. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing
to qualified service personnel under the following condi-
tions:
a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen into the
product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following
the operating instructions. Adjust only those controls
that are covered by the operating instructions as an
improper adjustment of other controls may result in
damage and will often require extensive work by a
qualified technician to restore the product to its normal
operation.
e) If the product has been dropped or damaged in any
way.
f) When the product exhibits a distinct change in perform-
ance-this indicates a need for service.
25. Servicing
Do not attempt to service this product yourself as opening
or removing covers may expose you to dangerous voltage
or other hazards. Refer all servicing to qualified service
personnel.
26. Replacement parts
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer or have the same characteristics as the origi-
nal part. Unauthorized substitutions may result in fire, elec-
tric shock, or other hazards.
27. Safety Check
Upon completion of any service or repairs to this product,
ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
4
IMPORTANT SAFETY INSTRUCTIONS (Cont’d)
INTRODUCTION
5
Table of Contents
Introduction
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . 3-4
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . . 7
About Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 7

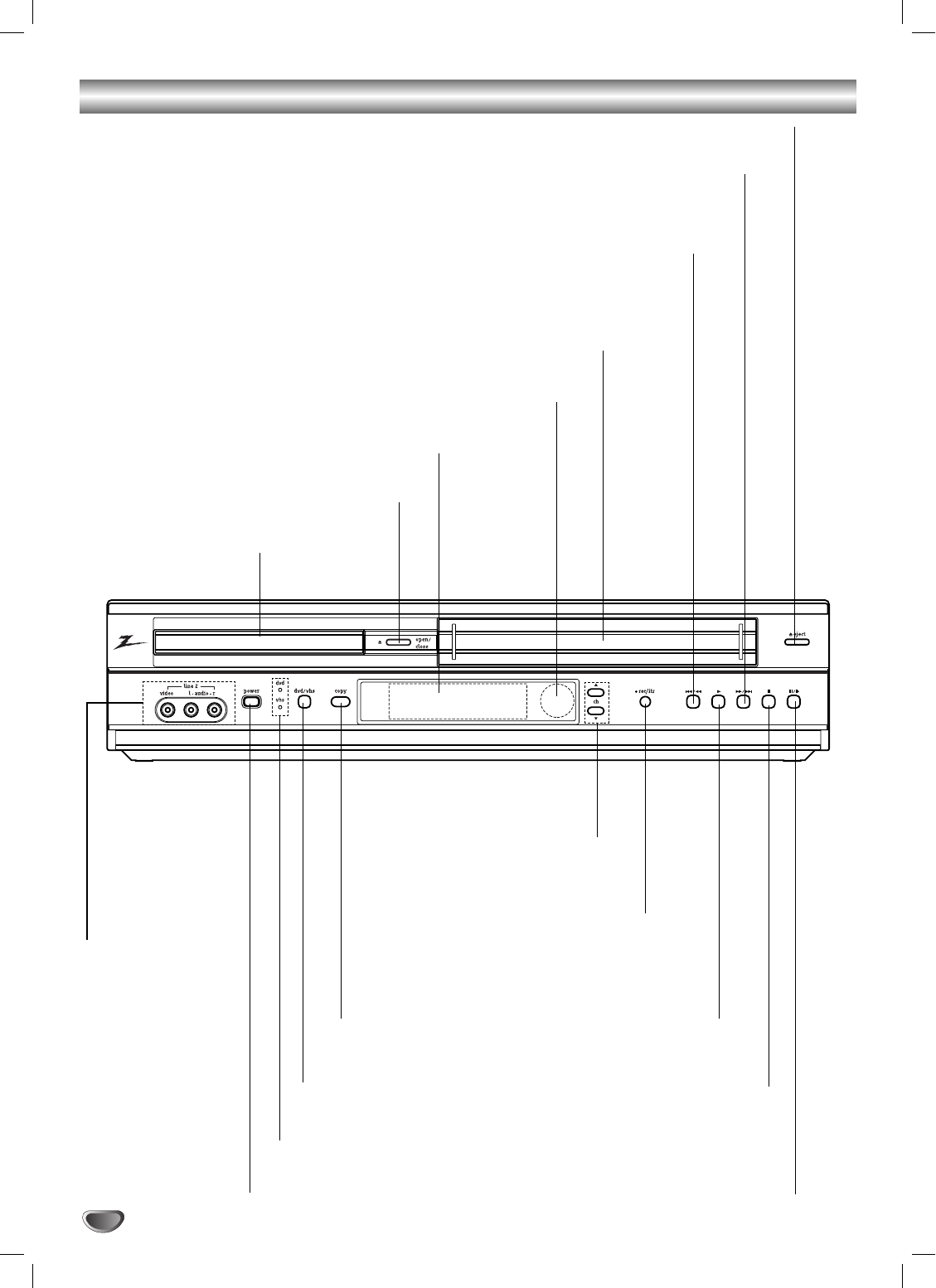

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

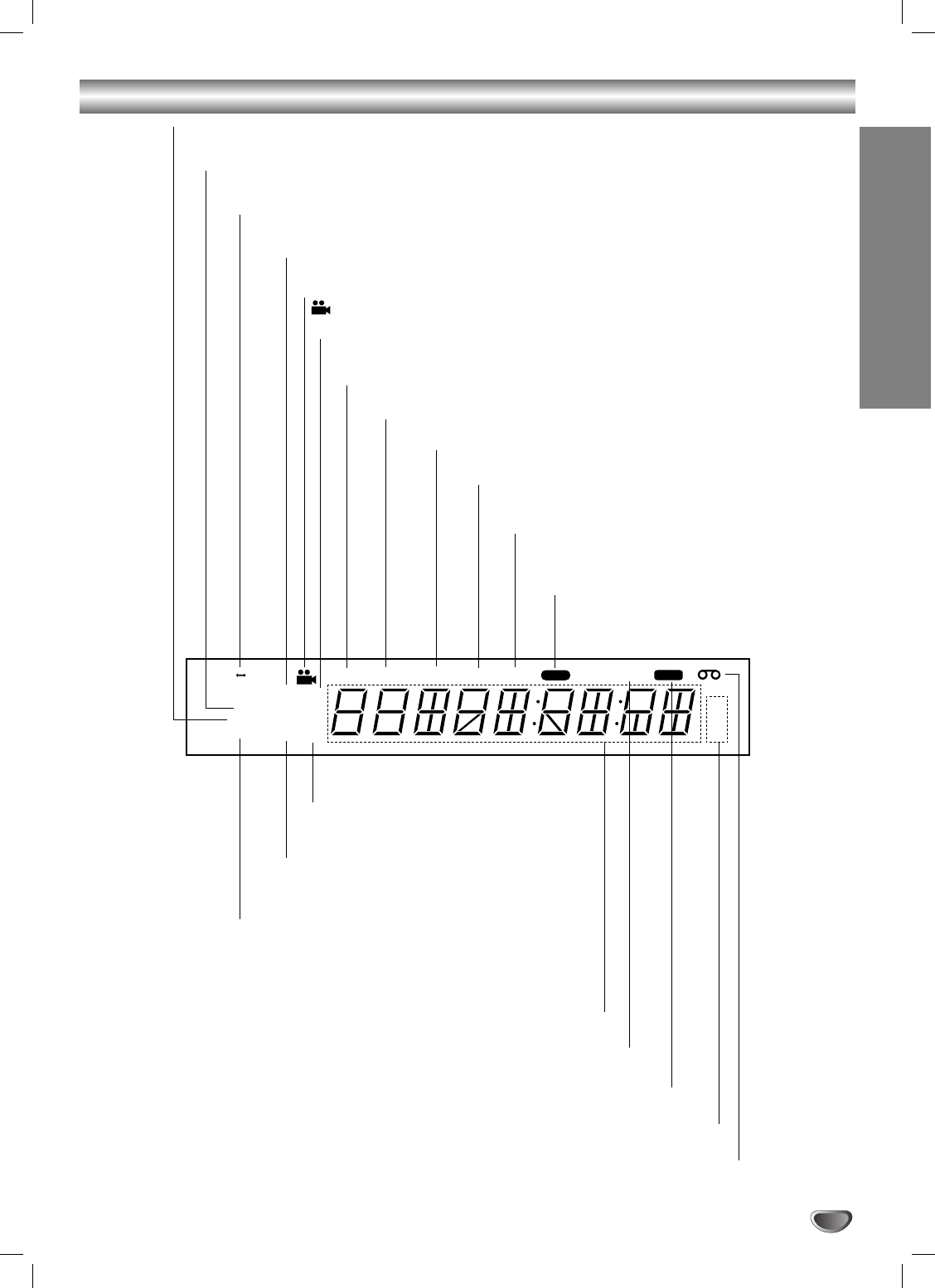

Display Window. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

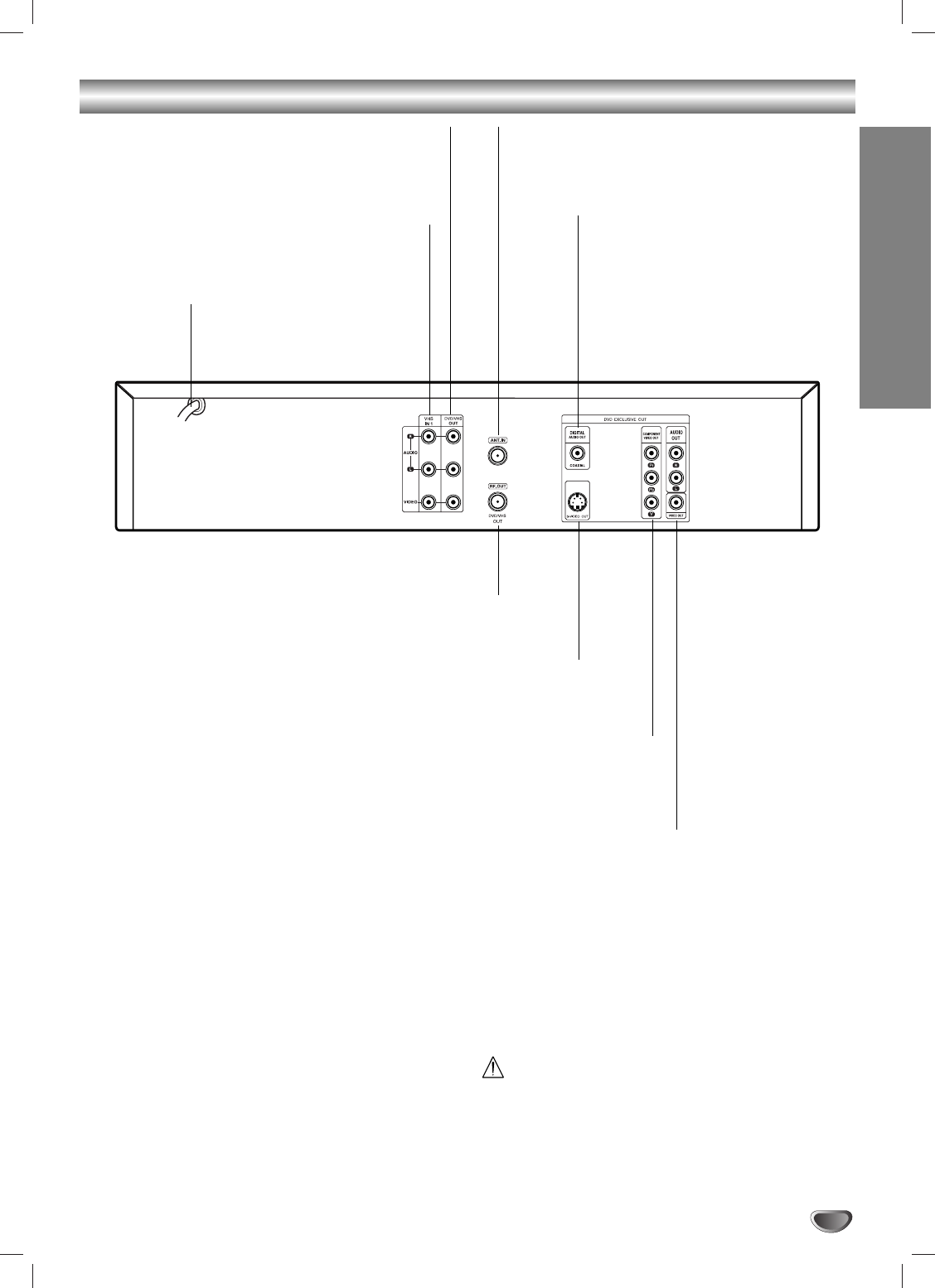

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Preparation
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-14

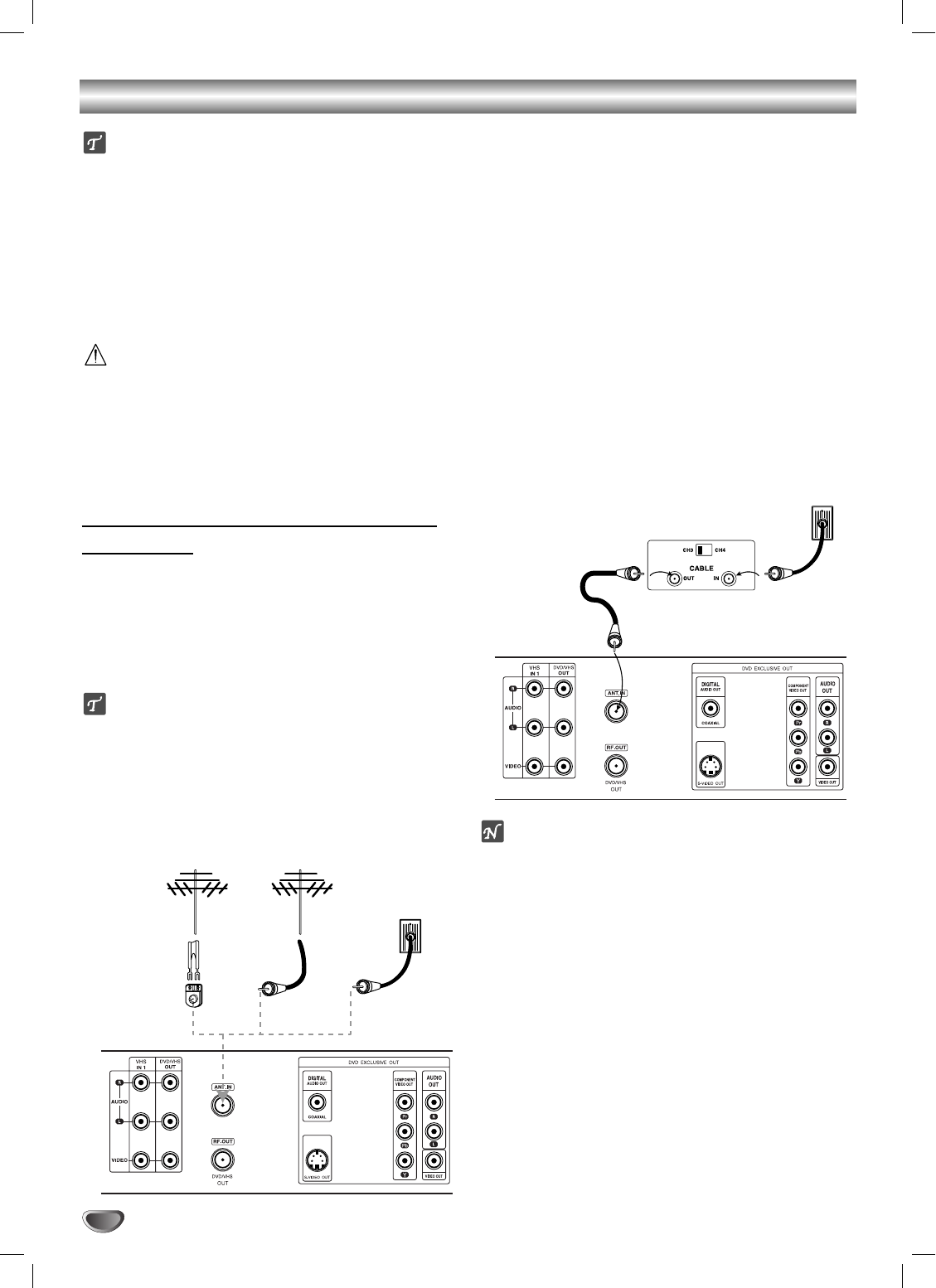

Connecting antenna/cable TV to a DVD+VCR . . 12

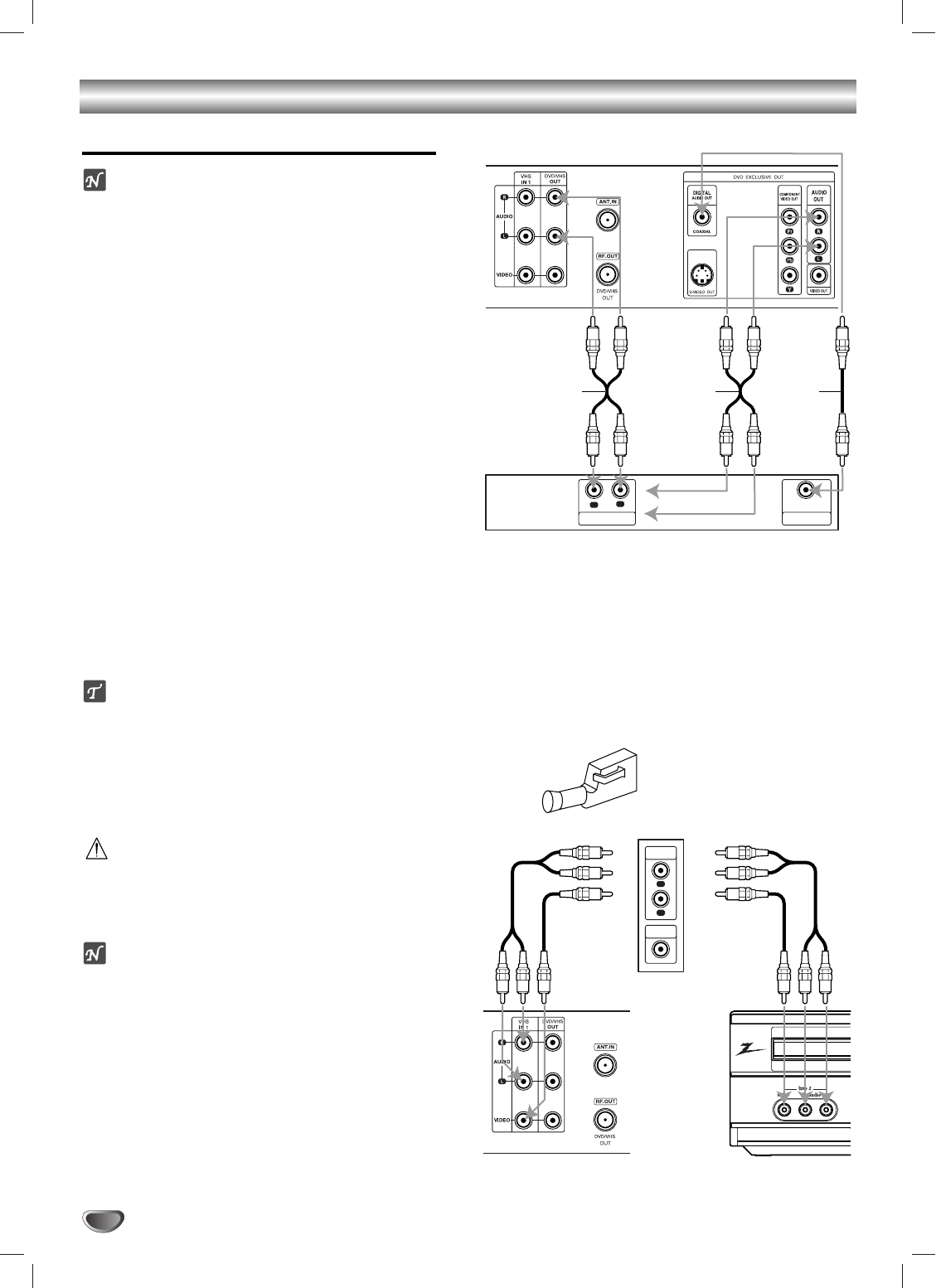

Basic connecting to a TV . . . . . . . . . . . . . . . . . . 13
Optional connecting to a TV . . . . . . . . . . . . . . . . 13
Connecting to Optional Equipment . . . . . . . . . . . 14
Before Operation - VCR Part . . . . . . . . . . . . . . 15-17

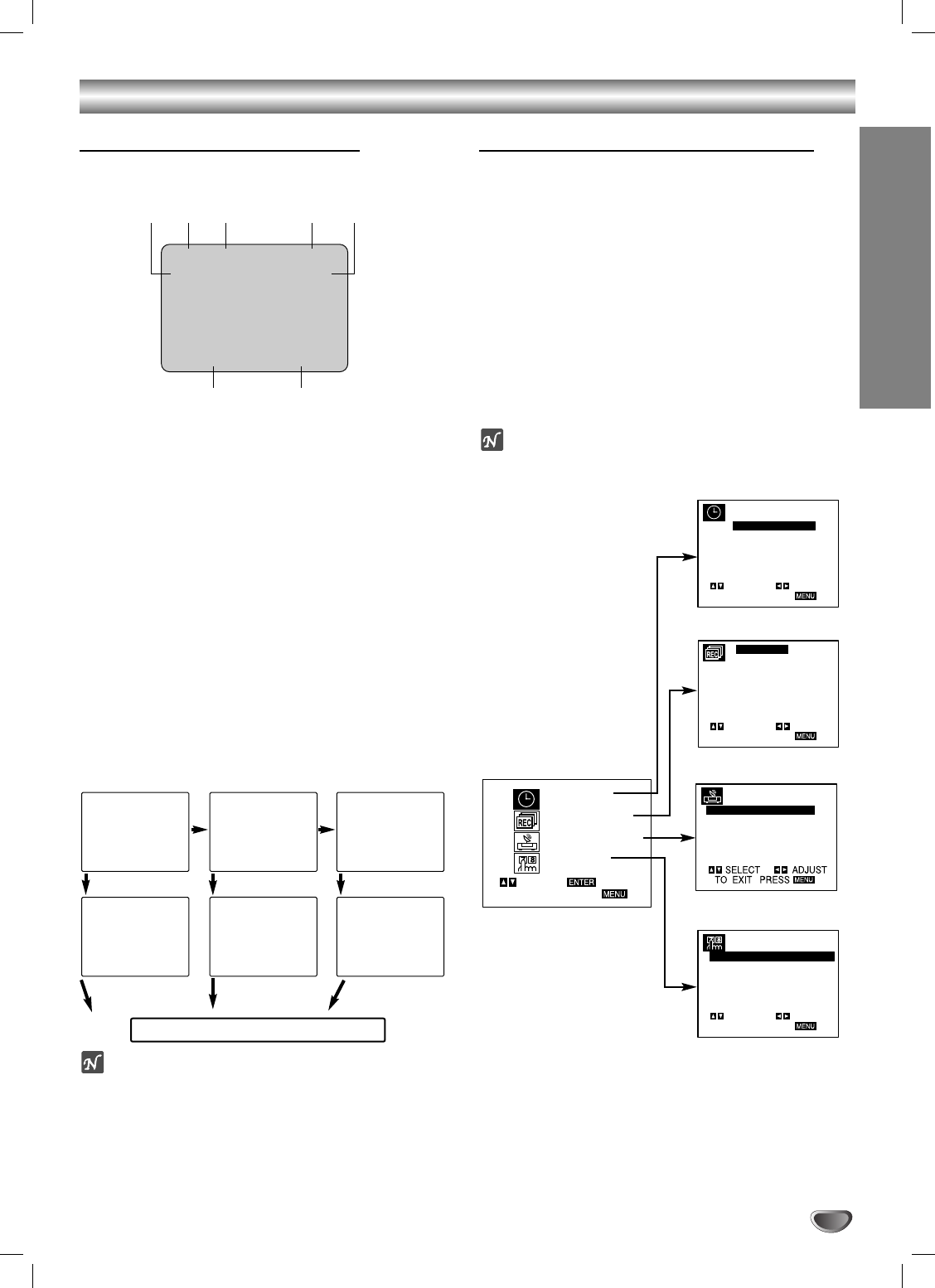

On-Screen Display. . . . . . . . . . . . . . . . . . . . . . . 15
Setting the On-Screen Display . . . . . . . . . . . . . . 15
Setting the VCR Setup Menu . . . . . . . . . . . . . . . 16
Channel Selection . . . . . . . . . . . . . . . . . . . . . . . 16
Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . 17
Before Operation - DVD Part . . . . . . . . . . . . . . 18-21
General Explanation. . . . . . . . . . . . . . . . . . . . . . 18

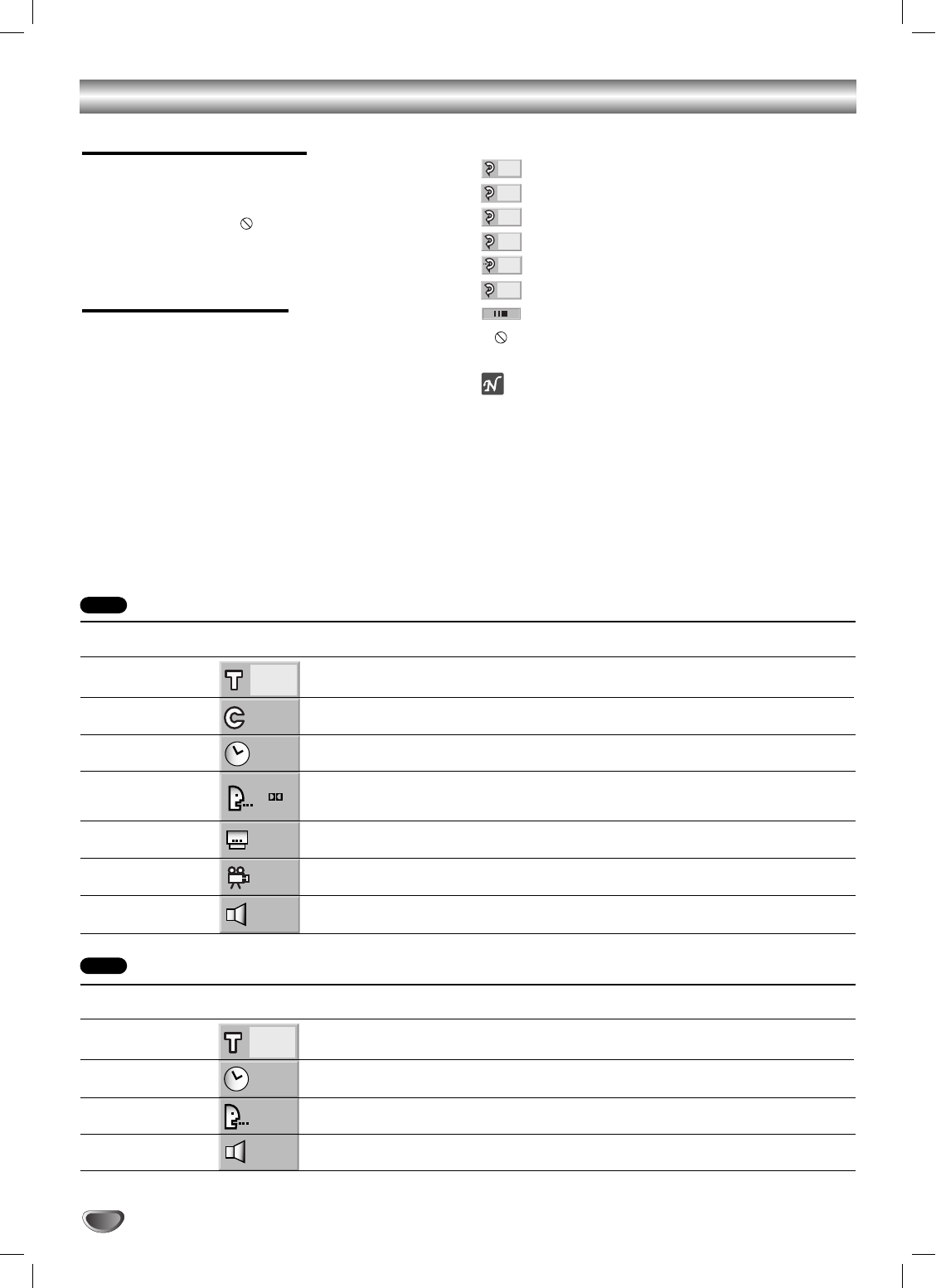

On-Screen Display. . . . . . . . . . . . . . . . . . . . . . . 18
Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . 19-21
Initial Settings General Operation . . . . . . . . . 19
Language . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Others (DRC/Vocal) . . . . . . . . . . . . . . . . . . . 20
Parental Control. . . . . . . . . . . . . . . . . . . . . . 21
Operation
Operation with tape . . . . . . . . . . . . . . . . . . . . . 22-27
Normal Playback . . . . . . . . . . . . . . . . . . . . . . . . 22
Special Effects Playback . . . . . . . . . . . . . . . . . . 22
Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Still Picture and Frame-by-Frame Playback . 22
Slow Motion . . . . . . . . . . . . . . . . . . . . . . . . . 22
CM Skip. . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Normal Recording . . . . . . . . . . . . . . . . . . . . . . . 23

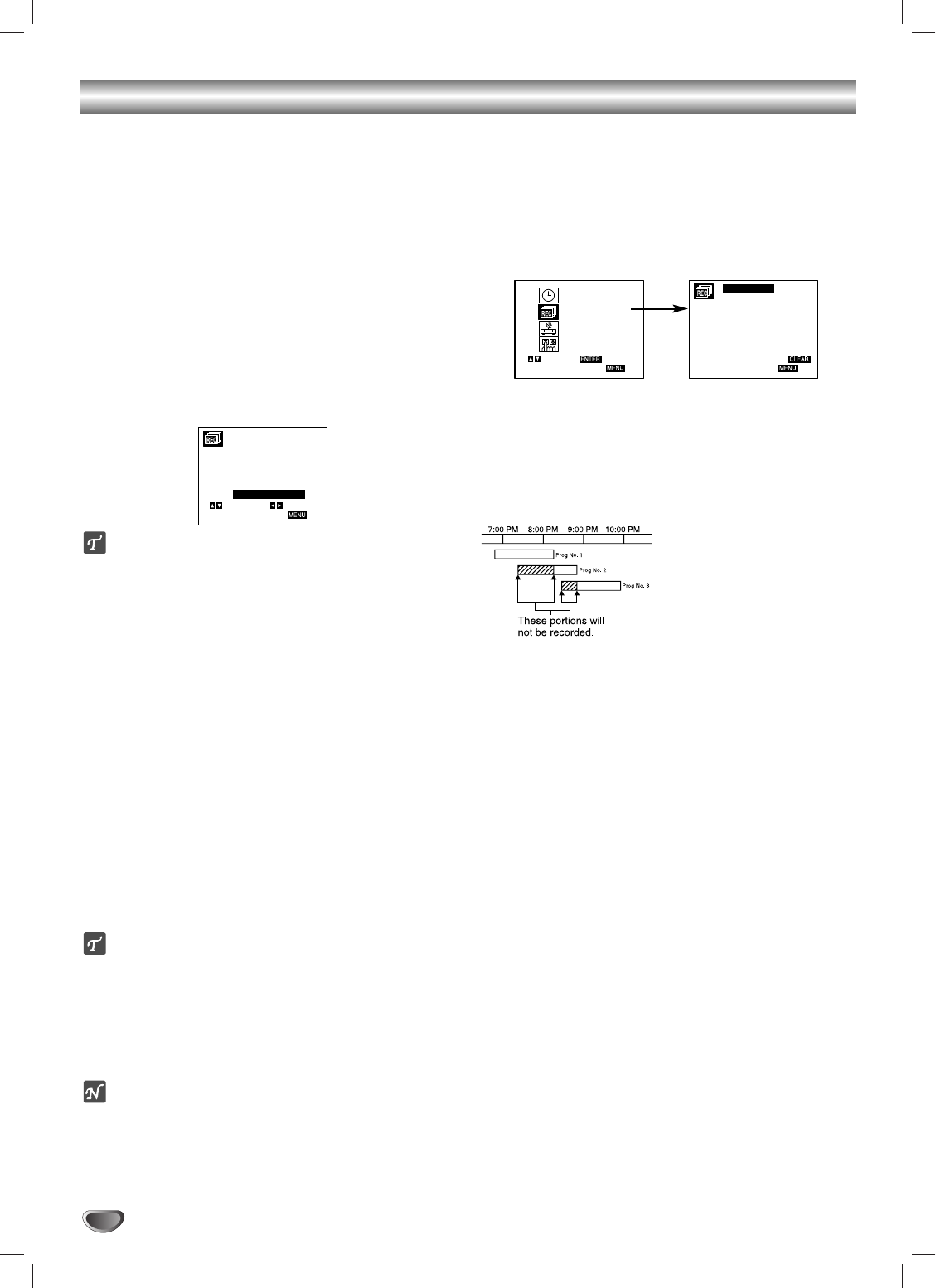

Timer Recording . . . . . . . . . . . . . . . . . . . . . . 23-24
Instant Timer Recording . . . . . . . . . . . . . . . . . . . 25
Dubbing and Editing. . . . . . . . . . . . . . . . . . . . . . 25
Copying from DVD to VCR. . . . . . . . . . . . . . . . . 25
MTS Hi-Fi Stereo System/MTS Broadcast . . . . . 26
Tape Counter Memory Feature. . . . . . . . . . . . . . 27
Additional Information . . . . . . . . . . . . . . . . . . . . 27
Operation with DVD and Audio CD . . . . . . . . . . . . 28
Playing a DVD and Audio CD. . . . . . . . . . . . . . . 28
General Features . . . . . . . . . . . . . . . . . . . . . . . . 28
Moving to another TITLE . . . . . . . . . . . . . . . 28
Moving to another CHAPTER/TRACK . . . . . 28
Slow Motion . . . . . . . . . . . . . . . . . . . . . . . . . 28
Still Picture and Frame-by-Frame Playback . 29
Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Random. . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Repeat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . 29
3D Surround . . . . . . . . . . . . . . . . . . . . . . . . 29
Special DVD Features . . . . . . . . . . . . . . . . . . . . 30
Time Search . . . . . . . . . . . . . . . . . . . . . . . . 30
Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Marker Search . . . . . . . . . . . . . . . . . . . . . . . 30
Title Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Disc Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Camera Angle . . . . . . . . . . . . . . . . . . . . . . . 31
Changing the Audio Language . . . . . . . . . . . 31
Subtitle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Operation with MP3 Disc. . . . . . . . . . . . . . . . . . . . 32
Notes on MP3 Discs . . . . . . . . . . . . . . . . . . . . . 32
Playing an MP3 Disc . . . . . . . . . . . . . . . . . . . . . 32
Programmed Playback with MP3 Disc . . . . . . . . 33
Reference
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 34-35
Language Code List . . . . . . . . . . . . . . . . . . . . . . . 36
Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
About the symbols for instructions
Indicates hazards likely to cause harm to the unit
itself or other material damage.
Indicates special operating features of this unit.
Indicates tips and hints for making the task easier.
6
Before Use
Playable Discs
DVD
(8 cm / 12 cm disc)
Audio CD
(8 cm / 12 cm disc)
In addition, this unit can play a CD-R or CD-RW that
contains audio titles or MP3 files.
Notes
– Depending on the conditions of the recording equip-
ment or the CD-R/RW disc itself, some CD-R/RW
discs cannot be played on the unit.
– The unit cannot play the CD-R/RW discs that contain
no data, or contain different kinds of formatted data
other than MP3 and CD-DA data.
– Do not attach any seal or label to either side (the
labeled side or the recorded side) of a disc.
– Do not use irregular shaped CDs (e.g., heart-shaped
or octagonal). It may result in malfunctions.
Notes on DVDs
Some playback operations of DVDs may be intention
ally fixed by software manufacturers. As this unit plays
DVDs according to disc content designed by the soft-
ware manufacturer, some playback features of the unit
may not be available, or other functions may be added.
Refer also to the instructions supplied with the DVDs.
Some DVDs made for business purposes may not be
played on the unit.
Regional code of the DVD+VCR and DVDs
This DVD+VCR is designed and manufactured
for playback of region “1” encoded DVD soft-
ware. The region code on the labels of some DVD discs
indicates which type of DVD+VCR can play those discs.
This unit can play only DVD discs labeled “1” or “ALL”. If
you try to play any other discs, the message “Check
Regional Code” will appear on the TV screen. Some
DVD discs may not have a region code label even
though their playback is prohibited by area limits.
Note on DTS-encoded CDs
When playing DTS-encoded CDs, excessive noise may
be exhibited from the analog stereo output. To avoid
possible damage to the audio system, turn down the
volume before playing back such discs, adjust the vol-
ume gradually, and keep the volume level low. To enjoy
DTS Digital SurroundTM playback, an external 5.1 chan-
nel DTS Digital SurroundTM decoder system must be
connected to the digital output of the unit.
Disc-related terms
Title (DVD only)
The main film content or accompanying feature content
or additional feature content, or music album.
Each title is assigned a title reference number enabling
you to locate it easily.
Chapter (DVD only)
Sections of a picture or a musical piece that are smaller
than titles.
A title is composed of one or several chapters. Each
chapter is assigned a chapter number, enable you to
locate the chapter you want. Depending on the disc, no
chapters may be recorded.
Track (audio CD only)
Sections of a picture or a musical piece on an audio
CD. Each track is assigned a track number, enabling
you to locate the track you want.
Remote control battery installation
Detach the battery cover on the rear of the
remote control, and insert two R03 (size
AAA) batteries with and aligned
correctly.
Caution
Do not mix old and new batteries. Never mix different
types of batteries (standard, alkaline, etc.).
Remote Control Operation Range
Point the remote control at the remote sensor and press
the buttons.
Distance: About 23 ft (7 m) from the front of the
remote sensor
Angle: About 30° in each direction of the front of the
remote sensor
1
AAA
AAA
7
INTRODUCTION
Before Use (Cont’d)

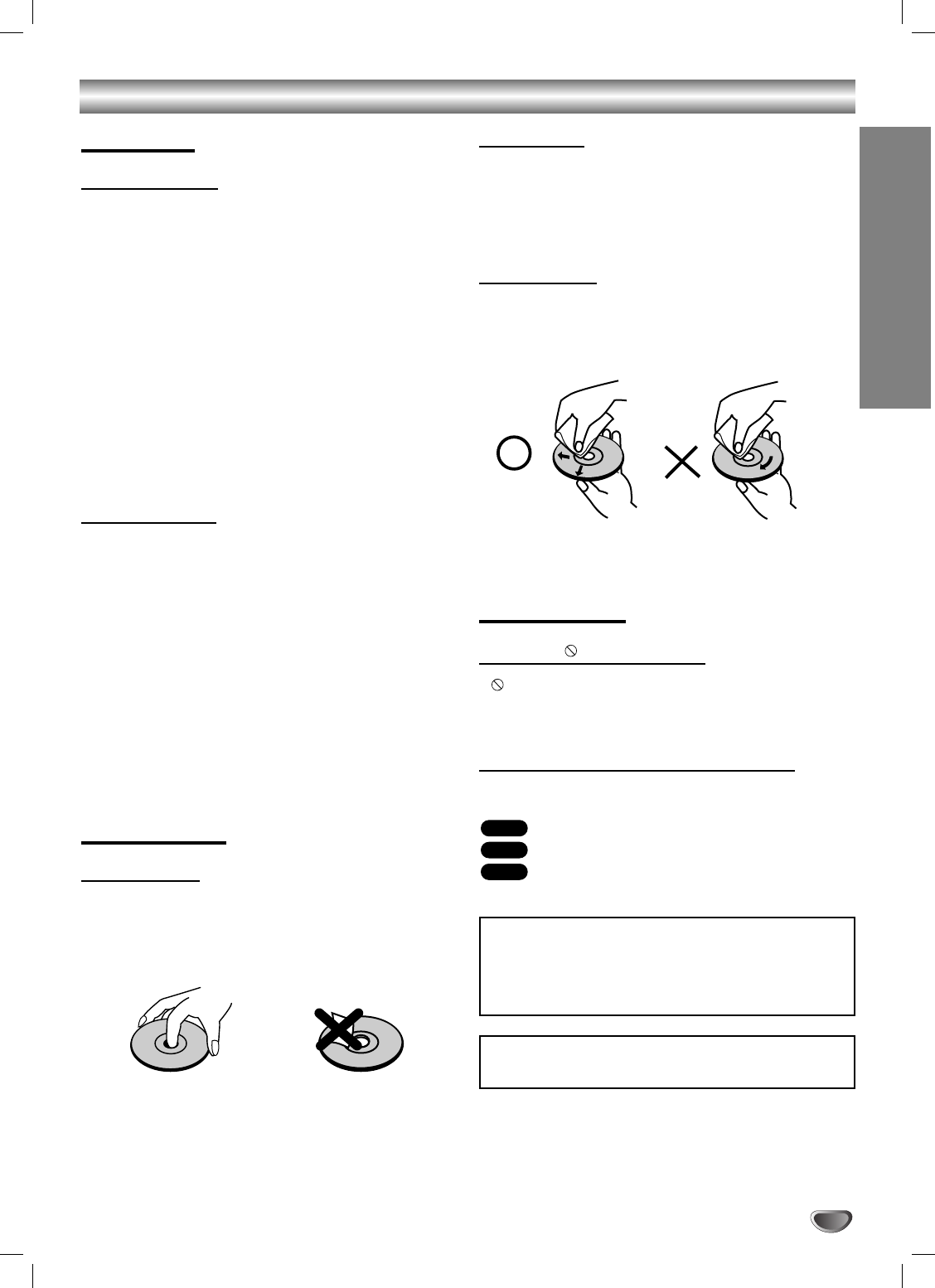

Precautions
Handling the unit
When shipping the unit
The original shipping carton and packing materials
come in handy. For maximum protection, re-pack the
unit as it was originally packed at the factory.
When setting the unit
The picture and sound of a nearby TV, VCR, or radio
may be distorted during playback. In this case, position
the unit away from the TV, VCR, or radio, or turn off the
unit after removing the disc.
To keep the surface clean
Do not use volatile liquids, such as insecticide spray,
near the unit. Do not leave rubber of plastic products in
contact with the unit for a long period of time. They will
leave marks on the surface.
Cleaning the unit
To clean the cabinet
Use a soft, dry cloth. If the surfaces are extremely dirty,
use a soft cloth lightly moistened with a mild detergent
solution. Do not use strong solvents, such as alcohol,
benzine, or thinner, as these might damage the surface
of the unit.
To obtain a clear picture
The DVD+VCR is a high-tech, precision device. If the
optical pick-up lens and disc drive parts are dirty or
worn down, the picture quality will be poor.
Regular inspection and maintenance are recommended
after every 1,000 hours of use. (This depends on the
operating environment.)
For details, please contact your nearest dealer.
Notes on Discs
Handling discs
Do not touch the playback side of the disc.
Hold the disc by the edges so that fingerprints will not
get on the surface.
Do not stick paper or tape on the disc.
Storing discs
After playing, store the disc in its case.
Do not expose the disc to direct sunlight or sources of
heat, or leave it in a parked car exposed to direct sun-
light, as there may be a considerable temperature
increase inside the car.
Cleaning discs
Fingerprints and dust on the disc can cause poor pic-
ture quality and sound distortion. Before playing, clean
the disc with a clean cloth. Wipe the disc from the cen-
ter out.
Do not use strong solvents such as alcohol, benzine,
thinner, commercially available cleaners, or anti-static
spray intended for older vinyl records.
About Symbols
About the symbol display
“ ” may appear on the TV screen during operation.
This icon means the function explained in this owner’s
manual is not available on that specific DVD video disc.
About the disc symbols for instructions
A section whose title has one of the following symbol is
applicable only to the disc represented by the symbol.
DVD
Audio CDs.
MP3 disc.
MP3
CD
DVD
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the double-D symbol are trade-
marks of Dolby Laboratories. Confidential unpublished
works. Copyright 1992-1997 Dolby Laboratories. All rights
reserved.
“DTS” and “DTS Digital Out” are trademarks of Digital Theater
Systems, Inc.
Front Panel
Forward SKIP/SCAN ( MM / >>)
DVD; Go to NEXT chapter/track. Press and hold for two seconds for a fast forward search.
VCR; Advances the tape during the STOP mode or for fast forward picture search.
PAUSE/STEP ( X/ C)
Pause playback or recording
temporarily / press repeatedly
for frame-by-frame playback.
OPEN/CLOSE ( ZZ)
Opens or closes the disc tray.
Remote Sensor
Point the DVD+VCR remote control here.
Display window
Shows the current status of the DVD+VCR.
Disc Tray (DVD deck)
Insert a disc here.
POWER
Switches the DVD+VCR ON and OFF.
DVD/VHS indicator
Indicates the active deck.
DVD/VHS
Toggles control between the
DVD deck and the VCR deck.
COPY
Press to copy a DVD in the
DVD deck to a VHS tape in
the VCR deck.
REC/ITR( zz)
To record normally or to activate
Instant Timer Recording.
Reverse SKIP/SCAN ( mm/ ..)
DVD: Go to beginning of current chapter/track or to previous chapter/track.
Press and hold for a fast reverse search.
VCR: Rewinds the tape during the STOP mode or for fast reverse picture search.
PLAY( BB)
To play back a
recorded tape.
STOP ( xx)
Stops playback.
CH (vv/VV)
To scan up or down through
memorized channels.
8
VIDEO IN/AUDIO IN
(Left/Right)
Connect the
audio/video output of
an external source
(Audio system,
TV/Monitor, Another
VCR).
Cassette Compartment (VCR deck)
Insert a video cassette here.
EJECT( ZZ)
Ejects the tape in the VCR deck.
9
INTRODUCTION
Display Window
CDRECTIMERVCRCHP/TRKTITLEPROG.
AB
SP
LP
EP
MP3ALL
CHSAP
DVD
CD
ST
HI-FIREC
ANGLE active.
MP3 MP3 disc inserted.
ST Indicates a stereo broadcast is
being received.
DVD DVD inserted.
CD Audio CD inserted.
AyyBIndicates A-B repeat mode.
SAP Indicates when a SAP BILINGUAL
broadcast is being received.
A Cassette is in the VCR deck.
SP LP EP Displays the recording and playback speed.
HI-FI Indicates the unit is playing back a tape recorded in HI-FI.
CDREC DVD to VCR copy is in progress.
Indicates total playing time, elapsed time, remaining time or
current deck status (Playback, Pause, etc).
CH DVD+VCR is tuned to Channel XX.
ALL Indicates repeat all mode
TITLE Indicates current title number.
CHP/TRK Indicates current chapter or track number
VCR DVD+VCR functions are available and channels
are selected at DVD+VCR.
TIMER DVD+VCR is in timer recording or a timer
recording is programmed.
REC DVD+VCR is Recording
PROG. Programmed playback active.
10
Remote Control
power
display disc menu
input
setup
/
menu
title
backward play forward
program
clear
pause
/
step stop rec / itr
select
enter
tv / vcr
eject
open
/
close
output
output
select
select
dvd vhs
audio subtitle
repeat
angle return zoom
random a-b
cm skip sp
/
ep
marker search
ch
/
trk
ch
/
trk
clk
/
cnt
DVD/VHS select button
Selects operational mode of remote
control.
POWER
Switches DVD+VCR ON and OFF.
TV/VCR
To view channels selected by the VCR
tuner or by the TV tuner.
DISPLAY, CLK/CNT
Accesses on-screen display.
Switches among the clock, tape counter
and tape remaining modes on the display.
11 22 33 44 (left/right/up/down)
- Selects an item in the menu
- Selects channel of VCR.
- Adjusts manually the tape’s picture
onscreen.
SETUP/MENU
Accesses or removes DVD setup menu
and VCR menu.
TITLE
Displays the Title menu of the disc if
available.
PAUSE/STEP ( XX)
Pause playback or recording
temporarily / press repeatedly for frame-
by-frame playback.
STOP ( xx)
Stops playback.
REC/ITR ( zz)
Records normally or activates Instant
Timer Recording.
0-9 numerical buttons
Selects numbered items in a menu.
AUDIO
Selects an audio language (DVD) or an
audio channel (CD).
SUBTITLE
Selects a subtitle language.
MARKER
Marks any point during playback.
SEARCH
Displays MARKER SEARCH menu.
REPEAT
Repeat chapter, track, title, all.
RANDOM, CM SKIP
- Plays tracks in random order.
- Fast forwards picture search through
30 seconds of recording.
A-B, SP/EP
- Repeats sequence.
- Selects recording speed
EJECT, OPEN/CLOSE
- Opens and closes the disc tray.
- Ejects the tape in the VCR deck.
OUTPUT SELECT
Select one of your output sources to
view on the TV screen.
SELECT/ENTER
Acknowledges menu selection.
DISC MENU
Accesses menu on a DVD disc.
INPUT
To select the VCR deck’s source (Tuner,
LINE 1, or LINE 2).
FORWARD ( TT )
DVD; Search forward* / go to next chap-
ter or track.
VCR; Advances the tape during the
STOP mode or for fast forward picture
search.
PLAY ( 22)
Starts playback.
BACKWARD ( SS )
DVD; Search backward* / go to begin-
ning of current chapter or track or go to
previous chapter or track.
VCR; Rewinds the tape during the
STOP mode or for fast reverse picture
search.
* Press and hold button for about two
seconds.
PROGRAM
Accesses or removes Program menu.
CLEAR
Removes a track number on the
program menu or a mark on the MARK-
ER SEARCH menu.
ANGLE
Selects a DVD camera angle if
available.
RETURN
Removes the setup menu.
ZOOM
Enlarges video image.
INTRODUCTION
11
Rear Panel
Do not touch the inner pins of the jacks on the rear
panel. Electrostatic discharge may cause permanent
damage to the unit.
COAXIAL (DVD digital audio out jack)
Connect to digital (coaxial) audio
equipment.
VHS IN 1 (VIDEO IN/AUDIO IN (Left/Right))
Connect the audio/video output of an external
source (Audio system, TV/Monitor, Another VCR).
ANTENNA INPUT CONNECTOR
Connect the VHF/UHF/CATV antenna to this
terminal.
DVD/VHS OUT (VIDEO/AUDIO (Left/Right))
Connect to a TV with video and audio inputs.
AC Power Cord
Plug into the power source.
S-VIDEO OUT (DVD OUT)
Connect this terminal to the VHF or UHF
antenna terminals on the back of a TV.
COMPONENT VIDEO OUT (Y Pb Pr) (DVD OUT)
Connect to a TV with Y Pb Pr inputs.
VIDEO OUT/AUDIO OUT (Left/Right) (DVD OUT)
Connect to a TV with video and audio inputs.
RF OUT(DVD/VHS OUT)
Connect to a TV with RF coaxial inputs.
Connections
12
Tips
Depending on your TV and other equipment you wish to
connect, there are various ways you could connect the
DVD+VCR. Use only one of the connections described
below.
Please refer to the manuals of your TV, VCR, Stereo
System or other devices as necessary to make the best
connections.
For better sound reproduction, connect the DVD+VCR’s
DVD/VHS AUDIO OUT jack to the audio in jacks of your
amplifier, receiver, stereo or audio/ video equipment. See
“Connecting to optional equipment” on page 14.
Caution
Make sure the DVD+VCR is connected directly to the TV.
Tune the TV to the correct video input channel.
Do not connect the DVD+VCR’s DVD/VHS AUDIO OUT
jack to the phono in jack (record deck) of your audio
system.
Do not connect your DVD+VCR via your VCR. The DVD
image could be distorted by the copy protection system.
Connecting antenna/cable TV to
DVD+VCR
11
Disconnect the antenna leads from the rear of the
TV.
22
Identify the type of cable from your antenna. If it is
a round cable as illustrated, it is a 75 ohm coaxial
antenna cable. This cable will connect directly to
the connector marked ANT.IN on your DVD+VCR.
Tips
If your antenna lead wire is a flat type antenna cable,
connect it to a Antenna Adaptor (300-ohm to 75-ohm)
(not supplied) and slip the Adaptor onto the ANT.IN
connector. The Adaptor does not screw on to the
DVD+VCR, it just slips over the connector.
Without Cable Box
If your cable wire is connected to your TV without a converter
or descrambler box, unscrew the wire from your TV and attach
it to the ANT.IN connector on the VCR. Use the supplied round
coaxial cable to connect between the VCR’s VHF/UHF/CATV
connector and the 75 ohm antenna input connector on the TV.
With this connection, you can receive all midband, super band,
and hyperband channels.
With Cable Box
If a converter is required in your cable system, follow the
instruction below:
The cable hookup permits both TV and VCR operation.
To view or record CATV channel
1Set the TV channel to the video output channel as located
on the back of the DVD+VCR (CH3 or CH4).
2Set the VCR channel selector to the output channel of the
Cable Converter box by pressing the CH/TRACK (▲/▼)or
number (0-9) of your VCR. (Example: CH3)
3Select the channel to view at the Cable Converter Box.
Notes
With this connection, you CANNOT record one program
while viewing another.
Channel memory programming is not needed when using
the connection..
Antenna Antenna
Flat Wire
(300 ohm)
300/75 ohm
Adaptor
(Not provided)
Cable TV
Wall Jack
OR OR
Cable TV
Wall Jack
Back Panel of
Typical Cable Box
PREPARATION
13
Connections (Cont’d)
Basic connecting to a TV
Make one of the following connections, depending on
the capabilities of your existing equipment.
RF coaxial connection
Connect the RF.OUT jack on the DVD+VCR to the
antenna in jack on the TV using the 75-ohm Coaxial
Cable supplied (R).
If you use this connection, tune the TV to the
DVD+VCR’s RF output channel (CH 3 or 4).
How to set the DVD+VCR’s RF output channel
When the VCR is turned off,
press and hold CH (vor V)
on the front panel for about five seconds and toggles
RF output channel between CH 03 and CH 04. The “RF
03” or “RF 04” is displayed in the display window.
Audio/Video connection
11
Connect the DVD/VHS VIDEO OUT jack on the
DVD+VCR to the video in jack on the TV using the
video cable supplied (V).
22
Connect the Left and Right DVD/VHS AUDIO OUT
jacks of the DVD+VCR to the audio left/right in
jacks on the TV (A1) using the supplied audio
cables.
If you use this connection, set the TV’s source selector
to VIDEO.
Optional connecting to a TV
Notes
You can ONLY watch and listen the DVD playback
through below connections.
For using S-VIDEO OUT or COMPONENT VIDEO
OUT jack, set the TV Oupt Select mode on the
SETUP menu to corresponding mode. See page 19.
Audio/Video connection
11
Connect the VIDEO OUT jack on the DVD+VCR to
the video in jack on the TV using the video cable
supplied (V).
22
Connect the Left and Right AUDIO OUT jacks of
the DVD+VCR to the audio left/right in jacks on the
TV (A2) using the supplied audio cables.
S-Video connection
11
Connect the S-VIDEO OUT jack on the DVD+VCR
to the S-Video in jack on the TV using the supplied
S-Video cable (S).
22
Connect the Left and Right AUDIO OUT jacks of
the DVD+VCR to the audio left/right in jacks on the
TV (A2) using the supplied audio cables.
Component Video (Color Stream®) connection
11
Connect the COMPONENT VIDEO OUT jacks on
the DVD+VCR to the corresponding in jacks on the
TV using an optional Y Pb Pr cable (C).
22
Connect the Left and Right AUDIO OUT jacks of
the DVD+VCR to the audio left/right in jacks on the
TV (A2) using the supplied audio cables.
L
R
AUDIO INPUT VIDEO
INPUT
ANTENNA
INPUT
Rear of TV
Rear of DVD+VCR
A1 V R
L
R
Y
Pb
Pr
COMPONENT VIDEO INPUT AUDIO INPUT
L
VIDEO
INPUT
S-VIDEO
INPUT
Rear of TV
Rear of DVD+VCR
S A2 VC
14
Connections (Cont’d)
Connecting to Optional Equipment
Note
You can ONLY listen the DVD playback through
COAXIAL (C) and AUDIO OUT (A2) connection
method. The tuner and VCR will still be listened
through the RF.OUT (R) or DVD/VHS AUDIO OUT
(A1) jack
Connecting to an amplifier equipped with two
channel analog stereo or Dolby Surround
Connect the Left and Right AUDIO OUT (or DVD/VHS
AUDIO OUT) jacks on the DVD+VCR to the audio left
and right in jacks on your amplifier, receiver or stereo
system, using the supplied audio cables (A1, A2).
Connecting to an amplifier equipped with two
channel digital stereo (PCM) or to an Audio/
Video receiver equipped with a multi-channel
decoder (Dolby Digital™, MPEG 2 or DTS)
11
Connect one of the DVD+VCR’s DIGITAL AUDIO
OUT jacks (COAXIAL X) to the corresponding in
jack on your amplifier. Use an optional digital
(coaxial X) audio cable.
22
You will need to activate the DVD+VCR’s digital
output. (See “Digital Audio Output” on page 20).
Digital Multi-channel sound
A digital multi-channel connection provides the best
sound quality. For this you need a multi-channel
Audio/Video receiver that supports one or more of the
audio formats supported by your DVD+VCR (MPEG 2,
Dolby Digital and DTS). Check the receiver manual and
the logos on the front of the receiver.
Caution:
Due to the DTS Licensing agreement, the digital output
will be in DTS digital out when DTS audio stream is
selected.
Notes
–
If the audio format of the digital output does not match
the capabilities of your receiver, the receiver will
produce a strong, distorted sound or no sound at all.
– Six Channel Digital Surround Sound via digital con-
nection can only be obtained if your receiver is
equipped with a Digital Multi-channel decoder.
– To see the audio format of the current DVD in the on-
screen display, press AUDIO.
Accessory Audio/Video (A/V) Connections to
DVD+VCR
Connect the VHS IN1 or VHS IN2 jacks on the
DVD+VCR to the audio/video out jacks on your
accessory component, using the optional audio/video
cables.
Rear of DVD+VCR
Amplifier (Receiver)
A2A1 X
L
R
AUDIO INPUT DIGITAL INPUT
COAXIAL
Accessory Component:
VCR, Camcorder,
Video Camera,
Satellite Receiver,
Laser Disc Player
L
R
VIDEO
OUTPUT
AUDIO
OUTPUT
Jack panel of Accessory
Rear of DVD+VCR Front of DVD+VCR
OR
15
PREPARATION
On-Screen Display (OSD)
Some of these functions will be displayed every time the
VCR is operated.
❶❷❸ ❹ ❺
❻❼
❶TAPE SPEED DISPLAY
Shows the current tape speed.
❷FUNCTION DISPLAY
Indicates the function in progress.
❸HI-FI DISPLAY
Indicates when this unit are playing back tape recorded with HI-
FI.
❹CHANNEL DISPLAY
I
ndicates the selected channel (or LINE1, LINE2).
❺STEREO/SAP DISPLAY (MONO is not displayed)
Shows the type of audio signal received by the VCR tuner.
❻DATE DISPLAY
Shows the current date. (Month/Day/Day of the week format)
❼CLOCK/COUNT/REMAIN DISPLAY
Shows the current time, the tape counter and remaining time
on the tape.
Each press of the SELECTER/ENTER changes the TV
screen in the following sequence.
Notes
The function displays can be seen displayed on the TV
screen for 5 seconds.
The clock (or tape counter, tape remaining) mode will contin-
ue until you press SELECTER/ENTER.
The tape counter and the remaining tape length indicator
appear only when a cassette is inserted. Also, the remaining
tape length indicator appears after any tape operation.
Setting the On-Screen Display
The SETUP, clock setting, and timer recordings are
accessed conveniently with On-Screen Menu Displays
that lead you through each step. The following pages
describe the On-screen selections to be set.
Menu Selection
Your VCR allows remote control adjustment of several
features.
11
Press MENU and the MAIN menu will appear.
22
Select the desired menu with the 33or 44button
and then press SELECTER/ENTER.
Note
The on-screens can be seen displayed for 3 minutes.
Before Operation - VCR Part
SET CLOCK (page 17)
TIMER RECORD (page 23)
CHANNEL SETUP (page 16)
VCR SETUP (page 16)
PLAY HI-FI CH 4
SP STEREO
JUL 5 , THU 2:15 PM
MAIN MENU
MONTH : JANUARY
DAY : 1 TUE
YEAR : 2002
TIME : 12 : 00 AM
AUTO CLOCK SET: OFF
PBC CH. : 2 TV
SELECT
TO EXIT PRESS
ADJUST
SELECT
TO EXIT PRESS
ENTER
SET CLOCK
TIMER RECORD
CHANNEL SETUP
VCR SETUP
PROGRAM 1
MONTH :
DAY :
START :
STOP :
CHANNEL :
SPEED :
REPEAT :
SELECT
TO EXIT PRESS
ADJUST
AUTO CHANNEL SEARCH
CHANNEL SOURCE:
ADD/DEL CH:
INPUT SLECT:
SELECT
TO EXIT PRESS
ADJUST
SCREEN DISPLAY: ON
LANGUAGE:
AUDIO MODE:
BROADCAST TYPE:
AUDIO OUTPUT:
One press Two presses Three presses
STOP CH 4
SP
JUL 05 , THU 2:15 PM
STOP CH 4
SP
REM 1:56
STOP CH 4
SP
M 0:35:40
2:15 PM
After 3 seconds
REM 1:56
After 3 seconds
After 3 seconds
Press
SELECTER/ENTER
Press
SELECTER/ENTER
Press
SELECTER/ENTER
All indicator are turned off.
M 0:35:40
Before Operation - VCR Part (Cont’d)
Setting the VCR Setup Menu
11
Press MENU and the MAIN menu will appear.
22
Press 33or 44to select the VCR SETUP menu,
then press SELECTER/ENTER.
The VCR SETUP menu will appear.
33
Press 33or 44to choose a desired item on the
VCR SETUP menu. Then press 11or 22to choose
a desired setting.
SCREEN DISPLAY
The on-screen display of this VCR can be turned on or off.
The SCREEN DISPLAY is switched between ON and OFF
by pressing 11or 22.
LANGUAGE
The on-screen programming of this VCR can display in either
English, Spanish, or French.
The LANGUAGE is switched among ENGLISH, SPANISH
and FRENCH by pressing 11or 22.
AUDIO MODE
The VCR has two separate audio playback systems, the high
quality VHS Hi-Fi system and standard NORMAL mono sys-
tem. The same audio is generally recorded on both systems.
The VHS Hi-Fi system plays on separate (left and right) chan-
nels, and the NORMAL system plays monaural sound. The
normal track is always played so the cassette can be played
on a VCR that does not have VHS Hi-Fi.
The AUDIO MODE is switched between HI-FI and NORMAL
by pressing 11or 22.
BROADCAST TYPE (STEREO/SAP/MONO)
Multichannel Television Sound (MTS) carries stereo and/or
Second Audio Program (SAP) bilingual signals. Set this display
to the desired position when both MTS stereo and SAP signals
are received. When only one of the MTS signal is received, the
VCR automatically selects the corresponding receiving mode
(Stereo or SAP) regardless of the selected position. For normal
operation, the display should be in the STEREO position. The
VCR will then record a STEREO program when available, and
record a mono program IF the program NOT IN STEREO.
For weak STEREO and/or SAP broadcasting, changing the
display to mono may give clearer sound.
The BROADCAST TYPE is switched among STEREO, SAP,
and MONO by pressing 11or 22.
AUDIO OUTPUT (STEREO/LEFT/RIGHT)
Used during playback [when AUDIO MODE (HI-FI/ NORMAL)
is in HI-FI position] for selecting the audio output signals from
the AUDIO OUT terminals (L ch and R ch), and
VHF/UHF/CATV.
This display setting should normally be left in the stereo posi-
tion, so that when a stereo tape is played, the stereo sound will
be heard through the left and right channels. If a mono tape is
played and the audio output is set to stereo, the same mono
sound will be heard from both left and right channels.
The AUDIO OUTPUT is switched among STEREO, LEFT, and
RIGHT by pressing 11or 22.
Channel Selection
This VCR is equipped with a frequency synthesized
tuner capable of receiving up to 181 channels. These
include VHF channels 2-13, UHF channels 14-69 and
CATV channels 1-125.
Preparation:
Connect the VCR to the desired type of antenna or cable TV
system, as shown in ANTENNA TO VCR CONNECTIONS .
AUTO CHANNEL PROGRAMMING
11
Press MENU and the MAIN menu will appear.
22
Press 33or 44to select the CHANNEL SETUP
menu, then press SELECTER/ENTER.
The CHANNEL SETUP menu will appear.
33
Press 44to choose the CHANNEL SOURCE item,
then press 11or 22to select TUNER.
Press 11or 22repeatedly to switch between TUNER,
LINE1 and LINE2.
44
Press 33or 44to choose the AUTO CHANNEL SEARCH
item, then press 11or 22to set the channel.
The tuner will automatically cycle through all
available channels in the area and place them in
the tuner’s memory.
55
After the AUTO CHANNEL SEARCH PROCEED-
ING is complete, make sure the CHANNEL
SOURCE is set appropriately (TV or CATV) by
pressing 33or 44and choosing the correct
CHANNEL SOURCE (TV or CATV) by pressing 11
or 22using the CHANNEL SETUP menu.
Remember, TV is for the air antenna reception,
CATV is for cable or wireless cable connection.
66
Press MENU to return to the TV screen.
77
Use CH/TRACK (▲/▼) or CHANNEL (▲/▼) on the
front panel to cycle the VCR through the chan-
nels in memory.
TO ADD OR ERASE CHANNELS FROM MEMORY
This feature allows you to add or erase channels from
memory manually.
1Press 44to choose the ADD/DEL CH item on the
CHANNEL SETUP menu. Press 11or 22to select a
channel to add or erase.
2Press SELECTER/ENTER to add or erase the
channel.
Repeat steps 1 and 2 to add or erase channels.
3Press MENU to return to the TV screen.
16
SELECT
TO EXIT PRESS
ENTER
SET CLOCK
TIMER RECORD
CHANNEL SETUP
VCR SETUP
SELECT
TO EXIT PRESS
ADJUST
SCREEN DISPLAY: ON
LANGUAGE:
AUDIO MODE:
BROADCAST TYPE:
AUDIO OUTPUT:
AUTO CHANNEL SEARCH
CHANNEL SOURCE:
ADD/DEL CH:
INPUT SLECT:
PREPARATION
17
Before Operation - VCR Part (Cont’d)

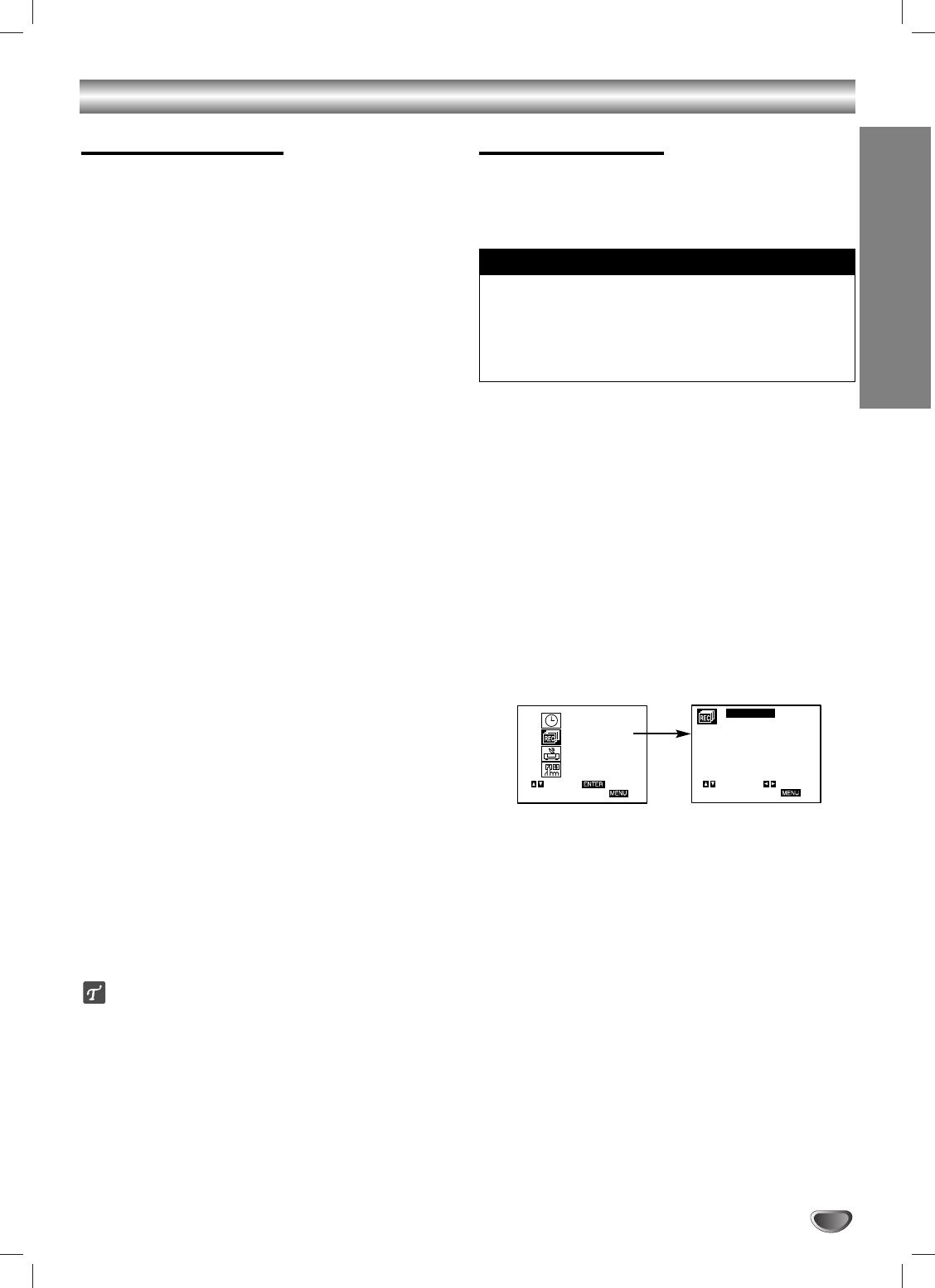

Setting the Clock
The VCR gives you two ways to set the time and date:
the Auto Clock Feature or manually. The Auto Clock
Feature enables the VCR to set up the clock when the
VCR is turned off.
Auto Clock Set
The Auto Clock Set feature is set to ON at the factory. In the
ON setting, the VCR looks for a channel carrying XDS
(Extended Data Services) information. XDS updates the clock
using the Coordinated Universal Time.
11
Press MENU and the MAIN menu will appear.
22
Press 33or 44to choose the SET CLOCK menu.
Press SELECTER/ENTER and the SET CLOCK
menu will appear.
33
Press 44to choose the AUTO CLOCK SET item.
Press 11or 22to choose ON.
The Auto Clock Set feature is set to ON at the factory. In
the ON setting, the VCR looks for a channel carrying XDS
(Extended Data Services) information. XDS updates the
clock using the Coordinated Universal Time.
44
Press 44to choose the PBS CH. item.
Press 11or 22to choose channel of PBS
broadcast..
55
Press MENU when finished.
Note
There are cases that TV station does not send or send wrong
date and/or time information and VCR set the
incorrect time accordingly.
In this case we recommend that you set the clock manually.
Manual Clock Set
Example: July 5, 2002 ; 2:15 AM
11
Press MENU and the MAIN menu will appear.
22
Press 33or 44to choose the SET CLOCK menu.
Press SELECTER/ENTER and the SET CLOCK
menu will appear.
33
Press 11or 22to choose the month.
44
Press 44to choose the DAY item.
Press 11or 22to choose the day.
The day of the week will display automatically.
55
Press 44to choose the YEAR item.
Press 11or 22to choose the year.
66
Press 44to choose the TIME item.
Press 11or 22to choose the time.
77
Press MENU when finished.
Note
The “AUTO CLOCK SET” must set to “OFF”.
If set to “ON”, an incorrect date and/or time will be
entered again when the VCR is turned off.
The clock uses the 12-hour system. (Be sure to set AM
and PM correctly.)
The initial Clock Setting is JANUARY 1, 2002, 12:00 AM.
Things to know before starting
MONTH : JANUARY
DAY : 1 TUE
YEAR : 2002
TIME : 12 : 00 AM
AUTO CLOCK SET: OFF
PBC CH. : 2 TV
SELECT
TO EXIT PRESS
ADJUST
SELECT
TO EXIT PRESS
ENTER
SET CLOCK
TIMER RECORD
CHANNEL SETUP
VCR SETUP
MONTH : JANUARY
DAY : 1 TUE
YEAR : 2002
TIME : 12 : 00 AM
AUTO CLOCK SET: OFF
PBC CH. : 2 TV
SELECT
TO EXIT PRESS
ADJUST
Before Operation - DVD Part
18
General Explanation
This manual gives the basic instructions for operating
the DVD+VCR. Some DVDs require specific operation
or allow only limited operation during playback. When
this occurs, the symbol appears on the TV screen,
indicating that the operation is not permitted by the
DVD+VCR or is not available on the disc.
On-Screen Display
The general playback status can be displayed on the
TV screen. Some items can be changed on the menu.
On-screen display operation
11
Press DISPLAY during playback.
22
Press vvor VVto select an item.
The selected item will be highlighted.
33
Press bbor BBto change the setting of an item.
The number buttons can be also be used for setting
numbers (e.g., title number). For some functions,
press SELECT/ENTER to execute the setting.
Temporary Feedback Field Icons
Repeat Title (DVD)
Repeat Chapter (DVD)
Repeat Track (CD)
Repeat All Tracks (CD)
Repeat A-B
Repeat Off
Resume play from this point
Action prohibited or not available
Notes
Some discs may not provide all of the features on the
on-screen display example shown below.
If no button is pressed for 10 seconds, the on-screen
display disappears.
OFF
A B
ALL
TRACK
CHAPT
TITLE
Items
Title Number
Chapter Number
Time search
Audio language
and Digital Audio
Output mode
Subtitle language
Angle
Sound
Function (Press vv
/
VVto select desired item)
Shows the current title number and,
skip to the desired title number.
Shows the current chapter number and,
skip to the desired chapter number.
Shows the elapsed playing time and,
search the point by the elapsed time directly.
Shows the current audio soundtrack language,
encoding method and channel number, and
changes the setting.
Shows the current subtitles language, and
changes the setting.
Shows the current angle number and,
changes the angle number.
Shows the current sound mode, and
changes the setting.
Selection Method
bb
/
BB
,or
Numeric, SELECT/ENTER
bb
/
BB
,or
Numeric, SELECT/ENTER
Numeric, SELECT/ENTER
bb
/
BB
, AUDIO
bb
/
BB
, SUBTITLE
bb
/
BB
, ANGLE
bb
/
BB
1
1
0:16:57
1 ENG
D
6 CH
OFF
1
NORM.
DVD
Items
Track Number
Time
Audio Channel
Sound
Function (Press 33
/
44to select desired item)
Shows the current track number and,
skip to the desired track number.
Shows the elapsed playing time (Display only)
Shows the audio channel, and
changes the audio channel.
Shows the current sound mode, and
changes the setting.
Selection Method
11
/
22
,or
Numeric, SELECT/ENTER
–
11
/
22
, AUDIO
11
/
22
1
16:57
STER.
NORM.
CD
PREPARATION
19
Before Operation - DVD Part (Cont’d)
Initial Settings
You can set your own Personal Preferences on the
DVD+VCR.
Initial Settings General Operation
11
Press SETUP.
The setup menu appears.
22
Press vv/VVto select the desired item.
The screen will show the current setting for the
selected item, as well as alternate setting(s).
33
While the desired item is selected, press BB, then
vv/VVto select the desired setting.
44
Press SELECT/ENTER to confirm your selection.
Some items require additional steps.
55
Press SETUP, RETURN or PLAY to exit the
setup menu.
Language
Disc Language
Select a language for the disc’s Menu, Audio and
Subtitle.
Original : The original language set for the disc is selected.
Other : To select another language, press number buttons to
enter the corresponding 4-digit number according to the lan-
guage code list on page 36. If you enter the wrong language
code, press CLEAR.
Menu Language
Select a language for the setup menu. This is the menu
you see when you press SETUP.
TV Aspect
4:3 Letterbox: Select when a standard 4:3 TV is con-
nected. Displays theatrical images with masking bars
above and below the picture.
4:3 Panscan: Select when a standard 4:3 TV is con-
nected. Displays pictures cropped to fill your TV screen.
Either sides of the picture are cut off.
16:9 Wide: Select when a 16:9 wide TV is connected.
TV Output Select
It can be used to select the video output between
S-VIDEO OUT jack and COMPONENT VIDEO
OUT jack.
S-Video: Select when you use S-VIDEO jack for TV
connection.
Component: Select when you use COMPONENT
VIDEO OUT jack for TV connection.
DVD
DVD
DVD
Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language
TV Output Select
Digital Audio Output
5.1 Speaker Setup
Others
Disc Audio Original
Spanish
English
Chinese
Polish
Hungarian
Russian
French
German
Italian
Other — — — —
Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language
TV Output Select
Digital Audio Output
5.1 Speaker Setup
Others
Disc Audio English
Spanish
French
Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language
TV Output Select
Digital Audio Output
5.1 Speaker Setup
Others
Disc Audio 4:3 Letterbox
4:3 Panscan
16:9 Wide
Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language
TV Output Select
Digital Audio Output
5.1 Speaker Setup
Others
Disc Audio Original
Spanish
English
Chinese
Polish
Hungarian
Russian
French
German
Italian
Other — — — —
Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language
TV Output Select
Digital Audio Output
5.1 Speaker Setup
Others
Disc Audio S-Video
Component
20
Before Operation - DVD Part (Cont’d)
Sound
Digital Audio Output
Each DVD disc has a variety of audio output options.
Set the DVD+VCR’s Digital Audio Output according to
the type of audio system you use.
DOLBY DIGITAL/PCM: Select “DOLBY DIGITAL/PCM”
if you connected the DVD+VCR’s DIGITAL OUT jack to
a Dolby Digital decoder (or an amplifier or other equip-
ment with a Dolby Digital decoder).
Stream/PCM: Select “Stream/PCM” if you connected
the DVD+VCR’s DIGITAL OUT jack to an amplifier or
other equipment with a DTS decoder, Dolby Digital
decoder or MPEG decoder.
PCM: Select when connected to a 2 channel digital
stereo amplifier. The DVD+VCR outputs sounds in the
PCM 2ch format when you play a DVD video disc
recorded on the Dolby Digital, MPEG1 or MPEG2
recording system.
Others
The DRC and Vocal settings can be changed.
Press vv/VVto select the desired item and press
SELECT/ENTER. The setting of the selected item is
changed between On and Off.
Dynamic Range Control (DRC)
With the DVD format, you can hear a program’s sound-
track in the most accurate and realistic presentation
possible, thanks to digital audio technology. However,
you may wish to compress the dynamic range of the
audio output (the difference between the loudest sounds
and the quietest ones). Then, you may listen to a movie
at a lower volume without losing clarity of sound. Set
DRC to On for this effect.
Vocal
Set Vocal to On only when a multi-channel karaoke
DVD is playing. The karaoke channels on the disc will
mix into normal stereo sound.
Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language
TV Output Select
Digital Audio Output
5.1 Speaker Setup
Others
Disc Audio DRC Off
Vocal On
Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language
TV Output Select
Digital Audio Output
5.1 Speaker Setup
Others
Disc Audio DOLBY
DIGITAL /PCM
Stream/PCM
PCM
PREPARATION
21
Before Operation - DVD Part (Cont’d)
Parental Control
Rating
Movies on DVDs may contain scenes not suitable for
children. Therefore, discs may contain Parental Control
information that applies to the complete disc or to
certain scenes on the disc. These scenes are rated
from 1 to 8, and alternatively, more suitable scenes are
available for selection on some discs. Ratings are
country dependent. The Parental Control feature allows
you to prevent discs from being played by your children
or to have certain discs played with alternative scenes.
11
Select “Rating” on the Setup menu using the vv
and VVbuttons.
22
While “Rating” is selected, press BB.
33
When you have not entered a password yet;
Go to step 4.
When you have already entered a password;
Enter a 4-digit password using the numerical but-
tons to confirm the personal 4-digit security pass-
word, then press SELECT/ENTER.
If you make a mistake before pressing SELECT/ENTER,
press CLEAR and enter 4-digit security password again.
44
Select a rating from 1 to 8 using the vv/VVbut-
tons. One (1) has the least playback restrictions.
Eight (8) has the most playback restrictions.
Unlock: If you select Unlock, Parental Control is
not active. The disc will play in full.
Ratings 1 to 8: Some discs contain scenes not
suitable for children. If you set a rating for the
DVD+VCR, all disc scenes with the same rating or
lower will be played. Higher rated scenes will not be
played unless an alternative scene is available on
the disc. The alternative must have the same rating
or a lower one. If no suitable alternative is found,
playback will stop. You must enter the 4-digit pass-
word or change the rating level in order to play the
disc.
55
Press SELECT/ENTER to confirm your rating
selection, then press SETUP to exit the menu.
Password
If you change the rating level to “7” or lower, you must
enter a 4-digit “password” to prevent playback of discs
with higher ratings.
11
Select Password using the vv/VVbuttons on the
setup menu.
22
While Password is selected, press B.
33
Enter a 4-digit password using the numerical
buttons to create a personal 4-digit security
password, then press SELECT/ENTER.
Do not forget your password.
44
Enter the 4-digit password again and press
SELECT/ENTER to verify.
Setting is complete.
Note
Confirmation of the 4-digit password is necessary when
the code is changed (see “Changing the 4-digit code”
below ).
Changing the 4-digit code
1Press SETUP to display the setup menu.
2Press VVto select Password.
3Enter the old code, then press SELECT/ENTER.
4Select Change using the vv/VVbuttons then press
SELECT/ENTER.
5Enter the new 4-digit code, then press
SELECT/ENTER.
6Enter exactly the same code a second time and veri-
fy by pressing SELECT/ENTER.
7Press SETUP to exit the menu.
If you forget your 4-digit code
If you forget your password, to clear the current pass-
word, follow the procedure below.
1Press SETUP to display the setup menu.
2Press VVto select Password.
3Use the Number buttons to enter the 6-digit number
“210499.” and then press SELECT/ENTER.
The 4-digit password is cleared.
4Enter a new code as shown above.
DVD
DVD
Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language
TV Output Select
Digital Audio Output
5.1 Speaker Setup
Others
Disc Audio New
— — — —
Disc Subtitle
Disc Menu
Rating
Password
TV Aspect
Menu Language
TV Output Select
Digital Audio Output
5.1 Speaker Setup
Others
Disc Audio 8
7
6
5
4
3
2
1
Unlock
Operation with tape
Normal Playback
Preparations:
Turn on the TV.
Tune the TV to the VCR output channel (CH 3 or 4).
If a direct VIDEO/AUDIO connection is made between the
VCR and the TV, set the TV’s source selector to VIDEO.
11
Insert a prerecorded video cassette.
The TAPE IN indicator will light and the VCR will power-up
automatically.
Make sure that the TIMER indicator in the VCR indica-
tor panel is not lighted. If it is, press POWER once.
If a tape without a safety tab is inserted the unit will
start the playback automatically.
22
Press PLAY once.
The PLAY appears on the TV screen .
It is not necessary to select the tape speed for play-
back. It will be automatically selected by the VCR.
In playback, the TV/VCR selector switches to VCR
mode automatically.
33
Press STOP to stop playback.
The STOP appears on the TV screen.
If the tape reaches the end before STOP is pressed,
the VCR will automatically stop, rewind, eject, and it will
turn itself off.
Tracking Control
Auto Tracking
The automatic tracking function adjusts the picture to
remove snow or streaks.
The AUTO TRACKING function works in the following
cases:
A tape is played back for the first time.
Tape speed (SP, LP, EP) changes.
Streaks or snow appear because of scratches on the tape.
Manual Tracking
If noise appears on the screen during playback, press
either CH/TRACK (33/ 44)on the remote control or
CHANNEL (33/ 44) on the front panel until the noise on
the screen is reduced.
In case of vertical jitter, adjust these controls very carefully.
Tracking is automatically reset to normal when the tape is
ejected or the power cord is unplugged for more than 3
seconds.
Special Effect Playbacks
Special effects playback notes
Horizontal lines (noise bars) will appear on the TV screen. This
is normal.
The audio is automatically muted during special effect modes,
so there is no sound during search.
During the high-speed picture search modes, a short period is
needed to stabilize tape speed when re-entering the PLAY
mode. Slight interference may be observed during this period.
Search
This function lets you quickly and visually search for a
desired tape section in either direction: forward and
reverse.
1Press BACKWARD .or FORWARD >during
playback.
The VCR will be activated in the SEARCH mode.
If the VCR is left in the SEARCH mode for more than 3
minutes, the VCR will automatically enter the PLAY mode,
to protect the tape and video heads.
2To exit search mode, press PLAY.
Still Picture and Frame-by-frame play-
back
1Press PAUSE/STEP during playback.
Still picture will appear on the TV screen.
If a still picture vibrates vertically, stabilize it by pressing
CH/TRACK (33/ 44)on the remote control.
If the VCR is left in the STILL mode for more than 5 min-
utes, the VCR will automatically enter the STOP mode to
protect the tape and video heads.
2Press PAUSE/STEP repeatedly to advance the
video picture one frame at a time while viewing a still
picture.
3To exit still picture mode, press PLAY.
Slow Motion
1While in still video mode, press BACKWARD .
or FORWARD >.
The tape will be played back at a speed 1/19 times
slower than the normal speed.
During slow playback, CH/TRACK (▲/▼)on the Remote
Control can be used to minimize noise bands.
When the slow mode continues for more than 30 seconds,
the VCR will automatically change to playback mode.
2Press BACKWARD .or FORWARD >to con-
trol slow speed during slow motion.
3To exit search mode, press PLAY.
CM SKIP (Commercial Skip)
This is useful for skipping commercials or short program
segments.
1Press CM SKIP during the playback mode.
The tape will fast forward picture search through 30
seconds of recording.
The skipping time can be extended by pressing CM SKIP.
Subsequent presses result in advancing the fast forward
picture search time by 30-second increments (maximum 3
minutes).
2When the search is completed, the VCR will go into
playback mode automatically.
22
OPERATION
23
Operation with tape (Cont’d)
Normal Recording
Preparations:
Turn on the power of both the VCR and TV.
Be sure the TV is set to the VCR Output Channel (CH 3 or
4).
If a direct VIDEO/AUDIO connection is made between the
VCR and the TV, set the TV’s source selector to VIDEO.
11
Insert the video cassette that the safety tab is in
place.
22
Select the desired channel by using CH/TRACK
(▲/▼).
If you are recording from another source via audio/video
input jacks (at the Rear or Front panel), select the
LINE1 or LINE2 by pressing INPUT.
33
Set the desired recording speed (SP or EP) by
pressing SP/EP.
This VCR is not designed to record in LP mode.
44
Set the MTS mode as desired (See page 16, 26).
55
Press REC once.
Recording will start. (The REC indicator will light on
the VCR indicator panel)
If a cassette with no safety tab is loaded, the cassette
will be ejected automatically.
66
Press STOP to stop recording.
If the tape reaches the end before STOP is pressed, the
VCR will automatically stop, rewind, eject, and it will turn
itself off.
To pause the recording
1Press PAUSE/STEP to pause the tape during
recording.
The REC indicator will flash on the VCR indicator panel.
2When you want to continue recording, press
PAUSE/STEP or press REC.
After 5 minutes in pause mode, the tape will be stopped
automatically to protect the tape and the video heads.
To record one TV program while
watching another
1Press TV/VCR to select the TV mode during record-
ing.
The VCR indicator disappears.
2Using the TV, select the channel to be viewed.
Tips
Always use PAUSE/STEP for best results when making
changes during recording.
For example: To change channels during recording, first press
PAUSE/STEP to put the unit in pause mode. Then select the
desired channel on the VCR, and press PAUSE/STEP again to
resume recording.
Timer Recording
This VCR can be programmed to record up to 8 pro-
grams within a period of 1 year. For unattended record-
ing, the timer needs to know the channels to be recorded
and the starting and ending times.
Preparations:
Turn on the power of both the VCR and the TV.
Be sure the TV is set to the VCR output channel (3 or 4).
Make sure the CHANNEL SOURCE in the CHANNEL
SETUP menu is set appropriately (TV or CATV) (see illus-
tration left).
11
Press MENU and the MAIN menu will appear.
22
Press 33or 44to choose the TIMER RECORD
menu.
33
Press SELECTER/ENTER to enter the TIMER
RECORD menu.
The TIMER RECORD menu will appear.
If all programs have already been entered, FULLY
PROGRAMMED message will appear for a moment
and then PROGRAM 1 will appear on the TV screen.
44
Press 11or 22to choose the PROGRAM No. (1-8).
55
Press 44to choose the MONTH item.
Press 11or 22to choose the desired month.
66
Press 44to choose the DAY item.
Press 11or 22to choose the desired day.
77
Press 44to choose the START item.
Press 11or 22to choose the desired start time.
88
Press 44to choose the STOP item.
Press 11or 22to choose the desired stop time.
33
Press 44to choose the CHANNEL item.
Press 11or 22to choose the desired channel
(Channel, LINE1 or LINE2).
Cable Users: If you have CABLE TV and used Cable Box
in Cable Antenna Connections (page 12), using a cable
box converter, you must set the channel in this step to
match the cable box output channel (usually CH 3 or 4).
Change channels on the cable box instead of with the
VCR.
SELECT
TO EXIT PRESS
ENTER
SET CLOCK
TIMER RECORD
CHANNEL SETUP
VCR SETUP
PROGRAM 1
MONTH :
DAY :
START :
STOP :
CHANNEL :
SPEED :
REPEAT :
SELECT
TO EXIT PRESS
ADJUST
If you try to set the program timer before setting the clock,
PLEASE SET THE CLOCK appears for a moment and
then SET CLOCK menu appears on the TV screen. Set the
time and date before proceeding.
Make sure a tape is in the VCR and the safety tab is in
place or the tape will be automatically ejected.
Things to know before starting
24
Operation with tape (Cont’d)
1100
Press 44to choose the SPEED item.
Press 11or 22to choose the desired recording
speed (AUTO, SP or EP).
The AUTO mode determines how much tape is left
and switches speed from SP to EP, if necessary, to
complete recording the program. There will be some
picture and sound distortion at the point of the speed
change.
1111
Press 44to choose the REPEAT item.
Press 11or 22to choose the desired repeat
(ONCE, WEEKLY, or DAILY).
ONCE event....for recording up to 8 programs on a
single day or over the days within a period of 1 year.
WEEKLY event....for recording up to 8 programs on a
certain day of every week.
DAILY event....for recording up to 8 programs at the
same time(s) Monday through Friday.
Tips
If the input data is wrong, press 33to select the data
and correct it by pressing 11or 22.
1122
Press MENU, the program will be memorized
at the VCR.
If the program preset time is past, the PAST TIME
PROGRAMMED message will appear on the TV
screen. Return to the incorrect program and program
it with the correct time.
If you had entered a past date, the timer recording
will be performed on that date of the next year.
Additional programs may be entered by repeating
steps 1-12.
Cable Users: If your cable hookup is via a TV convert-
er box, you can program multiple recordings only on
the converter box output channel. This is because the
converter determines what channel you view through
your VCR.
1133
Turn the DVD+VCR off for a timer recording
to take place.
Tips
If you are finished programming and you want to set the VCR
to record the programs you have entered. A) MAKE SURE
YOU HAVE INSERTED A TAPE INTO THE VCR. B) YOU
MUST TURN OFF THE VCR BEFORE IT WILL RECORD
ANY TIMER PROGRAMS. (TIMER indicator lights). The
VCR is now set to record the preset programs.
Notes
If the power fails or the VCR is unplugged from the AC
outlet, the correct clock time and timer settings are kept in
memory for approximately 3 seconds. After 3 seconds, the
clock and program timer must be reset when power is
restored. Reset time according to instructions.
Checking (Erasing) the Timer Program
Programming can be checked whenever the VCR is
turned on.
1Press MENU and the MAIN menu will appear.
2Press 3or 4to choose the TIMER RECORD menu.
Press SELECTER/ENTER and the PROGRAM menu
will appear.
3Press 1or 2to select a program you want to check
or erase. If you want to erase the program, press
CLEAR.
4Press MENU to return to the TV screen.
Program Priority
If the recording start and end
times of preset programs
overlap on the same day
(see the example and dia-
gram left), program number 2
will not be recorded until pro-
gram number 1 is finished.
The first part of program number 2 will not be recorded.
The same thing will happen to program number 3.
PROGRAM 1
MONTH : JULY
DAY : 6 SAT
START : 6 : 00 PM
STOP : 7 : 30 PM
CHANNEL : 4 TV
SPEED : SP
REPEAT : ONCE
SELECT
TO EXIT PRESS
ADJUST
SELECT
TO EXIT PRESS
ENTER
SET CLOCK
TIMER RECORD
CHANNEL SETUP
VCR SETUP
PROGRAM 1
MONTH : JULY
DAY : 6 SAT
START : 6 : 00 PM
STOP : 7 : 30 PM
CHANNEL : 4 TV
SPEED : SP
REPEAT : ONCE
TO EXIT PRESS
TO ERASE PRESS
OPERATION
25
Operation with tape (Cont’d)
Instant Timer Recording
Instant Timer Recording allows you to make a recording
easily of a preset length without using the program
timer.
Preparations:
Turn on the power of both the VCR and the TV.
Be sure the TV is set to the VCR output channel (3 or 4).
If a direct VIDEO/AUDIO connection is made between the
VCR and the TV, set the TV’s source selector to VIDEO.
11
Insert the video cassette that the safety tab is in
place.
22
Select the desired channel by using CH/TRACK
(▲/▼) or number (0-9).
The channel number appears on the TV screen.
If you are recording from another source via audio/video
input jacks (at the Rear or Front panel), select the
LINE1 or LINE2.
33
Set the desired recording speed (SP or EP) by
pressing SP/EP.
The tape speed will appear on the TV screen.
44
Press REC twice.
The menu as illustrated, will appear on the TV screen.
Recording will start. (The TIMER indicator will light)
55
Press REC repeatedly to select the recording
time length.
At the end of the recording, the VCR will stop
recording and shut off.
During Instant Timer Recording, changing the channel
on the VCR will not be possible.
You can stop the recording by pressing STOP.
INSTANT TIMER RECORD MENU
Checking the Recording Time
Press REC once to check the recording time. The
recalled setting will automatically return to the TV
screen after 6 seconds.
To extend the Recording Time
The recording time can be extended anytime by press-
ing REC.
Subsequent presses result in advancing the recording
time by 30-minute increments.
Notes
If you press PAUSE/STEP during instant timer recording, the
VCR will enter the normal recording mode.
If the VCR is set to “0H00M”, the VCR goes to normal record-
ing mode.
Dubbing and Editing
If you wish to edit or dub your camcorder (or another
VCR) recordings to this VCR, the rear (or Front) panel
mounted Audio and Video (A/V) input jacks make the
connections quick and easy. The direct A/V jacks will
also provide better picture results than using the RF
jack on the rear panel.
11
Connect the camcorder’s (or another VCR’s) A/V
outputs to your DVD+VCR as illustrated on page
14.
22
Set the input channel “LINE2”. (press INPUT to
select LINE2.)
If you have connected your VCR to the A/V input jacks
on the rear of VCR, you should select the input chan-
nel LINE1 by pressing INPUT twice.
33
Play the tape in the camcorder (or another
VCR). If you have a TV attached to your VCR,
you can see the video playing.
44
When you desire recording to begin, press
VCR’s REC once to start.
Note
Before recording, please confirm the recording start position.
Copying from DVD to VCR
This unit allows you to copy the contents of a DVD to a
VHS tape with a press of the COPY button.
Notes
If the DVD you are attempting to copy is copy protect-
ed,you will not be able to copy the disc.It is not per-
mitted to copy Macrovision encoded DVDs.
If the DVD you are attempting to copy is copy protect-
ed,the VCR will stop Automatically.
11
Insert Disc
Insert the disc you wish to copy in the DVD deck
and close the disc tray.
22
Insert VHS Tape
Insert a blank VHS videotape into the VCR deck.
33
Press the COPY button on the unit front panel.
The DVD will go into Play mode and the VCR will
go into Record mode.
If the DVD disc menu appears, you may need to press
the Play button manually to begin copying.
44
Stop the Copy Process
When the DVD is finished playing, press the VCR
button on the remote control and then press the
STOP button to end the copy.
You must stop the Copy process manually when the
DVD movie ends, or the unit may replay and record
over and over again.
INSTANT TIMER RECORD
CHANNEL 2
SPEED SP
START NOW
LENGTH 0H30M
0H30M ..... 9H00M ➝0H00M
Length Display
(each pressing REC increases
recording by 30 minutes)
26
Operation with tape (Cont’d)
VHS Hi-FI Stereo System/
MTS Broadcast
This VCR is equipped with the VHS Hi-Fi audio sound
system for recording and playback. The information
below gives a brief description of Hi-Fi audio and how to
record and play a tape in the Hi-Fi audio mode.
Playback with Hi-Fi Stereo Audio Sound
A stereo TV with AUDIO/VIDEO input jacks or a stereo
audio system is required for true stereo playback. To
experience the full and rich stereo sound available with
Hi-Fi recorded tapes, we recommend the connection of
this unit to a home stereo audio system.
11
Set the AUDIO MODE item to HI-FI on the VCR
SETUP menu .
22
Set the AUDIO OUTPUT item to STEREO
position.
(STEREO) POSITION: The left channel sound (L) is
heard from the left speaker and the right channel sound
(R) is heard from the right speaker.
(LEFT) POSITION: The left channel sound (L) is heard
from both speakers.
(RIGHT) POSITION: The right channel sound (R) is heard
from both speakers.
33
Insert a cassette and press PLAY.
Adjust volume at your stereo system.
MTS (Multi-Channel TV Sound)
This VCR will decode MTS stereo and bilingual (SAP)
off-the-air broadcast sound signals. It also decodes
stereo TV sound from local cable companies, as long as
they operate on assigned cable frequencies and use the
EIA-recommended MTS stereo/bilingual TV sound sys-
tem.
Multichannel TV Sound Indicator (MTS)
Shows Onscreen as illustrated below when
SELECTER/ENTER is pressed.
One or both of the indicators will light, depending on the
MTS broadcast.
If only the STEREO appears on the TV screen.
The VCR can record in stereo onto the VHS Hi-Fi audio tracks
when the BROADCAST TYPE item is in the STEREO position.
The VCR will also record mono audio onto the mono audio
track.
If only the SAP appears on the TV screen.
Select the BROADCAST TYPE item to SAP.
If both the STEREO/SAP appears on the TV screen
Use the BROADCAST TYPE item to select the desired record-
ing mode (STEREO or SAP).
SAP (Second Audio Program) Recording
Some stations transmit a Second Audio Program, which
is used for a second language or additional information.
When the station broadcasts a Second Audio Program,
follow the procedure below to record the SAP.
11
Insert a video cassette that the safety tab is in
place.
22
Set the BROADCAST TYPE item to SAP (VCR
SETUP menu).
Do this if only the SAP appears on the TV screen or you
know the program will use the SAP.
33
Set the desired recording speed (SP or EP) by
pressing SP/EP.
44
Select the desired channel. The SAP should
appear on the TV screen.
55
Press REC once
You are now recording the program you see and hear on the
TV.
66
Press STOP to stop recording.
SELECT
TO EXIT PRESS
ADJUST
SCREEN DISPLAY:
LANGUAGE:
AUDIO MODE: HI-FI
BROADCAST TYPE:
AUDIO OUTPUT:
SELECT
TO EXIT PRESS
ADJUST
SCREEN DISPLAY:
LANGUAGE:
AUDIO MODE:
BROADCAST TYPE:
AUDIO OUTPUT: STEREO
SELECT
TO EXIT PRESS
ADJUST
SCREEN DISPLAY:
LANGUAGE:
AUDIO MODE:
BROADCAST TYPE: SAP
AUDIO OUTPUT: STEREO
STEREO
Lights up when a stereo broadcast
is being received.
SAP
Lights up when a SAP BILINGUAL
broadcast is being received.
TV screen
CH 4
STEREO/SAP
OPERATION
27
Operation with tape (Cont’d)
Tape Counter Memory Feature
Real-Time Counter
Shows length of tape run in hours, minutes, and sec-
onds (refer to the left). Press CLK/COUNT to select the
real-time counter display.
Every press of CLK/COUNT changes the TV screen as
illustrated below.
Counter changes to “M 0:00:00” when the cassette is
ejected.
The real-time counter does not operate when nothing is
recorded on the tape.
The real-time counter will not work when the tape is not
inserted.
Counter Memory Function
This is useful if there is a section of tape you want to
view immediately after recording or if you want to return
to the same point several times.
11
Begin recording or playing a tape.
22
Press CLK/COUNT repeatedly to display the
real-time counter appears on the TV screen.
33
At the point that you want locate later, reset the
real-time counter to “M 0:00:00” by pressing
CLEAR.
44
Continue to play or record.
55
Press STOP when recording or playback finish-
es.
66
Press BACKWARD.
The tape automatically stops when the tape counter
returns to about “M 0:00:00”.
Tape Remaining
This function allows the time of the remaining tape to be
displayed during recording or playback.
Press CLK/COUNT until the REM indicator displays on
the TV screen during recording or playback.
Note
The remaining tape length indicator may not be displayed
correctly depending on the condition of the tape and the kind of
the tape (T-140, T-160, or T-210 etc)
Additional Information
In manual recording, Timer recording, Instant Timer
Recording, playback, or fast forward modes, the VCR auto-
matically starts rewinding the tape at the end of the tape. The
cassette will stop at the beginning of the tape and be eject-
ed, and the VCR will turn itself off.
After you have finished using the VCR, rewind, eject, and
remove the cassette. Place the cassette in its protective
sleeve to protect it from dust. It is not necessary to rewind the
cassette before removing it, but if you do, it will be ready to
play or record the next time you use it.
Be sure the VCR Channel Selector is on the correct channel
you wish to record. The channel that is being recorded can
always be checked by setting the television on the VCR
channel (3 or 4) and pressing the TV/VCR selector to turn the
VCR’s VCR indicator on.
Do not attempt to hook up more than one television set to the
VCR for either recording or playback.
Auto Play System
This VCR features full automatic playback and rewind.
Load a cassette (with the safety tab removed).
The power turns on automatically and playback begins.
At the end of the tape, the VCR stops, then rewinds.
The cassette is ejected after rewinding and turn itself off
automatically.
Auto Power Shut-Off Function
This feature is especially helpful when you finish watch-
ing a tape. Press STOP, BACKWARD, and POWER.
The VCR will rewind the tape and turn itself off automat-
ically.
1. Press STOP when you finish watching a tape.
2. Press BACKWARD to rewind the tape.
3. Press POWER during the REWIND mode, the VCR
will enter the AUTO POWER SHUT-OFF mode.
4. The POWER indicator will flash on the VCR indicator
panel.
5. After tape is rewound, VCR will turn off automatically.
2:15 AM M 0:05:25 REM 1:07
CLOCK COUNTER REMAINING TIME
LOAD
TAPE
AUTO
REWIND
AUTO
POWER
OFF
AUTO
EJECT
AUTO
PLAY
POWER
BACKWARD
STOP
REWIND
AUTO
POWER
OFF
Operation with DVD and Audio CD
Playing a DVD and Audio CD
Playback Setup
Turn on the TV and select the video input source con-
nected to the DVD+VCR.
Audio system: Turn on the audio system
and select the input source connected to the
DVD+VCR.
11
Press OPEN/CLOSE to open the disc tray.
22
Load your chosen disc in the tray, with the label
facing up.
When a double-sided DVD is inserted, make sure
the side you want to play is facing up.
33
Press OPEN/CLOSE to close the tray.
“dISC LOAD” appears on the display window, and
playback starts automatically. If playback does not
start, press PLAY.
In some cases, the disc menu might appear
instead.
If a menu screen is displayed
The menu screen may be displayed first after loading a
DVD which contains a menu.
Use the bbBBvvVVbuttons to select the title/chapter you
want to view, then press SELECT/ENTER to start play-
back.
Press TITLE or DISC MENU to return to the menu
screen.
Notes
If Parental Control is set and the disc is not within the
Rating settings (not authorized), the 4-digit code must
be entered and/or the disc must be authorized (see
“Parental Control”, on page 21).
DVDs may have a region code.
Your DVD+VCR will not play discs that have a region
code different from your DVD+VCR. The region code
for this DVD+VCR is 1 (one).
Screen Saver
The screen saver picture appears when you leave the
DVD+VCR in stop mode for about five minutes.
After the Screen Saver has been engaged for about five
minutes, the DVD+VCR will automatically turn itself off.
General Features
Note
Unless stated otherwise, all operations described use
the remote control. Some features may also be
available on the Setup menu.
Moving to another TITLE
When a disc has more than one title, you can move to
another title as follows:
Press DISPLAY when playback is stopped, then
press the appropriate numbered button (0-9) to
select a title number.
Moving to another CHAPTER/TRACK
When a title on a disc has more than one chapter or a
disc has more than one track, you can move to another
chapter/track as follows:
Press BACKWARD .or FORWARD >briefly
during playback to select the next chapter/track or to
return to the beginning of the current chapter/track.
Press BACKWARD .twice briefly to step back to
the previous chapter/track.
To go directly to any chapter during DVD playback,
press DISPLAY. Then, press 33/44to select C
(chapter) (or for a Audio CD, select T for track). Then,
enter the chapter/track number using the numbered
buttons (0-9).
Tip
In case of audio CD, to go directly to any track, enter
the track number using the numbered buttons (0-9)
during playback.
Slow Motion
1Press BACKWARD .or FORWARD >during
pause mode.
The DVD+VCR will enter SLOW mode.
2Use the BACKWARD .or FORWARD >to
select the required speed: t 1/16, t 1/8, t 1/4 or
t 1/2 (backward), or T1/16, T1/8, T1/4 or T
1/2 (forward).
3To exit slow motion mode, press PLAY.
DVD
1
1
CDDVD
1
DVD
DVD
CDDVD
28
OPERATION
29
Operation with DVD and Audio CD (Cont’d)
General Features (cont’d)
Still Picture and Frame-by-frame playback
DVD Video Discs
1Press PAUSE/STEP during playback.
The DVD+VCR will now go into PAUSE mode.
2With a DVD, You can advance the picture frame by
frame by pressing PAUSE/STEP repeatedly on the
remote control.
Audio CDs
1Press PAUSE/STEP during playback.
The DVD+VCR will now go into PAUSE mode.
2To return to playback, press PLAY or PAUSE/STEP
again.
Search
1Press and hold BACKWARD .or FORWARD >
for about two seconds during playback.
The DVD+VCR will now go into SEARCH mode.
2Press and hold BACKWARD .or FORWARD >
repeatedly to select the required speed: mX2,
mX4, mX16, mX100 (backward) or MX2,
MX4, MX16, MX100 (forward).
With a Audio CD, the Search speed changes: mX2
(backward) or MX2 (forward).
3To exit SEARCH mode, press PLAY.
Random
1Press RANDOM during playback or in stop mode.
The unit automatically begins Random Playback and
“RANDOM” appears on the TV screen.
2To return to normal playback, press RANDOM until
“NORMAL” appears on the TV screen.
Tips
By pressing BACKWARD .or FORWARD >
during Random playback, the unit selects another title
(track) and resumes Random playback.
Note
This function only works with DVD Karaoke discs and
audio CDs.
Repeat A-B
To repeat a sequence in a title:
1Press A-B at your chosen starting point.
A- appears briefly on the TV screen.
2Press A-B again at your chosen end point.
A-B appears briefly on the TV screen, and the repeat sequence
begins (a-b repeat appears on the DVD+VCR’s display).
3To cancel the sequence, press A-B.
Repeat
DVD Video Discs - Repeat Chapter/Title/Off
1To repeat the currently playing chapter, press
REPEAT.
The Repeat Chapter icon appears on the TV screen.
2To repeat the title currently playing, press REPEAT a
second time.
The Repeat Title icon appears on the TV screen.
3To exit Repeat mode, press REPEAT a third time.
The Repeat Off icon appears on the TV screen.
Audio CDs - Repeat Track/All/Off
1To repeat the track currently playing, press REPEAT.
The Repeat Track icon appears on the TV screen.
2To repeat the disc currently playing, press REPEAT a
second time.
The Repeat All icon appears on the TV screen.
3To exit Repeat mode, press REPEAT a third time.
The Repeat Off icon appears on the TV screen.
3D Surround
This unit can produce a 3D Surround effect, which
simulates multi-channel audio playback from two
conventional stereo speakers, instead of the five or
more speakers normally required to listen to multi-
channel audio from a home theater system.
1Press DISPLAY during playback.
2Press 3or 4to select the sound option.
The sound option will be highlighted.
3Press 1or 2to to select “3D SUR”.
To turn off the 3D Surround effect, select “NORM”.
3D SUR
NORM.
CDDVD
OFF
ALL
TRACK
TITLE
CHAPT
CDDVD
OFF
A B
A *
CDDVD
CDKaraoke DVD
CDDVD
CDDVD
30
Operation with DVD and Audio CD (Cont’d)
General Features (cont’d)
Time Search
The Time Search function allows you to start playing at
any chosen time on the disc.
1Press DISPLAY during playback. The on-screen dis-
play appears on the screen.
The Time Search box shows the elapsed playing time of the
current disc.
2Within 10 seconds, press vv/VVto select the Time
Search icon in the on-screen display.
The “-:--:--” appears in the Time Search box.
3Within 10 seconds, use the numerical buttons to enter
the required start time. Enter hours, minutes and sec-
onds from left to right in the box.
If you enter the wrong numbers, press CLEAR to remove the
numbers you entered. Then enter the correct numbers.
4Within 10 seconds, press SELECT/ENTER to confirm
the start time.
Playback starts from the selected time on the disc. If you enter
an invalid time, playback will continue from the current point.
Zoom
The Zoom function allows you to enlarge the video
image and to move through the enlarged image.
1Press ZOOM during playback or still playback to acti-
vate the Zoom function.
The square frame will be displayed in the center of the pic-
ture. If no button is pressed for more than 10 seconds, the
square frame will disappear.
Each press of the ZOOM button changes the TV screen in
the left sequence.
(X4) (X16) (Normal)
2Use the bb/BB/vv/VVbuttons to move the zoom point.
3Press SELECT/ENTER.
The zoomed picture appears.
4To resume normal playback, press ZOOM repeatedly
until the normal picture appears.
Note
The zoom function may not work for some DVDs.
The zoom function may not work on multi-angle
scenes.
Marker Search
You can start playback from a memorized point. Up to
nine points can be memorized.
To enter a mark, follow these steps.
1During disc playback, press MARKER when playback
reaches the spot that you want to memorize.
The Marker icon will appear on the TV screen briefly.
2Repeat step 1 to enter up to nine Marker points on a
disc.
To Recall a Marked Scene
1During disc playback, press SEARCH.
The Marker Search menu will appear on the screen.
2Press 11 22 33 44to select a Marker that you want to
recall.
3Press SELECT/ENTER.
Playback will start from the Marked scene.
To clear a Marked Scene
1During disc playback, press SEARCH.
The Marker Search menu will appear on the screen.
2Press 11 22 33 44to select the Marker that you want
to erase.
3Press CLEAR.
The Marker will be erased from the Marker Search menu.
4Repeat steps 2 and 3 to erase additional Marker
numbers.
Changing the Audio Language
Press AUDIO repeatedly during playback to hear a dif-
ferent audio language or audio track.
Changing the Audio Channel
Press AUDIO repeatedly during playback to hear a dif-
ferent audio channel (STEREO, LEFT or RIGHT).
RGHT
LEFT
STER.
CD
1 ENG
D
6 CH
DVD
1/5
DVD
DVD
-:--:--
0:16:57
DVD
X4
X16
Maker
Picture 1
Maker
Picture 2
Maker
Picture 3
Maker
Picture 4
Maker
Picture 5
Present
OPERATION
31
Operation with DVD and Audio CD (Cont’d)
Special DVD Features (Cont’d)
Checking the contents of DVD Video
discs: Menus
DVDs may contain menus that allow you to access spe-
cial features. To use the disc menu, press DISC MENU.
Then, press the appropriate number button to select an
option. Or, use the b/B/v/Vbuttons to highlight your
selection, then press SELECT/ENTER.
Title Menu
1Press TITLE.
If the current title has a menu, the menu will appear on the
screen. Otherwise, the disc menu may appear.
2The menu can list camera angles, spoken language
and subtitle options, and chapters for the title.
3To remove the title menu, press TITLE again.
Disc Menu
1Press DISC MENU.
The disc menu is displayed.
2To remove the disc menu, press DISC MENU again.
Camera Angle
If the disc contains sequences recorded from different
camera angles, the angle icon blinks on the display. You
can then change the camera angle if you wish.
Press ANGLE repeatedly during playback to select a
desired angle.
The number of the current angle appears on the display.
Subtitles
Press SUBTITLE repeatedly during playback to see the
different subtitle languages.
Note
If appears, the feature is not available on the disc.
Programmed Playback with
Audio CD
Program allows you to store your favorite tracks for a
particular disc in the DVD+VCR memory.
Program can contain 20 tracks.
11
Insert an audio CD and close the tray.
22
Press PROGRAM during playback or in the stop
mode.
The Program menu appears.
Note
Press PROGRAM to exit the Program menu.
33
Press the number buttons to select the desired
track number.
44
Press 22 and the number buttons to select the
next track number.
55
Repeat step 4 to place additional tracks on the
Program list.
66
Press PLAY or SELECT/ENTER to start play-
back.
Playback begins in the order in which you programmed
the tracks and “PROG.” appears on display window.
Playback stops after all of the tracks on the Program
menu have played once.
Clearing the program
To clear the programmed tracks one by one
Press 11 22 33 44to select the unwanted number and
then press CLEAR.
To clear all the programmed tracks
Press 11 22 33 44to select “Clear All” and then press
SELECT/ENTER. Press PLAY or SELECT/ENTER to
exit the screen. If you press PROGRAM to exit the
screen, the programs are not cleared. (The programs
are also cleared when the power is turned off or the
disc is removed.)
1 ENG
DVD
1
DVD
DVD
DVD
Step
Total Time
1
00:00
Program
Clear All
32
Operation with MP3 Disc
Notes on MP3 Discs
About MP3
An MP3 file is audio data compressed by using
MPEG1, the audio layer-3 file-coding scheme. We call
files that have the “.mp3” file extension “MP3 files”.
The DVD+VCR can not read an MP3 file that has a
file extension other than “.mp3”.
The DVD+VCR can not read a fake MP3 file that has
a file extension “.mp3”.
MP3 disc compatible with this DVD+VCR is
limited as follows:
1. Sampling Frequency / only at 44.1kHz
2. Bit rate / within 32 - 320kbps
3. CD-R physical format should be “ISO 9660”
4. If you record MP3 files using the software which
cannot create a FILE SYSTEM, for example “Direct-
CD” etc., it is impossible to playback MP3 files. We
therefore recommend that you use “Easy-CD
Creator”, which creates an ISO9660 file system.
5. A single session disc requires MP3 files in the first
track. If there is no MP3 file in the 1st track, it can-
not playback MP3 files. If you wish to playback MP3
files, format all the data in the disc or use a new
one.
6. We do not recommend using CD-RW discs. Please
use finished CD-R discs only.
7. File names should be named using 8 letters or less
and must incorporate “.mp3” extension
e.g. “********.MP3”.
8. Do not use special letters such as “_?!><+*}{`[@
]:;\/.,” etc.
9. Total number of files on the disc should be less than
256.
10. Use 74 minute CD-R discs (650M), Do not use 80
minute CD-R (700M) software
This DVD+VCR requires discs/recordings to meet
certain technical standards in order to achieve optimal
playback quality. Pre-recorded DVDs are automatically
set to these standards. There are many different types
of recordable disc formats (including CD-R containing
MP3 files).
Customers should also note that permission is required
in order to download MP3 files and music from the
Internet. Our company has no right to grant such per-
mission. Permission should always be sought from the
copyright owner.
Playing an MP3 disc
The DVD+VCR can play MP3 format recordings on CD-
ROM, CD-R or CD-RW discs.
Before playing MP3 recordings, read the notes on MP3
Recordings to the left.
11
Insert an MP3 disc and close the tray.
The MP3 menu appears on the TV screen.
MP3 menu
22
Press vv/VVto select the directory containing the
track that you want to play.
33
Press SELECT/ENTER and press vv/VVto select
the desird track.
44
Press SELECT/ENTER or PLAY.
Playback starts.
During playback, the current track’s elapsed playing
time will appear on the display window.
Playback will stop after playback the last track with-
in the directory.
To return to the previous MP3 menu
Press RETURN.
To move to the first MP3 menu
Press DISC MENU.
To return to the top of the page within the directory
Press TITLE.
Each time you press the button, the pages within
directory will change in rotating.
To pause playback
Press PAUSE/STEP during playback. To return to
playback, press PLAY or PAUSE/STEP again.
To skip to another track during playback
Press BACKWARD .or FORWARD >briefly
during playback.
Program
MP3
MP3-1
MP3-2
MP3-3
MP3-4
MP3-5
MP3-6
MP3-7
MP3-8
MP3-9 Clear All
ABCD
OPERATION
33
Operation with MP3 Disc (Cont’d)
Programmed Playback with
MP3 Disc
Program allows you to store your favorite tracks for a
particular disc in the DVD+VCR memory.
Program can contain 60 tracks.
11
Follow steps 1 - 3 of MP3 Playing an MP3 disc
to the left .
22
Press PROGRAM to list the selected track on
the MP3 Progrm list.
33
Repeat step 2 to place additional tracks on the
Program list.
55
Press B.
The programmed track you selected last is highlighted on
the program list.
66
Press vv/VVto select the track you want to start
playing.
77
Press PLAY to start.
Playback begins in the order in which you programmed
the tracks and “PROG.” appears on the display window.
Playback stops after all of the tracks on the Program list
have played once.
Erasing a Track from Program List
1Use vv/VV/b/B to select the track that you wish to
erase from the Program list.
2Press CLEAR.
The track will be erased from the Program list.
Erasing the Complete Program List
1Use vv/VV/b/B to select “Clear All” then press
SELECT/ENTER.
2Press SELECT/ENTER again.
The complete Program for the disc will be erased.
The programs are also cleared when the disc is removed.
Repeat Playback with MP3 Disc
To playback a track repeatedly
press REPEAT once during playback.
The current track will be played back repeatedly.
To playback a entire directory repeatedly
Press REPEAT twice during playback.
All of the tracks within the directory will be played back repeat-
edly.
To playback a programmed track repeatedly
press REPEAT once during programmed playback.
The current track will be played back repeatedly.
To playback a entire directory repeatedly
Press REPEAT twice during programmed playback.
All of the listed tracks on the MP3 Programmed list will be
played back repeatedly.
To exit Repeat mode
Press REPEAT repeatedly until the Repeat icon disap-
pears on the menu screen.
Program
MP3-1
MP3
Clear All
..
TRACK_1
TRACK_2
TRACK_3
TRACK_4
TRACK_5
TRACK_2
TRACK_7
TRACK_6
TRACK_9
TRACK_6
TRACK_7
TRACK_8
Program
MP3-1
MP3
Clear All
..
TRACK_1
TRACK_2
TRACK_3
TRACK_4
TRACK_5
TRACK_6
TRACK_7
TRACK_8
Program
MP3-1
MP3
Clear All
..
TRACK_1
TRACK_2
TRACK_3
TRACK_4
TRACK_5
TRACK_6
TRACK_7
TRACK_8
Program
MP3-1
MP3
Clear All
..
TRACK_1
TRACK_2
TRACK_3
TRACK_4
TRACK_5
TRACK_2
TRACK_7
TRACK_6
TRACK_9
TRACK_6
TRACK_7
TRACK_8
Program
MP3-1
MP3
Clear All
..
TRACK_1
TRACK_2
TRACK_3
TRACK_4
TRACK_5
TRACK_2
TRACK_7
TRACK_6
TRACK_9
TRACK_6
TRACK_7
TRACK_8
Repeat symbol
Program list
34
Symptom
No power.
The power is on, but
the DVD+VCR does not
work.
No picture.
No sound.
The playback picture is
poor.
The DVD+VCR does
not start playback.
The remote control
does not work properly.
Cause
The power cord is disconnected.
No disc is inserted.
No tape is inserted.
The TV is not set to receive DVD+VCR
signal output.
TV/VCR mode for DVD+VCR is set to
TV.
The video cable is not connected
securely.
The connected TV power is turned off.
The equipment connected with the
audio cable is not set to receive
DVD+VCR signal output.
The audio cables are not connected
securely.
The power of the equipment connected
with the audio cable is turned off.
The Digital Audio Output is set to the
wrong position.
The disc is dirty.
Tape heads are dirty.
Tape is a rental or was recorded on
another VCR.
No disc is inserted.
No tape is inserted.
An unplayable disc is inserted.
The disc is placed upside down.
The disc is not placed within the guide.
The disc is dirty.
The Rating level is set.
The remote control is not pointed at the
remote sensor of the DVD+VCR.
The remote control is too far from the
DVD+VCR.
There is an obstacle in the path of the
remote control and the DVD+VCR.
The batteries in the remote control are
exhausted.
Correction
Plug the power cord into the wall outlet
securely.
Insert a disc or tape. (Check that the
disc or tape indicator in the display
window is lit.)
Select the appropriate video input mode
on the TV so the picture from the
DVD+VCR appears on the TV screen.
Press the TV/VCR button on remote
repeatedly to choose VCR mode. VCR
indicator light appears in VCR front
panel.
Connect the video cable into the jacks
securely.
Turn on the TV.
Select the correct input mode of the
audio receiver so you can listen to the
sound from the DVD+VCR.
Connect the audio cable into the jacks
securely.
Turn on the equipment connected with
the audio cable.
Set the Digital Audio Output to the
correct position, then turn on the
DVD+VCR again by pressing POWER.
Clean the disc.
Clean video heads.
Use CH/TRK (v/V) for manual tracking
adjustment while tape is playing.
Insert a disc or tape. (Check that the
disc or tape indicator in the display
window is lit.)
Insert a playable disc. (Check the disc
type, color system and Regional code.)
Place the disc with the playback side
down.
Place the disc on the disc tray correctly
inside the guide.
Clean the disc.
Cancel the Rating function or change
the rating level.
Point the remote control at the remote
sensor of the DVD+VCR.
Operate the remote control within about
23 ft (7 m).
Remove the obstacle.
Replace the batteries with new ones.
Troubleshooting
Check the following guide for the possible cause of a problem before contacting service.
REFERENCE
35
Troubleshooting (Cont’d)
Symptom
Some channels are
skipped over when
using CH (+/-).
Picture and sound of
broadcasting channel
are weak or missing.
Camcorder image is not
shown.
Camcorder image via
A/V input to DVD+VCR
is not shown on TV
screen.
Timer recording is not
possible.
TIMER indicator light
appears after VCR is
turned off.
Stereo Audio Record
and/or Playback is not
present.
Cause
Those channels were deleted with the
CH. ADD/DEL option.
Antenna or cables are loose.
Wrong SOURCE option is being used.
Camcorder is off.
VCR SOURCE is not set to AUX.
Clock in VCR is not set to correct time.
VCR is on which disables timer.
Timer has been programmed
incorrectly.
TIMER indicator light does not appear
after programming timer.
VCR is in Timer Recording mode.
TV is not Stereo-compatible.
Broadcast program is not in stereo for-
mat.
DVD+VCR A/V Out jacks are not con-
nected to TV A/V In jacks.
DVD+VCR Audio/Video Out is not
selected for viewing at the TV.
DVD+VCR BROADCAST TYPE mode is
set to SAP or MONAURAL.
Correction
Use ADD/DEL CH. to restore channels.
See “Channel Selection” on page 16.
Tighten connections or replace cable.
Try all CHANNEL SOURCE options.
See “Channel Selection” on page 16 for
details.
Turn camcorder on and operate
properly.
Press INPUT to select LINE input chan-
nel.
Set clock to correct time. See “Setting
the Clock” on page 17.
Turn DVD+VCR off to enable timer.
TIMER indicator light appears in the
VCR front panel.
Reprogram Timer. See “Timer
Recording” on page 23.
Reprogram Timer and turn DVD+VCR
off to enable timer.
This is the normal indication that the
VCR is in TIMER mode.
No action is possible.
No action is possible.
Make A/V connections. Stereo is
available only via A/V output from VCR.
Select AUX or A/V source as TV input.
Set BROADCAST TYPE mode to
STEREO. See “Setting the VCR Setup
Menu” on page 16.
Moisture Condensation
Moisture condensation can occur:
• When the DVD+VCR is moved from a cold place to a
warm place.
• Under extremely humid conditions.
In locations where moisture condensation may occur:
• Keep the power cord plugged into an AC outlet and
POWER On. This will help prevent condensation.
• When condensation has occurred, wait a few hours
for the VCR to dry before using it.
36
Language Code List
Code Language
6565 Afar
6566 Abkhazian
6570 Afrikaans
6577 Ameharic
6582 Arabic
6583 Assamese
6588 Aymara
6590 Azerbaijani
6665 Bashkir
6669 Byelorussian
6671 Bulgarian
6672 Bihari
6678 Bengali; Bangla
6679 Tibetan
6682 Breton
6765 Catalan
6779 Corsican
6783 Czech
6789 Welsh
6865 Danish
6869 German
6890 Bhutani
6976 Greek
6978 English
6979 Esperanto
6983 Spanish
6984 Estonian
6985 Basque
7065 Persian
7073 Finnish
7074 Fiji
Code Language
7079 Faroese
7082 French
7089 Frisian
7165 Irish
7168 Scots Gaelic
7176 Galician
7178 Guarani
7185 Gujarati
7265 Hausa
7273 Hindi
7282 Croatian
7285 Hungarian
7289 Armenian
7365 Interlingua
7378 Indonesian
7383 Icelandic
7384 Italian
7387 Hebrew
7465 Japanese
7473 Yiddish
7487 Javanese
7565 Georgian
7575 Kazakh
7576 Greenlandic
7577 Cambodian
7578 Kannada
7579 Korean
7583 Kashmiri
7585 Kurdish
7589 Kirghiz
7665 Latin
Code Language
7678 Lingala
7679 Laothian
7684 Lithuanian
7686 Latvian, Lettish
7771 Malagasy
7773 Maori
7775 Macedonian
7776 Malayalam
7778 Mongolian
7779 Moldavian
7782 Marathi
7783 Malay
7784 Maltese
7789 Burmese
7865 Nauru
7869 Nepali
7876 Dutch
7879 Norwegian
7982 Oriya
8065 Panjabi
8076 Polish
8083 Pashto, Pushto
8084 Portuguese
8185 Quechua
8277 Rhaeto-Romance
8279 Rumanian
8285 Russian
8365 Sanskrit
8368 Sindhi
8372 Serbo-Croatian
8373 Singhalese
Code Language
8375 Slovak
8376 Slovenian
8377 Samoan
8378 Shona
8379 Somali
8381 Albanian
8382 Serbian
8385 Sudanese
8386 Swedish
8387 Swahili
8465 Tamil
8469 Telugu
8471 Tajik
8472 Thai
8473 Tigrinya
8475 Turkmen
8476 Tagalog
8479 Tonga
8482 Turkish
8484 Tatar
8487 Twi
8575 Ukrainian
8582 Urdu
8590 Uzbek
8673 Vietnamese
8679 Volapük
8779 Wolof
8872 Xhosa
8979 Yoruba
9072 Chinese
9085 Zulu
Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu”
(See page 19).
REFERENCE
37
Specification
General
Power requirements AC 120V , 60 Hz
Power consumption 23W
Dimensions (approx.) 430 X 97.5 X 360 mm (16.9 x 3.9 x 14.2 inches) (w/h/d)
Mass (approx.) 5.4 kg (11.9 lbs)
Operating temperature 5˚C to 35˚C (41˚F to 95˚F)
Operating humidity 5 % to 90 %
Signal system NTSC
Inputs
ANTENNA IN Antenna or CATV input, 75 ohms
VHS VIDEO IN 1 Vp-p 75 ohms, sync negative, RCA jack x 1
VHS AUDIO IN -6.0 dBm more than 47 kohms, RCA jack (L, R) x 1
Outputs
VIDEO OUT 1 Vp-p 75 ohms, sync negative
S-VIDEO OUT (Y) 1.0 V (p-p), 75 ohms, negative sync., Mini DIN 4-pin x 1
(C) 0.3 V (p-p) 75 ohms
COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75 ohms, negative sync., RCA jack x 1
(Pb)/(Pr) 0.7 V (p-p), 75 ohms, RCA jack x 2
Audio output (digital audio) 0.5 V (p-p), 75 ohms, RCA jack x 1
Audio output (analog audio) 1.0 Vrms (1 KHz, 0 dB), 600 ohms, RCA jack (L, R) x 1
RF OUT Channel 3 or 4
VCR Specification
Head system Four head helical scan azimuth system
Timer 12-hour display type with AM, PM
Tape speed SP: 33.35 mm/sec, LP: 16.67 mm/sec, EP: 11.12 mm/sec
Tape width 12.7 mm
Maximum recording time SP: 2 HOURS (T-120), EP: 6 HOURS (T-120)/8 HOURS (T-160)
Rewind time About 3 minutes (T-120)
Timer 12-hour display type with AM, PM
Tape width 12.7 mm
Rewind time About 3 minutes (T-120)
Antenna 75 ohms (VHF/UHF)
VHF output signal Channel 3 or 4 (Switchable)
Channel coverage VHF: 2-13, UHF: 14-69, CATV: 1-125 (4A, A-W, W+1 - W+84, A-5 - A-1)
Frequency range 20Hz to 20kHz
Signal-to-noise ratio More than 43dB
Dynamic range More than 83 dB
Channel separation More than 55 dB
DVD Specification
Laser system Semiconductor laser, wavelength 650 nm
Frequency response DVD (PCM 96 kHz): 8 Hz to 44 kHz, DVD (PCM 48 kHz): 8 Hz to 22 kHz
CD: 8 Hz to 20 kHz
Signal-to-noise ratio More than 100dB (ANALOG OUT connectors only)
Harmonic distortion Less than 0.008%
Dynamic range More than 100 dB
Accessory:
Video cable x 1, Audio cable x 1, RF 75-ohm Coaxial Cable x 1, Remote control x 1, Batteries x 2
Design and specifications are subject to change without notice.
ZENITH ELECTRONICS CORPORATION
DVD + VCR LIMITED WARRANTY-USA
Zenith will repair or replace your product, at Zenith’s option, if it proves to be defective in material or
workmanship under normal use during the warranty period listed below from the date of original con-
sumer purchase. This warranty is available only to the original purchaser of the product and effec-
tive only when used in the United States, excluding U.S. Territories.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS
REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERI-
OD ABOVE. ZENITH WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL,
INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITH-
OUT LIMITATION LOST PROFITS, LOST OR CORRUPTED PROGRAMMING OR DATA,
OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on
how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty
gives you specific legal rights and you may also have other rights that vary from state to state.
THIS LIMITED WARRANTY DOES NOT APPLY:
• To damages or problems that result from shipping, installation, calibration, maintenance, or separate
system components.
• To damages or problems that result from misuse, abuse, operation outside environmental specifications
or contrary to the requirements and precautions in the Operating Guide, accident, lightning strikes or
other natural causes, modification or alteration, incorrect electrical current or voltage, signal reception
or input, software not licensed directly by Zenith, software errors that do not disable functionality,
operating and software protocols adopted after date of manufacture or for outside the U.S., or institu-
tional or commercial use.
Therefore, the cost of repair or replacement under these circumstances is borne by the customer.
CUSTOMER ASSISTANCE NUMBERS:
WARRANTY PERIOD:
Labor: 90 Days from date of purchase
Parts: One Year from the date of purchase
HOW SERVICE IS HANDLED:
Carry in service: Please retain your bill of sale for proof of
warranty.
Please call 1-877-9Zenith (1-877-993-6484) to locate
your nearest Zenith Authorized Service Center.
Please see below for further information.
ZENITH ELECTRONICS CORPORATION Zenith Part No. 206-????
2000 MILLBROOK DRIVE GS# 3835RS?????
LINCOLNSHIRE, IL 60069 Printed in Korea
Issue O
To prove warranty coverage:
To obtain where-to-buy, product
assistance, or customer assistance:
Retain your dated sales receipt to prove date of purchase.
Legible copy of your sales receipt must be submitted at the time
warranty service is provided.
Call 1-877-9Zenith (1-877-993-6484) (Mon. - Fri. 7 AM to 8 PM and Sat.
8 AM to 5:00 PM CT) Please select the appropriate option from the menu.
