DVD Player+
Video Cassette Recorder
OWNER’S MANUAL
MODEL : SD-V390
Before connecting, operating or adjusting this product,
please read this instruction booklet carefully and completely.
Safety Precautions
This lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to
the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
product.
WARNING: Do not install this equipment in a confined space
such as a book case or similar unit.
NOTE TO CABLE/TV INSTALLER: This reminder is provided to
call the cable TV system installer’s attention to Article 820-40 of
the National Electric Code (U.S.A.). The code provides guidelines
for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the
building, as close to the point of the cable entry as practical.
CAUTION:
This DVD+VCR employs a Laser System.
To ensure proper use of this product, please read this owner’s
manual carefully and retain for future reference should the unit
require maintenance, contact an authorized service location.
Use of controls, adjustments, or the performance of proce-
dures other than those specified herein may result in haz-
ardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open
the enclosure. Visible laser radiation when open. DO NOT
STARE INTO BEAM.
CAUTION: The apparatus should not be exposed to water
(dripping or splashing) and no objects filled with liquids, such
as vases, should be placed on the apparatus.
FCC WARNING: This equipment may generate or use radio
frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the modifi-
cations are expressly approved in the instruction manual. The
user could lose the authority to operate this equipment if an
unauthorized change or modification is made.
REGULATORY INFORMATION: FCC Part 15
This product has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the product is
operated in a residential installation. This product generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this product does cause harmful
interference to radio or television reception, which can be
determined by turning the product off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the product and
receiver.
Connect the product into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
NOTES ON COPYRIGHTS:
It is forbidden by law to copy, broadcast, show, broadcast
via cable, play in public, or rent copyrighted material without
permission.
This product features the copy protection function developed
by Macrovision. Copy protection signals are recorded on some
discs. When recording and playing the pictures of these discs
on a VCR, picture noise will appear.
This product incorporates copyright protection technology that
is protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation
and other rights owners. Use of this copyright protection tech-
nology must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
SERIAL NUMBER: The serial number is found on the back of
this unit. This number is unique to this unit and not available to
others. You should record requested information here and
retain this guide as a permanent record of your purchase.
Model No. ___________________________________
Serial No. ___________________________________
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE
DANS LA BORNE CORRESPONDANTE DE LA PRISE ET
POUSSER JUSQU’AU FOND.
WARNING: TO REDUCE THE RISK OF FIRE OR ELEC-
TRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO
RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
INTRODUCTION
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND
INSTRUCTIONS IN THIS OWNER’S MANUAL AND THOSE
MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR
FUTURE REFERENCE.
This set has been designed and manufactured to assure personal safety.
Improper use can result in electric shock or fire hazard. The safeguards
incorporated in this unit will protect you if you observe the following proce-
dures for installation, use, and servicing.
This unit does not contain any parts that can be repaired by the user.
DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE
EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL ONLY.
1. Read These Instructions
All safety and operating instructions should be read before the
product is operated.
2. Follow All Instructions
All operating and use instructions should be followed.
3. Keep These Instructions
The safety and operating instructions should be retained for future
reference.
4. Heed All Warnings
All warnings on the product and in the operating instructions should
be adhered to.
5. Power Sources
This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of the
type of power supply in your home, consult your product dealer or
local power company. For products intended to operate from bat-
tery power, or other sources, refer to the operating instructions.
6. Grounding or Polarization
Do not defeat the safety purpose of the polarized plug has two
blades with one wider than the other. A grounding-type plug has
two blades and a third grounding prong. The wide blade or the
prong are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obso-
lete outlet.
7. Ventilation
Slots and openings in the cabinet are provided for ventilation and to
ensure reliable operation of the product and to protect it from over-
heating. These openings must not be blocked or covered. The open-
ings should never be blocked by placing the product on a bed, sofa,
rug or other similar surface. This product should not be placed in a
built-in installation such as a bookcase or rack unless proper ventila-
tion is provided or the manufacturer’s instructions have been adhered
to.
8. Heat
Do not install near any heat sources such as radiators, heat regis-
ters, stoves, or other apparatus (including amplifiers) that produce
heat.
9. Water and Moisture
Do not use this apparatus near water. For example: near a bath
tub, wash bowl, kitchen sink, Laundry tub, in a wet basement; or
near a swimming pool.
10. Cleaning
Unplug this product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Clean only with dry cloth.
11. Power-Cord Protection
Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit
from the apparatus.
12. Overloading
Do not overload wall outlets, extension cords, or integral conven-
ience receptacles, this can result in a risk of fire or electric shock.
13. Lightning
Unplug this apparatus apparatus during lightning storms or when
unused for long periods of time. This will prevent damage to the
product due to lightning and power-line surges.
14. Object and Liquid Entry
Never push objects of any kind into this product through openings
as they may touch dangerous voltage points or short-out parts that
could result in a fire or electric shock. Never spill liquid of any kind
on the product.
15. Attachments
Only use attachments/accessories specified by the manufacturer.
16. Accessories
Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
17. Disc Tray
Keep your fingers well clear of the disc tray as it is closing. It can
cause personal injury.
18. Burden
Do not place a heavy object on or step on the product. The object
may fall, causing serious personal injury and serious damage to the
product.
19. Connecting
When you connect the product to other equipment, turn off the
power and unplug all of the equipment from the wall outlet. Failure
to do so may cause an electric shock and serious personal injury.
Read the owner’s manual of the other equipment carefully and fol-
low the instructions when making any connections.
20. Sound Volume
Reduce the volume to the minimum level before you turn on the
product. Otherwise, sudden high volume sound may cause hearing
or speaker damage.
21. Sound Distortion
Do not allow the product to output distorted sound for a longtime. It
may cause speaker overheating and fire.
22. Earphone
When you use the earphone, keep the volume at a moderate level.
If you use the earphone continuously with high volume sound, it
may cause hearing damage.
23. Laser Beam
Do not look into the opening of the disc tray or ventilation opening
of the product to see the source of the laser beam. It may cause
sight damage.
24. Disc
Do not use a cracked, deformed, or repaired disc. These discs are
easily broken and may cause serious personal injury and product
malfunction.
25. Damage Requiring Service
Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normal, or has been dropped.
26. Servicing
Do not attempt to service this product yourself as opening or
removing the cover may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
27. Replacement parts
When replacement parts are required, be sure the service techni-
cian has used replacement parts specified by the manufacturer or
have the same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other hazards.
28. Safety Check
Upon completion of any service or repairs to this product, ask the
service technician to perform safety checks to determine that the
product is in proper operating condition.
PORTABLE CART
WARNING
Table of Contents
Introduction
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . 3
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . . 6
About Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Display Window. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

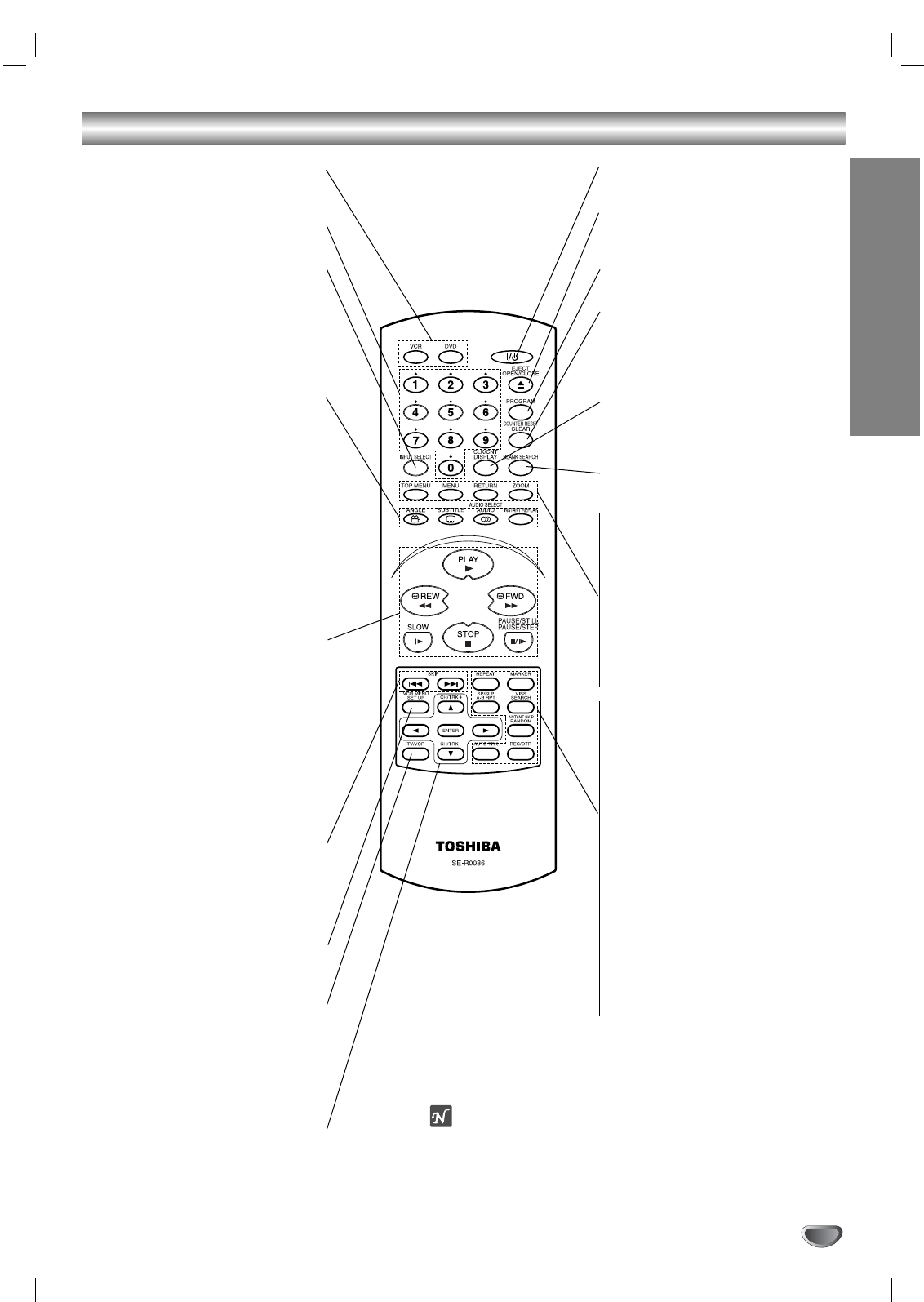

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

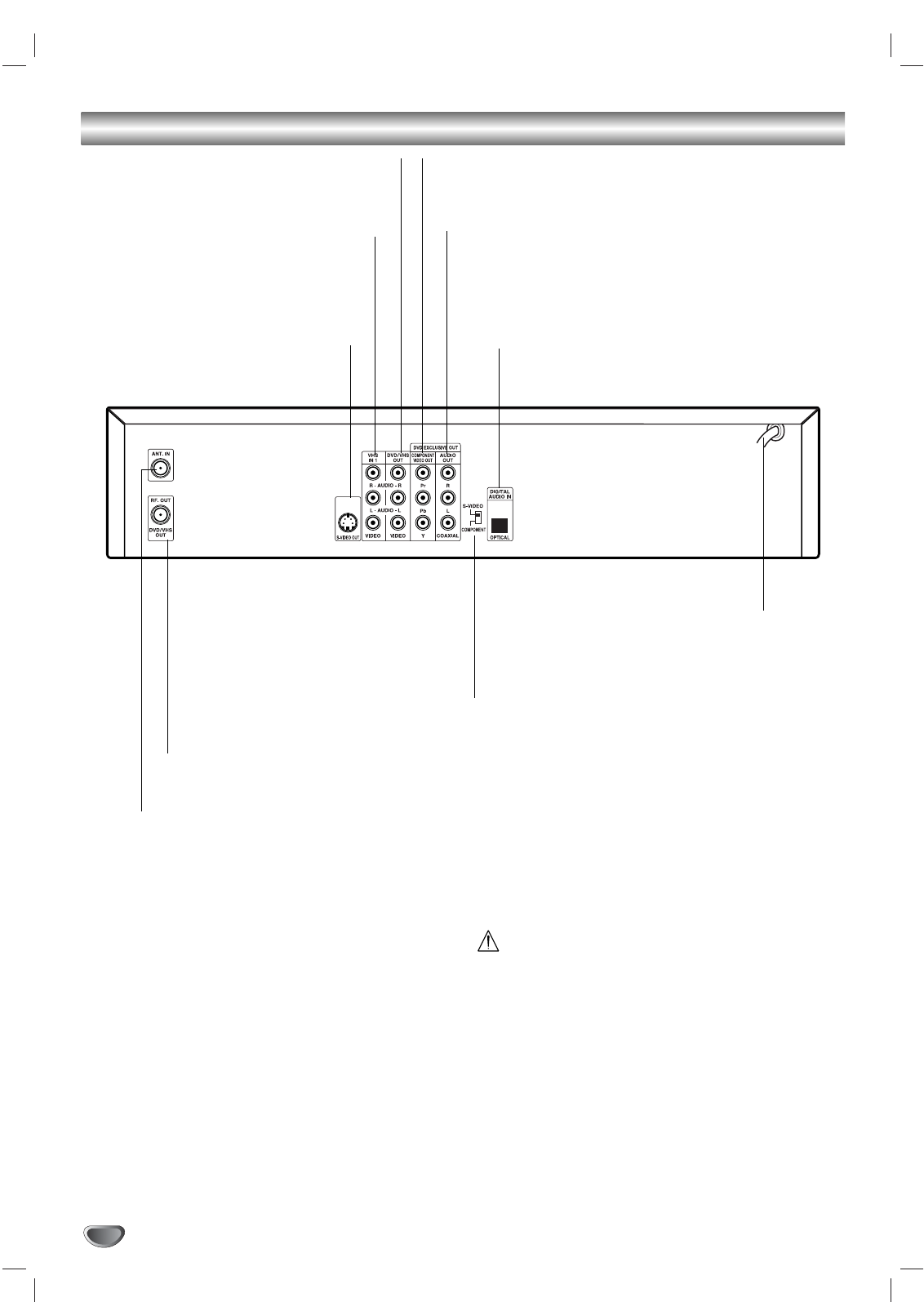

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Preparation
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-13

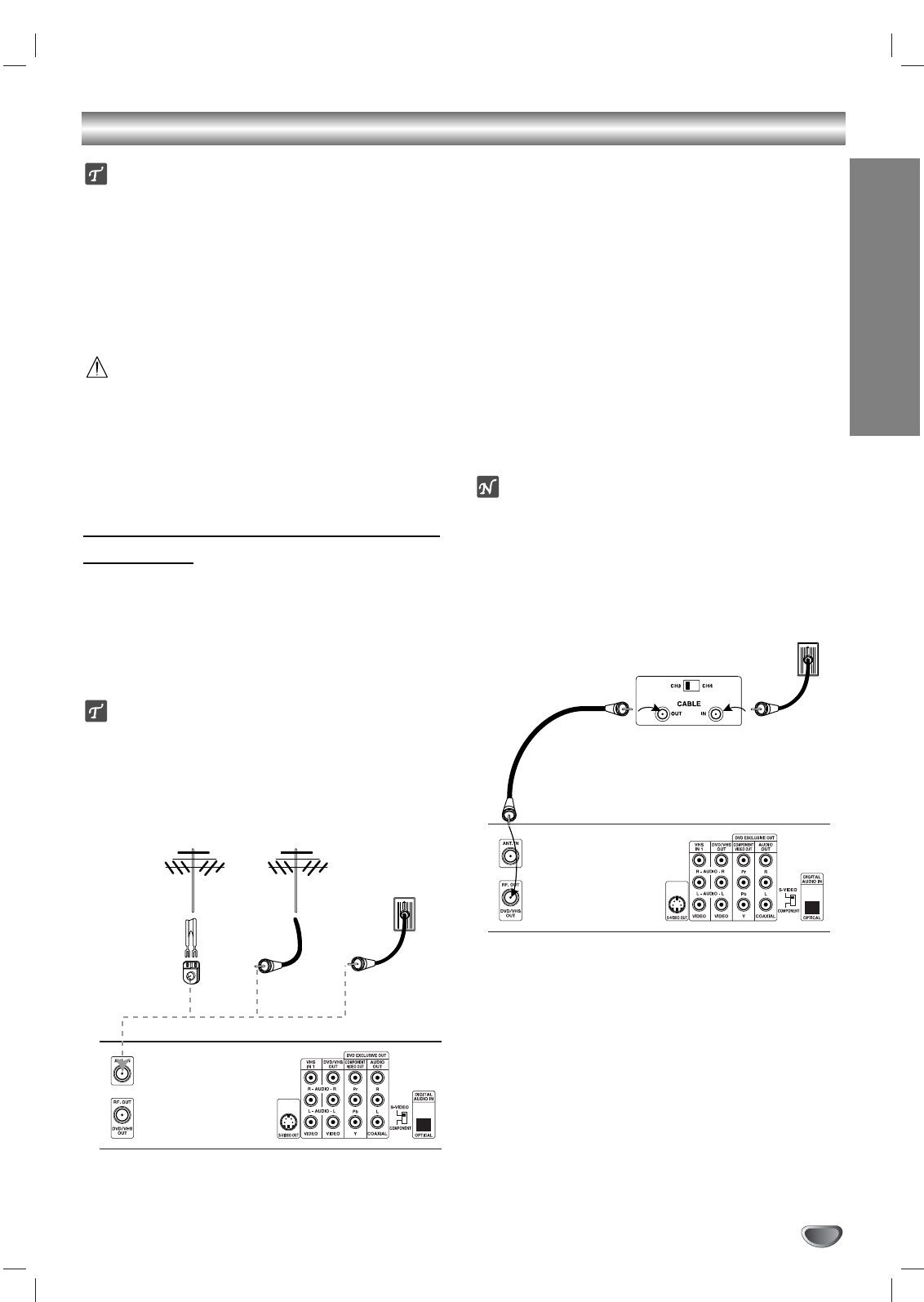

Connecting Antenna/Cable TV to a DVD+VCR . . 11

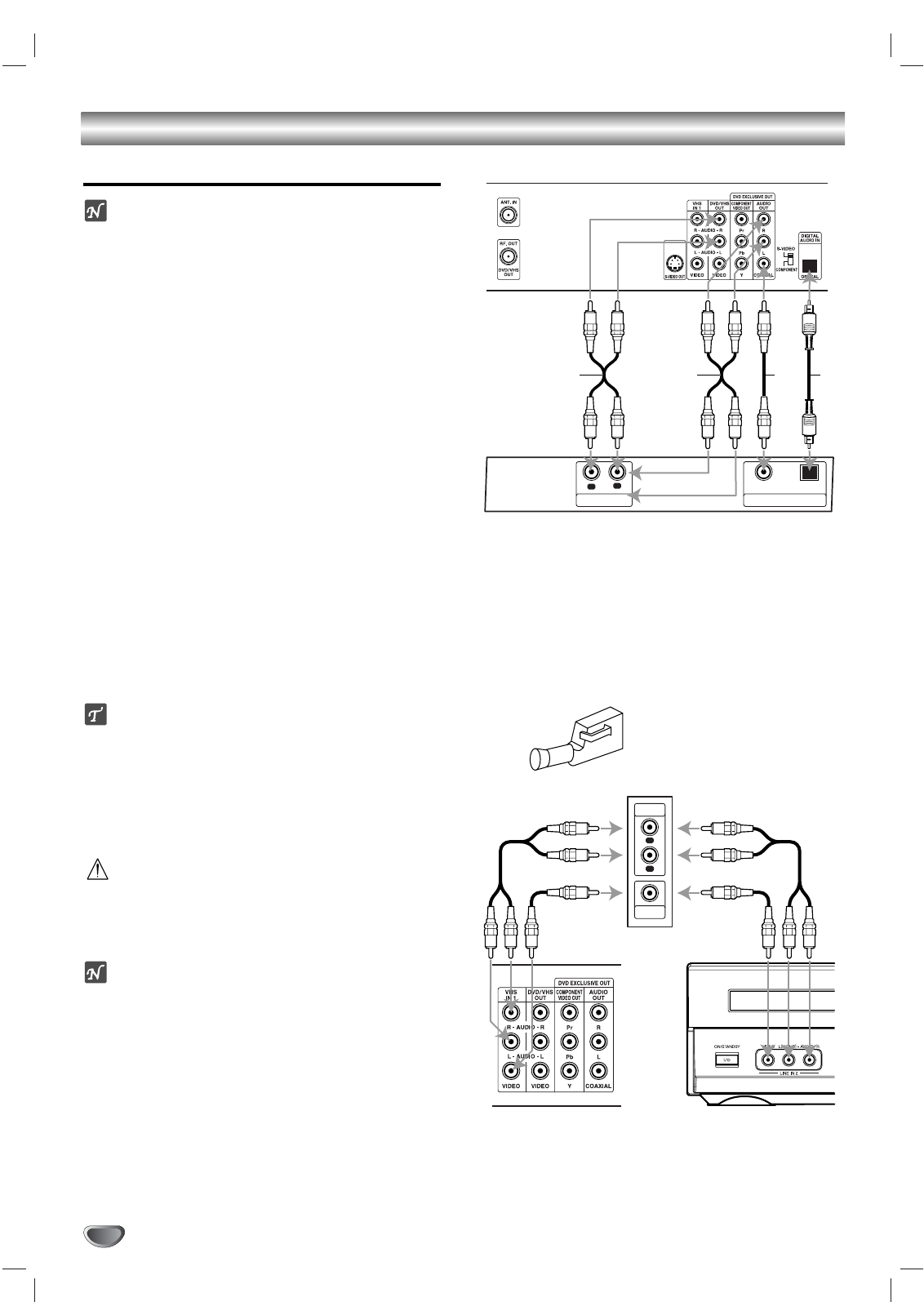

Basic TV Connections . . . . . . . . . . . . . . . . . . . . 12

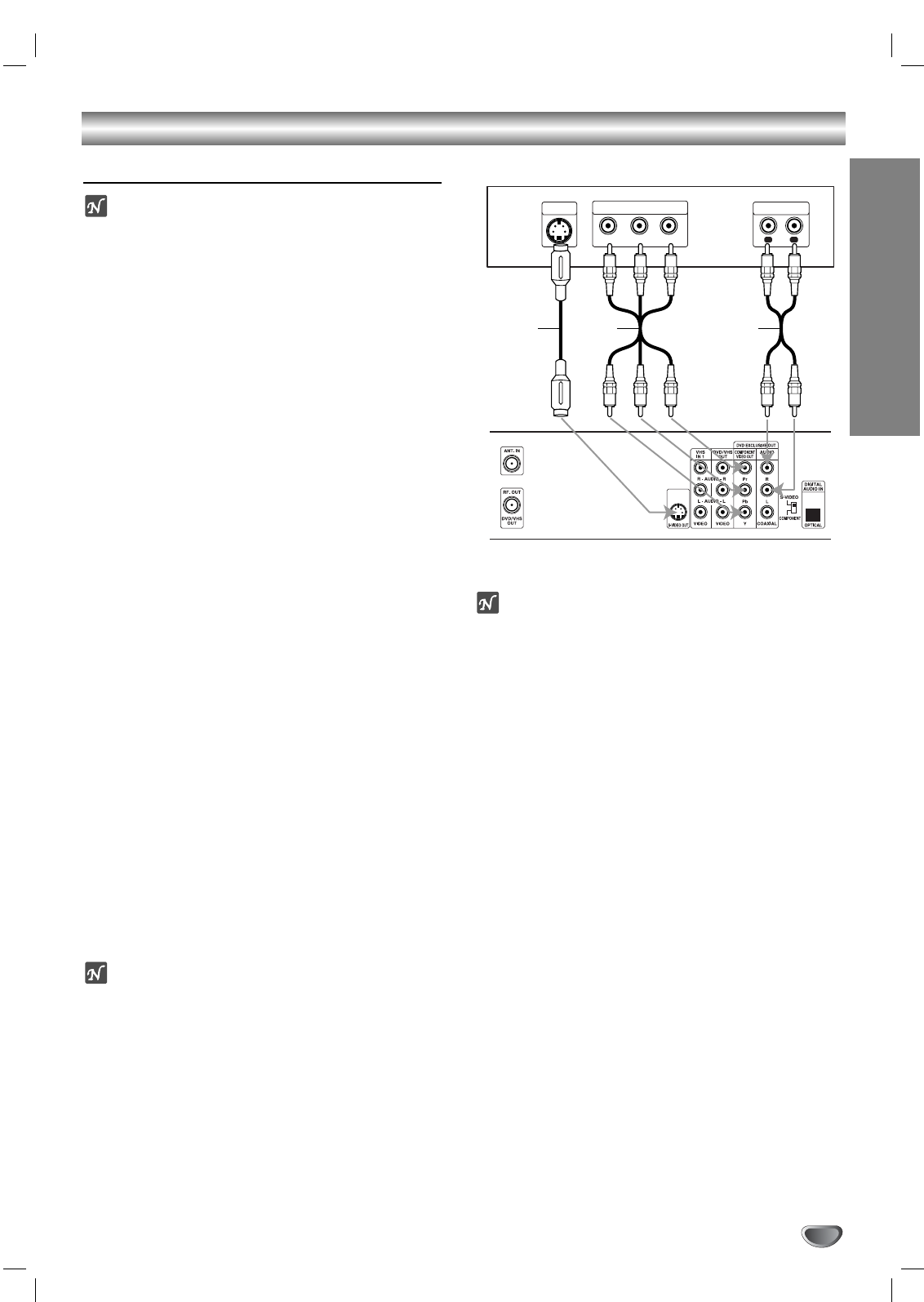

Optional, Preferred TV Connections . . . . . . . 13-14
Before Operation - VCR Part . . . . . . . . . . . . . . 15-17

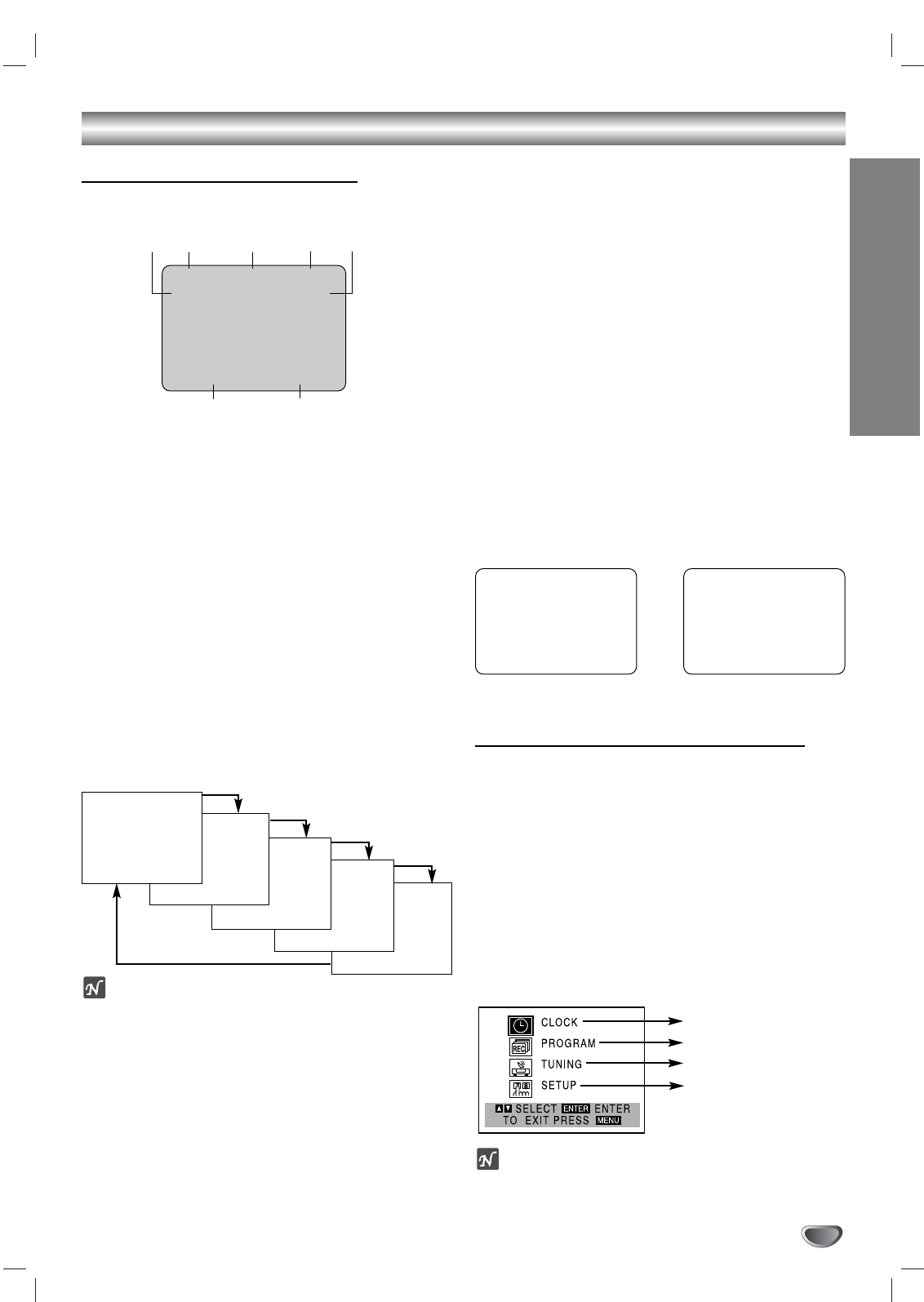

On-Screen Display. . . . . . . . . . . . . . . . . . . . . . . 15
Setting the On-Screen Display . . . . . . . . . . . . . . 15

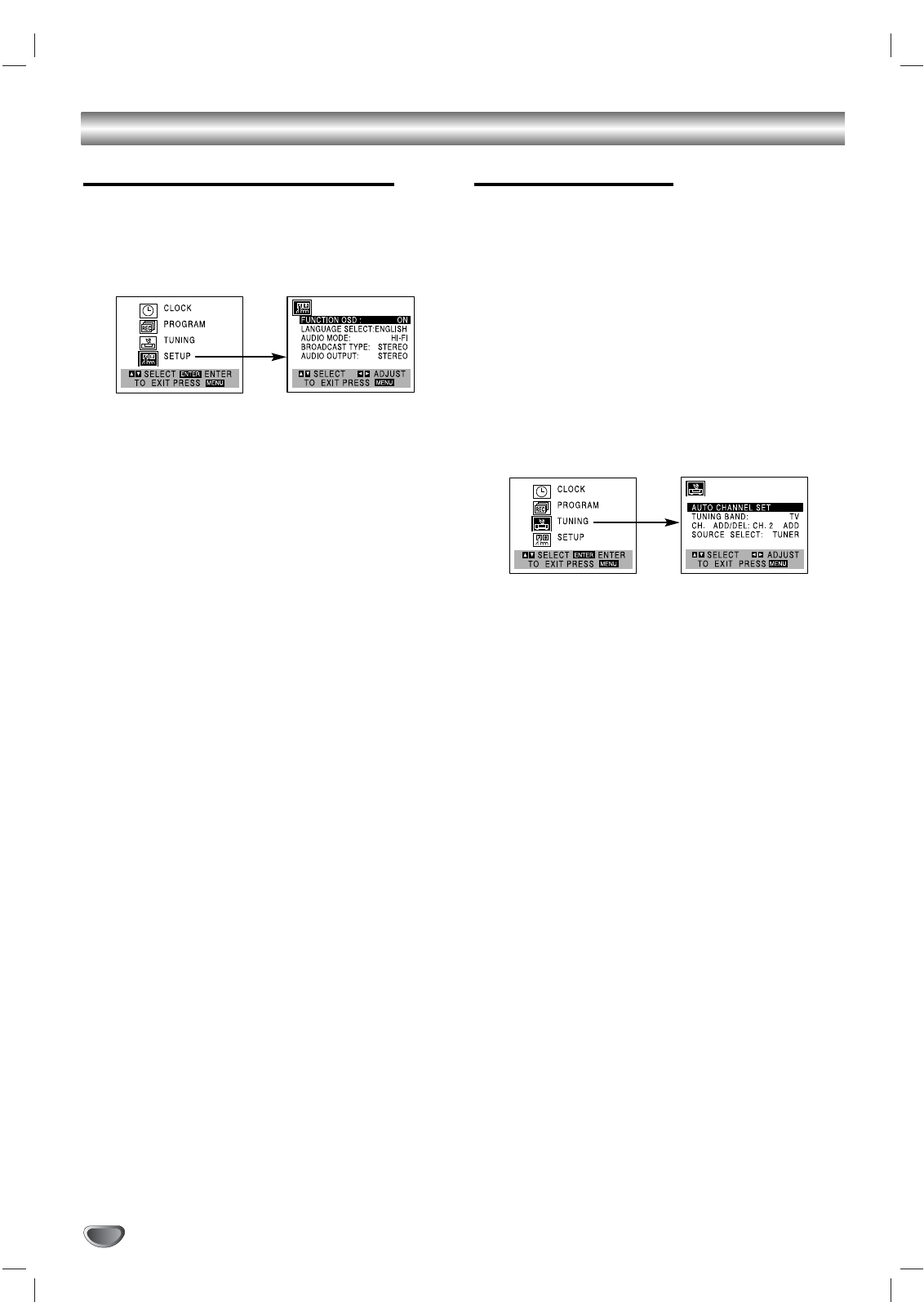

Setting the VCR Setup Menu . . . . . . . . . . . . . . . 16
Channel Selection . . . . . . . . . . . . . . . . . . . . . . . 16

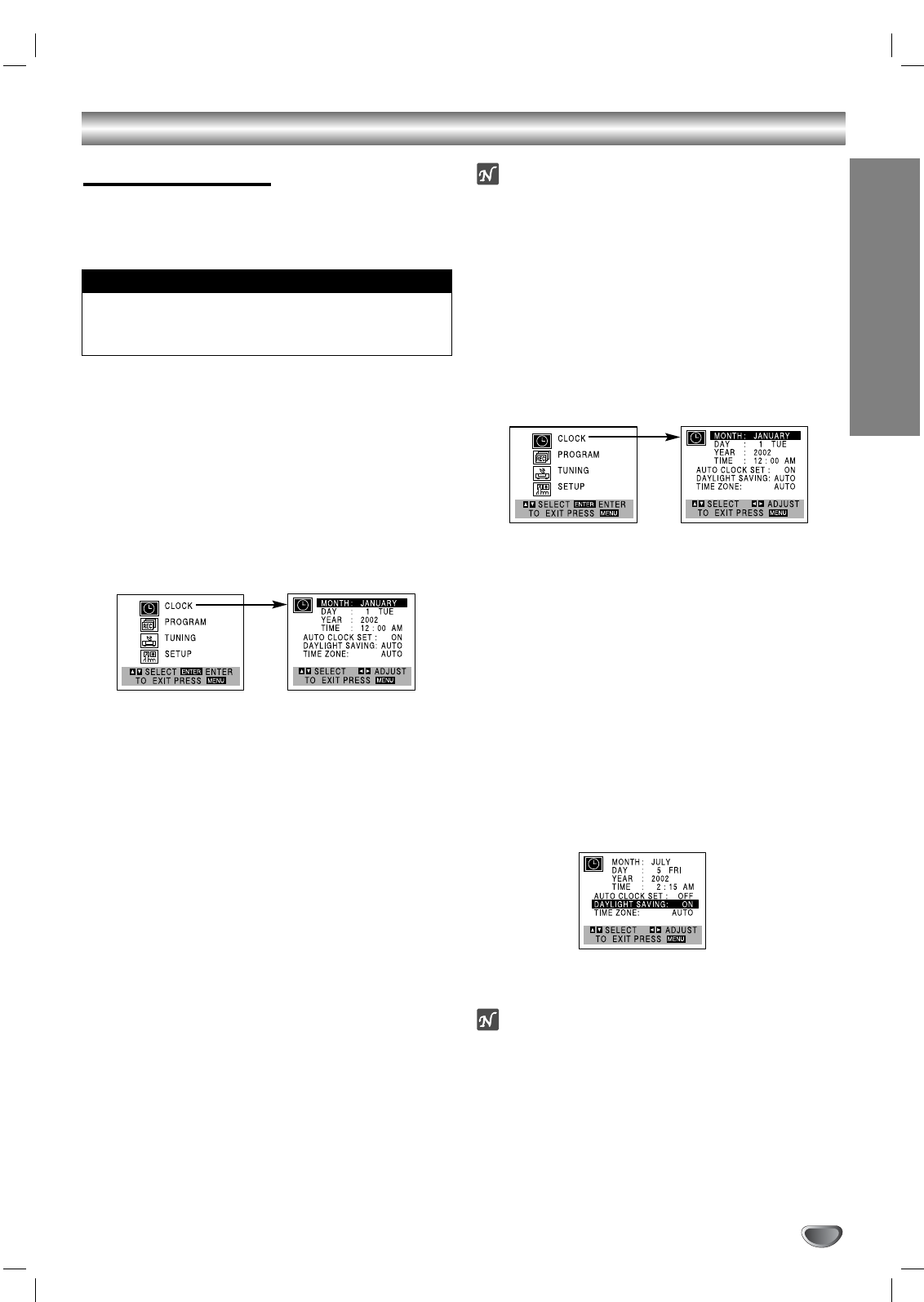

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . 17
Before Operation - DVD Part . . . . . . . . . . . . . . 18-21
General Explanation. . . . . . . . . . . . . . . . . . . . . . 18
On-Screen Display. . . . . . . . . . . . . . . . . . . . . . . 18

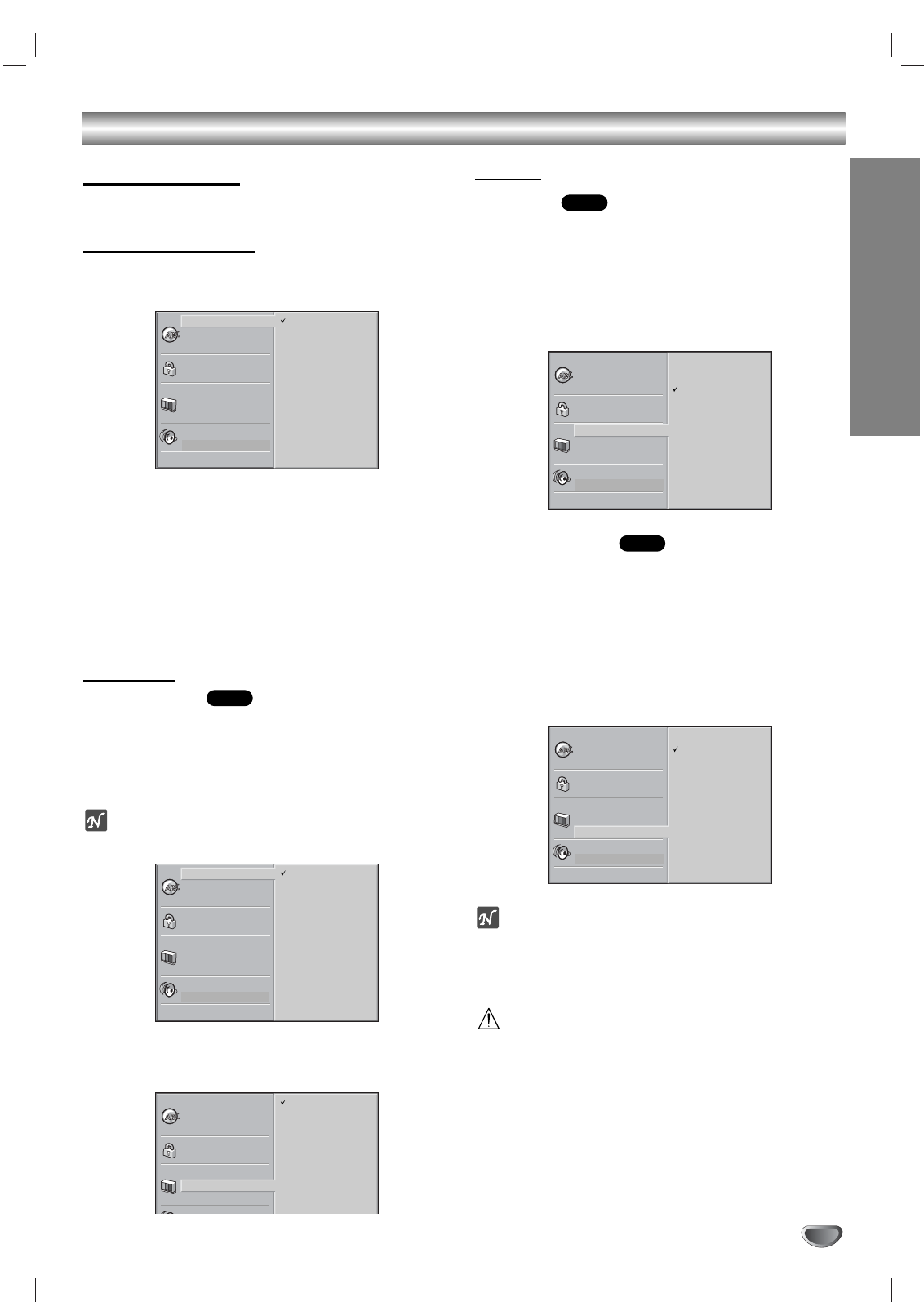

Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . 19-22
General Operation . . . . . . . . . . . . . . . . . . . . 19
Language . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Parental Control. . . . . . . . . . . . . . . . . . . . . . 21
Operation
Operation with tape . . . . . . . . . . . . . . . . . . . . . 22-28
Normal Playback . . . . . . . . . . . . . . . . . . . . . . . . 22
Special Effect Playbacks . . . . . . . . . . . . . . . . . . 22
Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Still Picture and Frame-by-Frame Playback . 22
Slow Motion. . . . . . . . . . . . . . . . . . . . . . . . . 22
Instant Skip . . . . . . . . . . . . . . . . . . . . . . . . . 22
VISS (VHS Index Search System) . . . . . . . . . . . 23
Normal Recording . . . . . . . . . . . . . . . . . . . . . . . 23
Timer Recording . . . . . . . . . . . . . . . . . . . . . . 24-25
Instant Timer Recording . . . . . . . . . . . . . . . . . . . 25
Dubbing and Editing. . . . . . . . . . . . . . . . . . . . . . 26
Copying from DVD to VCR. . . . . . . . . . . . . . . . . 26

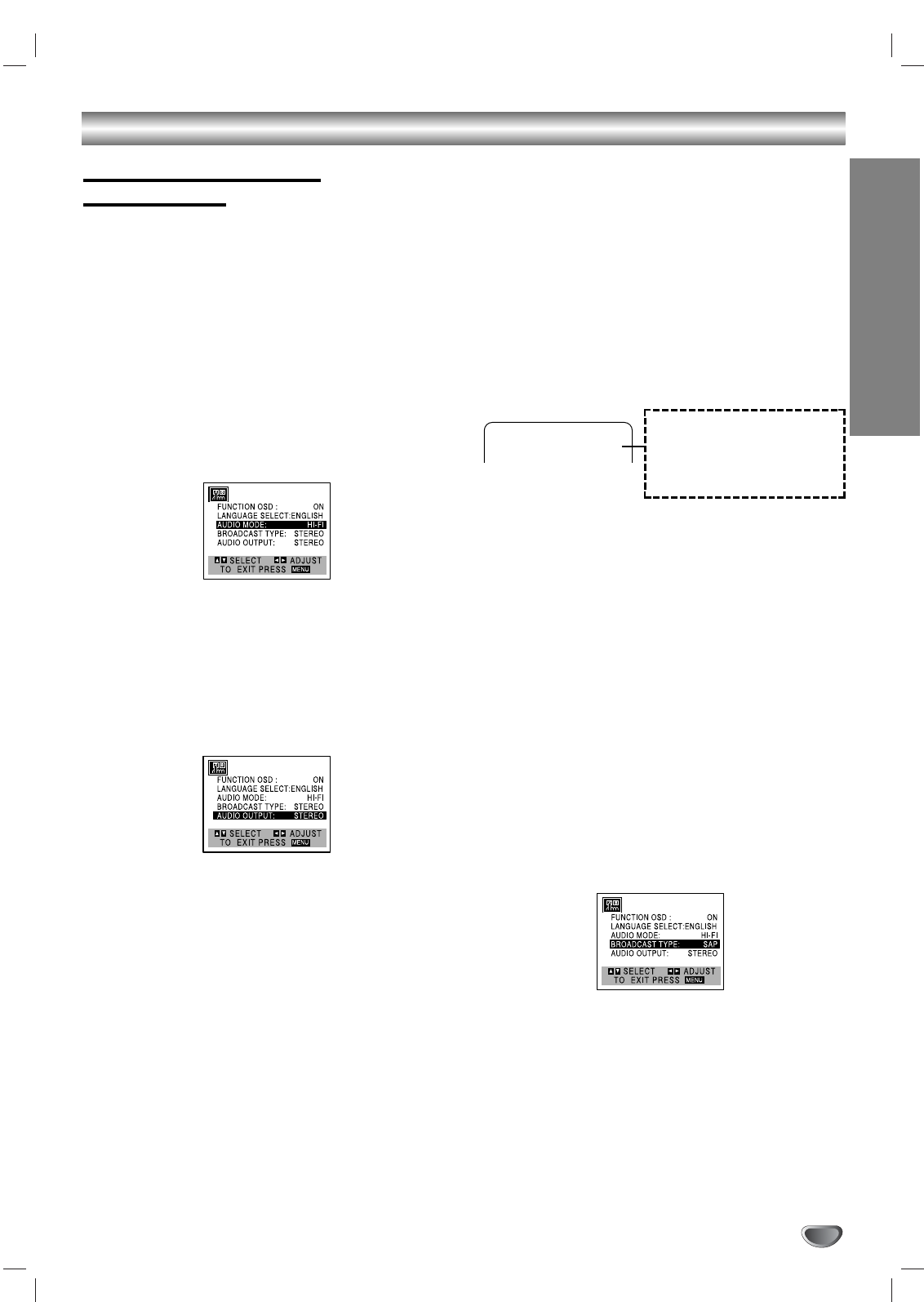

VHS Hi-Fi Stereo System/MTS Broadcast . . . . . 27
Tape Counter Memory Feature. . . . . . . . . . . . . . 28
Additional Information . . . . . . . . . . . . . . . . . . . . 28
S-VHS Quasi Playback (SQPB) . . . . . . . . . . 28
Auto Play System. . . . . . . . . . . . . . . . . . . . . 28
Video Head Cleaning . . . . . . . . . . . . . . . . . . 28
Blank Search . . . . . . . . . . . . . . . . . . . . . . . . 28
Operation with DVD and Video CD . . . . . . . . . 29-32
Playing DVD and Video CD . . . . . . . . . . . . . . . . 29
General Features. . . . . . . . . . . . . . . . . . . . . . . . 29
Moving to another TITLE . . . . . . . . . . . . . . . 29
Moving to another CHAPTER. . . . . . . . . . . . 29
Slow Motion. . . . . . . . . . . . . . . . . . . . . . . . . 29
Still Picture and Frame-by-Frame Playback . 30
Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Random. . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Time Search . . . . . . . . . . . . . . . . . . . . . . . . 30
Selecting the sound enhancement . . . . . . . . 30
Repeat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . 31
Zoom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Marker Search . . . . . . . . . . . . . . . . . . . . . . . 31
Special DVD Features . . . . . . . . . . . . . . . . . . . . 32
Checking the contents of DVD Video discs: Menus
. 32
Title Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Disc Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Camera Angle . . . . . . . . . . . . . . . . . . . . . . . 32
Changing the Audio Language . . . . . . . . . . . 32
Changing the Audio Channel . . . . . . . . . . . . 32
Subtitle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Operation with Audio CD . . . . . . . . . . . . . . . . . . . 33
Playing an Audio CD . . . . . . . . . . . . . . . . . . . . . 33
Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Moving to another Track . . . . . . . . . . . . . . . 33
Repeat Track/ All/ Off. . . . . . . . . . . . . . . . . . 33
Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Random . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . 33
Selecting the sound enhancement . . . . . . . . 33
Changing the Audio Channel . . . . . . . . . . . . 33
Operation with MP3 Disc. . . . . . . . . . . . . . . . . . . . 34
Playing an MP3 disc . . . . . . . . . . . . . . . . . . . . . 34
Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Moving to another Track . . . . . . . . . . . . . . . 34
Repeat Track/ All/ Off. . . . . . . . . . . . . . . . . . 34
Notes on MP3 Discs . . . . . . . . . . . . . . . . . . . . . 34
Operation with JPEG Disc. . . . . . . . . . . . . . . . . . . 35
Viewing a JPEG disc . . . . . . . . . . . . . . . . . . . . . 35
Moving to another Track . . . . . . . . . . . . . . . 35
Repeat All/ Off . . . . . . . . . . . . . . . . . . . . . . . 35
Programmed Playback . . . . . . . . . . . . . . . . . . . . . 36
Programmed Playback with Audio CD, MP3
and JPEG Discs. . . . . . . . . . . . . . . . . . . . . . . . . 36
Programmed Playback with Video CD . . . . . . . . 36
Repeat Programmed Tracks . . . . . . . . . . . . 37
Erasing a Track from Program List . . . . . . . . 37
Erasing the Complete Program List . . . . . . . 37
Additional Information - DVD Part . . . . . . . . . . . . 38
One Touch Replay . . . . . . . . . . . . . . . . . . . . . . . 38
Screen Saver. . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Video Mode Setting . . . . . . . . . . . . . . . . . . . . . . 38
Reference
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 39-40
Language Code List . . . . . . . . . . . . . . . . . . . . . . . 41
Country Code List . . . . . . . . . . . . . . . . . . . . . . . . . 42
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44-45
About the symbols for instructions
Indicates hazards likely to cause harm to the unit
itself or other material damage.
Indicates special operating features of this unit.
Indicates tips and hints for making the task easier.
INTRODUCTION
Before Use

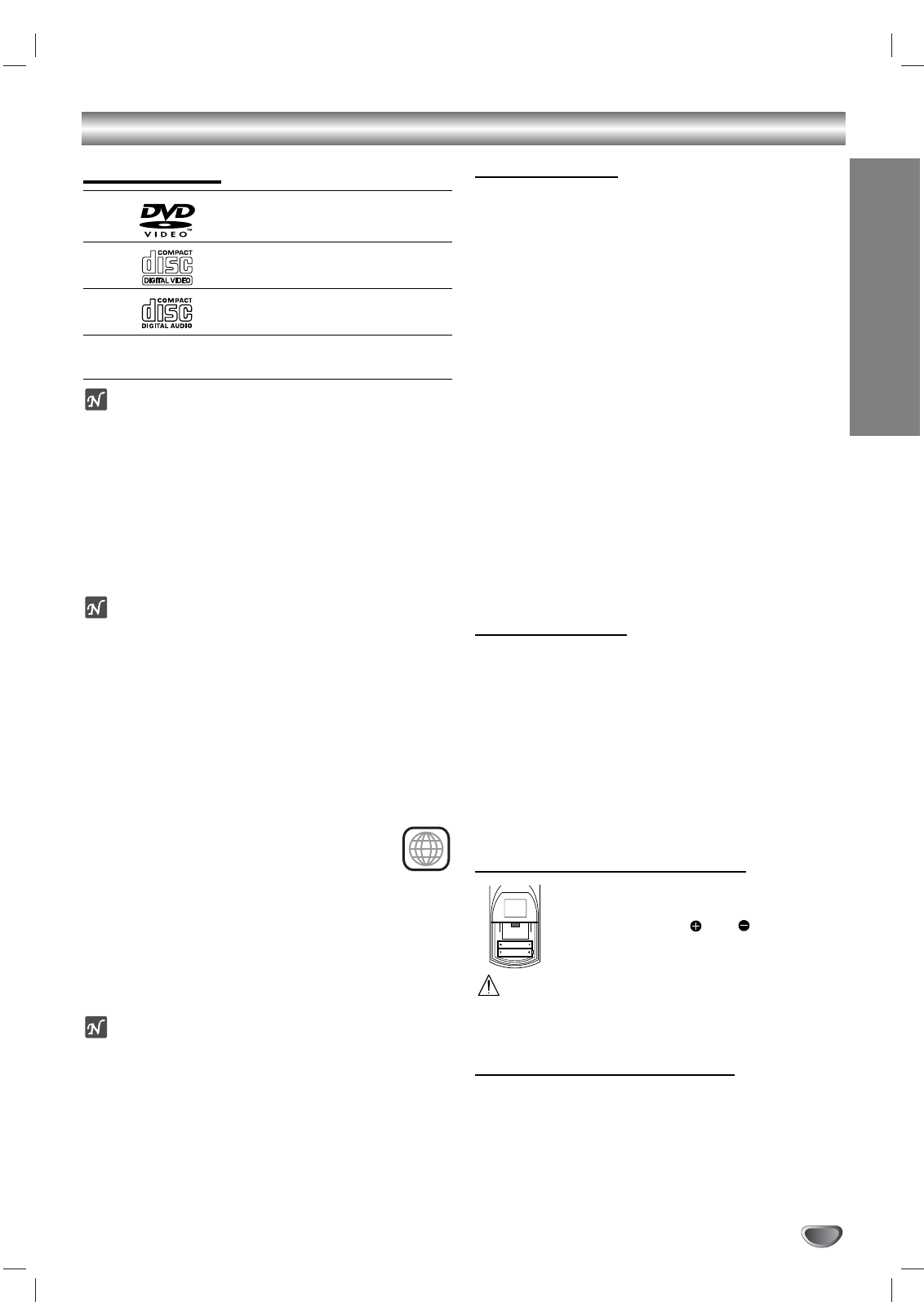

Playable Discs
DVD
(8 cm/12 cm disc)
Video CD (VCD)
(8 cm / 12 cm disc)
Audio CD
(8 cm/12 cm disc)
In addition, this unit can play a DVD-R, CD-R or
CD-RW that contains audio titles, MP3 or JPEG files.
Notes
–Depending on the conditions of the recording equip-
ment or the CD-R/RW disc itself, some CD-R/RW
discs cannot be played on the unit.
–The unit cannot play discs that contain data other
than MP3 and CD-DA data.
–Do not attach any seal or label to either side (the
labeled side or the recorded side) of a disc.
–Do not use irregularly shaped CDs (e.g., heart-
shaped or octagonal). It may result in malfunctions.

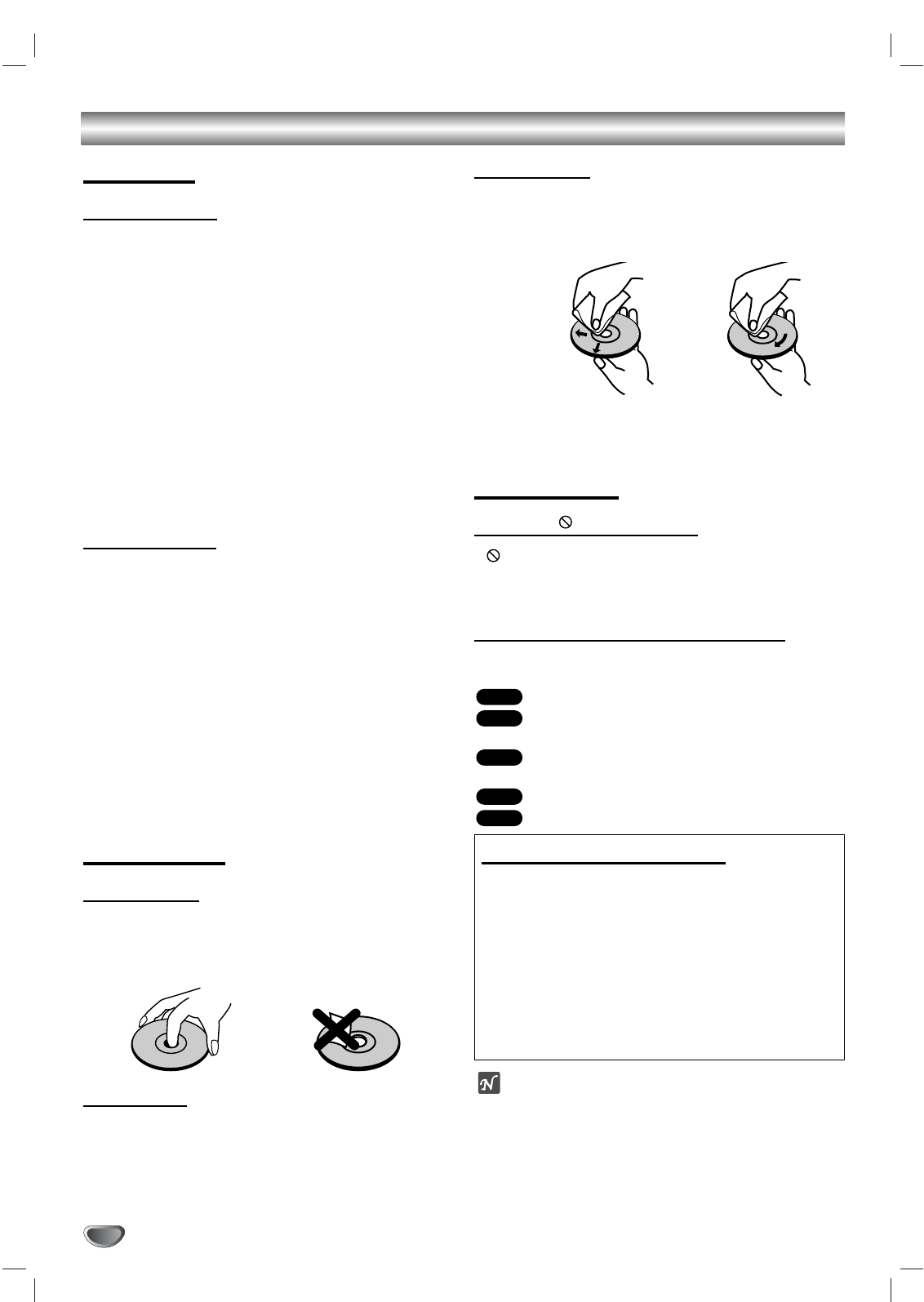

Notes on DVDs and Video CDs
Some playback operations of DVDs and Video CDs
may be intentionally fixed by software manufacturers.
As this unit plays DVDs and Video CDs according to
disc content designed by the software manufacturer,
some playback features of the unit may not be avail-
able, or other functions may be added.
Refer also to the instructions supplied with the DVDs
and Video CDs. Some DVDs made for business pur-
poses may not be playable on this unit.
Regional code of the DVD+VCR and DVDs
This DVD+VCR is designed and manufactured
for playback of region 1 encoded DVD software.
The region code on the labels of some DVD
discs indicates which type of DVD+VCR can
play those discs. This unit can play only DVD discs
labeled 1 or ALL. If you try to play any other discs, the
message “Check Regional Code” will appear on the TV
screen. Some DVD discs may not have a region code
label even though their playback is prohibited by area
limits.
Note on DTS-encoded CDs
When playing DTS-encoded CDs, excessive noise may
be exhibited from the analog stereo output. To avoid
possible damage to the audio system, turn down the
volume before playing back such discs, adjust the vol-
ume gradually, and keep the volume level low. To enjoy
DTS Digital SurroundTM playback, an external 5.1 chan-
nel DTS Digital SurroundTM decoder system must be
connected to the digital output of the unit.
Disc-related terms
Title (DVD only)
The main film content or accompanying feature content
or music album.
Each title is assigned a title reference number enabling
you to locate it easily.
Chapter (DVD only)
Sections of a picture or a musical piece that are smaller
than titles. A title is composed of one or several chap-
ters. Each chapter is assigned a chapter number to
enable you to locate the chapter you want. Depending
on the disc, chapters may not be recorded.
Track (Video CD and audio CD only)
Sections of a picture or a musical piece on a video CD
or an audio CD. Each track is assigned a track number,
enabling you to locate the track you want.
Scene
On a video CD with PBC (Playback control) functions,
moving pictures and still pictures are divided into sec-
tions called “Scenes”. Each scene is displayed in the
menu screen and assigned a scene number, enabling
you to locate the scene you want.
Ascene is composed of one or several tracks.
Types of video CDs
There are two types of video CDs:
Video CDs equipped with PBC (Version 2.0)
PBC (Playback control) functions allow you to interact
with the system via menus, search functions, or other
typical computer-like operations. Moreover, still pictures
of high resolution can be played if they are included in
the disc.
Video CDs not equipped with PBC (Version 1.1)
Operated in the same way as audio CDs, these discs
allow playback of video pictures as well as sound, but
they are not equipped with PBC.
Remote control battery installation
Detach the battery cover on the rear of the
remote control, and insert two R03 (size
AAA) batteries with and aligned
correctly.
Caution
Do not mix old and new batteries. Never mix different
types of batteries (standard, alkaline, etc.).
Remote Control Operation Range
Point the remote control at the remote sensor and press
the buttons.
Distance: About 23 ft (7 m) from the front of the
remote sensor
Angle: About 30° in each direction of the front of the
remote sensor
1
AAA
AAA
Before Use (Continued)
Precautions
Handling the unit
When shipping the unit
The original shipping carton and packing materials
come in handy. For maximum protection, re-pack the
unit as it was originally packaged at the factory.
When setting up the unit
The picture and sound of a nearby TV, VCR, or radio
may be distorted during playback. In this case, position
the unit away from the TV, VCR, or radio, or turn off the
unit after removing the disc.
To keep the surface clean
Do not use volatile liquids, such as insecticide spray,
near the unit. Do not leave rubber or plastic products in
contact with the unit for a long period of time. They will
leave marks on the surface.
Cleaning the unit
To clean the cabinet
Use a soft, dry cloth. If the surfaces are extremely dirty,
use a soft cloth lightly moistened with a mild detergent
solution. Do not use strong solvents such as alcohol,
benzine, or thinner, as these might damage the surface
of the unit.
To obtain a clear picture
The DVD+VCR is a high-tech, precision device. If the
optical pick-up lens and disc drive parts are dirty or
worn, the picture quality will be poor.
Regular inspection and maintenance are recommended
after every 1,000 hours of use. (This depends on the
operating environment.)
For details, please contact your nearest dealer.
Notes on Discs
Handling discs
Do not touch the playback side of the disc.
Hold the disc by the edges so that fingerprints will not
get on the surface.
Do not stick paper or tape on the disc.
Storing discs
After playing, store the disc in its case.
Do not expose the disc to direct sunlight or sources of
heat, or leave it in a parked car exposed to direct sun-
light, as there may be a considerable temperature
increase inside the car.
Cleaning discs
Fingerprints and dust on the disc can cause poor pic-
ture quality and sound distortion. Before playing, clean
the disc with a clean cloth. Wipe the disc from the cen-
ter out.
Do not use strong solvents such as alcohol, benzine,
thinner, commercially available cleaners, or anti-static
spray intended for older vinyl records.
About Symbols
About the symbol display
“ ” may appear on the TV screen during operation.
This icon means the function explained in this owner’s
manual is not available on that specific DVD video disc.
About the disc symbols for instructions
Asection whose title has one of the following symbols are
applicable only to those discs represented by the symbol.
DVD
Video CDs with the PBC (playback control)
function.
Video CDs without the PBC (playback control)
function.
Audio CDs.
MP3 Discs.
MP3
CD
VCD1.1
VCD2.0
DVD
No
Yes
Setting the Output Source
You must select one of your output sources (DVD or
VCR) to view on the TV screen.
•If you want to view output source of DVD deck:
Press DVD on the remote or DVD/VCR on the front panel
until DVD indicator in the display window lights and output
source of DVD deck is viewed on the TV screen.
•If you want to view output source of VCR deck:
Press VCR on the remote or DVD/VCR on the front panel
until VCR indicator in the display window lights and output
source of VCR deck is viewed on the TV screen.
NOTES
•If you insert a disc during DVD+VCR operation mode
is VCR mode, DVD+VCR is set to DVD mode
automatically.
•If you insert a cassette tape without prevention tab,
when DVD+VCR is set to DVD mode, the DVD+VCR
is set to VCR mode automatically.
INTRODUCTION

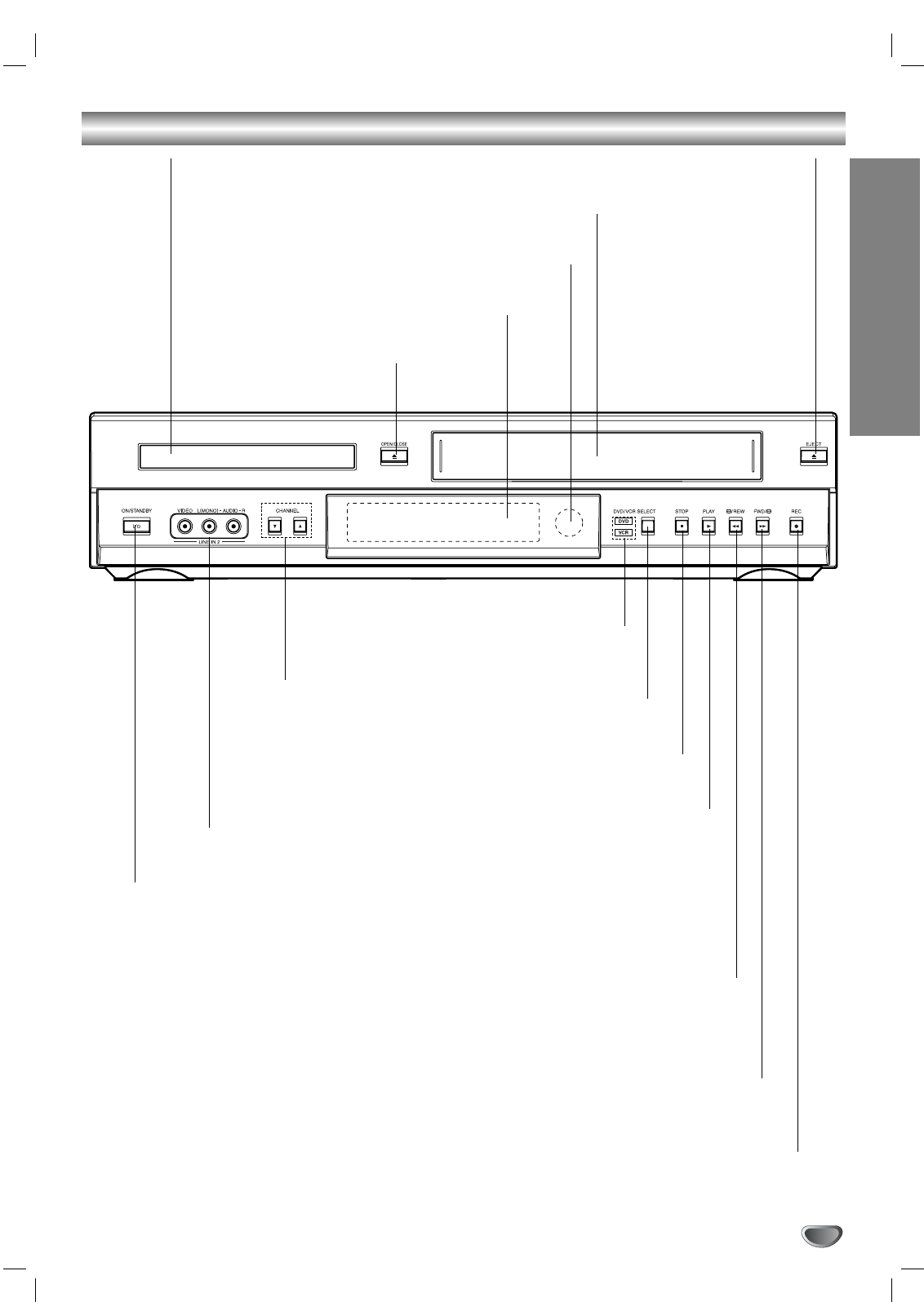

Front Panel
OPEN/CLOSE
Opens or closes the disc tray.
Remote Sensor
Point the DVD+VCR remote control here.
Display window
Shows the current status of the DVD+VCR.
Disc Tray (DVD deck)
Insert a disc here.
ON/STANBY
Switches the DVD+VCR ON and OFF.
CHANNEL (v/V)
To scan up or
down through
memorized chan-
nels.
LINE 2 (VIDEO IN/AUDIO IN
(Left/Right))
Connect the audio/video output
of an external source (Audio
system, TV/Monitor, Another
VCR).
Cassette Compartment (VCR deck)
Insert a video cassette here.
EJECT
Ejects the tape in the VCR deck.
DVD/VCR indicator
Indicates the active deck.
REC
To record normally or to activate Instant Timer Recording.
PLAY
To play back a recorded tape.
STOP
Stops playback.
DVD/VCR SELECT
Toggles control between the
DVD deck and the VCR deck.
FWD
DVD: Go to NEXT chapter/track. Press and hold for two seconds for a fast forward search.
VCR: Advances the tape during the STOP mode or for fast forward picture search.
REW
DVD: Go to beginning of current chapter/track or to previous chapter/track.
Press and hold for a fast reverse search.
VCR: Rewinds the tape during the STOP mode or for fast reverse picture search.
Display Window
CDRECTIMERVCRCHP/TRKTITLEPROG.
AB
SP
LP
EP
MP3ALL
CHSAP
DVD
VCD
ST
HI-FIREC
AM
ANGLE active.
MP3 MP3 disc inserted.
ST Indicates a stereo broadcast is
being received.
DVD DVD inserted.
VCD Video CD inserted
CD Audio CD inserted.
AyBIndicates A-B repeat mode.
ALL Indicates repeat all mode.
SAP Indicates when a SAP BILINGUAL
broadcast is being received.
Acassette is in the VCR deck.
SP LP EP Displays the recording and playback speed.
AM Indicates AM time. (PM is not displayed.)
HI-FI Indicates the unit is playing back a tape recorded in Hi-Fi.
Indicates total playing time, elapsed time, remaining time or
current deck status (Playback, Pause, etc).
CH DVD+VCR is tuned to Channel XX.
TITLE Indicates current title number.
CHP/TRK Indicates current chapter or track number.
VCR DVD+VCR functions are available and channels
are selected at DVD+VCR.
TIMER DVD+VCR is in timer recording or a timer
recording is programmed.
REC DVD+VCR is Recording.
PROG. Programmed playback active.
CDREC DVD to VCR copy is in
progress.
INTRODUCTION
Remote Control
DVD/VCR select button
Select the output source (DVD or VCR)
to view on the TV screen.
0-9 numerical buttons
Selects numbered options in a menu.
INPUT SELECT
To select the VCR deck’s source (Tuner,
LINE 1, or LINE 2).
ANGLE
Selects a DVD camera angle if
available.
SUBTITLE
Selects a subtitle language.
AUDIO
Selects an audio language (DVD) or an
audio channel (CD).
INSTANT REPLAY
Replays through 10 seconds of
playback.
PLAY
Starts playback.
REW
Rewinds the tape during the STOP
mode or for fast reverse picture search.
FWD
Advances the tape during the STOP
mode or for fast forward picture search.
SLOW
Forward slow playback of tape.
STOP
Stops playback.
PAUSE/STILL, PAUSE/STEP
Pause playback or recording
temporarily/press repeatedly for frame-
by-frame playback.
SKIP
Search backward*/go to beginning of
current chapter or track or go to previ-
ous chapter or track.
SKIP
Search forward*/go to next chapter or
track.
* Press and hold button for about two
seconds.
SETUP, VCR MENU
Accesses or removes DVD setup menu
and VCR menu.
TV/VCR
To view channels selected by the VCR
tuner or by the TV tuner.
b/B/v/V(left/right/up/down)
- Selects an option in the menu
- CH/TRK (+/-): Selects channel of VCR.
Adjusts manually the tape’s picture
onscreen.
ENTER
- Acknowledges menu selection.
- Displays functions on the TV screen.
POWER
Switches DVD+VCR ON and OFF.
EJECT, OPEN/CLOSE
-Opens and closes the disc tray.
-Ejects the tape in the VCR deck.
PROGRAM
Accesses or removes Program menu.
COUNT RESET, CLEAR
-Resets tape counter to M 0:00:00
-Removes a track number on the
program menu or a mark on the
MARKER SEARCH menu.
CLK/CNT, DISPLAY
Accesses On-Screen display.
Switches among the clock, tape counter
and tape remaining modes on the display.
BLANK SEARCH
Finds end points of recording.
TOP MENU
Displays the disc’s Title menu, if
available.
MENU
Accesses menu on a DVD disc.
RETURN
-Removes the setup menu.
-Displays the menu of a video CD with
PBC.
ZOOM
Enlarges DVD video image.
REPEAT
Repeat chapter, track, title, all.
A-B REPEAT, SP/SLP
- Repeats sequence.
- Selects recording speed
MARKER
Marks any point during playback.
VISS, SEARCH
- Enters the VISS function mode.
- Displays MARKER SEARCH menu.
RANDOM, INSTANT SKIP
-Plays tracks in random order.
-Fast forwards picture search through
30 seconds of recording.
REC/OTR
Records normally or activates Instant
Timer Recording.
AUTO TRK
Adjusts automatically the tape’s picture
onscreen.
Note
This remote control use the same buttons for VCR and DVD
functions (ex. PLAY).
When using a VCR, first press the VCR button.
When using a DVD, first press the DVD button.
Rear Panel
Do not touch the inner pins of the jacks on the rear
panel. Electrostatic discharge may cause permanent
damage to the unit.
VHS IN 1 (VIDEO IN/AUDIO IN (Left/Right))
Connect the audio/video output of an exter-
nal source (Audio system, TV/Monitor,
Another VCR).
ANTENNA INPUT
Connect the VHF/UHF/CATV antenna to this terminal.
DVD/VHS OUT (VIDEO/AUDIO (Left/Right))
Connect to a TV with video and audio inputs.
AUDIO OUT (Left/Right) (DVD OUT)
Connect to a TV, amplifier, receiver, or stereo system.
DIGITAL AUDIO OUT (COAXIAL) (DVD OUT)
Connect to digital (coaxial) audio equipment.
DIGITAL AUDIO OUT (OPTICAL) (DVD OUT)
Connect to digital (optical) audio equipment.
AC Power Cord
Plug into the power source.
S-VIDEO OUT (DVD OUT)
Connect to a S-Video Input on TV.
COMPONENT VIDEO OUT (Y Pb Pr)
Connect to a TV with Y Pb Pr inputs.
RF. OUT (DVD/VHS OUT)
Connect to a TV with RF coaxial inputs.
Video Output Select Switch
Select either S-VIDEO or COMPONENT, depending
on how you connect DVD Player to the TV.
INTRODUCTION

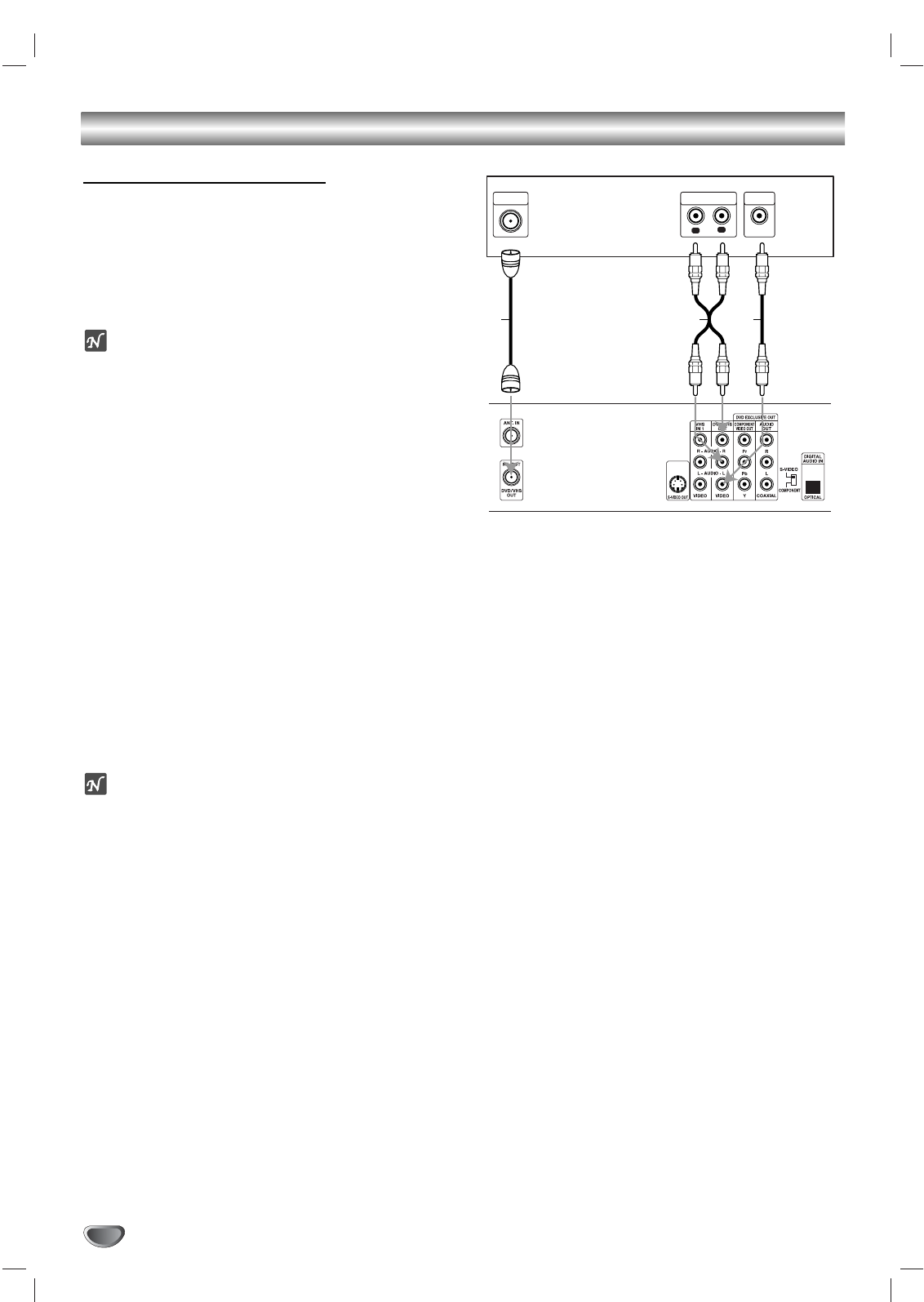

Connections
Tips
Depending on your TV and other equipment you wish to
connect, there are various ways you could connect the
DVD+VCR. Use connections described on pages 11-14.
Please refer to the manuals of your TV, VCR, Stereo
System or other devices as necessary to make the best
connections.
For better sound reproduction, connect the DVD+VCR’s
DVD/VHS AUDIO OUT jack to the audio in jacks of your
amplifier, receiver, stereo or audio/video equipment. See
Optional, Preferred TV Connections on page 13-14.
Caution
Make sure the DVD+VCR is connected directly to the TV.
Tune the TV to the correct video input channel.
Do not connect the DVD+VCR’s DVD/VHS AUDIO OUT
jack to the phono in jack (record deck) of your audio
system.
Do not connect your DVD+VCR via your VCR. The DVD
image could be distorted by the copy protection system.
Connecting Antenna/Cable TV to
DVD+VCR
11
Disconnect the antenna leads from the rear of the
TV.
22
Identify the type of cable from your antenna. If it is
a round cable as illustrated, it is a 75 ohm coaxial
antenna cable. This cable will connect directly to
the jack marked ANT.IN on your DVD+VCR.
Tip
If your antenna lead wire is a flat type antenna cable,
connect it to a Antenna Adaptor (300-ohm to 75-ohm)
(not supplied) and slip the Adaptor onto the ANT.IN
jack. The Adaptor does not screw on to the DVD+VCR,
it just slips over the jack.
Without Cable Box
If your cable wire is connected to your TV without a converter
or descrambler box, unscrew the wire from your TV and attach
it to the ANT.IN jack on the DVD+VCR. Use the supplied round
coaxial cable to connect between the DVD+VCR’s RF.OUT
jack and the 75 ohm antenna input jack on the TV. With this
connection, you can receive all midband, super band, and
hyperband channels.
With Cable Box
If a converter is required in your cable system, follow the
instruction below:
The cable hookup permits both TV and DVD+VCR operation.
To view or record CATV channel
1Tune the TV to the DVD+VCR output channel (CH 3 or 4).
2Set the DVD+VCR channel selector to the output channel of
the Cable Converter box by pressing the CH/TRK (+/-) or
number (0-9) of your DVD+VCR. (Example: CH3)
3Select the channel to view at the Cable Converter Box.
Notes
With this connection, you CANNOT record one program
while viewing another.
If you are using a cable box to tune channels, it is not nec-
essary to do Auto Channel Programming, (Auto Channel
Set) as indicated on page 16.
Antenna Antenna
Flat Wire
(300 ohm)
300/75 ohm
Adaptor
(Not supplied)
Cable TV
Wall Jack
OR OR
Rear of DVD+VCR
Cable TV
Wall Jack
Back Panel of
Typical Cable Box
Rear of DVD+VCR
Connections (Continued)
Basic TV Connections
Make one of the following connections, depending on
the capabilities of your existing equipment.
RF coaxial connection
Connect the RF.OUT jack on the DVD+VCR to the
antenna in jack on the TV using the 75-ohm Coaxial
Cable supplied (R).
Note
If you use this connection, tune the TV to the
DVD+VCR’s RF output channel (CH 3 or 4).
How to set the DVD+VCR’s RF output channel
1.When the DVD+VCR is turned off,
press and hold
CHANNEL (v/V) on the front panel for about five
seconds.
It will turn itself on and “RF 03” or “RF 04” appears in the
display window.
2.
Press CHANNEL (v/V) on the front panel or
CH/TRK (+/-) on the remote control to change the RF
output channel (CH 03 or CH 04).
3.
Turn off and on the DVD+VCR.
Audio/Video connection
11
Connect the DVD/VHS VIDEO OUT jack on the
DVD+VCR to the video in jack on the TV using the
video cable supplied (V).
22
Connect the Left and Right DVD/VHS AUDIO OUT
jacks on the DVD+VCR to the audio left/right in
jacks on the TV (A1) using the supplied audio
cables.
Note
If you use this connection, set the TV’s source selector
to VIDEO.
L
R
AUDIO INPUT VIDEO
INPUT
ANTENNA
INPUT
Rear of TV
Rear of DVD+VCR
A1 VR
Connections (Continued)
Optional, Preferred TV Connections
Notes
You can ONLY watch and listen to DVD playback
through the connections shown below.
When using the COMPONENT VIDEO OUT jacks,
set the video output select switch to COMPO-
NENT. When using the S-VIDEO OUT jack, set the
video output select switch to S-VIDEO.
S-Video connection
11
Connect the S-VIDEO OUT jack on the DVD+VCR
to the S-Video in jack on the TV using the optional
S-Video cable (S).
22
Connect the Left and Right AUDIO OUT jacks of
the DVD+VCR to the audio left/right in jacks on the
TV using the supplied audio cables (A2).
Component Video (Color Stream®) connection
11
Connect the COMPONENT VIDEO OUT jacks on
the DVD Player to the corresponding in jacks on
the TV using an optional Y Pb Prcable (C).
22
Connect the Left and Right AUDIO OUT jacks of
the DVD+VCR to the audio left/right in jacks on the
TV (A2) using the supplied audio cables.
Progressive Scan (ColorStream®pro) connection
If your television is a high-definition or “digital ready”
television, you may take advantage of the DVD
Player’s progressive scan output for the highest
video resolution possible.
If your TV does not accept the Progressive Scan for-
mat, the picture will appear scrambled if you select
Progressive Scan output from the DVD Player.
11
Connect the COMPONENT VIDEO OUT jacks on
the DVD Player to the corresponding in jacks on
the TV using an optional Y Pb Pr cable (C).
22
Connect the Left and Right AUDIO OUT jacks of
the DVD Player to the audio left/right in jacks on the
TV (A) using the supplied audio cables.
Notes
–Set the Progressive to “On” from the setup menu, see
page 19.
–Progressive scan does not function simultaneously
with the analog video connections (yellow VIDEO
OUT jack).
Note
If the TV has an S-video input, connect the DVD player
with the S-video cable. When using an S-video cable,
do not connect the yellow video cable.
INTRODUCTION
L
R
Y
Pb
Pr
COMPONENT VIDEO INPUT AUDIO INPUT
S-VIDEO
INPUT
Rear of TV
Rear of DVD+VCR
S A2C
Connections (Continued)
Optional, Preferred TV Connections
Note
You can ONLY listen to DVD playback using COAXIAL
(C),OPTICAL (O) and AUDIO OUT (A2) connections.
The tuner and VCR will still be heard through the
RF.OUT (R) or DVD/VHS AUDIO OUT (A1) jack. (See
previous page.)
Connecting to an amplifier equipped with two
channel analog stereo or Dolby Surround
Connect the Left and Right AUDIO OUT (or DVD/VHS
AUDIO OUT) jacks on the DVD+VCR to the audio left
and right in jacks on your amplifier, receiver, or stereo
system using the audio cables (A1, A2) supplied.
Connecting to an amplifier equipped with two
channel digital stereo (PCM) or to an Audio/Video
receiver equipped with a multi-channel decoder
(Dolby Digital™, MPEG 2, or DTS)
11
Connect one of the DVD+VCR’s DIGITAL AUDIO
OUT jacks (OPTICAL Oor COAXIAL X) to the cor-
responding in jack on your amplifier. Use an option-
al digital (optical Oor coaxial X) audio cable.
22
You will need to activate the DVD+VCR’s digital
output. (See Digital Audio Output on page 20).
Digital Multi-channel sound
Adigital multi-channel connection provides the best
sound quality. For this you need a multi-channel
Audio/Video receiver that supports one or more of the
audio formats supported by your DVD+VCR (MPEG 2,
Dolby Digital and DTS). Check the receiver manual and
the logos on the front of the receiver.
Caution:
Due to the DTS Licensing agreement, the digital output
will be in DTS digital out when DTS audio stream is
selected.
Notes
–
If the audio format of the digital output does not match
the capabilities of your receiver, the receiver will
produce a strong, distorted sound or no sound at all.
–Six Channel Digital Surround Sound via digital con-
nection can only be obtained if your receiver is
equipped with a Digital Multi-channel decoder.
–To see the audio format of the current DVD in the on-
screen display, press AUDIO.
Accessory Audio/Video (A/V) Connections to
DVD+VCR
Connect the VHS IN 1 or AV INPUT jacks on the
DVD+VCR to the audio/video out jacks on your
accessory component, using the optional audio/video
cables.
L
R
AUDIO INPUT DIGITAL INPUT
OPTICAL
COAXIAL
Rear of DVD+VCR
Amplifier (Receiver)
A2A1 X O
Accessory Component:
VCR, Camcorder,
Video Camera,
Satellite Receiver,
Laser Disc Player
L
R
VIDEO
OUTPUT
AUDIO
OUTPUT
Jack panel of Accessory
Rear of DVD+VCR Front of DVD+VCR
OR
PREPARATION
On-Screen Display (OSD)
Some of these functions will be displayed every time the
VCR is operated.
❶❷ ❸ ❹ ❺
❻❼
❶TAPE SPEED DISPLAY
Shows the current tape speed.
❷FUNCTION DISPLAY
Indicates the function in progress.
❸HI-FI DISPLAY
Indicates when this unit is playing back tape recorded with
Hi-Fi.
❹CHANNEL DISPLAY
I
ndicates the selected channel (or LINE1, LINE2).
❺STEREO/SAP DISPLAY (MONO is not displayed)
Shows the type of audio signal received by the VCR tuner.
❻DATE DISPLAY
Shows the current date. (Month/Date/Day of the week
format)
❼CLOCK/COUNT/REMAIN DISPLAY
Shows the current time, the tape counter and remaining time
on the tape.
Each press of the ENTER changes the TV screen in the
following sequence.
Notes
The function displays can be seen displayed on the TV
screen for 5 seconds.
The clock (or tape counter, tape remaining) mode will contin-
ue until you press ENTER.
The tape counter and the remaining tape length indicator
appear only when a cassette is inserted. Also, the remaining
tape length indicator appears after any tape operation.
Easy Information
If the Extended Data Service (XDS) signals are provided
along with normal TV signal in your area or during play-
back of a tape recorded with Extended Data Service
(XDS) signals, the station ID, program title and program
details are shown in the TV screen.
When viewing a channel with Extended Data Service
(XDS) signals, press ENTER then the station ID will
appear on the TV screen. Press ENTER again and the
program details will appear on the TV screen.
When viewing a tape recorded with Extended Data
Service (XDS) signals, press ENTER twice then the pro-
gram title and program details will appear on the TV
screen.
Program Details
LENGTH: Indicates the run length of a program.
TIME REMAINING: Indicates the remaining time of a
program.
RATING: Indicates the rating of the current program
(N/A, G, PG, PG-13, R, NC-17, X and Not Rated). The
rating N/A means that the motion picture ratings are not
applicable to this program.
0
Setting the On-Screen Display
The SETUP, clock setting, and timer recordings are
accessed conveniently with On-Screen Menu Displays
that lead you through each step. The following pages
describe the On-screen selections to be set.
Menu Selection
Your VCR allows remote control adjustment of several
features.
11
Press VCR MENU and the MAIN menu will
appear.
22
Select the desired menu with v/Vbutton and
then press ENTER.
Note
Menus remain on-screen for 3 minutes.
Before Operation - VCR Part
PLAY HI-FI CH 4
SP STEREO
JUL 5 , SAT 2:15 PM
REM 1:58
0:35:40
2:15 PM
STOP CH 4
SP STEREO
JUL 5 , SAT 2:15 PM
Easy Information Screen
(Program details)
Easy Information Screen
(Station ID)
CH 4
SP WABC STEREO
“Home video”
JUL 5 , SAT 2:15 PM
PROGRAM DETAILS
“Home video”
LENGTH 01:00
TIME REMAINING 00:26
RATING N/A
CLOCK SET (page 17)
PROGRAM (page 24)
TUNING (page 16)
SETUP (page 16)
MAIN MENU
Before Operation - VCR Part (Continued)
Setting the VCR Setup Menu
11
Press VCR MENU and the MAIN menu will
appear.
22
Press v/Vto select the SETUP menu, then
press ENTER.
The SETUP menu will appear.
33
Press v/Vto choose a desired option on the
SETUP menu. Then press b/Bto choose a
desired setting.
FUNCTION OSD
The on-screen display of this DVD+VCR can be turned on or off.
FUNCTION OSD can be switched between ON and OFF by
pressing b/B.
LANGUAGE SELECT
The on-screen programming of this DVD+VCR can be
displayed in either English, Spanish, or French.
LANGUAGE SELECT can be switched among ENGLISH,
SPANISH and FRENCH by pressing b/B.
AUDIO MODE
The DVD+VCR has two separate audio playback systems, the
high quality VHS Hi-Fi system and standard NORMAL mono sys-
tem. The same audio is generally recorded on both systems. The
VHS Hi-Fi system plays on separate (left and right) channels, and
the NORMAL system plays monaural sound. The normal track is
always played so the cassette can be played on a DVD+VCR that
does not have VHS Hi-Fi.
AUDIO MODE can be switched between HI-FI and
NORMAL by pressing b/B.
BROADCAST TYPE (STEREO/SAP/MONO)
Multichannel Television Sound (MTS) carries stereo and/or
Second Audio Program (SAP) bilingual signals. Set this display to
the desired position when both MTS stereo and SAP signals are
received. When only one of the MTS signal is received, the
DVD+VCR automatically selects the corresponding receiving
mode (Stereo or SAP) regardless of the selected position. For
normal operation, the display should be in the STEREO position.
The DVD+VCR will then record a STEREO program when available,
and record a mono program IF the program is NOT IN STEREO.
For weak STEREO and/or SAP broadcasts, changing the dis-
play to mono may give clearer sound.
BROADCAST TYPE can be switched among STEREO, SAP,
and MONO by pressing b/B.
AUDIO OUTPUT (STEREO/LEFT/RIGHT)
Used during playback [when AUDIO MODE (HI-FI/NORMAL) is
in HI-FI position] for selecting the audio output signals from the
AUDIO OUT terminals (L ch and R ch), and RF.OUT.
This display setting should normally be left in the stereo posi-
tion, so that when a stereo tape is played, the stereo sound will
be heard through the left and right channels. If a mono tape is
played and the audio output is set to stereo, the same mono
sound will be heard from both left and right channels.
AUDIO OUTPUT can be switched among STEREO, LEFT,
and RIGHT by pressing b/B.
44
Press MENU when finished.
Channel Selection
This DVD+VCR is equipped with a frequency
synthesized tuner capable of receiving up to 181
channels. These include VHF channels 2-13, UHF
channels 14-69 and CATV channels 1-125.
Preparation:
Connect the DVD+VCR to the desired type of antenna or
cable TV system, as shown in Connecting Antenna/Cable TV
to DVD+VCR on page 11.
AUTO CHANNEL PROGRAMMING
11
Press VCR MENU and the MAIN menu will
appear.
22
Press v/Vto select the TUNING menu, then
press ENTER.
The TUNING menu will appear.
33
Press Vto choose the SOURCE SELECT option,
then press b/Bto select TUNER.
Press b/Brepeatedly to switch among TUNER, LINE1
and LINE2.
44
Press v/Vto choose the AUTO CHANNEL SET
option, then press b/Bto set the channel.
The tuner will automatically cycle through all
available channels in the area and place them in
the tuner’s memory.
55
After the AUTO CHANNEL SET PROCEEDING is
complete, make sure the TUNING BAND is set
appropriately (TV or CATV) by pressing v/Vand
choosing the correct TUNING BAND (TV or
CATV) by pressing b/Busing the TUNING
menu.
Remember, TV is for the air antenna reception,
CATV is for cable or wireless cable connection.
66
Press VCR MENU to return to the TV screen.
77
Use CH/TRK (+/-) or CHANNEL (v/V) on the
front panel to cycle the DVD+VCR through the
channels in memory.
TO ADD OR ERASE CHANNELS FROM MEMORY
This feature allows you to add or erase channels from
memory manually.
1Press Vto choose the CH. ADD/DEL option on the
TUNING menu. Press b/Bto select a channel to
add or erase.
2Press ENTER to add or erase the channel.
Repeat steps 1 and 2 to add or erase channels.
3Press VCR MENU to return to the TV screen.
PREPARATION
Before Operation - VCR Part (Continued)
Setting the Clock
The DVD+VCR gives you two ways to set the time and
date: the Auto Clock Feature or manually. The Auto
Clock Feature enables the DVD+VCR to set up the clock
when the DVD+VCR is turned off.
Auto Clock Set
The Auto Clock Set feature is set to ON at the factory. In the
ON setting, the DVD+VCR looks for a channel carrying XDS
(Extended Data Services) information. XDS updates the clock
using the Coordinated Universal Time.
The Auto Clock Feature enables the DVD+VCR to set up
the clock when the DVD+VCR is turned off.
11
Press VCR MENU and the MAIN menu will
appear.
22
Press v/Vto choose the CLOCK menu.
Press ENTER and the CLOCK menu will appear.
33
Press Vto choose the AUTO CLOCK SET option.
Press b/Bto choose ON.
The Auto Clock Set feature is set to ON at the factory. In
the ON setting, the DVD+VCR looks for a channel
carrying XDS (Extended Data Services) information. XDS
updates the clock using the Coordinated Universal Time.
44
Press
V
to choose the DAYLIGHT SAVING item.
Press b/Bto choose AUTO, ON or OFF.
If you choose AUTO, the VCR sets the clock using the
DST information broadcast in the signal (channel).
If you choose ON, the VCR sets the clock when the
Daylight Saving Time is started and ended.
55
Press
V
to choose the TIME ZONE item.
Press b/Bto choose the correct time zone
(AUTO, EASTERN, CENTRAL, MOUNTAIN,
PACIFIC, ALASKA or HAWAII).
If “AUTO” is selected as the time zone, the VCR sets the
clock using the first Coordinated Universal Time informa-
tion it finds in a broadcast signal.
66
Press VCR MENU when finished.
77
Turn off the DVD+VCR and the auto clock set-
ting works.
Note
There are cases where the TV station does not send or sends
wrong date and/or time information and the DVD+VCR sets the
incorrect time.
If this happens we recommend that you set the clock manually.
Manual Clock Set
Example: July 5, 2003 ; 2:15 AM
11
Press VCR MENU and the MAIN menu will
appear.
22
Press v/Vto choose the CLOCK menu.
Press ENTER and the CLOCK menu will appear.
33
Press b/Bto choose the month.
44
Press Vto choose the DAY option.
Use b/Bto choose the day.
The day of the week will display automatically.
55
Press Vto choose the YEAR option.
Use b/Bto choose the year.
66
Press Vto choose the TIME option.
Use b/Bto choose the time.
77
Press EEto choose the DAYLIGHT SAVING item.
Use b/Bto choose AUTO, ON or OFF.
If you choose AUTO, the VCR sets the clock using the
DST information broadcast in the signal (channel).
If you choose ON, the VCR sets the clock when the
Daylight Saving Time is started and ended.
88
Press VCR MENU when finished.
Note
If setting the clock manually, “AUTO CLOCK SET” must
set to “OFF”.
If set to “ON”, an incorrect date and/or time will be
entered again when the DVD+VCR is turned off.
The clock uses the 12-hour system. (Be sure to set AM
and PM correctly.)
The initial Clock Setting is JANUARY 1, 2003, 12:00 AM.
Things to know before starting
Before Operation - DVD Part
General Explanation
This manual gives the basic instructions for operating
the DVD+VCR. Some DVDs require specific operation
or allow only limited operation during playback. When
this occurs, the symbol appears on the TV screen,
indicating that the operation is not permitted by the
DVD+VCR or is not available on the disc.

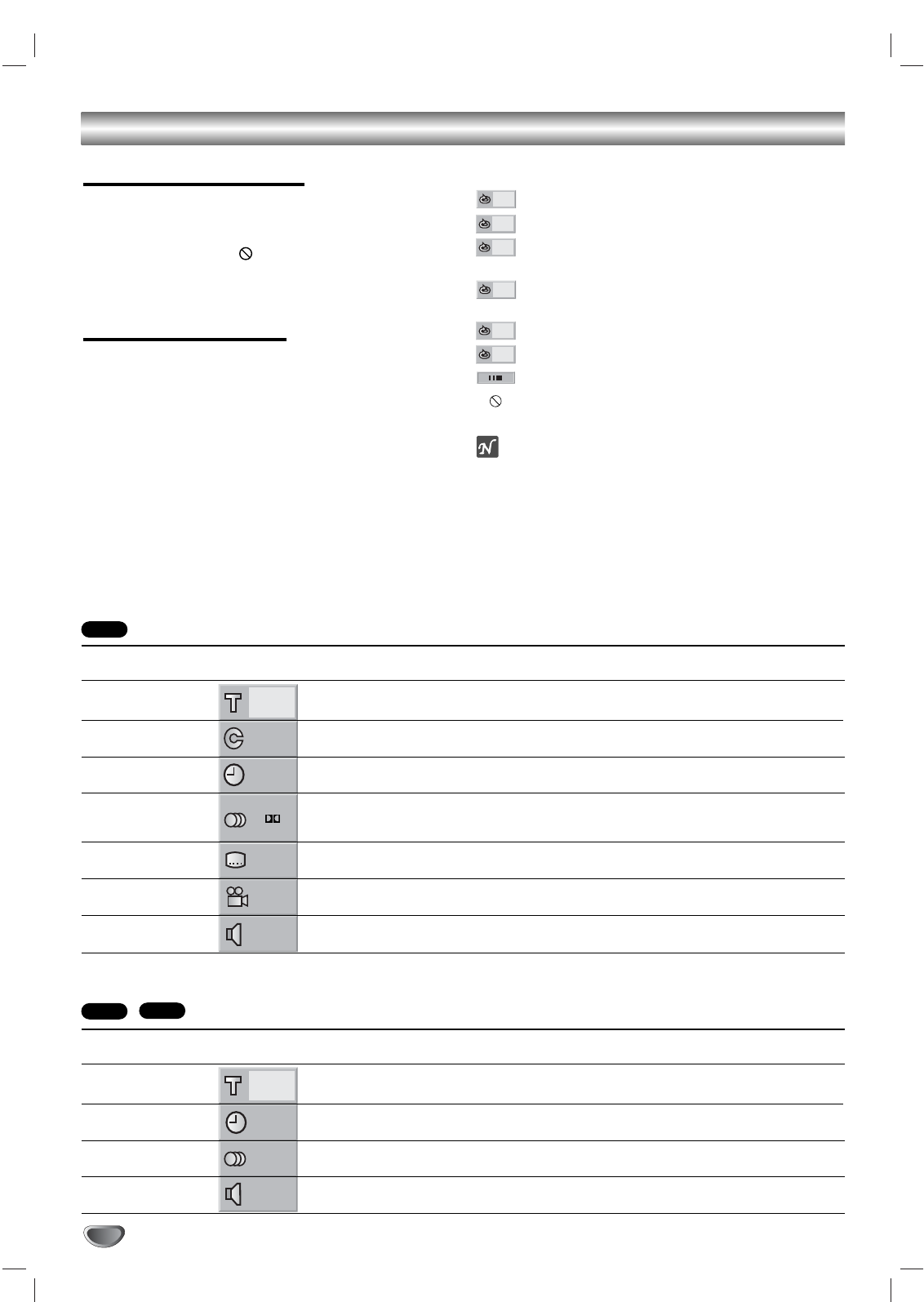

On-Screen Display
The general playback status can be displayed on the
TV screen. Some options can be changed on the menu.
On-screen display operation
11
Press DISPLAY during playback.
22
Use v/Vto select an option.
The selected option will be highlighted.
33
Use b/Bto change the setting of an option.
The number buttons can be also be used for setting
numbers (e.g., title number). For some functions,
press ENTER to execute the setting.
Temporary Feedback Field Icons
Repeat Title
Repeat Chapter
Repeat Track (non-PBC Video CDs
and Audio CD only)
Repeat Disc (non-PBC Video CDs
and Audio CD only)
Repeat A-B
Repeat Off
Resume play from this point
Action prohibited or not available
Notes
Some discs may not provide all of the features on the
on-screen display example shown below.
If no button is pressed for 10 seconds, the on-screen
display disappears.
OFF
A B
ALL
TRACK
CHAPT
TITLE
Options
Title Number
Chapter Number
Time search
Audio language
and Digital Audio
Output mode
Subtitle language
Angle
Sound
Function (Press v
/
Vto select desired option)
Shows the current title number and total number of
titles, and skips to the desired title number.
Shows the current chapter number and total number of
chapters, and skips to the desired chapter number.
Shows the elapsed playing time, and
searches the point by the elapsed time directly.
Shows the current audio soundtrack language,
encoding method, and channel number, and
changes the setting.
Shows the current subtitles language, and
changes the setting.
Shows the current angle number and total number of
angles, and changes the angle number.
Shows the current sound mode, and
changes the setting.
Selection Method
b/B
,or
Numeric, ENTER
b/B
,or
Numeric, ENTER
Numeric, ENTER
b/B
, AUDIO
b/B
, SUBTITLE
b/B
, ANGLE
b/B
1/3
1/12
0:16:57
1 ENG
D
6 CH
OFF
1/1
NORM.
DVD
Items
Track Number
Time
Audio Channel
Sound
Function (Press v
/
Vto select desired item)
Displays the current track number, total number of tracks
and PBC On mode, and skips to the desired track number.
Displays the elapsed playing time (Display only)
Displays the audio channel, and
changes you make to the audio channel.
Displays the current sound mode, and
any changes you make to the setting.
Selection Method
b
/
B
,or
Numbers, ENTER
–
b
/
B
b
/
B
1/4
0:16:57
STER.
NORM.
VCD2.0 VCD1.1
PREPARATION
Before Operation - DVD Part (Continued)

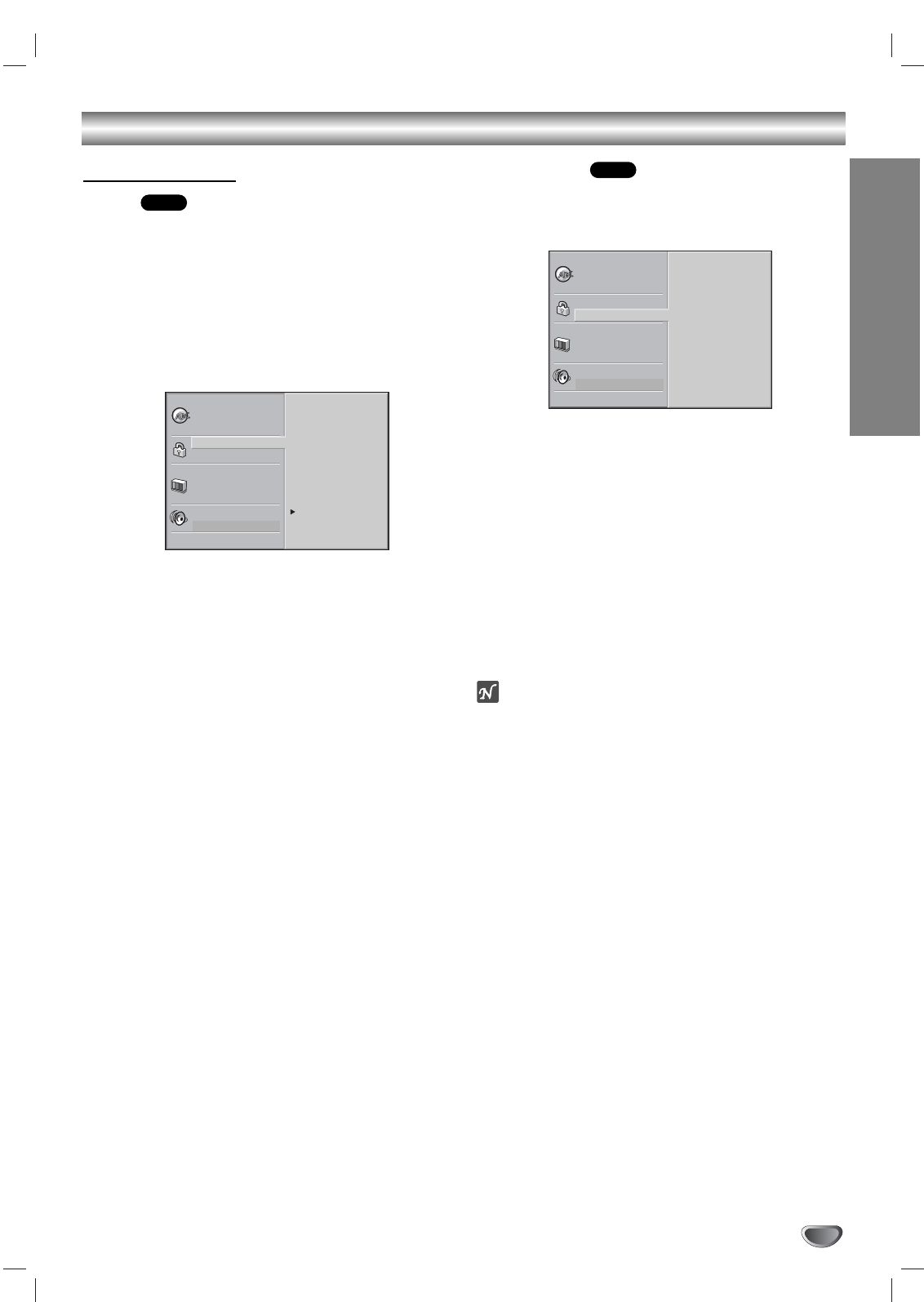

Initial Settings
You can set your own Personal Preferences on the
DVD+VCR.
General Operation
11
Press SETUP.
The setup menu appears.
22
Use v/Vto select the desired option.
The screen will show the current setting for the
selected option, as well as alternate setting(s).
33
While the desired option is selected, press B,
then v/Vto select the desired setting.
44
Press ENTER to confirm your selection.
Some options require additional steps.
55
Press SETUP, RETURN, or PLAY to exit the
setup menu.
Language
Disc Language
Select a language for the disc’s Menu, Audio, and Subtitle.
Original : The original language set for the disc is selected.
Other : To select another language, press number buttons to enter
the corresponding 4-digit number according to the language code
list on page 41. If you enter the wrong language code, press
CLEAR.
Notes
Disc Language selection may not work for some DVDs.
Menu Language
Select a language for the setup menu. This is the menu
you see when you press SETUP.
TV Aspect
4:3 Letterbox: Select when a standard 4:3 TV is con-
nected. Displays theatrical images with masking bars
above and below the picture.
4:3 Panscan: Select when a standard 4:3 TV is con-
nected. Displays pictures cropped to fill your TV screen.
Both sides of the picture are cut off.
16:9 Wide: Select when a 16:9 wide TV is connected.
Progressive Scan
Progressive Scan Video provides the highest resolution
pictures with less flicker and line structure.
If you are using the COMPONENT VIDEO OUT jacks,
but are connecting the DVD Player to a standard (ana-
log) television, set Progressive Scan to Off.
If you are using the Component Video jacks for
connection to a TV or monitor that is compatible with a
progressive scan signal, set Progressive Scan to On.
Notes
–Progressive Scan is available only when the VIDEO
OUTPUT switch on the rear panel is set to COMPO-
NENT.
Caution
Once the setting for progressive scan output is entered, an
image will only be visible on a progressive scan compatible
TV or monitor. If you set Progressive Scan to On in error,
you must reset the unit. Pointing the remote at the player,
press the STOP key to stop any disc that is playing. Next,
press the STOP key again and hold it for five seconds
before releasing it. The video output will be restored to the
standard setting, and a picture will once again be visible on
a conventional analog TV or monitor.
DVD
DVD
DVD
Disc Subtitle
Disc Menu
Rating
Country Code
TV Aspect
Menu Language
Progressive Scan
Digital Audio Output
5.1 Speaker Setup
Others
Disc Audio Original
Spanish
English
Chinese
Polish
Hungarian
Russian
French
German
Italian
Other — — — —
Disc Subtitle
Disc Menu
Rating
Country Code
TV Aspect
Menu Language
Progressive Scan
Digital Audio Output
Disc Audio English
Spanish
French
Disc Subtitle
Disc Menu
Rating
Country Code
TV Aspect
Menu Language
Progressive Scan
Digital Audio Output
5.1 Speaker Setup
Others
Disc Audio 4:3 Letterbox
4:3 Panscan
16:9 Wide
Disc Subtitle
Disc Menu
Rating
Country Code
TV Aspect
Menu Language
Progressive Scan
Digital Audio Output
5.1 Speaker Setup
Others
Disc Audio Original
Spanish
English
Chinese
Polish
Hungarian
Russian
French
German
Italian
Other — — — —
Disc Subtitle
Disc Menu
Rating
Country Code
TV Aspect
Menu Language
Progressive Scan
Digital Audio Output
5.1 Speaker Setup
Others
Disc Audio Off
On
Before Operation - DVD Part (Continued)
Sound
Digital Audio Output
Each DVD disc has a variety of audio output options.
Set the DVD+VCR’s Digital Audio Output according to
the type of audio system you use.
DOLBY DIGITAL/PCM: Select DOLBY DIGITAL/PCM if
you connected the DVD+VCR’s DIGITAL AUDIO OUT
jack to a Dolby Digital decoder (or an amplifier or other
equipment with a Dolby Digital decoder).
Stream/PCM: Select Stream/PCM if you connected the
DVD+VCR’s DIGITAL AUDIO OUT jack to an amplifier
or other equipment with a DTS decoder, Dolby Digital
decoder or MPEG decoder.
PCM: Select when connected to a 2 channel digital
stereo amplifier. The DVD+VCR output sounds in the
PCM 2ch format when you play a DVD video disc
recorded with a Dolby Digital, MPEG1, or MPEG2
recording system.
Sample Frequency
To change the Sample Frequency setting, first select
the desired Digital Audio Output as indicated as above.
If your receiver or amplifier is NOT capable of handling
96KHz signals, select 48KHz. When this choice is
made, this unit will automatically convert any 96KHz
signals to 48KHz so your system can decode them.
If your receiver or amplifier is capable of handling
96KHz signals, select 96KHz. When this choice is
made, this unit will pass each type of signal through
without any further processing.
Others
The DRC, Vocal, PBC, B.L.E., Pluge and DNR settings
can be changed.
Press v/Vto select the desired item and press
ENTER. The setting of the selected item alternates
between On and Off.
Dynamic Range Control (DRC)
With the DVD format, you can hear a program’s sound-
track in the most accurate and realistic presentation
possible, thanks to digital audio technology. However,
you may wish to compress the dynamic range of the
audio output (the difference between the loudest sounds
and the quietest ones). Then, you may listen to a movie
at a lower volume without losing clarity of sound. Set
DRC to On for this effect.
Vocal
Set Vocal to On only when a multi-channel karaoke
DVD is playing. The karaoke channels on the disc will
mix into normal stereo sound.
PBC
Set Playback Control (PBC) to On or Off.
On: Video CDs with PBC are played according to the PBC.
Off: Video CDs with PBC are played the same way as Audio
CDs.
B.L.E. (Black Level Expansion)
To select the black level of playback pictures. Set your
preference and monitor’s ability.
On: Expanded grey scale. (0 IRE cut off)
Off: Standard grey scale. (7.5 IRE cut off)
Pluge (Blacker than Black)
For proper adjustment of your television brightness
settings utilizing a commercially available test disc.
On: Select when you adjust the level of your TV using a
commercially available test disc that contains pluge
signals.
Off: For normal use.
DNR (Digital Noise Reduction)
You can reduce ambient noise in the picture.
DNR1: Normal level
DNR2: Expanded level.
Off: Off.
Notes
–Actual picture enhancement may vary depending on the
quality of the disc.
–While the DNR2 (expanded level) can provide additional
improvement in the reduction of noise in the video signal, it
may produce undesirable picture artifacts on some discs.
Should this occur, select a more appropriate DNR level (nor-
mal or off).
–Depending on the disc, some picture detail may be lost by
the picture enhancement.
–ADVD audio disc with Dolby Digital or DTS soundtrack may
be played, some DVD audio discs include moving pictures
which may be modified by the above processes.
Disc Subtitle
Disc Menu
Rating
Country Code
TV Aspect
Menu Language
Progressive Scan
Digital Audio Output
5.1 Speaker Setup
Others
Disc Audio DRC On
Vocal On
PBC On
B.L.E. Off
Pluge Off
DNR Off
Disc Subtitle
Disc Menu
Rating
Country Code
TV Aspect
Menu Language
Progressive Scan
Digital Audio Output
5.1 Speaker Setup
Others
Disc Audio DOLBY
DIGITAL /PCM
Stream/PCM
PCM
Sample Freq.
48 KHz
96KHz
PREPARATION
Before Operation - DVD Part (Continued)

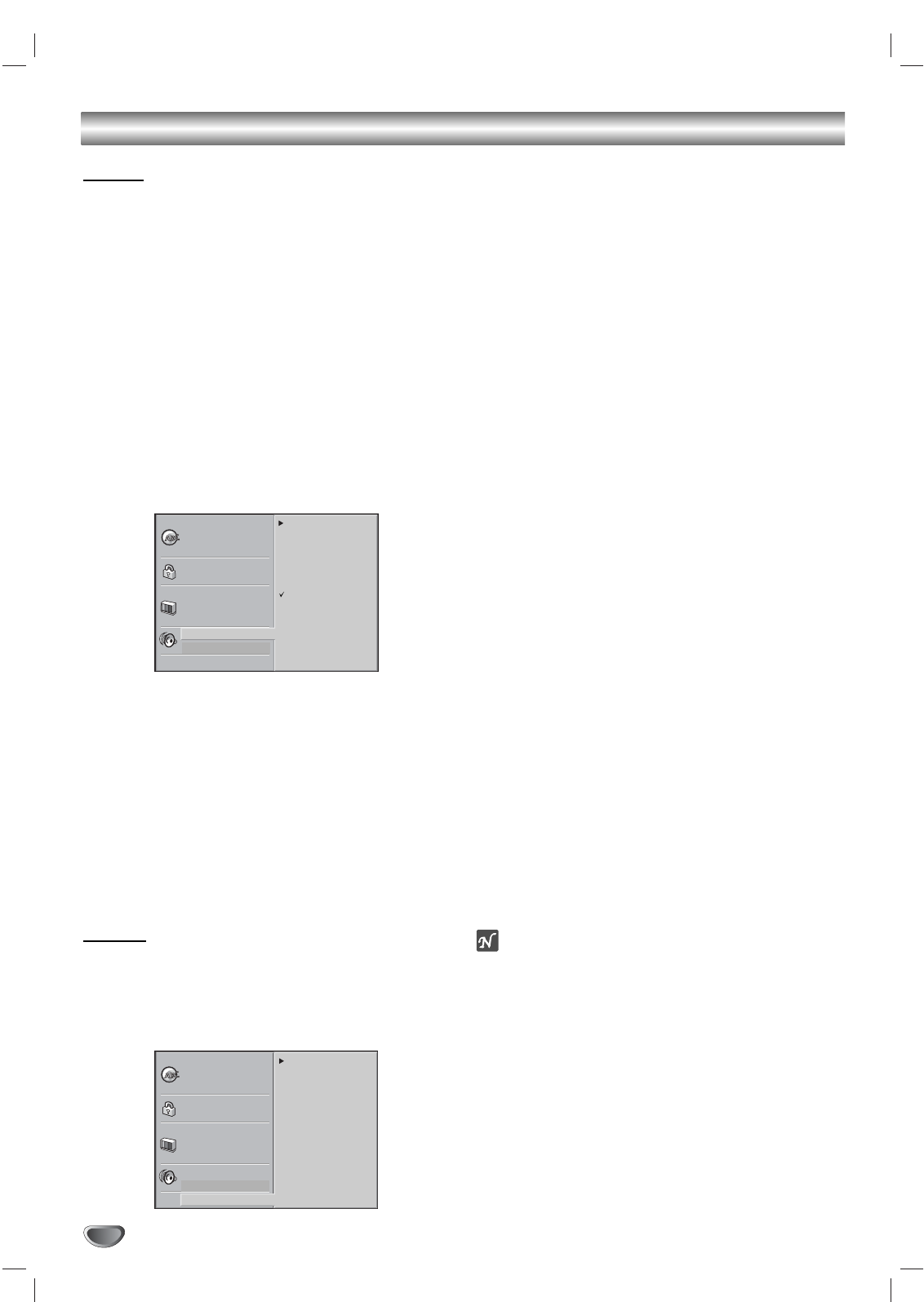

Parental Control
Rating
Movies on DVDs may contain scenes not suitable for
children. Therefore, discs may contain Parental Control
information that applies to the complete disc or to
certain scenes on the disc. These scenes are rated
from 1 to 8, and alternatively, more suitable scenes are
available for selection on some discs. Ratings are
country dependent. The Parental Control feature allows
you to prevent discs from being played by your children
or to have certain discs played with alternative scenes.
11
Select Rating on the Setup menu using v/V
buttons.
22
While Rating is selected, press B.
33
When you have not entered a password yet.
Enter a 4-digit password using the numbered but-
tons to create a personal 4-digit security password,
then press ENTER. Enter the 4-digit password again
and press ENTER to verify.
When you have already entered a password;
Enter a 4-digit password using the numerical but-
tons to confirm the personal 4-digit security pass-
word, then press ENTER.
If you make a mistake before pressing ENTER, press
CLEAR and enter 4-digit security password again.
44
Select a rating from 1 to 8 using v/Vbuttons.
One (1) has the least playback restrictions.
Eight (8) has the most playback restrictions.
Unlock: If you select Unlock, Parental Control is
not active. The disc will play in full.
Ratings 1 to 8: Some discs contain scenes not
suitable for children. If you set a rating for the
DVD+VCR, all disc scenes with the same rating or
lower will be played. Higher rated scenes will not be
played unless an alternative scene is available on
the disc. The alternative must have the same rating
or a lower one. If no suitable alternative is found,
playback will stop. You must enter the 4-digit pass-
word or change the rating level in order to play the
disc.
55
Press ENTER to confirm your rating selection,
then press SETUP to exit the menu.
Country Code
Enter the code of a country/area whose standards were
used to rate the DVD video disc, referring to the list
(See “Country Code List”, page 42.).
11
Select Country Code using the v/Vbuttons on
the setup menu.
22
While Country Code is selected, press B.
33
Follow step 3 of “Rating” on left.
44
Select the first character using the v/Vbuttons.
55
Press 2to shift to second character and select
the second character using v/Vbuttons.
66
Press ENTER to confirm your country code
selection, then press SETUP to exit the menu.
Note
Confirmation of the 4-digit password is necessary when
the password is changed (see Changing the 4-digit
password below ).
Changing the 4-digit password
1Follow Steps 1-2 as shown above to the left (Rating).
2Enter the old password, then press ENTER.
3Select Change using v/Vbuttons then press
ENTER.
4Enter the new 4-digit password, then press ENTER.
5Enter exactly the same password a second time and
verify by pressing ENTER.
6Press SETUP to exit the menu.
If you forget your 4-digit password
If you forget your password, to clear the current pass-
word, follow the procedure below.
1Press SETUP to display the setup menu.
2Enter the 6-digit number 210499 and then press
ENTER.
The 4-digit password is cleared.
3Enter a new password as shown
above to the left
(Rating).
DVD
DVD
Disc Subtitle
Disc Menu
Rating
Country Code
TV Aspect
Menu Language
Progressive Scan
Digital Audio Output
5.1 Speaker Setup
Others
Disc Audio Code Set
U S
Disc Subtitle
Disc Menu
Rating
Country Code
TV Aspect
Menu Language
Progressive Scan
Digital Audio Output
5.1 Speaker Setup
Others
Disc Audio 8
7
6
5
4
3
2
1
Unlock
Change
Operation with tape
Normal Playback
Preparation:
Turn on the TV.
Tune the TV to the DVD+VCR output channel (CH 3 or 4) or
set the TV’s source selector to VIDEO.
If a direct VIDEO/AUDIO connection is made between the
DVD+VCR and the TV, set the TV’s source selector to VIDEO.
Set the Output Source to VCR as shown in Setting the
Output Source on page 6.
11
Insert a prerecorded video cassette.
The indicator will light and the DVD+VCR will
power-up automatically.
Make sure that the TIMER indicator in the display
window is not lighted. If it is, press POWER once.
If a tape without a safety tab is inserted, the unit will
start playback automatically.
22
Press PLAY once.
PLAY appears on the TV screen .
It is not necessary to select the tape speed for play-
back. It will be automatically selected by the DVD+VCR.
In playback, the TV/VCR selector switches to VCR
mode automatically.
33
Press STOP to stop playback.
STOP appears on the TV screen.
If the tape reaches the end before STOP is pressed, the
DVD+VCR will automatically stop, rewind, eject, and it
will turn itself off.
Tracking Control
Auto Tracking
The automatic tracking function adjusts the picture to
remove snow or streaks.
The AUTO TRACKING function works in the following
cases:
When the AUTO TRK button is pressed.
Atape is played back for the first time.
Tape speed (SP, LP, SLP) changes.
Streaks or snow appear because of scratches on the tape.
Manual Tracking
If noise appears on the screen during playback, press
either CH/TRK (+/-) on the remote control or
CHANNEL (v/V) on the front panel until the noise on
the screen is reduced.
In case of vertical jitter, adjust these controls very carefully.
Tracking is automatically reset to normal when the tape is
ejected or the power cord is unplugged for more than 3 sec-
onds.
Special Effect Playbacks
Special effects playback notes
Horizontal lines (noise bars) will appear on the TV screen. This
is normal.
The audio is automatically muted during special effect modes,
so there is no sound during search.
During the high-speed picture search modes, a short period is
needed to stabilize tape speed when re-entering the PLAY
mode. Slight interference may be observed during this period.
Search
This function lets you quickly and visually search for a
desired tape section in either direction: forward and
reverse.
1Press REW or FWD during playback.
The DVD+VCR will be activated in the SEARCH
mode.
If the DVD+VCR is left in the SEARCH mode for more
than 3 minutes, the DVD+VCR will automatically enter the
PLAY mode, to protect the tape and video heads.
2To return to playback, press PLAY.
Still Picture and Frame-by-Frame
Playback
1Press PAUSE/STILL during playback.
Still picture will appear on the TV screen.
If a still picture vibrates vertically, stabilize it by pressing
CH/TRK (+/-) on the remote control.
If the DVD+VCR is left in the STILL mode for more than 5
minutes, the DVD+VCR will automatically enter the STOP
mode to protect the tape and video heads.
2Press PAUSE/STILL repeatedly to advance the
video picture one frame at a time while viewing a still
picture.
3To return to playback, press PLAY.
Slow Motion
1While in still mode, press SLOW.
The tape will be played back at a speed 1/19 times
slower than the normal speed.
During slow playback, use CH/TRK (+/-) on the Remote
Control to minimize noise bands.
If slow motion mode continues for more than 3 minutes,
the DVD+VCR will automatically change to playback
mode.
2To return to playback, press PLAY.
Instant Skip
This is useful for skipping commercials or short program
segments.
1Press INSTANT SKIP during the playback mode.
The tape will fast forward picture search through 30
seconds of recording.
The skipping time can be extended by pressing INSTANT
SKIP.
Subsequent presses result in advancing the fast forward
picture search time by 30-second increments (maximum 3
minutes).
2When the search is completed, the DVD+VCR will go
into playback mode automatically.
OPERATION
Operation with tape (Continued)
VISS (VHS Index Search System)
The VHS INDEX SEARCH SYSTEM enables you to
locate the beginning of any recording made on this VCR.
Whenever a recording begins, an invisible INDEX mark is
recorded on the tape.
VISS Scan
VISS SCAN lets you search out each VISS mark on the
recorded tape and play 5 seconds before advancing to
the next VISS mark.
11
Insert a cassette tape that has VISS signals
marked.
22
Press the VISS button once during PLAYBACK
or STOP mode.
The VISS 00 indicator will appear on the TV screen.
33
Press either the FWD or the REW button.
The VISS SCAN will start. The indicator appears
simultaneously during scanning. The tape will be
rewound or rapidly advanced to the next signal
marked.
The tape will be played back for approximately 5
seconds, and then rewound or rapidly advanced to
the next VISS signal.
Every time a VISS signal is detected and playback
begins, the displayed VISS scan number appears.
(V.SCAN 00)
Press VISS or STOP button to stop the VISS SCAN
mode.
44
At the desired program, press the PLAY button.
Normal playback of that program will begin.
VISS Search
You can locate the desired program and play it back
automatically by designating the number of its VISS sig-
nal. Up to the 99th VISS signal from the preset position
on the tape can be located.
11
Press the VISS button once during PLAYBACK
or STOP mode.
The VISS 00 indicator will appear on the TV screen.
22
Enter the number of VISS signals you wish to
skip.
Up to 99 signals may be skipped from any given
position on the tape.
33
Press either the FWD or REW button once.
The V.SEARCH 02 (for example) message
appears on the TV screen. When the desired VISS
signal is found, playback begins automatically.
If the end of the tape is reached during forward VISS
search, the VCR will automatically stop, rewind, eject,
and turn itself off.
Normal Recording
Preparation:
Turn on the power of both the DVD+VCR and TV.
Tune the TV to the DVD+VCR output channel (CH 3 or 4) or
set the TV’s source selector to VIDEO.
If a direct VIDEO/AUDIO connection is made between the
DVD+VCR and the TV, set the TV’s source selector to
VIDEO.
11
Insert a video cassette that the safety tab intact.
22
Select the desired channel by using CH/TRK
(+/-).
If you are recording from another source via audio/video
input jacks (at the Rear or Front panel), select the
LINE1 or LINE2 by pressing INPUT SELECT.
33
Set the desired recording speed (SP or SLP) by
pressing SP/SLP.
This DVD+VCR is not designed to record in LP mode.
44
Set the MTS mode as desired (See page 17, 27).
55
Press REC/OTR once.
Recording will start. (The REC indicator will light in
the display window.)
REC indicator appears only when the Output Source is
set to VCR.
If a cassette with no safety tab is loaded, the cassette
will be ejected automatically.
66
Press STOP to stop recording.
If the tape reaches the end before STOP is pressed, the
DVD+VCR will automatically stop, rewind, eject, and it will
turn itself off.
To pause the recording
1Press PAUSE/STILL to pause the tape during
recording.
The REC indicator will flash in the display window.
2When you want to continue recording, press
PAUSE/STILL or press REC/OTR.
After 5 minutes in pause mode, the tape will be stopped
automatically to protect the tape and the video heads.
To record one TV program while
watching another
1Press TV/VCR to select the TV mode during record-
ing.
The VCR indicator disappears.
2Using the TV, select the channel to be viewed.
Tips
Always use PAUSE/STILL for best results when making
changes during recording.
For example: To change channels during recording, first press
PAUSE/STILL to put the unit in pause mode. Then select the
desired channel on the DVD+VCR, and press PAUSE/STILL
again to resume recording.
Operation with tape (Continued)
Timer Recording
This DVD+VCR can be programmed to record up to 8
programs within a period of 1 year. For unattended
recording, the timer needs to know the channels to be
recorded and the starting and ending times.
Preparation:
Turn on the power of both the DVD+VCR and the TV.
Be sure the TV is set to the DVD+VCR output channel (3 or 4).
Make sure the TUNING BAND in the TUNING menu is set
appropriately (TV or CATV).
11
Press VCR MENU and the MAIN menu will
appear.
22
Use v/Vto choose the PROGRAM menu.
33
Press ENTER to go to the PROGRAM menu.
The PROGRAM menu will appear.
If all programs have already been entered, FULLY
PROGRAMMED message will appear for a moment
and then PROGRAM 1 will
appear on the TV screen.
44
Use b/Bto choose the PROGRAM No. (1-8).
55
Use Vto choose the MONTH option.
Use b/Bto choose the desired month.
66
Use Vto choose the DAY option.
Use b/Bto choose the desired day.
77
Use Vto choose the START option.
Use b/Bto choose the desired start time.
88
Use Vto choose the STOP option.
Use b/Bto choose the desired stop time.
99
Use Vto choose the CHANNEL option.
Use b/Bto choose the desired channel
(Channel, LINE1 or LINE2).
Cable Users: If you have CABLE TV and used Cable Box
in Connecting Antenna/Cable TV to DVD+VCR (page 11),
using a cable box converter, you must set the channel in
this step to match the cable box output channel (usually
CH 3 or 4). Change channels on the cable box instead of
with the DVD+VCR.
1100
Use Vto choose the SPEED option.
Use b/Bto choose the desired recording
speed (AUTO, SP or SLP).
AUTO mode determines how much tape is left and
switches speed from SP to SLP, if necessary, to
complete recording the program. There will be some
picture and sound distortion at the point of the speed
change.
1111
Use Vto choose the REPEAT option.
Use b/Bto choose the desired repeat (ONCE,
WEEKLY or DAILY).
ONCE event....for recording up to 8 programs on a
single day or over the days within a period of 1 year.
WEEKLY event....for recording up to 8 programs on a
certain day of every week.
DAILY event....for recording up to 8 programs at the
same time(s) Monday through Friday.
Tip
If the input data is wrong, use vto select the data
and correct it using b/B.
1122
Press VCR MENU, the program will be memo-
rized at the DVD+VCR.
TIMER indicator lights in the display window.
If the program preset time is past, the PAST TIME
PROGRAMMED message will appear on the TV
screen. Return to the incorrect program and program
it with the correct time.
If you had entered a past date, the timer recording
will be performed on that date of the next year.
Additional programs may be entered by repeating
steps 1-12.
Cable Users: If your cable hookup is via a TV convert-
er box, you can program multiple recordings only on
the converter box output channel. This is because the
converter determines what channel you view through
your DVD+VCR.
Tip
If you are finished programming and you want to set the
DVD+VCR to record the programs you have entered.
MAKE SURE YOU HAVE INSERTED A TAPE INTO THE
DVD+VCR. The DVD+VCR is now set to record the preset
programs.
Note
If the power fails or the DVD+VCR is unplugged from the AC
outlet, the correct clock time and timer settings are kept in
memory for approximately 3 seconds. After 3 seconds, the
clock and program timer must be reset when power is
restored. Reset the clock according to instructions.
After setting a timer recording, it will start if a timer recording
passes over the start time when stopping the playback or
recording.
If you try to set the program timer before setting the clock,
PLEASE SET THE CLOCK appears for a moment and
then CLOCK menu appears on the TV screen. Set the time
and date before proceeding.
Make sure a tape is in the DVD+VCR and the safety tab is
in place or the tape will be automatically ejected.
Things to know before starting
OPERATION
Operation with tape (Continued)
Checking (Erasing) the Timer Program
Programming can be checked whenever the DVD+VCR
is turned on.
1Press VCR MENU and the MAIN menu will appear.
2Use v/Vto choose the PROGRAM menu.
Press ENTER and the PROGRAM menu will appear.
3Use b/Bto select a program you want to check or
erase. If you want to erase the program, press
CLEAR.
4Press VCR MENU to return to the TV screen.
Program Priority
If the recording start and end
times of preset programs
overlap on the same day (see
the example and diagram
left), program number 2 will
not be recorded until program
number 1 is finished.
The first part of program number 2 will not be recorded.
The same thing will happen to program number 3.
Instant Timer Recording
Instant Timer Recording allows you to make a recording
easily of a preset length without using the program
timer.
Preparation:
Turn on the power of both the DVD+VCR and the TV.
Be sure the TV is tuned to the DVD+VCR output channel (3
or 4).
If a direct VIDEO/AUDIO connection is made between the
DVD+VCR and the TV, set the TV’s source selector to
VIDEO.
11
Insert a video cassette with the safety tab intact.
22
Select the desired channel by using CH/TRK
(+/-) or number (0-9).
The channel number appears on the TV screen.
If you are recording from another source via audio/video
input jacks (at the Rear or Front panel), select the
LINE1 or LINE2.
33
Set the desired recording speed (SP or SLP) by
pressing SP/SLP.
The tape speed will appear on the TV screen.
44
Press REC/OTR twice.
The menu as illustrated, will appear on the TV screen.
Recording will start. (The TIMER indicator will light)
55
Press REC/OTR repeatedly to select the
recording time length.
At the end of the recording, the DVD+VCR will stop
recording and shut off.
During Instant Timer Recording, changing the channel
on the DVD+VCR will not be possible.
You can stop the recording by pressing STOP.
INSTANT TIMER RECORD MENU
Checking the Recording Time
Press REC/OTR once to check the recording time. The
recalled setting will automatically return to the TV
screen after 6 seconds.
To extend the Recording Time
The recording time can be extended anytime by press-
ing REC/OTR.
Subsequent presses result in advancing the recording
time by 30-minute increments.
Notes
If you press PAUSE/STILL during instant timer recording, the
DVD+VCR will enter the recording pause mode. Instant
timer recording is cancelled.
If the DVD+VCR is set to “0H00M”, the DVD+VCR goes to
normal recording mode.
INSTANT TIMER RECORD
CHANNEL 2
SPEED SP
START NOW
LENGTH 0H30M
0H30M ..... 9H00M ➝0H00M
Length Display
(each additional press of
REC/OTR increases
recording time 30 minutes)
Operation with tape (Continued)
Dubbing and Editing
If you wish to edit or dub your camcorder (or another
VCR) recordings to this DVD+VCR, the rear (or Front)
panel mounted Audio and Video (A/V) input jacks
make the connections quick and easy. These direct
A/V jacks will also provide better picture results than
using the RF jack on the rear panel.
11
Connect the camcorder’s (or another VCR’s) A/V
outputs to your DVD+VCR as illustrated on page
14.
22
Set the input channel “LINE2”. (press INPUT
SELECT to select LINE2.)
If you have connected your DVD+VCR to the A/V
input jacks on the rear of DVD+VCR, you should
select the input channel LINE1 by pressing INPUT
SELECT twice.
33
Play the tape in the camcorder (or another
VCR). If you have a TV attached to your
DVD+VCR, you can see the video playing.
44
When you desire recording to begin, press
DVD+VCR’s REC/OTR once to start.
Note
Before recording, please confirm the recording start position.
Copying from DVD to VCR
This unit allows you to copy the contents of a DVD to a
VHS tape.
Note
If the DVD you are attempting to copy is copy protected,
you will not be able to copy the disc. It is not permitted
to copy Macrovision encoded DVDs. “Lock” is
displayed in the display window.
11
Insert Disc
Insert the disc you wish to copy in the DVD deck
and close the disc tray.
22
Insert VHS Tape
Insert a blank VHS video tape into the VCR deck.
33
Press PLAY on the DVD deck.
The DVD will go into play mode
If the DVD disc menu appears, you may need to press
the PLAY manually to begin copying.
44
Press REC on the VCR deck.
The DVD+VCR will go into Record mode.
“CDREC” indicator will light.
55
Stop the Copy Process
When the DVD is finished playing, press the VCR on the
remote control and then press STOP (x) to end the copy.
You must stop the Copy process manually when the DVD
movie ends, or the unit may replay and record over and
over again.
Note
When you stop the DVD playback during copying, the record-
ing on VCR is stopped automatically.
OPERATION
Operation with tape (Continued)
VHS Hi-Fi Stereo System/
MTS Broadcast
This DVD+VCR is equipped with the VHS Hi-Fi audio
sound system for recording and playback. The informa-
tion below gives a brief description of Hi-Fi audio and
how to record and play a tape in the Hi-Fi audio mode.
Playback with Hi-Fi Stereo Audio Sound
Astereo TV with AUDIO/VIDEO input jacks or a stereo
audio system is required for true stereo playback. To
experience the full and rich stereo sound available with
Hi-Fi recorded tapes, we recommend the connection of
this unit to a home stereo audio system.
11
Set the AUDIO MODE option to HI-FI on the
SETUP menu .
22
Set the AUDIO OUTPUT option to STEREO
position.
(STEREO) POSITION: The left channel sound (L) is
heard from the left speaker and the right channel sound
(R) is heard from the right speaker.
(LEFT) POSITION: The left channel sound (L) is heard
from both speakers.
(RIGHT) POSITION: The right channel sound (R) is heard
from both speakers.
33
Press MENU.
44
Insert a cassette and press PLAY.
Adjust volume at your stereo system.
MTS (Multi-Channel TV Sound)
This DVD+VCR will decode MTS stereo and bilingual
(SAP) off-the-air broadcast sound signals. It also
decodes stereo TV sound from local cable companies,
as long as they operate on assigned cable frequencies
and use the EIA-recommended MTS stereo/bilingual TV
sound system.
Multichannel TV Sound Indicator (MTS)
Shows Onscreen as illustrated below when ENTER is
pressed.
One or both of the indicators will light, depending on the
MTS broadcast.
If only STEREO appears on the TV screen.
The DVD+VCR can record in stereo onto the VHS Hi-Fi audio
tracks when the BROADCAST TYPE option is in the STEREO
position. The DVD+VCR will also record mono audio onto the
mono audio track.
If only SAP appears on the TV screen.
Set the BROADCAST TYPE option to SAP.
If STEREO/SAP appears on the TV screen
Use the BROADCAST TYPE option to select the desired
recording mode (STEREO or SAP).
SAP (Second Audio Program) Recording
Some stations transmit a Second Audio Program, which
is used for a second language or additional information.
When the station broadcasts a Second Audio Program,
follow the procedure below to record the SAP.
11
Insert a video cassette with the safety tab intact.
22
Set the BROADCAST TYPE option to SAP
(SETUP menu).
Do this if only the SAP appears on the TV screen or you
know the program will use the SAP.
33
Press MENU.
44
Set the desired recording speed (SP or SLP) by
pressing SP/SLP.
55
Select the desired channel. The SAP should
appear on the TV screen.
66
Press REC/OTR once
You are now recording the program you see and hear on the
TV.
77
Press STOP to stop recording.
STEREO
Lights up when a stereo broadcast
is being received.
SAP
Lights up when a SAP BILINGUAL
broadcast is being received.
TV screen
CH 4
STEREO/SAP
Operation with tape (Continued)
Tape Counter Memory Feature
Real-Time Counter
Shows length of tape run in hours, minutes, and sec-
onds. Press CLK/CNT to select the real-time counter
display.
Every press of CLK/CNT changes the TV screen as
illustrated below.
Counter changes to “0:00:00” when the cassette is
ejected.
The real-time counter does not operate if nothing is record-
ed on the tape.
The real-time counter will not work unless a tape is
inserted.
Counter Memory Function
This is useful if there is a section of tape you want to
view immediately after recording or if you want to return
to the same point several times.
11
Begin recording or playing a tape.
22
Press CLK/CNT repeatedly to display the real-
time counter appears on the TV screen.
33
At the point that you want locate later, reset the
real-time counter to “0:00:00” by pressing
COUNTER RESET.
44
Continue to play or record.
55
Press STOP when recording or playback finish-
es.
66
Press REW.
The tape automatically stops when the tape counter
returns to about “0:00:00”.
Tape Remaining
This function allows the time of the remaining tape to be
displayed during recording or playback.
Press CLK/CNT until the REM indicator displays on the
TV screen during recording or playback.
Note
The remaining tape length indicator may not be displayed
correctly depending on the condition of the tape and the kind of
the tape (T-140, T-160, or T-210 etc)
Additional Information
In manual recording, Timer recording, Instant Timer
Recording, playback, or fast forward modes, the DVD+VCR
automatically starts rewinding the tape at the end of the
tape. The cassette will stop at the beginning of the tape and
be ejected, and the DVD+VCR will turn itself off.
After you have finished using the DVD+VCR, rewind, eject,
and remove the cassette. Place the cassette in its protec-
tive sleeve to protect it from dust. It is not necessary to
rewind the cassette before removing it, but if you do, it will
be ready to play or record the next time you use it.
Be sure the DVD+VCR Channel Selector is on the correct
channel you wish to record. The channel that is being
recorded can always be checked by setting the television
on the DVD+VCR channel (3 or 4) and pressing the
TV/VCR selector to turn the DVD+VCR’s TV indicator off.
Do not attempt to hook up more than one television set to
the DVD+VCR for either recording or playback.
S-VHS Quasi Playback (SQPB)
This DVD+VCR can also play back a tape which is record-
ed in S-VHS playback picture.
This DVD+VCR cannot record in S-VHS format
SQPB is an abbreviation for S-VHS Quasi Playback.
Auto Play System
This DVD+VCR features automatic playback.
Load a cassette (with the safety tab removed).
The Output Source is changed to VCR mode automattically.
The power turns on automatically and playback begins.
At the end of the tape, the DVD+VCR stops, then rewinds.
The cassette is ejected after rewinding.
Video Head Cleaning
Whenever a video cassette is inserted into or ejected from
this unit the video head is automatically cleaned.
However, it is possible that the heads may become clogged
when playing an old or damaged tape. If the image on your
screen resembles the picture on the left while playing back
a tape, the heads may require cleaning.
To clean the heads, obtain a head cleaning tape from your
local video dealer. Follows the instructions that come with
the cleaning tape, as excessive use can shorten head life.
Blank Search
The Blank Search enables you to locate the end of any
recording. Whenever a recording creates, an blank con-
tent is recorded on the tape.
Press BLANK SEARCH during playback or in the stop
mode and rapidly advanced to find blank content.
To find next blank content, press BLANK SEARCH
2:15 AM 0:05:25 REM 1:07
CLOCK COUNTER REMAINING TIME
LOAD
TAPE
AUTO
REWIND
AUTO
EJECT
AUTO
PLAY
OPERATION
Operation with DVD and Video CD
Playing DVD and Video CD
Playback Setup
Turn on the TV and select the video input source con-
nected to the DVD+VCR.
Audio system: Turn on the audio system and select
the input source connected to the DVD+VCR.
Set the Output Source to DVD as shown in Setting
the Output Source on page 6.
11
Press OPEN/CLOSE to open the disc tray.
22
Load your chosen disc in the tray, with the label
facing up.
The condition and operation when displayed a key
mark and “----”.
When a double-sided DVD is inserted, make sure
the side you want to play is facing down.
33
Press OPEN/CLOSE to close the tray.
“LOAD” appears in the display window, and play-
back starts automatically. If playback does not start,
press PLAY.
In some cases, the disc menu might appear
instead.
If a menu screen is displayed
The menu screen may be displayed first after loading a
DVD or Video CD that contains a menu.
Use b/B/v/Vbuttons to select the title/chapter you
want to view, then press ENTER to start playback.
Press TOP MENU or MENU to return to the menu
screen.
Use the number buttons to select the track you want
to view.
Press RETURN to return to the disc menu screen.
Menu setting and the exact operating procedures for
using the disc menu may differ depending on the disc.
Follow the instructions on each menu screen.
You also may set PBC to Off under setup. See page
20.
Notes
If Parental Control is set and the disc is not within the
Rating settings (not authorized), the 4-digit password
must be entered and/or the disc must be authorized
(see Parental Control, on page 21).
DVDs may have a region code.
Your DVD+VCR will not play discs that have a region
code different from your DVD+VCR. The region code
for this DVD+VCR is 1 (one).
Do not keep an image or on-screen displayed for a
long time.
General Features
Note
Unless stated otherwise, all operations described use
the remote control. Some features may also be
available on the Setup menu.
Moving to another TITLE
When a disc has more than one title, you can move to
another title as follows:
Press DISPLAY when playback is stopped, then
press the appropriate numbered button (0-9) then
press ENTER to select a title number.
Moving to another CHAPTER/TRACK
When a title on a disc has more than one chapter or a
disc has more than one track, you can move to another
chapter/track as follows:
Press SKIP (.) or SKIP (>) briefly during play-
back to return to the beginning of the current
chapter/track or to select the next chapter/track.
Press SKIP (.) twice briefly to step back to the
previous chapter/track.
To go directly to any chapter/track during playback,
press DISPLAY. Then, press v/Vto select C
(chapter) (or for a Video CD, select T for track). Then,
enter the chapter number using the numbered buttons
(0-9).
Slow Motion
1Press PAUSE/STEP during playback.
The DVD+VCR will now go into PAUSE mode.
2Press SKIP (.) or SKIP (>) during pause mode.
The DVD+VCR will enter SLOW mode.
3Use SKIP (.) or SKIP (>) to select the required
speed: t 1/16, t 1/8, t 1/4 or t 1/2 (backward),
or T1/16, T1/8, T1/4 or T1/2 (forward).
4To return to playback, press PLAY.
Note
Slow motion playback in reverse is not available from a
Video CD.
VCD1.1VCD2.0
DVD
1/31/12
VCD1.1
DVD
1/3
DVD
VCD2.0
DVD
VCD1.1VCD2.0
DVD

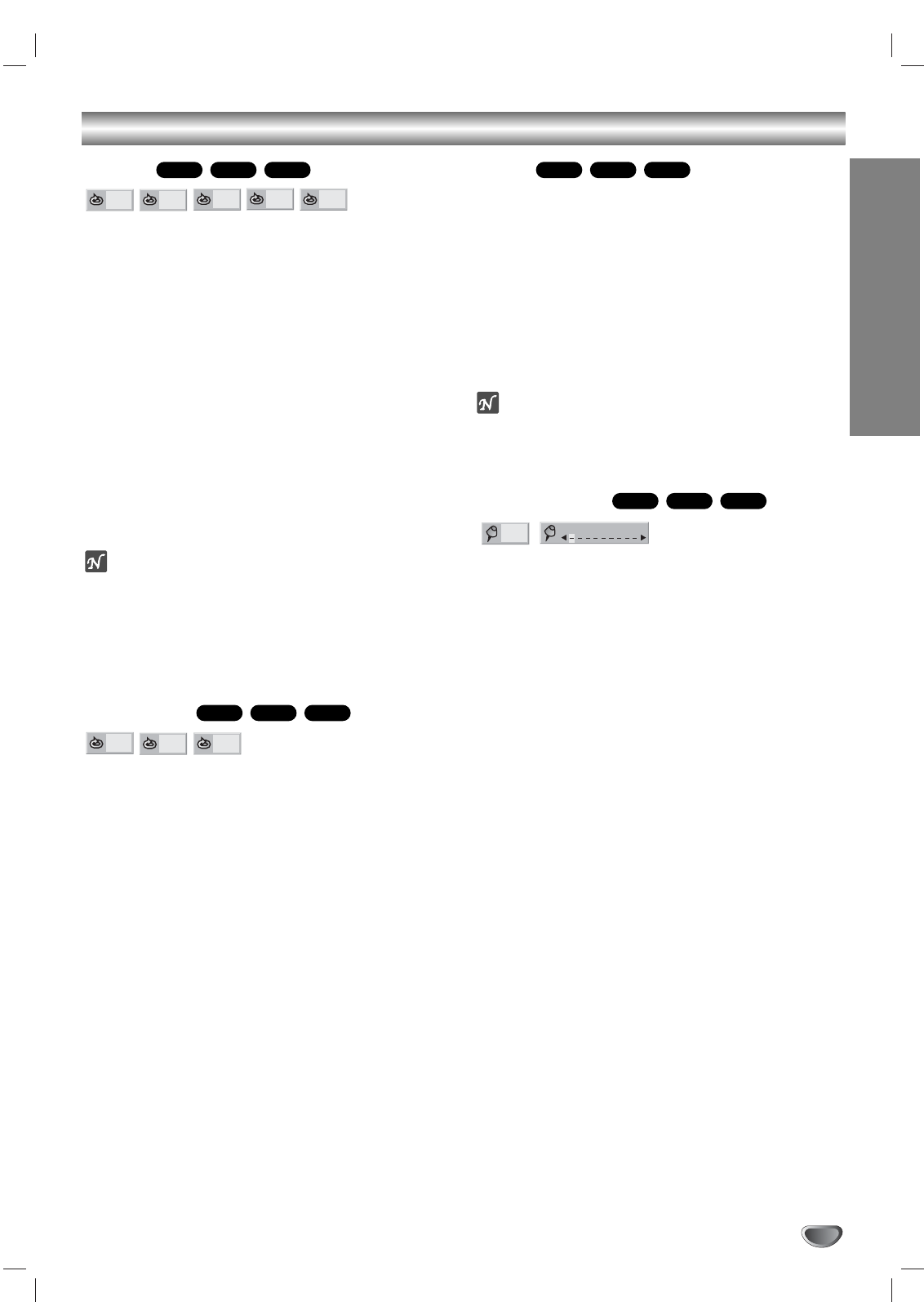

Operation with DVD and Video CD (Continued)
General Features (continued)
Still Picture and Frame-by-frame playback
1Press PAUSE/STEP during playback.
The DVD+VCR will now go into PAUSE mode.
2With a DVD, you can advance the picture frame by
frame by pressing PAUSE/STEP repeatedly on the
remote control.
3To return to playback, press PLAY.
Search
1Press REW or FWD for about two seconds during
playback.
The DVD+VCR will now go into SEARCH mode.
2Press REW or FWD repeatedly to select the required
speed: mX2, mX4, mX16, mX100 (backward)
or MX2, MX4, MX16, MX100 (forward).
With a Video CD, the Search speed changes:
mX2, mX4, mX8 (backward) or MX2, MX4,
MX8 (forward).
3To return to playback, press PLAY.
Random
1Press RANDOM during playback or in stop mode.
The unit automatically begins Random Playback and
“RANDOM” appears on the TV screen.
2To return to normal playback, press RANDOM until
“NORMAL” appears on the TV screen.
Tips
By pressing SKIP (.) or SKIP (>) during Random
playback, the unit selects another title (track) and
resumes Random playback.
Note
This function only works with DVD Karaoke discs and
video CD without PBC.
Time Search
The Time Search function allows you to start playing at
any chosen time on the disc.
1Press DISPLAY during playback. The on-screen dis-
play appears on the screen.
The Time Search box shows the elapsed playing time of the
current disc.
2Within 10 seconds, use v/Vto select the Time
Search icon in the on-screen display.
The “-:--:--” appears in the Time Search box.
3Within 10 seconds, use the numbered buttons to
enter the required start time. Enter hours, minutes
and seconds from left to right in the box.
If you enter the wrong numbers, press CLEAR to remove the
numbers you entered. Then enter the correct numbers.
4Within 10 seconds, press ENTER.
Playback starts from the selected time on the disc. If you enter
an invalid time, playback will continue from the current point.
Selecting the sound enhancement
1Press DISPLAY during playback.
2Use v/Vto select the sound icon.
The sound option will be highlighted.
3Use b/Bto select “NORM”, “3D SUR” or
“DIALOGUE”.
NORM. : Normal sound
3D SUR: This player can produce a 3D Surround effect, which
simulates multi-channel audio playback from two convention-
al stereo speakers, instead of the five or more speakers nor-
mally required to listen to multi-channel audio from a home
theater system.
DIALOGUE: Enhances critical center channel information to
make dialogue more intelligible (only when playing a DVD
video disc recorded on the Dolby Digital recording system).
•To use this enhancement on audio output from the
DIGITAL AUDIO OUT jack, be sure to set “Digital Audio
Output” to “PCM”. See page 20.
DIALOGUE
3D SUR
NORM.
VCD1.1VCD2.0
DVD
-:--:--
0:16:57
DVD
VCD1.1
Karaoke DVD
VCD1.1VCD2.0
DVD
VCD1.1VCD2.0
DVD
OPERATION
Operation with DVD and Video CD (Continued)
Repeat
DVD Video Discs - Repeat Chapter/Title/Off
1To repeat the currently playing chapter, press
REPEAT.
The Repeat Chapter icon appears on the TV screen.
2To repeat the title currently playing, press REPEAT a
second time.
The Repeat Title icon appears on the TV screen.
3To exit Repeat mode, press REPEAT a third time.
The Repeat Off icon appears on the TV screen.
Video CDs - Repeat Track/All/Off
1To repeat the track currently playing, press REPEAT.
The Repeat Track icon appears on the TV screen.
2To repeat the disc currently playing, press REPEAT
two times.
The Repeat All icon appears on the TV screen.
3
To cancel Repeat mode, press REPEAT repeatedly until
the Repeat Off icon appears on the TV screen.
Note
On a Video CD with PBC, you must set PBC to Off on
the setup menu to use the Repeat function.
See page 20.
If you press SKIP (.) twice or SKIP (>) during
Repeat Chapter/Track playback, the repeat playback
cancels.
Repeat A-B
To repeat a sequence in a title:
1Press A-B at your chosen starting point.
A- appears briefly on the TV screen.
2Press A-B again at your chosen end point.
A-B appears briefly on the TV screen, and the repeat
sequence begins
3To cancel the sequence, press A-B.
Zoom
The Zoom function allows you to enlarge the video
image and to move through the enlarged image.
1Press ZOOM during playback or still playback to acti-
vate the Zoom function.
If you press ZOOM repeatedly, the magnification level
increases up to six steps.
2Use b/B/v/Vbuttons to move through the zoomed
picture.
3Press CLEAR to resume normal playback or return to
the paused image.
Note
The zoom function may not work for some DVDs.
The zoom function may not work on multi-angle
scenes.
Marker Search
You can start playback from a memorized point. Up to
nine points can be memorized.
To enter a mark, follow these steps.
1During disc playback, press MARKER when playback
reaches the spot that you want to memorize.
The Marker icon will appear on the TV screen briefly.
2Repeat step 1 to enter up to nine Marker points on a
disc.
To Recall a Marked Scene
1During disc playback, press SEARCH.
The Marker Search menu will appear on the screen.
2Within 10 seconds, press b/Bto select a Marker
number that you want to recall.
3Press ENTER.
Playback will start from the Marked scene.
4To remove the MARKER SEARCH menu, press
SEARCH.
To clear a Marked Scene
1During disc playback, press SEARCH.
The Marker Search menu will appear on the screen.
2Within 10 seconds, press b/Bto select a Marker
number that you want to erase.
3Press CLEAR.
The Marker number will be erased from the list.
4Repeat steps 2 and 3 to erase additional Marker
numbers.
5To remove the MARKER SEARCH menu, press
SEARCH.
MARKER SEARCH
1/9
VCD1.1VCD2.0
DVD
VCD1.1VCD2.0
DVD
OFF
A B
A *
VCD1.1VCD2.0
DVD
OFF
ALL
TRACK
TITLE
CHAPT
VCD1.1VCD2.0
DVD
Operation with DVD and Video CD (Continued)
Special DVD Features
Checking the contents of DVD Video
discs: Menus
DVDs may contain menus that allow you to access spe-
cial features. To use the disc menu, press MENU. Then,
press the appropriate number button to select an option.
Or, use b/B/v/Vbuttons to highlight your selection,
then press ENTER.
Title Menu
1Press TOP MENU.
If the current title has a menu, the menu will appear on the
screen. Otherwise, the disc menu may appear.
2The menu can list camera angles, spoken language
and subtitle options, and chapters for the title.
3To remove the title menu, press TOP MENU again.
Disc Menu
1Press MENU.
The disc menu is displayed.
2To remove the disc menu, press MENU again.
Camera Angle
If the disc contains sequences recorded from different
camera angles, the angle icon blinks on the TV screen.
You can then change the camera angle if you wish.
Press ANGLE repeatedly during playback to select a
desired angle.
The number of the current angle appears on the display.
Changing the Audio Language
Press AUDIO repeatedly during playback to hear a
different audio language or audio track.
Changing the Audio Channel
Press AUDIO repeatedly during playback to hear a dif-
ferent audio channel (STEREO, LEFT or RIGHT).
Subtitles
Press SUBTITLE repeatedly during playback to see the
different subtitle languages.
Note
If appears, the feature is not available on the disc.
1 ENG
DVD
RIGHT
LEFT
STER.
VCD1.1VCD2.0
1 ENG
D
6 CH
DVD
1/1
DVD
DVD
DVD
OPERATION
Operation with Audio CD
Playing an Audio CD
11
Insert a disc and close the tray.
The menu appears on the TV screen.
Audio CD menu
22
Press v/Vto select a track then press PLAY.
Playback starts.
During playback, the current track’s elapsed playing
time will appear on the display window.
Playback will stop at the end of the disc.
33
To stop playback at any other time, press STOP.
Pause
1Press PAUSE/STEP during playback.
2To return to playback, press PLAY or press
PAUSE/STEP again.
Moving to another Track
Press SKIP (.) or SKIP (>) briefly during
playback to go to the next track or to return to the
beginning of the current track.
Press SKIP (.) twice briefly to step back to the
previous track.
In case of audio CD, to go directly to any track, enter
the track number using the numbered buttons (0-9)
during playback.
Repeat Track/All/Off
1To repeat the track currently playing, press REPEAT.
The Repeat Track icon appears on the menu screen.
2To repeat all tracks on a disc, press REPEAT a sec-
ond time.
The Repeat All icon appears on the menu screen.
3To cancel Repeat mode, press REPEAT a third time.
The Repeat Off icon appears on the menu screen.
Search
1Press and hold REW or FWD for about two seconds
during playback.
The player will now go into SEARCH mode.
2Press REW or FWD repeatedly to select the required
speed: mX2, mX4, mX8 (backward) or MX2,
MX4, MX8 (forward).
3Search speed and direction are indicated on the
menu screen.
4To exit SEARCH mode, press PLAY.
Random
1Press RANDOM during playback or when playback is
stopped.
The unit automatically begins Random Playback and
“RAND.” appears on the menu screen.
2To return to normal playback, press RANDOM repeat-
edly until “RAND.” disappears on the menu screen.
Repeat A-B
To repeat a sequence.
1During disc playback, press A-B at your chosen start-
ing point.
The Repeat icon and “A -” appears on the menu screen.
2Press A-B again at your chosen end point.
The Repeat icon and “A B” appears on the menu screen,
and the sequence begins to play repeatedly.
3To exit the sequence and return to normal play, press
A-B again.
The Repeat icon and “OFF” appear on the menu screen.
Selecting the sound enhancement
1Press DISPLAY during playback.
2Use b/Bto select the sound icon.
The sound option will be highlighted.
3Use v/Vto select “NORM”, “3D SUR” or
“DIALOGUE”.
NORM. : Normal sound
3D SUR: This player can produce a 3D Surround effect, which
simulates multi-channel audio playback from two convention-
al stereo speakers, instead of the five or more speakers nor-
mally required to listen to multi-channel audio from a home
theater system.
DIALOGUE: Enhances critical center channel information to
make dialogue more intelligible (only when playing a DVD
video disc recorded on the Dolby Digital recording system).
•To use this enhancement on audio output from the
DIGITAL AUDIO OUT jack, be sure to set “Digital Audio
Output” to “PCM”. See page 20.
Changing the Audio Channel
Press AUDIO repeatedly during playback to hear a dif-
ferent audio channel (STEREO, LEFT, or RIGHT).
CD
CD
CD
CD
CD
CD
CD
CD
ProgramCD
Clear All
TRACK 1
TRACK 2
TRACK 3
TRACK 4
TRACK 5
TRACK 6
TRACK 7
TRACK 8
0:56:35 STER. NORM.

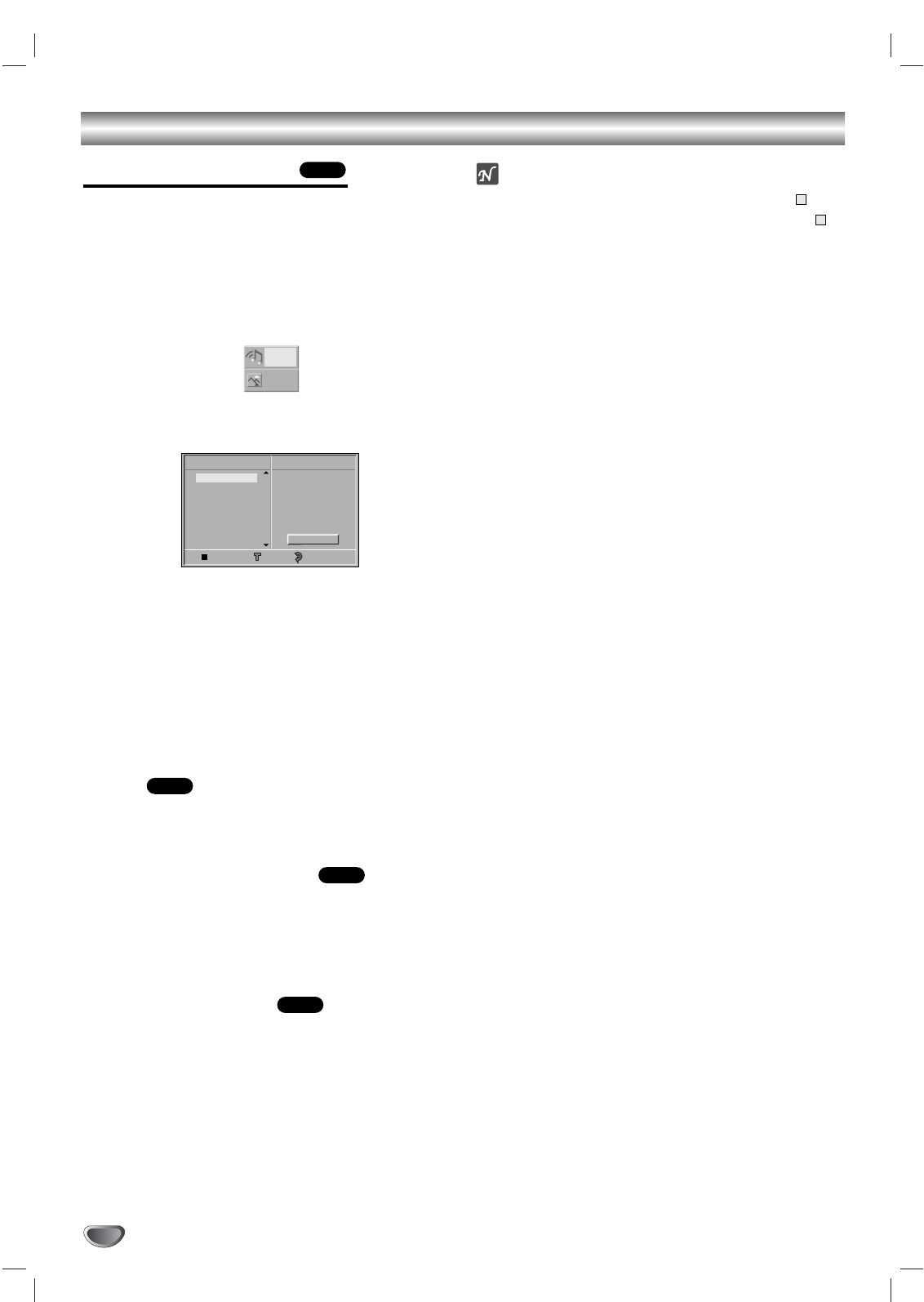

Operation with MP3 Disc
Playing an MP3 disc
The DVD Player can play MP3 formatted recordings on
CD-ROM, CD-R or CD-RW discs.
Before playing MP3 recordings, read the notes on MP3
Recordings on right.
11
Insert a disc and close the tray.
The MP3/JPEG choice menu appears on the TV
screen.
22
Press v/Vto select the MP3 then press ENTER.
The MP3 menu appears on the TV screen.
MP3 menu
33
Press v/Vto select a track then press PLAY.
Playback starts.
During playback, the current track’s elapsed playing
time will appear on the display.
Playback will stop at the end of the disc.
Press TOP MENU to move to he next page.
Press MENU to move to the previous page.
44
To stop playback at any other time, press STOP.
Pause
1Press PAUSE/STEP during playback.
2To return to playback, press PLAY or press
PAUSE/STEP again.
Moving to another Track
Press SKIP (.) or SKIP (>) once during play-
back to advance to the next track or to return to the
beginning of the current track.
Press SKIP (.) twice briefly to step back to the
previous track.
Repeat Track/All/Off
1To repeat the track currently playing, press REPEAT.
The Repeat Track icon appears on the menu screen.
2To repeat all tracks on a disc, press REPEAT two
times.
The Repeat All icon appears on the menu screen.
3
To cancel Repeat mode, press REPEAT repeatedly until
the Repeat Off icon appears on the menu screen.
Note
The REPEAT button is not available when the
mark appear. Press PROGRAM to disappear the
mark.
If you press SKIP (.) twice or SKIP (>) during
Repeat Track playback, the repeat playback cancels.
Notes on MP3 Discs
About MP3
An MP3 file is audio data compressed by using the
MPEG1 audio layer-3 file-coding scheme. We call
files that have the “.mp3” file extension “MP3 files”.
The player can not read an MP3 file that has a file
extension other than “.mp3”.
The player can not read a non MP3 encoded file that
has a file extension “.mp3”.
MP3 Disc compatibility with this player is limit-
ed as follows:
1. Sampling Frequency / only at 44.1kHz
2. Bit rate / within 32 - 320kbps
3. CD-R physical format should be “ISO 9660”
4. If you record MP3 files using the software which
cannot create a FILE SYSTEM, for example “Direct-
CD” etc., it is impossible to playback MP3 files. We
recommend that you use “Easy-CD Creator”, which
creates an ISO9660 file system.
5. A single session disc requires MP3 files in the first
track. If there is no MP3 file in the 1st track, it can-
not playback MP3 files. If you wish to playback MP3
files, format all the data in the disc or use a new
one.
6. We do not recommend using CD-RW discs. Please
use finished CD-R discs only.
7. File names should be named using 8 letters or less
and must incorporate “.mp3” extension
e.g. “********.MP3”.
8. Do not use special letters such as “_?!><+*}{`[@
]:;\/.,” etc.
9. Total number of files on the disc should be less than
200.
10. Use 74 minute CD-R discs (650M), Do not use 80
minute CD-R (700M) software
This DVD player requires discs/recordings to meet
certain technical standards in order to achieve optimal
playback quality. Pre-recorded DVDs are automatically
set to these standards. There are many different types
of recordable disc formats (including CD-R containing
MP3 files). That require certain pre-existing conditions
(see above) to insure compatible playback.
Customers should also note that permission is
required in order to download MP3 files and music
from the Internet. TOSHIBA cannot grant such
permission. Permission should always be sought
from the copyright owner.
E
E
MP3
MP3
MP3
MP3
ProgramMP3
Clear All
TRACK 1.MP3
TRACK 2.MP3
TRACK 3.MP3
TRACK 4.MP3
TRACK 5.MP3
TRACK 6.MP3
TRACK 7.MP3
TRACK 8.MP3
56:35 1 OFF
MP3
JPEG
OPERATION

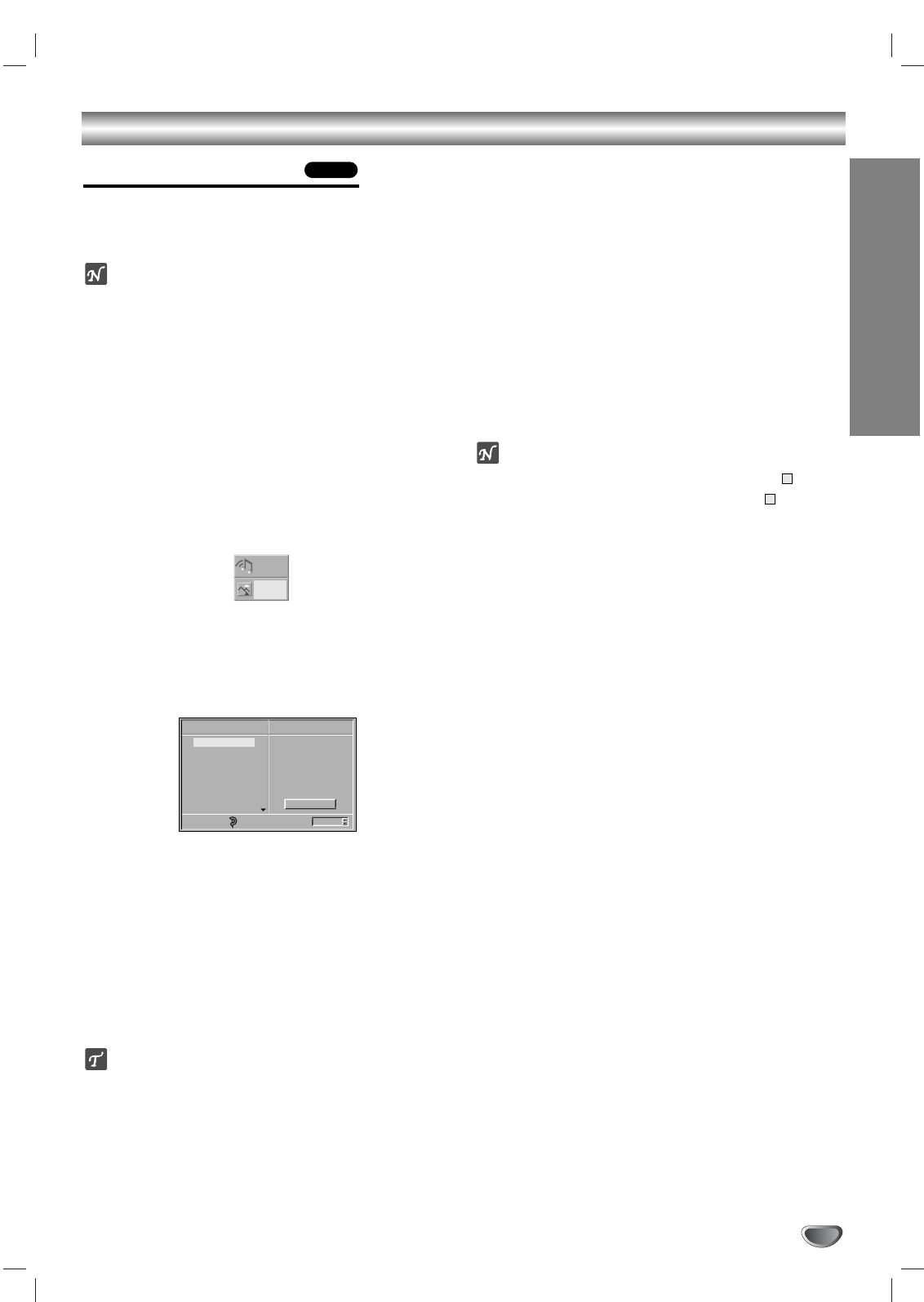

Operation with JPEG Disc
Viewing a JPEG disc
This DVD Player can play discs with JPEG files on it.
Make sure the resolution of the JPEG files is less than
2 mega pixels (2M).
Notes
Depending upon the size and number of the JPEG
files, it could take a long time for the DVD player to
read the disc’s contents. If you don’t see an on-
screen display after several minutes, some of the files
are too big — reduce the resolution of the JPEG files
to less than 2 mega pixels and burn another disc.
Total number of files on the disc should be less than
200.
Some disc may be incompatible due to different
recording format or condition of disc.
11
1
Insert a disc and close the tray.
The MP3/JPEG choice menu appears on the TV
screen.
22
Press v/Vto select the JPEG then press
ENTER.
The JPEG menu appears on the TV screen.
Press RETURN to move to the previous menu
(MP3/JPEG choice menu).
JPEG menu
33
If you want to view a particular file, press v/Vto
highlight a file and press ENTER or PLAY.
Viewing the file proceeding starts.
During viewing a file, press GUI DISPLAY or
RETURN to move to the previous menu (JPEG
menu).
Press TOP MENU to move to the next page.
Press MENU to move to the previous page.
Tip
There are three viewing Slide Speed options: Fast,
Normal, and Slow. Press b/Bto highlight the Slide
Speed then press v/Vto select the option you want to
use, and press ENTER.
44
To stop viewing at any other time, press STOP.
The JPEG menu appears.
Moving to another File
Press SKIP (.) or SKIP (>) once during viewing
to advance to the next file or to the previous file.
Repeat All/Off
1To repeat all files on a disc, press REPEAT when
JPEG menu appears.
The Repeat All icon appears on the menu screen.
2Press PLAY or ENTER to start repeat playback.
3To cancel Repeat mode, first press STOP to stop
playback then press REPEAT when JPEG menu
appears.
The Repeat Off icon appears on the menu screen.
Note
The REPEAT button is not available when the mark
appear. Press PROGRAM to disappear the mark.
E
E
JPEG
ProgramJPEG
Clear All
1/31 OFF
Slide Speed Fast
MP3
JPEG
Programmed Playback
VCD1.1VCD2.0
JPEGMP3CD
Programmed Playback with
Audio CD, MP3 or JPEG Disc
Program allows you to store your favorite tracks/files
(or files) for a particular disc in the player memory.
Program can contain 32 tracks (Audio CD/Video CD) or
60 tracks (MP3/JPEG disc).
11
Insert a disc and close the tray.
•The Audio CD menu appears.
•If MP3 or JPEG disc is inserted, the MP3/JPEG
choice menu appears on the TV screen.
Press v/Vto select the MP3 or JPEG then press
ENTER. The MP3 or JPEG menu appears on the
TV screen. Press RETURN to move to the previ-
ous menu (MP3/JPEG choice menu).
22
Press PROGRAM in the stop mode or during
playback (Audio CD and MP3 only) to enter the
Program Edit mode.
The mark will appear to the right of the word Program
on the right side of the menu screen.
Note
Press PROGRAM to exit the Program Edit mode;
the mark will disappear.
33
Press v/Vto select a track/file then press
ENTER to place the selected track/file on the
Program list.
44
Repeat step 4 to place additional tracks/files on
the Program list.
For example: Audio CD menu
55
Press B.
The programmed track/file you selected last is highlighted
on the program list.
66
Press v/Vto select the track/file you want to
start playing.
Press TOP MENU to move to the next page.
Press MENU to move to the previous page.
77
Press ENTER or PLAY to start.
Playback begins in the order in which you programmed the
tracks/files and “PROG.” appears in the display window.
Playback stops after playing the last programmed track/file
on the program list.
Note
The programmed tracks/files are cleared when the
power is turned off or the disc is removed.
Programmed Playback with
Video CD
Note
On a Video CD with PBC, you must set PBC to Off on the
setup menu to use the Program function. See page 13.
11
Insert Video CD and close the tray.
22
Press PROGRAM while playback is stopped.
The VCD Program menu will appear.
Note
Press RETURN or PROGRAM to exit the Program menu.
33
Follow steps 3-7 of “Programmed Playback with
Audio CD, MP3 or JPEG Disc” on left.
Tip
To resume normal playback from programmed
playback
Press and hold PROGRAM for 3 seconds until “PROG.”
indicator disappears in the display window.
VCD1.1VCD2.0
E
E
JPEGMP3CD
ProgramCD
Clear All
TRACK 1
TRACK 2
TRACK 3
TRACK 4
TRACK 12
TRACK 8
TRACK 10
TRACK 3
TRACK 5
TRACK 6
TRACK 7
TRACK 8
STER. NORM.
E
0:56:35
VCD
Clear All
TRACK 1
TRACK 2
TRACK 3
TRACK 4
TRACK 5
TRACK 6
TRACK 7
TRACK 8
Program
E
Programmed Playback (Continued)
Repeat Programmed Tracks/All/Off
1To repeat the track currently playing, press REPEAT.
The Repeat Track icon appears on the menu screen.
2To repeat all tracks on the program list, press
REPEAT two times.
The Repeat All icon appears on the menu screen.
3To cancel Repeat mode, press REPEAT repeatedly
until the Repeat Off icon appears on the menu
screen.
Note
If you press SKIP (.) twice or SKIP (>) during
Repeat Track playback, the repeat playback cancels.
Repeat Programmed All/Off
1To repeat all files on the program list, press REPEAT
when JPEG menu appears.
The Repeat All icon appears on the menu screen.
2Press PLAY or ENTER to start repeat playback.
3To cancel Repeat mode, first press STOP to stop
playback then press REPEAT when JPEG menu
appears.
Note
The REPEAT button is not available when the mark
appear. Press PROGRAM to disappear the mark.
Erasing a Track/File from Program List
1Press PROGRAM during playback or in the stop
mode to enter the Program Edit mode.
The mark will appear.
Note
JPEG can be programmed only in stop mode (when
menu screen is displayed.)
2Press Bto move to the Program list.
3Use v/Vto select the track/file that you wish to erase
from the Program list.
4Press CLEAR.
The track/file will be erased from the Program list.
Erasing the Complete Program List
1Follow steps 1-2 of “Erasing a Track/File from
Program List” as above.
2Use v/Vto select “Clear All”, then press ENTER.
The complete Program for the disc will be erased.
The programs are also cleared when the disc is removed.
E
E
E
JPEG
MP3CD
OPERATION

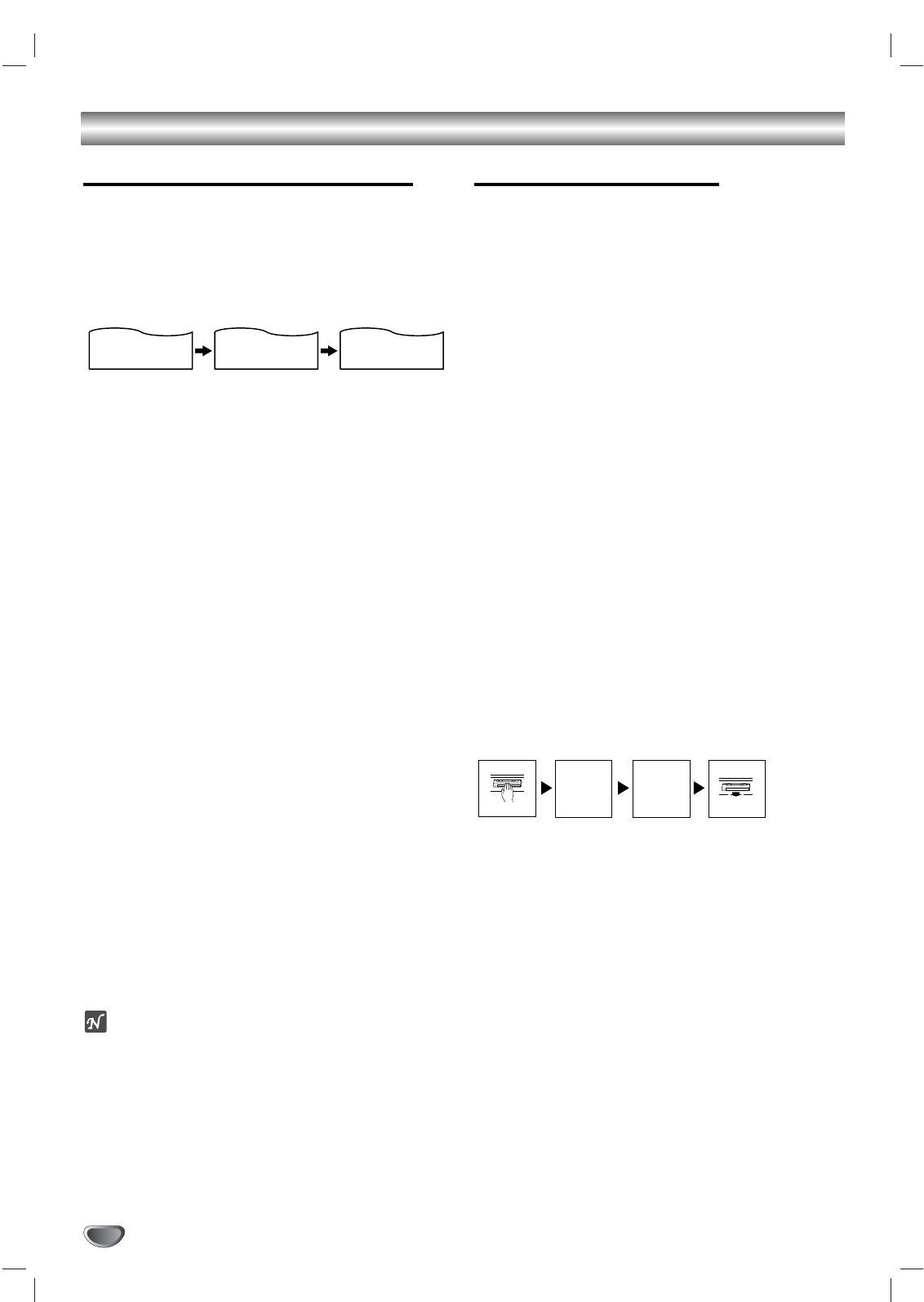

Additional Information - DVD Part
One Touch Replay
Press INSTANT REPLAY during playback and the disc
will reverse picture search through 10 seconds of play-
back. And then the playback will start from the point
again.
Screen Saver
Ascreen saver image appears when you leave the DVD
Player in stop mode for about five minutes.
Video Mode Setting
With certain discs, the playback picture may be flick-
ering or Dot Crawl is shown on straight lines. That
means Vertical interpolation or De-interlace is not
perfectly matched with the disc. In this case, the
picture quality may be improved by changing the
video mode.
To change the video mode, press and hold
GUI DISPLAY about 3 seconds during disc playback.
The new video mode number selected is displayed on
the TV screen. Check whether the video quality has
improved. If not, repeat the above procedure until pic-
ture quality is improved.
Video mode sequence:
Video1 →Video2 →Film →Adapt →Auto.
If you turn off the power, the video mode will return to
initial default state (Auto).
Detailed Description of each Video Mode
Auto : The source material of the DVD video (film material or
video material) is determined from disc information.
Video1 : Suitable for playing video based content with
comparatively little motion.
Video2 : Suitable for playing video based content with
comparatively more motion.
Film : Suitable for playing film based content or video based
material recorded by the progressive scan method.
Adapt : Determines the appropriate mode (film or video)
during disc playback, and automatically selects the proper
mode. Suitable for playing a disc comprised of film and
video based content.
VCD1.1VCD2.0
DVD
OPERATION
Symptom
No power.
The power is on, but
the DVD+VCR does not
work.
No picture.
No sound.
The playback picture is
poor.
The DVD+VCR does
not start playback.
The remote control
does not work properly.
Cause
The power cord is disconnected.
No disc is inserted.
No tape is inserted.
The TV is not set to receive DVD+VCR
signal output.
TV/VCR mode for DVD+VCR is set to
TV.
The video cable is not connected
securely.
The connected TV power is turned off.
The equipment connected with the
audio cable is not set to receive
DVD+VCR signal output.
The audio cables are not connected
securely.
The power of the equipment connected
with the audio cable is turned off.
The Digital Audio Output is set to the
wrong position.
The disc is dirty.
Tape heads are dirty.
Tape is a rental or was recorded on
another VCR.
No disc is inserted.
No tape is inserted.
An unplayable disc is inserted.
The disc is placed upside down.
The disc is not placed within the guide.
The disc is dirty.
The Rating level is set.
The remote control is not pointed at the
remote sensor of the DVD+VCR.
The remote control is too far from the
DVD+VCR.
There is an obstacle in the path of the
remote control and the DVD+VCR.
The batteries in the remote control are
exhausted.
This remote control use the same
buttons for VCR and DVD functions
(ex. PLAY).
Correction
Plug the power cord into the wall outlet
securely.
Insert a disc or tape. (Check that the
disc or tape indicator in the display
window is lit.)
Select the appropriate video input mode
on the TV so the picture from the
DVD+VCR appears on the TV screen.
Press the TV/VCR button on the remote
control repeatedly to choose VCR
mode. TV indicator disappears in the
display window.
Connect the video cable securely.
Turn on the TV.
Select the correct input mode of the
audio receiver so you can listen to the
sound from the DVD+VCR.
Connect the audio cable securely.
Turn on the equipment connected with
the audio cable.
Set the Digital Audio Output to the
correct position, then turn on the
DVD+VCR again by pressing POWER.
Clean the disc.
Clean video heads.
Use
CH/T
RK (+/-) for manual tracking
adjustment while tape is playing.
Insert a disc or tape. (Check that the
disc or tape indicator in the display
window is lit.)
Insert a playable disc. (Check the disc
type, color system, and Regional code.)
Place the disc with the playback side down.
Place the disc on the disc tray correctly
inside the guide.
Clean the disc.
Cancel the Rating function or change
the rating level.
Point the remote control at the remote
sensor of the DVD+VCR.
Operate the remote control within 23 ft
(7 m).
Remove the obstacle.
Replace the batteries with new ones.
When using a VCR, first press the VCR
button. When using a DVD, first press
the DVD button.
Troubleshooting
Check the following guide for the possible cause of a problem before contacting service.
Troubleshooting (Continued)
Symptom
Some channels are
skipped over when
using CH/TRK (+/-)
Picture and sound of
broadcasting channel
are weak or missing.
Camcorder image is not
shown.
Camcorder image via
A/V input to DVD+VCR
is not shown on TV
screen.
Timer recording is not
possible.
TIMER indicator
appears after DVD+VCR
is turned off.
Stereo Audio Record
and/or Playback is not
present.
Cause
Those channels were deleted with the
CH. ADD/DEL option.
Antenna or cables are loose.
Wrong TUNING BAND option is being
used.
Camcorder is off.
DVD+VCR SOURCE SELECT is not set
to LINE1 or LINE2.
Clock in DVD+VCR is not set to correct
time.
DVD+VCR is on which disables timer.
Timer has been programmed
incorrectly.
TIMER indicator does not appear after
programming timer.
DVD+VCR is in Timer Recording mode.
TV is not Stereo-compatible.
Broadcast program is not in stereo for-
mat.
DVD+VCR A/V Out jacks are not con-
nected to TV A/V In jacks.
DVD+VCR Audio/Video Out is not
selected for viewing at the TV.
DVD+VCR BROADCAST TYPE mode is
set to SAP or MONO.
Correction
Use CH. ADD/DEL. to restore channels.
See “Channel Selection” on page 16.
Tighten connections or replace cable.
Try all TUNING BAND options. See
“Channel Selection” on page 16 for
details.
Turn camcorder on and operate
properly.
Press INPUT SELECT to select LINE
input channel (LINE1 or LINE2).
Set clock to correct time. See “Setting
the Clock” on page 17.
Turn DVD+VCR off to enable timer.
TIMER indicator light appears in the
display window.
Reprogram Timer. See “Timer
Recording” on page 24.
Reprogram Timer and turn DVD+VCR
off to enable timer.
This is the normal indication that the
DVD+VCR is in TIMER mode.
No action is possible.
No action is possible.
Make A/V connections. Stereo is
available only via A/V output from
DVD+VCR.
Select AUX or A/V source as TV input.
Set BROADCAST TYPE mode to
STEREO. See “Setting the VCR Setup
Menu” on page 16.
Moisture Condensation
Moisture condensation can occur:
•When the DVD+VCR is moved from a cold place to a
warm place.
•Under extremely humid conditions.
In locations where moisture condensation may occur:
•
Keep the DVD+VCR plugged into an AC power outlet
with POWER On. This will help prevent condensation.
•When condensation has occurred, wait a few hours
for the DVD+VCR to dry before using it.
REFERENCE
Language Code List
Code Language
6566 Abkhazian
6565 Afar
6570 Afrikaans
8381 Albanian
6577 Amharic
6582 Arabic
7289 Armenian
6583 Assamese
6588 Aymara
6590 Azerbaijani
6665 Bashkir
6985 Basque
6678 Bengali; Bangla
6890 Bhutani
6672 Bihari
6682 Breton
6671 Bulgarian
7789 Burmese
6669 Byelorussian
7577 Cambodian
6765 Catalan
9072 Chinese
6779 Corsican
7282 Croatian
6783 Czech
6865 Danish
7876 Dutch
6978 English
6979 Esperanto
6984 Estonian
7079 Faeroese
Code Language
7074 Fiji
7073 Finnish
7082 French
7089 Frisian
7176 Galician
7565 Georgian
6869 German
6976 Greek
7576 Greenlandic
7178 Guarani
7185 Gujarati
7265 Hausa
7387 Hebrew
7273 Hindi
7285 Hungarian
7383 Icelandic
7378 Indonesian
7365 Interlingua
7165 Irish
7384 Italian
7465 Japanese
7487 Javanese
7578 Kannada
7583 Kashmiri
7575 Kazakh
7589 Kirghiz
7579 Korean
7585 Kurdish
7679 Laothian
7665 Latin
7686 Latvian, Lettish
Code Language
7678 Lingala
7684 Lithuanian
7775 Macedonian
7771 Malagasy
7783 Malay
7776 Malayalam
7784 Maltese
7773 Maori
7782 Marathi
7779 Moldavian
7778 Mongolian
7865 Nauru
7869 Nepali
7879 Norwegian
7982 Oriya
8065 Panjabi
8083 Pashto, Pushto
7065 Persian
8076 Polish
8084 Portuguese
8185 Quechua
8277 Rhaeto-Romance
8279 Romanian
8285 Russian
8377 Samoan
8365 Sanskrit
7168 Scots Gaelic
8382 Serbian
8372 Serbo-Croatian
8378 Shona
8368 Sindhi
Code Language
8373 Singhalese
8375 Slovak
8376 Slovenian
8379 Somali
6983 Spanish
8385 Sudanese
8387 Swahili
8386 Swedish
8476 Tagalog
8471 Tajik
8465 Tamil
8484 Tatar
8469 Telugu
8472 Thai
6679 Tibetan
8473 Tigrinya
8479 Tonga
8482 Turkish
8475 Turkmen
8487 Twi
8575 Ukrainian
8582 Urdu
8590 Uzbek
8673 Vietnamese
8679 Volapük
6789 Welsh
8779 Wolof
8872 Xhosa
7473 Yiddish
8979 Yoruba
9085 Zulu
Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu”
(See page 19).
Code Country
AD Andorra
AE United Arab Emirates
AF Afghanistan
AG Antigua and Barbuda
AI Anguilla
AL Albania
AM Armenia
AN Netherlands Antilles
AO Angola
AQ Antarctica
AR Argentina
AS American Samoa
AT Austria
AU Australia
AW Aruba
AZ Azerbaidjan
BA Bosnia-Herzegovina
BB Barbados
BD Bangladesh
BE Belgium
BF Burkina Faso
BG Bulgaria
BH Bahrain
BI Burundi
BJ Benin
BM Bermuda
BN Brunei Darussalam
BO Bolivia
BR Brazil
BS Bahamas
BT Bhutan
BV Bouvet Island
BW Botswana
BY Belarus
BZ Belize
CA Canada
CC Cocos (Keeling) Islands
CF Central African Republic
CG Congo
CH Switzerland
CI Ivory Coast
CK Cook Islands
CL Chile
CM Cameroon
CN China
CO Colombia
CR Costa Rica
CS Former Czechoslovakia
CU Cuba
CV Cape Verde
CX Christmas Island
CY Cyprus
CZ Czech Republic
DE Germany
DJ Djibouti
DK Denmark
DM Dominica
DO Dominican Republic
DZ Algeria
EC Ecuador
EE Estonia
EG Egypt
EH Western Sahara
Code Country
ER Eritrea
ES Spain
ET Ethiopia
FI Finland
FJ Fiji
FK Falkland Islands
FM Micronesia
FO Faroe Islands
FR France
FX France (European
Territory)
GA Gabon
GB Great Britain
GD Grenada
GE Georgia
GF French Guyana
GH Ghana
GI Gibraltar
GL Greenland
GM Gambia
GN Guinea
GP Guadeloupe (French)
GQ Equatorial Guinea
GR Greece
GS S. Georgia & S. Sandwich
Isls.
GT Guatemala
GU Guam (USA)
GW Guinea Bissau
GY Guyana
HK Hong Kong
HM Heard and McDonald
Islands
HN Honduras
HR Croatia
HT Haiti
HU Hungary
ID Indonesia
IE Ireland
IL Israel
IN India
IO British Indian Ocean
Territory
IQ Iraq
IR Iran
IS Iceland
IT Italy
JM Jamaica
JO Jordan
JP Japan
KE Kenya
KG Kyrgyzstan
KH Cambodia6
KI Kiribati
KM Comoros
KN
Saint Kitts & Nevis Anguilla
KP North Korea
KR South Korea
KW Kuwait
KY Cayman Islands
KZ Kazakhstan
LA Laos
LB Lebanon
Code Country
LC Saint Lucia
LI Liechtenstein
LK Sri Lanka
LR Liberia
LS Lesotho
LT Lithuania
LU Luxembourg
LV Latvia
LY Libya
MA Morocco
MC Monaco
MD Moldavia
MG Madagascar
MH Marshall Islands
MK Macedonia
ML Mali
MM Myanmar
MN Mongolia
MO Macau
MP Northern Mariana Islands
MQ Martinique (French)
MR Mauritania
MS Montserrat
MT Malta
MU Mauritius
MV Maldives
MW Malawi
MX Mexico
MY Malaysia
MZ Mozambique
NA Namibia
NC New Caledonia (French)
NE Niger
NF Norfolk Island
NG Nigeria
NI Nicaragua
NL Netherlands
NO Norway
NP Nepal
NR Nauru
NU Niue
NZ New Zealand
OM Oman
PA Panama
PE Peru
PF Polynesia (French)
PG Papua New Guinea
PH Philippines
PK Pakistan
PL Poland
PM Saint Pierre and Miquelon
PN Pitcairn Island
PR Puerto Rico
PT Portugal
PW Palau
PY Paraguay
QA Qatar
RE Reunion (French)
RO Romania
RU Russian Federation
RW Rwanda
SA Saudi Arabia
SB Solomon Islands
Code Country
SC Seychelles
SD Sudan
SE Sweden
SG Singapore
SH Saint Helena
SI Slovenia
SJ Svalbard and Jan Mayen
Islands
SK Slovak Republic
SL Sierra Leone
SM San Marino
SN Senegal
SO Somalia
SR Suriname
ST Saint Tome and Principe
SU Former USSR
SV El Salvador
SY Syria
SZ Swaziland
TC Turks and Caicos Islands
TD Chad
TF French Southern
Territories
TG Togo
TH Thailand
TJ Tadjikistan
TK Tokelau
TM Turkmenistan
TN Tunisia
TO Tonga
TP East Timor
TR Turkey
TT Trinidad and Tobago
TV Tuvalu
TW Taiwan
TZ Tanzania
UA Ukraine
UG Uganda
UK United Kingdom
UM USA Minor Outlying
Islands
US United States
UY Uruguay
UZ Uzbekistan
VA Vatican City State
VC Saint Vincent &
Grenadines
VE Venezuela
VG Virgin Islands (British)
VI Virgin Islands (USA)
VN Vietnam
VU Vanuatu
WF Wallis and Futuna Islands
WS Samoa
YE Yemen
YT Mayotte
YU Yugoslavia
ZA South Africa
ZM Zambia
ZR Zaire
ZW Zimbabwe
Country Code List
Enter the appropriate code number for the initial setting “Country Code” (See page 21).
REFERENCE
Specifications
General
Power requirements AC 120V , 60 Hz
Power consumption 23W
Dimensions (approx.) 430 X 97.5 X 293 mm (16.9 x 3.9 x 11.5 inches) (w x h x d)
Mass (approx.) 5.1 kg (11.3 lbs)
Operating temperature 5˚C to 40˚C (41˚F to 104˚F)
Operating humidity 5 % to 90 %
Signal system NTSC
Inputs
ANTENNA IN Antenna or CATV input, 75 ohms
VHS VIDEO IN 1 Vp-p 75 ohms, sync negative, RCA jack x 1
VHS AUDIO IN -6.0 dBm more than 47 kohms, RCA jack (L, R) x 1
Outputs
VIDEO OUT 1 Vp-p 75 ohms, sync negative
S-VIDEO OUT (Y) 1.0 V (p-p), 75 ohms, negative sync, Mini DIN 4-pin x 1
(C) 0.3 V (p-p) 75 ohms
COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75 ohms, negative sync, RCA jack x 1
(Pb)/(Pr) 0.7 V (p-p), 75 ohms, RCA jack x 2
Audio output (digital audio) 0.5 V (p-p), 75 ohms, RCA jack x 1
Audio output (optical audio) 5 V (p-p), 75 Ω, Optical connector x 1
Audio output (analog audio) 2.0 Vrms (1 KHz, 0 dB), 330 ohms, RCA jack (L, R) x 1
RF OUT Channel 3 or 4
VCR Specifications
Head system Four head helical scan azimuth system
Timer 12-hour display type with AM, PM
Tape speed SP: 33.35 mm/sec, LP: 16.67 mm/sec, SLP: 11.12 mm/sec
Tape width 12.7 mm
Maximum recording time SP: 2 HOURS (T-120), SLP: 6 HOURS (T-120)/8 HOURS (T-160)
Rewind time About 3 minutes (T-120)
Antenna 75 ohms (VHF/UHF)
VHF output signal Channel 3 or 4 (Switchable)
Channel coverage VHF: 2-13, UHF: 14-69, CATV: 1-125 (4A, A-W, W+1 - W+84, A-5 - A-1)
Frequency range 20Hz to 20kHz
Signal-to-noise ratio More than 43dB
Dynamic range More than 83 dB
Channel separation More than 55 dB
DVD Specifications
Laser system Semiconductor laser, wavelength 650 nm
Frequency response DVD (PCM 96 kHz): 8 Hz to 44 kHz, DVD (PCM 48 kHz): 8 Hz to 22 kHz
CD: 8 Hz to 20 kHz
Signal-to-noise ratio More than 100dB (ANALOG OUT jacks only)
Harmonic distortion Less than 0.008%
Dynamic range More than 95 dB (DVD/CD)
Accessory:
Video cable x 1, Audio cable x 1, RF 75-ohm Coaxial Cable x 1, Remote control x 1, Batteries x 2
Design and specifications are subject to change without notice.
Toshiba America Consumer Products, Inc. (“TACP”), Toshiba Hawaii (“THI”) and Toshiba Canada Limited (“TCL”) make the follow-
ing limited warranties. These limited warranties extend to original purchaser or any person receiving this set as a gift from the orig-
inal purchaser and to no other purchaser or transferee.
Limited Ninety (90) Day Warranty
TACP/THI warrant this product against defects in materials or
workmanship for a period of ninety (90) days after the date of
original retail purchase. During this period, TACP/ THI will
repair or replace a defective product or part, at their option,
with a new or refurbished product or part without charge to
you. You must deliver the entire product to a TACP/THI
Authorized Service Station. You are responsible for all trans-
portation and insurance charges for the unit to and from the
Authorized Service Station. If you live in the
U.S.A. you may, at your option, return your DVD Unit to:
Toshiba America Consumer Products Inc.
Returns Center
1420C Toshiba Dr.
Lebanon, TN 37087
Upon receipt we will, at our option, exchange the DVD Unit
with a new or refurbished unit. Canadian consumers are
requested to contact TCL. In Hawaii consumers are
requested to contact THI.
Limited One (1) Year Warranty
TACP/THI further warrant the parts in this product against
defects in materials or workmanship for a period of one (1)
year after the date of original retail purchase. During this peri-
od, TACP/THI will repair or replace a defective product or part,
at their option, with a new or refurbished product or part with-
out charge to you, except that if a defective part is replaced
after ninety (90) days from the date of the original retail pur-
chase you pay labor charges involved in the replacement. You
must also deliver the entire product to a TACP/THI Authorized
Service Station. You are responsible for all transportation and
insurance charges for the unit to and from the Authorized
Service Station. If you live in the U.S.A. you may, at your
option, return your DVD Unit to:
Toshiba America Consumer Products Inc.
Returns Center
1420C Toshiba Dr.
Lebanon, TN 37087
Upon receipt we will, at our option, exchange the DVD Unit
with a new or refurbished unit. Canadian Consumers are
requested to contact TCL. In Hawaii consumers are
requested to contact THI.
Rental Units
The warranty for rental units begin with the first rental or thirty
(30) days from the date of shipment to the rental firm, whichev-
er comes first.
Commercial Units
Products sold and used for commercial use have a limited
ninety (90) day warranty for all parts and labor.
Owner’s Manual
You should read the owner’s manual thoroughly before operat-
ing this product. You should complete and mail the enclosed
Demographic card within ten (10) days after you, or the person
who has given you this product as a gift, purchased this prod-
uct. This is one way to enable TACP to provide you with better
customer service and improved products. Failure to return the
card will not affect your rights under this warranty.
Your Responsibility
The above warranties are subject to the following conditions:
(1) You must retain your bill of sale or provide other proof of
purchase.
(2) You must notify a TACP/THI/TCL /Authorized Service
Station within thirty (30) days after you discover a defective
product or part.
(3) All warranty servicing of this product must be made by a
TACP/THI/TCL Authorized Service Station.
(4) U.S.A. warranties are effective only if the product is pur-
chased and operated in the Continental U.S.A. or Puerto
Rico.
(5) Labor service charges for set installation. Set up, adjust-
ment of customer controls and installation or repair of
antenna systems are not covered by this warranty.
Reception problems caused by inadequate antenna sys-
tems are your responsibility.
(6) Warranties extend only to defects in materials or workman-
ship as limited above and do not extend to any product or
parts which have been lost or discarded by you or to dam-
age to products or parts caused by misuse, accident, dam-
age caused by Acts of God, such as lighting or fluctuations
in electric power, improper installation, improper mainte-
nance or use in violation of instructions furnished by us; or
to units which have been altered or modified without
authorization of TACP/THI/TCL or to damage to products
or part thereof which have had the serial number removed,
altered, defaced or rendered illegible.
(7) Should you elect to return your DVD Unit to TACP after the
ninety (90) days and within one (1) year, or after the war-
ranty period has expired: Call (800)-631-3811 to receive
information concerning an exchange price. Payment must
be enclosed with product in the form of a certified check or
money order including reason for return.
(8) Physically damaged DVD Units are not acceptable for
repair or exchange whether in or out of warranty and will
be returned as received.
(Continued)
LIMITED WARRANTY DVD VIDEO PLAYER
REFERENCE
How to Obtain Warranty Service
(1) Refer to the troubleshooting guide in your owner’s manual. This check list may solve your problem.
(2) In the U.S.A., only call the TACP toll free number 800-631-3811, or if in Hawaii or Canada see listing below within (30) days
after you find a defective product or part.
(3) Arrange for the delivery of the product to the TACP/THI/TCL Authorized Service Station or TACP Return Center. Products
shipped to the Service Station must be insured and safely and securely packed, preferably in the original shipping carton,
and a letter explaining the defect and also a copy of the bill of sale or other proof of purchase must be enclosed.
ATTENTION CANADIAN CONSUMERS:
Canadian consumers are requested to complete the special Canadian “Warranty Registration Form” enclosed, and forward this
