LG Electronics USA 9QKE40420 DVD Player/Video Cassette Recorder Combination User Manual VYC8010MT HA1USS EVNT
LG Electronics USA DVD Player/Video Cassette Recorder Combination VYC8010MT HA1USS EVNT
users manual
Only cassettes marked can be used with this DVD+VCR.
Please read this manual carefully before connecting your DVD+VCR and operating it for the first time.
Keep the manual in a safe place for future reference.
As an ENERGY STAR®Partner,
SANYO has determined that
this product or product model
meets the ENERGY STAR®
guidelines for energy efficiency.
INSTRUCTION MANUAL DVW-7000
DVD Player + Video Cassette Recorder English
Reproductor de DVD + Videograbador Español
2
Safety Precautions
This lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to
the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
product.
WARNING: Do not install this equipment in a confined space
such as a book case or similar unit.
NOTE TO CABLE/TV INSTALLER: This reminder is provided to
call the cable TV system installer’s attention to Article 820-40 of
the National Electric Code (U.S.A.). The code provides guidelines
for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the
building, as close to the point of the cable entry as practical.
CAUTION:
This DVD+VCR employs a Laser System.
To ensure proper use of this product, please read this owner’s
manual carefully and retain for future reference should the unit
require maintenance, contact an authorized service location.
Use of controls, adjustments, or the performance of proce-
dures other than those specified herein may result in haz-
ardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open
the enclosure. Visible laser radiation when open. DO NOT
STARE INTO BEAM.
CAUTION: The apparatus should not be exposed to water
(dripping or splashing) and no objects filled with liquids, such
as vases, should be placed on the apparatus.
FCC WARNING: This equipment may generate or use radio
frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the modifi-
cations are expressly approved in the instruction manual. The
user could lose the authority to operate this equipment if an
unauthorized change or modification is made.
REGULATORY INFORMATION: FCC Part 15
This product has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the product is
operated in a residential installation. This product generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this product does cause harmful
interference to radio or television reception, which can be
determined by turning the product off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the product and
receiver.
Connect the product into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
NOTES ON COPYRIGHTS:
It is forbidden by law to copy, broadcast, show, broadcast
via cable, play in public, or rent copyrighted material without
permission.
This product features the copy protection function developed
by Macrovision. Copy protection signals are recorded on some
discs. When recording and playing the pictures of these discs
on a VCR, picture noise will appear.
This product incorporates copyright protection technology that
is protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation
and other rights owners. Use of this copyright protection tech-
nology must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
SERIAL NUMBER: The serial number is found on the back of
this unit. This number is unique to this unit and not available to
others. You should record requested information here and
retain this guide as a permanent record of your purchase.
Model No. ____________DVW-7000_____________
Serial No. __________________________________
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE
DANS LA BORNE CORRESPONDANTE DE LA PRISE ET
POUSSER JUSQU’AU FOND.
WARNING: TO REDUCE THE RISK OF FIRE OR ELEC-
TRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO
RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
INTRODUCTION
3
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions. - All these safety and oper-
ating instructions should be read before the product is
operated.
2. Keep these instructions. - The safety, operating and
use instructions should be retained for future refer-
ence.
3. Heed all warnings. - All warnings on the product and
in the operating instructions should be adhered to.
4. Follow all instructions. - All operating and use
instructions should be followed.
5. Do not use this product near water. – For example:
near a bath tub, wash bowl, kitchen sink, laundry tub,
in a wet basement; or near a swimming pool; and
other areas located near water.
6. Clean only with dry cloth. – Unplug this product from
the wall outlet before cleaning. Do not use liquid
cleaners.
7.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions. -
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over- heating. The open-
ings should never be blocked by placing the product
on a bed, sofa, rug or other similar surface. This prod-
uct should not be placed in a built-in installation such
as a bookcase or rack unless proper ventilation is pro-
vided or the manufacturer’s instructions have been
adhered to.
8. Do not install near any heat sources such as radi-
ators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. D
o not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are pro-
vided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the product.
11. Only use attachments/accessories specified by
the manufacturer.

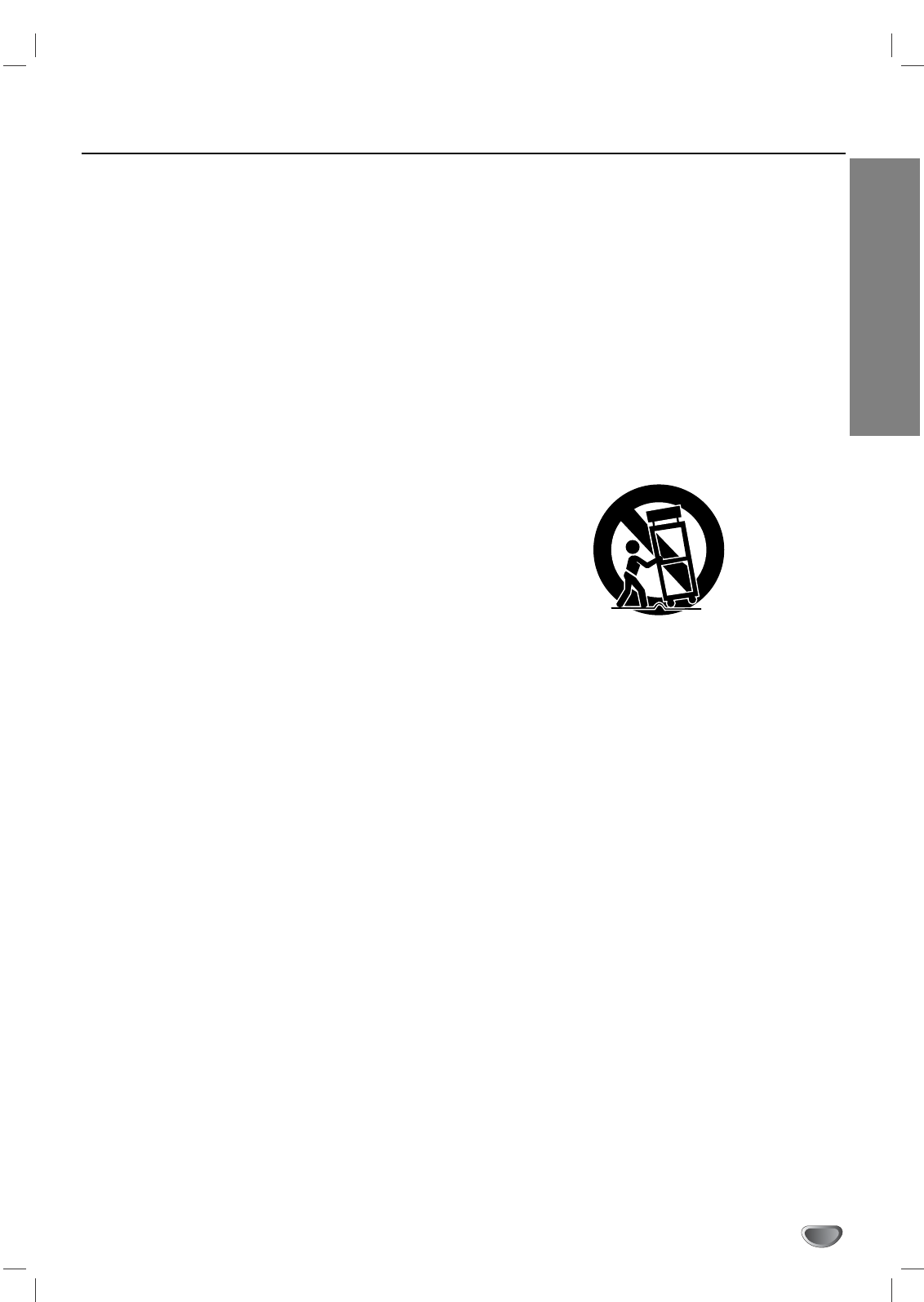

12. Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
apparatus. When a cart is used, use caution
when moving the cart/product combination to
avoid injury from tip-over.
13. Unplug this product during lightning storms or
when unused for long periods of time.
14.
Refer all servicing to qualified service personnel.
Servicing is required when the product has been
damaged in any way, such as power-supply cord
or plug is damaged, liquid has been spilled or
objects have fallen into the product, the product
has been exposed to rain or moisture, does not
operate normally, or has been dropped.
CAUTION:
PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANUAL.
AND THOSE MARKED ON THE PRODUCT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
This product has been designed and manufactured to assure personal safety. Improper use can result in electric
shock or fire hazard. The safeguards incorporated in this product will protect you if you observe the following proce-
dures for installation, use, and servicing.
This product does not contain any parts that can be repaired by the user.
DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.
4
Table of Contents
Introduction
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . 3
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . . 6
About Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Display Window. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Preparation
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-13
Connecting Antenna/Cable TV to DVD+VCR . . . 11
Basic TV Connections . . . . . . . . . . . . . . . . . . . . 12
Optional, Preferred TV Connections . . . . . . . 12-13
Before Operation - VCR Part . . . . . . . . . . . . . . 14-16
On-Screen Display(OSD) . . . . . . . . . . . . . . . . . . 14
Setting the On-Screen Display . . . . . . . . . . . . . . 14
Setting the VCR Setup Menu . . . . . . . . . . . . . . . 15
Channel Selection . . . . . . . . . . . . . . . . . . . . . . . 15
Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . 16
Before Operation - DVD Part . . . . . . . . . . . . . . 17-20
General Explanation. . . . . . . . . . . . . . . . . . . . . . 17
On-Screen Display. . . . . . . . . . . . . . . . . . . . . . . 17
Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . 18-20
Initial Settings General Operation . . . . . . . . . 18
LANGUAGE. . . . . . . . . . . . . . . . . . . . . . . . . 18
DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
OTHERS . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
LOCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
TVG®(TVGuardian®). . . . . . . . . . . . . . . . . . . . . . . . 21
Setting the TVG®(TVGuardian®). . . . . . . . . . . . . 21
Operation
Operation with tape . . . . . . . . . . . . . . . . . . . . . 22-27
Normal Playback . . . . . . . . . . . . . . . . . . . . . . . . 22
Special Effect Playbacks . . . . . . . . . . . . . . . . . . 22
Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Still Picture and Frame-by-Frame Playback . 22
Slow Motion . . . . . . . . . . . . . . . . . . . . . . . . . 22
Ad JUMP (Advertisement Jump). . . . . . . . . . 22
Normal Recording . . . . . . . . . . . . . . . . . . . . . . . 23

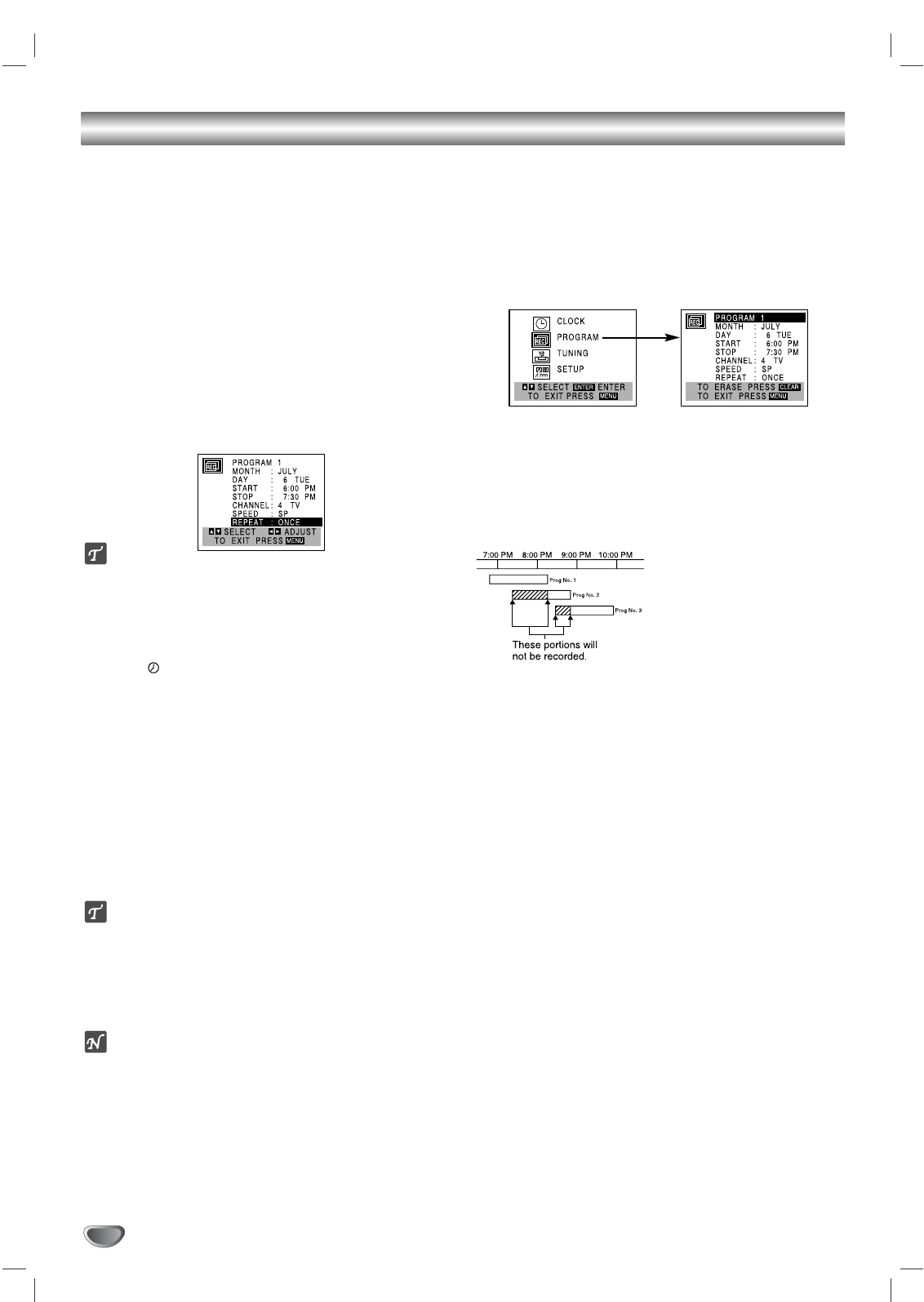

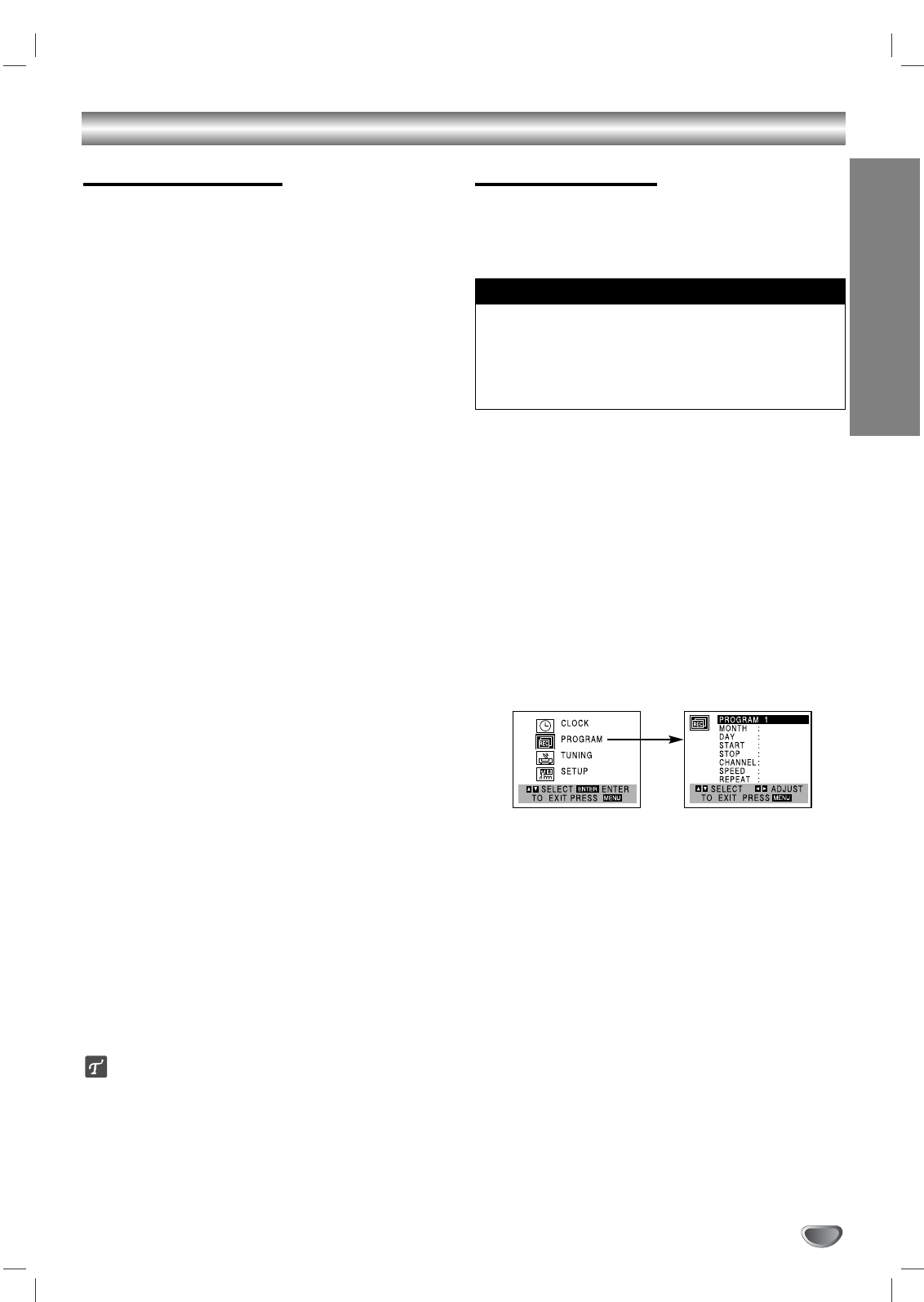

Timer Recording . . . . . . . . . . . . . . . . . . . . . . 23-24
Instant Timer Recording . . . . . . . . . . . . . . . . . . . 25
Dubbing and Editing. . . . . . . . . . . . . . . . . . . . . . 25
Copying from DVD to VCR. . . . . . . . . . . . . . . . . 25
VHS Hi-Fi Stereo System/MTS Broadcast . . . . . 26
Tape Counter Memory Feature. . . . . . . . . . . . . . 27
Additional Information . . . . . . . . . . . . . . . . . . . . 27
Operation with DVD . . . . . . . . . . . . . . . . . . . . . 28-30
Playing DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
General Features. . . . . . . . . . . . . . . . . . . . . . . . 28
Moving to another TITLE . . . . . . . . . . . . . . . 28
Moving to another CHAPTER. . . . . . . . . . . . 28
Slow Motion . . . . . . . . . . . . . . . . . . . . . . . . . 28
Still Picture and Frame-by-Frame Playback . 29
Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Repeat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . 29
Time Search . . . . . . . . . . . . . . . . . . . . . . . . 29
3D Surround . . . . . . . . . . . . . . . . . . . . . . . . 29
Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Marker Search . . . . . . . . . . . . . . . . . . . . . . . 30
Special DVD Features . . . . . . . . . . . . . . . . . . . . 30
Checking the contents of DVD Video discs: Menus
. 30
Title Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Disc Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Camera Angle . . . . . . . . . . . . . . . . . . . . . . . 30
Changing the Audio Language . . . . . . . . . . . 30
Subtitle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Operation with Audio CD and MP3 Discs . . . . 31-32
Playing an Audio CD and MP3 Discs . . . . . . . . . 31
Notes on MP3 Recordings . . . . . . . . . . . . . . . . . 31
Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Moving to another Track . . . . . . . . . . . . . . . 32
Repeat Track/ All/ Off. . . . . . . . . . . . . . . . . . 32
Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Random . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . 32
Programmed Playback . . . . . . . . . . . . . . . . . . . . . 33
Programmed Playback with Audio CD
and MP3 Discs . . . . . . . . . . . . . . . . . . . . . . . . . 33
Repeat Programmed Tracks . . . . . . . . . . . . 33
Erasing a Track from Program List . . . . . . . . 33
Erasing the Complete Program List . . . . . . . 33
Reference
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 34-35
Language Code List . . . . . . . . . . . . . . . . . . . . . . . 36
Country Code List . . . . . . . . . . . . . . . . . . . . . . . . . 37
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
About the symbols for instructions
Indicates hazards likely to cause harm to the unit
itself or other material damage.
Indicates special operating features of this unit.
Indicates tips and hints for making the task easier.
INTRODUCTION
5

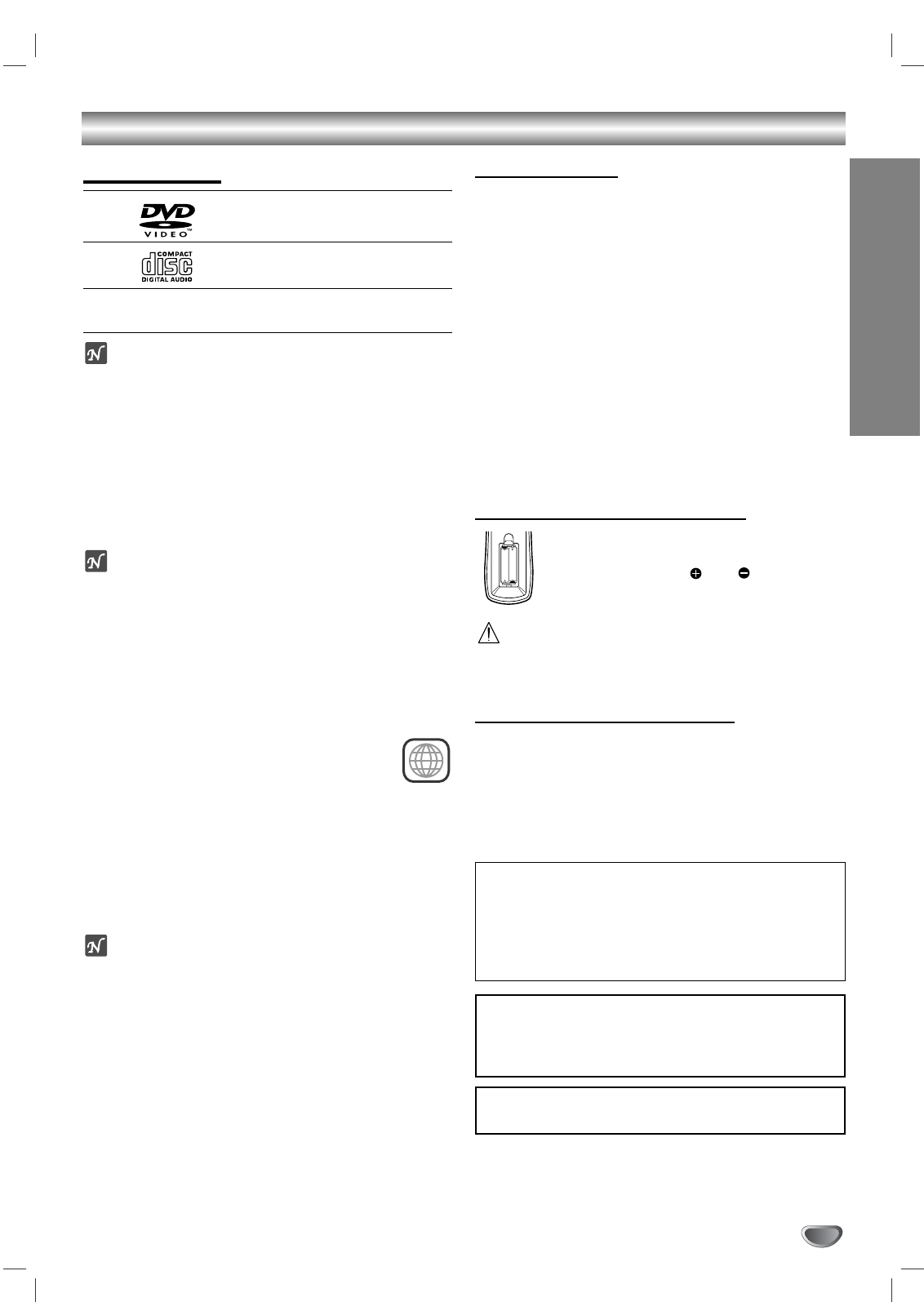

Before Use
Playable Discs
DVD
(8 cm/12 cm disc)
Audio CD
(8 cm/12 cm disc)
In addition, this unit can play a CD-R or CD-RW that
contains audio titles or MP3 files.
Notes
–Depending on the conditions of the recording equip-
ment or the CD-R/RW disc itself, some CD-R/RW
discs cannot be played on the unit.
–The unit cannot play discs that contain data other
than MP3 and CD-DA data.
–Do not attach any seal or label to either side (the
labeled side or the recorded side) of a disc.
–Do not use irregularly shaped CDs (e.g., heart-
shaped or octagonal). It may result in malfunctions.
Notes on DVDs
Some playback operations of DVDs may be intention
ally fixed by software manufacturers. As this unit plays
DVDs according to disc content designed by the soft-
ware manufacturer, some playback features of the unit
may not be available or other functions may be added.
Refer also to the instructions supplied with the DVDs.
Some DVDs made for business purposes may not be
played on the unit.
Regional code of the DVD+VCR and DVDs
This DVD+VCR is designed and manufactured
for playback of region 1 encoded DVD software.
The region code on the labels of some DVD discs indi-
cates which type of DVD+VCR can play those discs. This
unit can play only DVD discs labeled 1 or ALL. If you try
to play any other discs, the message “Check Regional
Code” will appear on the TV screen. Some DVD discs
may not have a region code label even though their play-
back is prohibited by area limits.
Note on DTS-encoded CDs
When playing DTS-encoded CDs, excessive noise may
be exhibited from the analog stereo output. To avoid
possible damage to the audio system, turn down the
volume before playing back such discs, adjust the vol-
ume gradually, and keep the volume level low. To enjoy
DTS Digital SurroundTM playback, an external 5.1 chan-
nel Digital SurroundTM decoder system must be connect-
ed to the digital output of the unit.
Disc-related terms
Title (DVD only)
The main film content or accompanying feature content
or music album.
Each title is assigned a title reference number enabling
you to locate it easily.
Chapter (DVD only)
Sections of a picture or a musical piece that are smaller
than titles. A title is composed of one or several chap-
ters. Each chapter is assigned a chapter number to
enable you to locate the chapter you want. Depending
on the disc, chapters may not be recorded.
Track (audio CD only)
Sections of a musical piece on an audio CD. Each track
is assigned a track number, enabling you to locate the
track you want.

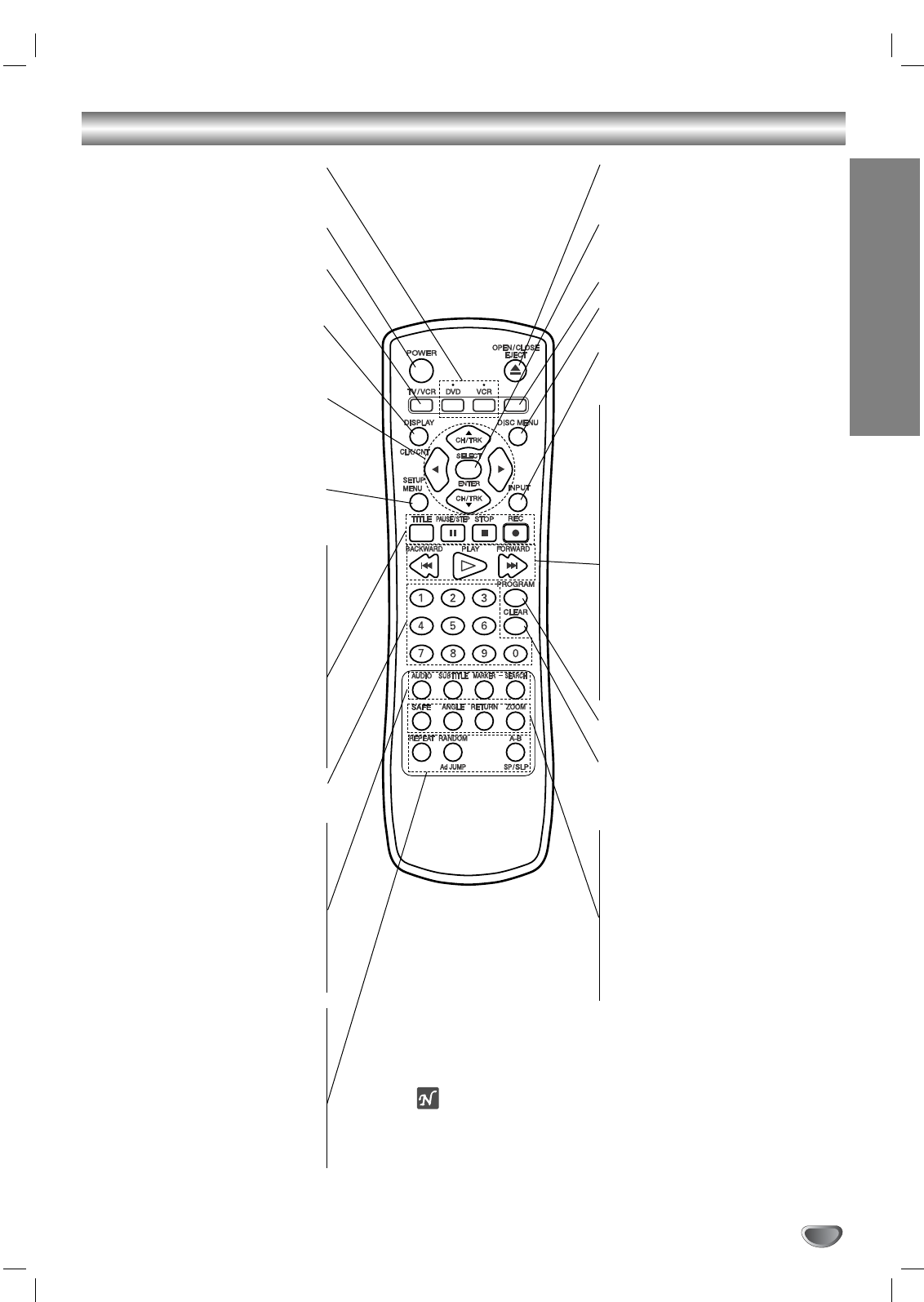

Remote control battery installation
Detach the battery cover on the rear of the
remote control, and insert two R03 (size
AAA) batteries with and aligned
correctly.
Caution
Do not mix old and new batteries. Never mix different
types of batteries (standard, alkaline, etc.).
Remote Control Operation Range
Point the remote control at the remote sensor and press
the buttons.
Distance: About 23 ft (7 m) from the front of the
remote sensor
Angle: About 30° in each direction of the front of the
remote sensor
1
AAA
AAA
IMPORTANT NOTE:
SPENT OR DISCHARGED BATTERIES MUST BE
RECYCLED OR DISPOSED OF IN A SAFE MANNER
IN COMPLIANCE WITH ALL APPLICABLE LAWS.
FOR DETAILED INFORMATION, CONTACT YOUR
LOCAL COUNTY SOLID WASTE AUTHORITY.
Manufactured under license from Dolby Laboratories. Dolby
and the double-D symbol are trademarks of Dolby
Laboratories. Confidential unpublished works. Copyright
1992-1997 Dolby Laboratories. All rights reserved.
DTS and DTS Digital Out are trademarks of Digital Theater
Systems, Inc.
6
Before Use (Continued)
Precautions
Handling the unit
When shipping the unit
The original shipping carton and packing materials
come in handy. For maximum protection, re-pack the
unit as it was originally packaged at the factory.
When setting up the unit
The picture and sound of a nearby TV, VCR, or radio
may be distorted during playback. In this case, position
the unit away from the TV, VCR, or radio, or turn off the
unit after removing the disc.
To keep the surface clean
Do not use volatile liquids, such as insecticide spray,
near the unit. Do not leave rubber or plastic products in
contact with the unit for a long period of time. They will
leave marks on the surface.
Cleaning the unit
To clean the cabinet
Use a soft, dry cloth. If the surfaces are extremely dirty,
use a soft cloth lightly moistened with a mild detergent
solution. Do not use strong solvents such as alcohol,
benzine, or thinner, as these might damage the surface
of the unit.
To obtain a clear picture
The DVD+VCR is a high-tech, precision device. If the
optical pick-up lens and disc drive parts are dirty or
worn, the picture quality will be poor.
Regular inspection and maintenance are recommended
after every 1,000 hours of use. (This depends on the
operating environment.)
For details, please contact your nearest dealer.

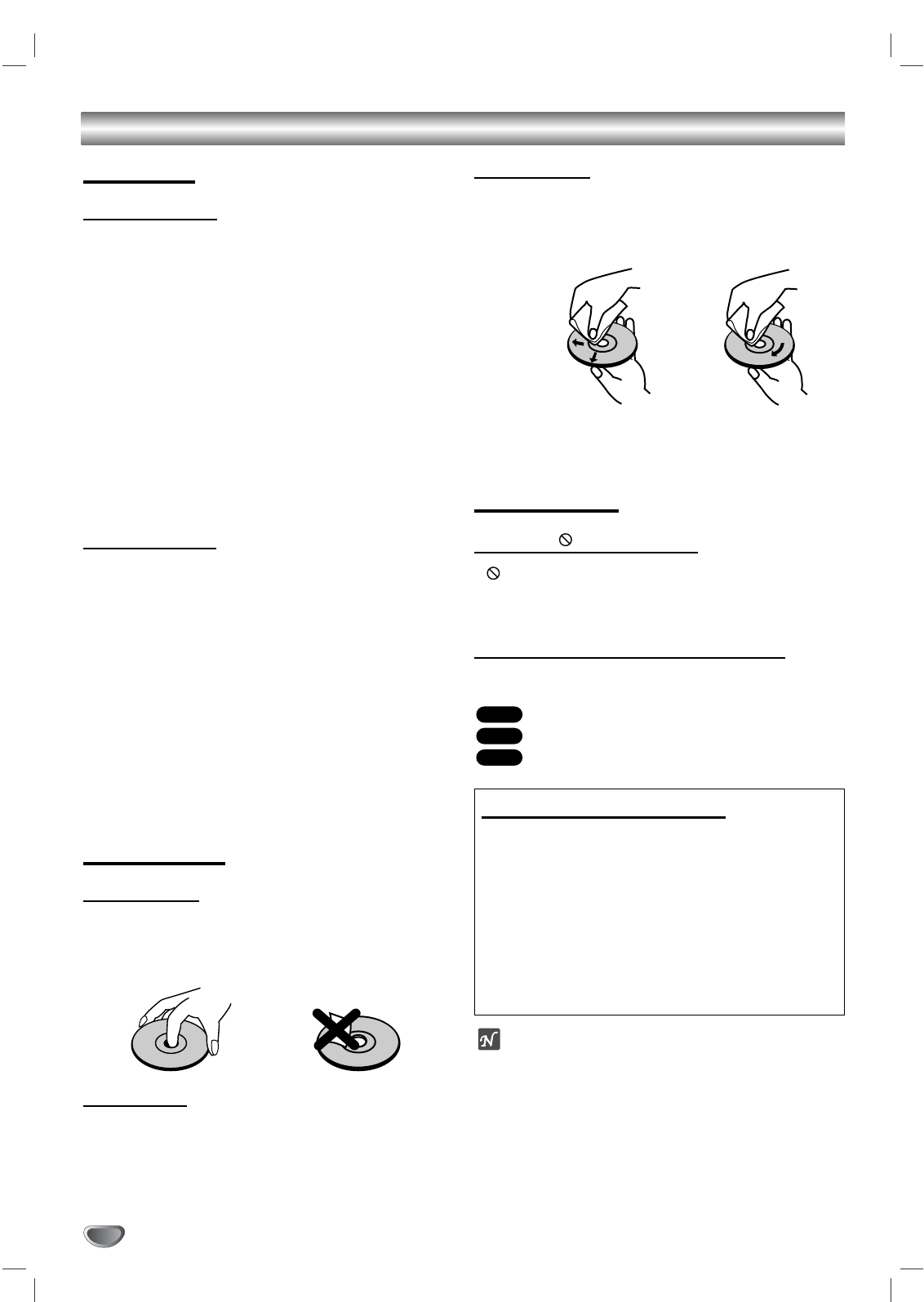

Notes on Discs
Handling discs
Do not touch the playback side of the disc.
Hold the disc by the edges so that fingerprints will not
get on the surface.
Do not stick paper or tape on the disc.
Storing discs
After playing, store the disc in its case.
Do not expose the disc to direct sunlight or sources of
heat, or leave it in a parked car exposed to direct sun-
light, as there may be a considerable temperature
increase inside the car.
Cleaning discs
Fingerprints and dust on the disc can cause poor pic-
ture quality and sound distortion. Before playing, clean
the disc with a clean cloth. Wipe the disc from the cen-
ter out.
Do not use strong solvents such as alcohol, benzine,
thinner, commercially available cleaners, or anti-static
spray intended for older vinyl records.
About Symbols
About the symbol display
“ ” may appear on the TV screen during operation.
This icon means the function explained in this owner’s
manual is not available on that specific DVD video disc.
About the disc symbols for instructions
Asection whose title has one of the following symbols are
applicable only to those discs represented by the symbol.
DVDs
Audio CDs.
MP3 Discs.
MP3
CD
DVD
No
Yes
Setting the Output Source
You must select one of your output sources (DVD or
VCR) to view on the TV screen.
•If you want to view output source of DVD deck:
Press DVD on the remote or DVD/VCR on the front panel
until DVD indicator in the display window lights and output
source of DVD deck is viewed on the TV screen.
•If you want to view output source of VCR deck:
Press VCR on the remote or DVD/VCR on the front panel
until VCR indicator in the display window lights and output
source of VCR deck is viewed on the TV screen.
Note
•If you insert a disc while the DVD+VCR is in the VCR
mode, the DVD+VCR will switch to DVD mode
automatically.
•If you insert a cassette tape without an erasure
prevention tab intact while the DVD+VCR is in the
DVD mode, the DVD+VCR will switch to VCR mode
automatically.
7
INTRODUCTION

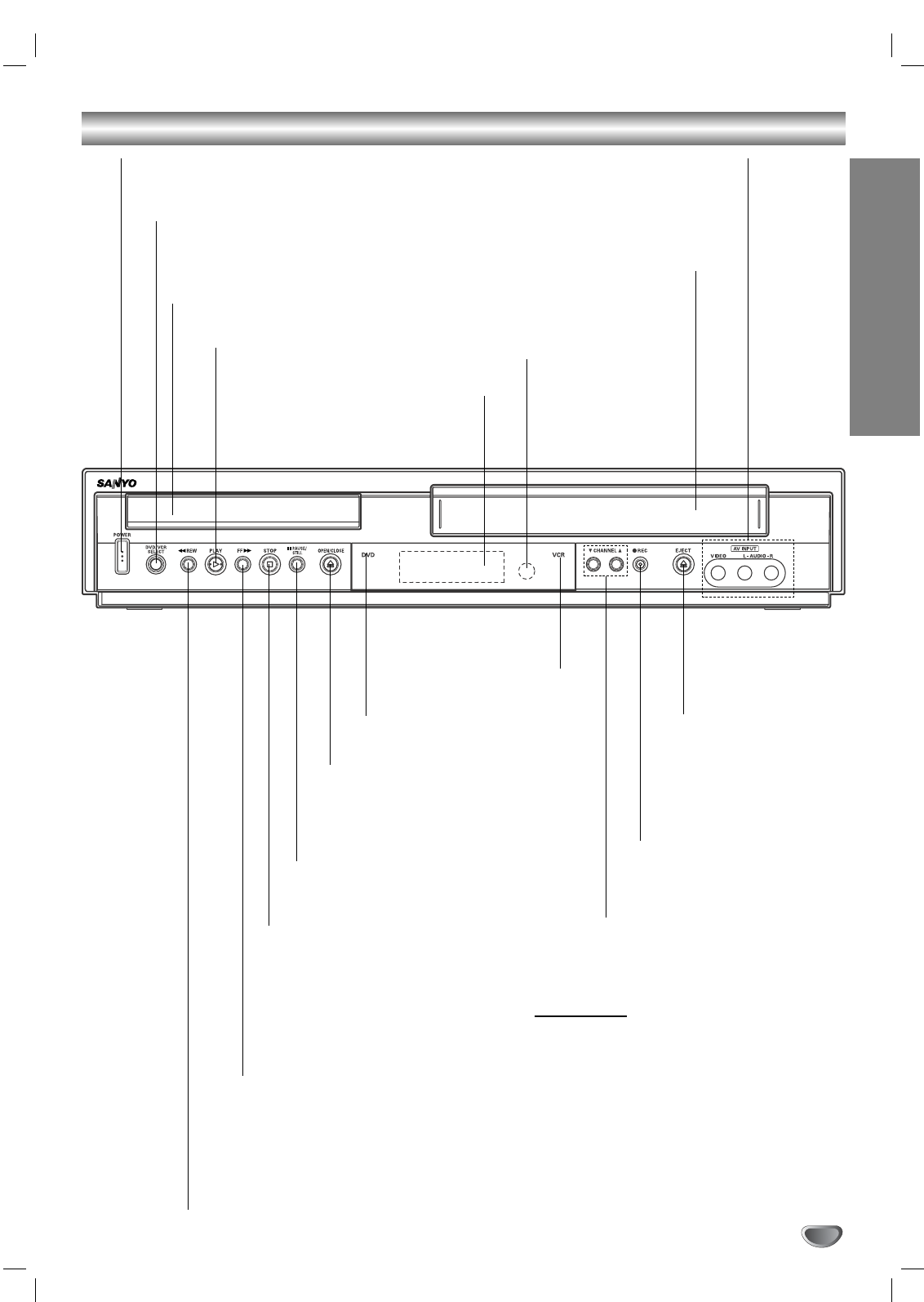

Front Panel
PAUSE/STILL(XX)
Pause playback of a disc in the DVD
deck temporarily/press repeatedly
for frame-by-frame playback.
Child Lock
The control buttons on the front panel of the
DVD+VCR can be switched off so that your
DVD+VCR can only be operated using the
remote control.
Press SAFE on the remote control to enable
LOCK function, SAFE appears in the display
window.
To disable the LOCK function, press SAFE on
the remote control until OFF appears in the
display window.
OPEN/CLOSE (ZZ)
Opens or closes the disc tray.
Remote Sensor
Point the DVD+VCR
remote control here.

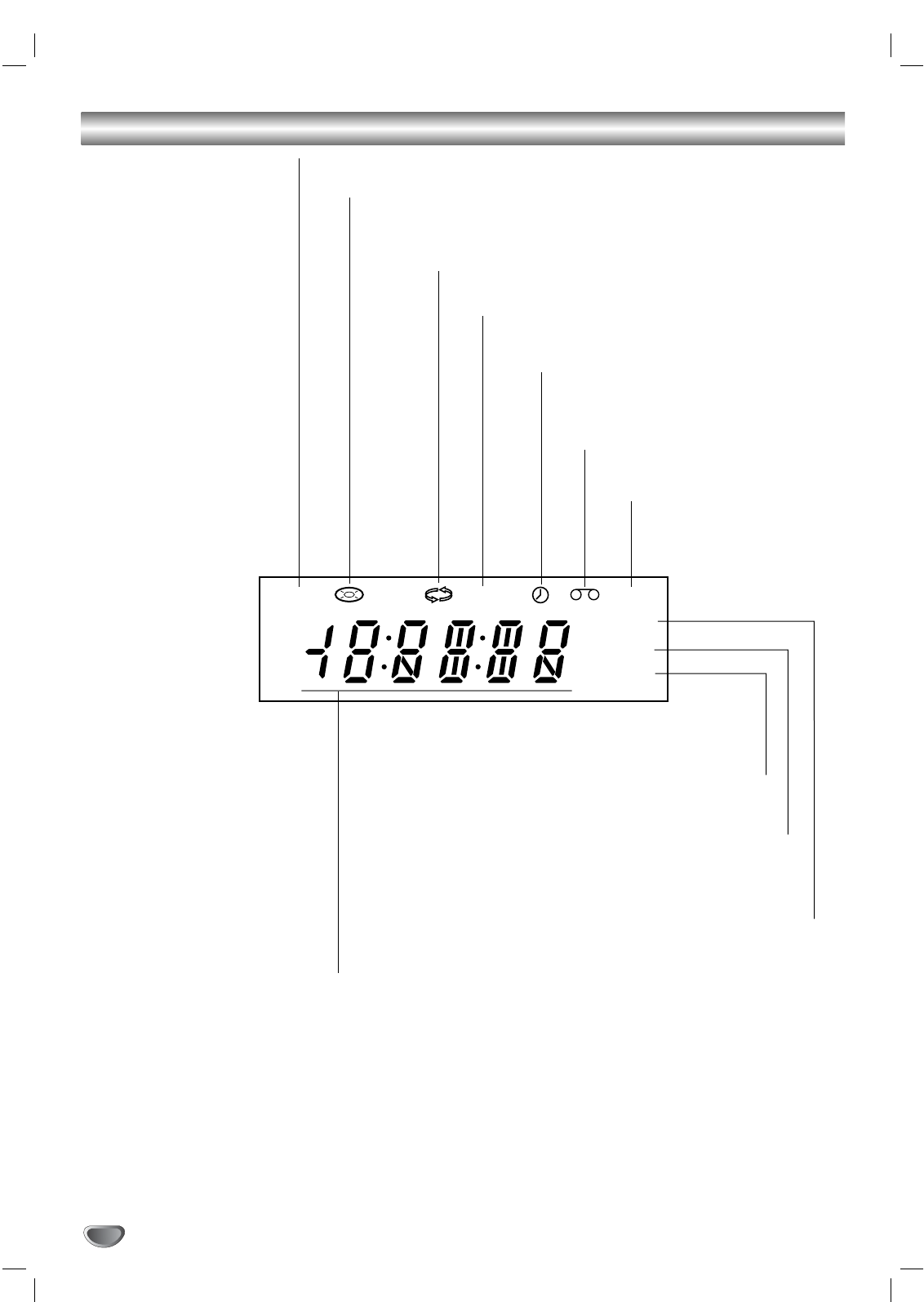

Display window
Shows the current status of the
DVD+VCR.
Disc Tray (DVD deck)
Insert a disc here.
POWER
Switches the DVD+VCR ON and OFF.
DVD indicator
Indicates the active DVD deck.
DVD/VCR SELECT (output select)
Select one of your output sources to
view on the TV screen between DVD
and VCR.
REC (zz)
To record normally or to acti-
vate Instant Timer
Recording.
CHANNEL (vv/VV)
To scan up or down through mem-
orized channels.
PLAY (BB)
Starts playback of a disc or tape.
STOP (xx)
Stops playback of disc or tape.
AV INPUT (VIDEO IN/AUDIO IN (Left/Right))
Connect the audio/video output of an exter-
nal source (Audio system, TV/Monitor,
Another VCR).
Cassette Compartment
(VCR deck)
Insert a video cassette here.
EJECT(ZZ)
Ejects the tape in the
VCR deck.
FF(M)
DVD: Go to NEXT chapter/track. Press
and hold for a fast forward search.
VCR: Advances the tape from STOP
mode or for fast forward picture
search.
REW (m)
DVD: Go to beginning of current
chapter/track or to previous chapter/track.
Press and hold for a fast reverse search.
VCR: Rewinds the tape from STOP mode or
for fast reverse picture search.
VCR indicator
Indicates the active VCR
deck.
8
Display Window
DVD
VCR
REC
PM
COPY
TV
DVD+VCR is in timer recording or a timer
recording is programmed.(VCR part only)
Acassette is in the VCR deck.
The VCR deck is selected.
DVD+VCR is Recording.
(VCR part only)
Indicates PM time. (AM is not displayed.)
Lights when TV mode is active (See page 23.)
Adisc is in the DVD deck.
(Lights when a disc is in the DVD deck
and Flashes when no disc.)
Indicates repeat mode.
DVD to VCR copy is in progress.
Indicates total playing time, elapsed time, remaining time or
current deck status (Playback, Pause, etc).
The DVD deck is selected.
9
INTRODUCTION
Remote Control
DVD/VCR select button
Select the output source (DVD or VCR)
to view on the TV screen.
POWER
Switches DVD+VCR ON and OFF.
TV/VCR
To view channels selected by the VCR
tuner or by the TV tuner.
DISPLAY, CLK/CNT
Accesses On-Screen display.
Switches among the clock, tape counter
and tape remaining modes on the display.
b/B/v/V(left/right/up/down)
- Selects an option in the menu
-
CH/TRK (v/V): Selects channel of VCR.
Adjusts manually the tape’s picture
onscreen.
SETUP, MENU
Accesses or removes DVD setup menu
and VCR menu.
TITLE
Displays the disc’s Title menu, if
available.
PAUSE/STEP (XX)
Pause playback or recording
temporarily/press repeatedly for frame-
by-frame playback.
STOP (xx)
Stops playback.
REC (zz)
Records normally or activates Instant
Timer Recording.
0-9 numerical buttons
Selects numbered options in a menu.
AUDIO
Selects an audio language (DVD) or an
audio channel (CD).
SUBTITLE
Selects a subtitle language.
MARKER
Marks any point during playback.
SEARCH
Displays MARKER SEARCH menu.
REPEAT
Repeat chapter, track, title, all.
RANDOM, Ad JUMP
- Plays tracks in random order.
- Fast forwards picture search through
30 seconds of recording.
A-B, SP/SLP
- Repeats sequence.
- Selects recording speed
OPEN/CLOSE, EJECT (ZZ)
- Opens and closes the disc tray.
- Ejects the tape in the VCR deck.
SELECT/ENTER
- Acknowledges menu selection.
- Displays functions on the TV screen.
This button is not available.
DISC MENU
Accesses menu on a DVD disc.
INPUT
To select the VCR deck’s source (Tuner,
LINE 1, or LINE 2).
FORWARD (>>)
DVD; Search forward*/go to next chap-
ter or track.
VCR; Advances the tape during the
STOP mode or for fast forward picture
search.
PLAY (HH)
Starts playback.
BACKWARD (..)
DVD; Search backward*/go to beginning
of current chapter or track or go to previ-
ous chapter or track.
VCR; Rewinds the tape during the
STOP mode or for fast reverse picture
search.
*Press and hold button for about two
seconds.
PROGRAM
Accesses or removes Program menu.
CLEAR
Removes a track number on the
program menu or a mark on the
MARKER SEARCH menu.
SAFE
Switch the Lock function on and off.
ANGLE
Selects a DVD camera angle if
available.
RETURN
Removes the setup menu.
ZOOM
Enlarges DVD video image.
Note
This remote control use the same buttons for VCR and DVD
functions (ex. PLAY).
When using a VCR, first press the VCR button.
When using a DVD, first press the DVD button.
10

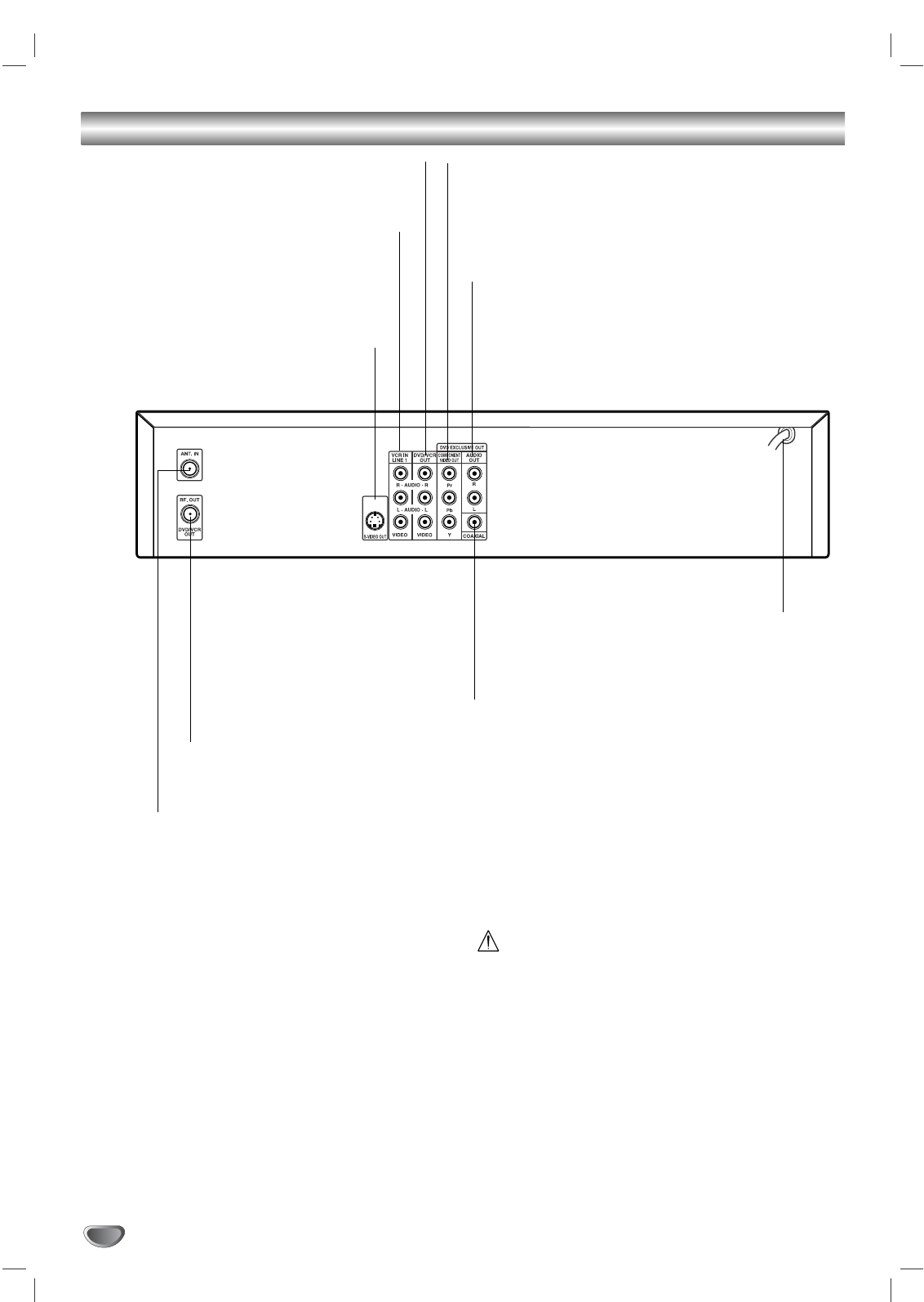

Rear Panel
Do not touch the inner pins of the jacks on the rear
panel. Electrostatic discharge may cause permanent
damage to the unit.
VCR IN LINE 1
(VIDEO IN/AUDIO IN (Left/Right))
Connect the audio/video output of an external
source (Audio system, TV/Monitor,
Another VCR).
ANT.IN (ANTENNA INPUT)
Connect the VHF/UHF/CATV antenna to this terminal.
DVD/VCR OUT (VIDEO/AUDIO (Left/Right))
Connect to a TV with video and audio inputs.
AUDIO OUT (Left/Right) (DVD OUT)
Connect to a TV, amplifier, receiver, or stereo system.
AC Power Cord
Plug into the power source.
S-VIDEO OUT (DVD OUT)
Connect to a S-Video Input on TV.
COMPONENT VIDEO OUT (Y Pb Pr) (DVD OUT)
Connect to a TV with Y Pb Pr inputs.
RF. OUT(DVD/VCR OUT)
Connect to a TV with RF coaxial inputs.
DIGITAL AUDIO OUT (COAXIAL) (DVD OUT)
Connect to digital (coaxial) audio equipment.
PREPARATION
11
Connections
Tips
Depending on your TV and other equipment you wish to
connect, there are various ways you could connect the
DVD+VCR. Use connections described on pages 11-13.
Please refer to the manuals of your TV, VCR, Stereo
System or other devices as necessary to make the best
connections.
For better sound reproduction, connect the DVD+VCR’s
DVD/VCR AUDIO OUT jacks to the audio in jacks of your
amplifier, receiver, stereo or audio/video equipment. See
Optional, Preferred TV Connections on pages 12-13.
Caution
Make sure the DVD+VCR is connected directly to the TV.
Tune the TV to the correct video input channel.
Do not connect the DVD+VCR’s DVD/VCR AUDIO OUT
jacks to the phono in jack (record deck) of your audio
system.
Do not connect your DVD+VCR via your VCR. The DVD
image could be distorted by the copy protection system.

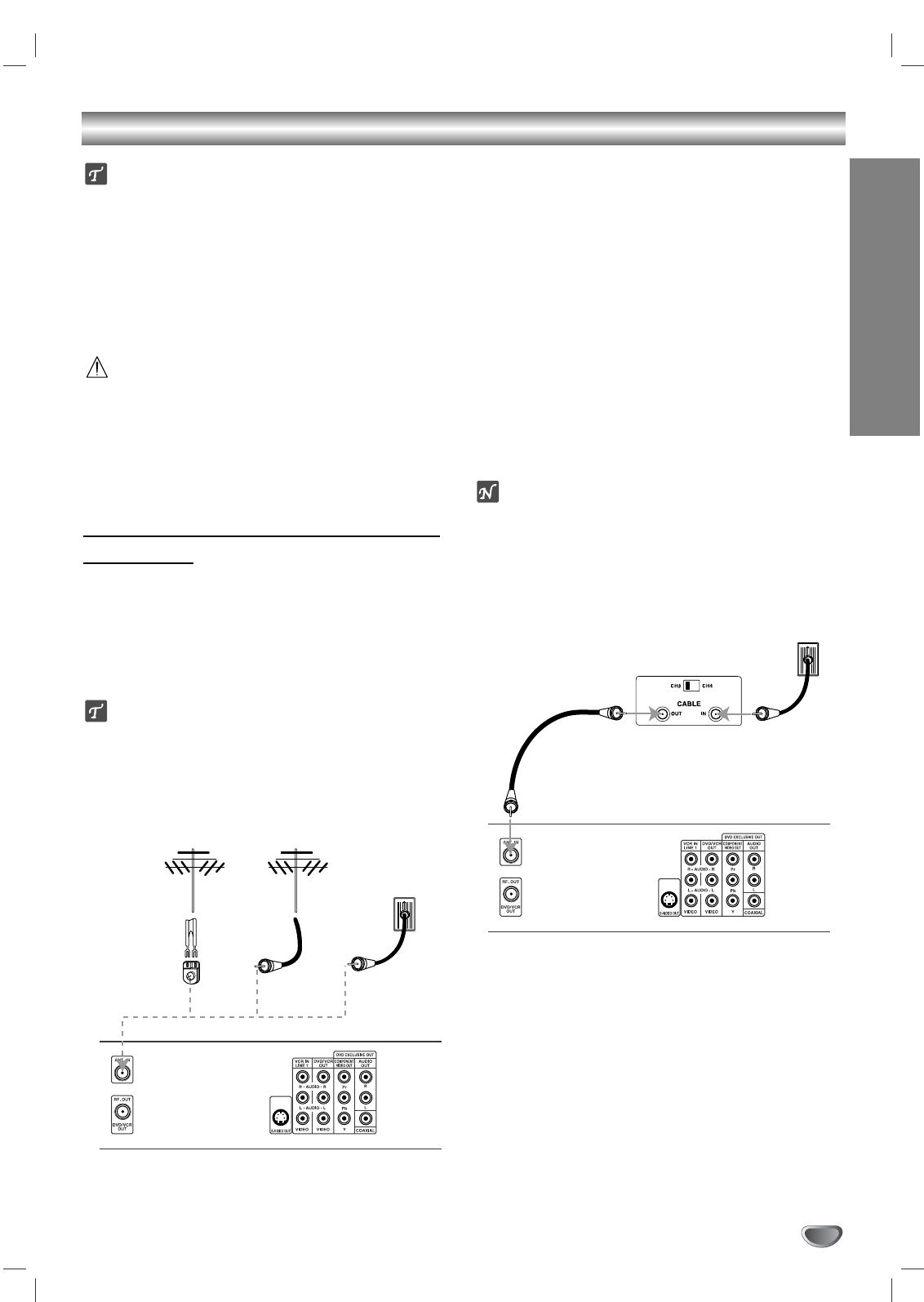

Connecting Antenna/Cable TV to
DVD+VCR
11
Disconnect the antenna leads from the rear of the
TV.
22
Identify the type of cable from your antenna. If it is
a round cable as illustrated, it is a 75 ohm coaxial
antenna cable. This cable will connect directly to
the jack marked ANT.IN on your DVD+VCR.
Tip
If your antenna lead wire is a flat type antenna cable,
connect it to a Antenna Adaptor (300-ohm to 75-ohm)
(not supplied) and slip the Adaptor onto the ANT.IN
jack. The Adaptor does not screw on to the DVD+VCR,
it just slips over the jack.
Without Cable Box
If your cable wire is connected to your TV without a converter
or descrambler box, unscrew the wire from your TV and attach
it to the ANT.IN jack on the DVD+VCR. Use the supplied round
coaxial cable to connect between the DVD+VCR’s RF.OUT
jack and the 75 ohm antenna input jack on the TV. With this
connection, you can receive all midband, super band, and
hyperband channels.
With Cable Box
If a converter is required in your cable system, follow the
instruction below:
The cable hookup permits both TV and DVD+VCR operation.
To view or record CATV channel
1Tune the TV to the DVD+VCR output channel (CH 3 or 4).
2Set the DVD+VCR channel selector to the output channel of
the Cable Converter box by pressing the CH/TRK (v/V) or
number (0-9) of your DVD+VCR. (Example: CH3)
3Select the channel to view at the Cable Converter Box.
Notes
With this connection, you CANNOT record one program
while viewing another.
If you are using a cable box to tune channels, it is not nec-
essary to do Auto Channel Programming as indicated on
page 15.
Antenna Antenna
Flat Wire
(300 ohm)
300/75 ohm
Adaptor
(Not supplied)
Cable TV
Wall Jack
OR OR
Rear of DVD+VCR
Cable TV
Wall Jack
Back Panel of
Typical Cable Box
Rear of DVD+VCR
12
Connections (Continued)
Basic TV Connections
Make one of the following connections, depending on
the capabilities of your existing equipment.
RF coaxial connection
Connect the RF.OUT jack on the DVD+VCR to the
antenna in jack on the TV using the 75-ohm Coaxial
Cable supplied (R).
Note
If you use this connection, tune the TV to the
DVD+VCR’s RF output channel (CH 3 or 4).
How to set the DVD+VCR’s RF output channel
1. When the DVD+VCR is turned off,
press and hold
CHANNEL (v/V) on the front panel for about five
seconds.
It will turn itself on and “RF03” or “RF04” appears in the dis-
play window.
2.
Press CHANNEL (v/V) on the front panel or CH/TRK
(v/V) on the remote control to change the RF output
channel (CH 03 or CH 04).
3.
Turn off the DVD+VCR.
Audio/Video connection
11
Connect the DVD/VCR VIDEO OUT jack on the
DVD+VCR to the video in jack on the TV using the
video cable supplied (V).
22
Connect the Left and Right DVD/VCR AUDIO OUT
jacks on the DVD+VCR to the audio left/right in
jacks on the TV (A1) using the supplied audio
cables.
Note
If you use this connection, set the TV’s source selector
to VIDEO.
Optional, Preferred TV Connections
Note
You can ONLY watch and listen to DVD playback
through the connections shown below.
S-Video connection
11
Connect the S-VIDEO OUT jack on the DVD+VCR
to the S-Video in jack on the TV using the optional
S-Video cable (S).
22
Connect the Left and Right AUDIO OUT jacks of
the DVD+VCR to the audio left/right in jacks on the
TV using the supplied audio cables (A2).
Component Video (Color Stream®) connection
11
Connect the COMPONENT VIDEO OUT jacks on
the DVD+VCR to the corresponding in jacks on the
TV using an optional Y Pb Pr cable (C).
22
Connect the Left and Right AUDIO OUT jacks of
the DVD+VCR to the audio left/right in jacks on the
TV (A2) using the supplied audio cables.
L
R
AUDIO INPUT VIDEO
INPUT
ANTENNA
INPUT
Rear of TV
Rear of DVD+VCR
A1 VR
L
R
Y
Pb
Pr
COMPONENT VIDEO INPUT AUDIO INPUT
S-VIDEO
INPUT
Rear of TV
Rear of DVD+VCR
S A2C
PREPARATION
13
Connections (Continued)

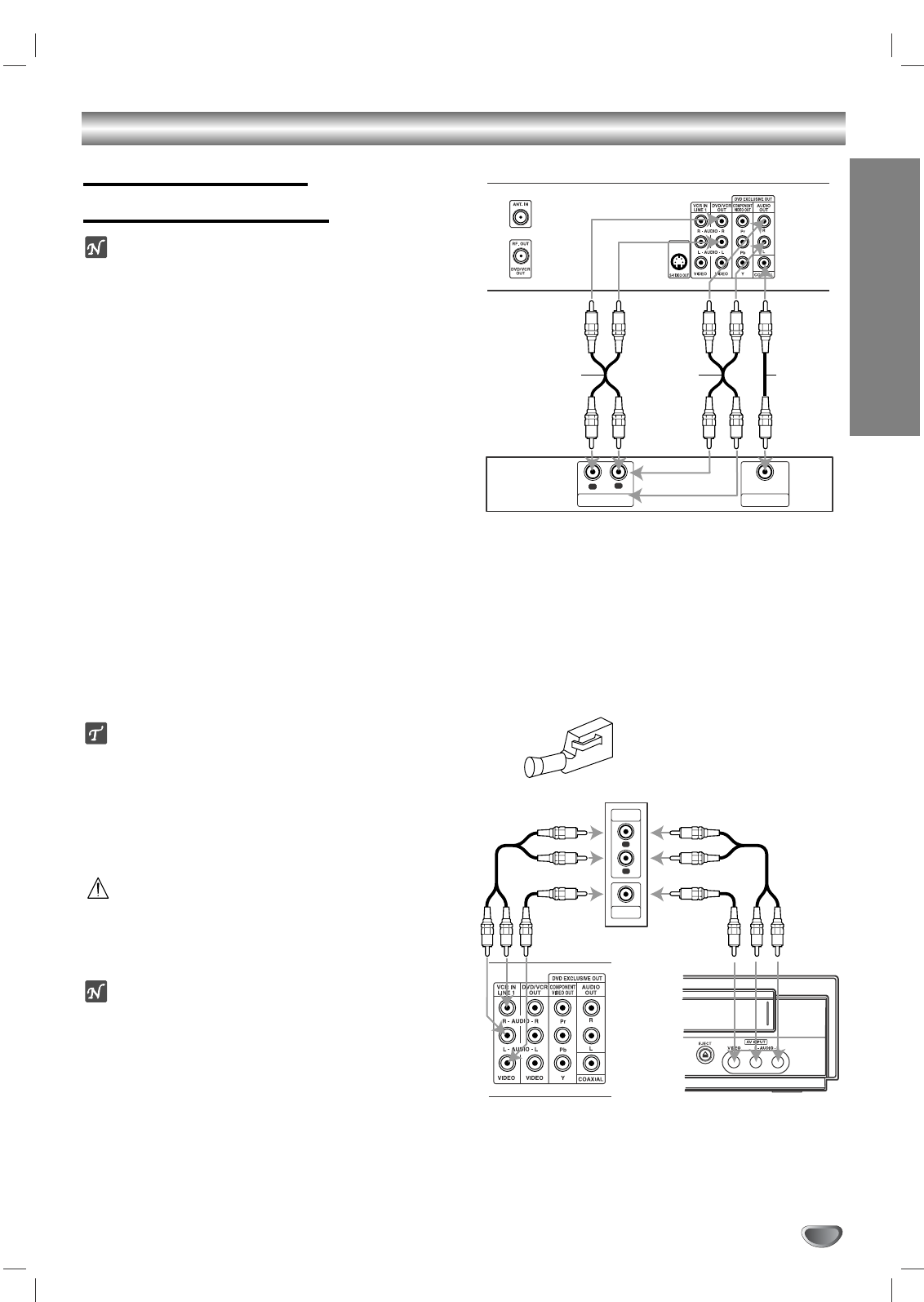

Optional, Preferred TV
Connections(Continued)
Note
You can ONLY listen to DVD playback using COAXIAL
(X) and AUDIO OUT (A2) connections. The tuner and
VCR will still be heard through the RF.OUT (R) or
DVD/VCR AUDIO OUT (A1) jacks. (See page 12.)
Connecting to an amplifier equipped with two
channel analog stereo or Dolby Surround
Connect the Left and Right AUDIO OUT (or DVD/VCR
AUDIO OUT) jacks on the DVD+VCR to the audio left
and right in jacks on your amplifier, receiver, or stereo
system using the audio cables (A1, A2) supplied.
Connecting to an amplifier equipped with two
channel digital stereo (PCM) or to an Audio/Video
receiver equipped with a multi-channel decoder
(Dolby Digital™, MPEG 2, or DTS)
11
Connect one of the DVD+VCR’s DIGITAL AUDIO
OUT jacks (COAXIAL X) to the corresponding in
jack on your amplifier. Use an optional digital
(coaxial X) audio cable.
22
You will need to activate the DVD+VCR’s digital
output. (See “AUDIO” on page 19).
Digital Multi-channel sound
Adigital multi-channel connection provides the best
sound quality. For this you need a multi-channel
Audio/Video receiver that supports one or more of the
audio formats supported by your DVD+VCR (MPEG 2,
Dolby Digital and DTS). Check the receiver manual and
the logos on the front of the receiver.
Caution:
Due to the DTS Licensing agreement, the digital output
will be in DTS digital out when DTS audio stream is
selected.
Notes
–
If the audio format of the digital output does not match
the capabilities of your receiver, the receiver will
produce a strong, distorted sound or no sound at all.
–Six Channel Digital Surround Sound via digital
connection can only be obtained if your receiver is
equipped with a Digital Multi-channel decoder.
–To see the audio format of the current DVD in the
on-screen display, press AUDIO.
Accessory Audio/Video (A/V) Connections to
DVD+VCR
Connect the VCR IN LINE 1 or AV INPUT jacks on the
DVD+VCR to the audio/video out jacks on your
accessory component, using the optional audio/video
cables.
L
R
AUDIO INPUT DIGITAL INPUT
COAXIAL
Rear of DVD+VCR
Amplifier (Receiver)
A2A1 X
Accessory Component:
VCR, Camcorder,
Video Camera,
Satellite Receiver,
Laser Disc Player
L
R
VIDEO
OUTPUT
AUDIO
OUTPUT
Jack panel of Accessory
Rear of DVD+VCR Front of DVD+VCR
OR
14

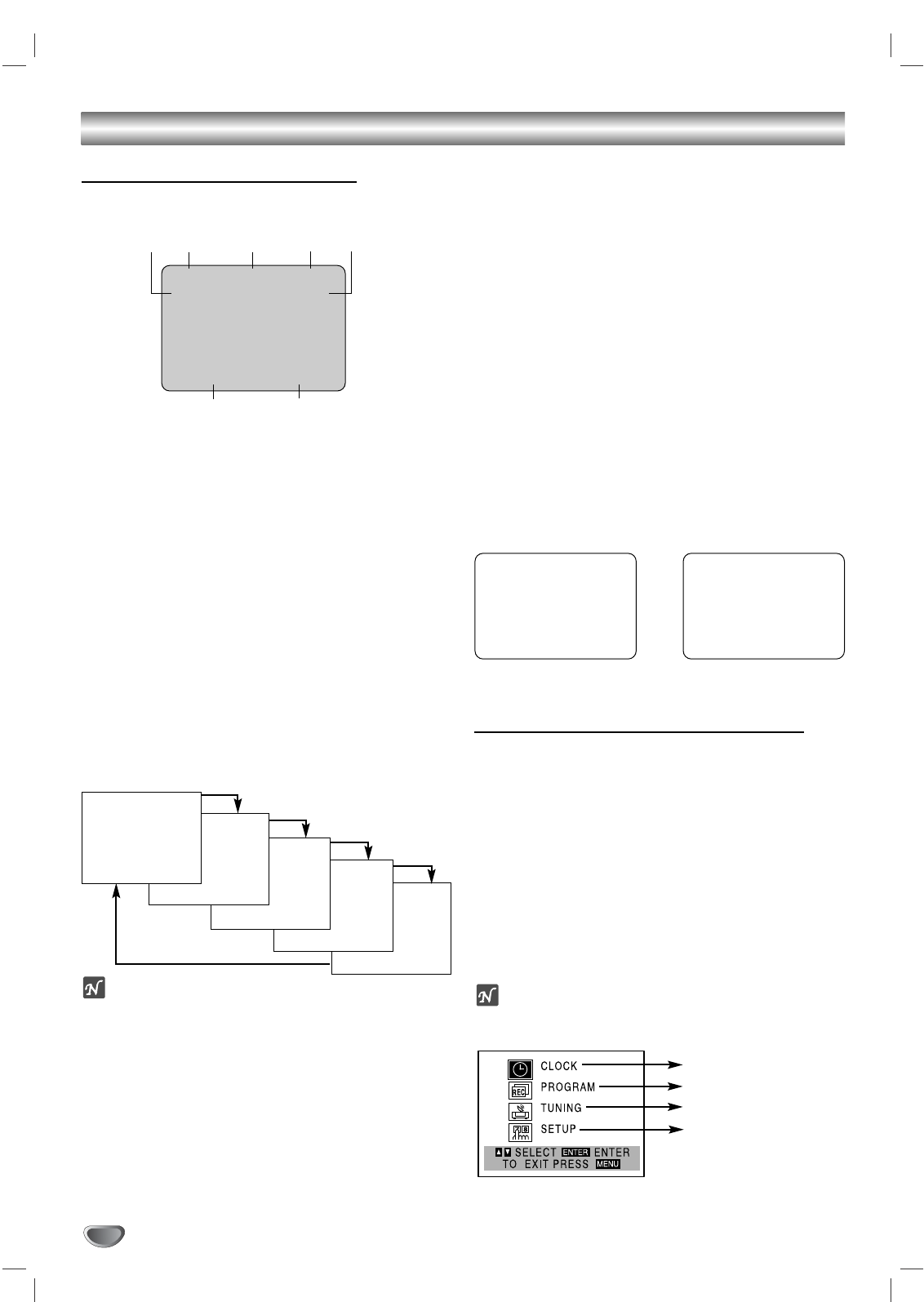

On-Screen Display (OSD)
Some of these functions will be displayed every time the
VCR is operated.
❶❷ ❸ ❹ ❺
❻❼
❶TAPE SPEED DISPLAY
Shows the current tape speed.
❷FUNCTION DISPLAY
Indicates the function in progress.
❸HI-FI DISPLAY
Indicates when this unit is playing back tape recorded with
Hi-Fi.
❹CHANNEL DISPLAY
I
ndicates the selected channel (or LINE1, LINE2).
❺STEREO/SAP DISPLAY (MONO is not displayed)
Shows the type of audio signal received by the VCR tuner.
❻DATE DISPLAY
Shows the current date. (Month/Date/Day of the week
format)
❼CLOCK/COUNT/REMAIN DISPLAY
Shows the current time, the tape counter and remaining time
on the tape.
Each press of the SELECT/ENTER changes the TV
screen in the following sequence.
Notes
The function displays can be seen displayed on the TV
screen for 5 seconds.
The clock (or tape counter, tape remaining) mode will contin-
ue until you press SELECT/ENTER.
The tape counter and the remaining tape length indicator
appear only when a cassette is inserted. Also, the remaining
tape length indicator appears after any tape operation.
EASY INFORMATION
If the Extended Data Service (XDS) signals are provided
along with normal TV signal in your area or during play-
back of a tape recorded with Extended Data Service
(XDS) signals, the station ID, program title and program
details are shown in the TV screen.
When viewing a channel with Extended Data Service (XDS)
signals, press SELECT/ENTER then the station ID will
appear on the TV screen. Press SELECT/ENTER again
and the program details will appear on the TV screen.
When viewing a tape recorded with Extended Data
Service (XDS) signals, press SELECT/ENTER twice
then the program title and program details will appear
on the TV screen.
PROGRAM DETAILS
LENGTH: Indicates the run length of a program.
TIME REMAINING: Indicates the remaining time of a
program.
RATING: Indicates the rating of the current program
(N/A, G, PG, PG-13, R, NC-17, X and Not Rated). The
rating N/A means that the motion picture ratings are not
applicable to this program.
Setting the On-Screen Display
The SETUP, clock setting, and timer recordings are
accessed conveniently with On-Screen Menu Displays
that lead you through each step. The following pages
describe the On-screen selections to be set.
Menu Selection
Your VCR allows remote control adjustment of several
features.
11
Press MENU and the MAIN menu will appear.
22
Select the desired menu with v/Vbutton and
then press SELECT/ENTER.
Note
Menus remain on-screen for 3 minutes.
33
Press MENU when finished.
Before Operation - VCR Part
PLAY HI-FI CH 4
SP STEREO
OCT 8 , FRI 2:15 PM
REM 1:58
0:35:40
2:15 PM
STOP CH 4
SP STEREO
OCT 8 , FRI 2:15 PM
Easy Information Screen
(Program details)
Easy Information Screen
(Station ID)
CH 4
SP WABC STEREO
“Home video”
OCT 8 , FRI 2:15 PM
PROGRAM DETAILS
“Home video”
LENGTH 01:00
TIME REMAINING 00:26
RATING N/A
CLOCK SET (page 16)
PROGRAM (page 23)
TUNING (page 15)
SETUP (page 15)
MAIN MENU
15
PREPARATION
Before Operation - VCR Part (Continued)

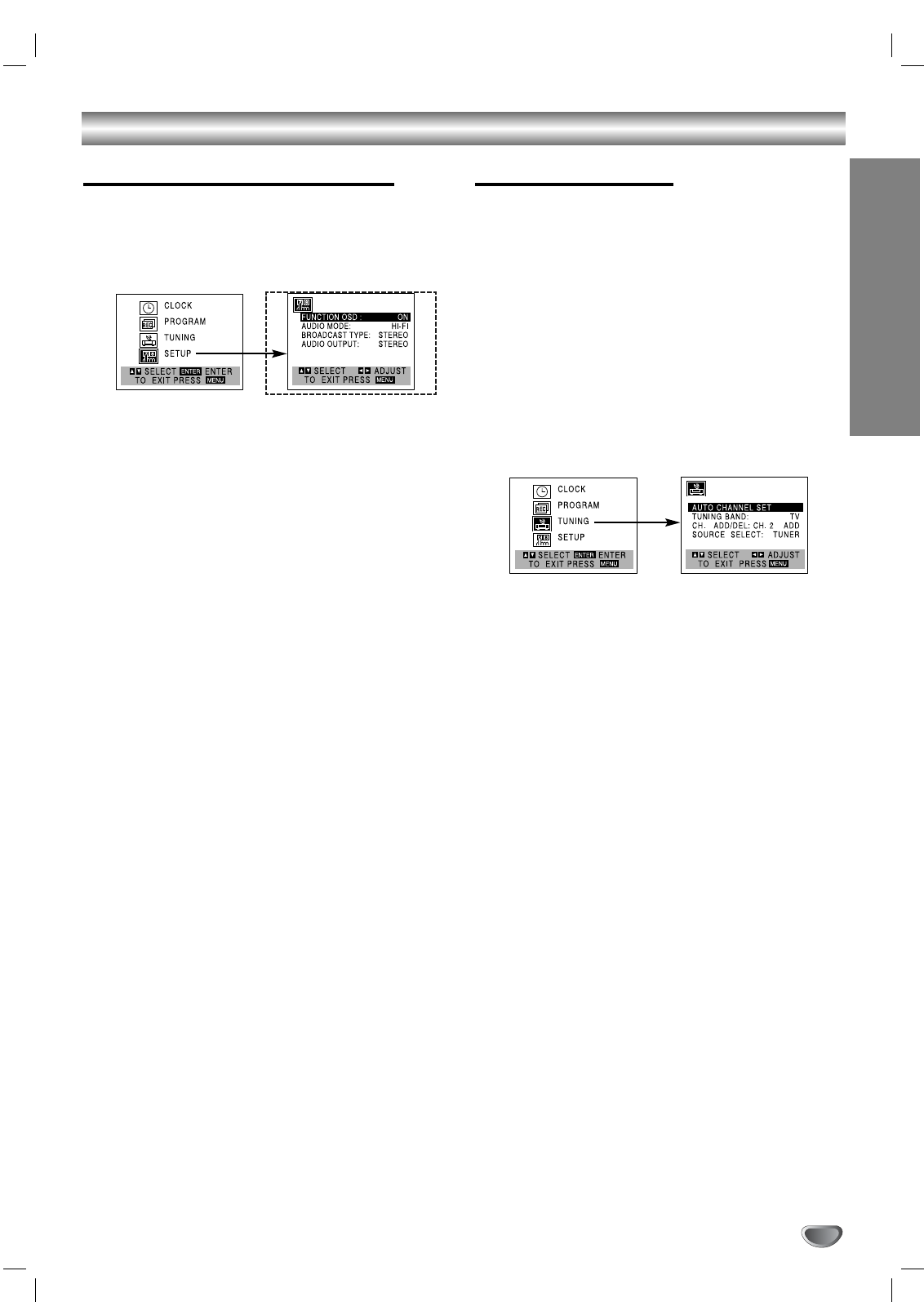

Setting the VCR Setup Menu
11
Press MENU and the MAIN menu will appear.
22
Press vv/VVto select the SETUP menu, then
press SELECT/ENTER.
The SETUP menu will appear.
33
Press vv/VVto choose a desired option on the
SETUP menu. Then press bb/BBto choose a
desired setting.
FUNCTION OSD
The on-screen display of this DVD+VCR can be turned on or off.
FUNCTION OSD can be switched between ON and OFF by
pressing b/B.
AUDIO MODE
The DVD+VCR has two separate audio playback systems, the
high quality VHS Hi-Fi system and standard NORMAL mono
system. The same audio is generally recorded on both
systems. The VHS Hi-Fi system plays on separate (left and
right) channels, and the NORMAL system plays monaural
sound. The normal track is always played so the cassette can
be played on a DVD+VCR that does not have VHS Hi-Fi.
AUDIO MODE can be switched between HI-FI and
NORMAL by pressing b/B.
BROADCAST TYPE (STEREO/SAP/MONO)
Multichannel Television Sound (MTS) carries stereo and/or
Second Audio Program (SAP) bilingual signals. Set this display to
the desired position when both MTS stereo and SAP signals are
received. When only one of the MTS signal is received, the
DVD+VCR automatically selects the corresponding receiving
mode (Stereo or SAP) regardless of the selected position. For
normal operation, the display should be in the STEREO position.
The DVD+VCR will then record a STEREO program when available,
and record a mono program IF the program is NOT IN STEREO.
For weak STEREO and/or SAP broadcasts, changing the dis-
play to mono may give clearer sound.
BROADCAST TYPE can be switched among STEREO, SAP,
and MONO by pressing b/B.
AUDIO OUTPUT (STEREO/LEFT/RIGHT)
Used during playback [when AUDIO MODE (HI-FI/NORMAL) is
in HI-FI position] for selecting the audio output signals from the
AUDIO OUT terminals (L ch and R ch), and RF.OUT.
This display setting should normally be left in the stereo posi-
tion, so that when a stereo tape is played, the stereo sound will
be heard through the left and right channels. If a mono tape is
played and the audio output is set to stereo, the same mono
sound will be heard from both left and right channels.
AUDIO OUTPUT can be switched among STEREO, LEFT,
and RIGHT by pressing b/B.
44
Press MENU when finished.
Channel Selection
This DVD+VCR is equipped with a frequency
synthesized tuner capable of receiving up to 181
channels. These include VHF channels 2-13, UHF
channels 14-69 and CATV channels 1-125.
Preparation:
Connect the DVD+VCR to the desired type of antenna or
cable TV system, as shown in Connecting Antenna/Cable TV
to DVD+VCR on page 11.
AUTO CHANNEL PROGRAMMING
11
Press MENU and the MAIN menu will appear.
22
Press vv/VVto select the TUNING menu, then
press SELECT/ENTER.
The TUNING menu will appear.
33
Press VVto choose the SOURCE SELECT option,
then press bb/BBto select TUNER.
Press b/Brepeatedly to switch among TUNER, LINE1
and LINE2.
44
Press vv/VVto choose the AUTO CHANNEL SET
option, then press bb/BBto set the channel.
The tuner will automatically cycle through all
available channels in the area and place them in
the tuner’s memory.
55
After the AUTO CHANNEL SET PROCEEDING is
complete, make sure the TUNING BAND is set
appropriately (TV or CATV) by pressing vv/VVand
choosing the correct TUNING BAND (TV or
CATV) by pressing bb/BBusing the TUNING
menu.
Remember, TV is for the air antenna reception,
CATV is for cable or wireless cable connection.
66
Press MENU to return to the TV screen.
77
Use CH/TRK (vv/VV) or CHANNEL (vv/VV) on the
front panel to cycle the DVD+VCR through the
channels in memory.
TO ADD OR ERASE CHANNELS FROM MEMORY
This feature allows you to add or erase channels from
memory manually.
1Press VVto choose the CH. ADD/DEL option on the
TUNING menu. Press b/Bto select a channel to
add or erase.
2Press SELECT/ENTER to add or erase the channel.
Repeat steps 1 and 2 to add or erase channels.
3Press MENU to return to the TV screen.
16
Before Operation - VCR Part (Continued)

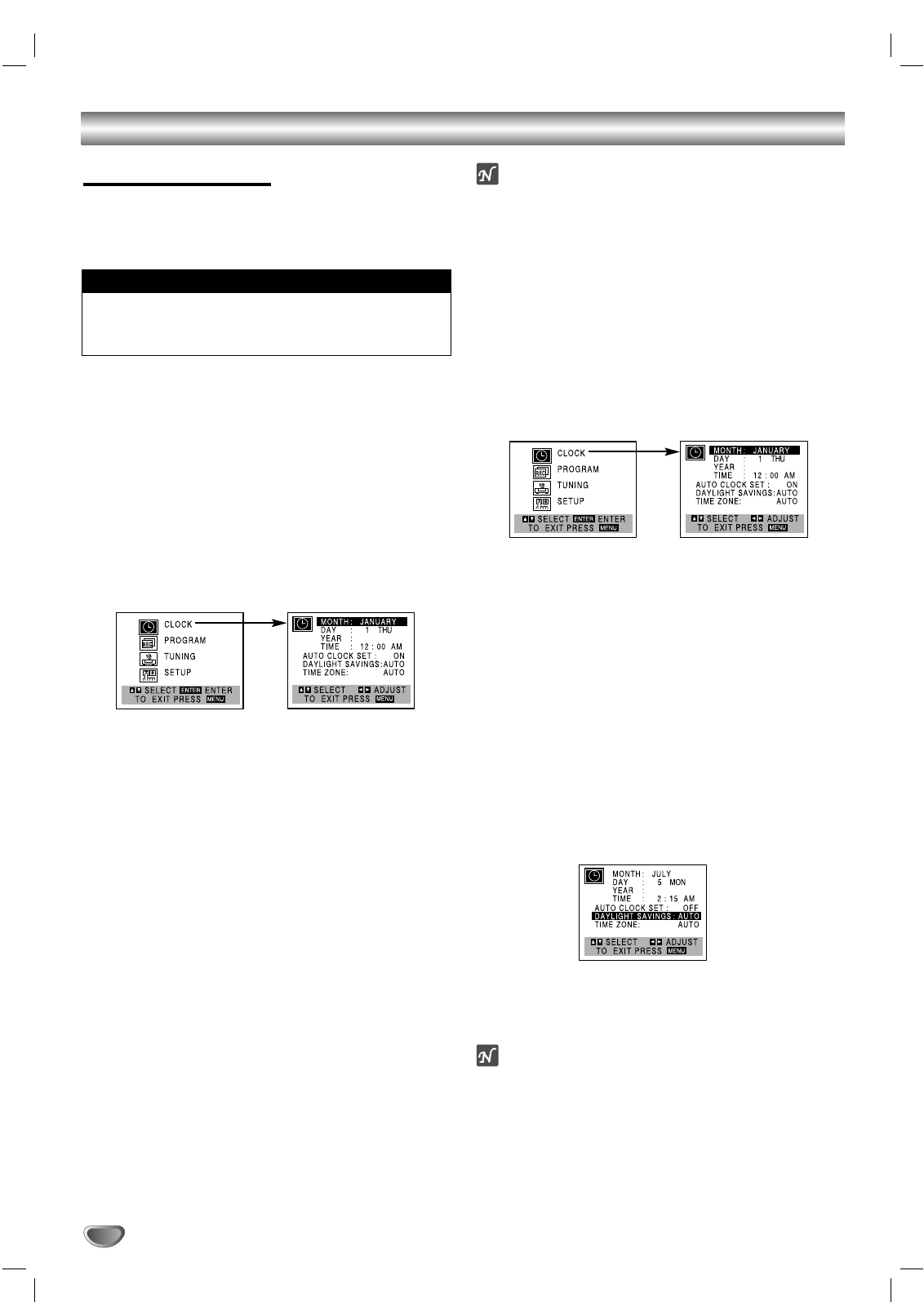

Setting the Clock
The DVD+VCR gives you two ways to set the time and
date: the Auto Clock Feature or manually. The Auto
Clock Feature enables the DVD+VCR to set up the clock
when the DVD+VCR is turned off.
Auto Clock Set
The Auto Clock Set feature is set to ON at the factory. In the
ON setting, the DVD+VCR looks for a channel carrying XDS
(Extended Data Services) information. XDS updates the clock
using the Coordinated Universal Time.
The Auto Clock Feature enables the DVD+VCR to set up
the clock when the DVD+VCR is turned off.
11
Press MENU and the MAIN menu will appear.
22
Press vv/VVto choose the CLOCK menu.
Press SELECT/ENTER and the CLOCK menu
will appear.
33
Press VVto choose the AUTO CLOCK SET option.
Press bb/BBto choose ON.
The Auto Clock Set feature is set to ON at the factory. In
the ON setting, the DVD+VCR looks for a channel
carrying XDS (Extended Data Services) information. XDS
updates the clock using the Coordinated Universal Time.
44
Press EEto choose the DAYLIGHT SAVINGS
item.
Press FFor GGto choose AUTO, ON or OFF.
If you choose AUTO, the VCR sets the clock using the
DST information broadcast in the signal (channel).
If you choose ON, the VCR sets the clock when the
Daylight Saving Time is started and ended.
55
Press EEto choose the TIME ZONE item.
Press FFor GGto choose the correct time zone
(AUTO, EASTERN, CENTRAL, MOUNTAIN,
PACIFIC, ALASKA or HAWAII).
If “AUTO” is selected as the time zone, the VCR sets the
clock using the first Coordinated Universal Time informa-
tion it finds in a broadcast signal.
66
Press MENU when finished.
77
Turn off the DVD+VCR and the auto clock
setting works.
Note
There are cases where the TV station does not send or sends
wrong date and/or time information and the DVD+VCR sets the
incorrect time.
If this happens we recommend that you set the clock manually.
Manual Clock Set
Example: JULY 5, 2003 ; 2:15 AM
11
Press MENU and the MAIN menu will appear.
22
Press vv/VVto choose the CLOCK menu.
Press SELECT/ENTER and the CLOCK menu
will appear.
33
Press bb/BBto choose the month.
44
Press VVto choose the DAY option.
Use bb/BBto choose the day.
The day of the week will display automatically.
55
Press VVto choose the YEAR option.
Use bb/BBto choose the year.
66
Press VVto choose the TIME option.
Use bb/BBto choose the time.
77
Press EEto choose the DAYLIGHT SAVINGS
item.
Press FFor GGto choose AUTO, ON or OFF.
If you choose AUTO, the VCR sets the clock using the
DST information broadcast in the signal (channel).
If you choose ON, the VCR sets the clock when the
Daylight Saving Time is started and ended.
88
Press MENU when finished.
Note
If setting the clock manually, “AUTO CLOCK SET” must
set to “OFF”.
If set to “ON”, an incorrect date and/or time will be
entered again when the DVD+VCR is turned off.
The clock uses the 12-hour system. (Be sure to set AM
and PM correctly.)
The initial Clock Setting is JANUARY 1, 2004, 12:00 AM.
Things to know before starting
2004
2004
2004
Before Operation - DVD Part
PREPARATION
17
Caution:
Before using the remote control, press the DVD button
to select the device to be operated.
General Explanation
This manual gives basic instructions for operating the
DVD+VCR. Some DVDs require specific operation or
allow only limited operation during playback. When this
occurs, the symbol appears on the TV screen, indi-
cating that the operation is not permitted by the
DVD+VCR or is not available on the disc.
On-Screen Display
General playback status can be displayed on the TV
screen. Some items can be changed on the menu.
On-screen display operation
11
Press DISPLAY during playback.
22
Use v/Vto select an item.
The selected item will be highlighted.
33
Use b/Bto change the setting of an item.
The number buttons can be also be used for setting
numbers (e.g., title number). For some functions,
press SELECT/ENTER to execute the setting.
Temporary Feedback Field Icons
Repeat Title (DVD)
Repeat Chapter (DVD)
Repeat A-B
Repeat Off
Resume play from this point
Action prohibited or not available
Notes
Some discs may not provide all of the features on the
on-screen display example shown below.
If no button is pressed for 10 seconds, the on-screen
display disappears.
You can change the desired status only when “bB”
mark appears on the On-screen display menu item.
Off
A - B
Chapter
Title
Items
Title Number
Chapter Number
Time search
Audio language
and Digital Audio
Output mode
Subtitle language
Angle
Sound
Function (Use v/Vto select desired item)
Shows the current title number and total number of
titles, and skips to the desired title number.
Shows the current chapter number and total number of
chapters, and skips to the desired chapter number.
Shows the elapsed playing time, and
searches the point by the elapsed time directly.
Shows the current audio soundtrack language,
encoding method, and channel number, and
changes the setting.
Shows the current subtitles language, and
changes the setting.
Shows the current angle number and total number of
angles, and changes the angle number.
Shows the current sound mode, and
changes the setting.
Selection Method
b
/
B
,or
Numbers, SELECT/ENTER
b
/
B
,or
Numbers, SELECT/ENTER
Numbers, SELECT/ENTER
b
/
B
,or
AUDIO
b
/
B
,or
SUBTITLE
b
/
B
,or
ANGLE
b
/
B
1 / 3
1 / 12
0:20:09
ABC
1 ENG
3D SUR
1 / 1
1 ENG
D
5.1 CH
DVD
18
Before Operation - DVD Part (Continued)

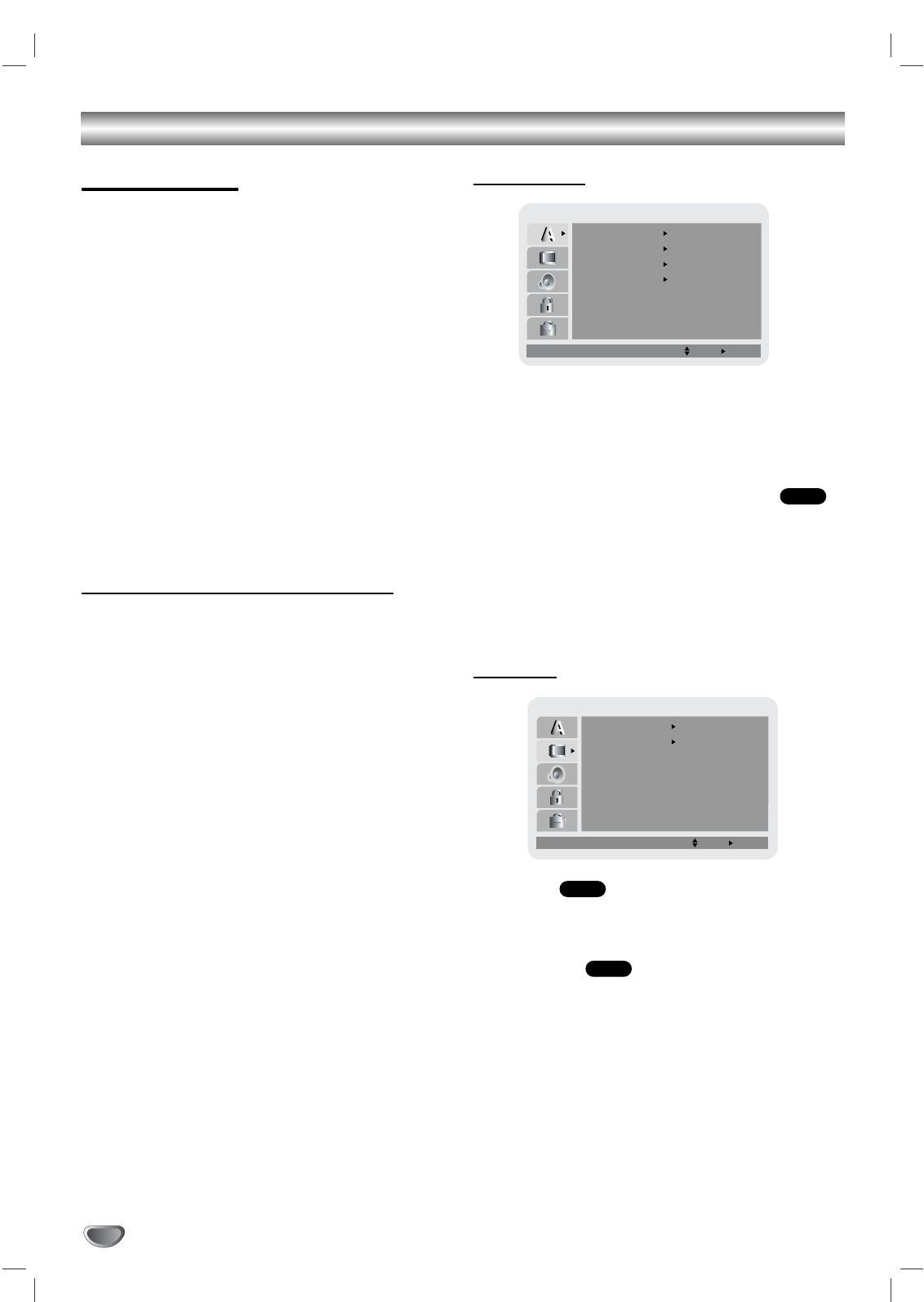

Initial Settings
In this menu system, there are several ways to cus-
tomize the settings provided. Most menus consist of
three levels to set up the options, but some require
greater depth for the variety of settings. If you press
SETUP, only the first level of the menu system will
appear on the TV screen. The second and third level
can be displayed by pressing B. For navigating the
menu levels, you will see “ B“ on the right side of the
menu label to help you to go to the next level.
To bring up and exit the Menu:
Press the SETUP to bring up the menu. The second
press of SETUP will take you back to initial screen.
To go to the next level:
Press Bon the remote control.
To go back to the previous level:
Press bon the remote control.
Initial Settings General Operation
11
Press SETUP.
The setup menu appears. The screen will show the
current setting for the selected item.
22
Use v/Vto select the desired item.
33
While the desired item is selected, press Bto
move to the second level.
44
Use v/Vto select the second desired item.
55
Press Bto move to the third level.
66
Press v/Vto select the desired setting then
press SELECT/ENTER to confirm your selection.
Some items require additional steps.
77
Press SETUP to exit the setup menu.
LANGUAGE
Menu Language
Select a language for the VCR and DVD’s setup menu
and information display.
Disc Language (Audio, Subtitle, Menu)
Select a language for the disc’s Audio, Subtitle, and
Menu.
Original : The original language set for the disc is selected.
Other : To select another language, press number buttons to
enter the corresponding 4-digit number according to the lan-
guage code list on page 36. If you enter the wrong language
code, press CLEAR.
DISPLAY
TV Aspect
4:3: Select when a standard 4:3 TV is connected.
16:9: Select when a 16:9 wide TV is connected.
Display Mode
The Display Mode setting works only when the TV
Aspect mode is set to “4:3”.
Letterbox: Displays theatrical images with masking
bars above and below the picture.
Panscan: Select when a conventional TV set is con-
nected. The video material formatted in the Pan & Scan
style is played back in that style (Both sides of the pic-
ture are cut off).
DVD
DVD
DVD
LANGUAGE
Menu Language
Original
English
Off
Original
Disc Audio
Disc Subtitle
Disc Menu
Move
Select
DISPLAY
TV Aspect
Widescreen
16 : 9
Display Mode
Move
Select
PREPARATION
19
Before Operation - DVD Part (Continued)

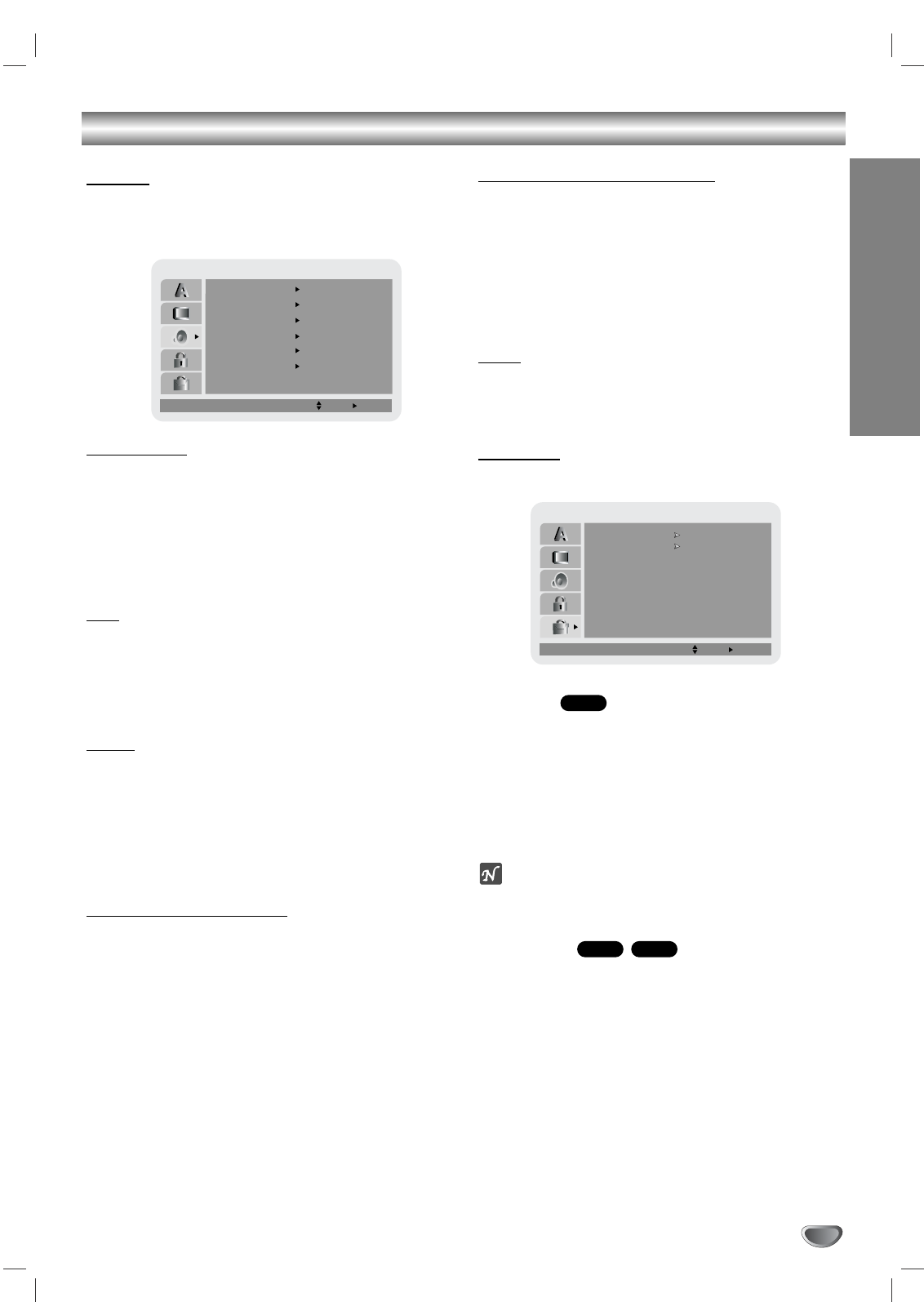

AUDIO
Each DVD disc has a variety of audio output options.
Set the player’s Audio Output according to the type of
audio system you use.
Dolby Digital
Bitstream: Select “Bitstream” if you connected the DVD
Player’s DIGITAL OUT jack to a Dolby Digital decoder
(or an amplifier or other equipment with a Dolby Digital
decoder).
PCM: Select when connected to a two-channel digital
stereo amplifier. DVDs encoded in Dolby Digital will be
automatically downmixed to two-channel PCM audio.
DTS
Bitstream: Select “Bitstream” if you connected the DVD
Player’s DIGITAL OUT jack to a DTS decoder (or an
amplifier or other equipment with a DTS decoder).
Off: If you select “Off”, the DTS signal through the DIGI-
TAL OUT jack is not outputted.
MPEG
Bitstream: Select “MPEG” if you connected the DVD
Player’s DIGITAL OUT jack to a MPEG decoder (or an
amplifier or other equipment with a MPEG decoder).
PCM: Select when connected to a 2-channel digital
stereo amplifier. The DVD+VCR outputs sounds in the
PCM 2ch format when you play a DVD video disc
recorded on the MPEG1, or MPEG2 recording system.
Sample Freq. (Frequency)
To change the Sample Frequency setting, first select
the desired Dolby Digital, DTS, and MPEG mode as
indicated as above.
If your receiver or amplifier is NOT capable of handling
96 kHz signals, select 48 kHz. When this choice is
made, this unit will automatically convert any 96 kHz
signals to 48 kHz, so your system can decode them.
If your receiver or amplifier is capable of handling
96 kHz signals, select 96 kHz. When this choice is
made, this unit will pass through each type of signal
without any further processing.
Dynamic Range Control (DRC)
With the DVD format, you can hear a program’s sound-
track in the most accurate and realistic presentation
possible, thanks to digital audio technology. However,
you may wish to compress the dynamic range of the
audio output (the difference between the loudest sounds
and the quietest ones). Then, you may listen to a movie
at a lower volume without losing clarity of sound. Set
DRC to “On” for this effect.
Vocal
Set Vocal to “On” only when a multi-channel karaoke
DVD is playing. The karaoke channels on the disc will
mix into normal stereo sound.
OTHERS
The Auto Play setting can be changed.
Auto Play
You can set up the DVD+VCR so a DVD disc automati-
cally starts playing whenever the DVD is inserted.
If Auto Play mode is set to “On”, this DVD player will
search the title which playback time is the longest and
then play back the title automatically.
On: Auto Play function is activated.
Off: Auto Play function is not activated.
Note
The Auto Play function may not work for some DVDs.
TVGuardian
Details are on the 21 page.
DVDVCR
DVD
AUDIO
Dolby Digital
Bitstream
PCM
48 kHz
Bitstream
DTS
MPEG
Sample Freq.
On
On
DRC
Vocal
Move
Select
OffAutoPlay
OTHERS
Move
Select
SelectTVGuardian
20
Before Operation - DVD Part (Continued)

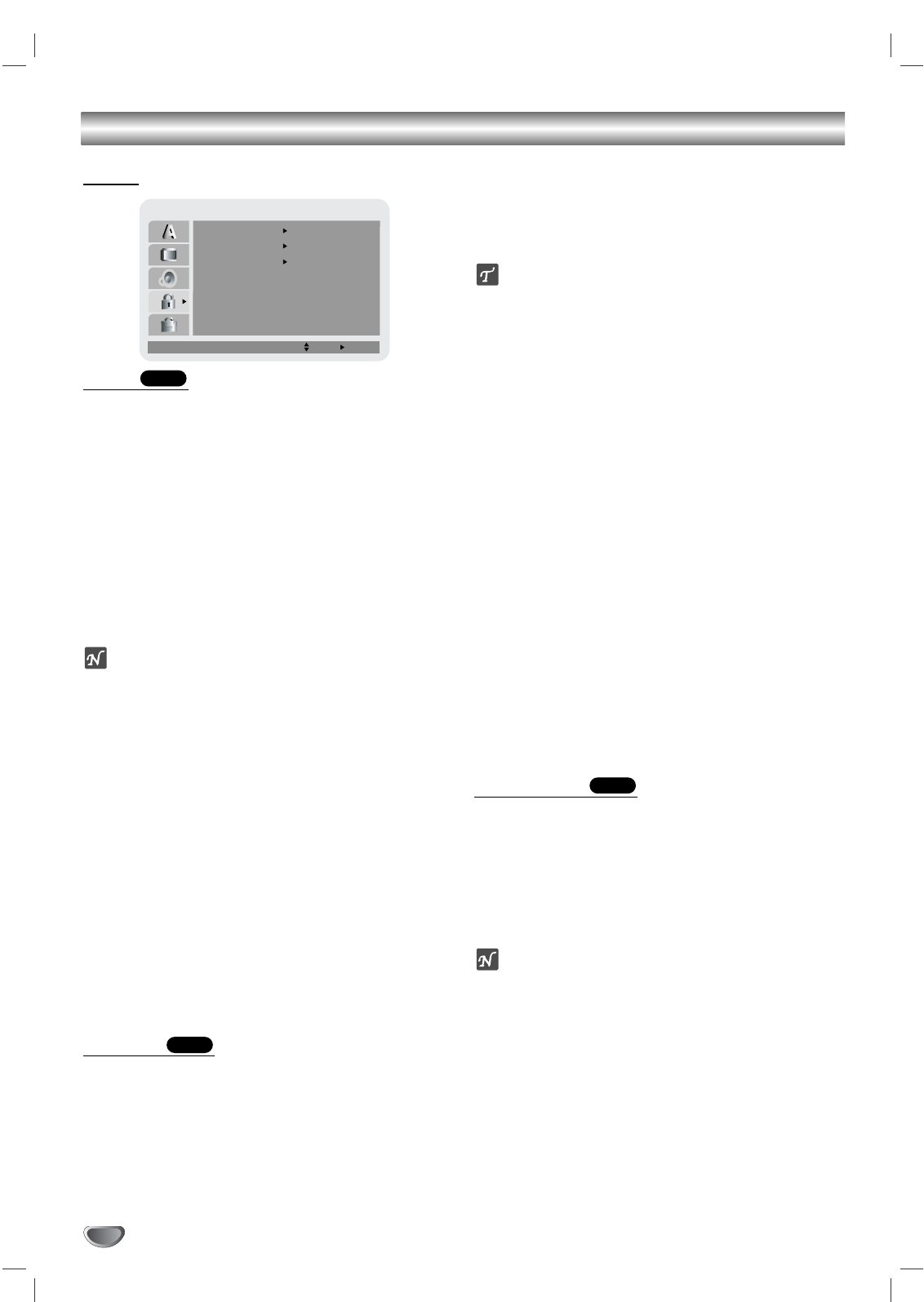

LOCK
Rating
Movies on DVDs may contain scenes not suitable for
children. Therefore, discs may contain Parental Control
information that applies to the complete disc or to
certain scenes on the disc. These scenes are rated
from 1 to 8, and alternatively, more suitable scenes are
available for selection on some discs. Ratings are differ-
ent in each country. The Parental Control feature allows
you to prevent discs from being played by your children
or to have certain discs played with alternative scenes.
11
Select “Rating” on the Setup menu.
22
While “Rating” is selected, press B.
When you have already entered a password
Enter a 4-digit password using the numbered buttons to
confirm the personal 4-digit security password, then
press SELECT/ENTER.
33
Select a rating from 1 to 8 using the v/Vbut-
tons. One (1) has the least playback restrictions.
Eight (8) has the most playback restrictions.
Unlock: If you select Unlock, Parental Control is
not active. The disc will play in full.
Ratings 1 to 8: Some discs contain scenes not
suitable for children. If you set a rating for the play-
er, all disc scenes with the same rating or lower will
be played. Higher rated scenes will not be played
unless an alternative scene is available on the disc.
The alternative must have the same rating or the
lower one. If no suitable alternative is found, play-
back will stop. You must enter the 4-digit password
or change the rating level in order to play the disc.
44
Press SELECT/ENTER to confirm your rating
selection, then press SETUP to exit the menu.
Password
Setting your password
If you change the rating level to “7” or lower, you must
enter a 4-digit “password” to prevent playback of discs
with higher ratings.
11
Select “Password” on the Setup menu.
22
While “Password” is selected, press B.
33
While “New” is selected, press SELECT/ENTER.
44
Enter a 4-digit password using the numbered
buttons to create a personal 4-digit security
password then press SELECT/ENTER.
Tip
If you make a mistake before pressing
SELECT/ENTER, press CLEAR to delete the entered
all-digit or press bto delete one by one and correct it.
55
Enter the 4-digit password again and press
SELECT/ENTER to verify.
Changing the 4-digit password
1Follow Steps 1-2 as shown above (Setting your
password).
2Enter the old password, then press SELECT/ENTER.
3Select “Change” using v/Vbuttons then press
SELECT/ENTER.
4Enter the new 4-digit password, then press
SELECT/ENTER.
5Enter the 4-digit password again and press
SELECT/ENTER to verify.
If you forget your 4-digit password
If you forget your password, to clear the current pass-
word, follow the procedure below.
1Press SETUP to display the setup menu.
2Use the Number buttons to enter the 6-digit number
“210499”.
3Enter a new code as shown above (Setting your
password).
Country Code
Enter the code of a country/area which standards were
used to rate the DVD video disc, referring to the list
(See “Country Code List”, page 37.).
11
Select “Country Code” on the Setup menu.
22
While “Country Code” is selected, press B.
When you have already entered a password
Enter a 4-digit password using the numbered buttons to
confirm the personal 4-digit security password, then
press SELECT/ENTER.
33
Select the first character using the v/Vbuttons.
44
Shift the cursor using Bbutton and select the
second character using v/Vbuttons.
55
Press SELECT/ENTER to confirm your country
code selection, then press SETUP to exit the
menu.
DVD
DVD
DVD
LOCK
Rating
New
US
Unlock
Password
Country Code
Move
Select
TVG
®
(TVGuardian
®)
These settings are effective on Tape and DVD playback
with closed caption signals only. TVG will not function
on broadcast signals. To operate the TVG function dur-
ing DVD playback, your TV must be capable of closed
caption and the caption mode is set to ON.
Setting the TVG®(TVGuardian®)
TVGuardian®Technology embedded into the VCR will
filter foul language from pre-recorded movies which
have CC (Closed Caption). Words detected by TVG®
will be muted from the program audio channel, and a
version of the phrase, with the foul language converted
to a suitable replacement word, can be displayed on the
TV screen.
This is accomplished by a process which:
•reads the hidden signals for closed captions,
•detects offensive language,
•momentarily mutes the sound, and
•displays acceptable words and phrases.
TVG not accepting Universal Studio Related software :
•This built-in Foul Language Filter may not work on
some VHS tapes and discs depending on their
recording conditions. It will not function on Universal
Studio software due to its format difference.
11
Press SETUP and the Setup menu will appear.
22
Use v/Vto select the OTHERS item.
33
While the OTHERS item is selected, press Bto
move to the second level.
44
Use v/Vto select the TVGuardian item.
55
Press Bto move to the third level.
66
press SELECT/ENTER.
TVGuardian menu appears.
44
Use vV b B to choose a desired setting.
55
Press SELECT/ENTER to confirm your setting,
then press SETUP to exit the menu
TVG Mode
Off : In the Off mode, TVG will not operate. Your
DVD+VCR will operate as normal.
Tolerant : In the Tolerant mode, only the most offensive
foul language will be filtered.
Moderate : In the Moderate mode, more offensive
words will be filtered.
Strict : In the Strict mode, all the foul language words
known to the TVG process will be filtered.
Words Subset
In addition to the main TVG Modes, five additional sets
of words are available to the user to select.
Damn and Hell
This set includes variations of “Damn” and “Hell”.
Religious
This set includes numerous Religious words, such as God
and Jesus. One might want to turn this Word Set to OFF if
watching religious programming material.
Sexual Ref
This set includes various sexually related words.
CC Mode
The TVG processing allows the user the choice of three
possible settings of CC Mode. By default, the TVG pro-
cessing only displays captions to the user when foul lan-
guage is detected. Other settings are described below.
On Mute (default): Whenever Foul Language is detected,
captions are displayed with a suitable replacement word
substituted for the foul language, and audio is muted for the
foul language.
Always: You can see all captions, whether or not any foul
language was detected. But like the ON MUTE mode, cap-
tions are displayed with a suitable replacement word substi-
tuted for the foul language, and audio is muted for the foul
language.
Off: You cannot see captions. Whenever Foul Language is
detected, only audio is muted.
CC Channel
To operate the TVG function during DVD or VCR Playback
(Prerecorded only), the TVG will block the foul language
when turned on, but your television must be capable of
closed caption and it must be turned on to get the alterna-
tive word on the screen.
CC1: Set your TV to CC1(Closed Caption 1) mode.
CC2: Set your TV to CC2(Closed Caption 2) mode.
Note
In case of “TVG Mode” set to “Off”, it is impossible for user to
set of Words Subset.
PREPARATION
21
TVGuardian®and TVG®are registered trademarks
of Principle Solutions, Inc.
OTHERS
Return
Enter
Select
TVG Mode
Words Subset
Damn and Hell
Religious
Sexual Ref
CC Mode
CC Channel
Off
Off
Off
Off
On Mute
CC2
22
Operation with tape
Normal Playback
Preparation:
Turn on the TV.
Tune the TV to the DVD+VCR output channel (CH 3 or 4) or
set the TV’s source selector to VIDEO.
If a direct VIDEO/AUDIO connection is made between the
DVD+VCR and the TV, set the TV’s source selector to VIDEO.
Set the Output Source to VCR as shown in “Setting the
Output Source” on page 6.
11
Insert a prerecorded video cassette.
The indicator will light and the DVD+VCR will
power-up automatically.
Make sure that the indicator in the display
window is not lighted. If it is, press POWER once.
If a tape without a safety tab is inserted, the unit will
start playback automatically.
22
Press PLAY (HH) once.
PLAY appears on the TV screen .
It is not necessary to select the tape speed for play-
back. It will be automatically selected by the DVD+VCR.
During playback, the TV/VCR selector switches to VCR
mode automatically.
33
Press STOP (xx) to stop playback.
STOP appears on the TV screen.
If the tape reaches the end before STOP (x) is
pressed, the DVD+VCR will automatically stop, rewind,
eject, and will turn itself off (Only when no disc).
Tracking Control
Auto Tracking
The automatic tracking function adjusts the picture to
remove snow or streaks.
The AUTO TRACKING function works in the following
cases:
Atape is played back for the first time.
Tape speed (SP, LP, SLP) changes.
Streaks or snow appear because of scratches on the tape.
Manual Tracking
If noise appears on the screen during playback, press
either
CH/TRK (vv/VV)
on the remote control or
CHANNEL (vv/VV) on the front panel until the noise on
the screen is reduced.
In case of vertical tremble, adjust these controls very carefully.
Tracking is automatically reset to normal when the tape is
ejected or the power cord is unplugged for more than 3 sec-
onds.
Special Effect Playbacks
Special effects playback notes
Horizontal lines (noise bars) will appear on the TV screen. This
is normal.
The audio is automatically muted during special effect modes,
so there is no sound during search.
During the high-speed picture search modes, a short period is
needed to stabilize tape speed when re-entering the PLAY
mode. Slight interference may be observed during this period.
Search
This function lets you search for a desired tape section
in either direction: forward or reverse quickly and visual-
ly.
1Press BACKWARD (.) or FORWARD (>)
during playback.
The DVD+VCR will be activated in the SEARCH
mode.
If the DVD+VCR is left in the SEARCH mode for more
than 3 minutes, the DVD+VCR will automatically enter the
PLAY mode, to protect the tape and video heads.
2To return to playback, press PLAY (H).
Still Picture and Frame-by-Frame Playback
1Press PAUSE/STEP (X) during playback.
Still picture will appear on the TV screen.
If a still picture vibrates vertically, stabilize it by pressing
CH/TRK (v/V)
on the remote control.
If the DVD+VCR is left in the STILL mode for more than 5
minutes, the DVD+VCR will automatically enter the STOP
mode to protect the tape and video heads.
2Press PAUSE/STEP (X) repeatedly to advance the
video picture one frame at a time while viewing a still
picture.
3To return to playback, press PLAY (H).
Slow Motion
1During the still mode, press FORWARD (>).
The tape will be played back at a speed 1/19 times
slower than the normal speed.
During slow playback, use CH/TRK (v/V) on the Remote
Control to minimize noise bands.
If slow motion mode continues for more than 3 minutes,
the DVD+VCR will automatically change to playback
mode.
2To return to playback, press PLAY (H).
Ad JUMP (Advertisement Jump)
This is useful for skipping commercials or short program
segments.
1Press Ad JUMP during the playback mode.
The tape will be fast forward picture search through
30 seconds of recording.
The skipping time can be extended by pressing Ad JUMP.
Subsequent presses result in advancing the fast forward
picture search time by 30-second increments (maximum 3
minutes).
2When the search is completed, the DVD+VCR will go
into playback mode automatically.
OPERATION
23
Operation with tape(Continued)
Normal Recording
Preparation:
Turn on the power of both the DVD+VCR and TV.
Tune the TV to the DVD+VCR output channel (CH 3 or 4) or
set the TV’s source selector to VIDEO.
If a direct VIDEO/AUDIO connection is made between the
DVD+VCR and the TV, set the TV’s source selector to
VIDEO.
11
Insert a video cassette that the safety tab intact.
22
Select the desired channel by using CH/TRK
(vv/VV).
If you are recording from another source via audio/video
input jacks (at the Rear or Front panel), select the
LINE1 or LINE2 by pressing INPUT.
33
Set the desired recording speed (SP or SLP) by
pressing SP/SLP.
This DVD+VCR is not designed to record in LP mode.
44
Set the MTS mode as desired (See page 15, 26).
55
Press REC (zz) once.
Recording will start. (The REC indicator will light in
the display window.)
REC indicator appears only when the Output Source is
set to VCR.
If a cassette with no safety tab is loaded, the cassette
will be ejected automatically.
66
Press STOP (xx) to stop recording.
If the tape reaches the end before STOP (x) is pressed,
the DVD+VCR will automatically stop, rewind, eject, and it
will turn itself off (Only when no disc).
To pause the recording
1Press PAUSE/STEP (X) to pause the tape during
recording.
The REC indicator will flash in the display window.
2When you want to continue recording, press
PAUSE/STEP (X) or press REC (zz).
After 5 minutes in pause mode, the tape will be stopped
automatically to protect the tape and the video heads.
To record one TV program while
watching another
1Press TV/VCR to select the TV mode during record-
ing.
The TV indicator appears.
2Using the TV, select the channel to be viewed.
Tips
Always use PAUSE/STEP (X) for the best results when mak-
ing changes during recording.
For example: To change channels during recording, first press
PAUSE/STEP (X) to put the unit in pause mode. Then select
the desired channel on the DVD+VCR, and press
PAUSE/STEP (X) again to resume recording.
Timer Recording
This DVD+VCR can be programmed to record up to 8
programs within a period of 1 year. For unattended
recording, the timer needs to know the channels to be
recorded and the starting and ending times.
Preparation:
Turn on the power of both the DVD+VCR and the TV.
Be sure the TV is set to the DVD+VCR output channel (3 or 4).
Make sure the TUNING BAND in the TUNING menu is set
appropriately (TV or CATV).
11
Press MENU and the MAIN menu will appear.
22
Use vv/VVto choose the PROGRAM menu.
33
Press SELECT/ENTER to go to the PROGRAM
menu.
The PROGRAM menu will appear.
If all programs have already been entered, FULLY
PROGRAMMED message will appear for a moment
and then PROGRAM 1 will appear on the TV screen.
44
Use bb/BBto choose the PROGRAM No. (1-8).
55
Use VVto choose the MONTH option.
Use bb/BBto choose the desired month.
66
Use VVto choose the DAY option.
Use bb/BBto choose the desired day.
77
Use VVto choose the START option.
Use bb/BBto choose the desired start time.
88
Use VVto choose the STOP option.
Use bb/BBto choose the desired stop time.
99
Use VVto choose the CHANNEL option.
Use bb/BBto choose the desired channel
(Channel, LINE1 or LINE2).
Cable Users: If you have CABLE TV and used Cable Box
in Connecting Antenna/Cable TV to DVD+VCR (page 11),
using a cable box converter, you must set the channel in
this step to match the cable box output channel (usually
CH 3 or 4). Change channels on the cable box instead of
channels on the DVD+VCR.
If you try to set the program timer before setting the clock,
PLEASE SET THE CLOCK appears for a moment and
then CLOCK menu appears on the TV screen. Set the time
and date before proceeding.
Make sure a tape is in the DVD+VCR and the safety tab is
in place or the tape will be automatically ejected.
Things to know before starting
24
Operation with tape (Continued)
1100
Use VVto choose the SPEED option.
Use bb/BBto choose the desired recording
speed (AUTO, SP or SLP).
AUTO mode determines how long tape is left and
switches speed from SP to SLP, if necessary, to
complete recording the program. There will be some
picture and sound distortion at the point of the speed
change.
1111
Use VVto choose the REPEAT option.
Use bb/BBto choose the desired repeat (ONCE,
WEEKLY or DAILY).
ONCE event....for recording up to 8 programs on a
single day or over the days within a period of 1 year.
WEEKLY event....for recording up to 8 programs on a
certain day of every week.
DAILY event....for recording up to 8 programs at the
same time(s) from Monday through Friday.
Tip
If the input data is wrong, use vvto select the data
and correct it using bb/BB.
1122
Press MENU, the program will be memorized
at the DVD+VCR.
indicator lights in the display window.
If the program preset time is past, the PAST TIME
PROGRAMMED message will appear on the TV
screen. Return to the incorrect program and program
it with the correct time.
If you had entered a past date, the timer recording
will be performed on that date of the next year.
Additional programs may be entered by repeating
steps 1-12.
Cable Users: If your cable hookup is via a TV convert-
er box, you can program multiple recordings only on
the converter box output channel. This is because the
converter determines what channel you view through
your DVD+VCR.
Tip
If you have finished programming and you want to set the
DVD+VCR to record the programs you have entered.
MAKE SURE YOU HAVE INSERTED A TAPE INTO THE
DVD+VCR. The DVD+VCR is now set to record the preset
programs.
Note
If the power fails or the DVD+VCR is unplugged from the AC
outlet, the correct clock time and timer settings are kept in
memory for approximately 3 seconds. After 3 seconds, the
clock and program timer will be reset when power is restored.
Reset the clock according to instructions.
After setting up a timer recording, recording will start if no other
timer recordings are scheduled to occur at the same time (see
“Program Priority” at right).
Checking (Erasing) the Timer Program
Programming can be checked whenever the DVD+VCR
is turned on.
1Press MENU and the MAIN menu will appear.
2Use v/Vto choose the PROGRAM menu.
Press SELECT/ENTER and the PROGRAM menu
will appear.
3Use b/Bto select a program you want to check or
erase. If you want to erase the program, press
CLEAR.
4Press MENU to return to the TV screen.
Program Priority
If the starting and ending
times of two or more timer
recordings overlap on the
same day, priority is given to
the earliest recording. For
example, in the diagram at
left Program number 2 will
not be recorded until Program number 1 is finished. The
first part of Program number 2 will not be recorded.
Likewise, Program number 3 will not be recorded until
Program number 2 is finished, and so on.
OPERATION
25
Operation with tape (Continued)
Instant Timer Recording
Instant Timer Recording allows you to make a recording
easily of a preset length without using the program
timer.
Preparation:
Turn on the power of both the DVD+VCR and the TV.
Be sure the TV is tuned to the DVD+VCR output channel (3 or 4).
If a direct VIDEO/AUDIO connection is made between the
DVD+VCR and the TV, set the TV’s source selector to VIDEO.
11
Insert a video cassette with the safety tab intact.
22
Select the desired channel by using CH/TRK
(vv/VV) or number (0-9).
The channel number appears on the TV screen.
If you are recording from another source via audio/video
input jacks (at the Rear or Front panel), select the
LINE1 or LINE2.
33
Set the desired recording speed (SP or SLP) by
pressing SP/SLP.
The tape speed will appear on the TV screen.
44
Press REC (zz) twice.
The menu as illustrated, will appear on the TV screen.
Recording will start. (The indicator will light)
55
Press REC (zz) repeatedly to select the record-
ing time length.
At the end of the recording, the DVD+VCR will stop
recording and shut off.
During Instant Timer Recording, changing the channel
on the DVD+VCR will not be possible.
You can stop the recording by pressing STOP (x).
INSTANT TIMER RECORD MENU
Checking the Recording Time
Press REC (z) once to check the recording time. The
recalled setting will automatically return to the TV
screen after 6 seconds.
To extend the Recording Time
The recording time can be extended anytime by press-
ing REC (z).
Subsequent presses result in advancing the recording
time by 30-minute increments.
Notes
If you press PAUSE/STEP (X) during instant timer record-
ing, the DVD+VCR will enter the recording pause mode.
Instant timer recording is cancelled.
If the DVD+VCR is set to “0H00M”, the DVD+VCR goes to
normal recording mode.
Dubbing and Editing
If you wish to edit or dub your camcorder (or another
VCR) recordings to this DVD+VCR, the rear (or Front)
panel mounted Audio and Video (A/V) input jacks
make the connections quick and easy. These direct
A/V jacks will also provide better picture results than
using the RF jack on the rear panel.
11
Connect the camcorder’s (or another VCR’s) A/V
outputs to your DVD+VCR as illustrated on page 13.
22
Set the input channel “LINE2”. (press INPUT to
select LINE2.)
If you have connected your DVD+VCR to the A/V input
jacks on the rear of DVD+VCR, you should select the
input channel LINE1 by pressing INPUT twice.
33
Play the tape in the camcorder (or another
VCR). If you have a TV attached to your
DVD+VCR, you can see the video playing.
44
When you desire recording to begin, press
DVD+VCR’s REC (zz) once to start.
You can stop the recording by pressing STOP (x).
Note
Before recording, please confirm the recording start position.
Copying from DVD to VCR
This unit allows you to copy the contents of a DVD to a
VHS tape.
Note
If the DVD you are attempting to copy is copy protected,
you will not be able to copy the disc. It is not permitted
to copy Macrovision encoded DVDs. “Lock” is
displayed in the display window.
11
Insert Disc
Insert the disc you wish to copy in the DVD deck
and close the disc tray.
22
Insert VHS Tape
Insert a blank VHS video tape into the VCR deck.
33
Press PLAY (HH) on the DVD deck.
The DVD will go into play mode
If the DVD disc menu appears, you may need to press
the PLAY (H) manually to begin copying.
44
Press REC (zz) on the VCR deck or on the
remote control.
The DVD+VCR will go into Record mode.
“COPY” indicator will light.
55
Stop the Copy Process
When the DVD is finished playing, press STOP (x) to end
the copy.
You must stop the Copy process manually when the DVD
movie ends, otherwise the unit may record over and over
again.
Note
When you stop the DVD playback during copying, the record-
ing on VCR is stopped automatically.
INSTANT TIMER RECORD
CHANNEL 2
SPEED SP
START NOW
LENGTH 0H30M
0H30M ..... 9H00M ➝0H00M
Length Display
(each additional press of
REC (zz) increases recording
time 30 minutes)
26
Operation with tape (Continued)

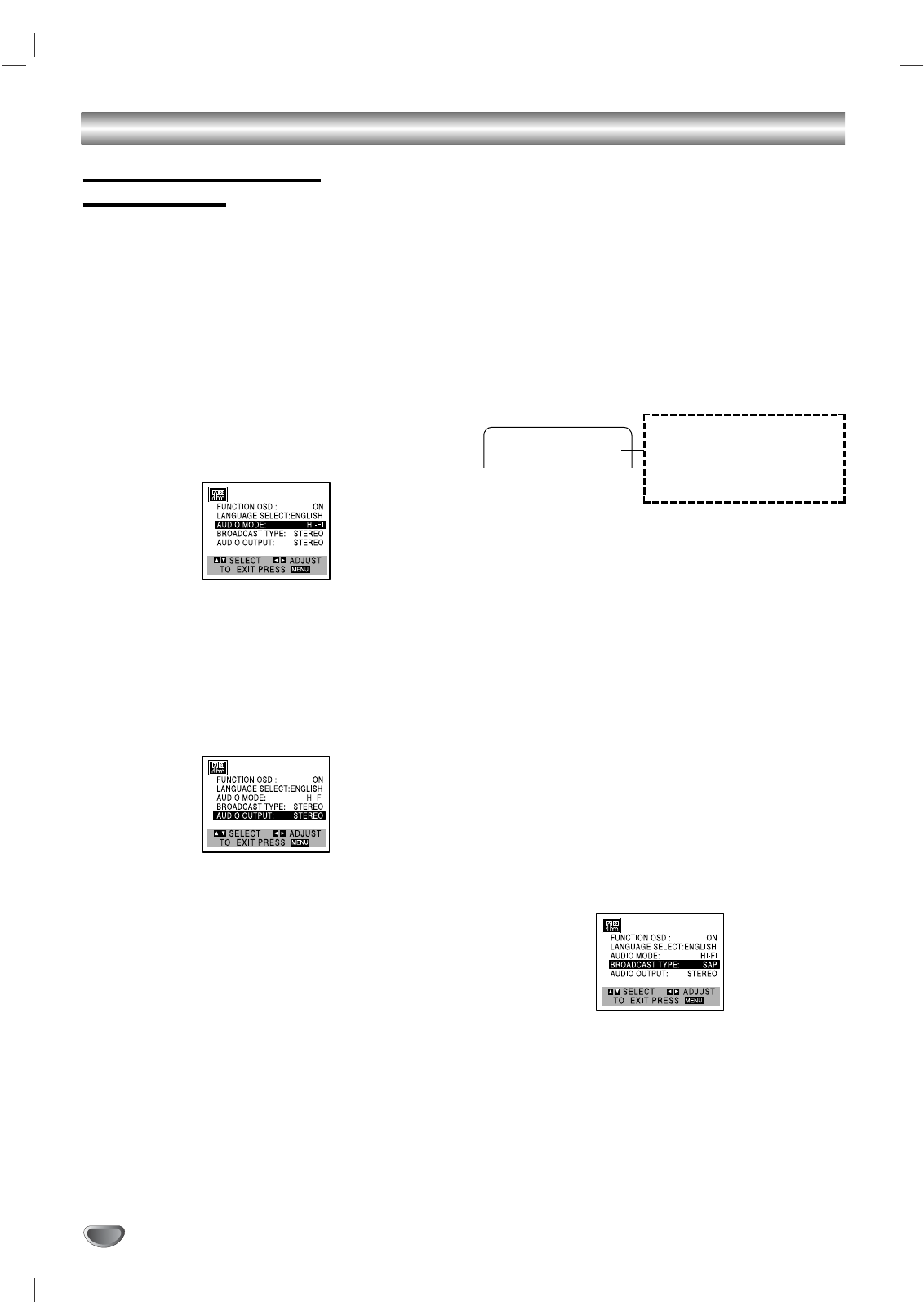

VHS Hi-Fi Stereo System/
MTS Broadcast
This DVD+VCR is equipped with the VHS Hi-Fi audio
sound system for recording and playback. The informa-
tion below gives a brief description of Hi-Fi audio and
how to record and play a tape in the Hi-Fi audio mode.
Playback with Hi-Fi Stereo Audio Sound
Astereo TV with AUDIO/VIDEO input jacks or a stereo
audio system is required for correct stereo playback. To
experience the full and rich stereo sound available with
Hi-Fi recorded tapes, we recommend the connection of
this unit to a home stereo audio system.
11
Set the AUDIO MODE option to HI-FI on the
SETUP menu .
22
Set the AUDIO OUTPUT option to STEREO
position.
(STEREO) POSITION: The left channel sound (L) is
heard from the left speaker and the right channel sound
(R) is heard from the right speaker.
(LEFT) POSITION: The left channel sound (L) is heard
from both speakers.
(RIGHT) POSITION: The right channel sound (R) is heard
from both speakers.
33
Press MENU.
44
Insert a cassette and press PLAY (HH).
Adjust volume at your stereo system.
MTS (Multi-Channel TV Sound)
This DVD+VCR will decode MTS stereo and bilingual
(SAP) off-the-air broadcast sound signals. It also
decodes stereo TV sound from local cable companies,
as long as they operate on assigned cable frequencies
and use the EIA-recommended MTS stereo/bilingual TV
sound system.
Multichannel TV Sound Indicator (MTS)
Shows On-screen as illustrated below when
SELECT/ENTER is pressed.
One or both of the indicators will light, depending on the
MTS broadcast.
If only STEREO appears on the TV screen.
The DVD+VCR can record in stereo onto the VHS Hi-Fi audio
tracks when the BROADCAST TYPE option is in the STEREO
position. The DVD+VCR will also record mono audio onto the
mono audio track.
If only SAP appears on the TV screen.
Set the BROADCAST TYPE option to SAP.
If STEREO/SAP appears on the TV screen
Use the BROADCAST TYPE option to select the desired
recording mode (STEREO or SAP).
SAP (Second Audio Program) Recording
Some stations transmit a Second Audio Program, which
is used for a second language or additional information.
When the station broadcasts a Second Audio Program,
follow the procedure below to record the SAP.
11
Insert a video cassette with the safety tab intact.
22
Set the BROADCAST TYPE option to SAP
(SETUP menu).
Do this only if the SAP appears on the TV screen or you
know the program will use the SAP.
33
Press MENU.
44
Set the desired recording speed (SP or SLP) by
pressing SP/SLP.
55
Select the desired channel. The SAP should
appear on the TV screen.
66
Press REC (zz) once
You are now recording the program you see and hear on the
TV.
77
Press STOP (xx) to stop recording.
STEREO
Lights up when a stereo broadcast
is being received.
SAP
Lights up when a SAP BILINGUAL
broadcast is being received.
TV screen
CH 4
STEREO/SAP
OPERATION
27
Operation with tape (Continued)
Tape Counter Memory Feature
Real-Time Counter
Shows length of tape run in hours, minutes, and sec-
onds. Press CLK/CNT to select the real-time counter
display.
Every press of CLK/CNT changes the TV screen as
illustrated below.
Counter changes to “0:00:00” when the cassette is
ejected.
The real-time counter does not operate if nothing is record-
ed on the tape.
The real-time counter will not work unless a tape is
inserted.
Counter Memory Function
This is useful if there is a section of tape you want to
view immediately after recording or if you want to return
to the same point several times.
11
Begin recording or playing a tape.
22
Press CLK/CNT repeatedly to display the real-
time counter appears on the TV screen.
33
At the point that you want locate later, reset the
real-time counter to “0:00:00” by pressing
CLEAR.
44
Continue to play or record.
55
Press STOP (xx) when recording or playback fin-
ishes.
66
Press BACKWARD (..).
The tape automatically stops when the tape counter
returns to about “0:00:00”.
Tape Remaining
This function allows the time of the remaining tape to be
displayed during recording or playback.
Press CLK/CNT until the REM indicator displays on the
TV screen during recording or playback.
Note
The remaining tape length indicator may not be displayed
correctly depending on the condition of the tape and the kind of
the tape (T-140, T-160, or T-210 etc)
Additional Information
In manual recording, Timer recording, Instant Timer
Recording, playback, or fast forward modes, the DVD+VCR
automatically starts rewinding the tape at the end of the
tape. The cassette will stop at the beginning of the tape and
be ejected, and the DVD+VCR will turn itself off (Only when
no disc).
After you have finished using the DVD+VCR, rewind, eject,
and remove the cassette. Place the cassette in its protec-
tive sleeve to protect it from dust. It is not necessary to
rewind the cassette before removing it, but if you do, it will
be ready to play or record the next time you use it.
Be sure the DVD+VCR Channel Selector is on the correct
channel you wish to record. The channel that is being
recorded can always be checked by setting the television
on the DVD+VCR channel (3 or 4) and pressing the
TV/VCR selector to turn off the DVD+VCR’s TV indicator.
Do not attempt to hook up more than one television set to
the DVD+VCR for either recording or playback.
Auto Play System
This DVD+VCR features automatic playback.
Load a cassette (with the safety tab removed).
The Output Source is changed to VCR mode automatically.
The power turns on automatically and playback begins.
At the end of the tape, the DVD+VCR stops, then rewinds.
The cassette is ejected after rewinding and turn itself off
automatically.
Note
Auto power off does not function during regular DVD play
mode. (DVD+VCR power stays on.)
2:15 AM 0:05:25 REM 1:07
CLOCK COUNTER REMAINING TIME
LOAD
TAPE
AUTO
REWIND
AUTO
POWER
OFF
AUTO
EJECT
AUTO
PLAY
28
Operation with DVD
Playing DVD
Playback Setup
Turn on the TV and select the video input source con-
nected to the DVD+VCR.
Audio system: Turn on the audio system and select
the input source connected to the DVD+VCR.
Set the Output Source to DVD as shown in “Setting
the Output Source” on page 6.
11
Press OPEN/CLOSE (ZZ) to open the disc tray.
22
Load your chosen disc in the tray, with the
playback side down.
33
Press OPEN/CLOSE (ZZ) to close the tray.
Playback starts automatically. If playback does not
start, press PLAY (H).
In some cases, the disc menu might appear
instead.
If a menu screen is displayed
The menu screen may be displayed first after loading a
DVD which offers a menu.
Use the b/B/v/Vbuttons to select the title/chapter you
want to view, then press SELECT/ENTER to start
playback.
Press TITLE or DISC MENU to return to the menu
screen.
44
To stop playback at any other time, press STOP.
This is RESUME STOP mode.
To exit RESUME STOP mode, press STOP again.
Notes
If Parental Control is set and the disc is not within the
Rating settings (not authorized), the 4-digit password
must be entered and/or the disc must be authorized
(see “LOCK”, on page 20).
DVDs may have a region code.
Your DVD+VCR will not play discs that have a region
code different from your DVD+VCR. The region code
for this DVD+VCR is 1 (one).
Do not keep an image or on-screen displayed for a
long time.
General Features
Note
Unless stated otherwise, all operations described use
the remote control. Some features may also be
available on the Setup menu.
Moving to another TITLE
When a disc has more than one title, you can move to
another title as follows:
Press DISPLAY then press v/Vto select the title
icon. Then press the appropriate numbered button
(0-9) to select a title number.
To go directly to any title at STOP mode
(or RESUME STOP mode), press the number button
(0-9).
Moving to another CHAPTER
When a title on a disc has more than one chapter, you
can move to another chapter as follows:
Press BACKWARD (.) or FORWARD (>) briefly
during playback to return to the beginning of the
current chapter or to select the next chapter.
Press BACKWARD (.) twice briefly to step back to
the previous chapter.
To go directly to any chapter during playback,
press DISPLAY. Then, press vv/VVto select chapter
icon. Then, enter the chapter number using the
numbered buttons (0-9).
Slow Motion
1Press PAUSE/STEP (X) during playback.
The DVD+VCR will now go into PAUSE mode.
2Press BACKWARD (.) or FORWARD (>)
during pause mode.
The DVD+VCR will enter SLOW mode.
3Use BACKWARD (.) or FORWARD (>) to
select the required speed: t 1/16, t 1/8, t 1/4 or
t 1/2 (backward), or T1/16, T1/8, T1/4 or T
1/2 (forward).
4To return to playback, press PLAY (H).
DVD
1 / 12
DVD
1 / 3
DVD
DVD
DVD
OPERATION
29
Operation with DVD (Continued)
General Features (Continued)
Still Picture and Frame-by-Frame Playback
1Press PAUSE/STEP (X) during playback.
The DVD+VCR will now go into PAUSE mode.
2You can advance the picture frame by frame by
pressing PAUSE/STEP (X) repeatedly on the remote
control.
3To return to playback, press PLAY (H).
Search
1
Press and hold BACKWARD (.) or FORWARD (>)
for about two seconds during playback.
The DVD+VCR will now go into SEARCH mode.
2
Press and hold BACKWARD (.) or FORWARD (>)
repeatedly to select the required speed: mX2, mX4,
mX16, mX100 (backward) or MX2, MX4,
MX16, MX100 (forward).
3To return to playback, press PLAY (H).
Repeat
DVD Video Discs - Repeat Chapter/Title/Off
1To repeat the currently playing chapter, press
REPEAT.
The Repeat Chapter icon appears on the TV screen.
2To repeat the title currently playing, press REPEAT a
second time.
The Repeat Title icon appears on the TV screen.
3To exit Repeat mode, press REPEAT a third time.
The Repeat Off icon appears on the TV screen.
Repeat A-B
To repeat a sequence:
1Press A-B at your chosen starting point.
“A-” appears briefly on the TV screen.
2Press A-B again at your chosen end point (after more
than 3 seconds).
“A-B” appears briefly on the TV screen, and the repeat
sequence begins.
3To cancel the sequence, press A-B.
Time Search
The Time Search function allows you to start playing at
any chosen time on the disc.
1Press DISPLAY during playback. The on-screen dis-
play appears on the screen.
The Time Search box shows the elapsed playing time of the
current disc.
2Within 10 seconds, use vv/VVto select the Time
Search icon in the on-screen display.
The “-:--:--” appears in the Time Search box.
3Within 10 seconds, use the numbered buttons to
enter the required start time. Enter hours, minutes
and seconds from left to right in the box.
If you enter the wrong numbers, press CLEAR to remove the
numbers you entered. Then enter the correct numbers.
4Within 10 seconds, press SELECT/ENTER.
Playback starts from the selected time on the disc. If you enter
an invalid time, playback will continue from the current point.
3D Surround
This unit can produce a 3D Surround effect, which
simulates multi-channel audio playback from two
conventional stereo speakers, instead of the five or
more speakers normally required to listen to multi-
channel audio from a home theater system.
1Press DISPLAY during playback.
2Use v/Vto select the sound icon.
The sound option will be highlighted.
3Use b/Bto to select “3D SUR”.
To turn off the 3D Surround effect, select “Normal”.
3D SUR
DVD
0:20:09
DVD
A - B
DVD
Title
DVD
DVD
DVD
30
Operation with DVD (Continued)
General Features (Continued)
Zoom
The Zoom function allows you to enlarge the video
image and to move through the enlarged image.
1Press ZOOM during playback or still playback to acti-
vate the Zoom function.
The square frame will be displayed in the right bottom of the
picture. If no button is pressed for more than 10 seconds,
the square frame will disappear.
Each press of the ZOOM button changes the TV screen in
the sequence shown below.
400% size →1600% size →multi zoom mode →normal size
2Use the bBvVbuttons to move through the
zoomed picture (400% or 1600%), or to enlarge and
reduce the picture size through the multi zoom mode.
3To resume normal playback, press ZOOM repeatedly
until the normal picture appears.
Note
The zoom function may not work for some DVDs.
The zoom function may not work on multi-angle
scenes.
Marker Search
You can start playback from a memorized point. Up to
nine points can be memorized.
To enter a mark, follow these steps.
1During disc playback, press MARKER when playback
reaches the spot that you want to memorize.
The Marker icon will appear on the TV screen briefly.
2Repeat step 1 to enter up to nine Marker points on a
disc.
To Recall a Marked Scene
1During disc playback, press SEARCH.
The Marker Search menu will appear on the screen.
2Within 10 seconds, press 1/2to select a Marker num-
ber that you want to recall.
3Press SELECT/ENTER.
Playback will start from the Marked scene.
4To remove the MARKER SEARCH menu, press
SEARCH.
To clear a Marked Scene
1During disc playback, press SEARCH.
The Marker Search menu will appear on the screen.
2Within 10 seconds, press 1/2to select a Marker num-
ber that you want to erase.
3Press CLEAR.
The Marker number will be erased from the list.
4Repeat steps 2 and 3 to erase additional Marker
numbers.
5To remove the MARKER SEARCH menu, press
SEARCH.
Special DVD Features
Checking the contents of DVD Video
discs: Menus
DVDs may contain menus that allow you to access spe-
cial features. To use the disc menu, press DISC MENU.
Then, press the appropriate number button to select an
option. Or, use b/B/v/Vbuttons to highlight your selec-
tion, then press SELECT/ENTER.
Title Menu
1Press TITLE.
If the current title has a menu, the menu will appear on the
screen. Otherwise, the disc menu may appear.
2The menu can list camera angles, spoken language
and subtitle options, and chapters for the title.
3To remove the title menu, press TITLE.
Disc Menu
1Press DISC MENU.
The disc menu is displayed.
2To remove the disc menu, press DISC MENU again.
Camera Angle
If the disc contains scenes recorded at different camera
angles, you can change to a different camera angle
during playback.
Press ANGLE repeatedly during playback to select a
desired angle.
The number of the current angle appears on the TV screen.
Changing the Audio Language
Press AUDIO repeatedly during playback to hear a
different audio language or audio track.
Subtitle
Press SUBTITLE repeatedly during playback to see the
different subtitle languages.
Note
If appears, the feature is not available on the disc.
ABC
1 ENG
DVD
1 ENG
D
5.1 CH
DVD
1 / 1
DVD
DVD
DVD
123456789
#1 1 / 9
DVD
DVD
OPERATION
31
Operation with Audio CD and MP3 Discs
Playing an Audio CD and MP3
Discs
The DVD+VCR can play an audio CD. Also, the
DVD+VCR can play MP3 formatted recordings on
CD-ROM, CD-R or CD-RW discs.
Before playing MP3 recordings, read the notes on MP3
Recordings on the right side of this page.
11
Insert a disc and close the tray.
Audio CD; Audio CD menu appears on the TV
screen. Go to step 3.
MP3 disc; The MP3 menu appears on the TV
screen. Go to step 2
Audio CD Menu MP3 Menu
22
Press v/Vto select a folder then press
SELECT/ENTER.
Alist of files in the folder appears.
33
Press v/Vto select a track then press
PLAY (H) or SELECT/ENTER.
Playback starts.
During playback, the current track’s elapsed playing
time will appear on the display window and menu.
Playback will stop at the end of the disc.
Tips
Press and hold Vto move to the next page.
Press and hold vto move to the previous page.
If you are in a file list on the MP3 menu and want to
return to the Folder list, use the v/Vto highlight
and press SELECT/ENTER.
44
To stop playback at any other time,
press STOP (xx).
Notes on MP3 Recordings
About MP3
An MP3 file is audio data compressed by using the
MPEG1 audio layer-3 file-coding scheme. We call
files that have the “.mp3” file extension “MP3 files”.
The player can not read an MP3 file that has a file
extension other than “.mp3”.
MP3 Disc compatibility with this player is limit-
ed as follows:
1. Sampling Frequency / only at 44.1 kHz
2. Bit rate / within 32 - 320kbps
3. CD-R physical format should be “ISO 9660”
4. If you record MP3 files using the software which
cannot create a FILE SYSTEM, for example “Direct-
CD” etc., it is impossible to playback MP3 files. We
recommend that you use “Easy-CD Creator”, which
creates an ISO9660 file system.
5. A single session disc requires MP3 files in the first
track. If there is no MP3 file in the 1st track, it can-
not play back MP3 files. If you wish to playback MP3
files, format all the data in the disc or use a new
one.
6. File names should be named using 8 letters or less
and must incorporate “.mp3” extension
e.g. “********.MP3”.
7. Do not use special letters such as “/ : * ? “ < > ” etc.
8. Total number of files and folders on the disc should
be less than 999.
This DVD+VCR requires discs/recordings to meet
certain technical standards in order to achieve optimal
playback quality. Pre-recorded DVDs are automatically
set to these standards. There are many different types
of recordable disc formats (including CD-R containing
MP3 files). That require certain pre-existing conditions
(see above) to insure compatible playback.
Customers should also note that permission must
be required in order to download MP3 files and
music from the Internet. Our company has no right
to grant such permission. Permission should
always be sought from the copyright owner.
MP3
CD
Program
List
TRACK 1
TRACK 2
TRACK 3
TRACK 4
TRACK 5
TRACK 6
TRACK 7
TRACK 8
00:52:44
1 / 12
Add All
Delete
AllDelete
Add
Audio CD
Program
List
00:00:00
1 / 104
MP3
Add All
Delete
AllDelete
Add
Music Folder 1
Music Folder 2
Music Folder 3
Music Folder 4
Music Folder 5
Music Folder 6
Music Folder 7
Music Folder 8
Operation with Audio CD and MP3 Discs (Continued)
32
Pause
1Press PAUSE/STEP (X) during playback.
2To return to playback, press PLAY or press
PAUSE/STEP (X) again.
Moving to another Track
Press
BACKWARD (.) or FORWARD (>)
briefly
during playback to go to the next track or to return to
the beginning of the current track.
Press
BACKWARD (.)
twice briefly to step back to
the previous track.
To go directly to any track, enter the track number
using the numbered buttons (0-9) during playback.
Repeat Track/All/Off
1To repeat the track currently playing, press REPEAT.
The Repeat icon and “TRACK” appears on the menu screen.
2To repeat all tracks on a disc, press REPEAT a sec-
ond time.
The Repeat icon and “ALL” appears on the menu screen.
3To cancel Repeat mode, press REPEAT a third time.
Search
1Press and hold
BACKWARD (.) or FORWARD
(>)
for about two seconds during playback.
The player will now go into SEARCH mode.
2Press and hold
BACKWARD (.) or FORWARD
(>)
repeatedly to select the required speed: mX2,
mX4, mX8 (backward) or MX2, MX4, MX8
(forward).
Search speed and direction are indicated on the menu
screen.
3To exit SEARCH mode, press PLAY(H).
Note
The DVD+VCR mutes sound during search mode of
MP3 files.
Random
1Press RANDOM during playback or when playback is
stopped.
The unit automatically begins Random Playback and
“Random” appears on the menu screen.
2To return to normal playback, press RANDOM repeat-
edly until “Random” disappears on the menu screen.
Repeat A-B
To repeat a sequence:
1Press A-B at your chosen starting point.
Repeat icon and “A” appears on the menu screen.
2Press A-B again at your chosen end point.
The Repeat icon and “A - B” appears on the menu screen,
and the repeat sequence begins.
3To exit the sequence and return to normal play, press
A-B again.
CD
MP3
CD
MP3
CD
MP3
CD
MP3
CD
MP3
CD
OPERATION
33

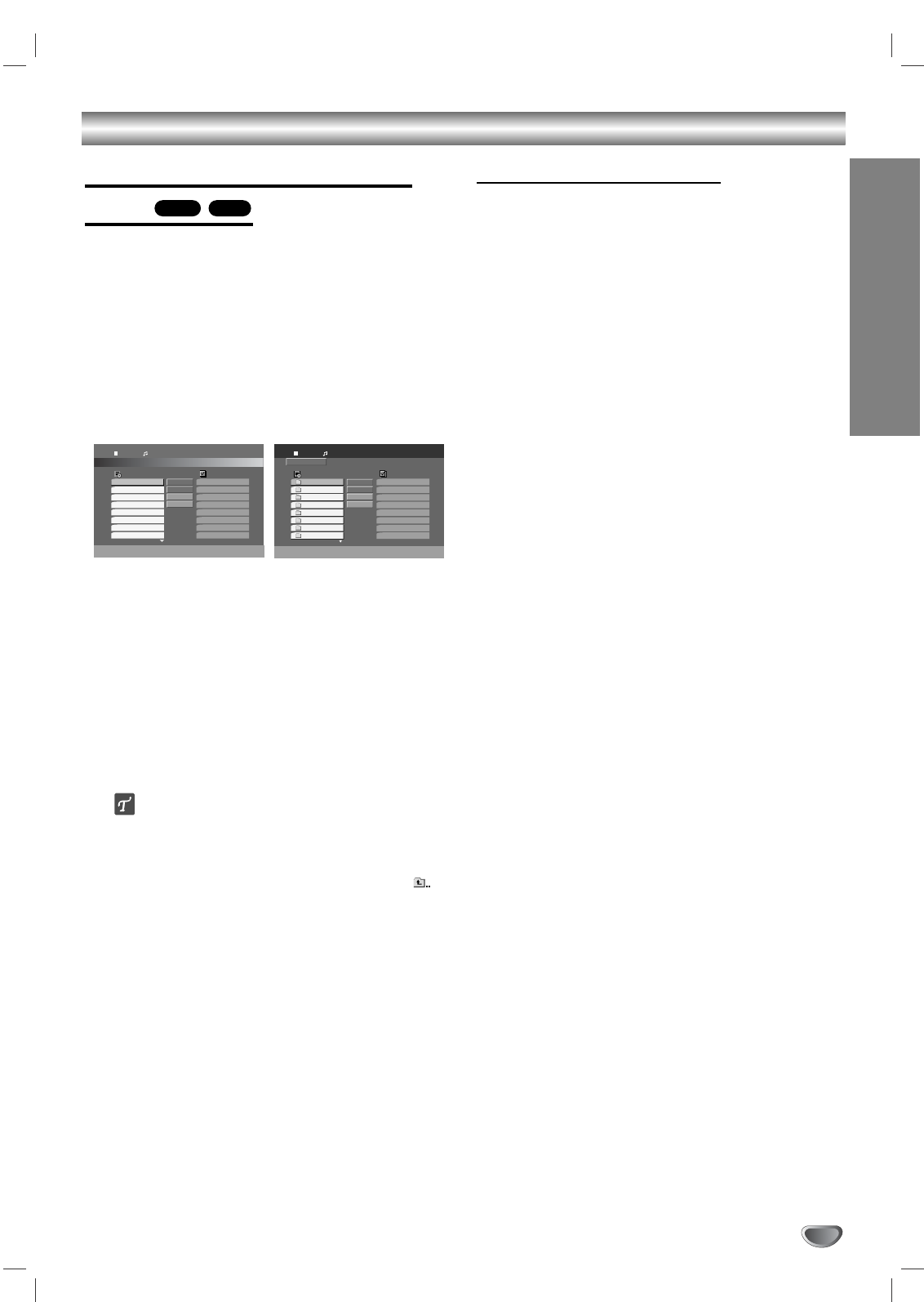

Programmed Playback MP3CD
Programmed Playback with Audio CD
and MP3 Discs
The Program function enables you to store your favorite
tracks from any disc in the player memory.
Program can contain 99 tracks (Audio CD) or 300
tracks (MP3).
11
Insert an Audio CD or MP3 disc.
Audio CD or MP3 menu will appear.
22
Press vVbBto select a track on the List.
33
Press PROGRAM. Or, press vVbBto highlight
the “Add” icon then press SELECT/ENTER.
The selected track is added to the program list.
44
Repeat steps 2-3 to place additional tracks on
the Program list.
55
Press vVbBto move to the Program list.
66
Press v/Vto select the track you want to start
playing.
Tips
Press and hold Vto move to the next page.
Press and hold vto move to the previous page.
If you are in a file list on the MP3 menu and want to
return to the Folder list, use the v/Vto highlight and
press SELECT/ENTER.
77
Press PLAY (HH) or SELECT/ENTER to start.
Playback begins in the order in which you programmed
the tracks.
Playback stops after all of the tracks on the Program list
have played once.
88
To resume normal playback from pro-
grammed playback, select a track on the
List then press SELECT/ENTER.
Repeat Programmed Tracks
To repeat the track currently playing, press REPEAT.
The Repeat icon and “TRACK” appears on the screen.
To repeat all tracks on the program list, press
REPEAT a second time.
The Repeat icon and “ALL” appears on the screen.
To cancel Repeat mode, press REPEAT a third time.
Erasing a Track from Program List
1Select the track that you wish to erase from the
Program list.
2Press vVbBto highlight the “Delete” icon then
press SELECT/ENTER. Or, press CLEAR.
The selected track is deleted on the program list.
3Repeat steps 1-2 to delete additional tracks on the
Program list.
Erasing the Complete Program List
Press vVbBto highlight the “Delete All” icon then
press SELECT/ENTER.
All tracks on the program list are deleted.
Program
List
TRACK 1
TRACK 2
TRACK 3
TRACK 4
TRACK 5
TRACK 6
TRACK 7
TRACK 8
TRACK 8
TRACK 3
TRACK 12
TRACK 7
TRACK 6
TRACK 9
TRACK 1
TRACK 10
00:52:44
1 / 12
Add All
Delete
AllDelete
Add
Audio CD
Program
List
00:00:00
1 / 104
MP3
Add All
Delete
AllDelete
Add
2-Music2.mp3
1-Music1.mp3
3-Music3.mp3
4-Music4.mp3
5-Music5.mp3
6-Music6.mp3
7-Music7.mp3
7-Music7
2-Music2
4-Music4
1-Music1
3-Music3
6-Music6
11-Music11
15-Music15
Symptom
No power.
The power is on, but
the DVD+VCR does not
work.
No picture.
No sound.
The playback picture is
poor.
The DVD+VCR does
not start playback.
The remote control
does not work properly.
Cause
The power cord is disconnected.
No disc is inserted.
No tape is inserted.
The TV is not set to receive DVD+VCR
signal output.
TV/VCR mode for DVD+VCR is set to
TV.
The video cable is not connected
securely.
The connected TV power is turned off.
The equipment connected with the
audio cable is not set to receive
DVD+VCR signal output.
The audio cables are not connected
securely.
The power of the equipment connected
with the audio cable is turned off.
The Digital Audio Output is set to the
wrong position.
The disc is dirty.
Tape heads are dirty.
Tape is a rental or was recorded on
another VCR.
No disc is inserted.
No tape is inserted.
An unplayable disc is inserted.
The disc is placed upside down.
The disc is not placed within the guide.
The disc is dirty.
The Rating level is set.
The remote control is not pointed at the
remote sensor of the DVD+VCR.
The remote control is too far from the
DVD+VCR.
There is an obstacle in the path of the
remote control and the DVD+VCR.
The batteries in the remote control are
exhausted.
This remote control use the same
buttons for VCR and DVD functions
(ex. PLAY).
Correction
Plug the power cord into the wall outlet
securely.
Insert a disc or tape. (Check that the
disc or tape indicator in the display
window is lit.)
Select the appropriate video input mode
on the TV so the picture from the
DVD+VCR appears on the TV screen.
Press the TV/VCR button on the remote
control repeatedly to choose VCR
mode. TV indicator disappears in the
display window.
Connect the video cable securely.
Turn on the TV.
Select the correct input mode of the
audio receiver so you can listen to the
sound from the DVD+VCR.
Connect the audio cable securely.
Turn on the equipment connected with
the audio cable.
Set the Digital Audio Output to the
correct position, then turn on the
DVD+VCR again by pressing POWER.
Clean the disc.
Clean video heads.
Use
CH/TRK (v/V)
for manual tracking
adjustment while tape is playing.
Insert a disc or tape. (Check that the
disc or tape indicator in the display
window is lit.)
Insert a playable disc. (Check the disc
type, color system, and Regional code.)
Place the disc with the playback side down.
Place the disc on the disc tray correctly
inside the guide.
Clean the disc.
Cancel the Rating function or change
the rating level.
Point the remote control at the remote
sensor of the DVD+VCR.
Operate the remote control within 23 ft
(7 m).
Remove the obstacle.
Replace the batteries with new ones.
When using a VCR, first press the VCR
button. When using a DVD, first press
the DVD button.
Check the following guide for the possible cause of a problem before contacting service.
34
Troubleshooting
REFERENCE
35
Troubleshooting (Continued)
Symptom
Some channels are
skipped over when
using
CH/TRK (v/V)
Picture and sound of
broadcasting channel
are weak or missing.
Camcorder image is not
shown.
Camcorder image via
A/V input to DVD+VCR
is not shown on TV
screen.
Timer recording is not
possible.
indicator
appears
after DVD+VCR is turned
off.
Stereo Audio Record
and/or Playback is not
present.
Cause
Those channels were deleted with the
CH. ADD/DEL option.
Antenna or cables are loose.
Wrong TUNING BAND option is being
used.
Camcorder is off.
DVD+VCR SOURCE SELECT is not set
to LINE1 or LINE2.
Clock in DVD+VCR is not set to correct
time.
Timer has been programmed
incorrectly.
indicator does not appear after pro-
gramming timer.
DVD+VCR is in Timer Recording mode.
TV is not Stereo-compatible.
Broadcast program is not in stereo for-
mat.
DVD+VCR A/V Out jacks are not con-
nected to TV A/V In jacks.
DVD+VCR Audio/Video Out is not
selected for viewing at the TV.
DVD+VCR BROADCAST TYPE mode is
set to SAP or MONO.
Correction
Use CH. ADD/DEL. to restore channels.
See “Channel Selection” on page 15.
Tighten connections or replace cable.
Try all TUNING BAND options. See
“Channel Selection” on page 15 for
details.
Turn camcorder on and operate
properly.
Press INPUT to select LINE input chan-
nel (LINE1 or LINE2).
Set clock to correct time. See “Setting
the Clock” on page 16.
Reprogram Timer. See “Timer
Recording” on pages 23 and 24.
Reprogram Timer.
This is the normal indication that the
DVD+VCR is in TIMER mode.
No action is possible.
No action is possible.
Make A/V connections. Stereo is
available only via A/V output from
DVD+VCR.
Select AUX or A/V source as TV input.
Set BROADCAST TYPE mode to
STEREO. See “Setting the VCR Setup
Menu” on page 15.
Moisture Condensation
Moisture condensation can occur:
•When the DVD+VCR is moved from a cold place to a
warm place.
•Under extremely humid conditions.
In locations where moisture condensation may occur:
•
Keep the DVD+VCR plugged into an AC power outlet
with POWER On. This will help prevent condensation.
•When condensation has occurred, wait a few hours
for the DVD+VCR to dry before using it.
36
Language Code List
Language Code
Abkhazian 6566
Afar 6565
Afrikaans 6570
Albanian 8381
Amharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Aymara 6588
Azerbaijani 6590
Bashkir 6665
Basque 6985
Bengali; Bangla 6678
Bhutani 6890
Bihari 6672
Breton 6682
Bulgarian 6671
Burmese 7789
Byelorussian 6669
Cambodian 7577
Catalan 6765
Chinese 9072
Corsican 6779
Croatian 7282
Czech 6783
Danish 6865
Dutch 7876
English 6978
Esperanto 6979
Estonian 6984
Faeroese 7079
Language Code
Fiji 7074
Finnish 7073
French 7082
Frisian 7089
Galician 7176
Georgian 7565
German 6869
Greek 6976
Greenlandic 7576
Guarani 7178
Gujarati 7185
Hausa 7265
Hebrew 7387
Hindi 7273
Hungarian 7285
Icelandic 7383
Indonesian 7378
Interlingua 7365
Irish 7165
Italian 7384
Japanese 7465
Javanese 7487
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kirghiz 7589
Korean 7579
Kurdish 7585
Laothian 7679
Latin 7665
Latvian, Lettish 7686
Language Code
Lingala 7678
Lithuanian 7684
Macedonian 7775
Malagasy 7771
Malay 7783
Malayalam 7776
Maltese 7784
Maori 7773
Marathi 7782
Moldavian 7779
Mongolian 7778
Nauru 7865
Nepali 7869
Norwegian 7879
Oriya 7982
Panjabi 8065
Pashto, Pushto 8083
Persian 7065
Polish 8076
Portuguese 8084
Quechua 8185
Rhaeto-Romance 8277
Romanian 8279
Russian 8285
Samoan 8377
Sanskrit 8365
Scots Gaelic 7168
Serbian 8382
Serbo-Croatian 8372
Shona 8378
Sindhi 8368
Language Code
Singhalese 8373
Slovak 8375
Slovenian 8376
Somali 8379
Spanish 6983
Sudanese 8385
Swahili 8387
Swedish 8386
Tagalog 8476
Tajik 8471
Tamil 8465
Tatar 8484
Telugu 8469
Thai 8472
Tibetan 6679
Tigrinya 8473
Tonga 8479
Turkish 8482
Turkmen 8475
Twi 8487
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapük 8679
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 7473
Yoruba 8979
Zulu 9085
Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu”
(See page 18).
REFERENCE
37
Country Code List
Country Code
Afghanistan AF
Albania AL
Algeria DZ
American Samoa AS
Andorra AD
Angola AO
Anguilla AI
Antarctica AQ
Antigua and Barbuda AG
Argentina AR
Armenia AM
Aruba AW
Australia AU
Austria AT
Azerbaidjan AZ
Bahamas BS
Bahrain BH
Bangladesh BD
Barbados BB
Belarus BY
Belgium BE
Belize BZ
Benin BJ
Bermuda BM
Bhutan BT
Bolivia BO
Bosnia-Herzegovina BA
Botswana BW
Bouvet Island BV
Brazil BR
British Indian
Ocean Territory IO
Brunei Darussalam BN
Bulgaria BG
Burkina Faso BF
Burundi BI
Cambodia KH
Cameroon CM
Canada CA
Cape Verde CV
Cayman Islands KY
Central African Republic CF
Chad TD
Chile CL
China CN
Christmas Island CX
Cocos (Keeling) Islands CC
Colombia CO
Comoros KM
Congo CG
Cook Islands CK
Costa Rica CR
Croatia HR
Cuba CU
Cyprus CY
Czech Republic CZ
Denmark DK
Djibouti DJ
Dominica DM
Dominican Republic DO
East Timor TP
Ecuador EC
Egypt EG
Country Code
El Salvador SV
Equatorial Guinea GQ
Eritrea ER
Estonia EE
Ethiopia ET
Falkland Islands FK
Faroe Islands FO
Fiji FJ
Finland FI
Former Czechoslovakia CS
Former USSR SU
France FR
France (European Territory) FX
French Guyana GF
French Southern Territories TF
Gabon GA
Gambia GM
Georgia GE
Germany DE
Ghana GH
Gibraltar GI
Great Britain GB
Greece GR
Greenland GL
Grenada GD
Guadeloupe (French) GP
Guam (USA) GU
Guatemala GT
Guinea GN
Guinea Bissau GW
Guyana GY
Haiti HT
Heard and
McDonald Islands HM
Honduras HN
Hong Kong HK
Hungary HU
Iceland IS
India IN
Indonesia ID
Iran IR
Iraq IQ
Ireland IE
Israel IL
Italy IT
Ivory Coast CI
Jamaica JM
Japan JP
Jordan JO
Kazakhstan KZ
Kenya KE
Kiribati KI
Kuwait KW
Kyrgyzstan KG
Laos LA
Latvia LV
Lebanon LB
Lesotho LS
Liberia LR
Libya LY
Liechtenstein LI
Lithuania LT
Luxembourg LU
Country Code
Macau MO
Macedonia MK
Madagascar MG
Malawi MW
Malaysia MY
Maldives MV
Mali ML
Malta MT
Marshall Islands MH
Martinique (French) MQ
Mauritania MR
Mauritius MU
Mayotte YT
Mexico MX
Micronesia FM
Moldavia MD
Monaco MC
Mongolia MN
Montserrat MS
Morocco MA
Mozambique MZ
Myanmar MM
Namibia NA
Nauru NR
Nepal NP
Netherlands NL
Netherlands Antilles AN
New Caledonia (French) NC
New Zealand NZ
Nicaragua NI
Niger NE
Nigeria NG
Niue NU
Norfolk Island NF
North Korea KP
Northern Mariana Islands MP
Norway NO
Oman OM
Pakistan PK
Palau PW
Panama PA
Papua New Guinea PG
Paraguay PY
Peru PE
Philippines PH
Pitcairn Island PN
Poland PL
Polynesia (French) PF
Portugal PT
Puerto Rico PR
Qatar QA
Reunion (French) RE
Romania RO
Russian Federation RU
Rwanda RW
S. Georgia
& S. Sandwich Isls. GS
Saint Helena SH
Saint Kitts
& Nevis Anguilla KN
Saint Lucia LC
Saint Pierre and Miquelon PM
Saint Tome and Principe ST
Country Code
Saint Vincent
& Grenadines VC
SamoaWS
San Marino SM
Saudi Arabia SA
Senegal SN
Seychelles SC
Sierra Leone SL
Singapore SG
Slovak Republic SK
Slovenia SI
Solomon Islands SB
Somalia SO
South Africa ZA
South Korea KR
Spain ES
Sri Lanka LK
Sudan SD
Suriname SR
Svalbard and
Jan Mayen Islands SJ
Swaziland SZ
Sweden SE
Switzerland CH
Syria SY
Tadjikistan TJ
Taiwan TW
Tanzania TZ
Thailand TH
Togo TG
Tokelau TK
Tonga TO
Trinidad and Tobago TT
Tunisia TN
Turkey TR
Turkmenistan TM
Turks and Caicos Islands TC
Tuvalu TV
Uganda UG
Ukraine UA
United Arab Emirates AE
United Kingdom UK
United States US
Uruguay UY
USA Minor Outlying Islands UM
Uzbekistan UZ
Vanuatu VU
Vatican City State VA
Venezuela VE
Vietnam VN
Virgin Islands (British) VG
Virgin Islands (USA) VI
Wallis and Futuna Islands WF
Western Sahara EH
Yemen YE
Yugoslavia YU
Zaire ZR
Zambia ZM
Zimbabwe ZW
Enter the appropriate code number for the initial setting “Country Code” (See page 20).
Specifications
38
General
Power requirements AC 120V , 60 Hz
Power consumption 23W
Dimensions (approx.) 430 X 97.5 X 293 mm (16.9 x 3.9 x 11.5 inches) (w x h x d)
Mass (approx.) 4.8 kg (10.58 lbs)
Operating temperature 5˚C to 40˚C (41˚F to 104˚F)
Operating humidity 5 % to 90 %
Signal system NTSC
Inputs
ANTENNA IN Antenna or CATV input, 75 ohms
VHS VIDEO IN 1 Vp-p 75 ohms, sync negative, RCA jack x 2
VHS AUDIO IN -6.0 dBm more than 47 kohms, RCA jack (L, R) x 2
Outputs
VIDEO OUT 1 Vp-p 75 ohms, sync negative
S-VIDEO OUT (Y) 1.0 V (p-p), 75 ohms, negative sync, Mini DIN 4-pin x 1
(C) 0.3 V (p-p) 75 ohms
COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75 ohms, negative sync, RCA jack x 1
(Pb)/(Pr) 0.7 V (p-p), 75 ohms, RCA jack x 2
Audio output (digital audio) 0.5 V (p-p), 75 ohms, RCA jack x 1
Audio output (analog audio) 2.0 Vrms (1 KHz, 0 dB), 600 ohms, RCA jack (L, R) x 1
RF OUT Channel 3 or 4
VCR Specifications
Head system Four head helical scan azimuth system
Timer 12-hour display type with AM, PM
Tape speed SP: 33.35 mm/sec, LP: 16.67 mm/sec, SLP: 11.12 mm/sec
Tape width 12.7 mm
Maximum recording time SP: 2 HOURS (T-120), SLP: 6 HOURS (T-120)/8 HOURS (T-160)
Rewind time About 3 minutes (T-120)
Antenna 75 ohms (VHF/UHF)
VHF output signal Channel 3 or 4 (Switchable)
Channel coverage VHF: 2-13, UHF: 14-69, CATV: 1-125 (4A, A-W, W+1 - W+84, A-5 - A-1)
Frequency range 20Hz to 20kHz
Signal-to-noise ratio More than 43dB
Dynamic range More than 88 dB
Channel separation More than 60 dB
DVD Specifications
Laser system Semiconductor laser, wavelength 650 nm
Frequency response DVD (PCM 96 kHz): 8 Hz to 44 kHz, DVD (PCM 48 kHz): 8 Hz to 22 kHz
CD: 8 Hz to 20 kHz
Signal-to-noise ratio More than 100dB (ANALOG OUT jacks only)
Harmonic distortion Less than 0.008%
Dynamic range More than 95 dB (CD), More than 100 dB (DVD)
Accessory:
Video cable x 1, Audio cable(L/R) x 1, RF 75-ohm Coaxial Cable x 1, Remote control x 1, Batteries x 2
Design and specifications are subject to change without notice.
For assistance in obtaining repairs and operational or technical information, please contact the following Toll Free Number:
DIAL TOLL FREE: 1-800-813-3435
Weekdays 7:30AM ~ 4:00PM Central Time
Also, you may write to SANYO Manufacturing Corporation, 3333 Sanyo Road Forrest City Arkansas 72335
LIMITED WARRANTY
LABOR 90 DAYS PARTS 1 YEAR CARRY-IN ONLY
THIS WARRANTY IS VALID ONLY ON SANYO PRODUCTS PURCHASED FROM A WAL-MART STORE AND USED IN THE UNITED
STATES OF AMERICA, EXCLUDING HAWAII AND ALL U.S. TERRITORIES AND PROTECTORATES. THIS WARRANTY APPLIES ONLY TO
THE ORIGINAL RETAIL PURCHASER AND DOES NOT APPLY TO PRODUCTS USED FOR ANY INDUSTRIAL, PROFESSIONAL OR
COMMERCIAL PURPOSE.
Subject to the OBLIGATIONS and EXCLUSIONS below, SANYO Manufacturing Corporation (“SANYO”) warrants this SANYO product
against defects in materials and workmanship for the periods of LABOR and PARTS specified above. SANYO will repair or replace (at its
option) the product and any of its parts which fail to conform to this warranty with new or refurbished products or parts. The warranty period
commences on the date the product was first purchased at retail from a Wal-Mart Store.
OBLIGATIONS
In order to obtain warranty service, the product must be delivered to and picked up from a Wal-Mart Store at the original retail purchaser’s
expense. The original dated bill of sale, or sales slip from a Wal-Mart Store must be submitted to a Wal-Mart Store at the time warranty service
is requested.
EXCLUSIONS
1. This warranty does not cover (A) the adjustment of customer-operated controls as explained in the appropriate model’s instruction manual,
or (B) the repair of any product whose serial number has been altered, defaced or removed.
2. This warranty shall not apply to the cabinet or cosmetic parts, broken or damaged video heads, batteries or routine maintenance.
3. This warranty does not apply to uncrating, setup, installation, removal of the product for repair or reinstallation of the product after repair.
4. This warranty does not apply to repairs or replacements necessitated by any cause beyond the control of SANYO including, but not limited
to, any malfunction, defect or failure caused by or resulting from unauthorized service or parts, improper maintenance, operation contrary to
furnished instructions, shipping or transit accidents, modification or repair by user or any third party, abuse, misuse, neglect, accident,
incorrect line voltage, fire, flood or other Acts of God, or normal wear and tear.
The foregoing is in lieu of all other express warranties and SANYO does not assume or authorize any party to assume for it any other
obligation or liability.
THE DURATION OF ANY WARRANTIES WHICH MAY BE IMPLIED BY LAW (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND
FITNESS) IS LIMITED TO THE TERM OF THIS WARRANTY. IN NO EVENT SHALL SANYO OR THE MANUFACTURER OF THE PRODUCT
BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM OWNERSHIP OR USE OF THIS PRODUCT,
OR FOR ANY DELAY IN THE PERFORMANCE OF ITS OBLIGATIONS UNDER THIS WARRANTY DUE TO CAUSES BEYOND ITS
CONTROL.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO
YOU.
THIS WARRANTY GIVES YOU SPECIAL LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
For your protection in the event of theft or loss of this product, please keep the following information with a sales receipt in a safe place.
Model No. Serial No.
Date of Purchase Purchase Price
Where Purchased
SANYO Manufacturing Corporation
