Users Manual
Before connecting, operating or adjusting this product, please
read this owner’s manual carefully and completely.
VCR & DVD
RECORDER
OWNER’S MANUAL
MODEL: LRY-517
2
CAUTION: THESE SERVICING INSTRUC-
TIONS ARE FOR USE BY QUALIFIED SER-
VICE PERSONNEL ONLY. TO REDUCE THE
RISK OF ELECTRIC SHOCK DO NOTT
PERFORM ANY SERVICING OTHER THAN
THAT CONTAINED IN THE OPERATING
INSTRUCTIONS UNLESS YOU ARE QUALI-
FIED TO DO SO.
Caution: The apparatus should not be
exposed to water (dripping or splashing)
and no objects filled with liquids, such as
vases, should be placed on the apparatus.
CAUTION: This product employs a Laser
System.
To ensure proper use of this product,
please read this owner’s manual carefully
and retain for future reference. Should the
unit require maintenance, contact an
authorized service center.
Use of controls, adjustments, or the per-
formance of procedures other than those
specified herein may result in hazardous
radiation exposure.
To prevent direct exposure to laser beam,
do not try to open the enclosure. Visible
laser radiation when open. DO NOT STARE
INTO BEAM.
WARNING: Do not install this equipment in
a confined space such as a bookcase or
similar unit.
FCC WARNING: This equipment may generate or use
radio frequency energy. Changes or modifications to
this equipment may cause harmful interference unless
the modifications are expressly approved in the instruc-
tion manual. The user could lose the authority to oper-
ate this equipment if an unauthorized change or modifi-
cation is made.
REGULATORY INFORMATION: FCC Part 15
This epuipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interfer-
ence when the product is operated in a residential
installation. This product generates, uses, and can radi-
ate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this product does
cause harmful interference to radio or television recep-
tion, which can be determined by turning the product off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the product and
receiver.
Connect the product into an outlet on a circuit dif-
ferent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a
dedicated circuit;
That is, a single outlet circuit which powers only that
appliance and has no additional outlets or branch cir-
cuits. Check the specification page of this owner's manu-
al to be certain.
Do not overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords, frayed
power cords, or damaged or cracked wire insulation are
dangerous. Any of these conditions could result in elec-
tric shock or fire. Periodically examine the cord of your
appliance, and if its appearance indicates damage or
deterioration, unplug it, discontinue use of the appliance,
and have the cord replaced with an exact replacement
part by an authorized servicer.
Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed in
a door, or walked upon. Pay particular attention to plugs,
wall outlets, and the point where the cord exits the appli-
ance.
SERIAL NUMBER:
You can find the serial number on the back of the unit.
This number is unique to this unit and not available to
others. You should record requested information here
and retain this guide as a permanent record of your pur-
chase.
Model No. ______________________________
Serial No. ______________________________
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
3
INTRODUCTION
1. Read these instructions. - All these safety and operating
instructions should be read before the product is operated.
2. Keep these instructions. - The safety, operating and use
instructions should be retained for future reference.
3. Heed all warnings. - All warnings on the product and in
the operating instructions should be adhered to.
4. Follow all instructions. - All operating and use instruc-
tions should be followed.
5. Do not use this product near water. – For example: near
a bath tub, wash bowl, kitchen sink, laundry tub, in a wet
basement; or near a swimming pool; and other areas
located near water.
6. Clean only with dry cloth. – Unplug this product from the
wall outlet before cleaning. Do not use liquid cleaners.
7.
Do not block any ventilation openings. Install in accor-
dance with the manufacturer’s instructions. -
Slots and
openings in the cabinet are provided for ventilation and to
ensure reliable operation of the product and to protect it
from over- heating. The openings should never be blocked
by placing the product on a bed, sofa, rug or other similar
surface. This product should not be placed in a built-in
installation such as a bookcase or rack unless proper ven-
tilation is provided or the manufacturer’s instructions have
been adhered to.
8. Do not install near any heat sources such as radia-
tors, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. D
o not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades
with one wider than the other. A grounding
type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience recepta-
cles, and the point where they exit from the product.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with appara-
tus. When a cart is used, use caution when moving
the cart/product combination to avoid injury from
tip-over.
13. Unplug this product during lightning storms or when
unused for long periods of time.
14.
Refer all servicing to qualified service personnel.
Servicing is required when the product has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the product, the product has been
exposed to rain or moisture, does not operate nor-
mally, or has been dropped.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION:
PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANUAL. AND
THOSE MARKED ON THE PRODUCT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
This product has been designed and manufactured to assure personal safety. Improper use can result in electric shock or
fire hazard. The safeguards incorporated in this product will protect you if you observe the following procedures for installa-
tion, use, and servicing.
This product does not contain any parts that can be repaired by the user.
DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVIC-
ING TO QUALIFIED SERVICE PERSONNEL ONLY.
4
INTRODUCTION
Safety Precautions 2
IMPORTANT SAFETY INSTRUCTIONS 3
Table of Contents 4-5
Overview 6-11
Recordable Discs 6
Playable Discs 6
Disc-related terms 7
About Symbols 7
•About the symbol display 7
•About the disc symbols for instructions 7
About Recordable discs 8
•What are “Recording modes”? 8
•Is editing a DVD like editing a video tape? 8
•About word ‘Original’ and ‘Playlist’ 8
About DVD recording 9-11
Card capable of displaying and saving 10
•Using Photo or Music menu
for Memory Card 10
Precautions 11

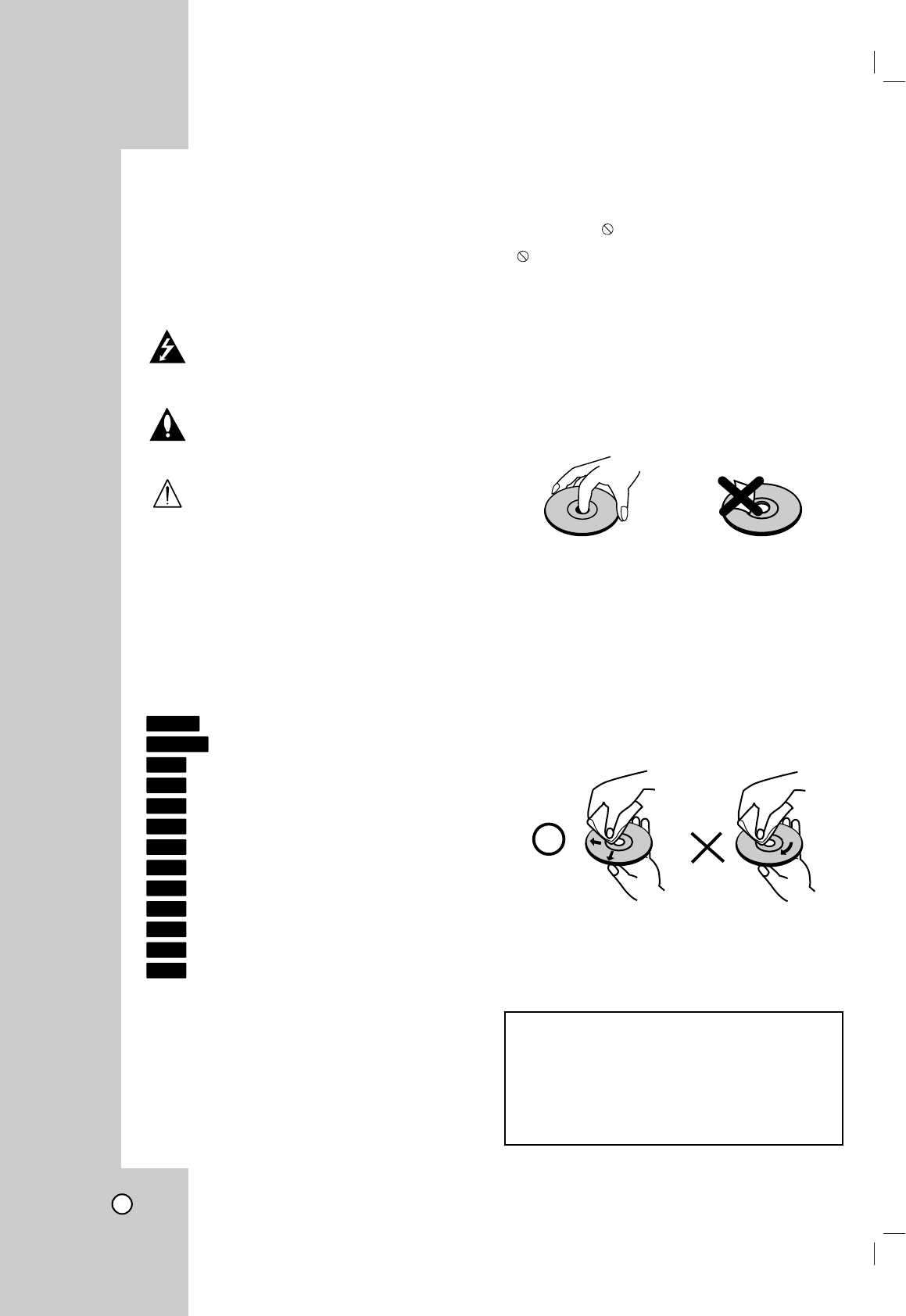

Notes on Discs 11
Remote Control Operation Range 11
Remote Control Battery Installation 11
Front Panel 12
Function Display Window 13

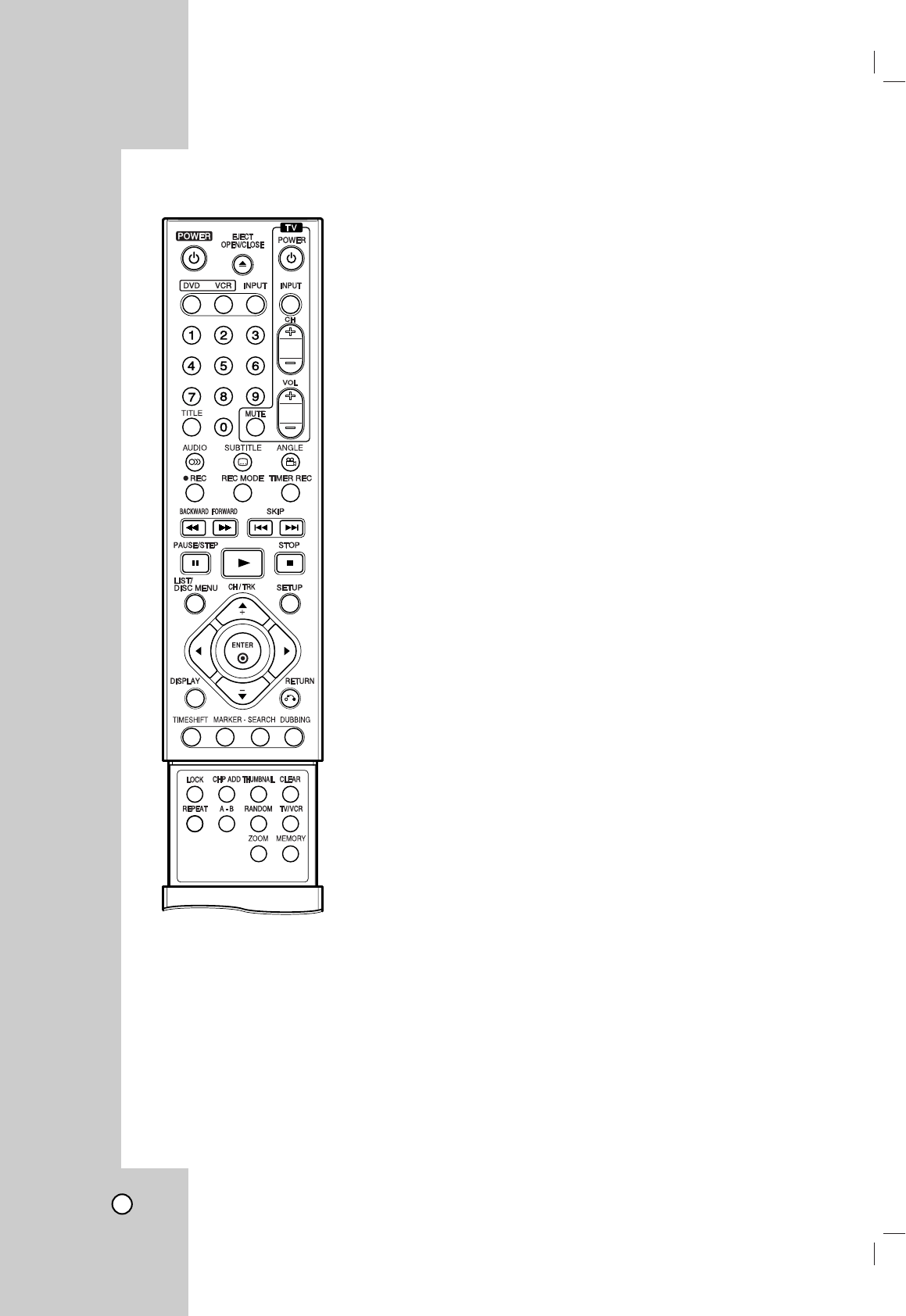

Remote Control Overview 14

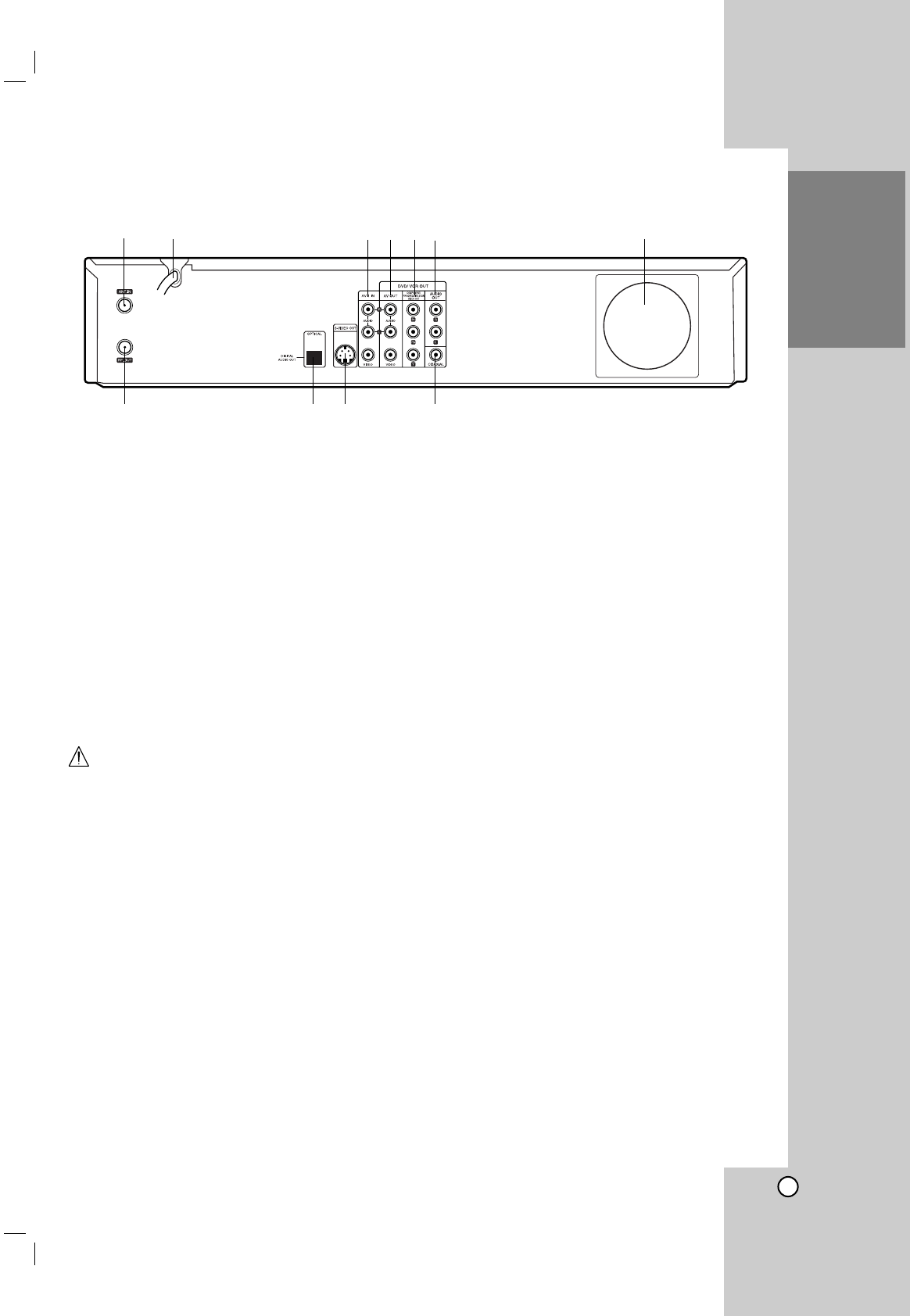

Rear Panel 15
DVR HOOKUP
Connections 16-19
Connecting Antenna/Cable TV
to VCR/DVD Recorder 16
Connecting to a TV 17
Connecting to Optional Equipment 18

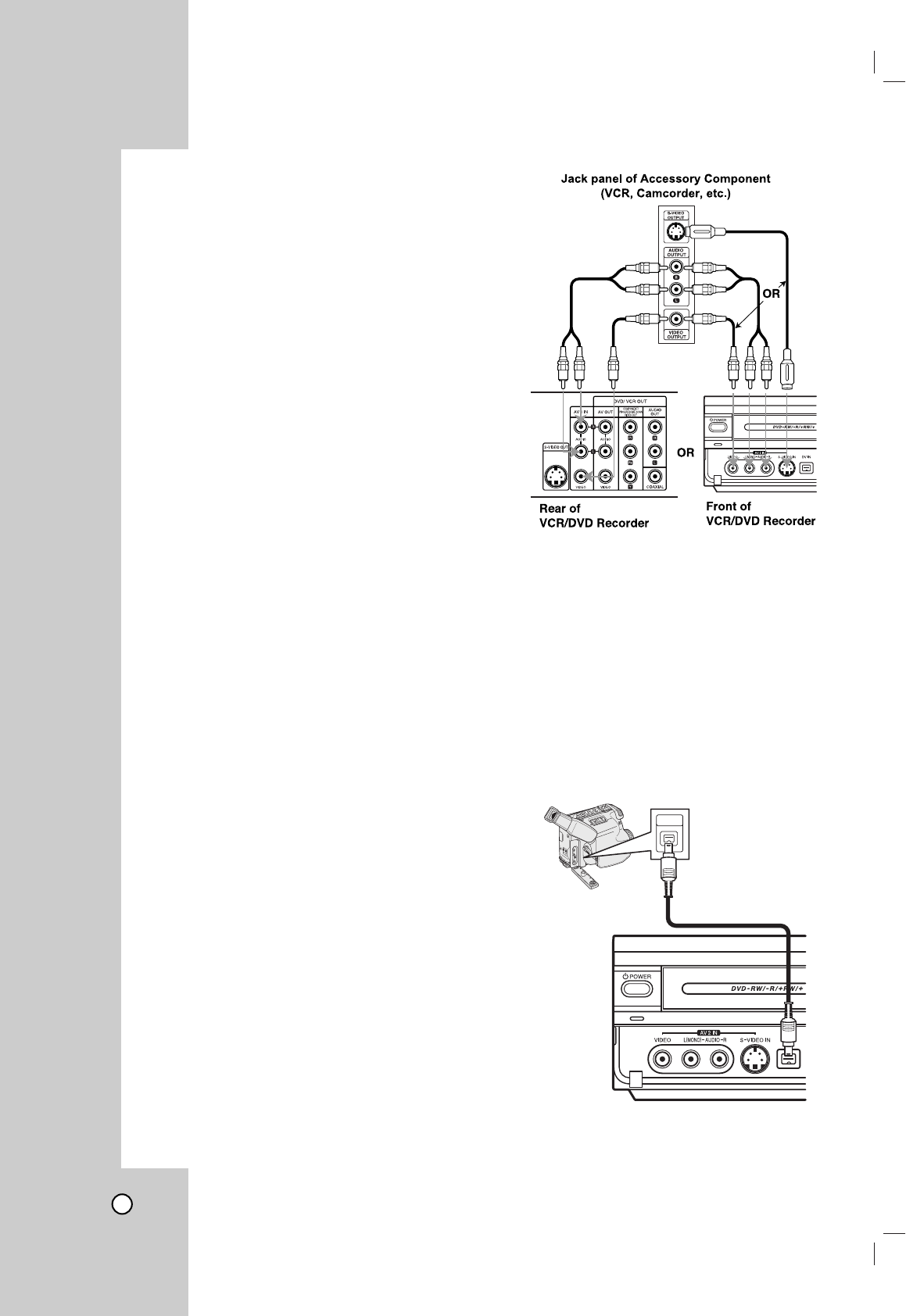

Accessory Audio/Video (A/V) Connections
to VCR/DVD Recorder 19
Connecting a Digital Camcorder 19
Before Operation 20-31
Initial Settings 20
•General Operation 20
GENERAL 20-22
•Tuning Band Select 20
•Auto Channel Set 20
•To Add or Erase Channels from Memory 21
•Auto Clock Set 21
•Manual Clock Set 21
•TV Aspect 22
•Progressive Scan 22
•Factory Setting 22
LANGUAGE 22
•Display Menu 22
•Disc Language 22
AUDIO 23
•Dolby Digital 23
•DTS 23
•MPEG 23
•Sampling Freq. (Frequency) 23
•DRC (Dynamic Range Control) 23
•Vocal 23
LOCK (Parental Control) 24-25
•Movie Rating 24
•Set Password 24
•Country Code 25
RECORD 25-26
•Disc Record Mode 25
•VCR Record Mode 25
•DV Record Audio 26
•Auto Chapter 26
DISC 26-28
•Disc Initialize 26
•Disc Finalize 27
•Disc Protect 27
•PBC 27
•Auto Play 27
•Disc Label 28
General Explanation of On-Screen Display 29
•Displaying Information on-screen 29
•Displaying OSD While Watching TV 29
•Changing TV Channels 29
•Changing TV Audio Channel 29
OSD Menu Options by Media Type 30-31
•DVD 30
•VR 30
•Video/+RW/+R 31
•VCD 31
•VHS 31
PLAYBACK
Operation with DVD or Video CD 32-35
Playing a DVD or Video CD 32-35
•Moving to another TITLE 32
•Moving to another CHAPTER/TRACKs 32
•Slow Motion 32
•
Still Picture and Frame-by-Frame Playback
33
•Search 33
•Random 33
•Repeat 33
•Repeat A-B 33
•Time Search 34
•Zoom 34
•Marker Search 34
•Disc Menus 34
•Title Menus 34
•Camera Angle 35
•Changing the Audio Language 35
•Changing the Audio Channel 35
•3D Surround 35
•Subtitles 35
•Finding Locations on a Disc 35
•Last Condition Memory 35
Audio CD and MP3/WMA Operation 36-38
Playing an Audio CD or MP3/WMA Disc 36
Music menu options 36
•Pause 37
•Moving to Another Track 37
•Repeat 37
•Random 37
•Changing the Audio Channel 37
•Search 37
•Repeat A-B 37
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
5
Notes on MP3/WMA Recordings 37
Copying MP3/WMA file(s)
on the disc to Memory Card 38
Erasing MP3/WMA file(s) or folder(s)
from the Memory Card 38
Programmed Playback with Audio CD
and MP3/WMA
39-40
Program List menu options 39
•Repeat Programmed Tracks 40
•Erasing a Track from the Program List 40
•Erasing the multi tracks
on the Program List 40
•Changing the order of Program List 40
Photo Disc Operation
41-42
Viewing a JPEG File 41
Photo menu options 41
•Photo-CD menu options 41
•Photo-Memory menu options 41
•Still picture 42
•Skip Images 42
•Rotate Images 42
•View Slide Shows 42
•Copying JPEG file(s) on the disc
to Memory Card 42
•Erasing JPEG file(s) or folder from
the Memory Card 42
•Notes on JPEG Recordings 42
VCR Mode Tape Playback 43
Preparation 43
Normal Playback 43
•Tracking Control 43
Special Effect Playback 43
•Search 43
•Still Picture and
Frame-by-Frame Playback 43
•Slow Motion 43
•Counter Memory Function 43
RECORDING
Basic Recording 44-45
Basic Recording from a TV 44
Instant Timer Recording 44
Dubbing from DVD to VCR 45
Dubbing from VCR to DVD 45
Timer Recording 46
Checking Timer Recording Details 46
Canceling a Timer Recording 46
Stopping a Timer Recording in Progress 46
Timer Recording Troubleshooting 46
Recording from an External Input 47
Recording from External Components 47
Recording from a Digital Camcorder 47
What is DV? 48
•DV-Related Messages 48
•Troubleshooting 48
EDITING
Title List and Chapter List Menu 49-53
Using the Title List-Original menu 49
Using the Chapter List-Original menu 49
Using the Title List-Playlist Menu 50
Using the Chapter List-Playlist Menu 50
Using the Title List menu 51
Deleting a Title 51
If the disc has already been finalized 51
Using the Title List menu (+RW) 52
Using the Chapter List menu (+RW) 52
Using the Title List menu (+R) 53
Using the Chapter List menu (+R) 53
Title and Chapter Editing 54-60
Titles, Chapters and Parts 54
Adding Chapter Markers 54
Changing Title Thumbnails 54
Making a New Playlist 55
Adding Additional Titles/Chapters
to the Playlist 55
Deleting a Title/Chapter 56
Deleting a Part 56
Naming a Title 57
Combining Two Chapters Into One 57
Moving a Playlist Chapter 58
Protect a Title 58
Hide a Title/Chapter 59
Divide One Title Into Two 59
Clean-up Recording 60
Overwrite Recording 60
Viewing Title List menu displayed
on other DVD recorders or players 60
Playing Your Recordings
on Other DVD Players (Finalizing a Disc) 60
REFERENCE

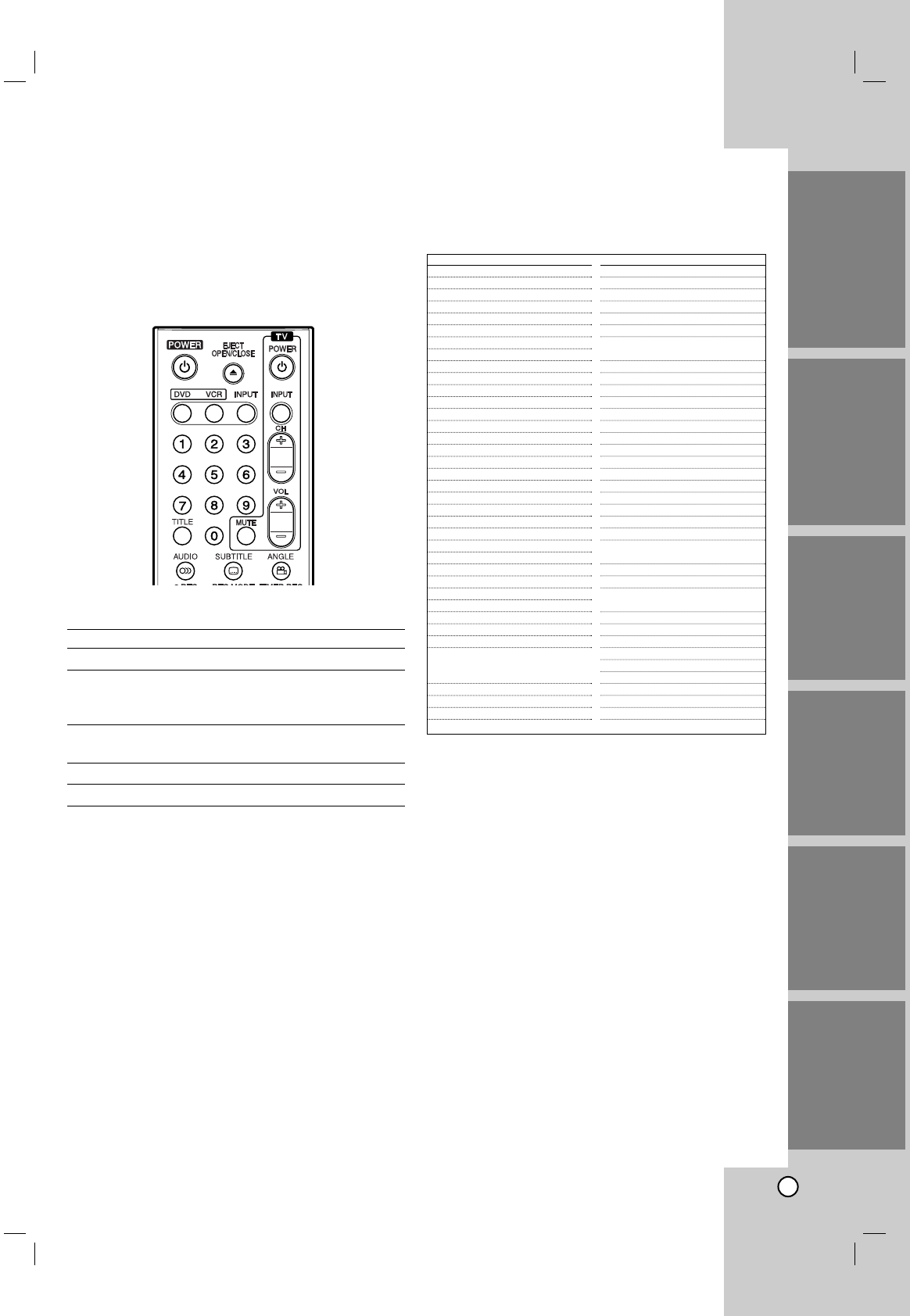

Controlling Your TV
with the Supplied Remote 61
Language Code and Country Code List 62
Troubleshooting 63-64
Reset the VCR/DVD Recorder 64
Specifications 65
About the symbols for instructions
Indicates hazards likely to cause harm to the unit
itself or other material damage.
NoteIndicates special operating features of this unit.
Tip Indicates tips and hints for making the task easier.
6
To ensure proper use of this product, please read this
owner’s manual carefully and retain for future refer-
ence.
Symbol Used in this Manual
The lightning flash symbol alerts you to the
presence of dangerous voltage within the
product enclosure that may constitute a risk
of electric shock.
The exclamation point alerts you to the
presence of important operating and mainte-
nance / servicing instructions.
Indicates hazards likely to cause harm to
the unit itself or other material damage.
Note: Indicates special notes and operating fea-
tures.
Tip: Indicates tips and hints for making the task
easier.
Asection whose title has one of the following sym-
bols are applicable only to those discs represented
by the symbol.
DVD-RW with Video recording mode
DVD-RW with VR recording mode
DVD-RAM disc
DVD+RW disc
DVD-R disc
DVD+R disc
DVD-Video disc
Video CDs
Audio CDs
DivX files
MP3 files
WMA files
JPEG files
About the Symbol Display
“ ” may appear on your TV display during opera-
tion and indicates that the function is not permitted by
this unit or the disc.
Notes on Discs
Handling Discs
Do not touch the playback side of the disc. Hold the
disc by the edges so that fingerprints do not get on
the surface. Never stick paper or tape on the disc.
Storing Discs
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.
Cleaning Discs
Fingerprints and dust on the disc can cause poor pic-
ture quality and sound distortion. Before playing,
clean the disc with a clean cloth. Wipe the disc from
the center out.
Do not use strong solvents such as alcohol, benzine,
thinner, commercially available cleaners, or anti-static
spray intended for older vinyl records.
JPEG
WMA
MP3
DivX
ACD
VCD
DVD
+R
-R
+RW
RAM
-RWVideo
-RWVR
Introduction
Moisture Condensation
Never operate this product immediately after mov-
ing it from a cold location to a warm location. Leave
it for two or three hours without operating it. If you
use this product in such a situation, it may damage
discs/tapes and internal parts.
7
Recordable and Playable Discs
DVD-RW (Digital Video Disc - ReWritable):
DVD-RW discs can be formatted for VR mode recording or Video mode recording.
These Discs can be recorded on repeatedly. Recordings can be erased, then you can record
again on the same Disc.
[VR mode]
Recordings can be extensively edited
Playable only on VR mode compatible players (after finalization)
[Video mode]
Playable on regular DVD players (after finalization)
Limited editing features
DVD-R (Digital Video Disc - Recordable)
These Discs can be recorded only once. After you finalize a DVD-R, you cannot record on it or
edit it.
DVD-R discs can be only formatted to Video mode.
Playable on regular DVD players (after finalization)
Limited editing features
DVD-RAM (Digital Video Disc + Recordable)
DVD-RAM discs can be formatted for VR mode recording.
These Discs can be recorded on repeatedly. Recordings can be erased, then you can record
again on the same Disc.
Playable on regular DVD players
Limited editing features
DVD+RW (Digital Video Disc + ReWritable)
These Discs can be recorded on repeatedly. Recordings can be erased, then you can record
again on the same Disc.
Playable on DVD+RW compatible players (automaticallly finalization)
The edited contents is playable on DVD+RW compatible players only after finalizing
Recordings can be edited the title/chapter
DVD+R (Digital Video Disc + Recordable)
These Discs can be recorded only once. After you finalize a DVD+R, you cannot record on it or
edit it any more.
Playable on DVD+R compatible players (after finalization)
Any edited contents are not be compatible on DVD+R compatible players. (Hide, chapter combine,
added chapter mark, etc.)
Limited title/chapter editing features.
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
Notes:
–This Recorder cannot record CD-R or CD-RW
discs.
–DVD-R/RW, DVD+R/RW and CD-R/RW discs
recorded using a personal computer or a DVD or
CD Recorder may not play if the disc is damaged
or dirty, or if there is dirt or condensation on the
Recorder’s lens.
–If you record a disc using a personal computer,
even if it is recorded in a compatible format, there
are cases in which it may not play because of the
settings of the application software used to create
the disc. (Check with the software publisher for
more detailed information.)
The recommendable recordable DVD
discs
DVD-R DVD+R DVD+R(DL) DVD-RW DVD+RW
SONY SONY Mitsubishi Victor SONY
TDK TDK Maxell Maxell TDK
Imation Imation - Imation Philips
Verbatim Mitsubishi - TDK Ricoh
Panasonic Ricoh - Mitsubishi HP
8

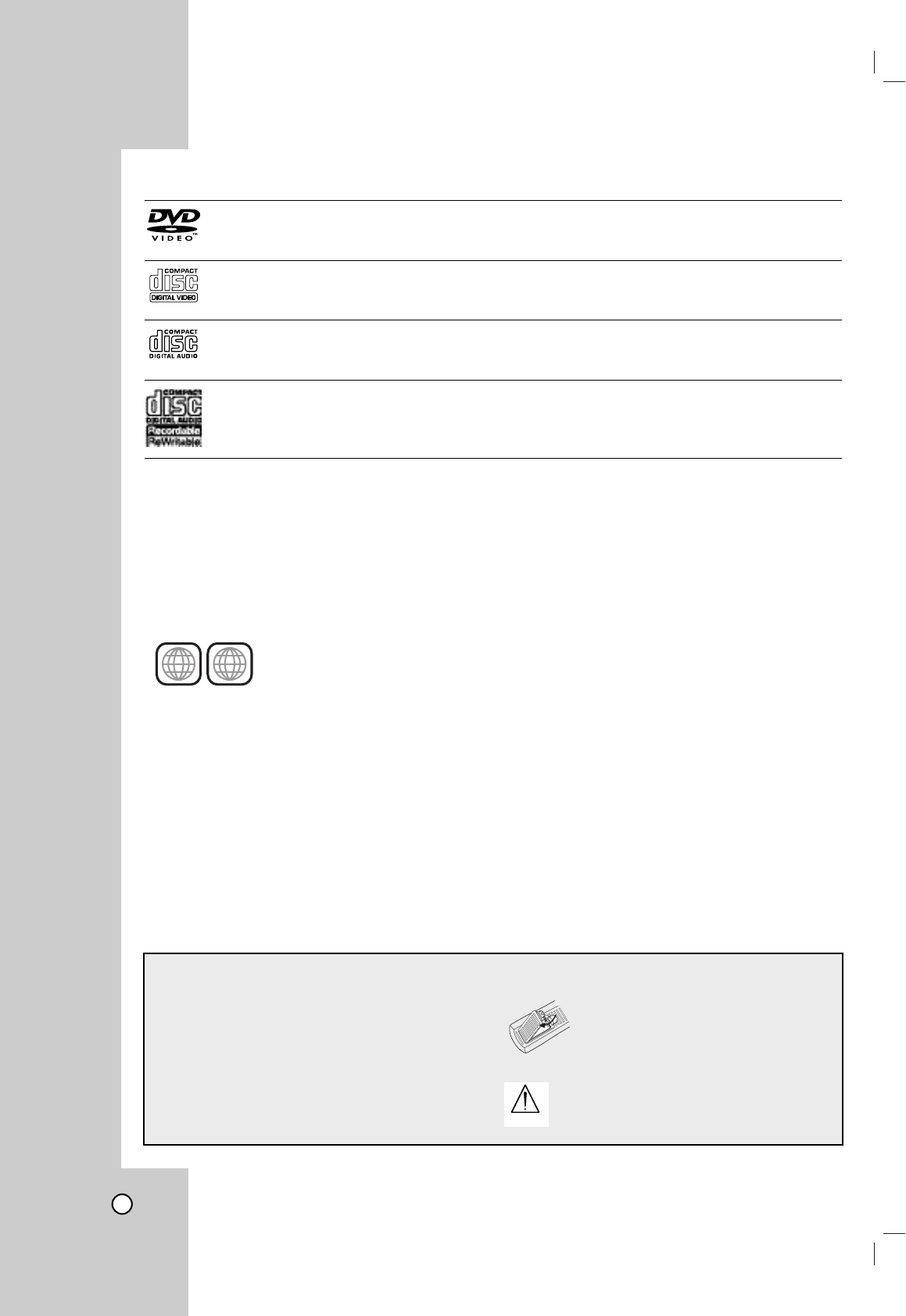

Playable Discs
DVD (8 cm / 12 cm disc)
Discs such as movies that can be purchased or rented
Video CD (VCD) (8 cm / 12 cm disc)
VIDEO CDs or CD-Rs/CD-RWs in VIDEO CD/Super VIDEO CD format
Audio CD (8 cm / 12 cm disc)
Music CDs or CD-Rs/CD-RWs in music CD format that can be purchased
CD-R/CD-RW (8 cm / 12 cm disc)
CD-R/CD-RW discs that contain audio titles, DivX, MP3, WMA, or JPEG files.
Notes:
–Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/±RW) disc itself, some
CD-R/RW (or DVD±R/±RW) discs cannot be played on the unit.
–Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.
–Do not use irregularly shaped CDs (e.g., heart-shaped
or octagonal). Doing so may result in malfunctions.
–Depending on the recording software & the finalization, some recorded discs (CD-R/RW or DVD±R/RW) may
not be playable.
Regional code of the recorder and DVDs
This recorder is designed and manufactured for playback of Region 1 encoded DVD soft-
ware. The region code on the labels of some DVD discs indicates which type of the recorder
can play those discs. This unit can play only DVD discs labeled 1 or ALL. If you try to play
any other discs, the message “Incorrect region code. Can’t play back” will appear on the TV
screen. Some DVD discs may not have a region code label even though their playback is
prohibited by area limits.
Notes on DVDs and Video CDs
Some playback operations of DVDs and Video CDs may be intentionally fixed by software manufacturers. As
this unit plays DVDs and Video CDs according to disc content designed by the software manufacturer, some
playback features of the unit may not be available or other functions may be added.
Refer also to the instructions supplied with the DVDs and Video CDs. Some DVDs made for business purpos-
es may not be played on the unit.
1
ALL
About the Remote Control
Operation Range
Point the remote control at the remote sensor and
press the buttons.
Distance: About 23 ft (7 m) from the front of the
remote sensor.
Angle: About 30° in each direction of the front of
the remote sensor.
Battery installation
Detach the battery cover on the rear
of the remote control, and insert two
(R03/AAA) size batteries with 3and
#aligned correctly.
Do not mix old and new batteries and never
mix different types of batteries such as stan-
dard, alkaline, etc.
9
Disc-related terms
DVD ±R / DVD ±RW
DVD -R and DVD +R are two different standards for
recordable DVD drives and discs. This format allows
information to be recorded onto the DVD disc only
once. DVD +RW and DVD -RW are two standards for
re-writable media, meaning the DVD content can be
erased and re-recorded. Single-sided discs can hold
4.38 Gigabytes and double-sided discs hold twice as
much. There are no dual layer single sided record-
able discs.
DVD-RAM
????
DVD +R (Double Layer)
Double layer recording technology offers two record-
able layers on a single DVD disc, providing nearly
double the capacity of 4.7GB single layer DVDs. The
greatest, most valuable benefit of double layer
recording technology is increased capacity. Storage
space is nearly doubled with double layer DVD+R
media, allowing consumers to burn up to 8.5GB of
video on a single DVD+R disc.
VCD (Video CD)
AVCD holds up to 74 minutes (650 MB disc) or 80
minutes (700 MB disc) of MPEG-1 full-motion video
along with quality stereo sound.
MPEG
MPEG is an international standard for video and
audio compression. MPEG-1 is used in encoding
video for VCD and provides for multichannel surround
sound coding such as PCM, Dolby Digital, DTS and
MPEG audio.
MP3
MP3 is a popular compression format used for digital
audio files that yields very high near-CD quality.
WMA
Windows media audio file. A type of coding / decod-
ing developed by Microsoft Corp.
JPEG
Joint Pictures Expert Group. JPEG is a compressed
file format that allows you to save images with no
limit on the number of colors.
DivX
DivX is the name of a revolutionary new video codec
which is based on the new MPEG-4 compression
standard for video.You will be able to play DivX
movies using this recorder.
PBC: Playback Control (Video CD only)
Playback control is available for Video CD (VCD) ver-
sion 2.0 disc formats. PBC allows you to interact with
the system via menus, search functions, or other typi-
cal computer-like operations. Moreover, still pictures
of high resolution can be played if they are included
in the disc. Video CDs not equipped with PBC
(Version 1.1) operate in the same way as audio CDs.
Title (DVD video discs only)
Atitle is generally a distinct section of a DVD disc.
For example the main feature could be title 1, a docu-
mentary describing how the film was made could be
title 2, and cast interviews could be title 3. Each title
is assigned a reference number enabling you to
locate it easily.
Chapter (DVD video discs only)
Achapter is a segment of a title such as a scene in a
film or one interview in a series. Each chapter is
assigned a chapter number, enabling you to locate
the chapter you want. Depending on the disc, chap-
ters may not be recorded.
Scene (VCD)
On a video CD with PBC (playback control) functions,
moving pictures and still pictures are divided into sec-
tions called “scenes”. Each scene is displayed in the
menu screen and assigned a scene number, enabling
you to locate the scene you want. A scene is com-
posed of one or several tracks.
Track
Adistinct element of audiovisual information, such as
the picture or sound track for a specific language
(DVD), or a musical piece on a video or audio CD.
Each track is assigned a track number, enabling you
to locate the track you want. DVD discs allow one
track of video (with multiple angles) and several
tracks of audio.
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
10
Notes on MP3/WMA Recordings
About MP3
•An MP3 file is audio data compressed by
using the MPEG1 audio layer-3 file-coding
scheme. We call files that have the “.mp3” file
extension “MP3 files”.
•The VCR/DVD Recorder can not read an MP3
file that has a file extension other than “.mp3”.
About WMA (Window Media Audio)
•AWMA file is made using Microsoft audio
compression technology.
•WMA (Windows Media Audio) offers double
the audio compression of the MP3 format.
MP3 / WMA disc compatibility with this play-
er is limited as follows:
•The player cannot read an MP3/WMA file that
has a file extension other than “.mp3” /
“.wma”.
•CD-R physical format should be ISO 9660
•If you record MP3 / WMA files using software
that cannot create a file system (eg. Direct-
CD) it is impossible to playback MP3 / WMA
files. We recommend that you use Easy-CD
Creator, which creates an ISO 9660 file sys-
tem.
•The total number of files and folders on the
disc are free but the total number of files and
folders on the folder should be less than 999.
This VCR/DVD Recorder requires discs and record-
ings to meet certain technical standards in order to
achieve optimal playback quality. Pre-recorded
DVDs are automatically set to these standards.
There are many different types of recordable disc
formats (including CD-R containing MP3 or WMA
files) and these require certain pre-existing condi-
tions (see above) to ensure compatible playback.
Customers should note that permission is
required in order to download MP3 / WMA files
and music from the Internet. Our company has
no right to grant such permission. Permission
should always be sought from the copyright
owner.
Notes on MP3/WMA Recordings
•Depending upon the size and number of JPEG
files, it could take a long time for the DVD+VCR
to read the disc’s contents. If you don’t see an on-
screen display after several minutes, some of the
files may be too large — reduce the resolution of
the JPEG files to less than 5760 x 3840 pixels
and burn another disc.
•The total number of files and folders on the disc
should be less than 1500.
•Some discs may be incompatible due to a differ-
ent recording format or the condition of disc.
•Ensure that all the selected files have the “.jpg”
extensions when copying into the CD layout.
•If the files have “.jpe” or “.jpeg” extensions, please
rename them as “.jpg” file.
•File names without “.jpg” extension will not be
able to be read by this DVD+VCR. Even though
the files are shown as JPEG image files in
Windows Explorer.
DivX disc compatibility with this player is limited
as follows:
•Available resolution size of the DivX file is under
720x576 (W x H) pixel.
•The file name of the DivX subtitle is limited to
characters.
•If there is impossible code to express in the DivX
file, it may be displayed as " _ " mark on the dis-
play.
•If the number of the screen frame is over 30
frames per second, this unit may not operate
normally.
•If the video and audio structure of recorded
file is not interleaved, either video or audio is
outputted.
•If the file is recorded with GMC, the unit sup-
ports only 1-point of the record level.
* GMC?
GMC is the acronym for Global Motion Compensation. It
is an encoding tool specified in MPEG4 standard. Some
MPEG4 encoders, like DivX or Xvid, have this option.
There are different levels of GMC encoding, usually
called 1-point, 2-point, or 3-point GMC.
11
Card useable on this unit
Memory card capacity
Compact Flash Card (CF)
Micro Drive (MD)
Secure Digital Card (SD)
Multi Media Card (MMC)
•SmartMedia Card (SMC)
•xD-Picture Card (xD)
•Memory Stick (MS)
•Magicstor
•Memory Stick Pro (MS-Pro)
•Memory Stick Duo (MS-Duo)
•Compatible with: FAT 12, FAT 16, or FAT 32
•Only use the memory cards recommended above.
Regarding Write Protect
For cards that have a write protect switch, if the
switch is on it will not be possible to write or erase
the contents of the card.
Inserting/Removing the Memory Card
Inserting the card.
Insert straight-in until it
fits into place.
Removing the card
Extract the card from
the card slot.
Notes:
•This unit can not format a memory card.
•Keep the memory card out of reach of children.
If swallowed, seek medical advice immediately.
•The reading time depends on file size or resolution.
•If a folder in your memory cards have more than
645 files, the whole files are not available to read.
•Do not extract the memory card in operating (play,
copy, move, etc.).
Caution
•Before you extract your memory cards, you should
press the MEMORY in VCR TUNER mode.
Otherwise you will lose your data in your memory
card or the memory card can be damaged.
Maintenance and Service
Refer to the information in this chapter before con-
tacting a service technician.
Handling the Unit
When shipping the unit
Please save the original shipping carton and packing
materials. If you need to ship the unit, for maximum
protection, re-pack the unit as it was originally packed
at the factory.
Keeping the exterior surfaces clean
•Do not use volatile liquids such as insecticide
spray near the unit.
•Do not leave rubber or plastic products in contact
with the unit for a long period of time. since they
leave marks on the surface.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the sur-
faces are extremely dirty, use a soft cloth lightly mois-
tened with a mild detergent solution.
Do not use strong solvents such as alcohol, benzine,
or thinner, as these might damage the surface of the
unit.
Maintaining the Unit
The DVD player is a high-tech, precision device. If
the optical pick-up lens and disc drive parts are dirty
or worn, the picture quality could be diminished.
Depending on the operating environment, regular
inspection and maintenance are recommended after
every 1,000 hours of use.
For details, please contact your nearest authorized
service center.
CF or MD
or
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
12
aPOWER button and indicator
Switches the VCR/DVD Recorder ON and OFF.
Lights green when the VCR/DVD Recorder is
turned on.
bDisc Tray (DVD deck)
Insert a disc here.
cZOPEN/CLOSE
Opens or closes the disc tray.
dCassette Compartment (VCR deck)
Insert a video cassette here.
eZEJECT
Ejects the tape in the VCR deck.
fAV 2 IN
- VIDEO /AUDIO (Left/Right)
Connect the audio/video output of an external source
(Audio system, TV/ Monitor, VCR, Camcorder, etc.).
- S-VIDEO IN
Connect the S-Video output of an external source
(TV/ Monitor, VCR, Camcorder, etc.).
gDV INPUT
Connect the DV output of a digital camcorder.
hMEMORY CARD Slot
Insert a memory card
(CF, MD, SMC, MMC, SD, MS, MS-Pro, XD-
Picture, Magic stor, MS Duo).
iDisplay window
Shows the current status of the VCR/DVD
Recorder.
jRemote Sensor
Point the VCR/DVD Recorder Remote Control
here.
kDVD/VCR indicator
Indicates the active DVD or VCR deck.
lDVD/VCR
Toggles control between the DVD deck and the
VCR deck.
mz(REC) button
Starts recording.
Press repeatedly to set the recording time.
nN(PLAY)
To play back a disc or tape.
ox(STOP)
Stops playback.
pCH (v/ V)
Scans up or down through memorized chan-
nels.
qDUB (DUBBING)
Press to copy DVD to VCR (or VCR to DVD).
Front Panel
ab c d e
fgh i jklmnopq
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
13
INTRODUCTION
Indicates the type of disc loaded.
Indicates when Memory Card is
activated.
Indicates repeat mode.
Indicates when the recorder is in
timer recording or a timer recording
is programmed.
The recorder is recording.
Programmed playback active.
Indicates current title.
Adisc is inserted in the DVD deck.
AVHS tape is inserted in the VCR
deck.
Indicates a DVD-RW disc (VR
mode only) is inserted in the DVD
deck.
Indicates that TV mode is active.
Indicates current chapter or track
number
Indicates that a DVD to VCR (or
VCR to DVD) dubbing is in
progress.
Indicates when the VCR/DVD
Recorder is Locked.
Indicates when the VCR/DVD
Recorder is playing
a tape in Hi-Fi.
Indicates a stereo broadcast is
being received.
Indicates when a SAP BILINGUAL
broadcast is being received.
Indicates clock, total playing time,
elapsed time, remaining time, title
number, chapter/track number,
channel, etc.
SAP
ST
Hi-Fi
DUB
TRKCHP
TV
VR
TTL
PRG
REC
AB
M.CARD
DVD
SVCD
Function Display Window
DVD
PRG TTL VR TV TRKCHP DUB
Hi-Fi ST
SAP
SVCD
M.CARD
AB
REC
14
A-B
Repeats sequence between two points
(A and B)
ANGLE
Selects a DVD camera angle,
if available.
AUDIO
Selects an audio language (DVD).
BACKWARD / FORWARD
(m/M)
-
DVD: Search backward or forward.
- VCR: Rewinds/Advances the tape
during the STOP mode, for fast
reverse/ forward picture search.
CHP ADD
Inserts a chapter marker when playing/
recording.
CH/TRK(v/V): Selects a program.
Adjusts manually the tape’s picture
onscreen.
CLEAR
Removes a mark on the Marker
Search menu.
DISPLAY
Accesses On-Screen Display.
Displays information while viewing a
TV program.
DUBBING
Press to copy DVD to VCR (or VCR to
DVD).
DVD
Select the VCR/DVD Recorder’s func-
tion mode to DVD.
EJECT, OPEN/CLOSE
- Opens and closes the disc tray.
- Ejects the tape in the VCR deck.
ENTER ()
Confirms menu selections.
INPUT
Changes the input to use for recording
(Tuner, AV1, AV2, or DV IN).
LIST / DISC MENU
Accesses menu on a DVD disc, Title
List or Playlist menu.
MARKER
Marks any point during playback.
MEMORY
Accesses the Photo (or Music) menu
for memory card.
POWER
Turns VCR/DVD Recorder ON and
OFF.
PAUSE/STEP (X)
Pause playback or recording
temporarily.
Press repeatedly for frame-by-frame
playback.
RETURN (O)
Removes the menu.
REPEAT
Repeat chapter, track, title or all.
RANDOM
Plays tracks in random order.
REC MODE
Selects the recording mode:
- DVD : SP, LP, EP or XP.
- VCR : SP or SLP.
zREC
Starts recording. Press repeatedly to
set the recording time.
STOP (x)
Stops playback or recording.
SEARCH
Displays Marker Search menu.
SETUP
Accesses or removes the Setup menu.
SKIP (./ >)
Go to next chapter or track. Returns to
beginning of current chapter or track or
go to previous chapter or track.
SUBTITLE
Selects a subtitle language.
TITLE
Displays the disc’s Title menu, if
available.
THUMBNAIL
Selects a thumbnail picture for the
current title for use in the Title List or
Chapter List menu.
TIMER REC
Displays Timer Record menu.
TIME SHIFT
To play the title being recorded
and also currently being recorded
appears as PIP.
TV Control Buttons
(See page 57)
TV/VCR
To view channels selected by the VCR
tuner or by the TV tuner.
VCR
Select the VCR/DVD Recorder’s func-
tion mode to VCR.
ZOOM
Enlarges DVD video image.
0-9 numerical buttons
Selects numbered options in a menu.
N(PLAY)
Starts playback.
bBvV(left/right/up/down)
Selects menu options.
Remote Control
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
15
INTRODUCTION
aANT.IN
Connect the VHF/UHF/CATV antenna to this
terminal.
bAC Power Cord
Plug into the power source.
cAV 1 IN (VIDEO IN /AUDIO IN (Left/Right))
Connect the audio/video output of an external
source (Audio system, TV/Monitor, VCR,
Camcorder).
d
A/V OUT (VIDEO OUT/AUDIO OUT (Left/Right))
Connect to a TV with video and audio inputs.
eCOMPONENT/PROGRESSIVE SCAN VIDEO
OUT (Y Pb Pr)
Connect to a TV with Y Pb Pr inputs.
f
AUDIO OUT (Left/Right)
Connect to a TV or other equipment with audio
inputs.
gRF. OUT
Connect to a TV with RF coaxial inputs.
hOPTICAL (DIGITAL AUDIO OUT jack)
Connect to digital (optical) audio equipment.
iS-VIDEO OUT
Connect to a S-Video Input on TV.
jCOAXIAL (DIGITAL AUDIO OUT jack)
Connect to digital (coaxial) audio equipment.
kCooling fan
ab cdef g
hijk
Rear Panel
Caution
Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause
permanent damage to the unit.
Preparation
Depending on your TV and other equipment there are various ways you can connect the
player. Please refer to the manuals of your TV, VCR, stereo system or other devices as nec-
essary for additional connection information.
Notes:
•Make sure the VCR/DVD Recorder is connected directly to the TV and tune the TV to the correct video input channel.
•Do not connect the VCR/DVD Recorder’s AUDIO OUT jack to the phono in jack (record deck) of your audio system.
Do not connect the VCR/DVD Recorder via another VCR. The DVD image could be distorted by the copy protection sys-
tem.
•The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. Position the units away from
each other or turn off the unit after removing the disc.
16
Connecting an
Connecting an Antenna
Antenna
or Cable TV
or Cable TV
aaAntenna:
Disconnect the antenna from the rear of the TV and
identify the antenna cable. If it is a round 75 ohm
coaxial cable connect it directly to the jack marked
ANT.IN on your VCR/DVD Recorder. If your antenna
cable is flat connect it to a 300-ohm to 75-ohm anten-
na adaptor (not supplied) and slip the adaptor over
the ANT.IN jack. Don’t attempt to screw it into to the
VCR/DVD Recorder.
bbCable TV:
If your cable connection has no converter or
descrambler, unscrew the cable from your TV and
attach it to the ANT.IN jack on the VCR/DVD
Recorder. If a converter is required connect a coaxial
cable from the wall jack to the IN connector on the
converter, and a coaxial cable from the OUT connec-
tor on the converter to the ANT IN on your VCR/DVD
Recorder. This cable hookup permits both TV and
VCR/DVD Recorder operation.
To view or record a CATV channel
1Tune the TV to the VCR/DVD Recorder output
channel (CH 3 or 4).
2Set the VCR/DVD Recorder channel selector to
the cable output channel. (Example: CH3)
3Select a channel using the cable converter.
Notes:
•With this connection, you cannot record one program
while viewing another.
•If you are using a cable box to tune channels, it is not
necessary to do Auto Channel Set.
Basic TV Connections
Basic TV Connections
Make one of the following connections, depending on
the capabilities of your TV.
Rear of VCR/DVD Recorder
Antenna Antenna
OR OR
a
b
Rear of VCR/DVD Recorder
L
R
AUDIO INPUT
VIDEO
INPUT
ANTENNA
INPUT
Rear of TV
A1
V
R
Y
Pb
Pr
COMPONENT/PROGRESSIVE SCAN
VIDEO INPUT
L
R
AUDIO INPUT
S-VIDEO
INPUT
Rear of TV
SA2
C
17
RF coaxial connection
Connect the RF.OUT jack on the VCR/DVD Recorder
to the antenna in jack on the TV using the supplied
75-ohm Coaxial Cable (R).
How to set the VCR/DVD Recorder’s
RF output channel
1. When the VCR/DVD Recorder is turned off, press
and hold CH (V/v) on the front panel for more
than five seconds. “RF-03” or “RF-04” appears in
the display window.
2. Press CH (V/v) to change the RF output channel
(CH 03 or CH 04). Tune the TV to this channel.
3. Turn off the VCR/DVD Recorder.
Audio/Video connection
1. Connect the DVD/VCR VIDEO OUT jack on the
VCR/DVD Recorder to the video in jack on the TV
using the video cable supplied (V).
2. Connect the Left and Right DVD/VCR AUDIO
OUT jacks on the VCR/DVD Recorder to the
audio left/right in jacks on the TV (A1) using the
supplied audio cables.
Note:
If you use this connection, set the TV’s source selector to
VIDEO.
Optional TV Connections
Optional TV Connections
These connections support only DVD playback. The
tuner and VCR still output through the RF.OUT (R) or
DVD/VCR OUT (A, V) jacks.
S-Video connection
1. Connect the S-VIDEO OUT jack on the VCR/DVD
Recorder to the S-Video in jack on the TV using
the optional S-Video cable (S).
2. Connect the Left and Right AUDIO OUT jacks of
the VCR/DVD Recorder to the audio left/right in
jacks on the TV using the supplied audio cables
(A2).
Component Video / Progressive Scan
connection
If your television is a high-definition or “digital ready”
television, you may take advantage of the VCR/DVD
Recorder’s progressive scan output for the highest
video resolution possible.
1. Connect the COMPONENT/PROGRESSIVE
SCAN VIDEO OUT jacks on the VCR/DVD
Recorder to the corresponding in jacks on the TV
using an optional Y Pb Pr cable (C).
2. Connect the Left and Right AUDIO OUT jacks of
the VCR/DVD Recorder to the audio left/right in
jacks on the TV (A2) using the supplied audio
cables.
Notes:
•Set Progressive Scan option to “ON” in the General
menu, see page 21.
•Progressive Scan does not work with the RF,
Audio/Video or S-Video connections.
•If your TV does not accept the Progressive Scan format,
the picture will appear scrambled.
•When you use Component Video signal, set the
Progressive Scan to “Off” on the General menu.

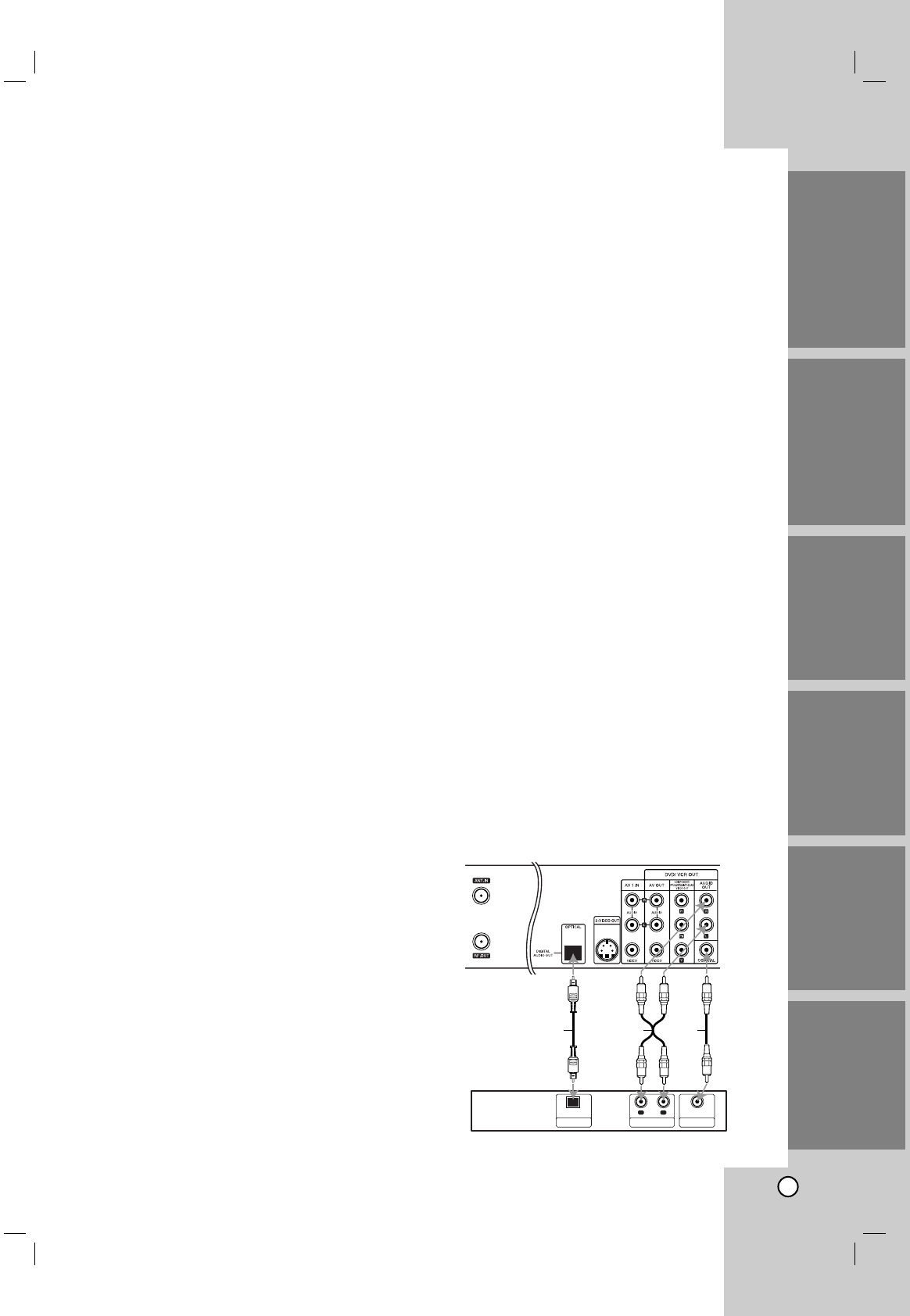

Audio Connection
Audio Connection
Connecting to an amplifier equipped with two
channel analog stereo or Dolby Pro Logic II/Pro
Logic
Connect the Left and Right AUDIO OUT (or
DVD/VCR AUDIO OUT) jacks on the VCR/DVD
Recorder to the audio left and right in jacks on your
amplifier, receiver, or stereo system using the audio
cables (A) supplied.
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
Amplifier (Receiver)
Rear of VCR/DVD Recorder
A XO
R
L
AUDIO INPUT DIGITAL INPUT
COAXIAL
DIGITAL INPUT
OPTICAL
18
Connecting to an amplifier equipped with two chan-
nel digital stereo (PCM) or to an Audio/Video receiv-
er equipped with a multi-channel decoder (Dolby
Digital™, MPEG 2, or DTS)
1. Connect one of the VCR/DVD Recorder’s DIGI-
TAL AUDIO OUT jacks ( OPTICAL O, COAXIAL
X) to the corresponding in jack on your amplifier.
Use an optional digital (OPTICAL O, COAXIAL X)
audio cable.
2. You will need to activate the VCR/DVD Recorder
’s digital output. (See “AUDIO” on page 18).
Digital Multi-channel sound
Adigital multi-channel connection provides the best
sound quality. For this you need a multi-channel
Audio/Video receiver that supports one or more of the
audio formats supported by your VCR/DVD Recorder
(MPEG 2, Dolby Digital and DTS). Check the receiver
manual and the logos on the front of the receiver.
Caution:
Due to the DTS Licensing agreement, the digital
output will be in DTS digital out when DTS audio
stream is selected.
Notes:
•
If the audio format of the digital output does not match the
capabilities of your receiver, the receiver will produce a
strong, distorted sound or no sound at all.
•Six Channel Digital Surround Sound via digital connec-
tion can only be obtained if your receiver is equipped
with a Digital Multi-channel decoder.
•To see the audio format of the current DVD in the on-
screen display, press AUDIO.
•This VCR/DVD Recorder does not perform internal (2
channel) decoding of a DTS sound track. To enjoy DTS
multi channel surround, you must connect this
VCR/DVD Recorder to a DTS compatible receiver via
one of this VCR/DVD Recorder’s digital audio outputs.
Accessory Audio/Video (A/V) Connections to
VCR/DVD Recorder
Connect the AV 1 IN or AV 2 IN jacks on the
VCR/DVD Recorder to the audio/video out jacks on
your accessory component, using the optional
audio/video cables. (Refer to page 24 for “Dubbing
and Editing”.)
Connecting a Digital Camcorder
Use a DV cable (not supplied) to connect the DV
in/out jack of your DV Digital Camcorder to the front
panel DV IN jack of this VCR/DVD Recorder.
Note:
This jack is for connection to DV equipment only. It is
not compatible with digital satellite tuners or D-VHS
video decks.
DV Digital Camcorder
Front of VCR/DVD Recorder
DV
IN/OUT
19

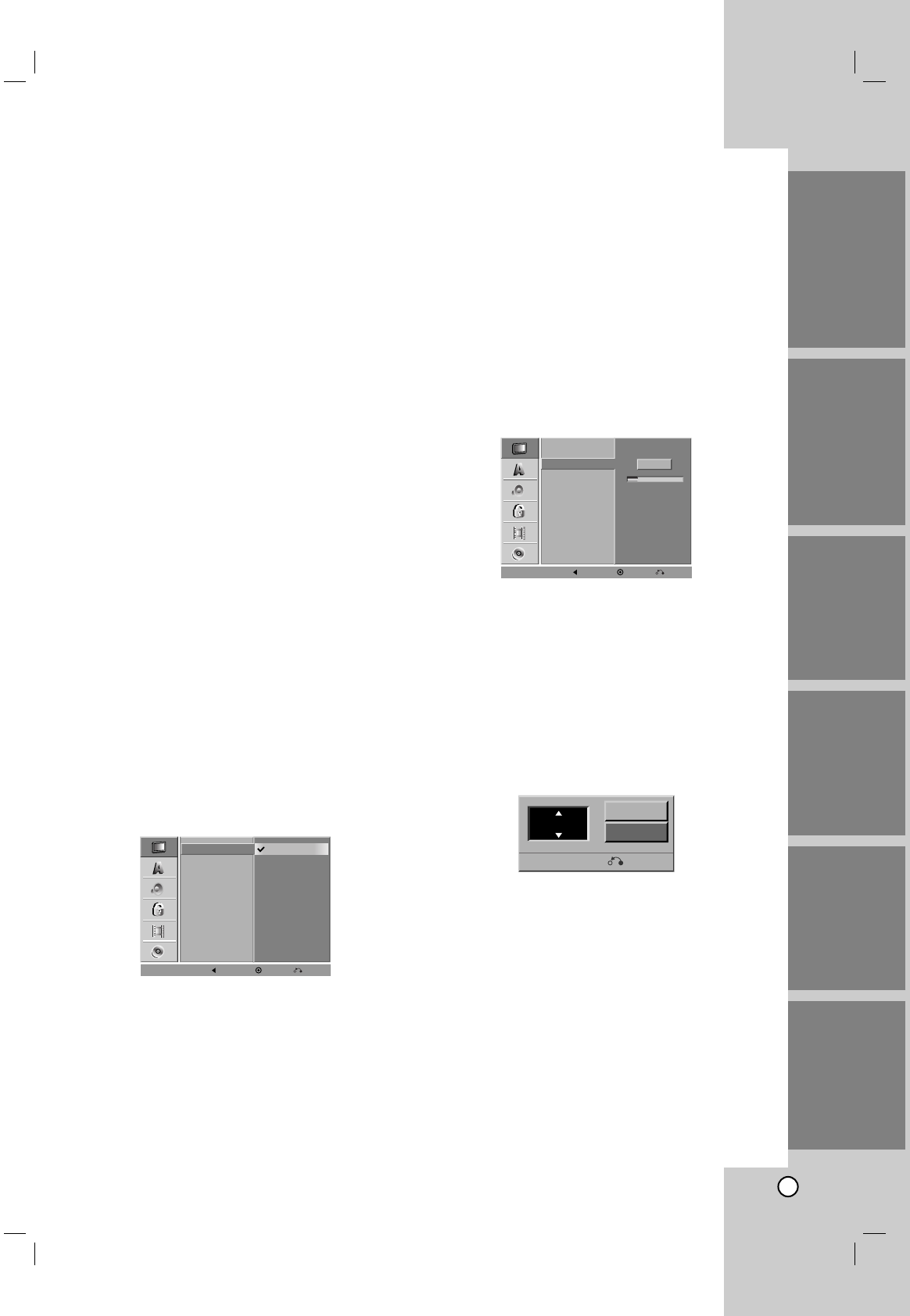

Initial Settings
Initial Settings
In this menu system, there are several ways to cus-
tomize the settings provided. Most menus consist of
three levels to set up the options, but some require
greater depth for the variety of settings.
General Operation
1. Press SETUP and the Setup menu appears.
2Use v / V to select the desired option.
3While the desired item is selected, press B to
move to the second level.
4Use v / V to select the second desired option.
5Press B to move to the third level.
6Use v / V to select the desired setting then press
ENTER to confirm your selection.
Some items require additional steps.
7Press SETUP to exit the Setup menu.
Note:
Press bto go back to the previous level.
GENERAL
Tuning Band Select
1Select the “Tuning Band” on the GENERAL menu
then press B.
2Use v / V to select the tuning band (TV or
CATV) option then press ENTER.
TV: If you are using a standard antenna to receive
channels.
CATV: If you are using basic cable to receive
channels.
Auto Channel Set
Connect the VCR/DVD Recorder to the desired type
of antenna or cable TV system as shown on page 16.
This VCR/DVD Recorder is equipped with a frequen-
cy synthesized tuner capable of receiving up to 181
channels. These include VHF channels 2-13, UHF
channels 14-69 and CATV channels 1-125.
1Select the “Auto Channel Set” option.
2Press Bto move to the third level.
“Start” icon is highlighted.
3Press ENTER to begin the channel search.
The tuner will automatically cycle through all
available channels in the area and place them in
the tuner’s memory.
Note:
After the Auto Channel Set proceeding is complete,
make sure the Tuning Band is set appropriately (TV
or CATV) on tuning band, follow steps 1~3 as shown
previous (Tuning Band Select) to choose the correct
Tuning Band (TV or CATV).
To Add or Erase Channels from Memory
This feature allows you to add to or erase channels
from memory manually.
1Select the CH. Add/Del option.
2Press Bto move to the third level.
“Edit” icon is highlighted.
3Press ENTER and the Channel Edit menu
appears.
4Use v / V or number buttons to select a channel
to add or delete then press B.
“Add” or “Delete” icon is highlighted.
5Press ENTER to confirm your setting.
6Repeat steps 4-5 to add or erase additional
channels.
7Press SETUP or RETURN to exit the menu.
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
Tuning Band
Auto Channel Set
CH. Add/Del
Clock Set
TV Aspect
Progressive Scan
Power Save Mode
TV
CATV
Prev. Select Close
Factory Setting
Tuning Band
Auto Channel Set
CH. Add/Del
Clock Set
TV Aspect
Progressive Scan
11%
Stop
Prev. Select Close
Power Save Mode
Factory Setting
Ch. 2 Delete
Add
0-9 Input Close
20

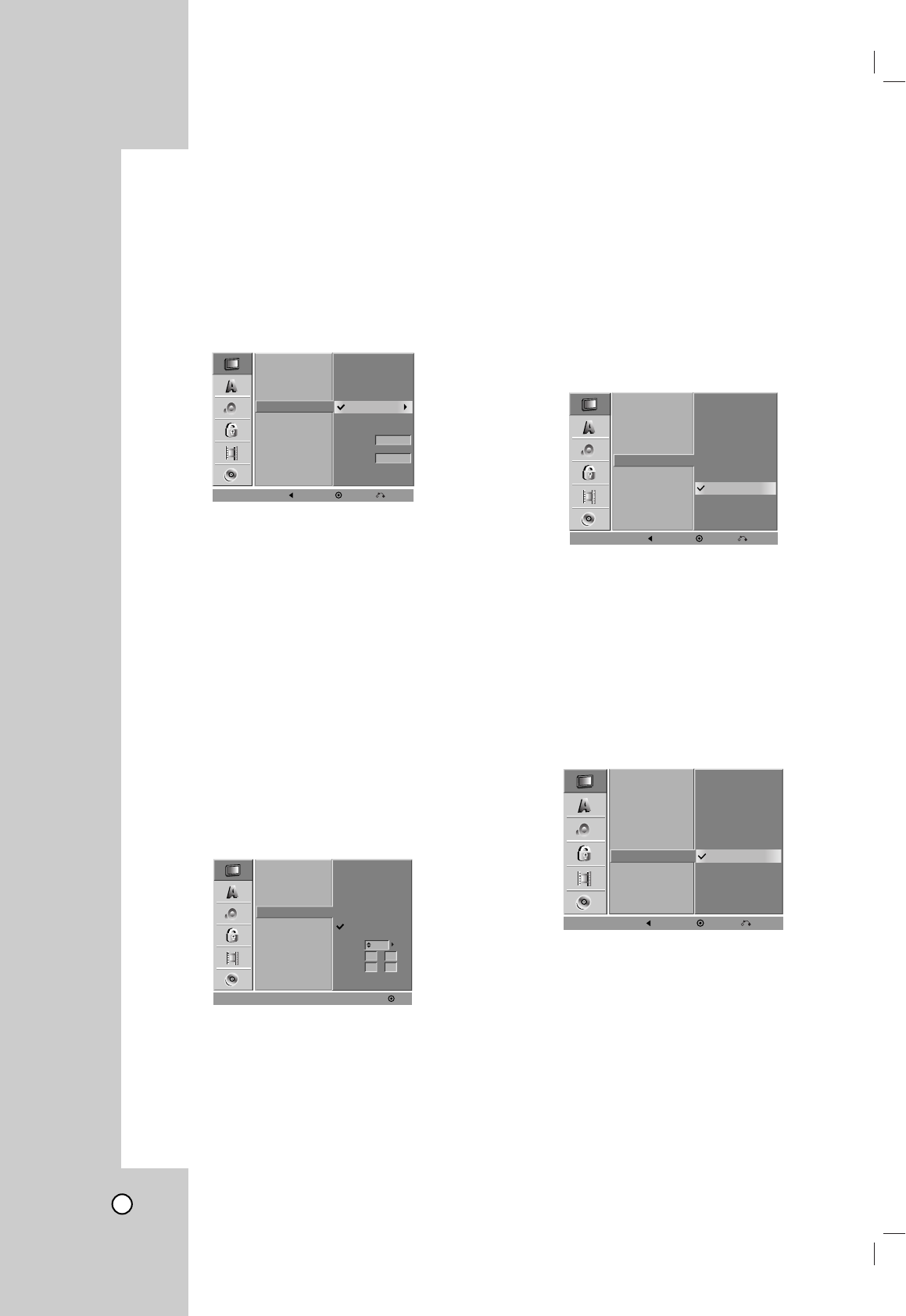

Clock Set
1Select the “Clock Set” option.
2Press Bto move to the third level.
Auto
The Auto option is set at the factory. In the Auto
option, the VCR/DVD Recorder looks for a chan-
nel carrying XDS (Extended Data Services) infor-
mation. XDS updates the clock using the
Coordinated Universal Time.
1. Use v / V to choose your Time Zone manually.
When Timezone is set to Auto, the VCR/DVD
Recorder will use XDS information to determine the
proper setting.
2. Use Bto choose the “Daylight Savings” option.
Use v / V to choose Auto, On, or Off.
When it is set to Auto, the VCR/DVD Recorder will
use XDS information to determine the proper set-
ting.
3. Press ENTER to confirm your setting.
Note :
The Auto Clock Feature enables the VCR/DVD
Recorder to set up the clock when the VCR/DVD
Recorder is turned off.
Manual
If your local TV station does not send date and
time information, or sends incorrect information,
you can set the clock manually.
1. Enter the necessary information for date and time.
b / B (left/right): Moves the cursor to the previous
or next column.
v / V (up/down): Changes the setting at the current
cursor position.
2. Press ENTER to confirm your setting.
3Press SETUP to exit the Setup menu.
TV Aspect
4:3 Letter Box:
Select when a standard 4:3 TV is connected.
Displays theatrical images with masking bars
above and below the picture.
4:3 Pan Scan:
Select when a standard 4:3 TV is connected.
Displays pictures cropped to fill your TV screen.
Both sides of the picture are cut off.
16:9 Wide:
Select when a 16:9 wide TV is connected.
Progressive Scan
Progressive Scan Video provides the highest quality
pictures with less flickering.
ON :Using the COMPONENT/PROGRESSIVE
SCAN VIDEO OUT jacks for connection to
a TV or monitor that is compatible with a
progressive scan signal.
OFF :Using the COMPONENT/PROGRESSIVE
SCAN VIDEO OUT jacks, but are connect-
ing the VCR/DVD Recorder to a standard
(analog) television.
Once the setting for Progressive Scan output is
entered, an image will only be visible on a
Progressive Scan compatible TV or monitor. If you
set Progressive Scan to ON in error, you must reset
the VCR/DVD Recorder. First, remove the disc in the
VCR/DVD Recorder. Next, press STOP (x) and hold
it for five seconds before releasing it. The video out-
put will be restored to the standard setting, and a pic-
ture will once again be visible on a conventional ana-
log TV or monitor.
Tuning Band
Auto Channel Set
CH. Add/Del
Clock Set
TV Aspect
Progressive Scan
Time Zone
Manual
Auto
Auto
Daylight
Savings
Auto
Prev. Select Close
Power Save Mode
Factory Setting
Tuning Band
Auto Channel Set
CH. Add/Del
Clock Set
TV Aspect
Progressive Scan
AM
Manual
Auto
Year
Date
Time 12
2005
00
11
/
:
OK
Power Save Mode
Factory Setting
Tuning Band
Auto Channel Set
CH. Add/Del
Clock Set
TV Aspect
Progressive Scan
ON
OFF
Prev. Select Close
Power Save Mode
Factory Setting
Tuning Band
Auto Channel Set
CH. Add/Del
Clock Set
TV Aspect
Progressive Scan
4:3 Letter Box
4:3 Pan Scan
16:9 Wide
Prev. Select Close
Power Save Mode
Factory Setting
21

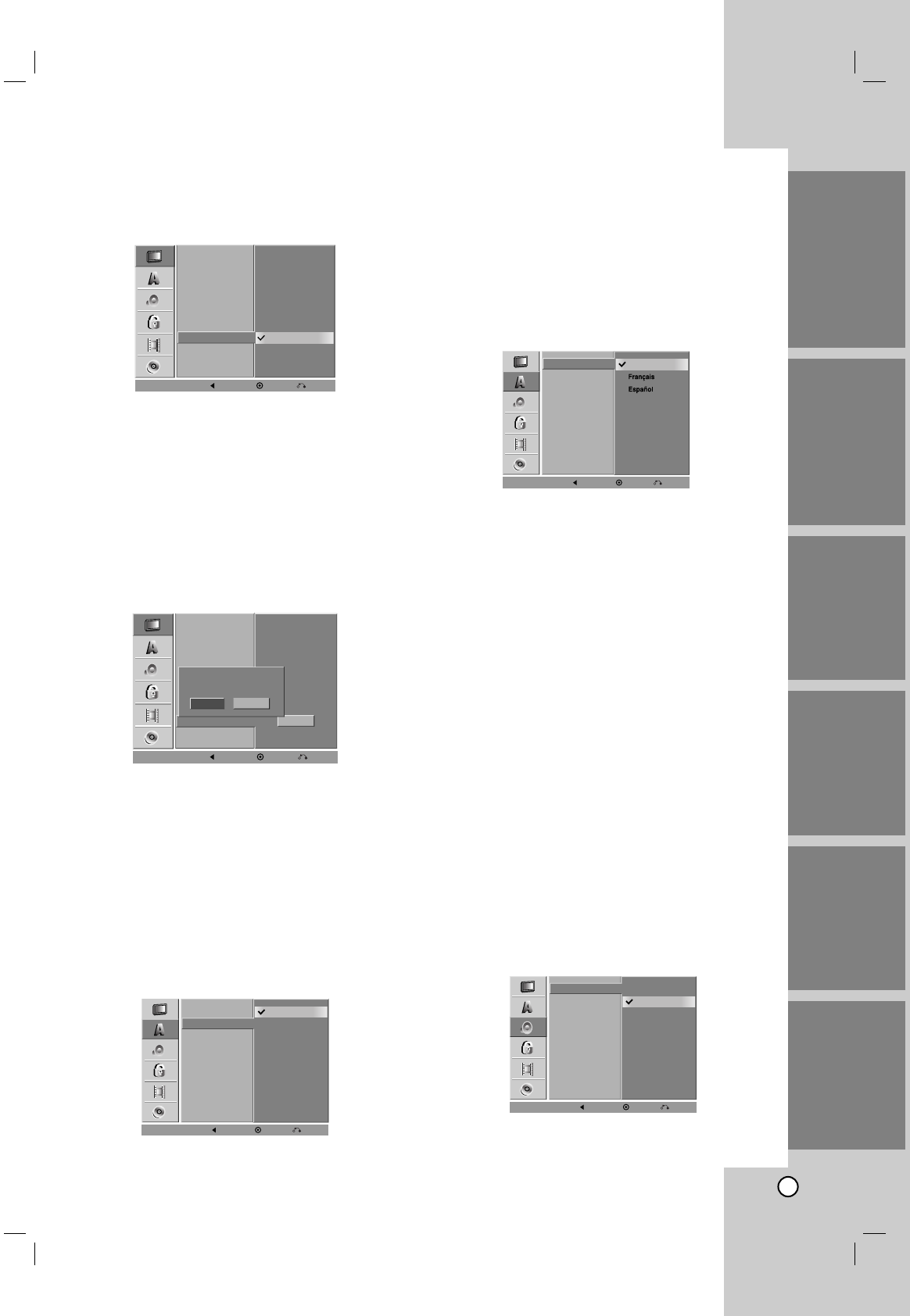

Power Save Mode
Set Power Save Mode to On to place your DVD/VCR
Recorder into an economic power save mode.
Factory Setting
You can reset the VCR/DVD Recorder to its original
factory settings.
1Select the “Factory Setting” option.
2Press Bto select “SET” then press ENTER.
The Initialize menu will appear.
3Select “Yes” and press ENTER.
Movie Rating, Password and Country Code
options cannot be reset.
LANGUAGE
Display Menu
Select a language for the Setup menu and informa-
tion display.
Disc Menu/Audio/Subtitle
Original: Refers to the original language in which
the disc was recorded.
Other: To select another language, press number
buttons then ENTER to enter the corresponding
4-digit number according to the language code list
in the reference chapter (see p. 36). If you enter
the wrong language code, press CLEAR.
Off (for Disc Subtitle) : Turn off Subtitle.
AUDIO
Each DVD disc has a variety of audio output options.
Set the VCR/DVD Recorder’s Audio Output according
to the type of audio system you use.
Dolby Digital / DTS / MPEG
Bitstream: Select “Bitstream” if you connect the
DVD+VCR’s DIGITAL AUDIO OUT jack to an
amplifier or other equipment with a Dolby Digital,
DTS or MPEG decoder.
PCM (for Dolby Digital / MPEG): Select when
connected to a two-channel digital stereo amplifi-
er. DVDs encoded in Dolby Digital or MPEG will
be automatically downmixed to two-channel PCM
audio.
Off (for DTS): If you select “Off”, the DTS signal
is not output through the DIGITAL AUDIO OUT
jack.
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
Tuning Band
Auto Channel Set
CH. Add/Del
Clock Set
TV Aspect
Progressive Scan
ON
OFF
Prev. Select Close
Power Save Mode
Factory Setting
Tuning Band
Auto Channel Set
CH. Add/Del
Clock Set
TV Aspect
Progressive Scan
SET
Prev. Select Close
Power Save Mode
Factory Setting
No
It initializes the system status.
Proceed?
Yes
Display Menu
Disc Menu
Disc Audio
Disc Subtitle
English
Prev. Select Close
Display Menu
Disc Menu
Disc Audio
Disc Subtitle
English
French
Spanish
Italian
Japanese
Chinese
Other - - - -
Original
Prev. Select Close
Dolby Digital
DTS
MPEG
Sampling Freq.
DRC
Vocal
Bitstream
PCM
Prev. Select Close
22

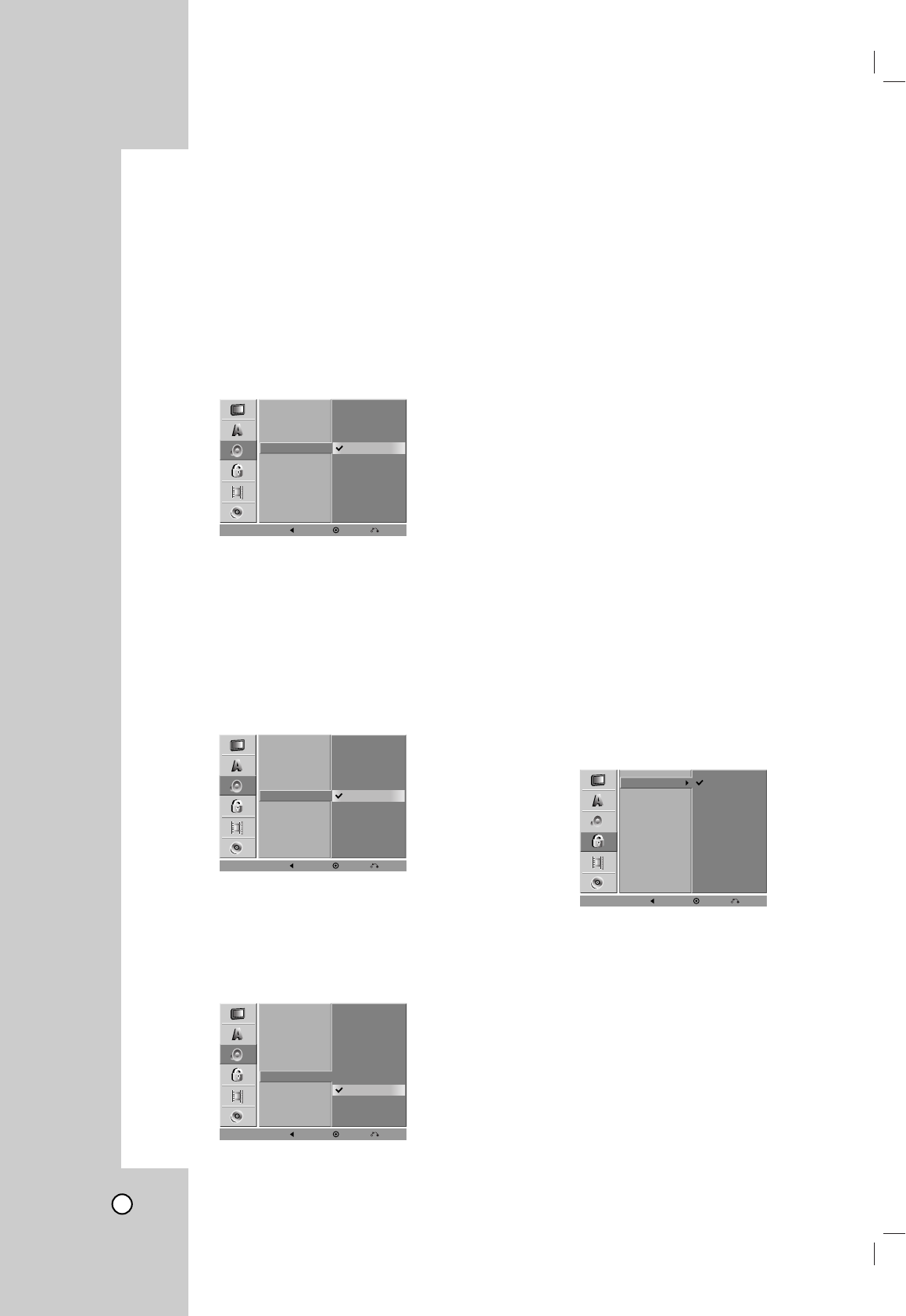

Sample Freq. (Frequency)
If your receiver or amplifier is NOT capable of han-
dling 96 kHz signals, select 48 kHz. When this choice
is made, this unit automatically converts any 96 kHz
signals to 48 kHz so your system can decode them.
If your receiver or amplifier is capable of handling 96
kHz signals, select 96 kHz. When this choice is
made, this unit passes each type of signal through
without any further processing.
Check the documentation for your amplifier to verify
its capabilities.
DRC (Dynamic Range Control)
With the DVD format, you can hear a program’s
soundtrack in the most accurate and realistic presen-
tation possible, thanks to digital audio technology.
However, you may wish to compress the dynamic
range of the audio output (the difference between the
loudest sounds and the quietest ones). This allows
you to listen to a movie at a lower volume without los-
ing clarity of sound. Set DRC to On for this effect.
Vocal
Set Vocal to ON only when a multi-channel karaoke
DVD is playing. The karaoke channels on the disc will
mix into normal stereo sound.
LOCK (Parental Control)
Movie Rating
Some movies contain scenes that may not be suit-
able for children to view. Many of these discs contain
parental control information that applies to the com-
plete disc or to certain scenes on the disc. Movies
and scenes are rated from 1 to 8, depending on the
area. DVD video discs may or may not respond to
the parental control setting if the Area code of the
disc is set wrongly. Some discs offer more suitable
scenes as an alternative. Ratings are area depend-
ent. The parental control feature allows you to block
access to scenes below the rating you input, thereby
preventing your children from being able to view
material you believe is unsuitable.
1. Select “Movie Rating” on the LOCK menu then
press B.
2. To access the Rating, Password and Area Code
features, you must input the 4-digit security code
you created.
If you have not yet entered a security code you
are prompted to do so. Input a 4-digit code and
press ENTER. Enter it again and press ENTER to
verify. If you make a mistake before pressing
ENTER, press CLEAR.
3. Select a rating from 1 to 8 using the v/Vbuttons.
1-8: Rating one (1) has the most restrictions and
rating eight (8) is the least restrictive.
No Limit : If you select unlock, parental control is
not active and the disc plays in full.
4. Press ENTER to confirm your rating selection,
then press SETUP to exit the menu.
5. Press OPEN/CLOSE (Z)to activate parental
control.
Note:
If you set a rating for the player, all disc scenes with the
same rating or lower are played. Higher rated scenes are
not played unless an alternate scene is available on the
disc. The alternative must have the same rating or a lower
one. If no suitable alternative is found, playback stops. You
must enter the 4-digit password or change the rating level in
order to play the disc.
Dolby Digital
DTS
MPEG
Sampling Freq.
DRC
Vocal
ON
OFF
Prev. Select Close
Dolby Digital
DTS
MPEG
Sampling Freq.
DRC
Vocal ON
OFF
Prev. Select Close
8(Adult)
7
6
5
4
3
2
1(Kids)
No Limit
Movie Rating
Set Password
Country Code
Prev. Select Close
Dolby Digital
DTS
MPEG
Sampling Freq.
DRC
Vocal
96KHz
48KHz
Prev. Select Close
23

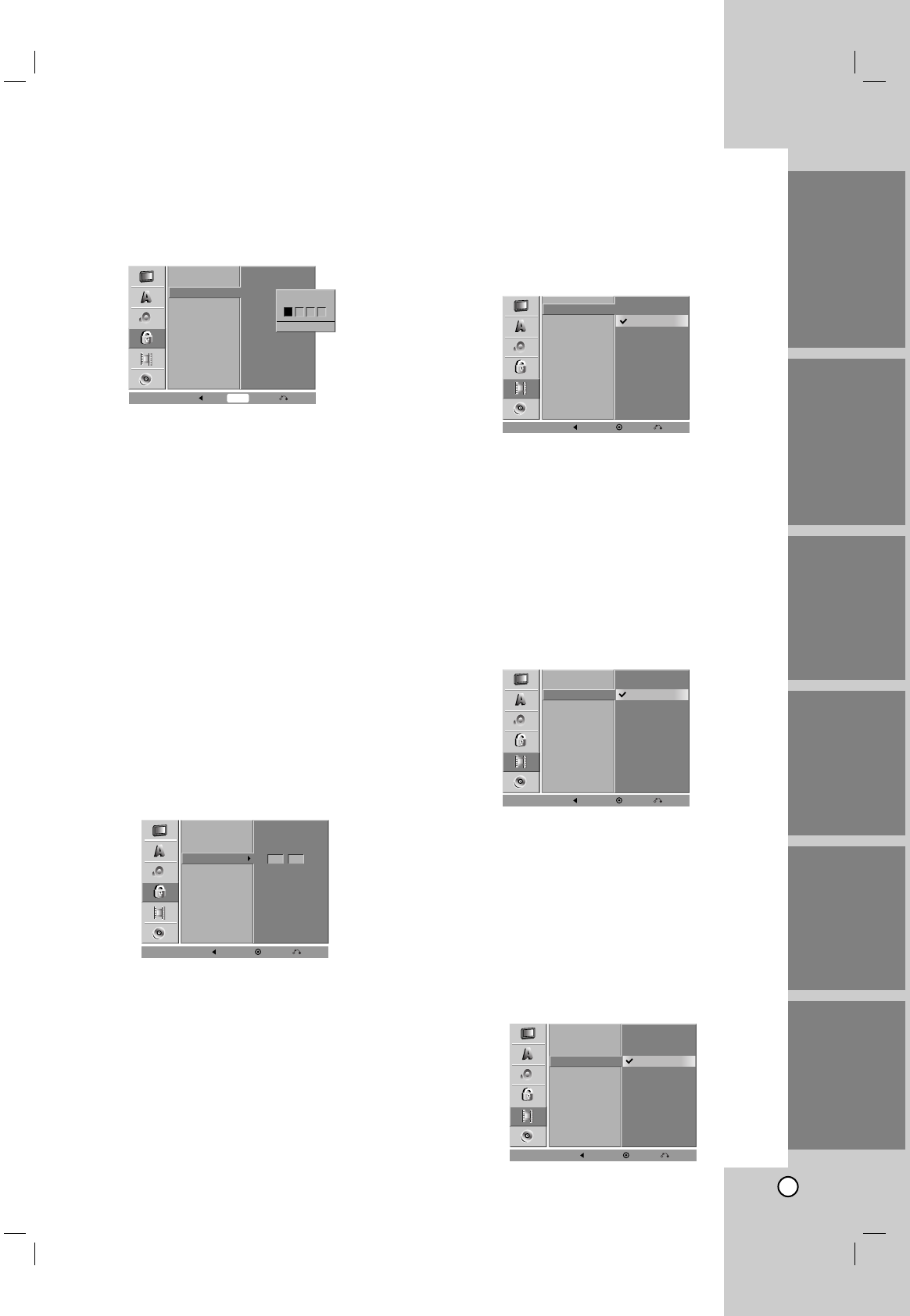

Set Password
You can enter or change password.
1. Select “Set Password” on the LOCK menu then
press B.
2. Follow step 2 as shown “Movie Rating”.
To change the password, select the “Change”,
press ENTER and input the new 4-digit code then
press ENTER. Input it again to verify.
3. Press SETUP to exit the menu.
If you forget your password
If you forget your password you can clear it using the
following steps:
1. Press SETUP to display the Setup menu.
2. Input the 5-digit number “21019”. The message
appears, select “Yes” then press ENTER. The
security code is cleared.
3. Enter a new code as described above.
Area Code
Enter the Area Code whose standards were used to
rate the DVD video disc, based on the list in the
reference chapter (see p. ??).
1. Select “Area Code” on the LOCK menu then
press B.
2. Follow step 2 as shown “Movie Rating”.
3. Select the first character using v/Vbuttons.
4. Press Band select the second character using
v/Vbuttons.
5. Press ENTER to confirm your area code
selection.
RECORD
Disc Record Mode
You can set the picture quality for DVD recording; XP
(High quality), SP (Standard quality), LP (Low quali-
ty), EP (Extend quality).
1Select the “Disc Record Mode” on the RECORD
menu then press B.
2Use v / V to select a desired Disc Record Mode
(XP, SP, LP or EP).
3Press ENTER to confirm your selection, then
press SETUP to exit the menu.
VCR Record Mode
You can set the picture quality for VCR recording;
SP (Standard Play), SLP (Super Long Play).
DV Record Audio
You need to set this if you have a camcorder using
32kHz/12-bit sound connected to the front panel DV
IN jack. Some digital camcorders have two stereo
tracks for audio. One is recorded at the time of shoot-
ing; the other is for overdubbing after shooting.
On the Audio 1 setting, the sound that was recorded
while shooting is used.
On the Audio 2 setting, the overdubbed sound is
used.
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
Prev. Reset Close
CLEAR
Change
Delete
Movie Rating
Set Password
Country Code
New
Password
0-9 Input
Movie Rating
Set Password
Country Code
US
Prev. Select Close
XP
SP
LP
EP
Disc Record Mode
VCR Record Mode
DV Record Audio
Auto Chapter
Prev. Select Close
SLP
SP
Disc Record Mode
VCR Record Mode
DV Record Audio
Auto Chapter
Prev. Select Close
Audio 2
Audio 1
Disc Record Mode
VCR Record Mode
DV Record Audio
Auto Chapter
Prev. Select Close
24
Auto Chapter
During recording, chapter markers are added auto-
matically at fixed intervals. You can set this interval to
5 minutes or 10 minutes. To turn off automatic chap-
ter marking, select “None”.
DISC
Disc Initialize
If you load a completely blank disc, the recorder will
initialize the disc.
•DVD-R/DVD+R/DVD+RW: The recorder formats in
Video mode.
•DVD-RW: The recorder initialize the disc to VR Mode or
Video Mode.
•DVD-RAM: The recorder initialize the disc to VR Mode.
Also, you can format the disc from the Setup menu
as below.
1Select the “Disc Initialize” on the DISC menu then
press B.
“Start” icon is highlighted.
2Press ENTER.
•In case of DVD-RW, use b / B to select a
desired Disc Initialize Mode (VR Mode or Video
Mode) then press ENTER.
•In case of DVD+RW/DVD-RAM, use b / B to
select “OK”, and press ENTER.
It takes a few moments to format the disc.
Caution
If you want to change the disc format, everything
recorded on the disc will be erased.
Disc Finalize
Finalizing ‘fixes’ the recordings in place so that the
disc can be played on a regular DVD player or com-
puter equipped with a suitable DVD-ROM drive.
Finalizing a Video mode disc creates a menu screen
for navigating the disc. This is accessed by pressing
LIST/DISC MENU or TITLE.
Caution
Once you have finalized a DVD-R and DVD+R disc,
you cannot edit or record anything else on that disc
except DVD+RW. However, you can record and edit
a DVD-RW disc by choosing Unfinalize.
1Select the “Disc Finalize” on the DISC menu then
press B.
Finalize is highlighted.
2Press ENTER.
3Use b / B to select OK then press ENTER.
The VCR/DVD Recorder starts finalizing the disc.
Note:
Finalization can take up to 3-4 minutes or more
depending on the type of disc, how much is recorded
on the disc, and the number of titles on the disc.
Tips
•If you load a DVD-RW that has already been final-
ized, you can ‘Unfinalize’ it by choosing Unfinalize
from the Finalize menu. After doing this, you can
edit and re-record onto the disc.
•You cannot unfinalize a DVD-R and DVD+R disc.
•If you need to unlock the disc to make edits,
select OFF.
Start
Disc Initialize
Disc Finalize
Disc Label
Disc Protect
PBC
AutoPlay
Prev. Select Close
Disc Initialize
Disc Finalize
Disc Label
Disc Protect
PBC
Unfinalize
Finalize
AutoPlay
Prev. Select Close
5 Min
10 Min
None
Disc Record Mode
VCR Record Mode
DV Record Audio
Auto Chapter
Prev. Select Close
25

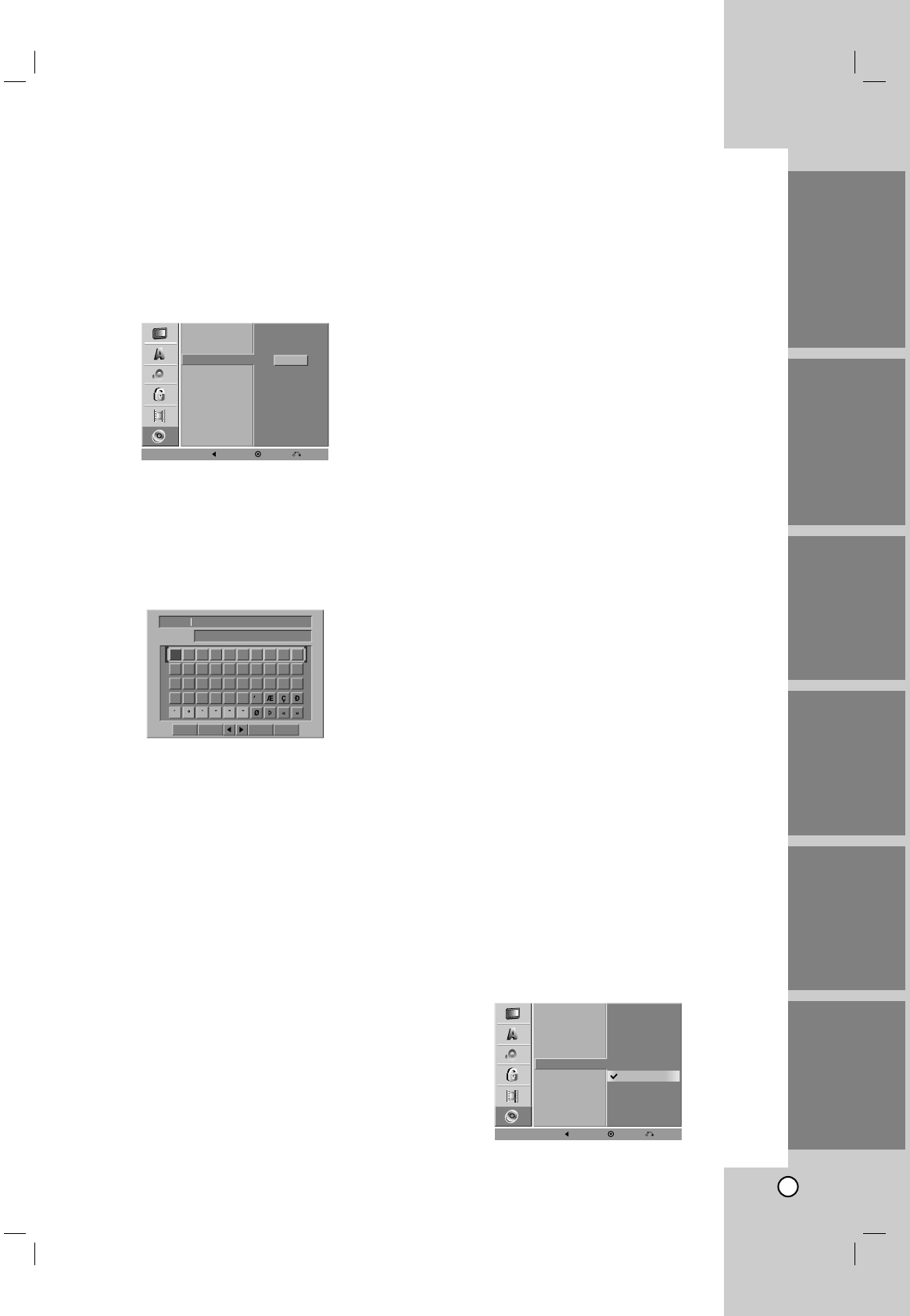

Disc Label
Use the Disc Label feature to enter a name for the
disc. This name appears when you load the disc and
when you display disc information on-screen.
•The Disc label can be up to 32 characters long.
•For discs formatted on a different DVD Recorder,
you will see only a limited character set.
1Select the “Disc Label” on the DISC menu then
press B.
“Edit” icon is highlighted.
2Press ENTER.
Keyboard menu appears.
3Use v V b B to select a character then press
ENTER to confirm your selection.
•English/Latin Capital: Selects a keyboard
with uppercase characters.
•English/Latin Lowercase: Selects a key-
board with lowercase characters .
•Symbols: Selects a keyboard with all sym-
bols.
•Space: Inserts a space at the cursor position.
•Delete: Deletes the character to the left of the
cursor position.
•b / B: Moves the cursor left or right.
•OK: Confirms the name you have entered.
•Cancel: Deletes all characters and exits the
Keyboard menu.
Remote control buttons for entering a name
•PLAY (N): Inserts a space at the cursor posi-
tion.
•PAUSE/STEP (X): Deletes the character to
the right of the cursor position.
•SKIP (. / >): Moves the cursor left or
right.
•STOP (x), CLEAR: Deletes the character to
the left of the cursor position.
•0-9: Enters the character corresponding to the
selected column.
•DISC MENU/LIST, DISPLAY: Switches the
keyboard type (English/Latin Capital,
English/Latin Lowercase, Symbols)
4Choose OK then press ENTER to set the name
and return to the DISC menu.
5Press SETUP to exit the menu.
ype of disc you are using, Disc Protect allows you to
preserve your DVD recordings in a variety of ways:
•DVD+RW : Prevents editing, erasing, or overwrit-
ing of existing recordings. Allows regular record-
ing.
•DVD+R : Prevents editing or erasing of existing
recordings. Allows regular recording.
•DVD-RW (VR mode) : Prevents editing, erasing,
and regular recording.
Notes:
•Disc Protect is not compatible with DVD-RW discs in
Video mode or DVD-R discs.
•If you need to unlock a disc to make edits, select OFF.
PBC
PBC stands for Playback Control and refers to spe-
cial menus and navigation features that are available
on some Video CDs.
- ON: Video CDs are played according to the PBC, if
available.
- OFF: Video CDs are played the same way as Audio
CDs.
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
Disc Initialize
Disc Finalize
Disc Label
Disc Protect
PBC
ON
OFF
AutoPlay
Prev. Select Close
Disc Initialize
Disc Finalize
Disc Label
Disc Protect
PBC
Edit
AutoPlay
Prev. Select Close
0123456789
ABCDEFGH I J
KLMNOPQRST
UVWX Y Z
DVD-VR
English/Latin CapitalLanguage
OK Cancel
Space Delete
26
27
On-Screen Display
On-Screen Display
You can display various information about the disc or
tape loaded on-screen. Some items can be changed
using the menu.
On-screen display operation
1. Press DISPLAY repeatedly to display/change the
information displayed on-screen.
2. Use v/Vto select an item.
3. Use b/Bto change the setting. You can also
use the number buttons if appropriate (e.g.
inputting the title number). For some functions,
press ENTER to execute the setting.
Notes:
•Some discs may not provide all of the features shown
below.
•If no button is pressed for 10 seconds, the on-screen
display disappears.
•If is displayed, action prohibited or not available.
Displaying OSD While Watching TV
While watching TV, press DISPLAY to display/
remove the on-screen display.
Changing TV Audio Channel
Some TV programs are broadcast with both a main
and a Secondary Audio Program (SAP). You can
change the TV audio using the AUDIO button.
Press AUDIO repeatedly to change the TV audio,
according to Broadcast audio signal as shown below.
•STEREO+SAP Audio Signal
Stereo →SAP →Mono →Stereo
•STEREO Audio Signal
Stereo →L→R →Mono →Stereo
•SAP Audio Signal
Mono →SAP →Mono
•MONO Audio Signal
Mono
The current audio channel is displayed
on-screen.
•If SAP is selected, but there is no SAP channel
being broadcast, you will still hear the main audio
(Mono or Stereo) channel.
•If the sound is poor quality when set to Stereo,
you can often improve it by changing to Mono.
•When an external input is selected, the audio
channel can be switched only to Stereo.
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
DVD-VR
VR Mode SP 1H 32M Free
10/08/2004Mono 11:35AM
MONO
DVD
Ch. 6
Indicates disc type. Indicates channel
number and
audio input
signal received
by the tuner.
Indicates the Recording mode,
free space, and elapsed time
progress bar.
Indicates current date and time.
Indicates output audio signal.
28
VCR T
VCR Tape Playback
ape Playback
Press VCR button to select the device to be operated.
Basic Instructions
1. Insert a pre-recorded video cassette.
The indicator lights and the VCR/DVD
Recorder powers on automatically.
2. If the (TIMER) indicator in the display window
is lit press POWER once.
3. If a tape without a safety tab is inserted the unit
starts playback automatically.
If not, press PLAY (N).
4. Press STOP (x)to stop playback. STOP appears
on the TV screen. If the tape reaches the end
before you press STOP (x) the VCR/DVD
Recorder automatically stops, rewinds and ejects
the tape.
Note:
It is not necessary to select the tape speed for playback
because it is automatically selected by the VCR/DVD
Recorder. Also, during playback the TV/VCR selector
switches to VCR mode automatically.
Auto Tracking
Automatic tracking adjusts the picture to remove
snow or streaks and beings when:
•Atape is played for the first time.
•The tape speed (SP, LP, SLP) changes.
•Streaks or snow appear due to scratches on the
tape.
Manual Tracking
To manually adjust the tracking use the
CH/TRK (v/V) buttons on the remote control or
CH (v/V) on the front panel during playback.
Notes:
•Vertical jitter requires a very fine adjustment.
•Tracking is automatically reset to normal when the tape
is ejected or the power cord is unplugged for more than
3 seconds.
Search
This function lets you visually search for a tape sec-
tion in either direction: forward and reverse. During
the high-speed picture search modes, the audio is
muted and horizontal lines (noise bars) appear. Also,
a short time is needed to stabilize the tape speed
when re-entering the PLAY mode so slight interfer-
ence may be observed during this time.
To search:
1. Press BACKWARD (m) or FORWARD (M)
during playback.
2. To return to playback, press PLAY (N).
Note:
After 3 minutes in SEARCH mode the VCR/DVD Recorder
returns to PLAY mode to protect the tape and video heads.
Still Picture and Frame-by-Frame Playback
1. Press PAUSE/STEP (X) during playback.
Astill picture appears on the TV screen and the
audio is muted.
2If the still picture vibrates vertically, stabilize it by
using CH/TRK (v/V)on the Remote Control.
3. Press PAUSE/STEP (X) repeatedly to advance
the video picture one frame at a time.
4. To return to playback, press PLAY (N).
Note:
After 5 minutes in STILL mode the VCR/DVD Recorder
stops to protect the tape and video heads.
Slow Motion
During slow motion, audio is muted and horizontal
lines (noise bars) may appear on the TV screen. This
is normal.
1While in still mode, press FORWARD (M). The
tape is played at a speed 1/19 times slower than
the normal speed.
2. Use CH/TRK (v/V) on the Remote Control if
necessary to adjust the tracking.
3. To return to the normal speed, press PLAY (N).
Note:
After 3 minutes in SLOW MOTION mode the VCR/DVD
Recorder goes back to PLAY mode to protect the tape and
video heads.
Playback
29
Counter Memory Function
This feature is useful if there is a section of tape you
want to view immediately after recording or if you
want to return to the same point several times.
1. Begin recording or playing a tape.
2. Press DISPLAY until the real-time counter is dis-
played on the TV screen.
3. At the point that you want to locate later, reset the
real-time counter to “0:00:00” by pressing CLEAR.
4. Continue to play or record.
5. Press STOP (x) when recording or playback fin-
ishes.
6Press RETURN (O). The tape automatically
stops when the tape counter returns to about
“0:00:00”.
Playing a DVD or V
Playing a DVD or Video CD
ideo CD
Playback Setup
1. Press OPEN/CLOSE (Z) to open the disc tray
and load your chosen disc in the tray, with the
playback side down.
2. Press OPEN/CLOSE (Z) to close the tray.
Playback starts automatically. If playback does
not start, press N(PLAY).
In some cases, the disc menu might appear
instead.
3. To stop the playback, press STOP x.
The unit records the stopped point, depending on
the disc. “
X
x” appears on the screen briefly.
Press N(PLAY) to resume playback (from the
scene point). If you press STOP xagain or
unload the disc (“x” appears on the screen.), the
unit will clear the stopped point.
Press OPEN/CLOSE (Z) to remove the disc.
Press OPEN/CLOSE (Z) to close disc tray or
press POWER (1), the disc tray closes automati-
cally and unit turns off.
If a menu screen is displayed
The menu screen may be displayed first after loading
a DVD or Video CD which offer a menu.
Use the bB v Vbuttons to select the title/chap-
ter you want to view, then press ENTER to start.
Press TITLE or LIST/DISC MENU to return to the
menu screen.
Use the number buttons to select the track you
want to view and press RETURN to return to the
menu screen. Menu settings and operating proce-
dures may differ. Follow the instructions on each
menu screen. You may also set PBC to Off (See
page 27).
Notes:
•If parental control is set and the disc is not within the
rating settings you must input the password.
(See “Movie Rating” on page 19).
•DVDs may have a region code. Your VCR/DVD
Recorder will not play discs that have a region code dif-
ferent from your VCR/DVD Recorder. The region code
for this player is 1 (one).
General Features
Notes:
Unless stated otherwise, all operations described use
the Remote Control. Some features may also be
available on the Setup menu.
Moving to another TITLE
When a disc has more than one title, you can move
to another title. Press DISPLAY and select desired
title by using number (0-9) or b/Bthen press
ENTER to move to another title.
Moving to another CHAPTER/TRACK
When a title on a disc has more than one chapter or
a disc has more than one track, you can move to
another chapter/track as follows:
•Press SKIP >or .briefly during playback to
select the next chapter/track or to return to the
beginning of the current chapter/track.
•Press SKIP . twice in quick successions to
step back to the previous chapter/track.
•To go directly to any chapter during DVD play-
back, press DISPLAY twice and use v/Vto
select the chapter or track (for Video CD) icon.
Input the chapter/track number or use b/B, then
press ENTER.
Note:
On a Video CD with PBC, you must set PBC to Off in the
DISC menu to use this function (See page 18).
VCD+R+RWVR
Video
DVD
+R+RWVR
Video
DVD
VCD
DVD
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
30
Slow Motion
1. Press BACKWARD (m) or FORWARD (M)
during pause mode.
2Use the BACKWARD (m) or FORWARD (M)
to select the required speed: 1/16, 1/8, 1/4 and
1/2 (forward and backward)
With a DivX Disc or Video CD: 1/8, 1/4 or 1/2 (for-
ward only).
3To exit Slow Motion mode, press N(PLAY).
Note:
Slow motion playback in reverse is not possible with Video
CDs and DivX file..
Search
1. Press BACKWARD (m) or FORWARD (M)
during playback.
The recorder will now go into SEARCH mode.
2Press BACKWARD (m) or FORWARD (M) to
select the required speed: b, m, ,, mm,
m,, ,, (backward) or B, M,
<, MM, M<, << (forward).
With a Video CD, the Search speed changes to:
m, ,, mm(backward) or
M, <, MM (forward).
3To exit SEARCH mode, press PLAY (N).
Note:
When you press BACKWARD or FORWARD during
a fast forward search or a fast reverse search mode
to go to normal speed, search mode is canceled.
Time Search
(VCD:????)
To start playing at any chosen time on the disc:
1. Press DISPLAY during playback. The time search
box shows the elapsed playing time.
2. Press v/Vto select the time clock icon and
“-:--:--” appears.
3. Input the required start time in hours, minutes,
and seconds from left to right. If you enter the
wrong numbers, press CLEAR to remove the
numbers you entered. Then input the correct
numbers.
4. Press ENTER to confirm. Playback starts from the
selected time.

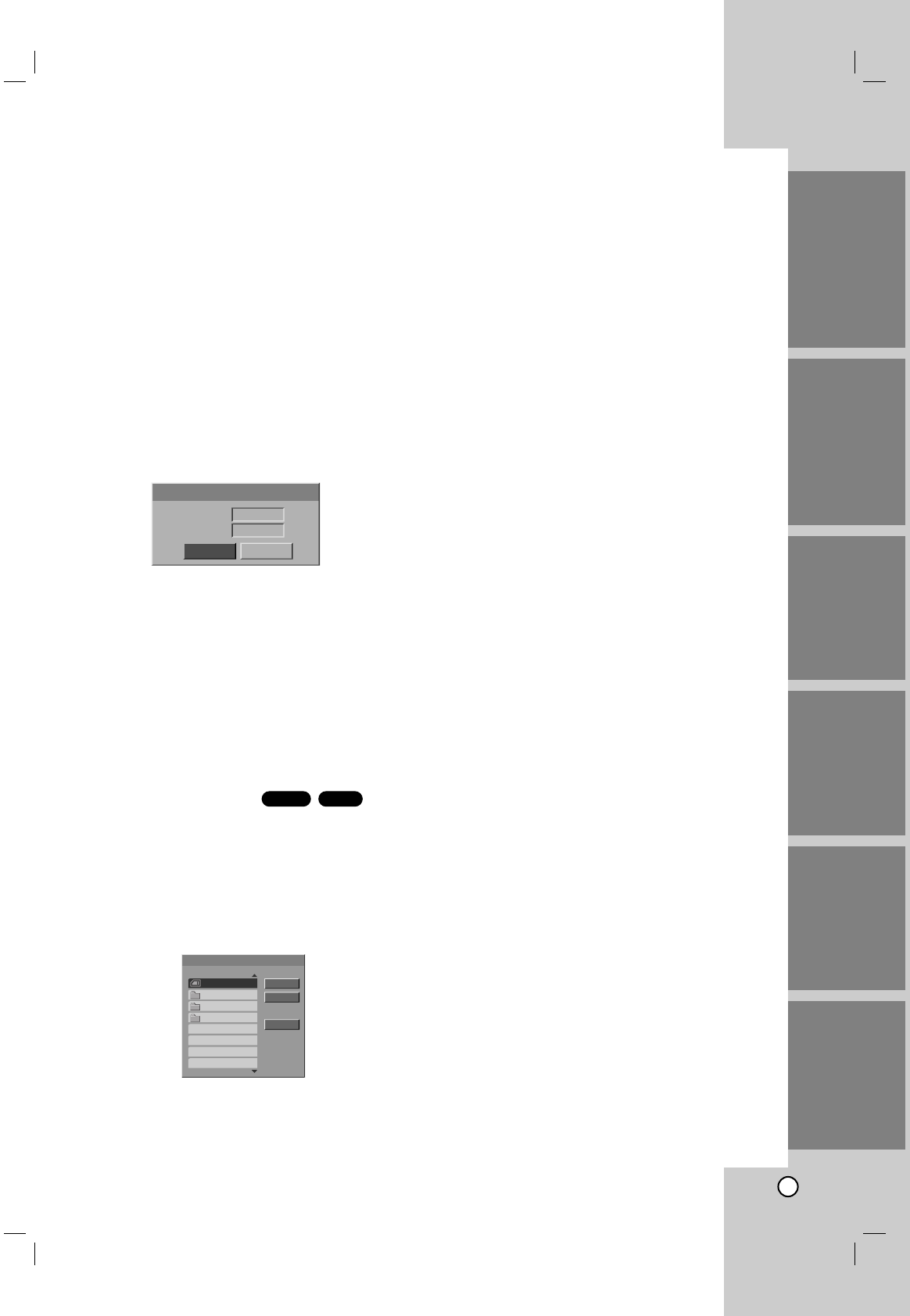

Marker Search
(VR/Video/RW??)
To enter a Marker
You can start playback from up to nine memorized
points. To enter a marker, press MARKER at the
desired point on the disc. The Marker icon appears
on the TV screen briefly. Repeat to enter up to nine
markers.
To Recall or Clear a Marked Scene
1. During disc playback, press SEARCH.
The marker search menu appears on the screen.
2. Within 10 seconds, use b/ Bto select a marker
number that you want to recall or clear.
3. Press ENTER and playback starts from the
marked scene. Or, Press CLEAR and use b/ B
to select “Yes” then press ENTER to delete
marked scene from the list.
4. You can play any marker by inputting its number
on the marker search menu.
5. To remove the Marker Search menu,
press RETURN (O)
Random
1Press RANDOM during playback or in Stop mode.
The unit automatically begins Random Playback
and “RANDOM” appears on the TV screen.
2Press RANDOM again to normal.
Tip:
By pressing SKIP (>) during Random playback,
the VCR/DVD Recorder selects another title (track)
and resumes Random playback.
Notes
•This function only works with DVD Karaoke discs
or video CDs without PBC.
•On a Video CD with PBC, you must set PBC to
OFF in the DISC menu to use the this function.
See page 27.
VCDKaraoke DVD
VCDDVD
+R+RWVR
Video
DVD
VCD+R+RWVR
Video
DVD
VCD+R+RWVR
Video
DVD
Delete
CLEAR
CloseSelect
Marker Search
Marker Search
Move
31
Still Picture and Frame-by-Frame Playback
1. Press PAUSE/STEP (X) during playback.
Advance the picture frame-by-frame by pressing
PAUSE/STEP (X) repeatedly.
2. To exit still motion mode, press N(PLAY).
Zoom
Use zoom to enlarge the video image.
1. Press ZOOM during playback or still playback to
activate the Zoom function. The square frame
appears briefly in the right bottom of the picture.
2. Each press of the ZOOM button changes the TV
screen in the sequence: X1 (normal size) →X2
size →X4 size →X1 (normal size)
3. Use the bBvVbuttons to move through the
zoomed picture.
4. To resume normal playback, press ZOOM repeat-
edly or CLEAR button.
Note:
Zoom may not work on some DVDs.
Repeat
You can repeat a title/chapter/all/track on a disc.
Press REPEAT during playback to select a desired
repeat mode.
DVD Video Discs - Repeat Chapter/Title/All/Off
• CHAPTER: repeats the current chapter.
• TITLE: repeats the current title .
• All: repeats the all titles on the disc.
(VR mode DVD-RW disc only)
• OFF: does not play repeatedly.
Video CDs or DivX file - Repeat Track/All/Off
• TRACK: repeats the current track.
• ALL: repeats the all tracks on the disc.
• OFF: does not play repeatedly.
Notes:
•On a Video CD with PBC, you must set PBC to Off on
the setup menu to use this function (See page 18).
•If you press SKIP (>) once during Repeat Chapter
(Track) playback, the repeat playback cancels.
Repeat A-B
To repeat a sequence.
1. Press A-B at your chosen starting point.
“REPEAT A - ” appears briefly on the TV screen.
2. Press A-B again at your chosen end point.
“REPEAT A - B” appears briefly on the TV screen
and the repeat sequence begins.
3. Press A-B again to cancel.
Title Menu
1. Press TITLE. If the current title has a menu, the
menu appears on the screen. Otherwise, the disc
menu may appear.
2. The menu offers features such as camera angles,
spoken language and subtitle options, and chap-
ters for the title.
3. Press TITLE to exit.
Disc Menu
Press DISC MENU and the disc menu is displayed.
Press DISC MENU again to exit.
Camera Angle
If the disc contains scenes recorded at different cam-
era angles, you can change to a different camera
angle during playback. Press ANGLE repeatedly dur-
ing playback to select a desired angle. Note that the
number of the current angle appears on the display.
Tip:
The Camera Angle icon is displayed on the TV screen when
alternate angles are available.
Subtitles
Press SUBTITLE repeatedly during playback to see
the different subtitle languages.
Note:
The subtitle file of the DivX file is displyed only
smi, srt and sub.
If there is no information or there is a code that
cannot read in the DivX file, “ 1 ” etc are dis-
played.
DVD
DVD
DVD
DVD
VCD+R+RWVR
Video
DVD
VCD+R+RWVR
Video
DVD
+R+RWVR
Video
DVD
VCD+R+RWVR
Video
DVD
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
32
Changing the Audio Language
Press AUDIO repeatedly during playback to hear a
different audio language or audio track.
Note:
Some discs feature both Dolby Digital and DTS
soundtracks. There is no analog audio output when
DTS is selected. To listen to the DTS soundtrack,
connect this recorder to a DTS decoder via one of
the digital outputs. See page 23 for connection
details.
Changing the Audio Channel
Press AUDIO repeatedly during playback to hear a
different audio channel.
- VCD : STEREO, LEFT or RIGHT.
- Video, +R/RW : L+R, L+L or R+R.
With DVD-RW discs recorded in VR mode that have
both a main and a Bilingual audio channel, you can
switch between Main (L), Bilingual (R), or a mix of
both (Main + Bilingual) by pressing AUDIO.
3D Surround
This unit can produce a 3D Surround effect, which
simulates multi-channel audio playback from two
conventional stereo speakers, instead of the five or
more speakers normally required to listen to multi-
channel audio from a home theater system.
1. Press DISPLAY twice then use v/ Vto select the
sound icon. Then, use b/ Bto select “3D SUR.”.
2. To turn off the 3D Surround effect, select “NOR-
MAL”.
Last Scene Memory
This VCR/DVD Recorder memorizes last scene from
the last disc that is viewed. The last scene remains in
memory even if you remove the disc from the
VCR/DVD Recorder or switch off the VCR/DVD
Recorder. If you load a disc that has the scene mem-
orized, the scene is automatically recalled.
Notes:
•Settings are stored in memory for use any time.
•This VCR/DVD Recorder does not memorize settings of
a disc if you switch off the VCR/DVD Recorder before
commencing to play it.
•The Last Condition Memory function may not work on
some DVDs.
•Last Condition Memory function for a previous DVD title
is erased once a different DVD title is played.
Finding Locations on a Disc
You can directly access any point on a video CD
using this function within 95% of progress bar. Use
this function only while a video CD is playing.
Playback jumps to the point specified.
1Press SEARCH during playback.
The progress bar appears on the TV screen.
2Use b / B to find the desired starting position for
playback.
3Press ENTER to confirm the selected position.
Playback starts from the selected position.
Notes:
This function will not work if any bookmarks have
been set; see page 30.
VCDCDDVD
VCD+R+RWVR
Video
DVD
VCD+R+RW
Video
VR
DVD
33%PBC
33%
TRK 1
33

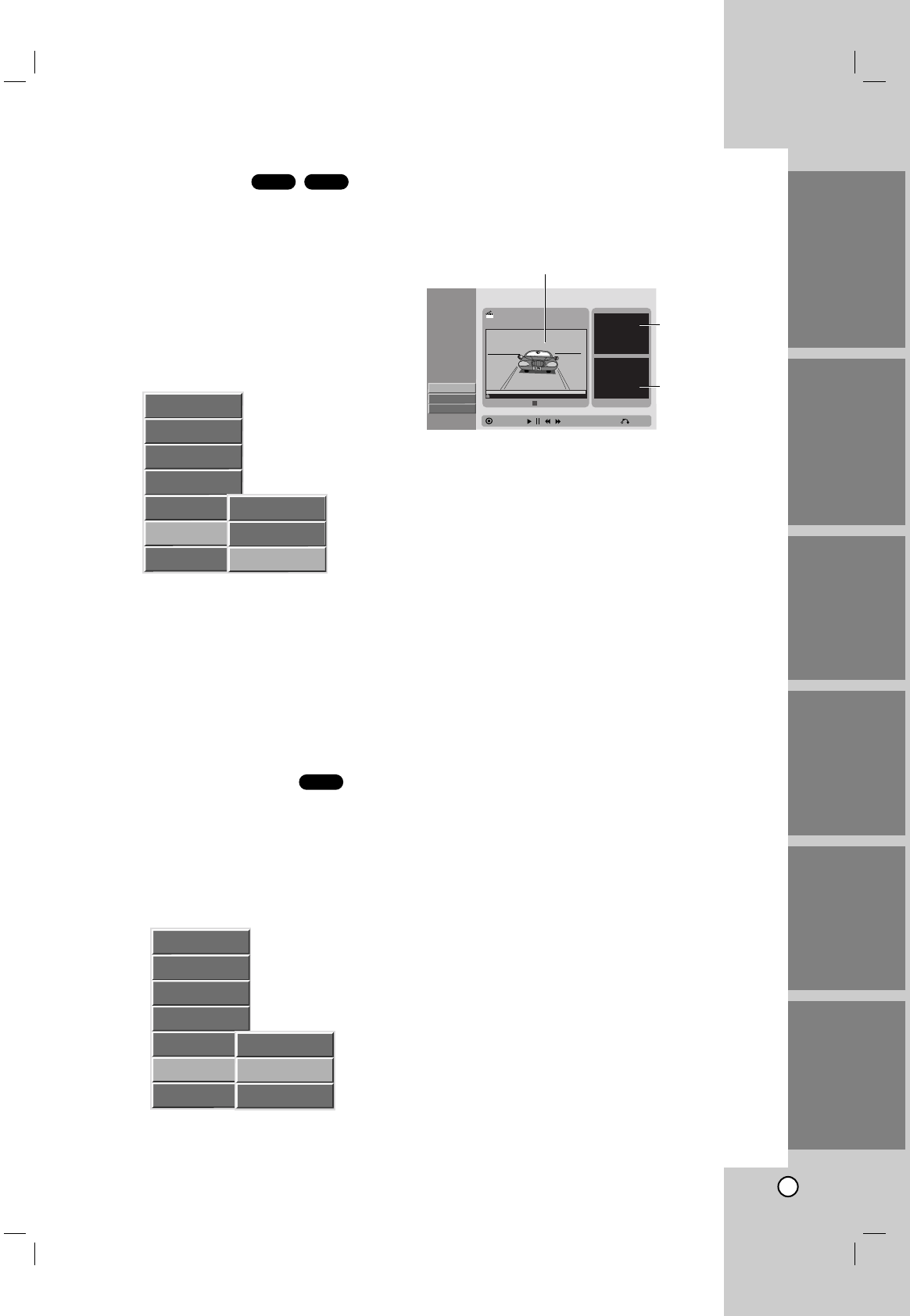

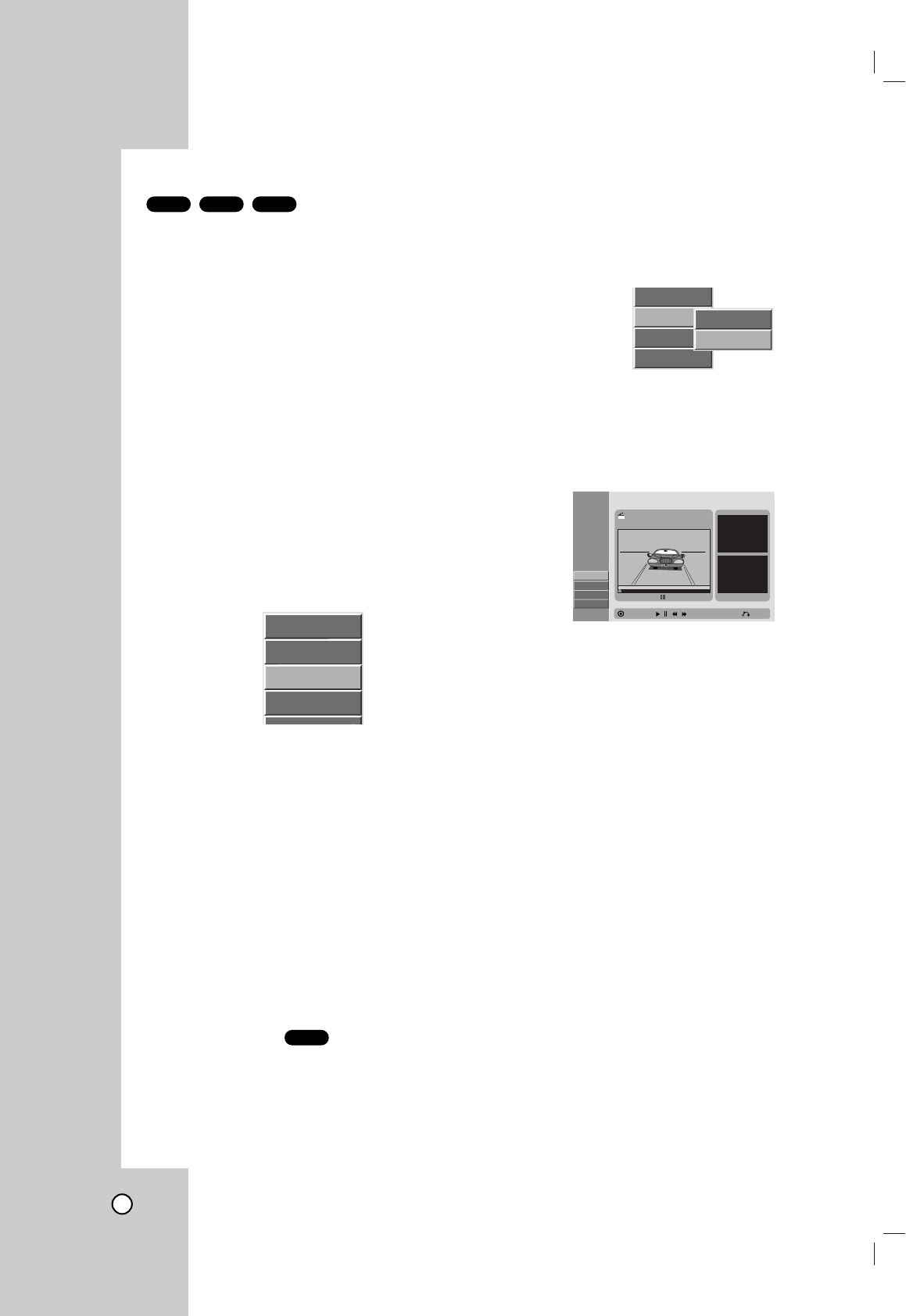

Playing a DivX Movie File
Using this DVD/VCR Recorder you can play
DivX disc.
1. Insert a disc and close the tray. The MOVIE menu
appears on the TV screen.
2. Press v/Vto select a folder, and press ENTER.
Alist of files in the folder appears. If you are in a
file list and want to return to the Folder list, use
the v/Vbuttons on the remote to highlight
and press ENTER.
3. If you want to view a particular file, press
v/Vto highlight a file and press ENTER or N
(PLAY).
4. Press STOP (ÁÁ)to exit.
Tip:
•Press DISC MENU to move to the next page.
•On a CD with MP3/WMA, JPEG and MOVIE file, you can
switch MUSIC, PHOTO and MOVIE menu. Press TITLE
and MUSIC, PHOTO and MOVIE word on top of the
menu is highlighted.
Film menu options
1. Press v/Vto select a folder/file on the Film
menu then press ENTER.
Film menu options appear.
2. Press v/V/b/Bto select an option, and press
ENTER.
Play: Start playback the selected title.
Open: Opens the folder and a list of files in the
folder appears
Delete: Deletes the file(s) or folder(s) from the
media. (HDD, Memory Card only)
Rename: Edits the file name.
(HDD, Memory Card only) (page 39)
Move: Moves the file(s) to another folder or
media. (HDD, Memory Card only) (page 39)
Copy: Copies the file(s) to another folder or
media. (page 39)
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
DivX disc compatibility with this recorder is lim-
ited as follows:
Available resolution size of the DivX file is under
720x576 (W x H) pixel.
The file name of the DivX subtitle is limited to
characters.
If there is impossible code to express in the DivX
file, it may be displayed as “_” mark on the dis-
play.
If the number of the screen frame is over 29.97
frames per second, this unit may not operate
normally.
If the video and audio structure of recorded
file is not interleaved, either video or audio is
outputted.
If the file is recorded with GMC, the unit sup-
ports only 1-point of the record level.
* GMC?
GMC is the acronym for Global Motion Compensation. It
is an encoding tool specified in MPEG4 standard. Some
MPEG4 encoders, like DivX or Xvid, have this option.
There are different levels of GMC encoding, usually
called 1-point, 2-point, or 3-point GMC.
Playable DivX file
“.avi”, “.mpg”, “.mpeg”, “.divx”
Playable DivX subtitle
“.smi (Micro DVD format only)”, “.srt”, “.sub”
“.txt (Micro DVD format only)”
*Divx subtitle except those listed above is not dis-
played on the TV screen.
Playable Codec format
“DIVX3.xx”, “DIVX4.xx”, “DIVX5.xx”, “XVID”,
“MP43”, “3IVX”
Playable Audio format
“AC3”, “PCM”, “MP3”, “WMA”.
Sampling frequency: within 8 - 48 kHz (MP3),
within 32 - 48kHz (WMA)
Bit rate: within 8 - 320kbps (MP3),
32 - 192kbps (WMA)
34
Playing an Memory Card
Playing an Memory Card
You can play Photo and Music files in Memory Cards.
1. Insert a Memory Card until it fits into place.
2. Press MEMORY on the Remote Control in the
Tuner mode. The Memory Card slot choice menu
appears.
3. Press ENTER. If both slots are connected with
Memory Card, use b/Bto select the desired
Memory Card slot.
MUSIC Menu
PHOTO Menu
4. Press MEMORY or RETURN to exit the menu.
For details on each operation item,
refer to relevant page.
35

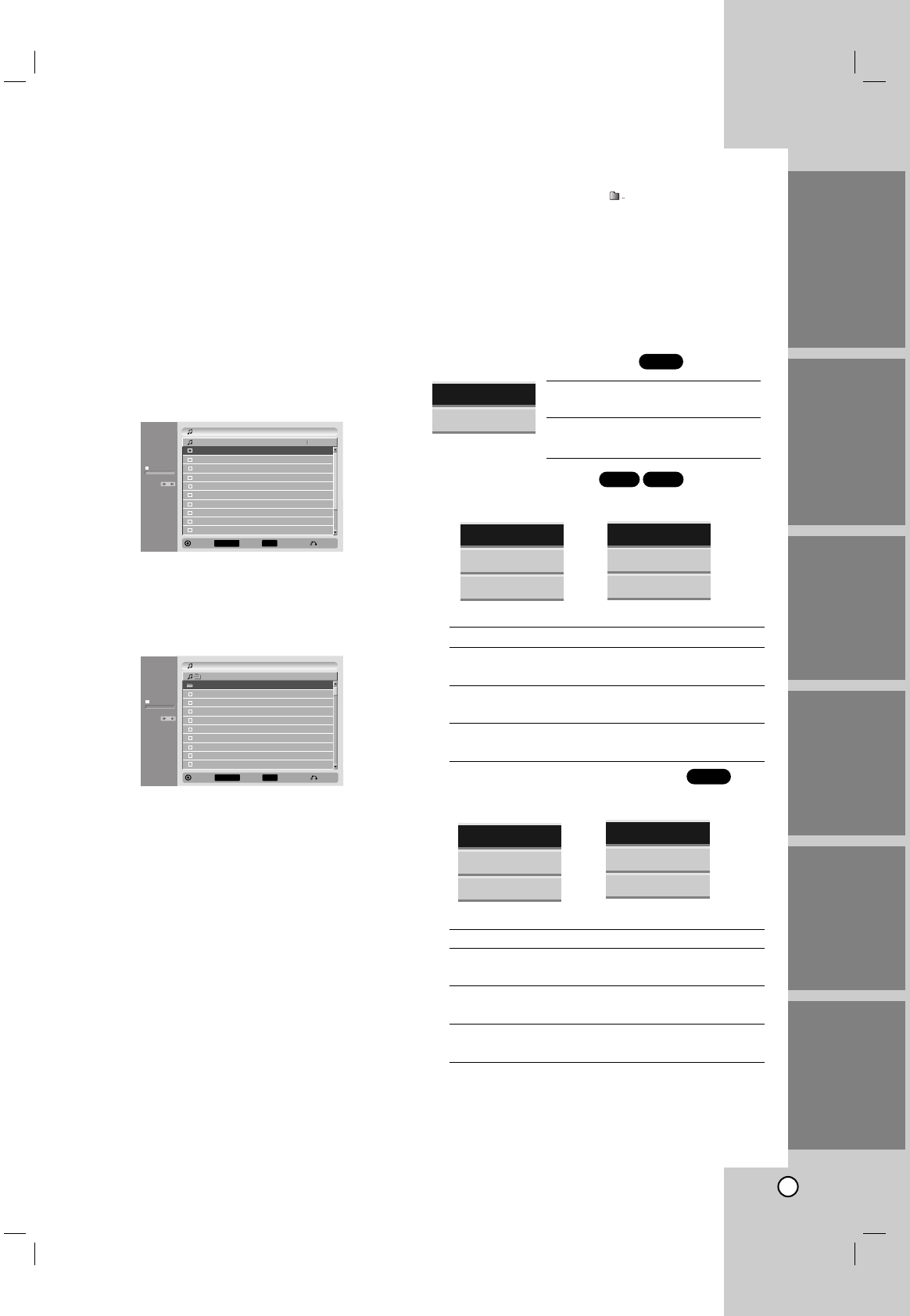

Playing an
Playing an Audio CD or
Audio CD or
MP3/WMA
MP3/WMA Disc
Disc
The VCR/DVD Recorder can play Audio CDs and
MP3/WMA files on CD-ROM, CD-R, CD-RW,
DVD+R/+RW, DVD-R/-RW discs or Memory Card.
Before playing MP3 files, read “Notes on MP3
Recordings” on page 8.
Audio CD
Once you insert an audio CD a menu appears on the
TV screen. Press v/Vto select a track then press
N(PLAY) or ENTER and playback starts.
MP3 / WMA
1. Press v/Vto select a folder, and press ENTER
to see the folder contents.
2. Press v/Vto select a track then press N
(PLAY) or ENTER. Playback starts.
ID3 TAG
•When playing a file containing information such as
track titles, you can see the information by press-
ing DISPLAY. [ Song, Artist, Album, Comment ]
•If there is no information, “No ID3 TAG” appear on
the menu screen.
Tips:
•You can view TV channel or video input source by
pressing RETURN. If you want to return to the Music-
CD or Music-Audio CD menu, press LIST/DISC MENU.
•On the Music-CD menu, you can display the folders on
the disc. Use vVbBto select the “Folder” icon on the
Music-CD menu then press ENTER twice.
•On CDs with mixed content (audio tracks, MP3/WMA
files and JPEG files), you can select among the Music-
Audio CD menu, Music-CD menu, and Photo-CD menu
by pressing TITLE repeatedly in Stop mode.
•If you select a folder and press DISPLAY, the number of
subfolders and number of MP3/WMA files in the folder
are displayed.
•If you are in a file list and want to return to the Folder
list, use the v/Vto highlight and press ENTER to
return to the previous menu screen.
Music menu options
1. To display menu options, select a tack (or folder)
on the menu then press ENTER.
2. Use v/ Vto select an option then press ENTER
to confirm your selection.
Music-Audio CD menu options
Play: Starts playback the select-
ed track.
Program Add: Adds the track(s)
to Program List. (page 39)
Music-CD menu options
• Track options. • Folder options
Play: Starts playback the selected track.
Program Add: Adds the track(s) to Program List.
(page 39)
Copy: Copies the track(s) to the memory card.
(page 38)
Open: Displays sub-folders and MP3/WMA files
only in the folder.
Music-MP3/WMA Memory menu options
• Track options. • Folder options
Play: Starts playback the selected track.
Program Add: Adds the track(s) to Program List.
(page 39)
Delete: Deletes the track(s) from the memory
card. (page 38)
Open: Displays sub-folders and MP3/WMA files
only in the folder.
M/C
WMA
MP3
CD
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
Music
1:07:30
Title Duration
Track 1 04:47
Track 2 04:01
03:01
03:30
04:24
05:01
03:48
04:09
05:10
04:11
Track 3
Track 4
Track 5
Track 6
Track 7
Track 8
Track 9
Track 10
Program
Close
Mark
MARKER
Select LIST
- Audio CD
Music
00:00
Root 152 Items
FOLDER 01
FILE 2.mp3
FILE 3.mp3
FILE 4.mp3
FILE 5.mp3
FILE 6.mp3
FILE 7.mp3
FILE 8.mp3
FILE 9.mp3
FILE 10.mp3
Program
Close
Mark
MARKER
Select LIST
- CD
Play
Program Add
Copy
Open
Program Add
Copy
Play
Program Add
Delete
Open
Program Add
Delete
Play
Program Add
36

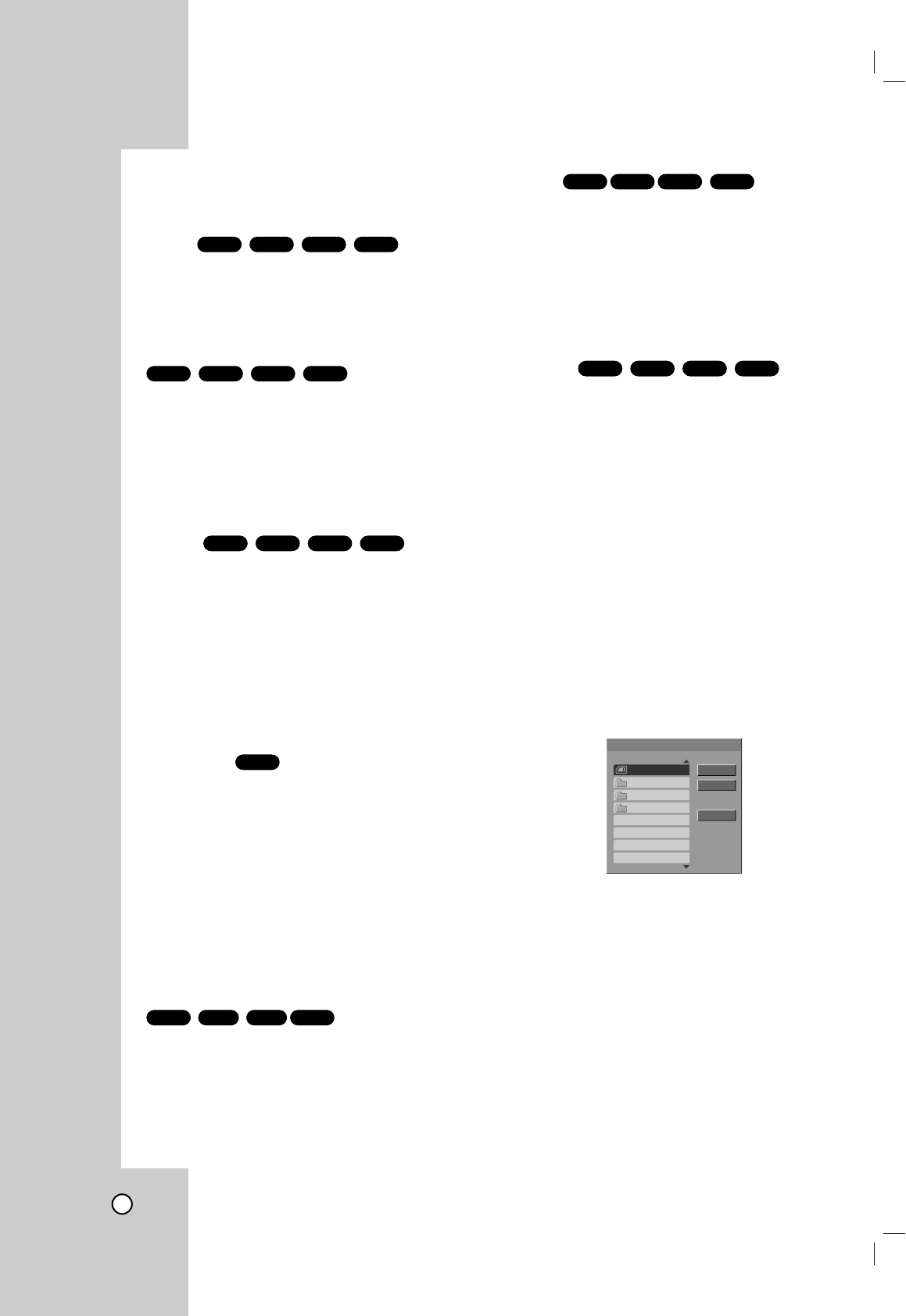

Audio CD and MP3 / WMA Disc
Features
Pause
1. Press PAUSE/STEP (
X
) during playback.
2. To return to playback, press PLAY (N) or press
PAUSE/STEP (
X
) again.
Moving to another Track
1. Press SKIP (> or .) briefly during playback
to go to the next track or to return to the begin-
ning of the current track.
2. Press SKIP .twice in quick successions to go
back to the previous track.
3. You can play any track by inputting its number.
Repeat
Press REPEAT to select a desired repeat mode.
•TRACK: Repeats the current track.
•ALL (CD): Repeats all the tracks on a disc.
•FOLDER (MP3/WMA): Repeats all the tracks on
a folder of a disc.
•OFF (No display): Does not play repeatedly.
Note:
If you press SKIP (>) once during Repeat Track play-
back, the repeat playback will be cancelled.
Repeat A-B
1. To repeat a sequence during disc playback press
A-B at your chosen starting point. The Repeat
icon and “A -” appear on the menu screen.
2. Press A-B again at your chosen end point. The
Repeat icon and “A-B” appear on the menu
screen, and the sequence begins to play repeat-
edly.
3. To exit the sequence and return to normal play,
press A-B again. The Repeat icon disappears
from the menu screen.
Search
1. Press BACKWARD mor FORWARD Mduring
playback.
2. Press BACKWARD mor FORWARD M
repeatedly to select the required speed:
m, ,, mm (backward) or
M, <, MM (forward).
3. To exit SEARCH mode, press PLAY (N).
Changing the Audio Channel
Press AUDIO repeatedly to hear a different audio
channel (stereo, left or right).
Random
1. Press RANDOM during playback. Random
Playback begins immediately and “Random”
appears on the menu screen.
2. To return to normal playback, press RANDOM
repeatedly until “Random” disappears from the
menu screen.
Tip:
By pressing SKIP .or >during random playback, the
unit selects another track and resumes random playback.
Copying MP3/WMA file(s) on the disc
to Memory Card
1Use v / V to select an MP3/WMA file or folder on
the Music-CD menu and press ENTER.
2Use v / V to select the “Copy” option then press
ENTER.
3Use v / V to select a copied folder then press B.
4When “Copy” option is highlighted on the Copy
menu, press ENTER to begin copying.
Notes:
•If you select a folder on the disc to copy,
the sub-folders in the folder will not be copied.
•You must insert a memory card in the VCR/DVD
recorder to use this function.
Tips:
•You can create new album (folder). Select “New album”
option on the Copy menu then press ENTER. “NON-
AME##” folder is created.
•Use the MARKER button to select multiple files and/or
folders.
Erasing MP3/WMA file(s) or folder(s)
from the Memory Card
1. Select an MP3/WMA file or folder you wish to
erase on the Music-Memory Card menu.
2. Press ENTER.
3. Select “Delete” option then press ENTER.
4. Use b / B to select “Yes” then press ENTER.
The selected file(s) or folder(s) is deleted from the
Memory Card.
Tip:
Use the MARKER button to select multiple files and/or fold-
ers.
M/C
WMA
MP3CD
M/C
WMA
MP3CD
CD
37
Audio CD and MP3 / WMA Disc
Features
Pause
1. Press PAUSE/STEP (
X
) during playback.
2. To return to playback, press PLAY (N) or press
PAUSE/STEP (
X
) again.
Moving to another Track
1. Press SKIP (> or .) briefly during playback
to go to the next track or to return to the begin-
ning of the current track.
2. Press SKIP .twice in quick successions to go
back to the previous track.
3. You can play any track by inputting its number.
Repeat
Press REPEAT to select a desired repeat mode.
•TRACK: Repeats the current track.
•ALL (CD): Repeats all the tracks on a disc.
•FOLDER (MP3/WMA): Repeats all the tracks on
a folder of a disc.
•OFF (No display): Does not play repeatedly.
Note:
If you press SKIP (>) once during Repeat Track play-
back, the repeat playback will be cancelled.
Repeat A-B
1. To repeat a sequence during disc playback press
A-B at your chosen starting point. The Repeat
icon and “A -” appear on the menu screen.
2. Press A-B again at your chosen end point. The
Repeat icon and “A-B” appear on the menu
screen, and the sequence begins to play repeat-
edly.
3. To exit the sequence and return to normal play,
press A-B again. The Repeat icon disappears
from the menu screen.
Changing the Audio Channel
Press AUDIO repeatedly to hear a different audio
channel (stereo, left or right).
Search
1. Press BACKWARD mor FORWARD Mduring
playback.
2. Press BACKWARD mor FORWARD M
repeatedly to select the required speed:
m, ,, mm (backward) or
M, <, MM (forward).
3. To exit SEARCH mode, press PLAY (N).
Random
1. Press RANDOM during playback. Random
Playback begins immediately and “Random”
appears on the menu screen.
2. To return to normal playback, press RANDOM
repeatedly until “Random” disappears from the
menu screen.
Tip:
By pressing SKIP .or >during random playback, the
unit selects another track and resumes random playback.
Copying MP3/WMA file(s) on the disc
to Memory Card
1Use v / V to select an MP3/WMA file or folder on
the Music-CD menu and press ENTER.
2Use v / V to select the “Copy” option then press
ENTER.
3Use v / V to select a copied folder then press B.
4When “Copy” option is highlighted on the Copy
menu, press ENTER to begin copying.
Notes:
•If you select a folder on the disc to copy,
the sub-folders in the folder will not be copied.
•You must insert a memory card in the VCR/DVD
recorder to use this function.
Tips:
•You can create new album (folder). Select “New album”
option on the Copy menu then press ENTER. “NON-
AME##” folder is created.
•Use the MARKER button to select multiple files and/or
folders.
M/C
WMA
MP3CD
M/C
WMA
MP3CD
M/C
WMA
MP3
CD
CD
M/C
WMA
MP3CD
M/C
WMA
MP3CD
M/C
WMA
MP3CD
Select the album
Copy
Copy
Cancel
New album
C:\
NONAME 01
NONAME 02
NONAME 03
38

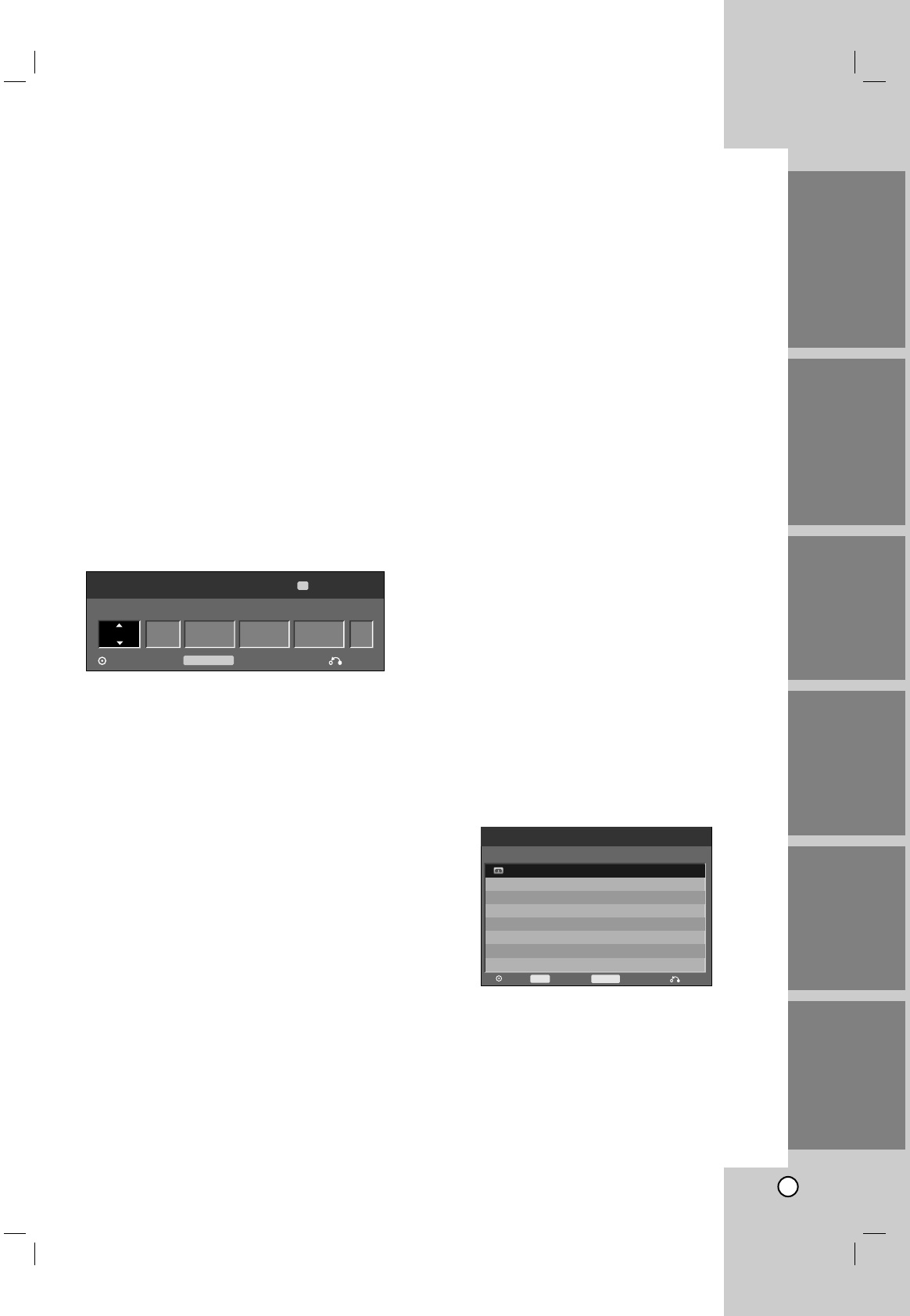

Programmed Playback
Programmed Playback
The program function enables you to store your
favourite tracks from any disc in the player memory.
Program can contain 99 tracks (Audio CD) or 256
tracks (MP3/WMA).
1Insert a disc.
AUDIO CD or MUSIC menu appears.
2Use v / V to select a track or fold on the List
then press ENTER.
3Select “Program Add” option then press ENTER.
The selected track is added to the Program List.
4Repeat steps 2-3 to place additional tracks on the
Program list.
5Audio CD : Use Bto move the tracks to the
Program list.
The programmed track you selected last is high-
lighted on the program list.
MP3/WMA : Go to next step.
6Use v / V to select the track you want to start
playing.
7Press PLAY (N) to start.
Playback begins in the order in which you pro-
grammed the tracks and “PRG” indicator appears
on the display window.
Playback stops after playing the last programmed
track on the program list.
Notes:
•Press and hold Vfor fast to move to the next track or
folder.
•Press and hold vfor fast to move to the previous track
or folder.
Tips:
•Use the MARKER button to select multiple files and/or
folders.
•Use the CLEAR button to select all tracks,
or cancel all marked tracks.
•If you select folder for Programmed Playback, all tracks
in the folder are added to the program list.
•You can switch between the Track List and Program List
menus by pressing LIST/DISC MENU (Music-CD only).

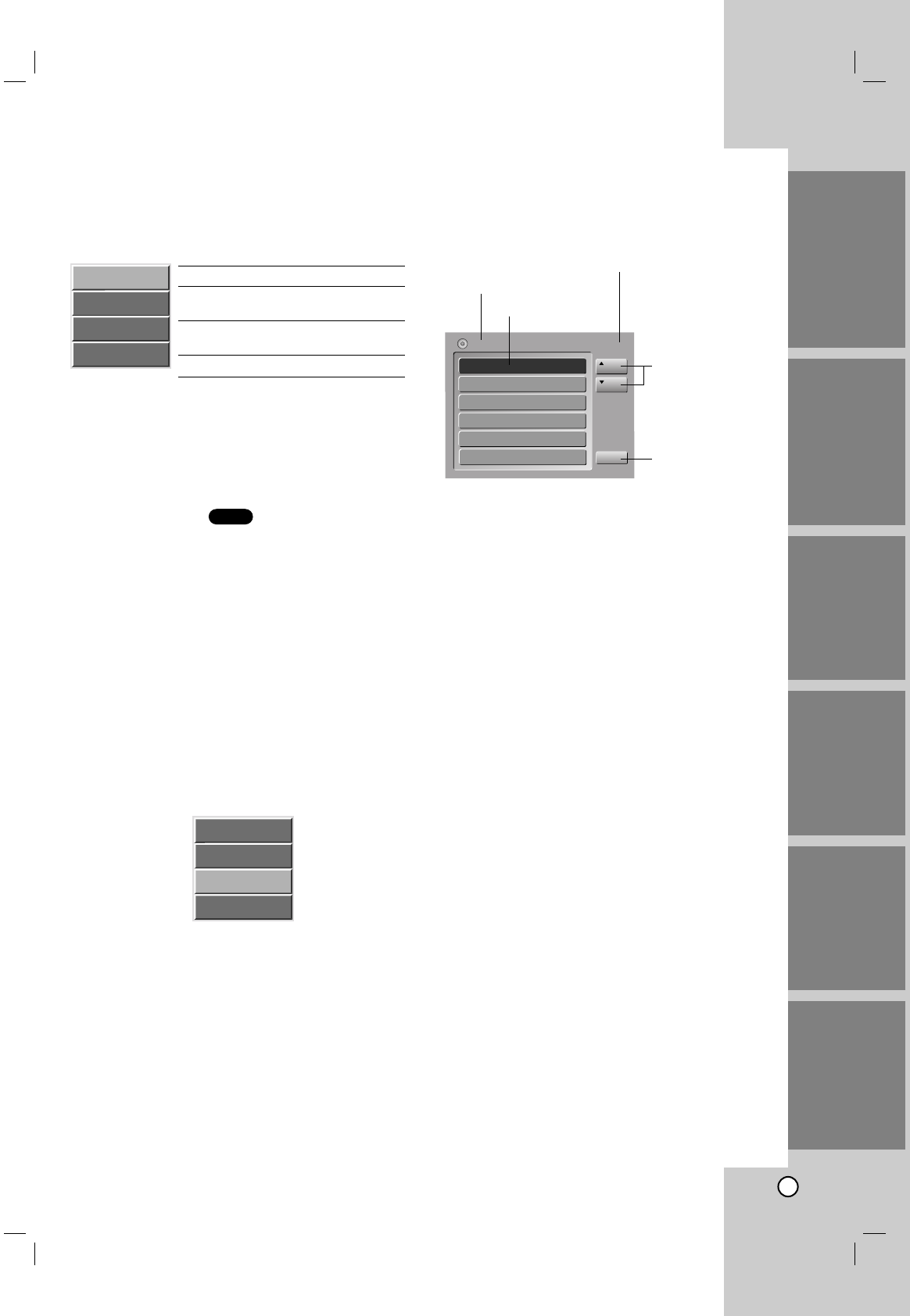

Program List menu options
1. To display menu options, select a tack on the
Program List menu then press ENTER.
The menu options appear on the left side of the
menu.
2. Use v / V to select an option then press ENTER
to confirm your selection.
Play: Playback begins in the
order in which you programmed
the tracks from the selected track.
Move: Moves the track(s) to
change the program order.
Delete: Deletes the track(s) from
the Program List menu.
Repeat Programmed Tracks
1Press REPEAT to select a desired repeat mode.
• TRACK: repeats the current track
• ALL: repeats all the tracks on programmed list.
• Off (No display): does not play repeatedly.
Erasing a Track(s) from “Program” List
1. Select the track that you wish to erase from the
Program list then press ENTER.
2. Select “Delete” icon then press ENTER.
3. Repeat steps 1-2 to erase additional tracks on the
list.
Tip:
Use the MARKER button to select multiple tracks.
WMA
MP3
CD
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
Play
Move
Delete
39
Changing the order of Program List
1Select the track you wish to move on the Program
List then press ENTER.
The options appear on the left side of the menu.
2Select “Move” then press ENTER.
Ayellow bar appears in the Program List.
3Use v/V to move the yellow bar to the desired
location, then press ENTER.
The selected track is moved.
4If you wish to move other tracks repeat
stages 1 - 3.
Tip:
Use the MARKER button to select multiple tracks.
V

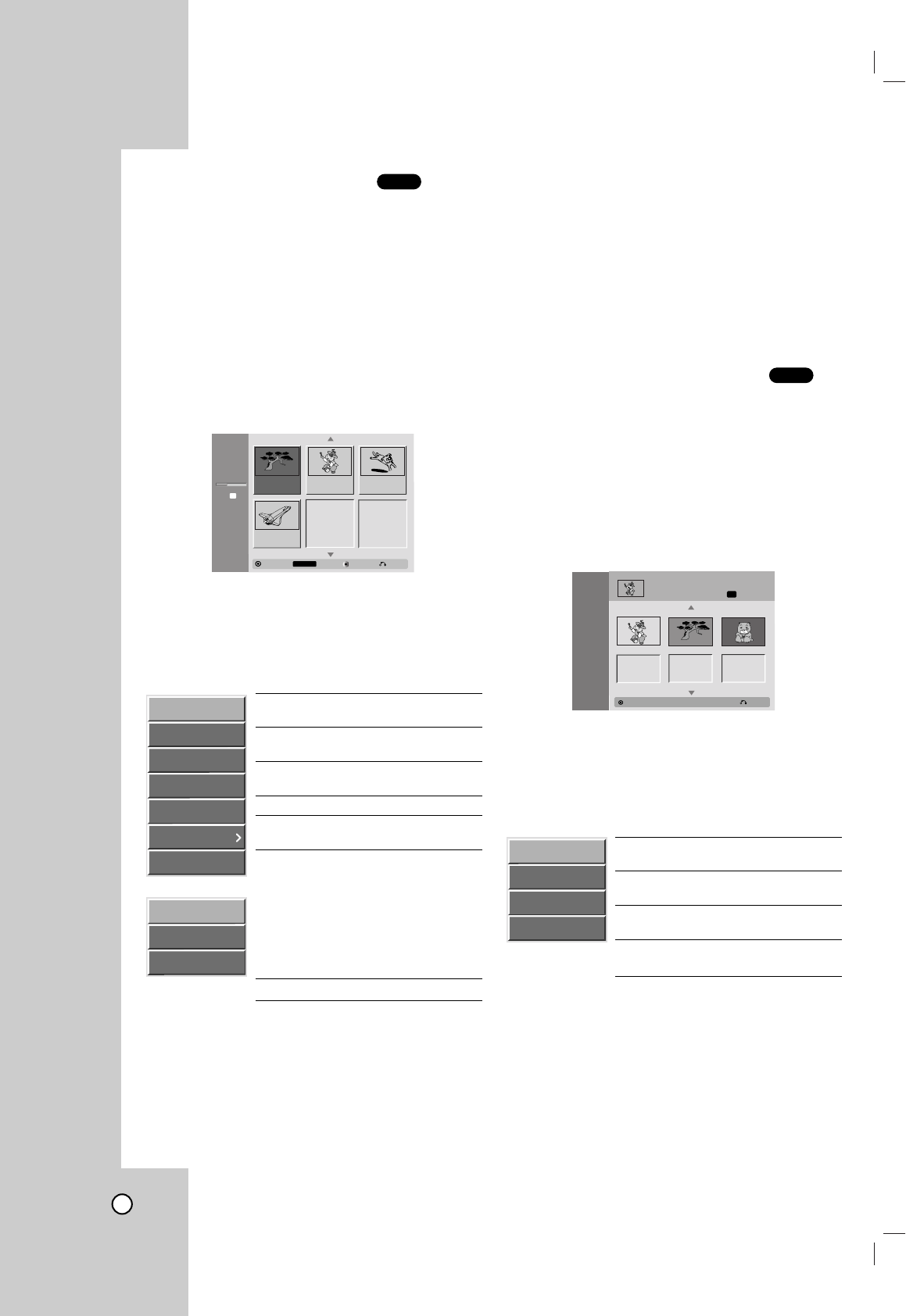

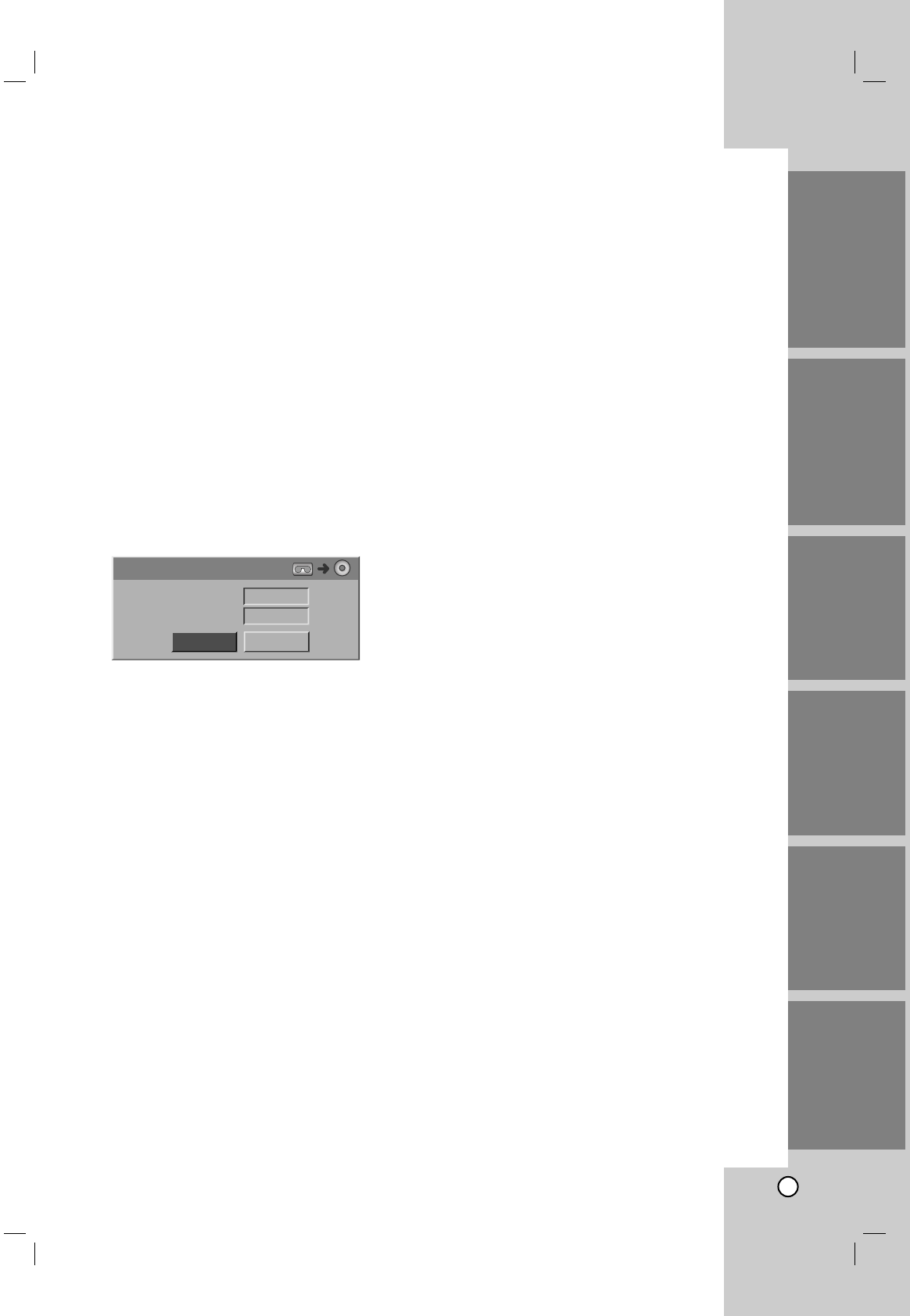

Viewing a JPEG Disc
iewing a JPEG Disc
The VCR/DVD Recorder can play JPEG files on
CD-ROM, CD-R, CD-RW, DVD+R/+RW, DVD-R/-RW
discs or Memory Card. Before playing JPEG record-
ings, read “Notes on JPEG Recordings” on page 8.
1. Insert a disc and close the tray. To display the
Photo-CD menu for JPEG files recorded on the
memory card, see “Playing an Memory Card” on
page ???. The Photo-CD menu appears.
2Use v V b B to select a file or folder and press
ENTER.
3Use v / V to select option and press ENTER.
4To stop viewing at any time, press STOP.
Note:
If the icon displays in the Photo-CD menu, it means you
cannot see those JPEG files.
Tips:
•You can view TV channel or video input source by
pressing RETURN. If you want to return to the Photo-
CD, press LIST/DISC MENU.
•On CDs with mixed content (Audio tracks, MP3/WMA
files and JPEG files), you can select among the Music-
Audio CD menu, Music-CD menu, and Photo-CD menu
by pressing TITLE repeatedly in Stop mode.
•If you are in a file list and want to return to the Folder
list, use the v/V to highlight folder and press
ENTER to return to the previous menu screen.

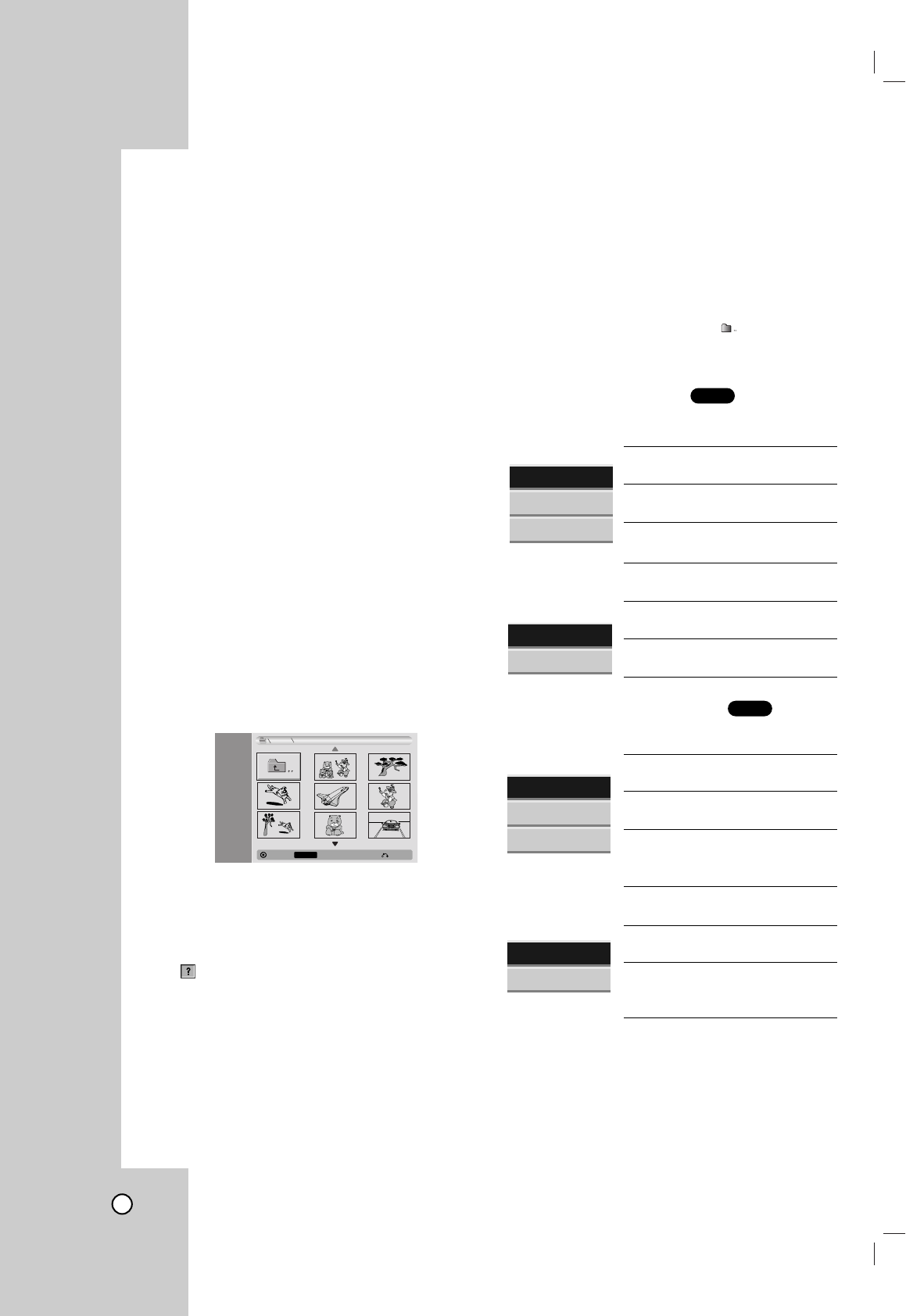

Photo-CD menu options
•When you select a photo file.
Full Screen: Shows the selected
file as full screen.
Slide Show: Displays Slide Show
menu. (page 42)
Copy: Copies the file(s) to
Memory card. (page 42)
•When you select a folder.
Open: Displays sub-folders and
JPEG files in the folder.
Copy: Copies the folder to mem-
ory card. (page 42)
Photo-Memory menu options
•When you select a photo file.
Full Screen: Shows the selected
file as full screen.
Slide Show: Displays Slide Show
menu. (page 42)
Delete: Deletes the selected
file(s) from the Memory card.
(page 42)
•When you select a folder.
Open: Displays sub-folders and
JPEG files in the folder.
Delete: Deletes the selected
folder(s) from the memory card.
(page 42)
M/C
JPEG
JPEG
Select
MARKER
Mark Close
- CD
Full Screen
Slide Show
Copy
Open
Copy
Full Screen
Slide Show
Delete
Open
Delete
40

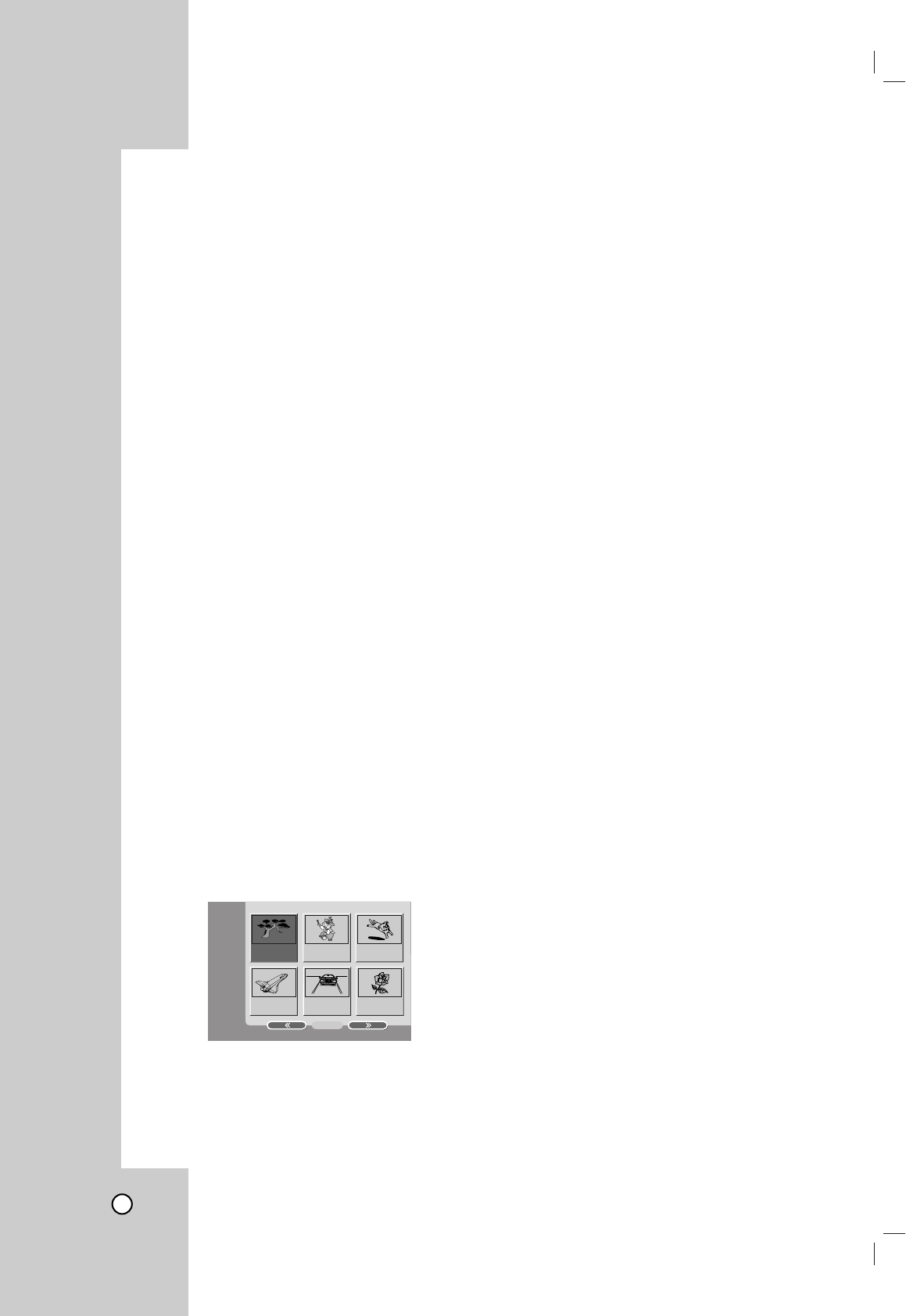

Still picture
Use PAUSE/STEP (X) while showing a picture to
pause mode.
Skip Images
While viewing a picture, press SKIP (.or >)
once to advance to the next file or return to the previ-
ous file.
Rotate Images
Use v / V while viewing a picture to flip the picture
clockwise or counterclockwise.
View Slide Shows
1. Select “Slide Show” option on the menu.
2. Press ENTER.
The Slide Show menu appears.
3. Use v V b B to set the options.
Object: Selected file or All files.
Speed: Sets the speed for Slide Show (Slow,
Normal, or Fast)
4. Select the “Start” option then press ENTER to
start the Slide Show.
5. Press STOP to stop the Slide Show and returns
to the menu.
Note:
Use the MARKER button to select multiple files.
Copying JPEG file(s) or folder on the
disc to Memory Card
1Use v / V to select an JPEG file or folder on the
Photo-CD menu.
2Press ENTER.
The options appear on the left side of the menu.
3Use v / V to select the “Copy” option then press
ENTER. Copy menu will appear.
4Use v / V to select a copied folder then press B.
5When “Copy” option is highlighted on the Copy
menu, press ENTER to begin copying.
Notes
•If you select a folder on the disc to copy, the sub-folders
in the folder will not be copied.
•You must insert a memory card in the VCR/DVD
recorder to use this function.
Tips:
•You can create new album (folder). Select “New album”
option on the Copy menu then press ENTER. “NON-
AME##” folder is created.
•Use the MARKER button to select multiple files and/or
folders.
Erasing JPEG file(s) or folder from
the Memory Card
1. Select an JPEG file or folder you wish to erase on
the Photo-Memory Card menu.
2. Press ENTER.
3. Select “Delete” option then press ENTER.
The confirm message for deleting will appear.
4. Use b / B to select “Yes” then press ENTER.
The selected file(s) or folder is deleted from the
Memory Card.
Tip:
Use the MARKER button to select multiple files and/or fold-
ers.
M/CJPEG
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
Start
Object
Speed
Slide Show
Cancel
All
Normal
Select the album
Copy
Copy
Cancel
New album
C:\
NONAME 01
NONAME 02
NONAME 03
41

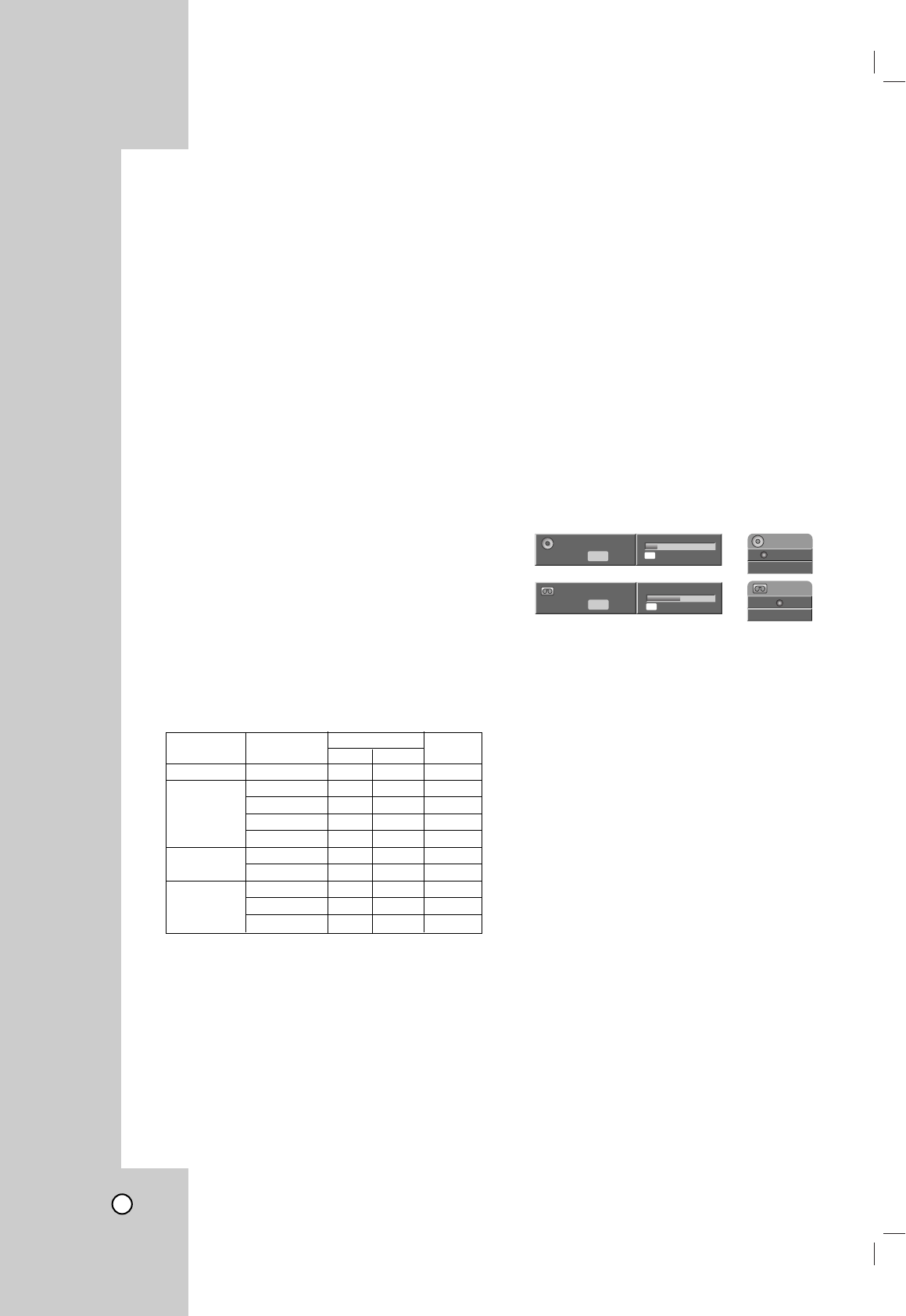

Basic Recording from a TV
Basic Recording from a TV
Follow the instructions below to record a TV program.
Recording starts immediately and continues until the
disc or tape is full or you stop the recording.
1Switch on the VCR/DVD Recorder, select the
device (VCR or DVD) for Recording and load a
recordable disc or tape. Also make sure that the
TV input is set to this recorder.
If you load a completely blank DVD±RW disc,
Disc initialize menu will appear, to select a
desired Recording Mode to initialize the disc (See
page 26).
2Set a recording mode as necessary by pressing
REC MODE repeatedly.
DVD: XP (High quality), SP (Standard quality), LP
(Low quality), EP (Extend quality).
VCR:
SP (Standard Play), SLP (Super Long Play).
3Select the TV channel to record.
4Use AUDIO to select the audio channel to record.
The table below shows what will be recorded on
the different settings for different types of broad-
cast. The last column (Monitor Audio) shows what
you’ll hear as it is recording.
If you set the audio channel to SAP, but there is
no SAP channel being broadcast, the main audio
(mono or stereo) will be recorded.
5Press zREC once to start recording.
The REC indicator lights in the display window.
6Press STOP (x) to stop recording.
Notes
•The maximum number of DVD titles is
99 (DVD-R/RW) or 49 (DVD+R/RW).
•If the VCR/DVD Recorder is powered off during DVD
recording, the recording will not be saved.
Instant T
Instant Timer Recording
imer Recording
Instant Timer Recording allows you to make a
recording easily of a preset length without using the
program timer.
1Follow steps 1-4 as shown left (Basic Recording
from a TV).
2Press zREC repeatedly to select the recording
time length. Recording starts after the first press.
DVD: Each subsequent press increases the
recording time by 10 minutes (maximum
360 minutes).
VCR: Each subsequent press increases the
recording time by 30 minutes (maximum
540 minutes). Please confirm the VHS tape
has enough remaining time to be recorded
before recording.
Instant Timer Record Menu
Checking the Recording Time
Press zREC or DISPLAY once to check the record-
ing time. The recalled setting will automatically return
to the TV screen for a moment.
Also, remaining time of recording is shown in the dis-
play window.
To Extend the Recording Time
The recording time can be extended anytime by
pressing zREC.
Each subsequent press increases the recording time
by 10 minutes (DVD) or 30 minutes (VCR).
To Pause the Recording
1Press PAUSE/STEP (X) to pause the disc during
recording.
2When you want to continue recording, press
PAUSE/STEP (X) or zREC.
Notes
•If you press PAUSE/STEP (X) during the Instant Timer
Recording, it will be canceled.
•The VCR/DVD Recorder will automatically power off
when the Instant Timer Recording ends.
Recording
TV Broadcast Selected Broadcast Audio Monitor
Audio
LChR Ch Audio
MONO MONO MONO MONO MONO
STEREO STEREO L R STEREO
Left L L Left
Right R R Right
MONO MONO MONO MONO
MONO+SAP MONO MONO MONO MONO
SAP SAP SAP SAP
STEREO STEREO L R STEREO
+SAP SAP SAP SAP SAP
MONO MONO MONO MONO
VCR
120min Rec
DVD
00:09:05
30min Rec.
MONO
Input: Ch. 6
0:17:32
MONO
Input: Ch. 6
2H 01M Free
SP
SP
42
To record one TV program while
watching another
1Press TV/VCR to select the TV mode during
recording. The TV indicator appears.
2Using the TV, select the channel to be viewed.
Tip (VCR mode only)
Always use PAUSE/STEP (X) for best results when making
changes during recording .
For example: To change channels during recording, first
press PAUSE/STEP (X) to put the unit in pause mode.
Then select the desired channel on the VCR/DVD Recorder,
and press PAUSE/STEP (X) again to resume recording.
T
Timer Recording
imer Recording
The Timer Recording function allows you to record up
to 8 programs within a period of one month.
1Press TIMER REC.
The Timer Record menu will appear.
•Media – Choose a media (DVD or VCR).
•Ch. – Choose a channel (2-69 or 1-125 for
antenna or cable channels respectively,
excluding skip channels), or one of the exter-
nal inputs from which to record (AV1 or AV2).
•Date – Choose a date up to 1 month in
advance, or select a daily or weekly program.
•Start Time – Set the recording start time.
•End Time – Set the recording end time.
•Mode – Choose a record mode.
DVD: EP, LP, SP, XP, or AT (Auto)
VCR: SP, SLP, or AT (Auto)
AT(Auto) mode determines how much time is avail-
able on the disc or tape and switches record mode,
if necessary, to complete recording the program.
2Enter the necessary information for your timer
recording(s).
•b / B (left/right) – Move the cursor left/right
•v / V (up/down) – Change the setting at the
current cursor position
•Press RETURN (O) to exit the Timer Record
menu.
•Press TIMER REC to display Timer Record
List.
3Press ENTER to save the program.
The Timer Record List will appear.
4Press RETURN (O) to exit the Timer Record
List.
5Be sure to load a recordable disc or tape.
Notes:
•The Timer indicator lights on the front panel dis-
play.
•If the Disc and Tape indicator are blinking, either
no disc or tape is loaded, or the loaded disc is not
recordable.
•The VCR/DVD Recorder will record the audio
according to the current TV tuner setting (Stereo,
Mono or SAP). Use the AUDIO button to set the
audio before switching the VCR/DVD Recorder to
Standby mode.
•The VCR/DVD Recorder will automatically power
off when the Timer Recording ends.
•There is a short delay when a timer recording fin-
ishes to confirm the recorded program. If two
timer recordings are set to record sequentially
(one right after the other), the very beginning of
the later program may not be recorded.
•You must press STOP to stop the Timer
Recording.
Checking Timer Recording Details
Programming can be checked whenever the
VCR/DVD Recorder is turned on. Press TIMER REC
twice.
•Use v / V to select a timer recording.
•Press ENTER to edit the selected program.
Timer Record menu appears.
•Press CLEAR to delete the selected program from
the Timer Record List.
Canceling a Timer Recording
You can clear a timer setting anytime before the
recording actually starts.
•Use v / V to select a program you want to erase
on the Timer Recorder List. If you want to erase
the program, press CLEAR.
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
TIMER REC
Media Ch. Date Start Time End Time Mode
Timer Record
OK Timer Rec List Close
198 min Free
Ch.11DVD 01/02 Fri 10:07 AM 11:00 AM EP
SP
Media Start Time DurationDateCh. Mode Check
Timer Record List
Edit CloseDelete
CLEAR
10/19 SunCh.11 18:07 AM 30min SP Rec. OK
Timer Rec
TIMER REC
43
Timer Recording Troubleshooting
Even though the timer is set, the recorder will not
record when:
•There is no disc (or tape) loaded.
•Anon-recordable disc (or tape) is loaded.
•Disc Protect is set to ON in the Disc menu
(see page 27).
•There are already 99 titles (DVD-RW, DVD-R),
49 titles (DVD+RW, DVD+R) recorded on the
disc.
You cannot enter a timer program when:
•Arecording is already underway.
•The time you’re trying to set has already
passed.
•There are already 8 timer programs set.
If two or more timer programs overlap:
•The earlier program takes priority.
•When the earlier program finishes, the later
program starts.
•If two programs are set to start at exactly the
same time, the program entered first takes pri-
ority.
Confirmation is not possible when:
•Disc Protect setting is set to ON.
•There are already 99 titles (DVD-RW, DVD-R),
49 titles (DVD+RW, DVD+R) recorded on the
disc.
If the disc is damaged, the recording may not com-
plete successfully. In this case even though the
Check field shows “Rec. OK”, it may not be.
Dubbing from DVD to VCR
Dubbing from DVD to VCR
You can copy the contents of a DVD to a VHS tape
using the DUBBING (or DUB) button.
1Insert a blank VHS videotape into the VCR deck.
2Insert the disc you wish to copy in the DVD deck
and close the disc tray.
3Find the place on the DVD (or Disc) from which
you want to start dubbing using the PLAY, FF,
REW and PAUSE functions.
For best results, pause playback at the point from
which you want to record.
4Press the DUBBING button on the Remote
Control or DUB on the front panel.
The Dubbing menu appears.
5Use v / V / b / B to select the desired Record
Mode: SP or SLP (3 times SP).
6Select “Dubbing” then press ENTER or DUBBING
to start copying.
7To stop dubbing at any other time,
press STOP (x).
You must stop the dubbing process manually
when the DVD movie ends, or the unit may replay
and record over and over again.
Note:
If the DVD (or Discs) you are attempting to copy is
copy protected, you will not be able to copy the disc.
It is not permitted to copy Macrovision encoded
DVDs (or Discs). “Copy-protected. Cannot record.” is
displayed on the TV screen.
Tip:
If you press PAUSE during Dubbing mode, both the
DVD and VCR decks go into Pause mode and the
“DUB” indicator blinks on the front panel display.
While in Pause mode, you can adjust the DVD play-
back position using PLAY, REW, FF, PAUSE/STEP,
etc. The VCR deck will remain in Pause mode. To
resume Dubbing, press the DUBBING button twice.
Free Space
Rec. Mode
Dubbing
55%
SP
Dubbing Stop
44

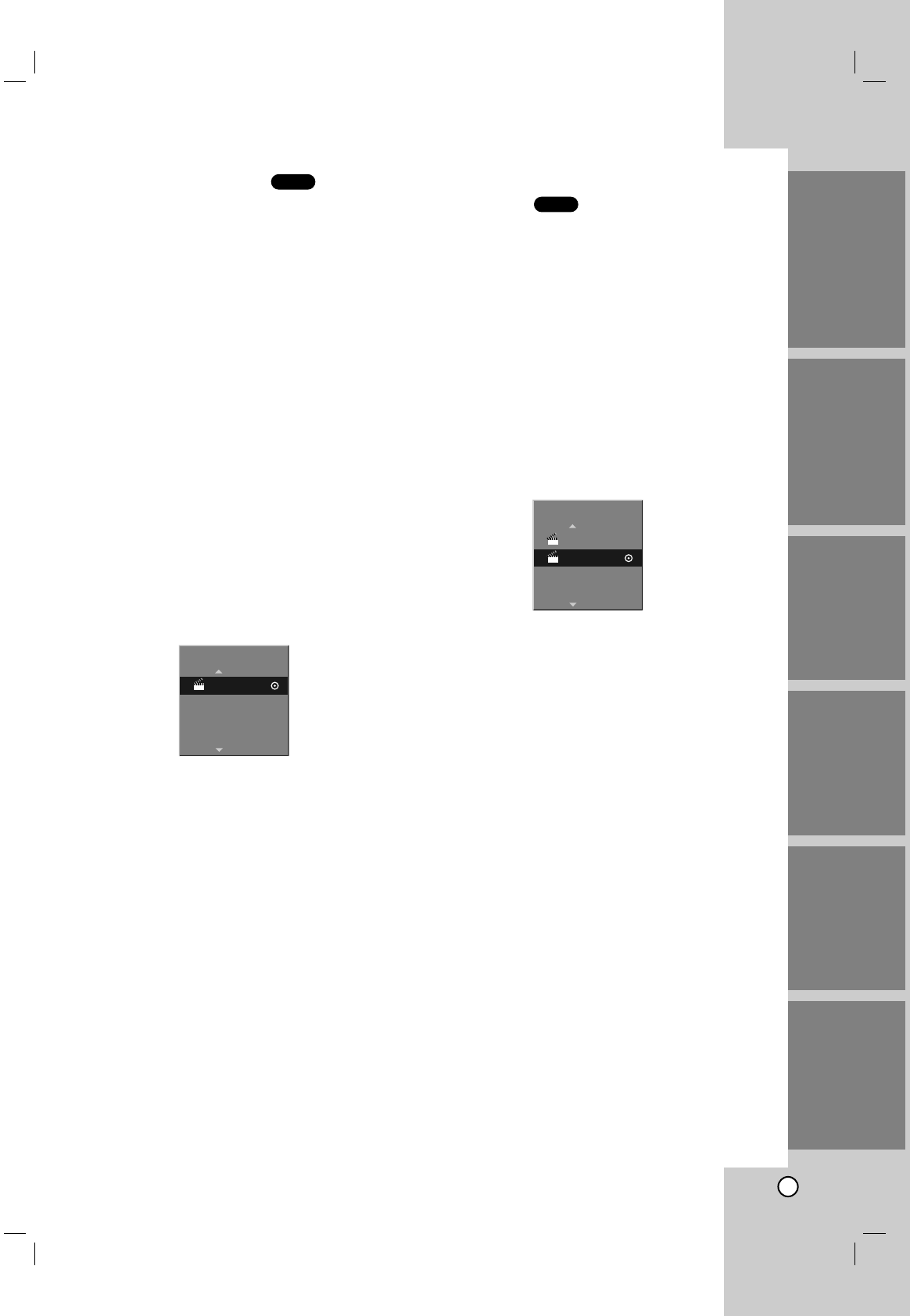

Dubbing from VCR to DVD
Dubbing from VCR to DVD
You can copy the contents of a VHS tape to a
DVD±R or DVD±RW using the DUBBING (DUB) but-
ton. This allows you to archive your old VHS tapes to
DVD.
1Insert a blank DVD±R or DVD±RW disc in the
DVD deck and close the disc tray. When using a
DVD±RW disc, you must initialize before copying;
see page 26.
2Insert the VHS video tape you wish to copy into
the VCR deck.
3Find the place on the VHS tape from which you
want to start dubbing using the PLAY, FF, REW
and PAUSE functions. For best results, pause
playback at the point from which you want to
record.
4Press the DUBBING button on the Remote
Control or DUB on the front panel.
The Dubbing menu appears.
6Use v / V / b / B to select the desired Record
Mode: EP, LP, SP or XP.
7Select “Dubbing” then press ENTER or DUBBING
to start copying.
8To stop dubbing at any other time,
press STOP (x).
Dubbing will stop automatically when the VHS
tape ends.
Note:
If the VHS video tape you are attempting to copy is
copy protected, you will not be able to copy the tape.
It is not permitted to copy Macrovision encoded
tapes.
Tip:
If you press PAUSE during Dubbing mode, both the
DVD and VCR decks go into Pause mode and the
“DUB” indicator blinks on the front panel display.
While in Pause mode, you can adjust the VCR play-
back position using PLAY, REW, FF, PAUSE/STEP,
etc. The DVD deck will remain in Pause mode. To
resume Dubbing, press the DUBBING button twice.
Recording from External
Components
You can record from an external component, such as
a camcorder or VCR, connected to any of the
VCR/DVD Recorder’s external inputs.
1Make sure that the component you want to record
from is connected properly to the VCR/DVD
Recorder. See page 19.
2Press INPUT repeatedly to select the external
input to record from.
•AV1: Audio/Video Input mounted on back
panel.
•AV2: Audio/Video Input mounted on front
panel.
•DV: DV Input mounted on front panel.
3Load a recordable disc or tape.
4Set a recording mode as necessary by pressing
REC MODE repeatedly.
DVD: XP, SP, LP or EP.
VCR: SP or SLP
5Press zREC once to start recording.
The REC indicator lights in the display window.
6Press STOP (x) to stop recording.
Notes
•Check that the Audio In settings DV Record Audio
are as you want them. See page 23.
•If your source is copy-protected using
CopyGuard, you will not be able to record it using
this recorder. See Copyright on page 10 for more
details.
•Recording continues until you press STOP (x) or
the disc is full.
•To record for a fixed length of time, see Instant
Timer Recording on page 44.
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
Dubbing
Free Space
Rec. Mode
Dubbing
01H54M
SP
Stop
45
What is DV?
Using DV, also known as i.LINK, you can connect a
DV-equipped camcorder to this recorder using a sin-
gle DV cable for input and output of audio, video,
data and control signals.
The i.LINK interface is also known as IEEE 1394-
1995. “i.LINK” and the “i.LINK” logo are trademarks.
•This recorder is only compatible with DV-format
(DVC-SD) camcorders. Digital satellite tuners and
Digital VHS video recorders are not compatible.
•You cannot connect more than one DV camcorder
at a time to this recorder.
•You cannot control this recorder from external
equipment connected via the DV IN jack (includ-
ing two DVD Recorders).
•It may not always be possible to control the con-
nected camcorder via the DV IN jack.
•Digital camcorders can usually record audio as
stereo 16-bit/48kHz, or twin stereo tracks of 12-
bit/32kHz. The VCR/DVD Recorder can only
record one stereo audio track. Set DV Record
Audio to Audio 1 or Audio 2 as necessary (see
page 26).
•Audio input to the DV IN jack should be 32 or
48kHz (not 44.1kHz).
•Picture disturbance on the recording may occur if
the source component pauses playback or plays
an unrecorded section of tape, or if the power
fails in the source component, or the DV cable
becomes disconnected.
•If DV Record Audio is set to Audio 2, but no Audio
2 signal is present, DV Record Audio will be reset
to Audio 1 automatically.
DV-Related Messages
You may see the following messages appear on your
TV screen when using the DV IN jack.
Not connected to Camcorder.
The camcorder is not connected properly, or the cam-
corder is switched off.
Too many devices connected.
The DV jack on this recorder supports connection to
just one camcorder.
Check the tape.
There is no cassette loaded into the connected
equipment.
Uncontrollable device.
The VCR/DVD Recorder cannot control the cam-
corder.
Updating the Information.
Camcorder is updating information for DV.
Camera mode.
Camcorder is set to camera mode.
Troubleshooting
If you cannot get a picture and/or audio through the
DV IN jack, check the following:
•Make sure the DV cable is properly connected.
•Try switching off the connected equipment, then
switch it back on.
•Try switching the audio input.
Notes:
•Depending on the connected camcorder, you may
not be able to control it using the Remote Control
supplied with this VCR/DVD Recorder.
•Before you set the mode of your Camcorder to
camera mode, turn down the volume of connect-
ed Sound device. There can be a howling sound.
46
T
Title List and Chapter List
itle List and Chapter List
Menu
Menu
Using the Title List-Original menu
The Title List-Original is where you build and edit
your Playlist, and where you can delete titles and
make other changes to the Original content of the
disc. You can also play individual titles directly from
the Title List-Original menu.
1Press LIST/DISC MENU repeatedly to display the
Title List-Original menu.
•Use the v/V buttons to display the
previous/next page if there are more than 6
titles or chapters.
•To exit the menu, press RETURN (O).
2To view Title List-Original options, select the title
you want then press ENTER. Title List-Original
options appears on the left side of the menu.
3Use v / V to select an option then press ENTER
to confirm.
Play: Start playback of the selected title.
Chapter: Shows the Chapter List-
Original menu of the title (Refer to right
on this page).
Delete: Deletes the title from the Title
List-Original menu. (see page 56)
Protect: Protects accidental recording,
editing or deleting of the title. (page 58)
Edit: Selects Edit options.
•Title Name: Edits the title name.
(page 57)
•Delete Part: Deletes a part of the
Title. (see page 56)
Playlist Add: Adds the title to the
Playlist. (see page 55)
Dubbing: Copys the title to a VHS tape.
4Press RETURN (O) repeatedly to exit the Title
List-Original menu.
Note:
To switch between the Title List-Original and Title
List-Playlist menu, press LIST/DISC MENU repeated-
ly. The Original and Playlist heading at the top of the
screen indicate which mode you are in.
Tip:
Press DISPLAY to display more detailed title informa-
tion for selected title.
Using the Chapter List-Original menu
1Press LIST/DISC MENU repeatedly to display
Title List-Original menu.
2Use v V b B to choose the title you want to view
Chapter List-Original menu then press ENTER.
Title List-Original options appears on the left side
of the menu.
3Use v / V to select “Chapter” from Title List-
Original options then press ENTER.
Chapter List-Original menu appears on the TV
screen.
4To view Chapter List-Original options, select the
chapter you want then press ENTER.
Chapter List-Original options appears on the left
side of the Chapter List-Original display.
5Use v / V to select an option then press ENTER
to confirm.
Play: Starts playback of the selected
chapter.
Title: Shows the Title List-Original menu
(refer to left on this page)
Delete: Deletes the chapter from the
Chapter List-Original menu. (page 56)
Combine: Merges two chapters into
one. (page 57)
Playlist Add: Adds the chapter to the
Playlist. (page 55)
6Press RETURN (O) repeatedly to exit Chapter
List-Original menu.
VR
VR
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
Editing
DVD-VR
57min
Playlist
LIST
Free
SP
Close
Info.
DISPLAY
Select
TITLE 1
10/12 0:25:20
TITLE 2
10/14 0:5:12
TITLE 3
10/16 0:2:34
1/4
TITLE 4
10/17 0:6:06
Title List
Original
Play
Chapter
Delete
Protect
Edit
Playlist Add
Dubbing
Title Name
Delete Part
Chapter List
TITLE 1
12/07/2004 Tue 0:25:20 TV 11
1/3
Playlist
LIST
Close
Select
Original
Play
Title
Delete
Combine
Playlist Add
47
Using the Title List-Playlist Menu
1Press LIST/DISC MENU repeatedly to display the
Title List-Playlist menu.
•Use the v/V buttons to display the
previous/next page if there are more than 6
titles or chapters.
•To exit the Title List-Playlist, press RETURN
(O).
2To view Title List-Playlist options, select the title
you want then press ENTER.
Title List-Playlist options appears on the left side
of the menu.
3Use v / V to select an option then press ENTER
to confirm.
Play: Start playback the selected title.
Chapter: Shows the Chapter List-
Playlist menu of the title (Refer to right
on this page).
Title Name: Edits the title name. (page
57)
Delete: Deletes the title from the Title
List-Playlist menu. (page 56)
Delete Part: Deletes a part of the Title.
(page 56)
Dubbing: Copys the title to a VHS tape.
4Press RETURN (O) repeatedly to exit Title List-
Playlist menu.
Using the Chapter List-Playlist Menu
1Press DISC MENU/LIST repeatedly to display the
Title List-Playlist menu.
2Use v V b B to choose the title you want to view
Title List-Playlist menu then press ENTER.
Title List-Playlist options appears on the left side
of the menu.
3Use v / V to select “Chapter” from Title List-
Playlist options then press ENTER.
Chapter List-Playlist menu appears on the TV
screen.
4To view Chapter List-Playlist options, select the
chapter you want then press ENTER.
Chapter List-Playlist options appears on the left
side of the menu.
5Use v / V to select an option then press ENTER
to confirm.
Play: Starts playback of the selected
chapter.
Title: Shows the Title List-Playlist menu
(Refer to left on this page).
Delete: Deletes the chapter from the
Chapter List-Playlist menu (page 56).
Move: Moves a chapter of Chapter List-
Playlist to a position on the Chapter List-
Playlist menu (page 58)
Combine: Merges two chapters into
one (page 57).
6Press RETURN (O) repeatedly to exit Chapter
List-Playlist menu.
Using the Title List menu
From the Title List display you can play, name and
erase titles.
Once a Video mode disc is finalized, the Title List
screen changes its appearance and all you can do is
select titles to play.
1Press LIST/DISC MENU to display the Title List.
Video
VR
VR
TITLE 1
10/12 0:25:20
TITLE 2
10/14 0:5:12
1/2
Original
LIST
Close
Select
Title List
Playlist
Play
Chapter
Title Name
Delete
Delete Part
Dubbing
Original
LIST
Close
Select
1/3
Chapter List
TITLE 1
12/07/2004 Tue 0:25:20
Playlist
Play
Title
Delete
Move
Combine
Title List
DVD VIDEO
TITLE 1 1/ 3 0:02:01
TITLE 2 1/ 3 0:06:21
TITLE 3 4/ 12 0:52:31
1/3
1hour 57min
Free
SP
Title DurationDate
Close
Info.
DISPLAY
Select
48
2Use v / V to choose a title then press ENTER.
Title List options appears on the left side of the
Title List display.
3Use v / V to select an option then press ENTER
to confirm.
Play: Start playback the selected title.
Title Name: Edits the title name (page
57).
Delete: Deletes the title from the Title
List.
Dubbing: Copys the title to a VHS tape.
4Press RETURN (O) repeatedly to exit Title List.
Tip:
Press DISPLAY to display more detailed title information for
selected title.
Deleting a Title
Before a disc is finalized, you can erase titles record-
ed on the disc.
Caution
•If you erase a title from a DVD-R disc,the title will disap-
pear from the Title List, but the available recording time
will not increase.
•When erasing a title from a DVD-RW disc, the remain-
ing time available for recording will only increase if it is
the last title on the disc.
1Press LIST/DISC MENU to display Title List
2Use v V b B to choose a title you want to erase
then press ENTER.
Title List options appears on the left side of the
Title List screen.
3Use v / V to select ‘Delete’ then press ENTER to
confirm.
The confirm message for deleting will appear.
4Use b / B to select ‘Yes’ then press ENTER.
The selected title is deleted.
After pressing ENTER, the new, updated menu is
displayed.
5Repeat steps 2 - 4 to continue to delete from the
menu.
6Press RETURN (O) to exit the menu.
If the disc has already been finalized
You will see a screen as shown below:
Video
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
Play
Title Name
Delete
Dubbing
Play
Title Name
Delete
Dubbing
DVD VIDEO 1/1
PAGE
UP
PAGE
DOWN
EXIT
1 TITLE 1 1/03 0:02:01
2 TITLE 2 1/03 0:24:12
3 TITLE 3 1/03 0:36:30
Disc name
Title list
Exits the Title List
screen.
Moves to the next or
previous page
Indicates total and current page number
49
Using the Title List menu
The Title List is where you can see the all recorded
titles, and where you can delete titles and make other
changes to the Original content of the disc. You can
also play titles directly from the Title List menu.
The recorder must be stopped in order to edit using
the Title List menu.
1Press LIST/DISC MENU to display the Title List
menu.
•Use the v / V buttons to display the previous/
next page if there are more than 6 titles.
•To exit the Title List menu, press RETURN
(O).
2To view Title List options, select the title you want
then press ENTER.
Title List options appears on the left side of the
menu.
3Use v / V to select an option then press ENTER
to confirm.
Play: Starts playback the selected title
except the hidden chapters or titles.
Full Play: Starts playback the selected
title including the hidden chapters.
Chapter: Moves Chapter List menu of
the title. (refer to right on this page)
Delete: Deletes the title. (page 56)
Protect: Protects accidental recording,
editing or deleting of the title. (page 58)
Edit: Selects Edit options.
•Title Name: Edits the title name.
(page 57)
•Divide: Divides one title into two
titles. (page 59)
•Hide (Show): Hides (or Shows) the
title or all chapters within the title.
(page 59)
Dubbing: Copys the title to a VHS tape.
4Press RETURN (O) repeatedly to exit Title List
menu.
Tip
Press DISPLAY to display more detailed title information for
selected title.
Caution
If you press z REC when the Title List menu appears, the
selected title is erased then overwrite recording starts. (See
page 60 for more details.)
Using the Chapter List menu
1Press LIST/DISC MENU to display Title List
menu.
2Use v V b B to choose the title you want to view
Chapter List menu then press ENTER.
Title List options appears on the left side of the
menu.
3Use v / V to select “Chapter” from Title List
options then press ENTER.
Chapter List menu appears on the TV screen.
4To view Chapter List options, select the chapter
you want then press ENTER.
Chapter List options appears on the left side of the
menu.
5Use v / V to select an option then press ENTER
to confirm.
Play: Starts playback of the selected
chapter.
Title: Moves to Title List menu of the
chapter. (refer to left on this page)
Combine: Combines two chapters into
one. (page 57)
Hide (Show): Hides (or Shows) the
selected chapter.
6Press RETURN (O) repeatedly to exit Chapter
List menu.
+RW
+RW
DVD+RW
57min
REC
Free
SP
Close
Info.
DISPLAY
Select
TITLE 1
10/12 0:25:20
TITLE 2
10/14 0:5:12
TITLE 3
10/16 0:2:34
1/4
TITLE 4
10/17 0:6:06
Title List
Play
Full Play
Chapter
Delete
Protect
Edit
Dubbing
Title Name
Divide
Hide (Show)
Chapter List
TITLE 1
12/07/2004 Tue 0:25:20
1/3
SP
Close
Select
Play
Title
Combine
Hide (Show)
50
Using the Title List menu
The Title List is where you build and edit your
Playlist, and where you can delete titles and make
other changes to the Original content of the disc. You
can also play individual titles directly from the Title
List menu.
The recorder must be stopped in order to edit using
the Title List menu.
1Press LIST/DISC MENU repeatedly to display the
Title List-Original menu.
•Use the v/V buttons to display the
previous/next page if there are more than 6
titles or chapters.
•To exit the menu, press RETURN (O).
2To view Title List options, select the title you want
then press ENTER.
Title List options appears on the left side of the
Title List display.
3Use v / V to select an option then press ENTER
to confirm.
Play: Start playback of the selected title.
Full Play: Starts playback the selected
title including the hidden chapters.
Chapter: Shows the Chapter List menu
of the title (Refer to right on this page).
Delete: Deletes the title from the Title
List menu. (page 56)
Protect: Protects accidental recording,
editing or deleting of the title. (page 58)
Edit: Selects Edit options.
•Title Name: Edits the title name.
(page 57)
•Divide: Unavailabel (DVD+RW
only).
•Hide (Show): Hides (or Shows) the
all chapters within the title. (page
59)
Dubbing: Copys the title to a VHS tape.
4Press RETURN (O) repeatedly to exit the Title
List menu.
Tip
Press DISPLAY to display more detailed title information for
selected title.
Using the Chapter List menu
1Press LIST/DISC MENU repeatedly to display
Title List menu.
2Use v V b B to choose the title you want to view
Chapter List menu then press ENTER.
Title List options appears on the left side of the
Title List display.
3Use v / V to select “Chapter” from Title List
options then press ENTER.
Chapter List menu appears on the TV screen.
4To view Chapter List options, select the chapter
you want then press ENTER.
Chapter List options appears on the left side of
the Chapter List display.
5Use v / V to select an option then press ENTER
to confirm.
Play: Starts playback of the select-
ed chapter.
Title: Shows the Title List menu of
the chapter (refer to left on this
page)
Combine: Combines two chapters
into one. (page 57)
Hide (Show): Hides (or Shows) the
selected chapter. (page 59)
6Press RETURN (O) repeatedly to exit Chapter
List menu.
+R
+R
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
DVD+R
2hour 57min
Free
EP
Close
Info.
DISPLAY
Select
TITLE 1
10/12 0:25:20
TITLE 2
10/14 0:5:12
TITLE 3
10/16 0:2:34
1/4
Empty Title
--/-- 0:6:06
Title List
Chapter List
TITLE 1
12/07/2004 Tue 0:25:20
1/3
SP
Close
Select
Play
Full Play
Chapter
Delete
Protect
Edit
Dubbing
Title Name
Divide
Hide (Show)
Play
Title
Combine
Hide (Show)
51

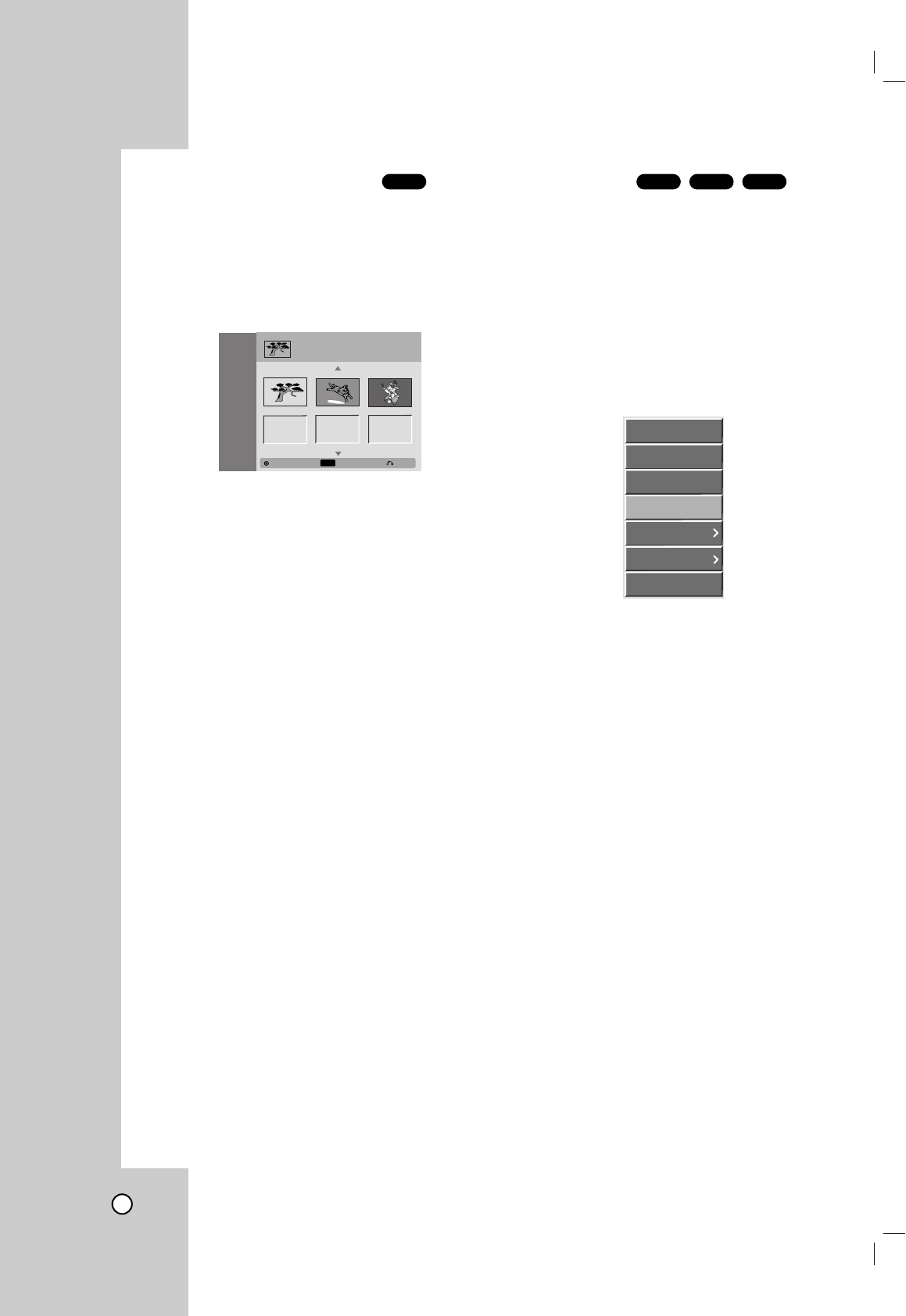

T
Title and Chapter Editing
itle and Chapter Editing
Edits you make to the Original content changes the
actual content of the disc. For example, if you delete
a title or chapter from the Original content (Title or
Chapter), that title or chapter is deleted from the disc,
freeing up extra recording time.
When you edit the Playlist, on the other hand, you
are not changing the content of the disc. For exam-
ple, when you delete a title from the Playlist, you are
just telling the recorder not to play that title; nothing is
actually deleted from the disc.
Titles, Chapters and Parts
Titles in the disc’s original content contain one or
more chapters. When you insert a title into the
Playlist, all the chapters within that title also appear.
In other words, chapters in the Playlist behave exact-
ly as chapters on a DVD-Video disc do. Parts are
sections of Original or Playlist titles. From the Original
and Playlist menu you can add or delete parts.
Adding a chapter or title to the Playlist creates a new
title made up of a section (ie., chapter) of an Original
title. Deleting a part removes part of a title from the
Original or Playlist menu.
Caution
•When editing using the Delete, Add and Move functions,
the start and end frames may not be exactly as set in
the start and end point display.
•During Playlist playback, you may notice a momentary
pause between edits. This is not a malfunction.
Adding Chapter Markers
You can put a chapter marker anywhere in a title dur-
ing recording or playback.
Once the chapter is marked, you can use the
Chapter Search feature, as well as Erase, combine
and move chapters in the Chapter List menu.
1Play the title (Original or Playlist).
2At the point you want to start a new chapter,
press CHP ADD.
Achapter marker icon appears on the TV screen.
Notes:
•Chapter markers are inserted at regular intervals auto-
matically. You can change this interval from the Initial
Setup menu (see Auto Chapter on page 26).
•You can also put chapter markers during recording.
Changing Title Thumbnails
Each title displayed in the Title List menu is repre-
sented by a thumbnail picture taken from the start of
that title or chapter.
If you prefer, select a different still picture from within
a title.
1Play the title (Original or Playlist).
2Press THUMBNAIL to make the currently dis-
played picture the one that appears in the Original
or Playlist menu.
The still picture that you choose appears in both
the Original or Playlist menu.
Tip:
You can also change the thumbnail picture of the title on the
Chapter List-Original or Chapter List-Playlist menu. Select a
chapter on the Chapter List-Original or Chapter List-Playlist
menu then press THUMBNAIL. The thumbnail picture of the
title that includes the chapter is changed.
Thumb.
+RW+RVR
Chapter
+RW+RVR
VR
52
Making a New Playlist
Use this function to add an Original title or chapter to
the Playlist. When you do this, the whole title or
chapter is put into the Playlist (you can delete bits
you don’t need later — see Deleting a Title/Chapter
on page 56).
The title appears in the Playlist complete with the
chapter markers that appear in the Original. However,
if you add more chapter markers to the Original later,
these are not automatically copied over into the
Playlist title.
If you only want to add a chapter of a title, use the
Adding Additional Title/Chapter to the Playlist on this
page.
1Press LIST/DISC MENU repeatedly to display
Title List-Original menu.
If you want to display the Chapter List-Original
menu, refer to “Using the Chapter List-Original
menu” on page 49.
2Choose a title or chapter on the Original menu to
put into the Playlist, then press ENTER.
The Title List-Original or Chapter List-Original
options appear on the left side of the screen.
3Use v / V to select “Playlist Add” from the Original
(Title or Chapter) options then press ENTER.
4Select ‘New Playlist’ then press ENTER.
The new title appears in the updated Playlist. All
chapters of the title are added to the Playlist.
Adding Additional Titles/Chapters to
the Playlist
You can add an Original title or chapter to add to a
Playlist title even if it is already registered.
1Press LIST/DISC MENU repeatedly to display
Title List-Original menu.
If you want to show the Chapter List-Original
menu, refer to “Using the Chapter List-Original ”
on page 49.
2Choose an Original title or chapter to put into the
Playlist, then press ENTER.
The Title List-Original or Chapter List-Original
options appear on the left side of the screen.
3Use v / V to select ‘Playlist Add’ from the Title
List-Original or Chapter List-Original options then
press ENTER.
4Choose a title that is already registered to insert a
title, then press ENTER.
The title appears in the updated Playlist menu.
5Repeat steps 1-4 to continue adding to the
Playlist.
6Press RETURN (O) repeatedly to exit the menu.
VR
VR
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
New Playlist
Select Playlist.
New Playlist
Select Playlist.
TITLE 1
53
Deleting a Title/Chapter
When you erase a title or chapter from the Playlist
menu on DVD+R, DVD+RW or DVD-RW discs for-
matted in VR mode, you only remove it from the
Playlist; the title/chapter remains in the Original
menu.
If you choose to delete a title or chapter from Title
List or Chapter List menu, the title or chapter is actu-
ally deleted from the disc and the remaining time
available for recording increases. Titles/chapters
deleted from the Original are also removed from the
Playlist.
ote
It may not be possible to delete chapters that are less
than 5 seconds long.
1On the Title List or Chapter List menu, use v V b
B to choose a chapter or title you want to delete
then press ENTER.
Options appears on the left side of the screen.
2Select ‘Delete’ option on the options on the menu.
e.g., If you select “Delete” on Title List-Original
menu.
3Press ENTER to confirm.
The confirm message for deleting will appear.
4Use b / B to select “Yes” then press ENTER.
The selected chapter or title is deleted.
After pressing ENTER, the new, updated menu is dis-
played.
5Repeat steps 1- 4 to continue to delete from the
menu.
6Press RETURN (O) repeatedly to exit the menu.
ote
When DVD+RW recording, the deleted title’s name is
changed to ‘Deleted Title’.
If more than two titles are repeatedly deleted, the
titles are combined into one.
Deleting a Part
You can delete a part which you do not want in the
title.
1Press LIST/DISC MENU repeatedly to display
Title List-Original or Title List-Playlist menu.
2Use v V b B to choose a title you want to delete
then press ENTER.
The options appears on the left side of the menu.
3Select ‘Delete Part’ from the options on the menu.
e.g., If you select “Delete Part” on Title List-
Original menu.
4Press ENTER.
The Title Edit (Delete Part) menu appears on the
TV screen and the VCR/DVD Recorder goes into
Pause mode.
The Start Point option is highlighted.
5Use PLAY, PAUSE/STEP, FF, REW, and Slow
Motion playback to find the starting point.
The segment is indicated in yellow on the
Progress Bar.
6Press ENTER at the starting point of the segment
you want to erase.
The End Point option is highlighted.
7Use PLAY, PAUSE/STEP, FF, REW, and Slow
Motion playback to find the ending point.
8Press ENTER at the ending point of the section
you want to erase.
The Done option is highlighted.
To cancel the Edit mode, select “Cancel” using v /
V then press ENTER.
9Press ENTER to delete the selected part.
When the confirm message appears, select “Yes”
using b / B then press ENTER.
To erase additional segments, repeat steps 5-9.
10 When finished editing, press RETURN (O).
The Title List-Original or Title List-Playlist menu
appears.
Note:
If you select “Cancel” then press ENTER, the VCR/DVD
Recorder will go to previous option and into Pause mode.
VR
+R+RWVR
Play
Chapter
Delete
Protect
Edi
Protect
Edit
Playlist Add
Dubbing
Title Name
Delete Part
Title Edit
Move Point
Select
Start Point
Play & Select the Start Point
-Delete Part
End Point
Cancel
Done
00:00:00
Start
End
TITLE 2
10/14 0:34:12
Close
54
Naming a Title
You can name Original and Playlist titles independ-
ently.
1On the Title List menu, use v V b B to choose the
title you want to name then press ENTER.
Options appears on the left side of the menu.
2Use v/V to select “Title Name” option then press
ENTER. The Keyboard menu appears.
e.g., If you select “Title Name” on Title List-
Original menu.
3Enter a name for the title. Use v V b B to select a
character then press ENTER to confirm your
selection. Refer step 5 as shown on page 28
(Disc Label).
4Choose OK then press ENTER to save the name
and return to the previous menu screen.
5Press RETURN (O) repeatedly to exit the menu.
Notes:
•Names can be up to 32 characters long.
•For discs formatted on a different DVD Recorder, you
will see only a limited character set.
•When recording in DVD-R, DVD+R or DVD+RW, the
entered name is displayed on the DVD player only after
finalizing.
Combining Two Chapters Into One
Use this function to combine two adjacent Playlist or
Original chapters into one.
1On the Chapter List menu, select the second
chapter of the two chapters you want to combine
then press ENTER.
Chapter List options appears on the left side of
the menu.
e.g., If you select “Combine” on Chapter List-
Original menu.
3Use v / V to select “Combine” option then press
ENTER.
After pressing ENTER, the new, updated menu is
displayed.
4Repeat steps 1 - 3 to continue to combine from
the menu.
5Press RETURN (O) repeatedly to exit the menu.
Notes:
This function cannot operate listed as below;
•If there is only one chapter within the title.
•If two chapters created by erasing a part from an origi-
nal title.
•If two chapters created from different titles.
•If two chapters created by moving an order from an orig-
inal title.
+R+RWVR+R+RW
Video
VR
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
0123456789
ABCDEFGH I J
KLMNOPQRST
UVWX Y Z
TITLE 2
English/Latin CapitalLanguage
OK Cancel
Space Delete
Delete
Protect
Edit
Playlist Add
Dubbing
Title Name
Delete Part
Play
Title
Delete
Combine
Playlist Add
55
Moving a Playlist Chapter
Use this function to re-arrange the playing order of
Playlist chapters on the Title List-Playlist menu.
1Press LIST/DISC MENU repeatedly to display
Title List-Playlist menu.
To display the Chapter List-Playlist menu, refer to
“Using the Chapter List-Playlist” on page 50.
2Select a chapter from the Chapter List-Playlist
menu.
3Press ENTER.
Chapter List-Playlist options appears on the left
side of the screen.
4Use v / V to select “Move” from Playlist options
then press ENTER.
5Use v V b B to choose the place you want to
move the chapter to then press ENTER.
After pressing ENTER, the new, updated menu is
displayed.
6Repeat steps 2 - 5 to continue to move from the
menu.
7Press RETURN (O) repeatedly to exit the menu.
Note:
This function is not available if there is only one chapter.
Protect a Title
Use this function to protect accidental recording, edit-
ing or deleting of the title.
1Press LIST/DISC MENU to display Title List
menu.
2Use v V b B to choose a title you want to protect
then press ENTER.
Options appears on the left side of the screen.
3Select “Protect” option on the options.
e.g., If you select “Protect” on Title List-Original
menu.
4Press ENTER to confirm.
The lock mark will appears on the title’s thumb-
nail.
Tip:
If you select a title that has already been protected on the
Title List menu, you can ‘unprotect’ it by choosing
“Unprotect” from the Title List menu options. After doing this,
you can edit and/or delete the title.
+R+RWVRVR
Play
Chapter
Delete
Protect
Edit
Playlist Add
Dubbing
Original
LIST
Close
Select
1/3
Chapter List
TITLE 1
12/07/2004 Tue 0:25:20
Playlist
56
Hide a Title/Chapter
Use this function to hide a title/chapter on the Title
List or Chapter List menu.
1On the Title List or Chapter List menu,
use v V b B to choose a title or chapter you want to
hide then press ENTER.
Options appears on the left side of the screen.
2Select ‘Hide’ option on the options.
e.g., If you select “Hide” on Title List menu.
3Press ENTER to confirm.
The title’s thumbnail will be dim.
Tip:
If you select a title that has already been dim on the
Title List menu, you can ‘show’ it by choosing “Show”
from the Title List menu options. After doing this, you
can see the title.
Divide One Title Into Two
Use this command to split a title up into two new
titles.
1On the Title List menu, select a title you want to
divide then press ENTER.
The menu options appears on the left side of the
screen.
2Select “Divide” from the Title List menu options
and press ENTER.
Title Edit-Divide menu appears and goes into
STOP mode. “Divide” option is highlighted.
3Use PLAY, PAUSE/STEP, FF, REW, and Slow
Motion playback to find the dividing point.
The segment is indicated in yellow on the
Progress Bar.
4Press ENTER at the point of the section you want
to divide the title.
The Done option is selected.
To cancel the dividing point, select “Cancel” using
v / V then press ENTER.
5Press ENTER to fix the dividing point.
The title is divided into two new titles. It take up to
4 minutes to divide.
+RW
+R+RW
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
Play
Full Play
Chapter
Delete
Protect
Edit
Dubbing
Title Name
Divide
Hide
Play
Full Play
Chapter
Delete
Protect
Edit
Dubbing
Title Name
Divide
Hide
Title Edit
Move Point
Select
Divide
-Divide
Cancel
Done
00:00:00
#1 Thumbnail
TITLE 2
12/07 12:00:00
Close
The first title’s
thumbnail
Current picture
The second
title’s thumbnail
57
Overwrite Recording
To overwrite a new video recording to a previously
recorded title, follow these steps. This feature is not
available on DVD+R, which always record at the end
of the Disc.
1Select input source you want to record (channel,
AV1-2, DV).
2Press LIST/DISC MENU to display the Title List
menu.
3Use v V b B to choose a title you want to over-
write.
4Press z REC to start overwrite recording.
Overwrite recording is started from the start point of
the title.
5Press STOP (x) to stop the overwrite recording.
The new title is created and updated menu is dis-
played.
Notes:
•This function is not available with a protected title.
•If the overwriting is elapsed more than the record-
ing length of the current title, the next title is over-
writen. But if next title is protected, the overwriting
is stopped at the starting point of the title.
•If the selected title’s recording length is less than
10 seconds, the next title is overwriten. But if next
title is protected, the overwriting is impossible.
Viewing Title List menu displayed on
other DVD recorders or players
You can view the Title List menu displayed on the
another DVD player that is capable of playing
DVD+RW or DVD+R discs.
1Insert DVD+R or DVD+RW disc recorded already.
2Press TITLE.
Title List menu will appear as below.
3To play back a title, select the title you want then
press ENTER or N (PLAY).
Tip:
You can remove the Title List menu by pressing STOP (x).
Playing Your Recordings on Other
DVD Players (Finalizing a Disc)
Most regular DVD players can play finalized discs
recorded in Video mode, finalized DVD+R or
DVD+RW. A small number of players can also play
DVD-RW discs recorded in VR mode, finalized or not.
Check the manual that came with the other player to
check what kinds of discs it will play.
Finalizing ‘fixes’ the recordings and editings in place
so that the disc can be played on a regular DVD play-
er or computer equipped with a suitable DVD-ROM
drive.
Finalizing a Video mode disc creates a menu screen
for navigating the disc. This is accessed by pressing
LIST/DISC MENU or TITLE.
To finalize a disc, refer to “Disc Finalize” on page 27.
Notes:
•Unfinalized DVD+RW is playable on regular DVD play-
ers.
•The edited contents of DVD+RW disc is compatible on
regular DVD players only after finalizing.
•Any edited contents of the DVD+R disc are not be com-
patible on regular DVD players. (Hide, chapter combine,
added chapter mark, etc.)
TITLE 1
10/12 0:25:20
TITLE 2
10/14 0:5:12
TITLE 3
10/16 0:2:34
DVD+RW
TITLE 4
10/17 0:6:06
TITLE 5
10/17 0:6:06
TITLE 6
10/17 0:6:06
Title List
1/2
58
Controlling
Controlling Y
Your TV with the
our TV with the
Supplied Remote
Supplied Remote
You can control the sound level, input source, and
power switch of your LG TV with the supplied remote.
You can control your TV using the buttons below.
By pressing You can
POWER Turn the TV on or off.
INPUT Switch the TV’s input source
between the TV and other input
sources.
CH +/– Scans up or down through
memorized channels.
VOL +/– Adjust the volume of the TV.
MUTE Turns on or off TV sound.
Note:
Depending on the unit being connected, you may not be
able to control your TV using some of the buttons.
Controlling other TVs with the
remote
You can control the sound level, input source, and
power switch of non-LG TVs as well. If your TV is list-
ed in the table below, set the appropriate manufactur-
er code.
1. While holding down TV POWER button, press the
number buttons to select the manufacturer code
for your TV (Refer to table on the right column).
2. Release TV POWER button.
Code numbers of controllable TVs
If more than one code number is listed, try entering
them one at a time until you find the one that works
with your TV.
Notes:
•Depending on your TV, some or all buttons may not
function on the TV, even after entering the correct
manufacturer code.
•If you enter a new code number, the code number previ-
ously entered will be erased.
•When you replace the batteries of the remote, the code
number you have set may be reset to the default set-
ting. Set the appropriate code number again.
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
Manufacturer Code Number
ADMIRAL 16,33,37,44,45
AIWA 70
AKAI 01
AMARK 09
AOC 01
BELL & HOWELL 33
BROKSONIC 18,19
CANDLE 51
CCE 07
CENTURION 08
CINERAL 43
CITIZEN 49,50,51,52,53,54,55
CORONADO 09
CROWN 09
CURTIS MATHES 01,03,08,33,35,37,44
DAEWOO 16,38,39,40,41,42,43
DAYTRON 01,08
EMERSON 01,09,16,17,18,19
FISHER 28,29
FUNAI 46,47
GENERAL ELECTRIC 03,10,11,13,37,44
GRADIENTE 01,56,57,63,67
HITACHI 09,14,15,43
JC PENNEY 01,08,10,27,35
JVC 20,21,63,67
KIOTE 43
KMC 09
KTV 01,08,09,31
LG (GOLDSTAR) 01,07,08,09,35,39,40
LODGENET 33
LOGIK 33
LXI 09,24,25,26,27,28,29
MAGNAVOX 01,02,04,05,06,
07,08,09,20,
34,35,43,51,61,62,65
MAJESTIC 33
MARANTZ 01,32
MEMOREX 33
MGA/MITSUBISHI 01,08,32,34
Manufacturer Code Number
MONTGOMERY
01,06,08,09
WARD
23,24,32,33,34
NEC 01,08
NOBLEX 07
PACKARD BELL 43
PANASONIC 07,11,13,25,35,36
PHILCO 01,06,07,08,09,
15,38,43,58
PHILIPS 06,07,43,61,62,65
PIONEER 30
PORTLAND 09
PROSCAN 03,37,44
QUASAR 11,13
RADIO SHACK 16,17,23
RCA 01,03,37,44,69
REALISTIC 16,17,23
SAMPO 08
SAMSUNG 01,08,09,25,68
SANYO 28,29
SCOTT 01,08
SEARS 09,25,26,27,28,29
SEMP 64
SHARP 09,22,23,24,60,66
SIGNATURE 2000 01,06,08,09,10,
23,24,33,34
SONY 12,62
SOUNDESIGN 51
SYLVANIA 01,04,05,06,07,
08,35,51
SYMPHONIC 46,47
TATUNG 11
TEKNIKA 07,09,16,33,51
TELERENT 09,33
THOMSON 69
YORX 08
TOSHIBA 01,25,26,27,64
WARDS 01,06,08,09,10,33,34
XR1000 48
ZENITH 01, 02,33,59
59
Reference
Area Code
Afghanistan AF
Argentina AR
Australia AU
Austria AT
Belgium BE
Bhutan BT
Bolivia BO
Brazil BR
Cambodia KH
Canada CA
Chile CL
China CN
Colombia CO
Congo CG
Costa Rica CR
Croatia HR
Czech Republic CZ
Denmark DK
Ecuador EC
Egypt EG
El Salvador SV
Area Code
Ethiopia ET
Fiji FJ
Finland FI
France FR
Germany DE
Great Britain GB
Greece GR
Greenland GL
Islands HM
Hong Kong HK
Hungary HU
India IN
Indonesia ID
Israel IL
Italy IT
Jamaica JM
Japan JP
Kenya KE
Kuwait KW
Libya LY
Luxembourg LU
Area Code
Malaysia MY
Maldives MV
Mexico MX
Monaco MC
Mongolia MN
Morocco MA
Nepal NP
Netherlands NL
Netherlands Antilles AN
New Zealand NZ
Nigeria NG
Norway NO
Oman OM
Pakistan PK
Panama PA
Paraguay PY
Philippines PH
Poland PL
Portugal PT
Romania RO
Russian Federation RU
Area Code
Saudi Arabia SA
Senegal SN
Singapore SG
Slovak Republic SK
Slovenia SI
South Africa ZA
South Korea KR
Spain ES
Sri Lanka LK
Sweden SE
Switzerland CH
Taiwan TW
Thailand TH
Turkey TR
Uganda UG
Ukraine UA
United States US
Uruguay UY
Uzbekistan UZ
Vietnam VN
Zimbabwe ZW
Area Codes
Choose a country code from this list.
Language Code
Abkhazian 6566
Afar 6565
Afrikaans 6570
Albanian 8381
Ameharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Aymara 6588
Azerbaijani 6590
Bashkir 6665
Basque 6985
Bengali; Bangla 6678
Bhutani 6890
Bihari 6672
Breton 6682
Bulgarian 6671
Burmese 7789
Byelorussian 6669
Cambodian 7577
Catalan 6765
Chinese 9072
Corsican 6779
Croatian 7282
Czech 6783
Danish 6865
Dutch 7876
English 6978
Esperanto 6979
Estonian 6984
Faroese 7079
Language Code
Fiji 7074
Finnish 7073
French 7082
Frisian 7089
Galician 7176
Georgian 7565
German 6869
Greek 6976
Greenlandic 7576
Guarani 7178
Gujarati 7185
Hausa 7265
Hebrew 7387
Hindi 7273
Hungarian 7285
Icelandic 7383
Indonesian 7378
Interlingua 7365
Irish 7165
Italian 7384
Japanese 7465
Javanese 7487
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kirghiz 7589
Korean 7579
Kurdish 7585
Laothian 7679
Latin 7665
Latvian, Lettish 7686
Language Code
Lingala 7678
Lithuanian 7684
Macedonian 7775
Malagasy 7771
Malay 7783
Malayalam 7776
Maltese 7784
Maori 7773
Marathi 7782
Moldavian 7779
Mongolian 7778
Nauru 7865
Nepali 7869
Norwegian 7879
Oriya 7982
Panjabi 8065
Pashto, Pushto 8083
Persian 7065
Polish 8076
Portuguese 8084
Quechua 8185
Rhaeto-Romance 8277
Rumanian 8279
Russian 8285
Samoan 8377
Sanskrit 8365
Scots Gaelic 7168
Serbian 8382
Serbo-Croatian 8372
Shona 8378
Sindhi 8368
Language Code
Singhalese 8373
Slovak 8375
Slovenian 8376
Somali 8379
Spanish 6983
Sudanese 8385
Swahili 8387
Swedish 8386
Tagalog 8476
Tajik 8471
Tamil 8465
Tatar 8484
Telugu 8469
Thai 8472
Tibetan 6679
Tigrinya 8473
Tonga 8479
Turkish 8482
Turkmen 8475
Twi 8487
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapük 8679
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 7473
Yoruba 8979
Zulu 9085
Language Codes
Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu.
60
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
T
Troubleshooting
roubleshooting
Symptom
No power.
The power is on, but
the DVD+VCR does not
work.
No picture.
No sound.
The playback picture is
poor.
Cause
The power cord is disconnected.
DVD or VCR button is not switched
properly.
No disc is inserted.
No tape is inserted.
The TV is not set to receive DVD+VCR
signal output.
The video cable is not connected
securely.
The Progressive Scan is set to On on
the setup menu but is connected to a
standard(analog) television with compo-
nent video input.
Mismatch setting between TV and this
unit.
Wrong connection.
The equipment connected with the
audio cable is not set to receive
DVD+VCR signal output.
The audio cables are not connected
securely.
The power of the equipment connected
with the audio cable is turned off.
The AUDIO options are set to the wrong
position.
The disc is dirty.
The TV channels are not tuned in properly.
Tape heads are dirty.
Tape is a rental or was recorded on
another VCR.
This unit can only output 525p
Progressive scan picture.
Correction
Plug the power cord into the wall out-
let securely.
Refer to page 6.
Insert a disc or tape. (Check that the
disc or tape indicator in the display
window is lit.)
Select the appropriate video input
mode on the TV so the picture from
the DVD+VCR player appears on the
TV screen.
Connect the video cable into the jacks
securely.
Set Progressive Scan to Off
(see page 17).
Select the correct Video Output in
SETUP menu.
Check the connection.
Select the correct input mode of the
audio receiver so you can listen to the
sound from the DVD+VCR.
Connect the audio cable into the jacks
securely.
Turn on the equipment connected with
the audio cable.
Set the AUDIO options to the correct
position.
Clean the disc.
Check tuning, carry out tuning again.
Clean video heads.
Use CH/TRK (+/-) for manual tracking
adjustment while tape is playing.
Make sure that your TV can support
525p Progressive scan picture or set
Progressive scan to off.
Check the following guide for the possible cause of a problem before contacting service.
61
Symptom
The DVD+VCR does
not start playback.
Video tape cannot be
inserted.
The remote control
does not work properly.
Camcorder image is
not shown.
Camcorder image via
AV input to DVD+VCR
is not shown on TV
screen.
Timer recording is not
possible.
TPicture from external
input is distorted.
Some channels are
skipped over when using
CH (v/ V).
Cause
An unplayable disc is inserted.
The disc is placed upside down.
The disc is not placed within the
guide.
The disc is dirty.
The Rating level is set.
Is the cassette compartment empty?
There is an obstacle in the path of the
remote control and this unit.
The batteries in the remote control are
exhausted.
The remote control is not pointed at
the remote sensor of the DVD+VCR.
The remote control is too far from the
DVD+VCR.
This remote control use the same but-
tons for VCR and DVD functions
(ex.PLAY).
Camcorder is off.
DVD+VCR SOURCE SELECT is not
set to LINE1 or LINE2.
Clock in DVD+VCR is not set to
correct time.
Timer has been programmed
incorrectly.
indicator light does not appear after
programming timer.
The video signal from the external
component is copy-protected.
The skipped channels were deleted
with the CH. Add/Del feature.
Correction
Insert a playable disc. (Check the disc
type and Regional code.)
Place the disc with the playback side
down.
Place the disc on the disc tray correctly
inside the guide.
Clean the disc.
Cancel the Rating function or change
the rating level.
Eject the tape in.
Remove the obstacle.
Replace the batteries with new ones.
Point the remote control at the remote
sensor of the DVD+VCR.
Operate the remote control within 23ft
(7m).
When using a VCR, first press the VCR
button. When using a DVD, first press
the DVD button.
Turn camcorder on and operate
properly.
Press INPUT to select LINE input
channel (LINE1 or LINE2).
Set clock to correct time.
Reprogram Timer.
Reprogram Timer and turn DVD+VCR
off to enable timer.
You cannot connect via the VCR/DVD
Recorder. Connect the component
directly to your TV.
Use the CH. Add/Del feature to restore
channels. See “To Add or Erase
Channels from Memory” on page 21.
62
INTRODUCTION
HOOKUP
PLAYBACK
RECORDINGEDITINGREFERENCE
Symptom
Picture or sound of
broadcasting channel is
weak or missing.
Can’t play disc record-
ed on this VCR/DVD
Recorder on another
DVD player.
Cannot record or did
not record successfully.
Stereo Audio Record
and/or Playback not
present.
Cause
Antenna or cables are loose.
Wrong Tuning Band is selected in the
VCR/DVD Recorder Setup menu.
The disc was recorded in Video mode.
Some players will not play even a
finalized disc recorded in Video mode.
The disc was recorded in VR mode.
Discs recorded with copy-once materi-
al cannot be played on other players.
The remaining blank space on the
disc is insufficient.
The source you are trying to record is
copy-protected.
When setting the recording channel,
the channel is tuned on the TV’s own
tuner.
When recording to a Video mode disc,
programs that are copy-once protect-
ed cannot be recorded.
TV is not Stereo-compatible.
Broadcast program is not in stereo for-
mat.
VCR/DVD Recorder A/V Out jacks are
not connected to TV A/V In jacks.
VCR/DVD Recorder Audio/Video Out
is not selected for viewing at the TV.
VCR/DVD Recorder’s TV audio chan-
nel is set to SAP or MONO.
Correction
Tighten connections or replace cable.
Try “Tuning Band Select” options; see
page 20 for details.
Finalize the disc; see page 27.
No solution.
The other player must be RW compati-
ble in order to play it.
No solution.
Use another disc.
You cannot record the source.
Select the channel on the VCR/DVD
Recorder’s built-in TV tuner.
Use a VR mode formatted disc for
copy-once material.
No solution.
No solution.
Make A/V connections. Stereo is avail-
able only via A/V output from VCR/DVD
Recorder.
Select AUX or A/V source as TV input.
Set TV audio channel mode to Stereo.
See “Changing TV Audio Channel” on
page 29.
Reset the VCR/DVD Recorder
If you observe any of the following symptoms...
When the VCR/DVD Recorder is plugged in,
but the power will not turn on or off.
When the display window does not working.
When the VCR/DVD Recorder does not oper-
ate normally.
You can reset the VCR/DVD Recorder as follows :
Press and hold the POWER button for more
than five seconds. This will force the
VCR/DVD Recorder to power off.
Press the POWER button again to turn the
VCR/DVD Recorder back on.
Unplug the power cord and then plug the
power cord again after more than five sec-
onds.
63
General
Power requirements AC 120V, 60 Hz
Power consumption 35W
Dimensions (approx.) 430 X 78.5 X 354 mm (16.9 x 3.1 x 13.9 inches) (w x h x d)
Mass (approx.) 5.6 kg (12.32 lbs)
Operating temperature 5˚C to 35˚C (41˚F to 95˚F)
Operating humidity 5 % to 90 %
Signal system NTSC
Recording
Recording format DVD VideoRecording, DVD-VIDEO
Recordable discs DVD-ReWritable, DVD-Recordable, DVD+ReWritable, DVD+Recordable
Recordable time DVD ; Approx. 1 hour (XP mode), 2 hours (SP mode),
4 hours (LP mode), 6 hours (EP mode)
VCR ; SP: 2 HOURS (T-120), SLP: 6 HOURS (T-120)/8 HOURS (T-160)
Video recording format
Sampling frequency 27MHz
Compression format MPEG 2
Audio recording format
Sampling frequency 48kHz, 96kHz
Compression format Dolby Digital
VCR Specifications
Head system Four head helical scan azimuth system
Timer 12-hour display type with AM, PM
Tape speed SP: 33.35 mm/sec, LP: 16.67 mm/sec, SLP: 11.12 mm/sec
Tape width 12.7 mm
Rewind time About 65 seconds (T-120)
Antenna 75 ohms (VHF/UHF)
VHF output signal Channel 3 or 4 (Switchable)
Channel coverage VHF: 2-13, UHF: 14-69, CATV: 1-125 (4A, A-W, W+1 - W+84, A-5 - A-1)
Frequency range 20Hz to 20kHz
Signal-to-noise ratio 43dB
Dynamic range 88 dB
Channel separation 60 dB
Specifications
Specifications
64
DVD Specifications
Laser system Semiconductor laser, wavelength 650 nm
Frequency response DVD (PCM 48 kHz): 8 Hz to 22 kHz, CD: 8 Hz to 20 kHz
Signal-to-noise ratio More than 95dB
Harmonic distortion Less than 0.008%
Dynamic range More than 90 dB
Inputs
ANTENNA IN Antenna or CATV input, 75 ohms
VIDEO IN (AV1,2) 1.0 Vp-p 75 ohms, sync negative, RCA jack x 2
AUDIO IN (AV1,2) -6 dBm more than 47 kohms, RCA jack (L, R) x 2
S-VIDEO IN (Y) 1.0 V (p-p), 75 Ω, negative sync, Mini DIN 4-pin x 1
(C) 0.286 V (p-p) 75 Ω
DV IN 4 pin (i.LINK/IEEE 1394 standard)
Outputs
VIDEO OUT 1 Vp-p 75 Ω, sync negative, RCA jack x 1
S-VIDEO OUT (Y) 1.0 V (p-p), 75 Ω, negative sync, Mini DIN 4-pin x 1
(C) 0.286 V (p-p) 75 Ω
COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75 Ω, negative sync, RCA jack x 1
(PROGRESSIVE SCAN) (Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2
Audio output (digital audio) 0.5 V (p-p), 75 Ω, RCA jack x 1
Audio output (optical audio) Optical connector x 1
Audio output (analog audio) 1.1 Vrms (1 kHz, -6 dB), 600 Ω, RCA jack (L, R) x 2
RF OUT Channel 3 or 4 (Switchable)
Accessory:
Video cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1Audio cable 1
RF 75-ohm Coaxial Cable . . . . . . . . . . . . . . . . . . . .1Remote control 1
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Design and specifications are subject to change without notice.
