LG Electronics USA 9QKE40540 DVD Player / Recorder User Manual DR7923CMC HA1ULL 63E 0408
LG Electronics USA DVD Player / Recorder DR7923CMC HA1ULL 63E 0408
Users Manual
DR7923CMC.HA1ULL_RD0063E
Before connecting, operating or adjusting this
product, please read this owner’s manual carefully
and completely.
DVD RECORDER
OWNER’S MANUAL
MODEL: LRA-516
Call us and we will
guide you through
your first recording,
for free.
1-800-243-0000
2

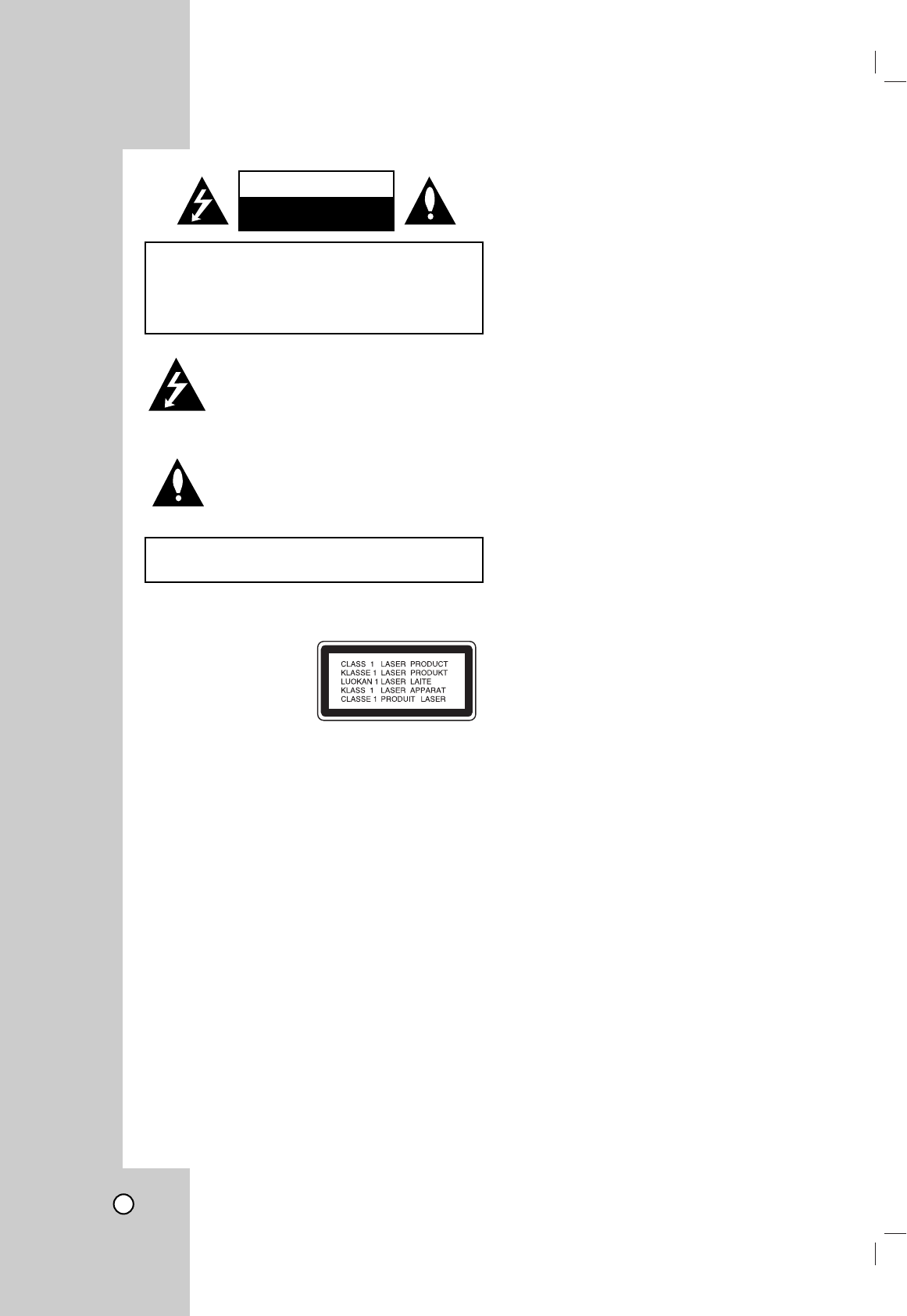

This lightning flash with arrowhead symbol within
an equilateral triangle is intended to alert the
user to the presence of uninsulated dangerous
voltage within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral trian-
gle is intended to alert the user to the presence
of important operating and maintenance (servic-
ing) instructions in the literature accompanying
the product.
WARNING: Do not install this equipment in a confined
space such as a bookcase or similar unit.
CAUTION:
This product employs a Laser System.
To ensure proper use of this product, please read this
owner’s manual carefully and retain it for future reference.
Should the unit require maintenance, contact an authorized
service center.
Performing controls, adjustments, or carrying out proce-
dures other than those specified herein may result in haz-
ardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open
the enclosure. Visible laser radiation when open. DO NOT
STARE INTO BEAM.
CAUTION: The apparatus should not be exposed to water
(dripping or splashing) and no objects filled with liquids,
such as vases, should be placed on the apparatus.
CAUTION: CLASS 2M VISIBLE AND INVISIBLE LASER
RADIATION WHEN OPEN AND INTERLOCKS DEFEATED
DO NOT STARE INTO THE BEAM OR VIEW DIRECTLY
WITH OPTICAL INSTRUMENTS
FCC WARNING: This equipment may generate or use
radio frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the
modifications are expressly approved in the instruction
manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is
made.
REGULATORY INFORMATION: FCC Part 15
This epuipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the product is operated in a residential installation. This
product generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
product does cause harmful interference to radio or televi-
sion reception, which can be determined by turning the
product off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the product and
receiver.
•Connect the product into an outlet on a circuit differ-
ent from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV tech-
nician for help.
FCC COMPLIANCE: The responsible party for this prod-
uct’s compliance is:
LG Electronics U.S.A., Inc.,1000 Sylvan Avenue,
Englewood Cliffs, NJ.
Phone: 1-800-243-0000.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a
dedicated circuit;
That is, a single outlet circuit which powers only that appli-
ance and has no additional outlets or branch circuits. Check
the specification page of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose
or damaged wall outlets, extension cords, frayed power
cords, or damaged or cracked wire insulation are danger-
ous. Any of these conditions could result in electric shock or
fire. Periodically examine the cord of your appliance, and if
its appearance indicates damage or deterioration, unplug it,
discontinue use of the appliance, and have the cord
replaced with an exact replacement part by an authorized
servicer.
Protect the power cord from physical or mechanical abuse,
such as being twisted, kinked, pinched, closed in a door, or
walked upon. Pay particular attention to plugs, wall outlets,
and the point where the cord exits the appliance.
SERIAL NUMBER:
You can find the serial number on the back of the unit. This
number is unique to this unit and not available to others.
You should record requested information here and retain
this guide as a permanent record of your purchase.
Model No. ______________________________
Serial No. ______________________________
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Dubbing
3
1. Read these instructions. - All these safety and operating
instructions should be read before the product is operated.
2. Keep these instructions. - The safety, operating and use
instructions should be retained for future reference.
3. Heed all warnings. - All warnings on the product and in
the operating instructions should be adhered to.
4. Follow all instructions. - All operating and use instruc-
tions should be followed.
5. Do not use this product near water. – For example: near
a bath tub, wash bowl, kitchen sink, laundry tub, in a wet
basement; or near a swimming pool; and other areas
located near water.
6. Clean only with dry cloth. – Unplug this product from the
wall outlet before cleaning. Do not use liquid cleaners.
7.
Do not block any ventilation openings. Install in accor-
dance with the manufacturer’s instructions. -
Slots and
openings in the cabinet are provided for ventilation and to
ensure reliable operation of the product and to protect it
from over- heating. The openings should never be blocked
by placing the product on a bed, sofa, rug or other similar
surface. This product should not be placed in a built-in
installation such as a bookcase or rack unless proper ven-
tilation is provided or the manufacturer’s instructions have
been adhered to.
8. Do not install near any heat sources such as radia-
tors, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. D
o not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades
with one wider than the other. A grounding
type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience recepta-
cles, and the point where they exit from the product.
11. Only use attachments/accessories specified by the
manufacturer.

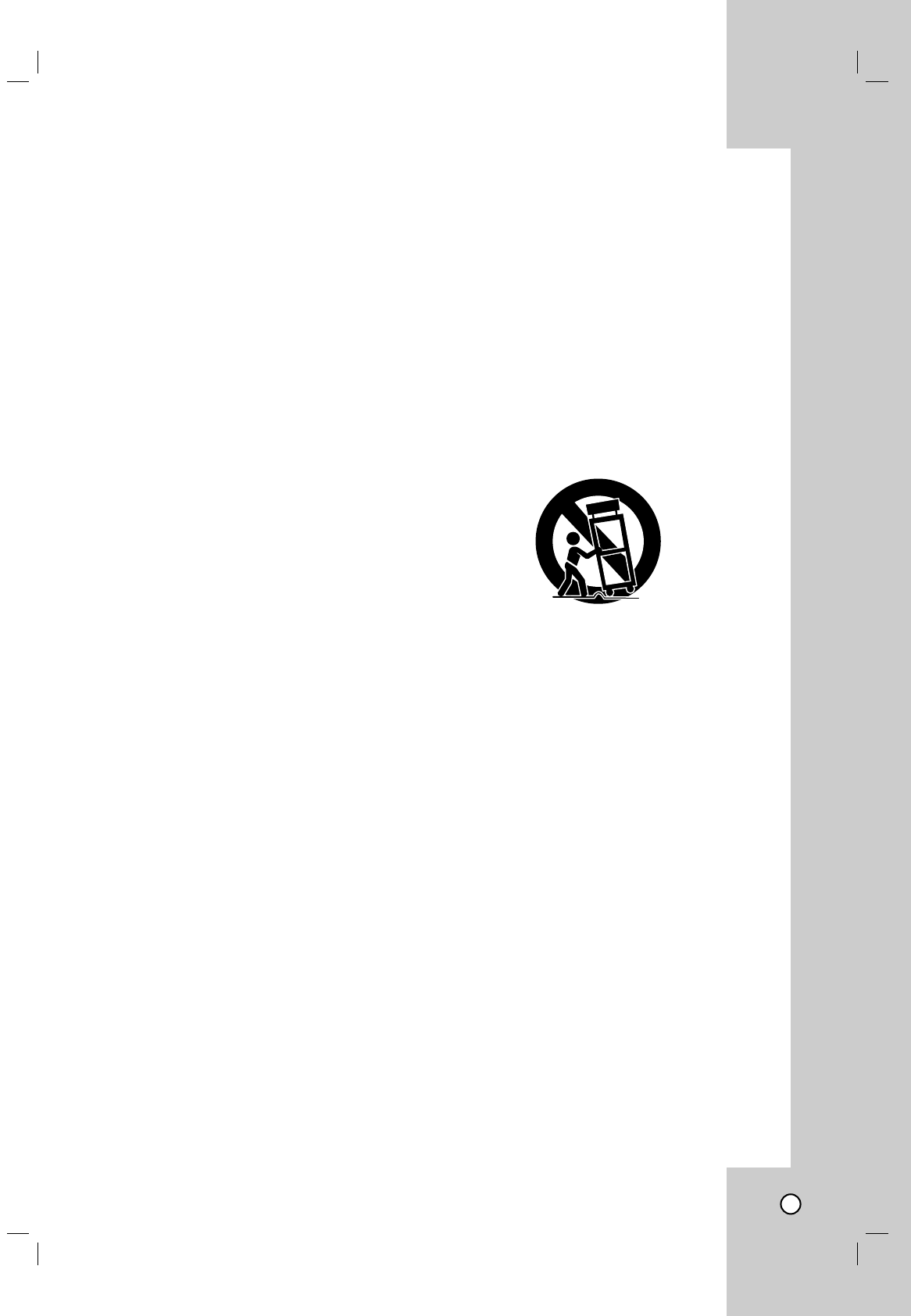

12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with appara-
tus. When a cart is used, use caution when moving
the cart/product combination to avoid injury from
tip-over.
13. Unplug this product during lightning storms or when
unused for long periods of time.
14.
Refer all servicing to qualified service personnel.
Servicing is required when the product has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the product, the product has been
exposed to rain or moisture, does not operate nor-
mally, or has been dropped.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION:
PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANUAL. AND
THOSE MARKED ON THE PRODUCT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
This product has been designed and manufactured to assure personal safety. Improper use can result in electric shock or
fire hazard. The safeguards incorporated in this product will protect you if you observe the following procedures for installa-
tion, use, and servicing.
This product does not contain any parts that can be repaired by the user.
DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVIC-
ING TO QUALIFIED SERVICE PERSONNEL ONLY.
4
INTRODUCTION
Symbol Used in this Manual . . . . . . . . . . . . . .6
About the Symbol Display . . . . . . . . . . . . .6

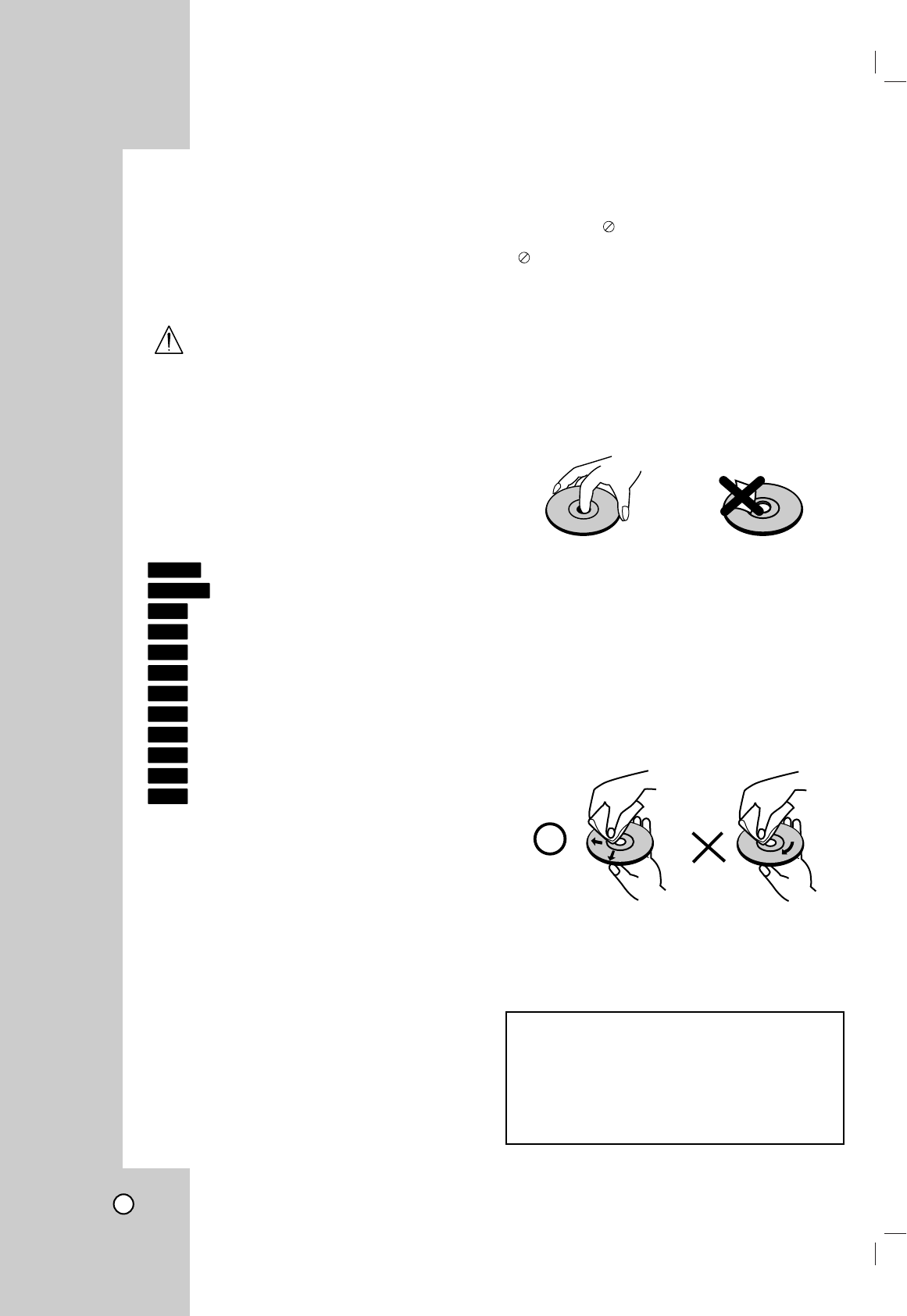

Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . .6
Moisture Condensation . . . . . . . . . . . . . . . . . .6
Recordable and Playable Discs . . . . . . . . . . .7
Recommended recordable DVD discs . . . . . .7
Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . .8
Region code of the recorder and DVDs . . . . .8
Restrictions on video recording . . . . . . . . . . .9
What is ‘CPRM’? . . . . . . . . . . . . . . . . . . . . . . .9
Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Notice for Progressive Scan Use . . . . . . . . . .9

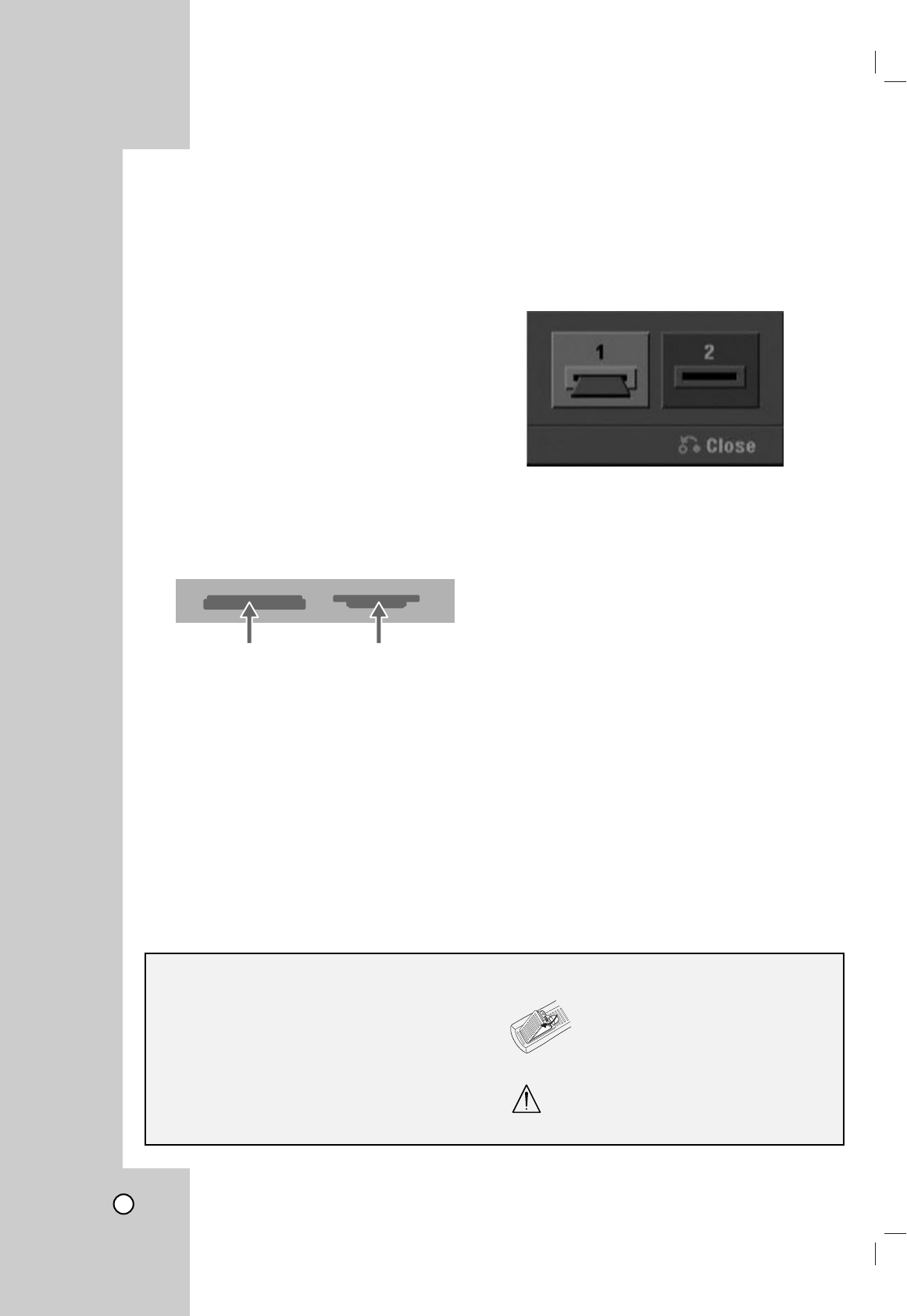

Card useable on this unit . . . . . . . . . . . . . . .10
Using Memory Card . . . . . . . . . . . . . . . . . . . .10
About the Remote Control . . . . . . . . . . . . . .10
Disc-related terms . . . . . . . . . . . . . . . . . . . . .11
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . .12
Remote Control . . . . . . . . . . . . . . . . . . . . . . .13

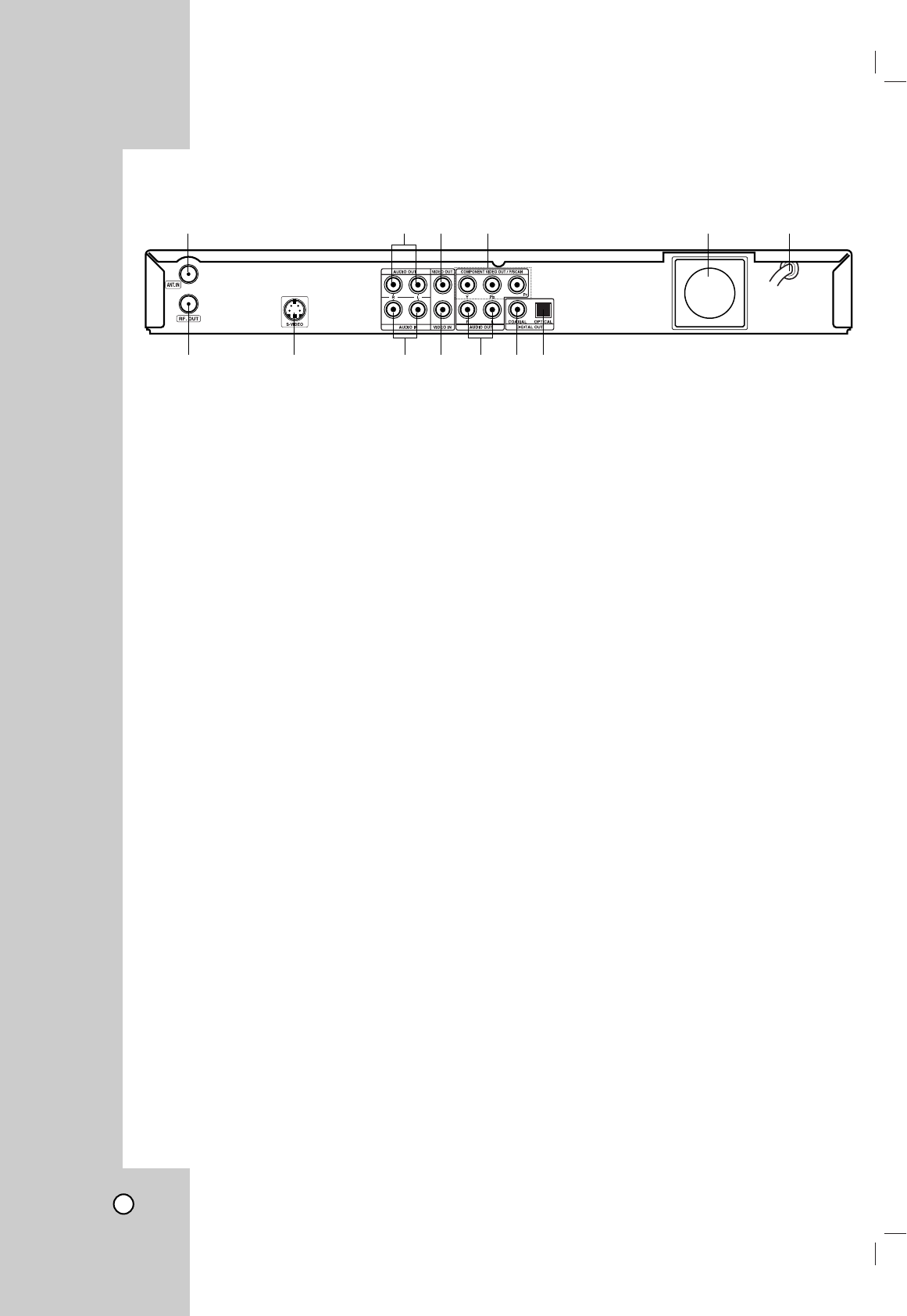

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . .14
HOOKUP AND SETTINGS
Connecting an Antenna or Cable TV . . . . . .15
Connections to your TV . . . . . . . . . . . . . .15-16

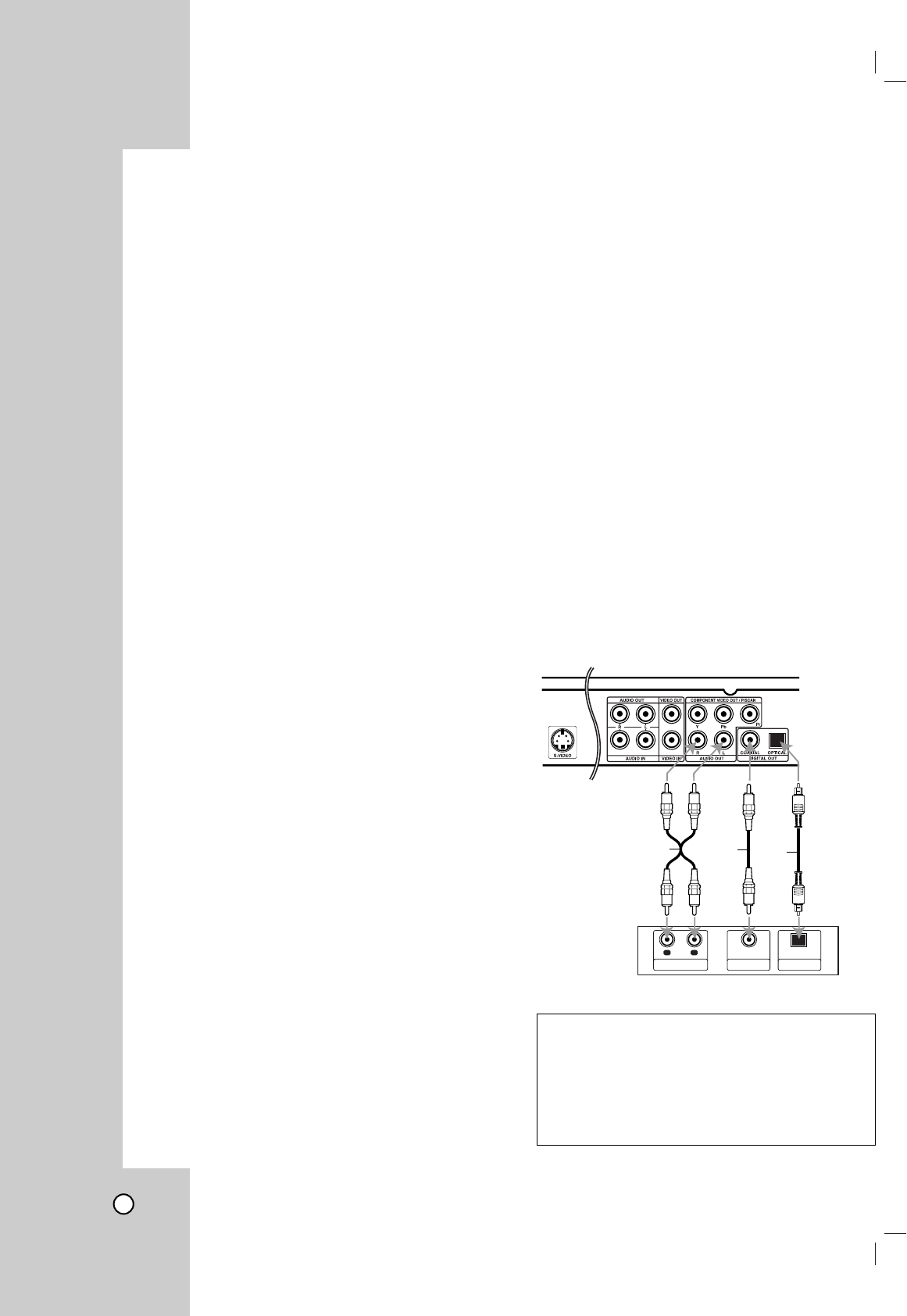

Connection to an Amplifier . . . . . . . . . . . . . .16
Connecting to the INPUT 1 or INPUT 2 Jacks
.17

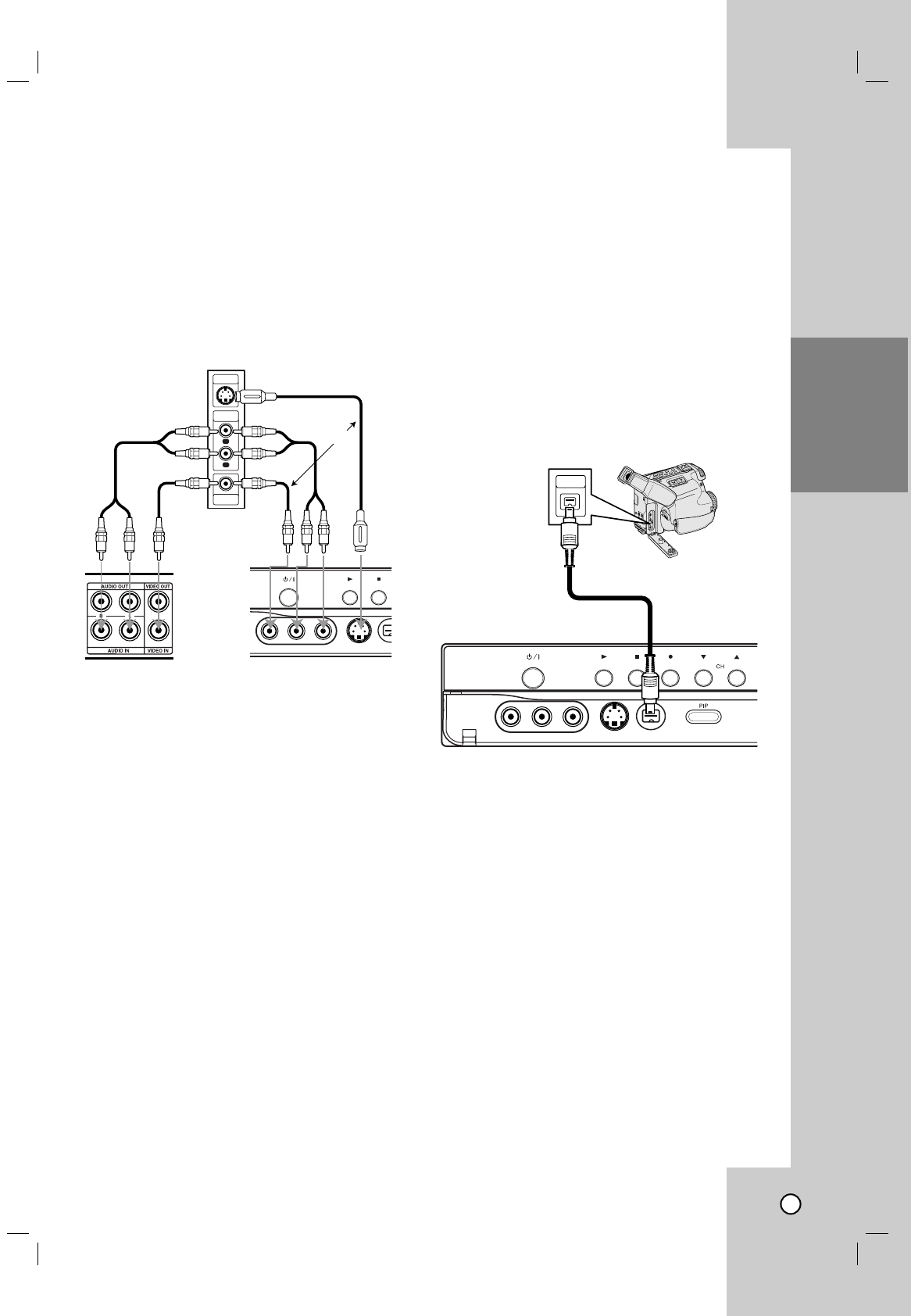

Connecting a Digital Camcorder . . . . . . . . . .17
Initial Settings . . . . . . . . . . . . . . . . . . . . . . . .18
General Operation . . . . . . . . . . . . . . . . . . . .18
General Settings . . . . . . . . . . . . . . . . . . .18-20
•Tuning Band Select . . . . . . . . . . . . . . . .18

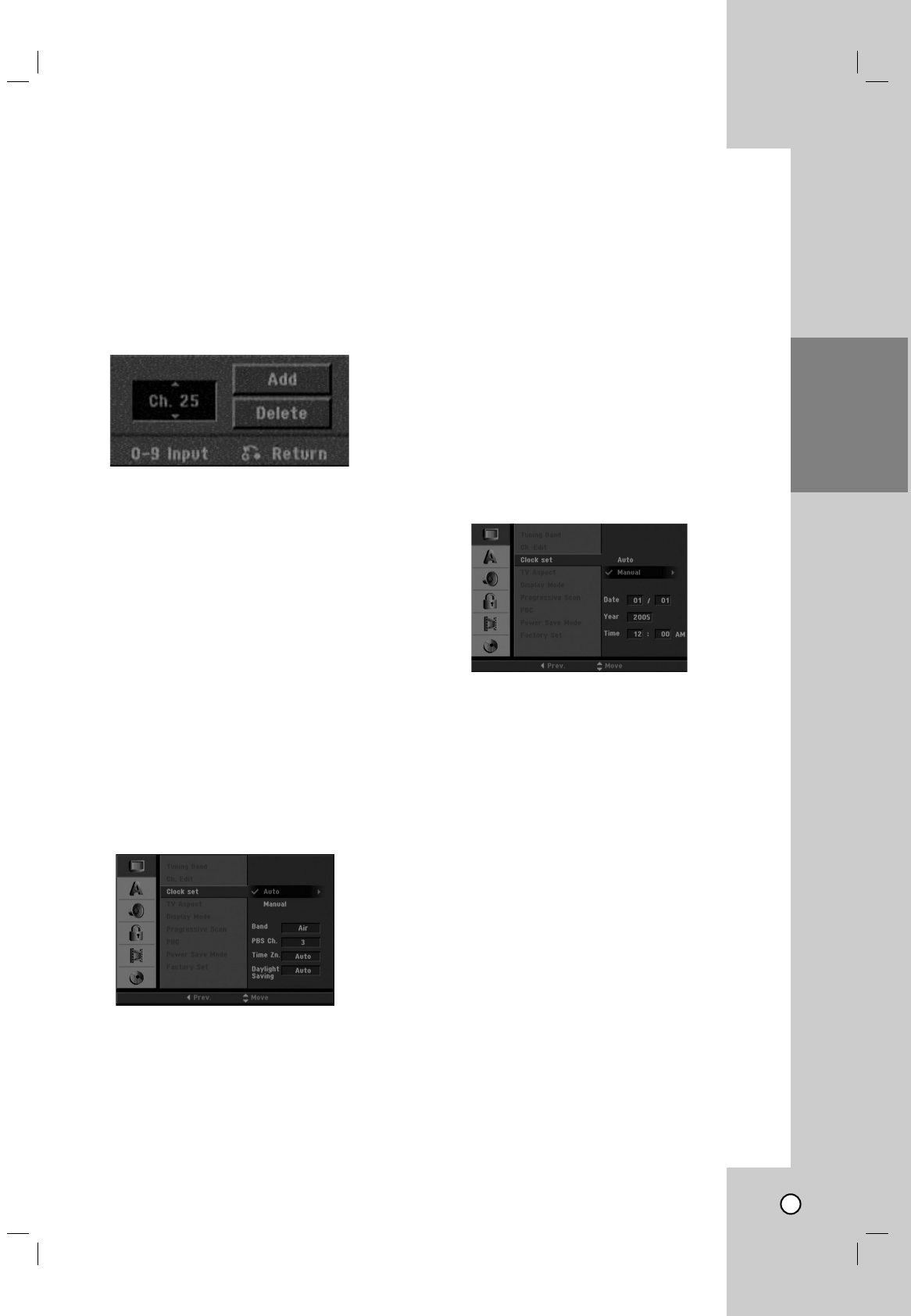

•To Add or Erase Channels from
Memory . . . . . . . . . . . . . . . . . . . . . . . . .19
•Clock Set . . . . . . . . . . . . . . . . . . . . . . . .19

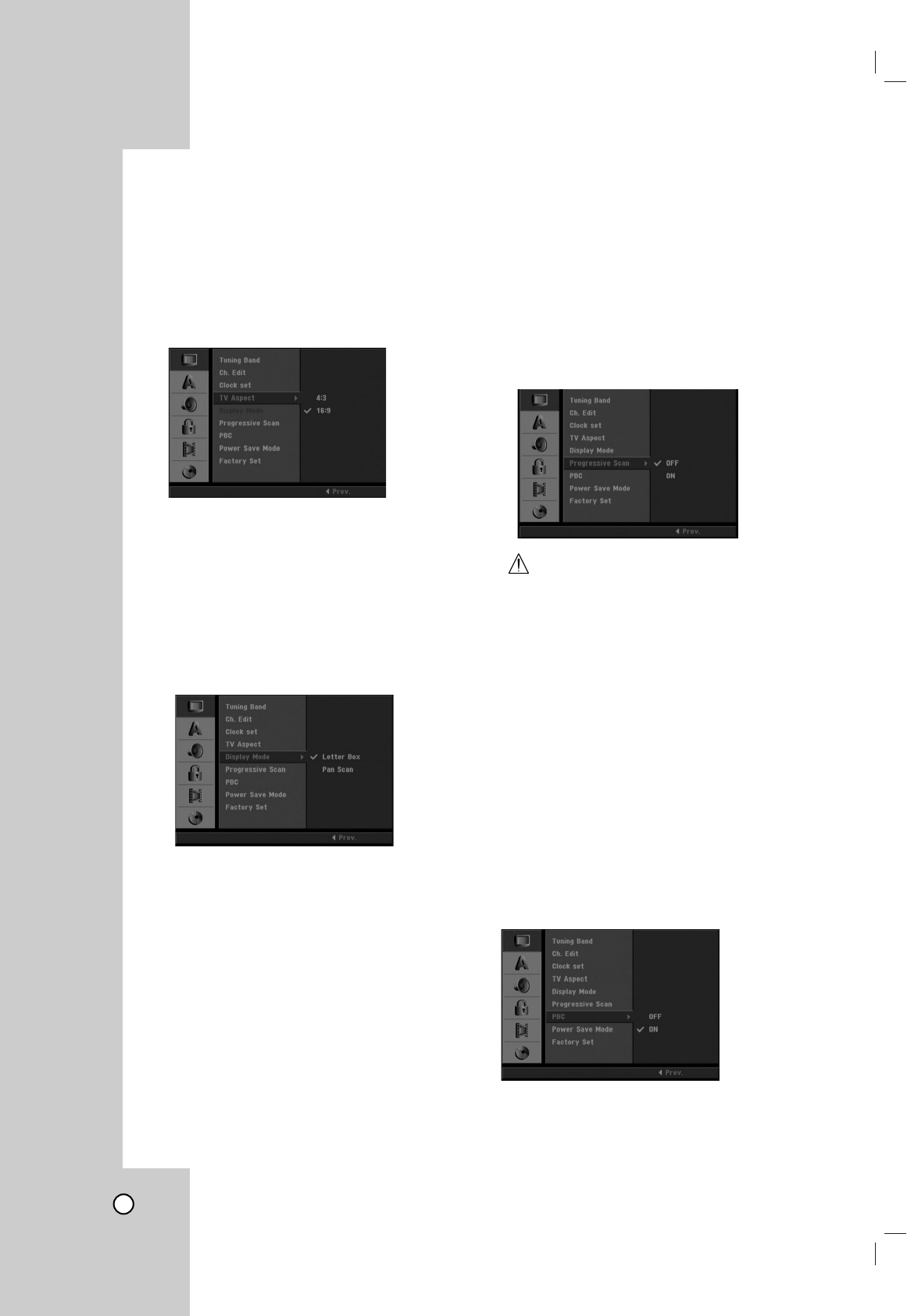

•TV Aspect . . . . . . . . . . . . . . . . . . . . . . .20
•Progressive Scan . . . . . . . . . . . . . . . . .20
•PBC . . . . . . . . . . . . . . . . . . . . . . . . . . .20
•Power Save Mode . . . . . . . . . . . . . . . . .21
•Factory Set . . . . . . . . . . . . . . . . . . . . . .21
Language Settings . . . . . . . . . . . . . . . . . . . .21
•Display Menu . . . . . . . . . . . . . . . . . . . . .21
•Disc Menu / Audio / Subtitle . . . . . . . . . .21

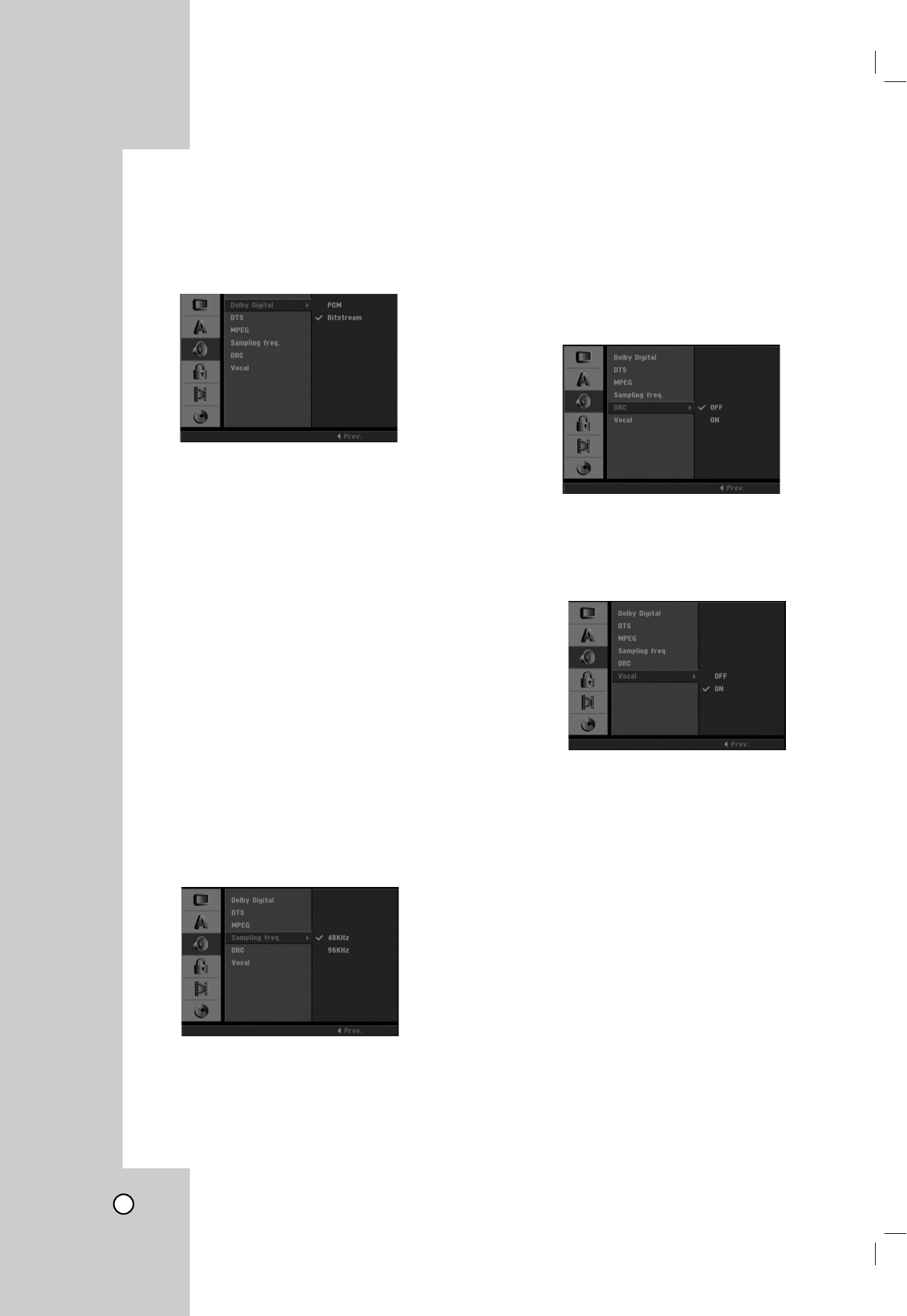

Audio Settings . . . . . . . . . . . . . . . . . . . . . . .22
•Dolby Digital / DTS / MPEG . . . . . . . . . .22
•Sampling Frequency . . . . . . . . . . . . . . .22
•DRC (Dynamic Range Control) . . . . . . .22
•Vocal . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Lock (Parental Control) Settings . . . . . . . . . .23
•Rating . . . . . . . . . . . . . . . . . . . . . . . . . .23
•Set Password . . . . . . . . . . . . . . . . . . . .23
•Area Code . . . . . . . . . . . . . . . . . . . . . . .23
•DivX Registration Code . . . . . . . . . . . . .24

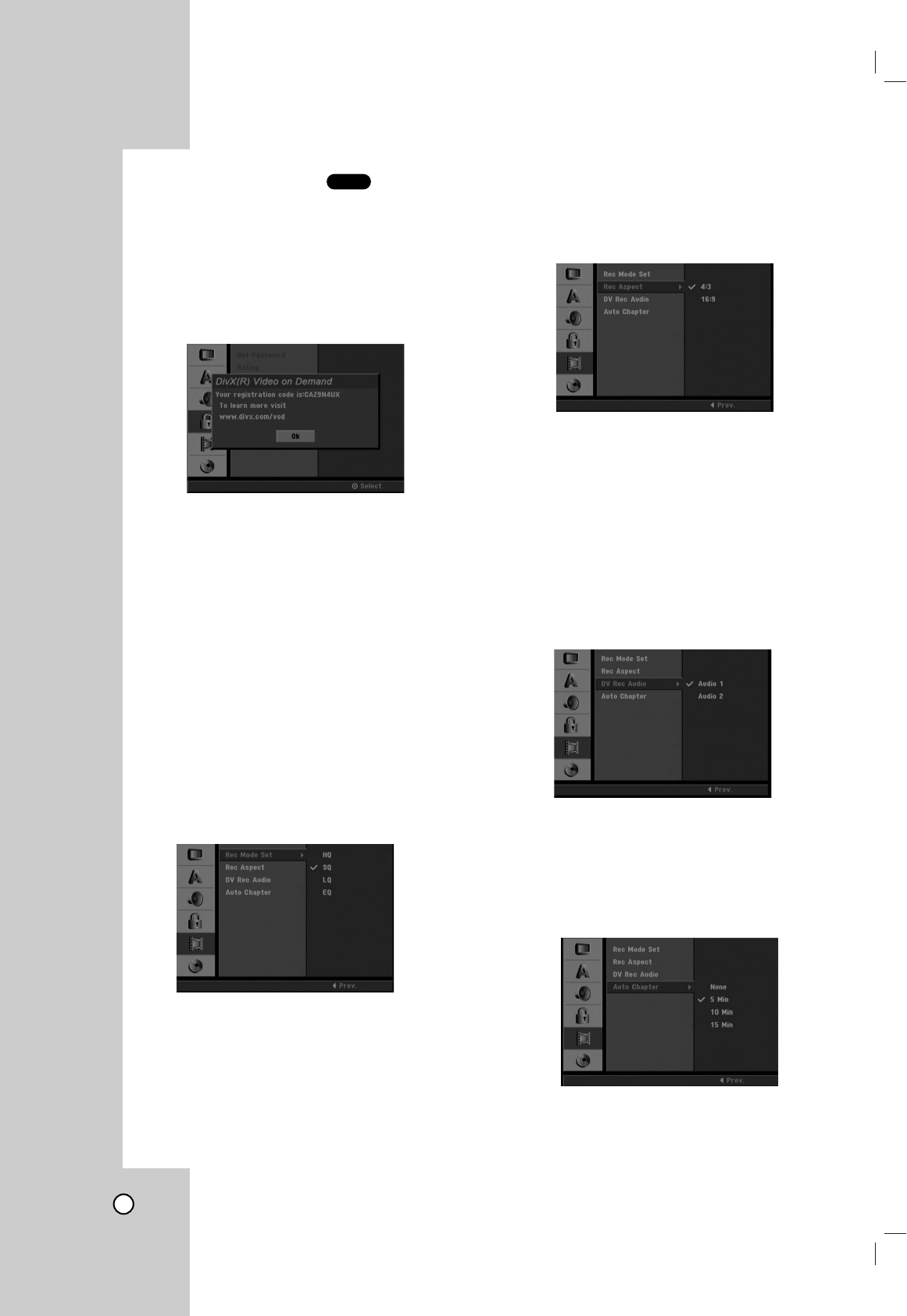

Recording Settings . . . . . . . . . . . . . . . . . . . .24
•Record Mode Set . . . . . . . . . . . . . . . . . .24
•Record Aspect . . . . . . . . . . . . . . . . . . . .24
•DV Recording Audio . . . . . . . . . . . . . . .24
•Auto Chapter . . . . . . . . . . . . . . . . . . . . .24
Disc Settings . . . . . . . . . . . . . . . . . . . . . .25-26

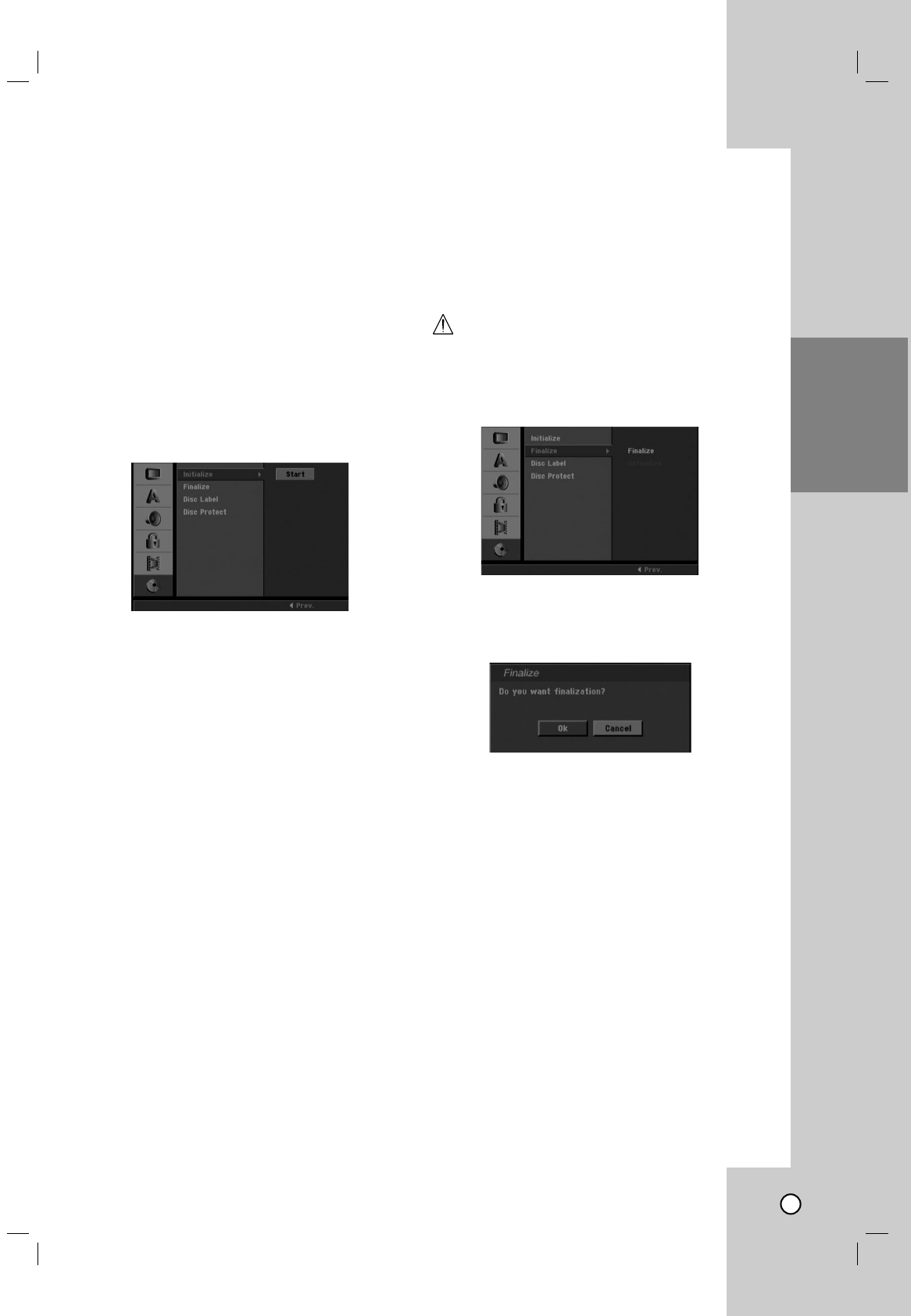

•Disc Format . . . . . . . . . . . . . . . . . . . . . .25
•Finalize . . . . . . . . . . . . . . . . . . . . . . . . .25

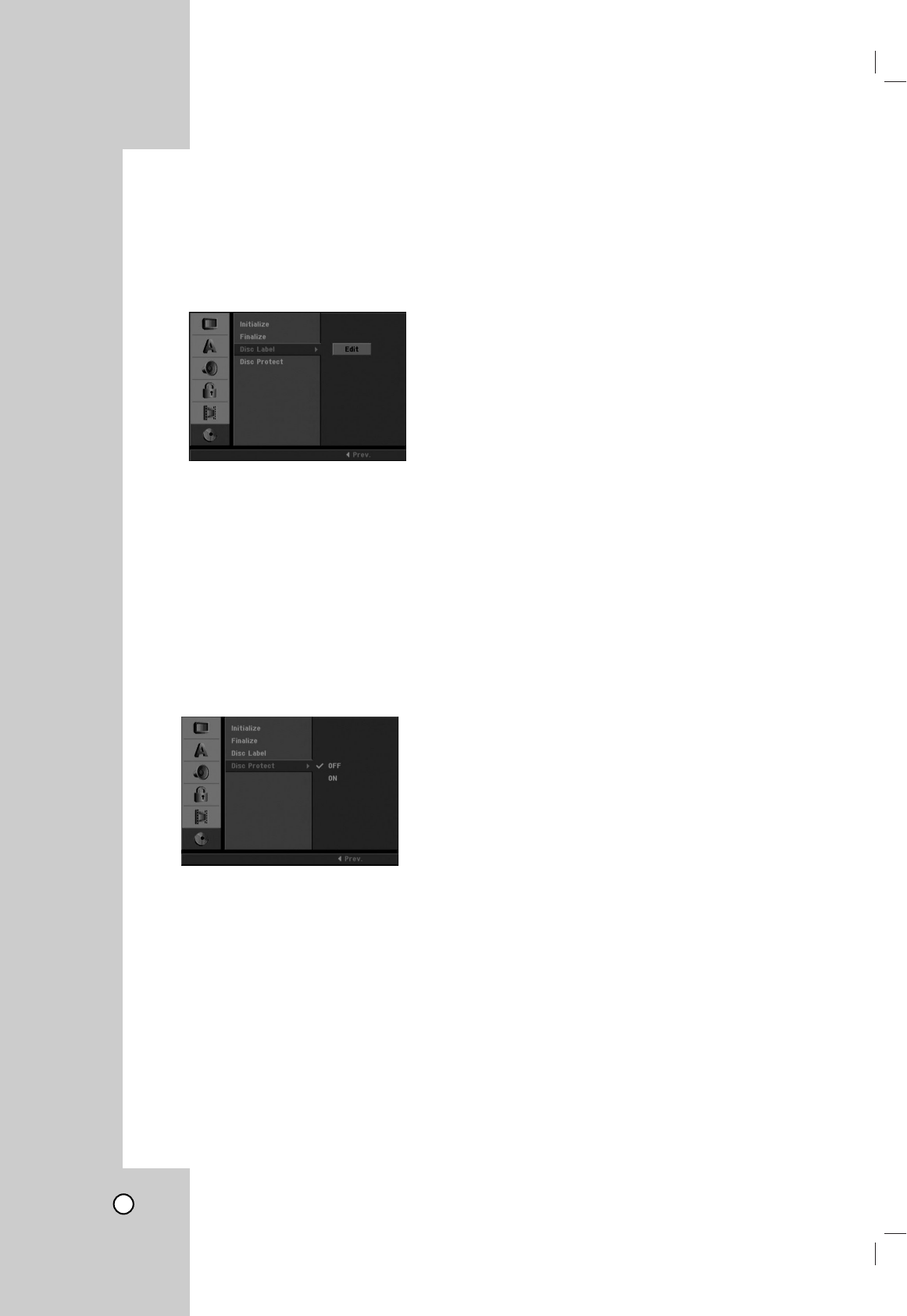

•Disc Label . . . . . . . . . . . . . . . . . . . . . . .26
•Disc Protect . . . . . . . . . . . . . . . . . . . . . .26

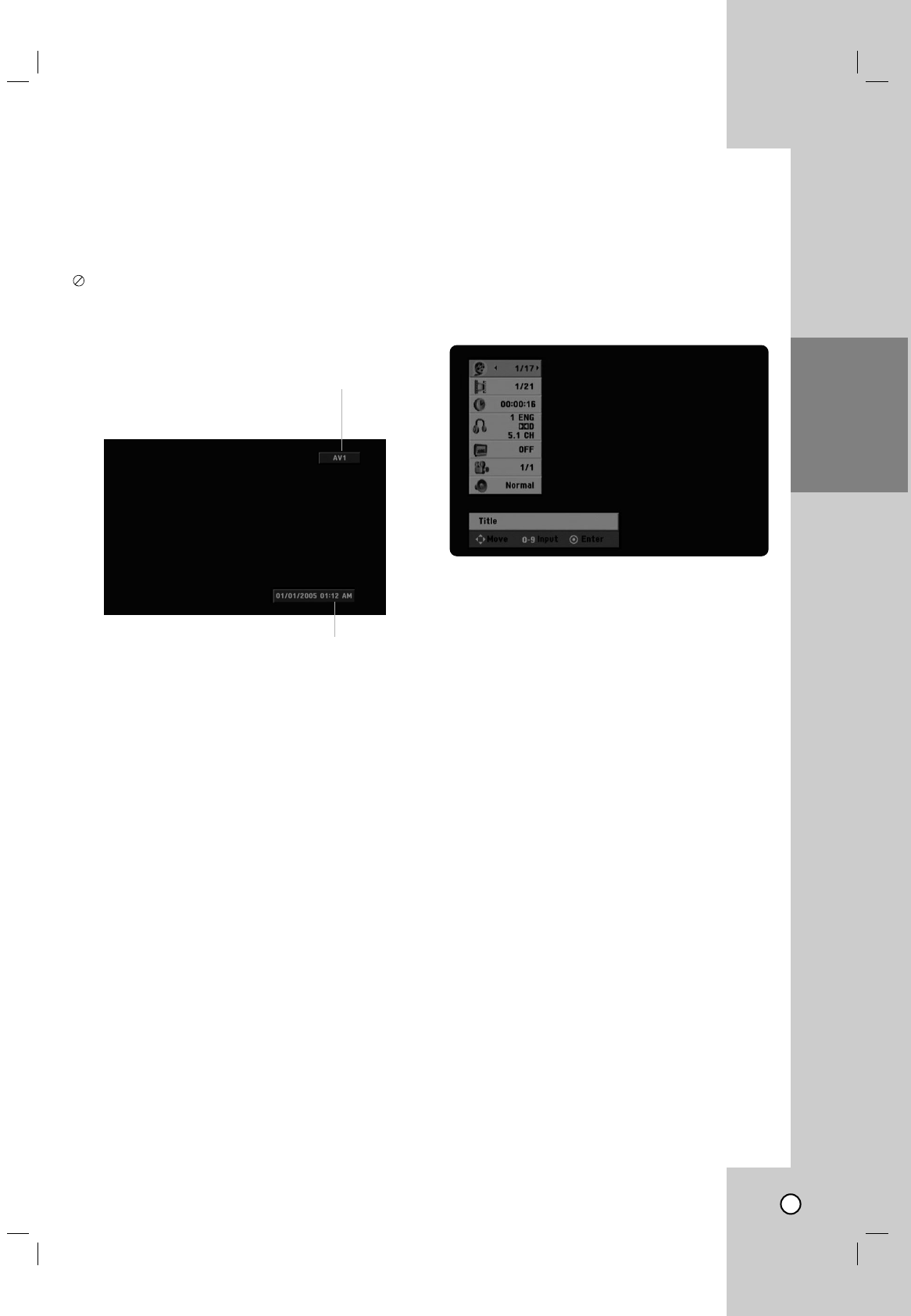

General Explanation of On-Screen
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Displaying Information While Watching TV . .27
Displaying Disc Information on-screen . . . . .27
PLAYBACK
Playing a DVD or Video CD . . . . . . . . . . .28-31
Playback Setup . . . . . . . . . . . . . . . . . . . .28-31
•Moving to another TITLE . . . . . . . . . . .28
•Moving to another CHAPTER / TRACK .28
•Search . . . . . . . . . . . . . . . . . . . . . . . . . .28
•Still Picture and Frame-by-Frame
Playback . . . . . . . . . . . . . . . . . . . . . . . .28
•Slow Motion . . . . . . . . . . . . . . . . . . . . . .29
•Repeat . . . . . . . . . . . . . . . . . . . . . . . . .29
•Repeat A-B . . . . . . . . . . . . . . . . . . . . . .29
•Time Search . . . . . . . . . . . . . . . . . . . . .29
•Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . .29
•Marker Search . . . . . . . . . . . . . . . . . . .29
•Title Menu . . . . . . . . . . . . . . . . . . . . . . .30
•Disc Menu . . . . . . . . . . . . . . . . . . . . . . .30
•Camera Angle . . . . . . . . . . . . . . . . . . . .30
•Changing the Audio Soundtrack . . . . . . .30
•Changing the Audio Channel . . . . . . . . .30
•3D Surround . . . . . . . . . . . . . . . . . . . . .30
•Subtitles . . . . . . . . . . . . . . . . . . . . . . . .30
•Instant Skip . . . . . . . . . . . . . . . . . . . . . .30
•Last Scene Memory . . . . . . . . . . . . . . . .30

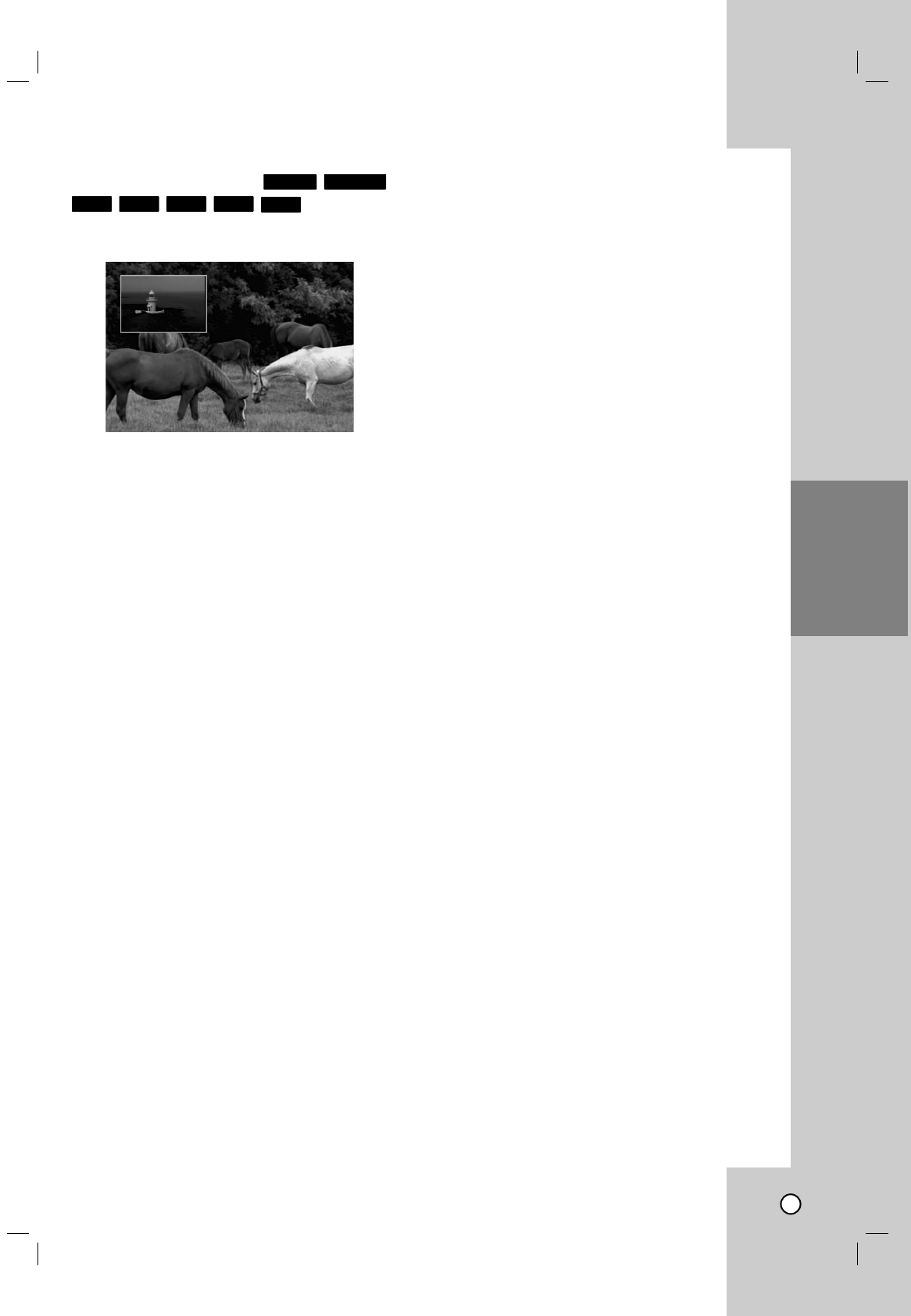

•PIP(Picture in Picture) . . . . . . . . . . . . . .31
Playing a DivX Movie File . . . . . . . . . . . . . . .32
Notice for displaying the DivX subtitle . . . . . .32
About DivX movie files . . . . . . . . . . . . . . . . .32
Playing an Audio CD or MP3 / WMA files
.33-34
Audio CD and MP3 / WMA file Features . . . .33
•Pause . . . . . . . . . . . . . . . . . . . . . . . . . .33
•Moving to another Track . . . . . . . . . . . .33
•Repeat Track/All/Off . . . . . . . . . . . . . . . .33
•Repeat A-B . . . . . . . . . . . . . . . . . . . . . .33
•Search . . . . . . . . . . . . . . . . . . . . . . . . . .33

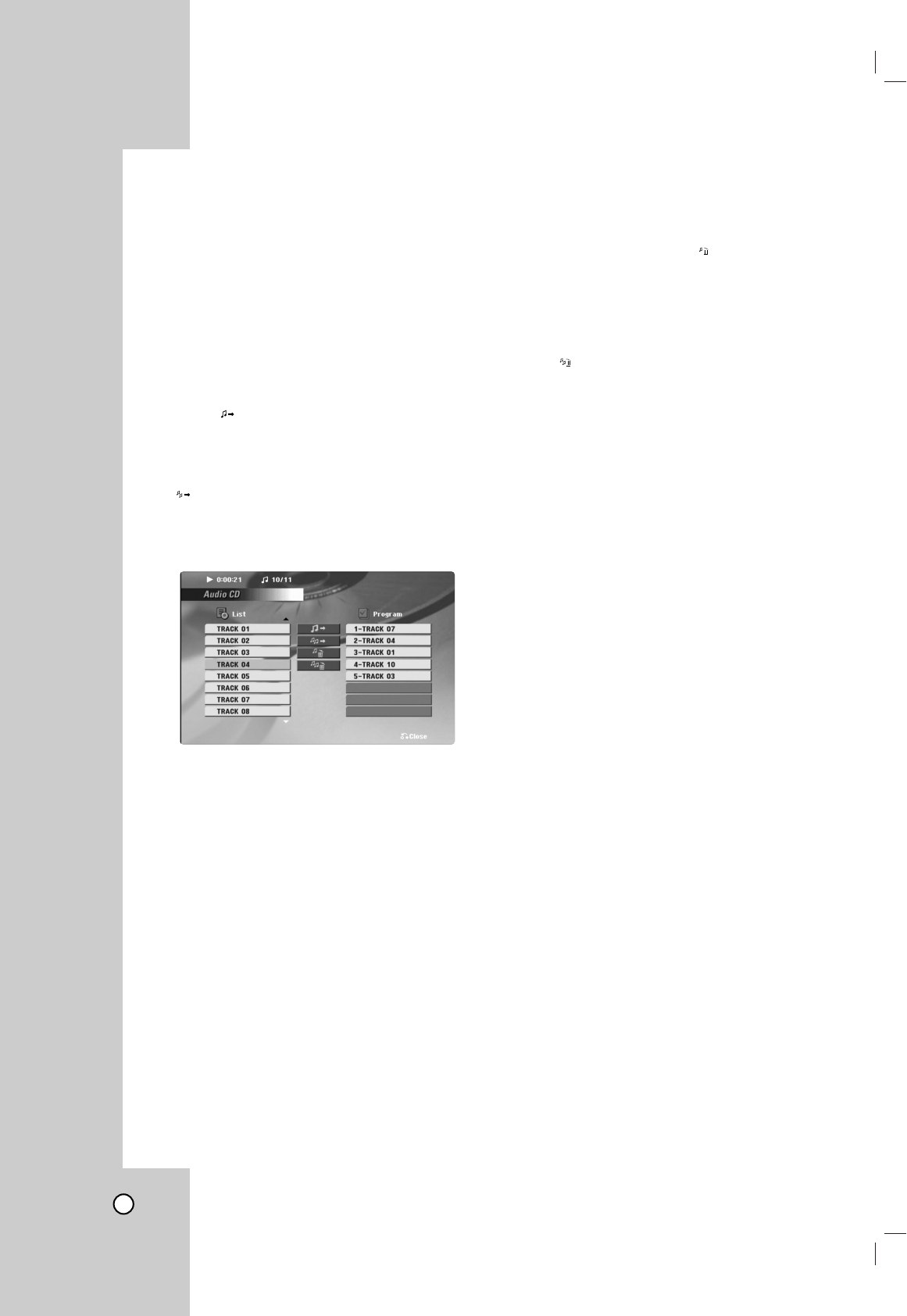

Program Playback with Audio CD and
MP3 / WMA files . . . . . . . . . . . . . . . . . . . . . . .34
Notes on MP3/WMA Recordings . . . . . . . . .34

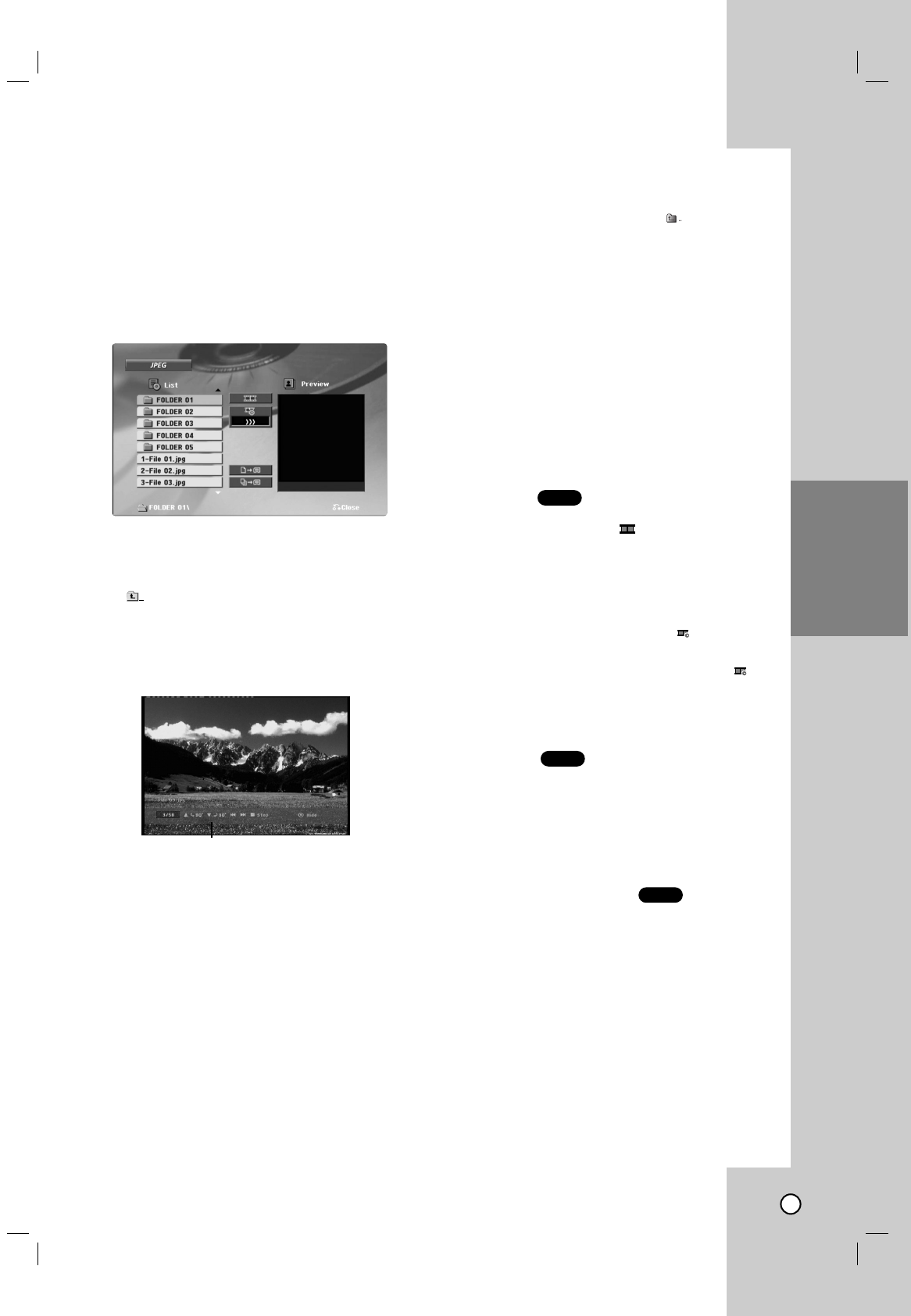

Viewing a JPEG File . . . . . . . . . . . . . . . . .35-36
•Slide Show . . . . . . . . . . . . . . . . . . . . . .35
•Still picture . . . . . . . . . . . . . . . . . . . . . . .35
•Moving to another File . . . . . . . . . . . . . .35
•To rotate picture . . . . . . . . . . . . . . . . . . .36
•Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . .36
•To listen to music while slide show
simultaneously . . . . . . . . . . . . . . . . . . . .36
About JPEG image files . . . . . . . . . . . . . . . .36
Dubbing
5
RECORDING
About DVD recording . . . . . . . . . . . . . . . . . .37
Disc types and recording formats, modes, and
settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Notes for recording . . . . . . . . . . . . . . . . . . . .37
Basic Recording from a TV . . . . . . . . . . . . . .38
Instant Timer Recording . . . . . . . . . . . . . . . .38
Checking the Recording Time . . . . . . . . . . . .38
To Extend the Recording Time . . . . . . . . . . .38
To Pause the Recording . . . . . . . . . . . . . . . .38
To record one TV program while watching
another . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Timer Recording . . . . . . . . . . . . . . . . . . . .39-40
Checking Timer Recording Details . . . . . . . .39
Canceling a Timer Recording . . . . . . . . . . . .39
Timer Recording Troubleshooting . . . . . . . . .40
Recording from External Components . . . . .40
Recording from DV Input . . . . . . . . . . . . . . .41
Before DV dubbing . . . . . . . . . . . . . . . . . . . .41
Recording from a Digital Camcorder . . . . . . .41
Troubleshooting . . . . . . . . . . . . . . . . . . . . . .41
EDITING

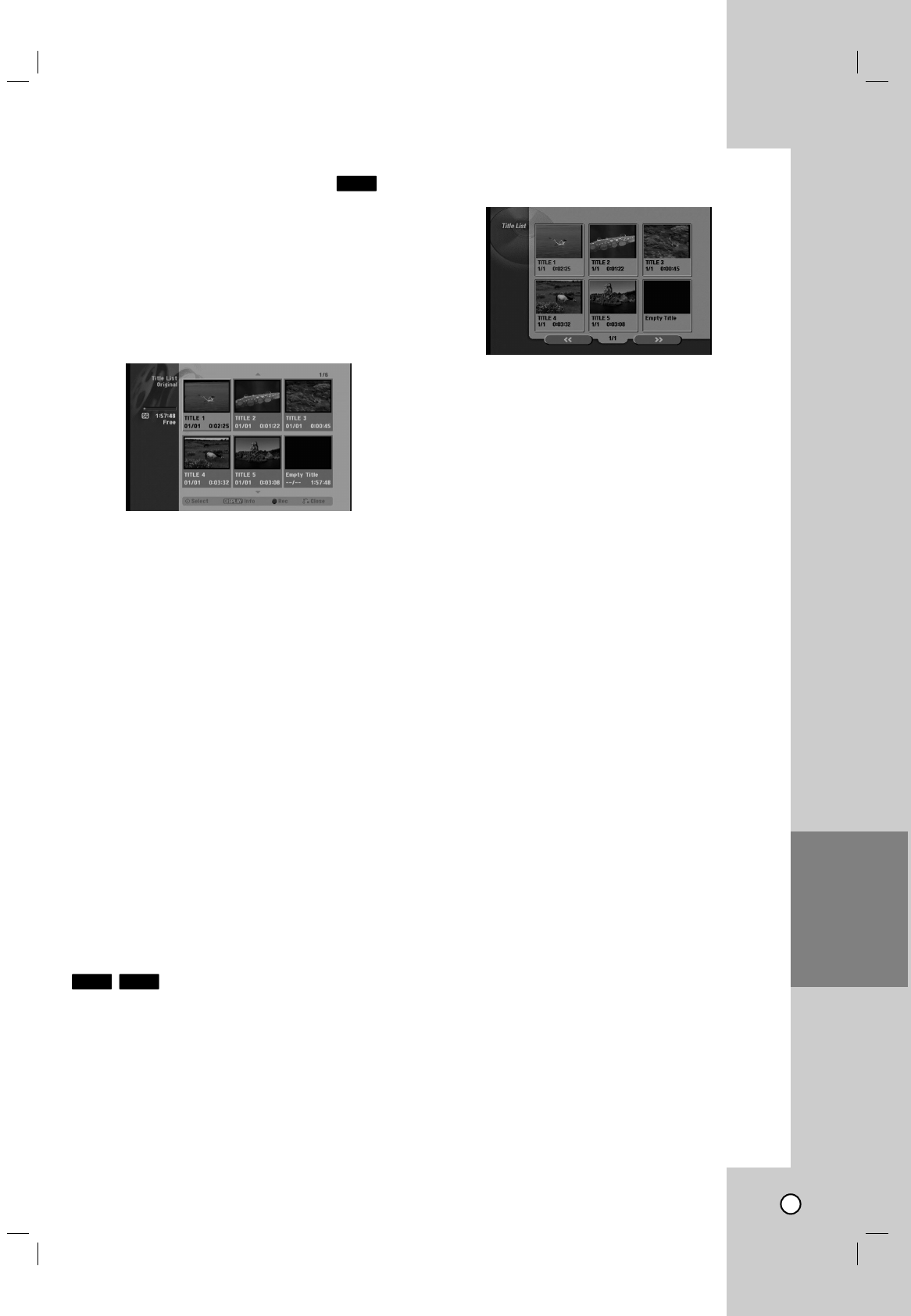

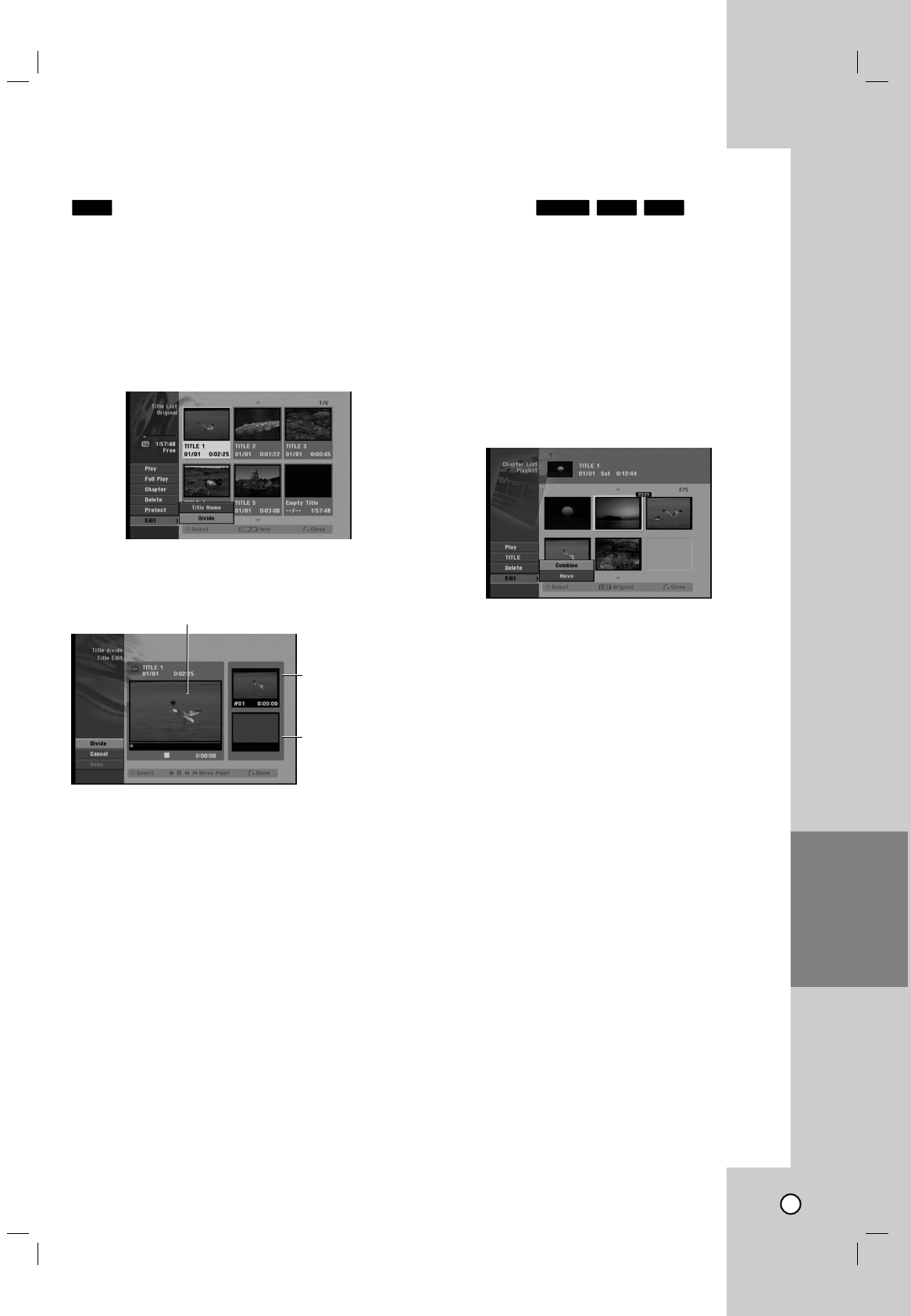

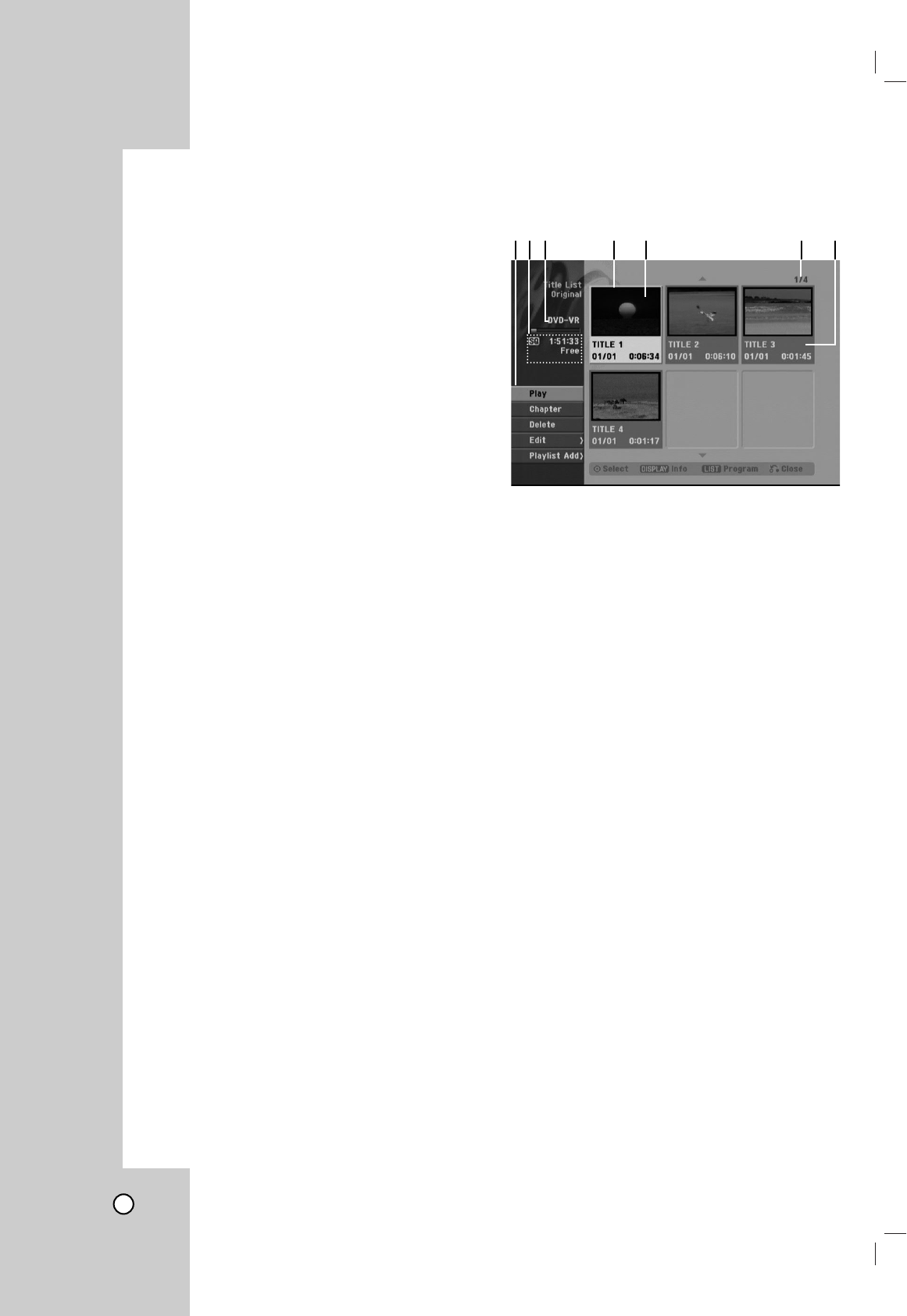

Title List and Chapter List Menu Overview .42
VR Mode: Original and Playlist Editing . . . .43
Titles, Chapters and Parts . . . . . . . . . . . . . .43
Is editing a DVD like editing a video tape? . .43
About word ‘Original’ and ‘Playlist’ . . . . . . . .43
Adding Chapter Markers . . . . . . . . . . . . . . . .43
Changing Title Thumbnails . . . . . . . . . . . . . .43

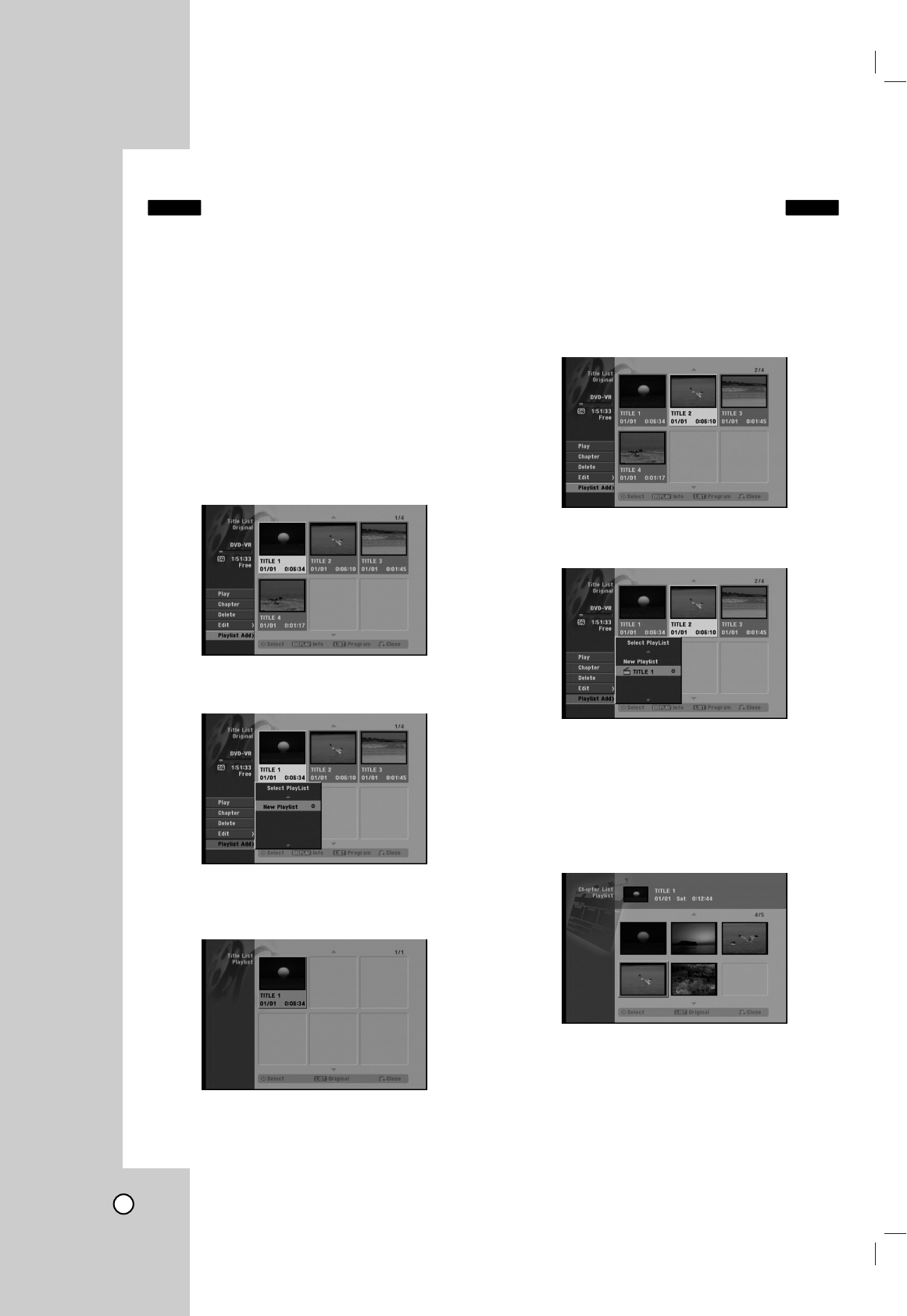

Making a New Playlist . . . . . . . . . . . . . . . . . .44
Adding Additional Title / Chapters to the
Playlist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Deleting an Original or Playlist Title /
Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Deleting a Part . . . . . . . . . . . . . . . . . . . . . . . .45

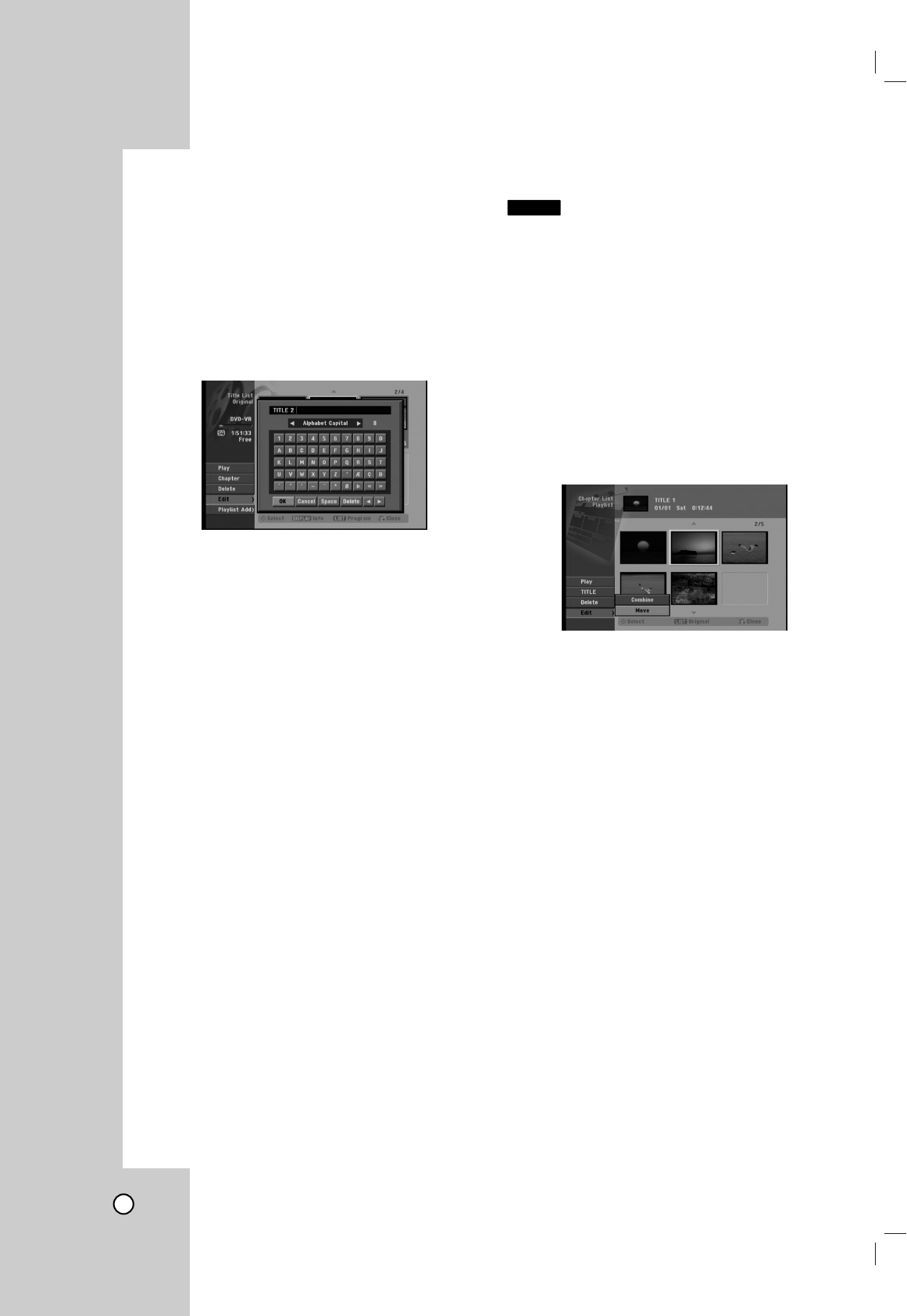

Naming a Title . . . . . . . . . . . . . . . . . . . . . . . .46
Moving a Playlist Chapter . . . . . . . . . . . . . . .46
Divide One Title Into Two . . . . . . . . . . . . . . .47
Combining Two Chapters Into One . . . . . . . .47
Hide a Chapter . . . . . . . . . . . . . . . . . . . . . . . .48
Protect a Title . . . . . . . . . . . . . . . . . . . . . . . .48
Overwriting Recording . . . . . . . . . . . . . . . . .49
Viewing Title List menu displayed on other
DVD Recorders or Players . . . . . . . . . . . . . .49
Playing Your Recordings on Other DVD
Players (Finalizing a Disc) . . . . . . . . . . . . . . .49
REFERENCE

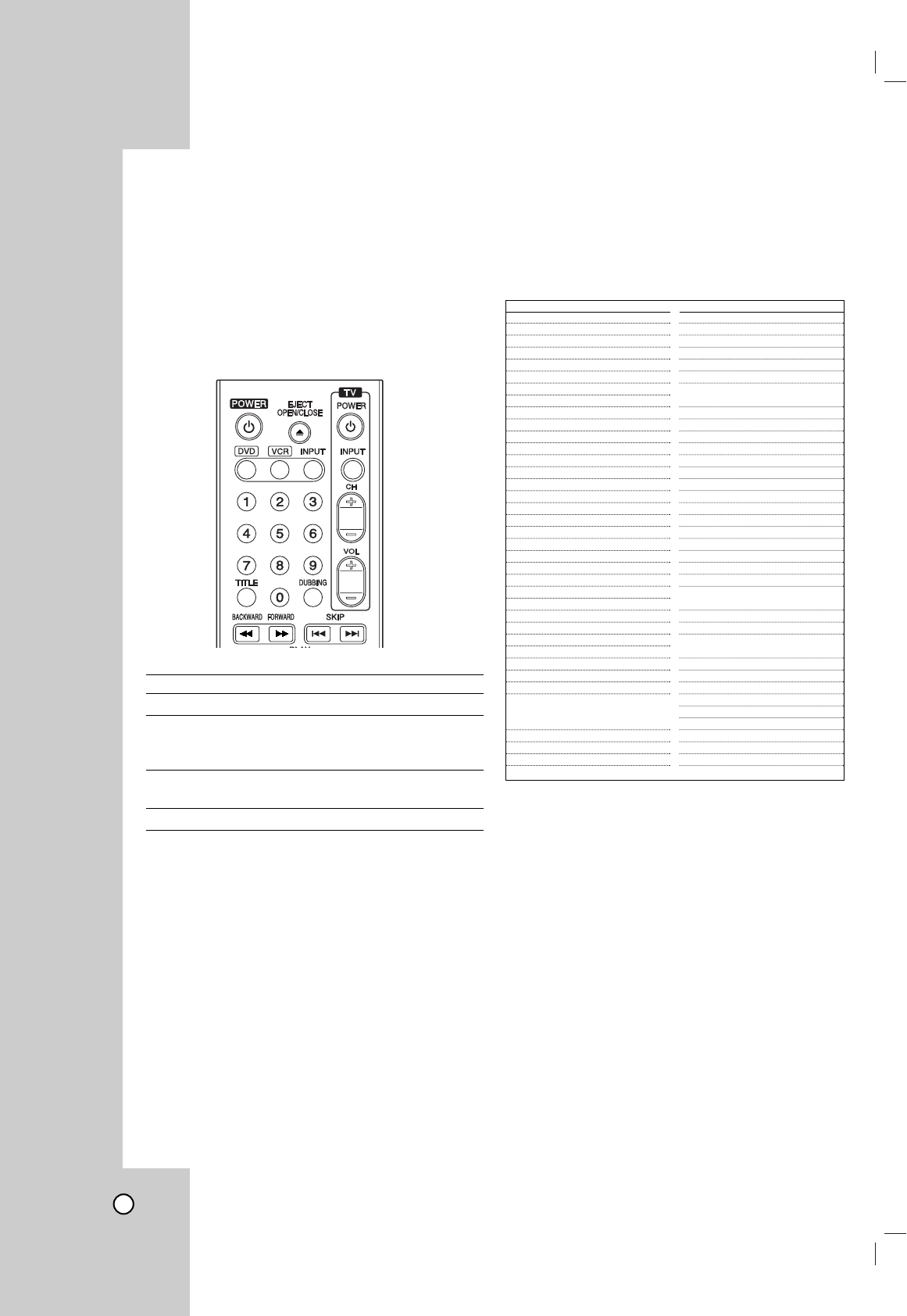

Controlling Your TV with the Supplied
Remote Control . . . . . . . . . . . . . . . . . . . . . . .50
Language Codes . . . . . . . . . . . . . . . . . . . . . .51
Area Codes . . . . . . . . . . . . . . . . . . . . . . . . . .51
Troubleshooting . . . . . . . . . . . . . . . . . . . .52-53
Reset the Recorder . . . . . . . . . . . . . . . . . . .53
Specifications . . . . . . . . . . . . . . . . . . . . . .54-55
6
To ensure proper use of this product, please read this
owner’s manual carefully and retain for future refer-
ence.
Symbol Used in this Manual
Indicates hazards likely to cause harm to
the unit itself or other material damage.
Note: Indicates special notes and operating fea-
tures.
Tip: Indicates tips and hints for making the task
easier.
Asection whose title has one of the following sym-
bols are applicable only to those discs represented
by the symbol.
DVD-RW with VR recording mode
DVD-RW with Video recording mode
DVD+RW disc
DVD-R disc
DVD+R disc
DVD-Video disc
DivX files
Video CDs
Audio CDs
MP3 files
WMA files
JPEG files
About the Symbol Display
“ ” may appear on your TV display during opera-
tion and indicates that the function is not permitted by
this unit or the disc.
Notes on Discs
Handling Discs
Do not touch the playback side of the disc. Hold the
disc by the edges so that fingerprints do not get on
the surface. Never stick paper or tape on the disc.
Storing Discs
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.
Cleaning Discs
Fingerprints and dust on the disc can cause poor pic-
ture quality and sound distortion. Before playing,
clean the disc with a clean cloth. Wipe the disc from
the center out.
Do not use strong solvents such as alcohol, benzine,
thinner, commercially available cleaners, or anti-static
spray intended for older vinyl records.
JPEG
WMA
MP3
ACD
VCD
DivX
DVD
+R
-R
+RW
-RWVideo
-RWVR
Introduction
Moisture Condensation
Never operate this product immediately after mov-
ing it from a cold location to a warm location. Leave
it for two or three hours without operating it. If you
use this product in such a situation, it may damage
discs/tapes and internal parts.
7
Recordable and Playable Discs
DVD-RW (DVD - ReWritable)
DVD-RW discs can be formatted for VR mode recording or Video mode recording.
These Discs can be recorded on repeatedly. Recordings can be erased, then you can record again on the
same Disc.
[VR mode]
Recordings can be extensively edited
Playable only on VR mode compatible players (after finalization)
[Video mode]
Playable on regular DVD players (after finalization)
Limited editing features
DVD-R (DVD - Recordable)
These Discs can be recorded only once. After you finalize a DVD-R, you cannot record on it or edit it.
DVD-R discs can be only formatted to Video mode.
Playable on regular DVD players (after finalization)
Limited editing features
DVD+RW (DVD+ ReWritable)
These Discs can be recorded on repeatedly. Recordings can be erased, then you can record again on the
same Disc.
Playable on DVD+RW compatible players (automatically finalization)
The edited contents are playable on DVD+RW compatible players only after finalization.
Recordings can be edited the title/chapter
DVD+R (DVD + Recordable)
These Discs can be recorded only once. After you finalize a DVD+R, you cannot record on it or edit it any
more.
Playable on DVD+R compatible players (after finalization)
Any edited contents are not be compatible on DVD+R compatible players. (Hide, chapter combine, added
chapter mark, etc.)
Limited title/chapter editing features.
DVD+R DL (DVD + Recordable; Double Layer)
These Discs can be recorded only once. After you finalize a DVD+R DL, you cannot record on it or edit it any
more.
Storage space is nearly doubled with double layer DVD+R media, allowing consumers to record up to 8.5GB
of video on a single DVD+R DL disc.
Playable on DVD+R compatible players (after finalization)
Any edited contents are not be compatible on DVD+R DL compatible players. (Hide, chapter combine, added
chapter mark, etc.)
Limited title/chapter editing features.
Recommended recordable DVD discs
DVD-R DVD+R DVD-RW DVD+RW DVD+R(DL)
SONY (8x, 16x) SONY (2.4x, 4x, 8x, 16x) Victor (1x, 4x) SONY (2.4x) Mitsubishi (2.4x)
TDK (4x, 8x) TDK (4x) Maxell (1x, 2x, 4x) TDK (2.4x) Maxell (2.4x)
Verbatim (4x, 8x) Mitsubishi (4x, 8x) VerbatimTDK (2x) Ricoh (2.4x) -
Panasonic (2x, 4x) Ricoh (2x, 4x, 8x) Mitsubishi (2x) HP (2.4x, 4x) -
---Philips (4x) -
Introduction
8
Playable Discs
DVD (8 cm / 12 cm disc)
Discs such as movies that can be purchased or rented
Video CD (VCD) (8 cm / 12 cm disc)
VIDEO CDs or CD-Rs/CD-RWs in VIDEO CD/Super VIDEO CD format
Audio CD (8 cm / 12 cm disc)
Music CDs or CD-Rs/CD-RWs in music CD format that can be purchased
CD-R/CD-RW (8 cm / 12 cm disc)
CD-R/CD-RW discs that contain audio titles, MP3, WMA, JPEG or DivX files.
Notes:
•Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/RW) disc itself, some
CD-R/RW (or DVD±R/RW) discs cannot be played on the unit.
•Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.
•Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal). Doing so may result in malfunctions.
•Depending on the recording software & the finalization, some recorded discs (CD-R/RW or DVD±R/RW)
may not be playable.
•DVD-R/RW, DVD+R/RW and CD-R/RW discs recorded using a personal computer or a DVD or CD
Recorder may not play if the disc is damaged or dirty, or if there is dirt or condensation on the Recorder’s
lens.
•If you record a disc using a personal computer, even if it is recorded in a compatible format, there are
cases in which it may not play because of the settings of the application software used to create the disc.
(Check with the software publisher for more detailed information.)
Region code of the recorder and DVDs
This recorder is designed and manufactured for playback of Region 1 encoded DVD soft-
ware. The region code on the labels of some DVD discs indicates which type of the recorder
can play those discs. This unit can play only DVD discs labeled 1 or ALL. If you try to play
any other discs, the message “Incorrect region code. Can’t play back” will appear on the TV
screen. Some DVD discs may not have a region code label even though their playback is
prohibited by area limits.
Notes on DVDs and Video CDs
Some playback operations of DVDs and Video CDs may be intentionally fixed by software manufacturers. As
this unit plays DVDs and Video CDs according to disc content designed by the software manufacturer, some
playback features of the unit may not be available or other functions may be added.
Refer also to the instructions supplied with the DVDs and Video CDs. Some DVDs made for business purpos-
es may not be played on the unit.
1
ALL
9
Restrictions on video recording
•You cannot record copy-protected video using this
recorder. Copy-protected video includes DVD-
Video discs and some satellite broadcasts. If
copy-protected material is encountered during a
recording, recording will pause or stop automati-
cally and an error message will be displayed on-
screen.
•Video that is ‘copy-once only’ can only be record-
ed using a DVD-RW disc in VR mode with CPRM
(see below).
What is ‘CPRM’?
CPRM is a copy protection system (with scramble
system) only allowing the recording of ‘copy once’
broadcast programs. CPRM stands for Content
Protection for Recordable Media.
This Recorder is CPRM compatible, which means
that you can record copy-once broadcast programs,
but you cannot then make a copy of those record-
ings. CPRM recordings can only be made on DVD-
RW discs formatted in VR mode, and CPRM record-
ings can only be played on players that are specifical-
ly compatible with CPRM.
Copyright
•Recording equipment should be used only for law-
ful copying and you are advised to check carefully
what is lawful copying in the area in which you
are making a copy. Copying of copyright material
such as films or music is unlawful unless permit-
ted by a legal exception or consented to by the
rights owner.
•This product incorporates copyright protection
technology that is protected by method claims of
certain U.S. patents and other intellectual property
rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protec-
tion technology must be authorized by
Macrovision Corporation, and is intended for
home and other limited viewing uses only, unless
otherwise authorized by Macrovision corporation.
Reverse engineering or disassembly is prohibited.
Notice for Progressive Scan Use
CONSUMERS SHOULD NOTE THAT NOT ALL
HIGH DEFINITION TELEVISION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT AND MAY
CAUSE ARTIFACTS TO BE DISPLAYED IN THE
PICTURE. IN CASE OF 525 PROGRESSIVE SCAN
PICTURE PROBLEMS, IT IS RECOMMENDED
THAT THE USER SWITCH THE CONNECTION TO
THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE
ARE QUESTIONS REGARDING YOUR TV SET
COMPATIBILITY WITH THIS MODEL 525p
DVD+VCR RECORDER, PLEASE CONTACT OUR
CUSTOMER SERVICE CENTER.
Introduction
10
Card useable on this unit
Card useable on this unit
•Compact Flash Card (CF)
•Micro Drive (MD)
•Secure Digital Card (SD)
•Multi Media Card (MMC)
•SmartMedia Card (SMC)
•xD-Picture Card (xD)
•Memory Stick (MS)
•Memory Stick Pro (MS-Pro)
•Compatible with: FAT 12, FAT 16, or FAT 32
•Only use the memory cards recommended above.
Regarding Write Protect
For cards that have a write protect switch, if the
switch is on it will not be possible to write or erase
the card.
Inserting/Removing the Memory Card
Inserting the card: Insert straight-in until it fits into
place.
Removing the card: Withdraw the card carefully.
Notes:
Keep the memory card out of reach of children. If
swallowed, seek medical advice immediately.
Some memory card may not work in this recorder,
depending on the formatting.
Do not extract the memory card in operating
(play, copy, etc.).
Using Memory Card
Using Memory Card
1. Insert a memory card.
2. Press MEMORY on the Remote Control while in
the DVD Tuner mode.
The Memory Card slot choice menu appears on
the TV screen.
3. Use v/V to select the desired Memory Card slot
then press ENTER.
The Photo or Music menu appears on the TV
screen.
4. Press RETURN (O)to exit the Photo or Music
menu for memory card.
Note:
For details on each operation item, refer to relevant pages.
Insert CF or MD card Insert SD, MMC, SMC,
xD, MS, or MS-Pro card
About the Remote Control
Operation Range
Point the Remote Control at the remote sensor and
press the buttons.
Distance: About 23 ft (7 m) from the front of the
remote sensor.
Angle: About 30° in each direction of the front of
the remote sensor.
Battery installation
Detach the battery cover on the rear
of the Remote Control, and insert two
(R03/AAA) size batteries with 3and
#aligned correctly.
Do not mix old and new batteries and never
mix different types of batteries such as stan-
dard, alkaline, etc.
11
Disc-related terms
DVD +R (Double Layer)
Double layer recording technology offers two record-
able layers on a single DVD disc, providing nearly
double the capacity of 4.7GB single layer DVDs. The
greatest, most valuable benefit of double layer
recording technology is increased capacity. Storage
space is nearly doubled with double layer DVD+R
media, allowing consumers to burn up to 8.5GB of
video on a single DVD+R disc.
DVD ±R / DVD ±RW
DVD -R and DVD +R are two different standards for
recordable DVD drives and discs. This format allows
information to be recorded onto the DVD disc only
once. DVD +RW and DVD -RW are two standards for
re-writable media, meaning the DVD content can be
erased and re-recorded. Single-sided discs can hold
4.7 GB and double-sided discs hold twice as much.
VCD (Video CD)
AVCD holds up to 74 minutes (650 MB disc) or 80
minutes (700 MB disc) of MPEG-1 full-motion video
along with quality stereo sound.
MPEG
MPEG is an international standard for video and
audio compression. MPEG-1 is used in encoding
video for VCD and provides for multichannel surround
sound coding such as PCM, Dolby Digital, DTS and
MPEG audio.
MP3
MP3 is a popular compression format used for digital
audio files that yields very high near-CD quality.
WMA
Windows media audio file. A type of coding / decod-
ing developed by Microsoft Corp.
JPEG
Joint Pictures Expert Group. JPEG is a compressed
file format that allows you to save images with no
limit on the number of colors.
DivX
DivX is the name of a revolutionary new video codec
which is based on the new MPEG-4 compression
standard for video.You will be able to play DivX
movies using this recorder.
PBC: Playback Control (Video CD only)
Playback control is available for Video CD (VCD) ver-
sion 2.0 disc formats. PBC allows you to interact with
the system via menus, search functions, or other typi-
cal computer-like operations. Moreover, still pictures
of high resolution can be played if they are included
in the disc. Video CDs not equipped with PBC
(Version 1.1) operate in the same way as audio CDs.
Title (DVD video discs only)
Atitle is generally a distinct section of a DVD disc.
For example the main feature could be title 1, a docu-
mentary describing how the film was made could be
title 2, and cast interviews could be title 3. Each title
is assigned a reference number enabling you to
locate it easily.
Chapter (DVD video discs only)
Achapter is a segment of a title such as a scene in a
film or one interview in a series. Each chapter is
assigned a chapter number, enabling you to locate
the chapter you want. Depending on the disc, chap-
ters may not be recorded.
Scene (VCD)
On a video CD with PBC (playback control) functions,
moving pictures and still pictures are divided into sec-
tions called “scenes”. Each scene is displayed in the
menu screen and assigned a scene number, enabling
you to locate the scene you want. A scene is com-
posed of one or several tracks.
Track
Adistinct element of audiovisual information, such as
the picture or sound track for a specific language
(DVD), or a musical piece on a video or audio CD.
Each track is assigned a track number, enabling you
to locate the track you want. DVD discs allow one
track of video (with multiple angles) and several
tracks of audio.
Introduction
12
aPOWER button
Switches the Recorder ON and OFF.
bN(PLAY)
To play back a disc or tape.
cx(STOP)
Stops playback.
dz(REC)
Starts recording.
Press repeatedly to set the recording time.
eCH (v/ V)
Scans up or down through memorized chan-
nels.
fDisc Tray
Insert a disc here.
gZOPEN/CLOSE
Opens or closes the disc tray.
hDisplay window
Shows the current status of the recorder.
REC: The recorder is recording.
TV: Indicates when the recorder is in TV tuner
mode.
:Indicates when the recorder is in timer
recording or a timer recording is programmed.
: Indicates clock, total playing
time, elapsed time, title number, chapter/track
number, channel, etc.
iRemote Sensor
Point the Recorder Remote Control here.
jAV 2 IN
- VIDEO /AUDIO (Left/Right)
Connect the audio/video output of an external source
(Audio system, TV/ Monitor, VCR, Camcorder, etc.).
- S-VIDEO IN
Connect the S-Video output of an external source
(TV/ Monitor, VCR, Camcorder, etc.).
kDV IN
Connect the DV output of a digital camcorder.
lPIP
Selects PIP function on or off.
mMEMORY CARD Slot 1
Insert a memory card (CF/MD).
nMEMORY CARD Slot 2
Insert a memory card
(SD/MMC/SMC/xD/MS/MS Pro).
Front Panel
abcde f g h i
jkl m n
13
Introduction
0-9 numerical buttons: Selects
numbered options in a menu.
b/ B/ v/ V(left/right/up/down):
Selects menu options.
A-B: Repeats sequence between two
points (A and B)
AUDIO: Selects an audio lan-
guage (DVD) or an audio channel
(CD).
INPUT: Changes the input to use
for recording (Tuner, AV1-2, or
DV IN).
CHP. ADD: Inserts a chapter
marker when playing/recording.
CH v/ V (up/down): Scans up or
down through memorized chan-
nels.
CLEAR: Removes a track number
on the Program List or a mark on
the Marker Search menu.
DISPLAY: Accesses On-Screen
Display.
ENTER
-Confirms menu selections.
-Displays information while view-
ing a TV program.
INSTANT SKIP : Skips 15 sec-
onds forward on the disc (about
the length of a typical TV: com-
mercial).
MARKER: Marks any point during
playback.
MENU/LIST: Accesses menu on a
DVD disc, Title List or Playlist
menu.
OPEN/CLOSE (Z): Opens or
closes the disc tray.
PAUSE/STEP (X) : Pause play-
back or recording temporarily,
press again to exit pause mode.
PIP: Selects PIP function on or
off.
PLAY (N): Starts playback.
POWER: Switches the Recorder
ON and OFF.
zREC: Starts recording. Press
repeatedly to set the recording
time.
REC MODE: Selects the record-
ing mode (HQ, SQ, LQ or EQ).
REPEAT: Repeat chapter, track,
title, all.
RETURN (O)
-Removes the menu.
-Displays the menu of a video
CD with PBC.
SCAN (m/ M): Search back-
ward or forward.
SEARCH: Displays Marker
Search menu.
SETUP: Accesses or removes the
Setup menu.
SKIP (./ >): Go to next
chapter or track. Returns to begin-
ning of current chapter or track or
go to previous chapter or track.
STOP (x): Stops playback or
recording.
SUBTITLE: Selects a subtitle lan-
guage.

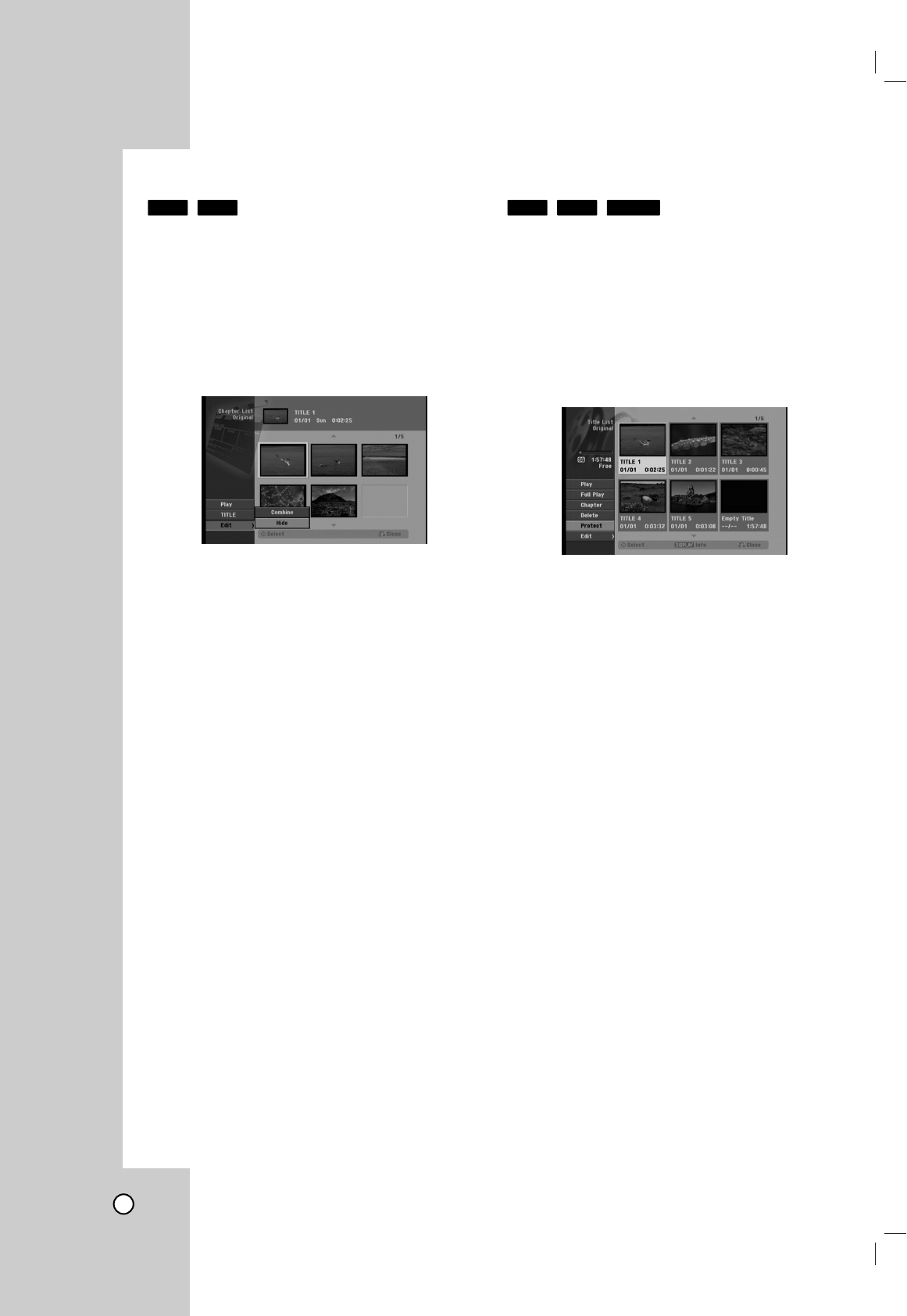

THUMBNAIL: Selects a thumbnail
picture for the current title for use
in the Title List or Chapter List
menu.
TIMER REC: Displays Timer
Record menu.
TITLE: Displays the disc’s Title
menu, if available.
TV/DVD: To view channels select-
ed by the recorder tuner or by the
TV tuner.
TV Control Buttons
See page 50.
ZOOM: Enlarges DVD video
image.
Remote Control
14
aANT.IN
Connect the antenna to this terminal.
bAUDIO OUT (Left/Right)
Connect to a TV with audio inputs.
cVIDEO OUT
Connect to a TV with video inputs.
dCOMPONENT VIDEO OUT/PROGRESSIVE
SCAN (Y Pb Pr)
Connect to a TV with Y Pb Pr inputs.
eCooling fan
fAC Power Cord
Plug into the power source.
gRF. OUT
Connect to a TV with RF coaxial inputs.
hS-VIDEO OUT
Connect to a S-Video Input on TV.
iAUDIO IN (Left/Right)
Connect the audio output of an external source
(Audio system, TV/Monitor, VCR, Camcorder).
jVIDEO IN
Connect the video output of an external source
(Audio system, TV/Monitor, VCR, Camcorder).
kAUDIO OUT (Left/Right)
Connect to a TV with audio inputs.
lCOAXIAL (Digital audio out jack)
Connect to digital (coaxial) audio equipment.
mOPTICAL (Digital audio out jack)
Connect to digital (optical) audio equipment.
abcd ef
gh ijklm
Rear Panel
Hookup and Settings
Depending on your TV and other equipment there are various ways you can connect the
recorder. Please refer to the manuals of your TV, VCR, Stereo System or other devices as nec-
essary for additional connection information.
Notes:
•Make sure the Recorder is connected directly to the TV and tune the TV to the correct video input channel.
•Do not connect the Recorder’s AUDIO OUT jack to the phono in jack (record deck) of your audio system.
Do not connect the Recorder via another VCR. The DVD image could be distorted by the copy protection system.
•The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. Position the units away from each
other or turn off the unit after removing the disc.
15

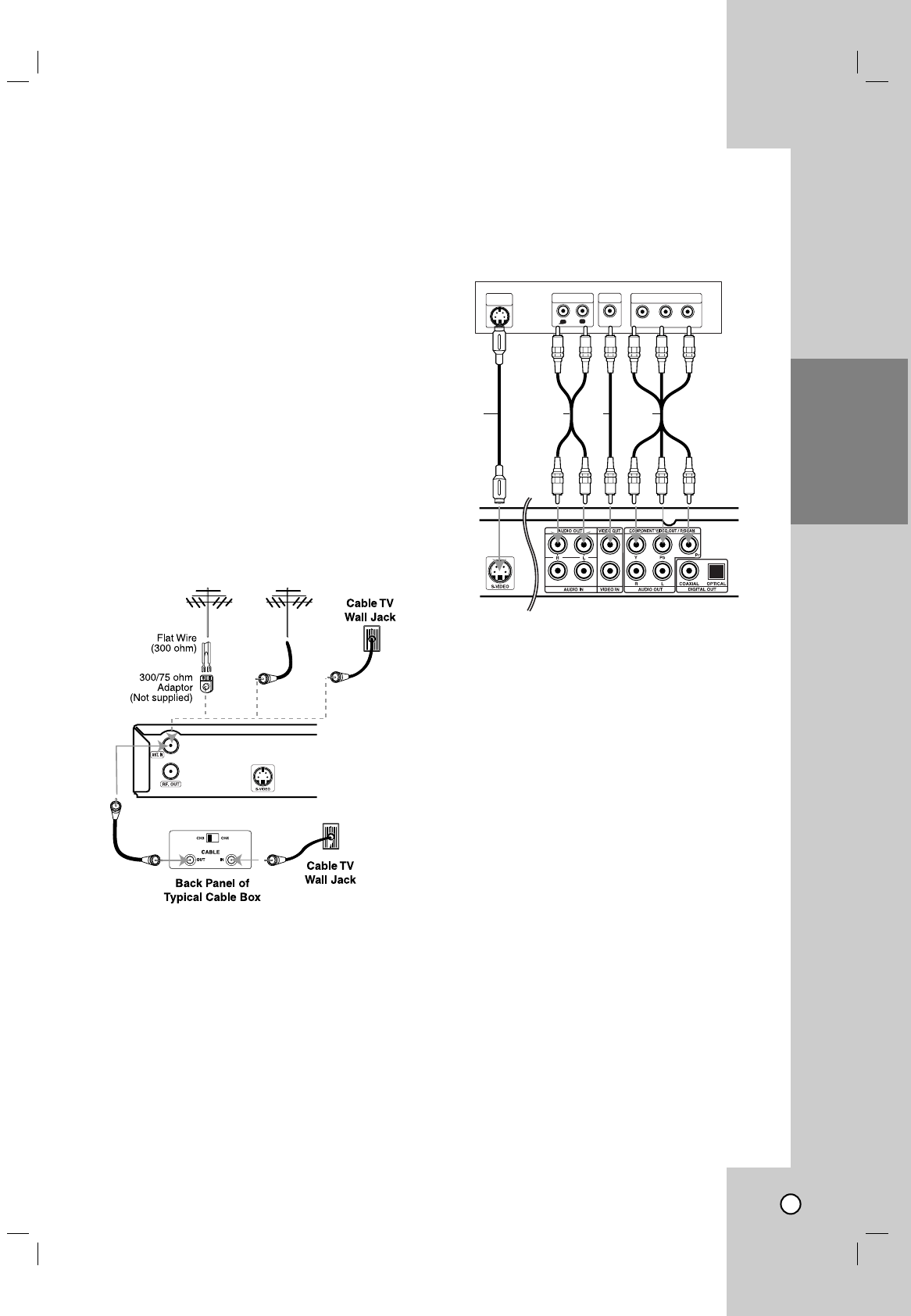

Connecting an
Connecting an Antenna
Antenna
or Cable TV
or Cable TV
aaAntenna:
Disconnect the antenna from the rear of the TV and
identify the antenna cable. If it is a round 75 ohm
coaxial cable connect it directly to the jack marked
ANT.IN on your Recorder. If your antenna cable is flat
connect it to a 300-ohm to 75-ohm antenna adaptor
(not supplied) and slip the adaptor over the ANT.IN
jack. Don’t attempt to screw it into to the Recorder.
bbCable TV:
If your cable connection has no converter or
descrambler, unscrew the cable from your TV and
attach it to the ANT.IN jack on the Recorder. If a con-
verter is required connect a coaxial cable from the
wall jack to the IN connector on the converter, and a
coaxial cable from the OUT connector on the convert-
er to the ANT.IN on your Recorder. This cable hookup
permits both TV and Recorder operation.
To view or record a CATV channel
1. Tune the TV to the Recorder output channel (CH
3 or 4).
2. Set the Recorder channel selector to the cable
output channel. (Example: CH3)
3. Select a channel using the cable converter.
Notes:
•With this connection, you cannot record one program
while viewing another.
•If you are using a cable box to tune channels, it is not
necessary to do Auto Channel Set.
Connections to your TV
Connections to your TV
Make one of the following connections, depending on
the capabilities of your TV.
RF coaxial connection
Connect the RF.OUT jack on the Recorder to the
antenna in jack on the TV using the supplied 75-ohm
Coaxial Cable (R).
How to set the Recorder’s RF output channel
1. When the Recorder is turned off, press and hold
CH (V/v) on the front panel for more than five
seconds. [ch03] or [ch04] appears in the display
window.
2. Press CH (V/v) to change the RF output channel
(ch03 or ch04).
3. Tune the TV to this channel.
Video connection
Connect the VIDEO OUT jack on the Recorder to the
video in jack on the TV using the video cable sup-
plied (V).
Note:
If you use this connection, set the TV’s source selector to
VIDEO.
S-Video connection
Connect the S-VIDEO OUT jack on the Recorder to
the S-Video in jack on the TV using the optional
S-Video cable (S).
Antenna Antenna
OR OR
a
b
Rear of the recorder
L
R
AUDIO INPUT VIDEO
INPUT
Pr
Pb
Y
Rear of TV
A V C
COMPONENT/PROGRESSIVE SCAN
VIDEO INPUT
S
S-VIDEO
INPUT
Hookup and
Settings
16
Component Video / Progressive Scan
connection
If your television is a high-definition or “digital ready”
television, you may take advantage of the Recorder’s
progressive scan output for the highest video resolu-
tion possible.
Connect the COMPONENT/PROGRESSIVE SCAN
VIDEO OUT jacks on the Recorder to the correspon-
ding in jacks on the TV using an optional Y Pb Pr
cable (C).
Notes:
•Set Progressive Scan option to [ON] in the setup menu,
see page 20.
•Progressive Scan does not work with the RF,
Audio/Video or S-Video connections.
•If your TV does not accept the Progressive Scan format,
the picture will appear scrambled.
•When you use Component Video signal, set the
Progressive Scan to [OFF] on the setup menu.
Audio connection
Connect the Left and Right AUDIO OUT jacks on the
Recorder to the audio left/right in jacks on the TV
using the supplied audio cables (A).
Connection to an
Connection to an Amplifier
Amplifier
Connecting to an amplifier equipped with two
channel analog stereo or Dolby Pro Logic II/Pro
Logic
Connect the Left and Right AUDIO OUT jacks on the
Recorder to the audio left and right in jacks on your
amplifier, receiver, or stereo system using the audio
cables (A) supplied.
Connecting to an amplifier equipped with two chan-
nel digital stereo (PCM) or to an Audio/Video receiv-
er equipped with a multi-channel decoder (Dolby
Digital™, MPEG 2, or DTS)
1. Connect one of the Recorder’s DIGITAL AUDIO
OUT jacks ( OPTICAL O, COAXIAL X) to the cor-
responding in jack on your amplifier. Use an
optional digital (OPTICAL O, COAXIAL X) audio
cable.
2. You will need to activate the Recorder ’s digital
output. (See [Audio Settings] on page 22).
Digital Multi-channel sound
Adigital multi-channel connection provides the best
sound quality. For this you need a multi-channel
Audio/Video receiver that supports one or more of the
audio formats supported by your Recorder (MPEG 2,
Dolby Digital and DTS). Check the receiver manual
and the logos on the front of the receiver.
Caution:
Due to the DTS Licensing agreement, the digital
output will be in DTS digital out when DTS audio
stream is selected.
Notes:
•If the audio format of the digital output does not match
the capabilities of your receiver, the receiver will pro-
duce a strong, distorted sound or no sound at all.
•Six Channel Digital Surround Sound via digital connec-
tion can only be obtained if your receiver is equipped
with a Digital Multi-channel decoder.
•To see the audio format of the current DVD in the on-
screen display, press AUDIO.
•This Recorder does not perform internal (2 channel)
decoding of a DTS sound track. To enjoy DTS multi
channel surround, you must connect this Recorder to a
DTS compatible receiver via one of this Recorder’s digi-
tal audio outputs.
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and the
double-D symbol are trademarks of Dolby
Laboratories.
DTS and DTS Digital Out are trademarks of
Digital Theater Systems, Inc.
Rear of the recorder
R
L
AUDIO INPUT DIGITAL INPUT
COAXIAL
DIGITAL INPUT
OPTICAL
Amplifier (Receiver)
AXO
17
Connecting to the INPUT 1 or INPUT 2
Jacks
Connect the input jacks (INPUT1, INPUT2) on the
recorder to the audio/video out jacks on your acces-
sory component, using audio/video cables.
Note:
If you use the S-VIDEO IN jack on the front panel,
the VIDEO IN jack on the front panel is not available.
Connecting a Digital Camcorder
Use a DV cable (not supplied) to connect the DV
in/out jack of your DV Digital Camcorder to the front
panel DV IN jack of this Recorder.
Use a DV cable (not supplied) to connect the DV
in/out jack of your DV Digital Camcorder to the front
panel DV IN jack of this recorder.
Note:
This jack is for connection to DV Digital Camcorder
only. It is not compatible with digital satellite tuners or
D-VHS video decks.
Hookup and
Settings
L
R
VIDEO
OUTPUT
AUDIO
OUTPUT
S-VIDEO
OUTPUT
Jack panel of Accessory Component
(VCR, Camcorder, etc.)
Rear of
the recorder
Front of
the recorder
OR
OR
DV Digital Camcorder
Front of the recorder
DV
IN/OUT
18
Initial Settings
Initial Settings
In this menu system, there are several ways to cus-
tomize the settings provided. Most menus consist of
three levels to set up the options, but some require
greater depth for the variety of settings.
General Operation
1. Press SETUP and the Setup menu appears.
2. Use v / V to select the desired option.
3. While the desired item is selected, press Bto
move to the second level.
4. Use v / V to select the second desired option.
5. Press Bto move to the third level.
6. Use v / V to select the desired setting then press
ENTER to confirm your selection.
Some items require additional steps.
7. Press SETUP to exit the Setup menu.
Note:
Press bto go back to the previous level.
General Settings
Tuning Band Select
1. Select the [Tuning Band] option then press B.
2. Use v / V to select the tuning band (TV or
CATV) option then press ENTER.
TV: If you are using a standard antenna to
receive channels.
CATV: If you are using basic cable to receive
channels.
Auto Channel Set
Connect the Recorder to the desired type of antenna
or cable TV system as shown on page 15.
This Recorder is equipped with a frequency synthe-
sized tuner capable of receiving up to 181 channels.
These include VHF channels 2-13, UHF channels 14-
69 and CATV channels 1-125.
1. Select the [Tuning Band] option.
2. Use B/ v /Vto select the [Start] icon.
3. Press ENTER to begin the channel search.
The tuner will automatically cycle through all
available channels in the area and place them in
the tuner’s memory.
Note:
After the Auto Channel Set proceeding is complete,
make sure the Tuning Band is set appropriately (TV
or CATV) on tuning band, follow steps 1~3 as shown
previous (Tuning Band Select) to choose the correct
Tuning Band (TV or CATV).
19
To Add or Erase Channels from Memory
This feature allows you to add to or erase channels
from memory manually.
1. Select the [Ch. Edit] option.
2. Press Bto move to the third level.
[Edit] icon is highlighted.
3. Press ENTER and the Channel Edit menu
appears.
4. Use v / V or number buttons to select a channel
to add or delete then press B.
[Add] or [Delete] icon is highlighted.
5. Press ENTER to confirm your setting.
6. Repeat steps 4-5 to add or erase additional
channels.
7. Press SETUP or RETURN (O)to exit the menu.
Clock Set
1. Select the [Clock Set] option.
2. Press Bto move to the third level.
Auto
The Auto option is set at the factory. In the Auto option,
the Recorder looks for a channel carrying XDS
(Extended Data Services) information. XDS updates the
clock using the Coordinated Universal Time.
1. Use b/B to choose the option and use v/V to
change the setting.
[Band] Select the band.
[PBS Ch.] Select the channel.
[Time Zn.] Choose your time zone.
When Timezone is set to Auto, the Recorder
will use XDS information to determine the prop-
er setting.
[Daylight Saving] Choose the Daylight Savings.
When it is set to Auto, the Recorder will use
XDS information to determine the proper set-
ting.
2. Press ENTER to confirm your setting.
Note :
The Auto Clock Feature enables the Recorder to set up
the clock when the Recorder is turned off.
Manual
If your local TV station does not send date and time
information, or sends incorrect information, you can set
the clock manually.
1. Enter the necessary information for year, date and
time.
b / B (left/right): Moves the cursor to the previous
or next column.
v / V (up/down): Changes the setting at the current
cursor position.
2. Press ENTER to confirm your setting.
3. Press SETUP to exit the Setup menu.
Hookup and
Settings
20
TV Aspect
Selects the aspect ratio of the connected TV (4:3
standard or wide).
[4:3] Select this when connecting to a 4:3 screen
TV. When you select [4:3], set [Display Mode]
below.
[16:9] Select this when connecting to a wide-screen
TV or TV with a wide mode function.
Display Mode
Selects how to display a wide picture on the screen
when [4:3] is selected in [TV Aspect].
[Letter Box] Displays a wide picture with bands on
the upper and lower portions of the screen.
[Pan Scan] Automatically displays a wide picture on
the entire screen and cuts off the portions that do
not fit.
Progressive Scan
Progressive Scan Video provides the highest quality
pictures with less flickering.
[ON] :Using the COMPONENT/PROGRESSIVE
SCAN VIDEO OUT jacks for connection to
a TV or monitor that is compatible with a
progressive scan signal.
[OFF] :Using the COMPONENT/PROGRESSIVE
SCAN VIDEO OUT jacks, but are con-
necting the Recorder to a standard (ana-
log) television.
Caution
Once the setting for Progressive Scan output is
entered, an image will only be visible on a
Progressive Scan compatible TV or monitor. If you
set Progressive Scan to [ON] in error, you must reset
the Recorder. First, remove the disc in the Recorder.
Next, press STOP (x) and hold it for five seconds
before releasing it. The video output will be restored
to the standard setting, and a picture will once again
be visible on a conventional analog TV or monitor.
PBC
PBC stands for Playback Control and refers to spe-
cial menus and navigation features that are available
on some Video CDs.
[ON] Video CDs are played according to the PBC,
if available.
[OFF] Video CDs are played the same way as
Audio CDs.
21
Power Save Mode
Set Power Save Mode to [ON] to place your
Recorder into an economic power save mode.
Factory Set
You can reset the Recorder to its original factory
settings. Some options cannot be reset (Rating,
Password and Area Code)
1. Select the [Factory Setting] option.
2. Press Bto select [SET] then press ENTER.
The Initialize menu will appear.
3. Select [OK] and press ENTER.
Language Settings
Language Settings
Display Menu
Select a language for the Setup menu and informa-
tion display.
Disc Menu/Audio/Subtitle
[Original]Refers to the original language in which
the disc was recorded.
[Others] To select another language, press number
buttons then ENTER to enter the corresponding
4-digit number according to the language code list
in the reference chapter (see page 51). If you enter
the wrong language code, press CLEAR.
[OFF] (for Disc Subtitle) : Turn off Subtitle.
Hookup and
Settings
22
Audio Settings
Audio Settings
Each DVD disc has a variety of audio output options.
Set the recorder’s Audio Output according to the type
of audio system you use.
Dolby Digital / DTS / MPEG
[Bitstream]: Select “Bitstream” if you connect the
recorder’s DIGITAL AUDIO OUT jack to an amplifi-
er or other equipment with a Dolby Digital, DTS or
MPEG decoder.
[PCM] (for Dolby Digital / MPEG): Select when con-
nected to a two-channel digital stereo amplifier.
DVDs encoded in Dolby Digital or MPEG will be
automatically downmixed to two-channel PCM
audio.
[OFF] (for DTS): If you select [OFF], the DTS signal
is not output through the DIGITAL AUDIO OUT
jack.
Sampling Frequency
If your receiver or amplifier is NOT capable of han-
dling 96 kHz signals, select [48 kHz]. When this
choice is made, this unit will automatically convert
any 96 kHz signals to 48 kHz so your system can
decode them.
If your receiver or amplifier is capable of handling
96 kHz signals, select [96 kHz]. When this choice is
made, this unit will pass each type of signal through
without any further processing.
DRC (Dynamic Range Control)
With the DVD format, you can hear a program’s
soundtrack in the most accurate and realistic presen-
tation possible, thanks to digital audio technology.
However, you may wish to compress the dynamic
range of the audio output (the difference between the
loudest sounds and the quietest ones). Then, you
may listen to a movie at a lower volume without los-
ing clarity of sound. Set DRC to [ON] for this effect.
Vocal
Set Vocal to [ON] only when a multi-channel karaoke
DVD is playing. The karaoke channels on the disc will
mix into normal stereo sound.
23
Lock (Parental Control) Settings
Rating
Some movies contain scenes that may not be suit-
able for children to view. Many of these discs contain
parental control information that applies to the com-
plete disc or to certain scenes on the disc. Movies
and scenes are rated from 1 to 8, depending on the
area. DVD video discs may or may not respond to
the parental control setting if the Area code of the
disc is set wrongly. Some discs offer more suitable
scenes as an alternative. Ratings are area depend-
ent. The parental control feature allows you to block
access to scenes below the rating you input, thereby
preventing your children from being able to view
material you believe is unsuitable.
1. Select [Rating] option then press B.
2. To access the Rating, Password and Area Code
features, you must input the 4-digit security code
you created.
If you have not yet entered a security code you are
prompted to do so. Input a 4-digit code and press
ENTER. Enter it again and press ENTER to verify.
If you make a mistake before pressing ENTER,
press CLEAR.
3. Select a rating from 1 to 8 using the v/Vbuttons.
[1]-[8] : Rating one (1) has the most restrictions
and rating eight (8) is the least restrictive.
[No Limit] : If you select [No Limit], parental
control is not active and the disc plays in full.
4. Press ENTER to confirm your rating selection,
then press SETUP to exit the menu.
5. Press OPEN/CLOSE (Z)to activate parental
control.
Note:
If you set a rating for the recorder, all disc scenes with the
same rating or lower are played. Higher rated scenes are
not played unless an alternate scene is available on the
disc. The alternative must have the same rating or a lower
one. If no suitable alternative is found, playback stops. You
must enter the 4-digit password or change the rating level in
order to play the disc.
Set Password
You can enter or change password.
1. Select [Set Password] option then press B.
2. Follow step 2 as shown [Rating].
To change the password, select the [Change],
press ENTER and input the new 4-digit code then
press ENTER.
Input it again to verify.
3. Press SETUP to exit the menu.
If you forget your password
If you forget your password you can clear it using the
following steps:
1. Press SETUP to display the Setup menu.
2. Input the 6-digit number [210499]. The message
appears, select [OK] then press ENTER. The
security code is cleared.
3. Enter a new code as described above.
Area Code
Enter the Area Code whose standards were used to
rate the DVD video disc, based on the list in the
reference chapter (see p. 54).
1. Select [Area Code] option then press B.
2. Follow step 2 as shown [Rating].
3. Select the first character using v/Vbuttons.
4. Shift the cursor using Bbuttons and select the
second character using v/ Vbuttons.
5. Press ENTER to confirm your area code
selection, then press SETUP to exit the menu.
Hookup and
Settings
24
DivX Registration Code
We provide you the DivX®VOD (Video On Demand
registration code that allows you to rent and purchase
videos using the DivX®VOD service.
For more information, visit www.divx.com/vod.
1. Select [DivX(R) VOD] option then press B.
2. Press ENTER while [Enter] is selected and the
registration code will appear.
3. Use the registration code to purchase or rent the
videos from Divx®VOD service at
www.divx.com/vod. Follow the instructions and
download the video onto a disc for playback on
this unit.
Note:
All the downloaded videos from DivX®VOD can only
be played back on this unit.
Recording Settings
Recording Settings
Record Mode Set
You can set the picture quality for recording;
HQ (High Quality), SQ (Standard Quality),
LQ (Low Quality), EQ (Extend Quality).
1. Select [Rec Mode Set] option then press B.
2. Use v/ Vto select a desired Record Mode (HQ,
SQ, LQ or EQ).
3. Press ENTER to confirm your selection, then
press SETUP to exit the menu.
Record Aspect
When DVD recording, you can set the recording
aspect ratio to suit the material you’re recording (16:9
or 4:3).
DV Recording Audio
You need to set this if you have a camcorder using
32kHz/12-bit sound connected to the front panel DV
IN jack.
Some digital camcorders have two stereo tracks for
audio. One is recorded at the time of shooting; the
other is for overdubbing after shooting.
On the Audio 1 setting, the sound that was recorded
while shooting is used.
On the Audio 2 setting, the overdubbed sound is
used.
Auto Chapter
During recording, chapter markers are added auto-
matically at fixed intervals. You can set this interval to
5 minutes, 10 minutes or 15 minutes. To turn off auto-
matic chapter marking, select [None].
DivX
25
Disc Settings
Disc Format
If you load a completely blank disc, the recorder will
initialize the disc.
•DVD-R: The recorder initialize the disc to Video mode.
The recording mode will always be Video mode.
•DVD-RW: The Initialize menu will appear. Select [VR
Mode] or [Video Mode] then press ENTER.
•DVD+R(DL): The Initialize menu will appears. Select
[Yes] then press ENTER.
•DVD+RW: The recorder initialize the disc to DVD+RW
mode.
Also, you can reformat the DVD-RW/DVD+RW from
the Setup menu as below.
1Select the [Disc Format] option then press B.
[Start] icon is highlighted.
2Press ENTER.
•In case of DVD-RW, use b / B to select a
desired Disc Initialize Mode (VR Mode or Video
Mode) then press ENTER.
•In case of DVD+RW, use b / B to select [OK],
and press ENTER.
It takes a few moments to format the disc.
Caution
If you want to change the disc format, everything
recorded on the disc will be erased.
Finalize
Finalizing ‘fixes’ the recordings in place so that the
disc can be played on a regular DVD player or com-
puter equipped with a suitable DVD-ROM drive.
Finalizing a Video mode disc creates a menu screen
for navigating the disc. This is accessed by pressing
MENU/LIST or TITLE.
Caution
Once you have finalized a DVD-R and DVD+R disc,
you cannot edit or record anything else on that disc
except DVD+RW. However, you can record and edit
a DVD-RW disc by choosing [Unfinalize] option.
1. Select [Finalize] option then press B.
2. Press ENTER while [Finalize] is selected.
Finalize menu appears.
3. Select [OK] then press ENTER.
The recorder starts finalizing the disc.
Notes:
•Finalization can take up to 3-4 minutes or more depend-
ing on the type of disc, how much is recorded on the
disc, and the number of titles on the disc.
•DVD+R DL disc can take up to 30 minutes to finalize.
Tips
•If you load a DVD-RW that has already been finalized,
you can ‘Unfinalize’ it by choosing Unfinalize from the
Finalize menu. After doing this, you can edit and re-
record onto the disc.
•You cannot unfinalize a DVD-R and DVD+R disc.
•If [Disc Protect] option is set to [ON], the finalize is not
available. To finalize, set [Disc Protect] option to [OFF].
Hookup and
Settings
26
Disc Label
Use the Disc Label feature to enter a name for the
disc. This name appears when you load the disc and
when you display disc information on-screen.
The disc label can be up to 32 characters long.
For discs formatted on a different recorder, you will
see only a limited character set.
1. Select the [Disc Label] option then press B.
[Edit] icon is highlighted.
2. Press ENTER.
Keyboard menu appears.
To enter characters, see page 46.
Disc Protect
When recording in DVD+RW / +R disc or VR mode
formatted DVD-RW disc, set to [ON] to prevent
accidental recording, editing or deleting of the disc
loaded. If you need to unlock the disc to make edits,
select [OFF].
27
General Explanation of
General Explanation of
On-Screen Display
On-Screen Display
Some DVDs require specific operation or allow only
limited operation during playback. When this occurs,
is displayed, action prohibited or not available.

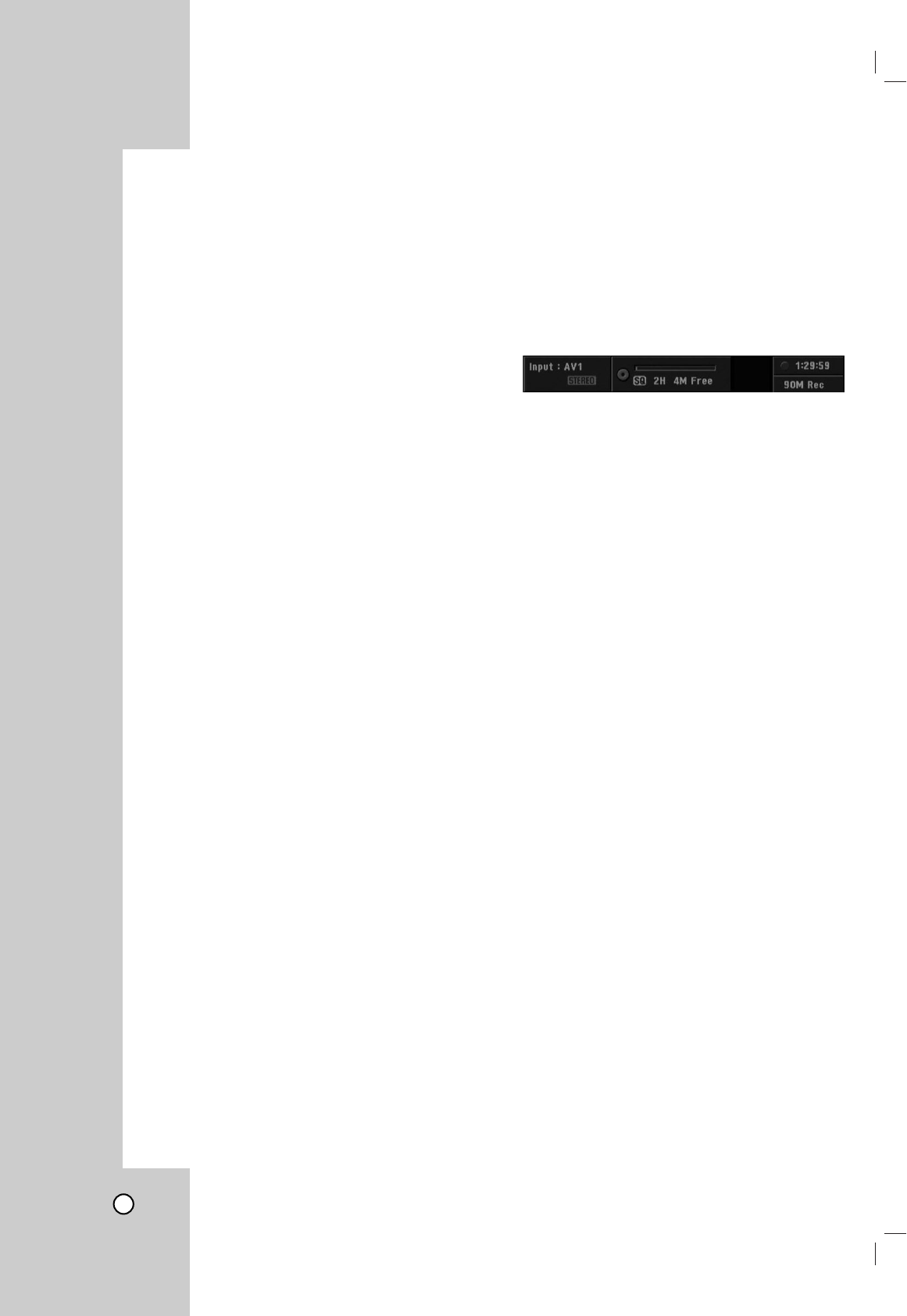

Displaying Information While Watching TV
While watching TV, press DISPLAY to display/
remove the information displayed on-screen.
Changing TV Audio Channel
Some TV programs are broadcast with both a main
and a Secondary Audio Program (SAP). You can
change the TV audio.
Press AUDIO repeatedly to change the TV audio,
according to Broadcast audio signal as shown below.
•STEREO+SAP Audio Signal
Stereo →SAP →Mono →Stereo
•STEREO Audio Signal
Stereo →L→R →Mono →Stereo
•SAP Audio Signal
Mono →SAP →Mono
•MONO Audio Signal
Mono
The current audio channel is displayed
on-screen.
•If SAP is selected, but there is no SAP channel
being broadcast, you will still hear the main audio
(Mono or Stereo) channel.
•If the sound is poor quality when set to Stereo,
you can often improve it by changing to Mono.
•When an external input is selected, the audio
channel can be switched only to Stereo.
Displaying Disc Information on-screen
You can display various information about the disc or
tape loaded on-screen. Some items can be changed
using the menu.
1. Press DISPLAY to show various playback infor-
mation.
The items displayed differ depending on the disc
type or playing status.
2. You can select an item by pressing v/ Vand
change or select the setting by pressing b/ B.
For details about each item, see the pages in
parentheses.
[Title]: Current title (or track) number/total
number of titles (or tracks) (page 28)
[Chapter]: Current chapter number/total number
of chapters (page 28)
[Time]: Elapsed playing time (page 29)
[Audio]: Selected audio language (DVD VIDEO
only) or audio channel (page 30)
[Subtitle]: Selected subtitle (page 30)
[Angle]: Selected angle/total number of angles
(page 30)
[Sound]: Selected sound mode (page 30)
Note:
If no button is pressed for 10 seconds, the on-screen dis-
play disappears.
Hookup and
Settings
Indicates channel number and audio
signal (STEREO, MONO) received
by the tuner.
Indicates current date and time.
28
Playing a DVD or V
Playing a DVD or Video CD
ideo CD
Playback Setup
1. Press OPEN/CLOSE (Z) to open the disc tray.
Load your chosen disc in the tray, with the play-
back side down.
2. Press OPEN/CLOSE (Z) to close the tray.
Playback starts automatically. If playback does
not start, press PLAY (N).
In some cases, the disc menu might appear
instead.
Use the bB v Vbuttons to select the title/chap-
ter you want to view, then press ENTER to start.
Press TITLE or MENU/LIST to return to the menu
screen.
Use the number buttons to select the track you
want to view and press RETURN to return to the
menu screen. Menu settings and operating proce-
dures may differ. Follow the instructions on each
menu screen. You may also set PBC to Off (See
page 20).
3. To stop the playback, press STOP (x).
The unit records the stopped point, depending on
the disc. “
X
x” appears on the screen briefly.
Press PLAY (N)to resume playback (from the
scene point). If you press STOP (x)again or
unload the disc (“x” appears on the screen.), the
unit will clear the stopped point.
Press OPEN/CLOSE (Z) to remove the disc.
Press OPEN/CLOSE (Z) to close disc tray or
press POWER (1), the disc tray closes automati-
cally and unit turns off.
Notes:
•If parental control is set and the disc is not within the
rating settings you must input the password.
(See [Rating]on page 20).
•DVDs may have a region code. Your Recorder will not
play discs that have a region code different from your
Recorder. The region code for this player is 4 (four).
•Unless stated otherwise, all operations described use
the Remote Control. Some features may also be avail-
able on the Setup menu.
Moving to another TITLE
When a disc has more than one title, you can move
to another title:
Press DISPLAY then use v/ Vto select the title icon.
Then, press the appropriate numbered
button (0-9) or b/ Bto select a title number.
Moving to another CHAPTER / TRACK
When a title on a disc has more than one chapter or
a disc has more than one track, you can move to
another chapter/track as follows:
•Press SKIP (>or .) briefly during playback
to select the next chapter/track or to return to the
beginning of the current chapter/track.
•Press SKIP (.)twice in quick successions to
step back to the previous chapter/track.
•To go directly to any chapter/track during
playback, press DISPLAY twice and use v/Vto
select the chapter or track (for Video CD) icon.
Input the chapter/track number or use b/B.
Note:
On a Video CD with PBC, you must set PBC to Off in the
Setup menu to use this function (See page 20).
Search
1. Press SCAN (mor M)during playback.
2. Press SCAN (mor M)to select the required
speed. (forward and backward) ;
DivX, DVD ; 4 steps
Video CD; 3 steps
3. To exit SEARCH mode, press PLAY (N).
Still Picture and Frame-by-Frame
Playback
1. Press PAUSE/STEP (X) during playback.
Advance the picture frame-by-frame by pressing
PAUSE/STEP (X) repeatedly.
2. To exit still motion mode, press PLAY (N).
Tips:
•You can advance or back up the picture frame-by-
frame by pressing b/ Brepeatedly during
PAUSE mode.
•The picture frame-by-frame in reverse is not avail-
able for Video CD.
DVD+R-R+RW-RWVideo
-RWVR
VCD
DVD
Playback
29
Slow Motion
1. Press SCAN (mor M) during pause mode.
2. Use the SCAN (mor M) to select the required
speed.
DVD; 4 steps (forward and backward)
DivX; 4 steps (forward only)
Video CD; 3 steps (forward only)
3. To exit Slow Motion mode, press PLAY (N).
Repeat
Press REPEAT to select a desired repeat mode.
[Chapter] repeats the current chapter. (DVD only)
[Title] repeats the current title. (DVD only)
[All] repeats the all titles/tracks (Video CD, DivX
disc or VR mode DVD-RW).
[Track]: repeats the current track. (Video CD, DivX
disc only)
[OFF] does not play repeatedly.
Note:
On a Video CD with PBC, you must set PBC to [OFF]
in the Setup menu to use the this function. See page
20.
Repeat A-B
To repeat a sequence during playback.
1. Press A-B at your chosen starting point. [A - ]
appears briefly on the TV screen.
2. Press A-B again at your chosen end point.
[A - B] appears briefly on the TV screen and the
repeat sequence begins.
3. Press A-B again to cancel.
Time Search
To start playing at any chosen time on the disc:
1. Press DISPLAY during playback. The time search
box shows the elapsed playing time.
2. Press v/Vto select the time clock icon
and [-:--:--] appears.
3. Input the required start time in hours, minutes,
and seconds from left to right.
If you enter the wrong numbers, press CLEAR.
Then enter the correct numbers.
4. Press ENTER to confirm. Playback starts from the
selected time.
Zoom
Use zoom to enlarge the video image.
1. Press ZOOM during playback or still playback to
activate the Zoom function.
2. Each press of the ZOOM button changes the TV
screen in the sequence.
x1 size →x2 size →x4 size →x1 size (normal size)
3. Use the b/ B/ v/ Vbuttons to move through the
zoomed picture.
4. To resume normal playback, press ZOOM repeat-
edly or CLEAR button.
Note:
The zoom function may not work on some DVDs.
Marker Search
To enter a Marker
You can start playback from up to nine memorized
points. To enter a marker, press MARKER at the
desired point on the disc. The Marker icon appears
on the TV screen briefly. Repeat to enter up to nine
markers.
To Recall or Clear a Marked Scene
1. During disc playback, press SEARCH. The mark-
er search menu appears on the screen.
2. Within 10 seconds, press b/ Bto select a marker
number that you want to recall or clear.
3. Press ENTER and playback starts from the
marked scene. Or, Press CLEAR and the marker
number is erased from the list.
4. You can play any marker by inputting its number
on the marker search menu.
VCDDVD
+R-R+RW-RWVideo
-RWVR
Playback
30
Checking the Contents of DVD
Video Discs: Menus
DVDs may contain menus that allow you to access
special features. To open the disc menu, press
MENU/LIST. Then, press the appropriate number but-
ton to select an option. Or, use the b/ B/ v/ Vbut-
tons to highlight your selection, then press ENTER.
Title Menu
1. Press TITLE.
If the current title has a menu, the menu appears
on the screen. Otherwise, the disc menu may not
appear.
2. The menu offers features such as camera angles,
spoken language and subtitle options, and chap-
ters for the title.
Disc Menu
1. Press MENU/LIST and the disc menu is displayed.
2. Press MENU/LIST again to exit.
Camera Angle
If the disc contains scenes recorded at different cam-
era angles, you can change to a different camera
angle during playback.
1. Press DISPLAY during playback. The On-Screen
Display appears on the TV screen.
2. Use v/ Vto select the Angle icon in the On-
Screen Display.
3. Use b/ Bto select the desired angle.
The number of the current angle appears on the
TV screen.
Tip:
The Camera Angle icon is displayed on the TV screen when
alternate angles are available.
Changing the Audio Soundtrack
Press AUDIO then press b/ Brepeatedly during
playback to hear a different audio language or audio
soundtrack if available.
Note:
Some discs feature both Dolby Digital and DTS
soundtracks. There is no analog audio output when
DTS is selected. To listen to the DTS soundtrack,
connect this recorder to a DTS decoder via one of
the digital outputs. See page 16 for connection
details.
Changing the Audio Channel
Press AUDIO then press b/ Brepeatedly during
playback to hear a different audio channel;
With DVD-RW discs recorded in VR mode and HDD
that have both a main and a Bilingual audio channel,
you can switch among Main (L), Sub (R), or
Main+sub (L+R) by pressing AUDIO.
3D Surround
This unit can produce a 3D Surround effect, which
simulates multi-channel audio playback from two
conventional stereo speakers, instead of the five or
more speakers normally required to listen to multi-
channel audio from a home theater system.
1. Press DISPLAY then use v/ Vto select the
sound icon. Then, use b/ Bto select [3D Sound].
2. To turn off the 3D Surround effect, select
[Normal].
Subtitles
Press SUBTITLE then press b/ Brepeatedly during
playback to see the different subtitle languages.
Instant Skip
Each press INSTANT SKIP skips forward 15 sec-
onds.
Note:
If appears, the feature is not available on the disc.
Last Scene Memory
This Recorder memorizes last scene from the last
disc that is viewed. The last scene remains in memo-
ry even if you remove the disc from the Recorder or
switch off the Recorder. If you load a disc that has
the scene memorized, the scene is automatically
recalled.
Notes:
•Settings are stored in memory for use any time.
•This Recorder does not memorize settings of a disc if
you switch off the Recorder before commencing to play
it.
•The Last Scene Memory function may not work on
some DVDs.
•Last Scene Memory function for a previous DVD title is
erased once a different DVD title is played.
DVD
DVD+R-R+RW-RWVideo
-RWVR
DivXDVD
VCD+R-R+RW-RWVideo
-RWVR
DVD
DVD
DVD
DVD
31
PIP (Picture in Picture)
This function enables you to view the stored stations
in sub picture during playback.
On and off
Press PIP to switch on the sub picture, press this
button again to switch it off.
Input mode selection for sub picture
Press INPUT to select the input mode for the sub
picture. Each time this button is pressed, each
input mode for the sub picture is displayed as
shown below.
Tuner
→
AV1
→
AV2
→DV
Program selection for sub picture
Use CH (v/ V) to change the program when sub
picture’s input is set to tuner. The selected program
number is displayed on the TV screen. You can
view the selected program by pressing STOP (x).
Sub picture position change
Press b/ Brepeatedly until desired position is
achieved. The sub picture moves clockwise or
counterclockwise.
VCD
DVD+R-R+RW
-RWVideo
-RWVR
Playback
32
Playing a DivX Movie File
Playing a DivX Movie File
The Recorder can play Divx files on CD-R/RW or
DVD±R/RW discs. Before playing DivX files, read
“About DivX movie files” on the right colum.
1. Use v/Vto select a folder, and press ENTER
twice. A list of files in the folder appears.
2. Use v/Vto select a file then press PLAY (N).
Playback starts. You can use variable playback
functions. Refer to pages 28-31.
3. Press STOP (x)to stop the playback. The Movie
menu appears.
Note:
This recorder cannot play back the DivX file(s) in the
Memory card.
Notice for displaying the DivX subtitle
Please refer to following notice when the DivX
subtitle does not display properly.
1. Press SETUP.
The Setup menu appears.
2. Use v/ V / b/ Bto select [LANGUAGE] b [Disc
Subtitle] then find a suitable language for the DivX
subtitle.
Refer to [Disc Menu/Audio/Subtitle] on page 22.
About DivX movie files
DivX disc compatibility with this recorder is limit-
ed as follows:
Available resolution size of the DivX file is under
720x576 (W x H) pixel.
The file name of the DivX subtitle is limited to char-
acters.
If there is impossible code to express in the DivX
file, it may be displayed as “_” mark on the display.
The total number of files and folders on the disc
are free but the total number of files and folders on
the folder should be less than 1999.
If the number of the screen frame is over 29.97
frames per second, this unit may not operate
normally.
If the video and audio structure of recorded file
is not interleaved, returns to the menu screen.
If the file is recorded with GMC, the unit sup-
ports only 1-point of the record level.
* GMC?
GMC is the acronym for Global Motion
Compensation. It is an encoding tool specified in
MPEG4 standard. Some MPEG4 encoders, like
DivX or Xvid, have this option.
There are different levels of GMC encoding, usually
called 1-point, 2-point, or 3-point GMC.
Playable DivX file
“.avi”, “.divx”
Playable DivX subtitle
“.smi”, “.srt”,
“.sub (Micro DVD format only)”,
“.txt (Micro DVD format only)”,
DivX subtitle except those listed above is not
displayed on the TV screen.
Playable Codec format
“DIV3”, “MP43”, “DIVX”, “XVID”, “DX50”.
Playable Audio format
“AC3”, “PCM”, “MP2”, “MP3”, “WMA”.
Sampling frequency: within 8 - 48 kHz (MP3),
within 32 - 48kHz (WMA)
Bit rate: within 8 - 320kbps (MP3),
32 - 192kbps (WMA)
33
Playing an
Playing an Audio CD or MP3
Audio CD or MP3
/ WMA
/ WMA files
files
The Recorder can play Audio CDs and MP3/WMA
files on CD-ROM, CD-R/RW, DVD+R/RW,
DVD-R/RW discs or Memory Card.
Before playing MP3/WMA files, read [Notes on
MP3/WMA Recordings] on page 34.

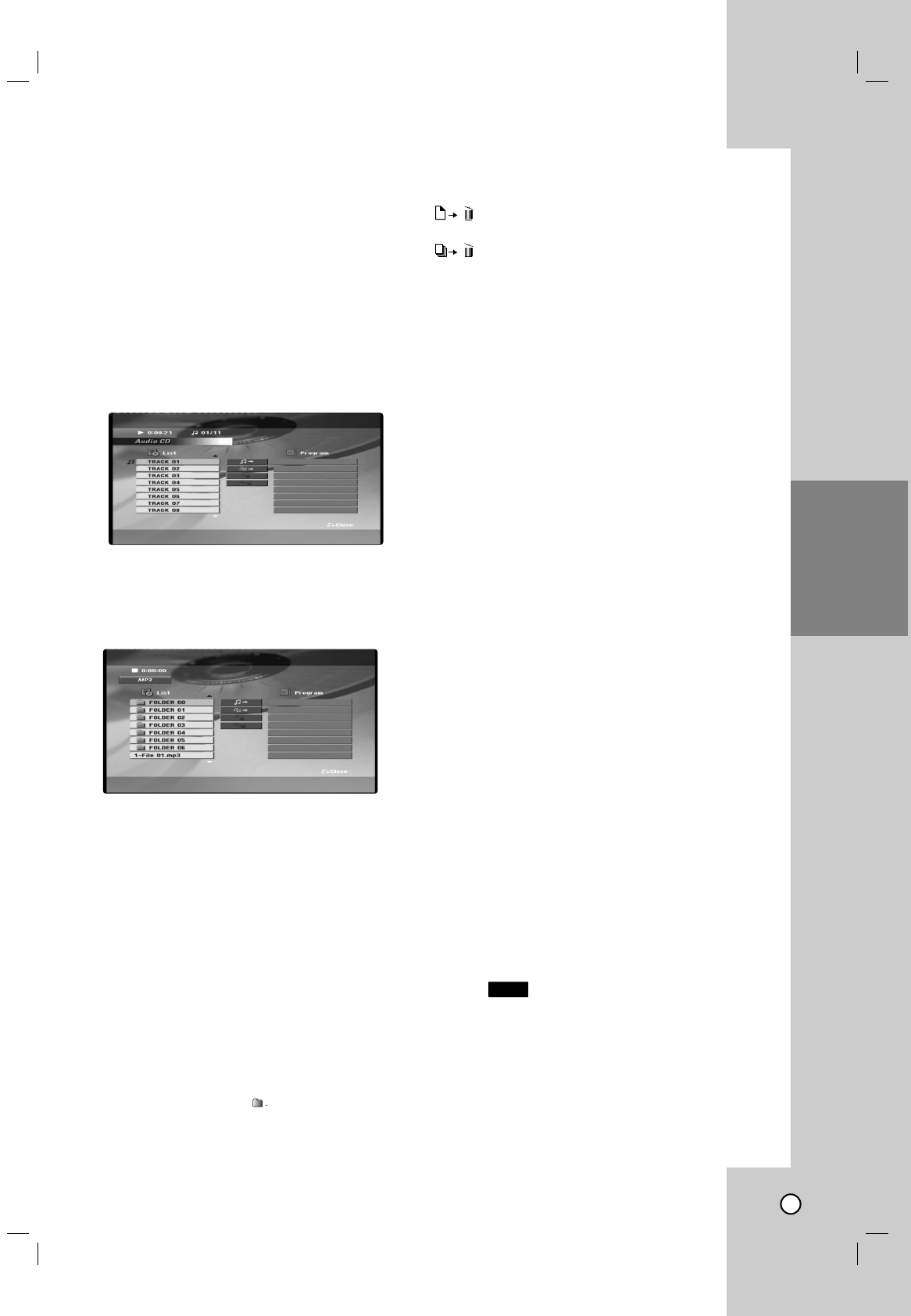

Audio CD
Once you insert an audio CD a menu appears on the
TV screen. Use v/Vto select a track then press
PLAY (N)and playback starts.
MP3 / WMA
1. Use v/Vto select a folder, and press ENTER
twice. A list of files in the folder appears.
2. Use v/Vto select a track then press PLAY (N)
and Playback starts.
Tips:
•You can view TV channel or video input source by
pressing RETURN (O). If you want to return to the
Music menu, press MENU/LIST.
•Press DISPLAY to view ID3-Tag information for the MP3
file. If ID3-Tag information is not present, [ID3-Tag
:None]will appear. If you select a folder, the number of
subfolders and number of MP3/WMA files in the folder
are displayed. Press DISPLAY again to remove the
information screen.
•On the Music menu, you can display the folders on the
disc. Use vVbBto select the “Folder” icon on the
Music menu then press ENTER twice.
•On CDs, DVDs or Memory Card with mixed content
(Audio tracks, MP3/WMA files, DivX files or JPEG files),
you can select among the Music menu, Movie menu
and Photo menu by pressing TITLE repeatedly.
•If you are in a file list and want to return to the Folder
list, use the v/Vto highlight and press ENTER to
return to the previous menu screen.
Additional options for memory card
:Deletes the selected file form the memory
card.
:Deletes all files form the memory card.
Audio CD and MP3 / WMA file Features
Pause
1. Press PAUSE/STEP (
X
) during playback.
2. To return to playback, press PLAY (N) or press
PAUSE/STEP (
X
) again.
Moving to another Track
•Press SKIP (> or .) briefly during playback
to go to the next track or to return to the begin-
ning of the current track.
•Press SKIP (.) twice in quick successions to
go back to the previous track.
•You can play any track by inputting its number.
Repeat Track/All/Off
Press REPEAT to select a desired repeat mode.
•[TRACK] repeats the current track.
•[ALL] repeats all the tracks on a disc.
•[Off] (No display): does not play repeatedly.
Repeat A-B
1. To repeat a sequence during disc playback.
Press A-B at your chosen starting point.
The Repeat icon and [A] appear on the menu
screen.
2. Press A-B again at your chosen end point. The
Repeat icon and [A-B] appear on the menu
screen, and the sequence begins to play repeat-
edly.
3. Press A-B again to cancel.
Search
1. Press SCAN (mor M) during playback.
2. Press SCAN (mor M) to select the required
speed (3 steps).
3. To exit SEARCH mode, press PLAY (N).
ACD
Playback
34
Program Playback with
Program Playback with Audio
Audio
CD and MP3/WMA
CD and MP3/WMA files
files
The program function enables you to store your
favourite tracks from any disc in the player memory.
Program can contain 99 tracks (Audio CD) or 256
tracks (MP3/WMA).
1. Insert a disc.
Audio CD and MP3/WMA Discs:
Audio CD or MP3/WMA menu appears.
2. Select a track on the List.
3. Select “ ” icon then press ENTER to place the
selected track on the Program list. Repeat to
place additional tracks on the list.
You can add all tracks in the disc. Select
“” icon then press ENTER.
4. Select the track you want to start playing on the
Program list. Press and hold v/Vto move to the
next / previous page.
Example) Audio CD
5. Press N(PLAY) or ENTER to start.
Playback begins in the order in which you
programmed the tracks.
Playback stops after playing the last programmed
track on the program list.
Repeat Programmed Tracks
Press REPEAT to select a desired repeat mode.
• [TRACK] repeats the current track
• [ALL] repeats all the tracks on programmed list.
• [Off] (No display): does not play repeatedly.
Note :
If you press SKIP (>) once during Repeat Track
playback, the repeat playback cancels.
Erasing a Track from Program List
1. Use vVbBto select the track that you wish to
erase from the Program list.
2. Press CLEAR. Or, select “ ” icon then press
ENTER to erase the selected track on the
Program list. Repeat to erase additional tracks on
the list.
Erasing the Complete Program List
Select “ ”, then press ENTER. The complete
Program for the disc is erased.
Note:
The programs are also cleared when the disc is
removed.
Notes on MP3/WMA Recordings
MP3/WMA disc compatibility with this unit is
limited as follows:
•Sampling frequency: within 8 - 48 kHz (MP3),
within 32 - 48 kHz (WMA)
•Bit rate: within 8 - 320 kbps (MP3),
32 - 192 kbps (WMA)
•This unit cannot read an MP3/WMA file that has
a file extension other than “.mp3” / “.wma”.
•CD-R physical format should be “ISO 9660” and
“JOLIET”.
•DVD±R/RW physical format should be “ISO
9660 (UDF Bridge format)”.
•If you record MP3 / WMA files using software
that cannot create a file system (eg. Direct-CD)
it is impossible to playback MP3 / WMA files.
We recommend that you use Easy-CD Creator,
which creates an ISO 9660 file system.
•The total number of files and folders on the disc
are free but the total number of files and folders
on the folder should be less than 1999.
This unit requires discs and recordings to meet cer-
tain technical standards in order to achieve optimal
playback quality. Pre-recorded DVDs are automati-
cally set to these standards. There are many differ-
ent types of recordable disc formats (including CD-R
containing MP3 or WMA files) and these require cer-
tain pre-existing conditions (see above) to ensure
compatible playback.
Customers should note that permission is
required in order to download MP3/WMA files
and music from the Internet. Our company has
no right to grant such permission. Permission
should always be sought from the copyright
owner.
35
Viewing a JPEG Disc
Using this Recorder you can view JPEG files on the
CD-R/RW or DVD±R/RW. Before playing JPEG files,
read [About JPEG image files] on page 36.
Also, you can view JPEG files in the memory card.
(To use memory card, see page 10.)
1. Insert a disc and close the tray. The JPEG menu
appears on the TV screen.
2. Press v/Vto select a folder, then press ENTER.
Alist of files in the folder appears. If you are in a
file list and want to return to the previous Folder
list, use the v/Vbuttons on the remote to high-
light then press ENTER.
3. If you want to view a particular file, press
v/Vto highlight a file then press ENTER or
N(PLAY). The selected image is displayed in
full screen.
4. To stop viewing at any time, press STOP.
The menu screen appears.
Tip:
•If you are in a file list and want to return to the
Folder list, use the v/Vto highlight and press
ENTER to return to the previous menu screen.
•Press and hold v/ Vto go to the next / previous
page.
•On a disc with mixed content (MP3/WMA, JPEG,
and DivX files), you can select menu screen. Press
TITLE a word on top on the menu is highlighted.
Then, use b/ Bto select MP3/WMA, JPEG, or
DivX then press ENTER.
•You can view TV channel or video input source by
pressing RETURN (O). If you want to return to the
menu, press MENU/LIST.
Slide Show
Use v V b B to highlight the (Slide Show) on the
JPEG menu then press ENTER.
Slide Show starts from the selected file if Speed
option is not II (Off). While viewing a file, you can
press STOP to move to the previous menu (JPEG
menu).
•There are four Slide Speed options ( ) : >>>
(Fast), >> (Normal), > (Slow) and II (Off).
Use v V b B to highlight the Speed options ( ).
Then, use b/Bto select the option you want to
use then press ENTER.
Still Picture
1. Press PAUSE/STEP during slide show.
The recorder will now go into PAUSE mode.
2. To return to the slide show, press N(PLAY) or
press PAUSE/STEP again.
Moving to another File
Press SKIP (.or >) or cursor (bor B) once
while viewing a picture to advance to the next or pre-
vious file.
JPEG
JPEG
JPEG
Playback
Press ENTER to appear or disappear this menu.
36
To rotate picture
Press v/Vduring showing a picture to rotate the
picture clockwise or counter clockwise.
Zoom
Use zoom to enlarge the photo image. (see 29 page)
To listen to music while slide show
simultaneously
You can display photo files while listening to
MP3/WMA music files recorded on a disc.
Select icon then press ENTER on the JPEG
menu.
Additional options for memory card
:Copies the selected file to the memory
card.
:Copies all files to the memory card.
:Deletes the selected file form the memory
card.
:Deletes all files form the memory card.
About JPEG image files
JPEG disc compatibility with this recorder is
limited as follows:
•Depending upon the size and number of JPEG
files, it could take a long time for the recorder to
read the files. If you don’t see an on-screen dis-
play after several minutes, some of the files may
be too large — reduce the resolution of the JPEG
files to less than 4M pixels.
•The total number of files and folders on the disc
are free but the total number of files and folders
on the folder should be less than 1999.
•Some discs may be incompatible due to a different
recording format or the condition of disc.
•Ensure that all the selected files have the “.jpg”
extensions when copying into the CD layout.
•If the files have “.jpe” or “.jpeg” extensions, please
rename them as “.jpg” file.
•File names without “.jpg” extension will not be
able to be read by this recorder. Even though the
files are shown as JPEG image files in Windows
Explorer.
•Progressive and lossless compression JPEG
image files are not supported.
JPEG
JPEG
JPEG
37
About DVD recording
Notes:
•This Recorder cannot record CD-R or CD-RW
discs.
•Fingerprints and small scratches on a disc can
affect playback and/or recording performance.
Please take proper care of your discs.
•The company does not hold any responsibility to
compensate the contents which should have been
recorded, and any losses or damages (e.g. losses
of business profit, or business intermission) that
may arise from malfunction of this recorder (not
recording/editing as intended).
Disc types and recording formats, modes,
and settings
This recorder can play many different kinds of DVD
discs: pre-recorded DVD-Video discs, DVD-RW,
DVD-R, DVD+RW and DVD+R(DL) discs. The disc
format for DVD-R, DVD+R(DL), DVD+RW discs is
always “Video format”—the same as pre-recorded
DVD-Video discs. This means that once finalized, you
can play a DVD-R, DVD+R, or DVD+RW in a regular
DVD player.
The DVD-RW disc format is Video Recording (VR)
format or Video format. You can change Recording
format, if required. (Reinitializing the disc will erase
the contents of the disc.)
The recording mode is closely related to the disc
format. If the disc format is Video Recording format,
then the recording mode is VR mode; if the disc
format is Video format, then the recording mode is
Video mode (except for DVD-Video, which is not
recordable, and so does not have a recording mode).
These can be changed as required for each recording
and determine the picture quality and how much
space the recording will take up on the disc.
Notes for recording
•The recording times shown are not exact because
the recorder uses variable bit-rate video compres-
sion. This means that the exact recording time will
depend on the material being recorded.
•When recording a TV broadcast, if the reception
is poor or the picture contains interference, the
recording times may be shorter.
•If you record still pictures or audio only, the
recording time may be longer.
•The displayed times for recording and time
remaining may not always add up to exactly the
length of the disc.
•The recording time available may decrease if you
heavily edit a disc.
•If using a DVD-RW disc, make sure you change
the recording format (Video mode or VR mode)
before you record anything on the disc. See page
25 (Disc Format) for how to do this.
•When using a DVD-R or DVD+R disc, you can
keep recording until the disc is full, or until you
finalize the disc. Before you start a recording
session, check the amount of recording time left
on the disc.
•When using a DVD-RW disc in Video mode,
recording time available will only increase if you
erase the last title recorded on the disc.
•The Delete Title option in the Title List (Original)
menu only hides the title, it does not actually
erase the title from the disc and increase the
recording time available (except for the last
recorded title on a DVD-RW disc in Video mode).
•Overwrite recording is available using DVD+RW
discs.
•When using a DVD+R/RW, the recorder will exe-
cute the Menu-making operation to update the
new title and editing when removing the disc from
the recorder.
Recording
Recording
38
Basic Recording from a TV
Basic Recording from a TV
Follow the instructions below to record a TV program.
Recording starts immediately and continues until the
disc is full or you stop the recording.
Note:
You must load a recordable disc for DVD recording.
1. Switch on the Recorder and load a recordable
disc. Also make sure that the TV input is set to
this recorder.
2. Set a recording mode as necessary by pressing
REC MODE repeatedly (HQ, SQ, LQ, EQ).
3. Select the TV channel to record.
Changing TV Audio Channel
You can select the audio channel (language) to listen
by pressing AUDIO during viewing TV program. The
current audio channel is displayed on-screen.
Stereo or mono broadcast:
Mono →(SAP) →Stereo
Bilingual broadcast:
Main →Sub →Main+Sub
If the sound is of poor quality when set to Stereo,
you can often improve it by changing to Mono (Left
or Right).
4. Press REC (z) once.
Recording will start. (The REC indicator lights in
the display window.)
Recording continues until you press STOP (x)
or the disc is full.
To record for a fixed length of time, see Instant
Timer Recording on right.
5. Press STOP (x) to stop recording.
Notes
•The maximum numbers of DVD titles are as show
below;
- DVD-R/RW : 99
- DVD+R(DL)/RW : 49
•If the Recorder is powered off during DVD recording, the
recording will not be saved.
Instant T
Instant Timer Recording
imer Recording
Instant Timer Recording allows you to make a record-
ing easily of a preset length without using the pro-
gram timer.
1. Follow steps 1-4 as shown left (Basic Recording
from a TV).
2. Press REC (z) repeatedly to select the recording
time length.
Recording starts after the first press. Each subse-
quent press increases the recording time within
free space (maximum 240 minutes).
The recording time is displayed on the TV screen.
At the end of the recording, the recorder will stop
recording and shut off.
Checking the Recording Time
Press zREC or DISPLAY once to check the record-
ing time. The recalled setting will automatically return
to the TV screen for a moment.
Also, remaining time of recording is shown in the dis-
play window.
To Extend the Recording Time
The recording time can be extended anytime by
pressing zREC.
Each subsequent press increases the recording time
by 10 minutes (DVD) or 30 minutes (VCR).
To Pause the Recording
1. Press PAUSE/STEP (X) to pause the recording.
2. When you want to continue recording, press
PAUSE/STEP (X) or zREC.
To record one TV program while watching
another
1. Press TV/DVD to select the TV mode during
recording. The TV indicator appears.
2. Using the TV, select the channel to be viewed.
Notes:
•If you press PAUSE/STEP (X) during the Instant Timer
Recording, it will be canceled.
•The Recorder will automatically power off when the
Instant Timer Recording ends.
39
T
Timer Recording
imer Recording
The Timer Recording function allows you to record up
to 8 programs within a period of one month.
1. Press TIMER REC.
The Timer Record menu will appear.
•[Ch] – Choose a channel (2-69 or 1-125 for
antenna or cable channels respectively,
excluding skip channels), or one of the exter-
nal inputs from which to record (AV1 or AV2).
•[Date] – Choose a date up to 1 month in
advance, or select a daily or weekly program.
•[Start Time] – Set the recording start time.
•[End Time] – Set the recording end time.
•[Mode] – Choose a record mode.
HQ, SQ, LQ or EQ or AT (Auto)
AT(Auto) mode determines how much time is avail-
able on the disc or tape and switches record mode,
if necessary, to complete recording the program.
2. Enter the necessary information for your timer
recording(s).
•b / B (left/right) – Move the cursor left/right
•v / V (up/down) – Change the setting at the
current cursor position
•Press RETURN (O) to exit the Timer Record
menu.
•Press TIMER REC to display Timer Record
List.
3. Press ENTER to save the program.
The Timer Record List will appear.
4. Press RETURN (O) to exit the Timer Record
List.
Notes:
•The Timer indicator lights on the front panel
display.
•The Recorder will record the audio according to the cur-
rent TV tuner setting (Stereo, Mono or SAP). Use the
AUDIO button to set the audio before switching the
Recorder to Standby mode.
•The Recorder will automatically power off when the
Timer Recording ends.
•There is a short delay when a timer recording
finishes to confirm the recorded program. If two timer
recordings are set to record sequentially (one right after
the other), the very beginning of the later program may
not be recorded.
•You must press STOP (x) to stop the Timer Recording
Checking Timer Recording Details
Programming can be checked whenever the
Recorder is turned on. Press TIMER REC twice.
•Use v / V to select a timer recording.
•Press ENTER to edit the selected program.
Timer Record menu appears.
Canceling a Timer Recording
You can clear a timer setting anytime before the
recording actually starts.
•Use v / V to select a program you want to erase
on the Timer Recorder List, then press CLEAR
and select [OK] than press ENTER.
Recording
40
Timer Recording Troubleshooting
Even though the timer is set, the recorder will not
record when:
•There is no disc (or tape) loaded.
•Anon-recordable disc (or tape) is loaded.
•[Disc Protect] is set to [ON] in the Disc menu
(see page 26).
•There are already 99 titles (DVD-RW, DVD-R)
or 49 titles (DVD+RW, DVD+R(DL)) recorded
on the disc.
You cannot enter a timer program when:
•Arecording is already underway.
•The time you’re trying to set has already
passed.
•There are already 8 timer programs set.
If two or more timer programs overlap:
•The earlier program takes priority.
•When the earlier program finishes, the later
program starts.
•If two programs are set to start at exactly the
same time, the program entered first takes pri-
ority.
If the disc is damaged, the recording may not com-
plete successfully. In this case even though the
Check field shows [Rec. OK], it may not be.
Recording from External
Recording from External
Components
Components
You can record from an external component, such as
a camcorder or VCR, connected to any of the
Recorder’s external inputs.
1. Make sure that the component you want to record
from is connected properly to the Recorder. See
page 17.
2. Press INPUT repeatedly to select the external
input to record from.
•AV1: Audio/Video Input mounted on back
panel.
•AV2: Audio/Video Input mounted on front
panel.
•DV: DV Input mounted on front panel.
3. Load a recordable disc or tape.
4. Set a recording mode as necessary by pressing
REC MODE repeatedly (HQ, SQ, LQ, EQ).
5. Press zREC once to start recording.
The REC indicator lights in the display window.
6. Press STOP (x) to stop recording.
Notes:
•Check that the Audio In settings [DV Recording
Audio] are as you want them. See page 24.
•If your source is copy-protected using CopyGuard,
you will not be able to record it using this recorder.
See Copyright on page 9 for more details.
•Recording continues until you press STOP (x) or
the disc is full.
•To record for a fixed length of time, see Instant
Timer Recording on page 38.
41
Recording from DV Input
Recording from DV Input
Before DV dubbing
You can connect a DV-equipped camcorder to this
recorder using a single DV cable for input and output
of audio, video, data and control signals.
This recorder is only compatible with DV-format
(DVC-SD, DV25) camcorders. Digital satellite
tuners and Digital VHS video recorders are not
compatible.
You cannot connect more than one DV camcorder
at a time to this recorder.
You cannot control this recorder from external
equipment connected via the DV IN jack (including
two recorders).
It may not always be possible to control the con-
nected camcorder via the DV IN jack.
Digital camcorders can usually record audio as
stereo 16-bit/48kHz, or twin stereo tracks of 12-
bit/32kHz. This recorder can only record one stereo
audio track. Set [DV Recording Audio] option to
Audio 1 or Audio 2 as required (see page 24).
Audio input to the DV IN jack should be 32 or
48kHz (not 44.1kHz).
Picture disturbance on the recording may occur if
the source component pauses playback or plays an
unrecorded section of tape, or if the power fails in
the source component, or the DV cable becomes
disconnected.
Recording from a Digital Camcorder
You can record from a digital camcorder connected to
the DV IN jack on the front panel of this recorder.
Using the recorder’s remote, you can control both the
camcorder and this recorder.
Before recording, make sure that the audio input for
the DV IN jack is set up (see page 24).
Tips:
•The source signal must be DVC-SD format.
•Some camcorders cannot be controlled using this
recorder’s remote.
•If you connect a second recorder using a DV
cable, you cannot control the second DVD from
this one.
•You cannot control this unit remotely from a com-
ponent connected to the DV IN jack.
•You cannot record date and time information from
a DV cassette.
1. Make sure your digital camcorder is connected to
the front panel DV IN jack. See page 17.
2. Check that the DV audio input is as you require.
You can choose between Audio 1 (original audio)
and Audio 2 (overdubbed audio).
DV Input is set from the DV Rec Audio in sub-
menu of the Setup menu. See [DV Recording
Audio] on page 24 for more information.
3. Press INPUT repeatedly to select the DV input.
DV appears in the display window and on the TV
screen.
4. Find the place on the camcorder tape that you
want to the recording to start from.
For best results, pause playback at the point from
which you want to record.
Depending on your camcorder, you can use
this recorder’s remote to control the camcorder
using the STOP, PLAY and PAUSE functions.
5. Press zREC once to start recording.
Recording is automatically stopped if the
recorder detects no signal.
You can pause or stop the recording by press-
ing PAUSE/STEP (X) or STOP (x).
You cannot control the camcorder from this
Remote Control during recording.
In Video mode, the final frame of the recording
may remain displayed on screen for a while
after recording stops.
Troubleshooting
If you cannot get a picture and/or audio through the
DV IN jack, check the bullet points:
Make sure the DV cable is properly connected.
Try switching off the connected equipment then
switch back on.
Try switching the audio input.
Note:
Depending on the connected camcorder, you may
not be able to control it using the Remote Control
supplied with this recorder.
Recording
42

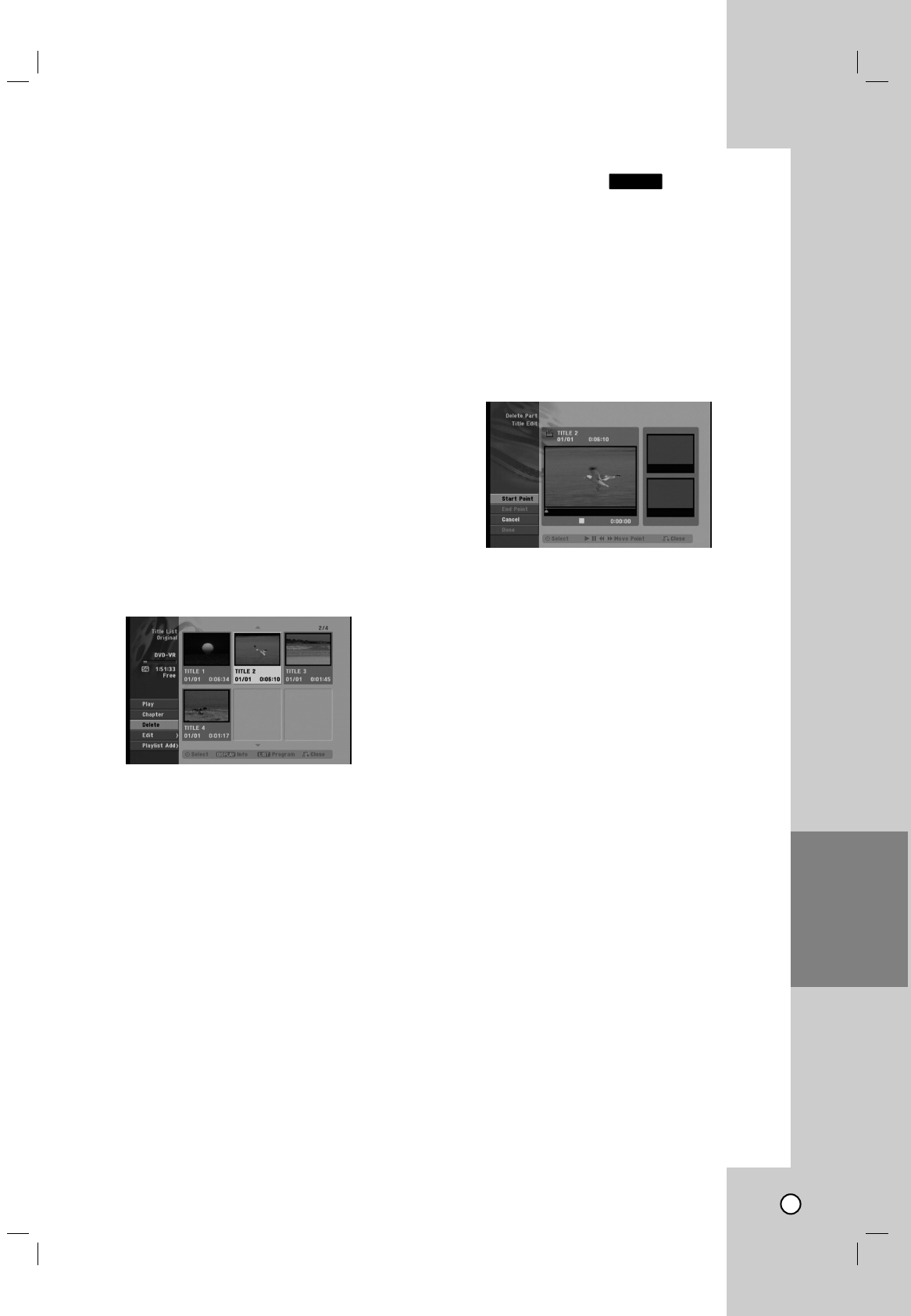

Title List and Chapter List Menu
Overview
Using the Title List menu you can edit video content.
The editing features available in the Title List menu
depend on whether you are editing video on DVD,
and whether you’re editing Original content, or a
Playlist.
There are two ways to edit VR mode DVD-RW discs.
You can directly edit the Original content of the disc,
or you can create and edit a Playlist. The Playlist
doesn’t actually change any of the content on the
disc, but just controls how the content is played back.
1. Press MENU/LIST to display the Title List menu.
Playback should be stopped when you do this.
When selecting titles, use the v/ Vbuttons to
display the previous/next page if there are more
than six titles.
If you are editing a VR mode disc, press
MENU/LIST to switch between Original and
Playlist menu.
On the left side of the screen are the menu
options. The main part of the screen shows
thumbnails of the titles (or chapter) on the DVD.
You can change these thumbnails using the
THUMBNAIL button. (see [Changing Title
Thumbnails] on page 43.)
Press DISPLAY to display the information of
selected title on the Title List menu.
After selecting a title or chapter on the Title List
of Chapter List menu, then press ENTER. The
menu options on the left side of the menu. Use
v/ Vto select a option then press ENTER to
confirm your selection.
2. To exit the Title List menu, press RETURN (O)
repeatedly.
1. Menu options: To display menu option, select a
title or chapter then press ENTER. The options
displayed differ depending on the disc type.
•[Play] Start playback of the selected title or chapter.
The hidden titles and chapters on the DVD+R/RW
cannot be play back.
•[Chapter] Displays Chapter List of the Title.
•[Delete] Deletes the title or chapter. (page 45)
•[Move] Moves chapter position on [Chapter List-
Playlist] menu (page 46).
•[Protect] Protects accidental recording, editing or
deleting of the title.
•[Edit] Edits or Deletes a part of the title.
•[Title Name] Edits the title name. (page 46)
•[Delete Part] Deletes a part of the Title (page 45).
•[Playlist Add] Adds the title or chapter to the Playlist.
(page 44)
•[Title] Displays Title List of the chapter.
•[Combine] Combines two titles or chapters into one
(page 47).
•[Divide] Divides a title into two (page 47).
•[Full Play] Starts playback of the selected title includ-
ing the hidden chapters.
•[Hide (Show)] Hides (or Shows) the selected chapter.
(page 48)
2. Indicates the record mode, free space, and
elapsed time progress bar.
3. Current media.
4. Currently selected title.
5. Thumbnail.
6. Shows the selected title number and total number
of titles.
7. Shows the title name, recorded date, and record-
ing length.
123 4 5 6 7
Editing
43
VR Mode: Original and
VR Mode: Original and
Playlist Editing
Playlist Editing
Titles, Chapters and Parts
Titles in the disc’s original content contain one or
more chapters. When you insert a disc’s title into the
Playlist, all the chapters within that title also appear.
In other words, chapters in the Playlist behave exact-
ly as chapters on a DVD-Video disc do. Parts are
sections of Original or Playlist titles. From the Original
and Playlist menu you can add or delete parts.
Adding a chapter or title to the Playlist creates a new
title made up of a section (ie., chapter) of an Original
title. Deleting a part removes part of a title from the
Original or Playlist menu.
Caution
When editing using the Delete, Add and Move func-
tions, the start and end frames may not be exactly
as set in the start and end point display.
During Playlist playback, you may notice a momen-
tary pause between edits. This is not a malfunction.
Is editing a DVD like editing a video
tape?
No. When you edit a video tape you need one video
deck to play the original tape and another to record
the edits. With DVD, you edit by making a ‘Playlist’ of
what to play and when to play it. On playback, the
Recorder plays the disc according to the Playlist.
About word ‘Original’ and ‘Playlist’
Throughout this manual, you will often see the words
Original and Playlist to refer to the actual content and
the edited version.
Original: content refers to what’s actually recorded
on the disc.
Playlist: content refers to the edited version of the
disc — how the Original content is to be played.
Adding Chapter Markers
You can create chapters within a title by inserting
chapter marks at the desired points.
Note:
Chapter markers are inserted at regular intervals
automatically. You can change this interval from the
Initial Setup menu (see [Auto Chapter] on page 24).
During recording or playing back, at the point you
want to start a new chapter, press CHP. ADD.
Achapter marker icon appears on the TV screen.
Changing Title Thumbnails
Each title displayed in the Title List menu is repre-
sented by a thumbnail picture taken from the start of
that title or chapter.
If you prefer, select a different still picture from within
a title.
Press THUMBNAIL to make the currently displayed
picture the one that appears in the Title List menu.
The still picture that you choose appears in both the
Original or Playlist menu.
Tip:
You can also change the thumbnail picture of the title
on the Chapter List menu. Select a chapter on the
Chapter List menu then press THUMBNAIL. The
thumbnail picture of the title that includes the chapter
is changed.
+R+RW-RWVR
+R+RW-RWVR
-RWVR
Editting
44
Making a New Playlist
Making a New Playlist
Use this function to add an Original title or chapter to
the Playlist. When you do this, the whole title is put
into the Playlist (you can delete bits you don’t need
later - see [Deleting an Original or Playlist title/chap-
ter] on page 45).
The title appears in the Playlist complete with the
chapter markers that appear in the Original. However,
if you add more chapter markers to the Original later,
these are not automatically copied over into the
Playlist title.
1. Choose a title or chapter on the [Title List-Original]
menu or [Chapter List-Original] menu to put into
the Playlist, then press ENTER.
The menu options appears on the left side of the
menu.
2. Use v/ Vto select [Playlist Add] option then
press ENTER.
3. Select [New Playlist] then press ENTER.
The new title appears in the updated Playlist. All
chapters of the title are added to the Playlist.
Adding
Adding Additional T
Additional Title /
itle /
Chapters to the Playlist
Chapters to the Playlist
You can add an Original title or chapter to add to a
Playlist title even if it is already registered.
1. Choose a title or chapter on the [Title List-Original]
menu or [Chapter List-Original] menu to put into
the Playlist, then press ENTER.
The menu options appears on the left side of the
screen.
2. Use v/ Vto select [Playlist Add] from menu
options then press ENTER.
3. Choose a Title List-Playlist that is already regis-
tered to insert a title or chapter, then press
ENTER.
4. Repeat steps 1-3 to add additional title or chapter
on the Playlist.
You can view the added chapters on the [Chapter
List-Playlist] menu.
5. Press RETURN (O) to exit, or MENU/LIST to go
back to the [Title List-Original] menu.
-RWVR
-RWVR
45
Deleting an Original or
Deleting an Original or
Playlist T
Playlist Title / Chapter
itle / Chapter
When you erase a title or chapter from the Playlist
menu, you only remove it from the Playlist; the
title/chapter remains in the Original menu.
If you choose to delete a title or chapter from the
Original (title/chapter) menu, the title or chapter is
actually deleted from the disc and the remaining time
available for recording increases. Titles/chapters
deleted from the Original are also removed from the
Playlist.
Note:
It may not be possible to delete chapters that are less
than 5 seconds long.
1. Use b/ B/ v/ Vto choose a chapter or title you
want to delete on the [Title List] or [Chapter List]
menu then press ENTER.
The menu options appears on the left side of the
screen.
2. Select [Delete] option from the options on the
menu.
Example: Title List (DVD-VR)
3. Press ENTER to confirm.
The confirm message for deleting will appear.
4. Use b/ Bto select [OK] then press ENTER.
The selected chapter or title is deleted.
After pressing ENTER, the new, updated menu is
displayed.
5. Repeat steps 1 - 4 to continue to delete from the
menu.
6. Press RETURN (O) repeatedly to exit the menu.
Notes:
•When DVD+RW recording, the deleted title’s
name is changed to [Deleted Title].
•If more than two titles are repeatedly deleted, the
titles are combined into one.
•When you are deleting a title or chapter, only the
last one on DVD+R/RW increases remaining
recording time.
Deleting a Part
Deleting a Part
You can delete a part which you do not want in the
title.
1. Use b/ B/ v/ Vto choose a title you want to
delete on the Title List menu then press ENTER.
The options appears on the left side of the menu.
2. Select [Delete Part] option then press ENTER.
[Title Edit (Delete Part)] menu appears on the TV
screen.
[Start Point] icon is highlighted.
Example: Title Edit (Delete Part) (DVD-VR)
3. Starts playback and use pause step, search and
slow-motion to find the starting point.
4. Press ENTER at the starting point of the section
you want to delete.
[End Point] icon is highlighted.
The part is indicated on the Progress Bar.
5. Use pause step, search and slow-motion to find
the ending point.
6. Press ENTER at the ending point of the section
you want to delete.
You can cancel the selected point, use v/Vto
select [Cancel] icon then press ENTER.
7. If you finish to edit, select [Done] icon then press
ENTER.
The confirm message for deleting will appear.
Use b/ Bto select [OK] then press ENTER.
The selected part is deleted from the title and Title
List menu appears.
Notes:
•It may not be possible to delete parts that are less than
3 seconds long.
•If you select [Cancel] then press ENTER, the Recorder
will go to previous option and into Pause mode.
-RWVR
Editting
46
Naming a T
Naming a Title
itle
You can name Original and Playlist titles independ-
ently.
1. Choose the title you want to name on the Title List
menu, then press ENTER.
The menu options appears on the left side of the
menu.
2. Use v/Vto select [Title Name] option then press
ENTER.
Keyboard menu appears.
3. Enter a name for the title. Use b/ B/ v/ Vto
select a character then press ENTER to confirm
your selection.
•Language : Selects a keyboard type.
•Space: Inserts a space at the cursor position.
•Delete: Deletes the character to the left of the
cursor position.
•b / B: Moves the cursor left or right.
•OK: Confirms the name you have entered.
•Cancel: Deletes all characters and exits the
Keyboard menu.
4. Choose OK then press ENTER to fix the name
and return to the previous menu screen.
5. Press RETURN (O) repeatedly to exit the menu.
Notes:
•Names can be up to 32 characters long.
•For discs formatted on a different recorder, you
will see only a limited character set.
•When recording on DVD-R, DVD+R or DVD+RW
discs, the entered name is displayed on the DVD
player only after finalization.
Moving a Playlist Chapte
Moving a Playlist Chapter
Use this function to re-arrange the playing order of
Playlist chapters on the [Chapter List-Playlist] menu.
Note:
This function is not available if there is only one
chapter.
1. Select a chapter on the Chapter List-Playlist
menu.
2. Press ENTER.
The menu options appears on the left side of the
menu.
3. Use v/ Vto select [Move] option from Playlist
options then press ENTER.
4. Use b/ B/ v/ Vto choose the place you want to
move the chapter then press ENTER.
After pressing ENTER, the updated menu is dis-
played.
-RWVR
47
Divide One T
Divide One Title Into T
itle Into Two
wo
Use this command to split a title up into two new
titles.
1. On the Title List menu, select a title you want to
divide then press ENTER.
The menu options appears on the left side of the
screen.
2. Select [Divide] option.
Example: Title List (DVD+RW)
3. Press ENTER.
[Title divide (Title Edit)] menu appears.
[Divide] option is highlighted.
4. Use play, pause step, search and slow-motion to
find the point you want to divide the title.
5. Select [Divide] option then press ENTER at the
point.
To reset the point, select [Cancel] option then
press ENTER. Repeat from step 3.
6. Choose [Done] option then press ENTER to fix
the dividing point.
The title is divided into two new titles. It take up to
4 minutes to divide.
Note:
You cannot select dividing point less than 3 seconds.
Combining T
Combining Two Chapters
wo Chapters
Into One
Into One
Use this function to combine two adjacent chapters
into one.
1. On the Chapter List menu, select the second
chapter of the two chapters you want to combine
then press ENTER
The menu options appears on the left side of the
screen.
2. Use v/ Vto select [Combine] option.
The combine indicator appears between the two
chapters you want to combine.
Example: Title List (DVD+RW)
4. Repeat steps 1 - 2 to continue to combine from
the menu.
5. Press RETURN ( O) repeatedly to exit the
menu.
Notes:
This function cannot operate listed as below;
•If there is only one chapter within the title.
•If you select first chapter.
•If two chapters created by erasing a part from an
original title.
•If two chapters created from different titles.
•If two chapters created by moving an order from an
original title.
+R+RW-RWVR
+RW
Editting
The first title’s
thumbnail
Current picture
The second
title’s thumbnail
48
Hide a
Hide a Chapter
Chapter
You can skip playing chapters or titles without delet-
ing from the disc.
1. Use vVbBto choose a chapter you want to
hide on the [Chapter List] menu, then press
ENTER.
Options appear on the left side of the screen.
2. Select [Hide] option.
Example: Title List (DVD+RW)
3. Press ENTER to confirm.
The chapter’s thumbnail will dim.
Tip:
If you select a hidden chapter on the [Chapter List]
menu, you can ‘show’ it by choosing [Show] option on
the menu. After doing that, you are able to see the
chapter or title.
Protect a T
Protect a Title
itle
Use this function to protect against accidental record-
ing, editing or deleting of the title.
1. Press MENU/LIST to display the [Title List] menu.
2. Use vVbBto choose a title you want to protect
then press ENTER.
Options appear on the left side of the screen.
3. Select [Protect] from the options.
Example: Title List (DVD+RW)
4. Press ENTER to confirm.
The lock mark will appears on the title’s
thumbnail.
Tip:
If you select a title that has already been protected
on the Title List menu, you can ‘unprotect’ it by
choosing [Unprotect] option from the Title List menu
options. After doing that, you can edit and delete the
title.
-RWVR
+R+RW+R+RW
49
Overwriting Recording
Overwriting Recording
To overwrite a new video recording on a previously
recorded title, follow these steps. This feature is not
available for DVD+Rs, that always record at the end
of the Disc.
1. Select input source you want to record (TV chan-
nel, AV1-2, DV).
2. Press MENU/LIST to display the Title List menu.
3. Use vVbBto choose a title you want to over-
write.
4. Press zREC to start overwrite recording.
Overwrite recording starts from the start point of
the title.
5. Press STOP (x) to stop the overwrite recording.
The new title is created and updated menu is dis-
played.
Notes:
•This function is not available for a protected title.
•If the overwrite is longer than the recording
length of the current title, the next title is over-
written. But if next title is protected, the over-
writing stops at the starting point of the title.
•If the selected title’s recording length is less than
10 seconds, the next title is overwritten. But if the
next title is protected, overwriting stops.
V
Viewing T
iewing Title List menu
itle List menu
displayed on other DVD
displayed on other DVD
Recorders or Players
Recorders or Players
You can view the Title List menu displayed on the
other DVD player that is capable of playing DVD+RW
or DVD+R discs.
1. Insert DVD+R or DVD+RW disc recorded already.
2. Press TITLE in Play mode or DVD tuner mode.
Title List menu will appear as shown below.
3. To play back a title, select the title you want then
press ENTER or PLAY (N).
Tip:
You can remove the Title List menu by pressing
STOP (x).
Playing
Playing Y
Your Recordings on
our Recordings on
Other DVD Players
Other DVD Players
(Finalizing a Disc)
(Finalizing a Disc)
Most regular DVD players can play finalized discs
recorded in Video mode, finalized DVD+R or
DVD+RWs. A small number of players can also play
DVD-RW discs recorded in VR mode, finalized or not.
Check the manual that came with the other player to
check what formats of discs it will play.
Finalizing ‘fixes’ the recordings and editings in place
so that the disc can be played on a regular DVD play-
er or computer equipped with a suitable DVD-ROM
drive.
Finalizing a Video mode disc creates a menu screen
for navigating the disc. The menu can be accessed
by pressing MENU/LIST or TITLE.
To finalize a disc, refer to [Finalize]on page 25.
Notes:
•Unfinalized DVD+RW is playable on regular DVD
players.
•The edited contents of a DVD+RW disc is com-
patible on regular DVD players only after finaliza-
tion.
•Any edited contents of the DVD+R disc are not
compatible on regular DVD players.
(Hide, chapter combine, added chapter mark, etc.)
•How long finalization takes depends on the type
of disc, how much is recorded on the disc, and
the number of titles on the disc.
•DVD+R DL disc can take up to 30 minutes to
finalize.
+R+RW
+RW
Editting
50
Controlling
Controlling Y
Your TV with the
our TV with the
Supplied Remote Control
Supplied Remote Control
You can control the sound level, input source, and
power switch of your LG TV with the supplied remote.
You can control your TV using the buttons below.
By pressing You can
POWER Turn the TV on or off.
INPUT Switch the TV’s input source
between the TV and other input
sources.
CH +/– Scans up or down through
memorized channels.
VOL +/– Adjust the volume of the TV.
Note:
Depending on the unit being connected, you may not be
able to control your TV using some of the buttons.
Controlling other TVs with the remote
You can control the sound level, input source, and
power switch of non-LG TVs as well. If your TV is list-
ed in the table below, set the appropriate manufactur-
er code.
1. While holding down TV POWER button, press the
number buttons to select the manufacturer code
for your TV (Refer to table on the right column).
2. Release TV POWER button.
Code numbers of controllable TVs
If more than one code number is listed, try entering
them one at a time until you find the one that works
with your TV.
Notes:
•Depending on your TV, some or all buttons may not
function on the TV, even after entering the correct
manufacturer code.
•If you enter a new code number, the code number previ-
ously entered will be erased.
•When you replace the batteries of the remote, the code
number you have set may be reset to the default set-
ting. Set the appropriate code number again.
Reference
Manufacturer Code Number
ADMIRAL 16,33,37,44,45
AIWA 70
AKAI 01
AMARK 09
AOC 01
BELL & HOWELL 33
BROKSONIC 18,19
CANDLE 51
CCE 07
CENTURION 08
CINERAL 43
CITIZEN 49,50,51,52,53,54,55
CORONADO 09
CROWN 09
CURTIS MATHES 01,03,08,33,35,37,44
DAEWOO 16,38,39,40,41,42,43
DAYTRON 01,08
EMERSON 01,09,16,17,18,19
FISHER 28,29
FUNAI 46,47
GENERAL ELECTRIC 03,10,11,13,37,44
GRADIENTE 01,56,57,63,67
HITACHI 09,14,15,43
JC PENNEY 01,08,10,27,35
JVC 20,21,63,67
KIOTE 43
KMC 09
KTV 01,08,09,31
LG (GOLDSTAR) 01,07,08,09,35,39,40
LODGENET 33
LOGIK 33
LXI 09,24,25,26,27,28,29
MAGNAVOX 01,02,04,05,06,
07,08,09,20,
34,35,43,51,61,62,65
MAJESTIC 33
MARANTZ 01,32
MEMOREX 33
MGA/MITSUBISHI 01,08,32,34
Manufacturer Code Number
MONTGOMERY
01,06,08,09
WARD
23,24,32,33,34
NEC 01,08
NOBLEX 07
PACKARD BELL 43
PANASONIC 07,11,13,25,35,36
PHILCO 01,06,07,08,09,
15,38,43,58
PHILIPS 06,07,43,61,62,65
PIONEER 30
PORTLAND 09
PROSCAN 03,37,44
QUASAR 11,13
RADIO SHACK 16,17,23
RCA 01,03,37,44,69
REALISTIC 16,17,23
SAMPO 08
SAMSUNG 01,08,09,25,68
SANYO 28,29
SCOTT 01,08
SEARS 09,25,26,27,28,29
SEMP 64
SHARP 09,22,23,24,60,66
SIGNATURE 2000 01,06,08,09,10,
23,24,33,34
SONY 12,62
SOUNDESIGN 51
SYLVANIA 01,04,05,06,07,
08,35,51
SYMPHONIC 46,47
TATUNG 11
TEKNIKA 07,09,16,33,51
TELERENT 09,33
THOMSON 69
YORX 08
TOSHIBA 01,25,26,27,64
WARDS 01,06,08,09,10,33,34
XR1000 48
ZENITH 01, 02,33,59
51
Reference
Area Code
Afghanistan AF
Argentina AR
Australia AU
Austria AT
Belgium BE
Bhutan BT
Bolivia BO
Brazil BR
Cambodia KH
Canada CA
Chile CL
China CN
Colombia CO
Congo CG
Costa Rica CR
Croatia HR
Czech Republic CZ
Denmark DK
Ecuador EC
Egypt EG
El Salvador SV
Area Code
Ethiopia ET
Fiji FJ
Finland FI
France FR
Germany DE
Great Britain GB
Greece GR
Greenland GL
Islands HM
Hong Kong HK
Hungary HU
India IN
Indonesia ID
Israel IL
Italy IT
Jamaica JM
Japan JP
Kenya KE
Kuwait KW
Libya LY
Luxembourg LU
Area Code
Malaysia MY
Maldives MV
Mexico MX
Monaco MC
Mongolia MN
Morocco MA
Nepal NP
Netherlands NL
Netherlands Antilles AN
New Zealand NZ
Nigeria NG
Norway NO
Oman OM
Pakistan PK
Panama PA
Paraguay PY
Philippines PH
Poland PL
Portugal PT
Romania RO
Russian Federation RU
Area Code
Saudi Arabia SA
Senegal SN
Singapore SG
Slovak Republic SK
Slovenia SI
South Africa ZA
South Korea KR
Spain ES
Sri Lanka LK
Sweden SE
Switzerland CH
Taiwan TW
Thailand TH
Turkey TR
Uganda UG
Ukraine UA
United States US
Uruguay UY
Uzbekistan UZ
Vietnam VN
Zimbabwe ZW
Area Codes
Choose a area code from this list.
Language Code
Abkhazian 6566
Afar 6565
Afrikaans 6570
Albanian 8381
Ameharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Aymara 6588
Azerbaijani 6590
Bashkir 6665
Basque 6985
Bengali; Bangla 6678
Bhutani 6890
Bihari 6672
Breton 6682
Bulgarian 6671
Burmese 7789
Byelorussian 6669
Cambodian 7577
Catalan 6765
Chinese 9072
Corsican 6779
Croatian 7282
Czech 6783
Danish 6865
Dutch 7876
English 6978
Esperanto 6979
Estonian 6984
Faroese 7079
Language Code
Fiji 7074
Finnish 7073
French 7082
Frisian 7089
Galician 7176
Georgian 7565
German 6869
Greek 6976
Greenlandic 7576
Guarani 7178
Gujarati 7185
Hausa 7265
Hebrew 7387
Hindi 7273
Hungarian 7285
Icelandic 7383
Indonesian 7378
Interlingua 7365
Irish 7165
Italian 7384
Japanese 7465
Javanese 7487
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kirghiz 7589
Korean 7579
Kurdish 7585
Laothian 7679
Latin 7665
Latvian, Lettish 7686
Language Code
Lingala 7678
Lithuanian 7684
Macedonian 7775
Malagasy 7771
Malay 7783
Malayalam 7776
Maltese 7784
Maori 7773
Marathi 7782
Moldavian 7779
Mongolian 7778
Nauru 7865
Nepali 7869
Norwegian 7879
Oriya 7982
Panjabi 8065
Pashto, Pushto 8083
Persian 7065
Polish 8076
Portuguese 8084
Quechua 8185
Rhaeto-Romance 8277
Rumanian 8279
Russian 8285
Samoan 8377
Sanskrit 8365
Scots Gaelic 7168
Serbian 8382
Serbo-Croatian 8372
Shona 8378
Sindhi 8368
Language Code
Singhalese 8373
Slovak 8375
Slovenian 8376
Somali 8379
Spanish 6983
Sudanese 8385
Swahili 8387
Swedish 8386
Tagalog 8476
Tajik 8471
Tamil 8465
Tatar 8484
Telugu 8469
Thai 8472
Tibetan 6679
Tigrinya 8473
Tonga 8479
Turkish 8482
Turkmen 8475
Twi 8487
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapük 8679
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 7473
Yoruba 8979
Zulu 9085
Language Codes
Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu.
52
Symptom
No power.
No picture.
No sound.
The playback picture is
poor.
The recorder does not
start playback.
The picture from the
external input is distort-
ed
Some channels are
skipped over when
using v/ V.
The picture or sound of
broadcasting channel is
weak or missing.
Camcorder image is
not shown.
Camcorder image via
A/V input or DV IN to
recorder is not shown
on TV screen.
Cause
The power cord is disconnected.
TV/DVD mode for the recorder is set
to TV.
The TV is not set to receive recorder
signal output.
The video cable is not connected
securely.
The connected TV power is turned off.
The equipment connected with the
audio cable is not set to receive
recorder signal output.
The audio cables are not connected
securely.
The power of the equipment connected
with the audio cable is turned off.
The audio connecting cord is damaged.
The disc is dirty.
No disc is inserted.
An unplayable disc is inserted.
The disc is placed upside down.
The disc is not placed within the
guide.
The disc is dirty.
The Rating level is set.
The video signal from the external
component is copy-protected.
Those channels are not stored in the
recorder.
Antenna or cables are loose.
Camcorder is off.
The recorder’s source is incorrect.
Solution
Plug the power cord into the wall out-
let securely.
Press TV/DVD on the remote control
repeatedly to choose DVD mode. TV
indicator disappears in the display
window.
Select the appropriate video input mode
on the TV so the picture from the
recorder appears on the TV screen.
Connect the video cable into the jacks
securely.
Turn on the TV.
Select the correct input mode on the
audio receiver so you can listen to the
sound from the recorder.
Connect the audio cable securely.
Turn on the equipment connected with
the audio cable.
Replace it with new one.
Clean the disc.
Insert a disc. (Check that the disc
indicator in the display window is lit.)
Insert a playable disc. (Check the disc
type, color system, and regional code.)
Place the disc with the playback side
down.
Place the disc on the disc tray cor-
rectly inside the guide.
Clean the disc.
Cancel the Rating function or change
the rating level.
You cannot connect via this recorder.
Connect the component directly to
your TV.
Restore channels. See page 19.
Tighten connections or replace cable.
Turn camcorder on and operate
properly.
Use INPUT to select input channel
(AV1, AV2, DV.)
T
Troubleshooting
roubleshooting
Check the following guide for the possible cause of a problem before contacting service.
53
Reference
Symptom
Cannot play a disc
recorded using this
recorder on another
player.
Cannot record or did
not record successfully.
Timer recording is not
possible.
Stereo Audio Record
and/or Playback is not
present.
The remote control
does not work properly.
Cause
The disc was recorded in Video mode.
Some players will not play even a final-
ized disc recorded in Video mode.
The disc was recorded in VR mode.
Discs recorded with copy-once material
cannot be played on other players.
The remaining blank space on the disc
is insufficient.
The source you are trying to record is
copy protected.
When setting the recording channel, the
channel is tuned on the TV’s own tuner.
When recording to a Video mode disc,
programs that are copy-once protected
cannot be recorded.
Clock in recorder is not set to correct
time.
Timer has been programmed
incorrectly.
(Timer record) indicator light does
not appear after programming timer.
TV is not Stereo-compatible.
Broadcast program is not in stereo for-
mat.
The recorder A/V Out jacks are not
connected to TV A/V In jacks.
The recorder Audio/Video Out is not
selected for viewing at the TV.
The recorder’s TV audio channel is set
to mono.
The remote control is not pointed at
the remote sensor of the recorder.
The remote control is too far from the
recorder.
There is an obstacle in the path of the
remote control and the recorder.
The batteries in the remote control are
exhausted.
Solution
Finalize the disc. (page 25)
No solution.
The other player must be RW com-
patible in order to play it.
No solution.
Use another disc.
You cannot record the source.
Select the channel on the recorder’s
built-in TV tuner.
Use a VR mode formatted disc for
copy-once material.
Set clock to correct time.
Reprogram Timer.
Reprogram Timer.
No solution.
No solution.
Make A/V connections. Stereo is
available only via A/V output from the
recorder.
Select AUX or A/V source as TV
input.
Set TV audio channel mode to
Stereo. See [Changing TV audio
channel] on page 27.
Point the remote control at the
remote sensor of the recorder.
Operate the remote control within
7 m.
Remove the obstacle.
Replace the batteries with new ones.
Reset the Recorder
If you observe any of the following symptoms...
When the Recorder is plugged in, but the
power will not turn on or off.
When the display window does not working.
When the Recorder does not operate normally.
You can reset the Recorder as follows :
Press and hold the POWER button for more
than five seconds. This will force the Recorder
to power off.
Press the POWER button again to turn the
Recorder back on.
Unplug the power cord and then plug the
power cord again after more than five sec-
onds.
54
General
Power requirements AC 120V, 60 Hz
Power consumption 35W
Dimensions (approx.) 430 X 49 X 300 mm (16.9 x 1.9 x 11.8 inches) (w x h x d)
Mass (approx.) 5.6 kg (12.32 lbs)
Operating temperature 5˚C to 35˚C (41˚F to 95˚F)
Operating humidity 5 % to 90 %
Signal system NTSC
Recording
Recording format DVD VideoRecording, DVD-VIDEO
Recordable discs DVD-ReWritable, DVD-Recordable, DVD+ReWritable,
DVD+Recordable, DVD+Recordable (Double Layer)
Recordable time DVD ; Approx. 1 hour (XP mode), 2 hours (SP mode),
4 hours (LP mode), 6 hours (EP mode)
DVD+R DL (8.5GB): Approx. 1 hour 50 minutes (XP mode),
3 hours 40 minutes (SP mode), 7 hours 10 minutes (LP mode),
11 hours (EP mode)
VCR ; SP: 2 HOURS (T-120), SLP: 6 HOURS (T-120)/8 HOURS (T-160)
Video recording format
Sampling frequency 27MHz
Compression format MPEG 2
Audio recording format
Sampling frequency 48kHz, 96kHz
Compression format Dolby Digital
DVD Specifications
Laser system Semiconductor laser, wavelength 650 nm
Frequency response DVD (PCM 48 kHz): 8 Hz to 22 kHz, CD: 8 Hz to 20 kHz
Signal-to-noise ratio More than 95dB
Harmonic distortion Less than 0.008%
Dynamic range More than 90 dB
Specifications
Specifications
55
Inputs
ANTENNA IN Antenna or CATV input, 75 ohms
VIDEO IN (AV1,2) 1.0 Vp-p 75 ohms, sync negative, RCA jack x 2
AUDIO IN (AV1,2) -6 dBm more than 47 kohms, RCA jack (L, R) x 2
S-VIDEO IN (Y) 1.0 V (p-p), 75 Ω, negative sync, Mini DIN 4-pin x 1
(C) 0.286 V (p-p) 75 Ω
DV IN 4 pin (IEEE 1394 standard)
Outputs
VIDEO OUT 1 Vp-p 75 Ω, sync negative, RCA jack x 1
S-VIDEO OUT (Y) 1.0 V (p-p), 75 Ω, negative sync, Mini DIN 4-pin x 1
(C) 0.286 V (p-p) 75 Ω
COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75 Ω, negative sync, RCA jack x 1
(PROGRESSIVE SCAN) (Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2
Audio output (digital audio) 0.5 V (p-p), 75 Ω, RCA jack x 1
Audio output (optical audio) Optical connector x 1
Audio output (analog audio) 1.1 Vrms (1 kHz, -6 dB), 600 Ω, RCA jack (L, R) x 2
RF OUT Channel 3 or 4 (Switchable)
Accessory:
Video cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Audio cable (L, R) . . . . . . . . . . . . . . . .1
RF 75-ohm Coaxial Cable . . . . . . . . . . . . . . . . .
1Remote Control . . . . . . . . . . . . . . . . . .1
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Design and specifications are subject to change without notice.
Reference
This LG Electronics product, will be repaired or replaced, at LG’s option, if it proves to be defective in material or
workmanship, under normal use, during the warranty period (“Warranty Period”) listed below, effective from the date
(“Date of Purchase”) of original consumer purchase of the product. This warranty is good only to the original pur-
chaser of the product and effective only when used in the United States, excluding U.S. Territories.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED
WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. LG ELEC-
TRONICS WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL OR PUNITIVE DAMAGES
OF ANY NATURE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, INCLUDING WITHOUT LIMITATION, LOST
REVENUES OR PROFITS, LOST OR CORRUPTED PROGRAMMING OR DATA, OR ANY OTHER DAMAGE WHETHER BASED
IN CONTRACT, TORT OR OTHERWISE. Some states do not allow the exclusion or limitation of incidental or consequential dam-
ages or limitation on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty
gives you specific legal rights and you may also have other rights that may vary from state to state.
THIS LIMITED WARRANTY DOES NOT APPLY TO:
•Damages or operating problems that result from shipping, installation, adjustment of user controls, calibration,
maintenance or failure to maintain, or separate system components; and
•Damages or operating problems that result from normal wear and tear, misuse, abuse, operation outside
environmental specifications or contrary to the requirements or precautions in the Operating Guide, accident,
lightning strikes or other natural causes, unauthorized modification or alteration, incorrect electrical current or
voltage, reception problem caused by inadequate home antenna or faulty antenna connections, computer
software, institutional or commercial use, or other causes not arising out of defect in material or workmanship.
Therefore, the cost of repair or replacement of such defective product shall be borne by the consumer.
CUSTOMER INTER-ACTIVE CENTER NUMBERS:
WARRANTY PERIOD:
LABOR: 90 days from the Date of Purchase.
PARTS: One Year from the Date of Purchase.
*Parts replaced are warranted for the remaining portion
of the original warranty period.
HOW SERVICE IS HANDLED:
Call 1-800-243-0000 for instructions on getting the
defective unit repaired or replaced.
Please retain dated sales receipt and your box to
return the unit to LG for repair or replacement.
Shipping both ways will be paid by LG during the
Warranty Period. After the Warranty Period, you pay
inbound shipping charges and LG pays return shipping
charges.
Visit our website at: http://www.lgservice.com
For nearest Authorized Service Center, Where to buy,
Product Assistance, or Customer Assistance
Call 1-800-243-0000 (24 hours a day, 365 days per year)
and select appropriate options from the menu.
Or visit our website at http://www.lgservice.com
LG Electronics, Inc.
Limited Warranty - USA
LG ELECTRONICS U.S.A., INC.
1000 SYLVAN AVENUE
ENGLEWOOD CLIFFS, NJ
P/N : 3835RD0063E
Issue O
Printed in China
