V1940MH.EVENT_ENG
Before connecting, operating or adjusting this
product, please read this owner’s manual
carefully and completely.
DVD Player &
Video Cassette Recorder
OWNER’S MANUAL
MODEL : V1940MH
For service/
support Call:
Toll Free Number
1-800-243-0000
2

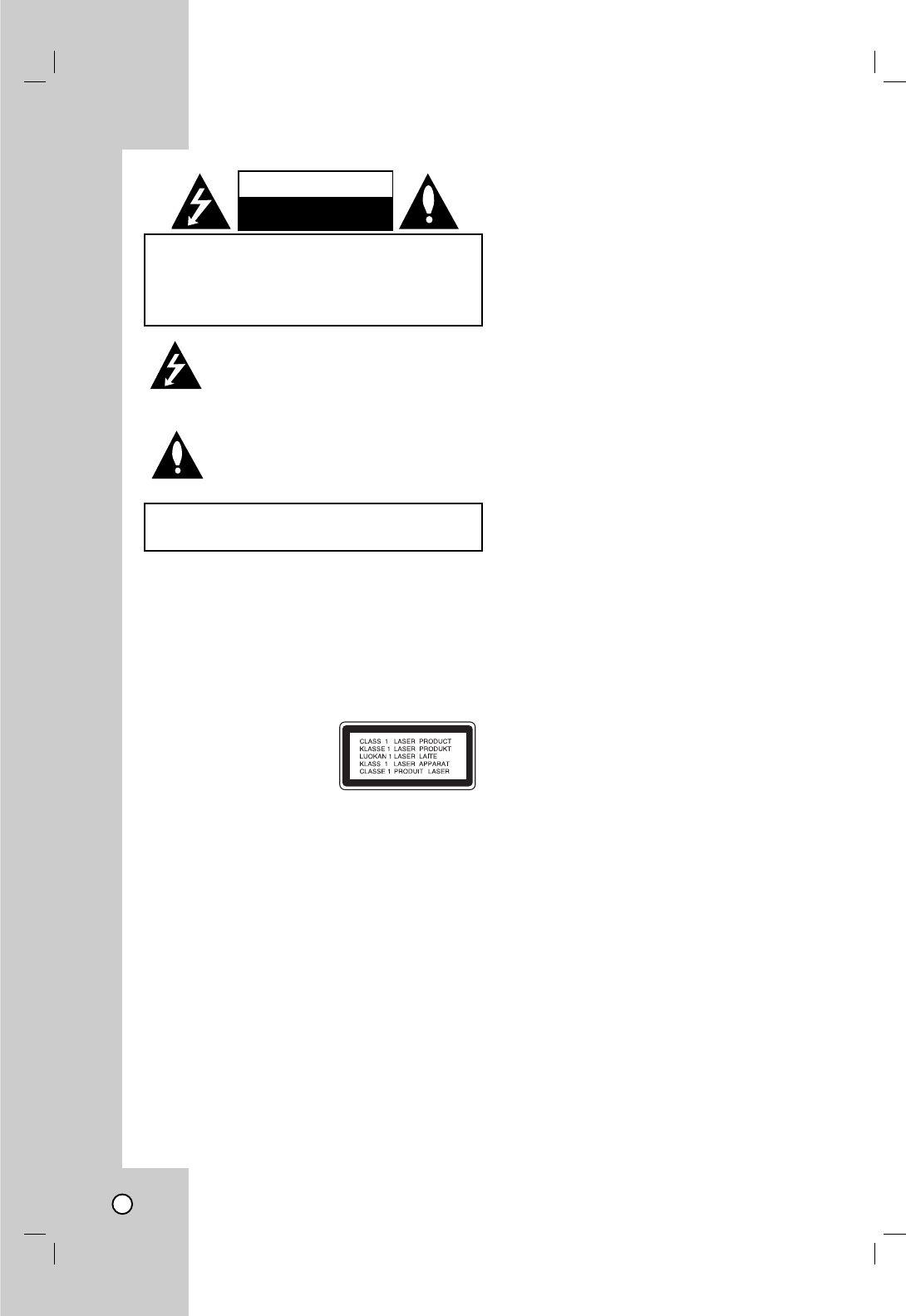

This lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the prod-
uct.
CAUTION: Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
Slots and openings in the cabinet are provided for ventila-
tion and to ensure reliable operation of the product and to
protect it from over heating.
The openings should be never be blocked by placing the
product on a bed, sofa, rug or other similar surface. This
product should not be placed in a built-in installation such as
a bookcase or rack unless proper ventilation is provided or
the manufacturer's instruction have been adhered to.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read this
owner’s manual carefully and retain it for future reference.
Should the unit require maintenance, contact an authorized
service center.
Performing controls, adjustments, or carrying out proce-
dures other than those specified herein may result in haz-
ardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open
the enclosure. Visible laser radiation when open. DO NOT
STARE INTO BEAM.
CAUTION: The apparatus should not be exposed to water
(dripping or splashing) and no objects filled with liquids,
such as vases, should be placed on the apparatus.
CAUTION: VISIBLE AND INVISIBLE LASER RADIATION
WHEN OPEN AND INTERLOCKS DEFEATED.
FCC WARNING: This equipment may generate or use
radio frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the
modifications are expressly approved in the instruction
manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is
made.
REGULATORY INFORMATION: FCC Part 15
This epuipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the product is operated in a residential installation. This
product generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
product does cause harmful interference to radio or televi-
sion reception, which can be determined by turning the
product off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the product and
receiver.
• Connect the product into an outlet on a circuit differ-
ent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV tech-
nician for help.
FCC COMPLIANCE: The responsible party for this prod-
uct’s compliance is:
LG Electronics U.S.A., Inc.,1000 Sylvan Avenue,
Englewood Cliffs, NJ.
Phone: 1-800-243-0000.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a
dedicated circuit;
That is, a single outlet circuit which powers only that appli-
ance and has no additional outlets or branch circuits. Check
the specification page of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose
or damaged wall outlets, extension cords, frayed power
cords, or damaged or cracked wire insulation are danger-
ous. Any of these conditions could result in electric shock or
fire. Periodically examine the cord of your appliance, and if
its appearance indicates damage or deterioration, unplug it,
discontinue use of the appliance, and have the cord
replaced with an exact replacement part by an authorized
servicer.
Protect the power cord from physical or mechanical abuse,
such as being twisted, kinked, pinched, closed in a door, or
walked upon. Pay particular attention to plugs, wall outlets,
and the point where the cord exits the appliance.
To disconnect power from the mains, pull out the mains cord
plug. When installing the product, ensure that the plug is
easily accessible.
SERIAL NUMBER:
You can find the serial number on the back of the unit. This
number is unique to this unit and not available to others.
You should record requested information here and retain
this guide as a permanent record of your purchase.
Model No. ______________________________
Serial No. ______________________________
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
3
1. Read these instructions. - All these safety and operating
instructions should be read before the product is operated.
2. Keep these instructions. - The safety, operating and use
instructions should be retained for future reference.
3. Heed all warnings. - All warnings on the product and in
the operating instructions should be adhered to.
4. Follow all instructions. - All operating and use instruc-
tions should be followed.
5. Do not use this product near water. – For example: near
a bath tub, wash bowl, kitchen sink, laundry tub, in a wet
basement; or near a swimming pool; and other areas
located near water.
6. Clean only with dry cloth. – Unplug this product from the
wall outlet before cleaning. Do not use liquid cleaners.
7.
Do not block any ventilation openings. Install in accor-
dance with the manufacturer’s instructions. -
Slots and
openings in the cabinet are provided for ventilation and to
ensure reliable operation of the product and to protect it
from over- heating. The openings should never be blocked
by placing the product on a bed, sofa, rug or other similar
surface. This product should not be placed in a built-in
installation such as a bookcase or rack unless proper ven-
tilation is provided or the manufacturer’s instructions have
been adhered to.
8. Do not install near any heat sources such as radia-
tors, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. D
o not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades
with one wider than the other. A grounding
type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience recepta-
cles, and the point where they exit from the product.
11. Only use attachments/accessories specified by the
manufacturer.

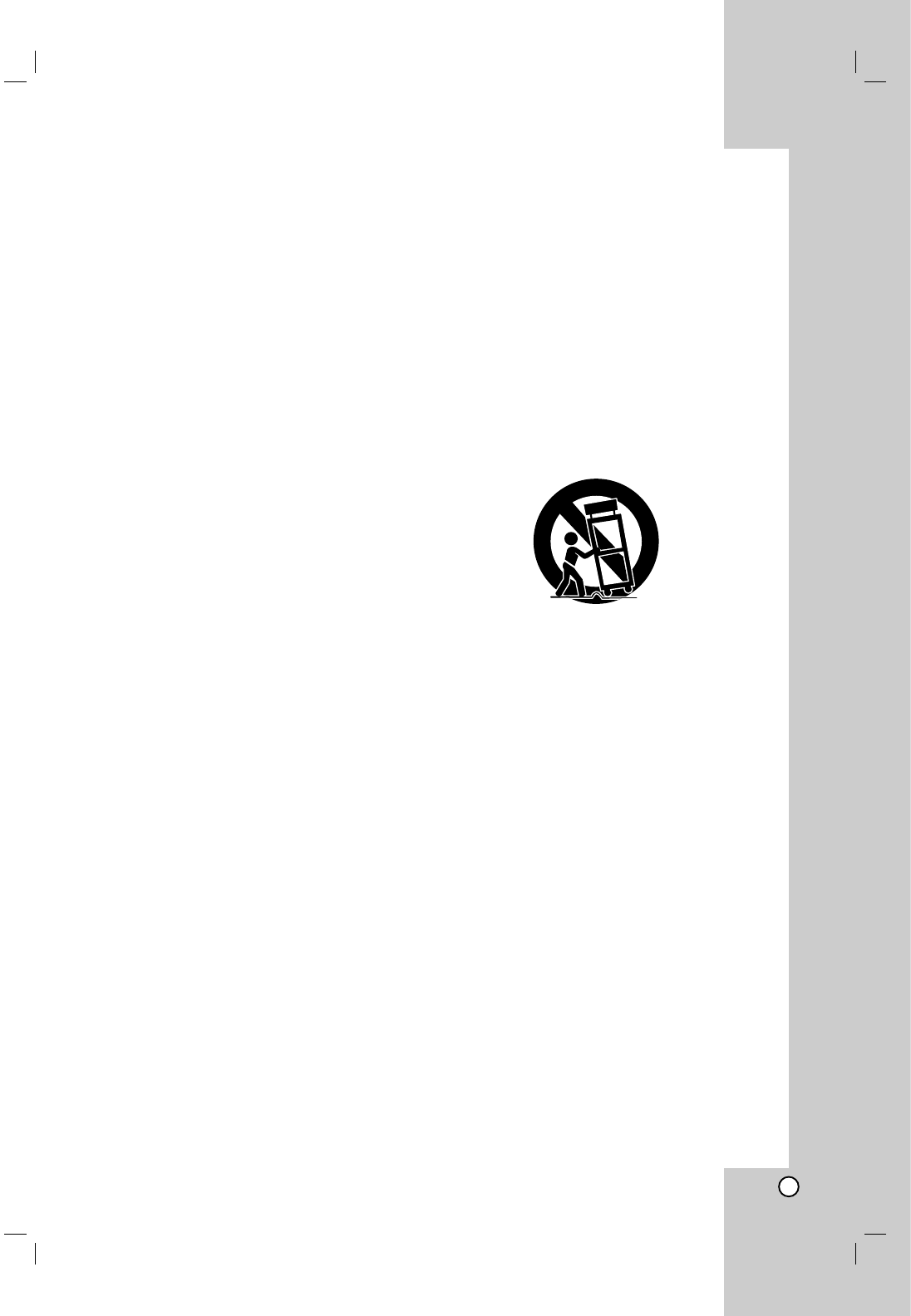

12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with appara-
tus. When a cart is used, use caution when moving
the cart/product combination to avoid injury from
tip-over.
13. Unplug this product during lightning storms or when
unused for long periods of time.
14.
Refer all servicing to qualified service personnel.
Servicing is required when the product has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the product, the product has been
exposed to rain or moisture, does not operate nor-
mally, or has been dropped.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION:
PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANUAL. AND
THOSE MARKED ON THE PRODUCT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
This product has been designed and manufactured to assure personal safety. Improper use can result in electric shock or
fire hazard. The safeguards incorporated in this product will protect you if you observe the following procedures for installa-
tion, use, and servicing.
This product does not contain any parts that can be repaired by the user.
DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVIC-
ING TO QUALIFIED SERVICE PERSONNEL ONLY.
4
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . .5
Moisture Condensation . . . . . . . . . . . . . . . . . .5
Symbol Used in this Manual . . . . . . . . . . . . . .5
About the Symbol Display . . . . . . . . . . . . .5

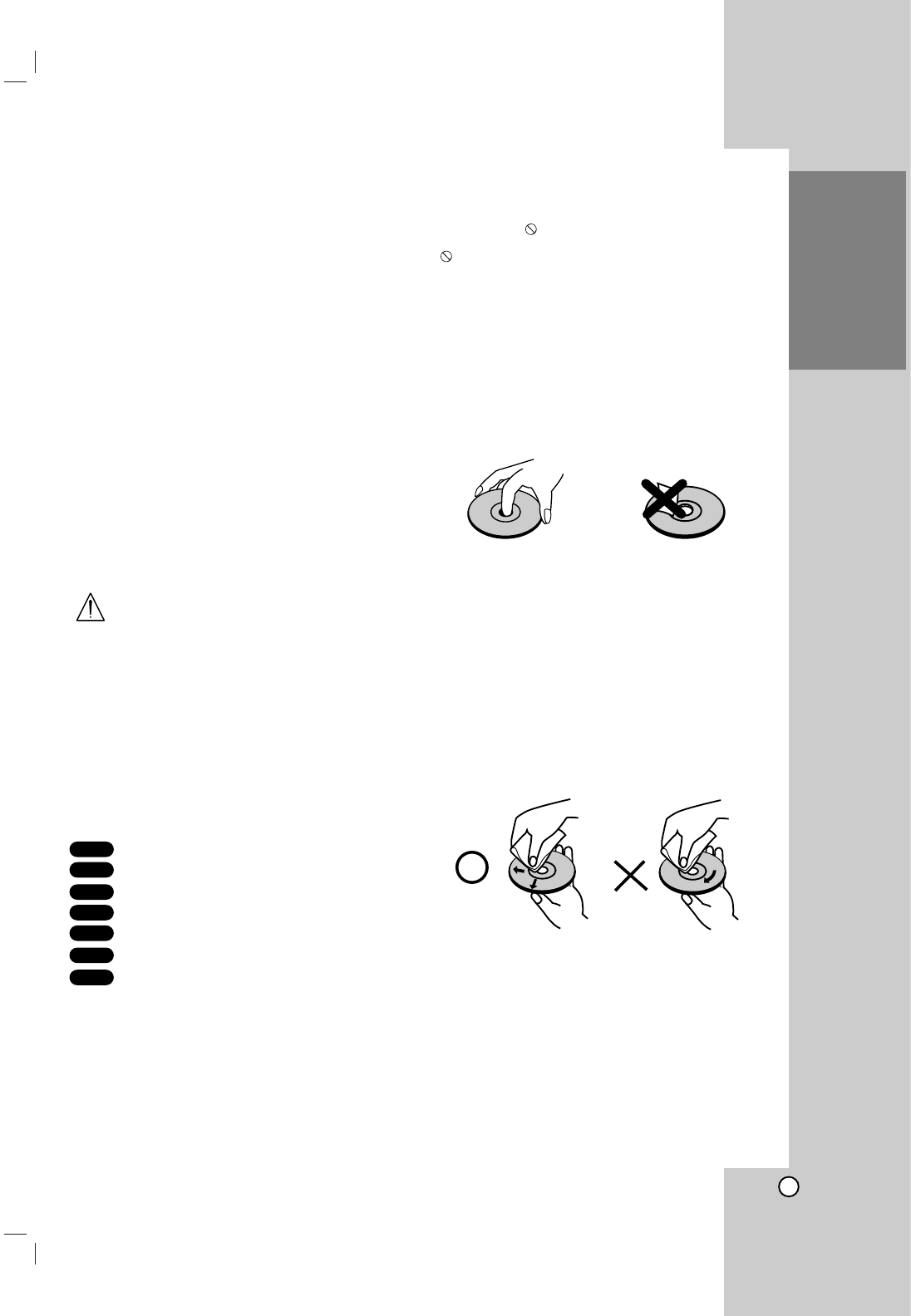

Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . .5

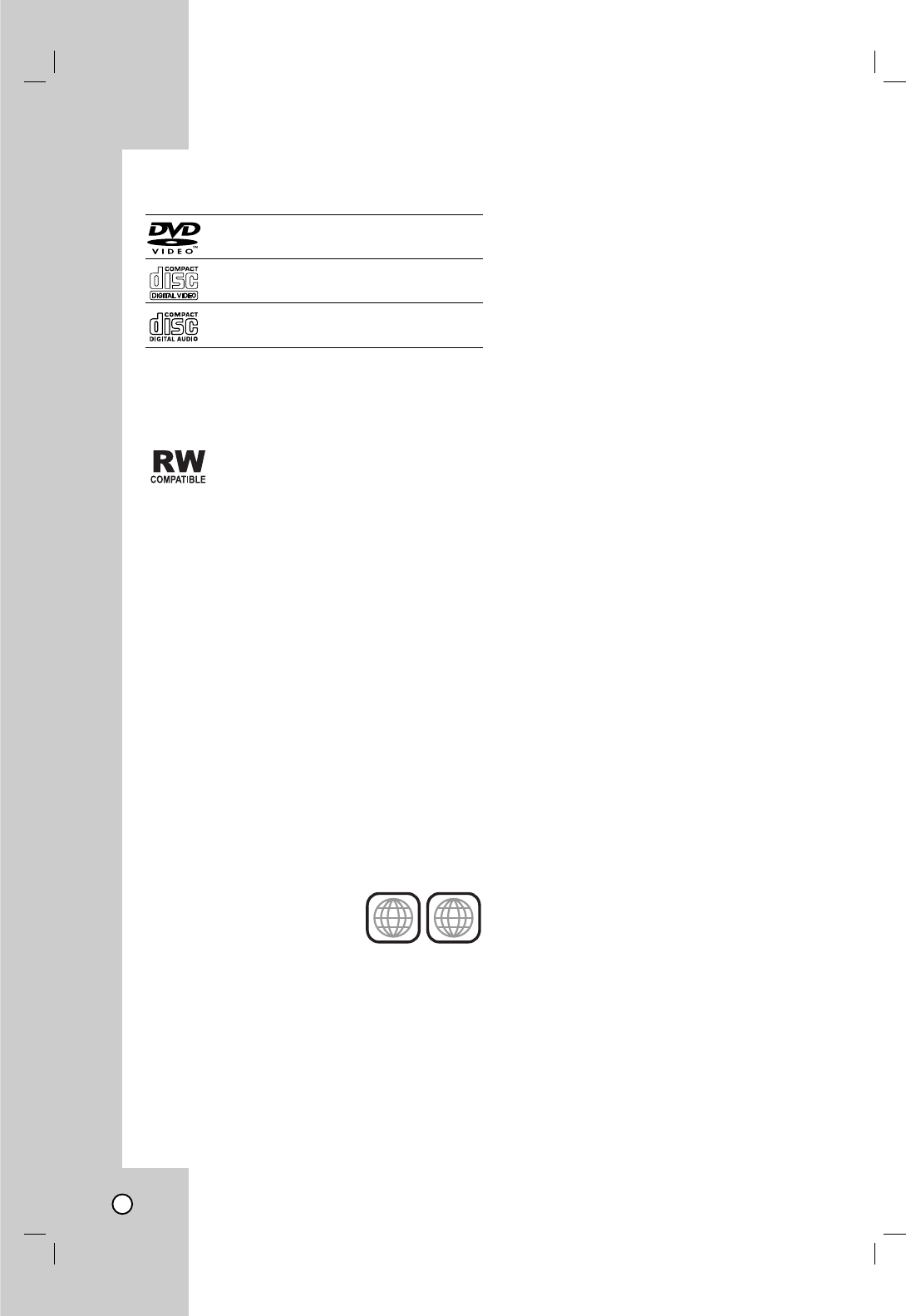

Types of Playable Discs . . . . . . . . . . . . . . . . .6
Region code . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Notes on Copyrights . . . . . . . . . . . . . . . . . . . .6
Notice for Progressive Scan Use . . . . . . . . . .6
Selecting the Viewing Source . . . . . . . . . . . . .6
Disc-related terms . . . . . . . . . . . . . . . . . . . . . .7
Card useable on this unit . . . . . . . . . . . . . . . .8
Using Memory Card . . . . . . . . . . . . . . . . . . . . .8
About the Remote Control . . . . . . . . . . . . . . .8

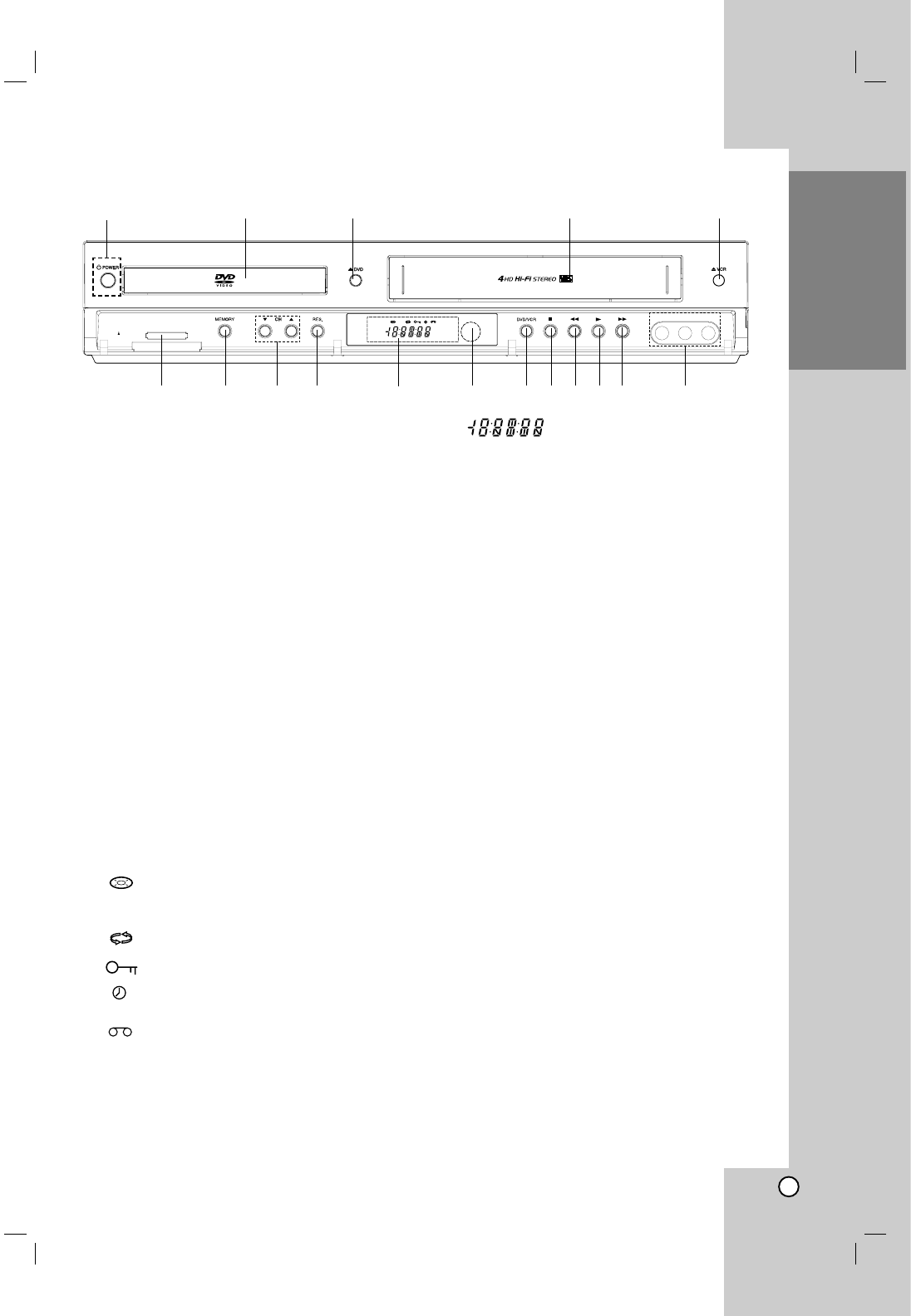

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Remote Control . . . . . . . . . . . . . . . . . . . . . . .10

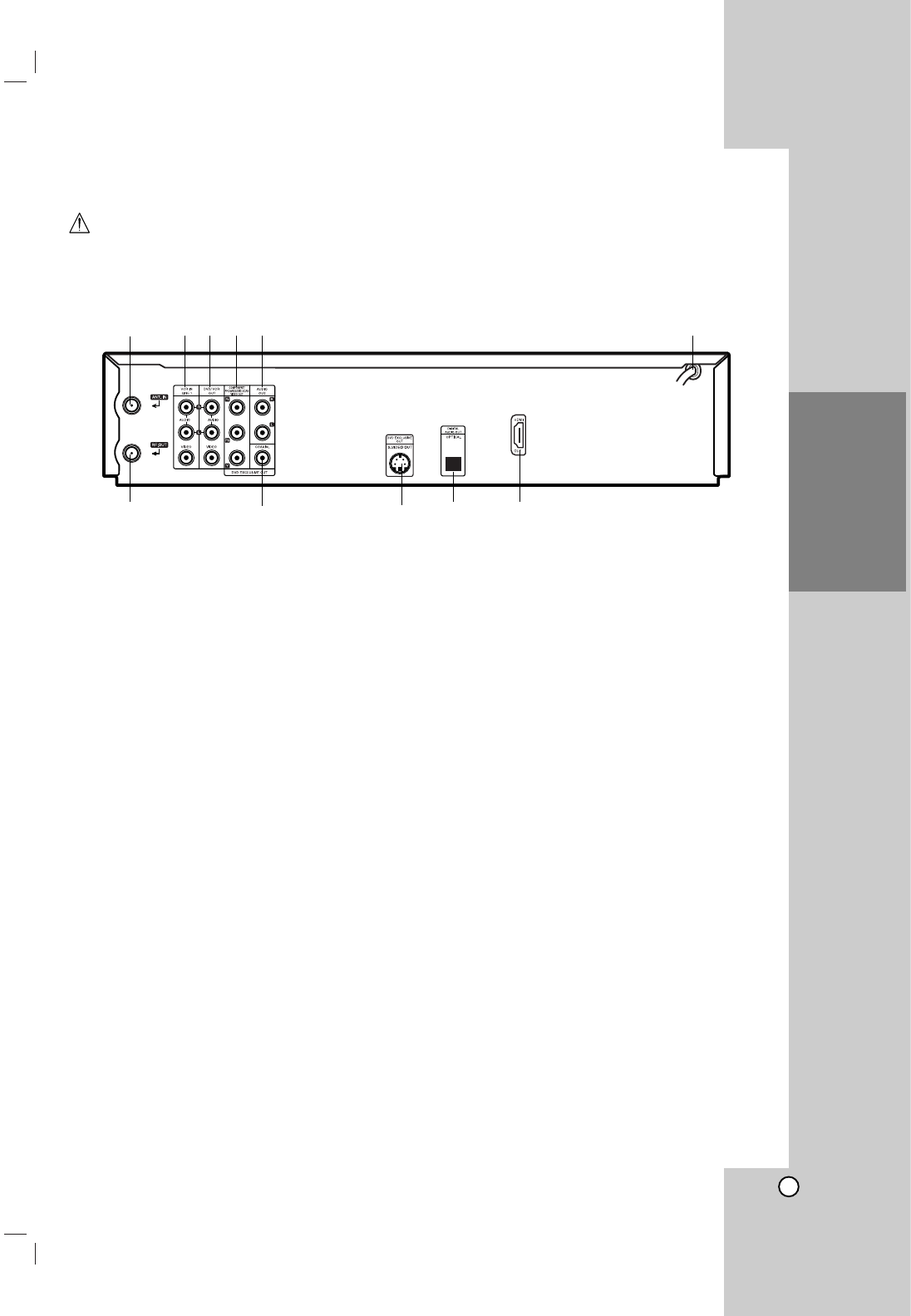

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Preparation . . . . . . . . . . . . . . . . . . . . . .11

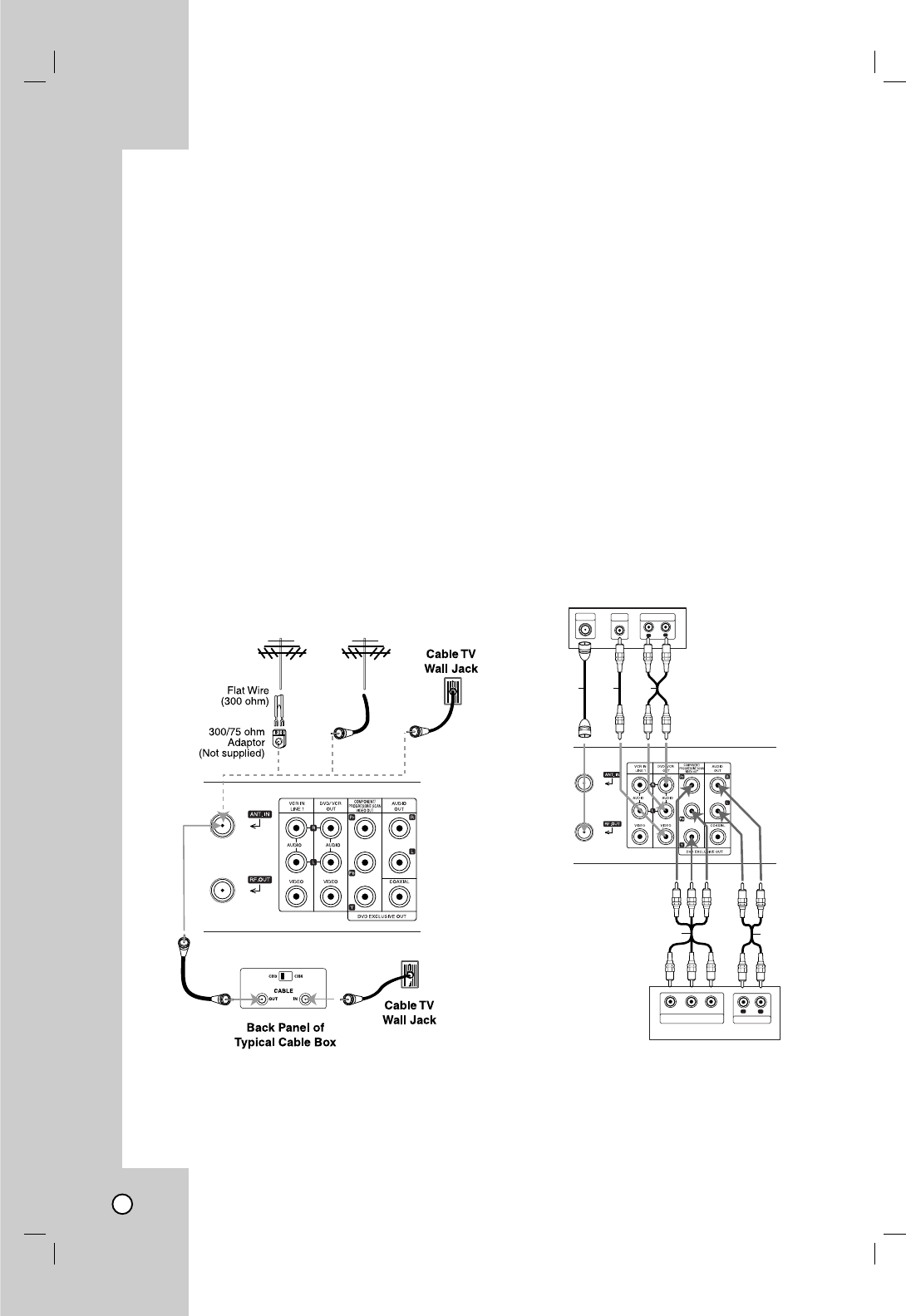

Connecting an Antenna or Cable TV . . . . . . .12
Basic TV Connections . . . . . . . . . . . . . . .12-13

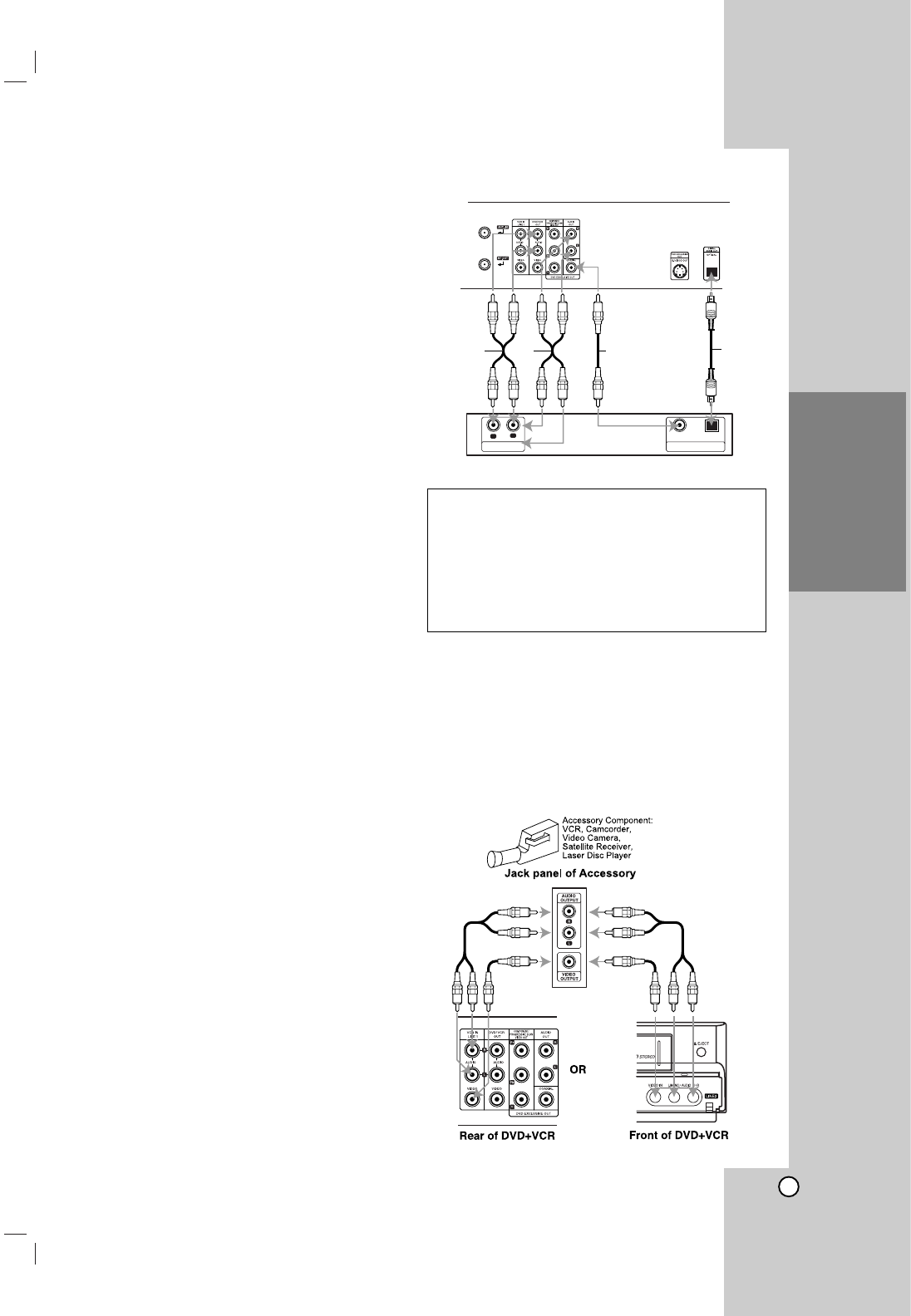

Optional TV Connections . . . . . . . . . . . . . . .13

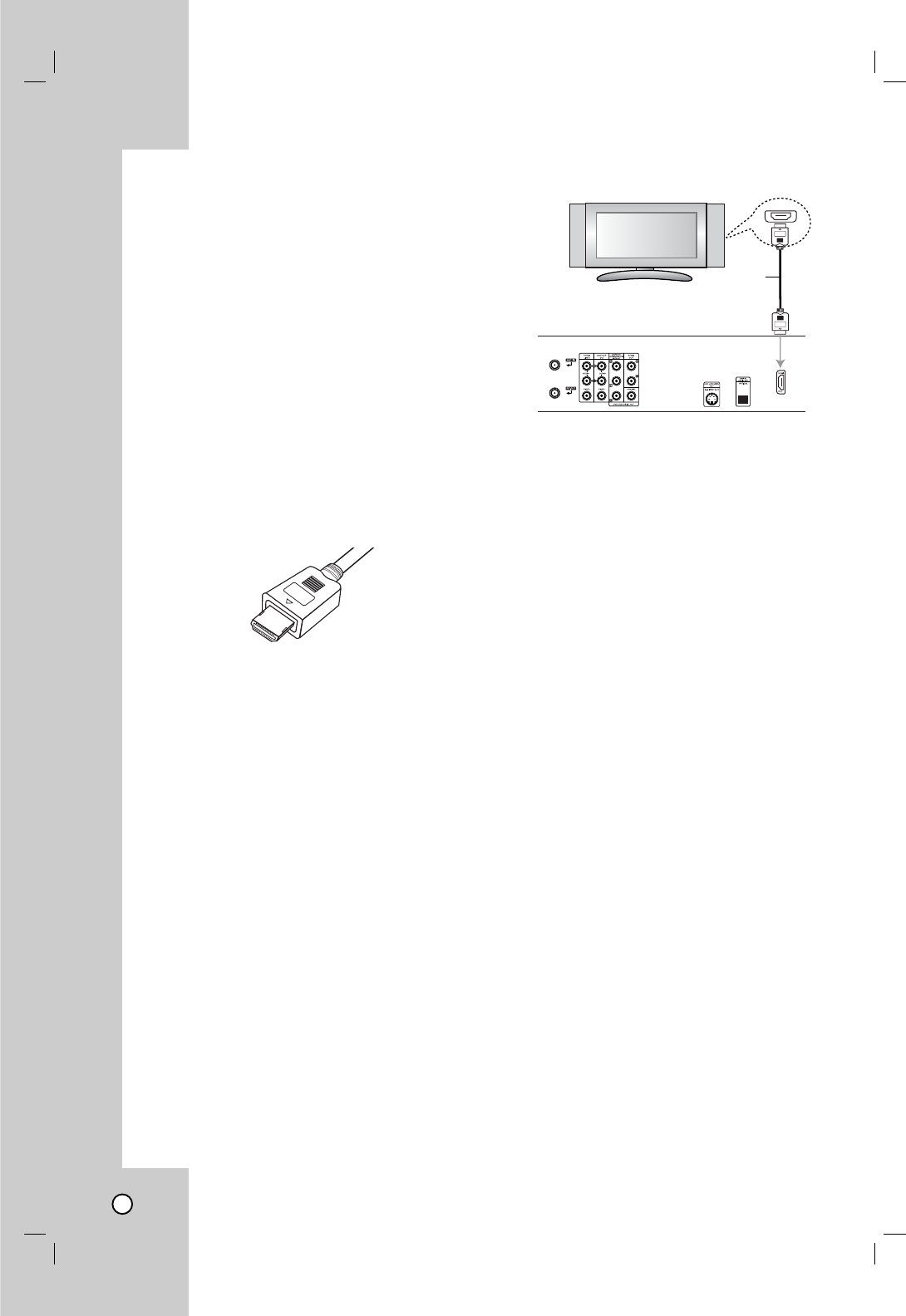

HDMI Connection . . . . . . . . . . . . . . . . . . . . . .14
Connection to an Amplifier . . . . . . . . . . . . . .15

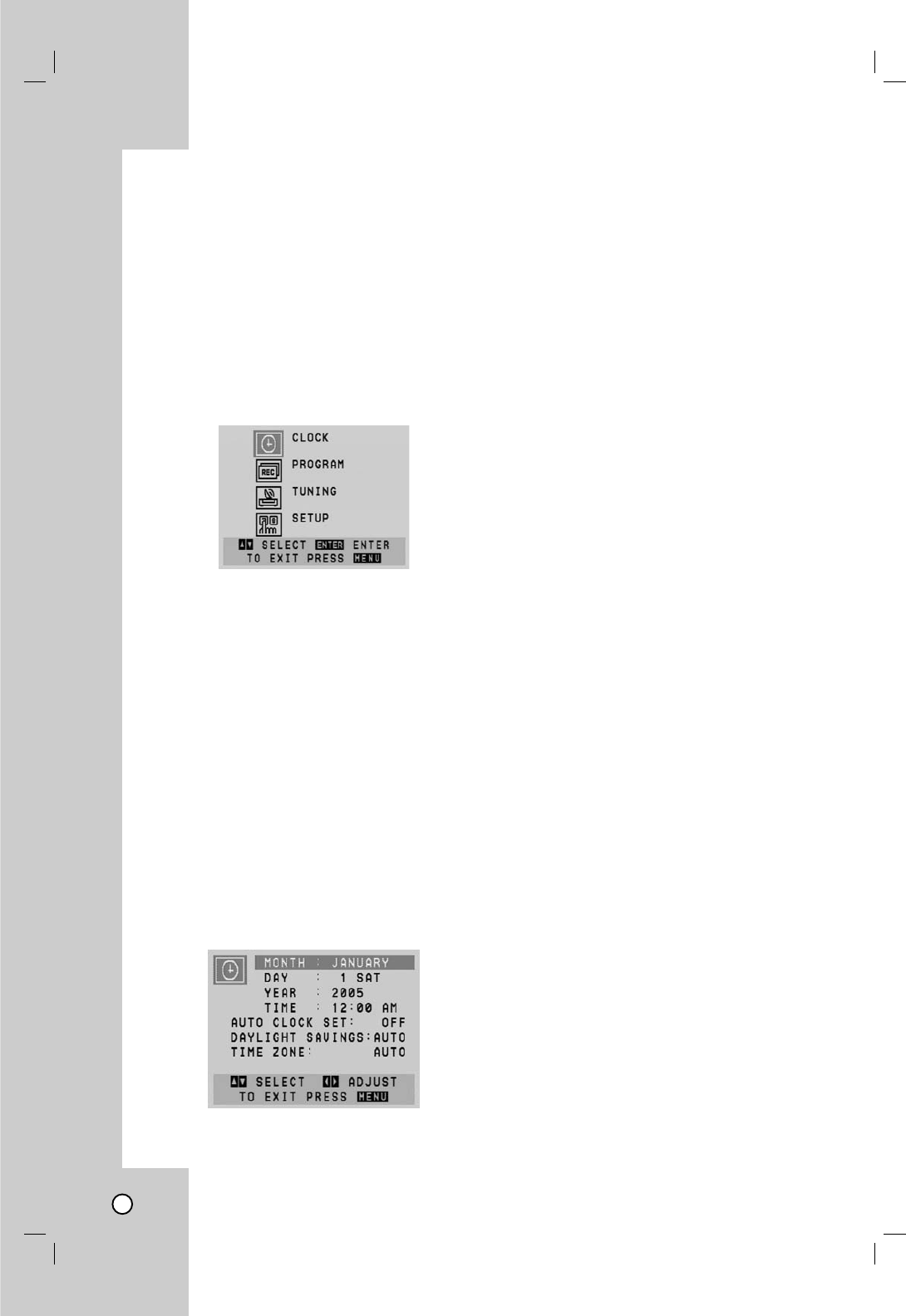

Initial Settings - VCR . . . . . . . . . . . . . . . .16-17
General Operation . . . . . . . . . . . . . . . . . . . .16
CLOCK . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
• Auto Clock Set . . . . . . . . . . . . . . . . . . . . .16
• Manual Clock Set . . . . . . . . . . . . . . . . . . .16

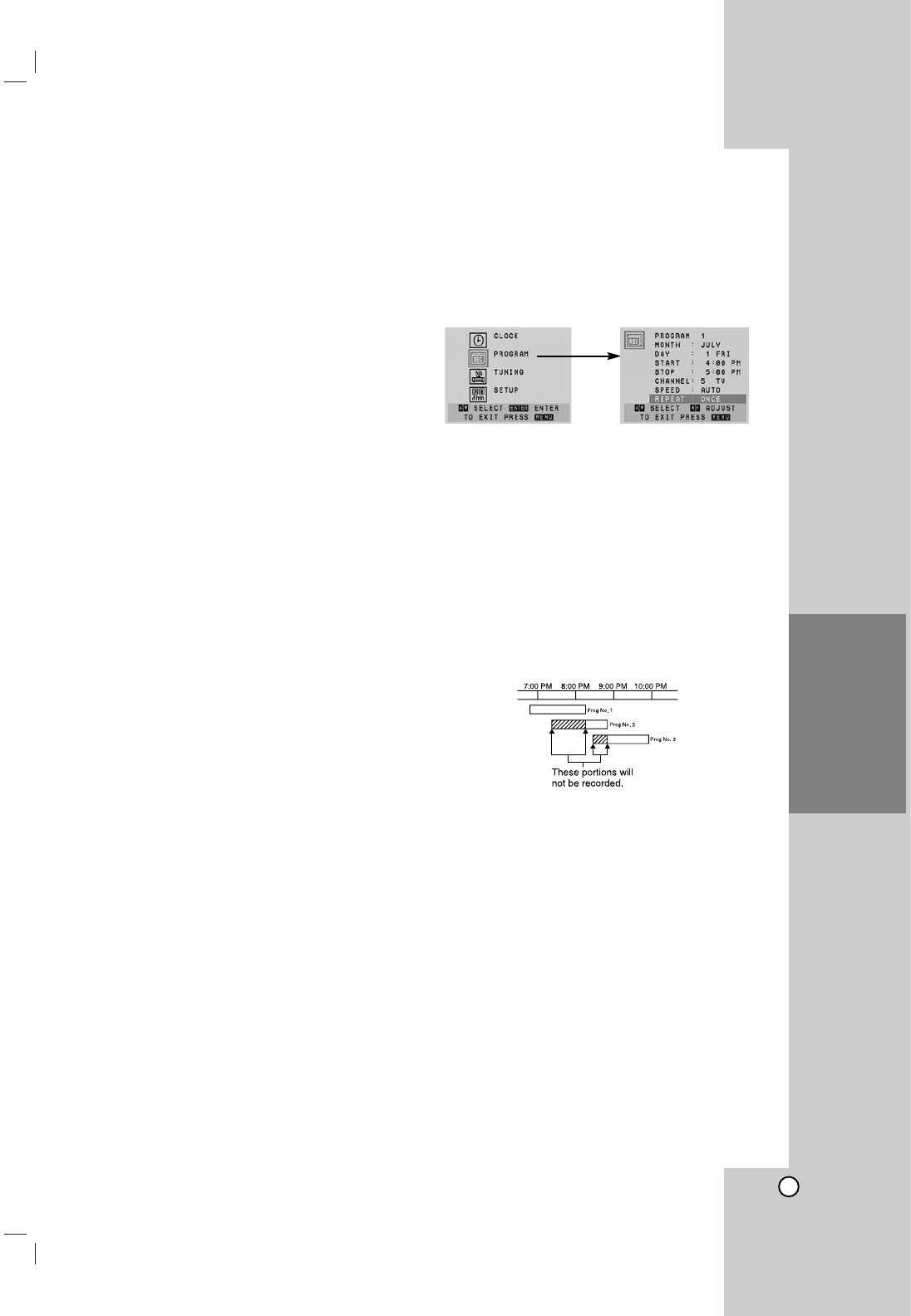

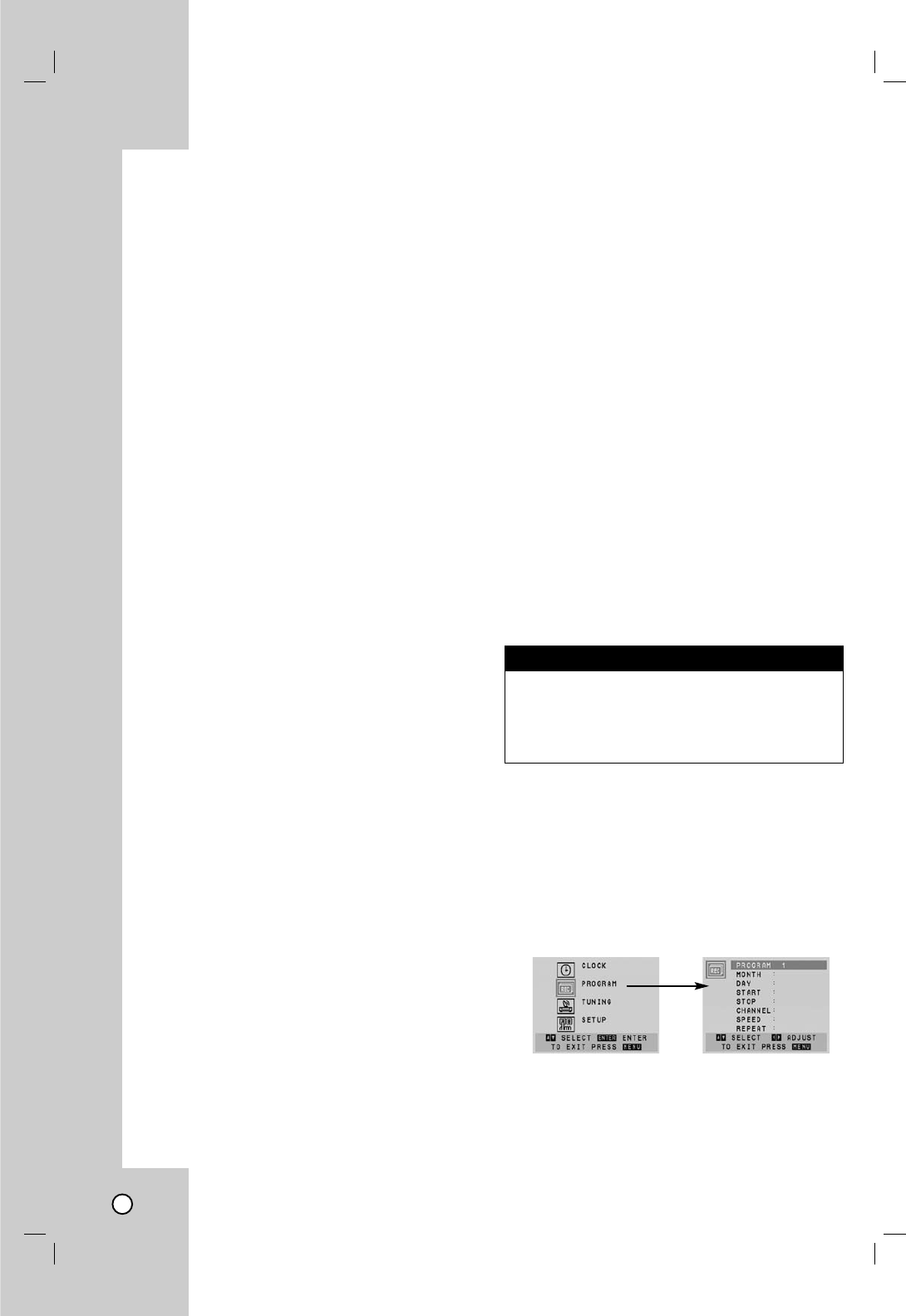

PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . .16

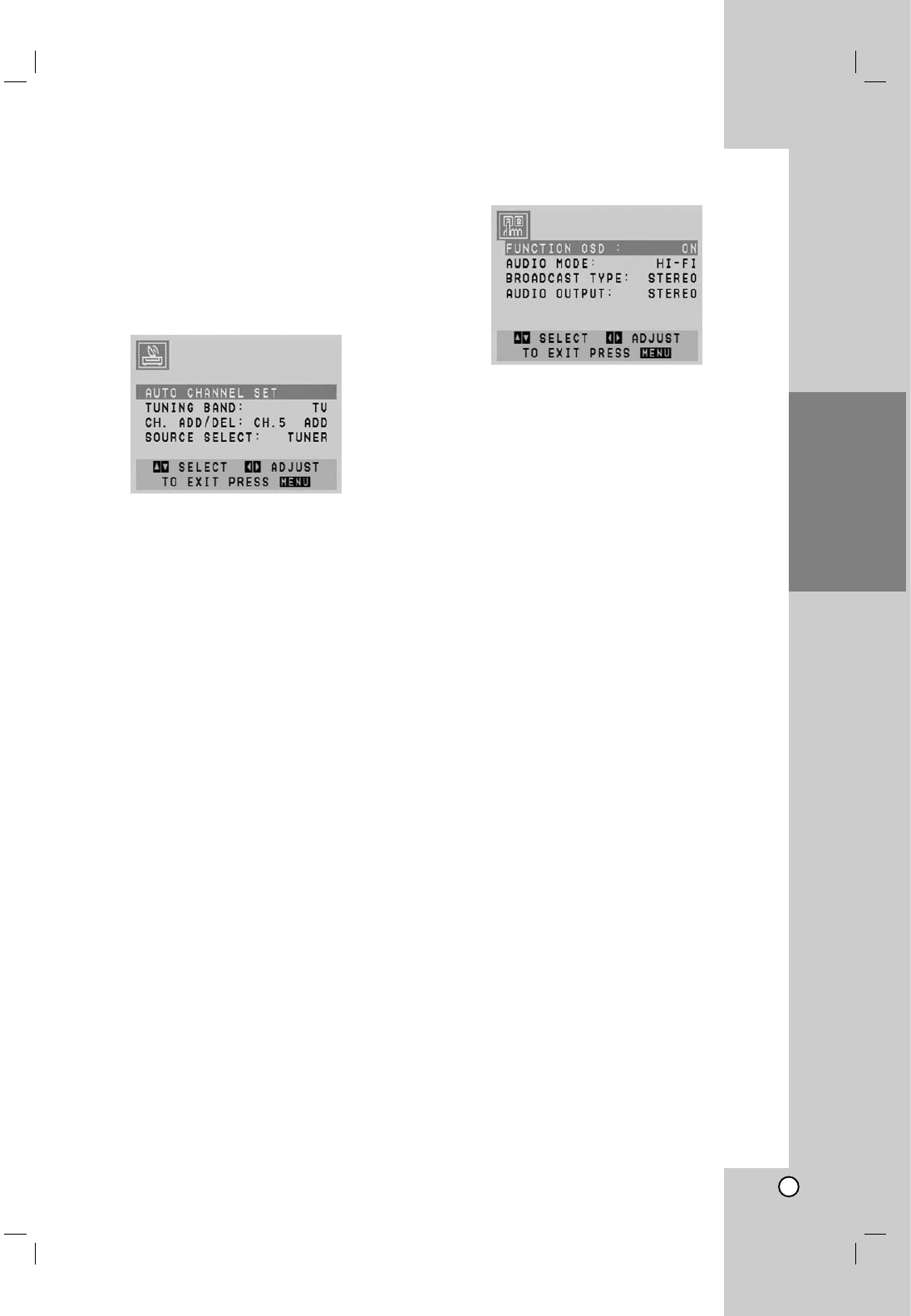

TUNING . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
• Auto Channel Programming . . . . . . . . . . .17
• To Add or Erase Channels . . . . . . . . . . . .17

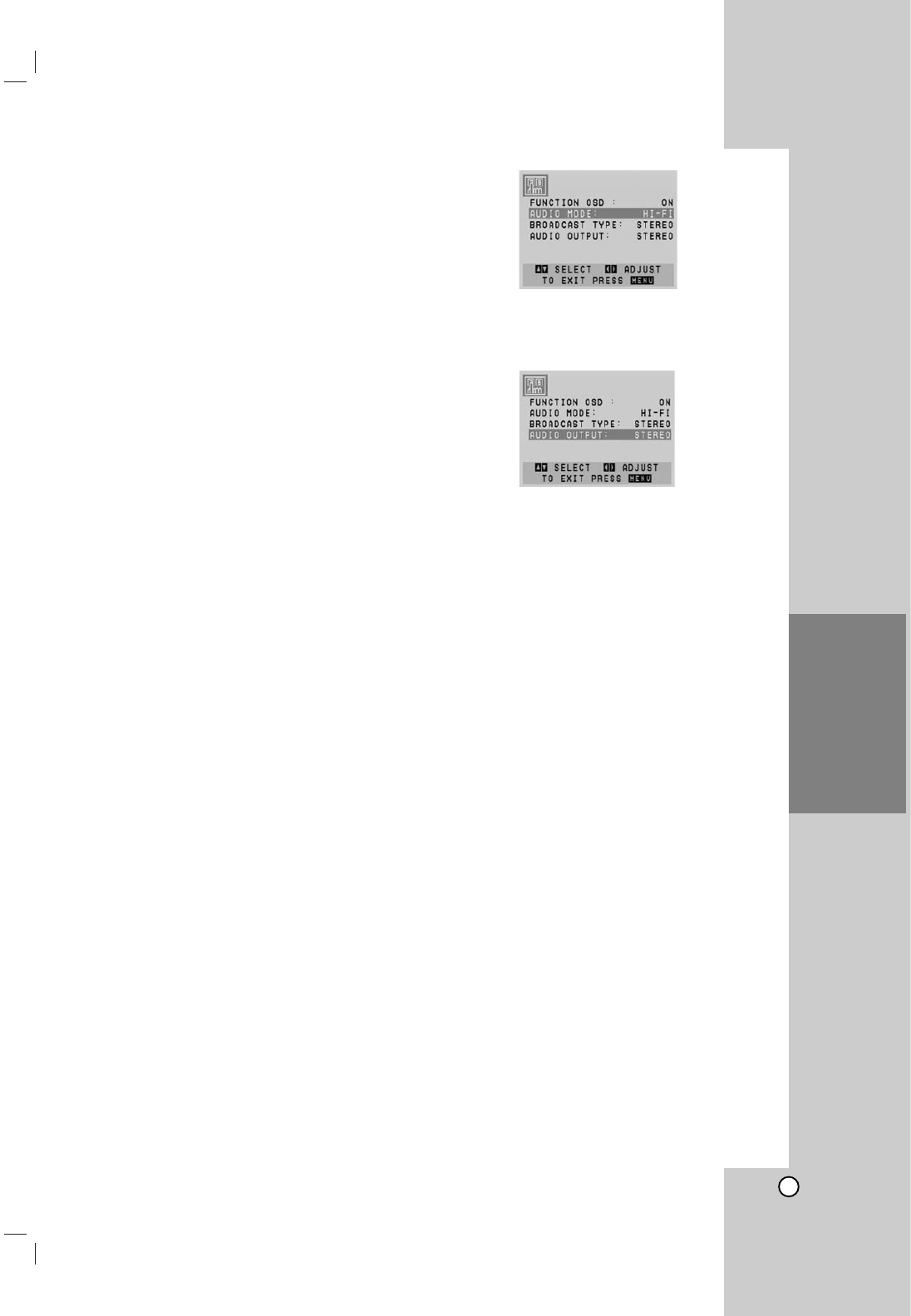

SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Initial Settings - DVD . . . . . . . . . . . . . . . .18-21
General Operation . . . . . . . . . . . . . . . . . . . .18

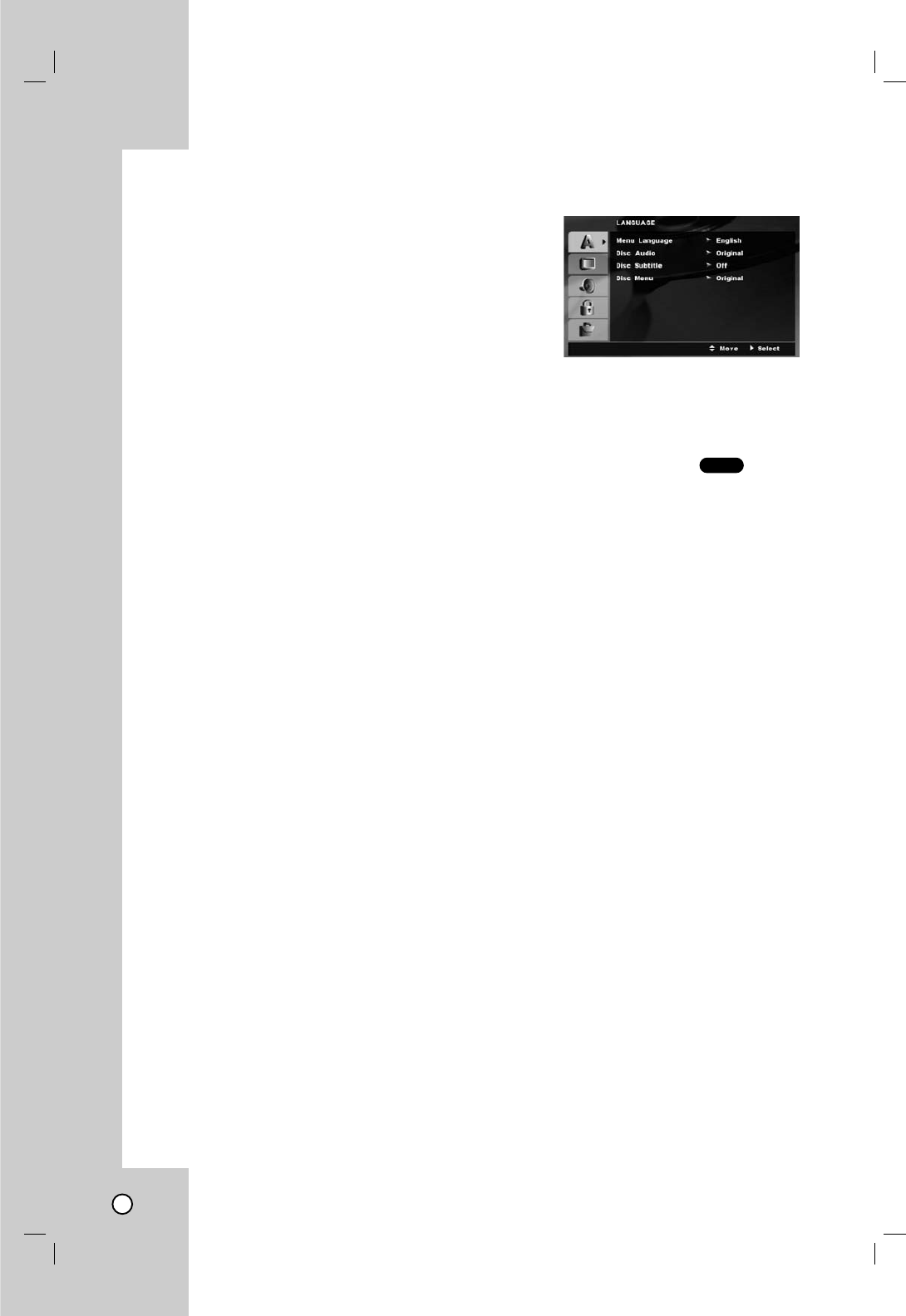

LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . .18
• Menu Language . . . . . . . . . . . . . . . . . . .18
• Disc Audio/Subtitle/Menu . . . . . . . . . . . . .18

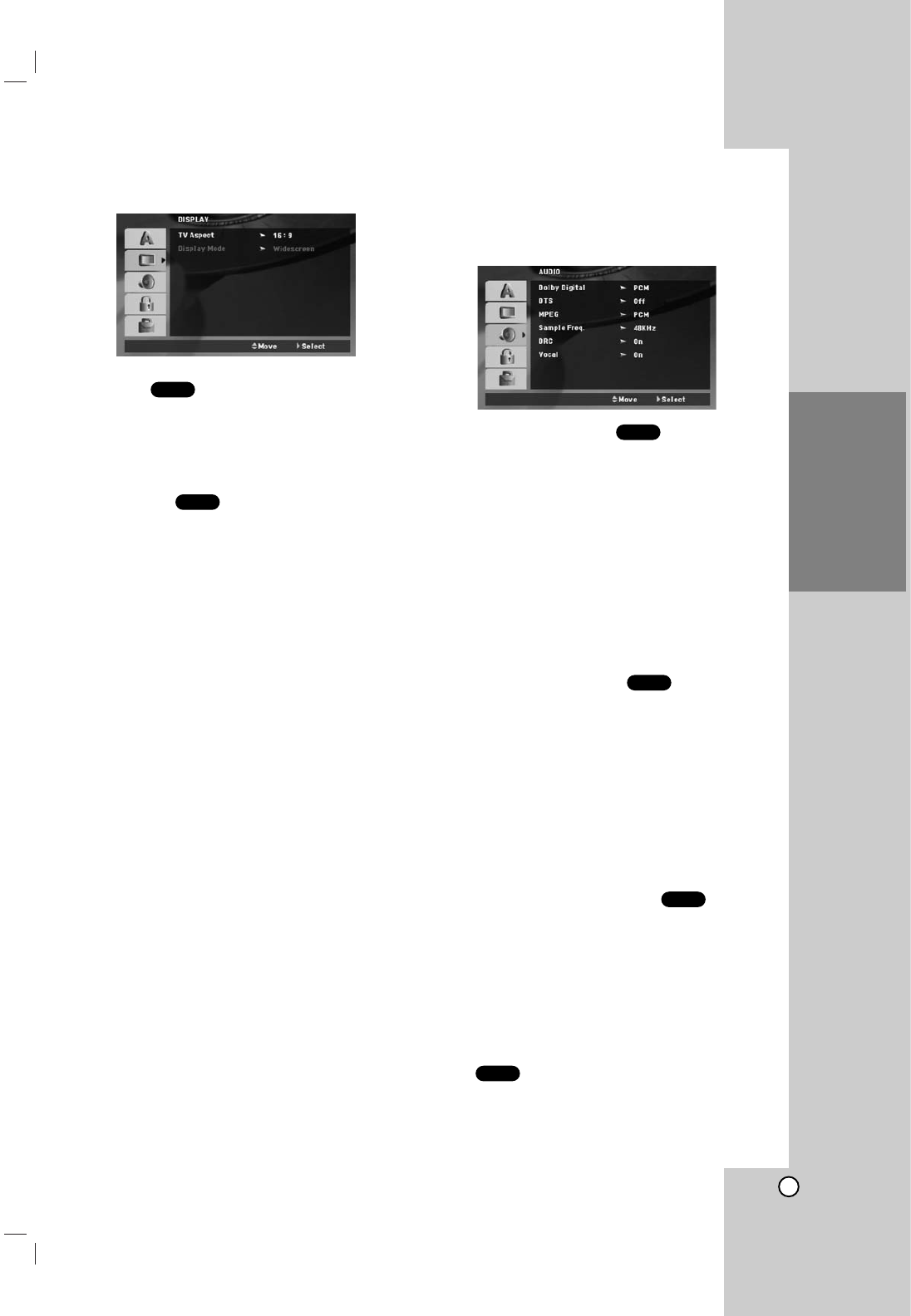

DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . .19
• TV Aspect . . . . . . . . . . . . . . . . . . . . . . . .19
• Display Mode . . . . . . . . . . . . . . . . . . . . . .19
AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
• Dolby Digital/DTS/MPEG . . . . . . . . . . . . .19
• Sample Freq. (Frequency) . . . . . . . . . . . .19
• DRC (Dynamic Range Control) . . . . . . .19
• Vocal . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

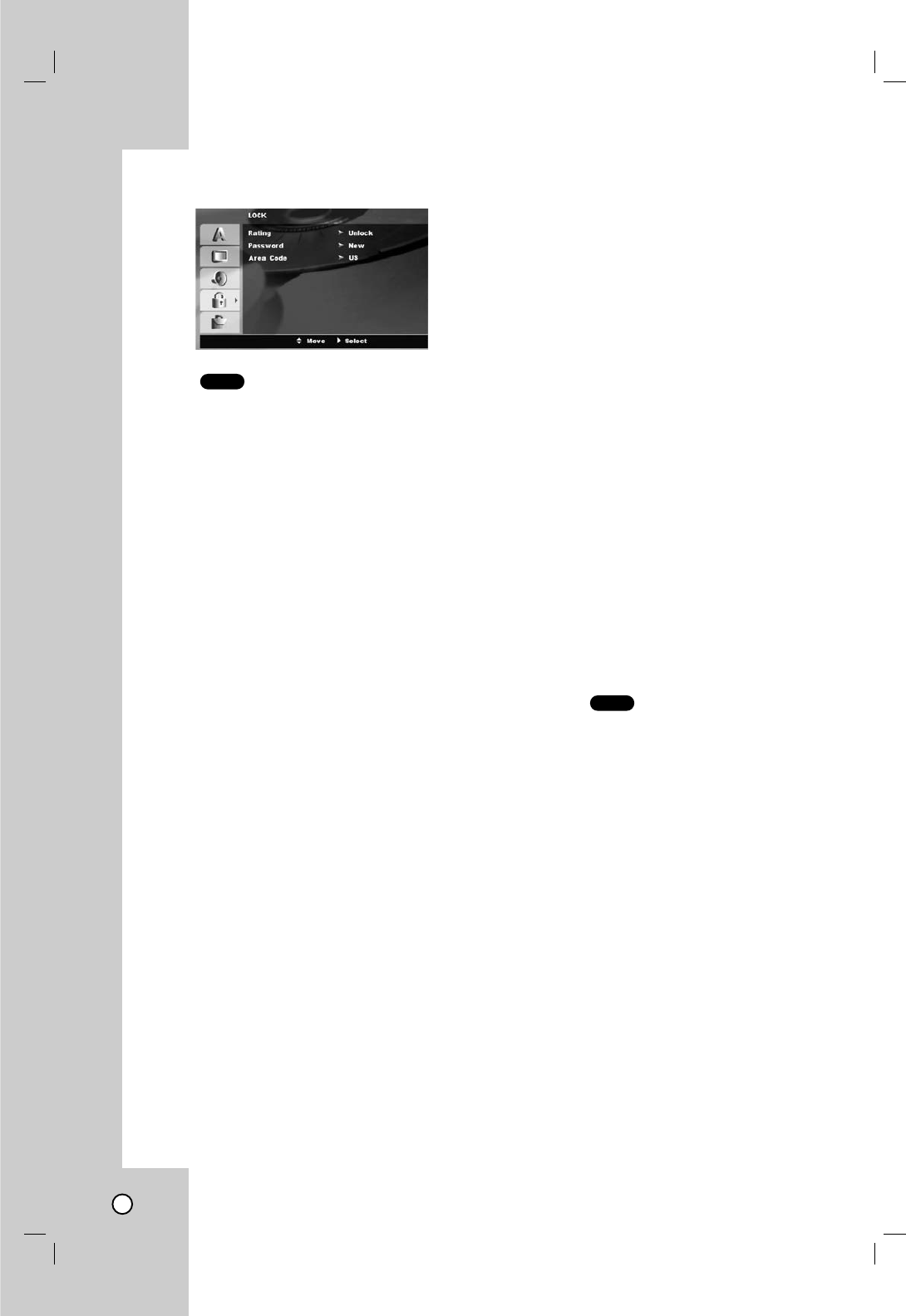

LOCK (Parental Control) . . . . . . . . . . . . . . . .20
• Rating . . . . . . . . . . . . . . . . . . . . . . . . . . .20
• Password (Security Code) . . . . . . . . . . . .20
• Area Code . . . . . . . . . . . . . . . . . . . . . . . .20

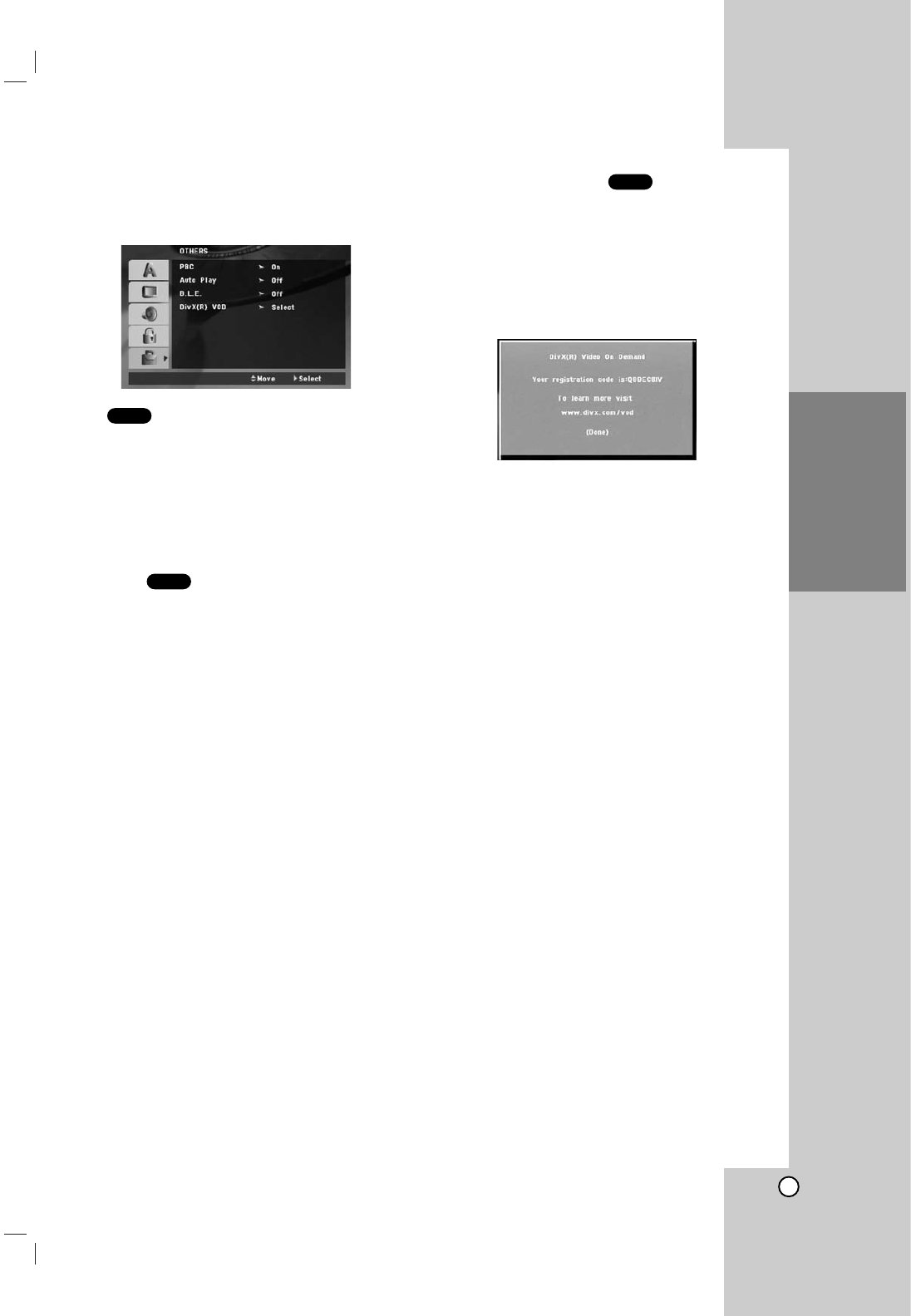

OTHERS . . . . . . . . . . . . . . . . . . . . . . . . . . .21
• PBC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
• Auto Play . . . . . . . . . . . . . . . . . . . . . . . . .21
• B.L.E. (Black Level Expansion) . . . . . . . .21
• DivX Registration Code . . . . . . . . . . . . . .21
Operation . . . . . . . . . . . . . . . . . . . . . . .22
VCR Tape Playback . . . . . . . . . . . . . . . . .22-23
Basic Instructions . . . . . . . . . . . . . . . . . . . . .22
Auto Tracking . . . . . . . . . . . . . . . . . . . . . . . .22
Manual Tracking . . . . . . . . . . . . . . . . . . . . . .22
Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Still Picture and Frame-by-Frame
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Slow Motion . . . . . . . . . . . . . . . . . . . . . . . . .23
CM SKIP (Commercial Skip) . . . . . . . . . . . . .23
VHS Hi-Fi Stereo/MTS Broadcast . . . . . . . . .23
VCR Tape Recording . . . . . . . . . . . . . . . . . . .24
Timer Recording . . . . . . . . . . . . . . . . . . . .24-25
Instant Timer Recording . . . . . . . . . . . . . . . .26
Recording from External Components . . . . .26
Copying from DVD to VCR . . . . . . . . . . . . . .27
On-Screen Display - VCR . . . . . . . . . . . . . . .27
Additional VCR Information . . . . . . . . . . . . .28

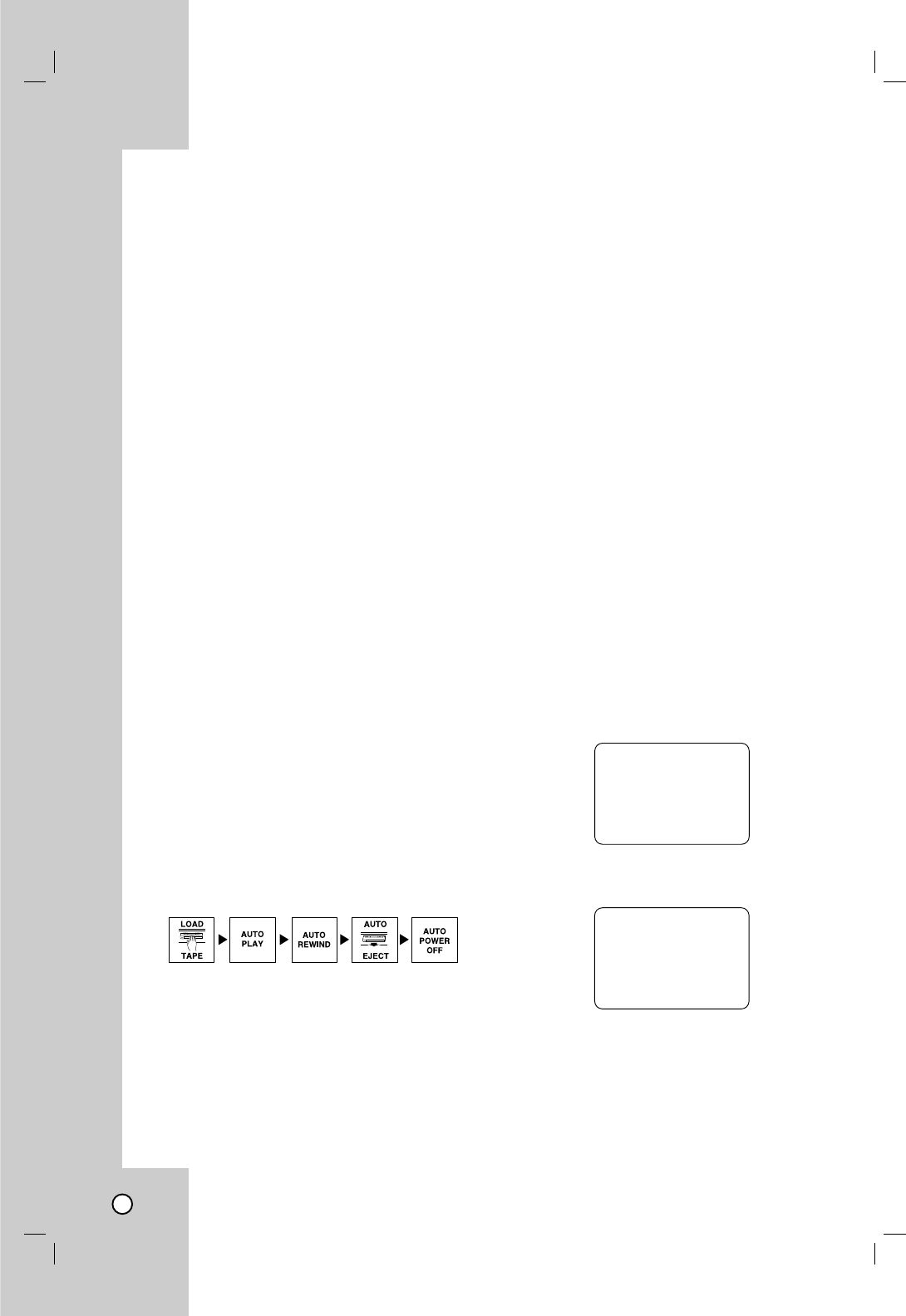

VCR Auto Play System . . . . . . . . . . . . . . . . .28
S-VHS Quasi Playback (SQPB) . . . . . . . . . .28
Easy Information . . . . . . . . . . . . . . . . . . . . .28
Playing a DVD or Video CD . . . . . . . . . . .29-31
Playback Setup . . . . . . . . . . . . . . . . . . . . . .29
General Features . . . . . . . . . . . . . . . . . .29-31
• Moving to another TITLE . . . . . . . . . . . . .29
• Moving to another CHAPTER/TRACK . . .29
• Slow motion . . . . . . . . . . . . . . . . . . . . . . .29
• Still Picture and Frame-by-Frame
Playback . . . . . . . . . . . . . . . . . . . . . . . . .29
• Search . . . . . . . . . . . . . . . . . . . . . . . . . . .30
• Time Search . . . . . . . . . . . . . . . . . . . . . .30
• Marker Search . . . . . . . . . . . . . . . . . . . . .30
• Repeat . . . . . . . . . . . . . . . . . . . . . . . . . .30
• Repeat A-B . . . . . . . . . . . . . . . . . . . . . . .30
• Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
• 3D Surround . . . . . . . . . . . . . . . . . . . . . .30
• Random . . . . . . . . . . . . . . . . . . . . . . . . . .31
• Changing the Audio Channel . . . . . . . . . .31
• Last Scene Memory . . . . . . . . . . . . . . . . .31
• Screen Saver . . . . . . . . . . . . . . . . . . . . . .31
• Changing Video Mode . . . . . . . . . . . . . . .31
Special DVD Features . . . . . . . . . . . . . . . . .31
• Checking the contents of DVD discs:
Menus . . . . . . . . . . . . . . . . . . . . . . . . . . .31
• Title Menu . . . . . . . . . . . . . . . . . . . . . . . .31
• Disc Menu . . . . . . . . . . . . . . . . . . . . . . . .31
• Camera Angle . . . . . . . . . . . . . . . . . . . . .31
• Changing the Audio Language . . . . . . . . .31
• Subtitles . . . . . . . . . . . . . . . . . . . . . . . . . .31
On-Screen Display - DVD . . . . . . . . . . . . . . .32
Maintenance and Service . . . . . . . . . . . . . . .32
Playing an Audio CD or MP3/WMA Disc .33-34
Programmed Playback . . . . . . . . . . . . . . . . .35
Viewing a JPEG Files . . . . . . . . . . . . . . . . . .36
Playing a DivX Movie File . . . . . . . . . . . . . . .37
Playing a DVD VR format Disc . . . . . . . . . . .37
Controlling Your TV with the Supplied
Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Reference . . . . . . . . . . . . . . . . . . . . . . .39
Language Codes . . . . . . . . . . . . . . . . . . . . . .39
Area Codes . . . . . . . . . . . . . . . . . . . . . . . . . .39
Troubleshooting . . . . . . . . . . . . . . . . . . . .40-41
Specifications . . . . . . . . . . . . . . . . . . . . . . . .42
5
To ensure proper use of this product, please read this
owner’s manual carefully and retain for future refer-
ence.
This manual provides information on the operation
and maintenance of your DVD+VCR. Should the unit
require service, contact an authorized service loca-
tion.
Moisture Condensation
Never operate the DVD+VCR immediately after mov-
ing it from a cold location to a warm location. Leave it
unplugged for two or three hours without operating it.
If you use the DVD+VCR in such a situation, it may
damage discs/tapes and internal parts.
Symbol Used in this Manual
Indicates hazards likely to cause harm to
the unit itself or other material damage.
Note: Indicates special notes and operating fea-
tures.
Tip: Indicates tips and hints for making the task
easier.
A section whose title has one of the following
symbols is applicable only to the disc represented
by the symbol.
DVD and finalized DVD±R/RW
Video CDs
Audio CDs
MP3 Discs
WMA Discs
JPEG Discs
DivX Discs
About the Symbol Display
“ ” may appear on your TV display during opera-
tion and indicates that the function is not permitted by
this unit or the disc.
Notes on Discs
Handling Discs
Do not touch the playback side of the disc. Hold the
disc by the edges so that fingerprints do not get on
the surface. Never stick paper or tape on the disc.
Storing Discs
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.
Cleaning Discs
Fingerprints and dust on the disc can cause poor pic-
ture quality and sound distortion. Before playing,
clean the disc with a clean cloth. Wipe the disc from
the center out.
Do not use strong solvents such as alcohol, benzine,
thinner, commercially available cleaners, or anti-static
spray intended for older vinyl records.
DivX
JPEG
WMA
MP3
ACD
VCD
DVD
Introduction
Introduction
6
Types of Playable Discs
DVD
(8 cm / 12 cm disc)
Video CD (VCD)
(8 cm / 12 cm disc)
Audio CD
(8 cm / 12 cm disc)
In addition, this unit plays Memory Card, DVD-R,
DVD+R, DVD-RW, DVD+RW, SVCD, and CD-R /
CD-RW that contains audio titles, MP3, WMA, and/or
JPEG, DivX files.
This indicates a product feature that is
capable of playing DVD-RW discs recorded
with Video Recording format.
Notes:
• Depending on the conditions of the recording
equipment or the CD-R/RW (or DVD -R, DVD +R,
DVD -RW, DVD +RW) disc itself, some CD-R/RW
(or DVD -R, DVD +R, DVD -RW, DVD +RW) discs
cannot be played on the unit.
• Do not attach any seal or label to either side (the
labeled side or the recorded side) of a disc.
• Do not use irregularly shaped CDs (e.g., heart-
shaped or octagonal) since they may result in
malfunctions.
Notes on DVDs and Video CDs
Some playback operations of DVDs and Video CDs
may be intentionally programmed by software manu-
facturers. This unit plays DVDs and Video CDs
according to disc content designed by the software
manufacturer, therefore some playback features may
not be available or other functions may be added.
Region code
This DVD+VCR is designed and
manufactured for playback of
region “1” encoded DVD software.
This unit can play only DVD discs
labeled “1” or “ALL”.
Notes on Regional Codes
• Most DVD discs have a globe with one or more
numbers in it clearly visible on the cover. This
number must match your DVD+VCR’s regional
code or the disc cannot play.
• If you try to play a DVD with a different region
code from your player, the message “Check
Regional Code” appears on the TV screen.
Notes on Copyrights:
It is forbidden by law to copy, broadcast, show,
broadcast via cable, play in public, or rent copyright-
ed material without permission.
This product features the copy protection function
developed by Macrovision. Copy protection signals
are recorded on some discs. When recording and
playing the pictures of these discs picture noise will
appear. This product incorporates copyright protec-
tion technology that is protected by method claims of
certain U.S. patents and other intellectual property
rights owned by Macrovision Corporation and other
rights owners. Use of this copyright protection tech-
nology must be authorized by Macrovision
Corporation, and is intended for home and other limit-
ed viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or dis-
assembly is prohibited.
Notice for Progressive Scan Use
CONSUMERS SHOULD NOTE THAT NOT ALL
HIGH DEFINITION TELEVISION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT AND MAY
CAUSE ARTIFACTS TO BE DISPLAYED IN THE
PICTURE. IN CASE OF 525 PROGRESSIVE SCAN
PICTURE PROBLEMS, IT IS ECOMMENDED THAT
THE USER SWITCH THE CONNECTION TO THE
‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE
QUESTIONS REGARDING OUR TV SET COMPATI-
BILITY WITH THIS MODEL 525p DVD+VCR,
PLEASE CONTACT OUR CUSTOMER SERVICE
CENTER.
Selecting the Viewing Source
You must select one of your output sources (DVD or
VCR) to view on the TV screen.
• If you want to view DVD deck output source:
Press DVD until DVD indicator in the display win-
dow lights and output source of DVD deck is
viewed on the TV screen.
• If you want to view VCR deck output source:
Press VCR until VCR indicator in the display win-
dow lights and output source of VCR deck is
viewed on the TV screen.
Notes:
•If you insert a disc while the DVD+VCR is in the VCR
mode, the DVD+VCR will switch to DVD mode automati-
cally.
•If you insert a cassette tape without prevention tab while
the DVD+VCR is in the DVD mode, the DVD+VCR will
switch to VCR mode automatically.
1
ALL
7
Disc-related terms
DVD ±R / DVD ±RW
DVD -R and DVD +R are two different standards for
recordable DVD drives and discs. This format allows
information to be recorded onto the DVD disc only
once. DVD +RW and DVD -RW are two standards for
re-writable media, meaning the DVD content can be
erased and re-recorded. Single-sided discs can hold
4.38 Gigabytes and double-sided discs hold twice as
much. There are no double layer single sided record-
able discs.
VCD (Video CD)
A VCD holds up to 74 minutes (650 MB disc) or 80
minutes (700 MB disc) of MPEG-1 full-motion video
along with quality stereo sound.
MPEG
MPEG is an international standard for video and
audio compression. MPEG-1 is used in encoding
video for VCD and provides for multichannel surround
sound coding such as PCM, Dolby Digital, DTS and
MPEG audio.
MP3
MP3 is a popular compression format used for digital
audio files that yields very high near-CD quality.
WMA
Windows media audio file. A type of coding / decod-
ing developed by Microsoft Corp.
JPEG
Joint Pictures Expert Group. JPEG is a compressed
file format that allows you to save images with no
limit on the number of colors.
DivX
DivX is the name of a revolutionary new video codec
which is based on the new MPEG-4 compression
standard for video.You will be able to play DivX
movies using this DVD player.
PBC: Playback Control (Video CD only)
Playback control is available for Video CD (VCD) ver-
sion 2.0 disc formats. PBC allows you to interact with
the system via menus, search functions, or other typi-
cal computer-like operations. Moreover, still pictures
of high resolution can be played if they are included
in the disc. Video CDs not equipped with PBC
(Version 1.1) operate in the same way as audio CDs.

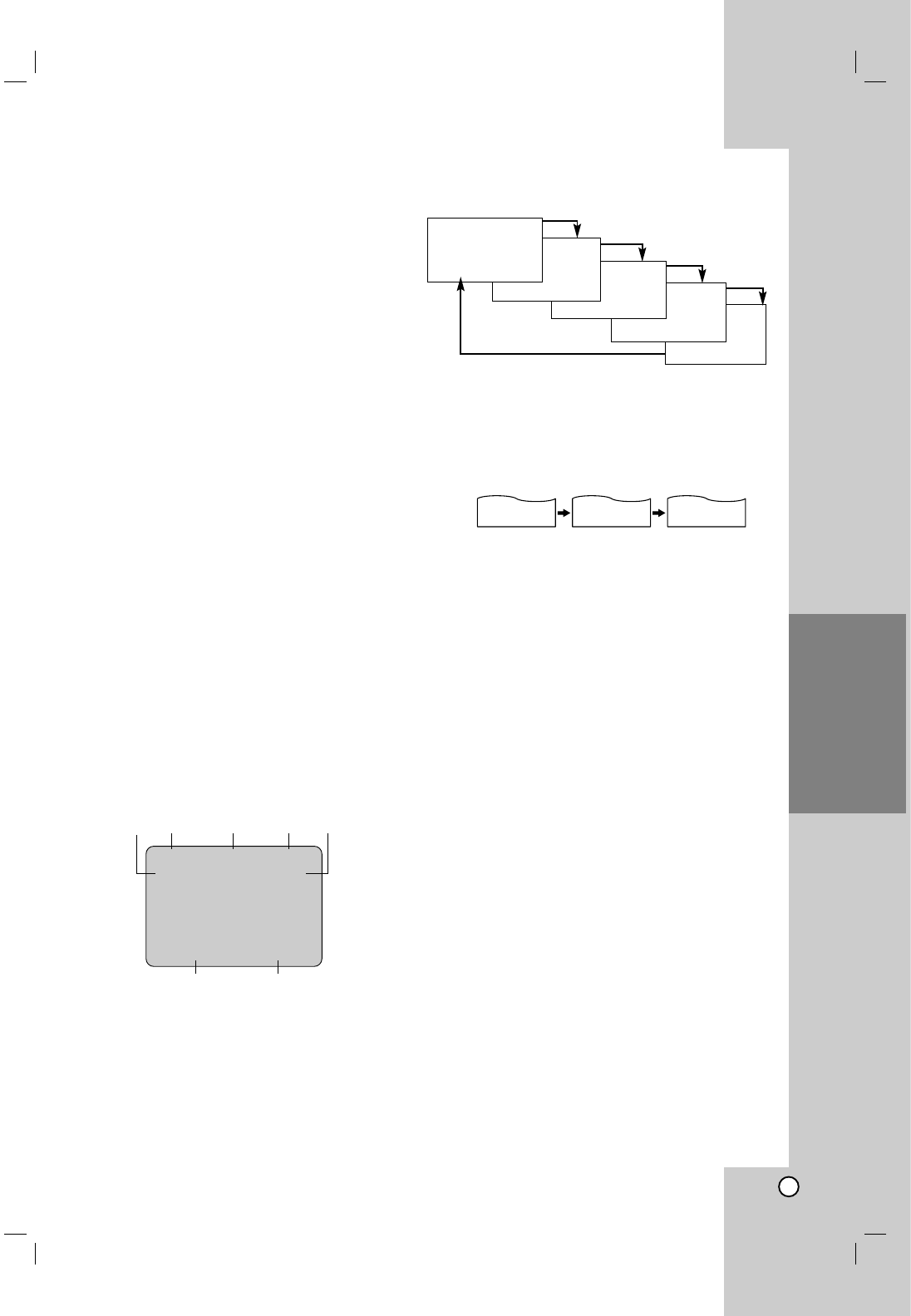

Title (DVD only)
A title is generally a distinct section of a DVD disc.
For example the main feature could be title 1, a docu-
mentary describing how the film was made could be
title 2, and cast interviews could be title 3. Each title
is assigned a reference number enabling you to
locate it easily.
Chapter (DVD only)
A chapter is a segment of a title such as a scene in a
film or one interview in a series. Each chapter is
assigned a chapter number, enabling you to locate
the chapter you want. Depending on the disc, chap-
ters may not be recorded.
Scene (VCD)
On a video CD with PBC (playback control) functions,
moving pictures and still pictures are divided into sec-
tions called “scenes”. Each scene is displayed in the
menu screen and assigned a scene number, enabling
you to locate the scene you want. A scene is com-
posed of one or several tracks.
Track
A distinct element of audiovisual information, such as
the picture or sound track for a specific language
(DVD), or a musical piece on a video or audio CD.
Each track is assigned a track number, enabling you
to locate the track you want. DVD discs allow one
track of video (with multiple angles) and several
tracks of audio.
Introduction
8

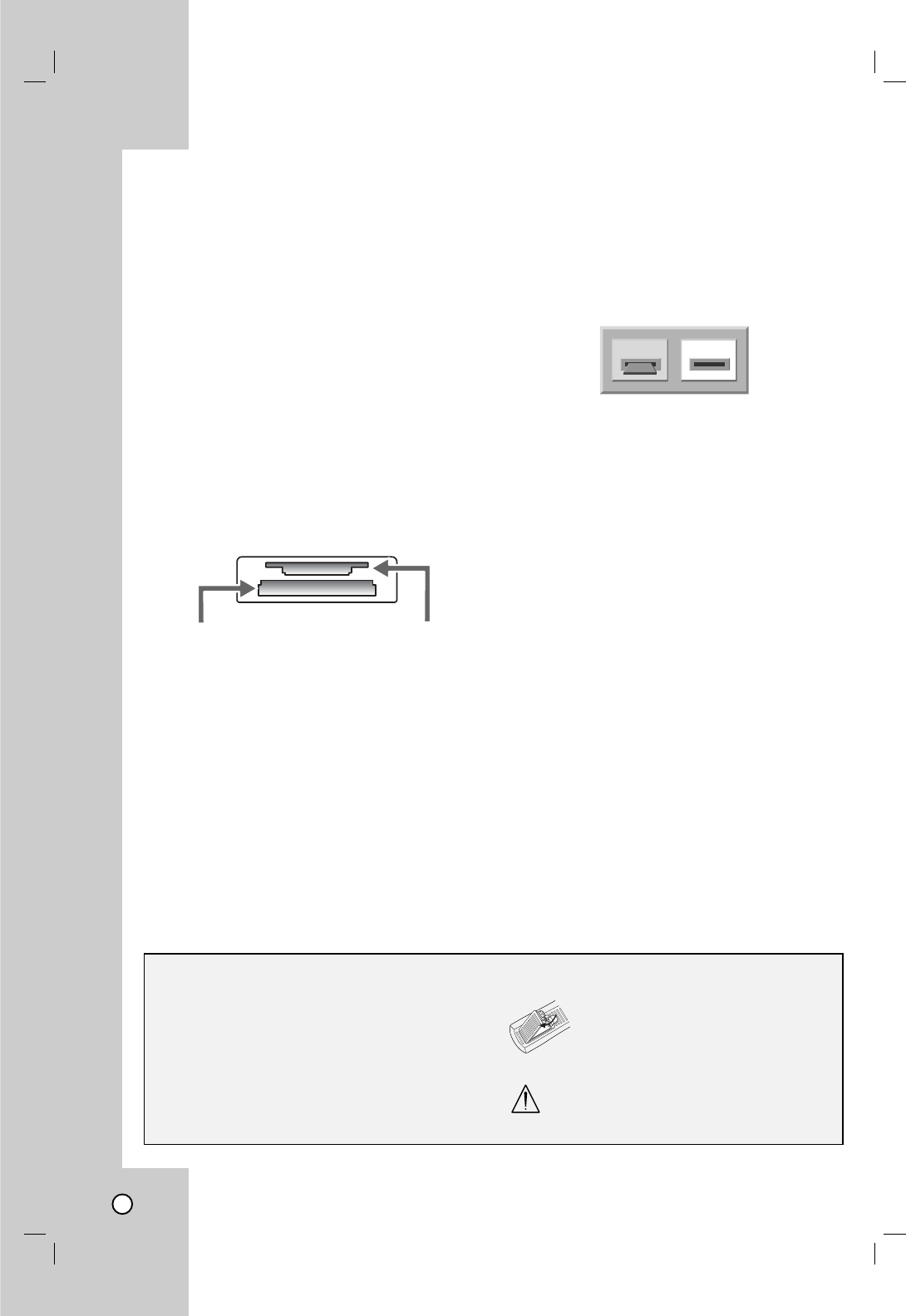

Card useable on this unit
Card useable on this unit
•Compact Flash Card (CF)
•Micro Drive (MD)
•Secure Digital Card (SD)
•Multi Media Card (MMC)
•SmartMedia Card (SMC)
•Memory Stick (MS)
•Memory Stick Pro (MS-Pro)
•Compatible with: FAT 12, FAT 16, or FAT 32
•Only use the memory cards recommended above.
Regarding Write Protect
For cards that have a write protect switch, if the
switch is on it will not be possible to write, erase or
format the card.
Inserting/Removing the Memory Card
Inserting the card: Insert straight-in until it fits into
place.
Removing the card: Withdraw the card carefully.
Notes:
Keep the memory card out of reach of children.
If swallowed, seek medical advice immediately.
Some memory card may not work in this unit,
depending on the formatting.
Do not extract the memory card in operating.

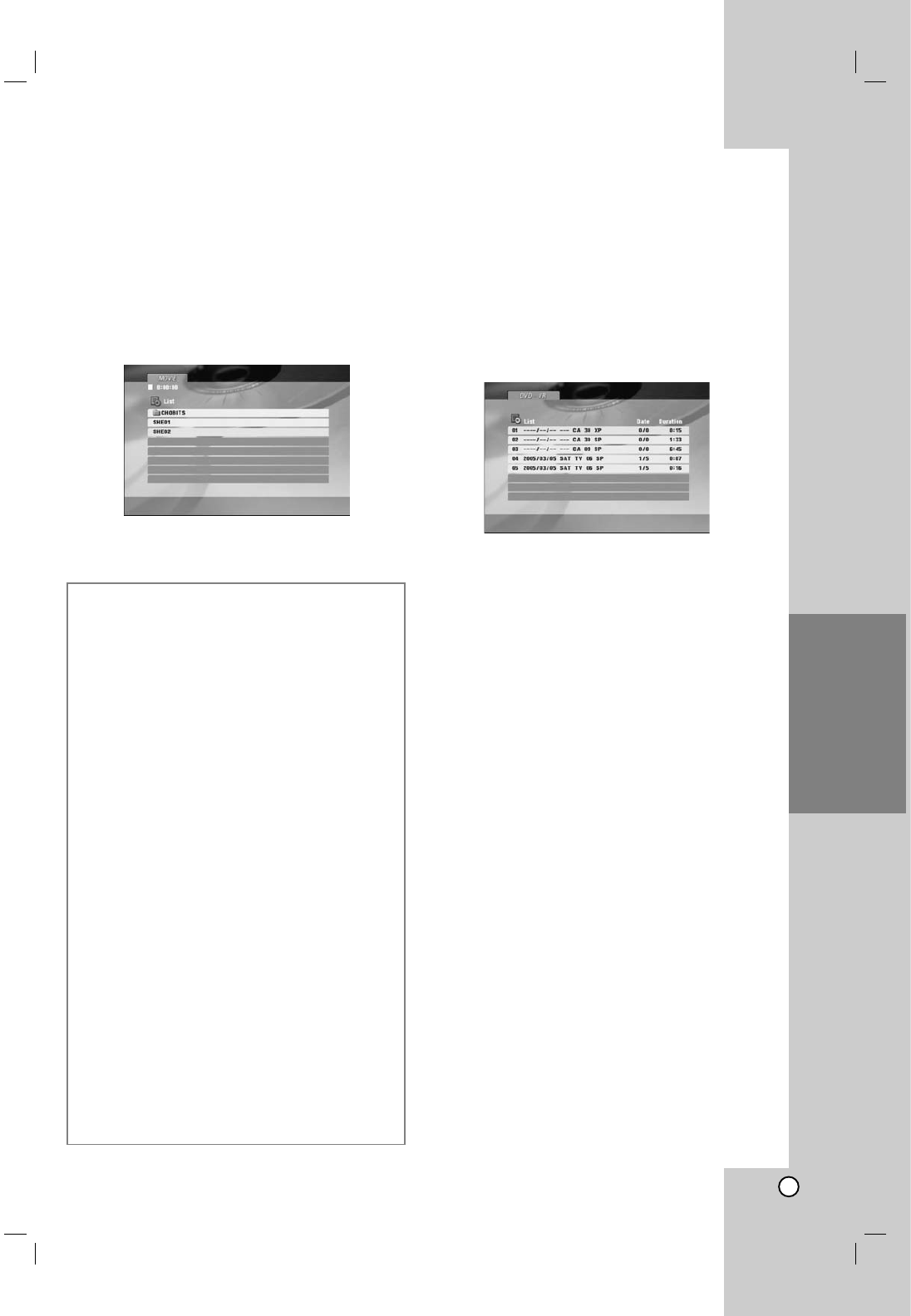

Using Memory Card
Using Memory Card
1. Insert a memory card.
2. Press MEMORY on the Front panel in the DVD
mode.
The Memory Card slot choice menu appears on
the TV screen.
3. Use v/V to select the desired Memory Card slot
then press ENTER.
The Photo or Music menu appears on the TV
screen.
Note:
For details on each operation item, refer to relevant pages.
Insert CF, MD card Insert SD, MMC, SMC,
MS, or MS-Pro card
1 2
About the Remote Control
Operation Range
Point the remote control at the remote sensor and
press the buttons.
Distance: About 23 ft (7 m) from the front of the
remote sensor.
Angle: About 30° in each direction of the front of
the remote sensor.
Battery installation
Detach the battery cover on the rear
of the remote control, and insert two
(R03/AAA) size batteries with 3and
#aligned correctly.
Do not mix old and new batteries and never
mix different types of batteries such as stan-
dard, alkaline, etc.
9
Introduction
a1 POWER button and indicator
Switches the DVD+VCR ON and OFF.
Lights green when the DVD+VCR is turned on.
bDisc Tray (DVD deck)
Insert a disc here.
cZOPEN/CLOSE
Opens or closes the disc tray.
dCassette Compartment (VCR deck)
Insert a video cassette here.e
gZEJECT
Ejects the tape in the VCR deck.
fMEMORY SLOT
Insert a memory card
(CF, MD, SMC, MMC, SD, MS, MS-Pro).
gMEMORY CARD
Accesses the menu for memory card.
hCH (V/v)
To scan up or down through memorized channels.
iRESOLUTION
You can change the resolution depending on your TV.
- HDMI mode : You can switch among the 480p, 720p
or 1080i resolution.
- Component mode : You can switch among 480i,
480p, 720p or 1080i resolution.
jDisplay Windows
The DVD deck is selected.
A disc is in the DVD deck.
(Lights when a disc is in the DVD deck
and Flashes when no disc.)
Indicates repeat mode.
Indicates when the DVD+VCR is locked.
DVD+VCR is in timer recording or a timer
recording is programmed (VCR part only).
A cassette is in the VCR deck.
The VCR deck is selected.
DVD+VCR is Recording.(VCR part only)
Indicates PM time. (AM is not displayed.)
Lights when TV mode is active.
Indicates total playing time,
elapsed time, remaining time
or current deck status
(Playback, Pause, etc).
kRemote Sensor
Point the DVD+VCR remote control here.
lDVD/VCR (output select)
Select one of your output sources to view on the TV
screen between DVD and VCR.
mx
Stops playback of the disc or tape.
nm
- DVD: Skip to beginning of current chapter or track,
press twice in quick successions to go to previous
chapter or track. Press and hold button for about two
seconds to search backward.
- VCR: Rewinds the tape during the stop mode or for
fast backward picture search.
oN
Starts playback of a disc or tape.
pM
DVD: Skip to next chapter or track. Press and hold for
two seconds for a fast forward search.
VCR: Advances the tape during the STOP mode or
for fast forward picture search.
qLINE2 (VIDEO/AUDIO (L/R) input)
Connect to the audio/video output of an external
source (Audio system, TV/Monitor, Another VCR).
TV
PM
REC
V
CR
DVD
DVD
VCR
REC
PM
TV
Front Panel
a
fjklmnoqpghi
bc d e
10
bBvV Selects menu options.
CH/TRK(v+/V-) Selects VCR channels. Adjusts
manually the tape’s picture onscreen.
N(PLAY) Starts playback.
0-9 Selects numbered options in a menu.
A-B Repeats sequence between two points (A and B).
SPEED Selects recording speed.
ANGLE Selects a DVD camera angle, if available.
AUDIO Selects an audio language (DVD) or an audio
channel (VCD).
BACKWARD / FORWARD (m/M)
- DVD: Search backward or forward.
- VCR: Rewinds/Advances the tape during the STOP
mode, for fast backward/forward picture search.
CLEAR Removes a mark on the Marker Search menu.
DISC MENU Accesses menu on a DVD disc.
DISPLAY Accesses On-Screen Display.
CLK/CNT Switches between the clock, tape counter and
tape remaining modes on the display.
DVD Select the DVD+VCR function mode to DVD.
EJECT Ejects the tape in the VCR deck.
OPEN/CLOSE Opens and closes the disc tray.
ENTER Confirms menu selections. Displays functions on
the TV screen.
INPUT Selects the VCR deck’s source
(Tuner, LINE 1, or LINE 2).
LOCK Locks/unlocks front panel buttons.
MARKER Marks any point during playback.
PAUSE/STEP (X)Pause playback or recording
temporarily. Press repeatedly for
frame-by-frame playback.
POWER Switches DVD+VCR ON and OFF.
PROGRAM Shows or hides Program menu.
RANDOM Plays tracks in random order.
CM SKIP Fast forwards picture search through
30 seconds of recording.
REC/ITR (z)Starts recording. Press repeatedly to set
the recording time.
REPEAT Repeat chapter, track, title or all.
RETURN (O)Removes the setup menu, displays the
video CD with PBC.
SEARCH Displays Marker Search menu.
SETUP, MENU Accesses or removes DVD Setup menu
and VCR menu.
SKIP (./ >)Go to next chapter or track.
Returns to beginning of current
chapter or track or go to previous
chapter or track.
STOP (x)Stops playback or recording.
SUBTITLE Selects a subtitle language.
TITLE Displays the disc’s Title menu, if available.
TV Control Buttons (See page 35).
TV/VCR To view channels selected by the VCR tuner or
by the TV tuner.
VCR Select the DVD+VCR function mode to VCR.
ZOOM Enlarges DVD video image.
Remote Control
LOCK function
The Lock feature disables the front panel buttons to
prevent children from tampering with the
DVD+VCR. Simply press LOCK on the remote con-
trol to toggle this feature on and off.
11
Preparation
aANT.IN
Connect the VHF/UHF/CATV antenna to this terminal.
bVCR IN LINE 1 (VIDEO/AUDIO (Left/Right))
Connect the audio/video output of an external source
(Audio system, TV/Monitor, VCR, Camcorder).
cDVD/VCR OUT (VIDEO/AUDIO (Left/Right))
Connect to a TV with video and audio inputs.
dCOMPONENT/PROGRESSIVE SCAN VIDEO
OUT (Y Pb Pr) (DVD OUT)
Connect to a TV with Y Pb Pr inputs.
eAUDIO OUT (Left/Right) (DVD OUT)
Connect to a TV or other equipment with audio inputs.
fAC Power Cord
Plug into the power source.
gRF. OUT
Connect to a TV with RF coaxial inputs.
hCOAXIAL (DIGITAL AUDIO OUT jack)
(DVD OUT)
Connect to digital (coaxial) audio equipment.
iS-VIDEO OUT (DVD OUT)
Connect to a S-Video Input on TV.
jOPTICAL (DIGITAL AUDIO OUT jack)
(DVD OUT)
Connect to digital (optical) audio equipment.
kHDMI OUT
HDMI output providing a high quality interface for
digital audio and video.
abcde f
gh
Preparation
Depending on your TV and other equipment there are various ways you can connect the
player. Please refer to the manuals of your TV, VCR, stereo system or other devices as nec-
essary for additional connection information.
Notes:
•The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. Position the units away from
each other or turn off the unit after removing the disc.
•Make sure the DVD+VCR is connected directly to the TV and tune the TV to the correct video input channel.
•Do not connect the DVD+VCR’s AUDIO OUT jack to the phono in jack (record deck) of your audio system. Do not con-
nect the DVD+VCR via another VCR. The DVD image could be distorted by the copy protection system.
Rear Panel
Caution
Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause
permanent damage to the unit.
ijk
12
Connecting an
Connecting an Antenna
Antenna
or Cable TV
or Cable TV
aAntenna:
Disconnect the antenna from the rear of the TV and
identify the antenna cable. If it is a round 75 ohm
coaxial cable connect it directly to the jack marked
ANT.IN on your DVD+VCR. If your antenna cable is
flat connect it to a 300-ohm to 75-ohm antenna adap-
tor (not supplied) and slip the adaptor over the
ANT.IN jack. Don’t attempt to screw it into to the
DVD+VCR.
bCable TV:
If your cable connection has no converter or
descrambler, unscrew the cable from your TV and
attach it to the ANT.IN jack on the DVD+VCR. If a
converter is required connect a coaxial cable from the
wall jack to the IN connector on the converter, and a
coaxial cable from the OUT connector on the convert-
er to the ANT.IN on your DVD+VCR. This cable
hookup permits both TV and DVD+VCR operation.
To view or record a CATV channel
1. Tune the TV to the DVD+VCR output channel
(CH 3 or 4).
2. Set the DVD+VCR channel selector to the cable
output channel. (Example: CH3)
3. Select a channel using the cable converter.
Notes:
•With this connection, you cannot record one program
while viewing another.
•If you are using a cable box to tune channels, it is not
necessary to do Auto Channel Set.
Basic TV Connections
Basic TV Connections
Make one of the following connections, depending on
the capabilities of your TV.
Rear of DVD+VCR
Antenna Antenna
OR OR
a
b
Rear of DVD+VCR
L
R
AUDIO INPUT
VIDEO
INPUT
ANTENNA
INPUT
Rear of TV
A1
VR
Y
Pb
Pr
COMPONENT/PROGRESSIVE SCAN
VIDEO INPUT
L
R
AUDIO INPUT
Rear of TV
A2
C
13
Preparation
RF coaxial connection
Connect the RF.OUT jack on the DVD+VCR to the
antenna in jack on the TV using the supplied 75-ohm
Coaxial Cable (R).
How to set the DVD+VCR’s RF output
channel
1. When the DVD+VCR is turned off, press and hold
CH (V/v) on the front panel for more than five
seconds. “RF03” or “RF04” appears in the display
window.
2. Press CH (V/v) to change the RF output channel
(RF03 or RF04). Tune the TV to this channel.
3. Turn off the DVD+VCR.
Audio/Video connection
1. Connect the DVD/VCR VIDEO OUT jack on the
DVD+VCR to the video in jack on the TV using
the video cable supplied (V).
2. Connect the Left and Right DVD/VCR AUDIO
OUT jacks on the DVD+VCR to the audio left/right
in jacks on the TV (A1) using the supplied audio
cables.
Notes:
• If you use this connection, set the TV’s source selector
to VIDEO.
• For DVD/VCR VIDEO OUT jack connection, resolution
must be set to 480i or 480p by pressing RESOLUTION
on the front panel, however DVD/VCR VIDEO OUT is
always at 480i standard resolution.
• HDMI mode must be set to OFF for DVD/VCR VIDEO
OUT jack connection.
Optional TV Connections
Optional TV Connections
These connections support only DVD playback. The
tuner and VCR still output through the RF.OUT (R) or
DVD/VCR OUT (A, V) jacks.
S-Video connection
Connect the S-VIDEO OUT jack on the DVD+VCR
to the S-Video in jack on the TV using the optional
S-Video cable (S).
Notes:
•For S-Video connection, resolution must be set to
480i or 480p by pressing RESOLUTION on the
front panel, however S-VIDEO OUT is always at
480i standard resolution.
•HDMI mode must be set to OFF for S-Video
connection.
Component Video / Progressive Scan
connection
If your television is a high-definition or “digital ready”
television, you may take advantage of the
DVD+VCR’s progressive scan output for the highest
video resolution possible.
Connect the COMPONENT/PROGRESSIVE SCAN
VIDEO OUT jacks on the DVD+VCR to the corre-
sponding in jacks on the TV using an optional Y Pb
Pr cable (C).
Notes:
• You can change the resolution (480i, 480p, 720p, 1080i)
for the component/progressive scan video output by
pressing RESOLUTION on the front panel.
• For 720p and 1080i resolution, only non-copy protected
discs can be played back. If the disc is copy protected, it
will be auto down-scaling to 480p resolution.
• HDMI mode must be set to OFF for Component video
connections.
• Progressive scan does not work with the analog video
connections (yellow VIDEO OUT jack and S-VIDEO
OUT jack).
Audio connection
Connect the Left and Right AUDIO OUT jacks of the
DVD+VCR to the audio left/right in jacks on the TV
using the supplied audio cables (A2).
14
HDMI Connection
HDMI Connection
If you have a HDMI TV or monitor, you can connect it
to this DVD+VCR using a HDMI cable.
1. Connect the HDMI OUT jack on the DVD+VCR to
the HDMI jack on a HDMI compatible TV or
monitor (H).
2. Set the TV’s source to HDMI (refer to TV’s
Owner’s manual).
3. In stop mode, select HDMI mode by pressing
HDMI on the front panel.
“hdmi” will appear on the display window.
Notes :
•No sound will be output from HDMI cable if the
[Dolby Digital] or [MPEG] option is not set to
PCM.
•The arrow on the cable connector body should be
face up for correct alignment with the connector
on the DVD+VCR.
•When you use HDMI, the other connections
(Yellow VIDEO OUT, S-Video and Component
Video (Y Pb Pr)) does not work.
•If there is noise or lines on the screen, please
check the HDMI cable.
Tip :
When you use HDMI connection, you can change the
resolution (480p, 720p, 1080i) for the HDMI output by
pressing RESOLUTION on the front panel. Software
incompatibility between this unit and TV/monitor may
result in getting only 2 options. 480i is not available.
You can only change the resolution within your TV’s
and Monitor’s resolution capabilities.
- For DVD/VCR VIDEO OUT connection, a mes-
sage will appear if you select an incompatible
resolution.
- For S-VIDEO OUT connection, black and white
scramble signal will appear if you select an
incompatible resolution.
About HDMI
HDMI (High Definition Multimedia Interface) supports
both video and audio on a single digital connection
for use with DVD players, Set-Top boxes, and other
AV devices.
HDMI was developed to provide the technologies of
HDCP (High Definition Contents Protection). HDCP is
used to protect digital content transmitted and
received.
HDMI has the capability to support standard,
enhanced, or high-definition video plus standard to
multi-channel surround-sound audio, HDMI features
include uncompressed digital video, a bandwidth of
up to 5 gigabytes per second, one connector (instead
of several cables and connectors), and communica-
tion between the AV source and AV devices such as
DTVs.
HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of
HDMI licensing LLC.
HDMI
HDMI compatible TV
Rear of DVD+VCR
H
15
Preparation
Connection to an
Connection to an Amplifier
Amplifier
You can only listen to DVD playback using OPTICAL
(O), COAXIAL (X) and AUDIO OUT (A2) connections.
The tuner and VCR will still be heard through the
RF.OUT (R) or DVD/VCR AUDIO OUT (A1) jack.
(See page 12.)
Connecting to an amplifier equipped with two
channel analog stereo or Dolby Pro Logic II/Pro
Logic
Connect the Left and Right AUDIO OUT (or
DVD/VCR AUDIO OUT) jacks on the DVD+VCR to
the audio left and right in jacks on your amplifier,
receiver, or stereo system using the audio cables
(A1, A2) supplied.
Connecting to an amplifier equipped with two chan-
nel digital stereo (PCM) or to an Audio/Video receiv-
er equipped with a multi-channel decoder (Dolby
Digital™, MPEG 2, or DTS)
1. Connect one of the DVD+VCR’s DIGITAL AUDIO
OUT jacks ( OPTICAL O, COAXIAL X) to the cor-
responding in jack on your amplifier. Use an
optional digital (OPTICAL O, COAXIAL X) audio
cable.
2. You will need to activate the DVD+VCR’s digital
output. (See “AUDIO” on page 19).
Digital Multi-channel sound
A digital multi-channel connection provides the best
sound quality. For this you need a multi-channel
Audio/Video receiver that supports one or more of the
audio formats supported by your DVD+VCR (MPEG
2, Dolby Digital and DTS). Check the receiver manual
and the logos on the front of the receiver.
Caution:
Due to the DTS Licensing agreement, the digital
output will be in DTS digital out when DTS audio
stream is selected.
Notes:
•
If the audio format of the digital output does not match the
capabilities of your receiver, the receiver will produce a
strong, distorted sound or no sound at all.
• Six Channel Digital Surround Sound via digital connec-
tion can only be obtained if your receiver is equipped
with a Digital Multi-channel decoder.
• To see the audio format of the current DVD in the on-
screen display, press AUDIO.
Accessory Audio/Video (A/V) Connections to
DVD+VCR
Connect the VCR IN LINE 1 or LINE 2 jacks on the
DVD+VCR to the audio/video out jacks on your
accessory component, using the optional audio/video
cables. (Refer to page 26 for “Recording from
External Components”.)
DIGITAL INPUT
OPTICAL
COAXIAL
L
R
AUDIO INPUT
Rear of DVD+VCR
Amplifier (Receiver)
A2A1 X
O
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and the
double-D symbol are trademarks of Dolby
Laboratories.
DTS and DTS Digital Out are trademarks of
Digital Theater Systems, Inc.
16
Initial Settings - VCR
Initial Settings - VCR
By using the VCR Setup menu, you can make
various adjustments to items such as clock setting,
and timer recordings.
Your DVD+VCR allows remote control adjustment of
several features.
General Operation
1. Press VCR on the remote control.
2. Press MENU and the MAIN menu will appear.
3. Use v/Vto select the desired menu, then press
ENTER.
4. Use v/Vto choose a desired option on the selet-
ed Menu. Then use b/Bto choose a desired set-
ting.
5. Press MENU when finished.
Note:
Menus remain on-screen for 3 minutes.
CLOCK
The DVD+VCR gives you two ways to set the time
and date: the Auto Clock Feature or Manually.
Auto Clock Set
•
AUTO CLOCK SET
The Auto Clock Set feature is set to ON at the fac-
tory. In the ON setting, the DVD+VCR looks for a
channel carrying XDS (Extended Data Services)
information. XDS updates the clock using the
Coordinated Universal Time.
- Use b/Bto choose ON or OFF.
•DAYLIGHT SAVINGS
You can turn Daylight Savings On or Off manually.
If you choose “AUTO”, the DVD+VCR sets the
clock using the DST information broadcast in the
signal (channel).
- Use b/Bto choose AUTO, ON or OFF.
•TIME ZONE
You can set your local Time Zone manually. If you
choose “AUTO”, the DVD+VCR sets the clock
using the first Coordinated Universal Time informa-
tion it finds in a broadcast signal.
-Use b/Bto choose the correct time zone
(AUTO, EASTERN, CENTRAL, MOUNTAIN,
PACIFIC, ALASKA or HAWAII).
Notes:
•
The Auto Clock feature enables the DVD+VCR to set up
the clock while the DVD+VCR is turned off.
• There are cases where the TV station does not send or
sends wrong date and/or time information and the
DVD+VCR sets the incorrect time. If this happens we
recommend that you set the clock manually.
Manual Clock Set
Use
v/V/b/B
to enter the necessary information.
•
MONTH
: Choose the month.
•
DAY :
Choose the date.
The day of the week will display automatically.
•YEAR : Choose the year.
•TIME : Choose the time.
Press and hold b/B to advance clock continuously.
Notes:
• If setting the clock manually, “AUTO CLOCK SET” must
set to “OFF”. If it is set to “ON”, an incorrect date and/or
time will be entered again when the DVD+VCR is turned
off.
• The clock uses the 12-hour system. Be sure to set AM
and PM correctly (AM does not appear).
PROGRAM
The Timer Recording function allows you to have up to
8 programs scheduled to record within a period of one
year. (See pages 24-25).
17
Preparation
TUNING
This DVD+VCR is equipped with a frequency synthe-
sized tuner capable of receiving up to 181 channels.
These include VHF channels 2-13, UHF channels
14-69 and CATV channels 1-125.
Auto Channel Programming
1. Choose the SOURCE SELECT option, then use
b/Bto select TUNER.
Use b/Bto switch among TUNER, LINE1, and LINE2.
2. Choose the AUTO CHANNEL SET option, then
use b/Bto find channels.
• The tuner will automatically cycle through all available
channels (TV/CATV) in the area and place them in
the tuner’s memory.
• After the AUTO CHANNEL SET is complete, the
TUNING menu will hide and return to the TV screen
automatically.
3. Make sure the TUNING BAND is set appropriately
(TV or CATV).
• TV : If you are using a standard antenna to receive
channels.
• CATV : If you are using basic cable to receive
channels.
To Add or Erase Channels
This feature allows you to add or erase channels
from memory manually.
1. Choose the CH. ADD/DEL option, then use b/B
to select a channel to add or erase.
2. Use ENTER to add or erase the channel.
Repeat steps 1 and 2 to add or erase other
channels.
3. Press MENU to return to the TV screen.
SETUP
FUNCTION OSD
The on-screen display can be turned on or off.
AUDIO MODE
The DVD+VCR has two separate audio playback sys-
tems, the high quality VHS Hi-Fi system and standard
NORMAL mono system. The same audio is generally
recorded on both systems. The VHS Hi-Fi system
plays on separate (left and right) channels, and the
NORMAL system plays monaural sound. The normal
track is always played so the cassette can be played
on a DVD+VCR that does not have VHS Hi-Fi.
BROADCAST TYPE (STEREO/SAP/MONO)
Multichannel Television Sound (MTS) carries stereo
and/or Second Audio Program (SAP) bilingual sig-
nals. Set this display to the desired position when
both MTS stereo and SAP signals are received.
When only one of the MTS signal is received, the
DVD+VCR automatically selects the corresponding
receiving mode (Stereo or SAP) regardless of the
selected position. For normal operation, the display
should be in the STEREO position. The DVD+VCR
will then record a STEREO program when available,
and record a mono program IF the program is NOT
IN STEREO. For weak STEREO and/or SAP broad-
casts, changing the display to mono may give clearer
sound.
AUDIO OUTPUT (STEREO/LEFT/RIGHT)
Used during playback [when AUDIO MODE (HI-
FI/NORMAL) is in HI-FI position] for selecting the
audio output signals from the AUDIO OUT terminals
(L ch and R ch), and RF.OUT. This display setting
should normally be left in the stereo position, so that
when a stereo tape is played, the stereo sound will
be heard through the left and right channels. If a
mono tape is played and the audio output is set to
stereo, the same mono sound will be heard from both
left and right channels.
18
Initial Settings - DVD
Initial Settings - DVD
By using the DVD Setup menu, you can make vari-
ous adjustments to items such as picture and sound.
You can also set a language for the subtitles and the
Setup menu, among other things. For details on each
Setup menu item, see pages 18 to 21.
To display and exit the Menu:
Press SETUP to display the menu. A second press of
SETUP will take you back to initial screen.
To go to the next level:
Press Bon the remote control.
To go back to the previous level:
Press bon the remote control.
General Operation
1. Press DVD on the remote control.
2. Press SETUP.
The Setup menu appears.
3. Use v/Vto select the desired option then press
Bto move to the second level. The screen shows
the current setting for the selected item, as well
as alternate setting(s).
4. Use v/Vto select the second desired option
then press Bto move to the third level.
5. Use v/Vto select the desired setting then press
ENTER to confirm your selection. Some items
require additional steps.
6. Press SETUP or N(PLAY)to exit the Setup
menu.
LANGUAGE
Menu Language
Select a language for the VCR and DVD’s setup
menu and information display.
Disc Audio/Subtitle/Menu
Select the language you prefer for the audio track
(disc audio), subtitles, and the disc menu.
Original: Refers to the original language in which the
disc was recorded.
Other: To select another language, press number
buttons then ENTER to enter the corresponding 4-
digit number according to the language code list in
the reference chapter (see p. 39). If you enter the
wrong language code, press CLEAR.
Off (for Disc Subtitle) : Turn off Subtitle.
DVD
19
Preparation
DISPLAY
TV Aspect
4:3 : Select when a standard 4:3 TV is connected.
16:9 : Select when a 16:9 wide TV is connected.
Display Mode
Display Mode setting works only when the TV Aspect
mode is set to “4:3”.
Letterbox: Displays a wide picture with bands on the
upper and lower portions of the screen.
Panscan: Automatically displays the wide picture on
the entire screen and cuts off the portions that do not
fit.
AUDIO
Each DVD disc has a variety of audio output options.
Set this unit’s AUDIO options according to the type of
audio system you use.
Dolby Digital/DTS/MPEG
Bitstream: Select “Bitstream” if you connect the
DVD+VCR’s DIGITAL AUDIO OUT jack to an
amplifier or other equipment with a Dolby Digital,
DTS or MPEG decoder.
PCM (for Dolby Digital / MPEG): Select when
connected to a two-channel digital stereo amplifi-
er. DVDs encoded in Dolby Digital or MPEG will
be automatically downmixed to two-channel PCM
audio.
Off (for DTS): If you select “Off”, the DTS signal
is not output through the DIGITAL AUDIO OUT
jack.
Sample Freq. (Frequency)
If your receiver or amplifier is NOT capable of han-
dling 96 kHz signals, select 48 kHz. When this choice
is made, this unit automatically converts any 96 kHz
signals to 48 kHz so your system can decode them.
If your receiver or amplifier is capable of handling 96
kHz signals, select 96 kHz. When this choice is
made, this unit passes each type of signal through
without any further processing.
Check the documentation for your amplifier to verify
its capabilities.
DRC (Dynamic Range Control)
With the DVD format, you can hear a program’s
soundtrack in the most accurate and realistic presen-
tation possible, thanks to digital audio technology.
However, you may wish to compress the dynamic
range of the audio output (the difference between the
loudest sounds and the quietest ones). This allows
you to listen to a movie at a lower volume without los-
ing clarity of sound. Set DRC to On for this effect.
Vocal
Set to On only when a multi-channel karaoke DVD is
playing. The karaoke channels on the disc mix into
normal stereo sound.
DVD
DVD
DVD
DVD
DVD
DVD
20
LOCK (Parental Control)
Rating
Some movies contain scenes that may not be suit-
able for children to view. Many of these discs contain
parental control information that applies to the com-
plete disc or to certain scenes on the disc. Movies
and scenes are rated from 1 to 8, depending on the
area. DVD video discs may or may not respond to
the parental control setting if the Area code of the
disc is set wrongly. Some discs offer more suitable
scenes as an alternative. Ratings are area depend-
ent.
The parental control feature allows you to block
access to scenes below the rating you input, thereby
preventing your children from being able to view
material you believe is unsuitable.
1. Select “Rating” on the LOCK menu then
press B.
2. To access the Rating, Password and Area Code
features, you must input the 4-digit security code
you created.
If you have not yet entered a security code you are
prompted to do so. Input a 4-digit code and press
ENTER. Enter it again and press ENTER to verify.
If you make a mistake before pressing ENTER,
press CLEAR.
3. Select a rating from 1 to 8 using the v/Vbuttons.
1-8: Rating one (1) has the most restrictions and
rating eight (8) is the least restrictive.
Unlock : If you select unlock, parental control is
not active and the disc plays in full.
Note:
If you set a rating for the player, all disc scenes with the
same rating or lower are played. Higher rated scenes are
not played unless an alternate scene is available on the
disc. The alternative must have the same rating or a lower
one. If no suitable alternative is found, playback stops. You
must enter the 4-digit password or change the rating level in
order to play the disc.
4. Press ENTER to confirm your rating selection,
then press SETUP to exit the menu.
5. Press OPEN/CLOSE (Z) to activate parental
control.
Password (Security Code)
You can enter or change password.
1. Select “Password” on the LOCK menu then press
B.
2. Follow step 2 as shown left column (Rating).
To change the password, select the “Change”,
press ENTER and input the new 4-digit code then
press ENTER. Input it again to verify.
3. Press SETUP to exit the menu.
If you forget your Security Code
If you forget your security code you can clear it using
the following steps:
1. Press SETUP to display the Setup menu.
2. Input the 6-digit number “210499” and the security
code is cleared.
3. Enter a new code as described above.
Area Code
Enter the Area Code whose standards were used to
rate the DVD video disc, based on the list in the
reference chapter (see p. 39).
1. Select “Area Code” on the LOCK menu then
press B.
2. Follow step 2 as shown left (Rating).
3. Select the first character using v/Vbuttons.
4. Press Band select the second character using
v/Vbuttons.
5. Press ENTER to confirm your area code
selection.
DVD
DVD
21
Preparation
OTHERS
The PBC, Auto Play, and B.L.E. settings can be
changed.
PBC
Set Playback Control (PBC) to On or Off.
On: Video CDs with PBC are played according to the
PBC.
Off: Video CDs with PBC are played the same way
as Audio CDs.
Auto Play
You can set up the DVD+VCR so a DVD disc auto-
matically starts playing whenever the DVD is insert-
ed.
If Auto Play mode is set to On, this DVD player will
search for title that has the longest playback time and
then play back the title automatically.
On: Auto Play function is active.
Off: Auto Play function is not active.
Note:
The Auto Play function may not work for some DVDs.
B.L.E. (Black Level Expansion)
To select the black level of playback pictures. Set
your preference and monitor’s ability.
On: Expanded grey scale. (0 IRE cut off)
Off: Standard grey scale. (7.5 IRE cut off)
DivX Registration Code
We provide you the DivX®VOD (Video On Demand
registration code that allows you to rent and purchase
videos using the DivX®VOD service. For more infor-
mation, visit www.divx.com/vod.
1. Select “DivX(R) VOD” option then press B.
2. Press ENTER while “Select” is selected and the
registration code will appear.
3. Use the registration code to purchase or rent the
videos from Divx®VOD service at
www.divx.com/vod. Follow the instructions and
download the video onto a disc for playback on
this unit.
Note:
All the downloaded videos from DivX®VOD can only be
played back on this unit.
DivX
DVD
VCD
22
This chapter describes how to operate the VCR and
DVD.
VCR T
VCR Tape Playback
ape Playback
Press the VCR button to select the device to be oper-
ated.
Basic Instructions
1. Turn on the TV.
2. Tune the TV to the DVD+VCR output channel
(CH 3 or 4) or if a direct VIDEO/AUDIO
connection is made between the DVD+VCR and
the TV, set the TV’s source selector to VIDEO.
3. Insert a pre-recorded video cassette.
The indicator lights and the DVD+VCR
powers on automatically.
4. If the (TIMER) indicator in the display window
is lit press POWER once.
5. If a tape without a safety tab is inserted the unit
starts playback automatically.
If not, press N(PLAY).
6. Press STOP (x)to stop playback. If the tape
reaches the end before you press STOP (x)the
DVD+VCR automatically stops, rewinds and
ejects the tape.
Note:
It is not necessary to select the tape speed for playback
because it is automatically selected by the DVD+VCR.
Also, during playback the TV/VCR selector switches to VCR
mode automatically.
Auto Tracking
Automatic tracking adjusts the picture to remove
snow or streaks and beings when:
• A tape is played for the first time.
• The tape speed (SP, LP, SLP) changes.
• Streaks or snow appear due to scratches on the
tape.
Manual Tracking
To manually adjust the tracking use the
CH/TRK (v/V) buttons on the remote control or
CH (v/V) on the front panel during playback.
Notes:
• Vertical jitter requires a very fine adjustment.
• Tracking is automatically reset to normal when the tape
is ejected or the power cord is unplugged for more than
3 seconds.
Search
This function lets you visually search for a tape sec-
tion in either direction: forward and backward. During
the high-speed picture search modes, the audio is
muted and horizontal lines (noise bars) appear. Also,
a short time is needed to stabilize the tape speed
when re-entering the PLAY mode so slight interfer-
ence may be observed during this time.
To search:
1. Press BACKWARD (m) or FORWARD (M)
during playback.
2. To return to playback, press N(PLAY).
Note:
After 3 minutes in SEARCH mode the DVD+VCR returns to
PLAY mode to protect the tape and video heads.
Still Picture and Frame-by-Frame Playback
1. Press PAUSE/STEP (X) during playback.
A still picture appears on the TV screen and the
audio is muted.
2 If the still picture vibrates vertically, stabilize it by
using CH/TRK (v/V) on the remote control.
3. Press PAUSE/STEP (X) repeatedly to advance
the video picture one frame at a time.
4. To return to playback, press N(PLAY).
Note:
After 5 minutes in STILL mode the DVD+VCR stops to
protect the tape and video heads.
Operation
23
Slow Motion
During slow motion, audio is muted and horizontal
lines (noise bars) may appear on the TV screen. This
is normal.
1. While in still mode, press FORWARD (M). The
tape is played at a speed 1/19 times slower than
the normal speed.
2. Use CH/TRK (v/V) on the Remote Control if
necessary to adjust the tracking.
3. To return to the normal speed, press N(PLAY).
Note:
After 3 minutes in SLOW MOTION mode the DVD+VCR
goes back to PLAY mode to protect the tape and video
heads.
CM SKIP (Commercial Skip)
This feature is useful for skipping commercials or
short program segments.
1. Press CM SKIP in playback mode. The
DVD+VCR performs a fast forward picture search
through 30 seconds of recording.
2. Press CM SKIP again to extend the search time
by an addition 30 seconds. The maximum search
time is 3 minutes.
3. When the search is complete, the DVD+VCR
goes into playback mode automatically.
VHS Hi-Fi Stereo/
VHS Hi-Fi Stereo/
MTS Broadcast
MTS Broadcast
This DVD+VCR is equipped with the VHS Hi-Fi audio
sound system for recording and playback. The infor-
mation below gives a brief description of Hi-Fi audio
and how to record and play a tape in the Hi-Fi audio
mode.
Hi-Fi Stereo Audio Sound
A stereo TV with AUDIO/VIDEO input jacks or a
stereo audio system is required for true stereo play-
back. To experience the full and rich stereo sound
available with Hi-Fi recorded tapes, we recommend
the connection of this unit to a home stereo audio
system.
1. Set the AUDIO MODE option to HI-FI on the VCR
SETUP menu .
2. Set the AUDIO OUTPUT option to STEREO so
that the left channel sound (L) is heard from the
left speaker and the right channel sound (R) is
heard from the right speaker.
The other options are (LEFT) POSITION, which
results in the left channel sound (L) being heard
from both speakers or (RIGHT) POSITION, which
results in the right channel sound (R) being heard
from both speakers.
3. Insert a cassette and press N(PLAY).
MTS (Multi-Channel TV Sound)
This DVD+VCR can decode MTS stereo and bilingual
(SAP) off-the-air broadcast sound signals. It also
decodes stereo TV sound from local cable companies
as long as they operate on assigned cable frequen-
cies and use the EIA-recommended MTS stereo/bilin-
gual TV sound system.
Multichannel TV Sound Indicator (MTS)
When you press ENTER one or both of the indicators
appears on the TV Screen.
STEREO
The DVD+VCR can record in stereo onto the VHS
Hi-Fi audio tracks when the BROADCAST TYPE
option is in the STEREO position. The DVD+VCR
can also record mono audio onto the mono audio
track.
SAP
Some stations transmit a Second Audio Program,
which is used for a second language or additional
information.
STEREO/SAP
Use the BROADCAST TYPE option to select the
desired recording mode (STEREO or SAP).
Operation
24
VCR T
VCR Tape Recording
ape Recording
Basic Instructions
1. Turn on the DVD+VCR and TV.
2. Tune the TV to the DVD+VCR output channel
(CH 3 or 4) or if a direct VIDEO/AUDIO connec-
tion is made between the DVD+VCR and the TV,
set the TV’s source selector to VIDEO.
3. Insert a video cassette with the safety tab intact.
4. Select the desired channel using CH/TRK (v/V).
5. If you are recording from another source via
audio/video input jacks (at the rear or front panel),
select LINE1 or LINE2 using INPUT.
6. Set the desired recording speed (SP or SLP) by
pressing SPEED. This DVD+VCR is not designed
to record in LP mode.
7. Set the MTS mode (STEREO or SAP). Set the
BROADCAST TYPE option to SAP if applicable.
8. Press REC/ITR (z)and recording starts. The
REC indicator appears in the display window. If a
cassette with no safety tab is loaded, the cassette
is ejected.
9. Press STOP (x)to stop recording. If the tape
reaches the end before STOP (x)is pressed, the
DVD+VCR stops, rewinds and ejects the tape.
Tips:
• Use PAUSE/STEP (X) for best results when making
changes while recording. For example, if you want to
change channels while recording, first press
PAUSE/STEP (X) to put the unit in pause mode, select
the desired channel on the DVD+VCR, and then press
PAUSE/STEP (X) again to resume recording.
• If you wish DVD playback during the VCR recording,
press DVD to change DVD mode and perform the DVD
playback.
To pause the recording
1. Press PAUSE/STEP (X) to pause the tape during
recording. The REC indicator flashes in the dis-
play window.
2. When you want to continue recording, press
PAUSE/STEP (X) or press REC/ITR (z). After 5
minutes in PAUSE mode, the DVD+VCR stops
automatically to protect the tape and the video
heads.
To record one TV program while watching
another
1. Press TV/VCR to select the TV mode during
recording. The TV indicator appears.
2. Using the TV, select the channel to be viewed.
T
Timer Recording
imer Recording
For unattended recording, you must input the
channels to be recorded and the starting and ending
times.
1. Turn on the DVD+VCR and the TV.
2. Be sure the TV is set to the DVD+VCR output
channel (3 or 4).
3. Make sure the TUNING BAND in the TUNING
menu is set appropriately (TV or CATV).
4. Press MENU and the MAIN menu appears.
5. Use v/Vto choose the PROGRAM menu and
press ENTER.
If eight programs are already entered, the FULLY
PROGRAMMED message appears for a moment
and then PROGRAM 1 appears on the TV
screen.
If you try to set the program timer before setting
the clock, “PLEASE SET THE CLOCK” appears
for a moment and then CLOCK menu appears on
the TV screen. Set the time and date before pro-
ceeding.
Things to know before starting
25
6. Use the v/Vbuttons to switch between the pro-
gram options, and the b/Bbuttons to input the
program information:
Input the month, day, start and stop times of the
program you want to record.
Channel: Select a TV channel, LINE1 or LINE2. If
you have CABLE TV and use a cable box (con-
verter) you must set the channel to match the
cable box output channel (usually CH 3 or 4).
Change channels on the cable box instead of with
the DVD+VCR. If you use a cable converter, you
can program multiple recordings only on the con-
verter box output channel. This is because the
converter determines what channel you view
through your DVD+VCR.
Speed: AUTO mode determines how much tape
is left and switches the speed from SP to SLP if it
is necessary to complete recording the program. If
this occurs there could be some picture and
sound distortion at the point where the speed
changes.
Repeat: To record up to 8 programs on a certain
day of every week select WEEKLY. To record up
to 8 programs at the same time Monday through
Friday select DAILY. Otherwise select ONCE.
7. Press MENU and the program is memorized by
the DVD+VCR.
8. Additional programs may be entered by repeating
steps 1-7.
9. Ensure you insert a tape with the record safety
tab intact before the first programmed time.
Notes:
• If you make a mistake or want to change a setting, use
vto select the option and correct it using b/B.
• If the program preset time is past, the “PAST TIME
PROGRAMMED” message appears on the TV screen.
Return to the incorrect program and program it with the
correct time.
• If you enter a past date, the timer recording will be
performed on that date of the next year.
• If the power fails or the DVD+VCR is unplugged the
clock and timer settings are kept in memory for only 3
seconds. Otherwise you must reset the clock and timer.
• If the tape indicator is blinking, no tape is loaded.
• When you are playing DVD at programmed Recording
time, the DVD+VCR automatically change to VCR mode
and start recording.
• The DVD+VCR will automatically power off when Timer
Recording ends.
Checking or Erasing the Timer Program
Programming can be checked whenever the
DVD+VCR is turned on.
1. Press MENU and the MAIN menu appears.
2. Use v/Vto choose the PROGRAM menu and
press ENTER.
3. Use b/Bto select a program you want to check
or erase. To erase the program, press CLEAR.
4. Press MENU to return to the TV screen.
Program Priority
If the recording start and end times of preset pro-
grams overlap on the same day (see the example),
the second program is not recorded until the first is
finished.
In this example, the first part of program numbers 2
and 3 are not recorded.
Operation
26
Instant T
Instant Timer Recording
imer Recording
With this feature you can record for a preset length
without using the program timer.
1. Turn on DVD+VCR and the TV.
2. Be sure the TV is tuned to the DVD+VCR output
channel (CH 3 or 4). If a direct VIDEO/AUDIO
connection is made between the DVD+VCR and
the TV, set the TV’s source selector to VIDEO.
3. Insert a video cassette with the safety tab intact.
4. Select the desired channel using CH/TRK (v/V)
or the number buttons (0-9). The channel number
appears on the TV screen. If you are recording
from another source via audio/video input jacks
(at the rear or front panel), select LINE1 (rear
jacks) or LINE2 (front jacks) by using INPUT.
5. Set the desired recording speed (SP or SLP)
using SPEED. The tape speed appears on the TV
screen.
6. Press REC/ITR (z)twice. The menu appears on
the TV screen, recording starts, and the
(TIMER) indicator lights.
7. Press REC/ITR (z)repeatedly to select the
recording time length. Each time you press this
button the recording time increases 30 minutes
(up to 9 hours). If you set the time to 0H00M, the
DVD+VCR goes into the normal recording mode.
8. Stop the recording by pressing STOP (x) If you
don’t press stop, at the end of the recording, the
DVD+VCR stops and shuts off.
Note:
During Instant Timer Recording, you cannot change the
channel on the DVD+VCR.
Checking the Recording Time
Press REC/ITR (z) once to check the recording time.
The recalled setting automatically returns to the TV
screen after 6 seconds.
Extending the Recording Time
The recording time can be extended anytime by
pressing REC/ITR (z). Subsequent presses result in
advancing the recording time by 30-minute
increments.
Note:
If you press PAUSE/STEP (X) during instant timer record-
ing, the instant timer recording is cancelled.
Recording from External
Recording from External
Components
Components
You can record from an external component, such as
a camcorder or VCR, connected to any of the
DVD+VCR’s external inputs.
1. Make sure that the component you want to record
from is connected properly to the DVD+VCR. See
page 15.
2. Press INPUT repeatedly to select the external
input to record from.
• LINE1 (L1): Audio/Video Input mounted on
back panel.
• LINE2 (L2): Audio/Video Input mounted on
front panel.
3. Load a recordable tape.
4. Set a recording mode (SP or SLP) as necessary
by pressing SPEED repeatedly.
5. Play the tape or disc in the external component. If
you have a TV attached to your DVD+VCR, you
can see the video palying.
6. Press REC/ITR (z) once to start recording.
The REC indicator lights in the display window.
7. Press STOP (x) to stop recording.
Notes:
• Before recording, confirm the recording start position.
• If your source is copy-protected using CopyGuard, you
will not be able to record it using this unit. See Copyright
on page 6 for more details.
• To record for a fixed length of time, see Instant Timer
Recording.
INSTANT TIMER RECORD
CHANNEL 2
SPEED SP
START NOW
LENGTH 0H30M
Operation
27
Copying from DVD to VCR
Copying from DVD to VCR
You can copy the contents of a DVD to a VHS tape.
1. Insert the disc you wish to copy into the DVD
deck and close the disc tray.
2. Insert a blank VHS video tape into the VCR deck.
3. Find the place on the DVD from which you want
to start dubbing using the PLAY, FF, REW and
PAUSE functions.
For best results, pause playback at the point from
which you want to record.
4. Press the REC/ITR (z). The DVD goes into PLAY
mode and the VCR goes into RECORD mode. If
the DVD disc menu appears, you may need to
press N(PLAY) manually to begin copying.
5. When the DVD is finished playing,
press STOP (x) to end copying.
Notes:
• If the DVD you are attempting to copy is copy protected,
you will not be able to copy the disc. It is not permitted
to copy Macrovision encoded DVDs (or Discs). “Lock” is
displayed in the display window.
• You must stop the copy process manually when the
DVD movie ends, or the unit may replay and record over
and over again.
• When you stop the DVD playback during copying, the
recording on VCR is stopped automatically.
On-Screen Display - VCR
On-Screen Display - VCR
Some of these functions will be displayed every time
the DVD+VCR is operated.
Each press of the ENTER changes the TV screen in
the following sequence.
Real-Time Counter
If a tape with contents recorded on it is inserted into
the VCR, the real-time counter shows length of the
tape running in hours, minutes, and seconds. Press
CLK/CNT to select the real-time counter display.
Every press of CLK/CNT changes the TV screen as
illustrated below.
Counter Memory
This feature is useful if there is a section of tape you
want to view immediately after recording or if you
want to return to the same point several times.
1. Begin recording or playing a tape.
2. Press CLK/CNT until the real-time counter is dis-
played on the TV screen.
3. At the point that you want to locate later, reset the
real-time counter to “0:00:00” by pressing CLEAR.
4. Continue to play or record.
5. Press STOP (x)when recording or playback fin-
ishes.
6. Press BACKWARD (m). The tape automatically
stops when the tape counter returns to about
“0:00:00”.
Tape Remaining
This function displays the amount of time remaining
on the tape during recording or playback. Press
CLK/CNT repeatedly until the REM indicator displays
on the TV screen during recording or playback.
The remaining tape length may not be displayed cor-
rectly depending on the condition of the tape and the
kind of the tape (T-140, T-160, or T-210 etc.).
Notes:
• The function displays can be seen displayed on the TV
screen for 5 seconds.
• The clock (or tape counter, tape remaining) mode will be
displayed until you press ENTER.
• The tape counter and the remaining tape length indica-
tor appear only when a cassette is inserted. Also, the
remaining tape length indicator appears after any tape
operation.
PLAY HI-FI CH 4
SP STEREO
OCT 8 , SAT 2:15 PM
❶❷ ❸ ❹ ❺
❻❼
2:15 AM 0:05:25 REM 1:07
CLOCK COUNTER REMAINING TIME
❶TAPE SPEED DISPLAY
❷FUNCTION DISPLAY
❸HI-FI DISPLAY
❹CHANNEL DISPLAY
❺STEREO/SAP DISPLAY
(MONO is not displayed)
❻DATE DISPLAY
❼CLOCK/ COUNT/
REMAIN DISPLAY
REM 1:58
0:35:40
2:15 PM
STOP CH 4
SP STEREO
APR 30 , SAT 2:15 PM
28
Additional VCR Information
Additional VCR Information
• During manual recording, timer recording, Instant
Timer Recording, playback, or fast forward
modes, the DVD+VCR automatically starts
rewinding the tape at the end of the tape. The
cassette stops at the beginning of the tape and is
ejected.
• After you have finished using the DVD+VCR,
rewind, eject, and remove the cassette. Place the
cassette in its protective sleeve to protect it from
dust. It is not necessary to rewind the cassette
before removing it, but if you do, it is ready to play
or record the next time you use it.
• Be sure the DVD+VCR channel selector is on the
correct channel you wish to record. The channel
that is being recorded can always be checked by
setting the television on the DVD+VCR channel
(CH 3 or 4) and pressing the TV/VCR to turn the
DVD+VCR’s TV indicator off.
• Do not attempt to hook up more than one televi-
sion set to the DVD+VCR for either recording or
playback.
VCR Auto Play System
This DVD+VCR features automatic playback.
When you load a tape with the safety tab removed
the following occurs:
• The Output Source is changed to VCR mode
automatically.
• The power turns on automatically and playback begins.
• At the end of the tape, the DVD+VCR stops, then
rewinds.
• The tape is ejected after rewinding and the turns itself
off automatically.
Note:
Auto power off does not function during regular DVD play
mode. (DVD+VCR power stays on.)
S-VHS Quasi Playback (SQPB)
• This DVD+VCR can play back S-VHS recorded
tapes, however, it cannot make recordings using
S-VHS format tapes.
• SQPB is an abbreviation for S-VHS Quasi
Playback.
Easy Information
If the Extended Data Service (XDS) signals are pro-
vided along with normal TV signal in your area or
during playback of a tape recorded with Extended
Data Service (XDS) signals, the station ID, program
title, and program details are shown on the TV
screen.
When viewing a channel with Extended Data
Service (XDS) signals, press ENTER and the station ID
will appear on the TV screen. Press ENTER again and
the program details will appear on the TV screen.
When viewing a tape recorded with Extended Data
Service (XDS) signals, press ENTER twice and the
program title and program details will appear on the
TV screen.
Program Details
LENGTH: Indicates the run length of a program.
TIME REMAINING: Indicates the remaining time of a
program.
RATING: Indicates the rating of the current program
(N/A, G, PG, PG-13, R, NC-17, X and Not Rated). The
rating N/A means that the motion picture ratings are not
applicable to this program.
Easy Information Screen
(Program details)
Easy Information Screen
(Station ID)
CH 4
SP WABC STEREO
“Home video”
APR 30 , SAT 2:15 PM
PROGRAM DETAILS
“Home video”
LENGTH 01:00
TIME REMAINING 00:26
RATING N/A
29
Playing a DVD or V
Playing a DVD or Video CD
ideo CD
Playback Setup
1. Turn on the TV and select the video input source
connected to the DVD+VCR.
2. Turn on the audio system (if applicable) and
select the input source connected to the
DVD+VCR.
3. Press OPEN/CLOSE (Z) to open the disc tray
and load your chosen disc in the tray, with the
playback side down.
4. Press OPEN/CLOSE (Z) to close the tray.
Playback starts automatically. If playback does
not start, press N(PLAY).
In some cases, the disc menu might appear
instead.
5. To stop the playback, press STOP (x).
The unit records the stopped point, depending on
the disc. “
X
x” appears on the screen briefly.
Press N(PLAY) to resume playback (from the
scene point). If you press STOP (x) again or
unload the disc (“x” appears on the screen.), the
unit will clear the stopped point.
Press OPEN/CLOSE (Z) to remove the disc.
Press OPEN/CLOSE (Z) to close disc tray or
press POWER (1), the disc tray closes automati-
cally and unit turns off.
If a menu screen is displayed
The menu screen may be displayed first after loading
a DVD or Video CD which offer a menu.
Use the bB v Vbuttons to select the title/chap-
ter you want to view, then press ENTER to start.
Press TITLE or DISC MENU to return to the menu
screen.
Use the number buttons to select the track you
want to view and press RETURN to return to the
menu screen. Menu settings and operating proce-
dures may differ. Follow the instructions on each
menu screen. You also may set PBC to Off (See
“PBC” on page 21).
Notes:
• If parental control is set and the disc is not within the
rating settings you must input the password.
(See “LOCK” on page 20).
• DVDs may have a region code. Your player will not play
discs that have a region code different from your player.
The region code for this player is 1 (one).
General Features
Notes:
Unless stated otherwise, all operations described use
the remote control. Some features may also be avail-
able on the Setup menu.
Moving to another TITLE
When a disc has more than one title, you can move
to another title. Press DISPLAY and select desired
title by using number (0-9) or b/Bthen press
ENTER to move to another title.
Moving to another CHAPTER/TRACK
When a title on a disc has more than one chapter or
a disc has more than one track, you can move to
another chapter/track as follows:
• Press SKIP (>or .) briefly during playback
to select the next chapter/track or to return to the
beginning of the current chapter/track.
• Press SKIP (.) twice in quick successions to
step back to the previous chapter/track.
• To go directly to any chapter during DVD play-
back, press DISPLAY and press v/Vto select
the chapter/track icon. Input the chapter/track
number (0-9) or use b/B.
Note:
On a Video CD with PBC, you must set PBC to Off on the
setup menu to use this function (See “PBC” on page 21).
Slow Motion
1. Press PAUSE/STEP (X) during playback.
The DVD+VCR will now go into PAUSE mode.
2. Use BACKWARD (m) or FORWARD (M) to
select the required speed:
DVD : 1/16, 1/8, 1/4 or 1/2 (Forward or Backward)
With a DviX Disc or Video CD : 1/16, 1/8, 1/4 or 1/2
(Forward only)
3. To exit Slow Motion mode, press N(PLAY).
Still Picture and Frame-by-Frame Playback
1. Press PAUSE/STEP (X) during playback.
Advance the picture frame-by-frame by pressing
PAUSE/STEP (X) repeatedly.
2. To exit still motion mode, press N(PLAY).
VCDDVD
DivXVCDDVD
VCDDVD
DivXDVD
VCD
DVD
Operation
30
Search
1. Press BACKWARD (m) or FORWARD (M)
during playback.
2. Press BACKWARD (m) or FORWARD (M)
repeatedly to select the required speed.
DVD disc; X2, X4, X16 or X100
With DivX Disc or Video CD; X2, X4, X8
3. To exit SEARCH mode, press N(PLAY).
Time Search
To start playing at any chosen time on the disc:
1. Press DISPLAY during playback. The time search
box shows the elapsed playing time.
2. Press v/Vto select the time clock icon and
“-:--:--” appears.
3. Input the required start time in hours, minutes,
and seconds from left to right. If you enter the
wrong numbers, press CLEAR to remove the
numbers you entered. Then input the correct
numbers.
4. Press ENTER to confirm. Playback starts from the
selected time.
Marker Search
To enter a Marker
You can start playback from up to nine memorized
points. To enter a marker, press MARKER at the
desired point on the disc. The Marker icon appears
on the TV screen briefly. Repeat to enter up to nine
markers.
To Recall or Clear a Marked Scene
1. During disc playback, press SEARCH. The mark-
er search menu appears on the screen.
2. Within 10 seconds, press b/ Bto select a marker
number that you want to recall or clear.
3. Press ENTER and playback starts from the
marked scene. Or, Press CLEAR and the marker
number is erased from the list.
4. You can play any marker by inputting its number
on the marker search menu.
Repeat
Press REPEAT during playback to select a desired
repeat mode.
• CHAPTER: repeats the current chapter.
(DVD only)
• TITLE: repeats the current title. (DVD only)
• TRACK : repeats the current track.
(VCD, DivX only)
• All : repeats all the tracks on a disc.
(VCD, DivX only)
• Off : does not play repeatedly.
Notes:
• On a Video CD with PBC, you must set PBC to Off on the
setup menu to use this function (See “PBC” on page 19).
• If you press SKIP (>) once during Repeat Chapter
(Track) playback, the repeat playback cancels.
Repeat A-B
To repeat a sequence.
1. Press A-B at your chosen starting point. “ A *”
appears briefly on the TV screen.
2. Press A-B again at your chosen end point.
“A B” appears briefly on the TV screen and the
repeat sequence begins.
3. Press A-B again to cancel.
Zoom
Use zoom to enlarge the video image.
1. Press ZOOM during playback or still playback to
activate the Zoom function. The square frame
appears briefly in the right bottom of the picture.
2. Each press of the ZOOM button changes the TV
screen in the sequence: 100% size → 400% size
→1600% size →screen fit mode →100% size
Screen fit mode:
You can change the way the image appears on
the screen when you’re playing a DVD movie.
Press 3/4 to select between Normal, Enhanced,
and Maximum.
3. Use the bBvVbuttons to move through the
zoomed picture.
4. To resume normal playback, press ZOOM repeat-
edly or CLEAR button.
Notes:
• Zoom may not work on some DVDs.
• Screen fit mode is available for playing the DVD disc,
VR disc.
3D Surround
To produce a 3D surround effect that simulates multi-
channel audio from two stereo speakers (instead of
the five+ speakers normally required for multi-channel
audio from a home theater system).
1. Press DISPLAY during playback.
2. Use 3or 4to select the sound option.
The sound option will be highlighted.
3. Use 1or 2to to select “3D SUR”.
To turn off the 3D Surround effect, select
“Normal”.
DivXVCDDVD
DivXVCDDVD
DivXVCDDVD
VCDDVD
DivXVCDDVD
DivXVCDDVD
31
Random
1. Press RANDOM during playback. The unit auto-
matically begins random playback and RANDOM
appears on the TV screen.
2. Press RANDOM again to normal.
Tip:
By pressing SKIP (>) during random playback, the unit
selects another title (track) and resumes random playback.
Note:
On a Video CD with PBC, You must set PBC to Off on the
setup menu to use the this function (See “PBC” on page 21).
Changing the Audio Channel
Press AUDIO repeatedly during playback to hear a
different audio channel (STEREO, LEFT, RIGHT).
Last Scene Memory
This player memorizes last scene from the last disc
that is viewed. The last scene remains in memory
even if you remove the disc from the player or switch
off the player. If you load a disc that has the scene
memorized, the scene is automatically recalled.
Note:
This player does not memorize the scene of a disc if you
switch off the player before commencing to play the disc.
Screen Saver
The screen saver appears when you leave the
DVD+VCR in Stop mode for about five minutes.
Changing Video Mode
•With certain discs, the playback picture may be
flickering or Dot Crawl is shown on straight lines.
That means Vertical interpolation or De-interlace is
not perfectly matched with the disc. In this case,
the picture quality may be improved by changing
the video mode.
•To change the video mode, press and hold
DISPLAY about 3 seconds during disc playback.
MODE1 : The source material of the DVD video (film
material or video material) is determined from
disc information.
MODE2 : Suitable for playing film based content or video
based material recorded by the progressive
scan method.
MODE3 : Suitable for playing video based content with
comparatively little motion.
Note:
The video mode setting only works when the Progressive
Scan option is set to “On” in the Setup menu.
Special DVD Features
Special DVD Features
Checking the contents of DVD discs: Menus
DVDs may offer menus that allow you to access
special features. To use the disc menu, press DISC
MENU. Input the corresponding number or use the
bB v Vbuttons to highlight your selection. Then
press ENTER.
Title Menu
1. Press TITLE. If the current title has a menu, the
menu appears on the screen. Otherwise, the disc
menu may appear.
2. The menu offers features such as camera angles,
spoken language and subtitle options, and chap-
ters for the title.
Disc Menu
Press DISC MENU and the disc menu is displayed.
Press DISC MENU again to exit.
Camera Angle
If the disc contains scenes recorded at different cam-
era angles, you can change to a different camera
angle during playback. Press ANGLE repeatedly dur-
ing playback to select a desired angle. Note that the
number of the current angle appears on the display.
Tip:
The Camera Angle icon is displayed on the TV screen when
alternate angles are available.
Changing the Audio Language
Press AUDIO repeatedly during playback to hear a
different audio language or audio track.
With DVD-RW discs recorded in VR mode that have
both a main and a Bilingual audio channel, you can
switch between Main (L), Bilingual (R), or a mix of
both (Main + Bilingual) by pressing AUDIO.
Subtitles
Press SUBTITLE repeatedly during playback to see
the different subtitle languages.
Note:
If there is no information or there is a code that can not read
in the Divx file, “1” etc are displayed.
DivXDVD
DivXDVD
DVD
DVD
DVD
DVD
VCD 1.1
ACDDVD
VCD
Karaoke DVDVCD
Operation
32

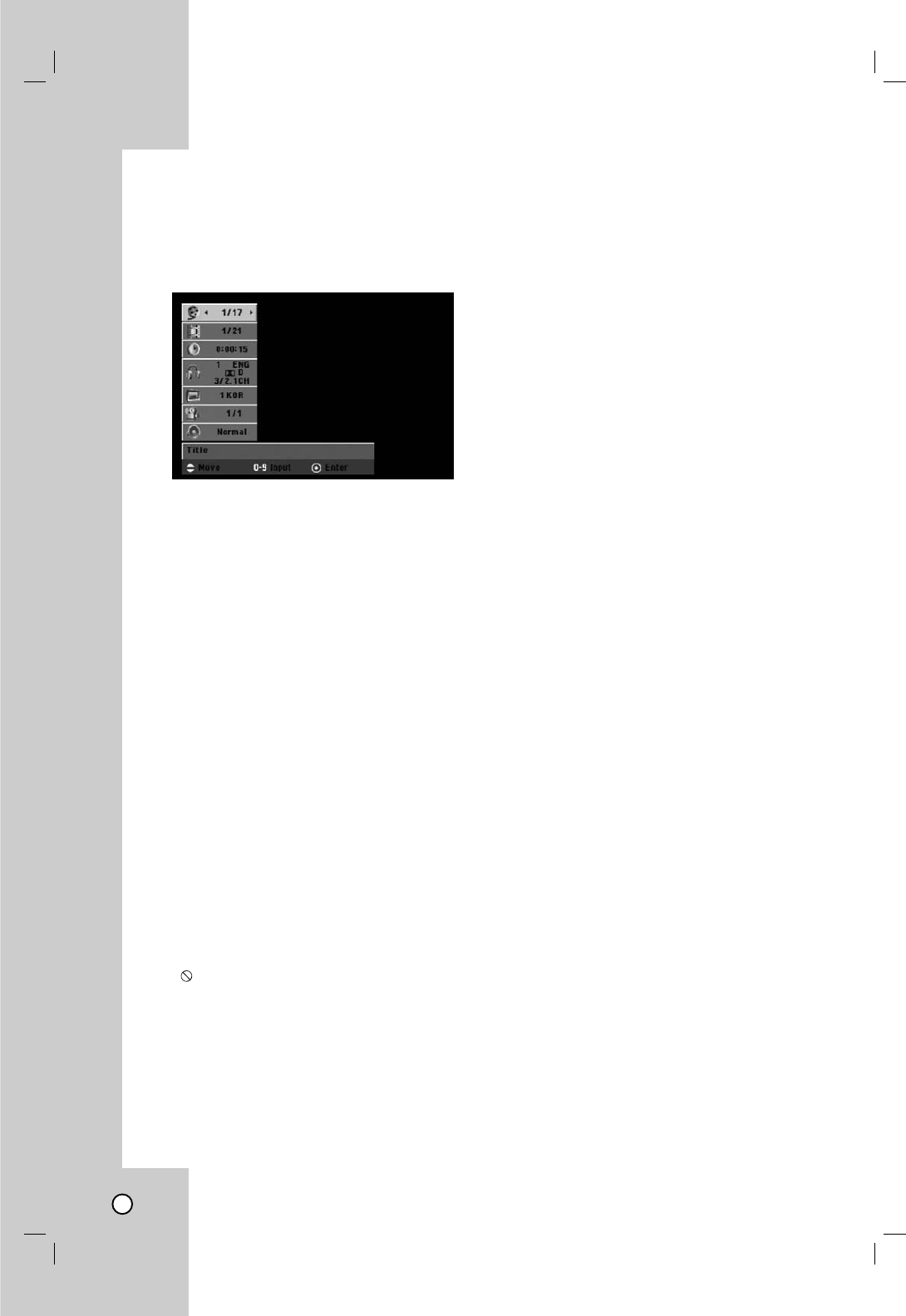

On-Screen Display - DVD
On-Screen Display - DVD
You can display the general playback status on the
TV screen. Some items can be changed using the
menu. To use the on-screen display:
1. Press DISPLAY during playback.
2. You can select an item by pressing v/ Vand
change or select the setting by pressing b/ B.
The items displayed differ depending on the disc
type or playing status.
For details about each item, see the pages in
parentheses.
•[Title]: Current title (or track) number/total
number of titles (or tracks) (page 29)
•[Chapter]: Current chapter number/total num-
ber of chapters (page 29)
•[Time]: Elapsed playing time (page 30)
•[Audio]: Selected audio language (DVD
VIDEO only) or audio channel (page 31)
•[Subtitle]: Selected subtitle (page 31)
•[Angle]: Selected angle/total number of angles
(page 31)
•[Sound]: Selected sound mode (page 31)
Notes:
• Some discs may not provide all of the features shown
below.
• If no button is pressed for 10 seconds, the on-screen
display disappears.
• If is displayed, action prohibited or not available.
Maintenance and Service
Maintenance and Service
Refer to the information in this chapter before con-
tacting a service technician.
Handling the Unit
When shipping the unit
Please save the original shipping carton and packing
materials. If you need to ship the unit, for maximum
protection, re-pack the unit as it was originally packed
at the factory.
Keeping the exterior surfaces clean
• Do not use volatile liquids such as insecticide
spray near the unit.
• Do not leave rubber or plastic products in contact
with the unit for a long period of time. since they
leave marks on the surface.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the sur-
faces are extremely dirty, use a soft cloth lightly mois-
tened with a mild detergent solution.
Do not use strong solvents such as alcohol, benzine,
or thinner, as these might damage the surface of the
unit.
Maintaining the Unit
The DVD+VCR is a high-tech, precision device. If the
optical pick-up lens and disc drive parts are dirty or
worn, the picture quality could be diminished.
Depending on the operating environment, regular
inspection and maintenance are recommended after
every 1,000 hours of use.
For details, please contact your nearest authorized
service center.
33

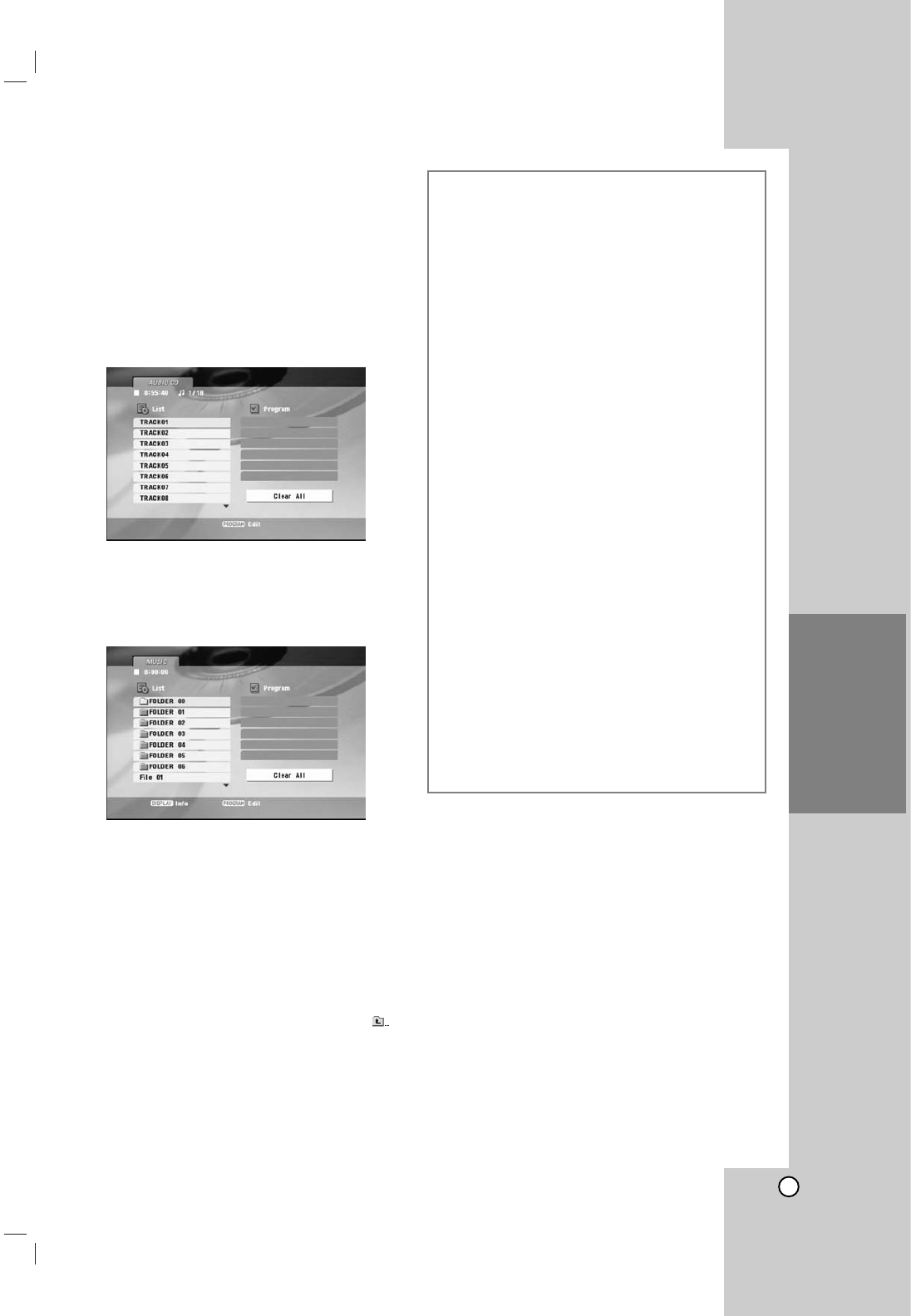

Playing an
Playing an Audio CD or
Audio CD or
MP3/WMA
MP3/WMA Files
Files
The DVD+VCR can play Audio CDs and MP3/WMA
files on CD-ROM, CD-R/RW, DVD+R/RW,
DVD-R/RW discs or Memory Card.
Audio CD
Once you insert an audio CD a menu appears on the
TV screen. Press v/Vto select a track then press
N(PLAY) or ENTER and playback starts.
MP3 / WMA
1. Press v/Vto select a folder, and press ENTER
to see the folder contents.
2. Press v/Vto select a track then press N(PLAY)
or ENTER. Playback starts.
ID3 TAG
• When playing a file containing information such as
track titles, you can see the information by pressing
DISPLAY. [ Title, Artist, Album, Year, Comment ]
• If there is no information, “No ID3 TAG” appear on
the menu screen.
Tips:
• If you are in a file list on the “MUSIC” menu and want to
return to the Folder list, use the v/Vto highlight
and press ENTER.
• Press DISC MENU to move to the next page.
• On CDs, DVDs or Memory Card with mixed content
(MP3/WMA files, JPEG files or DivX files), you can
select among the Music menu, Movie menu and Photo
menu by pressing TITLE repeatedly.
Operation
MP3 / WMA disc compatibility with this player is
limited as follows:
• Sampling frequency: within 8 - 48 kHz (MP3),
within 32 - 48kHz (WMA)
• Bit rate: within 8 - 320kbps (MP3),
32 - 192kbps (WMA)
• The player cannot read an MP3/WMA file that
has a file extension other than “.mp3” / “.wma”.
• CD-R physical format should be ISO 9660
• If you record MP3 / WMA files using software that
cannot create a file system (eg. Direct-CD) it is
impossible to playback MP3 / WMA files. We rec-
ommend that you use Easy-CD Creator, which
creates an ISO 9660 file system.
• File names should have a maximum of 8 letters
and must incorporate an .mp3 or .wma exten-
sion.
• They should not contain special letters such as /
? * : “ < > l etc.
• The total number of contens on the disc should
be less than 650.
This DVD+VCR requires discs and recordings to
meet certain technical standards in order to
achieve optimal playback quality. Pre-recorded
DVDs are automatically set to these standards.
There are many different types of recordable disc
formats (including CD-R containing MP3 or WMA
files) and these require certain pre-existing condi-
tions (see above) to ensure compatible playback.
Customers should note that permission is
required in order to download MP3 / WMA files
and music from the Internet. Our company has
no right to grant such permission. Permission
should always be sought from the copyright
owner.
34
Audio CD and MP3 / WMA
Audio CD and MP3 / WMA
Disc Features
Disc Features
Pause
1. Press PAUSE/STEP (
X
) during playback.
2. To return to playback, press N(PLAY) or press
PAUSE/STEP (
X
) again.
Moving to another Track
1. Press SKIP (> or .) briefly during playback
to go to the next track or to return to the begin-
ning of the current track.
2. Press SKIP (.) twice in quick successions to
go back to the previous track.
3. In case of audio CD, to go directly to any track,
enter the track number using the numbered
buttons (0-9) during playback.
Repeat Track / All / Off
You can play a track/all on a disc.
1. Press REPEAT when playing a disc. The repeat
icon appears.
2. Press REPEAT to select a desired repeat mode.
• TRACK: repeats the current track.
• ALL: repeats all the tracks on a disc.
• Off(No display): does not play repeatedly.
Note:
If you press SKIP (>) once during Repeat Track
playback, the repeat playback will be cancelled.
Search
1. Press BACKWARD (m) or FORWARD (M)
during playback.
2. Press BACKWARD (m) or FORWARD (M)
repeatedly to select the required speed:
X2, X4 and X8 backward or forward.
3. To exit SEARCH mode, press N(PLAY).
Random
1. Press RANDOM during playback. Random
Playback begins immediately and “RANDOM”
appears on the menu screen.
2. To return to normal playback, press RANDOM
repeatedly until “RANDOM” disappears from the
menu screen.
Tip:
By pressing SKIP (>or .) during random playback, the
unit selects another track and resumes random playback.
Repeat A-B
1. To repeat a sequence during disc playback press
A-B at your chosen starting point. The Repeat
icon and “A” appear on the menu screen.
2. Press A-B again at your chosen end point. The
Repeat icon and “A-B” appear on the menu
screen, and the sequence begins to play repeat-
edly.
3. To exit the sequence and return to normal play,
press A-B again. The Repeat icon disappears
from the menu screen.
3D Surround
To produce a 3D Surround effect that simulates multi-
channel audio from two stereo speakers (instead of
the five + speakers normally required for multi-chan-
nel audio from a home theater system).
1. Press AUDIO during playback.
“3D SUR.” appears on the menu screen.
2. To return to normal playback, press AUDIO
repeatedly until “3D SUR.” disappears from the
menu screen.
ACD
ACD
35

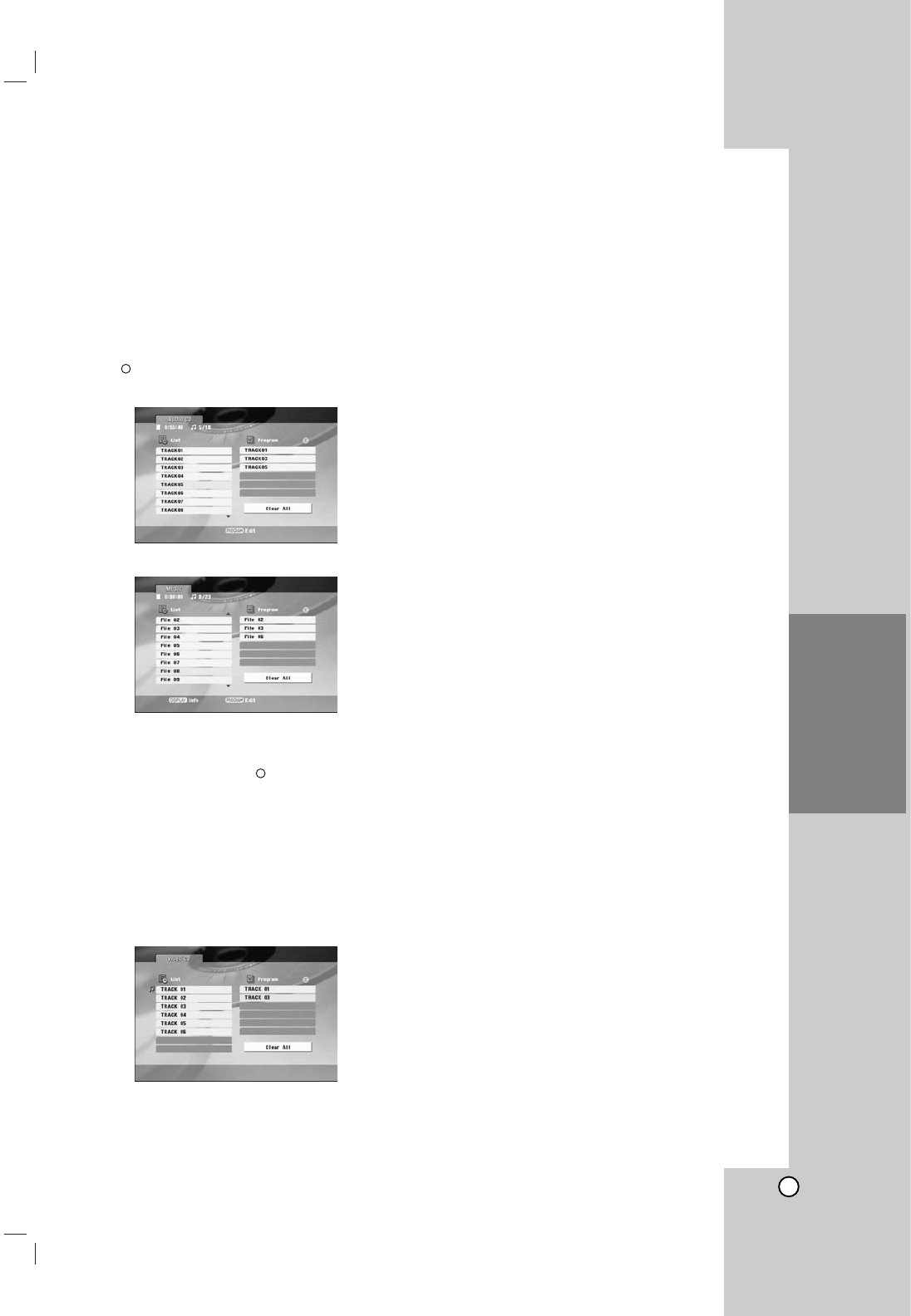

Programmed Playback
Programmed Playback
The program function enables you to store your
favourite tracks from any disc in the player memory.
A program can contain 30 tracks.
1. Insert a disc.
Audio CD or MP3/WMA Discs.
AUDIO CD or MUSIC menu appears.
2. Press PROGRAM.
The mark will appear to the right of the word
“Program” on the right side of the menu screen.
Note:
Press PROGRAM again, the mark will disappear to
exit the Program Edit mode.
Video CD: Press PROGRAM while playback is
stopped. The program menu appears. Press
PROGRAM again to exit the menu.
Note:
On a Video CD with PBC, you must set PBC to Off on the
setup menu to use the this function (See “PBC” on page 21).
3. Select a track on the “List”, then press ENTER to
place the selected track on the “Program” list.
Repeat to place additional tracks on the list.
4. Press B.
Select the track you want to start playing on the
“Program” list.
5. Press N(PLAY) or ENTER to start. Playback
begins in the order in which you programmed the
tracks. Playback stops after all of the tracks on
the “Program” list have played once.
6. To resume normal playback from programmed
playback, select a track of AUDIO CD (or MUSIC)
list and then press N(PLAY).
Repeat Programmed Tracks
1. Press REPEAT when playing a disc. The repeat
icon appears.
2. Press REPEAT to select a desired repeat mode.
• TRACK: repeats the current track
• ALL: repeats all the tracks on programmed list.
• Off (No display): does not play repeatedly.
Note:
If you press >once during Repeat Track playback, the
repeat playback will be cancelled.
Erasing a Track from “Program” List
1. Use B / v/ Vto select the track that you wish to
erase from the Program list.
2. Press CLEAR. Repeat to erase additional tracks
on the list.
Erasing the Complete Program List
Use B/v/Vto select “Clear All” in the “Program”
list, then press ENTER.
Note:
The programs are also cleared when the disc is removed.
E
E
Operation
Audio CD Program Menu
MP3/WMA Program Menu
36
V
Viewing a JPEG Files
iewing a JPEG Files
This unit can play JPEG files on CD-R/RW,
DVD+R/RW, DVD-R/RW discs or Memory Card.
1. Insert a disc and close the tray. The PHOTO
menu appears on the TV screen.
2. Press v/Vto select a folder, and press ENTER.
A list of files in the folder appears. If you are in a
file list and want to return to the previous Folder
list, use the v/Vbuttons on the remote to
highlight and press ENTER.
3. If you want to view a particular file, press
v/Vto highlight a file and press ENTER or N
(PLAY). The selected image is displayed in full
screen.
4. To stop viewing at any time, press STOP.
Tips:
• Press DISC MENU to move to the next page.
• There are three Slide Speed options :
>>> (Fast), >> (Normal) and > (Slow)
Use vVbBto highlight the Speed. Then, use b/Bto
select the option you want to use then press ENTER.
• On CDs, DVDs or Memory Card with mixed content
(MP3/WMA files, JPEG files or DivX files), you can
select among the Music menu, Movie menu and Photo
menu by pressing TITLE repeatedly.
Slide Show
Use vVbBto highlight the (Slide Show) then
press ENTER.
Still Picture
1. Press PAUSE/STEP (
X
) during slide show.
The player will now go into PAUSE mode.
2. To return to the slide show, press N(PLAY) or
press PAUSE/STEP (
X
) a gain.
Moving to another File
Press SKIP (> or .) or cursor (bor B) once
while viewing a picture to advance to the next or
previous file.
Zoom
Use zoom to enlarge the photo image. (see page 30)
To rotate picture
Press v/Vduring showing a picture to rotate the
picture clockwise or counter clockwise.
To listen to music while slide show
simultaneously
You can display photo files while listening to
MP3/WMA music files recorded on a disc.
Select icon then press ENTER on the JPEG
menu.
JPEG
JPEG
JPEG
JPEG
JPEG
JPEG
JPEG disc compatibility with this player is
limited as follows:
• Depending upon the size and number of JPEG
files, it could take a long time for the DVD+VCR
to read the disc’s contents. If you don’t see an
on-screen display after several minutes, some of
the files may be too large — reduce the resolu-
tion of the JPEG files to less than 2M Pixels as
2760X2048 pixels and burn another disc.
• The total number of contens on the disc should
be less than 650.
• Some discs may be incompatible due to a differ-
ent recording format or the condition of disc.
• Ensure that all the selected files have the “.jpg”
extensions when copying into the CD layout.
• If the files have “.jpe” or “.jpeg” extensions,
please rename them as “.jpg” file.
• File names without “.jpg” extension will not be
able to be read by this DVD+VCR. Even though
the files are shown as JPEG image files in
Windows Explorer.
Press RETURN to appear or disappear this menu.
37
Playing a DivX Movie File
Playing a DivX Movie File
The DVD+VCR can play Divx files on CD-R/RW or
DVD±R/RW discs or Memory Card.
1. Use v/Vto select a folder, and press ENTER.
A list of files in the folder appears.
2. Use v/Vto select a file then press N(PLAY).
Playback starts.
You can use variable playback functions. Refer to
pages 29-31.
3. Press STOP (x) to stop the playback. The Movie
menu appears.
Playing a DVD VR format
Playing a DVD VR format
Disc
Disc
This unit will play DVD-R/RW discs recorded using
the DVD-Video format that have been finalized using
a DVD-recorder.
This unit will play DVD-RW discs recorded using the
Video Recording (VR) format.
1. Insert a disc and close the tray. The DVD-VR
menu appears on the TV screen.
2. Press v/Vto select a track then press N
(PLAY) or ENTER and playback starts.
3. Press DISC MENU to move to the list menu.
Notes:
•Unfinalized DVD-R/RW discs cannot be played in
this player.
•Some DVD-VR disc are made with CPRM data by
DVD RECORDER. Player does not support these
kinds of discs and display the “CHECK DISC”.
What is ‘CPRM’?
CPRM is a copy protection system (with scramble
system) only allowing the recording of ‘copy once’
broadcast programs. CPRM stands for Content
Protection for Recordable Media.
This player is CPRM compatible, which means
that you can record copy-once broadcast pro-
grams, but you cannot then make a copy of those
recordings. CPRM recordings can only be made
on DVD-RW discs formatted in VR mode, and
CPRM recordings can only be played on players
that are specifically compatible with CPRM.
Operation
DivX disc compatibility with this recorder is limit-
ed as follows:
• Available resolution size of the DivX file is under
720x576 (W x H) pixel.
• The file name of the DivX subtitle is limited to charac-
ters.
• If there is impossible code to express in the DivX file, it
may be displayed as “_” mark on the display.
•If the number of the screen frame is over 29.97
frames per second, this unit may not operate nor-
mally.
•If the video and audio structure of recorded file is
not interleaved, returns to the menu screen.
•If the file is recorded with GMC, the unit supports
only 1-point of the record level.
* GMC?
GMC is the acronym for Global Motion Compensation.
It is an encoding tool specified in MPEG4 standard.
Some MPEG4 encoders, like DivX or Xvid, have this
option. There are different levels of GMC encoding,
usually called 1-point, 2-point, or 3-point GMC.
Playable DivX file : “.avi”, “.mpg”, “.mpeg”, “.divx”
Playable DivX subtitle : “.smi”, “.srt”,“.sub”.
• Divx subtitle except those listed above is not displayed
on the TV screen.
Playable Codec format
“DIV3”, “MP43”, “DIVX”, “XVID”, “DX50”, “DXSB”
Playable Audio format
“AC3”, “PCM”, “MP2”, “MP3”, “WMA”
• Sampling frequency: within 8-48 kHz (MP3),
within 32 - 48kHz (WMA).
• Bit rate: within 8-320kbps (MP3), 32-192kbps (WMA).
38
Controlling
Controlling Y
Your TV with the
our TV with the
Supplied Remote
Supplied Remote
You can control the sound level, input source, and
power switch of your LG TV with the supplied remote.
By pressing You can
POWER Turn the TV on or off.
INPUT Switch the TV’s input source.
CH +/– Scans up or down through
memorized channels.
VOL +/– Adjust the volume of the TV.
MUTE Turns on or off TV sound.
Note:
Depending on the unit being connected, you may not
be able to control your TV using some of the buttons.
Controlling other TVs with the remote
You can control the sound level, input source, and
power switch of non-LG TVs as well. If your TV is list-
ed in the table below, set the appropriate manufactur-
er code.
1. While holding down TV POWER button, press the
number buttons to select the manufacturer code
for your TV (see the table below).
2. Release TV POWER button.
Code numbers of controllable TVs
If more than one code number is listed, try entering
them one at a time until you find the one that works
with your TV.
Notes:
•Depending on your TV, some or all buttons may not
function on the TV, even after entering the correct
manufacturer code.
• If you enter a new code number, the code number previ-
ously entered will be erased.
• When you replace the batteries of the remote, the code
number you have set may be reset to the default set-
ting. Set the appropriate code number again.
Manufacturer Code Number
ADMIRAL 16,33,37,44,45
AIWA 70
AKAI 01
AMARK 09
AOC 01
BELL & HOWELL 33
BROKSONIC 18,19
CANDLE 51
CCE 07
CENTURION 08
CINERAL 43
CITIZEN 49,50,51,52,53,54,55
CORONADO 09
CROWN 09
CURTIS MATHES 01,03,08,33,35,37,44
DAEWOO 16,38,39,40,41,42,43
DAYTRON 01,08
EMERSON 01,09,16,17,18,19
FISHER 28,29
FUNAI 46,47
GENERAL ELECTRIC 03,10,11,13,37,44
GRADIENTE 01,56,57,63,67
HITACHI 09,14,15,43
JC PENNEY 01,08,10,27,35
JVC 20,21,63,67
KIOTE 43
KMC 09
KTV 01,08,09,31
LG (GOLDSTAR) 01,07,08,09,35,39,40
LODGENET 33
LOGIK 33
LXI 09,24,25,26,27,28,29
MAGNAVOX 01,02,04,05,06,
07,08,09,20,
34,35,43,51,61,62,65
MAJESTIC 33
MARANTZ 01,32
MEMOREX 33
MGA/MITSUBISHI 01,08,32,34
Manufacturer Code Number
MONTGOMERY
01,06,08,09
WARD
23,24,32,33,34
NEC 01,08
NOBLEX 07
PACKARD BELL 43
PANASONIC 07,11,13,25,35,36
PHILCO 01,06,07,08,09,
15,38,43,58
PHILIPS 06,07,43,61,62,65
PIONEER 30
PORTLAND 09
PROSCAN 03,37,44
QUASAR 11,13
RADIO SHACK 16,17,23
RCA 01,03,37,44,69
REALISTIC 16,17,23
SAMPO 08
SAMSUNG 01,08,09,25,68
SANYO 28,29
SCOTT 01,08
SEARS 09,25,26,27,28,29
SEMP 64
SHARP 09,22,23,24,60,66
SIGNATURE 2000 01,06,08,09,10,
23,24,33,34
SONY 12,62
SOUNDESIGN 51
SYLVANIA 01,04,05,06,07,
08,35,51
SYMPHONIC 46,47
TATUNG 11
TEKNIKA 07,09,16,33,51
TELERENT 09,33
THOMSON 69
YORX 08
TOSHIBA 01,25,26,27,64
WARDS 01,06,08,09,10,33,34
XR1000 48
ZENITH 01, 02,33,59
39
Reference
Reference
Area Code
Afghanistan AF
Argentina AR
Australia AU
Austria AT
Belgium BE
Bhutan BT
Bolivia BO
Brazil BR
Cambodia KH
Canada CA
Chile CL
China CN
Colombia CO
Congo CG
Costa Rica CR
Croatia HR
Czech Republic CZ
Denmark DK
Ecuador EC
Egypt EG
El Salvador SV
Area Code
Ethiopia ET
Fiji FJ
Finland FI
France FR
Germany DE
Great Britain GB
Greece GR
Greenland GL
Islands HM
Hong Kong HK
Hungary HU
India IN
Indonesia ID
Israel IL
Italy IT
Jamaica JM
Japan JP
Kenya KE
Kuwait KW
Libya LY
Luxembourg LU
Area Code
Malaysia MY
Maldives MV
Mexico MX
Monaco MC
Mongolia MN
Morocco MA
Nepal NP
Netherlands NL
Netherlands Antilles AN
New Zealand NZ
Nigeria NG
Norway NO
Oman OM
Pakistan PK
Panama PA
Paraguay PY
Philippines PH
Poland PL
Portugal PT
Romania RO
Russian Federation RU
Area Code
Saudi Arabia SA
Senegal SN
Singapore SG
Slovak Republic SK
Slovenia SI
South Africa ZA
South Korea KR
Spain ES
Sri Lanka LK
Sweden SE
Switzerland CH
Taiwan TW
Thailand TH
Turkey TR
Uganda UG
Ukraine UA
United States US
Uruguay UY
Uzbekistan UZ
Vietnam VN
Zimbabwe ZW
Area Codes
Choose a area code from this list.
Language Code
Abkhazian 6566
Afar 6565
Afrikaans 6570
Albanian 8381
Ameharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Aymara 6588
Azerbaijani 6590
Bashkir 6665
Basque 6985
Bengali; Bangla 6678
Bhutani 6890
Bihari 6672
Breton 6682
Bulgarian 6671
Burmese 7789
Byelorussian 6669
Cambodian 7577
Catalan 6765
Chinese 9072
Corsican 6779
Croatian 7282
Czech 6783
Danish 6865
Dutch 7876
English 6978
Esperanto 6979
Estonian 6984
Faroese 7079
Language Code
Fiji 7074
Finnish 7073
French 7082
Frisian 7089
Galician 7176
Georgian 7565
German 6869
Greek 6976
Greenlandic 7576
Guarani 7178
Gujarati 7185
Hausa 7265
Hebrew 7387
Hindi 7273
Hungarian 7285
Icelandic 7383
Indonesian 7378
Interlingua 7365
Irish 7165
Italian 7384
Japanese 7465
Javanese 7487
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kirghiz 7589
Korean 7579
Kurdish 7585
Laothian 7679
Latin 7665
Latvian, Lettish 7686
Language Code
Lingala 7678
Lithuanian 7684
Macedonian 7775
Malagasy 7771
Malay 7783
Malayalam 7776
Maltese 7784
Maori 7773
Marathi 7782
Moldavian 7779
Mongolian 7778
Nauru 7865
Nepali 7869
Norwegian 7879
Oriya 7982
Panjabi 8065
Pashto, Pushto 8083
Persian 7065
Polish 8076
Portuguese 8084
Quechua 8185
Rhaeto-Romance 8277
Rumanian 8279
Russian 8285
Samoan 8377
Sanskrit 8365
Scots Gaelic 7168
Serbian 8382
Serbo-Croatian 8372
Shona 8378
Sindhi 8368
Language Code
Singhalese 8373
Slovak 8375
Slovenian 8376
Somali 8379
Spanish 6983
Sudanese 8385
Swahili 8387
Swedish 8386
Tagalog 8476
Tajik 8471
Tamil 8465
Tatar 8484
Telugu 8469
Thai 8472
Tibetan 6679
Tigrinya 8473
Tonga 8479
Turkish 8482
Turkmen 8475
Twi 8487
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapük 8679
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 7473
Yoruba 8979
Zulu 9085
Language Codes
Use this list to input your desired language for the following initial settings:
Disc Audio, Disc Subtitle, Disc Menu.
40
T
Troubleshooting
roubleshooting
Symptom
No power.
Abnormal or no picture
Distorted or no sound.
The playback picture is
poor.
Cause
The power cord is disconnected.
The TV is not set to receive DVD+VCR
signal output.
The video cable is not connected
securely.
The HDMI mode is on.
Unit output setting and TV resolution
capabilites mismatch.
Wrong cable connection.
The equipment connected with the
audio cable is not set to receive
DVD+VCR signal outpt.
The audio cables are not connected
securely.
The power of the equipment connected
with the audio cable is turned off.
The AUDIO options are set to the wrong
position.
In HDMI mode, audio selection is not
set to PCM.
The disc is dirty.
The TV channels are not tuned in
properly.
Tape heads are dirty.
Tape is a rental or was recorded on
another VCR.
Correction
Plug the power cord into the wall out-
let securely.
Insert a disc or tape. (Check that the
disc or tape indicator in the display
window is lit.)
Select the appropriate video input
mode on the TV so the picture from
the DVD+VCR player appears on the
TV screen.
Set HDMI on the front panel to OFF.
Check TV capability.
Check mode of connections
(eg. S-Video, Components etc.).
Check unit Resolution setting accord-
ing to TV capability and mode of con-
nection.
Check the connection.
Select the correct input mode of the
audio receiver so you can listen to the
sound from the DVD+VCR.
Connect the audio cable into the jacks
securely.
Turn on the equipment connected with
the audio cable.
Set the AUDIO options to the correct
position.
Change AUDIO setup to PCM mode.
Clean thd disc.
Check tuning, carry out tuning again.
Clean video heads.
Use CH/TRK (+/-) for manual tracking
adjustment while tape is playing.
Check the following guide for the possible cause of a problem before contacting service.
Reference
41
Symptom
The DVD+VCR does
not start playback.
Video tape cannot be
inserted.
No Hi-Fi sound
The remote control
does not work properly.
Camcorder image is
not shown.
Camcorder image via
AV input to DVD+VCR
is not shown on TV
screen.
Timer recording is not
possible.
Cause
No disc is inserted.
No tape is inserted.
An unplayable disc is inserted.
The disc is placed upside down.
The disc is not placed within the
guide.
The disc is dirty.
The Rating level is set.
Is the cassette compartment empty?
Audio mode is not set properly.
There is an obstacle in the path of the
remote control and this unit.
The batteries in the remote control are
exhausted.
The remote control is not pointed at
the remote sensor of the DVD+VCR.
The remote control is too far from the
DVD+VCR.
This remote control use the same
buttons for VCR and DVD functions
(ex.PLAY).
Camcorder is off.
DVD+VCR SOURCE SELECT is not
set to LINE1 or LINE2.
Clock in DVD+VCR is not set to
correct time.
Timer has been programmed
incorrectly.
indicator light does not appear after
programming timer.
Correction
Insert a disc or tape. (Check that the
disc or tape indicator in the display
window is lit.)
Insert a playable disc. (Check the disc
type and Regional code.)
Place the disc with the playback side
down.
Place the disc on the disc tray correctly
inside the guide.
Clean the disc.
Cancel the Rating function or change
the Rating level.
Eject the tape in.
Select STEREO by repeatedly pressing
AUDIO on the remote control.
Remove the obstacle.
Replace the batteries with new ones.
Point the remote control at the remote
sensor of the DVD+VCR.
Operate the remote control within 23ft
(7m).
When using a VCR, first press the VCR
button. When using a DVD, first press
the DVD button.
Turn camcorder on and operate
properly.
Press INPUT to select LINE input
channel (LINE1 or LINE2).
Set clock to correct time.
Reprogram Timer.
Reprogram Timer and turn DVD+VCR
off to enable timer.
42
General
Power requirements 120V, 60 Hz
Power consumption 21 W
Dimensions (approx.) 16.9" X 3.1" X 10.2" (430 X 79 X 260 mm) (w x h x d)
Weight (approx.) 8.8 lbs (4.0 kg)
Operating temperature 5˚C to 40˚C (41˚F to 104˚F)
Operating humidity 5 % to 90 %
Signal system NTSC
Inputs
ANTENNA IN 75 ohms (VHF/UHF/CATV)
VHS VIDEO IN(LINE1, 2) 1 V (p-p) 75 ohms, sync negative, RCA jack x 2
VHS AUDIO IN(LINE1, 2) -6.0 dBm more than 47 ohms, RCA jack (L, R) x 2
Outputs
VIDEO OUT 1 V (p-p) 75 ohms, sync negative
S-VIDEO OUT (Y) 1.0 V (p-p), 75 ohms, negative sync, Mini DIN 4-pin x 1
(C) 0.286 V (p-p) 75 ohms
COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75 ohms, negative sync, RCA jack x 1
(PROGRESSIVE SCAN) (Pb)/(Pr) 0.7 V (p-p), 75 ohms, RCA jack x 2
Audio output (digital audio) 0.5 V (p-p), 75 ohms, RCA jack x 1
Audio output (optical audio) 5 V (p-p), 75 ohms, Optical connector x 1
Audio output (analog audio) 2.0 Vrms (1 KHz, 0 dB), 600 ohms, RCA jack (L, R) x 1
RF OUT Channel 3 or 4 (Adjustable)
VCR Specifications
Head system Four head helical scan azimuth system
Timer 12-hour display type with AM, PM
Tape speed SP: 33.35 mm/sec, LP: 16.67 mm/sec, SLP: 11.12 mm/sec
Tape width 12.7 mm
Maximum recording time SP: 2 HOURS (T-120), SLP: 6 HOURS (T-120)/8 HOURS (T-160)
Rewind time About 3 minutes (T-120)
Channel coverage VHF: 2-13, UHF: 14-69, CATV: 1-125 (4A, A-W, W+1 - W+84, A-5 - A-1)
Frequency range 20 Hz to 20 kHz
Signal-to-noise ratio More than 43 dB
Dynamic range More than 88 dB
Channel separation More than 60 dB
DVD Specifications
Laser system Semiconductor laser, wavelength 650 nm
Frequency response DVD (PCM 96 kHz): 8 Hz to 44 kHz,
DVD (PCM 48 kHz): 8 Hz to 22 kHz
CD: 8 Hz to 20 kHz
Signal-to-noise ratio More than 100 dB (ANALOG OUT jacks only)
Harmonic distortion Less than 0.008%
Dynamic range More than 95 dB (DVD/CD)
Accessories:
Video cable x 1, Audio cable (L/R) x 1, RF 75-ohm Coaxial Cable x 1, Remote control x 1, Batteries (R03/AAA) x 2
•Design and specifications are subject to change without prior notice.
Specifications
Specifications
LG ELECTRONICS U.S.A., INC. GS# 3835RV00???
1000 SYLVAN AVENUE Printed in Indonesia
ENGLEWOOD CLIFFS, NJ lssue O
LG
DVD/VCR LIMITED WARRANTY - USA
The manufacturer will repair or replace your product, at the manufacturer’s option, if it proves to be defective in
material or workmanship under normal use, during the warranty period (“Warranty Period”) listed below, effective
from the date (“Date of Installation”) of original consumer purchase of the product. This warranty is good only to the
original purchaser of the product and effective only when used in the United States, excluding U.S. Territories.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE
EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS
WARRANTY PERIOD ABOVE. LG WILL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT, OR INCI-
DENTAL DAMAGES OF ANY KIND, INCLUDING LOST REVENUES OR PROFITS, IN CONNECTION WITH THE
PRODUCT. SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS OR
THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY DOES NOT APPLY TO:
• Damages or operating problems that result from shipping, installation, adjustment of user controls, calibration,
maintenance or failure to maintain, or separate system components; and
• Damages or operating problems that result from normal wear and tear, misuse, abuse, operation outside envi-
ronmental specifications or contrary to the requirements or precautions in the Operating Guide, accident, light-
ning strikes or other natural causes, unauthorized modification or alteration, incorrect electrical current or volt-
age, signal reception or input, software not licensed directly by LG, software errors that do not disable function-
ality, operating and software protocols adopted after the date of manufacture or for outside the US, institutional
or commercial use, or other causes not arising out of defect in material or workmanship.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
CUSTOMER INTER-ACTIVE CENTER NUMBERS:
FOR WARRANTY SERVICE:
You must call 1-800-243-0000 (24 hours a day, 365 days per year) and select an appropriate option from the menu
to confirm the product is defective and to obtain a Return Authorization (RA). If the defect has occurred during the
first 90 days of the Warranty Period, you will be sent a return-shipping label. After you obtain an RA for return,
please box your unit with a legible copy of the sales receipt and enough packing material to ensure undamaged
delivery of your product. When you receive the label, place it on the box and call the 800# in the instructions for
pick-up. When your unit is received, the manufacturer will replace your unit in accordance with this Limited Warranty.
ADVANCE SHIPMENT. If a replacement unit is available and you want second day delivery, our service representa-
tive will ask for your credit card number. A reserved deposit by credit card is required as surety for such advance
shipment. Your credit card will not be charged if you return the defective unit in 10 business days. For advance ship-
ment, the return label will come with the replacement unit sent to you. Please follow boxing and shipping instructions
above.
WARRANTY PERIOD:
LABOR: 90 DAYS from the Date of Purchase.
PARTS: ONE YEAR from the Date of Purchase.
Replacement Units is warranted for the remaining
period of the original warranty.
HOW SERVICE IS HANDLED:
This is an Exchange Product. Call 1-800-243-0000 for
instructions on getting the defective unit replaced.
Please retain dated sales receipt and your box to return
the unit for replacement.
During the first 90 days of the Warranty Period, shipping
charges both ways will be paid by the manufacturer. During
the remainder of the Warranty Period (91-365 days), you
pay in-bound shipping charges and the manufacturer pays
return shipping charges.
Visit our website at http://us.lgservice.com
For Where to buy, Product Assistance, or
Customer Assistance
Call 1-800-243-0000 (24 hours a day, 365 days per year) and select
appropriate options from the menu.
Or visit our website at http://us.lgservice.com
