LG Electronics USA BN315JD DLP Projector User Manual U0029A

LG Electronics USA DLP Projector U0029A

User Manual

P/NO : 38289U0027A
BN315-JD
OWNER’S MANUAL
LG DLP PROJECTOR
LG DLP PROJECTOR
Please read this manual carefully before operating
your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the bottom of the set and
quote this information to your dealer when you
require service.
Model number :
Serial number :
DLP PROJECTOR
DLP PROJECTOR
FCC NOTICE
• A Class A digital device
This equipment has been tested and found to comply with the limits for a Class A digital device, pur-
suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment gen-
erates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Warning
This is a class A product. In a domestic environment this product may cause radio interference, in
which case the user may be required to take adequate measures.
Contents
3
Contents
Introduction
Safety Instructions ..........................................4
Names of parts
Main Body .......................................................7
Connecting Part ..............................................7

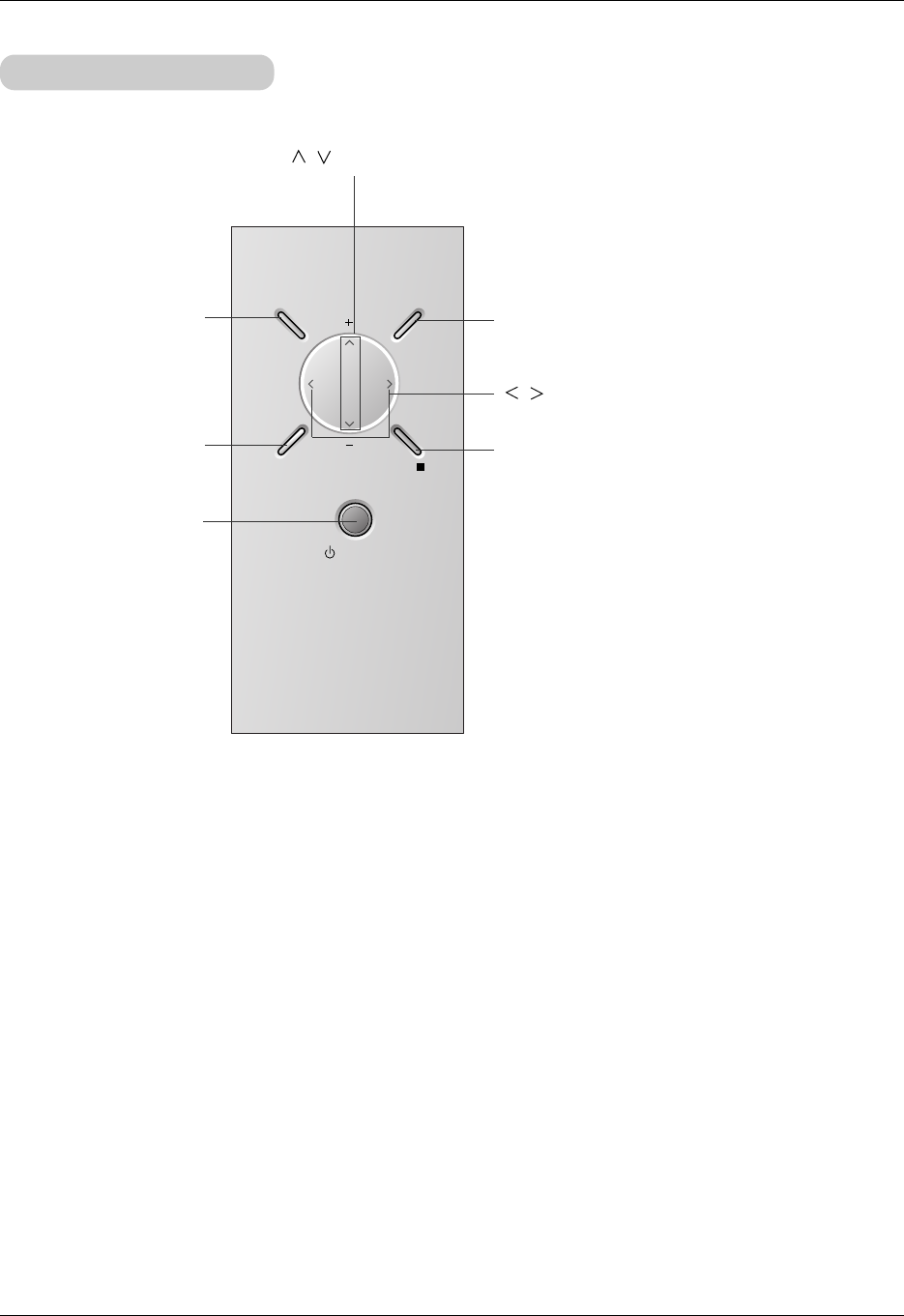

Control Panel ..................................................8
Remote Control...............................................9
Installing Batteries...........................................9
Projector Status Indicators..............................10
Accessories.....................................................11
Optional Extras ...............................................11
Installing and Composition

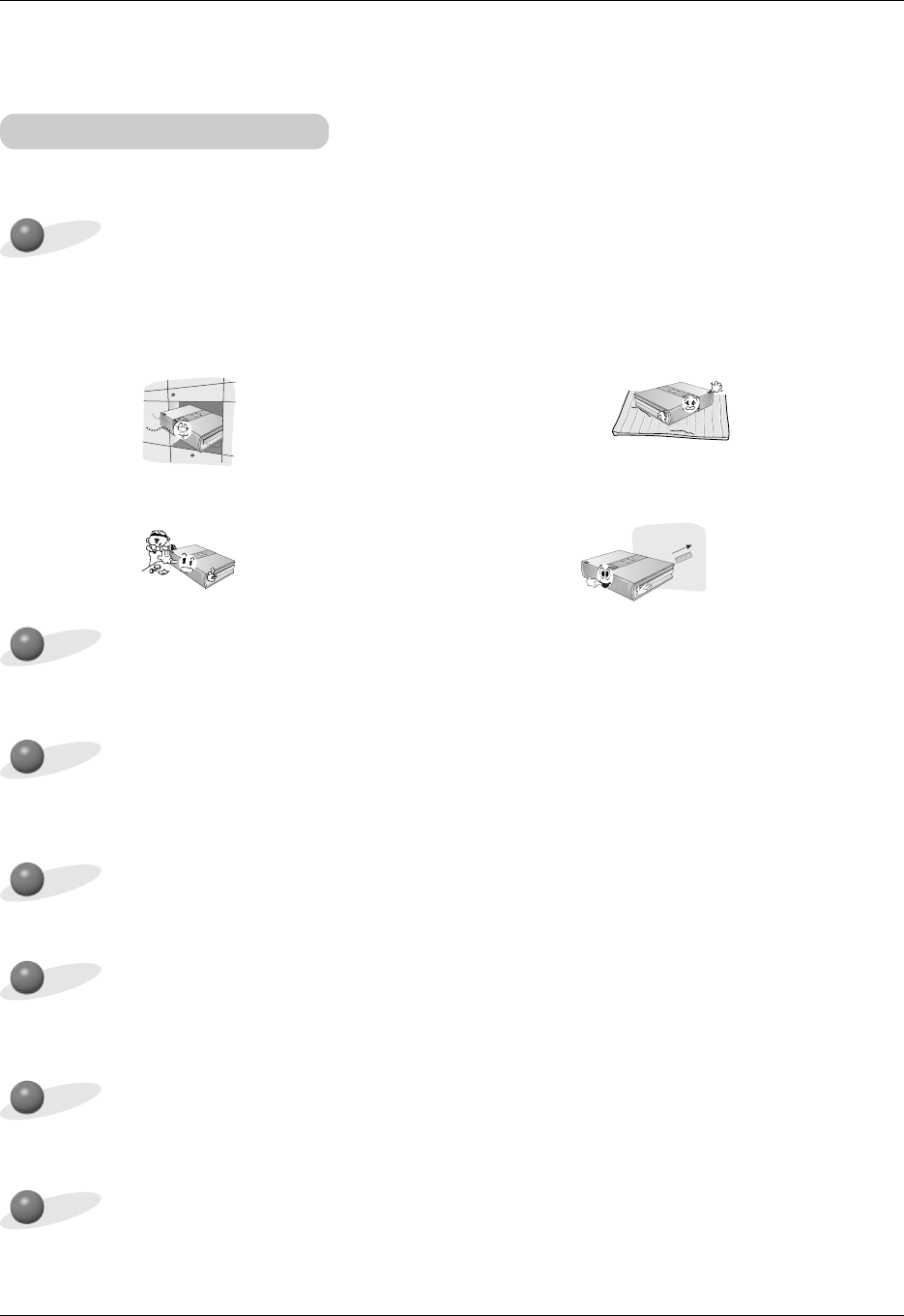

Installation Instructions ...................................12
Basic Operation of the Projector.....................13

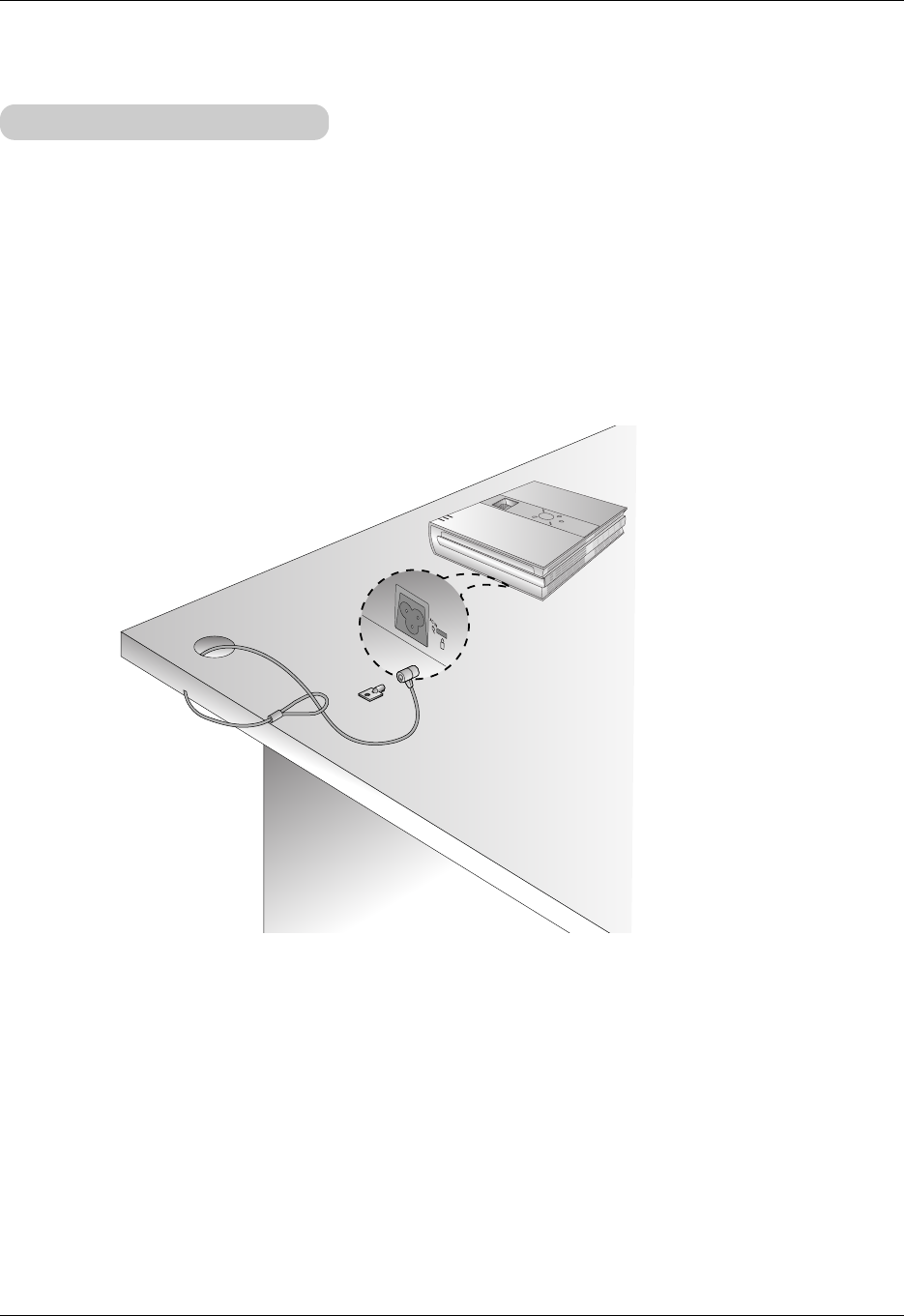

Using Kensington Security System.................14
Turning on the Projector .................................15
Turning off the Projector .................................15

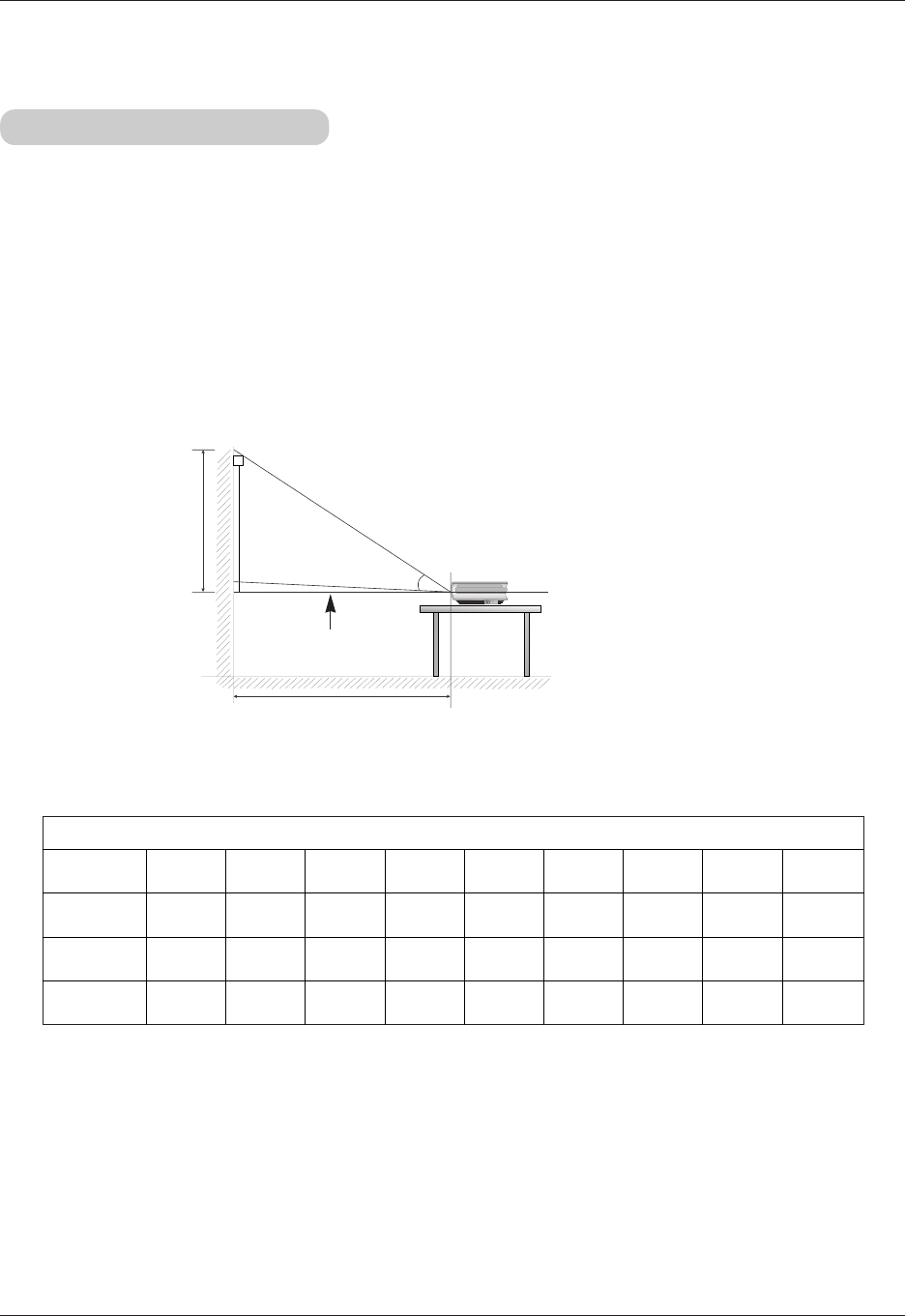

Focus and Position of the Screen Image........16
Selecting source mode ...................................16
Connection
Connecting to a Desktop PC ..........................17
Connecting to a Notebook PC ........................17
Connecting to a Video Source ........................17
Connecting to a DVD ......................................18
Connecting to a D-TV Set-Top Box ................18
Function
Video Menu Options
Adjusting Video ...............................................19
APC (Auto Picture Control).............................19
Auto Color Temperature Control .....................20
Gamma Function ............................................20
White Peaking Function ..................................21
Color Temperature Control..............................21
Color enhancement Control ............................21
Special Menu Options
Selecting language .........................................22
Using ARC Function........................................22
Flip Horizontal Function ..................................23
Flip Vertical Function.......................................23
Auto Sleep Function........................................23
Using Keystone function .................................24
Using Blank function .......................................24
Selecting Blank Image color ...........................24
Lamp Mode Function ......................................25
Checking lamp time ........................................25
Using Still function ..........................................25
Screen Menu Options
Auto configure Function ..................................26
Manual configure ............................................26
Using ZOOM function .....................................27
Screen Position...............................................27
Information
Supported Monitor Display..............................28
Maintenance....................................................29
Memo ..............................................................30
Specifications ..................................................31
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product it
means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately
from the municipal waste stream via designated collection facilities
appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential
negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance,
please contact your city office, waste disposal service or the shop
where you purchased the product.
Safety Instructions
4
Safety Instructions
Please take note of the safety instructions to prevent any potential accident or misuse of the projector.
➟Safety Instructions are given in two forms as detailed below.
WARNING : The violation of this instruction may cause serious injuries and even death.
NOTES : The violation of this instruction may cause light injuries or damage to the projector.
➟After reading this manual, keep it in the place that the user always can contact easily.
Indoor Installation WARNING
Do not place the Projector in direct
sunlight or near heat sources such
as radiators, fires and stove etc.
This may cause a fire hazard !
Do not place inflammable materi-
als beside the projector
This may cause a fire hazard !
Do not allow children to hang on
the installed projector.
It may cause the projector to fall, caus-
ing injury or death.
Outdoor Installation WARNING
Do not use the projector in a damp place such as a bathroom where it is likely to get wet.
This may cause a fire or an electric shock hazard !
Power WARNING
Indoor Installation NOTES
Disconnect from the mains and
remove all connections before
moving.
Do not place the projector close
to sources of steam or oil such
as a humidifier.
This may create a fire hazard or an
electric shock hazard !
Do not place the projector where
it might be exposed to dust.
This may cause a fire hazard !
Earth wire should be connected.
If the earth wire is not connected, there is a
possible danger of electric shock caused by
the current leakage.
If grounding methods are not possible, a
separate circuit breaker should be employed
and installed by a qualified electrician.
Do not connect ground to telephone wires,
lightning rods or gas pipe.
The mains plug should be insert-
ed fully into the power outlet to
avoid a fire hazard !
This may cause a fire hazard !
Do not place heavy objects on
the power cord
This may cause a fire or an electric
shock hazard !
Do not block the vents of the pro-
jector or restrict air-flow in any way.
This would cause the internal tempera-
ture to increase and could cause a fire
hazard!
Do not place the projector directly on a carpet, rug or place where
ventilation is restricted.
This would cause its internal temperature to increase and might create a fire
hazard !
When installing the projector on a
table, be careful not to place it
near the edge.
This may cause the projector to fall
causing serious injury to a child or
adult and serious damage to the
projector.
Only use a suitable stand.
Only use the projector on a level
and stable surface.
It may become unstable and affect
operation.
Ensure good ventilation around the
projector. The distance between
the projector and the wall should
be more than 20cm/8 inches.
An excessive increase in its inter-
nal temperature may cause a fire
hazard!
Safety Instructions
5
Using WARNING
Do not place anything containing
liquid on top of the projector such
as flowerpot, cup, cosmetics or
candle.
This may cause a fire hazard !
In case of impact shock or dam-
age to the projector switch it off
and unplug it from the mains out-
let and contact your service cen-
ter.
This may cause a fire or an electric
shock hazard !
Do not allow any objects to fall
into the projector.
This may cause an electric shock
hazard !
If water is spilt into the projector
unplug it from the mains supply
outlet immediately and consult
your Service Agent.
This may cause an electric shock haz-
ard !
Dispose of used batteries care-
fully and safely.
In the case of a battery being
swallowed by a child please consult a
doctor immediately.
In the event that an image does
not appear on the screen please
switch it off and unplug it from
the mains supply and contact
your Service Agent.
This may cause a fire or an electric
shock hazard !
Do not remove any covers
(except lens cover). High risk of
Electric Shock!
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit; that is,a single outlet circuit which
powers only that appliance and has no additional outlets or branch circuits.Check the specification page
of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets,loose or damaged wall outlets, extension cords,
frayed power cords,or damaged or cracked wire insulation are dangerous.Any of these conditions could
result in electric shock or fire. Periodically examine the cord of your appliance,and if its appearance indi-
cates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced
with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched,
closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the
cord exits the appliance.
Don’t look directly onto the lens
when the projector is in use. Eye
damage may occur!
Do not touch metal parts during or
soon after operation since the
vents and lamp cover will remain
very hot!
Power WARNING
Do not use too many plugs on the Mains multi-outlet.
It may result in overheating of the outlet and causes a fire hazard !
Power NOTES
Never touch the power plug with
a wet hand
This may cause an electric shock
hazard !
Hold the plug firmly when unplug-
ging. If you pull the cord the cord
may be damaged.
This may cause a fire hazard !
Prevent dust collecting on the
power plug pins or outlet.
This may cause a fire hazard !
Do not plug when the power cord
or the plug is damaged or the
connecting part of the power out-
let is loose.
This may cause a fire or an electric
shock hazard !
Ensure the power cord does not
come into contact with sharp or
hot objects such as a heater.
This may cause a fire or an electric
shock hazard !
Place the projector where people
will not trip or tread on the power
lead.
This may cause a fire or an electric
shock hazard !
Do not turn the projector On/Off by plugging-in or unplugging the power plug to the wall outlet.
(Do not use the power plug for switch.)
It may cause mechanical failure or could give an electric shock.
Safety Instructions
6
Using NOTES
Do not place heavy objects on
top of projector.
This may cause mechanical failure or
personal injury!
Take care not to cause impact to
the lens particularly when moving
the projector.
Do not touch the lens of the pro-
jector. It is delicate and easily
damaged.
Others NOTES
Be sure to unplug if the projector
is not to be used for a long peri-
od.
Accumulated dust may cause a fire
hazard!
Refer lamp servicing to qualified
service personnel.
Do not mix new batteries with old
batteries.
This may cause the batteries to over-
heat and leak.
Cleaning NOTES
Contact the Service Center once
a year to clean the internal parts
of the projector.
Accumulated dust can cause mechan-
ical failure.
Unplug this product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners.
This may cause damage to the Projector or cause an electric shock hazard !
Do not use any sharp tools on the projector as this will damage the casing.
Cleaning WARNING
Do not use water while cleaning
the projector
This may cause damage to the
projector or an electric shock hazard.
In the unlikely event of smoke or
a strange smell from the projec-
tor, switch it off , unplug it from
the wall outlet and contact your
dealer or service centre.
This may cause a fire or an electric
shock hazard !
Use an air spray or soft cloth that
is moist with a neutral detergent
and water for removing dust or
stains on the projection lens.
Others WARNING
Do not attempt to service the projector yourself. Contact your dealer or service centre.
This may cause damage to the projector and could give an electric Shock as well as invalidating the warranty !
Only use the specified type of battery.
This could cause damage to the remote control.
Never touch the wall outlet when
there is leakage of gas, open the
windows and ventilate.
It can cause a fire or a burn by a
spark.
Do not drop the projector or allow
impact shock.
This may cause mechanical failure or
personal injury !
Don’t look at laser beam directly
as it can cause eye damage!
Using WARNING
Names of parts
7
Names of parts
Main Body
Connecting Part
AUTO
SOURCE
POWER
KEYSTONE
KEYSTONE
MENU
OK
Indicators
Front remote control sensor
Power button
Foot adjusting button
Foot adjusting button
Rear remote control sensor
Control panel
*
The projector is manufactured using high-precision technology. You may, however, see on the Projector
screen tiny black points and/or bright points (red, blue, or green). This can be a normal result of the
manufacturing process and does not always indicate a malfunction.
Focus ring
Zoom ring
Lens cover
* Push the lens cover into the inside after pulling it open into the
front. (If you mount on the ceiling, after pushing the cover, the lens
cover is installed. If not, the cover may overlap projecting lens.)
HDMI S-Video
SVC Only
RGB Input
(PC/DTV) Component(Pb, Pr, Y)/ Video
AC IN
Kensington Security
System Connector
(Refer to page 14)
Names of parts
8
Control Panel
AUTO
SOURCE
POWER
MENU
KEYSTONE
KEYSTONE
OK
POWER Button
/, KEYSTONE+/- Button
MENU Button
Selects or closes menus.
AUTO Button
/ Button
Adjusts functions of menus.
SOURCE Button
Switches to RGB, DVI, Video,S-Video mode.
A OK Button
Checks present mode and
saves the change of functions.
Names of parts
9
Remote Control
Installing Batteries
POWER
MENU SOURCE
AUTO
BLANK ARC
STILL
OK
KEYSTONE
KEYSTONE
POWER Button
SOURCE Button
KEYSTONE+/-, D / EButton
AOK Button
ARC Button (Refer to p.22)
STILL Button (Refer to p.25)
AUTO Button (Refer to p.26)
BLANK Button (Refer to p.24)
F /GButton
•Open the battery compartment cover on the back of the
remote control and insert the batteries with correct polarity,
match “+” with “+”, and match “-” with “-”.
•Install two 1.5V “AAA” batteries.
Don’t mix used batteries with new batteries.
MENU Button
Names of parts
10

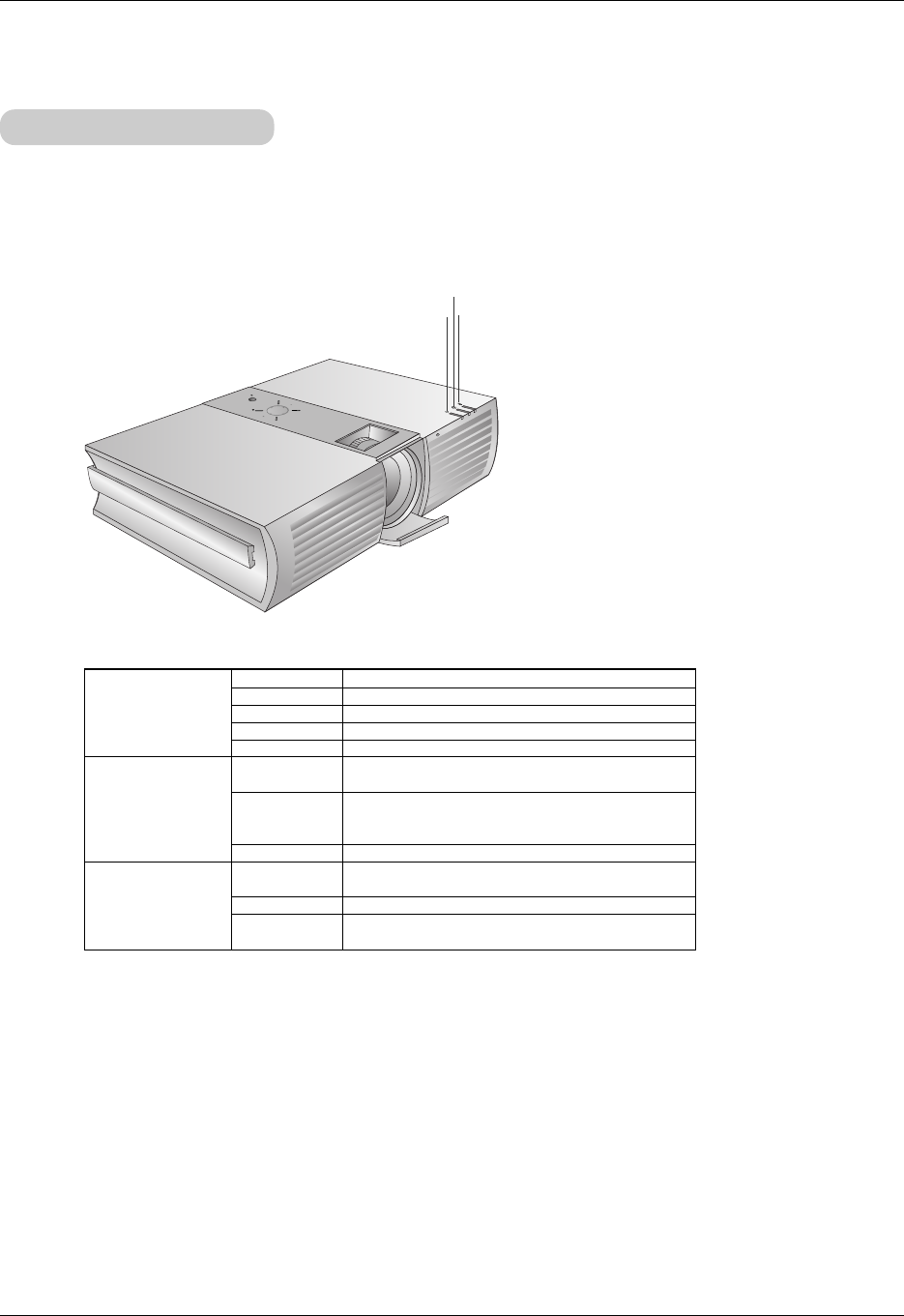

* Lamp Indicator, operation indicator and temperature indicator at the top of the projector show the user the operating status
of the projector.
AUTO
SOURCE
POWER
VOL
VOL
MENU
OK
Lamp Indicator
Temperature Indicator
Operation Indicator
Projector Status Indicators
Operation Indicator
Lamp Indicator
Temperature Indicator
Orange
Green(flashing)
Green
Orange(flashing)
Off
Red
Red(flashing)
Green(flashing)
Orange
Red
Red (flashing)
Standby.
Lamp cooling until the lamp turn on.
On operation. (Turn on the lamp)
Projector lamp is cooling as power out (2 minutes)
Power off.
Projector lamp is reaching the end of its life and needs
to be replaced with a new lamp. (over 2000 hours)
The projector has trouble in the lamp or around it at
power-on. Retry Power On again later. If lamp indicator
is red (flashing) again, contact the service center.
The lamp cover is not closed.
This projector is in high temperature. Turn the power of
projector off and check the ventilator.
The projector is turned off as its high temperature.
Power has turned off due to problem with the
internal cooling fan. Contact your service center.
Names of parts
11
Accessories
Optional Extras
* Contact your dealer to purchase these items.
* When applying a ceiling installer, use only the ceiling installer for projector.
* Contact your service personnel for replacing a new lamp.
* Projector lamp is reaching the end of its life and needs to be replaced with a new lamp.
Remote Control
Power Cord Video Cable
Audio Cable RCA to PC Audio Cable
Operating guide
Computer Cable
SCART to RCA jack (option)
Lamp
Portable Bag
S-Video Cable
Projection Screen
DVI-D Cable RS-232C Cable
1.5V
1.5V
2 Batteries (size AAA)
Ceiling installer for projector
Installing and Composition
12
Installation and Composition
Provide proper ventilation for this projector.
●
The projector is equipped with ventilation holes(intake)
on the bottom and ventilation holes(exhaust) on the front.
do not block or place anything near these holes, or internal
heat build-up may occur, causing picture degradation or
damage to the projector.
Place this projector in adequate temperature and humidity conditions.
●
Install this projector only in a location where adequate temperature and humidity is available. (refer p.31)
●Do not place the projector on a carpet, rug or other
similar surface. It may prevent a adequate ventilation
of the projector bottom. This product should be
mounted to a wall or ceiling only.
*
Don’t place the projector in the following conditions. It may cause malfunction or product damage.
●Never push projector or spill liquid of any kind into the
projector.
●Leave an adequate distance(30cm/12 inches or
more) around the projector.
Don’t place the projector where it can be covered with dust.
●
This may cause overheating of the projector.
Do not obstruct the slots and openings of the projector. This may cause overheating and create a fire
hazard.
The projector is manufactured using high-precision technology. You may, however, see tiny black points
and/or bright points (red, blue, or green) that continuously appear on the projector Screen. This is a nor-
mal result of the manufacturing process and does not indicate a malfunction.
To display DTV programs, it is necessary to connect a DTV receiver (Set-top Box) and connect it to the
projector.
If there is no input signal, the Menu will not be displayed on screen.
Installation Instructions
4:3 picture format mm/ inches
40″60″80″90″100″110″120″150″200″
610/24.0 914/36.0 1219/48.0 1372/54.0 1524/60.0 1676/66.0 1829/72.0 2286/90.0 3048/120.0
1265/50 1908/75 2552/100 2873/113 3195/126 3517/138 3839/151 4804/189 6412/252
1518/60 2290/90 3062/121 3448/136 3834/151 4220/166 4606/181 5765/227 7695/303
Installing and Composition
13
1.Place the projector on a sturdy and horizontal surface with the PC or AV source.
2.Place the projector the correct distance from the screen. The distance between the projector and the
screen determines the actual size of the image.
3.Position the projector so that the lens is set at a right angle to the screen. If the projector is not set at a right
angle, the screen image will be crooked. If this is so then the keystone adjustment may correct this (Refer to
page 24.)
4.Connect the cables of the projector to a wall power socket and other connected sources.
projection distance based on the picture format
Center line of lens
Screen height (X)
Projection distance (D)
Projection off-set ratio:100%
Basic Operation of the Projector
* The longest/shortest distance show status when adjusted by the zoom function.
screen
size
screen
height (X)
The shortest
distance (D)
The longest
distance (D)
Installing and Composition
14
●
The projector has a ‘Kensington’Security System Connector on the back panel. Connect the ‘Kensington’
Security system cable as below.
●
For the detailed installation and use of the Kensington Security System, refer to the user’s guide attached
to the Kensington Security System set.
And for further information, contact http://www.kensington.com, the internet homepage of the
Kensington company that deals with expensive electronic equipments such as notebook PCs or projec-
tors.
●
Kensington Security System is an optional item.
K
Using Kensington Security System
Installing and Composition
15
* Don’t unplug the power cord while the ventilation fan (inlet/outlet) is working. If so, you take longer time by lamp on.
Turning on the Projector
Turning off the Projector
1. Connect power cord correctly.
2. Remove the lens cover of the projector.
3. Press the POWER button on the remote control or top cover.
(Green operation indicator flashes during cooling of the lamp.)
●
It will take about 12 second to display the picture after power on because the projector lamp has to warm up.
●
An image will appear after the operation indicator light turns (Green).
●
Select the source mode with the SOURCE button.
●
Leave the projector plugged in for at least 2 minutes after switching off the projector, as this will allow the lamp
cooling to continue which will help to preserve the lamp life.
1.Press the POWER button on the top cover or remote control.
2.Press the POWER button on the top cover or remote control again to cut off the power.
3.If the operation indicator LED is orange and blinking, do not disconnect the mains supply until the
operation indicator LED is lit up constantly (orange).
●If the operation indicator LED is orange and blinking, the power button on the top cover or on the remote control will not
operate.
Power Off?
Please Press Key Again.
Installing and Composition
16
1. While pressing the foot adjuster button, raise or lower the projector to place the screen image in the proper position.
2. Release the button to lock the foot in its new position.
3. To fine-tune the height of the projector, rotate the front foot to raise or lower it.
After raising the front foot, do not press down on the projector.
When an image appears on the screen, check if it is in focus and fits well to the screen.
●To adjust the focus of the image, rotate the focus ring which is the outer ring on the lens.
●To adjust the size of the image, rotate the zoom ring which is the inner ring on the lens.
AUTO
SOURCE
POWER
VOL
VOL
MENU
OK
Focus ring
Zoom ring
Focus and Position of the Screen Image
Selecting source mode
1. Press the SOURCE button.
2. Each press of the F, Gbutton changes the display as below.
RGB HDMI
Video
Component S-Video
RGB
FG
select OK
To raise or lower the image on the screen, extend or retract the foot at the bottom of the projector
by pushing foot adjuster button as below.
Connection
17
Connection
Connecting to a Desktop PC
* You can connect the projector to a computer of VGA, SVGA, XGA and SXGA output.
* You can use ARC function for the RGB signals of the Aspect Ration 4:3. (For HD wide input signals, you cannot use ARC function.)
* Fundamentally, HD wide input signal is not included in the Spec, so the set may not support HD signal perfectly.
* Refer to page 28 for the supported pc graphic card displays of the projector.
< How to connect >
Connect computer cable to RGB Input (PC/DTV) of the
projector.
Connecting to a Notebook PC
< How to connect >
Connect computer cable to RGB Input (PC/DTV) of the
projector.
* If you set your computer, such as a notebook type IBM PC/AT
compatible, to output the signal to both the display of your
computer and the external monitor, the picture of the external
monitor may not appear properly. In such cases, set the output
mode of your computer to output the signal only to the external
monitor. For details, refer to the operating instructions supplied
with your computer.
Connecting to a Video Source
< How to connect 1 >
a. Connect the Video input jacks of the projector to the output
jacks of the A/V source with Video cable.
< How to connect 2 >
b. Connect the S-Video input jack of the projector to the
S-Video output jack of an A/V source with an S-Video cable.
* You can get better picture quality when connecting
S-Video source to the projector.
S VIDEO
(R) AUDIO (L) VIDEO
OUT
IN
* You can connect a VTR, a camcorder, a LDP or any other compatible video image source to the projector.
<VCR>
Connection
18
Connecting to a DVD
< How to connect >
a. Connect the DVD Component cable to Component Pb, Pr, Y
of the projector.
* When connecting the component cable, match the jack colors
with the component cable.(Y=green, PB=blue, PR=red)
b. Use a DVD with Component 480i(576i)/480p(576p) mode.
PR
PB
Y
(R) AUDIO (L)
* The output jacks (Y, PB, PR) of the DVD might be labelled as Y, Pb, Pr / Y, B-Y, R-Y / Y, Cb, Cr according to the equipment.
<DVD>
Component cable
Component cable
Connecting to a D-TV Set-Top Box
< How to connect an RGB source >
a. Connect computer cable to RGB Input (PC/DTV) of the
projector.
b. Use a DTV receiver with DTV 480p(576p)/720p/1080i mode.
* It can be supported the DVI/HDCP.
< How to connect a Component source >
a. Connect the D-TV Set-Top Box Component cable to
Component Pb, Pr, Y of the projector.
* When connecting the component cable, match the jack colors
with the component cable.(Y=green, PB=blue, PR=red)
b. Use a DTV receiver with DTV 480p(576p)/720p/1080i mode.
(R) AUDIO (L)
DTV OUTPUT DVI OUTPUT
PR
PB
Y
(R) AUDIO (L)
DTV OUTPUT DVI OUTPUT
PR
PB
Y
* To receive D-TV programmes, it is necessary to purchase a D-TV receiver (Set-Top Box) and
connect it to the projector.
* Please refer to the owner's manual of the D-TV Set-Top Box for the connection between projector and
D-TV Set-Top Box.
<D-TV Set-Top Box>
Function
19
Function

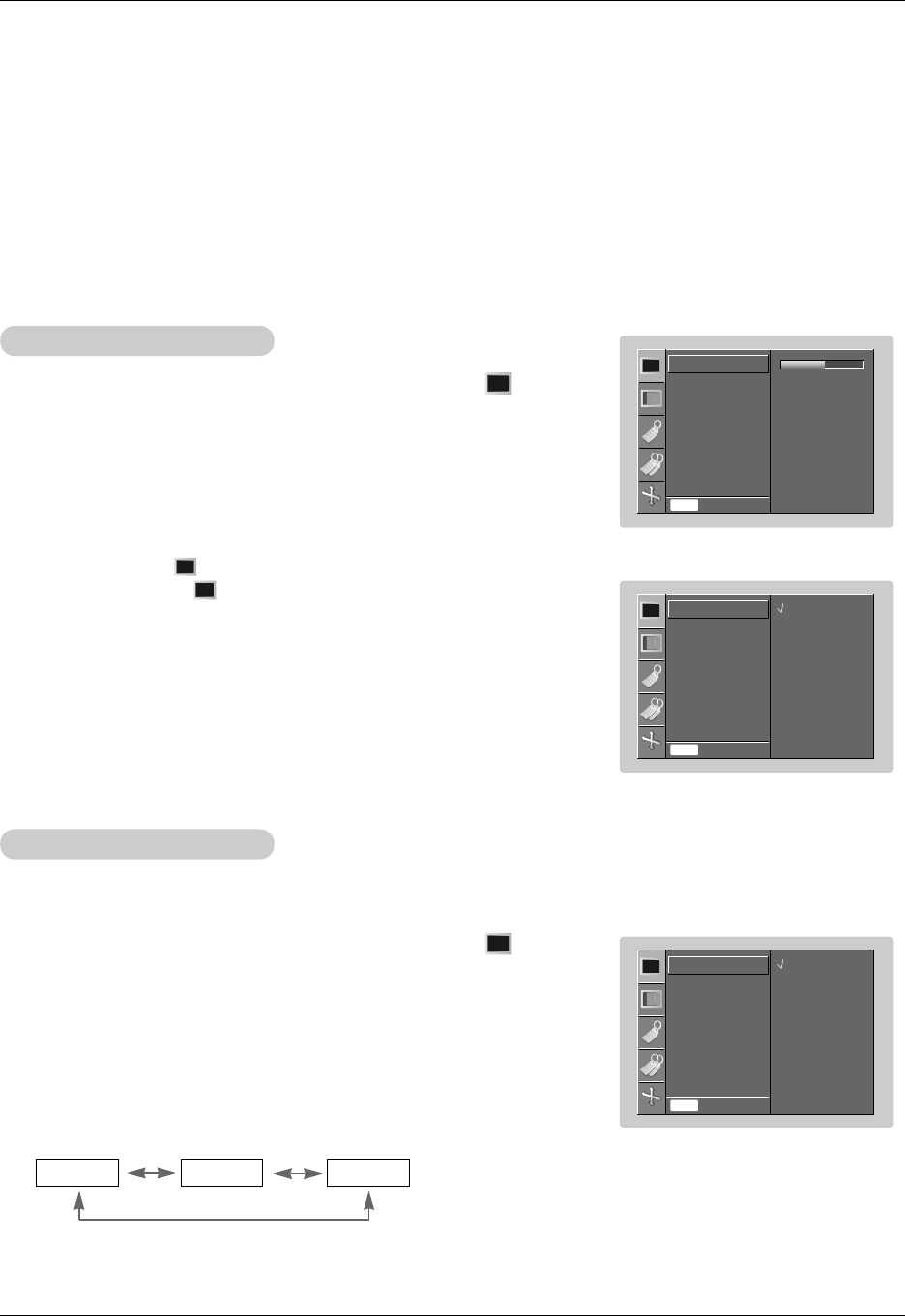

Video Menu Options
* In this manual, the OSD(On Screen Display) may be different from your Projector’s because it is just example to help
with the Projector operation.
* If there is no input signal present, the Menu will not be displayed on the screen.
* This operating guide explains operation of RGB(PC) mode mainly.
1. Press the MENU button and then use D, Ebutton to select the menu.
2. Press the Gbutton and then use D, Ebutton to select a video item you
want to adjust.
3. Press the F, Gbutton to adjust the screen condition as you want.
4. Press the AOK button to save.
< RGB mode >
< Video mode >
●Each adjustment of menu options will not affect other input source.
As required, re-adjust menu options for the following input source :
Video/S-Video/Component (480i(576i)), Component (480p(576p), 720p, 1080i)
●To restore the original image condition after changing it, press AOK button
after selecting [Reset] item.
●In the broadcasting system NTSC, the picture item Tint is displayed and can
be adjusted.
●To exit the menu display, repeatedly, press the MENU button.
Adjusting Video
1. Press the MENU button and then use D, Ebutton to select the menu.
2. Press the Gbutton and then use D, Ebutton to select APC item.
3. Press the Gbutton and then use D, Ebutton to adjust the screen
condition as you want.
4. Press the AOK button to save.
APC (Auto Picture Control)
* Use APC to set the projector for the best picture appearance.
* This function will not work in RGB mode.
●Each press of the D, Ebutton changes the screen as shown below.
● To exit the menu display, repeatedly, press the MENU button.
Clear Soft User
Contrast 50
Brightness 50
Reset
Menu Prev.
Contrast 50
G
APC
Contrast 80
Brightness 50
Sharpness 50
Menu Prev.
APC
G
Clear
Soft
User
APC
Contrast 80
Brightness 50
Sharpness 50
Menu Prev.
APC
G
Clear
Soft
User
Function
20
1. Press the MENU button and then use D, Ebutton to select the menu.
2. Press the Gbutton and then use D, Ebutton to select ACC item.
3. Press the Gbutton and then use D, Ebutton to make appropriate adjustments.
4. Press the AOK button to save.

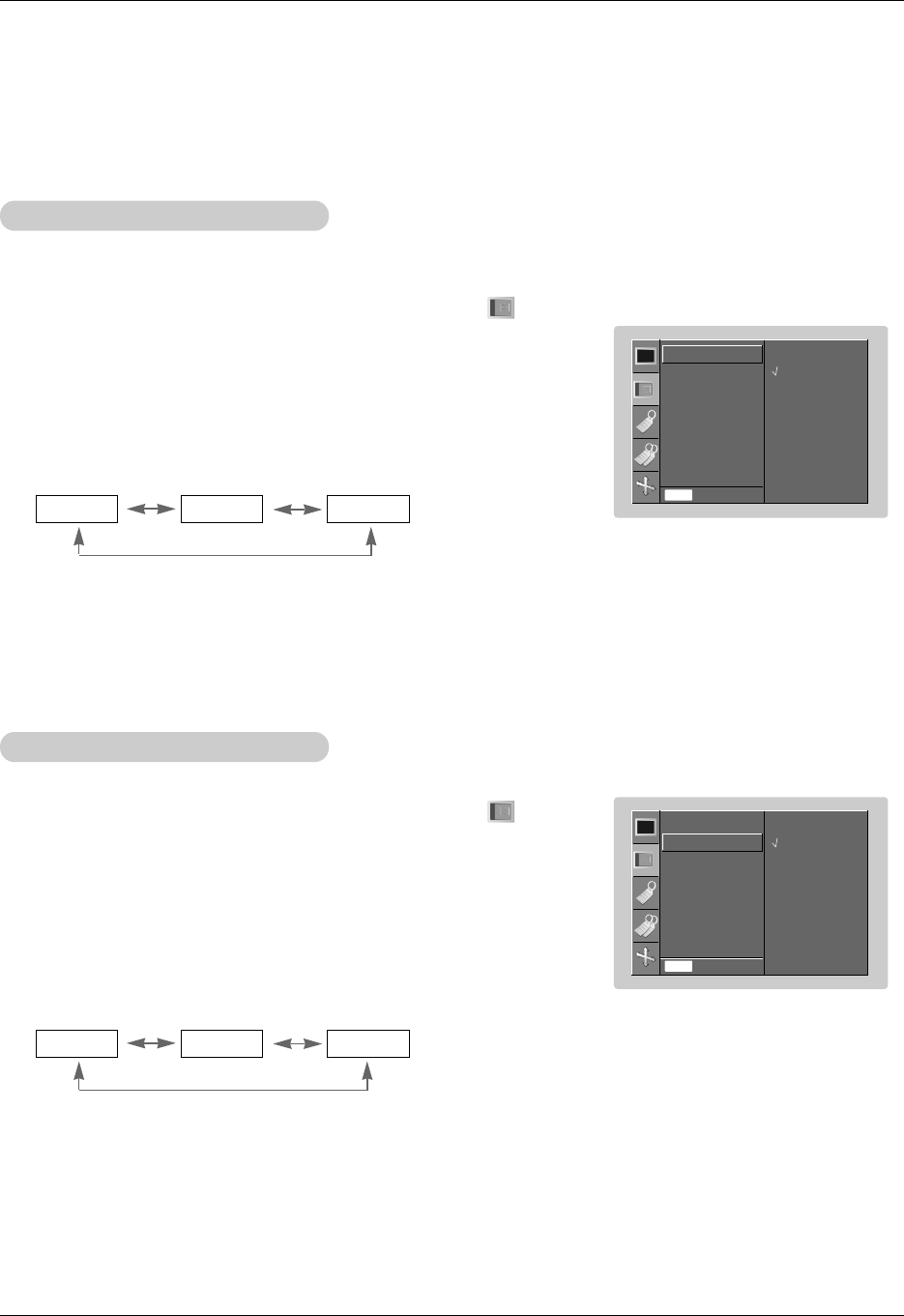

Auto Color Temperature Control
●Each press of the D, Ebutton changes the screen as shown below.
● To exit the menu display, repeatedly, press the MENU button.
Cool Normal Warm
- To initialize values (reset to default settings), select the Normal option.
ACC
Gamma
White peaking 10
Color temp.
Color enhancement
Reset
Menu Prev.
ACC G
Cool
Normal
Warm
1. Press the MENU button and then use D, Ebutton to select the menu.
2. Press the Gbutton and then use D, Ebutton to select Gamma item.
3. Press the Gbutton and then use D, Ebutton to adjust the screen condition as
you want.
4. Press the AOK button to save.
Gamma Function
●Each press of the D, Ebutton changes the screen as shown below.
● To exit the menu display, repeatedly, press the MENU button.
Normal Film Sports
ACC
Gamma
White peaking 10
Color temp.
Color enhancement
Reset
Menu Prev.
Normal
Film
Sports
Gamma G
Function
21

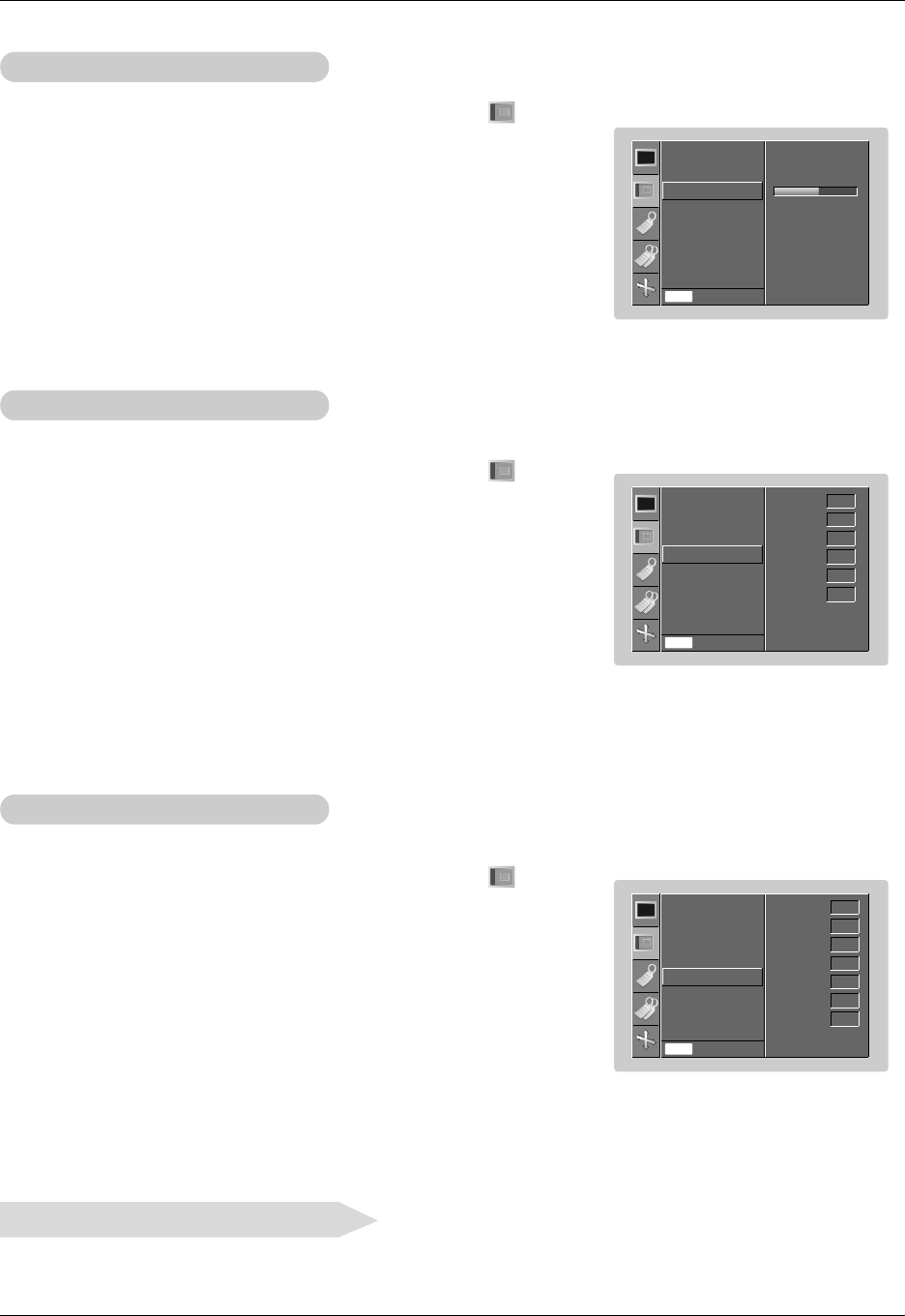

* You can adjust color to any color temperature you prefer.
* You can adjust color to any color enhancement you prefer.
1. Press the MENU button and then use D, Ebutton to select the menu.
2. Press the Gbutton and then use D, Ebutton to select Color temp. item.
3. Press the Gbutton and then use D, Ebutton to select Gain R, Gain G, Gain B
or Offset R, Offset G, Offset B.
4. Use the F, Gbutton to make appropriate adjustments.
●The Gain R, Gain G, Gain B adjustment range is 0 ~ 100.
●The Offset R, Offset G,Offset B adjustment range is -50 ~ +50.
5. Press the AOK button to save.
●To exit the menu display, repeatedly, press the MENU button.
ACC
Gamma
White peaking 10
Color temp.
Color enhancement
Reset
Menu Prev.
Gain R
Gain G
Gain B
Offset R
Offset G
Offset B
50
50
50
0
0
0
Color temp. G
1. Press the MENU button and then use D, Ebutton to select the menu.
2. Press the Gbutton and then use D, Ebutton to select Color enhancement item.
3. Press the Gbutton and then use D, Ebutton to select Color, Red, Green or
Blue, Yellow, Cyan, Magenta.
4. Use the F, Gbutton to adjust the screen condition as you want.
●The adjustment range of Color, Red, Green and Blue, Yellow, Cyan,
Magenta is 0~ 100.
5. Press the AOK button to save.
●To exit the menu display, repeatedly, press the MENU button.
●To restore the original image condition after changing it, press AOK button after selecting [Reset] item.
ACC
Gamma
White peaking 10
Color temp.
Color enhancement
Reset
Menu Prev.
Color
Red
Green
Blue
Yellow
Cyan
Magenta
50
50
50
50
50
50
50
Color enhancement
G
Color Temperature Control
Color enhancement Control
Reset (Reset to original factory value)
1. Press the MENU button and then use D, Ebutton to select the menu.
2. Press the Gbutton and then use D, Ebutton to select White peaking item.
3. Press the F, Gbutton to adjust the screen condition as you want.
4. Press the AOK button to save.
●It’s available to adjust [White peaking] in RGB(PC) and HDMI(DVI) mode only.
●The default value may changed based on input mode.
●Adjust to higher value to see the bright picture and adjust to lower value to
see the quality picture.
●To exit the menu display, repeatedly, press the MENU button.
White peaking Function
ACC
Gamma
White peaking 10
Color temp.
Color enhancement
Reset
Menu Prev.
White peaking
5
G
Function
22
Special Menu Options
1. Press the MENU button and then use D, Ebutton to select the menu.
2. Press the Gbutton and then use D, Ebutton to select Language item.
3. Press the Gbutton and then use D, Ebutton to select the language you want
to use.
4. Press the AOK button to save.
●On-Screen-Display (OSD) is marked in the selected language from this point.
●To exit the menu display, repeatedly, press the MENU button.
Selecting Language
1. Press the ARC button.
Each press of the button changes the display as below.
Using ARC Function
You can also use this function by using the MENU button.
16:9
Zoom1
Full
Full 16:9
4 : 3
Zoom2
Language
ARC
Flip horizontal
Flip vertical
Auto sleep
Menu Prev.
Language
G
English
Deutsch
Français
Italiano
Español
Svenska
Português
4:3
Zoom1Zoom2
Function
23
Flip horizontal Function
* This function reverses the projected image horizontally.
Use this function when rear projecting an image.
1. Press the MENU button and then use D, Ebutton to select the menu.
2. Press the Gbutton and then use D, Ebutton to select Flip horizontal item.
3. Press the Gbutton to see reversed image.
●Each time you press the Gbutton, the image will be reversed.
●To exit the menu display, repeatedly, press the MENU button.
Language
ARC
Flip horizontal
Flip vertical
Auto sleep
Menu Prev.
Flip horizontal
G
To flip
Flip Vertical Function
* This function reverses the projected image vertically.
* When you hang the projector upside down from the ceiling ,
you will need to reverse the image vertically and horizontally.
1. Press the MENU button and then use D, Ebutton to select the menu.
2. Press the Gbutton and then use D, Ebutton to select Flip Vertical item.
3. Press the Gbutton to see reversed image.
●Each time you press the Gbutton, the image will be reversed.
●To exit the menu display, repeatedly, press the MENU button.
Language
ARC
Flip horizontal
Flip vertical
Auto sleep
Menu Prev.
Flip vertical
G
To flip
* The sleep timer turns the projector off at the preset time.
1. Press the MENU button and then use D, Ebutton to select the menu.
2. Press the Gbutton and then use D, Ebutton to select Auto sleep item.
3. Press the Gbutton and then use D, Ebutton to select the wanted preset time.
4. Press the AOK button to save.
●To exit the menu display, repeatedly, press the MENU button.
Auto sleep Function
Language
ARC
Flip horizontal
Flip vertical
Auto sleep
Menu Prev.
Auto sleep
G
Off
10 Min
20 Min
30 Min
60 Min
90 Min
120 Min
180 Min
240 Min
Function
24
Special Menu Options
1. Press the KEYSTONE + or KEYSTONE - button.
2. Press the KEYSTONE + or KEYSTONE - button to adjust the screen
condition as you want.
●Keystone are adjusted from -20 to +20.
●You can also use this function by using the MENU button.
Using Keystone function
* Use this function when the screen is not at a right angle to the projector and the image is a trapezoid shape.
* Only use the Keystone function when you can’t get the best angle of projection, because it may cause a blazing fire
of the screen.
Keystone 0 FG
1. Press the BLANK button.
●The screen turns off to a background color.
●You can choose the background color.
(Refer to ‘Selecting blank image color’)
2. Press any button to cancel the blank function.
Using Blank function
* This function may be effective if you need to get attention of the audience during presentations, meetings or briefings.
1. Press the MENU button and then use D, Ebutton to select the menu.
2. Press the Gbutton and then use D, Ebutton to select Blank image item.
3. Press the Gbutton and then use D, Ebutton to select the color you want to use.
4. Press the AOK button to save.
●Background color will be changed to the selected Blank function color from
this point.
●To exit the menu display, repeatedly, press the MENU button.
Selecting Blank image color
Keystone 0
Blank image
Lamp mode
Lamp time
Menu Prev.
Blue
Black
Green
Logo
Blank image
G
Function
25
1. Press the MENU button and then use D, Ebutton to select the menu.
2. Press the Gbutton and then use D, Ebutton to select Lamp mode item.
3. Press the Gbutton and then use D, Ebutton to select Normal mode or
Silent mode.
4. Press the AOK button to save.
●To exit the menu display, repeatedly, press the MENU button.
1. Press the MENU button and then use D, Ebutton to select the menu.
2. Press the Gbutton and then use D, Ebutton to select Lamp time item.
●
The used lamp time is displayed.
●
When projector lamp is reaching the end of its life (over 4000 hours), the lamp indicator will
be turned red.
●
The lamp warning LED illuminates red continuously in the case of excessive lamp time.
●
To exit the menu display, repeatedly, press the MENU button.
Lamp mode Function
Keystone 0
Blank image
Lamp mode
Lamp time
Menu Prev.
Normal mode
Silent mode
Lamp mode
G
Checking Lamp time
Keystone 0
Blank image
Lamp mode
Lamp time
Menu Prev.
Lamp time
Hr
10
1. Press the STILL button.
* You can freeze the input image.
2.
To exit Pause, press any button .
* The STILL function would release automatically after about 10 minutes.
Using Still function
<Moving Image> <Still Image>
Function
26
1. Press the MENU button and then use D, Ebutton to select the menu.
2. Press the Gbutton and then use D, Ebutton to select Manual configure
item.
3. Press the Gbutton and then use D, Ebutton to select Phase, Clock,
H Position or V Position.
4. Press the F, G button to adjust the screen condition.
●The Phase adjustment range is 0 ~ 63.
●The Clock adjustment range is -50 ~ +50.
●Based on the input mode, the adjustment range may be changed.
5. Press the AOK button to save.
●To exit the menu display, repeatedly, press the MENU button.
*It’s available to adjust [Manual Configure] in RGB mode only.
*Phase Function
This function is for the detailed adjustment of the clock function.
*Clock Function
This function adjusts the horizontal width of the projected image to get the image to fit on the screen size.
Manual configure
1. Press the AUTO button.
●Image positioning and synchronization are automatically adjusted.
2. Adjust Manual configure in menu after operation of Auto configure
if you want to get better picture quality in accordance with diverse PC
input modes. In certain circumstances, you can’t get the best picture
quality only with auto-correction.
Auto configure Function
* This function assures you of getting the best video quality by automatically adjusting the difference of horizontal size and
synchronization of the image.
* Auto Tracking function works in RGB input only.
Auto Configure
You can also use this function by using the MENU button. (Only in RGB mode)
For best results, perform this function while displaying a still image.
Screen Menu Options
Auto configure
Manual configure
Zoom +/-
Position
Reset
Menu Prev.
Manual configure
G
Phase
Clock
H Position
V Position
32
0
0
0
Function
27
1. Press the MENU button and then use D, Ebutton to select the menu.
2. Press the Gbutton and then use D, Ebutton to select Zoom +/- item.
3. Press the Gbutton and then use F, G button to zoom in or out the picture size
condition as you want.
●Zoom +/-adjustment range is 100% ~ 250%.
●To exit the menu display, repeatedly, press the MENU button.
Auto configure
Manual configure
Zoom +/-
Position
Reset
Menu Prev.
Zoom +/-
G
1. Press the MENU button and then use D, Ebutton to select the menu.
2. Press the Gbutton and then use D, Ebutton to select Position item.
3. Press the Gbutton and then use D, E, F,Gbutton to adjust the position.
4. Press the AOK button to save.
●To exit the menu display, repeatedly, press the MENU button.
* You are available o this function after adjusting Zoom +/-.
Screen Position
Using ZOOM function
Auto configure
Manual configure
Zoom +/-
Position
Reset
Menu Prev.
Position
GD
E
FG
●To restore the original image condition after changing it, press AOK button after selecting [Reset] item.
●You can initialize Manual configure, Zoom +/-, Position.
Reset (Reset to original factory value)
FG
100%
Function
28
Supported Monitor Display
Component-*1 RGB(DTV)-*2Signal
<DVD/DTV Input>
* Cable type
1- RCA to D-Sub Adaptor
2- Computer Cable
NTSC(60Hz)
480i
480p
720p
1080i
PAL(50Hz)
576i
576p
1080i
O
O
O
O
O
O
O
X
O
O
O
X
O
O
Sources Format Vertical Freq.(Hz) Horizontal Freq. (kHz)
VGAEGA 640X350 70.090Hz 31.468kHz
640X350 85.080Hz 37.861kHz
PC98 / VGA text
640X400 70.090Hz 31.468kHz
640X400 85.080Hz 37.861kHz
720X400 70.082Hz 31.469kHz
720X400 85.039Hz 37.927kHz
VGA 640X480 59.940Hz 31.469kHz
640X480 72.800Hz 37.861kHz
640X480 75.00Hz 37.500kHz
640X480 85.008Hz 43.269kHz
SVGA 800X600 56.250Hz 35.156kHz
800X600 60.317Hz 37.879kHz
800X600 72.188Hz 48.077kHz
800X600 75.00Hz 46.875kHz
800X600 85.061Hz 53.674kHz
XGA 1024X768 60.004Hz 48.363kHz
1024X768 70.069Hz 56.476kHz
1024X768 75.029Hz 60.023kHz
1024X768 84.99Hz 68.677kHz
SXGA 1152X864 60.053Hz 54.348kHz
1152X864 70.01Hz 63.995kHz
1152X864 75.00Hz 67.500kHz
1280X960 60.00Hz 60.00kHz
1280X1024 60.020Hz 63.981kHz
* The following table lists the display formats supported by the projector.
* If the projector does not support the input signal, “Out of Range” message appears on the screen.
* The projector supports DDC1/2B type as Plug & Play function. (Auto recognition of PC monitor)
* The Synchronization input form for horizontal and vertical frequencies are Separate, Composite and SOG.
* According to PC, the optimum vertical frequency may not be displayed up to the optimum frequency of set in
‘Registration information (Display registration information)’. (ex, The optimum vertical frequency may be displayed
up to 75Hz or under in the resolution of 640X480 or 800X600.)
Information
29
Maintenance
Cleaning the lens
Clean the lens whenever you notice dirt or dust on the surface of it. Wipe the lens surface gently with an air spray or a soft,
dry lint-free cloth.
To remove dirt or stains on the lens, moisten a soft cloth with water and a neutral detergent and wipe the lens surface gently.
Cleaning the Projector Case
To clean the projector case, first unplug the power cable. To remove dirt or dust, wipe the casing with a soft, dry, lint-free cloth. To remove
stubborn dirt or stains, moisten a soft cloth with water and a neutral detergent and then wipe the casing.
Do not use alcohol, benzene, thinners or other chemical detergents as these can cause the casing to be warped or discolored.
* The projector needs little maintenance. You should keep the lens clean because any dirt or stains may appear
on the screen. If any parts need to be replaced, contact your dealer. When cleaning any part of the projector,
always turn the power off and unplug the projector first.
Information
30
Memo
Information
31
Specifications
Operating Condition Projector Lamp
MODEL
resolution
horizontal / vertical ratio
DLP panel size
screen size
remote control distance
speaker system
zoom ratio
Video compatibility
Power
height(mm/inches)
breadth(mm/inches)
length(mm/inches)
1024(Horizontal) x 768(Vertical)pixel
4:3(horizontal:vertical)
0.7 inches
1.01~5.08m(40~200 inches)
12m
1W(mono)
1:1.2
NTSC/PAL/SECAM/NTSC4.43/PAL-M/PAL-N
AC 100 - 240V~50/60Hz, 3A-1A, 260W
100.7/3.9
330/12.9
220.1/8.7
BN315-JD
temperature
In operation : 32~95°F(0°C~35°C)
In storage and transit : -4~140°F(-20°C~60°C)
humidity
In operation : 0~ 80% relative humidity by dry hygrometer
Not in operation : 0 ~ 90% relative humidity by dry hygrometer
lamp model
AJ-LT91
lamp power consumption
LAMP Replacement
WARNING : Lamp is no user replaceable part.
Do not touch and open the lamp replace cover of
bottom enclosure. It could cause injury and electric
shock due to high temperature and voltage.
Only service personnel can replace lamp after
minimum 3 min. from disconnect mains plug to
avoid injury cause by high temperature of lamp.
* Applicable Lamp: Manufactured by USHIO Inc.,
type NSH200LG
200W
P/NO : 38289U0027A
BN315-JD
OWNER’S MANUAL
LG DLP PROJECTOR
LG DLP PROJECTOR
Please read this manual carefully before operating
your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the bottom of the set and
quote this information to your dealer when you
require service.
Model number :
Serial number :
