OWNER’S MANUAL
CINEMA 3D MONITOR
D2242P
D2542P
Please read this manual carefully before operating
your set and retain it for future reference.
CINEMA 3D MONITOR MODEL
ENGLISH
2
ENG
ENGLISH
TABLE OF CONTENTS
CONTENTS
3 ASSEMBLING AND PREPARING
3 Unpacking
4 Parts and buttons
6 Setting up the Monitor set
6 - Attaching the Stand Base
6 - Detaching the Stand Base and Body
7 - Mounting on a table
8 - Mounting on a wall
10 USING THE MONITOR SET
10 Connecting to a PC
10 - D-SUB connection
10 - DVI-D connection
10 - HDMI connection
12 CUSTOMIZING SETTINGS
12 Accessing The Main Menus
13 Customizing Settings

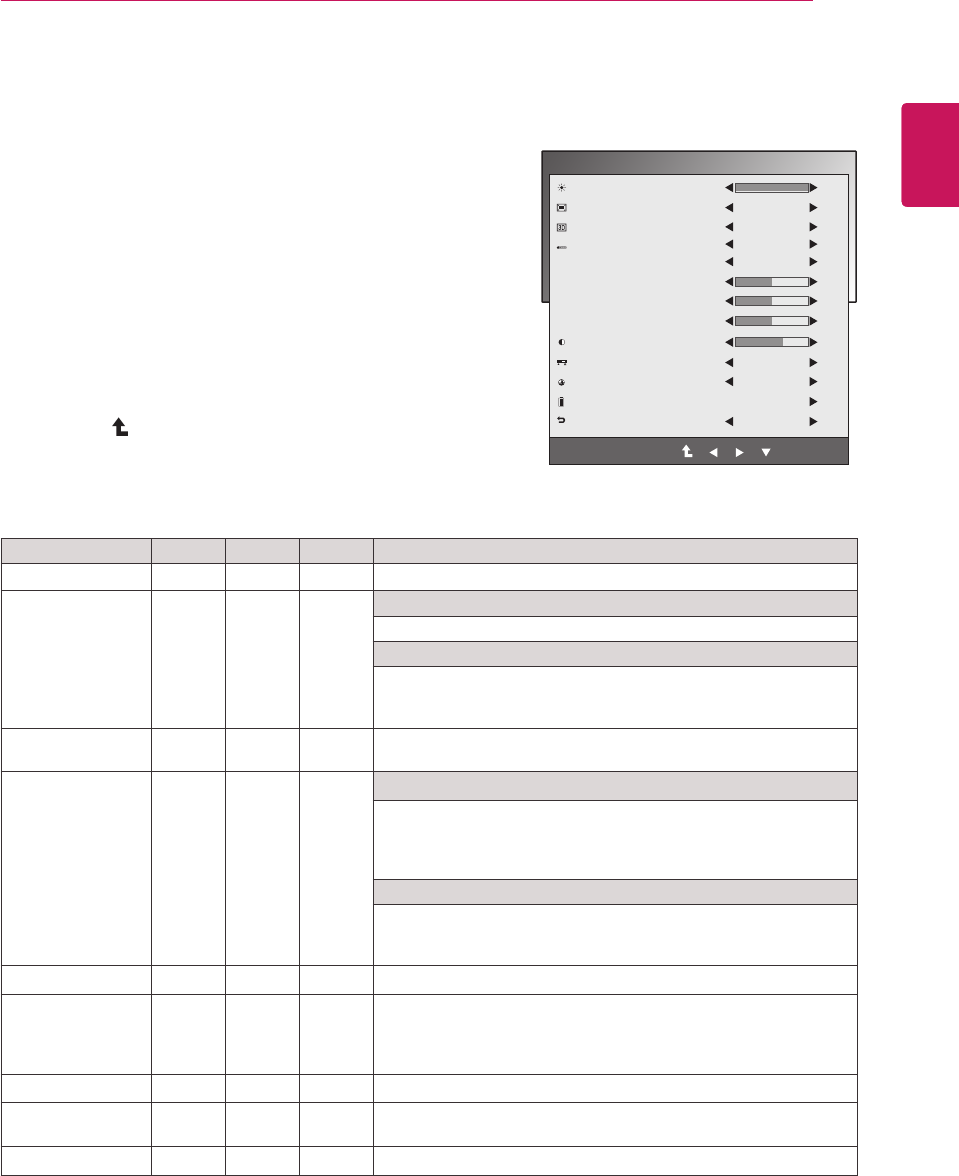

13 - Menu Settings
14 - 3D Settings(Only 3D mode)
14 - Volume Settings (Only supported in
HDMI)
15 - SUPER ENERGY SAVING Settings
16 TROUBLESHOOTING
18 TROUBLESHOOTING WHEN
USING 3D MODE
19 SPECIFICATIONS
21 Preset Modes (Resolution)
21 HDMI 3D TIMING
21 Indicator
22 PRECAUTIONS TO TAKE
WHEN VIEWING 3D IMAGES

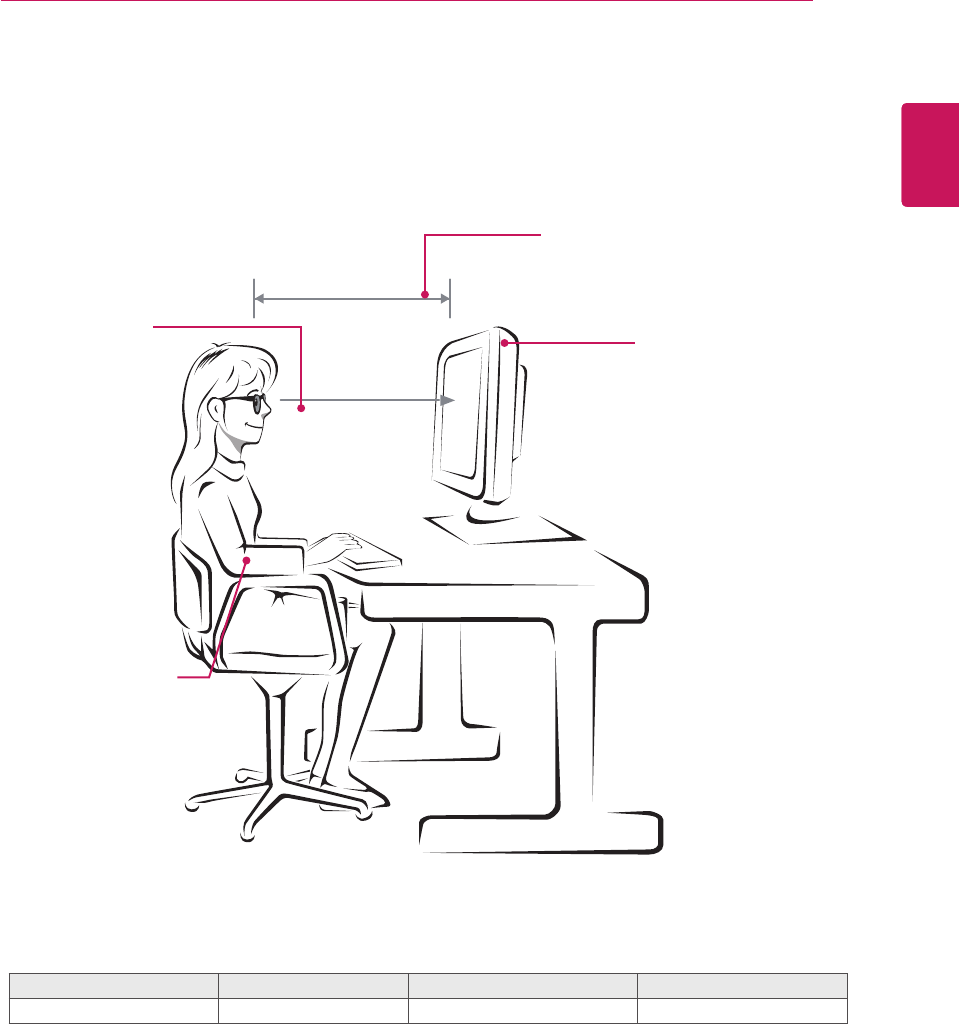

23 PROPER POSTURE
23 Proper posture for using the Monitor set.
23 Precautions to take when viewing 3D im-
ages
3
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
yDo not use any unapproved accessories to ensure the safety and product life span.
yAny damages or injuries by using unapproved accessories are not covered by the warranty.
yThe accessories supplied with your product may vary depending on the model.
yProduct specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
yUser should use shielded signal interface cables (RGB cable / DVI-D cable) with ferrite cores to
maintain standard compliance for the product.
CAUTION
NOTE
Stand Base
Stand Body
Power Cord
CD(Owner's Manual) /
Card
TriDef 3D software Program CD /
Quick Installation Guide
D-SUB Cable
(This signal cable may be attached
to this product before shipping out.)
DVI-D Cable
(This cable is not included in all
countries.)
3D Glasses
(Normal type)
3D Glasses
(Clip-on type)
4
ENG
ENGLISH
ASSEMBLING AND PREPARING

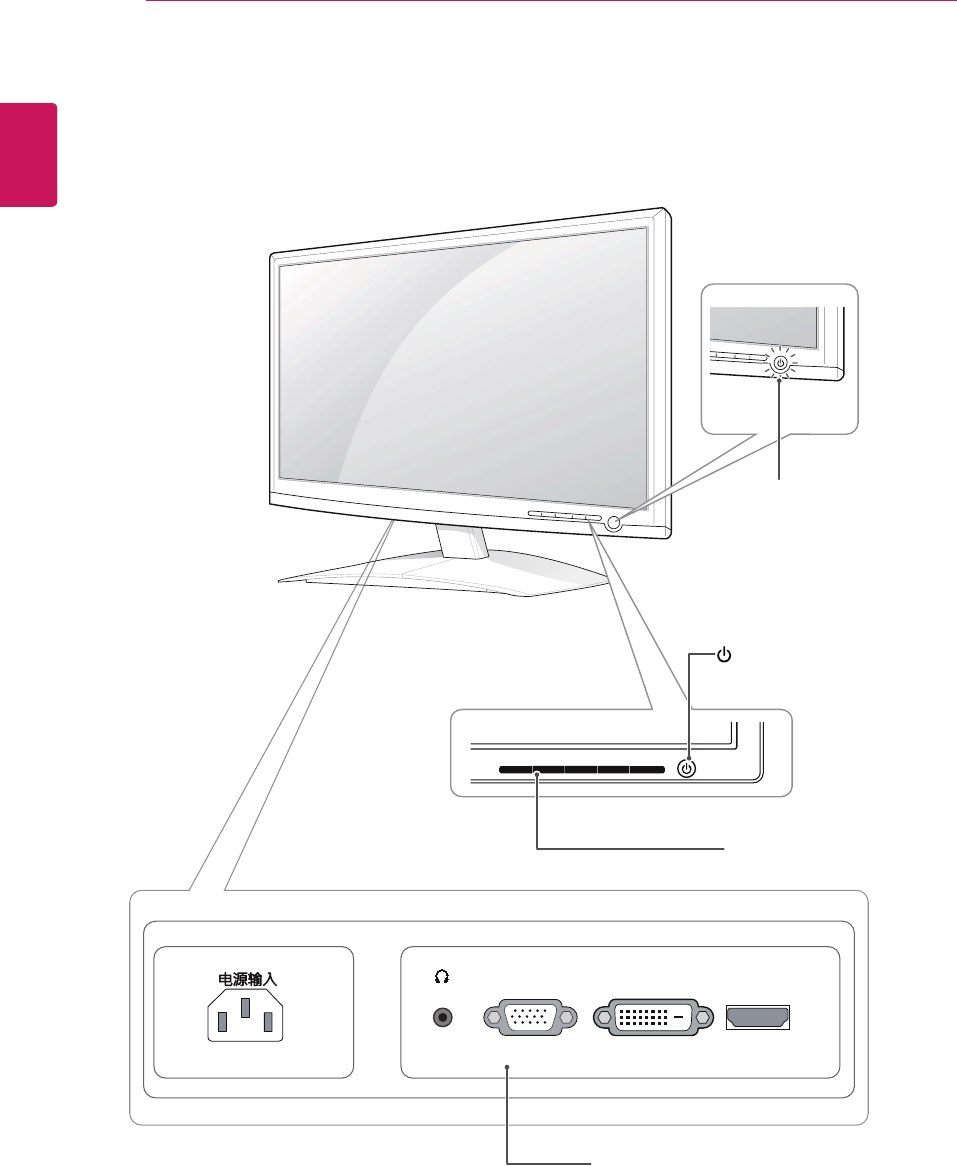

Parts and buttons
HDMID-SUB
AC-IN/
䔜㹷彺⅌ DVI-D
Power Indicator
yLighting On: Turned on
yLighting Off: Turned off
Connection panel (See p.10)
Button (See p.12)
(Power Button)
5
ENG
ENGLISH
ASSEMBLING AND PREPARING
Button Description
MENU Accesses the main menus.(See p.13)
OSD LOCKED/
UNLOCKED
This function allows you to lock the current control settings, so
that they cannot be inadvertently changed.
Press and hold the MENU button for several seconds.
The message "OSD LOCKED" should appear.
You can unlock the OSD controls at any time by pushing
the MENU button for several seconds. The message "OSD
UNLOCKED" should appear.
SUPER ENERGY
SAVING Button
Use this button to enter SUPER ENERGY SAVING menu.For
more information.(See p.15)
3D 3D display settings.(See p.14)
AUTO When adjusting your display settings, always press the AUTO button on the MONITOR
SETUP OSD. (Only supported in Analog Mode)
The best display mode 1920 x 1080 (D2242P/D2542P)
VOLUME (Only HDMI mode) Adjust the volume of the Monitor set.(See p.14)
INPUT You can choose the input signal.
yWhen two input signals are at least are connected, you can select the input signal
(D-SUB/DVI/HDMI) you want.
yWhen only one signal is connected, it is automatically detected. The default setting is
D-SUB.
EXIT Exit the OSD(On Screen Display).
(Power Button) Turns the power on or off.
Power Indicator The power indicator stays blue if the display is running
properly (On Mode). If the display is in Sleep Mode, the power
indicator blinks blue.
6
ENG
ENGLISH
ASSEMBLING AND PREPARING

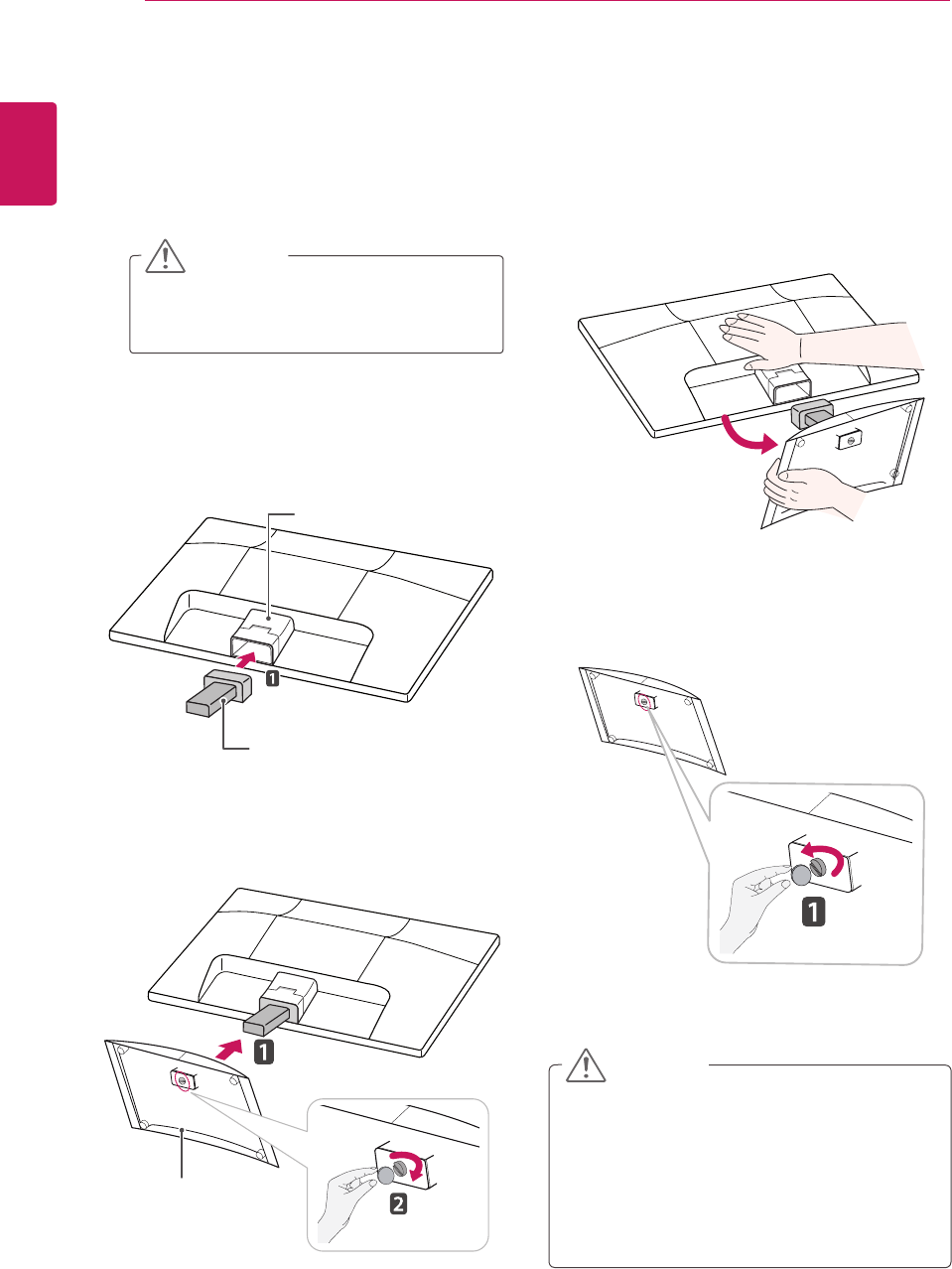

Setting up the Monitor set
Attaching the Stand Base
1 Place the Monitor set with the screen side
down on a flat and cushioned surface.
Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
yThis illustration depicts the general model of
connection. Your monitor may differ from the
items shown in the picture.
yDo not carry the product upside down holding
only the stand base. The product may fall
and get damaged or injure your foot.
CAUTION
CAUTION
Detaching the Stand Base and Body
1 Place the Monitor set with the screen side
down on a flat and cushioned surface.
2 Pull out the Stand Base and Stand Body from
the Monitor set.
3 Attach the Stand Base and then tighten the
screw to the right with a Coin.
2 Assemble the Stand Body into the product in
the correct direction as shown in the picture.
Make sure you push it until you hear it “click”.
3 Turn the screw to the left with a Coin, and then
pull out the Stand Base from the Stand Body.
Stand Body
Stand Base
Hinge Body
7
ENG
ENGLISH
ASSEMBLING AND PREPARING

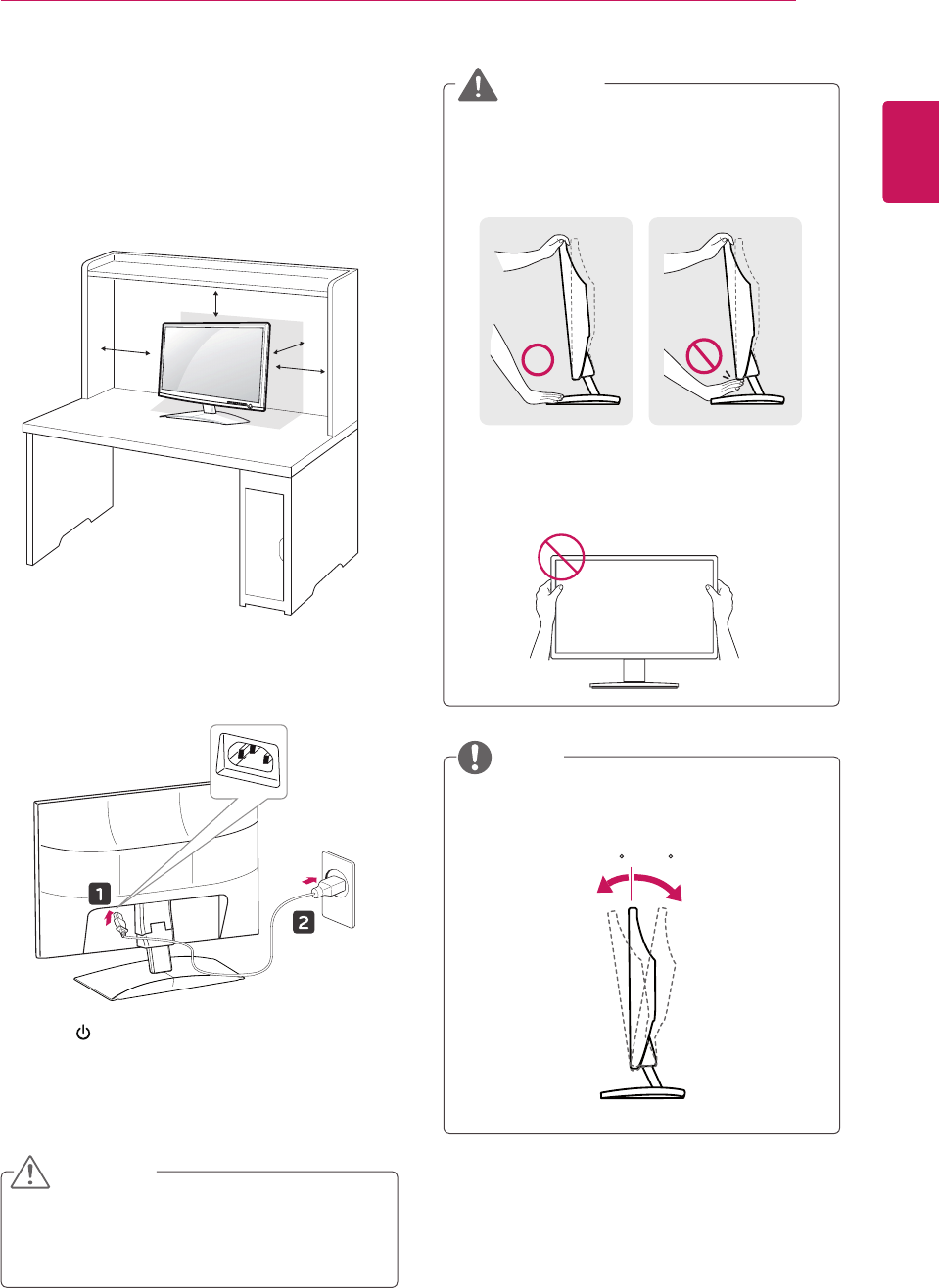

Mounting on a table
1 Lift and tilt the Monitor set into its upright
position on a table.
Leave a 10 cm (minimum) space from the wall
for proper ventilation.
2 Connect the Power Cord to a wall outlet.
3 Press (Power) button on the front switch
panel to turn the power on.
10 cm
10 cm
10 cm
10 cm
When you adjust the angle, do not hold the
bottom of the Monitor set frame as shown on
the following illustration, as may injure your
fingers.
Do not touch or press the screen when
adjusting the angle of the monitor.
WARNING
Unplug the power cord before moving the
Monitor to another location. Otherwise electric
shock may occur.
Tilt from +15 to -5 degrees up or down to adjust
the angle of the Monitor set to suit your view.
CAUTION
NOTE
Front Rear
15- 5
8
ENG
ENGLISH
ASSEMBLING AND PREPARING
Mounting on a wall
For proper ventilation, allow a clearance of 10 cm
on each side and from the wall. Detailed
instructions are available from your dealer, see the
optional Tilt Wall Mounting Bracket Installation and
Setup Guide.
When you install the Monitor set using a wall
mounting interface (optional parts), attach it
carefully so it will not drop.
Please use VESA standard as below.
y784.8 mm (30.9 inch) and under
* Wall Mount Pad Thickness : 2.6 mm
* Screw : Φ 4.0 mm x Pitch 0.7 mm x
Length 10 mm
y787.4 mm (31.0 inch) and above
* Please use VESA standard wall mount pad
and screws.
10 cm
10 cm
10 cm
10 cm
Using the Kensington security system
The Kensington security system connector is
located at the back of the Monitor set. For more
information of installation and using, refer to the
manual supplied with the Kensington security
system or visit
http://www.kensington.com
.
Connect the Kensington security system cable
between the Monitor set and a table.
The Kensington security system is optional.
You can obtain it from most electronics stores.
NOTE
9
ENG
ENGLISH
ASSEMBLING AND PREPARING
yDisconnect the power cord first, and then
move or install the Monitor set. Otherwise
electric shock may occur.
yIf you install the Monitor set on a ceiling or
slanted wall, it may fall and result in severe
injury.
yUse only an authorized LG wall mount
and contact the local dealer or qualified
personnel.
y Do not over tighten the screws as this may
cause damage to the Monitor set and void
your warranty.
y Use only screws and wall mounts that
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
yUse the screws that are listed on the VESA
standard screw specifications.
yThe wall mount kit will include an installation
manual and necessary parts.
yThe wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
yThe length of screws may differ depending
on the wall mount. Be sure to use the proper
length.
yFor more information, refer to the
instructions supplied with the wall mount.
CAUTION
NOTE
Model D2242P D2542P
VESA (A x B) 75 x 75 100 x 200
Standard screw M4 M4
Number of screws 4 4
Wall mount bracket
(optional)
RW120 RW120
10
ENG
ENGLISH
USING THE MONITOR SET
USING THE MONITOR SET
Connecting to a PC
yYour Monitor set supports Plug & Play*.
*Plug & Play: A PC recognizes a connected
device that users connect to a PC and turn
on, without device configuration or user
intervention.
D-SUB connection
Transmits analog video from your PC to the
Monitor set. Connect the PC and the Monitor set
with the supplied D-sub 15 pin signal cable as
shown in the following illustrations.
yMac adapter
For Apple Macintosh use, a separate plug
adapter is needed to change the 15 pin
high density (3 row) D-SUB VGA connector
on the supplied cable to a 15 pin 2 row
connector.
yWhen using a D-Sub signal input cable
connector for Macintosh
yIf you use HDMI PC, it can cause compatibility
problem.
NOTE
NOTE
H
D
MI
D-SUB
DVI
-D
RGB OUT
H
D
MI
D
-
S
U
B
DVI OUT
DVI-D
HDMI
D
-
S
U
B
HDMI OUT
DVI
-D
HDMI OUT
DVI-D connection
Transmits a digital video signal from your PC to
the Monitor set. Connect the PC and the Monitor
set with a DVI cable as shown in the following
illustrations.
HDMI connection
Transmits the digital video and audio signals from
your PC or A/V to the Monitor set. Connect the PC
or A/V and the Monitor set with the HDMI cable as
shown in the following illustrations.
11
ENG
ENGLISH
USING THE MONITOR SET
yWhen you want to use two PC in our Monitor,
please connect the signal cable(D-SUB/
DVI-D/HDMI) respectively in Monitor set.
yIf you turn the Monitor set on while it is cold,
the screen may flicker. This is normal.
ySome red, green, or blue spots may appear
on the screen. This is normal.
y"Self Image Setting" Function.
This function provides the user with optimal
display settings.When the user connects
the monitor for the first time, this function
automatically adjusts the display to optimal
settings for individual input signals.(Only
supported in Analog Mode)
y‘AUTO’ Function.
When you encounter problems such as
blurry screen, blurred letters, screen flicker
or tilted screen while using the device or
after changing screen resolution, press the
AUTO function button to improve resolution.
(Only supported in Analog Mode)
NOTE NOTE
yConnect the signal
input cable and tighten
it by turning the screws
clockwise.
yDo not press the screen with your finger for
a long time as this may result in temporary
distortion on the screen.
yAvoid displaying a fixed image on the
screen for a long period of time to prevent
image burn. Use a screensaver if possible.
CAUTION Self Image Setting Function
Press the power button on the front panel to turn
the power on. When monitor power is turned on,
the "Self Image Setting" Function is executed
automatically. (Only supported in Analog Mode)
12
ENG
ENGLISH
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
Accessing The Main Menus
1 Press any button on the front of the Monitor set to display the MONITOR SETUP OSD menu.
2 Press the desired menu item.
3 Change the value of the menu item by pressing the buttons on the front of the Monitor set.
To return to the upper menu or set other menu items, use the up arrow ( ) button.
4 Select EXIT to leave the OSD menu.
Monitor set Buttons
MONITOR SETUP
MENU AUTO VOLUME INPUT EXIT
3D
MENU (See p.13)
Sets the screen options.
AUTO (See p.5)
Optimizes the resolution.
EXIT
Exits the OSD menu.
INPUT
Sets the external input.
3D (See p.14)
Sets the 3D mode.
VOLUME (See p.14)
Sets the volume.
Different menu items are enabled depending on the type of input signal.
yD-SUB / DVI Mode: MENU, 3D, AUTO, INPUT, EXIT
yHDMI Mode: MENU, 3D, VOLUME, INPUT, EXIT
NOTE
13
ENG
ENGLISH
CUSTOMIZING SETTINGS
Customizing Settings
Menu Settings
1 Press any button on the front of the Monitor set to display the
MONITOR SETUP OSD menu.
2 Press the MENU button to display the options in the OSD
menu.
3 Set the options by pressing the buttons on the front of the
Monitor set.
4 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items, use the
up arrow ( ) button.
Menu Analog Digital HDMI Description
BRIGHTNESS ● ● ● Adjusts the brightness of the screen.
ORIGINAL RATIO
● ● ●
WIDE
Switch to full screen mode according to input image signal.
ORIGINAL
Change the input image signal ratio to original.
* This function works only if input resolution is lower than Monitor
set ratio (16:9).
3D COLOR
EFFECT ● ● ● The picture quality is optimized at the 3D mode.
COLOR TEMP
● ● ●
PRESET
Select the screen color.
yWARM: Set the screen to warm color temperature (more red).
yMEDIUM: Set the screen to medium color temperature.
yCOOL: Set the screen to cool color temperature (More blue).
USER
yRED: Set your own red color levels.
yGREEN: Set your own green color levels.
yBLUE: Set your own blue color levels.
CONTRAST ● ● ● Adjusts the contrast of the screen.
BLACK LEVEL
(Only supported
in HDMI mode) ●
You can set the offset level. If you select 'HIGH', the screen will be
bright and if you select ‘LOW’, the screen will be dark.
yOffset: As the criteria for video signal, it is the darkest screen
the monitor can show.
LANGUAGE ● ● ● Changes the menu language.
SUPER ENERGY
SAVING ● ● ● Sets the SUPER ENERGY SAVING function.
FACTORY ● ● ● Returns the monitor to original factory settings.
yAnalog: D-SUB(Analog signal) input.
yDigital: DVI-D(Digital signal) input.
yHDMI: HDMI(Digital signal) input.
MENU
EXIT
BRIGHTNESS
ORIGINAL RATIO
3D COLOR EFFECT
COLOR TEMP
PRESET
RED
GREEN
BLUE
CONTRAST
BLACK LEVEL
LANGUAGE
SUPER ENEYGY SAVING
FACTORY RESET
WIDE
OFF
PRESET
WARM
HIGH
ENGLISH
NO
The available program settings are described below.
100
50
50
50
70
14
ENG
ENGLISH
CUSTOMIZING SETTINGS
3D Settings(Only 3D mode)
1 Press any button on the front of the Monitor set to display the
MONITOR SETUP OSD menu.
2 Press the 3D button to display the options in the OSD menu.
3 Set the options by pressing the buttons on the front of the
Monitor set.
4 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items, use the
up arrow ( ) button.
Volume Settings (Only supported in HDMI)
1 Press any button on the front of the Monitor set to display the
MONITOR SETUP OSD menu.
2 Press the VOLUME button to display the options in the OSD
menu.
3 Set the options by pressing the buttons on the front of the
Monitor set.
4 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items, use the up
arrow ( ) button.
The available picture settings are described below.
Menu Description
3D MODE Select the format of 3D video data. (Enabled only for HDMI VIDEO TIMING)
SIDE BY SIDE Left and right pictures are arranged in Side by Side layout.
TOP & BOTTOM Left and right pictures are arranged in Top and Bottom layout.
LINE INTERLACED Left and right pictures are arranged in line by line.
OFF Turns off 3D Mode.
3D L/R CHANGE Changes which frame is shown to each eye.
R-L Odd lines are Right picture and even lines are Left picture.
L-R Odd lines are Left picture and even lines are Right picture.
3D - > 2D Converts 3D images into 2D. (Enabled only for HDMI VIDEO TIMING)
OFF Displays images in 3D.
ON Displays images in 2D.
y3D Mode.
SIDE BY SIDE TOP & BOTTOM LINE INTERLACED
yIf the 3D option selected is incorrect, images may not be displayed properly.
NOTE
3D
3D MODE
3D L/R CHANGE
3D - > 2D
OFF(1/4)
R-L(1/2)
OFF
VOLUME
EXIT
EXIT
50
15
ENG
ENGLISH
CUSTOMIZING SETTINGS
SUPER ENERGY SAVING Settings
1 Press any button on the front of the Monitor set to
display the MONITOR SETUP OSD menu.
2 Press the MENU button to display the options in the
OSD menu.
3 Select SUPER ENERGY SAVING by pressing the
buttons on the front of the Monitor set and set the
options.
4 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
The available picture settings are described below.
Menu Description
ON Enables SUPER ENERGY SAVING you can save energy with this energy-efficient function.
OFF Disables SUPER ENERGY SAVING.
RESET Resets the values of total energy consumption reduction and CO2 emission reduction estimates.
yTOTAL POWER REDUCTION: How much power is saved while using the monitor.
yTOTAL CO2 REDUCTION: Change the TOTAL POWER REDUCTION to CO2.
ySAVING DATA(W/h)
546 mm(22 inch) 634 mm(25 inch)
SUPER SAVING 4 W/h
5 W/h
LED SAVING 15 W/h 12 W/h
ySaving Data depends on the Panel. So,those values should be different from each panel and panel
vendor.
yLG calculated these values by using “broadcast video signal”.
yLED Saving refers to how much power can be saved using a WLED Panel instead of CCFL panel.
ySUPER SAVING refers to how much power can be saved using the SUPER ENERGY SAVING
function.
NOTE
EXIT
OK
ON OFF RESET
TOTAL POWER REDUCTION: 20 W
TOTAL CO2 REDUCTION: 16 g
SUPER
SAVING
: 5 W/h
LED
SAVING
: 12 W/h
SUPER ENERGY SAVING
16
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
Check the following before calling for service.
No image appears
Is the power cord of the display
connected?
yCheck and see if the power cord is connected properly to the power
outlet.
Is the power indicator light on?
yPress the Power button.
Is the power on and the power
indicator blue or green?
yAdjust the brightness and the contrast.
Is the power indicator flickering?
yIf the display is in power saving mode, try moving the mouse or
pressing any key on the keyboard to bring up the screen.
yTry to turn on the PC.
Do you see an "OUT OF RANGE"
message on the screen?
yThis message appears when the signal from the PC (video card) is
out of horizontal or vertical frequency range of the display. See the
'Specifications' section of this manual and configure your display
again.
Do you see a "CHECK SIGNAL
CABLE" message on the screen?
yThis message appears when the signal cable between your PC and
your display is not connected. Check the signal cable and try again.
Do you see a "OSD LOCKED" message on the screen?
Do you see “OSD LOCKED” when
you push MENU button?
yYou can secure the current control settings, so that they cannot be
inadvertently changed. You can unlock the OSD controls at any time
by pushing the MENU button for several seconds: the message “OSD
UNLOCKED” will appear.
Display image is incorrect
Display Position is incorrect.
yPress the AUTO button to automatically adjust your display image to
the ideal setting.
On the screen background, vertical
bars or stripes are visible.
yPress the AUTO button to automatically adjust your display image to
the ideal setting.
Any horizontal noise appearing in
any image or characters are not
clearly portrayed.
yPress the AUTO button to automatically adjust your display image to
the ideal setting.
yCheck Control Panel ► Display ► Settings and adjust the display
to the recommended resolution or adjust the display image to the ideal
setting. Set the color setting higher than 24 bits (true color).
17
ENG
ENGLISH
TROUBLESHOOTING
Display image is incorrect
The screen color is mono or
abnormal.
yCheck if the signal cable is properly connected and use a screwdriver
to fasten if necessary.
yMake sure the video card is properly inserted in the slot.
ySet the color setting higher than 24 bits (true color) at Control Panel
► Settings.
The screen blinks.
yCheck if the screen is set to interlace mode and if yes, change it to the
recommend resolution.
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display
driver?
yBe sure to install the display driver from the display driver CD (or
diskette) that comes with your display. Or, you can also download the
driver from our web site: http://www.lg.com.
yMake sure to check if the video card supports Plug&Play function.
yCheck Control Panel ► Display ► Settings and see if the frequency or the resolution were
changed. If yes, readjust the video card to the recommend resolution.
yIf the recommended resolution (optimal resolution) is not selected, letters may be blurred and the
screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.
yThe setting method can differ by computer and O/S (Operation System), and resolution mentioned
above may not be supported by the video card performance. In this case, please ask to the computer
or the video card manufacturer.
CAUTION
18
ENG
ENGLISH
TROUBLESHOOTING WHEN USING 3D MODE
TROUBLESHOOTING WHEN USING 3D MODE
I can see a swirling oil-like pattern on the monitor when the monitor is turned off.
yThis is caused by the interference of external light in the air layer between the LCD surface and 3D filter.
The pattern becomes almost invisible when you turn on the power again.
I cannot see 3D image properly
If you are not using the glasses
provided with the monitor,
yWhen you view 3D images with this monitor, it is very important
that you use the glasses provided with the monitor. The glasses are
designed to compensate optically for the 3D filter attached to the
surface of the monitor. If you wear third-party glasses, you may not
see 3D images properly on the monitor.
If you view 3D images outside the
optimal viewing angle or distance,
yThe optimal viewing angle of the monitor is 12° in vertical direction
while 80° in horizontal direction; the optimal viewing distance is
between 50 cm to 90 cm from the monitor.
When you view 3D images outside the optimal viewing angle or
viewing distance, the images may look overlapped or not be displayed
properly in 3D.
If you have not set the resolution,
yPlease set the resolution of the monitor to the maximum (1920 x
1080 @ 60 Hz) in the display settings. The 3D software may not work
properly if the resolution is not set to the maximum.
If the images that your left and right
eyes see are reversed,
yThe stripe images in the odd-numbered lines are the ones that your
right eye sees on the monitor. If you only see the stripe images, not
3D images, set the images for your right eye to be displayed in the
odd-numbered lines by changing the player or viewer option of the 3D
software.
I cannot see 3D but only 2D images.
yThis monitor works both in 2D and 3D mode. You can view a video in
3D if it is made in 3D. If you try to view 2D images in 3D, they might
not be displayed properly or you may experience poor picture quality.
If the ‘TriDef 3D’ couldn’t work
properly
yThe minimum system requirements on PC to run the ‘TriDef 3D’ :
»Intel® Core 2 Duo or AMD Athlon™ 64 X2 Dual-Core CPU or better
»1GB RAM
»NVIDIA® GeForce® 8600 GT or ATI X1650 XT
»500MB free disk space
»Windows® XP (SP2) (32 bit only), Windows® Vista (32 bit only) or
Windows® 7 (32 or 64 bit)
»DirectX 9.0c compatible sound card
»Internet connection
»DVD-ROM drive
»Network card
»DirectX 9.0c
19
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS D2242P
Display Screen Type 54.6 cm (21.5 inch) Flat Panel Active matrix-TFT LCD
Anti-Glare coating
Visible diagonal size: 54.6 cm
Pixel Pitch 0.248 mm x 0.248 mm (Pixel Pitch)
Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic)
Vertical Frequency 56Hz to 75Hz (D-SUB, DVI-D)
56Hz to 61Hz (HDMI)
Input Form Separate Sync. Digital
Video Input Signal Input 15 pin D-SUB Connector /DVI-D Connector (Digital)
HDMI Connector
Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Resolution Max D-SUB(Analog) : 1920 x 1080 @ 60 Hz
DVI / HDMI (Digital) : 1920 x 1080 @ 60 Hz
Recommend VESA 1920 x 1080 @ 60 Hz
Plug & Play DDC 2B(Analog,Digital,HDMI)
Power Consumption On Mode : 34 W(Typ.)
Sleep Mode ≤ 0.5 W
Off Mode ≤ 0.5 W
Power Input AC 100-240 V~ 50 / 60 Hz 1.0 A
Dimensions
(Width x Height x Depth)
With Stand 50.9 cm x 38.8 cm x 16.6 cm
Without Stand 50.9 cm x 32.2 cm x 5.8 cm
Weight 3.0 kg
Tilt Range -5° to 15°
Environmental
conditions
Operating
Temperature
Operating Humidity
10°C to 35 °C
20 % to 80 %
Storage Temperature
Storage Humidity
-10°C to 60 °C
5 % to 90 % non-Condensing
Stand Base Attached ( ), Detached (O)
Power cord Wall-outlet type
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
20
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS D2542P
Display Screen Type 63.4 cm (25 inch) Flat Panel Active matrix-TFT LCD
Anti-Glare coating
Visible diagonal size: 63.4 cm
Pixel Pitch 0.288 mm x 0.288 mm (Pixel Pitch)
Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic)
Vertical Frequency 56Hz to 75Hz (D-SUB, DVI-D)
56Hz to 61Hz (HDMI)
Input Form Separate Sync. Digital
Video Input Signal Input 15 pin D-SUB Connector /DVI-D Connector (Digital)
HDMI Connector
Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Resolution Max D-SUB(Analog) : 1920 x 1080 @ 60 Hz
DVI / HDMI (Digital) : 1920 x 1080 @ 60 Hz
Recommend VESA 1920 x 1080 @ 60 Hz
Plug & Play DDC 2B(Analog,Digital,HDMI)
Power Consumption On Mode : 39 W(Typ.)
Sleep Mode ≤ 0.5 W
Off Mode ≤ 0.5 W
Power Input AC 100-240 V~ 50 / 60 Hz 1.2 A
Dimensions
(Width x Height x Depth)
With Stand 59.4 cm x 43.3 cm x 17.9 cm
Without Stand 59.4 cm x 37.1 cm x 6.1 cm
Weight 4.4 kg
Tilt Range -5° to 15°
Environmental
conditions
Operating
Temperature
Operating Humidity
10°C to 35 °C
20 % to 80 %
Storage Temperature
Storage Humidity
-10°C to 60 °C
5 % to 90 % non-Condensing
Stand Base Attached ( ), Detached (O)
Power cord Wall-outlet type
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
21
ENG
ENGLISH
SPECIFICATIONS
Preset Modes (Resolution)
Display Modes (Resolution) Horizontal
Frequency(kHz)
Vertical
Frequency(Hz) Polarity(H/V)
720 x 400 31.468 70 -/+
640 x 480 31.469 60 -/-
640 x 480 37.500 75 -/-
800 x 600 37.879 60 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.123 75 +/+
1152 x 864 67.500 75 +/+
1280 x 1024 63.981 60 +/+
1680 x 1050 65.290 60 -/+
1920 x 1080 67.500 60 +/+ Recommend Mode
HDMI 3D TIMING
3D Format Resolution Refresh Rate Limitation
Frame Packing 1080 p 24 Hz
Frame Packing 720 p 50/60 Hz
Side-by-Side(Half) 1080 p 50/60 Hz
Side-by-Side(Half) 1080 i 50/60 Hz
Side-by-Side(Half) 720 p 50/60 Hz
Top-and-Bottom 1080 p 50/60 Hz
Top-and-Bottom 1080 p 24 Hz
Top-and-Bottom 720 p 50/60 Hz
Indicator
Mode LED Color
On Mode Blue
Sleep Mode Blinking Blue
Off Mode Off
22
ENG
ENGLISH
PRECAUTIONS TO TAKE WHEN VIEWING 3D IMAGES
PRECAUTIONS TO TAKE WHEN VIEWING 3D
IMAGES
1 If you view images in the 3D mode for a long period of time (playing games, watching movies etc.), you
may feel dizzy. We strongly recommend you to take a rest after one hour of viewing 3D. (The time of
experiencing dizziness varies depending on the individual.)
2 Please view 3D images at the optimal viewing angle and at the recommended distance from the
product. Otherwise, 3D images may appear to be overlapped or may not be displayed properly.
3 If you view 3D images too closely for a long period of time, this may result in dizziness or blurred vision.
Please use the device at the recommended distance.
4 If you are pregnant, elderly or have heart problems, we recommend that you do not view 3D images.
This is because the 3D images can cause disorientation and confusion.
5 3D images can also cause nausea or vomiting for users under the influence of alcohol. In this situation,
please do not view 3D images.
6 Parents/guardians should monitor children’s viewing of 3D images because they may not be used to the
3D viewing experience and lack knowledge on how to handle potential risks.
7 Do not use the 3D glasses as regular glasses, sunglasses or goggles. This may cause your vision to
worsen.
8 Do not keep the 3D glasses in an extremely hot or cold place. This may the shape of the glasses to
change and become damaged. Do not use the 3D glasses if they are damaged because this may cause
your vision to worsen, or you may experience dizzin.
9 The lenses of the 3D glasses (polarizing film) are easily scratched. Use a soft clean cloth when cleaning
them. Do not use any chemical cleaning products on the glasse.
CAUTION
Warning about photosensitivity seizures
ySome users may have a seizure or other abnormal symptoms when they are exposed to a
flashing light or particular pattern in a video game or movie. If anyone in your family has a history
of epilepsy or has ever experienced any kind of seizure, please consult with your doctor before
viewing 3D images. If you exhibit any of the symptoms listed below when viewing 3D images,
please stop viewing immediately and consult with your doctor even if you do not have previous
medical problems of this nature.
Symptoms
yDizziness, blurred vision or facial tics, involuntary movements, twitching, blackouts, confusion,
disorientation and wrong state.
To prevent a photosensitivity seizure, please follow the instructions below.
yDo not view 3D images when you are tired or ill.
yDo not view 3D images for a long period of time.
yReduce the depth of the 3D image.
23
ENG
ENGLISH
PROPER POSTURE
Proper posture for using the Monitor set.
PROPER POSTURE
Mode Size(Inch) Optimal viewing distance (L) Optimal viewing angle (D)
When viewing 3D images 54.6 cm/63.4 cm 50 cm to 90 cm 12°
Precautions to take when viewing 3D images
yWear the 3D glasses provided with the Monitor set.
yWatch your posture.
yRemain at the optimal distance and angle when viewing 3D images.
(Viewing 3D images too closely may cause your vision to worsen, or you may experience dizziness.)
50 cm to 90 cm
Adjust the
Monitor set and
your posture to
allow you to view
images at the
optimal viewing
angle (D).
Place your hands
gently on the
keyboard, keeping
your arms bent at
the elbows and
horizontally outright.
Adjust your distance from the Monitor
set to allow you to view images from
the optimal distance (L).
Adjust the location of the
Monitor set to avoid it
reflecting light.
Make sure to read the Safety Precautions before
using the product.
Keep the Owner’s Manual (CD) in an accessible
place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service. As an ENERGY STAR Partner LGE
U. S. A.,Inc. has determined that this
product meets the ENERGY STAR
guidelines for energy efficiency.
ENERGY STAR is a set of power-saving
guidelines issued by the U.S.Environmental
Protection Agency(EPA).
MODEL
SERIAL

Navigation menu
