44 Using the system

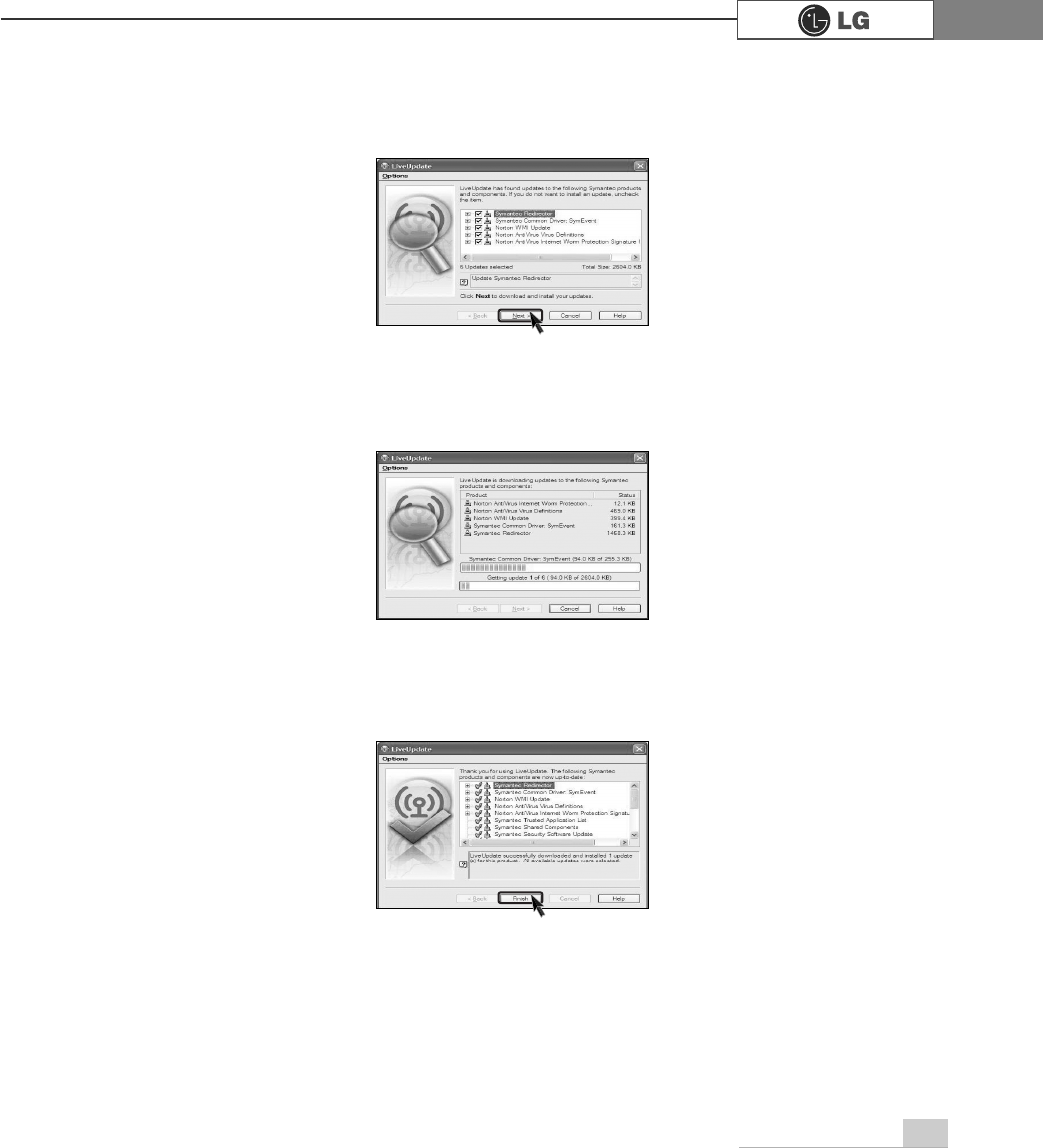

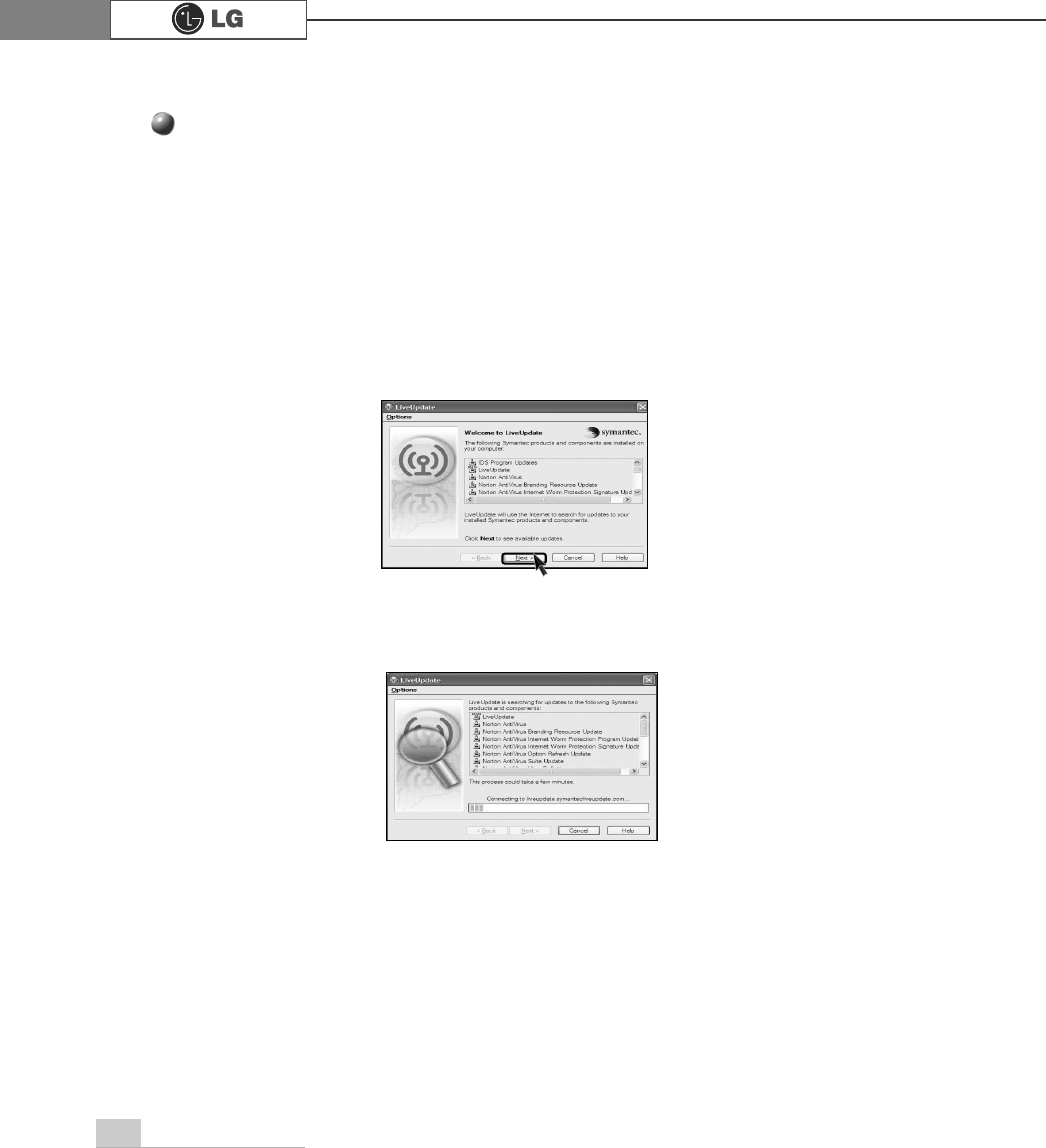

ⓞClick [Start] and [All programs]⍛⍛[Norton Antivirus]⍛[Live Update]-[Norton
AntiVirus].
ⓟClick [Next].
ⓠFollowing window appears.
You should have an internet access to process Norton Antivirus update.
Norton Antivirus update
45Using the system
ⓢDownloading update-items online.
ⓣClick [Finish] . Norton Antivirus Update is complete.
ⓡClick [Next].
46 Using the system
ⓞClick [Start]⍛⍛[All programs]⍛[Norton Antivirus]⍛⍛[Norton AntiVirus2004].
ⓟClick [Scan for virus] and select an item to scan.
ⓠNorton AntiVirus is scanning virus.
ⓡClick [Finish]. Virus scanning is complete.
Running Norton Antivirus
ãIf any virus is detected,
click [Fix] to repair.
Note
47memo
PHPR
System setup
48
The system setup saves your computer’s hardware configurations in CMOS RAM.
The system setup provides you with information, such as the size and type of your
hard disk, size of the installed memory, date, and time.
3-1. Starting the system setup
3-1. Starting the system setup

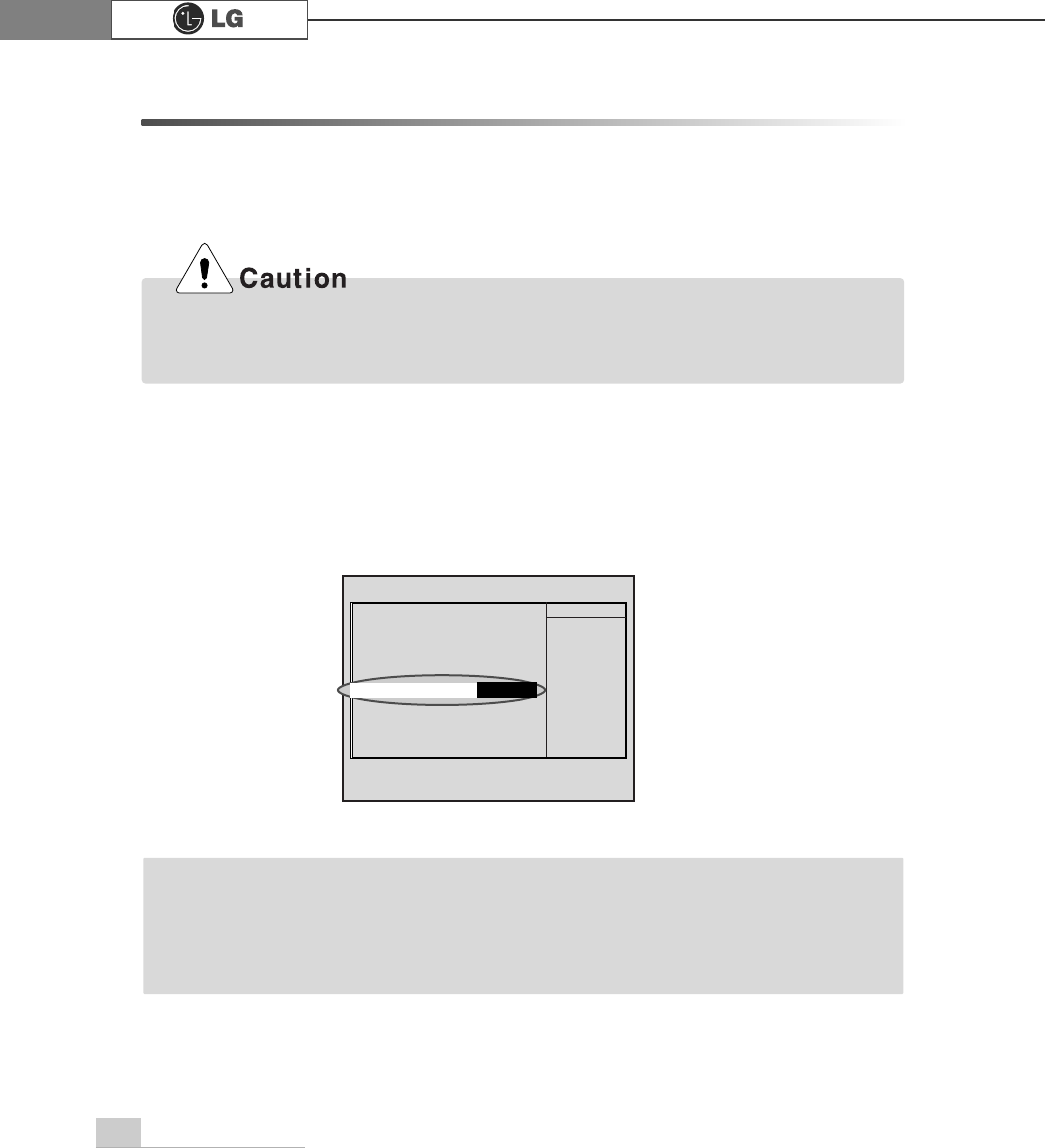

You may want to use the CMOS Setup Utility in the following situations:
ãBooting the system using a startup FDD. (Page 50)
ãSetting a password. (Page 52)
ãChanging or removing the password. (Page 53)
ãRecovering the factory default settings. (Page 55)
Do not change the system setup arbitrarily. Incorrect system setup may result in errors
while using the computer.
The menu and default factory settings of the CMOS Setup Utility may look different from this
manual. They may have been changed to improve the performance of the system.
3. System setup
Keys Function
Select the current item.
[Enter]
Close the current window or move to the previous window.
[Esc]
Move up, down, left, and right.
[Ⓑ],[Ⓒ],[⒵],[Ⓐ]
Increase or decrease the value
Increase or decrease the value.
Increase or decrease the value.
Save or exit the system setup.
+/-
[Page Up]
[Page Down]
[F10]
Keys used in the CMOS Setup Utility
System setup 49
ⓞTurn on the computer and monitor.
ⓟThe CMOS Setup Utility window appears.
Phoenix-Award BIOS CMOS Setup Utility
ĚStandard CMOS Features Ě
PC Health Status
ĚAdvanced BIOS Features ĚFrequency/Voltage Control
ĚAdvanced Chipset Features Load Optimized Defaults
ĚIntegrated Peripherals Set Password
ĚPower Management Setup Save & Exit Setup
ĚPnP/PCI Configurations Exit Without Saving
Esc : Quit êëè é : Select ltem
F10 : Save & Exit Setup
Time, Date, Hard Disk Type.....
ⓟ
When LG logo appears on the screen, press [Delete].
ãCursor control keys (arrow keys) move the cursor
up, down, to the left and right. If Num Lock button is off,
the arrow keys in the numeric keypad can be used just
like the cursor control keys.
Note
&XUVRUNH\SDG!
1XPHULFNH\SDG!
System setup50
3-2. Booting with a bootable FDD
Follow the instruction below to set the floppy disk as start up disk.
ⓞ

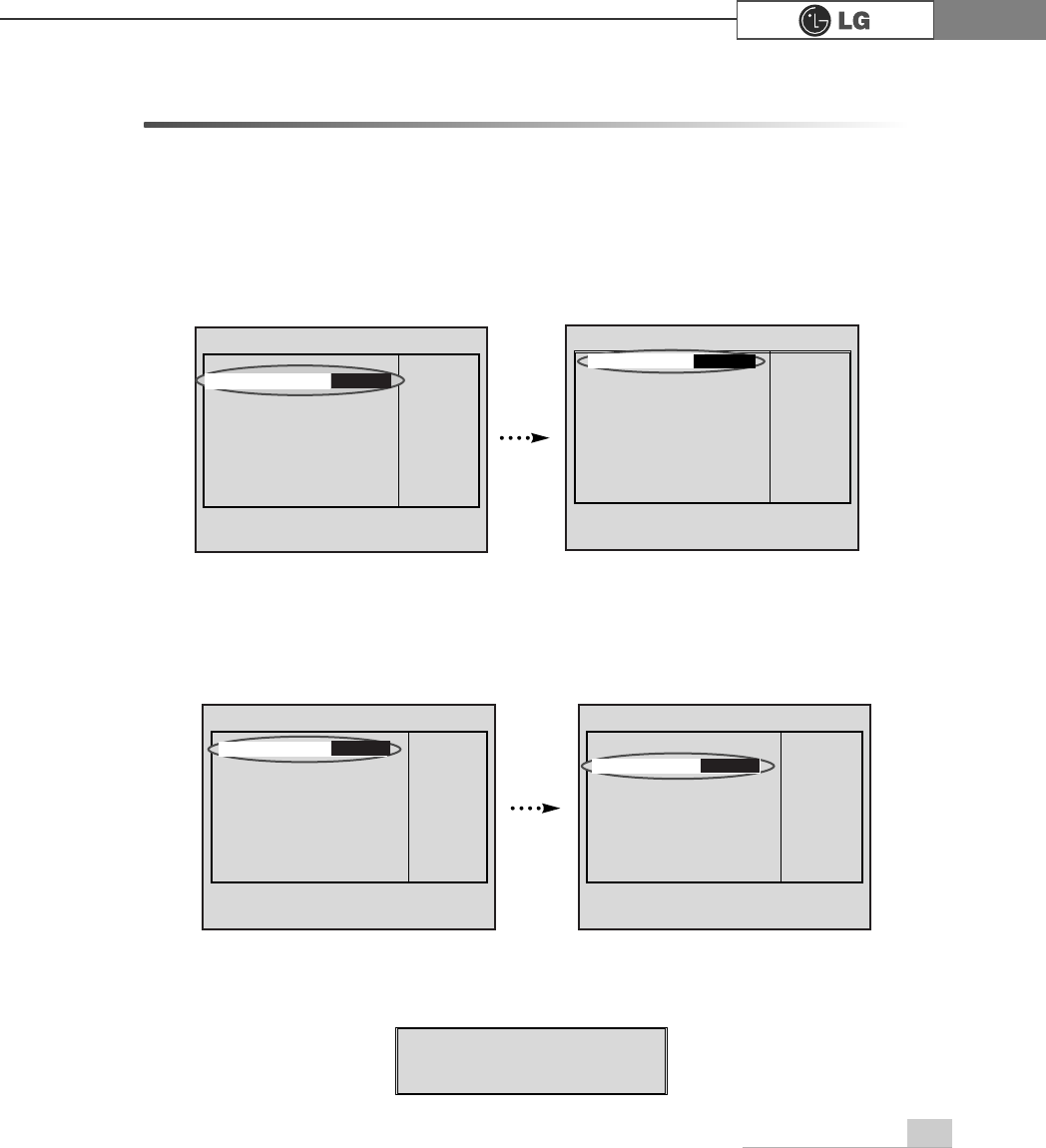

Open the CMOS Setup Utility. Use the arrow keys to select Advanced BIOS
Features and press [Enter].
ⓟUse the arrow keys to select Boot Sequence, and then select 1st Boot Device to
select Floppy. Use page up/down key to select Floppy.
ⓠPress [F10] to save the new setting.
ⓡWhen the following message appears, press [Enter]. The computer restarts.
Phoenix-Award BIOS CMOS Setup Utility
Advanced BIOS Features
êëèé:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Gelp
F5:Previous Values F7:Optimized Defaults
Quick Boot [Enabled]
Anti-Virus Protection [Disabled]
Boot Sequence [Press Enter]
CPU L1&L2 Cache [Enabled]
CPU L2 Cache ECC Checking [Enabled]
Swap Floppy [Disabled]
Seek Floppy [Disabled]
Boot Up Num-Lock Status [On]
Security Option [System]
HDD S.M.A.R.T. Capability [Disabled]
Full Screen LOGO Show [Enabled]
Summary Screen Show [Disabled]
Summary Screen Show [Enabled]
APIC Mode Enabled
MPS Table Version [1.4]
Item Help
Memu Level Ě
Phoenix-Award BIOS CMOS Setup Utility
Boot Sequence
êëèé:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Gelp
F5:Previous Values F7:Optimized Defaults
1st Boot Device [Enabled]
2nd Boot Device [Disabled]
3rd Boot Device [HDD-0]
Boot Other Device [Enabled]
Item Help
Memu Level Ě
Select Your Boot
Device Priority
1st Boot Device Floppy
SAVE to CMOS and EXIT(Y/N)? Y
ĚBoot Sequence [Press Enter]
X
51System setup
3-3. Booting with a bootable USB Device disk
Follow the instruction below to set the USB disk as start up disk.
ⓞOpen the CMOS Setup Utility. Use the arrow keys to select Advanced BIOS
Features and press [Enter].
ⓟUse the arrow keys to select Boot Sequence, and then select 1st Boot Device to
select USB HDD. Use page up/down key to select USB HDD.
ⓠOpen the CMOS Setup Utility. Select Integrated Peripherals, and then press
[Enter].
ⓡIf following dialogue box appears, select SIS On PCI Device and press [Enter].
USB Legacy Support and choose Enabled using page up/down keys.
Phoenix-Award BIOS CMOS Setup Utility
Advanced BIOS Features
êëèé:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Gelp
F5:Previous Values F7:Optimized Defaults
Quick Boot [Enabled]
Anti-Virus Protection [Disabled]
Boot Sequence [Press Enter]
CPU L1&L2 Cache [Enabled]
CPU L2 Cache ECC Checking [Enabled]
Swap Floppy [Disabled]
Seek Floppy [Disabled]
Boot Up Num-Lock Status [On]
Security Option [System]
HDD S.M.A.R.T. Capability [Disabled]
Full Screen LOGO Show [Enabled]
Summary Screen Show [Disabled]
Summary Screen Show [Enabled]
APIC Mode Enabled
MPS Table Version [1.4]
Item Help
Memu Level Ě
Phoenix-Award BIOS CMOS Setup Utility
Boot Sequence
êëèé:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Gelp
F5:Previous Values F7:Optimized Defaults
1st Boot Device [Enabled]
2nd Boot Device [Disabled]
3rd Boot Device [HDD-0]
Boot Other Device [Enabled]
Item Help
Memu Level Ě
Select Your Boot
Device Priority
1st Boot Device USB HDD
ĚBoot Sequence [Press Enter]
Phoenix-Award BIOS CMOS Setup Utility
Integrated Peripherals
êëèé:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Gelp
F5:Previous Values F7:Optimized Defaults
ĚSIS OnChip IDE Device
[Press Enter]
ĚSIS OnChip PCI Device [Press Enter]
ĚOnbord SuperIO Device [Press Enter]
Init Display First [AGP]
Item Help
Memu Level Ě
Ě 6,62Q&KLS3&,'HYLFH
>3UHVV(QWHU@
ⓢPress [F10] to save the new setting.
ⓣWhen the following message appears, press [Enter]. The computer restarts.
SAVE to CMOS and EXIT(Y/N)? Y
Phoenix-Award BIOS CMOS Setup Utility
SIS OnChip PCI Device
êëèé:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Gelp
F5:Previous Values F7:Optimized Defaults
SIS USB Controller [Enabled]
USB 2.0 Supports [Enabled]
USB Legacy Support [Disabled]
USB Mouse Support [Disabled]
SIS AC97 AUDID [Auto]
SIS 10/100M ETHERNET [Enabled]
Onboard Lan Boot ROM [Disabled]
Item Help
Memu Level Ě
Ě 86%/HJDF\6XSSRUW
>(QDEOHG@
52 System setup
ⓟUse the arrow keys to select Security Option. Use the Page Up and Page Down
keys to select Setup or System, and then press [Esc].
ⓞStart the CMOS Setup Utility. Use the arrow keys to select Advanced BIOS
Features, and then press [Enter].
ⓠUse the arrow keys to select Set Password, and then press [Enter].
3-4. Setting a password
If you want to protect the system setup from unauthorized users, follow the instruction
below to set a password.
You can set a password in the CMOS Setup Utility program.
If you forget the password, you cannot gain access to your system. Be sure to write
down the password in a safe place only you can refer to in case you forget the pass
word.
Phoenix-Award BIOS CMOS Setup Utility
Advanced BIOS Features
êëèé:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Gelp
F5:Previous Values F7:Optimized Defaults
Quick Boot [Enabled]
Anti-Virus Protection [Disabled]
Boot Sequence [Press Enter]
CPU L1&L2 Cache [Enabled]
CPU L2 Cache ECC Checking [Enabled]
Swap Floppy [Disabled]
Seek Floppy [Disabled]
Boot Up Num-Lock Status [On]
Security Option [System]
HDD S.M.A.R.T. Capability [Disabled]
Full Screen LOGO Show [Enabled]
Summary Screen Show [Disabled]
Summary Screen Show [Enabled]
APIC Mode Enabled
MPS Table Version [1.4]
Item Help
Memu Level Ě
Select wherther the
passward is required
ever time the system
boots or only when
you enter setup
Security Option
[System]
ã
If you select Setup in the Security Option, the computer asks for a password next time
you try to enter the CMOS Setup Utility. If you select System, the computer asks for a
password next time you start the computer and also when you try to enter the CMOS
Setup Utility. Setting the System password prevents unauthorized users from using the
computer or changing the system setup.
Note
53System setup
3-5. Changing or removing the password
You must know the password to change or remove it.
ⓞStart the CMOS Setup Utility, enter your password, and then press [Enter].
ⓢIf the following message appears, enter the password again, and then press [Enter].
ⓣPress [F10] to save the new settings.
ⓤIf the following message appears, press [Enter]. The computer restarts.
ⓡIf the following message appears, enter the new password and then press [Enter].
A password must consist of characters A~Z and numbers 0~9, and has the maxi-
mum length of 8.
SAVE to CMOS and EXIT(Y/N)? Y
Confirm Password :
Enter Password :
Phoenix-Award BIOS CMOS Setup Utility
ĚStandard CMOS Features Ě
PC Health Status
ĚAdvanced BIOS Features ĚFrequency/Voltage Control
ĚAdvanced Chipset Features Load Optimized Defaults
ĚIntegrated Peripherals Set Password
ĚPower Management Setup Save & Exit Setup
ĚPnP/PCI Configurations Exit Without Saving
Esc : Quit êëè é : Select ltem
F10 : Save & Exit Setup
Change/Set/Disable/Password
Enter Password:
54 System setup
ãTo change the password, follow the instructions on Setting a password.
ãTo remove the password, follow the instructions below.
ⓟUse arrow keys to select Set Password, and then press [Enter].
ⓠIf the following message appears, press [Enter].
ⓡIf the following message appears, press [Enter].
ⓢPress [F10] to save the new setting.
ⓣIf the following message appears, press [Y] key and [Enter]. The computer
restarts.
PASSWORD DISABLD!!!
Press any key to continue...
Enter Password :
SAVE to CMOS and EXIT(Y/N)? Y
Phoenix-Award BIOS CMOS Setup Utility
ĚStandard CMOS Features Ě
PC Health Status
ĚAdvanced BIOS Features ĚFrequency/Voltage Control
ĚAdvanced Chipset Features Load Optimized Defaults
ĚIntegrated Peripherals Set Password
ĚPower Management Setup Save & Exit Setup
ĚPnP/PCI Configurations Exit Without Saving
Esc : Quit êëè é : Select ltem
F10 : Save & Exit Setup
Change/Set/Disable/Password
Set Password
55System setup
3-6. Recovering the factory default settings
You can follow the instructions below to recover the factory default settings.
ⓞStart the CMOS Setup Utility. Use the arrow keys to select Load Optimized
Defaults and press [Enter].
ⓟIf the following message appears, press [Y] key and then [Enter]. The factory
default settings have been recovered.
ⓠPress [F10] to save the new setting.
ⓡIf the following message appears, press [Enter]. The computer restarts.
SAVE to CMOS and EXIT(Y/N)? Y
Load Optimized Defaults (Y/N) ? Y
56 System setup
You can use power saving function in Windows OS no matter how you set the
BIOS setup.
3-7. Using Power saving function
ⓡClick [Advanced] for setup if necessary and then click [OK].
ⓠSet the Power option properties and click [OK].
ⓞClick [Start]è
è[Control panel]è[Switch to classic view].
ⓟDouble click Power option icon from the control panel.
ãHibernation mode: It saves data
and turns off the power and then
restores data when the system
starts again.
Note
There are some devices which
do not support the power saving
function properly. If you have
installed such devices, you
should disable power saving
function.
Phoenix-Award BIOS CMOS Setup Utility
Power Management Setup
êëèé:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F7:Optimized Default
S
57System setup
Your computer has ACPI Standby State in the system setup set to S3(STR) to
manage power more effectively in standby mode. Use the power button to exit
standby mode. If you want to use a keyboard stroke or mouse movement to exit
standby mode, change S3(STR) to S1(POS).
Note: S1(Power On Suspend), S3(Save to Ram)
ⓞ
Start the CMOS Setup Utility. Use the arrow keys to select Power Management
Setup and then press [Enter].
ⓟ
Use the arrow keys to select Sleep State, and PageUp and PageDown keys to
set S1(POS).
ⓠ
Press [F10] to save the new setting.
ⓡ
If the following message appears, press [Enter].The computer restarts.
SAVE to CMOS and EXIT(Y/N)? Y
ACPI Funtion [Enabled]
Sleep State [S3 (SRT)]
Power Management [User Define]
Suspend Made [Disable]
Hot Key Function As [Disabled]
HDD Key After [Disabled]
Power Button Function [Suspend]
After AC Power Lost [Power Off]
ĚPM Wake Up Events [Press Enter]
Item Help
Memu Level Ě
S1 / POS
Sleep State
System Recovery
58
The system setup saves your computer’s hardware configurations in CMOS RAM.
The system setup provides you with information, such as the size and type of your
hard disk, size of the installed memory, date, and time.
4. System Recovery
ⓞPlease make backup files from your Computer.
ⓟInsert the Recovery CD into the CD-ROM drive, and then turn off your computer.
Turn on your Notebook PC, and then press [Enter] when ²Press any key to boot
from CD³message appears on the screen.
ⓠFollow the instructions to install the Widows operating system.
ⓡAfter the installation is complete, remove the Recovery CD from your computer
and then restart the computer. Start the registration procedure by following instruc
tions on the screen.
ⓢ.After the Windows operating system installation is complete, install the LG GILJABI
CD (software installation CD) on your computer, and then you can use all application
programs and device drivers.
You can restore your computer system by using Recovery CD, shipped with your
Computer.
You can select two options (Full Recovery without Format / Full Recovery after
Format.)
Restoring the system by using Recovery CD
For Windows users
System Recovery 59
1. If Windows XP is already installed on your computer, simply install Widows XP
for upgrade purpose without formatting hard disk.
2. If you have Windows Operating system running on your computer, follow the
instructions to install Windows XP upgrade.
ⓟClick [Start] and then select [Run].
ⓠInsert Recovery CD on your computer, and then type D:ƃi386ƃwinnt32.exe/unat-
tend on the [Run] dialogue box and press [OK].
(In case CD-ROM drive is located at (D:)
ⓞTurn on the computer that has Windows XP installed.
To install Windows XP upgrade
ãIf winnt32.exe is applied without
"unattend"option, Input Product
key number, written on the com
puter. You should register
Windows XP OS in 30days.
Note
60 Reinstalling the driver
5.Reinstalling the driver
After connecting a printer, you should istall the printer driver. Windows XP auto-
matically recognize the printer driver. If the printer driver does not function correct-
ly, re install the printer driver by following instruc-tions.
5-1.Reinstalling the print driver

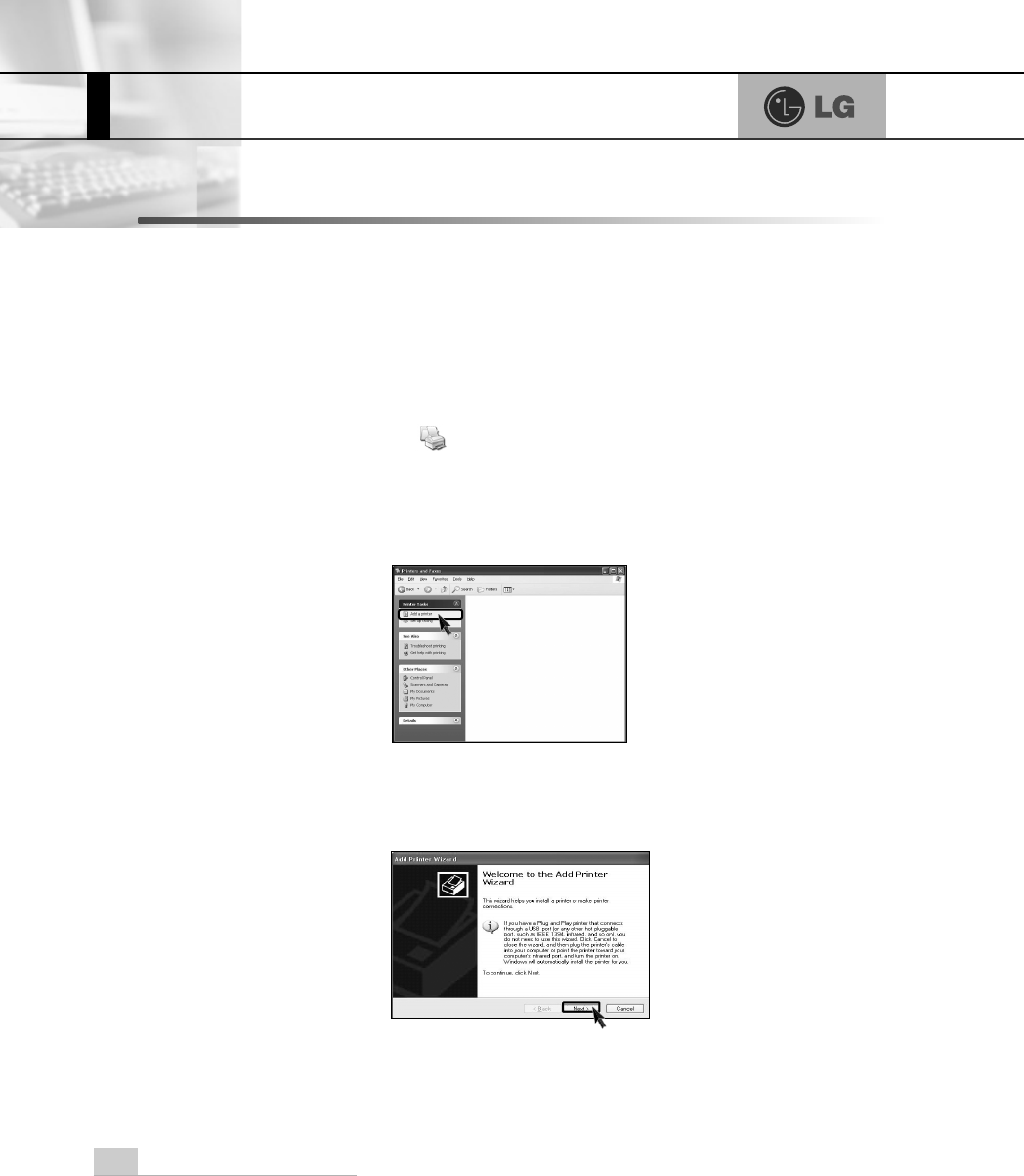

ⓟDouble-click [Printer&Fax] ( ) icon.
ⓠIf the following dialogue box appears, select [Add a printer].
ⓞ[Start] - [Control panels] - [Switch to classic view].
ⓡAfter "Welcome to the add printer Wizard" dialogue box appears,click [Next].
61Reinstalling the driver
ⓢSelect [Local or Network Printer] and then click [Next].
ⓣ[New Printer Detection] dialogue box appears, click [Next].
ⓤSelect LPT1 and then click [Next].
ⓥSelect Manufacturer and printer, and then click [Next]. If your computer came
with an installation disk, click [Have Disk].
62 Reinstalling the driver
ⓧPrint Test Page appears, click [Yes] and then press [Next].
ⓦInsert the manufacturer's installation disk, and then make sure that the correct
drive is selected bellow.
ⓦYou must assign a Printer name, and then click [Next].
[Have disk] button was selected
[Next] button was selected
63Reinstalling the driver
ⓨTest page is now printing, click [OK].
ⓩIf followig dialogue box appears, click [Finish].
⓪Adding the new printer process is now completed.
64 Reinstalling the driver
Sound driver enables you to listen music files and CD from your computer. Sound
driver is came with your computer. But if the computer does not recognize the
sound driver, you should re-install the sound driver.
5-2.Reinstalling the sound device driver.
ⓞTurn on the computer and the moitor.
ⓟInsert LG Giljabi CD into the CD-ROM drive, and then select the sound driver.
ⓠSound driver installation starts. complete the processs by the instructions on the
screen.
65Reinstalling the driver
Video driver is came with your computer. But if the computer does not recognize
the sound driver, you should re-install the sound driver.
5-3.Reinstalling the video driver
ⓞTurn on the computer and the monitor.
ⓟInsert LG Giljabi CD into the CD-ROM drive, and then select the video driver.
ⓠVideo driver installation starts. complete the process by the instructions on the
screen.
System Expansion
66
6-1. Opening the computer case
Always consult with your service representatives before opening the computer case.
Follow the guidelines below when opening the case.
ãQuit all running programs.
ãTurn off the computer and monitor, and unplug and remove the power cords.
ãKeep magnetic objects such as screw driver away from the parts inside the com-
puter.
ãOpen the computer case in a safe, clean area.
ãThe static electricity can damage the parts inside the computer. Touch a bare,
unpainted metal part of the computer for 2~3 seconds to remove the static elec-
tricity before opening the computer case.
ãMake sure that there is no metallic object left inside the computer before closing the
case. There is a risk of electric shock or fire.
6. System Expansion
Opening and closing the computer case
Remove 3 screws from the cover and
then push the cover as the direction of
the arrow.
Push the cover in the direction of
arrow as it aligns the groove of com-
puter cover with body shown on the
picture and fasten 3 screws.

Navigation menu
