LG Electronics USA DU42PX12XD 42-inch Plasma Monitor User Manual User s Manual H
LG Electronics USA 42-inch Plasma Monitor User s Manual H
Users Manual
PLASMA TV
OWNER’S MANUAL
Please read this manual carefully and completely before
operating your TV.
Retain this manual for future reference.
Record model number and serial number of the TV in the
spaces provided below.
See the label attached on the back cover and relate this
information to your dealer if you require service.
Model Number :
Serial Number :
MODEL: DU-42PX12XD
LG Electronics U.S.A., Inc.
2 Plasma TV

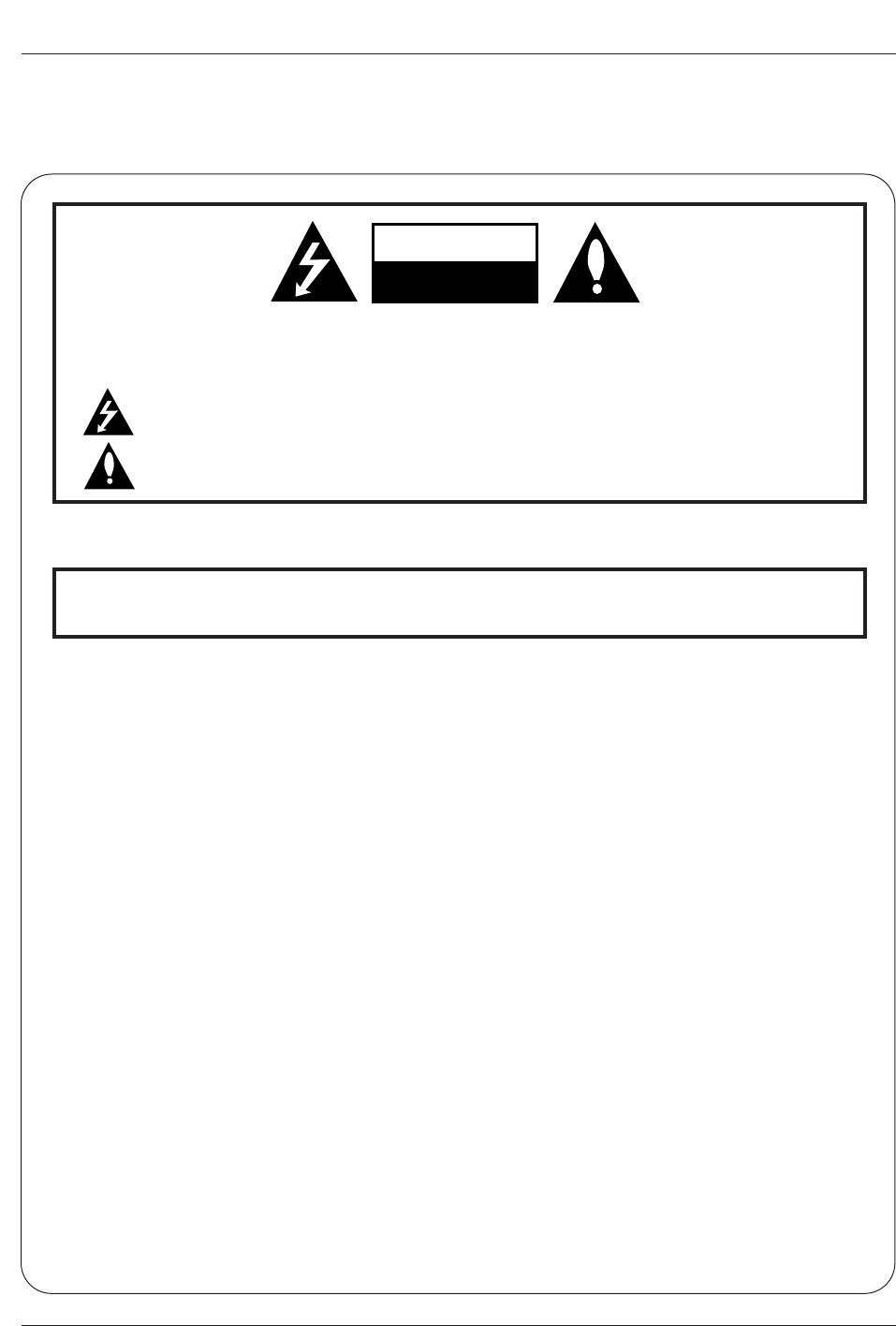

Warning
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to
the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of impor-
tant operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
POWER CORD POLARIZATION:
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code
(U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the point of the cable entry as practical.
REGULATORY INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equip-
ment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio com-
munications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
CAUTION:
Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized mod-
ification could void the user’s authority to operate this product.
COMPLIANCE:
The responsible party for this product’s compliance is:
LG Electronics U.S.A., Inc
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632
1-800-243-0000
http://www.lgusa.com
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
/CAUTION
W
Warning
arning
Owner’s Manual 3
Safety Instructions
Important safeguards for you and your new product
Your product has been manufactured and tested with your safety in mind. However, improper use can result in electrical
shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe
the following safety points when installing and using your new product, and save them for future reference.
Observing the simple precautions discussed in this manual can help you get many years of enjoyment and safe operation
that are built into your new product.
This product complies with all applicable U.S. Federal safety requirements, and those of the Canadian Standards Association.
1. Read Instructions
All the safety and operating instructions should be read
before the product is operated.
2. Follow Instructions
All operating and use instructions should be followed.
3. Retain Instructions
The safety and operating instructions should be retained for
future reference.
4. Heed Warnings
All warnings on the product and in the operating instructions
should be adhered to.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a damp
cloth for cleaning.
6. Water and Moisture
Do not use this product near water, for example, near a bath
tub, wash bowl, kitchen sink, or laundry tub, in a wet base-
ment, or near a swimming pool.
7. Accessories, Carts, and Stands
Do not place this product on a slippery or tilted surface, or on
an unstable cart, stand, tripod, bracket, or table. The product
may slide or fall, causing serious injury to a child or adult,
and serious damage to the product. Use only with a cart,
stand, tripod, bracket, or table recommended by the manu-
facturer, or sold with the product. Any mounting of the prod-
uct should follow the manufacturer’s instructions, and should
use a mounting accessory recommended by the manufac-
turer.
8. Transporting Product
A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may
cause the product and cart combination to overturn.
9. Attachments
Do not use attachments not recommended by the product
manufacturer as they may cause hazards.
10. Ventilation
Slots and openings in the cabinet are provided for ventilation
and to ensure reliable operation of the product and to protect
it from overheating, and these openings must not be blocked
or covered. The openings should never be blocked by plac-
ing the product on a bed, sofa, rug, or other similar surface.
This product should not be placed in a built-in installation
such as a bookcase or rack unless proper ventilation is pro-
vided or the manufacturer’s instructions have been adhered
to.
11. Power Sources
This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supply to your home, consult your product
dealer or local power company. For products intended to
operate from battery power, or other sources, refer to the
operating instructions.
12. Power-Cord Polarization
This product is equipped with a three-wire grounding type
plug, a plug having a third (grounding) pin. This plug will only
fit into the grounding-type power outlet. This is a safety fea-
ture. If you are unable to insert the plug into the outlet, con-
tact your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the grounding-type plug.
13. Power-Cord Protection
Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from
the product.
PORTABLE CART WARNING
Safety Instructions
Safety Instructions
4 Plasma TV
Safety Instructions

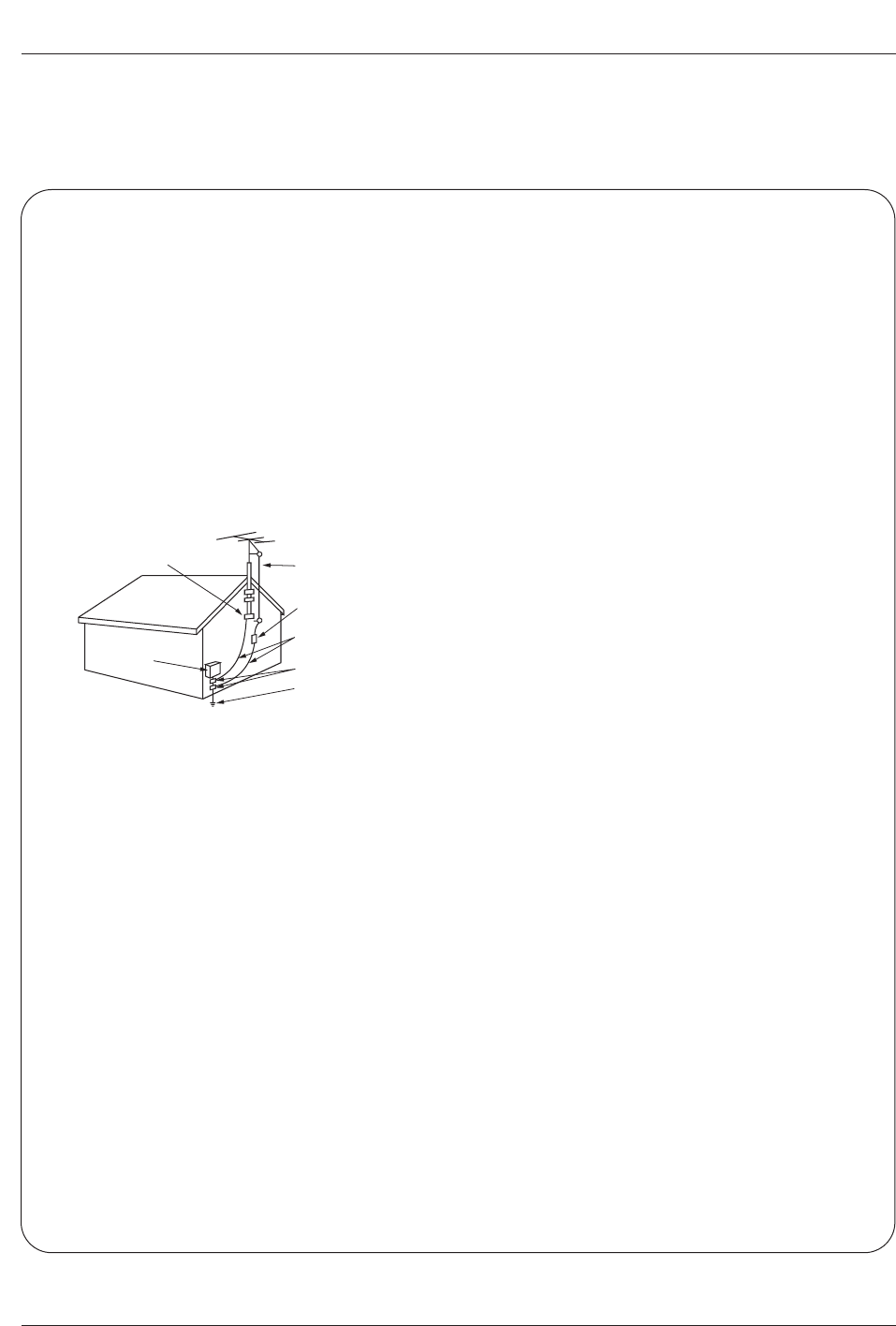

Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System (NEC
Art 250, Part H)
Ground Clamp
Electric Service
Equipment
Example of Grounding According to National
Electrical Code Instructions
NEC - National Electrical Code
14. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the
product, be sure the antenna or cable system is grounded so
as to provide some protection against voltage surges and
built-up static charges. Article 810 of the National Electrical
Code (U.S.A.), ANSI/ NFPA 70 provides information with
regard to proper grounding of the mast and supporting struc-
ture, grounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of antenna-dis-
charge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
15. Lightning
For added protection for this product (receiver) during a light-
ning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect
the antenna or cable system. This will prevent damage to the
product due to lightning and power-line surges.
16. Power Lines
An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines or
circuits. When installing an outside antenna system, extreme
care should be taken to keep from touching such power lines
or circuits as contact with them might be fatal.
17. Overloading
Do not overload wall outlets and extension cords as this can
result in a risk of fire or electric shock.
18. Object and Liquid Entry
Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
19. Servicing
Do not attempt to service this product yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service per-
sonnel.
20. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. If the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the
product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and
will often require extensive work by a qualified technician
to restore the product to its normal operation.
e. If the product has been dropped or the cabinet has been
damaged.
f. If the product exhibits a distinct change in performance.
21. Replacement Parts
When replacement parts are required, be sure the service
technician has used replacement parts specified by the man-
ufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric
shock, or other hazards.
22. Safety Check
Upon completion of any service or repairs to this product,
ask the service technician to perform safety checks to deter-
mine that the product is in proper operating condition.
23. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as
recommended by the manufacturer. The product may slide
or fall, causing serious injury to a child or adult, and serious
damage to the product.
24. Heat
The product should be situated away from heat sources
such as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat.
Safety Instructions continued
Safety Instructions continued
Owner’s Manual 5
Contents
After reading this manual, keep it handy for future reference.
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3~4
Introduction

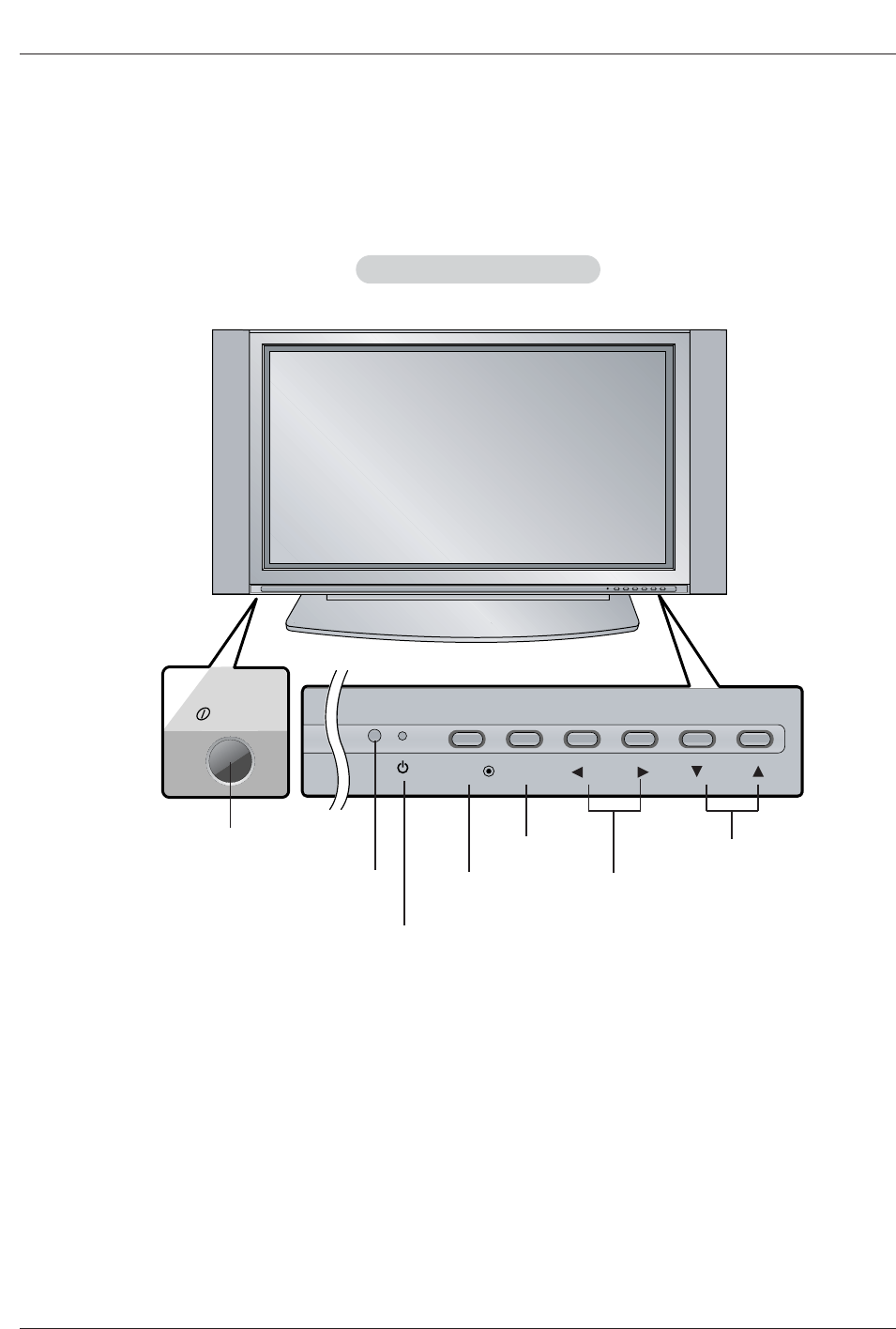

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

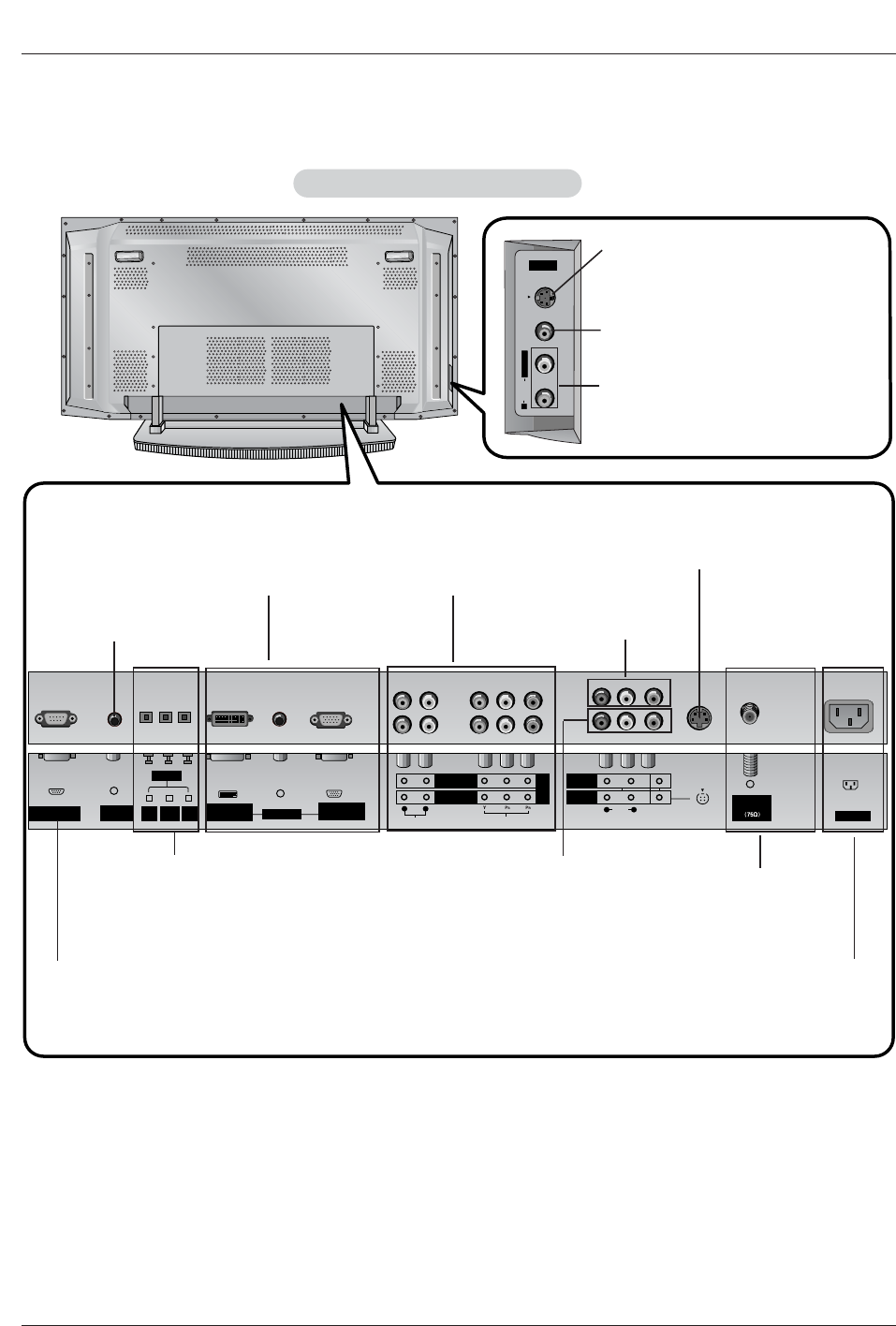

Connection Options . . . . . . . . . . . . . . . . . . . . . .8
Remote Control Key Functions . . . . . . . . . . . . . .9
Installation
Installation Instruction . . . . . . . . . . . . . . . . . . .10~11
External Equipment Connections . . . . . . . . . .12~16

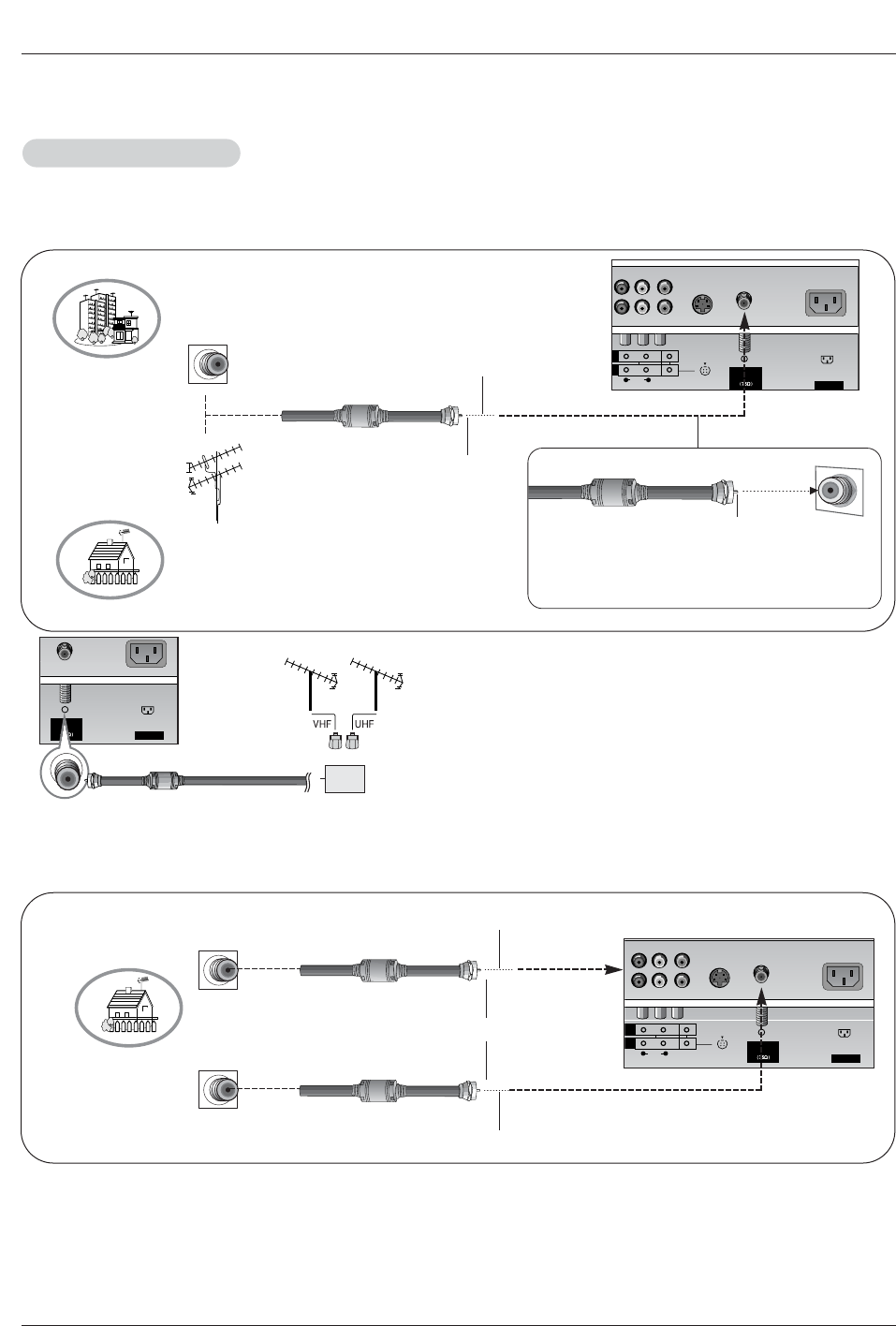

Antenna Connection . . . . . . . . . . . . . . . . . . . . .12

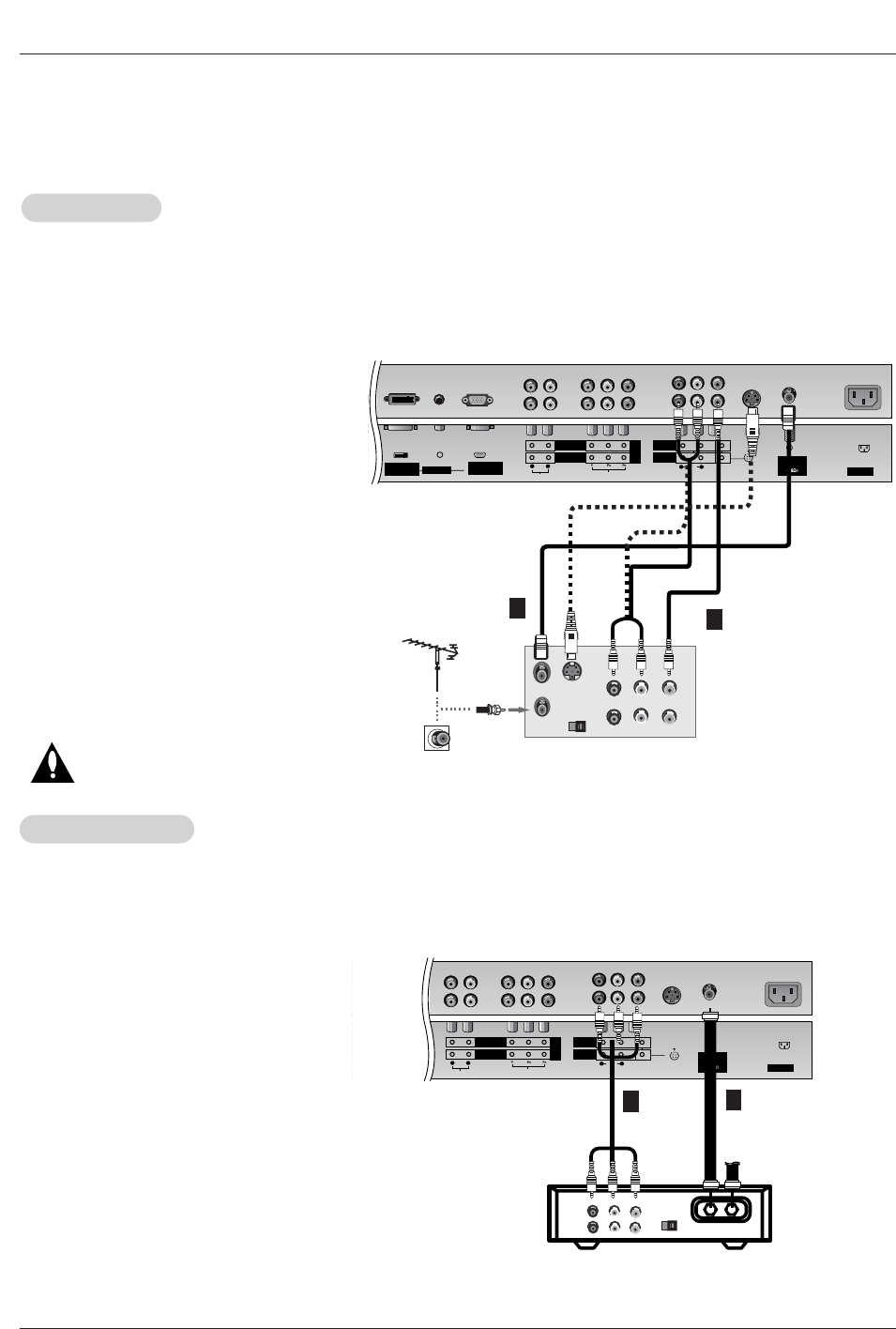

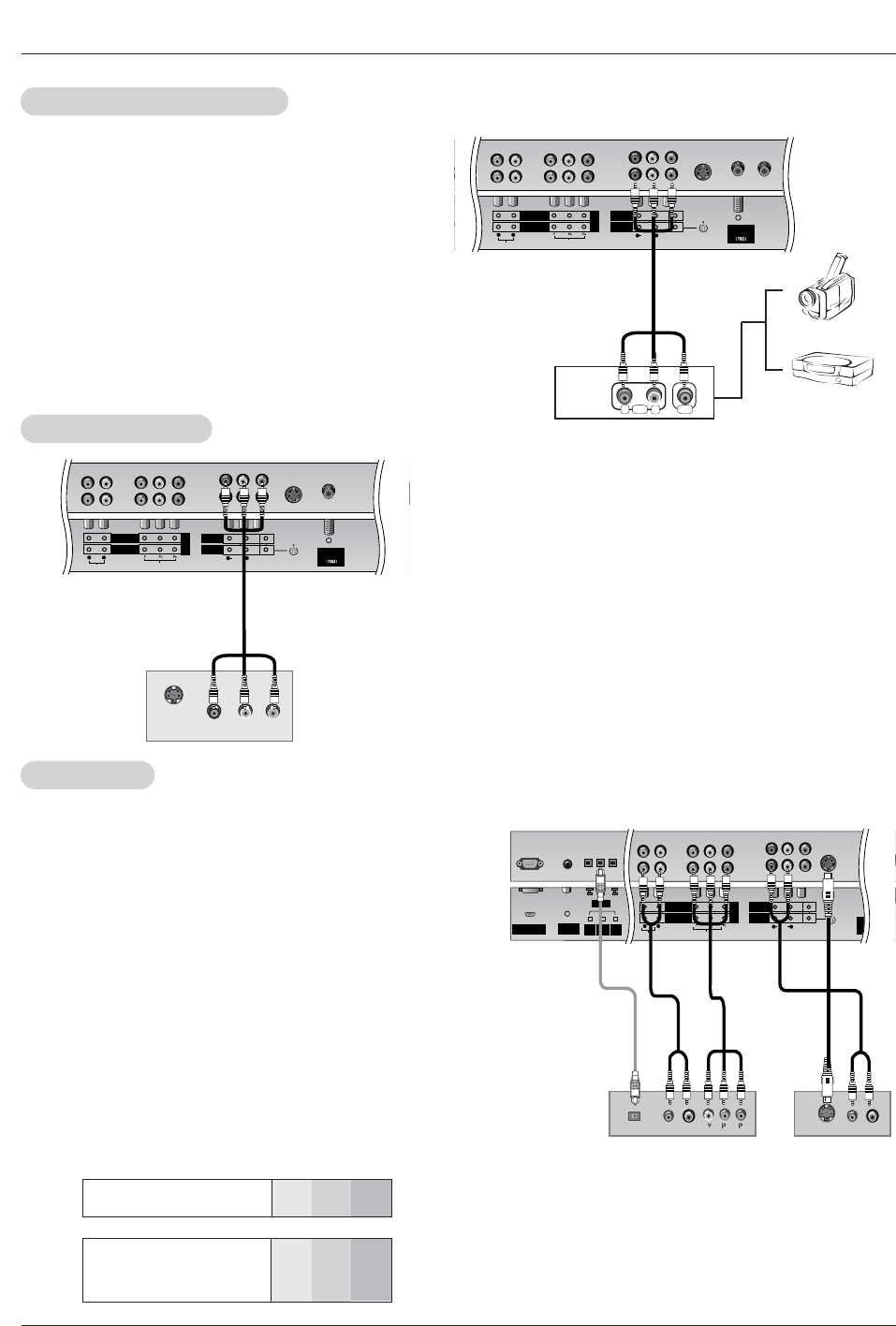

VCR Setup / Cable TV Setup . . . . . . . . . . . . . .13
External A/V Source Setup . . . . . . . . . . . . . . . .14
Monitor Out Setup / DVD Setup . . . . . . . . . . . .14

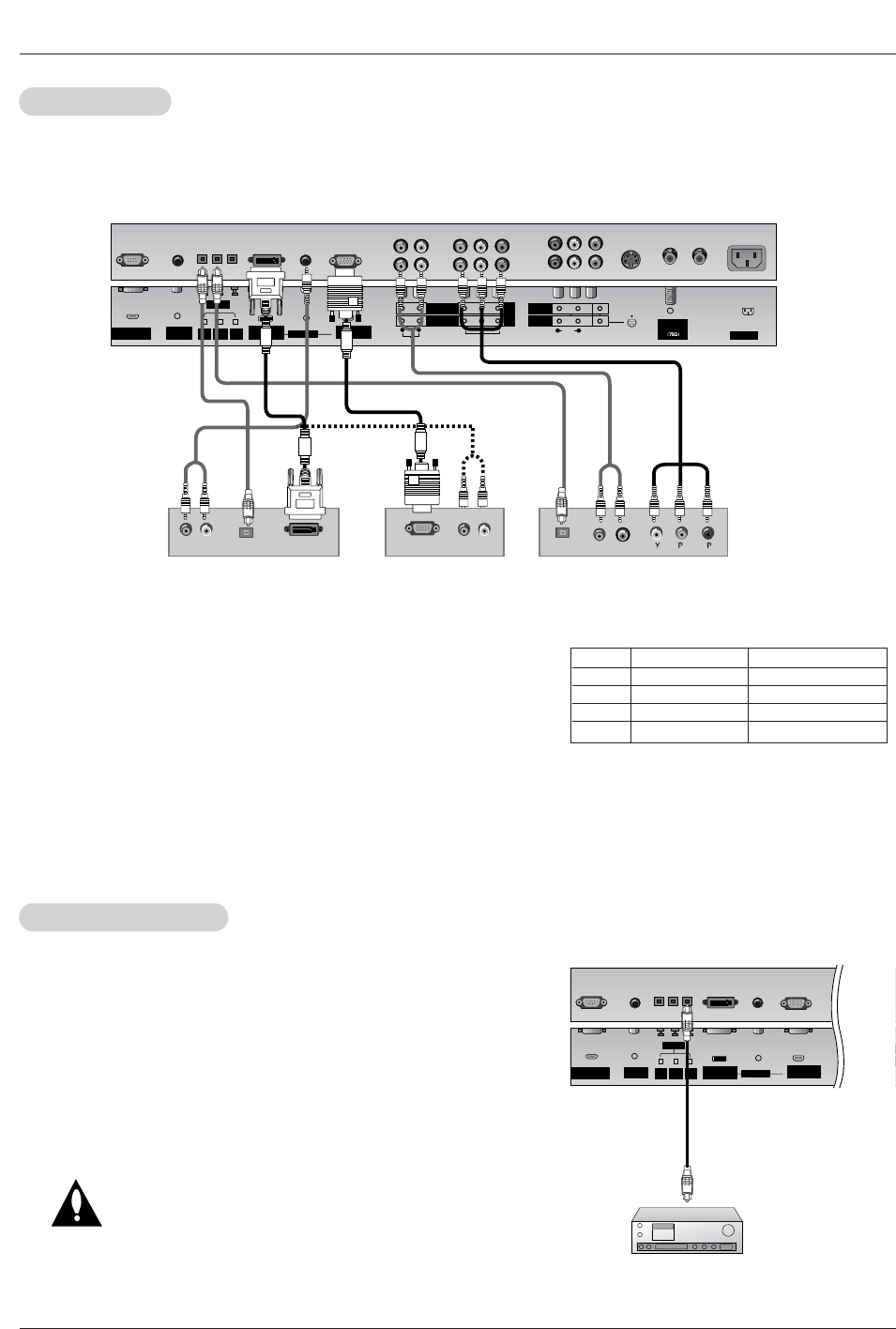

HDSTB Setup / Digital Audio Output . . . . . . . . .15
PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Operation
Screen Setup for PC mode . . . . . . . . . . . . . . . . . .17
Turning the TV On . . . . . . . . . . . . . . . . . . . . . . . .18
On-screen Menus Language Selection . . . . . . . . .18
Setup Menu Options
EZ Scan (Channel Search) . . . . . . . . . . . . . . . .19
Channel Edit . . . . . . . . . . . . . . . . . . . . . . . . . . .19
DTV Signal Strength . . . . . . . . . . . . . . . . . . . . .20
Channel Label Setup . . . . . . . . . . . . . . . . . . . .20
Main Picture Source Selection . . . . . . . . . . . . .20

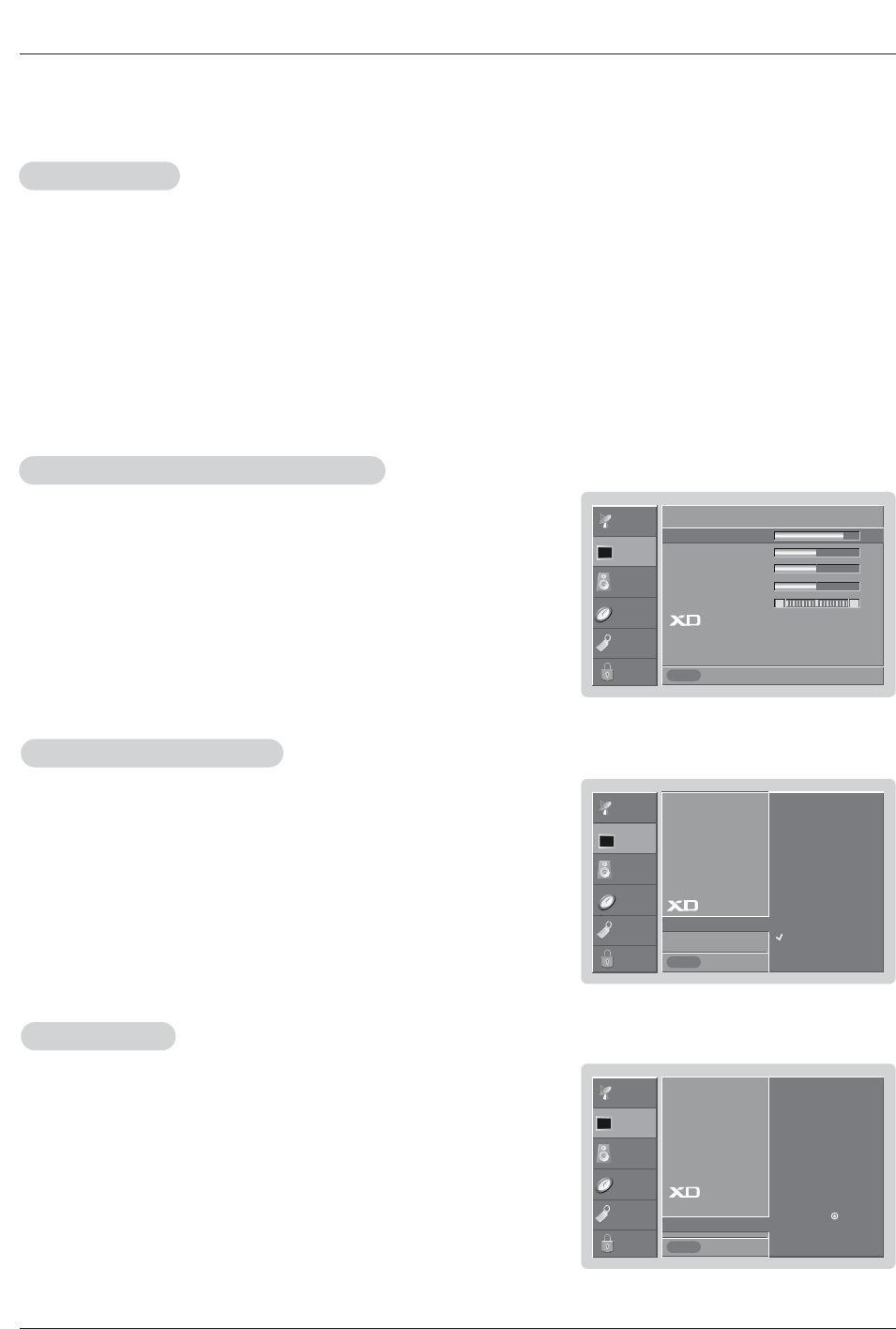

Video Menu Options
EZ Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Manual Picture Control (Off Option) . . . . . . . . .21
Color Temperature Control . . . . . . . . . . . . . . . .21
Video Preset . . . . . . . . . . . . . . . . . . . . . . . . . .21
Audio Menu Options
Audio Language . . . . . . . . . . . . . . . . . . . . . . . .22
EZ SoundRite / EZ Sound . . . . . . . . . . . . . . . . .22
Manual Sound Control (Off Option) . . . . . . . . . .23
Stereo/SAP Broadcasts Setup . . . . . . . . . . . . .23
Front Surround . . . . . . . . . . . . . . . . . . . . . . . . .23
TV Speakers On/Off Setup . . . . . . . . . . . . . . . .24
BBE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Time Menu Options
Auto Clock Setup . . . . . . . . . . . . . . . . . . . . . . .25
Manual Clock Setup . . . . . . . . . . . . . . . . . . . . .25
On/Off Timer Setup . . . . . . . . . . . . . . . . . . . . .25
Sleep Timer / Auto Off . . . . . . . . . . . . . . . . . . . .26
Option Menu Features
Aspect Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Caption / Caption Mode . . . . . . . . . . . . . . . . . .28
Caption Option . . . . . . . . . . . . . . . . . . . . . . . .29
Cinema Mode Setup . . . . . . . . . . . . . . . . . . . .29
Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
ISM Method . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Low power . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Split Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Lock Menu Options
Parental Lock Setup . . . . . . . . . . . . . . . . . . . . .32

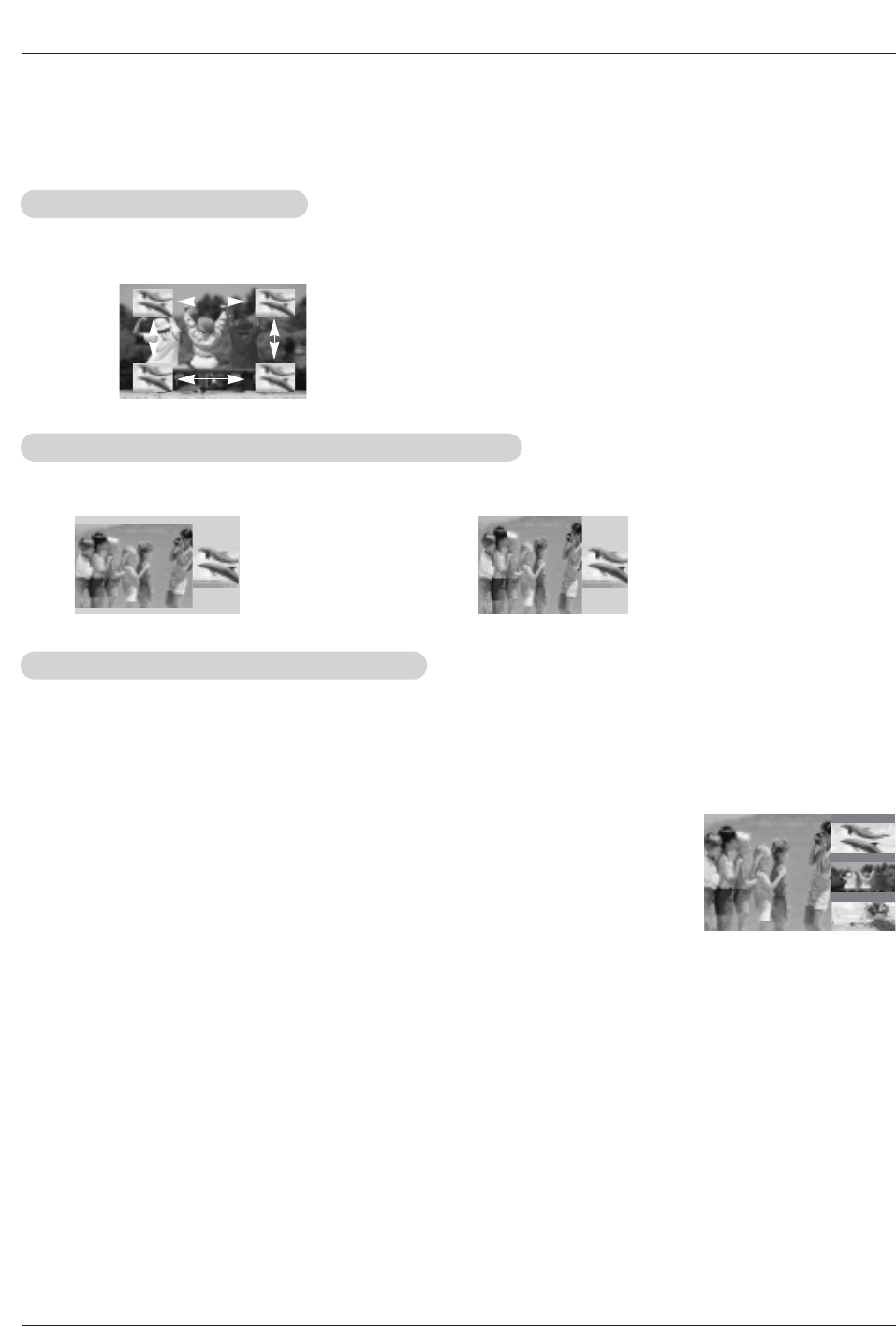

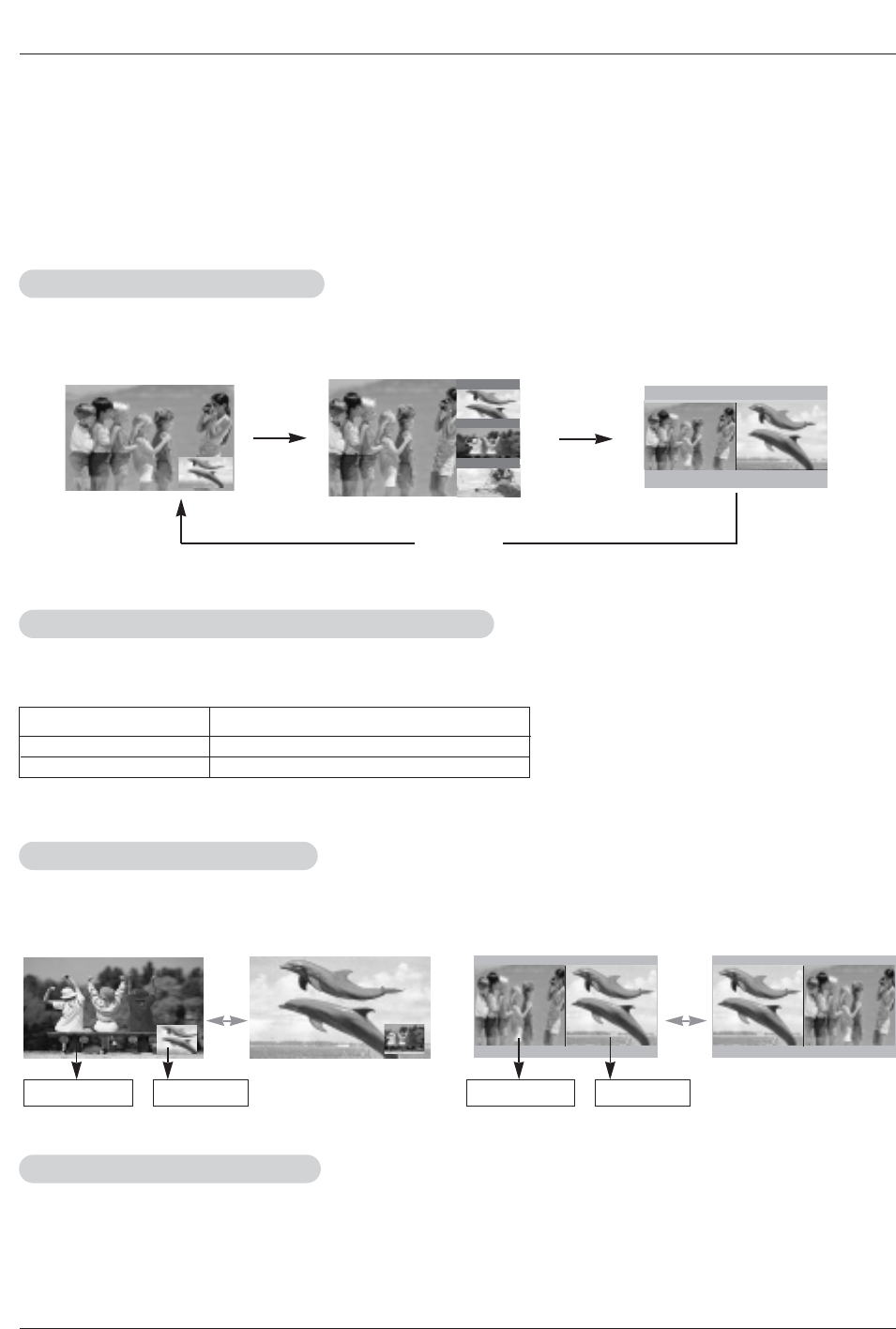

PIP (Picture-in-Picture)/POP/Twin Picture
Watching PIP/POP/Twin Picture . . . . . . . . . . . ..33
Selecting an Input Signal Source for PIP/Twin Picture
. .33
Swapping the PIP/Twin Picture . . . . . . . . . . . . .33
TV Program Selection for PIP . . . . . . . . . . . . . .33
Moving the PIP sub picture . . . . . . . . . . . . . . . .34
Adjusting Main and Sub Picture Sizes for Twin Picture . .34
POP (Picture-out-of-Picture: Channel Scan) . . .34
External Control Device Setup . . . . . . . . . . . . . . . .35~39

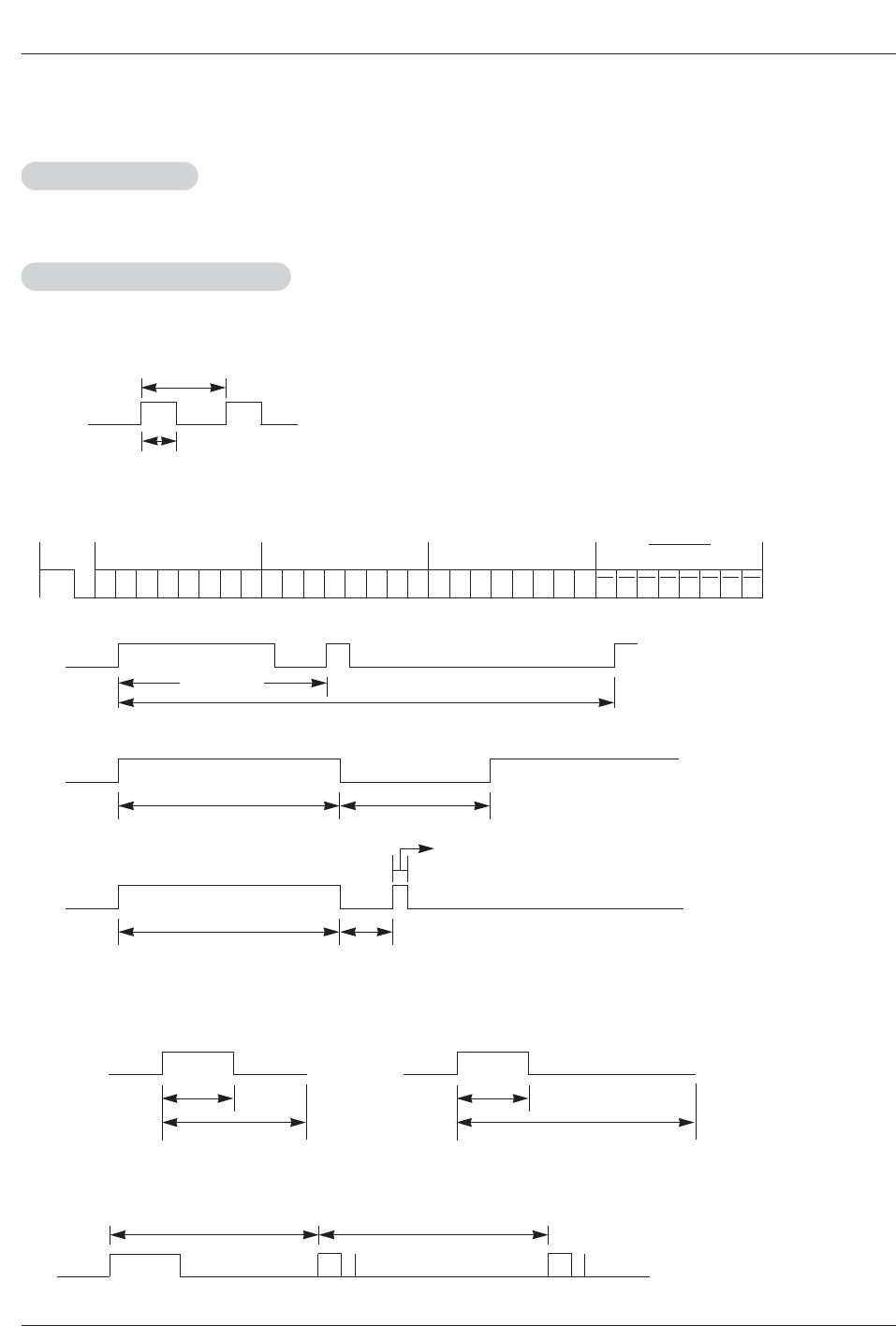

IR Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40~41
Programming the Remote . . . . . . . . . . . . . . . . . . . . . .42
Programming Codes . . . . . . . . . . . . . . . . . . . . . . .43~44
Troubleshooting Checklist . . . . . . . . . . . . . . . . . . . . . .45
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . .46
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47~48
Contents
Contents
Setup and Operation Checklist
Setup and Operation Checklist
Setup and Operation Checklist
(See pages 11~16 for available connection and operational setup options.)
1. Unpack TV and all accessories.
2. Connect all external video and audio equipment.
see pages 14 ~ 16.
3 Install batteries in remote control.
See page 9.
4. Turn TV on.
See page 18.
5. Turn video source equipment on.
6. Select viewing source for TV.
See page 20.
7. Fine-tune source image and sound to your personal prefer-
ence or as required by source.
See pages 21 ~ 24.
8. Additional features set up
See Contents above.
6 Plasma TV
Introduction
Introduction
Introduction
What is a Plasma Display Panel (PDP)?
A plasma display panel is the latest display technology and the best way to achieve flat panel displays with excellent image quality
and large screen sizes that are easily viewable. The PDP can be thought of as a descendant of the neon lamp and it can be also
be viewed as a series of fluorescent lamps.
How does it work?
PDP is an array of cells, known as pixels, which are comprised of 3 sub pixels, corresponding to the colors red, green, and blue.
Gas in a plasma state is used to react with phosphors in each sub-pixel to produce colored light (red, green, or blue). These phos-
phors are the same types used in Cathode Ray Tube (CRT) devices such as televisions and common computer monitors.
You get the rich, dynamic colors that you expect. Each sub-pixel is individually controlled by advanced electronics to produce over
16 million different colors. All of this means that you get perfect images that are easily viewable in a display that is less than 5
inches thick.
160° - Wide angle range of vision
Your flat panel plasma screen offers an exceptionally broad viewing angle -- over 160 degrees. This means that the display is
clear and visible to viewers anywhere in the room who can see the screen.
Wide Screen
The screen of the Plasma Display is so wide that your viewing experience is as if you are in a theater.
Multimedia
Connect your plasma display to a PC and you can use it for conferencing, games, and Internet browsing. The Picture-in-Picture
feature allows you to view your PC and video images simultaneously.
Versatile
The light weight and thin size makes it easy to install your plasma display in a variety of locations where conventional TVs will not
fit.
The PDP Manufacturing Process: a few minute colored dots may be present on the PDP screen
The PDP (Plasma Display Panel), which is the display device of this product is composed of 0.9 to 2.2 million cells. A few cell
defects will normally occur in the PDP manufacturing process. Several tiny, minute colored dots visible on the screen should be
acceptable. This also occurs in other PDP manufacturers' products. The tiny dots appearing does not mean that this PDP is defec-
tive. Thus a few cell defects are not sufficient cause for the PDP to be exchanged or returned. Our production technology mini-
mizes these cell defects during the manufacture and operation of this product.
Owner’s Manual 7
Introduction
Controls
Controls
ON/OFF
TV/VIDEO
MENU
VOL CH
- This is a simplified representation of front panel.
Image shown may be somewhat different from your TV.
Front Panel Controls
Front Panel Controls
ON/OFF Button
Remote Control Sensor VOLUME (FF,G) Buttons
Power Standby Indicator
Illuminates red in standby mode,
Illuminates green when the TV is
turned on.
CHANNEL (E,D) Buttons
MENU Button
TV/VIDEO Button
8 Plasma TV
Introduction
Connection Options
Connection Options
RS-VIDEOVIDEO
L / MONO
AUDIO
A/V 2
REMOTE
CONTROL
RS-232C INPUT
(CONTROL/SERVICE)
AC INPUT
AUDIO INPUT
COMPONENT 2
COMPONENT 1
RL
DIGITAL AUDIO
(OPTICAL)
DVI
INPUT
COMPONENT1
INPUT
OUTPUT
AUDIO INPUT
DVI INPUT
(PC/DTV INPUT)
RGB INPUT
(PC/DTV INPUT)
VIDEO INPUT
DVD
DTV
INPUT
MONITOR
OUTPUT
A/V
INPUT 1
AUDIO
R L
(MONO)
VIDEO
S-VIDEO
Antenna
Analog/DTV
.
Back Connection Panel
Back Connection Panel
Antenna 1-2 Inputs
Connect cable or antenna signals to the
TV, either directly or through your cable
box. For DTV use Antenna 2 only.
DVI Input/Audio Input/RGB
Input
Connect the monitor output con-
nector from a PC to the appro-
priate input port.
Digital Audio (DVI: Digital Visual
Interface/Component1) Input/
Digital Audio Output
Connect digital audio from various types
of equipment. Note: In standby mode,
these ports will not work.
Audio/Video Input 1
Connect audio/video out-
put from an external
device to these jacks.
DVD/DTV Input (Component
1-2)
Connect a component
video/audio device to these
jacks. Monitor Output
Connect a second TV or
Monitor.
Remote Control
Port
Connect your wired
remote control here.
S-Video Input
Connect S-Video out from an
S-VIDEO device to the S-
VIDEO input.
Power Cord Socket
This TV operates on an AC power. The voltage is indi-
cated on the Specifications page. Never attempt to oper-
ate the TV on DC power.
S-VIDEO Input
A connection available to provide better
picture quality than the video input.
VIDEO Input
Connects the video signal from a video
device.
AUDIO Input
Use to connect to hear stereo sound
from an external device.

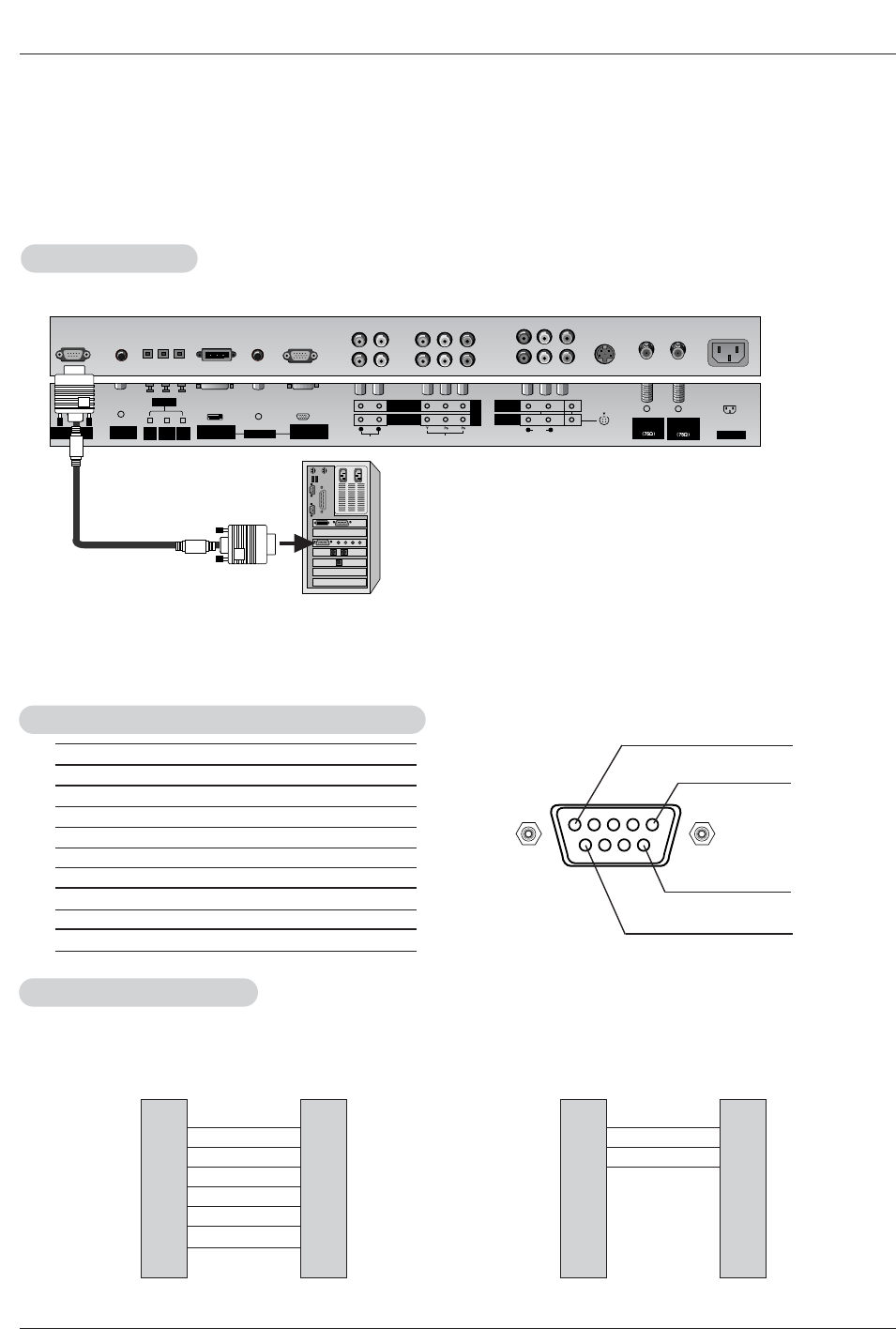

RS-232C INPUT
(CONTROL/SERVICE) PORT
Connect to the RS-232C port
on a PC.
Owner’s Manual 9
Installation
- When using the remote control, aim it at the remote control sensor on the TV.
LIGHT
TV/VIDEO
MODE
COMP/RGB/DVI
MUTE SURF
VOL CH
INFO
SAP RATIO
CC
MENU
SOUND VIDEO
EXIT
PLAY PAUSE STOP RECORD
PIP PIPCH- PIPCH+ PIPINPUT
FREEZE
ADJUST
OK
ZOOM SIGNAL SWAP
REW FF SKIP
POWER
TIMER
FLASHBK
LIGHT
Illuminates the remote control buttons.
TV/VIDEO
Selects: DTV, Analog, Video1-2,
Component 1-2, RGB-DTV (or RGB-PC),
DVI-DTV (or DVI-PC) input sources.
COMP/RGB/DVI
Selects: Component 1-2, RGB-DTV (or RGB-
PC), DVI-DTV (or DVI-PC) input sources.
NUMBER buttons
DASH
Used to enter a program number for multiple
program channels such as 2-1,2-2,etc.
MUTE
Switches the sound on or off.
VCR/DVD BUTTONS
Control some video cassette recorders or
DVD player ("RECORD" button is not avail-
able for DVD player).
RATIO
Changes the aspect ratio.
MODE
Selects the remote operating mode: TV,
VCR, DVD, CABLE, HDSTB or AUDIO.
Select other operating modes, for the
remote to operate external devices.
POWER
Turns your TV or any other programmed
equipment on or off, depending on mode.
TIMER
Lets you select the amount of time before
your TV turns itself off automatically.
SURF
Use to scroll the Surf channel list.
CC
Select a closed caption:
Off, EZ Mute, and On.
FLASHBK
Tunes to the last channel viewed.
THUMBSTICK (Up/Down/Left/Right/OK)
Allows you to navigate the on-screen
menus and adjust the system settings to
your preference.
CHANNEL UP/DOWN
Selects available channels found
with EZ scan.
EXIT
Clears all on-screen displays and returns to
TV viewing from any menu.
VIDEO
Adjusts the factory preset picture according
to the room.
VOLUME UP/DOWN
Increases/decreases the sound level.
SAP
Selects MTS sound: Mono, Stereo, and SAP.
Change the audio language in DTV mode.
MENU
Brings up the main menu to the screen.
INFO
When you watch the TV, displays information
on top of the screen. Not available in
Component 1-2, RGB and DVI mode.
SOUND
Selects the sound appropriate
for the program's character. PIP
Switches between PIP, POP (Picture-out-of-
Picture) and Twin picture modes.
PIPCH-/PIPCH+
Changes to next higher/lower PIP channel.
PIP INPUT
Selects the input source for the sub picture.
SWAP
Exchanges the PIP/main images.
FREEZE
Freezes the currently-viewed picture. Main
picture is frozen in PIP/Twin picturre mode.
ADJUST
Adjusts screen position, clock, and
phase in PC mode.
ZOOM
Enlarges the main picture size.
SIGNAL
Displays the digital signal strength.
Installing Batteries
• Open the battery compartment cover on the back side and install the batteries
matching correct polarity (+ with +, - with -).
• Install two 1.5V AA batteries. Don’t mix old or used batteries with new ones.
Replace cover.
Remote Control Key Functions
Remote Control Key Functions
10 Plasma TV
Installation
Installation
Installation
Owner’s Manual
1.5V
1.5V
Batteries Power Cord
LIGHT
TV/VIDEO
MODE
COMP/RGB/DVI
MUTE SURF
VOL CH
INFO
SAP RATIO
CC
MENU
SOUND VIDEO
EXIT
PLAY PAUSE STOP RECORD
PIP PIPCH- PIPCH+ PIPINPUT
FREEZE
ADJUST
OK
ZOOM SIGNAL SWAP
REW FF SKIP
POWER
TIMER
FLASHBK
Remote Control
75ΩRound Cable

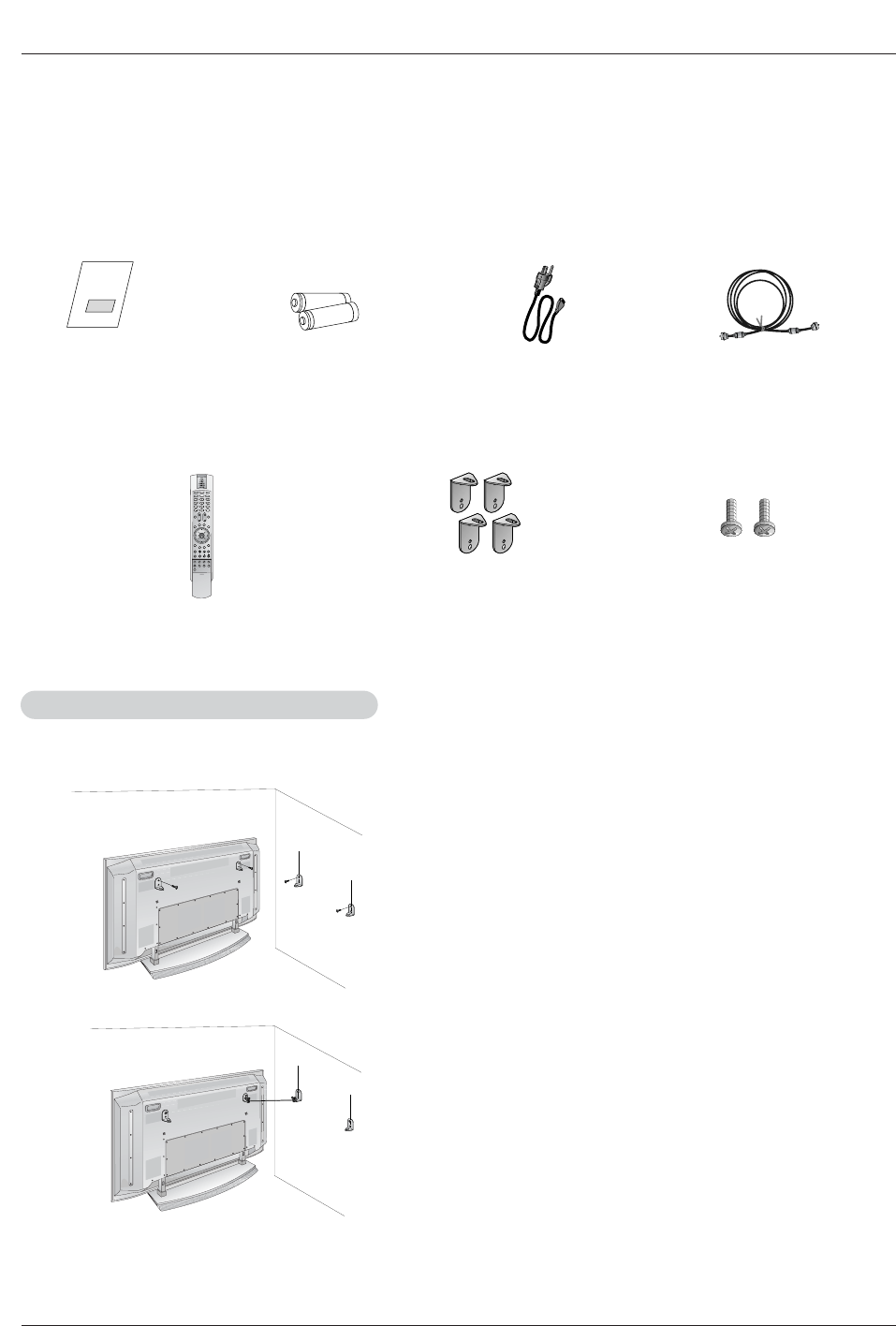

Ensure that the following accessories are included with your plasma display. If an accessory is missing, please contact the dealer
where you purchased the product.
- Secure the TV assembly by attaching it to a wall for additional support.
Attaching the
Attaching the TV assembly to the wall
TV assembly to the wall
• Install the TV brackets on the TV as shown.
Insert the 2 bolts and tighten securely, in the holes on the bracket.
Install the wall brackets on the wall with 4 bolts*,
(not supplied with the product), as shown.
Match the height of the TV brackets and the wall brackets.
Check to be sure the brackets are tightened securely.
• Secure the TV assembly to the wall with strong strings or
wound wire cables, (not supplied with the product), as
shown.
2-TV brackets
2-Wall brackets
2-TV bracket bolts
Owner’s Manual 11

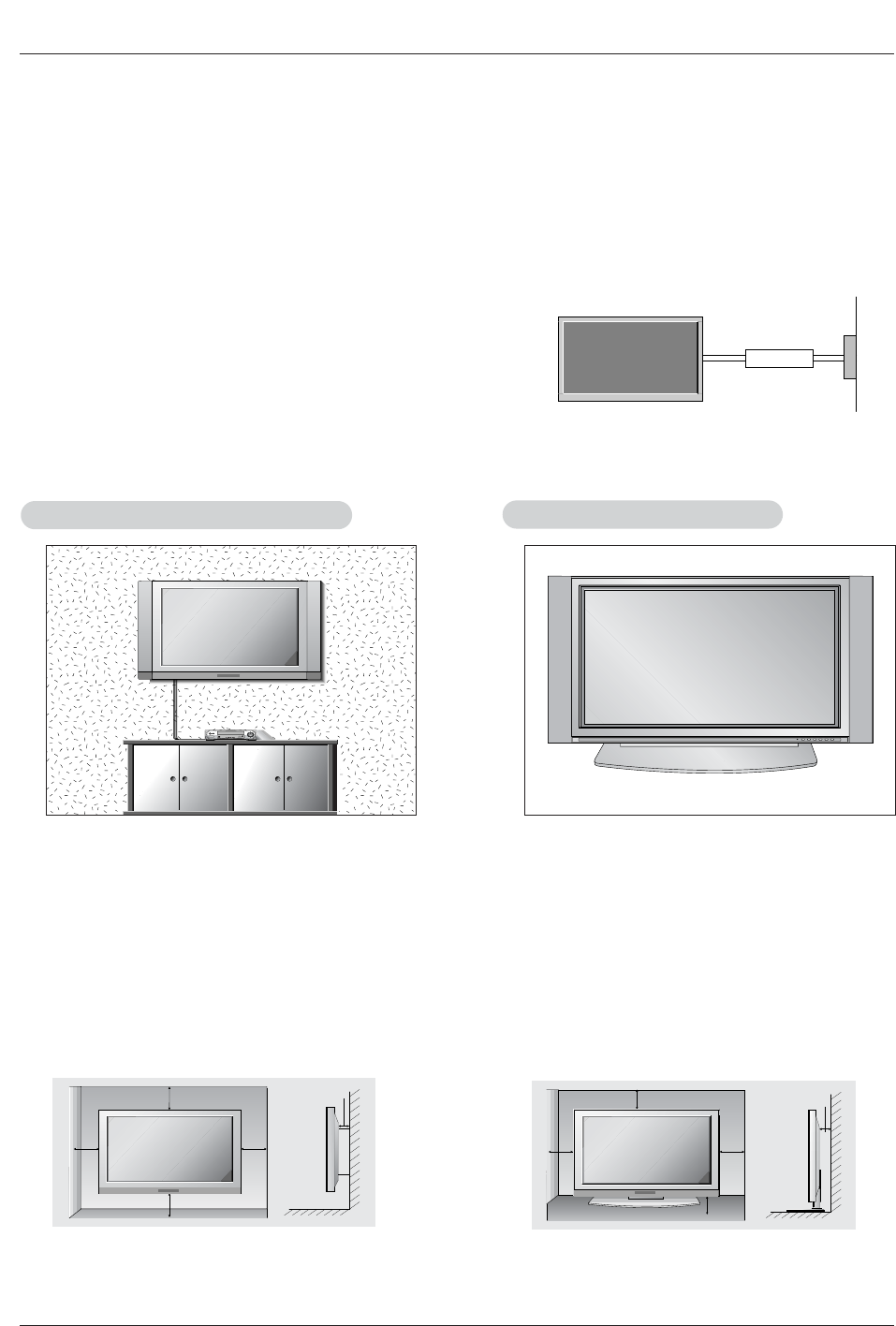

Installation
Installation Instructions
Installation Instructions
• The TV can be installed in various ways such as on a wall, or on a desktop etc.
• The TV is designed to be mounted horizontally. The speakers shown are optional.
GROUNDING
Ensure that you connect the grounding / earth wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not try to ground the
unit by connecting it to telephone wires, lightening rods, or gas pipes.
Power
Supply
Short-circuit
Breaker
4 inches
4 inches
4 inches4 inches
2 inches
W
Wall Mount: Horizontal installation
all Mount: Horizontal installation
For proper ventilation, allow a clearance of 4” on each
side and 2” from the wall. Detailed installation instruc-
tions are available from your dealer, see the optional
Wall Mounting Bracket Installation and Setup Guide.
4 inches
4 inches
2.36 inches
4 inches
2 inches
Desktop Pedestal Installation
Desktop Pedestal Installation
For proper ventilation, allow a clearance of 4” on each
side and the top, 2.36” on the bottom, and 2” from the
wall. Detailed installation instructions are included in
the optional Desktop Stand Installation and Setup
Guide available from your dealer.
To Mount on a Wall
Wall mount minimum allowable clearances for ade-
quate ventilation.
To Install on a Desktop
Pedestal mount minimum allowable clearances for
adequate ventilation.
12 Plasma TV
Installation
- Antenna or Cable Service without a Cable Box Connections
- For optimum picture quality, adjust antenna direction if needed.
Antenna Connection
Antenna Connection
Analog and Digital TV signals provided on one antenna
NOTE: If you are not sure of the type of signal(s) you are receiving, let EZ Scan complete all the channel signal-type searches.
The TV will let you know when the analog, cable, and digital channel scans are complete.
Analog and DTV signals provided on two separate antennas
• In a poor signal area to improve picture quality, purchase
and install a signal amplifier.
• If the antenna needs to be split for two TV’s, install a “2-
Way Signal Splitter” in the connections.
• If the antenna is not installed properly, contact your deal-
er for assistance.
AC INPUT
R
T
1
AUDIO
R L
(MONO)
VIDEO
S-VIDEO
Antenna
Analog/DTV
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor
Antenna
Wall Antenna
Socket
VHF Antenna
UHF Antenna
RF Coaxial Wire (75 ohm)
Copper Wire
Turn clockwise to tighten.
Copper Wire
Be careful not to bend the Copper wire when
connecting the antenna.
AC INPUT
T
OR
P
UT
V
T
1
AUDIO
R L
(MONO)
VIDEO
S-VIDEO
Antenna
Analog/DTV
Wall Antenna
Socket RF Coaxial Wire (75 ohm)
Analog Antenna
Digital Antenna
Copper Wire
Copper Wire
Turn clockwise to tighten.
Wall Antenna
Socket RF Coaxial Wire (75 ohm)
External Equipment Connections
External Equipment Connections
AC INPUT
Antenna
Analog/DTV
Signal
Amplifier
Owner’s Manual 13
Installation
NOTE: All cables shown are not included with the TV
- To avoid picture noise (interference), leave an adequate distance between the VCR and TV
- Use the ISM Method (on the Option menu) feature to avoid having a fixed image remain on the screen for a long period of time.
Typically a frozen still picture from a VCR. If the 4:3 picture format is used; the fixed images on the sides of the screen may
remain visible on the screen.
Connection Option 1
Set VCR output switch to 3 or 4 and then tune
TV to the same channel number.
Connection Option 2
1. Connect the audio and video cables from the
VCR's output jacks to the TV input jacks, as
shown in the figure.
When connecting the TV to VCR, match the
jack colors (Video = yellow, Audio Left = white,
and Audio Right = red).
If you connect an S-VIDEO output from VCR to
the S-VIDEO input, the picture quality is
improved; compared to connecting a regular
VCR to the Video input.
2. Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR owner’s
manual.)
3. Select the input source with using the
TV/VIDEO button on the remote control. (If
connected to A/V INPUT 1, select Video 1
input source)
Do not connect to both Video and
S-Video at the same time.
VCR Setup
VCR Setup
AC INPUT
AUDIO INPUT
COMPONENT 2
COMPONENT 1
RL
PUT
AUDIO INPUT
DVI INPUT
(PC/DTV INPUT)
RGB INPUT
(PC/DTV INPUT)
VIDEO INPUT
DVD
DTV
INPUT
MONITOR
OUTPUT
A/V
INPUT 1
AUDIO
R L
(MONO)
VIDEO
S-VIDEO
Antenna
Analog/DTV
S-VIDEO OUT
IN
(R) AUDIO (L) VIDEO
34
OUTPUT
SWITCH
ANT OUT
ANT IN
.
- After subscribing to a cable TV service from a local provider and installing a converter, you can watch cable TV programming.
The TV cannot display TV programming unless a TV tuner device or cable TV converter box is connected to the TV.
- For further information regarding cable TV service, contact your local cable TV service provider(s).
Connection Option 1
1. Select 3 or 4 with channel switch on cable
box.
2. Tune the TV channel to the same selected
output channel on cable box.
3. Select channels at the cable box or with the
cable box remote control.
Connection Option 2
1. Connect the audio and video cables from the
Cable Box's output jacks to the TV input jacks,
as shown in the figure.
When connecting the TV to a Cable Box,
match the jack colors (Video = yellow, Audio
Left = white, and Audio Right = red).
2. Select the input source with using the
TV/VIDEO button on the remote control. (If
connected to A/V INPUT 1, select Video 1
input source)
3. Select your desired channel with the remote
control for cable box.
Cable
Cable TV Setup
TV Setup
AC INPUT
AUDIO INPUT
COMPONENT 2
COMPONENT 1
RL
IO INPUT
RGB INPUT
(PC/DTV INPUT)
VIDEO INPUT
DVD
DTV
INPUT
MONITOR
OUTPUT
A/V
INPUT 1
AUDIO
R L
(MONO)
VIDEO
S-VIDEO
Antenna
Analog/DTV
TV
VCR RF Cable
(R) AUDIO (L) VIDEO
34
OUTPUT
SWITCH
.
VCR
Cable Box
12
1
2
14 Plasma TV
Installation
•Component Input ports
To get better picture quality, connect a DVD player to the compo-
nent input ports as shown below.
How to connect
Connect the audio and video cables from the external equip-
ment's output jacks to the TV input jacks, as shown in the
figure.
When connecting the TV to external equipment, match the
jack colors (Video = yellow, Audio Left = white, and Audio
Right = red).
How to use
1. Select the input source with using the TV/VIDEO button on
the remote control. (If connected to A/V INPUT 1, select
Video 1 input source).
2. Operate the corresponding external equipment. Refer to
external equipment operating guide.
Component ports
on the TV YPBPR
Video output ports
on DVD player
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
How to connect
1. Connect the DVD video outputs (Y, PB, PR) to the COMPONENT (Y,
PB, PR) INPUT jacks on the TV and connect the DVD audio outputs
to the AUDIO INPUT jacks on the TV, as shown in the figure.
2. If your DVD only has an S-Video output jack, connect this to the S-
VIDEO input on the TV and connect the DVD audio outputs to the
AUDIO INPUT jacks on the TV, as shown in the figure.
NOTE: If your DVD player does not have component video output, use
S-Video.
How to use
1. Turn on the DVD player, insert a DVD.
2. Use the TV/VIDEO or COMP/RGB/DVI button on the remote control
to select Component 1 or Component 2. (If connected to S-
VIDEO, select the Video 1 or Video 2 external input source.)
3. Refer to the DVD player's manual for operating instructions.
External
External A/V Source Setup
A/V Source Setup
DVD Setup
DVD Setup
RL
AUDIO VIDEO
AC INPUT
AUDIO INPUT
COMPONENT 2
COMPONENT 1
RL
NPUT
V INPUT)
VIDEO INPUT
DVD
DTV
INPUT
MONITOR
OUTPUT
A/V
INPUT 1
AUDIO
R L
(MONO)
VIDEO
Antenna
Analog/DTV
S-VIDEO
.
REMOTE
CONTROL
RS-232C INPUT
(CONTROL/SERVICE)
AUDIO INPUT
COMPONENT 2
COMPONENT 1
RL
DIGITAL AUDIO
(OPTICAL)
DVI
INPUT
COMPONENT1
INPUT
OUTPUT
VIDEO INPUT
MONITOR
OUTPUT
A/V
INPUT 1
AUDIO
R L
(MONO)
VIDEO
Antenna 1
Analog/DTV
Ante
D
BR
(R) AUDIO (L)
DIGITAL AUDIO
OPTICAL (R) AUDIO (L)
S-VIDEO
S-VIDEO
DVD
DTV
INPUT
.
DVD
or
Camcorder
Video Game Set
The TV has a special signal output capability which allows you to
hook up a second TV or monitor.
Connect the second TV or monitor to the TV’s MONITOR OUTPUT.
See the Operating Manual of the second TV or monitor for further
details regarding that device’s input settings.
NOTE
• Component, RGB-PC/RGB-DTV, DVI-PC/DVI-DTV, DTV input
sources cannot be used for Monitor out.
NOTES
• Digital Audio will not work for Component 2 input source.
• Digital Audio operation has priority if Digital Audio and AUDIO L/R
are connected at the same time.
AC INPUT
AUDIO INPUT
COMPONENT 2
COMPONENT 1
RL
RGB INPUT
(PC/DTV INPUT)
VIDEO INPUT
MONITOR
OUTPUT
A/V
INPUT 1
AUDIO
R L
(MONO)
VIDEO
S-VIDEO
Antenna
Analog/DTV
S-VIDEO IN
(R) AUDIO (L)
VIDEO
DVD
DTV
INPUT
.
Monitor Out Setup
Monitor Out Setup
or
Owner’s Manual 15
Installation
Send the TV’s audio to external audio equipment (stereo system) via
the Digital Audio Output Optical port.
How to connect
1. Connect one end of an optical cable to the TV Digital Audio Optical
Output port.
2. Connect the other end of the optical cable to the digital audio optical
input on the audio equipment.
3. Set the “ TV Speaker option - Off” in the AUDIO menu. Refer to
page 23.
See the external audio equipment instruction manual for operation.
Caution: Do not look into the optical output port.
Looking at the laser beam may damage
your vision.
Digital
Digital Audio Output
Audio Output
- This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive Digital
signals from a digital set-top box or other digital external device, refer to the figure as shown below.
- This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for DTV (480p,720p,1080i) mode.
How to connect
Use the TV’s COMPONENT (Y, PB, PR) INPUT, RGB or DVI jack for
video connections, depending on your set-top box connector. Then,
make the corresponding audio connections.
How to use
1. Turn on the digital set-top box. (Refer to the owner’s manual for the
digital set-top box.)
2. Use TV/VIDEO or COMP/RGB/DVI on the remote control to select
Component 1,Component 2,RGB-DTV, or DVI-DTV source.
HDSTB Setup
HDSTB Setup
REMOTE
CONTROL
RS-232C INPUT
(CONTROL/SERVICE)
AC INPUT
AUDIO INPUT
COMPONENT 2
COMPONENT 1
RL
DIGITAL AUDIO
(OPTICAL)
DVI
INPUT
COMPONENT1
INPUT
OUTPUT
AUDIO INPUT
DVI INPUT
(PC/DTV INPUT)
RGB INPUT
(PC/DTV INPUT)
VIDEO INPUT
MONITOR
OUTPUT
A/V
INPUT 1
AUDIO
R L
(MONO)
VIDEO
Antenna
Analog/DTV
R
(R) AUDIO (L)
RGB-DTV OUTPUT
BR
(R) AUDIO (L)
DIGITAL AUDIO
OPTICAL
(R) AUDIO (L)
DVI-DTV OUTPUT
DIGITAL AUDIO
OPTICAL
S-VIDEO
DVD
DTV
INPUT
.
Digital Set-top Box
or or
or or
REMOTE
CONTROL
RS-232C INPUT
(CONTROL/SERVICE)
AUDIO INPUT
COMPONEN
COMPONEN
RL
DIGITAL AUDIO
(OPTICAL)
DVI
INPUT
COMPONENT1
INPUT
OUTPUT
AUDIO INPUT
DVI INPUT
(PC/DTV INPUT)
RGB INPUT
(PC/DTV INPUT)
Signal
480i
480p
720p
1080i
Component 1/2
Yes
Yes
Yes
Yes
RGB-DTV,DVI-DTV
No
Yes
Yes
Yes
16 Plasma TV
Installation

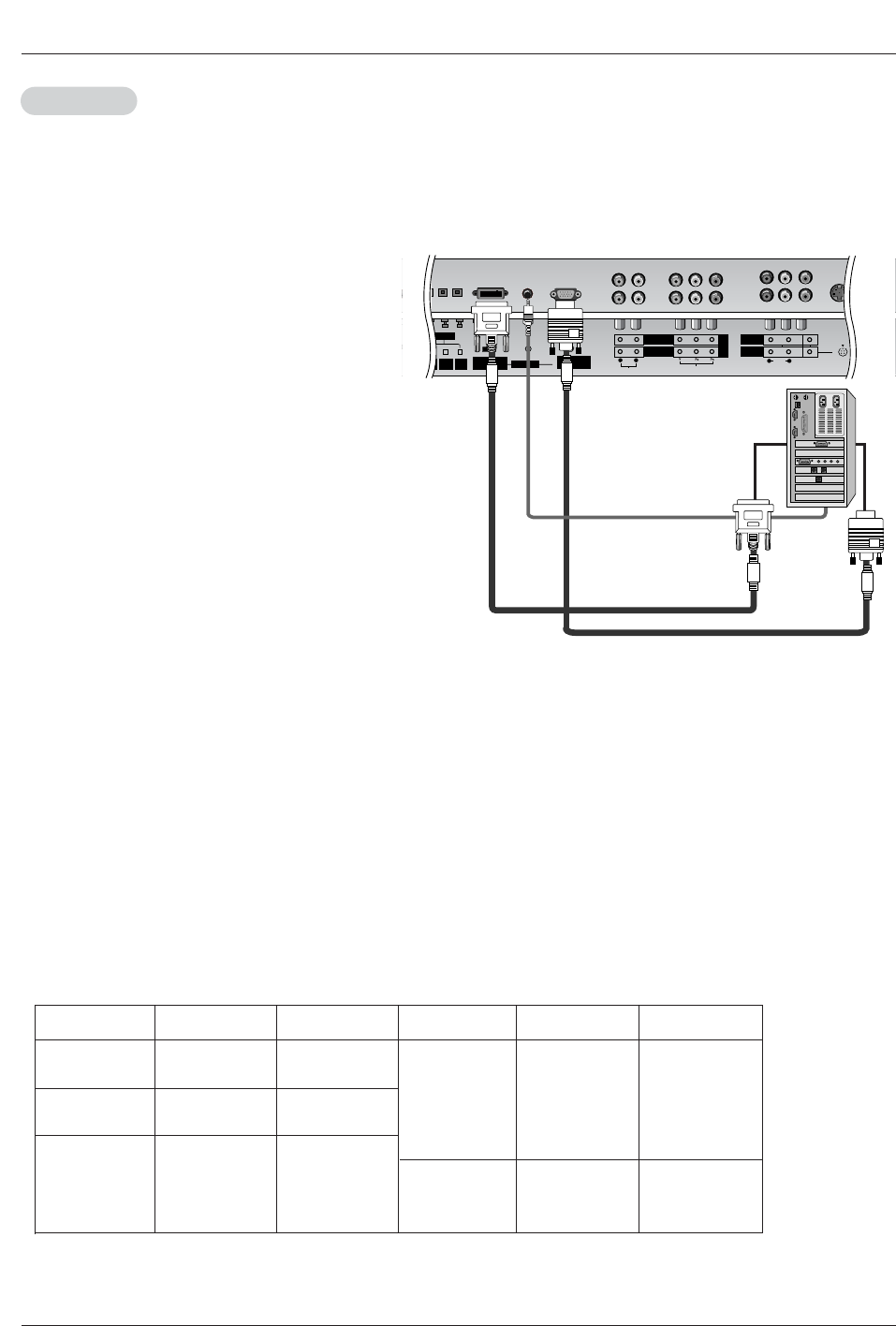

How to connect
1. To get the best picture quality, adjust the PC
graphics card to 1024x768, 60Hz.
2. Use the TV’s RGB INPUT or DVI (Digital Visual
Interface) INPUT port for video connections,
depending on your PC connector.
• If the graphic card on the PC does not output
analog and digital RGB simultaneously, connect
only one of either RGB INPUT or DVI INPUT to
display the PC on the TV.
• If the graphic card on the PC does output analog
and digital RGB simultaneously, set the TV to
either RGB or DVI; (the other mode is set to Plug
and Play automatically by the TV.)
3. Then, make the corresponding audio connections.
If using a sound card, adjust the PC sound as
required.
How to use
1. Turn on the PC and the TV.
2. Turn on the display by pressing the POWER button on the TV's remote control.
3. Select RGB-PC or DVI-PC input source in main input option of SETUP menu. (Refer to P.20)
4. Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or bright-
ness in PC mode. If noise is present, change the PC mode to another resolution, change the refresh rate to another
rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphic
card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.
NOTES: • Depending on the graphics card, DOS mode may not work if you use a DVI-I cable.
• Avoid keeping a fixed image on the TV's screen for a long period of time. The fixed image may become per-
manently imprinted on the screen. Use the Orbiter screen saver when possible.
• The synchronization input form for Horizontal and Vertical frequencies is separate.
PC Setup
PC Setup
EMOTE
NTROL AUDIO INPUT
COMPONENT 2
COMPONENT 1
RL
DIGITAL AUDIO
(OPTICAL)
DVI
INPUT
COMPONENT1
INPUT
OUTPUT
AUDIO INPUT
DVI INPUT
(PC/DTV INPUT)
RGB INPUT
(PC/DTV INPUT)
VIDEO INPUT
MONITOR
OUTPUT
A/V
INPUT 1
AUDIO
R L
(MONO)
VIDEO
Antenna 1
Analog/DTV
S-VIDEO
DVD
DTV
INPUT
.
- This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings. The TV sends config-
uration information (EDID) to the PC using the Video Electronics Standard Association (VESA) Display Data Channel (DDC)
protocol.
- The TV perceives 640x480, 60Hz as DTV 480p based on the PC graphic card. card, change the screen scanning rate for the
graphic card accordingly.
Resolution
640x350
720x400
640x480
800x600
Horizontal
Frequency(KHz)
31.468
37.861
31.469
37.927
31.469
37.861
37.500
43.269
70.09
85.08
70.08
85.03
59.94
72.80
75.00
85.00
35.156
37.879
48.077
46.875
53.674
48.363
56.476
60.023
56.25
60.31
72.18
75.00
85.06
60.00
70.06
75.02
Vertical
Frequency(Hz) Resolution Horizontal
Frequency(KHz)
Vertical
Frequency(Hz)
1024x768
Monitor Display Specifications (RGB-PC / DVI-PC Mode)
Owner’s Manual 17
Installation
Operation
Operation
- Be sure to select the RGB-PC/RGB-DTV source before operation.
(For RGB-DTV input source, Position and Reset are available.)
- In DVI-PC and DVI-DTV input source, settings are not adjustable.
- You can manually adjust picture position and minimize image shaking for the PC input source.
1. Press the ADJUST button and then use D/Ebutton to select POSITION,
CLOCK, or PHASE.
2. Press OK button and then use D/E/F/Gbuttons to make appropriate adjust-
ments.
• The PHASE adjustment range is -16 ~ +16.
• The CLOCK adjustment range is -30 ~ +30.
3. Press OK button.

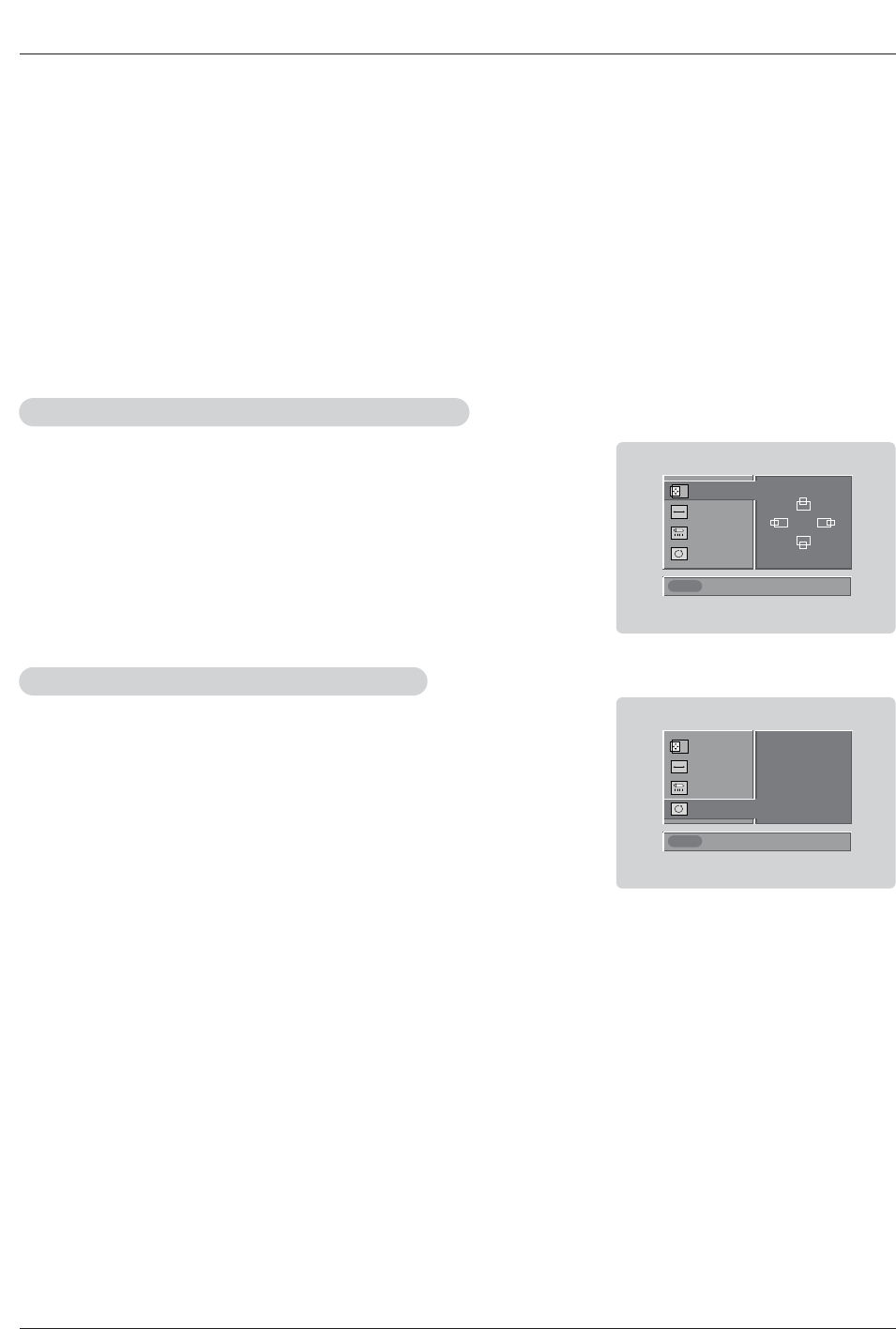

Adjustment for screen Position, Clock, and Phase
Adjustment for screen Position, Clock, and Phase
Screen Setup for PC mode
Screen Setup for PC mode
1. Press the ADJUST button and then use D/Ebutton to select the RESET option.
2. Press OK button and then use F/Gbutton to select Yes.
3. Press OK button
Initializing (Reset to original factory values)
Initializing (Reset to original factory values)
- To initialize the adjusted values
Close
POSITION G
CLOCK
PHASE
RESET
Adjust
D
FG
E
Close
POSITION
CLOCK
PHASE
RESET G
Adjust
Initialize Settings
18 Plasma TV
Operation

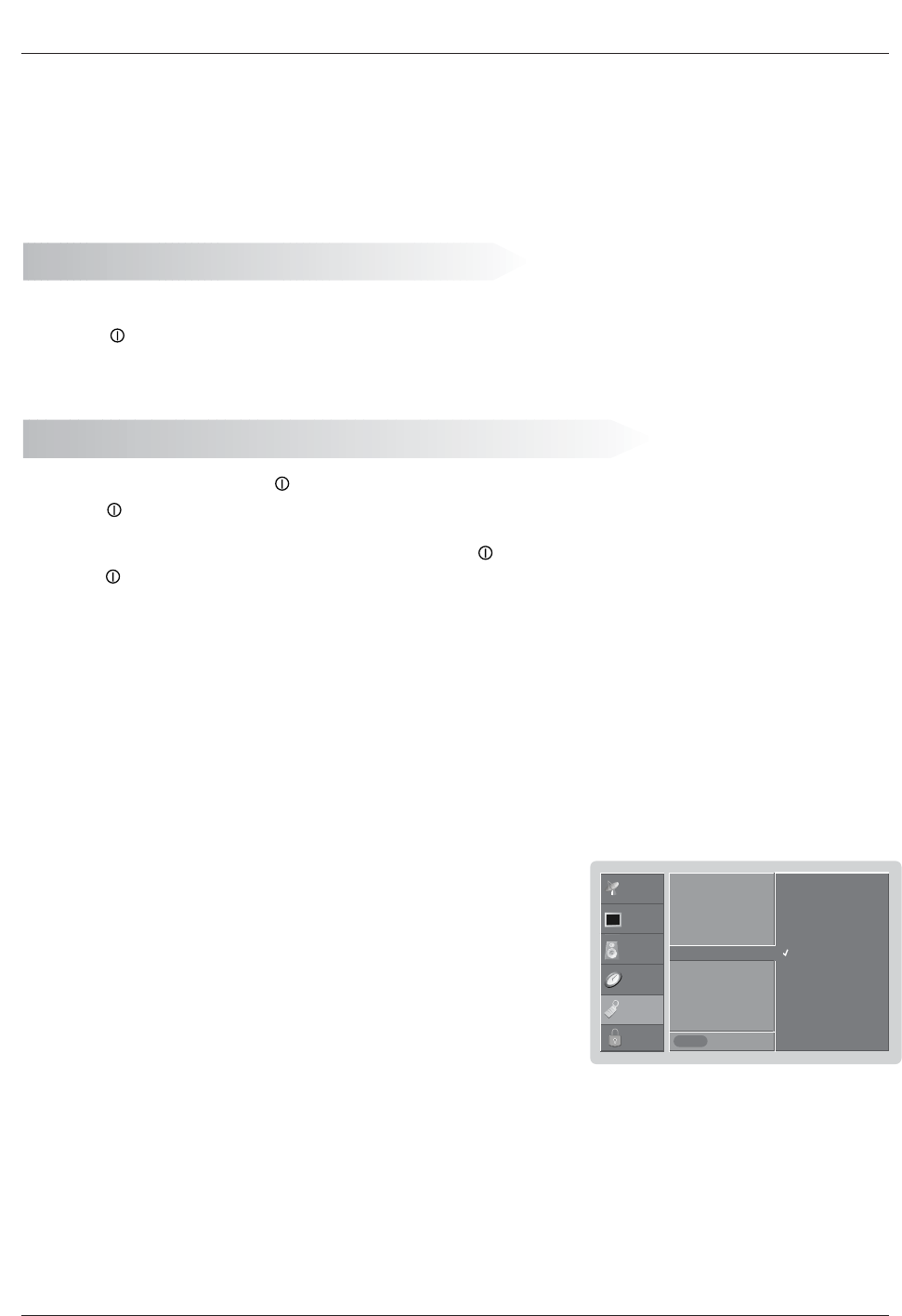

On-screen Menus Language Selection
On-screen Menus Language Selection
T
Turning the TV On
urning the TV On
Turning on the TV just after installation
Turning on the TV (power cord is still connected)
1. Connect power cord correctly.
2. Press the ON/OFF button on the TV. At this moment, the TV is switched to standby mode.
Press the TV/VIDEO,CH (D/E)button on the TV or press the POWER,TV/VIDEO,
COMP/RGB/DVI,CH (+,-),Number (0 ~ 9) button on the remote control and then the TV will
switch on.
• Press the ON/OFF button on the TV to turn the TV on.
1. If the TV was turned off with the ON/OFF button on the TV
2. If the TV was turned off with the remote control and then the ON/OFF button on the TV
• Press the ON/OFF button on the TV and then press the POWER,TV/VIDEO,COMP/RGB/DVI,
CH (+,-),Number (0 ~ 9) button on the remote control to turn the TV on.
-The menus can be shown on the screen in the selected language. First select your language.
1. Press the MENU button and then use D/Ebutton to select the OPTION menu.
2. Press the Gbutton and then use D/Ebutton to select Language.
3. Press the Gbutton and then use D/Ebutton to select your desired language.
From this point on, the on-screen menus will be shown in the selected language.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
NOTE
• If you intend to be away on vacation, disconnect the power plug from the wall power outlet.
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
Aspect Ratio
Caption
Caption Mode
Caption Option
Language G
Cinema
Demo
ISM Method
Low Power
English
Español
Français
MENU
Owner’s Manual 19
Operation
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
Select antenna input,
press
MENU
- Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the channel list.
- Run EZ Scan again after any Antenna/Cable connection changes.
1. Press the MENU button and then use D/Ebutton to select the SETUP menu.
2. Press the Gbutton and then use D/Ebutton to select EZ Scan.
3. Press the Gbutton and then use D/Ebutton to select antenna input (Based on your connections to antenna 1-2).
• Analog/DTV Air:
Watching the Over-the-air, cable, and digital over-the-air signals via antenna 1 input port
• Analog/DTV Cable:
Watching the Over-the-air, cable, and digital cable signals via antenna 1 input port
• Analog+DTV Air (ANT2):
Watching the Over-the-air, and cable signal via antenna 1 input port and the digital over-the-air signal via antenna 2 input port
• Analog/DTV Cable (ANT2):
Watching the Over-the-air, and cable signal via antenna 1 input port and the digital cable signal via antenna 2 input port
* Cable Service Band Note: Select Std=Standard, HRC=HRC Band, or IRC=IRC Band.
(For further band information, contact your cable service provider.)
4. Press the OK button to begin the channel search.
Allow EZ Scan to complete the channel search cycle for TV, CATV, and DTV/CADTV.
EZ Scan (Channel Search)
EZ Scan (Channel Search)
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
EZ Scan
Ch.Edit G
DTV Signal
Ch. Label
Main Input
Sub Input
SET ID
Selection (
G
or ) leads you
to the channel edit screen.
MENU

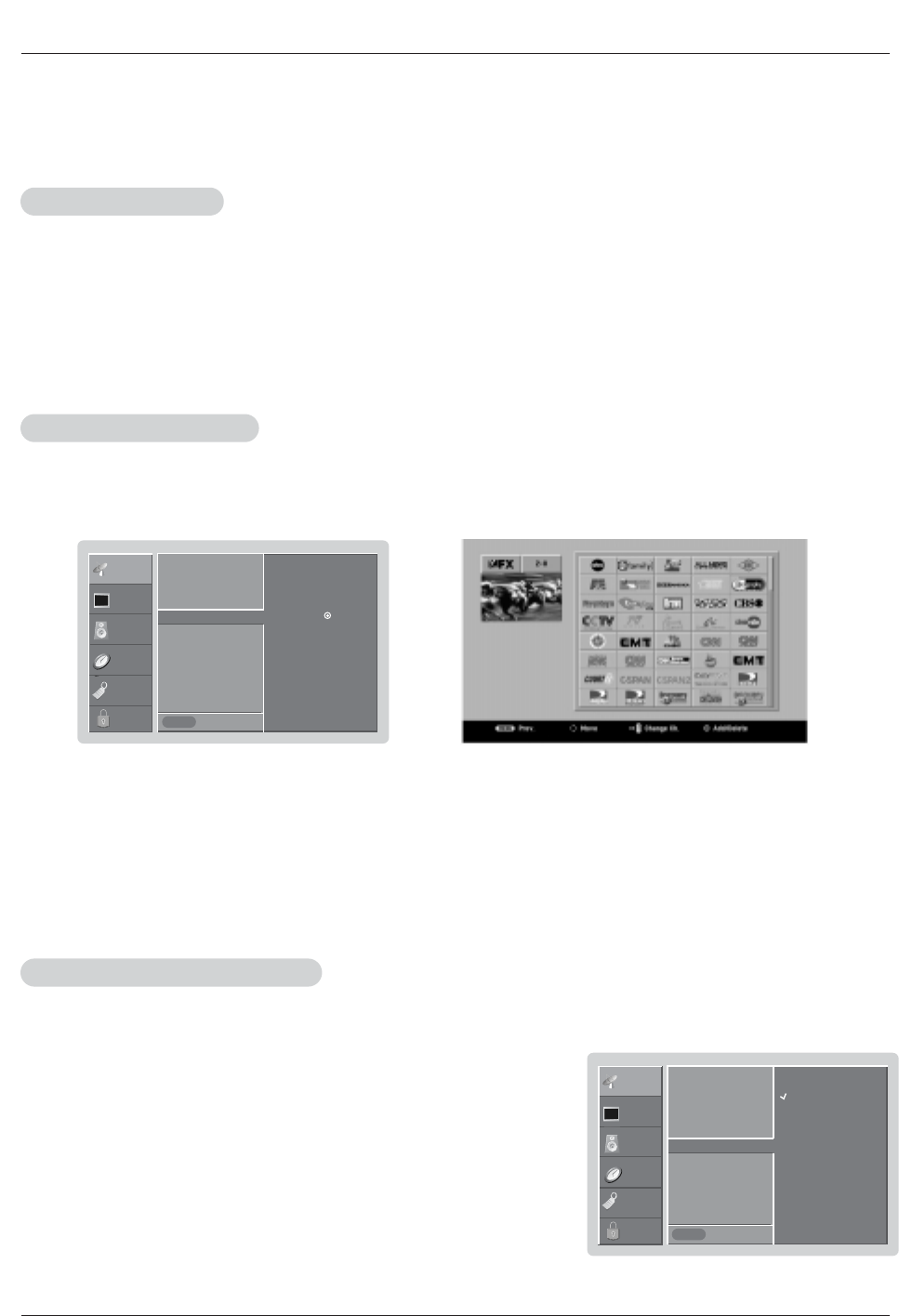

- Create two different types of channel lists in memory: “Custom list” and “Surf"
(Favorite) channel list” from the default channel list created from the EZ Scan
channel search.
- A custom list can be created by toggling each channel on or off with OK button.
Once a channel is highlighted, you will be able to see whether the channel is
currently added or deleted by referring to the small window at the top-left corner
of the screen. You can create your own Surfchannel list with up to 10 channels.
It appears at the bottom-left corner of the screen. Use the SURF button on the
remote control when a channel is highlighted, to add or delete the channel from
the Surf channel list.
- You can create your SURF channel list from the channel list memorized from
EZ Scan.
- CATV is available for 1-125 channel.
1. Press the MENU button and then use D/Ebutton to select the SETUP menu.
2. Press the Gbutton and then use D/Ebutton to select Ch. Edit.
3. Press the Gbutton. You will now see a screen filled with channel numbers and
a preview picture.
4. Use D/E/F/Gbutton to select a channel and then use the OK button to add
or delete it. Press SURF to add the channel to the Surf List.
5. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
Channel Edit
Channel Edit
Setup Menu Options
Setup Menu Options
Analog/DTV Air
Analog/DTV Cable
Prev.
Select antenna input,
press
MENU
Analog/DTV Air
Analog/DTV Cable
EZ Scan
Ch.Edit
DTV Signal
Ch. Label
Main Input
Sub Input
SET ID
Select DTV cable band,
press
1. STD
2. HRC
3. IRC
Air
ANT 1
Cable
ANT 1
20 Plasma TV
Operation
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
EZ Scan
Ch.Edit
DTV Signal
Ch. Label G
Main Input
Sub Input
SET ID
MENU
Selection (
G
or ) leads you
to the channel logo screen.
- Choose preset labels for your channels.
- If a channel label is provided on the signal from the broadcasting station, the TV displays a short name for a DTV chan-
nel - even if you didn't preset a label for the channel.
1. Press the MENU button and then use D/Ebutton to select the SETUP menu.
2. Press the Gbutton and then use D/Ebutton to select Ch.Label.
3. Press the Gbutton. You will now see a screen filled with Labels and a preview screen.
4. Use the CH +/- button to select a channel to Label.
5. Use D/E/F/Gbutton to select the appropriate label for the channel, then press OK button to set the Label to the
selected channel.
6. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
Channel Label Setup
Channel Label Setup
- Reveals how strong your DTV signal is and whether you need to adjust your antenna or digital cable input.
The higher the signal strength, the less likely you are to experience picture degradation.
- Digital DTV Signals: May not be available in all areas, nor are broadcast on all programs.
1. Press the SIGNAL button.
2. View the on-screen signal strength monitor to see the quality of the signal being received.
• You can also check the DTV Signal strength with the SETUP menu.
DTV Signal Strength
DTV Signal Strength
- Changes the picture source so you can watch your off-air TV, cable TV, VCR, DVD, or any other devices that are connected to
your TV.
1. Press the MENU button and then use D/Ebutton to select the SETUP menu.
2. Press the Gbutton and then use D/Ebutton to select Main Input.
3. Press the Gbutton and then use D/Ebutton to select the source: DTV, Analog,
Video1, Video2, Component1, Component2, RGB-DTV (or RGB-PC), DVI-DTV
(or DVI-PC).
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
Main Picture Source Selection
Main Picture Source Selection
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
EZ Scan
Ch.Edit
DTV Signal
Ch. Label
Main Input G
Sub Input
SET ID
DTV
Analog
Video1
Video2
Component1
Component2
RGB-DTV
DVI-DTV
MENU
Owner’s Manual 21
Operation
- Adjust the picture appearance to suit your preference and viewing situations.
1. Press the MENU button and then use D/Ebutton to select the VIDEO menu.
2. Press the Gbutton and then use D/Ebutton to select the desired picture option
(Contrast,Brightness,Color,Sharpness, or Tint).
3. Press the Gbutton and then use F/Gbutton to make appropriate adjustments.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
1. Press the VIDEO button repeatedly to select the picture appearance setup option as shown below:
Off (your own settings), Day Light,Normal,Night Time,Movie,Video Game, and Sports.
• You can also use the VIDEO menu to adjust EZ Picture.
2. Press the EXIT button to save and return to TV viewing.
EZ Picture
EZ Picture
Manual Picture Control (
Manual Picture Control (Off option)
option)
- Choose one of three automatic color adjustments. Set to warm to enhance hotter
colors such as red, or set to cool to see less intense colors with more blue.
1. Press the MENU button and then use D/Ebutton to select the VIDEO menu.
2. Press the Gbutton and then use D/Ebutton to select Color Temperature .
3. Press the Gbutton and then use D/Ebutton to select either Warm,Medium,
or Cool.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
Color
Color T
Temperature Control
emperature Control
- Use to quickly reset all the Video menu options to their original factory preset
values.
1. Press the MENU button and then use D/Ebutton to select the VIDEO menu.
2. Press the Gbutton and then use D/Ebutton to select Video Preset .
3. Press the Gbutton to reset the Video menu options to original values.
V
Video Preset
ideo Preset
- EZ Picture adjusts the TV for the best picture appearance. Select the preset value in the EZ Picture menu based on the
program category.
- When adjusting Video menu options (contrast, brightness, color, sharpness, tint, and color temperature) manually, EZ
Picture automatically changes to Off.
-Day Light,Normal,Night Time,Movie,Video Game, and Sports settings are preset for optimum picture quality
at the factory and are not adjustable.
V
Video Menu Options
ideo Menu Options
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
EZ Picture
Contrast
Brightness
Color
Sharpness
Tint
Color Temperature G
Video Preset
Warm
Medium
Cool
MENU
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
EZ Picture
Contrast
Brightness
Color
Sharpness
Tint
Color Temperature
Video Preset G
MENU
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
EZ Picture
Contrast 85 G
Brightness 50
Color 50
Sharpness 50
Tint 0
Color Temperature
Video Preset
MENU
Selection (
G
or ) presets
the video configuration.
R G
22 Plasma TV
Operation
- Other languages may be available if a digital signal is provided by the broad-
casting station.
Audio Menu Options
Audio Menu Options
1. Press the SOUND button repeatedly to select the appropriate sound setup as shown below:
Off (your own settings), Normal,Stadium,Theater, and Music.
• You can also adjust EZ Sound in the AUDIO menu.
2. Press EXIT button to save and return to TV viewing.
EZ Sound
EZ Sound
1. Press the MENU button and then use D/Ebutton to select the AUDIO menu.
2. Press the Gbutton and then use D/Ebutton to select Audio Language.
3. Press the Gbutton and then use D/Ebutton to select: English, Spanish, or
French.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
Audio Language
Audio Language
- EZ Sound lets you enjoy the best sound without any special adjustment because the TV sets the appropriate sound
options based on the program content.
- When adjusting sound options (treble, bass, and front surround) manually, EZ Sound automatically switches Off.
-Normal,Stadium,Theater, and Music are preset for good sound quality at the factory and are not adjustable.
- Scans for changes in sound level during commercials, then adjusts the sound
to match the specified audio level. SoundRite makes sure that the volume level
remains consistent whether you are watching a commercial or a regular TV
program.
1. Press the MENU button and then use D/Ebutton to select the AUDIO menu.
2. Press the Gbutton and then use D/Ebutton to select EZ SoundRite.
3. Press the Gbutton and then use D/Ebutton to select On or Off.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
EZ SoundRite
EZ SoundRite
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
Audio Language G
EZ SoundRite
EZ Sound
Balance
Treble
Bass
Front Surround
TV Speaker
BBE
English
Spanish
French
MENU
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
Audio Language
EZ SoundRite G
EZ Sound
Balance
Treble
Bass
Front Surround
TV Speaker
BBE
Off
On
MENU
Owner’s Manual 23
Operation
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
Audio Language
EZ SoundRite
EZ Sound
Balance
Treble
Bass
Front Surround G
TV Speaker
BBE
Off
3D EchoSound System
SRS TruSurround XT
MENU

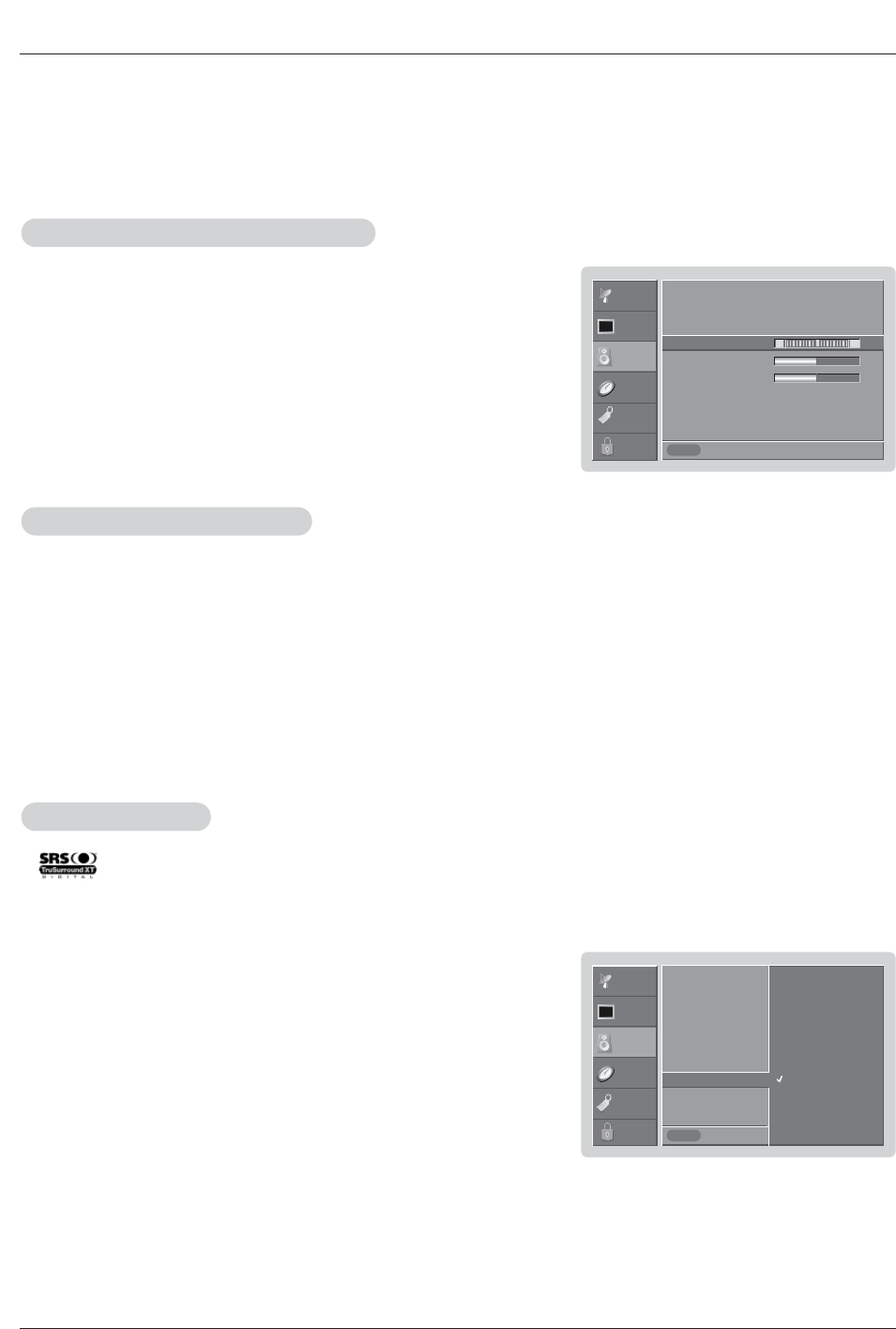

1. Press the MENU button and then use D/Ebutton to select the AUDIO menu.
2. Press the Gbutton and then use D/Ebutton to select Front Surround.
3. Press the Gbutton and then use D/Ebutton to select Off,3D EchoSound
System or SRS (Sound Retrieval System) TruSurround XT..
•SRS TruSurround XT
Takes advantage of any multi-channel format without needing to add extra
speakers or equipment. Dialog clarity, bass enrichment, and the addition of
stereo audio enhancement that produces an immersive sound experience from
standard stereo material.
•3D EchoSound System
Creates a stunning simulated stereo effects from any mono sound and a real-
istic three-dimensional sound with a very wide and deep sound stage into
stereo sound.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
Front Surround
Front Surround
1. Use the SAP button to select your desired MTS mode in analog signal. Each time you press the SAP button, Mono,
Stereo, or SAP appear in turn.
• If other languages available on the digital signal, select them with the SAP button.
2. Press EXIT button to save and return to TV viewing.
Stereo/SAP
Stereo/SAP Broadcasts Setup
Broadcasts Setup
- This TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accompanies the stereo program; if
the station transmits an additional sound signal as well as the original one.
- Stereo or SAP can be received only when the TV station transmits those signals even though you have selected Stereo or
SAP.
- Mono sound is automatically received if the broadcast is only in Mono; even though Stereo or SAP has been selected.
- Select Mono if you want to listen to the mono sound in remote fringe areas during stereo/SAP broadcasting.
- is a trademark of SRS Labs, Inc.
- TruSurround XT technology is incorporated under license from SRS Labs, Inc.
- Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
1. Press the MENU button and then use D/Ebutton to select the AUDIO menu.
2. Press the Gbutton and then use D/Ebutton to select the desired sound option
(Balance,Treble, or Bass).
3. Press the Gbutton and then use F/Gbutton to make appropriate adjustments.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
Manual Sound Control (
Manual Sound Control (Off option)
option)
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
Audio Language
EZ SoundRite
EZ Sound
Balance 0 G
Treble 50
Bass 50
Front Surround
TV Speaker
BBE
MENU
L R
- Adjust the sound to suit your taste and room situations.
Audio Menu Options continued
Audio Menu Options continued
24 Plasma TV
Operation
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
Audio Language
EZ SoundRite
EZ Sound
Balance
Treble
Bass
Front Surround
TV Speaker G
BBE
Off
On
MENU

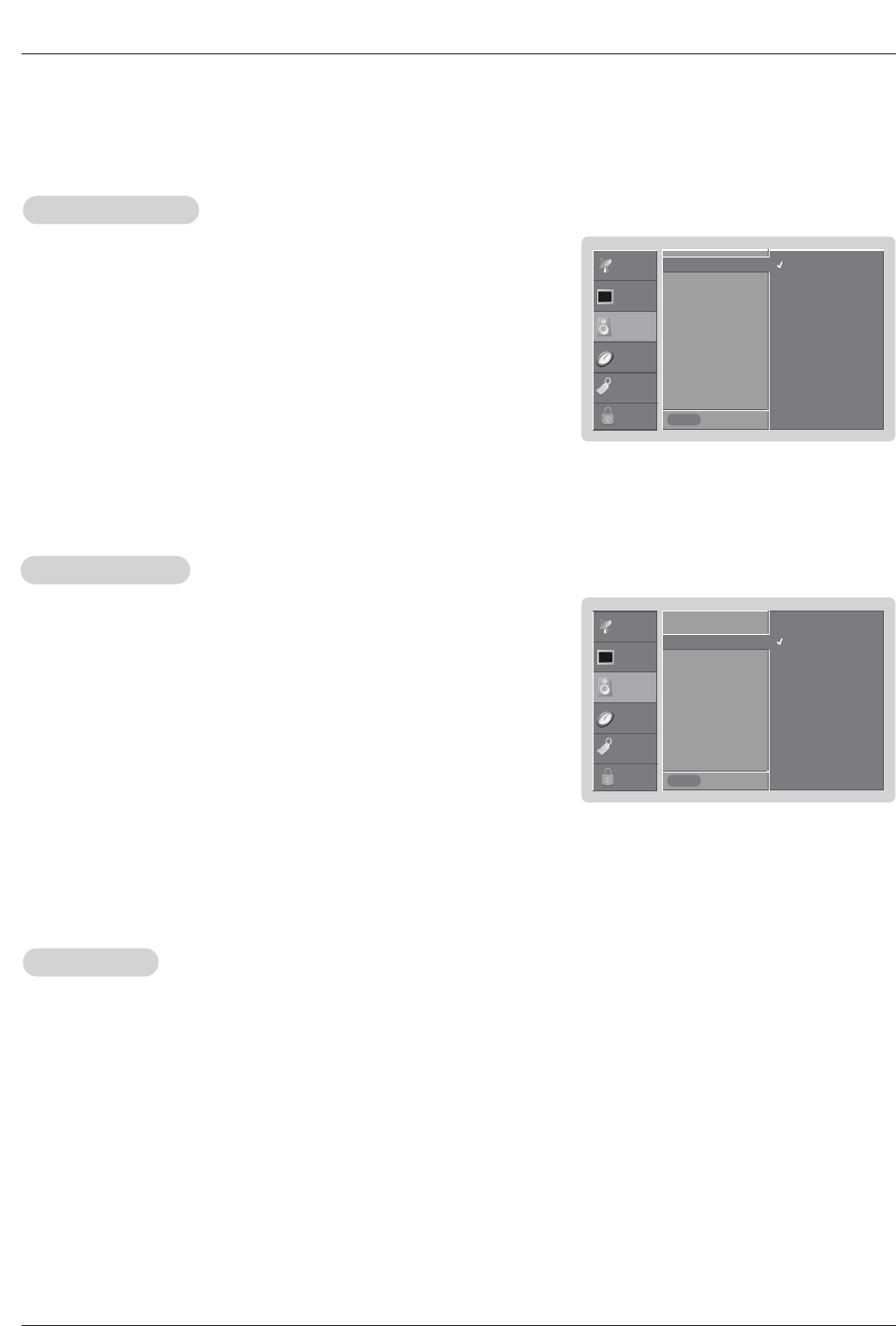

1. Press the MENU button and then use D/Ebutton to select the AUDIO menu.
2. Press the Gbutton and then use D/Ebutton to select TV Speaker.
3. Press the Gbutton and then use D/Ebutton to select On or Off.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.

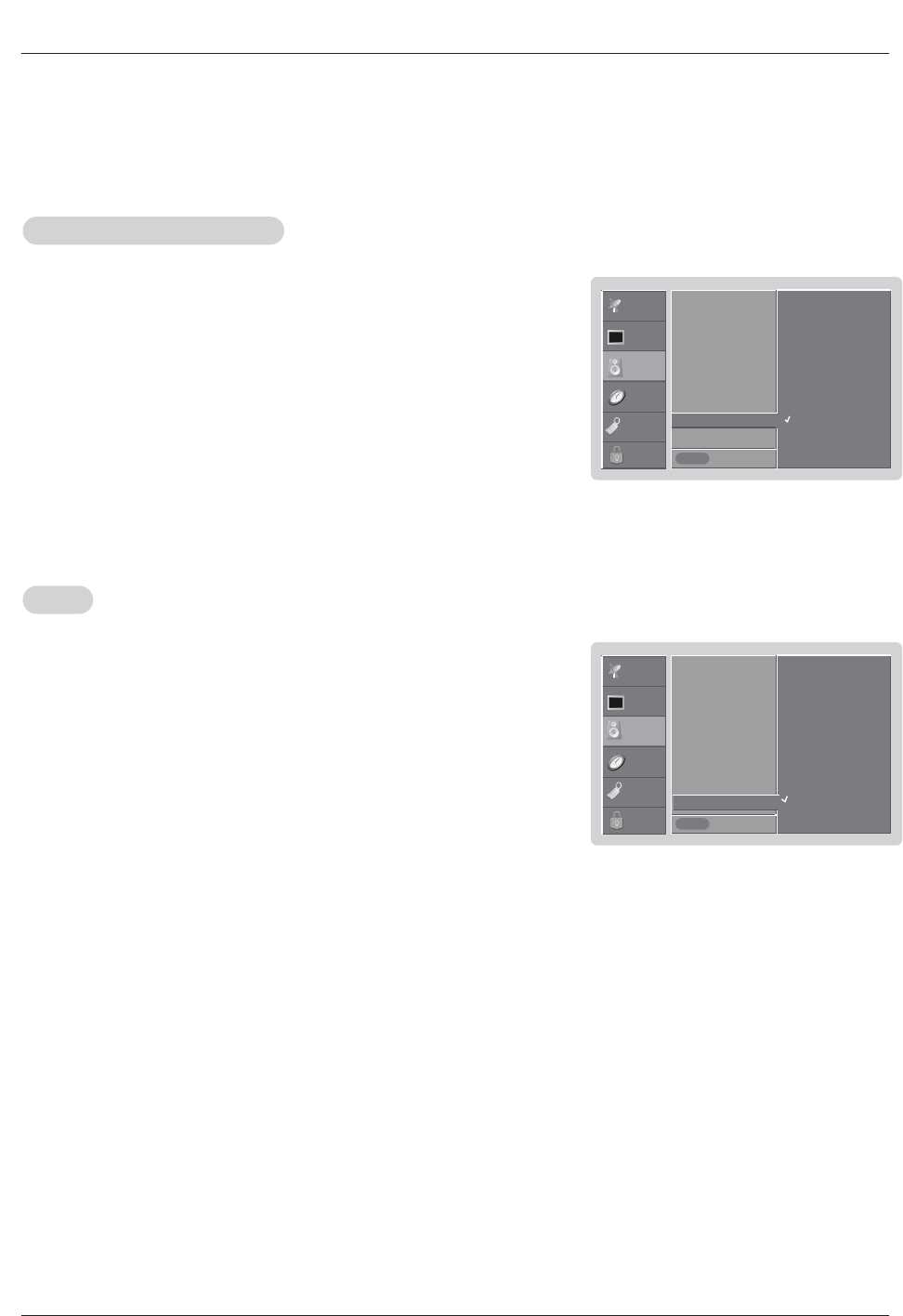

TV Speakers On/Of
TV Speakers On/Off Setup
f Setup
- Turn TV speakers off if using external audio equipment. Feature turns the TV
Speakers option On or Off.
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
Audio Language
EZ SoundRite
EZ Sound
Balance
Treble
Bass
Front Surround
TV Speaker
BBE G
MENU
1.Press the MENU button and then use D/Ebutton to select the AUDIO menu.
2. Press the Gbutton and then use D/Ebutton to select BBE.
3. Press the Gbutton and then use D/Ebutton to select On or Off.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
BBE
BBE
- BBE High Definition Sound restores clarity and presence for better speech
intelligibility and music realism.
Off
On
Owner’s Manual 25
Operation
T

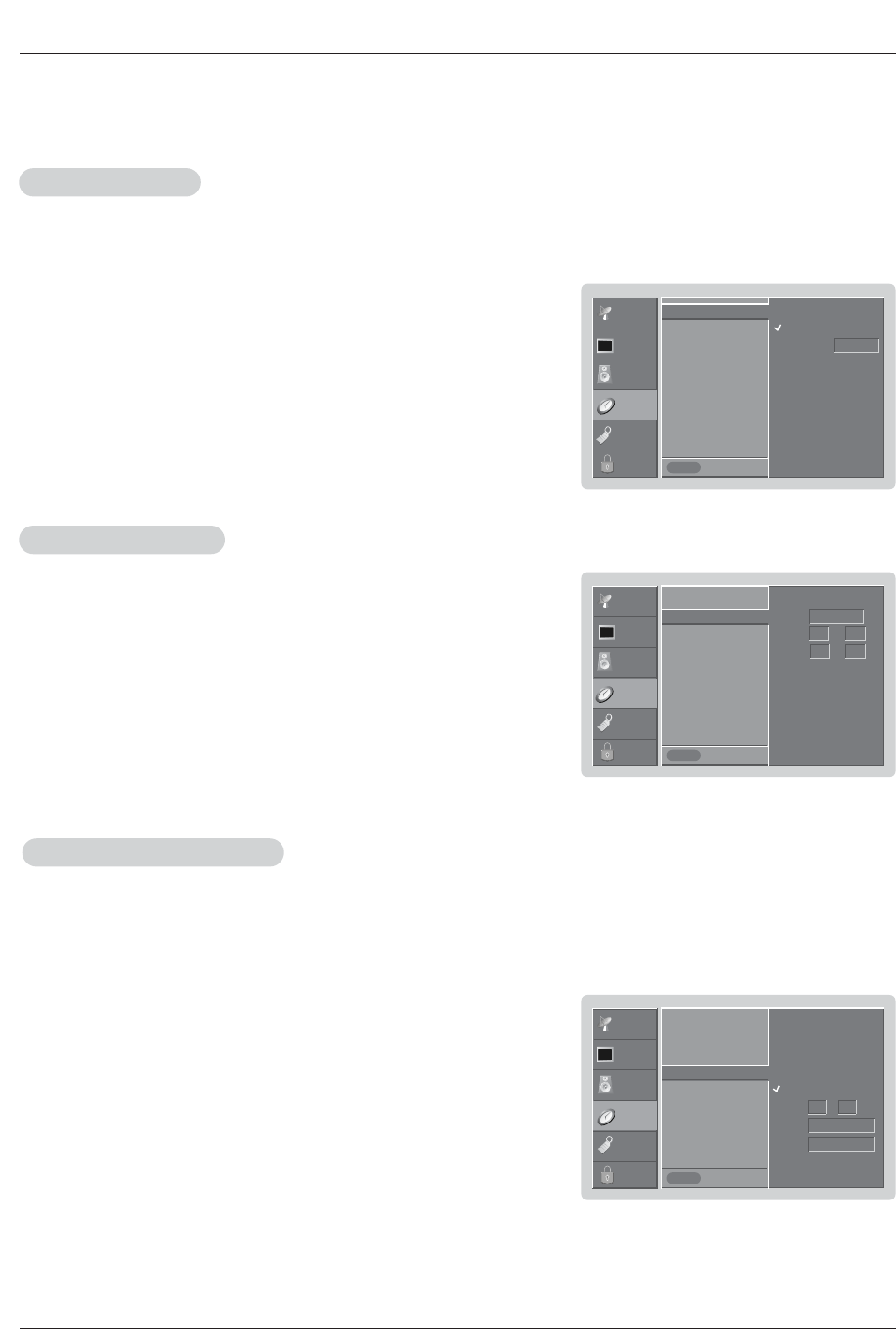

Time Menu Options
ime Menu Options
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
Auto Clock G
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
Off
On
Time Zone Eastern
MENU
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
Auto Clock
Manual Clock
Off Timer
On Timer G
Sleep Timer
Auto Off
Off
On
Time 6 : 30 AM
Ch. TV 2-0
Vol 17
MENU
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
Auto Clock
Manual Clock G
Off Timer
On Timer
Sleep Timer
Auto Off
Year - - - -
Date - - / - -
Time - - : - - - -
MENU
- Timer function operates only if current time has been set.
- Off-Timer function overrides On-Timer function if they are set both set to the same time.
- The TV must be in standby mode for the On-Timer to work.
- If you do not press any button within 2 hours after the TV turns on with the On Timer function, the TV will automatically revert to
standby mode.
On/Of
On/Off
fT
Timer Setup
imer Setup
1. Press the MENU button and then use D/Ebutton to select the TIME menu.
2. Press the Gbutton and then use D/Ebutton to select Off Timer or On Timer.
3. Press the Gbutton and then use D/Ebutton to select On.
• To cancel On/Off timer function, select Off.
4. Press the Gbutton and then use D/Ebutton to set the hour.
5. Press the Gbutton and then use D/Ebutton to set the minutes.
6. For only On timer function
Press the Gbutton and then use D/Ebutton to select the channel at turn-on.
Press the Gbutton and then use D/Ebutton to set the sound level at turn-on.
7. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
Auto Clock Setup
Auto Clock Setup
- The time is set automatically from a digital channel signal.
- The digital channel signal includes information for the current time provided by the broadcasting station.
- Set the clock manually, if the current time is set incorrectly by the auto clock function.
1. Press the MENU button and then use D/Ebutton to select the TIME menu.
2. Press the Gbutton and then use D/Ebutton to select Auto Clock.
3. Press the Gbutton and then use D/Ebutton to select On.
4. Press the Gbutton and then use D/Ebutton to select your viewing area time
zone: Eastern,Central,Mountain,Pacific,Alaska, or Hawaii.
5. Press EXIT button to return to TV viewing or press MENU button to return to
the previous menu.
Manual Clock Setup
Manual Clock Setup
- If current time setting is wrong, reset the clock manually.
1. Press the MENU button and then use D/Ebutton to select the TIME menu.
2. Press the Gbutton and then use D/Ebutton to select Manual Clock.
3. Press the Gbutton and then use F/Gbutton to select either the year, date, or
time option. Once selected, use the D/Ebutton to set the year, date, and time
options.
4. Press EXIT button to return to TV viewing or press MENU button to return to
the previous menu.
26 Plasma TV
Operation

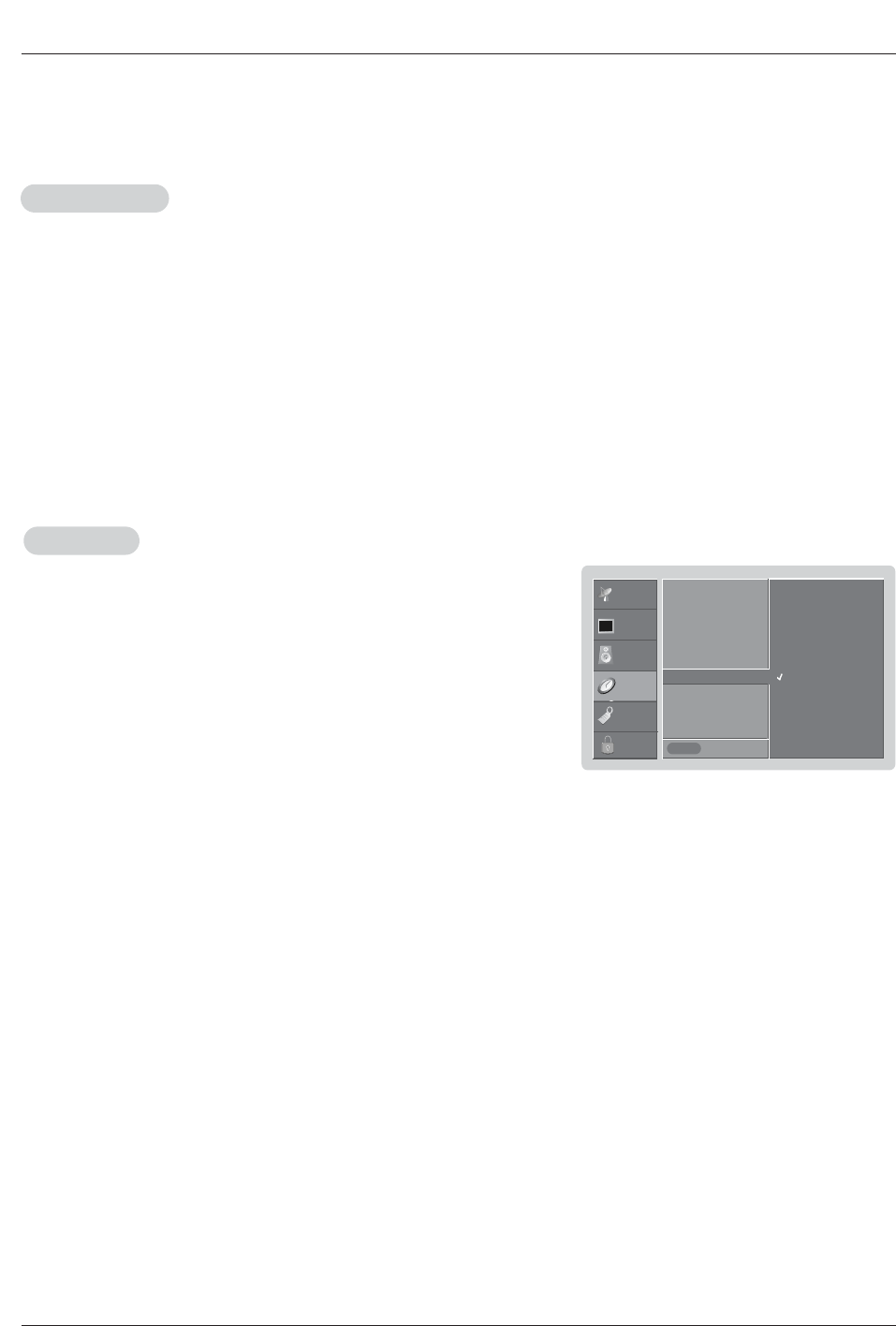

Auto Of
Auto Off
f
- If set to on and there is no input signal, the TV turns off vertically after 10 min-
utes.
1. Press the MENU button and then use D/Ebutton to select the TIME menu.
2. Press the Gbutton and then use D/Ebutton to select Auto Off.
3. Press the Gbutton and then use D/Ebutton to select On or Off.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
Sleep
Sleep T
Timer
imer
- The Sleep Timer turns the TV off at the preset time. Note that this setting is cleared when the TV is turned off.
- You can also set up the Sleep Timer in the TIME menu.
1. Press the TIMER button repeatedly to select the number of minutes. First the Off option appears on the screen,
followed by the following sleep timer options: 10, 20, 30, 60, 90, 120, 180, and 240 minutes.
2. When the number of minutes you want is displayed on the screen, press the OK button. The timer begins to count
down from the number of minutes selected.
3. To check the remaining minutes before the TV turns off, press the TIMER button once.
4. To cancel the Sleep Timer, press the TIMER button repeatedly to select Off.
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off GOff
On
MENU
Owner’s Manual 27
Operation
Option Menu Features
Option Menu Features
Aspect Ratio Control
Aspect Ratio Control
- Lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV with a 16:9 ratio picture format.
When you receive an analog picture with a 4:3 aspect ratio on your 16:9 TV, you need to specify how the picture is to be dis-
played.
- If you are viewing a picture with a 16:9 aspect ratio, you can’t use the Horizon aspect ratio option.
- Horizon aspect ratio is not available for Component 1-2 (720p/1080i)/RGB-DTV (720p/1080i)/DVI-DTV (720p/1080i)/DTV(720p/1080i)
input source.
- RGB-PC/DVI-PC input source use 4:3 or 16:9 aspect ratio.
-Note: If a fixed image is displayed on the screen for a long time, that fixed image may become imprinted on the screen and
remain visible.
•Set By Program
Selects the proper picture proportion to match the source’s image. (4:3 →4:3, 16:9 → 16:9)
•4:3
Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio, with black bars appearing at both
the left and right sides.
•16:9
Choose 16:9 when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen.
•Horizon
Choose Horizon when you want to adjust the picture in a non-linear proportion, that is, more enlarged at both
sides, to create a spectacular view.
•Zoom 1
Choose Zoom 1 when you want to view the picture without any alteration. However, the top and bottom portions
of the picture will be cropped.
•Zoom 2
Choose Zoom 2 when you want the picture to be altered, both horizontally extended and vertically cropped. The
picture taking a halfway trade off between alteration and screen coverage.
•Cinema Zoom
Choose Cinema Zoom when you want to enlarge the picture in correct proportion. Note: When enlarging or
reducing the picture, the image may become distorted.
You can adjust the enlarge proportion of Cinema Zoom using D/Ebutton. The adjustment range is 1~16.
1. Press the RATIO button repeatedly to select the desired picture format.
You can also adjust Aspect Ratio in the OPTION menu.
28 Plasma TV
Operation
Caption Mode
Caption Mode
Analog Broadcasting System Captions
- Select a caption mode for displaying captioning information if provided on a program.
- Analog caption displays information at any position on the screen usually the program's dialog.
- Text displays information, usually at the bottom position and is used for a data service, generally not program related.
- Caption/Text, if provided by the broadcaster, would be available for both digital and analog channels on the Antenna 1 source.
- This TV is programmed to remember the caption/text mode it was last set to, when you turn the power off.
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
Aspect Ratio
Caption
Caption Mode G
Caption Option
Language
Cinema
Demo
ISM Method
Low Power
MENU
CC 1
CC 2
CC 3
CC 4
Text 1
Text 2
Text 3
Text 4
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
Aspect Ratio
Caption
Caption Mode G
Caption Option
Language
Cinema
Demo
ISM Method
Low Power
MENU
English
Spanish
French
Digital Broadcasting System Captions
- Choose the language you want the DTV/CADTV Captions to appear in.
- Languages can be chosen for digital sources only if they are included on the program.
1. Press the MENU button and then use D/Ebutton to select the OPTION menu.
2. Press the Gbutton and then use D/Ebutton to select Caption Mode.
3. Press the Gbutton and then use D/Ebutton to select caption: CC1,CC2,CC3,
CC4,Text1,Text2,Text3, or Text4.
•CAPTION
The term for the words that scroll across the bottom of the TV screen; usually
the audio portion of the program provided for the hearing impaired.
•TEXT
The term for the words that appear in a large black frame and almost cover
the entire screen; usually messages provided by the broadcaster.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
1. Press the MENU button and then use D/Ebutton to select the OPTION menu.
2. Press the Gbutton and then use D/Ebutton to select Caption Mode.
3. Press the Gbutton and then use D/Ebutton to select available caption lan-
guages: English,Spanish, or French.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
Caption
Caption
1. Use the CC button repeatedly to select Caption Off,EZ Mute, or On.
•EZ Mute shows the selected captions option (if available on program) when the TV sound is muted.
. • You can also use the OPTION menu to select Caption.
2. Press EXIT button to save and return to TV viewing.
Owner’s Manual 29
Operation
Option Menu Features continued
Option Menu Features continued
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
Aspect Ratio
Caption
Caption Mode
Caption Option G
Language
Cinema
Demo
ISM Method
Low Power
Style Custom
Size A Standard
Font Font 0
Text Color White
Text Opacity Solid
Bg Color Black
Bg Opacity Solid
Edge Type None
Edge Color Black
MENU
Caption Option
Caption Option
- Customize the DTV/CADTV captions that appear on your screen.
1. Press the MENU button and then use D/Ebutton to select the OPTION
menu.
2. Press the Gbutton and then use D/Ebutton to select Caption Option.
3. Press the Gbutton and then use F/Gbutton to select Custom.
4. Use D/Ebutton to customize the Style, Font, etc., to your preference. A pre-
view icon is provided at the bottom of the screen, use it to see the caption lan-
guage.
•Size: Set the size the words will appear in.
•Font: Select a typeface for the words.
•Text Color: Choose a color for the text.
•Text Opacity: Specify the opacity for the text color.
•Bg (Background) Color: Select a background color.
•Bg (Background) Opacity: Select the opacity for the background color.
•Edge Type: Select an edge type.
•Edge Color: Select a color for the edges.
5. Press EXIT button to return to TV viewing or press MENU button to return
to the previous menu.
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
MENU
Cinema Mode Setup
- Set up the TV for the best picture appearance for viewing movies.
1. Press the MENU button and then use DD/Ebutton to select the OPTION menu.
2. Press the Gbutton and then use D/Ebutton to select Cinema.
3. Press the Gbutton and then use D/Ebutton to select On or Off.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
-EZ Demo Use to scan the features and menu options available on your TV.
-XD Demo Use to see the difference between XD Demo On and XD Demo Off.
1. Press the MENU button and then use D/Ebutton to select the OPTION menu.
2. Press the Gbutton and then use D/Ebutton to select Demo.
3. Press the Gbutton and then use D/Ebutton to select EZ Demo or XD Demo.
4. Press the Gbutton to start EZ Demo or XD Demo. Press EXIT button to stop EZ
Demo or XD Demo.
Demo
Demo
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
Aspect Ratio
Caption
Caption Mode
Caption Option
Language
Cinema
Demo G
ISM Method
Low Power
MENU
EZ Demo
Demo
Off
On
Aspect Ratio
Caption
Caption Mode
Caption Option
Language
Cinema G
Demo
ISM Method
Low Power
30 Plasma TV
Operation

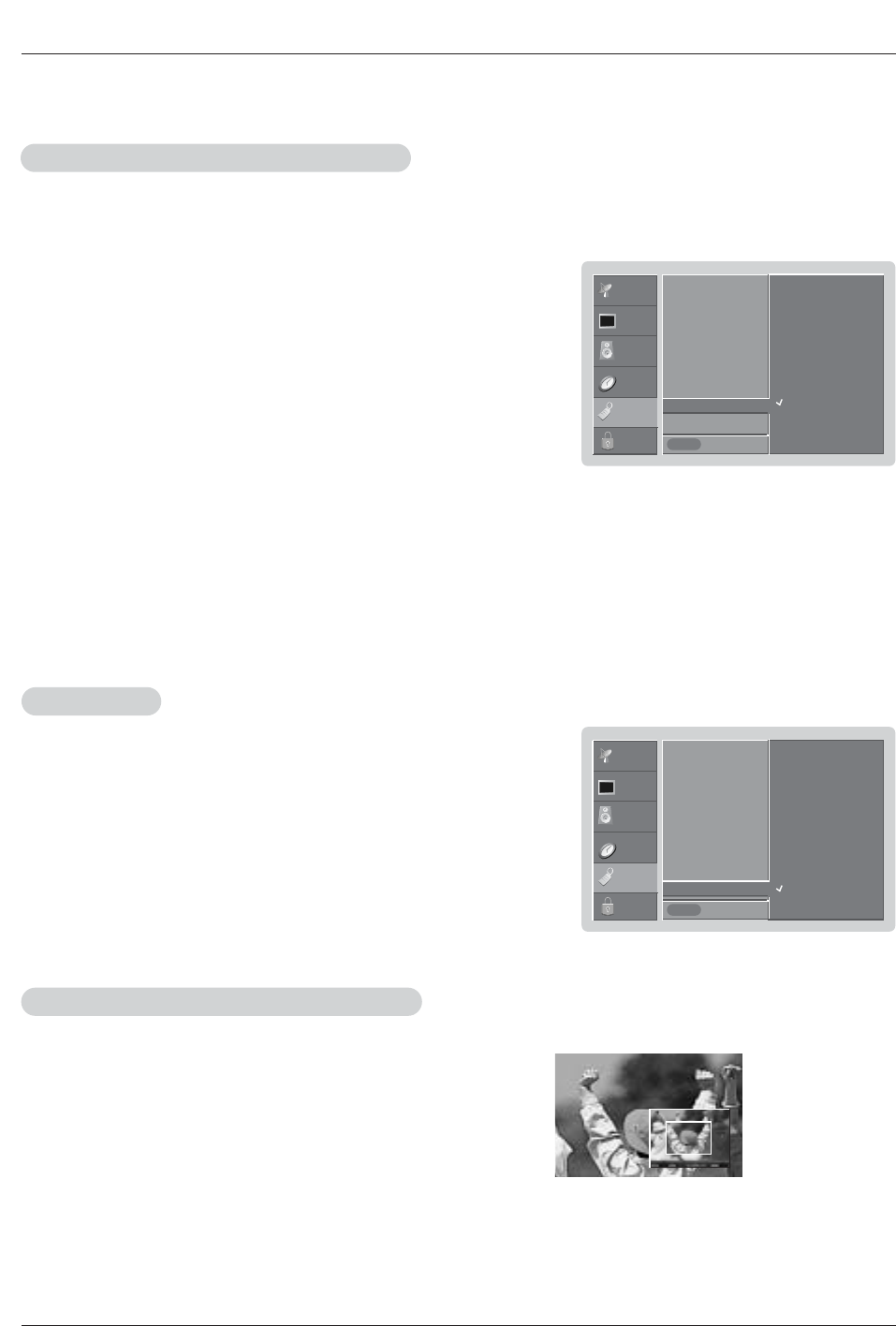

Low Power
Low Power
- Low power reduces the plasma display's power consumption.
1. Press the MENU button and then use D/Ebutton to select the OPTION menu.
2. Press the Gbutton and then use D/Ebutton to select Low power.
3. Press the Gbutton and then use D/Ebutton to select On or Off.
• If you select On, the screen darkens.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
Aspect Ratio
Caption
Caption Mode
Caption Option
Language
Cinema
Demo
ISM Method G
Low Power
MENU
Normal
Orbiter
Inversion
White Wash
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
Aspect Ratio
Caption
Caption Mode
Caption Option
Language
Cinema
Demo
ISM Method
Low Power G
MENU
Off
On
1. Press the ZOOM button in DTV 720p, or 1080i modes.
2. Use the D/E/F/Gbuttons to select the screen split zoom section.
3. To return to normal viewing, press the ZOOM button again.
Split Zoom (DTV 720p, or 1080i mode only)
Split Zoom (DTV 720p, or 1080i mode only)
- Enlarges the picture with correct proportions.
- When enlarging the picture, the image may become distorted.
F
F
F
F
- A frozen still picture from a PC/video game displayed on the screen for prolonged periods will result in an ghost
image remaining; even when you change the image. Avoid allowing any fixed image to remain on the TV's screen
for a long period of time.
1. Press the MENU button and then use D/Ebutton to select the OPTION menu.
2. Press the Gbutton and then use D/Ebutton to select ISM Method.
3. Press the Gbutton and then use D/Ebutton to select either Normal,Orbiter,
Inversion, or White Wash.
•Normal
If image sticking is never a problem, ISM is not necessary - set to Normal.
When image is stopped, screen light automatically get dark to prevent ghost
images, and image is appeared, screen light get bright,automatically.
•Orbiter
Orbiter may help prevent ghost images. However, it is best not to allow any
fixed image to remain on the screen. To avoid a permanent image on the
screen, the image will move once per minute: Right →Right → Downside →
Downside →Left →Left→Upside →Upside.
•Inversion
Inversion will automatically invert the plasma display panel color every 30 min-
utes.
•White Wash
White Wash remove s permanent images from the screen. Note: An excessive
permanent image may be impossible to clear entirely with White Wash. To
return to normal viewing, press the any button.
4. Press EXIT button to return to TV viewing or press MENU button to return to
the previous menu.
ISM (Image Sticking Minimization) Method
ISM (Image Sticking Minimization) Method
Owner’s Manual 31
Operation
Lock Menu Options
Lock Menu Options
Parental Control can be used to block specific channels, ratings and other viewing sources.
The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcasting station.
The default setting is to allow all programs to be viewed. Viewing can be blocked by the type of program and by the categories
chosen to be blocked. It is also possible to block all program viewing for a time period. To use this function, the following must be
done :
1. Set ratings and categories to be blocked.
2. Specify a password
3. Enablethe lock
V-Chip rating and categories
Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be blocked by TV
Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie Rating
System (MPAA) only.
Ratings for Movies previously shown in theaters:
Movie Ratings :
• Blocking Off (Permits all programs)
• G (General audience)
• PG (Parental guidance suggested)
• PG-13 (Parents strongly cautioned)
• R (Restricted)
• NC-17 (No one 17 and under admitted)
• X (Adult only)
If you set PG-13 : G and PG movies will be available , PG-13, R, NC-17 and X will be blocked.
Ratings for Television programs including made-for-TV movies :
• TV-G (General audience)
• TV-PG (Parental guidance suggested)
• TV-14 (Parents strongly cautioned)
• TV-MA (Mature audience only)
• TV-Y (All children)
• TV-Y7 (Children 7 years older)
TV Rating Children:
• Age (applies to TV-Y, TV-Y7)
• Fantasy Violence (applies to TV-Y7)
TV Rating General:
• Age (applies to TV-G, TV-PG, TV-14, TV-MA)
• Dialogue - sexual dialogue (applies to TV-PG, TV-14)
• Language - adult language (applies to TV-PG, TV-14, TV-MA)
• Sex - sexual situations (applies to TV-PG, TV-14, TV-MA)
• Violence (applies to TV-PG, TV-14, TV-MA)
Aux. Block
• Video 1, 2 (On, Off)
• Component 1, 2 (On, Off)
• RGB, DVI (On, Off)
32 Plasma TV
Operation
Parental Lock Setup
Parental Lock Setup
1. Press the MENU button and then use D/Ebutton to select the LOCK menu.
Then, press the Gbutton
• If Lock is already set, enter the password as requested.
• The TV is set up with the initial password “7-7-7-7”.
2. Use the D/Ebutton to choose from the following Lock Menu options. Once the
option is selected, change the settings to your preference.
•Lock System: Activates or disables the blocking scheme you set up previ-
ously.
•Set Password: Change the password by inputting a new password twice.
•Movie Rating (MPPA): Blocks movies according to the movie ratings limits
specified, so children cannot view certain movies. You can set the ratings
limit by blocking out all the movies with the ratings above a specified level.
Keep in mind that the movie ratings limit only applies to movies shown on
TV, not TV programs, such as soap operas.
•TV Rating-Children: Prevents children from watching certain children's TV
programs, according to the ratings limit set. The children rating does not
apply to other TV programs. Unless you block certain TV programs intend-
ed for mature audiences in the TV Rating - sub menu, your children can
view those programs.
•TV Rating-General: Based on the ratings, blocks certain TV programs that
you and your family do not want to view.
•Aux. Block: Enables you to select a source to block from the external
source devices you have hooked up.
3. Press EXIT button to return to TV viewing or press MENU button to return to
the previous menu.
Note
• If you ever forget your password, key in ‘7’, ‘7’, ‘7’, ‘7’ on the remote control.
- Lets you set up blocking schemes to block specific channels, ratings, and external viewing sources.
- A password is required to gain access to this menu if the Lock System is turned on
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
Lock System G
Set Password
Block Ch.
Movie Rating
TV Rating-Children
TV Rating-General
Aux. Block
MENU
Off
On
Owner’s Manual 33
Operation
W
Watching PIP/POP/T
atching PIP/POP/Twin Picture
win Picture
- PIP lets you view 2 different inputs (sources) on your TV screen at the same time. One source will be large, and the other
source will show a smaller inset image.
- Twin Picture mode splits the screen into 2, allowing 2 picture sources to be shown on the TV screen at the same time. Each
source is given half the screen.
- If you set the block/rating for Lock menu options in PIP/Twin Picture mode, “Rating Blocked” doesn’t display on screen.
Press the PIP button to access the sub picture. Each press of PIP changes the PIP options as shown below.
PIP Off
PIP Mode POP Mode Twin Picture Mode
PIP
PIP (Picture-In-Picture) / POP
(Picture-In-Picture) / POP / T
/ Twin Picture
win Picture
TV Program Selection for PIP
TV Program Selection for PIP
1. Press the PIP button.
2. Select the Analog or DTV option on the Sub input menu or with the PIP INPUT button. Use the PIPCH+ /
PIPCH- button to select a channel for the sub picture.
Swapping the PIP
Swapping the PIP/T
/Twin Picture
win Picture
Use the SWAP button to switch the main and sub pictures.
• Component 1, Component 2, RGB-PC (or RGB-DTV), DVI-DTV (or DVI-PC) input sources for the main picture can’t
be used to swap the main and sub pictures.
Selecting an Input Signal Source for PIP/T
Selecting an Input Signal Source for PIP/Twin Picture
win Picture
Use the PIP INPUT button to select the input source for the sub picture. Each press of PIP INPUT button changes
the PIP source. You can also select sources for the Sub Input in the SETUP menu.
Main Picture Source Available Sub Picture Sources
DTV Signal
Analog Signal
Analog, Video 1, and Video 2
DTV, Analog, Video 1, and Video 2
Main Picture Sub Picture Main Picture Sub Picture
FTV 2-0
TV 4-0
TV 6-0
E
D
34 Plasma TV
Operation
Moving the PIP
Moving the PIP sub picture
sub picture
In PIP mode, press the D/E/F/Gbutton to move the sub picture to a different location on the
screen.
Adjusting Main and Sub Picture Sizes for
Adjusting Main and Sub Picture Sizes for T
Twin Picture
win Picture
Use the D/E/F/Gbutton to change main and sub picture sizes in Twin Picture mode.
If the maximal adjusted
screen is 4:3, the large
screen is filled with entire
screen vertically as shown.
If the maximal adjusted
screen is 16:9, the large
screen appears the gray
part at both the up and
down sides.
i.e)
1. Press the PIP button to activate the POP mode while in PIP mode.
•Channel selection: Use Fbutton to enlarge the selected channel being searched on the PIP
screen to shift it for viewing on the Main screen.
•PIP selection: Use D/Ebutton to select one of 3 PIP screen pictures in POP mode.
•Input source selection for PIP: Use PIP INPUT button or Sub Input option on the SETUP
menu to select an input source for the sub picture (You can’t select DTV for main and sub pic-
ture simultaneously). You can only select the Analog and DTV signal for sub input source in
POP mode.
2. Press the EXIT button to cancel POP mode.
POP
POP (Picture-out-of-Picture: Channel Scan)
(Picture-out-of-Picture: Channel Scan)
- Use POP to search the programs of all the memorized channels one-by-one on the 3 PIP screen display,
(while the main picture source remains the current channel). The pictures of all the programmed channels
are searched with the 3 POP screen.
- Note: Run EZ Scan channel search before using POP mode.
FTV 2-0
TV 4-0
TV 6-0
E
D
Owner’s Manual 35
External Control Device Setup
No. Pin Name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
1
5
6
9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DSR
DTR
CTS
RTS
PC
7-Wire Configurations
(Standard RS-232C cable)
D-Sub 9
3
2
5
6
4
8
7
PDP
D-Sub 9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DTR
DSR
RTS
CTS
PC
3-Wire Configurations
(Not standard)
D-Sub 9
3
2
5
4
6
7
8
PDP
D-Sub 9
- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)
and control the Monitor’s functions externally.
- Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.
- RS-232C connection cables are not supplied with the Monitor.
T
Type of Connector; D-Sub 9-Pin Male
ype of Connector; D-Sub 9-Pin Male
RS-232C Configurations
RS-232C Configurations
External Control Device Setup
External Control Device Setup
RS-232C Setup
RS-232C Setup
REMOTE
CONTROL
RS-232C INPUT
(CONTROL/SERVICE)
AC INPUT
AUDIO INPUT
COMPONENT 2
COMPONENT 1
RL
DIGITAL AUDIO
(OPTICAL)
DVI
INPUT
COMPONENT1
INPUT
OUTPUT
AUDIO INPUT
DVI INPUT
(PC/DTV INPUT)
RGB INPUT
(PC/DTV INPUT)
VIDEO INPUT
MONITOR
OUTPUT
A/V
INPUT 1
AUDIO
R L
(MONO)
VIDEO
Antenna 1
Analog/DTV
Antenna 2
DTV
S-VIDEO
DVD
DTV
INPUT
.
PC
36 Plasma TV
External Control Device Setup

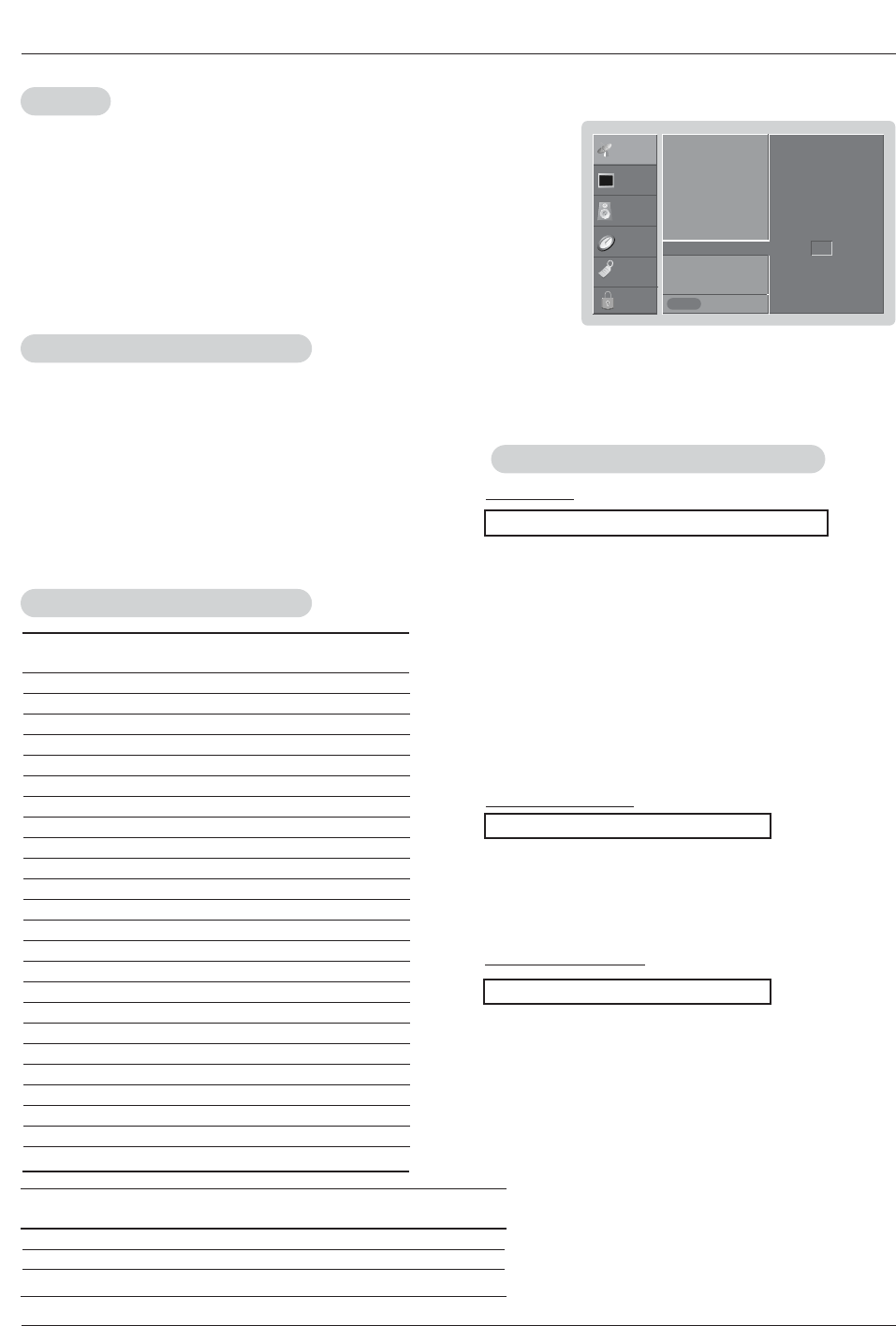

Set ID
Set ID
Use this function to specify a monitor ID number.
Refer to ‘Real Data Mapping’. See page 37.
• Baud rate : 9600 bps (UART)
• Data length : 8 bits
• Parity : None
* Use a crossed (reverse) cable.
• Stop bit : 1 bit
• Communication code : ASCII code
Communication Parameters
Communication Parameters
1. Press the MENU button and then use D/Ebutton to select the SETUP menu.
2. Press the Gbutton and then use D/Ebutton to select SET ID.
3. Press the Gbutton and then use D/Ebutton to adjust SET ID to choose the
desired monitor ID number. The adjustment range of SET ID is 1 ~ 99.
4. Press EXIT button to return to TV viewing or press MENU button to return to the
previous menu.
Transmission
*[Command 1]: First command to control the set. (j or k)
*[Command 2]: Second command to control the set.
*[Set ID]: You can adjust the set ID to choose desired monitor
ID number in Setup menu. Adjustment range is 1
~ 99. When selecting Set ID ‘0’, every connected
the TV is controlled. Set ID is indicated as decimal
(1~99) on menu and as Hexa decimal (0x0~0x63)
on transmission/receiving protocol.
*[DATA]: To transmit command data.
Transmit ‘FF’ data to read status of command.
*[Cr]: Carriage Return
ASCII code ‘0x0D’
*[ ]: ASCII code ‘space (0x20)’
[Command1][Command2][ ][Set ID][ ][Data][Cr]
T
Transmission / Receiving Protocol
ransmission / Receiving Protocol
OK Acknowledgement
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving normal data. At this time, if the
data is data read mode, it indicates present status data. If
the data is data write mode, it returns the data of the PC
computer.
[Command2][ ][Set ID][ ][OK][Data][x]
Error Acknowledgement
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving abnormal data from non-viable
functions or communication errors.
[Command2][ ][Set ID][ ][NG][Data][x]
Data 1: Illegal Code
2: Not supported function
3: Wait more time
01. Power k a 0 ~ 1
02. Input Select k b 0 ~ 9
03. Aspect Ratio k c 0 ~ 15
04. Screen Mute k d 0 ~ 1
05. Volume Mute k e 0 ~ 1
06. Volume Control k f 0 ~ 64
07. Contrast k g 0 ~ 64
08. Brightness k h 0 ~ 64
09. Color k i 0 ~ 64
10. Tint k j 0 ~ 64
11. Sharpness k k 0 ~ 64
12. OSD Select k l 0 ~ 1
13.
Key Lock Mode
k m 0 ~ 1
14. PIP/POP/Twin Picture k n 0 ~ 3
15. PIP Position k q 0 ~ 3
16. Treble k r 0 ~ 64
17. Bass k s 0 ~ 64
18. Balance k t 0 ~ 64
19. Color Temperature k u 0 ~ 2
20. PIP Input Source k y 0 ~ 3
21. ISM Method j p 0 ~ 2
22. White Wash j q 0 ~ 1
23. Orbiter Time Setting j r 1 ~ 64
24. Orbiter Pixel Setting j s 0 ~A
COMMAND 1 COMMAND 2 DATA
(Hexadecimal)
25. Channel Tuning m a 01 ~ 87 01 ~ 87 00 ~ FE 00 ~ 15
26. Channel Add/Del m b 00 ~ 01
27. Key m c
COM-
MAND 2
COM-
MAND 1
DATA 0
(Hexadecimal)
DATA 1
(Hexadecimal)
DATA 2
(Hexadecimal)
DATA 3
(Hexadecimal)
Command Reference List
Command Reference List
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK Prev.
EZ Scan
Ch.Edit
DTV Signal
Ch. Label
Main Input
Sub Input
SET ID G
MENU
1
Owner’s Manual 37
External Control Device Setup
02. Input Select (Command2:b) (Main Picture Input)
GTo select input source for the Monitor.
Transmission
Data 0: DTV
1: Analog
2: Video 1
3: Video 2
4: Component 1
5: Component 2
6: RGB-DTV
7: RGB-PC
8: DVI-DTV
9: DVI-PC
Data 0: Auto (Set by program)
1: Normal screen (4:3)
2: Wide screen (16:9)
3: Horizon
4: Zoom 1
5: Zoom 2
6: Cinema Zoom (1)
15: Cinema Zoom (16)
[k][b][ ][Set ID][ ][Data][Cr]
Acknowledgement
[b][ ][Set ID][ ][OK][Data][x]
01. Power (Command2:a)
GTo control Power On/Off of the Monitor.
Transmission
Data 0 : Power Off 1 : Power On
[k][a][ ][Set ID][ ][Data][Cr]
Acknowledgement
[a][ ][Set ID][ ][OK][Data][x]
* In a like manner, if other functions transmit ‘FF’ data
based on this format, Acknowledgement data feedback
presents status about each function.
*Real data mapping
0 : Step 0
A : Step 10 (SET ID 10)
F : Step 15 (SET ID 15)
10 : Step 16 (SET ID 16)
64 : Step 100
05. Volume Mute (Command2:e)
GTo control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission
Data 0 : Volume mute off (Volume on)
1 : Volume mute on (Volume off)
[k][e][ ][Set ID][ ][Data][Cr]
Acknowledgement
[e][ ][Set ID][ ][OK][Data][x]
03. Aspect Ratio (Command2:c) (Main picture format)
GTo adjust the screen format.
You can also adjust the screen format using the RATIO
button on remote control or in the Option menu.
Transmission
[k][c][ ][Set ID][ ][Data][Cr]
Acknowledgement
[c][ ][Set ID][ ][OK][Data][x]
04. Screen Mute (Command2:d)
GTo select screen mute on/off.
Transmission
Data 0 : Screen mute off (Picture on)
1 : Screen mute on (Picture off)
[k][d][ ][Set ID][ ][Data][Cr]
Acknowledgement
[d][ ][Set ID][ ][OK][Data][x]
06. Volume Control (Command2:f)
GTo adjust volume.
You can also adjust volume with the volume buttons
on remote control.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping’ as shown below.
[k][f][ ][Set ID][ ][Data][Cr]
Acknowledgement
[f][ ][Set ID][ ][OK][Data][x]
07. Contrast (Command2:g)
GTo adjust screen contrast.
You can also adjust contrast in the Video menu.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping’ as shown below.
[k][g][ ][Set ID][ ][Data][Cr]
Acknowledgement
[g][ ][Set ID][ ][OK][Data][x]
08. Brightness (Command2:h)
GTo adjust screen brightness.
You can also adjust brightness in the Video menu.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping’ as shown below.
[k][h][ ][Set ID][ ][Data][Cr]
Acknowledgement
[h][ ][Set ID][ ][OK][Data][x]
38 Plasma TV
External Control Device Setup
09. Color (Command2:i)
GTo adjust the screen color.
You can also adjust color in the Video menu.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping’. See page 37.
[k][i][ ][Set ID][ ][Data][Cr]
Acknowledgement
[i][ ][Set ID][ ][OK][Data][x]
10. Tint (Command2:j)
GTo adjust the screen tint.
You can also adjust tint in the Video menu.
Transmission
Data Red : 0 ~ Green : 64
•Refer to ‘Real data mapping’. See page 37.
[k][j][ ][Set ID][ ][Data][Cr]
Acknowledgement
[j][ ][Set ID][ ][OK][Data][x]
13. Remote Control Lock Mode (Command2:m)
GTo lock the remote control and the front panel controls on
the set.
Transmission
[k][m][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0: Lock off 1: Lock on
[m][ ][Set ID][ ][OK][Data][x]
14. PIP / POP / Twin Picture (Command2:n)
GTo control the PIP (Picture-in-Picture)/POP/Twin picture.
You can also control the PIP/POP/Twin picture using the
PIP button on the remote control.
Transmission
Data 0: PIP off
1: PIP
2: POP
3: Twin Picture
[k][n][ ][Set ID][ ][Data][Cr]
Acknowledgement
[n][ ][Set ID][ ][OK][Data][x]
GTo adjust the screen sharpness.
You can also adjust sharpness in the Video menu.
Transmission
11. Sharpness (Command2:k)
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping’. See page 37.
[k][k][ ][Set ID][ ][Data][Cr]
Acknowledgement
[k][ ][Set ID][ ][OK][Data][x]
12. OSD Select (Command2:l)
GTo select OSD (On Screen Display) on/off.
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0: OSD off 1: OSD on
[l][ ][Set ID][ ][OK][Data][x]
15. PIP Position (Command2:q)
GTo select sub picture position for PIP.
Transmission
[k][q][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0: Right down on screen
1: Right up on screen
2: Left up on screen
3: Left down on screen
[q][ ][Set ID][ ][OK][Data][x]
16. Treble (Command2:r)
GTo adjust treble.
You can also adjust treble in the Audio menu.
Transmission
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping’. See page 37.
[k][r][ ][Set ID][ ][Data][Cr]
Acknowledgement
[r][ ][Set ID][ ][OK][Data][x]
18. Balance (Command2:t)
GTo adjust balance.
You can also adjust balance in the Audio menu.
Transmission
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping’. See page 37.
[k][t][ ][Set ID][ ][Data][Cr]
Acknowledgement
[t][ ][Set ID][ ][OK][Data][x]
17. Bass (Command2:s)
GTo adjust bass.
You can also adjust bass in the Audio menu.
Transmission
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping’. See page 37.
[k][s][ ][Set ID][ ][Data][Cr]
Acknowledgement
[s][ ][Set ID][ ][OK][Data][x]
Owner’s Manual 39
External Control Device Setup
19. Color Temperature (Command2:u)
GTo adjust color temperature.
You can also adjust color temperature in the Video
menu.
Transmission
Data 0: Warm 1: Medium 2: Cool
[k][u][ ][Set ID][ ][Data][Cr]
Acknowledgement
[u][ ][Set ID][ ][OK][Data][x]
23. Orbiter Time Setting (Command2:r)
GTo adjust orbiter operation time term.
Transmission
Data Min: 1 ~ Max: 64
•Refer to ‘Real data mapping’. See page 37.
[j][r][ ][Set ID][ ][Data][Cr]
Acknowledgement
[r][ ][Set ID][ ][OK][Data][x]
24. Orbiter Pixel Setting (Command2:s)
GTo adjust pixel number in orbiter function.
Transmission
Data Min: 0 ~ Max: A
[j][s][ ][Set ID][ ][Data][Cr]
Acknowledgement
[s][ ][Set ID][ ][OK][Data][x]
25. Channel Tuning (Command: m a)
GTo tune channel to following physical/major/minor number
Transmission
Data 0:
Physical channel number (Transmit by Hexadecimal code)
* NTSC air: 02 ~ 45
NTSC cable: 01, 0E ~ 7D
ATSC air: 01 ~ 45
ATSC cable: 01 ~ 87
1:
Major channel number (Transmit by Hexadecimal code)
* NTSC air: 02 ~ 45, NTSC cable: 01 ~ 7D
ATSC air: 01 ~ 63, ATSC cable: 01 ~ 87
2:
Minor channel number (Transmit by Hexadecimal code)
* NTSC air: 00 (must be 0), ATSC: 01 ~ FE
3: High nibble →Main picture: 0, Sub picture (PIP): 1
Low nibble →NTSC air: 0, NTSC cable: 1, ATSC: 2,
Example) If you want PIP channel tuned to ATSC cable (stan-
dard) 30-5, the command sequence is ma 00 1e 1e 05 12.
•Refer to ‘Real data mapping’. See page 37.
* To change the channel between ATSC air and ATSC cable,
change the antenna setting with EZ Scan.
[m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][ ][Data3][Cr]
[a][ ][Set ID][ ][OK][Data0][Data1][Data2][Data3][x]
[a][ ][Set ID][ ][NG][Data0][x]
Acknowledgement
26. Channel Add/Del (Command: m b)
GTo add and delete the channels
Transmission
Data 0: Channel Delete
1: Channel Add
[m][b][ ][Set ID][ ][Data][Cr]
[b][ ][Set ID][ ][OK][Data][x]
[b][ ][Set ID][ ][NG][Data][x]
Acknowledgement
27. Key (Command: m c)
GTo send IR remote key code
Transmission
Data Key code: Refer to page 41.
* It’s impossible to command the IR Code 0x08 and 0xC4
with RS-232C.
[m][c][ ][Set ID][ ][Data][ ][Cr]
[c][ ][Set ID][ ][OK][Data][x]
Acknowledgement
20. PIP Input Select (Command2:y)
GTo select input source for sub picture in PIP/Twin pic-
ture mode.
Transmission
Data 0: DTV
1: Analog
2: Video 1
3: Video 2
[k][y][ ][Set ID][ ][Data][Cr]
Acknowledgement
[y][ ][Set ID][ ][OK][Data][x]
21. ISM Method (Command2:p)
GTo avoid having a fixed image remain on screen.
Transmission
Data 0: Normal
1: Orbiter
2: Inversion
[j][p][ ][Set ID][ ][Data][Cr]
Acknowledgement
[p][ ][Set ID][ ][OK][Data][x]
22. White Wash (Command2:q)
GTo control the white wash function on/off.
You can also adjust white wash in Option menu.
Transmission
Data 0: White Wash off
1: White Wash on
[j][q][ ][Set ID][ ][Data][Cr]
Acknowledgement
[q][ ][Set ID][ ][OK][Data][x]
40 Plasma TV
IR Codes
GConnect your wired remote control to the Remote Control port on the TV.
GOutput waveform
Single pulse, modulated with 37.917KHz signal at 455KHz
GConfiguration of frame
GRepeat code
GLead code
•1st frame
Low
custom code
Lead
code
High
custom code Data code Data code
TC
Tf
T1
C0
Carrier frequency
FCAR = 1/TC= fOSC/12
Duty ratio = T1/TC= 1/3
•Repeat frame
C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
Repeat code
9 ms 4.5 ms
0.55 ms
9 ms
2.25 ms
GBit description
GFrame interval : Tf
The waveform is transmitted as long as a key is depressed.
•Bit “0”
Tf Tf
Tf=108ms @455KHz
0.56 ms 0.56 ms
1.12 ms
•Bit “1”
2.24 ms
How to Connect
How to Connect
Remote Control IR Codes
Remote Control IR Codes
IR Codes
IR Codes
Owner’s Manual 41
IR Codes
0x0B
0x08
0xC4
0xC5
0x98
0x79
0x0E
0x10 ~ 0x19
0x4C
0x1A
0x09
0x02
0x03
0x00
0x01
0x1E
0xAA
0x39
0x40
0x41
0x07
0x06
0x44
0x43
0x52
0x4D
0x5B
0x60
0x72
0x71
0x61
0x63
0x65
0x7B
0x0A
0xCB
0xD6
0x5A
0xD0
0xBF
0xD4
0xD5
0xD7
0xC6
0x76
0x77
0xAF
0x70
0x96
R/C Button
R/C Button
R/C Button (Power On/Off)
Discrete IR Code (Only Power On)
Discrete IR Code (Only Power Off)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
Discrete IR Code (TV Input Selection)
Discrete IR Code (Video1 Input Selection)
Discrete IR Code (Video2 Input Selection)
Discrete IR Code (Component1 Input Selection)
Discrete IR Code (Component2 Input Selection)
Discrete IR Code (RGB-PC Input Selection)
Discrete IR Code (RGB-DTV Input Selection)
Discrete IR Code (DVI-DTV Input Selection)
Discrete IR Code (Only 4:3 Mode)
Discrete IR Code (Only 16:9 Mode)
Discrete IR Code (Only Zoom Mode)
Channel Search
R/C Button
Code (Hexa) Function Note
TV/VIDEO
MODE
POWER
POWER ON
POWER OFF
COMP/RGB/DVI
RATIO
TIMER
Number Key 0~ 9
- (Dash)
FLASHBK
MUTE
VOL +
VOL -
CH +
CH -
SURF
INFO
CC
D
E
F
G
OK
MENU
SOUND
VIDEO
EXIT
PIP
PIPCH -
PIPCH +
PIP INPUT
SWAP
FREEZE
ZOOM
SAP
ADJUST
TV
VIDEO 1
VIDEO 2
COMPONENT 1
COMPONENT 2
RGB-PC
RGB-DTV
DVI-DTV
Ratio 4:3
Ratio 16:9
Ratio Zoom
MULTI PIP
SIGNAL
42 Plasma TV
Programming the Remote
GThe remote control is a multi-brand or universal remote control. It can be programmed to operate most remote-controllable
devices of other manufacturers.
Note that the remote control may not control all models of other brands.
Programming a code into a remote mode
Programming a code into a remote mode
Programming the Remote
Programming the Remote
1. Test your remote control.
To find out whether your remote control can operate the component without programming, turn on the component such as a VCR
and press the corresponding MODE button (VCR) on the remote control, while pointing at the component. Test the POWER and
CH +/- buttons to see if the component responds properly. If not, the remote requires programming to operate the device.
2. Turn on the component to be programmed, then press the corresponding MODE button on the remote control.
3. Press the MENU and MUTE buttons simultaneously, the remote control is ready to be programmed for the code.
4. There are two ways to find the right code for the component.
A. If you press the CH +/- buttons repeatedly, the codes will change one at-a-time. Press the POWER button after each code
change. If the right code is found, the device will turn off.
B. Enter a code number using the number buttons on the remote. Programming code numbers for the corresponding component
can be found on the following pages. Again, if the code is correct, the device will turn off.
5. Press the MENU button to store the code.
6. Test the remote control functions to see if the component responds properly. If not, repeat from step 2.
Owner’s Manual 43
Programming Codes
Programming Codes
Programming Codes
VCRs
VCRs
CA
CATV
TV
AIWA 034
AKAI 016 043 046 124
125 146
AMPRO 072
ANAM 031 033 103
AUDIO DYNAMICS
012 023 039 043
BROKSONIC 035 037 129
CANON 028 031 033
CAPEHART 108
CRAIG 003 040 135
CURTIS MATHES 031 033 041
DAEWOO 005 007 010 064
065 108 110 111
112116117119
DAYTRON 108
DBX 012 023 039 043
DYNATECH 034 053
ELECTROHOME 059
EMERSON 006 017 025 027
029 031 034 035
036 037 046 101
129 131 138 153
FISHER 003 008 009 010
FUNAI 034
GE 031 033 063 072
107 109 144 147
GO VIDEO 132 136
HARMAN KARDON
012 045
HITACHI 004 018 026 034
043 063 137 150
INSTANTREPLAY 031 033
JCL 031 033
JCPENNY 012 013 015 033
040 066 101
JENSEN 043
JVC 012 031 033 043
048 050 055 060
130 150 152
KENWOOD 014 034 039 043
047 048
LG (GOLDSTAR) 001 012 013 020
101 106 114 123
LLOYD 034
LXI 003 009 013 014
017 034 101 106
MAGIN 040
MAGNAVOX 031 033 034 041
067 068
MARANTZ 012 031 033 067
069
MARTA 101
MATSUI 027 030
MEI 031 033
MEMOREX 003 010 014 031
033 034 053 072
101 102 134 139
MGA 045 046 059
MINOLTA 013 020
MITSUBISHI 013 020 045 046
049 051 059 061
151
MTC 034 040
MULTITECH 024 034
NEC 012 023 039 043
048
NORDMENDE 043
OPTONICA 053 054
PANASONIC 066 070 074 083
133 140 145
PENTAX 013 020 031 033
063
PHILCO 031 034 067
PHILIPS 031 033 034 054
067 071 101
PILOT 101
PIONEER 013 021 048
PORTLAND 108
PULSAR 072
QUARTZ 011 014
QUASAR 033 066 075 145
RCA 013 020 033 034
040 041 062 063
107 109 140 144
145 147
REALISTIC 003 008 010 014
031 033 034 040
053 054 101
RICO 058
RUNCO 148
SALORA 014
SAMSUNG 032 040 102 104
105 107 109 112
113 115 120 122
125
SANSUI 022 043 048 135
SANYO 003 007 010 014
102 134
SCOTT 017 037 112 129
131
SEARS 003 00 009
010 013 014 017 020
031 042 073 081
101
SHARP 031 054 149
SHINTOM 024
SONY 003 009 031 052
056 057 058 076
077 078 149
SOUNDESIGN 034
STS 013
SYLVANIA 031 033 034 059
067
SYMPHONIC 034
TANDY 010 034
TATUNG 039 043
TEAC 034 039 043
TECHNICS 031 033 070
TEKNIKA 019 031 033 034
101
THOMAS 034
TMK 006
TOSHIBA 008 013 042 047
059 082 112 131
TOTEVISION 040 101
UNITECH 040
VECTOR RESEARCH
012
VICTOR 048
VIDEO CONCEPTS
012 034 046
VIDEOSONIC 040
WARDS 003 013 017 024
031 033 034 040
053 054 131
YAMAHA 012 034 039 043
ZENITH 034 048 056
058 072 080 101
Brand Codes Brand Codes Brand Codes Brand Codes
Brand Codes Brand Codes Brand Codes Brand Codes
ABC 003 004 039 042
046 052 053
AJIN 112
ANTRONIK 014
ARCHER 005 007 014 024
CABLE STAR 026
CENTURION 092
CENTURY 007
CITIZEN 007
COLOUR VOICE 065 090
COMBANO 080 081
COMTRONICS 019 030
DIAMOND 023
EAGLE 020 030 040
EASTERN 057 062 066
ELECTRICORD 032
GE 072
GEMINI 008 022 025 054
GI 052 074
GOLDEN CHANNEL
030
HAMLIN 049 050 055
HITACHI 052 055
HOSPITALITY 070 077
JERROLD 002 003 004 008
009 010 052 069
074
LG (GOLDSTAR) 001 106 101 005
M-NET 037
MACOM 033
MAGNAVOX 010 012 064 079
MEMOREX 100
MOVIE TIME 028 032
NSC 015 028 038 071
073
OAK 016 031 037 053
PANASONIC 044 047
PARAGON 100
PHILIPS 006 012 013 020
065 085 090
PIONEER 034 051 052 063
076
POST NEWS WEEK
016
PRUCER 059
PTS 011 048 071 072
073 074
PULSAR 100
RCA 047
REGAL 049 050
REGENCY 057
REMBRANT 025
RK 091
SAMSUNG 102 107 030 068
SCIENTIFIC ATLANTA
003 011 041 042
043 045 046
SHERITECH 022
SIGNAL 030
SIGNATURE 052
SL MARX 030
SPRUCER 047 078
STARCOM 002 004 008 009
STARGATE 008 030
SYLVANIA 067
TADIRAN 030
TAEKWANG 110
TAIHAN 105
TANDY 017
TEXSCAN 029 067
TOCOM 039 040 056
TOSHIBA 100
UNIKA 007 014 024
UNITED CABLE 004 053
UNIVERSAL 005 007 014 024
026 027 032 035
VIEWSTAR 012 015 018 086
087 088 089
ZENITH 100 114 060 093
44 Plasma TV
Programming Codes
Audio
Audio
APEX DIGITAL 022
DENON 020 014
GE 005 006
HARMAN KARDON 027
JVC 012
LG 001 010 016 025
MAGNAVOX 013
MARANTZ 024
MITSUBISHI 002
NAD 023
ONKYO 008 017
PANASONIC 003 009
PHILIPS 013
PIONEER 004 026
PROCEED 021
PROSCAN 005 006
RCA 005 006
SAMSUNG 011 015
SONY 007
THOMPSON 005 006
TOSHIBA 019 008
YAMAHA 009 018
ZENITH 010 016 025
DVD
DVD
ALPHASTAR DSR
123
AMPLICA 050
BIRDVIEW 051 126 129
BSR 053
CAPETRONICS 053
CHANNEL MASTER
013 014 015 018
036 055
CHAPARRAL 008 009 012 077
CITOH 054
CURTIS MATHES 050 145
DRAKE 005 006 007 010
011 052 112 116
141
DX ANTENNA 024 046 056 076
ECHOSTAR 038 040 057 058
093 094 095 096
097 098 099 100
122
ELECTRO HOME 089
EUROPLUS 114
FUJITSU 017 021 022 027
133 134
GENERAL INSTRUMENT
003 004 016 029
031 059 101
HITACHI 139 140
HOUSTON TRACKER
033 037 039 051
057 104
HUGHES 068
HYTEK 053
JANIEL 060 147
JERROLD 061
KATHREIN 108
LEGEND 057
LG 001
LUTRON 132
LUXOR 062 144
MACOM 010 059 063 064
065
MEMOREX 057
NEXTWAVE 028 124 125
NORSAT 069 070
PACE SKY SATELLITE 143
PANASONIC 060 142
PANSAT 121
PERSONAL CABLE 117
PHILIPS 071
PICO 105
PRESIDENT 019 102
PRIMESTAR 030 110 111
PROSAT 072
RCA 066 106
REALISTIC 043 074
SAMSUNG 123
SATELLITE SERVICE CO
028 035 047 057
085
SCIENTIFIC ATLANTA
032 138
SONY 103
STARCAST 041
SUPER GUIDE 020 124 125
TEECOM 023 026 075 087
088 090 107 130
137
TOSHIBA 002 127
UNIDEN 016 025 042 043
044 045 048 049
078 079 080 086
101
UNIDEN 135 136
VIEWSTAR 115
WINEGARD 128 146
ZENITH 081 082 083 084
091 120
HDSTB
HDSTB
Brand Codes Brand Codes Brand Codes Brand Codes
Brand Codes Brand Codes Brand Codes Brand Codes
AIWA 014 028 070 096
125 129 139 229
230
AKAI 163
ANAM 003 014 017 023
059 106 189 216
217 235 236
BURMECTER 252
CARVER 086
CLARION 199
DAEWOO 027 053 060 084
102 148 198 221
DENON 015 075 130 143
FANTASIA 071
FINEARTS 022
FISHER 089 099
LG(GOLDSTAR) 001 021 024 029
087 107 108 110
190 191 192 210
211 212 239
HAITAI 034 035 188 222
HARMAN/KARDON 068
INKEL 037 058 062 069
078 079 095 121
122 149 150 151
152 153 154 155
157 158 159 160
189 207 222 224
225 226 227 243
247
JVC 004 013 141
KEC 185 186 187
KENWOOD 038 050 067 089
170 171 197 206
215 222
KOHEL 030
NAD 045 046
LOTTE 014 016 036 098
100 172 173 174
175 176 177 178
179 180 181 183
201 202 208 213
214 219 223 232
238 240
LXI 103
MAGNAVOX 111
MARANTZ 002 018 020 025
034 041 081 090
097 112
MCINTOSH 049
MCS 104
MEMOREX 107
NAD 046
ONKYO 013 040 041 047
048 056 057 132
133 140
OPTIMUS 158
PANASONIC 007 033 064 113
142 220 241 251
PENNEY 104
PHILIPS 026 112 143 253
PIONEER 039 042 043 063
065 091 093 094
115 123 127 250
QUASAR 113
RCA 080
RCX 092
REALISTIC 103 106
SAMSUNG 124 145 146 182
193 194 195 203
204 244 245 246
SANSUI 011 135 138 144
SANYO 019 083 234
SCOTT 106 186
SHARP 031 032 051 052
072 082 117 119
156 184 199 200
206 209
SHERWOOD 005 006 158
SONY 044 045 109 114
118 126 248 249
TAEKWANG 012 020 073 074
076 077 105 161
162 163 164 165
166 167 168 169
205 231 233 242
254
TEAC 010 085 106 136
185 187 237
TECHNICS 101 113 128 134
147 218
TOSHIBA 137
THE 061
VICTOR 088 131
WARDS 089
YAMAHA 054 055 066 092
199
Brand Codes Brand Codes Brand Codes Brand Codes
Owner’s Manual 45
Troubleshooting Checklist
No output from one of
the speakers • Adjust Balance in the AUDIO menu. (Refer to p.23)
Unusual sound from
inside the TV
• A change in ambient humidity or temperature may result in an unusual noise
when the plasma display is turned on or off and does not indicate a fault with
the TV.
No picture &
No sound
• Check whether the TV is turned on.
• Is the power cord inserted into wall power outlet?
• Test the wall power outlet, plug another product’s power cord into the outlet
where the TV’s power cord was plugged in.
No or poor color
or poor picture
• Select Color in the Video menu and press the Gbutton.
(Refer to p.21)
• Keep a sufficient distance between the TV and the VCR.
• Activate any function to restore the brightness of the picture.
(If still picture is on the screen for more than 5 minutes, the screen gets dark.)
The remote control
doesn’t work
• Check to see if there is any object between the TV and the remote control
causing obstruction.
• Are batteries installed with correct polarity (+ to +, - to -)?
(Refer to p.9)
• Correct remote operating mode set: TV, VCR etc.?
• Install new batteries. (Refer to p.9)
Picture OK &
No sound
• Press the VOLUME (G) button.
• Sound muted? Press MUTE button.
Picture appears slowly
after switching on
• This is normal, the image is muted during the TV startup process. Please
contact your service center, if the picture has not appeared after five minutes.
Horizontal/vertical bars
or picture shaking • Check for local interference such as an electrical appliance or power tool.
T
Troubleshooting Checklist
roubleshooting Checklist
46 Plasma TV
Maintenance & Specification
• The specifications shown above may be changed without prior notice for quality improvement.
Product Specifications
Product Specifications
MODEL
AC100-240V ~ 50/60Hz
NTSC-M, ATSC
VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 125, CADTV 1 ~ 135. DTV 2 ~ 69
75 Ω
1024 x 768 (Dot)
16,770,000 (256 steps of each R, G and B)
32 ~ 104°F (0 ~ 40°C)
Less than 80%
6561 feet (2000m)
41 / 1210
27.5 / 701
3.7 / 96
76.1 / 34.6
Width (inches / mm)
Height (inches / mm)
Depth (inches / mm)
Weight (pounds / kg)
Power requirement
Television System
Program Coverage
External Antenna Impedance
Resolution
Color
Operating Temperature Range
Operating Humidity Range
Maximum Elevation
DU-42PX12XD
1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and
a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the
screen.
2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.
If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug
the power cord to protect against possible damage from lightning or power surges.
- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your
new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Cleaning the Screen
Cleaning the Screen
Cleaning the Cabinet
Cleaning the Cabinet
Extended
Extended Absence
Absence
Maintenance
Maintenance
