Users Manual

LG-E617g User Guide

This guide helps you to get started using your phone.

Some of the contents of this manual may not apply to your phone,

depending on the software and your service provider.

This handset is not suitable for people who have a visual impairment

due to the touch screen keyboard.

LG logo are registered trademarks of LG Group and its related entities.

All other trademarks are the property of their respective owners.

Google™, Google Maps™, Gmail™, YouTube™, Google Talk™ and

Android Market™ are trademarks of Google, Inc.

•

ENGLISH

This model is not intended for sale in the USA.

Part 15.21 statement

" Change or Modifications that are not expressly approved by the manufacturer could void

the user's authority to operate the equipment. “

Part 15.105 statement

This equipment has been tested and found to comply with the limits for a class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference or

television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

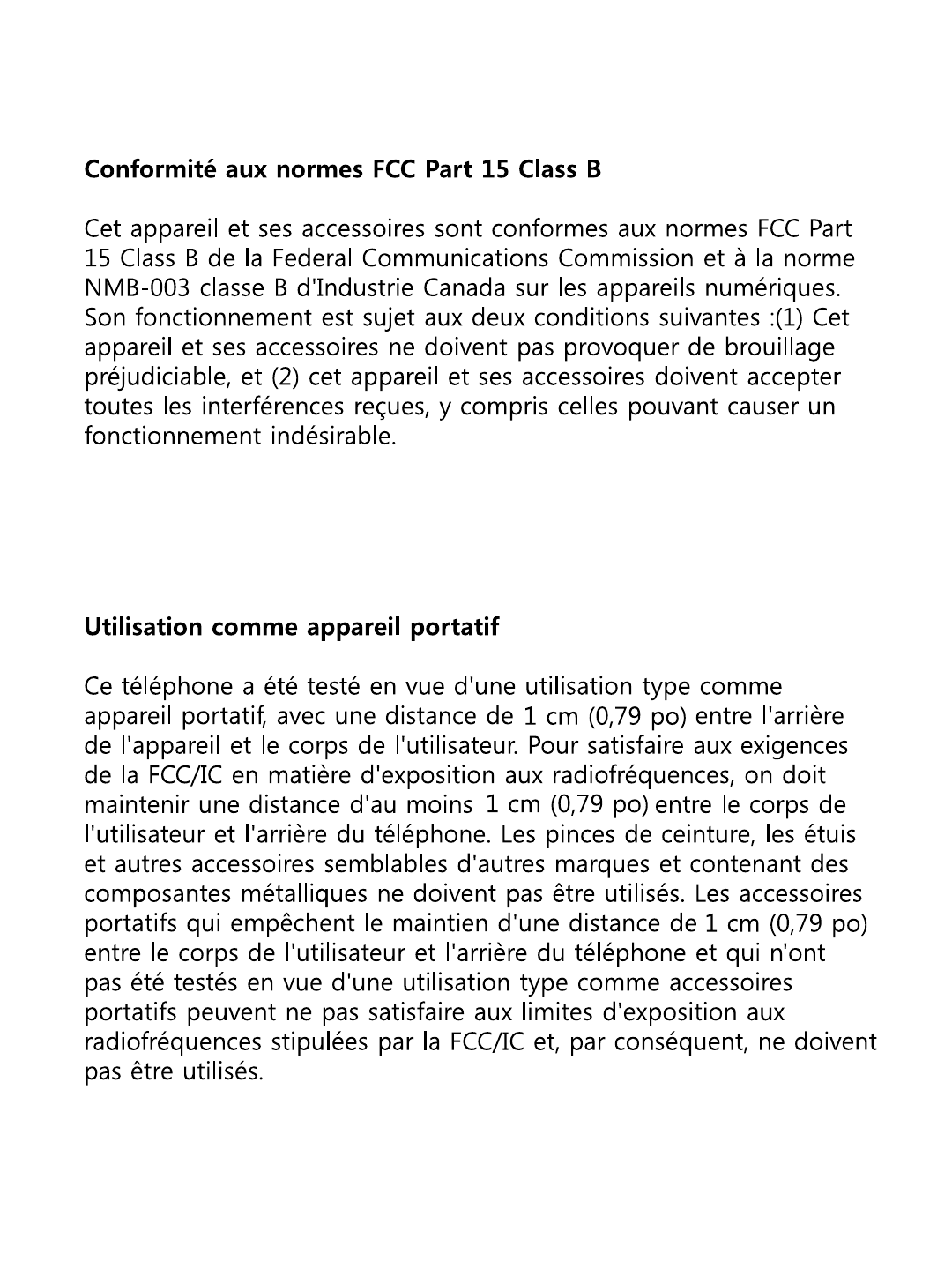

Part 15 Class B Compliance

This device and its accessories comply with part15 of FCC rules

and ICES-003 Class B digital apparatus requirements for Industry Canada.

Operation is subject to the following two conditions:

(1) This device & its accessories may not cause harmful interference.

(2) This device & its accessories must accept any interference received,

including interference that may cause undesired operation.

Body-worn Operation

This device was tested for typical use with the back of the phone kept 0.39 inches (1 cm)

from the body. To comply with FCC/IC RF exposure requirements, a minimum separation

distance of 0.39 inches (1 cm) must be maintained between the user’s body and the back

of the phone, including the antenna, whether extended or retracted. Third-party belt-clips,

holsters, and similar accessories containing metallic components may not be used.

Avoid the use of accessories that cannot maintain 0.39 inches (1 cm) distance between

the user’s body and the back of the phone and have not been tested for compliance

with FCC/IC RF exposure limits.

Please check to see whether any problems

you encountered with your phone are

described in this section before taking the

phone in for service or calling a service

representative.

1. Phone memory

When there is less than 10% of space

available in your phone memory, your phone

cannot receive new messages. You need to

check your phone memory and delete some

data, such as applications or messages, to

make more memory available.

To uninstall applications:

Touch > Apps tab > Settings >

Apps from the DEVICE category.

Once all applications appear, scroll to

and select the application you want to

uninstall.

Touch Uninstall.

Getting to know your phone

Before you start using the phone, please read this! 2.

Ext

hav

You

sys

Ext

•

2. Optimising battery life

Extend your battery's life between charges

by turning off features that you don't need to

having running constantly in the background.

You can monitor how applications and

system resources consume battery power.

Extending your phone's battery life:

Turn off radio communications you are not

using. If you are not using Wi-Fi, Bluetooth

or GPS, turn them off.

Reduce screen brightness and set a

shorter screen timeout.

•

Turn off automatic syncing for Google

Mail™, Calendar, Contacts and other

applications.

Some applications you have downloaded

may reduce battery power.

To check the battery power level:

Touch > Apps tab > Settings >

About phone from the SYSTEM > Status

The battery status (charging or not charging)

and level (percentage charged) is displayed

at the top of the screen.

•

To monitor and control how battery

power is being used:

Touch > Apps tab > Settings >

Power Saver from the DEVICE > Battery

use from the BATTERY INFORMATION.

Battery usage time is displayed on the

screen. It tells you how long it has been

since you last connected your phone to a

power source or, if currently connected, how

long the phone was last running on battery

power. The screen shows the applications or

services using battery power, listed in order

from the greatest to smallest amount used.

•

3. Using folders

You can combine several app icons in a

folder. Drop one app icon over another on

a Home screen, and the two icons will be

combined.

NOTE: To see a smaller collection of

frequently used apps, touch the Google

Apps folder near the bottom of the

screen. As with any folder, you can

customize its contents.

Getting to know your phone

NOTE: After you open an app, you can

usually adjust its settings by choosing

items from its Menu icon near the top or

bottom of the screen.

4. Before installing an open

source application and OS

WARNING

If you install and use an OS other than

the one provided by the manufacturer it

may cause your phone to malfunction.

In addition, your phone will no longer be

covered by the warranty.

WARNING

To protect your phone and personal

data, only download applications from

trusted sources, such as Android

Market™. If there are improperly

installed applications on your phone, it

may not work normally or a serious error

may occur. You must uninstall those

applications and all associated data and

settings from the phone.

5. Using the hard reset

(Factory reset)

If your phone needs to be restored to its

original condition, use hard reset to reboot

your phone.

When the phone is switched off, press

and hold the Volume down key +

Power key with your left hand.

When the LED on the bottom of the phone

lights up, touch and hold the Menu key

with your right hand. You need to do this

immediately, before the screen displays the

LG logo. Make sure your left hand is still

Lea

the

abl

Cau

app

Getting to know your phone

holding the Volume down and Power keys.

Then release the power key at vibration

time.

When the LG logo is displayed on the

screen, continue to hold the keys for

around 2 seconds, and then release all

them at the same time, before the LG

logo disappears.

Leave your phone for at least a minute while

the hard reset is carried out. You will then be

able to switch your phone back on.

Caution: If you perform a hard reset, all user

applications and user data will be deleted.

This cannot be reversed. Remember to back

up any important data before performing a

hard reset.

6. Opening and switching

applications

Multitasking is easy with Android because

you can keep more than one application

running at the same time. There's no

need to quit an application before opening

another. Use and switch between several

open applications. Android manages each

application, stopping and starting them as

needed to ensure that idle applications don't

consume resources unnecessarily.

To return to view list recently used

applications:

Simply press and hold the Home key.

To stop applications:

Touch > Apps tab > Settings >

Apps from the DEVICE > RUNNING tab.

Scroll and touch the desired application

and touch Stop to stop it.

7. Installing PC Software

(LG PC Suite)

"LG PC Suite" PC Application is a program

that helps you connect your device to a PC

via a USB cable and Wi-Fi. Once connected,

you can use the functions of your device

from your PC.

With your "LG PC Suite" PC Application,

You Can...

Manage and play your media contents

(music, movie, pictures) on your PC.

Send multimedia contents to your device.

•

Getting to know your phone

ed,

Synchronises data (schedules, contacts,

bookmarks) in your device and PC.

Backup the applications in your device.

Update the softwares in your device.

Backup and restore the device.

Play multimedia contents of your PC from

other device.

NOTE: You can use the Help menu from

the application to find out how to use

your "LG PC Suite" PC application.

•

Installing "LG PC Suite" PC Application

"LG PC Suite" PC application can be

downloaded from the webpage of LG.

Go to www.lg.com and select a country of

your choice.

Go to Support > Mobile Phone Support

> Select the Model (LG-E617g).

Click PC Sync from Download, and

click WINDOW PC Sync Download to

download "LG PC Suite" PC software.

System Requirements for "LG PC Suite"

PC software

OS: Windows XP 32 bit(Service pack 2),

Windows Vista 32 bit/64 bit, Windows 7

32 bit/64 bit

CPU: 1 GHz or higher processors

Memory: 512 MB or higher RAMs

Graphic card: 1024 x 768 resolution,

32 bit color or higher

•

HDD: 100 MB or more free hard disk

space (More free hard disk space may be

needed depending on the volume of data

stored.)

Required software: LG integrated drivers

NOTE: LG Integrated USB Driver

LG integrated USB driver is required

to connect an LG device and PC and

installed automatically when you install

"LG PC Suite" PC software.

•

Dat

syn

Con

syn

The

Getting to know your phone

8. Synchronising your phone to a

Computer

Data from your device and PC can be

synchronised easily with "LG PC Suite"

PC application for your convenience.

Contacts, schedules, and bookmarks can be

synchronised.

The procedure is as follows:

Connect your device to PC. (Use a USB

cable or Wi-Fi connection.)

After connection, run the program

and select the device section from the

category on the left side of the screen.

Click [Personal information] to select.

Select the checkbox of contents to

synchronise and click the Sync button.

9. Synchronising your phone to a

computer via USB

NOTE: To synchronise your phone with

your PC using the USB cable, you need

to install LG PC Suite onto your PC.

Please refer to previous pages to install

LG PC Suite.

Touch > Apps tab > Settings >

Storage from the DEVICE to check out

the storage media. (If you want to transfer

files from or to a memory card, insert a

memory card into the phone.)

Connect the phone to your PC using the

USB cable.

USB connection mode list will appear, and

select Media sync (MTP) option.

Open the removable memory folder on

your PC. You can view the mass storage

content on your PC and transfer the files.

Copy the files from your PC to the drive

folder.

Select Charge only option to disconnect

the phone.

TIP! To use the microSD card on your

phone again, you need to open the

notification drawer and touch >

Charge only.

com

Ope

pho

Getting to know your phone

To disconnect your phone from the

computer:

Open the notification drawer and touch

> Charge only to disconnect your

phone from the computer safely.

10. Hold your phone upright

Hold your mobile phone vertically, as you

would a regular phone. The LG-E617g

has an internal antenna. Be careful not to

scratch or damage the back of the phone, as

this may affect performance.

While making/receiving calls or sending/

receiving data, avoid holding the lower part

of the phone where the antenna is located.

Doing so may affect call quality.

11. When the screen freezes

If the screen freezes or the phone does

not respond when you try to operate it:

Remove the battery, reinsert it, then turn the

phone on.

Press and hold the Power/Lock key for

10 seconds to turn it off.

If it still does not work, please contact the

service centre.

Getting to know your phone

Ear

Pro

Hom

Ret

any

•

Device components

Earpiece

Proximity sensor

Home key

Return to the Home screen from

any screen.

Menu key

• Check what options are available.

Power/Lock key

• Switch your phone on/off by pressing

and holding this key.

• Short press to lock/unlock the

screen.

Back key

Return to the previous screen.

NOTE: Proximity sensor

When receiving and making calls, the

proximity sensor automatically turns

the backlight off and locks the touch

screen by sensing when the phone is

near your ear. This extends battery life

and prevents you from unintentionally

activating the touch screen during calls.

WARNING

Placing a heavy object on the phone or

sitting on it can damage the LCD and

touch screen functions. Do not cover

the LCD proximity sensor with protective

film. This could cause the sensor to

malfunction.

Getting to know your phone

Pow

Cha

Mic

Ear

Vol

• In

• D

• W

Power/Lock key

Charger/USB port

Microphone

Earphone Jack

Volume keys

• In the Home screen: Control ringer

volume.

• During a call: Control your earpiece

volume.

• When playing a track: Control

volume continuously.

Battery cover

Flash

SIM card slot

microSD Card

slot Speaker

Battery

Camera lens

Installing the SIM card and

battery

Before you can start exploring your new

phone, you'll need to set it up. To insert the

SIM card and battery:

To remove the battery cover, hold the

phone firmly in one hand. With your other

hand, lift off the battery cover with your

thumbnail as shown in figure.

Getting to know your phone

Slide the SIM card into the SIM card slot.

Make sure the gold contact area on the

card is facing downwards.

Insert the battery into place by aligning

the gold contacts on the phone and the

battery (1) and pressing it down until it

clicks into place (2).

Align the battery cover over the battery

compartment (1) and press it down until it

clicks into place (2).

Charging your phone

The charger connector is at the bottom of

the phone. Insert the charger and plug it into

an electrical outlet.

Getting to know your phone

You

or m

32G

spe

nto

NOTE: The battery must be fully charged

initially to improve battery lifetime.

NOTE: Do not open the battery cover

during the charging of your phone.

Using the memory card

Your phone supports the use of microSDTM

or microSDHCTM memory cards of up to

32GB capacity. These memory cards are

specifically designed for mobile phones

and other ultra-small devices, and are ideal

for storing media-rich files such as music,

programs, videos, and photographs for use

with your phone.

To insert a memory card:

Insert the memory card into the slot.

Make sure the gold contact area is facing

downwards.

To remove the memory card safely:

Touch > Apps tab > Settings >

Storage from the DEVICE > Unmount SD

card > OK.

NOTE:

Use only compatible memory cards

with your phone. Using incompatible

memory cards may damage the card

and data stored on the card, as well

as the phone.

As the device uses FAT32 the

Maximum size for any given file is

4 GB.

•

Getting to know your phone

You

form

bef

WARNING

Do not insert or remove the memory

card when the phone is on. Doing so

may damage the memory card as well

as your phone, and the data stored on

the memory card may get corrupted.

To format the memory card:

Your memory card may already be

formatted. If it isn't, you must format it

before you can use it.

NOTE: All files on your memory card are

deleted when it is formatted.

On the home screen, touch > Apps

tab to open the menu.

Scroll and touch Settings > Storage

from the DEVICE.

Touch Unmount SD card and touch OK

to confirm it.

Touch Erase SD card > Erase SD card

> Erase everything, then confirm your

choice.

If you have set a pattern lock, input

the pattern lock then select Erase

Everything.

NOTE: If there is content on your

memory card, the folder structure may

be different after formatting as all the

files will be deleted.

Locking and unlocking the

screen

If you do not use the phone for a while, the

screen is turned off and locked automatically.

This helps to prevent accidental touches and

saves battery power.

When you are not using the LG-E617g,

press the Power/Lock key to lock

your phone.

Getting to know your phone

If th

set

Loc

all

avo

web

To w

Loc

app

any

The

ally.

and

If there are any programs running when you

set lock screen, they may be still running in

Lock mode. It is recommended that you exit

all programs before entering Lock mode to

avoid unnecessary charges (e.g. phone calls,

web access and data communications).

To wake up your phone, press the Power/

Lock key . The lock screen will

appear. Touch and slide the lock screen in

any direction to unlock your home screen.

The last screen you viewed will open.

TIP! To wake up your phone, you can

alternatively use the home key while the

screen is turned off.

Secure your lock screen

You can lock your screen so that only you

can unlock it to access your phone.

To set an Unlock Pattern, PIN or

Password for the first time:

Touch > Apps tab > Settings >

Lock screen from the DEVICE.

Select Screen lock and desired

options (None, Swipe, Pattern, PIN or

Password).

NOTE:

Precautions to take when using

pattern lock.

It is very important to remember the

unlock pattern you set. You will not be

able to access your phone if you use

an incorrect pattern 5 times. You have

5 opportunities to enter your unlock

pattern, PIN or password. If you have

used all 5 opportunities, you can try

again after 30 seconds.

Getting to know your phone

pat

If yo

the

pat

but

you

If yo

per

If y

you

to d

When you cannot recall your unlock

pattern:

If you logged in to your Google account on

the phone but failed to enter the correct

pattern 5 times, tap the Forgot pattern

button. You are then required to log in with

your Google account to unlock your phone.

If you have not created a Google account

on the phone or you forgot it, you have to

perform a hard reset.

If you have forgotten PIN or Password: If

you forgot your PIN or Password, you need

to do Hard reset.

Your Home screen

Touch screen tips

Here are some tips on how to navigate

around your phone.

Touch – To choose a menu/option or open

an application, touch it.

Touch and hold – To open an options menu

or grab an object you want to move, touch

and hold it.

Drag – To scroll through a list or move

slowly, drag across the touch screen.

Flick – To scroll through a list or move

quickly, flick across the touch screen (drag

quickly and release).

NOTE:

• To select an item, touch the centre of

the icon.

• Do not press too hard; the touch

screen is sensitive enough to pick up

a light, firm touch.

• Use the tip of your finger to touch the

option you want. Be careful not to

touch any other keys.

Sim

to v

pan

key

Home screen

Simply swipe your finger to the left or right

to view the panels. You can customise each

panel with Apps, Downloads, Widgets and

wallpapers.

NOTE: Some screen images may be

different depending on your phone

provider.

On your Home screen, you can view quick

keys at the bottom of the screen. Quick

keys provide easy, one-touch access to the

functions you use the most.

Touch the Phone icon to bring up the

touch screen dialpad to make a call.

Touch the Messaging icon to access

the messaging menu. This is where you can

create a new message.

Touch the Contacts icon to open your

contacts.

Touch the Apps icon at the bottom

of the screen. You can then view all

your installed applications. To open any

application, simply touch the icon in the

applications list.

Customising the Home screen

You can customise your Home screen

by adding Apps, Downloads, Widgets or

Wallpapers. For more convenience using

your phone, add your favourite widgets to

the Home screen.

To add items on your Home screen:

Touch and hold the empty part of the

Home screen.

In the Add Mode menu, select items you

want to add. You will then see added

items on the Home screen.

Drag it to the location you want and lift

your finger.

To remove an item from the Home

screen:

Home screen > touch and hold the icon

you want to remove > drag it to .

TIP! To add an application icon to the

Home screen from the Applications

menu, touch and hold the application

you want to add.

•

Your Home screen

Returning to recently-used

applications

Touch and hold the Home key. The

screen displays a pop-up with icons of

applications you used recently.

Touch an icon to open the application.

Or touch the Back key to return to your

current application.

Notification drawer

The notification drawer runs across the top

of your screen.

EditGPSBluetoothWi-FiSound

Touch and slide the notification drawer down

with your finger.

Touch > to manage the Notifications.

Here you can check and manage Sound,

Wi-Fi, Bluetooth, Airplane mode, Accounts &

sync, Auto-rotate screen, Brightness, Data

enabled, GPS, NFC or Portable Wi-fi Hotspot.

Viewing the status bar

The status bar uses different icons to display

phone information such as signal strength,

new messages, battery life, active Bluetooth

and data connections.

Your Home screen

Bel

lay

Icon Description

No SIM card

No signal

Airplane mode

Connected to a Wi-Fi network

Power saver is on

Icon Description

Wired headset

Call in progress

Call hold

Speakerphone

Phone microphone is muted

Below is a table explaining the meaning of icons you're likely to see in the status bar.

Icon Description

Missed call

Bluetooth is on

System warning

Alarm is set

New voicemail

Ringer is silenced

Icon Description

NFC is on

Vibrate mode

Battery fully charged

Battery is charging

Phone is connected to PC via

USB cable

Downloading data

Your Home screen

Icon Description

Uploading data

GPS is acquiring

Receiving location data from GPS

Data is syncing

New Gmail

New Google Talk message

Icon Description

New message

Song is playing

FM radio turned on in the

background

USB tethering is active

Portable Wi-Fi hotspot is active

Both USB tethering and portable

hotspot are active

Onscreen keyboard

You can enter text using the onscreen

keyboard. The onscreen keyboard appears

automatically on the screen when you

need to enter text. To manually display the

keyboard, simply touch a text field where

you want to enter text.

Using the keypad & entering text

Tap once to capitalise the next letter

you type. Double-tap for all caps.

Tap to switch to the numbers and

symbols keyboard. You can also touch and

hold this tab to view the Settings menu.

Tap to enter a space.

Tap to create a new line in the message

field.

Tap to delete the previous character.

Tap to hide the onscreen keyboard.

Your Home screen

text

Fre

For

the

big

lan

The

Entering accented letters

When you select French or Spanish as the

text entry language, you can enter special

French or Spanish characters (e.g. "á").

For example, to input "á", touch and hold

the "a" key until the zoom-in key grows

bigger and displays characters from different

languages.

Then select the special character you want.

Google account set up

When you first turn on your phone, you have

the opportunity to activate the network, to

sign into your Google Account and how you

want to use some Google services.

To set up your Google account:

Sign into a Google Account from the

prompted set up screen.

Touch > Apps tab > select a Google

application, such as Gmail > select New

to create a new account.

If you have a Google account, touch

Existing, enter your email address and

•

password, then touch Sign in.

Once you have set up your Google account

on your phone, your phone automatically

synchronises with your Google account on

the web.

Your contacts, Gmail messages, Calendar

events and other information from these

applications and services on the web are

synchronised with your phone. (This depends

on your synchronisation settings.)

After signing in, you can use Gmail™ and

take advantage of Google services on your

phone.

Wit

acc

usin

acc

Som

sim

or u

you

nds

Connecting to Networks and Devices

Wi-Fi

With Wi-Fi, you can use high-speed Internet

access within the coverage of the wireless

access point (AP). Enjoy wireless Internet

using Wi-Fi, without extra charges.

Connecting to Wi-Fi networks

To use Wi-Fi on your phone, you need to

access a wireless access point or "hotspot".

Some access points are open and you can

simply connect to them. Others are hidden

or use security features; you must configure

your phone to be able to connect to them.

Turn off Wi-Fi when you're not using it to

extend the life of your battery.

NOTE: If you are out of the Wi-Fi zone or

set Wi-Fi to OFF, additional charges may

be applied by your mobile operator for

mobile data use.

Turning Wi-Fi on and connecting to a

Wi-Fi network

Touch > Apps tab > Settings > Wi-

Fi from the WIRELESS & NETWORKS

Set Wi-Fi to ON to turn it on and start

scanning for available Wi-Fi networks.

Tap Wi-Fi menu again to see a list of

active and in-range Wi-Fi networks.

Secured networks are indicated by a

lock icon.

Touch a network to connect to it.

If the network is open, you are asked

to confirm that you want to connect to

that network by touching Connect.

If the network is secured, you are

prompted to enter a password or

other credentials. (Ask your network

administrator for details)

•

The status bar displays icon that indicate

Wi-Fi status.

Bluetooth

You can use Bluetooth to send data by

running a corresponding application, not

from the Bluetooth menu as on most other

mobile phones.

Connecting to Networks and Devices

•

NOTE:

LG is not responsible for the loss,

interception, or misuse of data sent

or received via the Bluetooth wireless

feature.

Always ensure that you share and

receive data with devices that are

trusted and properly secured. If there

are obstacles between the devices,

the operating distance may be

reduced.

•

Some devices, especially those

that are not tested or approved by

Bluetooth SIG, may be incompatible

with your device.

•

Turning on Bluetooth and pairing up your

phone with a Bluetooth device

You must pair your device with another

device before you connect to it.

Touch > Apps tab > Settings > Set

Bluetooth to ON from the WIRELESS &

NETWORKS

Tap Bluetooth menu again. Your phone

will scan for and display the IDs of all

available Bluetooth in-range devices. If

the device you want to pair with isn’t on

the list, make sure the target device is

set to be discoverable, then tap SEARCH

FOR DEVICES again.

Choose the device you want to pair up

with from the list.

Once the paring is successful, your device

will connect to the device.

Send data using the Bluetooth wireless

feature

Select a file or item, such as a contact,

calendar event, memo, or media file, from

an appropriate application or Downloads.

Select an option for sending data via

Bluetooth.

NOTE: The method for selecting an

option may vary by data type.

Search for and pair with a Bluetooth-

enabled device.

Connecting to Networks and Devices

USB

gre

con

pho

sing

teth

dat

dev

por

con

ds.

Sharing your phone's data

connection

USB tethering and portable Wi-Fi hotspot are

great features when there are no wireless

connections available. You can share your

phone's mobile data connection with a

single computer via a USB cable (USB

tethering). You can also share your phone's

data connection with more than a single

device at a time by turning your phone into a

portable Wi-Fi hotspot.

When your phone is sharing its data

connection, an icon appears in the status

bar and as an ongoing notification in the

notifications drawer.

For the latest information about tethering

and portable hotspots, including supported

operating systems and other details, visit

http://www.android.com/tether.

To change Portable Wi-Fi hotspot

settings:

Touch > Apps tab > Settings >

More from the WIRELESS & NETWORKS

> Wi-Fi Direct

Select a device to connect from the

scanned device list.

CREATE GROUP – Touch to activate group

owner mode, which enables the legacy Wi-Fi

devices to connect by scanning your phone.

In this case you must enter the password

that is set in Password.

NOTE: When your phone becomes

a group owner, it will consume more

battery power than when it is a client.

Wi-Fi Direct connection does not provide

Internet service. Additional costs may

be incurred when connecting and using

online services. Check data charges

with your network provider.

Using SmartShare

SmartShare uses DLNA (Digital Living

Network Alliance) technology to share digital

content through a wireless network.

Both devices must be DLNA certified to

support this feature.

To turn SmartShare on and allow sharing

contents

Touch > Apps tab > SmartShare

Press and select Settings.

Touch Discoverable checkbox to turn off.

Connecting to Networks and Devices

•

tal

ff.

Touch Always accept request if you

would like to automatically accept sharing

requests from other devices.

Touch Receive files if you would like to

automatically allow upload files to my

phone from other devices.

Under the Sharing contents section,

touch to checkmark the types of content

you would like to share. Choose from

Pictures, Videos and Music.

SmartShare is now activated and ready

to share contents.

•

To share contents from remote content

library to other devices

Let your renderer device (e.g. TV) play

multimedia contents from your remote

content library (e.g. PC).

NOTE: Make sure that the DLNA

functionality of your devices is properly

configured (e.g. TV and PC).

Touch the top right button to or select the

device from renderer lists.

Touch the top left button and select the

device of the remote content library.

100

You can browse the content library.

Touch a content thumbnail or touch the

Menu key and select Play button.

To share contents from your phone to

your renderer device(e.g. TV)

NOTE: Make sure that your renderer

device is properly configured.

While browsing your pictures or videos

using the Gallery application, touch to

select files. Then you will be able to select

multiple files to be shared.

Touch Share on the menu and select the

SmartShare.

SmartShare is automatically launched

with the selected files.

Select the device from renderer lists to

play the files.

NOTE: Follow the similar steps to use

the Music Player, Camera and Video

player to share contents.

Connecting to Networks and Devices

Not

with

con

DLN

only

not

dev

con

101

he Notice: Check that your device is connected

with your home network using Wi-Fi

connection to use this application. Some

DLNA enabled devices (e.g. TV) support

only the DMP feature of DLNA and will

not appear in the renderer device list. Your

device might not be able to play some

contents.

To download contents from remote

content library

Touch > Apps tab > SmartShare

Touch the top left button and select the

device of the remote content library.

You can browse the content library.

Touch a content thumbnail then touch

Download menu key.

Notice: A few types of contents are not

supported.

To upload contents from my phone to

remote content library

NOTE: Mare sure that SD card is

correctly mounted and the Receive files

in settings menu is checked.

102

Touch > Apps tab > SmartShare

Touch the top left button and select My

phone.

You can browse the content library.

Touch and hold a content thumbnail and

then touch the Upload menu key.

Select a device of remote content library

to be uploaded.

Notice: Some DLNA enabled devices do not

support DMS upload functionality and will

not be uploaded. A few types of contents are

not supported.

Connecting to Networks and Devices

103

Calls

Making a call

Touch to open the keypad.

Enter the number using the keypad. To

delete a digit, touch the .

Touch to make a call.

To end a call, touch the End icon .

TIP! To enter "+" to make international

calls, touch and hold .

Calling your contacts

Touch to open your contacts.

Scroll through the contact list or enter the

first few letters of the contact you want to

call by touching Search contacts.

In the list, touch the contact you want

to call.

Answering and rejecting a call

When you receive a call in Lock state, hold

and slide the to Answer incoming call.

Hold and slide the to Decline an

incoming call.

104

Hold and slide the Quick msg icon from the

bottom if you want to send one.

TIP! Quick msg

You can send a message quickly using

this function. This is useful if you need

to reply the message during a meeting.

Adjusting call volume

To adjust the in-call volume during a call,

use the Volume up and down keys on the

left-hand side of the phone.

Making a second call

During your first call, touch Menu >

Add call and dial the number. Also, you

can go recent dialled list by touching

or can search contacts by touching

and select the number you want to call.

Touch to make the call.

Both calls are displayed on the call

screen. Your initial call is locked and put

on hold.

Touch the displayed number to toggle

between calls. Or touch Merge call

to make a conference call.

Vie

the

View

and

Calls

105

To end active calls, touch End or press

Home Key and slide the notification bar

down and select End call icon .

NOTE: You are charged for each call

you make.

Viewing your call logs

On the Home screen, touch and choose

the Call log tab .

View a complete list of all dialled, received

and missed voice calls.

TIP! Touch any call log entry to view the

date, time and duration of the call.

TIP! Touch the Menu key, then touch

Delete all to delete all the recorded

items.

Call settings

You can configure phone call settings such

as call forwarding and other special features

offered by your carrier.

106

On the Home screen, touch .

Touch the Menu key.

Tap Call settings and choose the options

that you want to adjust.

Fixed dialing numbers – To turn on and

compile a list of numbers that can be called

from your phone. You’ll need your PIN2,

which is available from your operator. Only

numbers within the fixed dial list can be

called from your phone.

Voicemail service – Allows you to select

your carrier’s voicemail service.

Voicemail settings – If you are using your

carrier’s voicemail service, this option allows

you to enter the phone number to use for

listening to and managing your voicemail.

Save unknown numbers – Add unknown

numbers to contacts after a call.

Call reject – Allows you to set the call reject

function. Choose from Disabled, Reject

calls on list or Reject all calls.

Quick messages – When you want to reject

a call, you can send a quick message using

this function. This is useful if you need to

reject a call during a meeting.

Cal

all c

Cal

call

pas

ope

Cal

inc

and

Calls

107

ect

Call forwarding – Choose whether to divert

all calls, when the line is busy, when there is

no answer or when you have no signal.

Call barring – Select when you would like

calls to be barred. Enter the call barring

password. Please check with your network

operator about this service.

Call duration – View the duration of calls

including all calls, dialled calls, received calls

and last call.

Call costs – View the charges applied

to your calls. (This service is network

dependent; some operators do not support

this function)

Additional settings – This lets you change

the following settings:

Caller ID: Choose whether to display your

number on an outgoing call.

Call waiting: If call waiting is activated,

the handset will notify you of an

incoming call while you are on the phone

(depending on your network provider).

108

Contacts

Add contacts to your phone and synchronise

them with the contacts in your Google

account or other accounts that support

contact syncing.

Searching for a contact

In the Home screen

Touch to open your contacts.

Touch Search contacts and enter the

contact name using the keyboard.

Adding a new contact

Touch , enter the new contact's

number, then touch the Menu key. Touch

Add to contacts > Create new contact.

If you want to add a picture to the new

contact, touch the image area.

Choose from Take photo or Select from

Gallery.

Select the contact type by touching .

Touch a category of contact information

and enter the details about your contact.

Touch Save.

You

Add

109

act.

ct.

Favourite contacts

You can classify frequently called contacts

as favourites.

Adding a contact to your favourites

Touch to open your contacts.

Touch a contact to view their details.

Touch the star to the right of the contact's

name. The star turns yellow.

Removing a contact from your favourites

list

Touch to open your contacts.

Touch the Favourites tab, and choose a

contact to view its details.

Touch the yellow star to the right of the

contact's name. The star turns grey

and the contact is removed from your

favourites.

110

Import or export contacts

To import/export contact files (in vcf format)

from a storage memory(Internal storage/

memory card) or SIM or USIM card to your

device or vice versa.

Touch to open your contacts.

Touch the Menu key > Import/Export.

Select an desired option for importing/

exporting. If you have more than one

account, select an account to which you

want to add the contact.

Select contact files to import/export and

select Import to confirm.

Moving contacts from your Old

Device to your New Device

Export your contacts as a CSV file from

your old phone to your PC using a PC

sync program.

Install LG PC Suite on the PC first. Run

the program and connect your Android

mobile phone to the PC using a USB

cable.

Select the . Go to File > Import and

Contacts

111

select the CSV file saved on your PC.

If the fields in the imported CSV file are

different from those in LG PC Suite, you

need to map the fields. After mapping

the fields, click OK. The contacts are then

added to LG PC Suite.

If LG PC Suite detects the connection of

your LG-E617g phone (using the USB

cable), click Sync or Sync contacts to

synchronise the contacts saved on your

PC with your phone.

112

Messaging

Your LG-E617g combines SMS and MMS

into one intuitive, easy-to-use menu.

Sending a message

Touch on the home screen, and touch

to open a blank message.

Enter a contact name or contact number

in the To field. As you enter the contact

name, matching contacts appear. You can

touch a suggested recipient. You can add

multiple contacts.

NOTE: You will be charged for a text

message for every person you send the

message to.

Touch Enter message field and start to

compose your message.

Touch the Menu key to open the Options

menu. Choose from Add subject,

Discard, Attach, Templates, Insert

smiley and All messages.

Touch Send to send your message.

113

The message screen opens, with your

message after Recipient Name/Number.

Responses appear on the screen. As you

view and send additional messages, a

message thread is created.

WARNING: The 160-character

limit may vary from country to country

depending on the language and how the

SMS is coded.

WARNING: If an image, video or

audio file is added to an SMS message,

it is automatically converted into an

MMS message and you are charged

accordingly.

Threaded box

Messages (SMS, MMS) exchanged

with another party can be displayed

in chronological order so that you can

conveniently see an overview of your

conversation.

114

Using Smilies

Liven up your messages using Smilies.

When writing a new message, touch the

Menu key, then choose Insert smiley.

Changing your message settings

Your LG-E617g message settings are

predefined, so you can send messages

immediately. You can change the settings

based on your preferences.

Touch on the home screen, and touch

the Menu key, then tap Settings.

You

The

acc

You

can

The

app

to s

Messaging

115

You can use the Email application to read

emails from services other than Google Mail.

The Email application supports the following

account types: POP3, IMAP and Exchange.

Your service provider or system administrator

can provide the account settings you need.

Managing an email account

The first time you open the Email

application, a setup wizard opens to help you

to set up an email account.

To add another email account:

Touch > Apps tab > Email > in the

account screen, touch > Settings

> ADD ACCOUNT

After the initial setup, Email displays the

contents of your inbox. If you have added

more than one account, you can switch

among accounts.

To change an email account's setting:

Touch > Apps tab > Email > in the

account screen, touch > Settings

•

116

To delete an email account:

Touch > Apps tab > Email > in the

account screen, touch > Settings

> touch an account you want to delete >

Remove account

Email account screen

You can touch an account to view its Inbox.

The account from which you send email by

default is indicated with a tick.

– Touch the folder icon to open the

account folders.

•

Only the most recent emails in your account

are downloaded to your phone.

Working with account folders

Each account has an Inbox, Outbox, Sent

and Drafts folder. Depending on the features

supported by your account's service provider,

you may have additional folders.

Composing and sending email

To compose and send a message

While in the Email application, touch

the .

117

unt

der,

Enter an address for the message's

intended recipient. As you enter text,

matching addresses are offered from your

Contacts. Separate multiple addresses

with semicolon.

Add Cc/Bcc and add attachment files if

required.

Enter the text of the message.

Touch the .

If you aren't connected to a network, for

example, if you're working in airplane

mode, the messages that you send

are stored in your Outbox folder until

you're connected to a network again. If

it contains any pending messages, the

Outbox is displayed on the Accounts

screen.

TIP! When a new email arrives in the

inbox, you will receive a notification

by sound or vibration. Tap the email

notification to stop notifications.

118

Camera

Getting to know the viewfinder

Zoom – Zoom in or zoom out. Alternatively you can use the

side volume keys.

Brightness – This defines and controls the amount of sunlight

entering the image.

Shot mode – Choose from Normal, Panorama or

Continuous shot.

Flash – Allows you to turn on the flash when taking a photo

in a dark place.

Settings – Touch this icon to open the Settings menu.

Video mode – Touch this icon to switch to video mode.

Capture – Takes a photo.

Gallery – Touch to view the last photo you captured. This

enables you to access your gallery and view saved photos

within camera mode.

NOTE: The memory capacity

may differ depending on the

shooting scene or shooting

conditions.

119

ght

Taking a quick photo

Open the Camera application.

Hold the phone, point the lens towards

the subject you want to photograph.

Touch the screen and a focus box will

appear in the centre of the viewfinder

screen.

When the focus box turns green, the

camera has focused on your subject.

Touch the Capture icon to take the

picture.

Using the advanced settings

In the viewfinder, touch to open all advanced

options.

: Restore all camera default settings.

: Touch whenever you want to know

how this function operates. This

provides you with a quick guide.

Change camera settings by scrolling

through the list. After selecting the

option, touch the Back key.

- Focuses on the specific spot.

•

120

-Select the image resolution. If you

choose the high resolution, the file size will

increase, which means you will be able to

store fewer photos in the memory.

- Finds the color and light settings

appropriate for the current environment.

Choose from Auto, Portrait, Landscape,

and Sunset.

- The ISO rating determines the

sensitivity of the camera's light sensor.

The higher the ISO, the more sensitive

the camera is. This is useful in darker

conditions when you cannot use the flash.

•

- Improves colour qualities in different

lighting conditions.

- Choose a color tone to use for your

new view.

- Takes pictures a few seconds after

clicking the shutter. This option is ideal if

you want to be in the picture.

- Activate to use your phone's location-

based services. Take pictures wherever

you are and tag them with the location.

If you upload tagged pictures to a blog

that supports geotagging, you can see the

pictures displayed on a map.

•

Camera

•

121

on-

NOTE: This function is only available

when GPS is active.

- Select one of the four shutter sounds.

- Allows you to review images after

taking pictures.

- Select storage to save images.

•

TIP! When you exit the camera, some

settings return to their defaults, such as

white balance, timer and scene mode.

Check these before you take your next

photo.

TIP! The Settings menu is superimposed

over the viewfinder so, when you

change elements of the image colour or

quality, you see a preview of the image

change behind the Settings menu.

122

After taking photos, select the image

viewer icon to view the taken photos.

To view more photos, scroll left or right.

To zoom in or out, place two fingers on the

screen and spread them apart (move your

fingers closer together to zoom out) or

double-tap the screen.

To send a photo to others, touch Share

via > desired item like Bluetooth,

Email, Memo, Picasa and so on.

To delete a photo, touch Delete .

•

View a photo

Learn to view photos saved in your phone's

storage.

In Home screen, open the application list

and select Gallery.

Select a photo to view.

While viewing a photo, use the following

options:

To view more photos, scroll left or right.

To zoom in or out, tap the screen with two

fingers and spread them apart (move your

fingers closer together to zoom out).

•

Camera

Tou

adv

Set

a C

•

123

To send a photo to others, touch Share

via > desired item like Bluetooth,

Email, Memo, Picasa and so on.

TIP! If you have an SNS account and set

it up on your phone, you can share your

photo with the SNS community.

To delete a photo, touch Delete .

Touch the Menu key to open all

advanced options.

Set image as – Touch to use the image as

a Contact photo, Lockscreen Wallpaper

•

or Wallpaper.

Move – Touch to move the image to other

place.

Rename – Touch to edit the name of the

selected picture.

Rotate left/right – Rotate left or right.

Crop – Crop your photo. Move your finger

across the screen to select the area.

Edit - View and edit the picture.

- Select the image resolution. If you

choose the high resolution, the file size will

increase, which means you will be able to

124

store fewer photos in the memory.

- Improves colour qualities in different

lighting conditions.

- Applies artistic effects to the pictures.

- Applies the additional options for

pictures.

Slideshow – Auto review automatically

shows you the picture you just recorded.

Details – Show the picture information.

NOTE: Some file formats are not

supported depending on the software of

the device.

NOTE: If the file size exceeds the

available memory, an error can occur

when you open files.

Camera V

125

Video camera

Getting to know the viewfinder

Zoom – Zoom in or zoom out. Alternatively you can use the

side volume keys.

Brightness – This defines and controls the amount of sunlight

entering the video.

Live effect – Changing backgrounds and providing morphing

effects to transform facial features during video recording.

Flash – Allows you to turn on the flash when recording a video

in dark conditions.

Settings – Touch this icon to open the settings menu.

Camera mode – Touch this icon to switch to camera mode.

Record – Starts recording.

Gallery – Touch to view the last video you recorded. This

enables you to access your gallery and view your saved videos

from within video mode.

NOTE: The zoom function is not

available while recording a video.

126

Shooting a quick video

Touch the Camera mode button down

and the icon changes to .

The video camera viewfinder appears on

the screen.

Holding the phone, point the lens towards

the subject you want to capture in your

video.

Press the Record button once to start

recording.

A red light appears at the top corner of

the viewfinder with a timer showing the

length of the video.

Touch on the screen to stop

recording.

Using the advanced settings

Using the viewfinder, touch to open all

the advanced options.

- Restore all video camera default

settings.

- Touch if you want to know how this

function operates. This provides you

with a quick guide. Adjust the video

camera setting by scrolling through the

list. After selecting the option, touch

Video camera

127

the

the Back key

- Touch to set the size (in pixels) of the

video you are recording.

- Improves colour qualities in different

lighting conditions.

- Apply a special effect, such as sepia or

mono tones.

- Activate to use your phone's

location-based services. Records

videos wherever you are and tag

them with the location. If you upload

tagged videos to a blog that supports

geotagging, you can see the videos

displayed on a map.

- Choose Off to record a video without

sound.

- Auto review automatically shows you

the video you just recorded.

- Select storage to save videos.

After recording videos, select the image

viewer icon to view the recorded videos.

To view more videos, scroll left or right.

To send a video to others, select Share

via desired item like Bluetooth,

Messaging, YouTube and so on.

•

128

To play a video, select Play .

To delete a video, select Delete .

Play a video

Learn to use the video player to play various

kinds of videos.

In Home screen, open the application list

and select Gallery.

Select a video (with the icon) to play.

Rotate the device to landscape view.

Control playback with the virtual keys.

•

NOTE:

Some file formats are not supported

depending on the software of the

device.

If the file size exceeds the available

memory, an error can occur when you

open files.

•

Tou

adv

Tou

opt

Scr

rati

Bri

leve

Det

suc

Video camera

129

Touch the Menu key to open all

advanced options.

Touch to open all the advanced

options.

Screen ratio – Tap to select desired screen

ratio.

Brightness – Check for adjusting brightness

level for comfortable video viewing.

Details – Tap to see a detailed information,

such as the name, date, time, size and type

Adjusting the volume when

viewing a video

To adjust the volume of a video while it is

playing, use the volume keys on the left-

hand side of the phone.

130

You can store multimedia files on a memory

card for easy access to all your image and

video files.

Gallery

Learn to view photos and play videos saved

in your device’s memory and memory card.

Touch > Apps tab > Gallery. Open

a list of catalogue bars that store all your

multimedia files.

Supported file formats (Type Format)

Image: bmp, gif, jpg, png

Video: 3gp, mp4, avi, wmv, flv, mkv

•

(Codec: MPEG4, H.263, Sorenson

H.263, H.264, VC-1, DivX

, XviD)

Avoid locking the device’s screen while

playing a DivX Video-On-Demand.

Each time you lock the screen while

playing a DivX Video-On-Demand, one

of your available rental counts will be

decremented.

Some file formats are not supported

depending on the software of the device.

If the file size exceeds the available

memory, an error can occur when you

open files.

•

Multimedia

You

tha

acc

tab

Tra

131

Music Player

Your LG-E617g has a built-in music player

that lets you play all your favourite tracks. To

access the music player, Touch > Apps

tab > Music Player.

Transferring music files using

USB mass storage devices

Connect the LG-E617g to a PC using a

USB cable.

If you haven't installed LG Android

Platform Driver on your PC, you need to

change the settings manually. Choose

System settings > Connectivity > USB

Connection type, then select Media

sync.

You can view the mass storage content

on your PC and transfer the files.

NOTE: If you installed LG Android

Platform Driver, you will immediately see

a pop-up saying Turn on USB storage.

132

Playing a song

In the Home screen, touch > Apps

tab > Music Player.

Touch Songs.

Select the song you want to play.

Touch to pause playback.

Touch to resume playback.

Touch to skip to the next track in the

album, playlist or shuffle.

Touch to go back to the beginning of

the song. Touch twice to return to the

previous song.

Touch to manage the music volume.

Touch to set repeat mode.

Touch to play the current playlist in

shuffle mode.

Touch to see the current playlist.

Touch to see lyrics. This option is on only

if the song includes the lyrics.

Tou

disp

ring

Det

Multimedia

133

To change the volume while listening to

music, press the up and down volume keys

on the left-hand side of the phone.

Touch and hold any song in the list. It

displays Play, Add to playlist, Set as

ringtone, Delete, Share, Search and

Details as options.

NOTE: Music file copyrights may be

protected by international treaties and

national copyright laws.

Therefore, it may be necessary to obtain

permission or a licence to reproduce or

copy music.

In some countries, national laws prohibit

private copying of copyrighted material.

Before downloading or copying the file,

check the national laws of the relevant

country concerning the use of such

material.

134

FM Radio

Your LG-E617g has a built-in FM Radio so

you can tune in to your favourite stations

and listen on the go.

NOTE: You need to use your

headphones to listen to the radio. Insert

it into the headphone jack.

Searching for stations

You can tune in to radio stations by searching

for them manually or automatically. They are

then saved to specific channel numbers, so

you don't have to find them again.

You can store up to 48 channels on your

phone.

Tuning in automatically

In the Home screen, touch > Apps

tab > FM Radio.

Touch , then select Auto scan.

During auto scanning, touch Stop if you

want to stop scanning. Only scanned

channels are saved before you stop

scanning.

Multimedia

135

NOTE: You can also manually tune in to

a station using the on-screen wheel.

TIP! To improve radio reception, extend

the headset cord as this also functions

as the radio antenna.

If you connect a headset not specifically

made for radio reception, radio reception

may be poor.

LG Tag+

What is LG Tag+

LG Tag+ allows easy saving and loading to

NFC tag, which can be customized to suit

certain environments.

Using Tag+ writing

In the Home screen, touch the

Applications tab and select LG Tag+.

Select the desire mode (Car/Office/Sleep/

User mode settings) and tap Write on

tag.

136

exc

use

Life

fro

Touch the back of your device to a tag

or a device to share, then launching

application and changing settings can

be set.

Using Tag+ reading

When touching the set tag, mode will be

activated right away.

Multimedia

137

LG SmartWorld offers an assortment of

exciting content - games, applications,

wallpaper and ringtones - giving LG phone

users the chance to enjoy richer "Mobile

Life" experiences.

How to Get to LG SmartWorld

from Your Phone

Tap the icon to access LG

SmartWorld.

Tap Sign in and enter ID/PW for LG

SmartWorld. If you have not yet signed

up, tap Register and get a LG SmartWorld

membership.

Download the content you want.

NOTE: What if there is no icon?

1 Using a mobile Web browser, access

LG SmartWorld (www.lgworld.com)

and select your country.

2 Download LG SmartWorld App.

3 Execute and install the downloaded

file.

4 Access LG SmartWorld by tapping the

icon.

LG SmartWorld

138

How to use LG SmartWorld

Participate in monthly LG SmartWorld

promotions.

Try the easy "Menu" buttons to find what

you’re looking for fast.

Categories – Find contents by category

(e.g. Education, Entertainment, Games,

etc).

Search – Search Content.

Apps for you – Recommended content

based on your previous choices.

•

My Apps – List of downloaded/to-be

updated contents.

Settings – Set Profile and Display.

Try other useful functions as well. (Content

Detail screen)

NOTE: LG SmartWorld may not be

available in all carriers or countries.

•

LG SmartWorld U

139

ent

Utilities

Setting your alarm

Touch > Apps tab > Alarm/Clock

After you set the time, the LG-E617g lets

you know how much time is left before

the alarm will sound.

Set Snooze duration, Vibration, Alarm

tone, Puzzle lock and Memo. Touch

Save.

Using your calculator

Touch > Apps tab > Calculator

Touch the number keys to enter numbers.

For simple calculations, touch the

function you want (+, –, x or ÷) followed

by =.

For more complex calculations, touch

, select the Advanced panel, then

choose sin, cos, tan, log and so on.

Adding an event to your

calendar

Touch > Apps tab > Calendar

Tap on the month displayed at left top

corner, you can find the different view

types of the calender (Day, Week, Month,

Agenda).

140

Tap on the date you want to add event

on.

Tap on to add a event.

Touch Event name then enter the event

name.

Touch Location and enter the location.

Check the date and enter the time you

want your event to start and finish.

If you want to add a note to your event,

touch Description and enter the details.

If you want to repeat the alarm, set

REPEAT, and set REMINDERS, if

necessary.

Touch Done to save the event in the

calendar.

Polaris Office

Polaris Office is a professional mobile office

solution that lets users conveniently view

various types of office documents, including

Word, Excel and PowerPoint files, anywhere,

anytime, using their mobile devices.

Touch > Apps tab > Polaris Office

Utilities

Pol

con

inc

del

Vie

var

Off

doc

and

orig

141

re,

Managing files

Polaris Office provides mobile users with

convenient file management features,

including copying, moving and pasting, and

deleting files and folders right on the device.

Viewing files

Mobile users can now easily view a wide

variety of file types, including Microsoft

Office documents and Adobe PDF, right

on their mobile devices. When viewing

documents using Polaris Office, the objects

and layout remain the same as in their

original documents.

Backup

About backing up and restoring smart

phone data

It recommends that you regularly create

and save a backup file on the Storage card,

especially before you update any software.

Maintaining a current backup file on Storage

memory might allow you to recover smart

phone data if your smart phone is lost,

stolen, or corrupted by an unforeseen issue.

This Backup application support between LG

smart phones, other S/W version or OS. And

so, when you buy the new LG smart phone,

142

you can back up the current LG-E617g

smart phone data on your new one.

If you have preloaded application Backup

on your smart phone, you can back up and

restore most of your smart phone data,

applications (Downloaded,Pre-installed),

Bookmarks, Calendar, Call log, Contacts,

Home Screen, Messages, and System

settings using this application.

To perform a manual backup of your smart

phone data.

To schedule automatic backups of your

smart phone data.

•

To restore your smart phone data.

Back up your smart phone data

Insert to the memory card into the slot

and check out the storage status.

Touch the Application tab , and then

select Backup > Backup > Storage

Card or Internal memory.

Touch the Add new to enter a name

for your backup file, and then select

Continue.

Select the check box next to the item

you want to back up, and then select

•

Utilities

Sch

You

the

you

the

143

Continue to back up.

When all selected files backed up, you

will see the message ‘Done’ and select

Continue to finish backing up data.

Scheduling automatic backups

You can also enable automatic backups of

the data on your smart phone according to

your schedule setting. To do this, complete

the following steps:

Insert to the memory card into the slot

and check out the storage status.

Touch the Application tab , and then

select Backup > Schedule.

On the Scheduled Backup Location

screen, touch Storage Card or Internal

memory.

From the list, select how often you want

to back up your device data and settings,

and select Continue.

Select the check box next to the data

you want to back up, and then select

Continue to finish the schedule set.

144

Restoring smart phone data

To restore data that is in your on-board

device memory, mass storage mode must

be turned off.

NOTE: All files that are stored on your

smart phone are deleted before the

backup file is restored.

Insert to the memory card into the slot

and check out the storage status.

Touch the Application tab , and then

select Backup > Restore > Storage

Card or Internal memory.

On the Restore screen, select a backup

file that contains the data you want to

restore.

Select the check box next to the item you

want to restore, and then select Continue

to restore to phone.

NOTE: Please note that your phone data

will be overwritten with the contents of

your backup.

Utilities

Pre

scr

sele

145

nue

If the backup file is encrypted, type the

password that you set to encrypt.

When all selected files restored, you will

see the message ‘Done’ and select Yes

to restart the phone.

NOTE: You can set Enable encryption

to encrypt your backup files for extra

protection.

Press the Menu from the Backup

screen, and select Settings > Security and

select the check box. And after enabling

encryption, To restore synchronized organizer

data, you must have an activation password.

NOTE:

You can also enable automatic delete

old backups and only keep the most

recent backup. Press the Menu

from the Backup & Restore screen,

and select Settings > Scheduled

backup > Auto delete old backups

to select the number of scheduled

backups to keep.

•

146

When you insert a memory card in

your smart phone, the file directory

of the memory card will appear in

the Polaris Office / My folders/_

ExternalSD/backup folder under the

Storage Memory (when memory card

is inserted.).

•

Backup allows a user to immediately

back up what the user selects.

(Application (Downloaded, Pre-

installed), Contacts, Messages, Call

log, Calendar, Bookmarks) For the

recent backup history, if there is no

history of backups, “No backup” is

displayed ; if there is history, up to two

backed up files are displayed.

•

Utilities

•

147

Restore allows a user to restore

backed up items when the user

wants using backup files. The Restore

application can be used on the backed

up smart phone as well as other LG

smart phones.

•

Schedule allows a user to set a

time for a scheduled backup by

automatically generating a backup

file at a desired time such as an early

morning when the user usually does

not use the phone. No scheduled

backup is set by default if there is no

previous setting through Schedule;

otherwise, the time of next scheduled

backup is displayed.

•

148

Browser

Browser gives you a fast, full-colour world

of games, music, news, sport, entertainment

and much more, right on your mobile phone.

Wherever you are and whatever you enjoy.

NOTE: Additional charges apply when

connecting to these services and

downloading content. Check data

charges with your network provider.

Using the web toolbar

Touch to go back a page.

Touch to go forwards a page, to the

page you connected to after the current

one. This is the opposite of what

happens when you press the Back key,

which goes to the previous page.

Touch and hold, up and down to zoom in

or out of browser.

Touch to add a new window.

Touch to add a favourite bookmarks.

The web

Pre

Ref

Sav

pag

Sha

pag

Fin

Req

the

149

m in

Using options

Press to view options.

Refresh – Update the current web page.

Save to Bookmarks – Add the current web

page as bookmark.

Share page – Allows you to share the web

page with others.

Find on page – Allows you to find letters or

words on the current web page.

Request desktop site – Allows you to view

the web page as desktop.

Save for offline reading – You can view the

saved web page.

Settings – Displays Browser settings.

150

LG On-Screen Phone 2.0

LG On-Screen Phone 2.0 allows you to view

your mobile phone screen from a PC via a

USB, Bluetooth, or Wi-Fi connection.

You can also control your mobile phone from

your PC using the mouse or keyboard.

On-Screen Phone 2.0 icons

Connects your mobile phone to your PC,

or disconnects it.

Launches LG Home Panorama or

changes the On-Screen Phone

preferences.

Exits the On-Screen Phone program.

Maximises the On-Screen Phone

window.

Minimises the On-Screen Phone

window.

On-Screen Phone 2.0 features

Real-time transfer and control: Displays

and controls your mobile phone screen

when connected to your PC.

•

151

ays

Mouse control: Allows you to control your

mobile phone by using the mouse to click

and drag on your PC screen.

Text input with keyboard: Allows you to

compose a text message or note using

your computer keyboard.

File transfer (mobile phone to PC):

Sends a file from your mobile phone (e.g.

Gallery, Video Player, Music Player and

Polaris Office) to your PC. Simply right-

click and drag to send a file to your PC.

File transfer (PC to mobile phone):

Sends files from your PC to your mobile

•

phone. Simply select the files you wish to

transfer and drag and drop into the On-

Screen Phone window. The files you send

are stored on OSP folder.

Real-time event notifications: Prompts

a pop-up to inform you of any incoming

calls or text, as well as alarm and event

notifications.

LG Home Panorama: Shows the whole

workspaces of LG Home. You can easily

organise icons or widgets and run an

application by double-clicking the shortcut.

•

152

NOTE: Please make sure LG Home is a

default launcher.

Installing On-Screen Phone on

your PC

Visit LG Home (www.lg.com) and select a

country of your choice.

Go to Support > Mobile Phone Support

> Search the Model (LG-E617g) > Click

OSP( On-Screen Phone ) to download.

You can install the On-Screen Phone on

your PC.

Connecting your phone to your

On-Screen Phone 2.0 provides USB,

Bluetooth and Wi-Fi connection.

Please follow the instruction on Connection

Wizard of OSP program.

NOTE: Please make sure USB

connection type is a PC software.

Onc

LG On-Screen Phone 2.0

153

NOTE: Please make sure that On-

Screen Phone check box in System

settings > Connectivity > On-Screen

Phone settings.

Please make sure that the battery may

run out more quickly due to the current

consumption if On-Screen Phone is

connected via Wi-Fi.

Checking the On-Screen Phone

connection

Once the devices have been connected,

drag down the status bar at the top of the

home screen to check the On-Screen Phone

connection status.

Disconnecting your phone from

your PC

Touch and slide the notification drawer

down and touch the On-Screen Phone

connected.

Touch Disconnect On-Screen Phone >

Disconnect.

154

In the Home screen, touch > System

settings.

WIRELESS & NETWORKS

Here, you can manage Wi-Fi and Bluetooth.

You can also set up mobile networks and

switch to airplane mode.

< Wi-Fi >

Wi-Fi – Turns on Wi-Fi to connect to

available Wi-Fi networks.

Wi-Fi settings – Allows you to set up and

manage wireless access points. Set network

notification or add a Wi-Fi network. The

advanced Wi-Fi settings screen is accessed

from the Wi-Fi settings screen. Press the

and touch Advanced.

TIP! How to obtain the MAC address

To set up a connection in some wireless

networks with MAC filters, you may

need to enter the MAC address of your

LG-E617g into the router.

You can find the MAC address in the

following user interface: Touch Apps

tab > Settings > Wi-Fi > >

Advanced > MAC Address.

Settings

< B

Tur

dev

Tur

Ref

< D

Dis

dat

< C

You

offe

155

< Bluetooth >

Turns on Bluetooth to connect to Bluetooth

devices.

Turn the Bluetooth wireless feature on or off.

Refer to page Bluetooth chapter in details.

< Data usage >

Displays the data usage and set mobile

data limit.

< Call >

You can configure phone call settings such

as call forwarding and other special features

offered by your carrier.

< More >

Airplane mode – After switching to airplane

mode, all wireless connections are disabled.

VPN – Displays the list of Virtual Private

Networks (VPNs) that you've previously

configured. Allows you to add different types

of VPN.

NOTE: You must set a lock screen

PIN or password before you can use

credential storage.

156

Wi-Fi Direct – You can turn on or off.

Portable Wi-Fi hotspot – You can configure

the portable Wi-Fi hotspot settings.

NFC – Your LG-E617g is NFC-enabled

mobile phone. NFC (Near Field

Communication) is a wireless connectivity

technology that enables two-way

communication between electronic devices.

It operates over a distance of a few

centimeters. You can share your contents

with a NFC tag or another device via simple

touch with your device. If you touch a NFC

tag with your device, it will display the tag

contents on your device.

NOTE: Be careful not to scratch or

damage the inside of the battery cover

as this is the NFC antenna.

To switch NFC on or off: From the Home

screen, touch and slide the notification

drawer down with your finger, then select

the NFC icon to turn it on.

NOTE: When the Airplane mode is

activated, NFC application can be used.

And

pag

scr

dev

Settings

157

Using NFC: To use NFC, make sure your

device is switched on and activate the

NFC setting, if disabled.

Android Beam – You can beam a web

page, a video, or other content from your

screen to another device by bringing the

devices together (typically back to back).

NOTE: Make sure both devices

are unlocked, support Near Field

Communication (NFC), and have both

NFC and Android Beam™ turned on.

158

Wi-Fi Direct – Tick the check box to make

Wi-Fi Direct active. Set Wi-Fi Direct device

name and scan for other devices.

Mobile networks – Set options for data

roaming, network mode & operators, access

point names (APNs) and so on.

DEVICE

< Sound >

Sound profile – You can choose the Sound,

Vibrate only or Silent.

Volumes – You can manage the volume of

music, video, games, other media, Ringtone

& notifications. Touch feedback & system.

Phone ringtone – Allows you to set your

default incoming call ringtone.

Notification ringtone – Allows you to set

your default notification ringtone.

Ringtone with vibration – Vibration

feedback for calls and notifications.

Quiet time – Set times to turn off all sounds

except alarm and media.

Dial pad touch tones – Allows you to set

the phone to play tones when using the

dialpad to dial numbers.

Tou

pho

but

rea

Scr

pho

unl

Vib

vibr

< D

Bri

Aut

Settings

159

nds

Touch sounds – Allows you to set your

phone to play a sound when you touch

buttons, icons and other onscreen items that

react to your touch.

Screen lock sound – Allows you to set your

phone to play a sound when locking and

unlocking the screen.

Vibrate on touch – Allows you to set the

vibration feedback for phone screen touch.

< Display >

Brightness – Adjust the screen brightness.

Auto-rotate screen – Set to switch

orientation automatically when you rotate

the phone.

Screen timeout – Set the time for screen

timeout.

Font size – Change the display font size

Font Key LED – Set the front key LED time.

Motion sensor calibration – Improve the

accuracy of the tilt and speed of the sensor.

< Home screen >

Wallpaper – You can select the wallpaper

from Gallery, Live wallpapers and

Wallpapers.

160

< Lock screen >

Screen Lock – Set an unlock pattern to

secure your phone. Opens a set of screens

that guide you through drawing a screen

unlock pattern. You can set a Slide, Pattern,

PIN instead of a Password or leave it as

None.

When you turn on your phone or wake up

the screen, you're asked to draw your unlock

pattern to unlock the screen.

< Storage >

INTERNAL STORAGE – View the internal

storage usage.

SD CARD – Check total available SD card

space. Touch Unmount SD card for safe

removal. Erase SD card if you want to delete

all data from the SD card.

< Power Saver >

Here, you can manage the battery and check

the power saving items. Also, you can check

the battery use.

< A

You

< A

Per

in t

act

sett

(bu

< L

Goo

Settings

161

ete

eck

< Apps >

You can view and manage the applications.

PERSONAL

< Accounts & sync >

Permits applications to synchronise data

in the background, whether or not you are

actively working in them. Deselecting this

setting can save battery power and lowers

(but does not eliminate) data usage.

< Location services >

Google's location service – If you select

Google's location service, your phone

determines your approximate location using

Wi-Fi and mobile networks. When you

select this option, you're asked whether

you consent to allowing Google to use your

location when providing these services.

GPS satellites – If you select GPS satellites,

your phone determines your location to

street level accuracy.

Location & Google search – If you select

google use your location to improve search

results and other services.

162

< Security >

Set up SIM card lock – Set up SIM card

lock or change the SIM PIN.

Make passwords visible – Show password

as you type.

Device administrators – View or deactivate

device administrators.

Unknown sources – Default setting to

install non-Market applications.

Trusted credentials – Display trusted CA

certificates.

Install from SD card – Choose to install

encrypted certificates from your SD card.

Clear credentials – Remove all certificates.

< Language & input >

Use the Language & input settings to

select the language for the text on your

phone and for configuring the on-screen

keyboard, including words you've added to

its dictionary.

< Backup & reset >

Change the settings for managing your

settings and data.

Bac

sett

ser

Bac

acc

Aut

sett

app

Fac

to t

all y

this

sam

Settings

163

es.

Back up my data – Set to back up your

settings and application data to the Google

server.

Backup account – Set to back up your

account.

Automatic restore – Set to restore your

settings and application data when the

applications are reinstalled on your device.

Factory data reset – Reset your settings

to the factory default values and delete

all your data. If you reset the phone in

this way, you are prompted to reenter the

same information as when you first started

Android.

SYSTEM

< Date & time >

Use Date & time settings to set how dates

are displayed. You can also use these

settings to set your own time and time zone

rather than obtaining the current time from

the mobile network.

< Accessibility >

Use the Accessibility settings to configure

accessibility plug-ins you have installed on

your phone.

164

NOTE: Requires additional plug-ins.

< Connectivity >

USB connection type – You can set the

desired mode (Charge only, Media sync,

USB tethering or PC software).

Ask on connection – Ask USB connection

mode when connecting to a computer.

On-Screen Phone settings – Displaying

screen and controlling phone from PC are

available through USB, Bluetooth or Wi-Fi

connection.

< About phone >

View legal information and check phone

status and software version.

Phone software update

LG Mobile phone software update from

the Internet

For more information about using this

function, please visit http://update.lgmobile.

com or http://www.lg.com/common/index.

jsp select country and language.

This feature allows you to update the

firmware on your phone to a newer version

con

nee

will

a n

dev

req

dur

sur

tha

Ple

cab

ser

Settings

165

conveniently from the Internet without

needing to visit a service centre. This feature

will only be available if and when LG makes

a newer firmware version available for your

device.

As the mobile phone firmware update

requires the user's full attention for the

duration of the update process, please make

sure you check all instructions and notes

that appear at each step before proceeding.

Please note that removing the USB data

cable or battery during the upgrade may

seriously damage your mobile phone.

NOTE: LG reserves the right to make

firmware updates available only for

selected models at its own discretion

and does not guarantee the availability

of the newer version of the firmware for

all handset models.

LG Mobile Phone software update via

Over-the-Air (OTA)

This feature allows you to update your

phone's software to a newer version

conveniently via OTA, without connecting

with a USB data cable. This feature will only

166

be available if and when LG makes a newer

firmware version available for your device.

First, you can check the software version

on your mobile phone: System settings >

About phone > Software update > Check

now for update.

You can also delay the update by 1 hour,

4 hours, 8 hours or One day. In this case,

the application will notify you to update when

the time is up. You can also rearrange an

update manually.

NOTE: This feature is dependent on

your network service provider, region

and country.

DivX Mobile

ABOUT DIVX VIDEO: DivX

is a digital video

format created by DivX, LLC, a subsidiary

of Rovi Corporation. This is an official DivX

Certified

device that plays DivX video. Visit

divx.com for more information and software

tools to convert your files into DivX videos.

Cer

to p

(VO

cod

dev

reg

Div

320

Settings

167

sit

ABOUT DIVX VIDEO-ON-DEMAND: This DivX

Certified

device must be registered in order

to play purchased DivX Video-on-Demand

(VOD) movies. To obtain your registration

code, locate the DivX VOD section in your

device setup menu. Go to vod.divx.com for

more information on how to complete your

registration.

DivX Certified

to play DivX

video up to

320x240.

DivX

, DivX Certified

and associated

logos are trademarks of Rovi Corporation

or its subsidiaries and are used under

license.

168

These accessories are available for use with the LG-E617g. (Items described below may be optional.)

Travel adaptor Battery Stereo

headset

Data cable

Connect your

LG-E617g and

PC.

User Guide

Learn more

about your

LG-E617g.

NFC Tag

NOTE:

• Always use genuine LG accessories.

• Failure to do this may void your warranty.

• Accessories may vary in different regions.

Accessories

Thi

pro

SIM

169

al.) This chapter lists some problems you might encounter while using your phone. Some

problems require you to call your service provider, but most are easy to fix yourself.

Message Possible causes Possible corrective measures

SIM error There is no SIM card in the phone

or it is inserted incorrectly.

Make sure that the SIM card is correctly

inserted.

No network

connection/

Losing network

Signal is weak or you're outside

the carrier network.

Operator applied new services.

Move towards a window or into an open area.

Check the network operator coverage map.

Check whether the SIM card is more than 6~12

months old. If so, change your SIM at your

network provider's nearest branch. Contact your

service provider.

Troubleshooting

170

Message Possible causes Possible corrective measures

Codes do not

match

To change a security code, you

will need to confirm the new code

by re-entering it.

The two codes you have entered

do not match.

If you forget the code, contact your service

provider.

Any application

cannot be set

Not supported by service provider

or registration required. Contact your service provider.

Calls not

available

Dialling error

New SIM card inserted.

Pre-paid charge limit reached.

New network not authorised.

Check for new restrictions.

Contact service provider or reset limit with PIN2.

Troubleshooting

171

Message Possible causes Possible corrective measures

Phone cannot

be switched on

On/Off key pressed too briefly.

Battery is not charged.

Battery contacts are dirty.

Press the On/Off key down for at least two

seconds.

Charge battery. Check charging indicator on

the display.

Clean the battery contacts.

172

Message Possible causes Possible corrective measures

Charging error

Battery is not charged. Charge battery.

Outside temperature is too hot

or cold.

Make sure phone is charging at a normal

temperature.

Contact problem

Check the charger and connection to the phone.

Check the battery contacts and clean them if

necessary.

No voltage Plug the charger into a different socket.

Charger defective Replace charger.

Wrong charger Only use original LG accessories.

Battery defective Replace battery.

rec

Fil

Troubleshooting

173

Message Possible causes Possible corrective measures

Number not

permitted

The Fixed dialling number

function is on.

Check the Settings menu and turn the function

off.

Impossible to

receive / send

SMS & picture

Memory full Delete some messages from the phone.

Files not

opening Unsupported file format Check the file formats that can be supported.

SD card not

working

FAT16, FAT32 file system

supported

Check SD card file system via card reader, or

format SD card using the phone.

174

Message Possible causes Possible corrective measures

The screen

does not turn

on when I

receive a call.

Proximity sensor problem

If you use any protection tape or case, check

to see if it has covered the area around the

proximity sensor. Make sure that the area

around the proximity sensor is clean.

No sound Vibration mode Check the settings status of the sound menu to

make sure you are not in vibrate or silent mode.

Hang up or

freeze Intermittent software problem

Remove the battery, insert it again and switch

on the phone.

Try to perform a software update via the

website.

Ple

this

Troubleshooting

LG Electronics USA E617G Cellular/PCS GSM/WCDMA Phone with WLAN, Bluetooth and RFID User Manual LG E617g Canada EN Cover indd

LG Electronics MobileComm USA, Inc. Cellular/PCS GSM/WCDMA Phone with WLAN, Bluetooth and RFID LG E617g Canada EN Cover indd

Users Manual

Navigation menu

Namespaces

Views

Navigation
