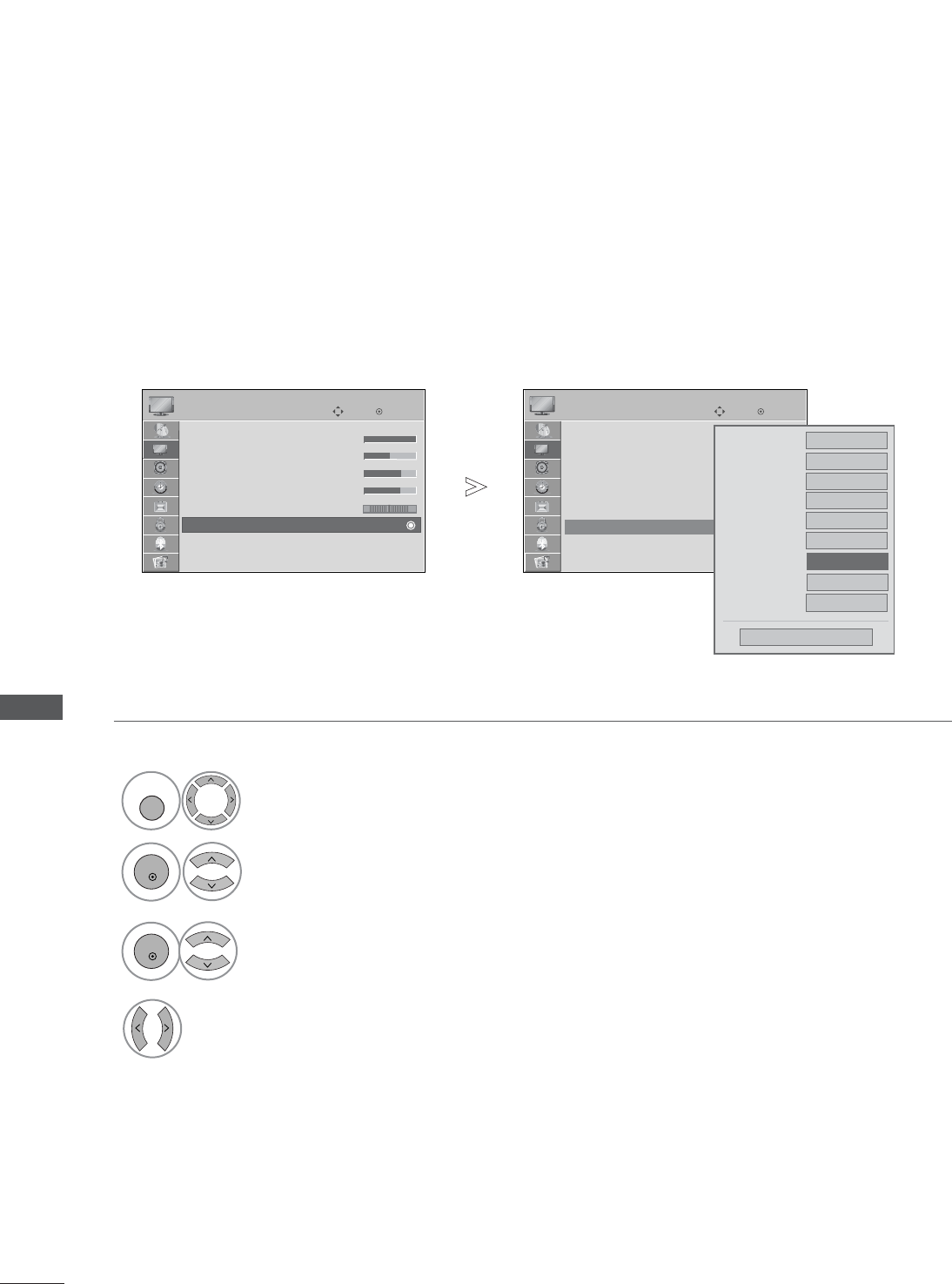

PICTURE CONTROL

ADVANCED - TRUMOTION (37/42/47/52LG70** Only)

PICTURE CONTROL

It is used for the best picture quality without any motion blur or judder when you enter a quick image or Film

Source.

This feature is disable in RGB-PC,HDMI-PC mode.

Select


Select

Advanced Control

Select

TruMotion

Select

Off

Low

High

Move

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint

• Advanced Control

• Picture Reset

Screen


• Advanced Control

Move

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint

• Advanced Control

• Picture Reset

Screen


• Advanced Control

• High

Provides smoother picture movement.

• Low

Provides smooth picture movement. Use this set-

ting for standard use.

• Off

Use this setting when "High" and "Low" setting

result in noise.

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

• If you enable "TruMotion", noise may appear on the screen.

• If this occurs, set "TruMotion" to "Off".

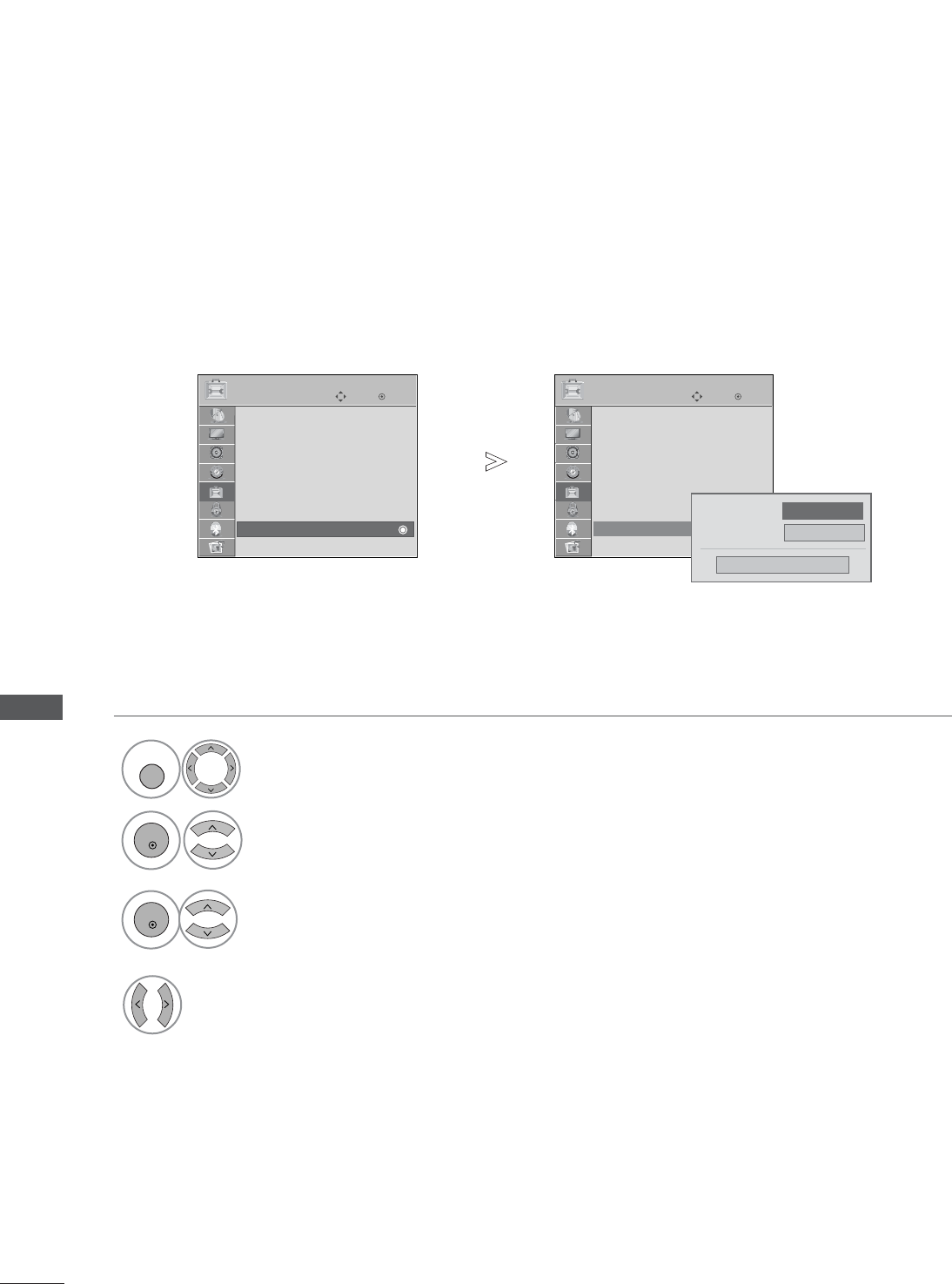

Colour Temperature

Fresh Contrast

High

Fresh Colour

High

Noise Reduction

Medium

Gamma Medium

Black Level

Off

TruMotion

Off

Eye Care

Auto

High

Real Cinema

PICTURE CONTROL

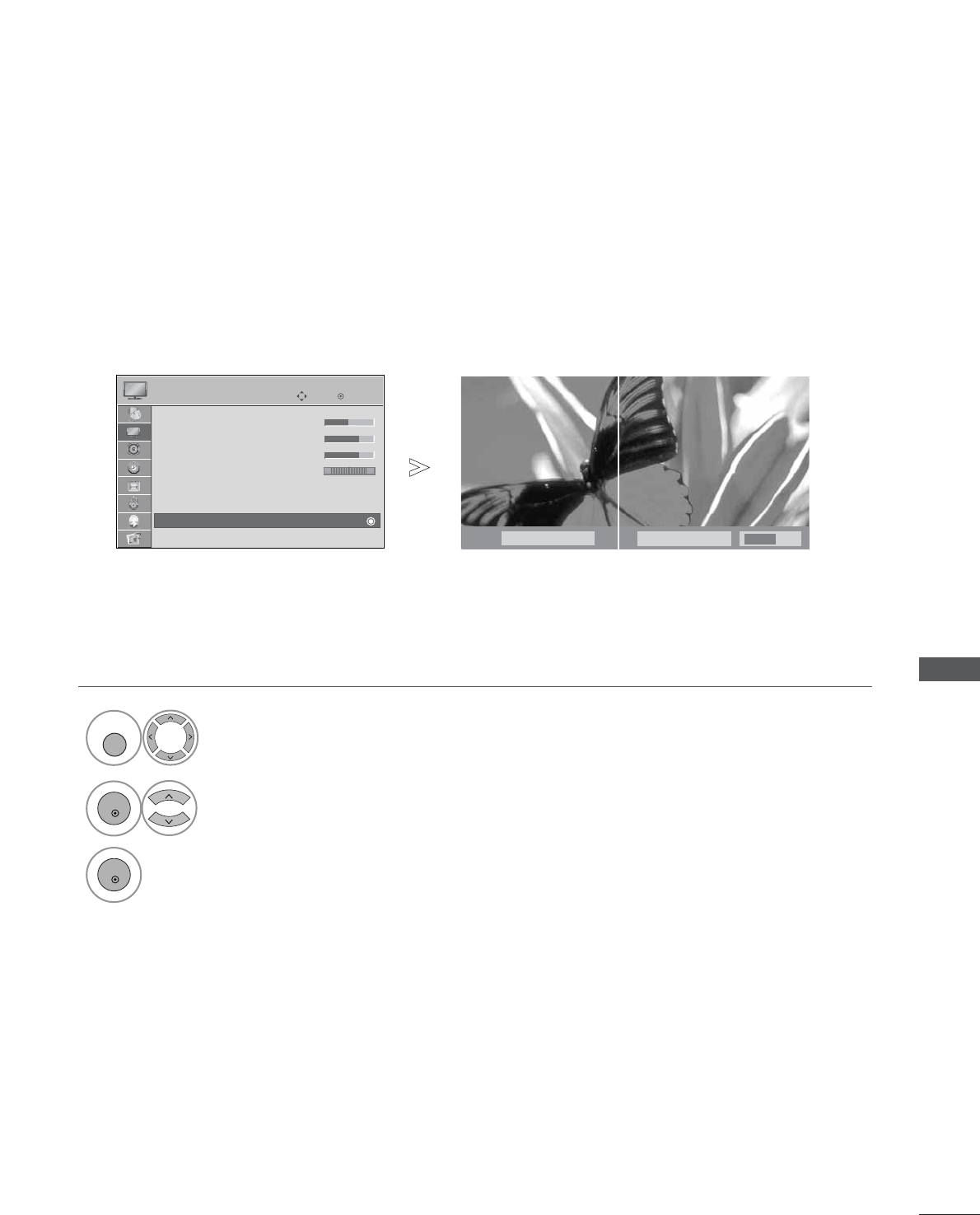

TRUMOTION DEMO (37/42/47/52LG70** Only)

TruMotion

Off

TruMotion

Use it to see the difference between TruMotion Demo on and TruMotion Demo off.

It’s not available to use this function in RGB[PC], HDMI[PC] mode.

If you select TruMotion Demo during operating bluetooth headset, bluetooth headset is disconnected.

Select


Select

TruMotion Demo.

Move

• Brightness 50

• Sharpness 70

• Colour 70

• Tint

• Advanced Control

• Picture Reset

Screen


TruMotion Demo

Exit

RETURN

• Press the

RETURN

button to return to normal TV viewing.

Image shown may differ from your TV.

PICTURE CONTROL

EYE CARE

(LCD TV ONLY)

It helps you adjust brightness when the screen is too bright to prevent dazzling.

Select


Select

Advanced Control

Select

Eye Care

Select

O n

Off

Move

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint

• Advanced Control

• Picture Reset

Screen


• Advanced Control

Move

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint

• Advanced Control

• Picture Reset

Screen


• Advanced Control

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

RG RG

Colour Temperature

Fresh Contrast

High

Fresh Colour

High

Noise Reduction

Medium

Gamma Medium

Black Level

Off

TruMotion High

Eye Care

Auto

Off

Real Cinema

PICTURE CONTROL

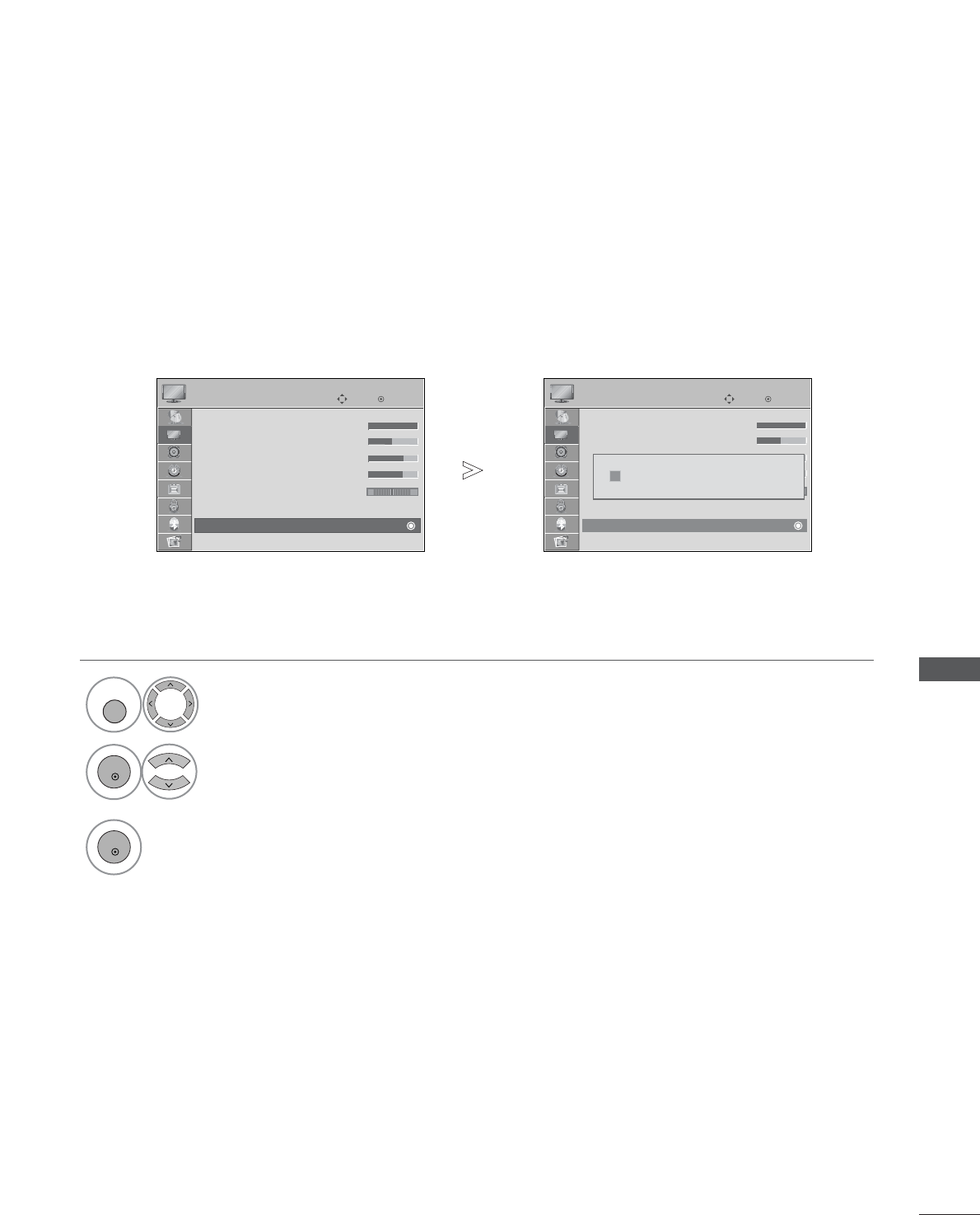

PICTURE RESET

Settings of the selected picture modes return to the default factory settings.

Select


Select

Picture Reset

Initialize the adjusted value.

Move

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint

• Advanced Control

• Picture Reset

Screen


• Picture Reset

Move

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint

• Advanced Control

• Picture Reset

Screen


• Picture Reset

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

RG RG

Resetting video configuration...

PICTURE CONTROL

POWER INDICATOR (LCD TV ONLY)

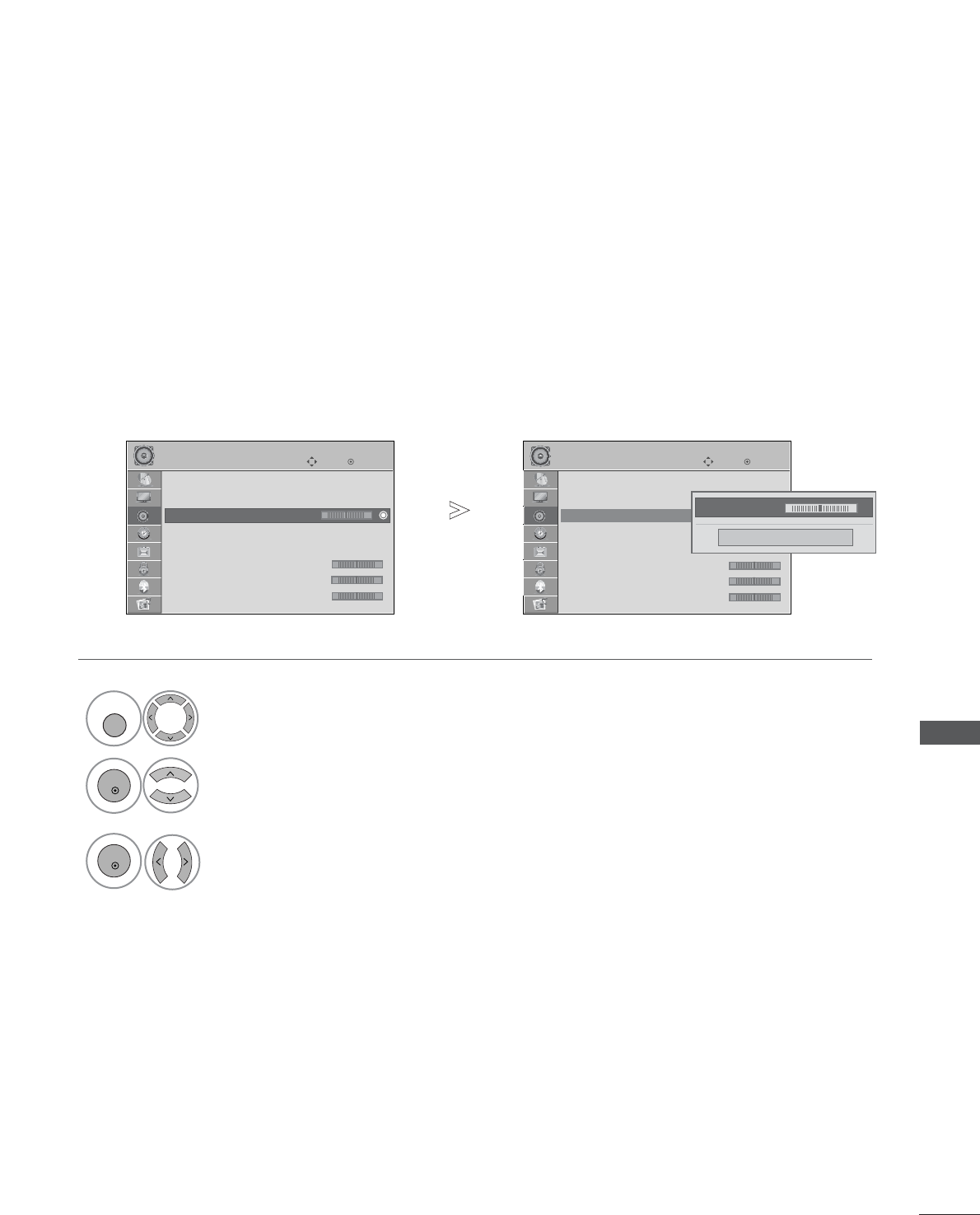

It helps you adjust the brightness of moving LED and sound when power is turned on.

Select

OPTION

Select

Power Indicator

Select

Standby Light

Power Light

Move

Country : UK

Input Label

SIMPLINK : On

Key Lock : Off

Simple Manual

Set ID :1

Power Indicator

Factory Reset

OPTION

Power Indicator

Move

Country : UK

Input Label

SIMPLINK : On

Key Lock : Off

Simple Manual

Set ID

Power Indicator

Factory Reset

OPTION

Power Indicator

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

PICTURE CONTROL

Standby Light

Power Light

Select your desired Source.

PICTURE CONTROL

IMAGE STICKING MINIMIZATION (ISM) METHOD (PLASMA TV ONLY)

A frozen or still picture from a PC/Video game displayed on the screen for prolonged periods will result in a

ghost image remaining even when you change the image. Avoid allowing a fixed image to remain on the

screen for prolonged periods.

White Wash

White wash removes permanent images from the screen.

Note: An excessive permanent image may be impossible to clear entirely with White Wash.

Orbiter

Orbiter may help prevent ghost images. However, it is best not to allow any fixed image to remain on the

screen. To avoid a permanent image on the screen, the screen will move every 2 minutes.

Inversion

This function inverts the panel colour of the screen. The panel colour is automatically inverted every 30

minutes.

Select

OPTION

Select

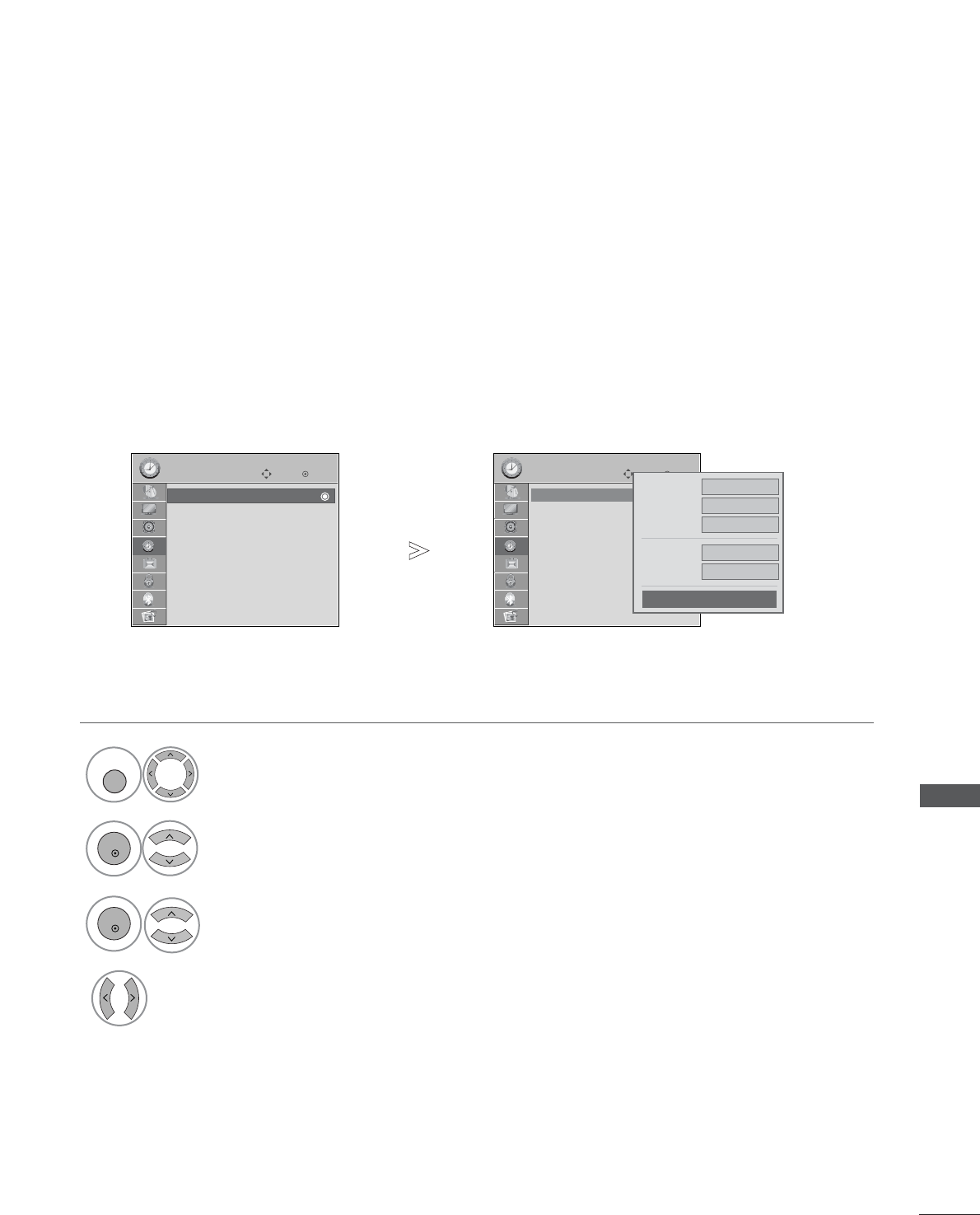

ISM Method

Select

Normal, Orbiter, Inversion

White Wash.

Save.

Move

Country : UK

Input Label

SIMPLINK : On

Key Lock : Off

Set ID :1

ISM Method : Normal

Power Saving : Level 0

Factory Reset

OPTION

ISM Method

Move

Country : UK

Input Label

SIMPLINK : On

Key Lock : Off

Set ID :1

ISM Method : Normal

Power Saving : Level 0

Factory Reset

OPTION

ISM Method

Normal

Orbiter

Inversion

White Wash

Normal

• If you do not need this function, set

Normal.

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

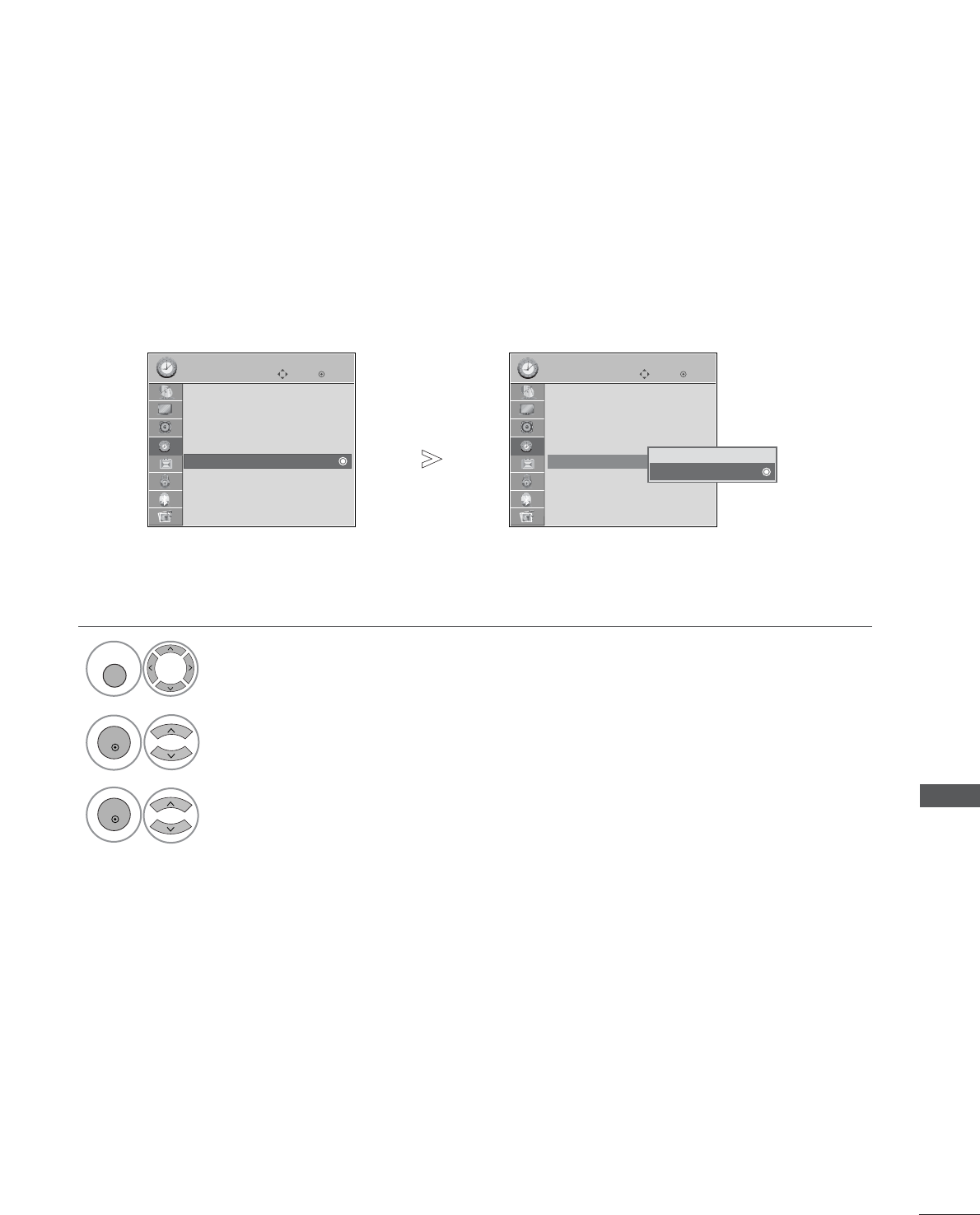

PICTURE CONTROL

POWER SAVING PICTURE MODE

(PLASMA TV ONLY)

PICTURE CONTROL

This function allows you to reduce the power consumption of the TV.

Select

OPTION

Select

Power Saving

Select

Level 0, Level 1, Level 2,

Level 3

Level 4

Save.

Move

Country : UK

Input Label

SIMPLINK : On

Key Lock : Off

Set ID :1

ISM Method : Normal

Power Saving : Level 0

Factory Reset

OPTION

Power Saving

Move

Country : UK

Input Label

SIMPLINK : On

Key Lock : Off

Set ID :1

ISM Method : Normal

Power Saving : Level 0

Factory Reset

OPTION

Power Saving

Level 0

Level 1

Level 2

Level 3

Level 4

Level 0

• Level 0 is the brightest.

• You can also adjust

Power Saving

in the

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

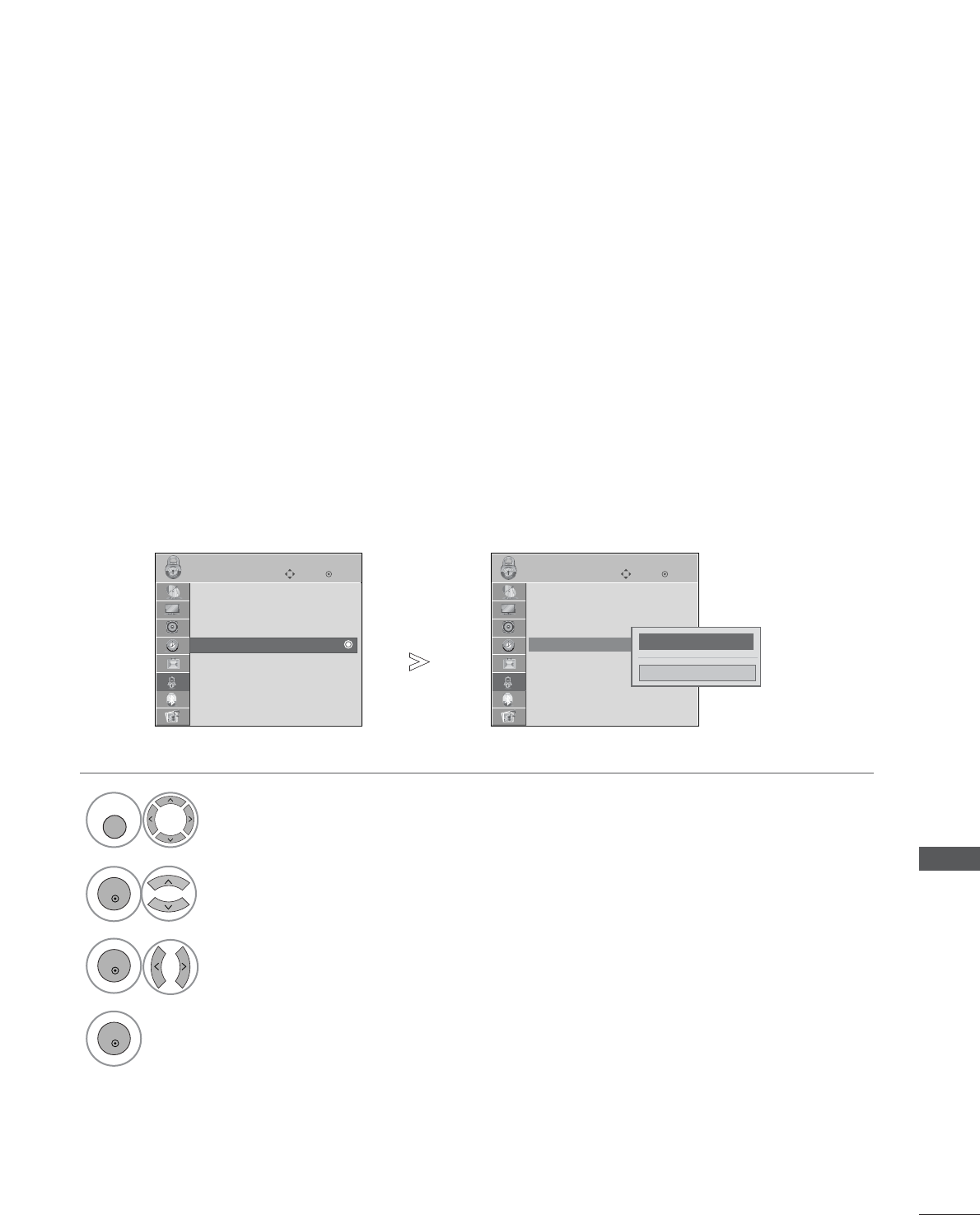

SOUND & LANGUAGE CONTROL

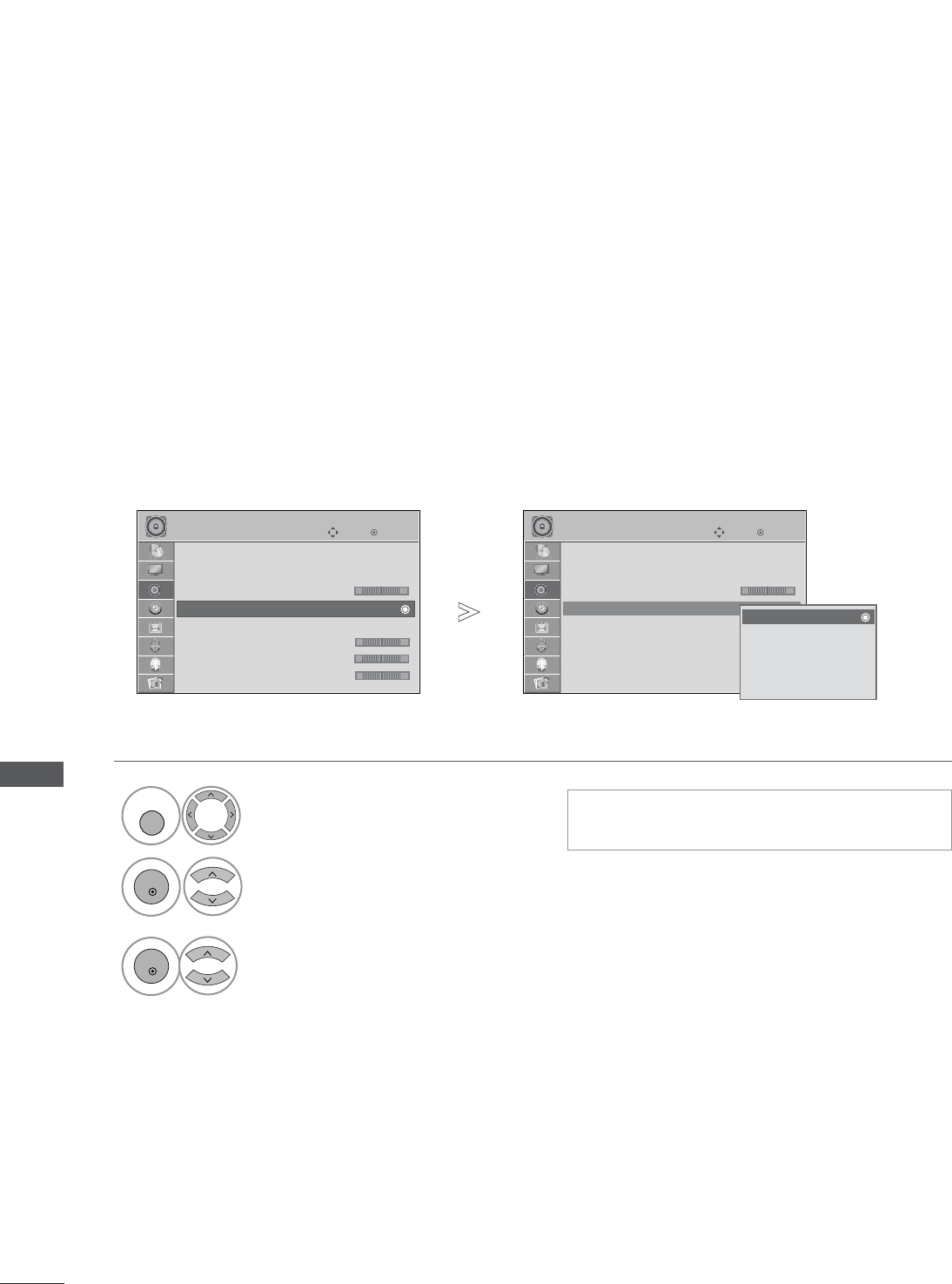

AUTO VOLUME LEVELER

AVL automatically remains on the same level of volume if you change programmes

Select

AUDIO

Select

Auto Volume

Select

O n

Off

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

Move

Auto Volume : Off

Clear Voice : Off

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT

: Off

• 80Hz 0

• 220Hz 0

• 470Hz 0

AUDIO

Move

Auto Volume : Off

Clear Voice : Off

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT

: Off

• 80Hz 0

• 220Hz 0

• 470Hz 0

AUDIO

Auto Volume : On Auto Volume :On Off

SOUND & LANGUAGE CONTROL

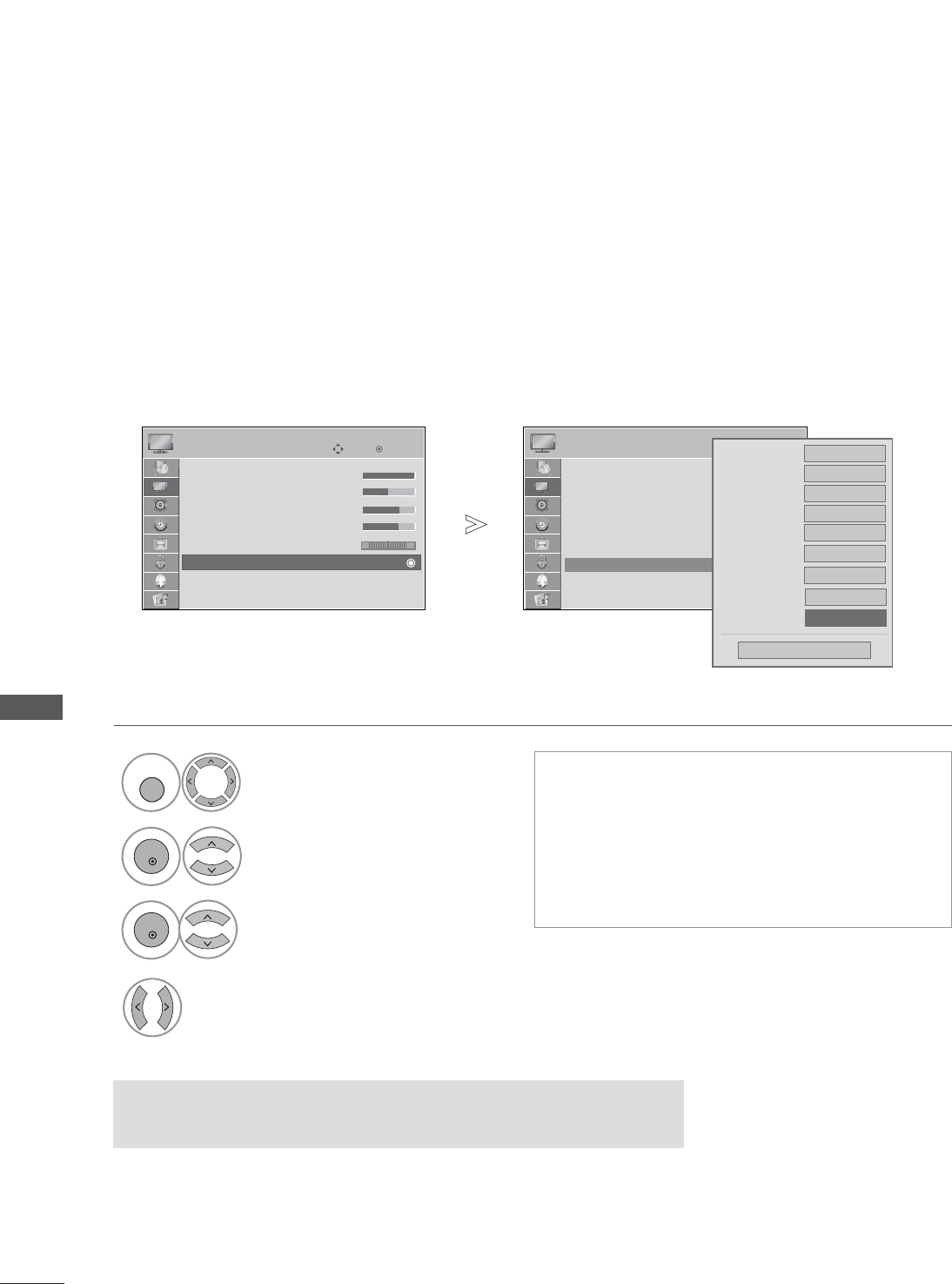

PRESET SOUND SETTINGS-SOUND MODE

You can select your preferred sound setting; Standard, Music, Cinema, Sport or Game and you can also adjust

the frequency of the equalizer.

Sound Mode lets you enjoy the best sound without any Special adjustment as the TV sets the appropriate sound

options based on the programme content.

Standard, Music, Cinema, Sport and Game are preset for optimum sound quality at the factory.

Select

AUDIO

Select

Sound Mode

Select

Standard, Music, Cinema, Sport

Game

• You can also adjust

Sound Mode

in the

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

Move

Auto Volume : Off

Clear Voice : Off

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT

: Off

• 80Hz 0

• 220Hz 0

• 470Hz 0

AUDIO

Move

Auto Volume : Off

Clear Voice : Off

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT

: Off

• 80Hz 0

• 220Hz 0

• 470Hz 0

AUDIO

Sound Mode Standard Sound Mode : Standard

Standard

Music

Cinema

Sport

Game

Standard

SOUND & LANGUAGE CONTROL

Move

Auto Volume : Off

Clear Voice : Off

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT

: Off

• 80Hz 0

• 220Hz 0

• 470Hz 0

AUDIO

Move

Auto Volume : Off

Clear Voice : Off

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT

: Off

• 80Hz 0

• 220Hz 0

• 470Hz 0

AUDIO

is a trademark of SRS Labs, Inc.

TruSurround XT technology is incorporated under license from SRS Labs, Inc.

TruSurround XT

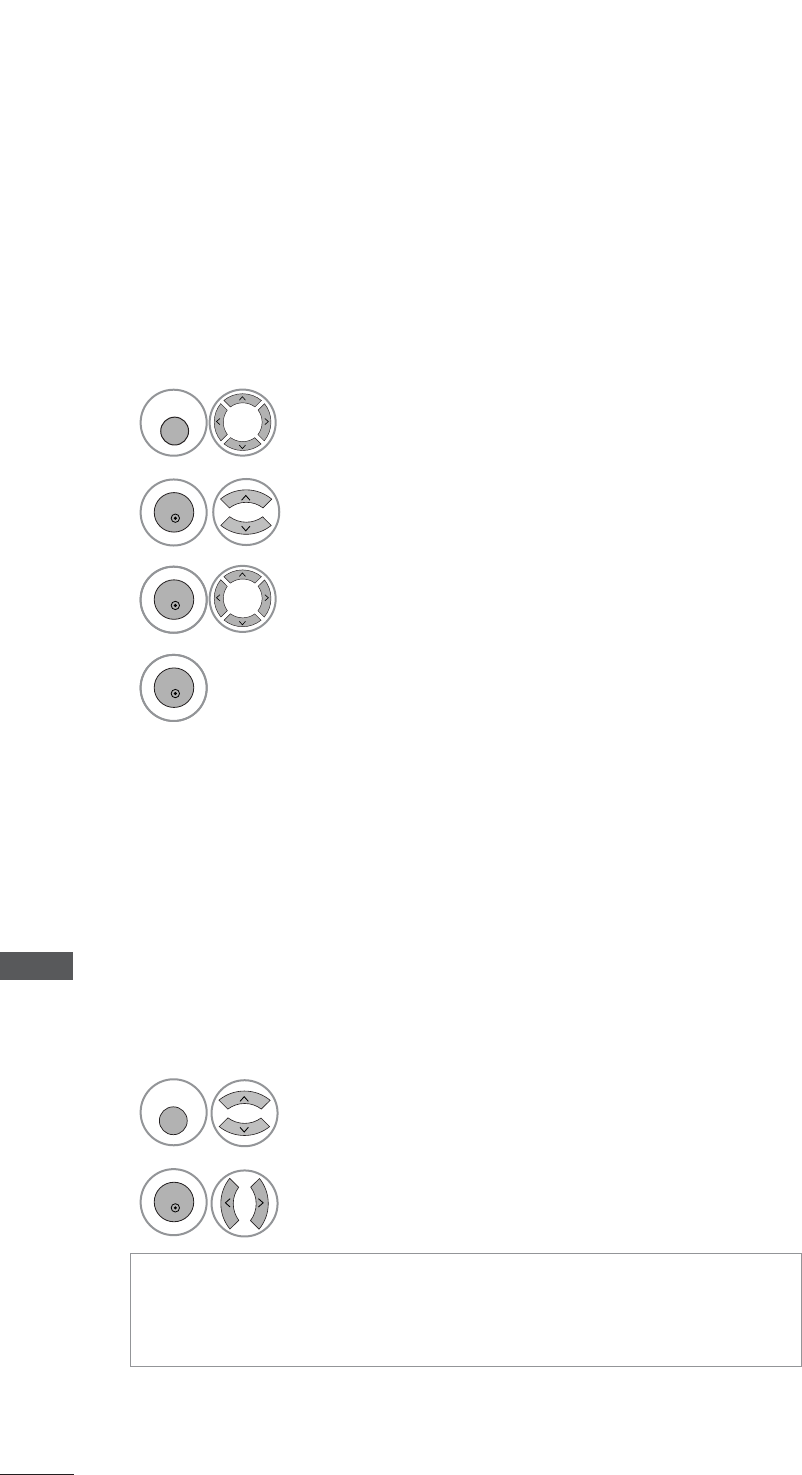

SOUND SETTING ADJUSTMENT -USER MODE

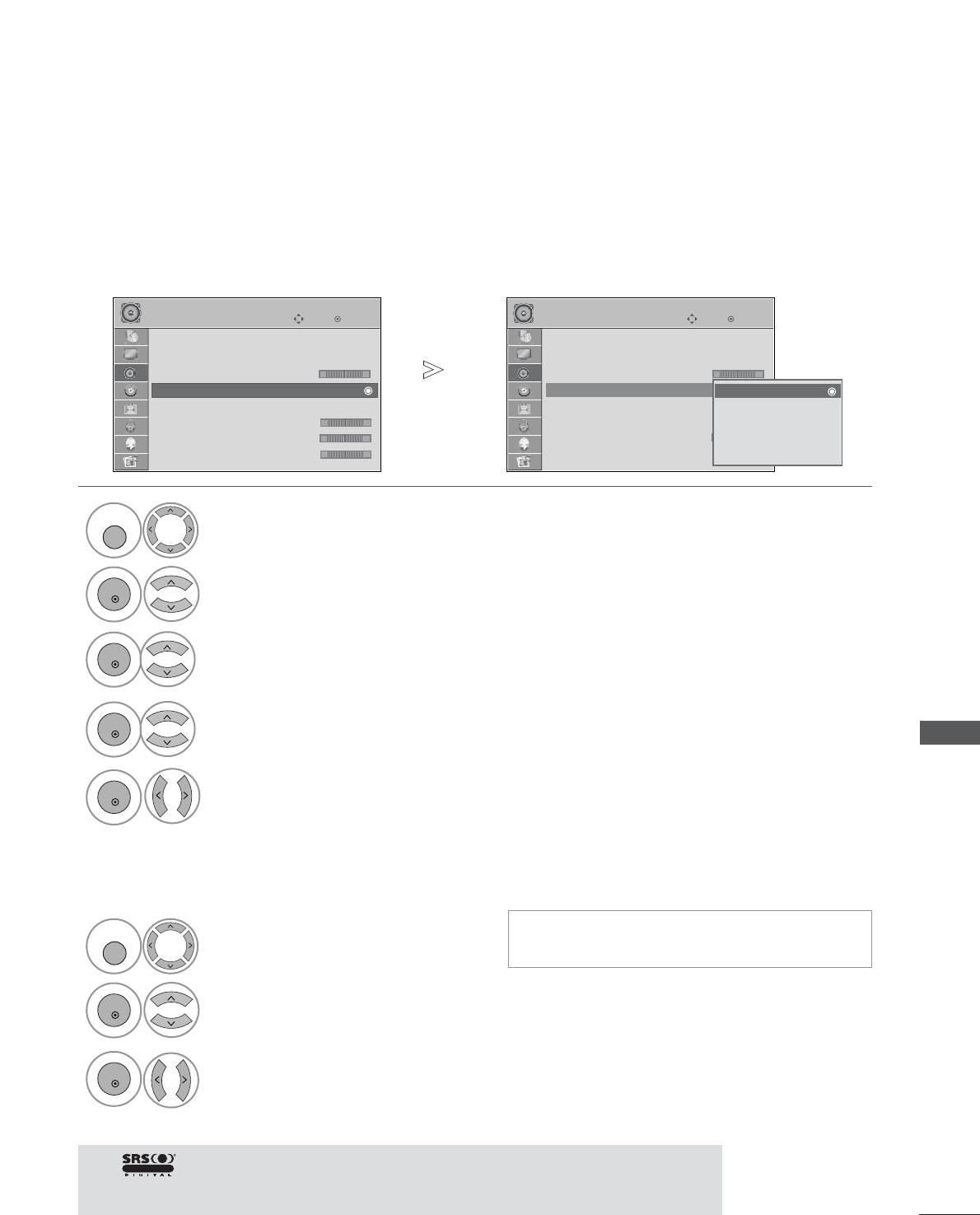

SRS TRUSURROUND XT

Adjusting the audio equalizer.

Select

AUDIO

Select

Sound Mode

Select

Standard, Music, Cinema, Sport

Game

Set the desired sound level.

Select a frequency band.

Sound Mode Standard (User) Sound Mode : Standard (User)

Select

AUDIO

Select

SRS TruSurround XT

Select

O n

Off

SRS TruSurround XT

Select this option to

sound realistic.

Standard

Music

Cinema

Sport

Game

Standard (User)

SOUND & LANGUAGE CONTROL

Move

Auto Volume : Off

Clear Voice : Off

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT

: Off

• 80Hz 0

• 220Hz 0

• 470Hz 0

AUDIO

Move

Auto Volume : Off

Clear Voice : Off

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT

: Off

• 80Hz 0

• 220Hz 0

• 470Hz 0

AUDIO

SOUND & LANGUAGE CONTROL

CLEAR VOICE

By differentiating the human sound range from others, it helps users listen to human voices better.

Select

AUDIO

Select

Clear Voice

Clear Voice : On Clear Voice : On Off

Select

O n

Off

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

• If you select “

O n

” for

Clear Voice

SR S

TruSurround XT

feature will not work.

SOUND & LANGUAGE CONTROL

Move

Auto Volume : Off

Clear Voice : Off

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT

: Off

• 80Hz 0

• 220Hz 0

• 470Hz 0

AUDIO

Move

Auto Volume : Off

Clear Voice : Off

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT

: Off

• 80Hz 0

• 220Hz 0

• 470Hz 0

AUDIO

Balance 0 LR

Balance 0

BALANCE

You can adjust the sound balance of the speakers to preferred levels.

Select

AUDIO

Select

Balance

Make desired adjustment.

Balance 0

F G

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

SOUND & LANGUAGE CONTROL

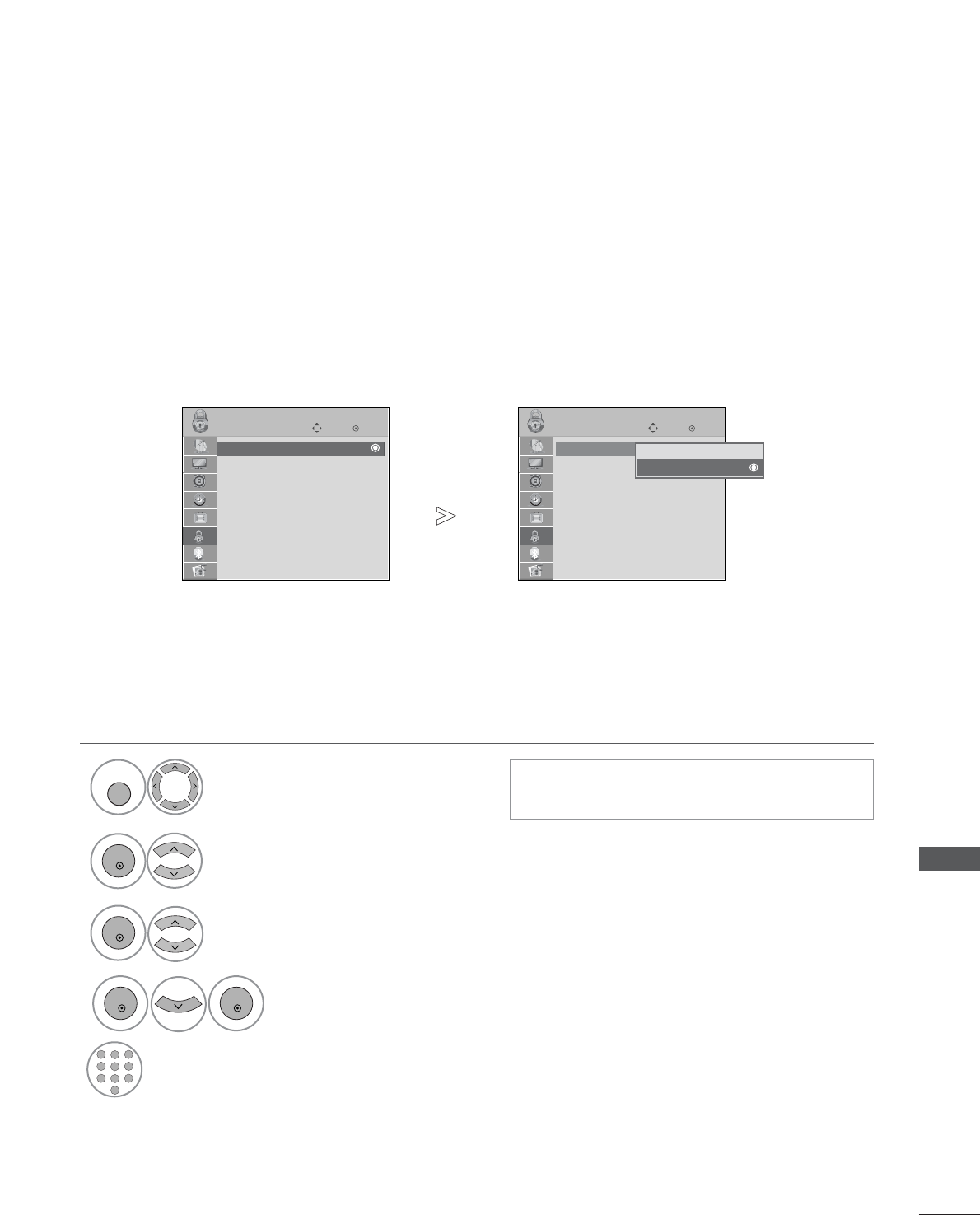

TV SPEAKERS ON/ OFF SETUP

You can adjust the TV internal speaker status.

AV1

AV2

AV3

COMPONENT

RGB

and

HDMI1

with HDMI to DVI cable, the TV speaker can be opera-

tional even when there is no video signal.

If you wish to use an external Hi-Fi system, turn off the TV internal speakers.

Select

AUDIO

Select

TV Speaker

Select

O n

Off

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

Move

• 470Hz 0

• 1KHz 0

• 2.2KHz 0

• 4.7KHz 0

• 12KHz 0

• Reset

Digital Audio Out : PCM

TV Speaker : On

AUDIO

Move

• 470Hz 0

• 1KHz 0

• 2.2KHz 0

• 4.7KHz 0

• 12KHz 0

• Reset

Digital Audio Out : PCM

TV Speaker : On

AUDIO

TV Speaker : Off TV Speaker : Off Off

SOUND & LANGUAGE CONTROL

Move

• 470Hz 0

• 1KHz 0

• 2.2KHz 0

• 4.7KHz 0

• 12KHz 0

• Reset

Digital Audio Out : PCM

TV Speaker : On

AUDIO

Move

• 470Hz 0

• 1KHz 0

• 2.2KHz 0

• 4.7KHz 0

• 12KHz 0

• Reset

Digital Audio Out : PCM

TV Speaker : On

AUDIO

Digital Audio Out : PCM Digital Audio Out : PCM Dolby Digital

PCM

Dolby Digital

Select

AUDIO

Select

Digital Audio Out

Select

Dolby Digital

PCM

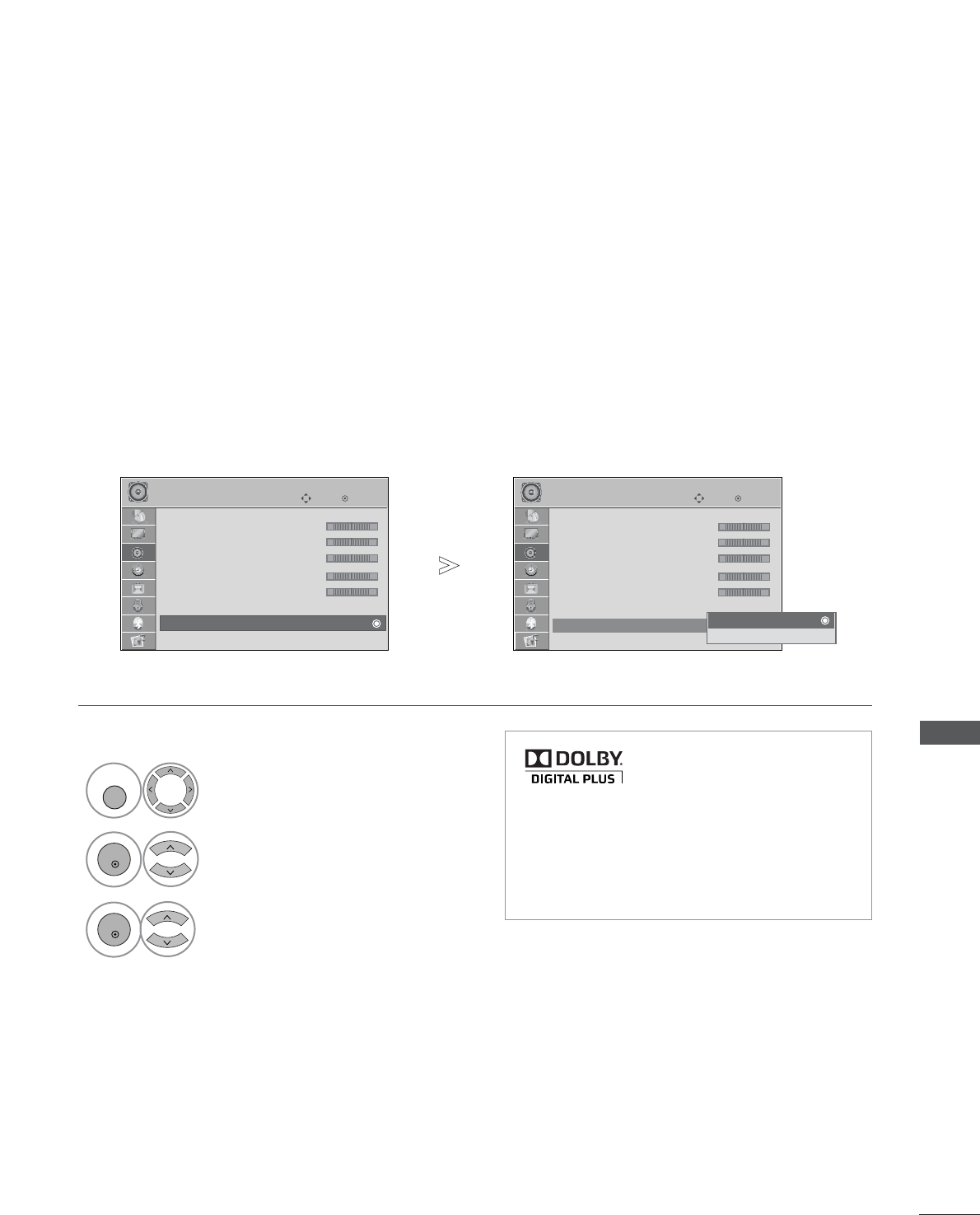

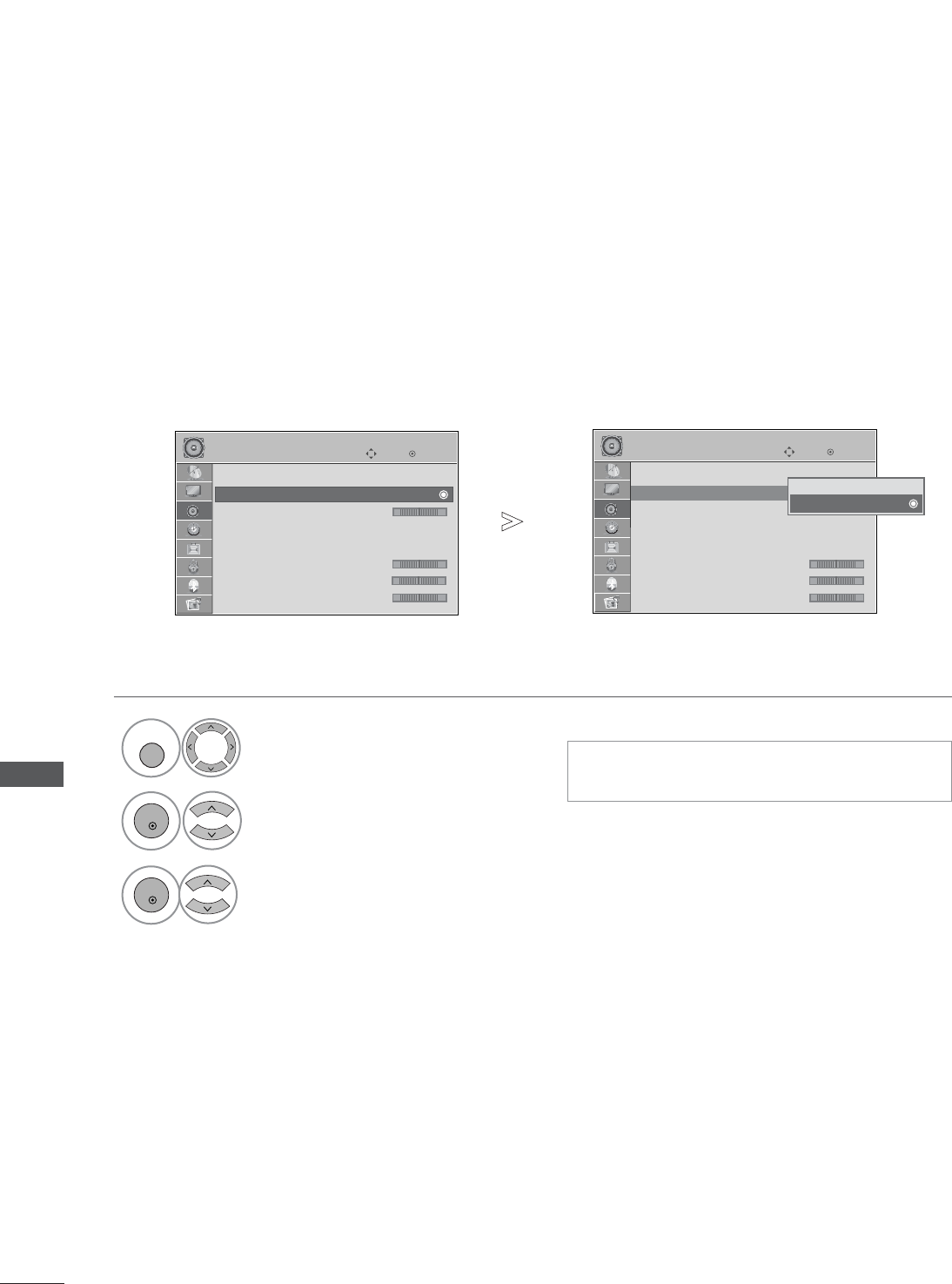

SELECTING DIGITAL AUDIO OUT

This function allows you to select your preferred Digital Audio Output.

The TV can only output DOLBY Digital if a channel is broadcast with Dolby Digital audio.

When Dolby digital is available, selecting Dolby Digital in the Digital Audio Out menu will set SPDIF output to

Dolby Digital

If Dolby Digital is selected in the digital audio out menu when dolby digital is not available, SPDIF output will be

PCM.

Even if both Dolby Digital and Audio language have been set in a channel which broadcast Dolby Digital Audio,

only Dolby Digital will be played.

Manufactured under license from

Dolby Laboratories. “

Dolby

“and

the double-D symbol are trade-

marks of Dolby Laboratories.

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

• There is a possibility that when HDMI mode,

some DVD players do not make SPDIF sound.

At that time, set the output of the digital audio

of the DVD player to PCM.

SOUND & LANGUAGE CONTROL

Move

• 220Hz 0

• 470Hz 0

• 1KHz 0

• 2.2KHz 0

• 4.7KHz 0

• 12KHz 0

• Reset

Digital Audio Out : PCM

AUDIO

Move

• 220Hz 0

• 470Hz 0

• 1KHz 0

• 2.2KHz 0

• 4.7KHz 0

• 12KHz 0

• Reset

Digital Audio Out : PCM

AUDIO

• Reset • Reset

Settings of the selected Sound Mode return to the default factory settings.

Select

AUDIO

Select

Reset

Initialize the adjusted value.

AUDIO RESET

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

Resetting sound mode configuration...

SOUND & LANGUAGE CONTROL

I/II

AMono sound selection

If the stereo signal is weak in stereo reception, you can switch to mono. In mono reception, the clarity of

sound is improved.

ALanguage selection for dual language broadcast

If a programme can be received in two languages (dual language), you can switch to DUAL I, DUAL II or DUAL

I+II.

DUAL I

Sends the primary broadcast language to the loudspeakers.

DUAL II

Sends the secondary broadcast language to the loudspeakers.

DUAL I+II

Sends a separate language to each loudspeaker.

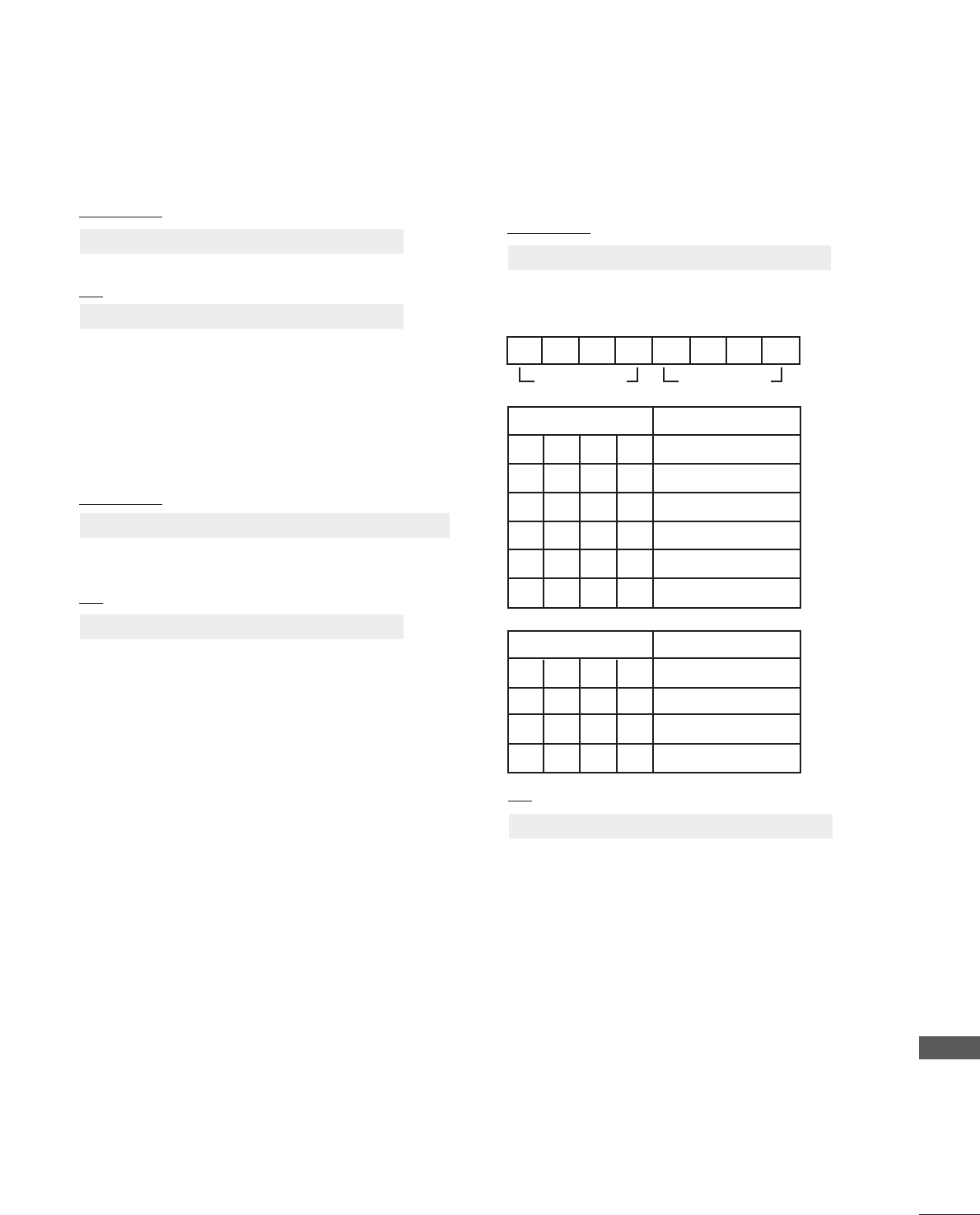

Broadcast

Mono

Stereo

Dual

On Screen Display

MONO

STEREO

DUAL I, DUAL II, DUAL I+II

Stereo/Dual Reception (In Analogue Mode Only)

When a programme is selected, the sound information for the station appears with the programme number

and station name.

Select

Audio

Select the sound output.

Q. MENU

SOUND & LANGUAGE CONTROL

100

SOUND & LANGUAGE CONTROL

NICAM Reception (In Analogue Mode Only)

When NICAM mono is received, you can select

NICAM MONO

FM MONO

When NICAM stereo is received, you can select

NICAM STEREO

FM MONO

If the stereo signal is weak, switch to

FM MONO

When NICAM dual is received, you can select

NICAM DUAL I

NICAM DUAL II

NICAM DUAL I+II

F M MO NO

If the TV is equipped with a receiver for NICAM reception, high quality NICAM (Near Instantaneous

Companding Audio Multiplex) digital sound can be received.

Sound output can be selected according to the type of broadcast received.

Speaker Sound Output Selection

In AV, Component, RGB and HDMI mode, you can select output sound for the left and right loud-

speakers.

Select the sound output.

L+R:

Audio signal from audio L input is sent to the left loudspeaker and audio signal from audio

R input is sent to the right loudspeaker.

L+L:

Audio signal from audio L input is sent to left and right loudspeakers.

R+R:

Audio signal from audio R input is sent to left and right loudspeakers.

SOUND & LANGUAGE CONTROL

101

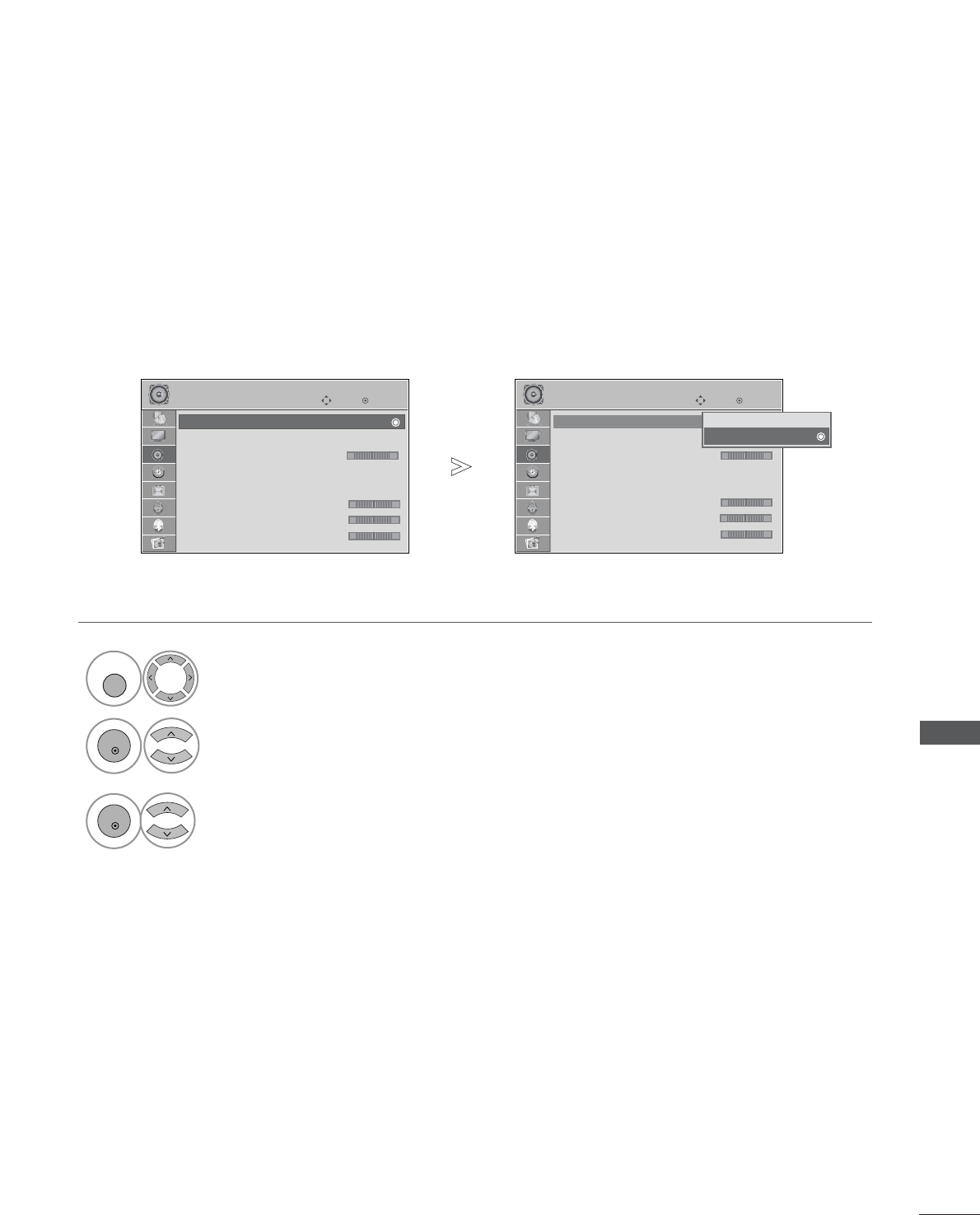

ON-SCREEN MENU LANGUAGE /

COUNTRY SELECTION

The installation guide menu appears on the TV screen when it is switched on for the first time.

* If you want to change Language/ Country selection

NOTE

If you do not finish the set-up

Installation Guide

by pressing

RETURN

or if you time out on the

OSD (On Screen Display) the installation menu will continuously appear until the set up is completed

whenever the TV is switched on

If you select the wrong local country, teletext may not appear correctly on the screen and some problems

may occur during teletext operation.

The CI (Common Interface) function may not be applied based on country broadcasting circumstances.

DTV mode control buttons may not function based on country broadcasting circumstances.

In country that Digital broadcasting regulation isn’t fixed, some DTV function may not work depending

on digital broadcasting circumstances.

The Country Setting "UK" should only be activated in UK.

Select your desired language.

Select your country.

Select

OPTION

Select

Menu Language

Country

Select your desired language or country.

Save.

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

SOUND & LANGUAGE CONTROL

102

SOUND & LANGUAGE CONTROL

The Audio function allows selection of a preferred language.

If audio data in a selected language is not broadcast, the default language audio will be played.

Use the Subtitle function when two or more subtitle languages are broadcast. If subtitle data in a selected lan-

guage is not broadcast, the default language subtitle will be displayed.

When the languages you selected as the primary for Audio Language and Subtitle Language are not supported,

you can select language in secondary category.

< Audio Language Selection >

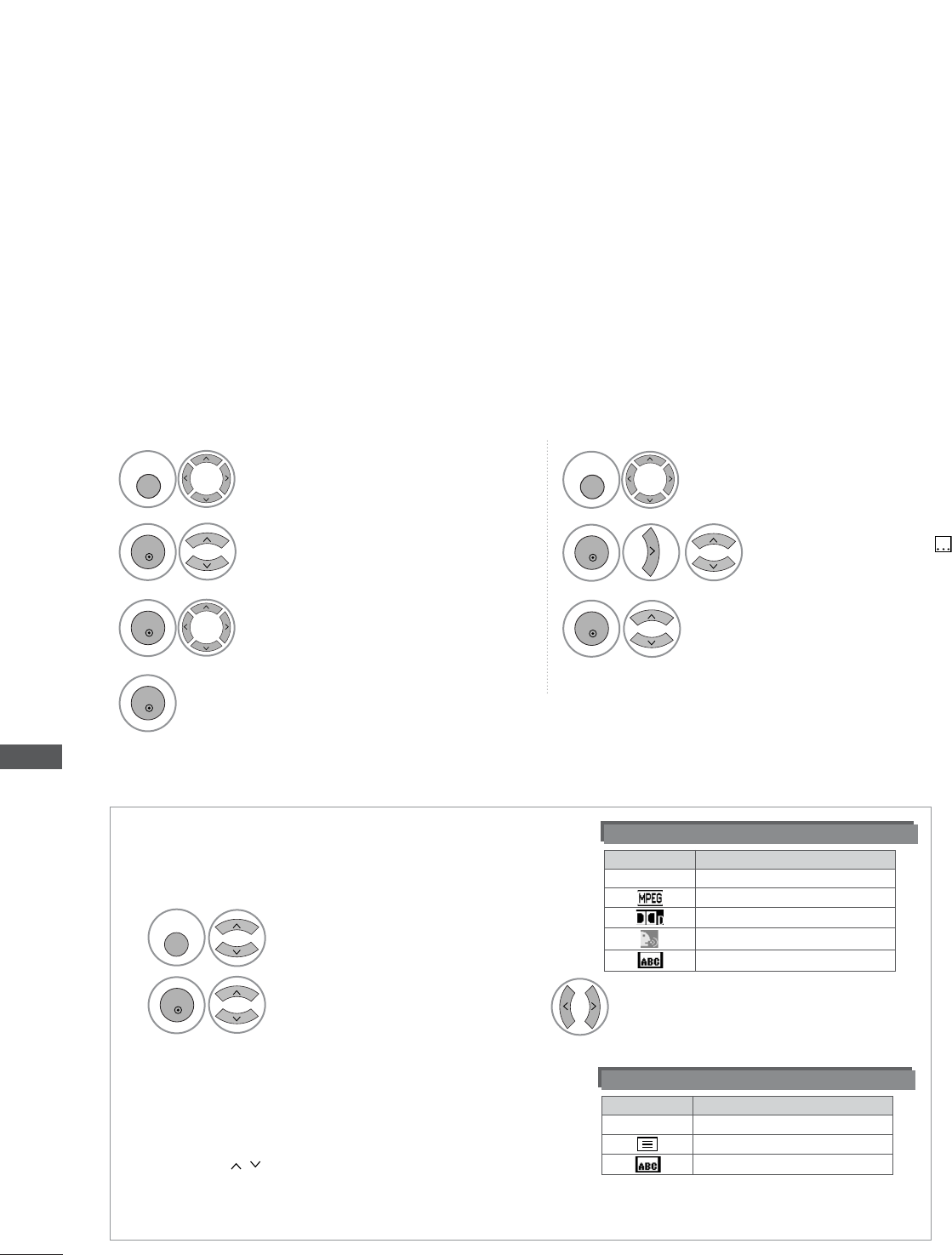

When two or more audio languages are broadcast, you can

select the audio language.

- The audio/subtitles can be displayed in a simpler form with 1 to 3 characters broadcast by the service provider.

- When you select supplementary Audio (Audio for “Visual/Hearing Impaired”) the TV may output a part of the Main audio.

Audio Language OSD Information

Status

Not Available

MPEG Audio

Dolby Digital Audio

Audio for “Visual Impaired”

Audio for “Hearing Impaired”

Display

N.A

< Subtitle Language Selection >

When two or more subtitle languages are broadcast, you

can select the subtitle language with the SUBTITLE button

on the remote control.

Press the button to select a subtitle language.

Subtitle Language OSD Information

Status

Not Available

Teletext Subtitle

Subtitle for “Hard of Hearing”

Display

N.A

Select

OPTION

Select

Audio Language

Subtitle Language

Select your desired language.

Save.

Select

Hard of Hearing( )

Select

O n

Off

Select

OPTION

• Press the

RETURN

button to move to the previous menu screen.

LANGUAGE SELECTION (IN DIGITAL MODE ONLY)

Select

Audio

Select an audio language. Select L+R, L+L or R+R.

Q. MENU

103

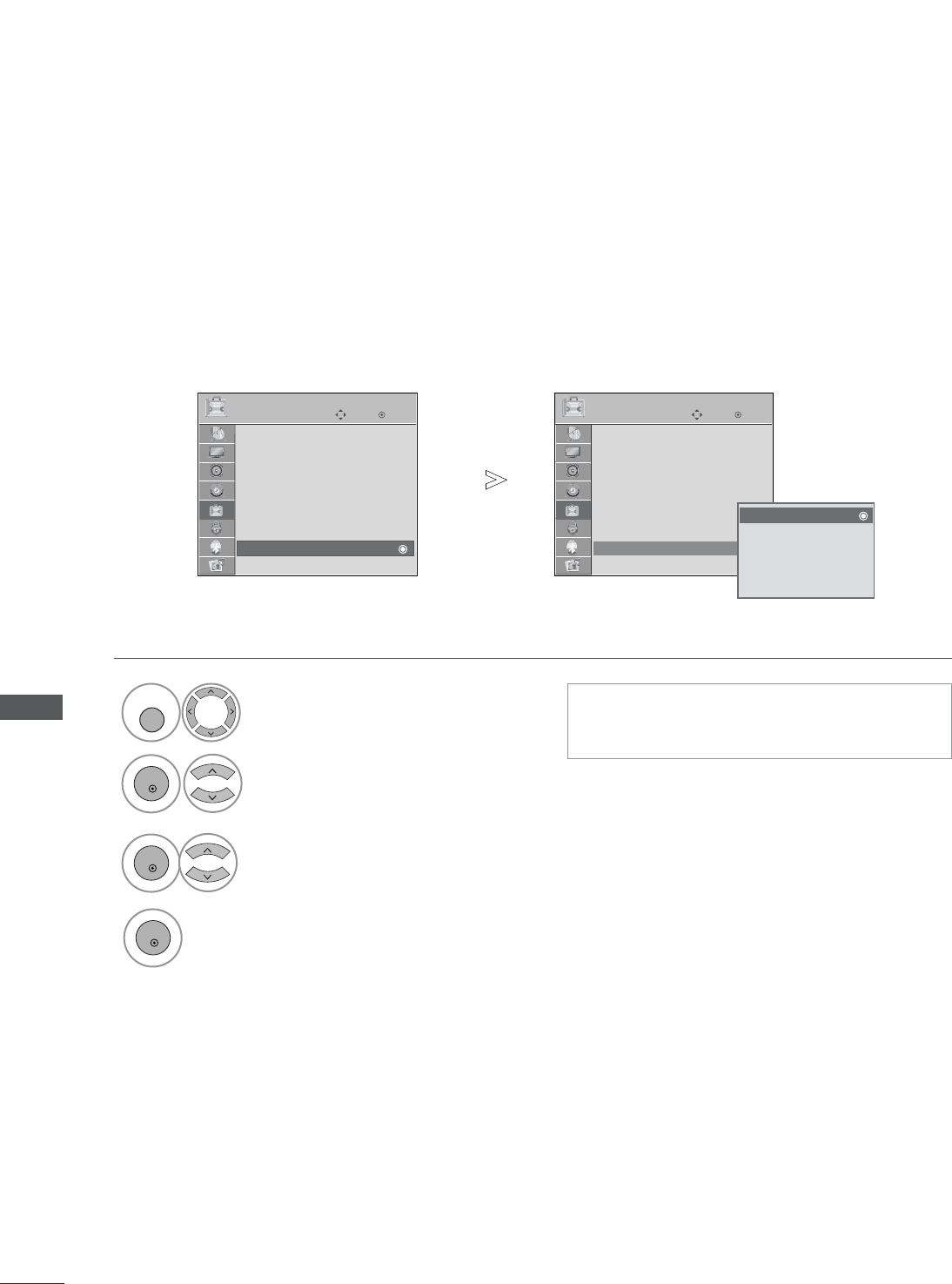

CLOCK SETUP

TIME SETTING

The clock is set automatically when receiving a digital signal. (You can set the clock manually only if the TV has no

DTV signal.)

You must set the time correctly before using on/off timer function.

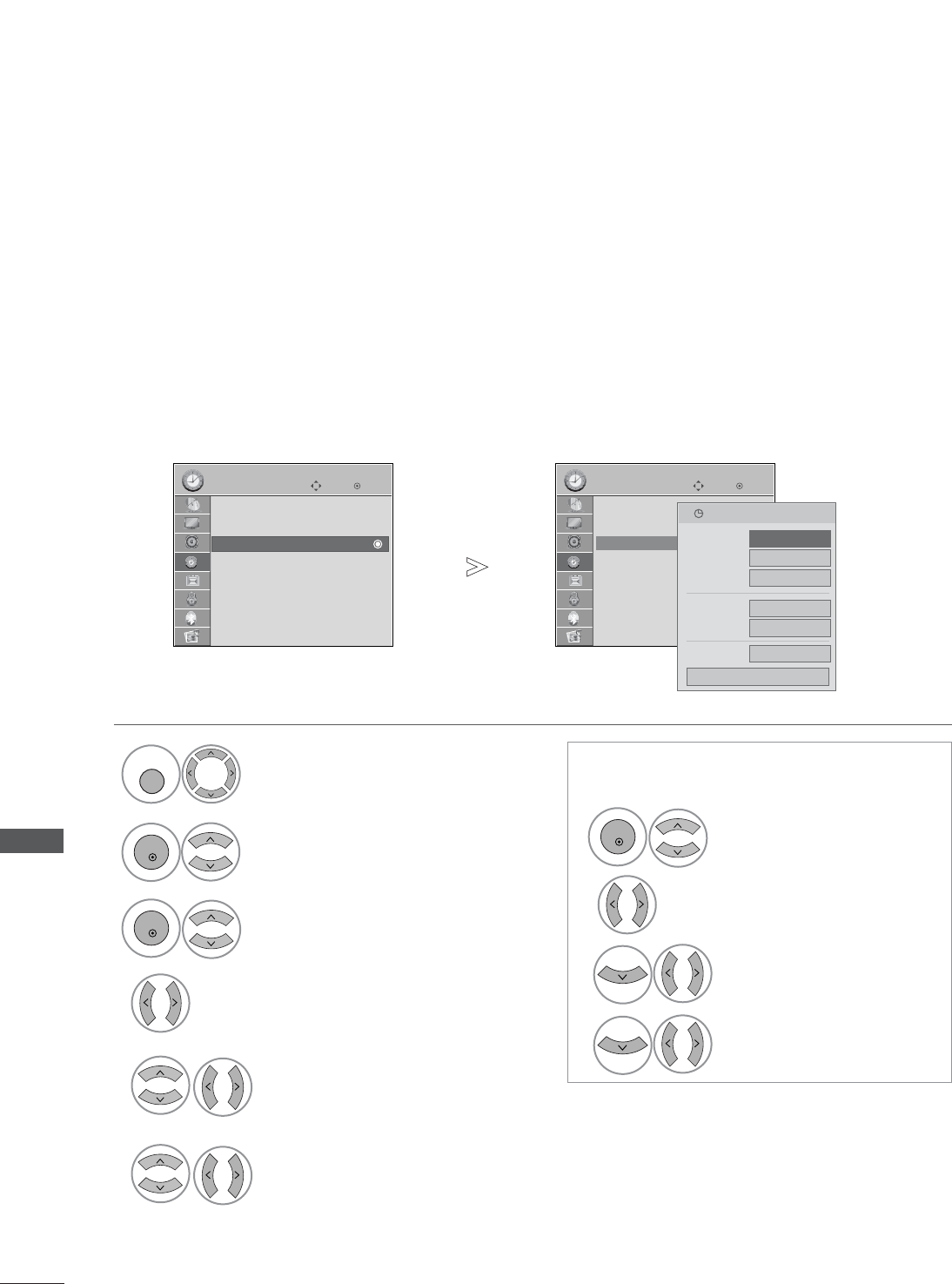

Select

TIME

Select

Clock

Select either the year, date, or time option.

Set the year, date, and time options.

Move

Clock

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Time Zone : Canary GMT

TIME

Move

Clock

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Time Zone : Canary GMT

TIME

Clock

Date 01

Month Mar

Year 2007

Hour 16

Minute 09

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

104

TIME SETTING

AUTO ON/OFF TIMER SETTING

TIME SETTING

The Off time function automatically switches the TV to standby at a preset time.

Two hours after the TV is switched on by the on time function it will automatically switch back to standby mode

unless a button has been pressed.

The Off time function overrides the On timer function if both are set to the same time.

The TV must be in standby mode for the On timer to work.

Select

TIME

Select

Off Time

On Time

Select

Repeat

Set the hour.

Set the minutes.

Select

Off

Once

Daily

Mon

Fri

Mon

Sat

Sun

• To cancel

On/Off Time

function, select

Off

• For On Time function only

Select

Mode

Select

DTV

Radio

Set the programme.

Adjust volume level at

switch-on.

Move

Clock

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Time Zone : Canary GMT

TIME

Move

Clock

Off Time :

Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Time Zone : Canary GMT

TIME

On Time : Off

On Time : Off Repeat

Off

Hour 00

Minute 00

Mode TV

Programme 1

Volume 30

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

1/Mar. 2007 16:09

105

AUTO SHUT-OFF SETTING

TIME SETTING

If the TV is switched on and there is no input signal, it will switch off automatically after 10 minutes.

Select

TIME

Select

Auto Sleep

Select

Off

O n

Move

Clock

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Time Zone : Canary GMT

TIME

Move

Clock

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Time Zone : Canary GMT

TIME

Auto Sleep : Off

Auto Sleep : Off Off

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

106

TIME SETTING

TIME ZONE SETUP

TIME SETTING

You do not have to remember to switch the TV off before you go to sleep.

The sleep timer automatically switches the TV to standby after the preset time has elapsed.

SLEEP TIMER SETTING

When you select a Time Zone city, the TV time is set by the time offset information based on Time Zone and

GMT (Greenwich Mean Time) which is received with the broadcast signal and the time is set automatically by a

digital signal.

Select

TIME

Select

Time Zone

Select your viewing area time zone.

Confirm it.

• When you switch the TV off, the preset sleep timer is cancelled.

• You can also adjust

Sleep Timer

in the

TIME

menu.

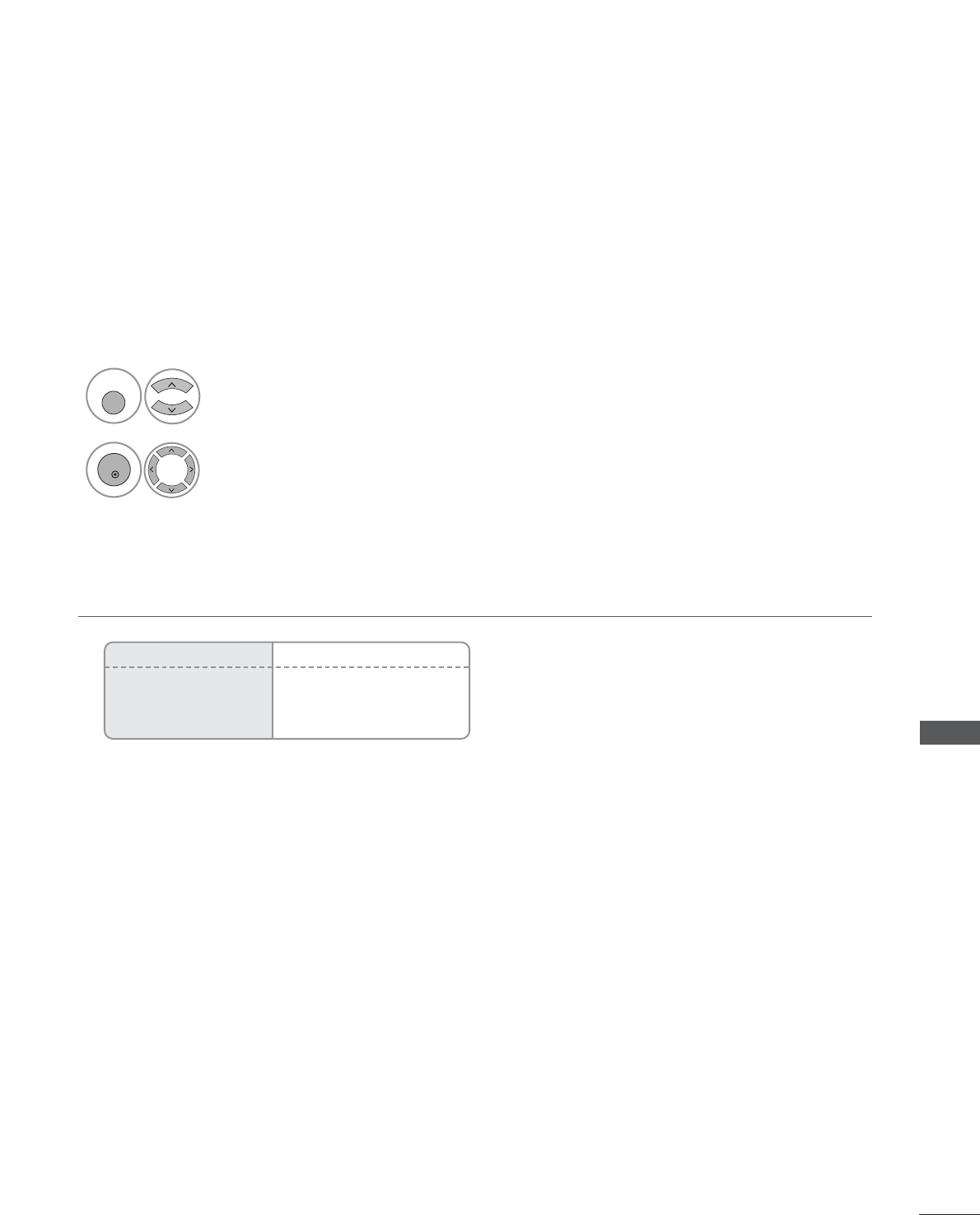

Select

Sleep Timer

Select

Off

1 0

2 0

3 0

6 0

9 0

120

180

240 Min

OK OK

Q. MENU

107

PARENTAL CONTROL / RATINGS

SET PASSWORD & LOCK SYSTEM

PARENTAL CONTROL / RATINGS

Enter the password, press ‘0’, ‘0’, ‘0’, ‘0’ on the remote control handset.

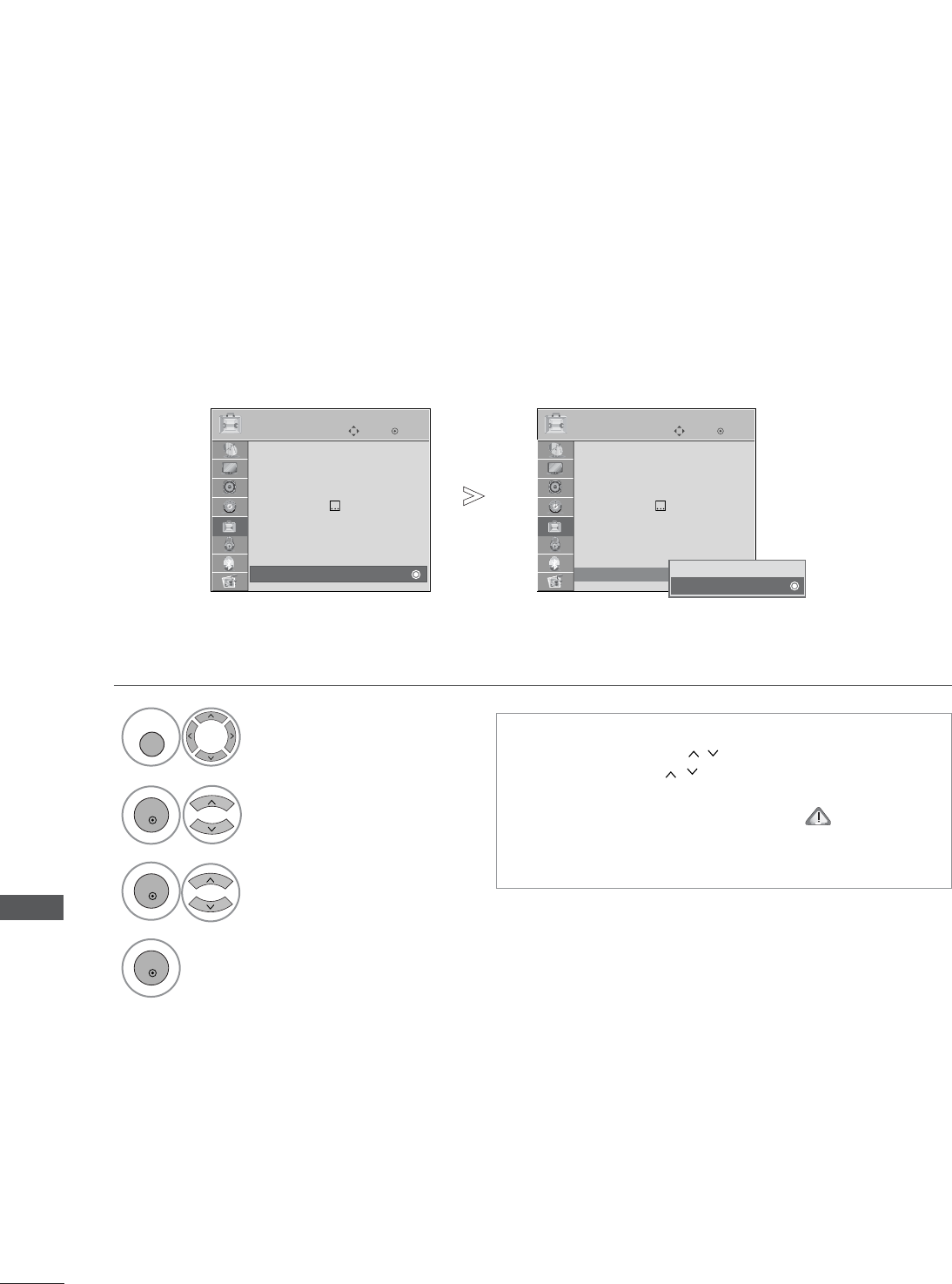

Select

LOCK

Select

Lock System

Select

O n

Set the password.

Input a 4-digit password.

Be sure to remember this number!

Re-enter new password for confirm.

• If you forget your password, press ‘7’, ‘7’, ‘7’, ‘7’

on the remote control handset.

Move

Lock System : Off

Set Password

Block Programme

Parental Guidance : Off

LOCK

Move

Lock System : Off

Set Password

Block Programme

Parental Guidance : Off

LOCK

Lock System : Off

Lock System : Off Off

456

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

YLE TV11

Pr. Change Page Change

TV DTV Radio

1 YLE TV1 2 YLE TV2

4 TV4 Stockholm

5 YLE FST

6 CNN 8 YLE24

9 YLE Teema 14 TV4 Film

24 TV4 Fakta 50 TV400

Navigation Previous

Return

Block/Unblock

108

PARENTAL CONTROL / RATINGS

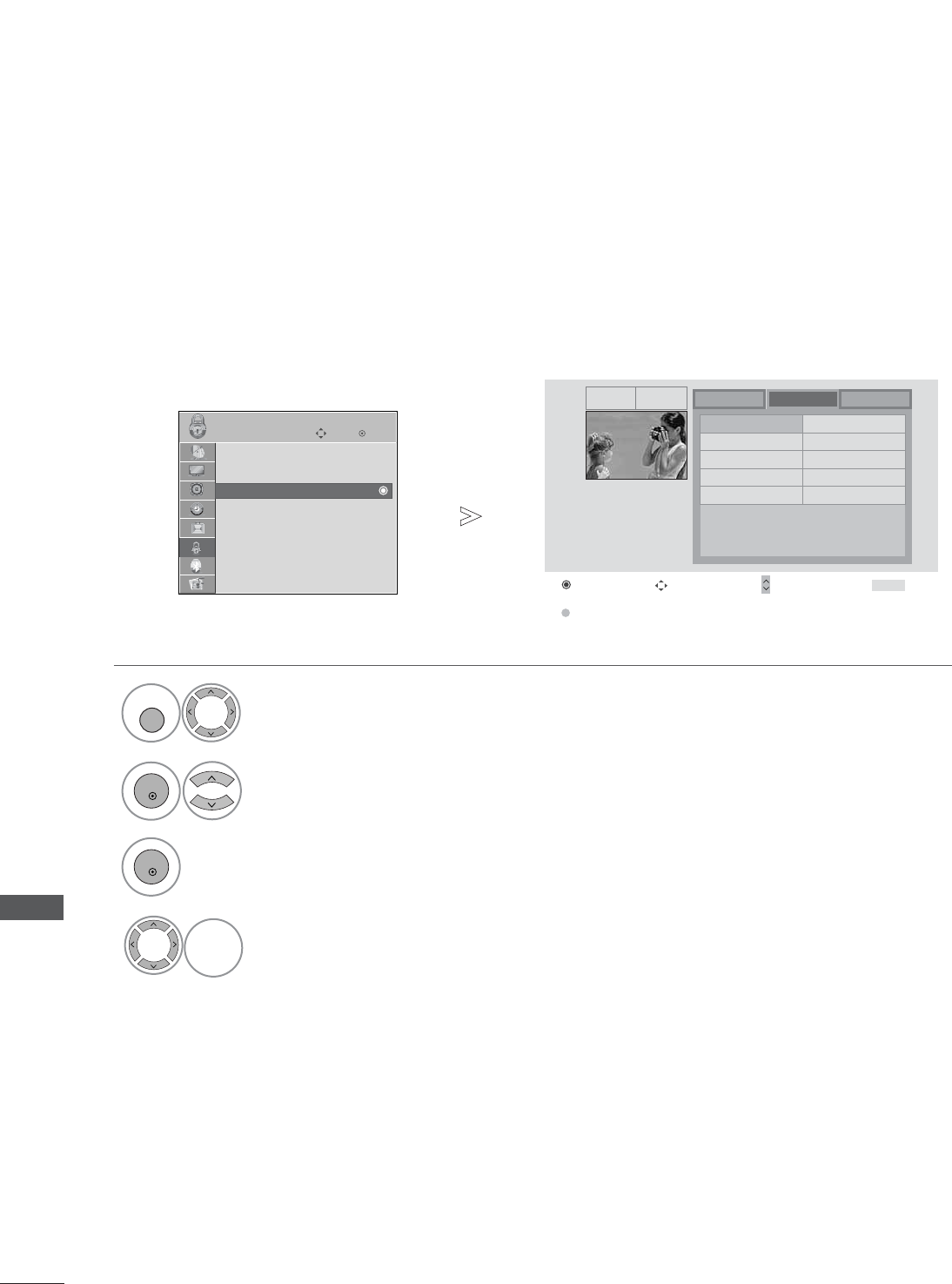

BLOCK PROGRAMME

PARENTAL CONTROL / RATINGS

Blocks any programmes that you do not want to watch or that you do not want your children to watch.

It is available to use this function in

Lock System

”

O n

”.

Select

LOCK

Select

Block Programme

Enter the

Block Programme

Select a programme to be locked.

Move

Lock System : Off

Set Password

Block Program

Parental Guidance : Off

LOCK

Block Programme

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

GREEN

Move

Lock System : Off

Set Password

Block Programme

Parental Guidance

LOCK

Move

Lock System : Off

Set Password

Block Programme

Parental Guidance

LOCK

Parental Guidance

Parental Guidance : Off

109

PARENTAL CONTROL

PARENTAL CONTROL / RATINGS

This function operates according to information from the broadcasting station. Therefore if the signal has incor-

rect information, this function does not operate.

A password is required to gain access to this menu.

This set is programmed to remember which option it was last set to even if you switch the set off.

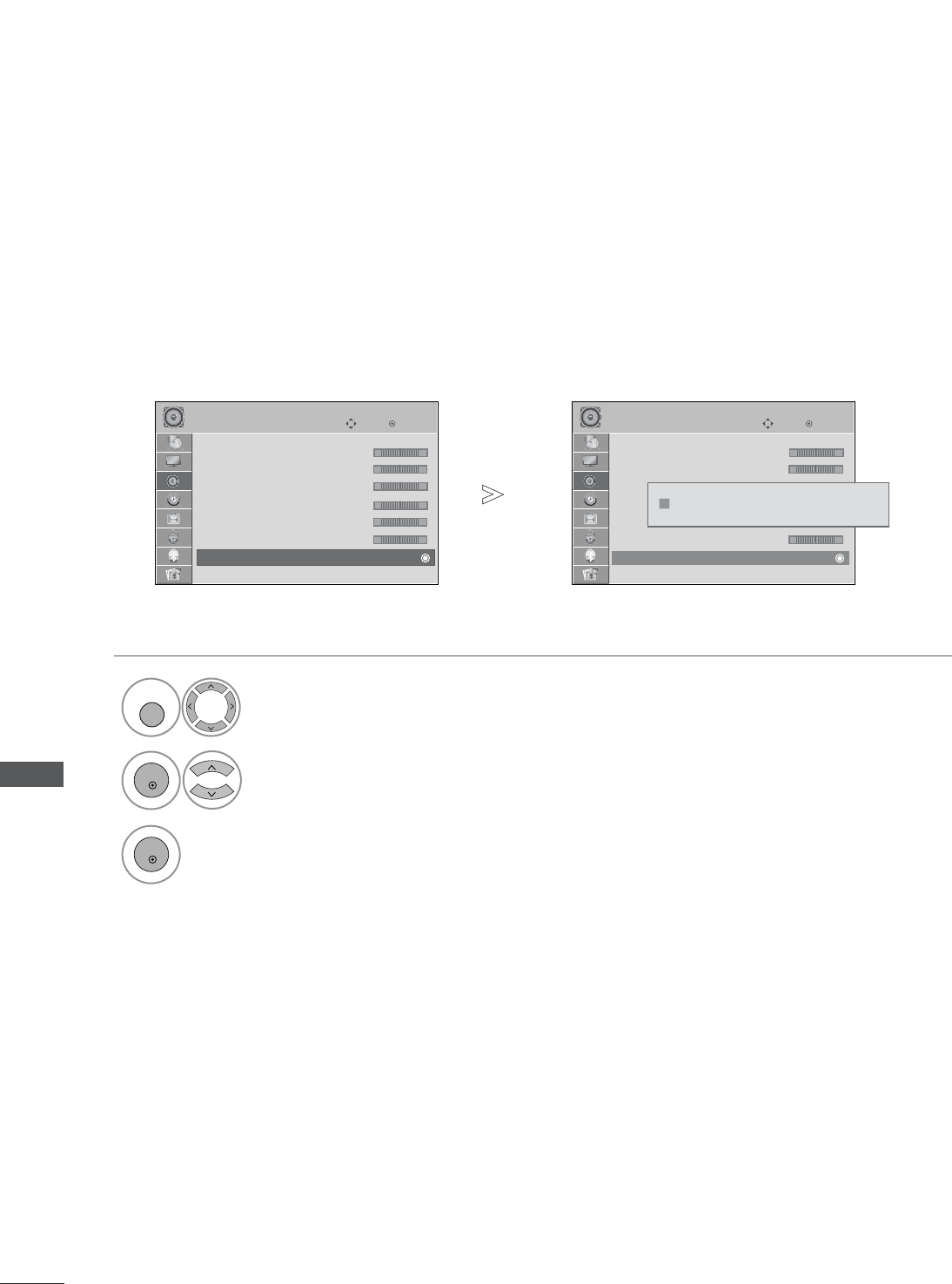

Prevents children from watching certain adult’s TV programmes, according to the ratings limit set.

Select

LOCK

Select

Parental Guidance

Make appropriate adjustments.

Save.

Off

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

Move

Menu Language : English

Audio Language : English

Subtitle Language : English

Hard of Hearing( )

: Off

Country : UK

Input Label

SIMPLINK : On

Key Lock : Off

OPTION

Key Lock : Off

Move

Menu Language : English

Audio Language : English

Subtitle Language : English

Hard of Hearing( )

: Off

Country : UK

Input Label

SIMPLINK : On

Key Lock : Off

OPTION

Off

Key Lock : Off

110

PARENTAL CONTROL / RATINGS

KEY LOCK

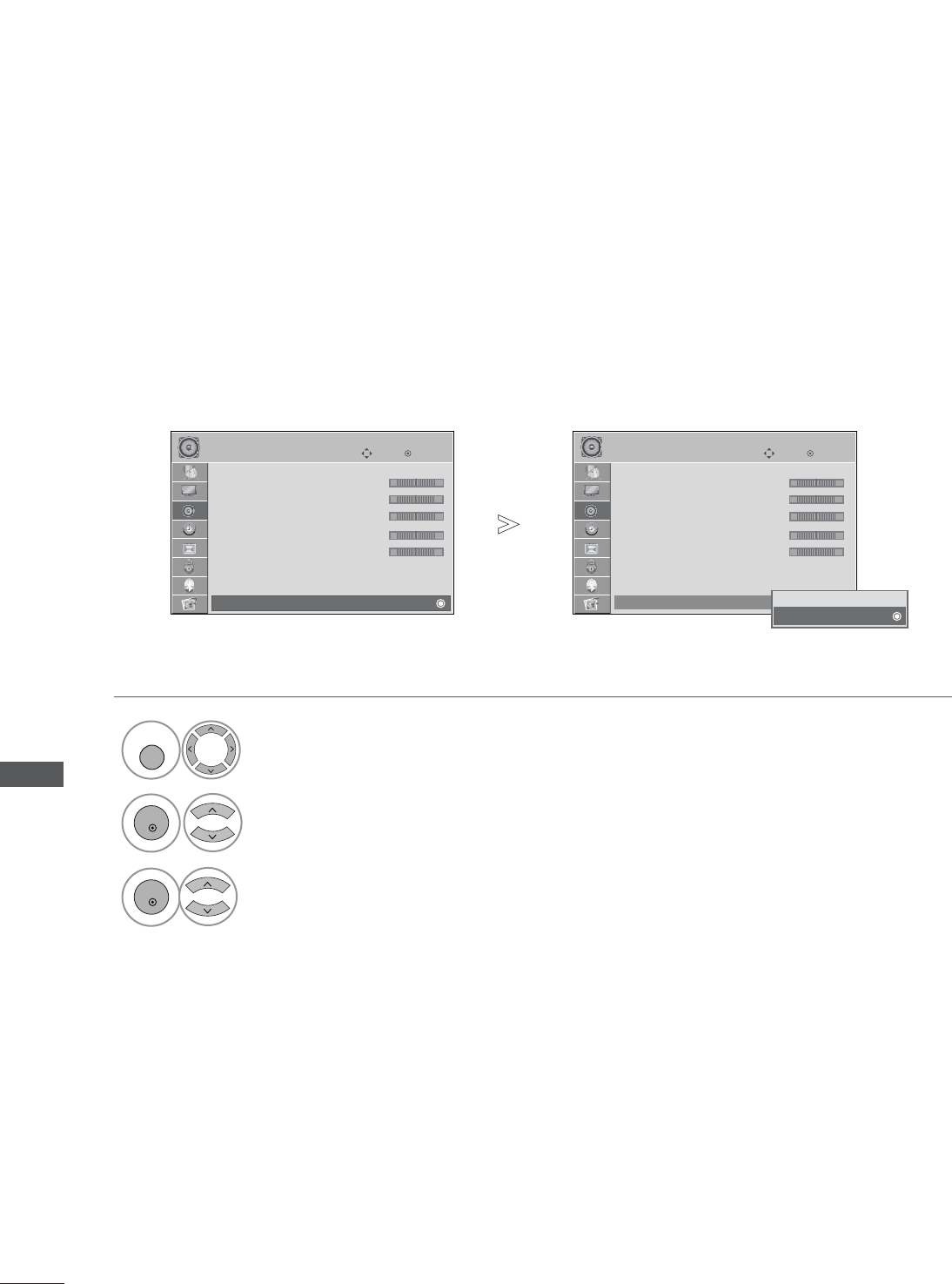

PARENTAL CONTROL / RATINGS

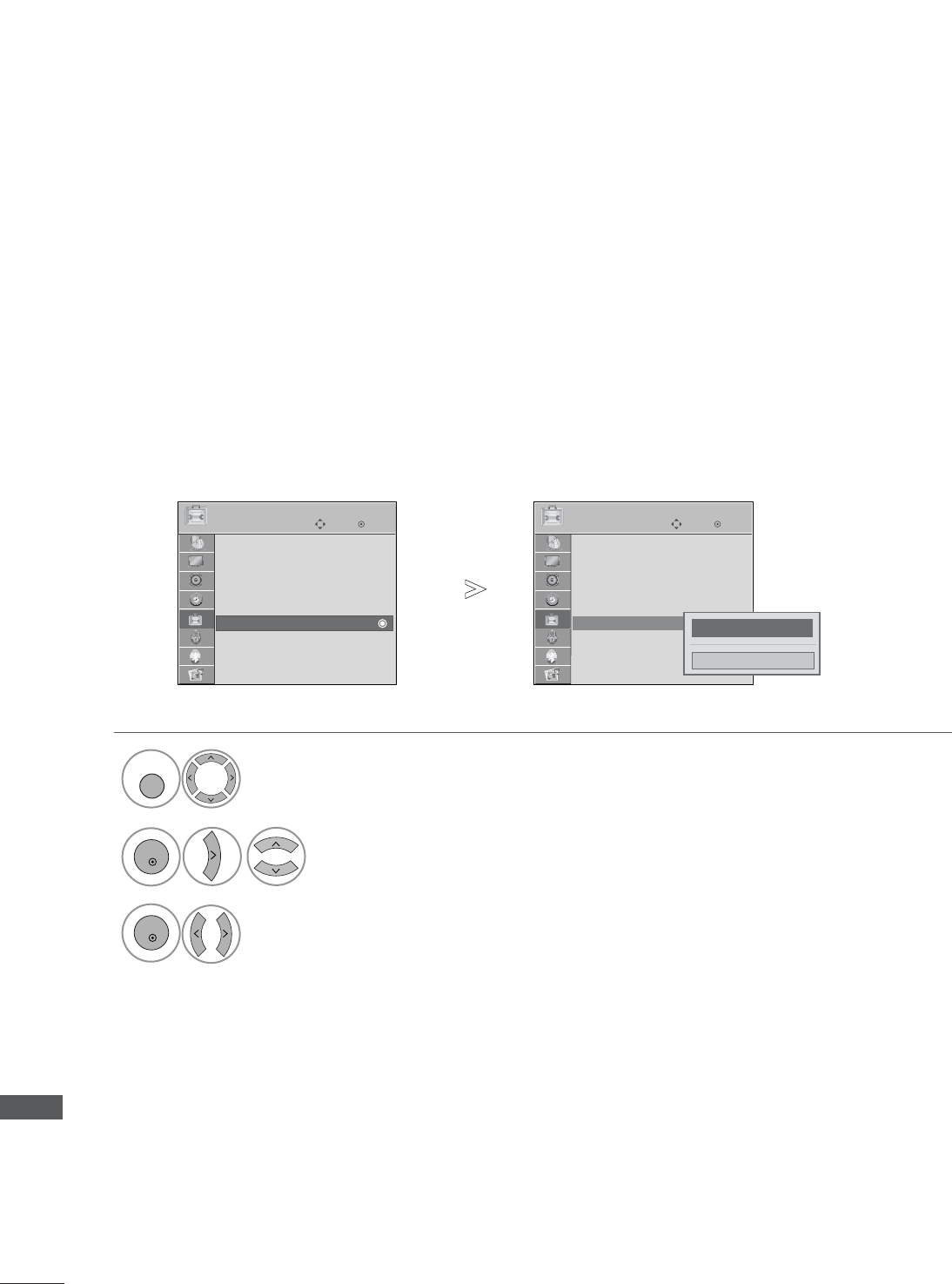

The TV can be set so that the remote control is required to control it. This feature can be used to prevent unau-

thorized viewing.

Select

OPTION

Select

Key Lock

Select

Off

Save.

• In

Key Lock

‘

O n

’, if the TV is turned off, press the

/ I,

INPUT, P Dor E(or P) button on the TV or

POWER, INPUT, P or NUMBER buttons on the

remote control then the set will be turned on.

• With the

Key Lock On

, the display ‘

Key Lock

’ appears on the screen if any

button on the front panel is pressed while viewing the TV.

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

111

TELETEXT

This feature is not available in all countries.

TELETEXT

TOP TEXT

The user guide displays four fields-red, green, yellow and blue at the bottom of the screen. The yellow field

denotes the next group and the blue field indicates the next block.

Block / group / page selection

With the blue button you can progress from block to block.

Use the yellow button to proceed to the next group with automatic overflow to the next block.

With the green button you can proceed to the next existing page with automatic overflow to the next group.

Alternatively the Pbutton can be used.

The red button returns to the previous selection. Alternatively the P button can be used.

Direct page selection

As with SIMPLE teletext mode, you can select a page by entering it as a three digit number using the NUMBER

buttons in TOP mode.

Press the

TEXT

button to switch to teletext. The initial page or last page viewed appears on the screen.

Two page numbers, TV station name, date and time are displayed on the screen headline. The first page number

indicates your selection, while the second shows the current page displayed.

Press the

TEXT

button to switch off teletext. The previous mode reappears.

SWITCH ON/OFF

Page selection

Enter the desired page number as a three digit number with the NUMBER buttons. If during selection you

press a wrong number, you must complete the three digit number and then re-enter the correct page number.

The Pbutton can be used to select the preceding or following page.

SIMPLE TEXT

Teletext is a free service broadcast by most TV stations which gives up-to-the-minute information on news,

weather, television programmes, share prices and many other topics.

The teletext decoder of this TV can support the SIMPLE, TOP and FASTEXT systems. SIMPLE (standard tele-

text) consists of a number of pages which are selected by directly entering the corresponding page number.

TOP and FASTEXT are more modern methods allowing quick and easy selection of teletext information.

112

TELETEXT

SPECIAL TELETEXT FUNCTIONS

AREVEAL

Select this menu to display concealed information, such as solutions to riddles or puzzles.

AUPDATE

Displays the TV picture on the screen while waiting for a new teletext page. The display will appear at the top left

hand corner of the screen. When the updated page is available then display will change to the page number. Select

this menu again to view the updated teletext page.

ATIME

When viewing a TV programme, select this menu to display the time at the top right hand corner of the screen.

In the teletext mode, press this button to select a sub page number. The sub page number is displayed at the bot-

tom of the screen. To hold or change the sub page, press the RED/GREEN, or NUMBER buttons.

AHOLD

Stops the automatic page change which will occur if a teletext page consists of 2 or more sub pages. The num-

ber of sub pages and the sub page displayed is, usually, shown on the screen below the time. When this menu is

selected the stop symbol is displayed at the top left-hand corner of the screen and the automatic page change

is inactive.

FASTEXT

The teletext pages are colour coded along the bottom of the screen and are selected by pressing the correspond-

ing coloured button.

Page selection

Press the

T.OPT

button and then use button to select menu. Display the index page.

You can select the pages which are colour coded along the bottom line with corresponding coloured buttons.

AS with SIMPLE teletext mode, you can select a page by entering its three digit page number with the NUM-

BER buttons in FASTEXT mode.

The Pbutton can be used to select the preceding or following page.

■Press the

T. OPT

button and then use button to select the

Text Option

menu.

113

DIGITAL TELETEXT

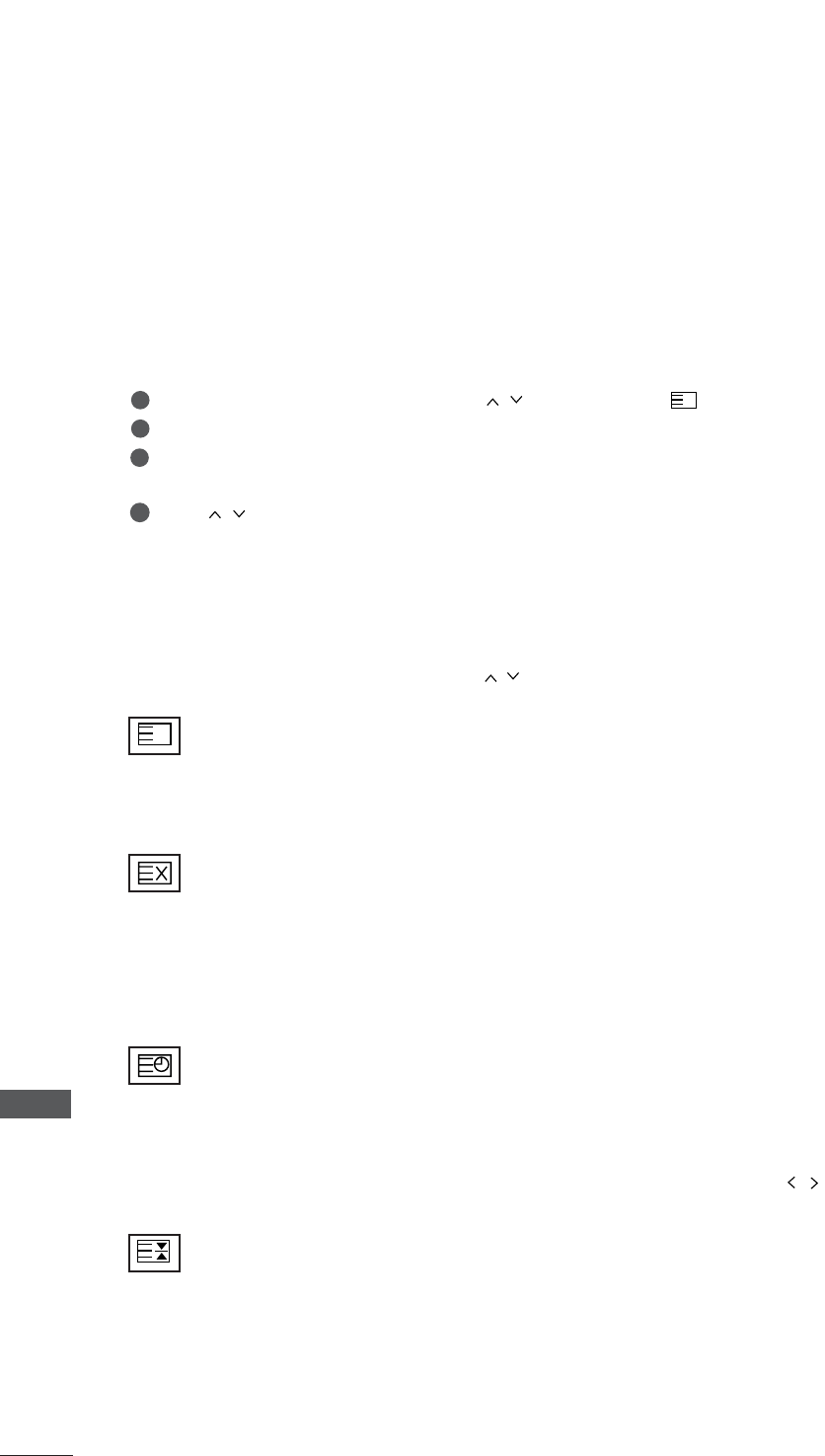

Press the numeric or P button to select a digital ser-

vice which broadcasts digital teletext.

To know which are digital teletext services, refer to the

EPG service list.

Follow the indications on digital teletext and move onto the

next step by pressing TEXT, OK, , RED,

GREEN, YELLOW, BLUE or NUMBER buttons and etc..

To change digital teletext service, select a different ser-

vice by the numeric or P button.

Press the numeric or P button to select a certain

service which broadcasts digital teletext.

Press the TEXT or coloured button to switch on teletext.

Follow the indications on digital teletext and move onto

the next step by pressing OK, , RED, GREEN,

YELLOW, BLUE or NUMBER buttons and so on.

Press the TEXT or colour button to switch off digital tele-

text and return to TV viewing.

Some services may allow you to access text services by

pressing the RED button.

*This function works in UK only.

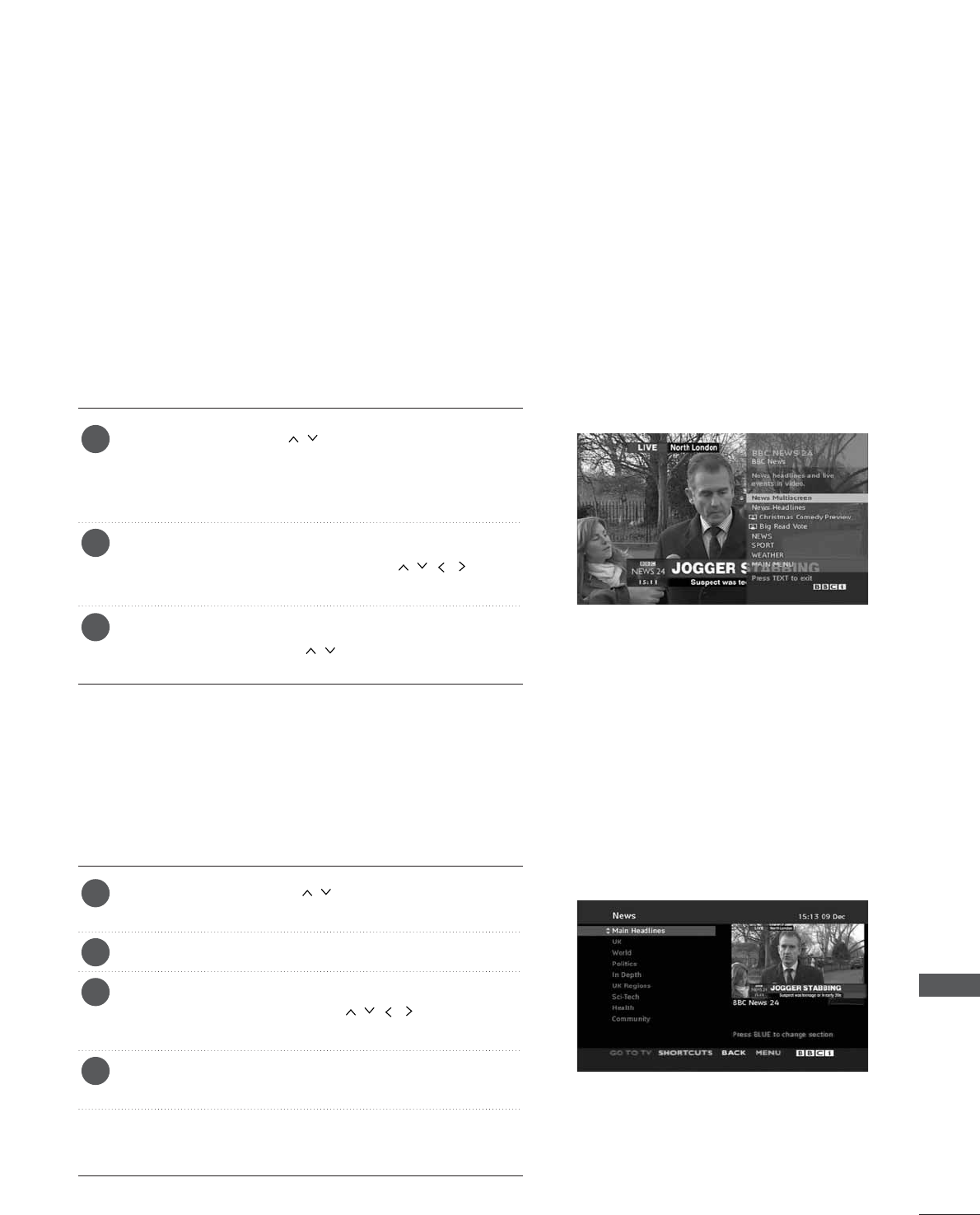

The TV gives you access to digital teletext which is greatly improved in various aspects such as text, graphics etc.

This digital teletext can access special digital teletext services and specific services which broadcast digital teletext.

You should select off in the subtitle language menu to display teletext by pressing the SUBTITLE button.

TELETEXT WITHIN DIGITAL SERVICE

TELETEXT IN DIGITAL SERVICE

APPENDIX

114

APPENDIX

TROUBLESHOOTING

The TV does not operate properly.

The remote control

does not work

Power is suddenly

turned off

ACheck to see if there is any object between the TV and the remote control causing

an obstruction. Ensure you are pointing the remote control directly at the TV.

AEnsure that the batteries are installed with correct polarity (+ to +, - to -).

AEnsure that the correct remote operating mode is set : TV, STB etc.

AInstall new batteries.

AIs the sleep timer set?

ACheck the power control settings. Has the Power supply been interrupted.

AIs Auto sleep activated on this station?

No picture & No sound

No or poor colour

or poor picture

Poor reception on

some channels

Lines or streaks

in pictures

No picture

when connecting HDMI

Horizontal/vertical bars

or picture shaking

Picture appears slowly

after switching on

ACheck whether the TV is switched on.

ATry another channel. The problem may be with the broadcast.

AIs the power cord inserted correctly into the mains?

ACheck your antenna direction and/or location.

ATest the mains outlet by plugging another TV into the same outlet.

AThis is normal, the image is muted during the TV startup process. Please contact

your service centre, if the picture has not appeared after five minutes.

AAdjust Colour in menu option.

AAllow a sufficient distance between the TV and the VCR.

ATry another channel. The problem may be with the broadcast.

AAre the video cables installed properly?

AActivate any function to restore the brightness of the picture.

ACheck for local interference such as an electrical appliance or power tool.

AStation or cable channel experiencing problems, tune to another station.

AStation signal is weak, reposition the antenna to receive weaker stations.

ACheck for sources of possible interference.

ACheck antenna (Change the position of the antenna).

ACheck HDMI cable over version 1.3.

If the HDMI cables don’t support HDMI version 1.3, it can cause flickers or no

screen display. In this case use the latest cables that support HDMI version 1.3.

The video function does not work.

115

APPENDIX

There is a problem in PC mode. (Only PC mode applied)

AAdjust resolution, horizontal frequency, or vertical frequency.

ACheck the input source.

AUse Auto configure or adjust clock, phase, or H/V position. (Option)

ACheck the signal cable.

AReinstall the PC video card.

The signal is out of range

(Invalid format)

Screen colour is unstable

or single colour

Vertical bar or stripe on

background &

Horizontal Noise &

Incorrect position

The audio function does not work.

APress the

button.

ASound muted? Press MUTE button.

ATry another channel. The problem may be with the broadcast.

AAre the audio cables installed properly?

AAdjust

Balance

in menu option.

AA change in ambient humidity or temperature may result in an unusual noise

when the TV is switched on or off and does not indicate a fault with the TV.

ACheck HDMI cable over version 1.3.

ACheck USB cable over version 1.1.

Picture OK & No sound

Unusual sound from

inside the TV

No sound when

connecting HDMI

or USB

No output from one

of the speakers

*This feature is not available for all models.

APPENDIX

MAINTENANCE

116

APPENDIX

Early malfunctions can be prevented. Careful and regular cleaning can prolong the life of your new TV.

Caution: Be sure to switch the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

A good way to keep the dust off your screen for a while is to wet a soft cloth in a mixture of lukewarm water

and a little fabric softener or dish washing detergent. Wring the cloth until it is almost dry, and then use it

to wipe the screen.

Ensure there is no excess water on the screen. Allow any water or dampness to evaporate before switching on.

Cleaning the Cabinet

ATo remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.

ADo not to use a wet cloth.

Extended Absence

GIf you expect to leave your TV dormant for prolonged periods (such as a holiday), unplug the power

cord to protect against possible damage from lightning or power surges.

CAUTION

117

PRODUCT SPECIFICATIONS

APPENDIX

■The specifications shown above may be changed without prior notice for quality improvement.

918.6 x 684.8x 293.4mm

36.2x 26.9 x 11.6 inches

918.6x 635.8x 111.7mm

36.2x 25 x 4.4 inches

18.5kg / 40.8 lbs

15.8 kg / 34.8lbs

AC100-240V~50/60Hz

180W

1026.2 x 734 x 293.4 mm

40.4 x 28.8 x 11.5 inches

1026.2 x 687.9 x 111.8 mm

40.4 x 27.0 x 4.4 inches

22.1kg / 48.7 lbs

19.4 kg / 42.8lbs

AC100-240V~50/60Hz

230W

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

Environment condition

Television System

Program Coverage

External Antenna Impedance

PAL/SECAM B/G/D/K, PAL I/II, SECAM L/L’

VHF: E2 ~E12, UHF: E21 ~E69, CATV: S1 ~S20, HYPER: S21 ~S47

75 Ω

0 ~40°C / 32 ~ 104°F

Less than 80%

-20 ~60°C / -4 ~ 140°F

Less than 85%

Dimensions

(Width x Height x Depth)

Weight

Power requirement

Power Consumption

with stand

without stand

with stand

without stand

37LG 70 **

37LG7000-ZA

797 x 597 x 227.3 mm

31.3 x 23.5 x 8.9 inches

797x 558.6x 100.5mm

31.3 x 21.9 x 3.9 inches

13.0kg / 28.7 lbs

11.5kg /25.4 lbs

AC100-240V~50/60Hz

180W

32LG70**

32LG7000-ZA

42LG70**

42LG7000-ZA

MODELS

1140.4 x 820.1 x 342.9 mm

44.8 x 32.2 x 13.5 inches

1140.4 x 764.8 x 129.0 mm

44.8 x 30.1 x 5.0 inches

29.8 kg / 65.7lbs

25.1 kg / 55.3 lbs

AC100-240V~50/60Hz

300W

1284.4 x 898.6 x 342.9 mm

50.5 x 35.3 x 13.5 inches

1284.4 x 844.6 x 129.5 mm

50.5 x 33.2 x 5.1 inches

39.5 kg / 87.1 lbs

34.8kg / 76.7lbs

AC100-240V~50/60Hz

350W

Dimensions

(Width x Height x Depth)

Weight

Power requirement

Power Consumption

with stand

without stand

with stand

without stand

47LG70**

47LG7000-ZA

52LG70**

52LG7000-ZA

MODELS

118

APPENDIX

■The specifications shown above may be changed without prior notice for quality improvement.

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

Environment condition

Television System

Program Coverage

External Antenna Impedance

PAL/SECAM B/G/D/K, PAL I/II, SECAM L/L’

VHF: E2 ~E12, UHF: E21 ~E69, CATV: S1 ~S20, HYPER: S21 ~S47

75 Ω

0 ~40°C / 32 ~ 104°F

Less than 80%

-20 ~60°C / -4 ~ 140°F

Less than 85%

1235.6 x 849.3 x 364.1 mm

48.6 x 33.4x 14.3inches

1235.6 x 792.8 x 79.6 mm

48.6x 31.2 x 3.1 inches

45.65 kg / 100.6 lbs

41.7kg / 91.9lbs

AC100-240V~50/60Hz

520W

1455 x 985 x 414 mm

57.3 x 38.8 x 16.3 inches

1455 x 924.8 x 84.1 mm

57.3 x 36.4 x 3.3 inches

62.4kg / 137.6 lbs

54.9 kg / 121.0 lbs

AC100-240V~50/60Hz

700W

Dimensions

(Width x Height x Depth)

Weight

Power requirement

Power Consumption

with stand

without stand

with stand

without stand

50PG70**

50PG7000-ZB

60PG70**

60PG7000-ZB

MODELS

119

APPENDIX

PROGRAMMING THE REMOTE CONTROL

Programming a code into a remote mode

Testing your remote control.

To find out whether your remote control can operate other components without programming, turn on a

component such as a STB and press the corresponding mode button (such as a

STB

) on the remote con-

trol, while pointing at the component. Test the POWER and P buttons to see if the component

responds correctly. If the component does not operate correctly, the remote control requires programming

to operate the device.

Switch on the component to be programmed, then press the corresponding mode button (such as

ST B

)

on the remote control. The remote control button of the desired device is illumintated.

Press the

and

MUT

E buttons simultaneously, the remote control is ready to be programmed with

the code.

Enter a code number using the number buttons on the remote control. Programming code numbers for the

corresponding component can be found on the following pages. If the code is correct, the device will turn

off.

Press the

button to store the code.

Test the remote control functions to see if the component responds correctly. If not, repeat from step 2.

The remote control is a multi brand or universal remote. It can be programmed. to operate most remote

controlled devices from other manufacturers.

Note that the remote control may not control all models from other brands.

120

APPENDIX

Brand Codes Brand Codes Brand Codes

HDSTB

ALPHASTAR DSR 123

AMPLICA 050

BIRDVIEW 051 126 129

CHANNEL MASTER 013 014 015 018

036 055

CHAPARRAL 008 009 012 077

CITOH 054

CURTIS MATHES 050 145

DRAKE 005 006 007 010

011 052 112 116

141

DX ANTENNA 024 046 056 076

ECHOSTAR 038 040 057 058

093 094 095 096

097 098 099 100

122

ELECTRO HOME 089

EUROPLUS 114

FUJITSU 017 021 022 027

133 134

GENERAL INSTRUMENT

003 004 016 029

031 059 101

HITACHI 139 140

HOUSTON TRACKER

033 037 039 051

057 104

HUGHES 068

JANIEL 060 147

JERROLD 061

KATHREIN 108

LEGEND 057

LG 001

LUTRON 132

LUXOR 062 144

MACOM 010 059 063 064

065

MEMOREX 057

NEXTWAVE 028 124 125

NORSAT 069 070

PACE SKY SATELLITE

143

PANASONIC 060 142

PANSAT 121

PERSONAL CABLE 117

PHILIPS 071

PICO 105

PRESIDENT 019 102

PRIMESTAR 030 110 111

PROSAT 072

RCA 066 106

REALISTIC 043 074

SAMSUNG 123

SATELLITE SERVICE CO

028 035 047 057

085

SCIENTIFIC ATLANTA

032 138

SONY 103

STARCAST 041

SUPER GUIDE 020 124 125

TEECOM 023 026 075 087

088 090 107 130

137

TOSHIBA 002 127

UNIDEN 016 025 042 043

044 045 048 049

078 079 080 086

10 135 136

VIEWSTAR 115

WINEGARD 128 146

ZENITH 081 082 083 084

091 120

121

APPENDIX

IR CODES

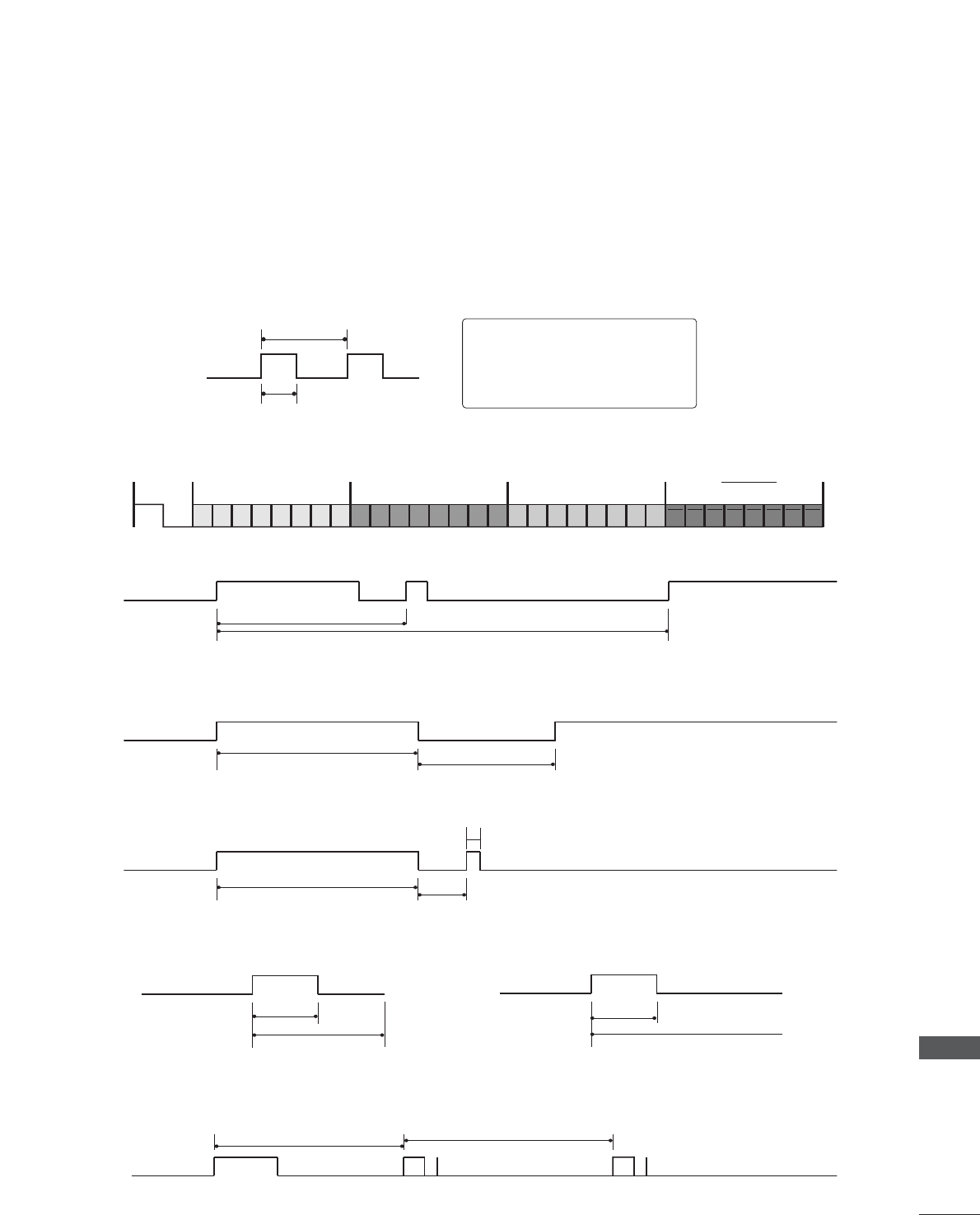

Configuration of frame

1st frame

Repeat frame

Lead code

Repeat code

Bit description

Frame interval: Tf

The waveform is transmitted as long as a key is depressed.

C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7

Lead code Low custom code High custom code Data code Data code

Repeat code Tf

4.5 ms

9 ms

2.25 ms

9 ms

0.55 ms

0.56 ms

1.12 ms

0.56 ms

2.24 ms

Tf Tf

Tf=108ms @455KHz

Bit ”0” Bit ”1”

1. How to Connect

AConnect your wired remote control to the Remote Control port on the TV.

2. Remote Control IR Codes

Output waveform

Single pulse, modulated with 37.917KHz signal at 455KHz

Tc Carrier frequency

FCAR = 1/TC = fOSC/12

Duty ratio = T1/TC = 1/3

122

APPENDIX

Code (Hexa) Function Note

POWER

INPUT

TV/RADIO

Q.MENU

GUIDE

Left ( )

Right ( )

Up ( )

Down ( )

OK( )

RETURN

INFO i

AV MODE

FAV

MUTE

Number Key 0~9

LIST

Q.VIEW

RED Key

GREEN Key

YELLOW Key

BLUE Key

TEXT

T.Option

SUBTITLE

Ô(Record)

SIMPLINK

R/C BUTTON (POWER ON/OFF)

R/C BUTTON

10 ~19

123

APPENDIX

EXTERNAL CONTROL DEVICE SETUP

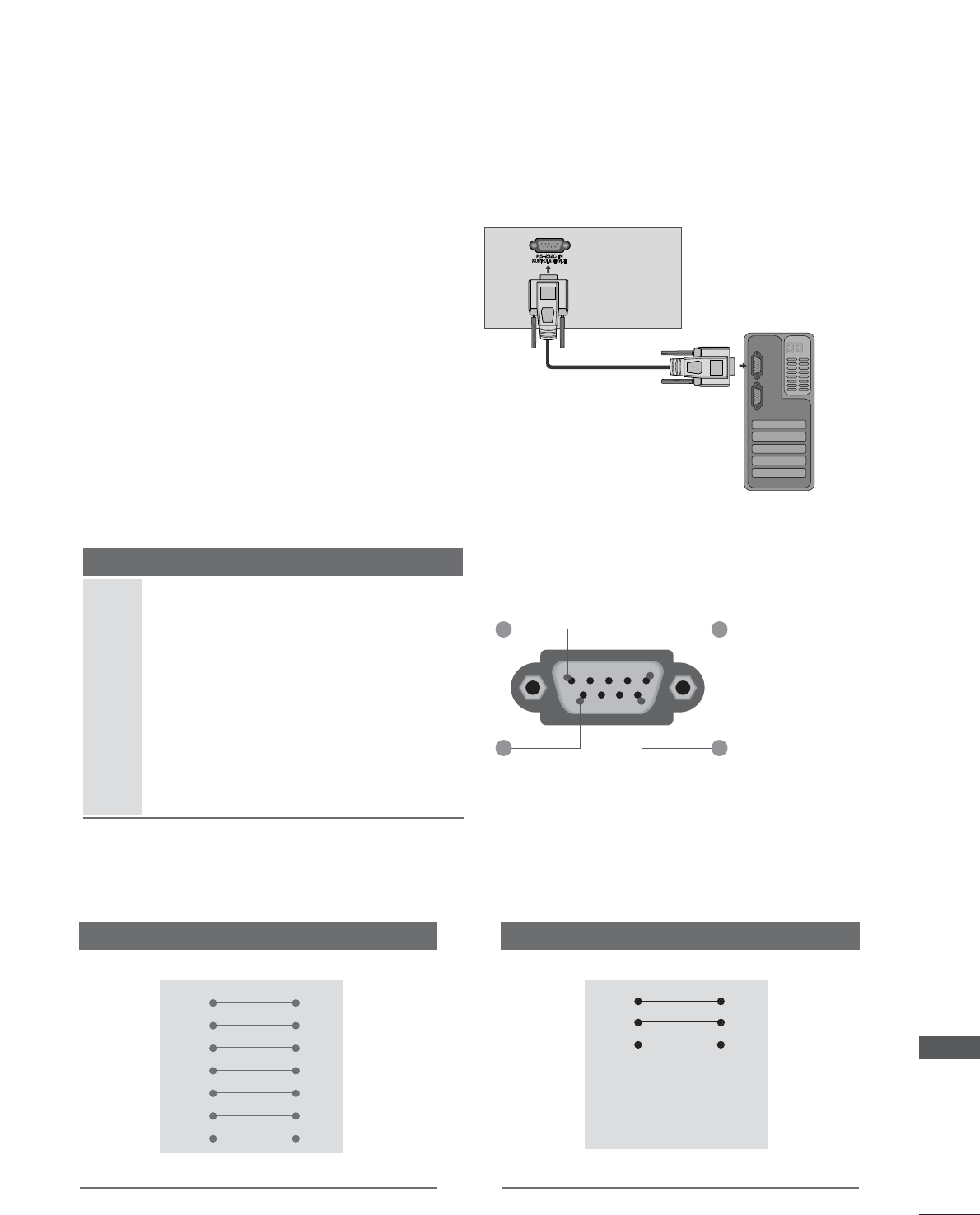

RS-232C Setup

Connect the RS-232C (serial port) input jack to an

external control device (such as a computer or an A/V

control system) to control the product’s functions

externally.

Connect the serial port of the control device to the

RS-232C jack on the product back panel.

Note: RS-232C connection cables are not supplied

with the product.

Type of Connector; D-Sub 9-Pin Male

No. Pin Name

1 No connection

2 RXD (Receive data)

3 TXD (Transmit data)

4 DTR (DTE side ready)

5 GND

6 DSR (DCE side ready)

7 RTS (Ready to send)

8 CTS (Clear to send)

9 No Connection

1 5

6 9

RS-232C Configurations

7-Wire Configurations (Standard RS-232C cable)

PC TV

RXD 2 3 TXD

TXD 3 2 RXD

GND 5 5 GND

DTR 4 6 DSR

DSR 6 4 DTR

RTS 7 8 CTS

CTS 8 7 RTS

D-Sub 9 D-Sub 9

3-Wire Configurations(Not standard)

PC TV

RXD 2 3 TXD

TXD 3 2 RXD

GND 5 5 GND

DTR 4 6 DTR

DSR 6 4 DSR

RTS 7 7 RTS

CTS 8 8 CTS

D-Sub 9 D-Sub 9

124

APPENDIX

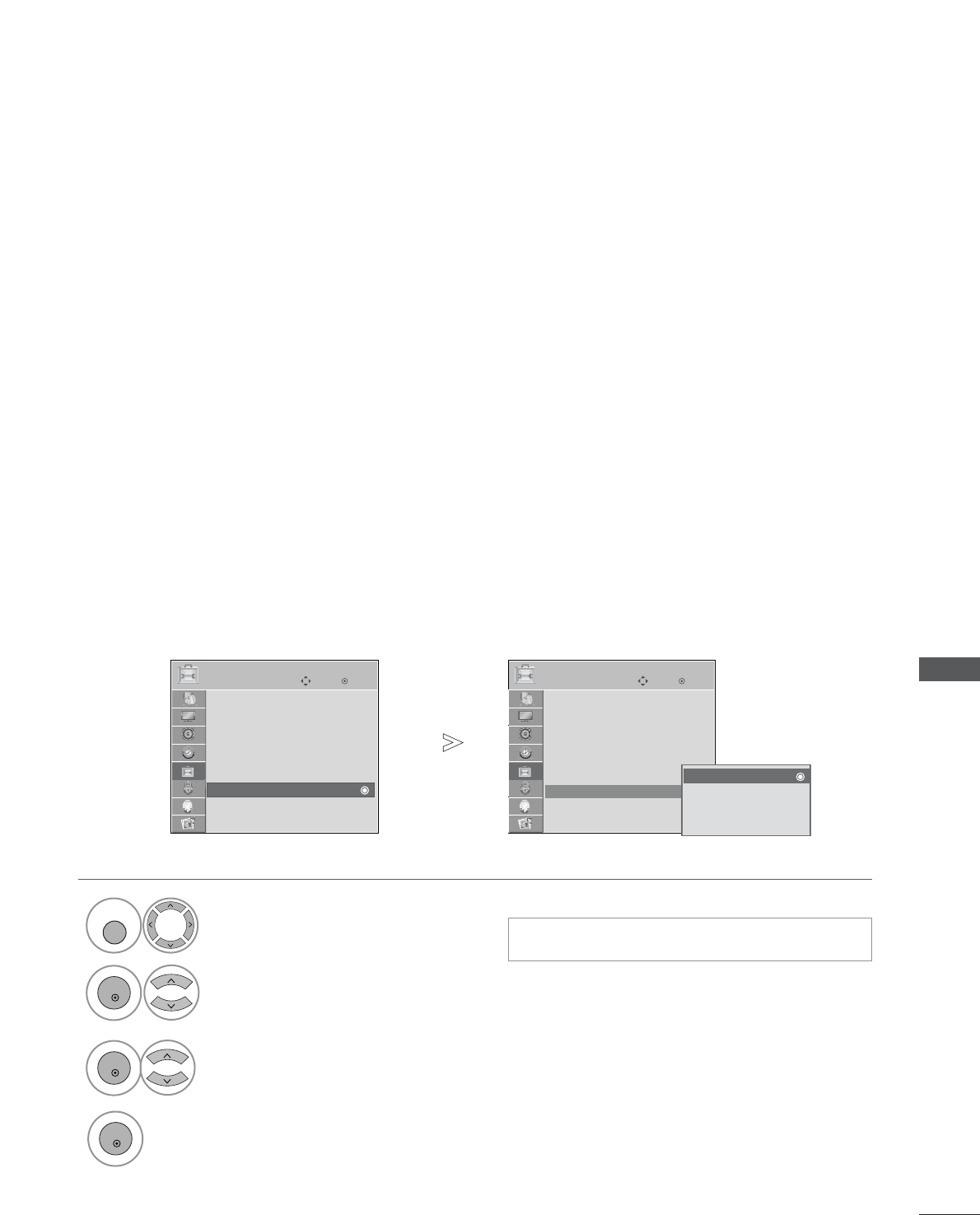

Use this function to specify a set ID number.

Refer to ‘Real Data Mapping’. G

p.128

Set ID

• Press

RETURN

to move to the previous menu screen.

Select

OPTION

Select

Set ID

Adjust

Set ID

to choose the desired TV ID number.

The adjustment range of SET ID is 1~99.

Move

Country : UK

Input Label

SIMPLINK : On

Key Lock : Off

Set ID

ISM Method : Normal

Power Saving : Level 0

Factory Reset

OPTION

Set ID :1

Move

Country : UK

Input Label

SIMPLINK : On

Key Lock : Off

Set ID

ISM Method : Normal

Power Saving : Level 0

Factory Reset

OPTION

Set ID :1

APPENDIX

125

01. Power k a 00 ~01

02. Aspect Ratio k c Refer to p. 126

03. Screen Mute k d 00 ~01

04. Volume Mute k e 00 ~01

05. Volume Control k f 00 ~64

06. Contrast k g 00 ~64

07. Brightness k h 00 ~64

08. Colour k i 00 ~64

09. Tint k j 00 ~64

10. Sharpness k k 00 ~64

11. OSD Select k l 00 ~01

12.

Remote control lock mode

k m 00 ~01

13. Balance k t 00 ~64

14.

Colour Temperature

k u 00 ~02

15. Abnormal Status k z 00 ~a

16. ISM Method j p Refer to p. 127

17. Power Saving j q 00 ~04

18. Auto Configuration j u 01

19. Equalize j v Refer to p. 128

20. Tune Command m a Refer to p. 128

21. Channel Add/Skip m b 00 ~01

22. Key m c Key C ode

23. Control Back Light m g 00 ~64

24. Input select (Main) x b Refer to p. 129

Communication Parameters

ABaud rate : 9600 bps (UART)

AData length : 8 bits

AParity : None

AStop bit : 1 bit

ACommunication code : ASCII code

AUse a crossed (reverse) cable.

Transmission

* [Command 1] : First command to control the TV.

(j, k, m or x)

* [Command 2] : Second command to control the TV.

* [Set ID] : You can adjust the set ID to choose

desired monitor ID number in option

menu. Adjustment range is 1 ~99.

When selecting Set ID ‘0’, every connect-

ed set is controlled.

Set ID is indicated as decimal (1~99) on

menu and as Hexa decimal (0x0~0x63)

on transmission/receiving protocol.

* [DATA] : To transmit command data.

Transmit ‘FF’ data to read status of com-

mand.

* [Cr] : Carriage Return

ASCII code ‘0x0D’

* [ ] : ASCII code ‘space (0x20)’

[Command1][Command2][ ][Set ID][ ][Data][Cr]

OK Acknowledgement

* The set transmits ACK (acknowledgement) based on

this format when receiving normal data. At this time, if

the data is data read mode, it indicates present status

data. If the data is data write mode, it returns the

data of the PC computer.

[Command2][ ][Set ID][ ][OK][Data][x]

Error Acknowledgement

* The set transmits ACK (acknowledgement) based on

this format when receiving abnormal data from

non-viable functions or communication errors.

[Command2][ ][Set ID][ ][NG][Data][x]

Transmission / Receiving Protocol

Command Reference List

Data 00: Illegal Code

COMMAND

DATA

(Hexadecimal)

*When setting the 15 ~24, a menu does not appear on screen.

APPENDIX

08. Colour (Command: k i )

GTo adjust the screen colour.

You can also adjust colour in the PICTURE menu.

Transmission

Data Min : 00 ~Max : 64

* Refer to ‘Real data mapping 1’. See page 128.

[k][i][ ][Set ID][ ][Data][Cr]

Ack

[i][ ][Set ID][ ][OK/NG][Data][x]

126

APPENDIX

04. Volume Mute (Command: k e)

GTo control volume mute on/off.

You can also adjust mute using the MUTE button on

remote control.

Transmission

Data 00 : Volume mute on (Volume off)

01 : Volume mute off (Volume on)

[k][e][ ][Set ID][ ][Data][Cr]

Ack

[e][ ][Set ID][ ][OK/NG][Data][x]

02. Aspect Ratio (

Command: k

c) (Main Picture Size)

GTo adjust the screen format. (Main picture format)

You can also adjust the screen format using the

Aspect Ratio

in the Q.MENU. or PICTURE menu.

Transmission

Data 01 : Normal screen (4:3)

02 : Wide screen (16:9)

04 : Zoom1

05 : Zoom2

06 : Original

07 : 14:9

09 : Just Scan

[k][c][ ][Set ID][ ][Data][Cr]

Ack

* Using the PC input, you select either 16:9 or 4:3

screen aspect ratio.

* In DTV/HDMI (1080i 50Hz/60Hz, 720p

24Hz/50Hz/60Hz, 1080p 24Hz/30Hz/50Hz/60Hz),

Component( 720p, 1080i, 1080p 50Hz/60Hz) mode,

Just Scan is available.

[c][ ][Set ID][ ][OK/NG][Data][x]

03. Screen Mute (Command: k d)

GTo select screen mute on/off.

Transmission

Data 00 : Screen mute off (Picture on)

01 : Screen mute on (Picture off)

[k][d][ ][Set ID][ ][Data][Cr]

Ack

[d][ ][Set ID][ ][OK/NG][Data][x]

05. Volume Control (Command: k f )

GTo adjust volume.

You can also adjust volume with the VOLUME buttons on

remote control.

Transmission

Data Min : 00 ~Max : 64

* Refer to ‘Real data mapping 1’. See page 128.

[k][f][ ][Set ID][ ][Data][Cr]

Ack

[f][ ][Set ID][ ][OK/NG][Data][x]

06. Contrast (Command: k g)

GTo adjust screen contrast.

You can also adjust contrast in the PICTURE menu.

Transmission

Data Min : 00 ~Max : 64

* Refer to ‘Real data mapping 1’. See page 128.

[k][g][ ][Set ID][ ][Data][Cr]

Ack

[g][ ][Set ID][ ][OK/NG][Data][x]

07. Brightness (Command: k h )

GTo adjust screen brightness.

You can also adjust brightness in the PICTURE menu.

Transmission

Data Min : 00 ~Max : 64

* Refer to ‘Real data mapping 1’. See page 128.

[k][h][ ][Set ID][ ][Data][Cr]

Ack

[h][ ][Set ID][ ][OK/NG][Data][x]

01. Power (Command: k a)

GTo control Power On/Off of the set.

Transmission

Data 00 : Power Off 01 : Power On

[k][a][ ][Set ID][ ][Data][Cr]

Ack

[a][ ][Set ID][ ][OK/NG][Data][x]

GTo show Power On/Off.

Transmission

[k][a][ ][Set ID][ ][FF][Cr]

Ack

* Similarly, if other functions transmit ‘0xFF’ data based

on this format, Acknowledgement data feed back pre-

sents status about each function.

* OK Ack., Error Ack. and other message may display on

the screen when TV is power On.

[a][ ][Set ID][ ][OK/NG][Data][x]

APPENDIX

12. Remote control lock mode (Command: k m )

GTo lock the front panel controls on the monitor and

remote control.

Transmission

[k][m][ ][Set ID][ ][Data][Cr]

Ack

Data 00 : Lock off 01 : Lock on

* If you are not using the remote control, use this mode.

When main power is on/off, external control lock is

released.

[m][ ][Set ID][ ][OK/NG][Data][x]

11. OSD Select (Command: k l )

GTo select OSD (On Screen Display) on/off when con-

trolling remotely.

Transmission

[k][l][ ][Set ID][ ][Data][Cr]

Ack

Data 00 : OSD off 01 : OSD on

[l][ ][Set ID][ ][OK/NG][Data][x]

09. Tint (Command: k j )

GTo adjust the screen tint.

You can also adjust tint in the PICTURE menu.

Transmission

Data Red : 00 ~Green : 64

* Refer to ‘Real data mapping 1’. See page 128.

[k][j][ ][Set ID][ ][Data][Cr]

Ack

[j][ ][Set ID][ ][OK/NG][Data][x]

GTo adjust the screen sharpness.

You can also adjust sharpness in the PICTURE menu.

Transmission

10. Sharpness (Command: k k )

Data Min : 00 ~Max : 64

* Refer to ‘Real data mapping 1’. See page 128.

[k][k][ ][Set ID][ ][Data][Cr]

Ack

[k][ ][Set ID][ ][OK/NG][Data][x]

13. Balance (Command: k t )

GTo adjust balance.

You can also adjust balance in the AUDIO menu.

Transmission

Data Min : 00 ~Max : 64

* Refer to ‘Real data mapping 1’. See page 128.

[k][t][ ][Set ID][ ][Data][Cr]

Ack

[t][ ][Set ID][ ][OK/NG][Data][x]

14. Colour Temperature (Command: k u )

GTo adjust colour temperature. You can also adjust Colour

Temperature in the PICTURE menu.

Transmission

Data 00: Medium 01:Cool 02: Warm

[k][u][ ][Set ID][ ][Data][Cr]

Ack

[u][ ][Set ID][ ][OK/NG][Data][x]

127

15. Abnormal State (Command: k z)

GTo recognize an abnormal state.

Transmission

Data FF : Read

Data 00: Normal (Power on and signal exist)

01: No signal (Power on)

02: Turn the TV off by remote control

03: Turn the TV off by sleep time function

04: Turn the TV off by RS-232C function

05: 5V down

06: AC down

07: Turn the TV off by Fan Alarm function

08: Turn the TV off by Off time function

09: Turn the TV off by Auto sleep function

a: Turn the TV off by AV board detection.

* This function is “read only”.

[k][z][ ][Set ID][ ][FF][ ][Cr]

Ack

[z][ ][Set ID][ ][OK/NG][Data][x]

16. ISM Method (Plasma TV only)

(Command: j p )

GTo control the ISM method. You can also adjust ISM

Method in OPTION menu.

Transmission

[j][p][ ][Set ID][ ][Data][Cr]

Ack

[p][ ][Set ID][ ][OK/NG][Data][x]

Data 01 : Inversion

02: Orbiter

04: White wash

08: Normal

APPENDIX

128

APPENDIX

* Real data mapping 1

00 : Step 0

A : Step 10 (Set ID 10)

F : Step 15 (Set ID 15)

10 : Step 16 (Set ID 16)

64: Step 100

6E : Step 110

73 : Step 115

74 : Step 116

C7: Step 199

FE : Step 254

FF : Step 255

* Real data mapping 2

00 :-40

01 :-39

02 :-38

28 : 0

4E : +38

4F : +39

50 : +40

20.Tune Command (Command: m a )

GSelect channel to following physical number.

Transmission

Data00 : High channel data

Data01 : Low channel data

ex. No. 47 -> 00 2F (2FH)

No. 394 -> 01 88 (188H),

DTV No. 0 -> Don’t care

Data020x00 : ATV Main

0x10 : DTV Main

Channel data range

Analogue - Min: 00 ~Max: 63 (0~99)

Digital - Min: 00 ~Max: 3E7 (0~999)

[m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][Cr]

Ack

[a][ ][Set ID][ ][OK/NG][Data][x]

Data Min: 00 ~Max: FF

21. Channel Add/Skip(Command: m b)

GTo set skip status for the current Programme.

Transmission

Data 00 : Skip 01 : Add

[m][b][ ][Set ID][ ][Data][Cr]

Ack

[b][ ][Set ID][ ][OK/NG][Data][x]

17. Power Saving (Plasma TV only)

(Command: j q )

GTo reduce the power consumption of the TV. You can also

adjust Low Power in OPTION menu.

Transmission

Data Min :00 ~ Max :04 (*transmit by hexadecimal code)

[j][q][ ][Set ID][ ][Data][Cr]

Ack

[q][ ][Set ID][ ][OK/NG][Data][x]

18. Auto Configure(Command: j u)

GTo adjust picture position and minimize image shaking

automatically. It works only in RGB (PC) mode.

Transmission

Data 01 : To set

[j][u][ ][Set ID][ ][Data][Cr]

Ack

[u][ ][Set ID][ ][OK/NG][Data][x]

19. Equalize(

Command: j

v )

GTo adjust equalize.

Transmission

MSB LSB

[j][v][ ][Set ID][ ][Data][Cr]

0 0 0 0 0 0 0

Frequency Data

Ack

[v][ ][Set ID][ ][OK/NG][Data][x]

Frequency

80Hz

00000 ~10 010

220Hz

470Hz

1KHz

2.2KHz

4.7KHz

12KHz

765

000

001

010

011

100

101

110

43210

APPENDIX

129

24. Input select (

Command: x

b )

(Main Picture Input)

GTo select input source for main picture.

Transmission

Data Structure

MSB LSB

[x][b][ ][Set ID][ ][Data][Cr]

0 0 0 0 0 0 0

External Input Input Number

23. Control Back Light (Command: m g )

(LCD TV only)

GTo Cont rol t he back light.

Transmission

Data : data Min: 00 ~Max: 64 ( * transmit by Hexadecimal code)

[m][g][ ][Set ID][ ][Data][Cr]

Ack

[g][ ][Set ID][ ][OK/NG][Data][x]

Ack

[b][ ][Set ID][ ][OK/NG][Data][x]

External Input Data

0 0 0 1 Analogue

0000 DTV

0010 AV

0 1 0 0 Component

0101 RGB-PC

1 0 0 1 HDMI/DTV-PC

Input Number Data

0 0 0 0 Input1

0 0 1 1 Input4

0 0 1 0 Input3

0 0 0 1 Input2

22. Key(Command: m c)

GTo send IR remote key code.

Transmission

Data Key code - Refer to page 122.

[m][c][ ][Set ID][ ][Data][Cr]

Ack

[c][ ][Set ID][ ][OK/NG][Data][x]

APPENDIX

Open source software notice

130

APPENDIX

The following GPL executables and LGPL/MPL libraries used in this product are subject to the

GPL2.0/LGPL2.1/MPL1.1 License Agreements:

GPL EXECUTABLES:

•Linux kernel 2.6

•busybox

LGPL LIBRARIES:

•glibc

MPL LIBRARIES:

•Nanox

LG Electronics offers to provide source code to you on CD-ROM for a charge covering the cost of performing

such distribution, such as the cost of media, shipping and handling upon e-mail request to LG Electronics at:

Opensource@lge.com

This offer is valid for a period of three(3) years from the date of the distribution of this product by LG

Electronics.

You can obtain a copy of the GPL, LGPL and MPL licenses at next pages.

Also you can obtain the translation of GPL, LGPL licenses from http://www.gnu.org/licenses/old-licenses/gpl-

2.0-translations.html, http://www.gnu.org/licenses/old-licenses/lgpl-2.1-translations.html.

•This software is based in part on the work of the Independent JPEG Group.

•This software includes the libpng, PNG reference library.

•This software includes the Zlib compression library, developed by Jean-loup Gailly and Mark Adler. Copyright

131

APPENDIX

OPEN SOURCE LICENSE

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU

General Public License is intended to guarantee your freedom to share and change free

software--to make sure the software is free for all its users. This General Public License applies to most of the Free

Software Foundation's software and to any other program whose authors commit to

using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License

instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to

make sure that you have the freedom to distribute copies of free software (and charge for

this service if you wish), that you receive source code or can get it if you want it, that you can change the software or

use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to sur-

render the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software,

or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all

the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show

them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal

permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no war-

ranty for this free software. If the software is modified by someone else and passed on, we

want its recipients to know that what they have is not the original, so that any problems introduced by others will not

reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors

of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we

have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

GNU GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it

may be distributed under the terms of this General Public License. The "Program", below, refers to any such program

or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that

is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into

another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is

addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope.

The act of running the Program is not restricted, and the output from the Program

is covered only if its contents constitute a work based on the Program (independent of having been made by running

the Program). Whether that is true depends on what the Program does.

132

APPENDIX

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, pro-

vided that you conspicuously and appropriately publish on each copy an appropriate

copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of

any warranty; and give any other recipients of the Program a copy of this License

along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in

exchange for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the

Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you

also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any

change.

b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the

Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this

License.

c) If the modified program normally reads commands interactively when run, you must cause it, when started running

for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copy-

right notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may

redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception:

if the Program itself is interactive but does not normally print such an announcement, your work based on the

Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the

Program, and can be reasonably considered independent and separate works in themselves, then this License, and its

terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same

sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of

this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regard-

less of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the

intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on

the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this

License.

3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable

form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under

the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than

your cost of physically performing source distribution, a complete machine-readable copy of the corresponding

source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software

interchange; or,

c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This

alternative is allowed only for noncommercial distribution and only if you received the program in object code or exe-

cutable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable

work, complete source code means all the source code for all modules it contains, plus any associated interface defini-

tion files, plus the scripts used to control compilation and installation of the executable. However, as a special excep-

tion, the source code distributed need not include anything that is normally distributed (in either source or binary

form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs,

unless that component itself accompanies the executable.

133

APPENDIX

If distribution of executable or object code is made by offering access to copy from a designated place, then offering

equivalent access to copy the source code from the same place counts as distribution of the source code, even though

third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License.

Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate

your rights under this License. However, parties who have received copies, or rights, from you under this License will

not have their licenses terminated so long as such parties remain in full compliance.

5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permis-

sion to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not ccept

this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate

your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the

Program or works based on it.

6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a

license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You

may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible

for enforcing compliance by third parties to this License.

7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to

patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the con-

ditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to sat-

isfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you

may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the

Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it

and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the sec-

tion is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest

validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution

system, which is implemented by public license practices. Many people have made generous contributions to the wide

range of software distributed through that system in reliance on consistent application of that system; it is up to the

author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot

impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted

interfaces, the original copyright holder who places the Program under this License may add an explicit geographical

distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus

excluded. In such case, this License incorporates the limitation as if written in the body of this License.

9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to

time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems

or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which

applies to it and "any later version", you have the option of following the terms and conditions either of that version or of

any later version published by the Free Software Foundation. If the Program does not specify a version number of

this License, you may choose any version ever published by the Free Software Foundation.

10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different,

write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to

the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals

of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software

generally.

134

APPENDIX

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PRO-

GRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING

THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY

OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WAR-

RANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE

QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFEC-

TIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPY-

RIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PER-

MITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR

CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING

BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY

YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS),

EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to

achieve this is to make it free software which everyone can redistribute and change under these terms.

To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most

effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to

where the full notice is found.

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public

License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later

version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the

implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General

Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the

Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA.

Also add information on how to contact you by electronic and paper mail.

If the program is interactive, make it output a short notice like this when it starts in an interactive mode:

Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRAN-

TY; for details type `show w'. This is free software, and you are welcome to redistribute it under certain conditions;

type `show c' for details.

The hypothetical commands `show w' and `show c' should show the appropriate parts of the General Public License.

Of course, the commands you use may be called something other than `show w' and `show c'; they could even be

mouse-clicks or menu items--whatever suits your program.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer"

for the program, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the program `Gnomovision' (which makes passes at compil-

ers) written by James Hacker.

<signature of Ty Coon>, 1 April 1989

Ty Coon, President of Vice

This General Public License does not permit incorporating your program into proprietary programs. If your program is a

subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is

what you want to do, use the GNU Lesser General Public License instead of this License.

135

APPENDIX

GNU LESSER GENERAL PUBLIC LICENSE

Version 2.1, February 1999

USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not

allowed.

[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public

License, version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU

General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the

software is free for all its users.

This license, the Lesser General Public License, applies to some specially designated software packages--typically

libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest

you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in

any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are

designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you

wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of

it in new free programs; and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to

surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the

library or if you modify it.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the

rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code

with the library, you must provide complete object files to the recipients, so that they can relink them with the library

after making changes to the library and recompiling it. And you must show them these terms so they know their rights.

We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which

gives you legal permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the

library is modified by someone else and passed on, the recipients should know that what they have is not the original

version, so that the original author's reputation will not be affected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a

company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder.

Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom

of use specified in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license,

the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary

General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free

programs.

When a program is linked with a library, whether statically or using a shared library, the combination of the two is legal-

ly speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits

such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more

lax criteria for linking other code with the library.

We call this license the "Lesser" General Public License because it does Less to protect the user's freedom than the

ordinary General Public License. It also provides other free software developers Less of an advantage over competing

non-free programs. These disadvantages are the reason we use the ordinary General Public License for many

libraries. However, the Lesser license provides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library,

so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more

frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to

gain by limiting the free library to free software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-free programs enables a greater number of people to use

a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many

more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.

136

APPENDIX

Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a

program that is linked with the Library has the freedom and the wherewithal to run that program using a modified ver-

sion of the Library.

The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the differ-

ence between a "work based on the library" and a "work that uses the library". The former contains code derived from

the library, whereas the latter must be combined with the library in order to run.

GNU LESSER GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License Agreement applies to any software library or other program which contains a notice placed by the

License (also called "this License"). Each licensee is addressed as "you".

A "library" means a collection of software functions and/or data prepared so as to be conveniently linked with applica-

tion programs (which use some of those functions and data) to form executables.

The "Library", below, refers to any such software library or work which has been distributed under these terms. A

"work based on the Library" means either the Library or any derivative work under copyright law: that is to say, a work

containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into

another language. (Hereinafter, translation is included without limitation in the term "modification".)

"Source code" for a work means the preferred form of the work for making modifications to it. For a library, complete

source code means all the source code for all modules it contains, plus any associated interface definition files, plus

the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope.

The act of running a program using the Library is not restricted, and output from such a program is covered only if its

contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether

that is true depends on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim copies of the Library's complete source code as you receive it, in any medi-

um, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and dis-

claimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distrib-

ute a copy of this License along with the Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection

in exchange for a fee.

2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library,

and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all

of these conditions:

a) The modified work must itself be a software library.

b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of

any change.

c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this

License.

d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program

that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good

faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates,

and performs whatever part of its purpose remains meaningful.

(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of

the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function

must be optional: if the application does not supply it, the square root function must still compute square roots.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the

Library, and can be reasonably considered independent and separate works in themselves, then this License, and its

terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same

sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of

this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regard-

less of who wrote it.

137

APPENDIX

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the

intent is to exercise the right to control the distribution of derivative or collective works based on the Library.

In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the

Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy

of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU

General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU

General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other

change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License

applies to all subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or exe-

cutable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete correspond-

ing machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a

medium customarily used for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent

access to copy the source code from the same place satisfies the requirement to distribute the source code, even

though third parties are not compelled to copy the source along with the object code.

5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being

compiled or linked with it, is called a "work that uses the Library". Such a work, in isolation, is not a derivative work of

the Library, and therefore falls outside the scope of this License.

However, linking a "work that uses the Library" with the Library creates an executable that is a derivative of the Library

(because it contains portions of the Library), rather than a "work that uses the library". The executable is therefore cov-

ered by this License. Section 6 states terms for distribution of such executables.

When a "work that uses the Library" uses material from a header file that is part of the Library, the object code for the

work may be a derivative work of the Library even though the source code is not.

Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library.

The threshold for this to be true is not precisely defined by law.

If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and

small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it

is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under

Section 6.)

Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of

Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with

the Library itself.

6. As an exception to the Sections above, you may also combine or link a "work that uses the Library" with the Library

to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that

the terms permit modification of the work for the customer's own use and reverse engineering for debugging such modi-

fications.

You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its

use are covered by this License. You must supply a copy of this License. If the work during execution displays copy-

right notices, you must include the copyright notice for the Library among them, as well as a reference directing the

user to the copy of this License. Also, you must do one of these things:

a) Accompany the work with the complete corresponding machine-readable source code for the Library including

whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work

is an executable linked with the Library, with the complete machine-readable "work that uses the Library", as object

code and/or source code, so that the user can modify the Library and then relink to produce a modified executable

containing the modified Library. (It is understood that the user who changes the contents of definitions files in the

Library will not necessarily be able to recompile the application to use the modified definitions.)

b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at

run time a copy of the library already present on the user's computer system, rather than copying library functions

into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as

long as the modified version is interface-compatible with the version that the work was made with.

138

APPENDIX

c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials

specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution.

d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to

copy the above specified materials from the same place.

e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.

For an executable, the required form of the "work that uses the Library" must include any data and utility programs

needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need

not include anything that is normally distributed (in either source or binary form) with the major components (compiler,

kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies

the executable.

It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normal-

ly accompany the operating system. Such a contradiction means you cannot use both them and the Library together in

an executable that you distribute.

7. You may place library facilities that are a work based on the Library side-by-side in a single library together with

other library facilities not covered by this License, and distribute such a combined library, provided that the separate

distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that

you do these two things:

a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other

library facilities. This must be distributed under the terms of the Sections above.

b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and

explaining where to find the accompanying uncombined form of the same work.

8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this

License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automati-

cally terminate your rights under this License. However, parties who have received copies, or rights, from you under

this License will not have their licenses terminated so long as such parties remain in full compliance.

9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permis-

sion to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept

this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your

acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or

works based on it.

10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a

license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and condi-

tions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein.

You are not responsible for enforcing compliance by third parties with this License.

11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to

patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the con-

ditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to sat-

isfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you

may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the

Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and

this License would be to refrain entirely from distribution of the Library.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the sec-

tion is intended to apply, and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest

validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution

system which is implemented by public license practices. Many people have made generous contributions to the wide

range of software distributed through that system in reliance on consistent application of that system; it is up to the

author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot

impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted

interfaces, the original copyright holder who places the Library under this License may add an explicit geographical dis-

tribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus

excluded. In such case, this License incorporates the limitation as if written in the body of this License.

139

APPENDIX

13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License

from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address

new problems or concerns.

Each version is given a distinguishing version number. If the Library specifies a version number of this License which

applies to it and "any later version", you have the option of following the terms and conditions either of that version or of

any later version published by the Free Software Foundation. If the Library does not specify a license version number,

you may choose any version ever published by the Free Software Foundation.

14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompati-

ble with these, write to the author to ask for permission. For software which is copyrighted by the Free Software

Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guid-

ed by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing

and reuse of software generally.

NO WARRANTY

15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY,

TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE

ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY

AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU

ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPY-

RIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMIT-

TED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR

CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT

NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU

OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF

SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries

If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it

free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms

(or, alternatively, under the terms of the ordinary General Public License).

To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source

file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a

pointer to where the full notice is found.

This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General

Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option)

any later version.

This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied

warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General

Public License for more details.

You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to

the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Also add information on how to contact you by electronic and paper mail.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer"

for the library, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the library `Frob' (a library for tweaking knobs) written by

James Random Hacker.

<signature of Ty Coon>, 1 April 1990

Ty Coon, President of Vice

140

APPENDIX

MOZILLA PUBLIC LICENSE

Version 1.1

---------------

1. Definitions.

1.0.1. "Commercial Use" means distribution or otherwise making the Covered Code available to a third party.

1.1. "Contributor" means each entity that creates or contributes to the creation of Modifications.

1.2. "Contributor Version" means the combination of the Original Code, prior Modifications used by a Contributor,

and the Modifications made by that particular Contributor.

1.3. "Covered Code" means the Original Code or Modifications or the combination of the Original Code and

Modifications, in each case including portions thereof.

1.4. "Electronic Distribution Mechanism" means a mechanism generally accepted in the software development com-

munity for the electronic transfer of data.

1.5. "Executable" means Covered Code in any form other than Source Code.

1.6. "Initial Developer" means the individual or entity identified as the Initial Developer in the Source Code notice

required by Exhibit A.

1.7. "Larger Work" means a work which combines Covered Code or portions thereof with code not governed by the

terms of this License.

1.8. "License" means this document.

1.8.1. "Licensable" means having the right to grant, to the maximum extent possible, whether at the time of the ini-

tial grant or subsequently acquired, any and all of the rights conveyed herein.

1.9. "Modifications" means any addition to or deletion from the substance or structure of either the Original Code or

any previous Modifications. When Covered Code is released as a series of files, a Modification is:

A. Any addition to or deletion from the contents of a file containing Original Code or previous Modifications.

B. Any new file that contains any part of the Original Code or previous Modifications.

1.10. "Original Code" means Source Code of computer software code which is described in the Source Code notice

required by Exhibit A as Original Code, and which, at the time of its release under this License is not already

Covered Code governed by this License.

1.10.1. "Patent Claims" means any patent claim(s), now owned or hereafter acquired, including without limitation,

method, process, and apparatus claims, in any patent Licensable by grantor.

1.11. "Source Code" means the preferred form of the Covered Code for making modifications to it, including all

modules it contains, plus any associated interface definition files, scripts used to control compilation and installation

of an Executable, or source code differential comparisons against either the Original Code or another well known,

available Covered Code of the Contributor's choice. The Source Code can be in a compressed or archival form,

provided the appropriate decompression or de-archiving software is widely available for no charge.

1.12. "You" (or "Your") means an individual or a legal entity exercising rights under, and complying with all of the

terms of, this License or a future version of this License issued under Section 6.1.

For legal entities, "You" includes any entity which controls, is controlled by, or is under common control with You.

For purposes of this definition, "control" means (a) the power, direct or indirect, to cause the direction or manage-

ment of such entity, whether by contract or otherwise, or (b) ownership of more than fifty percent (50%) of the out-

standing shares or beneficial ownership of such entity.

2. Source Code License.

2.1. The Initial Developer Grant.

The Initial Developer hereby grants You a world-wide, royalty-free, non-exclusive license, subject to third party intel-

lectual property claims:

(a) under intellectual property rights (other than patent or trademark) Licensable by Initial Developer to use,

reproduce, modify, display, perform, sublicense and distribute the Original Code (or portions thereof) with or

without Modifications, and/or as part of a Larger Work; and

141

APPENDIX

(b) under Patents Claims infringed by the making, using or selling of Original Code, to make, have made, use,

practice, sell, and offer for sale, and/or otherwise dispose of the Original Code (or portions thereof).

Original Code under the terms of this License.

(d) Notwithstanding Section 2.1(b) above, no patent license is granted: 1) for code that You delete from the

Original Code; 2) separate from the Original Code; or 3) for infringements caused by: i) the modification of the

Original Code or ii) the combination of the Original Code with other software or devices.

2.2. Contributor Grant.

Subject to third party intellectual property claims, each Contributor hereby grants You a world-wide, royalty-free,

non-exclusive license

(a) under intellectual property rights (other than patent or trademark) Licensable by Contributor, to use, repro-

duce, modify, display, perform, sublicense and distribute the Modifications created by such Contributor (or por-

tions thereof) either on an unmodified basis, with other Modifications, as Covered Code and/or as part of a

Larger Work; and

(b) under Patent Claims infringed by the making, using, or selling of Modifications made by that Contributor

either alone and/or in combination with its Contributor Version (or portions of such combination), to make, use,

sell, offer for sale, have made, and/or otherwise dispose of: 1) Modifications made by that Contributor (or portions

thereof); and 2) the combination of Modifications made by that Contributor with its Contributor Version (or por-

tions of such combination).

Commercial Use of the Covered Code.

(d) Notwithstanding Section 2.2(b) above, no patent license is granted: 1) for any code that Contributor has delet-

ed from the Contributor Version; 2) separate from the Contributor Version; 3) for infringements caused by: i)

third party modifications of Contributor Version or ii) the combination of Modifications made by that Contributor

with other software (except as part of the Contributor Version) or other devices; or 4) under Patent Claims

infringed by Covered Code in the absence of Modifications made by that Contributor.

3. Distribution Obligations.

3.1. Application of License.

The Modifications which You create or to which You contribute are governed by the terms of this License, including

without limitation Section 2.2. The Source Code version of Covered Code may be distributed only under the terms of

this License or a future version of this License released under Section 6.1, and You must include a copy of this

License with every copy of the Source Code You distribute. You may not offer or impose any terms on any Source

Code version that alters or restricts the applicable version of this License or the recipients' rights hereunder.

However, You may include an additional document offering the additional rights described in Section 3.5.

3.2. Availability of Source Code.

Any Modification which You create or to which You contribute must be made available in Source Code form under

the terms of this License either on the same media as an Executable version or via an accepted Electronic

Distribution Mechanism to anyone to whom you made an Executable version available; and if made available via

Electronic Distribution Mechanism, must remain available for at least twelve (12) months after the date it initially

became available, or at least six (6) months after a subsequent version of that particular Modification has been

made available to such recipients. You are responsible for ensuring that the Source Code version remains available

even if the

Electronic Distribution Mechanism is maintained by a third party.

3.3. Description of Modifications.

You must cause all Covered Code to which You contribute to contain a file documenting the changes You made to

create that Covered Code and the date of any change. You must include a prominent statement that the Modification

is derived, directly or indirectly, from Original Code provided by the Initial Developer and including the name of the

Initial Developer in (a) the Source Code, and (b) in any notice in an Executable version or related documentation in

which You describe the origin or ownership of the Covered Code.

3.4. Intellectual Property Matters

(a) Third Party Claims.

If Contributor has knowledge that a license under a third party's intellectual property rights is required to exercise

the rights granted by such Contributor under Sections 2.1 or 2.2, Contributor must include a text file with the

Source Code distribution titled "LEGAL" which describes the claim and the party making the claim in sufficient

detail that a recipient will know whom to contact. If Contributor obtains such knowledge after the Modification is

made available as described in Section 3.2, Contributor shall promptly modify the LEGAL file in all copies

Contributor makes available thereafter and shall take other steps (such as notifying appropriate mailing lists or

newsgroups) reasonably calculated to inform those who received the Covered Code that new knowledge has

been obtained.

142

APPENDIX

(b) Contributor APIs.

If Contributor's Modifications include an application programming interface and Contributor has knowledge of

patent licenses which are reasonably necessary to implement that API, Contributor must also include this infor-

mation in the LEGAL file.

Contributor represents that, except as disclosed pursuant to Section 3.4(a) above, Contributor believes that

Contributor's Modifications are Contributor's original creation(s) and/or Contributor has sufficient rights to grant

the rights conveyed by this License.

3.5. Required Notices.

You must duplicate the notice in Exhibit A in each file of the Source Code. If it is not possible to put such notice in a

particular Source Code file due to its structure, then You must include such notice in a location (such as a relevant

directory) where a user would be likely to look for such a notice. If You created one or more Modification(s)

You may add your name as a Contributor to the notice described in Exhibit A. You must also duplicate this License

in any documentation for the Source Code where You describe recipients' rights or ownership rights relating to

Covered Code. You may choose to offer, and to charge a fee for, warranty, support, indemnity or liability obligations

to one or more recipients of Covered Code. However, You may do so only on Your own behalf, and not on behalf of

the Initial

Developer or any Contributor. You must make it absolutely clear than any such warranty, support, indemnity or liabil-

ity obligation is offered by You alone, and You hereby agree to indemnify the Initial Developer and every Contributor

for any liability incurred by the Initial Developer or such Contributor as a result of warranty, support, indemnity or lia-

bility terms You offer.

3.6. Distribution of Executable Versions.

You may distribute Covered Code in Executable form only if the requirements of Section 3.1-3.5 have been met for

that Covered Code, and if You include a notice stating that the Source Code version of the Covered Code is avail-

able under the terms of this License, including a description of how and where You have fulfilled the obligations of

Section 3.2. The notice must be conspicuously included in any notice in an Executable version, related documenta-

tion or collateral in which You describe recipients' rights relating to the Covered Code. You may distribute the

Executable version of Covered Code or ownership rights under a license of Your choice, which may contain terms

different from this License, provided that You are in compliance with the terms of this License and that the license

for the Executable version does not attempt to limit or alter the recipient's rights in the Source Code version from

the rights set forth in this

License. If You distribute the Executable version under a different license You must make it absolutely clear that any

terms which differ from this License are offered by You alone, not by the Initial Developer or any Contributor. You

hereby agree to indemnify the Initial Developer and every Contributor for any liability incurred by the Initial

Developer or such Contributor as a result of any such terms You offer.

3.7. Larger Works.

You may create a Larger Work by combining Covered Code with other code not governed by the terms of this

License and distribute the Larger Work as a single product. In such a case, You must make sure the requirements

of this License are fulfilled for the Covered Code.

4. Inability to Comply Due to Statute or Regulation.

If it is impossible for You to comply with any of the terms of this License with respect to some or all of the Covered

Code due to statute, judicial order, or regulation then You must: (a) comply with the terms of this License to the max-

imum extent possible; and (b) describe the limitations and the code they affect. Such description must be included in

the LEGAL file described in Section 3.4 and must be included with all distributions of the Source Code. Except to

the

extent prohibited by statute or regulation, such description must be sufficiently detailed for a recipient of ordinary

skill to be able to understand it.

5. Application of this License.

This License applies to code to which the Initial Developer has attached the notice in Exhibit A and to related

Covered Code.

6. Versions of the License.

6.1. New Versions.

Netscape Communications Corporation ("Netscape") may publish revised and/or new versions of the License from

time to time. Each version will be given a distinguishing version number.

6.2. Effect of New Versions.

Once Covered Code has been published under a particular version of the License, You may always continue to use

it under the terms of that version. You may also choose to use such Covered Code under the terms of any subse-

quent version of the License published by Netscape. No one other than Netscape has the right to modify the terms

applicable to Covered Code created under this License.

143

APPENDIX

6.3. Derivative Works.

If You create or use a modified version of this License (which you may only do in order to apply it to code which is

not already Covered Code governed by this License), You must (a) rename Your license so that the phrases

"Mozilla", "MOZILLAPL", "MOZPL", "Netscape", "MPL", "NPL" or any confusingly similar phrase do not appear in

your license (except to note that your license differs from this License) and (b) otherwise make it clear that Your ver-

sion of the license contains terms which differ from the Mozilla Public License and Netscape Public License. (Filling

in the name of the Initial Developer, Original Code or Contributor in the notice described in Exhibit A shall not of

themselves be deemed to be modifications of this License.)

7. DISCLAIMER OF WARRANTY.

COVERED CODE IS PROVIDED UNDER THIS LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTY OF ANY

KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, WARRANTIES THAT THE COV-

ERED CODE IS FREE OF DEFECTS, MERCHANTABLE, FIT FOR A PARTICULAR PURPOSE OR NON-INFRING-

ING. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE COVERED CODE IS WITH YOU.

SHOULD ANY COVERED CODE PROVE DEFECTIVE IN ANY RESPECT, YOU (NOT THE INITIAL DEVELOPER OR

ANY OTHER CONTRIBUTOR) ASSUME THE COST OF ANY NECESSARY SERVICING, REPAIR OR CORRECTION.

THIS DISCLAIMER OF WARRANTY CONSTITUTES AN ESSENTIAL PART OF THIS LICENSE. NO USE OF ANY

COVERED CODE IS AUTHORIZED HEREUNDER EXCEPT UNDER THIS DISCLAIMER.

8. TERMINATION.

8.1. This License and the rights granted hereunder will terminate automatically if You fail to comply with terms here-

in and fail to cure such breach within 30 days of becoming aware of the breach. All sublicenses to the Covered

Code which are properly granted shall survive any termination of this License. Provisions which, by their nature,

must remain in effect beyond the termination of this License shall survive.

8.2. If You initiate litigation by asserting a patent infringement claim (excluding declatory judgment actions) against

Initial Developer or a Contributor (the Initial Developer or Contributor against whom You file such action is referred

to as "Participant") alleging that:

(a) such Participant's Contributor Version directly or indirectly infringes any patent, then any and all rights granted

by such Participant to You under Sections 2.1 and/or 2.2 of this License shall, upon 60 days notice from Participant

terminate prospectively, unless if within 60 days after receipt of notice You either: (i) agree in writing to pay

Participant a mutually agreeable reasonable royalty for Your past and future use of Modifications made by such

Participant, or (ii) withdraw Your litigation claim with respect to the Contributor Version against such Participant. If

within 60 days of notice, a reasonable royalty and payment arrangement are not mutually agreed upon in writing by

the parties or the litigation claim is not withdrawn, the rights granted by Participant to You under Sections 2.1 and/or

2.2 automatically terminate at the expiration of the 60 day notice period specified above.

(b) any software, hardware, or device, other than such Participant's Contributor Version, directly or indirectly

infringes any patent, then any rights granted to You by such Participant under Sections 2.1(b) and 2.2(b) are

revoked effective as of the date You first made, used, sold, distributed, or had made, Modifications made by that

Participant.

8.3. If You assert a patent infringement claim against Participant alleging that such Participant's Contributor Version

directly or indirectly infringes any patent where such claim is resolved (such as by license or settlement) prior to the

initiation of patent infringement litigation, then the reasonable value of the licenses granted by such Participant

under Sections 2.1 or 2.2 shall be taken into account in determining the amount or value of any payment or license.

8.4. In the event of termination under Sections 8.1 or 8.2 above, all end user license agreements (excluding distrib-

utors and resellers) which have been validly granted by You or any distributor hereunder prior to termination shall

survive termination.

9. LIMITATION OF LIABILITY.

UNDER NO CIRCUMSTANCES AND UNDER NO LEGAL THEORY, WHETHER TORT (INCLUDING NEGLI-

GENCE), CONTRACT, OR OTHERWISE, SHALL YOU, THE INITIAL DEVELOPER, ANY OTHER CONTRIBUTOR, OR

ANY DISTRIBUTOR OF COVERED CODE,OR ANY SUPPLIER OF ANY OF SUCH PARTIES, BE LIABLE TO ANY

PERSON FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY CHARACTER

INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF GOODWILL, WORK STOPPAGE, COMPUTER

FAILURE OR MALFUNCTION, OR ANY AND ALL OTHER COMMERCIAL DAMAGES OR LOSSES, EVEN IF SUCH

PARTY SHALL HAVE BEEN INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. THIS LIMITATION OF LIABILI-

TY SHALL NOT APPLY TO LIABILITY FOR DEATH OR PERSONAL INJURY RESULTING FROM SUCH PARTY'S

NEGLIGENCE TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH LIMITATION. SOME JURISDICTIONS DO

NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THIS

EXCLUSION AND LIMITATION MAY NOT APPLY TO YOU.

APPENDIX

144

10. U.S. GOVERNMENT END USERS.

The Covered Code is a "commercial item," as that term is defined in 48 C.F.R. 2.101 (Oct. 1995), consisting of

"commercial computer software" and "commercial computer software documentation," as such terms are used in 48

C.F.R. 12.212 (Sept. 1995). Consistent with 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-1 through 227.7202-4 (June

1995), all U.S. Government End Users acquire Covered Code with only those rights set forth herein.

11. MISCELLANEOUS.

This License represents the complete agreement concerning subject matter hereof. If any provision of this License

is held to be unenforceable, such provision shall be reformed only to the extent necessary to make it enforceable. This

License shall be governed by California law provisions (except to the extent applicable law, if any, provides otherwise),

excluding its conflict-of-law provisions. With respect to disputes in which at least one party is a citizen of, or an entity

chartered or registered to do business in the United States of America, any litigation relating to this License shall be

subject to the jurisdiction of the Federal Courts of the Northern District of California, with venue lying in Santa Clara

County, California, with the losing party responsible for costs, including without limitation, court costs and reasonable

attorneys' fees and expenses. The application of the United Nations Convention on Contracts for the International Sale

of Goods is expressly excluded. Any law or regulation which provides that the language of a contract shall be construed

against the drafter shall not apply to this License.

12. RESPONSIBILITY FOR CLAIMS.

As between Initial Developer and the Contributors, each party is responsible for claims and damages arising, direct-

ly or indirectly, out of its utilization of rights under this License and You agree to work with Initial Developer and

Contributors to distribute such responsibility on an equitable basis. Nothing herein is intended or shall be deemed to

constitute any admission of liability.

13. MULTIPLE-LICENSED CODE.

Initial Developer may designate portions of the Covered Code as "Multiple-Licensed". "Multiple-Licensed" means

that the Initial Developer permits you to utilize portions of the Covered Code under Your choice of the NPL or the alter-

native licenses, if any, specified by the Initial Developer in the file described in Exhibit A.

EXHIBIT A -Mozilla Public License.

``The contents of this file are subject to the Mozilla Public License Version 1.1 (the "License"); you may not use this

file except in compliance with the License. You may obtain a copy of the License at http://www.mozilla.org/MPL/

Software distributed under the License is distributed on an "AS IS" basis, WITHOUT WARRANTY OF ANY KIND,

either express or implied. See the License for the specific language governing rights and limitations under the License.

The Original Code is ______________________________________.

The Initial Developer of the Original Code is ________________________.

Portions created by ______________________ are Copyright (C) ______

Contributor(s): ______________________________________.

Alternatively, the contents of this file may be used under the terms of the _____ license (the "[___] License"), in

which case the provisions of [______] License are applicable instead of those above. If you wish to allow use of your

version of this file only under the terms of the [____] License and not to allow others to use your version of this file

under the MPL, indicate your decision by deleting the provisions above and replace them with the notice and other

provisions required by the [___] License. If you do not delete the provisions above, a recipient may use your version of

this file under either the MPL or the [___] License."

[NOTE: The text of this Exhibit A may differ slightly from the text of the notices in the Source Code files of the

Original Code. You should use the text of this Exhibit A rather than the text found in the Original Code Source Code for

Your Modifications.]

APPENDIX

LG Electronics USA EAX57538201 Bluetooth Module User Manual SAC31539704 en REV02

LG Electronics USA Bluetooth Module SAC31539704 en REV02

Contents

Host user manual 2 of 2

Navigation menu

Namespaces

Views

Navigation
