OWNER’S MANUAL

LCD TV MODELS

32LG70**

37LG70**

42LG70**

47LG70**

52LG70**

PLASMA TV MODELS

50PG70**

60PG70**

LCD TV PLASMA TV

Please read this manual carefully before operating

your TV.

Retain it for future reference.

Record model number and serial number of the TV.

Refer to the label on the back cover and quote this

information.

To your dealer when requiring service.

ENGLISH

Trade Mark of the DVB Digital Video

Broadcasting Project (1991 to 1996)

ID Number(s):

5512: 32LG7000

5511: 37LG7000

5510: 42LG7000

5530: 47LG7000

5509: 52LG7000

5245: 50PG7000

5244: 60PG7000

Statement according to FCC part 15.105

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable

protection against harmful interference in a residential installation.This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Statement according to FCC part 15.21

Modifications not expressly approved by Westermo could void the user's

authority to operate the equipment.

FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation

exposure limits set forth for an uncontrolled environment. This device and its antenna must not

be co-located or operating in conjunction with any other antenna or transmitter.

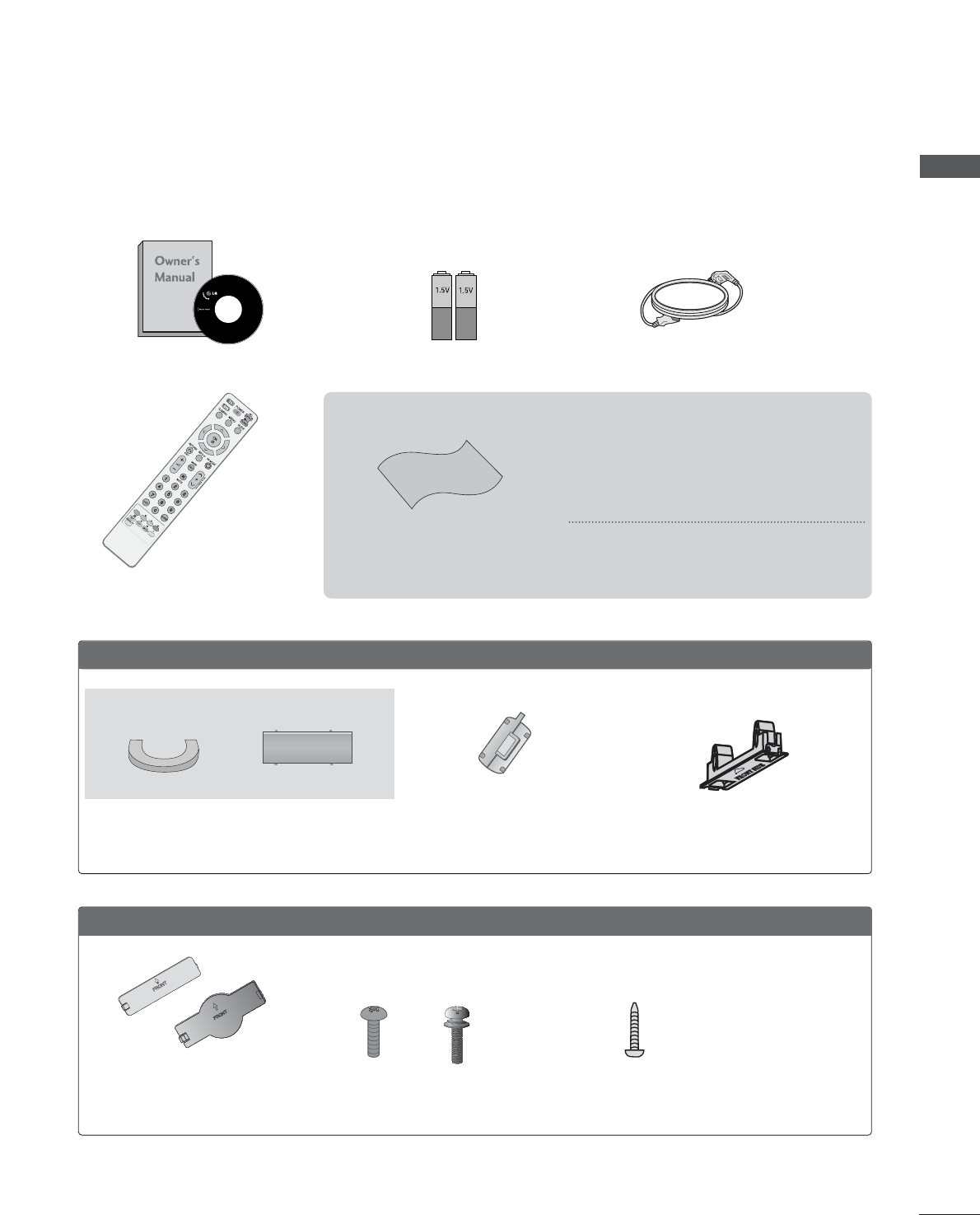

ACCESSORIES

Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the

dealer where you purchased the TV.

■

Image shown may differ from your TV

Owner’s Manual Batteries

Remote Control

Power Cord

Polishing Cloth

Polishing cloth for use on

the screen.

This feature is not available for all models.

* Lightly wipe any stains or fingerprints on

the surface of the TV with the polishing

cloth.

Do not use excessive force. This may cause

scratching or discolouration.

LCD TV models

Cable management clip Protection cover

(Refer to p.13)

Ferrite core

(Refer to p.10)

PLASMA TV models

Protection Cover

(Refer to

.13)

Bolts for stand assembly

(Refer to p.8)

x 4

(32/37/42LG70** only)

1-screw for stand fixing

(Refer to p.12)

(32LG70** only)

CONTENTS

ACCESSORIES

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PREPARATION

Front Panel Controls..................................................... 4

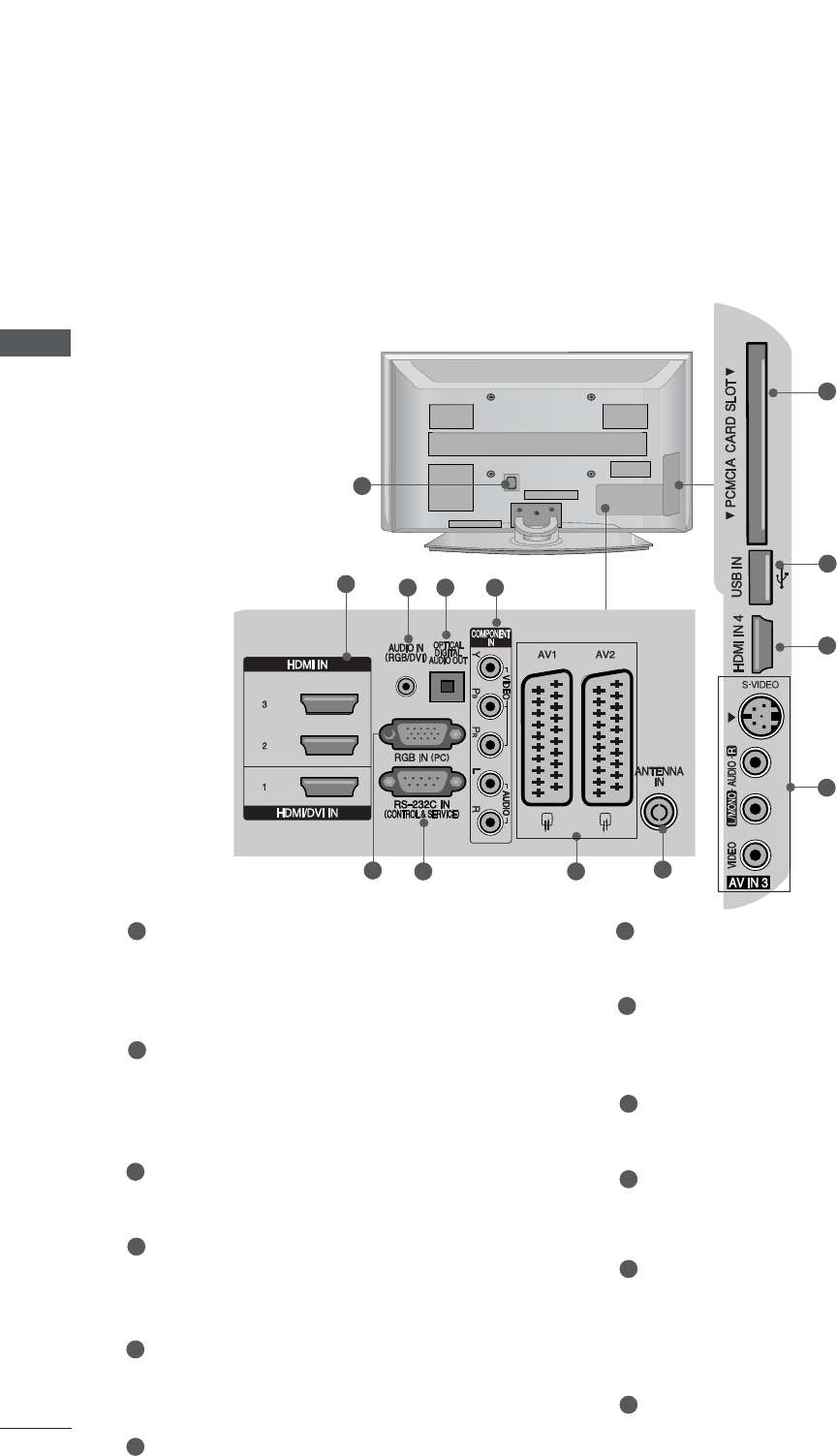

Back Panel Information ................................................ 6

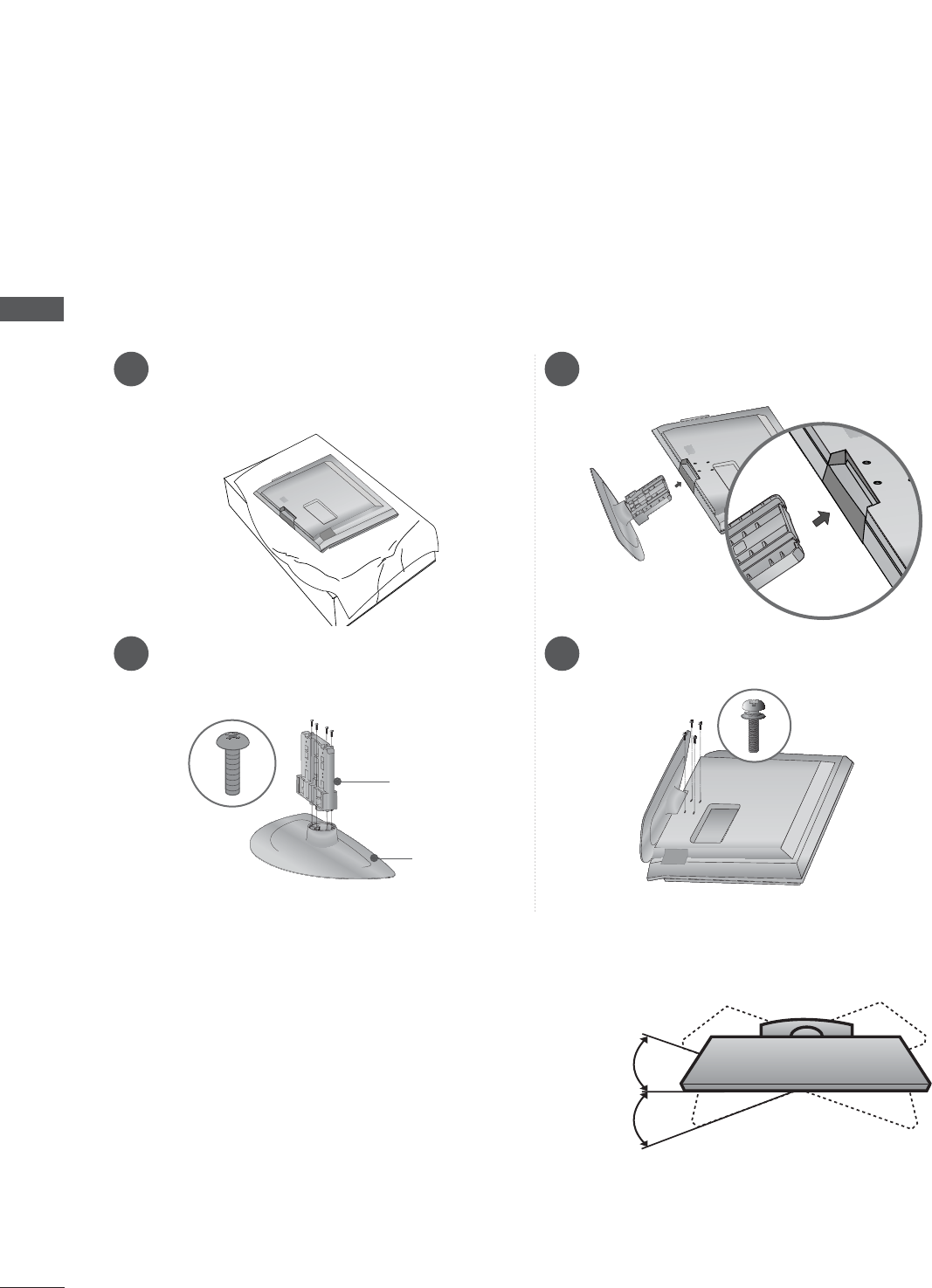

Stand Installation........................................................... 8

Swivel Stand ................................................................... 8

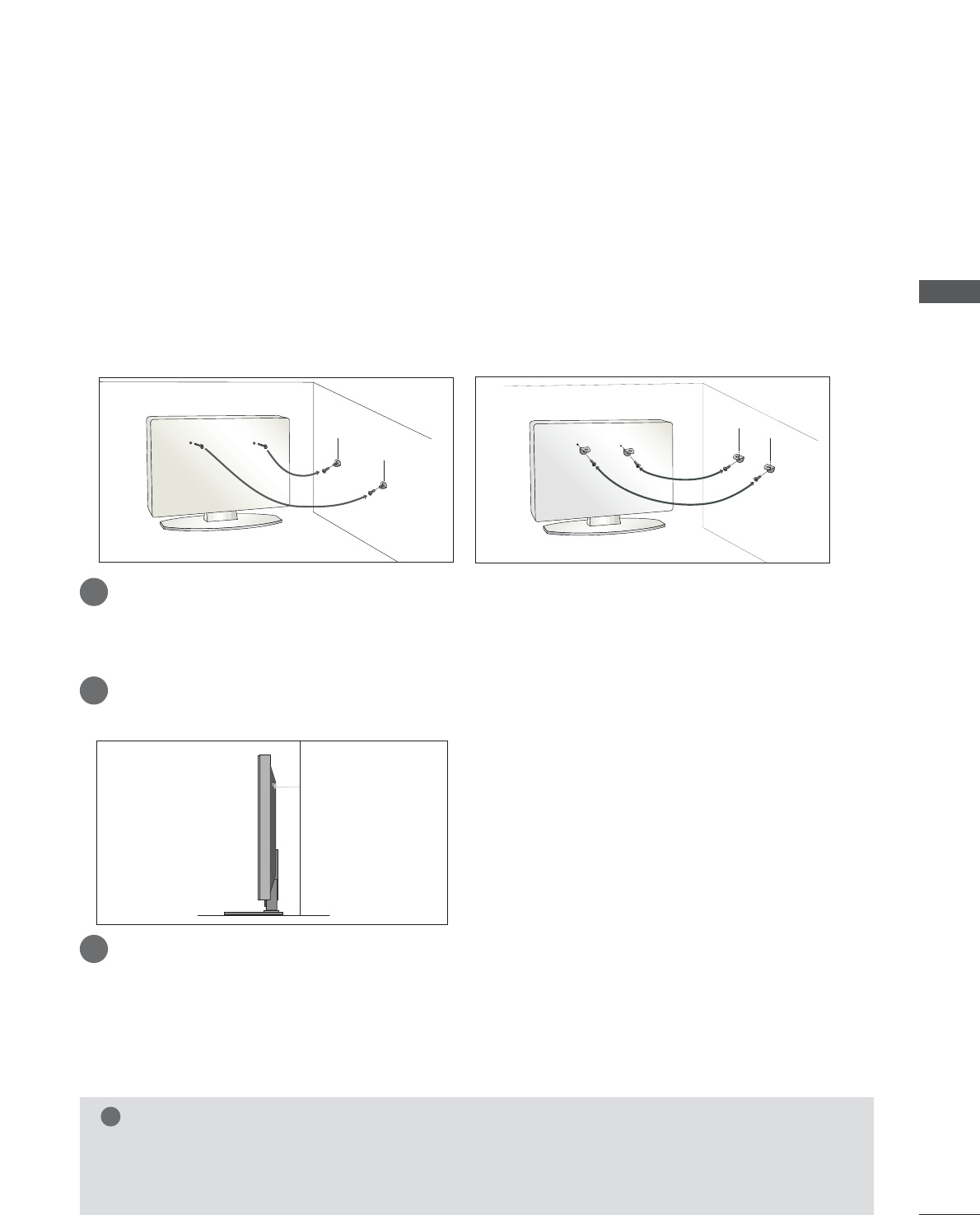

Please set it up carefully so the product doesn’t fall

over..................................................................................... 9

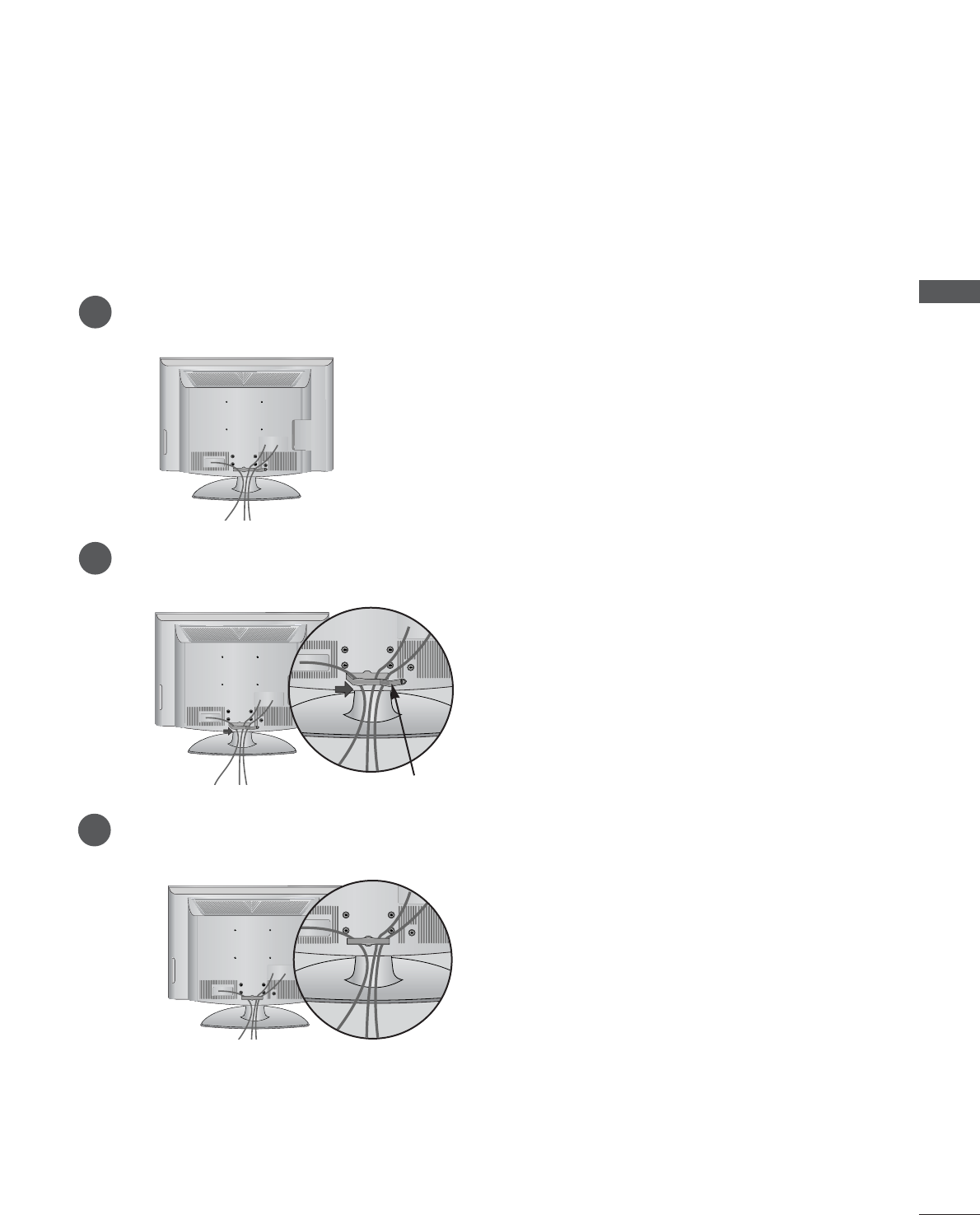

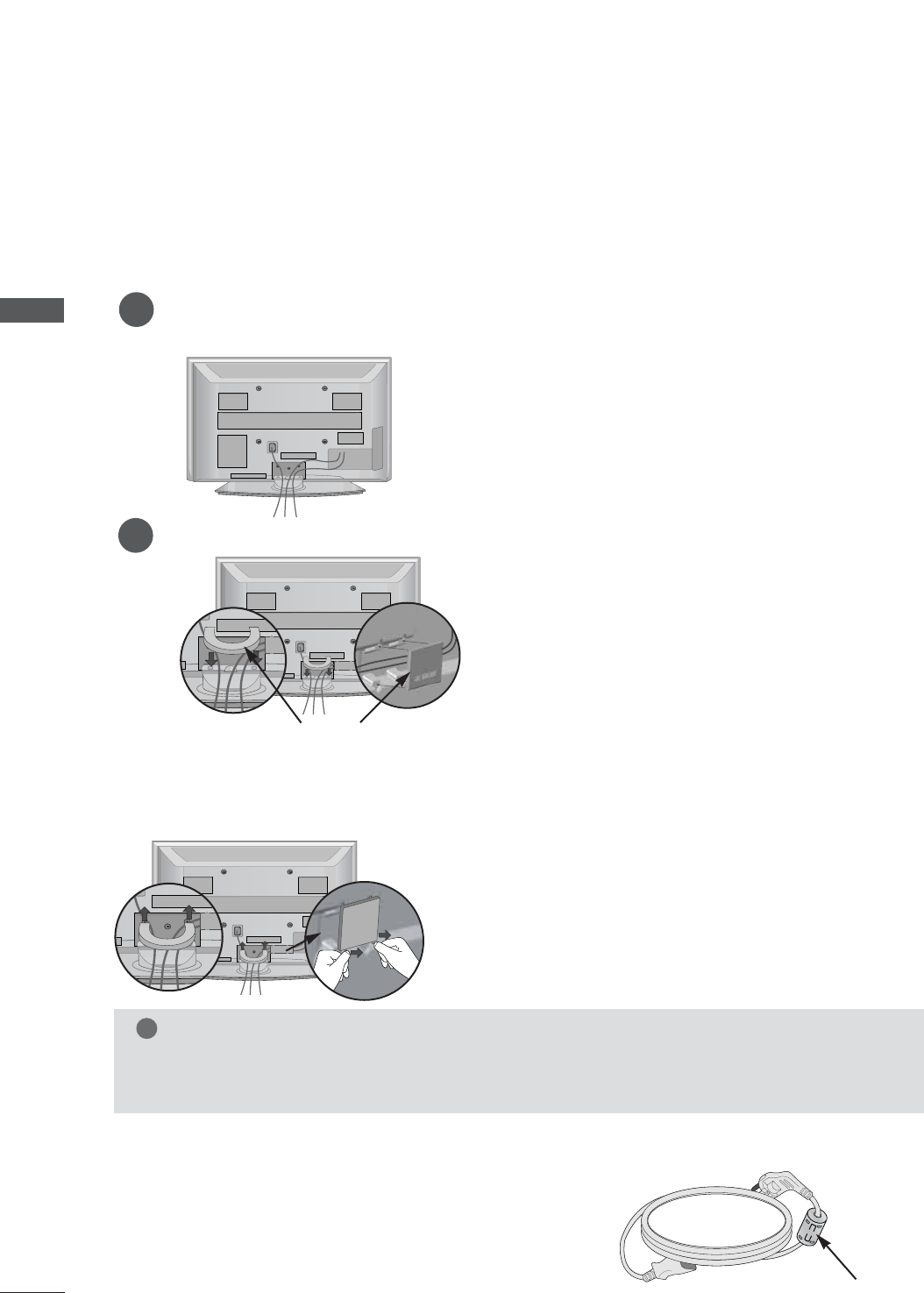

Back Cover for Wire Arrangement .......................... 10

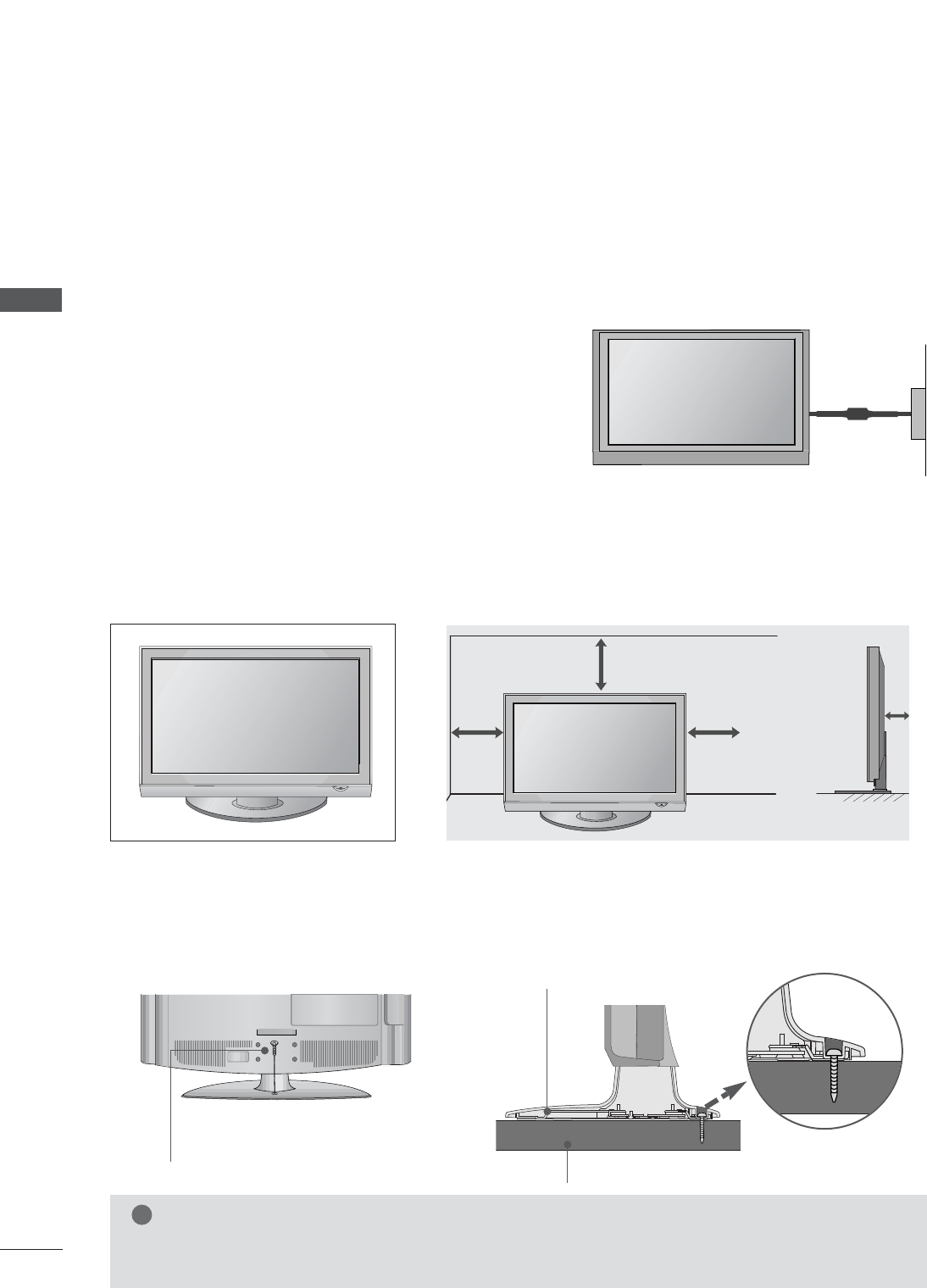

Desktop Pedestal Installation................................... 12

Attaching the TV to a desk.........................................12

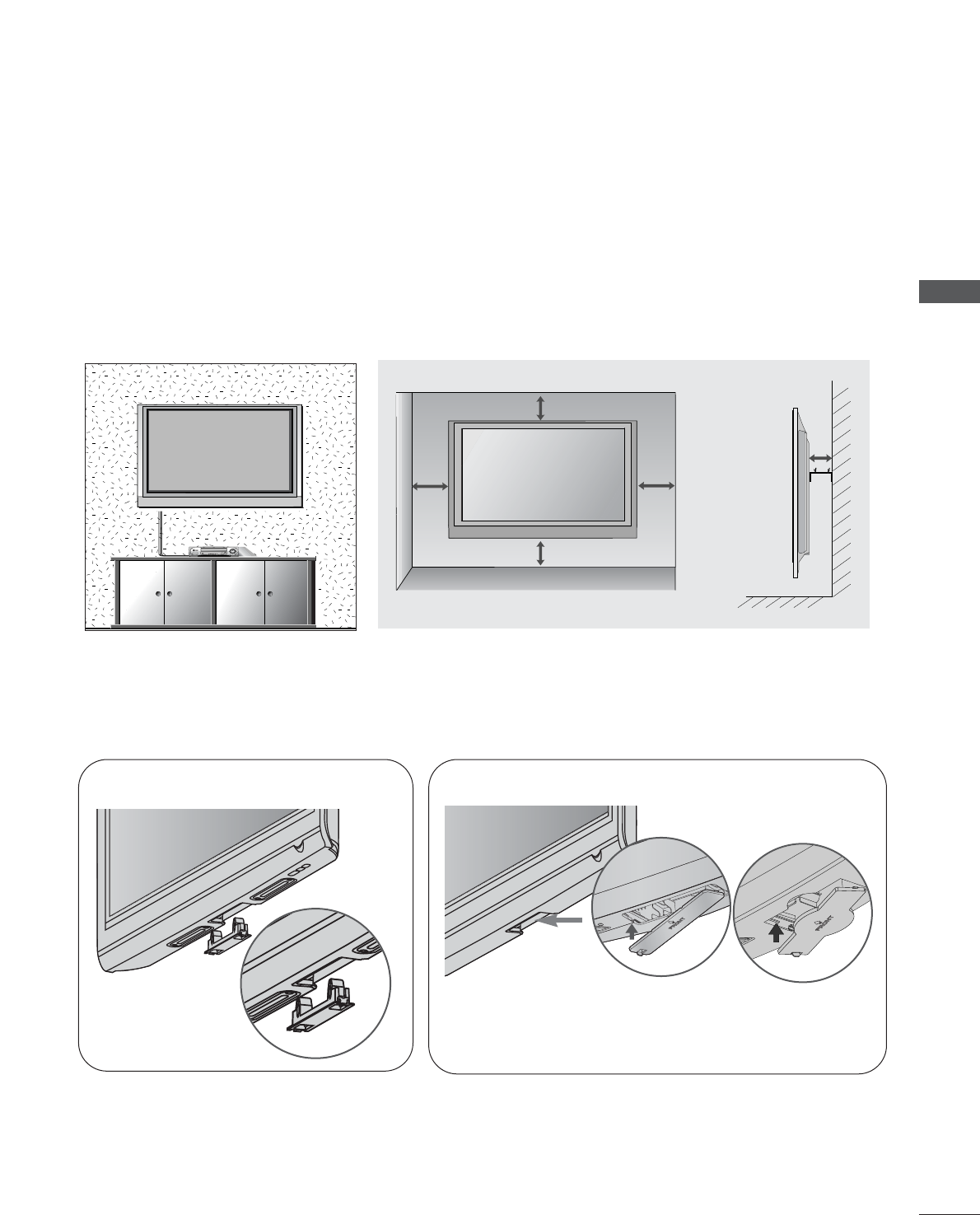

Wall Mount: Horizontal Installation........................ 13

Not Using the desk-type stand.................................13

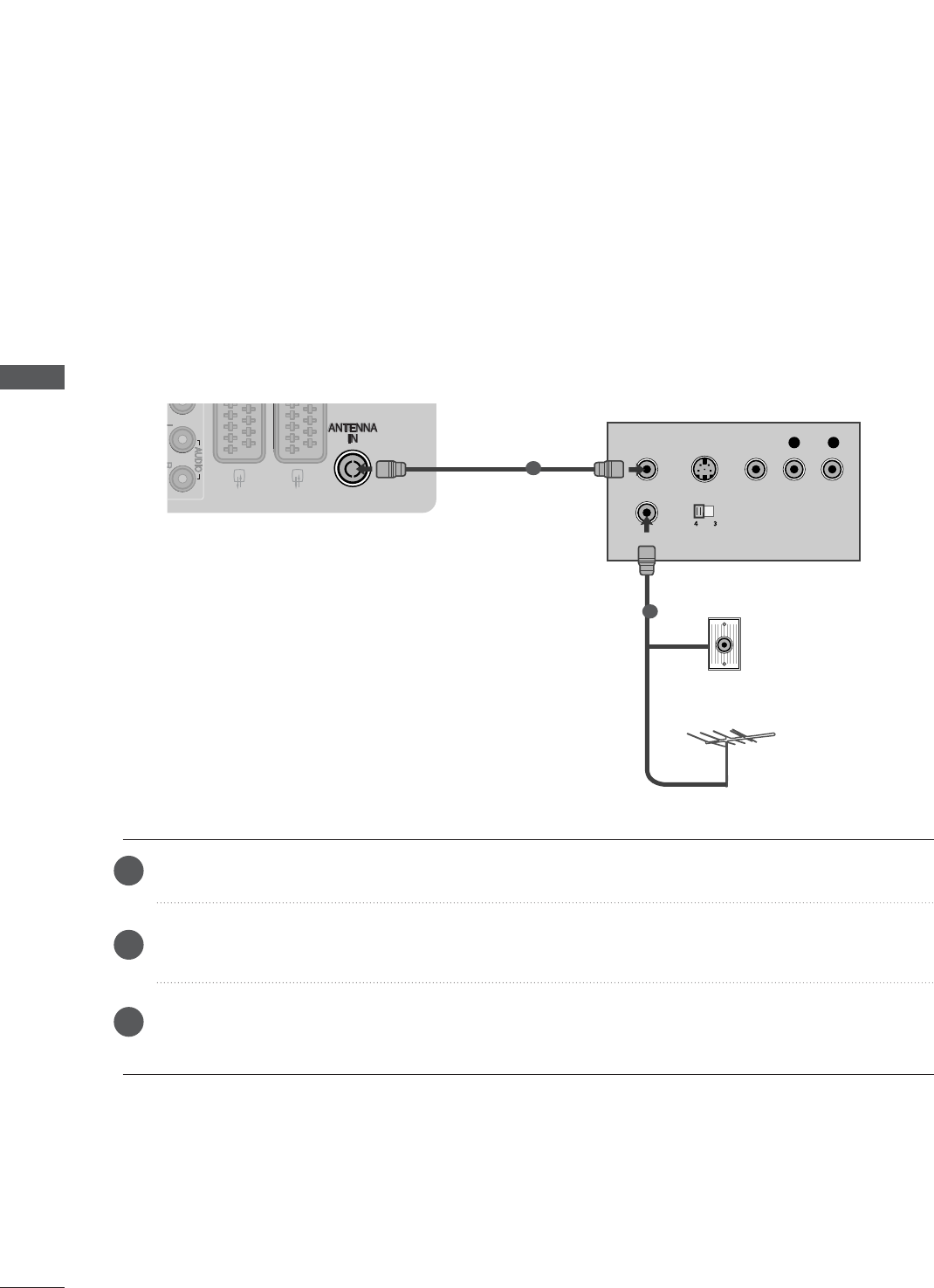

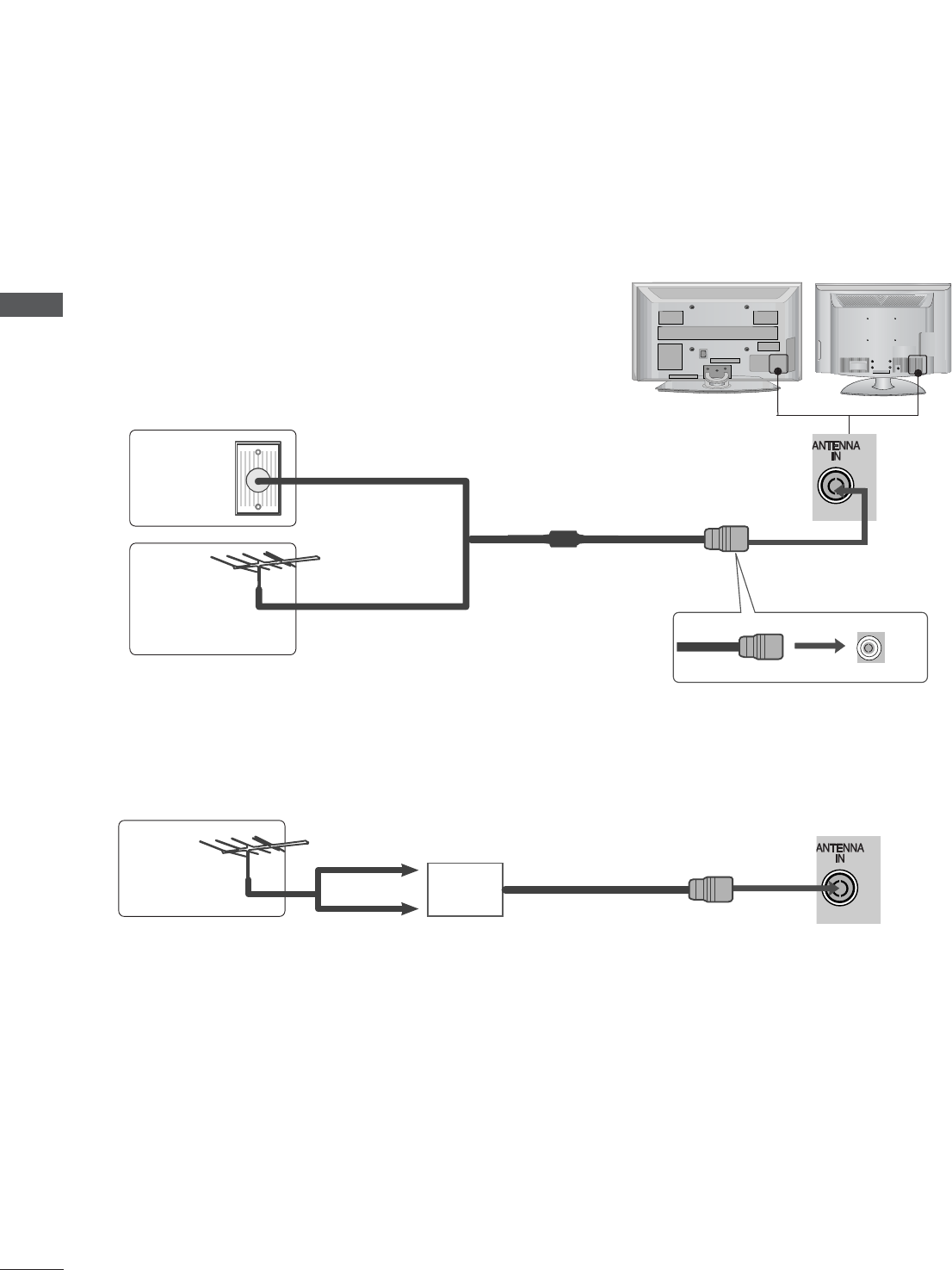

Antenna Connection................................................... 14

EXTERNAL EQUIPMENT SETUP

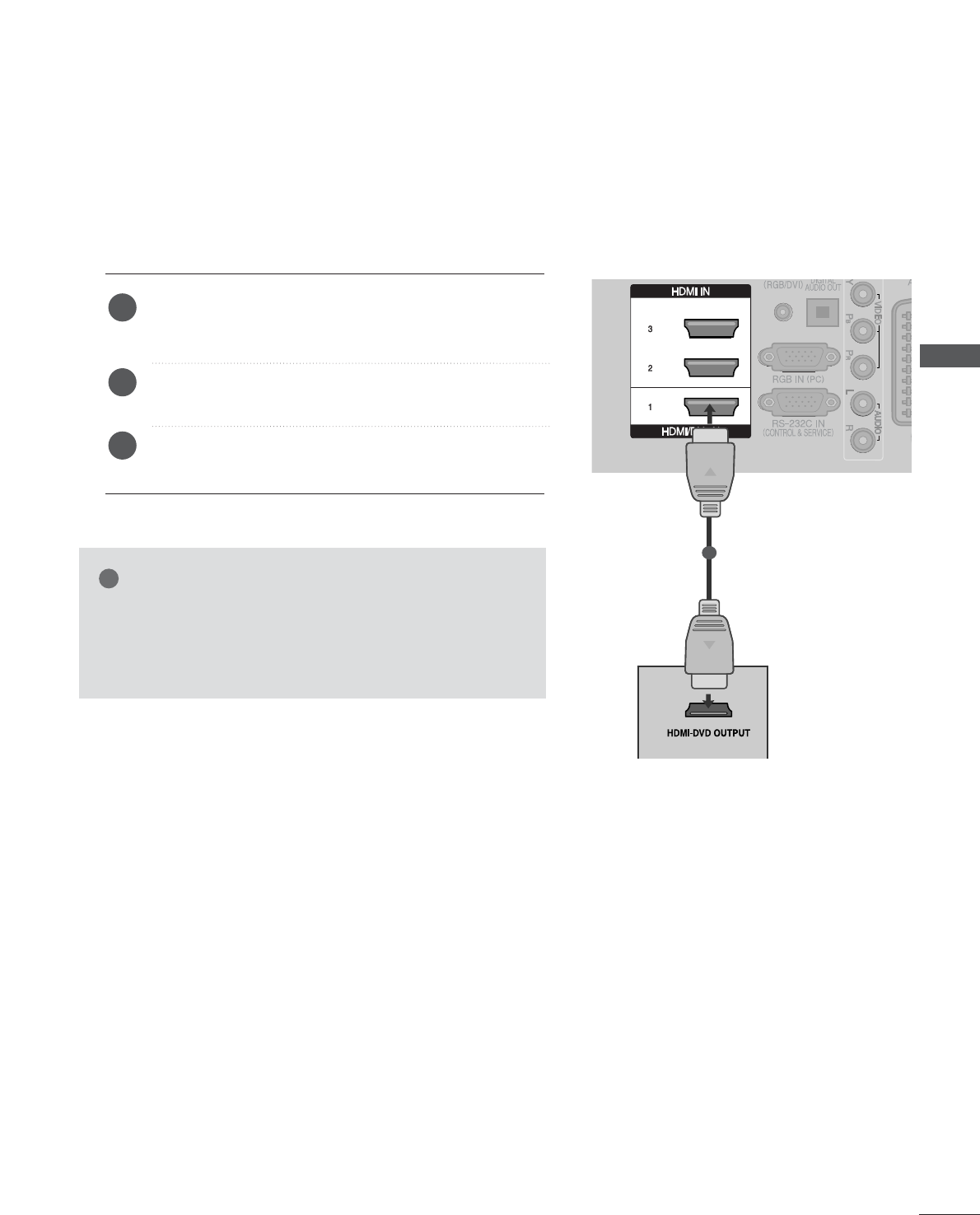

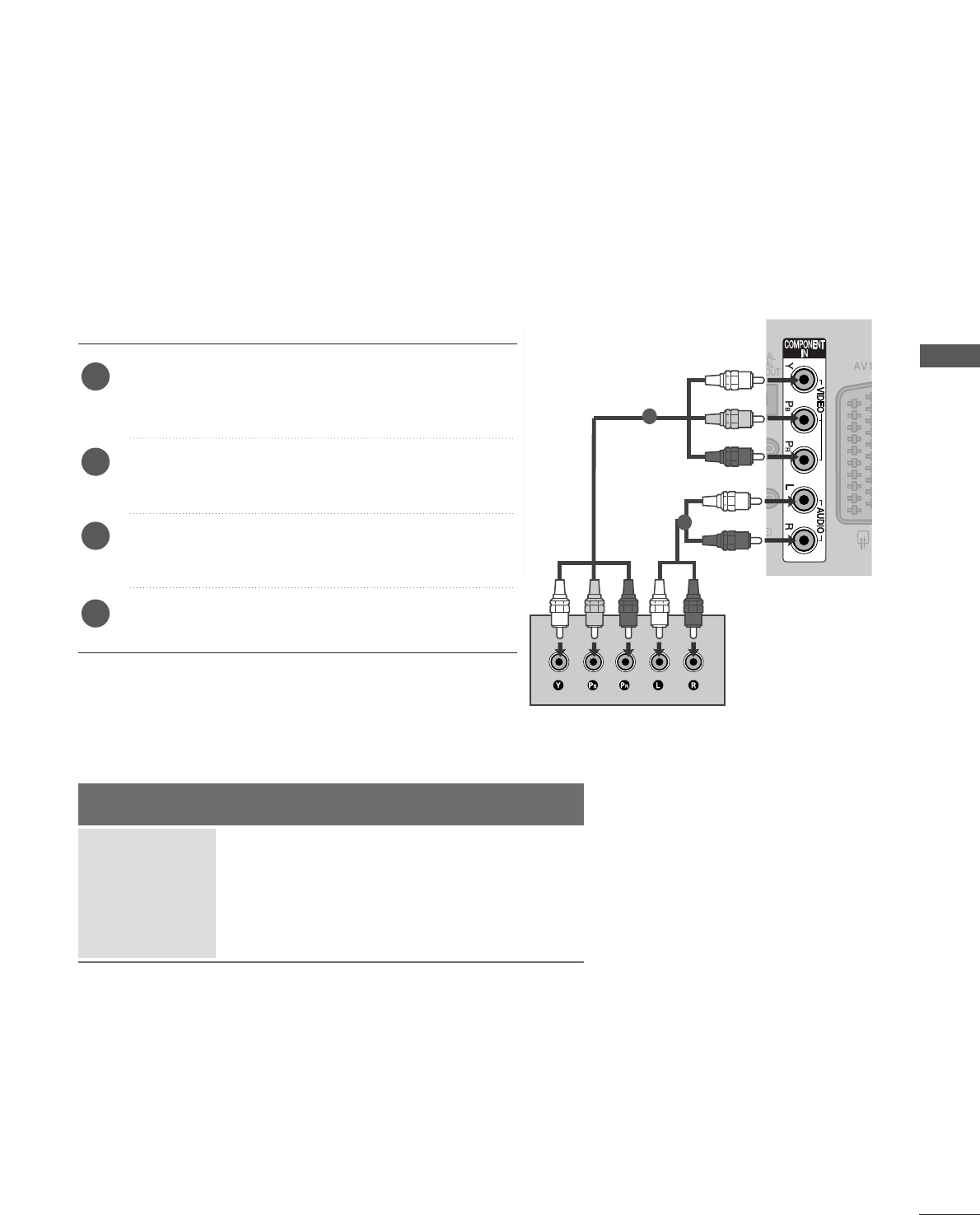

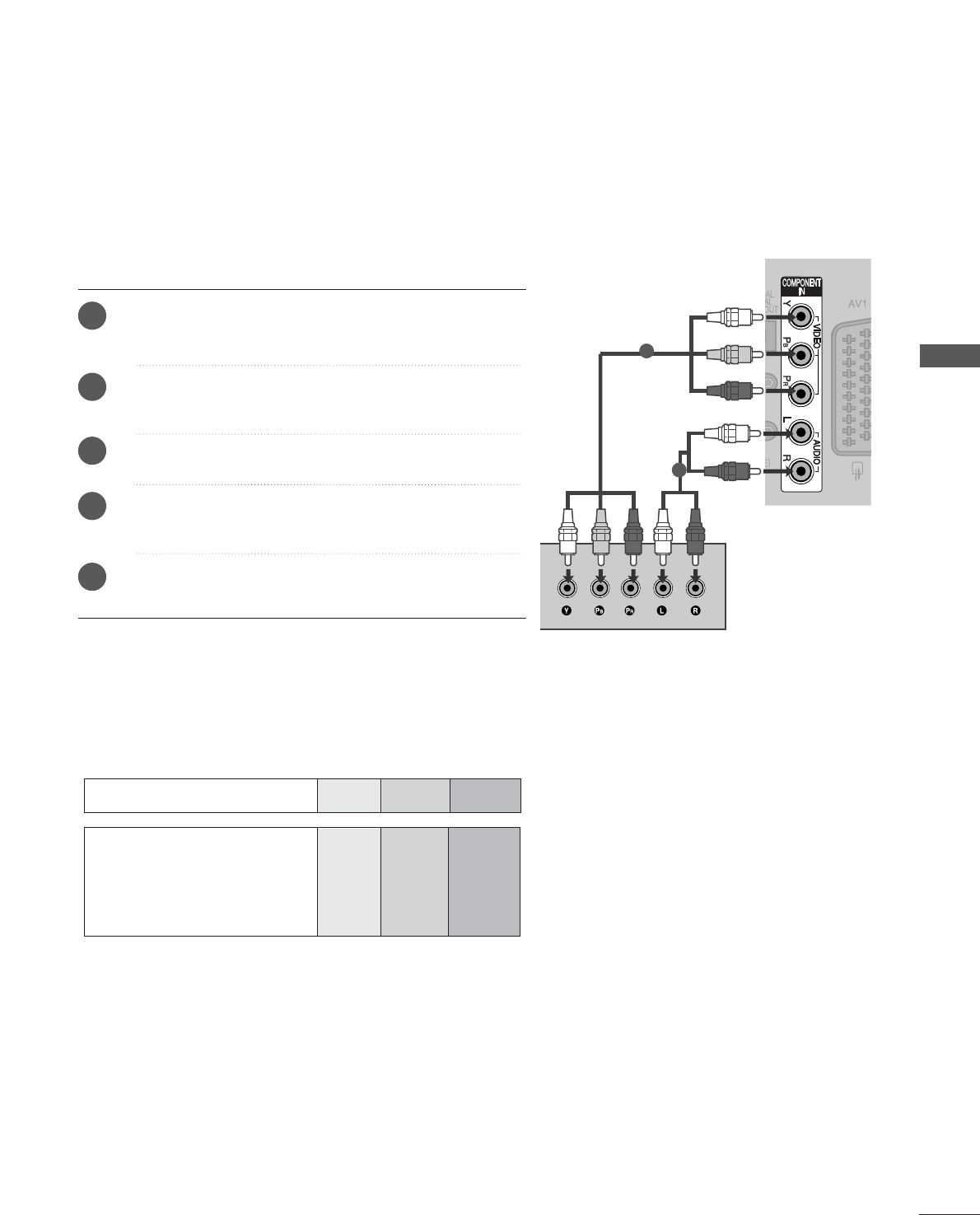

HD Receiver Setup...................................................... 15

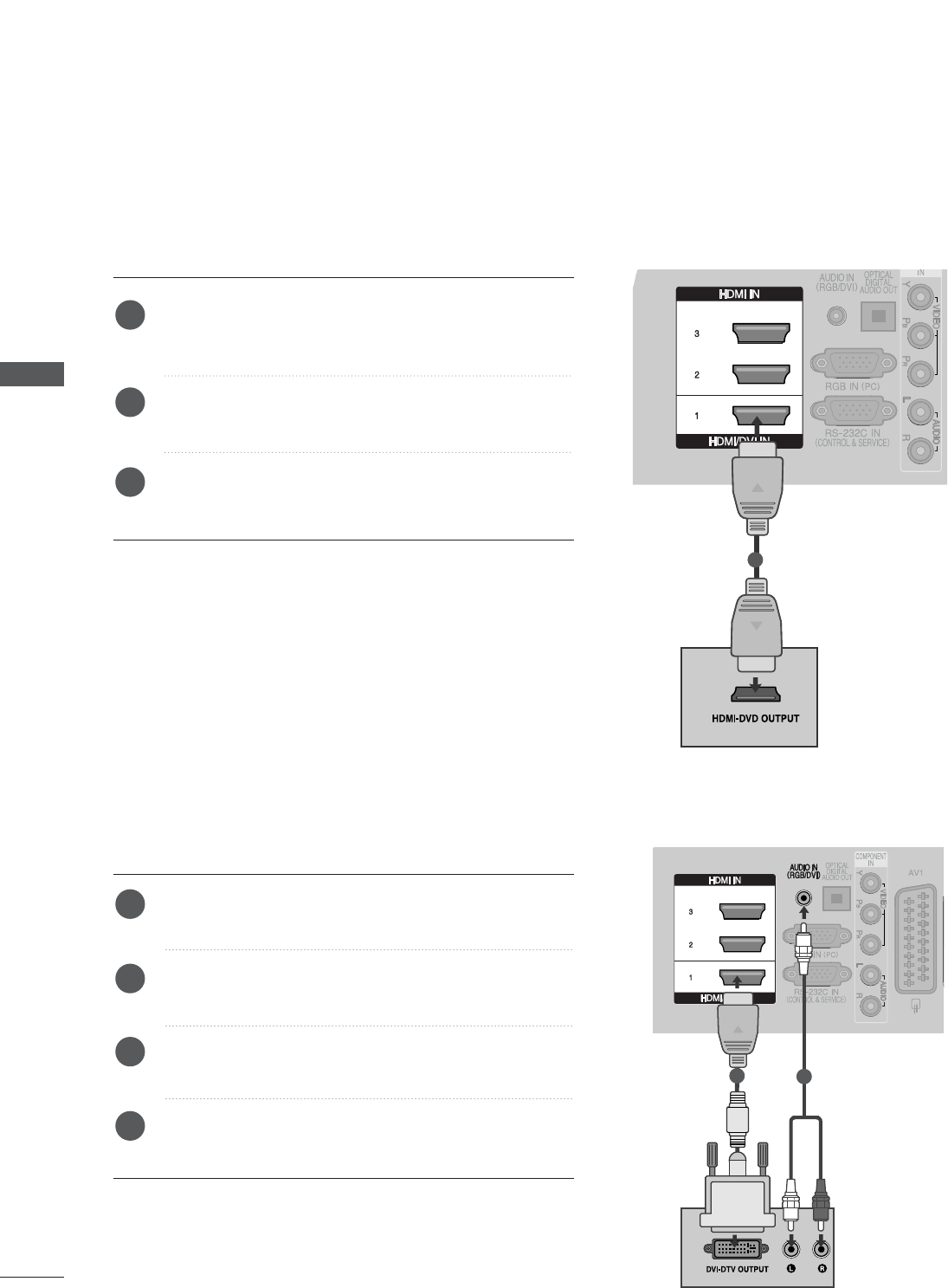

DVD Setup..................................................................... 17

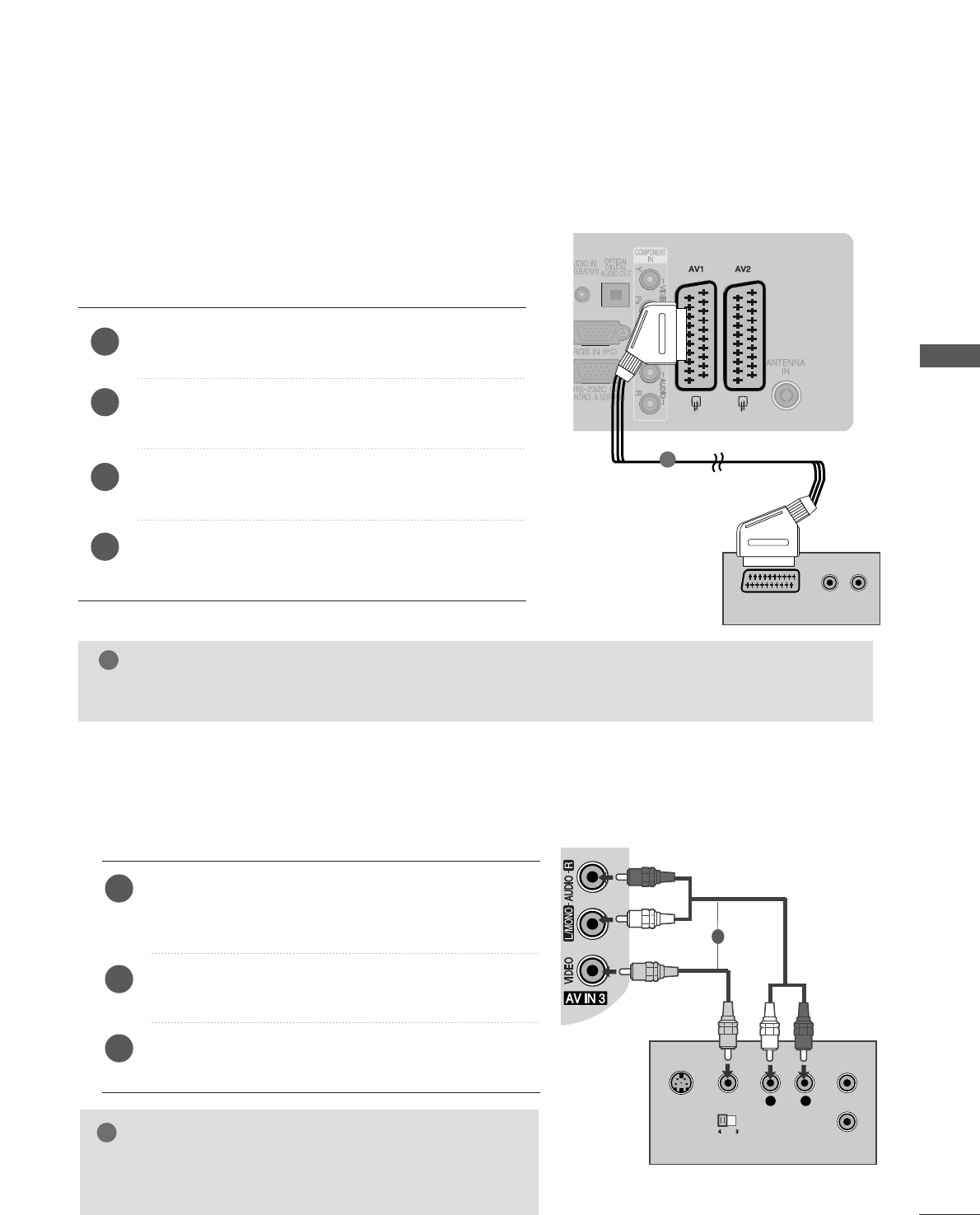

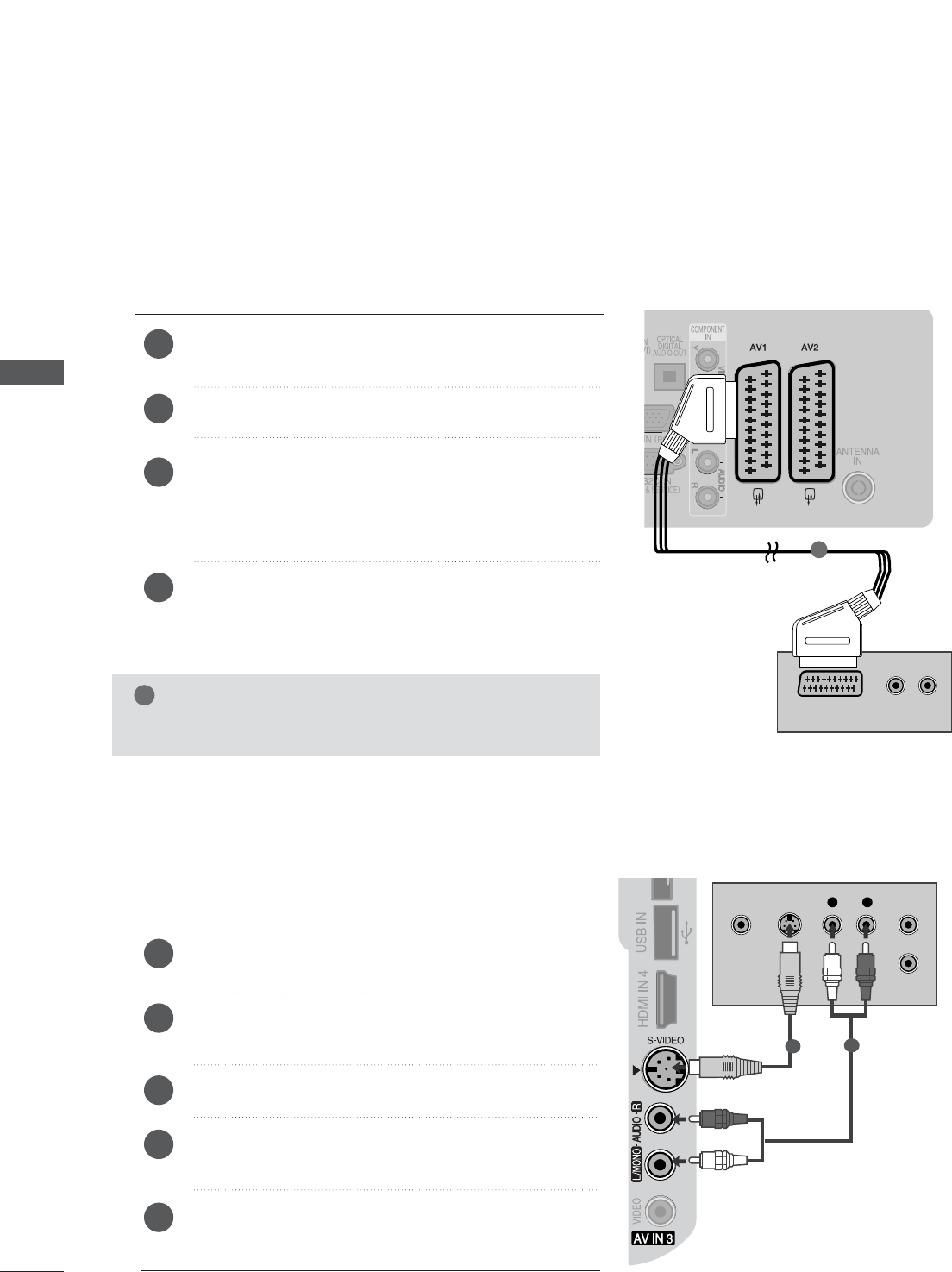

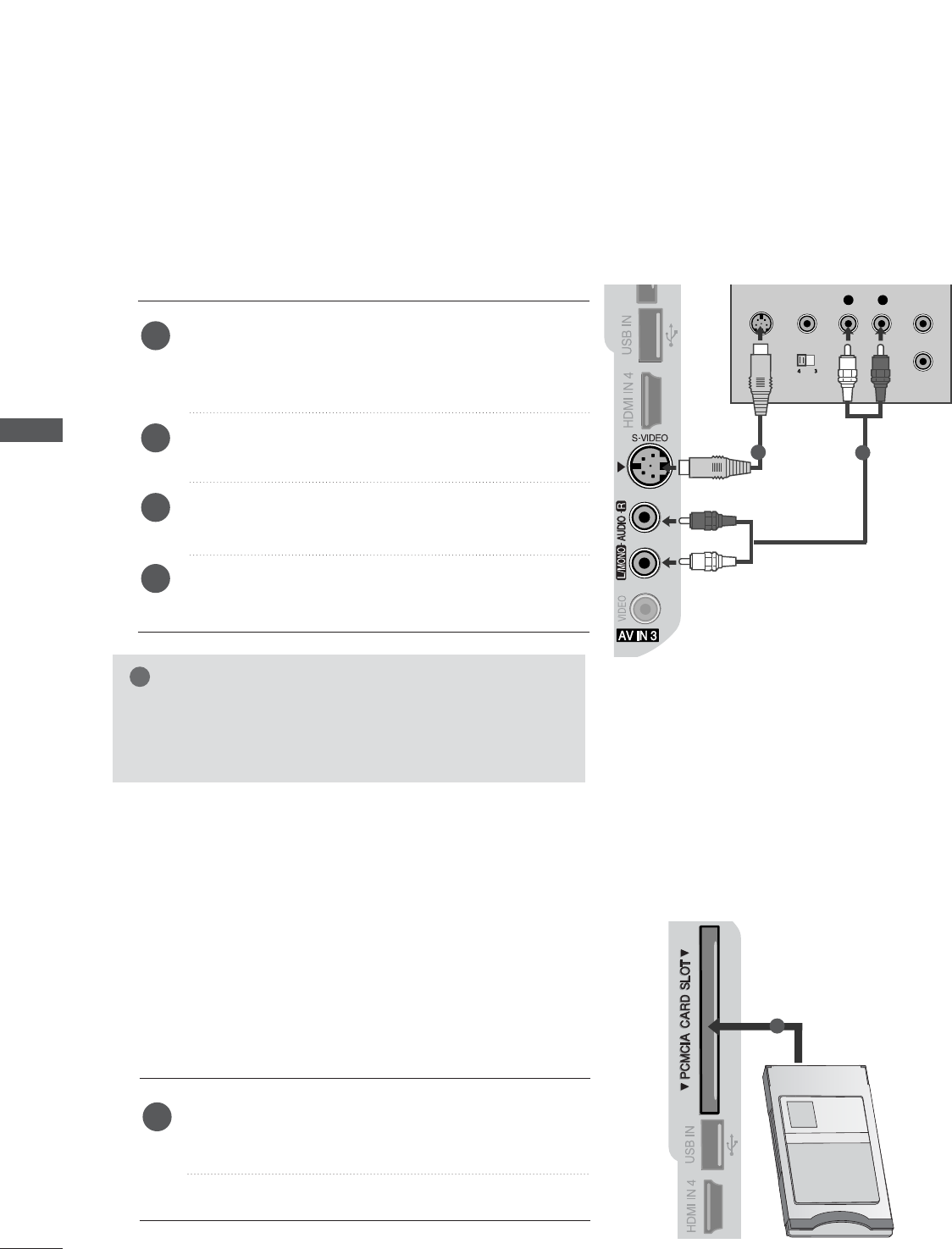

VCR Setup..................................................................... 20

Insertion of CI Module .............................................. 22

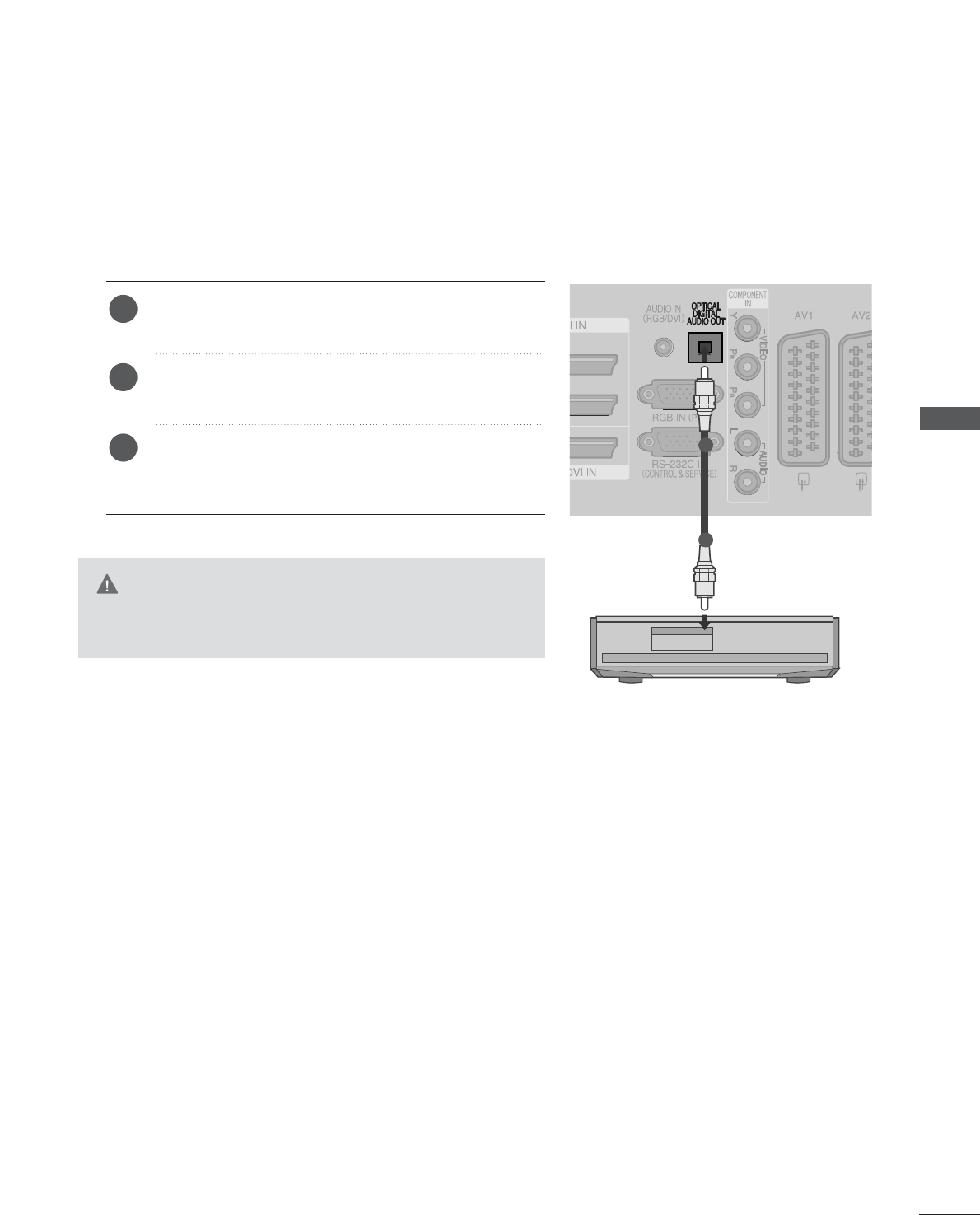

Digital Audio Out Setup............................................ 23

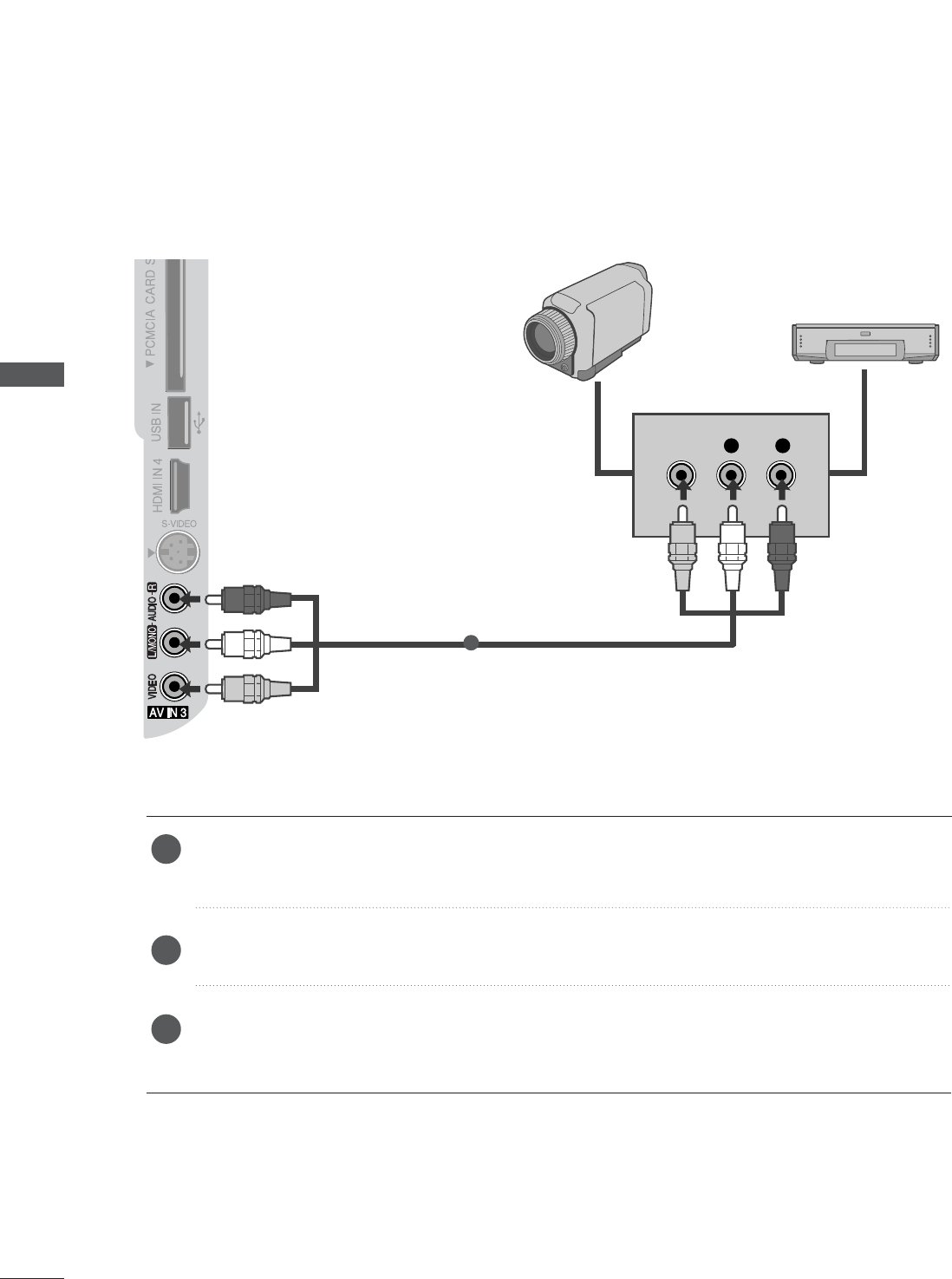

Other A/V Source Setup........................................... 24

Usb in Setup................................................................. 25

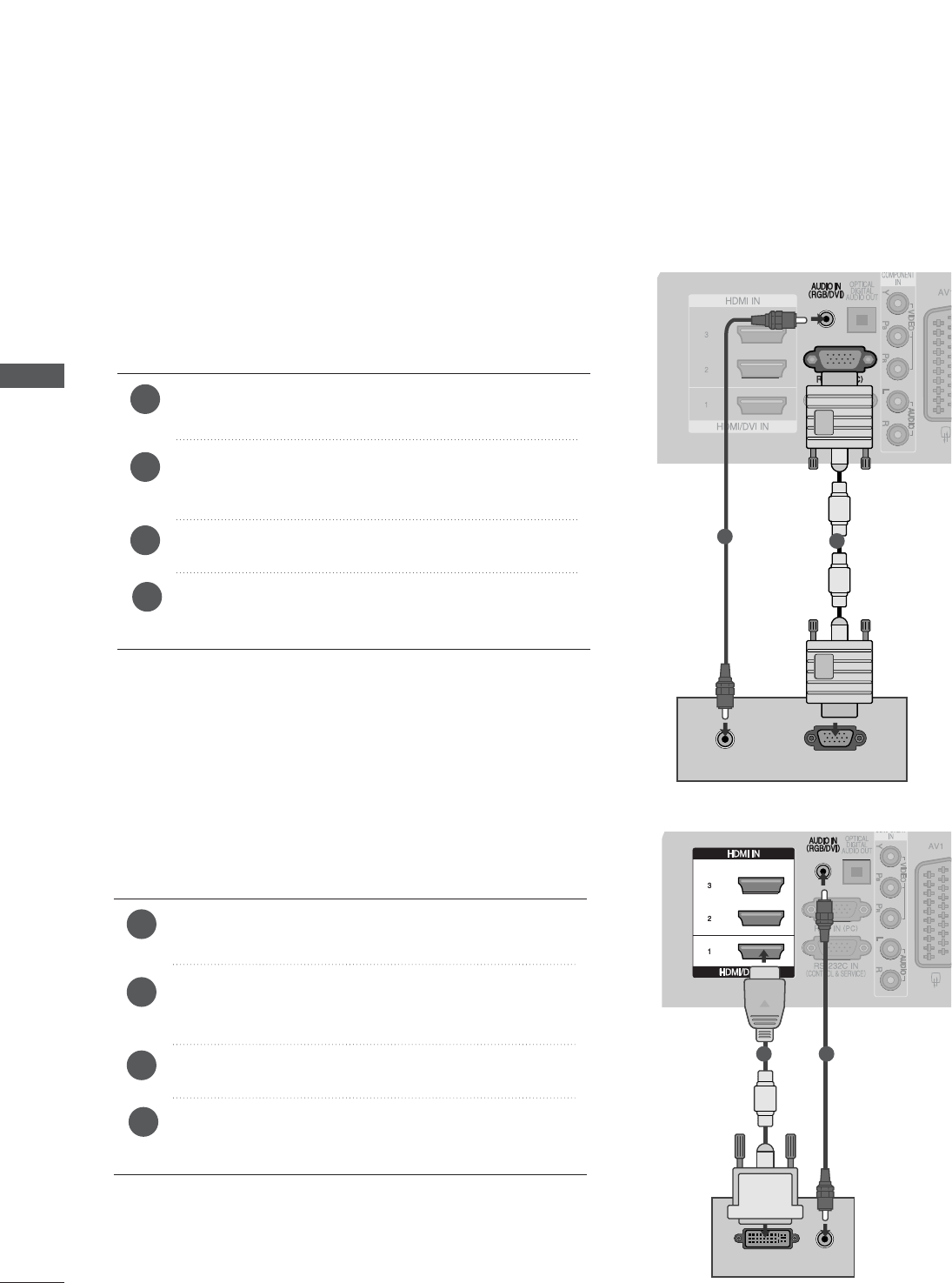

PC Setup........................................................................ 26

- Screen Setup for PC Mode .............................. 29

WATCHING TV / PROGRAMME CONTROL

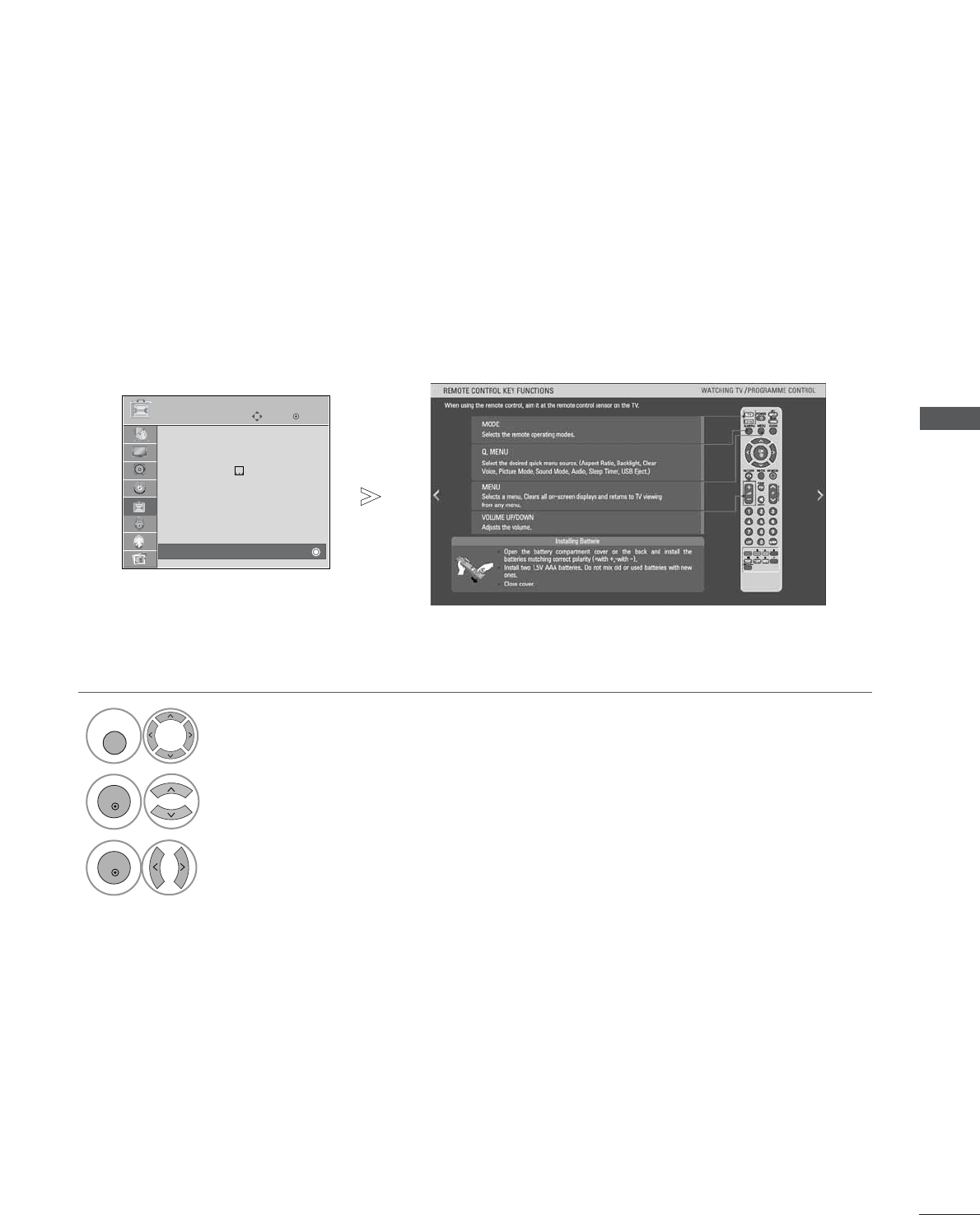

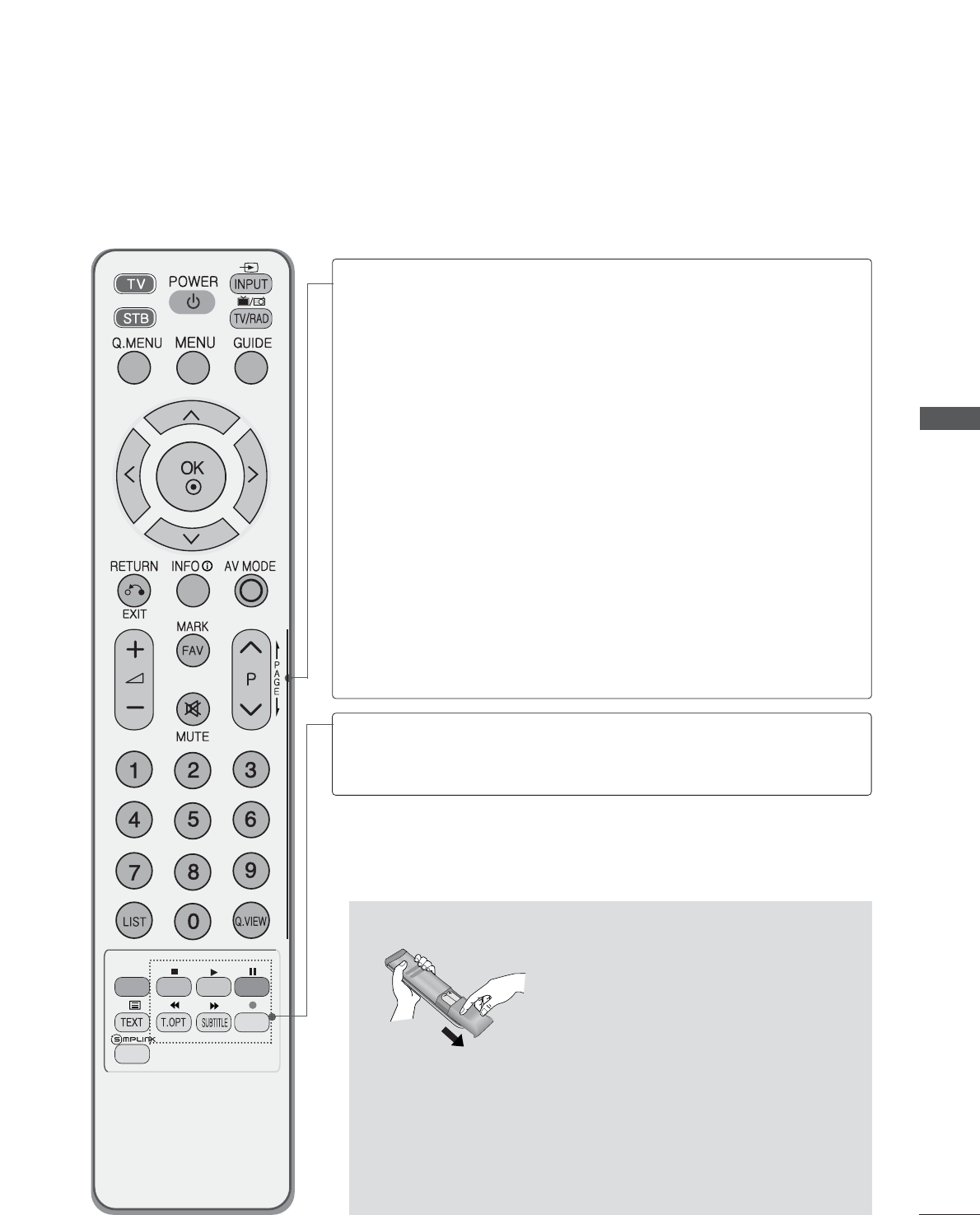

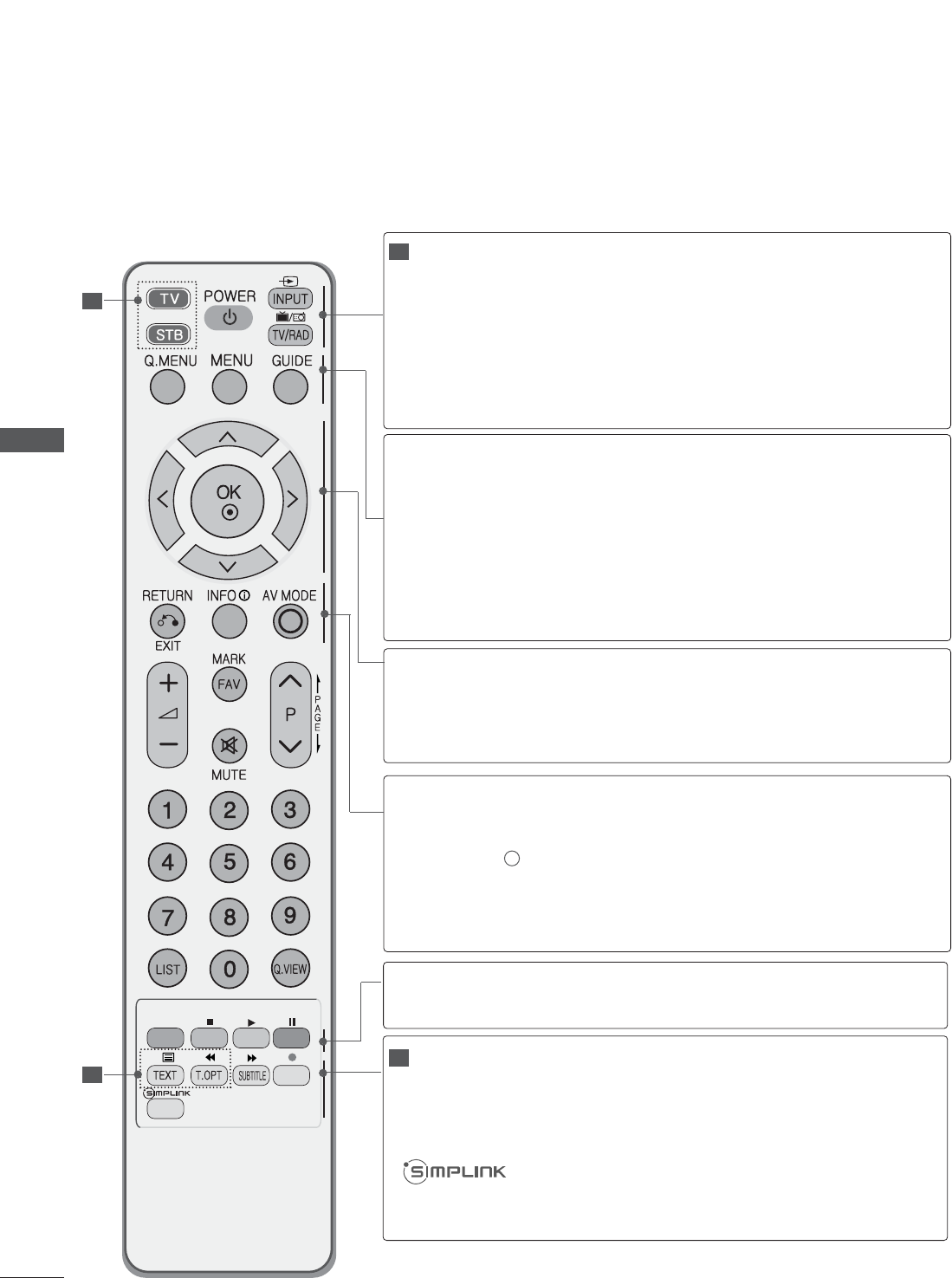

Remote Control Key Functions ............................... 34

Turning on the TV....................................................... 36

Programme Selection ................................................ 36

Volume Adjustment ................................................... 36

Quick Menu ................................................................. 37

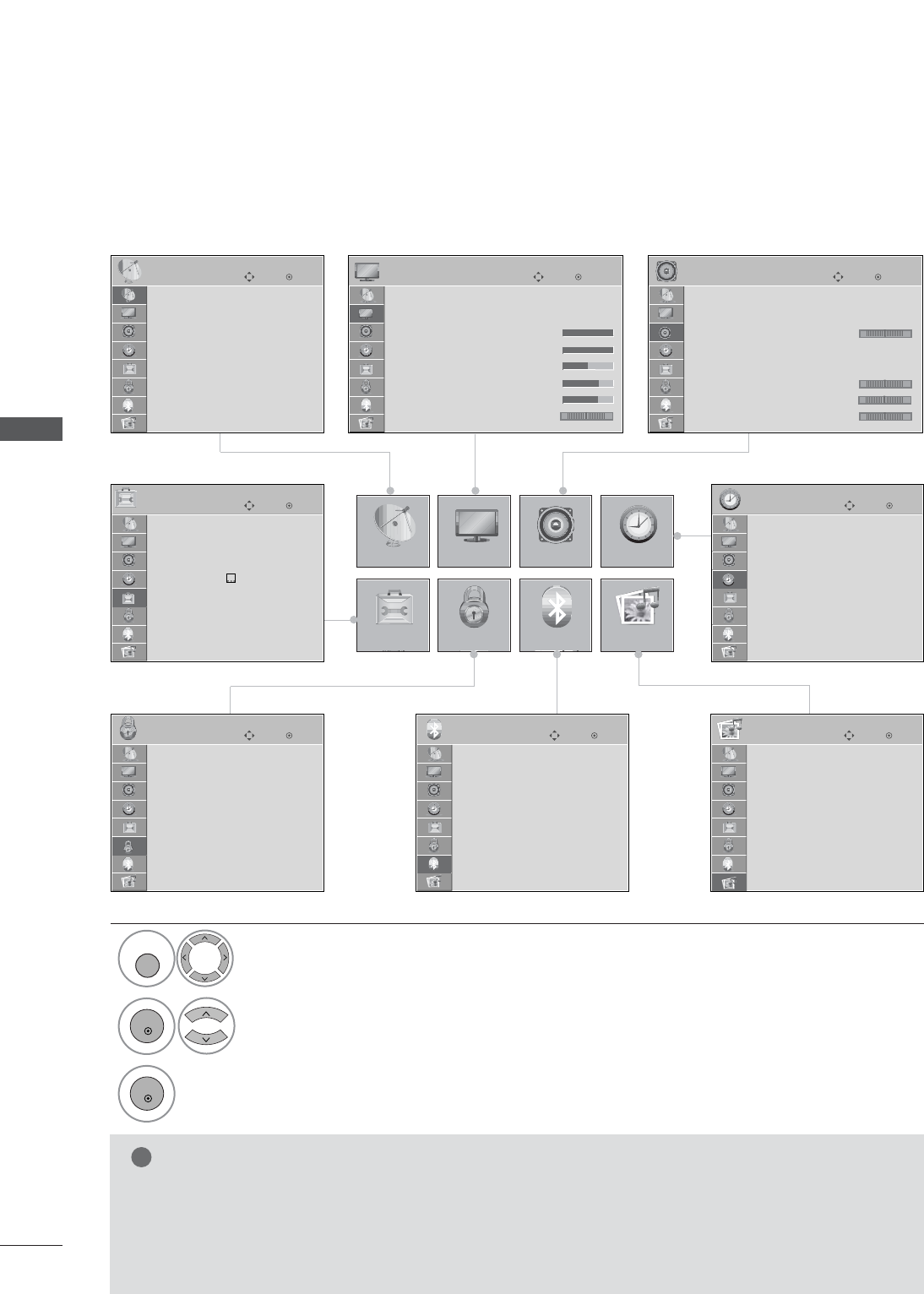

On-Screen Menus Selection and Adjustment..... 38

Auto Programme Tuning............................................ 39

Manual Programme Tuning (In Digital Mode)..... 40

Manual Programme Tuning (In Analogue Mode) ... 41

Programme Edit ........................................................... 43

Booster........................................................................... 46

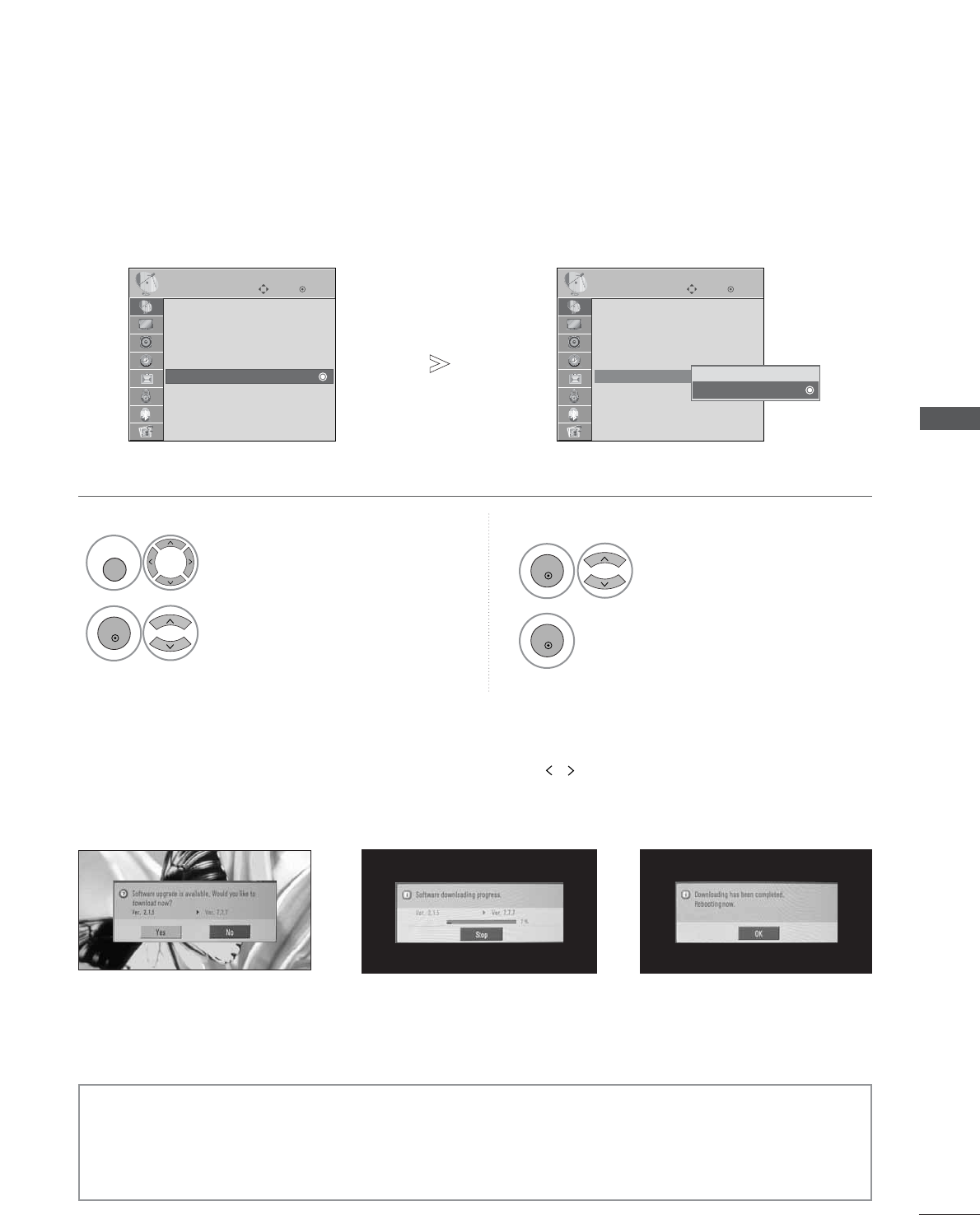

Software Update.......................................................... 47

Diagnostics ................................................................... 48

CI Information.............................................................. 49

Selecting the Programme Table............................... 50

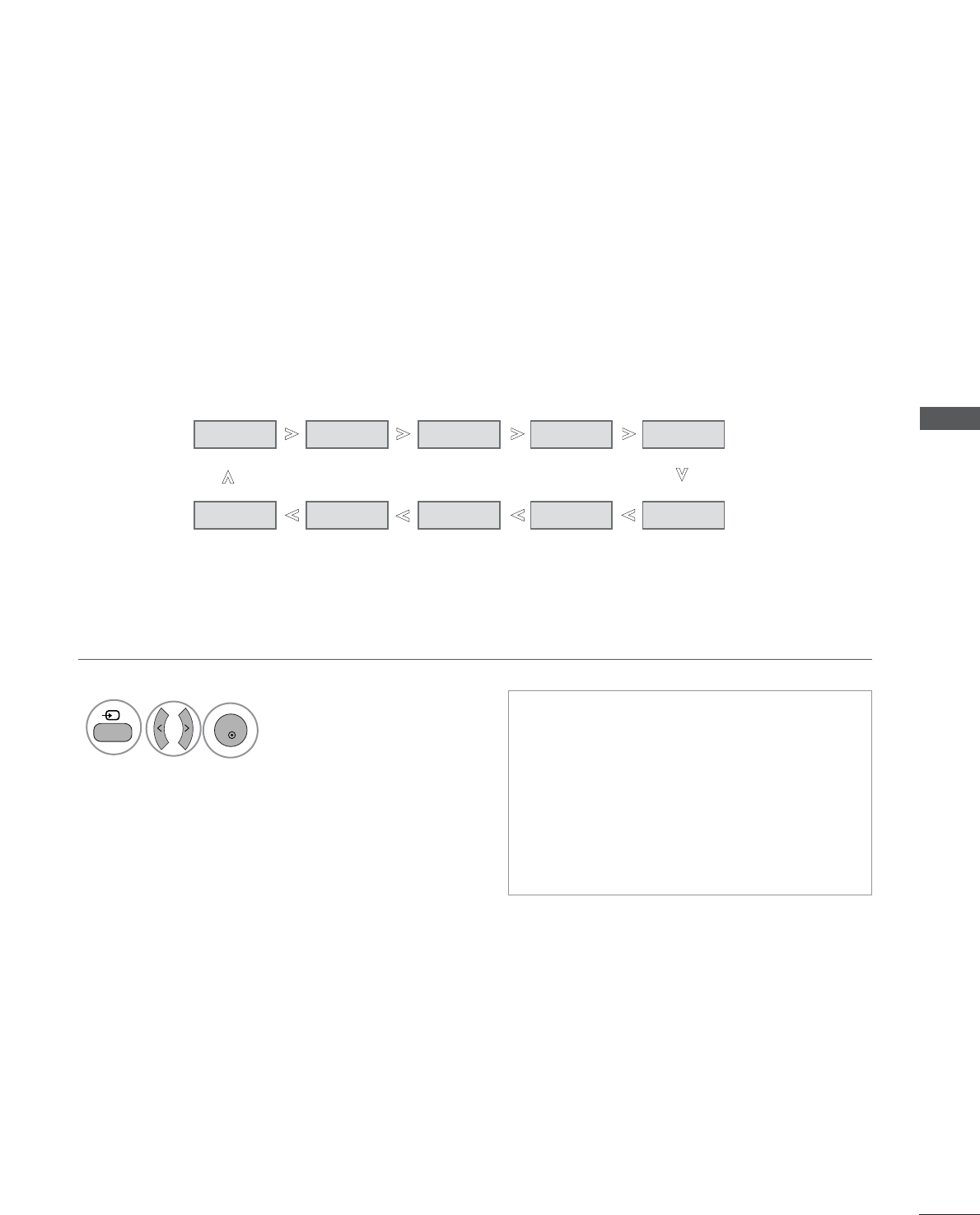

Input List........................................................................ 51

................................................................. 52

Input Label .................................................................... 54

AV Mode........................................................................ 54

Simple manual .............................................................. 55

TO USE THE BLUETOOTH

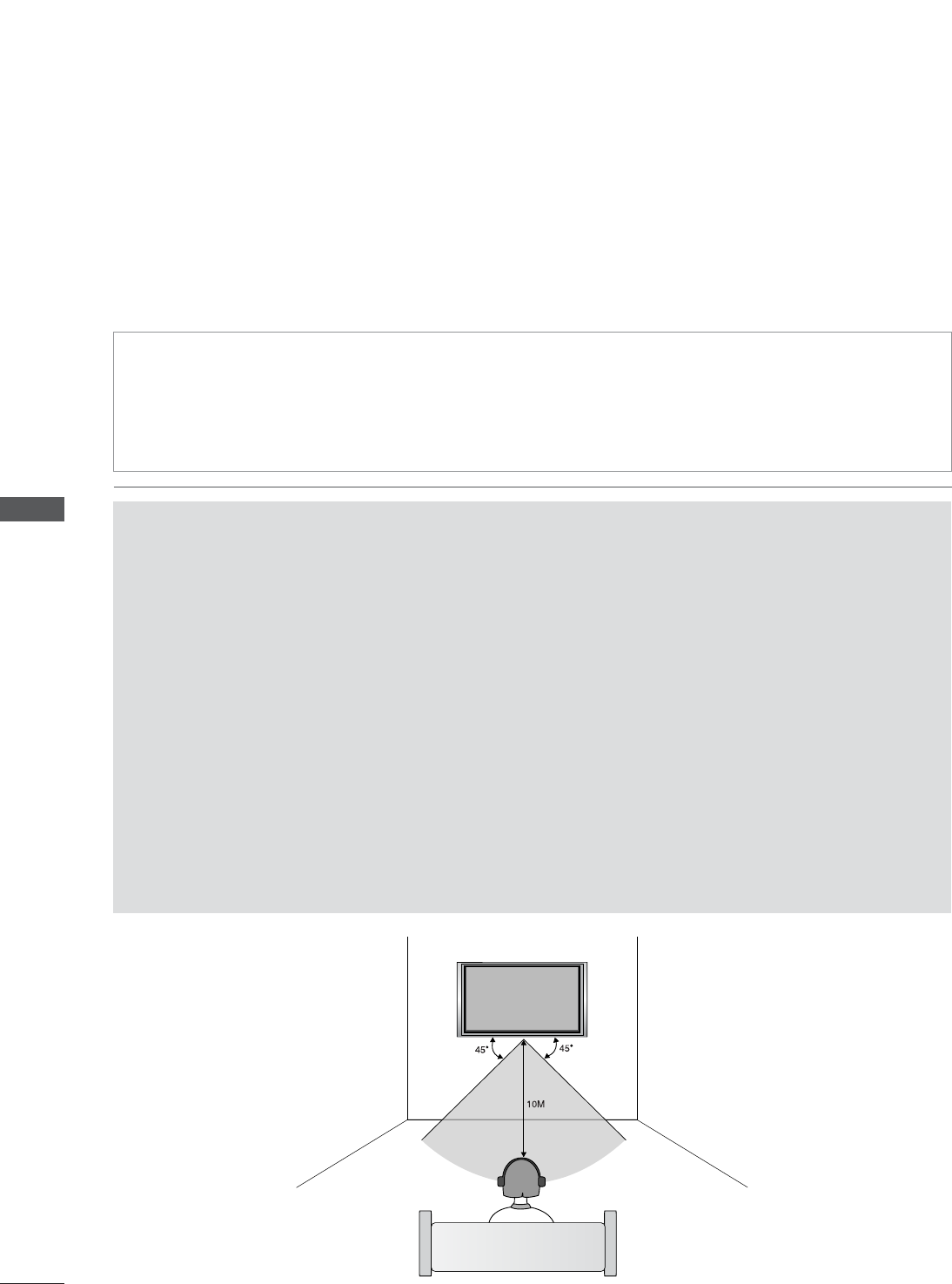

Precautions when using the Bluetooth ................. 56

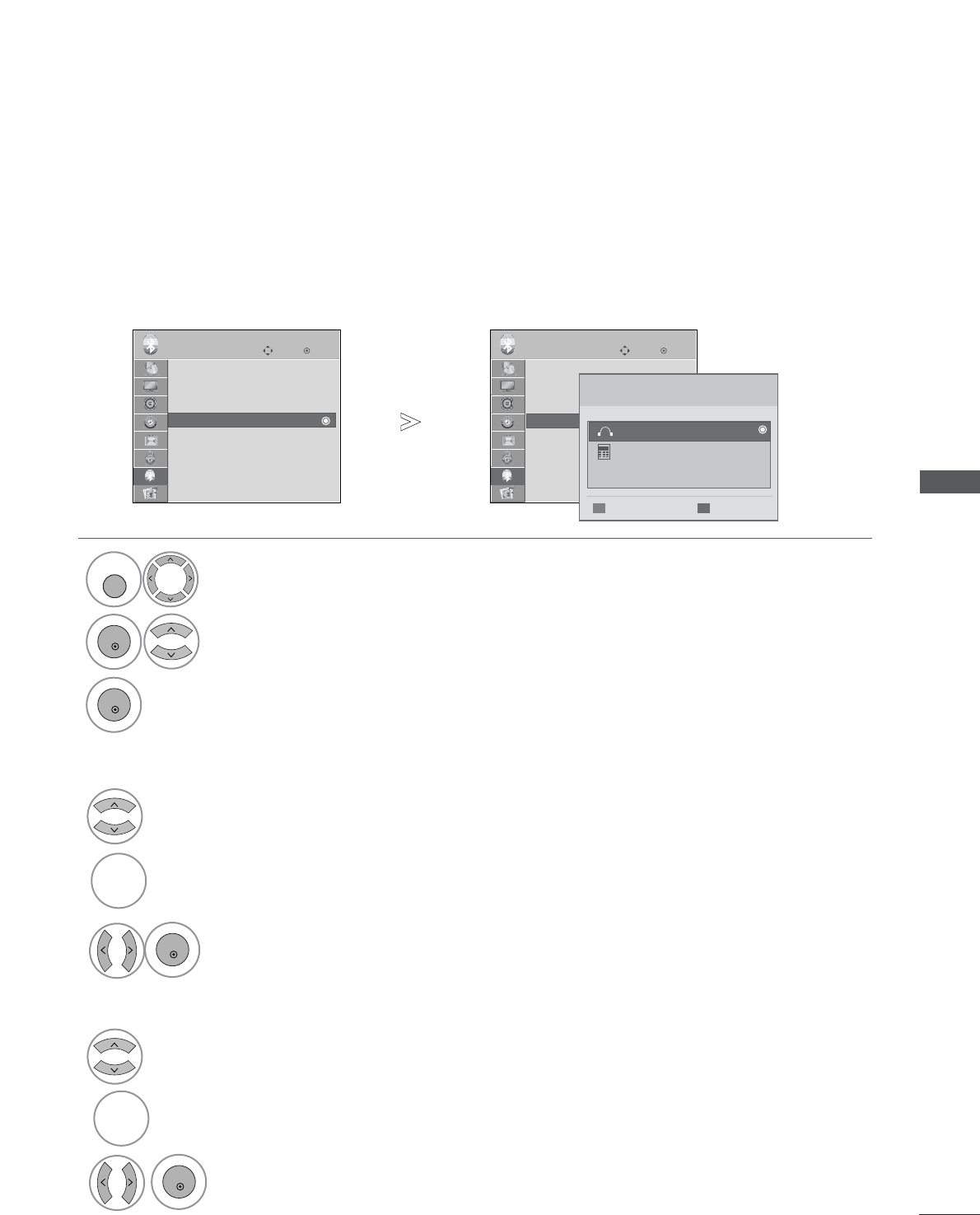

Setting the Bluetooth................................................. 57

Set TV PIN......................................................................58

Bluetooth headset

- Connecting a new Bluetooth headset .............59

- Connecting to Bluetooth headset already regis-

tered............................................................................ 59

Disconnecting the Bluetooth headset during use

...60

- When requesting to connect to TV from the

Bluetooth headset....................................................60

Managing Registered Bluetooth device................. 61

My Bluetooth Information. ........................................62

Receiving photos through external Bluetooth device...

TO USE THE USB DEVICE

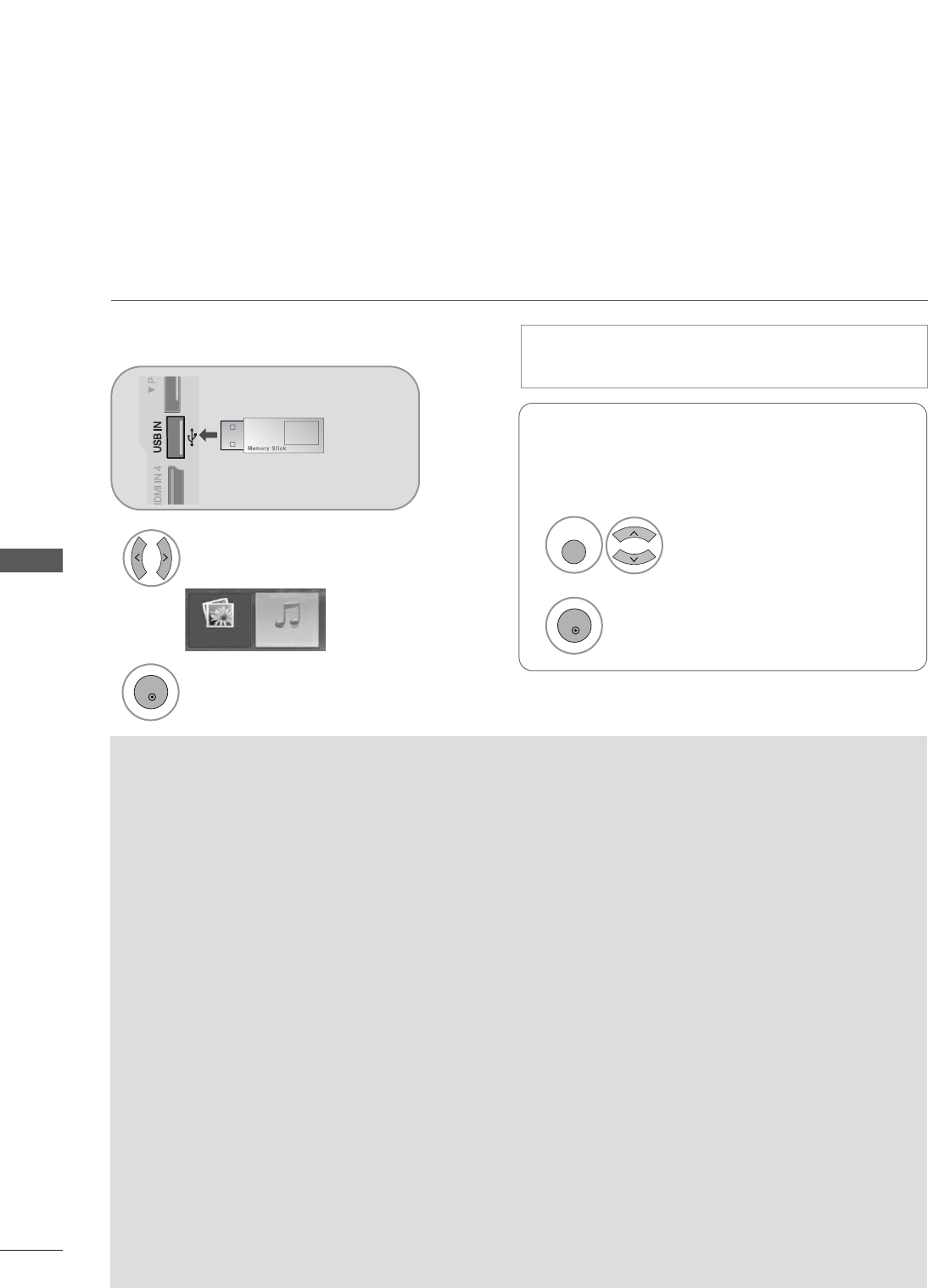

When connecting the USB device.......................... 64

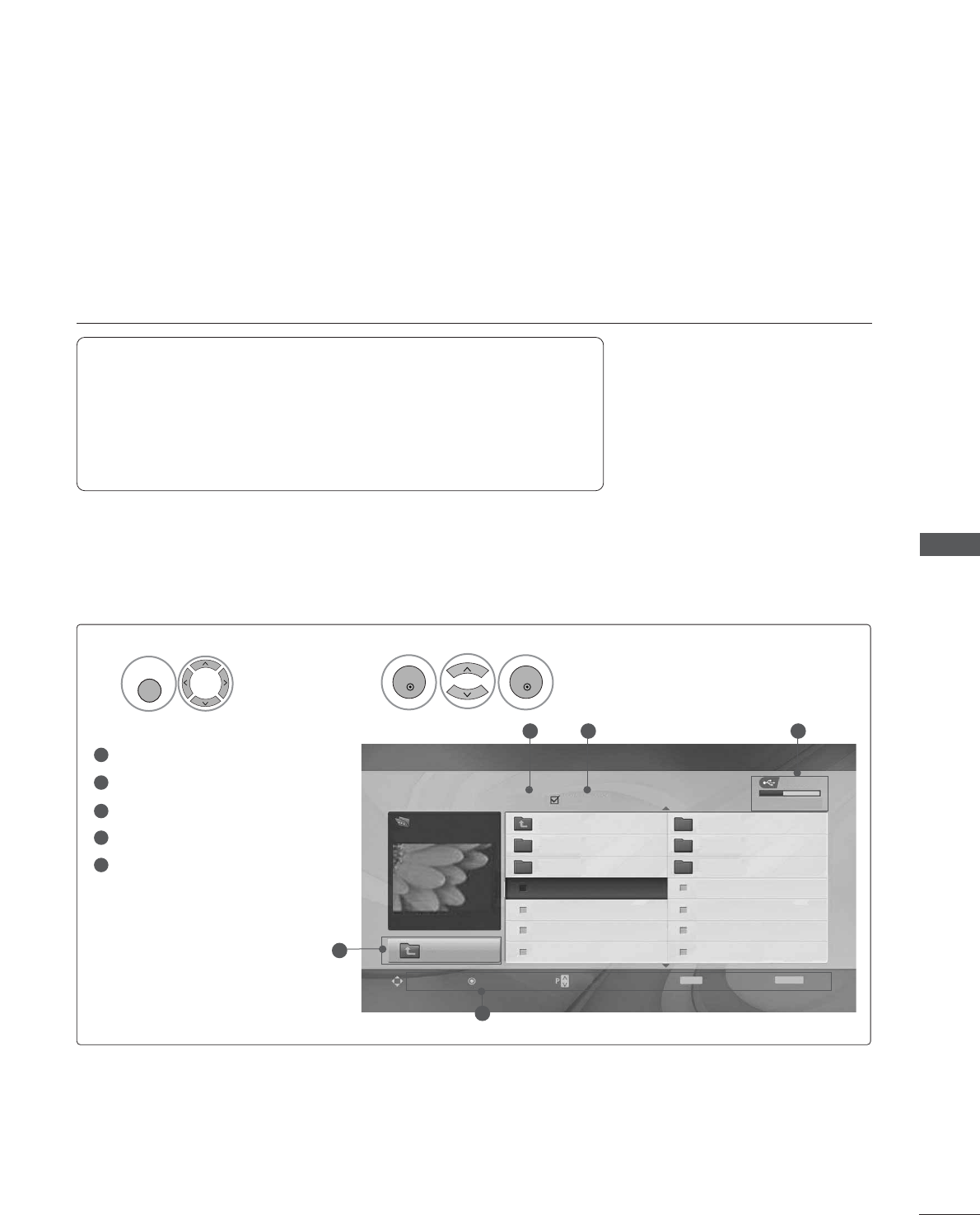

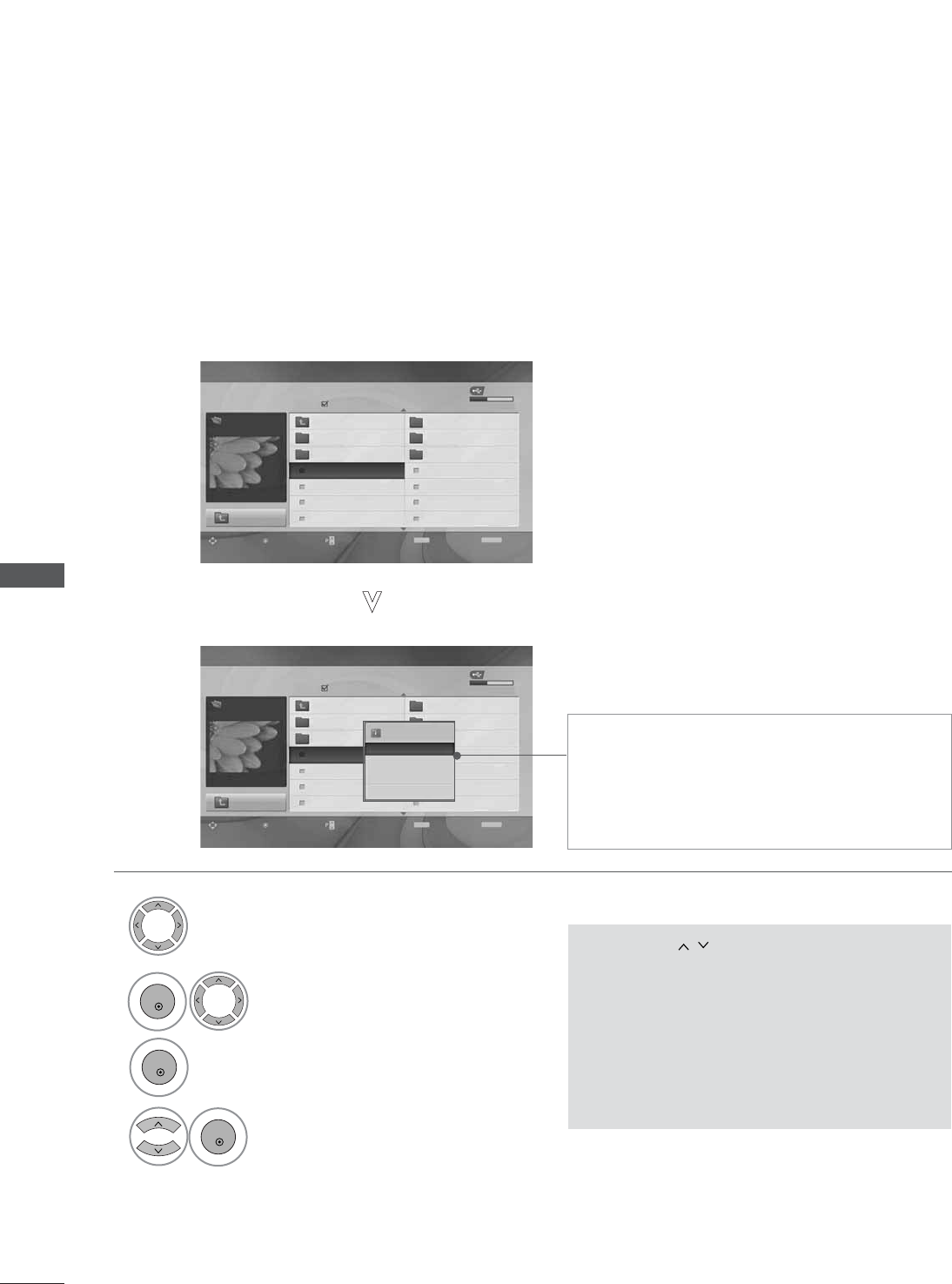

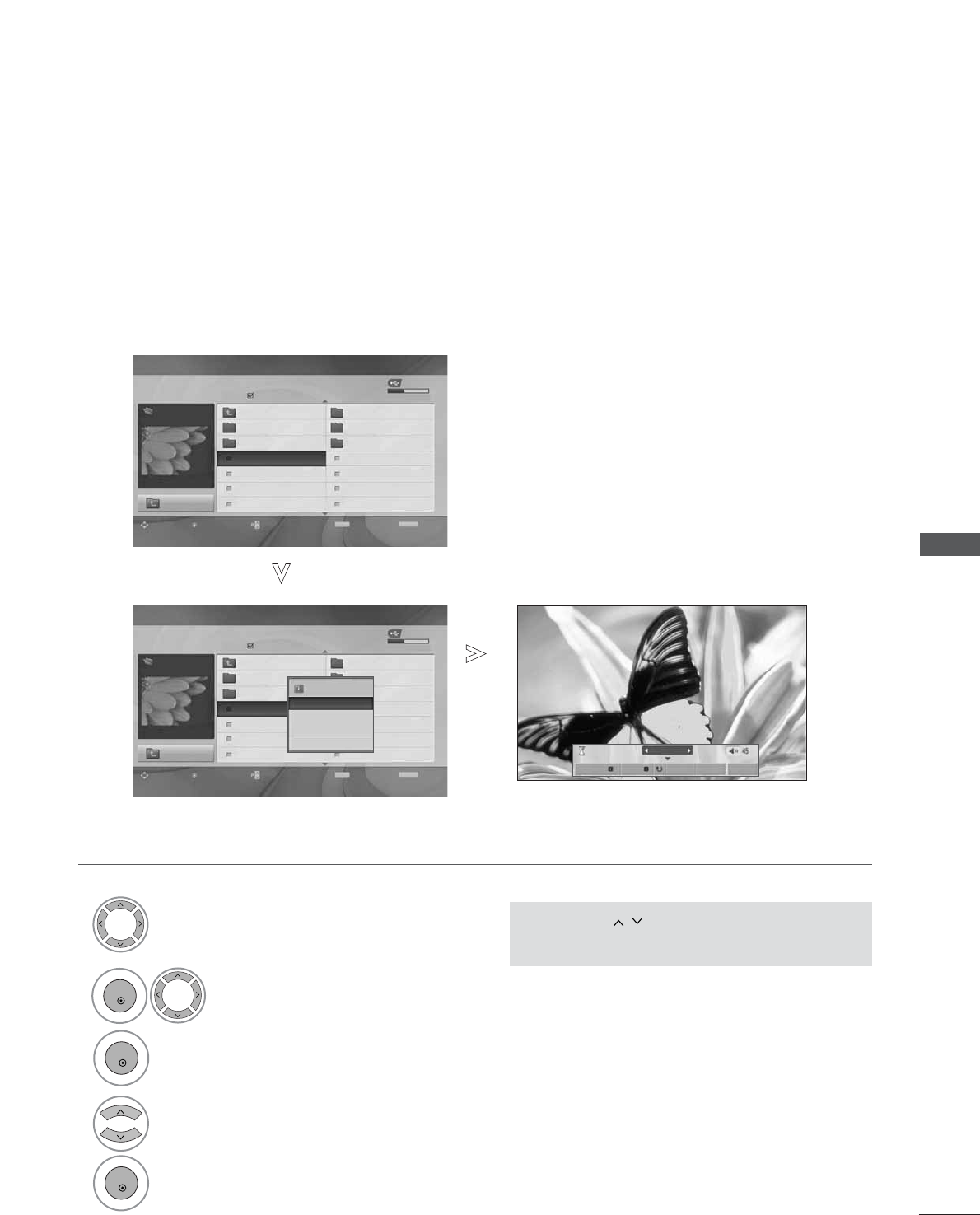

Photo List ...................................................................... 65

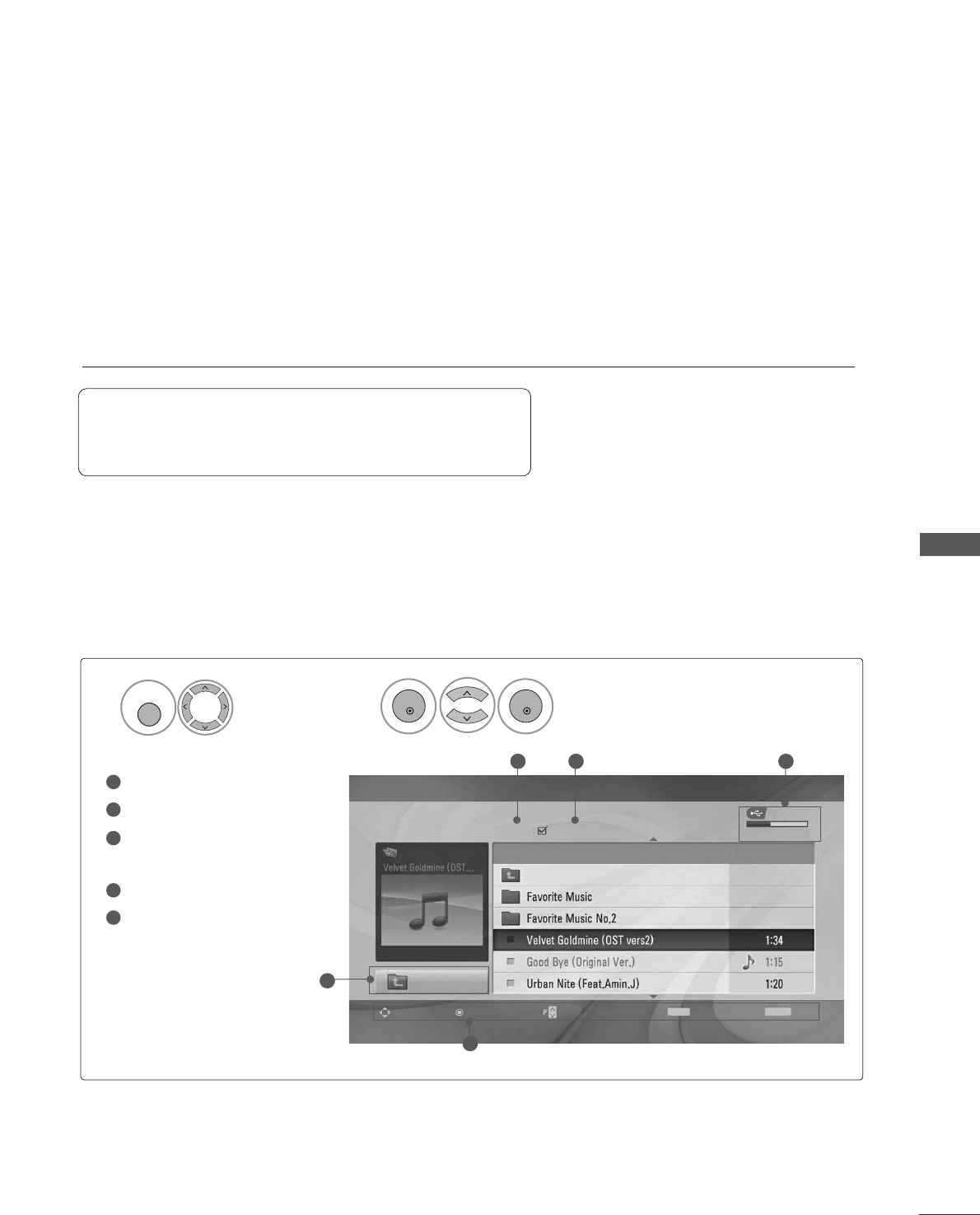

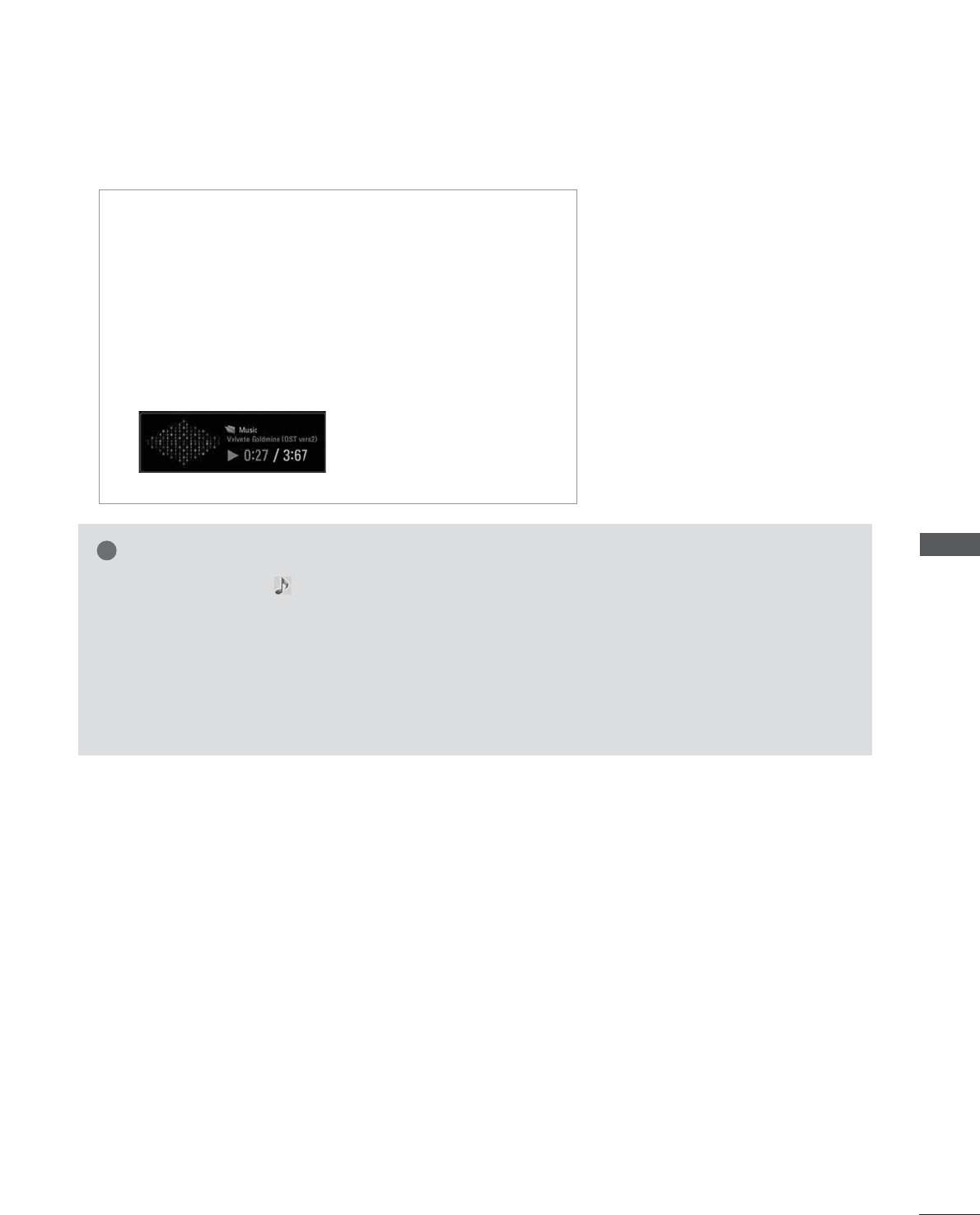

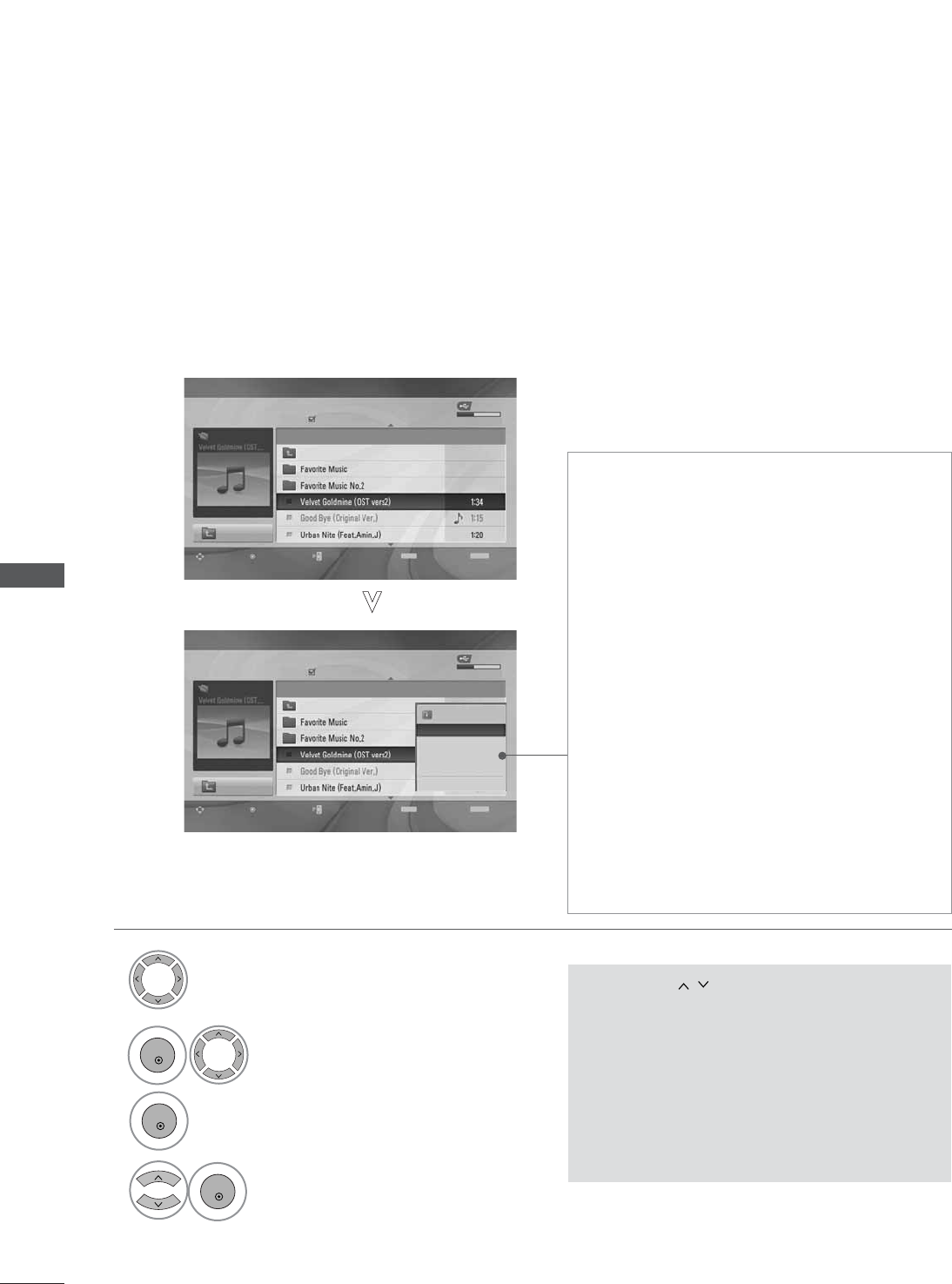

Music List........................................................................69

EPG (ELECTRONIC PROGRAMME

GUIDE) (IN DIGITAL MODE)

- Switch on/off EPG ............................................... 72

- Select Programme ................................................ 72

- Button Function in NOW/NEXT Guide Mode 73

- Button Function in 8 Day Guide Mode.......... 73

- Button Function in Date Change Mode......... 73

Button Function in Extended Description Box..

Button Function in Record/Remind Setting Mode

.74

- Button Function in Schedule List Mode......... 74

CONTENTS

PICTURE CONTROL

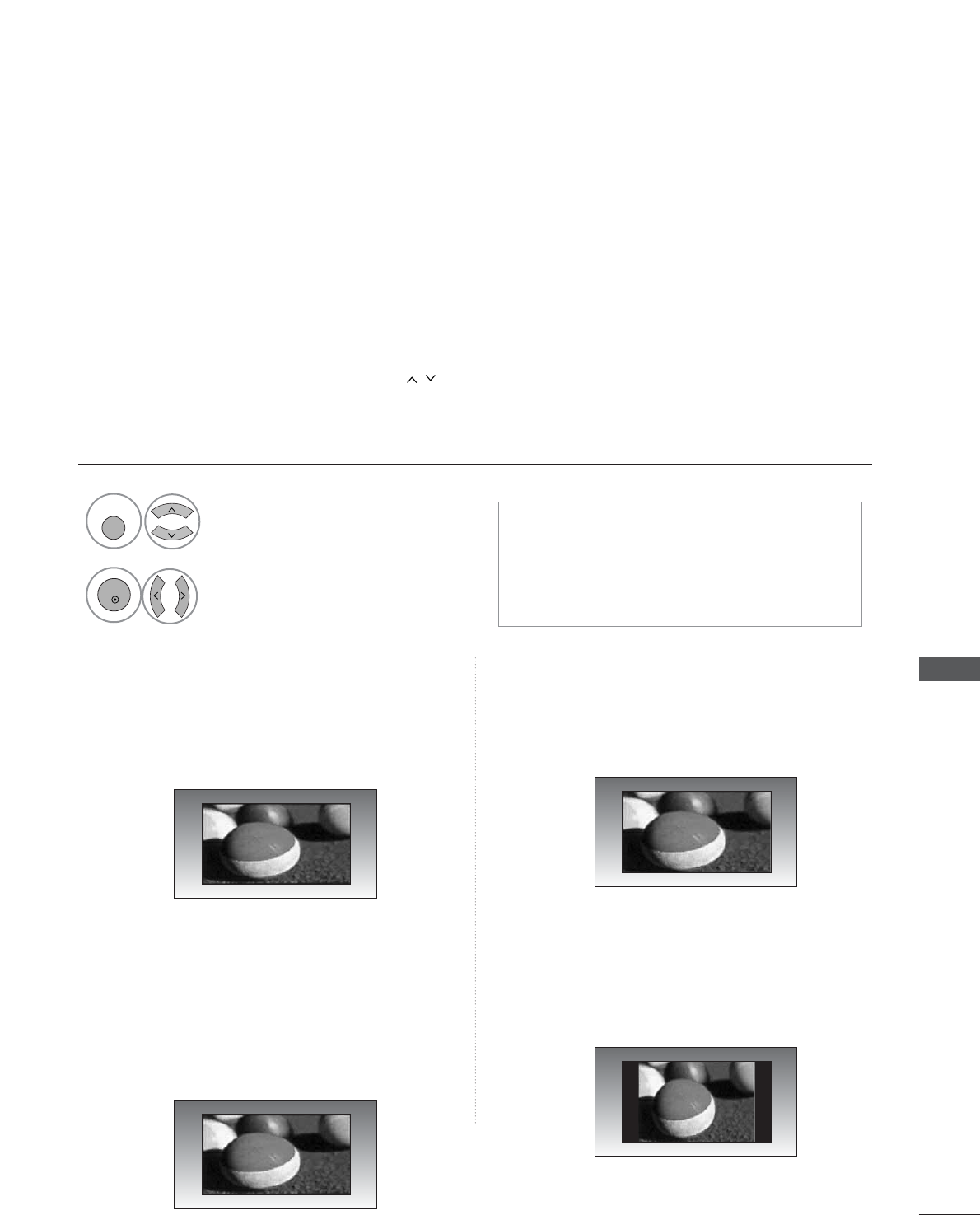

Picture Size (Aspect Ratio) Control....................... 75

Preset Picture Settings

- Picture Mode-Preset............................................ 77

- Auto Colour Tone Control

(Warm/Medium/Cool)..........................................78

Manual Picture Adjustment

- Picture Mode-User option................................. 79

-Picture Mode-Expert Control ............................ 80

Picture Improvement Technology ........................... 81

Advanced - Film Mode/ Real Cinema.................... 82

Advanced - Black(Darkness) Level ......................... 83

Advanced - Trumotion ................................................84

TruMotion Demo ..........................................................85

Eye Care..........................................................................86

Picture Reset................................................................. 87

Power Indicator .............................................................88

Image Sticking Minimization (ISM) Method........ 89

Power Saving Picture Mode...................................... 90

SOUND & LANGUAGE CONTROL

Auto Volume Leveler ................................................... 91

Preset Sound Settings - Sound Mode................... 92

Sound Setting Adjustment -User Mode ............... 93

SRS TruSurround XT .................................................. 93

Clear Voice.................................................................... 94

Balance........................................................................... 95

TV Speakers On/ Off Setup .................................... 96

Selecting Digital Audio Out ..................................... 97

Audio Reset....................................................................98

I/II

- Stereo/Dual Reception (In Analogue Mode

Only)........................................................................... 99

- NICAM Reception (In Analogue Mode Only)... 100

- Speaker Sound Output Selection ................. 100

On-Screen Menu Language/Country Selection .... 101

Language Selection (In Digital Mode only)....... 102

TIME SETTING

Clock Setup ................................................................ 103

Auto On/ Off Timer Setting .................................. 104

Auto Shut-off Setting............................................... 105

Time Zone Setup ...................................................... 106

Sleep Timer Setting .................................................. 106

PARENTAL CONTROL / RATINGS

Set Password & Lock System................................. 107

Block Programme ...................................................... 108

Parental Control ........................................................ 109

Key Lock ....................................................................... 110

TELETEXT

Switch on/off............................................................... 111

SIMPLE Text ................................................................. 111

TOP Text ....................................................................... 111

FASTEXT....................................................................... 112

Special Teletext Functions ....................................... 112

DIGITAL TELETEXT

Teletext within Digital Service................................. 113

Teletext in Digital Service......................................... 113

APPENDIX

Troubleshooting ......................................................... 114

Maintenance ............................................................... 116

Product Specifications.............................................. 117

Programming the Remote Control ........................ 119

IR Codes....................................................................... 121

External Control Device Setup .............................. 123

PREPARATION

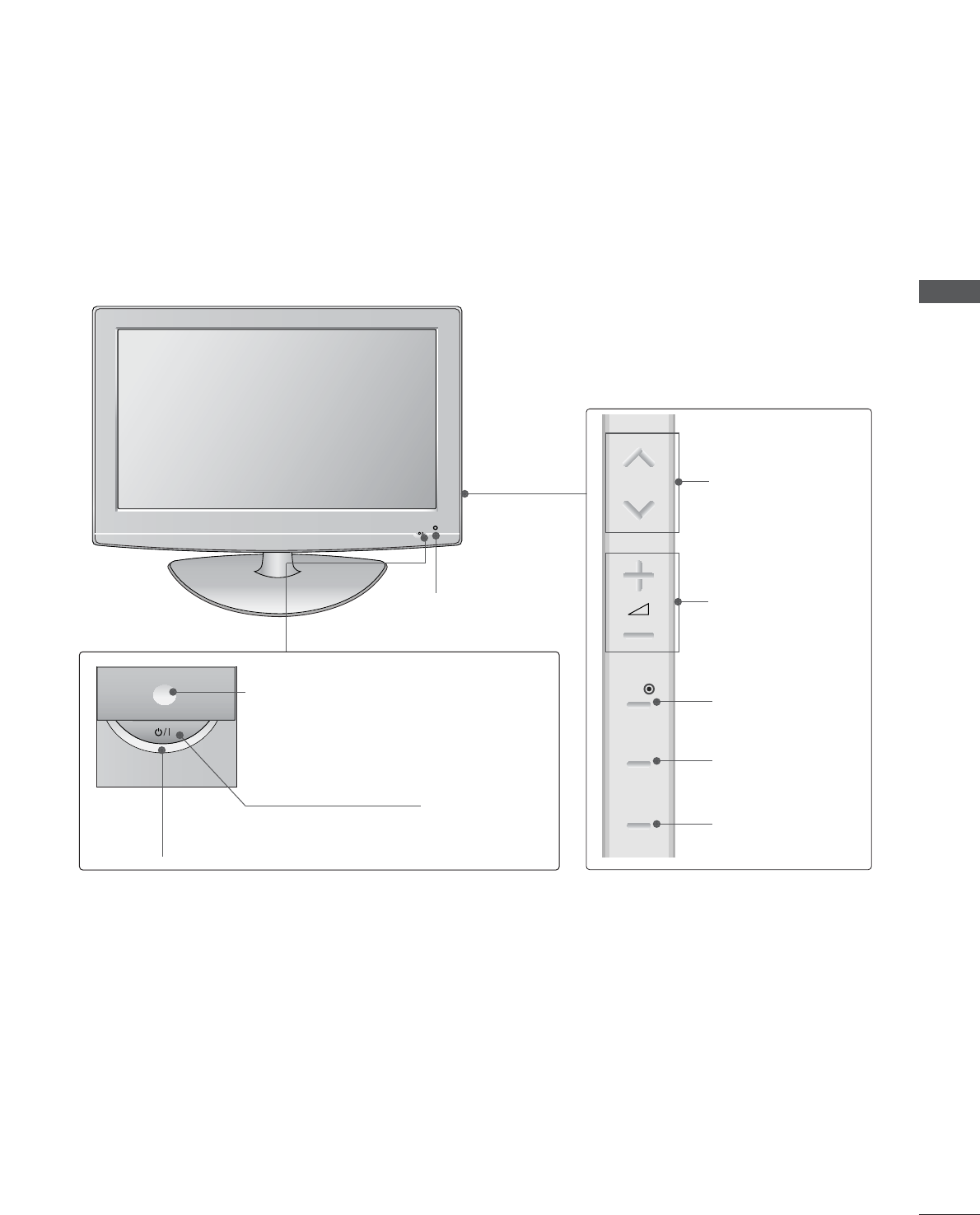

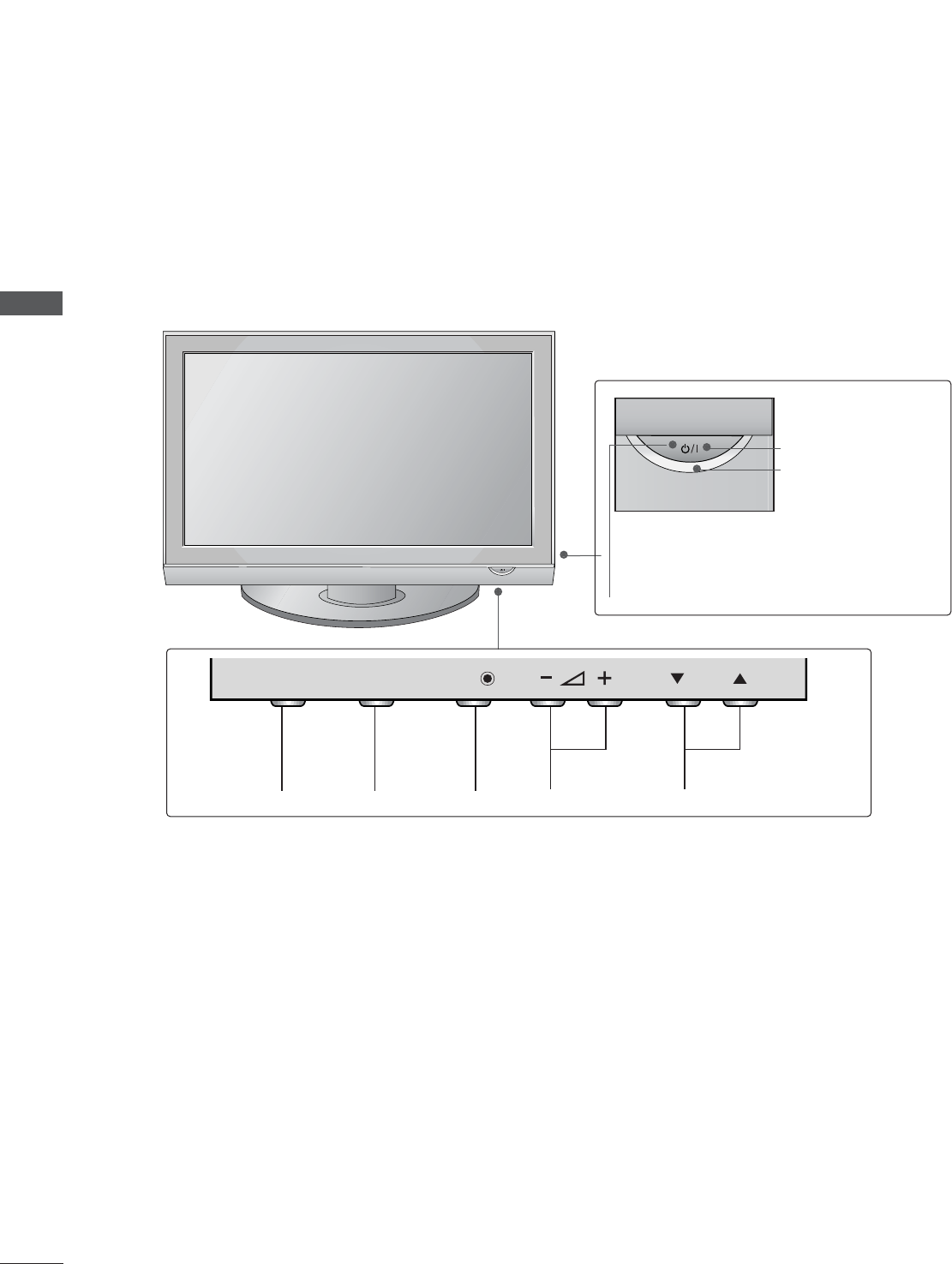

FRONT PANEL CONTROLS

■

Image shown may differ from your TV

■

If your TV has a protection film attached, remove the film and then wipe the product with a polishing cloth.

Plasma TV Models

VOL

INPUT

VOL

INPUT

Remote Control Sensor

POWER

Power/Standby Indicator

• Illuminates red in standby mode.

• Illuminates green when the TV is

switched on.

PROGRAMMEVOLUMEMENU OKINPUT

MENUMENU

INPUTINPUT

PREPARATION

LCD TV Models

POWER

Power/Standby Indicator

• illuminates red in standby mode.

• illuminates blue when the TV is switched on.

Note: You can adjust

Power Indicator

in the

Option menu.

INPUT

PROGRAMME

VOLUME

INPUT

Intelligent Sensor

Adjusts picture according to the

surrounding conditions.

Remote Control Sensor

PREPARATION

BACK PANEL INFORMATION

Image shown may differ from your TV.

Power Cord Socket

This TV operates on an AC power. The voltage is

indicated on the Specifications page. Never

attempt to operate the TV on DC power.

HDMI Input

Connect a HDMI signal to HDMI IN.

Or DVI(VIDEO)signal to HDMI/DVI port with DVI

to HDMI cable.

RGB/DVI Audio Input

Connect the audio from a PC or DTV.

OPTICAL DIGITAL AUDIO OUT

Connect digital audio from various types of equipment.

Note: In standby mode, these ports do not work.

Component Input

Connect a component video/audio device to

these jacks.

RGB Input

Connect the output from a PC.

RS-232C IN (CONTROL & SERVICE) PORT

Connect to the RS-232C port on a PC.

Euro Scart Socket (AV1/AV2)

Connect scart socket input or output from an

external device to these jacks.

Antenna Input

Connect RF antenna to this jack.

PCMCIA (Personal Computer Memory Card

International Association) Card Slot

(This feature is not available in all countries.)

S-Video Input

Connect S-Video out from an S-VIDEO device.

Audio/Video Input

Connect audio/video output from an external

device to these jacks.

USB Input

23 4 5

67 8 9

Plasma TV Models

PREPARATION

LCD TV Models

Power Cord Socket

This TV operates on an AC power. The voltage is

indicated on the Specifications page. Never

attempt to operate the TV on DC power.

HDMI Input

Connect a HDMI signal to HDMI IN.

Or DVI(VIDEO)signal to HDMI/DVI port with DVI

to HDMI cable.

RGB/DVI Audio Input

Connect the audio from a PC or DTV.

OPTICAL DIGITAL AUDIO OUT

Connect digital audio from various types of equipment.

Note: In standby mode, these ports do not work.

Component Input

Connect a component video/audio device to

these jacks.

RGB Input

Connect the output from a PC.

RS-232C IN (CONTROL & SERVICE) PORT

Connect to the RS-232C port on a PC.

Euro Scart Socket (AV1/AV2)

Connect scart socket input or output from an

external device to these jacks.

Antenna Input

Connect RF antenna to this jack.

PCMCIA (Personal Computer Memory Card

International Association) Card Slot

(This feature is not available in all countries.)

S-Video Input

Connect S-Video out from an S-VIDEO device.

Audio/Video Input

Connect audio/video output from an external

device to these jacks.

USB Input

23 4 5

67 8 9

PREPARATION

STAND INSTALLATION

■

Image shown may differ from your TV

When assembling the desk type stand, check whether the bolt is fully tightened. (If not tightened fully, the product can

tilt forward after the product installation.) If you tighten the bolt with excessive force, the bolt can deviate from abrasion

of the tightening part of the bolt.

1 3

Carefully place the TV screen side down on a

cushioned surface to protect the screen from

damage.

2Assemble the parts of the S

Stand Body

with

the

Cover Base

of the TV.

Assemble the TV as shown.

Fix the 4 bolts securely using the holes in the

back of the TV.

Stand Body

Cover Base

32/37/42LG70** only

SWIVEL STAND

After installing the TV, you can adjust the TV set man-

ually to the left or right direction by 20 degrees to

suit your viewing position.

PREPARATION

PLEASE SET IT UP CAREFULLY SO THE PRODUCT

DOESN’T FALL OVER.

AYou should purchase necessary components to fix the TV to the wall on the market.

APosition the TV close to the wall to avoid the possibility of it falling when pushed.

AThe instructions shown below are a safer way to set up the TV, which is to fix it to the wall, avoiding the

possibility of it falling forwards if pulled. This will prevent the TV from falling forward and causing injury.

This will also prevent the TV from damage. Ensure that children do not climb or hang from the TV.

NOTE

G When moving the TV undo the cords first.

G Use a platform or cabinet strong and large enough to support the size and weight of the TV.

G To use the TV safely make sure that the height of the bracket on the wall and on the TV is the same.

Use the eye-bolts or TV brackets/bolts to fix the product to the wall as shown in the picture.

(If your TV has bolts in the eyebolts, loosen then bolts.)

* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.

Secure the wall brackets with the bolts on the wall. Match the height of the bracket that is mounted on the

wall.

3Use a sturdy rope to tie the product. It is safer to tie the rope so it becomes horizontal between

the wall and the product.

PREPARATION

BACK COVER FOR WIRE ARRANGEMENT

Connect the cables as necessary.

To connect additional equipment, see the

External equipment Setup

section.

Install the

CABLE MANAGEMENT CLIP

as shown.

NOTE

Do not use the CABLE MANAGEMENT CLIP to lift the TV.

- If the TV is dropped, you may be injured or the TV may be damaged.

■

Image shown may differ from your TV.

Install the power plug closely.

Use of ferrite core

(50/60PG70** Only)

Ferrite core can be used to reduce the electromagnetic

wave when connecting the power cord.

The closer the location of the ferrite core to the power

plug, the better it is.

Plasma TV models

Hold the C

CABLE MANAGEMENT CLIP

with both hands and pull it upward.

How to remove the cable management clip

Separate CABLE MANAGEMENT

from TV by pressing two latches.

CABLE MANAGEMENT CLIP

PREPARATION

LCD TV models

Connect the cables as necessary.

To connect additional equipment, see the External Equipment Setup section of the manual.

Open the

CABLE MANAGEMENT CLIP

as shown and manage the cables.

CABLE MANAGEMENT CLIP

Fit the

CABLE MANAGEMENT CLIP

as shown.

VOL

INPUT

4 inches

4 inches 4 inches

4 inches

PREPARATION

DESKTOP PEDESTAL INSTALLATION

AThe TV can be installed in various ways such as on a wall, or on a desktop etc.

A The TV is designed to be mounted horizontally.

Power Supply

Circuit breaker

EARTHING

Ensure that you connect the earth wire to prevent possible

electric shock. If grounding methods are not possible, have a

qualified electrician install a separate circuit breaker.

Do not try to earth the TV by connecting it to telephone

wires, lightening rods or gas pipes.

For adequate ventilation allow a clearance of 4” (10cm) all around the TV.

ATTACHING THE TV TO A DESK (32LG70** only )

The TV must be attached to desk so it cannot be pulled in a forward/backward direction, potentially causing

injury or damaging the product. Use only an attached screw.

1-Screw

(provided as parts of the product)

Desk

Stand

WARNING

G To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation

instructions. Tipping, shaking, or rocking the machine may cause injury.

PREPARATION

WALL MOUNT: HORIZONTAL INSTALLATION

For adequate ventilation allow a clearance of 4” (10cm) all around the TV. We recommend that you

use a wall mount-ing bracket of LG brand when mounting the TV to a wall.

4 inches

■

Image shown may differ from your TV.

When installing the wall-mounted unit, use the protection cover for desk-type stand installation.

NOT USING THE DESK-TYPE STAND

Plasma TV models LCD TV models

Insert the

PROTECTION COVER

into the TV until

clicking sound.

PREPARATION

ANTENNA CONNECTION

AV 1 AV 2

ANTENNA

AV 1 AV 2

ANTENNA

■For optimum picture quality, adjust antenna direction.

■An antenna cable and converter are not supplied.

■To prevent damage do not connect to the mains outlet until all connections are made between the devices.

Multi-family Dwellings/Apartments

(Connect to wall antenna socket)

Single-family Dwellings /Houses

(Connect to wall jack for outdoor antenna)

Outdoor

Antenna

(VHF, UHF)

Wall

Antenna

Socket

RF Coaxial Wire (75 ohm)

Antenna

UHF

Signal

Amplifier

VHF

■In poor signal areas, to achieve better picture quality it may be necessary to install a signal amplifier to the

antenna as shown above.

■If signal needs to be split for two TVs,use an antenna signal splitter for connection.

EXTERNAL EQUIPMENT SETUP

HD RECEIVER SETUP

■To avoid damaging any equipment, never plug in any power cords until you have finished connecting all equipment.

■This section on EXTERNAL EQUIPMENT SETUP mainly uses diagrams for the 50PG70** models.

■

Image shown may differ from your TV.

Connecting with a component cable

Signal

480i/576i

480p/576p

720p/1080i

1080 p

Component

Yes

(50/60Hz only)

HDMI

Yes

(24Hz/30Hz/50Hz/60Hz)

■This TV can receive Digital RF/Cable signals without an external digital set-top box. However, if you do receive

Digital signals from a digital set-top box or other digital external device, refer to the diagram as shown below.

Connect the video outputs (Y, PB, PR)of the digital set

top box to the

COMPONENT IN VIDEO

jacks on the

TV.

Connect the audio output of the digital set-top box to

the

COMPONENT IN AUDIO

jacks on the TV.

Turn on the digital set-top box.

(Refer to the owner’s manual for the digital set-top box.)

Select

Component

input source using the

INPUT

button on the remote control.

EXTERNAL EQUIPMENT SETUP

Connecting a set-top box with an HDMI cable

Connecting with an HDMI to DVI cable

Connect the digital set-top box to

HDMI/DVI IN 1

HDMI IN 2

HDMI IN 3

HDMI IN 4

jack on the

TV.

Turn on the digital set-top box.

(Refer to the owner’s manual for the digital set-top box.)

Select

HDMI1

HDMI2

HDMI3

HDMI4

input

source using the

INPUT

button on the remote control.

Connect the digital set-top box to

HDMI/DVI IN 1

jack on the TV.

Connect the audio output of the digital set-top box to

the

AUDIO IN (RGB/DVI)

jack on the TV.

Turn on the digital set-top box. (Refer to the owner’s

manual for the digital set-top box.)

Select

HDMI1

input source using the

INPUT

button

on the remote control.

EXTERNAL EQUIPMENT SETUP

DVD SETUP

Connecting with a component cable

Component Input ports

To achieve better picture quality, connect a DVD player to the component input ports as shown below.

Component ports on the TV

Video output ports

on DVD player

B-Y

R-Y

Connect the video outputs (Y, PB, PR)of the DVD to the

COMPONENT IN VIDEO

jacks on the TV.

Connect the audio outputs of the DVD to the

COMPONENT IN AUDIO

jacks on the TV.

Turn on the DVD player, insert a DVD.

Select

Component

input source using the

INPUT

button on the remote control.

Refer to the DVD player's manual for operating instruc-

tions.

EXTERNAL EQUIPMENT SETUP

(R) AUDIO (L)

AUDIO/

VIDEO

Connecting with a S-Video cable

L R

S-VIDEOVIDEO

OUTPUT

SWITCH

ANT IN

ANT OUT

Connect the S-VIDEO output of the DVD to the S

S-

VIDEO

input on the TV.

Connect the audio outputs of the DVD to the

AUDIO

input jacks on the TV.

Turn on the DVD player, insert a DVD.

Select

AV3

input source using the

INPUT

button on

the remote control.

Refer to the DVD player's manual for operating instruc-

tions.

Connecting with a Euro Scart cable

Connect the Euro scart socket of the DVD to the

AV1

Euro scart socket on the TV.

Turn on the DVD player, insert a DVD.

Select

AV1

input source using the

INPUT

button on

the remote control.

If connected to

AV2

Euro scart socket, select

AV2

input source.

Refer to the DVD player's manual for operating

instructions.

NOTE

Any Euro scart cable used must be signal shielded.

EXTERNAL EQUIPMENT SETUP

Connecting the HDMI cable

Connect the HDMI output of the DVD to the

HDMI/DVI IN 1

HDMI IN 2

HDMI IN 3

HDMI

IN 4

jack on the TV.

Select

HDMI1

HDMI2

HDMI3

HDMI4

input

source using the

INPUT

button on the remote control.

Refer to the DVD player's manual for operating instructions.

The TV can receive video and audio signals simultaneously

when using a HDMI cable.

If the DVD does not support Auto HDMI, you must set the

output resolution appropriately.

NOTE

VCR SETUP

■To avoid picture noise (interference), allow adequate distance between the VCR and TV.

■Typically a frozen still picture from a VCR. If 4:3 picture format is used for an extended period the fixed

images on the sides of the screen may remain visible.

OUTPUT

SWITCH

ANT IN

S-VIDEO VIDEO

ANT OUT

Wall Jack

Antenna

Connecting with a RF Cable

EXTERNAL EQUIPMENT SETUP

Connect the

ANT OUT

socket of the VCR to the

ANTENNA IN

socket on the TV.

Connect the antenna cable to the

ANT IN

socket of the VCR.

Press the

PLAY

button on the VCR and match the appropriate channel between the TV and VCR for

viewing.

EXTERNAL EQUIPMENT SETUP

(R) AUDIO (L)

AUDIO/

VIDEO

Connecting with a Euro Scart cable

Connect the Euro scart socket of the VCR to the A

AV1

Euro scart socket on the TV.

Insert a video tape into the VCR and press PLAY on

the VCR. (Refer to the VCR owner’s manual.)

Select

AV1

input source using the

INPUT

button on

the remote control.

If connected to

AV2

Euro scart socket, select

AV2

input source.

Connecting with a RCA cable

S-VIDEO VIDEO

OUTPUT

SWITCH

ANT IN

ANT OUT

Connect the A

AUDIO

VIDEO

jacks between TV and

VCR. Match the jack colours (Video = yellow, Audio Left

= white, and Audio Right = red)

Insert a video tape into the VCR and press PLAY on

the VCR. (Refer to the VCR owner’s manual.)

Select

AV3

input source using the

INPUT

button on

the remote control.

If you have a mono VCR, connect the audio cable from the

VCR to the

AUDIO L/MONO

jack of the TV.

NOTE

Any Euro Scart cable used must be signal shielded.

EXTERNAL EQUIPMENT SETUP

If both S-VIDEO and VIDEO sockets have been connected to

the S-VHS VCR simultaneously, only the S-VIDEO can be

received.

NOTE

S-VIDEO

VIDEO

OUTPUT

SWITCH

ANT IN

ANT OUT

Connecting with a S-Video cable

Connect the S-VIDEO output of the VCR to the

S -

VIDEO

input on the TV set. The picture quality is

improved; compared to normal composite (RCA cable)

input.

Connect the audio outputs of the VCR to the

AUDIO

input jacks on the TV.

Insert a video tape into the VCR and press PLAY on the

VCR. (Refer to the VCR owner’s manual.)

Select

AV3

input source with using the

INPUT

button on

the remote control.

Insert the CI Module to

PCMCIA

(Personal Computer

Memory Card International Association)

CARD SLOT

of TV as shown.

For further information, see p.49.

INSERTION OF CI MODULE

TVTVTV

- To view the encrypted (pay) services in digital TV

mode.

- This feature is not available in all countries.

GDo not look into the optical output port. Looking at the

laser beam may damage your vision.

CAUTION

Connect one end of an optical cable to the TV Digital

Audio (Optical)Output port.

Connect the other end of the optical cable to the digi-

tal audio (Optical)input on the audio equipment.

Set the “TV Speaker option - Off ” in the AUDIO

menu.(G

p.96

). Refer to the external audio equipment

instruction manual for operation.

EXTERNAL EQUIPMENT SETUP

DIGITAL AUDIO OUT SETUP

Sending the TV’s audio signal to external audio equipment via the Digital Audio Output (Optical) port.

EXTERNAL EQUIPMENT SETUP

OTHER A/V SOURCE SETUP

Connect the

AUDIO

VIDEO

jacks between TV and external equipment. Match the jack colours

(Video = yellow, Audio Left = white, and Audio Right = red)

Select

AV3

input source with using the

INPUT

button on the remote control.

Operate the corresponding external equipment.

Refer to external equipment operating guide.

L R

VIDEO

Camcorder

Video Game Set

EXTERNAL EQUIPMENT SETUP

USB IN SETUP

Connect the USB device to the U

USB IN

jacks on the side of TV.

After connecting the

USB IN

jacks, you use the

USB

function. (

Gp.64

)

PC SETUP

This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

Connecting with a D-sub 15 pin cable

AUDIO RGB OUTPUT

Connect the RGB output of the PC to the

RGB IN

(PC)

jack on the TV.

Connect the PC audio output to the

AUDIO IN

(RGB/DVI)

jack on the TV.

Turn on the PC and the TV

Select

RGB

input source using the INPUT button on

the remote control.

DVI-PC OUTPUT AUDIO

Connecting with a HDMI to DVI cable

1 2

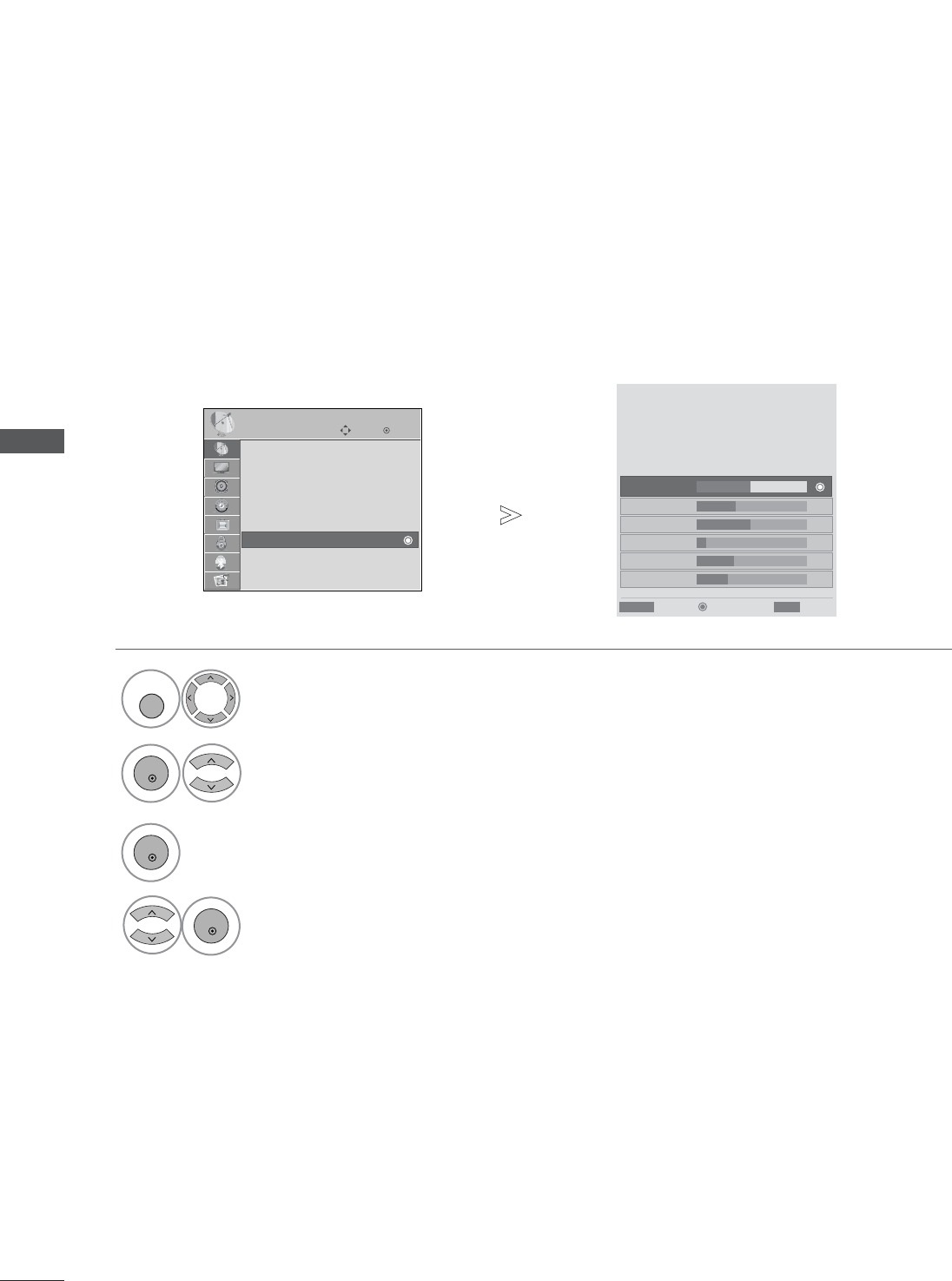

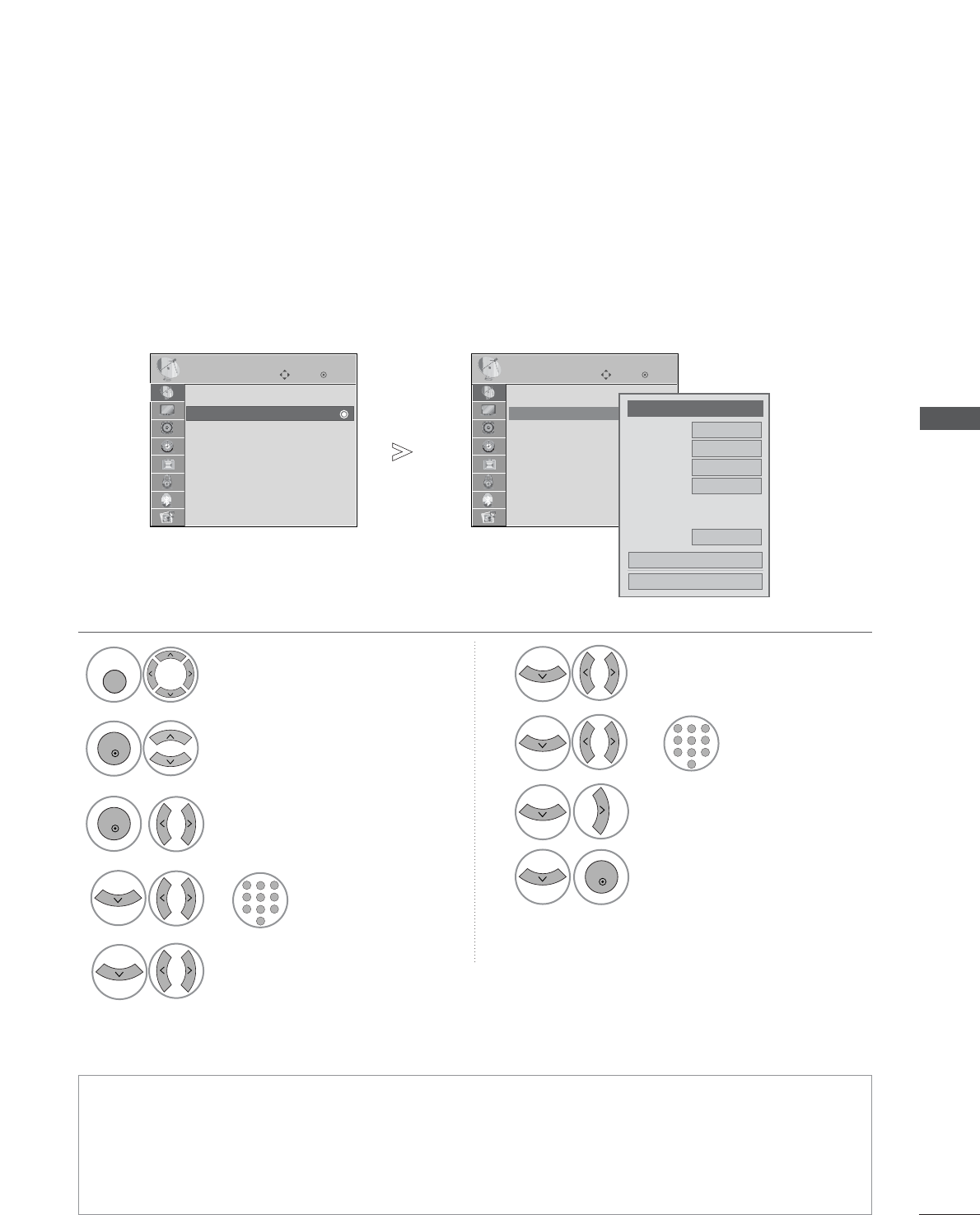

EXTERNAL EQIPMENT SETUP

EXTERNAL EQUIPMENT SETUP

Connect the DVI output of the PC to the

HDMI/DVI

IN1

jack on the TV.

Connect the PC audio output to the

AUDIO IN

(RGB/DVI)

jack on the TV.

Turn on the PC and the TV.

Select

HDMI1

input source using the INPUT button

on the remote control.

EXTERNAL EQUIPMENT SETUP

Supported Display Resolution

RGB-PC, HDMI/DVI-PC mode

70.08

59.94

60.31

60.00

59.87

59.80

59.934

60.02

59.979

31.468

31.469

37.879

48.363

47.78

47.72

66.587

63.98

65.317

720x400

640x480

800x600

1024x768

1280x768

1360x768

1920x1080

1280x1024

1400x1050

Resolution Horizontal

Frequency(kHz) Vertical

Frequency(Hz)

HDMI/DVI-DTV mode

59.94

50.00

59.94

50.00

59.94

24.00

50.00

59.94

31.649

31.469

31.47

31.50

31.25

37.50

44.96

45.00

28.125

33.72

33.75

27.00

33.750

56.25

67.433

67.50

Resolution Horizontal

Frequency(kHz) Vertical

Frequency(Hz)

640x480

720x480

720x576

1280x720

1920x1080

Plasma TV Models

RGB-PC, HDMI/DVI-PC mode

70.08

59.94

60.31

60.00

59.87

59.80

59.934

60.02

59.979

31.468

31.469

37.879

48.363

47.78

47.72

66.587

63.98

65.317

720x400

640x480

800x600

1024x768

1280x768

1360x768

1920x1080

1280x1024

1400x1050

Resolution Horizontal

Frequency(kHz) Vertical

Frequency(Hz)

HDMI/DVI-DTV mode

59.94

50.00

50.94

50.00

59.94

24.00

50.00

59.94

31.649

31.469

31.47

31.50

31.25

37.50

44.96

45.00

28.125

33.72

33.75

27.00

33.750

56.25

67.433

67.50

Resolution Horizontal

Frequency(kHz) Vertical

Frequency(Hz)

640x480

720x480

720x576

1280x720

1920x1080

LCD TV Models

EXTERNAL EQIPMENT SETUP

EXTERNAL EQUIPMENT SETUP

NOTE

To enjoy vivid picture and sound, connect a PC to

the TV.

Avoid keeping a fixed image on the set’s screen

for prolonged periods of time. The fixed image

may become permanently imprinted on the

screen; use a screen saver when possible.

Connect the PC to the RGB (PC) or HDMI IN (or

HDMI/DVI IN) port of the TV; change the resolu-

tion.

There may be interference relating to resolution,

vertical pattern, contrast or brightness in PC

mode. Change the PC mode to another resolu-

tion or change the refresh rate to another rate or

adjust the brightness and contrast on the menu

until the picture is clear. If the refresh rate of the

PC graphic card can not be changed, change the

PC graphic card or consult the manufacturer of

the PC graphic card.

The synchronization input waveform for

Horizontal and Vertical frequencies are separate.

Connect the signal cable from the monitor out-

put port of the PC to the RGB (PC) port of the

TV or the signal cable from the HDMI output

port of the PC to the HDMI IN (or HDMI/DVI

IN) port on the TV.

Connect the audio cable from the PC to the

Audio input on the TV. (Audio cables are not

included with the TV).

If using a sound card, adjust PC sound as

required.

This TV uses a VESA Plug and Play Solution. The

TV provides EDID data to the PC system with a

DDC protocol. The PC adjusts automatically

when using this TV.

DDC protocol is preset for RGB (Analog RGB),

HDMI (Digital RGB) mode.

If required, adjust the settings for Plug and Play

functionality

If the graphic card on the PC does not output

analogue and digital RGB simultaneously, connect

only one of either RGB or HDMI IN (or

HDMI/DVI IN) to display the PC output on the

TV.

If graphic card on the PC does output analog and

digital RGB simultaneously, set the TV to either

RGB or HDMI; (the other mode is set to Plug and

Play automatically by the TV.)

DOS mode may not work depending on the video

card if you use a HDMI to DVI cable.

If you use too long an RGB-PC cable, there may

be interference on the screen. We recommend

using under 5m of cable. This provides the best

picture quality.

If connected HDMI(1080p, over 12bit) to HDMI

jack on the side, screen may abnormal.

EXTERNAL EQUIPMENT SETUP

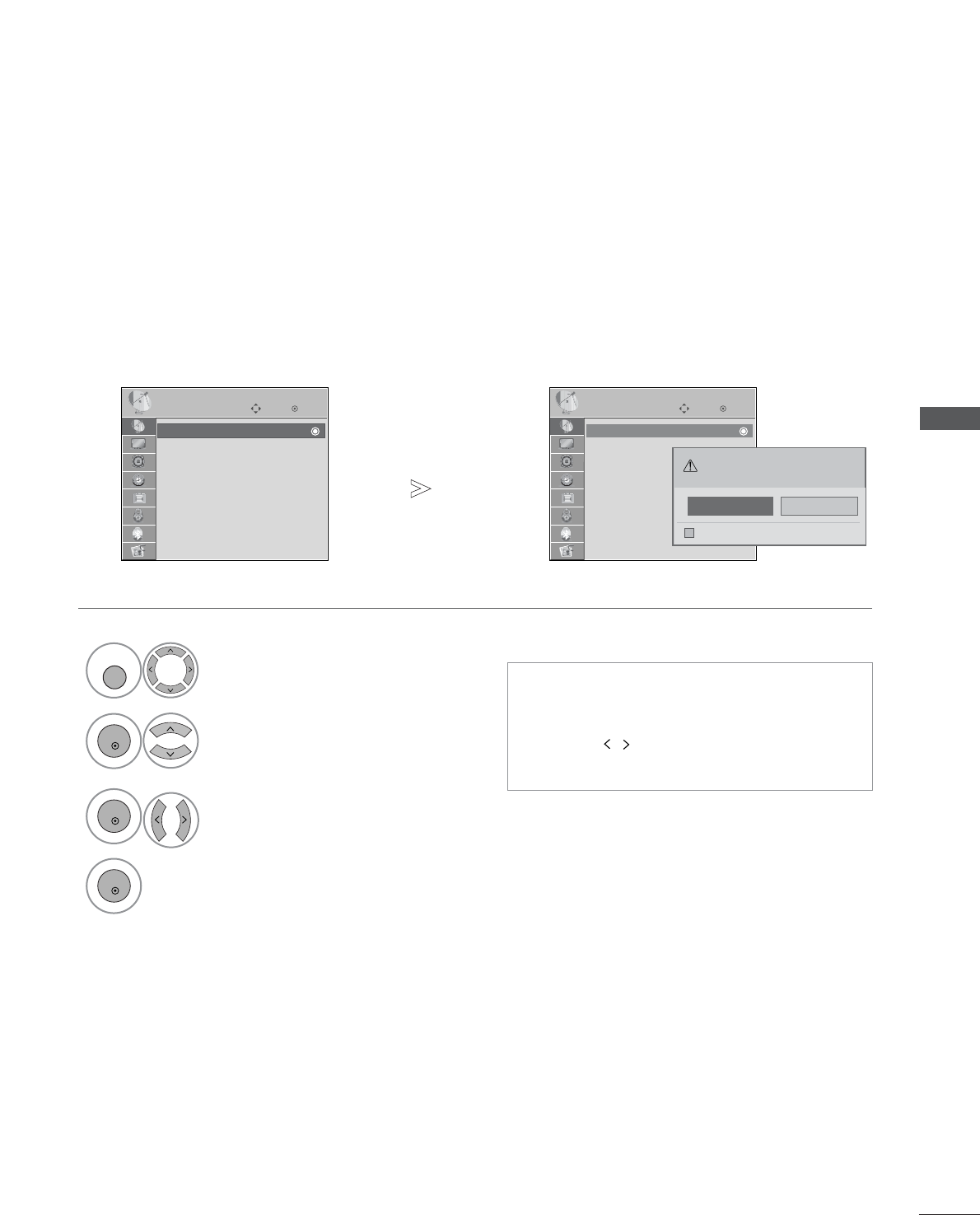

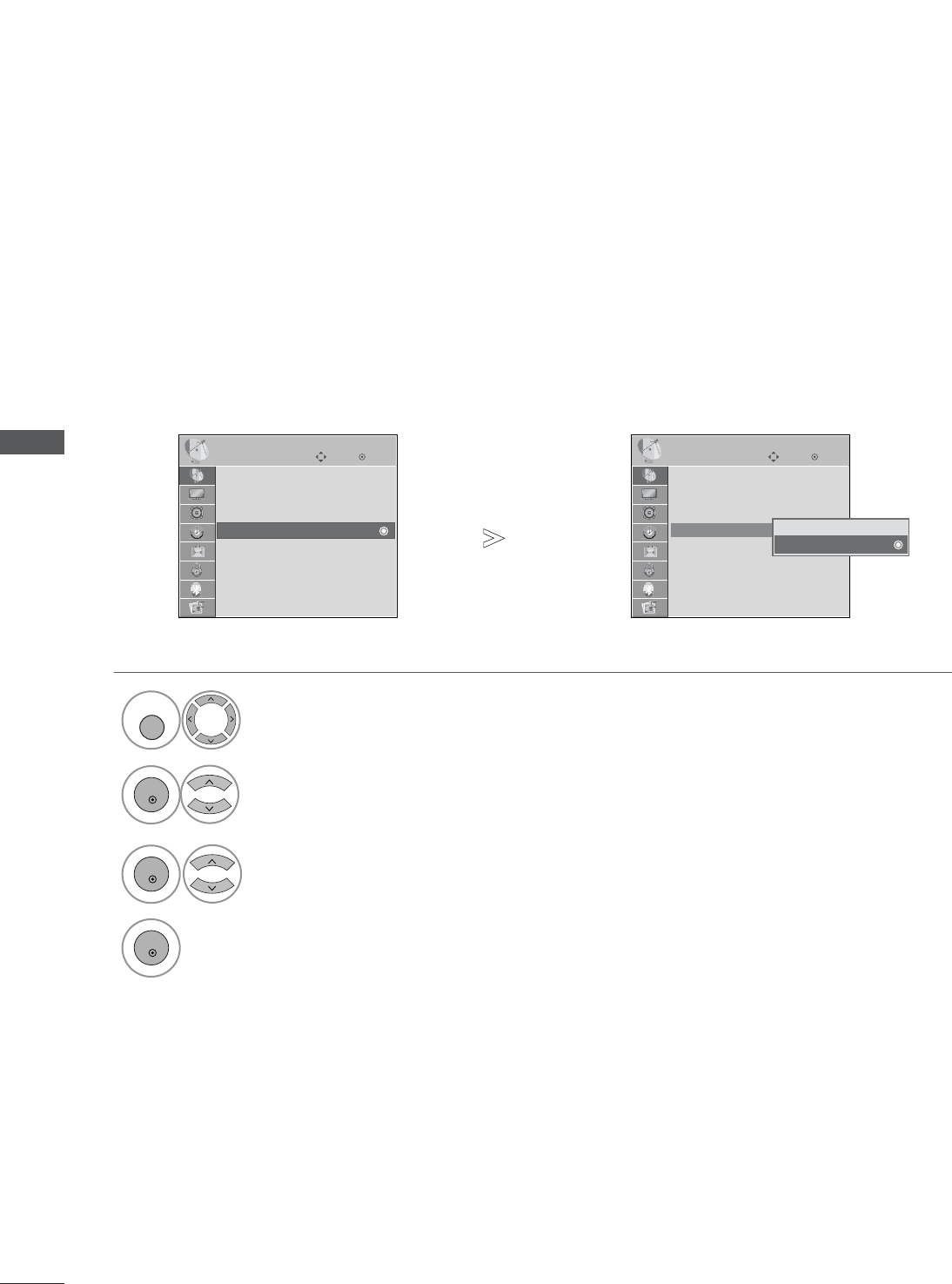

Screen Setup for PC mode

Returns Position, Size and Phase to the factory default settings.

This function works in the following mode : RGB[PC].

Screen Reset

Select


Select

SCREEN

3Select

Reset

To Set

Auto Config.

SCREEN

Move

Prev.

RETURN

Resolution

Position

Size

Phase

Reset

Move

• Contrast 90

• Brightness 50

• Sharpness 60

• Colour 60

• Tint 0

• Advanced Control

• Picture Reset

Screen


Screen

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

Select

Yes

Run

Reset

EXTERNAL EQIPMENT SETUP

EXTERNAL EQUIPMENT SETUP

If the picture is not clear after auto adjustment and especially if characters are still trembling, adjust the pic-

ture phase manually.

This function works in the following mode : RGB[PC].

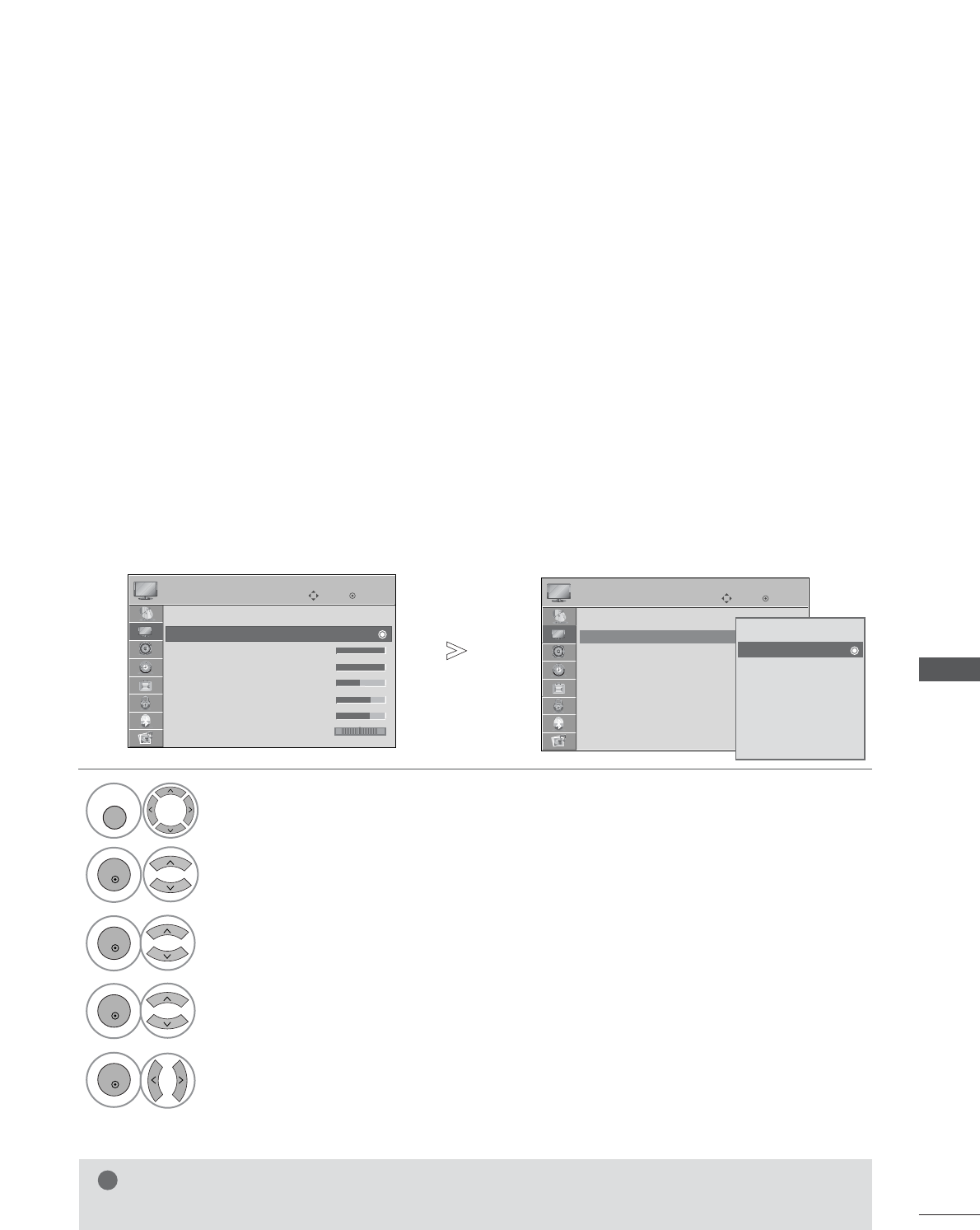

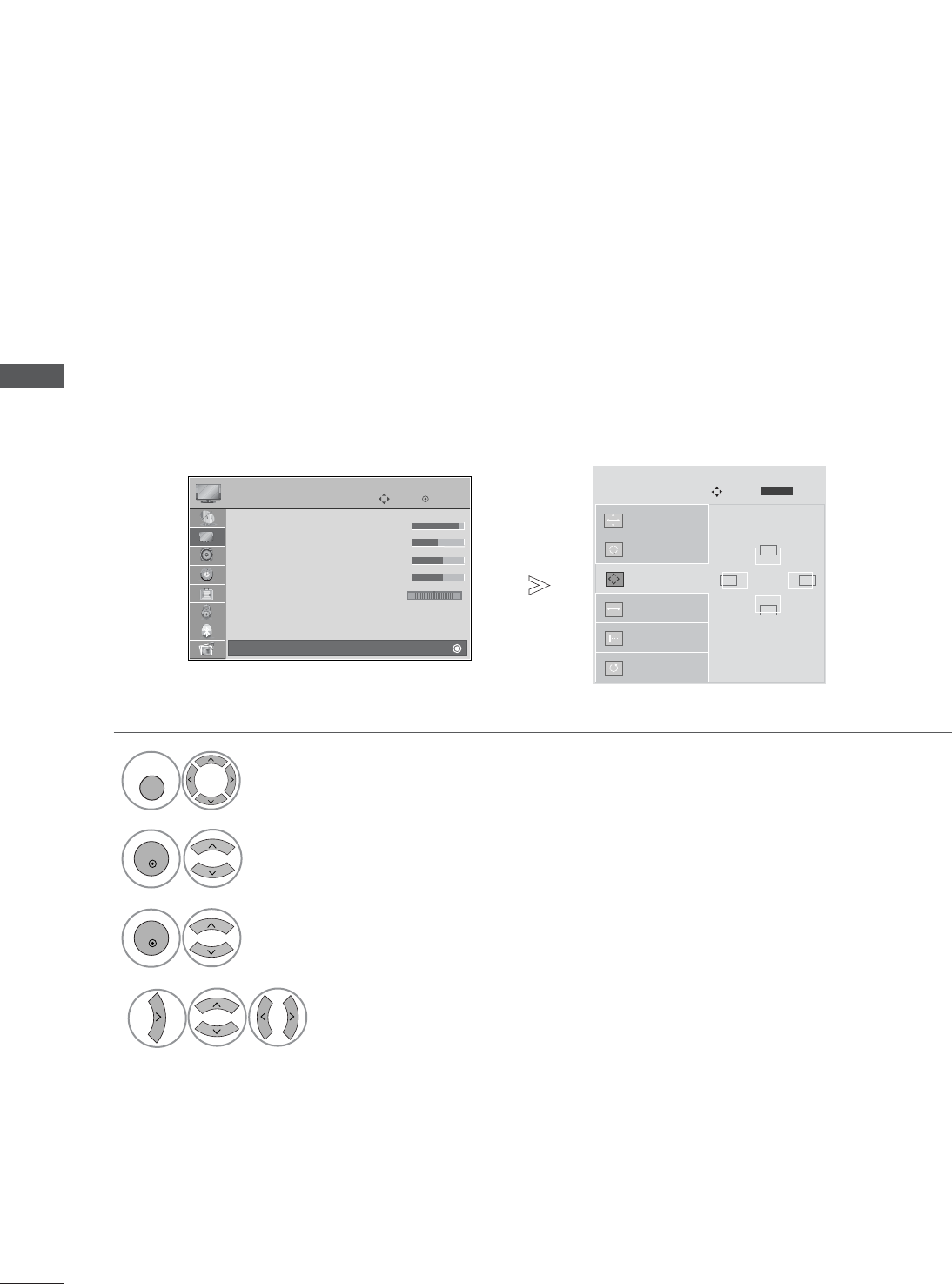

Adjustment for screen Position, Size, Phase

Select


Select

SCREEN

Select

Position

Size

Phase

Make appropriate adjustments.

Auto Config.

Resolution

Position

Size

Phase

Reset

Move

• Contrast 90

• Brightness 50

• Sharpness 60

• Colour 60

• Tint 0

• Advanced Control

• Picture Reset

Screen


Screen

SCREEN

Move

Prev.

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

RETURN

EXTERNAL EQUIPMENT SETUP

To view a normal picture, match the resolution of RGB mode and selection of PC mode.

This function works in the following mode: RGB[PC]

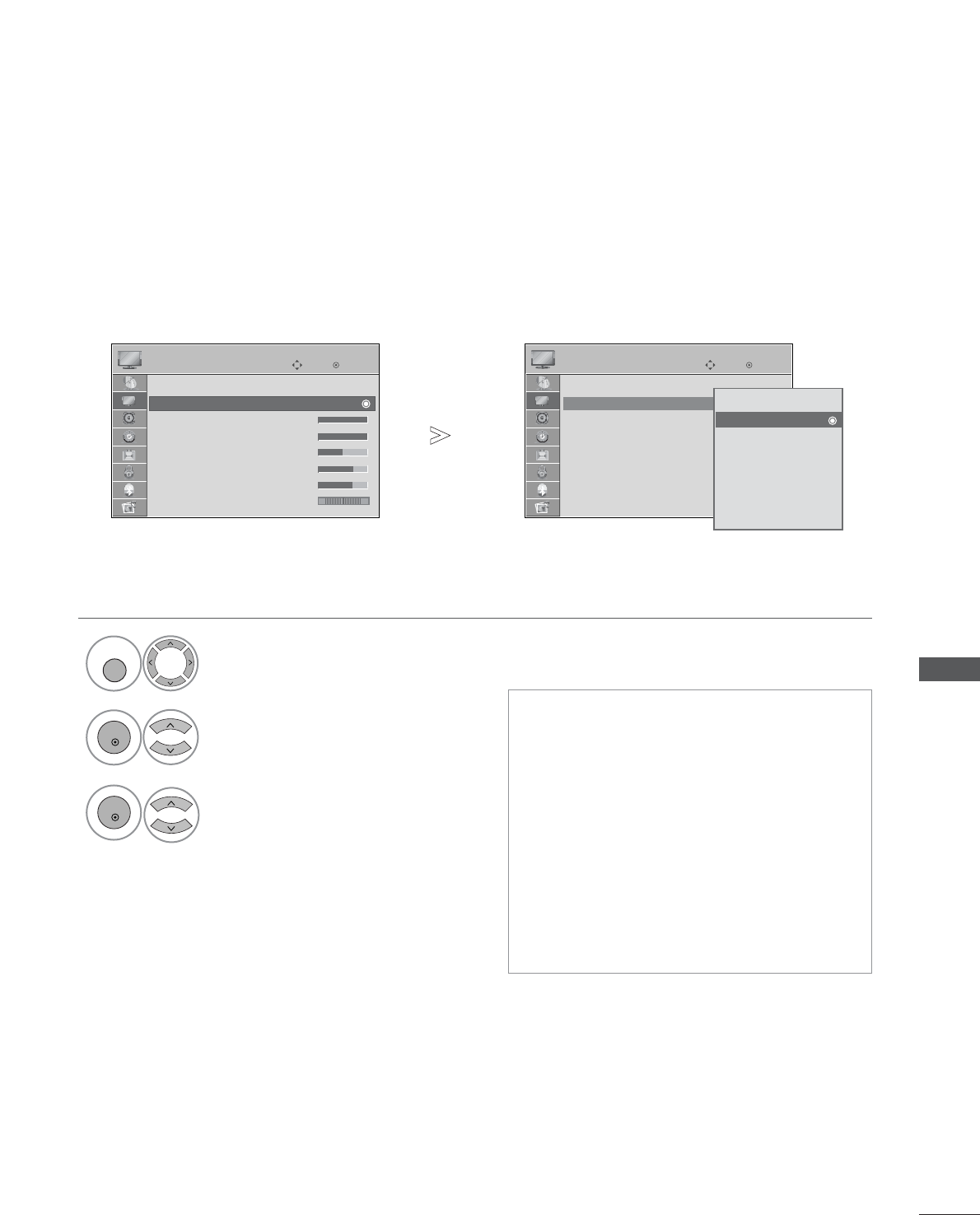

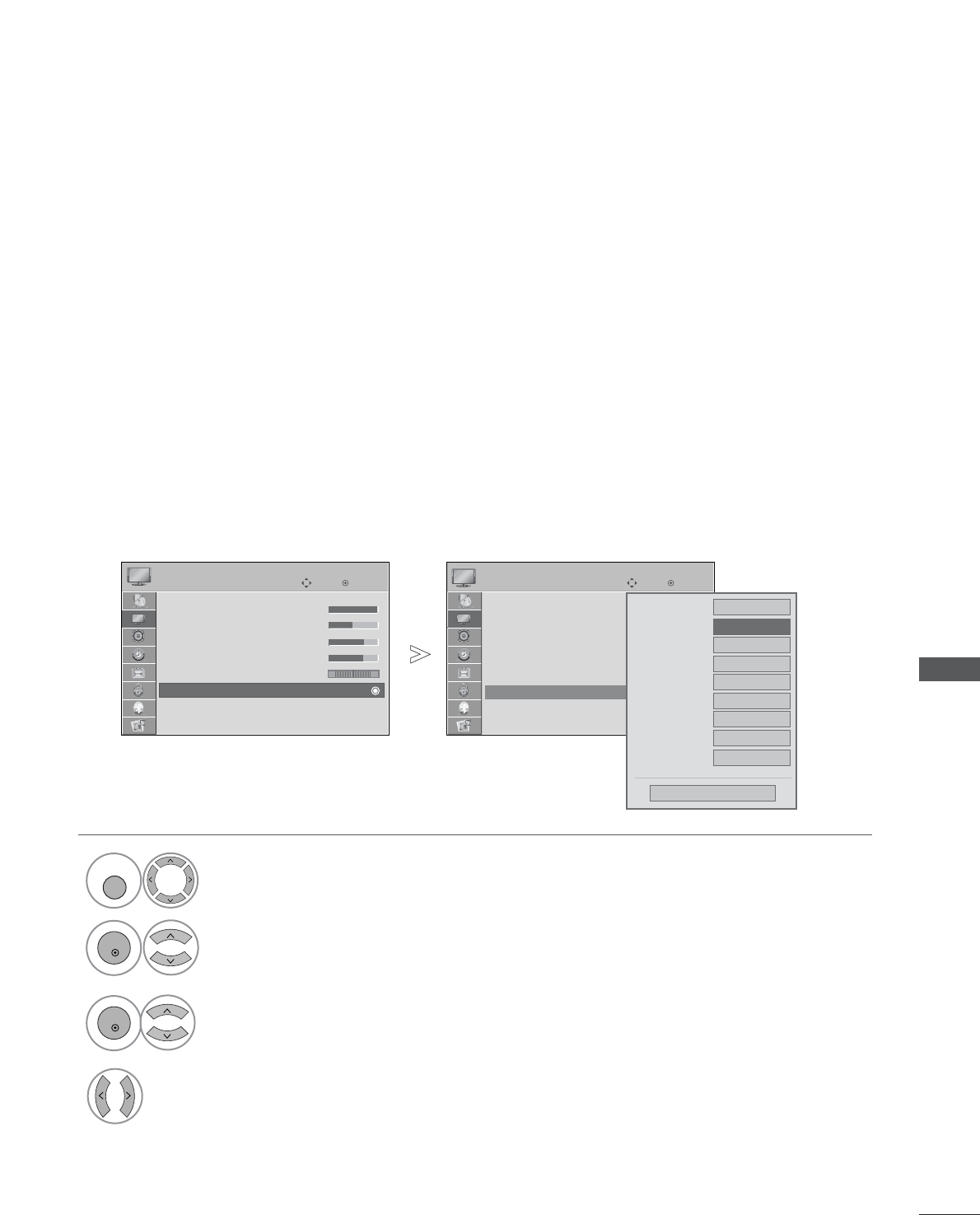

Selecting Resolution

Select


Select

SCREEN

Select

Resolution

Select the desired resolution.

1024 x 768

1280 x 768

1360 x 768

Auto Config.

Resolution

Position

Size

Phase

Reset

Move

• Contrast 90

• Brightness 50

• Sharpness 60

• Colour 60

• Tint 0

• Advanced Control

• Picture Reset

Screen


Screen

SCREEN

Move

Prev.

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

RETURN

EXTERNAL EQIPMENT SETUP

EXTERNAL EQUIPMENT SETUP

Automatically adjusts picture position and minimizes image instability. After adjustment, if the image is still

not correct, your TV is functioning properly but needs further adjustment.

Auto configure

This function is for automatic adjustment of the screen position, clock, and phase The displayed image will

be unstable for a few seconds while the auto configuration is in progress.

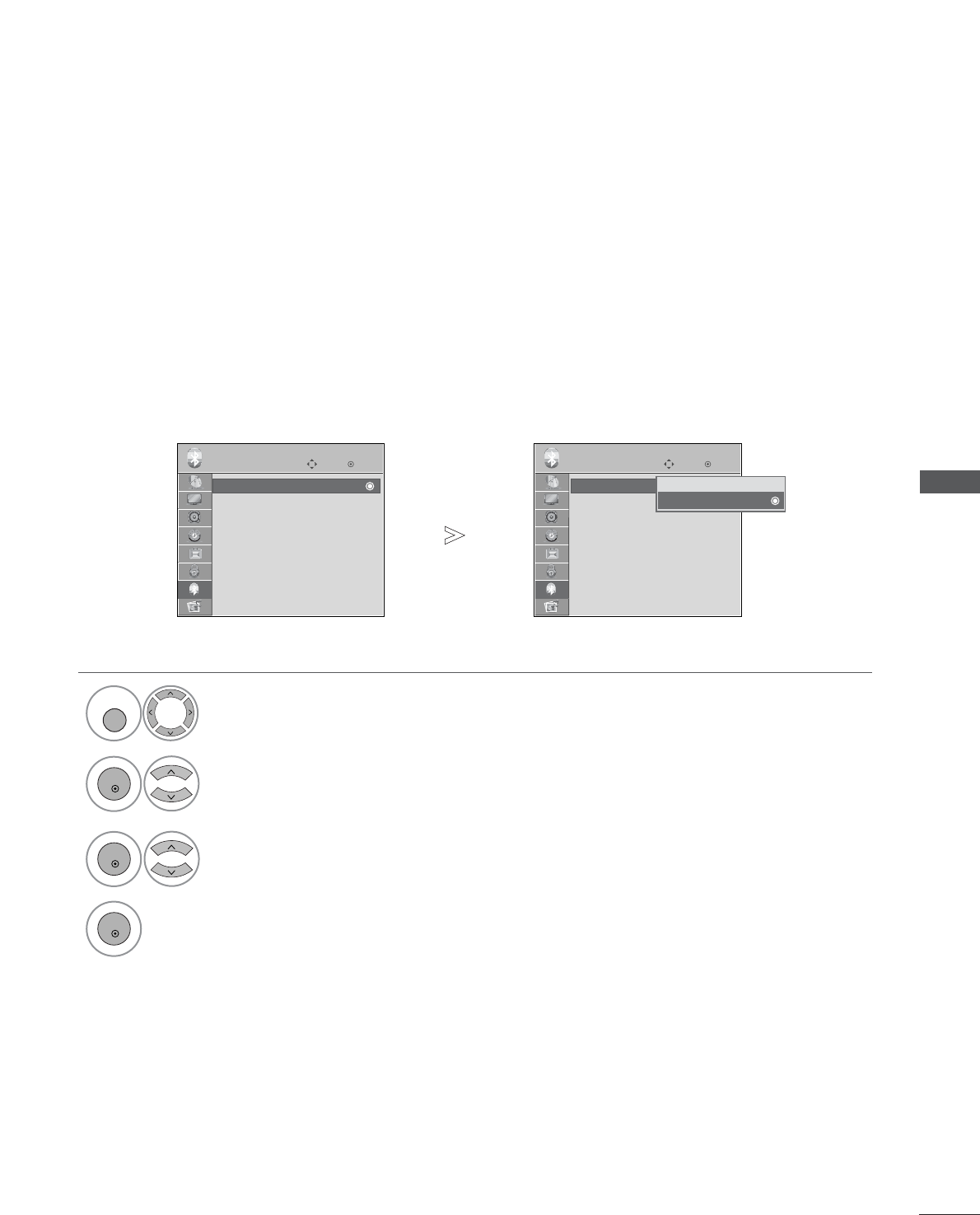

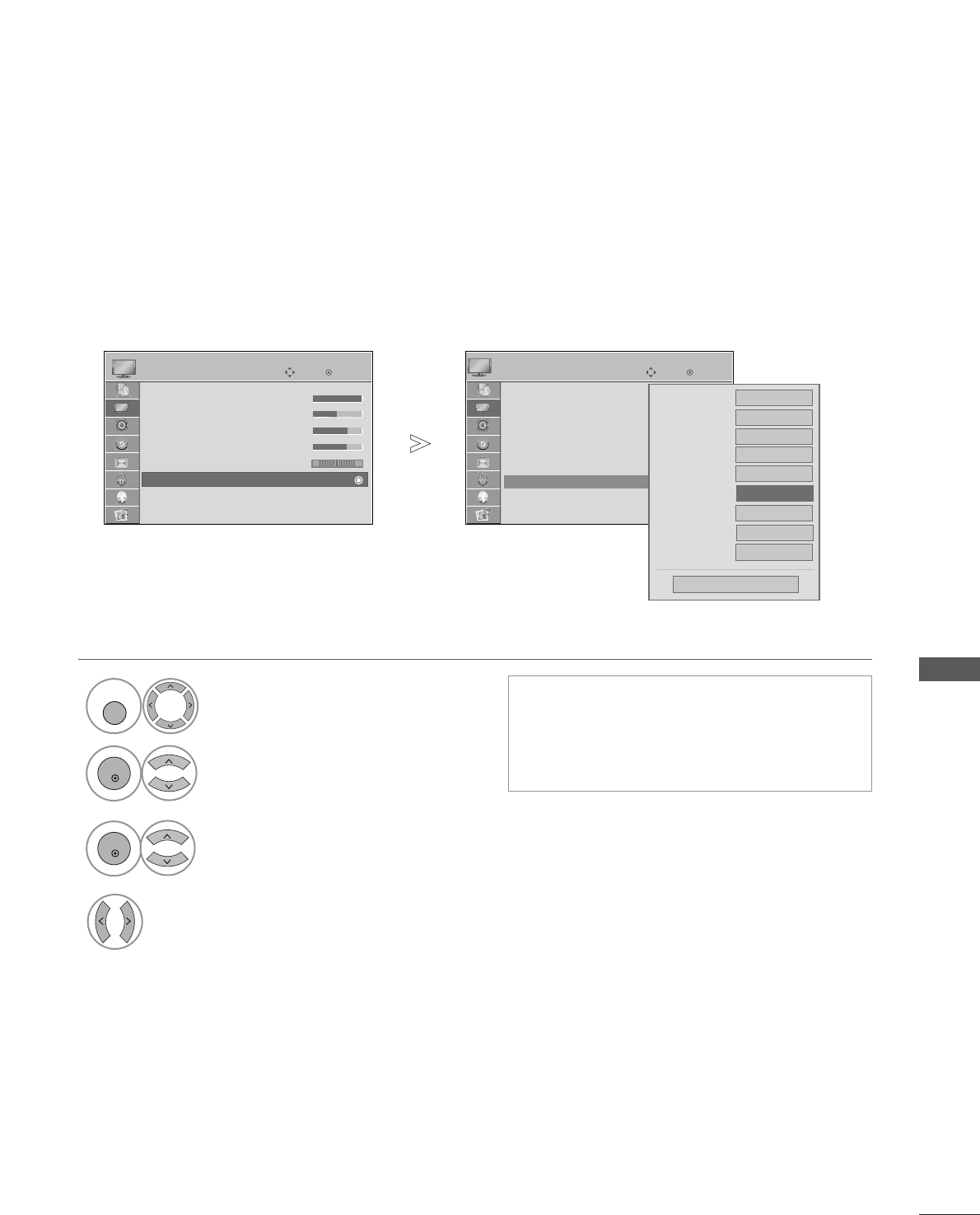

Auto Configure (RGB [PC] mode only)

•If the position of the image is still not correct,

try Auto adjustment again.

•If picture needs to be adjusted again after Auto

adjustment in RGB (PC), you can adjust the

Position

Size

Phase

Select


Select

SCREEN

Select

Auto Config.

Move

• Contrast 90

• Brightness 50

• Sharpness 60

• Colour 60

• Tint 0

• Advanced Control

• Picture Reset

Screen


Screen

Auto Config. G

Resolution

Position

Size

Phase

Reset

SCREEN

Move

Prev.

To Set

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

RETURN

Select

Yes

Run

Auto Config.

EXTERNAL EQUIPMENT SETUP

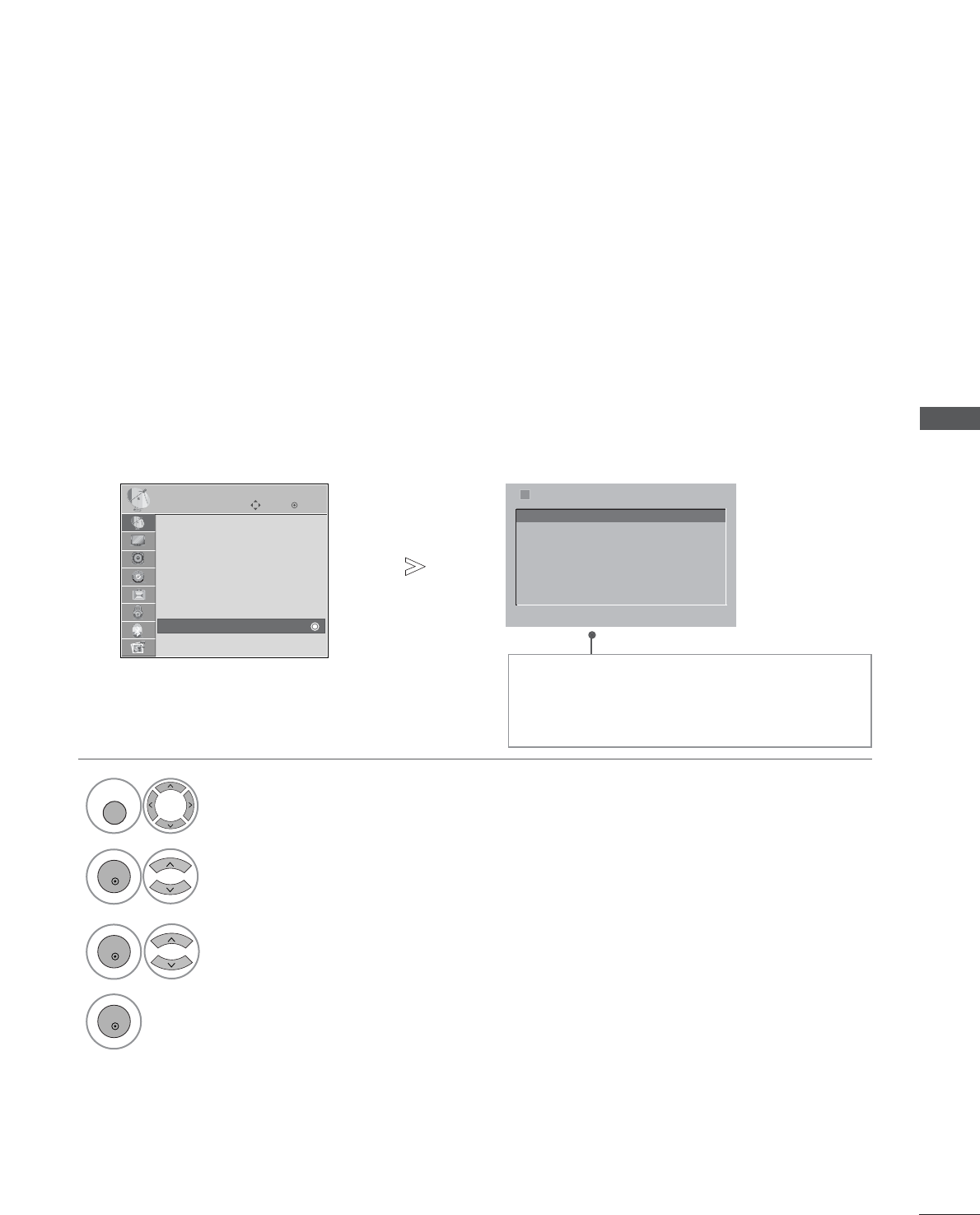

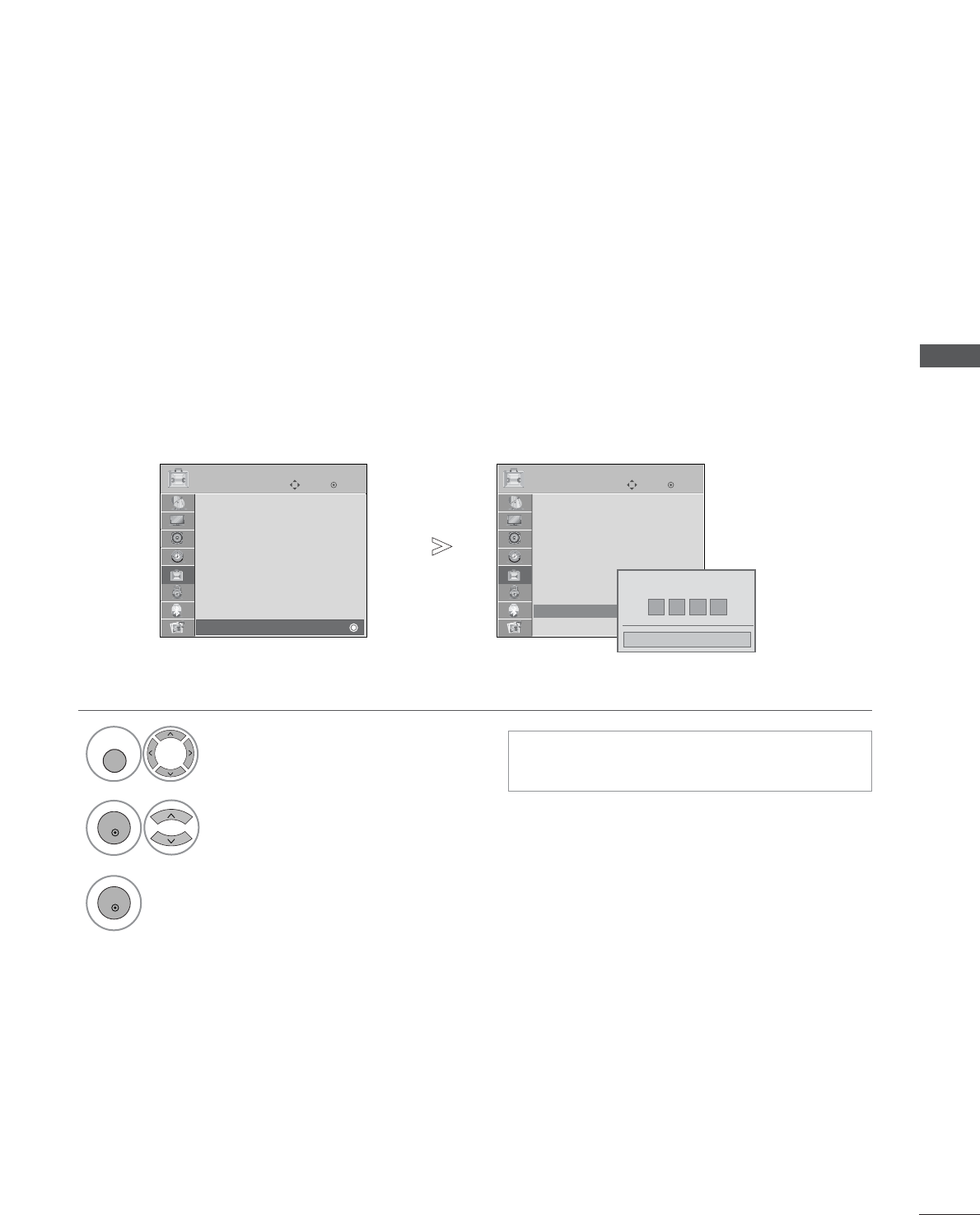

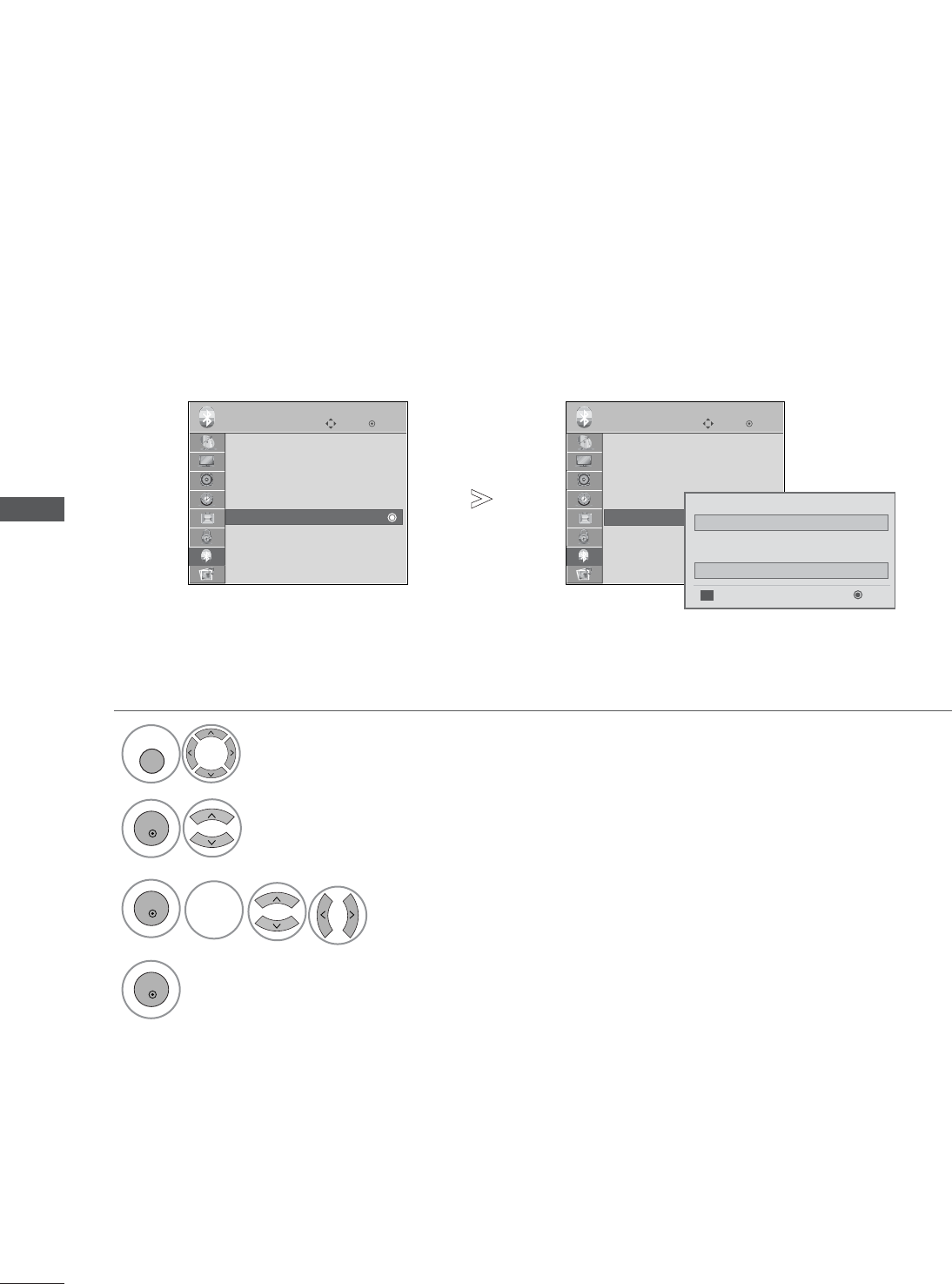

Initializing

(Reset to original factory settings)

This function operates in current mode.

To initialize the adjusted value.

When the

Lock System

menu is "

", the message to enter the password appears.

• In

Lock System

O n

", if you forget your password,

press '7', '7', '7', '7' on the remote control handset.

Select

OPTION

Select

Factory Reset

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

Move

Country : UK

Input Label

SIMPLINK : On

Key Lock : Off

Set ID :1

ISM Method : Normal

Power Saving : Level 0

Factory Reset

OPTION

Factory Reset

Move

Input Label

SIMPLINK : Off

Key Lock : Off

Set ID :1

ISM Method

Power Saving

Factory Reset

OPTION

Factory Reset

Enter Password

Cancel

* * * *

WATCHING TV / PROGRAMME CONTROL

REMOTE CONTROL KEY FUNCTIONS

When using the remote control, aim it at the remote control sensor on the TV.

MODE

POWER

INPUT

TV/RAD

Selects the remote operating modes.

Switches the TV on from standby or off to standby.

External input mode rotate in regular sequence.

Switches the TV on from standby.

Selects Radio, TV and DTV channel.

Q. MENU

GUIDE

Select the desired quick menu source. (Aspect Ratio,

Power Saving(Plasma TV models), Backlight(LCD TV

models), Clear Voice, Picture Mode, Sound Mode,

Audio, Sleep Timer, USB Eject.)

Selects a menu.

Clears all on-screen displays and returns to TV viewing

from any menu.

Shows programme schedule.

THUMBSTICK

(Up/Down/Left

Right)

Allows you to navigate the on-screen menus and adjust

the system settings to your preference.

Accepts your selection or displays the current mode.

RETURN(EXIT)

INFO i

AV MODE

Allows the user to move return one step in an interac-

tive application, EPG or other user interaction function.

Shows the present screen information.

It helps you select and set images and sounds when

connecting AV devices.

Coloured

buttons

These buttons are used for teletext (on

TELETEXT

models only) ,

Programme edit

TELETEXT

BUTTONS

SUBTITLE

These buttons are used for teletext.

For further details, see the ‘Teletext’ section.

Recalls your preferred subtitle in digital mode.

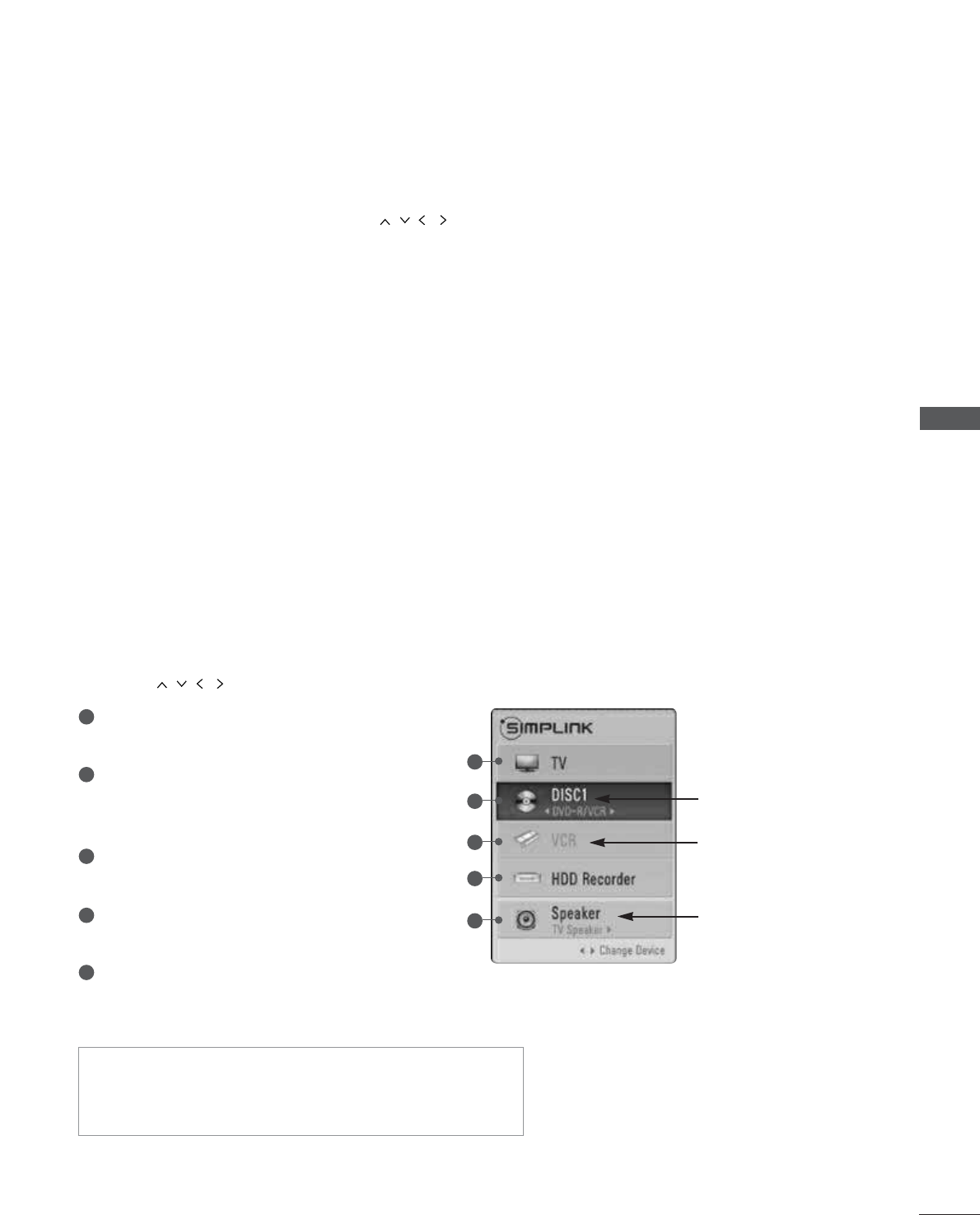

See a list of AV devices connected to TV.

When you toggle this button, the Simplink menu appears

at the screen.

WATCHING TV / PROGRAMME CONTROL

VOLUME UP

/DOWN

MARK

FAV

MUTE

Programme

UP/DOWN

PAGE

UP/DOWN

0~9 number

button

LIST

Q.VIEW

Adjusts the volume.

Check and un-check programmes in the USB menu.

Displays the selected favourite programme.

Switches the sound on or off.

Selects a programme.

Move from one full set of screen information to the next

one.

Selects a programme.

Selects numbered items in a menu.

Displays the programme table.

Returns to the previously viewed programme.

Installing Batteries

■

Open the battery compartment cover on the back and install the

batteries matching correct polarity (+with +,-with -).

■

Install two 1.5V AAA batteries. Do not mix old or used batteries

with new ones.

■

Close cover.

SIMPLINK /

USB Menu

control buttons

Controls SIMPLINK or USB menu(Photo List and Music

List).

WATCHING TV / PROGRAMME CONTROL

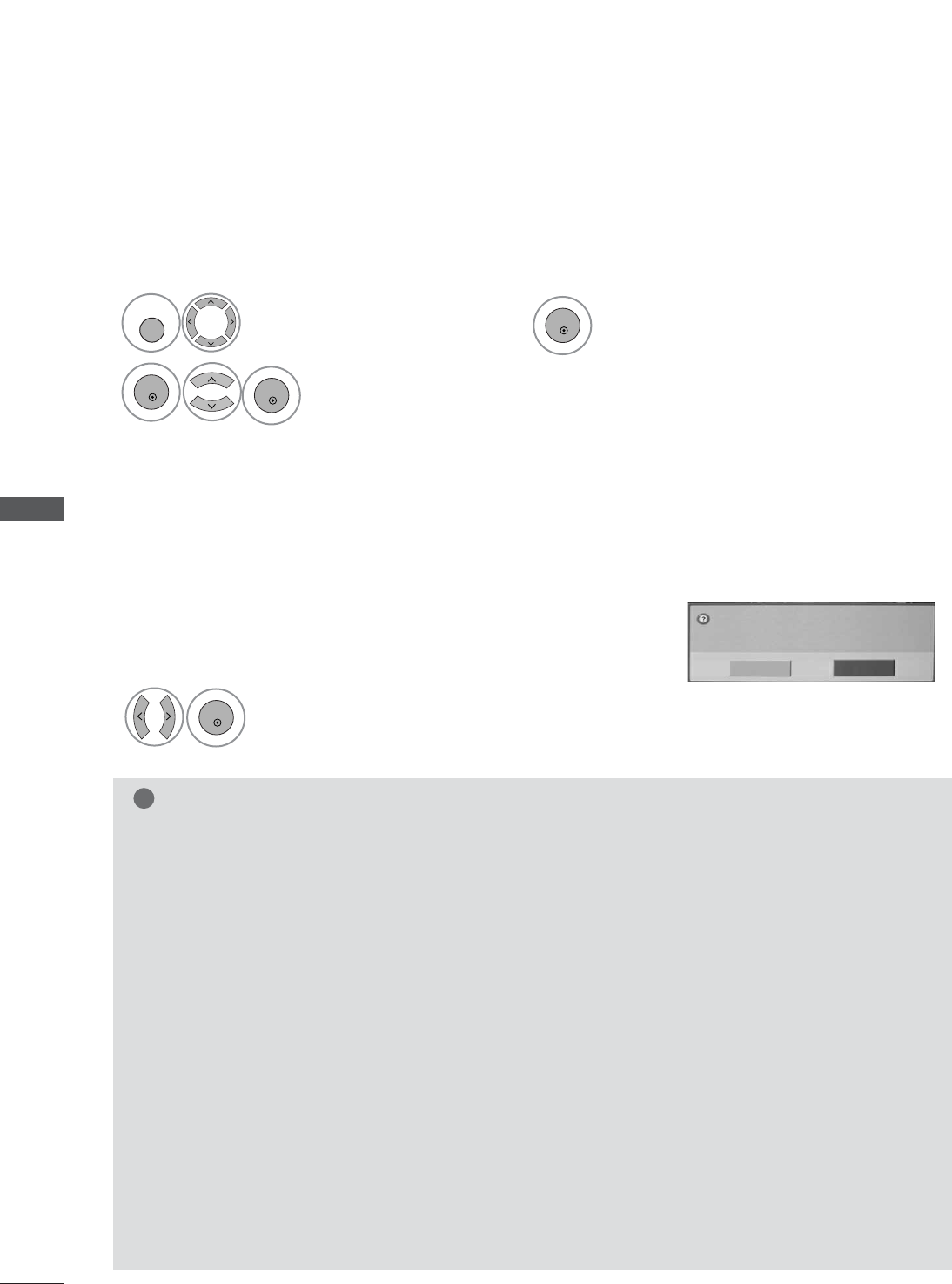

TURNING ON THE TV

Firstly, connect the power cord correctly.

At this stage, the TV switches to standby mode.

In standby mode to turn TV on, press the

/ I, INPUT or P D E (or P) button on the TV or

press the POWER, INPUT, P or NUMBER button on the remote control and the TV will switch on.

Initializing setup

Note:

a. It will automatically disappear after approx. 40 seconds unless a button is pressed.

b. Press the RETURN button to change the current OSD to the previous OSD.

c. For those countries without confirmed DTV broadcasting standards, some DTV features might not

work, depending on the DTV broadcasting environment.

d "Home” mode is the optimal setting for home environments, and is the TV's default mode.

e. "In Store" mode is the optimal setting for store environments. If a user modifies image quality data, “In

Store” mode initializes the product to the image quality set by us after a certain period of time.

f. The mode (Home, In Store) can be changed by executing Factory Reset in the OPTION menu.

g. “

In store

” Mode is an optimal setting for displaying at stores. “In-Store” mode initializes the TV to set

the image quality and operates “

TruMotion Demo

” after a certain period of

time.(37/42/47/52LG70** only.)

If the OSD (On Screen Display) is displayed on the screen after turning on the TV, you can adjust the

Language

Select Mode

Country

Time Zone

Auto programme tuning

- When your TV is turned on, you will be able to use its features.

PROGRAMME SELECTION

Press the

or NUMBER buttons to select a programme

number.

VOLUME ADJUSTMENT

Press the

button to adjust the volume.

If you wish to switch the sound off, press the MUTE button.

You can cancel this function by pressing the MUTE,

button.

•

Aspect Ratio

: Selects your desired picture format.

For Zoom Setting, select 14:9, Zoom1 and Zoom2 in

Ratio Menu. After completing Zoom Setting, the dis-

play goes back to Q.Menu.

•

Power Saving

(Plasma TV Only): Adjusts screen

brightness to reduce the power consumption of the

TV.

•

Backlight

(LCD TV Only): Adjusts screen brightness.

It returns to the default settings brightness by

changing mode source.

•

Clear Voice

: By differentiating the human sound

range from others, it helps users listen to human voic-

es better.

•

Picture Mode

: Selects your desired Picture Mode.

•

Sound Mode

: It is a feature to automatically set the

sound combination which it deems the best for the

images being watched. Selects your desired Sound

Mode.

•

Audio

: Selects the sound output.

•

Sleep Timer

: Sets the sleep timer.

•

USB Eject

: Select “USB Eject” in order to eject USB

device.

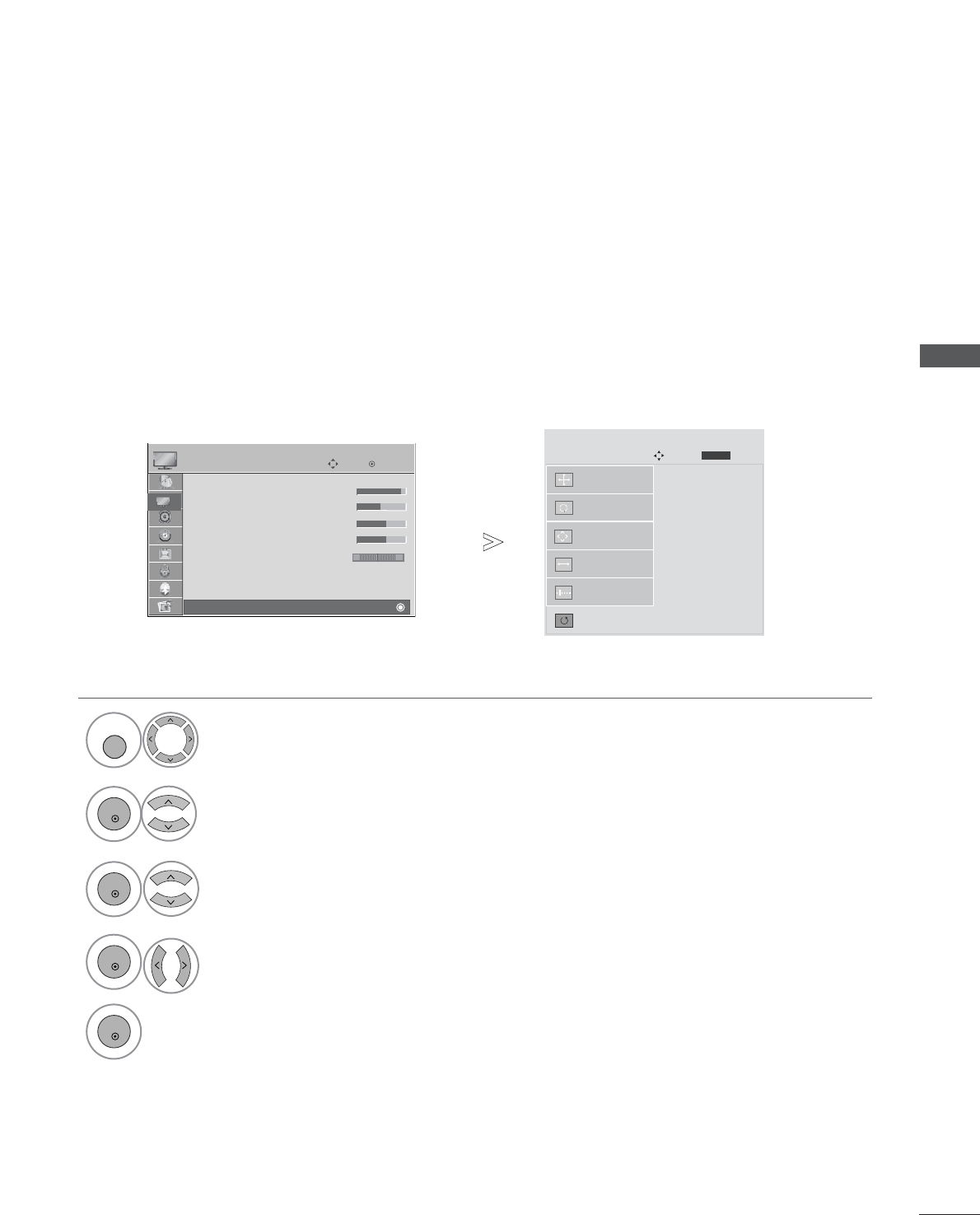

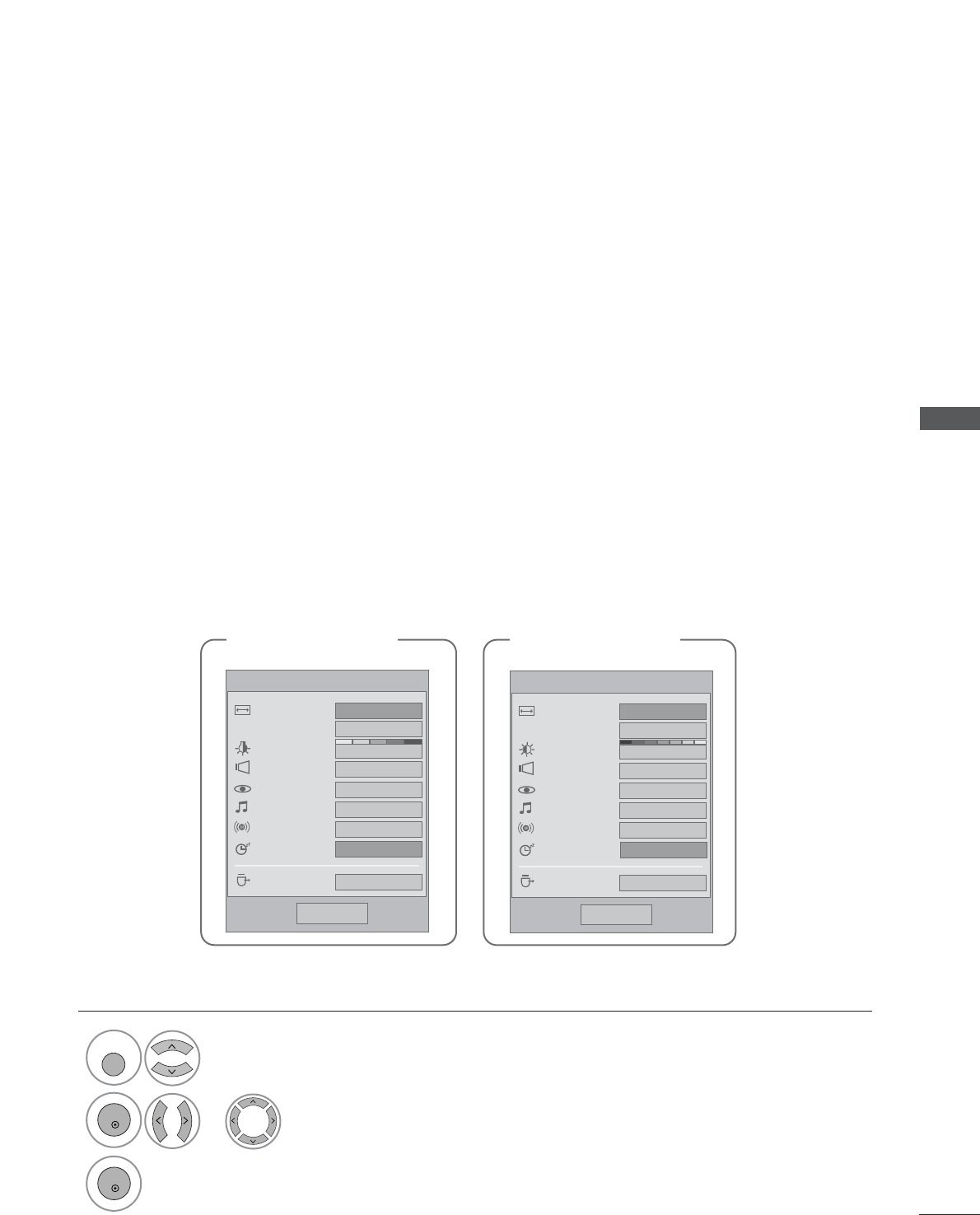

QUICK MENU

Display each menu.

Select your desired Source.

LCD TV Models

Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.

Q.Menu (Quick Menu) is a menu of features which users might use frequently.

WATCHING TV / PROGRAMME CONTROL

Q. MENU

• Press the

Q.MENU

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

Q.Menu

16:9

Zoom Setting

Standard

MONO

Off

Eject

Aspect Ratio

Power Saving

Clear Voice

Picture Mode

Sound Mode

Audio

Sleep Timer

USB Eject

Plasma TV Models

Q.Menu

16:9

Zoom Setting

Standard

MONO

Eject

Aspect Ratio

Backlight

Clear Voice

Picture Mode

Sound Mode

Audio

Sleep Timer

USB Eject

Off

WATCHING TV / PROGRAMME CONTROL

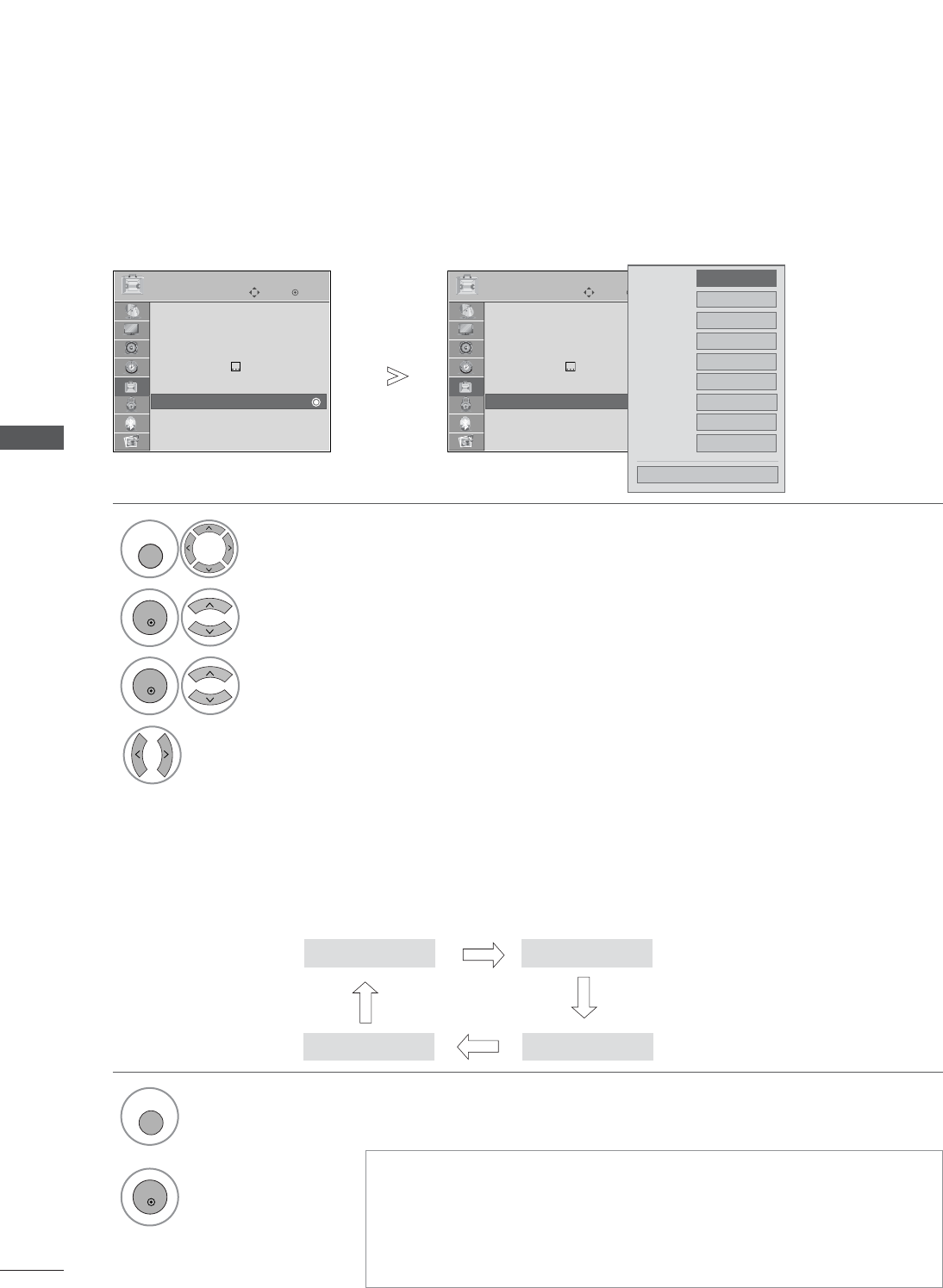

ON SCREEN MENUS SELECTION AND ADJUSTMENT

Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.

Move

Auto Tuning

Manual Tuning

Programme Edit

Booster : On

Software Update : On

Diagnostics

CI Information

SETUP

OPTION


LOCK

AUDIO

BLUETOOTH

TIME

USB

Move

Aspect Ratio : 16:9

Picture Mode : Vivid

• Backlight 100

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint 0


Move

Auto Volume : Off

Clear Voice : Off

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT

: Off

• 80Hz 0

• 220Hz 0

• 470Hz 0

AUDIO

Move

Clock

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Time Zone : Canary GMT

TIME

Move

Photo List

Music List

USB

Move

Bluetooth : Off

TV PIN : 0000

Bluetooth Headset : Disconnected

Registered Bluetooth Device

My Bluetooth Info.

BLUETOOTH

Move

Lock System : Off

Set Password

Block Programme

Parental Guidance : Off

LOCK

Move

Menu Language : English

Audio Language : English

Subtitle Language : English

Hard of Hearing( )

: Off

Country : UK

Input Label

SIMPLINK : On

Key Lock : Off

OPTION

NOTE

GIt is possible to use I

ISM Method

and

Power Saving

Plasma TV

models only.

GIt is possible to use

Backlight

Power Indicator

TruMotion

TruMotion Demo

Simple Manual

LCD

T V

models only.

GIt is possible to use

TruMotion

TruMotion Demo

37/42/47/52LG70**

models only.

GIt is not possible to use

CI Information

and

Booster

in Analogue mode.

Display each menu.

Select a menu item.

Move to the pop up menu.

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

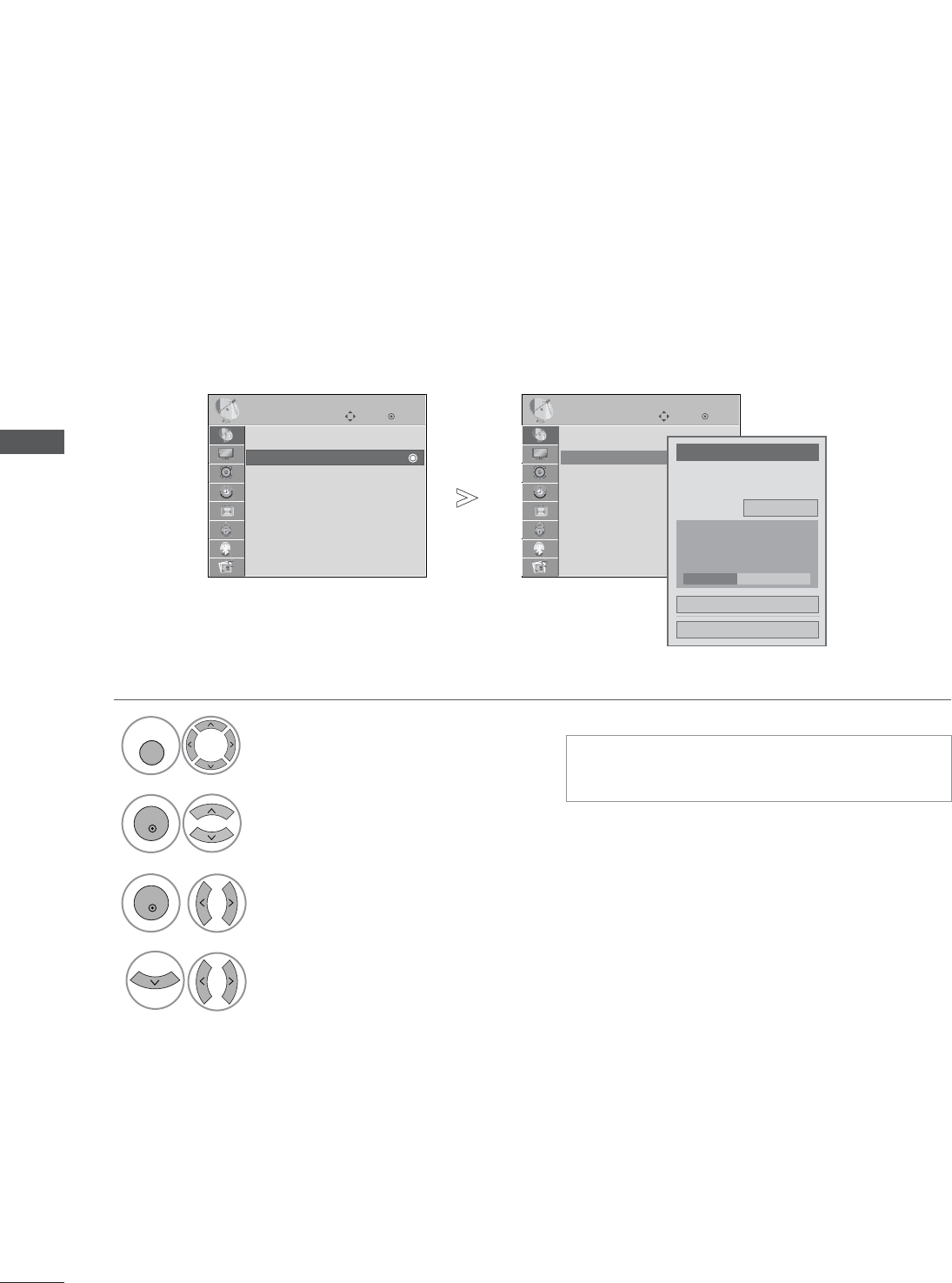

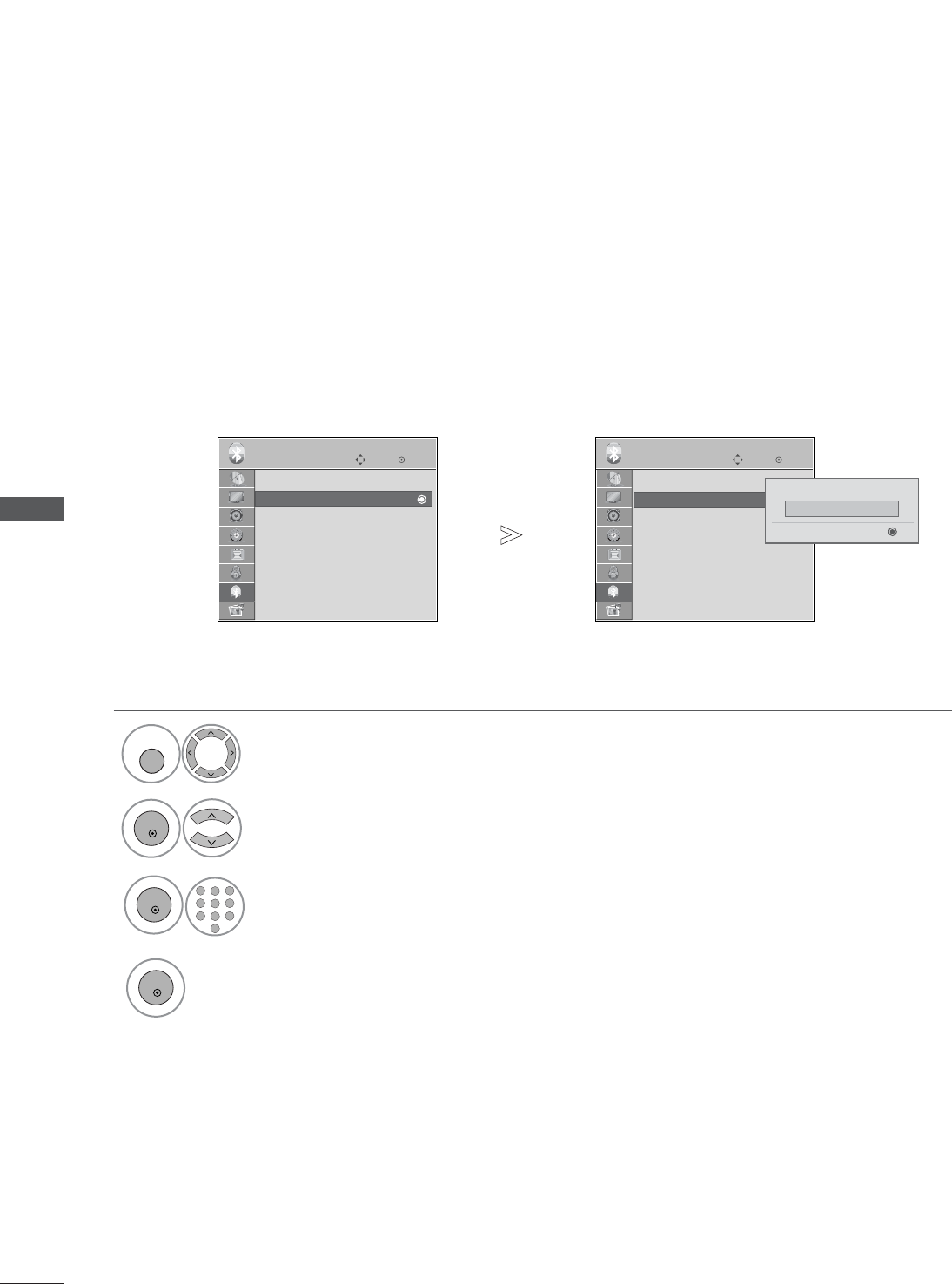

AUTO PROGRAMME TUNING

Use this to automatically find and store all available programmes.

When you start auto programming, all previously stored service information will be deleted.

• Use NUMBER buttons to input a 4-digit pass-

word in

Lock System

‘

O n

’.

• If you wish to keep on auto tuning select

YES

using the button. Then, press the OK but-

ton. Otherwise select

N O

Select

SETUP

Select

Auto Tuning

Select

Yes

Run

Auto tuning

Move

Auto Tuning

Manual Tuning

Programme Edit

Booster : On

Software Update : On

Diagnostics

CI Information

SETUP

Auto Tuning

Move

Auto Tuning

Manual Tuning

Programme Edit

Booster : On

Software Update : Onf

Diagnostics

CI Information

SETUP

Auto Tuning

All service-information will be updated.

Continue?

SECAM L Search

Yes No

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

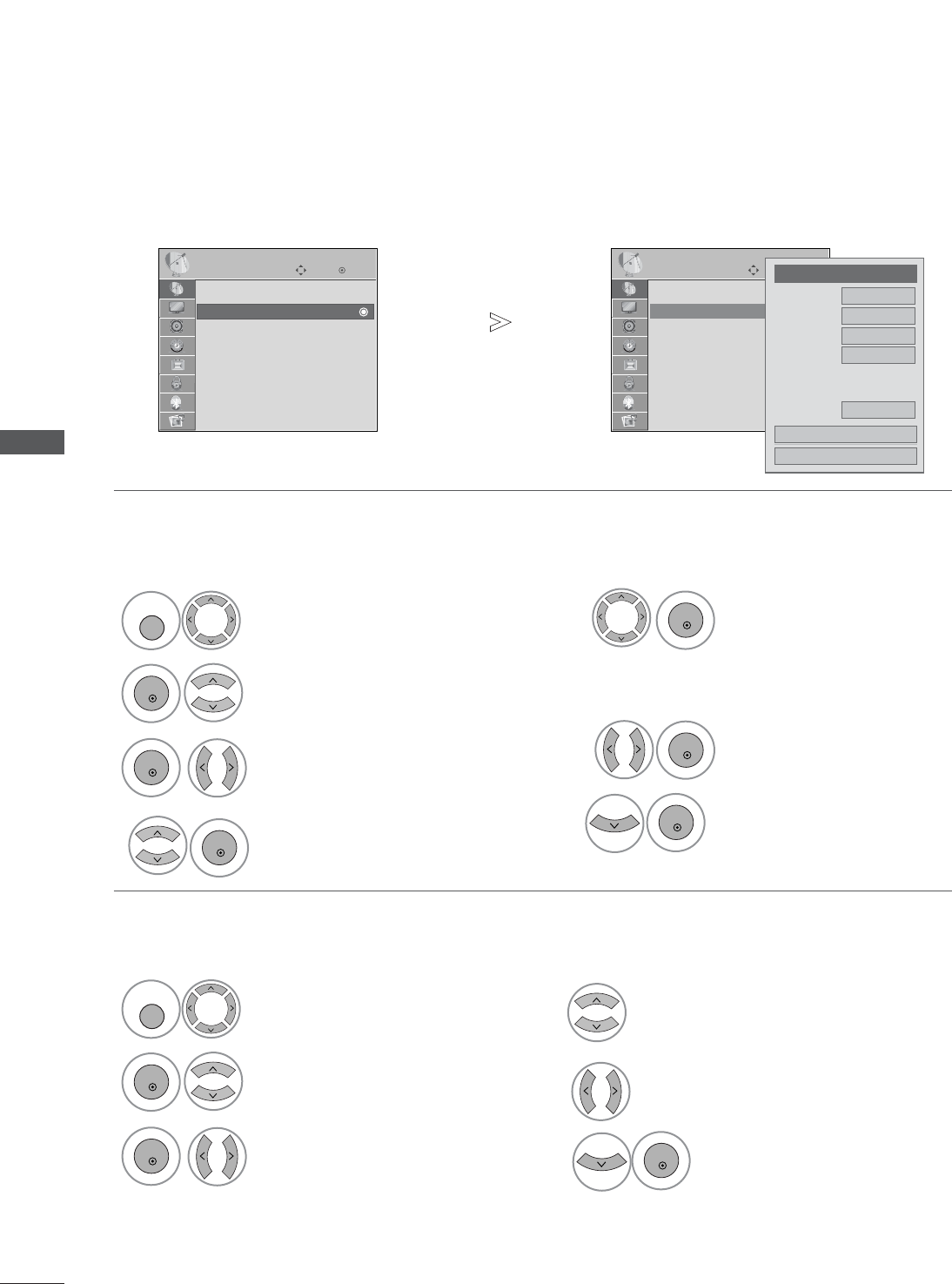

MANUAL PROGRAMME TUNING (IN DIGITAL MODE)

Manual Tuning lets you manually add a programme to your programme list.

• Use NUMBER buttons to input a 4-digit pass-

word in

Lock System

‘

O n

’.

Select

SETUP

Select

Manual Tuning

Select

DTV

Select the desired channel number.

Move

Auto Tuning

Manual Tuning

Programme Edit

Booster : On

Software Update : On

Diagnostics

CI Information

SETUP

Manual Tuning

Move

Auto Tuning

Manual Tuning

Programme Edit

Booster : On

Software Update : On

Diagnostics

CI Information

SETUP

Manual Tuning

Your receiver will add this

channel to your channel list.

UHF CH.

Bad Normal Good

DTV

Update

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

MANUAL PROGRAMME TUNING (IN ANALOGUE MODE)

Manual Tuning lets you manually tune and arrange the stations in whatever order you desire.

•Use NUMBER buttons to input a 4-digit password in

Lock System

‘

O n

’.

•

: SECAM L/L’ (France)

B G

: PAL B/G, SECAM B/G (Europe / East Europe / Asia / New Zealand / M.East / Africa / Australia)

: PAL I/II (U.K. / Ireland / Hong Kong / South Africa)

D K

: PAL D/K, SECAM D/K (East Europe / China / Africa / CIS)

•To store another channel, repeat steps 4 to 9.

Select

SETUP

Select

Manual Tuning

Select

T V

Select the desired pro-

gramme number on.

Select a TV system.

Select

V/UHF

Cable

Commence searching.

Select the desired

channel number.

Move

Auto Tuning

Manual Tuning

Programme Edit

Booster : On

Software Update : On

Diagnostics

CI Information

SETUP

Manual Tuning

Move

Auto Tuning

Manual Tuning

Programme Edit

Booster : On

Software Update : On

Diagnostics

CI Information

SETUP

Manual Tuning

Storage

System BG

Band V/UHF

Channel

Fine

F G

Name C 02

Store

Select

Store

456

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

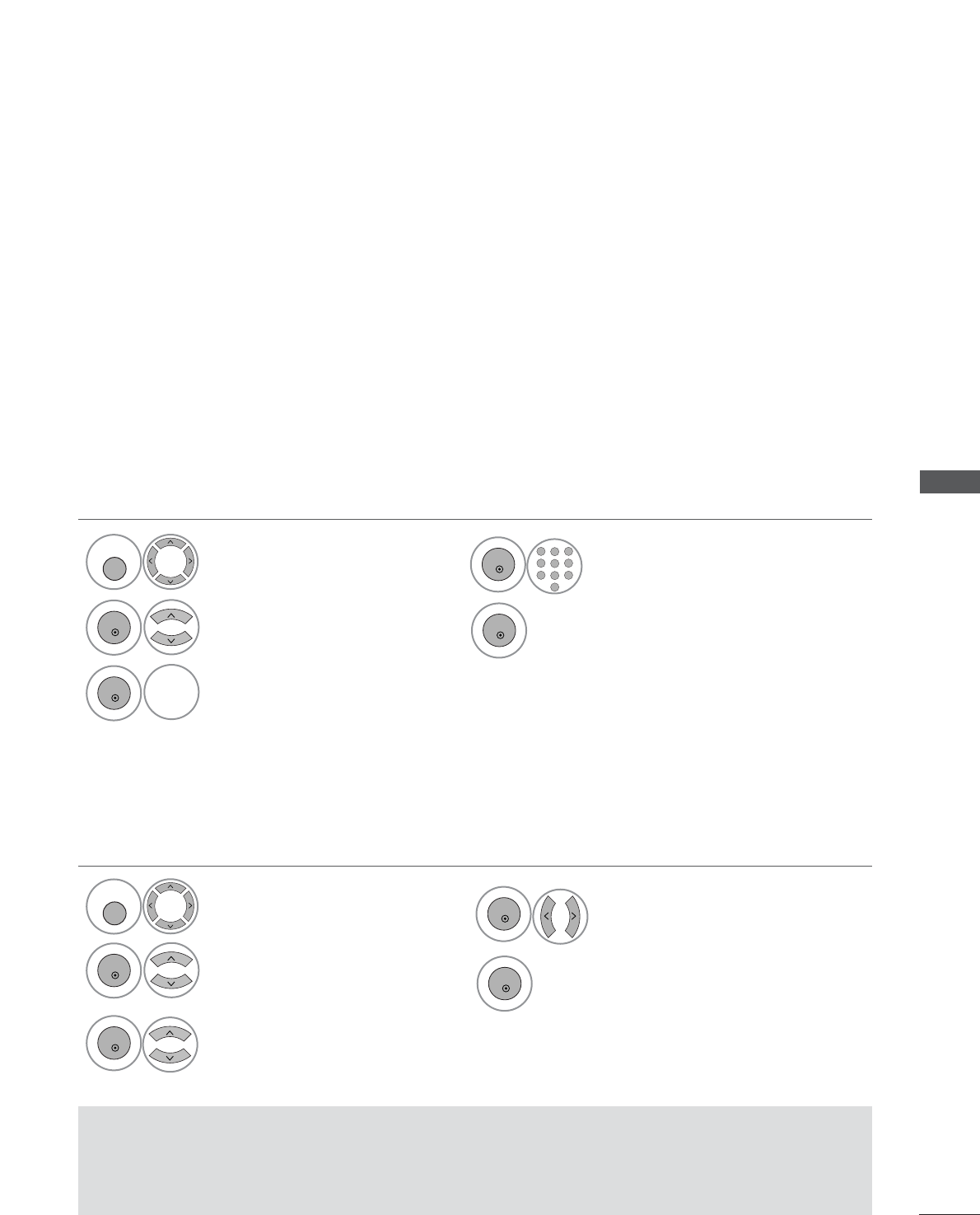

Normally fine tuning is only necessary if reception is poor.

AFine Tuning

Select

T V

Select

Fine

You can assign a station name with five characters to each programme number.

AAssigning a station name

Select

SETUP

Select

Manual Tuning

Select

T V

Select

Name

Select

SETUP

Select

Manual Tuning

Move

Auto Tuning

Manual Tuning

Programme Edit

Booster : On

Software Update : On

Diagnostics

CI Information

SETUP

Manual Tuning

Move

Auto Tuning

Manual Tuning

Programme Edit

Booster : On

Software Update : On

Diagnostics

CI Information

SETUP

Manual Tuning

Storage

System BG

Band V/UHF

Channel

Fine

F G

Name C 02

Store

Select

Store

Fine tune for the best picture and

sound.

5Select the position and make

your choice of the second char-

acter, and so on.

You can use an the alphabet

, the number

, +/ -,

and blank.

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

Select

Store

WATCHING TV / PROGRAMME CONTROL

PROGRAMME EDIT

When a programme number is skipped, it means that you will be unable to select it using P button during TV

viewing.

If you wish to select the skipped programme, directly enter the programme number with the NUMBER buttons or

select it in the Programme edit menu.

This function enables you to skip the stored programmes.

In some countries it is possible to move a programme number by using the YELLOW button only.

• Use NUMBER buttons to input a 4-digit pass-

word in

Lock System

‘

O n

’.

Select

SETUP

Select

Programme Edit

Enter the

Programme Edit

Select a programme to be

stored or skipped.

YLE TV11

Favourite List

Favourite Pr. Change Page Change

TV DTV Radio

1 YLE TV1 2 YLE TV2

4 TV4 Stockholm

5 YLE FST

6 CNN 8 YLE24

9 YLE Teema 14 TV4 Film

24 TV4 Fakta 50 TV400

24 TV4 Fakta 84 Kanal Lokal

24 TV4 Fakta 86 Info/3sat

87 Doku/Kika 88 TVE 1

FAV Navigation Previous

RETURN

Skip

Move

Auto Tuning

Manual Tuning

Programme Edit

Booster : On

Software Update : On

Diagnostics

CI Information

SETUP

Programme Edit

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

ASkipping a programme number

Select a programme number to be skipped.

BLUE

BLUE Turn the skipped programme number to blue.

BLUE

BLUE Release the skipped programme.

1• When programmes are to be skipped, skipped

programme shows in blue and these pro-

grammes will not be selected by the

buttons during TV viewing.

• If you wish to select a skipped programme, directly

enter the programme number with the NUMBER but-

tons or select it in the programme edit or EPG.

ASelecting favourite programme

Select your favourite pro-

gramme number.

FAV

MARK

• This will automatically include the selected pro-

gramme into your favourite programme list.

(IN DTV/RADIO MODE)

This function enables you to delete or skip the stored programmes.

You can also move some channels and use other programme numbers.

WATCHING TV / PROGRAMME CONTROL

AAuto Sort

Start Auto Sort.

GREEN

• After activating Auto Sort once, you can no longer

edit programmes.

ASelecting a Favourite Programme

Select your favourite programme number.

1• The selected programme will be added to the

favourite programme list.

IN TV MODE

ADeleting a programme

Select a programme number to be deleted.

RED

RED Turn the deleted programme number to red.

RED

RED Release the deleted programme.

ASkipping a programme number

Select a programme number to be skipped.

BLUE

BLUE Turn the skipped programme number to blue.

BLUE

BLUE Release the skipped programme.

• The selected programme is deleted, all the fol-

lowing programmes are shifted up one

AMoving a programme

Select a programme number to be moved.

Turn the moved programme number to YELLOW.

YELL

YELLO

Release the moved programme.

• When a programme number is skipped it means

that you will be unable to select it using the P

button during normal TV viewing.

• If you wish to select a skipped programme, directly

enter the programme number with the NUMBER but-

tons or select it in the programme edit or EPG.

YELL

YELLO

FAV

MARK

BOOSTER (IN DIGITAL MODE)

If reception is poor select Booster to On.

When the signal is strong, select "Off".

Select

SETUP

Select

Booster

Select

Off

Save.

Move

Auto Tuning

Manual Tuning

Programme Edit

Booster : On

Software Update : On

Diagnostics

CI Information

SETUP

Booster : On

Move

Auto Tuning

Manual Tuning

Programme Edit

Booster : On

Software Update : On

Diagnostics

CI Information

SETUP

Booster : On

Off

WATCHING TV / PROGRAMME CONTROL

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

- During Progress of a Software Update, please note the following:

• Power to the TV must not be interrupted.

• The TV must not be switched off.

• The antenna must not be disconnected.

• After Software Update, you can confirm the updated software version in Diagnostics menu.

SOFTWARE UPDATE

Software Update means software can be downloaded through the digital terrestrial broadcasting system.

* When setting “Software Update”

Occasionally, a transmission of

updated digital software infor-

mation will result in the following

menu on the TV screen.

After the Software Update is

complete, the System restarts.

Select

SETUP

Select

Software Update

Select

Off

• If you select

O n

, a user con-

firm message box will be dis-

played to notify that new soft-

ware is found.

Save.

Move

Auto Tuning

Manual Tuning

Programme Edit

Booster : On

Software Update : On

Diagnostics

CI Information

SETUP

Software Update : On

Move

Auto Tuning

Manual Tuning

Programme Edit

Booster : On

Software Update : On

Diagnostics

CI Information

SETUP

Software Update : On

Off

WATCHING TV / PROGRAMME CONTROL

Select the

YES

using the

button and you will see the follow-

ing picture.

When the Software Update

menu is "

Off

", the message to

change it to "

O n

" appears.

When the power is turned off, downloading

starts.

When the power is turned on while updat-

ing, the progress status is displayed.

DIAGNOSTICS

WATCHING TV / PROGRAMME CONTROL

This function enables you to view information on the Manufacturer, Model/Type, Serial Number and Software

Version.

This displays the information and signal strength of the tuned MUX.

This displays the signal information and service name of the selected MUX.

Select

SETUP

Select

Diagnostics

Display the information of Channel.

Display Manufacturer, Model/Type, Serial Number and Software Version.

Move

Auto Tuning

Manual Tuning

Programme Edit

Booster : On

Software Update : On

Diagnostics

CI Information

SETUP

Diagnostics

Engineering Diagnostics

Manufacturer : LG Electronics Inc.

Model/Type : 50PG7000

Serial No. : SKJY1107

Software Version : V1.10.00

Popup

CH 34

CH 36

CH 38

CH 54

CH 60

Prev.

RETURN

Exit

CH 30

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

CI [COMMON INTERFACE] INFORMATION

This function enables you to watch some encrypted services (pay services). If you remove the CI Module, you can-

not watch pay services.

When the module is inserted into the CI slot, you can access the module menu.

To purchase a module and smart card, contact your dealer. Do not repeatedly insert or remove a CI module from

the TV. This may cause a malfunction. When the TV is turned on after inserting a CI Module, you may not have any

sound output.

This may be incompatible with the CI module and smart card.

CI (Common Interface) functions may not be possible depending upon the country broadcasting circumstances.

• This OSD is only for illustration and the menu options

and screen format will vary according to the Digital pay

services provider.

• It is possible for you to change CI (Common Interface)

menu screen and service by consulting your dealer.

Select

SETUP

Select

CI Information

Select the desired item: Module information, smart card

information, language, or software download etc.

Viaccess Module

Select the item

Consultations

Authorizations

Module information

Move

Auto Tuning

Manual Tuning

Programme Edit

Booster : On

Software Update : On

Diagnostics

CI Information

SETUP

CI Information

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

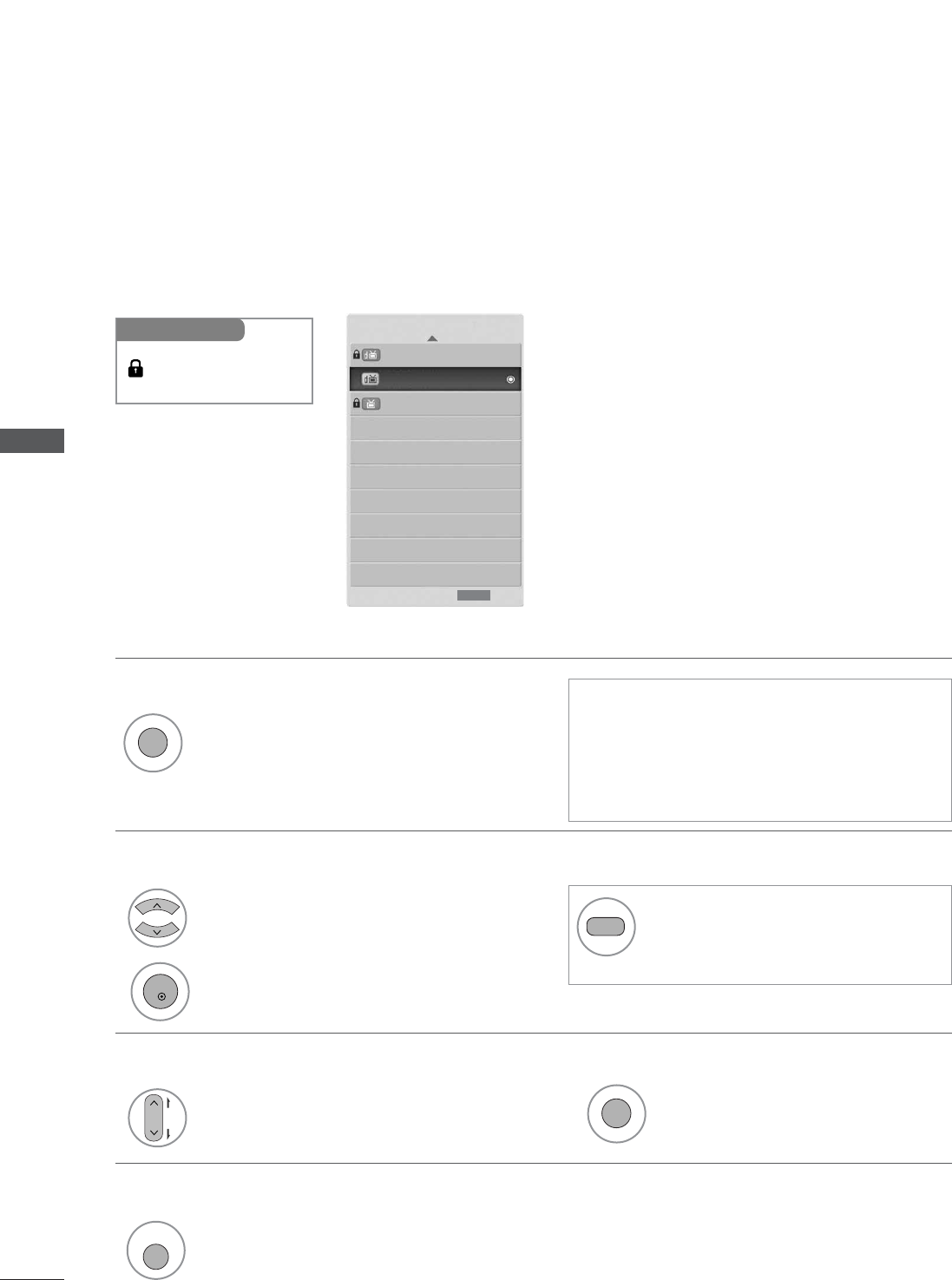

SELECTING THE PROGRAMME TABLE

WATCHING TV / PROGRAMME CONTROL

You can check which programmes are stored in the memory by displaying the programme table

Displayed when the

Locked Programme.

Mini Glossary

Display the Programme List.

Select a programme.

Switch to the chosen programme number.

LIST

ADisplaying programme LIST

ASelecting a programme in the programme list

• You may find some blue programmes. These

have been set up to be skipped by auto pro-

gramming or in the programme edit mode.

• Some programmes with the channel number

shown in the programme LIST indicate there is

no station name assigned.

Turn the pages. 2Return to normal TV viewing.

APaging through a programme list

Display the Favourite Programme table.

Displaying the favourite programme table

Programme List

1 BBC

2 BBC

3 BBC

Exit

RETURN

FAV

MARK

From the programme you are current-

ly watching, the mode will change

from TV to DTV to Radio.

TV/RAD

LIST

WATCHING TV / PROGRAMME CONTROL

INPUT LIST

HDMI and AV1, 2 (SCART) can be recognized by a detect pin and thus enabled only when an external device approves volt-

age.

By using

TV/RAD

button, you can move from External Input to RF Input and to the last watched programme in DTV/RADIO/TV

mode.

Select the input source.

INPUT

•

Antenna

: Select it when watching the DTV/TV.

•

AV1

AV2

AV3

: Select it when watching the VCR

or external equipment.

•

Component

: Select it when using the DVD or the

Digital set-top box depends on connector.

•

RGB

:Select it when using PC depends on connector.

•

HDMI1

HDMI2

HDMI3

HDMI4

: Select it

when using DVD, PC or Digital set-top box depend on

connector.

Antenna AV1 AV2 AV3

Component

HDMI4 HDMI3 HDMI2 HDMI1 RGB

WATCHING TV / PROGRAMME CONTROL

Move

Menu Language : English

Audio Language : English

Subtitle Language : English

Hard of Hearing( )

: Off

Country : UK

Input Label

SIMPLINK : On

Key Lock : Off

OPTION

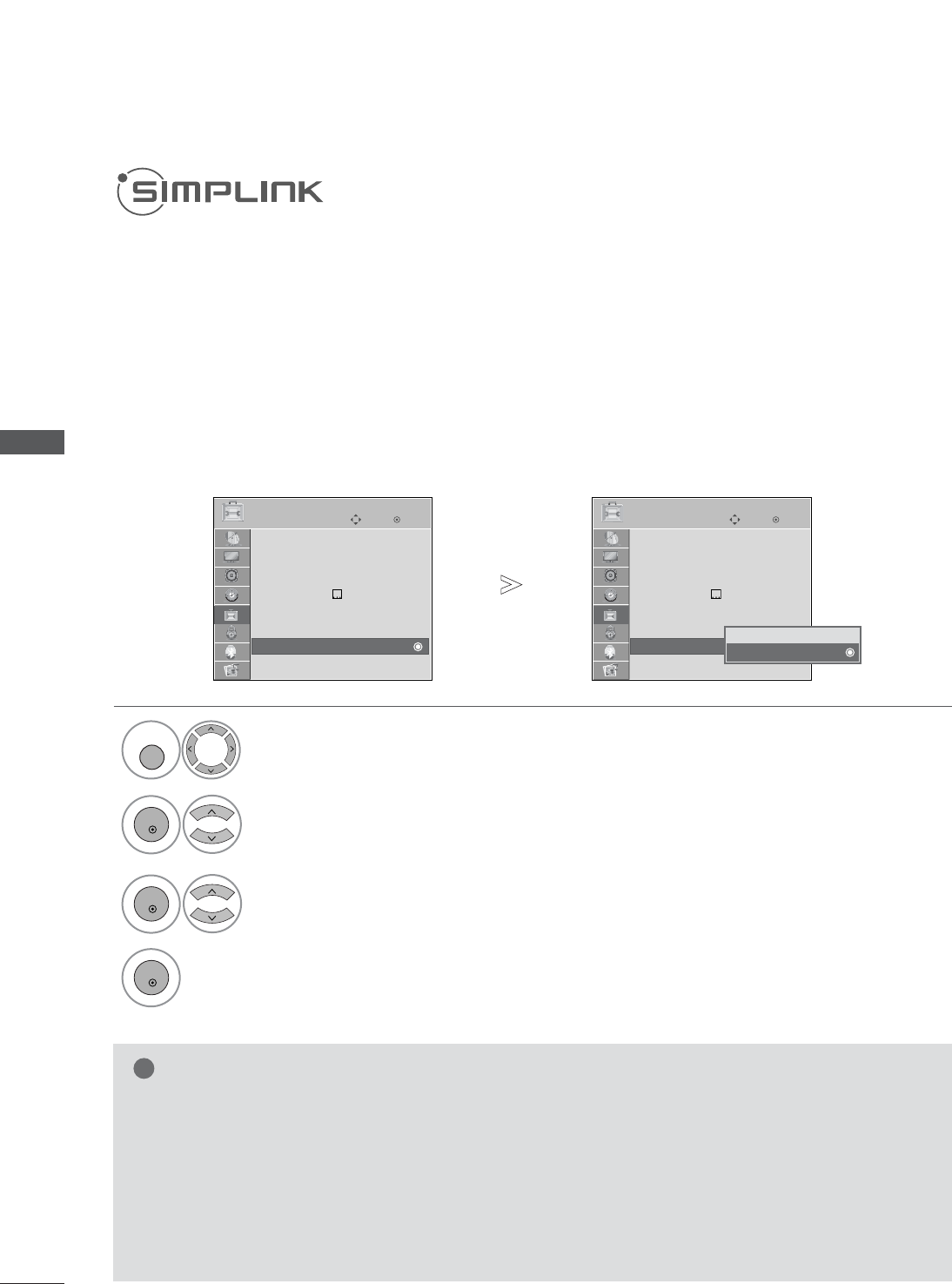

SIMPLINK : On

This function operates only with devices with the SIMPLINK logo.

Please check the SIMPLINK logo.

This TV might not function properly when using it with other products with HDMI-CEC function.

This allows you to control and play other AV devices connected to the display through HDMI cable without addi-

tional cables and settings.

If you do not want SIMPLINK menu,select “

Off

”.

SIMPLINK function is not supported by HDMI IN 4 input.

Select

OPTION

Select

SIMPLINK

Select

Off

Save.

Move

Menu Language : English

Audio Language : English

Subtitle Language : English

Hard of Hearing( )

: Off

Country : UK

Input Label

SIMPLINK : On

Key Lock : Off

OPTION

Off

SIMPLINK : On

NOTE

Connect the HDMI/DVI IN or HDMI IN terminal of the TV to the rear terminal (HDMI terminal) of the SIMPLINK device

with the HDMI cable.

After connecting the HDMI terminal for the home theatre with the SIMPLINK function using the above method, connect

the DIGITAL AUDIO OUT terminal on the back of the TV to the DIGITAL AUDIO IN terminal on the back of the SIM-

PLINK device with the OPTICAL cable.

When operating an external device with SIMPLINK, press the TV button from the MODE buttons on the remote control.

When you switch the Input source using the INPUT button on the remote control, you can stop the operation of a device

controlled by SIMPLINK

When you select or operate a media device with home theater function, the speaker automatically switches to home the-

ater speaker (HT speaker).

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

Disc playback

Control connected AV devices by pressing the , OK,

l l

and

buttons.(The

button does not pro-

vide such functions.)

Direct Play

After connecting AV devices to the TV, you can directly control the devices and play media without additional settings.

Select AV device

Enables you to select one of the AV devices connected to the TV and operate it.

Power off all devices

When you switch off the TV, all connected devices are turned off.

Switch audio-out

Offers an easy way to switch audio-out.

Sync Power on

When you play the connected AV device, TV will automatically turn on.

A device, which is connected to the TV through a HDMI cable but does not support SIMPLINK, does not provide this function.

SIMPLINK Functions

Selected Device

When no device is connect-

ed (displayed in gray)

When a device is connected

(displayed in bright colour)

SIMPLINK Menu

Press the button and then OK button to select the desired SIMPLINK source.

TV viewing :

Switch to the previous TV programme

regardless of the current mode.

DISC playback :

Select and play connected discs.

When multiple discs are available, the titles of discs are

conveniently displayed at the bottom of the screen.

VCR playback :

Play and control the connected

VCR.

HDD Recordings playback :

Play and control

recordings stored in HDD.

Audio Out to Home theater/Audio Out to TV:

Select Home theater or TV speaker for Audio Out.

• Home theater: Only one supported at a time

• DVD, Recorder: Up to three supported at a time

• VCR: Only one supported at a time

WATCHING TV / PROGRAMME CONTROL

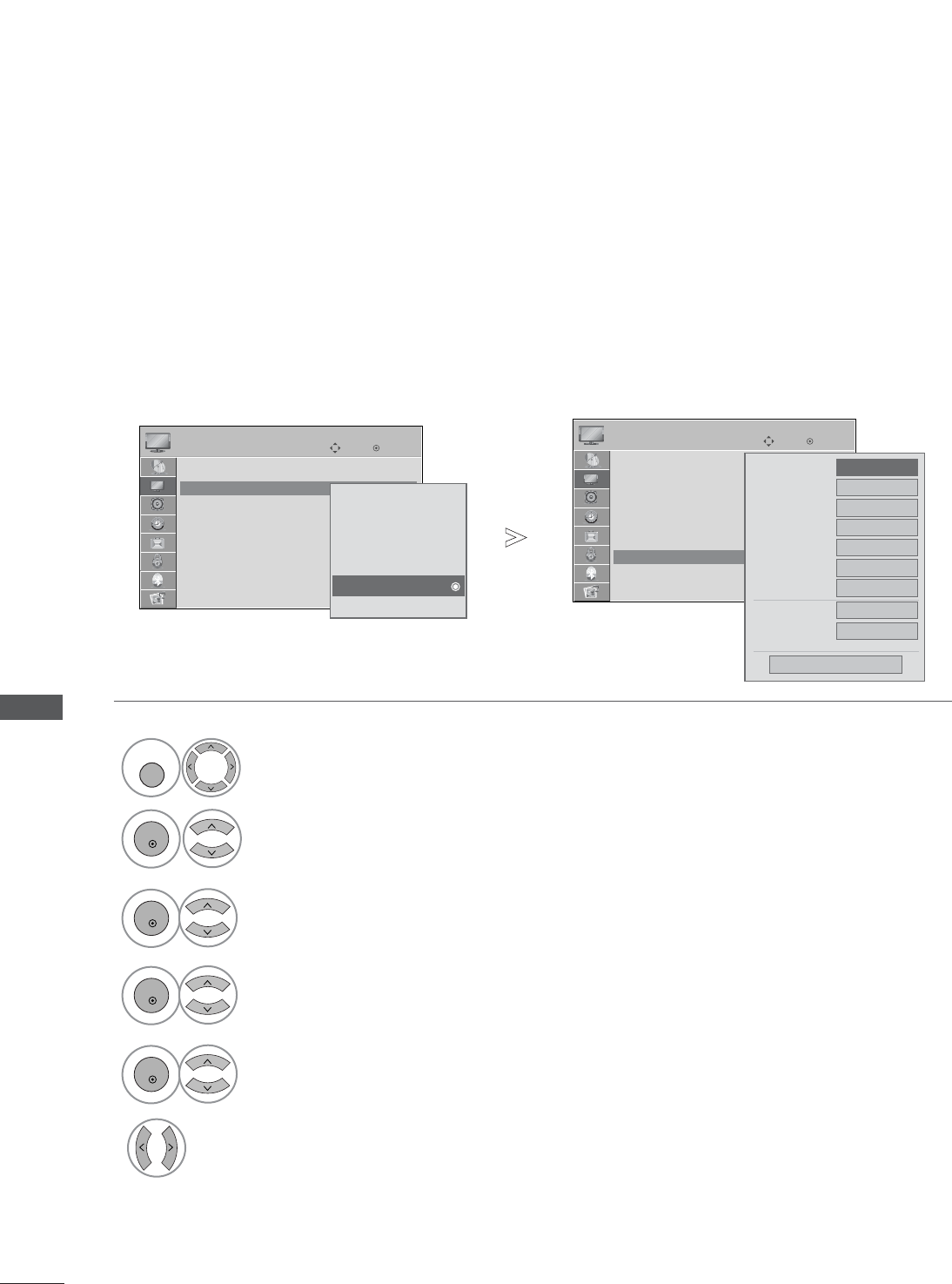

INPUT LABEL

Selects a label for each input source.

Select

OPTION

Select

Input Label

Select the source.

Select the label.

Move

Menu Language : English

Audio Language : English

Subtitle Language : English

Hard of Hearing( )

: Off

Country : UK

Input Label

SIMPLINK : On

Key Lock : Off

OPTION

Input Label

Move

Menu Language : English

Audio Language : English

Subtitle Language : English

Hard of Hearing( )

: Off

Country : UK

Input Label

SIMPLINK : On

Key Lock : Off

OPTION

Input Label

AV1

AV2

AV3

Component

RGB

HDMI1

HDMI2

HDMI3

HDMI4

Off Cinema

Game Sport

4• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

AV MODE

You can select the optimal images and sounds when connecting AV devices to external input.

AV MODE

2• If you select

Cinema Mode

AV mode

Cinema

mode will be

selected both for

Picture Mode

and

Sound Mode


menu and

AUDIO

menu respectively.

• If you select “

Off

” in

AV mode

, the picture and image which you ini-

tially set will be selected.

Press the

AV MODE

button repeatedly to select the desired source.

WATCHING TV / PROGRAMME CONTROL

SIMPLE MANUAL(LCD TV ONLY)

You can easily and effectively access the TV information by viewing a simple manual on the TV.

During the Simple Manual operation, audio will be muted.

Select

OPTION

Select

Simple Manual

Select the part of the manual you want to see.

Move

Audio Language : English

Subtitle Language : English

Hard of Hearing( )

: Off

Country : UK

Input Label

SIMPLINK : On

Key Lock : Off

Simple Manual

OPTION

Simple Manual

• Press the

RETURN

button to return to normal TV viewing.

Precautions when using the Bluetooth

Use within 10m range.

If you use the device out of the range or within the range with obstacles, it can result in communication

error.

Communication error can occur depending on the surrounding device.

Products using the same frequency of 2.4 GHz (Wireless LAN, microwave oven etc.), can cause communi-

cation error by using the same frequency bandwidth.

The device search time differs depending on the number of Bluetooth devices and the operating situation,

and the probability of search increases with less number of devices.

Electromagnetic wave can be interfered with applicable wireless devices.

Because applicable wireless devices have the possibility of electronic wave interference, they cannot pro-

vided services related to human life.

For the external Bluetooth device, you can only connect one headset at a time.

You cannot receive the image while using the Bluetooth headset.

MP3 function is not supported.

For details of Bluetooth, refer to the user manual of the Bluetooth device.

Bluetooth?

Bluetooth is a short distance networking technology using 2.4 GHz frequency to connect various types of infor-

mation devices such as computer, cell phone and PDA, as well as digital appliances through wireless connection,

without having to connect any cable, to enable data exchange.

With the Bluetooth communication function, you can connect the Bluetooth enabled wireless stereo headset or

receive images from the Bluetooth enabled cell phone using this TV.

TO USE THE BLUETOOTH

QDID : B014281

• Communication spec. : BLUETOOTH Specification version 2.0

• Output : BLUETOOTH Specification Power Class 2

• Maximum communication Range : Line of open sight approx. 10m(30ft)

• Frequency band : 2.4GHz band (2.400 GHz ~2.4835GHz)

• Compatible BLUETOOTH Profile : A2DP(Advanced Audio Distribution Profile)

OPP(Object Push Profile)

TO USE THE BLUETOOTH

SETTING THE BLUETOOTH

Move

Bluetooth : Off

TV PIN : 0000

Bluetooth Headset : Disconnected

Registered Bluetooth Device

My Bluetooth Info.

BLUETOOTH

Move

Bluetooth : Off

TV PIN : 0000

Bluetooth Headset : Disconnected

Registered Bluetooth Device

My Bluetooth Info.

BLUETOOTH

If you want to listen to the broadcasted sound using the Bluetooth headset or receive the jpeg images from an

external device and view them on the TV, you can use the wireless communication without having to connect any

cables.

You can use the BLUETOOTH menu by selecting “O

”.

If you do not want to use the Bluetooth function, select “

Off

”.

If it is connected to the external Bluetooth device, you can select “Off” after disconnecting the device.

Select

BLUETOOTH

Select

Bluetooth

Select

Off

Save.

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

Bluetooth : Off

Off

Bluetooth : Off

SET TV PIN

Move

Bluetooth : On

TV PIN : 0000

Bluetooth Headset : Disconnected

Registered Bluetooth Device

My Bluetooth Info.

BLUETOOTH

Move

Bluetooth : On

TV PIN : 0000

Bluetooth Headset : Disconnected

Registered Bluetooth Device

My Bluetooth Info.

BLUETOOTH

To accept connection from an external Bluetooth device or to connect to an external Bluetooth device.

For details on how to set the PIN of the external Bluetooth device, refer to the user manual of the applicable

device.

Set TV PIN can support up to maximum of 10 digits.

Select B

BLUETOOTH

Select

TV PIN

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

TV PIN : 0000

TO USE THE BLUETOOTH

Set TV PIN

Delete

456

Select the desired PIN number.

0 0 0 0_

TO USE THE BLUETOOTH

You can only search for the new Bluetooth stereo headset only in the

Disconnected

condition.

When you run the search, it will show you the list of all Bluetooth stereo headsets responding.

After new Bluetooth device is searched, the PIN number is validated to connect the device. For details, refer to

the user manual of the applicable device.

When you select the Bluetooth stereo headset, you can listen to the TV sound in the Bluetooth stereo headset through wireless

communication.

You must pair it with any new Bluetooth device before the first use. For details, refer to the user manual of the applicable device.

Maximum of 12 lists can be used.

When the unit is searching for the Bluetooth stereo headset, other buttons except for the “Stop” (OK button) do not work.

Connecting a new Bluetooth headset

Select

BLUETOOTH

Select

Bluetooth Headset

Search the Bluetooth headset.

GREEN

BLUETOOTH HEADSET

456

Select Bluetooth headset PIN number.

Refer to the user manual of the applic-

able device for the PIN number.

Bluetooth stereo headsets are listed in the order most recently used with the headset currently in use listed at the top.

When connecting to the Bluetooth device already registered, you can select and connect directly without any PIN validation.

Connecting to Bluetooth headset already registered

Select

BLUETOOTH

Select

Bluetooth Headset

Select the desired Bluetooth headset.

• After connecting/using the Bluetooth stereo headset, the headset setting will Disconnected condition automatically

when you turn off/on the power of the TV.

• After connecting the Bluetooth stereo headset, the TV speaker is switched to Mute condition and the sound will only

be generated from the headset.

Connect the Bluetooth headset.

Message asking to connect the selected

Bluetooth headset will be displayed.

Select

Yes

N o

TO USE THE BLUETOOTH

NOTE

LG recommends the following headset models. (Model name : MOTOROLA (HT820, S9), Jabra (BT620S, BT8010),

Plantronics(Pulsar590), Nokia (BH-501), Sony (DR-BT30Q), Philips (HSB7100), Logitech (Freepulse-Wireless), Idobi

(HP-910), LG(HBS250)). It might be audio delay according to the buffering memory size of headset.

Only the stereo headset officially certified to be Bluetooth compatible can be searched and connected.

Only the stereo headset that supports the A2DP (AV) function among the Bluetooth devices can be connected.

The stereo headset that supports only the HF (Hands Free) function among the Bluetooth devices cannot be connected.

If the PIN number saved in Bluetooth PIN setting is different from the PIN number described in the user manual of the

stereo headset, the device will not be connected. For more details, refer to the user manual of the applicable device.

If the surrounding environment of the TV is as follows, the device may not be searched or connected properly.

-If there is strong electromagnetic wave.

-If there are many Bluetooth devices.

-If the stereo headset is turned off, not in place or has an error.

-Because products such as microwave oven, wireless LAN, plasma light, gas range etc., use the same frequency range, it

can cause communication error.

Only one stereo headset can be connected at once.

You cannot connect other Bluetooth device other than the stereo headset simultaneously.

Connection that is lost due to the TV being turned off etc. will not be automatically recovered. Try connecting the applic-

able device again.

Some operations can be slower while operating the headset.

Even if you choose simplink Home Theater after using the headset during Simplink operation, the unit will not automati-

cally switch to Home Theater speakers.

When the headset connection continuously fails, pair the device one more time.

When the Bluetooth menu is "On" and there is a connection request from

the headset, this message is dispalyed.

It's only available for the headset in support of this feature.(Refer to the user

manual of the applicable Bluetooth headset.)

Do you want to use your headset?

Yes No

Select

Yes

N o

When requesting to connect to TV from the Bluetooth headset

Disconnecting the Bluetooth headset during use

Select

BLUETOOTH

Select

Bluetooth Headset

Disconnect the Bluetooth headset.

MANAGING REGISTERED BLUETOOTH DEVICE

Move

Bluetooth : On

TV PIN : 0000

Bluetooth Headset : Disconnected

Registered Bluetooth Device

My Bluetooth Info.

BLUETOOTH

Move

Bluetooth : On

TV PIN : 0000

Bluetooth Headset : Disconnected

Registered Bluetooth Device

My Bluetooth Info.

BLUETOOTH

If there are no devices registered, Registered B/T Device menu will be deactivated and cannot be used.

When 12 devices are registered, you cannot register any more devices, and the external device will no longer be

able to pair up with the TV. In this case, you should delete one (disconnect first if a device is connected to the

TV) and then you can register another device

Select B

BLUETOOTH

Select

Registered Bluetooth Device

Check the registered Bluetooth device.

Registered Bluetooth Device

TO USE THE BLUETOOTH

Registered Bluetooth Device

00:0d:44:84:14:62

Delete

Connect

LG L600V

FreePulse_Wireless

ADeleting registered Bluetooth device

Select the Bluetooth device you want.

2Message asking to delete the selected Bluetooth device will be displayed.

Select

Yes

N o

RED

AConnecting the registered Bluetooth stereo headset

Select the registered Bluetooth stereo headset you want.

Message asking to connect the selected Bluetooth device will be displayed.

Select

Yes

N o

BLUE

MY BLUETOOTH INFORMATION

Move

Bluetooth : On

TV PIN : 0000

Bluetooth Headset : Disconnected

Registered Bluetooth Device

My Bluetooth Info.

BLUETOOTH

Move

Bluetooth : On

TV PIN : 0000

Bluetooth Headset : Disconnected

Registered Bluetooth Device

My Bluetooth Info.

BLUETOOTH

This function provides the My Bluetooth Information to the user.

"Edit" will be available when selecting "Bluetooth device- disconnected"

You can edit the My device name.

You can check the My device Address.

Select B

BLUETOOTH

Select

My Bluetooth Info.

You can use an the alphabet

, the number

, +/ -, and blank.

Save.

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

My Bluetooth Info.

00:05:c9:ff:00f:07

My Device Name

My Device Address

OKEdit

60PG7000-ZB

TO USE THE BLUETOOTH

BLUE

TO USE THE BLUETOOTH

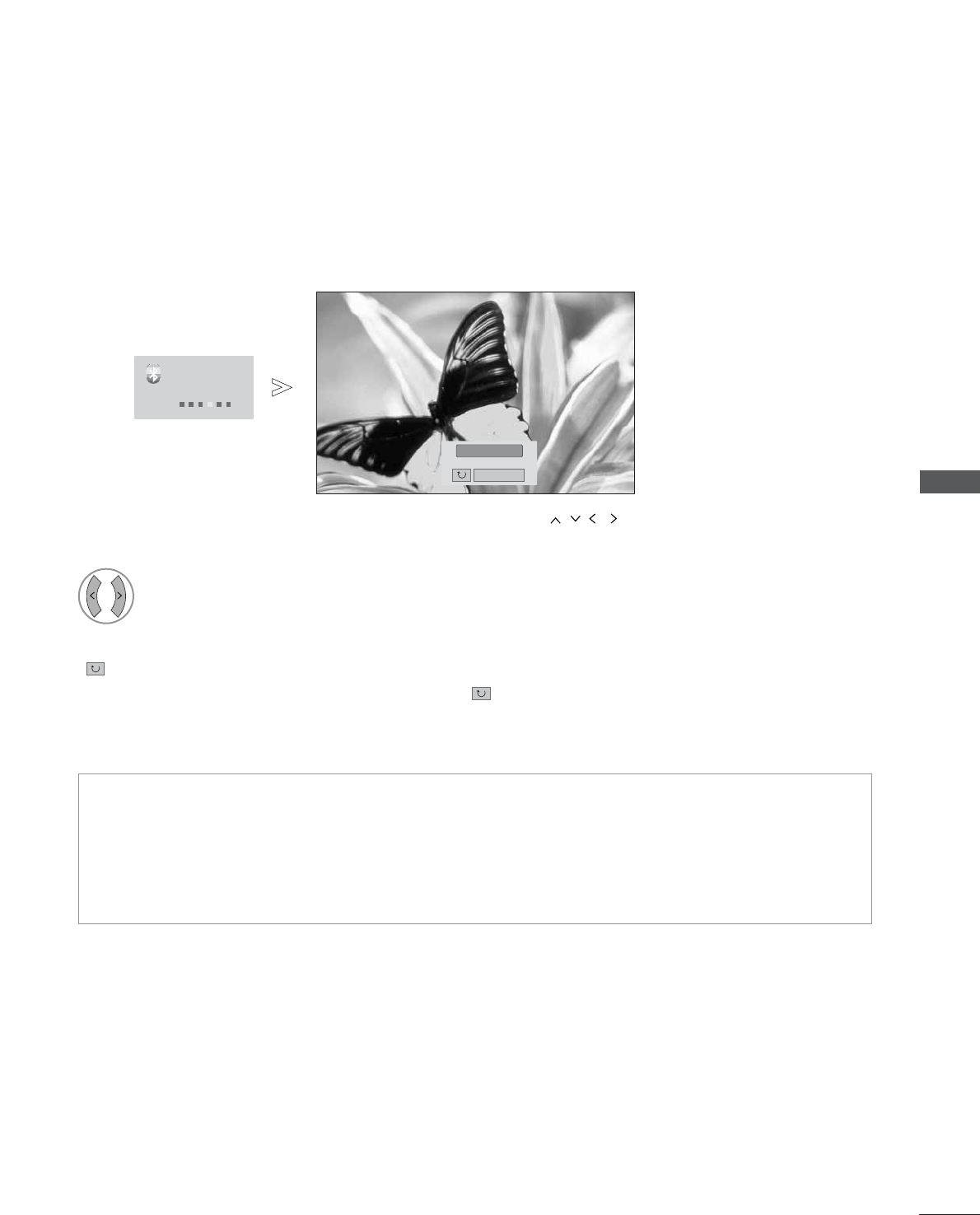

RECEIVING PHOTOS THROUGH EXTERNAL BLUETOOTH DEVICE

Receiving

file(s)

1/3

• When you select

with the button, the OSD will disappear.

And when you press the OK button again, it will appear again.

• The maximum accumulated size of the image that can be received is 10MBytes.

• Only the OPP (Object Push Profile) method is supported among the method on sending the image through

the Bluetooth cell phone.

• You cannot receive the image while using the Bluetooth stereo headset.

• When the external Bluetooth device is currently sending the photo, press the

RETURN

button to stop

receiving the photo. In this all the photos already received will be deleted.

Send the photo from the external Bluetooth device. For details on how to send the photo from the external

Bluetooth device, refer to the user manual of the applicable device.

Select the desired photos.

(Rotate)

: Rotate photos.

■Rotates the photo 90°clockwise upon

button on

(Rotate)

TO USE THE USB DEVICE

Precautions when using the USB device

Only a USB storage device is recognizable.

If the USB storage device is connected through a USB hub, the device is not recognizable.

A USB storage device using an automatic recognition programme may not be recognized.

A USB storage device which uses its own driver may not be recognized.

The recognition speed of a USB storage device may depend on each device.

Please do not turn off the TV or unplug the USB device when the connected USB storage device is working.

When such device is suddenly separated or unplugged, the stored files or the USB storage device may be dam-

aged.

Please do not connect the USB storage device which was artificially maneuvered on the PC. The device may

cause the product to malfunction or fail to be played. Never forget to use only a USB storage device which has

normal music files or image files.

Please use only a USB storage device which was formatted as a FAT32 file system provided with the Windows

operating system. In case of a storage device formatted as a different utility programme which is not supported

by Windows, it may not be recognized.

Please connect power to a USB storage device which requires an external power supply. If not, the device may

not be recognized.

Please connect a USB storage device with cable is offered by USB maker. If connected with cable is not offered

by USB maker or an excessively long cable, the device may not be recognized.

Some USB storage devices may not be supported or operated smoothly.

File alignment method of USB storage device is similar to Window XP and filename can recognize up to 100

English characters.

Please up the important file because a data of USB device may be damaged. Data management is consumer's

responsibility and in consequence the manufactures does not cover the product bearing data damage.

When connecting the USB device

When you connect a USB device, this screen is displayed, automatically.

In USB device, you can not add a new folder or delete the existing folder.

When removing the USB device

Connect the USB device to the

USB IN

jacks on the side of TV.

Select

PHOTO LIST

MUSIC LIST

USB memory stick

PHOTO LIST MUSIC LIST

Select U

USB Eject

Select the USB EJECT menu before removing the

USB device.

Q. MENU

• It doesn’t support USB HDD

• This TV Supports on JPEG and MP3.

TO USE THE USB DEVICE

Screen Components

The On Screen Display may be different from your TV. Images are an example to assist with the TV operation.

Moves to upper level file

Current page/Total pages

Total number of marked photos

Usable USB memory

Corresponding buttons on the

remote control

PHOTO LIST

PHOTO(*.JPEG) supporting file

Baseline: 7680 x 4320

• You can play JPEG files only.

• Only baseline scan is supported among JPEG (SOF0, SOF1 only).

• Non-supported files are displayed in the form of bitmap.

USB Device

Page 2/3 No Marked

PHOTO LIST

Up Folder

Free Space 150MB

Navigation Option Page Change Mark Exit

1366x768, 125KB

KY101

KY102

JMJ001

JMJ002

JMJ003

JMJ004

KY103

KY104

KY105

JMJ005

JMJ006

JMJ007

JMJ008

Up Folder

2 3 4

Select

USB

.Select

Photo List.

Drive1

MARK

RETURN

TO USE THE USB DEVICE

Photo Selection and PopUp Menu

USB Device

Page 2/3

No Marked

PHOTO LIST

Up Folder

Free Space 150MB

Navigation Option Page Change Mark Exit

1366x768, 125KB

KR101

KR102

JMJ001

JMJ002

JMJ003

JMJ004

KR103

KR104

KR105

JMJ005

JMJ006

JMJ007

JMJ008

Up Folder

USB Device

Page 2/3

No Marked

PHOTO LIST

Up Folder

Free Space 150MB

Navigation Option Page Change Mark Exit

1366x768, 125KB

KR101

KR102

JMJ001

JMJ002

JMJ003

JMJ004

KR103

KR104

KR105

JMJ005

JMJ006

JMJ007

JMJ008

Up Folder

1366x768, 125KB

View

Mark All

Delete

GView

: Display the selected item.

GMark All

: Mark all photos on the screen.

GUnmark All

: Deselect all marked photos.

GDelete

: Delete the selected photo item.

GClose

: Close the pop-up menu.

Select the target folder or drive.

Select the desired photos.

Show the PopUp menu.

• Use the

button to navigation in the

photo page.

• Use the

MARK

button to mark or unmark a

photo. When one or more photos are marked,

you can view individual photos or a slide show

of the marked photos. If no photos are marked,

you can view all photos individually or all pho-

tos in the folder in a slide show.

Drive1

4Select the desired PopUp menu.

• Press the

RETURN

button to return to normal TV viewing.

MARK RETURN

TO USE THE USB DEVICE

Set up the menu in Full-Sized Screen

You can change the settings to display photos stored on a USB device, on a full-sized screen.

Detailed operations are available on full-sized photo view screen.

• Use the

button to navigation in the

photo page.

USB Device

Page 2/3

No Marked

PHOTO LIST

Up Folder

Free Space 150MB

Navigation Option Page Change Mark Exit

1366x768, 125KB

KR101

KR102

JMJ001

JMJ002

JMJ003

JMJ004

KR103

KR104

KR105

JMJ005

JMJ006

JMJ007

JMJ008

Up Folder

1366x768, 125KB

View

Mark All

Delete

The aspect ratio of a photo may change the size of the photo dis-

played on the screen in full size.

Press the

RETURN

button to move to the previous menu screen.

1/17

Slideshow BGM Delete Option Close

USB Device

Page 2/3

No Marked

PHOTO LIST

Up Folder

Free Space 150MB

Navigation Option Page Change Mark Exit

1366x768, 125KB

KR101

KR102

JMJ001

JMJ002

JMJ003

JMJ004

KR103

KR104

KR105

JMJ005

JMJ006

JMJ007

JMJ008

Up Folder

Drive1

Select the target folder or drive.

Select the desired photos.

Show the PopUp menu.

Select V

View

The selected photo is displayed in

full size.

MARK RETURN

TO USE THE USB DEVICE

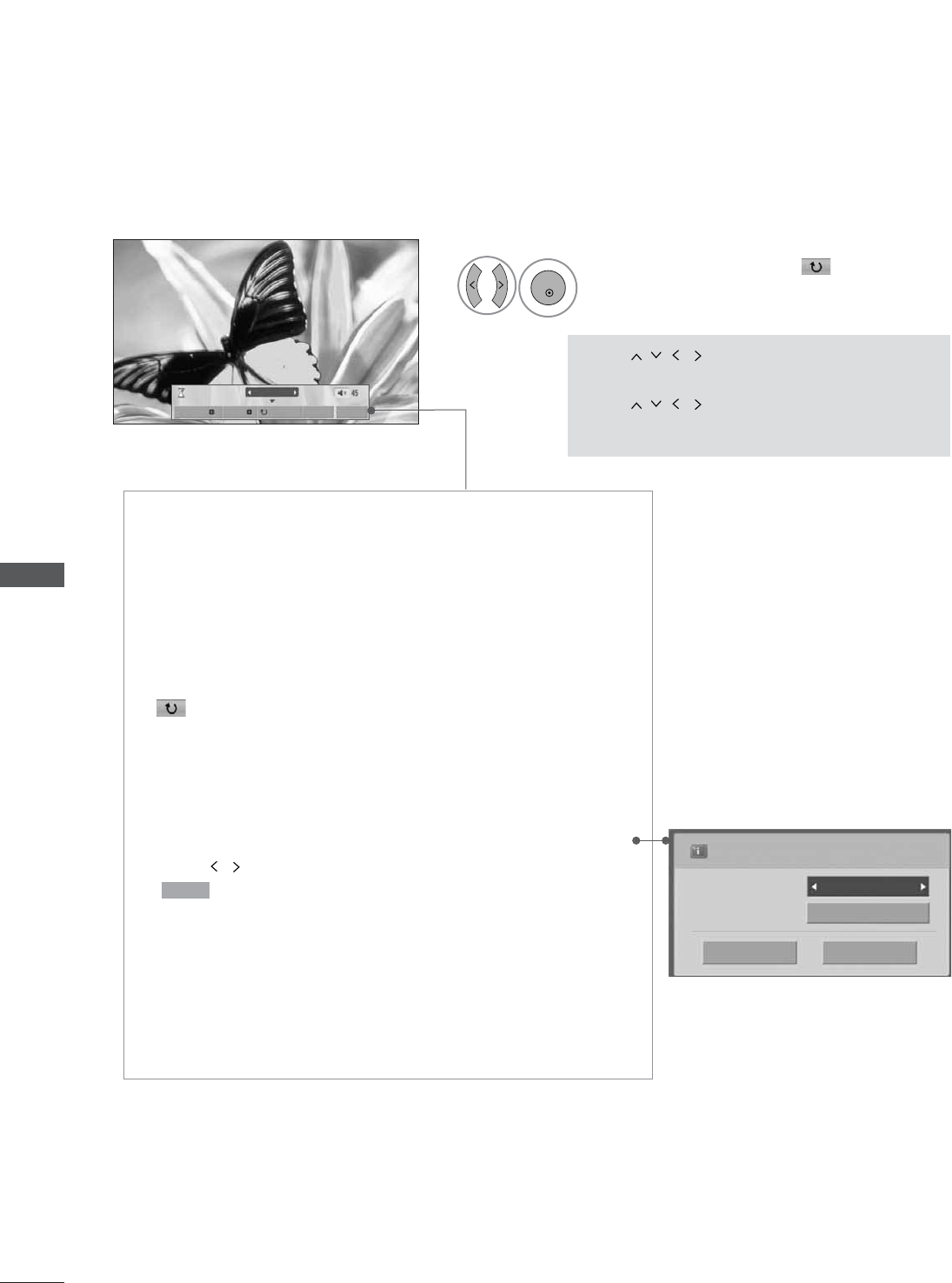

1/17

Slideshow BGM Delete Option Close

GSlideshow

: When no picture is selected, all photos in the current

folder are displayed during slide show. When selected, the selected

photos are displayed during slide show.

■Set the time interval of the slide show in

Option

GBGM

: Listen to music while viewing photos in full size.

■Set the BGM device and album in

Option

G(Rotate)

: Rotate photos.

■Rotates the photo 90°clockwise.

G Delete

: Delete photos.

GOption

: Set values for

Slide Speed

and

Music Folder

■Use button and

O K

button to set values. Then go to

and press

O K

to save the settings.

■You cannot change

Music Folder

while BGM is playing.

GClose

: Hide the menu on the full-sized screen.

■To see the menu again on the full-sized screen, press

button

to display.

Select the

Slideshow

BGM

(Rotate)

Delete

Option

Press

F G

to set the time interval between

slides.

Slide Speed Fast

Music

Music Folder

• Use button to select the previous

or next photo.

• Use button to select and control

the menu on the full-sized screen.

TO USE THE USB DEVICE

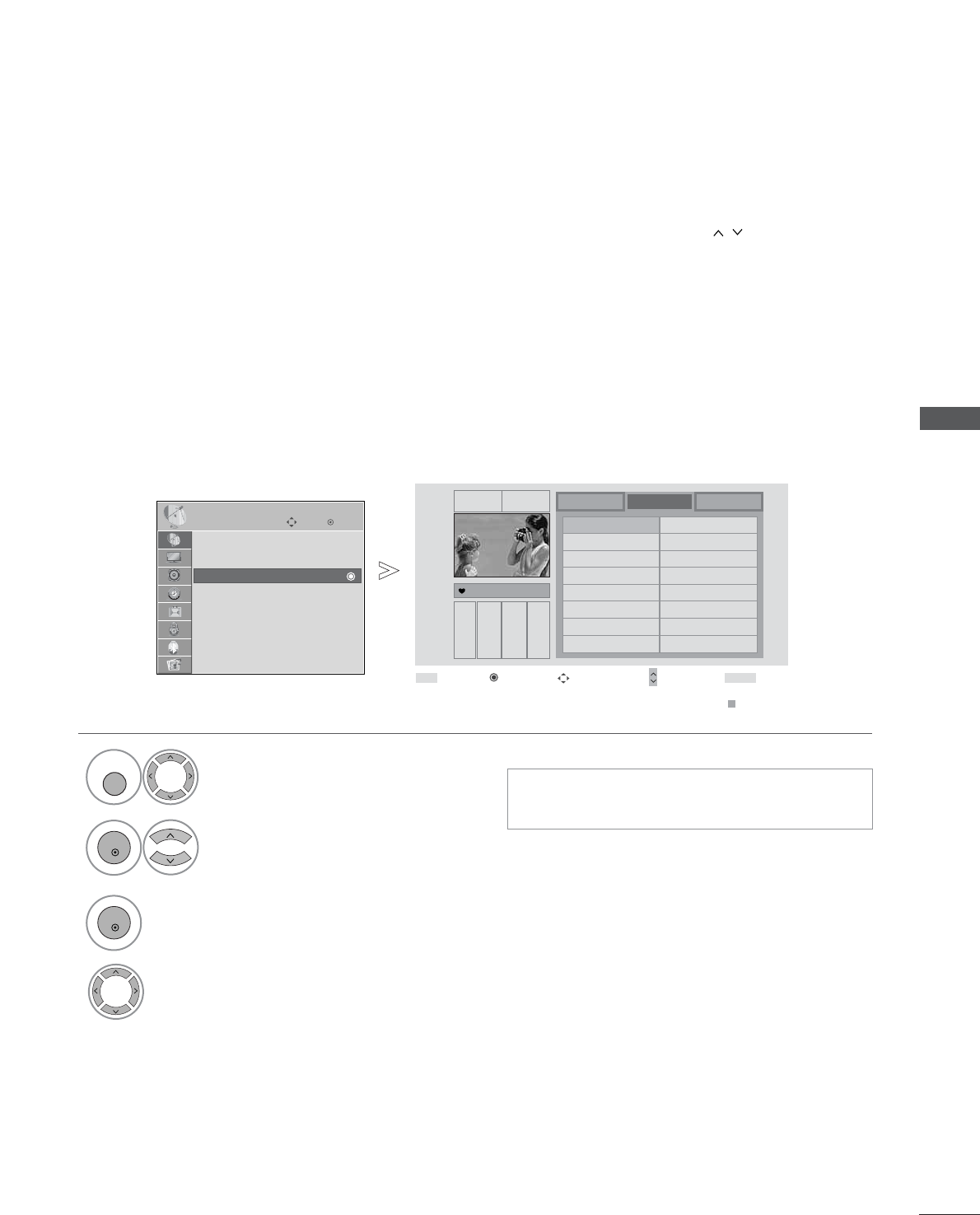

MUSIC LIST

Purchased music files(*.MP3) may contain copyright restrictions. Playback of these files may not be support-

ed by this model.

Music file on your USB device can be played by this unit.

The On Screen Display may be different from your TV. Images are an example to assist with the TV opera-

tion.

Screen Components

MUSIC (*.MP3) supporting file

Bit rate 32 ~320

• Sampling rate MPEG1 layer 3: 32 kHz, 44.1 kHz, 48 kHz.

USB Device

Page 2/3 No Marked

MUSIC LIST

Up Folder

Free Space 150MB

Navigation Option Page Change Mark Exit

1:340, 120KB

Up Folder

2 3 4

Moves to upper level file

Current page/Total pages

Total number of marked

musics

Usable USB memory

Corresponding buttons on

the remote control

Select

USB

.Select

Music List

Music

MARK RETURN

Title Duration

USB Device

Page 2/3

No Marked

MUSIC LIST

Up Folder

Free Space 150MB

Navigation Option Page Change Mark Exit

1:340, 120KB

Up Folder

4395KB

1Kbps

Play

Play with Photo

Mark All

Delete

TO USE THE USB DEVICE

Music Selection and PopUp Menu

GPlay

(During stop) : Play the selected musics.

Once a music finishes playing, the next select-

ed one will be played. When there are no

selected musics to play, the next one in the

current folder will be played. If you go to a dif-

ferent folder and press the

O K

button, the

current music in playback will stop.

GPlay Marked

: Play the selected musics.

Once a music finishes playing, the next select-

ed one will be played automatically.

GStop Play

(During playback) : Stop the play-

ing musics.

GPlay with Photo

: Start playing the selected

musics and then move to the Photo List.

GMark All

: Mark all musics in the folder.

GUnmark All

: Deselect all marked musics.

GDelete

: Delete the selected musics.

GClose

: Close the pop-up menu.

• Use the

button to navigation in the

music page.

• Use

MARK

button to mark or unmark a music.

When one or more music files are marked, the

marked musics will be played in sequence. For

example, if you want to listen to only one music

repeatedly, just mark the music only and play it.

If no music is marked, all the music in the folder

will be played in sequence.

As shown , up to 6 music titles are listed per page.

USB Device

Page 2/3

No Marked

MUSIC LIST

Up Folder

Free Space 150MB

Navigation Option Page Change Mark Exit

1:340, 120KB

Up Folder

Music

Select the target folder or drive.

Select the desired musics.

Show the PopUp menu.

Select the desired PopUp menu.

• Press the

RETURN

button to return to normal TV viewing.

MARK

RETURN

MARK

RETURN

Title

Duration

Title

Duration

TO USE THE USB DEVICE

■If you don't press any button for a while during the play-

ing, the play information box (as shown in the below) will

float as a screen saver.

■The ‘Screen Saver’?

Screen saver is to prevent screen pixel damage due to an

fixed image remaining on the screen for a extended period

of time.

NOTE

When music is playing, is displayed in back of the music title.

A damaged or corrupted music does not play but displays 00:00 in playtime.

A music downloaded from a paid service with copyright protection does not start but displays inappropri-

ate information in playtime.

If you press

O K

buttons, screen saver is stopped.

The

PLAY(G)

Pause(I I)

buttons on the remote control are also available in this mode.

You can use the

button to select the next music and the

button to select the previous music.

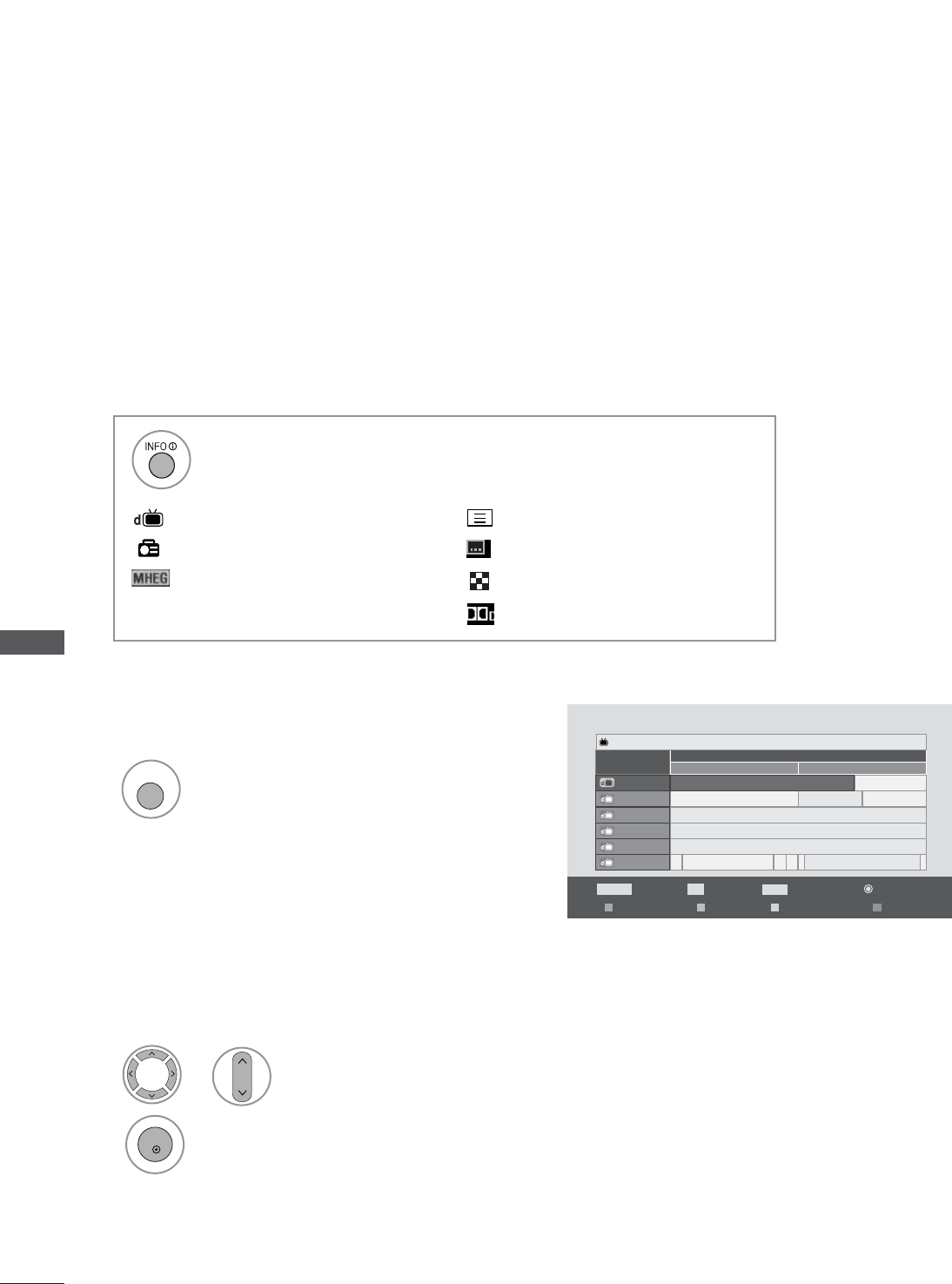

EPG (ELECTRONIC PROGRAMME GUIDE)(IN DIGITAL MODE)

This system has an Electronic Programme Guide (EPG) to help your navigation through all the possible viewing

options.

The EPG supplies information such as programme listings, start and end times for all available services. In addi-

tion, detailed information about the programme is often available in the EPG (the availability and amount of

these programme details will vary, depending on the particular broadcaster).

This function can be used only when the EPG information is broadcast by broadcasting companies

The EPG displays the programme details for next 8 days.

Switch on or off EPG.

GUIDE

Programme Guide

ALL 6/Mar(Mon)

14:00 15:00

1 YLE TV1

Kungskonsumente

2 YLE TV2 No Information

No Information

TV2: Farmen

4 TV.. No Information

No Information

... ... ... ... Tänään otsikoissa

5 YLE FST

6 CNN

8 YLE24

Radio Pr. Change

TV/RAD

Favourite

FAV

Mode Date Manual Timer Schedule List

Information

INFO

Switch on/off EPG

Select desired programme.

Display the selected programme.

Select a programme

No Information

1 YLE TV1 6/ Mar 2006 15:09

Displayed with a DTV Programme.

Displayed with a Radio Programme.

Displayed with a MHEG Programme.

Displayed with a Teletext Programme.

Displayed with a Subtitle Programme.

Displayed with a Scramble Programme.

Displayed with a Dolby Programme.

Shows the present screen information.

EPG (ELECTRONIC PROGRAMME GUIDE)(IN DIGITAL MODE)

Button Function in 8 Day Guide Mode

Button Function in Date Change Mode

Change EPG mode.

RED

Change to the selected programme. Select TV or RADIO Programme.

TV/RAD

Detail information on or off

Select NOW or NEXT Programme.

Select the Broadcast Programme.

Enter Timer Record/Remind setting mode.

YELL

YELLO

Button Function in NOW/NEXT Guide Mode

Page Up/Down.

Switch off EPG.

Change EPG mode.

RED

Enter Timer Record/Remind list mode.

BLUE

Enter Date setting mode.

GREEN

Switch off Date setting mode.

GREEN

Change to the selected programme.

Change to the selected date.

Select TV or RADIO Programme.

Detail information on or off

Select NOW or NEXT Programme.

Select a date.

Select the Broadcast Programme.

Switch off Date setting mode.

Enter Timer Record/Remind setting

mode.

YELL

YELLO

Page Up/Down.

Switch off EPG.

GUIDE

TV/RAD

Enter Timer Record/Remind list mode.

BLUE

EPG (ELECTRONIC PROGRAMME GUIDE)(IN DIGITAL MODE)

Button Function in Extended Description Box

- This function is available only when recording equipment that use pin8 recording signalling has been con-

nected to the DTV-OUT(AV2) terminal, using a SCART cable.

Button Function in Record/Remind Setting Mode

Button Function in Schedule List Mode

Text Up/Down.

Function setting.

Select

Schedule List

Enter Timer Record/Remind setting mode.

YELL

YELLO

Change to Guide or Timer list mode.

YELL

YELLO

Add new Manual Timer setting mode.

YELL

YELLO

The detail information on or off.

Switch off EPG.

Save Timer Record/Remind.

Select Type, Service, Date or Start/End time.

Enter

Schedule List

editing mode.

GREEN

Delete the selected item.

RED

Change to Guide mode.

BLUE

GUIDE

•

16:9

The following selection will allow you to adjust the pic-

ture horizontally, in linear proportion, to fill the entire

screen(useful for viewing 4:3 formatted DVDs).

•

Just Scan

Following Selection will lead to you view the

picture of best quality without loss of original

picture in high resolution image.

Note : If there is noise in original Picture,

You can see the noise at the edge.

•

Original

When your TV receives a wide screen signal it will auto-

matically change to the picture format broadcast.

•

4:3

The following selection will allow you to view a picture

with an original 4:3 aspect ration, gray bars will appear

on both the left and right of the screen.

PICTURE CONTROL

PICTURE SIZE (ASPECT RATIO) CONTROL

PICTURE CONTROL

You can watch the screen in various picture formats; 16:9, Just Scan,

Original, 4:3, 14:9 and Zoom1/2.

If a fixed image is displayed on the screen for a long time, that fixed image

may become imprinted on the screen and remain visible.

You can adjust the enlarge proportion using button.

This function works in the following signal.

• You can also adjust

Aspect Ratio

in the

PIC-

TURE

menu.

• For Zoom Setting, select

14:9

Zoom1

and

Zoom2

in Ratio Menu. After completing Zoom

Setting, the display goes back to Q.Menu.

Select

Aspect Ratio

Select the desired picture format.

Q. MENU

Just Scan

Original

PICTURE CONTROL

•

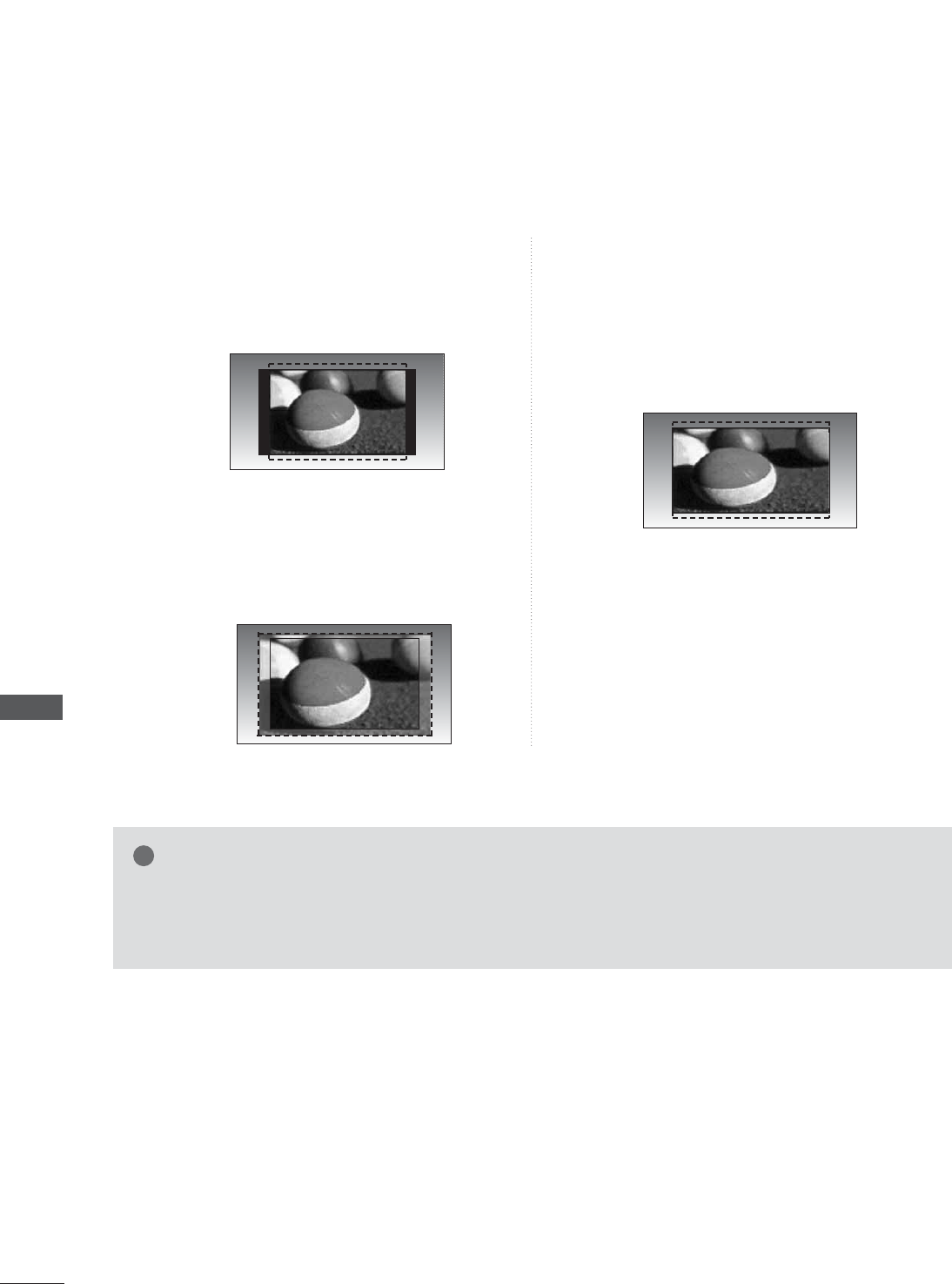

14:9

You can view a picture format of 14:9 or a general TV

programme in the 14:9 mode. The 14:9 screen is

viewed in the same way as in 4:3, but is magnified to

the left and right.

•

Zoom1

The following selection will allow you to view

the picture without any alteration, while filling

the entire screen. However, the top and bot-

tom of the picture will be cropped.

•

Zoom2

Choose Zoom 2 when you wish the picture to

be altered, both horizontally extended and

vertically cropped. The picture adopting a

compromise between alteration and screen

coverage.

NOTE

You can only select

4:3

16:9

(Wide),

14:9

Zoom 1/2

in Component, HDMI mode.

You can only select

4:3

16:9

(Wide) in RGB mode only.

In HDMI/Component (over 720p) mode,

Just Scan

is available.

PICTURE CONTROL

Move

Aspect Ratio : 16:9

Picture Mode : Vivid

• Backlight 100

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint 0


Picture Mode : Vivid

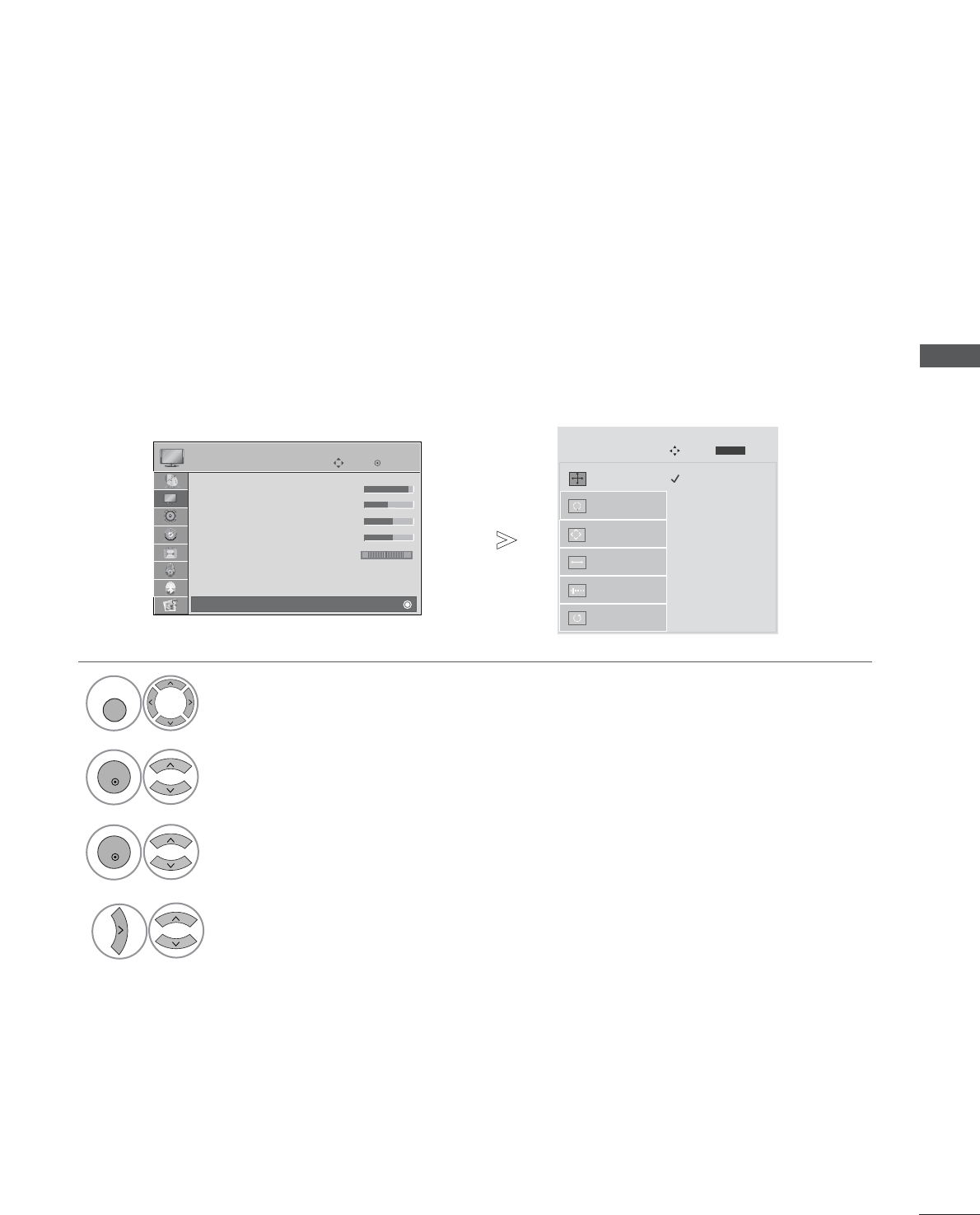

PRESET PICTURE SETTINGS

Picture Mode-Preset

Select


Select

Picture Mode

Select

Intelligent Sensor

(LCD

TV only),

Vivid

Standard

Cinema

Sport

Game

•

Picture Mode

adjusts the TV for the best pic-

ture appearance. Select the preset value in the

Picture Mode

menu based on the programme

category.

• When the Intelligent sensor function is on, the

most suitable picture is automatically adjusted

according to the surrounding conditions. (LCD

TV only)

• You can also adjust

Picture Mode

in the

•

Intelligent Sensor

: Adjusts picture accord-

ing to the surrounding conditions. (LCD TV

only)

Move

Aspect Ratio : 16:9

Picture Mode : Vivid

• Backlight 100

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint 0


Picture Mode : Vivid Intelligent Sensor

Vivid

Standard

Cinema

Sport

Game

Expert1

Expert2

Vivid

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

PICTURE CONTROL

Move

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint

• Advanced Control

• Picture Reset

Screen


• Advanced Control

Move

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint

• Advanced Control

• Picture Reset

Screen


• Advanced Control

PICTURE CONTROL

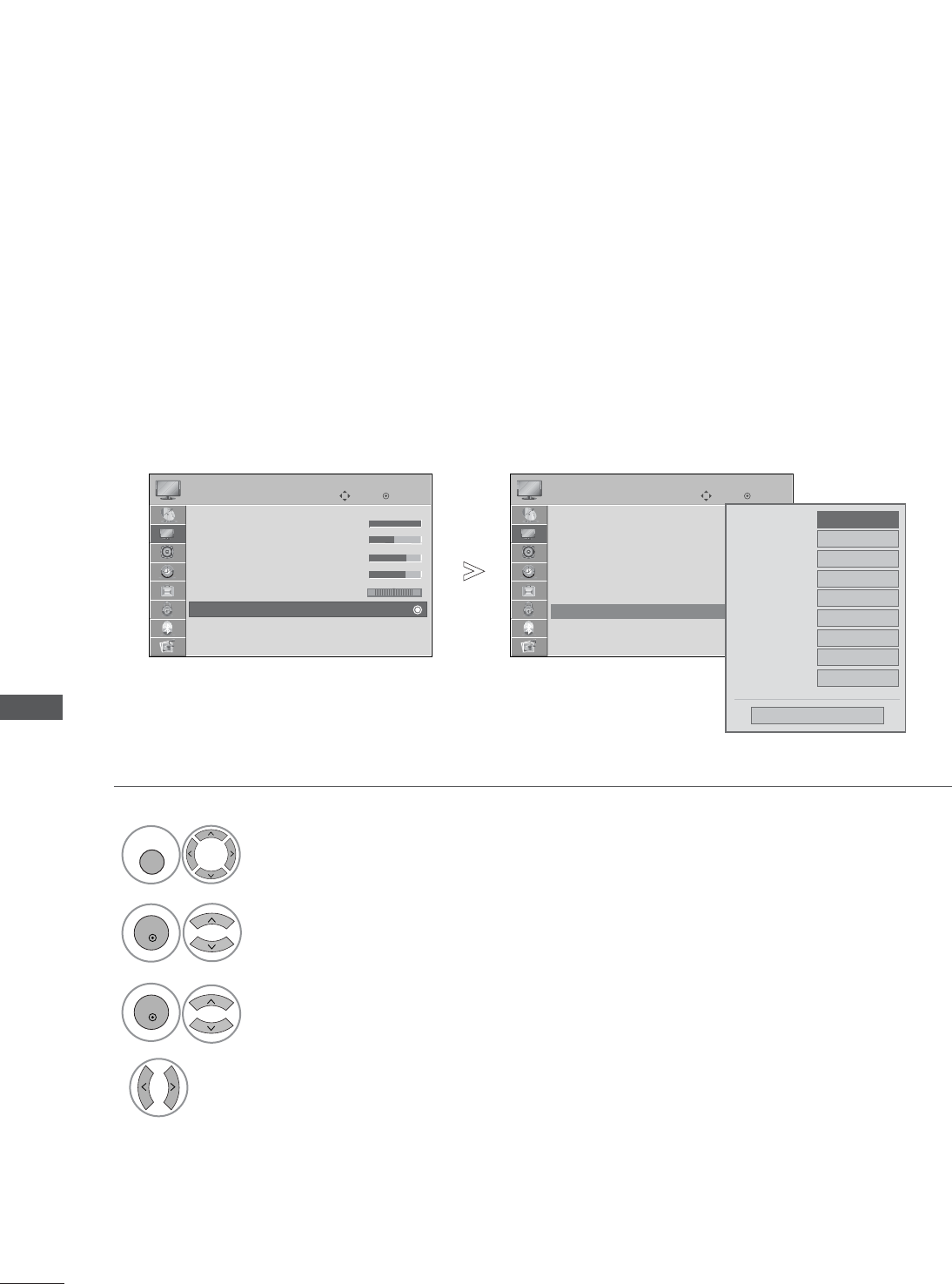

Auto Colour Tone Control (Warm/Medium/Cool)

Choose one of three automatic colour adjustments. Set to warm to enhance hotter colours such as red, or set to

cool to see less intense colours with more blue.

Select


Select

Advanced Control

Select

Colour Temperature

Select either

Cool

Medium

Warm

Colour Temperature

Medium

Fresh Contrast

High

Fresh Colour

High

Noise Reduction

Medium

Gamma Medium

Black Level Auto

Real Cinema Off

TruMotion High

Eye Care Off

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

PICTURE CONTROL

MANUAL PICTURE ADJUSTMENT

Picture Mode-User option

Move

Aspect Ratio : 16:9

Picture Mode : Vivid

• Backlight 100

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint 0


NOTE

You cannot adjust colour, sharpness and tint in the RGB-PC mode.

Select


Select

Picture Mode

Select

Backlight

(LCD TV only),

Contrast

Brightness

Sharpness

Colour

Tint

Make appropriate adjustments.

Select

Vivid

Standard

Cinema

Sport

Game

•

Backlight

(LCD TV Only)

To control the brightness of the screen, adjust the brightness of LCD panel.

•

Contrast

Adjusts the difference between light and dark levels in the picture.

•

Brightness

Increases or decreases the amount of white in the picture.

•

Sharpness

Adjusts the level of crispness in the edges between the light and dark areas of the picture.

The lower the level, the softer the image.

•

Colour

Adjusts intensity of all colours.

•

Tint

Adjusts the balance between red and green levels.

It is not available to use this function in “

Intelligent Sensor

(LCD TV only)”.

Move

Aspect Ratio : 16:9

Picture Mode : Vivid

• Backlight 100

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint 0


Picture Mode : Vivid Intelligent Sensor

Vivid

Standard

Cinema

Sport

Game

Expert1

Expert2

Vivid

Picture Mode : Vivid

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

PICTURE CONTROL

Move

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint

• Advanced Control

• Picture Reset

Screen


• Expert Control

Select your desired Source.

PICTURE CONTROL

Move

Aspect Ratio : 16:9

Picture Mode : Vivid

• Backlight 100

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint 0


Picture Mode : Expert1

Picture Mode-Expert Control

Select


Select

Picture Mode

Select

Expert Control

Make appropriate adjustments.

Select

Expert1

Expert2

By segmenting categories,

Expert1

and

Expert2

provide more categories which users can set as they see fit,

offering the optimal picture quality for users.

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

Off

Fresh Contrast

Noise Reduction

Low

Gamma

White Balance

Low

Colour Standard

Black Level Auto

Real Cinema Off

Warm

TruMotion High

• Red

Contrast

255

Vivid

Standard

Cinema

Sport

Game

Expert1

Expert2

Expert1

Move

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint

• Advanced Control

• Picture Reset

Screen


• Advanced Control

Move

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint

• Advanced Control

• Picture Reset

Screen


• Advanced Control

PICTURE IMPROVEMENT TECHNOLOGY

PICTURE CONTROL

Fresh Contrast

Optimizes the contrast automatically according to the brightness of the reflection.

Fresh Colour

Adjusts the colour of the reflection automatically to reproduce as close as possible natural colours.

Noise Reduction

Removes interference up to the point where it does not damage the original picture.

Gamma

High gamma values display whitish images and low gamma values display high contrast images.

Select


Select

Advanced Control

Select

Fresh Contrast,Fresh Colour, Noise Reduction

Gamma

Select your desired Source.

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

Colour Temperature

High

Fresh Contrast

Medium

Fresh Colour

High

Noise Reduction

Medium

Gamma Medium

Black Level Auto

Real Cinema Off

TruMotion High

Eye Care Off

PICTURE CONTROL

Move

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint

• Advanced Control

• Picture Reset

Screen


• Advanced Control

Move

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint

• Advanced Control

• Picture Reset

Screen


• Advanced Control

PICTURE CONTROL

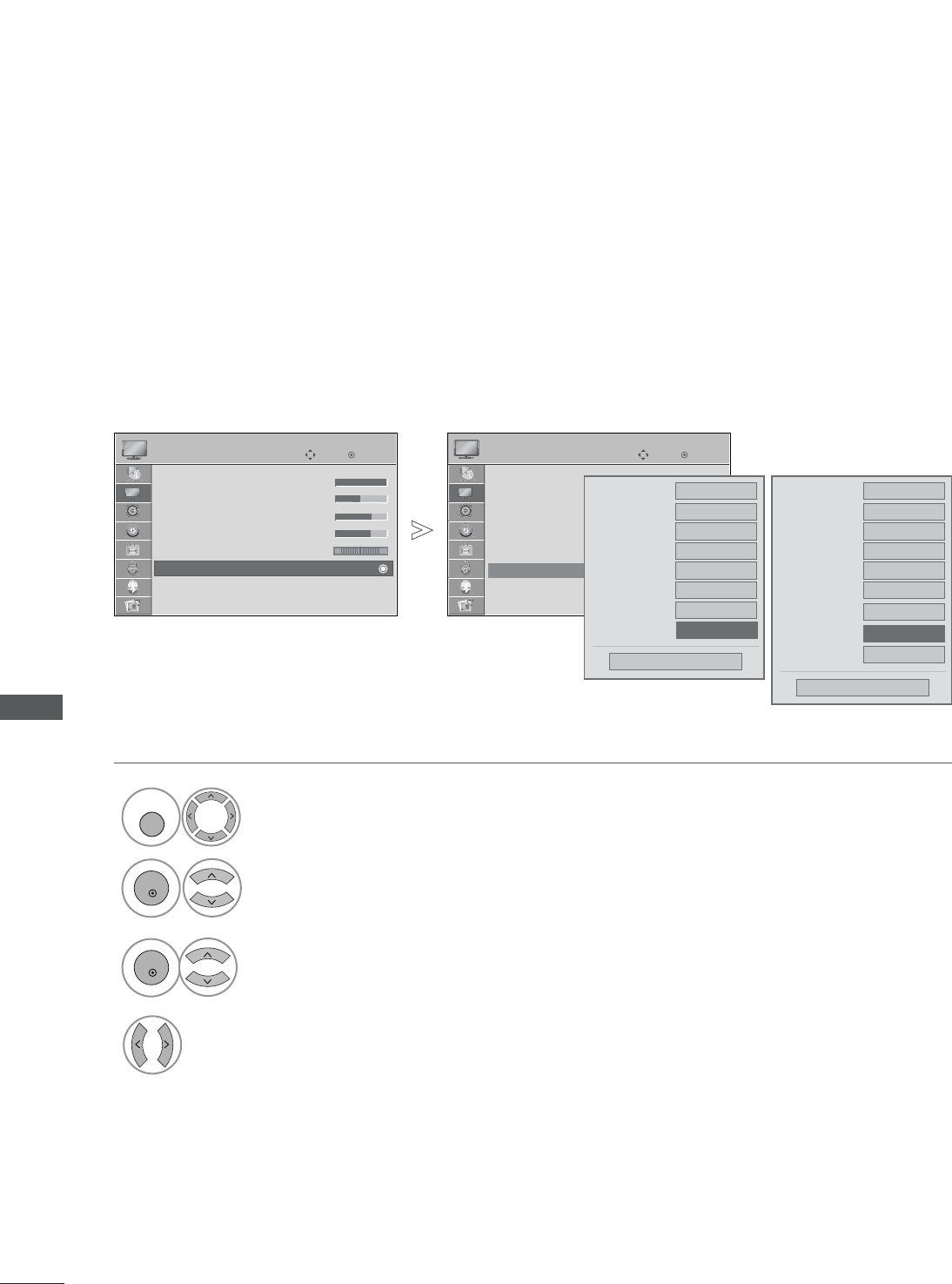

ADVANCED - FILM MODE/ REAL CINEMA

(37/42/47/52LG70** Only)

Select


Select

Advanced Control

Select

Film Mode(

Real Cinema(

37/42/47/52LG70* * Only

) )

Select

O n

Off

To set the TV up for the best picture quality for viewing films.

This feature operates only in TV, AV and Component 480i/576i/1080i mode(Film Mode only).

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

Colour Temperature

Fresh Contrast

High

Fresh Colour

High

Noise Reduction

Medium

Gamma Medium

Black Level Auto

Eye Care Off

Off

Film Mode

Colour Temperature

Fresh Contrast

High

Fresh Colour

High

Noise Reduction

Medium

Gamma Medium

Black Level Auto

TruMotion High

Eye Care Off

Off

Real Cinema

37/42/47/52LG70* * Only

PICTURE CONTROL

Move

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint

• Advanced Control

• Picture Reset

Screen


• Advanced Control

Move

• Contrast 100

• Brightness 50

• Sharpness 70

• Colour 70

• Tint

• Advanced Control

• Picture Reset

Screen


• Advanced Control

When you view a film this function adjusts the TV to best picture quality.

This function works in the following mode: AV (NTSC-M), HDMI or Component .

ADVANCED - BLACK(DARKNESS) LEVEL

Select


Select

Advanced Control

Select

Black Level

Select

Low

High

•

Low

: The reflection of the screen gets darker.

•

Hi gh

: The reflection of the screen gets

brighter.

•

Auto

: Realizing the black level of the screen

and set it to High or Low automatically.

• Press the

button to return to normal TV viewing.

• Press the

RETURN

button to move to the previous menu screen.

Colour Temperature

Fresh Contrast

High

Fresh Colour

High

Noise Reduction

Medium

Gamma Medium

Black Level

Off

TruMotion High

Eye Care Off

Auto

Real Cinema

LG Electronics USA EAX57538201 Bluetooth Module User Manual SAC31539704 en REV02

LG Electronics USA Bluetooth Module SAC31539704 en REV02

Contents

Host user manual 1 of 2

Navigation menu

Namespaces

Views

Navigation
