HBM-550
User Manual
Clipcomm, Inc. Confidential Page 2
1. Table of Contents
1. TABLE OF CONTENTS.............................................................................................................................................2
2. INTRODUCTION.........................................................................................................................................................3
3. PART DESCRIPTION.................................................................................................................................................3
4. HOW TO USE..............................................................................................................................................................4
4.1. CHANGE DIRECTION ...............................................................................................................................................4
4.2. CHARGING HBM-550 .............................................................................................................................................4
4.3. LOW BATTERY WARNING..........................................................................................................................................4
4.4. POWER ON ..............................................................................................................................................................4
4.5. POWER OFF.............................................................................................................................................................4
4.6. BLUETOOTH PAIRING ...............................................................................................................................................4
4.7. CONNECTING...........................................................................................................................................................5
4.8. VOLUME CONTROL ..................................................................................................................................................5
4.9. CALLING ..................................................................................................................................................................5
5. SUMMARY OF BUTTON FUNCTIONS...................................................................................................................7
6. LED INDICATION........................................................................................................................................................7
7. TROUBLESHOOTING ...............................................................................................................................................8
8. SPECIFICATION .........................................................................................................................................................8
9. PRECAUTIONS...........................................................................................................................................................9
10. DECLARATION OF CONFIRMATION...................................................................................................................9
11. WEEE........................................................................................................................................................................10
12. ADDITIONAL INFORMATION ..............................................................................................................................10
13. LIMITED WARRANTY ...........................................................................................................................................12
Clipcomm, Inc. Confidential Page 3
2. Introduction
The LG Bluetooth headset HBM-550 is a light weight wireless Headset utilizing Bluetooth technology.
This product can be used as an audio accessory for devices supporting either the Headset or Handsfree
Bluetooth Profiles.

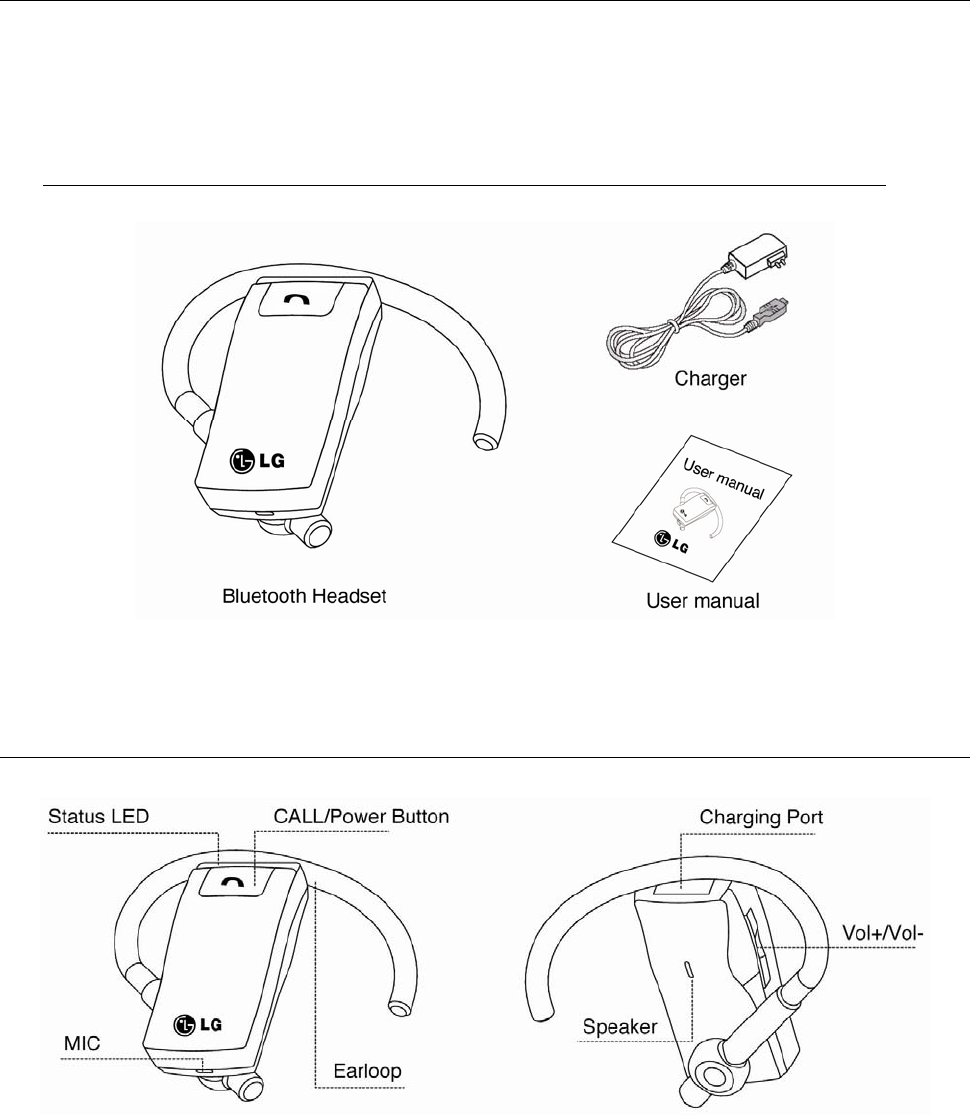

Included in package
3. Part description
Clipcomm, Inc. Confidential Page 4
4. How to use
4.1. Change Direction
If you want to pull out the headset from your left ear to put it in your right ear or the other way around, pull out
the earpiece from the hole of your headset and reverse the direction of the earpiece and put it back into the
hole of the headset to fit the headset for either side of your ears.
4.2. Charging HBM-550
Please ensure that your new HBM-550 is fully charged before your initial use.
1. Open the charging port cover on the top of the Headset.
2. Plug the charger into the charging port outlet.
3. While charging, the red LED indicator is lit and will remain lit, until the Headset is fully charged.
4. The red LED light is off when the device is fully charged.
5. Charge the Headset for approximately 2 hours or until the red LED is off.
4.3. Low battery warning
The Headset needs to be recharged when
1. You hear a short beeping sound through the Headset’s speaker at 30 second intervals.
2. You see the red LED light flickers.
Always use the charger that comes with the HBM-550 or that is authorized by LG Electronics inc.
Unauthorized chargers are not covered under warranty and may void the HBM-550 warranty.
4.4. Power on
In order to turn the Headset on, press and hold the Call/Power button located in front of the product for at
least 2 seconds.
4.5. Power off
In order to turn the Headset off, press and hold the Call/Power button located in front of the product for at
least 4 seconds.
4.6. Pairing
Before using your Headset for the first time, you must pair it with another Bluetooth device, such as a mobile
phone.
Follow the steps below (for most devices):
1. Place the LG Bluetooth Headset HBM-550 in Pairing Mode.
Check your Headset is turned off.
Press the Call/Power button for at least 5 seconds and make your Headset discoverable.
Red LED light and blue LED light flickers alternately.
Clipcomm, Inc. Confidential Page 5
2. Using Your Handset, Find HBM-550.
On your Handset, find the Bluetooth menu.
From this menu, select the option to search for Bluetooth devices ("Search New", "Find New",
etc.)
Your Handset will find "LG HBM-550"
You will be prompted to accept the pairing by pressing "OK" or "yes".
When prompted to enter the PIN number, enter "0000" (four zeros).
Press "yes" or "OK" to confirm the pairing with the HBM-550
Note If pairing is successful, the blue LED light will flicker 5 times slowly.
4.7. Connecting
There are two ways to connect a LG Bluetooth Headset “HBM-550” to a Handset.
1. Connecting from a Handset to a Bluetooth headset.
From the Bluetooth menu, select the “connect” submenu
selecting a “LG HBM-550” you want to connect
Pressing “OK” or “Yes” button
2. Connecting from a Bluetooth headset to a Handset.
Press Call/Power button
If a “HBM-550” has ever paired with a Bluetooth device successfully, such as a mobile phone, it
would initiate a connection with it automatically.
Note If connection is successful, the blue LED light will flicker 5 times slowly.
4.8. Volume control
Press the Vol+ or Vol- button to increase or decrease the speaker volume.
The volume control button allows you to adjust the Headset volume to one of 8 levels.
4.9. Calling
4.9.1. Answering a call
Press the Call/Power button to receive a call on the Headset.
4.9.2. Making a call
If you make a call from the Handset while connected with the HBM-550, the call will (subject to Handset
settings) be automatically transferred to the Headset. If not automatically transferred, you can transfer the
call manually by pressing the Call/Power button.
Clipcomm, Inc. Confidential Page 6
4.9.3. Voice dialing*
Activate voice dialing by pressing the Call/Power button.
If the Handset does not support this feature, the Headset HBM-550 will activate the last number redialing.
4.9.4. Last number redial*
Activate last number redial by pressing the Call/Power button for 1 second until beeping sound is heard.
If the Handset does not support voice dialing, pressing the Call/Power button will activate last number
redialing.
4.9.5. Ending a call
Press the Call/Power button to terminate the call.
4.9.6. Transferring a call*
To transfer a call from the Handset to the Headset, press the Call/Power button. And to transfer a call from
the Headset to the Handset, press Vol+ button for 1 second.
4.9.7. Call waiting*
To answer a second call without hanging up the first call, press the Call/Power button for 1 second. Press the
Call/Power button for 1 second to switch between the two calls.
Press the Call/Power button to terminate the active call.
4.9.8. Call rejecting*
Activate call rejecting by pressing the Call/Power button for 1 second when the Handset rings.
4.9.9. Auto reconnect*
When the HBM-550 and your Handset are separated by a distance of 33 feet (10meters) or more, the
connection of the Headset and the Handset may be closed. When the Handset and HBM-550 are brought
back within the required distance, the HBM-550 will automatically reconnect with the Handset. For the first 3
minutes after the connection is closed, the HBM-550 will try to connect with your Handset approximately
every 10 seconds. After the first 3 minutes, the Headset will try to connect with your Handset once in 10
minutes.
* It is possible to use these functions only when your Handset supports them.
For further information about using these features please consult your Handset’s user manual.
Clipcomm, Inc. Confidential Page 7
5. Summary of button functions
Function HBM-550 status Action
Power On Power Off Press the Call/Power button for at least 2 seconds
Power Off Power On Press the Call/Power button for at least 4 seconds
Volume Up Talking Press the Vol+ button
Volume Down Talking Press the Vol- button
Transferring a Call
(Handset should
support)
Talking Handset to Headset:
Press the Call/Power button
Headset to Handset:
Press the Vol+ button for 1 second
Answering a Call Ringing Press the Call/Power button
Ending a Call Talking Press the Call/Power button
Call waiting mode
(Answering a second
call or Return to
original call)
Talking Press the Call/Power button for 1 second
Call waiting mode
(terminating active
call)
Talking Press the Call/Power button
Last Number
redialing (Handset
should support)
Ready Press the Call/Power button for 1 second
Voice dialing
(Handset should
support)
Ready Press the Call/Power button
Call Rejecting
(Handset should
support)
Ringing Press the Call/Power button for 1 second
Mute On/Off Talking Press the Vol- button for 1 second
6. LED indication
Functions HBM-550 status LED status
Operating Power On The blue LED light flickers 5 times.
Clipcomm, Inc. Confidential Page 8
Power Off The blue LED light flickers 5 times.
Pairing mode The red and blue LED light flicker in turn continuously.
Headset/Handsfree Profile
Connected
The blue LED light flickers twice every 5 seconds.
Battery low The red LED substitutes the blue LED.
Conversation mode The blue LED light flickers twice every 5 seconds.
Unintentional Link Loss
(until the lost link is recovered)
The purple (blue and red) LED light flickers once
every 5 seconds.
Charging The red LED is lit. Charging
Charging Complete The red LED is off.
7. Troubleshooting
Do not turn on
Check
whether
the
battery
of
the
HBM-
550
is
fully
discharged.
Charge the battery
Check whether the Handset supports
the Headset or Handsfree Bluetooth
Profiles.
Determine whether your
Handset supports the Headset
or Handsfree Bluetooth Profiles.
Unable to communicate with
the LG Bluetooth Headset
HBM-550
Check
whether
the
battery
of
the
HBM-
550
is
low
Charge
the
battery
Check
whether
the
Headset
is
off.
Press
the
Call/Power
button
for
at
least 4 seconds
to
turn
off
the
Headset.
Unable
to
pair
the
HBM-
550
with
the
Bluetooth
device.
Check
whether
the
Headset
is
placed
in
pairing
mode.
After turning off the Headset, press
and
hold
the
Call/Power
button
for
at
least 4 seconds
to
place
the
Headset
in
pairing
mode.
Low
sound
from
the
speaker
Check
the
speaker
volume.
lncrease
the
volume
level.
8. Specification
ITEM Description
Bluetooth
Specification
V1.2
Supported
Profile
Handsfree
/
Headset
Frequency Range 2.4GHz ~ 2.4835GHz
Rx.
Sensitivity
Typ
-78dBm
Clipcomm, Inc. Confidential Page 9
Battery
3.7V,
80mAh,
Li-Polymer
Rated
Input
4.8V/0.9A
(USA,
GSM),
Speaker
32
Ω
20mW
MIC
-
35dB/ Omnidirectional
Standby
Current
0.51mA
(Avr)
Talk
Current
21.5mA
(Avr)
Standby
Time
Up
to
1
56Hrs
Talk Time
Up to 3.5Hrs
Charging Time
2Hrs
Operating
Temperature
-20
℃
~ 60
℃
Dimension/Weight
18.8(W) x 41.0(L) x 16.5(H) / 12.0g
9. Precautions
1. Do not drop the unit from high places.
2. Do not modify, repair & take a part at discretion.
3. Do not expose directly to the water, alcohol, benzene, etc. for clearing.
4. Do not expose directly to flammables.
5. Do not place or keep the unit near the flammables.
6. Keep unit away from humidity & dust.
7. Do not place the heavy objects on the unit.
8. Keep away from direct light or heat.
z Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
z Risk of explosion if the battery is replaced by on incorrect type.
z Dispose of used batteries according to the instructions.
10. Declaration of Confirmation
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the
Clipcomm, Inc. Confidential Page 10
antenna or the device is permitted. Any change to the antenna or the device could result in the device
exceeding the RF exposure requirements and void user’s authority to operate the device.
11. WEEE
D
i
s
p
o
s
a
l
o
f
y
o
u
r
o
l
d
app
l
i
a
n
c
e
1.
When this crossed-out wheeled bin symbol is attached to a product it means the product is
covered by the European Directive 2002/96/EC
.
2.
All electrical and electronic products should be disposed of separately from the municipal
waste stream via designated collection facilities appointed by the government or the local
authorities.
3.
The correct disposal of your old appliance will help prevent potential negative consequences for the
environment and human health.
4. The correct disposal of your old appliance will help prevent potential negative consequences for the
environment and human health.
12. Additional Information
1. Radio frequency exposure
This Bluetooth Headset, HBM-550, is a radio transmitter and receiver. When in operation,
it communicates with a Bluetooth equipped mobile device by receiving and transmitting
radio frequency(RF) electromagnetic fields (microwaves) in the frequency range 2.4 to
2.4835 GHz. The output power of the radio transmitter is low, 0.001 watt. Your Bluetooth
Headset is designed to operate in compliance with the RF exposure guidelines and limits
set by national authorities and international health agencies when used any compatible LG
Electronics mobile phone.
2. Potentially explosive atmosphere
Turn off your electronic device when in any area with a potentially explosive atmosphere. It
is rare, but your electronic device could generate sparks. Sparks in such areas could
cause an explosion or fire resulting in bodily injury or even death. Areas with a potentially
explosive atmosphere are often, but not always, clearly marked.
3. Emergency calls
IMPORTANT!
This Bluetooth Headset and the electronic device connected to the Headset operate using
radio signals, cellular and landline networks as well as user-programmed functions, which
cannot guarantee connection under all conditions. Therefore you should never rely solely
upon any electronic device for essential communications (e.g. medical emergencies).
Remember, in order to make or receive calls, the Headset and the electronic device
Clipcomm, Inc. Confidential Page 11
connected to the Headset must be switched on and in a service area with adequate
cellular signal strength. Emergency calls may not be possible on all cellular phone
networks or when certain network services and/or phone features are in use. Check with
your local service provider.
4. Battery information
A rechargeable battery has a long service life if treated properly. A new battery or one that has not
been used for a long period of time could have reduced capacity the first few times it is used. Do not
expose the battery to extreme temperatures, never above +60°(+140°F) or under -20°(-4°F). For
maximum battery capacity, use the battery in room temperature. If the battery is used in low
temperatures, the battery capacity will be reduced. The battery can only be charged in temperatures
between +10° (+50 °F) and +45° (+113°F).
5. Recycling the battery in your Bluetooth Headset
The battery in your Bluetooth Headset must be disposed of properly and should never be placed in
municipal waste. The LG Electronics service partner removing battery will dispose of it according to
local regulations.
6. Conditions
z The warranty is valid only if the original receipt issued to the original purchaser by the dealer, specifying
the date of purchase and serial number, is presented with the product to be repaired or replaced. LG
Electronics reserves the right to refuse warranty service if this information has been removed or changed
after the original purchase of the product from the dealer.
z If LG Electronics repairs or replaces the product, the repaired or replaced product shall be warranted for
the remaining time of the original warranty period or for ninety (90) days from the date of repair, whichever
is longer. Repair or replacement may involve the use of functionally equivalent reconditioned units.
Replaced parts or components will become the property of LG Electronics.
z This Warranty does not cover any failure of the product due to normal wear and tear, or due to misuse,
including but not limited to use in other than the normal and customary manner, in accordance with
instructions for use and maintenance of the product. Nor does this warranty cover any failure of the
product due to accident, modification or adjustment, acts of God or damage resulting from liquid.
z This warranty does not cover product failures due to improper repair installations, modifications or service
performed by a non-LG Electronics authorized person.
z Tampering with any of the seals on the product will void the warranty.
z There are no express warranties, whether written or oral, other than this printed including without limitation
the implied warranties of merchantability or fitness for a particular purpose, are limited to the duration of
this limited warranty. in no event shall LG electronics or its vendors be liable for incidental or
consequential damages of any nature whatsoever, including but not limited to lost profits or commercial
loss, to the full extent those damages can be disclaimed by law.
Some countries/states do not allow the exclusion or limitation of incidental or consequential damages, or
Clipcomm, Inc. Confidential Page 12
limitation of the duration of implied warranties, so the preceding limitations or exclusions may not apply to you.
The warranty provided does not affect the consumer's statutory rights under applicable national legislation in
force, nor the consumer's rights against the dealer arising from their sales/purchase contract.
13. Limited Warranty
Subject to the conditions of this Limited Warranty, LG Electronics warrants this product to be free from
defects in design, material and workmanship at the time of its original purchase by a consumer, and for a
subsequent period of one (1) year. Should your product need warranty service, please return it to the dealer
from whom it was purchased or contact your local LG Electronics contact center to get further information.
