Users Manual
EUT Type: LCD Monitor
FCC ID: BEJHSTND-2591-G
Test Report Number: GETEC-E3-08-051
FCC Class B Certification
APPENDIX H
: USER’S MANUAL
HP LD4200 LCD Monitor
User Guide
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
© 2009 Hewlett-Packard Development
Company, L.P.
Microsoft, Windows, and Windows Vista are
either trademarks or registered trademarks
of Microsoft Corporation in the United States
and/or other countries.
All other product names mentioned herein
may be trademarks of their respective
companies.
Hewlett-Packard Company shall not be liable
for technical or editorial errors or omissions
contained herein or for incidental or
consequential damages in connection with
the furnishing, performance, or use of this
material. The information in this document is
provided “as is” without warranty of any kind,
including, but not limited to, the implied
warranties of merchantability and fitness for
a particular purpose, and is subject to
change without notice. The warranties for
Hewlett-Packard products are set forth in the
express limited warranty statements
accompanying such products. Nothing
herein should be construed as constituting
an additional warranty.
This document contains proprietary
information that is protected by copyright. No
part of this document may be photocopied,
reproduced, or translated to another
language without the prior written consent of
Hewlett-Packard Company.
First Edition (February 2009)
Document Part Number: 516388-001
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
About This Guide
This guide provides information on setting up the monitor, installing drivers, using the on-screen display
menu, troubleshooting and technical specifications.
WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily
harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage
to equipment or loss of information.
NOTE: Text set off in this manner provides important supplemental information.
ENWW iii
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Table of contents
1 Product Features
HP LD4200 Model ................................................................................................................................ 1
2 Safety and Maintenance Guidelines
Important Safety Information ................................................................................................................ 2
Maintenance Guidelines ....................................................................................................................... 3
Cleaning the Monitor ............................................................................................................ 3
Shipping the Monitor ............................................................................................................ 3
3 Setting Up the Monitor

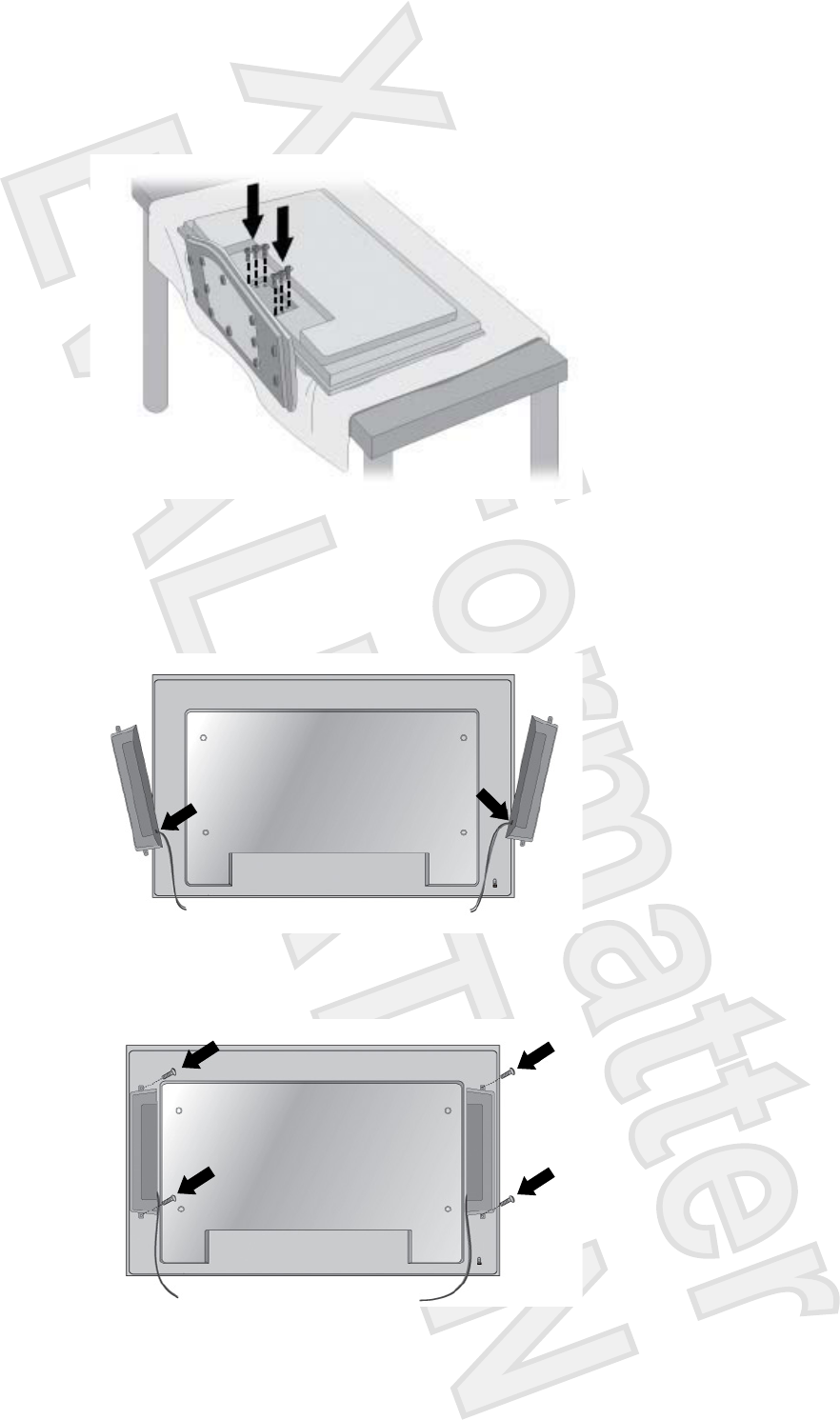

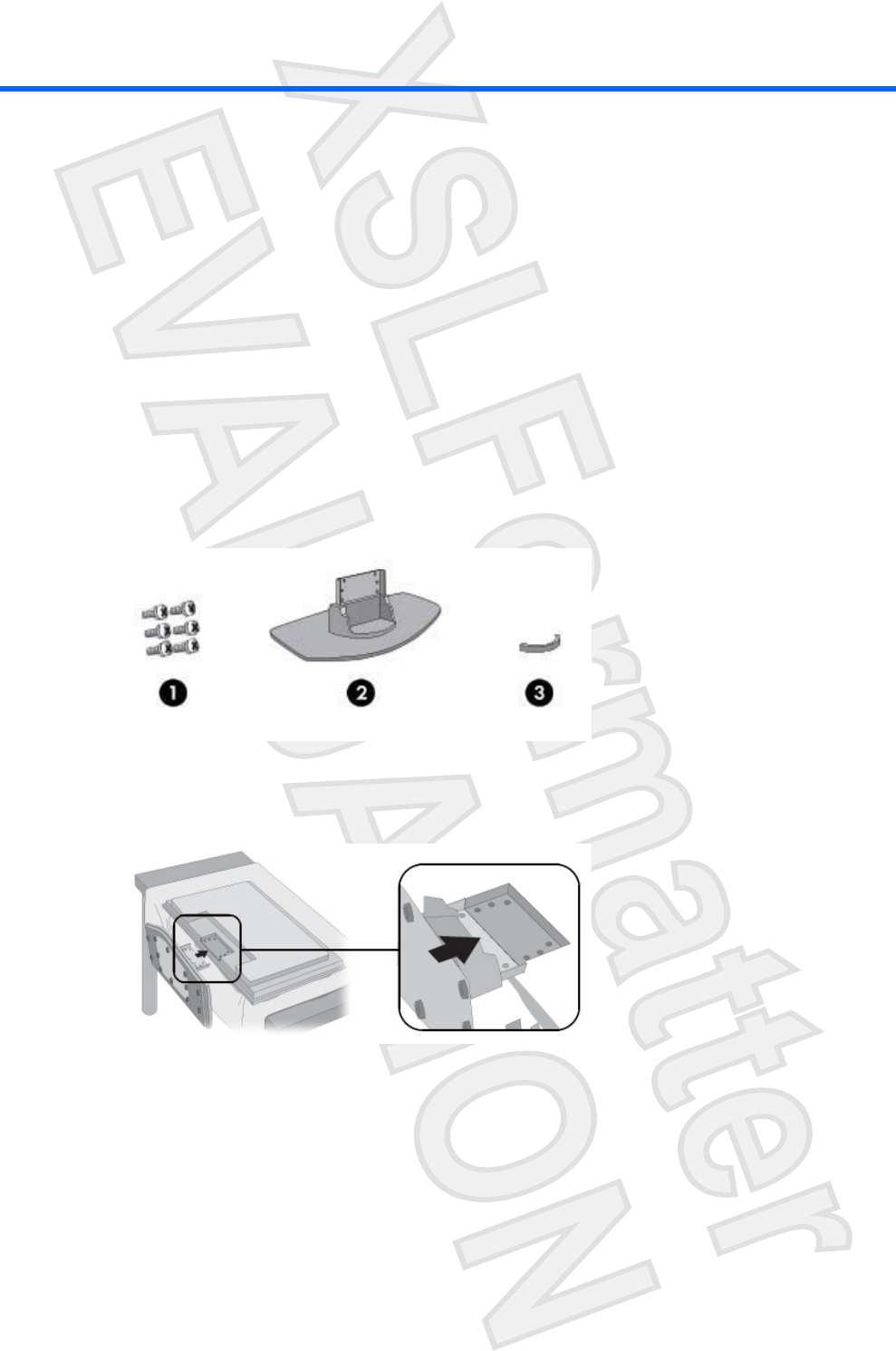

Installing the Stand (Select Models) ..................................................................................................... 4

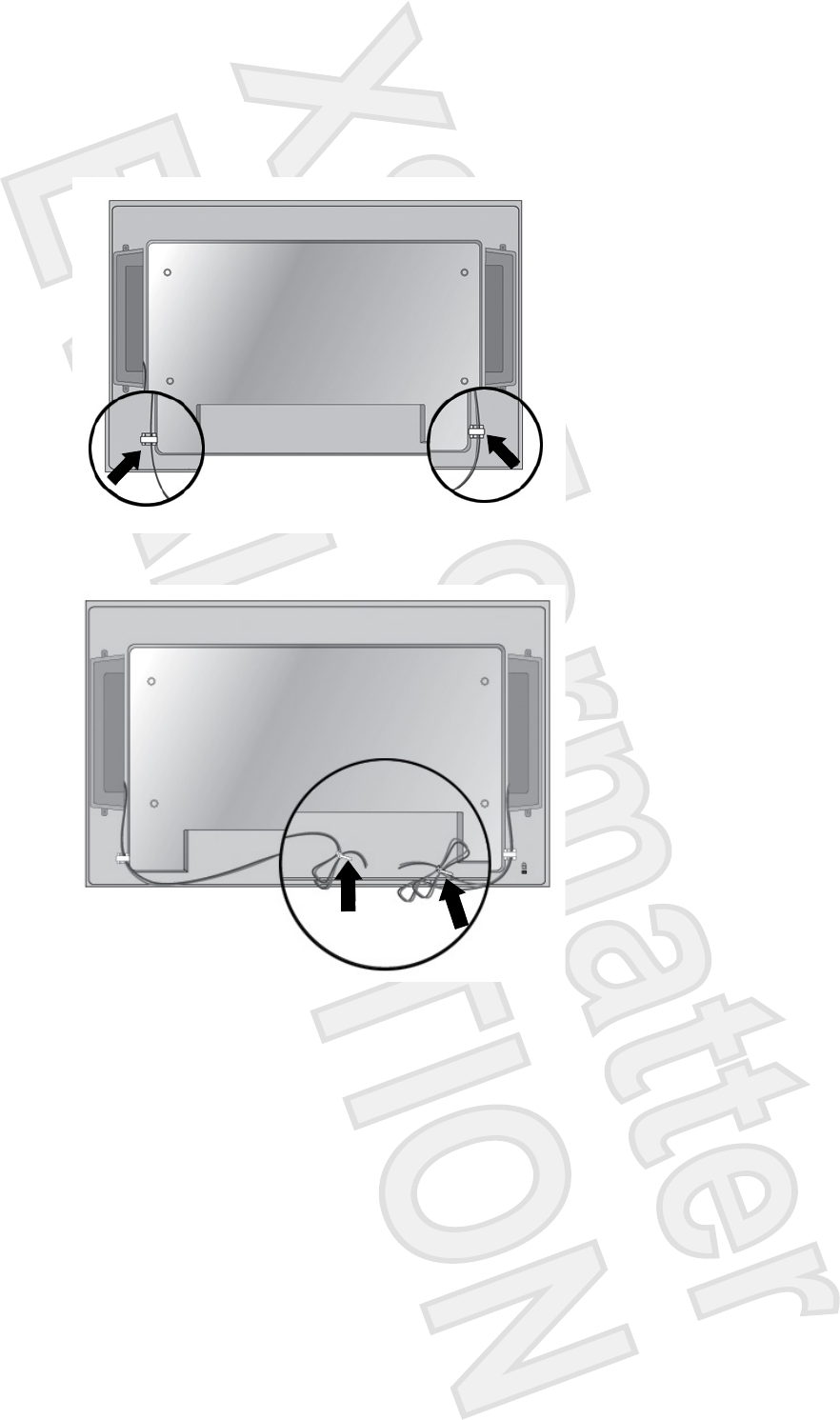

Connecting the Speakers (Select Models) ........................................................................................... 5

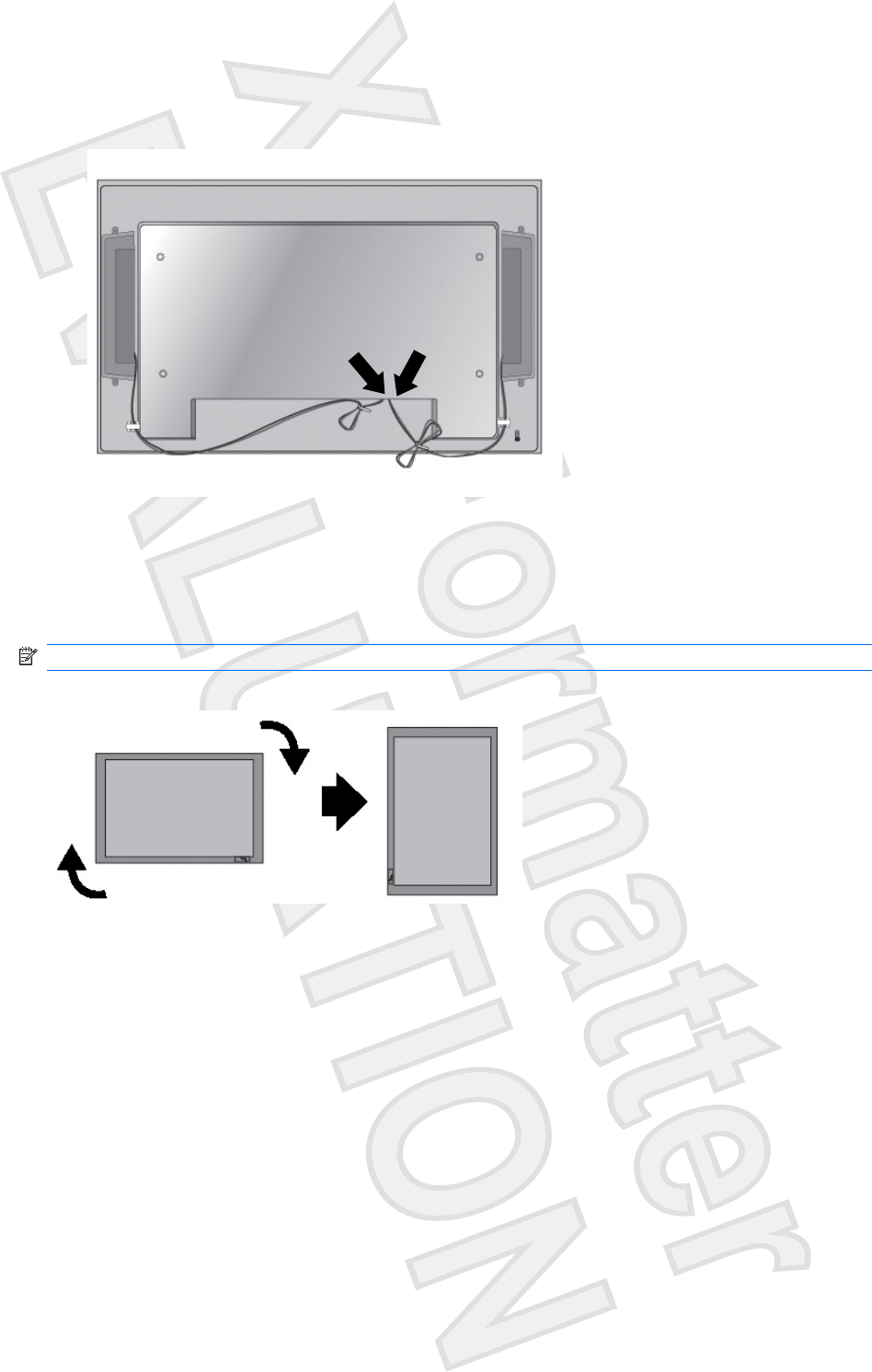

Rotating to the Portrait Position (Select Models) .................................................................................. 7
Using the Remote Control .................................................................................................................... 8

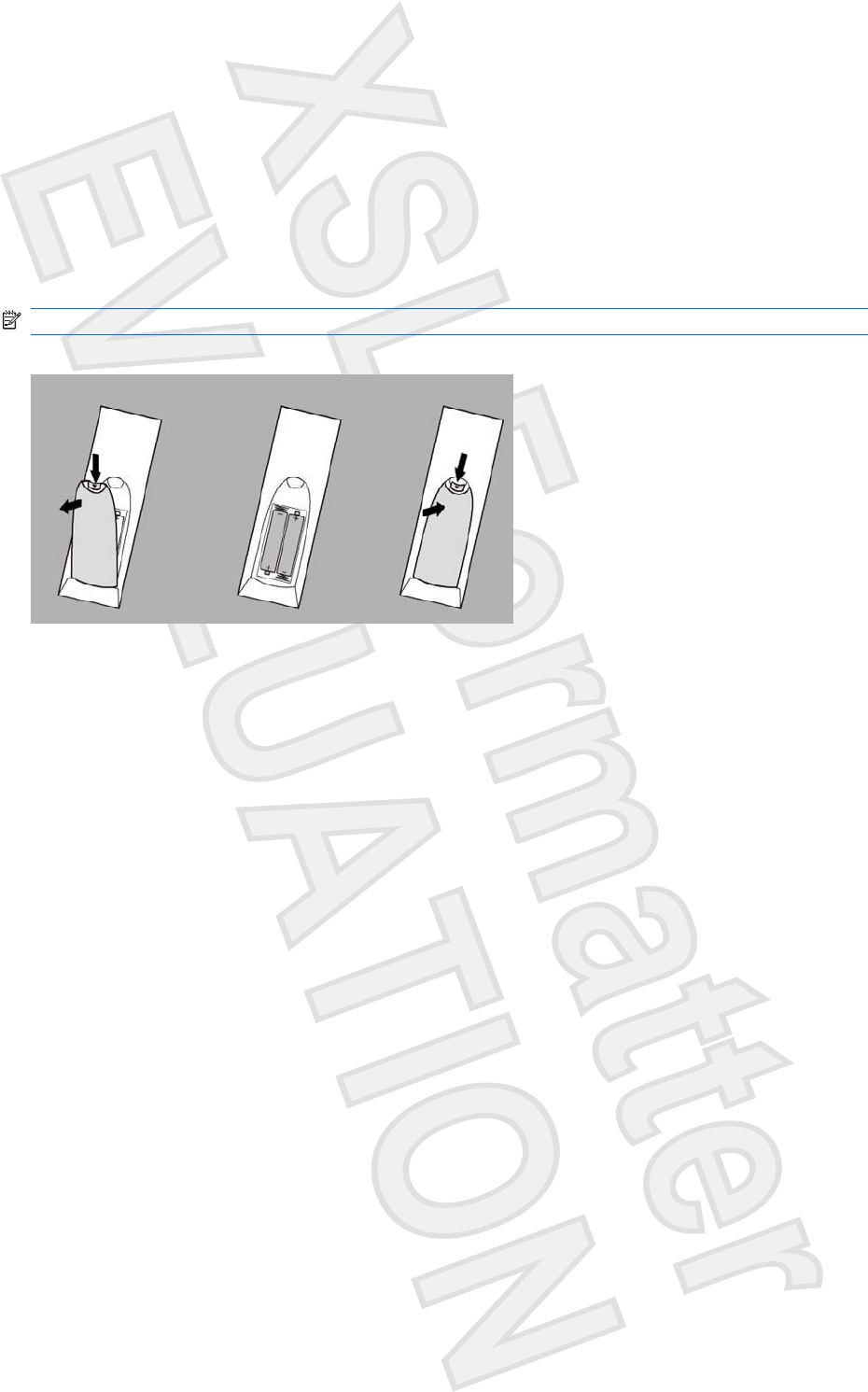

Inserting the Batteries .......................................................................................................... 8

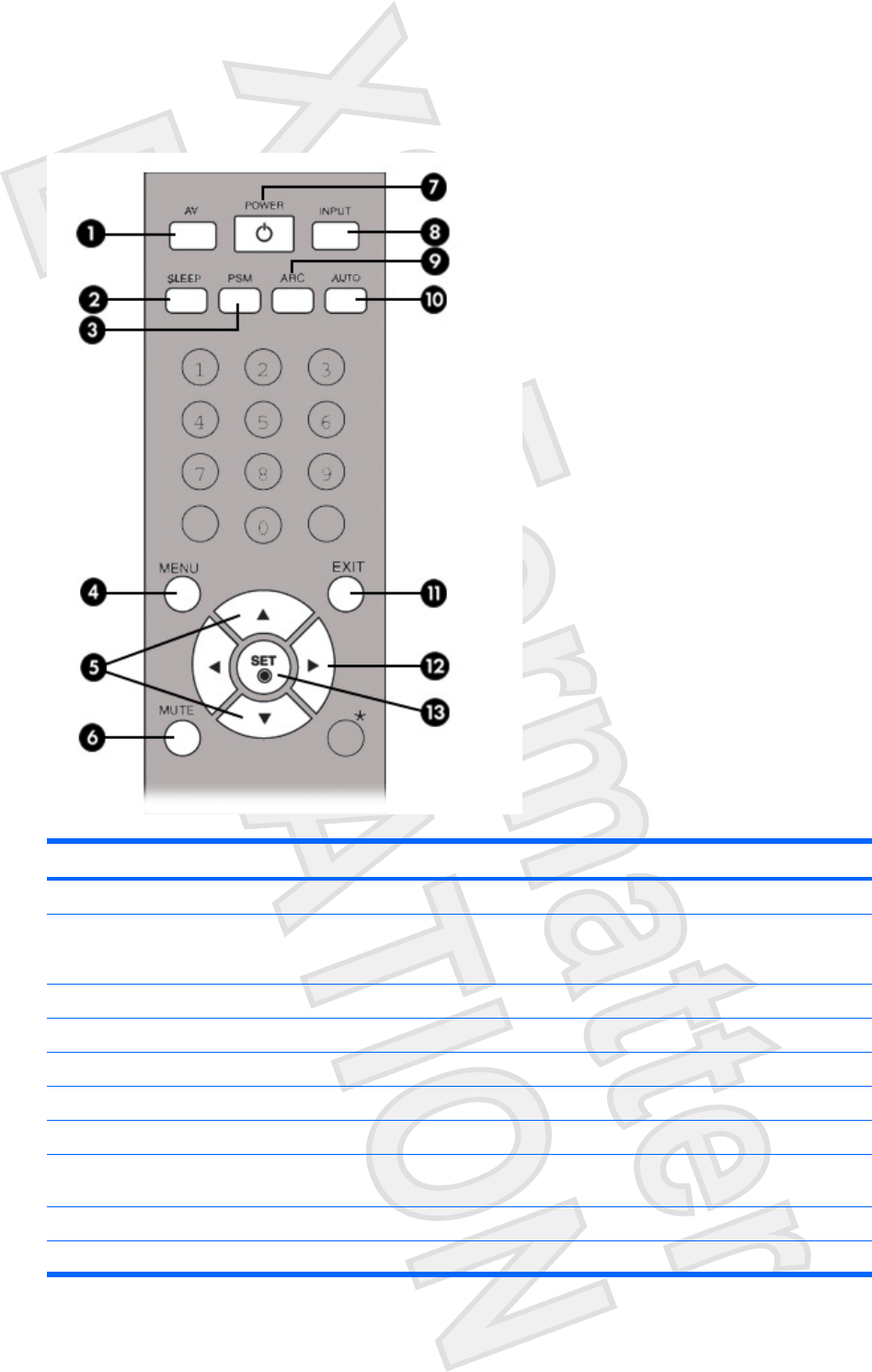

Identifying Remote Control Buttons ..................................................................................... 9

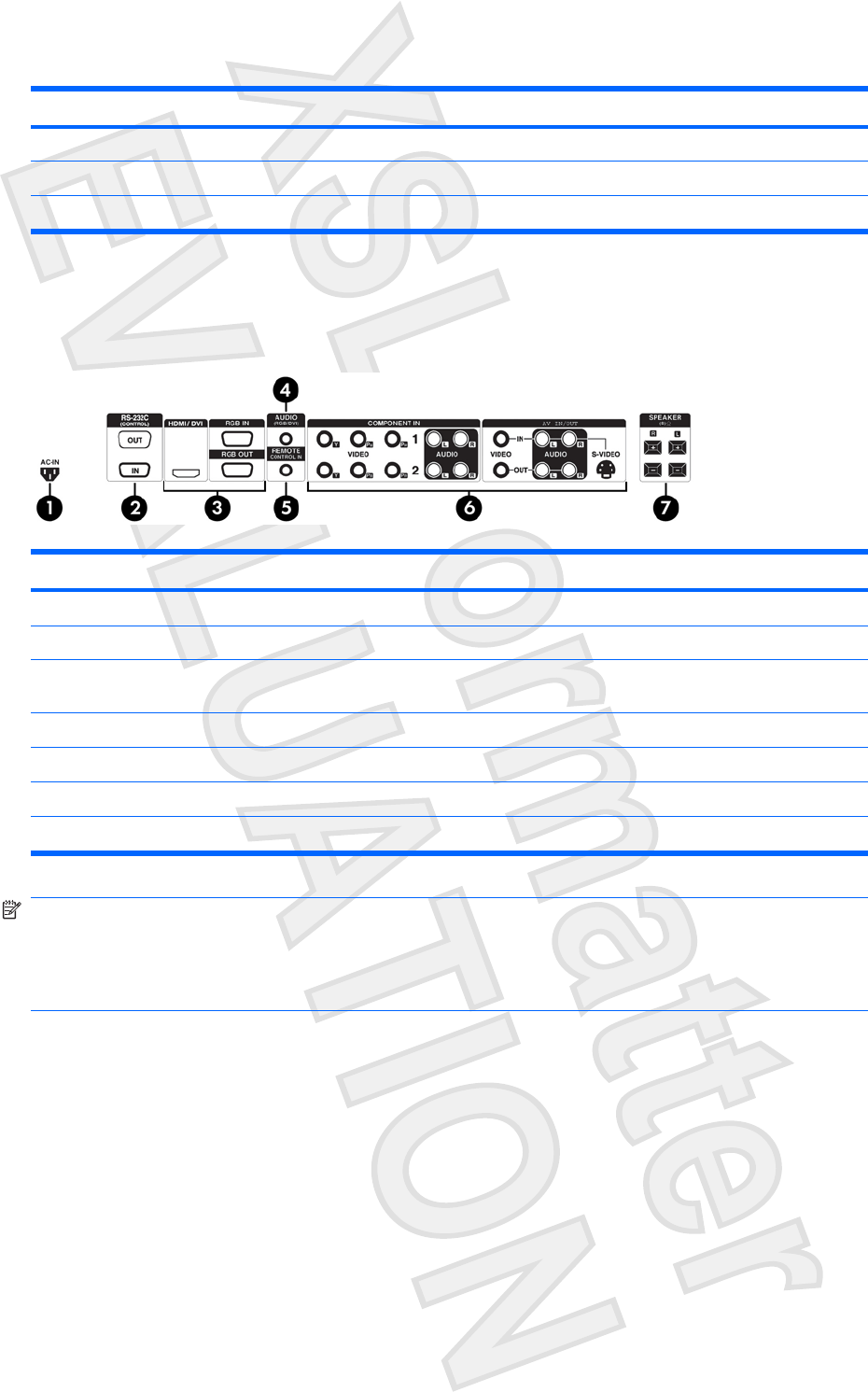

Identifying Rear Components ............................................................................................................. 10
Connecting to External Devices ......................................................................................................... 11

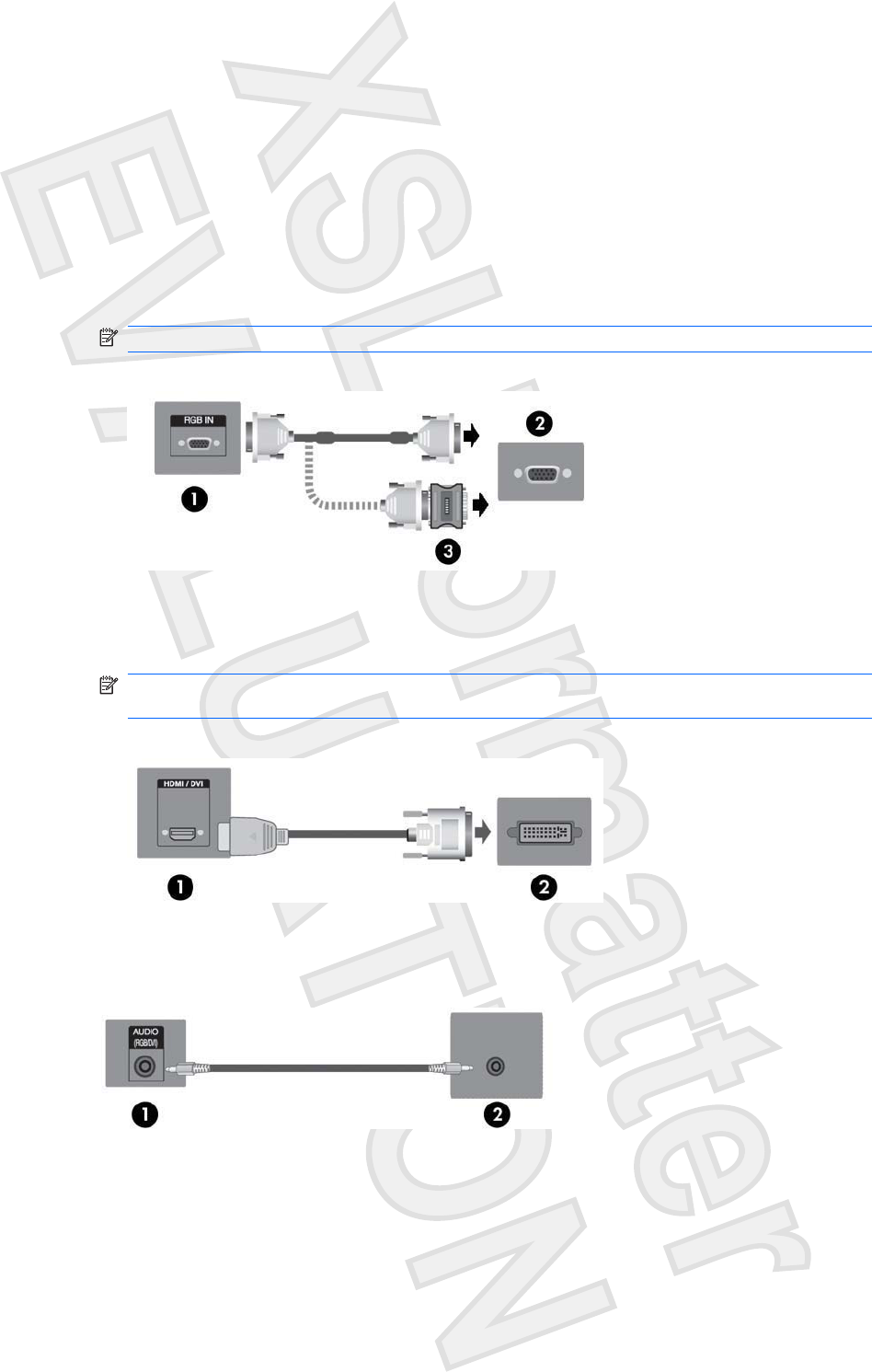

Connecting to the Computer .............................................................................................. 11

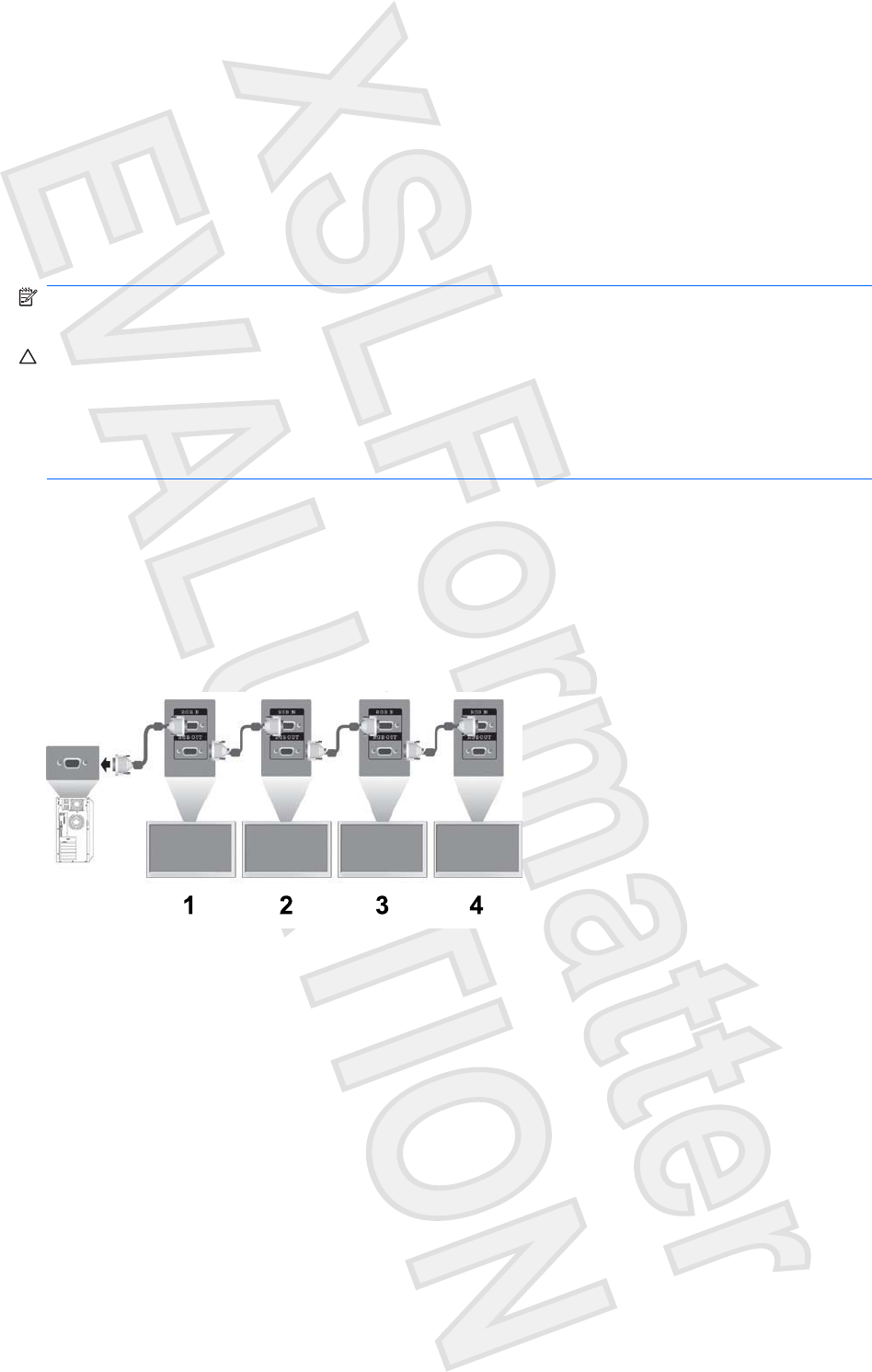

Connecting Daisy Chain Monitors ..................................................................................... 13

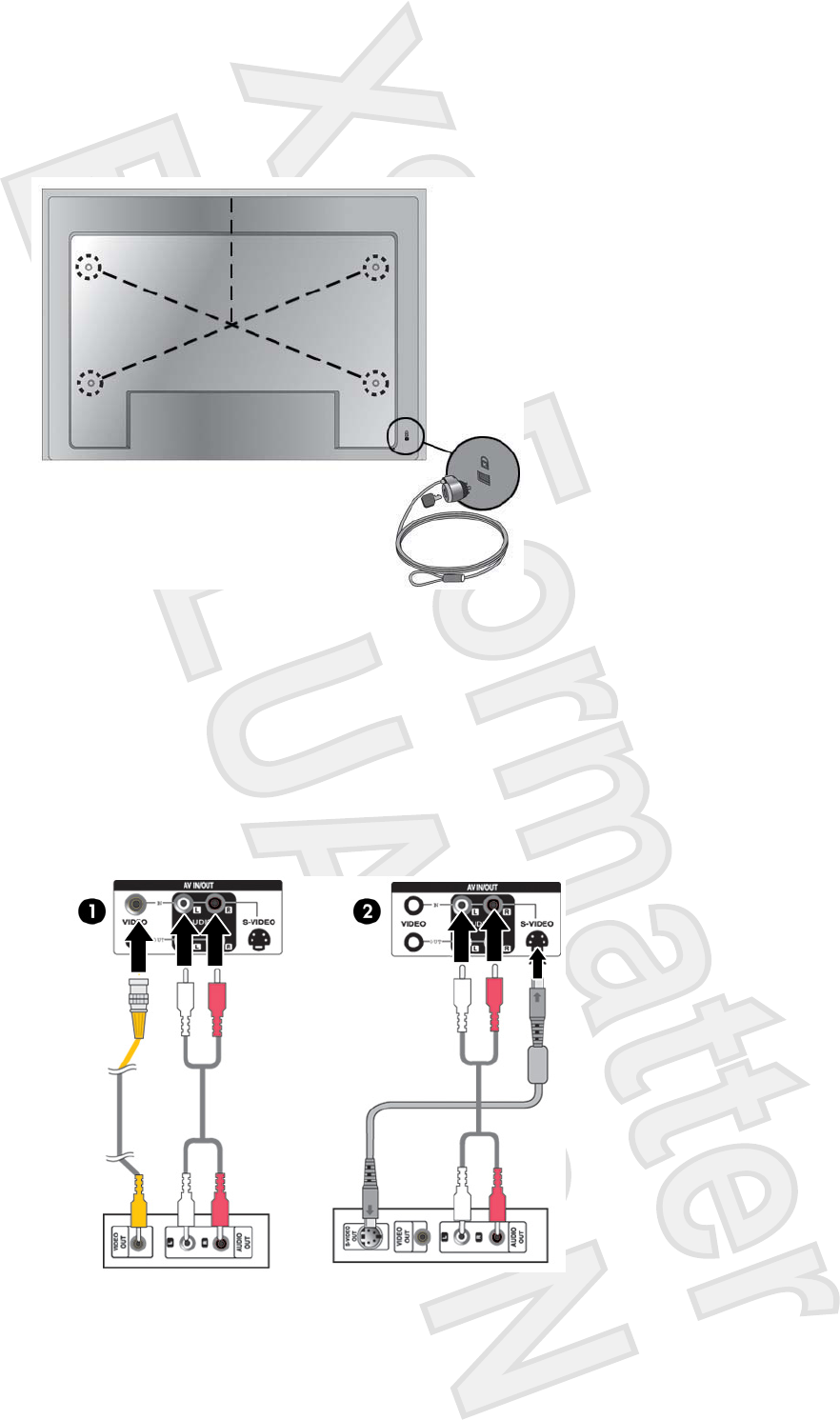

VESA Mounting Support .................................................................................................... 13
Connecting Video Input ..................................................................................................... 14

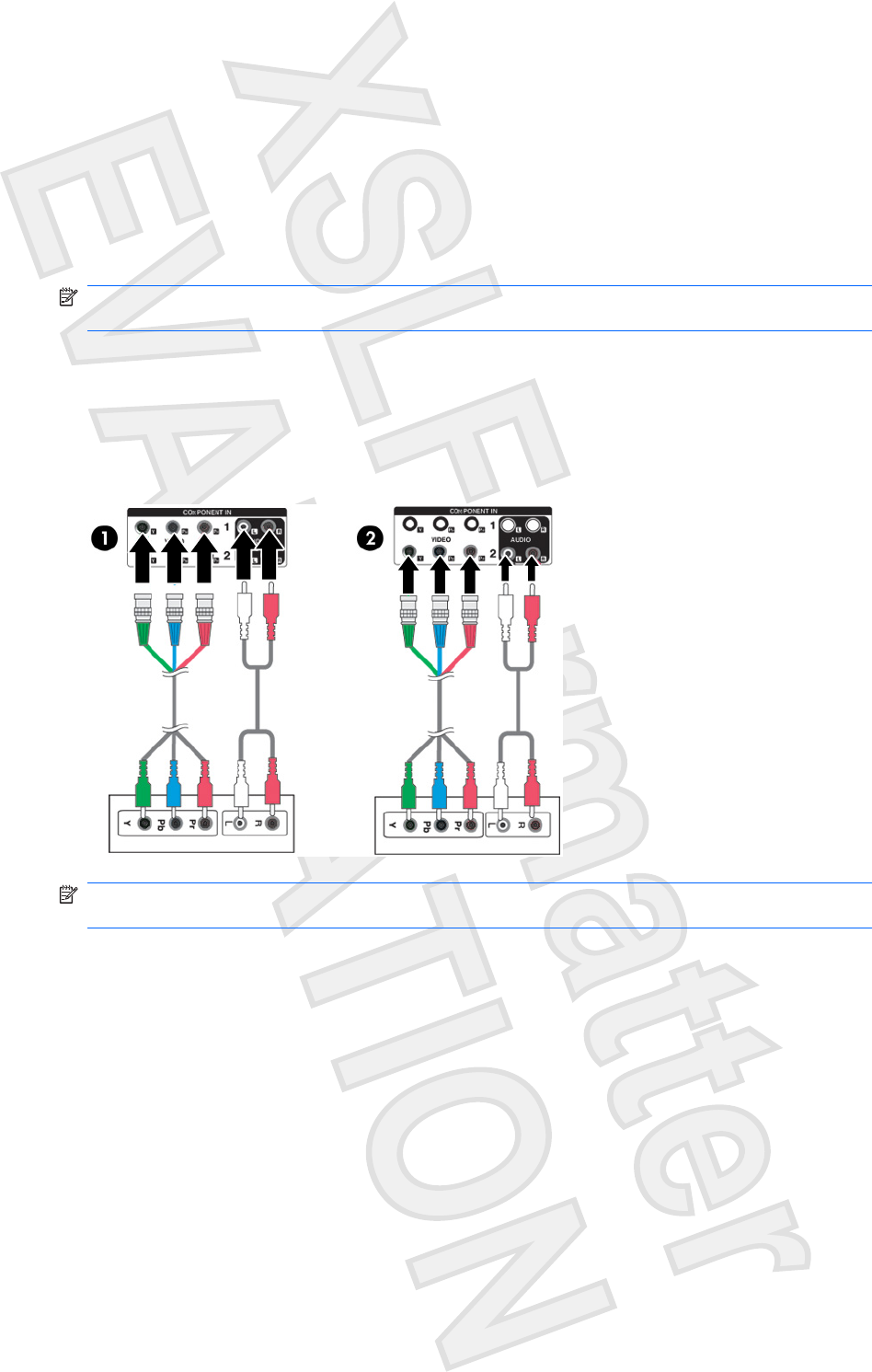

Connecting Component Input (480p/720p/1080p/1080i/480i) ........................................... 15

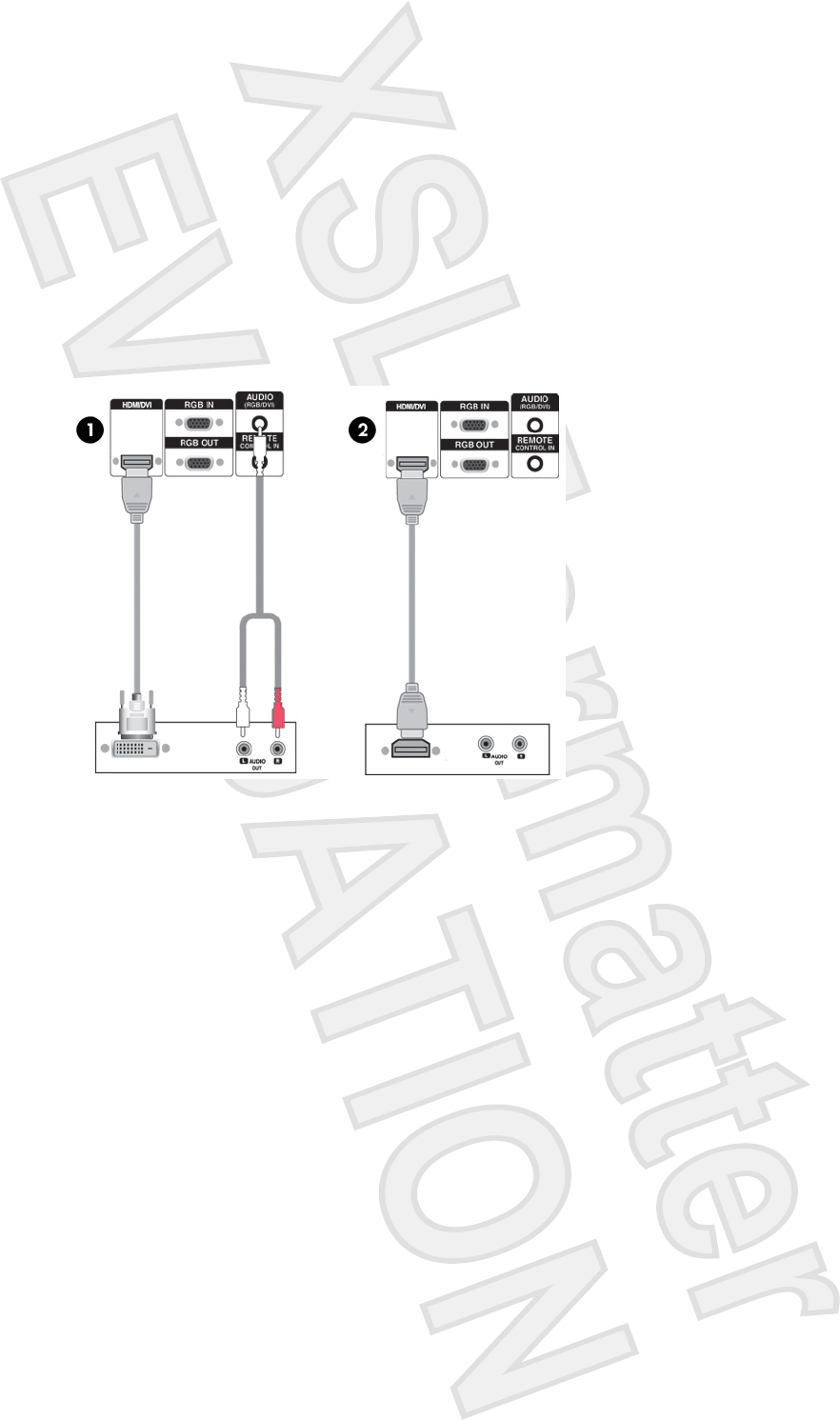

Connecting HDMI Input (480p/720p/1080i/1080p) ............................................................ 16

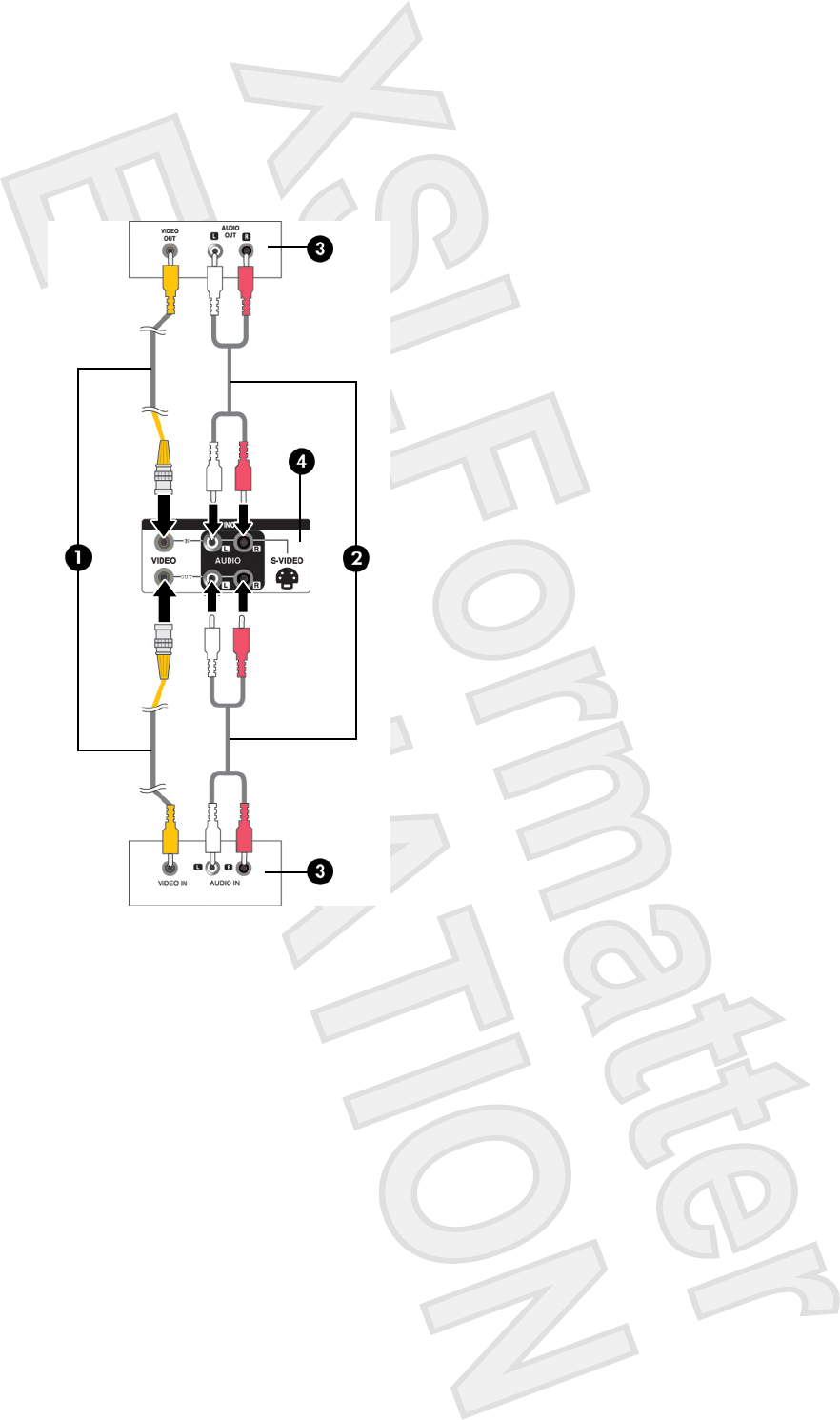

Watching AV Outputs ........................................................................................................ 17
4 Operating the Monitor
Software and Utilities .......................................................................................................................... 18
The Information File ........................................................................................................... 18
The Image Color Matching File .......................................................................................... 18
Installing the .INF and .ICM Files ....................................................................................................... 19
Installing from the CD ........................................................................................................ 19
Downloading from the Worldwide Web .............................................................................. 19
Screen Adjustment Options ................................................................................................................ 20
Using the Auto-Adjustment Function ................................................................................. 21

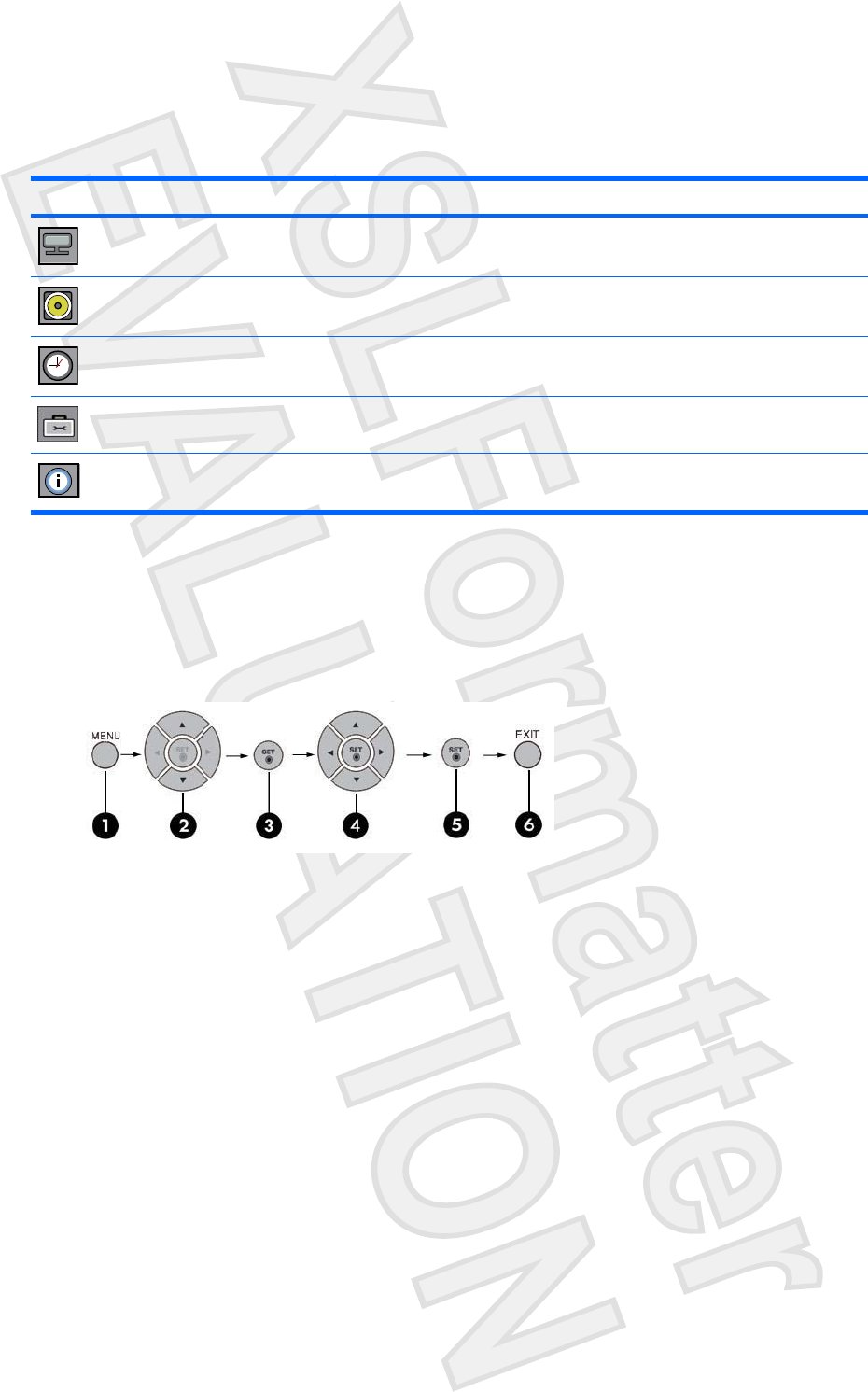

Using the On-Screen Display Menu ................................................................................................... 22
Using the Remote Control to Adjust the OSD .................................................................... 22
OSD Menu Selections ....................................................................................................... 23
ENWW v
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Selecting An Aspect Ratio Mode ....................................................................................... 26
Adjusting the Timer Function ............................................................................................. 27
Clock ................................................................................................................. 27
On/Off Timer ..................................................................................................... 27
Sleep Time ........................................................................................................ 27
Auto Sleep ......................................................................................................... 27
Selecting Options ............................................................................................................... 28
Using the Key Lock ........................................................................................... 28
Using the ISM Method Option ........................................................................... 28
Using the Tile Mode .......................................................................................... 28
Appendix A Troubleshooting
Solving Common Problems ................................................................................................................ 31
Using the Worldwide Web .................................................................................................................. 33
Preparing to Call Technical Support ................................................................................................... 33
Appendix B Technical Specifications
HP LD4200 LCD Monitor .................................................................................................................... 34
Recognizing Preset Display Resolutions ............................................................................................ 36
HP LD4200 Preset Display Modes .................................................................................... 36
DTV Mode .......................................................................................................................... 36
Power Indicator .................................................................................................................. 37
Appendix C Controlling the Multiple Product
Connecting the Cable ......................................................................................................................... 38
RS-232C Configurations .................................................................................................... 38
Communication Parameter ................................................................................................ 39
Command Reference List ................................................................................................................... 39
Transmission / Receiving Protocol ..................................................................................................... 40
01. Power (Command : a) .................................................................................................. 41
02. Input Select (Command : b) (Main Picture Input) ........................................................ 42
03. Aspect Ratio (Command : c) (Main picture format) ..................................................... 42
04. Screen Mute (Command : d) ....................................................................................... 43
05. Volume Mute (Command : e) ....................................................................................... 43
06. Volume Control (Command : f) .................................................................................... 44
07. Contrast (Command : g) .............................................................................................. 44
08. Brightness (Command : h) ........................................................................................... 45
09. Color (Command : i) (Video only) ................................................................................ 45
10. Tint (Command : j) (Video only) ................................................................................... 46
11. Sharpness (Command : k) (Video only) ....................................................................... 46
12. OSD Select (Command : l) .......................................................................................... 46
13. Remote Lock /Key Lock (Command : m) ..................................................................... 47
14. Balance (Command : t) ................................................................................................ 47
15. Color Temperature (Command : u)v ............................................................................ 48
16. Abnomal state (Command : z) ..................................................................................... 48
17. ISM mode (Command: j p) ........................................................................................... 49
18. Auto Configure (Command: j u) ................................................................................... 49
19. Key (Command : m c) .................................................................................................. 49
20. Tile Mode (Command : d d) ......................................................................................... 50
vi ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
21. Tile H Position (Command : d e) .................................................................................. 50
22. Tile V Position (Command : d f) ................................................................................... 51
23. Tile H Size (Command : d g) ....................................................................................... 51
24. Tile V Size (Command : d h) ........................................................................................ 51
25. Tile ID Set (Command : d i) ......................................................................................... 51
26. Natural Mode (In Tilemode) (Command : d j) .............................................................. 52
27. Elapsed time return (Command : d l) ........................................................................... 52
28. Temperature value (Command : d n) ........................................................................... 52
29. Lamp fault Check (Command : d p) ............................................................................. 53
30. Auto volume (Command : d u) ..................................................................................... 53
31. Speaker (Command : d v) ............................................................................................ 54
32. Time (Command : f a) .................................................................................................. 54
33. On Timer (On/Off Timer) On, Off (Command : F b) ..................................................... 55
34. Off Timer (On/Off Timer) On, Off (Command : f c) ...................................................... 55
35. On Timer (On/Off Timer) Time (Command : f d) .......................................................... 56
36. Off Timer (On/Off Timer) Time (Command : f e) .......................................................... 57
37. Sleep Time (Command : f f) ......................................................................................... 57
38. Auto Sleep (Command : f g) ........................................................................................ 58
39. Power On Delay (Command : f h) ................................................................................ 58
40. Language (Command : f i) ........................................................................................... 59
41. DPM Select (Command : f j) ........................................................................................ 59
42. Reset (Command : f k) ................................................................................................. 59
43. S/W Version (Command : f z) ...................................................................................... 60
44. Input Select (Command : x b) ...................................................................................... 60
IR Codes ............................................................................................................................................ 61
Remote Control IR Code ................................................................................................... 61

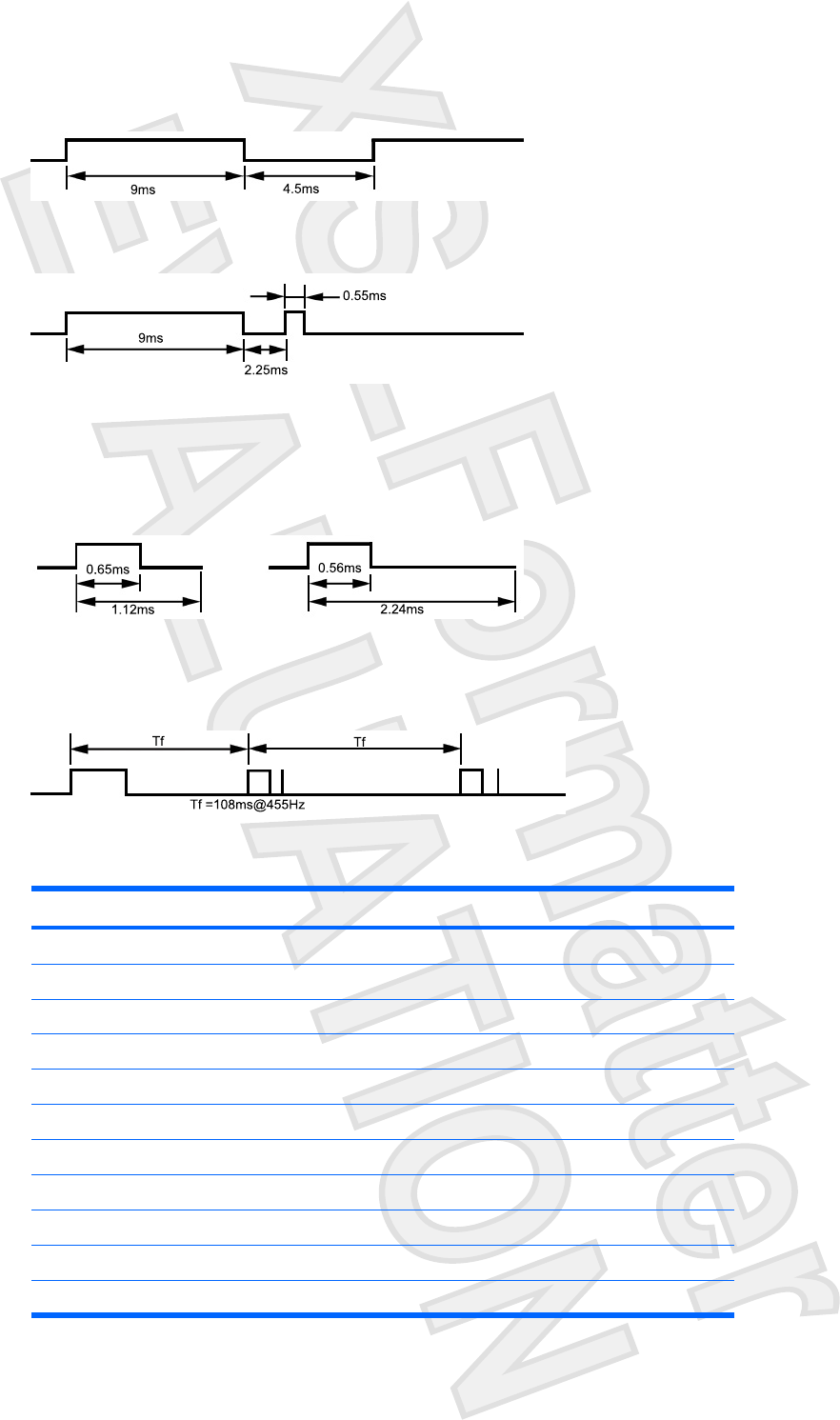

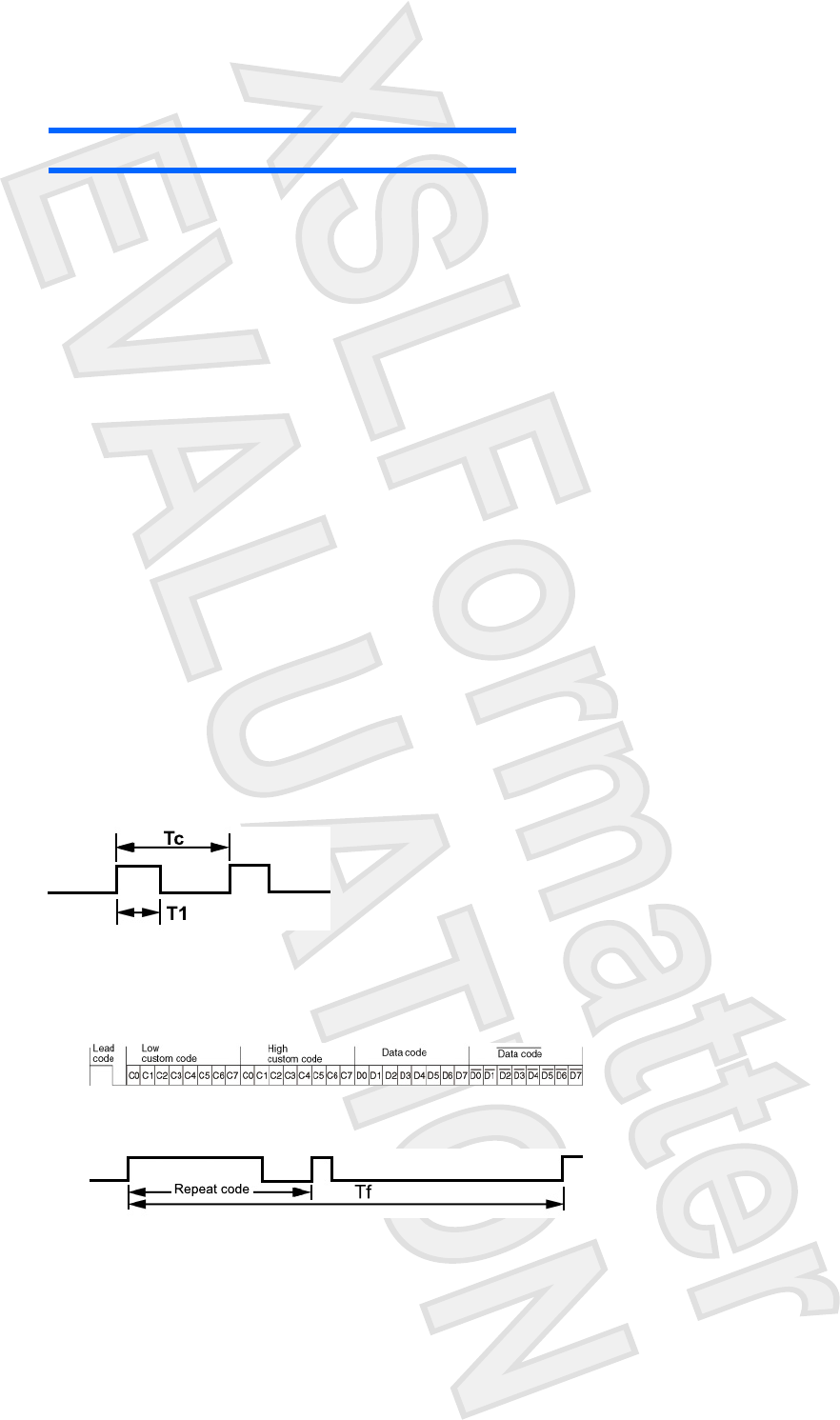

Output Wave ..................................................................................................... 61
Configuration of Frame ..................................................................................... 61
Lead Code ......................................................................................................... 62
Repeat Code ..................................................................................................... 62
Bit Description ................................................................................................... 62
Frame Interval: Tf .............................................................................................. 62
IR Codes Table .................................................................................................................. 62
Appendix D Agency Regulatory Notices
Federal Communications Commission Notice ................................................................................... 64
Modifications ...................................................................................................................... 64
Cables ................................................................................................................................ 64
Declaration of Conformity for Products Marked with the FCC Logo (United States Only) ................. 64
Canadian Notice ................................................................................................................................. 65
Avis Canadien .................................................................................................................................... 65
Power Cord Set Requirements ........................................................................................................... 65
Product Environmental Notices .......................................................................................................... 66
Materials Disposal ............................................................................................................. 66
Chemical Substances ........................................................................................................ 66

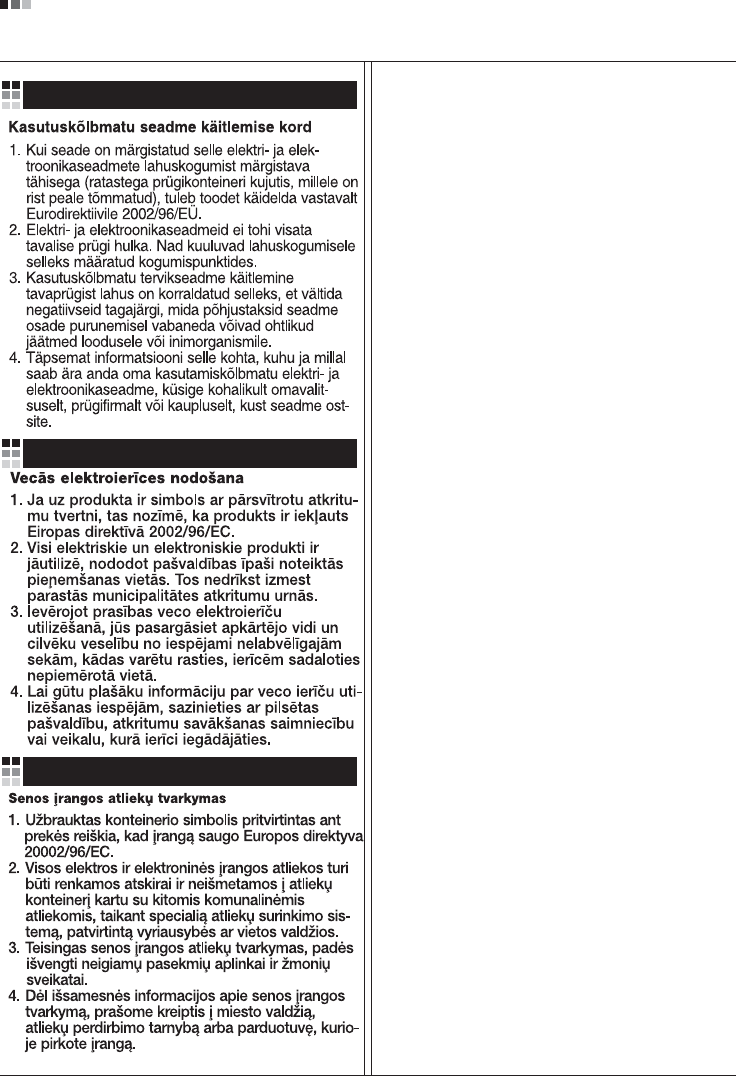

Disposal of Waste Equipment by Users in Private Household in the European
Union ................................................................................................................................. 66

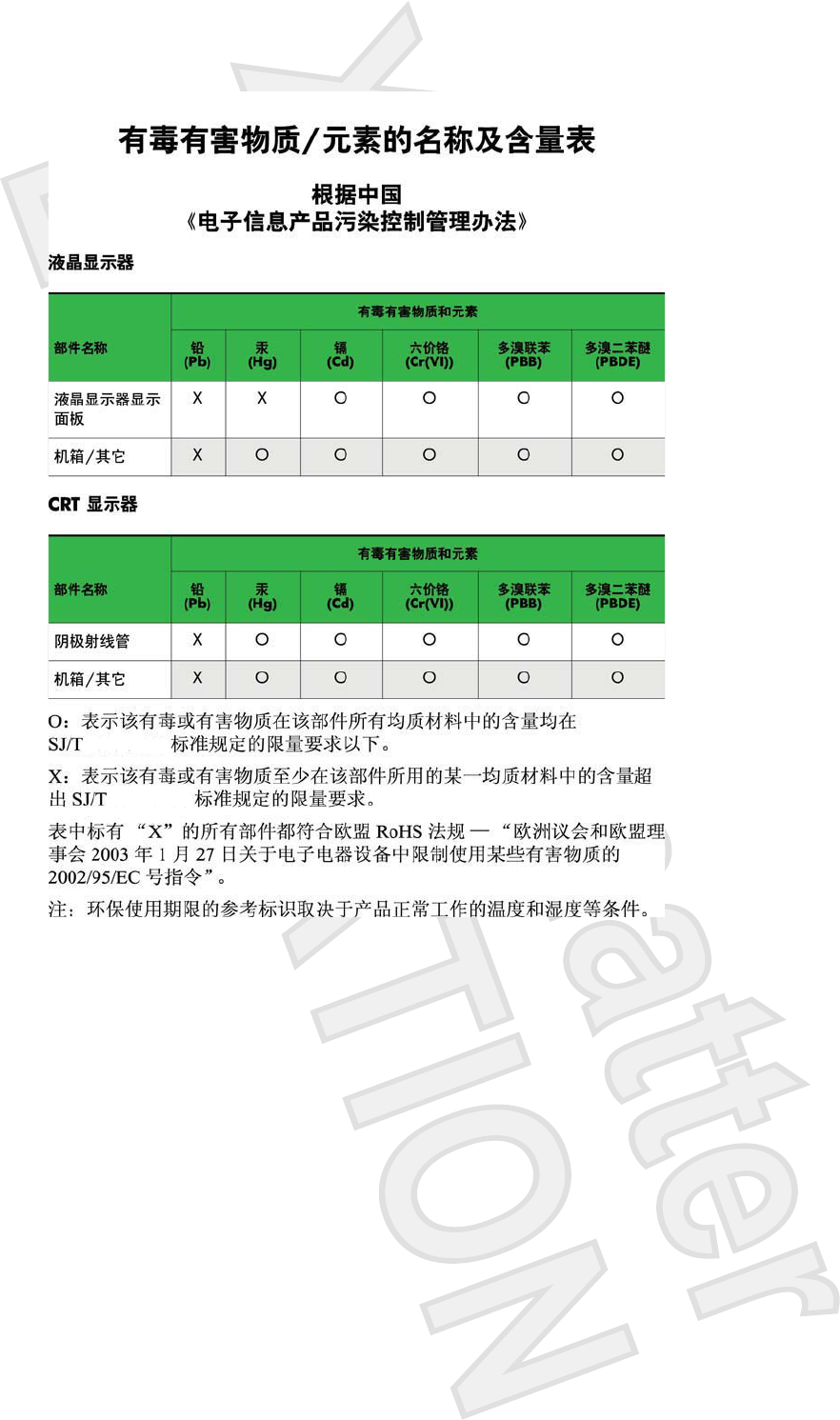

Restriction of Hazardous Substances (RoHS) ................................................................... 66
ENWW vii
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
1 Product Features
HP LD4200 Model
The HP LD4200 LCD digital signage monitor has a wide aspect active matrix thin-film transistor (TFT)
panel. The monitor features:
ł106.7 cm (42-inch) widescreen diagonal viewable area display with 1920 x 1080 native resolution
łWide viewing angle up to 178° horizontal and 178° vertical
łLandscape or portrait wall mounting position
łRemote control with AAA type batteries
łVideo signal inputs to support HDMI and VGA analog with VGA cable provided
łVideo inputs support HDMI, composite, S-video and RS232 signal inputs
łPicture mode, tile mode, color temperature, aspect ratio, audio modes, auto volume, on/off timer,
key lock, ISM method and auto config user controls
łPC sound jack, audio ports and speaker ports with audio cable provided

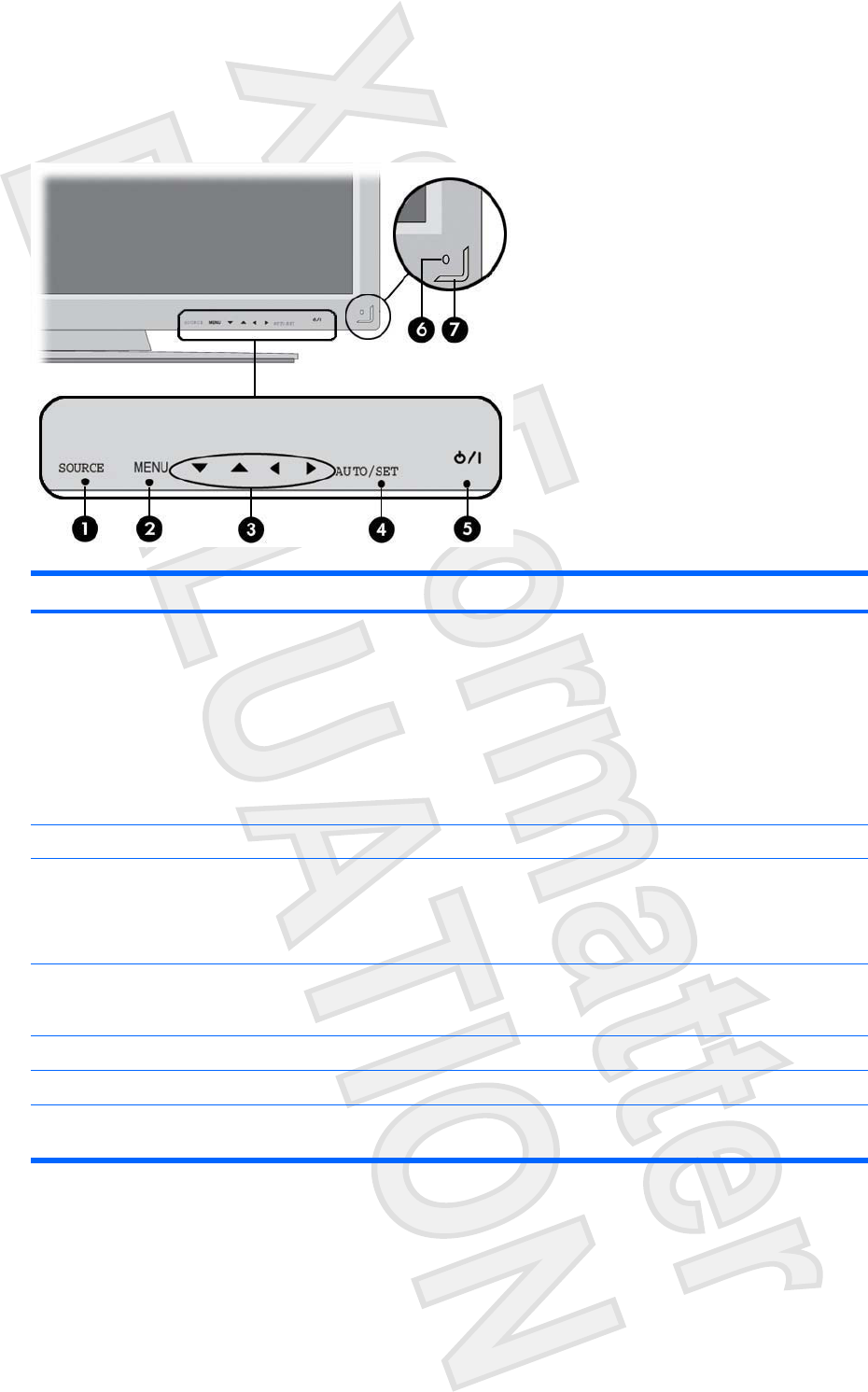

łScreen adjustment buttons on the back side of the monitor panel
łOn-screen display (OSD) menu in several languages for ease of setup and screen optimization
łPlug and play capability if supported by the system
łSecurity cable provision on rear panel to lock down the montor and help prevent theft
łSupport VESA compliant mounting interface with 600 x 400 hole pattern
łOptional stand with cable management feature to position monitor on a desktop or table
łOptional mounting speakers
łOptional Thin Client mounting adapter plate
łSoftware and documentation CD provided
ENWW HP LD4200 Model 1
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
2 Safety and Maintenance Guidelines
Important Safety Information
A power cord is included with the monitor. If another cord is used, use only a power source and
connection appropriate for this monitor. For information on the correct power cord set to use with the
monitor, refer to the Power Cord Set Requirements on page 65 in Appendix C.
WARNING! To reduce the risk of electric shock or damage to the equipment:
• Do not disable the power cord grounding feature. The grounding plug is an important safety feature.
• Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.
• Disconnect power from the product by unplugging the power cord from the electrical outlet.
For your safety, do not place anything on power cords or cables. Arrange them so that no one may
accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the electrical
outlet, grasp the cord by the plug.
To reduce the risk of serious injury, read the Safety and Comfort Guide. It describes proper workstation,
setup, posture, and health and work habits for computer users, and provides important electrical and
mechanical safety information. This guide is located on the Web at http://www.hp.com/ergo and/or on
the documentation CD, if one is included with the monitor.
CAUTION: For the protection of the monitor, as well as the computer, connect all power cords for the
computer and its peripheral devices (such as a monitor, printer, scanner) to some form of surge
protection device such as a power strip or Uninterruptible Power Supply (UPS). Not all power strips
provide surge protection; the power strips must be specifically labeled as having this ability. Use a power
strip whose manufacturer offers a Damage Replacement Policy so you can replace the equipment, if
surge protection fails.
Use the appropriate and correctly sized furniture designed to properly support your HP LCD monitor.
WARNING! LCD monitors that are inappropriately situated on dressers, bookcases, shelves, desks,
speakers, chests, or carts may fall over and cause personal injury.
Care should be taken to route all cords and cables connected to the LCD monitor so that they can not
be pulled, grabbed, or tripped over.
2 Chapter 2 Safety and Maintenance Guidelines ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Maintenance Guidelines
To enhance the performance and extend the life of the monitor:
łDo not open the monitor cabinet or attempt to service this product yourself. Adjust only those
controls that are covered in the operating instructions. If the monitor is not operating properly or
has been dropped or damaged, contact an authorized HP dealer, reseller, or service provider.
łUse only a power source and connection appropriate for this monitor, as indicated on the label/
back plate of the monitor.
łBe sure the total ampere rating of the products connected to the outlet does not exceed the current
rating of the electrical outlet, and the total ampere rating of the products connected to the cord does
not exceed the rating of the cord. Look on the power label to determine the ampere rating (AMPS
or A) for each device.
łInstall the monitor near an outlet that you can easily reach. Disconnect the monitor by grasping the
plug firmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.
łTurn the monitor off when not in use. You can substantially increase the life expectancy of the
monitor by using a screen saver program and turning off the monitor when not in use.
łSlots and openings in the cabinet are provided for ventilation. These openings must not be blocked
or covered. Never push objects of any kind into cabinet slots or other openings.
łDo not drop the monitor or place it on an unstable surface.
łDo not allow anything to rest on the power cord. Do not walk on the cord.
łKeep the monitor in a well-ventilated area, away from excessive light, heat or moisture.
łWhen removing the monitor base, you must lay the monitor face down on a soft area to prevent it
from getting scratched, defaced, or broken.
Cleaning the Monitor
1. Turn off the monitor and the computer.
2. Unplug the monitor from the wall outlet.
3. Clean the monitor plastics with a clean cloth dampened with water.
4. Clean the monitor screen with an antistatic screen cleaner.
CAUTION: Do not use benzene, thinner, ammonia, or any other volatile substances to clean the
monitor or the screen. These chemicals may damage the cabinet finish as well as the screen.
Shipping the Monitor
Keep the original packing box in a storage area. You may need it later if you move or ship the monitor.
ENWW Maintenance Guidelines 3
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
3 Setting Up the Monitor
To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other
attached devices, then follow the instructions below.
Installing the Stand (Select Models)
1. Remove the six M4 x 12mm screws (1), monitor stand (2) and cable management clip (3) from the
box.
Figure 3-1 Stand Accessory Contents
2. Place a soft cloth on the table and place the product with the screen facing downward. Connect
the stand as shown in the following illustration.
Figure 3-2 Sliding the Stand Onto the Monitor
4 Chapter 3 Setting Up the Monitor ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
3. Use the screws to secure the stand to the rear side of the product.
Figure 3-3 Securing the Stand to the Monitor
Connecting the Speakers (Select Models)
1. Mount the speakers onto the product.
Figure 3-4 Mounting the Speakers
2. Use the four Taptite D3 x 12mm screws to secure the speakers to the monitor.
Figure 3-5 Securing the Speakers to the Monitor
ENWW Connecting the Speakers (Select Models) 5
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
3. After installing the speakers, use the cable holders and cable ties (available on select models) to
organize the speaker cables.
Figure 3-6 Using the Cable Holders (Feature Available on Select Models)
Figure 3-7 Using the Cable Ties (Feature Available on Select Models)
6 Chapter 3 Setting Up the Monitor ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
4. After installing the speakers, connect the input terminal with a proper color match.
Figure 3-8 Connecting to the Input Terminal
Rotating to the Portrait Position (Select Models)
When installing the monitor in the portrait position, rotate it clockwise based on its front. The monitor
can be rotated in only one direction.
NOTE: The monitor cannot be rotated if it is installed on the stand.
Figure 3-9 Installing Portrait
ENWW Rotating to the Portrait Position (Select Models) 7
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using the Remote Control
Inserting the Batteries
1. Slide off the battery cover.
2. Insert the batteries with correct polarity (+/-).
3. Close the battery cover.
NOTE: Dispose of used batteries in the recycle bin to prevent environmental pollution.
Figure 3-10 Inserting Batteries
8 Chapter 3 Setting Up the Monitor ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Identifying Remote Control Buttons
Figure 3-11 Remote Control Buttons
Component Function
1AV Toggles through video: AV > Component1 > Component2 > RGB PC > HDMI/DVI
2Sleep When watching AV,RGB PC,HDMI/DVI,Component1,Component2, the product will be
automatically turned off after a certain period of time. Press the button repetitively to select an
appropriate time duration.
3PSM Toggles through present video settings.
4Menu Opens the menu selection.
5Up and Down Provides up and down direction adjustment.
6Mute Turns off sound.
7Power Turns the monitor on and off.
8Input Select Selects the video signal input. If you press the button once, the input signal window will open.
Select the signal input type you want using the up or down button.
9ARC Aspect Ratio Correction. Toggles through aspect ratio options.
10 Auto Automatic adjustment function (operational for the analog signal only).
ENWW Using the Remote Control 9
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Component Function
11 Exit Exits the menu.
12 Volume Adjusts the sound up and down.
13 Set (Check) Press to select a menu item or save changes.
Identifying Rear Components
Figure 3-12 Rear Components (The product image in the user guide could be different from the actual
image)
Component Function
1Power connector Connects the AC power cord to the monitor
2RS-232C serial ports Connects to RS-232 devices
3RGB PC, HDMI/DVI Ports HDMI supports High Definition input and HDCP (High-bandwidth Digital Content
Protection). Some devices require HDCP in order to display HD signals
4PC Sound Jack Connects the audio cable to the line-out jack of the PC sound card
5Wired Remote Control Port Connects a wired remote control to the monitor
6AV Ports Connects the video and audio equipment to the monitor
7 Speaker Ports Connects the speakers to the monitor
NOTE: The line-out terminal is used to connect to the speaker, including a built-in amplifier (AMP). Be
sure the connecting terminal of the PC sound card is checked before connecting. If the Audio Out of the
PC sound card has only Speaker Out, reduce the PC volume. If the Audio Out of the PC sound card
supports both Speaker Out and Line Out, convert to Line Out using the card jumper of the program.
Refer to the manual that comes with the sound card for additional instructions.
10 Chapter 3 Setting Up the Monitor ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Connecting to External Devices
Connecting to the Computer
1. Be sure the monitor, computer and all attached devices are turned off.
2. Connect the signal input cable:
a. For analog operation, connect the VGA (D-sub) signal cable to the RGB IN (1) connector on
the rear of the monitor and the other end to the VGA connector (2) on the computer.
NOTE: If connecting to a Mac computer, use the standard Macintosh adapter (3).
Figure 3-13 Connecting the VGA Signal Cable
b. For digital operation, connect the HDMI to DVI signal cable (not included) to the HDMI/DVI
(1) connector on the rear of the monitor and the other end to the DVI connector (2) on the
computer.
NOTE: Use shielded signal interface cables with ferrite cores to maintain standard
compliance for this product.
Figure 3-14 Connecting the HDMI to DVI Signal Cable
3. Connect the audio cable (provided) to the Audio (RGB/DVI) (1) connector on the rear of the monitor
and the other end to the line out jack (2) on the computer.
Figure 3-15 Connecting the Audio Cable
ENWW Connecting to External Devices 11
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
4. Connect the AC power cord to the power connector (1) on the rear of the monitor and the other
end to an electrical outlet (2).
WARNING! To reduce the risk of electric shock or damage to the equipment:
• Do not disable the power cord grounding feature. The grounding plug is an important safety
feature.
• Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.
• Disconnect power from the product by unplugging the power cord from the electrical outlet.
For your safety, do not place anything on power cords or cables. Arrange them so that no one may
accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the
electrical outlet, grasp the cord by the plug.
To reduce the risk of serious injury, read the Safety and Comfort Guide. It describes proper
workstation, setup, posture, and health and work habits for computer users, and provides important
electrical and mechanical safety information. This guide is located on the Web at
http://www.hp.com/ergo and/or on the documentation CD, if one is included with the monitor.
Figure 3-16 Connecting the Power Cord
5. Turn on power to the monitor by pressing the front panel power button.
Figure 3-17 Front Panel Power Button
6. Turn on the computer.
7. Select an input signal.
12 Chapter 3 Setting Up the Monitor ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Press the INPUT button on the remote control to select the input signal. Press the SET button to
save your change.
Or, press the SOURCE button on the back side of the monitor panel. Press the AUTO/SET button
to save your change.
a. When connecting with a VGA signal input cable, select the RGB PC from the Input menu.
b. When connecting with a HDMI to DVI signal input cable, select HDMI/DVI from the Input menu.
NOTE: If connecting two monitors, connect the signal cables (HDMI to DVI and VGA) to each
computer. Press the INPUT button on the remote control to select the computer use.
CAUTION: Burn-in damage may occur on monitors that display the same static image on the screen
for a prolonged period of time (12 consecutive hours of non-use). To avoid burn-in image damage on
the monitor screen, you should always activate a screen saver application or turn off the monitor when
it is not in use for a prolonged period of time or cycle between 5 minutes of static information and 10
seconds of a moving image. Image retention is a condition that may occur on all LCD screens. Screen
burn-in is not covered under the HP warranty.
Connecting Daisy Chain Monitors
Use this function when displaying analog RGB inputs of a computer to the other product.
To use different products connected to each other, connect one end of the signal input cable (15-pin D-
Sub VGA signal cable) to the RGB Out connector of product 1 and connect the other end of the RGB
In connector of other products.
Figure 3-18 Connecting Several Monitors to the Computer
VESA Mounting Support
This product supports a VESA FDMI compliant mounting interface. On the rear of the monitor are four
VESA mounting holes that allow you to install a mounting device to the monitor. The mounting devices
are purchased separately and not available from HP. Refer to the instructions included with the mount
for additional information.
ENWW Connecting to External Devices 13
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
A security cable provision is available on the rear of the monitor to help prevent theft. The cable and
lock are available separate and can be purchased from HP.
Figure 3-19 VESA Mounting Holes
Connecting Video Input
1. Connect the video cable (not included) as shown in the following illustration, and then connect the
power cable.
a. When connecting with a BNC cable (1), connect the input terminal to the monitor and VCR/
DVD receiver.
b. When connecting with an S-Video cable (2), connect the S-Video input terminal to the monitor
and VCR/DVD receiver to watch high image quality movies.
Figure 3-20 Connecting with the BNC and Audio Cables to VCR/DVD Receiver
2. Select an input signal.
14 Chapter 3 Setting Up the Monitor ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Press the INPUT button on the remote control to select the input signal. Press the SET button to
save your change.
Or, press the SOURCE button on the back side of the monitor panel. Press the AUTO/SET button
to save your change.
a. When connecting with a BNC cable, select AV from the Input menu.
b. When connecting with an S-Video cable, select AV from the Input menu.
NOTE: When the BNC cable is connected simultaneously with S-Video cable, the S-Video input
has a priority.
Connecting Component Input (480p/720p/1080p/1080i/480i)
1. Connect the video/audio cable (not included) as shown in the following illustration, and then
connect the power cord. Connect the Component1 (1) or Component2 (2) input terminal to the
monitor and HDTV receiver.
Figure 3-21 Connecting the BNC and Audio Cables to HDTV Receiver
NOTE: Some devices may require HDCP in order to display HD signals. Component does not
support HDCP.
2. Select an input signal.
Press the INPUT button on the remote control to select the input signal. Press the SET button to
save your change.
Or, press the SOURCE button on the back side of the monitor panel. Press the AUTO/SET button
to save your change.
a. Select Component1 from the Input menu.
b. Select Component2 from the Input menu.
ENWW Connecting to External Devices 15
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Connecting HDMI Input (480p/720p/1080i/1080p)
HDMI supports High Definition Input and HDCP (High-bandwidth Digital Content Protection). Some
devices require HDCP in order to display HD signals.
1. Connect the video/audio cable (not included) as shown in the following illustration, and then
connect the power cord.
(1) Connect an HDMI to DVI signal cable and RCA-PC audio cable to the monitor and VCR/DVD/
Set-top box
(2) Connecting an HDMI signal cable to the monitor and DVR/DVD/Set-top box
Figure 3-22 Connecting HDMI Input to VCR/DVD/Set-Top Box
2. Select an input signal.
Press the INPUT button on the remote control to select the input signal. Press the SET button to
save your change.
Or, press the SOURCE button on the back side of the monitor panel. Press the AUTO/SET button
to save your change.
When connecting with an HDMI to DVI signal cable or HDMI signal input cable, select HDMI/DVI
from the Input menu.
16 Chapter 3 Setting Up the Monitor ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Watching AV Outputs
When using AV input, you can connect the AV Out to other monitors. Connect the BNC cable (1) and
audio cable (2) to the video/TV (3) and to the monitor (4).
Figure 3-23 Connecting AV Out
ENWW Connecting to External Devices 17
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
4 Operating the Monitor
Software and Utilities
The CD that comes with the monitor contains files that you can install on the computer to enhance the
performance of the monitor.
łHP monitor driver software, which automatically detects the computer's Microsoft Operating
System and installs the corresponding .INF (Information) and .ICM (Image Color Matching) driver
files that are used to configure the HP monitor
łAuto-adjustment pattern utility to optimize the display
PDF Complete is supplied on this CD and can be installed from the menu.
NOTE: If the monitor does not include a CD, the .INF and .ICM files can be downloaded from the HP
monitors support Web site. See Downloading from the Worldwide Web on page 19 in this chapter.
The Information File
The setup information, or .INF file, defines monitor resources used by Microsoft Windows operating
systems to ensure monitor compatibility with the computer’s graphics adapter.
The Image Color Matching File
The image color matching, or .ICM file, is a color data file that is used in conjunction with graphics
applications to provide consistent color matching from monitor screen to printer, or from scanner to the
monitor screen. The .ICM file is only activated from within the graphics applications that support this
feature.
18 Chapter 4 Operating the Monitor ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Installing the .INF and .ICM Files
After you determine that you need to update, you can install the .INF and .ICM files from the CD or
download them.
Installing from the CD
To install the .INF and .ICM files on the computer from the CD:
1. Insert the CD in the computer CD-ROM drive. The CD menu is displayed.
2. View the Monitor Driver Software Readme file.
3. Select Install Monitor Driver Software.
4. Follow the on-screen instructions.
5. Ensure that the proper resolution and refresh rates appear in the Windows Display control panel.
NOTE: You may need to install the digitally signed monitor .INF and .ICM files manually from the CD
in the event of an installation error. Refer to the Monitor Driver Software Readme file on the CD.
Downloading from the Worldwide Web
To download the latest version of .INF and .ICM files from the HP monitors support Web site:
1. Refer to http://www.hp.com/support and select the country region.
2. Follow the links for the monitor to the support page and download page.
3. Ensure the system meets the requirements.
4. Download the software by following the instructions.
ENWW Installing the .INF and .ICM Files 19
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Screen Adjustment Options
Figure 4-1 Front Panel Controls
Component Function
1Source Toggles between video inputs:
łAV - Composite Video, S-Video
łComponent1 - HDTV, DVD
łComponent2 - HDTV, DVD
łRGB PC - VGA or 15-pin D-Sub analog signal
łHDMI/DVI - Digital signal
2Menu Opens or closes the OSD (On-screen Display) menu screen.
3OSD Select/Adjust buttons Selects an OSD menu icon or adjusts the settings in the OSD screen.
źŸ Adjusts up and down
ŻŹ Adjusts the volume
4Auto/Set When OSD window is closed, activates the auto adjustment feature to optimize the
screen image. When OSD window is open, press to select a menu item or save
changes.
5Power Press to turn on the power. Press again to turn it off.
6IR Receiver Receives signals from the remote control.
7 Power Indicator Lights up blue when the display operates normally (on mode). If the display is in
sleep (Energy Saving) mode, the indicator color changes to amber.
20 Chapter 4 Operating the Monitor ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using the Auto-Adjustment Function
You can optimize the screen performance for the VGA (analog) input by using the Auto/Set button on
the monitor (AUTO button on the remote control) and the auto-adjustment pattern software utility on the
CD provided.
Do not use this procedure if the monitor is using an HDMI to DVI input. If the monitor is using a VGA
(analog) input, this procedure can correct the following image quality conditions:
łFuzzy or unclear focus
łGhosting, streaking or shadowing effects
łFaint vertical bars
łThin, horizontal scrolling lines
łAn off-center picture
To use the auto-adjustment feature:
1. Allow the monitor to warm up for 20 minutes before adjusting.
2. Press the Auto/Set button on the back side of the monitor panel.
If the result is not satisfactory, continue with the procedure.
3. Insert the CD in the disc drive. The CD menu is displayed.
4. Select Open Auto-Adjustment Software. The setup test pattern is displayed.
5. Press the Auto/Set button on the back side of the monitor panel to produce a stable, centered
image.
6. Press the ESC key or any other key on the keyboard to exit the test pattern.
ENWW Screen Adjustment Options 21
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Using the On-Screen Display Menu
The monitor settings can be adjusted from the On-Screen Display (OSD) menu.
Icon Main Menu Function Description
Picture Adjusts screen brightness, contrast and color
Audio Adjusts the audio options
Time Adjusts the timer options
Option Adjusts the screen status according to the circumstances
Information Adjusts Set ID and check serial number and software version
Using the Remote Control to Adjust the OSD
Use the OSD to adjust the screen image based on your viewing preferences. To access the OSD, do
the following:
1. If the monitor is not already on, press the power button to turn on the monitor.
2. Press the MENU button (1) on the remote control.
3. To access a control, use the źŸ buttons (2).
4. When the icon you want becomes highlighted, press the SET button (3).
5. Use the źŸŻŹ buttons (4) to adjust the item to the desired level.
6. Accept the changes by pressing the SET (5) button.
7. Exit the OSD menu by pressing the EXIT button (6).
22 Chapter 4 Operating the Monitor ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
OSD Menu Selections
The following table lists the On-Screen Display (OSD) menu selections and their functional descriptions.
Icon Main Menu Submenu Description
Picture Picture Mode Selects your screen presets. Toggle between:
łVivid - select to display with a sharp image.
łStandard - the most general and natural screen display
status.
łCinema - lowers brightness by one level.
łSport - displays with a soft image.
łGame - to enjoy dynamic image when playing a game.
łUser 1, 2 - allows the user defined settings:
ŃBacklight: controls the brightness of the screen,
adjust the brightness of the LCD panel.
ŃContrast: adjusts the difference between the light and
dark levels.
ŃColor: adjusts the color to desired level.
ŃSharpness: adjusts the clearness of the screen.
Ń
Tint: adjusts the tint to a desired level.
ŃExpert: compensates for each image mode, or adjust
image values according to a particular image (applies
only to User 2 menu.)
NOTE: If the Picture Mode setting in the Picture menu is set
to Vivid,Standard,Cinema,Sport or Game, the subsequent
menus will be automatically set
Color Temperature Selects color settings:
łCool - slightly bluish white.
łMedium - slightly purplish white.
łWarm - slightly reddish white.
łUser - select this option to use the user-defined settings
and set your own colors levels:
ŃRed
ŃGreen
ŃBlue
ENWW Using the On-Screen Display Menu 23
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Icon Main Menu Submenu Description
Advanced Selects the following screen color adjustment settings:
łGamma - set your own gamma value. On the monitor, high
gamma values display whitish images and low gamma
values display high contrast images.
łFilm Mode - function works in the following mode: AV,
Component 480i. When you watch a movie, this function
adjusts the set to the best picture appearance.
łBlack Level - function works in the following mode: AV
(NTSC), HDMI/DVI adjusts the contrast and the brightness
of the screen using the black level of the screen.
łNR - removing the noise up to the point where it does not
damage the original picture.
Aspect Ratio Selects the image size of the screen to:
ł16:9 - widescreen mode.
łJust Scan - allows you to enjoy the transmitted data fully
without any images cut off. (This menu is activated only in
720p, 1080p and 1080i in Component mode.)
łOriginal - the aspect ratio is not adjusted from the original.
It is set by the program being watched.
ł4:3 - the picture format is 4:3 aspect ratio.
ł1:1 - the aspect ratio is not adjusted from the original. Used
in PC mode. (Only HDMI/DVI PC, RGB PC)
ł14:9 - programs are viewed normally in 14:9 with black bars
added to the top and bottom. The 4:3 programs are
magnified on the top/bottom and left/right sides.
łZoom1,2 - 4:3 programs are magnified until they fill the 16:9
screen. The top and bottom will be cut off.
Picture Reset Returns the Picture Mode, Color Temperature, and Advance
menu settings to the default factory settings.
Screen Adjusts the screen video to:
łAuto config (RGB PC Input only): This button is for the
automatic adjustment of the screen position, clock and
phase. This function is available for analog signals only.
łManual Config: If the picture isn’t clear after auto
adjustment and characters are still trembling, adjust the
picture phase manually using the following functions:
ŃClock - minimizes any vertical bars or strips visible on
the screen background. The horizontal screen size
will also change. This function is available for analog
signals only. The clock function is not available in
Component, HDMI/DVI/AV.
ŃPhase - adjusts the focus of the display. This item
allows you to move any horizontal noise and clear or
sharpen the image of characters. This function is
available for analog signals only. The phase function
is not available in Component, HDMI/DVI/AV.
24 Chapter 4 Operating the Monitor ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Icon Main Menu Submenu Description
ŃH-Position - moves the screen position horizontally.
ŃV-Position - moves the screen position vertically.
ŃH-Size - adjusts the horizontal size of the screen.
ŃV-Size - adjusts the vertical size of the screen.
XGA Mode (RGB-PC only) - provides improved or better picture
quality, select the same mode corresponding to computer
resolution.
Reset: returns Manual Config to the default factory settings.
Audio Sound Mode Automatically selects the best sound tone quality depending on
the video type that you’re currently watching:
łClear Voice - differentiates the human sound from others
and helps users listen to human voices better.
łStandard - most commanding and natural audio.
łMusic - select the option to enjoy the original sound when
listening to the music.
łCinema - select this option to enjoy sublime sound.
łSport - select this option to watch sports broadcasting.
łGame - select this option to enjoy dynamic sound when
playing a game.
łUser - select this option to use the user-defined audio
settings.
NOTE: When connected to a computer and the Sound
Mode setting, the audio menu is Clear Voice,Standard
Music,Cinema or Sport. The available menus are Balance,
Auto Volume,Speaker.
Auto Volume Adjusts uneven sound volumes across all channels or signals
automatically to the most appropriate level. To use this feature
select On.
Balance Use this function to balance sound from the left and right
speakers.
Speaker Adjusts internal speaker status.If you want to use an external hi-
fi stereo system, turn off the internal speakers of the set.
Time Clock Resets the clock if the current time is incorrect.
On/Off Timer The time off automatically switches the set to standby at the pre-
set time.
Sleep Time Automatically turns off power when the time set by a user is
passed.
Auto Sleep If active and there is no input signal, the set switches to off mode
automatically after 10 minutes.
Power On Delay When connecting multiple monitors and turning the power on,
the monitors are turned on individually to prevent overload.
ENWW Using the On-Screen Display Menu 25
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Icon Main Menu Submenu Description
Option Language Selects the language in which the OSD menu is displayed.
Key Lock Sets up the monitor so that it can only be used with the remote
control. This feature can prevent unauthorized viewing.
ISM Method Avoids allowing a fixed or burn-in image to remain on the screen
for a long period of time.
Power Indicator Sets the power indicator on the front of the monitor to On or Off.
Logo Light Sets the Logo light on the front of the monitor to On or Off.
DPM (Display
Power
Management)
Select
Turns the power saving mode on or off.
Tile Mode Enlarges the screen and is also used with several products to
view the screen. To use this function, it:
łmust be displayed with several other products.
łmust be in a function that can be connected to RS232C or
RGB Out.
Information Set ID Assigns a unique Set ID number (name assignment) to each
product when several products are connected for display.
Specify the number (1 ~ 99) using the up and down buttons and
exit. Use the assigned Set ID to individually control each product
using the Product Control Program.
Serial No Displays the serial numbers of the product.
SW Version Displays the software version.
Selecting An Aspect Ratio Mode
The aspect ratio modes available for your selection depends on the current input source. Use the
following table to determine which mode is available for your monitor.
ARC \ Mode AV Component HDMI/DVI RGB
DTV PC PC
16:9 X X X X X
Just Scan X X
Original X
4:3 X X X X X
1:1 X X
14:9 X
Zoom1 X
Zoom2 X
26 Chapter 4 Operating the Monitor ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Adjusting the Timer Function
Use the remote control to set the following timer options.
Clock
The Clock menu allows you to reset the clock manually if the current time is incorrect. To reset the clock:
1. Press the MENU button and then use źŸ buttons to select the Time menu.
2. Press the Ź button and then use źŸ buttons to select the Clock menu.
3. Press the Ź button and then use źŸ buttons to set the hour (00~23).
4. Press the Ź button and then use źŸ buttons to set the minutes (00~59).
On/Off Timer
The on/off timer menu lets you set the monitor to automatically switch to standby at a pre-set time:
1. Press the MENU button and then use źŸ buttons to select the Time menu.
2. Press the Ź button and then use źŸ buttons to select On/Off Timer.
3. Press the Ź button and then use źŸ buttons to set the hour (00~23).
4. Press the Ź button and then use źŸ buttons to set the minutes (00~59).
5. Press the Ź button and then use źŸ buttons to select On or Off.
Sleep Time
The sleep time menu lets you set the monitor power to automatically turn off when the time set by a user
is passed.
1. Press the MENU button and then use źŸ buttons to select the Sleep Time menu.
2. Press the Ź button and then use źŸ buttons to set the hour (00~23).
3. Press the Ź button and then use źŸ buttons to set the minutes (00~59).
Auto Sleep
To set the monitor to switch to the off mode automatically after 10 minutes if Auto Sleep is active and
there is no input signal:
1. Press the MENU button and then use źŸ buttons to select the Auto Sleep menu.
2. Press the Ź button and then use źŸ buttons to select On or Off.
NOTE: In the event of a power interruption (disconnection or power failure), the Sleep Time clock must
be reset.
NOTE: Once the On or Off time is set, these functions operate daily at the preset time. Off time function
overrides On time function if they are set to the same time. When On time is operated, input screen is
turned on as it was turned off.
ENWW Using the On-Screen Display Menu 27
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Selecting Options
Using the Key Lock
The monitor can be set up so you can only use the remote control. To lock or unlock the OSD screen
adjustment:
1. Open the OSD menu and select Option.
2. Select Key Lock from the menu list.
3. To lock the OSD screen adjustment, set the Key Lock tab to the ON position.
4. To unlock the OSD screen adjustment, press the MENU button on the remote control and set the
Key Lock tab to the Off position.
Using the ISM Method Option
A frozen or still picture from a PC/Video game that is displayed on the screen for a prolonged period of
time could result in a ghost image remaining even when you change the image. To avoid a fixed or burn-
in image to remain on the screen for a long period of time:
1. Open the OSD menu and select Option.
2. Select ISM Method from the menu list.
3. Select one of the following menu options:
łNormal - leave on normal if you don’t foresee image burn-in being a problem.
łWhite wash - white wash fills the screen with solid white. This helps removes permanent
images burned into the screen. A permanent image may be impossible to clear entirely with
white wash.
łOrbiter - may help prevent ghost images. However, it is best not to allow any fixed image to
remain on the screen. To avoid a permanent image on the screen, the screen will move every
2 minutes.
łInversion - this function inverts the panel color of the screen. The panel color is automatically
inverted every 30 minutes.
łDot Wash - this function moves the black dots of the screen. The black dots are automatically
moved every 5 second.
Using the Tile Mode
Tile Mode is used to enlarge the screen and also used with several products to view the screen. This
function must be displayed with various other products and connected to RS-232C or RGB Out.
Tile mode allows you to:
łChoose tile alignment and set the ID of the current product to set location
łSet column by row (r = 1, 2, 3, 4, 5; c = 1, 2, 3, 4, 5) up to 5 x 5
łConfigure an integration screen as well as configure one by one display
NOTE: Adjustments made to the settings will be saved only after pressing the SET button on the
remote control.
28 Chapter 4 Operating the Monitor ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
A Troubleshooting
Solving Common Problems
The following table lists possible problems, the possible cause of each problem, and the recommended
solutions.
Problem Possible Cause Solution
No image is displayed. Power cord not connected. Be sure the power cord is properly
connected to the outlet.
łVerify that the outlet has power to it.
łCheck that the fuse or breaker has
not tripped or burned out.
See if the power switch is turned on.
May need service.
Power is on, power indicator is blue, but
the screen appears extremely dark.
Screen needs adjustments Adjust brightness and contrast again.
Backlight may need repair.
Power indicator is amber. Monitor in power saving mode. Move the mouse or press any key on the
keyboard.
Turn off equipment and then back on.
Out of Range message appears. Input signal is out of frequency range. The signal from the PC (video card) is out
of the vertical or horizontal frequency
range of the monitor. Adjust the
frequency range by referring to the
specifications in this manual (maximum
resolution: RGB - 1920 x 1080 @ 60Hz;
HDMI - 1920 x 1080 @ 60Hz.
NOTE: Vertical Frequency - to enable
the user to watch the monitor display,
screen image should be changed tens of
times every second like a fluorescent
lamp. The vertical frequency or refresh
rate is the times of image display per
second. The unit is measured in Hz.
Horizontal Frequency - the horizontal
interval is the time to display one vertical
line. When 1 is divided by the horizontal
interval, the number of horizontal lines
displayed every second can be tabulated
as the horizontal frequency. The unit is
measured in kHz.
ENWW Solving Common Problems 31
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Problem Possible Cause Solution
Check signal cable message appears. Signal cable is not connected. The signal cable between the PC and
monitor is not connected.
Check the signal cable.
Press the INPUT button on the remote
control to check the input signal.
“Unknown Product” message appears
when the monitor is connected.
Monitor driver is not installed. Install the monitor driver, which is
provided with the monitor or download
from the HP Web site
(http://www.hp.com).
See if the plug & play function is
supported by referring to the video card’s
user manual.
“Key Lock On” message appears when
pressing the Menu button.
Key Lock function is turned on. The control locking function prevents
unintentional OSD setting change due to
careless usage. To unlock the controls,
simultaneously press the Menu button
and Ź button for several seconds. (You
cannot set this function using the remote
control buttons. You can set this function
in the monitor only.)
The screen looks abnormal; screen
position is wrong.
Screen is out of adjustment. D-sub analog signal - press the AUTO
button on the remote control to
automatically select the optimal screen
status that fits into the current mode. If
the adjustment is not satisfactory, use
the Position OSD menu.
Check that the video card resolution and
frequency are supported by the monitor.
If the frequency is out of range, set to the
recommended resolution in the Control
Panel > Display > Setting menu of the
operating system.
Lines appear on the background screen. Screen is out of adjustment. D-sub analog signal - press the AUTO
button on the remote control to
automatically select the optimal screen
status that fits into the current mode. If
the adjustment is not satisfactory, use
the Clock OSD menu.
Horizontal noise appears or the
characters look blurred.
Screen is out of adjustment. D-sub analog signal - press the AUTO
button on the remote control to
automatically select the optimal screen
status that fits into the current mode. If
the adjustment is not satisfactory, use
the Phase OSD menu.
The screen displays abnormally. Using an incorrect Input signal. The proper input signal is not connected
to the signal port. Connect the signal
cable that matches with the source input
signal.
An after image appears when the
monitor is turned off.
Using a fixed image too long. If you used a fixed image for a long time,
the pixels may be damaged. Use a
screen-saver function.
32 Appendix A Troubleshooting ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Problem Possible Cause Solution
No sound. Audio cable not connected. Check that the audio cable is properly
connected. Adjust the volume. Check if
the sound is set properly.
Sound is too dull. Equalizer is not balanced. Select the appropriate equalize sound.
Sound is too low. Sound needs adjusting. Adjust the volume by pressing the
volume buttons on the remote control.
Screen has poor color resolution (16
colors).
Color is not set correctly. Set the number of colors to more than 24
bits (true color). Select Control Panel >
Display > Settings > Color table menu in
the operating system.
Screen color is unstable or monocolored. Signal cable or video card connection is
loose.
Check the connection status of the signal
cable or reinsert the PC video card.
Black spots appear on the screen. Characteristics of the LCD panel. Several pixels (red, green, white or black
color) may appear on the screen, which
can be attributable to the unique
characteristics of the LCD panel. It is not
a malfunction of the LCD.
The power suddenly turned off. Sleep timer setting turned on or power
interrupted.
Check that the sleep timer is set.
Check the power control settings.
If power is turned off after the message,
“CAUTION! FAN ERROR!” appears, the
fan is out of order. Contact your local
service center.
Using the Worldwide Web
For the online access to technical support information, self-solve tools, online assistance, community
forums of IT experts, broad mutlivendor knowledge base, monitoring and diagnostic tools, go to
http://www.hp.com/support
Preparing to Call Technical Support
If you can not solve a problem using the troubleshooting tips in this section, you may need to call
technical support. Contact your regional HP authorized service provider. Have the following information
available when you call:
łMonitor model number
łSerial number for the monitor
łPurchase date on invoice
łConditions under which the problem occurred
łError messages received
łHardware configuration
łHardware and software you are using
ENWW Using the Worldwide Web 33
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
B Technical Specifications
NOTE: All performance specifications are provided by the component manufacturers. Performance
specifications represent the highest specification of all HP's component manufacturers' typical level
specifications for performance and actual performance may vary either higher or lower.
HP LD4200 LCD Monitor
Table B-1 HP LD4200 Specifications
Display
Type
106.73 cm
TFT LCD
42 inches
Viewable Image Size 106.73 cm diagonal 42-inch diagonal
Pixel Pitch 0.681 mm x 0.681 mm
Maximum Weight
Without Stand & Speaker
With Speaker
With Stand
With Stand & Speaker
21.2 kg
21.9 kg
24.5 kg
25.3 kg
46.7 lbs.
48.3 lbs.
54.0 lbs.
55.7 lbs.
Dimensions (Without Stand & Speaker)
Height
Depth
Width
58.76 cm
11.39 cm
99.56 cm
23.1 inches
4.5 inches
39.2 inches
Dimensions (With Speaker)
Height
Depth
Width
58.76 cm
12.57 cm
99.56 cm
23.1 inches
4.9 inches
39.2 inches
Dimensions (With Stand)
Height
Depth
Width
67.6 cm
29.3 cm
99.56 cm
26.6 inches
11.5 inches
39.2 inches
Dimensions (With Stand & Speaker)
34 Appendix B Technical Specifications ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Height
Depth
Width
67.6 cm
29.3 cm
99.56 cm
26.6 inches
11.5 inches
39.2 inches
Power
Rated Voltage AC 100-240V ~50/60Hz 2.2 A
Power Consumption
On Mode
Sleep Mode
Off Mode
220W Typical
1W (RGB) / 4W (HDMI/DVI)
1W
Maximum Resolution
RGB
HDMI/DVI
1920 x 1080 @ 60Hz
1920 x 1080 @ 60Hz (if supported by OS or video card type)
Recommended Resolution
RGB
HDMI/DVI
1920 x 1080 @ 60Hz
1920 x 1080 @ 60Hz (if supported by OS or video card type)
Horizontal Frequency
RGB
HDMI/DVI
30 - 83kHz
30 - 83kHz
Vertical Frequency
RGB
HDMI/DVI
56 - 76Hz
56 - 60Hz
Synchronization Type Composite/Separate/Digital
Input Connector 15-pin D-Sub type, HDMI (digital), S-Video, Composite Video,
Component, RS-232C
Environmental Conditions
Operating Temperature
Storage Temperature
0 ~ 35° C, Humidity 10% ~ 80%
-20 ~ 60° C, Humidity 5% ~ 90%
Audio (Select Models)
RMS Audio Output
Input Sensitivity
Speaker Impedance
10W + 10W (R+L)
0.7 rms
8 Ohms
Table B-1 HP LD4200 Specifications (continued)
ENWW HP LD4200 LCD Monitor 35
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Recognizing Preset Display Resolutions
The display resolutions listed below are the most commonly used modes and are set as factory defaults.
This monitor automatically recognizes these preset modes and they will appear properly sized and
centered on the screen.
HP LD4200 Preset Display Modes
Table B-2 HP LD4200 Factory Preset Display Modes
Preset Pixel Format Horz Freq (kHz) Vert Freq (Hz)
1640 x 350 31.469 70.8
2720 x 400 31.468 70.8
*3 640 x 480 31.469 59.94
4640 x 480 37.5 75
*5 800 x 600 37.879 60.317
6800 x 600 46.875 75
7832 x 624 49.725 74.55
*8 1024 x 768 48.363 60
91024 x 768 60.123 75.029
*10 1280 x 720 44.772 59.855
*11 1280 x 768 47.7 60
*12 1360 x 768 47.72 54.799
*13 1366 x 768 47.4 60
*14 1280 x 1024 63.981 60.02
15 1280 x 1024 79.98 75.02
*16 1680 x 1050 65.290 60
*17 1920 x 1080 67.5 60
1 ~17 RGB Mode
* HDMI/DVI Mode
DTV Mode
Component HDMI/DVI (DTV)
480i o x
480p o o
720p o o
1080i o o
1080p o o
36 Appendix B Technical Specifications ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
NOTE: DTV/PC selection on RGB and HDMI/DVI inputs is availabe for PC resolutions 640 x 480/60Hz,
1280 x 720/60Hz, 1920 x 1080/60Hz and DTV resolutions: 480p, 720p, 1080p.
Power Indicator
Mode Indicator Light
On Mode Blue
Sleep Mode Amber
Off Mode
ENWW Recognizing Preset Display Resolutions 37
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
C Controlling the Multiple Product
Use this method to connect several monitors to a single computer. You can control several monitors at
a time by connecting them to a single computer.
Connecting the Cable
Connect the RS-232C cable as shown in the following illustration. The RS-232C protocol is used for
communication between the computer and the monitor. You can turn the monitor on/off, select an input
source or adjust the OSD menu from the computer.
RS-232C Configurations
7-Wire Configurations
(Standard RS-232C cable)
3-Wire Configurations
(Not Standard)
PC Monitor PC Monitor
RXD 2 3 TXD RXD 2 3 TXD
TXD 3 2 RXD TXD 3 2 RXD
GND 5 5 GND GND 5 5 GND
DTR 4 6 DSR DTR 4 6 DSR
DSR 6 4 DTR DSR 6 4 DTR
RTS 7 8 CTS RTS 7 8 CTS
CTS 8 7 RTS CTS 8 7 RTS
D-Sub
(Female)
D-Sub 9
(Female)
D-Sub
(Female)
D-Sub 9
(Female)
38 Appendix C Controlling the Multiple Product ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Communication Parameter
łBaud Rate: 9600buadRate (UART)
łData Length: 8bits
łParity Bit: None
łStop Bit: 1bit
łFlow Control: None
łCommunication Code: ASCII code
łUse a crossed (reverse) cable
Command Reference List
COMMAND1 COMMAND2 DATA1 DATA2 DATA3
01. Power k a 00H -01H
02. Input Select k b 02H -09H
03. Aspect Ratio k c 01H -09H
04. Screen Mute k d 00H -01H
05. Volume Mute k e 00H -01H
06. Volume Control k f 00H -64H
07. Contrast k g 00H -64H
08. Brightness k h 00H -64H
09. Color k i 00H -64H
10. Tint k j 00H -64H
11. Sharpness k k 00H -64H
12. OSD Select k l 00H -01H
13. Remote Lock/ key Lock k m 00H -01H
14. Balance k t 00H -64H
15. Color Temperature k u 00H -03H
16. Abnormal state k z FFH
17. ISM mode j p 00H -10H
18. Auto configuratio j u 01H
19. Key m c Key Code
20. Tile Mode d d 00H -55H
21. Tile H Position d e 00H -64H
22. Tile V Position d f 00H -64H
23. Tile H Size d g 00H -64H
ENWW Command Reference List 39
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
COMMAND1 COMMAND2 DATA1 DATA2 DATA3
24. Tile V Size d h 00H -64H
25. Tile ID Set d i 00H -19H
26. Natural Mode (In Tilemode) d j 00H -01H
27. Elapsed time return d l FFH
28. Temperature value d n FFH
29. Lamp fault check d p FFH
30. Auto Volume d u 00H -01H
31. Speaker d v 00H -01H
32. Time f a 00H -06H 00H - 17H 0 - 3BH
33. On Timer (On/Off Timer) On, Off f b 00H, FFH
34. Off Timer (On/Off Timer) On, Off f c 00H, FFH
35. On Timer (On/Off Timer) Time f d 00H -07H 00H - 17H 00 - 3BH
36. Off Timer (On/Off Timer) Time f e 00H -07H 00H - 17H 00 - 3BH
37. Sleep Time f f 00H -08H
38. Auto Sleep f g 00H -01H
39. Power On Delay f h 00H -64H
40. Language f i 00H -09H
41. DPM Select f j 00H -01H
42. Reset f k 00H -02H
43. S/W Version f z FFH
44. Input Select x b 20H -A0H
Transmission / Receiving Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
*[Command 1]: First command. (k)
*[Command 2]: Second command.(a ~ u)
*[Set ID]: Set up the Set ID number of product.
range : 01H~63H. by setting '00H', server can control all products.
* In case of operating with more than 2 sets using set ID as '0' at the same time, it should not be checked
the ack message.
Because all sets will send the ack message, so it's impossible the check the whole ack messages.
40 Appendix C Controlling the Multiple Product ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
*[DATA]: To transmit command data.
Transmit 'FF' data to read status of command.
*[Cr]: Carriage Return
ASCII code ‘0x0D’
*[ ]: ASCII code Space (0x20)’
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
*The Product transmits ACK (acknowledgement) based on this format when receiving normal data. At
this time, if the data is data read mode, it indicates present status data.
If the data is data write mode, it returns the data of the PC computer.
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]
*If there is error, it returns NG
01. Power (Command : a)
To control Power On/Off of the Set.
Transmission
[k][a][ ][Set ID][ ][Data][Cr]
Data 0 : Power Off 1 : Power On
Acknowledgement
[a][ ][Set ID][ ][OK][Data][x]
To show the status of Power On/Off.
Transmission
[k][a][ ][Set ID][ ][FF][Cr]
Acknowledgement
[a][ ][Set ID][ ][OK][Data][x]
ENWW Transmission / Receiving Protocol 41
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Data 0 : Power Off 1 : Power On
02. Input Select (Command : b) (Main Picture Input)
To select input source for the Set.
You can also select an input source using the INPUT button on the remote control.
Transmission
[k][b][ ][Set ID][ ][Data][Cr]
Data 2: AV
4 : Component 1
5 : Component 2
7 : RGB (PC)
8 : HDMI (DTV)
9 : HDMI (PC)
Acknowledgement
[b][ ][Set ID][ ][OK][Data][x]
Data 2 : AV
4 : Component 1
5 : Component 2
7 : RGB (PC)
8 : HDMI (DTV)
9 : HDMI (PC)
03. Aspect Ratio (Command : c) (Main picture format)
To adjust the screen format.
You can also adjust the screen format using the ARC (Aspect Ratio Control) button on remote control
or in the Screen menu.
Transmission
[k][c][ ][Set ID][ ][Data][Cr]
Data 1 : Normal Screen (4:3)
2 : Wide Screen (16 :9)
42 Appendix C Controlling the Multiple Product ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
4 : Zoom1 (AV)
5 : Zoom2 (AV)
6 : Original (AV)
7 : 14:9 (AV)
9 : Just Scan(HD DTV), 1:1 (RGB PC, HDMI/DVI PC)
Acknowledgement
[c][ ][Set ID][ ][OK][Data][x]
04. Screen Mute (Command : d)
To select screen mute on/off.
Transmission
[k][d][ ][Set ID][ ][Data][Cr]
Data 0 : Screen mute off (Picture on)
1 : Screen mute on (Picture off)
Acknowledgement
[d][ ][Set ID][ ][OK][Data][x]
05. Volume Mute (Command : e)
To control On/Off of the Volume Mute.
Transmission
[k][e][ ][Set ID][ ][Data][Cr]
Data 0 : Volume Mute On (Volume Off)
1 : Volume Mute Off (Volume On)
Acknowledgement
[e][ ][Set ID][ ][OK][Data][x]
Data 0 : Volume Mute On (Volume Off)
1 : Volume Mute Off (Volume On)
ENWW Transmission / Receiving Protocol 43
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
06. Volume Control (Command : f)
To adjust Volume.
Transmission
[k][f][ ][Set ID][ ][Data][Cr]
Data Min : 00H ~ Max : 64H
(Hexadecimal code)
Acknowledgement
[f][ ][Set ID][ ][OK][Data][x]
Data Min : 00H ~ Max : 64H
Refer to “Real data mapping” in this appendix.
07. Contrast (Command : g)
To adjust screen contrast. You can also adjust the contrast in the Picture menu.
Transmission
[k][g][ ][Set ID][ ][Data][Cr]
Data Min : 00H ~ Max : 64H
Refer to “Real data mapping” as shown below.
Acknowledgement
[g][ ][Set ID][ ][OK][Data][x]
* Real data mapping
0 : Step 0
:
A : Step 10
:
F : Step 15
10 : Step 16
:
44 Appendix C Controlling the Multiple Product ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
64 : Step 100
08. Brightness (Command : h)
To adjust screen brightness. You can also adjust the brightness in the Picture menu.
Transmission
[k][h][ ][Set ID][ ][Data][Cr]
Data Min : 00H ~ Max : 64H
Refer to “Real data mapping” as shown below.
Acknowledgement
[h][ ][Set ID][ ][OK][Data][x]
* Real data mapping
0 : Step
:
A : Step 10
:
F : Step 15
10 : Step 16
:
64 : Step 100
09. Color (Command : i) (Video only)
To adjust the screen color. You can also adjust the color in the Picture menu.
Transmission
[k][i][ ][Set ID][ ][Data][Cr]
Data Min : 00H ~ Max : 64H (Hexadecimal code)
Refer to “Real data mapping” in the previous section of this appendix.
Acknowledgement
[i][ ][Set ID][ ][OK][Data][x]
ENWW Transmission / Receiving Protocol 45
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Data Min : 00H ~ Max : 64H
10. Tint (Command : j) (Video only)
To adjust the screen tint. You can also adjust the tint in the Picture menu.
Transmission
[k][j][ ][Set ID][ ][Data][Cr]
Data Red: 00H ~ Green: 64H (Hexadecimal code)
Refer to “Real data mapping” in the previous section of this appendix.
Acknowledgement
[j][ ][Set ID][ ][OK][Data][x]
Data Red: 00H ~ Green: 64H
* Tint Real data mapping
0 : Step -50
:
64 : Step 50
11. Sharpness (Command : k) (Video only)
To adjust the screen Sharpness. You can also adjust the sharpness in the Picture menu.
Transmission
[k][k][ ][Set ID][ ][Data][Cr]
Data Min : 00H ~ Max : 64H
(Hexadecimal code)
Refer to “Real data mapping” in the previous section of this appendix.
Acknowledgement
[k][ ][Set ID][ ][OK][Data][x]
Data Min : 00H ~ Max : 64H
12. OSD Select (Command : l)
To control OSD on/off to the set.
46 Appendix C Controlling the Multiple Product ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Data 0 : OSD Off 1 : OSD On
Acknowledgement
[l][ ][Set ID][ ][OK][Data][x]
Data 0 : OSD Off 1 : OSD On
13. Remote Lock /Key Lock (Command : m)
To control Remote Lock on/off to the set.
This function, when controlling RS-232C, locks the remote control and the local keys.
Transmission
[k][m][ ][Set ID][ ][Data][Cr]
Data 0 : Off 1 : On
Acknowledgement
[m][ ][Set ID][ ][OK][Data][x]
Data 0 : Off 1 : On
14. Balance (Command : t)
To adjust the sound balance.
Transmission
[k][t][ ][Set ID][ ][Data][Cr]
Data Min : 00H ~ Max : 64H
(Hexadecimal code)
Refer to “Real data mapping” in the previous section of the appendix
Acknowledgement
[t][ ][Set ID][ ][OK][Data][x]
ENWW Transmission / Receiving Protocol 47
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Data Min : 00H ~ Max : 64H
Balance : L50 ~ R50
15. Color Temperature (Command : u)v
To adjust the screen color temperature.
Transmission
[k][u][ ][Set ID][ ][Data][Cr]
Data 0 : Medium
1 : Cool
2 : Warm
3 : User
Acknowledgement
[u][ ][Set ID][ ][OK][Data][x]
Data 0 : Medium
1 : Cool
2 : Warm
3 : User
16. Abnomal state (Command : z)
Abnormal State : Used to Read the power off status when Stand-by mode.
Transmission
[k][z][ ][Set ID][ ][Data][Cr]
Data FF : Read
0 : Normal (Power on and signal exist)
1 : No signal (Power on)
2 : Turn the monitor off by remote control
3 : Turn the monitor off by sleep time function
4 : Turn the monitor off by RS-232C function
8 : Turn the monitor off by off time function
48 Appendix C Controlling the Multiple Product ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
9 : Turn the monitor off by auto off function
Acknowledgement
[z][ ][Set ID][ ][OK][Data][x]
17. ISM mode (Command: j p)
Used to select the afterimage preventing function.
Transmission
[j][p][ ][Set ID][ ][Data][Cr]
Data 1H : Inversion
2H : Orbiter
4H : White Wash
8H : Normal
10H : Dot Wash
Acknowledgement
[p][ ][Set ID][ ][OK][Data][x]
18. Auto Configure (Command: j u)
To adjust picture position and minimize image shaking automatically. It works only in RGB(PC) mode.
Transmission
[j][u][ ][Set ID][ ][Data][Cr]
Data 1 : To set
Acknowledgement
[u][ ][Set ID][ ][OK][Data][x]
19. Key (Command : m c)
To send IR remote key code.
Transmission
[m][c][ ][Set ID][ ][Data][Cr]
ENWW Transmission / Receiving Protocol 49
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Data Key code : Refer to page A18.
Acknowledgement
[c][ ][Set ID][ ][OK][Data][x]
20. Tile Mode (Command : d d)
Change a Tile Mode.
Transmission
[d][d][][Set ID][][Data][x]
Data Description
00 Tile mode is off.
12 1 x 2 mode(column x row)
13 1 x 3 mode
14 1 x 4 mode
... ...
55 5 x 5 mode
*The data can not be set to 0X or X0 except 00
Acknowledgement
[d][][00][][OK/NG][Data][x]
21. Tile H Position (Command : d e)
To set the Horizontal position.
Transmission
[d][e][][Set ID][][Data][x]
Data Min : 00H ~ Max : 64H
Acknowledgement
[e][][Set ID][][OK/NG][Data][x]
50 Appendix C Controlling the Multiple Product ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
22. Tile V Position (Command : d f)
To set the Vertical position.
Transmission
[d][f][][Set ID][][Data][x]
Data Min : 00H ~ Max : 64H
Acknowledgement
[f][][Set ID][][OK/NG][Data][x]
23. Tile H Size (Command : d g)
To set the Horizontal size.
Transmission
[d][g][][Set ID][][Data][x]
Data Min : 00H ~ Max : 64H
Acknowledgement
[g][][Set ID][][OK/NG][Data][x]
24. Tile V Size (Command : d h)
To set the Vertical size.
Transmission
[d][h][][Set ID][][Data][x]
Data Min : 00H ~ Max : 64H
Acknowledgement
[h][][Set ID][][OK/NG][Data][x]
25. Tile ID Set (Command : d i)
To assign the Tile ID for Tiling function.
Transmission
ENWW Transmission / Receiving Protocol 51
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
[d][i][][Set ID][][Data][x]
Data Min : 00H ~ Max : 19H
(Hexadecimal code)
Acknowledgement
[i][][Set ID][][OK/NG][Data][x]
26. Natural Mode (In Tilemode) (Command : d j)
The image is omitted by the distance between the screens to be naturally shown.
Transmission
[d][j][][Set ID][][Data][x]
Data 0 : Natural Off
1 : Natural On
ff : Read Status
Acknowledgement
[j][][Set ID][][OK/NG][Data][x]
27. Elapsed time return (Command : d l)
To read the elapsed time.
Transmission
[d][l][][Set ID][][Data][x]
* The data is always FF(in Hex).
Acknowledgement
[l][][Set ID][][OK/NG][Data][x]
* The data means used hours. (Hexadecimal code)
28. Temperature value (Command : d n)
To read the inside temperature value.
52 Appendix C Controlling the Multiple Product ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Transmission
[d][n][][Set ID][][Data][x]
* The data is always FF(in Hex).
Acknowledgement
[n][][Set ID][][OK/NG][Data][x]
* The data is 1 byte long in Hexadecimal.
29. Lamp fault Check (Command : d p)
To check lamp fault.
Transmission
[d][p][][Set ID][][Data][x]
* The data is always FF(in Hex).
Acknowledgement
[p][][Set ID][][OK/NG][Data][x]
Data 0 : Lamp Fault
1 : Lamp OK
30. Auto volume (Command : d u)
Automatically adjust the volume level.
Transmission
[d][u][][Set ID][][Data][x]
Data 0 : Off
1 : On
Acknowledgement
[u][][Set ID][][OK/NG][Data][x]
ENWW Transmission / Receiving Protocol 53
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
31. Speaker (Command : d v)
Turn the speaker on or off.
Transmission
[d][v][][Set ID][][Data][x]
Data 0 : Off
1 : On
Acknowledgement
[v][][Set ID][][OK/NG][Data][x]
32. Time (Command : f a)
Set the current time.
Transmission
[f][a][][Set ID][][Data1][][Data2][][Data3][Cr]
[Data1]
0 : Monday
1 : Tuesday
2 : Wednesday
3 : Thursday
4 : Friday
5 : Saturday
6 : Sunday
[Data2]
0H~17H (Hours)
[Data3]
00H~3BH (Minutes)
Acknowledgement
[a][][Set ID][][OK/NG][Data1][Data2][Data3][x]
54 Appendix C Controlling the Multiple Product ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
*When reading data, FFH is inputted for [Data1], [Data2] and [Data3]. In other cases, all are treated as
NG.
33. On Timer (On/Off Timer) On, Off (Command : F b)
Set days for On Timer.
Transmission
[f][b][][Set ID][][Data1][][Data2][Cr]
[Data1]
0 (Write), FFH(Read)
[Data2]
00H~FFH
bit0 : Monday On Timer On(1), Off(0)
bit1 : Tuesday On Timer On(1), Off(0)
bit2 : Wednesday On Timer On(1), Off(0)
bit3 : Thursday On Timer On(1), Off(0)
bit4 : Friday On Timer On(1), Off(0)
bit5 : Saturday On Timer On(1), Off(0)
bit6 : Sunday On Timer On(1), Off(0)
bit7 : Everyday On Timer On(1), Off(0)
Acknowledgement
[b][][Set ID][][OK/NG][Data1][Data2][x]
34. Off Timer (On/Off Timer) On, Off (Command : f c)
Set days for Off Timer.
Transmission
[f][c][][Set ID][][Data1][][Data2][Cr]
[Data1]
0 (Write), FFH(Read)
[Data2]
00H~FFH
ENWW Transmission / Receiving Protocol 55
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
bit0 : Monday Off Timer On(1), Off(0)
bit1 : Tuesday Off Timer On(1), Off(0)
bit2 : Wednesday Off Timer On(1), Off(0)
bit3 : Thursday Off Timer On(1), Off(0)
bit4 : Friday Off Timer On(1), Off(0)
bit5 : Saturday Off Timer On(1), Off(0)
bit6 : Sunday Off Timer On(1), Off(0)
bit7 : Everyday Off Timer On(1), Off(0)
Acknowledgement
[c][][Set ID][][OK/NG][Data1][Data2][x]
35. On Timer (On/Off Timer) Time (Command : f d)
Set On Timer.
Transmission
[f][d][][Set ID][][Data1][][Data2][Data3][Cr]
[Data1]
0 : Monday
1 : Tuesday
2 : Wednesday
3 : Thursday
4 : Friday
5 : Saturday
6 : Sunday
7 : Everyday
[Data2]
00H~17H (Hours)
[Data3]
00H~3BH (Minutes)
Acknowledgement
[d][][Set ID][][OK/NG][Data1][Data2][Data3][x]
56 Appendix C Controlling the Multiple Product ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Acknowledgement
[b][ ][Set ID][ ][OK][Data][x]
Data 20H : AV
40H : Component 1
41H : Component 2
60H : RGB (PC)
90H : HDMI/DVI (DTV)
A0H : HDMI/DVI (PC)
IR Codes
Use this method to connect your wired remote control port on the monitor.
Remote Control IR Code
Output Wave
łSingle pulse, modulated with 37.9KHz signal at 455kHz
łCarrier Frequency
ŃFCAR = 1/Tc=fosc/12
ŃDuty Ratio = T1/Tc = 1/3
Configuration of Frame
łFirst Frame
łRepeat Frame
ENWW IR Codes 61
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Lead Code
Repeat Code
Bit Description
łBit “0”
łBit “1”
Frame Interval: Tf
The waveforem is transmitted as long as a key is depressed.
IR Codes Table
Code(Hexa) Function Note
00 ŸR/C Button
01 źR/C Button
02 VOL(Ź)R/C Button
03 VOL(Ż)R/C Button
08 POWER ON/OFF R/C Button (Power On/Off)
C4 POWER ON Discrete IR Code (Only Power On)
C5 POWER OFF Discrete IR Code (Only Power On)
09 MUTE R/C Button
98 AV R/C Button
0B INPUT R/C Button
0E SLEEP R/C Button
62 Appendix C Controlling the Multiple Product ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Code(Hexa) Function Note
43 MENU R/C Button
5B EXIT R/C Button
6E PSM R/C Button
44 SET R/C Button
10 Number Key 0 R/C Button
11 Number Key 1 R/C Button
12 Number Key 2 R/C Button
13 Number Key 3 R/C Button
14 Number Key 4 R/C Button
15 Number Key 5 R/C Button
16 Number Key 6 R/C Button
17 Number Key 7 R/C Button
18 Number Key 8 R/C Button
19 Number Key 9 R/C Button
5A AV Discrete IR Code(Input AV Selection)
BF COMPONENT1 Discrete IR Code(Input COMPONENT1 Selection)
D4 COMPONENT2 Discrete IR Code(Input COMPONENT2 Selection)
D5 RGB PC Discrete IR Code(Input RGB PC Selection)
C6 HDMI/DVI Discrete IR Code(Input HDMI/DVI Selection)
79 ARC R/C Button
76 ARC (4:3) Discrete IR Code(Only 4:3 mode)
77 ARC (16:9) Discrete IR Code(Only 16:9 mode)
AF ARC (ZOOM) Discrete IR Code(Only ZOOM1, ZOOM2 mode)
99 AUTO CONFIC Discrete IR Code
ENWW IR Codes 63
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
D Agency Regulatory Notices
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
łReorient or relocate the receiving antenna.
łIncrease the separation between the equipment and the receiver.
łConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
łConsult the dealer or an experienced radio or television technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this device that are
not expressly approved by Hewlett Packard Company may void the user's authority to operate the
equipment.
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods
to maintain compliance with FCC Rules and Regulations.
Declaration of Conformity for Products Marked with the
FCC Logo (United States Only)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
For questions regarding the product, contact:
64 Appendix D Agency Regulatory Notices ENWW
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Hewlett Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
Or, call 1-800-HP-INVENT (1-800 474-6836)
For questions regarding this FCC declaration, contact:
Hewlett Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
Or, call (281) 514-3333
To identify this product, refer to the Part, Series, or Model number found on the product.
Canadian Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
Power Cord Set Requirements
The monitor power supply is provided with Automatic Line Switching (ALS). This feature allows the
monitor to operate on input voltages between 100–120V or 200–240V.
The power cord set (flexible cord or wall plug) received with the monitor meets the requirements for use
in the country where you purchased the equipment.
