LG Electronics USA IPS235VX LCD Monitor User Manual
LG Electronics USA LCD Monitor
User Manual
www.lg.com
OWNER’S MANUAL
LCD MONITOR
IPS225V
IPS235V
LCD MONITOR MODEL
Please read this manual carefully before operating the
your set and retain it for future reference.
ENGLISH
MODEL NO.:
IPS235*X
IPS225*X
2
ENG
ENGLISH
TABLE OF CONTENTS
CONTENTS
3 ASSEMBLING AND PREPARING
3 Unpacking

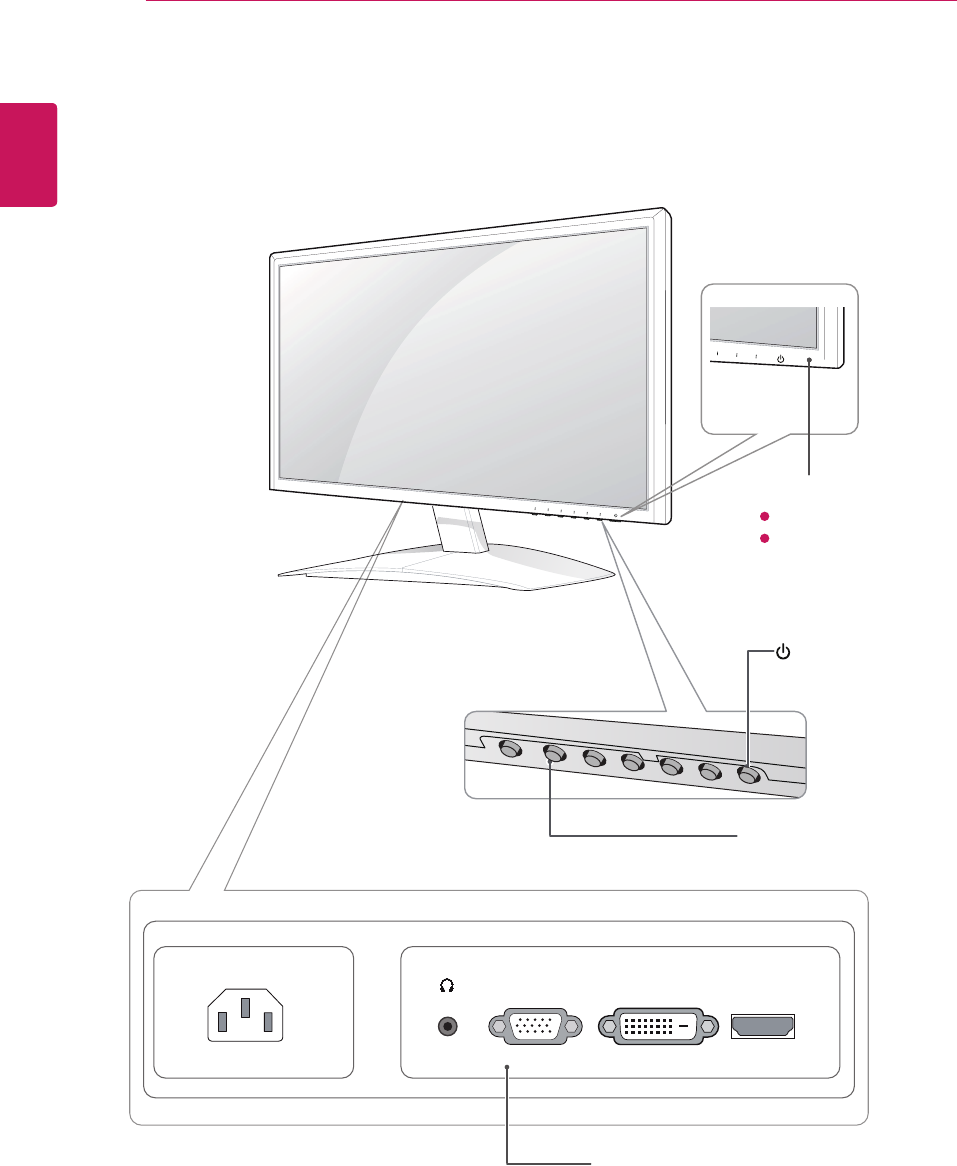

4 Parts and buttons
6 Setting up the Monitor set
6 - Attaching the Stand Base
6 - Detaching the Stand Base
7 - Mounting on a table
8 - Mounting on a wall
10 USING THE MONITOR SET
10 Connecting to a PC
10 - D-SUB connection
10 - DVI-D connection
10 - HDMI connection
12 CUSTOMIZING SETTINGS
12 Accessing The Main Menus
13 Customizing Settings
13 - Menu Settings
14 - PICUURE
15 -
20 TROUBLESHOOTING
22 SPECIFICATIONS
22
24 P
24
Indicator
COLOR

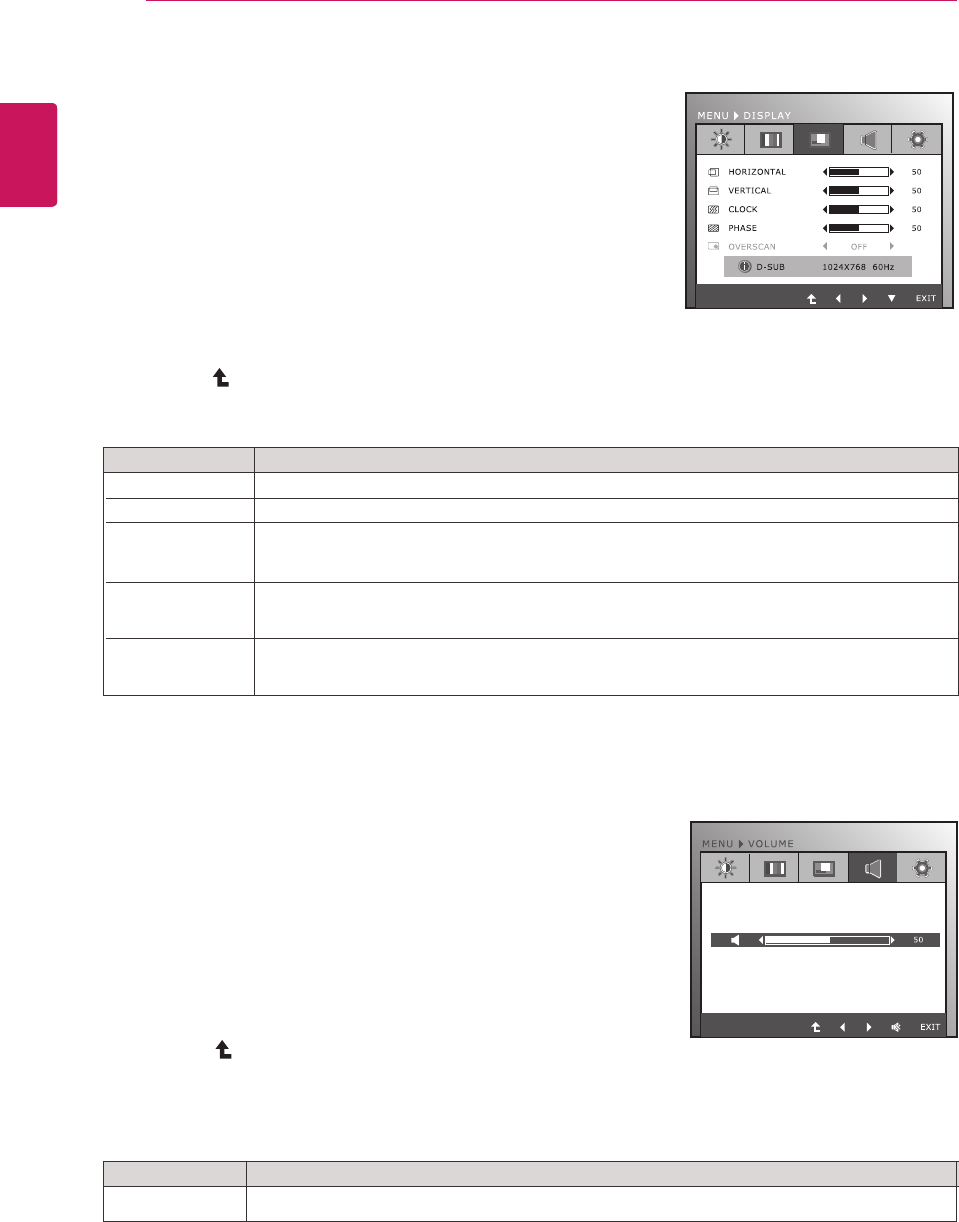

16 -DISPLAY
16 -VOLUME
17 -OTHERE

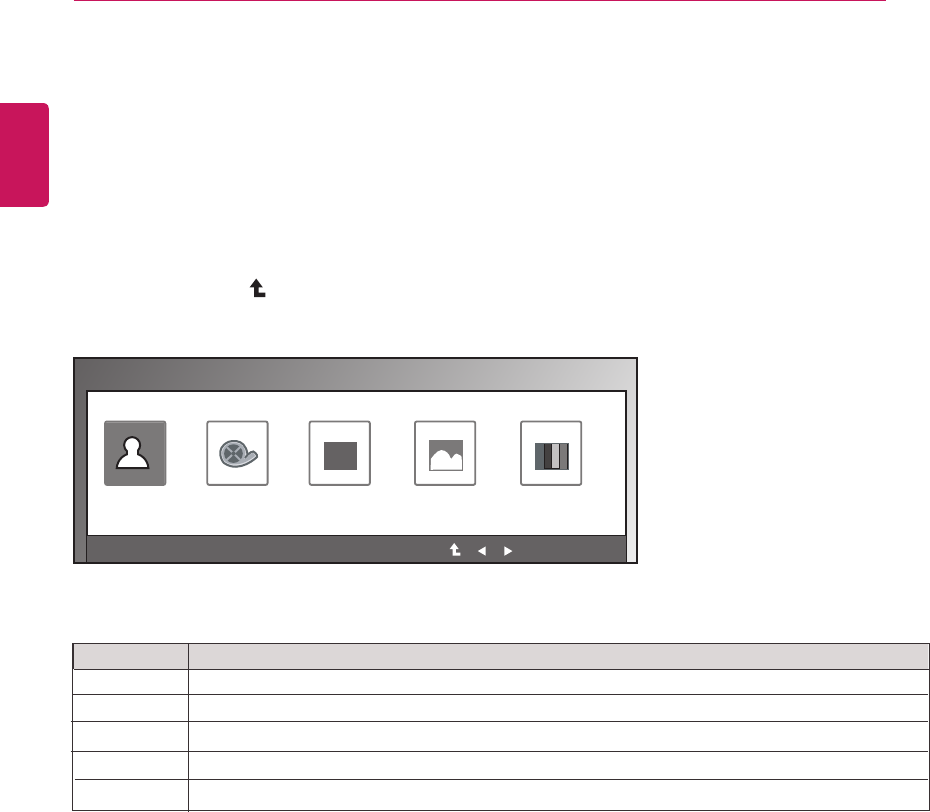

18 MODE Setting
19 DUAL PACKAGE Setting
reset Modes (Resolution)
IPS225V
23 IPS235V
3
ENG
ENGLISH
ASSEMBLING AND PREPARING
Stand Base
Power Cord
CD(Owner's Manual) /
Card
D-SUB Cable
(This signal cable may be attached
to this product before shipping out.)
DVI-D Cable
(This cable is not included in all
countries.)
and accessories.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
yDo not use any unapproved accessories to ensure the safety and product life span.
yAny damages or injuries by using unapproved accessories are not covered by the warranty.
yThe accessories supplied with your product may vary depending on the model.
yProduct specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
yUser should use shielded signal interface cables (RGB cable / DVI-D cable) with ferrite cores to
maintain standard compliance for the product.
CAUTION
NOTE
5
ENG
ENGLISH
ASSEMBLING AND PREPARING
Button Description
MENU Accesses the main menus.(See p.13)
OSD LOCKED/
UNLOCKED
This function allows you to lock the current control settings, so
that they cannot be inadvertently changed.
Press and hold the MENU button for several seconds.
The message "OSD LOCKED" should appear.
You can unlock the OSD controls at any time by pushing
the MENU button for several seconds. The message "OSD
UNLOCKED" should appear.
MODE
DUAL
AUTO When adjusting your display settings, always press the AUTO button on the MONITOR
SETUP OSD. (Only supported in Analog Mode)
The best display mode 1920 x 1080
INPUT You can choose the input signal.
�When two input signals are connected, you can select the input signal (D-SUB/DVI/
HDMI) you want.
�When only one signal is connected, it is automatically detected. The default setting is
D-SUB.
EXIT Exit the OSD(On Screen Display).
(Power Button) Turns the power on or off.
Power Indicator The power indicator stays blue if the display is running
properly (On Mode). If the display is in Sleep Mode, the power
indicator blinks blue.
Use this button to enter USER ,
MOVE,TEXT, PHOTO,sRGB menus.(See p.18)
Use this button to enter DUAL MONITOR and DUAL WEB menus.(See p.19)
6
ENG
ENGLISH
ASSEMBLING AND PREPARING

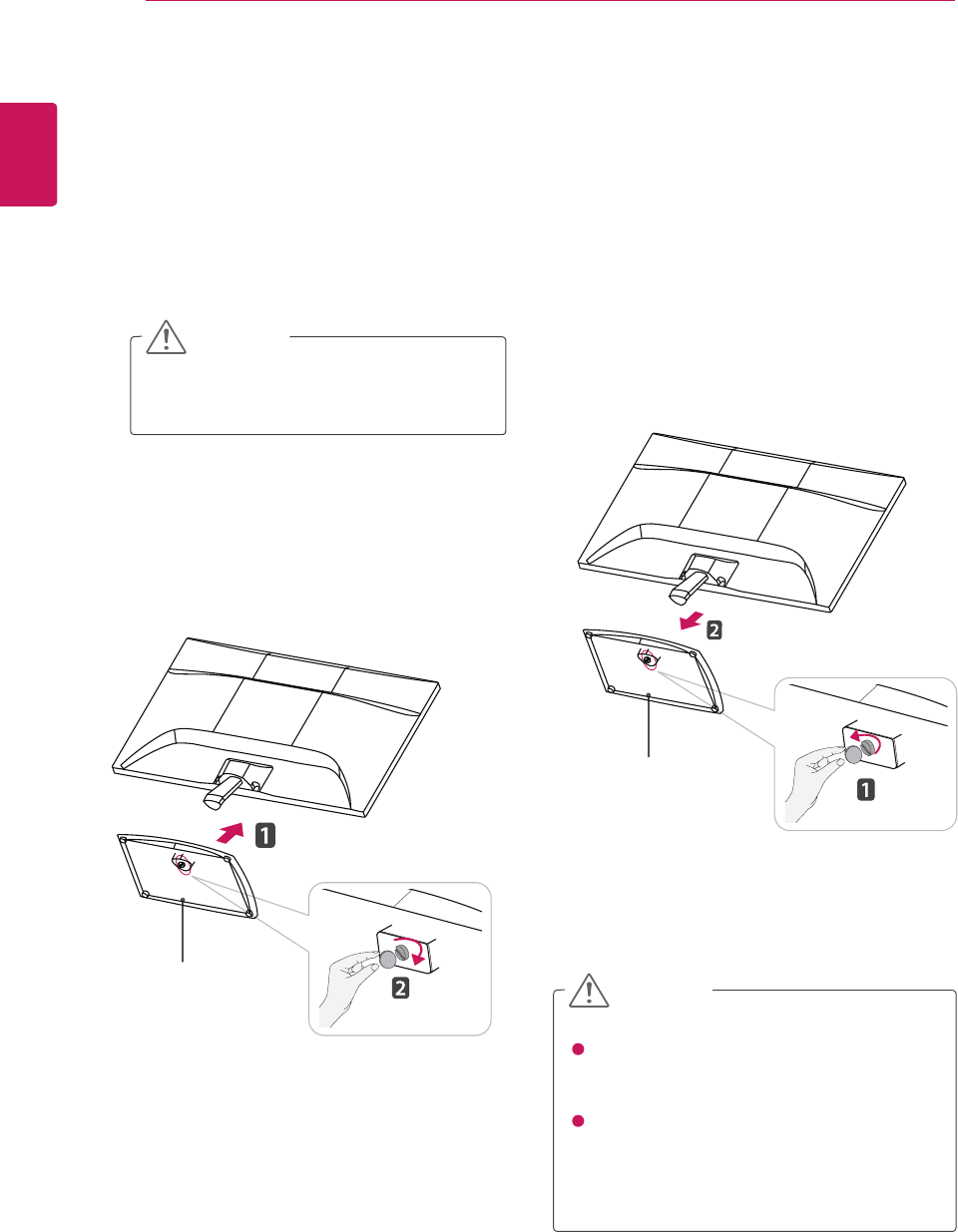

Setting up the Monitor set
Attaching the Stand Base
1 Place the Monitor set with the screen side
down on a flat and cushioned surface.
Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
This illustration depicts the general model of
connection. Your monitor may differ from the
items shown in the picture.
Do not carry the product upside down
holding only the stand base. The product
may fall and get damaged or injure your
foot.
CAUTION
CAUTION
Detaching the Stand Base and Body
1 Place the Monitor set with the screen side
down on a flat and cushioned surface.
2
Turn the screw to the left, and then pull out the
Stand Base from the Stand Body.
Attach the Stand Base and then tighten the
screw to the right with a Coin.
2
Stand Base
Stand Base
7
ENG
ENGLISH
ASSEMBLING AND PREPARING
Mounting on a table
1 Lift and tilt the Monitor set into its upright
position on a table.
Leave a 10 cm (minimum) space from the wall
for proper ventilation.
2 Connect the Power Cord to a wall outlet.
3 Press (Power) button on the front switch
panel to turn the power on.
10 cm
10 cm
10 cm
10 cm
When you adjust the angle, do not hold the
buttom of the Monitor set frame as shown on
the following illustration, as may injure your
fingers.
Do not touch or press the screen when
adjusting the angle of the monitor.
WARNING
Unplug the power cord before moving the
Monitor to another location. Otherwise electric
shock may occur.
Tilt from +15 to -5 degrees up or down to adjust
the angle of the Monitor set to suit your view.
CAUTION
NOTE
Front Rear
5 - 51
8
ENG
ENGLISH
ASSEMBLING AND PREPARING
Mounting on a wall
For proper ventilation, allow a clearance of 10 cm
on each side and from the wall. Detailed
instructions are available from your dealer, see the
optional Tilt Wall Mounting Bracket Installation and
Setup Guide.
When you install the Monitor set using a wall
mounting interface (optional parts), attach it
carefully so it will not drop.
Please use VESA standard as below.
y784.8 mm (30.9 inch) and under
* Wall Mount Pad Thickness : 2.6 mm
* Screw : Φ 4.0 mm x Pitch 0.7 mm x
Length 10 mm
y787.4 mm (31.0 inch) and above
* Please use VESA standard wall mount pad
and screws.
10 cm
10 cm
10 cm
10 cm
Using the Kensington security system
The Kensington security system connector is
located at the back of the Monitor set. For more
information of installation and using, refer to the
manual supplied with the Kensington security
system or visit
http://www.kensington.com
.
Connect the Kensington security system cable
between the Monitor set and a table.
The Kensington security system is optional.
You can obtain it from most electronics stores.
NOTE
9
ENG
ENGLISH
USING THE MONITOR SET
yDisconnect the power cord first, and then
move or install the Monitor set. Otherwise
electric shock may occur.
yIf you install the Monitor set on a ceiling or
slanted wall, it may fall and result in severe
injury.
yUse only an authorized LG wall mount
and contact the local dealer or qualified
personnel.
y Do not over tighten the screws as this may
cause damage to the Monitor set and void
your warranty.
y Use only screws and wall mounts that
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
yUse the screws that are listed on the VESA
standard screw specifications.
yThe wall mount kit will include an installation
manual and necessary parts.
yThe wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
yThe length of screws may differ depending
on the wall mount. Be sure to use the proper
length.
yFor more information, refer to the
instructions supplied with the wall mount.
CAUTION
NOTE
IPS225V/IPS235V
100 x 100
M4
Model
VESA (A x B)
Standard screw
Number of screws 4
10
ENG
ENGLISH
USING THE MONITOR SET
USING THE MONITOR SET
Connecting to a PC
yYour Monitor set supports Plug & Play*.
*Plug & Play: A PC recognizes a connected
device that users connect to a PC and turn
on, without device configuration or user
intervention.
D-SUB connection
Transmits analog video from your PC to
the Monitor set. Connect the PC and the Monitor
set with the supplied D-sub 15 pin signal cable as
shown in the following illustrations.
yMac adapter
For Apple Macintosh use, a separate plug
adapter is needed to change the 15 pin
high density (3 row) D-SUB VGA connector
on the supplied cable to a 15 pin 2 row
connector.
yWhen using a D-Sub signal input cable
connector for Macintosh
yIf you use HDMI PC, it can cause compatibility
problem.
NOTE
NOTE
H
D
MI
D-SUB
DVI
-D
RGB OUT
H
D
MI
D
-
S
U
B
DVI OUT
DVI-D
HDMI
D
-
S
U
B
HDMI OUT
DVI
-D
HDMI OUT
DVI-D connection
Transmits a digital video signal from your PC to the
Monitor set. Connect the PC and the Monitor set
with a DVI cable as shown in the following
illustrations.
HDMI connection
Transmits the digital video and audio signals from
your PC or A/V to the Monitor set. Connect the PC
or A/V and the Monitor set with the HDMI cable as
shown in the following illustrations.
11
ENG
ENGLISH
�When you want to use two PC in our Monitor,
please connect the signal cable(D-SUB/
DVI-D/HDMI) respectively in Monitor set.
�If you turn the Monitor set on while it is cold,
the screen may flicker. This is normal.
�Some red, green, or blue spots may appear
on the screen. This is normal.
�"Self Image Setting" Function.
This function provides the user with optimal
display settings.When the user connects
the monitor for the first time, this function
automatically adjusts the display to optimal
settings for individual input signals.(Only
supported in Analog Mode)
�‘AUTO’ Function.
When you encounter problems such as
blurry screen, blurred letters, screen flicker
or tilted screen while using the device or
after changing screen resolution, press the
AUTO function button to improve resolution.
(Only supported in Analog Mode)
NOTE NOTE

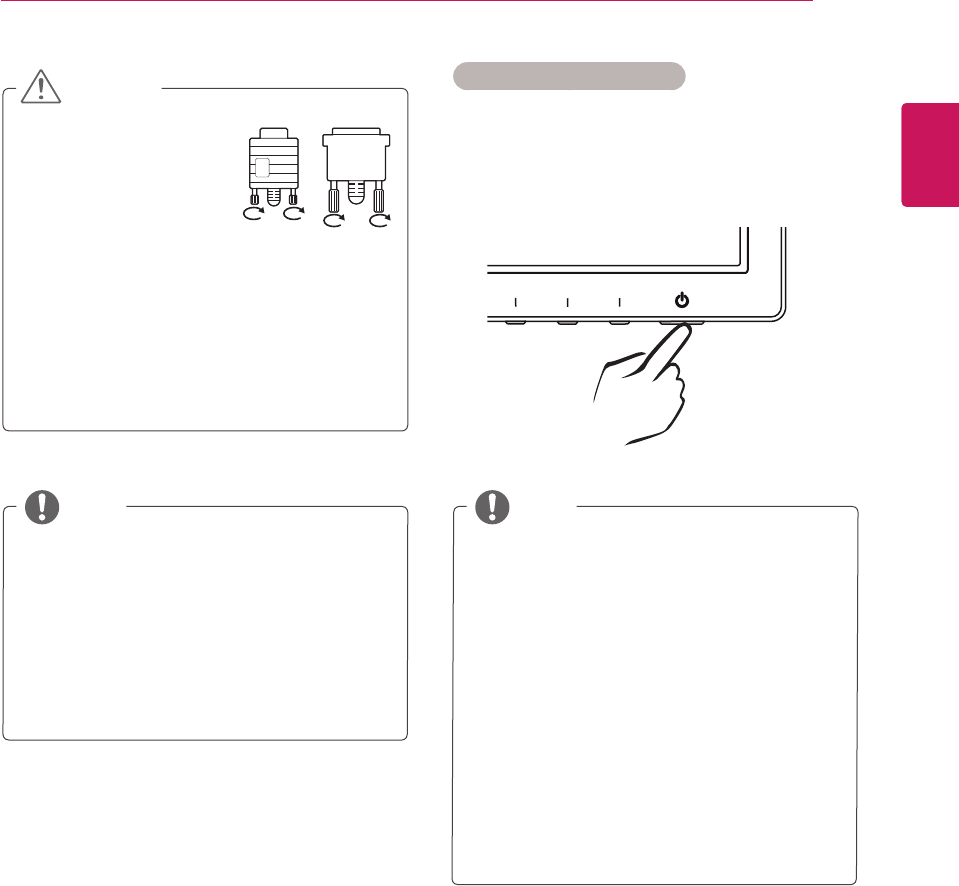

�Connect the signal
input cable and tighten
it by turning the screws
clockwise.
�Do not press the screen with your finger for
a long time as this may result in temporary
distortion on the screen.
�Avoid displaying a fixed image on the
screen for a long period of time to prevent
image burn. Use a screensaver if possible.
CAUTION Self Image Setting Function
Press the power button on the front panel to turn
the power on. When monitor power is turned on,
the "Self Image Setting" Function is executed
automatically. (Only supported in Analog Mode)
USING THE MONITOR SET
12
ENG
ENGLISH
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS

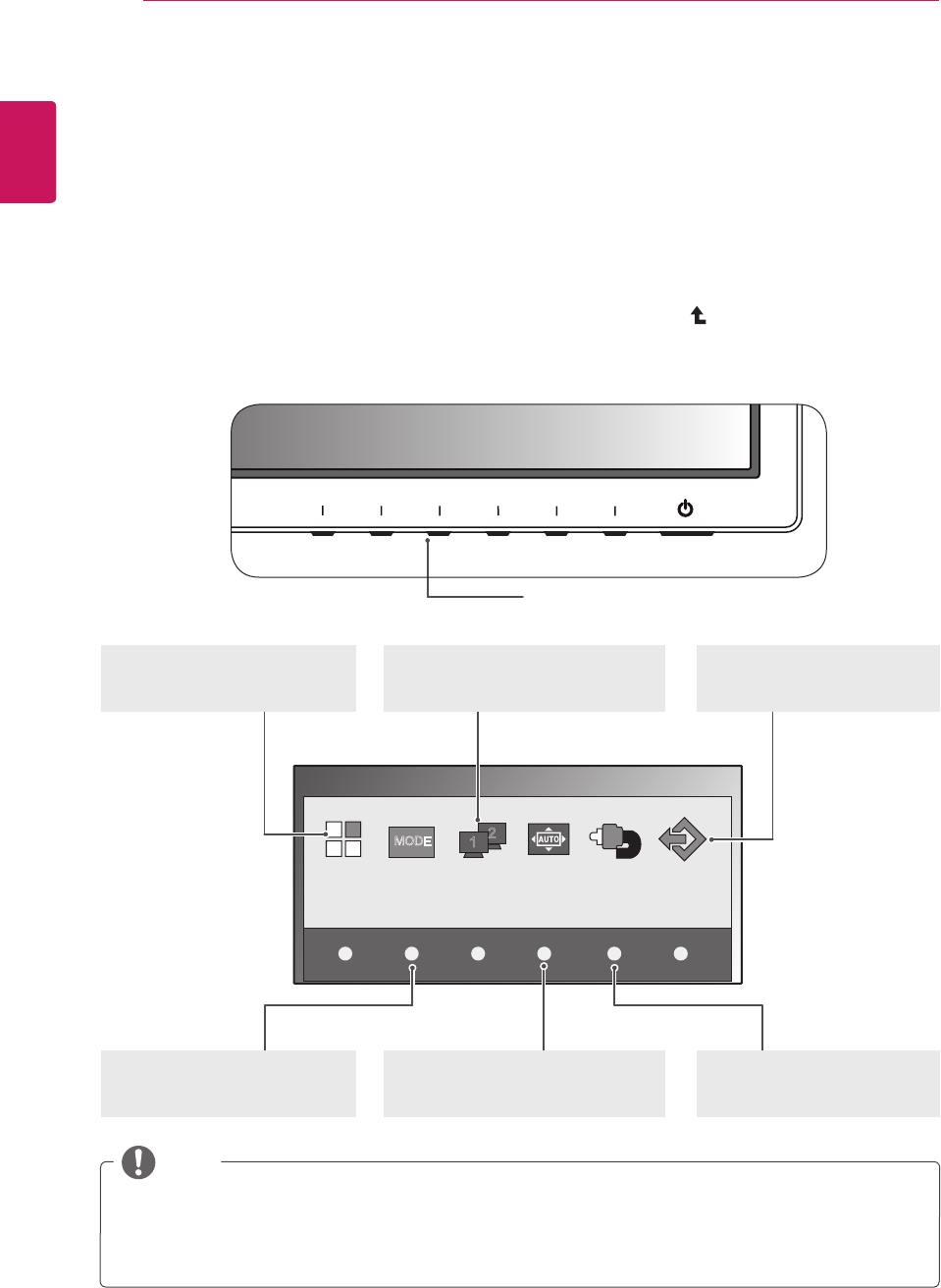

Accessing The Main Menus
1 Press any button on the front of the Monitor set to display the MONITOR SETUP OSD menu.
2 Press the desired menu item.
3 Change the value of the menu item by pressing the buttons on the front of the Monitor set.
To return to the upper menu or set other menu items, use the up arrow ( ) button.
4 Select EXIT to leave the OSD menu.
Monitor set Buttons
MONITOR SETUP
MENU AUTO INPUTEXIT
MODE DUAL
MENU(See p.13)
Sets the screen options.
DUAL (See p.19) EXIT
Exits the OSD menu.
INPUT
Sets the external input.
MODE (See p.18)
Sets the mode.
Different menu items are enabled depending on the type of input signal.
D-SUB / DVI Mode: MENU, MODE, DUAL, AUTO, INPUT, EXIT
NOTE
MODE 12
AUTO (See p.11)
Optimizes the resolution.
Sets the screen .
13
ENG
ENGLISH
CUSTOMIZING SETTINGS
Customizing Settings

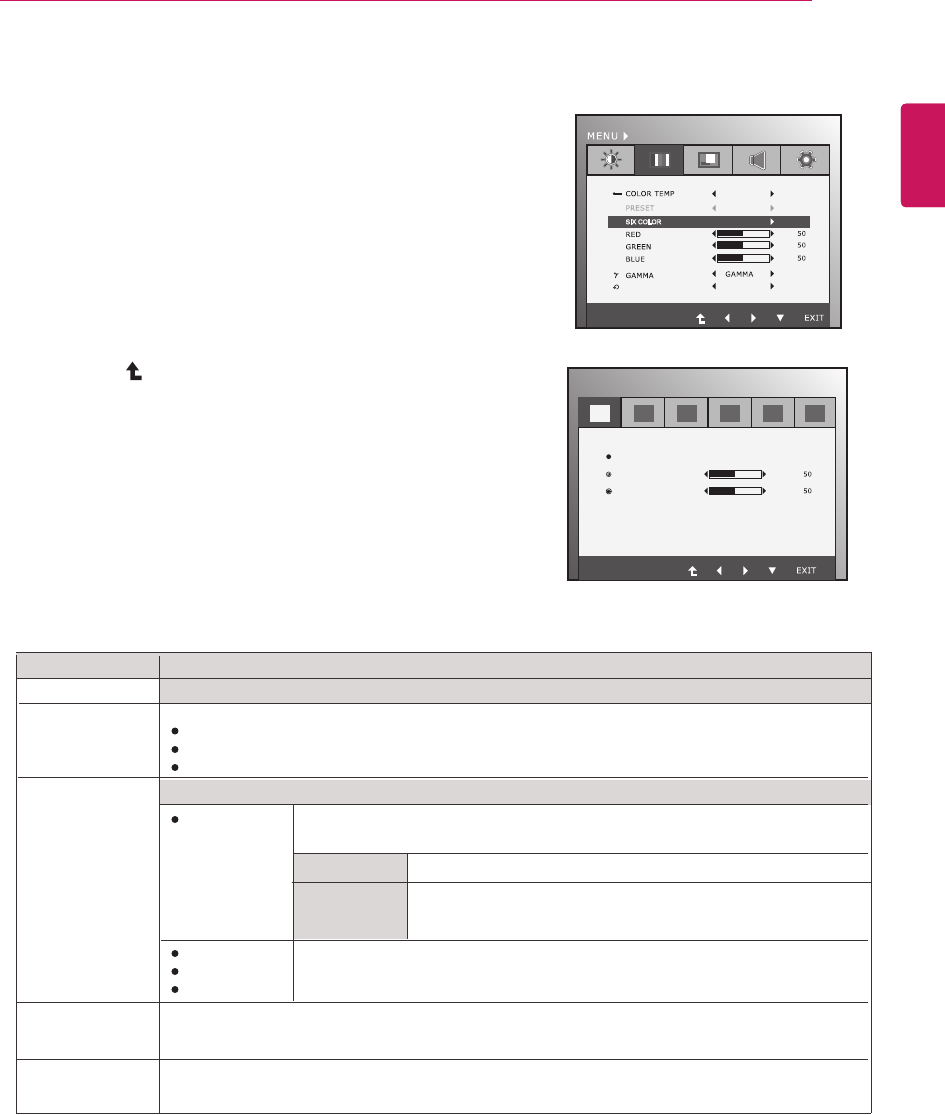

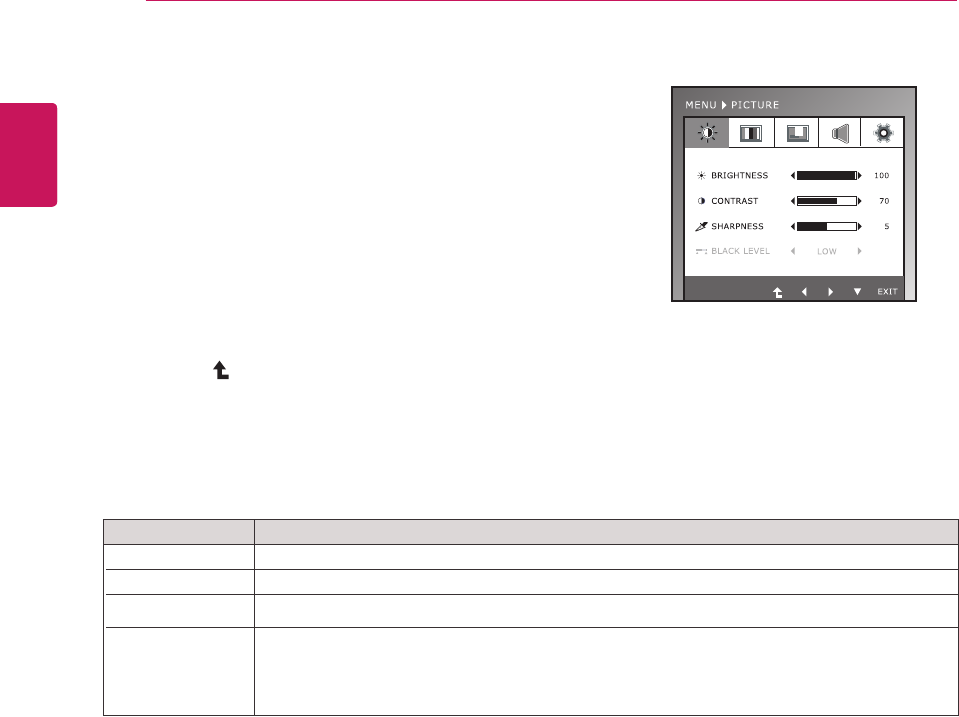

Menu Settings
1 Press any button on the front of the Monitor set to display the
MONITOR SETUP OSD menu.
2 Press the MENU button to display the options in the OSD
menu.
3 Set the options by pressing the buttons on the front of the
Monitor set.
4 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items, use the
up arrow ( ) button.
Analog: D-SUB(Analog signal) input.
Digital: DVI-D(Digital signal) input.
HDMI: HDMI(Digital signal) input.
The available progam settings are described below.
Menu Analog Digital HDMI Description
LANGUAGE
POWER INDICATOR
WHITE BALANCE
ORIGINAL RATIO
SUPER ENEYGY
FACTORY RESET
To customize the screen statusfor a user's operatingenvironment
OTHERS
OVERSCAN
Sub-menu
VOLUME To adjust the volume
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
To adjust the brightness, contrast
To customize the color of the screen.
and sharpness of the screen
● ●
●
●
●
●
●
●
● ● ●
●
●
●
●
●●●
●●●
●●●
COLOR TEMP
(PRESET/USER)
GAMMA
COLOR RESET
COLOR
DISPLAY
HORIZONTAL
VERTICAL
CLOCK
PHASE
SAVING
To adjust the position of thescreen
To improve the clarity andstability of the screen
●
●
●
14
ENG
ENGLISH
CUSTOMIZING SETTINGS
1 Press any button on the front of the Monitor set to display the
MONITOR SETUP OSD menu.
2 Press the MENU button to display the options in the OSD menu.
3 Select PICTURE by pressing the buttons on the front of the
Monitor set and set the options.
4 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items, use the
up arrow ( ) button.
The available picture settings are described below.
Menu Description
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
To adjust the brightness of the screen.
To adjust the contrast of the screen.
To adjust the clearness of the screen.
You can set the offset level. If you select'HIGH', the screen will be bright and if youselect ‘LOW’,
(only for HDMI input)
* Offset?As the criteria for video signal, itis the darkest screen the monitor canshow.
the screen will be dark.
COLOR
The available picture settings are described below.
Menu Description
PRESET
GAMMA
COLOR
RESEST
Set your own gamma value. :
COLOR TEMP
Select the screen color.
WARM: Set the screen to warm color temperature (more red).
MEDIUM: Set the screen to medium color temperature.
COOL: Set the screen to cool color temperature (More blue).
USER
RED: Set your own red color levels.
GREEN: Set your own green color levels.
BLUE: Set your own blue color levels.
SIX COLOUR:
WARM
2.2
NO
COLOR RESET
USER
SIX COLOR
COLOR
RED
HUE
SATURATION
SIX COLOR
15
ENG
ENGLISH
CUSTOMIZING SETTINGS
Sets and stores the hue and saturationfor six colors(RED/GREEN/BLUE/CYA
N/
MAGENTA/YELLOW
) to satisfy thecolor requirements of a user.
HUE
Adjusts the screen hue.
SATURATIONAdjusts the color sharpness on thescreen. Lower values
sharpness weaker and colors lighterwhile sharpness stronger
1.8/2.0/2.2/2.4/2.6 On the monitor, high gamma values
display whitish images and low gamma values display blackish images.
Resets the color settings to the
factory
default settings for the current inputdevice.
make the
color
and colors darker.
1 Press any button on the front of the Monitor set to display the
MONITOR SETUP OSD menu.
2 Press the MENU button to display the options in the OSD menu.
3 Select COLOR by pressing the buttons on the front of the
Monitor set and set the options.
4 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items, use the
up arrow ( ) button.
16
ENG
ENGLISH
CUSTOMIZING SETTINGS
DISPLAY
The available picture settings are described below.
Menu Description
VOLUME
The available picture settings are described below.
Menu Description
CLOCK
PHASE
OVERSCAN
To minimize any vertical bars orstripes visible on the screenbackground.
The horizontal screen size will alsochange.
To adjust the focus of the display. This item allows you to remove anyhorizontal noise
the image of characters.
To select the range of output imagefor DTV timing in HDMI input.(only for HDMI input)
Recommend overscanfunction toturn on when connect AV equipment.
HORIZONTAL
VERTICAL
To move image left and right.
To move image up and down.
VOLUME To adjust the volume of headphone/Earphone.(Only for HDMI input)
and clear or sharpen
1 Press any button on the front of the Monitor set to display the
MONITOR SETUP OSD menu.
2 Press the MENU button to display the options in the OSD menu.
3 Select DISPLAY by pressing the buttons on the front of the
Monitor set and set the options.
4 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items, use the
up arrow ( ) button.
1 Press any button on the front of the Monitor set to display the
MONITOR SETUP OSD menu.
2 Press the MENU button to display the options in the OSD menu.
3 Select VOLUME by pressing the buttons on the front of the
Monitor set and set the options.
4 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items, use the
up arrow ( ) button.
17
ENGLISH
CUSTOMIZING SETTINGS
OTHER
The available picture settings are described below.
Menu Description
Press the , buttons to reset
immediately.
To choose the language in which thecontrol names are displayed.
LANGUAGE
WHITE
BALANCE
If the output of the video card isdifferent the required specifications,the color level may
to video signal distortion. Using thisfunction, the signal level is adjusted
to fit into the standard output level ofthe video card in order to provide theoptimal image.
Activate this function when whiteand black colors are present in thescreen.
Restore all factory default settings except"LANGUAGE."
FACTORY RESET
POWER
INDICATOR
Use this function to set the powerindicator on the front side of the monitorto ON or OFF.
If you set OFF, it will go off.
If you set ON at any time, the powerindicator will automatically be turned on.
deteriorate due
ORIGINAL RATIO
SUPER ENEYGY SAVING
WIDE
ORIGINAL RATIO WIDE
Switch to full screen mode according to input image signal.
ORIGINAL
Change the input image signal ratio to original.
* This function works only if input resolution is lower than Monitor set ratio (16:9).
SUPER ENEYGY
SAVING
Sets the SUPER ENERGY SAVING function.
EXIT
OK
ON OFFRESET
TOTAL POWER REDUCTION: 20 W
TOTAL CO2 REDUCTION: 16 g
SUPER
SAVING
: 5 W/h
LED
SAVING
: 12 W/h
SUPER ENERGY SAVING
ON Enables SUPER ENERGY SAVING you can save energy with this energy-efficient
OFF Disables SUPER ENERGY SAVING.
RESET Resets the values of total energy consumption reduction and CO2 emission reduction
TOTAL POWER REDUCTION: How much power is saved while using the monitor.
TOTAL CO2 REDUCTION: Change the TOTAL POWER REDUCTION to CO2.
SAVING DATA(W/h)
584 mm (23 inch)
SUPER SAVING 5 W/h
LED SAVING 12 W/h
545 mm (22 inch)
4 W/h
15 W/h
Saving Data depends on the Panel. So,those values should be different from each panel and panel
vendor.
LG calculated these values by using “broadcast video signal”.
LED Saving refers to how much power can be saved using a WLED Panel instead of CCFL panel.
SUPER SAVING refers to how much power can be saved using the SUPER ENERGY SAVING
function.
NOTE
estimates.
function.
1 Press any button on the front of the Monitor set to display the
MONITOR SETUP OSD menu.
2 Press the MENU button to display the options in the OSD menu.
3 Select OTHERS by pressing the buttons on the front of the
Monitor set and set the options.
4 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items, use the
up arrow ( ) button.
18
ENGLISH
CUSTOMIZING SETTINGS
MODE Setting
1 Press any button on the front of the Monitor set to display the MONITOR SETUP OSD menu.
2 Press the MODE button to display the options in the OSD menu.
3
4 Select EXIT to leave the OSD menu. To return to the upper menu or set other menu items,
use the up arrow ( ) button.
The available picture settings are described below.
Menu Description
USER
MOVIE
TEXT
sRGB
T
USER MOVIE TEXT PHOTO sRGB
EXIT
sRGB
MODE
It is a mode that the screen is adjusted to the best to view the videos.
It is a mode that the screen is adjusted to the best for the text works.
It is a mode that the screen is adjusted to the best to view pictures.
It is a mode that the user can adjust each element. It can adjust the color mode of the Main Menu.
It is a mode that the screen is adjusted to the standard sRGB.
Set the options by pressing the buttons on the front of the Monitor set.
19
ENGLISH
CUSTOMIZING SETTINGS
DUAL PACKAGE Setting
1 Press any button on the front of the Monitor set to
display the MONITOR SETUP OSD menu.
2 Press the DUAL button to display the options in the
OSD menu.
3
4 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
The available picture settings are described below.
Menu Description
DUAL MONTOR OFF
EXTENDED
ON
OFF
CLONE
DUAL WEB
DUAL PACKAGE DUAL MONITOR
12
OFF EXTENDED CLONE
12
DUAL
WEB
EXIT
OK
Make the eye comfortable byreducing the background brightness
in the web page.
If select OFF,CINEMA MODE is off.
* Before using below functions, please install DUAL PACKAGE programme.
* Only for D-SUB/DVI-D input.
If select OFF,DUALMONITOR off
By selecting EXETNDED,user can use secondary monitor as extended
mode of primary monitor.
By selecting CLONE,user can use secondary monitor as done mode of
primary monitor.
Set the options by pressing the buttons on the front
Monitor set.of the
When monitor goes to Power Saving Mode, on pressing any buttons user can bring
NOTE
back monitor to normal mode
20
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
Check the following before calling for service.
No image appears
Is the power cord of the display
connected?
Check and see if the power cord is connected properly to the power
outlet.
Is the power indicator light on?
Press the Power button.
Is the power on and the power
indicator blue or green?
Adjust the brightness and the contrast.
Is the power indicator flickering?
If the display is in power saving mode, try moving the mouse or
pressing any key on the keyboard to bring up the screen.
Try to turn on the PC.
Do you see an "OUT OF RANGE"
message on the screen?
This message appears when the signal from the PC (video card) is
out of horizontal or vertical frequency range of the display. See the
'Specifications' section of this manual and configure your display
again.
Do you see a "CHECK SIGNAL
CABLE" message on the screen?
This message appears when the signal cable between your PC and
your display is not connected. Check the signal cable and try again.
Do you see a "OSD LOCKED" message on the screen?
Do you see “OSD LOCKED” when
you push MENU button?
You can secure the current control settings, so that they cannot be
inadvertently changed. You can unlock the OSD controls at any time
by pushing the MENU button for several seconds: the message “OSD
UNLOCKED” will appear.
Display image is incorrect
Display Position is incorrect.
Press the AUTO button to automatically adjust your display image to
the ideal setting.
On the screen background, vertical
bars or stripes are visible.
Press the AUTO button to automatically adjust your display image to
the ideal setting.
Any horizontal noise appearing in
any image or characters are not
clearly portrayed.
Press the AUTO button to automatically adjust your display image to
the ideal setting.
Check Control Panel ► Display ► Settings and adjust the display
to the recommended resolution or adjust the display image to the ideal
setting. Set the color setting higher than 24 bits (true color).
21
ENGLISH
TROUBLESHOOTING
Display image is incorrect
The screen color is mono or
abnormal.
Check if the signal cable is properly connected and use a screwdriver
to fasten if necessary.
Make sure the video card is properly inserted in the slot.
Set the color setting higher than 24 bits (true color) at Control Panel
► Settings.
The screen blinks.
Check if the screen is set to interlace mode and if yes, change it to the
recommend resolution.
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display
driver?
Be sure to install the display driver from the display driver CD (or
diskette) that comes with your display. Or, you can also download the
driver from our web site: http://www.lg.com.
Make sure to check if the video card supports Plug&Play function.
Check Control Panel ► Display ► Settings and see if the frequency or the resolution were
changed. If yes, readjust the video card to the recommend resolution.
If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the
screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.
The setting method can differ by computer and O/S (Operation System), and resolution mentioned
above may not be supported by the video card performance. In this case, please ask to the computer
or the video card manufacturer.
CAUTION
22
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
IPS225V
Display Screen Type 54.5 cm (22 inch) Flat Panel Active matrix-TFT LCD
Anti-Glare coating
Visible diagonal size: 54.5 cm
Pixel Pitch 0.247 mm x 0.247 mm (Pixel Pitch)
Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic)
Vertical Frequency 56Hz to 75Hz (D-SUB, DVI-D)
56Hz to 61Hz (HDMI)
Input Form Separate Sync. Digital
Video Input Signal Input 15 pin D-SUB Connector /DVI-D Connector (Digital)
HDMI Connector
Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Resolution Max D-SUB(Analog) : 1920 x 1080 @ 60 Hz
DVI / HDMI (Digital) : 1920 x 1080 @ 60 Hz
Recommend VESA 1920 x 1080 @ 60 Hz
Plug & Play DDC 2B(Analog,Digital)
Power Consumption On Mode : 31 W(Typ.)
Sleep Mode ≤ 0.3W
Off Mode ≤ 0.3 W
Power Input AC 100-240 V~ 50 / 60 Hz 1.2A
Dimensions
(Width x Height x Depth)
With Stand 51.3 cm x 39.8 cm x 19.1 cm
Without Stand 51.3 cm x 31.2 cm x 5.9 cm
Weight 3.28 kg
Tilt Range -5° to 15°
Environmental
conditions
Operating Temperature
Operating Humidity
10°C to 35 °C
20 % to 80 %
Storage Temperature
Storage Humidity
-10°C to 60 °C
5 % to 90 % non-Condensing
Stand Base Attached ( ), Detached (O)
Power cord Wall-outlet type
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
23
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
IPS235V
Display Screen Type 58.4 cm (23 inch) Flat Panel Active matrix-TFT LCD
Anti-Glare coating
Visible diagonal size: 58.4 cm
Pixel Pitch 0.265 mm x 0.265 mm (Pixel Pitch)
Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic)
Vertical Frequency 56Hz to 75Hz (D-SUB, DVI-D)
56Hz to 61Hz (HDMI)
Input Form Separate Sync. Digital
Video Input Signal Input 15 pin D-SUB Connector /DVI-D Connector (Digital)
HDMI Connector
Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Resolution Max D-SUB(Analog) : 1920 x 1080 @ 60 Hz
DVI / HDMI (Digital) : 1920 x 1080 @ 60 Hz
Recommend VESA 1920 x 1080 @ 60 Hz
Plug & Play DDC 2B(Analog,Digital)
Power Consumption On Mode : 35W(Typ.)
Sleep Mode ≤ 0.3 W
Off Mode ≤ 0.3 W
Power Input AC 100-240 V~ 50 / 60 Hz 1.2A
Dimensions
(Width x Height x Depth)
With Stand 54.7 cm x 41.7 cm x 19.1 cm
Without Stand 54.7 cm x 33.1 cm x 5.9 cm
Weight 3.57 kg
Tilt Range -5° to 15°
Environmental
conditions
Operating Temperature
Operating Humidity
10°C to 35 °C
20 % to 80 %
Storage Temperature
Storage Humidity
-10°C to 60 °C
5 % to 90 % non-Condensing
Stand Base Attached ( ), Detached (O)
Power cord Wall-outlet type
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
24
ENGLISH
SPECIFICATIONS
Preset Modes (Resolution)
Display Modes (Resolution) Horizontal
Frequency(kHz)
Vertical
Frequency(Hz) Polarity(H/V)
720 x 400 31.468 70 -/+
640 x 480 31.469 60 -/-
640 x 480 37.500 75 -/-
800 x 600 37.879 60 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.123 75 +/+
1152 x 864 67.500 75 +/+
1280 x 1024 63.981 60 +/+
1280 x 1024 79.976 75 +/+
1680 x 1050 65.290 60 -/+
1920 x 1080 67.500 60 +/+ Recommend Mode
Display Modes (Resolution) Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
HDMI TIMING
Indicator
Mode LED Color
On Mode Blue
Sleep Mode Blinking Blue
Off Mode Off
480P
576P
720P
720P
1080i
1080i
1080P
1080P
31.50
31.25
37.50
45.00
28.12
33.75
56.25
67.50
60
50
50
60
50
60
50
60 Recommend Mode
Make sure to read the Safety Precautions before
using the product.
Keep the Owner’s Manual (CD) in an accessible
place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service. As an ENERGY STAR Partner LGE
U. S. A.,Inc. has determined that this
product meets the ENERGY STAR
guidelines for energy efficiency.
ENERGY STAR is a set of power-saving
guidelines issued by the U.S.Environmental
Protection Agency(EPA).
MODEL
SERIAL
