LG Electronics USA KE800 Single-Band PCS GSM Phone with Bluetooth User Manual
LG Electronics USA Single-Band PCS GSM Phone with Bluetooth
Users Manual
KE800 USER GUIDE
WE SHOULD INFORM USER THAT THIS MANUAL CAN HAVE
SOME DIFFERENCES FROM PHONE DEPENDING ON PHONE
S/W AND SERVICE PROVIDER.
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product it means
the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from
the municipal waste stream via designated collection facilities appointed by
the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative
consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please
contact your city office, waste disposal service or the shop where you
purchased the product.
ENGLISH
Congratulations on your purchase of the advanced and
compact KE800 mobile phone, designed to operate
with the latest digital mobile communication
technology.
This user’s guide contains important information on
the use and operation of this phone. Please read all the
information carefully for optimal performance and to
prevent any damage to or misuse of the phone. Any
changes or modifications not expressly approved in
this user’s guide could void your warranty for this
equipment.
Introduction
4
Introduction
8
For Your Safety
Important Information
This user guide contains important information on the use and
operation of this phone. Please read all the information
carefully for optimal performance and to prevent any damage
to or misuse of the phone. Any changes or modifications not
expressly approved in this user guide could void your warranty
for this equipment.
Before You Start
Safety Instructions
WARNING! To reduce the possibility of electric shock, do not
expose your phone to high humidity areas, such as the
bathroom, swimming pool, etc.
Always store your phone away from heat. Never store your
phone in settings that may expose it to temperatures less than
32°F or greater than 104°F, such as outside during extreme
weather conditions or in your car on a hot day. Exposure to
excessive cold or heat will result in malfunction, damage
and/or catastrophic failure.
Be careful when using your phone near other electronic
devices. RF emissions from your mobile phone may affect
nearby in adequately shielded electronic equipment. You
should consult with manufacturers of any personal medical
devices such as pacemakers and hearing aides to determine if
they are susceptible to interference from your mobile phone.
Turn off your phone in a medical facility or at a gas station.
Never place your phone in a microwave oven as this will
cause the battery to explode.
IMPORTANT! Please read the TIA SAFETY INFORMATION on
page 78 before using your phone.
Safety Information
Read these simple guidelines. Breaking the rules may be
dangerous or illegal. Further detailed information is given in this
user guide.
]Never use an unapproved battery since this could damage
the phone and/or battery and could cause the battery to
explode.
]Never place your phone in a microwave oven as it will
cause the battery to explode.
]Do not dispose of your battery by fire or with hazardous or
flammable materials.
]Make sure that no sharp-edged items come into contact
with the battery. There is a risk of this causing a fire.
]Store the battery in a place out of reach of children.
]Be careful that children do not swallow any parts such as
rubber plugs (earphone, connection parts of the phone,
etc.). This could cause asphyxiation or suffocation.
9
For Your Safety
]Unplug the power cord and charger during lightning storms
to avoid electric shock or fire.
]When riding in a car, do not leave your phone or set up the
hands-free kit near to the air bag. If wireless equipment is
improperly installed and the air bag is activated, you may be
seriously injured.
]Do not use a hand-held phone while driving.
]Do not use the phone in areas where its use is prohibited.
(For example: aircraft).
]Do not expose the battery charger or adapter to direct
sunlight or use it in places with high humidity, such as a
bathroom.
]Never store your phone in temperatures less than- 4°F or
greater than 122°F.
]Do not use harsh chemicals (such as alcohol, benzene,
thinners, etc.) or detergents to clean your phone. There is a
risk of this causing a fire.
]Do not drop, strike, or shake your phone severely. Such
actions may harm the internal circuit boards of the phone.
]Do not use your phone in high explosive areas as the phone
may generate sparks.
]Do not damage the power cord by bending, twisting, pulling,
or heating. Do not use the plug if it is loose as it may cause
a fire or electric shock.
]Do not place any heavy items on the power cord. Do not
allow the power cord to be crimped as it may cause fire or
electric shock.
]Do not handle the phone with wet hands while it is being
charged. It may cause an electric shock or seriously
damage your phone.
]Do not disassemble the phone.
]Do not place or answer calls while charging the phone as it
may short-circuit the phone and/or cause electric shock or
fire.
]Only use the batteries, antennas, and chargers provided by
LG. The warranty will not be applied to products provided by
other suppliers.
]Only authorized personnel should service the phone and its
accessories. Faulty installation or service may result in
accidents and consequently invalidate the warranty.
]Do not hold or let the antenna come in contact with your
body during a call.
]An emergency call can be made only within a service area.
For an emergency call, make sure that you are within a
service area and that the phone is turned on.
10
For Your Safety
FCC RF Exposure Information
WARNING! Read this information before operating the phone.
In August 1996, the Federal Communications (FCC) of he United
States, with its action in Report and Order FCC 96-326, adopted
an updated safety standard for human exposure to radio
frequency (RF) electromagnetic energy emitted by FCC
regulated transmitters. Those guidelines are consistent with
the safety standard previously set by both U.S. and
international standards bodies.
The design of this phone complies with the FCC guidelines and
these international standards.
CAUTION
Use only the supplied and approved antenna. Use of
unauthorized antennas or modifications could impair call
quality, damage the phone, void your warranty and/or result in
violation of FCC regulations. Do not use the phone with a
damaged antenna. If a damaged antenna comes into contact
with skin, a minor burn may result. Contact your local dealer
for a replacement antenna.
Body-worn Operation
This device was tested for typical body-worn operations with
the back of the phone kept 0.6 inches (1.5cm) between the
user’s body and the back of the phone. To comply with FCC RF
exposure requirements, a minimum separation distance of 0.6
inches(1.5cm) must be maintained between the user's body
and the back of the phone. Third-party belt-clips, holsters, and
similar accessories containing metallic components should not
be used. Body-worn accessories that cannot maintain 0.6
inches(1.5cm) separation distance between the user's body
and the back of the phone, and have not been tested for typical
body-worn operations may not comply with FCC RF exposure
limits and should be avoided.
11
For Your Safety
Vehicle Mounted External Antenna
(optional, if available)
A minimum separation distance of 8 inches (20cm) must be
maintained between the user/bystander and the vehicle
mounted external antenna to satisfy FCC RF exposure
requirements. For more information about RF exposure, visit
the FCC website at www.fcc.gov

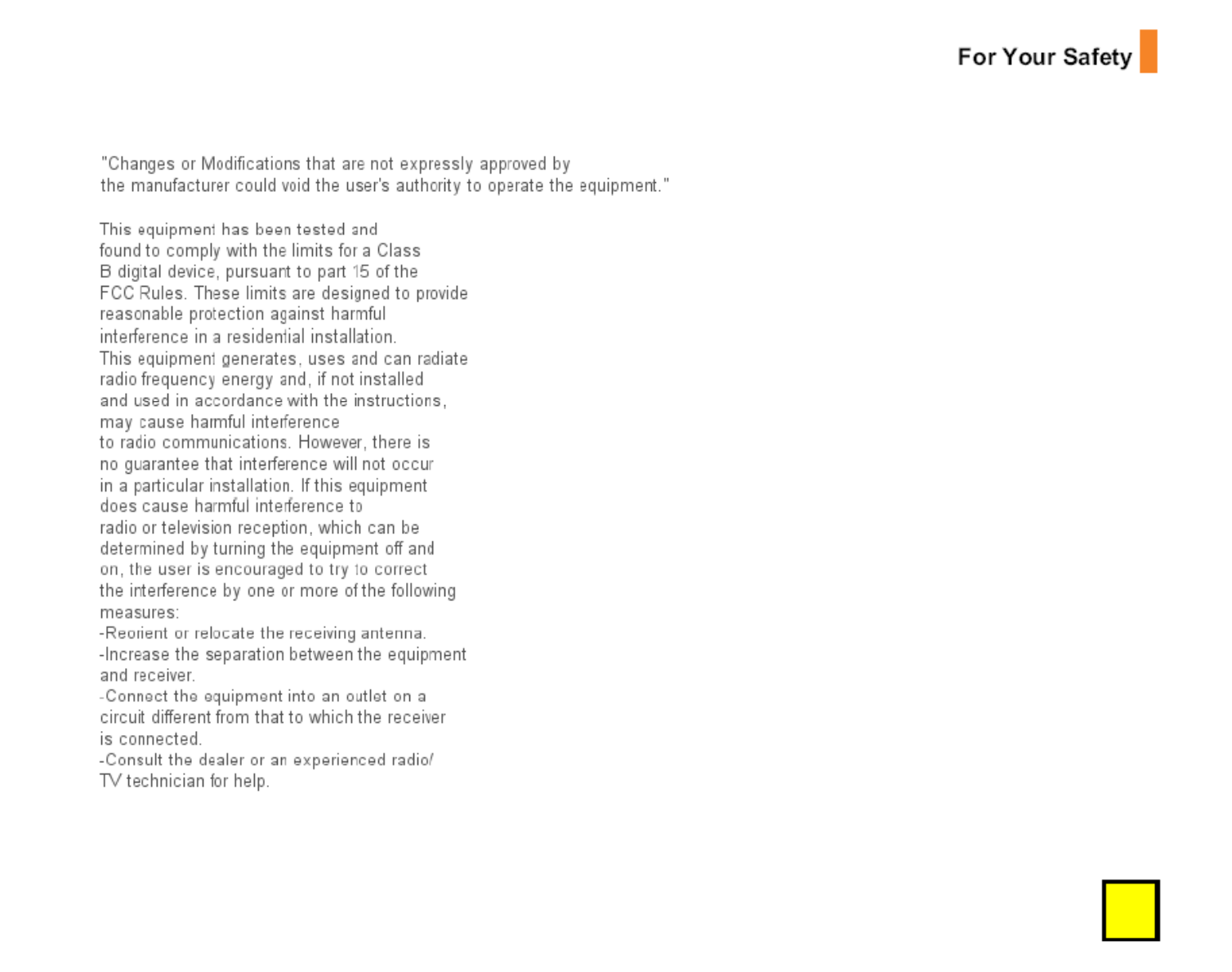

FCC Part 15 Class B Compliance
This device and its accessories comply with part 15 of FCC
rules. Operation is subject to the following two conditions:
(1) This device and its accessories may not cause harmful
interference, and (2) this device and its accessories must
accept any interference received, including interference that
may cause undesired operation.
Cautions for Battery
]Do not disassemble.
]Do not short-circuit.
]Do not expose to high temperature: 60°C (140°F).]
]Do not incinerate.
Battery Disposal
]Please dispose of your battery properly or bring to your
local wireless carrier for recycling.
]Do not dispose in fire or with hazardous or flammable
materials.
Adapter (Charger) Cautions
]Using the wrong battery charger could damage your phone
and void your warranty.
]The adapter or battery charger is intended for indoor use
only.
Do not expose the adapter or battery charger to direct sunlight
or use it in places with high humidity, such as the bathroom.
KE800 features
10
KE800 features
Parts of the phone
1. Earpiece
2. Main LCD
]
To p : Signal strength, battery level and various
function
]
Bottom: Soft key indications
3. Alpha numeric keys
]
In standby mode:
Input numbers to dial
Hold down
– International calls
– Activate Voice mail centre menu
to – Speed dials
]
In editing mode: Enter numbers & characters
KE800 features
11
4. Side keys
]
In standby mode (opened):
Volume of key tone
]
In standby mode (closed):
Short press
– The sub LCD light on.
Long press
– Only display a wallpaper.
]
In menu:
scroll up & down
]
During a call:
volume of the earpiece
5. Headset jack
6. End key
]
Switch on/off (hold down)
]
End or reject a call.
7. Side camera key
Short press
– Camera and MP3 menu access
Long press
– Photo camera activation
8. MP3 key
Note
]
To protect the sense of hearing while slide open,
maximum volume level is 3.
Display Information The screen displays several icons. They are described
below.
On-Screen Icons
KE800 features
14
KE800 features
Note
]
❋
The quality of the conversation may change
depending on network coverage. When the signal
strength is below 2 bars, you may experience
muting, call drop and bad audio. Please take the
network bars as indicator for your calls. When
there are no bars, that means that there is no
network coverage: in this case, you won’t be able
to access the network for any service (call,
messages and so on).
Icon area
Text and graphic area
Soft key indications
Icon Description
Tells you the strength of the
network signal. ❋
Call is connected.
You can use GPRS service.
Shows that you are using a
roaming service.
Area Description
First line Displays various icons.
Middle lines Display messages, instructions and any
information that you enter, such as
number to be dialled.
Last line Shows the functions currently assigned
to the two soft keys.
Menu Contacts
15
KE800 features
Icon Description
The alarm has been set and is on.
Tells you the status of the battery.
You have received a text message.
You have received a voice mail.
Vibrate only menu in profile.
General menu in profile.
Loud menu in profile.
Silent menu in profile.
Headset menu in profile.
You can divert a call.
Indicates that the phone is
accessing the WAP.
Indicates that you are using GPRS.
Bluetooth activated.
Installing the SIM card and
the handset battery
Make sure the power is off before you remove the
battery.
1. Remove the battery.
Press and hold down
the battery release
button and slide the
battery down.
2. Install the SIM card
Insert the SIM card into the holder. Slide the SIM
card into the SIM card holder. Make sure that the
SIM card is inserted properly and that the gold
contact area on the card is facing downwards. To
remove the SIM card, press down lightly and pull it
in the reverse direction.
Installation
16
Installation
Caution
]
The metal contact of the SIM card can be easily
damaged by scratches. Pay special attention to the
SIM card while handling. Follow the instructions
supplied with the SIM card.
17
Installation
3. Install the battery.
Slide the battery
upwards until it
snaps back into
place.
Charging the Battery
Before connecting the travel adapter to the phone you
must first install the battery.
1. Ensure the battery is fully charged before using the
phone for the first time.
2. With the arrow facing you as shown in the diagram
push the plug on the battery adapter into the
socket on the side of the phone until it clicks into
place.
3. Connect the other end of the travel adapter to the
mains socket. Use only the charger included in the
box.
4. The moving bars of battery icon will stop after
charging is complete.
Caution!
]
If the battery is completely discharged, the
charging display will appear on the LCD
approximately 1 to 1.5 minutes after connecting
TA .
]
Do not force the connector as this may damage
the phone and/or the travel adapter.
]
Insert the battery pack charger vertically to wall
power outlet.
]
If you use the battery pack charger out of your
own country, use an attachment plug adaptor for
the proper configuration.
]
Do not remove your battery or the SIM card while
charging.
Installation
18
Disconnecting the charger
Disconnect the travel adapter from the phone by
pressing its side buttons as shown in the diagram.
Installation
Warning!
]
Unplug the power cord and charger during
lightning storms to avoid electric shock or fire.
]
Make sure that no sharp-edged items such as
animal teeth, nails, come into contact with the
battery. There is a risk of this causing a fire.
]
Do not place or answer calls while charging the
phone as it may short-circuit the phone and/or
cause electric shock or fire.
General Functions
19
General Functions
Making a call
1. Make sure your phone is powered on.
2. Enter a phone number including the area code.
To edit a number on the display screen, simply press
the key to erase one digit at a time.
]
Press and hold the key to erase the entire
number.
3.
Press the
key
to call.
4.
When you want to finish, press the key.
Making a Call by Send Key
1.
Press the key, and the most recent incoming,
outgoing and missed phone numbers will be
displayed.
2. Select the desired number by using the navigation
key.
3. Press the
.
Making an international call
1. Press and hold the key for the international
prefix. The ‘+’ character automatically selects the
international access code.
2. Enter the country code, area code, and the phone
number.
3.
Press the
.
Ending a call
When you have finished a call, press the key.
Making a Call From the Contact list
You can store names and phone numbers dialled
frequently in the SIM card as well as the phone
memory known as the Contact list.
You can dial a number by simply looking up a name in
the contact list. For more details on the Contacts
feature, please refer to page 30.
General Functions
20
General Functions
Adjusting the volume
During a call, if you want to adjust the earpiece
volume, use the side keys of the phone.
In idle mode, you can adjust the key volume using the
side keys.
Answering a call
When you receive a call, the phone rings and the
flashing phone icon appears on the screen.
If the caller can be identified, the caller’s phone
number (or name if stored in your Address Book) is
displayed.
1. Slide up and press the key or the left soft key to
answer an incoming call. If the Any Key menu
option [Menu #-3-2], see p. 70, has been set to
any key press will answer a call except for the key
or the right soft key.
2. End the call by closing the phone or pressing the
key.
Vibrate Mode (Quick)
Vibrate Mode can be activated by pressing and holding
the left navigation key.
Signal strength
If you are inside a building, being near a window may
give you better reception. You can see the strength
of your signal by the signal indicator ( ) on
your phone’s display screen.
Entering text
You can enter alphanumeric characters by using the
phone’s keypad. For example, storing names in the
Address Book, writing a message, creating scheduling
events in the calendar all require entering text. The
following text input methods are available in the phone.
Note
]
You can answer a call while using the Address
Book or other menu features. In case phone is
connected with PC via USB cable, incoming call
will be rejected, but after disconnecting phone
from PC you can see Missed call window.
T9 mode
This mode allows you to enter words with only one
keystroke per letter. Each key on the keypad has more
than one letter. The T9 mode automatically compares
your keystrokes with an internal linguistic dictionary
to determine the correct word, thus requiring far
fewer keystrokes than the traditional ABC mode.
ABC mode
This mode allows you to enter letters by pressing the
key labeled with the required letter once, twice, three
or four times until the letter is displayed.
123 mode (Number mode)
Type numbers using one keystroke per number. To
change to 123 mode in a text entry field, press
key until 123 mode is displayed.
Symbolic Mode
This mode allows you to enter special characters.
Changing the text input mode
1. When you are in a field that allows characters to be
entered, you will notice the text input mode
indicator in the upper right corner of the display.
2. If you want to change modes, press
. The
available modes are changed.
Using the T9 mode
The T9 predictive text input mode allows you to
enter words easily with a minimum number of key
presses. As you press each key, the phone begins to
display the characters that it thinks you are typing
based on a built-in dictionary. As new letters are
added, the word changes to reflect the most likely
candidate from the dictionary.
1. When you are in the T9 predictive text input mode,
start entering a word by pressing keys to
Press one key per letter
General Functions
21
Note
]
Some fields may allow only one text input mode
(e.g. telephone number in address book fields).
Note
]
You can select a different T9 language from the
menu option or press hold down the key .
The default setting on the phone is T9
disable mode.
General Functions
22
General Functions
]
The word changes as letters are typed-ignore
what’s on the screen until the word is typed
completely.
]
If the word is still incorrect after typing
completely, press the down navigation key once
or more to cycle through the other word
options.
Example: Press to type
Good
]
If the desired word is missing from the word
choices list, add it by using the ABC mode.
2. Enter the whole word before editing or deleting any
key strokes.
3. Complete each word with a space by pressing the
key or key.
To delete letters, press . Press and hold down
to erase the letters continuously.
Using the ABC mode
Use the to keys to enter your text.
1. Press the key labelled with the required letter:
]
Once for the first letter
]
Twice for the second letter
]
And so on
2. To insert a space, press the key once.
To delete letters, press the key. Press and
hold down the key to erase the letters
continuously.
Note
]
To exit the text input mode without saving your
input, press . The phone returns to the idle
screen.
23
General Functions
Using the 123 (Number) mode
The 123 mode enables you to enter numbers in a text
message (a telephone number, for example). Press the
keys corresponding to the required digits before
manually switching back to the appropriate text entry
mode.
Using the Symbol Mode
The Symbol Mode enables you to enter various
symbols or special characters.
To enter a symbol, press the key. Use the
navigation keys to select the desired symbol and press
the [OK] key.
Key Upper Case Lower Case
. , / ? ! - : ' '' 1 @ . , / ? ! - : ' '' 1 @
AB C 2 Ä À Á Â Ã Å Æ Ç a b c 2 ä à á â ã å æ ç
D E F 3 Ë È É Ê d e f 3 ë è é ê
G H I 4 Ï Ì Í Î ˝g h i 4 ï ì í î ©
J K L 5 j k l 5
M N O 6 Ñ Ö Ø Ò Ó Ô Õ Œ m n o 6 ñ ö ø ò ó ô õ œ
P Q R S 7 ß Íp q r s 7 ß ß
T U V 8 Ü Ù Ú Û t u v 8 ü ù ú û
W X Y Z 9 w x y z 9
Space 0 Space 0
Characters in the order display
Note
]
Refer to the table below for more information on the
characters available using the alphanumeric keys.
Selecting functions and options
24
Selecting functions and options
Your phone offers a set of functions that allow you to
customise the phone. These functions are arranged in
menus and sub-menus, accessed via the two soft keys
marked [ ] and [ ]. Each menu and sub-
menu lets you view and alter the settings of a
particular function.
The roles of the soft keys vary according to the current
context; the label on the bottom line of the screen just
above each key indicates its current role.
In-call menu
25
In-call menu
Your phone provides a number of control functions
that you can use during a call. To access these
functions during a call, press the left soft key
[Options].
During a call
The menu displayed on the handset screen during a
call is different to the default main menu displayed
when in standby mode, and the options are
described below.
Making a Second Call
(Network Dependent)
You can get a number you wish to dial from the
phonebook to make a second call.
Switching between two calls
To switch between two calls, press key or the
left soft key, and then select Swap Call.
Answering an incoming call
To answer an incoming call when the handset is
ringing, simply press the key. The handset is
also able to warn you of an incoming call while you
are already on a call. A tone sounds in the earpiece,
and the display will show that a second call is waiting.
This feature, known as Call waiting, is only available if
your network supports it. For details of how to
activate and deactivate it see Call waiting (Menu #-
3-4, see p. 82)
If Call Waiting is on, you can put the first call on hold
and answer the second, by pressing the left soft key
.
Rejecting an incoming call
You can reject an incoming call without answering by
simply pressing the key.
During a call, you can reject an incoming call by
pressing the key.
Muting the microphone
You can mute the microphone during a call by
pressing the [Mute] key. The handset can be
unmuted by pressing the [Unmute]. When the
handset is muted, the caller cannot hear you, but you
can still hear them.
In-call menu
26
In-call menu
DTMF tones while calling
To switch on DTMF tones while calling (e.g. to use
the phone with an automatic switchboard) press the
key [Options] followed by Send DTMF on. Select
DTMF off to disable DTMF tones. DTMF tones are
normally on
Conference Calls
The conference service provides you with the ability
to have a simultaneous conversation with more than
one caller, if your network service provider supports
this feature. A conference call can only be set up
when you have one active call and one call on hold,
both calls having been answered.
Once a conference call is set up, calls may be added,
disconnected or separated (that is, removed from the
conference call but still connected to you) by the
person who set up the conference call. These options
are all available from the In-Call menu. The maximum
callers in a conference call are five. Once started, you
are in control of the conference call, and only you
can add calls to the conference call.
Making a second call
You can make a second call while currently on a call.
Enter the second number and press the . When
the second call is connected, the first call is
automatically placed on hold. You can swap between
calls, by pressing the key.
Setting up a conference call
To set up a conference call, place one call on hold
and while the active call is on, press the left soft key
and then select the Join menu of Conference call.
Activate the conference call on hold
To activate a conference call on hold, press the S key.
Alternatively press the left soft key [Options] and
select Join all/Hold all calls. Other users on hold will
stay connected. To return to conference call mode,
press the left soft key < [Options] followed by
Conference call.
27
In-call menu
Adding calls to the conference call
To add a call to an existing conference call, press the
left soft key, and then select the Join menu of
Conference call.
Private Call in a Conference Call
To have a private call with one caller from a
conference call, display the number of the caller you
wish to talk to on the screen, then press the left soft
key. Select the Private menu of Conference call to put
all the other callers on hold.
Ending a conference call
Currently displayed caller from a conference call can
be disconnected by pressing the key.
28
Menu Tree
1. Browser
1.1 Home
1.2 Bookmarks
1.3 Go to URL
1.4 Settings
2. Call register
2.1 All calls
2.2 Missed calls
2.3 Dialled calls
2.4 Received calls
2.5 Call duration
2.6 Call costs
2.7 Data information
3. Tools
3.1 Favorite
3.2 Alarm clock
3.3 Calendar
3.4 Calculator
3.5 Memo
3.6 Tip calculator
3.7 Stop watch
3.8 Unit converter
3.9 World time
3.0 SIM services
4. Multimedia
4.1 Camera
4.2 Video camera
4.3 MP3 player
4.4 Radio
4.5 Music Composer
4.6 Voice recorder
5. Messaging
5.1 New message
5.2 Inbox
5.3 Mailbox
5.4 Drafts
5.5 Outbox
5.6 Sent
5.7 Voice mail
5.8 Info message
5.9 Templates
Menu Tree
29
Menu Tree
5. Messaging
5.0 Settings
6. My stuff
6.1 Videos
6.2 Images
6.3 Sounds
6.4 Others
6.5 Games & Apps
6.6 External Memory
7. Profiles
7. 1 G e n e r a l
7.2 Silent
7.3 Vibrate only
7.4 Outdoor
7. 5 H e a d s e t
7.6 Offline
8. Contacts
8.1 Search
8.2 Add new
8.3 Caller groups
8.4 Speed dials
8.5 Own number
8.6 My Business card
8.7 Settings
9. Settings
9.1 Date & Time
9.2 Power saving
9.3 Display
9.4 Language
9.5 Connectivity
9.6 Calling
9.7 Security
9.8 Memory status
9.9 Reset efault
Browser
30
Browser
You can access various WAP (Wireless Application
Protocol) services such as banking, news, weather
reports and flight information. These services are
specially designed for mobile phones and they are
maintained by WAP service providers.
Check the availability of WAP services, pricing and
tariffs with your network operator and/or the service
provider whose service you wish to use. Service
providers will also give you instructions on how to
use their services.
Once connected, the homepage is displayed. The
content depends on the service provider. To exit the
browser at any time, press the ( ) key. The
phone will return to the previous menu.
Navigating with the WAP browser
You can surf the Internet using either the phone keys
or the WAP browser menu.
Using the phone keys
When surfing the Internet, the phone keys function
differently to phone mode.
Using the WAP browser menu
There are various menu options available when
surfing the Mobile Web.
Home
Menu 1.1
Connects to a homepage. The homepage will be the
site which is defined in the activated profile. It will be
defined by the service provider if you have not
defined it in the activated profile.
Key Description
Scrolls each line of the content
area
Returns to the previous page
Selects options and confirms
actions
Note
]
The WAP browser menus may vary, depending
on your browser version.
Browser
31
Bookmarks
Menu 1.2
This menu allows you to store the URL of favourite
web pages for easy access at a later time.
To create a bookmark
1. Press the left soft key [Options].
2. Select Add new and press the OK key.
3. After entering the desired URL and title, press the
OK key.
After selecting a desired bookmark, the following
options are available.
]
Connect: Connects to the selected bookmark.
]
Add new: Select this to create a new bookmark.
]
Edit: You can edit the URL and/or the title of the
selected bookmark.
]
Delete: Deletes the selected bookmark.
]
Delete all: Deletes all the selected bookmarks.
Go to URL
Menu 1.3
You can connect directly to the site you want. After
entering a specific URL, press the OK key.
Settings
Menu 1.4
You can set the profile, cache, cookie and security
related to internet service.
Profiles (Menu 1.4.1)
A profile is the network information used to connect
to the Internet.
There are default profiles for some operators, stored
in phone memory. It’s impossible to rename default
profiles.
Each profile has submenus as follows:
]
Activate: Activates the selected profile.
]
Settings: Use this to edit and change WAP settings
for the selected profile.
- Homepage: This setting allows you to enter the
address (URL) of a site you want to use as
homepage. You do not need to type http:// at
the front of each URL as the WAP Browser will
automatically add it.
- Gateway Settings: IP Adress/Port Number: You
need to enter IP adress or Port number that you
want.
- Connection type: This setting allows you to
select the type among HTTP and HTTP with
proxy and WAP.
- Network Profile: You can select network profile
that have set on the [menu 9-5-6-1].
]
Rename: You can change the profile name.
]
Add new: You can add a new profile.
]
Delete: Deletes the selected profile from the list.
]
Delete all: Deletes all profile from the list.
Cache (Menu 1.4.2)
The information or services you have accessed are
saved in the cache memory of the phone.
Clear cache (Menu 1.4.3)
Removes all context saved in cache.
Security certificates (Menu 1.4.4)
A list of the available certification is shown.
]
Authority: You can see the list of authority
certificates that have been stored in your phone.
]
Personal: You can see the list of personal
certificates that have been stored in your phone.
WAP information (Menu 1.4.5)
Browser
32
Browser
Note
]
A cache is a buffer memory, which is used to save
data temporarily.
Call register
33
Call register
You can check the record of missed, received, and
dialled calls only if the network supports the Calling
Line Identification (CLI) within the service area.
The number and name (if available) are displayed
together with the date and time at which the call was
made. You can also view call times.
All calls
Menu 2.1
You can view all lists of outgoing or incoming calls.
Missed calls
Menu 2.2
This option lets you view the last 40 unanswered calls.
You can also:
]
View the number if available and call it or save it in
the phonebook.
]
Enter a new name for the number and save both in
Address book.
]
Send a message to this number.
]
Delete the call from the list.
Dialled calls
Menu 2.3
This option lets you view the last 40 outgoing calls
(called or attempted).
You can also:
]
View the number if available and call it or save it in
Address Book
]
Enter new name for the number and save both in
Address Book.
]
Send a message to this number.
]
Delete the call from the list.
Received calls
Menu 2.4
This option lets you view the last 40 incoming calls.
You can also:
]
View the number if available and call it, or save it in
Address Book
]
Enter a new name for the number and save both in
Address Book.
]
Send a message to this number.
]
Delete the call from the list.
Call duration
Menu 2.5
Allows you to view the duration of your incoming and
outgoing calls. You can also reset the call times. The
following timers are available:
]
Last call: Length of the last call.
]
Dialled calls: Length of the outgoing calls.
]
Received calls: Length of the incoming calls.
]
All calls: Total length of all calls made and
incoming calls since the timer was last reset.
Call costs
Menu 2.6
Allows you to check the cost of your Last call, All
calls, Remaining and Reset all. To reset the cost,
you need to PIN2 code.
Data information
Menu 2.7
You can check the amount of data transferred over
the network through the GPRS information option. In
addition, you can also view how much time you are
online.
Call duration (Menu 2.7.1)
You can check the duration of Last call and All calls.
You can also Reset all the call timers.
Data volumes (Menu 2.7.2)
You can check the Sent, Received or All data
volumes and Reset all.
Call register
34
Call register
Tools
Tools
35
Favorite
Menu 3.1
This option allows you to add your own favorite to the
list already provided. Once you create your own menu,
you can access the desired function quickly in the idle
screen by pressing the up navigation key.
Alarm clock
Menu 3.2
You can set up to 5 alarm clocks to go off at a
specified time.
1. Select On and enter the alarm time you want.
2. Select the repeat period: Once, Mon~Fri, Mon~Sat,
Everyday.
3. Select the alarm tone you want and press
[OK].
4. Edit the alarm name and press [OK].
Calendar
Menu 3.3
When you enter this menu a Calendar will show up.
On top of the screen there are sections for date.
Whenever you change the date, the calendar will be
updated according to the date. And square cursor will
be used to locate the certain day. If you see under bar
on the calendar, it means that there is a schedule or
memo that day. This function helps to remind you of
your schedule and memo. The phone will sound an
alarm tone if you set this for the note.
To change the day, month, and year.
In the scheduler mode, press left soft key
[Options] as follows;
View (Menu 3.3.1)
New schedule (Menu 3.3.2)
Allows you to add new schedule and memo for the
Note
]
The menu of FM Radio is already provided in your
own favourites.
Key Description
Yearly
Monthly
Weekly
Daily
Tools
36
chosen day. You can store up to 20 notes. Input the
subject and then press left soft key [OK]. You
enter the appropriate information in the follow section;
Time, Repeat and Alarm.
Alert tone (Menu 3.3.3)
You can set the alarm tone of each chosen date.
View all schedules (Menu 3.3.4)
View all schedules and memo for the chosen day. Use
, to browse through the note lists. If you set
alarm for the note, the alarm icon is displayed. If you
want to view the note in detail, press left soft key
[Select]. Press left soft key [Options] to
delete, edit the note you selected.
Go to date (Menu 3.3.5)
You can go the chosen date directly.
Delete past (Menu 3.3.6)
You can delete the past schedule that has been already
notified you.
Delete all (Menu 3.3.6)
You can delete for the all notes.
Calculator Menu 3.4
This contains the standard functions such as +, –, x, ÷
: Addition, Subtraction, Multiplication, and Division.
Furthermore, you can use the various function of
calculator such as +/-, sin, cos, tan, log, Ln, exp,
sqrt, deg,Rad.
1. Input the numbers by pressing numeric keys.
2. Use a navigation key to select a sign for calculation.
3. Then input the numbers.
4. Press key to view the result.
5. To input the decimal number, press key. If you
press key, you can enter ‘.’ .
6. To end Calculator, press the right soft key
[Back].
Memo Menu 3.5
1. Select the Memo by pressing the left soft key
[Select].
Tools
37
Tools
2. If the entry is empty, press the left soft key
[Write].
3. Input the memo and then press left soft key
[OK].
Tip calculator Menu 3.6
1. Input the bill, percentage and split.
2. You can view the amount.
3. Press [Reset] to default condition.
Stop watch Menu 3.7
1. Press [Start] to take time and record the lap time by
pressing [Lap].
2. Press [Stop] to ascertain the record of lap time.
3. Press [Reset] to default condition.
Unit converter Menu 3.8
This converts any measurement into a unit you want.
There are 4 types that can be converted into units:
Length,Area,Weight and Volume.
1. You can select one of four unit types by pressing
[Select] key.
2. Select the unit you want to convert by pressing
and . It's impossible to input "-" symbol in
unit converter.
3. Select the standard value by using , .
World time Menu 3.9
You can view clocks of the world’s major cities.
1. Select the city belonged to the time zone by
pressing , key.
2. You can set the current time to the city time you
select by pressing the left soft key [Set].
SIM services Menu 3.0
This menu depends on SIM and the network services.
Note
]
If you want to change the text input mode, press
the in order.
You can enjoy your multimedia function such as
camera, voice recorder, MP3 for your fun and
convinience.
Camera Menu 4.1
To take a picture with Folder opened
1. Select Take photo, and then press . If you
want to reach this menu directly, press for a
long time.
2. Focus on the subject to capture the image, and then
press the key.
3. If you want to save it, press the left soft key or
the key.
]
Scene:
Allows you to take a picture by using this
menu u at night.
]
Image effect:
4 settings are available: Color, Sephia,
Black & white, Negative.
]
Night mode
:
]
Mode:
Allows to take multishot photos successively.
• Still shot: 320x240, 640x480, 1280x960,
1600x1200
• Multi shot: 320x240
]
Flash:
Allows you to set the flash when you take a
photo in dark surroundings.
]
Zoom: Allowing you to set the zooming value from x1,
x2, x3 and x4 depending on the resolution.
]
Brightness:
Use the right/left navigation keys to
adjust lighting. 5 lighting levels are available: -2, -1,
0, 1, 2.
]
Size:
Allows you to set the image size to one of Hi
(1600x1200), (1280x960), (1280x720), Med
(640x480), Low (320x240), (176x220), (72x72)
main screen, contact, and front screen. If you want
to take panorama(1280x720), you should swivel the
folder. Frame shots are only available with the
176x220 pixel resolution.
Multimedia
38
Multimedia
Note
]
When the status of the battery indicates low, you
may not use Camera or Multimedia function.
]
While using Multimedia function, the status of the
battery is changeable.
Note
]
You can control the image size, brightness, colour
and zooming by pressing the navigation key. (
or )
Multimedia
39
]
Delay timer:
Allows you to select the delay time
(Off, 3 Seconds, 5 Seconds, 10 seconds). Then the
phone takes a photo after the specified time.
]
Quality:
Allows you to set the image quality from
Fine/Normal/Super fine.
]
White Balance:
Allows you to change the settings
according to the enviroment.
]
Auto focus:
Automatically adjusts the focus for a
clear, sharp with a single press of a button.
]
Metering:
determines the lighting based on a little
part of the subject. You can select the Centred, pot
and combined which is to be exposed correctly.
]
Shutter tone:
]
Memory in use:
You can select a storage space;
Phone or Memory card.
]
Album:
Allow you to see photos saved in your
phone.
]
Exit:
Back to the screen mode to take photos.
When you are in Photo Camera capture mode, you may
adjust zoom by pressing side Up/Down navigation
keys.
To take a picture with Folder closed
1. Press [ ] for a long time.
2. A list will be displayed on the sub LCD.
]
MP3:
Activates the MP3 mode.
]
Ta ke p i c t u re :
Activates the Take photo mode.
]
Slide show:
View the pictures in Album as a slide
show.
Note
]
In My album you may look only photos made by
handset’s camera.
Note
]
To make panorama photo (1280x720 resolution)
you should swivel and close flip.
MMS message
Save
Delete
After finishing all the
setting, focus on the
subject to capture and
press the Camera key
or OK key. With a click,
the image is captured
and the following menu
bar appears.
Multimedia
40
Digital Camera Mode
To enter Digital Camera Mode from idle mode you
should swivel and close flip.
Handset will automatically enter Digital Camera Mode.
- To enter camera’s main menu, press and hold side
camera button.
- With side up/down buttons you may scroll through
settings items. After necessary item is selected, press
side camera button, and you will access detailed
settings of this selected item. With side up/ down
buttons select necessary setting and press side
camera button for confirmation.
- To exit to camera capture mode you should press and
hold side camera button.
- To make photo, simply press side camera button.
]
To rc h :
Activates the flash light.
]
Back:
Go back to the previous menu.
Video camera Menu 4.2
1. Select Video camera menu.
2. To be able to record, you must reverse the display
of the phone and close.
3. You can also amend the brightness, size, quality and
other settings by pressing and holding down the q
for seconds. Video camera settings menu is the same
with Photo camera settings, except following items:
]
Size:
You may select following resolution: 128x96,
176x144 .
]
Record time:
You may select recording time from
the list: 1 min, 5 min, 30 min, 90 min and unlimited.
Once the settings are displayed on the screen, you can
scroll through them using the side keys. Scroll to the
setting you wish to change, press the and it will
bring up the setting values. Use the side keys to scroll
to your preferred choice and then press the to
select.
4. To start recording press . As soon as it starts to
record a timer will be displayed.
5. Press the to end the recording and this will now
be saved.
Multimedia
Note
]
When you are in Digital Camera Mode, and there’s
no action for some time, phone will automatically
exit to idle mode.
41
Multimedia
MP3 player
Menu 4.3
The KE800 has an integrated MP3 player built-in. You
can enjoy listening to MP3 music files on a memory in
your phone using a compatible headset or via the
internal loudspeaker.
The music player supports:
]
MPEG-1 Layer III, MPEG-2 Layer III, MPEG-2.5
Layer III:
Sampling frequency up from 8KHz to
48KHz. Bit rate up to 320Kbps, stereo.
]
AAC:
ADIF, ADTS formats (Sampling frequency from
8KHz to 48KHz)
]
AAC+:
V1: (Bit rate 16~128Kbps)
V2 : (Bit rate 16~48Kbps)
(Sampling frequency from 8KHz to 48KHz)
]
MP4, M4A:
Sampling frequency up from 8KHz to
48KHz, Bit rate up to 320Kbps, stereo.
]
WMA:
Sampling frequency up from 8KHz to 48KHz,
Bit rate up to 320Kbps, stereo.
You can transfer MP3 files from a compatible PC to the
memory in your phone using the Mass Storage. When
you connect the phone to a PC using the USB cable
(supplied in the same package), and then you can
show removable disk through windows explorer. After
you copy songs in removable disk, you should execute
safe remove from your system.
Note
]
Because of the small dimension of the speaker, in
some cases the audio could be distorted,
especially at maximum volume and when there are
lots of bass sounds. Therefore, we recommend
you to use the stereo headset in order to
appreciate the high quality of your music.
Note
]
KE800 doesn’t support the variable bit rate of all
mentioned file types. Therefore, you can’t change
the file from MP3 format to AAC.
Note
]
You should copy MP3 to My media\Music folder.
If you copy another folder, you can’t see MP3
files.
]
The PC should run Windows 98 SE, Windows ME,
Windows 2000, Windows XP operating system.
Multimedia
42
MP3 player [Menu 4-3-1]
The following screen is shown up.
1. Press MP3 menu, and then select MP3 player.
2. Press the left soft key [Options] to access
the following menus.
]
View playlist: You can select another music you want
on playing MP3 file.
]
Area repeat: The special area part of the current
music is repeated when you select ON of the menu.
]
Set as ringtone: You can set as a ringtone the
current music on playing MP3 file
]
Settings: There are many setting menus, and you
refer the Settings part at the next page.
Playlist [Menu 4-3-2]
This menu allows to view the whole play list. You can
move the track by pressing the navigation key. In
addition, if you select option menu, you can delete the
file or view its information.
Settings [Menu 4-3-3]
]
Equalizer
This menu helps you to adjust various of
environment on listening to the music. This phone
Multimedia
Progressive bar
Volume level
Player skin
File name
Running time
Status of the
music controller
Stereo/
Playmode/
Shuffle/Hold
Repeat
Play all
Repeat all
Repeat one
Note
]
In case that any invalid file is included in the
playlist, an error message will be popped up and
go back to the prior screen.
43
supports four preset menus. When you enter this
menu, you can view current value of equalizer, and
change the equalizer here. We support some
equalizers like General, Classic, Jazz, Pop, Rock, and
Bass.
]
Playmode
This menu allows to set the play mode: Play all,
Repeat all, Repeat one.
]
Set shuffle
It you selece On, you can listen to the music at
random.
]
Visual effect
You can select the visual effect menus: Light, Bounce
and Guitarist. This menu allows to change the
background of main LCD and sub LCD on playing
MP3 file.
]
Flip setting
- Continue playing: Although you close the flip on
playing, the play mode is continued without a
pause.
- Stop playing: When you close the flip, you can
stop the play mode.
Radio Menu 4.4
You can search radio stations and enjoy listening to the
radio.
Listen radio [Menu 4-4-1]
Connect the FM Radio headset into headset jack on
the right side of the phone to activate this menu.
Multimedia
Note
]
Music is copyright protected in international
treaties and national copyright laws. It may be
necessary to obtain permission or a license to
reproduce or copy music. In some countries
national law prohibits private copying of
copyrighted material. Please check the national
legislation of the applicable country concerning
the use of such material.
Frequency display
Volume level
Preset channel
stations
Multimedia
44
1. Search the desired radio station using the left/right
navigation keys.
Key operations
2. Press and hold down the corresponding number key
of a channel to store the currently selected radio
station into. “Done” message will be popped up and
the selected channel will be coloured.
3. After presetting radio channels, you can listen to
other channel by pressing the corresponding
number key (short press).
4. You can access the following option menus by
pressing the left soft key [Options].
]
Exit radio: Stops the radio play and goes back to
standby mode.
]
Radio alarm: To set the radio alarm. The steps to
set the radio alarm are same to the ones to set the
alarm clock.
]
Save channel: To save the radio station. The list of
10 channel status appears. After selecting an
(empty) channel, press the left soft key [Save]. If you
select an occupied channel, “Replace?” message will
be popped up. And if you select Yes, the channel will
be replaced by the new station.
]
Delete channel: After selecting the channel to
delete, press the left soft key [Delete]. You’ll be
asked to confirm this action.
]
Activate speaker: Select this to listen to the radio
through the built-in speaker. To turn off the speaker,
select “Deactivate speaker”.
Multimedia
Repeat Loop
(Long press) Scans downward/
upward to the next receivable radio
station.
(Short press) Changes the
frequency 0.1 MHz at a time.
Increases/Decreases the volume
level (6 volume levels including
mute).
Left/Right
navigation keys
Up/Down
navigation keys
Note
]
To improve the radio reception, extend the
headset cord which functions as the FM antenna.
45
Channels [Menu 4-4-2]
Opens up the channel list.
After storing radio stations to the preset channels, you
can listen to the radio by electing the desired channel.
Music Composer Menu 4.5
Compose Melody [Menu 4-5-1]
Connect the FM Radio headset into headset jack on
the right side of the phone to activate this menu.
You can compose melody and play with the instrument
of your chosen.
1. Once select Humming Mode or Keyboard Mode or
Score Mode. You can compose melody with this
mode.
2. Input the melody that you want.
3. Select Play the melody by press [OK].
Melody key
My Melody [Menu 4-5-2]
You can display melody which have been saved in the
memory.
Options
]
Play: You can play the melody.
]
Set as ringtone:
]
Edit: You can edit the melody file.
]
Rename: You can change the melody file name.
]
Delete: Delete a file.
]
Delete all: Delete all files in the list.
]
Information: You can view information of the Style,
Instrument, Rhythm and Tempo fixed.
Multimedia
Key Description
Play/stop
Raise/Drop Octave
Shift Note
Length Note
Rest
Delete
Multimedia
46
Settings [Menu 4-5-3]
]
Arrange
You can arrange music Style, Instrument, Rhythm and
Temp o.
]
Metronome
You can choose the tempo of Metronome.
(Fast/Normal/Slow)
Settings [Menu 4-5-4]
You can view information about Music composer menu.
Voice recorder Menu 4.6
You can record voice memo. The following [Options]
menus are available.
]
Storage
You can choose Phone or External memory.
]
Recording mode
You can choose General mode of unlimited recording
or MMS mode of recording up to 30 seconds.
Record
1. Once recording is started, the message Recording
and the remaining time is displayed.
2. If you want to pause or resume recording, press left
soft key or OK key.
3. If you want to finish recording, press right soft key.
Album
You can display Sounds which have been saved in the
memory.
Sound files are stored each folder of Default Sounds,
Voice records and MP3.
Multimedia
Messaging
Messaging
47
New message
Menu 5.1
This menu includes functions related to SMS (Short
Message Service), MMS (Multimedia Message Service),
Email, voice mail, as well as the network’s service
messages.
Tex t (Menu 5.1.1)
You can write and edit text message, checking the
number of message pages.
1. Enter the New message menu by pressing the left
soft key [OK].
2. If you want to write a new message, select Write text
message.
3. To make text input easier, use T9.
4. Press [Insert] to attach the following ;
Options
]
Send:
Sends text messages.
1. Enter numbers of recipient.
2. Press key to add more recipients.
3. You can add phone numbers in the address book.
4. Once the numbers have been entered, press the left
soft key to send the message.
All messages will automatically be saved in the
outbox folder, even after a sending failure.
Insert
]
Symbol: You can add special characters.
]
Image: You can insert the Default graphics or
graphics in My Folder that are available for short
messages.
]
Sound: You can insert sounds that are available for
short messages.
]
Default image: You can insert Animations stored.
]
Default sound: You can insert Sounds stored.
]
Text template: You can use Text templates already
set in the phone.
]
Contact: You can add phone numbers or e-mail
addresses in the address book.
]
Business card: You can add your Signature to the
message.
]
Save to drafts: Stores messages in Drafts.
]
T9 languages:
Select the desired language for T9
input mode. You can also deactivate the T9 input
mode by selecting ‘T9 off’.
Messaging
48
Messaging
]
Exit:
If you press Exit whilst writing a message, you
will be taken back to the message menu. The
message you have written is not saved.
Multimedia (Menu 5.1.2)
You can write and edit multimedia messages, checking
message size.
1. Enter the New message menu by pressing the left
soft key [Select].
2. If you want to write a new message, select
Multimedia.
3. You can create a new message or choose one of the
multimedia message templates already made.
4. Press Insert to add Image, Sound, External memory,
Contacts, Symbol, New photo, New sound, Text
templates, My business card.
Maximum available file size, that can be inserted to
MMS-message, is 300 kb.
Options
]
Send to:
You can send multimedia messages to
multiple recipients, priorities your message, and
make it sent later as well.
]
Insert:
You can add photos, images, sounds,
contacts, symbol, new photo, new sound, text
templates and my business card.
]
Preview:
You can preview multimedia messages you
have created.
]
Save:
You can save multimedia messages To drafts or
As template.
]
Edit subject:
Allows you to modify the multimedia
message you have chosen.
]
Slide duration:
]
Save to Drafts:
You can save multimedia messages
to Drafts.
]
T9 languages:
Select the language for T9 input
mode. You can also deactivate T9 input mode by
selecting ‘T9 off’.
]
Exit:
You can get back to the Message menu.
Note
]
The phone which supports EMS release 5 is
available to send colour pictures, sounds, text
styles, etc.. The other party may not receive
pictures, sounds or text styles you sent properly if
the phone does not support such options.
Note
]
All messages will be automatically saved in the
outbox folder, even after a sending failure.
Messaging
49
Email (Menu 5.1.3)
To send/receive an email, you should set up the email
account. Refer to Email on page 50 first.
1. You can input up to 20 email addresses in the To
and Cc field.
Tip: To input "@", press the and select "@".
2. Key in the subject of the mail and press OK.
3. After writing an email message, press the left soft
key [Options]. You can access the following
option menus.
]
Send:
Sends the email message.
]
Send to:
You can edit recipients..
]
Attachment:
You can attach file with this menu.
]
Preview:
You can preview the writing mail.
]
Save to drafts:
Select this to save the message in
Drafts.
]
Edit subject:
You can edit the subject.
]
T9 languages:
Select the language for T9 input
mode. You can also deactivate the T9 input mode by
selecting ‘T9 off’.
]
Clear text:
You can clear text while writing the
message.
]
Exit:
If you select this while writing the message, you
can exit from writing message and go back to the
previous screen. The message you have written is not
stored.
]
Contacts:
You can connect with phonebook.
]
Edit email:
You can edit the email body.
Note
]
If you select the picture (200K) on writing
multimedia message, loading duration will take
around 10 seconds at least. Furthermore, you can’t
activate any key during loading time. After 10
seconds, it is available to write multimedia message.
Note
]
For each e-mail account you may save up to 40
messages (totally 200 for five accounts). In Inbox
folder you may save not more than 20 messages,
in Drafts and Outbox folders - 5 messages, and in
Sent folder up to 10 messages. In case Drafts
Outbox or Sent folder is full, and you try to save
new message to one of this folders, first saved
message will be automatically deleted.
]
Maximum size for one sent message is 300 kb
with attachments, and maximum size for one
received message is 300 kb. In case you have
received message with more than 5 attachments,
only 5 of them will be received. Some attachment
may display incorrectly.
Messaging
50
Messaging
Inbox
Menu 5.2
You will be alerted when you have received a message.
They will be stored in the Inbox.
In the Inbox, you can identify each message by icons.
For detail, see the icon directive.
If the phone shows ‘No space for SIM message’, you
have to delete only SIM messages from Inbox. If the
phone displays ‘No space for message’, you can make
space of each repository as deleting messages, media
and applications.
❇SIM message
SIM message means that the message is
exceptionally stored in the SIM card. You can move
this message to the phone.
For notified multimedia message, you have to wait for
downloading and processing of the message.
To read a message, select one of the messages by
pressing the left soft key .
]
View:
You can view the received messages.
]
Delete:
You can delete the current message.
]
Reply:
You can reply to the sender.
]
Forward:
You can forward the selected message to
another party.
]
Return call:
You can call back the sender.
]
View information:
You can view information about
received messages; Sender’s address, Subject (only
for Multimedia message), Message date & time,
Message type, Message size.
]
Delete all:
You can delete all messages.
Icon Icon directive
Multimedia message
Short message
SIM message
Read multimedia message
Read text message
Push message
Notified multimedia message
51
Messaging
Emailbox
Menu 5.3
When you access this menu, you can either connect to
your remote mailbox to retrieve your new email
messages, or you can view the previously retrieved
email messages without logging in to the email server.
You can check the saved emails, drafts, outbox, and
sent emails. In the Inbox, up to 20 emails are stored.
(Outbox stores up to 5, Draftes store up to 5, Sent
stores up to 10)
Drafts
Menu 5.4
Using this menu, you can preset up to five multimedia
messages that you use most frequently. This menu
shows the preset multimedia message list.
The following options are available.
]
View:
You can see the multimedia messages.
]
Edit:
Modifies the massage you choose.
]
Delete:
Deletes the message you choose.
]
Delete all:
Deletes all of the messages in the folder.
Outbox Menu 5.5
This menu allows to view the message which is about
to send or is failed sending.
After sending the message successfully, the message
will be moved to sent menu.
]
View:
You can view the message.
]
Delete:
You can delete the message.
]
Resend:
]
Edit:
]
View information:
You can check the information of
each message.
]
Multi delete:
]
Delete all:
You can delete all the messages in the
outbox.
Icon Icon directive
MMS Unsent
Waiting for sending in MMS
Sending MMS
Messaging
52
Messaging
Sent
Menu 5.6
This menu allows you to view the messages which are
already sent. You can check the time and the contents
of message.
Voice mail
Menu 5.7
Once this menu has been selected, simply press the
left soft key [OK] to listen to voice mail.
You can also hold down the key in standby mode
to listen to voice mail.
Info message
Menu 5.8
(Dependent to network and subscription)
Info service messages are text messages delivered by
the network to GSM. They provide general information
such as weather reports, traffic news, taxis, pharmacies,
and stock prices.
Each type of has the number; therefore, you can
contact service provider as long as you have input the
certain number for the information.
When you have received an info service message, you
can see the popup message to show you that you have
received a message or the info service message is
directly displayed.
To view the message again or not in standby mode,
follow the sequence shown below;
Read (Menu 5.8.1)
1. When you have received an info service message and
select Read to view the message, it will be displayed
on the screen. You can read another message by
scrolling , or [Next].
2. The message will be shown until another message is
selected.
Topics (Menu 5.8.2)
(Dependent to network and subscription)
]
View list: You can see Info service message numbers
which you added. If you press [Options], you
can edit and delete info message category which you
Note
]
When you receive a voice mail, your phone will
display an icon and you will hear an alert. Please
check with your network provider for details of
their service in order to configure the handset
correctly.
53
Messaging
added.
]
Active list: You can select info service message
numbers in the active list. if you activate an info
service number, you can receive messages sent from
the number.
Templates Menu 5.9
Tex t (Menu 5.9.1)
You have 6 text templates as below;
Multimedia (Menu 5.9.2)
After you have saved a new template, you can use the
following options.
]
Insert:
You can add photos, images, sounds,
contacts, symbol, new photo, new sound, text
templates and my business card.
]
Edit subject: Allows you to modify the multimedia
message you have chosen.
]
Slide duration:
]
T9 languages: Select the desired language for T9
input mode. You can also deactivate T9 input mode
by selecting ‘T9 off’.
]
Exit: Will take you back to the Message menu.
]
Delete all: Allows you to delete all multimedia
messages.
Settings Menu 5.0
Text message (Menu 5.0.1)
]
Message types:
Text, Voice, Fax, Natl. paging, X.400, E-mail,
ERMES
Usually, the type of message is set to Tex t . You can
convert your text into alternative formats. Contact
your service provider for the availability of this
function.
]
Validity period:
This network service allows you to
set how long your text messages will be stored at the
message centre.
• Please call me back.
• I’m late. I will be there at
• Where are you now?
• I am on the way.
• Top urgent. Please contact.
• I love you.
Messaging
54
Messaging
]
Delivery report:
If you set to Yes , you can check
whether your message is sent successfully.
]
Reply via same service centre:
When a message is
sent, it allows the recipients to reply and charge the
cost of the reply to your telephone bill.
]
Message centre number:
If you want to send the
text message, you can receive the address of SMS
centre through this menu.
]
Bearer setting:
Mulitimedia (Menu 5.0.2)
]
Priority:
You can set the priority of the message
you choose.
]
Validity period:
This network service allows you to
set how long your text messages will be stored at the
message centre.
]
Subject:
You can enter multimedia messages subject
when this menu is on.
]
Delivery report:
If it is set to Yes in this menu, you
can check whether your message is sent successfully.
]
Read report:
]
Auto download:
If you select On, you receive
multimedia messages automatically. If you select Off,
you receive only notification message in the inbox
and then you can check this notification. If you
select Home network only, you receive multimedia
messages depends on Homenetwork.
]
Network settings:
If you select multimedia message
server, you can set URL for multimedia message
server.
]
Permitted message types
Personal: Personal message.
Advertisements: Commercial message.
Information: Necessary information.
Email (Menu 5.0.3)
This menu allows you to edit, delete or add and email
account.
]
View:
]
New account: You can set up to 5 email accounts
by selecting New account menu. Using the Edit
menu, you can set the following values.
]
Set as default
55
Messaging
]
Edit
- Account name: Account name.
- Email address: Enter the email address given to
you by your service provider.
- My name: You can make your nickname.
- Incoming mail server: Enter the POP3 address
and Port number of the that receives your email.
- User name: Enter your email ID.
- Password: Enter your email password.
- Outgoing mail server: Enter the SMTP address
and Port number of computer that sends your
email.
- Maximum receive size: View the Maximum size
that you can receive mails.
- Save to server: Select Yes to leave the messages
on the server.
- Insert signature: Select Yes to attach your
signature to your email messages.
]
Advanced settings
- Reply email address: Email address that you can
receive the reply.
- Incoming port number: Allow you to edit POP3
port number.
- Outgoing port number: Allow you to edit SMTP
port number.
- Outgoing mail authentication: when you send
the mail, you can set authentication whether or
not.
- Outgoing server ID/PW: Enter the ID and
password for sending your email.
]
New account: You can set up to 5 email accounts
by selecting New account menu. Using the Edit
menu, you can set the following values.
]
Delete: Deletes the selected account from the list.
]
Delete all: You can delete all account lists.
- Access point: Allow you to select the access point
from the list.
]
Network profile:
]
Signature: You can make your signature.
Voicemail number (Menu 5.0.4)
You can receive the voicemail if your network service
provider supports this feature. When a new voicemail is
arrived, the symbol will be displayed on the screen.
Please check with your network service provider for
Messaging
56
Messaging
details of their service in order to configure the phone
accordingly.
Push messages (Menu 5.9.6)
You can set the option whether you will receive the
message or not.
Info message (Menu 5.0.6)
]
Receive
Yes:
If you select this menu, your phone will receive
Info service messages.
No:
If you select this menu, your phone will not
receive Info service messages any more.
]
Alert
Yes:
Your phone will beep when you have received
Info service message numbers.
No:
Your phone will not beep even though you have
received info service messages.
]
Languages
You can select the language you want by pressing
[On/Off]. Then, the info service message will be
shown in the language that you selected.
My stuff
57
My stuff
Videos
Menu 6.1
Show the list of 3GP, 3G2 files at My media\Videos in
Multimedia memory. Supported only .3gp files, that are
encoded with MPEG4 and h.263 video-codecs and
AMR audio-codec.
]
Play: You can play the video file when pressing OK
key or selecting Play menu of Option menus.
]
Send via: Send the selected file to another device
via Multimedia or Email or bluetooth.
]
Copy to External memory: Copy the selected file
to the same folder at Multimedia memory/External
memory.
]
Move to External memory: Move the selected file
to the same folder at Multimedia memory/External
memory.
]
Rename: Change the file name of selected file. The
maximum length of characters is 200. And You can
not change the extension of file.
]
Delete: Delete a file.
]
Delete all: Delete all files in the list.
]
Information: Show the file information..
Images Menu 6.2
Show the list of JPG files at My media\Photos in
Multimedia memory.
]
View: You can see the JPG file when pressing OK key
Note
]
You may send files via Bluetooth only if they are
stored in phone memory, not on memory card. To
send file from external memory, please, firstly copy
it to internal phone memory.
Warning
]
If you remove a external memory during copying a
file, it makes a serious damage at phone.
Warning
]
If you remove a external memory during moving a
file, it makes a serious damage at phone.
Warning
]
You can’t use the following characters, \ / : * ? “ < >
|
My stuff
58
My stuff
or selecting View menu of Option menus.
]
Slide show: View the pictures in that folder as a
slide show.
]
Send via email: Send the selected file to another
device via email if the file size is less than
300Kbytes.
]
Send via Bluetooth: Send the selected file to
another device via Bluetooth.
]
Set as wallpaper: Set the selected file into
wallpaper.
]
Send via Bluetooth printer: Print the selected file
via Bluetooth compliant printer.
]
Copy to External memory: Copy the selected file
to the same folder at Multimedia memory/External
memory.
]
Move to External memory: Move the selected file
to the same folder at Multimedia memory/External
memory.
]
Rename: Change the file name of selected file. The
maximum length of characters is 200. And You can
not change the extension of file.
]
Delete: Delete a file.
]
Multi delete: Select and delete the selected files.
]
Delete all: Delete all files in the list
]
Information: Show the file information.
]
View by list/grid: Toggle the view into list/grid view.
Sounds Menu 6.3
Show the list of MP3, MP4, AAC, M4A, WMA files at
My media\Music in Multimedia memory.
]
Play: You can play the MP3 file when pressing OK
key or selecting Play menu of Option menu.
]
Set as ringtone:
]
Send via: Send the selected file to another device
via MMS or EMAIL or Bluetooth.
]
Copy to External memory: Copy the selected file
to the same folder at Multimedia memory/External
memory.
Note
]
You may send files via Bluetooth only if they are
stored in phone memory, not on memory card. To
send file from external memory, please, firstly copy
it to internal phone memory.
Settings
59
]
Move to External memory: Move the selected file
to the same folder at Multimedia memory/External
memory.
]
Rename: Change the file name of selected file. The
maximum length of characters is 200. And You can
not change the extension of file.
]
Delete: Delete a file.
]
Delete all: Delete all files in the list
]
Information: Show the file information.
Others Menu 6.4
Show the list of files at My media\Others in
Multimedia memory.
]
Play: You can play a file if its type is the one of 3GP,
3G2, MP3, MP4, AAC, M4A and WMA.
]
View: You can see a file if its type is the one of JPG,
GIF, WBMP, PNG and TXT.
]
Send via Bluetooth: Send the selected file to
another device via Bluetooth.
Games & Apps Menu 6.5
In this menu, you can manage the Java applications
installed in your phone. You can play or delete
downloaded applications, or set the connect option.
External Memory Menu 6.6
This menu allows you to view Videos, Photos, Music,
Text, Images, Sounds and Others in memory card.
Note
]
You may send files via Bluetooth only if they are
stored in phone memory, not on memory card. To
send file from external memory, please, firstly copy
it to internal phone memory.
]
When you connect phone with PC via bluetooth,
to Music, Video, Others and Text folders you can
write and receive files, and from Photo, Sounds
and Images folders you may only receive files,
copy files to this folders from PC is impossible. All
supported file types you may copy from PC to
phone’s Others folder, and then you may view or
play these files. When connecting with PC via USB
cable in internal phone memory you may see only
Photo, Music, Others, Text and Video folders, and
on external memory card you may see all folders.
My stuff
60
If the external memory is not available, a pop up
message “Please insert external memory” is displayed.
My stuff
Note
]
Removable disk will be not available, if in phone
Sim card absence.
Note
]
MASS STORAGE function will only work in idle
mode.
]
Please do not try to remove the cable while you
are downloading files. After you download the
files, you need to click “window HW safely
remove” on PC and then disconnect cable.
]
When you copy a file to the removable disk, you
can see the Main LCD display “transferring”. it
means MASS STORAGE is working. while
“transferring”, do not disconnect the cable. if you
disconnect the cable while “transferring”, data will
be broken.
]
If you receive a call during MASS STORAGE the
call will be rejected but after you safely remove
the cable, you will be able to see the missed call.
New Fantastic LG
]
There is mass storage function in KE800. if you
connect the USB cable, you can use the phone as
a Removable Disk. You can download MP3 files,
and photos, video, txt files etc. this gives you fast
access from PC to Phone, by just connecting the
USB cable.
Profiles
61
In Profiles, you can adjust and customise the phone
tones for different events, environments, or caller
groups.
There are five preset profiles: General, Silent, Vibrate
only, Outdoor, Headset and Offline.
Each profile can be personalised. Press the left soft key
[Menu] and select Profiles using up/down navigation
keys.
Activate (Menu 7.X.1)
1. A list of profiles is displayed.
2. In the Profiles list, scroll to the profile you want to
activate and press the left soft key [Select] or
OK key.
3. Then, select Activate.
Personalise (Menu 7.X.2)
Scroll to the desired profile in the Profile list. After
pressing the left soft key or the OK key, select
Personalise. The profile setting option opens. Set the
option as required.
]
Call alert type: Set the alert type for incoming calls.
]
Ring tone: Select the desired ring tone from the list.
]
Ring volume: Set the volume of the ringing tone.
]
Message alert type: Set the alert type for messages.
]
Message tone: Select the alert tone for messages.
]
Keypad tone: Select the desired keypad tone.
]
Keypad volume: Set the volume of keypad tone.
]
Slide tone: Allows to set the flip tone for adjusting
environment.
]
Effect sound volume: Set the volume of effect
sound.
]
Power on/off volume: Set the volume of the ringing
tone when switching the phone on/off.
Rename (Menu 7.X.3)
You can rename a profile and give it any name you
choose to.
Profiles
Note
]
Vibrate only, Silent and Headset profiles cannot
be renamed.
Profiles
62
1. To change the name of a profile, scroll to the profile
in the profile list and after pressing the left soft key
or the OK key, select Rename.
2. Key in the desired name and press the OK key or
the left soft key [OK].
Profiles
Contacts
63
Search
Menu 8.1
1. Select Search by press the left soft key [OK].
2. Enter the name that you want to search.
3. If you want to edit, delete, copy an entry, or to add
the voice to one, select left soft key [Options].
The following menu will be displayed.
]
View:
]
Edit: You can edit the name, number, group,
character and picture by using the navigation key.
]
Send via Bluetooth:
You can send the data of
phone book to devices which is compatible with
bluetooth through bluetooth.
]
Delete:
You can delete an entry.
]
New message:
After you have found the number
you want, you can send a text/multimedia message
to the selected number.
]
Copy to handset:
You can copy an entry from SIM
to phone or from phone to SIM.
]
Delete: You can delete an entry.
Add new
Menu 8.2
You can add phonebook entry by using this function.
Phone memory capacity is 1000 entries. SIM card
memory capacity depends on the cellular service
provider. The number of character is SIM dependent
feature.
1. Select Add new by press left soft key [OK].
2. Select the memory you want to save: SIM or
Handset. If you set to Phone, you need to select
which number you want as a main number.
a. Press [OK] to input a name.
b. Press [Save], then you can input a number.
c. You can set a group for the entry by pressing ,
.
d. You can set a character and a picture for theentry
by pressing , .
Contacts
Note
]
Instant searching is available by inputting the
initial letter of the name or number you want to
search.
Note
]
Maximum stored name and number length
depends on SIM-card type.
Contacts
64
Caller groups
Menu 8.3
You can list up to 20 members per one group. There
are 7 groups you can make lists to.
]
Member list:
Shows the group members you have
selected.
]
Group ring tone:
Allows you to specify ring tone
for the group members’ call.
]
Group icon:
Allows you to select the icon
dependent on Group.
]
Add member:
You can add group members. Each
group member shouldn’t be exceeded 20.
]
Remove member:
You can remove the member
from the Group member list. But the name and the
number still remain in phonebook.
]
Rename:
You can change a group name.
]
Remove all:
You can delete all the members in the
group.
Speed dials Menu 8.4
You can assign any of the keys , to with a
Name list entry. You can call directly by pressing this
key.
1. Open the phonebook first by pressing the Right soft
key [Names] in standby mode.
2. Scroll to Speed dials, press the left soft key
[Ok].
3. If you want to add Speed dials, select (empty).
Then, you can search the name in phonebook.
4. Select an allocated name by Speed dials, and
choose Change or Delete to edit the name. In
addition , you can make a call or write a message by
this number.
Own number(Sim dependent) Menu 8.5
You can save and check your own number in SIM card.
My Business card Menu 8.6
This option allows you to create your own business
card featuring Name and an mobile phone number. To
create a new business card, press the left soft key
[Options] and enter the information into the
fields.
Contacts
65
Settings
Menu 8.7
1. Press the right soft [ Names] in standby
mode.
2. Scroll to Settings, then press the left soft key
[Select].
]
Default memory
Scroll to highlight Default memory, and then press
the left soft key [Select].
- If you select Always ask, when adding entry, the
phone will ask where to store.
- If you select SIM or Handset, the phone will store
an entry to SIM or Handset.
]
View options
Scroll to highlight
View options
, and then press the
left soft key [OK].
- Name only: Set the phonebook list with displaying
only name.
- With photo: Set the phonebook list with the
information of character and picture.
]
Copy/Move all
You can copy/move entries from SIM card memory
to Handset memory and vice versa.
1. Open the Phonebook first by pressing the right
soft key [Contacts] in standby mode.
2. Scroll to Copy/Move all, and then press the left
soft key [Select] enter this menu.
- SIM to handset: You can copy the entry from SIM
Card to Phone memory.
- Handset to SIM: You can copy the entry from
Phone memory to SIM Card.
]
Clear contacts
You can delete all the entries in the SIM and
Handset. This function requires the Security code.
1. Press the right soft key [Contacts] in
standby mode and select Delete all, press
[Select].
2. Then select a memory to erase.
3. Enter security code and Press the left soft key
[OK] or the right soft key [Back].
]
Service dial number
Use this function to access a particular list of
services provided by your network operator (if
supported by the SIM card).
Contacts
Settings
66
Settings
Date & Time
Menu 9.1
You can set functions relating to the date and time.
Set date (Menu 9.1.1)
You can enter the current date.
Date format (Menu 9.1.2)
You can set the Date format such as DD/MM/YYYY,
MM/DD/YYYY, YYYY/MM/DD.
(D: Day / M: Month / Y: Year)
Set time (Menu 9.2.1)
You can enter the current time.
Time format (Menu 9.2.2)
Your can set the time format between 24-hour and 12-
hour.
Power saving
Menu 9.2
If you set On, you can save the power when you don’t
use the phone.
Display
Menu 9.3
Wallpaper (Menu 9.3.1)
You can select the background pictures in standby
mode.
- Main LCD
- Sub LCD
Default
You can select a picture or an animation of wallpaper
by pressing or .
My folder
You can select a picture or an animation as
wallpaper.
Menu style (Menu 9.3.2)
Your phone provides you with 4 menu colour themes.
Set the menu colour by scrolling and pressing the left
soft key [Select].
Standby text (Menu 9.3.3)
If you select On, you can edit the text which is
displayed in standby mode.
67
Settings
Backlight time (Menu 9.3.4)
You can set the light-up duration of the display.
Brightness (Menu 9.3.5)
You can set the brightness of LCD: 100%, 80%,
60%, 40%
Network name (Menu 9.3.6)
If this function is activated, network name will be
displayed on main LCD.
Home screen shortcut (Menu 9.3.7)
Language Menu 9.4
You can change the language for the display texts in
your phone. This change will also affect the Language
Input mode.
Connectivity Menu 9.5
Bluetooth (Menu 9.5.1)
Bluetooth® functionality enables compatible mobile
devices, peripherals and computers that are in close
proximity to communicate directly with each other
without wires. This handset supports built-in
Bluetooth
connectivity, which makes it possible to
connect them with compatible
Bluetooth
headsets,
computer applications and so on.
Note
]
If you use LG PC Sync via
Bluetooth
, you can
exchange the data only within phonebook
]
When you receive data from another
Bluetooth
device, the phone requests confirmation. After
confirming the transfer, the file will be copied on
to your phone.
]
Depending on the file type, it will be stored in the
following folders:
- MP3 (.mp3, mp4, aac, m4a, wma): Music folder.
- Video (.3GP): Video folder.
- Phonebook contacts (.VCF): Phonebook.
- Text (.txt): Text folder.
- Other files (.*.*): File storage folder.
]
Supported
Bluetooth
software (
Bluetooth
stacks)
for DUN: Recommended drivers WidComm
Bluetooth for Windows 1.4 and 3.0
Settings
68
Settings
]
Set Bluetooth
You can activate or cancel the Bluetooth function.
]
Paired devices/Handsfree devices
You can view all devices which your KE800 is already
paired to. If you enter Paired devices or Handsfree
devices menu, you access the options:
- Add new: Allows to search new
Bluetooth
devices
and add them to your phone’s list of paired
devices. When you select Add new your handset
will start to search for
Bluetooth
devices within
range. Once the device you wish to pair appears
on the list press the right soft key [Stop]. Scroll
to the desired device and press the left soft key
[Pair]. You will then be asked to enter a passcode.
The passcode can be any code you wish to use
(the same passcode must be used by both
devices) or is one that is predetermined by the
manufacturer of the device you are trying to pair
with. Please check the User Manual of the device
you are initiating the pair with to see if it already
has a predetermined passcode in place.
- Assign name: Allows you to change the name of
the paired
Bluetooth
device and how it is
displayed on the handset.
- Set as authorised/Set as unauthorized: Allows
you to set an authorised connection between
each
Bluetooth
device. For example if you
regularly use a
Bluetooth
headset with your
phone then setting the connection as authorised
will mean the headset will automatically connect
to the handset each time the headset is powered
on.
- All services: Allows to view all services which are
supported by
Bluetooth
device.
- Delete: Allows to delete a paired
Bluetooth
device.
]
Settings
- My handset’s visibility: This indicates whether or
not your handset will be visible to other
Bluetooth
devices.
- My handset’s name: You can set the name of
Bluetooth
device. The default name is LG KE800.
]
Supported services
Displays a list of Bluetooth services the handset
supports.
69
Settings
- Headset
- Handsfree kit
- File transfer
- Image printing
- Dial-up networking
- Business card transfer
- Browsing other device
- Serial Port Profile
Sync service (Menu 9.5.2)
You can access the network services through the Sync
service. If you want to use the Sync service, you should
access the menu and activate the modem and then
plug in the USB cable.
]
Connect
]
Logs
]
Set server
]
Access point
Network selection (Menu 9.5.3)
You can select a network which will be registered either
automatically or manually. Usually, the network
selection is set to Automatic.
]
Automatic
If you select Automatic mode, the phone will
automatically search for and select a network for
you. Once you have selected “Automatic”, the phone
will be set to “Automatic” even though the power is
off and on.
]
Manual
The phone will find the list of available networks and
show you them. Then you can select the network
which you want to use if this network has a roaming
agreement with your home network operator. The
phone let you select another network if the phone
fails to access the selected network.
]
Preferred
You can set a list of preferred networks and the
phone attempts to register with first, before
attempting to register to any other networks. This
list is set from the phone’s predefined list of known
networks.
Settings
70
Settings
GPRS attach (Menu 9.5.4)
You can set GPRS service depending on various
situations.
]
Switch on
If you select this menu, the phone is automatically
registered to a GPRS network when you switch the
phone on. Starting a WAP or PC dial-up application
created the connection between phone and network
and data transfer is possible. When you end the
application, GPRS connection is ended but the
registration to the GPRS network remains.
]
When needed
If you select this menu, the GPRS connection is
established when you connect a WAP service and
closed when you end the WAP connection.
Network profile (Menu 9.5.5)
]
Data connections
- Bearer: You can set the bearer data service.
1 Data/2 GPRS
- Data settings: Appears only if you select Data
Settings as a Bearer/service.
Dial number: Enter the telephone number to dial
to access your WAP gateway.
User ID: The users identity for your dial-up server
(and NOT the WAP gateway).
Password: The password required by your dial-up
server (and NOT the WAP gateway) to identify
you.
Call type: Select the type of data call : Analogue
of Digital (ISDN).
Linger time: You need to enter timeout period.
After entering that, the WAP navigation service
will be unavailable if any data is not input or
transferred.
Call speed: The speed of your data connection;
9600 or 14400 ( Depends on Operator)
- GPRS settings: The service settings are only
available when GPRS is chosen as a bearer service.
APN: Input the APN of the GPRS.
User ID: The users identify for your APN server.
Password: The password required by your APN
server.
71
Settings
- Proxy settings
Proxy: Activates or cancels proxy.
IP address: Input the IP address of the Proxy
server you access.
Port: Input the Proxy Port.
- DNS settings
Primary server: Input the IP address of the
primary DNS server you access.
Secondary server: Input the IP address of the
secondary DNS server you access.
Calling
Menu 9.6
You can set the menu relevant to a call by pressing
[Select] in the Setting menu.
Call divert (Menu 9.6.1)
The Call divert service allows you to divert incoming
voice calls, fax calls, and data calls to another number.
For details, contact your service provider.
]
All voice calls: Diverts all voice calls unconditionally.
]
If busy: Diverts voice calls when the phone is in use.
]
If no reply: Diverts voice calls which you do not
answer.
]
If out of reach: Diverts voice calls when the phone
is switched off or out of coverage.
]
All data calls: Diverts to a number with a PC
connection unconditionally.
]
All fax calls: Diverts to a number with a fax
connection unconditionally.
]
Cancel all: Cancels all call divert service.
The submenus
Call divert menus have the submenus shown below.
]
Activate:
Activates the corresponding service.
- To voice mail centre: Forwards to message centre.
This function does not apply to All data calls and
All fax calls menus.
- To o t h er nu m b e r: Input the number for call
diverting.
- To favourite number: You can check recent five
diverted numbers.
]
Cancel:
Deactivate the corresponding service.
]
View status:
View the status of the corresponding
service.
Settings
72
Settings
Answer mode (Menu 9.6.2)
]
Flip open:
If you select this menu, you can receive
an incoming call when only opening flip.
]
Any key:
If you select this menu, you can receive a
call by pressing any key except [End] key.
]
Send key only:
If you select this menu, you can
receive a call by only pressing [Send] key.
Send my number (Menu 9.6.3)
(network and subscription dependent)
]
Set by network:
If you select this, you can send
your phone number depending on two line service
such as line 1 or line 2.
]
On:
You can send your phone number to another
party. Your phone number will be shown on the
receiver’s phone.
]
Off:
Your phone number will not be shown.
Call waiting (Network Service) (Menu 9.6.4)
]
Activate:
If you select Activate, you can accept a
waiting (receiving) call.
]
Cancel:
If you select Cancel, you cannot recognize
the waiting (receiving) call.
]
View status:
Shows the status of Call waiting.
Minute minder (Menu 9.6.5)
If you select On, you can check the call duration by
beep sound every minute during a call.
Auto redial (Menu 9.6.6)
]
On:
When this function is activated, the phone will
automatically try to redial in the case of failure to
connect a call.
]
Off:
Your phone will not make any attempts to redial
when the original call has not connected.
Send DTMF (Menu 9.6.7)
You can send touch tones during an active call to
control your voice mailbox or other automated phone
services.
]
Information:
DTMF tone: Dual Tones Multiple
Frequency.
Settings
Security
Menu 7.7
PIN code request (Menu 9.7.1)
In this menu, you can set the phone to ask for the PIN
code of your SIM card when the phone is switched on.
If this function is activated, you’ll be requested to enter
the PIN code.
1. Select PIN code request in the Security menu, and
then press [OK].
2. Set Enable/Disable.
3. If you want to change the setting, you need to enter
PIN code when you switch on the phone.
4. If you enter wrong PIN code more than 3 times, the
phone will lock out. If the PIN is blocked, you will
need to key in PUK code.
5. You can enter your PUK code up to 10 times. If you
put wrong PUK code more than 10 times, you can
not unlock your phone. You will need to contact
your service provider.
Handset lock (Menu 9.7.2)
You can use security code to avoid unauthorized use of
the phone. Whenever you switch on the phone, the
phone will request security code if you set phone lock
to when swith on. If you set phone lock to when SIM
changed your phone will request security code only
when you change your SIM card.
Auto key lock time
(Menu 9.7.3)
Call barring
(Menu 9.7.4)
The Call barring service prevents your phone from
making or receiving certain category of calls. This
function requires the call Network password. You can
view the following submenus.
]
All outgoing calls:
The barring service for all
outgoing calls.
]
Outgoing international:
The barring service for all
outgoing international calls.
]
Outgoing international when roaming:
The
barring service for all international outgoing calls
except home network.
73
Settings
74
Settings
]
All incoming:
The barring service for all incoming
calls.
]
Incoming when roaming:
The barring service for all
incoming calls when roaming.
]
Cancel all:
You can cancel all barring services.
]
Change password:
You can change the password
or Call Barring Service.
The submenus:
- Activate
Allows to request the network to set call restriction
on.
- Cancel
Set the selected call restriction off.
- View status
View the status whether the calls are barred or not.
Fixed dial number (FDN) (Menu 9.7.5)
(SIM dependent)
You can restrict your outgoing calls to selected phone
numbers.
The numbers are protected by your PIN2 code.
]
On: You can restrict your outgoing calls to
selected phone numbers.
]
Off: You can cancel fixed dialling function.
]
Number list: You can view the number list saved as
Fixed dial number.
Change codes (Menu 9.7.6)
PIN is an abbreviation of Personal Identification
Number to prevent use by unauthorized person.
You can change the access codes: Security code, PIN
code, PIN2 code.
1. If you want to change the Security code/PIN/PIN2
code input your original code, and then press
[OK].
2. Input new Security code/PIN/PIN2 code and verify
them.
Memory status Menu 9.8
You can check free space and memory usage of each
repository, Internal memory, Multimedia memory and
External memory. You can go to each repository menu.
75
Settings
Reset efault
Menu 9.9
You can initialize all factory defaults. You need Security
code to activate this function.
]
Restore default settings: Allows you to restore
default settings.
]
Clear multimedia memory: Allows you to format
the multimedia memory and create a default
directory.
Standard Battery
Tra ve l Adapter
This charger allows you to
charge the battery while away
from home or your office.
Data cable/CD
You can connect your phone
to PC to exchange the data
between them.
Hands free earmicrophone
and music player
controller combo
]
Stereo headset
]
Controller:
Answer & End
button, music player control,
volume control, Hold button
and microphone.
There are a variety of accessories available for your mobile phone. You can select these according to your personal
communication requirements.
Note
]
Always use genuine LG accessories.
]
Failure to do this may invalidate your warranty.
]
Accessories may be different in different regions;
please check with our regional service company or
agent for further enquiries.
Accessories
76
Accessories
Technical data
Technical data
77
General
Product name : KE800
System : GSM 900 / DCS 1800 / PCS 1900
Ambient Temperatures
Max : +55°C
Min : -10°C
