KG245 USER GUIDE
Some of contents in this manual may differ from your
phone depending on the software of the phone or your
service provider.

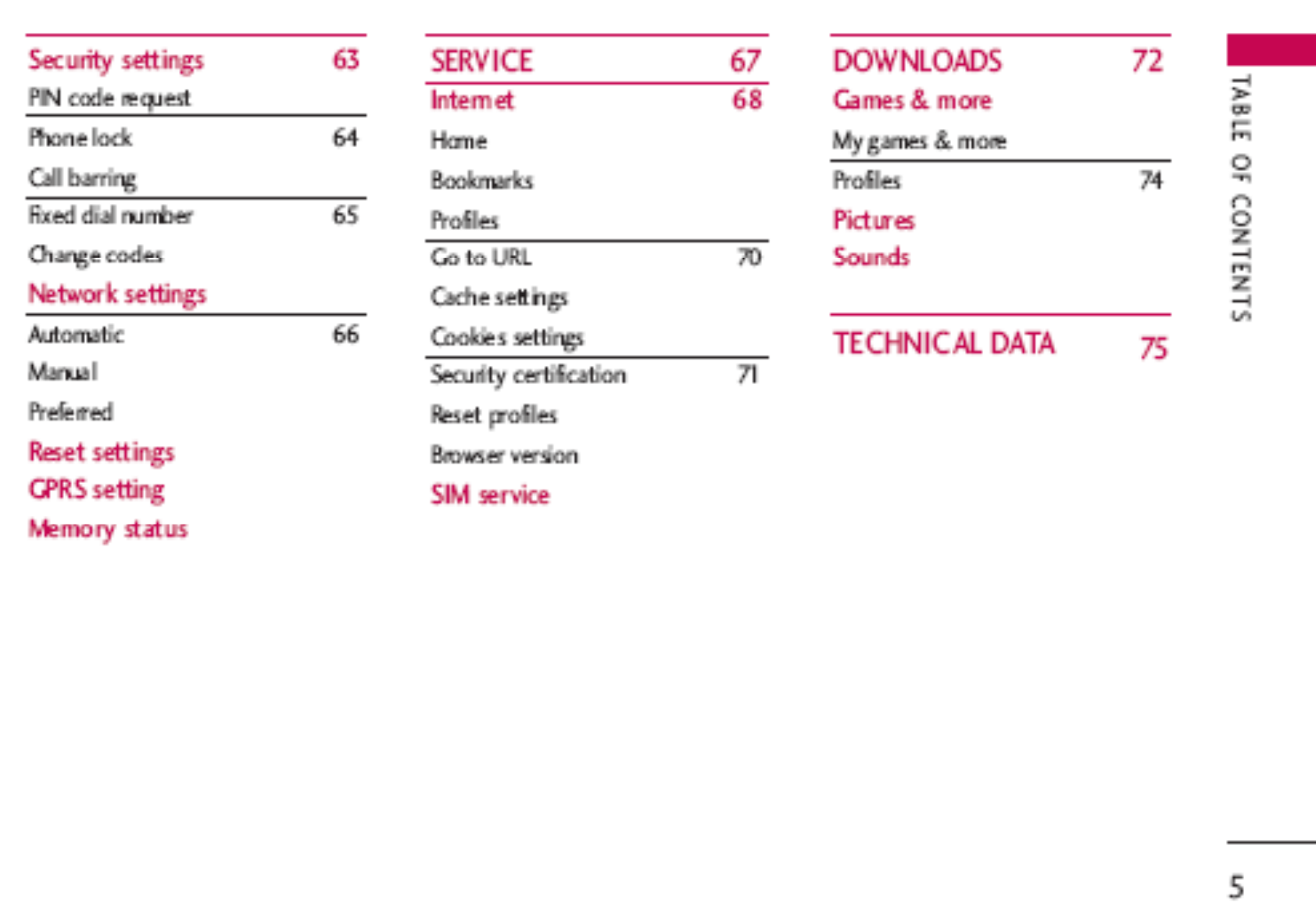

TABLE OF CONTENTS
2
TABLE OF CONTENTS
INTRODUCTION 6
FOR YOUR SAFETY 7
GUIDELINES FOR SAFE
AND EFFICIENT USE 8
KG245 FEATURES 13
Parts of the phone
Display information 16
On-Screen Icons
GETTING STARTED 18
Installing the SIM card and
battery 16
Charging the Battery 19
Disconnecting the adapter 20
GENERAL FUNCTIONS 21
Making and answering calls
SELECTING FUNCTIONS
AND OPTIONS 27
IN-CALL MENU 28
MENU TREE 31
PROFILES 34
Activate
Personalise
Rename 35
CALL REGISTER 36
Missed calls 32
Received calls 32
Dialled calls 32
Delete recent calls 37
Call charges 33
Call duration 33
Call costs 33
Settings
GPRS information 38
Call duration 34
Data volumes 34
3
TABLE OF CONTENTS
TOOLS 39
Alarm clock 57
Bluetooth 36
My devices 36
Handsfree devices 36
Settings 36
Calculator
40
Unit converter
World time 35
Voice recorder 41
Record 36
View list
37
ORGANISER 42
Contacts 38
Search 38
Add new 38
Caller groups 43
Speed dial 41
Settings 44
Copy all 40
Delete all 45
Information 41
Scheduler 46
Add new 42
View 42
View all 42
Delete past 47
Delete all 42
Memo 43
MESSAGES 48
New Message
Write text message
Write multimedia
message 49
Inbox 51
Outbox 52
Drafts
Listen to voice mail 53
Info message
Read
Topics
Te m p l a te s 54
Text templates
Multimedia templates
Signature
TABLE OF CONTENTS
4
Settings 54
Text message 50
Multimedia message 55
Voice mail centre 56
Info message
Push messages
CAMERA 57
Take picture 53
Take in modes 58
Take continuously
Album 54
All pictures 54
General pictures 54
Mode pictures
PhoneBook pictures 59
Settings 55
Memory status 57
Clear album
Auto save
SETTINGS 60
Date & Time 57
Set date 57
Date format 57
Set time 57
Time format 57
Phone settings 57
Display settings 57
Language 61
Call settings 58
Call divert 58
Answer mode 62
Send my number
Call waiting 63
Minute minder 60
Auto redial 60
TABLE OF CONTENTS
Congratulations on your purchase of the advanced and
compact KG245 mobile phone, designed to operate
with the latest digital mobile communication
technology.
This user’s guide contains important information on
the use and operation of this phone. Please read all the
information carefully for optimal performance and to
prevent any damage to or misuse of the phone. Any
changes or modifications not expressly approved in
this user’s guide could void your warranty for this
equipment.
INTRODUCTION
6
INTRODUCTION

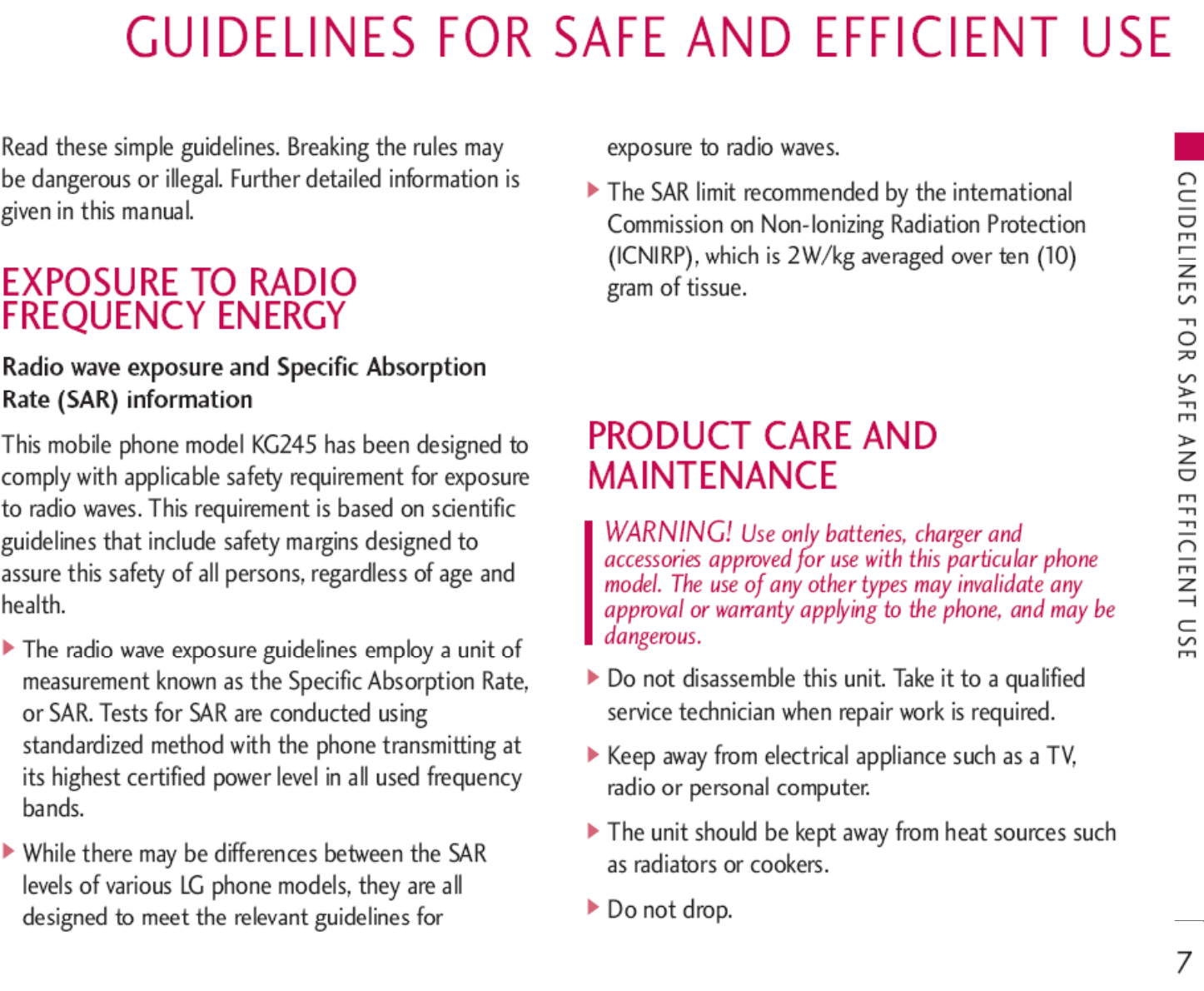

GUIDELINES FOR SAFE AND EFFICIENT USE
8
]Do not subject this unit to mechanical vibration or
shock.
]The coating of the phone may be damaged if
covered with wrap or vinyl wrapper.
]Use dry cloth to clean the exterior of the unit. (Do
not use solvent such as benzene, thinner or alcohol.)
]Do not subject this unit to excessive smoke or dust.
]Do not keep the phone next to credit cards or
transport tickets; it can affect the information on the
magnetic strips.
]Do not tap the screen with a sharp object;
otherwise, it may damage the phone.
]Do not expose the phone to liquid or moisture.
]Use the accessories like an earphone cautiously. Do
not touch the antenna unnecessarily.
ELECTRONICS DEVICES
All mobile phones may get interference, which
could affect performance.
]Do not use your mobile phone near medical
equipment without requesting permission. Avoid
placing the phone over the pacemaker, i.e. in your
breast pocket.
]Some hearing aids might be disturbed by mobile
phones.
]Minor interference may affect TVs, radios, PCs, etc.
ROAD SAFETY
Check the laws and regulations on the use of
mobile phones in the areas when you drive.
]Do not use a hand-held phone while driving.
]Give full attention to driving.
]Use a hands-free kit, if available.
]Pull off the road and park before making or
answering a call if driving conditions so require.
GUIDELINES FOR SAFE AND EFFICIENT USE
9
]RF energy may affect some electronic systems in
your motor vehicle such as car stereo, safety
equipment.
]When your vehicle is equipped with an air bag, do
not obstruct with installed or portable wireless
equipment. It can cause serious injury due to
improper performance.
BLASTING AREA
Do not use the phone where blasting is in progress.
Observe restrictions, and follow any regulations or
rules.
POTENTIALLY EXPLOSIVE
ATMOSPHERES
]Do not use the phone at a refueling point. Don’t use
near fuel or chemicals.
]Do not transport or store flammable gas, liquid, or
explosives in the compartment of your vehicle, which
contains your mobile phone and accessories.
IN AIRCRAFT
Wireless devices can cause interference in aircraft.
]Turn off your mobile phone before boarding any
aircraft.
]Do not use it on the ground without crew
permission.
CHILDREN
Keep the phone in a safe place out of small children’s
reach. It includes small parts which if detached may
cause a choking hazard.
EMERGENCY CALLS
Emergency calls may not be available under all cellular
networks. Therefore, you should never depend solely
on the phone for emergency calls. Check with your
local service provider.
GUIDELINES FOR SAFE AND EFFICIENT USE
GUIDELINES FOR SAFE AND EFFICIENT USE
10
BATTERY INFORMATION AND
CARE
]You do not need to completely discharge the battery
before recharging. Unlike other battery systems,
there is no memory effect that could compromise
the battery’s performance.
]Use only LG batteries and chargers. LG chargers are
designed to maximize the battery life.
]Do not disassemble or short-circuit the battery pack.
]Keep the metal contacts of the battery pack clean.
]Replace the battery when it no longer provides
acceptable performance. The battery pack may be
recharged hundreds of times until it needs replacing.
]Recharge the battery if it has not been used for a
long time to maximize usability.
]Do not expose the battery charger to direct sunlight
or use it in high humidity, such as the bathroom.
]Do not leave the battery in hot or cold places, this
may deteriorate the battery performance.
GUIDELINES FOR SAFE AND EFFICIENT USE
KG245 FEATURES
11
PART OF THE PHONE
KG245 FEATURES
!
#
%
@
#
Camera
lens
Side keys
$
Side
camera key
Flash
$
Side camera key
Sub LCD
Side keys
]
In standby mode (opened):
Volume of key tone
]
In standby mode (closed):
Backlight on (long press)
]
In menu:
scroll up & down
]
During a call:
volume of the earpiece
Holes for a
carrying strap
SIM card
socket
Battery terminals
Battery latch
SIM card terminals
Battery pack
Battery cover
Charger connector/Cable connector
KG245 FEATURES
12
KG245 FEATURES
!
@
#
$
Menu Contacts
Alpha numeric keys
]
In standby mode:
Input numbers
to dial
Hold down
– International calls
– Activate Voice mail
centre menu
to – Speed dials
– Activate Timer in Take
picture mode
]
In editing mode:
Enter numbers
& characters
Earpiece
Microphone
Main LCD
]
To p
Signal strength, battery level
and various function
]
Bottom
Soft key indications
13
KG245 FEATURES
Rear view
!
$
^
*
@
Confirm key
End key
]Switched on/off (hold down)
]End or reject a call.
Send key
]Dial a phone number and answer a call.
]In standby mode: shows recently dialled, received
and missed call.
Clear key
#
&
Navigation key
]
In standby mode:
Briefly: List of Favorites
Briefly: List of Auto answer
Briefly: List of Messages
Briefly: List of Profiles
Hold down: Activate
/Deactivate Vibrate mode
]In menu: scroll up & down
Scheduler hot key
]Activate the Scheduler menu directly.
%
Soft keys
]These keys perform the function Indicated in the
bottom of the display.
Camera hot key
DISPLAY INFORMATION The screen displays several icons. There are described
below.
ON-SCREEN ICONS
KG245 FEATURES
14
KG245 FEATURES
Icon area
Text and graphic area
Soft key indications
Icon Description
Tells you the strength of the
network signal.*
Call is connected.
You can use GPRS service.
Shows that you are using a
roaming service.
The alarm has been set and is on.
Area Description
First line Displays various icons. See page 17.
Middle lines Display messages, instructions and Any
information that you enter, such As
number to be dialled.
Last line Shows the functions currently
Assigned to the two soft keys.
Menu Contacts
15
KG245 FEATURES
Icon Description
Tells you the status of the battery.
You have received a text message.
You have received a voice message.
You can view your schedule.
Vibrate only menu in profile.
General menu in profile.
Loud menu in profile.
Silent menu in profile.
Headset menu in profile.
You can divert a call.
Indicates that the phone is
accessing the WAP.
Indicates that you are using GPRS.
Note
]*The quality of the conversation may change
depending on network coverage. When the signal
strength is below 2 bars, you may experience
muting, call drop and bad audio. Please take the
network bars as indicator for your calls. When
there are no bars, that means that there is no
network coverage: in this case, you won’t be able
to access the network for any service (call,
messages and so on).
INSTALLING THE SIM CARD
AND THE HANDSET BATTERY
Make sure the power is off before you remove the
battery.
1. Remove the battery cover.
Press the battery release latch and slide the battery
cover toward the bottom of the phone. And remove
the battery cover.
2. Remove the battery.
Hold the top edge of the battery and lift the battery
from the battery compartment.
3. Install the SIM card
Insert the SIM card into the holder. Slide the SIM
card into the SIM card holder. Make sure that the
SIM card is inserted properly and that the gold
contact area on the card is facing downwards. To
remove the SIM card, press down lightly and pull it
in the reverse direction.
GETTING STARTED
16
GETTING STARTED
Note
]Removing the battery from the phone when the
power is on may cause the phone to malfunction.
To insert the SIM card To remove the SIM card
17
GETTING STARTED
4. Install the battery.
Insert the bottom of the battery first into the
bottom edge of the battery compartment. Push
down the top of the battery until it snaps into
space.
5. Replace the battery cover.
Lay the battery cover in place of the phone and
slide it until the latch clicks.
CHARGING THE BATTERY
To connect the mains adapter to the phone, you must
have installed the battery.
Caution
]The metal contact of the SIM card can be easily
damaged by scratches. Pay special attention to
the SIM card while handling.
Follow the instructions supplied with the SIM
card.
GETTING STARTED
18
1. With the arrow facing you as shown in the diagram
push the plug on the battery adapter into the
socket on the bottom of the phone until it clicks
into place.
2. Connect the other end of the mains adapter to the
mains socket. Use only the included packing charger.
3. The moving bars of battery icon will stop after
charging is complete.
DISCONNECTING THE ADAPTER
1. When charging is finished, the moving bars of the
battery icon stop and ‘Full’ is displayed on the
screen.
2. Unplug the adapter from the power outlet.
Disconnect the adapter from the phone by pressing
the grey tabs on both sides of the connector and
pull the connector out.
GETTING STARTED
Caution!
]Do not force the connector as this may damage
the phone and/or the travel adapter.
]Insert the battery pack charger vertically to wall
power outlet.
]If you use the battery pack charger out of your
own country, use an attachment plug adapter for
the proper configuration.
]Do not remove your battery or the SIM card while
charging.
Warning!
]Unplug the power cord and charger during
lightning storms to avoid electric shock or fire.
]Make sure that no sharp-edged items such as
animal teeth, nails, come into contact with the
battery. There is a risk of this causing a fire.
]Do not place or answer calls while charging the
phone as it may short-circuit the phone and/or
cause electric shock or fire.
19
GETTING STARTED
Note
]Ensure the battery is fully charged before first
using the phone.
]Do not remove the battery or SIM card while
charging.
]In the case the battery is not properly charged,
please turn the phone off and on using the power
key, then recharge the battery. After detaching
and reattaching the battery, please recharge the
battery.
GETTING STARTED
20
GETTING STARTED
TURNING YOUR PHONE ON
AND OFF
Turning your phone ON
1. Install a battery to the handset and connect the
phone to an external power source such as the travel
adapter, cigarette lighter adapter or
hands-free car kit. Or install a charged battery pack
to the handset.
2. Press for a few seconds until the LCD screen
is turned on.
3. Depending on the status of the PIN code request
setting you may need to enter your PIN code.
Turning your phone OFF
1. Press
turned off.
21
ACCESS CODES
You can use the access codes described in this section
to avoid unauthorised use of your phone. The access
codes (except PUK and PUK2 codes) can be changed
by using the Change codes feature [Menu 3-5-5].
See page 49.
PIN code (4 to 8 digits)
The PIN (Personal Identification Number) code
protects your SIM card against unauthorised use. The
PIN code is usually supplied with the SIM card. When
the PIN code request is set to Enable, your phone
will request the PIN code every time the phone is
switched on. When the PIN code request is set to
Disable, your phone connects to the network directly
without the PIN code.
PIN2 code (4 to 8 digits)
The PIN2 code, supplied with some SIM cards, is
required to access functions such as Advice of Call
Charge and Fixed dial number. These functions are
only available if supported by your SIM card. Check
with your network for further information.
PUK code (4 to 8 digits)
The PUK (PIN Unblocking Key) code is required to
change a blocked PIN code. The PUK code may be
supplied with the SIM card. If not, contact your
network operator for the code. If you lose the code,
also contact your network operator.
PUK2 code (4 to 8 digits)
The PUK2 code, supplied with some SIM cards, is
required to change a blocked PIN2 code. If you lose
the code, also contact your network operator.
Security code (4 to 8 digits)
The security code protects the unauthorised use of
your phone. The default security code is set to ‘0000’
and the security code is required to delete all phone
entries and to activate the Reset settings menu. Also,
the security code is required to enable or disable the
phone lock function to prevent unauthorised use of
the phone. The security code default setting can be
modified from the Security settings menu.
GETTING STARTED
GETTING STARTED
22
BARRING PASSWORD
The barring password is required when you use Call
barring [Menu 3-5-3] function. You obtain the
password from your network operator when you
subscribe to this function. See page 48 for further
details.
GETTING STARTED
GENERAL FUNCTIONS
23
MAKING AND ANSWERING
CALLS
Making a call
1. Make sure your phone is switched on.
2. Enter a phone number, including the area code.
]Press and hold the clear key ( ) to erase the
entire number.
3. Press the send key ( ) to call the number.
4. To end the call, press the end key ( ) or the
right soft key.
Making a call using the send key
1. In standby mode, press the send key ( ), and
the latest incoming, outgoing and missed phone
numbers will be displayed.
2. Select the desired number by using the up/down
navigation key.
3. Press .
Making an international call
1. Press and hold the key for the international
prefix. The ‘+’ character automatically selects the
international access code.
2. Enter the country code, area code, and the phone
number.
3. Press .
Ending a call
When you have finished your call, press the end
( ) key.
Making a call from the address book
You can save the names and phone numbers dialled
regularly in the SIM card and/or phone memory, which
is address book You can dial a number by simply
looking up the desired name in the address book.
GENERAL FUNCTIONS
24
Adjusting the volume
If you want to adjust the earpiece volume during a call,
use the side keys ( ) . Press the up side key to
increase and down side key to decrease the volume.
Answering a call
When you receive a call, the phone rings and the
flashing phone icon appears on the screen. If the caller
can be identified, the caller’s phone number (or name if
saved in the phonebook) is displayed.
1. To answer an incoming call, open the phone. (When
Flip open has been set as the answer mode. See
page 47 [Menu 3-4-2].)
]To reject an incoming call, press and hold one of
the side keys on the left side of the phone
without opening the phone.
]You can answer a call while using the address
book or other menu features.
2. To end the call, close the phone or press the
key.
Manner mode (Quick)
You can activate the manner mode by pressing and
holding down the key after opening the phone.
Signal strength
You can check the strength of your signal by the signal
indicator ( ) on the LCD screen of your phone.
Signal strength can vary, particularly inside buildings.
Moving near to a window may improve reception.
Entering text
You can enter alphanumeric characters by using the
phone’s keypad. For example, storing names in the
phonebook, writing a message, creating a personal
Note
]If Press any key has been set as the answer mode
(see page 47), any key press will answer a call
except for the or the right soft key.
Note
]In standby mode with the phone open, pressing
the side keys adjusts the key tone volume.
GENERAL FUNCTIONS
25
greeting.
The following text input methods are available in the
phone.
T9 mode
This mode lets you enter words with only one
keystroke per letter. Each key on the keypad has more
than one letter. The T9 mode automatically compares
your keystrokes with an internal dictionary to
determine the correct word, thus requiring far fewer
keystrokes than the traditional ABC mode. This is
sometimes known as predictive text.
ABC mode
This mode lets you enter letters by pressing the key
labelled with the required letter once, twice, three or
four times until the letter is displayed.
123 mode (Number mode)
Type numbers using one keystroke per number. To
change to 123 mode in a text entry field, press
thekey until 123 mode is displayed.
Changing the text input mode
1. When you are in a field that
allows characters to be entered,
you will notice the text input
mode indicator in the lower
right corner of the LCD screen.
2. Change the text input mode by
pressing . You can check
the current text input mode in
the lower right corner of the
LCD screen.
Using the T9 mode
The T9 predictive text input mode lets you enter
words easily with a minimum number of key presses. As
you press each key, the phone begins to display the
characters that it thinks you are typing based on the
built-in dictionary. You can also add new words in the
dictionary. As new words are added, the word changes
to reflect the most likely candidate from the dictionary.
1. When you are in the T9 predictive text input mode,
start entering a word by pressing keys to
GENERAL FUNCTIONS
Options Insert
text input mode
GENERAL FUNCTIONS
26
. Press one key per letter.
]The word changes as letters are typed. Ignore
what’s on the screen until the word is typed
completely.
]If the word is still incorrect after typing
completely, press the down navigation key once or
more to cycle through the other word options.
Example: Press to type Good
Press [Down
navigation key] to type Home
]If the desired word is missing from the word
choice list, add it using the ABC mode.
]You can select the language of the T9 mode.
Press the left soft key [Option], then select T9
languages. Select the desired language of T9
mode. You can also turn off the T9 mode by
selecting T9 off. The default setting on the phone
is T9 enabled mode.
2. Enter the whole word before editing or deleting any
keystrokes.
3. Complete each word with a space by pressing the
key. To delete letters, press . Press and
hold down to erase entire words.
Using the ABC mode
Use the to keys to enter your text.
1. Press the key labelled with the required letter:
]Once for the first letter
]Twice for the second letter
]And so on
2. To insert a space, press the key once. To delete
letters, press the key. Press and hold down
the key to clear the whole display.
GENERAL FUNCTIONS
Note
]To exit from the text input mode without saving
your input, press . The phone goes back to
standby mode.
27
Using the 123 (Number) mode
The 123 mode enables you to enter numbers in a text
message (a telephone number, for example). Press the
keys corresponding to the required digits before
manually switching back to the appropriate text entry
mode.
CONTACTS
You can store phone numbers and their corresponding
names in the memory of your SIM card.
In addition, you can store up to 200 numbers and
names in the phone memory.
The SIM card and phone are both used in the same
way in the Contacts menu.
IN-CALL MENU
Your phone provides a number of control functions
that you can use during a call. To access these
functions during a call, press the left soft key
[Options].
GENERAL FUNCTIONS
Note
]Refer to the table below for more information on
the characters available using the alphanumeric
keys.
Key Upper Case Lower Case
. , / ? ! - : ' '' 1 @ . , / ? ! - : ' '' 1 @
AB C 2 Ä À Á Â Ã Å Æ Ç a b c 2 ä à á â ã å æ ç
D E F 3 Ë È É Ê d e f 3 ë è é ê
G H I 4 Ï Ì Í Î ˝g h i 4 ï ì í î ©
J K L 5 j k l 5
M N O 6 Ñ Ö Ø Ò Ó Ô Õ Œ m n o 6 ñ ö ø ò ó ô õ œ
P Q R S 7 ß Íp q r s 7 ß ß
T U V 8 Ü Ù Ú Û t u v 8 ü ù ú û
W X Y Z 9 w x y z 9
Space 0 Space 0
Characters in the order display
28
During a call
The menu displayed on the handset screen during a
call is different to the default main menu displayed
when in standby mode, and the options are described
below.
Making a second call
You can get a number you wish to dial from the
phonebook to make a second call. Press the right soft
key then select Search. To save the dialled number into
the phonebook during a call, press the right soft key
then select Add new.
Making a second call
You can get a number you wish to dial from the
phonebook to make a second call. Press the right soft
key then select Search. To save the dialled number into
the phonebook during a call, press the right soft key
then select Add new.
Switching between two calls
To switch between two calls, press the left soft key
then select Swap.
Answering an incoming call
To answer an incoming call when the handset is ringing,
simply press the key. The handset is also able to
warn you of an incoming call while you are already on a
call. A tone sounds in the earpiece, and the display will
show that a second call is waiting.
This feature, known as Call waiting, is only available if
your network supports it. For details of how to activate
and deactivate it see Call waiting [Menu 3-4-4] on
page 47.
If Call waiting is activated, you can put the first call on
hold and answer the second, by pressing or by
selecting left soft key, then Hold & Answer. You can
end the current call and answer the waiting call by
selecting left soft key and then End & Answer.
Rejecting an incoming call
You can reject an incoming call without answering by
simply pressing the key.
During a call, you can reject an incoming call by
pressing the left soft key [Menu] key and selecting the
Conference/Reject or by pressing the .
GENERAL FUNCTIONS
GENERAL FUNCTIONS
29
Muting the microphone
You can mute the microphone during a call by pressing
the [Menu] key then selecting Mute on. The handset
can be unmuted by selecting Mute off. When the
handset is muted, the caller cannot hear you, but you
can still hear them.
Switching DTMF tones on during a call
To turn DTMF tones on during a call, press the left soft
key, and then select DTMF on. DTMF tones can be
turned off the same way. DTMF tones allow your phone
to make use of an automated switchboard.
MULTIPARTY OR CONFERENCE
CALLS
The multiparty or conference service provides you with
the ability to have a simultaneous conversation with
more than one caller, if your network operator supports
this feature. A multiparty call can only be set up when
you have one active call and one call on hold, both
calls having been answered. Once a multiparty call is
set up, calls can be added, disconnected or separated
(that is, removed from the multiparty call but still
connected to you) by the person who set up the
multiparty call. These options are all available from the
In-Call menu. The maximum callers in a multiparty call
are five. Once started, you are in control of the
multiparty call, and only you can add callers to the
multiparty call.
Making a second call
You can make a second call while currently on a call.
Enter the second number and press the key.
When the second call is connected, the first call is
automatically placed on hold. You can swap between
calls by pressing the left soft key then selecting Swap.
Setting up a conference call
Place one call on hold and while the active call is on,
press the left soft key and then select the
Conference/Join all.
Putting a conference call on hold
Press the left soft key, then select the
Conference/Hold all.
Activate the conference call on hold
GENERAL FUNCTIONS
GENERAL FUNCTIONS
30
Press the left soft key, then select the
Conference/Join all.
Adding calls to the conference call
To add a call to an existing conference call, press the
left soft key, then select the Conference/Join all.
Displaying callers in a conference call
To scroll through the numbers of the callers who make
up a conference call on the handset screen, use the
up/down navigation keys.
Taking a private call during a
conference call
To have a private call with one caller from a conference
call, display the number of the caller you wish to talk to
on the screen, then press the left soft key. Select the
Conference/Private to put all the other callers on
hold.
Ending a conference call
The currently displayed caller from a conference call
can be disconnected by pressing the key. To end a
conference call, press the left soft key, then select the
Conference/End multiparty. After pressing the left
soft key, selecting Conference/End all will end all the
active and on-hold calls..
GENERAL FUNCTIONS
MENU TREE
31
MENU TREE
1. Profiles
1.1 Vibrate only
1.2 Silent
1.3 General
1.4 Loud
1.5 Headset
2. Call register
2.1 Missed calls
2.2 Received calls
2.3 Dialled calls
2.4 Delete recent calls
2.5 Call charges
2.5.1 Call duration
2.5.2 Call costs
2.5.3 Settings
2.6 GPRS information
2.6.1 Call duration
2.6.2 Data volumes
The following illustration shows the available menu
structure and indicates the:
]Number assigned to each menu option.
]Page where you can find the feature description.
You can go to the desired menu using the left soft key
[Menu], navigation keys and the [OK] key. And you can
also take a shortcut by pressing the corresponding
number key of desired menu after pressing the left soft key
[Menu].
MENU TREE
32
MENU TREE
3. Tools
3.1 Alarm clock
3.2 Bluetooth
3.2.1 My devices
3.2.2 Handsfree devices
3.2.3 Settings
3.3 Calculator
3.4 Unit converter
3.5 World time
3.6 Voice recorder
3.6.1 Record
3.6.2 View list
4. Organiser
4.1 Contacts
4.1.1 Search
4.1.2 Add new
4.1.3 Caller groups
4.1.4 Speed dial
4.1.5 Settings
4.1.6 Copy all
4.1.7 Delete all
4.1.8 Information
4.2 Scheduler
4.2.1 Add new
4.2.2 View
4.2.3 View all
4.2.4 Delete past
4.2.5 Delete all
4.3 Memo
5. Messages
5.1 New message
5.1.1 Write text message
5.1.2 Write multimedia
message
5.2 Inbox
5.3 Outbox
5.4 Drafts
5.5 Listen to voice mail
5.6 Info message
5.6.1 Read
5.6.2 Topics
5.7 Templates
5.7.1 Text templates
5.7.2 Multimedia templates
5.7.3 Signature
5.8 Settings
5.8.1 Text message
5.8.2 Multimedia message
5.8.3 Voice mail centre
5.8.4 Info message
5.8.5 Push messages
33
MENU TREE
6. Camera
6.1 Take picture
6.2 Take in modes
6.3 Take continuously
6.4 Album
6.4.1 All pictures
6.4.2 General pictures
6.4.3 Mode pictures
6.4.4 PhoneBook pictures
6.5 Settings
6.5.1 Memory status
6.5.2 Clear album
6.5.3 Auto save
7. Settings
7.1 Date & Time
7.1.1 Set date
7.1.2 Date format
7.1.3 Set time
7.1.4 Time format
7.2 Phone settings
7.2.1 Display settings
7.2.2 Language
7.3 Call settings
7.3.1 Call divert
7.3.2 Answer mode
7.3.3 Send my number
7.3.4 Call waiting
7.3.5 Minute minder
7.3.6 Auto redial
7.4 Security settings
7.4.1 PIN code request
7.4.2 Phone lock
7.4.3 Call barring
7.4.4 Fixed dial number
7.4.5 Change codes
7.5 Network settings
7.5.1 Automatic
7.5.2 Manual
7.5.3 Preferred
7.6 Reset settings
7.7 GPRS setting
7.8 Memory status
MENU TREE
34
MENU TREE
8. Service
8.1 Internet
8.1.1 Home
8.1.2 Bookmarks
8.1.3 Profiles
8.1.4 Go to URL
8.1.5 Cache settings
8.1.6 Cookies settings
8.1.7 Security certification
8.1.8 Reset profiles
8.1.9 Browser version
8.2 SIM service
9. Downloads
9.1 Games & more
9.1.1 My games & more
9.1.2 Profiles
9.2 Pictures
9.3 Sounds
35
SELECTING FUNCTIONS AND OPTIONS
Your phone offers a set of functions that allow you to
customise the phone. These functions are arranged in
menus and sub-menus, accessed via the two soft keys
marked [ ] and [ ]. Each menu and sub-menu
lets you view and alter the settings of a particular
function.
The roles of the soft keys vary according to the current
context; the label on the bottom line of the screen just
above each key indicates its current role.
SELECTING FUNCTIONS AND OPTIONS
Press the left soft key
to access the available
menu.
Press the right soft
key to access the
shotcut menus.
Menu Shortcut
CONTACTS
36
SEARCH MENU 1.1
1. Select Search by press the left soft key
[Select] or [OK].
2. Enter the name that you want to search or select
left soft key [List] to view all the phonebook
list.
3. If you want to edit, delete, copy an entry, or to add
the voice to one, select left soft key [Options].
The following menu will be displayed.
]Edit: You can edit the name, number, group,
character and picture by using the navigation key.
]
Write text/
multimedia
message:
After you have
found the number you want, you can send a text/
multimedia message to the selected number.
]
Send via Bluetooth:
You can send the data of
phone book to devices which is compatible with
bluetooth through bluetooth.
]
Copy:
You can copy an entry from SIM to phone or
from phone to SIM.
]
Main number:
You can select the one out of
mobile, home, office that you often use. After you
set this, the main number will be displayed first,
when you search.
]
Delete:
You can delete an entry.
ADD NEW MENU 1.2
You can add phonebook entry by using this function.
Phone memory capacity is 200 entries. SIM card
memory capacity depends on the cellular service
provider. You can also save 20 characters of name in
The Phone memory, and save characters in the SIM
card. The number of character is SIM dependent
feature.
1. Select Add new by press left soft key [Select]
or [OK].
2. Select the memory you want to save: SIM or Phone.
If you set to Phone, you need to select which
number you want as Main number.
a. Press [OK] to input a name.
CONTACTS
Note
]Instant searching is available by inputting the
initial letter of the name or number you want to
search.
37
b. Press [OK], then you can input a number.
c. Press [OK].
d. You can set a group for the entry by pressing ,
:
e. You can set a character and a picture for the
entry by pressing , , , .
CALLER GROUPS MENU 1.3
You can list up to 20 members per one group. There
are 7 groups you can make lists to.
]
Member list:
Shows the group members you have
selected.
]
Group ring tone:
Allows you to specify ring tone
for the group members’ call.
]
Group icon:
Allows you to select the icon
dependent on Group.
]
Add member:
You can add group members. Each
group member shouldn’t be exceeded 20.
]
Remove member:
You can remove the member
from the Group member list. But the name and the
number still remain in phonebook.
]
Rename:
You can change a group name.
SPEED DIAL MENU 1.4
You can assign any of the keys , to with a
Name list entry. You can call directly by pressing this
key.
1. Open the phonebook first by pressing the Right soft
key [Contacts] in standby mode.
2. Scroll to Speed dials, press the left soft key
[Select].
3. If you want to add Speed dial, select (empty). Then,
you can search the name in phonebook.
4. Select allocated a name by speed dial, and choose
Change or Delete to edit the name.
OWN NUMBER(SIM DEPENDENT) MENU 1.5
You can save and check your own number in SIM card.
MY BUSINESS CARD MENU 1.6
This option allows you to create your own business
card featuring Name and an mobile phone number. To
CONTACTS
CONTACTS
38
create a new business card, press the left soft key
[Edit] and enter the information into the fields.
SETTINGS MENU 1.7
1. Press the right soft [Contacts] in standby
mode.
2. Scroll to Settings, then press the left soft key
[Select].
]
Default memory
Scroll to highlight Default memory, and then press
the left soft key [Select].
- If you select Always ask, when adding entry, the
phone will ask where to store.
- If you select SIM or Phone, the phone will store an
entry to SIM or phone.
]
View options
Scroll to highlight
View options
, and then press the
left soft key [Select].
- Name only: Set the phonebook list with displaying
only name.
- With pictures: Set the phonebook list with the
information of character and picture.
- Name & number: Set the phonebook list with
displaying name and number.
]
Copy/Move all
You can copy/move entries from SIM card memory
to Phone memory and vice versa.
1. Open the Phonebook first by pressing the right
soft key [Contacts] in standby mode.
2. Scroll to Copy all, and then press the left soft
key [Select]to enter this menu.
]
Memory in use
This feature allows you to see how many entries are
in use, or free in your phonebook.
]
Clear contacts
You can delete all the entries in the SIM and Phone.
This function requires the Security code.
1. Scroll to highlight Clear contacts, and then press
the left soft key [Select].
2. Highlight the memory you wish to erase, and
then press the left soft key [Select].
CONTACTS
39
3. Enter security code and Press the left soft key
[OK] or the right soft key [Back].
]
Service dial number
Use this function to access a particular list of
services provided by your network operator (if
supported by the SIM card).
CONTACTS
CALL REGISTER
40
You can check the record of missed, received, and
dialled calls only if the network supports the Calling
Line Identification (CLI) within the service area.
The number and name (if available) are displayed
together with the date and time at which the call was
made. You can also view call times.
MISSED CALLS MENU 2.1
This option lets you view the last 10 unanswered calls.
You can also:
]View the number if available and call it or save it in
the phonebook.
] Enter a new name for the number and save both in
Address book.
] Send a message to this number.
] Delete the call from the list.
RECEIVED CALLS MENU 2.2
This option lets you view the last 10 incoming calls.
You can also:
]View the number if available and call it, or save it in
Address Book
]Enter a new name for the number and save both in
Address Book.
]Send a message to this number.
]Delete the call from the list.
DIALLED CALLS MENU 2.3
This option lets you view the last 10 outgoing calls
(called or attempted).
You can also:
]View the number if available and call it or save it in
Address Book
] Enter new name for the number and save both in
Address Book.
] Send a message to this number.
] Delete the call from the list.
ALL CALLS MENU 2.4
You can view all lists of outgoing or incoming calls.
CALL REGISTER
41
DELETE RECENT CALLS MENU 2.5
Allows you to delete Missed calls and Received calls
lists. You can delete Dialled calls and All calls lists at
one time.
CALL CHARGES MENU 2.6
Call duration (Menu 2.6.1)
Allows you to view the duration of your incoming and
outgoing calls. You can also reset the call times. The
following timers are available:
] Last call: Length of the last call.
] All calls: Total length of all calls made and
incoming calls since the timer was last reset.
] Received calls: Length of the incoming calls.
] Dialled calls: Length of the outgoing calls.
] Reset all: Allows you to clear the length of all calls
by pressing the left soft key [Yes ].
Call costs (Menu 2.6.2)
Allows you to check the cost of your last call, all calls,
remaining and reset the cost. To reset the cost, you
need to PIN2 code.
Settings (Menu 2.6.3)
] Set tariff: You can set the currency type and the
unit price. Contact your service providers to obtain
charging unit prices. To select the currency or unit
in this menu, you need the PIN2 code.
] Set credit: This network allows you to limit the
cost of your calls by selected charging units.If you
select Read, the number of remaining unit is
shown. If you select Change, you can change your
change limit.
]Auto display: This network service allows you to
see automatically the cost of your last calls. If set
to On, you can see the last cost when the call is
released.
CALL REGISTER
CALL REGISTER
42
GPRS INFORMATION MENU 2.7
You can check the amount of data transferred over
the network through the GPRS information option. In
addition, you can also view how much time you are
online.
Call duration (Menu 2.7.1)
You can check the duration of Last call and All calls.
You can also reset the call timers.
Data volumes (Menu 2.7.2)
You can check the Sent, Received or All data
volumes and Reset all.
CALL REGISTER
FUN
43
FAVOURITES MENU 3.1
This option allows you to add your own favourites to
the list already provided. Once you create your own
menu, you can access the desired function quickly in
the idle screen by pressing the up navigation key.
ALARM CLOCK MENU 3.2
You can set up to 5 alarm clocks to go off at a
specified time.
1. Select On and enter the alarm time you want.
2. Select the repeat period: Once, Mon~Fri, Mon~Sat,
Everyday.
3. Select the alarm tone you want and press
[OK].
BLUETOOTH MENU 3.3
Bluetooth enables compatible mobile devices,
peripherals and computers that are in close proximity
to communicate directly with each other without wires.
This handset supports built-in Bluetooth connectivity,
which makes it possible to connect them with
compatible Bluetooth headsets, computer applications
and so on.
TOOLS
Note
]The menu of SMS, MMS and MP3 is already
provided in your own favourites.
Note
]If you use a pcsync via Bluetooth, you can
exchange the data within only the phonebook.
]When you receive data from another Bluetooth
device, the phone requests for a confirmation.
After confirming the transfer, the file will be copied
in your phone.
]Depending on the file type, it will be stored in the
following folders:
- MP3 (.mp3, mp4, aac, m4a, wma): Music
folder.
- Video (.3GP): video folder.
- Phonebook contacts (.VCF): Phonebook.
- Text (.txt): Text folder.
- Other files (.*.*): File storage folder.
]Supported Bluetooth software (Bluetooth stacks)
for DUN: WIDCOMM Bluetooth for Windows 1.4
and 3.0
TOOLS
44
Paired devices (Menu 3.3.1)
You can view all devices which are compatible with
Bluetooth phone.
Handsfree devices (Menu 3.3.2)
You can view the list of handsfree devices which are
compatible with bluetooth phone.
If you have entered Paired devices or Handsfree
devices, you will see the following options in both
those menus.
] Connect/Disconnect: Allows you to connect to
other Bluetooth devices.
] Add new: Allows you to search for new Bluetooth
device.
] Assign name: Allows you to change the name of
Bluetooth device and how its displayed on the
handset.
] Set as authorised/Set as unauthorised: Allows you
to set the authorised connection between each
Bluetooth devices.
] All service: Allows you to view all services which are
supported by a Bluetooth device.
] Delete: Allows you to delete the Bluetooth device.
] Delete all: Allows you to delete all Bluetooth
devices.
Settings (Menu 3.3.3)
You can register a new device which is compatible with
Bluetooth. If you already have added the device, you
can search it after entering a password.
] Set Bluetooth
You can activate or cancel bluetooth function.
] My handset's visibility
You can set the function that your phone is visible
on the other Bluetooth devices.
] My handset's name
You can set the name of bluetooth device. The
default name is KG245.
TOOLS
Note
]Due to a compatibility problem, some devices
may not support this function.
45
TOOLS
GAMES & APPS MENU 3.4
• Default Games: In this menu, you can manage the
Java applications installed in your phone.
You can play or delete downloaded applications, or
set the connect option. The downloaded applications
are organised in folders.
Press the left soft key [Select] to open the
selected folder or launch the selected midlet.
After selecting a folder, press [Options] and then sub
menus available to several options are displayed.
]Open: You can see the stored games.
]New folder: Create a new folder.
CALCULATOR MENU 3.5
This contains the standard functions such as +, –, x, ÷
: Addition, Subtraction, Multiplication, and Division.
Furthermore, you can use the various function of
calculator such as +/-, sin, cos, tan, log, in, exp, sqrt.
1. Input the numbers by pressing numeric keys.
2. Use a navigation key to select a sign for calculation.
3. Then input the numbers.
4. Press key to view the result.
5. To input the decimal number, press key. If you
press key, you can enter ( ).
6. To end Calculator, press the right soft key
[Back].
UNIT CONVERTER MENU 3.6
This converts any measurement into a unit you want.
There are 9 types that can be converted into units:
Currency,Surface,Length,Weight,Te m p e r a t u re ,
Volume,Velocity, Shoes and Clothes.
1. You can select one of four unit types by pressing
[Select] key.
2. Select the unit you want to convert by pressing
and . It's impossible to input "-" symbol in
unit converter.
3. Select the standard value by using , .
WORLD TIME MENU 3.7
You can view clocks of the world’s major cities.
1. Select the city belonged to the time zone by
TOOLS
46
pressing , key.
2. You can set the current time to the city time you
select by pressing the left soft key [Set].
VOICE RECORDER MENU 3.8
The voice memo feature you to record up to 10 voice
messages and each memo is up to 20 Seconds.
Record (Menu 3.8.1)
You can record voice memo in Voice recorder menu.
1. Once recording is started, the message Recording
and the remaining time is displayed.
2. If you want to finish recording, press the left soft
key [Save].
3. Key in Voice memo title, press the left soft key
[OK].
View list (Menu 3.8.2)
The phone shows voice memo list. You can Playback
and Delete the recorded voice memo.
SIM SERVICES MENU 3.9
This menu depends on SIM and the network services.
TOOLS
Note
]In case the SIM card support SAT(i.e. SIM
Application Toolkit) services, this menu will be the
operator specific service name stored on the SIM
card.
]In case the SIM card does not support SAT
services, this menu will be Profiles.
ORGANISER
47
CALENDAR MENU 4.1
When you enter this menu a calendar will be displayed.
The month and year are shown at the top of the
screen. Whenever you the change the date under the
Settings menu, the calender will update automatically.
The current date will be highlighted in green and any
schedule or memos will be indicated with a red triangle
at the top left hand corner of the corresponding
square. An audible alarm can be set for memo's and
reminders.
To change the day, month, and year.
In the scheduler mode, press left soft key
[Options] as follows;
Add new (Menu 4.1.1)
Allows you to add new schedule and memo for the
chosen day. You can store up to 20 notes.
Input the subject and then press left soft key
[OK]. You enter the appropriate information in the
follow section; Time, Repeat and Alarm.
View daily schedules (Menu 4.1.2)
View all schedules and memo for the chosen day. Use
, to browse through the note lists. If you set
alarm for the note, the alarm icon is displayed.
If you want to view the note in detail, press left soft
key [Select]. Press left soft key [Options] to
delete, edit the note you selected.
Delete past (Menu 4.1.3)
You can delete the past schedule that you have already
been notified of.
Delete all (Menu 4.1.4)
You can delete all the notes.
ORGANISER
Key Description
Yearly
Monthly
Weekly
Daily
ORGANISER
48
Go to date (Menu 4.1.5)
You can go the chosen date directly.
Set alarm tone (Menu 4.1.6)
You can set the alarm tone of each chosen date.
MEMO MENU 4.2
1. Select the Memo by pressing the left soft key
[Select].
2. If the entry is empty, press the left soft key
[Write].
3. Input the memo and then press left soft key
[Ok].
ORGANISER
Note
]If you want to change the text input mode, press
the in order.
MESSAGES
49
NEW MESSAGE MENU 5.1
This menu includes functions related to SMS (Short
Message Service), MMS (Multimedia Message Service),
Email, voice mail, as well as the network’s service
messages.
Write text message (Menu 5.1.1)
You can write and edit text message, checking the
number of message pages.
1. Enter the New messages menu by pressing the left
soft key [Select].
2. If you want to write a new message, select Write text
message.
3. To make text input easier, use T9.
4. Press [Insert] to attach the following ;
Insert
]Images: You can insert the Default graphics or
graphics in My pictures that are available for short
messages.
]Sounds: You can insert sounds that are available for
short messages.
]Text templates: You can use Text templates already
set in the phone.
]Contacts: You can add phone numbers or e-mail
addresses in the address book.
]Symbol: You can add special characters.
]My business card: You can add your Business card
to the message.
5. After you complete the message, to select the
required option, press the left soft key
[Options].
Options
]
Send:
Sends text messages.
1. Enter numbers of recipient.
2. Press key to add more recipients.
3. You can add phone numbers in the address book.
4. Once the numbers have been entered, press the left
soft key to send the message.
All messages will automatically be saved in the
outbox folder, even after a sending failure.
]
Save to drafts:
Stores messages in the Drafts folder.
MESSAGES
50
]
Font & Alignment:
You can select the Size and
Style of font, and the alignment of text.
]
Colour:
You can also set the Colour of the text
(foreground) and the background.
]
Add T9 dictionary:
You can add your own words.
This menu will only be shown when the edit mode
has been set to T9ABC/T9Abc/T9abc.
]
T9 languages:
Select the desired language for T9
input mode. You can also deactivate the T9 input
mode by selecting ‘T9 off’.
]
Exit:
If you press Exit whilst writing a message, you
will be taken back to the message menu. Also the
written message will not have been saved.
Write multimedia message (Menu 5.1.2)
A multimedia message can contain text, images, and/or
sound clips. This feature can be used only if it is
supported by your network operator or service
provider. Only devices that offer compatible multimedia
message or e-mail features can receive and send
multimedia messages.
1. Enter the New message menu by pressing the left
soft key [Select].
2. If you want to write a new message, select Write
multimedia message.
3. You can create a new message or choose one of the
multimedia message templates already made.
4. Press Insert to add Image, Sound, External memory,
Contacts, Symbol, New photo, New sound, Text
templates, My business card.
Maximum available file size, that can be inserted to
MMS-message, is 100 kb.
Options
]
Send:
You can send multimedia messages to multiple
recipients, as well as save it to send at a later time.
MESSAGES
Note
]This phone supports EMS release 5, so is
available to send colour pictures, sounds, text
styles, etc.. If the other parties handsets do not
support such options, the pictures, sounds or
texts sent may not be displayed correctly on their
phones.
51
]
Preview:
You can preview multimedia messages you
have created.
]
Save:
You can save multimedia messages To d ra ft s
or As template.
]
Edit subject:
Allows you to modify the multimedia
message you have chosen.
]
Add slide:
You can add a slide before or after
current slide.
]
Move to slide:
You can move to previous or next
slide.
]
Delete slide:
You can delete current slides.
]
Set slide format
-
Set timer:
You can set a timer for slide, text,
picture and sound.
]
Add T9 dictionary:
You can add your own words.
This menu will only be shown when the edit mode
has been set to T9ABC/T9Abc/T9abc.
]
T9 languages:
Select the desired language for T9
input mode. You can also deactivate T9 input mode
by selecting ‘T9 off’.
]
Exit:
Will take you back to the Message menu.
Write email message (Menu 5.1.3)
To send/receive an email, you should set up the email
account. Refer to Email on page 49 first.
1. You can input up to 12 email addresses in the To
and Cc field.
Tip: To input "@", press the and select "@".
2. Key in the subject of the mail and press OK.
3. After writing an email message, press the left soft
key [Options]. You can access the following
option menus.
]
Send:
Sends the email message.
MESSAGES
Note
]All messages will be automatically saved in the
outbox folder, even after a sending failure.
Note
]When creating a multimedia message, if you
upload a picture (50K) you may find that whilst
the picture is loading you will not be able to carry
out any other actions until the picture has
competed loading.
MESSAGES
52
]
Edit recipients:
You can edit recipients.
]
Edit subject:
You can edit the subject.
]
Save to drafts:
Select this to save the message in
Drafts.
]
T9 languages:
Select the language for T9 input
mode. You can also deactivate the T9 input mode by
selecting 'T9 off'.
]
Exit:
If you select Exit whilst writing a message, you
will be taken back to the message menu. Also the
written message will not have been saved.
4. You can attach files by pressing the right soft key
[Attach].
INBOX MENU 5.2
You will be alerted when you have received a message.
They will be stored in the Inbox.
In the Inbox, you can identify each message by icons.
For detail, see the icon directive.
MESSAGES
Icon Icon directive
Multimedia message
Short message
SIM message
Read multimedia message
Read text message
Push message
Notified multimedia message
Note
]For each e-mail account you may save up to 50
messages (totally 150 for three accounts). In
Inbox folder you may save not more than 30
messages, in Drafts and Outbox folders - 5
messages, and in Sent folder up to 10 messages.
In case Drafts Outbox or Sent folder is full, and
you try to save new message to one of this
folders, first saved message will be automatically
deleted.
]Maximum size for one sent message is 300 kb
with attachments, and maximum size for one
received message is 100 kb. In case you have
received message with more than 5 attachments,
only 5 of them will be received. Some attachment
may display incorrectly.
53
If the phone shows ‘No space for SIM message’, you
only have to delete the SIM messages from the Inbox.
If the phone displays ‘No space for message’, you will
then need to delete messages, media or applications to
free up space.
❇SIM message
SIM message means that the message is
exceptionally stored in the SIM card. You can move
this message to the phone.
When you are notified that you have received a
multimedia message, you have to wait for the message
to be downloaded before you can view it.
To read a message, select one of the messages by
pressing the left soft key .
]
View:
You can view the received messages.
]
Delete:
You can delete the current message.
]
Reply:
You can reply to the sender.
]
Forward:
You can forward the selected message to
another party.
]
Return call:
You can call back the sender.
]
Information:
You can view information about
received messages; Sender’s address, Subject (only
for Multimedia message), Message date & time,
Message type, Message size.
]
Delete all:
You can delete all messages.
MAILBOX MENU 5.3
When you access this menu, you can either connect to
your remote mailbox to retrieve your new email
messages, or you can view the previously retrieved
email messages without logging in to the email server.
You can check the saved emails, drafts, outbox, and
sent emails. In the Inbox, up to 30 emails are stored.
DRAFTS MENU 5.4
Using this menu, you can preset up to five multimedia
messages that you use most frequently. This menu
shows the preset multimedia message list.
The following options are available.
]
View:
You can see the multimedia messages.
]
Edit:
Allows you to modify the chosen message.
]
Delete:
Deletes the message you choose.
MESSAGES
MESSAGES
54
]
Information:
To view the information of the
message.
]
Delete all:
Deletes all of the messages in the folder.
OUTBOX MENU 5.5
This menu allows you to view the messages which you
have sent, those that are currently sending or
messages that have failed sending previously.
]
View:
You can view the message.
]
Forward:
You can forward the selected message to
another party.
]
Delete:
You can delete the message.
]
Information:
You can check the information of each
message.
]
Delete all:
You can delete all the messages in the
outbox.
LISTEN TO VOICE MAIL MENU 5.6
Once this menu has been selected, simply press the
left soft key [OK] to listen to voice mail. You can
also hold down the key in standby mode to listen
to voice mail.
INFO MESSAGE MENU 5.7
(Dependent to network and subscription)
Info service messages are text messages delivered by
the network to your handset. They provide general
information such as weather reports, traffic news, taxis,
pharmacies, and stock prices. When you receive an info
service message, you will see a popup message show
you that or the info service message is directly
MESSAGES
Icon Icon directive
MMS Unsent
MMS delivery confirmed
SMS unsent
SMS delivery confirmed
Note
]When you receive a voice mail, your phone will
display an icon and you will hear an alert. Please
check with your network provider for details of
their service in order to configure the handset
correctly.
55
displayed. To view the message again follow the
sequence shown below;
Read (Menu 5.7.1)
1. When you have received an info service message and
select Read to view the message, it will be displayed
on the screen. You can read another message by
scrolling , or [Next].
2. The message will be shown until another message is
selected.
Topics (Menu 5.7.2)
(Dependent to network and subscription)
]Add new: You can add Info service message numbers
in the Phone memory with its nickname.
]View list: You can see Info service message numbers
which you have added. If you press [Options], you
can edit and delete info message categories which
you have added.
]Active list: You can select info service message
numbers in the active list. if you activate an info
service number, you can receive messages sent from
the number.
TEMPLATES MENU 5.8
Text templates (Menu 5.8.1)
You have 6 text templates as below;
Multimedia templates (Menu 5.8.2)
After you have saved a new template, you can use the
following options.
]
View:
You can see multimedia templates.
]Delete: You can delete multimedia templates.
]Add new: Allows you to add new multimedia
templates.
]Write messages: You can write and send multimedia
messages.
MESSAGES
• Please call me back.
• I’m late. I will be there at...
• Where are you now?
• I’m on the way.
• Top urgent. Please contact.
• I love you.
MESSAGES
56
]Edit: You can edit multimedia templates.
]Delete all: Allows you to delete all multimedia
messages.
Signature (Menu 5.8.3)
This option helps you to make your own name card.
Key in the name, mobile phone number, office number,
Fax number, and E-mail address.
SETTINGS MENU 5.9
Text message (Menu 5.9.1)
]
Message types:
Text, Voice, Fax, Natl. paging, X.400, E-mail,
ERMES
Usually, the type of message is set to Tex t . You can
convert your text into alternative formats. Contact
your service provider for the availability of this
function.
]
Validity period:
This network service allows you to
set how long your text messages will be stored at the
message centre.
]
Delivery report:
If you set to Yes , you can check
whether your message is sent successfully.
]
Reply charging:
When a message is sent, it allows
the recipients to reply and charge the cost of the
reply to your telephone bill.
]
SMS centre:
If you want to send the text message,
you can receive the address of SMS centre through
this menu.
Mulitimedia message (Menu 5.9.2)
]
Priority:
You can set the priority of the message
you choose.
]
Validity period:
This network service allows you to
set how long your text messages will be stored at the
message centre.
]
Delivery report:
If it is set to Yes in this menu, you
can check whether your message is sent successfully.
]
Auto retrieve:
If you select On, you receive
multimedia messages automatically. If you select Off,
you receive only notification message in the inbox
and then you can check this notification. If you
select Home network only, you receive multimedia
messages depends on Homenetwork.
MESSAGES
57
]
Network settings:
If you select multimedia message
server, you can set URL for multimedia message
server.
]
Permitted message types
Personal: Personal message.
Advertisements: Commercial message.
Information: Necessary information.
Email (Menu 5.9.3)
This menu allows you to edit, delete or add and email
account.
]
Account
You can set up to 3 email accounts by selecting Add
new. Using the Edit menu, you can set the following
values.
]
Set as default
]
Edit
- Secure settings: Account name.
- User ID: Enter your email ID.
- Password: Enter your email password.
- Email address: Enter the email address given to
you by your service provider.
- Outgoing server: Enter the SMTP address and
Port number of computer that sends your email.
- Incoming server: Enter the POP3 address and Port
number of the that receives your email.
- Leave msg on server: Select Yes to leave the
messages on the server.
- Insert signature: Select Yes to attach your
signature to your email messages.
- Access point: Allow you to select the access point
from the list.
- SMTP port number: Allow you to edit SMTP port
number.
- POP3 port number: Allow you to edit POP3 port
number.
- Outgoing server ID/PW: Enter the ID and
password for sending your email.
]Delete: Deletes the selected account from the list.
]Access point
You can edit the access points. There are default
access points for some operators, stored in phone
memory.
]Title: Access point name.
MESSAGES
MESSAGES
58
]APN: Input the APN of Access point.
]User ID: Enter the User ID of your access point.
]Password: Enter the Password of your access point.
]Signature
You can make your signature.
Voice mail centre (Menu 5.9.4)
You can receive the voicemail if your network service
provider supports this feature. When a new voicemail
has arrived, the symbol will be displayed on the screen.
Please check with your network service provider for
details of their service in order to configure the phone
accordingly.
]
Home:
You can listen to voice mails by selecting
Home.
]
Roaming:
Even when you are in abroad, you can
listen to voice mails if roaming service is supported.
Info message (Menu 5.9.5)
]
Receive
Yes :
If you select this menu, your phone will receive
Info service messages.
No:
If you select this menu, your phone will not
receive Info service messages any more.
]
Alert
Yes :
Your phone will beep when you have received
Info service message numbers.
No:
Your phone will not beep even though you have
received info service messages.
]
Languages
You can select the language you want by pressing
[On/Off]. Then, the info service message will be
shown in the language that you selected.
Push messages (Menu 5.9.6)
You can set the option whether you will receive the
message or not.
MESSAGES
CAMERA
59
To take a picture with phone opened
1. Press the Menu key and then navigate and
select Multimedia. Select Camera and the screen will
now become the viewfinder. If you want to reach this
menu directly, press for a few seconds.
2. Focus on the subject to capture the image, and then
press the key.
3. If you want to save it, press the left soft key or
the key.
]
Mode [ ]:
Allows to take multishot photos
successively.
• Multi shot: 320x240
• Still shot: 72x72, 176x220, 320x240, 640x480,
1280x720, 1280x960, 1600x1200
• Frame shot: 176 x 22 0
]
Size [ ]
ettings are available: Color, Sepia,
Black/White
• Still shot: 4 8 x 48 , 12 8 x 16 0 , 6 40 x 4 8 0
• Multi shot: 128x160, 320x240
• Frame shot: 128x160, 320x240
]
Quality [ ]:
Allows you to set the image quality
from Normal/Basic/Fine.
]
Auto save (On/Off):
]
Album [ ]:
Allow you to see photos saved in
your phone.
]
Exit [ ]:
Back to the screen mode to take
photos.
]Zoom [ ]: Allowing you to set the zooming value
from x1, x2, x3 and x4 depending on the resolution.
]
Effect [ ]:
4 settings are available: Color/Black
& White/Sephia
CAMERA
Note
]You can control the image size, brightness, colour
and zooming by going into the camera settings
. Then use the , , to navigate and
change the various settings.
( or ).
Note
]In My album you may only view pictures taken by
the handset's camera.
CAMERA
60
]
Brightness [ ]:
Use the right/left navigation
keys to adjust lighting. 5 lighting levels are available:
]
Timer [ ]:
Allows you to select the time delay
(Off, 3 Seconds, 5 Seconds or 10 seconds). Then
the phone takes a photo after the specified time.
]
Flash [ ]:
Allows you to set the flash when you
take a photo in dark surroundings.
To take a picture with phone closed
1. Press and hold [ ] for a few seconds.
2. A list will be displayed on the sub LCD.
• MP3: Activates the MP3 mode.
• Ta ke p i c t u r e: Activates the Take photo mode.
• Slide show: View the pictures in Album as a slide
show.
Digital Camera Mode
To enter the Digital Camera Mode you should swivel
and close the flip whilst the handset is in idle mode.
Now the handset will automatically enter Digital
Camera Mode.
- To enter the camera’s main menu, press and hold the
side camera button.
- With side up/down buttons you may scroll through
the settings items. After the necessary item is
selected, press the side camera button, and you will
access the detailed settings of this selected feature.
By using the side up/down buttons select the desired
setting and press the side camera button for
confirmation.
- To exit to camera capture mode you should press the
and hold side camera button.
- A short press of the camera key is all that is required
to take a photo.
• To r c h : Activates the flash light.
• Back: Goes back to the previous menu.
CAMERA
SETTINGS
61
You can set the following menus for your convenience
and preferences.
1. Press [Menu] in standby mode.
2. Press for direct access to enter Settings.
PROFILES MENU 7.1
In Profiles, you can adjust and customise the phone
tones for different events, environments, or caller
groups.
There are five preset profiles: Vibrate only, Silent,
General, Loud and Headset. Each profile can be
personalised. Press the left soft key [Menu] and select
Profiles using up/down navigation keys.
Activate (Menu 7.X.1)
Use this to enter the day, month and year. You can
change the date format via the Date format menu
option.
1. A list of profiles is displayed.
2. In the Profiles list, scroll to the profile you want to
activate and press the left soft key [Select] or
OK key.
3. Then, select Activate.
Personalise (Menu 7.X.2)
Scroll to the desired profile in the Profile list. After
pressing the left soft key or the OK key, select
Personalise. The profile setting option opens. Set the
option as required.
]Call alert type: Set the alert type for incoming calls.
]Ring tone: Select the desired ring tone from the list.
]Ring volume: Set the volume of the ringing tone.
]Message alert type: Set the alert type for messages.
]Message tone: Select the alert tone for messages.
]Keypad tone: Select the desired keypad tone.
]Keypad volume: Set the volume of keypad tone.
]Flip tone: Allows you to set the flip tone.
]Effect sound volume: Set the volume of effect
sound.
]Power on/off volume: Set the volume of the ringing
tone when switching the phone on/off.
SETTINGS
SETTINGS
62
]Auto answer: This function will be activated only
when your phone is connected to the handsfree kit.
• Off: The phone will not answer automatically.
• After 5 secs: After 5 seconds, the phone will
answer automatically.
• After 10 secs: After 10 seconds, the phone will
answer automatically.
Rename (Menu 7.X.3)
You can rename a profile and give it any name you
choose to.
1. To change the name of a profile, scroll to the profile
in the profile list and after pressing the left soft key
or the OK key, select Rename.
2. Key in the desired name and press the OK key or
the left soft key [OK].
DATE & TIME MENU 7.2
You can set functions relating to the date and time.
Set date (Menu 7.2.1)
]Set date
You can enter the current date.
]Date format
You can set the Date format such as DD/MM/YYYY,
MM/DD/YYYY, YYYY/MM/DD.
(D: Day / M: Month / Y: Year)
Set time (Menu 7.2.2)
]Set time
You can enter the current time.
]Time format
Your can set the time format between 24-hour and
12 - h o u r.
SETTINGS
Note
]Vibrate only, Silent and Headset profiles cannot
be renamed.
63
PHONE SETTINGS MENU 7.3
You can set functions relating to the phone.
Display settings (Menu 7.3.1)
]Wallpaper: You can select the background pictures
in standby mode.
- Main LCD
- Sub LCD
Default
You can select a picture or an animation of wallpaper
by pressing or .
My folder
You can select a picture or an animation as
wallpaper.
]Handset scheme: You can choose 4 kind of color
schemes, Clean, Clear, Paper and Metalic style.
]Greeting note: If you select On, you can edit the
text which is displayed in standby mode.
]Backlight: You can set the light-up duration of the
display.
]Information window: You can preview the current
state of the selected menu before open the menu.
The state is shown at bottom of the display.
]Network name: If you set ON, Network name (the
name of service provider) will be appeared in
Internal LCD.
Language (Menu 7.3.2)
You can change the language for the display texts in
your phone. This change will also affect the Language
Input mode.
CALLING MENU 7.4
You can set the menu relevant to a call by pressing
[Select] in the Setting menu.
Call divert (Menu 7.4.1)
The Call divert service allows you to divert incoming
voice calls, fax calls, and data calls to another number.
For details, contact your service provider.
]
All voice calls: Diverts all voice calls unconditionally.
SETTINGS
SETTINGS
64
]
If busy: Diverts voice calls when the phone is in use.
]
If no reply: Diverts voice calls which you do not
answer.
]
If out of reach: Diverts voice calls when the phone
is switched off or out of coverage.
]
All data calls: Diverts to a number with a PC
connection unconditionally.
]
All fax calls: Diverts to a number with a fax
connection unconditionally.
]
Cancel all: Cancels all call divert service.
The submenus
CCaallll ddiivveerrttmenus have the submenus shown below.
]
Activate:
Activates the corresponding service.
- To voice mail centre: Forwards to message centre.
This function does not apply to All data calls and
All fax calls menus.
- To other number: Input the number for call
diverting.
- To favourite number: You can check recent five
diverted numbers.
]
Cancel:
Deactivate the corresponding service.
]
View status:
View the status of the corresponding
service.
Answer mode (Menu 7.4.2)
]
Flip open:
If you select this menu, you can receive
an incoming call when only opening flip.
]
Press any key:
If you select this menu, you can
receive a call by pressing any key except [End]
key.
]
Send only:
If you select this menu, you can receive
a call by only pressing [Send] key.
Send my number (Menu 7.4.3)
(network and subscription dependent)
]
On:
You can send your phone number to another
party. Your phone number will be shown on the
receiver’s phone.
]
Off:
Your phone number will not be shown.
]
Set by network:
If you select this, you can send
your phone number depending on two line service
such as line 1 or line 2.
SETTINGS
65
Call waiting (Menu 7.4.4)
(Network Service)
]
Activate:
If you select Activate, you can accept a
waiting (receiving) call.
]
Cancel:
If you select Cancel, you cannot recognize
the waiting (receiving) call.
]
View status:
Shows the status of Call waiting.
Minute minder (Menu 7.4.5)
If you select On, you can check the call duration by
deep sound every minute during a call.
Auto redial (Menu 7.4.6)
]
On:
When this function is activated, the phone will
automatically try to redial in the case of failure to
connect a call.
]
Off:
Your phone will not make any attempts to redial
when the original call has not connected.
SECURITY SETTINGS MENU 7.5
PIN code request (Menu 7.5.1)
In this menu, you can set the phone to ask for the PIN
code of your SIM card when the phone is switched on.
If this function is activated, you’ll be requested to enter
the PIN code.
1. Select PIN code request in the security settings
menu, and then press [Select].
2. Set On/Off.
3. If you want to change the setting, you need to enter
PIN code when you switch on the phone.
4. If you enter wrong PIN code more than 3 times, the
phone will lock out. If the PIN is blocked, you will
need to key in PUK code.
5. You can enter your PUK code up to 10 times. If you
put wrong PUK code more than 10 times, you can
not unlock your phone. You will need to contact
your service provider.
SETTINGS
SETTINGS
66
Phone lock (Menu 7.5.2)
You can use security code to avoid unauthorized use of
the phone. Whenever you switch on the phone, the
phone will request security code if you set phone lock
to On. If you set phone lock to Automatic, your
phone will request security code only when you change
your SIM card.
Call barring
(Menu 7.5.3)
The Call barring service prevents your phone from
making or receiving certain category of calls. This
function requires the call barring password. You can
view the following submenus.
]
All outgoing:
The barring service for all outgoing
calls.
]
International:
The barring service for all outgoing
international calls.
]
International when roam:
The barring service for
all international outgoing calls except home network.
]
All incoming:
The barring service for all incoming
calls.
]
Incoming when abroad:
The barring service for all
incoming calls when roaming.
]
Cancel all:
You can cancel all barring services.
]
Change password:
You can change the password
or Call Barring Service.
The submenus:
• Activate
Allows to request the network to set call restriction
on.
• Cancel
Set the selected call restriction off.
• View status
View the status whether the calls are barred or not.
Fixed dial number (FDN) (Menu 7.5.4)
(SIM dependent)
You can restrict your outgoing calls to selected phone
numbers.
The numbers are protected by your PIN2 code.
]
Activate: You can restrict your outgoing calls to
selected phone numbers.
SETTINGS
67
]
Cancel: You can cancel fixed dialling function.
]
Number list: You can view the number list saved as
Fixed dial number.
Change codes (Menu 7.5.5)
PIN is an abbreviation of Personal Identification
Number to prevent use by unauthorized person.
You can change the access codes: PIN2 code,
Security Code
1. If you want to change the Security code/PIN/PIN2
code input your original code, and then press
[OK].
2. Input new Security code/PIN/PIN2 code and verify
them.
NETWORK SETTINGS MENU 7.5
You can select a network which will be registered either
automatically or manually. Usually, the network
selection is set to Automatic.
Automatic (Menu 7.5.1)
If you select Automatic mode, the phone will
automatically search for and select a network for you.
Once you have selected “Automatic”, the phone will be
set to “Automatic” even though the power is off and
on.
Manual (Menu 7.5.2)
The phone will find the list of available networks and
show you them. Then you can select the network which
you want to use if this network has a roaming
agreement with your home network operator. The
phone let you select another network if the phone fails
to access the selected network.
Preferred (Menu 7.5.3)
You can set a list of preferred networks the handset
should attempt to register with first, before attempting
to register to any other networks. This list is created
from the handset’s predefined list of known networks.
GPRS SETTINGS MENU 7.6
You can set GPRS service depending on various
situations.
SETTINGS
SETTINGS
68
Switch on (Menu 7.6.1)
If you select this menu, the phone is automatically
registered to a GPRS network when you switch the
phone on. Starting a WAP or PC dial-up application
created the connection between phone and network
and data transfer is possible. When you end the
application, GPRS connection is ended but the
registration to the GPRS network remains.
When needed (Menu 7.6.2)
If you select this menu, the GPRS connection is
established when you connect a WAP service and
closed when you end the WAP connection.
MEMORY STATUS MENU 7.7
You can check free space and memory usage of each
repository, Internal memory, Multimedia memory and
External memory. You can go to each repository menu.
RESET SETTINGS MENU 7.8
You can initialize all factory defaults. You need Security
code to activate this function.
]Restore default settings: Allows you to restore
default settings.
]Clear multimedia memory: Allows you to format
the multimedia memory and create a default
directory.
]Clear external memory: Allows you to format the
external memory and create default directory.
SETTINGS
SERVICE
69
You can access various WAP (Wireless Application
Protocol) services such as banking, news, weather
reports and flight information. These services are
specially designed for mobile phones and they are
maintained by WAP service providers.
Check the availability of WAP services, pricing and
tariffs with your network operator and/or the service
provider whose service you wish to use. Service
providers will also give you instructions on how to
use their services.
Once connected, the homepage is displayed. The
content depends on the service provider. To exit the
browser at any time, press the ( ) key. The phone
will return to the previous menu.
Navigating with the WAP browser
You can surf the Internet using either the phone keys
or the WAP browser menu.
Using the phone keys
When surfing the Internet, the phone keys function
differently to phone mode.
Using the WAP browser menu
There are various menu options available when
surfing the Mobile Web.
Home Menu 8.1
Connects to a homepage. The homepage will be the
site which is defined in the activated profile. It will be
defined by the service provider if you have not
defined it in the activated profile.
SERVICE
Key Description
Scrolls each line of the content
area
Returns to the previous page
Selects options and confirms
actions
Note
]The WAP browser menus may vary, depending
on your browser version.
SERVICE
70
BOOKMARKS MENU 8.2
This menu allows you to store the URL of favourite
web pages for easy access at a later time. Your phone
has several pre-installed bookmarks.
These pre-installed bookmarks cannot be deleted.
To create a bookmark
1. Press the left soft key [Options].
2. Select Add new and press the OK key.
3. After entering the desired URL and title, press the
OK key.
✽
Tip: Use the “ ” key and key to enter
symbols. To enter “.”, press “ ”.
After selecting a desired bookmark, the following
options are available.
]Connect: Connects to the selected bookmark.
]Add new: Select this to create a new bookmark.
]Edit: You can edit the URL and/or the title of the
selected bookmark.
]Delete: Deletes the selected bookmark.
]Delete all: Deletes all the bookmarks.
GO TO URL MENU 8.3
You can connect directly to the site you want. After
entering a specific URL, press the OK key.
SETTINGS MENU 8.4
You can set the profile, cache, cookie and security
related to internet service.
Profiles (Menu 8.4.1)
A profile is the network information used to connect
to the Internet.
Each profile has submenus as follows:
]Activate: Activates the selected profile.
]Settings: Use this to edit and change WAP settings
for the selected profile.
- Homepage: This setting allows you to enter the
address (URL) of a site you want to use as
homepage. You do not need to type http:// at
the front of each URL as the WAP Browser will
automatically add it.
- Bearer: You can set the bearer data service.
SERVICE
71
1 Data
2 GPRS
- Data settings: Appears only if you select Data
Settings as a Bearer / service.
Dial number: Enter the telephone number to
dial to access your WAP gateway.
User ID: The users identity for your dial-up
server (and NOT the WAP gateway).
Password: The password required by your
dial-up server (and NOT the WAP gateway) to
identify you.
Call type: Select the type of data call : Analogue
of Digital (ISDN)
Linger time: You need to enter timeout period.
After entering that, the WAP navigation service
will be unavailable if any data is not input or
transferred.
Call speed: The speed of your data connection ;
9600 or 14400
- GPRS settings: The service settings are only
available when GPRS is chosen as a bearer
service.
APN: Input the APN of the GPRS.
User ID: The users identify for your APN server.
Password: The password required by your APN
server.
- Proxy settings
Proxy: Activates or cancels proxy.
IP address: Input the IP address of the Proxy
server you access.
Port number: Input the Proxy Port
- DNS settings
Primary server: Input the IP address of the
primary DNS server you access
Secondary server: Input the IP address of the
secondary DNS server you access
]Rename: You can change the profile name.
]Add new: You can add a new profile.
]Delete: Deletes the selected profile from the list.
SERVICE
SERVICE
72
Cache (Menu 8.4.2)
The information or services you have accessed are
saved in the cache memory of the phone.
Cookie (Menu 8.4.3)
The information or services you have accessed are
saved in the cache memory of the phone.
Clear cache (Menu 8.4.4)
Removes all context saved in cache.
Clear cookie (Menu 8.4.5)
Removes all context saved in cookie.
Security (Menu 8.4.6)
A list of the available certification is shown.
]Authority: You can see the list of authority
certificates that have been stored in your phone.
]Personal: You can see the list of personal
certificates that have been stored in your phone.
SERVICE
Note
]A cache is a buffer memory, which is used to
save data temporarily.
MY STUFF
73
PHOTOS MENU 9.1
Shows the list of JPG files at My media\Photos in
Multimedia memory.
]
View: You can see the JPG file by pressing the OK
key or selecting View from the Option menu.
]
Send via email: Send the selected file to another
device via email if the file size is less than
300Kbytes.
]
Send via Bluetooth: Send the selected file to
another device via Bluetooth.
]
Copy to External memory: Copy the selected file
to the same folder at Multimedia memory/External
memory.
]
Move to External memory: Move the selected file
to the same folder at Multimedia memory/External
memory.
]
Rename: Change the file name of selected file. The
maximum length of characters is 200. And You can
not change the extension of file.
]
Delete: Delete a file.
]
Delete all: Deletes all the files in the list
]
Information: Shows the file information.
MY STUFF
Note
]You may send files via Bluetooth only if they are
stored in phone memory, not on memory card. To
send files from the external memory, please, firstly
copy it to internal phone memory.
]In Photos folder in internal and in external
memory only .JPG (.JPEG) files can be stored. In
Images folder in internal and in external memory
you may store .GIF, .JPG (.JPEG) and other image
format files.
]To setup .JPG (.JPEG) file from Photo folder as
wallpaper, go to Menu-Multimedia-Photo album
and then please select Set as wallpaper in
Options menu.
Note
]The maximum size of JPG file you can see is
460Kbytes.
MY STUFF
74
IMAGES MENU 9.2
After selecting a image, press the left key [View]
and then you can check the options as follow:
]
Set as wallpaper: Currently selected image can be
set as a wallpaper.
]
Write messages: The images downloaded from the
network can be sent by Multimedia or Email service.
Maximum message size is 100 kb for MMS message
and 300 kb for E-mail message.
]
Send via Bluetooth: The sound downloaded from
network can be sent by Bluetooth.
]
Copy to External memory: Copy the selected file
to the same folder at Multimedia memory/External
memory.
SOUNDS MENU 9.3
After selecting a sound, press the left key [Options].
You can check the options as follow:
]
Set as ringtone:
Currently selected sound can be
set as a ringtone.
]
Write messages:
The sound downloaded from
network can be sent by SMS or MMS, Email service.
Maximum MMS message is 100 kb, and for e-mail is
300 kb.
]
Send via Bluetooth:
The sound downloaded from
network can be sent by Bluetooth.
\
]
Copy to External memory:
Copy the selected file
to the same folder at Multimedia memory/External
memory.
MY STUFF
Note
]You may send files via Bluetooth only if they are
stored in the phone memory, not on memory
card. To send file from external memory, please,
firstly copy it to internal phone memory.
]Maximum .GIF supporting size is 100 Kb.
Note
]You may send files via Bluetooth only if they are
stored in the phone memory, not on memory
card. To send file from external memory, please,
firstly copy it to internal phone memory. When
you send .MMF or .MIDI sound file from another
phone via Bluetooth, it will be saves to Others
folder. But if you will setup this file as ring tone, it
will be copied to Sounds folder.
TECHNICAL DATA
77
TECHNICAL DATA
General
Product name : KG245
System : GSM 900 / DCS 1800
Ambient Temperatures
Max : +55°C
Min : -10°C
Appendix 1. RF Exposure Statement
WARNING! Read this information before operating the phone.
In August 1996, the Federal Communications (FCC) of the United States, with its action in Report
and Order FCC 96-326, adopted an updated safety standard for human exposure to radio
frequency(RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines
are consistent with the safety standard previously set by both U.S. and international standards
bodies.
The design of this phone complies with the FCC guidelines and these international standards.
CAUTION
Use only the supplied and approved antenna. Use of unauthorized antennas or modifications could
impair call quality, damage the phone, void your warranty and/or result in violation of FCC
regulations.
Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with skin,
a minor burn may result. Contact your local dealer for a replacement of antenna.
Body Worn Operation
This device was tested for typical body-worn operations with the back of the phone kept 1.5
cm from the body. To comply with FCC RF exposure requirements, a minimum separation
distance of 1.5 cm must be maintained between the user’s body and the back of the phone,
including the antenna, whether extended or retracted. The use of belt-clips, holsters, and
similar accessories should not containing metallic components in its assembly. The use of
accessories that do not satisfy these requirements may not comply with FCC RF exposure
requirements, and should be avoided.
* This GSM phone has Bluetooth function.
For Your Safety FCC Part 15 Class B Compliance
This device and its accessories comply with part 15 of FCC rules. Operation is subject to the
following two conditions: (1) This device and its accessories may not cause harmful
interference, and (2) this device and its accessories must accept any interference received,
including interference that may cause undesired operation.
Appendix 2. Consumer Information on SAR
(Specific Absorption Rate)
This Model Phone Meets the Government’s Requirements for Exposure to Radio Waves. Your
wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed
the emission limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the general population. The guidelines
are based on standards that were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The standards include a substantial safety
margin designed to assure the safety of all persons, regardless of age and health.
The exposure standard for wireless mobile phones employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are
conducted using standard operating positions specified by the FCC with the phone transmitting at
its highest certified power level in all tested frequency bands. Although SAR is determined at the
highest certified power level, the actual SAR level of the phone while operating can be well below
the maximum value. Because the phone is designed to operate at multiple power levels to use only
the power required to reach the network, in general, the closer you are to a wireless base station
antenna, the lower the power output.
Before a phone model is available for sale to the public, it must be tested and certified to the FCC
that it does not exceed the limit established by the government-adopted requirement for safe
exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the
body) as required by the FCC for each model.
The highest SAR value for this model phone when tested for use at the ear is 1.28W/kg,
and when worn on the body, as described in this user guide, is 0.164W/kg
(body-worn measurements differ among phone models, depending upon available accessories and
FCC requirements). While there may be differences between SAR levels of various phones and at
various positions, they all meet the government requirement for safe exposure.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR
levels evaluated as in compliance with the FCC RF emission guidelines. SAR information on this
model phone is on file with the FCC and can be found under the Display Grant section of
http://www.fcc.gov/oet/fccid after searching on FCC ID BEJKG245.
