APPENDIX F
FCC ID : BEJL172WA
USER’S MANUAL
Make sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for furture reference.
See the label attached on the back cover and quote this information to your
dealer when you require service.
L172WT
User’s Guide
1
FCC Compliance Statement
This equipment has been tested and found to comply within
the limits of a Class B digital device pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio
frequency energy and if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio
or television reception (which can be determined by turning
the equipment on and off), the user is encouraged to try to
correct the interference by using one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Caution: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user's (or your) authority to operate the equipment. Only
peripherals (digital input/output devices, terminals, printers,
etc.) certified to comply with the Class B limits may be
attached to this monitor. Operation with non-certified
peripherals is likely to result in interference to radio and TV
reception.
Only shielded signal cables may be used with this System.
Canadian DOC Notice
This Class B digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les
exigences du Règlement sur le matériel brouilleur du
Canada.
CE Conformity Notice (for Europe)
Products with the “CE” Marking comply with the EMC
Directive(89/336/EEC) and LOW VOLTAGE Directive
(73/23/EEC) issued by the Commission of the European
Community.
Compiance with these directives implies conformity to the
following European Norms :
• EN 55022:1998 ; Radio Frequency Interference
• EN 55024:1998 ; Electromagnetic Immunity
• EN 61000-3-2 ; Power Line Harmonics
• EN 61000-3-3 ; Voltage Fluctuations
• EN 60950 ; Product Safety
Low Radiation Compliance (MPR II)
This monitor meets one of the strictest guidelines available
today for low radiation emissions, offering the user extra
shielding and an antistatic screen coating. These
guidelines, set forth by a government agency in Sweden,
limit the amount of emission allowed in the Extremely Low
Frequency (ELF) and Very Low Frequency (VLF)
electromagnetic range.
TCO95
Congratulations!
You have just purchased a TCO’95 approved and labelled
product! Your choice has provided you with a product
developed for professional use. Your purchase has also
contributed to reducing the burden on the environment and
to the further development of environmentally-adapted
electronic products.
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an
established method for encouraging the adaptation of
goods and services to the environment. The main problem
as far as computers and other electronic equipment are
concerned is that environmentally harmful substances are
used both in the products and during their manufacture.
Since it has not been possible so far for the majority of
electronic equipment to be recycled in a satisfactory way,
most of these potentially damaging substances sooner or
later enter Nature.
There are also other characteristics of a computer, such as
energy consumption levels, that are important from both the
working and natural environment viewpoints. Since all
types of conventional electricity generation have a negative
effect on the environment (acidic- and climatic-influencing
emissions, radioactive waste, etc.), it is vital to conserve
energy. Electronic equipment in offices consumes as
enormous amount of energy, since it is often routinely left
running continuously.
What does the environmenal labelling involve?
This product meets the requirements for the TCO’95
Regulatory Information
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
2
Regulatory Information cont.
NUTEK
Naturskydds
föreningen
Närings- och teknikutvecklingsverket
SEMKO
scheme, which provides for international environmental
labelling of personal computers. The labelling scheme was
developed as a joint effort by the TCO (The Swedish
Confederation of Professional Employees),
Naturckyddsföreningen (The Swedish Society for Nature
Conservation), and NUTEK (The National Board for
Industrial and Technical Development in Sweden), and
SEMKO AB (an international certification agency).
The requirements cover a wide range of issues:
environment, ergonomics, usability, emission of electrical
and magnetic fields, energy consumption and electrical and
fire safety.
The environmental demands concern, among other things,
restriction on the presence and use of heavy metals,
brominated and chlorinated flame retardants, CFCs
(freons), and chlorinated solvents. The product must be
prepared for recycling, and the manufacturer is obliged to
have an environmental plan, which must be adhered to in
each country where the company implements its
operational policy.
The energy requirements include a demand that the
computer and/or display, after a certain period of inactivity,
shall reduce its power consumption to a lower level, in one
or more stages. The length of time to reactivate the
computer shall be reasonable for the user.
Labelled products must meet strict environmental
demands, for example, in respect of the reduction of electric
and magnetic fields, along with physical and visual
ergonomics and good usability.
The following is a brief summary of the environmental
requirements met by this product. The complete
environmental criteria document may be ordered from:
TCO Development Unit
Linnegatan 14, S-11494 Stockholm, Sweden
FAX +46-8 782 92 07
E-mail (Internet): development@tco.se
Current information regarding TCO’95 approved and
labelled products may also be obtained on the Internet
using the address: http://www.tco-info.com/
TCO’95 is a co-operative project between:
Environmental requirements
Brominated flame retardants are present in printed circuit
boards, cabling, casings, and housings, and are added to
delay the spread of fire. Up to 30% of the plastic in a
computer casing can consist of flame-retardant substances.
These are related to another group of environmental toxins,
PCBs, and are suspected of giving rise to similar harm,
including reproductive damage in fish-eating birds and
mammals. Flame retardants have been found in human
blood, and researchers fear that they can disturb fetus
development.
Bio-accumulative1TCO’95 demands require that plastic
components weighing more than 25 grams must not
contain flame retardants with organically bound chlorine or
bromine.
Lead can be found in picture tubes, display screens, solder,
and capacitors. Lead damages the nervous system and in
higher doses causes lead poisoning. The relevant bio-
accumulative TCO’95 requirement permits the inclusion of
lead, as no replacement has yet been developed.
Cadmium is present in rechargeable batteries and in the
color-generating layers of certain computer displays.
Cadmium damages the nervous system and is toxic in high
doses. The relevant bio-accumulative TCO’95 requirement
states that batteries may not contain more than 25 ppm
(parts per million) of cadmium. The color-generating layers
of display screens must not contain any cadmium.
Mercury is sometimes found in batteries, relays and
switches. Mercury damages the nervous system and is
toxic in high doses. The relevant bio-accumulative TCO’95
requirement states that batteries may not contain more than
25 ppm of mercury and that no mercury is present in any of
the electrical or electronic components concerned with the
display unit.
CFCs (freons) are sometimes used for washing printed
circuit boards and in the manufacture of expanded foam for
packaging. CFCs break down ozone and thereby damage
the ozone layer in the atmosphere, causing increased
reception on Earth of ultra-violet light with consequent
increased risks of skin cancer (malignant melanoma). The
relevant TCO’95 requirement: Neither CFCs nor HCFCs
may be used during the manufacture of the product or its
packaging.
1Bio-accumulative means that the substance accumulates
within living organisms.
Shipping Package
The packaging material can be recycled, or you can save it
to return the monitor to a service center for repair or
disposal.
CFC Compounds in Distribution Packaging
Cushioning material used for shipping finished monitors are
not manufactured with nor do they contain any CFC
compounds.
Design for Disassembly/Recycling
These monitors have been designed for easy end-of-life
disassembly and recycling. Fasteners are generally of the
same type for efficient disassembly. Components made of
different materials can be easily separated and plastics
have been identified using intermational symbols to aid in
recycling.
Monitor Disposal
WARNING
If you need to dispose of a monitor, ask a qualified service
representative for the proper procedure. Improper disposal
could result in personal injury from implosion.
3
TCO99
Congratulations!
You have just purchased a TCO’99 approved and
labelled product! Your choice has provided you with
a product developed for professional use. Your
purchase has also contributed to reducing the
burden on the environment and also to the further
development of environmentally adapted electronics
products.
Why do we have environmentally labelled
computers?
In many countries, environmental labelling has
become an established method for encouraging the
adaptation of goods and services to the environment.
The main problem, as far as computers and other
electronics equipment are concerned, is that
environmentally harmful substances are used both in
the products and during their manufacture. Since it is
not so far possible to satisfactorily recycle the
majority of electronics equipment, most of these
potentially damaging substances sooner or later
enter nature.
There are also other characteristics of a computer,
such as energy consumption levels, that are
important from the viewpoints of both the work
(internal) and natural (external) environments. Since
all methods of electricity generation have a negative
effect on the environment (e.g. acidic and climate-
influencing emissions, radioactive waste), it is vital to
save energy. Electronics equipment in offices is
often left running continuously and thereby
consumes a lot of energy.
What does labelling involve?
This product meets the requirements for the TCO’99
scheme which provides for international and
environmental labelling of personal computers. The
labelling scheme was developed as a joint effort by
the TCO (The Swedish Confederation of
Professional Employees), Svenska
Naturskyddsforeningen (The Swedish Society for
Nature Conservation) and Statens Energimyndighet
(The Swedish National Energy Administration).
Approval requirements cover a wide range of issues:
environment, ergonomics, usability, emission of
electric and magnetic fields, energy consumption
and electrical and fire safety.
The environmental demands impose restrictions on
the presence and use of heavy metals, brominated
and chlorinated flame retardants, CFCs (freons) and
chlorinated solvents, among other things. The
product must be prepared for recycling and the
manufacturer is obliged to have an environmental
policy which must be adhered to in each country
where the company implements its operational
policy.
The energy requirements include a demand that the
computer and/or display, after a certain period of
inactivity, shall reduce its power consumption to a
lower level in one or more stages. The length of time
to reactivate the computer shall be reasonable for
the user.
Labelled products must meet strict environmental
demands, for example, in respect of the reduction of
electric and magnetic fields, physical and visual
ergonomics and good usability.
Below you will find a brief summary of the
environmental requirements met by this product. The
complete environmental criteria document may be
ordered from:
TCO Development
SE-114 94 Stockholm, Sweden
Fax: +46 8 782 92 07
Email (Internet): development@tco.se
Current information regarding TCO’99 approved and
labelled products may also be obtained via the Internet,
using the address: http://www.tco-info.com/
Environmental requirements
Flame retardants
Flame retardants are present in printed circuit
boards, cables, wires, casings and housings. Their
purpose is to prevent, or at least to delay the spread
of fire. Up to 30% of the plastic in a computer casing
can consist of flame retardant substances. Most
flame retardants contain bromine or chloride, and
those flame retardants are chemically related to
another group of environmental toxins, PCBs. Both
the flame retardants containing bromine or chloride
and the PCBs are suspected of giving rise to severe
health effects, including reproductive damage in
fish-eating birds and mammals, due to the bio-
accumulative* processes. Flame retardants have
been found in human blood and researchers fear
that disturbances in foetus development may occur.
The relevant TCO’99 demand requires that plastic
components weighing more than 25 grams must not
contain flame retardants with organically bound
bromine or chlorine. Flame retardants are allowed in
the printed circuit boards since no substitutes are
available.
Cadmium**
Cadmium is present in rechargeable batteries and in
the colour-generating layers of certain computer
displays. Cadmium damages the nervous system
and is toxic in high doses. The relevant TCO’99
requirement states that batteries, the colour-
generating layers of display screens and the
electrical or electronics components must not contain
any cadmium.
Regulatory Information cont.
4
Regulatory Information cont.
Mercury**
Mercury is sometimes found in batteries, relays and
switches. It damages the nervous system and is
toxic in high doses. The relevant TCO’99
requirement states that batteries may not contain
any mercury. It also demands that mercury is not
present in any of the electrical or electronics
components associated with the labelled unit.
CFCs (freons)
The relevant TCO’99 requirement states that neither
CFCs nor HCFCs may be used during the
manufacture and assembly of the product. CFCs
(freons) are sometimes used for washing printed
circuit boards. CFCs break down ozone and thereby
damage the ozone layer in the stratosphere, causing
increased reception on earth of ultraviolet light with
e.g. increased risks of skin cancer (malignant
melanoma) as a consequence.
Lead**
Lead can be found in picture tubes, display screens,
solders and capacitors. Lead damages the nervous
system and in higher doses, causes lead poisoning.
The relevant TCO’99 requirement permits the
inclusion of lead since no replacement has yet been
developed.
* Bio-accumulative is defined as substances which
accumulate within living organisms
** Lead, Cadmium and Mercury are heavy metals which are
Bio-accumulative.
EPA (U.S.A only)
ENERGYSATR is a set of power-saving guidelines
issued by the U.S. Environmental Protection
Agency(EPA).
NOM MARK (Mexico only)
GOST MARK
EPA POLLUTION PREVENTER
As an ENERGY STAR Partner LG
Electronics U.S.A.,Inc. has
determined that this product meets the
ENERGY STAR guidelines for
energy efficiency.
BZ03
Internet Address:http://www.lg.ru
»ÌÙÓχˆËÓÌ̇ˇ ÒÎÛÊ·‡ LG
Electronics (095)742-77-77
i
A1
A4
A6
A7
A12
A12
A14
A15
A16
Safety Precautions

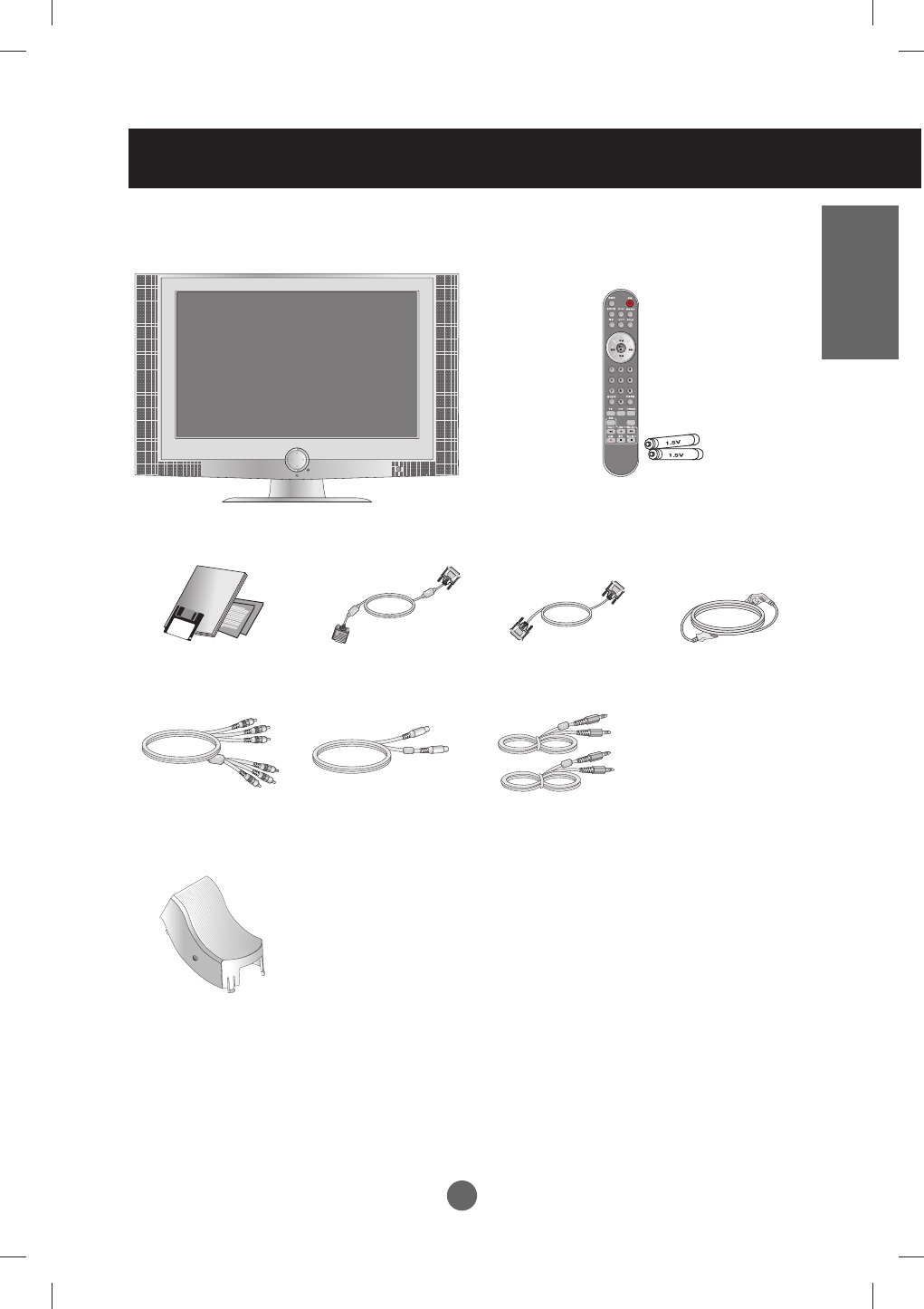

Accessories
Important Monitor Features

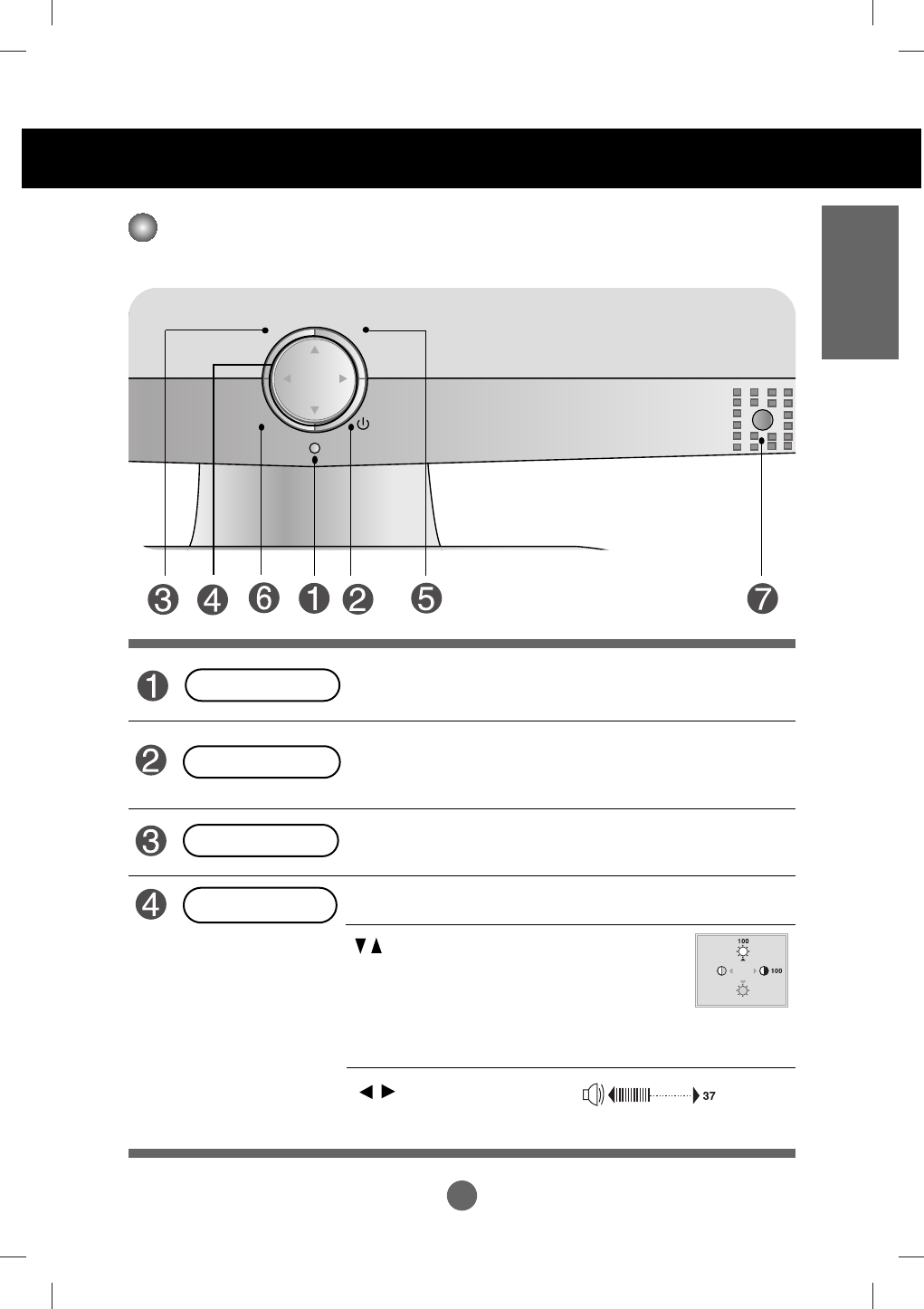

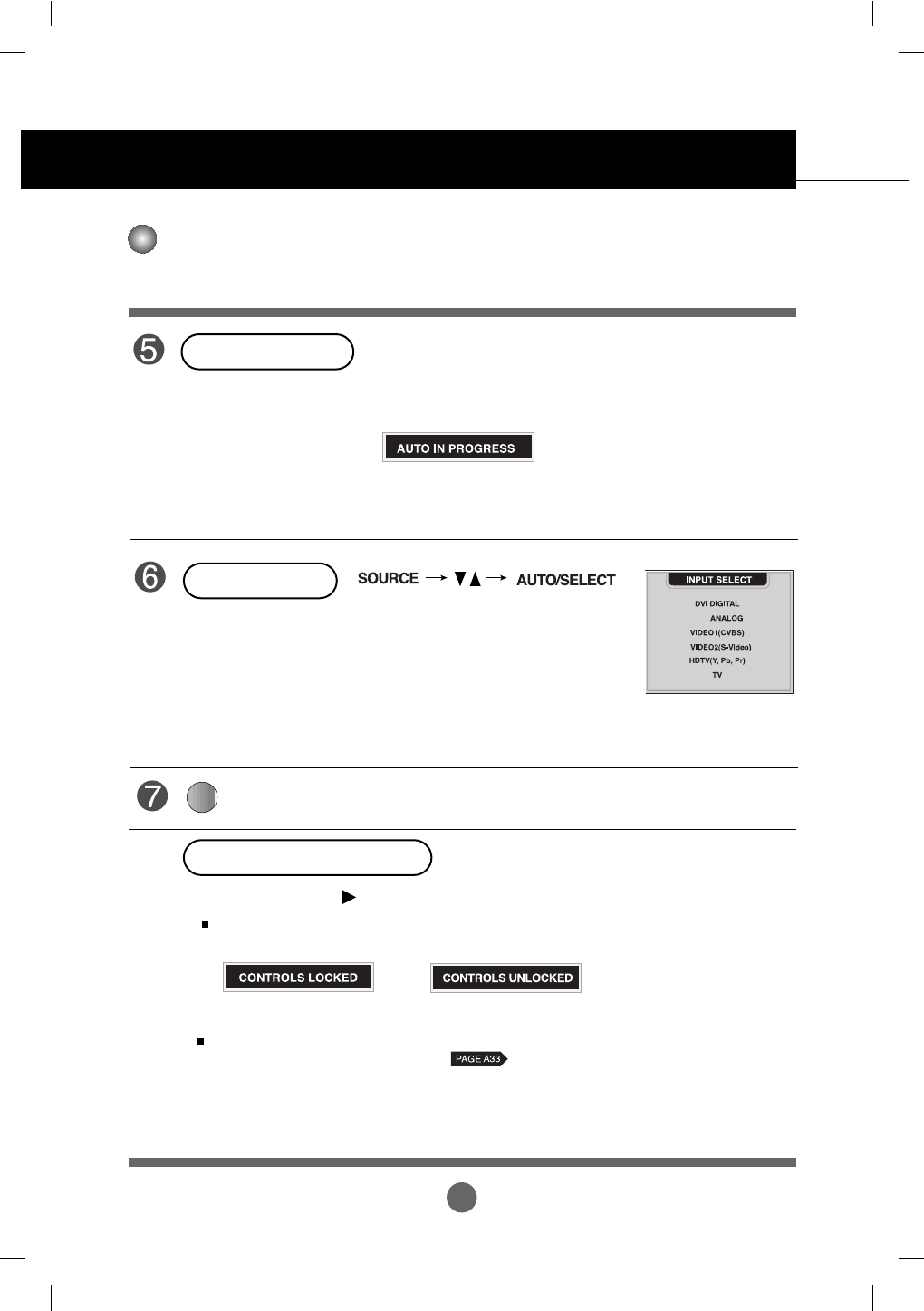

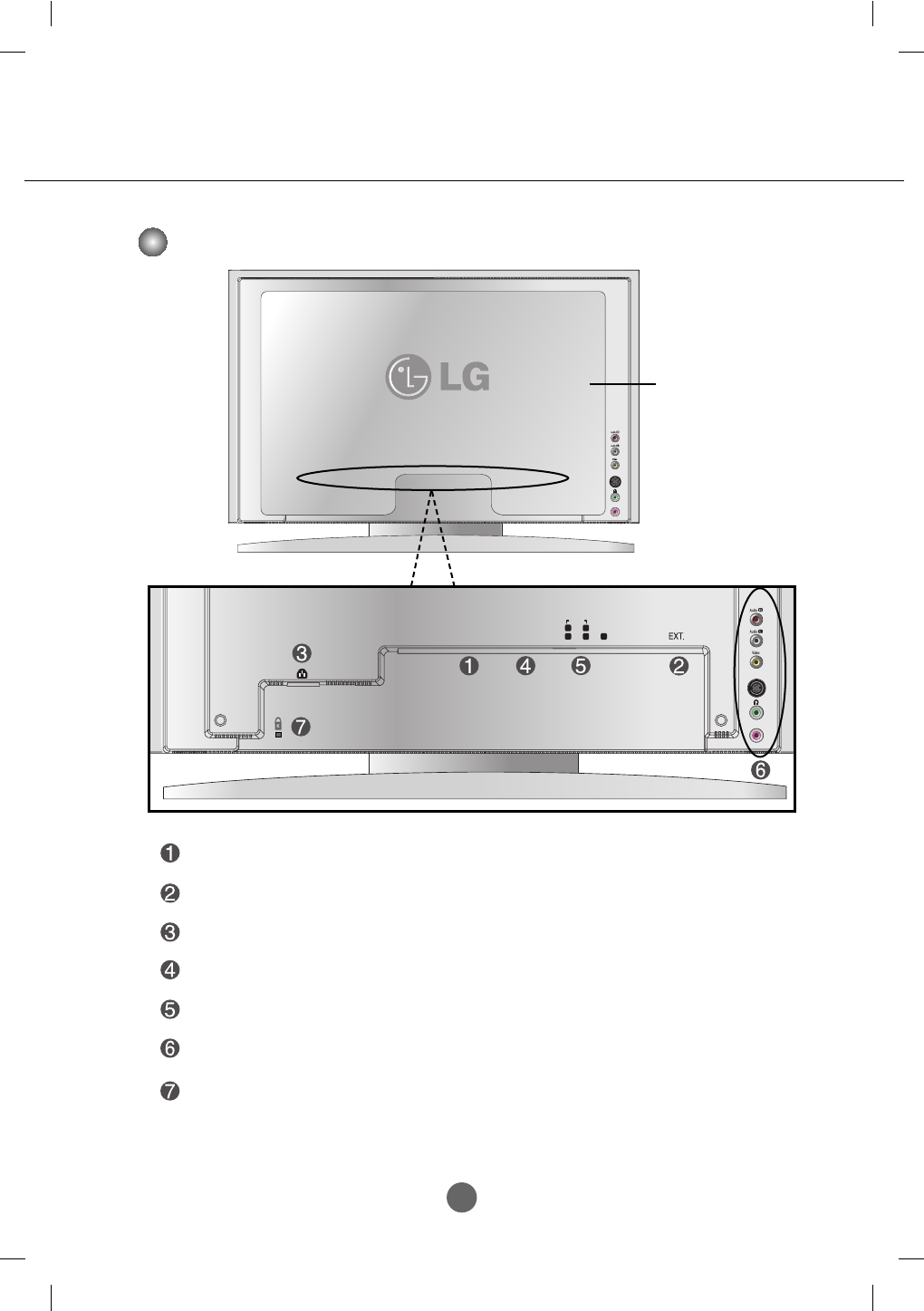

Name and Function of the Parts

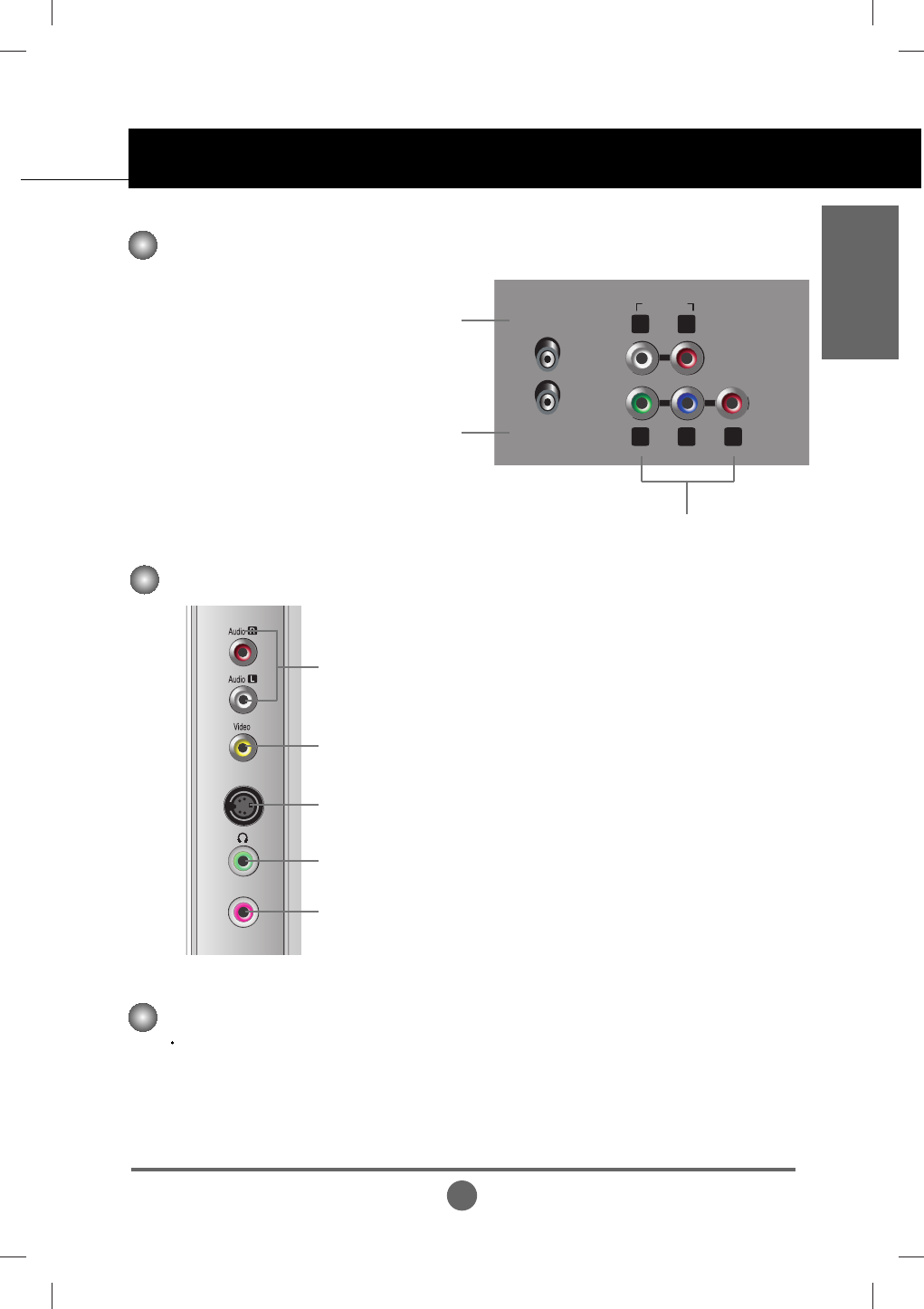

Connecting to External Devices

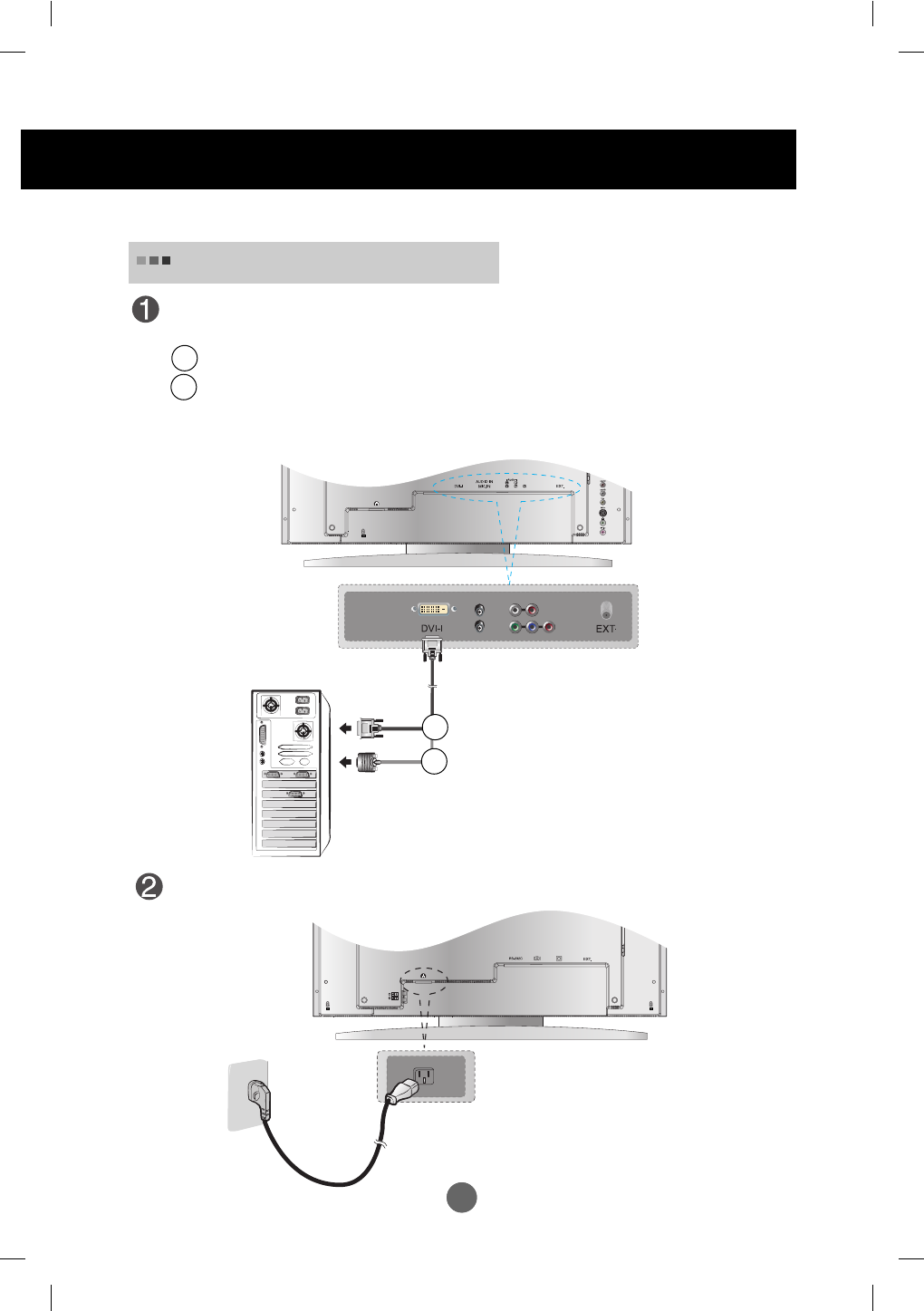

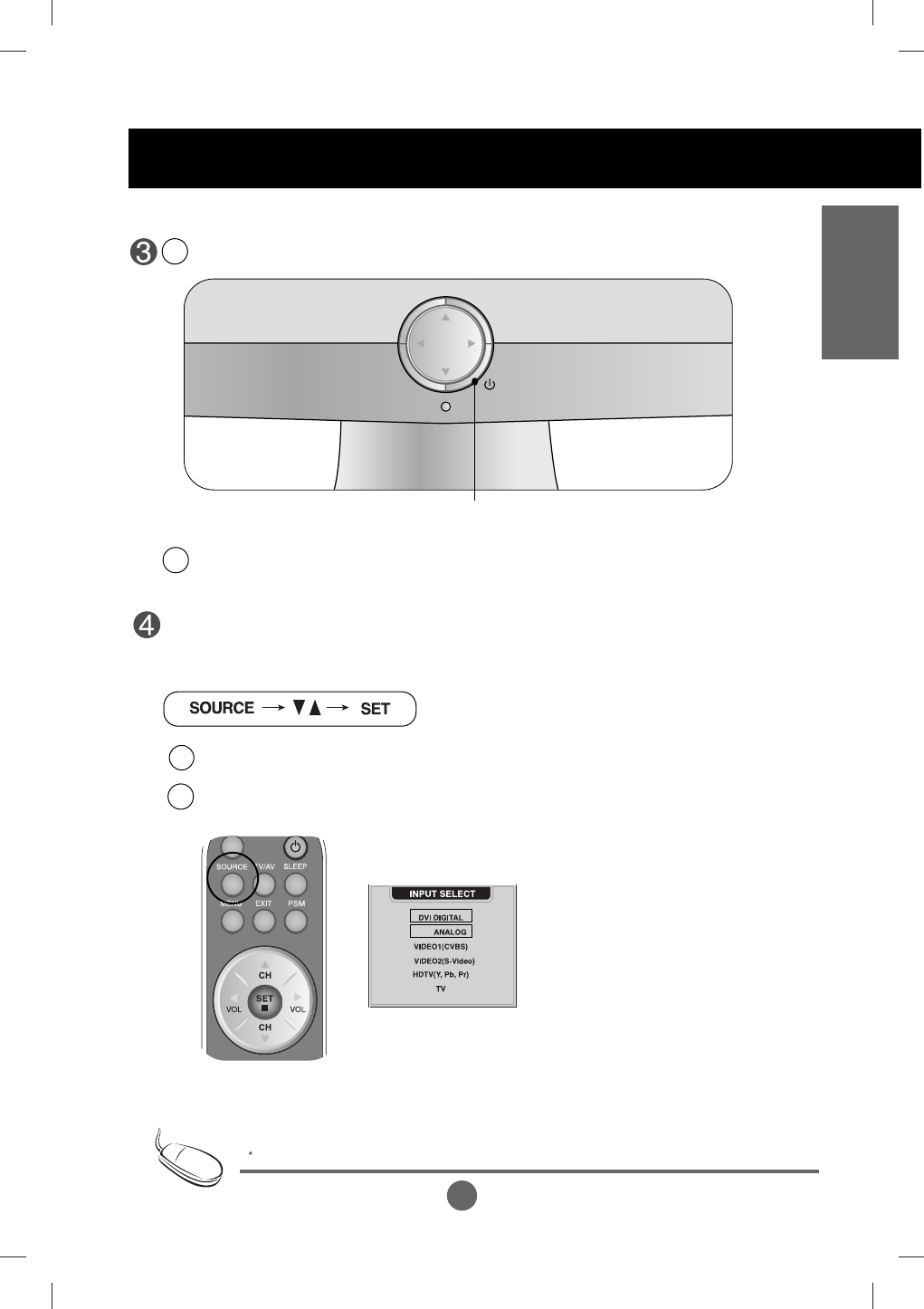

Connecting to your PC

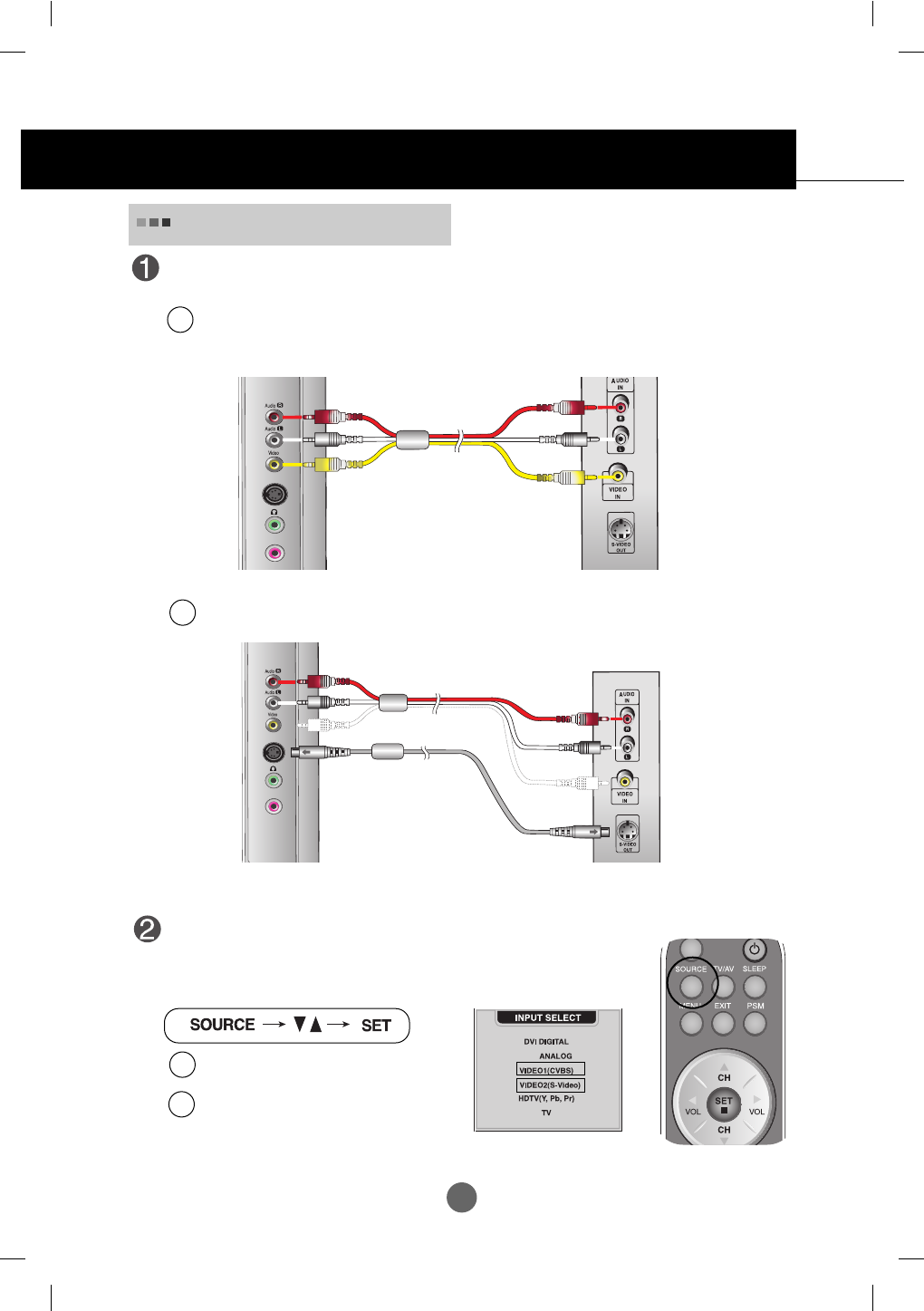

Watching Video

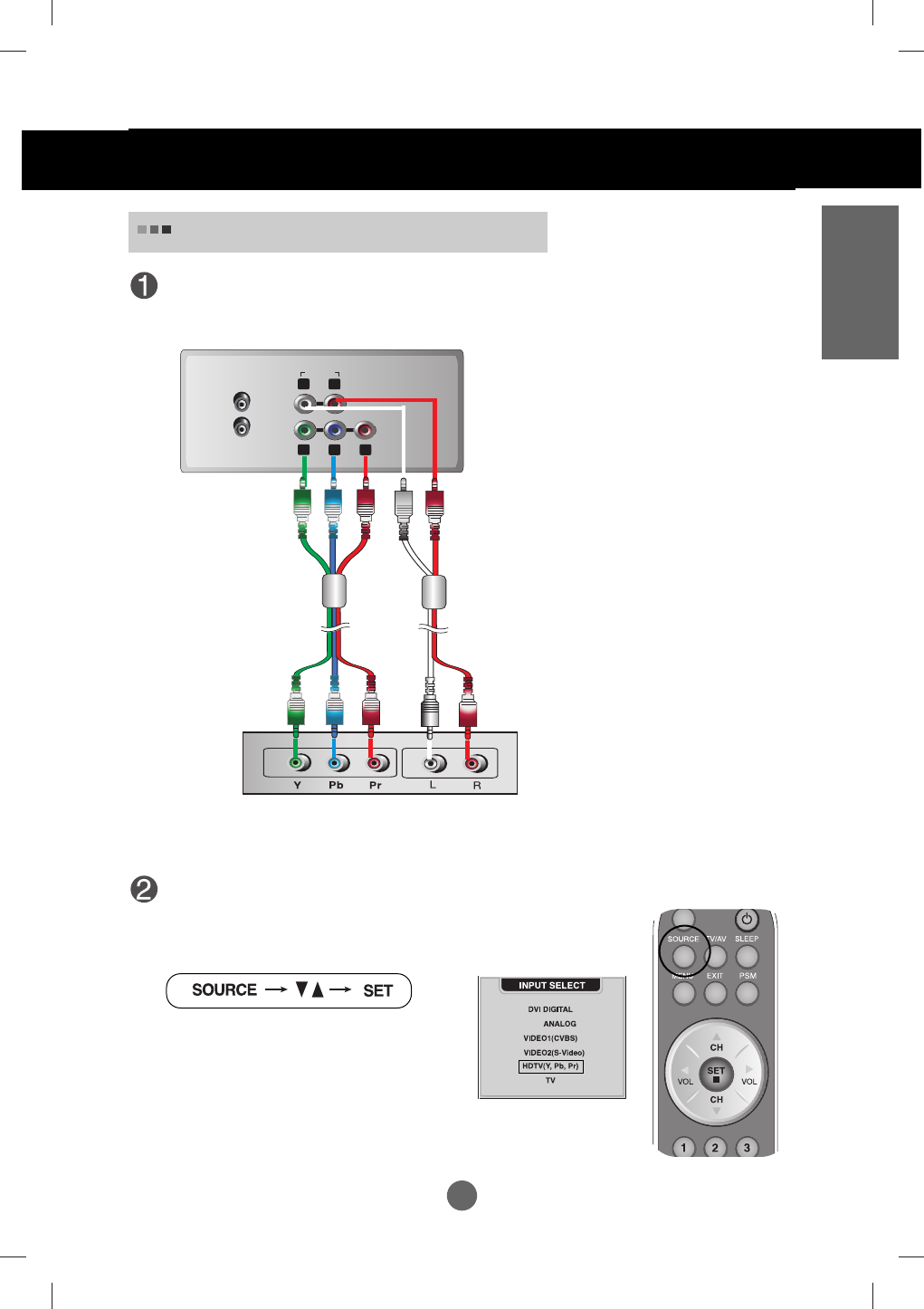

Watching HDTV (720p/1080i)

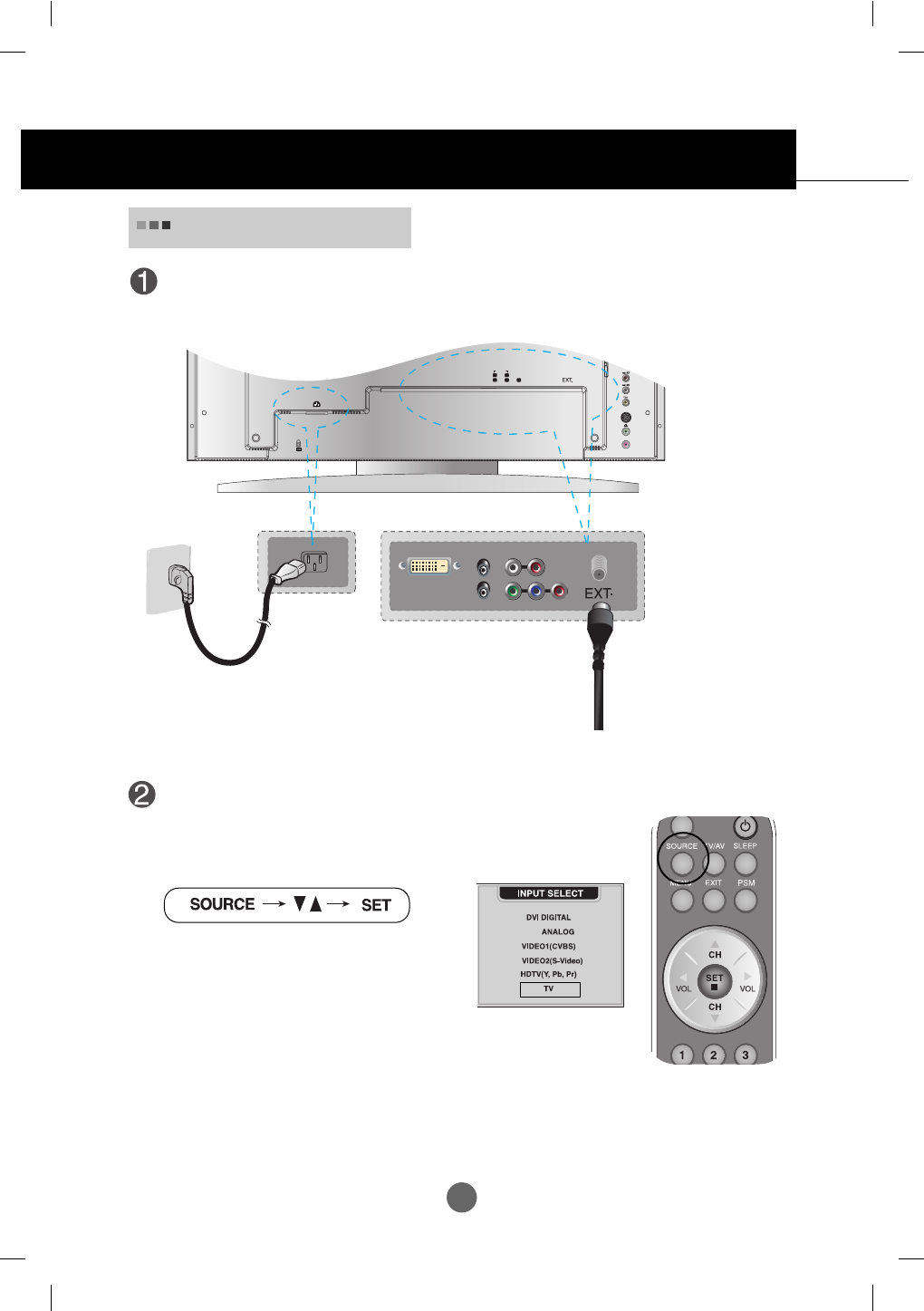

Watching TV
A37
A40

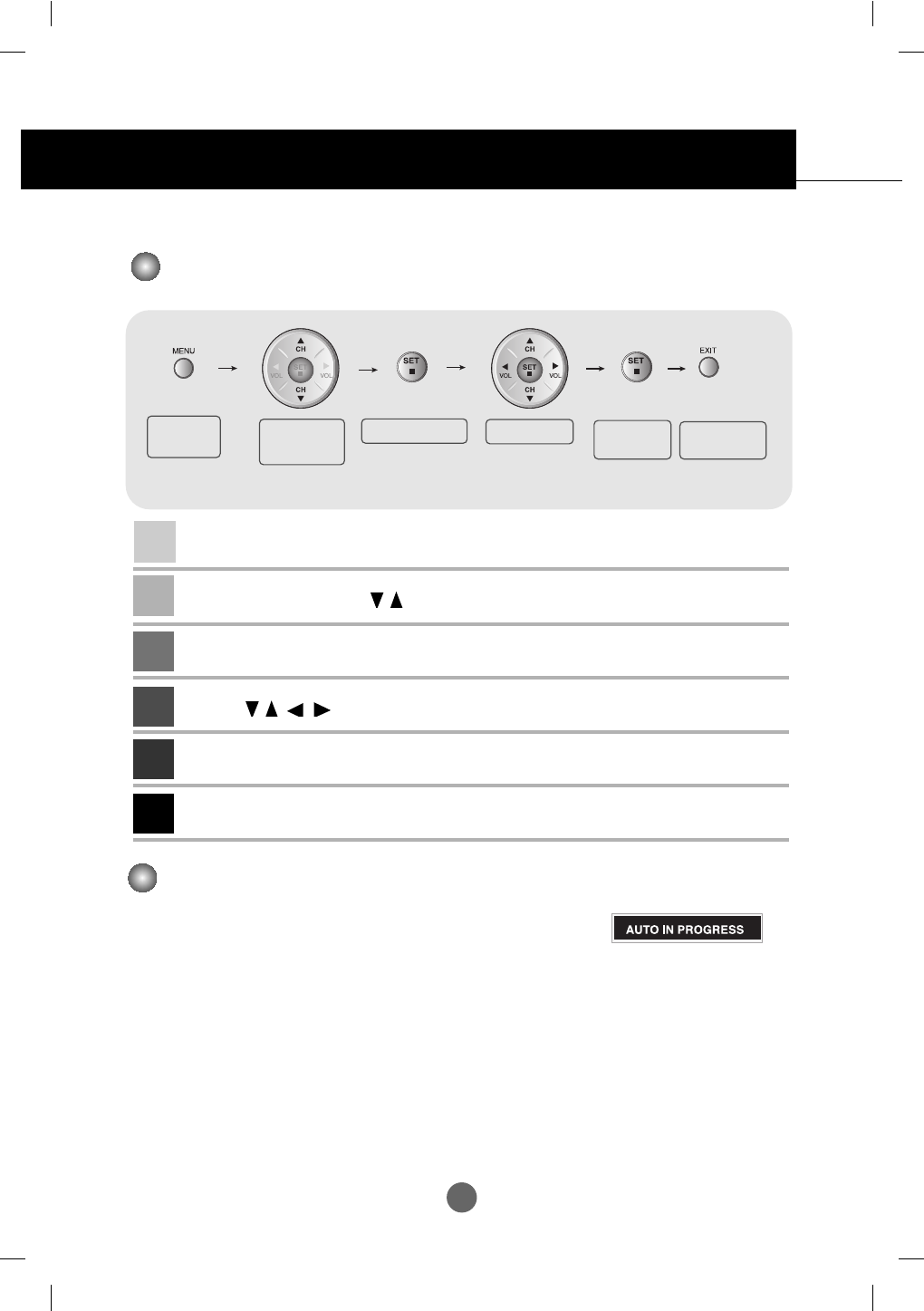

Name of the Buttons in the screen Adjustment Unit
OSD (On Screen Display) Screen Tracking Order
When Connected to your PC

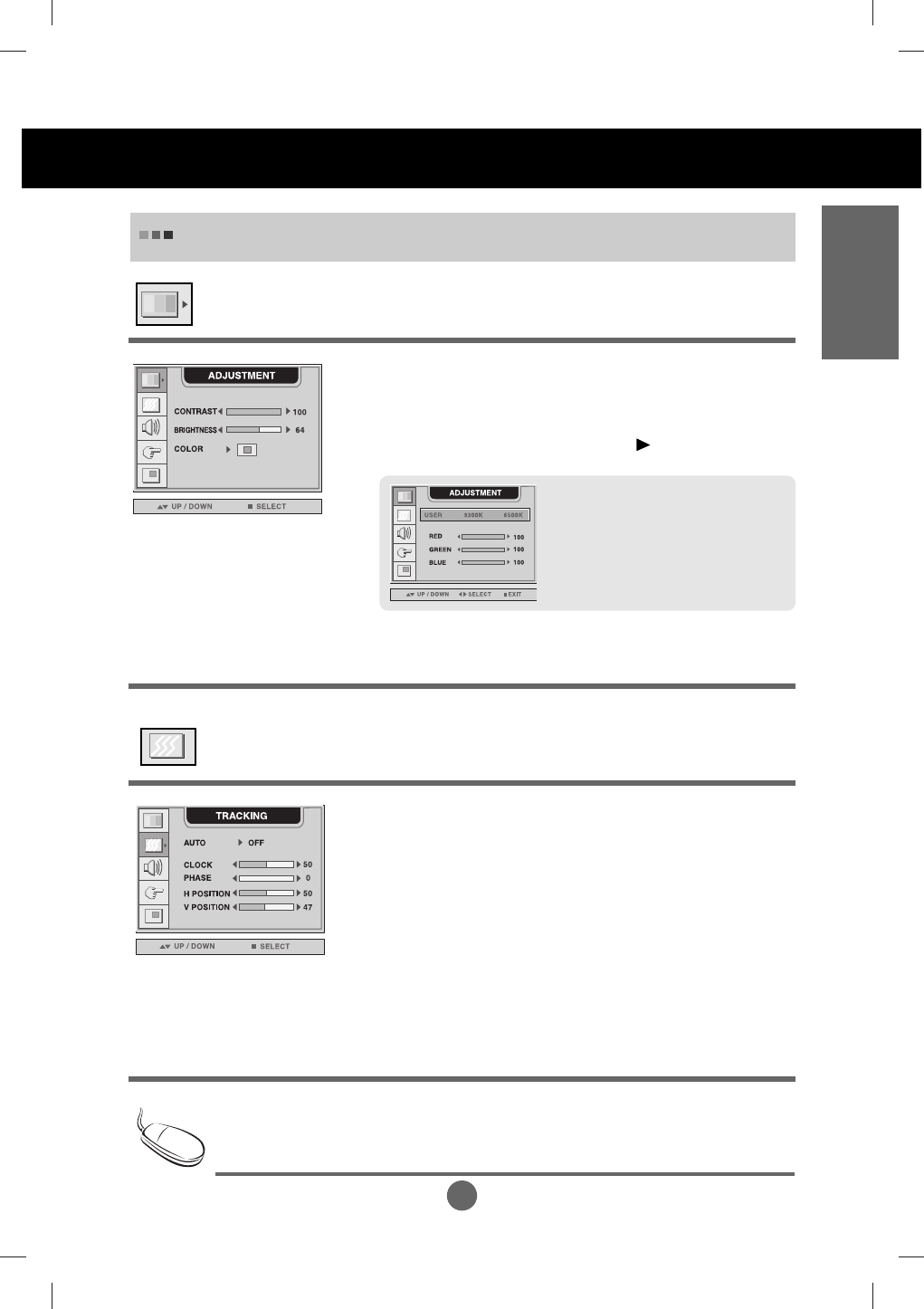

Adjusting Screen Color
Adjusting Screen CLOCK/PHASE and Position

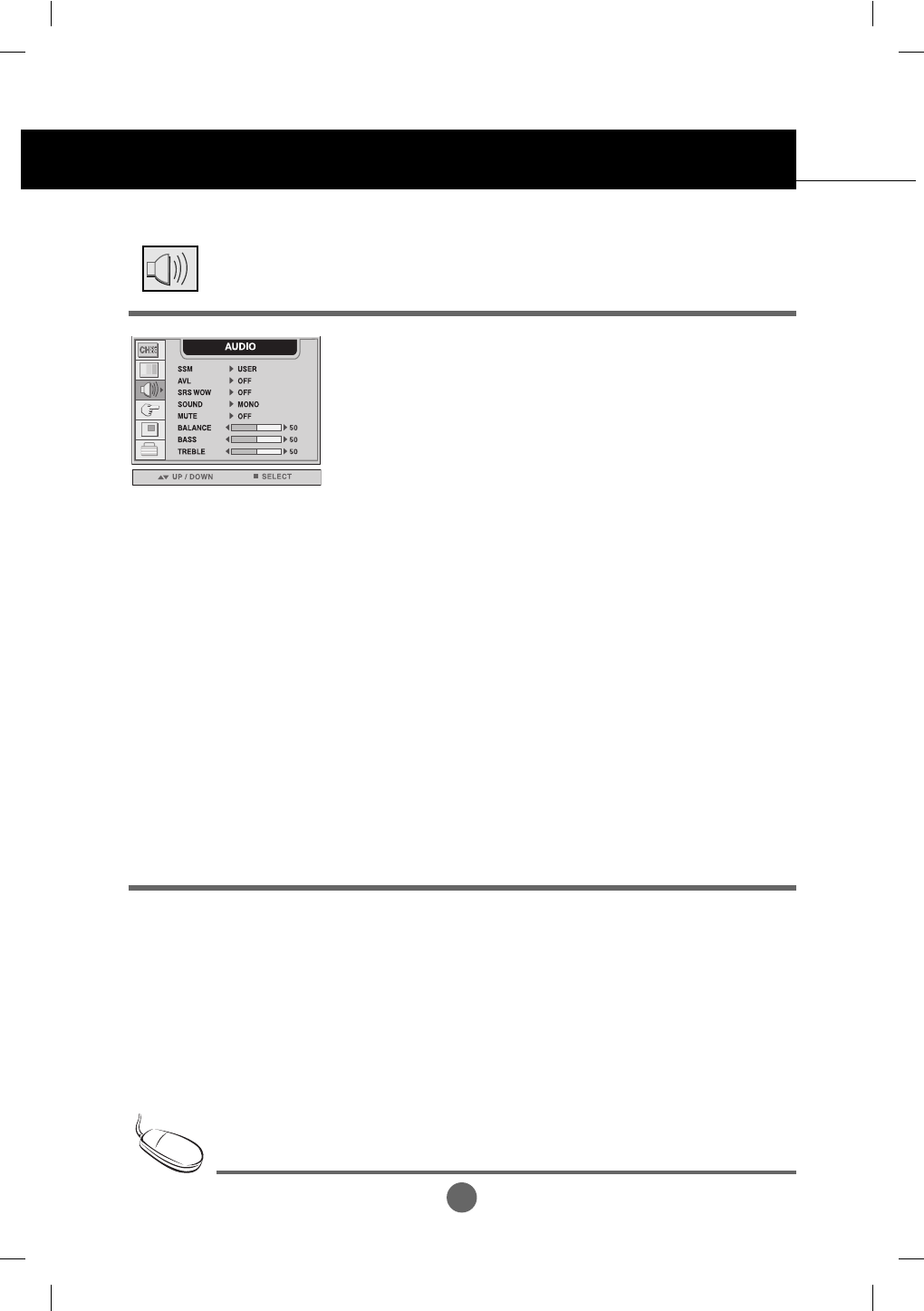

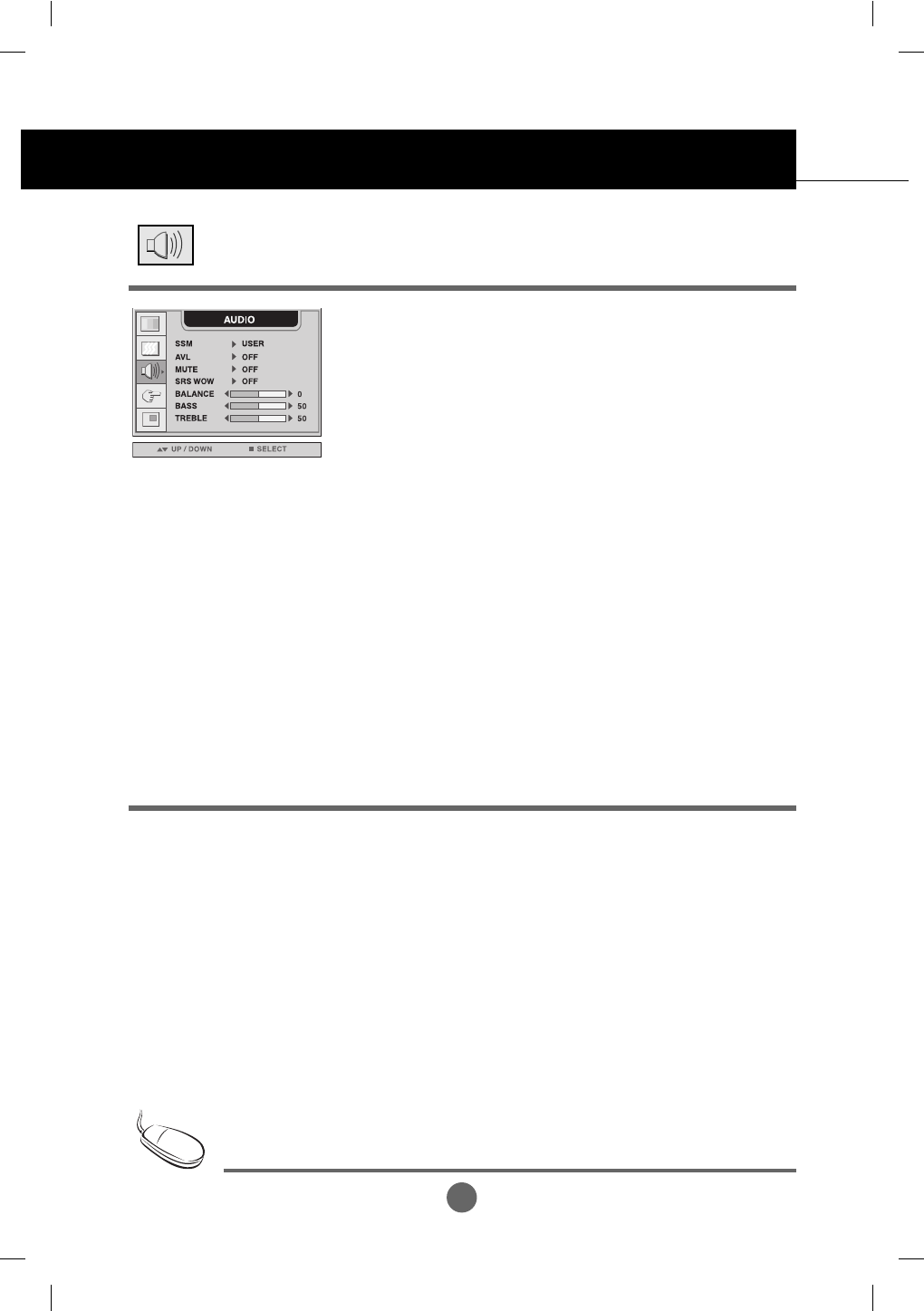

Adjusting the audio function

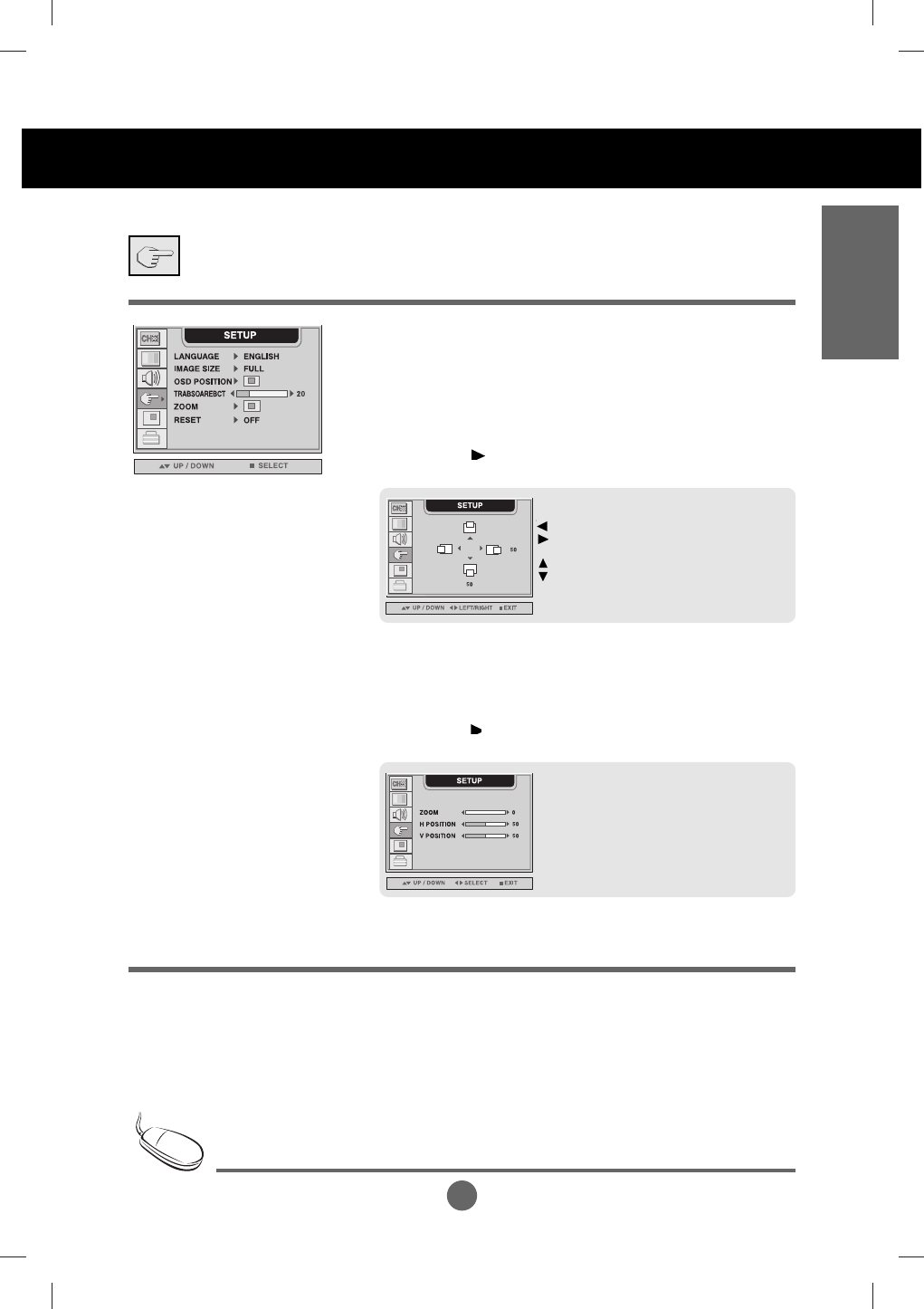

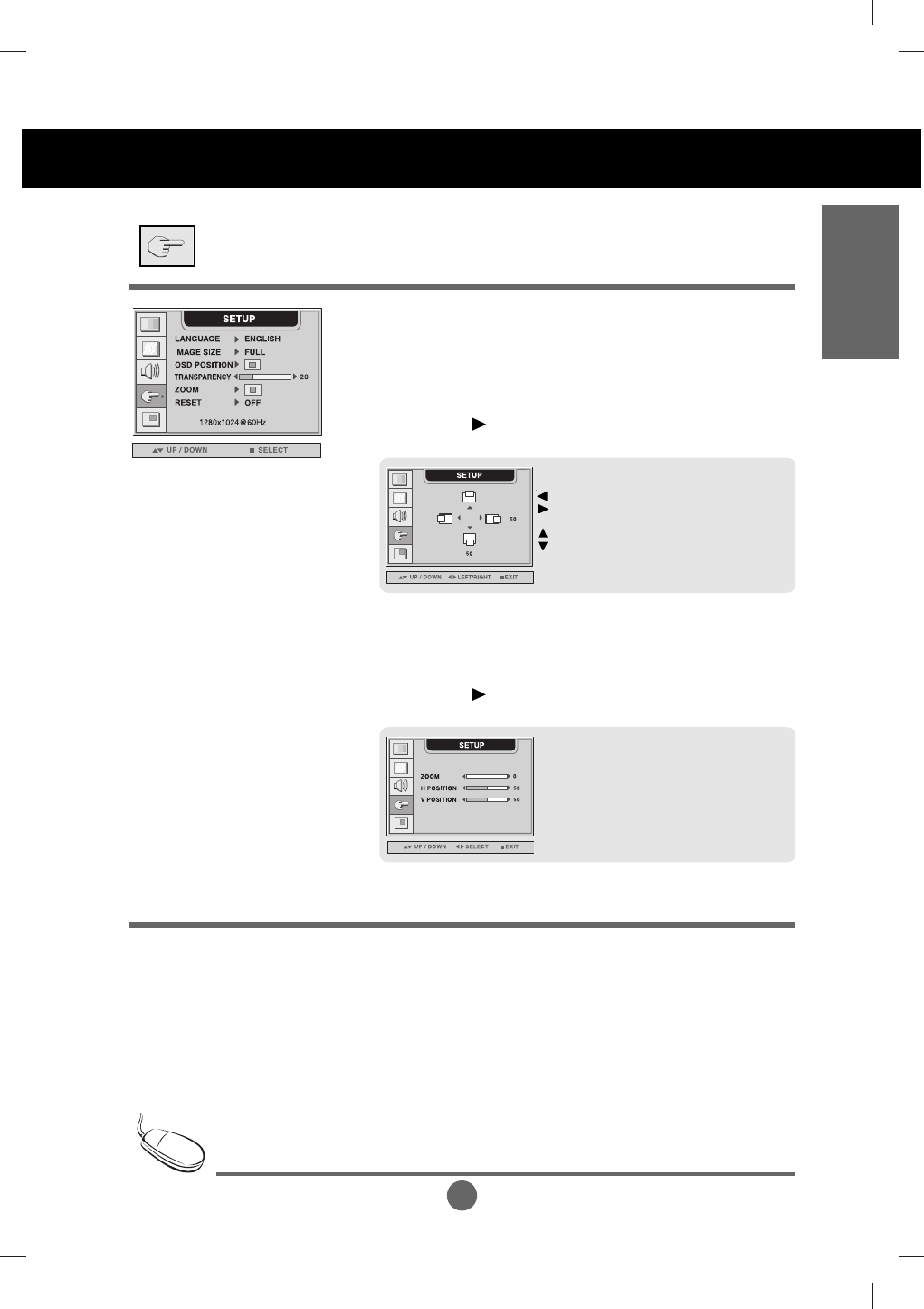

Adjusting Options

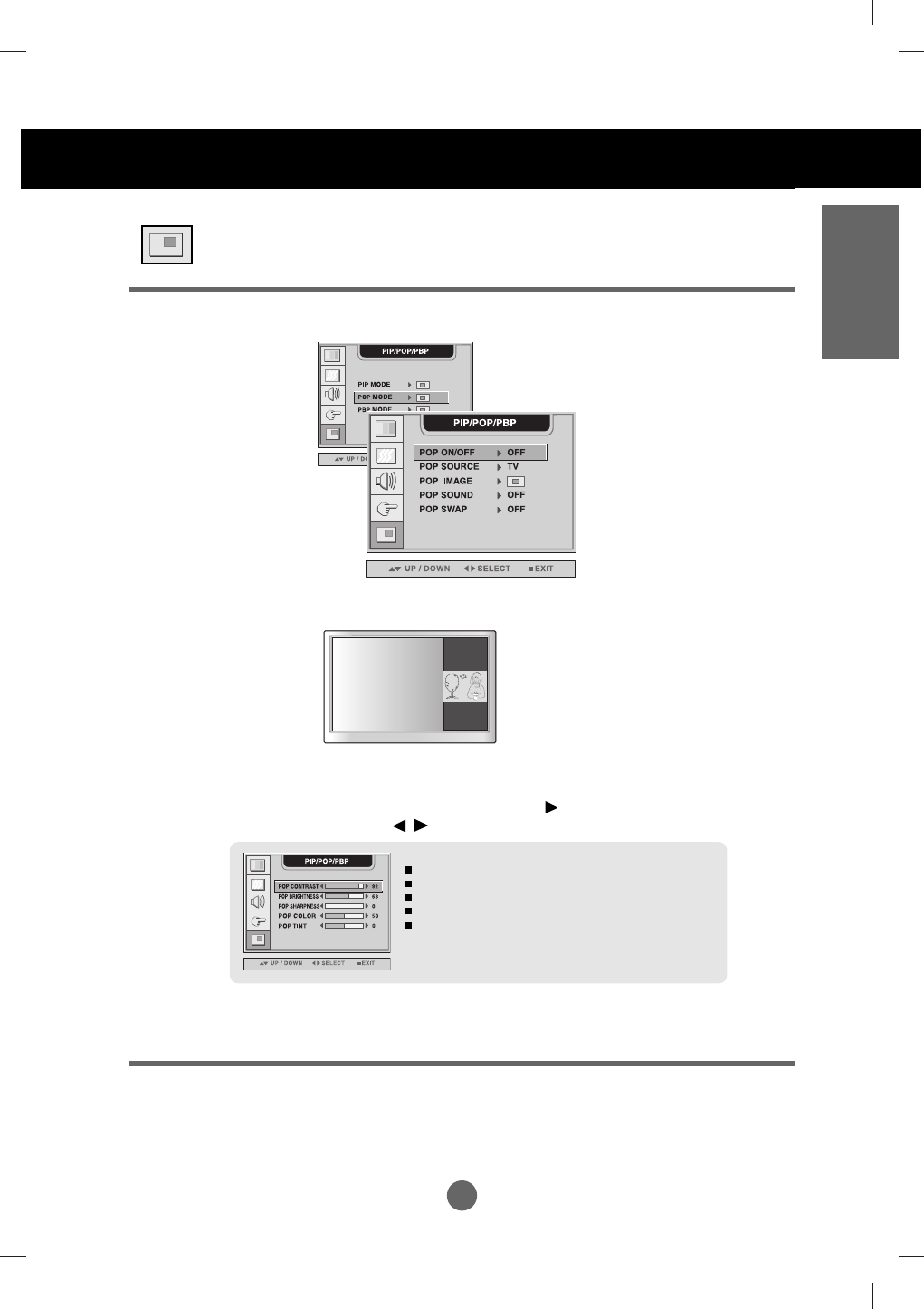

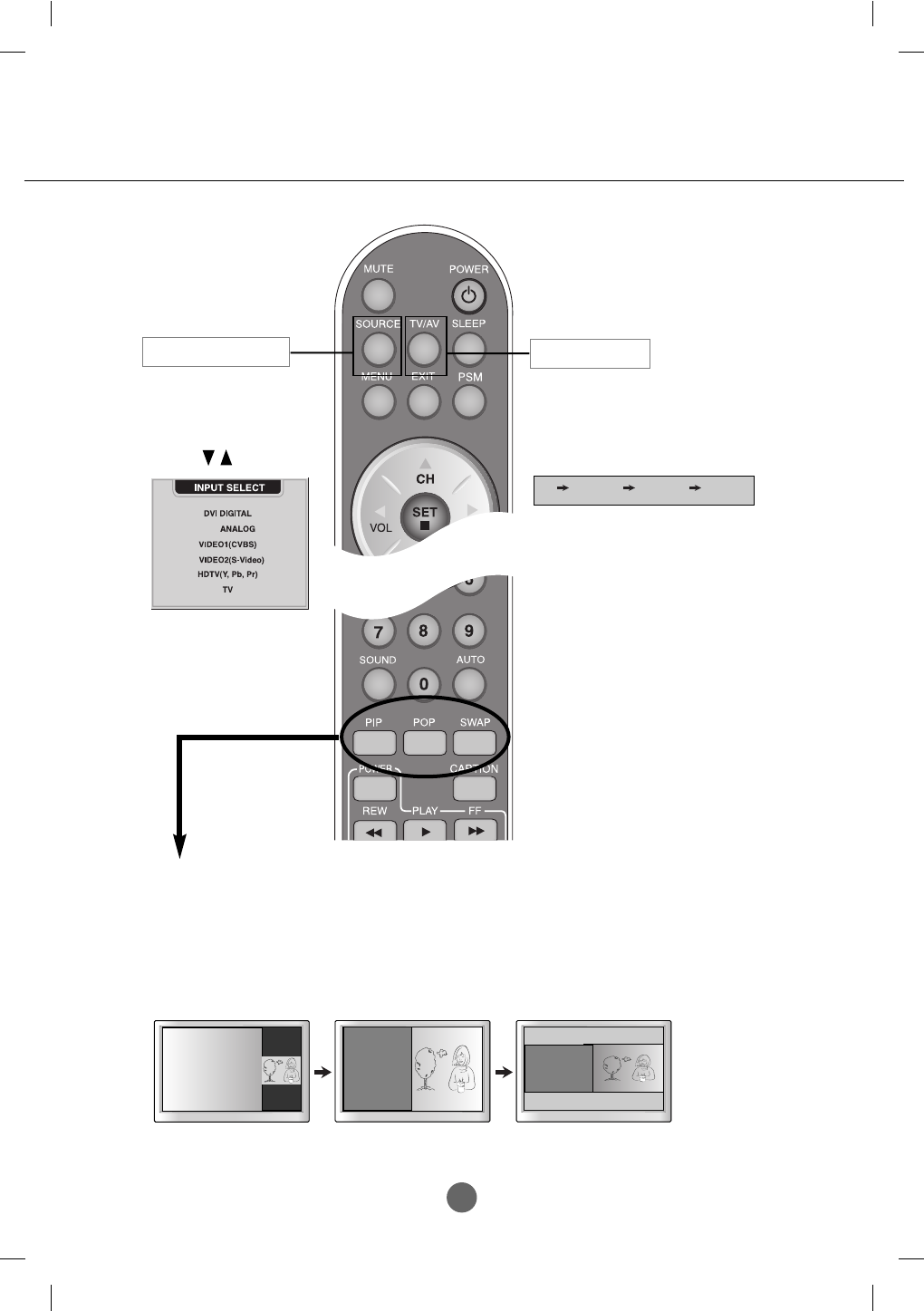

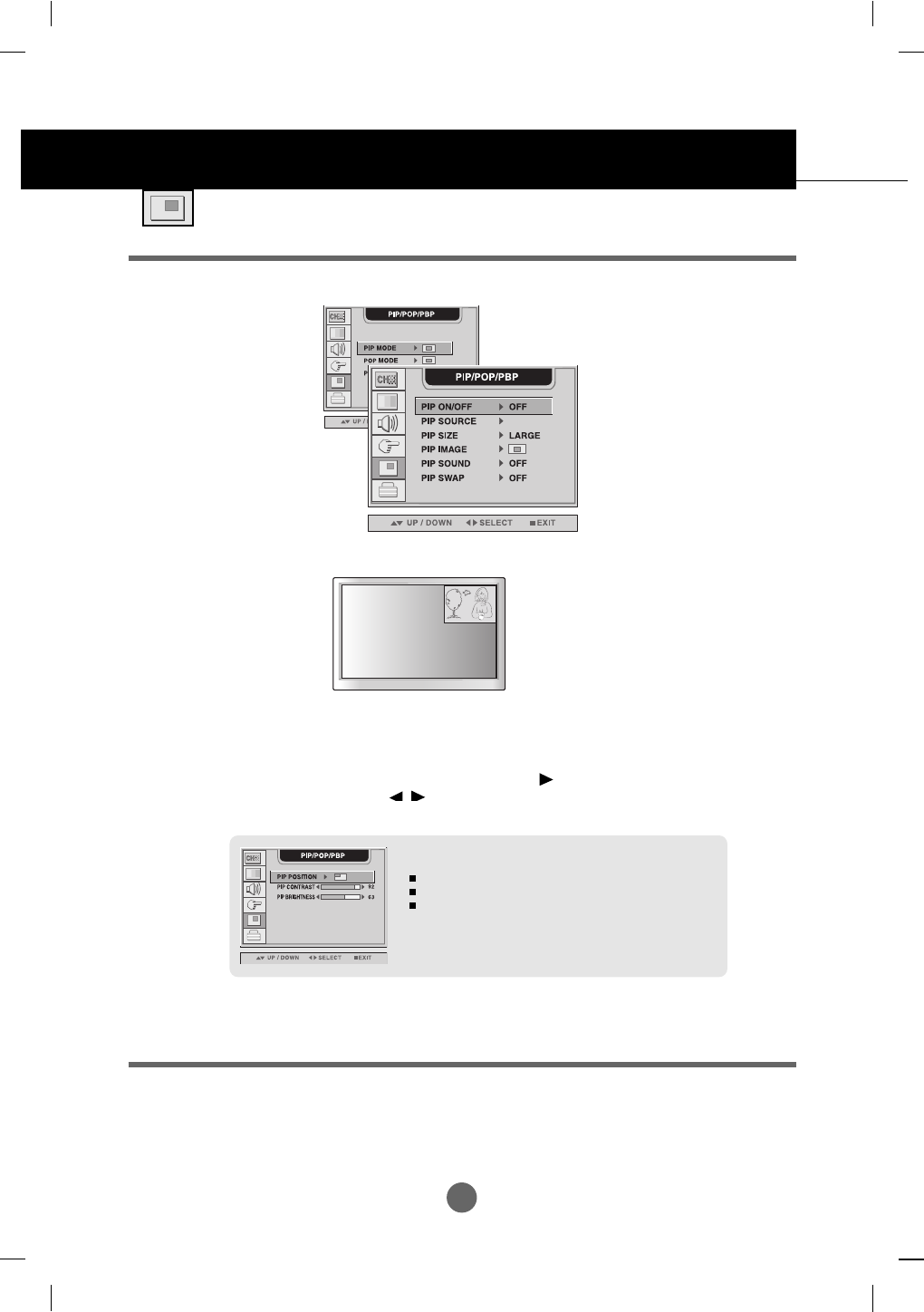

Adjusting PIP/POP/PBP Mode Functions
When Watching Video/HDTV/TV

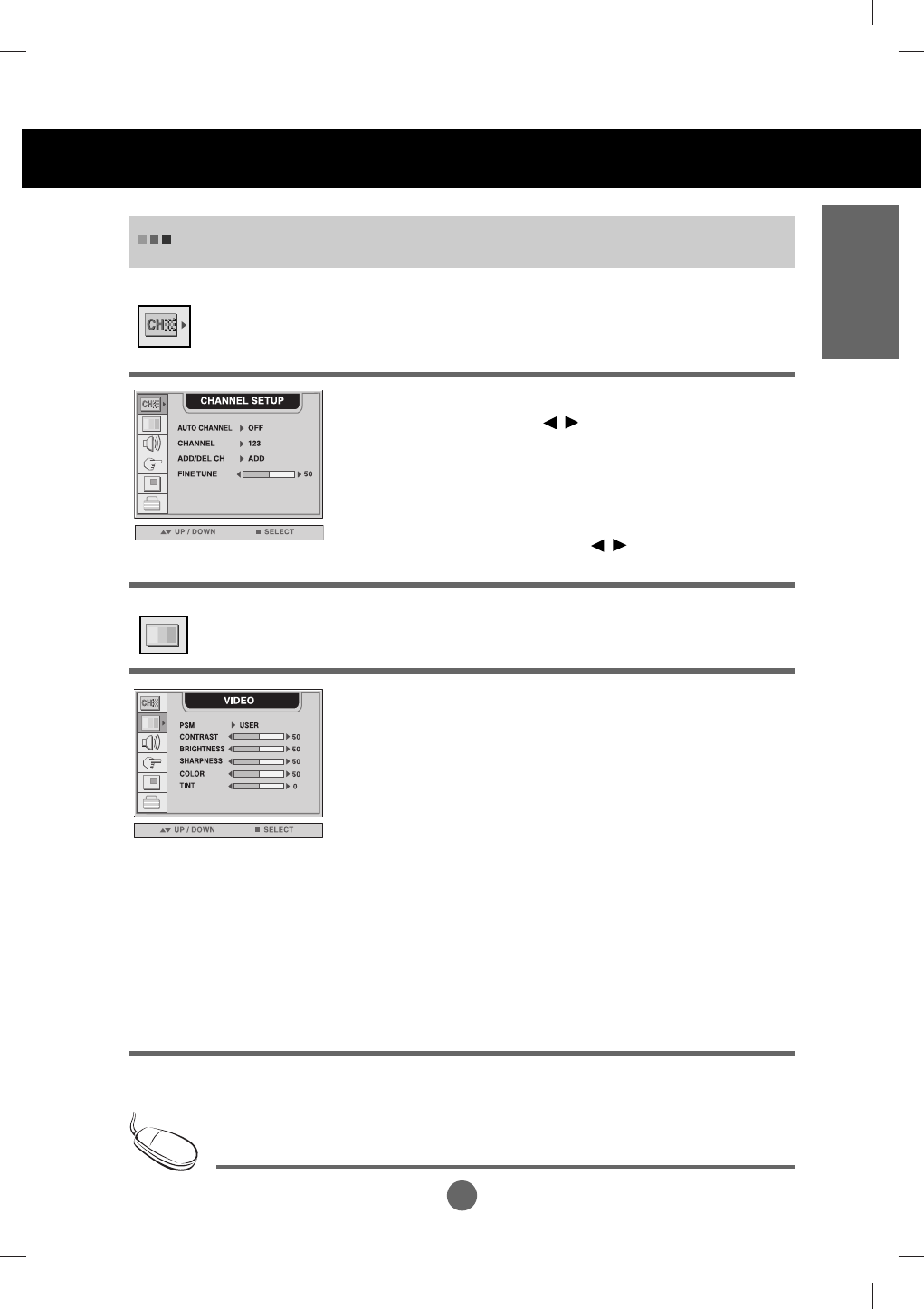

Setting up the channel(When Watching TV)
Adjusting Screen Image
Adjusting the audio function
Adjusting Options

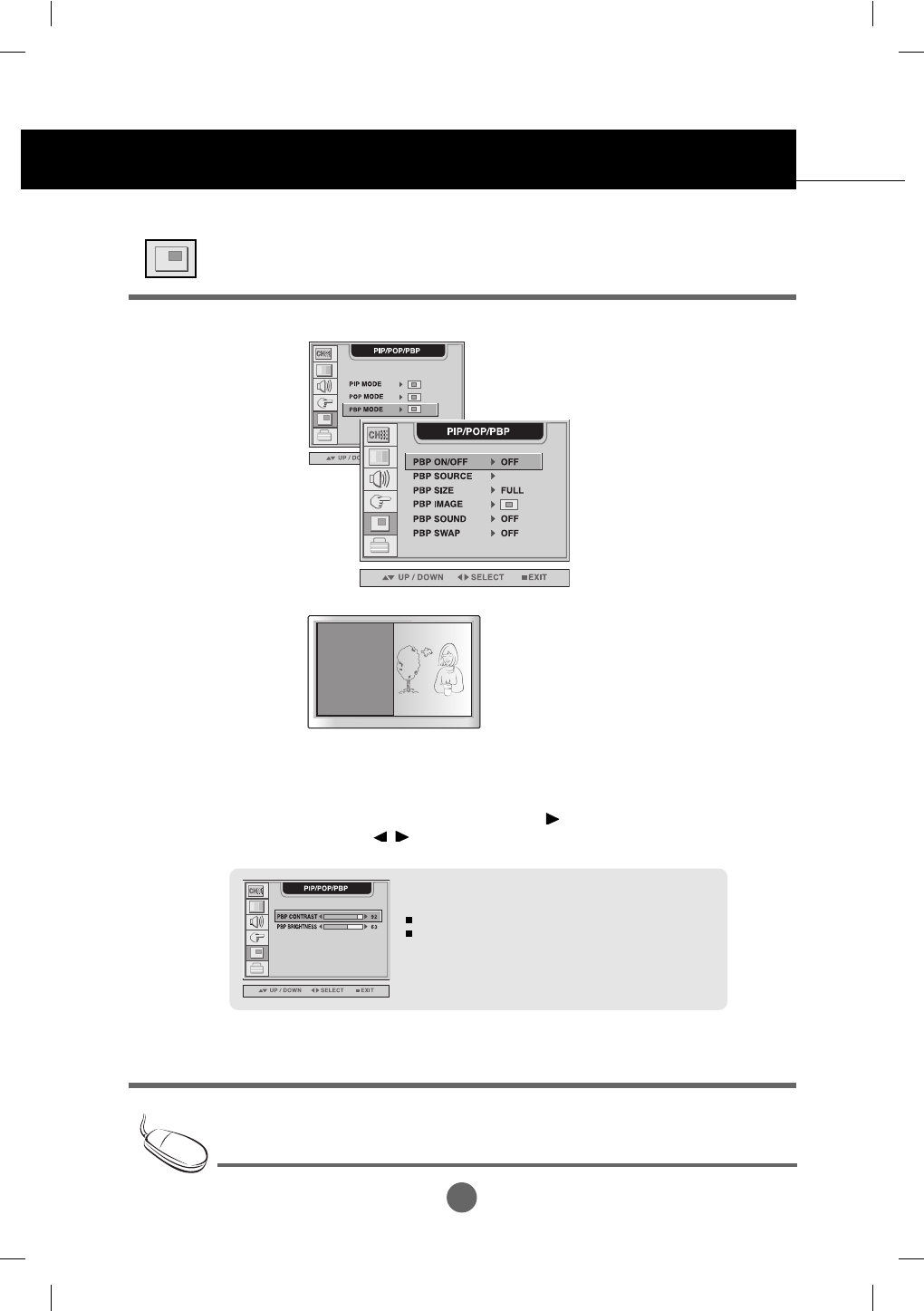

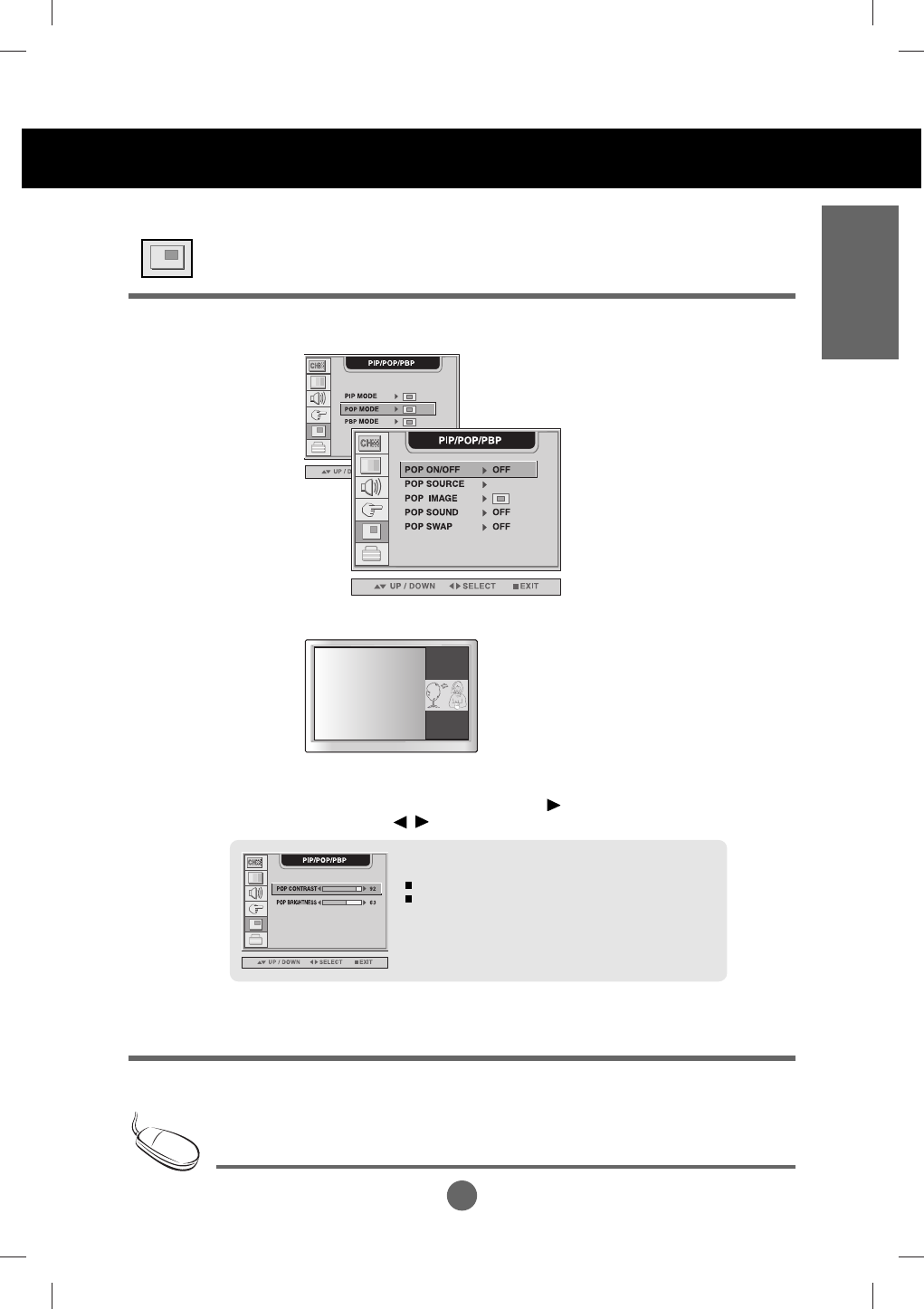

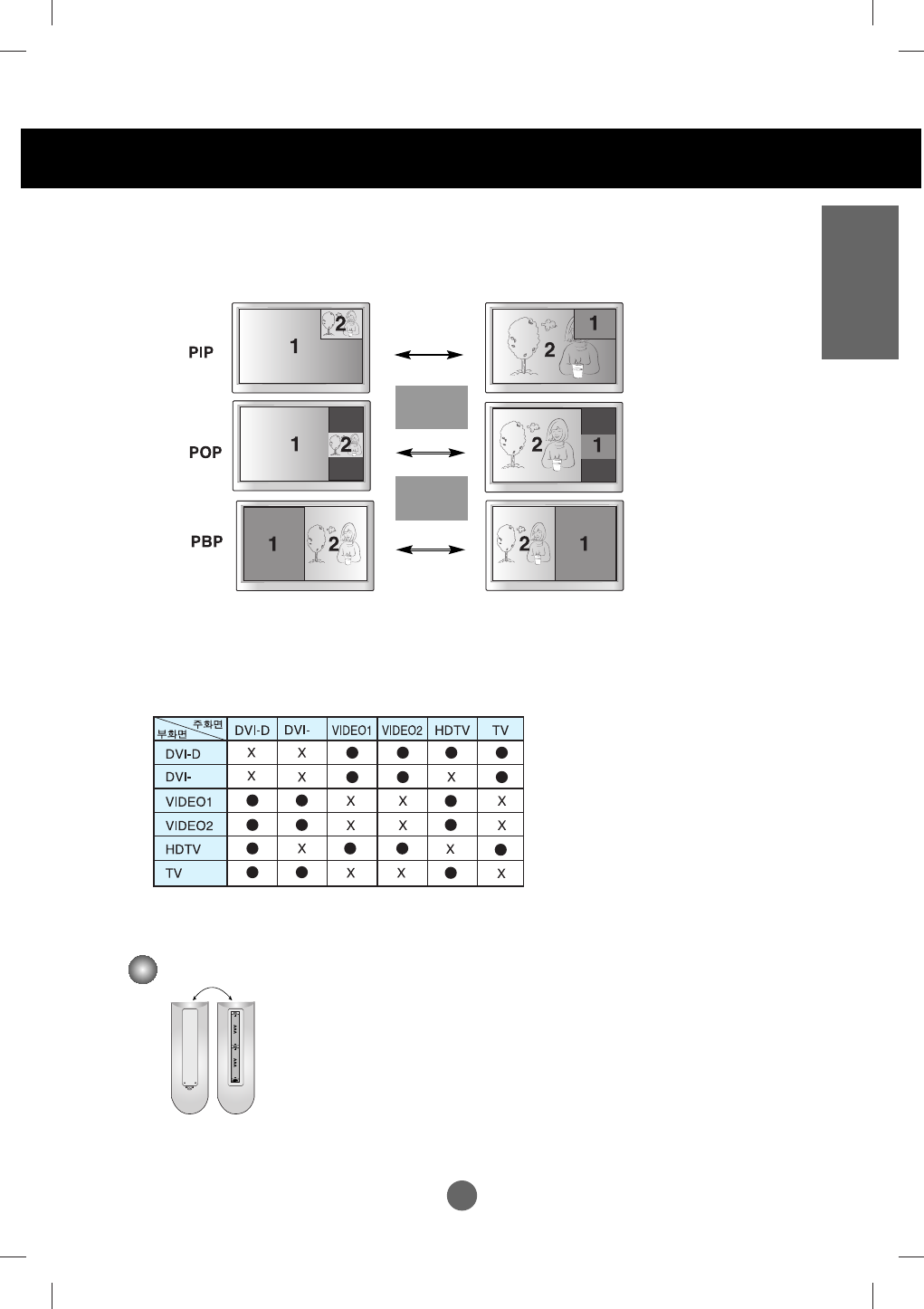

Adjusting PIP/POP/PBP Mode Functions

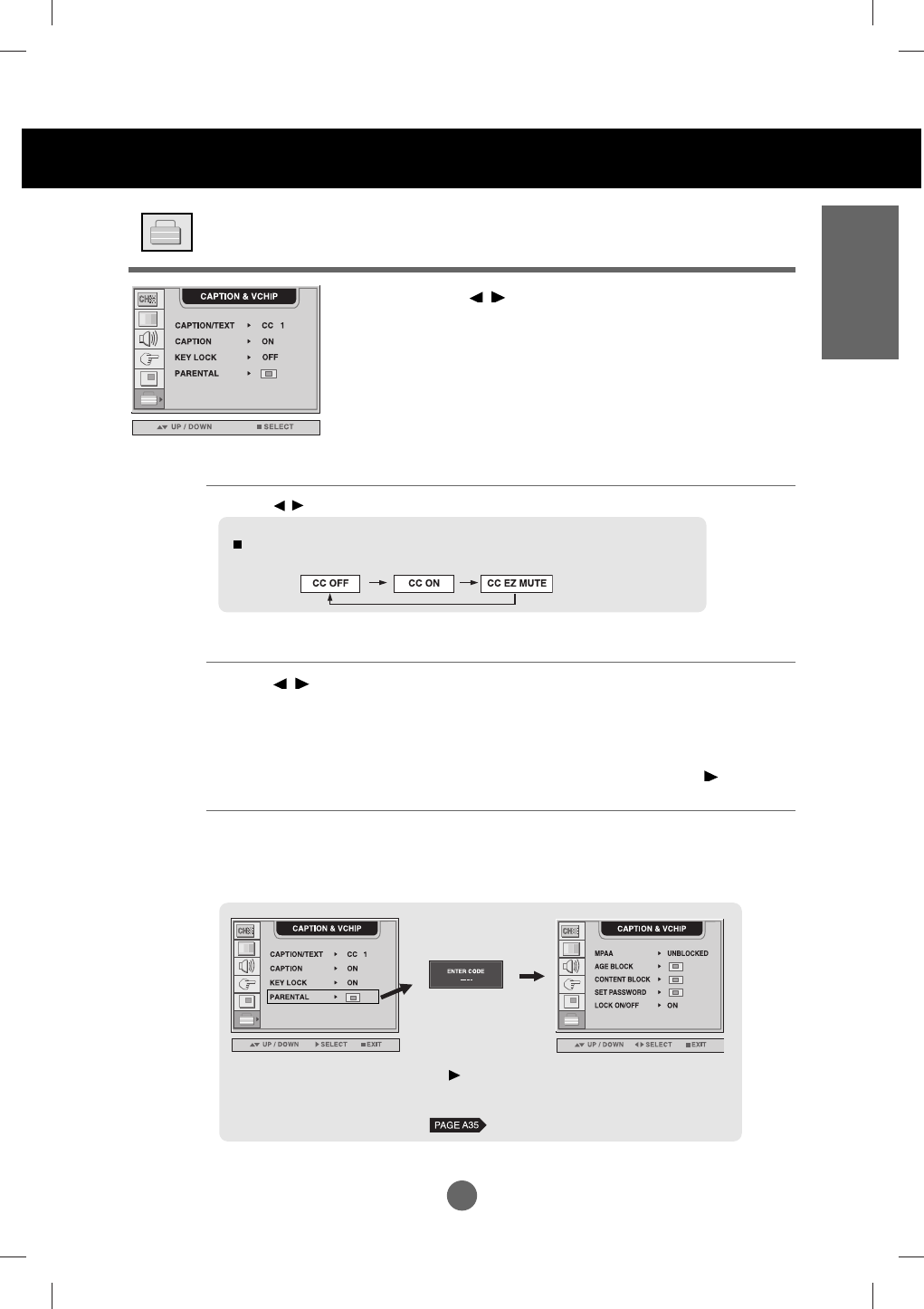

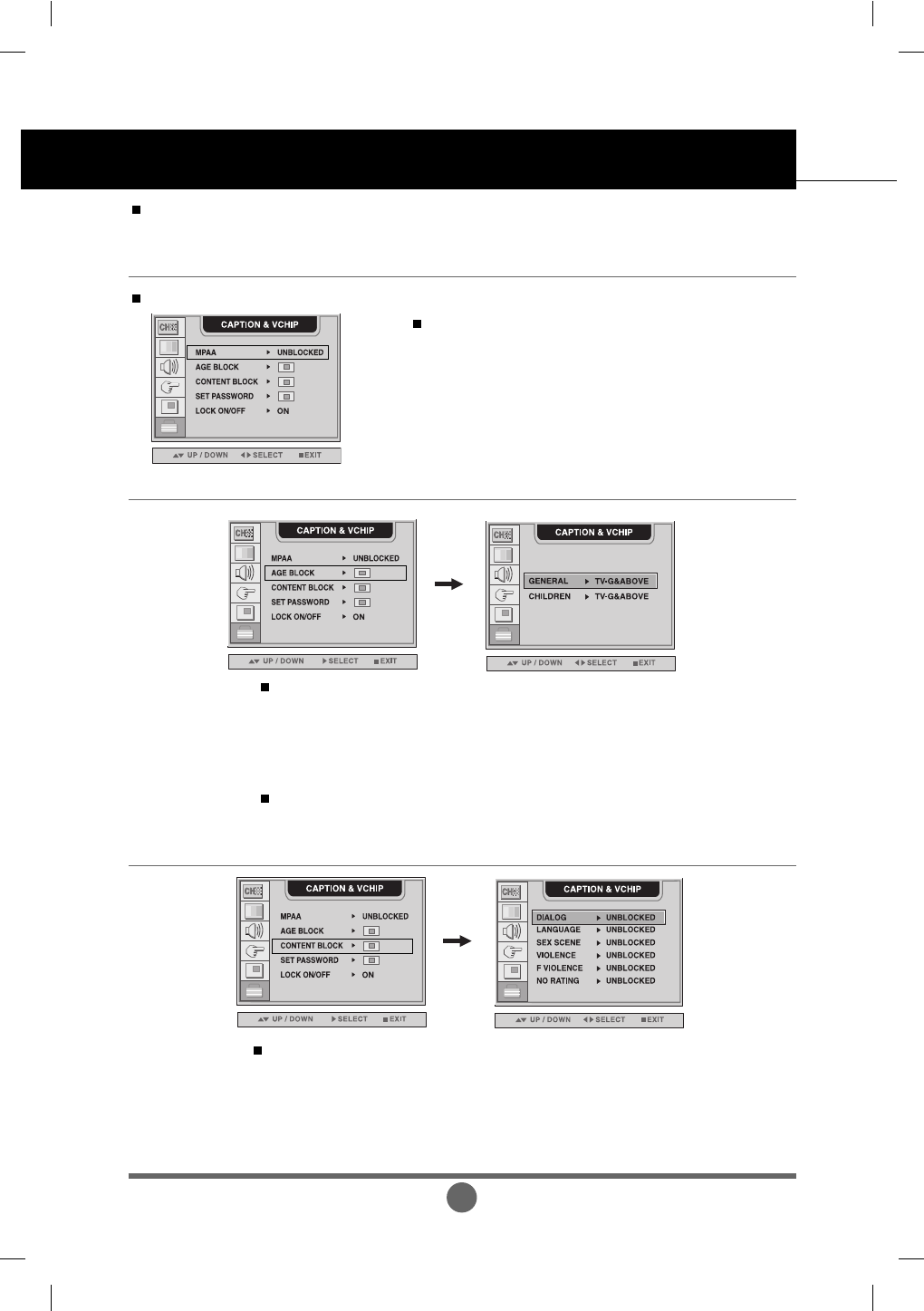

To adjust the CAPTION&VCHIP function

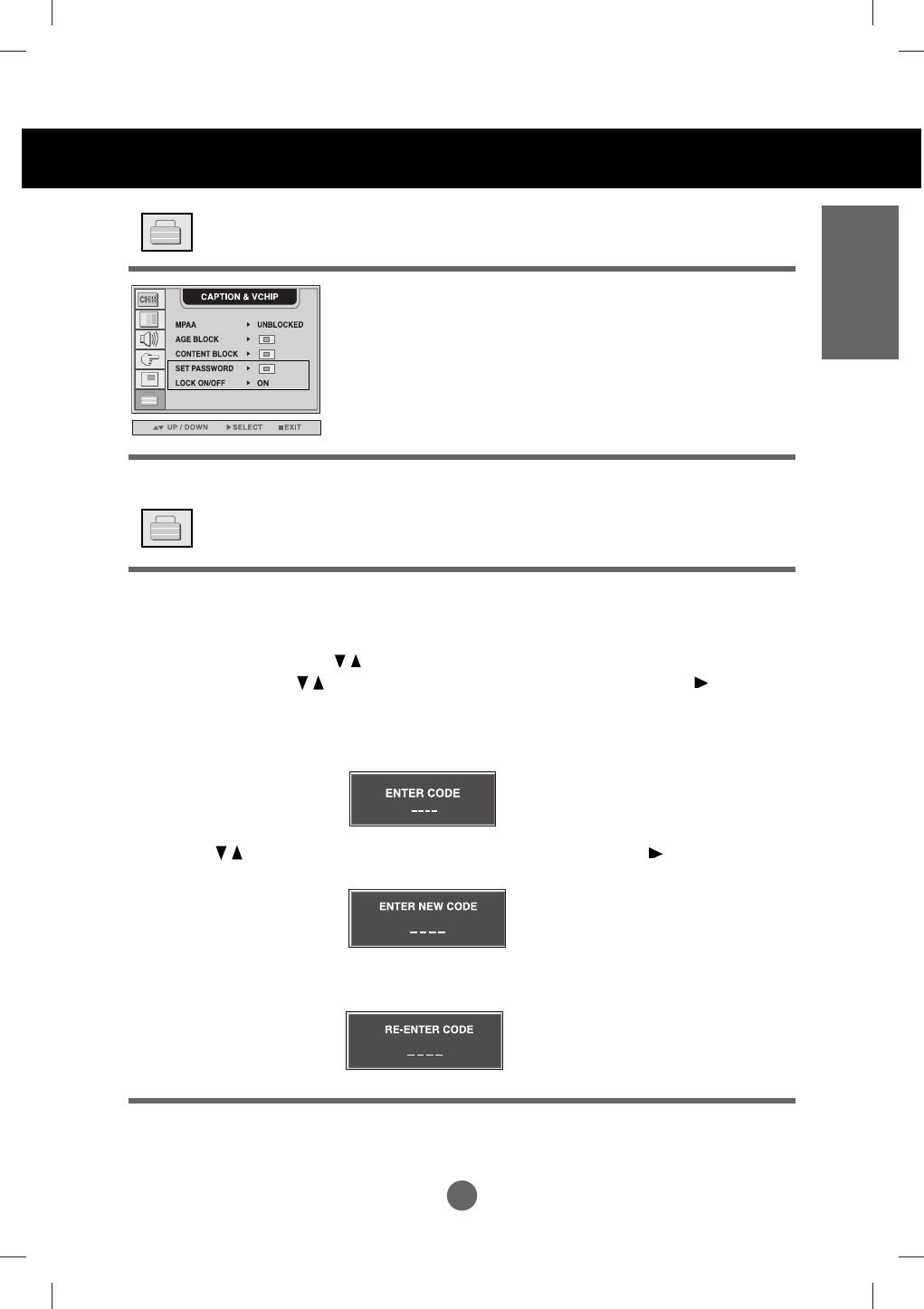

Setting a password
Closed Captions
A17
A20
A21
A21
A21
A22
A23
A24
A27
A27
A27
A28
A29
A30
A33
A35
A36
Troubleshooting
Product Specifications
Installation
and
Connection
Input
Selection
and Tracking
Miscellaneous
Table of Contents
ENGLISH
A1
Please read these safety precautions carefully before using the monitor.
Precautions in installing the Monitor
If you ignore the caution message, you may be slightly injured or the product may be damaged
If you ignore the warning message, you may be seriously injured or there is a possibility of
accident or death.
Keep away from heat sources like electrical heaters.
- Electrical shock, fire, malfunction or deformation may occur.
Keep the packing anti-moisture material or vinyl packing out of the reach of children.
- Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the
nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
Do not put heavy objects on the monitor or sit upon it.
- If the monitor collapses or is dropped, you may be injured. Children must pay particular attention.
Do not leave the power or signal cable unattended on the pathway.
- The passerby can falter, which can cause electrical shock, fire, product breakdown or injury.
Install the monitor in a neat and dry place.
- Dust or moisture can cause electrical shock, fire or product damage.
If you can smell smoke or other odors or hear a strange sound unplug the power cord and contact the
service center.
- If you continue to use without taking proper measures, electrical shock or fire can occur.
If you dropped the monitor or the case is broken, turn off the monitor and unplug the power cord.
- If you continue to use without taking proper measures, electrical shock or fire can occur. Contact the service
center.
Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the monitor, or inflammable
objects such as paper and matches. Children must pay particular attention.
- Electrical shock, fire or injury can occur. If a foreign object is dropped into the monitor, unplug the power cord and
contact the service center.
Make sure the monitor ventilation hole is not blocked. Install the monitor in a suitably wide place (more
than 10cm from the wall)
- If you install the monitor too close to the wall, it may be deformed or fire can break out due to internal heat.
Do not block the ventilation hole of the monitor by a tablecloth or curtain.
- The monitor can be deformed or fire can break out due to overheating inside the monitor.
Install the monitor on a flat and stable place that has no risk of dropping the monitor.
- If the monitor is dropped, you may be injured or the monitor may be broken.
Install the monitor where no EMI occurs.
Keep the monitor away from direct sunlight.
- The monitor can be damaged.
Safety Precautions
Warning
Warning
Caution
Caution
A2A2
Electrical Power Related Precautions
Make sure to connect the power cable to the grounded current.
- You may be electrocuted or injured.
Use the rated voltage only.
- The monitor can be damaged, or you may be electrocuted.
During a thunder or lightning storm, unplug the power cable or signal cable.
- You may be electrocuted or a fire can break out.
Do not connect several extension cords, electrical appliances or electrical heaters to a single outlet. Use a
power bar with a grounding terminal designed for exclusive use with the computer.
- A fire can break out due to overheating.
Do not touch the power plug with wet hands. Additionally, it the cord pin is wet or covered with dust, dry
the power plug completely or wipe dust off.
- You may be electrocuted due to excess moisture.
If you don’t intend to use the monitor for a long time, unplug the power cable from the monitor.
- Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.
Fix the power cable completely.
- If the power cable is not fixed completely, a fire can break out.
Hold the plug when pulling out the power cable. Do not bend the power cord with excessive force or put
heavy objects on the power cord.
- The power line can be damaged, which may cause electric shock or fire.
Do not insert a conductor (like a metal chopstick) into one end of the power cable while the other end is
connected to the input terminal on the wall. Additionally, do not touch the power cable right after
plugging into the wall input terminal.
- You may be electrocuted.
Do not unplug the power cord while the monitor is in use.
- Electrical shock can damage the monitor.
Warning
Caution
ENGLISH
Precautions in Moving the Monitor
Warning
Make sure to turn off the monitor.
- You may be electrocuted or the monitor can be damaged.
Make sure to remove all cables before moving the monitor.
- You may be electrocuted or the monitor can be damaged.
A3
Safety Precautions
Caution
Precautions in Using the Monitor
Warning
Do not put or store inflammable substances near the monitor.
- There is a danger of explosion or fire due careless handling of the inflammable substances.
When cleaning the brown tube surface, unplug the power cord and scrub with soft cloth to prevent
scratching. Do not clean with a wet cloth.
- The water can sink into the monitor, which can cause electric shock or serious malfunction.
Take a rest from time to time to protect your vision.
Keep the monitor clean at all times.
Take a comfortable and natural position when working with a monitor to relax the muscles.
Take a regular break when working with a monitor for a long time.
Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a
scratch on it.
Keep the proper distance from the monitor.
- Your vision may be impaired if you look at the monitor too closely.
Set the appropriate resolution and clock by referring to the User’s Manual.
- Your vision can be impaired.
Use authorized detergent only when cleaning the monitor. (Do not use benzene, thinner or alcohol.)
- Monitor can be deformed.
Caution
Do not shock the monitor when moving it.
- You may be electrocuted or the monitor can be damaged
Do not dispose the product-packing box. Use it when you move.
Make the panel face forward and hold it with both hands to move.
- If you drop the monitor, the damaged monitor can cause electric shock or fire. Contact with the service center for
repair.
Do not disassemble, repair or modify the monitor at your own discretion.
- Fire or electric shock accident can occur.
- Contact the service center for check, calibration or repair.
Do not spray water on the monitor or scrub with an inflammable substance (thinner or benzene). Fire or
electric shock accident can occur
Keep the monitor away from water.
- Fire or electric shock accident can occur.
A4A4
*
M
E
N
U
A
U
T
O
/
S
E
L
E
C
T
S
O
U
R
C
E
Remote Controller/Batteries (AAA x 2)
User’s Manual Power Cord
RCA Cable S-Video Cable Audio Cable (PC) Cable Holder (x 2)
Monitor
Please check the accessories in the product package.
* The monitor and the accessories can be different from the figures shown here.
DVI-A Signal Cable DVI-D Signal Cable
ENGLISH
Accessories
Cable Cap
A5
Swapping Function
You can swap the main screen and the sub-screen when the PIP/POP/PBP function is used.
Spectacle Function
The screen center area is close to a 4:3 ratio and the outskirt area is expanded by more than 15:9.
Therefore, the different screen ratio is applied for each area. Because most ordinary people
concentrate their focus on the screen center, a non-linear ratio increase at the outskirt area is not
recognized, which makes it possible to watch 4:3 TV screen with a wide screen.
However, the spectacle function is useful in watching TV or motion pictures but is not suitable for the
PC environment in which you perform graphic or document work.
Sleep Function
When watching AV/HDTV/TV – The monitor will be automatically turned off after a certain period of
time.
Press this button repetitively to select an appropriate time duration.
Important Monitor Features
A6
ENGLISH
A6
Power On/Off Button
Channel Up/Down Button
•
Input Select Button
•
TV/AV Button
(See next page)
Sleep Button
When watching AV/HDTV/TV
-
The monitor will be automatically turned
off after a certain period of time.
Press this button repetitively to select an
appropriate time duration
PSM Button
When watching AV/HDTV/TV
- Automatically adjusts the image.
Press this button repetitively to set
the intended screen. (See A27)
CAPTION Button
(See A33)
•
Menu Button
•
Exit Button
Auto Channel Button
TV: Automatic TV channel setup
(Applicable to the model equipped with
the TV tuner)
PC: Automatic adjustment function
(Operational for the analog signal only)
Channel Number Select
Button
Operational at the TV mode only
Check Button
Sound Mode Select
Select the sound mode
: MONO/STEREO/SAP
Video Operation Button
Applicable for LG products only
Volume Button
Mute button
Name and Function of the Parts
Name of the Remote Controller Buttons
A7
1. PIP (Picture in Picture) Button
The sub-screen moves to the next mode whenever you press this button.
: Small -> Large -> Off
2. POP (Picture out Picture) Button
The sub-screen moves to the next mode whenever you press this button.
: POP ON -> PBP(FULL) -> PBP(4:3) -> OFF
If you press the button once,
the following Input Signal
Window will appear. Select
the signal type you want
using the button.
This button will be enabled only
when you selected the TV/AV
signal. The signal type will be
changed with the following order.
Set the signal type you want.
POP ON PBP (FULL) PBP (4:3)
•
Input Select Button
•
TV/AV Button
TV VIDEO1 VEDIO2 HDTV
DVI
A8
ENGLISH
A8
<Table of PIP/POP/PBP Function Support>
SWAP
SWAP
When 'Input Signal 1' comes on in the main screen, only 'Input Signal 2' can be displayed on the sub-screen. On
the contrary, if the main screen displays 'Input Signal 2', the sub-screen can display 'Input Signal 1' only. You can
swap 'Input Signal 1' and 'Input Signal 2' using the SWAP button.
1. Take out the battery cap.
2. Insert the battery with correct polarity (+/-).
3. Close the battery cap.
• You can use a remote controller 7 meter distance and 30 degree (left/right)
within the receiving unit scope.
• Dispose of used batteries in the recycle bin to prevent environmental pollution.
Inserting batteries into remote controller.
A
A
3. Swap Button
You can swap the main screen and the sub-screen when the PIP/POP/PBP function is used..
Name and Function of the Parts
A9
DVI-I
Audio
RL
Pb
Y
Pr
S-Video
Audio In
MIC.Out
MIC.In
DVI-I
Audio
RL
Pb
Y
Pr
S-Video
Audio In
MIC.Out
MIC.In
Rear View
Back Cap
- Open the back cap before
you install the monitor.
DVI Digital Signal Connector (DVI-D or DVI-A)
TV Tuner Jack: Connect the antenna.
Connect the power cord.
Speaker Terminal: Connect the speaker.
HDTV Input Terminal
AV Input Terminal
Theft prevention locking device
A10
ENGLISH
Make sure to check the sound card connection terminal in the PC before connecting to the monitor.
If the PC sound card supports both Speaker Out and Line Out, change it to Line Out by setting the jumper
or the PC application. (For more details, refer to the sound card user’s manual.)
- Speaker Out : The terminal connected to the speaker that is not equipped with an amplifier.
- *Line Out : The terminal connected to the speaker equipped with an amplifier.
If Audio Out in the PC sound card has only Speaker Out, reduce the PC volume. This monitor is integrated
with an amplifier.
AV Input Terminal
HDTV Input Terminal
Connecting the sound card output terminal
PC Audio Input Terminal
- Connect the audio cable to the LINE OUT
jack in the PC sound card.
Microphone Connection Terminal
- Connect the microphone cable to the MIC Input
jack in the PC sound card.
S-Video
MIC.In
Headphone/Earphone
Connection Terminal
Microphone Connection Terminal
S-Video Input Terminal
AV Input Terminal(Audio)
AV Input Terminal(Video)
MIC.Out
Audio
RL
Audio In
Pb
Y
Pr
HDTV Input Terminal
Name and Function of the Parts
A11A11
Audio In
When Connecting to your PC
First of all, see if the computer, monitor and the peripherals are turned off. Then,
connect the signal input cable.
When connecting with the DVI-D signal input cable.
When connecting with the DVI-A signal input cable.
PC
PC
Rear side of the monitor.
Rear side of the monitor.
* When connecting to a
wall outlet.
Connecting to External Devices
Connect the power cord.
B
A
B
A
A12
ENGLISH
Connecting to External Devices
DVI
When connecting with a DVI-D signal input cable.
• Select DVI DIGITAL: DVI-D digital signal.
When connecting with a DVI-A signal input cable.
• Select DVI ANALOG:
DVI-A
analog signal
Directly connect to a grounded power outlet on the wall or a power bar with a ground wire.
Note
Turn on power by pressing the power button on the monitor.
Turn on the PC.
Select an input signal.
Press the Input Select button on the remote controller to select the input signal.
Or, press the SOURCE button at the front side of the monitor.
B
A
B
A
M
E
N
U
A
U
T
O
/
S
E
L
E
C
T
S
O
U
R
C
E
Power button
A13
When connecting with an RCA cable.
•
Connect the input terminal with a proper color match. (Video – Yellow, Sound (left) – White,
Sound (right) – Red)
When connecting with an S-Video cable.
•
Connect to the S-Video input terminal to watch high image quality movies.
S-Video
MIC.In
S-Video
MIC.In
Rear of the Monitor
RCA Cable
Red
White
Yellow
Red
White
R
W
R
W
Y
RCA Cable
S-Video Cable
Video
Rear of the Monitor
When connecting with a RCA cable.
•
Select VIDEO 1 (CVBS).
When connecting with a S-Video cable.
•
Select VIDEO 2 (S-Video).
Select an input signal.
Press the Input Select button on the remote controller to select the
input signal. Or, press the SOURCE button at the front side of the
monitor.
DVI
Connect the video cable as shown in the below figure and then connect the power cord
(see Page A12).
When watching Video
Video
B
A
B
A
A14
ENGLISH
DVI
When connecting with an HDTV/audio cable.
•
Select HDTV (Y, Pb, Pr)
Select an input signal.
Press the Input Select button on the remote controller to select the
input signal. Or, press the SOURCE button at the front side of the
monitor.
Connect the video/audio cable as shown in the below figure and then, connect the
power cord (see Page A12).
•
Connect the input terminal with a proper color match.
* The HDTV terminal also supports SDTV (480i/480p).
When watching HDTV (720p/1080i)
Connecting to External Devices
RBRWG
MIC.Out
Audio
RL
Audio In
PbYPr
HDTV Receiver
Rear of the Monitor
Audio Cable
(optional)
HDTV Cable
(optional)
Red
White
Red
Blue
Green
A15
DVI-I
AUDIO IN
MIC.IN
Audio
RL
Pb
Y
Pr
S-Video
MIC.Out
DVI-I
DVI
Rear Side of the Monitor
Antenna Cable
(optional)
•
Select TV
Select an input signal.
Press the Input Select button on the remote controller to select the
input signal. Or, press the SOURCE button at the front side of the
monitor.
See if the antenna cable is connected at the rear side of the monitor and
then, connect the power cord (see Page A12).
When watching TV
A16
ENGLISH
Name of the Buttons in the Screen
Adjustment Unit
• Press the button to turn on the power. Press the button again to turn it off.
• This Indicator lights up green when the display operates normally. If
the display is in DPM (Energy Saving) mode, this indicator color
changes to amber.
Power Button
Power LED
• Adjust the volume.
•Use this button to directly control
brightness and contrast of the PC signal
(DVI-D/DVI-A).
•Use this button to control the channel for
the TV signal.
• Use this button to show/hide the OSD (On Screen Display) menu screen.
MENU Button
•
Use the button to select an icon or adjust the setting in the OSD screen.
OSD Select/Adjust Button
Selecting and Adjusting the Screen
M
E
N
U
A
U
T
O
/
S
E
L
E
C
T
S
O
U
R
C
E
A17
Name of the Buttons in the Screen Adjustment Unit
[For DVI-ANALOG signal]
•Select the icon to adjust on the OSD screen.
•If you press the [AUTO/SELECT] button, automatic screen
adjustment will be started.
[Other signals that DVI-ANALOG]
•The current signal and mode information will be displayed.
AUTO/SELECT Button
•
OSD is locked
•
OSD is unlocked.
Use this button to lock/unlock OSD screen adjustment.
(Activated when pressed together longer than 5 seconds.)
DVI DIGITAL DVI digital signal
DVI ANALOG DVI analog signal
VIDEO1(CVBS) Composite video
VIDEO2(S-Video) S-Video
HDTV(Y, Pb, Pr) HD television
TV Television
• Select the input signal
SOURCE Button
OSD Lock/Unlock Button
Menu button +
•The unit that receives the signal from the remote controller.
DVI
Under the CAPTION & VCHIP menu, it is also possible to lock/unlock the OSD screen
adjustment with the 'KEY LOCK' tab.
A18
ENGLISH
OSD Menu – When Connected to Your PC
OSD(On Screen Display)
The OSD function enables you to adjust the screen status conveniently since it provides
graphical presentation.
Adjustment
Tracking
Audio
Setup
Adjusts screen brightness, contrast and color that you prefer.
Adjusts position of the screen, clock or phase.
Adjusts the audio function.
Adjusts the screen status according to the circumstances.
PIP/POP/PBP
Adjusts PIP/POP/PBP mode function.
Icon Function Description
Icon Function Description
OSD Menu – When Watching Video/TV/HDTV
Channel Setup
Video
Audio
Setup
PIP/POP/PBP
CAPTION&VCHIP
Adjusts PIP/POP/PBP mode function.
Adjusts the CAPTION&VCHIP function.
Adjusts the screen status according to the circumstances.
Adjusts the audio function.
Adjusts the screen video.
Sets/Selects the channel. (available only when watching TV)
Selecting and Adjusting the Screen
Note
A19
How to adjust the OSD (On Screen Display) screen.
•
Use the remote controller to adjust the OSD screen.
How to adjust the screen automatically.
You need to adjust the screen display when connecting the monitor to a
new computer or changing the mode. Refer to the following section to
set an optimal monitor screen.
Press the AUTO/SELECT button (AUTO button in a remote controller)
in the PC analog signal. Then, an optimal screen status will be selected
that fits into the current mode.
If adjustment is not satisfactory, you need to adjust screen position,
clock and phase in the OSD menu.
Pops up the
menu screen Select a menu
icon
Select a menu icon Adjust the status Save
adjustment Exit from the
menu screen.
Press the MENU Button, then the main menu of the OSD appears.
To access a control, use the Buttons.
When the icon you want becomes highlighted, press the SET Button.
Use the Buttons to adjust the item to the desired level.
Accept the changes by pressing the SET Button.
Exit the OSD by pressing the EXIT Button.
1
2
3
4
5
6
A20
ENGLISH
To adjust the contrast of the screen.
To adjust the brightness of the screen.
Adjusting screen color. Press the button to display the
submenu for COLOR.
To adjusting the brightness of the screen for PC.
Adjusting Screen CLOCL/PHASE and Position
When connected to your computer and the digital input signal (DVI-DIGITAL), only ADJUSTMENT,
AUDIO, SETUP and PIP/POP/PBP menu are enabled. TRACKING menu items will be automatically
adjusted.
Adjusting Screen Color
OSD Menu – When Connected to Your PC
Selecting and Adjusting the Screen
CONTRAST
BRIGHTNESS
COLOR
AUTO
BRIGHTNESS
CONTROL
USER
RED
GREEN
BLUE
9300K/6500K
Selecting a factory setting color set.
• 9300K: Slightly bluish white.
• 6500K: Slightly reddish white.
Set your own color levels.
This function is suitable for analog signal input only. This button
is for the automatic adjustment of the screen position, clock and
phase.
To minimize any vertical bars or stripes visible on the screen
background.The horizontal screen size will also change.
To adjust the focus of the display. This item allows you to
remove any horizontal noise and clear or sharpen the image of
characters.
To move image left or right
To move image up or down.
AUTO
CLOCK
PHASE
H POSITION
V POSITION
Note
A21
The best sound tone quality will be selected automatically
depending on the video type that you're currently watching.
• USER : Select this option to use the user-defined audio settings.
• FLAT : The most commanding and natural audio.
• MOVIE : Select this option to enjoy sublime sound.
• MUSIC : Select this option to enjoy the original sound when
listening to the music.
• SPORTS : Select this option to watch sports broadcasting.
To adjust uneven sound volumes across all channels or signals
automatically to the most appropriate level. To use this feature,
select ON.
Used to select mute ON(means sound off) and mute OFF(means
sound on).
Set the SRS WOW menu on.
The SRS WOW function plays back the mono or stereo sound
input with the dynamic surround effects. It will provide rich and
profound sound tone. If you set the SRS WOW on, bass/treble will
be automatically adjusted.
Use this function to balance sound from the left and right speakers.
To raises or lowers Bass level.
To raises or lowers Treble level.
SSM
AVL
MUTE
SRS WOW
BALANCE
BASS
TREBLE
Adjusting the audio function
When connected to your computer and the 'SSM' setting in the audio menu is one of FLAT,
MOVIE, MUSIC or SPORTS, the available menus are VAL, MUTE and BALANCE.
Note
A22
ENGLISH
Selecting and Adjusting the Screen
When connected to your computer, the Zoom menu will be disabled if the screen size is 1:1 or
PIP/POP/PBP is in use.
Selecting the options
To choose the language in which the control names are
displayed.
To select the image size of the screen. (FULL/1:1)
To adjust position of the OSD window on the screen.
Press the button to display the submenu for OSD
POSITION.
LANGUAGE
IMAGE SIZE
OSD
POSITION
To adjust the transparency of the OSD menu screen.
Use this function to zoom in the screen. When you turn the monitor
off and on again, the default screen size will be restored.
Press the button to display the submenu for OSD
POSITION.
TRANSPARENCY
ZOOM
Use this function to reset the monitor to the factory default.
However, language selection will not be initialized.
RESET
Left
Right
Up
Down
Moving the OSD screen position horizontally.
Moving the OSD screen position vertically.
* If the zooming value is set to '0', vertical
and horizontal positioning cannot be
adjusted.
Note
A23
Adjusting PIP/POP/PBP Mode (Multiple Screen) Functions
To adjust the PIP(PICTURE IN PICTURE) of the screen
TV
After selecting ON in the PIP ON/OFF menu, the following menu items can be adjusted.
PIP ON/OFF
PIP SOURCE
PIP SIZE
PIP IMAGE
To select an input signal for PIP.
To adjust the size of the PIP screen. (SMALL/LARGE)
To adjust the image of the PIP screen; Press the button to display the submenu
for PIP IMAGE. Use the buttons to adjust the item to the desired level. The
items of the sub-menu may vary depending on the type of the source.
To turn the PIP sound on/off.
To switch the main-screen and sub-screen in PIP mode.
PIP SOUND
PIP SWAP
PIP POSITION Adjust the PIP screen position.
PIP CONTRAST Adjust PIP screen contrast.
PIP BRIGHTNESS Adjust PIP screen brightness.
PIP SHARPNESS Adjust PIP screen sharpness.
PIP COLOR Adjust the PIP screen color.
PIP TINT Adjust the PIP screen tint.
* The sub-menu can differ according to the type of the input signal.
Note
A24
ENGLISH
Selecting and Adjusting the Screen
Adjusting PIP/POP/PBP Mode (Multiple Screen) Functions
To adjust the POP(PICTURE OUT PICTURE) of the screen
After selecting ON in the POP ON/OFF menu, the following menu items can be adjusted.
POP ON/OFF
To select an input signal for POP.
To adjust the image of the POP screen; Press the button to display the submenu
for POP IMAGE. Use the buttons to adjust the item to the desired level.
POP SOURCE
POP IMAGE
To turn the POP sound on/off.
To switch the main-screen and sub-screen in POP mode.
POP SOUND
POP SWAP
POP CONTRAST Adjust POP screen contrast.
POP BRIGHTNESS Adjust POP screen brightness.
POP SHARPNESS Adjust POP screen sharpness.
POP COLOR Adjust the POP screen color.
POP TINT Adjust the POP screen tint.
* The sub-menu can differ according to the type of the input signal.
A25
Adjusting PIP/POP/PBP Mode (Multiple Screen) Functions
To adjust the PBP(PICTURE BY PICTURE) of the screen
After selecting ON in the PBP ON/OFF menu, the following menu items can be adjusted.
PBP ON/OFF
To select an input signal for PBP.
To adjust the size of the PBP screen. (FULL/4:3)
To adjust the image of the PBP screen; Press the button to display the submenu
for PBP IMAGE. Use the buttons to adjust the item to the desired level. The
items of the sub-menu may vary depending on the type of the source.
PBP SOURCE
PBP SIZE
PBP IMAGE
To turn the PBP sound on/off.
To switch the main-screen and sub-screen in PBP mode.
PBP SOUND
PBP SWAP
PBP CONTRAST Adjust PBP screen contrast.
PBP BRIGHTNESS Adjust PBP screen brightness.
PBP SHARPNESS Adjust PBP screen sharpness.
PBP COLOR Adjust the PBP screen color.
PBP TINT Adjust the PBP screen tint.
* The sub-menu can differ according to the type of the input signal.
A26
ENGLISH
OSD Menu – When Watching Video/HDTV/TV
Adjusting Screen Image
Setting up the channel - Available only when watching TV.
If the 'PSM' setting in the Video menu is set to GAME, STANDARD, DYNAMIC or MILD the
subsequent menus will be automatically set.
Selecting and Adjusting the Screen
Note
To automatically search the available channels.
Select On using to start automatic channel setup.
To change the channel.
To add/delete the selected channels.
To adjust the channel quality.
Adjust the screen using until you can see a sharp
screen.
AUTO
CHANNEL
CHANNEL
ADD/DEL.CH
FINE TUNE
The PSM function automatically adjusts the screen image
quality depending on the AV/TV usage environment.
• USER : Select this option to use the user-defined settings.
• GAME : Select this option to enjoy dynamic image when
playing a game.
• STANDARD : The most general and natural screen display
status.
• DYNAMIC : Select this option to display with a sharp image.
• MILD : Select this option to display with a mild image.
To adjust the contrast of the screen.
To adjust the brightness of the screen.
To adjust the clearness of the screen.
To adjust the color to desired level.
To adjust the tint to desired level.
This function is available only in NTSC broadcasting mode.
PSM
CONTRAST
BRIGHTNESS
SHARPNESS
COLOR
TINT
A27
If the 'SSM' setting in the audio menu is one of FLAT, MOVIE, MUSIC or SPORTS, the
available menus are AVL, SOUND, MUTE and BALANCE. Other menu items will be
automatically adjusted.
Note
Adjusting the audio function
The best sound tone quality will be selected automatically
depending on the video type that you're currently watching.
• USER : Select this option to use the user-defined audio settings.
• FLAT : The most commanding and natural audio.
• MOVIE : Select this option to enjoy sublime sound.
• MUSIC : Select this option to enjoy the original sound when
listening to the music.
• SPORTS : Select this option to watch sports broadcasting.
To adjust uneven sound volumes across all channels or signals
automatically to the most appropriate level. To use this feature,
select ON.
Set the SRS WOW menu on.
The SRS WOW function plays back the mono or stereo sound
input with the dynamic surround effects. It will provide rich and
profound sound tone. If you set the SRS WOW on, bass/treble will
be automatically adjusted.
To select the audio mode.
: MONO/STEREO/SAP
Used to select mute ON(means sound off) and mute OFF(means
sound on).
Use this function to balance sound from the left and right speakers.
To raises or lowers Bass level.
To raises or lowers Treble level.
SSM
AVL
SRS WOW
SOUND
MUTE
BALANCE
BASS
TREBLE
A28
ENGLISH
Selecting and Adjusting the Screen
Selecting the options
To choose the language in which the control names are
displayed.
To select the image size of the screen.
(FULL/4:3/SPECTACLE/1:1)
To adjust position of the OSD window on the screen.
Press the button to display the submenu for OSD
POSITION.
LANGUAGE
SIZE
OSD
POSITION
To adjust the transparency of the OSD menu screen.
Use this function to zoom in the screen. When you turn the monitor
off and on again, the default screen size will be restored.
Press the button to display the submenu for OSD
POSITION.
TRANS
-PARENCY
ZOOM
Use this function to reset the monitor to the factory default.
However, language selection will not be initialized.
RESET
Left
Right
Up
Down
Moving the OSD screen position horizontally.
Moving the OSD screen position vertically.
* If the zooming value is set to '0', vertical
and horizontal positioning cannot be
adjusted.
The 'ZOOM' menu will be disabled when the screen size is 4:3, spectacle or 1:1, or
PIP/POP/PBP is activated.
Note
A29
Adjusting PIP/POP/PBP Mode (Multiple Screen) Functions
To adjust the PIP(PICTURE IN PICTURE) of the screen
DVI ANALOG
After selecting ON in the PIP ON/OFF menu, the following menu items can be adjusted.
PIP ON/OFF
To select an input signal for PIP.
To adjust the size of the PIP screen. (SMALL/LARGE)
To adjust the image of the PIP screen; Press the button to display the submenu
for PIP IMAGE. Use the buttons to adjust the item to the desired level. The
items of the sub-menu may vary depending on the type of the source.
PIP SOURCE
PIP SIZE
PIP IMAGE
To turn the PIP sound on/off.
To switch the main-screen and sub-screen in PIP mode.
PIP SOUND
PIP SWAP
PIP POSITION Adjust the PIP screen position.
PIP CONTRAST Adjust PIP screen contrast.
PIP BRIGHTNESS Adjust PIP screen brightness.
* The sub-menu can differ according to the type of the input signal.
A30
ENGLISH
Selecting and Adjusting the Screen
Adjusting PIP/POP/PBP Mode (Multiple Screen) Functions
To adjust the POP(PICTURE OUT PICTURE) of the screen
DVI ANALOG
After selecting ON in the POP ON/OFF menu, the following menu items can be adjusted.
POP ON/OFF
To select an input signal for POP.
To adjust the image of the POP screen; Press the button to display the submenu
for POP IMAGE. Use the buttons to adjust the item to the desired level.
POP SOURCE
PIP IMAGE
To turn the POP sound on/off.
To switch the main-screen and sub-screen in POP mode.
POP SOUND
POP SWAP
POP CONTRAST Adjust POP screen contrast.
POP BRIGHTNESS Adjust POP screen brightness.
* The sub-menu can differ according to the type of the input signal.
The 'POP IMAGE' menu will be disabled if the POP screen input is video of HDTV.
Note
A31
Adjusting PIP/POP/PBP Mode (Multiple Screen) Functions
To adjust the PBP(PICTURE BY PICTURE) of the screen
DVI ANALOG
After selecting ON in the PBP ON/OFF menu, the following menu items can be adjusted.
PBP ON/OFF
To select an input signal for PBP.
To adjust the size of the PBP screen. (FULL/4:3)
To adjust the image of the PBP screen; Press the button to display the submenu for
PBP IMAGE. Use the buttons to adjust the item to the desired level. The items of
the sub-menu may vary depending on the type of the source.
PBP SOURCE
PBP SIZE
PBP IMAGE
To turn the PBP sound on/off.
To switch the main-screen and sub-screen in PBP mode.
PBP SOUND
PBP SWAP
PBP CONTRAST Adjust PBP screen contrast.
PBP BRIGHTNESS Adjust PBP screen brightness.
* The sub-menu can differ according to the type of the input signal.
The 'PBP IMAGE' menu will be disabled if the PBP screen input is video of HDTV.
Note
A32
ENGLISH
Selecting and Adjusting the Screen
To adjust the CAPTION&VCHIP function
Use the buttons to select caption mode.
Text services give a wide variety of information on all kind of
subjects(ex. captioned program lists, weather forecasts, stock
exchange topics, news for hearing-impaired....) on up to half
of the TV screen. But not all stations offer text services, even
though they might offer captioning.
In the event you are receiving a poor signal, an empty black
box may appear and disappear, even when the text mode is
selected. This is a normal when receiving a poor signal.
This TV is programmed to remember the CAPTION/TEXT
mode it was last set to, when you turn the power off.
Use the buttons to select captions.
* CC EZ MUTE
: If sound is on, the caption will be off. On the contrary, if sound is off, the caption will be on.
CAPTION/TEXT
CAPTION
Use the buttons to select ON or OFF. The TV can be set up so that it can only be used
with the remote control. This feature can prevent unauthorized viewing.
In order to lock the OSD screen adjustment, set the KEY LOCK tab to the 'on' position.
In order to unlock it, do the following :
1) Push the menu button on the remote control and set KEY LOCK to the 'off' position.
2) Simultaenously push the menu button on the bottom of the monitor and the button for 5
seconds.
KEY LOCK
This Function is used to block program viewing based on the ratings sent by the broadcast
station. The default setting is to allow all programs to be viewed. Viewing can be blocked by
the type of program and by the categories chosen to be blocked. It is also possible to block all
program viewing for a time period.
PARENTAL
[Remote Control]
Press the CAPTION button repeatedly to display the caption option as shown below.
Prees the ENTER button to select the caption option.
Select the PARENTAL menu and click button. The 'ENTER CODE' window will appear.
Once the correct four-digit password is entered, sub-menu that allows a user to control
various blocks will be enabled. The initial password is set for '7777' and it can be changed
through 'SET PASSWORD' menu.
A33
For movies previously shown in theaters.
V-CHIP rating and categories
- Rating guidelines are provided by broadcast station. Most television programs and television
movies can be blocked by TV rating and/or individual categories. Movies that have been shown
at the theaters or direct-to-video movies use the Movies Rating System(MPAA) only.
Movie Ratings :
- UNBLOCKED
- G&ABOVE : General audience
- PG&ABOVE : Parental guidance suggested
- PG-13&ABOVE : 13 years and up
- R&ABOVE : Restricted
- NC-17&ABOVE : 17years and up
- X : Adult
If you set PG-13&ABOVE, G&ABOVE and PG movies will be
available : PG-13, R, NC-17, and X will be blocked.
MPAA
GENERAL TV Rating :
- TV-G&ABOVE : General audience / Individual categories do not apply.
- TV-PG&ABOVE : Parental guidance suggested
- TV-14&ABOVE : 14 years and up
- TV-MA : Mature audience
- UNBLOCKED
CHILDREN TV Rating :
- TV-Y&ABOVE : Youth / Individual content categories do not apply.
- TV-Y7 : Youth, 7 years and up.
- UNBLOCKED
AGE BLOCK
CONTENT Categories :
- DIALOGUE(sexual dialogue) : Applies to TV-PG&ABOVE, TV-14.
- LANGUAGE(adult language) : Applies to TV-PG&ABOVE, TV-14&ABOVE, TV-MA.
- SEX SCENE(sexual situations) : Applies to TV-PG&ABOVE, TV-14&ABOVE, TV-MA.
- VIOLENCE : Applies to TV-PG&ABOVE, TV-14&ABOVE, TV-MA.
- F VIOLENCE(fantasy violence) : Applies only to TV-Y7.
- NO RATING : Blocks all viewing.
CONTENT
BLOCK
A34
ENGLISH
Selecting and Adjusting the Screen
To adjust the CAPTION&VCHIP function
Setting a password
This menu is to be used to change passwords. Once the
correct current password is entered using the number panel
in a remote control, the window for new password will
appear. Enter your choice of new four-digit password.
To select the VCHIP function ON/OFF.
You control access to the parental controls with a password. The default passworld is '7777'. You can
change the password to any four-digit number.
1. Open the OSD. -> Press the buttons to select the CAPTION&VCHIP menu, then press SET to open
the menu. -> Press the buttons to select the PARENTAL sub-menu, then press the button to
open the sub-menu.
2. Use the number pad to enter your password when prompted. If you have not set a passwod, enter 7777.
If you have forgotten your password, enter 7777.
3. Press the buttons to select the SET PASSWORD sub-menu, then press the button to change the
setting. Use the number button pad to enter a new four-digit password when prompted.
SET
PASSWORD
LOCK
ON/OFF
4. Re-enter the new four-digit password when prompted.
A35
Closed Captions
Closed captioning is a process which converts the audio portion of a television program into written
words which then appear as subtitles on the television screen. Closed captions allow viewers to read
the dialogue and narration of television programs.
Using Closed Captions
Captions are the subtitles of the dialogue and narration of television programs. For prerecorded
programs, program dialogue can be arranged into captions in advance. It is possible to caption a live
program by using a process called real-time captioning, which creates captions instantly. Real-time
captioning is normally done by professional reporters using a machine shorthand system and computer
for translation into English.
Captioning is an effective system for the hearing-impaired, and it can also aid in teaching language
skills.
Caption Tips
1. Not all TV broadcasts include closed caption signals.
2. Sometimes TV stations broadcasts four different caption signals on the same channel. By selecting
From CC1 ~ CC4, TEXT1 ~ TEXT4 you can choose which signal you view CC1 is usually the signal
with the captions, while Another mode might show demonstration or programmimg information.
3. Your TV might not receive caption signals normally in the following situations.
Poor reception conditions are encountered :
- IGNITION :
Picture may flutter, drift, suffer from black spots, or horizontal streaking. Usually caused by
interference from automobile ignition systems, neon lamps, electrical drills, and other electrical
appliances.
- GHOSTS :
Ghosts are caused when the TV signal splits and follows two paths. One is the direct path and the
other is reflected off tall buildings, hills or other objects. Changing the direction or position of the
antenna may improve reception.
- SNOW :
If your receiver is located at the weak, fringe area of a TV signal, your picture may be marred by
small dots. It may be necessary to install a special antenna to improve the picture.
An old, bad or illegally recorded tape is playing.
Strong, random signals from a car or airplane interfere with the TV signal.
The signal from the antenna is weak.
The program wasn't captioned when it was produced, transmitted, or taped.
A36
ENGLISH
• Install the monitor driver, which is provided with
the monitor, or download it from the web site.
(http://www.lge.co.kr)
• See if the plug&play function is supported by
referring to the video card user manual.
Did you install the driver?
'Unknown Monitor' message appears when the monitor is connected.
• See if the power cord is properly connected to the
outlet.
• See if the power switch is turned on.
• Adjust brightness ( ) and contrast ( ) again.
• If the monitor is in power saving mode, move the
mouse or press any key.
• The signal from the PC (video card) is out of the
vertical or horizontal frequency range of the
monitor. Adjust the frequency range by referring
to the Specifications in this manual.
* Maximum resolution
DVI-A : 1280x1024 @60Hz
DVI-D : 1280x1024 @60Hz
• The signal cable between PC and monitor is not
connected. Check the signal cable.
• Press the 'Input Select' menu in the remote
controller to check the input signal.
Is the monitor power cord
connected?
Does the power LED is turned on?
Power is on, power LED is green but
the screen appears extremely dark.
Does the power LED look yellow?
Does the 'Out of Range' message
appear?
Does the 'Check Signal Cable'
message appear?
No image is displayed
Note
• The control locking function prevents unintentional
OSD setting change due to careless usage. To
unlock the controls, simultaneously press the Menu
button and button for 5 seconds. (You cannot set
this function using the remote controller buttons. You
can set this function in the monitor only.)
The “Controls locked” message
appears when pressing the Menu
button.
'Controls Locked' message appears.
* Vertical frequency: To enable the user to watch the monitor display, screen image should be changed tens of times
every second like a fluorescent lamp. The vertical frequency or refresh rate is the times of image display per second.
The unit is Hz.
* Horizontal frequency: The horizontal interval is the time to display one vertical line. When the 1is divided by
horizontal interval, the number of horizontal lines displayed every second can be tabulated as the horizontal
frequency. The unit is kHz.
Troubleshooting
A37
• DVI-A analog signal – Press the “Auto Channel”
button in the remote controller to automatically
select the optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use
the Position OSD menu.
• See if the video card resolution and frequency are
supported by the monitor. If the frequency is out of
range, set to the recommended resolution in the
Control Panel – Display – Setting menu.
• DVI-A analog signal – Press the “Auto Channel”
button in the remote controller to automatically
select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use
the Clock OSD menu.
• DVI-A analog signal – Press the “Auto Channel”
button in the remote controller to automatically
select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use
the Phase OSD menu.
• See if the Zoom value is set to 0. If it is, you
cannot adjust the H/V Position value.
• If the screen size is not full when connected to the
PC, execute the POP to change to full screen
mode.
• See if the TV sound is set to mono. If it is, the
sound will not be displayed.
• You cannot adjust brightness and tint in the
PIP/POP/PBP Screen menu for the sub-screen
among PIP/POP/PBP menus. Therefore,
brightness can be different for the sub-screen.
Is the screen position wrong?
Do thin lines appear on the
background screen?
Horizontal noise appears or the
characters look blurred.
Unable to adjust the
horizontal/vertical position in the
Zoom menu.
Screen size is automatically adjusted
when connected to the PC.
No sound appears in the TV channel
display window.
Brightness differs in the main and
sub screen when connected to the
PC.
The screen image looks abnormal.
• If you use a fixed image for a long time, the pixels
may be damaged quickly. Use the screensaver
function.
After-image appears when the
monitor is turned off.
After-image appears on the monitor.
Troubleshooting
A38
ENGLISH
• Set the number of colors to more than 24 bits (true
color)
Select Control Panel – Display – Settings – Color
Table menu in Windows.
• Check the connection status of the signal cable.
Or, re-insert the PC video card.
• Several pixels (red, green, white or black color)
may appear on the screen, which can be
attributable to the unique characteristics of the
LCD panel. It is not a malfunction of the LCD.
Screen has poor color resolution (16
colors).
Screen color is unstable or mono-
colored.
Do black spots appear on the
screen?
Screen color is abnormal.
• See if the audio cable is connected properly.
• Adjust the volume.
• See if the sound is set properly.
• See if the Sound is set to On in the PIP/POP/PBP
menu.
• Select the appropriate treble sound.
• Select the appropriate bass sound.
• Adjust the volume.
No sound?
No sound is available when the
PIP/POP/PBP mode is engaged.
Sound is too dull.
Sound is too low.
The audio function does not work.
• See if you have selected the proper channel
mode.
• Use the automatic channel setup function.
• See if the TV antenna is properly connected.
The TV signal is not being received.
The TV function does not work.
• See if the POP function is in use. If the POP
function is in use, the screen size function may not
work.
The screen size function in the OSD
menu does not work.
The screen size function in the OSD menu does not work.
Troubleshooting
A39
Specifications
Screen Type 17 inches (43.438cm) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel
Visible diagonal size: 43.438cm
Pixel Pitch 0.291mm
Max. Resolution DVI-A : 1280 X 1024 @60Hz
DVI-D : 1280 X 1024 @60Hz
Recommended Resolution
DVI-A : WXGA 1280 X 768 @60Hz
DVI-D : WXGA 1280 X 768 @60Hz
Horizontal Frequency DVI-A : 30 - 66 kHz
DVI-D : 30 - 66 kHz
Vertical Frequency 56 - 85 Hz
Synchronization Type Separate/Composite/SOG (Sync On Green)/Digital
DVI-A(analog), DVI-D (digital), S-Video,
composite video, HDTV, TV
Rated Voltage AC 100-240V~ 50/60Hz 1.1A
Power Consumption Normal operation: 70W
Power saving preparation state: ≤5W
Power saving state: ≤5W
Power switch on: ≤5W
Size (WxLxH) 505.5mm x 231.5 mm x 365mm
Weight (excl. package) 6.6 kg
Operational Condition Temperature: 10˚C ~ 35˚C , Humidity: 10% ~ 80%
Storage Condition Temperature: -20˚C ~ 60˚C , Humidity: 5% ~ 95%
The product specifications can change without prior notice for product improvement.
LCD Panel
Video Signal
Input Connector
Power
Dimension/Weight
Environmental Conditions
A40
ENGLISH
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(kHz)
PC Mode – Preset Mode
HDV Mode
Composite Video Input YPbPr
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(kHz)
1
2
3
4
5
6
7
640 x 350
720 x 400
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
31.469
31.468
31.469
37.500
43.269
37.879
46.875
70
70
60
75
85
60
75
VGA
VGA
VGA
VESA
VESA
VESA
VESA
8
9
10
11
12
13
800 x 600
832 x 624
1024 x 768
1024 x 768
1280 x 1024
1280 x 768
53.674
49.725
48.363
60.123
63.981
47.7
VESA
MAC
VESA
VESA
VESA
VESA
85
75
60
75
60
60
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(kHz)
1
2
3
4
5
720 x 483
1280x 720
1280x 720
1920x 1080
1920x 1080
31.50
45.00
44.96
33.75
33.72
59.94
60.00
59.94
60.00
59.94
Power LED
Mode Monitor
Normal Operation
Pre-power Saving State
Power Saving State
Power Switch Off
Green
Amber
Ambrer
-
-
DVI-I
Audio In
MIC.Out
Audio
RL
Pb
Y
Pr
S-Video
MIC.In
Locking Device
Use this locking cable (optional) to
prevent theft.
Specifications
A41

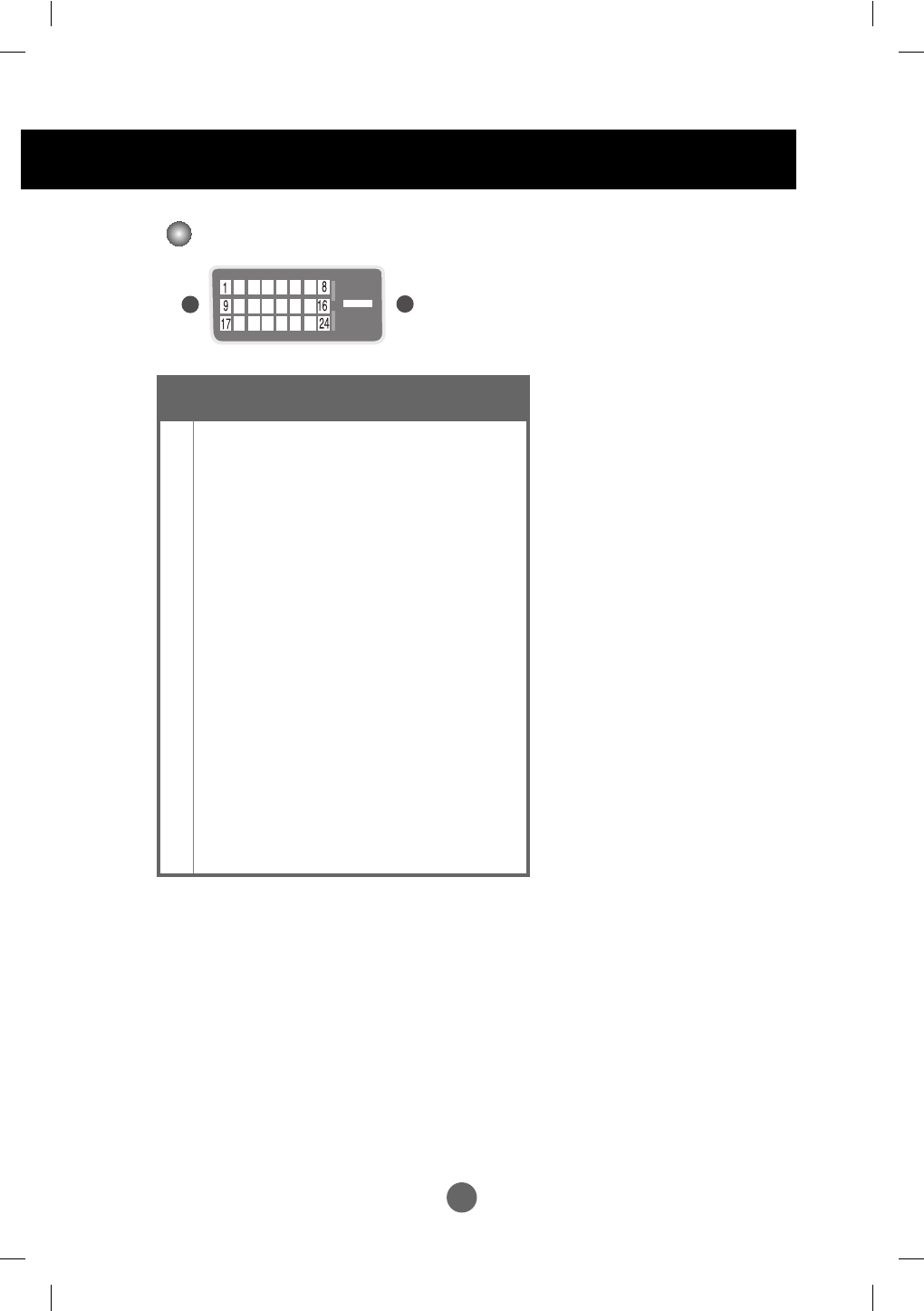

DVI-D
T.M.D.S. (Transition Minimized Differential Signaling)
No. Signal
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
T. M. D. S. Data 2-
T. M. D. S. Data 2+
T. M. D. S. Data 2/4 Shield
T. M. D. S. Data 4-
T. M. D. S. Data 4+
DDC Clock
DDC Data
Analog Vertical Synchronization
T. M. D. S. Data 1-
T. M. D. S. Data 1+
T. M. D. S. Data 1/3 Shield
T. M. D. S. Data 3-
T. M. D. S. Data 3+
+5V Power
Grounding (return for +5V, horizontal sync and vertical sync)
Hot Plug Detect
T. M. D. S. Data 0-
T. M. D. S. Data 0+
T. M. D. S. Data 0/5 Shield
T. M. D. S. Data 5-
T. M. D. S. Data 5+
T. M. D. S. Clock Shield
T. M. D. S. Clock+
T. M. D. S. Clock
Specifications
