LG Electronics USA WLAN module EMISSION TEST REPORT

Updated Manual

Order Number
: GETEC-C1-13-029
CANADA IC
Test Report Number
: GETEC-E4-13-019
Page 1 / 1
EUT Type: WLAN module
IC: 2703N-LGHAWWW1301
APPENDIX G
: USER’S MANUAL
LGHA-WWW1301
WLAN Dongle
User Manual
HB-RND-xxA 2 페이지 2013-03-13 - 2 -박병만 2 페이지 2013-03-13HB-개발-xxA
LG ELECTRONICS
2/13 Pages
1 Information
1.1 Feature
LGHA-WWW1301 is WLAN Dongle support USB2.0 A type Interface.
Because It support USB2.0 interface, Therefore you can connect to the host
system it easily
LGHA-WWW1301 use MURATA MODUEL(PARTNAME:LBWA17XQXZ-450)
MURATA MODULE use BCM4319(BroadCom)
LGHA-WWW1301 support IEEE802.11b/g/n and data rate 65Mbps
1.2 Module Summary
ㆍ 2.4GHz IEEE 802.11b/g/n Radio Technology
ㆍ On-board Antenna
ㆍ Transmit power : +18dBm @ 11b/11Mbps
ㆍ Max Receive Sensitivity : -92dBm
ㆍ MURATA Module applied ( RF CHIPSET : BCM4319 )
ㆍ USB2.0 A Type Interface
ㆍ Operating Temperature Range : -20°C to 70°C
ㆍ ROHS compliant

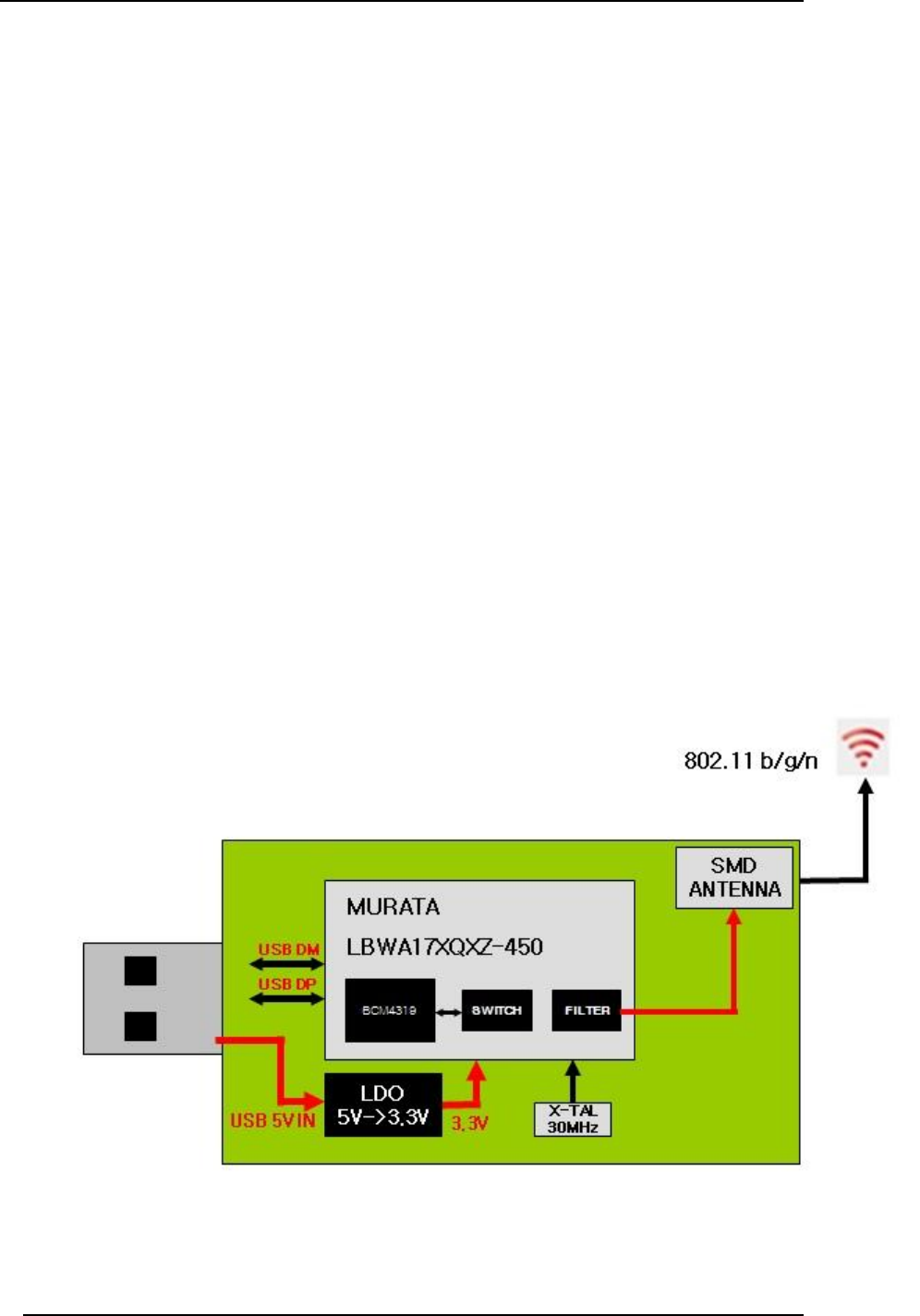

1.3 Block Diagram
Fig.1 System Block Diagram
HB-RND-xxA 3 페이지 2013-03-13 - 3 -박병만 3 페이지 2013-03-13HB-개발-xxA
LG ELECTRONICS
3/13 Pages
2 Module Outline

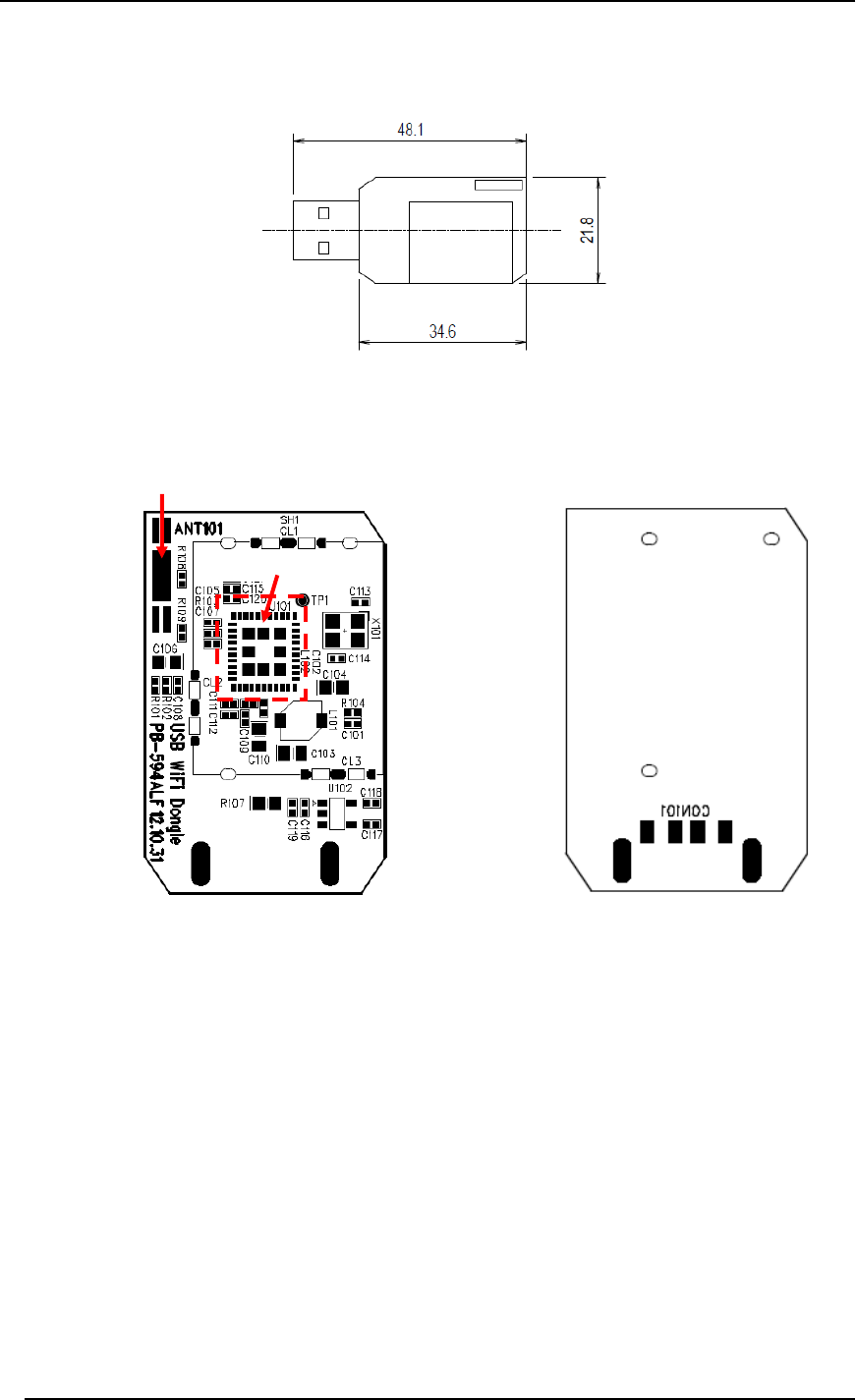

2.1 Module Dimension
Fig. 2 LGHA-WWW1301 Dimension (Unit : mm)
2.2 Component Placement
Fig.3 LGHA-WWW1301 Component Placement
ANCG12G44SAA145RD1
LBWA17XQXZ-450
HB-RND-xxA 4 페이지 2013-03-13 - 4 -박병만 4 페이지 2013-03-13HB-개발-xxA
LG ELECTRONICS
4/13 Pages
3 MURATA LBWA17XQXZ-450
MURATA's WLAN Module LBWA17XQXZ-450 WLAN chipset, RF Switch, Filter, etc.
are included. Broadcom's WLAN chipset bcm4319 was used. SDIO Interface and
USB Interface is supported 30MHz external clock operation.

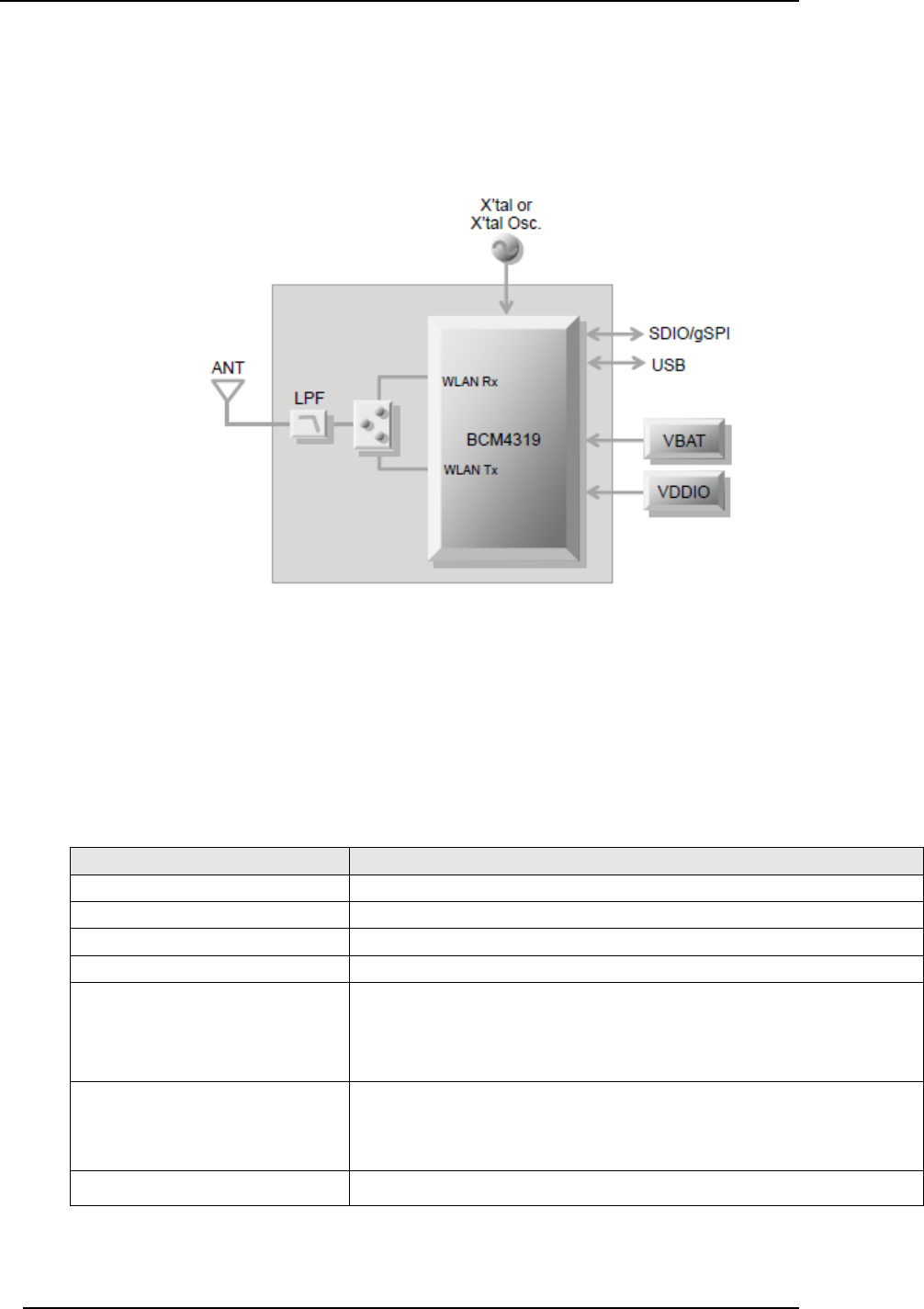

Fig.4 LBWA17XQXZ-450 Block Diagram
4 RF Specifications
4.1 RF Specifications Summary
Items
Contents
Support
IEEE802.11b/g/n, WLAN compliant
Frequency Range
2400 ~ 2483.5 MHz
Modulation
DSSS, CCK, OFDM
Channel
1~11ch (2412 ~ 2462 MHz)
Data Rate
802.11b = 1, 2, 5.5, 11 Mbps
802.11g = 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n = 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps
Target Max Output Power
(Peak)
802.11b = 18 dBm
802.11g = 19 dBm
802.11n = 17 dBm
Antenna
On Board SMD Antenna, 50 ohm
Table.1 LGHA-WWW1301 RF Specification Summary
HB-RND-xxA 5 페이지 2013-03-13 - 5 -박병만 5 페이지 2013-03-13HB-개발-xxA
LG ELECTRONICS
5/13 Pages
4.2 IEEE 802.11b Mode
Items
Contents
Specification
IEEE802.11b
Mode
DSSS / CCK
Frequency
2400 – 2483.5 MHz
Data rate
1, 2, 5.5, 11 Mbps
Target Max Output Power
18dBm
DC Characteristics
Min.
Typ.
Max.
unit
1. DC current
1) Tx mode (1024byte, 20usec interval)
300
mA
2) Rx mode
77
mA
Tx Characteristics
Min.
Typ.
Max.
unit
2. Power Levels
16
18
20
dBm
3. Spectrum Mask
1) Fc ± 11MHz
-40
-30
dBr
2) Fc ± 20MHz
-54
-50
dBr
4. RF Carrier Suppression
-15
dB
5. Modulation Accuracy(EVM)
17
35
%
6. OBW(Occupied Bandwidth)
20
MHz
7. Outband Spurious Emissions
1) 30Mhz to 1 Ghz(BW=100kHz)
tbd
dBm
2) 1Ghz to 12.75 Ghz(BW=100kHz)
tbd
dBm
3) 1.8Ghz to 1.9 Ghz(BW=100kHz)
tbd
dBm
4) 5.5Ghz to 5.3 Ghz(BW=100kHz)
tbd
dBm
Rx Characteristics
Min.
Typ.
Max.
unit
8. Minimum input Level Sensitivity
1) 1Mbps (FER ≤ 8%)
-92
-80
dBm
2) 11Mbps (FER ≤ 8%)
-85
-76
dBm
9. Maximum Input Level (FER ≤ 8%)
-10
dBm
10. Adjacent Channel Rejection (FER ≤ 8%)
tbd
dB
Table.2 IEEE 802.11b Mode Specification
HB-RND-xxA 6 페이지 2013-03-13 - 6 -박병만 6 페이지 2013-03-13HB-개발-xxA
LG ELECTRONICS
6/13 Pages
4.3 IEEE 802.11g Mode
Items
Contents
Specification
IEEE802.11g
Mode
OFDM
Frequency
2400 – 2483.5 MHz
Data rate
6, 9, 12, 18, 24, 36, 48, 54 Mbps
Target Max Output Power
19dBm
DC Characteristics
Min.
Typ.
Max.
unit
1. DC current
1) Tx mode (1024byte, 20usec interval)
237
mA
2) Rx mode
77
mA
Tx Characteristics
Min.
Typ.
Max.
unit
2. Power Levels
17
19
21
dBm
3. Spectrum Mask
1) Fc ± 11MHz
-34
-20
dBr
2) Fc ± 20MHz
-50
-28
dBr
3) Fc ± 30MHz
-58
-40
dBr
4. Constellation Error (EVM)
1) 6 Mbps
-30
-5
dB
2) 24 Mbps
-30
-16
dB
3) 54 Mbps
-30
-25
dB
5. Modulation Accuracy(EVM)
17
35
%
6. OBW(Occupied Bandwidth)
20
MHz
7. Outband Spurious Emissions
1) 30Mhz to 1 Ghz(BW=100kHz)
tbd
dBm
2) 1Ghz to 12.75 Ghz(BW=100kHz)
tbd
dBm
3) 1.8Ghz to 1.9 Ghz(BW=100kHz)
tbd
dBm
4) 5.5Ghz to 5.3 Ghz(BW=100kHz)
tbd
dBm
Rx Characteristics
Min.
Typ.
Max.
unit
8. Minimum input Level Sensitivity
1) 6Mbps (FER ≤ 10%)
-85
-82
dBm
2) 24Mbps (FER ≤ 10%)
-82
-74
dBm
3) 54Mbps (FER ≤ 10%)
-72
-65
9. Maximum Input Level (FER ≤ 10%)
-10
dBm
10. Adjacent Channel Rejection (FER ≤8%)
dB
Table.3 IEEE 802.11g Mode Specification
HB-RND-xxA 7 페이지 2013-03-13 - 7 -박병만 7 페이지 2013-03-13HB-개발-xxA
LG ELECTRONICS
7/13 Pages
4.4 IEEE 802.11n Mode
Items
Contents
Specification
IEEE802.11n
Mode
OFDM
Frequency
2400 – 2483.5 MHz
Data rate
6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps
Target Max Output Power
17dBm
DC Characteristics
Min.
Typ.
Max.
unit
1. DC current
1) Tx mode (1024byte, 20usec interval)
227
mA
2) Rx mode
80
mA
Tx Characteristics
Min.
Typ.
Max.
unit
2. Power Levels
15
17
19
dBm
3. Spectrum Mask
1) Fc ± 11MHz
-34
-20
dBr
2) Fc ± 20MHz
-50
-28
dBr
3) Fc ± 30MHz
-58
-45
dBr
4. Constellation Error (EVM)
1) MCS0 (6.5Mbps)
-29
-5
dB
2) MCS4 (39Mbps)
-31
-19
dB
3) MCS7 (65Mbps)
-31
-28
dB
5. OBW(Occupied Bandwidth)
20
MHz
6. Center Frequency Tolerance
-25
-4.5
25
ppm
7. Symbol clk freq Tolerance
-25
-4.7
25
ppm
8. Outband Spurious Emissions
1) 30Mhz to 1 Ghz(BW=100kHz)
tbd
dBm
2) 1Ghz to 12.75 Ghz(BW=100kHz)
tbd
dBm
3) 1.8Ghz to 1.9 Ghz(BW=100kHz)
tbd
dBm
4) 5.5Ghz to 5.3 Ghz(BW=100kHz)
tbd
dBm
Rx Characteristics
Min.
Typ.
Max.
unit
9. Minimum input Level Sensitivity
1) 6.5Mbps (FER ≤ 10%)
-87
-82
dBm
2) 39Mbps (FER ≤ 10%)
-79
-70
dBm
3) 62Mbps (FER ≤ 10%)
-70
-64
10. Maximum Input Level (FER ≤ 10%)
-20
dBm
11. Adjacent Channel Rejection (FER ≤ 8%)
tbd
dB
Table.4 IEEE 802.11n Mode Specification
HB-RND-xxA 8 페이지 2013-03-13 - 8 -박병만 8 페이지 2013-03-13HB-개발-xxA
LG ELECTRONICS
8/13 Pages

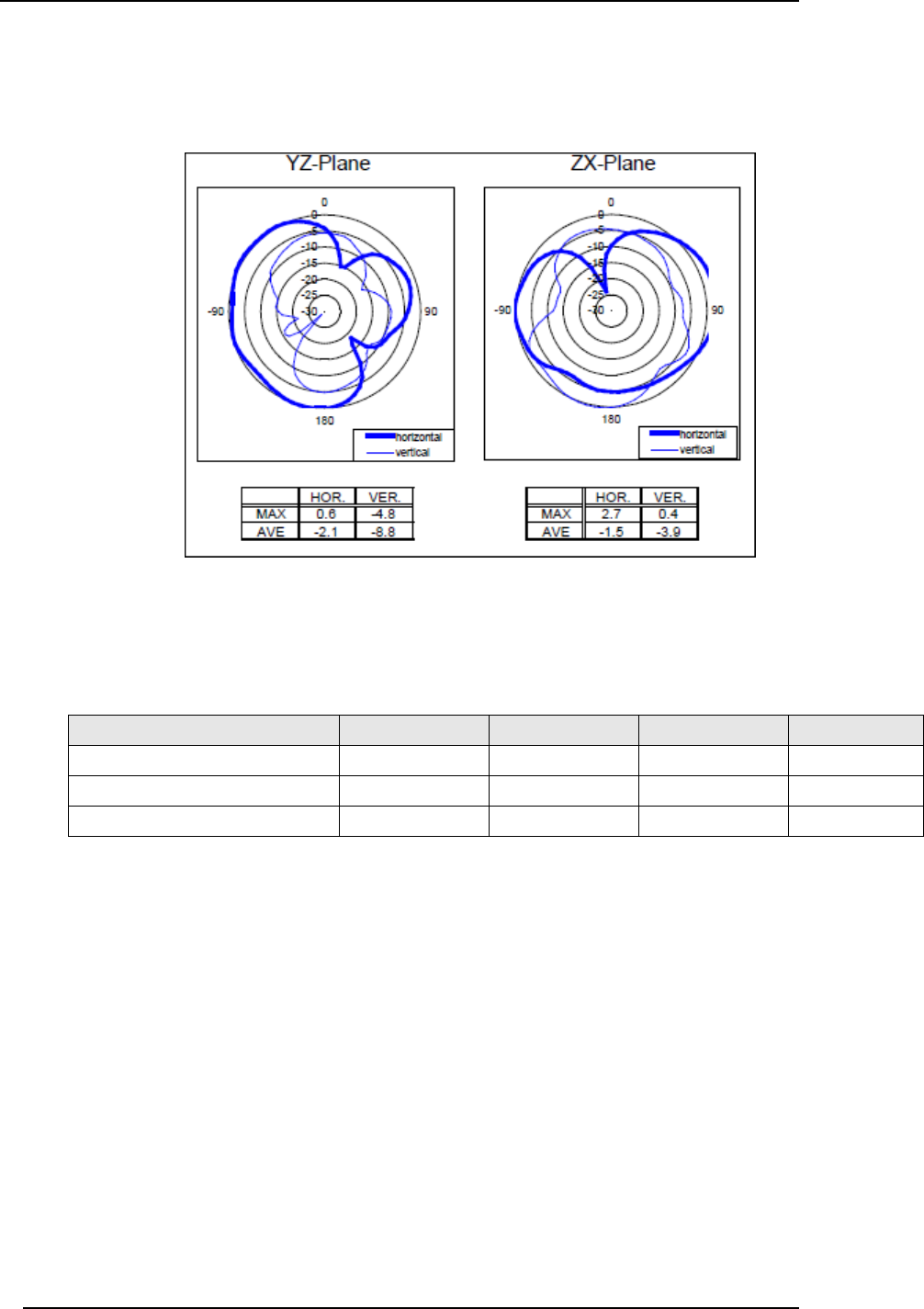

5 Antenna
LGHA-WWW1301 with omni directional characteristics in the 2.4GHz band, MURATA
SMD's dielectric Antenna ANCG12G44SAA145 is applied.
Fig.5 ANCG12G44SAA145 Radiation Pattern
6 Electrical Characteristics
Parameter
min
typ
max
Unit
Operation Temperature
-20
+25
+70
Deg.C
Operation Humidity
0
80
%
Supply Voltage
4.75
5
5.25
V
Table.5 LGHA-WWW1301 Electrical Characteristics
7 User installation
This manual explains to set-up the WLAN MODULE (USB DONGLE TYPE)
to the Smart Pad installed in the refrigerator only.
The WLAN MODULE is not available for regular laptops or any other portable devices.
7.1 USB WLAN installation requirements
(1)PC(WINDOWS XP, USB1.1/USB2.0 Support) 1EA
(2) Wireless AP(802.11/b/g/n) : 1EA
(3) USB WLAN DONGLE XP Driver
HB-RND-xxA 9 페이지 2013-03-13 - 9 -박병만 9 페이지 2013-03-13HB-개발-xxA
LG ELECTRONICS
9/13 Pages
7.2 USB WLAN DONGLE Driver installation method
(1) copy the 4319USB_4.218.116.42.nvm to the
“C:/WINDOWS/system32/drivers”
(2) copy the driver to the proper folder of PC

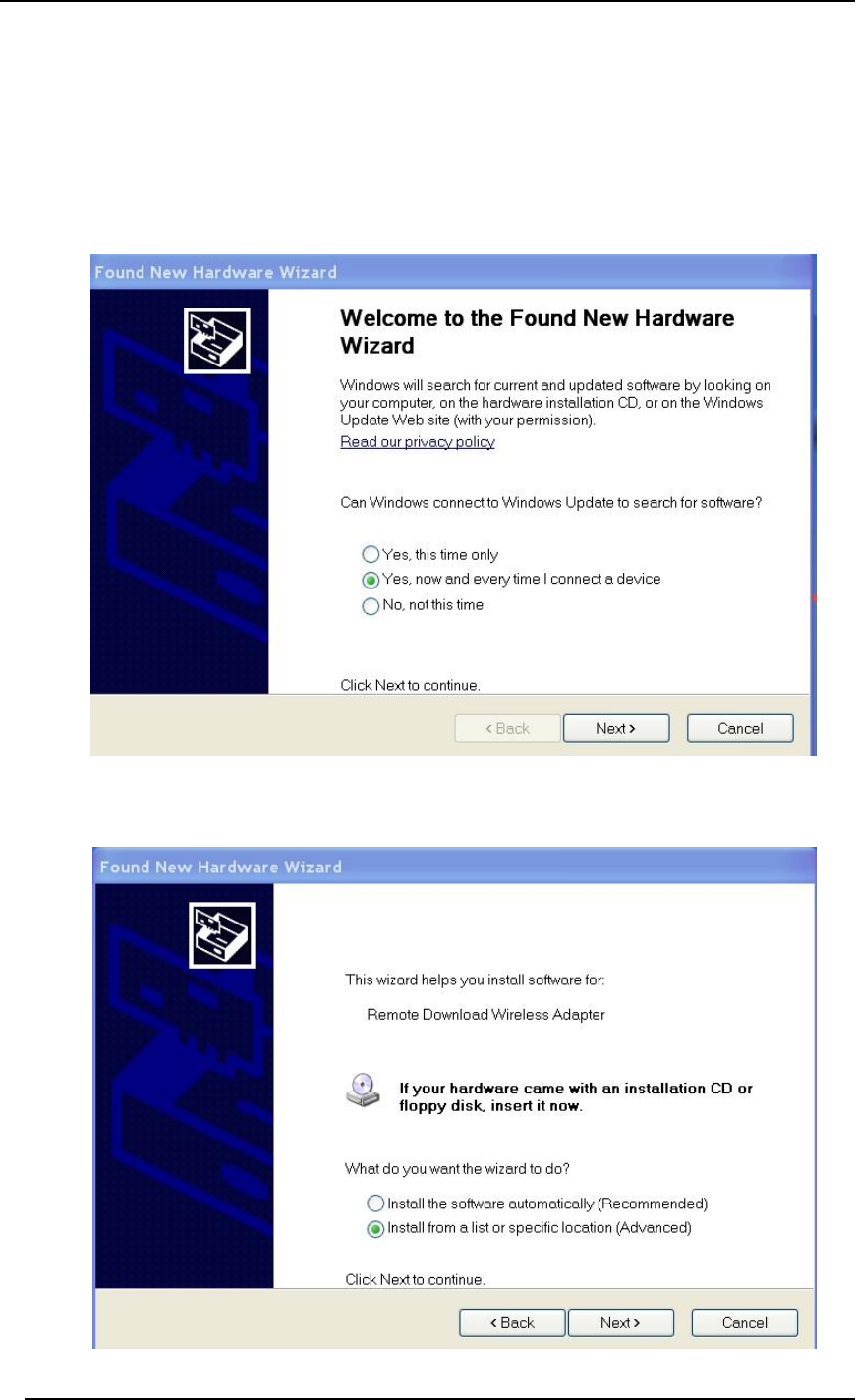

(3) Insert USB WLAN DONGLE to PC
- Pop up “New Hardware Wizard”
- Refer to below picture and click “NEXT”
(4) Refer to below picture and click “NEXT”
HB-RND-xxA 10 페이지 2013-03-13 - 10 -박병만 10 페이지 2013-03-13HB-개발-xxA
LG ELECTRONICS
10/13 Pages

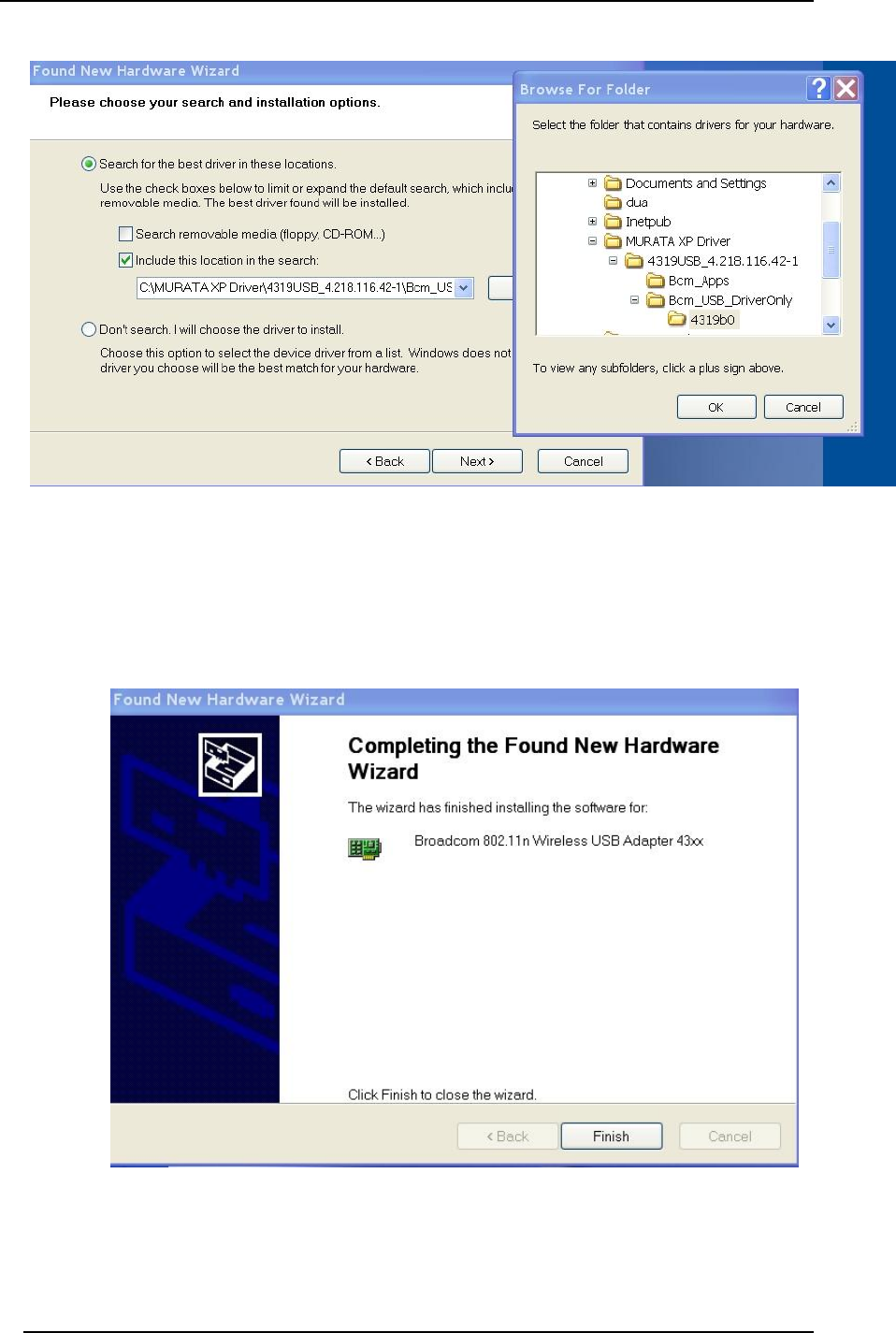

(5)Check where is the driver and click “NEXT”
(6) Refer to below picture and click “Finish”
HB-RND-xxA 11 페이지 2013-03-13 - 11 -박병만 11 페이지 2013-03-13HB-개발-xxA
LG ELECTRONICS
11/13 Pages

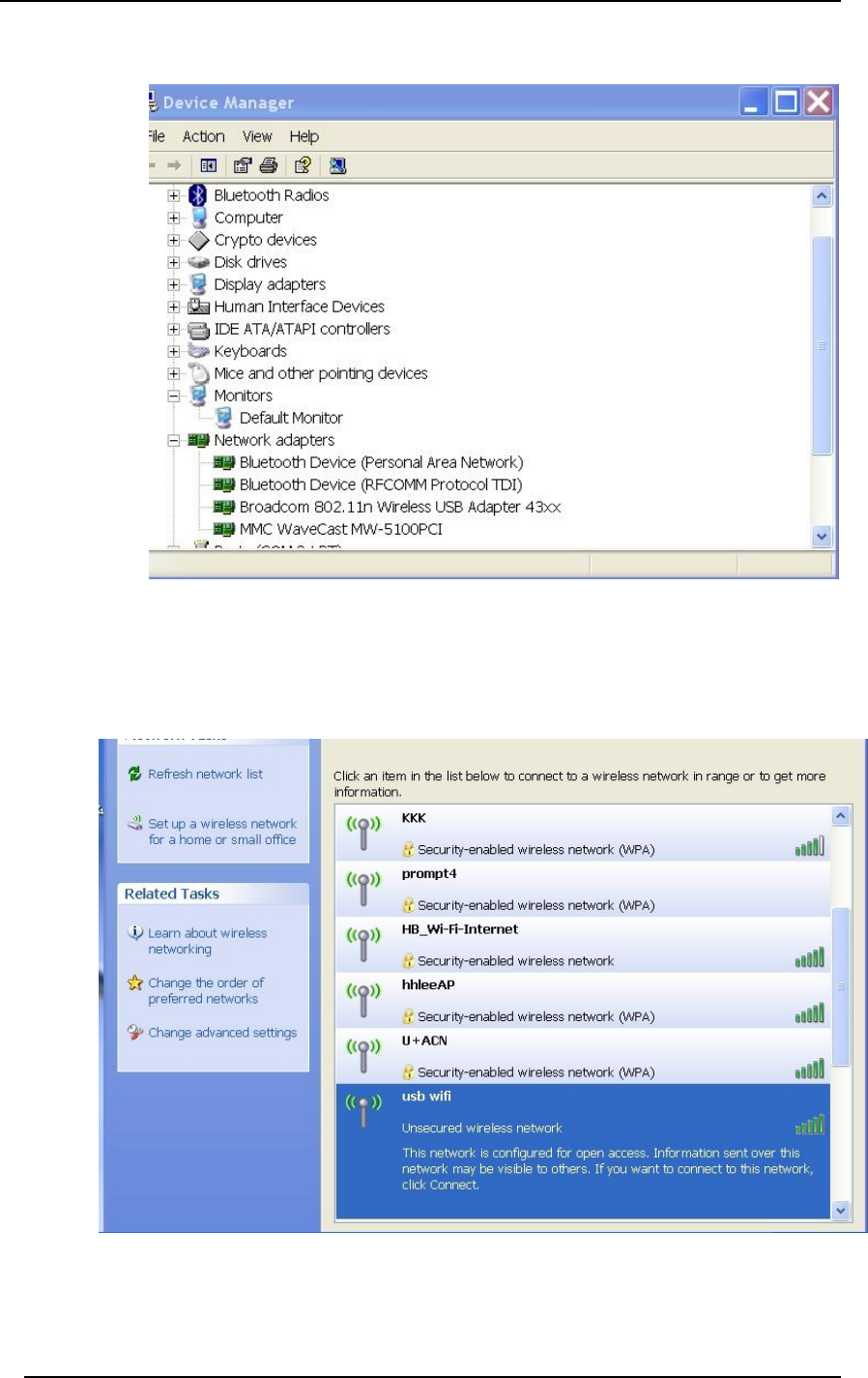

(7)After installation is finished corretly, you can find out “Broadcom 802.11n
Wireless USB Adapter 43xx” is activated in the network adaptor
(8) Click Start Menu/Network Connection, and then select wireless device
Click right button of the mouse, scan AP and connect USB WLAN DONGLE to
Target AP
HB-RND-xxA 12 페이지 2013-03-13 - 12 -박병만 12 페이지 2013-03-13HB-개발-xxA
LG ELECTRONICS
12/13 Pages
8 Notice
WARNING
The WLAN MODULE (USB DONGLE TYPE) to the Smart Pad installed in the refrigerator only.
The WLAN MODULE is not available for regular laptops or any other portable devices.
8.1 FCC(Certification)
FCC Notice
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules These limits are designed to provide reasonable protection
against harmful to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio Communication. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures :
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a oircuit difference from that to which the receiver is
connected.
- Consult the dealer of an experienced radio/TV technician for help.
NOTE : The manufacturer is not responsible for any radio or TV interference caused by
unauthorized
modifications to this equipment. Such modifications could void the user's authority to operate
the equipment.
End product labeling
This transmitter module is authorized only for use in device where the antenna may be installed
such that 20 cm may be maintained between the antenna and user. The final end product must
be labeled in an visible area with the following “Contain FCC ID: BEJ-LGHAWWW1301”. The
grantee’s FCC ID can be used only when all FCC compliance requirements are met.
IMPORTANT NOTE
(1) Warning that this module is not approved to be operated simultaneously with other radios.
Further certification requirement may required when installed and operated simultaneously with
other radios.
(2) Confirming of approved antenna, and advice that used other type of antenna or same type with
higher gain will required additional certification.
HB-RND-xxA 13 페이지 2013-03-13 - 13 -박병만 13 페이지 2013-03-13HB-개발-xxA
LG ELECTRONICS
13/13 Pages
8.2 IC(Certification)
This device complies with RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause
undesired operation of the device
IC Warning
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
This class B digital apparatus complies with CanadianICES-003.
Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment.
This equipment should be installed and operated with minimum distance 20 cm between
the radiator & your body.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZEDMODIFICATIONS TO THIS EQUIPMENT.
SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

Navigation menu
