SPECIFICATIONS
PRODUCT NAME : : 802.11a/b/g/n/ac + Bluetooth Combo Module
MODEL NAME : LGSBWAC72
Designed Checked Approved
LG Innotek Co., Ltd.
I.H. PARK D.S. OH S.D. CHOI
DOCUMENT No. -
2016.04.26 2016.04.26 2016.04.26 PAGE 20
(00)-0073
The information contained herein is the exclusive property of LG Innotek
and shall not be distributed, reproduced or disclosed in whole or no in part
without prior written permission of LG Innotek.
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2016.04.26
MODEL NAME : TWCM-K305D (LGIT)
LGSBWAC72 (LGE)
REV. DATE : 2016.04.26
REV.NO : 1.0
WC42512
Copyrightⓒ. 2016. All Rights Reserved.
1/ 12
Index
No Description Page
1 Features 2
2 Ordering Information 2
3 Label Marking 2
4 Block Diagram 3
5 Absolute Maximum Ratings 3
6 Operating Conditions 4
7 Standard Test Conditions 4
8 Pin Description 5
9 Mechanical Characteristics 6
10 Outline Drawing 7
11 Packing Information 8
12 Change History of Revision 10
13 Regulatory Notices 11
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2016.04.26
MODEL NAME : TWCM-K305D (LGIT)
LGSBWAC72 (LGE)
REV. DATE : 2016.04.26
REV.NO : 1.0
WC42512
Copyrightⓒ. 2016. All Rights Reserved.
2/ 12
2. Ordering Information
Model Description
TWCM-K305D
LGSBWAC72 802.11 a/b/g/n/ac + BT combo Module, Dual Band 2T2R MIMO
1. Features
TWCM-K305D is the small size and low power module for IEEE 802.11ac wireless LAN
& BT4.2 + HS. TWCM-K305D is based on Mediatek MT7662TU solution.
IEEE 802.11 a/b/g/n/ac Dual Band WLAN infrastructure
Bluetooth 4.2+ HS
Size : 68.0mm x 38.0 mm
Two stream spatial multiplexing up to 300Mbps(802.11n)/ 867Mbps(802.11ac)
WLAN Metal Press antenna, BT Printed antenna on
Use on-chip OTP (One-Time Programmable)
Host Interface : USB2.0 (WLAN & BT)
- This model is using the common USB2.0 to control WLAN and BT
Security : WAPI, WEP, WPA, WPA2, WMM, AES, WEP, TKIP, CKP
Application: DTV, DVR, HD DVD Player, Blue-ray Disk Player, STB

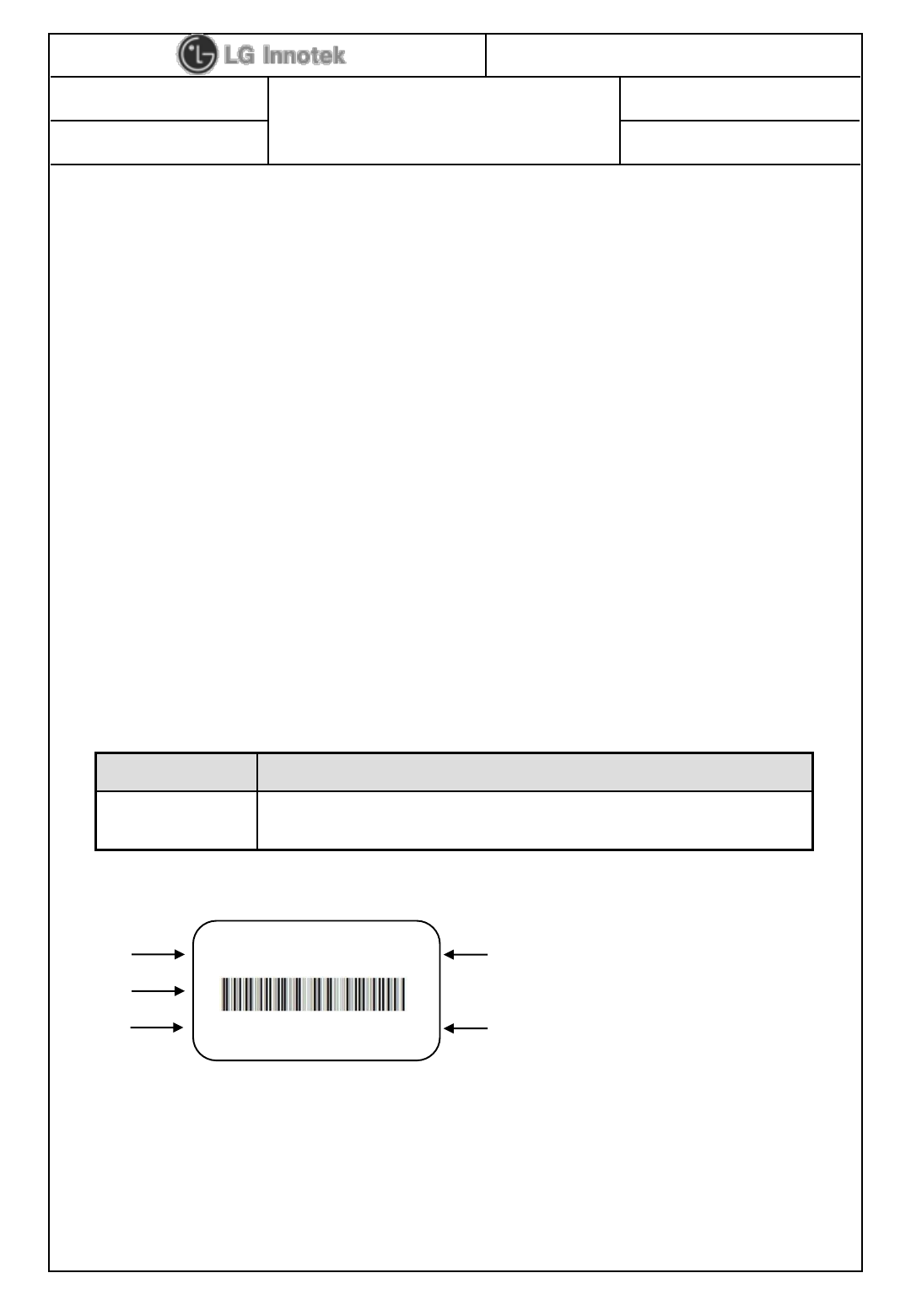

3. Label marking
①Customer P/N ④Product Lot No. : 1604B2601
②MAC Address BAR Code -16 : Year - 26 : Date
③Model No - 04: Month - 01 : Manufactured Process
- A :Revision No. -01 : Change History of Revision
⑤MAC Address No.
①
②
③
Customer P/N 1604B260101
001EB2B00339
④
⑤
TWCM-K305D
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2016.04.26
MODEL NAME : TWCM-K305D (LGIT)
LGSBWAC72 (LGE)
REV. DATE : 2016.04.26
REV.NO : 1.0
WC42512
Copyrightⓒ. 2016. All Rights Reserved.
3/ 12
5. Absolute Maximum Ratings
Parameter Min Max Unit
Storage Temperature -20 +80 ℃
Storage Humidity (40℃) - 90 %
Caution : The specifications in Table 1 define levels at which permanent damage to the
device can occur. Function operation is not guaranteed under these conditions.
Operating at absolute maximum conditions for extend periods can adversely affect the
long-term reliability of the device.

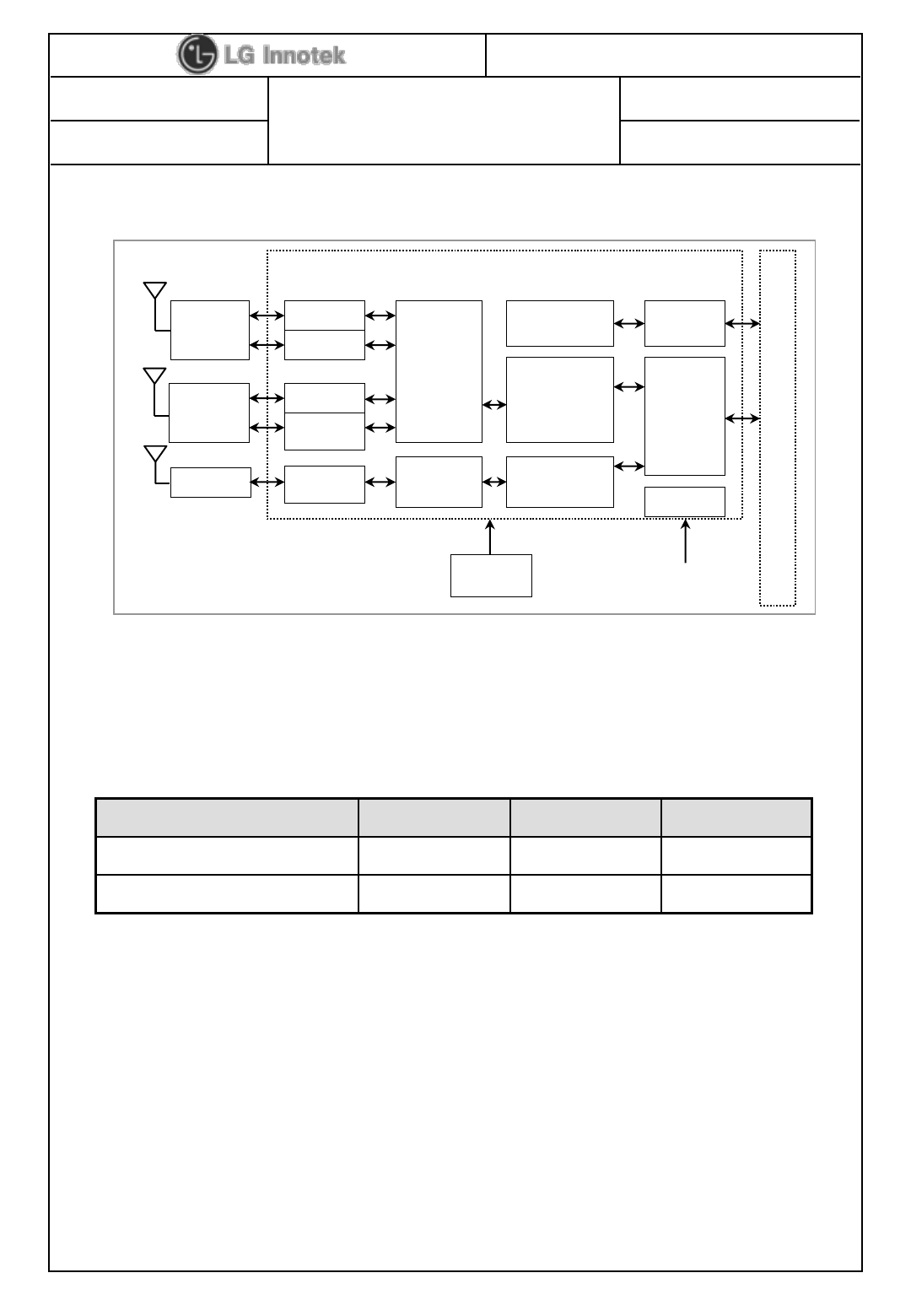

4. Block Diagram
. Other conditions
1) Do not use or store modules in the corrosive atmosphere, especially where chloride
gas, sulfide gas, acid, alkali, salt or the like are contained.
Also, avoid exposure to moisture.
2) Store the modules where the temperature
and relative humidity do not exceed 5 to 40℃and 20 to 60%.
3) Assemble the modules within 6 months.
Check the soldering ability in case of 6 months over.
< Table 1 >
MT7662TU
2.4GHz
5GHz
2.4GHz
5GHz
11ac 2T2R
Baseband
32bit RISC CPU
MAC /
Packet buffer/
Security engine
System
Control
PMU
USB2.0
Interface
USB I/F 12PIN CONNECTOR
3.3V
Main
Clock
40MHz
Diplexer
Diplexer
ANT0
ANT1
2.4GHz BT
Baseband
Bluetooth
MAC
LPF
BT
ANT
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2016.04.26
MODEL NAME : TWCM-K305D (LGIT)
LGSBWAC72 (LGE)
REV. DATE : 2016.04.26
REV.NO : 1.0
WC42512
Copyrightⓒ. 2016. All Rights Reserved.
4/ 12
6. Operating Conditions
Parameter Min Typ Max Unit
Ambient Temperature 0 - 60 ℃
Ambient Humidity (40℃) - - 85 %
Supply Voltage 3.135 3.3 3.6 Vdc
7. Standard Test Conditions
The Test for electrical specification shall be performed under the following condition
Otherwise this following conditions, not guaranteed this performance.
Temperature 25 ±5℃
Humidity 65 ±5%
Input power Supply Voltage
VDD_3.3V 3.135 ~ 3.6V
7-1. Ambient condition
7-2. Power supply voltages
7-3. Current consumption
Human Body Model (HBM) Min. Max. Unit
Contact - ±2kV
Air - ±15
7-4. ESD Information
Note 1 : IEC 61000-4-2 (150pF, 330R)
※Test condition : After 8-pin USB Cable connect to module, progress ESD test.
Current Consumption Min. Typ. Max. Unit
TX Mode ( 11ac/80MHz) - 480 1000
mA Idle and Associated state - 270 300
Radio disabled state - 60 70
Note 1 : This figure is the RMS(root mean square) Value.
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2016.04.26
MODEL NAME : TWCM-K305D (LGIT)
LGSBWAC72 (LGE)
REV. DATE : 2016.04.26
REV.NO : 1.0
WC42512
Copyrightⓒ. 2016. All Rights Reserved.
5/ 12
8. Pin Description
Pin No. Pin Name I/O Pin Description
1VCC I Power Supply 3.3V
2 USB D- I/O USB Communication signal USB D-
3 USB D+ I/O USB Communication signal USB D+
4 GND I Ground
5 WL_HOST_WAKE O Wake On WLAN
6VCC I Power Supply 3.3V
7 BT_REG_ON O BT Regulator ON
8 GND I Ground
9 BT_DEV _Wake O BT_DEV _Wake
10 BT_HOST _Wake O BT_HOST _Wake
11 GND I Ground
12 GND I Ground
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2016.04.26
MODEL NAME : TWCM-K305D (LGIT)
LGSBWAC72 (LGE)
REV. DATE : 2016.04.26
REV.NO : 1.0
WC42512
Copyrightⓒ. 2016. All Rights Reserved.
6/ 12
9. Mechanical Characteristics
1) Outline view
Item Test Conditions
Assembly No defects of wiring, soldering and assembling
Appearance No dirt, rust, corrosion or foreign material
2) Appearance structure
Item Test Conditions
Dimension As assembly drawing
Mounting As assembly drawing
Weight 9.85g
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2016.04.26
MODEL NAME : TWCM-K305D (LGIT)
LGSBWAC72 (LGE)
REV. DATE : 2016.04.26
REV.NO : 1.0
WC42512
Copyrightⓒ. 2016. All Rights Reserved.
7/ 12

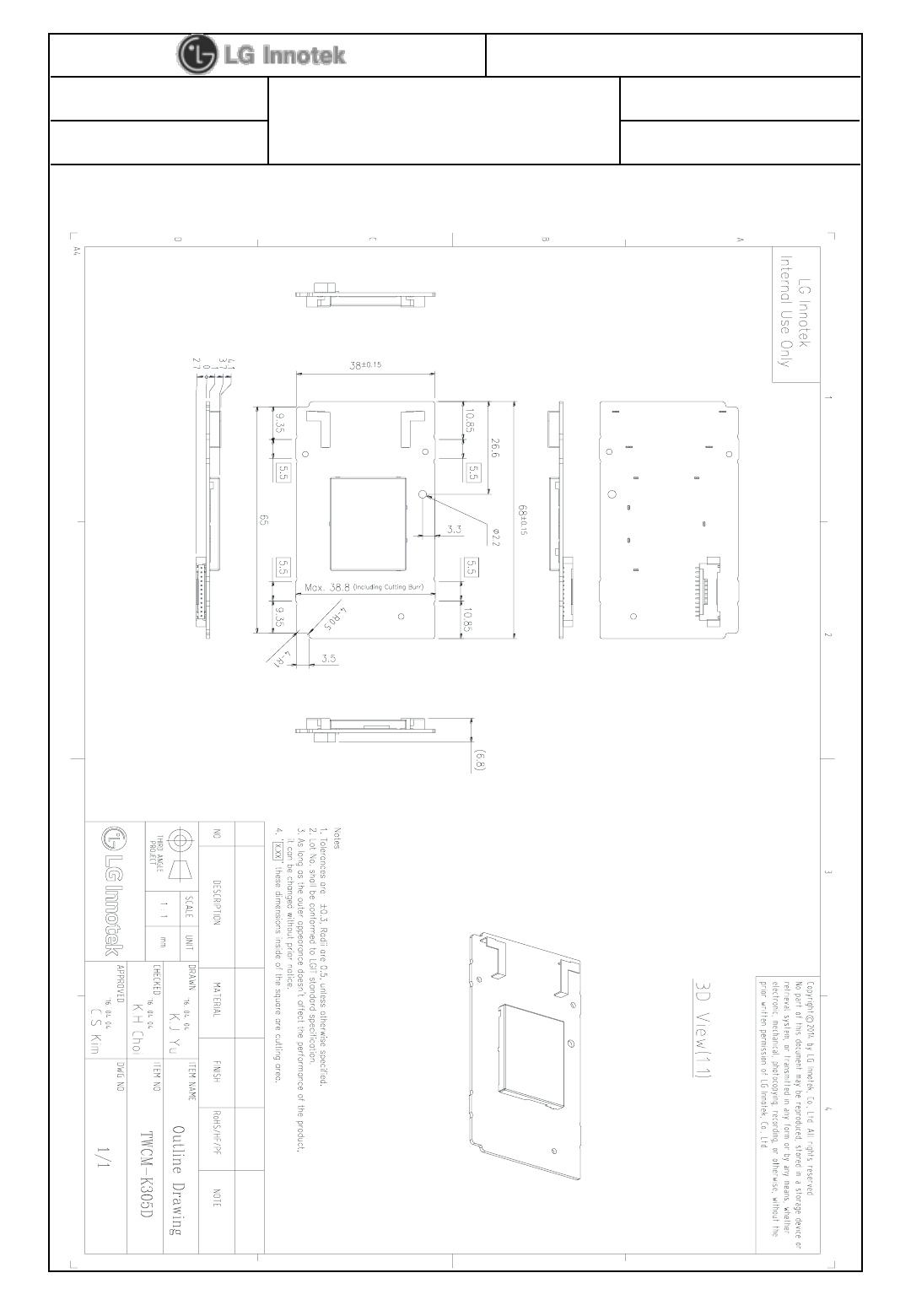

10. Outline Drawing
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2016.04.26
MODEL NAME : TWCM-K305D (LGIT)
LGSBWAC72 (LGE)
REV. DATE : 2016.04.26
REV.NO : 1.0
WC42512
Copyrightⓒ. 2016. All Rights Reserved.
8/ 12

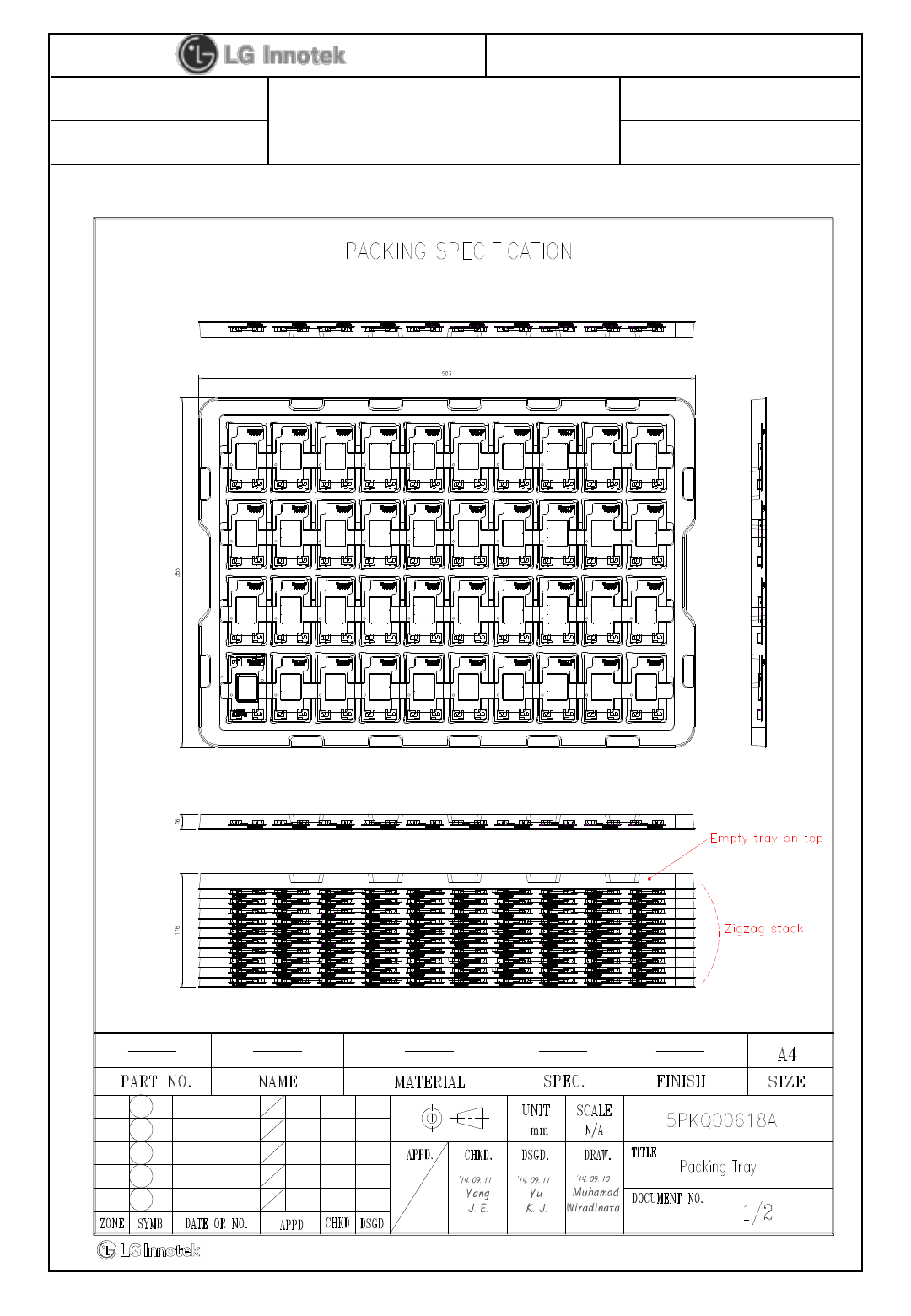

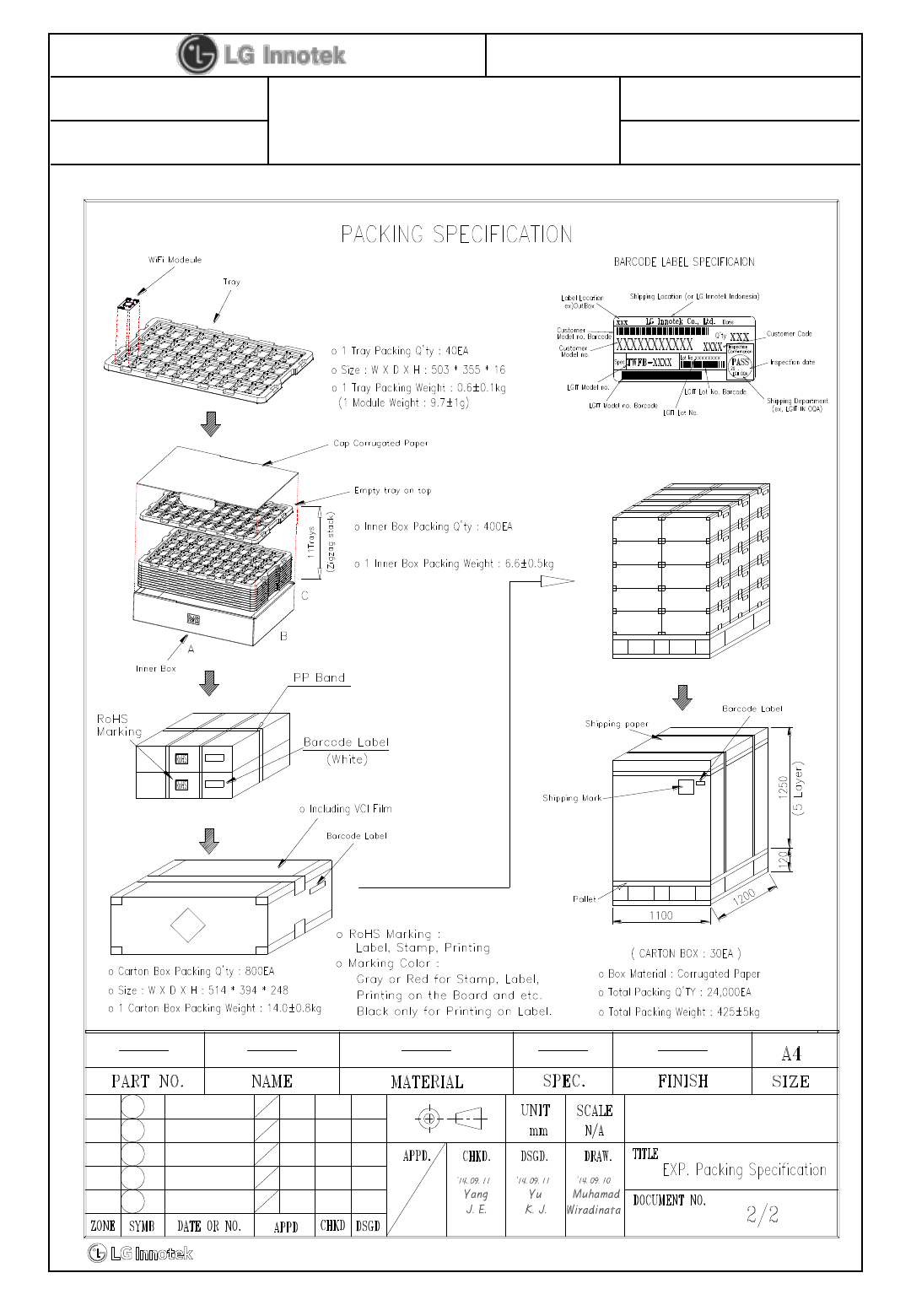

11. Packing Information
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2016.04.26
MODEL NAME : TWCM-K305D (LGIT)
LGSBWAC72 (LGE)
REV. DATE : 2016.04.26
REV.NO : 1.0
WC42512
Copyrightⓒ. 2016. All Rights Reserved.
9/ 12
TWCM-K305D
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2016.04.26
MODEL NAME : TWCM-K305D (LGIT)
LGSBWAC72 (LGE)
REV. DATE : 2016.04.26
REV.NO : 1.0
WC42512
Copyrightⓒ. 2016. All Rights Reserved.
10 / 12
12. Change History of Revision
Revision Date Contents of Revision Change Remark
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2016.04.26
MODEL NAME : TWCM-K305D (LGIT)
LGSBWAC72 (LGE)
REV. DATE : 2016.04.26
REV.NO : 1.0
WC42512
Copyrightⓒ. 2016. All Rights Reserved.
11 / 12
Regulatory Notices
1. FCC
FCC Part 15.19 Statements:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Part 15.21 statement
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment.
FCC Part 15.105 statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
OEM Responsibilities to comply with FCC and Industry Canada Regulations
The module has been certified for integration into products only by OEM integrators under the
following condition:
- The antenna(s) must be installed such that a minimum separation distance of at least 20 cm is
maintained between the radiator (antenna) and all persons at all times.
- The transmitter module must not be co-located or operating in conjunction with any other antenna
or transmitter except in accordance with FCC multi-transmitter product procedures.
As long as the two condition above is met, further transmitter testing will not be required. However,
the OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed (for example, digital device emissions, PC
peripheral requirements, etc.).
End Product Labeling
The module is labeled with its own FCC ID and IC Certification Number. If the FCC ID and IC
Certification Number are not visible when the module is installed inside another device, then the
outside of the device into which the module is installed must also display a label referring to the
enclosed module. In that case, the final end product must be labeled in a visible area with the
following:
“Contains FCC ID: BEJLGSBWAC72
“Contains IC: 2703H-LGSBWAC72”
S P E C I F I C A T I O N
PAGE :
DOCUMENT No :
REG. DATE : 2016.04.26
MODEL NAME : TWCM-K305D (LGIT)
LGSBWAC72 (LGE)
REV. DATE : 2016.04.26
REV.NO : 1.0
WC42512
Copyrightⓒ. 2016. All Rights Reserved.
12 / 12
2. IC
RSS-GEN, Sec. 7.1.3 –(licence-exempt radio apparatus)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit
pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
RF Exposure
The antenna (or antennas) must be installed so as to maintain at all times a distance minimum of
at least 20 cm between the radiation source (antenna) and any individual. This device may not be
installed or used in conjunction with any other antenna or transmitter.
l'exposition aux RF
L’antenne (ou les antennes) doit être installée de façon à maintenir à tout instant une distance
minimum de au moins 20 cm entre la source de radiation (l’antenne) et toute personne physique.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could
void your authority to operate thisequipment.Attention:
Les changements ou modifications de cet appareil non expressément approuvé par le fabricant
peuvent annuler votre droit à utiliser cet équipement.
É tiquetage du produit final (IC)
Le module BT111 est étiqueté avec sa propre identification FCC et son propre numéro de
certification IC. Si l’identification FCC et le numéro de certification IC ne sont pas visibles lorsque
le module est installé à l’intérieur d’un autre dispositif, la partie externe du dispositif dans lequel
le module est installé devra également présenter une étiquette faisant référence au module inclus.
Dans ce cas, le produit final devra être étiqueté sur une zone visible avec les informations
suivantes :
« Contient module émetteur identification FCC ID : BEJLGSBWAC72
« Contient module émetteur IC : 2703H-LGSBWAC72”
3. CE
Hereby, ' LG Electronics USA, Inc.' declares that this LGSBWAC72 is in compliance with the essential
requirements and other relevant provisions of directive 1999/5/EC.
