T541 Flat Panel Monitor
User Guide
ii
First Edition (June / 2002)
This publication could contain technical inaccuracies or typographical errors. Changes are made periodically to the information
herein; these changes will be made in later editions. IBM may make improvements and/or changes in the product(s) and/or
program(s) at any time.
It is possible that this publication may contain reference to, or information about, IBM products (machines and programs),
programming, or services that are not announced in your country.
Requests for copies of this publication and for technical information about IBM products should be made to your IBM Authorized
Dealer or IBM Retailer.
No part of this publication may be reproduced or distributed in any form or by any means without prior permission in writing from
the International Business Machines Corporation.
© Copyright International Business Machines Corporation 2002. All rights reserved.
Note to U.S. Government Users -- Documentation related to restricted rights -- Use, duplication or disclosure is subject to
restrictions set forth in GSA ADP Schedule Contract with IBM Corp.
Notices
References in this publication to IBM products, programs, or services do not imply that IBM intends to make these available in all
countries in which IBM operates. Any reference to an IBM product, program or service is not intended to state or imply that only
IBM’s product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe
any of IBM’s intellectual property rights or other legally protectable rights may be used instead of the IBM product, program, or
service. Evaluation and verification of operation in conjunction with other products, programs, or services, except those expressly
designated by IBM, are the user’s responsibility.
IBM may have patents or pending patent applications covering subject matter in this document. The furnishing of this document
does not give you any license to these patents.
Trademarks
The following terms, used in this publication, are trademarks or service marks of the IBM Corporation in the United States, other
countries, or both:
HelpCenter
IBM
ENERGY STAR is a U.S. Govt. registered trademark.
Microsoft, Windows, and Windows NT are trademarks of Microsoft Corporation in the United States, other countries, or both.
Other company, product, and service names may be trademarks or service marks of others.
Note : For important information, refer to the Monitor Safety and Warranty manual that comes with this monitor.
ENGLISH
1
Setting up the monitor ...............................................................................................2
System Hardware Requirements .........................................................................2
Handling Instructions ...........................................................................................2
Monitor Installation ....................................................................................................3
Connecting your Monitor......................................................................................3
Switching on your Monitor....................................................................................4
Monitor Driver Installation .........................................................................................5
Driver installation for Windows 95 or Windows 98...............................................5
Driver installation for Windows 2000 or Windows Me ..................................................6
Driver installation for Windows XP ................................................................................7
Image Setup for Analog Input ..................................................................................8
Auto Setup ...........................................................................................................8
AutoSetup for Windows 3.1, Windows 95, Windows 98, Windows 2000,
Windows Me, Windows XP or Windows NT
................................................................
9
Adjusting the image settings in DOS .................................................................10
Manually adjusting the image settings ...............................................................11
Ergonomic Considerations......................................................................................12
Workplace preparation.......................................................................................12
Working Practices ..............................................................................................12
Adjusting the Monitor Position ...............................................................................13
Caring for your Monitor ......................................................................................13
Adjusting Your LCD Monitor ...................................................................................14
User controls......................................................................................................14
On-screen display (OSD) controls .....................................................................15
Further Information ..................................................................................................18
Display modes ...................................................................................................18
Power Management...........................................................................................19
Troubleshooting .......................................................................................................20
Specifications ...........................................................................................................22
Contents
T541 Flat Panel Monitor User Guide
2
Setting up the monitor
Handling InstructionsHandling Instructions
1. Do not support the monitor within the screen area. The Liquid Crystal
Display is glass and can be damaged by rough handling or excessive
pressure.
2. Before using your monitor for the first time, remove the clear protective
film from the front of the screen.
System Hardware Requirements
This monitor requires a computer with a suitable on-board sub-system or
Video Adapter card that can support XGA 1024 x 768, SVGA 800 x 600, or
VGA 640 x 480 at 60Hz.
ENGLISH
3
Connecting your Monitor
Monitor Installation
1. Turn off your computer and all attached devices. Next, unplug the
power cord(s) to your computer and all attached devices.
2. Connect the signal cable.
The analog signal cable is already connected to your monitor. The
analog connector is the blue connector.

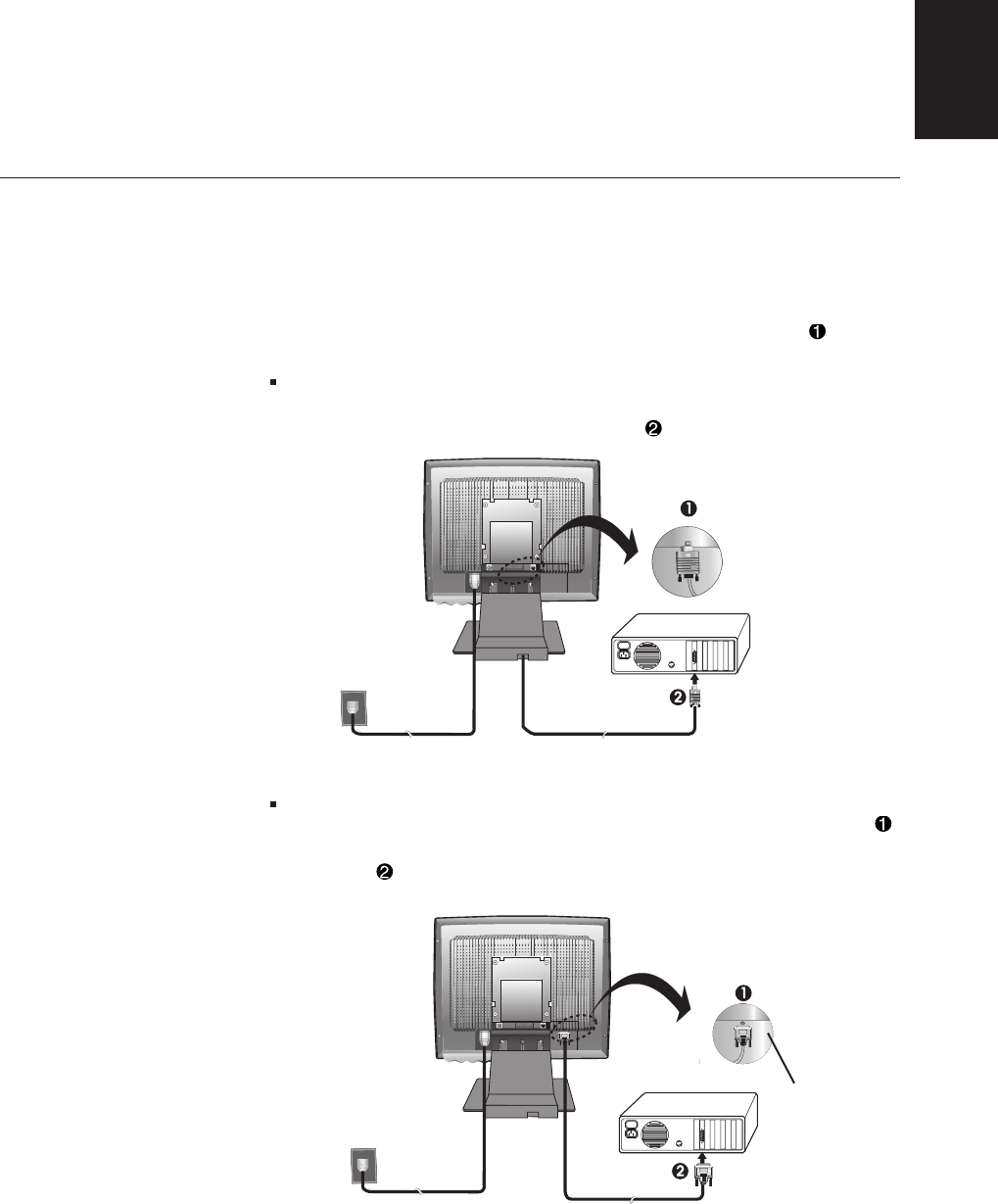

When connecting the analog signal cable (Figure A)
Connect the free end of the attached signal cable to the 15-pin Monitor
port on the computer and tighten screws.
If connecting a DVI-D digital signal cable (Figure B)
Connect one end of the monitor signal cable to the white connector
on the rear panel of the monitor. Connect the other end to the white
connector on the rear panel of the computer and tighten the screws.
(Figure B)
(Figure A)
Cable not supplied
(Optional)
4
1. Switch on your monitor by pushing and releasing the power switch marked [ ]
at the front of the bezel.
[To switch off your monitor, push and release the power switch again.]
2. Switch on your computer.
3. If you are using the analog connector, run AUTO SETUP by following the
instructions in the Auto Setup section on page 8.
Switching on your Monitor
3. Connect the power cord to the monitor and then plug the power cord into a
properly grounded outlet. Next, reconnect the power cord(s) to your computer
and all attached devices.
ENGLISH
5
To use the Plug and Play feature in Microsoft
®
Windows
®
95 or Windows
98, files should be loaded from the IBM Monitor CD.
1. Turn off the computer and all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then the system unit. Allow the system to boot
into Windows95 or Windows98.
Your computer’s Plug and Play code may warn you that your system
hardware has changed. This means that it has detected your new
monitor for the first time.
4. Open the DISPLAY PROPERTIES window by clicking START, SETTINGS,
CONTROL PANEL and then double - clicking on the DISPLAY icon.
5. Click the SETTINGS tab.
• In case of Windows 95 :
6 - 1. Click the CHANGE DISPLAY TYPE button.
2. Click the CHANGE MONITOR TYPE button.
• In case of Windows 98 :
6 - 1. Click the ADVANCED button.
2. Click the MONITOR tab.
3. Open the UPGRADE DEVICE DRIVER WIZARD window by clicking on
CHANGE button and then select the NEXT button.
4. Click the “Display a list of the known drivers for this device so that
I can choose a specific driver” and then select the NEXT button.
7. Insert the Setup CD into the CD driver: and click the HAVE DISK button.
8. Click OK.
9. Ensure that the CD drive letter is selected, and then select the ‘Drivers’
folder.
10.Choose IBM T541 monitor and Click OK. The files will be copied from
the CD to your hard disk drive.
11.Close all open windows and remove the CD.
12.Restart the system.
The system will automatically select the maximum refresh rate and
corresponding Color Matching Profiles.
Monitor Driver Installation
Driver installation for Windows 95 or Windows 98
This section must be
completed before
continuing with the
Windows95 or Windows98
Auto Setup on page 9.
i
On LCD monitors, unlike
CRTs, a faster refresh rate
does not improve display
quality. IBM recommends
using either 1024 x 768 at a
refresh rate of 60Hz or 640 x
480 at a refresh rate of 60Hz.
6
To use the Plug and Play feature in Microsoft Windows 2000 or Microsoft
Windows Millennium Edition(Me) files should be loaded from the IBM
Monitor CD.
1. Turn off the computer and all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then the system unit. Allow the system to boot
into Windows 2000 or Windows Me.
4. Open the DISPLAY PROPERTIES window by clicking START, SETTINGS,
CONTROL PANEL and then double-clicking the DISPLAY icon.
5. Click the SETTINGS tab.
6. Click the ADVANCED button.
7. Click the MONITOR tab.
8. Click the PROPERTIES button.
9. Click the DRIVER tab.
10.Open the UPGRADE DEVICE DRIVER WIZARD window by clicking on UPDATE
DRIVER and then Click the NEXT button.
11.Select the “Display a list of the known drivers for this device so that I can
choose a specific driver” and then Click the NEXT button.
12.Insert the Setup CD into the CD drive : and click the HAVE DISK button.
13.Click OK.
14.Ensure that the CD drive letter is selected, and then select the ‘Drivers’
folder.
15.Choose IBM T541 monitor and Click OK. The files will be copied from
the CD to your hard disk drive.
16.Close all open windows and remove the CD.
17.Restart the system.
The system will automatically select the maximum refresh rate and
corresponding Color Matching Profiles.
Driver Installation for Windows 2000 or Windows Me
This section must be
completed before
continuing with the
Windows2000 ,Windows Me
Auto Setup on page 9.
i
On LCD monitors, unlike
CRTs, a faster refresh rate
does not improve display
quality. IBM recommends
using either 1024 x 768 at a
refresh rate of 60Hz or 640 x
480 at a refresh rate of 60Hz.
ENGLISH
7
To use the Plug and Play feature in Microsoft Windows XP files should be
loaded from the IBM Monitor CD.
1. Turn off the computer and all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then the system unit. Allow the system to boot
into Windows XP.
4. Open the DISPLAY PROPERTIES window by clicking START, SETTINGS,
CONTROL PANEL and then double-clicking the DISPLAY icon.
5. Click the SETTINGS tab.
6. Click the ADVANCED button.
7. Click the MONITOR tab.
8. Click the PROPERTIES button.
9. Click the DRIVER tab.
10.Open the Hardware Update Wizard window by clicking on UPDATE
DRIVER and then Click the NEXT button.
11.Select the “Install from a list or Specific location(Advanced)” and then
Click the NEXT button.
12.Insert the Setup CD into the CD drive : and click the HAVE DISK button.
13.Click OK.
14.Ensure that the CD drive letter is selected, and then select the ‘Drivers’
folder.
15.Choose IBM T541 monitor and Click OK. The files will be copied from
the CD to your hard disk drive.
16.Close all open windows and remove the CD.
17.Restart the system.
The system will automatically select the maximum refresh rate and
corresponding Color Matching Profiles.
Driver Installation for Windows XP
This section must be
completed before
continuing with the
Windows XP Auto Setup on
page 9.
i
On LCD monitors, unlike
CRTs, a faster refresh rate
does not improve display
quality. IBM recommends
using either 1024 x 768 at a
refresh rate of 60Hz or 640 x
480 at a refresh rate of 60Hz.
8
For digital input, image setup is not required.
When you first use your monitor, you must perform Auto Setup for analog
input. If you are using digital input, continue with the instructions on page
12. This procedure sets up your monitor to process the video signals from
your computer without image discoloration or smearing. After you perform
Auto Setup, the settings are stored and used each time you turn on the
monitor.
In order to optimize the displayed image a set-up utility is provided on the
IBM Monitor CD. Operation of this utility is dependent on the operating
system on your computer. You may choose to run AUTO SETUP for each
operating system that you use. This means that if you sometimes use your
monitor while running any version of Windows and sometimes also use it
from within DOS (not a DOS window), you must run AUTO SETUP for both
Windows and DOS. You may run versions of AUTO SETUP in any order.
Before you begin AUTO SETUP for your computer, make sure the
computer video mode is set in the range of the supported screen
resolution shown in the table on page 18.
You should perform AUTO SETUP for each screen mode you use.
Image Setup for analog input
Auto Setup
Before carrying out this
section, it is very important
that the correct monitor
drivers have been
installed.(See pages 5and 7)
i
The Setup Utility included
on the setup CD displays a
test pattern of dots. It does not
replace or modify the display
drivers.
i
The Auto Setup instructions
require the monitor to be
warmed up for 15 minutes.
This is not required for normal
operation.
i
If your computer does not
run with the setup CD
shipped with the monitor, refer
to Manual Setup on page 11.
i
The AUTO SETUP process
only applies to the current
screen mode. When a new
mode is selected, repeat this
section to reset the monitor.
ENGLISH
9
1. Turn on the monitor first; then the computer.
If the message CHECK VIDEO CABLE is displayed, or if nothing is
displayed, check:
• that the video interface cable is not connected properly.
• the correct video adapter card is not installed.
2. Wait approximately 15 minutes, until the monitor warms up.
3. Ensure that the icon bar and tool bar, if displayed are at the bottom of
the screen.
4. Insert the CD labelled ‘IBM Monitor CD’ into the CD drive.
5. Check the operating system installed on your computer and follow the
instructions from the table below.
6. When the test pattern appears, press the Image Setup direct access
button at the bottom of the monitor to run the image setup.
7. To clear the Image Setup test pattern, press the ESC key on your
keybord.
You have completed the monitor setup for Windows. If you use other
operating systems, perform the appropriate AUTO SETUP for those systems
and also see Adjusting the image settings in DOS on page 10.
i
If the monitor is in standby
mode (STANDBY ON), it
may automatically turn off while
you are waiting for it to warm up.
i
The size and diversity of the
dot pattern varies with the
screen resolution.
i
Position the mouse pointer at
the bottom center of the
screen. This allows AUTO
SETUP to run properly
Step1
Open
PROGRAM
Manager
Select
START Select RUN
Select
RUN
Type
‘E:\TESTPAT’
and press
ENTER
Step2 Step3
Windows 3.1
Windows 95
Windows 98
Windows 2000
Microsoft Windows NT®4.0
Windows Me
Operating
System
Windows XP
AutoSetup for Windows 3.1, Windows 95, Windows 98, Windows 2000,
Windows Me, Windows XP or Windows NT
10
1. Turn on the monitor first; then the computer.
If the message CHECK VIDEO CABLE is displayed, or if nothing is
displayed, check:
• that the video interface cable is not connected properly.
• the correct video adapter card is not installed.
2. Wait approximately 15 minutes, until the monitor warms up.
3. Insert the CD labelled ‘IBM Monitor CD’ into the CD drive.
4. Display the command prompt screen of the DOS full-screen display.
5. At the command prompt, type the CD drive letter,and press ENTER.
6. Type ‘TESTPATD’ and press ENTER.
7. Select from the screen the number for the color or text mode you want
to setup.
8. Select from the screen the number for the video mode you want to
setup.
You may repeat this process for as many of the color and video modes
as you need.
9. When the test pattern appears, press the Image Setup direct access
button at the bottom of the monitor to run the image setup.
10. To clear the Image Setup test pattern, press the ESC key on your
keybord.
11. Type ‘Exit’ at the command prompt to return to Windows.
If you use other operating systems, perform the appropriate Image Setup
for those systems and also see
Image Setup Windows 3.1, Windows 95, Windows 98, Windows 2000,
Windows Me, Window XP or Windows NT workstation on page 9.
Adjusting the image settings in DOS
i
If the monitor is in standby
mode (STANDBY ON), it
may automatically turn off while
you are waiting for it to warm
up. If this happens, switch off
the monitor and switch it on
again after a few seconds.
i
If you are using PC-DOS/V,
change to U.S. mode by
typing ‘CHEV US’ and pressing
ENTER at the command
prompt.
You must use when you run
DOS Auto Setup.
i
The size and diversity of the
dot pattern varies with the
screen resolution.
i
If the screen flickers,
repeat the setup several
times until the flicker is
minimised, or adjust it manually
by following refer to
Manual Setup on page 11.
ENGLISH
11
Normally, you can complete the setup procedure using Image Setup, however,
if your screen image is still distorted after you perform Image Setup or the setup
CD does not run on your system, perform MANUAL SETUP.
1. Have your monitor turned on for about 15 minutes, until the monitor
warms up.
2. Display the image you most frequently use on the screen.
3. Press the OSD Enter button at the botton of the monitor to display
the initial OSD menu.
4. Use an Arrow button ( or ) to select the IMAGE SET-UP icon
and press the OSD Enter button to access the function.
5. Using an Arrow button ( or ), select MANUAL, press and then
press once to select COARSE. Left and right arrow adjustment
indicators become illuminated (see page 16).
6. Use the Arrow buttons to manually adjust to correct (as much as
possible) for jitter or noise in the image, then press to save the
changes.
7. Use an Arrow button to select FINE and press the button.
8. Use the Arrow buttons again to tune the image to your liking.
9. When finished, press the Exit button four times to exit from the
OSD.
You have completed the monitor setup.
Manually adjusting the image settings
i
If the monitor is in standby
mode (STANDBY ON), it
might automatically turn off
while you are waiting for it to
warm up.
12
i
This section gives advice
on how you can work
comfortably and reduce
fatigue.
Rest
Take regular breaks. Vary your posture, stand up and stretch occasionally
as prolonged use of computer workstations can be tiring.
Back
Sit back in your chair and use the backrest.
Hands
Use a light touch on the keyboard, keeping your hands and fingers relaxed.
Allow a space in front of the keyboard to rest your wrists when not typing.
Consider using a wristpad.
Eyesight
Working with monitors, in common with any prolonged close work, can be
visually demanding. Look away from the screen periodically and have your
eyesight checked regularly.
Screen settings
Set the screen brightness and contrast to a comfortable level. You may
have to adjust these settings as the lighting changes during the day. Many
application programs let you select color combinations which can help you
to view in comfort. See the User controls section on page 14 for more
information.
Working Practices
i
This section gives advice
on what you should
consider before you set up
your monitor.
Workplace Preparation
Height
Position the monitor so that the top of the screen is slightly below your eye
level when you sit at your workstation.
Orientation
- Choose a position that gives the least reflection from lights and windows,
usually at a right angle to any windows.
- Positon the monitor directly in front of you so that you do not have to twist
your body to use it.
- Tilt the monitor to a comfortable viewing angle.
Ergonomic Considerations
ENGLISH
13
Be sure to turn off the power before you perform any maintenance on the
monitor. Clean your monitor as follows:
• Gently wipe the covers and the screen with a soft cloth.
• Remove finger marks and grease with a damp cloth and mild detergent.
• Never use flammable cleaning materials to clean your IBM monitor or
any other electrical apparatus.
Caring for your Monitor

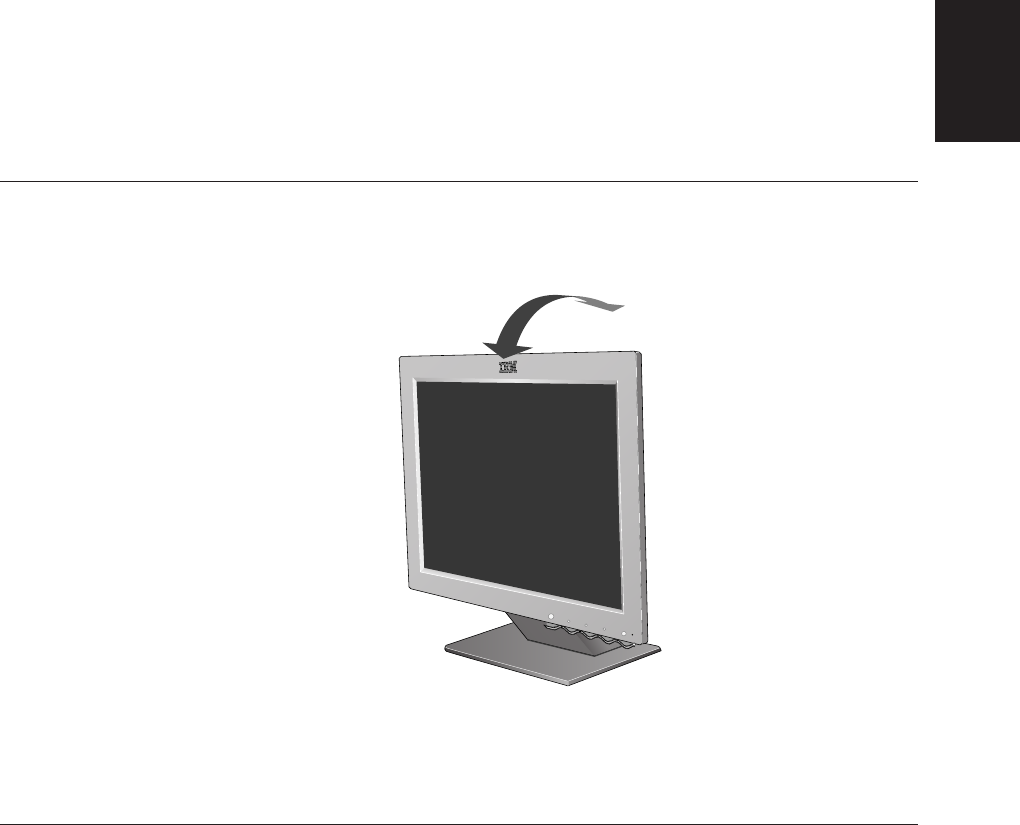

Viewing Angle
You can tilt the screen forward and backward as shown below.
i
With the IBM Flat Panel
Monitor, you can adjust its
position in various ways for
maximum comfort.
Adjusting the Monitor Position
(Figure A)
14
Adjusting Your LCD Monitor
User controls

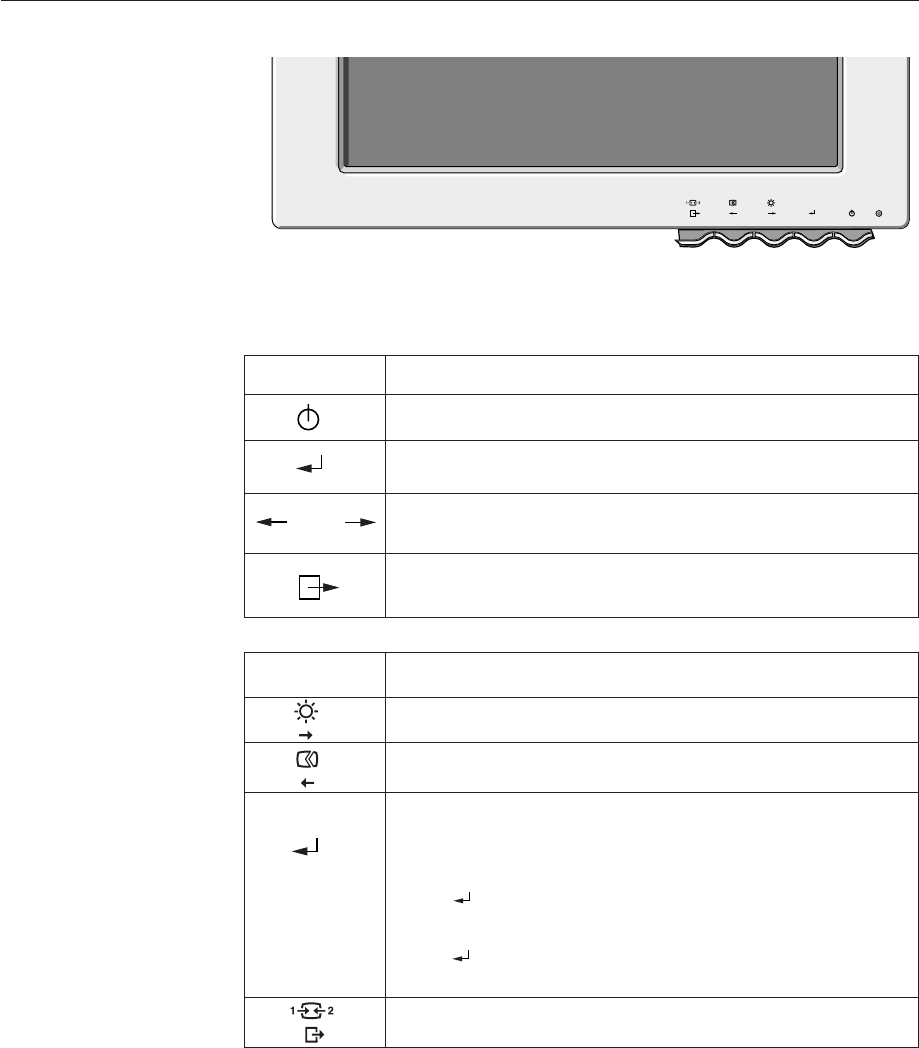

USER CONTROL FEATURES
Icon Direct Access Functions
i
The image is already
optimized for many display
modes, however the user
controls can be used to adjust
the image to your liking.
i
The settings are saved
after adjustment and
when exiting the OSD and
will be effective thereafter.
Switches the monitors on and off.
Bring up Brightness adjustment.
Bring up auto image setup.
Switch between input signals.
Icon Monitor controls
and
Display main OSD menu and selects highlighted menu item.
Moved the cursor to highlight icons or make adjustments.
Exits from current OSD menu.
CONTROLS LOCK / UNLOCK
This feature allows you to secure the current control settings,
while allowing the user to adjust Brightness or Contrast, so that
they cannot be inadvertently changed. Push and hold the enter
button[ ] for 10 seconds; the message “Controls Locked”
appears.
You can unlock the OSD controls at any time by pushing the enter
button[ ] for 10 seconds; the message “Controls Unlocked” will
appear.
ENGLISH
15
The settings adjustable with the user controls are viewed through the On -
Screen Display (OSD). Press the enter button [ ] to display the main OSD
menu.
Initial appearance of OSD
main menu;
On-screen display (OSD) controls
i
The LCD monitor needs
time to become thermally
stable the first time you turn it
on each day. Thus, to achieve
more accurate adjustments for
parameters, allow the LCD
monitor to warm up (be On) for
at least 15 minutes before
making any screen adjustment.

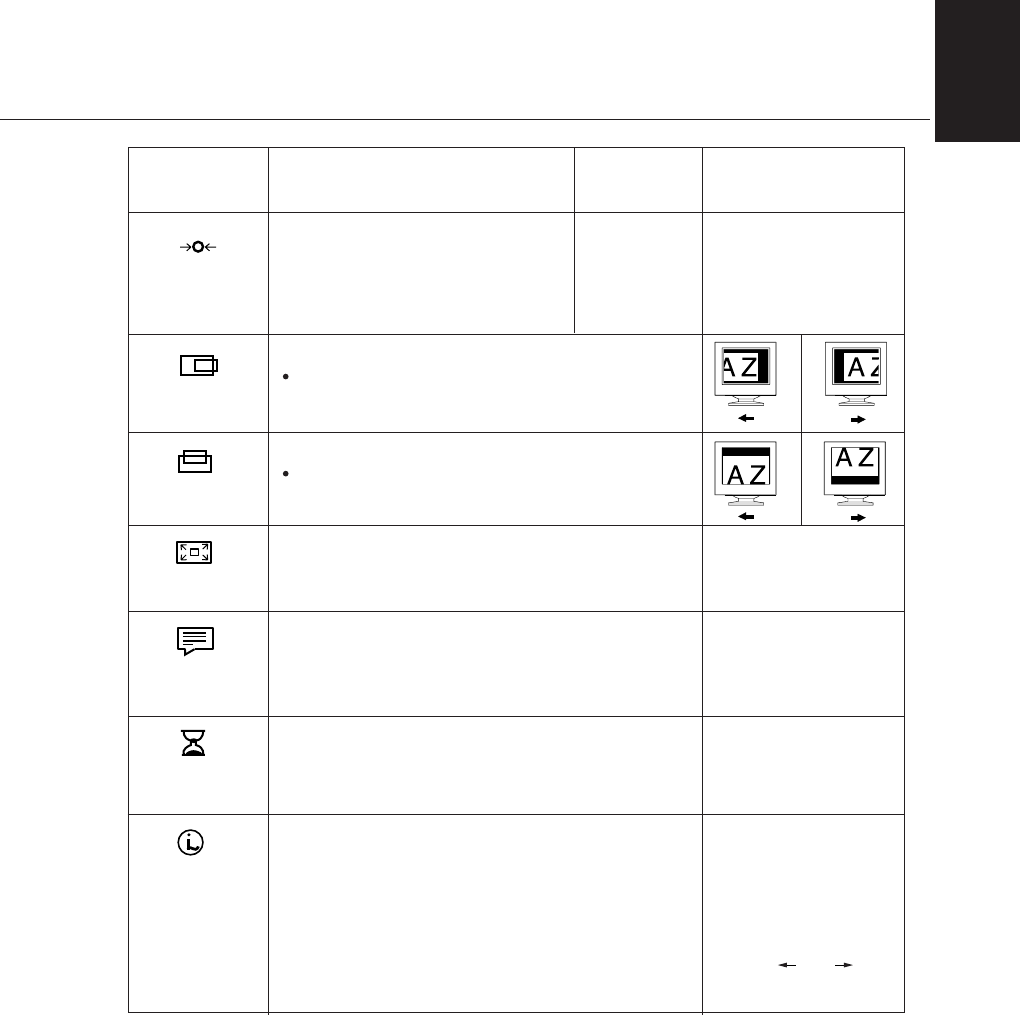

OSD functions
OSD Icon Description sub-menu(s)
AUTO If AUTO is selected the
image will automatically
adjust
Control and
Adjustments
Adjusts brightness
Adjusts contrast
The IMAGE SET-UP function is used
to adjust the level of noise in the video
signal which causes horizontal lines or
areas on the screen where the image
appears to be unstable and jitters or
shimmers. This can be done
automatically or manually.
It is not applicable to digital input.
BRIGHTNESS
CONTRAST
IMAGE SET-UP
sub menu;
Analog Signal input Digital Signal input
16
OSD Icon
Select the COLOR MODE you find
most comfortable or fine tune the
colors using the USER COLOR MODE
menu, if necessary.
Description Sub-menu(s)
MANUAL
• Fine
• Coarse
Preset 1
(Pink White)
Preset 2
(Normal White)
Preset 3
(Blue White)
Increases or decreases
redness
Increases or decreases
greenness
Increases or decreases
blueness
COLOR MODE
USER COLOR
MODE-
•
Red
•
Green
•
Blue
To adjust the focus of the
display. This item allows
you to remove any
horizontal noise and clear
or sharpen the image of
characters.
Fine adjustments should
be done after adjusting the
Coarse .
If manual is selected, the user will go
to the manual adjustment screen.
Controls and
Adjustments
Changes the position of the OSD on the
screen.
OSD Position
H-POSITION
V-POSITION
COLOR
IMAGE SET-UP
CONT
ENGLISH
17
OSD Icon Sub-menu(S)
• YES
• NO
Controls and
Adjustments
Description
RESET
OSD SIZE
Language
Changes the size of the OSD menu on the screen.
The language chosen affects only the language of the OSD.
Select one of the five language to use for the OSD.
It has no effect on any software running on the computer.
• ENGLISH
• FRANCAIS
• DEUTSCH
• ITALIANO
• ESPANOL
• SMALL
• MEDIUM
• BIG
• INFORMATION
• PRESET MODES
• USER MODES
Use the and
buttons to move between
information screens.
Information
Display model name, serial number, year of manufacture
and microcode level.
Display all preset modes stored in the monitor.
Display all user modes stored in the monitor.
The current display mode will be shown at the base of all
information screens.
OSD TIME
To select OSD display duration time.
(5 - 60 seconds)
H-POSITION
V-POSITION
Reset should return all available functions
(apart from language which should not
change unless adjusted via the
LANGUAGE menu) fo their factory
presets.
Moves the screen left and right .
Is not availible with a digital input
Moves the screen up and down.
Is not availible with a digital input
18
i
If your computer has
previously been used with
a CRT monitor and is currently
configured to a display mode
outside the range that the Flat
Panel monitor can display, you
may need to re-attach the CRT
monitor temporarily until you
have reconfigured the
computer, preferably to 1024 x
768 at 60Hz.
The display mode the monitor uses is controlled by the computer. Therefore,
you should refer to your computer documentation for details on how to
change display modes.
The image size, position and shape may change when the display mode
changes. This is normal and the image can be readjusted using AUTO SETUP
and the monitor controls.
Unlike CRT monitors, which require a high refresh rate to minimize flicker,
TFT technology is inherently flicker-free. If possible, configure your computer
for 1024 x 768 addressability at 60Hz vertical refresh rate.
For the display modes listed below, the screen image has been optimized
during manufacture.
Factory Set Display Modes
Further Information
Display modes
Addressabillty Refresh Rate Horizontal
Frequency
640 x 480 60 Hz 31.5 kHz
640 x 480 66 Hz 35.0 kHz
640 x 480 75 Hz 37.5 kHz
640 x 350 70 Hz 31.5 kHz
720 x 400 70 Hz 31.5 kHz
800 x 600 56 Hz 35.2 kHz
800 x 600 60 Hz 37.9 kHz
800 x 600 72 Hz 48.1 kHz
800 x 600 75 Hz 46.9 kHz
832 x 624 75 Hz 49.7 kHz
1024 x 768 † 60 Hz 48.4 kHz
1024 x 768 70 Hz 56.5 kHz
1024 x 768 75 Hz 60.0 kHz
Note : VESA timings are as detailed in the VESA “Display Monitor Timing
Specification”. Version 1.0, Revision 0.8, Dated 09/17/98.
† Recommended
ENGLISH
19
To benefit from power management, the monitor must be used in
conjunction with a computer that implements the Video Electronics
Standards Association (VESA) Display Power Management Signaling
(DPMS) Standard.
The power management feature is invoked when the computer recognizes
that you have not used your mouse or keyboard for a user-definable period.
There are several states as described in the table below.
As an ENERGY STAR 2000®Partner, IBM has determined that this product
meets the ENERGY STAR 2000®guidelines for energy efficiency.
IBM recommends that you switch off your monitor at the end of each
working day, or whenever you expect to leave it unused for long periods
during the day.
Power Management
On
Active off
State Power
Indicator
Steady green Normal
Blank
Steady amber
Screen Restoring
Operation Compliance
Press a key or
move the mouse.‡
ENERGY
STAR 2000®
‡ There may be a slight delay before the picture reappears.
20
Troubleshooting
If you have a problem setting up or using your monitor, you may be able
to solve it yourself. Before calling your retailer or IBM, try the suggested
actions that are appropriate to your problem.
Problem
No power to
monitor.
Possible
Cause Suggested Action Reference
Brightness
and Contrast
may be too
low.
The monitor is
in the Power
Management
Standby state.
Screen is
blank and
power
indicator is off.
Screen is blank
and power
indicator is
steady green.
Screen is blank
and power
indicator is
steady amber.
User
controls
section on
page 14.
Power
Management
section on
page 19.
Connecting
your
Monitor
section on
page 3.
•Adjust brightness and contrast.
•Press any key on the keyboard
or move the mouse to restore
operation.
•Check the Power Management
software on your computer.
•Press the to switch between
analog and digital mode. If the
panel is the wrong mode for
the signal being provided, the
monitor appears to go into
sleep mode.
• Ensure that the electrical outlet
and the monitor are both
switched on.
• Check that the power cord
is firmly plugged into the
electrical outlet and the power
supply unit.
• If the power cord plug has
a removalble fuse, replace it.
• Try another power cord.
• Try another electrical outlet.
• Check the power connection at
the back of the panel.
ENGLISH
21
i
For image problems, you
may want to run AUTO
SETUP again before
consulting to this section. In
most cases, AUTO SETUP
can fix the problems. See
Auto Setup for the computer
on page 8for details.
Problem Possible
Cause Suggested Action Reference
There are noises
in the video
signal
The color setting
may be incorrect.
The LCD contains over 2,300,000 thin-film transistors (TFTs).
A small number of missing, discolored, or lighted dots may be
present on the screen, which is an intrinsic characteristic of the
TFT LCD technology and is not an LCD defect.
Screen is blank
and power
indicator is
flashing green
every 0.5
second
CHECK
VIDEO
CABLE
message is
shown and
power indicator
is steady amber.
Image appears
to be smeared
Image appears
to be discolored
A few dots are
missing,
discolored, or
inappropriately
lighted.
User
Controls
section on
page 14.
User
Controls
section on
page 14.
•Select IMAGE SET-UP menu
in the OSD. Then select
MANUAL to adjust FINE /
COARSE settings.
•Adjust the Color settings.
Connecting
your monitor
section on
page 3.
•Check that the signal cabel
is firmly connected to the
computer.
• Check that no pins are bent
in the signal cable connector.
The monitor is
not receving a
video signal
Display mode of
the
computer
is
outside the
range of the
monitor
•Reconfigure key on the
computer to use a supported
display mode.
Further
Information
section on
page 18.
22
This color monitor (Type-model 9512-Hxx) uses a 15-inch TFT LCD.
i
Power consumption figures
are for the monitor and the
power supply combined.
Weight 4.3 kg (9.48 lbs)
15-inch (381.0 mm)
304.1 mm
228.1 mm
0.297 mm (H) x 0.297 mm (V)
100 - 240 Vac 60/50 ± 3Hz
0.6A
< 35 W
< 3 W
< 1 W
Analog-75 ohm 0.7V
Digital-DVI 1.0
1024 pixels (max)
768 lines (max)
80 MHz (Digital)
80 MHz(Analog)
IBM, VESA, MAC
See Factory Set Display
Modes on page 18.
See Display Mode Ranges on
page 23.
Analog - Separate, Composite,
SOG
Digital-DVI 1.0
10 to 35°C
- 20 to 60°C
- 20 to 60°C
10 to 80%
5 to 95%
5 to 95%
Power Input
Power
Consumption
Video Input
Communications
Sync Input
VESA DDC:
Type
2B, 2AB
Supported Display
Modes
Environment
Viewable Image Size:
Maximum Height:
Maximum Width:
Pixel Pitch:
Supply Voltage:
Rated Current:
Normal Operation:
Active off:
Off:
Input Signal:
Horiz. Addressability:
Vert. Addressability:
Clock Frequency:
Standard modes :
Horiz / Vert Freq:
Temperature:
Operating:
Storage:
Shipping:
Humidity:
Operating:
Storage:
Shipping:
Specifications
365.2 mm
202.7 mm
355.3 mm
Dimensions Width:
Depth:
Height:
ENGLISH
23
Addressabillty Refresh Rate /
Range ( + / - 3%)
Horizontal Frequency /
Range ( + / - 3%)
640 x 480 58.2 ~ 61.8 Hz 30.56 ~ 31.45 kHz
640 x 480 64.0 ~ 68.0 Hz 34.95 ~ 36.05 kHz
640 x 480 72.8 ~ 77.3 Hz 36.38 ~ 38.63 kHz
640 x 350 67.9 ~ 72.1 Hz 30.56 ~ 31.45 kHz
720 x 400 67.9 ~ 72.1 Hz 30.56 ~ 31.45 kHz
800 x 600 54.3 ~ 57.7 Hz 34.14 ~ 36.26 kHz
800 x 600 58.2 ~ 61.8 Hz 36.76 ~ 39.04 kHz
800 x 600 69.8 ~ 74.2 Hz 46.66 ~ 49.54 kHz
800 x 600 72.8 ~ 77.3 Hz 45.49 ~ 48.31 kHz
832 x 624 72.8 ~ 77.3 Hz 48.21 ~ 51.19 kHz
1024 x 768 58.2 ~ 61.8 Hz 46.95 ~ 49.85 kHz
1024 x 768 67.9 ~ 72.1 Hz 54.81 ~ 58.20 kHz
1024 x 768 72.8 ~ 77.3 Hz 58.20 ~ 61.80 kHz
Display Mode Ranges
Compliances
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult an IBM authorized dealer or service representative for help.
Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits.
Proper cables and connectors are available from IBM authorized dealers. IBM is not responsible for any radio
or television interference caused by using other than recommended cables and connectors or by
unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could void
the user’s authority to operate the equipment.
Declaration of Conformity Trade name
Trade name: IBM Corporation
Model Nos.: 9512-HW0 and 9512-HB0
Responsible Party: LG Electronics USA Inc.
Address: 6133 North River Road Suite 1100 (Riverview Plaza) Rosemont, Illinois, 60018
Telephone No.: 847-692-4630 ext 329
This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Power Cords
For your safety, IBM provides a power cord with a grounded attachment plug to use with this IBM product. To
avoid electrical shock, always use the power cord and plug with a properly grounded power outlet.
IBM power cords used in the United States and Canada are listed by the Underwriter’s Laboratories (UL) and
certified by the Canadian Standards Association (CSA).
For units intended to be operated at 115 volts: Use a UL-listed and CSA-certified cord set consisting of a
minimum 18 AWG, Type SVT or SJT, three-conductor cord, a maximum of 15 feet in length and a parallel
blade, grounding-type attachment plug rated 15 amperes, 125 volts.
For units intended to be operated at 230 volts (U.S. use): Use a UL-listed and CSA-certified cord set
consisting of a minimum 18 AWG, type SVT or SJT, three-conductor cord, a maximum of 15 feet in length
and a tandem blade, grounding-type attachment plug rated 15 amperes, 250 volts.
For units intended to be operated at 230 volts (outside the U.S.): Use a cord set with a grounding-type
attachment plug. The cord set should have the appropriate safety approvals for the country in which
the equipment will be installed.
APPENDIX
IBM power cords for a specific country or region are usually available only in that country or region.
Used in these countries or regions
IBM power cord part
number
13F9959
1838576
13F9978
13F9996
14F0050
14F0086
14F0068
14F0014
14F0032
Antigua, Aruba, Bahamas, Barbados, Belize, Bermuda, Bolivia,
Brazil, Caicos Island, Canada, Cayman Islands, Costa Rica,
Columbia, Dominican Republic, Guam, Ecuador, El Salvador,
Guatemala, Haiti, Honduras, Jamaica, Japan, Mexico, Netherlands
Antilliles, Nicaragua, Panama, Peru, Phillipines, Saudi Arabia,
Thailand, Taiwan, United States, Venezuela
Antigua, Aruba, Bahamas, Barbados, Belize, Bermuda, Bolivia,
Brazil, Caicos Island, Canada, Cayman Islands, Costa Rica,
Columbia, Dominican Republic, Guam, Ecuador, El Salvador,
Guatemala, Haiti, Honduras, Jamaica, Japan, Mexico, Netherlands
Antilliles, Nicaragua, Panama, Peru, Phillipines, Taiwan, United
States, Venezuela
Afghanistan, Albania, Algeria, Andorra, Angola, Armenia, Austria,
Azerbaidjan, Belarus, Benin, Belgium, Bosnia, Burkina Faso,
Burundi, Cameroon, Cambodia, Cape Verde, Central African
Republic, Chad, Congo (Republic of), Comoros, Congo
(Democratic Republic of), Cote D'Ivoire (Ivory Coast), Croatia,
Czech Rep, Dahomey, Djibouti, Equatorial Guinea, Eqypt, Eritrea,
Estonia, Ethiopia, Finland, France, French Guyana, French
Polynesia, Gabon, Georgia, Germany, Greece, Guadeloupe,
Guinea, Guinea Bissau, Hungary, Iceland, Indonesia, Iran,
Kazakhstan, Korea (South), Kyrgyzstan, Laos, Latvia, Lebanaon,
Lithuania, Luxemborg, Macedonia, Madagascar, Mali, Martinique,
Mauritania, Mauritus, Mayotte, Moldavia, Monaco, Mongolia,
Morocco, Mozambique, Netherlands, New Caledonia, Niger,
Nigeria, Norway, Poland, Portugal, Reunion, Romania, Russia,
Rwanda, Sao Tome, Saudi Arabia, Senegal, Serbia, Slovakia,
Solvenia, Somalia, Spain, Suriname, Sweden, Syria, Tajikistan,
Togo, Tunisia, Turkey, Turkmenistan, Ukraine, Upper Volta, USSR
(C.I.S.), Uzbekistan, Vanuatu, Vietnam, Wallia and Futuna,
Yugoslavia, Zaire
Denmark
Lichtenstein, Switzerland
Israel
Chile, Italy, Libya
Bangladesh, India, Lesotho, Maldives, Nambia, Nepal, Pakistan,
Samoa, South Africa, Sri Lanka, Swaziland, Uganda
Bahrain, Brunei, Botswana, Channel Islands, Cyprus, Dominica,
Gambia, Ghana, Grenada, Guyana, Hong Kong, Iraq, Ireland,
Jordan, Kenya, Kuwait, Liberia, Malawi, Malaysia, Malta, Myanmar
(Burma), Nigeria, Oman, Qatar, Seychelles, Saint Kitts & Nevis,
Saint Lucia, Saint Vincent and the Grenadines, Sierra Leone,
Singapore, Sudan, Tanzania, Trinidad & Tobago, United Arab
Emirate (Dubai), United Kingdom, Yemen, Zambia, Zimbabwe
Industry Canada Class B emission compliance statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel
brouilleur du Canada.
Avis de conformité à la réglementation d'Industrie Canada
Cet appareil numérique de classe B est conforme à la norme NMB-003 du Canada.
TCO Compliances Section
Congratulations!
You have just purchased a TCO’95 or TCO’99 approved and labeled product! Your choice has
provided you with a product developed for professional use. Your purchase has also contributed to
reducing the burden on the environment and also to the further development of environmentally
adapted electronics products.
Why do we have environmentally labeled computers?
In many countries, environmental labeling has become an established method for encouraging the
adaptation of goods and services to the environment. With the growing manufacture and usage of
electronic equipment throughout the world, there is a recognized concern for the materials and
substances used by electronic products with regards to their eventual recycling and disposal. By proper
selection of these materials and substances, the impact on the environment can be minimized.
There are also other characteristics of a computer, such as energy consumption levels, that are
important from the viewpoints of both the work (internal) and natural (external) environments. Electronic
equipment in offices is often left running continuously, resulting in unnecessary consumption of large
amounts of energy and additional power generation. From the standpoint of carbon emissions alone, it
is vital to save energy.
Models 9512-HB0 comply with TCO ’95 guidelines.
Models 9512-HW0 comply with TCO ’99 guidelines
APPENDIX
Used in these countries or regions
IBM power cord part
number
13F9939
02K0545
36L8879
Australia, Fiji, New Zealand, Papua New Guinea
China
Argentina, Paraguay, Uruguay
What does labeling involve?
This product meets the requirements for the TCO’95 or TCO’99 scheme which provides for
international and environmental labeling of personal computers. The labeling scheme was developed
as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska
Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet
(The Swedish National Energy Administration)
Approval requirements cover a wide range of issues: environment, ergonomics, emission of electric
and magnetic fields, energy consumption and electrical safety.
Environmental criteria impose restrictions on the presence and use of heavy metals, brominated and
chlorinated flame retardants, CFCs (freons) and chlorinated solvents, and other materials . The product
must be prepared for recycling and the manufacturer is obliged to have an environmental policy which
must be adhered to in each country where the company implements its operational policy.
Energy requirements include a demand that the computer and/or display, after a certain period of
inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time
to reactivate the computer shall be reasonable for the user.
Labeled products must meet strict environmental demands, for example, in respect of the reduction of
electric and magnetic fields as well as physical and visual ergonomics.
Below you will find a brief summary of the environmental requirements met by this product. The
complete environmental criteria document may be ordered from:
TCO Development
SE-114 94 STOCKHOLM, Sweden
Fax: +46 8 782 92 07
E-mail (Internet): development@tco.se
Current information regarding TCO’99 approved and labeled products may also be obtained via the
Internet, using the address: http://www.tcodevelopment.com/
Environmental requirements
Flame retardants
Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their
purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer
casing can consist of flame retardant substances. Most flame retardants contain bromine or chlorine,
and those flame retardants are chemically related to PCBs. Both the flame retardants containing
bromine or chlorine and the PCBs are suspected of giving rise to health effects, including reproductive
damage in fish-eating birds and mammals, due to the bio-accumulative* processes when not disposed
of in accordance with strict standards for disposal.
________________________________
*Bio-accumulative is defined as substances which accumulate within living organisms.
The relevant TCO’99 demand requires that plastic components weighing more than 25 grams must not
contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in
the printed circuit boards since no substitutes are available.
Cadmium**
Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer
displays.
The relevant TCO’99 requirement states that batteries, the colour-generating layers of display screens
and the electrical or electronics components must not contain any cadmium.
Mercury**
Mercury is sometimes found in batteries, relays and switches. The relevant TCO’99 requirement states
that batteries may not contain any mercury. It also demands that mercury is not present in any of the
electrical or electronics components associated with the labeled unit. There is however one exception.
Mercury is, for the time being, permitted in the back light system of flat panel monitors as there today is
no commercially available alternative. TCO aims on removing this exception when a mercury free
alternative is available.
CFCs (freons)
The relevant TCO’99 requirement states that neither CFCs nor HCFCs may be used during the
manufacture and assembly of the product or in its packaging. CFCs (freons) are sometimes used for
washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the
stratosphere, causing increased reception on earth of ultraviolet light. This restriction assures that
further damage to the ozone layer form this type of equipment will be eliminated.
Lead**
Lead can be found in picture tubes, display screens, solders and capacitors. The relevant TCO’99
requirement permits the inclusion of lead since no replacement has yet been developed.
_____________________________
**Lead, Cadmium and Mercury are heavy metals which are bio-accumulative.
Energy Star Compliances Section
Congratulations!
You have just purchased an ENERGY STAR qualified product
What is an ENERGY STAR (R) qualified product?
The ENERGY STAR program is a voluntary partnership between the U.S. Environmental Protection
Agency / Dept. of Energy and Partners to reduce pollution and save energy. An ENERGY STAR
qualified product meets or exceeds the energy criteria defined in an MOU (Memorandum of
Understanding) for that product category. As an ENERGY STAR Partner, IBM offers ENERGY STAR
qualified computers, monitors and printers that meet the growing performance and networking needs of
customers while reducing energy use, saving you money and improving the environment.
IBM is a recognized leader in providing energy efficient office products. In 1998 and 1999, IBM
received the ENERGY STAR Computer Partner of the Year award in the office equipment category and
in 2001, IBM received the first ENERGY STAR Excellence in Corporate Commitment award. ENERGY
STAR products save you more -- look for the ENERGY STAR label and program information on IBM
products, product literature, Web sites, packaging and promotional material.
ENERGY STAR (R)
Current criteria and information regarding the ENERGY STAR program can be found at
http://www.energystar.gov
APPENDIX
As an ENERGY STAR Partner, IBM
Corporation has determined that this
product meets the ENERGY STAR
guidelines for energy efficiency
MPRII
This product complies with Swedish National Council for Metrology (MPR) standards issued in
December 1999 (MPRII) for very low frequency (VLF) and Extremely low frequency (ELF) emissions.
Electronic emission notices
Hinweise
Gemäß der Amtsblätter des BMPT Nm. 61Ú1991 und 6Ú1992 wird der Betreiber darauf aufmerksam
gemächt, daß die von ihm mit diesem Gerät zusammengestellte Anlage auch den technischen
Bestimmungen dieser Amtsblätter genügen muß.
Aus ergonomischen Gründen wird empfohlen, die Grundfarbe Blau nicht auf dunklem Untergrund zu
verwenden (schlechte Erkennbarkeit, Augenbelastung bei zu geringem Zeichenkontrast).
Aus ergonomischen Gründen sollten nur Darstellungen auf dunklem Hintergrund bei
Vertikalfrequenzen ab 60 Hz (ohne Zeilensprung) benutzt werden.
Die Konvergenz des Bildes kann sich auf Grund des Magnetfeldes am Ort der Aufstellung aus der
Korrekten Grundeinstellung verändern. Zur Korrektur empfiehlt es sich deshalb, die Regler an der
Frontseite für H STAT und V STAT so einzustellen, daß die getrennt sichtbaren Farblinien für Rot.
Grün und Blau bei z.B. der Darstellung eines Buchstabens zur Deckung (Konvergenz) gelangen. Siehe
hierzu auch die Erklärungen zu H STAT und V STAT.
European Union (EU) Statement
This product is in conformity with the protection requirements of the EU Council Directive 89/366/ECC
on the approximation of the laws of the Member States relating to electromagnetic compatibility
IBM can not accept responsibility for any failure to satisfy the protection requirements resulting from a
non-recommended modification of the product, including the fitting of non-IBM option cards.
This product has been tested and found to comply with the limits for Class B Information Technology
Equipment according to CISPR 22 Ú European Standard EN55024:1998. The limits for Class B
equipment were derived for typical residential environments to provide reasonable protection against
interference with licensed communication devices.
Properly shielded and grounded cables and connectors must be used in order to reduce the potential
for causing interference to radio and TV communications and to other electrical or electronic
equipment. Such cables and connectors are available from IBM authorised dealers.
In accordance with EN 55024:1998 1992, Performance Criterion A:, it should be noted that in the
presence of certain electromagnetic fields, some screen jitter may be observed.
Spécifications de la CEE
Ce produit est conforme aux exigences de protection de la directive 89/ 336/ EEC du Conseil de l’UE
sur le rapprochement des lois des États membres en matière de compatibilité électromagnétique.
IBM ne peut accepter aucune responsabilité pour le manquement aux exigences de protection
résultant d’une modification non recommandée du produit, y compris l’installation de cartes autres que
les cartes IBM.
Ce produit a été testé et il satisfait les conditions de l’équipement informatique de Classe B en vertu de
CISPR22 / Standard européen EN55024:1998. Les conditions pour l’équipement de Classe B ont été
définies en fonction d’un contexte résidentiel ordinaire afin de fournir une protection raisonnable contre
l’interférence d’appareils de communication autorisés.
Des câbles blindés et correctment reliés à la terre doivent être utilisés pour réduire les risques
d’interférence avec des communications radio et télévisées, ainsi qu’avec des équipements électriques
ou électroniques. Ces câbles et connecteurs sont disponibles auprés de vos revendeurs IBM agréés.
Conformément à la norme EN 55024:1998 (Critére de Performance A), l’utilisateur doit être conscient
du fait qu’en présence de certains champs électromagnétiques, l’image peut être instable.
Erklärung für die Europäische Union (EU)
Zulassungbescheinigunglaut dem Deutschen Gesetz über die elektromagnetische Verträglichkeit von
Geräten (EMVG) vom 30. August 1995 (bzw. der EMC EG Richtlinie 89/336):
Dieses Gerät ist berechtigt in Übereinstimmungmit dem Deutschen EMVG das EG-
Konformitätszeichen - CE - zu führen.
Verantwortlich für die Konformitätserklärung nach Paragraph 5 des EMVG ist die:
IBM Deutschland Informationssysteme GmbH, 70548 Stuttgart.
Informationen in Hinsicht EMVG Paragraph 3 Abs. (2) 2:
EN 55082 Hinweis:
“Wird dieses Gerät in einer industriellen Umgebung betrieben (wie in EN 55082:B festgetlegt), dann
kann es dabei eventuell gestört werden. In solch einem FAll ist der Abstand bzw. die Abschirmungzu
der industriellen Störquelle zu vergrößern.”
Anmerkung:
Um die Einhaltung des EMVG sicherzustellen sind die Geräte, wie in den IBM Handbüchern
angegeben, zu installieren und zu betreiben.
Declaración de la Unión Europea (UE)
Este producto satisface los requisitos de protección del Consejo de la UE, Directiva 89/ 336/ CEE en lo
que a la le gislatura de los Estados Miembros sobre compatibilidad electroma gnética se refiere.
IBM no puede aceptar responsabilidad al guna si este producto deja de satisfacer dichos requisitos de
protección como resultado de una modificación no recomendada del producto, inclu yendo el ajuste de
tarjetas de opción que no sean IBM.
Das Gerät erfüllt die Schutzanforderungen nach EN 55024:1998 und
EN55024:1998 Klasse B.
APPENDIX
Este producto ha sido probado y satisface los límites para Equipos Informáticos Clase B de
conformidad con el Estándar CISPR22 y el Estándar Europeo EN55024:1998. Los límites para los
equipos de Clase B se han establecido para entornos residenciales típicos a fin de proporcionar una
protección razonable contra las interferencias con dispositivos de comunicación licenciados.
Se deben utilizar concetores y cables debidamente protegidos y conectados a tierra a fin de reducir las
posibilidades de que se produzcan interferencias con comunicaciones por radio o televisión y otros
equipos eléctricos o electrónicos. Este tipo de cables y conectores pueden adquirirse en
concesionarios autorizados de IBM.
De acuerdo con la norma EN 55024:1998, Performance Criterion A, habría que destacar que en
presencia de determinados campos electroma gnéticos, podría observarse una marcada inestabilidad
e la imagen.
Dichiarazione di conformità dell’Unione Europea (EU)
Questo prodotto è conforme alle normative di protezione ai sensi della Direttiva del Consi glio
dell’Unione Europea 89/ 336/ CEE sull’armonizzazione le gislativa degli stati membri in materia di
compatibilità elettromagnetica.
IBM non accetta responsabilità alcuna per la mancata conformità alle normative di protezione dovuta a
modifiche non consi gliate al prodotto, compresa l’installazione di schede e componenti di marca
diversa da IBM.
Le prove effettuate sul presente prodotto hanno accertato che esso rientra nei limiti stabiliti per 4
le le apparecchiature di informatica Classe B ai sensi del CISPR 22 / Norma Europea EN55024:1998. I
limiti delle apparecchiature della Classe B sono stati stabiliti al fine di fornire ra gionevole protezione da
interferenze mediante dispositivi di comunicazione in concessione in ambienti residenziali tipici.
Utilizzare cavi e connettori colle gati a terra per ridurre il rischio potenziale di interferenza delle
comunicazioni radiotelevisive e di a; tri apparecchi elettrici o elettronici. I cavi sono disponibili presso i
rivenditori IBM.
In accordo con quando previsto nel documento EN 55024:1998, Performance Criterion A, é importante
sottolineare che in presenza di determinati campi elettroma gnetici é possibile che si verifichi un certo
tremolio delle immagini.
Europeiska unionen (EU)
Denna produkt har testats och följer gränsvärdena för Klass B Information Technology Equipment enligt
CISPR 22 Ú Europeisk standard EN55024:1998. Gränsvärden för Klass B-utrutning utgår frår vanliga
bostadsomräden för att ge ett rimligt skydd mot störningar i kommunikationsenheter.
Korrekt avskärmade och jordade kablar och kontakter måste användas för att minska risken för
störningar i radio- och TV-kommunikationer och annan elektrisk utrustning. Sådana kablar och
kontakter finns tillgängliga hos auktoriserade IBM-återförsäljare.
I enlighet med EN 55024:1998 1992, Performance Criterion A påpekas följande: I närheten av en del
elektromagnetiska fält kan vissa bildstörningar uppstår på skårmen.
Deutsche EMV-Direktive (electromagnetische Verträglichkeit)
Dieses Gerät ist berechtigt in Übereinstimmung mit dem deutschen EMVG vom 9.Nov.92 das EG-
Konformitätszeichen zu führen.
Der Aussteller der Konformitätserklärung ist die IBM UK, Greenock.
Dieses Gerät erfüllt die Bedingungen der EN 55022 Klasse B.
VCCI Class B Notice (Japan Only)
This equipment complies with the limits for a Class B digital device (devices used in or adjacent to a
residential environment) and conforms to the standards for information technology equipment that are
set by the Voluntary Control Council for Interference for preventing radio frequency interference in
residential areas.
Japanese statement of compliance for products less than or equal to 20 A per phase:
APPENDIX
