LSI-120 USER GUIDE

Please read this manual carefully before operating your

set. Retain it for future reference.

Important Information 5

1.1 Safety Instruction 5

1.2 Optimal Phone Performance 5

1.3 Care and Service 6

1.4 Safety Information 7

Introduction 8

2.1 Front View of the Phone 10

2.2 LCD Display 11

2.3 Installation 12

2.4 Battery Replacement Step 14

2.5 Installation Steps 15

Basic Operations 16

3.1 Making a Call 16

3.2 Data Call (Packet) 16

3.3 3 Way Call Conferencing 16

3.4 Call Waiting 16

3.5 Receiving a Call 16

3.6 Lock Mode 17

3.7 Entering and Editing Information 17

Menu Tree 22

4.1 Names 23

4.2 Messages 24

4.3 Call History 29

4.4 Sound 30

4.5 Display 32

4.6 Settings 34

4.7 Organiser 38

4.8 R World 40

Speaker Phone 41

Troubleshooting 42

General Information 44

7.1 Main Unit 44

7.2 AC/DC Adapter 44

7.3 Battery 45

TIA Safety Information 46

Limited Warranty Statement 59

Authorized LGE Service Center List 62

CONTENTS

Appendix. RF Exposure Statement

Appendix 2. Consumer Information on SAR

Important Information

1.1 Safety Instruction

WARNING / CAUTION

To reduce the risk of fire or electric shock, do not

expose this phone to rain or moisture. Do not use this

phone in swimming pools or other water bodies.

1.2 Optimal Phone Performance

▶

Do not hold the antenna when operating the

phone, or operate the phone when someone is

within four inches (ten centimeters) of the antenna.

Both cases affect the call quality and may cause the

phone to operate at a higher power level than

required.

▶

For the best call quality, keep the antenna free from

obstructions and position the antenna upright.

▶

Do not use the phone if the antenna is damaged.

Replace the damaged antenna immediately by a

qualified technician. Use only a manufacturer -

approved antenna.

Non-approved antennas, modifications or attach-

ments may impair call quality and damage the

phone.

▶

RF energy may affect improperly installed or

inadequately shielded personal medical devices

such as pace-makers or hospital monitors.

Consult the manufacturer of any personal medical

devices to determine whether they are adequately

shielded from external RF energy.

Turn your phone OFF in health care centers if any

regulations posted in the area instruct you to do

so. Hospitals or health care centers may be using

equipment that may be sensitive to external RF

energy.

▶

If this phone causes harmful interference to radio or

television reception, which can be determined by

turning the equipment off and on, the user is

encouraged to try to correct the interference by

one or more of the following measures:

- Reorient or relocate the receiving antenna

- Place the radio or television farther away from the

phone.

- Connect the equipment to an outlet on a circuit

different from that to which the phone is

presently connected.

- Consult the Authorized LGE Dealer for assistance

of an experienced radio/TV technician.

▶

Use battery, antenna and AC/DC power adapter

provided by LGE. Using parts made by any other

manufactures may invalidate the warranty.

▶

Only authorized personnel should service the

phone and its accessories. Faulty installation or

service can be dangerous and may invalidate the

warranty.

▶

Do not use the phone in any designated

“cellular

phone use”

area.

▶

Avoid using the phone in high temperature or

humidity.

▶

Avoid spilling any liquid on the phone. If the phone

gets wet, turn the power off immediately.

If the phone doesn’

t work, please contact the

service provider immediately.

▶

Avoid shock or impact.

▶

We recommend you to charge the backup battery

before initial use. The backup battery may be

discharged during delivery.

1.3 Care and Service

Before cleaning, always unplug the phone from the

wall outlet Do not use liquid or aerosol cleaners; use a

damp cloth for cleaning.

If the phone doesn’

t work, do not attempt to

disassemble it, contact the authorized LGE Service

center for assistance.

If any of the following conditions exist, unplug the

phone from the wall plug, remove the battery and call

the qualified engineer.

- The power supply cord is damaged or frayed.

- Liquid has spilled into the phone.

- The phone has been exposed to rain or water.

- The phone has been dropped or damaged.

- The phone does not function normally even after

following the operating instructions.

Important Information

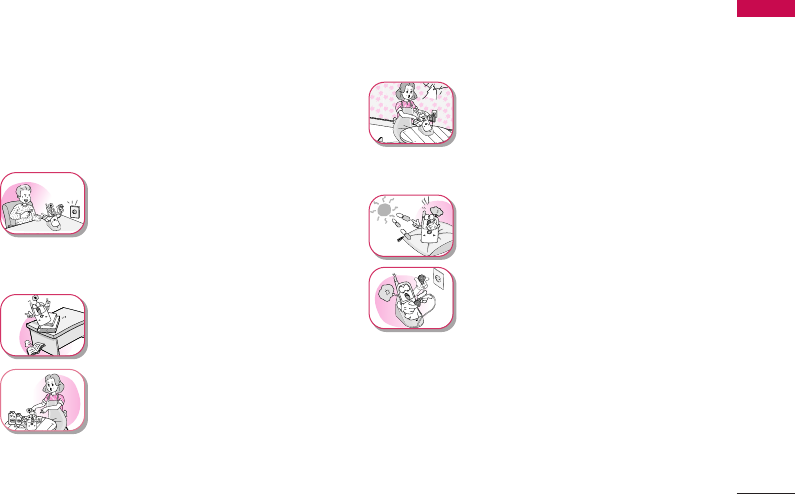

1.4 Safety Information

WWAARRNNIINNGG

▶

For safety, use only an adapter

approved by LG.

LG does not bear responsibility

for any faults that may arise due

to non-conformation to this

guide.

Example: LSI-120R (LG Power

Adapter Source: DC 5V / 1A)

▶

Do not, in any way, cause a

short-circuit. It may start a fire or

the phone may explode causing

injury.

▶

Do not create a sudden impact

on the battery by throwing it. Do

not dispose off batteries by

putting them in a fire. They may

explode or catch fire due to the

electrolyte within.

CCAAUUTTIIOONN

▶

Do not use the phone with a car

battery. It may cause electric

shock, fire, breakdown or

transformation.

▶

Avoid using the phone in high

temperature or humidity. Avoid

spilling any liquid on this phone.

If the phone gets wet, turn off

AC power supply.

▶

Keep the phone dry.

Submersion, humidity, and

liquids contain minerals that

may corrode internal electronic

circuits.

▶

Do not store or use the phone

in dusty or dirty areas as this

can damage the moving parts.

▶

Do not store the phone in hot

areas. High temperatures can

shorten the life of electronic

devices, damage batteries, and

Important Information

warp or melt certain plastics.

▶

Do not store the phone in cold

areas. When the phone warms up

to its normal operating

temperature, moisture can form

inside the phone, which can

damage the internal electronic

circuit boards.

▶

Do not attempt to open it.

Nonexpert handling of the phone

could damage it. It may cause fire,

electric shock and breakdown.

Consult your authorized LG

dealer for assistance.

▶

Do not drop, knock or shake the

phone. Rough handling may

break the internal circuit boards.

▶

Do not use harsh chemicals,

cleaning solvents or strong

detergents to clean the phone.

Wipe it with a soft cloth that has

been slightly dampened in a mild

soap and water solution.

▶

Do not paint the phone. Paint

can clog the phone’s moving

parts and prevent proper

functioning.

▶

During lightning, do not touch

the power plug or the phone

line.

It may result in an electric shock

or death.

▶

Do not install the phone under

direct sunlight or on an uneven

surface.

▶

Before using the plug, check the

available power voltage.

Inaccurate power voltage may

cause fire and damage.

Example: LSI-120R Input

Voltage:

100

240V.

Important Information

▶

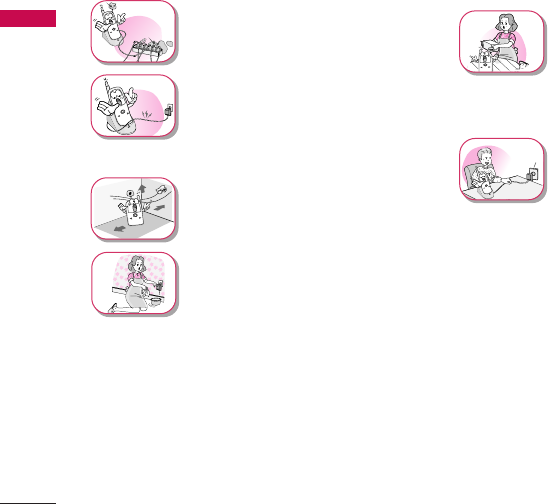

Do not plug many power cords

into one outlet. It may cause fire

or electric shock.

▶

Do not remodel the power cord

or disassemble it. If the power

cord or plug is impaired, do not

use it. It may cause fire or electric

shock.

▶

Do not install the phone in an ill-

ventilated place. It may cause fire

or a breakdown.

▶

Do not touch the plug with wet

hands. When disconnecting the

power cord of any accessory,

grasp and pull out the plug itself

and not the cord. It may cause

fire or elec tric shock.

▶

Do not put heavy objects on the

power cord. Do not bend the

power cord too much. It may

cause fire or electric shock.

▶

Use only an LG-approved

battery and adapter. If not, it

may cause an explosion or result

in a short-circuit. LG does not

bear any responsibility for the

damage.

▶

When you disconnect the power

cord of any accessory, grasp

and pull the plug itself and not

the cord. It may cause the

adapter to breakdown.

Important Information

Introduction

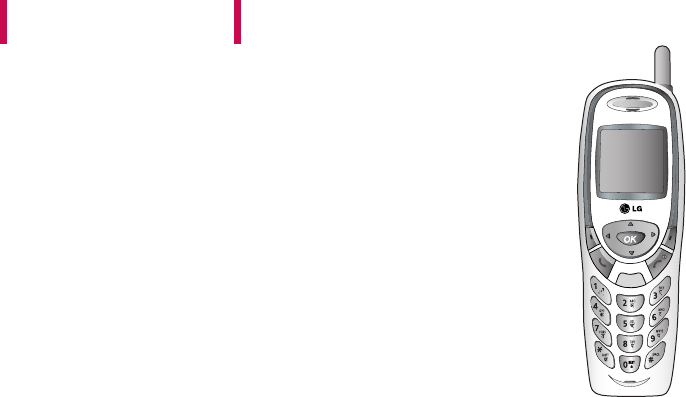

2.1 Front View of the Phone

①OK Key Accepts the highlighted choice when navigating through a menu.

Speaker ON~OFF During a call, activate speaker mode ON~OFF.

R World Access Key

Connect to R World by holding about 2 seconds in standby

mode.

②Soft Key 1 Used to display the function setting menu

③Soft Key 2 Used to select back in menu status.

④CALL / FLASH Key Allows user to place or answer calls.

Hook-on/off in standby

⑤END / PWR Key Used to turn on/off power, end a call and return to the main menu

screen.

⑥Clear Key Used to erase a single space or character by press once and

delete a whole words by pressing and holding.

Go back to the previous menu in any menu state.

Access to all calls menu in standby mode.

⑦Up Key Access to message menu In standby mode,

⑧Down Key Access to ring tone select menu In standby mode,

⑨Left Key Access to alarm menu In standby mode,

⑩Right Key Access to game menu In standby mode,

⑪*Key Set the light mode on/off toggle by pressing and holding about 2

seconds in standby mode

⑫# Key Set the speaker mode on/off toggle by pressing and holding

about 2 seconds in standby mode.

⑬0 Key Set the keyguard mode on/off toggle by pressing and holding

about 2 seconds in standby mode

CLR

Introduction

2.2 LCD Display

The LCD shows icons on the top of the LCD screen.

Different indicators appear based on the phone's operating mode.

Lock mode

IIccoonnOOppeerraattiinngg CCoonnddiittiioonn

RSSI indicator: Indicates the signal strength in the service area.

No service: The phone is not receiving any system signal.

Bell (Light : )

In use: Displayed when a call is in progress or the phone is in off-hook state

Alarm: Displayed when alarm time is set

Text message: Displayed when a text message is received

Voice message: Displayed when voice message is received

Text and Voice message: Displayed when text and voice messages are received.

Battery charge level: Indicates charged battery level

No AC power & Battery ON. But in low battery state

Key Guard

Introduction

2.3 Installation

You should follow each step carefully as shown below in order to guarantee

the proper operation of CDMA Fixed Wireless Phone.

CLR

OKOK

Main Phone Cradle

AC/DC Power Adapter User Guide

Introduction

You should follow each step carefully as shown below

in order to guarantee the proper operation of CDMA

Fixed Wireless Phone.

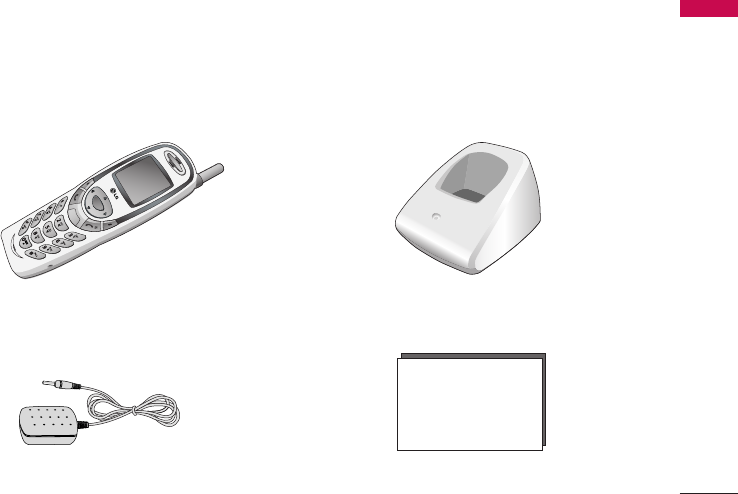

STEP I. Check Components

▶

The following components are supplied for Fixed

Wireless Phone.

1. LSI-120R Main Phone with Handset -1EA-

(Including inner backup battery)

2. Cradle -1EA-

3. AC/DC Power Adapter -1EA-

4. User Guide -1EA-

▶

Please make sure that these components are

present before you begin to install the phone. If

any of the components are missing or damaged,

contact your service provider immediately.

STEP II. Place the Terminal

▶

Place the phone on the stable flat surface area

(desk, table, etc.). Serious damage may result if the

phone is dropped. Do not place the phone within

1 meter of heaters or radiators.

This phone is designed for desktop usage. Avoid

the direct exposure to sunlight and dampness.

▶

Read the Safety Information located in the first

part of this document before you place the phone.

STEP III. Connect Components

(Please refer to “Installation Steps” in 2.5)

▶

Please make sure that the antenna is connected

tightly to the antenna port located on the top side

of the phone.

▶

Connect the AC/DC Adapter cable to the DC

input port located at the right side of the phone.

-If it is correct, a beep tone will be heard.

-If it is not correct (Booting fails the phone will

start to boot), you will have to reconnect the

adapter

▶

Please observe the following to get better voice

quality

1. Keep away from electrical appliances such as

TV, computer, radio etc.

2. Keep the phone in the cradle without any

obstructions to get mayimum strength.

STEP IV. Check the LCD Display

▶

After you follow the installation instruction step I to

step III, please check the LCD for normal operation.

▶

If you do not see the status of service, please

repeat the 4th instruction of step III.

Then confirm the status of phone to get the

proper signal strength from the service

operator system.

2.4 Battery Replacement Step

Introduction

Battery

Battery Cover

Introduction

CLR



2.5 Installation Steps

Please follow the procedure below to install the phone properly.

Connect the AC/DC

adapter cable to the

DC input port of the

charger.

Press and hold the

END button for a

few seconds to turn

on the phone.

After charging the

battery, make a call.

Connect AC/DC

adapter to an

electric outlet.

Put the handset

on the cradle.

CLR

Basic Operations

3.1 Making a Call

You can make a call as follows.

1. Press the call key or press “#” for a long time

(Speaker phone).

2. Listen for dial tone.

3. Enter the phone number. (You need to press

the area code when you make a long distance

call.)

4. Press the call key.

5. If the call is connected and you may start

conversation.

6. To disconnect the call, press the end key.

3.2 Data Call(Packet)

1. Data is connected by Computer, PPP Calling.

2. Packet call is connected.

3.3 3 way call conferencing

You can start 3 way call conferencing.

1. Dial second party phone number while you are

in conversation with the first party.

2. To make conference call, press ‘3’ +

button.

This service should be provided by your service

provider.

3.4 Call Waiting

While a call is in progress, you may hear two beeps

indicating another incoming call. When call wait is

enabled, you may put the active call on hold

while you answer the other incoming call.

1. Press CLR key or end key, Call Waiting window

then disappears.

2. Press call key, you may start conversation with

called number.

3. Re-press call key, you may start conversation

with previous number.

3.5 Receiving a Call

When the bell rings or backlight blinks in Light Mode,

you can receive a call as follows

1. Press the Call key.

2. Start a conversation.

3. To disconnect the call, press the End key.

3.6 Signal Strength

The quality of call depends on the signal strength in

your area. I.e. stornger signal guarantee better call

quality. The receive signal strength icon indicates the

current strength of the signal as a number of bars in

the upper-left part of LCD.

3.7 Entering and Editing Infor-

mation

You can edit the phonebook, Short Messges, E-Mail,

Scheduler and Banner using various text input mode.

Your phone supports T9 Text Input in Hindi and

English Language. T9 Text Input is an easy way to

write. In this input method, you only need to press a

key once for each letter.

Key Functions

Soft key 2 : Press to scroll and select a mode through

menus.

- You can scroll through the modes using Soft key 2 in

the following order : T9En, Abc, 123, Symbols,

Smileys, T9Hindi, Hindi

- Shift key : Used to change the letter case. In

T9 Mode, it switches 3-types of letter case such as

T9En, T9EN, T9en and in Abc Mode, it switches 3-

types of letter case such as Abc, ABC, abc.

-Next key : In T9 mode, press to display other

matching words.

-key : In T9 mode, press to insert sentence

mark ( . , - ? ! ‘ @ : )

-SPACE key : Press to complete a word or

insert a space.

-Clear key : Press to delete a single space or

character. Press and hold to delete entire words.

Input Mode

Text Input provides seven modes for entering text,

numbers, special characters, and punctuation

- TT99EEnn MMooddee : Type text using keystroke per

letter in English with the help of T9 English

dictionary function. This is default mode.

Basic Operations

- Abc Mode : Use Abc mode to input text in English.

* If you want an instant input of numbers in Abc

mode without converting to 123 mode, press the

button until number is displayed in Abc mode. Use

Abc mode to add words to the T9 database too.

- 112233 MMooddee: Type numbers using one keystroke

per number. To change to 123 mode in a text

entry field, press Soft key 2 until 123 mode is

displayed

- SSyymmbboollss MMooddee: Insert special characters,

punctuation. You may use any of the special

characters. When the special characters are

displayed, you can select the number

corresponding to the character that you want to

input. To search more symbols, press Soft key

1(Next) or up/down key button.

- SSmmiilleeyyss MMooddee : Insert smileys in your text.

When the smileys are displayed, you can select

the number corresponding to the smileys that

you want to input. To search more smileys, press

Soft key 1(Next) or up/down key button.

- TT99 HHiinnddii MMooddee: Type text using keystroke per

letter in Hindi with the help of T9 Hindi dictionary

function.

- HHiinnddii MMooddee : Use Hindi mode to input text in

Hindi language.

* If you want an instant input of numbers in Hindi

mode without converting to 123 mode, press the

button until number is displayed in Hindi mode.

Initial Cap(T9En/Abc)

Only the first letter is capitalized.

Caps Lock(T9EN/ABC)

All subsequent letters are capitalized.

Lowercase(T9en/abc)

All subsequent letters are lowercase.

Examples Using T9 Text Input for

English

Typing In T9 Mode

When you want to use T9 Mode, check that T9En is

shown at the right bottom of the display. To write the

word, press each key once for one letter.

For example, to write “Call the office”, follow these

Basic Operations

steps:

1. Press: Soft key 2 to change letter case to T9En

mode.

2. Press:

3. Press: # to complete the word and add a space.

4. Press:

5. Display: Call the office

As you can see, the word changes after each key

press. Therefore, you don’t need to pay much

attention to what happens on the display before you

have keyed in the whole word.

Using the NEXT key

After you have finished typing a word, if the word

displayed is not the word you want, press “0” to

display additional choices. For example, follow these

steps:

1. Press:

2. Display: Good

3. Press:

4. Display: Home, Gone, Hood ............

Adding Words to the T9 Database

If a word is not in the T9 database, add it by using Abc

mode text entry. The word is automatically added to

the T9 database when you complete a word.

For example, follow these steps:

1. Press: Soft Key 2 to change letter case to Abc

mode.

2. Press:

3. Display: Imt

4. Press: Soft Key 2 to change letter case to T9En

mode and then the word ‘Imt’ will be

automatically added to the T9 database.

5. Press: to erase the existing word.

6. Press:

7. Display: Got

8. Press:

9. Display: Imt

Basic Operations

Examples ABC Text input

Typing In ABC(Multi-tap) Mode

For example, to type ‘RELIANCE’, follow these steps:

1. Press: Soft key 2 to change letter case ABC

mode.

2. Press: Shift key to change to ABC Caps Lock

mode.

3. Press:

4. Display: RELIANCE

Hindi Keys are mapped as following

Key Mapping for Hindi Entry

Basic Operations

Examples Using ABC Text input

Hindi Keys are mapped as following

When you want to use T9 mode for Hindi typing,

check the T9Hindi is shown at the bottom of the

display. To write the desired word, press each key

once for one letter.

For example, to write , follow these steps:

1. Press : Soft Key 2 to change letter case to

T9Hindi mode.

2. Press :

3. Press : # to complete the word and add a space.

4. Display :

As you can see, the word changes after each key

press. Therefore you don’t need to pay much

attention to what happens on the display before you

have keyed in the whole word.

Example Using T9Hindi Text Input Key Mapping for

Hindi Entry

Basic Operations

Names

1. Find (n/2000)

2. Add

3. Speed Dial

Messages

1. Write

2. Inbox (n/m)

3. 1234 Services

4. Outbox

5. Voice Mail

6. Archive

7. Drafts

8. Templates

9. Msg Groups

0. Erase Message

*. Msg Settings

Call history

1. Missed Call

2. Received Call

3. Dialled Call

4. In Call Memo

5. Call Duration

6. Erase History

Sound

1. Ring Type

▶Ring

▶One-Beep

▶Light

2. Ring Tone

▶Bell

▶Melody

▶My Melody

3. Ringer Volume

4. Earpiece Volume

5. Key Volume

6. Speaker Volume

7. Message Alert

▶Alert Type

▶Alert Tone

▶Message Reminder

Display

1. Language

▶English

▶

2. Wallpaper

▶Idle Screen

▶Banner

▶Clock Position

▶Clock Type

3. Menu style

4.Backlight

5. Contrast

6. Rhythmic Lighting

Settings

1. Call

▶Call Forward

▶Call Wait ing

▶Call Timer

2. Phone

▶Auto Dial Time

out

▶Data Settings

▶Phone info

3. Security

▶Lock Mode

▶Emergency

Numbers

▶Change Lock

Code

▶Restrict Call

▶HotLine

▶Set NAM

▶Clear Memory &

Reset l Reset Phone

Organiser

1. Scheduler

2. Alarm

3. Calculator

4. World Clock

5. Memo

6. Stopwatch

R World

1. R Menu

2. Games

4. Menu Tree

Menu Tree

If you press Soft Key1, Menu is activated.

To scroll in Menu, press , , or

button.

To return to the initial screen, press End key and to

return to the previous screen, press CLR key.

4.1 Names

You may select from three Sub-Menus (Find, Add,

Speed Dial) for this item.

4.1.1 Find

To find phone numbers you have stored in the Phone

Book.

1. Press + +

2. Select a desired search Menu.

, : Enter full or

starting of name (Number), select

3. Select desired item.

4. To make a call, press the

5. To view, press Soft Key 1.

: You can View,Edit or Erase.

You can send a message also while number is

highlighted.

4.1.2 Add

You can save up to 2000 entries in your LSI-120R

phonebook.

You can store multiple contact details under a name:

Mobile Number, Home Number, Office Number,

General Number, E-mail address of the contact.

You can also add any additional details about the

contact like the Person’s birthday , favorite things etc

in memo.

Lastly, there is an option to assign a ring tone to a

name.

1. Press + +

2. Enter the information to select a desired item.

In this menu, All sorts of the icon have the meaning as

follows:

Options

Number searchName search

- Mobile : - Home :

- Office : - General :

- Fax : - Pager :

- Wll : - Memo:

- Ring: - E-mail:

4.1.3 Speed Dial

Speed Dial allows you to make a call faster by just

pressing a corresponding number.

You can save up to 99 entries.

1. Press + +

2. You can view a stored item.

4.2 Messages

Text messaging, page and voice mailbox become

available as soon as the power is on. You may access

the above type of messages using the navigation

,,or key.

The phone can store up to 50 messages in each Inbox

and Outbox. And the phone can also store up to 50

messages in Archive, 30 messages in Drafts, 30

messages in Templates, 5 SMS Groups with 10

Entries per Group.

To access messages, Press Menu +

In the list of Inbox or Outbox , all sorts of the icon

have the meaning as follows:

- Unread : - Unread Urgent :

- Read : - Read Urgent :

- Sent : - Sent Urgent :

- Unsent : - Unsent Urgent :

4.2.1 Write

Write Text

1. Press + + +

2. Write message.

Refer to the 3.7 (page 17) Entering and Editing

Information about text input.

3. Select .

4. Enter phone number or press Find.

Menu Tree

: can select or .

5. Select options as following.

Priority: Allows you to give priority to Message as

or .

Delivery Ack: This function allows you to know

whether the Messages have been successfully

transmitted to the recipient. If you want to

activate this function, set to .

Deferred Delivery : This function allows you to

reserve when the message is sent.

You may select from seven options(Immediate /

After 30 Mins / After 1 Hour / After 2 Hours /

After 12Hours / After 1 Day / After 2 Days)

Validity Period : This function allows you to

define the period of the valid message until the

message sending is completed.

You may select from seven options(Default/ 30

Mins / 1 Hour / 2 Hours / 12 Hours / 1 Day / 2

Days)

6. Select .

Write E-Mail

1. Press + + +

2. Enter E-Mail address or press Options.

Options : can select Send, Find, E-Mail Groups or

Domains

3. Write Sucject and Press .

4. Write contents and Press .

4.2.2 Inbox

Received messages are stored here.

1. Press + +

2. To erase message, select .

3. To view desired message, select .

4. You may select from five options (1. Reply 2.

Forward 3. Move to Archive 4. Save Number).

* For example, the meaning of (2/3) in Inbox is that 2

out of 3 messages are unread.

Erase

UrgentNormal

SMS GroupsFindFind

Menu Tree

4.2.3 1234 Services

Exciting SMS-based Infotainment services such as

News, Jokes, Horoscope etc are available to Reliance

subscribers. Using the SMS 1234 services, the user

will be able to access interesting information on

common subjects through SMS. User needs to send

Keyword in specified format to 1234 to access these

services.

1. Press + +

2. Place the cursor on the item that you wants to

be served, and then press Soft key 1 (OK). You

may select from eleven items ( 1. News 2.

Cricket 3. Joke of the Day 4. Thought of the

Day 5. Contest 6. Beauty Tips 7. Health 8.

Horoscope 9. Bill Info

0. Unbilled Info *. Help )

You may select the keyword that you want to send in

subsequent-Menu.

Example

For example, to receive the “sports news” you can

operate the phone as follow:

1. Press + + + +

2. Display: Sending SMS to 1234

4.2.4 Outbox

All your successfully sent messages are saved here.

1. Press + +

2. To erase message, select Erase.

3. To view desired message, select OK .

4. You may select from four options (1. Resend 2.

Forward 3. Move To Archive).

4.2.5 Voice Mail

Voice mail notifications indicate the number of new

voice mail messages in your mailbox.

Only the most recent voice mail notification will be

stored in your phone;

previous message will be overwritten.

1. Press + +

2. Press the Call key or press “#” key for a long

Menu Tree

time to make a call back your voice mailbox if the

number of the voice mailbox is provided by the

telecom service company’s system.

4.2.6 Archive

Archive allows you to store your messages in a

different folder.

1. Press + +

2. To erase message, select .

3. To view desired message, select .

4. •In case of Inbox message, you may select from

three options

(1. Reply 2. Forward 3. Save Number).

•In case of Outbox message, you may select

from two options (1. Resend 2. Forward).

4.2.7 Drafts

A Draft is a function enabling you to store messages

to be sent in Future. A total of up to 30 messages may

be saved in Draft. These include failed messages,

incomplete/unsent messages saved by the user and

also messages which automatically get saved when a

user is interrupted by a call while composing a

message.

The most recent data is saved at the top of list.

1. Press + +

2. To erase message, select .

3. To view desired message, select .

4. You may select Send.

4.2.8 Templates

There are 10 predefined phrases included in the

Templates.

You may add up 20 templates more. A total of 30

templates may be saved.

1. Press + +

2. If you select the message, you may select five

options. (1. View 2. Send 3. Add 4. Edit 5.

Move)

Erase

Menu Tree

4.2.9 Msg Groups

Five SMS Groups are available in your phone. You can

add up to ten members in each group. You can also

rename the group name.

1. Press + +

2. Select a desired groups.

SMS Groups , E-Mail Groups :

Options : There are five options (1. View 2.

Send 3. Rename 4. Clear Group 5. Clear All)

View : There are five options (1. Send 2. Send to

all 3. Replace 4. Erase Member 5. Clear Group)

or add new member

4.2.10 Erase Message

You may erase message with various options from

Inbox, Outbox, Archive or Drafts. You may erase all

messages by selecting single option All Messages.

1. Press + +

2. Select desired option to erase.

3. Press button.

4.2.11 Message Settings

Priority

1. Press + + +

2. You may select from two options (1. Normal 2.

Urgent).

Delivery Ack

1. Press + + +

2. Select or .

Deferred Delivery

1. Press Menu + + +

2. Select one of the following.

1. 2.

3. 4.

5. 6.

Validity Period

1. Press Menu + + +

2. Select desired time.

After 2Days

After a Day

After 12Hours

After 2Hours

After 1Hour

After 30MinsImmediate

OffOn

Menu Tree

1. 2. 3. 4.

5. 6. 7.

Save Sent Message

1. Press Menu + + +

2. Select or .

Auto Erase Inbox

1. Press Menu + + +

2. Select or .

4.3 Call History

The phone can store up to 60 Received Call, 60

Dialled Call, 60 Missed Call and 5 In Call Memo in Call

History.

When you press the CLR key, All Calls are displayed.

In the list of all calls, all sorts of the icon have the

meaning as follows:

- Received : - Dialled :

- Missed : - In Call Memo:

- Call Waiting : - Call Waiting(Missed) :

- 3 Way Call :

4.3.1 Missed

1. Press + +

2. To erase, select Erase .

3. To view desired item, select .

4. You may select (1. Send Message 2. Save

Number).

4.3.2 Received

1. Press + +

2. To erase received calls, select .

3. To view desired item, select .

4. You may select (1. View 2. Send Message 3.

Save Number).

4.3.3 Dialled

1. Press + +

Erase

OffOn

2 Days

1Day12 Hours

2 Hours

1 Hour 30 MinsDefault

Menu Tree

2. To erase dialled numbers, select .

3. To view desired item, select .

4. You may select from three options (1. View 2.

Send Message 3. Save Number).

4.3.4 In Call Memo

‘In Call Memo’ allows you to make quick

notes(numbers only) while call is in progress. While in

call, press Soft key 1(Menu), and then select 2 to

type in ‘In Call Memo’.

To retrieve an In Call Memo :

1. Press + +

2. To erase In Call Memo, select Erase.

3. To view desired item, select .

4. You may select from two options (1. Send

Message 2. Save Number).

4.3.5 Call Duration

1. Press + +

2. You may select from four options (1. Last Dialled

Calls 2. All Dialled Calls 3. All Calls 4. Reset Call

Duration).

4.3.6 Erase History

You may erase all history from three options (1. Erase

Missed 2. Erase Received 3. Erase Dialled)

1. Press + +

2. To select history that you want to erase,

press .

4.4 Sound

Sound lets you choose your phone’s sound settings

to your environment.

Sound Menu contains settings for your phone`s Ring

Type, Ring Tone, Ringer Volume, Earpiece Volume,

Key Volume, Speaker Volume, and Message Alert.

4.4.1 Ring Type

You may select the call alert option.

Erase

Menu Tree

1. Press + +

2. There are three modes (1. Ring 2. One-Beep

3. Light)

4.4.2 Ring Tone

1. Press + +

2. There are three modes (1. Bell 2. Melody 3. My

Melody)

You may select one ring sound among the 5 Bells,

15 Melodies and R World downloaded melodies.

4.4.3 Ringer Volume

You may select a volume level of ringer sound among

the 0 ~ 5 steps.

When you select 0 level, ringer sound become mute.

1. Press + +

2. Select the desired volume level by using the

horizontal scroll keys and press .

4.4.4 Earpiece Volume

You may select a volume level of handset earpiece

sound among the 1 ~ 5 steps.

1. Press + +

2. Select the desired volume level by using the

horizontal scroll keys and press .

4.4.5 Key Volume

You may select a volume level of key tone sound

among the 0 ~ 5 steps.

When you select 0 level, key tone sound become

mute.

1. Press + +

2. Select the desired volume level by using the

horizontal scroll keys and press .

4.4.6 Speaker Volume

You may select a volume level of speaker phone sound

among the 1 ~ 5 steps.

Menu Tree

1. Press + +

2. Select the desired volume level by using the

horizontal scroll keys and press .

4.4.7 Message Alert

1. Press + +

2. Select desired item (1. Alert Type 2. Alert Tone

3. Message Reminder)

Alert Type: 1. 2. 3.

Alert Tone:1. 2. 3.

Message Reminder: 1. 2.

3. 4.

4.5 Display

You can personalize your phone’s display by selection

of various display settings like Language, Wallpaper,

Menu Style, Backlight, Contrast and Rhythmic Lighting.

4.5.1 Language

1. Press + +

2. Select between English or and press

4.5.2 Wallpaper

It allows you to customize the LCD screen display in

the standby mode / idle state.

1. Press + +

2. Select ~.

Idle Screen

Allows you to choose among given LCD screen

display option during idle state.

The Idle Screen has 6 options(Desert, Dolphin,

Flower, lslander, Orange, Scuba Diver), So you may

choose the one of those screens. Banner Idle

Screen

Banner

Enter the string of characters you want to be

displayed.

Every 5 MinEvery 2 Min

OnceOff

Effect 5Effect 2

Effect 3Effect 2Effect 1

Light

One-BeepRingOff

Menu Tree

Banner is presented during idle mode along with

selected wallpaper.

Clock Position

To Select Clock Position that you want to choose

press .

Clock Type

You may select Clock Type(12hours(AM|PM),

24hours Year Type(DD-MMM-YYYY, DD-MMM-

YY, DD-MM-YY, YY-MM-DD, To Select Clock

Type taht you want to choose, press OK

DD/MMM/YYYY , DD/MM/YY, DD/MMM/YY,

YY/MM/DD, DD/MM/ YYYY, MM/YYYY or On,

Off by press ,

4.5.3 Menu Style

Allows you to select the Menu style.

1. Press + +

2. Select List or Icon and press .

4.5.4 Backlight

Allows you to choose the settings of the LCD and

keypad backlight.

1. Press + +

2. Select among 30 Sec / 60 Sec / Night Only /

Always On

*If you want to turn on the backlights from 6 PM

to 6 AM, select Night Only.

4.5.5 Contrast

Allows you to select the contrast setting using the

scale of brightest to darkest.

You may select a contrast level of LCD among the 0 ~

20 steps.

1. Press + +

2. Select the desired contrast level by using the

navigation keys and press .

4.5.6 Rhythmic Lighting

Allows you to select pattern for an incoming call.

1. Press + +

Menu Tree

2. Select Blink, Wave, Festival, Spray or Off and

press .

4.6 Settings

4.6.1 Call

Call Forward

‘Call Forward’ lets you forward all your incoming

calls to another number or Voice Mail connection.

1. Press + + +

2. Select from Immediate / When Busy / No Reply

/ Not Reachable / Disable All.

‘Disable All’ deactivates all the activated call

forwarding options.

3. Select Enable or Disable and press .

Call Waiting

While a call is in progress, you may hear two beeps

indicating another incoming call. When call waiting

is enabled, you may put the active call on hold while

you answer the other incoming call.

1. Press + + +

2. Select or and press .

* Contact your service provider for more

information on Call Forward and Call Waiting.

Call Timer

While a call is in progress, you can see the elapsed

time of the active call if you set Call Timer to be

Enable.

1. Press + + +

2. Select or and press .

4.6.2 Phone

Auto Dial Time Out

Allows you to place a call automatically after the last

digit of the phone number is dialled.

You may select one of the 2~9 Sec

1. Press + + +

2. Select desired time and press number.

OKOffOn

OKDisableEnable

Menu Tree

Emergency Numbers

Emergency Number can store up to three Numbers

(default100, 101, 102).

1. Press + + +

2. To edit a number, press .

Change Lock Code

Change Lock Code allows you to enter a new four-

digit lock code.

1. Press + + +

2. Enter current lock code.

3. Enter new four-digit lock code.

4. For confirmation, it will ask you to enter the new

lock code again.

Restrict Call

You can restrict your outgoing calls including numbers

/ numbers beginning with specified digit in the

Restrict List.

For example: If “9” is stored in the Restrict List, all

number beginning with “9” cannot be called. However

if “92” is stored in Permit List, you can call numbers

beginning with “92”successfully.

1. Press + + +

2. Select or and press .

3. If is selected,

▶

Enter the numbers / starting digit of specific

numbers to be restricted in the Restric List.

▶

Enter the number / starting digits of the

numbers to be allowed in the Permit List.

4. To add new list, press OK.

5. To erase (or edit, view) the existing list, select

desired options and press OK.

HotLine

HotLine automatically calls to registered number by

passing setup time in off-hook state.

1. Press + + +

2. Select or and press .

3. On is selected, enter Number and Time.

If you have selected ‘On’ and enter the Hotline

Number and Time, HotLine functions as follows:

When you press Call key or press “#” key for a long

time , the phone automatically dials the HotLine

OKOffOn

Edit

Menu Tree

Number that you have already saved if any number is

not dialed for duration specified in HotLine Time.

Set NAM

This option is presently not available. Please contact

your service provider for further information. Use

NAM 1 only.

1. Press + + +

2. Select NAM1 or NAM2 and press .

Clear Memory & Reset

Erase all data and return to factory setting. Be

cautious since any erased information is not

recoverable.

1. Press + + +

2. Enter lock code.

3. To Clear Memory and Erase all data, select

Reset Phone

Return to factory setting. But User data is not erased.

1. Press + + +

2. Enter lock code.

3. To Reset Phone, select .

4.7 Organiser

4.7.1 Scheduler

Scheduler keep your agenda convenient and easy to

access. Simply store your appointment and your

phone would alert you with a reminder of your

appointment.

1. Press + +

2. Move cursor to desired day

3. Select .

4. If is selected, you can store new

schedules.

5. If is selected,

1) In case of already stored schedule, you may

see stored schedules and select from Options.

(View / Edit / Erase / Alarm Tone / View by

Week / View by Month / View All / Erase

Today / Erase Past Day)

Add

Yes

Menu Tree

2) In the absence of schedule, ‘There is no data’

message is displayed.

Select from Options: View by Week / View by

Month / View All / Alarm Tone / Erase Past

Day

4.7.2 Alarm

Allows user to set alarm time.

You can save 3 Alarms and set the alarm for a period

and specified time.

1. Press + +

In case of already stored alarm, you may see stored

alarm and select from Options. (View / Edit / Erase)

In the absence of alarm, “There is no data” message

is displayed.

2. To enter new alarm,

1) press Add

2) Enter time and date.

3) You can select option from Off / Once / Daily /

Mon~Fri / Mon~Sat / Weekends / Select Days

4) Select ring tone and press .

4.7.3 Calculator

Calculates simple mathematical computations.

1. Press + +

2. Use Navigation Key for the four arithmetical

operations.

left: X right: / upper : +

lower : - * : () #: .

3. Press for computing result of the calculation.

4.7.4 World Clock

It is useful when you need to make a call to another

country, and you are not sure about the time

difference.

1. Press + +

2. Select the city by pressing navigation button.

Menu Tree

4.7.5 Memo

Memo function allows user to store up to 50 memos.

1. Press + +

2. Select desired item.

Options : can View, Edit or Erase memos.

4.7.6 Stopwatch

1. Press + +

2. Select Start

4.8 R World

Hear the phone talk to you! Play and save Ringtones

that suit your personality and taste. You can

download, save and replay the tunes. The Ringtones

will be delivered in the format compatible with your

phone models.

4.8.1 R-Menu

You can connect to R World site and download your

favourite ringtones and get access to other useful

information.

1. Press + +

4.8.2 Games

You phone also has two in-built games.

1. Press + +

2. Selet Poshoong Plus or Stone Axe.

To return to the intial screen, press End key.

Menu Tree

5. Speaker Phone

This function is a convenient feature, which enables

you to make a call using press “ ” key for a long

time.

Menu Tree

Troubleshooting

6. Troubleshooting

Please check the following items before contacting service center.

Item Remedy

Phone doesn’t operate at all.

Because of noise and cross talking,

call status is bad.

When I press button to call, can’t hear

the dial tone.

Call cannot be received.

Battery fails to charge.

Bell sound isn’t heard

• Check that the phone is installed correctly.

• Check that the battery is fully charged.

• Check that the power is on.

Keep away from electrical application such as TV, computer, radio

and so on.

Check that phone cord or power is connected correctly.

Check the current status of Rx call mode settings in data settings

menu. Voice option should be selected.

Check that the authorized adaptor (5V/1A) for LSI-120 is

correctly connected to the DC power connector of the phone and

Battery ON/OFF switch is ON.

If bell sound is low, please adjust the volume level and make sure

that Light Mode is not selected.

Troubleshooting

Item Remedy

▶

The LCD repeats on and off when

you plug-in the adapter while

battery is Not Connected.

▶

Phone repeats abnormally power-

on and power-off after a few

second when you plug-in the

adapter While battery is connected

and phone is power-off

▶

There is no charging display when

you plug-in the adapter while the

phone is power on.

Check that the adapter is the approved from LG.

Adapter should be 5V(DC), 1A

General Information

7. General Information

7.1 Main unit

IItteemmLLSSII--112200

Tx Frequency Digital: 824 ~849 MHz

Rx Frequency Digital: 869 ~894 MHz

Channel Bandwidth 1.25 MHz

Tx Power Digital: LOWER: 0.2W ~UPPER:1W

Rx Sensitivity -104 ~ -25dBm

Size (mm) 142.5 ᴧ48.5 ᴧ26 (L x W x H)

Weight (gms) 106.5(included Li-ion battery)

Operating Temperature -10 ~50 °C

7.2 AC/DC Adapter

IItteemmSSMMPPSS TTyyppee DDeessccrriippttiioonn

Rated Input Voltage AC 100 ~240V

Operating Input voltage AC 80 ~420V

Rated Input Frequency 50 / 60Hz

Operating Input Frequency 47 ~63Hz

Rated Output Voltage, Current 5V(DC), 1A

General Information

7. 3 Battery

Item Description

Capacity 3.7V Li-ion (Nominal)

Charging time duration 3 Hours (standby condition)

TIA Safety Information

Provided herein is the complete TIA Safety

Information for Wireless Handheld phones. Inclusion

of the text covering Pacemakers, Hearing Aids, and

Other Medical Devices is required in the owner’s

manual for CTIA Certification. Use of the remaining

TIA language is encouraged when appropriate.

Exposure to Radio Frequency Signal

Your wireless handheld portable phone is a low

power radio transmitter and receiver. When it is ON,

it receives and also sends out radiofrequency (RF)

signals. In August, 1996, the Federal

Communications Commissions (FCC) adopted RF

exposure guidelines with safety levels for hand-held

wireless phones. Those guidelines are consistent with

the safety standards previously set by both U.S. and

international standards bodies:

ANSI C95.1 (1992) *

NCRP Report 86 (1986)

ICNIRP (1996)

Those standards were based on comprehensive and

periodic evaluations of the relevant scientific

literature. For example, over 120 scientists,

engineers,

and physicians from universities, government health

agencies, and industry reviewed the available body of

research to develop the ANSI Standard (C95.1). The

design of your phone complies with the FCC

guidelines (and those standards).

Antenna Care

Use only the supplied or an approved replacement

antenna. Unauthorized antennas, modifications, or

attachments could damage the phone and may

violate FCC regulations.

Phone Operation

Tips on Efficient Operation:

▶

For your phone to operate most efficiently: Do not

touch the antenna unnecessarily when the phone

is in use. Contact with the antenna affects call

quality and may cause the phone to operate at a

higher power level than otherwise needed.

▶

American National Standards Institute; National

Council on Radiation Protection and

Measurements; International Commission on Non-

Ionizing Radiation Protection.

Electronic Devices

Most modern electronic equipment is shielded from

RF signals. However, certain electronic equipment may

not be shielded against the RF signals from your

wireless phone.

Pacemakers

The Health Industry Manufacturers Association

recommends that a minimum separation of six(6”)

inches be maintained between a handheld wireless

phone and a pacemaker to avoid potential

interference with the pacemaker.

These recommendations are consistent with the

independent research by and recommendations of

Wireless Technology Research Persons with

pacemakers:

▶

Should ALWAYS keep the phone more than six

inches from their pacemaker when the phone is

turned ON.

▶

Should use the ear opposite the pacemaker to

minimize the potential for interference.

▶

If you have any reason to suspect that interference

in taking place, turn your phone OFF immediately.

Hearing Aids

Some digital wireless phones may interfere with some

hearing aids. In the event of such interference, you

may want to consult your service provider [or call the

customer service line to discuss alternatives.]

Optional for each phone manufacturer.

Other Medical Devices

If you use any other personal medical device, consult

the manufacturer of your device to determine if they

are adequately shielded from external RF energy. Your

physician may be able to assist you in obtaining this

information.

Turn your phone OFF in health care facilities when any

regulations posted in these areas instruct you to do

so. Hospitals or health care facilities may be using

equipment that could be sensitive to external RF

energy.

Potentially Explosive Atmosphere

Do not install the phone in potentially explosive

TIA Safety Information

atmosphere.

Sparks in such areas could cause an explosion or fire

resulting in bodily injury or even death.

Areas with a potentially explosive atmosphere are

often, but not always marked clearly. Potential areas

may include: fueling areas (such as gasoline

stations); below deck on boats; fuel or chemical

transfer or storage facilities;

vehicles using liquefied petroleum gas (such as

propane or butane); areas where the air contains

chemicals or particles (such as grain, dust, or metal

powders); and any other area where you would

normally be advised to turn off your vehicle engine.

For Vehicles Equipped with an Air Bag

An air bag inflates with great force. DO NOT place

objects, including either installed or portable wireless

equipment, in the area over the air bag or in the air

bag deployment area. If invehicle wireless equipment

is improperly installed and the air bag inflates, serious

injury could result.

FDA Consumer Update

The U.S. Food and Drug Administration’s Center for

Devices and Radiological Health Consumer Update on

Mobile Phones.

1. Do wireless phones pose a health hazard?

The available scientific evidence does not show that

any health problems are associated with using

wireless phones. There is no proof, however, that

wireless phones are absolutely safe.

Wireless phones emit low levels of radiofrequency

energy (RF) in the microwave range while being

used. They also emit very low levels of RF when in

the stand-by mode. Whereas high levels of RF can

produce health effects (by heating tissue),

exposure to low level RF that does not produce

heating effects causes no known adverse health

effects. Many studies of low level RF exposures have

not found any biological effects. Some studies have

suggested that some biological effects may occur,

but such findings have not been confirmed by

additional research.

In some cases, other researchers have had difficulty

in reproducing those studies, or in determining the

reasons for inconsistent results.

TIA Safety Information

2. What is FDA's role concerning the safety of wireless

phones?

Under the law, FDA does not review the safety of

radiation-emitting consumer products such as

wireless phones before they can be sold, as it does

with new drugs or medical devices. However, the

agency has authority to take action if wireless

phones are shown to emit adiofrequency energy

(RF) at a level that is hazardous to the user. In such

a case, FDA could require the manufacturers of

wireless phones to notify users of the health hazard

and to repair, replace or recall the phones so that

the hazard no longer exists. Although the existing

scientific data do not justify FDA regulatory actions,

FDA has urged the wireless phone industry to take a

number of steps, including the following:

▶

Support needed research into possible biological

effects of RF of the type emitted by wireless

phones;

▶

Design wireless phones in a way that minimizes

any RF exposure to the user that is not necessary

for device function; and

▶

Cooperate in providing users of wireless phones

with the best possible information on possible

effects of wireless phone use on human health.

FDA belongs to an interagency working group of

the federal agencies that have responsibility for

different aspects of RF safety to ensure

coordinated efforts at the federal level. The

following agencies belong to this working group:

▶

National Institute for Occupational Safety and

Health Environmental Protection Agency

▶

Occupational Safety and Health Administration

▶

National Telecommunications and Information

Administration The National Institutes of Health

participates in some interagency working group

activities, as well. The FDA shares regulatory

responsibilities for wireless phones with the

Federal Communications Commission (FCC).

All phones that are sold in the United States must

comply with FCC safety guidelines that limit RF

exposure. FCC relies on FDA and other health

agencies for safety questions about wireless

phones. FCC also regulates the base stations that

the wireless phone networks rely upon.

While these base stations operate at higher power

TIA Safety Information

than do the wireless phones themselves, the RF

exposures that people get from these base

stations are typically thousands of times lower

than those they can get from wireless phones.

Base stations are thus not the subject of the

safety questions discussed in this document.

3. What kinds of phones are the subject of this

update?

The term “wireless phone” refers here to hand-held

wireless phone with built-in antennas, often called

“cell”, “mobile”, or “PCS” phones. These types of

wireless phones can expose the user to measurable

radiofrequency energy(RF) because of the short

distance between the phone and the user’s head.

These RF exposures are limited by Federal

Communications Commission safety guidelines that

were developed with the advice of FDA and other

federal health and safety agencies.

When the phone is located at greater distances

from the user, the exposure to RF is drastically

lower because a person's RF exposure decreases

rapidly

with increasing distance from the source. The so-

called “cordless phones,” which have a base unit

connected to the phone wiring in a house, typically

operate at far lower power levels, and thus produce

RF exposures far below the FCC safety limits.

4. What are the results of the research done already?

The research done thus far has produced conflicting

results, and many studies have suffered from flaws

in their research methods. Animal experiments

investigating the effects of radiofrequency energy

(RF) exposures characteristic of wireless phones

have yielded conflicting results that often cannot

be repeated in other laboratories. A few animal

studies, however, have suggested that low levels of

RF could accelerate the development of cancer in

laboratory animals. However, many of the studies

that showed increased tumor development used

animals that had been genetically engineered or

treated with cancer-causing chemicals so as to be

predisposed to develop cancer in the absence of RF

exposure. Other studies exposed the animals to RF

for up to 22 hours per day. These conditions are

not similar to the conditions under which people

use wireless phones, so we don’t know with

certainty what the results of such studies mean for

TIA Safety Information

human health.

Three large epidemiology studies have been published

since December 2000. Between them, the studies

investigated any possible association between the use

of wireless phones and primary brain cancer, glioma,

meningioma, or acoustic neuroma, tumors of the brain

or salivary gland, leukemia, or other cancers. None of

the studies demonstrated the existence of any

harmful health effects from wireless phone RF

exposures.

However, none of the studies can answer questions

about longterm exposures, since the average period of

phone use in these studies was around three years.

5. What research is needed to decide whether RF

exposure from wireless phones poses a health risk?

A combination of laboratory studies and

epidemiological studies of people actually using

wireless phones would provide some of the data

that are needed. Lifetime animal exposure studies

could be completed in a few years. However, very

large numbers of animals would be needed to

provide reliable proof of a cancer promoting effect

if one exists. Epidemiological studies can provide

data that is directly applicable to human

populations,

but 10 or more years follow-up may be needed to

provide answers about some health effects, such as

cancer. This is because the interval between the

time of exposure to a cancer-causing agent and the

time tumors develop - if they do - may be many,

many years. The interpretation of epidemiological

studies is hampered by difficulties in measuring

actual RF exposure during dayto- day use of

wireless phones. Many factors affect this

measurement, such as the angle at which the phone

is held, or which model of phone is used.

6. What is FDA doing to find out more about the

possible health effects of wireless phone RF?

FDA is working with the U.S. National Toxicology

Program and with groups of investigators around

the world to ensure that high priority animal studies

are conducted to address important questions

about the effects of exposure to radiofrequency

energy (RF).

FDA has been a leading participant in the World

Health Organization International Electromagnetic

TIA Safety Information

Fields (EMF) Project since its inception in 1996. An

influential result of this work has been the

development of a detailed agenda of research

needs that has driven the establishment of new

research programs around the world. The Project

has also helped develop a series of public

information documents on EMF issues. FDA and the

Cellular Telecommunications & Internet

Association (CTIA) have a formal Cooperative

Research and Development Agreement (CRADA) to

do research on wireless phone safety.

FDA provides the scientific oversight, obtaining

input from experts in government, industry, and

academic organizations. CTIA-funded research is

conducted through contracts to independent

investigators. The initial research will include both

laboratory studies and studies of wireless phone

users. The CRADA will also include a broad

assessment of additional research needs in the

context of the latest research developments around

the world.

7. How can I find out how much radiofrequency

energy exposure I can get by using my wireless

phone?

All phones sold in the United States must comply

with Federal Communications Commission (FCC)

guidelines that limit radiofrequency energy (RF)

exposures. FCC established these guidelines in

consultation with FDA and the other federal health

and safety agencies. The FCC limit for RF exposure

from wireless phones is set at a Specific Absorption

Rate (SAR) of 1.6 watts per kilogram (1.6 W/kg).

The FCC limit is consistent with the safety

standards developed by the Institute of Electrical

and Electronic Engineering (IEEE) and the National

Council on Radiation Protection and Measurement.

The exposure limit takes into consideration the

body_ ability to remove heat from the tissues that

absorb energy from the wireless phone and is set

well below levels known to have effects.

Manufacturers of wireless phones must report the

RF exposure level for each model of phone to the

FCC. The FCC website

(http://www.fcc.gov/oet/rfsafety) gives directions

for locating the FCC identification number on your

phone so you can find your phone’s RF exposure

level in the online listing.

8. What has FDA done to measure the radiofrequency

TIA Safety Information

energy coming from wireless phones ?

The Institute of Electrical and Electronic Engineers

(IEEE) is developing a technical standard for

measuring the radiofrequency energy (RF) exposure

from wireless phones and other wireless handsets

with the participation and leadership of FDA

scientists anring the rate at which RF is deposited in

the heads of wireless phone users. The test method

uses a tissue-simulating model of the human head.

Standardized SAR test methodology is expected to

greatly improve the consistency of measurements

made at different laboratories on the same phone.

SAR is the measurement of the amount of energy

absorbed in tissue, either by the whole body or a

small part of the body. It is measured in watts/kg

(or milliwatts/g) of matter. This measurement is

used to determine whether a wireless phone

complies with safety guidelines.

9. What steps can I take to reduce my exposure to

radiofrequency energy from my wireless phone?

If there is a risk from these products--and at this

point we do not know that there is--it is probably

very small. But if you are concerned about avoiding

even potential risks, you can take a few simple steps

to minimize your exposure to radiofrequency

energy (RF). Since time is a key factor in how much

exposure a person receives, reducing the amount of

time spent using a wireless phone will reduce RF

exposure.

▶

If you must condict extended conversationsby

wireless phone every day, you could place more

distance between your body and the source of

the RF, since the exposure level drops off

dramatically with distamce. For example, you

could use a headset and carry the wireless phone

away from your body or use a wireless phone

connected to a remote antenna Again, the

scientific data do not demonstrate that wireless

phones are harmful. But if you are concerned

about the RF exposure from these products, you

can use measures like those described above to

reduce your RF exposure from wireless phone

use.

10. What about children using wireless phones?

The scientific evidence does not show a danger to

users of wireless phones, including children and

teenagers. If you want to take steps to lower

exposure to radiofrequency energy (RF), the

TIA Safety Information

measures described above would apply to

children and teenagers using wireless phones.

Reducing the time of wireless phone use and

increasing the distance between the user and the

RF source will reduce RF exposure. Some groups

sponsored by other national governments have

advised that children be discouraged from using

wireless phones at all. For example, the

government in the United Kingdom distributed

leaflets containing such a recommendation in

December 2000.They noted that no evidence

exists that using a wireless phone causes brain

tumors or other ill effects.

Their recommendation to limit wireless phone use

by children was strictly precautionary; it was not

based on scientific evidence that any health

hazard exists.

11. What about wireless phone interference with

medical equipment?

Radiofrequency energy (RF) from wireless phones

can interact with some electronic devices.

For this reason, FDA helped develop a detailed

test method to measure electromagnetic

interference (EMI) of implanted cardiac

pacemakers and defibrillators from wireless

phones.

This test method is now part of a standard

sponsored by the Association for the

Advancement of Medical instrumentation (AAMI).

The final draft, a joint effort by FDA, medical

device manufacturers, and many other groups,

was completed in late 2000. This standard will

allow manufacturers to ensure that cardiac

pacemakers and defibrillators are safe from

wireless phone EMI.

FDA has tested hearing aids for interference from

handheld wireless phones and helped develop a

voluntary standard sponsored by the Institute of

Electrical and Electronic Engineers (IEEE). This

standard specifies test methods and performance

requirements for hearing aids and wireless phones

so that no interference occurs when a person uses

a “compatible” phone and a “compatible” hearing

aid at the same time.

This standard was approved by the IEEE in 2000.

FDA continues to monitor the use of wireless

phones for possible interactions with other

TIA Safety Information

medical devices. Should harmful interference be

found to occur, FDA will conduct testing to assess

the interference and work to resolve the problem.

12. Where can I find additional information?

For additional information, please refer to the

following resources:

▶

FDA wed page on wireless phones

(http://www.fda.gov/cdrh/phones/index.html)

▶

Federal Communications Commission(FCC)RF

Safety Program

(http://www.fcc.gov/oet/rfsafety)

▶

International Commission on Non-lonizing

Radiation Protection

(http://www.icnirp.de)

▶

World Health Organization(WHO)

International EMF Project

(http://www.who.int/emf)

▶

National Radiological Protection Board(UK)

(http://www.nrpb.org.uk/)

TIA Safety Information

LG ELECTRONICS Inc. represents and warrants that

this subscriber unit and its accessories (“PRODUCT”)

is free from defects in material and workmanship.

This warranty is subject to the following terms and

conditions;

1. This warranty of the PRODUCT extends for a

period of 12 months commencing from the date

of the activation or 16 months from the date of

manufacture whichever is less, except for the

battery, for which the warranty is 9 months from

the date of activation or 12 months from the

date of manufacture whichever is less.

2. During the warranty period, LG ELECTRONICS

Inc. or its authorized service network will repair

or replace, at LG ELECTRONICS Inc.’s option,

the PRODUCT or any relevant parts thereof in

the event that the PRODUCT is found to be

defective. The repaired PRODUCT or the

Product/part provided as a replacement for a

defective PRODUCT/part, shall be free from

defects. The END USER/consumer purchaser of

the PRODUCT or his/her assignee

(‘CONSUMER’) shall not be charged (whether

for parts, labour or otherwise) for the repair or

replacement of a defective PRODUCT during the

warranty period. All replaced parts, boards or

equipment shall become the property of LG

ELECTRONICS Inc.

3. The warranty in respect of a repaired or replaced

PRODUCT/part shall extend for the remaining

warranty period of the repaired PRODUCT or

replacement thereof to the CONSUMER.

4. Upon request from LG ELECTRONICS Inc. , the

CONSUMER may be required to provide the

purchase receipt or other documentation or

information in respect of the date and place of

purchase.

5. The CONSUMER shall have no coverage or

benefits under this warranty in the event that

any of the following conditions are applicable:

(a) The PRODUCT has been subject to

abnormal use or conditions, improper storage,

exposure to excessive moisture or dampness,

exposure to excessive temperatures,

unauthorized modifications, unauthorized repair

(including but not limited to use of unauthorized

spare parts in repairs), abuse, accident, Acts of

Limited warranty statement

God, spills of food or liquids, improper

installation and breakage or damage to

antennae (otherwise than by reason of any

defects in material or workmanship).

(b) LG ELECTRONICS Inc. has not been notified

by the CONSUMER of the defects of the

PRODUCT during the applicable warranty

period.

accessory date code has been removed, defaced

or altered.

(d) The PRODUCT has been used with or

connected to an accessory (i) not supplied by

LG ELECTRONICS Inc. or its affiliates, (ii) not fit

for use with the PRODUCT or (iii) used

otherwise than in the manner intended.

(e) The seals of the PRODUCT’S battery

enclosure have been broken or show evidence of

tampering or the PRODUCT’S battery has been

used in equipment other than that for which it

has been specified usable by LG

ECLECTRONICS Inc.

(f) All plastic surfaces and all other externally

exposed parts that are scratched or damages

due to normal customer use.

(g) Breakage or damage to antenna unless

caused by defects in material or workmanship.

6. Order to derive benefits of this warranty in

respect of any defects in the PRODUCT, the

CONSUMER shall ship the PRODUCTS or part

thereof at its cost to the authorized service

center of LG ELECTRONICS Inc. LG

ELECTRONICS Inc. shall bear the cost of

shipping the PRODUCT or part thereof back to

the CONSUMER after the completion of the

service under this limited warranty.

NO OTHER EXPRESS WARRANTY IS

APPLICABLE TO THIS PRODUCT. THE

DURATION OF ANY IMPLIED WARRANTIES,

INCLUDING THE IMPLIED WARRANTY OF

MARKETABILITY OR MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE OR USE

IS LIMITED TO THE DURATION OF THE

EXPRESS WARRANTY HEREIN. LG

ELECTRONICS Inc. SHAll NOT BE LIABLE FOR

THE LOSS OF USE OF THE PRODUCT,

INCONVENIECE, LOSS OR ANY OTHER

Limited warranty statement

CONSEQUENTIAL DAMAGE, ARISING OUT OF

THE USE OF, OR INABILITY OF USE, OF THIS

PRODUCT OR FOR BREACH OF ANY EXPRESS

OR IMPLIED WARRANTY, INCLUDING THE

IMPLIED WARRANTY OF MARKETABILTY OR

MERCHANTABILITY OR FITNESS APPLICABLE

TO THIS PRODUCT.

THE CONSUMER UNDERSTANDS THAT LG

ELECTRONICS INC.

HAS EMBEDDED RELIANCE SOFTWARE AND

ITS NETWORK PARAMETERS IN THE

PRODUCT. IN CASE THE CONSUMER

DELETES, REMOVES, ALTERS OR MODIFIES

SUCH SOFTWARE

AND THE PARAMETERS AND/OR INSTALLS

ANY THIRD PARTY SOFTWARE, THE

WARRANTY AND REMEDIES HEREUNDER

SHALL NOT BE AVAILABLE TO THE

CONSUMER.

7. It is hereby expressly clarified that all warranties

(express or implied) in respect of the PRODUCT

are provided by LG ELECTRONICS Inc. alone.

Limited warranty statement

LGE ASC List

Authorized LGE Service Center List

1Andhra Pradesh Guntur Vasavi Associates Door no 6-20-4, Swarnalok complex, 4/1 Arandal Pet, MR.Satyam 0863-2233678,

Guntur-522003 9848105789,

0863-3155554

2Andhra Pradesh Hydrabad Sri Varun Electronics D.No 5-8-344/1, “ DHAN BHAGYA ESTATE ”, Chirag Ali Lane, Mr.Raghavendra 040-55781999,

Abids, Next to Raghava Ratna Towers, Hyderabad - 500 001 040-55253888,

040-56878822,

040-31001463

3Andhra Pradesh Hydrabad JVR Infotech Pvt Ltd Shop No 8 ,Vanijya Vihar, Nalanda Building, EV Ramakanth 040-24161848,

Dilsukh Nagar Main Road, Hydrabad-500060 040-55109604,

040-56524157,

040-31131067,

040-36060606

4Andhra Pradesh Hydrabad S V Electronics Shop No. 41, Nilagiri Block, Aditya Enclave, Ameerpet Main Road, Mr.Vankteshwara 040-55754477,

Hydrabad-500038 Rao 55343030

5Andhra Pradesh Hydrabad Reliable G-8, 3-6-561, AALTO’S A & M Trade Centre, HIMAYATNAGAR, Mr Mahesh Heda 040-30913251,

Communication HYDERABAD - 500029 040-31045556,

09849251173

6Andhra Pradesh Kurnool R K LG CDMA #40-37-J1, Opp. Indian Bank, Near Balaji Hotel, Kurnool- 518002. Mr.G Rama 08518-220201,

Krishna 08518-310688

7Andhra Pradesh Nellore Siri Enterprises Opp.Archana Thearter,A C Centre,Nellore PIN-524001 Mr.Paraveen 0861-3209571,

0861-3100309

8Andhra Pradesh Rajamund Siri Infotech Police Welfare Complex, City Hospitals Junction, Danvai Pet Main Mr Raghvendra 0883-2421567,

-hary Road, Rajhamundry-533103 0883-3125799

9Andhra Pradesh Secundrabad Shweta Computers # 1-7-69/1 & 2, OPP Aditya Delux Hotel,Near Paradaise Mr.Jagdish 040-55334180,

circel Sarojini Devi Road, Secunderabad - 500003 040-27721076,

040-36532358,

040-31041673

10 Andhra Tirupathi CMT Computer 18-1-624 VV Mahal Road, OPP HDFC BANK, Mr.K Vasu Naidu 0877-5561979,

LGE ASC List

SSrrCCiirrcclleeCCiittyy NNaammeeAASSCCss AAddddrreessss PPeerrssoonnCCoonnttaacctt PPhhoonnee

LGE ASC List

Pradesh Services Tirupathi, PIN-517501 0877-3120209

11 Andhra Pradesh Vijaywada K L Computer House 39-9-46 SVS Temple Street,Labbipet,Vijaywada PIN- 520010 Mr.Kartik 0866-5520461,

5671461,

0866-3105222

12 Andhra Pradesh Visakha S V Electronics D No.30-15-111, Daba Garden, Main Road, Mr.Nani 0891-2598610,

-patnam Visakhapatnam PIN-530020 0891-2706074,

0891-3706074

13 Andhra Pradesh Warrangal S S Marketers 6-1-73/1,Sai Bhavan, Sridevi Theatre Road, Mr.L.Srinivas Rao 0870-2552223,

Hanamkonda,Warrangal-506001 0870-3100708

14 Bihar Jamshedpur Tirupati Chakravarti Compound, Near Hotel Castel, Abhijeet 0657-3100350

Teletech Contractors area,Bistupur, Jamshedpur-831001 Mukherjee

15 Bihar Patna

Infotek Trading Company

1st floor, City Palace, New Dak Bunglow Road, Patna-800001 Sanjay Chowbey 0612-2227166

16 Bihar Ranchi Satya Systems 158, Opp Hotel Palace, Kadru, Ranchi-834002& Solutions Amit Rastogi 0651-2341361,

667

17 Delhi Delhi Comhard Systems D-30,31, First floor, Near Hotel Shipra, Main Vikas Marg, Mr Ravi 011-30955887,

Lakshmi Nagar Kant Gupta 9818867678

18 Delhi Delhi Innovative Telecom 305,Aggarwal Millenium Tower,Netaji Subash Mr Manoj Garg 011-55154343,

Place,Pitam Pura,Delhi-110088 9811682453,

1130925753

19 Delhi Delhi Sagar Technologies W-8, First Floor,Main Patel Road,West Patel Nagar, Mr Deepak/ 9810320170

New Delhi- 110008 Mr Amit 011 55433100

20 Delhi Delhi Sagar Technologies J-39,Central Mkt, Lajpat Nagar-II, New Delhi -110024 Mr Prabhat 1155186929,

9350224692

21 Delhi Delhi Ucom Technologies 45, 1st Flr, Corner Mrkt, Malviya Nagar, Bhuwan Chandra 011-26675900,

Pvt Ltd. New Delhi - 110017 55655382,

011-33088818

22 Delhi Delhi Nice Tele 15/23,First Floor, DDA Complex, Nangal raya, D Block, Janakpuri, Ripul Garg 011-28521044,

-communication Delhi - 110046 9810778310

23 Delhi Delhi Touch Tone Telecom B-52, First Floor,Kalkaji,New Delhi Ashish Dey 11 30939031

24 Delhi Delhi Cube Engineers A-65, Naraina Industrial Area, Phase-1, New Delhi Atul Gupta 011-31004103,

SSrrCCiirrcclleeCCiittyy NNaammeeAASSCCss AAddddrreessss PPeerrssoonnCCoonnttaacctt PPhhoonnee

LGE ASC List

and Consultants Pvt Ltd 011-55450272,

51411623

25 Delhi Delhi Comhard Systems B-120, Hardev Puri, 100 Feet Main Road, Near MTNL Office, Mr. Ravi Kant 011-39572430,

Nathu Colony Chowk,Shahdra, New Delhi - 110093 Gupta. 011-39572427

26 Delhi Delhi R K Communications 2516 Hudson Lines , Kingsway Camp-Nr. Mr. Pradeep 011-35908861

Kamla Nagar , New Delhi Aggarwal

27 Gujarat Ahmedabad Visual Enterprises 104, Saarthak Complex, behind Urja House, Swastik Char Rasta, Mirza Patel 079-6438609,

Navrangpura, Ahmedabad-380009 31037582

28 Gujarat Ahmedabad Silicon Valley F/6,Silver lake,Jagabhai Park, Rambaug Road, Maninagar, Rajesh Patel 079-5430634,

Ahmedabad -380008 36163645,

9824025430

29 Gujarat Ahmedabad

Mishree Communication

75,Management Enclave, Opp.Indraprastha Bungalows,Vastrapur, Mitesh Patel 079-31037582,

Ahmedabad 079-30920724

30 Gujarat Ahmedabad A Com Technologies Shop No-40, 1st Floor, Shubh Complex,Near Rajasthan Hospital, Vijay.S.Gohel 9824544230

Camp Road,S hahibaug, Ahmedabad-380004

31 Gujarat Bhavnagar Teletext Gold G/8,Radheshyam Complex, Radha Mandir,Vaghavadi Road, Nilesh Bagadia 0278-2415545,

Bhavnagar-364001 9825206498

32 Gujarat Gandhinagar

Creative Communications

Shop No 102,Suman City, Sector 11,Gandhinagar-382011 K.J.Barot 079-23226241,

9825059590

33 Gujarat Jamnagar Sudarshan Infosys 3, Prerna Building, Cricket Bunglow-3, Indira Nagar, Amit Unadkat 0288-2552696,

Jamnagar 9824478203

34 Gujarat Rajkot Roopang infocare Vinod Nivas,4,Sardarnagar(West),Nr Astron Cinema,Rajkot-360001 Kalpesh Rugani 0281-2464485,

3103622,

9824068880

35 Gujarat Surat Excel Solutions G-48, Ascon Plaza, Anand Mahal Road, Adajan Surat-395009 Nitesh Ghosal 0261-5544500,

3344500,

9825399870

36 Gujarat Surat Omsai Services

37,Golden Point,Near Science Laboratory, Ring Road, Surat -3940003

Dharmesh Patel (0261)3110610

37 Gujarat Vadodra Aashnik Infotech F 50,National Plaza,R.C. Dutt Road, Alkapuri, Vadodara-390005 Aashish Parmar 0265-2323216,

3090969,

3112123

SSrrCCiirrcclleeCCiittyy NNaammeeAASSCCss AAddddrreessss PPeerrssoonnCCoonnttaacctt PPhhoonnee

LGE ASC List

LGE ASC ListLGE ASC List

38 Haryana Ambala Bee Ess Aar 92-93, Gandhi market, Ambala Cantt-133001 Rajiv Gupta 0171-2641234,

Communication 9416021234

39 Haryana Faridabad

Hi - Tech Communication

105, Sector 10, Faridabad-121006 Rahul Jindal 0129-2223422,

9810456663

40 Haryana Gurgaon Signature B-100 A , South City -1 , Opposite - Huda Gymkhana Club - Raj Kumar Garg 0124-3097955,

Communications Gurgaon 122001 9811465111,

0124-3956565

41 Haryana Karnal Mass Communication 7, Dayal Singh Colony, Kunj Pura Road, Karnal -132001 Ms Pinki 0184-3090717,

09896354205

42 Haryana Panipat INS Telecom 2,Bishan Sarup Colony, Opp Bus Stand, Near Hotel Deep, Panipat Jagdeep 0180-3091860,

Sachdeva 5005360,

9812072860

43 Haryana Rohtak Telecentre Shakti Market, Civil Hospital Road, Near Chhotu Ram Chowk, Mr.Madaan 01262-247242,

Rohtak-124001 9896243092,

01262-371666

44 Haryana Sonipat Teleworld Ground Floor, Main Market, Main Railway Road, Opp. Vipin Dua 1303090889

Old Civil Hospital, Sonipat - 138001

45 Karnataka Bangalore Meenakshi Electronics #129,Lalbagh Main Road, Bangalore-560027 Mr. Ramesh. 080-56992943,

30617345,

31810375,

51146822

46 Karnataka Bangalore

Optima Mobile Services

591-B, Dr Rajkumar road, 2nd block, Rajajinagar, Bangalore-560010

Unni Krishnan 080-3131953,

8031866656

47 Karnataka Bangalore

Optima Mobile Services

B-3, Mallikaarjun Complex, Opp R T Nagar Police Station, Prasad 080-30610202

80 Feet Road, R T Nagar, Bangalore-560032

48 Karnataka Bangalore Pranav infocom 91/92 ,Hemachandra complex,Near VGP Show room, S.V.Sirish 080-56697937,

4th block,jayanagar, Bangalore-560011 31860269,

26552551

49 Karnataka Bangalore Pranav infocom 267/1,1st Main Road,6th Cross, Behind Shanti Sagar, S.V.Sirish 80- 56969937,

Domlur Layout, Bangalore-560071 51256309

50 Karnataka Bangalore Ascent Communication No:113, St Johns Church road,Bangalore - 5 Naveen 080-30914856

SSrrCCiirrcclleeCCiittyy NNaammeeAASSCCss AAddddrreessss PPeerrssoonnCCoonnttaacctt PPhhoonnee

LGE ASC List

51 Karnataka Belgaum Hello India Telecom G-4,Maratha Mandir Complex, Khanapur Road, Sanjay 9845327531,

Near Railway Flyover, Belgaum - 590001. 0831-3101800,

2420533

52 Karnataka Hubli Networld shop no : B6, Laxmi complex, Court circle , Hubli- 580020 Mr.Mahendar 0836-3090671,

98452-54251,

0836-3090671

53 Karnataka Mangalore City Talk GURU PLAZA, G-5, Near KSRTC Bus stand, Bejai, A V Prabhu 0824-3344528,

Communication Mangalore - 575001 5277528

54 Karnataka Mysore K.K. 1432/9, Tribhuvan Towers, opp Vetenary Hospital, Dewan’s Road, Mr. Karunakaran 0821-3115003,

Marketing Dhanwantri Road Cross, Mysore -570001 821 3120789

55 Kerala Ernakulam Zenicon Infocom(P) 2nd floor, Tharian’s Building,opp. Ship Yard, M.G. Road, Jaimon Joseph 0484-2359511,

limited Ernakulam -682015 9349271511

56 Kerala Irinjalkuda Akbar Mobiles 376-44, Near St. Josephs college junction, Irinjalakuda-680121 Mr Sebastian 0480-830796

57 Kerala Karuna-gapally Supreme Enterprises Opp to KSRTC Bus stand,Karunagapally -690518 Mr. Ratish 0476-2620282

58 Kerala Kollam Digital Infosystems MC-3087, New Block, Bishop Jeromi Nagar, Chinnakada, Johnson 0474-2760647,

Kollem-691001 Lawrence 9846007059

59 Kerala Kottayam SVM Technologies NSS Builbing, Near Pallippurathukavu Temple, Kodimapha, Rajesh K S 0481-2565303,

Kottayam- 686002 9847310123

60 Kerala Kozhikode Domain Domain Infosystems, 2nd Floor, Darussalam Mukundan 0495-2722222

Infosystems Complex, Mavoor Road, Kozhikode - 673004

61 Kerala Manjeri Akbar Mobiles 16-870A, Ooty Road, Manjeri-676121 Mr Harry 0483-2766835

62 Kerala Mavellikarra Ettutharayl Agency Ettutharayil complex, K P Road,Kayamkulam -690502 Anu T cheriyan 0479-2441760,

0479-3100025

63 Kerala Pallakad Akbar Mobiles N.S. Towers,Kalamandapam junction, Palakkad - 678001 Suresh 0491-2529829,

9847086446

64 Kerala Thiruvanan Appolo Systems TC 20/2392, Kalpalayam, Karamana P.O., Thiruvananthapuram Santosh 0471-2340523

65 Kerala Tirur Akbar Mobiles 7-2,Ancila Building, Terivazhiambalam, Tirur - 676101 Mr Byju 0494-2427444

66 Kerala Trichur Akbar Mobiles Kadarathodh Building, North Bus stand, Trichur - 680 001 Sojan 0487-2323424

Madhya Pradesh

Bhopal Neha Sales F-104, Anmol Tower, E-5/14, Commercial Zone, Arera Colony, Ashok Hirwani 0755-5277247,

Corporation Bhopal-462016 2424088 ,

SSrrCCiirrcclleeCCiittyy NNaammeeAASSCCss AAddddrreessss PPeerrssoonnCCoonnttaacctt PPhhoonnee

LGE ASC List

9826072327

68 Madhya Pradesh Gwalior Computer Clinic Global Appartments, City Centre, Opp Income Tax Office, Gwalior Rishi Sharma 0751-3202200

69 Madhya Pradesh Indore Neha Sales M-8,Mezanine Floor, Akash Deep Shopping Complex, Sneh Nagar, Ashok Hirwani 0731-5091833,

Corporation Sapana Sangeeta Road, INDORE - 452001(M.P) 9826072327

70 Madhya Pradesh Jabalpur S M Shopee 846, Chattarpur Bhavan, Nr. Ashoka Hotel, Wright Town, Vikas Jain 0761-5063183

Jabalpur,Pin 482002

71 Madhya Pradesh Raipur Cybernet Systems B-2,1st Floor, Garchaz Complex, Jail Road, Raipur - 492001 Anand Singh 0771-2524033,

9826132918

72 Maha rashtra Amravati Scorpio Services Shop No. 84, Ground Floor,GulshanTowers, Nr. Panchasheel Cinema, Mr. Pramod 0721-2567302,

Amrawati, Pin-444601 0721 3151826,

9422156874

73 Maha rashtra Aurangabad Unique Shop no.108/B,Behind Sajawat Handloom, Tapdiya Super Market, Mr. Mahesh 0240-2356447,

Teletmatics Nirala Bazar, Aurangabad-431001 9823007730,

0240 3110364

74 Maha rashtra Chinchwad Ritz Communication Shop No 22, Gawde Kunal garden,Pimpri-Chinchwad Link Road, Mr Reyaz 020-7485613,

(Pimpri) Chinchwad, Pune-411033 020 31029777,

020 30961900,

09890339777

75 Maha rashtra Kohlapur SMS Services S5, Diwan Tower, Opp. Nutan Marathi School, Prakash Patil 0231-2541120,

Near Mirajkar Tikkty, Kolhapur, Pin -416005. 9823026120

76 Maha rashtra Margoa Comlink Synergies Ground Floor, Shop No. i, Garden view building, Next to UTI Bank , Sunil 0832 3105629,

India Pvt Limited. Near Margao Municipal Garden,Margao-403601 9822101522,

0832 3105637

77 Maha rashtra Nagpur Spectrum Marketing Shop No.2, Dharampeth Towers, West High Court Sonali 0712-3095700,

(WHC) Road, Dharampeth, Nagpur - 440010 5618186,

2527823

78 Maha rashtra Nasik MOBS Associates SHOP NO. 12, FIRST FLOOR,’KAPOTE-MEHER’ MARKET, Girish Bhangre 0253-5623613,

RENUKA NAGAR, WADALA NAKA, DAWRKA, NASIK- 422001 0253-3291070,

0253-3331078

79 Maha rashtra Panjim Comlink Synergies Shop No. 5 , Dr Atmaram Borkar Road, Next to RIL Mutual Fund, Sunil 0832-3105629

India Pvt Ltd Panjim, Goa-403001

SSrrCCiirrcclleeCCiittyy NNaammeeAASSCCss AAddddrreessss PPeerrssoonnCCoonnttaacctt PPhhoonnee

LGE ASC List

80 Maha rashtra Pune Digital Concepts Shop No. 5, Indulal Complex,Besides Kaka Halvai, LBS Marg, A Ahmed 020-4012921,

Navi Peth, Pune-411030 020 31029798

81 Maha rashtra Sangli Ramesh Electronics Opp. Kanya Purohit prashala,Rajwada,Sangli-416416 Suresh Shegane 0233-2327601,

9823085176,

0233 3107601

82 Maha rashtra Solapur Jawaharlal Radio 184, Gold Finch Peth, nr Hotel Ritesh, Solapur- 413007 Prasanna 0217-2725030,

Service J Chavan 9422458830,

9823317081

83 Mumbai Kalyan Vintech Solutions SHOP- 14, GROUND FLR, ARCHIES APARTMENT, Pawan 022-32977555

OAK BAUG,KALYAN -421301

84 Mumbai Vasai E-Link Solutions Shop No.5, Type C, Bldg no.5/6, Shanti Vihar, Mira Road -E, Kamlesh 022-28552087,

Pin Code : 401107 022-33482084

85 Mumbai Mumbai Everest International SHOP NO 6 AMBIKA COOPERATIVE HOUSING SOCIETY, Chetan 022-56299540,

Pvt Ltd JAWAHAR NAGAR ROAD NO 2 NEAR RAILWAY CROSSING, 39533603,

GOREGAON WEST, MUMBAI 400062 9820188338

86 Mumbai Mumbai LG Service Third Floor, Trade World, Kamala Mills Compound, Rajib Saha 022-24947375,

Centre Senapati Bapat Marg, Lower Parel, Mumbai -400013 022 33490401

87 Mumbai Navi Mumbai LG Service A Block, Ground Floor, Dhirubhai Ambani Knowledge City, Rajnish 022-30388052,

Centre-DAKC Navi Mumbai-400709 022-33490405

88 Mumbai Thane Vinay Technologies Shop no 3, Minal Chhaya Aptt, Muncipal Corporation Road, Vinod Jakotiya 022-25304960,

Pvt Ltd Panch Pakhadi, Thane (W) - 400601 9821068231,

022-31013342

89 Mumbai Navi Mumbai Hello World Shop No 53,GF,Welfare Chambers, Sector-17, Vashi,Mumbai-400703 Mahesh 022-27657705,

022 32741396

90 Mumbai Khar(W) Komplex Telecom 1,Satguru Shopping Center, IIIrd road, Khar(W), Mumbai Mr Mohammad 022-26461917,

Corporation 34195024

91 Mumbai Panvel Oceanic Tele System Shop No.10, Prajapati Arcade,Sector 15, New Panvel ( E), Shailash Bobade 022-56104542,

Dist. Raigad. 022-31017221

92 Orissa Bhubr neshwa S.A.INFOSYS 291.Bomikhal, Opp. Akamra cinema hall, Bhubaneswar-751010 Sarabjeet Singh 0674-

2573113/4

SSrrCCiirrcclleeCCiittyy NNaammeeAASSCCss AAddddrreessss PPeerrssoonnCCoonnttaacctt PPhhoonnee

LGE ASC List

93 Orissa Cuttack O.A. Behind Govt Bus Stand, Badambadi, Cuttack INFOTECH

Manas Mahapatro

0671-2312613-

753012

94 Punjab Amritsar Bajaj Telecommuni 87, G Floor, Nehru Complex, Lawrence Road, Amritsar-143001 Suman Bajaj 0183-3124827,

-cation 9814650314

95 Punjab Barnala Unique Infotech Mittal Street, Near M C Office, Barnala-148101 Pankaj Goyal 01679-238007,

01679-310667

96 Punjab Bathinda

Lalli’s Electronic Gallery

1139-A, First Floor, Amrik Singh Road, Ashok Kakria 0164-2239500,

Nr Gole Diggi, Bhatinda-151005 2236337,

9814222310

97 Punjab Chandigarh Vignesh Services S.C.O- 189-90,Sec- 34,Chandigarh Mukesh Arya 0172-3018028,

09316134655

98 Punjab Hoshiarpur Kuldip’s Mobile Care Dhobian Wali Gali, Phagwara Road, Hoshiarpur-146001 Kuldip 01882-226906,

9815073906

99 Punjab Jallandhar Mobile Center Shop No-7, Gobind Market,.Opp-Beri Hospital, Jogesh Diwan 0181-3092666,

Nakodar Road,Jalandhar 9814029696,

9815314060

100 Punjab Ludhiana

Shahi Communication

Shop No.5, 4X International, 583 L, Model Town, Ludhiana Amit Shahi 0161-3944190

101 Punjab Malerkotla Prime Infocomm Opp. Main gate,Govt College, MalerKotla -148023 Raj Verma 01675-253899,

9814040066,

01675-331979

102 Punjab Moga Super Communication Pawan Market,Opp shankar Batteries,Court Road, Moga-142001 Jai Deep Mehta 01636-314398

103 Punjab Patiala Image Services 84, First Floor, Leela Bhawan, Patiala-147001 Rohit Bansal 0175-2222796,

9814040066

104 Rajasthan Jaipur Kamakshi Telecom 105,1st floor,Paradise, C-61(A), Sarojini Marg, C-Scheme, Rahul Bhargav 0141-2365575,

Jaipur-302001 0141-3112863

105 Rajasthan Jaipur Alpha Infotech F-1, First Floor, Krishna Mall, Lakshmi Mandir Crossing, Tonk Road, Shatrughan 0141-5106777,

Systems Jaipur-302015 Mangal 9829077136,

0141-3099724

106 Rajasthan Jodhpur Omega Electronics UG/4, Adeshwar Tower, Main Chopasani Road, Pratap Singh 0291-3091214,

3117171

SSrrCCiirrcclleeCCiittyy NNaammeeAASSCCss AAddddrreessss PPeerrssoonnCCoonnttaacctt PPhhoonnee

LGE ASC List

Opp.Gehlot Watch Co, Jodhpur-342003

107 Rajasthan Kota Cyber Infosystems 26, Ground floor, Kalawati Paliwal market, Shyam 0744-2398153,

Gumanpura, Kota-324007 Maheshwari 07443103354,

07443320153

108 Rajasthan Udaipur Ficusa Enterprises

13,Darshanpura,Opp.M.B.Commerce CollegeGate, Nr Computer Zone,

Virendra Ranka 0294-2410002,

Udaipur-313002 2413002,

3410002

109 Tamilnadu Chennai Unicare Infocomm 73, Nutech Plaza, Shop no G-3, G Floor, Arcot R M Rajesh/ 044-24724666,

Services Road, Kodambakkam, Chennai - 600 024 Kartik 9841036466

110 Tamilnadu Chennai GS Systems 547/352, F M Towers, Mount Road, Kanirajan 044-24330889,

Nandanam, Chennai-6000035 9884160010

111 Tamilnadu Chennai U Com Tech Shop#3, Door # 24, New #30,Balfour Apartments, Shyam 044-52174656,

-nologies Pvt. Ltd. Balfour Road,Kilpauk. Chennai - 600010 52175115,

9884187800

112 Tamilnadu Chennai Escomm Systems No 57-7, Arunodaya Apartments Next to Hotel Sindhoori, Near by Mrs N S Vijaysri 044-30901688,

India P Ltd Everest Bus Stop,Ponnamalai High Road, Chennai-600003 25612212

113 Tamilnadu Chennai

Genesis Communication

63/3, First main road, Gandhi Nagar, Adyar, Chennai-600020 Mr Suresh 044-24401188

114 Tamilnadu Coimbatore Fast Track Sudera Complex, 354B, 100 Feet Road, COIMBATORE - 641012 Anand Prakash 0422-2490577,

9843080040,

0422-3100080

115 Tamilnadu Cuddlore

Kasturi Cellular Service

NO: 37 (2C) BHARATHI ROAD,CUDDALORE. 607 001, Mr Raghupati 04142 - 220183

CUDDALORE DISTRICT,TAMIL NADU.

116 Tamilnadu Erode JANS Electronics 148,Mettur Road, Opposite shakti vinayak temple,Dana Complex, M Kanan 0424-2258526,

Erode-638011 9443263508

117 Tamilnadu Madurai Devaa Electronics No.4, Thirumakulam North Street, Near Ayyappan koil, Guna 0452-5360995,

Thhallakulam,Madurai-625002 0452-2526179

3107995

118 Tamilnadu Pondicherry Digital Logistics 126/2, Perumal Koil Street(Bharathi Street Cutting), G Singaravelu 9843093348,

Pondicherry-605001 0413-3155351,

0413-5210148

SSrrCCiirrcclleeCCiittyy NNaammeeAASSCCss AAddddrreessss PPeerrssoonnCCoonnttaacctt PPhhoonnee

LGE ASC List

119 Tamilnadu Salem Global Care 262-A, Advitha Ashram Road, Salem - 636004 Vasudev Nayak 0427-2335787,

0427-3102124

120 Tamilnadu Thanjavur Z M Electronics 33,New Municipal Shopping Complex,Opp LIC,Gandhi Ziauddin 04362-272595,

ji road,Thanjavur-613001 04362-313254

121 Tamilnadu Tirunevelli Classic Electronic 39, Trivendrum Road, Opposite Kalimark, Welcome Complex, Erkins 0462-2575801

Palayamkottai, Tirunilveli-627002

122 Tamilnadu Tirupur Shri Vasavi Electronics #155-303, Mangalam Road,Karuvam palayam, MR.U.B. Bala 0421-3091438,

Tirupur -641604 Murali 98422-74300,

0421-3105560

123 Tamilnadu Trichy S K Electronics Raj Complex, 9/A EVR Road, Puthur, Trichy- 620017 Krishnan 0431-2771946,

9843178104,

0431-3101502

124 Tamilnadu Vellore

Matha Communication 4, S.L.N Plaza, Opposite Odai Pilliar Koil, Gandhinagar,Vellor - 632006

Gunaa Shekhar 0416-2240800

125 Uttar pradesh Agra NSC Computers Shop No G-124, Block No- 29, Sanjay Place, Agra - 282002 Rajiv Singhal 0562-2520032,

562 3111350

126 Uttar pradesh Agra Space Consultancy UG 1 & 2, Opp. Jaihind Hotel, Merchant Chamber, Sadar Bazar, Tanvir 9358311202

& Services Agra-282001

127 Uttar pradesh Aligarh A V Computer Services G-1,Ganpati Plaza ,Jha Compund, Marris Rd, Aligarh-202001 Vaibhav 0571-2506148,

9412274391

128 Uttar pradesh Allahbad B.P.Electronics G-11, Indira Bhawan, Ground Floor, Civil Lines, Allahbad-211001 Ms Naina Pandey 0532-2608088

129 Uttar pradesh Bareilly Sapan Infotech G - 64 A Kunwar Complex, Near Gupta Watch Co, Sanjeev Singh 0581 - 3102467

116 Civil Lines,Bareilly

130 Uttar pradesh Dehradun Krishna Shop No 15A, Meedo Plaza, Rajpur Road, Dehradun, Vinod 135 3090895,

Communication Uttaranchal-248001 135 3112922

135 3119696

131 Uttar Ghaziabad Concessionair C-83, Rajnagar DistrictCenter (RDC), Ghaziabad Arun Sharma 0120-3092011

Documentation

India Pvt Ltd(CDIL)

132 Uttar pradesh Gorakhpur Eternal Electronics Shop No.11, Pandey Complex,33, Kasya Road, Opp DIG Bunglow, Ram Pratap 0551-2204520

Gorakhpur -273001

SSrrCCiirrcclleeCCiittyy NNaammeeAASSCCss AAddddrreessss PPeerrssoonnCCoonnttaacctt PPhhoonnee

LGE ASC List

133 Uttar pradesh Kanpur AR Infotech 111/402 Ashok Nagar,Kanpur Pin 208012 Manoj Shukla 0512-3111662,

9839068734,

0512-3093011

134 Uttar pradesh Lucknow NET COM 3 way road, City Point, Opp Krishi Bhawan, Lucknow-226024 Kawaljeet 0522-3094222

135 Uttar pradesh Meerut Systech Computers

F-124/125 Ist floor Ganga Plaza, Begum Bridge Road, Meerut-250002

Vineet Goyal 0121-2691167,

121 3116631

136 Uttar pradesh Muza Jai Computer

Shop No. 4, 1st Floor, Roorkee road, Near Shiv Chowk,Central Bank Mkt,

Manohar Singh 0131-2635483,

-ffarnagar Muzaffarnagar-251001 9412110215

137 Uttar Noida M R Telecom J-45, First Floor, Sector-18, NOIDA-201301 Kailash Aggarwal 0120-2591440,

9871197801

138 Uttar pradesh Saharanpur Maharaj Near Maharaja Palace,Delhi Road, Saharanpur-247001 Pankaj Malhotra 0132-2720881,

Communications 132 3111202

139 Uttar pradesh Varanasi Shivam Mobile Shop No.5,B37/115-B-1 Baradari Complex,Rathyatra Crossing, Rishi Mohan 0542-2363296,

Distributers Varansi Pin 221010 9839241004

140 W Bengal Assansol Sky Computer Islam Market, Nuruddin Road, Assansol-713301 Syed Arshad Ali 0341- 2207719,

& Telecom Tikonia Bus Stand, 9832160886

141 W Bengal Burdwan San Infosys Central Mkt, GT Road, Burdawan-713101 Sanjit Debnath 0342-3090265,

9832192170

142 W Bengal Calcutta Benma Infosol Pvt Ltd.P-168/1 CIT Road, Scheme VIIM, KOLKATA 700067 Arun Surana 033-30943176/7

143 W Bengal Calcutta JP Computers 5B Ekdalia Place, Kolkata- 700019 Somim Kabir 033-24401923

144 W Bengal Calcutta Jaksom Engineering Block-A, Shop-1, Ambika Vihar,1/1 Harduttrai Chamaria Road, P.Mukherjee 033- 30950383

Pvt Ltd Howrah- 711001

145 W Bengal Calcutta Skylink 8/1A, Little Russel Street, Calcutta-700071 H R Molla 033-30903814,

033-32091037

146 W Bengal Durgapur Tech International Red Cross Road, City Centre, Durgapur-713216 Amitava Banerjee 0343-2546893,

9434002244

Appendix. RF Exposure Statement

WARNING! Read this information before operating the phone.

In August 1996, the Federal Communications (FCC) of the United States, with its action in Report

and Order FCC 96-326, adopted an updated safety standard for human exposure to radio

frequency(RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines

are consistent with the safety standard previously set by both U.S. and international standards

bodies.

The design of this phone complies with the FCC guidelines and these international standards.

CAUTION

Use only the supplied and approved antenna. Use of unauthorized antennas or modifications could

impair call quality, damage the phone, void your warranty and/or result in violation of FCC

regulations.

Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with skin,

a minor burn may result. Contact your local dealer for a replacement of antenna.

Body Worn Operation

This device was tested for typical body-worn operations with the back of the phone kept 1.5

cm from the body. To comply with FCC RF exposure requirements, a minimum separation

distance of 1.5 cm must be maintained between the user’s body and the back of the phone,

including the antenna, whether extended or retracted. The use of belt-clips, holsters, and

similar accessories should not containing metallic components in its assembly. The use of

accessories that do not satisfy these requirements may not comply with FCC RF exposure

requirements, and should be avoided.

Appendix 2. Consumer Information on SAR

(Specific Absorption Rate)

This Model Phone Meets the Government’s Requirements for Exposure to Radio Waves. Your

wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed

the emission limits for exposure to radio frequency (RF) energy set by the Federal

Communications Commission of the U.S. Government. These limits are part of comprehensive

guidelines and establish permitted levels of RF energy for the general population. The guidelines

are based on standards that were developed by independent scientific organizations through

periodic and thorough evaluation of scientific studies. The standards include a substantial safety

margin designed to assure the safety of all persons, regardless of age and health.

The exposure standard for wireless mobile phones employs a unit of measurement known as the

Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are

conducted using standard operating positions specified by the FCC with the phone transmitting at

its highest certified power level in all tested frequency bands. Although SAR is determined at the

highest certified power level, the actual SAR level of the phone while operating can be well below

the maximum value. Because the phone is designed to operate at multiple power levels to use only

the power required to reach the network, in general, the closer you are to a wireless base station

antenna, the lower the power output.

Before a phone model is available for sale to the public, it must be tested and certified to the FCC

that it does not exceed the limit established by the government-adopted requirement for safe

exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the

body) as required by the FCC for each model.

The highest SAR value for this model phone when tested for use at the ear is 1.29 W/kg and

when worn on the body, as described in this user guide, is 0.949 W/kg (body-worn measurements

differ among phone models, depending upon available accessories and FCC requirements). While

there may be differences between SAR levels of various phones and at various positions, they all

meet the government requirement for safe exposure.

The FCC has granted an Equipment Authorization for this model phone with all reported SAR

levels evaluated as in compliance with the FCC RF emission guidelines. SAR information on this

model phone is on file with the FCC and can be found under the Display Grant section of

http://www.fcc.gov/oet/fccid after searching on FCC ID BEJLSI120R

LG Electronics USA LSI120R Cellphone User Manual LSI 120 User Guide

LG Electronics USA Cellphone LSI 120 User Guide

Users Manual Revised

Navigation menu

Namespaces

Views

Navigation
