LSM2150HU user manual Version 2
Make sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for future reference.
See the label attached on the product and give the information to your
dealer when you ask for service.
LSM1850
LSM2150
User’s Guide
A1
This unit has been engineered and manufactured to ensure your personal safety,
however improper use may result in potential electrical shock or fire hazards. In
order to allow the proper operation of all safeguards incorporated in this display,
observe the following basic rules for its installation, use, and servicing.
On Safety
Use only the power cord supplied with the unit. In case you use another power
cord, make sure that it is certified by the applicable national standards if not being
provided by the supplier. If the power cable is faulty in any way, please contact the
manufacturer or the nearest authorized repair service provider for a replacement.
The power supply cord is used as the main disconnection device. Ensure that the
socket-outlet is easily accessible after installation.
Operate the display only from a power source indicated in the specifications of
this manual or listed on the display. If you are not sure what type of power supply
you have in your home, consult with your dealer.
Overloaded AC outlets and extension cords are dangerous. So are frayed power
cords and broken plugs. They may result in a shock or fire hazard. Call your service
technician for replacement.
As long as this unit is connected to the AC wall outlet, it is not disconnected from
the AC power source even if the unit is turned off.
Do not Open the Display:
There are no user serviceable components inside.
There are Dangerous High Voltages inside, even when the power is OFF.
Contact your dealer if the display is not operating properly.
To Avoid Personal Injury :
Do not place the display on a sloping shelf unless properly secured.
Use only a stand recommended by the manufacturer.
Do not drop an object on or apply impact to the product. Do not throw any toys
or objects on the product screen.
It can cause injury to human, problem to product and damage the display.
To Prevent Fire or Hazards:
Always turn the display OFF if you leave the room for more than a short period
of time. Never leave the display ON when leaving the house.
Keep children from dropping or pushing objects into the display's cabinet
openings. Some internal parts carry hazardous voltages.
Do not add accessories that have not been designed for this display.
When the display is to be left unattended for an extended period of time, unplug
it from the wall outlet.
In the presence of thunder and lightning, never touch the power cord and signal
cable because it can be very dangerous. It can cause electric shock.
Important Precautions
A2
Important Precautions
On Installation
Do not allow anything to rest upon or roll over the power cord, and do not place
the display where the power cord is subject to damage.
Do not use this display near water such as near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming pool.
Displays are provided with ventilation openings in the cabinet to allow the release
of heat generated during operation. If these openings are blocked, built-up heat
can cause failures which may result in a fire hazard. Therefore, NEVER:
Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
Place the display in a built-in enclosure unless proper ventilation is provided.
Cover the openings with cloth or other material.
Place the display near or over a radiator or heat source.
Do not rub or strike the Active Matrix LCD with anything hard as this may scratch,
mar, or damage the Active Matrix LCD permanently.
Do not press the LCD screen with your finger for a long time as this may cause
some afterimages.
Some dot defects may appear as Red, Green or Blue spots on the screen.
However, this will have no impact or effect on the display performance.
If possible, use the recommended resolution to obtain the best image quality for
your LCD display. If used under any mode except the recommended resolution,
some scaled or processed images may appear on the screen. However, this is
characteristic of the fixed-resolution LCD panel.
Leaving a fixed image on the screen for a long time may cause damage to the
screen and cause image burn-in. Make sure to use a screen saver on the product.
Burn-in and related problems are not covered by the warranty on this product.
Do not shock or scratch the front and sides of the screen with metallic objects.
Otherwise, it may cause damage to the screen.
Make sure the panel faces forward and hold it with both hands to move. If you
drop the product, the damaged product can cause electric shock or fire. Contact
an authorized the service center for repair.
Avoid high temperatures and humidity.
Important Precautions
NOTE
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTRERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY
NOTE
This epuipment has been tested and found to comply with the limits for a class
B digital device,pursuant to part 15 of the FCC Rules.These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.This equipment generates,uses and can radiate radio frequency
cause harmful interference to radio communications.However,there is no
guarantee that interference will not occur in a particular installation.If this
which can be determined by turning the equipment off and on,the user is
encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and the receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
energy and,if not installed and used in accordance with the instructions,may
equipment does cause harmful interference to radio or television reception,
TO OPERATE THE EQUIPMENT.
-Consult the dealer or an experienced radio/TV technician for help.
A3
Important Precautions
A3

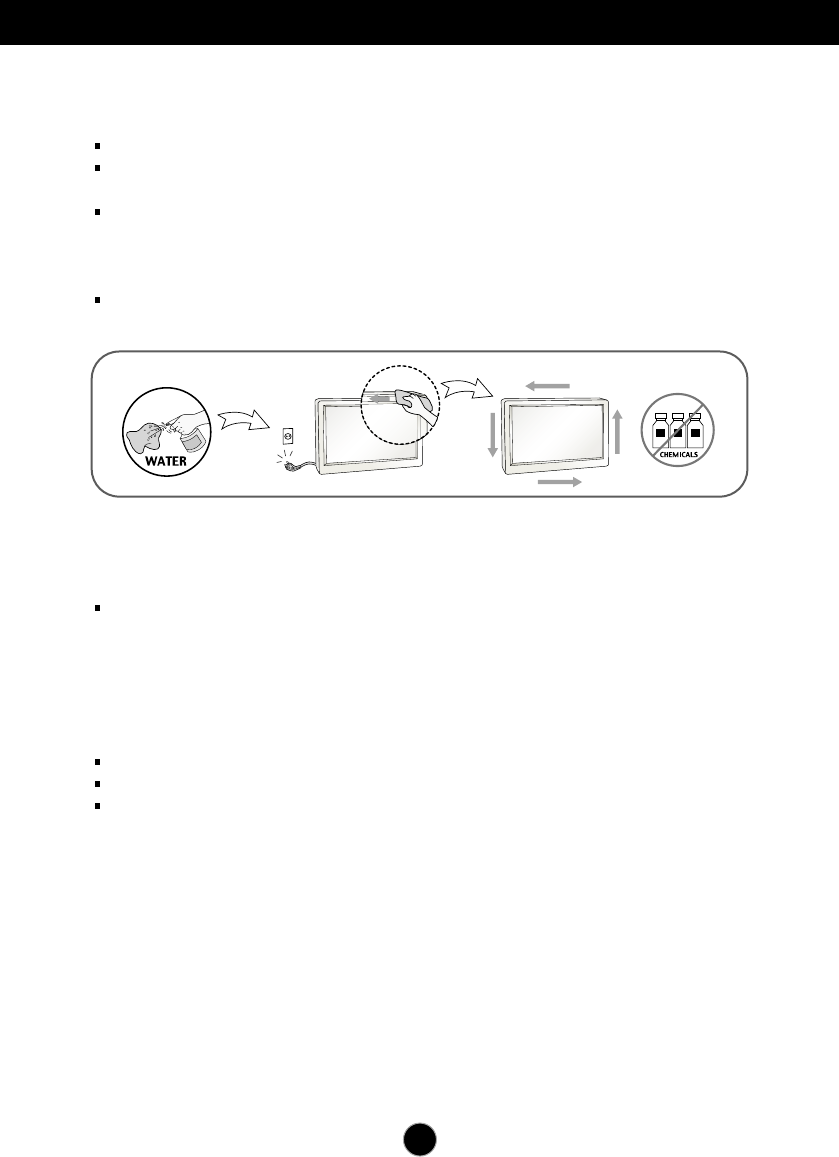

On Cleaning
Unplug the display before cleaning the face of the display screen.
Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display
screen because over-spraying may cause electrical shock.
When cleaning the product, unplug the power cord and scrub gently with a soft
cloth to prevent scratching. Do not clean with a wet cloth or spray water or
other liquids directly onto the product. An electric shock may occur. (Do not use
chemicals such as benzene, paint thinners or alcohol)
Spray water onto a soft cloth 2 to 4 times, and use it to clean the front frame;
wipe in one direction only. Too much moisture may cause staining.
On Repacking
Do not throw away the carton and packing materials. They make an ideal
container in which to transport the unit. When shipping the unit to another
location, repack it in its original material.
On Disposal (Only, Hg lamp used LCD Monitor)
The fluorescent lamp used in this product contains a small amount of mercury.
Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of
your local authority.
A4

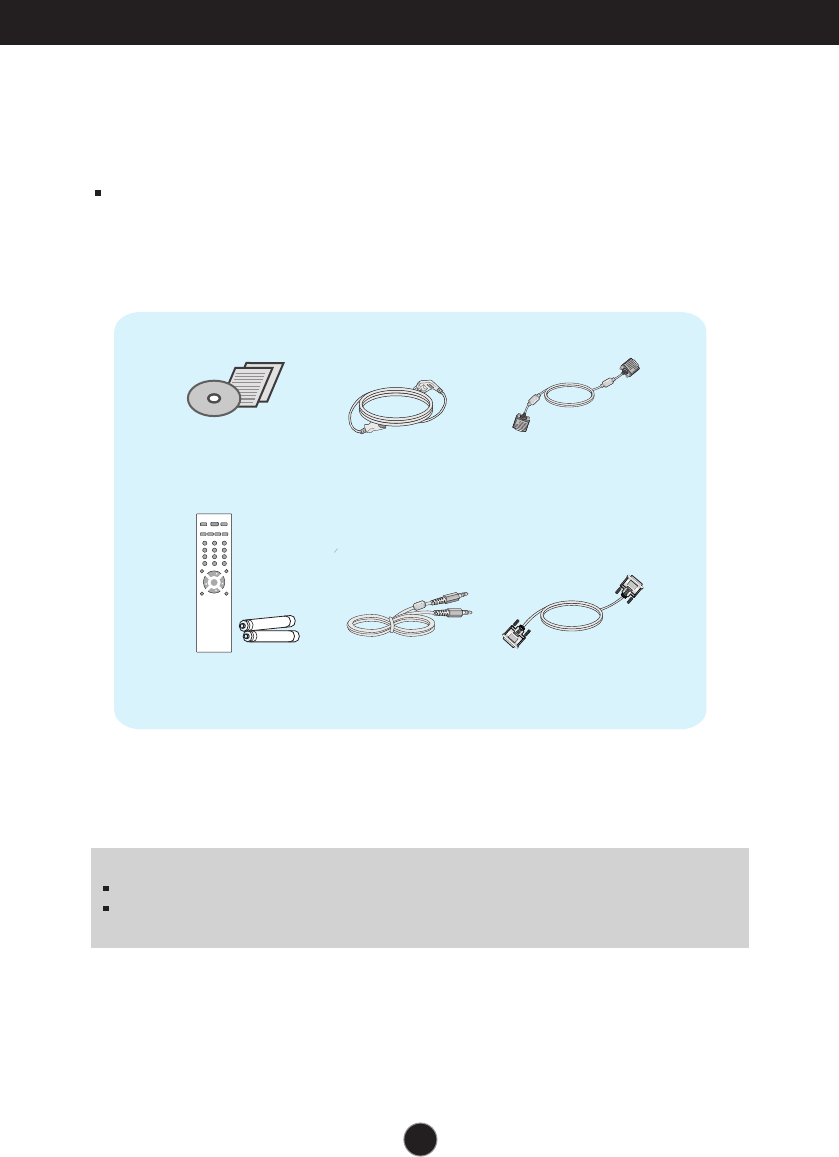

Accessories
15-pin D-Sub Signal Cable
(To set it up, this signal cable may
be attached to this product before
shipping out.)
Power Cord
NOTE
This accessories may look different from those shown here.
User must use shielded signal interface cables (D-sub 15 pin cable) with ferrite cores to
maintain standard compliance for the product.
!!! Thank for selecting LGE products !!!
Please make sure the following items are included with your
monitor. If any items are missing, contact your dealer.
User's Guide/Cards
Audio Cable (PC)
Remote Control/Batteries DVI-D Cable (PC)
A5
Connecting the Display
Important
This illustration depicts the general model of connection. Your monitor may differ from
the items shown in the picture.
Do not carry the product upside down holding only the stand base. The product may
fall and get damaged or injure your foot.
Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.

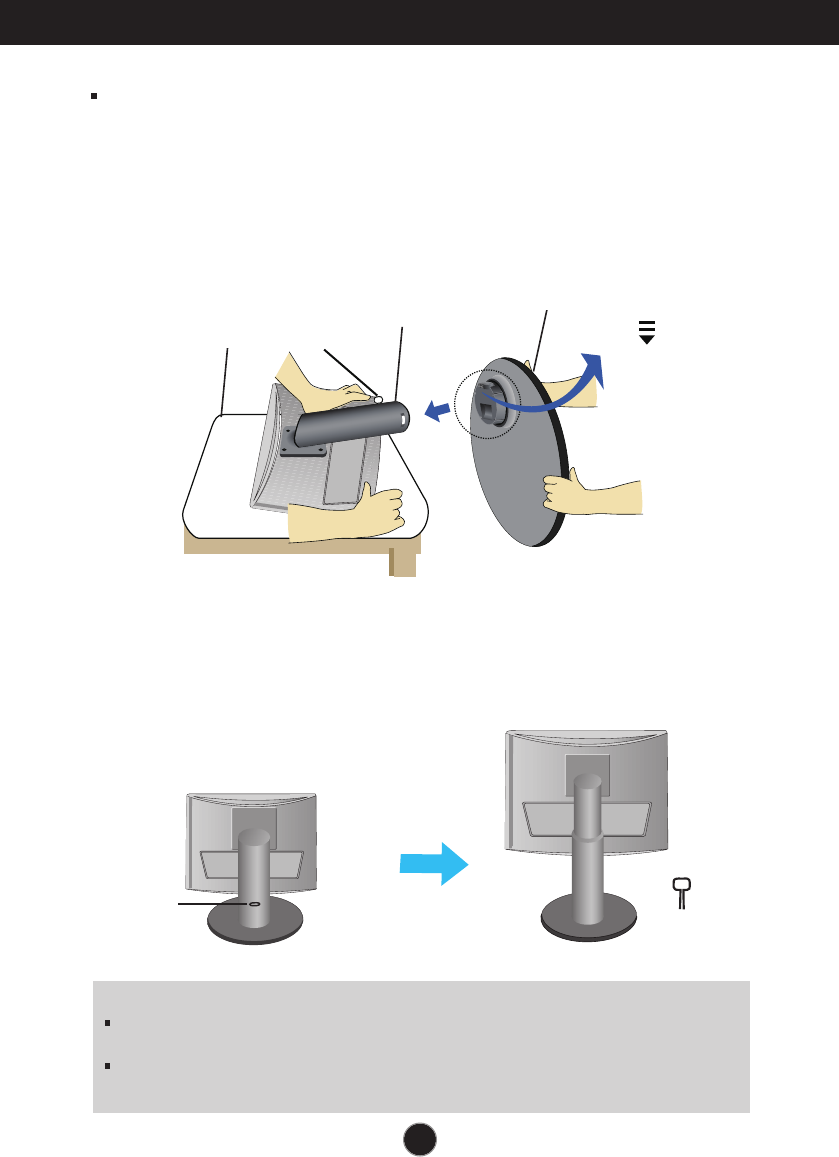

Connecting the stand
1. Place the monitor with its front facing downward on a cushion or soft cloth.
2.Assemble the Stand Base into the Stand Body.
Be sure don't pull out the Stop Pin and make the Stand Base direction as shown.
3.Make the monitor stand , then pull out the Stop Pin.
pull out the stop pin
Stop Pin
Stop Pin
Stand Base
FRONT
Stand Body
Stop PinSide
The tape and locking pin may only be removed from those monitors
equipped with a standing base when the base is pulled up. Otherwise,
you may be injured by the protruding sections of the stand.
Warning:
A6
Before Connecting to the PC
Before setting up the product, ensure that the power supply, the computer system,
and other attached devices is turned off.

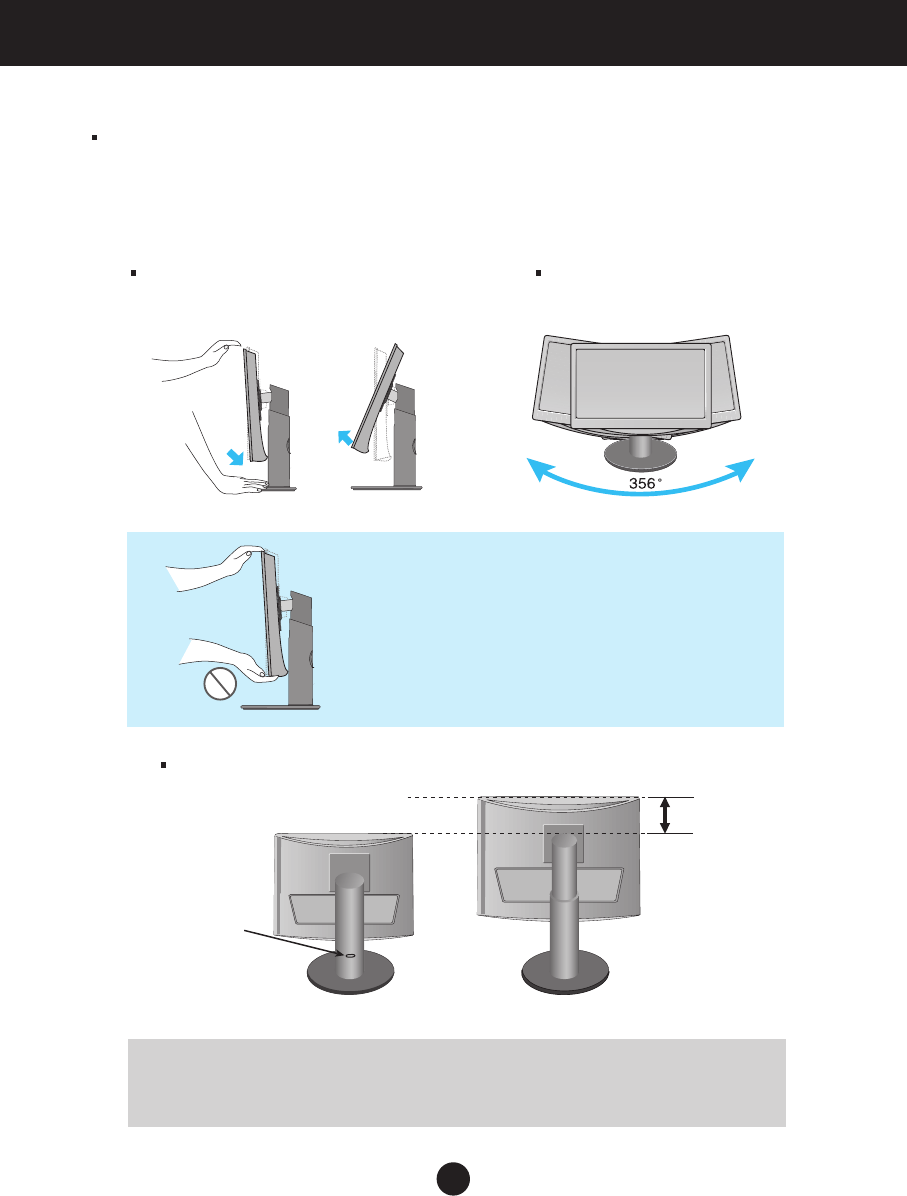

Positioning your display
1. Adjust the position of the panel in various ways for maximum comfort.
-5
°
15
°
Warning:
When adjusting the angle or height of the screen, do
not put your finger(s) in between the head of the
monitor and the stand body. You can hurt your finger(s).
Tilt Range: -5˚~ 15˚ Swivel: 356˚
Ergonomic
It is recommended that in order to maintain an ergonomic and comfortable viewing
position, the forward tilt angle of the monitor should not exceed 5 degrees.
Height Range: maximum 4.33 inch (110.0 mm)
110.0 mm
First, remove
the stop pin.
A7

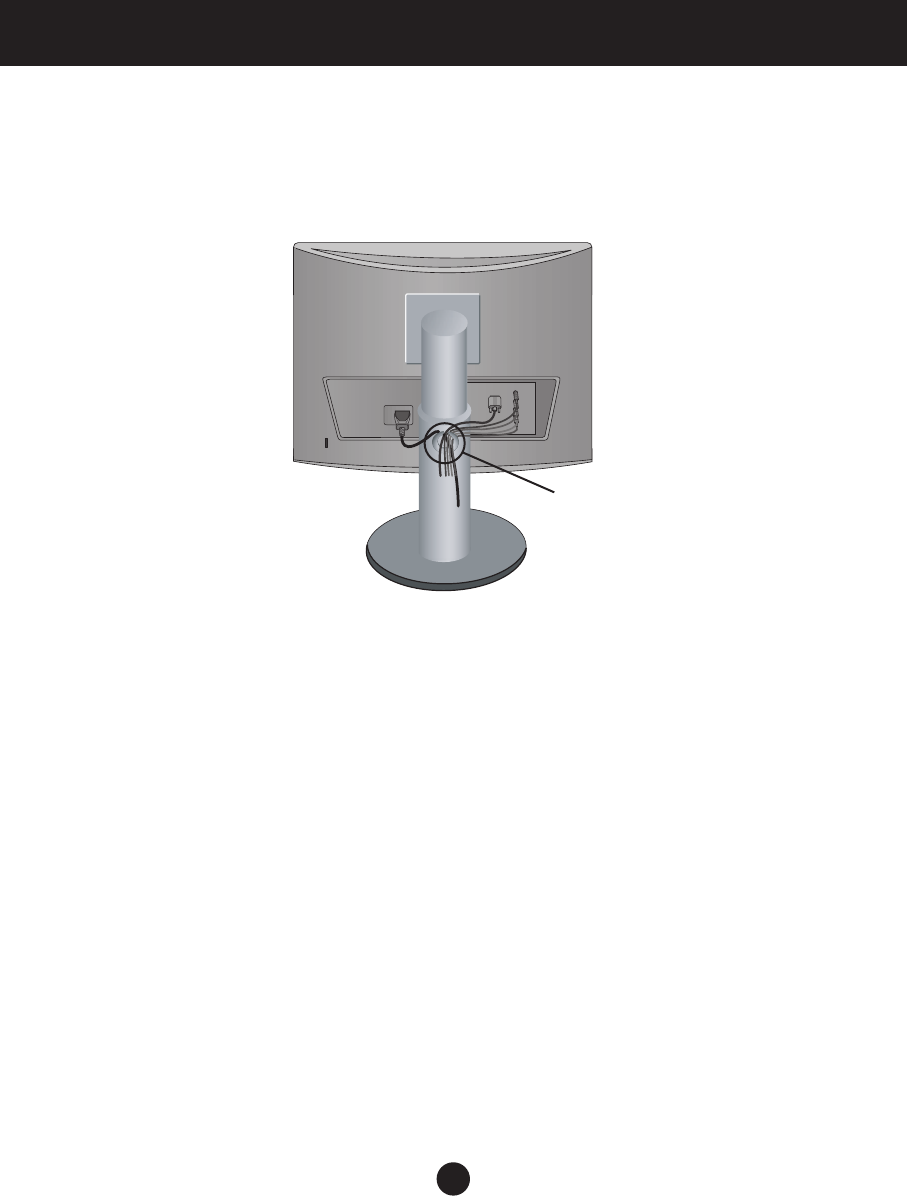

To arrange cables using cable management
1.Tie cables together with a cable management as shown in the illustration.
Cable Holder
A8
Name and Function of the Parts
Name of the Remote Control Buttons
ID
POWER
RGB
HDMI
DVI VIDEO1
MENU RETURN
VIDEO2
MUTE *
OK
1. Take out the battery cap.
2. Insert the batteries with correct polarity (+/-).
3. Close the battery cap.
• Dispose of used batteries in the recycle bin to prevent
environmental pollution.
Inserting batteries into remote control.
AAA Type
POWER
RGB,HDMI,DVI,VIDEO1,VIDEO2
NOTE : In case of weak
stereo sound signals, with
stereo or Nicam stereo
transmission, select mono
reception.
Turn the monitor on or off.
Select input sources.
MUTE
Switches the sound on or off.
MENU
Use this button to enter the On Screen Display menu.
Buttons
Able to change channel.
Number buttons
Used for input ID.
OK Button
Use when functional adjustment is completed.
Double press the OK button, then Auto Config.(Only RGB input)
RETURN
Return one step.
*
There is not a function which is supported.
A9
Name and Function of the Parts
Rear View
AV 1
AC IN
AUDIO IN
(RGB/DVI)
VIDEO1
AUDIO2
L
R
DVI-D
HDMI
RGB
AUDIO1
R
VIDEO2
OUT IN
L
AV 1
AC IN
AC IN
AV 1
AC IN
Power Connector : Connect the power cord.
HDMI Digital Signal Connector RGB, DVI Sound Jack : Connect to
the jack in the PC sound card.
AV Sound Jack(AUDIO Input)
AV Input / Output terminal
DVI Digital Signal Connector
RGB Analog Signal Connector
13
A10
AUDIO IN
(RGB/DVI)
DVI-D

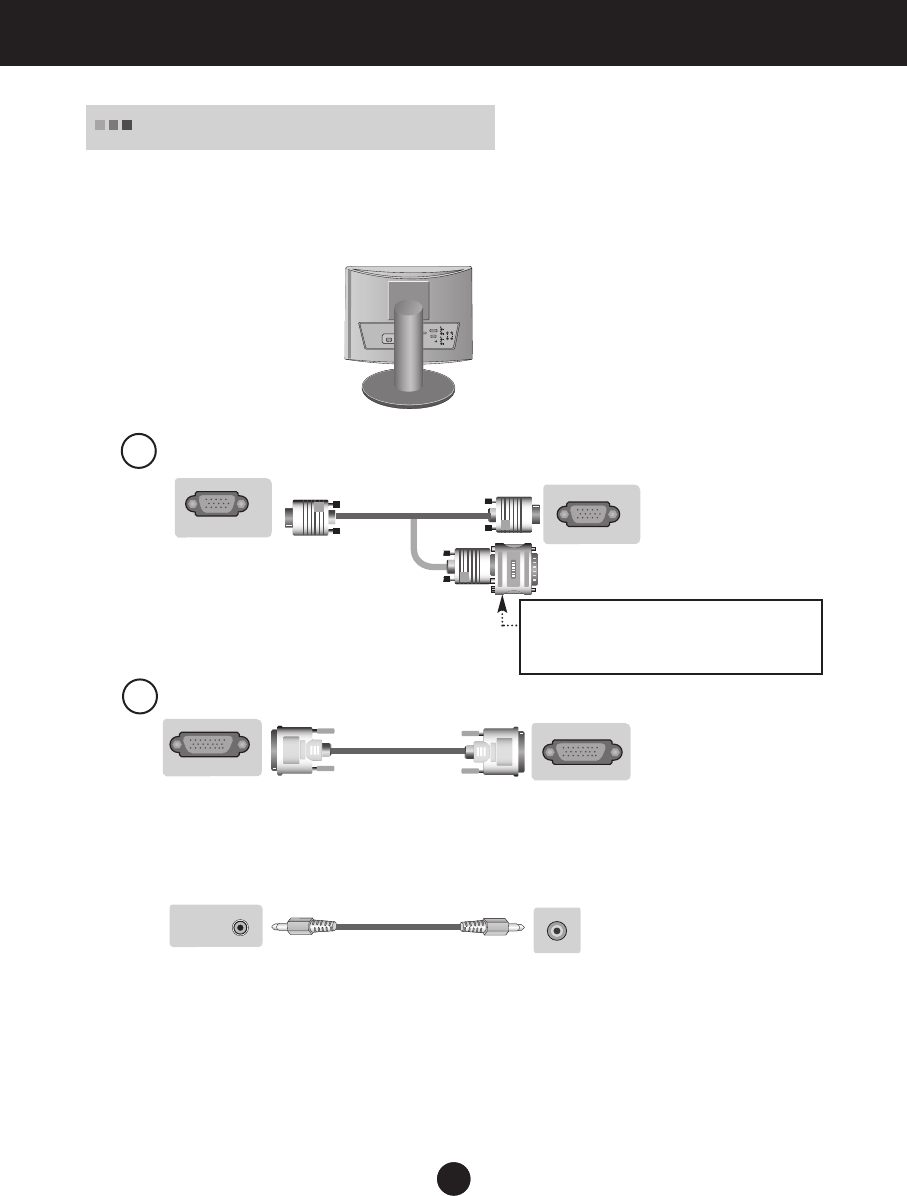

Connecting to your PC
First of all, see if the computer, product and the peripherals are turned off.
Then, connect the signal input cable.
Connecting with the D-Sub signal input cable.
Rear side of the product.

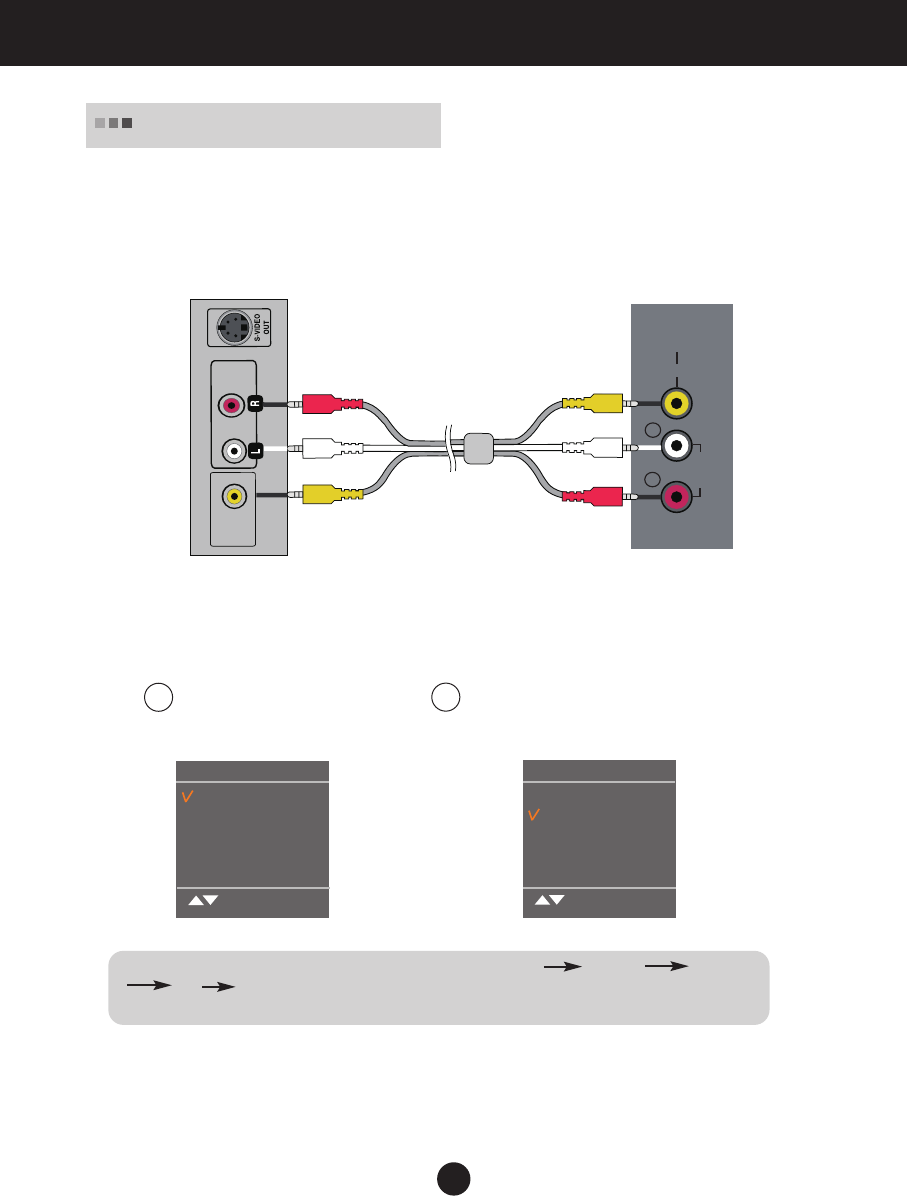

Connecting to External Devices
RGB
Macintosh Adapter (Not included)
Use the standard Macintosh adapter since an
incompatible adapter is available in the market.
(Different signaling system)
1.
Audio cable
Connecting with the DVI signal input cable.
A
B
2.
Rear side of the product
.
Rear side of the product.
Rear side of the product.
Connect the audio cable.
•
Make sure to check the sound card connection terminal in the PC before connecting to the product.
If the PC sound card supports both Speaker Out and Line Out, change it to Line Out by setting the jumper
or the PC application. (For more details, refer to the sound card user’s guide.)
- Speaker Out : The terminal connected to the speaker that is not equipped with an amplifier.
- *Line Out : The terminal connected to the speaker equipped with an amplifier.
If Audio Out in the PC sound card has only Speaker Out, reduce the PC volume. This product is integrated
with an amplifier.
AV 1
AC IN
L
AUD
R
VIDEO1
IO1
DVI-D
HDMI OUT IN
AC IN
L
RGB
AUDIO IN
AUD
VIDEO2
(RGB/DVI)
R
IO2
A11
• Directly connect to a grounded power outlet on the wall or a power bar with a ground wire.
Note
Turn on the PC.
2
1
Rear side of the product.
Connect the power cord.
Select an input signal.
Press the input source button on the remote control to select the input signal.
Or, press the INPUT button at the top side of the product.
Turn on power by pressing the
power button on the product.
Power
Power button
AV 1
AC IN
AC IN
AUDIO IN
(RGB/DVI)
VIDEO1
AUDIO2
L
R
DVI-D
HDMI
RGB
AUDIO1
R
VIDEO2
OUT IN
L
3.
4.
5.
Connecting to External Devices
A•
Select RGB
B•
Select DVI
Input
VIDEO1
VIDEO2
RGB PC
DVI
HDMI
OK
Input
VIDEO1
VIDEO2
RGB PC
DVI
HDMI
OK
Each time you press the Input button it will change to VIDEO1 VIDEO2 RGB PC
DVI HDMI.
If nothing is inputted for several seconds the screen will automatically move to the selected menu.
A12
Connecting to External Devices
•
Connect the input terminal with a proper colour match.
RCA Cable
(Not included)
VIDEO
AUDIO1
R
L
IN
AUDIO
OUT
VIDEO
OUT
Connect the video/audio cable as shown in the figure below and then connect the power
cord
.
Connecting to VCR/DVD
VCR/DVD
Rear side of the Product
1.
2.Select an input signal.
Press the input source button on the remote control to select the input signal.
Input
Input
VIDEO1
VIDEO1
VIDEO2VIDEO2
RGB PC
RGB PC
DVI
DVI
HDMI
HDMI
OK
OK
Or, press the INPUT button at the top side of the product.
A
When connecting with VIDEO1.
•
Select VIDEO1
B
When connecting with VIDEO2.
•
Select VIDEO2
Each time you press the Input button it will change to VIDEO1 VIDEO2 RGB PC
DVI HDMI.
If nothing is inputted for several seconds the screen will automatically move to the selected menu.
A13
Connecting to External Devices
Connect the HDMI cable as shown in the below figure and then connect the power
cord.
When watching HDMI from the DVD/Set-top Box
Select an input signal.
Press the input source button on the remote control to select the input signal.
Or, press the INPUT button at the top side of the product.
2.
1.
HDMI OUTPUT
HDMI
DVI OUTPUT
AUDIO
RL
AUDIO IN
(RGB/DVI)
HDMI
[Rear side of the Product]
[Rear side of the Product]
[Set-top Box/DVD]
[Set-top Box/DVD]
HDMI cable
(not included)
HDMI to DVI cable
(not included)
RCA Stereo cable
(not included)
•
Select HDMI
• HDMI Input does not support PC mode.If it is connected PC,the screen may not be displayed properly.
Note
Input
VIDEO1
VIDEO2
RGB PC
DVI
HDMI
OK
Each time you press the Input button it will change to VIDEO1 VIDEO2 RGB PC
DVI HDMI.
If nothing is inputted for several seconds the screen will automatically move to the selected menu.
A14
Screen Adjustment options
OK Button
Power Button
MENU Button • Use this button to show/hide the OSD (On Screen Display) menu
screen.
• Use
this
button to select an icon or adjust the setting in the OSD screen.
• Adjust the up and down.
• Adjust the volume.
Power
Adjusting the Screen
•OK button is usually used in choosing the MENU.
When there is no MENU on the screen pushing the OK button will
give the information about the current input source.
OSD Select/Adjust Button
• Use this button to turn the product on and off.
Volume 30
A15
Screen Adjustment options
INPUT Button Input
VIDEO1
VIDEO2
RGB PC
DVI
HDMI
OK
Adjusting the Screen
VIDEO1 CVBS
VIDEO2 CVBS
RGB PC D-Sub analog signal
DVI DVI Digital signal
HDMI HDMI Digital signal
Each time you press the Input button it will change to VIDEO1 VIDEO2 RGB PC
DVI HDMI.
If nothing is inputted for several seconds the screen will automatically move to the selected menu.

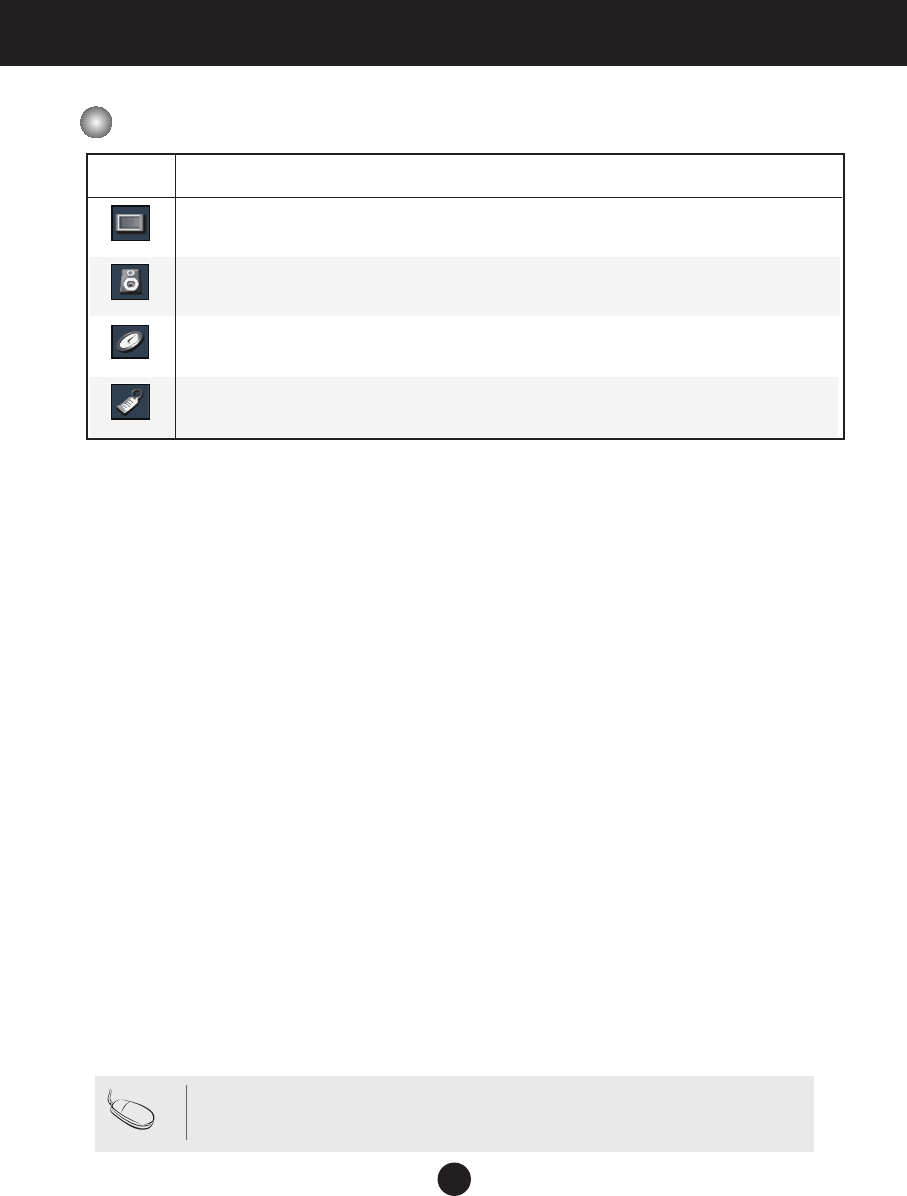

Icon Function Description
Adjusts screen brightness, contrast and color that you prefer.
Adjusts the audio options.
Audio
Adjusts the timer options.
Time
Adjusts the screen status according to the circumstances.
Option
A16
OSD Menu
Note
OSD(On Screen Display)
The OSD function enables you to adjust the screen status conveniently since it provides
graphical presentation.
Adjusting the Screen
A17
RETURN

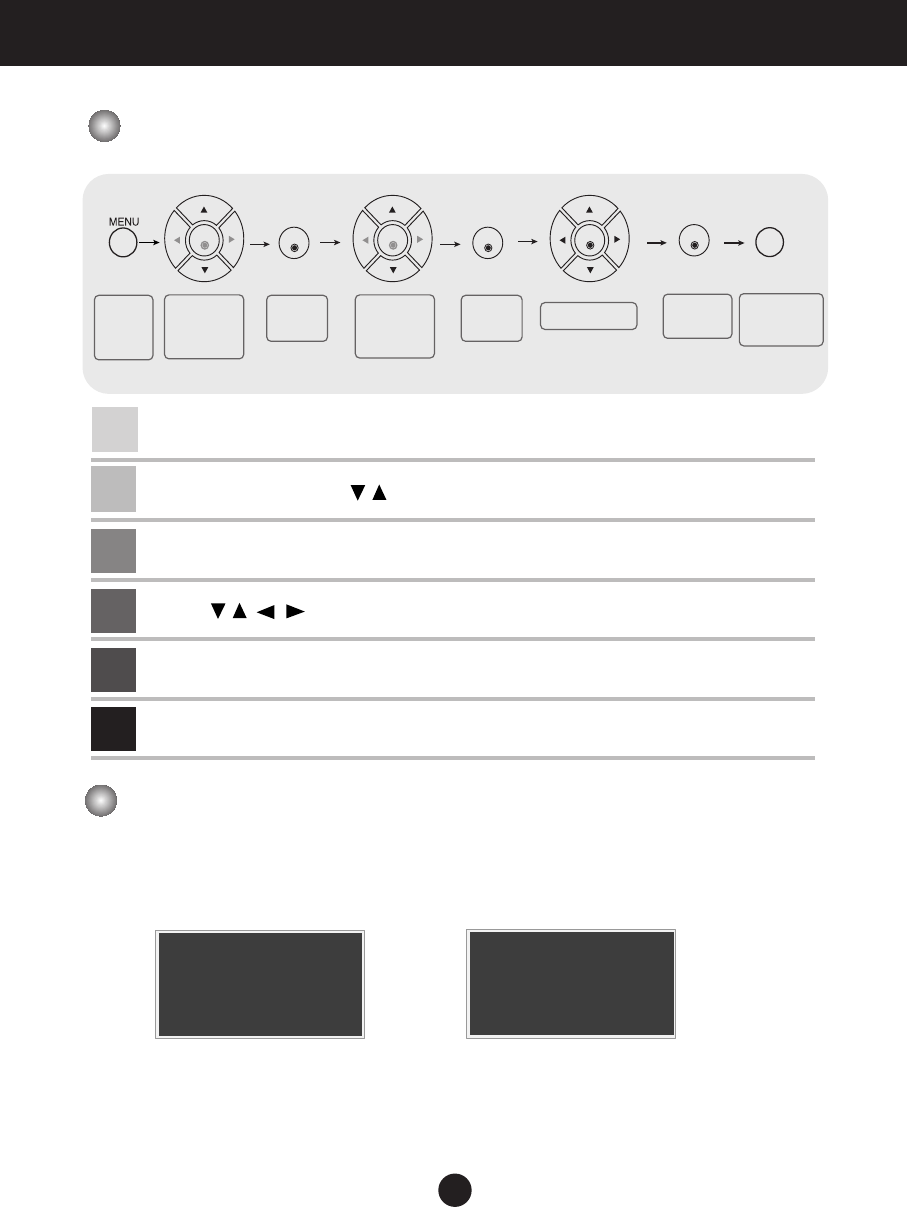

How to adjust the OSD (On Screen Display) screen
OK OK OK OK OK OK
•
Use the remote control to adjust the OSD screen.
How to adjust the screen automatically
Press the OK button (OK button on a remote Control) twice in the PC analog signal. Then optimal
screen settings will be selected that fit into the current mode. If adjustment is not satisfactory, you
can adjust the screen manually.
Press the MENU Button, then the main menu of the OSD appears.
To access a control, use the Buttons.
When the icon you want becomes highlighted, press the OK Button.
Use the Buttons to adjust the item to the desired level.
Accept the changes by pressing the OK Button.
Exit the OSD by pressing the RETURN Button.
1
2
3
4
5
6
Pops up
the menu
screen
Move where
you want to
adjust
Move where
you want to
adjust
Select a
menu icon
Select a
menu icon Adjust the status Save
adjustment
Return to
last step.
Adjusting the Screen
Auto in progress
For opimal display change
resolution to 1360 X 768
Auto in progress
For opimal display change
resolution to 1920 X 1080
[For PC Analog signal]
LSM1850 LSM2150
A18
Adjusting the Screen

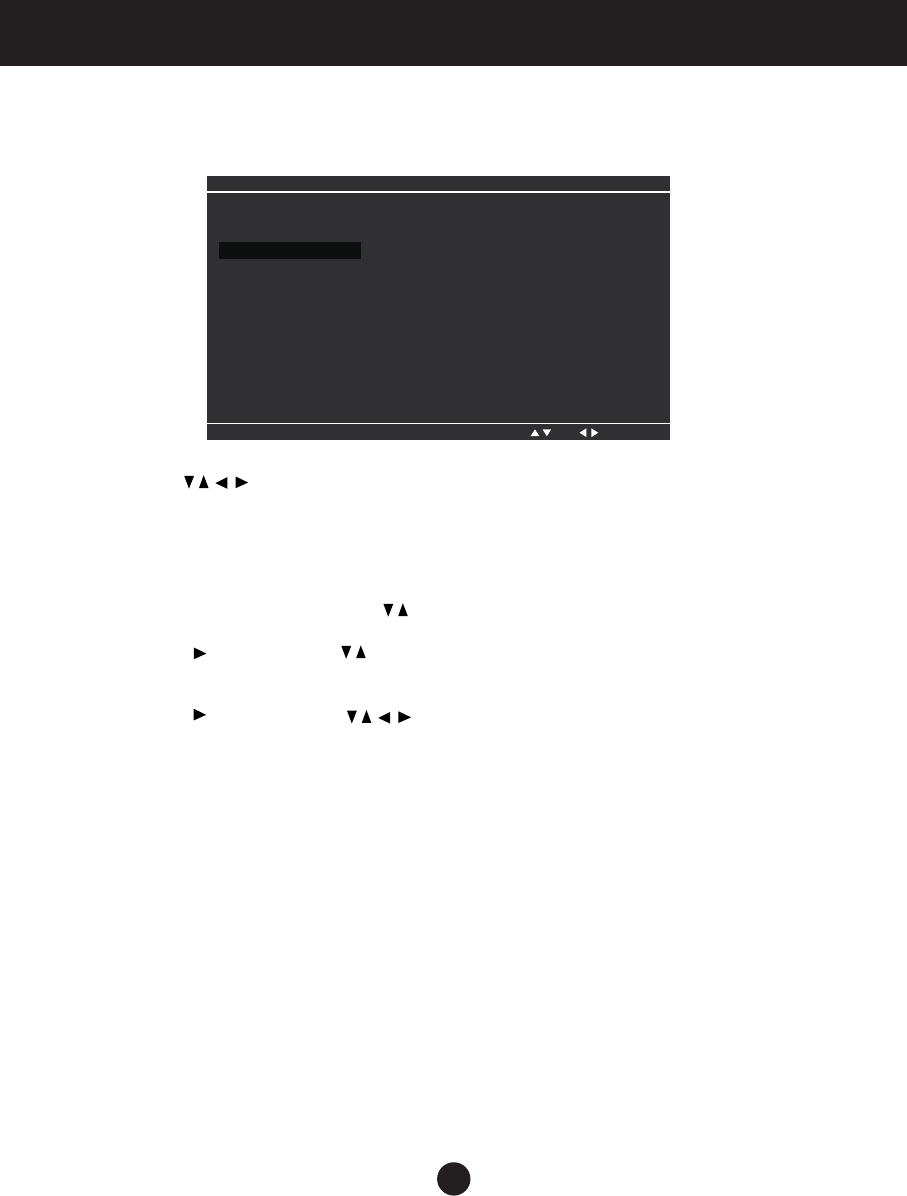

Press the button and then, OK button to select your desired language.
* If you want to change Language selection
1. Press the MENU button and then button to select the Option menu.
2. Press the button and then button to select Language.
The menus can be shown on the screen in the selected language.
3. Press the button and then button to select your desired language.
4. Press the OK button.
Note
•
If you don't finish set up Installation Guide by pressing MENU button or time out of OSD
(On Screen Display) display, it will continuously appear until completing set up whenever
the set is turned on.
On-Screen Menu Language Selection
Installation guide menu appears on product screen when it is turned on for the first time.
Installation Guide
Language
Deut sch Franςa is
Español Ita l i a n o Sve nsk a
Suo
English
m
i Português Polsk i
Русский Ελ ληνικά УК РА Ї
НСЬК А
汉
语 Ja pa n K
o
rea
OK
▲
▼
OK RETURN
XD
Advanced
Aspect Ratio
Picture Reset
Screen
Picture Mode
Color Temperature
v
Vivid
Standard
Cinema
Sport
Game
User1
User2
A19
Adjusting Screen Color
Backlight : To control the brightness of the screen,adjust the brightness of LCD panel.
Contrast : Adjust the difference between the light and dark levels in the picture.
Brightness : To adjust the brightness of the screen.
Color : To adjust the color to desired level.
Sharpness : To adjust the clearness of the screen.
Tint :To adjust the tint to desired level.
Toggles between screen presets.
• Vivid : Select this option to display with a sharp image.
• Standard : The most general and natural screen display status.
• Cinema : Select this option to lower brightness by one level.
• Sport : Select this option to display with a soft image.
• Game : To enjoy dynamic image when playing a game.
• User1,2 : Select this option to use the user-defined settings.
Mode
Note
If the '
Picture Mode
' setting in the Picturemenu is set to Vivid, Standard, Cinema,
Sport or Game the subsequent menus will be automatically set.
OK RETURN
User2
Backlight 20
Contrast 90
Brightness 50
Color 50
Sharpness 50
Tint 50
Adjusting the Screen
A20
Red / Green / Blue
Set your own color levels.
Color Settings
• Cool : Slightly purplish white.
• Medium : Slightly bluish white.
• Warm : Slightly reddish white.
• User : Select this option to use the user-defined settings.
Color
Temperature
Adjusting Screen Color
OK RETURN
User
Red 0
Green 0
Blue 0
Adjusting the Screen
Picture Mode
Color Temperature v Cool
XD Medium
Advanced Warm
Aspect Ratio User
Picture Reset
Screen
▲▼ OK RETURN
▼
▼
Picture Mode
Color Temperature v9300K
XD 6500K
Advanced sRGB
Aspect Ratio User
Picture Reset
Screen
▲▼ OK RETURN
▼
▼
• 9300K
Slightly purplish white.
• 6500K
Slightly bluish white.
• sRGB
Slightly lower brightness.
[VIDEO]
[RGB PC]
A21
XD
Picture Mode

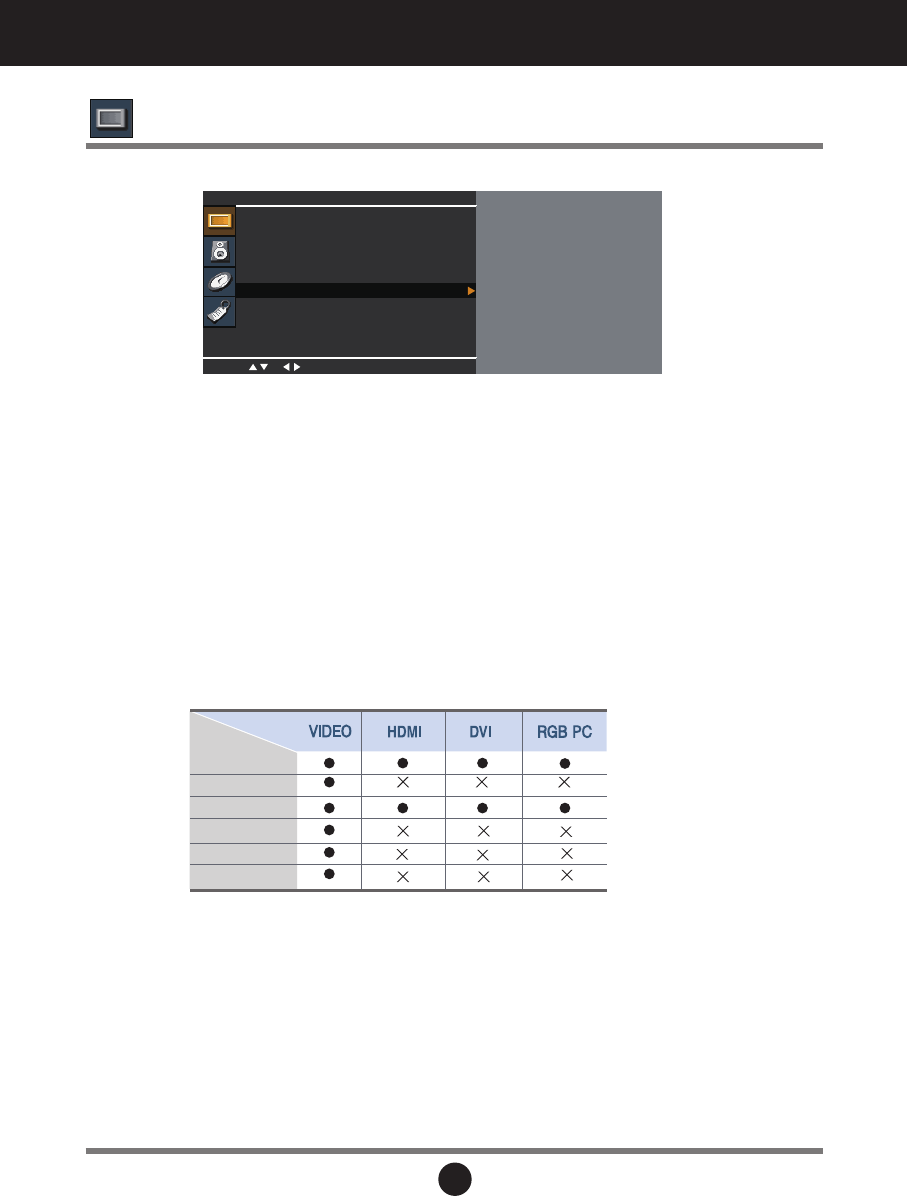

Color Temperature
XD
v Auto
Advanced
Manual
Aspect Ratio
Picture Reset
Screen
OK RETURN
Adjusting Screen Color

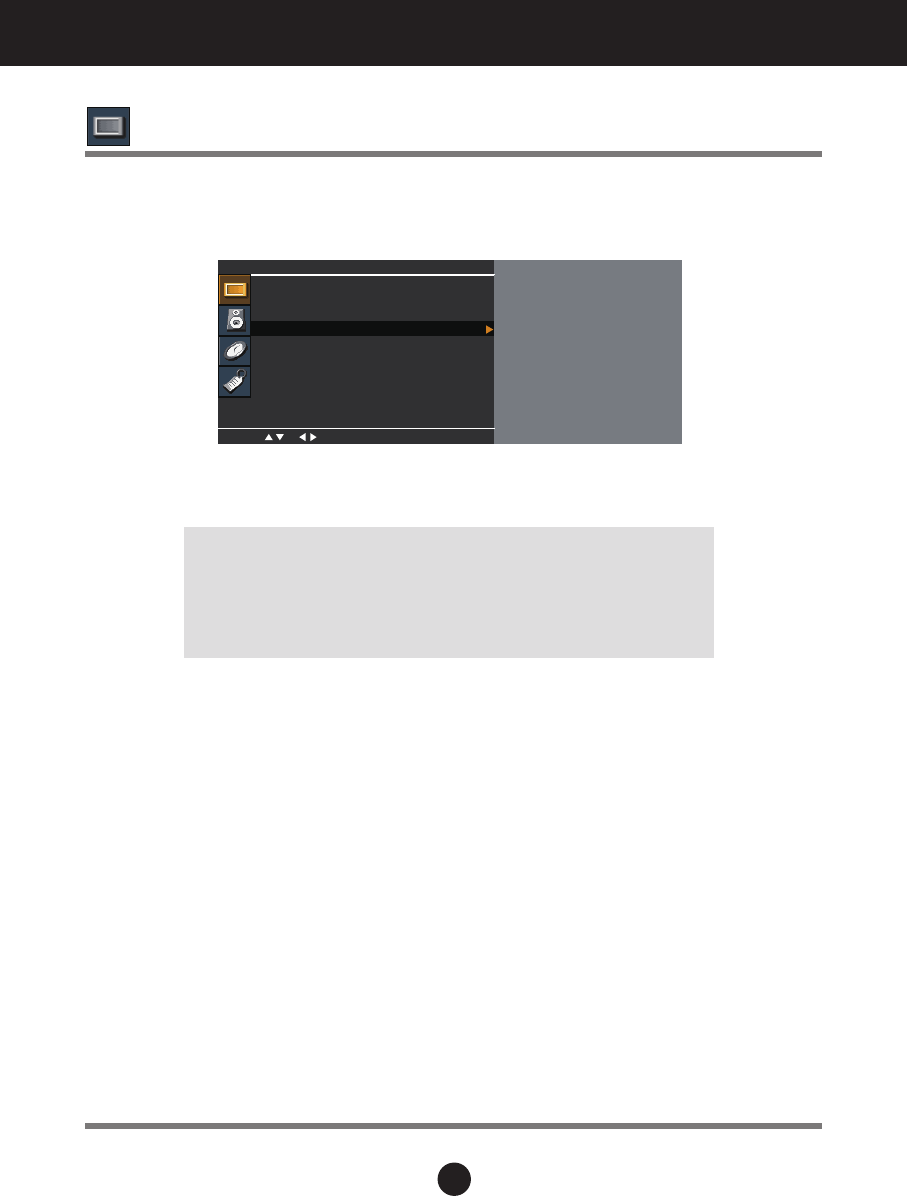

XD is LG Electronics' unique picture improving technology that displays a real HD source
through an advanced digital signal processing algorithm.
This function is not available in RGB-PC or DVI modes.
This menu is activated after selecting User1 or User2 of Picture Mode.
• Auto : XD is automatically changed to Auto.
• Manual : When selecting the Manual, you can adjust the XD Contrast, XD Colour, XD NR.
• XD Contrast : Optimizing the contrast automatically according to the
brightness of the reflection.
• XD Colour : Adjusting the colors of the reflection automatically to
reproduce as closely as possible to natural colors.
• XD NR : Removing the noise up to the point where it does not damage the
original picture.
Adjusting the Screen
A22
• Gamma : Set your own gamma level : Low,Medium,High.
On the monitor, high gamma values display whitish images and low gamma
values display blackish images.
• Cinema :
When you watch a movie, this function adjusts the set to the best picture
appearance.
• Black Level :
adjusts the contrast and the brightness of the screen using the black level
of the screen.
Advanced
• Low : The reflection of the screen gets brighter.
• High : The reflection of the screen gets darker.
To set
OK RETURN
Picture Mode
Color Temperature
XD
Advanced
Aspect Ratio
Picture Reset
Screen
Adjusting Screen Color
Adjusting the Screen
This function is available only in VIDEO1,VIDEO2 modes.
A23

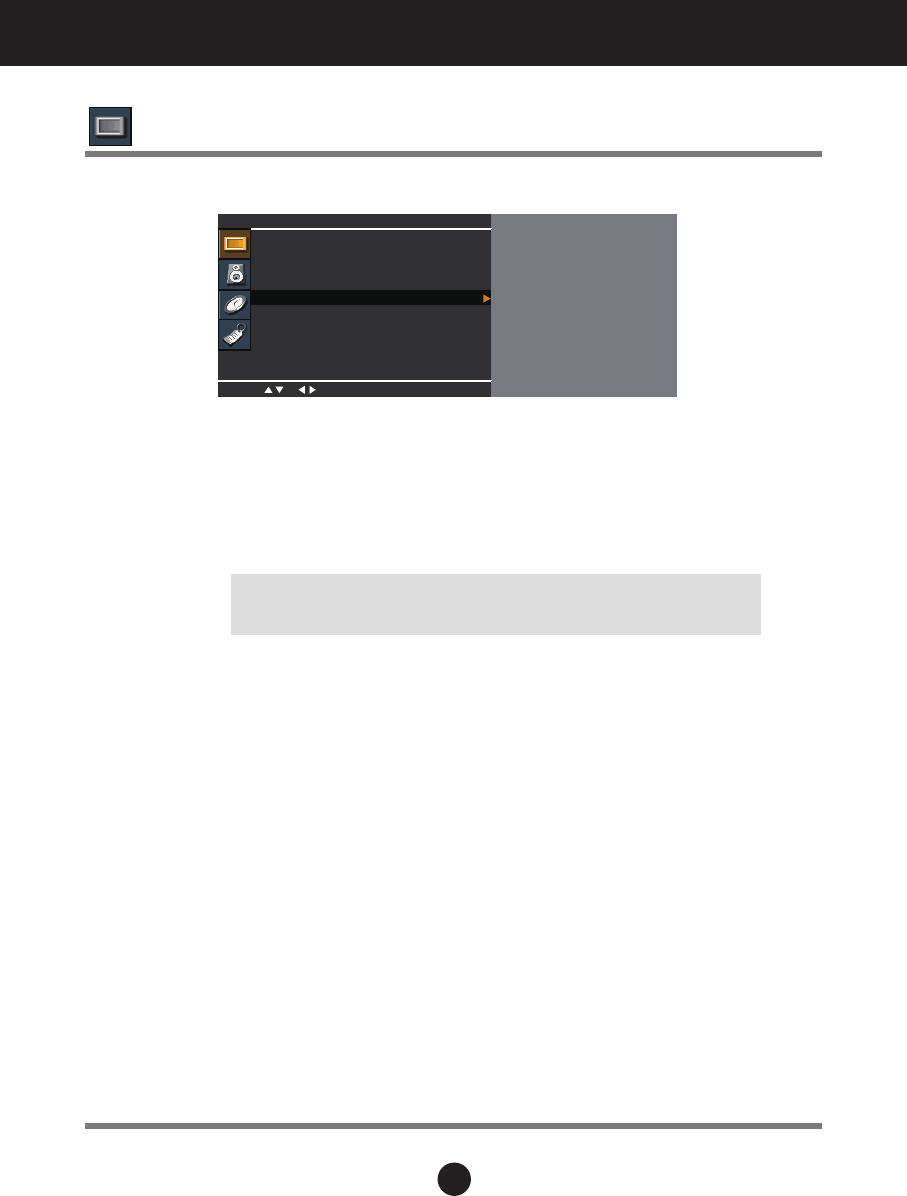

To select the image size of the screen.
Aspect Ratio
Original
The aspect ratio is not adjusted from the original. It is set by the program
being watched.
4:3
This picture format is 4:3 aspect ratio.
14:9
14:9 programs are viewed normally in 14:9 with black bars added to the
top and bottom. 4:3 programs are magnified on the top/bottom and
left/right sides.
Zoom1, 2
4:3 programes are magnified until they fill the 16:9 screen. The top and
bottom will be cut off.
Widescreen mode.
16:9
Adjusting Screen Color
v16:9
4:3
OK RETURN
Picture Mode
Color Temperature
XD
Advanced
Aspect Ratio
Picture Reset
Screen
Original
4:3
16:9
14:9
Zoom1
Zoom2
MODE
ARC
Adjusting the Screen
A24
To Set▶
OK RETURN
Picture Mode
Color Temperature
XD
Advanced
Aspect Ratio
Picture Reset
Screen
To Set
Screen
Auto configure
Manual configure
Resolution
Reset
Adjusting Screen Color
Return Picture Mode,
Color Temperature
, Advanced to the default factory
settings.
Picture Reset
To Set▶
OK RETURN
Picture Mode
Color Temperature
XD
Advanced
Aspect Ratio
Picture Reset
Screen
Auto Config.
: This button is for the automatic adjustment of the screen position, clock and
phase. This function is available for analog signals only.
Manual Config. :
If the picture isn't clear after auto adjustment and characters are still
trembling, adjust the picture phase manually.
* Phase, Clock function are available only in RGB.
Clock :
To minimize any vertical bars or stripes visible on the screen background. The
horizontal screen size will also change.
Phase :
To adjust the focus of the display. This item allows you to remove any horizontal
noise and clear or sharpen the image of characters.
H-Position :
Moving the screen position horizontally.
V-Position :
Moving the screen position vertically.
Reset: Return
Manual config.
to the default factory settings.
Screen Adjust the screen video.
Adjusting the Screen
Resolution:
To view the best resolution of RGB-PC mode. Select the same resolution on
OSD with PC's. It's working at RGB-PC mode when vertical frequency is 60Hz.
OK RETURN
(RGB PC input only)
A25

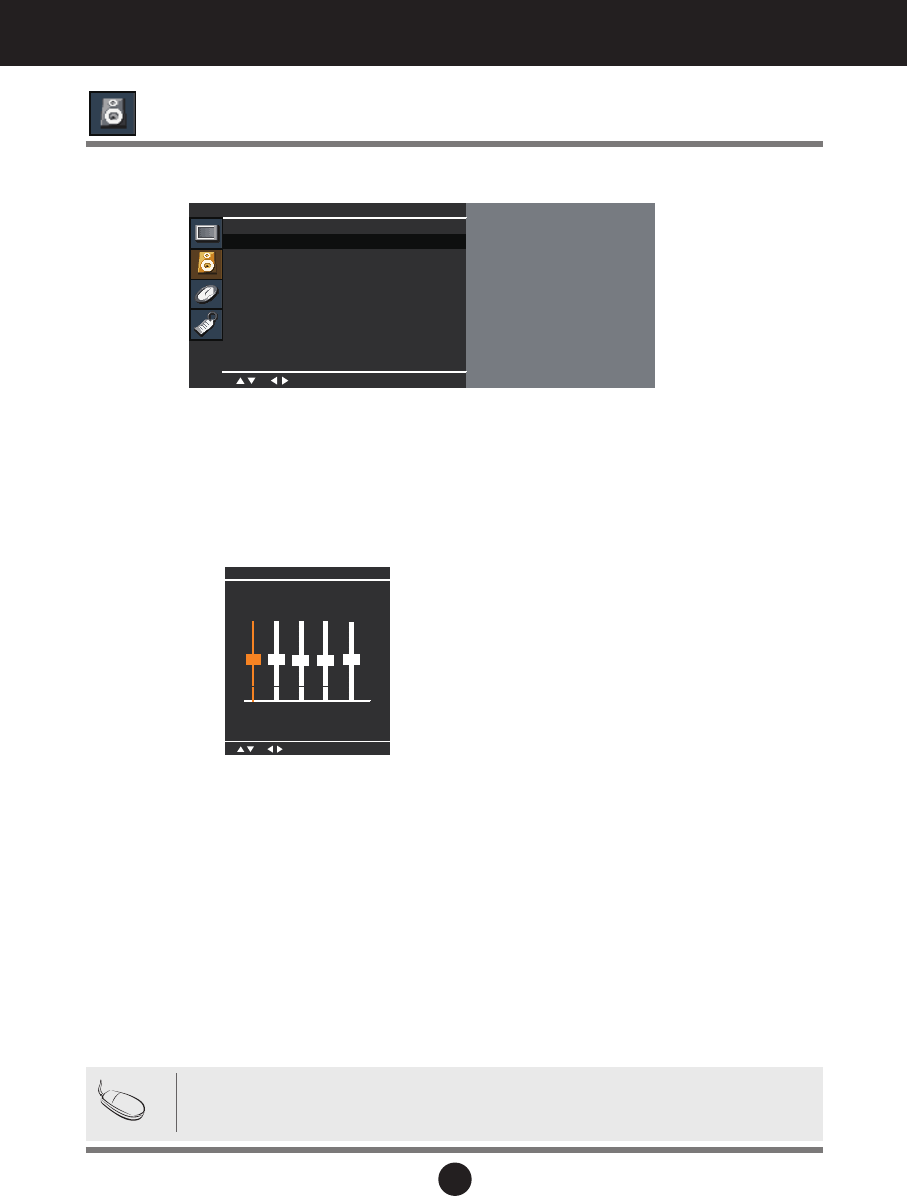

The best sound tone quality will be selected automatically depending on the video type that you're currently watching.
Sound
Mode
Adjusting the audio function
Note
When connected to your computer and the '
Sound Mode
'setting in the audio menu is
Clear Voice, Standard
, Music,
Cinema
or Sport, the available menu is Speaker.
Speaker
You can adjust internal speaker status.
If you want to use your external hi-fi stereo system, turn off the internal speakers of the set.
• Clear Voice : By differentiating the human sound range from others,it helps users listen to human
voices better.
• Standard : The most commanding and natural audio.
• Music : Select this option to enjoy the original sound when listening to the music.
• Cinema : Select this option to enjoy sublime sound.
• Sport : Select this option to watch sports broadcasting.
• Game : To enjoy dynamic sound when playing a game.
• User : Select this option to use the user-defined audio settings.
Audio
Sound Mode
▶
v Clear Voice
Standard
Music
Cinema
Speaker
Sport
Game
User
OK RETURN
User
OK RETURN
0.1
0.5
1.5
5.0
10
KHz
Adjusting the Screen
A26

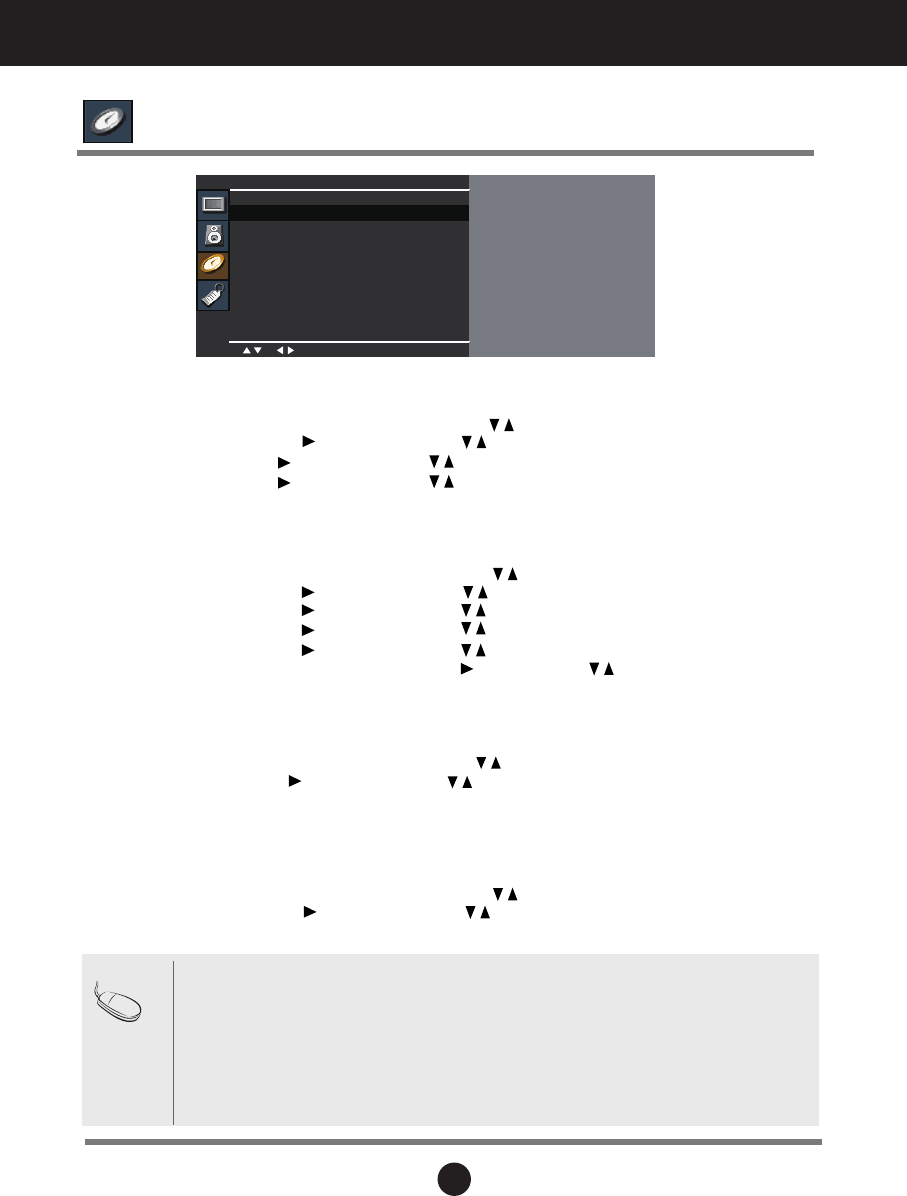

Adjusting the time function
Time
Clock ▶ㅡㅡ :ㅡㅡ
Off Time
On Time
Sleep Timer
Auto Sleep
OK RETURN
Adjusting the Screen
Clock
Off/On time
The Off time automatically switches the set to off mode at the pre-set time.
1) Press the MENU button and then use
button to select the TIME menu.
2) Press the button and then use
button to select Off time or On time.
3) Press the button and then use
button to set the hour(00~23).
4) Press the button and then use
button to set the minutes(00~59).
5) Press the button and then use
button to select On or Off.
6) Only On time function; Press the button and then
button to adjust volume level
and programme number
.
7) Press the OK/MENU button to save.
Auto sleep
If Auto sleep is active and there is no input signal, the set switches to off mode
automatically after 10 minutes. ( It is not working in PC)
1) Press the MENU button and then use
button to select the
Auto
sleep menu.
2) Press the button and then use
button to select On or Off.
3) Press the OK/MENU button to save .
This function is used to set up of current time.
You must set the time correctly before using On/Off time function.
1) Press the MENU button and then use
button to select the TIME menu.
2) Press the button and then use
button to select the Clock menu.
3
) Press
button and then use button to set the hour(00~23).
4
) Press
button and then use button to set the minutes(00~59).
The default value is -- : --.
5) Press the OK/MENU button to save.
•In the event of power interruption (disconnection or power failure), the Clock must be reset.
Note
•Two hours after the set is switched on by the On time function it will automatically switch
back to off mode unless a button has been pressed.
•Once the On or Off time is set, these functions operate daily at the preset time.
•Off time function overrides On time function if they are set to the same time.
•The set must be in off mode for the On time to work.
•On time will move on to auto off if no activity is received in 2hours after setting the On time.
Sleep Timer
The power is automatically turned off when the time set by a user is passed.
1) Press the MENU button and then use
button to select the
Sleep Timer
menu.
2
) Press the button and then use
button to select the minutes(10,20,30,60,90,120,
180,240) or off.
3) Press the OK/MENU button to save .
A27

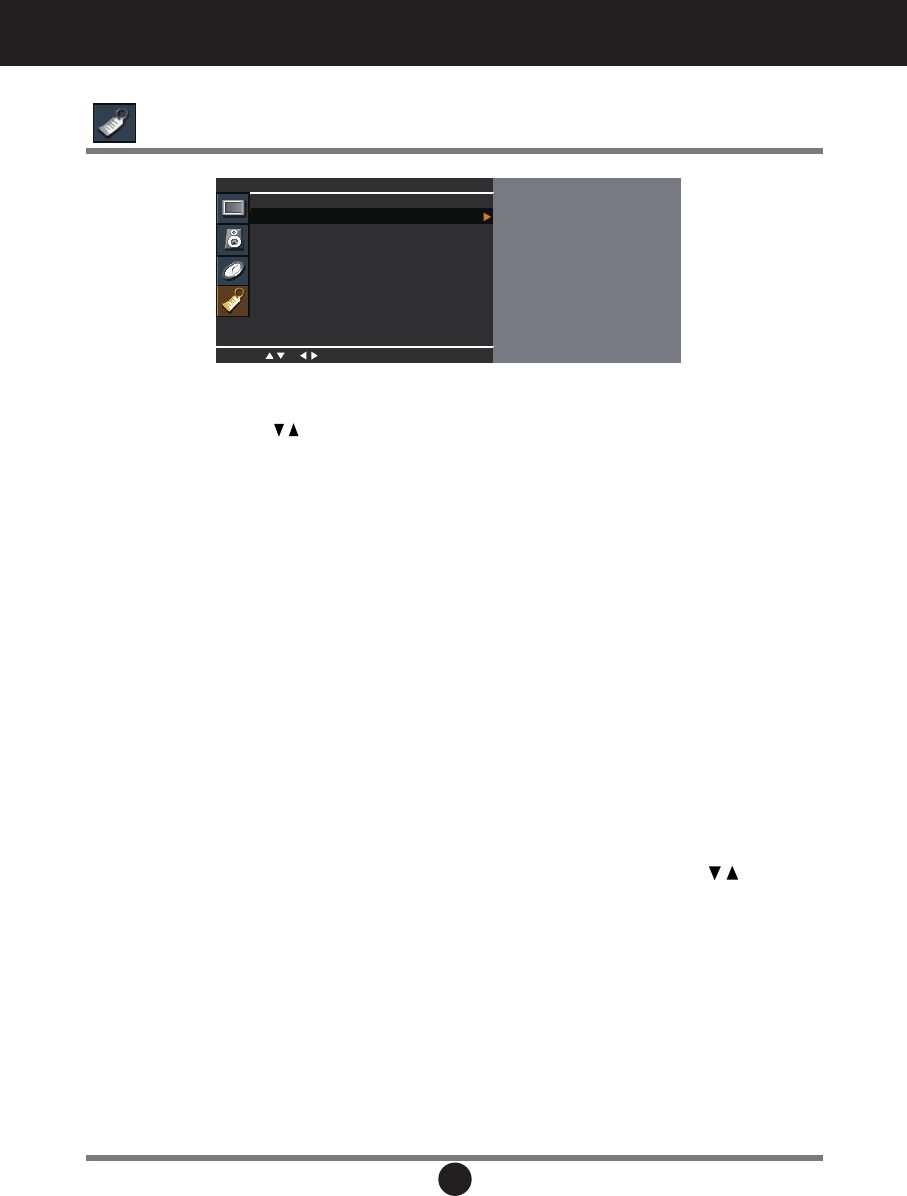

Selecting the options
Language
To choose the language in which the control names are displayed.
Use the buttons to select On or Off. The monitor can be set up so that it can only be
used with the remote control. This feature can prevent unauthorized viewing.
In order to lock the OSD screen adjustment, set the
Key Lock
tab to the 'On' position.
In order to unlock it, do the following :
•
Push the MENU button on the remote control and set
Key Lock
to the 'Off' position.
Key Lock
ISM Method
Normal :
Leave on normal if you don't foresee image burn in being a problem.
White wash :
White wash fills the screen with solid white. This helps removes permanent
images burned into the screen. A permanent image may be impossible to clear entirely
with white wash.
Orbiter : May help prevent ghost images. However, it is best not to allow any fixed image to
remain on the screen. To avoid a permanent image on the screen, the screen will move every 2
minutes.
Inversion : This function inverts the panel color of the screen. The panel color is
automatically inverted every 30 minutes.
A frozen or still picture from a PC/Video game displayed on the screen for prolonged periods could
result in a ghost image remaining even when you change the image. Avoid allowing a fixed image to
remain on the screen for a long period of time.
Option
Key lock
ISM Method
DDC-CI
Power Indicator
Factory Reset
Language To Set
Set ID
OK RETURN
Power Indicator
Use this function to set the power indicator on the front side of the product to
On or Off.
Dot Wash : This function moves the black dots of the screen. The black dots is automatically
moved every 5 second.
Factory Reset Select this option to return to the default factory settings.
DDC-CI DDC/CI(Display Data Channel Command Interface) is communication protocol for
communications between PC and monitor.
DDC/CI makes it possible to adjust and setup detailed functions on PC instead of the
monitor OSD.
Monitor can be adjusted with PC by connecting communication between PC and
monitor when DDC/CI is ON, and monitor cannot be adjusted with PC because
communication between PC and monitor is disconnected when DDC/CI is OFF.
Adjusting the Screen
You can assign a unique Set ID NO (name assignment) to each product when several
products are connected for display. Specify the number (1~99) using the button
and exit. Use the assigned Set ID to individually control each product using the Product
Control Program.
Set ID
A28
Troubleshooting
No image appears
Check the following before calling for service.
No image appears
Do you see a "OSD LOCKED" message on the screen?
Is the power cord of the
display connected?
Is the power indicator
light on?
Is the power indicator
amber?
Do you see an "OUT OF
RANGE" message on
the screen?
Do you see a "CHECK
SIGNAL CABLE"
message on the
screen?
•
Check and see if the power cord is connected
properly to the power outlet.
•
Press the Power button.
•
If the display is in power saving mode, try moving
the mouse or pressing any key on the keyboard to
bring up the screen.
• Try to turn on the PC
.
•
This message appears when the signal from the
PC (video card) is out of horizontal or vertical
frequency range of the display. See the
'Specifications' section of this manual and
configure your display again.
•
This message appears when the signal cable
between your PC and your display is not
connected. Check the signal cable and try again.
• You can secure the current control settings,
so that they cannot be inadvertently changed.
You can unlock the OSD controls at any time
by pushing the MENU button for several
seconds: the message
“OSD UNLOCKED”will appear.
●
Do you see “OSD
LOCKED” when you
push MENU button?
A20A29
Troubleshooting
Display image is incorrect
●Display Position is
incorrect.
●On the screen
background, vertical
bars or stripes are
visible.
●Any horizontal noise
appearing in any
image or characters
are not clearly
portrayed.
•
Press the OKbutton twice to automatically
adjust your display image to the ideal setting.
If the results are unsatisfactory, adjust the image
position using the H position and V position icon
in the on screen display.
•
Press the OKbutton twice to automatically
adjust your display image to the ideal setting.
If the results are unsatisfactory, decrease the
vertical bars or stripes using the CLOCK icon in
the on screen display.
•
Press the OKbutton twice to automatically
adjust your display image to the ideal setting.
If the results are unsatisfactory, decrease the
horizontal bars using the PHASE icon in the on
screen display.
•
Check Control Panel --> Display --> Settings
and adjust the display to the recommended
resolution or adjust the display image to the ideal
setting. Set the color setting higher than 24 bits
(true color).
Important
Check Control Panel --> Display --> Settings and see if the frequency or the
resolution were changed. If yes, readjust the video card to the recommend
resolution.
If the recommended resolution (optimal resolution) is not selected, letters may
be blurred and the screen may be dimmed, truncated or biased. Make sure to
select the recommend resolution.
The setting method can differ by computer and O/S (Operation System),
and resolution mentioned above may not be supported by the video card
performance. In this case, please ask to the computer or the video card
manufacturer.
A30
Troubleshooting
Do you see an "Unrecognized monitor, Plug&Play (VESA
DDC) monitor found" message?
●
Have you installed the
display driver?
•
Be sure to install the display driver from the display
driver CD (or diskette) that comes with your
display. Or, you can also download the driver from
our web site: http://www.lge.com.
•
Make sure to check if the video card supports
Plug&Play function.
Display image is incorrect
●The screen color is
mono or abnormal.
●The screen blinks.
•
Check if the signal cable is properly connected
and use a screwdriver to fasten if necessary.
•
Make sure the video card is properly inserted in
the slot.
•
Set the color setting higher than 24 bits (true color)
at Control Panel - Settings.
•
Check if the screen is set to interlace mode and if
yes, change it to the recommend resolution.
A31
Specifications LSM1850
NOTE
Information in this document is subject to change without notice.
Display
Sync Input
Video Input
Resolution
Plug&Play
Power
Consumption
Dimensions
& Weight
Tilt Range
Power Input
Environmental
Conditions
Stand Base
Power cord
18.51 inches (47.01 cm) Flat Panel Active matrix-TFT LCD
Anti-Glare coating
Visible diagonal size: 47.01 cm
0.100*0.100 mm pixel pitch
Horizontal Freq. Analog : 30 - 61 kHz (Automatic)
Digital : 30 - 61 kHz (Automatic)
Vertical Freq. 56 - 75 Hz (Automatic)
Input Form Separate TTL, Positive/Negative
Digital (HDCP)
Signal Input 15 pin D-Sub Connector
DVI - D Connector (Digital)
Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Max Analog : VESA 1366 x 768 @ 60 Hz
Digital : VESA 1366 x 768 @ 60 Hz
Recommend VESA 1360 x 768 @60 Hz
DDC 2B
On Mode : 35W(Typ.)
Sleep Mode ≤ 2 W
Off Mode ≤ 1 W
With Stand Without Stand
Width 45.44 cm / 17.89 inches 45.44 cm / 17.89 inches
Height 35.65 cm / 14.04 inches 31.10 cm / 12.24 inches
45.65 cm / 17.97 inches
Depth 27.11 cm / 10.67 inches 7.58 cm / 2.98 inches
Net 5.89 kg (13.09 lbs)
Tilt -5˚~ 15˚
AC 100-240V~ 50/60Hz 0.8A
Operating Conditions
Temperature 10˚C to 35 ˚C
Humidity 20 % to 80 %
Storage Conditions
Temperature -10˚C to 60 ˚C non-Condensing
Humidity 5 % to 90 % non-Condensing
Attached ( ), Detached ( O )
Wall-outlet type or PC-outlet type
A32
Specifications LSM2150
Display
Sync Input
Video Input
Resolution
Plug&Play
Power
Consumption
Dimensions
& Weight
Tilt Range
Power Input
Environmental
Conditions
Stand Base
Power cord
21.53 inches (54.68 cm) Flat Panel Active matrix-TFT LCD
Anti-
Glare coating
Visible diagonal size: 54.68 cm
0.248*0.248 mm pixel pitch
Horizontal Freq. Analog : 30 - 83 kHz (Automatic)
Digital : 30 - 83 kHz (Automatic)
Vertical Freq. 56 - 75 Hz (Automatic)
Input Form Separate TTL, Positive/Negative
Digital (HDCP)
Signal Input 15 pin D-Sub Connector
DVI - D connector (Digital)
Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Max Analog : VESA 1920 x 1080 @60 Hz
Digital : VESA 1920 x 1080 @60 Hz
Recommend VESA 1920 x 1080 @60 Hz
DDC 2B
On Mode : 45W(Typ.)
Sleep Mode ≤ 2 W
Off Mode ≤ 1 W
With Stand Without Stand
Width 51.96 cm / 20.46 inches 51.96 cm / 20.46 inches
Height 36.83 cm / 14.50 inches 34.96 cm / 13.76 inches
46.83 cm / 18.44 inches
Depth 27.11 cm / 10.67 inches 7.80 cm / 3.07 inches
Net 6.68 kg (14.84 lbs)
Tilt -5˚~ 15˚
AC 100-240V~ 50/60Hz 1.0A
Operating Conditions
Temperature 10˚C to 35 ˚C
Humidity 20 % to 80 %
Storage Conditions
Temperature -10˚C to 60 ˚C non-Condensing
Humidity 5 % to 90 % non-Condensing
Attached ( ), Detached ( O )
Wall-outlet type or PC-outlet type
NOTE
Information in this document is subject to change without notice.
A33
Specifications
Preset Modes (Resolution)
Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)
1
2
720 x 400 31.468 70
640 x 480 31.469 60
640 x 480 37.500 75
800 x 600 37.879 60
800 x 600 46.875 75
3
4
5
6
7
8
1024 x 768 48.363 60
1024 x 768 60.123 75
9
10
1280 x 768
1360 x 768
47.776 60
47.712
47.700
60
1366 x 768 60
*
*Recommend Mode
18 inch monitor
21 inch monitor
Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)
1720 x 400 31.468 70
2640 x 480 31.469 60
3640 x 480 37.500 75
4800 x 600 37.879 60
5800 x 600 46.875 75
61024 x 768 48.363 60
71024 x 768 60.123 75
81152 x 864 67.500 75
91280 x 1024 63.981 60
10 1280 x 1024 79.976 75
11 1680 x 1050 64.674 60
12 1680 x 1050 65.290 60
*Recommend Mode
Indicator
On Mode
Sleep Mode
Off Mode
blue
amber
Off
LED Color
MODE
*131920 x 108066.587 60
PC Mode
A34
Specifications
Preset Modes (Resolution)
Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)
1
2
720 x 48031.47 60
720 x 480 31.50 60
720 x 576 31.25 50
1280 x 720
1280 x 72037.50
44.96
50
60
3
4
5
6
7
8
1280 x 720
33.72
60
1920 x 1080 60
9
1920 x 1080
1920 x 1080
33.75 60
28.125 50
18 inch monitor
21 inch monitor
Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)
1720 x 480 15.75 60
2720 x 480 15.73 60
3720 x 576 15.625 50
4720 x 480 31.47 60
5720 x 480 31.50 60
6 720 x 576 31.25 50
71280 x 720 44.96 60
81280 x 720 45.00 60
9 1280 x 720 37.50 50
10 1 x 10
11 1920 x 1080 33.75 60
12 1920 x 1080 28.125 50
131920 x 108067.43 60
920 80 33.72 60
45.00
141920 x 1080 67.50 60
151920 x 1080 56.25 50
161920 x 1080 27.00 24
171920 x 1080 33.75 30
DTV Mode
A35
Installing the Wall mount plate
This monitor satisfies the specifications of the Wall mount plate or
the interchange device.
1. Place the monitor with its front facing downward on a soft cloth.
2.Separate the stand after firstly separating 4 screws by using a driver as figure.
3.
Install the Wall mount plate.
Wall mount plate(Separate purchase)
This is stand-type or wall mount type and is
connectable with Wall mount plate.
Please refer to the installation guide for more
details, which is provided when Wall mount
plate is purchased.
Kensington Security Slot
Connected to a locking cable that can be
purchased separately at most computer stores.
Digitally yours
