LG Electronics USA LSP340 Fixed WLL Phone (CDMA) User Manual LSP340 USERMENUAL
LG Electronics USA Fixed WLL Phone (CDMA) LSP340 USERMENUAL
Users Manual
CDMA Fixed Wireless Telephone
User Guide
Model: LSP-340
LGE CDMA Fixed Wireless Telephone
LSP-340
3
REVISED HISTORY
DATE ISSUE CONTENTS OF CHANGES REMARK
2001/10/25
ISSUE1 Initial Release
LGE CDMA Fixed Wireless Telephone
LSP-340
4
Blank Page
LGE CDMA Fixed Wireless Telephone
LSP-340
5
CONTENTS
Highlights............................................................................................................................... 6
1. Important Information...................................................................................................... 8
1.1 Safety Information .................................................................................................. 8
1.2 Optimal Phone Performance .................................................................................. 8
1.3 Care and Service ................................................................................................... 9
2. Introduction ................................................................................................................... 10
2.1 Front View of the Telephone ................................................................................ 10
2.2 LCD Display ......................................................................................................... 11
2.3 Installation ............................................................................................................ 13
2.4 Installation Steps.................................................................................................. 15
3. Basic Operation ............................................................................................................... 16
3.1 Making a Call....................................................................................................... 16
3.2 Redialing Last Outgoing Number ........................................................................ 16
3.3 Receiving a Call ................................................................................................... 17
3.4 Signal Strength..................................................................................................... 17
3.5 Missed Call Message ........................................................................................... 17
4. List of Menu State............................................................................................................ 18
4.1 Volume / Ring...................................................................................................... 18
4.1.1 Ring Volume .............................................................................................. 18
4.1.2 Key Volume ............................................................................................... 18
4.1.3 Ear Volume................................................................................................ 19
4.1.3 Ring Type................................................................................................... 19
4.2 Additional feature ................................................................................................. 19
4.2.1 Key-tone Length........................................... Error! Bookmark not defined.
4.2.2 Minute Alert ................................................................................................ 20
4.2.3 Set Rx call mode ........................................................................................ 20
4.2.4 SIO baud rate ............................................................................................. 20
5. Functions while in a call................................................................................................... 21
5.1 Mute........................................................................................................................ 21
5.2 Ear Volume .......................................................................................................... 21
6. Searching, Editing & Dialing ............................................................................................ 21
6.1 Retrieving Phone Number by Name..................................................................... 21
6.2 Retrieving Phone Number by Address................................................................. 22
6.3 Retrieving Phone Number by NUMBER .......................................................... 23
6.4 Fast Searching .................................................................................................... 23
6. 5 Clear Memory ........................................................................................................ 31
LGE CDMA Fixed Wireless Telephone
LSP-340
6
7. SMS (Short Message Service) ........................................................................................ 24
7.1 Checking & Deleting Received Message ............................................................. 24
7.1.1 Text Message............................................................................................. 24
7.1.2 Voice Message........................................................................................... 25
7.1.3 Erasing all Received Message................................................................... 25
7.2 MSG Notification tone select................................................................................ 25
7.3 Message Sending ................................................................................................ 26
7.3.1 Sending a New Message ........................................................................... 26
7.3.2 Sending the sent message or message after editing the sent message.... 26
7.3.3 Erasing a sent message............................................................................. 26
8. Beside Functions .............................................................................................................29
8.1 Viewing your own number .................................................................................... 27
8.2 Redial ................................................................................................................... 29
8.3 Hook Switch ........................................................................................................... 27
8.4 Flash .................................................................................................................... 29
8.5 Safe mode............................................................................................................ 29
9. Storing Phone Number .................................................................................................... 28
9.1 Storing/Editing Phone Numbers........................................................................... 30
9.1.1 Storing Phone Numbers............................................................................. 30
9.1.2 Erasing Stored Phone Numbers ................................................................ 31
9.2 Finding Stored Phone Numbers........................................................................... 32
10. Speaker phone .............................................................................................................. 32
11. General Information ....................................................................................................... 33
Highlights
Congratulations on your purchase of the LSP-340 Fixed Wireless Telephone. This
telephone has been designed to operate on the latest digital mobile communications
technology. This technology has greatly enhanced voice clarity and can provide various
advanced features.
The telephone provides:
3-line LCD Display with status indicator
A choice of 10 ring sounds
A menu driven interface with prompts for easy operation
Last Number Redial
Speed Dialing with a 99-number memory
Dial tone
ROH (Receiver Off-Hook) tone
Adjustable Ring Volume
Internal Back-up Battery Pack
AC Power Supply
LGE CDMA Fixed Wireless Telephone
LSP-340
7
Dipole Antenna
DB9 Data Port for service and repair
Backlingt
Speaker phone
For more information about RF exposure, please visit the FCC website at www.fcc.gov
FCC RF EXPOSURE INFORMATION
In August 1996 the Federal Communications Commission (FCC) of the United States
with its action in Report and Order FCC 96-326 adopted an updated safety standard
for human exposure to radio frequency electromagnetic energy emitted by FCC
regulated transmitters. Those guidelines are consistent with the safety standard
previously set by both U.S. and international standards bodies. The design of this
phone complies with the FCC guidelines and these international standards.
Use only the supplied or an approved antenna. Unauthorized antennas,
modifications, or attachments could impair call quality, damage the phone, or result in
violation of FCC regulations.
Do not use the phone with a damaged antenna. If a damaged antenna comes into
contact with the skin, a minor burn may result. Please contact your local dealer for
replacement antenna.
Body-worn Operation
This device was tested for typical body-worn operations with the back of the phone
kept 2.1 cm. from the body. To maintain compliance with FCC RF exposure
requirements, maintain a 2.1 cm. separation distance between the user’s body and
the phone, including the antenna.
WARNING! Read this information before using your phone
LGE CDMA Fixed Wireless Telephone
LSP-340
8
1. Important Information
1.1 Safety Information
Warning
To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
Do not use this product near swimming pools or other bodies of water.
IMPORTANT
Before installing or operating this product read this information.
1.2 Optimal Phone Performance
Do not operate your product when holding the antenna, or when someone is within four
inches (ten centimeters) of the antenna. Holding the antenna affects call quality and may
cause the telephone to operate at a higher power level than needed.
For the best call quality, keep the antenna free from obstructions and point the antenna
straight up.
Do not use the unit with a damaged antenna. Have your antenna replaced by a qualified
technician immediately. Use only a manufacturer-approved antenna. Non-approved
antennas, modifications, or attachments could impair call quality, damage the phone.
RF energy may affect improperly installed or inadequately shielded personal medical
devices such as pace markers, hospital monitor. Consult the manufacturer of any
personal medical devices to determine if they are adequately shielded from external RF
energy. Turn your terminal OFF in health care facilities when any regulations posted in
the areas instruct you to do so. Hospitals or health care facilities may be using equipment
that could be sensitive to external RF energy.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna
- Increase the distance between the radio or television and the telephone.
- Connect the equipment into an outlet on a circuit different from that to which the
terminal is connected.
- Consult you Authorized LGIC Dealer of an experienced radio/TV technician for help.
Use only the battery, antenna and AC power supply provided by LGIC. Using any other
type will invalidate the warranty.
Only authorized personnel should service the phone and its accessories. Faulty
installation or service any be dangerous and may invalidate the warranty.
Do not use the unit in designated “no cellular phone use” area.
Avoid exposure to high temperature or humidity.
Avoid wetting the unit with any liquids. If the unit gets wet, turn the power off immediately
and remove the backup battery and AC power supply. If the unit is inoperable, then return
to the service agent for service.
Avoid shock or impact.
LGE CDMA Fixed Wireless Telephone
LSP-340
9
We recommend you to charge the backup battery before initial use. Backup battery may
be discharged during delivery.
1.3 Care and Service
Unplug the telephone from the wall outlet and remove antenna (or disconnect antenna
cable) before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for
cleaning.
If the unit fails for any reason, do not attempt to disassemble; contact the telephone
service provider for assistance.
If any of the following conditions exist; unplug the unit at the wall plug, remove battery,
and call the service provider.
- The power supply cord is damaged or frayed.
- Liquid has been spilled into the unit.
- The unit has been exposed to rain or water.
- The unit has been dropped or damaged.
- The unit does not work normally by following the operating instructions.
LGE CDMA Fixed Wireless Telephone
LSP-340
10
2. Introduction
2.1 Front View of the Telephone

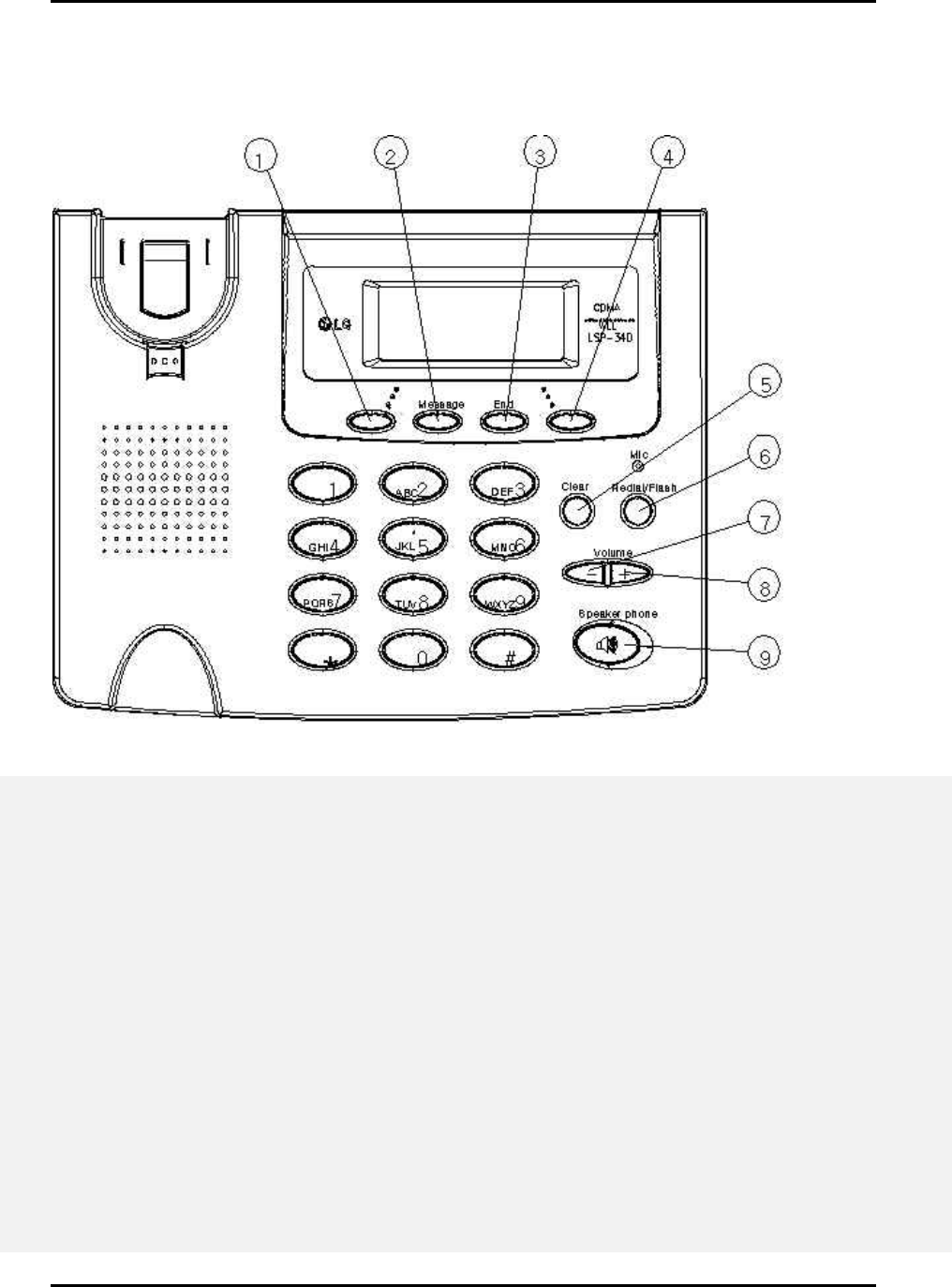

※ Function Key
① Menu / Softkey 1 : Activate MENU state (also MENU state in the call state)
② Message : Activate SMS state
③ End : Deactivate a STATE – No store a value (also activate MUTE state )
④ Recall / Softkey 2 : Activate RECALL state / Choose NEXT state
⑤ Clear(Cancel) : Delete the last digit/dial number(also Exit without storing in the MENU state)
⑥ Redial /Flash : Redial function, flash function in the call state
⑦ Navigation Left () : Volume－(also Function as a cursor th the EDIT state)
⑧ Navigation Right ():Volume＋(also Function as a cursor th the EDIT state)
⑦ SPKR :speaker phone
LGE CDMA Fixed Wireless Telephone
LSP-340
11

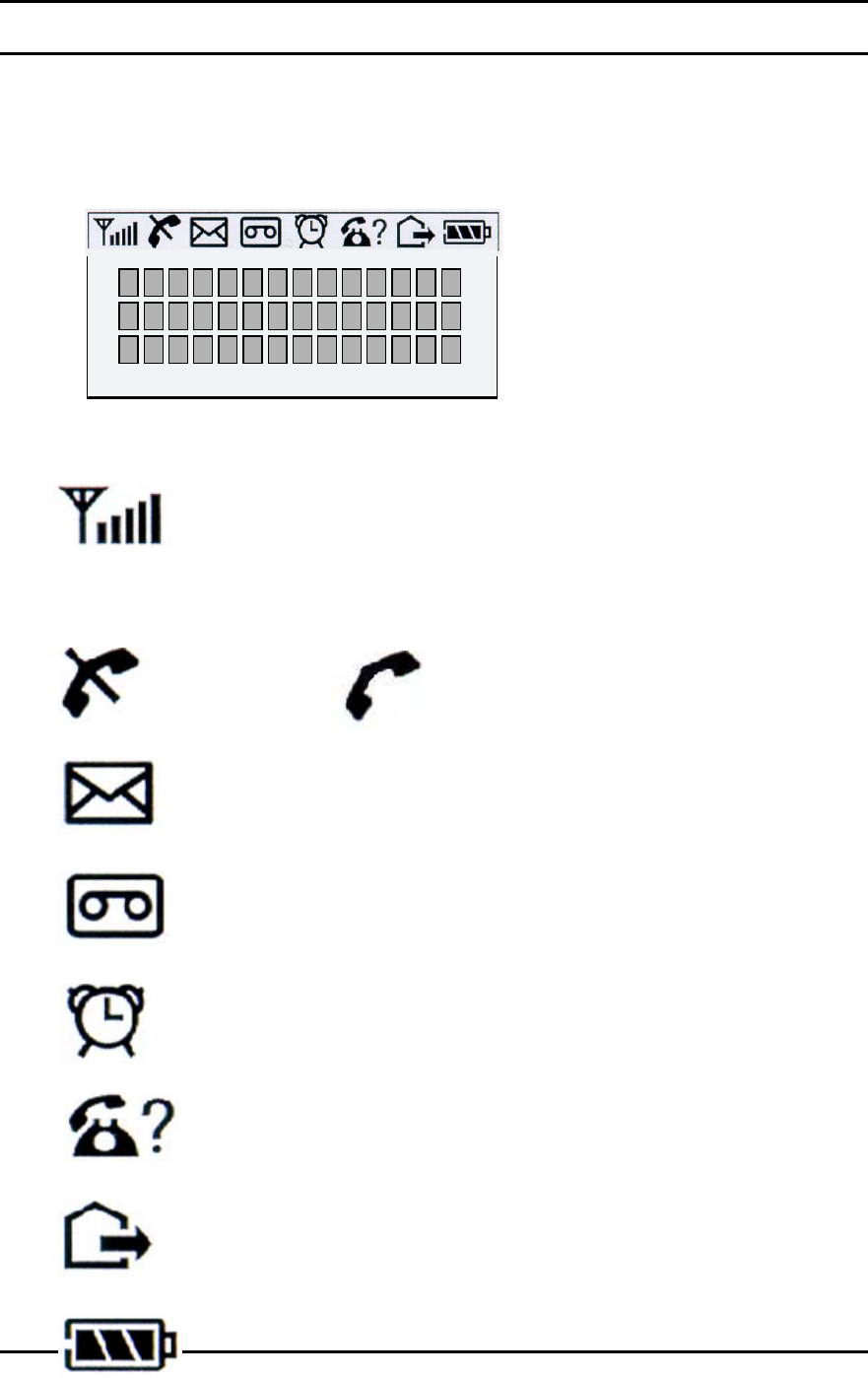

2.2 LCD Display
The LCD shows icons on the top of the LCD screen.
Different indicator appears based on the phone's operating mode.
1) RSSI indicator : Indicates the signal strength in the service area.
2) No service : The phone is not receiving system signal.
3) In use : Displayed when call is in progress or the phone is in off-hook and dial tone
heard.
: No service : In use
4) Text message : Displayed when a text message is received.
5) Voice message : Displayed when a voice message is received.
6) Alarm : Displayed when wake up alarm time was setting.
7) Caller ID : Displayed when caller ID is received.
8) OUT : Going out.
9) Battery charge level : Indicates charged battery level.
LGE CDMA Fixed Wireless Telephone
LSP-340
12
LGE CDMA Fixed Wireless Telephone
LSP-340
13

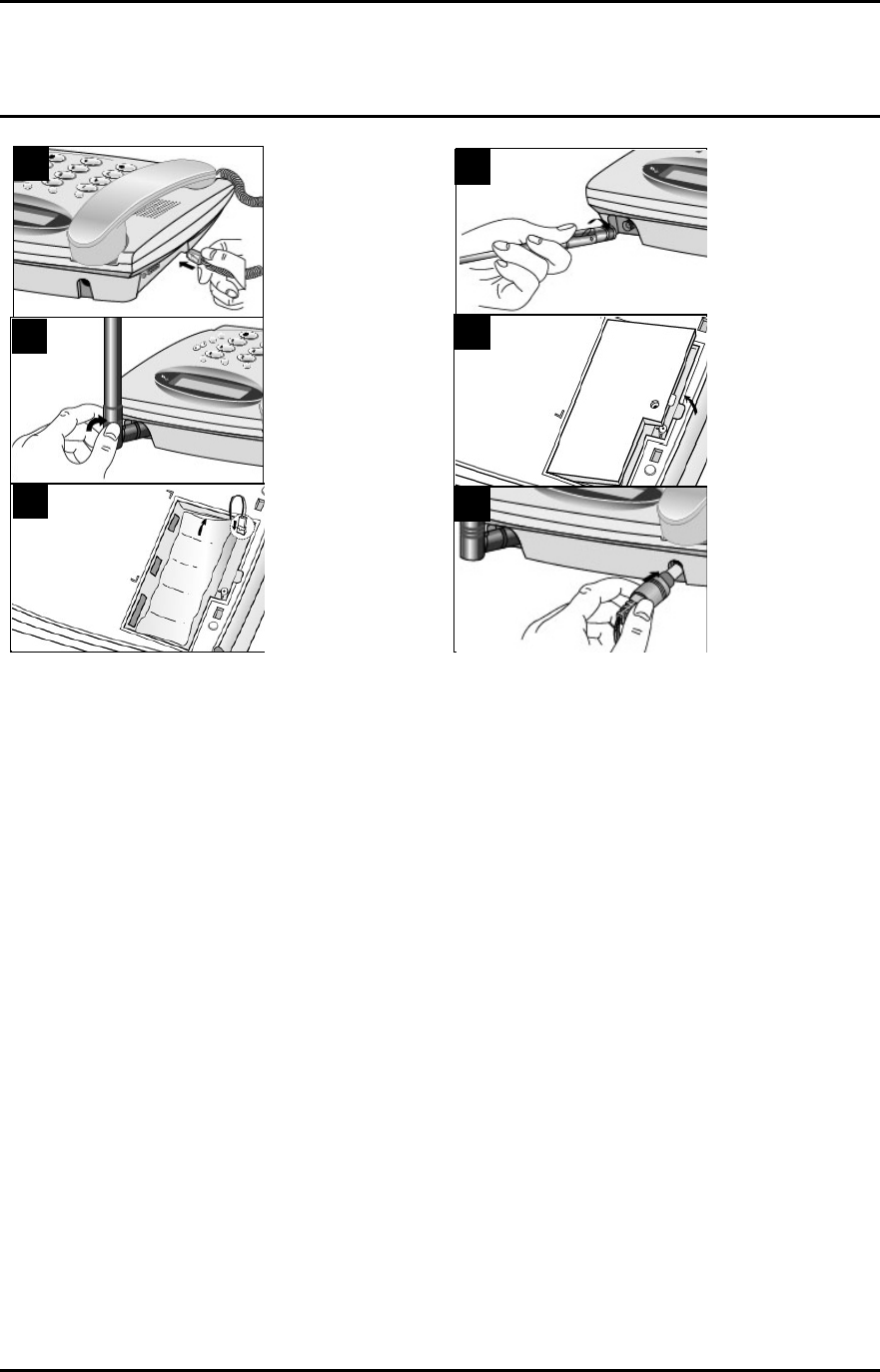

2.3 Installation

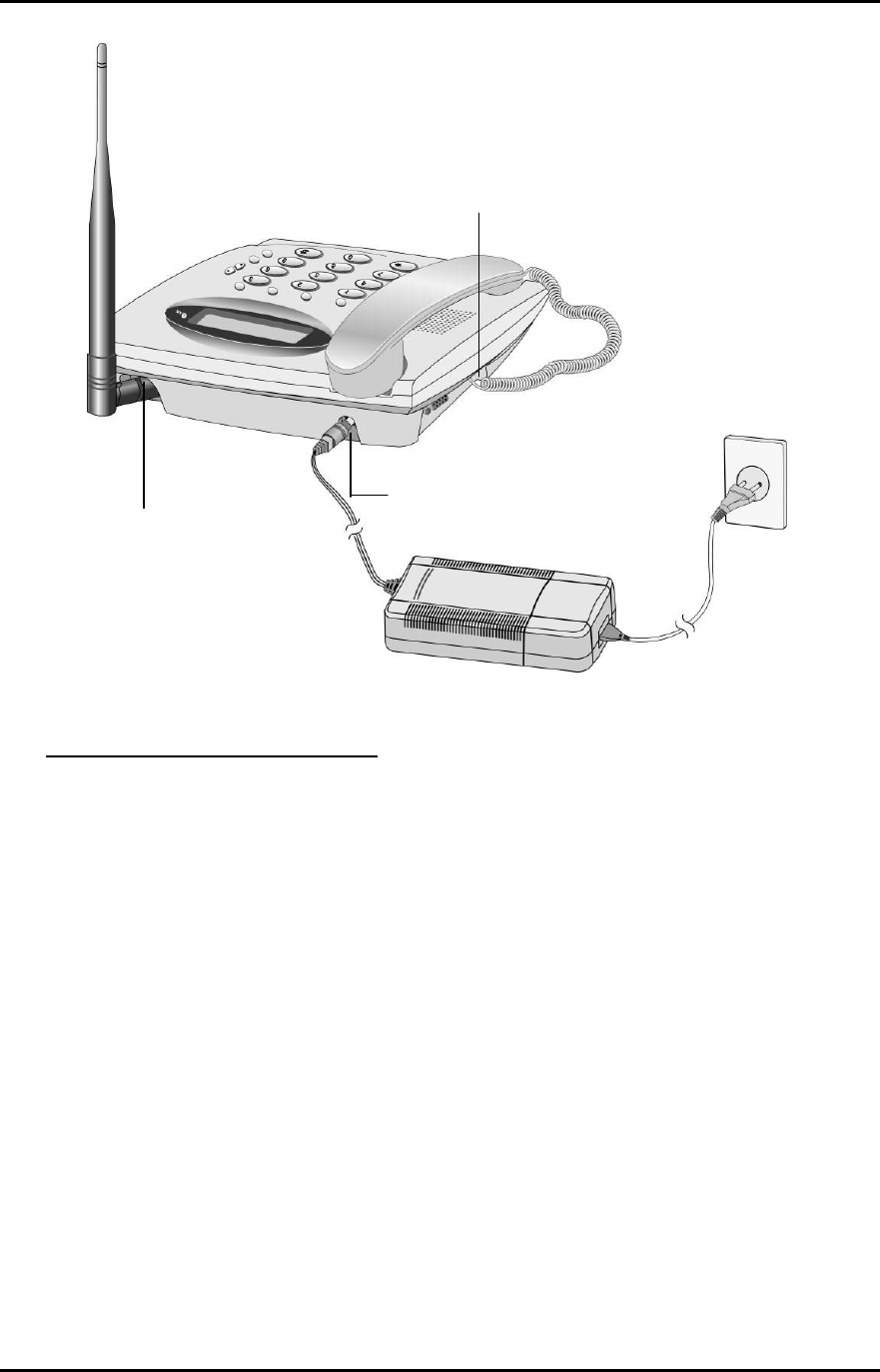

You should follow each step carefully as shown below in order to guarantee proper
operation of CDMA Fixed Wireless Telephone.
STEP I. Check Components
Fixed Wireless Terminal is supplied with the following standard unit and accessories;
1. LSP-340 Main Unit with Handset -1EA-
2. Dipole Antenna -1EA-
3. Backup Battery -1EA-
4. User Guide . -1EA-
5. AC/DC Power Adapter -1EA-
6. Power Cord(Only SMPS Adapter) -1EA-
Please make sure that these components are present before you begin the unit
installation. And then compare the following figures and components. If components
are missing or damage is found, contact the store where you purchased the unit
immediately.
STEP II. Place the Terminal
Place the terminal on the stable flat secure surface area (desk, table, etc.). Serious
damage may result if the unit falls. Do not place the unit on, or within 1 meter of
heaters or radiators. This unit is designed for desktop usage. Avoid direct exposure to
the sun lights and damp area.
Read the SAFETY INFORMATION located at the first part of this document before you
place the terminal
STEP III. Connect Components (See the figures in “Installation Steps”.)
Connect the antenna to the TNC antenna connector located at the top side of the
terminal. If you placed the terminal on the flat surface, bend the antenna up right.
Connect curl cord of handset assembly to the RJ-11C port located at the left side of
the terminal.
Open the battery case, securely connect the battery cord, place the backup battery
pack and close the case.
Connect the AC/DC Adapter cable to the DC input port located at the topside of the
terminal.
-. If it is good, beep tone is heard.
-. If it is not good(Booting is fail or beep tone is not heard), you have to connect the
adapter or backup battery, again.
Please follow the below to get better voice quality;
1. Keep away from electrical appliances such as TV, computer, radio and so on.
2. Keep terminal in a high and central location with no obstructions, such as metal
walls.
3. Raise the integral antenna of terminal to get maximum strength of receive signal
as shown figure at the next page.
LGE CDMA Fixed Wireless Telephone
LSP-340
14
STEP IV. Check the LCD Display
After you follow the installation instruction step I to step III, please check the LCD for
normal operation.
If you may not see status of service, please repeat the 5th instruction of step III. And
conform Fixed Wireless Telephone to get the proper signal strength from service
operator system.
※
The adapter type(with power cord) may be different by country adaptation.
Antenna TNC
Connector
AC Power Supply
Connector
Handset Connector
LGE CDMA Fixed Wireless Telephone
LSP-340
15
2.4 Installation Steps
Please follow the below procedure to install the unit properly.
Connect Base-
handset to the
handset connector.
Connect the
antenna to the
TNC connector
(Turn right).
Bend the antenna
up right.
Open the
battery cover
at the bottom
of the unit.
Insert back-up
battery in the
bottom of the unit.
(give care to
polarity)
Connect the AC
power supply.
1
1
1
2
3
1
5
1
4
1
6
LGE CDMA Fixed Wireless Telephone
LSP-340
16
1234567
1234567
Calling...
3. Basic Operation
3.1 Making a Call
1. Pick up the handset or press button.
2. Listen for dial tone
3. Enter the phone number with area code if needed.
4. Wait for the Auto Time-out.
5. The call is connected and you can start conversation.
6. To disconnect the call, replace the handset or press button.
3.2 Redialing Last Outgoing Number
1. Pick up the handset or press button.
2. Listen for dial tone.
Press Redial button. The last number that you called will be re-dialed.
Correcting dialing mistakes
1. Press
Clear button shortly to erase the most recent digit.
2. Press and hold Clear button for at least one second.
If the phone is locked, enter the Lock Code
If the call did not go through, press the hook switch and dial again.
Flashing / Hook Switch
1. While in the middle of a call, pressing the hook switch for less than 1 second will be
treated as a flash. After 1 second, the call will be terminated.
2. Very briefly pressing the hook switch will be ignored.
Battery icon is displayed only when the terminal is operating by battery without AC power.
LGE CDMA Fixed Wireless Telephone
LSP-340
17
10:51 AM
Missed 1 call
OK
Incoming Call!
10:23 AM
08 May, Sat
MENU RECALL
3.3 Receiving a Call
1. When bell rings, pick up the handset.
2. Start conversation.
3. To disconnect the call, replace the handset.
3.4 Signal Strength
The quality of calls depends on the signal strength in your
area. The stronger the signal, the better the call quality.
The signal strength icon indicates the current strength as
a number of bars. You can see the antenna and bars
according to the strength of received signal in the upper-
left part.
3.5 Missed Call Message
If a call is received and not answered for user’s absence,
You are informed that you have missed a call. The latest
missed call time and number of missed call is displayed.
Press [OK] to erase “Missed call” message.
Time: 0:23
[MUTE]
LGE CDMA Fixed Wireless Telephone
LSP-340
18
MAIN MENU
2:Additional
1:Volume / Ring
RING VOLUME
OK NEXT
KEY VOLUME
NEXTOK
U
4. List of Menu State
Main Menu Sub-Menu Setting Value Default
1. Ring Volume 4 steps
2. Key Volume 4 steps +silent
3. Ear Volume 4 steps
1. Select Volume
4. Ring Select - 10 types
1. Key tone length normal/Long
2 .Minute alert Enable/Disable
3.Rx call mode Voice / Fax for next / Always Fax /
Modem for next / Always
modem
4.SIO baud rate 19200/38400/57600/115200
/230400
2. Additional
4.1 Volume / Ring
This menu allows you to adjust the various different volumes.
4.1.1 Ring Volume
The received tone when you receive a call can be adjusted.
From the MENU
1. Press
[MENU] + 1(Volume/Ring)+ 1(Ring Volume) in on-hook state.
2. Press
Volume button or [NEXT] to adjust ring volume.
3. Press
[OK]
By the Volume button
1. Press
Volume button to adjust ring volume in on-hook
state
4.1.2 Key Volume
The tone when you press a key can be adjusted.
1. Press
[MENU] + 1(Volume/Ring) + 2(Key Volume) in
on-hook state.
2. Press
Volume button or [NEXT] to adjust key volume.
LGE CDMA Fixed Wireless Telephone
LSP-340
19
ADDITIONAL
2:KeyTone Length
KEY TONE LENGTH
NEXT
OK
normal
EAR VOLUME
NEXTOK
3. Press
[OK]
4.1.3 Ear Volume
The voice of the other party can be adjusted in on-hook state.
1. Press
[MENU] + 1(Volume/Ring) + 3(Ear Volume) in
on-hook state.
2. Press
Volume button or [NEXT] to adjust ear piece
volume
3. Press
[OK]
Press Volume button to adjust volume during conversation
4.1.4 Ring Select
You can select the various ring types
1. Press
[MENU] + 1(Volume/Ring) + 4(Ring Type)
in on-hook state.
2. Select a desired ring type with Volume button or
[NEXT].
There are 10 different ring types.
Those are Standard,Option 1,Option 2, Option 3, Option 4, Habanera, Deutsch
song, La Primavera, Oh! susanna, Beethoven
3. Press [OK] to save and exit.
4.2 Additional feature
4.2.1 Key-tone Length
Setting key beep playback length. Possible settings are Normal and Long.
1. Press
[MENU] + 2(ADDITIONAL) + 2(Keytone Length)
in on – hook State.
2. Select
Normal or Long by [NEXT] or Volume button
and press [OK] to select.
RINGER TYPE
NEXT
OK
Standard
LGE CDMA Fixed Wireless Telephone
LSP-340
20
MINUTE ALERT
NEXTOK
On
DATA BAUDRATE
NEXT
OK
19200
RX CALL MODE
NEXT
OK
voice
4.2.2 Minute Alert
Alerts you every minute during a call.
1. Press
[MENU] + 2(ADDITIONAL) + 3(Minute Alert)
In on – hook State
2. Select
On or Off by [NEXT] or Volume button.
3. Press
[OK] to save and exit
4.2.3 Set Rx call mode
.
1. Press
[MENU] + 2(ADDITIONAL) + 4(RX Call Mode)
in on – hook State.
2. Select Voice, Fax for next, Always Fax, Modem for
next by Volume or [NEXT] button.
3. Press
[OK] to save and exit.
4.2.4 SIO baud rate
1. Press
[MENU] + 2(ADDITIONALl) + 5(SIO Baud Rate)
in on – hook State.
2. Select
19200, 38400, 57600, 115200, 230400 by
Volume or [NEXT] button
3. Press
[OK] to save and exit
LGE CDMA Fixed Wireless Telephone
LSP-340
21
Lookup name?
FINDABC
FROM MEMORIES
2:By Address
1:By Name
1234567
Time: 0:23
MUTE]
1234567
Time: 0:23
[UNMUTE]
MUTE
EAR VOLUME
[ OK ] [ NEXT ]
1234567
Time: 0:23
MENU MUTE]
5. Functions while in a call
5.1 Mute
This function prevents your voice from being transmitted but
you can call still hear other side.
1. Press
[MUTE] button while in a call.
2. You could see “MUTE” message blinking on the right
side of the LCD
3. To release Mute, Press
[UNMUTE] button.
5.2 Ear Volume
You may adjust ear volume while you are in a call.
The Volume button on the right side of the phone can be
used to adjust ear volume.
6. Searching, Editing & Dialing

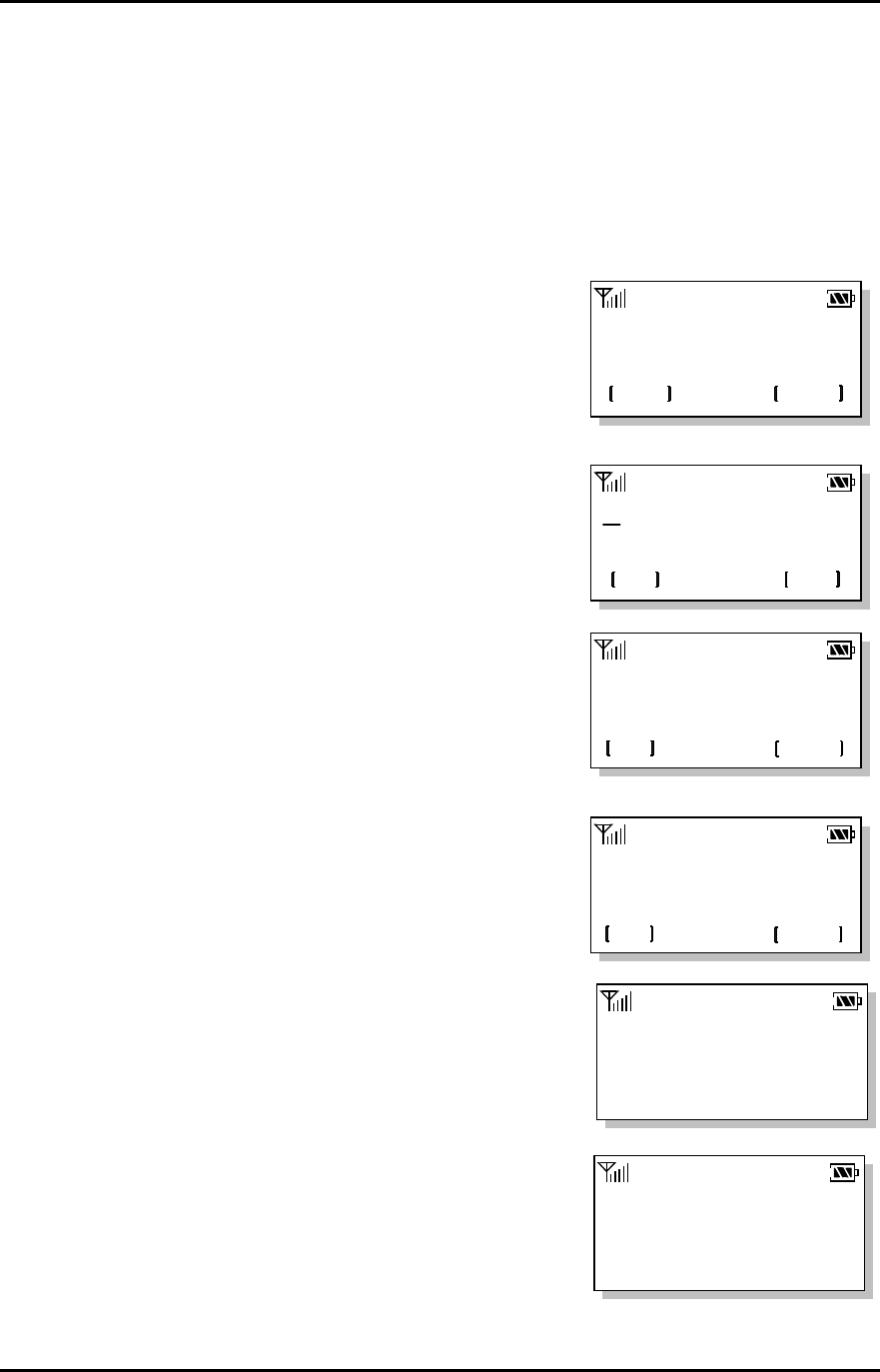

6.1 Retrieving Phone Number by Name
1. Press
[RECALL] and 2(FROM MEMORIES)
2. Press
1 button to retrieve phone number by name.
3. Enter the name that you want to look for and press
[FIND].
At least two letters are recommended for quick
search.
LGE CDMA Fixed Wireless Telephone
LSP-340
22
Lookup Location?
??
FIND
01:ADG
028503619
ERASEEDIT
01:ADG
028503619
ERASEEDIT
A
028503619
QUITOK
01:ADG
ERASEVIEW
02:ACG
01:ADG
ERASEVIEW
02:ACG
Press [NEXT] or UP and DOWN button to scroll
through the list of matches.
4. Press
[VIEW] to see information in that location.
Pick up handset to make a call.
You can edit the phone number by pressing [EDIT]
button.

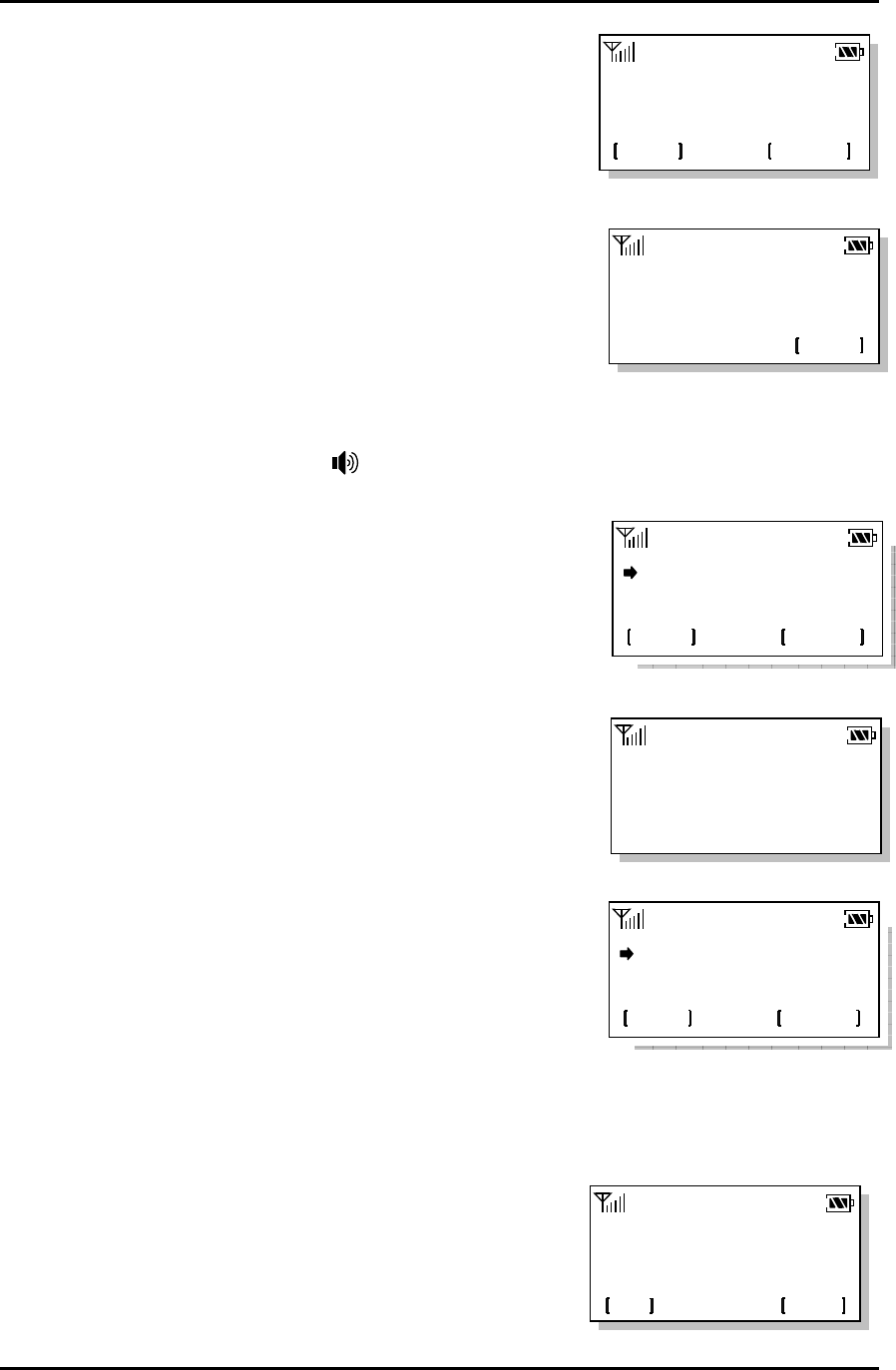

6.2 Retrieving Phone Number by Address
1. Press [RECALL] and 2(FROM MEMORIES)
2. Press 2 button to retrieve a phone number by address.
3. Enter a memory address to retrieve phone number.
(ex: If you enter a memory address, 01.)
If there is no stored phone number in the memory
location, “Empty Location” is displayed.
If you press [FIND] button without entering
number, you see the whole phone number list in
the memory Location and you can find the number
by scrolling the list.
4. Pick up the handset or press button to call to displayed number, press [EDIT] to
edit stored information or press [ERASE] to delete displayed information.
Edit process
Modify the phone number by Clear button and
keypad. And Press [OK] to edit a related name.
1) Delete the phone number by Clear button.
2) Enter the modified phone number.
3) Press
[OK].
4) To move cursor, use Volume button or *, #.
5) Enter the name.
6) Press
[OK].
Enter a new memory address to store a new information or choose the new
memory address by [NEXT] and press [OK].
Press [OK] to no secret.
LGE CDMA Fixed Wireless Telephone
LSP-340
23
Lookup Number?
??
FIND
ERASE ? #02
NO
NEXTOK
01:ADG
ERASEVIEW
02:ACG
RECALL
2:Clear Memory
1:FROM MEMORIES
01:ADG
ERASEVIEW
02:ACG
CLEAR WHOLE BOOK
NEXT
OK
No
Erasing process
You might press [ERASE] at the above step 3.
Press [OK] to complete erasing process.
6.3 Retrieving Phone Number by NUMBER
1. Press [RECALL] and 2(FROM MEMEORIES).
2. Press 3 button to retrieve a phone number by number.
3. Enter the phone number that you want to find and press
[FIND] button.
If there is no stored phone number in the memory location, “No number
matches” is displayed.
4. Pick up the handset or press button to call to displayed number, press [EDIT] to
edit stored information or press [ERASE] to delete displayed information.
Edit process.
Erasing process
Do the above step of 6.2.2.
6.4 Fast Searching
. 1. Press [RECALL] button
2.Press [RECALL] button again.
you see the whole phone number list in the memory
Location and you can find the number by scrolling
the list.
6.5 Clear Memory
When you want to delete phonebook memory, you can erase all phonebook memory.
1. Press [RECALL] button
2. Press
2(Clear Memory).
3. Press
[YES] to erase all phone memory.
LGE CDMA Fixed Wireless Telephone
LSP-340
24
RECEIVED MSG
2:Voice Mail
1:Message
01 Hello
02 Good Morning
[ERASE]VIEW
5/21 2:20 PM
< PAGE from >
OK
333333
[ERASE]
333333
Hello!
[ERASE][OK]
ERASE ?
OK [ NEXT ]
No
SMS MENU
2:MSG Sending
1:MSG Received
7.SMS (Short Message Service)
Messaging, Paging, and Voice mail features are available when your phone is turned
on. Using Message button allows you to access messages for viewing on the LCD
screen or to send a message.
Check with your WLL service provider regarding the availability of this feature. The
information in a message depends on the mode the WLL is operating in and the
service’s capabilities.
7.1 Checking & Deleting Received Message
7.1.1 Text Message
1. Press
MESSAGE button and 1(MSG RECEIVED)
2. Press
1(Text MSG) to see a received text message list.
Locate to the desired message in the list.
Mark “∨ “means already a checked message.
3. Press
[VIEW] to see the content of desired message.
You can see the message with received time and
caller’s phone number.
You can read a l message.
4. Press
[ERASE] to erase a message.
Press [OK] to complete erasing process.
LGE CDMA Fixed Wireless Telephone
LSP-340
25
MSG RECEIVED
3:Clear All
* VOICE MAIL *
5/21 2:32 PM
1 < DUPLICATED >
[OK] [ERASE]
MSG NOTIF
Off
[OK] [NEXT]
7.1.2 Voice Message
Voice mail notifications indicate the number of new voice mail message in your mail box.
Only the most recent voice mail notification will be stored in the WLL phone; previous
messages will be overwritten. When a voice mail messages left for you, the WLL phone
will alert and display “ * Voice Mail * “. You must call your voice mail service to retrieve
these messages.
1. Press
MESSAGE button and 1(Received MSG) in idle
state.
2. Press
2(Voice MSG) to check the voice message.
If there is no voice message, “No Voice Mail was received” is displayed.
Press [ERASE] to delete the voice message.
7.1.3 Erasing all Received Message
1. Press
MESSAGE button and 1(MSG RECEIVED).
2. Press
3(Clear All).
3. Press
[OK] to delete.
7.2 MSG Notification tone select
1. Press
Message button and 3(MSG NOTIF).
2. Select
off, once, Every 2 Min by pressing [NEXT] or
Volume button.
. 3. Press [OK] to save and exit.
ERASE All?
[OK] [NEXT]
Yes
LGE CDMA Fixed Wireless Telephone
LSP-340
26
028503333
ok A/a
abcde
<MSG Input>
OK ABC
Store Message ?
NEXT
OK
Yes
MSG SENDING
2:Sent Message
1:New Message
Called Number
OK
1234
[FIND]
Call back Number
OK
5678
SMS MENU
2:MSG Sending
1:MSG Received
7.3 Message Sending
7.3.1 Sending a New Message
1. Press MESSAGE button and 2(MSG SENDING)
2. Press 1(New Message) to send a new message
3. Enter the called number and press [OK]
You can find the called number in the memory by
[FIND] button
4. Enter the call back number and press [OK]
5. Input a message and press [OK] to send
Press
[A BC] to change upper or lower case character
6. Select Yes/No to store the message. Press [OK] to send
LGE CDMA Fixed Wireless Telephone
LSP-340
27
028503333
ok A/a
Hello!
<MSG Input>
OK ABC
Store Message?
NEXT
OK
Yes
MSG Sending
2:Sent MSG
1:New MSG
01 Hello
02 Good Morning
ERASEEDIT
Called Number
OK
1234
[RECALL]
Call back Number
OK
5678
7.3.2 Sending the sent Message or message after editing the Sent
Message
1. Press MESSAGE button and 2(MSG SENDING)
.
2.Press 2(Sent Message) to see a received
text message list.
Locate to the desired message in the list.
.
3. Press [EDIT] to edit the content of the selected message.
You can see the selected sent message
Edit the message. Press [ABC] to change upper
or lower case character
5. Press [OK] Button.
6. Enter the called Number and press [OK]
7. Enter the call back Number and press [OK]
8. Select Yes/No to store Message. Press [OK] to send the
MSG
LGE CDMA Fixed Wireless Telephone
LSP-340
28
ERASE ALL ?
OK [NEXT]
Yes
MSG Sending
2:Sent Message
1:New Message
MSG SENDING
3:Clear All
7.3.3 Erasing a Sent Message
1. Press MESSAGE button and 2(MSG SENDING)
2. Press 3(Clear All) to clear text message list.
.
3. Press
[OK] to erase a message.
LGE CDMA Fixed Wireless Telephone
LSP-340
29
LSP-340
MENU [RECALL]
OWN NUMBER
OK
000-000-0000
8.Beside Functions
8.1Viewing your own number
Press Redial button in on-hook state to see your own
telephone number
8.2 Redial
Pick up the handset or press button and Redial
button to redial last outgoing number.
8.3 Hook Switch
1. While in the middle of a call, pressing the hook switch for 300ms(600~300ms) will be
treated as a flash. After 1 second, the call will be terminated.
2. Very briefly pressing the hook switch will be ignored.
8.4 Flash
The same as that of a single line phone
8.5 Safe mode
Even if you misplaced the handset for long, The phone
returns to the normal state.
After the ROH tone, The phone returns to the IDLE state as
the picture
and the phone is able to recive a call.
LGE CDMA Fixed Wireless Telephone
LSP-340
30
ABC
As stored!
in 01
021234567
FIND
SAVE
021234567
OK ABC
Auto=01 ??
OK NEXT
ABC
Make it Secret?
No
OK NEXT
- MEMORY -
empty : 99
used : 01
9. Storing Phone Number
9.1 Storing/Editing Phone Numbers
9.1.1 Storing Phone Numbers
Frequently used phone numbers can be stored on the memory locations (01~99: 2 digits)
and you can make a call by pressing memory location number in off-hook state.
1. Enter the area code and phone number in on-hook
state. (Max. 32 digits)
2. Press
[SAVE].
3. Enter the name in text mode and press [OK] to save.
Press
[ABC] to change upper or lower case characters.
To store without name, just press [OK].
Refer to “To enter a character”.
4. Enter the desired memory location.
The phone number is stored in the displayed
memory location.
5. The phone will display a message asking to keep your
number as secret or not. Select “No” or “Yes” using
[NEXT]. Then Press [OK].
You can see a confirming message.
Also you can see a condition of used memory.
LGE CDMA Fixed Wireless Telephone
LSP-340
31
01:ADG
ERASEVIEW
02:ACG
Lookup Number?
FIND
To enter a character.
You can enter English character in editing mode.
You can enter English character as default, and press Message to select specific character.
To enter English character.
Press once a keypad to enter the first letter labeled in the keypad, twice to enter the
second letter and 3 times to enter the third letter.
EX) To enter “L”,
Press dial button 5 labeled “JKL” 3 times to enter “L”.
After 2 seconds entering a character, the cursor is moved to the next position
automatically.
Press Volume button to move the cursor.
Press Clear button to erase or correct entered character.
To enter specific character,
Press Message to view a desired character while you are entering names.
Special characters includes *, #, %, “, :, +, <, >, =, and more
Press the number next to the character you want insert.
9.1.2 Erasing Stored Phone Numbers
When a phone number is stored in a memory location, you can erase the stored phone
number.
1. Press [RECALL] + 1(FROM MEMORIES) + 3(By
Number) and enter a number of the desired memory
location to erase.
If there is no stored phone number in the memory
location, “Empty Location” is displayed.
If you do not remember the memory location to erase, press [FIND] to search
phone number by memory location
2. Erasing process
LGE CDMA Fixed Wireless Telephone
LSP-340
32
- ERASED -
Erase? #01
Yes
OK NEXT
Lookup Number?
??
FIND
01:ADG
ERASEVIEW
02:ACG
01:ADG
028503619
ERASEEDIT
Press [ERASE] to delete.
Press [OK] to complete erasing process.
9.2 Finding Stored Phone Numbers
You can see all the list of stored phone numbers in memory list and if you forgot the
memory location, can find it in sequence. And You can place a call with the phone
number.
1. Press [RECALL] + 1(FROM MEMEORIES) +3(By
Number) in on-hook state.
2. Press [FIND] button to find the desired phone number.
Locate in the desired name or address to find.
If not any entered name, phone number is
displayed.
3. Press [VIEW] to see the stored number.
4. To make a call with the phone number in the state of
step 2 or step 3, pick up the handset or press
button and wait for Auto Time-out.

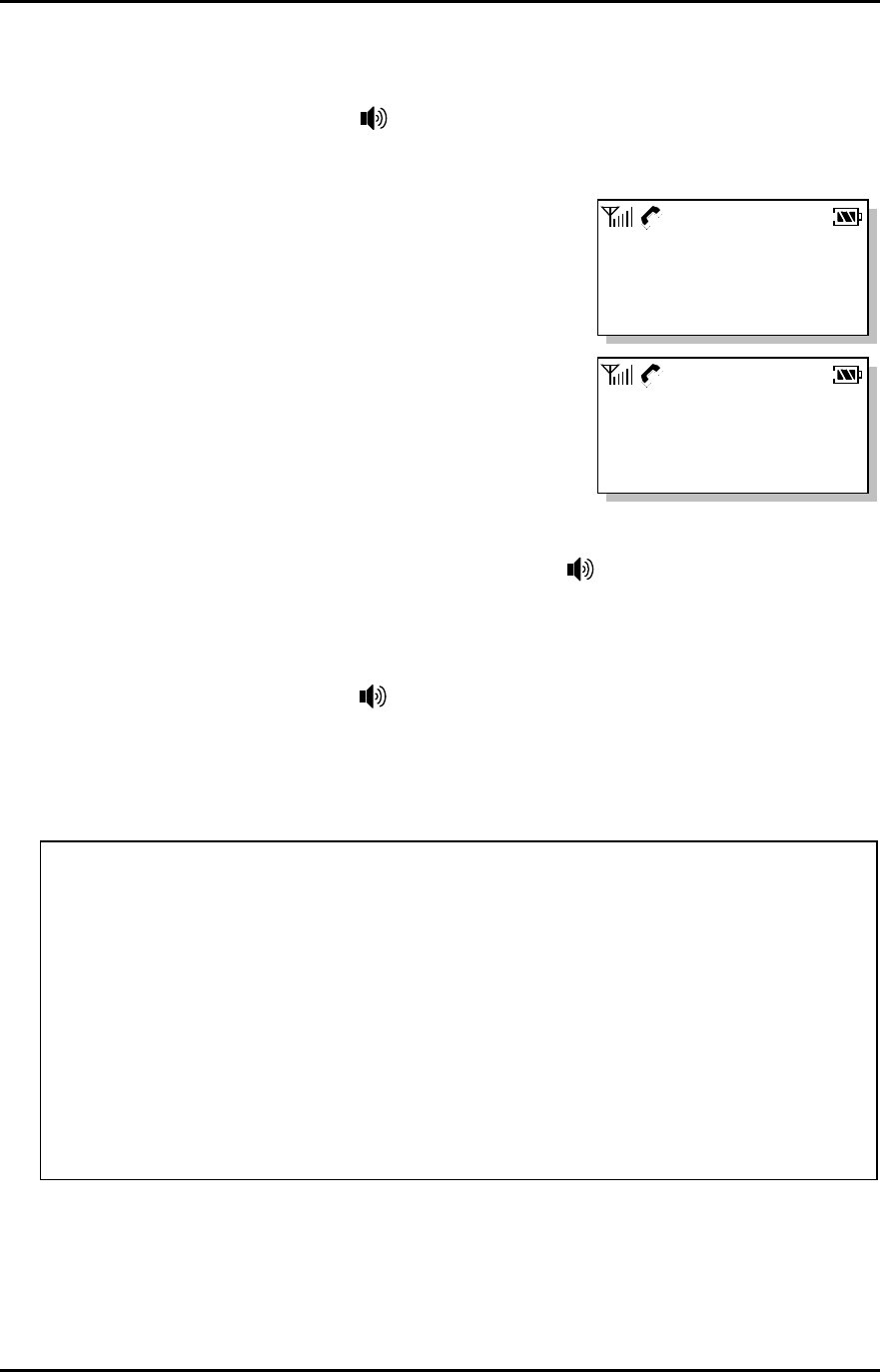

10. Speaker phone
This function is a convenient feature which enables you to call using speaker phone
LGE CDMA Fixed Wireless Telephone
LSP-340
33
button in on-hook state.
11. General Information
Main Unit
Item LSP-340
Tx Frequency Digital : 824 ~ 849 MHz
Rx Frequency Digital : 869 ~ 894 MHz
Channel Bandwidth 1.25 MHz
Tx Power Digital : Max. 0.31W
Rx Sensitivity -104 ~ -25dBm
Size 215 X 160 X 84 ( W X LX H)
Below 833(with battery, Ni-MH) Weight(g)
Below 749 (without battery)
Operating
Temperature
0 ~ 55℃
AC/DC Adapter
Item SMPS Type Description
Input Voltage AC 100 ~ 250V / 0.3A, 15W
Input Frequency 50 / 60Hz
Output Voltage 9.6V(DC), 1A
Battery
Item Description
Capacity 3.6V Ni-MH 1700mAh
Talk duration time 2 Hours
Standby duration time 24Hours
Charging duration time Trickle, 24 Hours
Licensed by QUALCOMM Incorporated under one or more of the following Patents:
U.S, Patent No. 4,901,307 U.S, Patent No. 5,056,109 U.S, Patent No. 5,099,204
U.S, Patent No. 5,101,501 U.S, Patent No. 5,103,459 U.S, Patent No. 5,107,225
