LG Electronics USA LSP345 CDMA Fixed Wireless Telephone User Manual

LG Electronics USA CDMA Fixed Wireless Telephone

Users Manual

REVISED HISTORY
DATE ISSUE CONTENTS OF CHANGES REMARK
2004/06
2004/08
ISSUE1.0
ISSUE1.1
Initial Release
Cover Design Change
LSP-345LGE CDMA Fixed Wireless Telephone
5
CONTENTS
1GImportant Information.......................................................................9G
Safety Information ...............................................................................................9G
Optimal Phone Performance ...............................................................................9G
Care and Service...............................................................................................10G
Safety Information .............................................................................................11G
2GIntroduction .....................................................................................14G
2.1
G
Front View of the Telephone .................................................................... 14
G
2.2
G
LCD Display ............................................................................................. 15
G
2.3
G

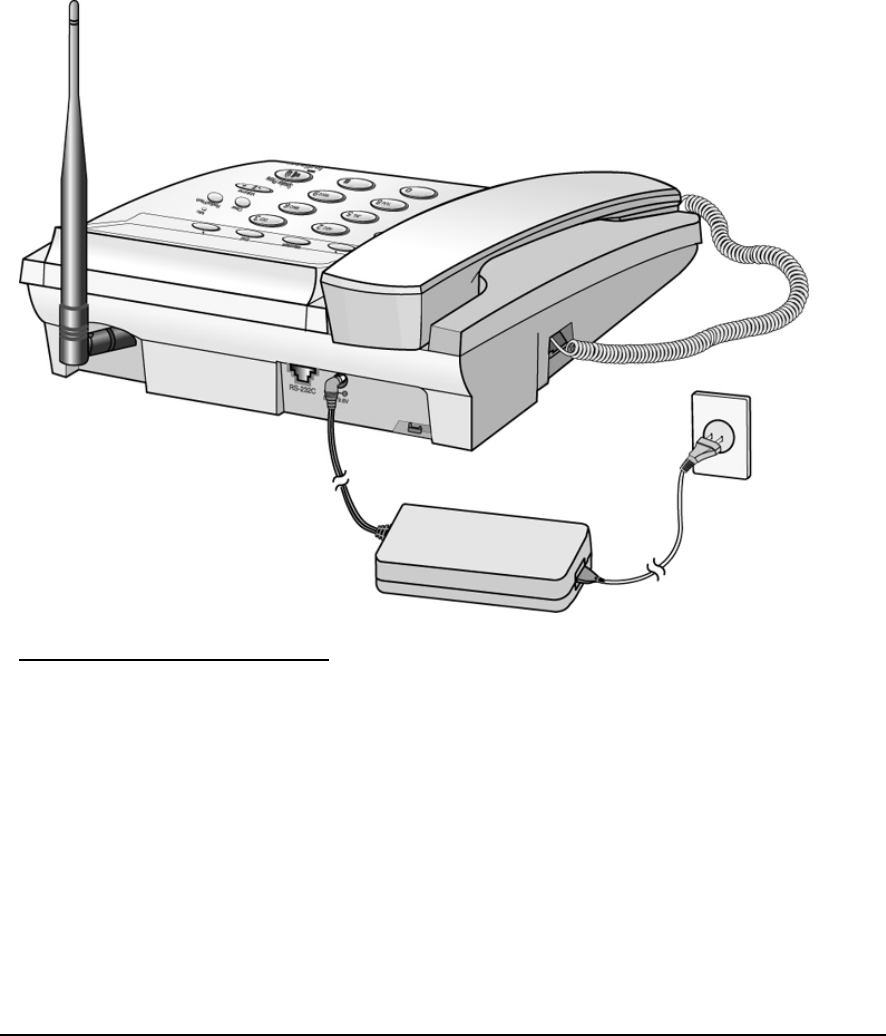

Installation ................................................................................................ 16
G
2.4
G
Installation Steps...................................................................................... 18
G
3GBasic Operation ..............................................................................19G
3.1
G
Making a Call ........................................................................................... 19
G
3.2
G
Redialing Last Outgoing Number ............................................................. 19
G
3.3
G
Receiving a Call ....................................................................................... 20
G
3.4
G
Signal Strength......................................................................................... 20
G
3.5
G
Missed Call Message ............................................................................... 21
G
4GList of Menu State...........................................................................22G
4.1
G
Volume / Ring........................................................................................... 23
G
4.1.1GRing Volume.................................................................................................23G
4.1.2GKey Volume..................................................................................................23G
4.1.3GEar Volume ..................................................................................................23G
4.1.4GRing Type.....................................................................................................24G
4.2
G
Additional Features .................................................................................. 25
G
4.2.1GWake-up.......................................................................................................25G
4.2.1.1GTime..................................................................................................25G
4.2.1.2GRinger ...............................................................................................25G
4.2.2GMinute Alert ..................................................................................................26G
4.2.3GConnect Alert ...............................................................................................26G
4.2.4GRx Call Mode................................................................................................26G
4.2.5GSIO Baud Rate .............................................................................................26G
4.2.6GOwn Number ................................................................................................26G
4.3
G
Dial Features............................................................................................ 27
G
4.3.1GHot Line........................................................................................................27G
LSP-345 LGE CDMA Fixed Wireless Telephone
6
4.3.2GHot Line Time...............................................................................................27G
4.3.3GAuto Time-out...............................................................................................27G
4.3.4GSpeed Dial (enable / disable) .......................................................................28G
4.3.5GKey-tone Length...........................................................................................28G
4.4
G
Security Features ..................................................................................... 29
G
4.4.1GSet Lock Mode .............................................................................................29G
4.4.2GClear Calls....................................................................................................29G
4.4.3GClear Memory...............................................................................................30G
4.4.4GEmergency Call............................................................................................30G
4.4.5GRestriction Call Service ................................................................................31G
4.4.5.1GRestrict Set .......................................................................................31G
4.4.5.2GPermit Memory .................................................................................32G
4.4.5.3GDeny Memory ...................................................................................33G
5GFunctions while in a call.................................................................34G
5.1
G
Ear Volume .............................................................................................. 34
G
5.2
G
Mute ......................................................................................................... 34
G
5.3
G
Memo ....................................................................................................... 35
G
5.4
G
MIC Volume ............................................................................................. 35
G
5.5
G
Transmitting your own number................................................................. 36
G
6GSearching, Editing & Dialing..........................................................37G
6.1
G
Retrieving Last Call History...................................................................... 37
G
6.2
G
Retrieving Phone Number by Name......................................................... 39
G
6.3
G
Retrieving Phone Number by Address ..................................................... 40
G
6.4
G
Retrieving Phone Number by Number...................................................... 41
G
6.5
G
Fast Searching ......................................................................................... 42
G
7GSMS (Short Message Service) .......................................................43G
7.1
G
Checking & Deleting Received Message ................................................. 43
G
7.1.1GText Message...............................................................................................43G
7.1.2GVoice Message.............................................................................................44G
7.1.3GErasing all Received Message.....................................................................45G
7.2
G
MSG Notification Type Select .................................................................. 45
G
7.3
G
Message Sending .................................................................................... 46
G
7.3.1GSending a New Message .............................................................................46G
7.3.2GSending the sent Message or Message after editing the Sent Message .....47G
7.3.3GSending the Received Message or Message after editing the Received
Message.......................................................................................................49G
LSP-345LGE CDMA Fixed Wireless Telephone
7
7.3.4GErasing a Sent Message ..............................................................................50G
7.4
G
MSG Ringer ............................................................................................. 51
G
8GOther Functions ..............................................................................52G
8.1
G
Redial ....................................................................................................... 52
G
8.2
G
Finding Last Call History .......................................................................... 52
G
8.3
G
Hook Switch ............................................................................................. 52
G
8.4
G
Flash Key ................................................................................................. 52
G
8.5
G
Safe Mode................................................................................................ 52
G
9 Storing Phone Number...................................................................53
9.1
G
Storing/Editing Phone Numbers ............................................................... 53
G
9.1.1GStoring Phone Numbers...............................................................................53G
9.1.2GErasing Stored Phone Numbers ..................................................................55G
9.2
G
Finding Stored Phone Numbers ............................................................... 56
G
10GSpeaker Phone ................................................................................57G
11GGeneral Information........................................................................57
FCC RF Exposure Information ............................................................59
LSP-345 LGE CDMA Fixed Wireless Telephone
8
Highlights
Congratulations on your purchase of the LSP-345 Fixed Wireless Telephone. This telephone has
been designed to operate on the latest digital mobile communications technology. This
technology has greatly enhanced voice clarity and can provide various advanced features.
The telephone provides:
z CMX 16 Poly Ringer Type, Power on / off, SMS, Alarm Midi Sound
z 3-line LCD Display with status indicator
z A choice of 10 ring sounds
z A menu driven interface with prompts for easy operation
z Last Number Redial
z Speed Dialing with a 99-number memory
z Dial tone
z ROH (Receiver Off-Hook) tone
z Adjustable Ring Volume
z Internal Back-up Battery Pack
z AC Power Supply
z Dipole Antenna
z RJ-45 Data Port for service and repair
z Speaker phone
LSP-345LGE CDMA Fixed Wireless Telephone
9
1 Important Information
Safety Information
Warning
To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. Do not
use this product near swimming pools or other water bodies.
IMPORTANT
Before installing or operating this product, please read this information.
Optimal Phone Performance
z Do not operate your product when holding the antenna, or when someone is within four
inches (ten centimeters) of the antenna. Holding the antenna affects call quality and may
cause the telephone to operate at a higher power level than needed.
z For the best call quality, keep the antenna free from obstructions and position the antenna
straight up.
z Do not use the unit with a damaged antenna. Have your antenna replaced by a qualified
technician immediately. Use only a manufacturer-approved antenna. Non-approved
antennas, modifications, or attachments could impair call quality, damage the phone.
z RF energy may affect improperly installed or inadequately shielded personal medical
devices such as pace markers, hospital monitors. Consult the manufacturer of any
personal medical devices to determine if they are adequately shielded from external RF
energy. Turn your terminal OFF in health care facilities when any regulations posted in the
areas instruct you to do so. Hospitals or health care facilities may be using equipment that
could be sensitive to external RF energy.

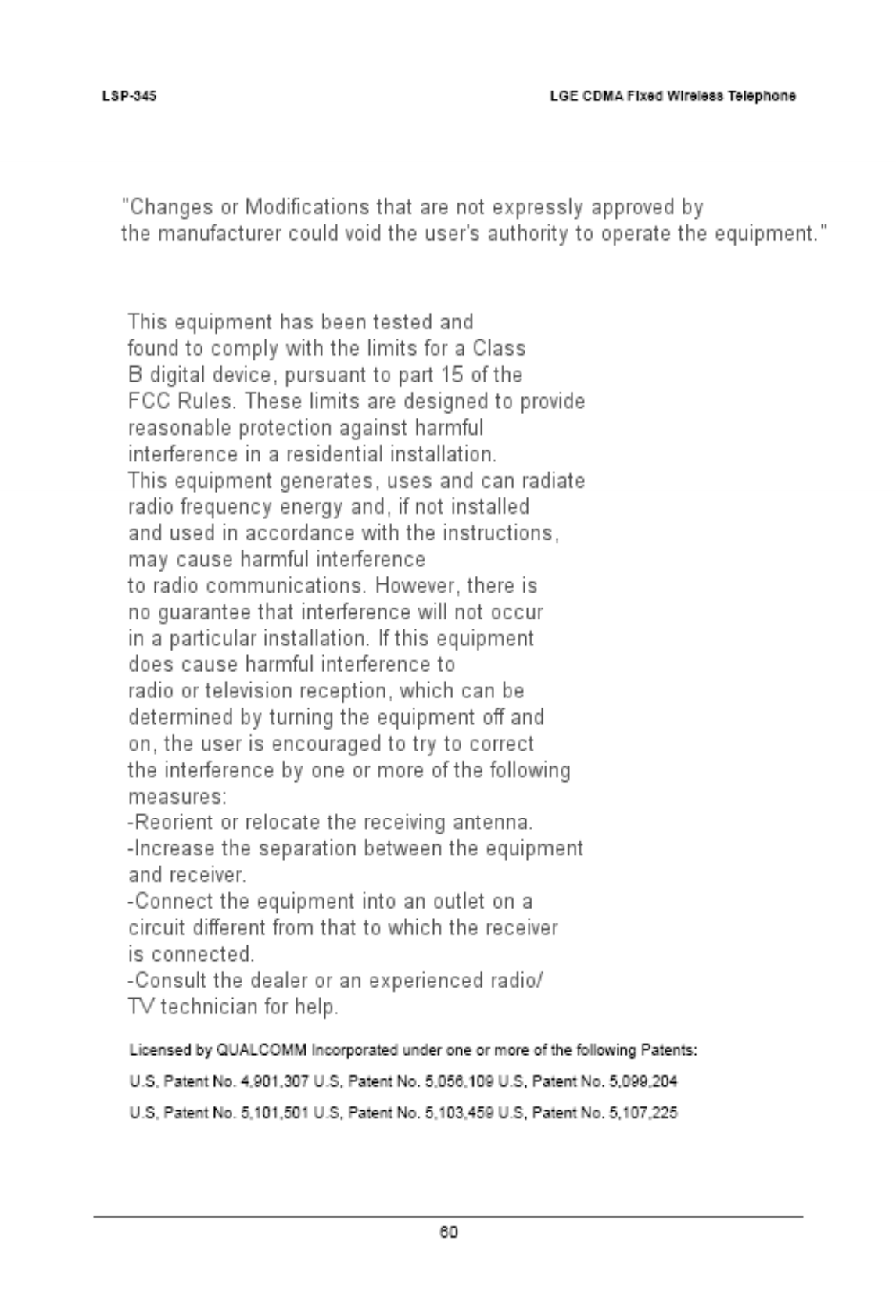

z If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
¾ Reorient or relocate the receiving antenna
¾ Increase the distance between the radio or television and the telephone.
¾ Connect the equipment into an outlet on a circuit different from that to which the
terminal is connected.
¾ Consult you Authorized LGE Dealer of an experienced radio/TV technician for help.
LSP-345 LGE CDMA Fixed Wireless Telephone
10
z Use only the battery, antenna and AC power supply provided by LGE. Using any other
type will invalidate the warranty.
z Only authorized personnel should service the phone and its accessories. Faulty installation
or service can be dangerous and may invalidate the warranty.
z Do not use the unit in designated “no cellular phone use” area.
z Avoid exposure to high temperature or humidity.
z Avoid wetting the unit with any liquids. If the unit gets wet, turn the power off immediately
and remove the backup battery and AC power supply. If the unit is inoperable, then return
to the service agent for service.
z Avoid shock or impact.
z We recommend you to charge the backup battery before initial use. Backup battery may be
discharged during delivery.
Care and Service
Unplug the telephone from the wall outlet and remove antenna (or disconnect antenna cable)
before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
If the unit fails for any reason, do not attempt to disassemble; contact the telephone service
provider for assistance.
If any of the following conditions exist, unplug the unit at the wall plug, remove battery, and call
the service provider.
z The power supply cord is damaged or frayed.
z Liquid has been spilled into the unit.
z The unit has been exposed to rain or water.
z The unit has been dropped or damaged.
z The unit does not work normally by following the operating instructions.
LSP-345LGE CDMA Fixed Wireless Telephone
11
Safety Information
Do not use with car battery. It may cause electric shock, fire, breakdown
or transformation.
For safety use, use only adapter approved by LG.
To all problems arising from not following this guide, LG does not bear
responsibility.
Ex) LSP-345
(LG Power Adapter Source : DC 9.6V / 1A)
Avoid exposure to high temperature or humidity. Avoid wetting the unit
with any liquids. If the unit gets wet, turn the power off immediately and
remove the backup battery and AC power supply.
Keep it dry. Precipitation, humidity, and liquids contain minerals that may
corrode electronic circuits.
Do not use or store it in dusty, dirty areas as this can damage its moving
parts.
Do not store it in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
Do not store it in cold areas. When the phone warms up to its normal
operating temperature, moisture can form inside the phone, which could
damage the phone’s electronic circuit boards.
Do not attempt to open it. Non-expert handling of the device could
damage it. Consult your authorized LG dealer for help. It may cause fire,
electric shock and breakdown.
Do not drop, knock or shake it. Rough handling can break internal circuit
boards.
WARNING
LSP-345 LGE CDMA Fixed Wireless Telephone
12
Do not use harsh chemicals, cleaning solvents, or strong detergents to
clean it. Wipe it with a soft cloth that has been slightly dampened in a mild
soap-and water solution.
Do not paint it. Paint can clog the device’s moving parts and prevent
proper operation.
During lightning, do not touch power plug or phone line. It may cause an
electric shock or death.
Do not install under direct sunlight or on an uneven surface.
Before using plug, check with available power voltage. Inaccurate power
voltage may cause fire and damage.
Ex) LSP-345 Input Voltage : 100-250V.
Do not plug many power cords in outlet. It may cause fire or electric shock.
Do not remodel the power cord or disassemble. If power cord or plug is
impaired, do not use it. It may cause fire or electric shock.
Do not install in an ill-ventilated place. It may cause fire or breakdown.
LSP-345LGE CDMA Fixed Wireless Telephone
13
Do not touch the plug with wet hands. When disconnecting the power
cord of any accessory, grasp and pull the plug, not the cord. It may cause
fire or electric shock.
Do not put heavy things on the power cord. Do not bend power cord too
much. It may cause fire or electric shock.
Do not short-circuit. It may start a fire or may explode causing injury.
Do not throw and impact battery. Do not dispose of batteries by putting
them in fire. It may explode or catch fire by electrolyte.
Use only LG-approved battery or adapter. If not, it may cause explosion or
short. LG does not bear responsibility for the danger.
When you disconnect the power cord of any accessory, grasp and pull the
plug, not the cord. It may cause an adapter breakdown.
WARNING
WARNING
LSP-345 LGE CDMA Fixed Wireless Telephone
14
2 Introduction
2.1 Front View of the Telephone
1) Menu / Softkey 1: Activate MENU state
2) Message : Activate SMS state
3) End : Deactivate a state – No store a value
4) Recall / Softkey 2 : Activate RECALL state / Choose next state
5) Clear(Cancel) : Delete the last digit/dial number(also exit without storing in the MENU state)
6) Redial /Flash : Flash function in the call state / Dial the last dialed number
7) Volume Left (ൖ): Volume୉(also function as a cursor in the edit state)
8) Volume Right (൘): Volumeେ(also function as a cursor in the edit state)
9) Speaker phone
10) Antenna
LSP-345LGE CDMA Fixed Wireless Telephone
15
2.2 LCD Display
The LCD shows icons on the top of the LCD screen.
Different indicator appears based on the phone's operating mode.
RSSI indicator : Indicates the signal strength in the service area.
No service : The phone is not receiving system signal.
In use : Displayed when call is in progress or the phone is in off-hook and dial tone heard.
: No service : In use
Text message : Displayed when a text message is received.
Voice message : Displayed when a voice message is received.
Alarm : Displayed when wake up alarm time was setting.
Caller ID : Displayed when caller ID is received.
Battery charge level : Indicates charged battery level.
LSP-345 LGE CDMA Fixed Wireless Telephone
16
2.3 Installation
You should follow each step carefully as shown below in order to guarantee proper operation of
CDMA Fixed Wireless Telephone.
STEP I. Check Components
z Fixed Wireless Terminal is supplied with the following standard unit and accessories;
1. LSP-345 Main Unit with Handset -1EA-
2. Dipole Antenna -1EA-
3. Backup Battery -1EA-
4. User Guide -1EA-
5. AC/DC Power Adapter -1EA-
6. Power Cord(Only SMPS Adapter) -1EA-
z Please make sure that these components are present before you begin the unit installation.
And then compare the following figures and components. If components are missing or
damage is found, contact the store where you purchased the unit immediately.
STEP II. Place the Terminal
z Place the terminal on the stable flat secure surface area (desk, table, etc.). Serious
damage may result if the unit falls. Do not place the unit on, or within 1 meter of heaters or
radiators. This unit is designed for desktop usage. Avoid direct exposure to sunlight and
damp areas.
z Read the SAFETY INFORMATION located at the first part of this document before you
place the terminal.
STEP III. Connect Components (See the figures in “Installation Steps”.)
z Connect the antenna to the TNC antenna connector located at the topside of the terminal.
If you have placed the terminal on a flat surface, position the antenna up right.
z Connect curl cord of handset assembly to the RJ-11 port located at the left side of the
terminal.
z Open the battery case, securely connect the battery cord, place the backup battery pack
and close the case.
z Connect the AC/DC Adapter cable to the DC input port located at the topside of the
terminal.
LSP-345LGE CDMA Fixed Wireless Telephone
17
¾ If it is good, beep tone is heard.
¾ If it is not good(Booting fails or beep tone is not heard), you have to connect the
adapter or backup battery, again.
z Please observe the following matters to get better voice quality;
1. Keep away from electrical appliances such as TV, computer, radio and so on.
2. Keep terminal in a high and central location with no obstructions.
3. Raise the integral antenna of terminal to get maximum strength as shown figure.
STEP IV. Check the LCD Display
z After you follow the installation instruction step I to step III, please check the LCD for
normal operation.
z If you may not see status of service, please repeat the 5th instruction of step III. And
confirm Fixed Wireless Telephone to get the proper signal strength from service operator
system.
ଖ The adapter type(with power cord) may be different from country to country.
LSP-345 LGE CDMA Fixed Wireless Telephone
18
2.4 Installation Steps
Please follow the below procedure to install the unit properly.
Connect Base-
handset to the
handset connector.
Bend the antenna up
right.
Insert back-up
battery in the bottom
of the unit.
(Give care to
polarity)
Connect the
antenna to the TNC
connector (Turn
right).
Open the battery
cover at the bottom
of the unit.
Replace the Battery
cover
When you use
terminal first, please
Turn “on” the battery
switch.
Connect the AC
power supply.
Notice
Before using the terminal, please check battery switch is on.
After switching on it, use the phone.
When charging the battery, check that battery switch is “on”.
Battery is charged only when battery switch is on.
LSP-345LGE CDMA Fixed Wireless Telephone
19
3 Basic Operation
3.1 Making a Call
If user press '୆' button after dialing the number, the terminal make a call immediately.
1. Pick up the handset or press button.
2. Listen for dial tone.
3. Enter the phone number with area code if needed.
4. Wait for the Auto Time-out.
5. The call is connected and you can start conversation.
6. To disconnect the call, replace the handset or press button.
3.2 Redialing Last Outgoing Number
1. Pick up the handset or press button.
2. Listen for dial tone.
3. Press Redial button. The last number that you called will be re-dialed.
1234567
1234567
Calling...
LSP-345 LGE CDMA Fixed Wireless Telephone
20
3.3 Receiving a Call
1. When bell rings, pick up the handset.
2. Start conversation.
3. To disconnect the call, replace the handset.
3.4 Signal Strength
The quality of calls depends on the signal strength in your area.
The stronger the signal, the better the call quality. The signal
strength icon indicates the current strength as a number of bars.
You can see the antenna and bars according to the strength of
received signal in the upper-left part.
zCorrecting dialing mistakes
1. Press Clear button shortly to erase the most recent digit.
2. Press and hold Clear button for at least one second.
z If the phone is locked, enter the Lock Code
z If the call did not go through, press the hook switch and dial again.
zFlashing / Hook Switch
1. While in the middle of a call, pressing the hook switch for less than 1 second will be
treated as a flash. After 1 second, the call will be terminated.
2. Very briefly pressing the hook switch will be ignored.
z Battery icon is displayed only when the terminal is operating by battery without AC power.
Incoming Call!
10:23 AM
08 May, Sat
[MENU][RECALL]
Time: 0:23
1234567
[MENU
[MUTE]
LSP-345LGE CDMA Fixed Wireless Telephone
21
3.5 Missed Call Message
If a call is received and not answered for user’s absence, you
are informed that you have missed a call. The latest missed
call time and number of missed call is displayed. Press [OK] to
erase “Missed call” message.
10:51 AM
Missed 1 call
[OK]
LSP-345 LGE CDMA Fixed Wireless Telephone
22
4 List of Menu State
Main Menu Sub-Menu Setting Value Default
1. Ring Volume 4 steps
2. Key Volume 4 steps +silent
3. Ear Volume 4 steps
1. Volume / Ring
4. Ring Type 10 types
1. Time Off / Once / Always
1. Wake-up
2. Ringer ALARM1...ALARM5
2. Minute Alert On/Off
3. Connect Alert On/Off
4. Rx Call Mode
Voice / Fax for next / Always Fax
Modem for next / Always modem
5. SIO Baud Rate
9,600/19,200/38,400/57,600
/115,200/230,400
2. Additional
6. Own Number Display own number
1. Hot Line Off/On
2. Hot Line Time 2-9 Sec.
3. Auto Time-out 2-9 Sec.
4. Speed Dialing Enable/Disable
3. Dial features
5. Key Tone Length Normal/Long
1. Set Lock Mode On/Off
2. Clear Calls No/Yes
3. Clear Memory No/Yes
4. Emergency Call Local(3.ea)
5. Restriction Call Servic
e
5.1 Restrict Set
No restriction/Restriction
/Emergency Only
5.2 Permit Memory Local(10.ea)
4. Security
5.3 Deny Memory Local(10.ea)
LSP-345LGE CDMA Fixed Wireless Telephone
23
4.1 Volume / Ring
This menu allows you to adjust the various different volumes.
4.1.1 Ring Volume
The received tone when you receive a call can be adjusted.
z From the MENU
1. Press [MENU] + 1(VOLUME/RING)+ 1(Ring Volume)
In on-hook state.
2. Press Volume left/right button or [NEXT] to adjust ring
volume.
3. Press [OK].
z By the Volume left/right button
1. Press Volume left/right button to adjust ring volume in
on-hook state.
4.1.2 Key Volume
The tone when you press a key can be adjusted.
1. Press [MENU] + 1(VOLUME/RING) + 2(Key Volume) in on-
hook state.
2. Press Volume left/right button or [NEXT] to adjust key
volume.
3. Press [OK].
4.1.3 Ear Volume
The voice of the other party can be adjusted in on-hook state.
1. Press [MENU] + 1(VOLUME/RING) + 3(Ear Volume) in on-
hook state.
2. Press Volume left/right button or [NEXT] to adjust ear piece
volume.
3. Press [OK].
3 Press Volume left/right button to adjust volume during conversation.
RING VOLUME
[OK][NEXT]
KEY VOLUME
[NEXT][OK]
EAR VOLUME
NEXTOK
MAIN MENU
2:ADDITIONAL
1:VOLUME / RING
LSP-345 LGE CDMA Fixed Wireless Telephone
24
4.1.4 Ring Type
You can select the various ring types.
1. Press [MENU] + 1(VOLUME/RING) + 4(Ring Type) in on-
hook state.
2. Select a desired ring type with Volume left/right button or
[NEXT].
3 There are 10 different ring types.
3. Press [OK] to save and exit.
RING TYPE
[
N
EXT][O
¥Sare Jahan Se
LSP-345LGE CDMA Fixed Wireless Telephone
25
4.2 Additional Features
4.2.1 Wake-up
4.2.1.1 Time
This function allows you to adjust Wake-up.
1. Press [MENU] + 2(ADDITIONAL) + 1(Wake-up ) + 1
(Time)
in the on - hook state.
2. Select Off, Once or Always by [NEXT] and press [OK].
3. Press [EDIT] and set the time.
4. Select A.M. or P.M. by [AM/PM].
5. If you want to modify the wrong time, press Clear button
and set again.
6. Press [OK] to save and exit.
4.2.1.2 Ringer
You can select the various ring types.
1. Press [MENU] + 2(ADDITIONAL) + 1(Wake-up) +
2(Ringer) in the on - hook state.
2. Select a desired ring type with [OK] or [NEXT]
3. There are 5 different ring types.
Those are ALARM1, ALARM2, ALARM3, ALARM4,
ALARM5
Wake-up Time
_1:23 AM
OKAM/PM
Ringer
¥ALARM1
[OK][NEXT]
MAIN MENU
2:ADDITIONAL
1:VOLUME / RING
Wake-up
1:Time
2:Ringer
[OK][NEXT]
Alarm Time
¥Always
OK
[NEXT]
[OK][NEXT]
Wake-up
1:Time
2:Ringer
LSP-345 LGE CDMA Fixed Wireless Telephone
26
4.2.2 Minute Alert
Alerts you every minute during a call.
1. Press [MENU] + 2(ADDITIONAL) + 2(Minute Alert) in on
– hook State.
2. Select On or Off by [NEXT] or Volume left/right button.
3. Press [OK] to save and exit.
4.2.3 Connect Alert
This function allows you to select the call connect tone.
1. Press [MENU] + 2(ADDITIONAL) + 3(Connect Alert) in
on – hook State.
2. Select On or Off by [NEXT] or Volume left/right button.
3. Press [OK] to save and exit.
4.2.4 Rx Call Mode
1. Press [MENU] + 2(ADDITIONAL) + 4(RX Call Mode) in
on – hook State.
2. Select Voice, Fax for next, Always Fax, Modem for next,
always Modem by Volume or [NEXT] button.
3. Press [OK] to save and exit.
4.2.5 SIO Baud Rate
1. Press [MENU] + 2(ADDITIONAL) + 5(SIO Baud Rate) in
on – hook State.
2. Select 9,600/19,200/ 38,400/ 57,600/ 115,200/ 230,400
by Volume or [NEXT] button.
3. Press [OK] to save and exit.
4.2.6 Own Number
1. Press [MENU] + 2(ADDITIONAL) + 6(Own Number) in on
– hook State.
2. Press [OK] to exit.
MINUTE ALERT
[NEXT][OK]
On
DATA BAUDRATE
NEXT
OK
19,200
OWN NUMBER
OK
000-000-0000
RX CALL MODE
NEXT
OK
Voice
CONNECT ALERT
[NEXT][OK]
On
LSP-345LGE CDMA Fixed Wireless Telephone
27
4.3 Dial Features
4.3.1 Hot Line
1. Press [MENU] + 3 (DIAL FEATURES) + 1(Hot Line) in
on – hook state.
2. Select On or Off by [NEXT] or Volume left/right button
and press [OK] to select.
3. Press [EDIT] to input Hot Line phone number.
4. Enter the Hot Line phone number.
5. Press [OK] to save and exit.
4.3.2 Hot Line Time
1. Press [MENU] + 3 (DIAL FEATURES) + 2(Hot Line time)
in on – hook State.
2. Select hot line connection time(2~9 sec.) by [NEXT] or
Volume left/right button.
3. Press [OK] to select.
4.3.3 Auto Time-out
Setting the length of time the phone waits before automatically dialing a number. You can select
this time between 2 and 9 second.
1. Press [MENU] + 3(DIAL FEATURES) + 3(Auto Timeout)
in on – hook State.
2. Select Auto time-out second between 2 and 9 by [NEXT]
or Volume left/right button.
3. Press [OK] to select.
DIAL FEATURES
2:Hot Line time
1:Hot Line
[OK][QUIT]
119
Hot Line Time
[NEXT][OK]
5 sec
Auto Time-out
[NEXT][OK]
5 sec
Hot Line
[NEXT]
[OK]
On
LSP-345 LGE CDMA Fixed Wireless Telephone
28
4.3.4 Speed Dial (enable / disable)
1. Press [MENU] + 3 (DIAL FEATURES) + 4(Speed Dialing)
in on – hook State.
2. Select Enable or Disable by [NEXT] or Volume left/right
button and press [OK] to save and exit.
This function can be used when the Speed Dial is set to Yes.
z Speed Dial Function
1. You can store phone numbers in memory locations (1~99) and place a call.
2. Press the memory number (1 through 99) corresponding to the appropriate memory
location, and hold for a few seconds.
4.3.5 Key-tone Length
Setting key beep playback length. Possible settings are Normal and Long.
1. Press [MENU] + 3(DIAL FEATURES) + 5(KeyTone
Length) in on – hook State.
2. Select Normal or Long by [NEXT] or Volume left/right
button and press [OK] to select.
SPEED DIALING
[NEXT][OK]
Enable
DIAL FEATURES
5:KeyTone Length
KEY TONE LENGTH
Normal
[OK][NEXT]
LSP-345LGE CDMA Fixed Wireless Telephone
29
4.4 Security Features
4.4.1 Set Lock Mode
This function prevents your phone from being used without permission. Possible settings are
ON/OFF. The OFF means that the phone is not locked. ON sets the phone locked immediately.
LOCK code will always be the last 4 digits of the phone number.
1. Press [MENU] + 4 (SECURITY).
2. Enter your own 4 digit lock code.
3. Press 1(Set Lock Mode)
4. Select Off, On by [NEXT] or Volume left/right button.
5. Press [OK] to save and exit.
4.4.2 Clear Calls
When a previous outgoing or incoming call history is stored in a memory location, you can erase
the all call history.
1. Do the above 1 and 2 steps of 4.4.1.
2. Press 2(Clear Calls).
3. Select “Yes” and press [OK] using [NEXT] or Volume
left/right button.
Enter
Lock Code
SECURITY
1:Set Lock Mode
2:Clear Calls
SET LOCK
[NEXT][OK]
Off
CLEAR CALL STACK
[NEXT][OK]
Yes
LSP-345 LGE CDMA Fixed Wireless Telephone
30
4.4.3 Clear Memory
When you want to delete phonebook memory, you can erase all phonebook memory.
1. Do the above step1 and 2 of 4.4.1.
2. Press 3(Clear Memory).
3. Select “Yes” and press [OK] using [NEXT] or Volume
left/right button.
4.4.4 Emergency Call
Even if your phone is locked, you can make calls to 3 emergency numbers.
1. Do the above step1 and 2 of 4.4.1.
2. Press 4(Emergency Call)
3. Press [NEXT] or Volume left/right button to choose the
number from 1 to 3.
4. Press [EDIT].
5. Enter the emergency phone number.
6. Press [OK] to save the number.
7. Press [NEXT] or Volume left/right button to edit others or
Press End button to exit emergency call process.
EMERGENCY 1
[NEXT]
[EDIT]
100
100
[OK][QUIT]
CLEAR WHOLE BOOK
[NEXT]
[OK]
Yes
EMERGENCY 1
[NEXT]
[EDIT]
100
LSP-345LGE CDMA Fixed Wireless Telephone
31
4.4.5 Restriction Call Service
This function is a convenient feature which enables user to restrict using any phone number.
To forbid using any phone number, user must set the number in deny edit.
Can’t use any phone number(max 32digits) started with the number saved in deny edit.
If user set the phone number in permit edit, can use any phone number (max 32digits)
started with the number even if the phone number is set in deny edit.
Ex) example to restrict using the phone number started with “700” .
1. Set “Restriction” in Restrict set menu (Menu 4.5.1)
2. Set “700” in deny edit. (Menu 4.5.3)
3. Set “700-1234” in permit edit.(Menu 4.5.2)
Result : user can use the phone number started with “700-1234”.
4.4.5.1 Restrict Set
z No restriction
This is a general function which has no any restrictions
z Restriction
This is a function that you can set permitted phone number and denied phone number.
z Emergency only
This is a function which enable you to call only emergency numbers.
1. Press [MENU] and 4(SECURITY).
2. Enter a lock code using key pad.
3LOCK code will always be the last 4 digits of the
phone number.
3. Press 5(Restrict Call) and 1(Restrict Set).
MAIN MENU
4:SECURITY
3:DIAL FEATURES
Enter
Lock Code
_
--- **
RESTRICT CALL
1: Restrict Set
2: Permit Memory
LSP-345 LGE CDMA Fixed Wireless Telephone
32
4. Select “No restriction” ,” Restriction” or “Emergency
Only ” using [NEXT] or Volume left/right button and press
[OK].
i Below 4.4.5.2 and 4.4.5.3 function can be used when the Restrict set is set to “Restriction”.
4.4.5.2 Permit Memory
You can call it if the phone numbers saved in permit edit though they were saved in deny edit.
You can save 10 permit phone numbers.
1. Do the above step 1~2 of 4.4.5.1.
2. Press 5(Restrict Call) and 2(Permit Memory).
3. Press [EDIT] to edit permit phone number.
4. Enter the permit phone number.
5. Press [OK] to save and exit.
7001234
[
N
EXT][EDIT]
Restrict Set
Restriction
[OK][NEXT]
RESTRICT CALL
1: Restrict Set
2: Permit Memory
LSP-345LGE CDMA Fixed Wireless Telephone
33
4.4.5.3 Deny Memory
You couldn’t call any phone numbers saved in deny edit.
You can save 10 deny phone numbers.
1. Do the above step 1~2 of 4.4.5.1.
2. Press 5(Restrict Call) and 3(Deny Memory).
3. Press [EDIT] to edit deny number.
4. Enter the deny phone number.
5. Press [OK] to save and exit.
RESTRICT CALL
3: Deny Memory
Restrict
700
[
N
EXT][EDIT]
LSP-345 LGE CDMA Fixed Wireless Telephone
34
5 Functions while in a call
5.1 Ear Volume
You may adjust ear volume while you are in a call.
The Volume left/right button on the right side of the phone can
be used to adjust ear volume.
5.2 Mute
This function prevents your voice from being transmitted but you can call still hear other side.
1. Press [MUTE] button while in a call.
2. You could see “MUTE” message blinking on the right side
of the LCD.
3. To release Mute, Press [UNMUTE] button.
1234567
Time: 0:23
[MENU][MUTE]
EAR VOLUME
[OK][NEXT]
1234567
Time: 0:23
[MENU][MUTE]
1234567
Time: 0:23
[MENU][UNMUTE]
MUTE
LSP-345LGE CDMA Fixed Wireless Telephone
35
5.3 Memo
You can save numbers while in a call.
1. Press [MENU] and 1(MEMO) while in a call.
2. Enter a number using keypad.
3. Press [ADD] to save and exit. Or press [QUIT] to exit.
5.4 MIC Volume
Adjusting MIC volume while in a call.
1. Press [MENU] and 2(MIC LEVEL) while in a call.
2. Select Low or High by [NEXT] or Volume left/right button.
3. Press [OK] to save and exit.
IN
_
CALL MENU
2:MIC LEVEL
1:MEMO
MIC LEVEL
High
[OK][NEXT]
IN
_
CALL MENU
2:MIC LEVEL
1:MEMO
Number Stored
in Call List
114
QUIT
ADD
LSP-345 LGE CDMA Fixed Wireless Telephone
36
5.5 Transmitting your own number
This function is a convenient feature which enables you to transmit your own phone number while
in a call through press one key. (For example, sending your phone number when you pages.)
1. Press [MENU] and 3(SEND OWNER #) button while in a
call.
IN-CALL MENU
3:SEND OWNER #
LSP-345LGE CDMA Fixed Wireless Telephone
37
6 Searching, Editing & Dialing
6.1 Retrieving Last Call History
1. Press [RECALL] and 1(FROM LAST CALL).
2. Select a number or a name in the last call list by Volume
left/right button and press [VIEW].
3. To see more information, press [TIME] and press [SAVE]
to save a number in the memory.
3Pick up the handset or Press button to make a
call with the displayed number.
z By pressing [TIME]
3Press [OK] to exit.
z To save a number
3Press [SAVE] in step 3.
3Enter the name in text mode and press [OK] to save.
Press [ABC] to change upper or lower case character.
¾ To store without name, just press [OK].
¾ Refer to “To enter a character”.
RECALL
2:FROM MEMORIES
1:FROM LAST CALL
CALL TO
028507618
SAVE TIME
6/9 10:14am
0Min 5Sec
[OK]
028507618
OK ABC
1234567
028507618
VIEW
LSP-345 LGE CDMA Fixed Wireless Telephone
38
3Enter a desired memory location (01~99: 2 digits) or
press [NEXT] to choose a desired memory location
and press [OK].
¾ The phone number is stored in the displayed
memory location.
3The phone will display a message asking to keep your
number as secret or not. Select “No” or “Yes” using
[NEXT]. Then press [OK].
¾ You can see a confirming message.
¾ Also you can see a condition of used memory.
ABC
Auto=01 ??
OK NEXT
ABC
was stored
in 01
- MEMORY -
empty : 98
used : 01
Make Secret?
No
OK NEXT
LSP-345LGE CDMA Fixed Wireless Telephone
39
6.2 Retrieving Phone Number by Name
1. Press [RECALL] and 2(From Memories).
2. Press 1 button to retrieve phone number by name.
3. Enter the name that you want to look for and press [FIND].
3At least two letters are recommended for quick search.
3Press [NEXT] or Volume left/right button to scroll
through the list of matches.
4. Press [VIEW] to see information in that location.
3Pick up handset to make a call.
3You can edit the phone number by pressing [EDIT]
button.
Lookup name?
[FIND]
[ABC]
01:ABC
028507618
[ERASE]
[EDIT]
01:ABC
[ERASE]
[VIEW]
02:ACG
FROM MEMORIES
2:By Address
1:By Name
LSP-345 LGE CDMA Fixed Wireless Telephone
40
6.3 Retrieving Phone Number by Address
1. Press [RECALL] and 2(FROM MEMORIES)
2. Press 2 button to retrieve a phone number by address.
3. Enter a memory address to retrieve phone number.
(ex: If you enter a memory address, 01.)
3If there is no stored phone number in the memory
location, “Empty Location” is displayed.
3If you press [FIND] button without entering number
you see the whole phone number list in the memory
location and you can find the number by scrolling the
list.
4. Pick up the handset or press button to call to displayed number, press [EDIT] to edit
stored information or press [ERASE] to delete displayed information.
z Edit process
3Modify the phone number by Clear button and keypad.
And Press [OK] to edit a related name.
ཛ Delete the phone number by Clear button.
ཛྷ Enter the modified phone number.
ཝ Press [OK].
ཞ To move cursor, use Volume left/right button.
ཟ Enter the name.
འ Press [OK].
3Enter a new memory address to store new information
or choose the new memory address by [NEXT] and
press [OK].
3Press [OK] to no secret.
Lookup Location?
??
[FIND]
01:ABC
028507618
[ERASE][EDIT]
01:ABC
[ERASE][VIEW]
02:ACG
Make Secret?
No
[OK][NEXT]
LSP-345LGE CDMA Fixed Wireless Telephone
41
z Erasing process
3You might press [ERASE] at the above step 3.
3Select “Yes” using [NEXT] or Volume key.
3Press [OK] to delete.
6.4 Retrieving Phone Number by Number
1. Press [RECALL] and 2(FROM MEMORIES).
2. Press 3 button to retrieve a phone number by number.
3. Enter the phone number that you want to find and press
[FIND] button.
3If there is no stored phone number in the memory location, “No number matches” is
displayed.
4. Pick up the handset or press button to call to displayed number, press [EDIT] to edit
stored information or press [ERASE] to delete displayed information.
z Edit process.
z Erasing process
3Do the above step of 6.2
Lookup Number?
FIND
01:ABC
[ERASE][VIEW]
02:ACG
ERASE ? #01
[NEXT][OK]
Yes
LSP-345 LGE CDMA Fixed Wireless Telephone
42
6.5 Fast Searching
1. Press [RECALL] button.
2. Press [RECALL] button again.
3You see the whole phone number list in the memory
location and you can find the number by scrolling the
list.
RECALL
2:FROM MEMORIES
1:FROM LAST CALL
01:ABC
[ERASE][VIEW]
02:ACG
LSP-345LGE CDMA Fixed Wireless Telephone
43
7 SMS (Short Message Service)
Messaging, Paging, and Voice mail features are available when your phone is turned on. Using
Message button allows you to access messages for viewing on the LCD screen or to send a
message. While viewing a message, you can call back to the number displayed in the message
by picking up handset.
Check with your WLL service provider regarding the availability of this feature. The information in
a message depends on the mode the WLL is operating in and the service’s capabilities.
7.1 Checking & Deleting Received Message
7.1.1 Text Message
1. Press MESSAGE button and 1(MSG RECEIVED).
2. Press 1(Text MSG) to see a received text message list.
3Locate to the desired message in the list.
3Mark “ “means already a checked message.
3. Press [VIEW] to see the content of desired message.
3You can see the message with received time and
caller’s phone number.
3You can read all messages.
Note) CB#(Call Back Number) is the call back number.
FR#(FROM) is the origination number.
* According to the system, from number may not be available.
! 01 Hello
02 Good Morning
[ERASE][VIEW]
5/21 2:20 PM
< MESSAGE >
[QUIT]
CB#:1234
[ERASE]
SMS MENU
2:MSG SENDING
1:MSG RECEIVED
MSG RECEIVED
2:Voice MSG 0
1:Text MSG 1/2
LSP-345 LGE CDMA Fixed Wireless Telephone
44
4. Press [ERASE] to erase a message.
3Press [OK] to complete erasing process.
z When you scroll received MSGs, you can use Volume
left/right key.
In other words, if you push Volume left key, the arrow
will be placed upward.
7.1.2 Voice Message
Voice mail notifications indicate the number of new voice mail message in your mailbox. Only the
most recent voice mail notification will be stored in the WLL phone; previous messages will be
overwritten. When a voice mail messages left for you, the WLL phone will alert and display “Voice
Mail “. You must call your voice mail service to retrieve these messages.
1. Press MESSAGE button and 1(Received MSG) in idle state.
2. Press 2(Voice MSG) to check the voice message.
3If there is no voice message, “No Voice Mail was
received” is displayed.
3Press [ERASE] to delete the voice message.
* According to the system, right LCD contents may be
different.
3. Pick up the phone to make a call-to-call back your voice mailbox if the number of the voice
mailbox is provided by system.
z When you scroll received MSGs, you can use Volume left/right button. In other words, if
you push Volume left button, the arrow will be placed upward.
< VOICE MAIL >
1 New Message
5/21 2:32 PM
ERASE ?
[OK][NEXT]
Yes
FR#:5678
Hello
[ERASE][OK]
LSP-345LGE CDMA Fixed Wireless Telephone
45
7.1.3 Erasing all Received Message
1. Press MESSAGE button and 1(MSG RECEIVED).
2. Press 3(Clear All).
3. Select “No” or “Yes” using [NEXT] or Volume key.
Press [OK] to delete.
7.2 MSG Notification Type Select
1. Press Message button and 3(MSG NOTIF).
2. Select Off, Once, Every 2 Min by pressing [NEXT] or
Volume left/right button.
3. Press [OK] to save and exit.
MSG RECEIVED
3:Clear All
MSG NOTIF
Off
[OK][NEXT]
ERASE All?
[OK][NEXT]
Yes
LSP-345 LGE CDMA Fixed Wireless Telephone
46
7.3 Message Sending
When sending message, you can select set priority among Normal, Emergency and Urgent.
7.3.1 Sending a New Message
1. Press MESSAGE button and 2(MSG SENDING).
2. Press 1(New Message) to send a new message.
3. Enter the called number and press [OK].
3You can find the called number in the memory by
[FIND] button.
4. Input a message and press [OK] to send.
Press [ABC] to change upper or lower case character.
5. Select Yes/No the Set Delivery Ack.
Press [OK] to send.
6. Select Yes/No to store the message. Press [OK].
Store Message ?
[NEXT][OK]
Yes
SMS MENU
2:MSG SENDING
1:MSG RECEIVED
Called Number
[OK]
1234
[FIND]
028503333
ok A/a
ABCDE
<
MSG Input>
[OK][ABC]
MSG SENDING
2:Sent Message
1:New Message
Delivery Ack?
[OK]
NO
[NEXT]
LSP-345LGE CDMA Fixed Wireless Telephone
47
7. Select type for setting priority among Normal/Emergency
/Urgent.
Set the priority. Press [OK] to send the message.
7.3.2 Sending the sent Message or Message after editing the Sent Message
1. Press MESSAGE button and 2(MSG SENDING)
2. Press 2(Sent Message) to see a sent text message list.
3Locate to the desired message in the list.
3. Press [EDIT] to edit the content of the selected message.
3You can see the selected sent message.
3Edit the message. Press [ABC] to change upper or lower case character.
4. Press [OK] Button.
5. Enter the called Number and press [OK].
6. Select Yes/No the Set Delivery Ack.
Press [OK] to send.
MSG SENDING
2:Sent Message
1:New Message
01 Hello
02 Good Morning
[ERASE]
[EDIT]
Called Number
[OK]
1234
[FIND]
Hello
<MSG Input>
[OK][ABC]
Set Priority ?
[NEXT][OK]
Normal
Delivery Ack?
[OK]
NO
[NEXT]
LSP-345 LGE CDMA Fixed Wireless Telephone
48
7. Select Yes/No to store Message. Press [OK].
8. Select type for setting priority among Normal /
Emergency /Urgent.
Set the priority. Press [OK] to send the message.
Store Message?
[NEXT][OK]
Yes
Set Priority ?
[NEXT][OK]
Normal
LSP-345LGE CDMA Fixed Wireless Telephone
49
7.3.3 Sending the Received Message or Message after editing the Received Message
1. Press MESSAGE button and 2(MSG SENDING).
2. Press 3(Received MSG) to see a received text message
list.
3Locate to the desired message in the list.
3. Press [EDIT] to edit the content of the selected message.
3You can see the selected received message.
3Edit the message. Press [ABC] to change upper or
lower case character.
4. Press [OK] Button.
5. Enter the called Number and press [OK].
6. Select Yes/No the Set Delivery Ack.
Press [OK] to send.
028503333
ok A/a
Hello
<
MSG Input>
[OK][ABC]
MSG SENDING
4:Clear All
3:Received MSG
9
01 Hello
9
02 Good Morning
[EDIT]
Called Number
[OK]
1234
[FIND]
Delivery Ack?
[OK]
NO
[NEXT]
LSP-345 LGE CDMA Fixed Wireless Telephone
50
7. Select Yes/No to store Message. Press [OK].
8. Select type for setting priority among
Normal/Emergency Urgent.
Set the priority. Press [OK] to send the message.
7.3.4 Erasing a Sent Message
1. Press MESSAGE button and 2(MSG SENDING).
2. Press 4(Clear All) to clear text message list.
3. Select “No” or “Yes” using [NEXT] or Volume button.
Press [OK] to erase a message.
ERASE ALL ?
[OK][NEXT]
Yes
MSG Sending
2:Sent Message
1:New Message
Store Message?
[NEXT]
[OK]
Yes
MSG SENDING
3:Received MSG
4:Clear All
Set Priority ?
[NEXT][OK]
Normal
LSP-345LGE CDMA Fixed Wireless Telephone
51
7.4 MSG Ringer
You can select the various ring types.
1. Press [Message] + 4(MSG RINGER) in the idle state.
Select a desired ring type with [NEXT] or Volume button.
Press [OK] button.
2. There are 5 different ring types.
Those are RING1, RING2, RING3, RING4 and RING5.
G
MSG RINGER
[NEXT][OK]
¥ RING1
LSP-345 LGE CDMA Fixed Wireless Telephone
52
8 Other Functions
8.1 Redial
Pick up the handset or press button and Redial button to redial last outgoing number.
8.2 Finding Last Call History
Press Redial button in on-hook state to see your last telephone
numbers.
8.3 Hook Switch
1. While in the middle of a call, pressing the hook switch for a while (100~600ms) will be
treated as a flash. After that, the call will be terminated.
2. Very briefly pressing the hook switch will be ignored.
8.4 Flash Key
3During a call, flash key is used for call transfer, 3-way conference calls and call waiting.(As
a system function, it may not be available according to the system.)
8.5 Safe Mode
Even if you misplaced the handset for a long time, the phone
returns to the normal state.
After the ROH tone, the phone returns to the IDLE state as the
picture and the phone is able to receive a call.
1234567
028507618
[VIEW]
LSP-345
[MENU][RECALL]
LSP-345LGE CDMA Fixed Wireless Telephone
53
9 Storing Phone Number
9.1 Storing/Editing Phone Numbers
9.1.1 Storing Phone Numbers
Frequently used phone numbers can be stored on the memory locations (01~99: 2 digits) and you
can make a call by pressing memory location number in off-hook state.
1. Enter the area code and phone number in on-hook state
(Max. 32 digits)
2. Press [SAVE].
3. Enter the name in text mode and press [OK] to save.
Press [ABC] to change upper or lower case characters.
3To store without name, just press [OK].
3Refer to “To enter a character”.
4. Enter the desired memory location.
3The phone number is stored in the displayed memory
location.
5. The phone will display a message asking to keep your
number as secret or not. Select “No” or “Yes” using
[NEXT] or Volume button. Then press [OK].
028507618
[FIND]
[SAVE]
028507618
[OK][ABC]
Make Secret?
No
[OK][NEXT]
Auto=01 ??
[OK][NEXT]
ABC
LSP-345 LGE CDMA Fixed Wireless Telephone
54
3You can see a confirming message.
3Also you can see a condition of used memory.
z To enter a character
You can enter English character in editing mode.
You can enter English character as default, and press Message to select specific character.
z To enter English character
Press once a keypad to enter the first letter labeled in the keypad, twice to enter the
second letter and 3 times to enter the third letter.
EX) To enter “L”,
Press dial button 5 labeled “JKL” 3 times to enter “L”.
3After 2 seconds entering a character, the cursor is moved to the next position
automatically.
3Press Volume left/right button to move the cursor.
3Press Clear button to erase or correct entered character.
z To enter specific character,
Press the key next to the End key to view a desired character while you are entering a
character.
3Special characters includes , . ‘ “ ! ? : @ _ + - % / \ < > ( ) =
3Press the number next to the character you want to insert.
- MEMORY -
empty : 98
used : 01
in 01
ABC
was stored
LSP-345LGE CDMA Fixed Wireless Telephone
55
9.1.2 Erasing Stored Phone Numbers
When a phone number is stored in a memory location, you can erase the stored phone number.
1. Press [RECALL] + 2(FROM MEMORIES) + 3 (By
Number) and enter a number of the desired memory
location to erase.
3If there is no stored phone number in the memory
location, “No number matches” is displayed.
3If you do not remember the memory location to erase, press [FIND] to search phone
number by memory location.
2. Erasing process
3Select “No” or “Yes” using [NEXT] or Volume key.
3Press [OK] to complete erasing process.
Lookup Number?
[FIND]
ERASE? #01
Yes
[OK][NEXT]
[ERASE]
[VIEW]
01:028507618
02:123123
- ERASED !-
LSP-345 LGE CDMA Fixed Wireless Telephone
56
9.2 Finding Stored Phone Numbers
You can see all the list of stored phone numbers in memory list and if you forgot the memory
location, can find it in sequence. And You can place a call with the phone number.
1. Press [RECALL] + 2(FROM MEMORIES) +3(By Number)
in on-hook state.
2. Press [FIND] button to find the desired phone number.
3Locate in the desired name or address to find.
3If not entered any name, phone number is displayed.
3. Press [VIEW] to see the stored number.
4. To make a call with the phone number in the state of step
2 or step 3, pick up the handset or press button and
wait for Auto Time-out.
Lookup Number?
[FIND]
[ERASE]
[VIEW]
01:028507618
02:123123
01:ABC
028507618
[ERASE]]
[EDIT]
LSP-345LGE CDMA Fixed Wireless Telephone
57
10 Speaker Phone
This function is a convenient feature which enables you to call using speaker phone button in on-
hook state.
11 General Information
z Main Unit
Item LSP-345
Tx Frequency Digital : 824 ~ 849 MHz
Rx Frequency Digital : 869 ~ 894 MHz
Channel Bandwidth 1.25 MHz
Tx Power Digital : LOWER: 0.2W ~UPPER:1W
Rx Sensitivity -104 ~ -25dBm
Size(mm) 160 X 215 X 76 (L X W X H)
Below 833(with battery, Ni-MH)
Weight(g)
Below 749 (without battery)
Operating Temperature 0 ~ 55ଇ
z AC/DC Adapter
Item SMPS Type Description
Input Voltage AC 100 ~ 250V
Input Frequency 50 / 60Hz
Output Voltage 9.6V(DC), 1A
LSP-345 LGE CDMA Fixed Wireless Telephone
58
z Battery
Item Description
Capacity 3.6V Ni-MH
Talk duration time 2 Hours
Standby duration time 24 Hours
Charging duration time Trickle, 24 Hours
LSP-345LGE CDMA Fixed Wireless Telephone
59
FCC RF Exposure Information
Finding Stored Phone Numbers
WARNING!
The antenna used for this transmitter must not exceed 2.5dBi and must be installed to provide a
minimum separation distance of 20 cm from all persons.
CAUTION
Use only the supplied and approved antenna. Use of unauthorized antennas or modifications could
impair call quality, damage the phone, void your warranty and/or result in violation of FCC regulations.
Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with skin,
a minor burn may result. Contact your local dealer for a replacement of antenna.
FCC Part 15 Class B Compliance
This device and its accessories comply with part 15 of FCC rules.
Operation is subject to the following two conditions:
(1) This device and its accessories may not cause harmful interference, and (2) this device and its
accessories must accept any interference received, including interference that may cause undesired
operation.

Navigation menu
