Users Manual
LG Telematics
Test Manual
[TG97AABJU]
Version 1.0
2011.04.15
LG Telematics
Revision History
Author Description Date
Jongman Park Merged document. Document start April 15, 2011
LG Telematics
Contents
1. How to Place a Call
2. ATT Tool for TCU Setting
3. VCP Commander
FCC Information
LG Telematics

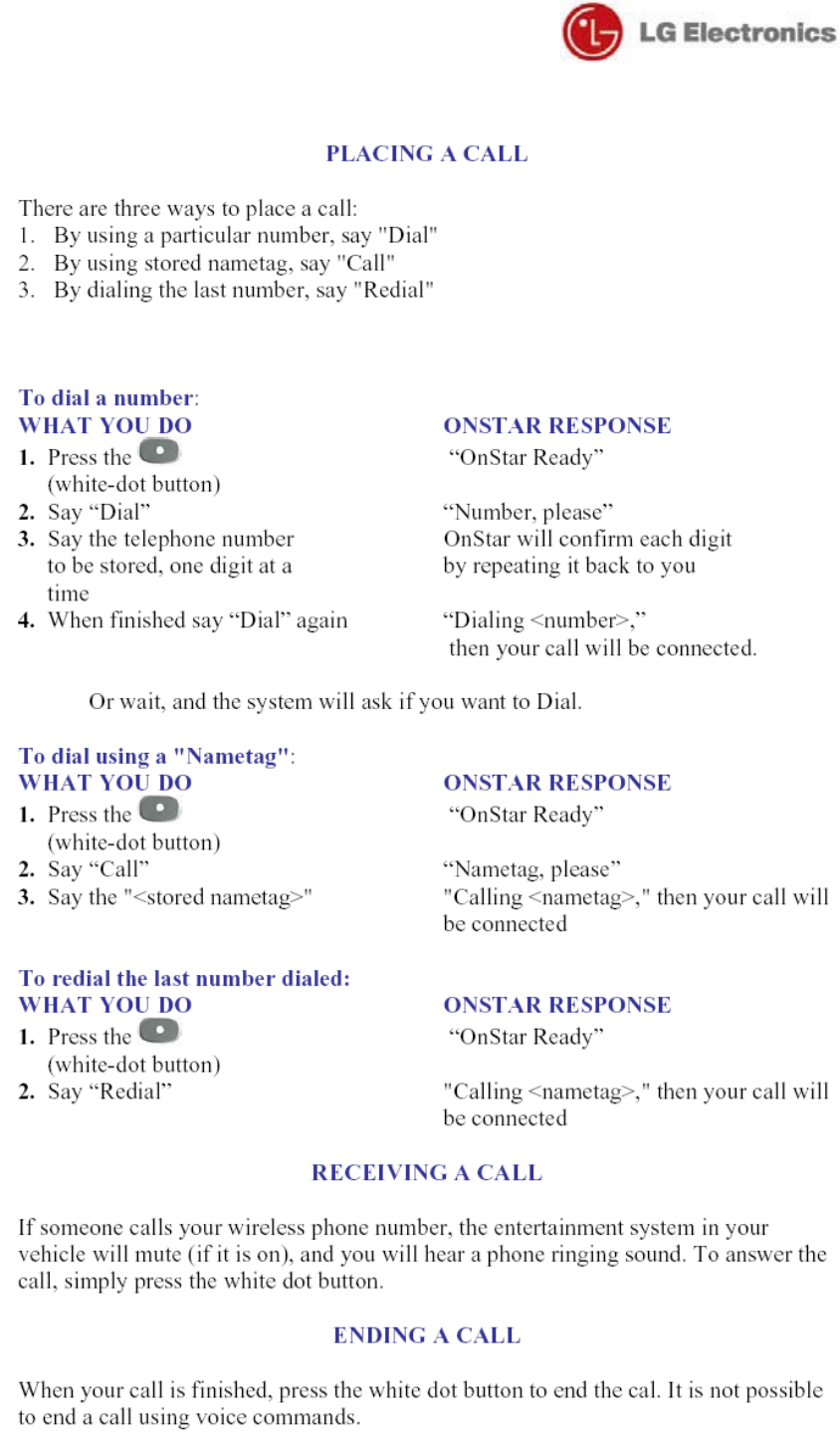

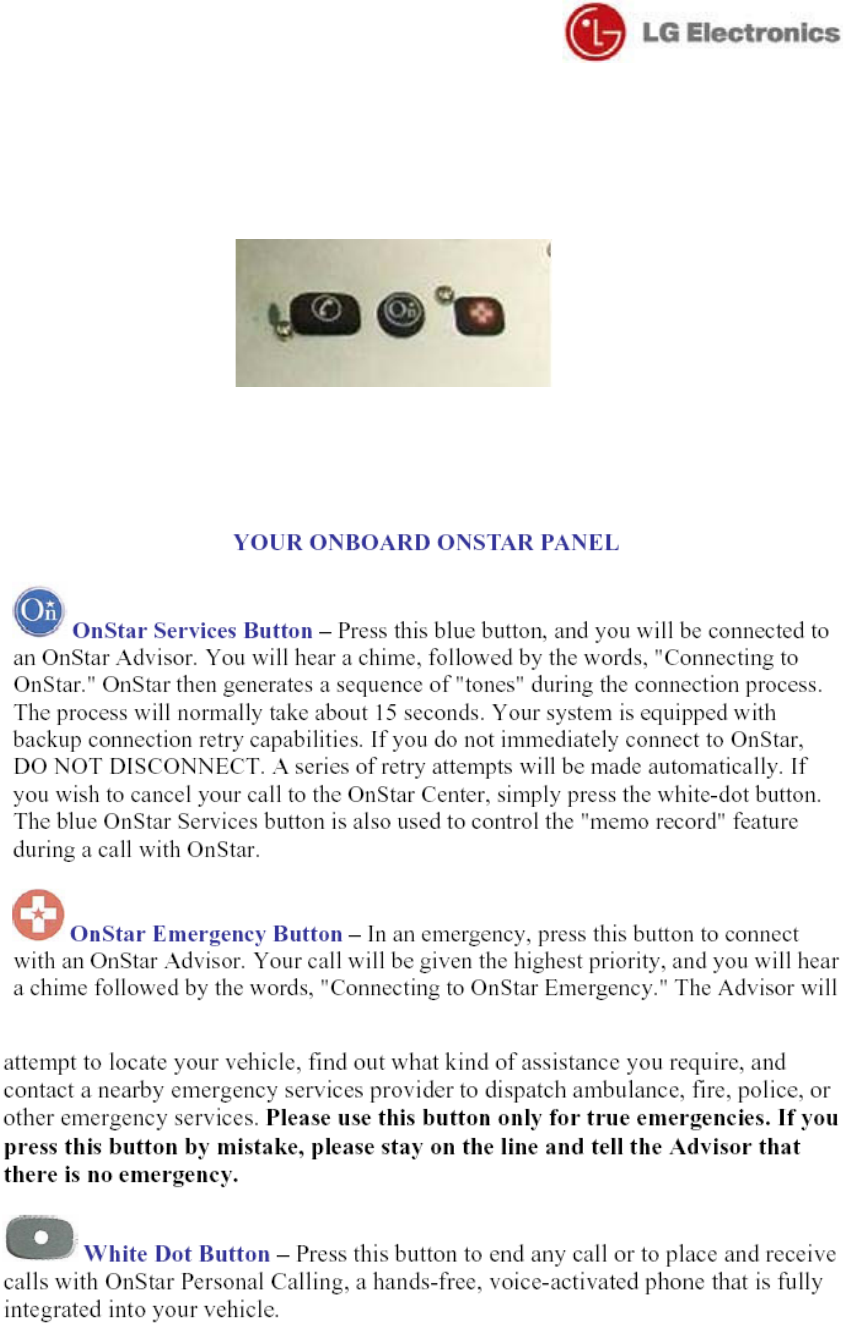

1. How to Place a Call
Fig.1
LG Telematics
LG Telematics

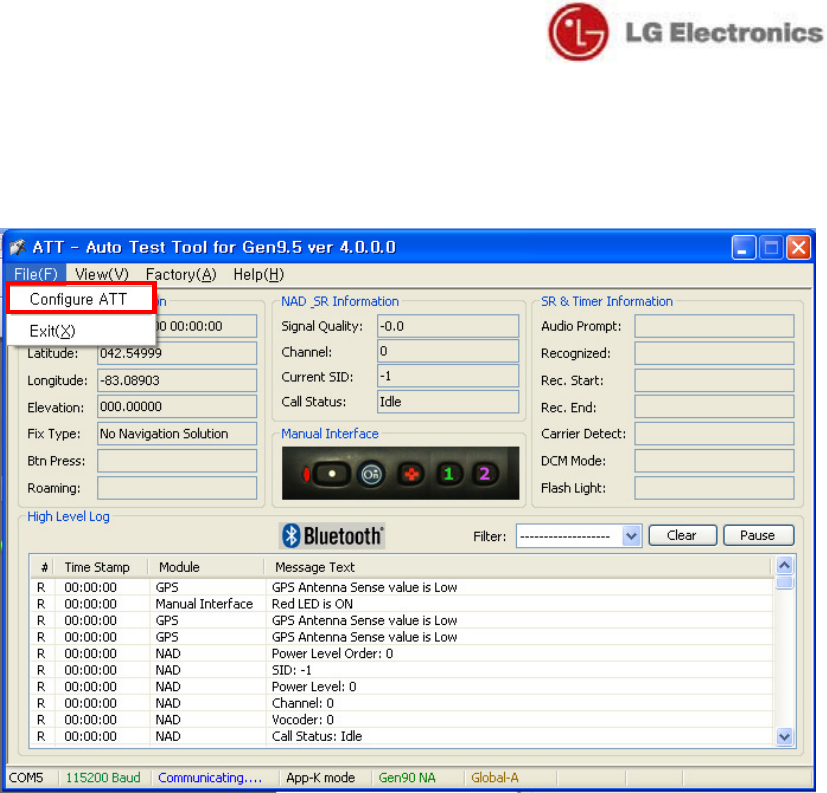

2. ATT Tool for TCU Setting

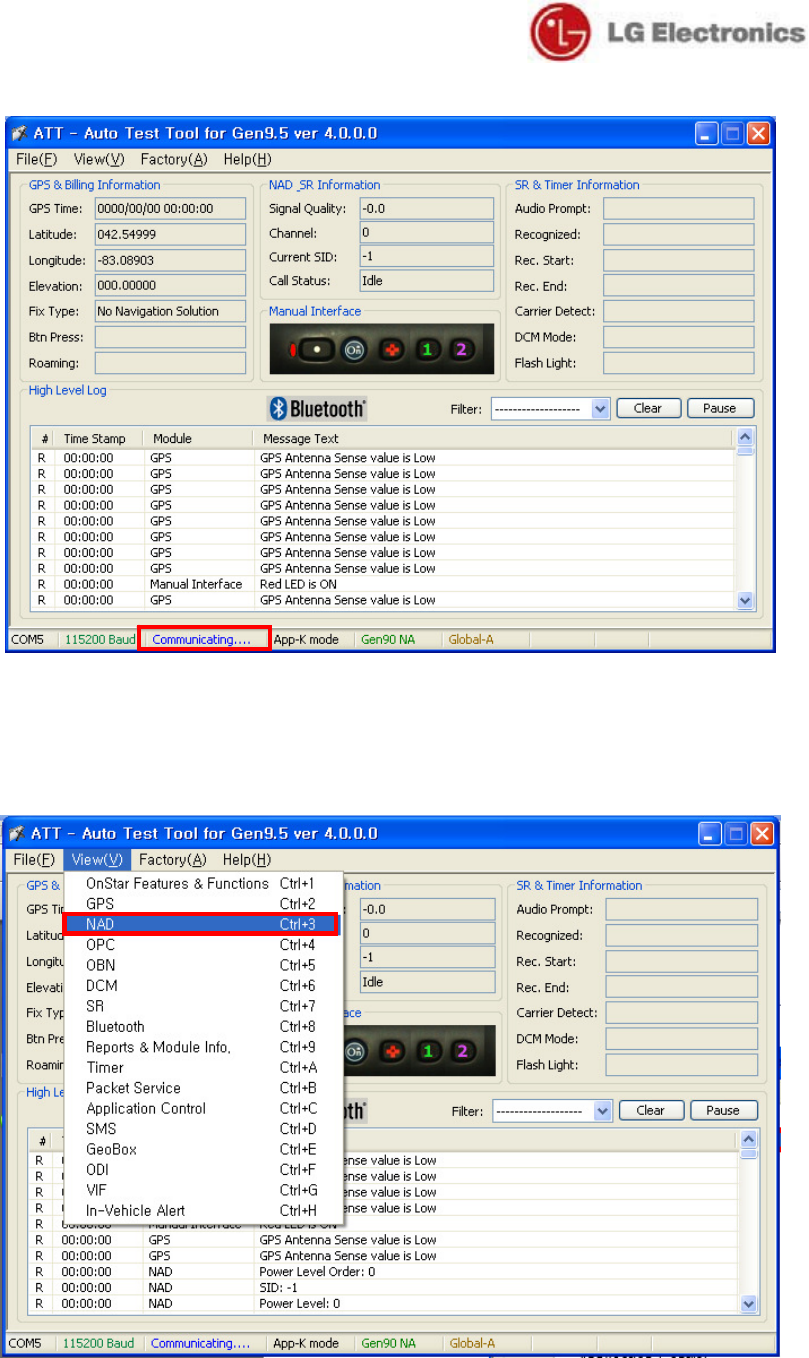

1) Set COM Port
Fig.2
2) Check Connection Status
LG Telematics
Fig.3

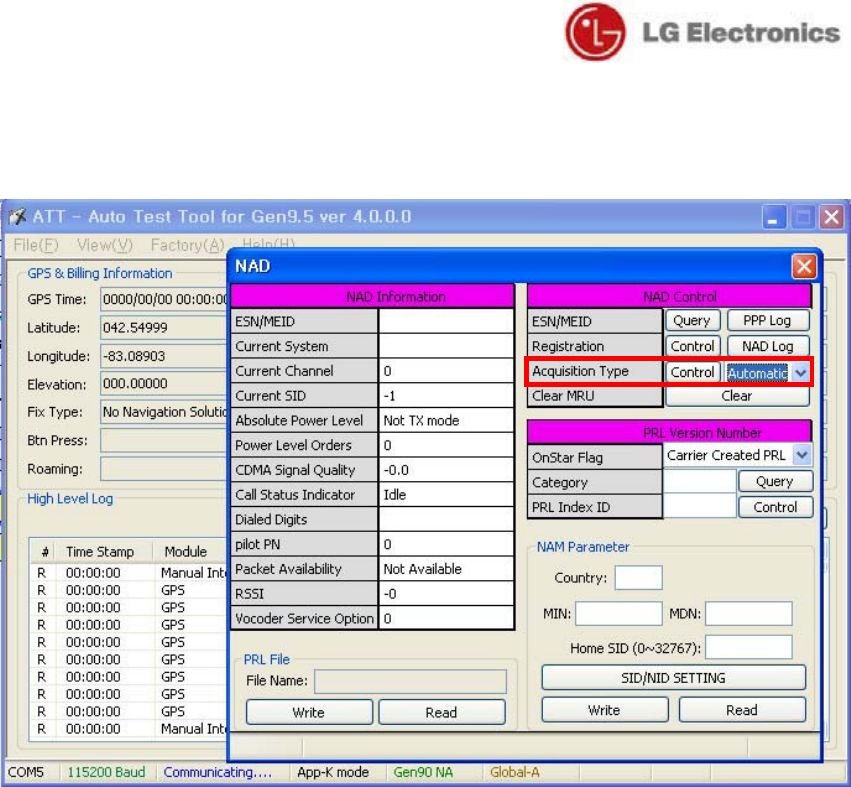

3) NAD Screen
Fig.4
LG Telematics

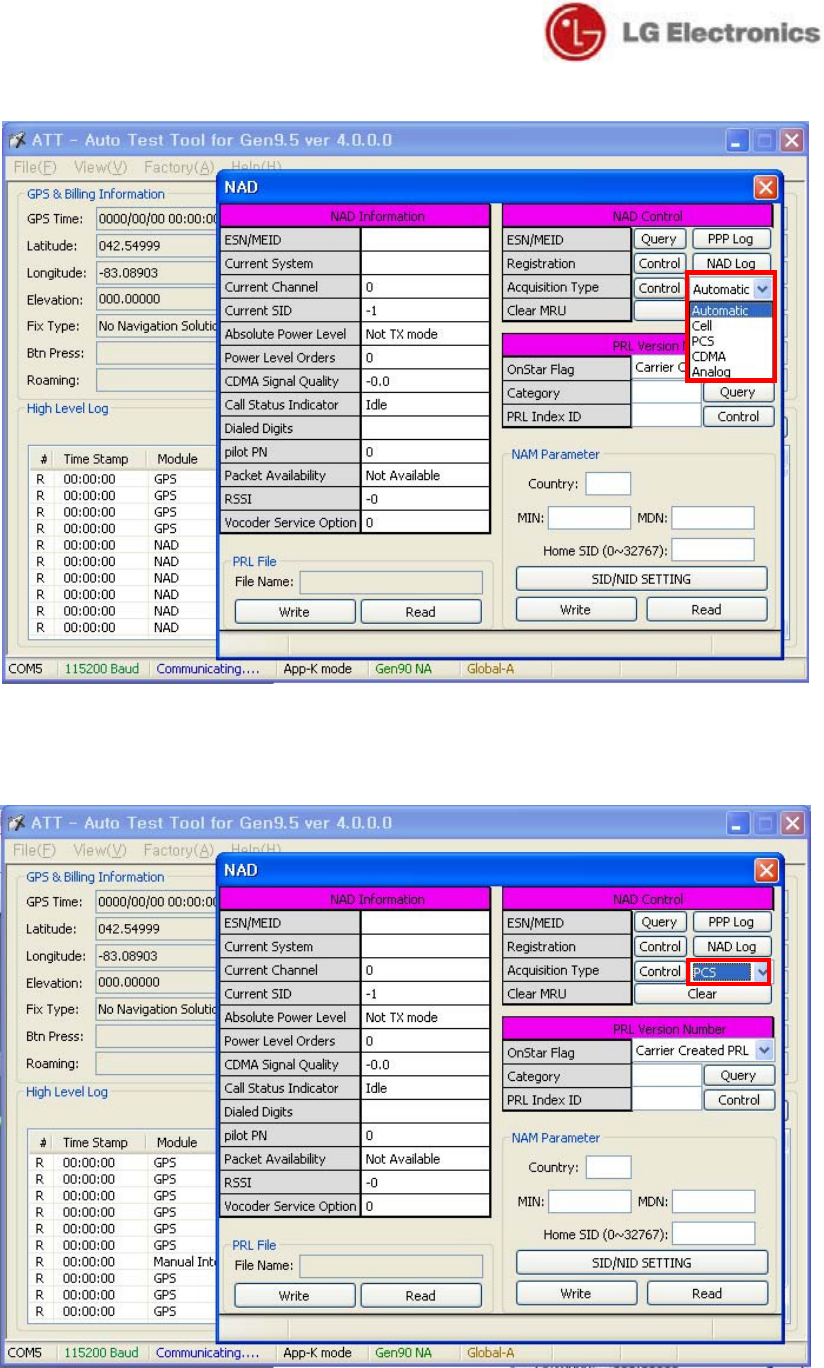

4) Select Forced band mode and apply it
Fig.5
- Click to see the selectable menu for changing
- After select the Service mode, click “Control” to apply it.
LG Telematics
Fig.6
4) Check result of change.
Fig.7
LG Telematics

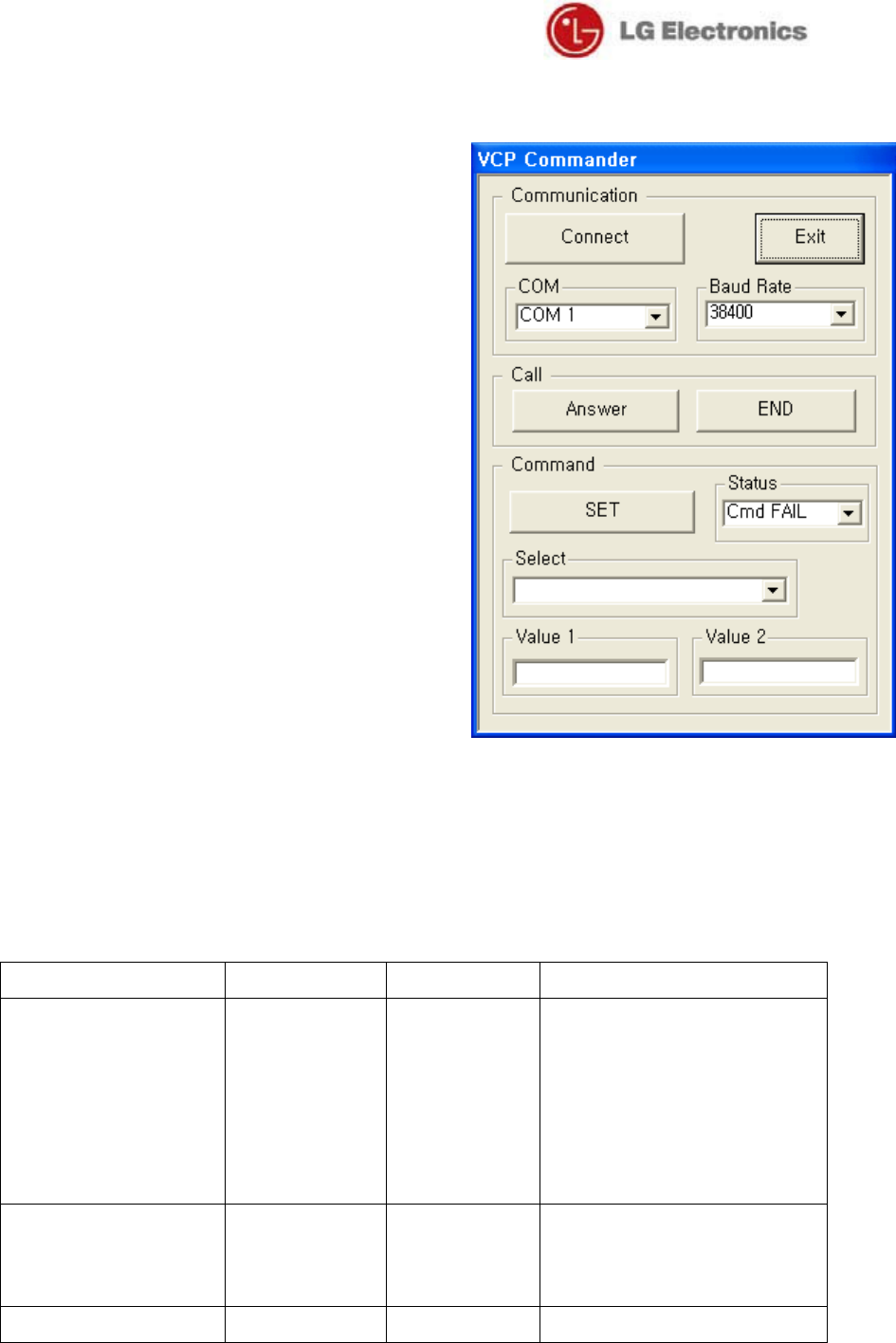

3. VCP Commander
1) Run “VCP-Commander.exe”.
This tool is single executable file.
2) Connect the named “CAIT”-port to
Your PC’s serial port.
3) Check the serial baud rate of VCP
(Power-up default is 38400bps)
4) select your PC’s COM-port,
Press “Connect button”
5) Test the right connection.
Press “END”, verify that “Status” is
Flipped (“Cmd FAIL” to “Cmd OK”)
6) Select command from drop-down-list
And enter “Value 1” or “Value 2” according to each command.
7) Press “SET” button, then status is flipped.
8) Below table are command lists, value 1 and value 2.
“Command” “Value 1” “Value 2” Description
PREF_AUTOMATIC
PREF_CELL_ONLY
PREF_PCS_ONLY
PREF_CDMA_ONLY
PREF_ANALOG_ONLY
PREF_HOME_ONLY
Don’t care Don’t care Set system selection mode
PREF_P_REV_3
PREF_P_REV_4
PREF_P_REV_6
Don’t care Don’t care Set MOB_P_REV
temporally
A_KEY See example 1 See example 1 Set A-key value
LG Telematics
PREF_FOR_RC 1 ~5 Don’t care Set NV_PREF_FOR_RC_I
IMSI_MCC 3-digit
Decimal ie’
“120”
Don’t care Set NV_IMSI_MCC_I
IMSI_11_12 2-digit
Decimal ie’
“12”
Don’t care Set NV_IMSI_11_12_I
(MNC)
SCM One-byte
decimal
Don’t care Set NV_SCM_I
SLOT_SYCLE_INDEX 0 ~ 7 Don’t care Set
NV_SLOT_CYCLE_INDEX_I
MOB_TERM_HOME 0 or 1 Don’t care Enable(1) or Disable(0)
MOB_TERM_FOR_SID 0 or 1 Don’t care Enable(1) or Disable(0)
MOB_TERM_FOR_NID 0 or 1 Don’t care Enable(1) or Disable(0)
Dial_SO2_LB,
Dial_SO3_EVRC,
Dial_SO9_LB13,
Dial_SO54
Dial_SO55_LB
Dial_SO32768
Dial_SO32798
Dial_SO32799
Don’t care Don’t care Originate call with specified
SO.
Dial number is fixed to “111”
internally.
CALL_ANSWER Don’t care Don’t care Answer incoming call
CALL_END Don’t care Don’t care End call.
Power_Down Don’t care Don’t care Force power-down
“Communication Module” only
After this command, must do
unplug then plug main VCP
power to power-up Module.
Power_Recycle Don’t care Don’t care Force power-recycle
“Communication Module” only
LG Telematics
FCC Information
FCC part 15.19
This device complies with Part 15 of the FCC Rules, Operation is subject to the
following two conditions: (1) this device ma not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Installation
This unit should only be installed by qualified personnel by GMOnstar.
Address
P.O.Box 430627
Pontiac, MI 48343
Part 15.21 statement
"Change or Modifications that are not expressly approved by the manufacturer could void the
user's authority to operate the equipment. “
"In order to comply with RF Exposure requirements the antenna or radiating element of this
device must be installed to ensure that it is at least 20cm from end users. The antenna supplied
with this device must not exceed a maximum gain of 9.74dBi in the cellular band and 8.25dBi in
the PCS band."
Part 15.105 statement
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures: -Reorient or relocate the receiving antenna. -Increase the separation
between the equipment and receiver. -Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Part 15 Class B Compliance
This device and its accessories comply with part15 of FCC rules. Operation is subject to the
following two conditions:
