LG Electronics USA M5520CJ LCD Monitor User Manual G User s manual
LG Electronics USA LCD Monitor G User s manual
User Manual
G
Order Number : GETEC-C1-10-191 FCC Part 15 subpart B
Test Report Number : GETEC-E3-10-100 Page 1 / 1
EUT Type: LCD Monitor
FCC ID.: BEJM5520CJ
APPENDIX G
: USER’S MANUAL
www.lg.com
ENGLISH
MONITOR SIGNAGE
MONITOR SIGNAGE MODELS
M5520C
Please read this manual carefully before operating
your set and retain it for future reference.
OWNER’S MANUAL
2
Table of Contents
Accessories 3
Connecting the stand 4
Connecting the Speakers 5
To install Portrait 6
Using the Remote Control 7
Name and Function of the Parts 9
Connecting to External Devices 10
When Connecting to your PC ............................................................................................10
When using the LAN ...........................................................................................................12
Daisy Chain Monitors .........................................................................................................13
VESA FDMI wall Mounting .................................................................................................14
Video Input ...........................................................................................................................15

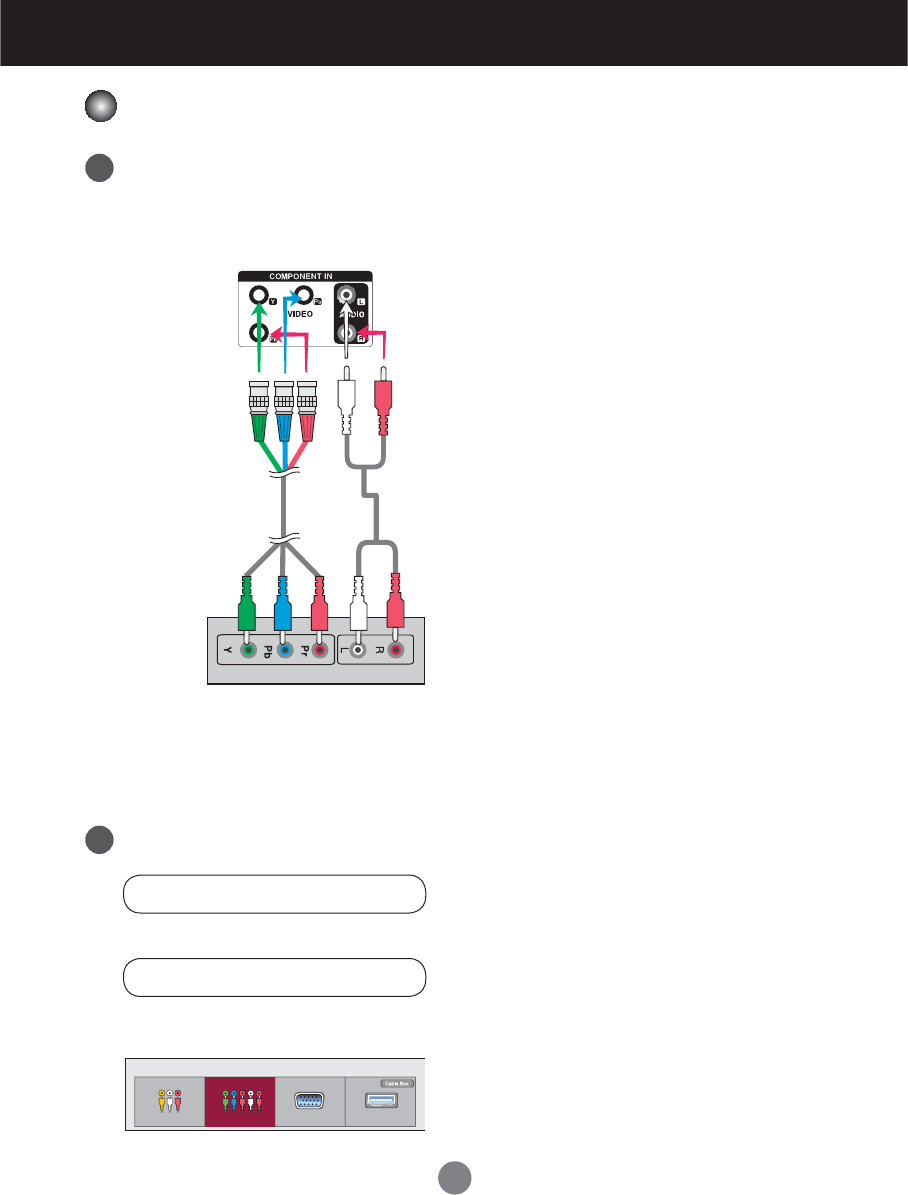

Component Input (480i/480p/576i/576p/720p/1080i/1080p) ..........................................16
HDMI Input (480p/576p/720p/1080i/1080p) ......................................................................17
User Menus 18

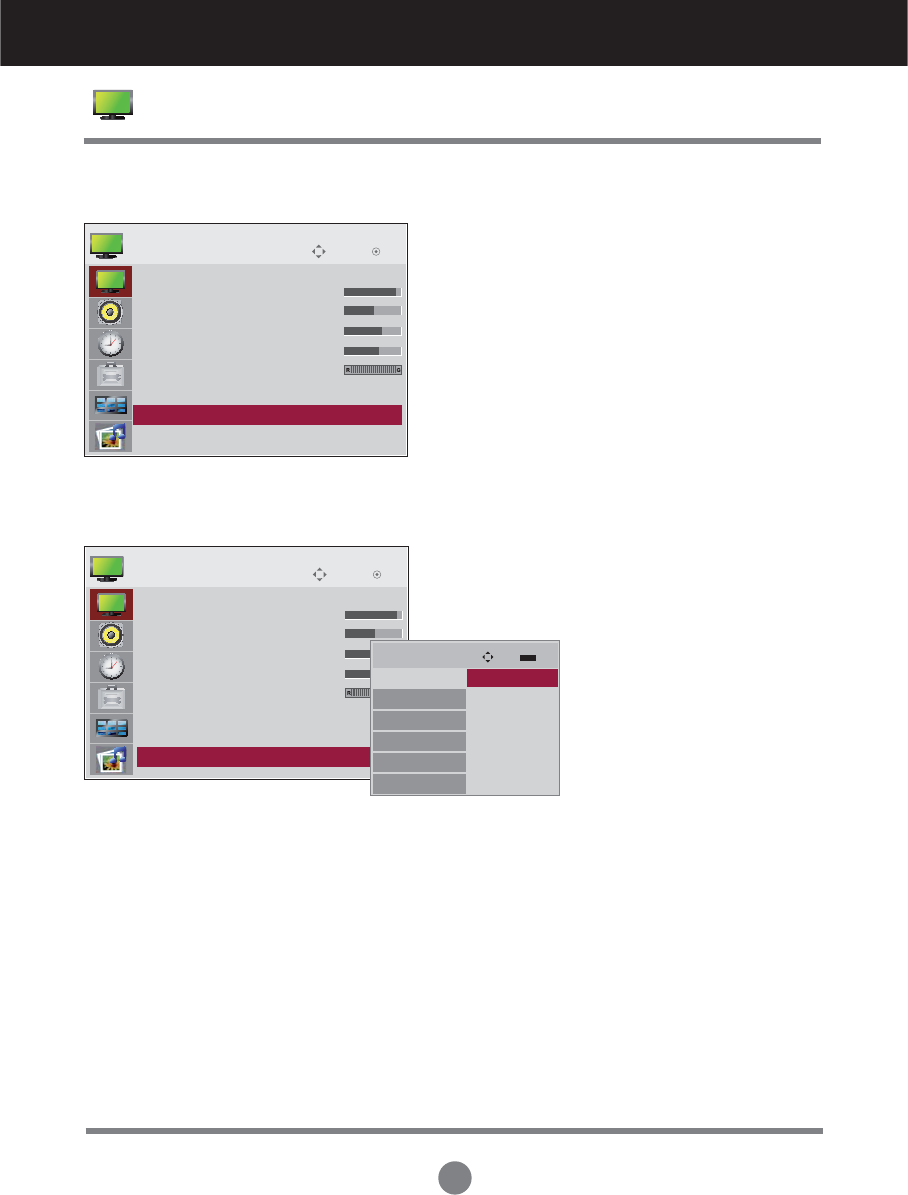

Screen Adjustment options ...............................................................................................18

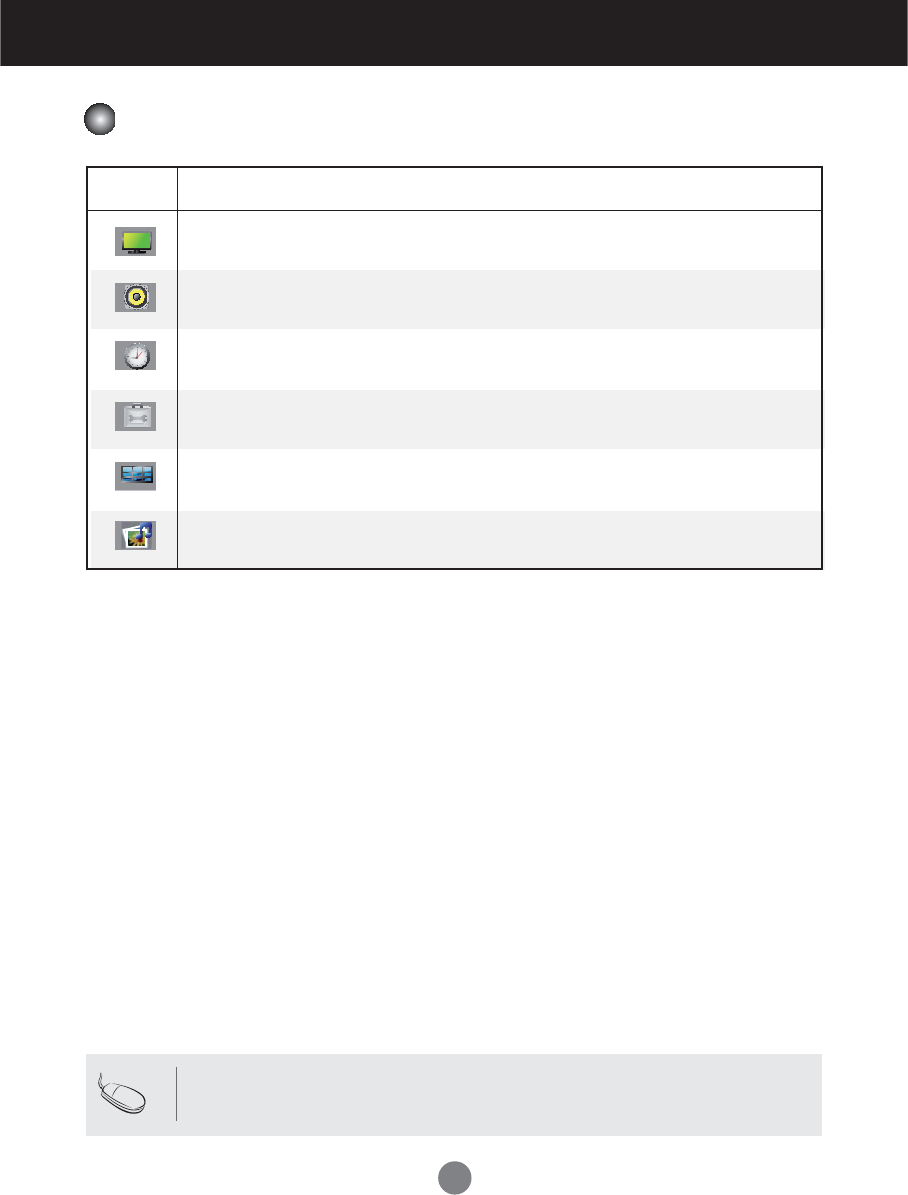

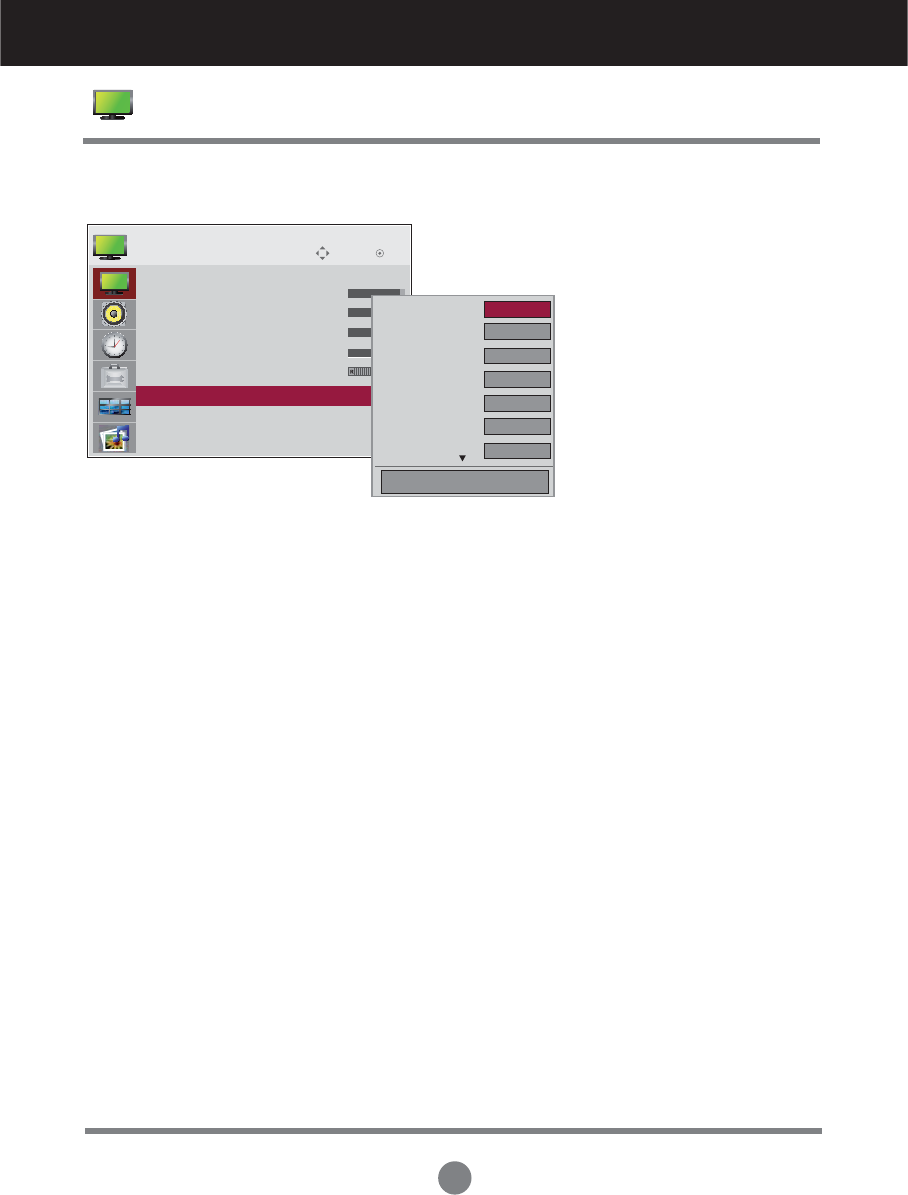

OSD Menu ............................................................................................................................20
How to adjust the OSD (On Screen Display) screen .....................................................21
How to adjust the screen automatically ..........................................................................21
Adjusting Screen Color ......................................................................................................22
Adjusting the audio function .............................................................................................28
Adjusting the timer function ..............................................................................................29
Selecting the options .........................................................................................................30

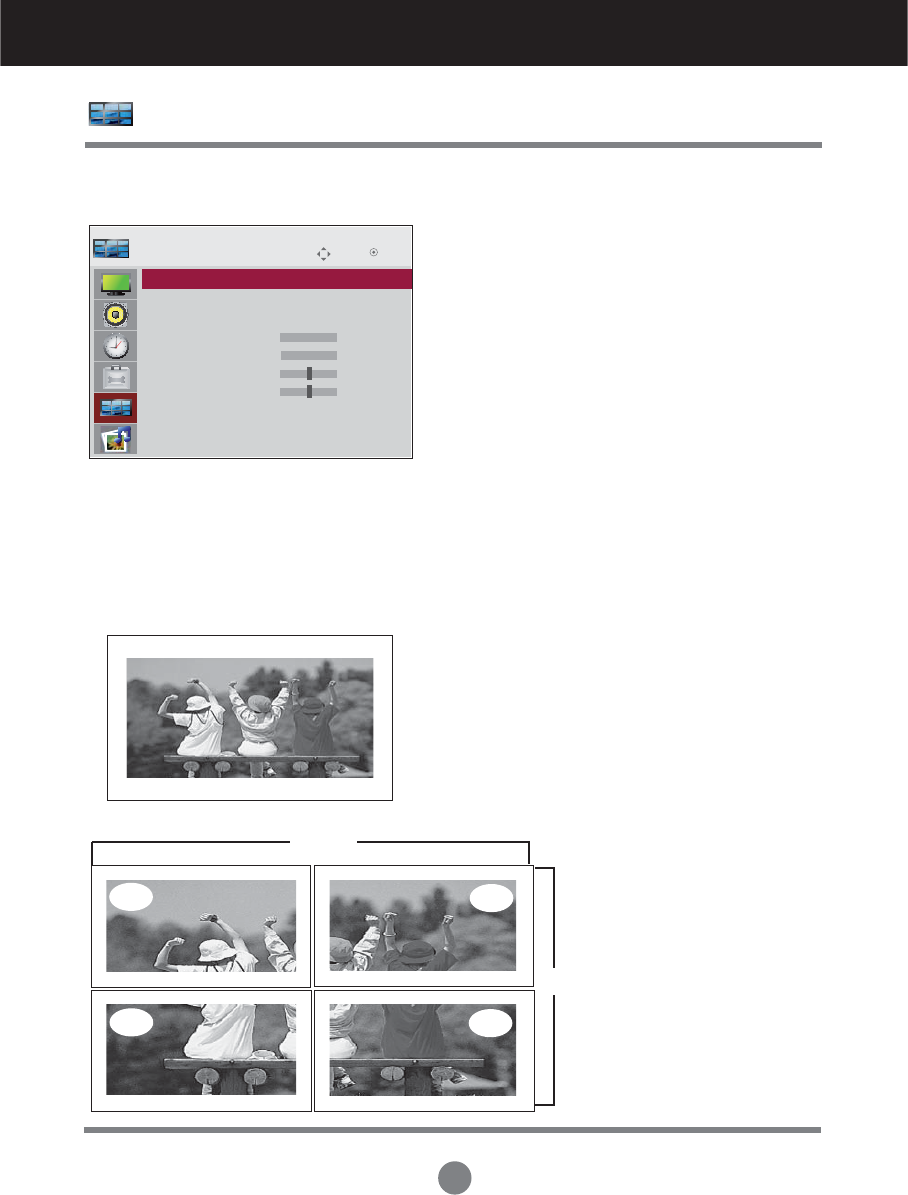

Adjusts the tile options. .....................................................................................................32
Adjusts the USB options. ...................................................................................................34
Troubleshooting 48

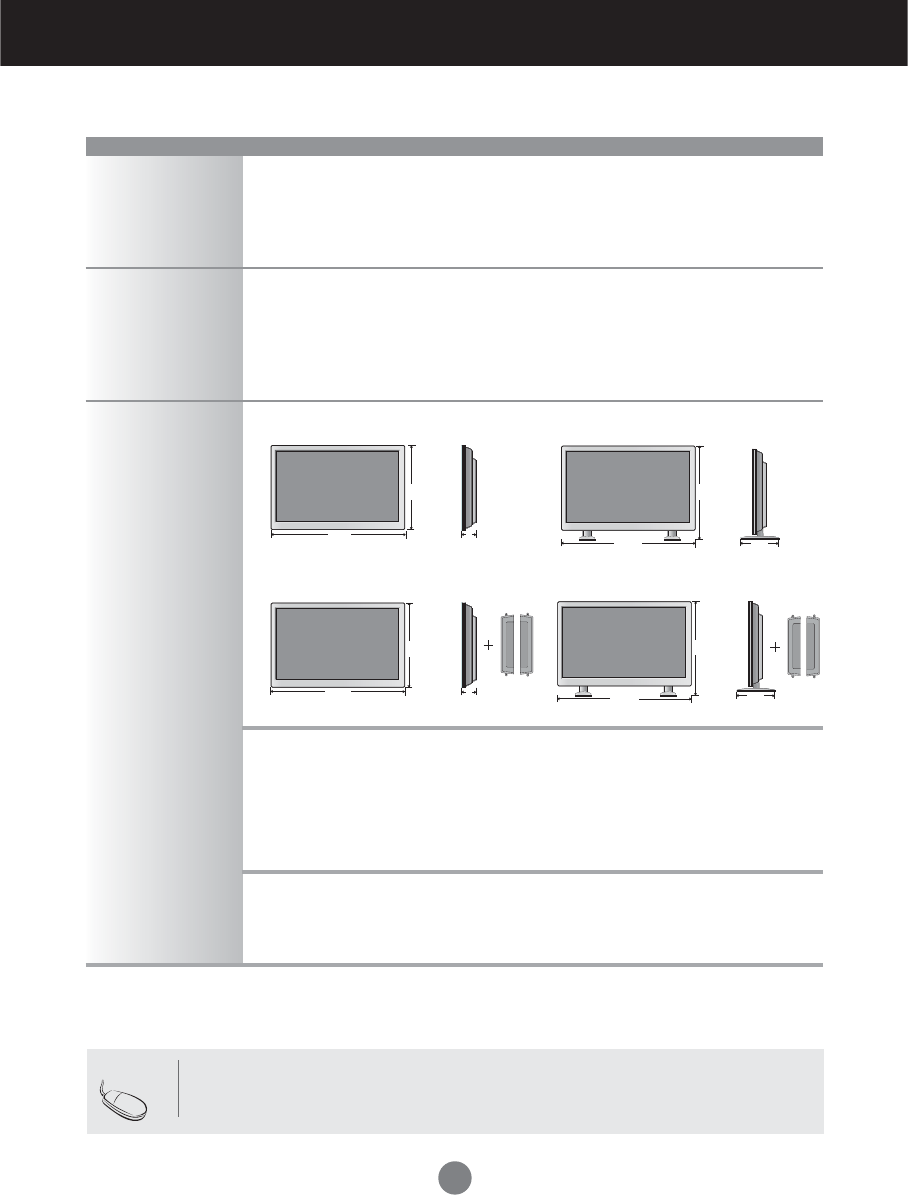

Specifications 51

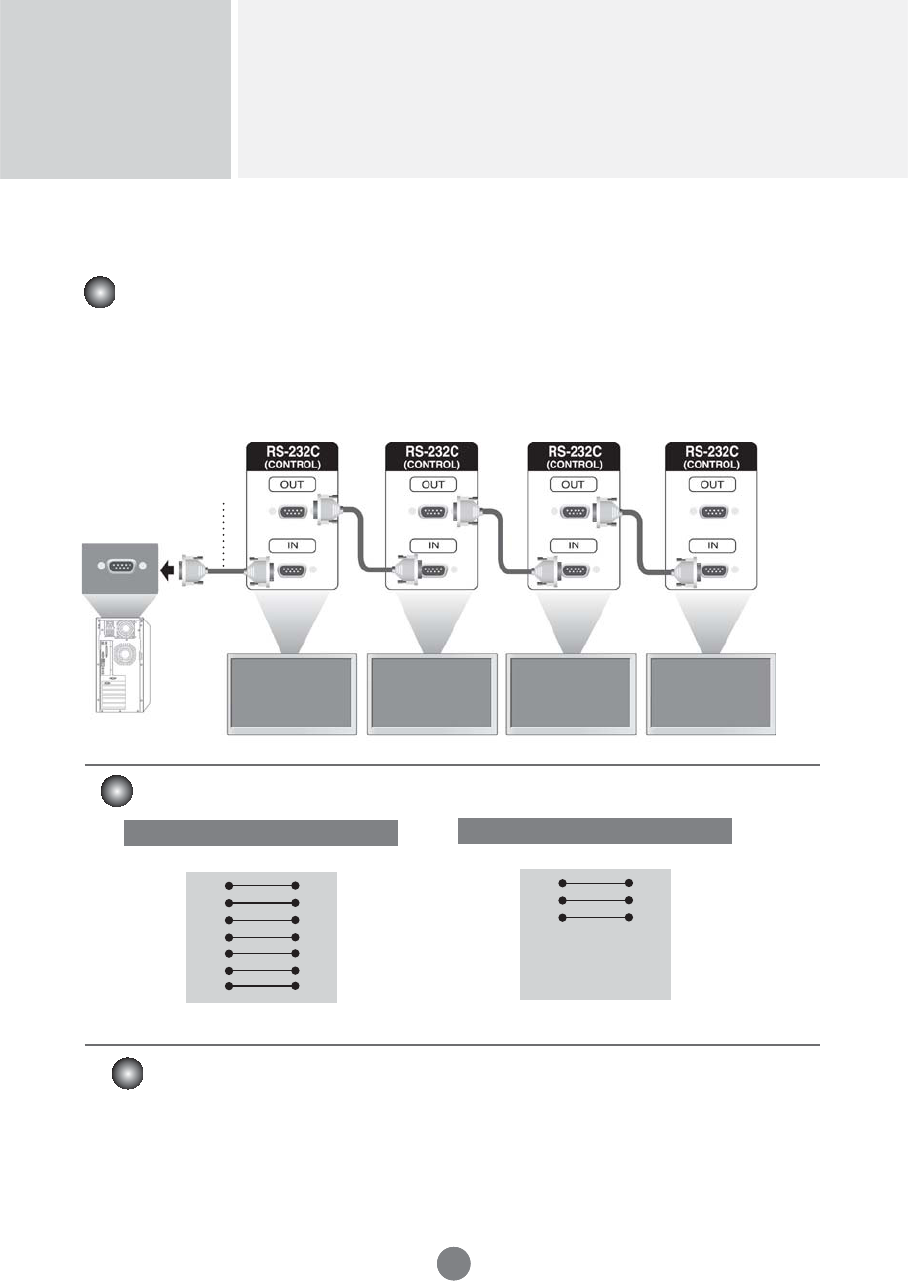

Controlling the Multiple Product A1
3
Without prior notice, optional accessories are subject to change to improve the performance of the product, and
new accessories may be added.To purchase optional accessories,
ۚ
Optional accessories (purchased separately) may vary depending on the model.
ۚ
Note that optional accessories may look different from those shown here.

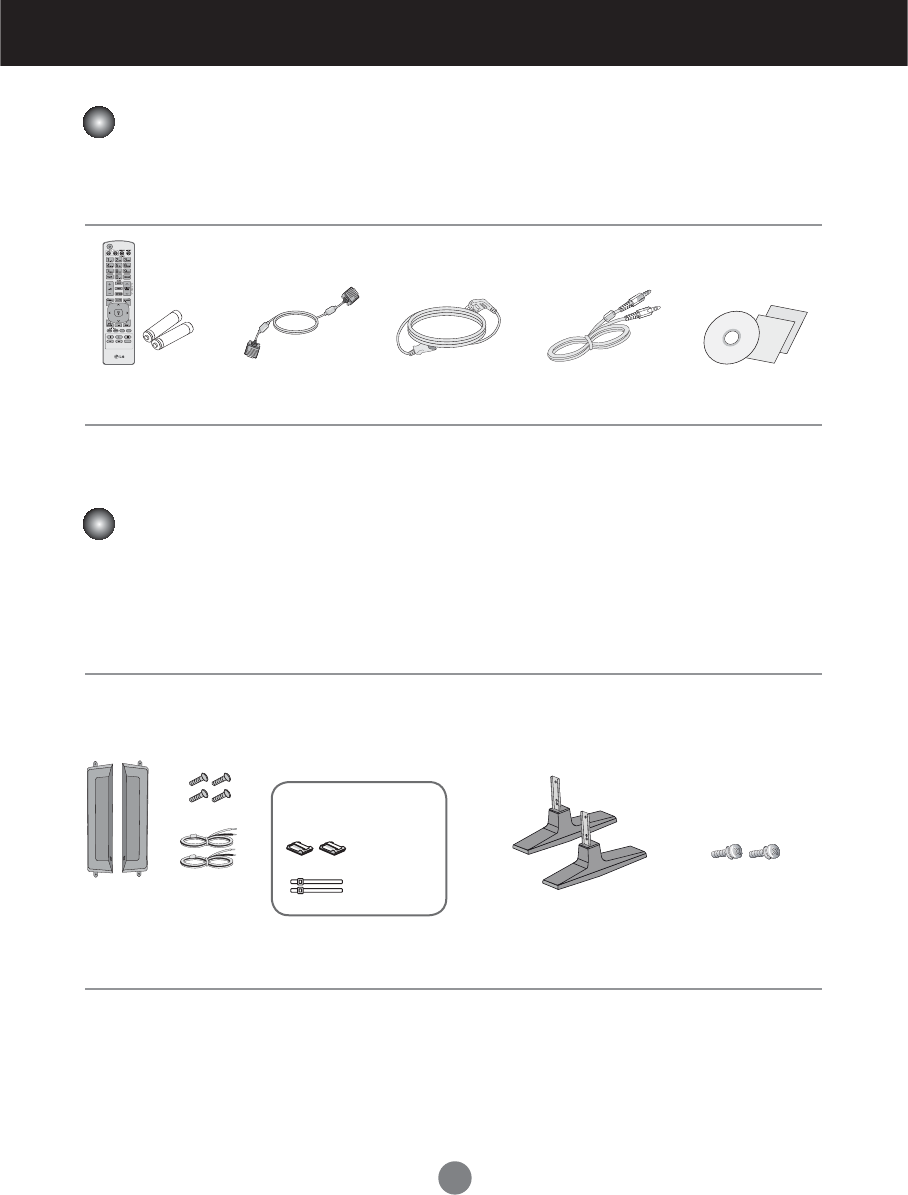

Thank you for your purchase. Please check the product as well as the accessories shown below
ۚ
Note that the accessories may look different from those shown here.
Speaker kit
ۚ
Applicable only for models that support the speakers.
Stand kit
ۚ
Applicable only for models that support the stand.
Remote Control
/ Batteries
CD-ROM / Cards
D-Sub Signal
Cable
Speaker(2) Screws (4)
/ Cable (2)
Power Cable Audio Cable (PC)
$BCMFIPMEFS$BCMFUJF
They may not
be available
in some areas
or for some
models.
Accessories
Separate purchase
Accessories
Stand (2) Screws (2)
4

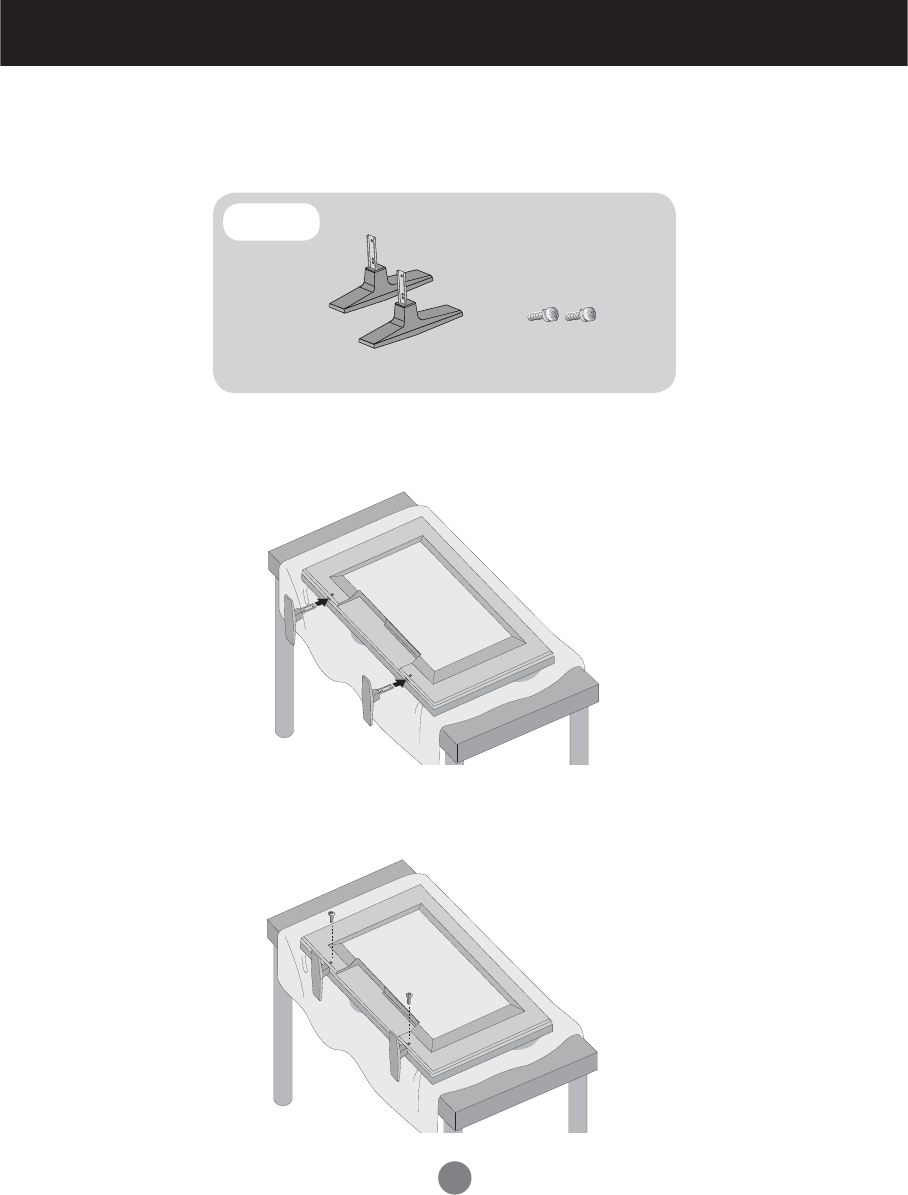

Connecting the stand
- Only on some models.
2.
3.
1. Take the parts for the stand out of the box and assemble them as shown in the
picture.
Place a soft cloth on the table and put the product with the screen facing
downward. Connect the stand as shown in the following picture.
Use the screws to secure the stand on the rear side of the product as
shown in the diagram.
First, check if the following parts are all present.
Parts
Stand (2) Screws (2)
5

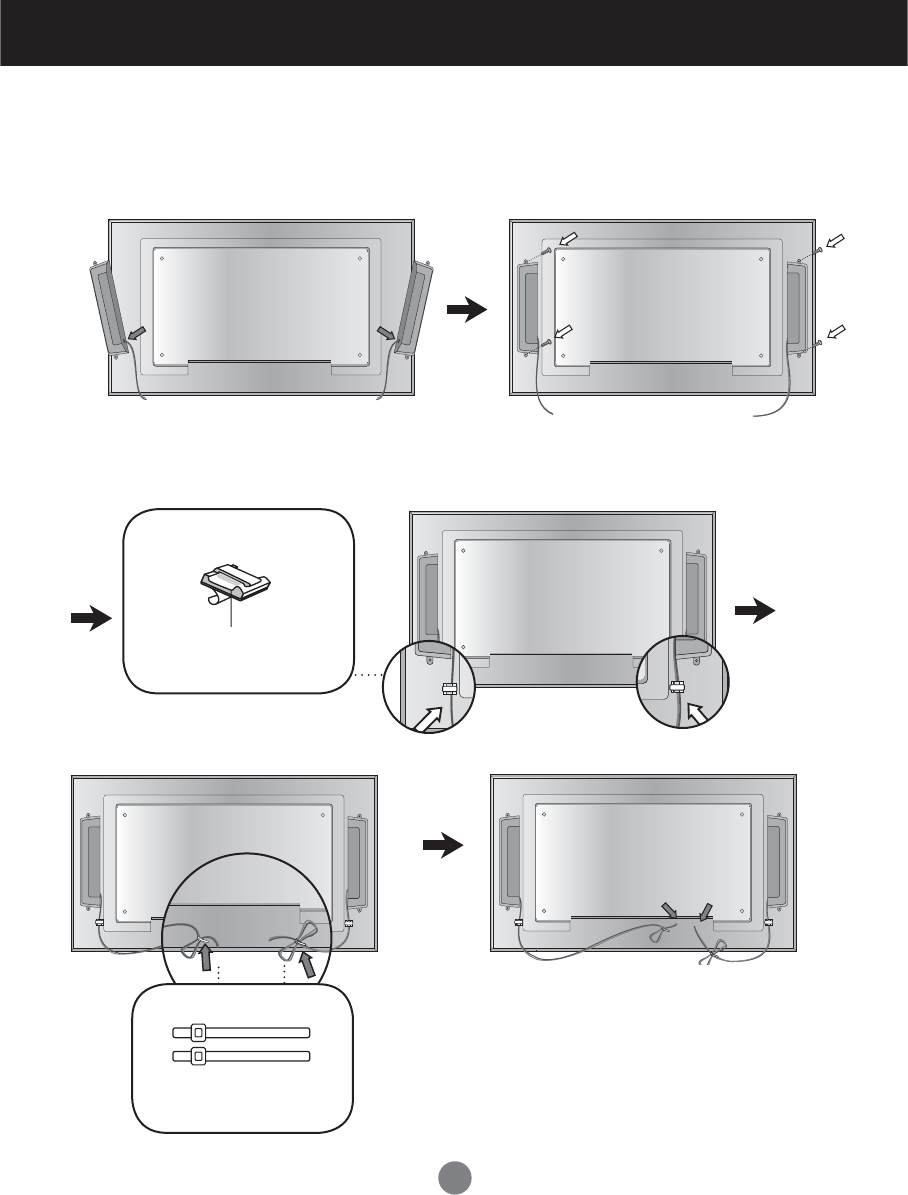

Connecting the Speakers
Mount the product onto the speaker by using a screw as shown in the following
connect the speaker cable.
When the speaker is installed.
*Connect the input terminal with a proper
color match.
Remove the paper.
Cable holder
After installing your speakers, use holders and cable ties to organize the speaker
cables.
* This feature is not available in all model.
Cable tie
* This feature is not available in all model.
- Only on some models.
6

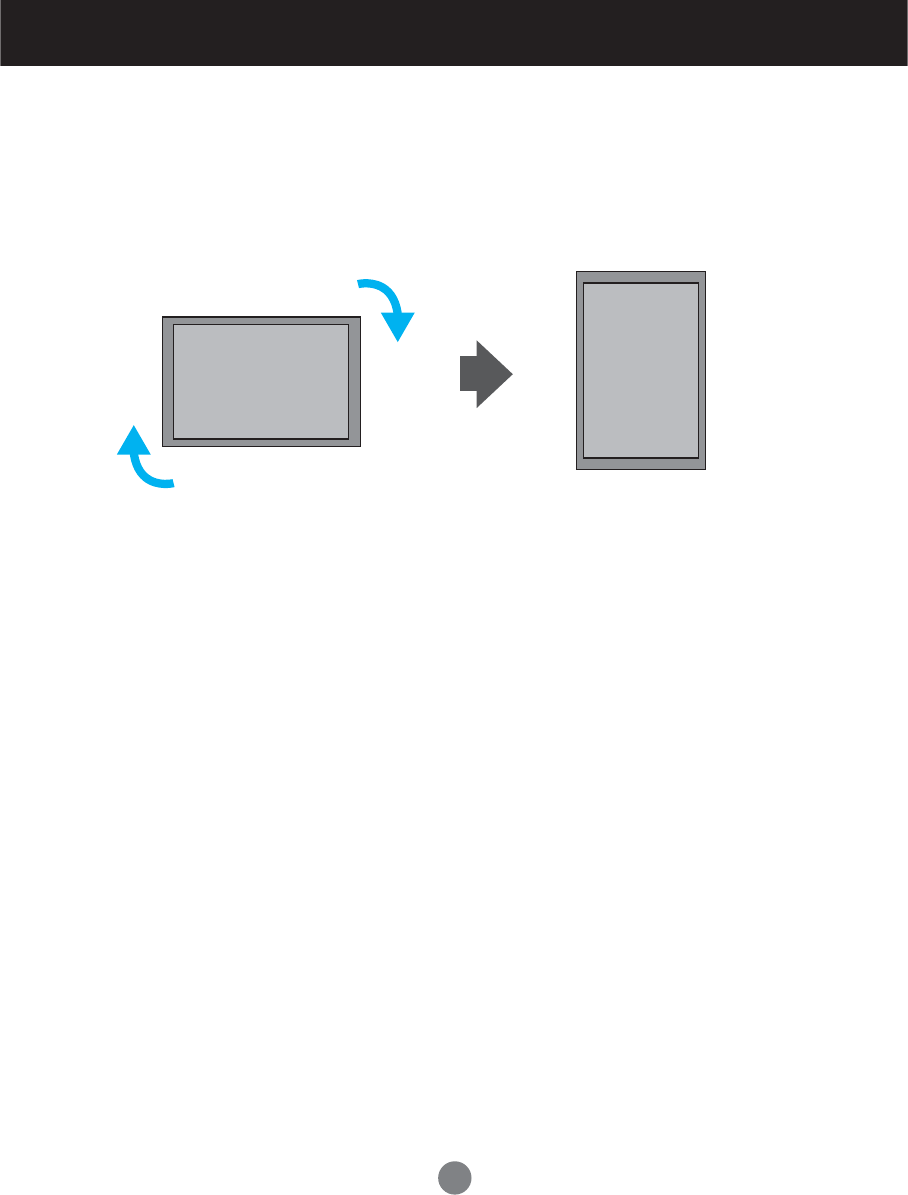

To install Portrait
"When installing Portrait, rotate it clockwise based on its front."
- Only on some models.
7

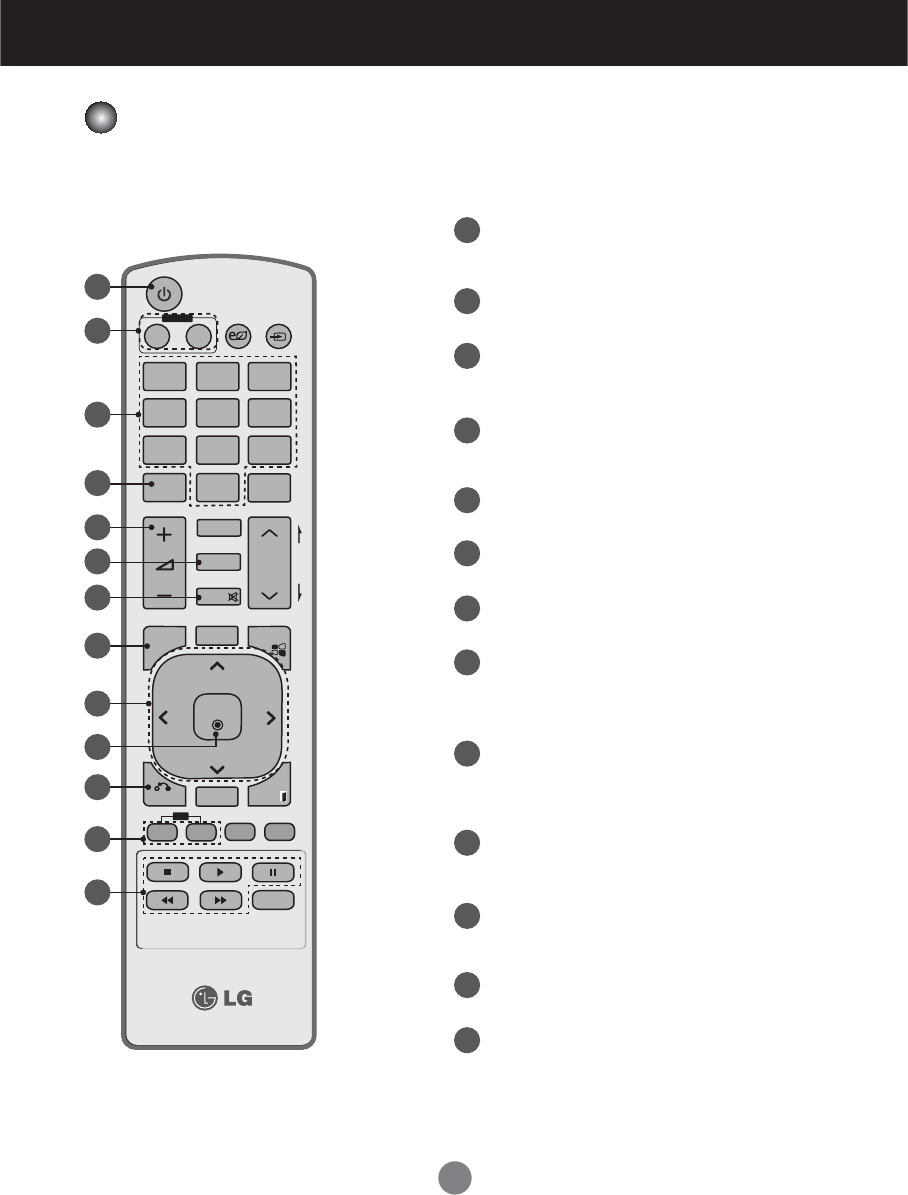

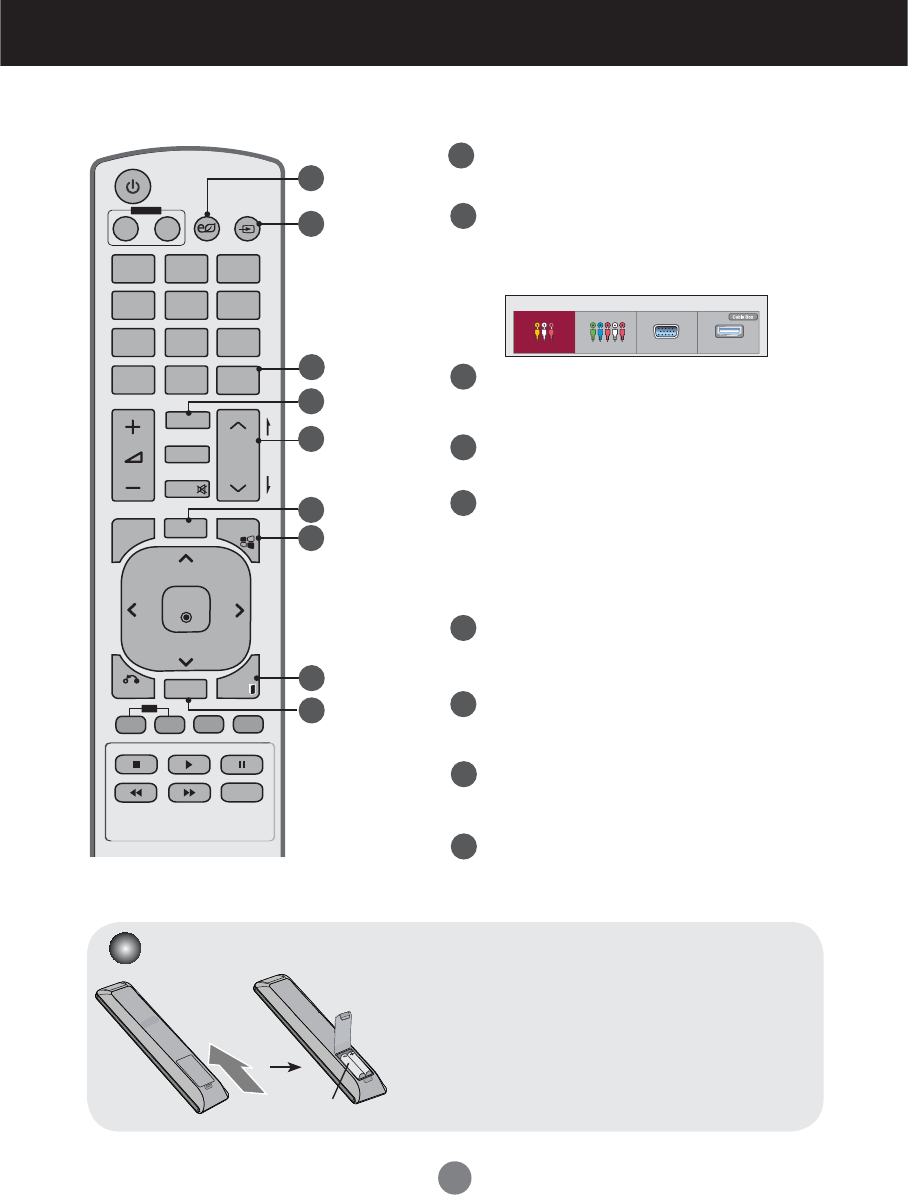

Using the Remote Control
Name of the Remote Control Buttons
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DFG
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK TILE
ON OFF
EXIT
1
2
5
4
7
6
9
8
13
12
11
10
3
1
2
5
3
4
7
6
9
8
13
12
11
10
Power On / Off Button
- Switches the set on from standby or off to
standby.
Monitor On / Off Button
- Turn off the monitor and then turn it back on.
Number and Alphabet Buttons
- Type numbers.
- It is not available to use Alphabet.
1/a/A Button
- Selects the number and alphabet.
Volume Up/Down Button
- Adjusts the volume.
PSM Button
- Selects the Picture Status Mode.
MUTE Button
- Switches the sound on or off.
MENU Button
- Selects a menu.
- Clears all on-screen displays and returns to
TV viewing from any menu.
Up/Down/Left/Right Buttons
- Allows you to navigate the on-screen menus
and adjust the system settings to your
preferenc.
OK Button
- Accepts your selection or displays the
current mode.
BACK button
- Allows the user to move
return one step in an interactive application.
ID ON/OFF Button
- Enable the monitor lock.
USB Menu control buttons
- Adjust the USB menu(Photo List, Music List
and Movie List ).
8
Energy Saving Button
- Adjust the Energy Saving mode of the SET.
INPUT Select Button
If you press the button once, the following
Input Signal Window will appear. Select the
Clear button
- Delete the numbers and alphabets you
typed.(SuperSign input only)
ARC Button
- Selects the Aspect Ratio Mode
Brightness Key
- Adjust the resolution and brightness by
pressing the Up and Down buttons on the
remote control.
- In USB mode, the OSD menu has the Page
function to move to the next file list.
AUTO Button
- Automatically adjusts picture position and
minimizes image instability.(RGB input only)
S.MENU Button (SuperSign Menu Key)
- It is not available to use this function.
EXIT Button
- Clears all on-screen displays and returns to monitor
viewing from any menu.
TILE button
- Selects the TILE Mode
Using the Remote Control
1. Slide off the battery cover.
2. Insert the batteries with correct polarity ( + / - ).
3. Close the battery cover.
4. To remove the batteries, perform the installation actions
in reverse.
environmental pollution.
Inserting batteries into remote control.
14
15
16
18
19
17
20
21
22
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DFG
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK TILE
ON OFF
EXIT
14
15
18
16
19
17
20
21
22
AAA Type
Input List
AV Component RGB HDMI/DVI
9

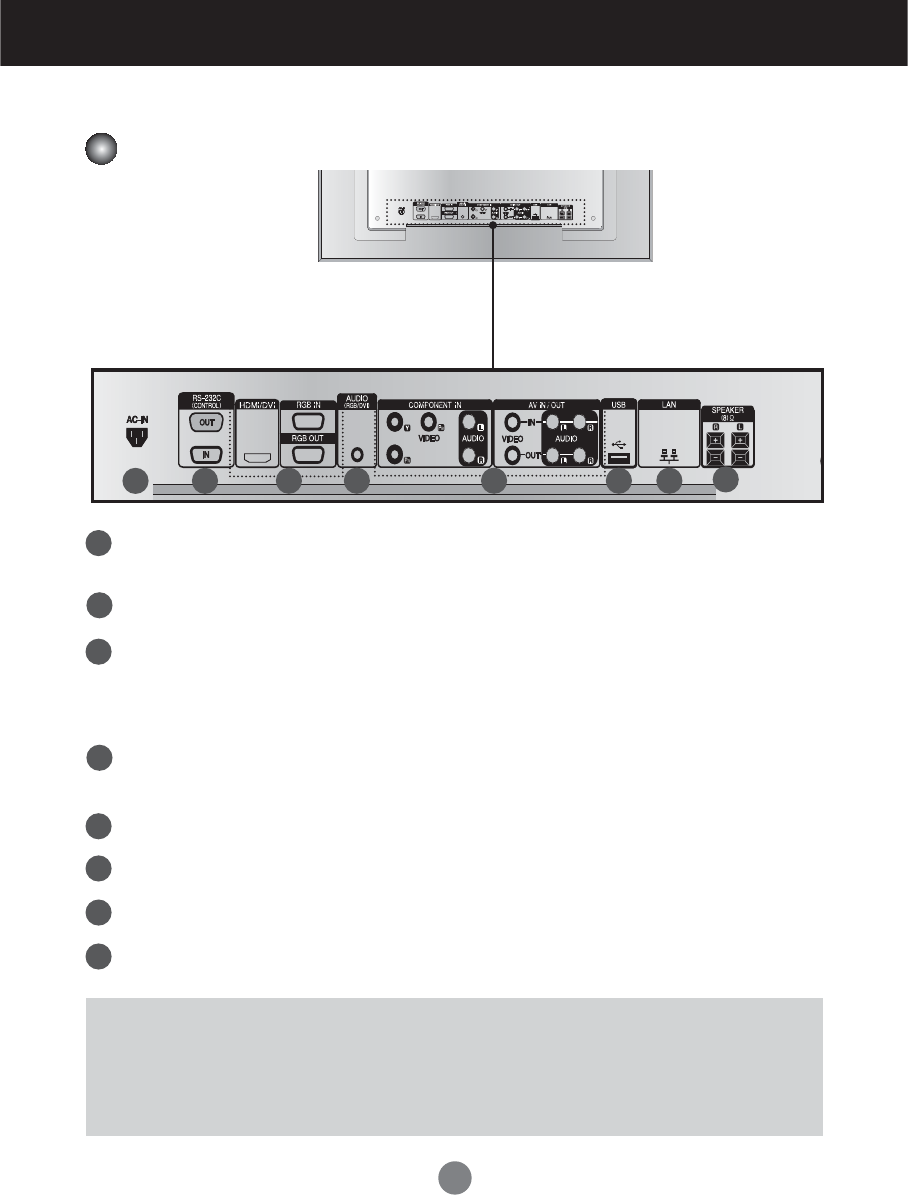

Name and Function of the Parts
Rear View
* LINE OUT
A terminal used to connect to the speaker including a built-in amplifier (Amp). Make sure that
the connecting terminal of the PC sound card is checked before connecting. If the Audio Out of PC
sound card has only Speaker Out, reduce the PC volume. If the Audio Out of the PC sound card
supports both Speaker Out and Line Out, convert to Line Out using the card jumper of the program
(Refer to the Sound Card Manual).
* The product image in the user's guide could be different from the actual image.
Power Connector
Connect the power cord
RS-232C Serial Ports
RGB, HDMI/DVI Ports
HDMI Supports High Definition input and HDCP (High-bandwidth Digital
Content Protection). Some devices require HDCP in order to display HD
signals.
PC Sound Jack
Connect the audio cable to the *LINE OUT jack of the PC sound card.
AV Ports
USB Port
LAN Port
Speaker Ports
1
2
4
3
6
5
8
7
1 2 43 65 8
7
10
First of all, see if the computer, product and the peripherals are turned off. Then, connect
the signal input cable.
When connecting with the D-Sub signal input cable.
When connecting with the HDMI-DVI signal input cable (not included).
* When HDMI PC is used, a compatiblity problem might occur.
MAC
Macintosh Adapter (not included)
Use the standard Macintosh adapter since an incompatible
adapter is available in the market. (Different signaling system)
Connecting to External Devices
Connect the power cord.
PC
PC/MAC
PC
PC
Connect the Audio cable.
(not included)
* User must use shielded signal interface cables (D-sub 15 pin cable, DVI cable) with ferrite
cores to maintain standard compliance for the product.

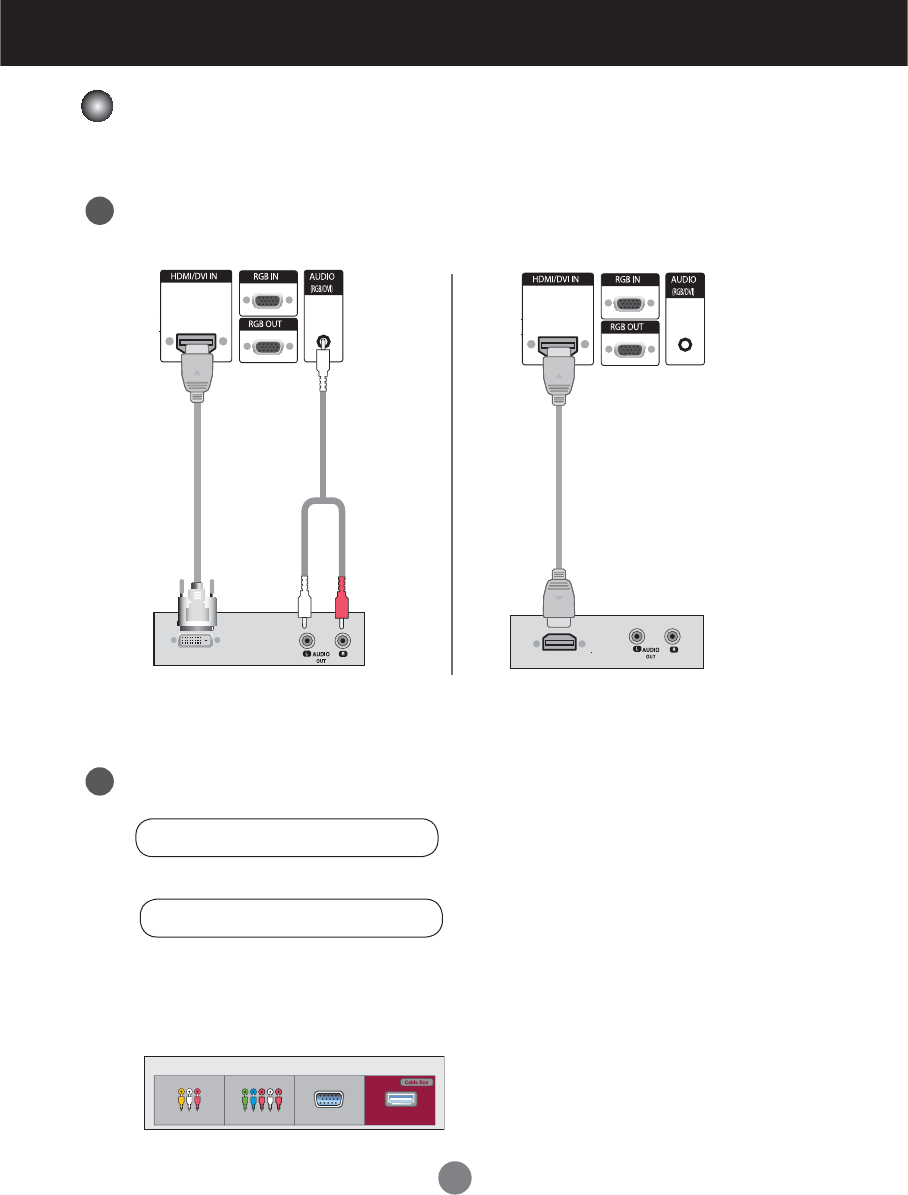

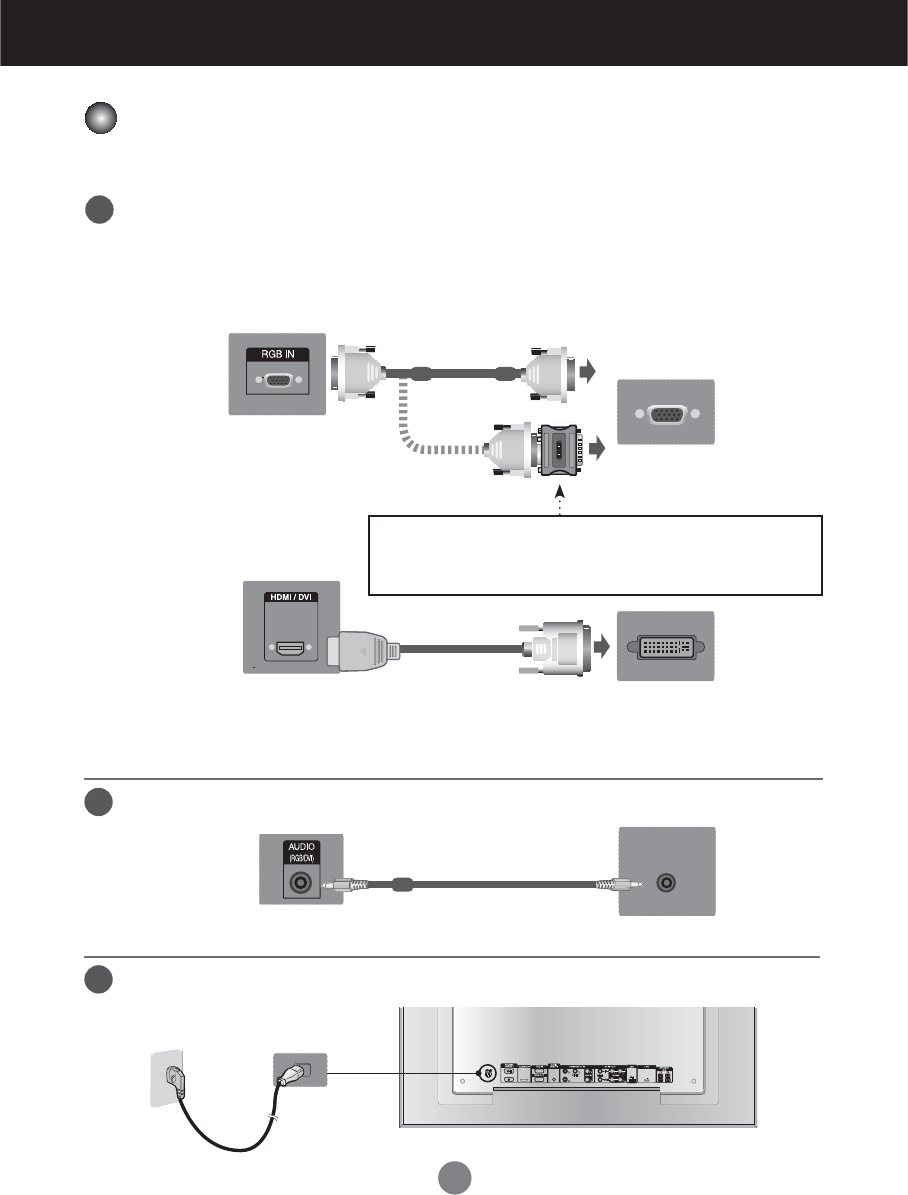

When Connecting to your PC
1
2
3
B.
B.
A.
A.
Rear back of the product.
Rear back of the product.
Rear back of the product.
Rear back of the product.
11

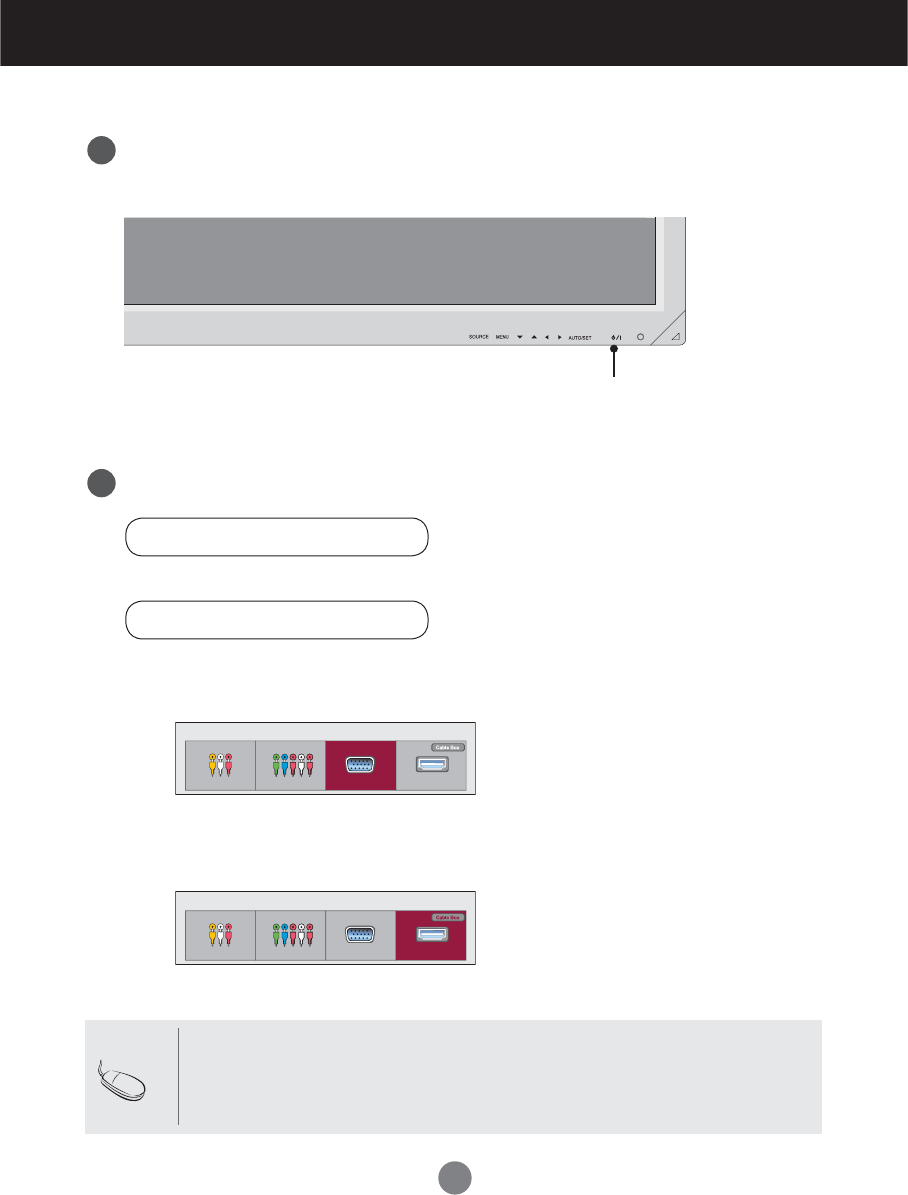

Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the SOURCE button on the back of the product.
How to connect to two computers.
Connect the signal cables (HDMI-DVI and D-Sub) to each computer.
Press the INPUT button on the remote control to select the computer to use.
Directly connect to a grounded power outlet on the wall or a power bar with a ground wire.
Note
Turn on power by pressing the power button on the product.
Turn on the PC.
When connecting with a D-Sub signal input cable.
RGB : 15-pin D-Sub analog signal.
When connecting with a HDMI-DVI signal input cable and HDMI Signal Cable.
HDMI/DVI : DVI Digital signal or HDMI Digital signal.
Connecting to External Devices
Power button
2.
1.
B.
A.
4
5
Input List
AV Component RGB HDMI/DVI
Input List
AV Component RGB HDMI/DVI
12

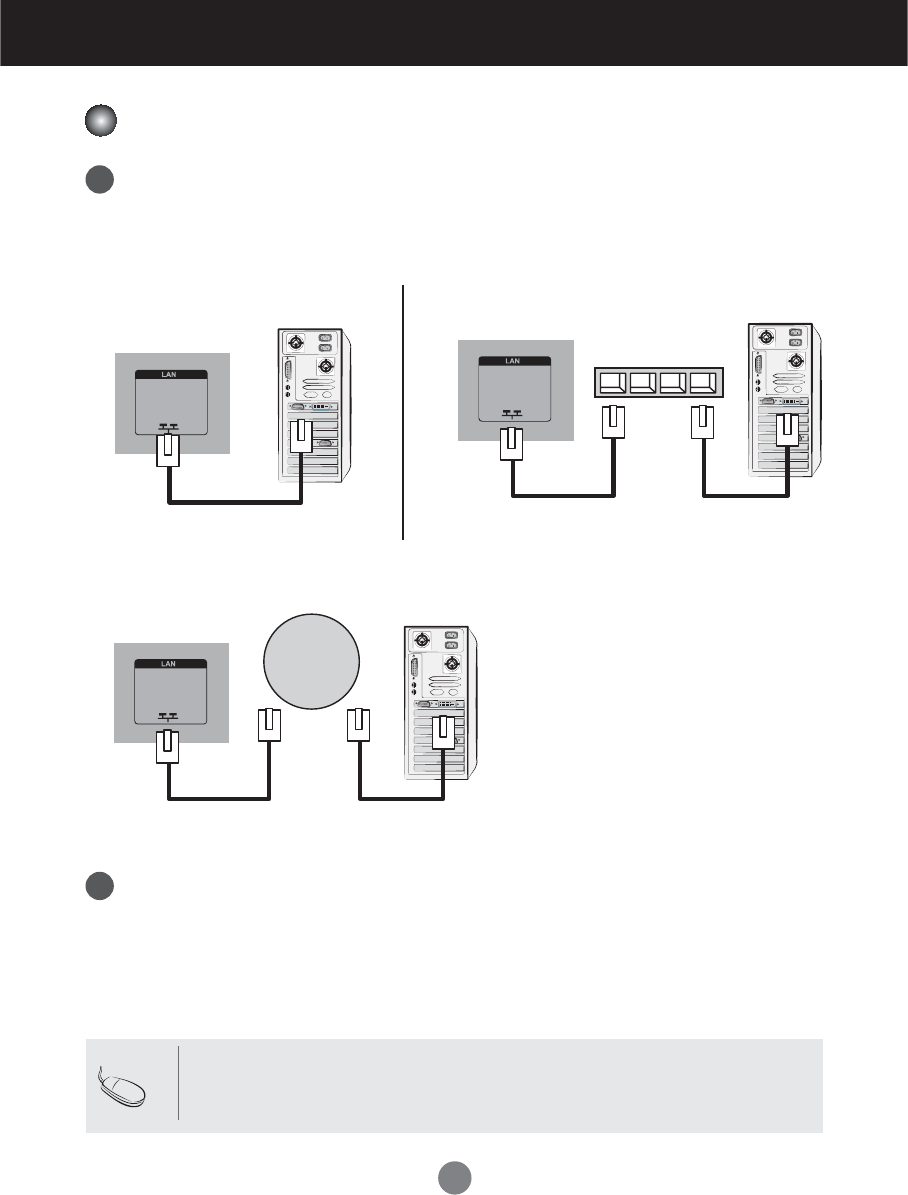

Using LAN establishes communication between your PC and the monitor and
enables to use the OSD menus on the PC as well as on the monitor.
Note
Connecting to External Devices
Connect the LAN cable as shown in the below figure .
Connect the LAN cable and install the eZ-Net Manager program on the CD-ROM.
For more information about the program, please refer to eZ-Net Guide in the enclosed
CD-ROM.
Connect PC to Monitor directly. Using a router(Switch)
PC
Product Product
LAN
PC
LAN
Switch
Using the Internet.
PC
Product
Network
LAN
When using the LAN
1
2
B.A.
C.
13
Connecting to External Devices

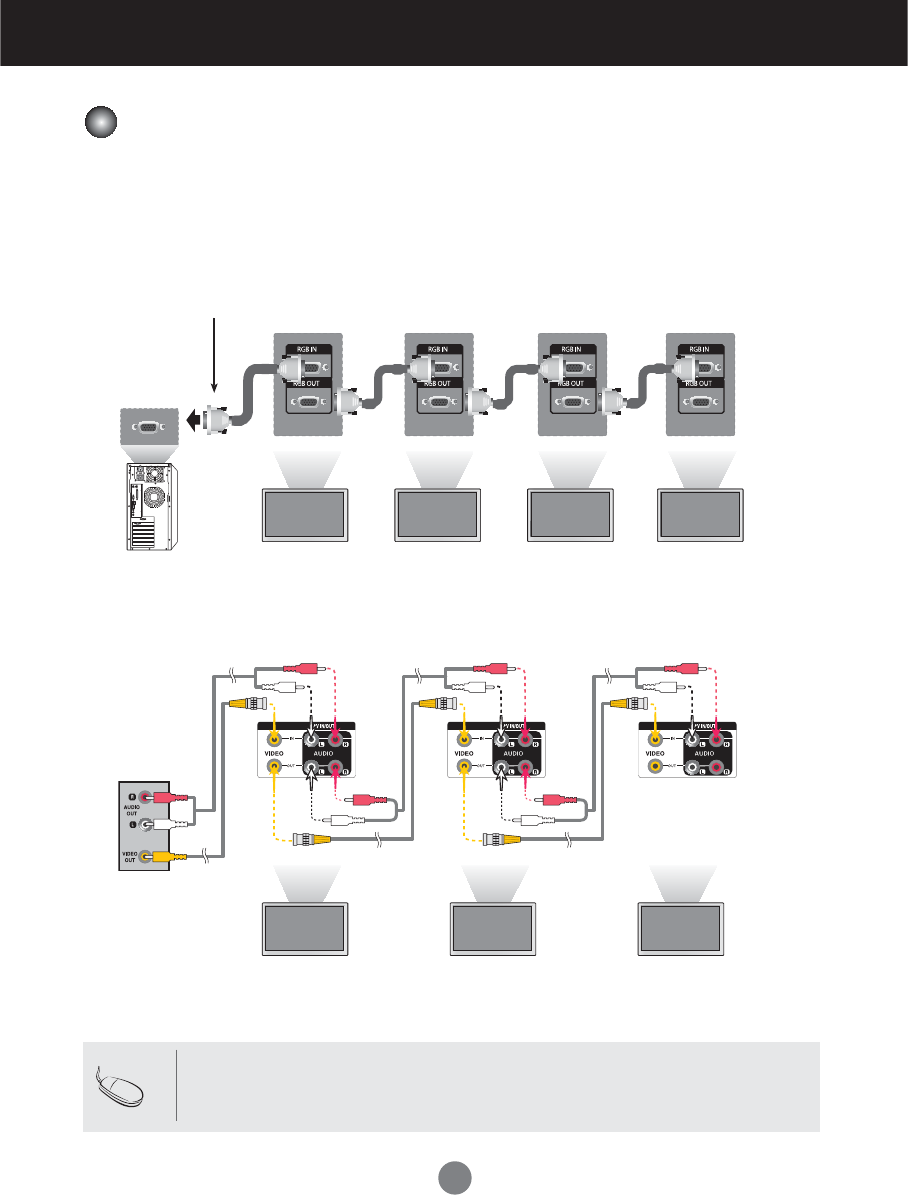

Daisy Chain Monitors
When using RGB input
When using AV input
To use different products connected to each other Connect one end of the signal input
cable (15-pin D-Sub Signal Cable) to the RGB OUT connector of product 1 and connect
the other end to the RGB IN connector of other products.
Product 1 Product 2 Product 3 Product 4
15-pin D-Sub Signal Cable
PC
Video/TV
PC
BNC Cable
(not included)
Audio Cable
(not included)
Product 1 Product 2 Product 3
The number of monitors that can be connected to one output may vary depending on
signal status and cable loss. If the signal status is good, and there is no cable loss, it
is possible to connect up to 9 monitors. If you want to connect more than this number
of monitors, it is recommended to use a distributor.
Note
B.
A.
14

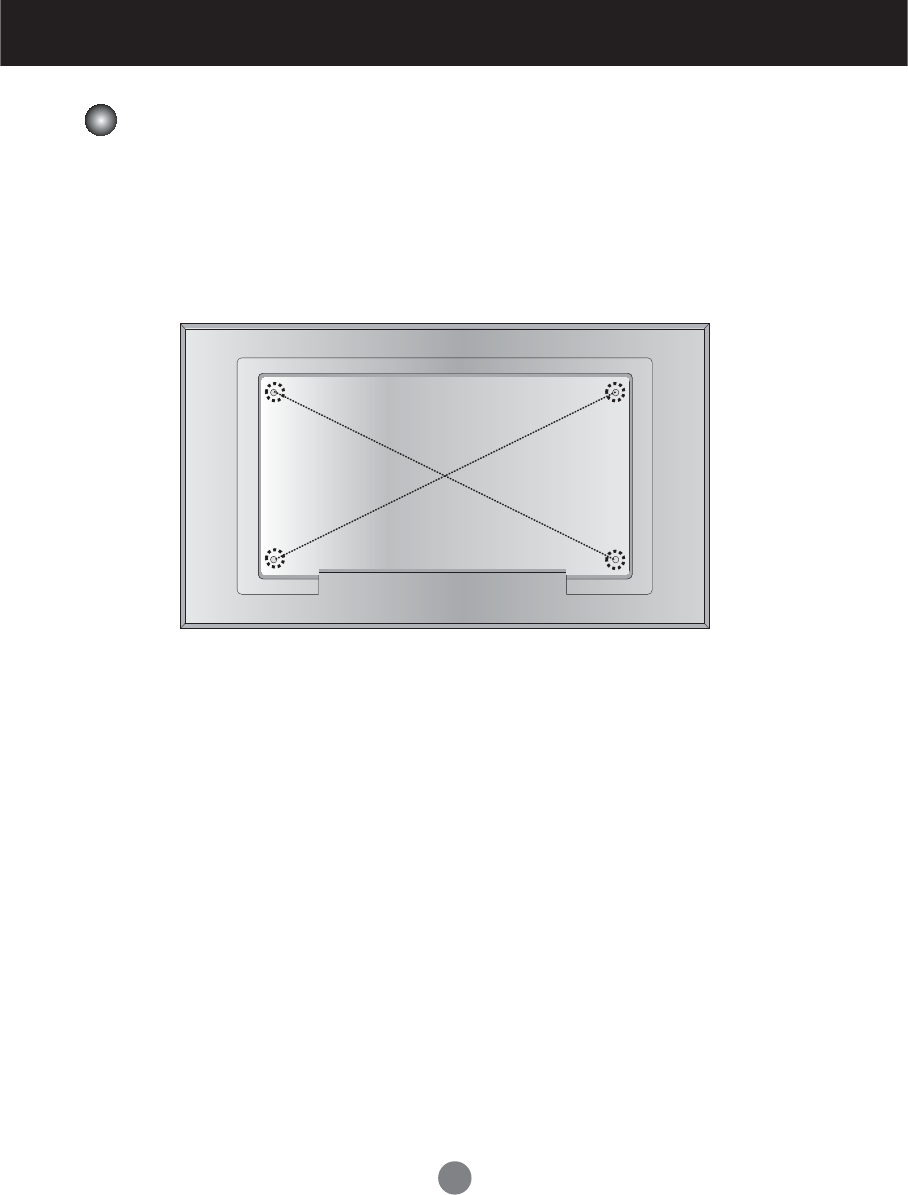

This product supports a VESA FDMI compliant mounting interface. These mounts
are purchased separately and not available from LG. Refer to the instructions
included with wall mount for more info.
Connecting to External Devices
VESA FDMI wall Mounting
15

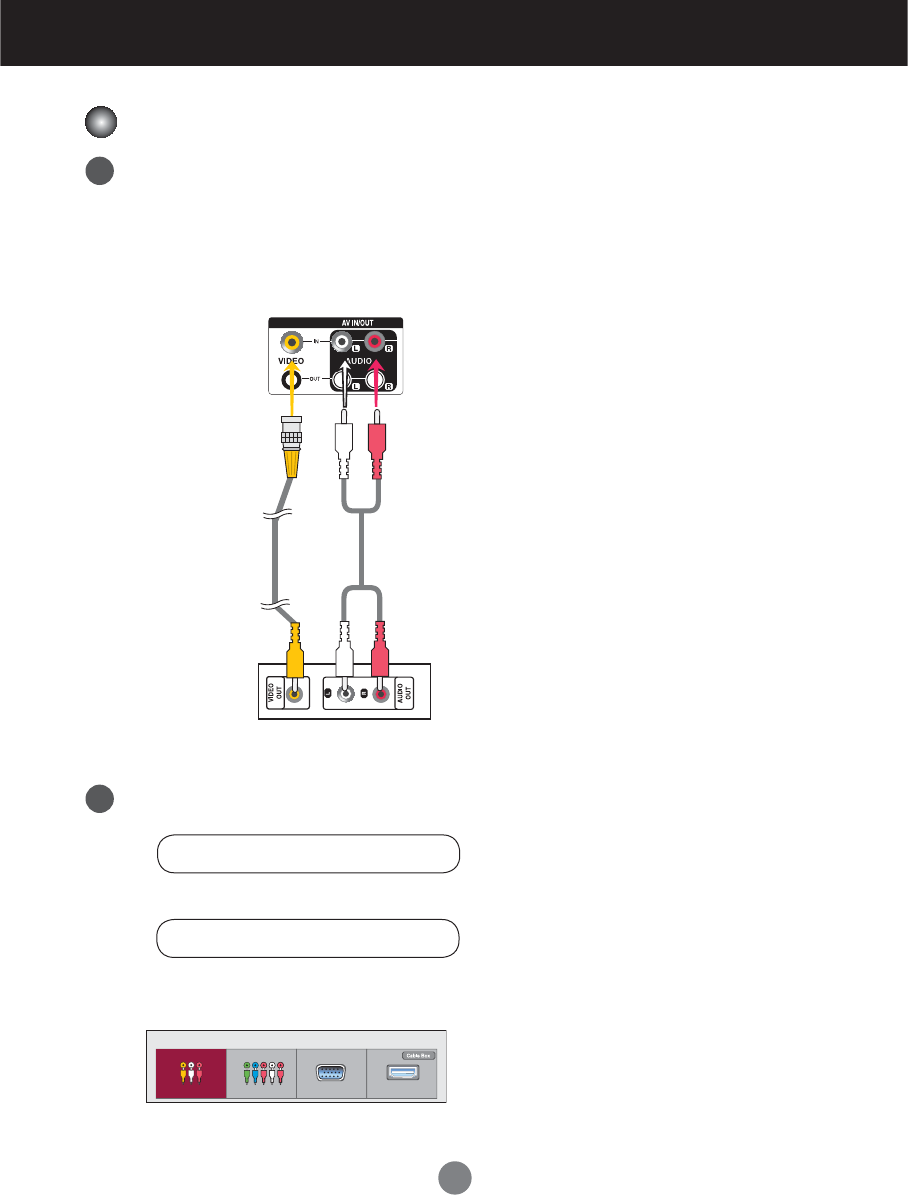

Connecting to External Devices
When connecting with an BNC cable.
AV.
Connect the video cable as shown in the below figure and then connect the
power cord. (See page 10).
When connecting with a BNC cable.
Connect the input terminal with a proper color match.
BNC Cable
(not included)
Product
VCR/DVD Receiver
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the SOURCE button on the back of the product.
Audio Cable
(not included)
Video Input
1
2
Input List
AV Component RGB HDMI/DVI
16
Component.
Connect the video/audio cable as shown in the below figure and then, connect the power
cord (See page 10).
Connect the input terminal with a proper color match.
BNC Cable
(not included)
Product
HDTV Receiver
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the SOURCE button on the back of the product.
Audio Cable
(not included)
Connecting to External Devices
Note
- Some devices may require HDCP in order to display HD signals.
- Component doesn't support HDCP.
Component Input (480i/480p/576i/576p/720p/1080i/1080p)
1
2
Input List
AV Component RGB HDMI/DVI
17
Connect the video/audio cable as shown in the below figure and then connect the power
cord (See page 10).
RCA-PC
Audio Cable
(not included)
Product
VCR/DVD/Set-top Box
HDMI-DVI
Signal Cable
(not included)
VCR/DVD/Set-top Box
Product
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the SOURCE button on the back of the product.
HDMI Signal Cable
(not included)
Connecting to External Devices
When connecting with a HDMI-DVI signal input cable.
When connecting with a HDMI signal input cable.
HDMI/DVI
HDMI Supports High Definition input and HDCP (High-bandwidth Digital Content
Protection). Some devices require HDCP in order to display HD signals.
Note : Dolby Digital is not supported.
HDMI Input (480p/576p/720p/1080i/1080p)
1
2
Input List
AV Component RGB HDMI/DVI
18

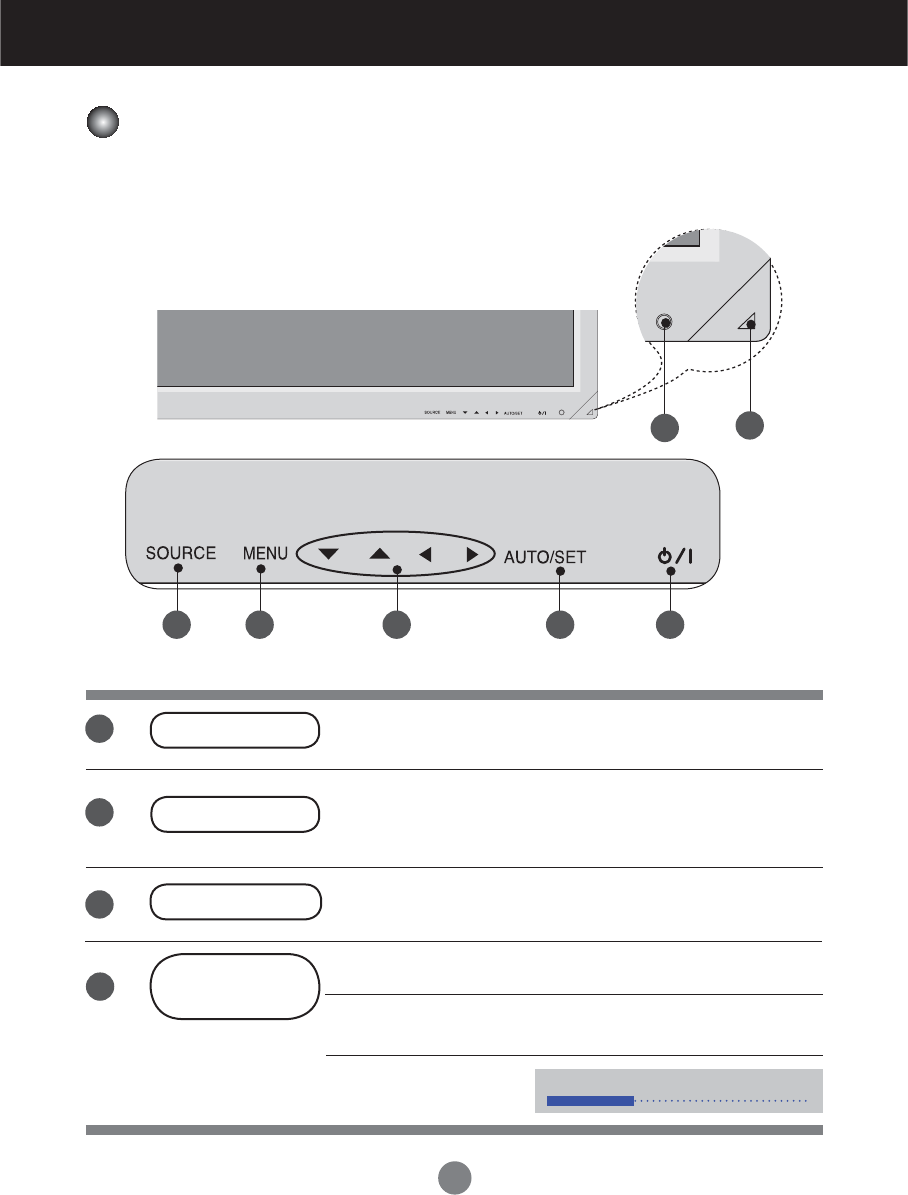

User Menus
Screen Adjustment options
Press this button to turn on the power. Press this button
again to turn it off.
This Indicator lights up green when the display operates
normally(on mode). If the display is in sleep (Energy Saving)
mode, this indicator color changes to amber.
Power Button
Use this button to show/hide the OSD (On Screen Display)
menu screen.
MENU Button
Use
this
button to select an icon or adjust the setting in the OSD
screen.
OSD Select /
Adjust Button
Power Indicator
Volume 35
1
2
3
4
6 3 4 5 1
2
7
19
User Menus
This is where the unit receives signals from the remote control.
Screen Adjustment options
[For PC Analog signal]
AUTO/SET Button
AV Composite Video
Component HDTV, DVD
RGB 15-pin D-Sub analog signal
HDMI/DVI Digital signal
- Toggles between inputs
SOURCE Button
IR Receiver
[When XGA Mode is active and
1920 x 1080 is selected]
Auto in progress
For optimal display change
resolution to 1920 x 1080
Auto in progress
5
7
6
Input List
AV Component RGB HDMI/DVI
20

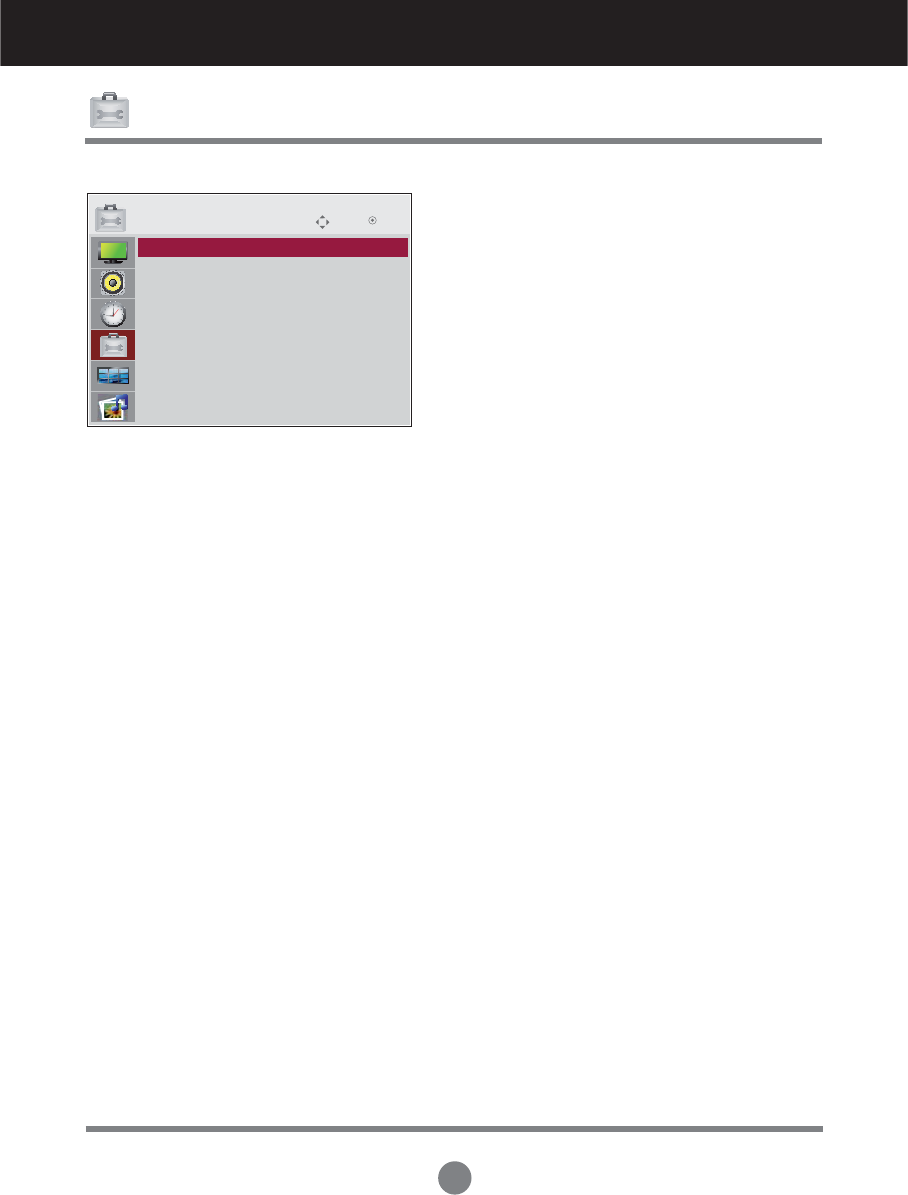

OSD Menu
Note OSD(On Screen Disp lay)
The OSD function enables you to adjust the screen status conveniently since it
provides graphical presentation.
User Menus
Icon Function Description
Adjusts the audio options.
Adjusts screen brightness, contrast and color that you prefer.
Adjusts the screen status according to the circumstances.

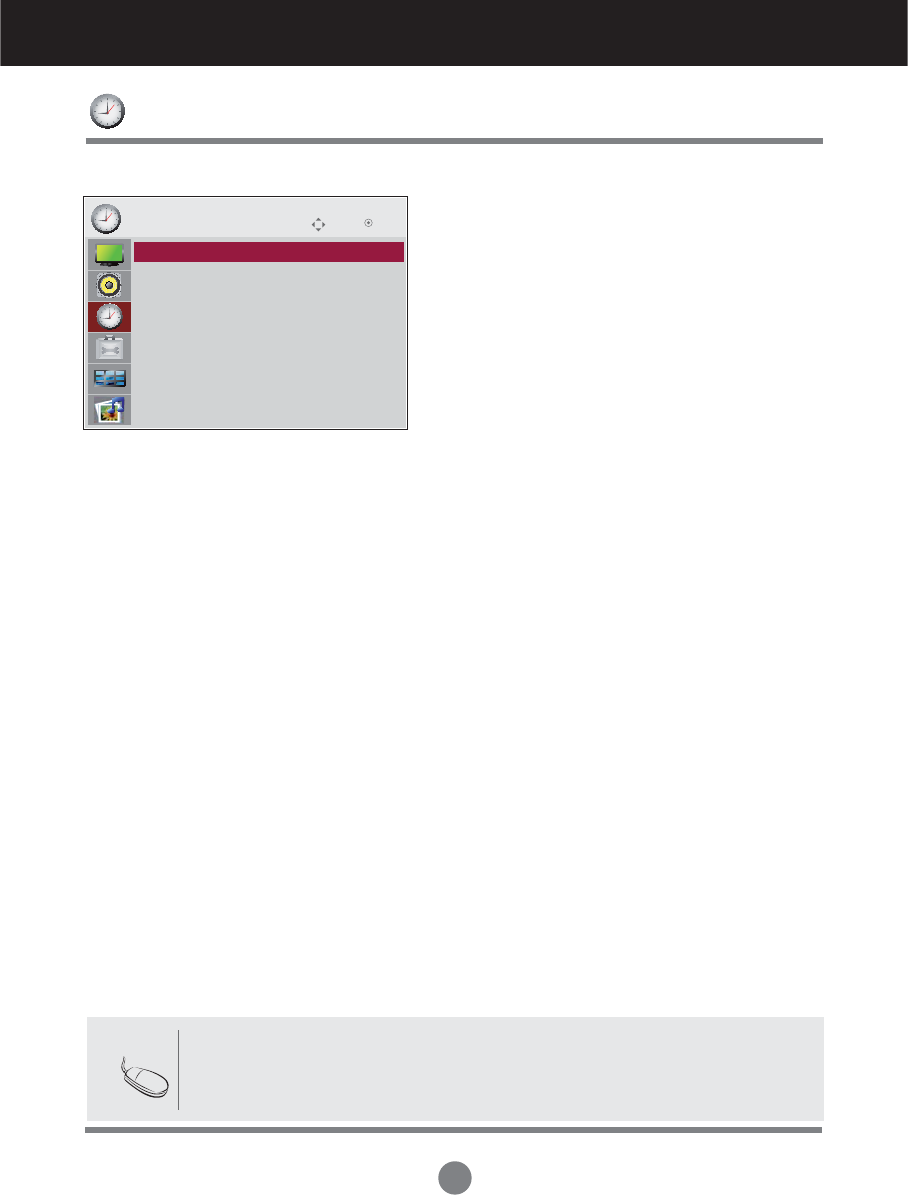

Adjusts the timer options.
Adjusts the tile options.

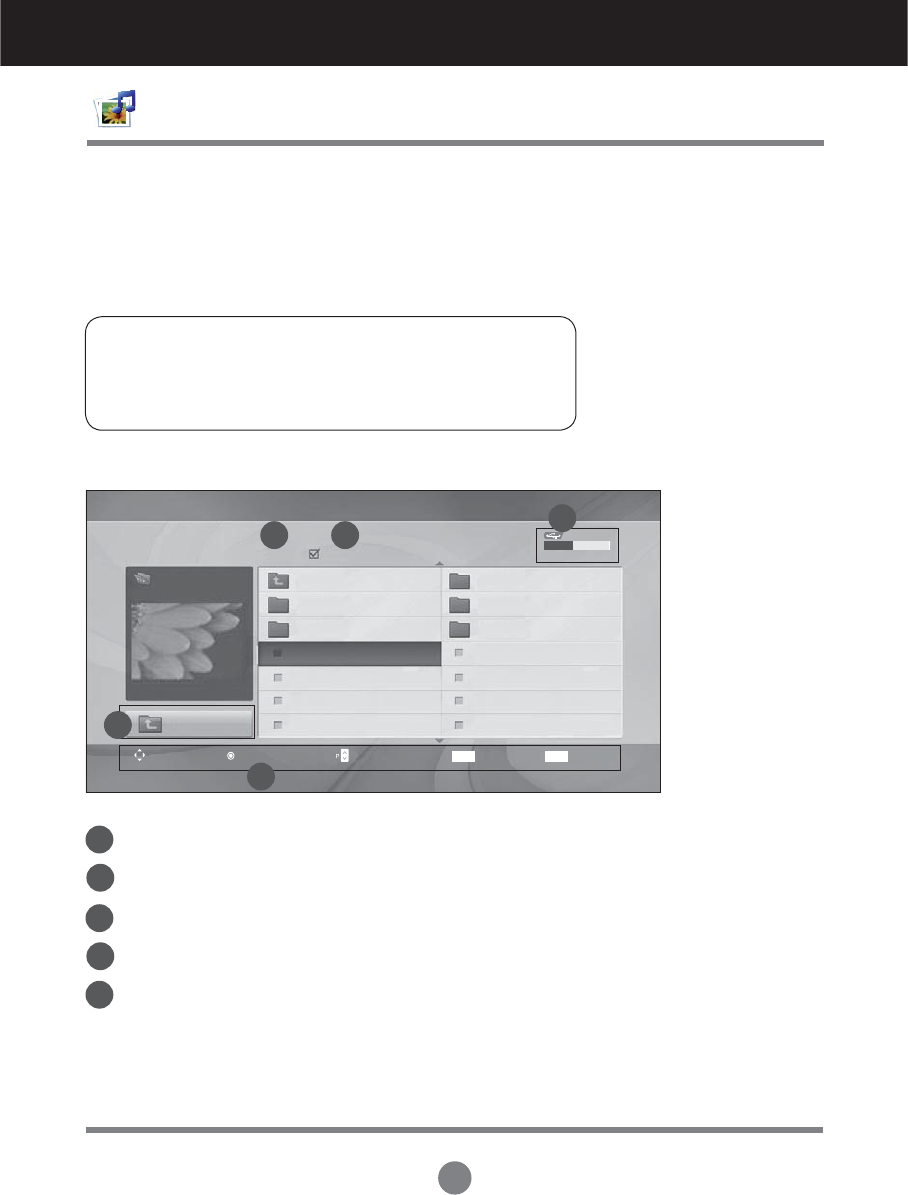

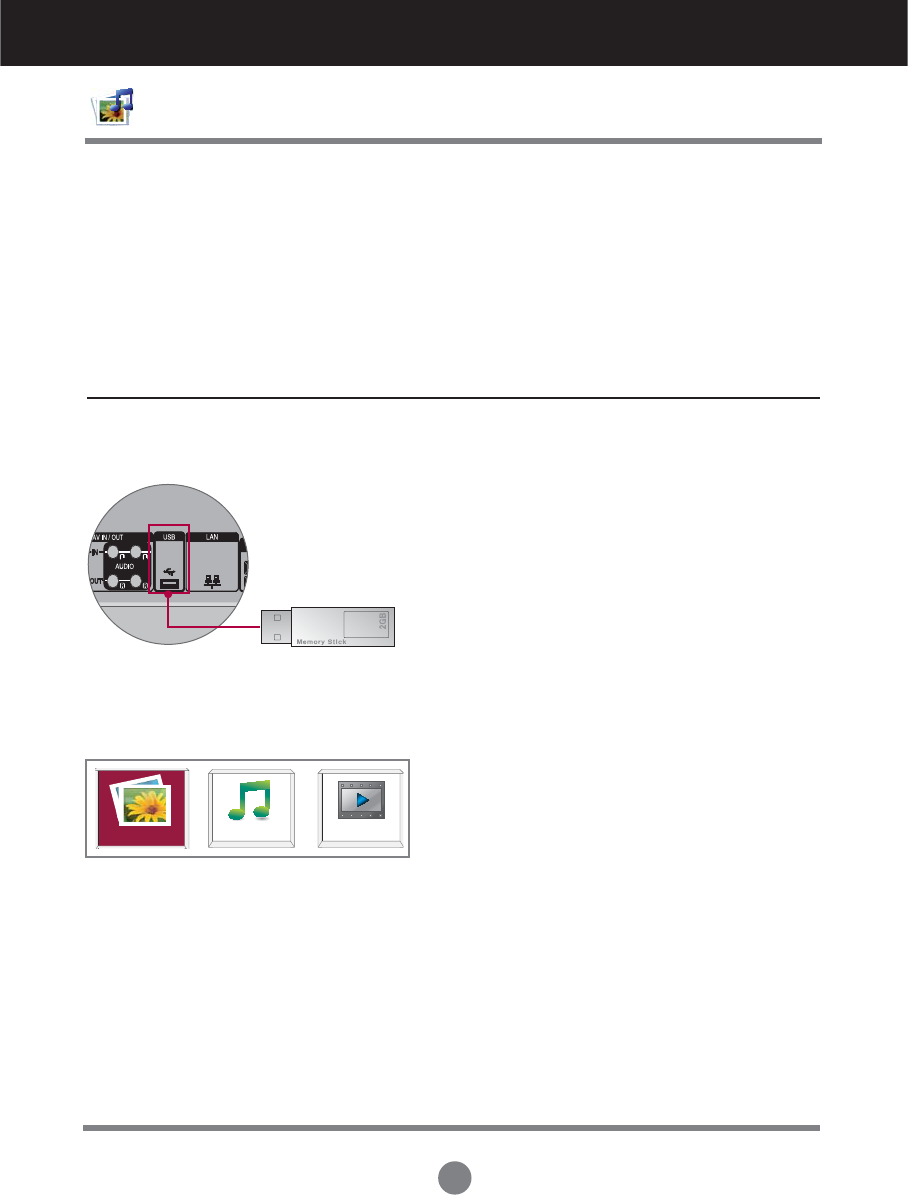

Adjusts the USB options.
Audio
Option
Time
Tile
USB
21
User Menus

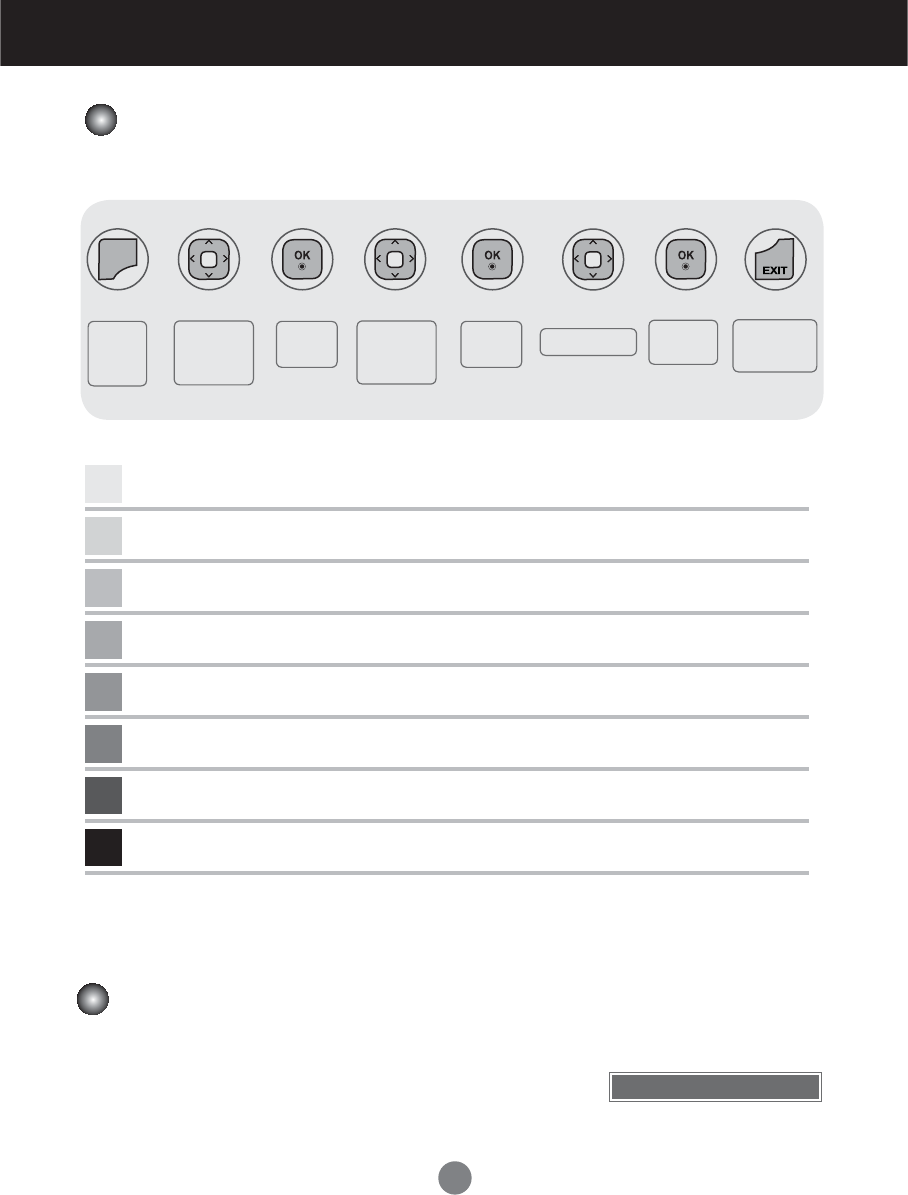

How to adjust the OSD (On Screen Display) screen
Use the remote control to adjust the OSD screen.
How to adjust the screen automatically
Press the AUTO/SET button (AUTO button on a remote Control)
in the PC analog signal. Then optimal screen settings will be
selected that fit into the current mode. If adjustment is not
satisfactory, you can adjust the screen manually.
Pops up
the menu
screen
Move where
you want to
adjust
Move where
you want to
adjust
Select a
menu list
Select a
menu icon Adjust the status Save
adjustment
Exit from the
menu screen.
[When XGA Mode is active and
1920 x 1080 is selected]
Auto in progress
MENU
ܙܙ ܙ ܙ ܙܙܙ
Press the MENU Button, then the main menu of the OSD appears.
When the icon you want becomes highlighted, press the OK Button.
When the list you want becomes highlighted, press the OK Button.
Accept the changes by pressing the OK Button.
Exit the OSD by pressing the EXIT Button.
1
2
3
4
5
6
7
8
22
User Menus

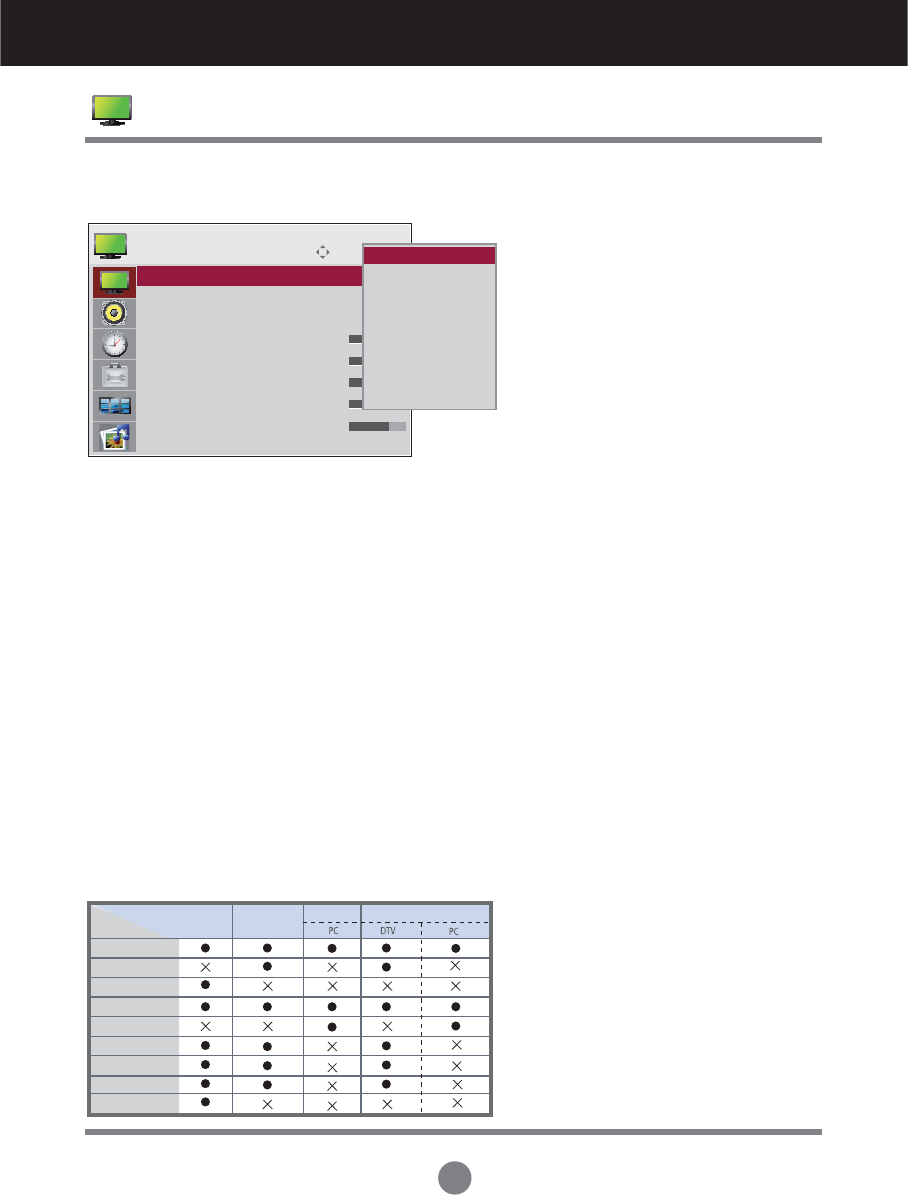

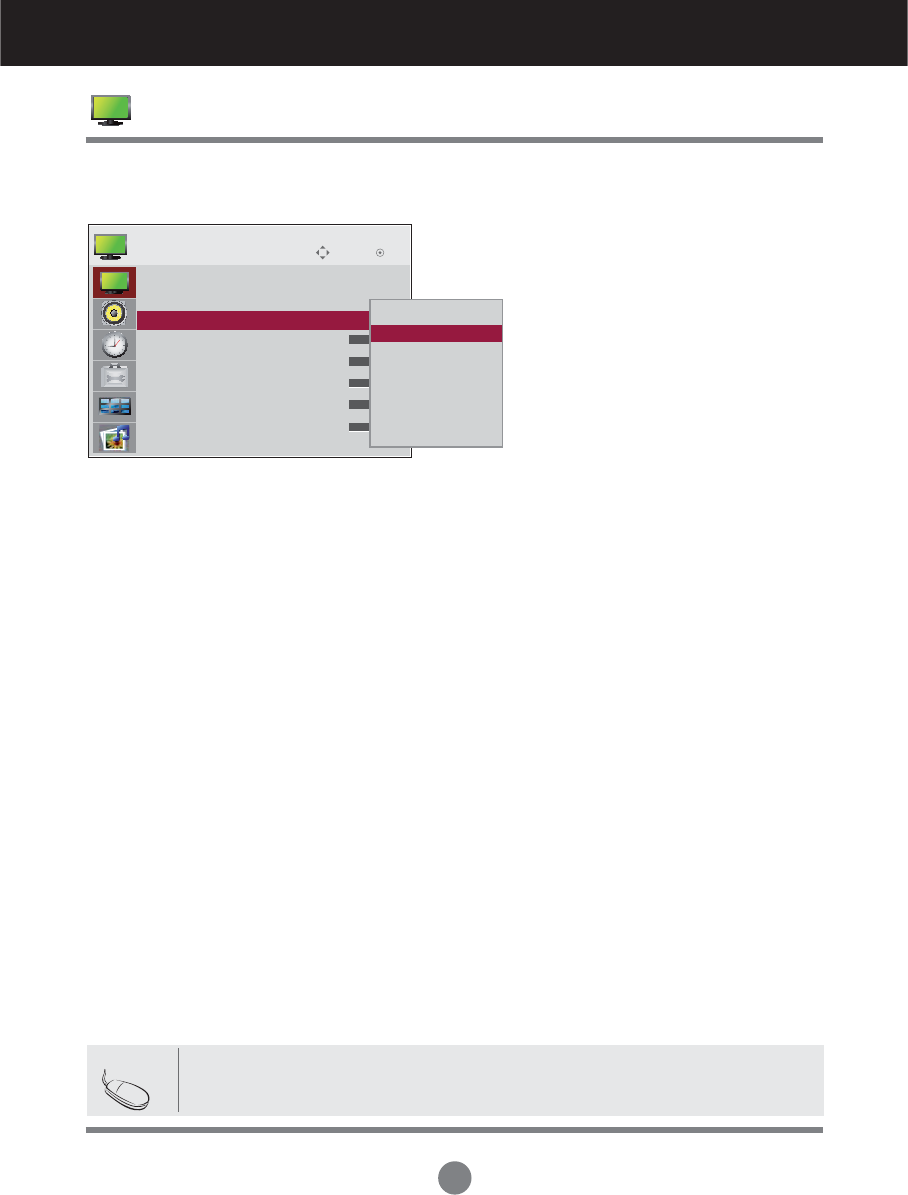

Adjusting Screen Color
Aspect Ratio
Move OK
Aspect Ratio : 16:9
Energy Saving : Off
Picture Mode : Standard
Aspect Ratio : 16:9
16:9
Just scan
Original
4:3
14:9
Zoom
Cinena Zoom 1
Full Wide
16:9
To select the image size of the screen.
16:9 :
Widescreen mode.
Just Scan :
Allows you to enjoy the transmitted data fully without any images cut off.
(* This menu is activated only in 720p and 1080i in Component mode.)
Original :
The aspect ratio is not adjusted from the original. It is set by the program being watched.
4:3 :
This picture format is 4:3 aspect ratio.
1:1 : The aspect ratio is not adjusted from the original. Used in PC mode.
(Only HDMI/ DVI PC, RGB PC)
14:9 :
14:9 programs are viewed normally in 14:9 with black bars added to the top and bottom.
4:3 programs are magnified on the top/bottom and left/right sides.
Zoom :
4:3 programs are magnified until they fill the 16:9 screen. The top and bottom will be cut off.
Cinena Zoom 1 :
Choose Cinema Zoom when you wish the picture to be altered, both horizontally
extended and vertically cropped. The picture adopting a compromise between
alteration and screen coverage.
Full Wide :
When TV receives the wide screen signal,it will lead you to adjust the picture
horizontally or vertically, in a linear proportion,to fill the entire screen fully.
AV HDMI / DVI
RGB
Component
ARC
MODE
16 : 9
Just Scan
Original
4 : 3
1 : 1
14 : 9
Zoom
Cinema Zoom 1
Full Wide
23
Move OK
Aspect Ratio : 16:9
Energy Saving : Off
Picture Mode : Standard
Energy Saving : Off
User Menus
Adjusting Screen Color

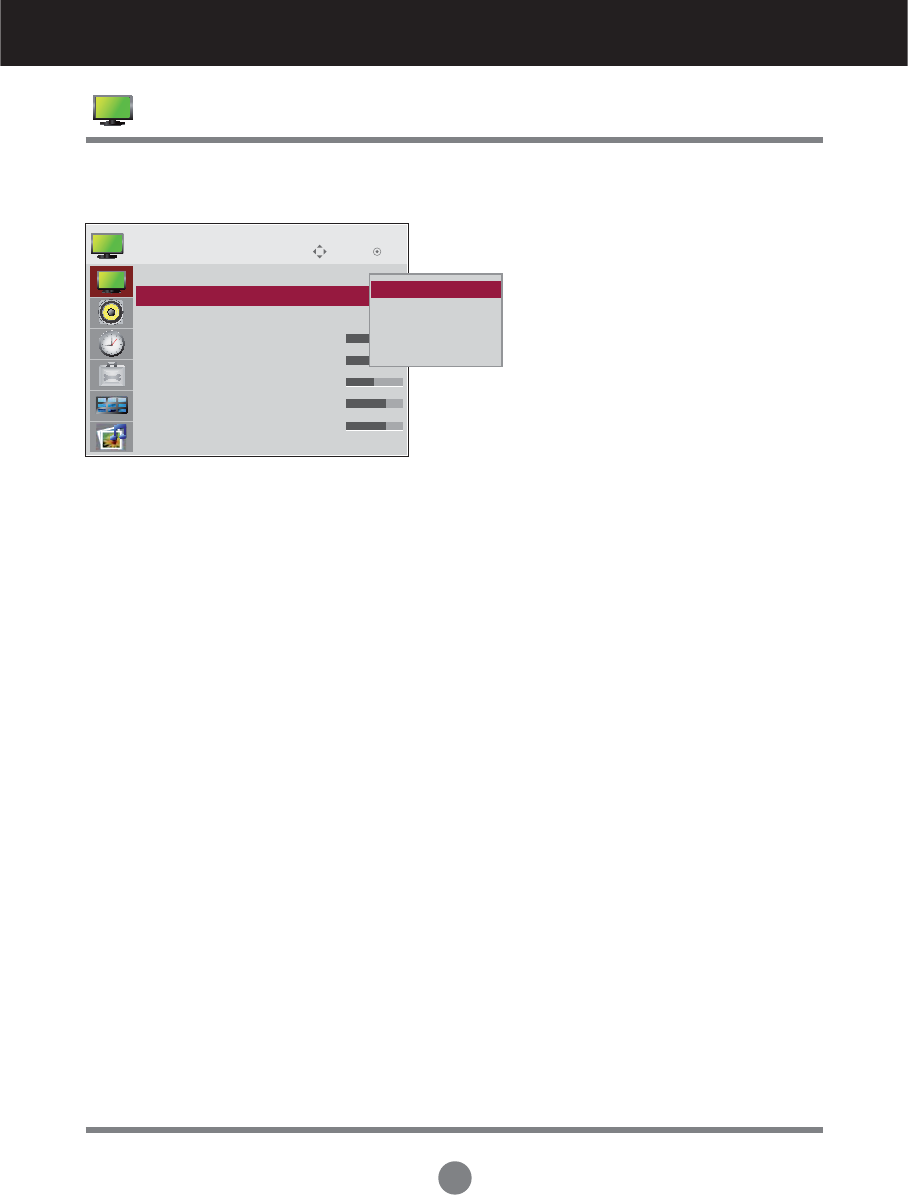

Energy Saving
Off
Level 1
Level 2
Level 3
Off
This screen brightness adjusting menu helps you save energy.
Level : Total 4 screen brightness levels are provided.
- Off: 100% light
- Level 1: 80% light
- Level 2: 60% light
- Level 3: 40% light
24
Adjusting Screen Color
User Menus
Picture Mode
Move OK
Aspect Ratio : 16:9
Energy Saving : Off
Picture Mode : Standard
Picture Mode : Standard
Vivid
Standard
Cinema
Sports
Game
Expert 1
Expert 2
Standard
Toggles between screen presets.
Standard : The most general and natural screen display status.
Vivid : Select this option to display with a sharp image.
Cinema : Select this option to lower brightness by one level.
Sport : Select this option to display with a soft image.
Game : To enjoy dynamic image when playing a game.
Expert1,2 : Select this option to use the user-defined settings.
Note If the 'Picture Mode' setting in the Picture menu is set to Vivid, Standard, Cinema,
Sport or Game the subsequent menus will be automatically set.
25
User Menus
Move OK
Aspect Ratio : 16:9
Energy Saving : Off
Picture Mode : Standard (User)

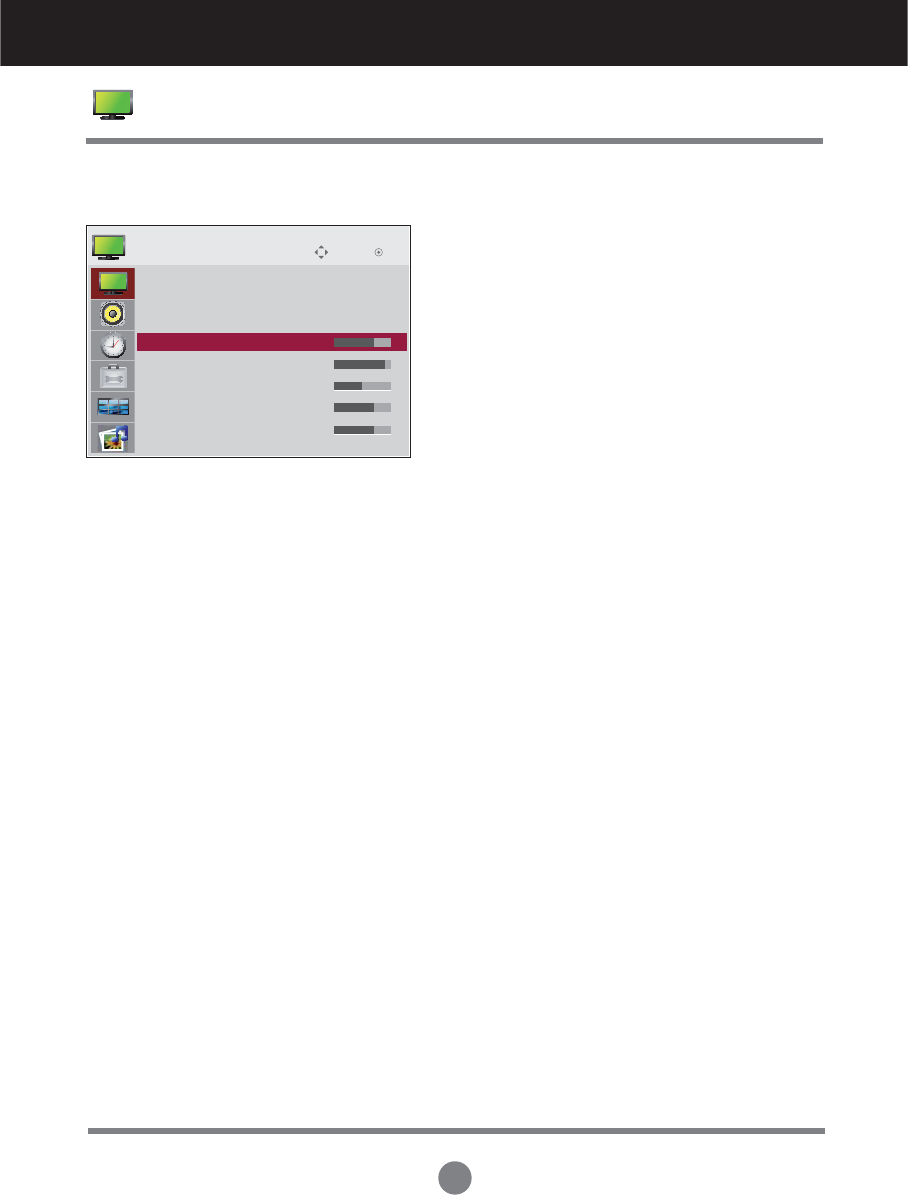

Backlight : To control the brightness of the screen,adjust the brightness of LCD panel.
Contrast : Adjust the difference between the light and dark levels in the picture.
Brightness : To adjust the brightness of the screen.
Sharpness : To adjust the clearness of the screen.
Color : To adjust the color to desired level.
Tint : To adjust the tint to desired level.
Picture Mode
Adjusting Screen Color
26
User Menus
Move OK
Screen
High
Medium
High
Medium
High
Off
Color Temperature
Dynamic Contrast
Dynamic Color
Noise Reduction
Gamma
Black Level
Film Mode
Close
Adjusting Screen Color
Color Temperature : Color Settings
Cool : Slightly purplish white.
Medium : Slightly bluish white.
Warm : Slightly reddish white.
Dynamic Contrast : Optimizes the contrast automatically according to the brightness of the reflection.
Dynamic Color : Adjusts the Color of the reflection automatically to reproduce natural colurs as close as
possible.
Noise Reduction : Removing the noise up to the point where it does not damage the original
picture.
Gamma : Set your own gamma value.
On the monitor, high gamma values display whitish images and low gamma
values display high contrast images.
Black Level : (
Function works in the following mode - AV, Component, HDMI-DTV)
adjusts the
contrast and the brightness of the screen using the black level of the screen.
Low : The reflection of the screen gets darker.
High : The reflection of the screen gets brighter.
Film Mode : (
Function works in the following mode - AV, Component 480i/576i/1080i, HDMI/DTV
480i/576i/1080i) When you watch a movie, this function adjusts the set to the best
picture appearance.
White Balance :
This is the function to adjust the overall colour of the screen to the feeling you want.
( Function works in the following mode - Expert 1, Expert 2 Picture mode)
Color Management System : As the tool used by the experts to make adjustments by
using the test patterns, this does not affect other colours but
can be used to selectively adjust the 6 colour areas (Red/
Green/Blue/Cyan/Magenta/Yellow). Colour difference may not
be distinctive even when you make the adjustments for the
general video.
(Function works in the following mode - Expert 1,
Expert 2 Picture mode)
Advanced Control
27
User Menus
Move OK
Screen
Move OK
Screen
Screen
Adjusting Screen Color
Return Picture Mode to the default factory
settings.
Picture Reset
Screen
Adjust the screen video.
Resolution :
To view a normal picture, match the resolution of RGB mode and selection of PC
mode. This function works in the following mode: RGB[PC] mode.
Auto Config.
(RGB PC input only) : This button is for the automatic adjustment of the screen
position, clock and phase. This function is available for analog signals only.
Position :
Moving the screen position.
Size : Adjust the size of the screen
.
Phase :
To adjust the focus of the display. This item allows you to remove any horizontal noise
and clear or sharpen the image of characters. This function is available for analog signals
only.
Reset : Return
Manual config.
to the default factory settings.
1360 x 768
1024 x 768
Auto Config.
Position
Size
Phase
Reset
Prev.
BACK
Move
SCREEN
31360 x 768
28

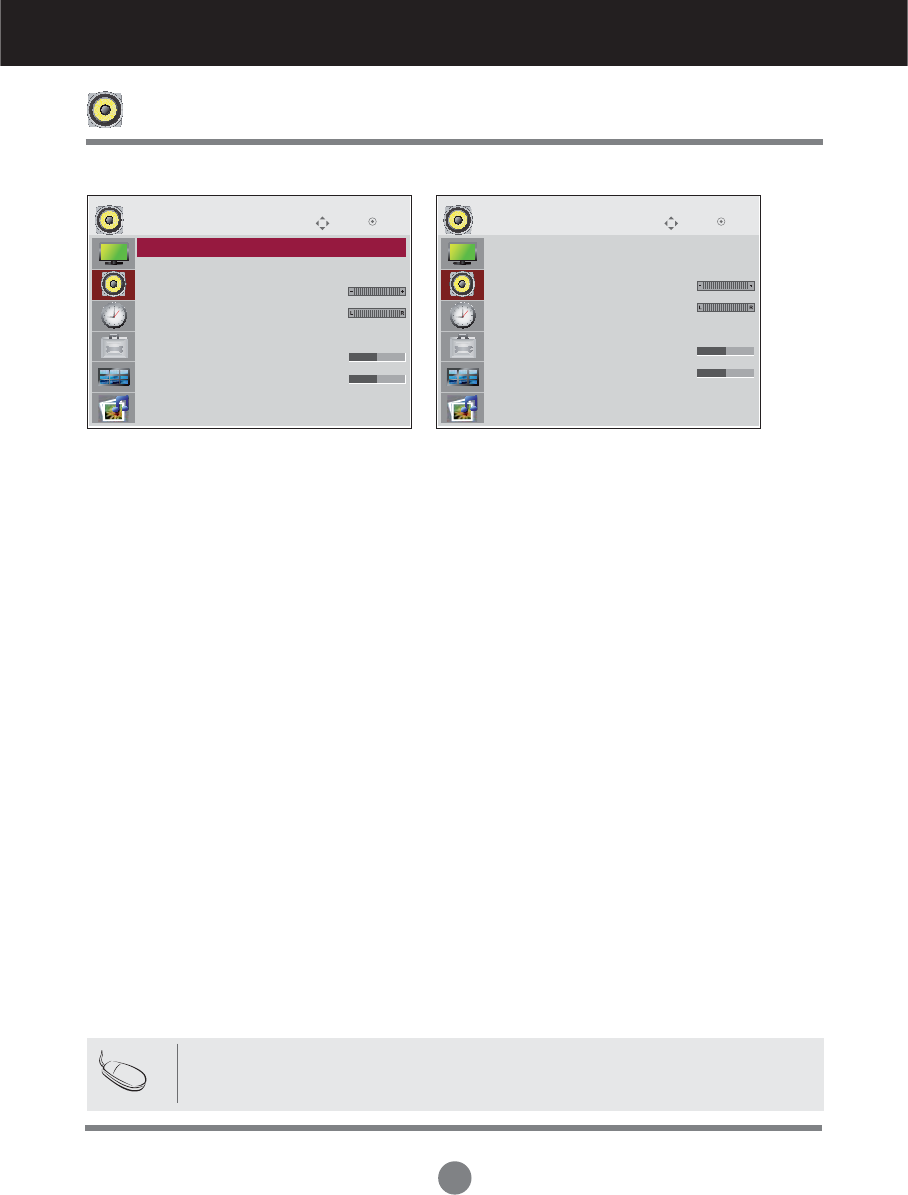

Adjusting the audio function
User Menus
Move
AUDIO
Auto Volume : Off
Clear Voice II : Off
Balance 0
Sound Mode : Standard
OK
Auto Volume : Off
Auto Volume
To adjust uneven sound volumes across all channels or signals automatically to the most
appropriate level. To use this feature, select On.
Clear Voice II
By differentiating the human sound range from others,it helps users listen to human voices better.
Balance
Use this function to balance sound from the left and right speakers.
Sound Mode
The best sound tone quality will be selected automatically depending on the video type that you're
currently watching.
Standard :
The most commanding and natural audio.
Music :
Select this option to enjoy the original sound when listening to the music.
Cinema :
Select this option to enjoy sublime sound.
Sport :
Select this option to watch sports broadcasting.
Game :
To enjoy dynamic sound when playing a game.
Speaker
You can adjust internal speaker status.
If you want to use your external hi-fi stereo system, turn off the internal speakers of the set.
Note When connected to your computer and the 'Sound Mode' setting in the audio menu is
Clear Voice, Standard, Music, Cinema or Sport, the available menus are Balance,
Auto Volume, Speaker.
Move
AUDIO
Clear Voice II : Off
Balance 0
Sound Mode : Standard
Speaker : On
OK
29
Adjusting the timer function
User Menus
Move
TIME OK
Clock
Off Time : Off
On Time : Off
Sleep Timer : Off
Auto Off : On
Power On Delay : Off
Clock
Clock
If the current time is incorrect, reset the clock manually.
1) Press the MENU button and then use
Time menu.
2) Press the
X
button and then use
Clock menu.
3) Press the X button and then use
4) Press the X button and then use
On/Off time
The off time automatically switches the set to standby at the pre-set time.
1) Press the MENU button and then use
Time menu.
2) Press the X button and then use
On/Off Timer
.
3) Press the X button and then use
4) Press the X button and then use
5) Press the X button and then use
On or Off.
6) Press the X button and then use
Select input or On Timer
Sleep timer
The power is automatically turned off when the time set by a user is passed.
1) Press the MENU button and then use
Sleep Timer
menu.
2
) Press the X button and then use
3) Press the X button and then use
Auto off
If Auto off is active and there is no input signal, the set switches to off mode automatically after
10 minutes.
1) Press the MENU
button to select the
Auto
off menu.
2) Press the X button and then use
On or Off.
Power on delay
When connecting multiple monitors and turning the power on, the monitors are turned
on individually to prevent overload.
In the event of power interruption (disconnection or power failure), the clock must be reset.
Once the on or off time is set, these functions operate daily at the preset time.
Off time function overrides On time function if they are set to the same time.
When On time is operated, input screen is turned on as it was turned off.
Note
30
User Menus
Move
OPTION OK
Language : English
Input Label
Key Lock : Off
Set ID : Off
ISM Method : Normal
DPM Select : On
Power Indicator : ON
Ineterface Select : RS232C
Language : English
Language
To choose the language in which the control names are displayed.
Input Label
Selects a label for each input source.
Key Lock
On or Off. The monitor can be set up so that it can only be
used with the remote control. This feature can prevent unauthorized viewing.
In order to lock the OSD screen adjustment, set the
Key Lock
tab to the 'On' position.
In order to unlock it, do the following :
Push the MENU button on the remote control and set
Key Lock
to the 'Off' position.
Set ID
You can assign a unique Set ID NO (name assignment) to each product when several products
are connected for display. Specify the number (0 to 99) using the button and exit. Use the
assigned Set ID to individually control each product using the Product Control Program.
ISM Method
Leaving a fixed image on the screen for a long time may cause damage to the screen and cause
image burn-in. To use the product for a long period of time, use a screen saver on the PC or utilize the
residual image prevention function on the product, and when the product is not used, turn off the
power. Burn-in and related problems are not covered by the warranty on this product.
Normal :
Leave on normal if you don't foresee image burn in being a problem.
Orbiter : May help prevent ghost images. However, it is best not to allow any fixed image to remain
on the screen. To avoid a permanent image on the screen, the screen will move every 2
minutes.
Inversion : This function inverts the panel color of the screen. The panel color is automatically
inverted every 30 minutes.
White wash :
White wash fills the screen with solid white. This helps removes permanent
images burned into the screen. A permanent image may be impossible to clear
entirely with white wash.
Selecting the options
31
User Menus
DPM Select
A user can choose to turn the power saving mode on / off.
Power Indicator
Use this function to set the power indicator on the front side of the product to On or Off. If you set Off, i
will go Off. If you set On at any time, the power indicator will automatically be turned on.
Ineterface Select
Sets up network connections.
- Network : LAN - Enables communication via Ethernet.
- RS-232C : Enables communication via Serial.
Network Setup
- DHCP : Allocates and sets up IP automatically.
- Manual : Sets up IP address, Gateway, Subnet Mask, Primary DNS and Secondary DNS.
The setup process is complete when you select Execute, and "IP Setup
Completed" is displayed at the bottom of the screen. While "Wait for IP Setup"
is displayed, you cannot use the local keys and remote control. "Wait for IP
Setup" is displayed for up to 40 seconds.
*If Network Select is set to Serial, DHCP and Manual are disabled.
Information
You can find informations about Serial No, F/W version, IP Address and MAC Address.
Factory Reset
Select this option to return to the default factory settings.
Move
OPTION OK
ISM Method : Normal
DPM Select : On
Power Indicator : ON
Ineterface Select : RS232C
Network Setup
Information
Factory Reset
DPM Select : On
Selecting the options
32
Tile mode and choose Tile alignment and set the ID of the current product to set location.
Only after pressing the SET button the adjustments made to the settings will be saved.
- Must be displayed with various other
products.
- Must be in a function that can be connected
to RS-232C or RGB Out.
-
It is used to enlarge the screen and also used
with several products to view screen.
Tile Mode
-
Tile mode : column x row ( c = 1, 2, 3, 4,5 r = 1, 2, 3, 4, 5)
- 5 x 5 available.
- Configuration of an integration screen is also available as well as configuration of One by one Display.
-
Tile mode (product 1 ~ 4) : c(2) x r(2)
Adjusts the tile options.
User Menus
ID1 ID
ID ID4
column
row
3
2
Move
TILE OK
Tile Mode : Off
Tile ID : 0
Natural Mode : Off
H Size : 0
V Size : 0
H Position : 0
V Position : 0
Reset
Tile Mode : 2x2
33
-

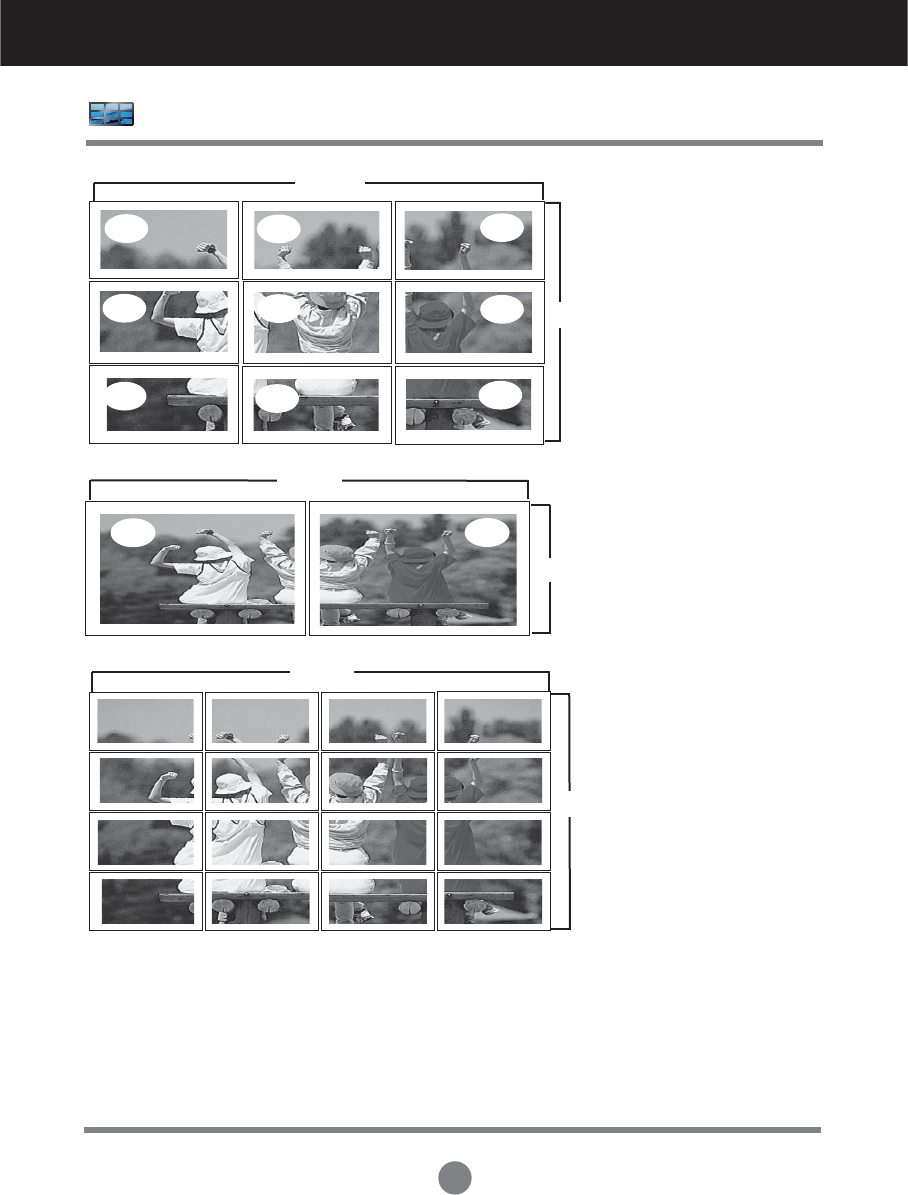

Tile mode (product 1 ~ 2) : c(2) x r(1)
-
Tile mode (product 1 ~ 9) : c(3) x r(3)
-
Tile mode (product 1 ~16) : c(4) x r(4)
row
column
ID 1
ID 5
ID 9
ID 13
ID 2
ID 6
ID10
ID 14
ID 3
ID 7
ID 11
ID 15
ID 4
ID 8
ID 12
ID 16
User Menus
row
column
ID1 ID2
ID4 ID5 ID6
ID7 ID8 ID9
ID 3
ID1
column
row
ID2
Tile ID : Select the location of the Tile by setting an ID.
Natural : The image is omitted by the distance between the screens to be naturally shown.
H-Size : Adjust the horizontal size of the screen taking into account the size of the bezel.
V-Size : Adjust the vertical size of the screen taking into account the size of the bezel.
H-Position :
Moving the screen position horizontally.
V-Position :
Moving the screen position vertically.
Reset : Function to initialize and release Tile.
All Tile setting are released when selecting Tile recall and the screen returns to Full screen.
Adjusts the tile options.
34
User Menus
Adjusts the USB options.

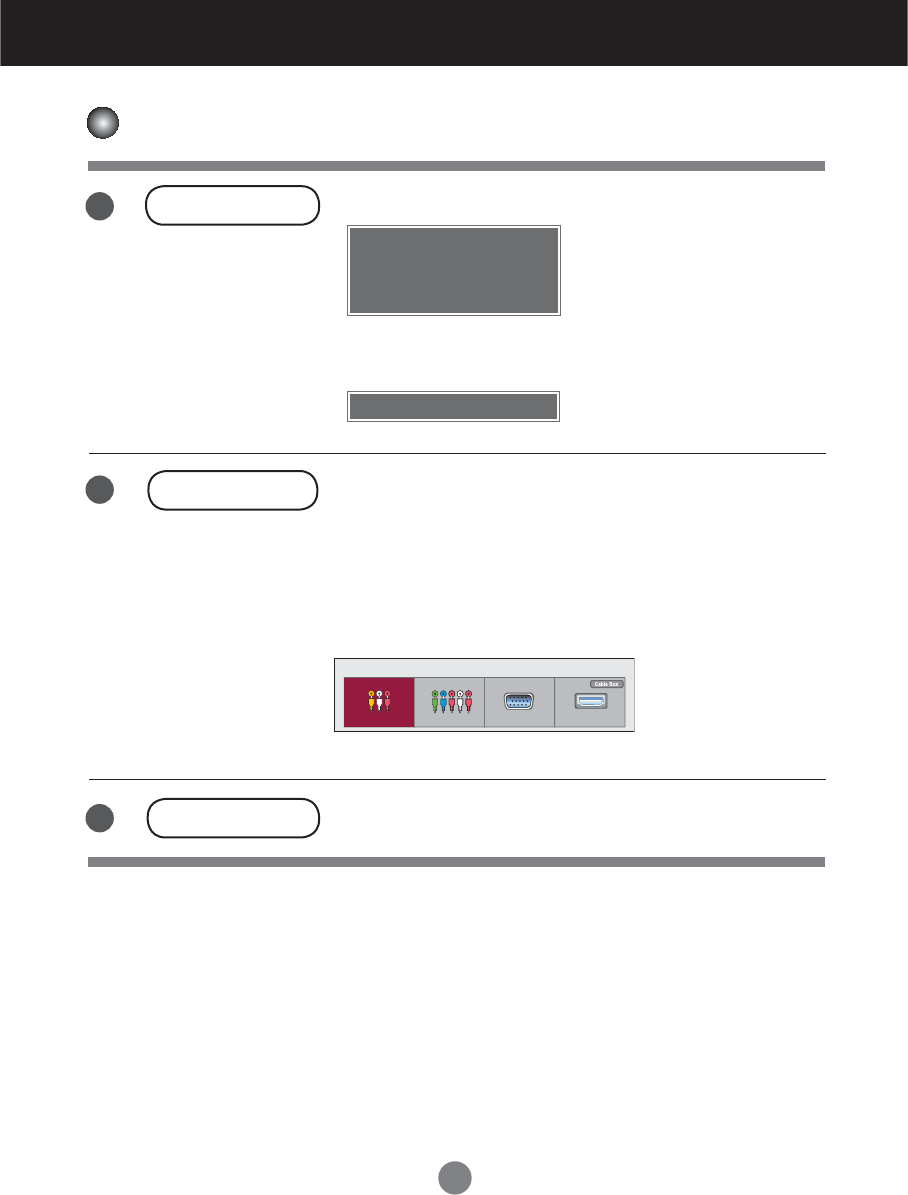

When connecting the USB device
When you connect a USB device, this pop up menu is displayed, automatically.
“POP UP MENU” will not be displayed while the OSD including Menu, EPG or Schedule list
is activated.
When the Pop Up menu appears, you can select Music List, Photo List or Movie List in the
MY MEDIA menu.
In USB device, you can not add a new folder or delete the existing folder.
Select PHOTO LIST, MUSIC LIST or MOVIE LIST.
Connect the USB device to the USB jack on the TV.
PHOTO LIST MUSIC LIST MOVIE LIST
2.
1.
35
User Menus
Adjusts the USB options.
Precautions when using the USB device
Only a USB storage device is recognizable.
If the USB storage device is connected through a USB hub, the device is not recognizable.
A USB storage device using an automatic recognition programme may not be recognized.
A USB storage device which uses its own driver may not be recognized.
The recognition speed of a USB storage device may depend on each device.
Please do not turn off the TV or unplug the USB device when the connected USB storage device
is working. When such device is suddenly separated or unplugged, the stored files or the USB
storage device may be damaged.
Please do not connect the USB storage device which was artificially maneuvered on the PC. The
device may cause the product to malfunction or fail to be played. Never forget to use only a USB
storage device which has normal music files or image files.
Please use only a USB storage device which was formatted as a FAT16, FAT32, NTFS file system
provided with the Windows operating system. In case of a storage device formatted as a different
utility programme which is not supported by Windows, it may not be recognized. Data in a USB
storage device cannot be deleted in the NTFS file system.
Please connect power to a USB storage device which requires an external power supply. If not,
the device may not be recognized.
Please connect a USB storage device with cable is offered by USB maker. If connected with cable
is not offered by USB maker or an excessively long cable, the device may not be recognized.
Some USB storage devices may not be supported or operated smoothly.
Maximum of 999 files and folders can be recognized.
Data in a USB storage device cannot be aligned. Up to 128 English characters can be recognized
as a file name.
Please back up the important file because a data of USB device may be damaged. Data manage-
ment is consumer's responsibility and in consequence the manufactures does not cover the prod-
uct bearing data damage.
If the USB is connected in Standby Mode, specific hard disk will automatically be loaded when the
TV is turned on.
The recommended capacity is 1TB or less for a USB external hard disk and 32GB or less for USB
memory.
Any device with more than the recommended capacity may not work properly.
If a USB external hard disk with a “Power Saving” function does not work, turn the hard disk off
and on again to MAKE IT WORK PROPERLY.
36
User Menus
Adjusts the USB options.

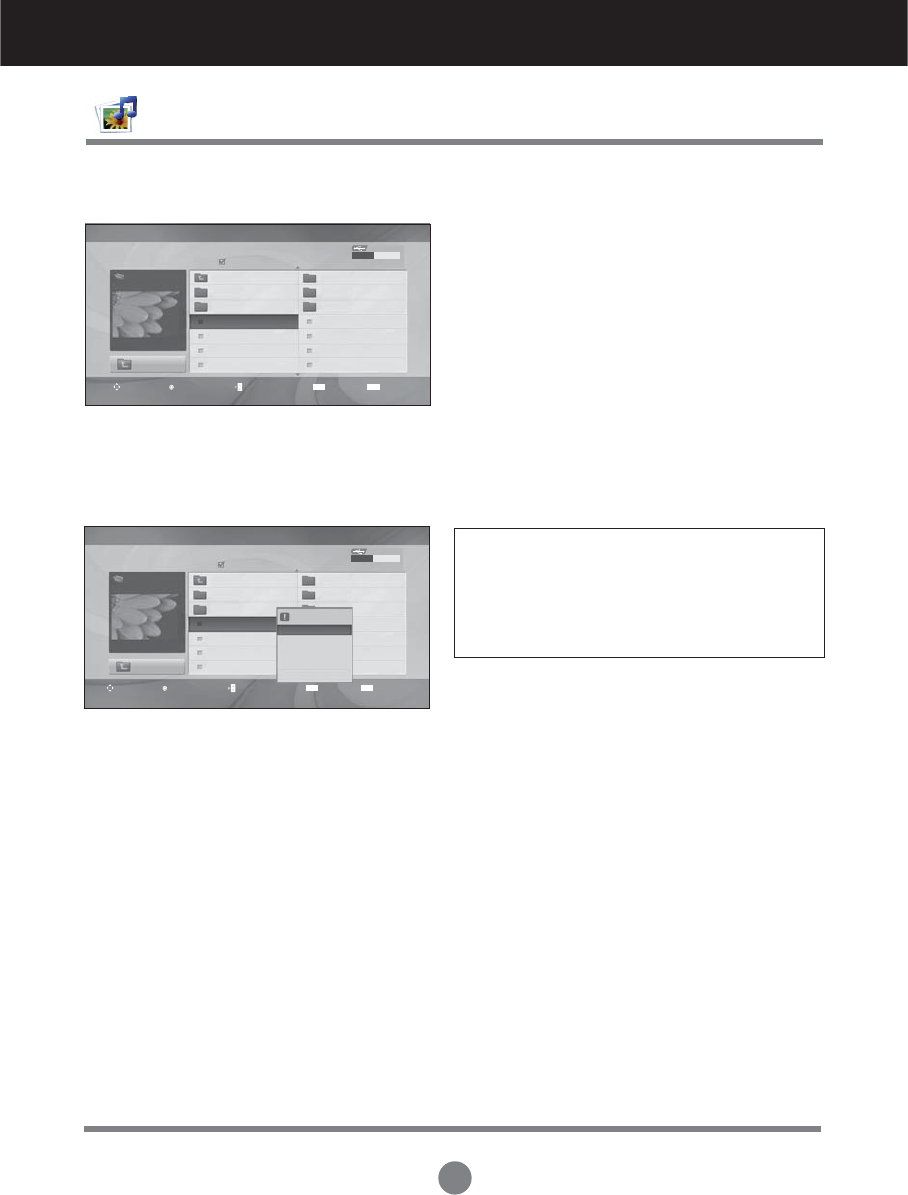

You can view photo files on USB storage device.
The On Screen Display may be different from your TV. Images are an example to assist with the TV
operation.
PHOTO(*.JPEG) supporting file
Baseline: 15360 x 8640
Progressive : 1024 x 768
Photo List
Photo List Page 2/3
Drive1
JMJ001
1366x768, 125KB
Up Folder
Up Folder
KY101 02/12/2010
KY102 02/12/2010
JMJ001 02/12/2010
JMJ002 02/12/2010
JMJ003 02/12/2010
JMJ004 02/12/2010
KY103 02/12/2010
KY104 02/12/2010
KY105 02/12/2010
JMJ005 02/12/2010
JMJ006 02/12/2010
JMJ007 02/12/2010
JMJ008 02/12/2010
No Marked
Option Mark
Navigation Page Change Exit
MARK EXIT
USB Device
Free Space 150 MB

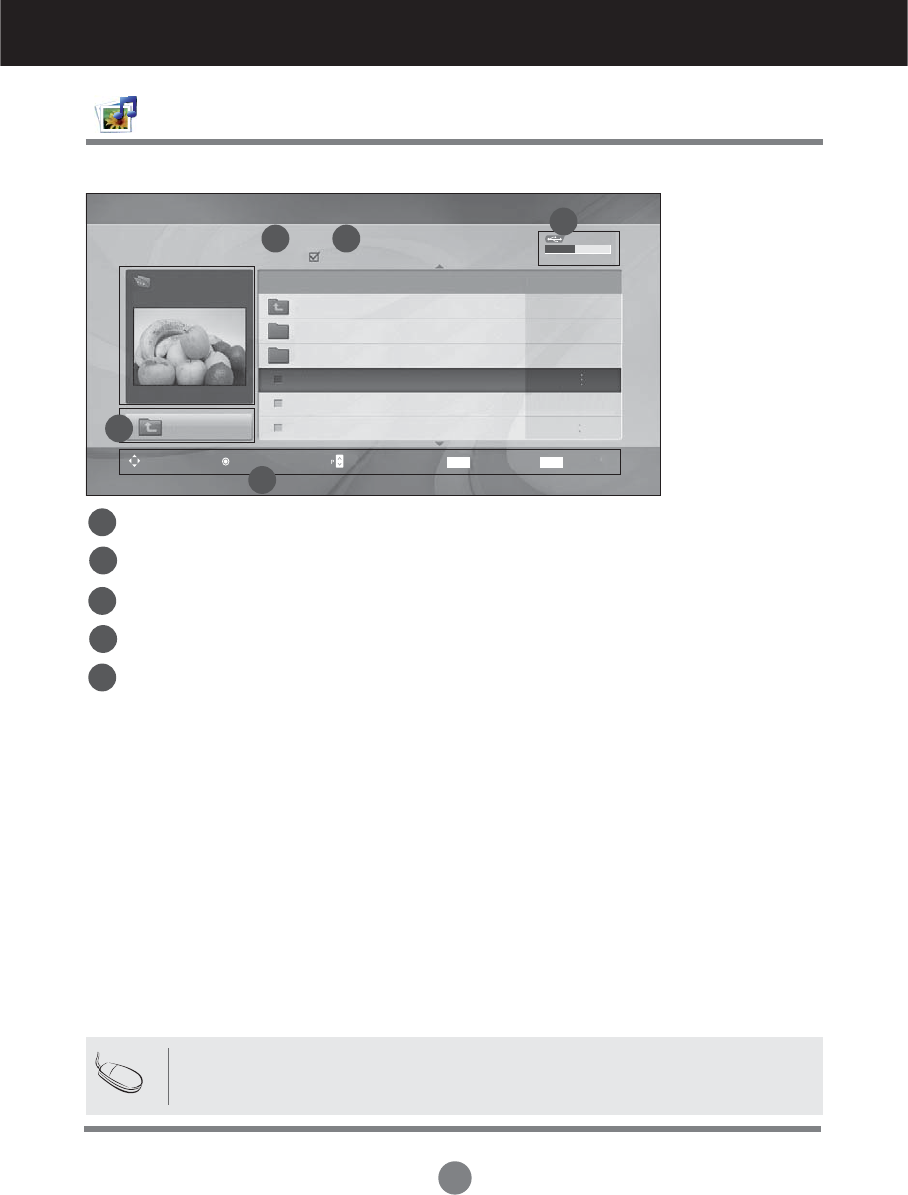

Screen Components
1
5
2 3 4
Moves to upper level folder
Current page / Total pages
Total number of marked photos
Usable USB memory
Corresponding buttons on the remote control
1
2
4
3
5
37
Photo List Page 2/3
Drive1
JMJ001
1366x768, 125KB
Up Folder
Up Folder
KY101 02/12/2010
KY102 02/12/2010
JMJ001 02/12/2010
JMJ002 02/12/2010
JMJ003 02/12/2010
JMJ004 02/12/2010
KY103 02/12/2010
KY104 02/12/2010
KY105 02/12/2010
JMJ005 02/12/2010
JMJ006 02/12/2010
JMJ007 02/12/2010
JMJ008 02/12/2010
No Marked
USB Device
Free Space 150 MB
1366x768, 125KB
View
Mark All
Delete
Close
User Menus
Adjusts the USB options.

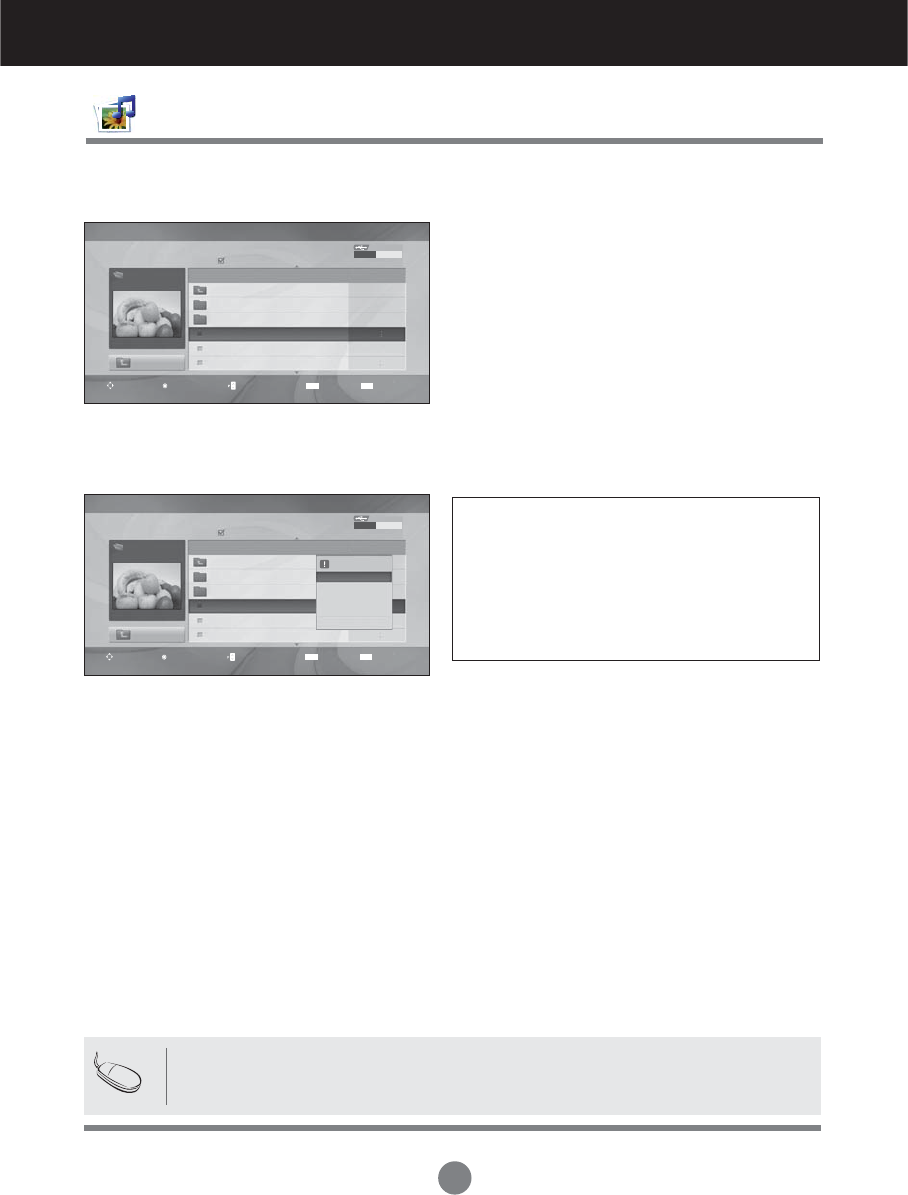

Photo Selection and PopUp Menu
ܙ
Photo List Page 2/3
Drive1
JMJ001
1366x768, 125KB
Up Folder
Up Folder
KY101 02/12/2010
KY102 02/12/2010
JMJ001 02/12/2010
JMJ002 02/12/2010
JMJ003 02/12/2010
JMJ004 02/12/2010
KY103 02/12/2010
KY104 02/12/2010
KY105 02/12/2010
JMJ005 02/12/2010
JMJ006 02/12/2010
JMJ007 02/12/2010
JMJ008 02/12/2010
No Marked
USB Device
Free Space 150 MB
Option Mark
Navigation Page Change Exit
MARK EXIT
Option Mark
Navigation Page Change Exit
MARK EXIT
View : Display the selected item.
Mark All : Mark all photos on the screen.
Unmark All : Deselect all marked photos.
Delete : Delete the selected photo item.
Close : Close the pop-up menu.
38
User Menus
Adjusts the USB options.
Delete Option Hide
How to view photo
Detailed operations are available on full-sized photo view screen.
The aspect ratio of a photo may change the
size of the photo displayed on the screen in
full size. Press the EXIT button to move to
the previous menu screen.
Slideshow
When no picture is selected, all photos in the current folder are displayed during slide show. If some
photos are selected, those photos are displayed in a slide show.
Set the time interval of the slide show in Option.
BGM (Background Music)
Listen to music while viewing photos in full size.
Set the Music Folder for BGM in Options before using this function.
(Rotate)
Rotate photos. Rotates the photo 90°, 180°, 270°, 360° clockwise.
Delete
Delete photos.
Option
Set values for Sl ide Speed and Music Folder for BGM.
Use < > button and OK button to set values. Press OK to save the settings.
You cannot change Music Folder while BGM is playing.
Hide
Hide the menu on the full-sized screen. To see the menu again on the full-sized screen, press OK
button to display.
39
User Menus

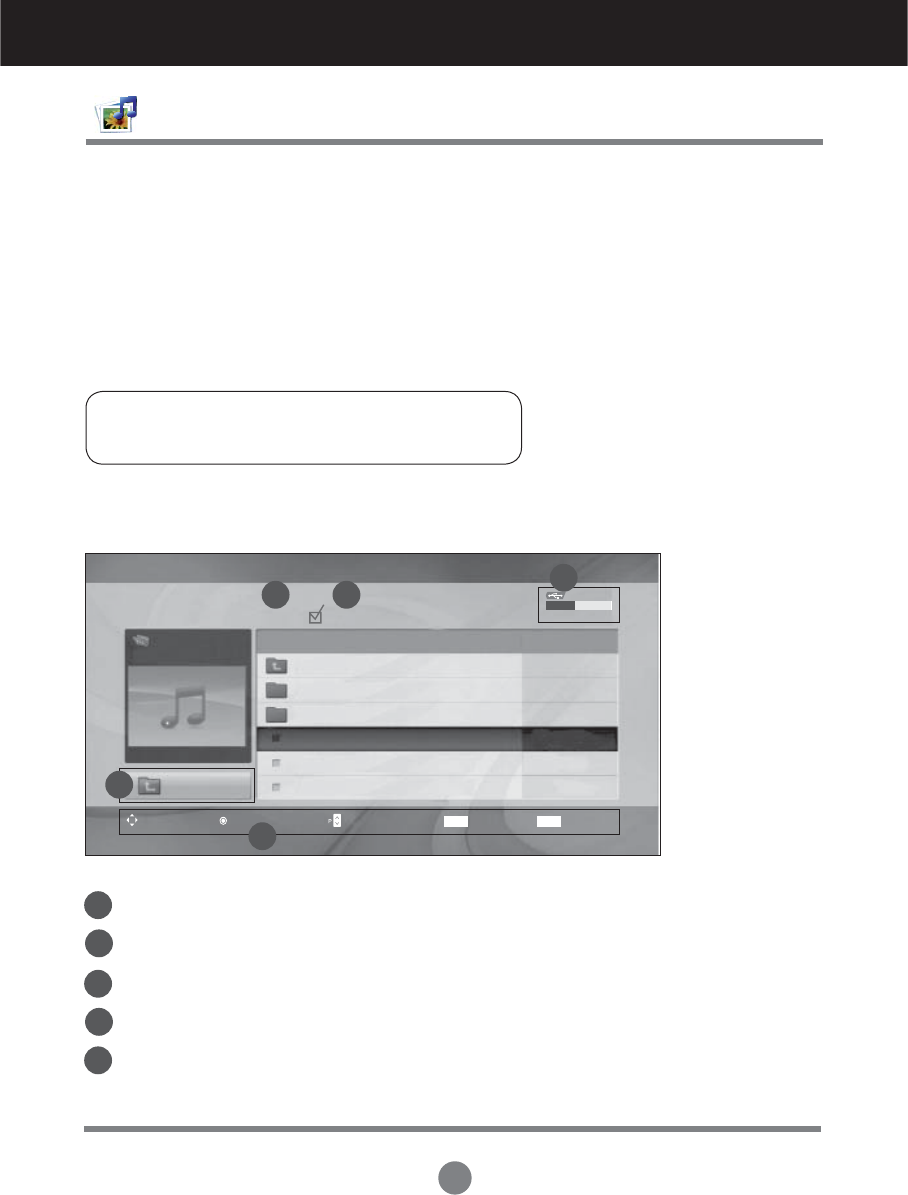

You can play music files on USB storage device.
Purchased music files(*.MP3) may contain copyright restrictions. Playback of these files may
not be supported by this model. Music file on your USB device can be played by this unit.
The On Screen Display may be different from your TV. Images are an example to assist with
the TV operation.
MUSIC (*.MP3) supporting file
Bit rate 32 to 320kbps
Adjusts the USB options.
Music List
Music List Page 2/3

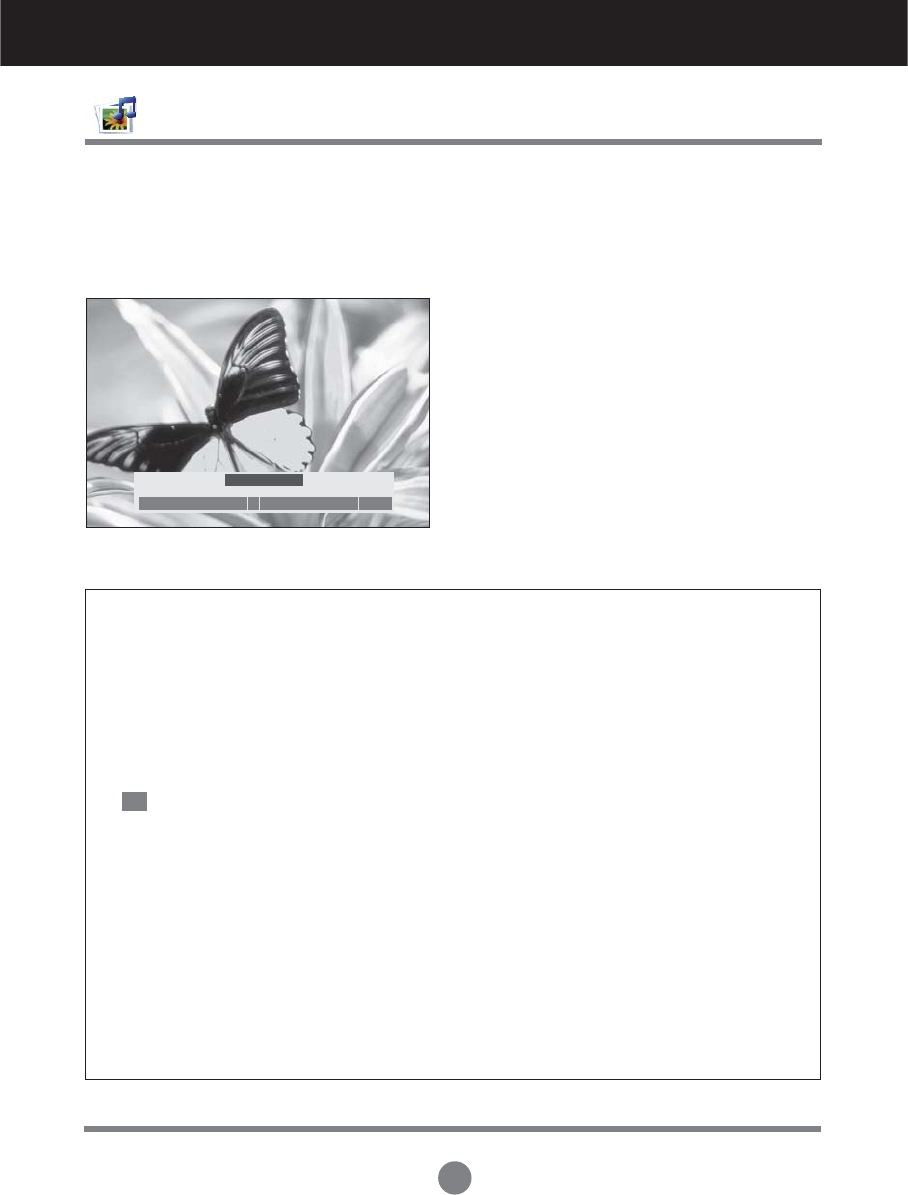

Music
S003
00:00/01:34
Up Folder
Title Duration
Up Folder
S001
S002
S003
S004
S005
Up Folder
03:33
04:45
01:30
02:37
01:58
No Marked
USB Device
Free Space 150 MB
Screen Components
1
5
2 3 4
Moves to upper level folder
Current page / Total pages
Total number of marked music title
Usable USB memory
Corresponding buttons on the remote control
1
2
4
3
5
Option Mark
Navigation Page Change Exit
MARK EXIT
40

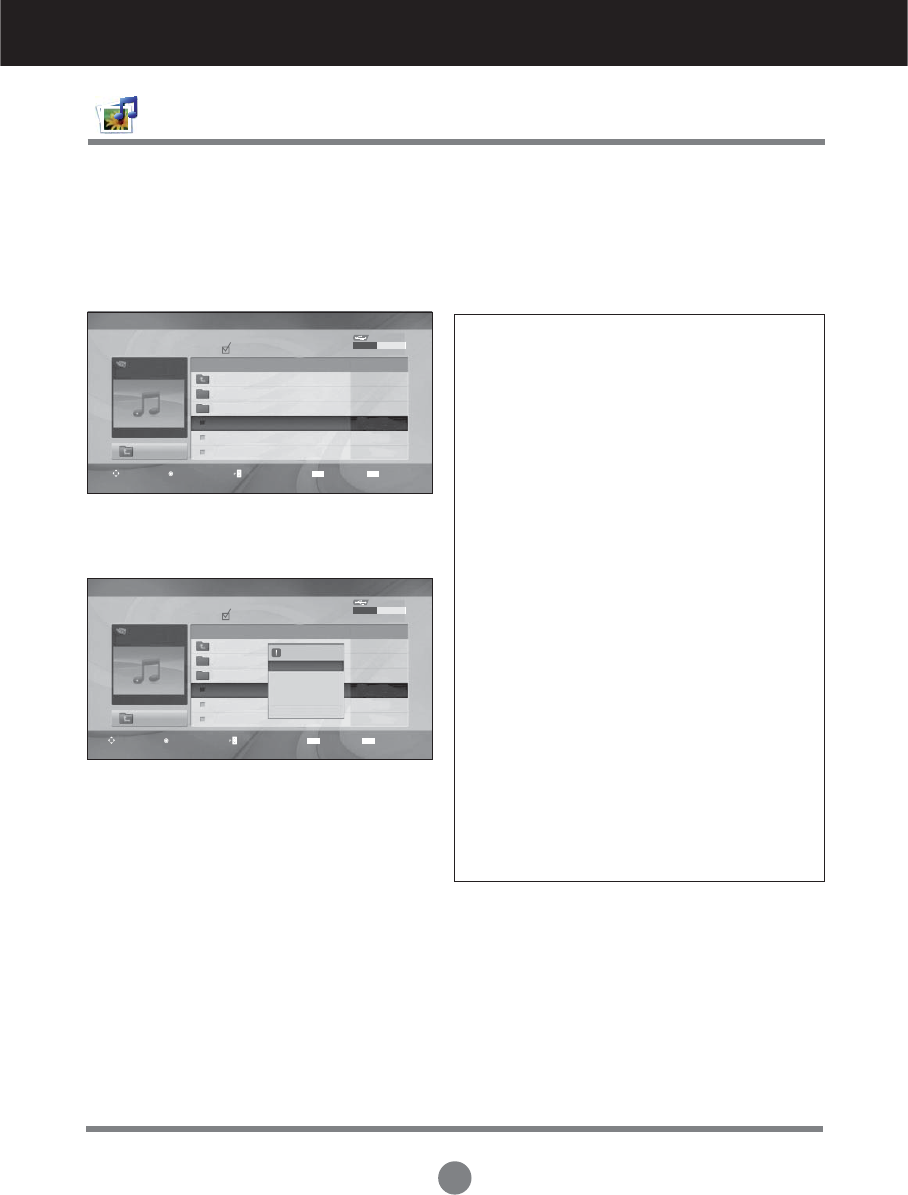

Music Selection and PopUp Menu
ܙ
As shown, up to 6 music titles are listed per page.
User Menus
Adjusts the USB options.
Music List Page 2/3
Music
S003
00:00/01:34
Up Folder
Title Duration
Up Folder
S001
S002
S003
S004
S005
Up Folder
03:33
04:45
01:30
02:37
01:58
No Marked
Music List Page 2/3
Music
S003
00:00/01:34
Up Folder
Title Duration
Up Folder
S001
S002
S003
S004
S005
Up Folder
03:33
04:45
01:30
02:37
01:58
No Marked
4395KB 1Kbps
Play
Play with Photo
Mark All
Delete
Close
USB Device
Free Space 150 MB
USB Device
Free Space 150 MB
Option Mark
Navigation Page Change Exit
MARK EXIT
Option Mark
Navigation Page Change Exit
MARK EXIT
Play (During stop) : Play the selected
music titles.
One playback of a piece of music finishes,
the next selected one will be played. When
there are no selected music titles to play,
the next one in the current folder will be
played. If you go to a different folder and
press the OK button, the current music in
playback will stop.
Play Marked: Play the selected music
titles. Once a music finishes playing, the
next selected one will be played
automatically.
Stop Play (During playback): Stop the
playing music titles.
Play with Photo: Start playing the
selected music titles and then move to the
Photo List.
Mark All : Mark all music titles in the folder.
Unmark All : Deselect all marked music
titles.
Delete : Delete the selected music titles.
Close : Close the pop-up menu.
41
Music
S003
0:27 / 3:67
If you don't press any button for a while during the playing, the play information box (as shown in the below)
will float as a screen saver.
The ‘Screen Saver’?
Screen saver is to prevent screen pixel damage due to an fixed image remaining on the screen
for a extended period of time.
A damaged or corrupted music does not play but displays 00:00 in playtime.
A music downloaded from a paid service with copyright protection does not start but
displays inappropriate information in playtime.
-
able in this mode.
the previous music.
Note
User Menus
Adjusts the USB options.
42
The movie list is activated once USB is detected. It is used when playing movie files on TV.
Displays the movies in the USB folder and supports Play.
Allows playback of all movies in the folder and user desired files.
Video editing is not supported but files can be deleted.
It is a movie list that displays folder information and DivX file.
Supports up to four drives.
Movie List
User Menus
Adjusts the USB options.
MOVIE(*.avi/*.DivX) supporting file
Video format : MPEG1, MPEG2, MPEG4(Doesn’t support Microsoft MPEG 4-V2, V3), DivX 3.xx, DivX
4.xx, DivX 5.xx, DivX VOD(DRM), XviD, DivX 6.xx(Playback)
Audio format : Mpeg, Mp3, PCM, Dolby Digital
Sampling frequency : within 32k to 48 khz
Bit rate : 32k to 320 kbps
Subtitle format : *.smi/ *.srt/ *.sub(MicroDVD, SubViewer 2.0)/ *.ass/ *.ssa/*.txt(DVD Subtitle System)
FPS (720*480) depending on Resolution.
movie list.
Extension
name Video Decoder Audio Codec Max Resolution
mpg, mpeg,
vob, dat MPEG1, MPEG2 AC3,MPEG,MP3,PCM
720x576@25p
720x480@30p
Avi, DivX, m4v
MPEG4-SP, MPEG4-ASP, DivX 3.xx,
DivX 4.xx, DivX 5.xx
DivX 6.xx(Playback), Xvid
AC3,MPEG,MP3,PCM
43
User Menus
Adjusts the USB options.
Page 2/3
Movie
M002
640x480, 720KB
Up Folder
Title Duration
Up Folder
Favorite Music
M001
M002
M001
M001
01:34:15
01:35:30
01:30:20
No Marked
USB Device
Free Space 150 MB
Movie List
Screen Components
1
5
2 3 4
Moves to upper level folder
Current page / Total pages
Total number of marked movie title
Usable USB memory
Corresponding buttons on the remote control
1
2
4
3
5
Use the left/right (< / >) keys to move to a specific frame forward or backward while
playing a movie. (The left/right (< / < ) keys may not work properly for some files while
playing a movie.)
Note
Option Mark
Navigation Page Change Exit
MARK EXIT
44
Movie Selection and PopUp Menu
ܙ
User Menus
Adjusts the USB options.
Page 2/3
Movie
M002
640x480, 720KB
Up Folder
Title Duration
Up Folder
Favorite Music
M001
M002
M001
M001
01:34:15
01:35:30
01:30:20
No Marked
Page 2/3
Movie
M002
640x480, 720KB
Up Folder
Title Duration
Up Folder
Favorite Music
M001
M002
M001
M001
01:34:15
01:35:30
01:30:20
No Marked
1366x768, 125KB
Play
Mark All
Delete
Close
Movie List
Movie List
USB Device
Free Space 150 MB
USB Device
Free Space 150 MB
In the case of files not supported, a message regarding non-supported file is displayed.
Note
Option Mark
Navigation Page Change Exit
MARK EXIT
Option Mark
Navigation Page Change Exit
MARK EXIT
Play : Play the selected movie. DivX Play is
executed while screen changes.
Mark All : Mark all Movie in the folder.
Unmark All : Deselect all marked movies.
Delete : Delete the selected Movie item.
Close : Close the pop-up menu.
45
Using the remote control
User Menus
Adjusts the USB options.
the fast forward/reverse speed.
I I During playback, press Pause (II) and the still screen is displayed.
< > When using < or > during playback, a cursor indicating the position can be viewed on the screen.
Press ENERGY SAVING repeatedly to change the brightness of your screen.
46
User Menus
Move
USB OK
Photo List
Music List
Movie List
DivX Reg. Code
Deactivation
DivX Reg. Code
Adjusts the USB options.
Supported movie file
Resolution : under 25 frames/sec(720x576 WxH pixels).
Frame rate : under 30 frames/sec(720x480)
Video Codec : MPEG1, MPEG2, MPEG4(Doesn’t support Microsoft MPEG4-V2, V3),
DivX3.xx, DivX4.xx, DivX5.xx, , DivX VOD(DRM), XviD, DivX6.xx(Playback).
When loading, some buttons may not work.
Note
Confirm the DivX registration code number of the TV. Using the registration number, movies
can be rented or purchased at www.divx.com/vod.
With a DivX registration code from other TV, playback of rented or purchased DivX file is not
allowed. (Only DivX files matched with the registration code of the purchased TV are
playable.)

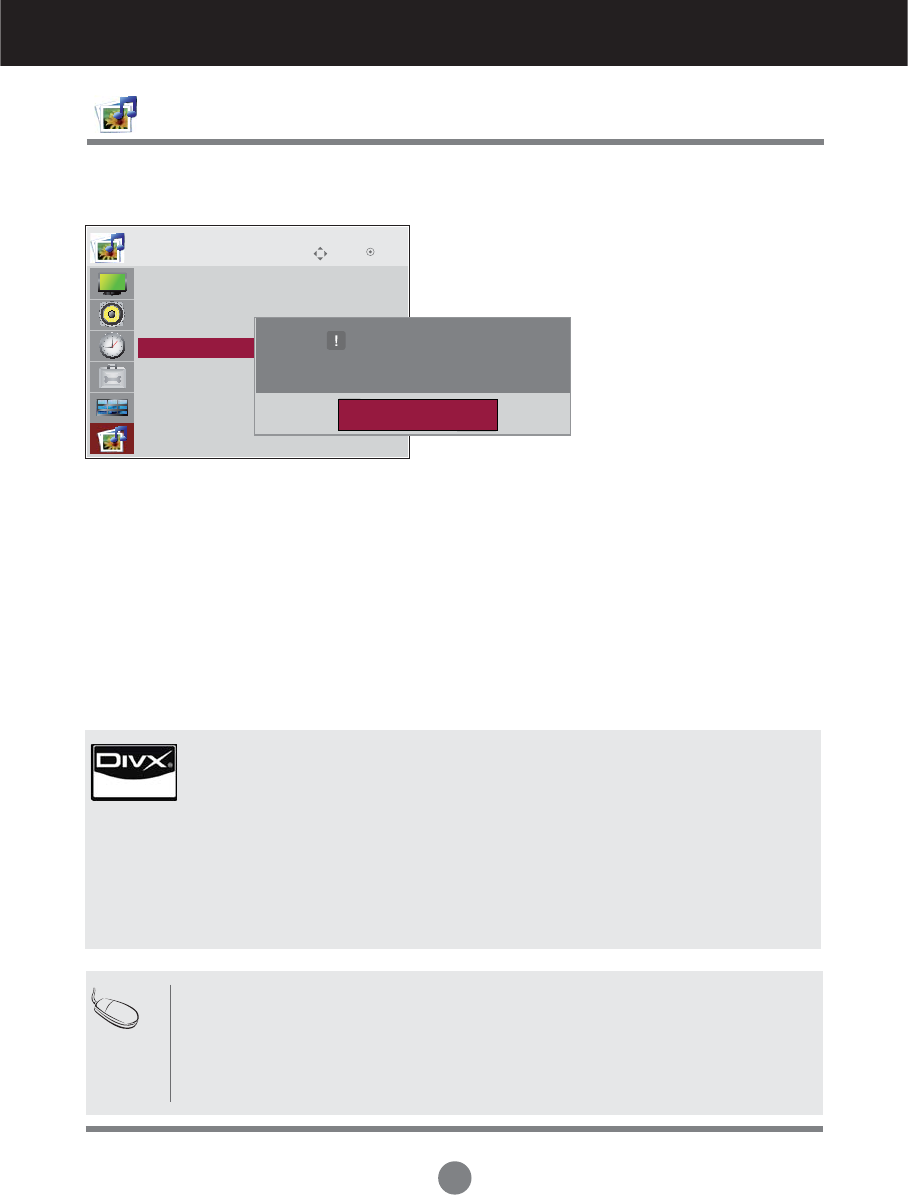

DivX Registration Code
DivX(R) Video On Demand
Your registration Code is: xxxxxxxxxx
To learn more visit www.divx.com/vod.
Close
Close
ABOUT DivX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an
official DivX Certified device that plays DivX video. Visit www.divx.com for more
information and software tools to convert your files into DivX video.
ABOUT DivX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in
order to play DivX Video-on-Demand (VOD) content. To generate the registration code,
locate the DivX VOD section in the device setup menu. Go to vod.DivX.com with this
code to complete the registration process and learn more about DivX VOD.
“DivX Certified to play DivX video, including premium content”
“Pat. 7,295,673 ; 7,460,668 ; 7,515,710 ; 7,519,274”
47
Move
USB OK
Photo List
Music List
Movie List
DivX Reg. Code

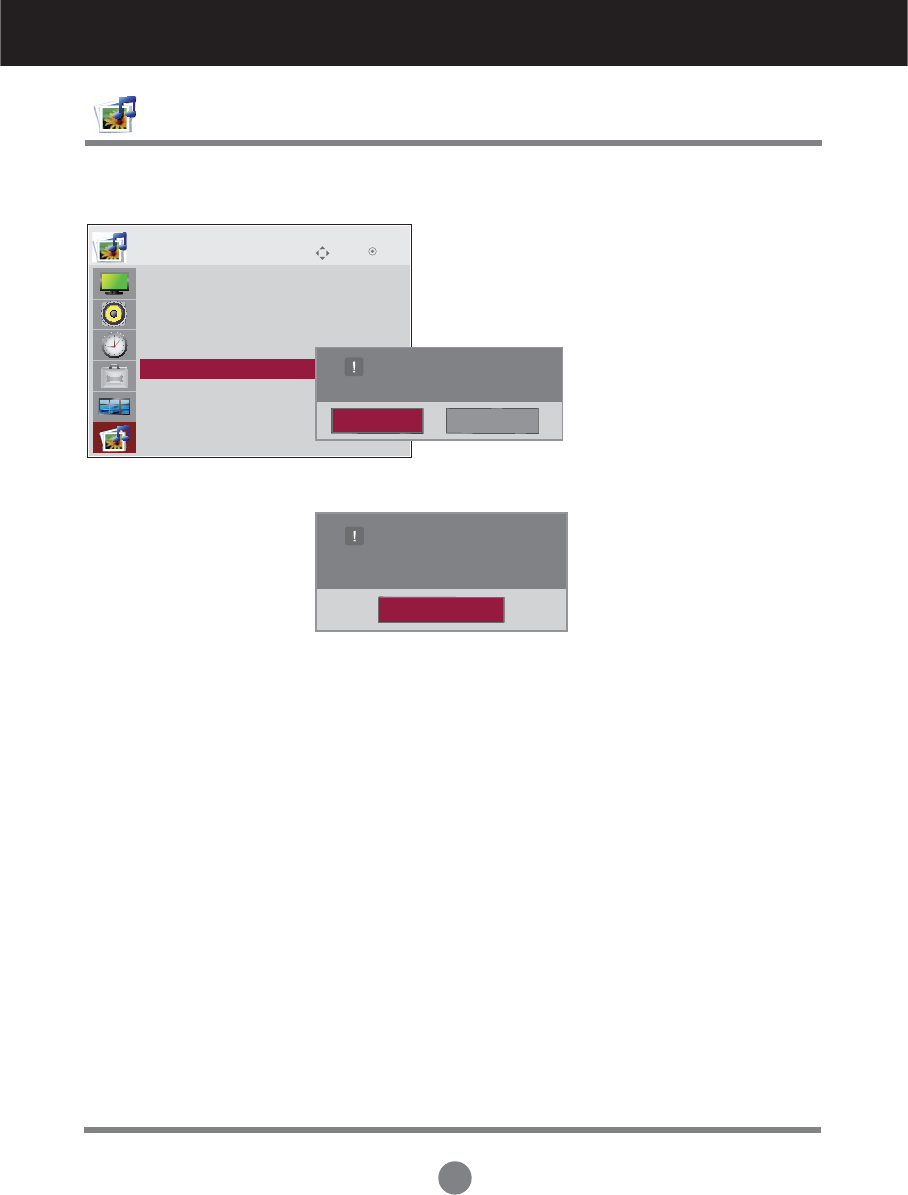

Deactivation
Deactivation
Deactivation
The purpose of deactivation is to allow deactivation of devices for users who have activated
all the available devices through the web_server and are blocked from activating more
devices. DivX VOD allowed the consumer to activate up to 6 devices under one account,
but to replace or deactivate any of those devices, the consumer had to contact DivX
Support and request deletion. Now with this added feature, consumers will be able to
deactivate the device themselves and hence better manage their DivX VOD devices.
ܙ
DivX(R) Video On Demand
Do you want to deactivate your device?
Yes No
DivX(R) Video On Demand
This device is deactivated.
Your deactivation code is: xxxxxxxx
To learn more visit www.divx.com/vod.
Close
Adjusts the USB options.
Yes
Close
User Menus
48
Troubleshooting
unintentional OSD setting change due to
careless usage. To unlock the controls,
simultaneously press the Menu button and
this function using the remote control buttons.
You can set this function in the product only.)
The 'Key Lock On' message
appears when pressing the Menu
button.
with the product, or download it from the web
site. (http://www.lg.com)
referring to the video card user manual.
Did you install the driver?
No image is displayed
'Unknown Product' message appears when the product is connected.
'Key Lock On' message appears.
the outlet.
mouse or press any key.
the vertical or horizontal frequency range of the
set. Adjust the frequency range by referring to
the specifications in this manual.
* Maximum Resolution
RGB : 1920 x 1080 @ 60 Hz
HDMI/DVI : 1920 x 1080 @ 60 Hz
connected. Check the signal cable.
the input signal.
Is the power cord connected?
Is the power indicator light on?
Power is on, power indicator is
Blue
but the screen appears extremely dark.
Is the power indicator amber?
Does the 'Out of range' message
appear?
Does the 'Check signal cable'
message appear?
49
Troubleshooting
Is the screen position wrong?
Do thin lines appear on the
background screen?
Horizontal noise appears or the
characters look blurred.
The screen is displayed abnormally.
The screen image looks abnormal.
in the remote control to automatically select the
optimal screen status that fits into the current
mode. If adjustment is not satisfactory, use the
Position OSD menu.
are supported by the product. If the frequency
is out of range, set to the recommended
resolution in the Control Panel "Display"
Setting menu.
button in the remote control to automatically
select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory,
use the Clock OSD menu.
button in the remote control to automatically
select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory,
use the Phase OSD menu.
signal port. Connect the signal cable that
matches with the source input signal.
pixels may be damaged quickly. Use the
screen-saver function.
After-image appears when the
product is turned off.
After-image appears on the product.
Note Vertical frequency: To enable the user to watch the product display, screen image
should be changed tens of times every second like a fluorescent lamp. The vertical
frequency or refresh rate is the times of image display per second. The unit is Hz.
Horizontal frequency: The horizontal interval is the time to display one vertical line.
When 1 is divided by the horizontal interval, the number of horizontal lines displayed
every second can be tabulated as the horizontal frequency. The unit is kHz.
50
Troubleshooting
(true color)
Select Control Panel - Display - Settings - Color
Table menu in Windows.
Or, re-insert the PC video card.
may appear on the screen, which can be
attributable to the unique characteristics of the
LCD panel. It is not a malfunction of the LCD.
Screen has poor color resolution
(16 colors).
Screen color is unstable or mono-
colored.
Do black spots appear on the screen?
No sound?
Sound is too dull.
Sound is too low.
Power interrupted.
"CAUTION! FAN STOP!"
If the power is turned off after this message
appears, it means that the fan is out of order.
In this case, contact your local service center.
The power suddenly turned off.
The audio function does not work.
Screen color is abnormal.
The operation does not work normally.
51
Note The specifications shown above may be changed without prior notice for quality
improvement.
LCD Panel
Power
Dimensions
& Weight
138.78 cm ( 54.64 inch) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel
Visible diagonal size : 138.78 cm
0.630 mm x 0.630 mm X RGB (Pixel Pitch)
Rated Voltage AC 100-240 V~ 50/60 Hz 6A
Power Consumption On Mode : 320 W Typ.
(If LAN OFF is selected)
Width x Height x Depth
[1] 125.1 cm (49.3 inch) x 72.2 cm (28.4 inch) x 10.4 cm (4.1 inch)
[2] 125.1 cm (49.3 inch) x 79.5 cm (31.3 inch) x 29.8 cm (11.7 inch)
[3] 125.1 cm (49.3 inch) x 72.2 cm (28.4 inch) x 10.4 cm (4.1 inch)
[4] 125.1 cm (49.3 inch) x 79.5 cm (31.3 inch) x 29.8 cm (11.7 inch)
Net
[1] 34.5 kg (76.05 lb) [2] 35.9 kg (79.14 lb)
[3] 35.2 kg (77.60 lb) [4] 36.6 kg (80.68 lb)
[1] [2]
[3] [4]
W
H
D
W
H
D
W
H
D
D
W
H
52
Note The specifications shown above may be changed without prior notice for quality
improvement.
Max. Resolution RGB : 1920 x 1080 @ 60 Hz
HDMI/DVI :
1920 x 1080
@ 60 Hz
- It may not be supported depending on the OS or video card type.
Recommended Resolution
RGB : 1920 x 1080 @ 60 Hz
HDMI/DVI : 1920 x 1080 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Horizontal Frequency RGB : 30 kHz to 83 kHz
HDMI/DVI : 30 kHz to 83 kHz
Vertical Frequency RGB : 56 Hz to 75 Hz
HDMI/DVI : 56 Hz to 60 Hz
Synchronization Type Composite/Separate/Digital
15-pin D-Sub type, HDMI/DVI(digital)
Composite Video, Component, RS-232C, LAN, USB
Operational Condition Temperature : 0 °C to 40 °C , Humidity : 10 % to 80 %
Storage Condition Temperature : -20 °C to 60 °C , Humidity : 5 % to 95 %
Video Signal
Input Connector
Environmental
Conditions
RMS Audio Output 10 W + 10 W ( R + L )
Input Sensitivity 0.7 Vrms
Audio
Applicable only for models that support the speakers
53
PC Mode - Preset Mode
Note
DTV/PC selection on HDMI/DVI inputs is available for PC resolutions : 640 x 480/60 Hz,
1280 x 720/60 Hz, 1920 x 1080/60 Hz and DTV resolutions : 480p, 720p, 1080p.
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
1
2
*3
4
*5
6
7
*8
9
*10
640 x 350
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1280 x 720
31.469
31.468
31.469
37.5
37.879
46.875
49.725
48.363
60.123
44.772
70.8
70.8
59.94
75
60.317
75
74.55
60
75.029
59.855
*11
*12
*13
*14
15
*16
*17
1280 x 768
1360 x 768
1366 x 768
1280 x 1024
1280 x 1024
1680 x 1050
1920 x 1080
47.7
47.72
47.7
63.981
79.98
65.290
67.5
60
59.799
60
60.02
75.02
59.954
60
Mode Product
On Mode
Sleep Mode
Off Mode
Blue
Amber
-
1 to 17: RGB Mode
* : HDMI/DVI mode
Component
480i o x
576i o x
480p o o
576p o o
720p o o
1080i o o
1080p o o
HDMI/DVI(DTV)
DTV Mode
Power Indicator
Controlling the Multiple Product
RS-232C
A1
Controlling the Multiple Product
RS-232C
A1
A1
Connecting the cable
Connect the RS-232C cable as shown in the picture.
You need to purchase a cable to connect the RS-232C socket as it is not provided as the
accessory.
The RS-232C protocol is used for communication between the PC and product. You can
turn the product on/off, select an input source or adjust the OSD menu from your PC.
Use this method to connect several products to a single PC. You can control several products at a
time by connecting them to a single PC.
If the [Set ID] menu in [Option] is set to OFF, the monitor ID value should be set between 1 and 99.
RS-232C Cable
(not included)
monitor 1
PC
monitor 2 monitor 3 monitor 4
7-Wire Configurations (Standard RS-232C cable)
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXDRXD
GND
DSR
DTR
CTS
RTS
PC Monitor
2
3
5
4
6
7
8
3
2
5
6
4
8
7
D-Sub 9 D-Sub 9
(Female) (Female)
3-Wire Configurations (Not Standard)
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXDRXD
GND
DTR
DSR
RTS
CTS
PC Monitor
2
3
5
4
6
7
8
3
2
5
6
4
7
8
D-Sub 9 D-Sub 9
(Female) (Female)
Baud Rate : 9600 buad Rate (UART)
Data Length : 8 bit
Parity Bit : None
Stop Bit : 1bit
Flow Control : None
Communication Code : ASCII code
Use a crossed (reverse) cable
Communication Parameter
RS-232C Configurations
Controlling the Multiple Product
RS-232C
A2
'311%2('311%2((%8%(%8%(%8%
Command Reference List
O E ,XS,
O F ,XS,
O G ,XS*,
O H ,XS,
O I ,XS,
O J ,XS,
O K ,XS,
O L ,XS,
O M ,XS,
O N ,XS,
O O ,XS,
O P ,XS,
O Q ,XS,
O X ,XS,
O Y ,XS,
O ^ **,
N T ,XS,
N Y ,
Q G /I]'SHI
H H ,XS,
H I ,XS,
H J ,XS,
H K ,XS,
H L ,XS,
H M ,XS,
H N ,XS,
H \ ,XS,
H ] ,XS,
H [ **,
H P **,
H R **,
H T **,
H Y ,XS,
H Z ,XS,
J E ,XS,
J H *,XS*,
),XS),
,XS,
J I *,XS*,
),XS),
,XS,
Power
Input Select
Aspect Ratio
7GVIIR1YXI
Volume Mute
Volume Control
Contrast
Brightness
Color
Tint
Sharpness
OSD Select
Remote Lock/ key Lock
Balance
Color Temperature
%FRSQEPWXEXI
ISM mode
%YXSGSRJMKYVEXMSR
/I]
Tile Mode
Tile H Position
Tile V Position
Tile H Size
Tile V Size
8MPI-(7IX
Natural Mode (In Tile mode
Picture mode(PSM)
Sound mode
Fan Fault check
Elapsed time return
Temperature value
Lamp fault check
Auto Volume
Speaker
Time
On Timer (On/Off Timer) Time
Off Timer (On/zOff Timer) Time
,XS,,XS&,
,XS,,XS&,
,XS,,XS&,
Controlling the Multiple Product
RS-232C
A3
'311%2('311%2((%8%(%8%(%8%
Scheduling input select
Sleep Time
Auto Sleep
Power On Delay
Language
DPM Select
Reset
Power Saving
Power Indicator
Serial no.
7;:IVWMSR
Input Select
J Y *,XS*,
J J ,XS,
J K ,XS,
J L ,XS,
J M ,XS,
J N ,XS,
J O ,XS,
J P ,XS,
J S ,XS,
J ] **,
J ^ **,
\ F ,XS%,
,XS,
Controlling the Multiple Product
RS-232C
A4
OK Acknowledgement
* The Product transmits ACK (acknowledgement) based on
this format when receiving normal data. At this time, if the
data is data read mode, it indicates present status data.
If the data is data write mode, it returns the data of the PC
computer.
Error Acknowledgement
* If there is error, it returns NG
Transmission
* [Command 1]: First command. (k, j, m, d, f, x)
* [Command 2]: Second command.(a to u)
* [Set ID]: Set up the Set ID number of product.
range : 01H to 63H. by setting '0', server can control all products.
* In case of operating with more than 2 sets using set ID as '0' at the same time, it should
not be checked the ack message. Because all sets will send the ack message, so it's
impossible the check the whole ack messages.
* [DATA]: To transmit command data.
Transmit 'FF' data to read status of command.
* [Cr]: Carriage Return
ASCII code '0 x 0 D'
* [ ]: ASCII code Space (0 x 20)
Transmission / Receiving Protocol
?'SQQERHA?'SQQERHA?A?7IX-(A?A?(EXEA?'VA
?'SQQERHA?A?7IX-(A?A?3/A?(EXEA?\A
?'SQQERHA?A?7IX-(A?A?2+A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A5
Transmission / Receiving Protocol
01. Power(Command : a)
To control Power On / Off of the Set.
Transmission
Data 0 : Power Off 1 : Power On
Acknowledgement
To show the status of Power On / Off.
Transmission
Acknowledgement
Data 0 : Power Off 1 : Power On
02. Input Select (Command : b) (Main Picture Input)
To select input source for the Set.
You can also select an input source using the INPUT
button on the remote control.
Transmission
Data 2 : AV
4 : Component
7 : RGB (PC)
8 : HDMI (DTV)
9 : HDMI (PC)
Acknowledgement
Data 2 : AV
4 : Component
7 : RGB (PC)
8 : HDMI (DTV)
9 : HDMI (PC)
?OA?EA?A?7IX-(A?A?(EXEA?'VA
?EA?A?7IX-(A?A?3/A?(EXEA?\A
?OA?EA?A?7IX-(A?A?**A?'VA
?EA?A?7IX-(A?A?3/A?(EXEA?\A
?OA?FA?A?7IX-(A?A?(EXEA?'VA
?FA?A?7IX-(A?A?3/A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A6
03. Aspect Ratio(Command : c) (Main picture format)
To adjust the screen format.
You can also adjust the screen format using the ARC
(Aspect Ratio Control) button on remote control or in the
Screen menu.
Transmission
Data 1 : Normal Screen (4 : 3)
2 : Wide Scran (16 : 9)
4 : Zoom (AV)
6 : Original (AV)
7 : 14 : 9 (AV)
9 : Just Scan (HD DTV) * When the RGB, HDMI / DVI PC mode(1:1)
10 to 1F : Cinema Zoom 1 to 16
B : Full Wide
Acknowledgement
04. Screen Mute(Command : d)
To select screen mute on / off.
Transmission
Data 0 : Screen mute off (Picture on)
1 : Screen mute on (Picture off)
Acknowledgement
Transmission / Receiving Protocol
?OA?GA?A?7IX-(A?A?(EXEA?'VA
?OA?HA?A?7IX-(A?A?(EXEA?'VA
?GA?A?7IX-(A?A?3/A?(EXEA?\A
?HA?A?7IX-(A?A?3/A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A7
A7
05. Volume Mute(Command : e)
To control On/Off of the Volume Mute.
Transmission
Data 0 : Volume Mute On (Volume Off)
1 : Volume Mute Off (Volume On)
Acknowledgement
Data 0 : Volume Mute On (Volume Off)
1 : Volume Mute Off (Volume On)
06. Volume Control(Command : f)
To adjust Volume
Transmission
Data Min : 00H to Max : 64H
(Hexadecimal code)
Acknowledgement
Data Min : 00H to Max : 64H
* Real Data Mapping
0 : STEP 0
:
A : STEP 10
:
F : STEP 15
10 : STEP 16
:
64 : STEP 100
Transmission / Receiving Protocol
?OA?IA?A?7IX-(A?A?(EXEA?'VA
?IA?A?7IX-(A?A?3/A?(EXEA?\A
?OA?JA?A?7IX-(A?A?(EXEA?'VA
?JA?A?7IX-(A?A?3/A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A8
A8
Transmission / Receiving Protocol
07. Contrast(Command : g)
To adjust screen contrast.
You can also adjust the contrast in the Picture menu.
Transmission
Data Min : 00H to Max : 64H
Acknowledgement
*
Refer to 'Real data mapping' page A7.
08. Brightness(Command : h)
To adjust screen brightness.
You can also adjust the brightness in the Picture menu.
Transmission
Data Min : 00H to Max : 64H
*
Refer to 'Real data mapping' as shown below.
Acknowledgement
*
Refer to 'Real data mapping' page A7.
?OA?KA?A?7IX-(A?A?(EXEA?'VA
?KA?A?7IX-(A?A?3/A?(EXEA?\A
?OA?LA?A?7IX-(A?A?(EXEA?'VA
?LA?A?7IX-(A?A?3/A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A9
Transmission / Receiving Protocol
09. Color(Command : i) (Video Timing only)
To adjust the screen color.
You can also adjust the color in the Picture menu.
Transmission
Data Min : 00H to Max : 64H
(Hexadecimal code)
*
Refer to 'Real data mapping' page A7.
Acknowledgement
Data Min : 00H to Max : 64H
10. Tint(Command : j) (Video Timing only)
To adjust the screen tint.
You can also adjust the tint in the Picture menu.
Transmission
Data Red : 00H to Green: 64H
(Hexadecimal code)
*
Refer to 'Real data mapping' page A7.
Acknowledgement
Data Red : 00H to Green : 64H
* Tint Real data mapping
0 : Step 0 to Red
:
64 : Step 100 to Green
?OA?MA?A?7IX-(A?A?(EXEA?'VA
?MA?A?7IX-(A?A?3/A?(EXEA?\A
?OA?NA?A?7IX-(A?A?(EXEA?'VA
?NA?A?7IX-(A?A?3/A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A10
11. Sharpness(Command : k) (Video Timing only)
To adjust the screen Sharpness.
You can also adjust the sharpness in the Picture menu.
Transmission
Data Min : 00H to Max : 64H
(Hexadecimal code)
*
Refer to 'Real data mapping' page A7.
Acknowledgement
Data Min : 00H to Max : 64H
12. OSD Select(Command : l)
To control OSD on/off to the set.
Transmission
Data 0 : OSD Off 1 : OSD On
Acknowledgement
Data 0 : OSD Off 1 : OSD On
13. Remote Lock /Key Lock (Command : m)
To control Remote Lock on/off to the set.
This function, when controlling RS-232C, locks the remote control and the local keys.
Transmission
Data 0 : Off 1 : On
Acknowledgement
Data 0 : Off 1 : On
Transmission / Receiving Protocol
?OA?OA?A?7IX-(A?A?(EXEA?'VA
?OA?A?7IX-(A?A?3/A?(EXEA?\A
?OA?PA?A?7IX-(A?A?(EXEA?'VA
?PA?A?7IX-(A?A?3/A?(EXEA?\A
?OA?QA?A?7IX-(A?A?(EXEA?'VA
?QA?A?7IX-(A?A?3/A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A11
Transmission / Receiving Protocol
14 Balance(Command : t)
To adjust the sound balance.
Transmission
Data Min : 00H to Max : 64H
(Hexadecimal code)
,7XIT0
,7XIT6
Acknowledgement
Data Min : 00H to Max : 64H
,7XITXS0
,7XITXS6
* Balance : L50 to R50
15. Color Temperature (Command : u)
To adjust the screen color temperature.
Transmission
Data 0 : Medium
1 : Cool
2 : Warm
Acknowledgement
Data 0 : Medium
1 : Cool
2 : Warm
?OA?XA?A?7IX-(A?A?(EXEA?'VA
?XA?A?7IX-(A?A?3/A?(EXEA?\A
?OA?YA?A?7IX-(A?A?(EXEA?'VA
?YA?A?7IX-(A?A?3/A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A12
Transmission / Receiving Protocol
16. Abnormal state (Command : z)
Abnormal State : Used to Read the power off status when Stand-by mode.
Transmission
Data FF : Read
Acknowledgement
0 : Normal (Power on and signal exist)
1 : No signal (Power on)
2 : Turn the monitor off by remote control
3 : Turn the monitor off by sleep time function
4 : Turn the monitor off by RS-232C function
8 : Turn the monitor off by off time function
9 : Turn the monitor off by auto off function
17. ISM mode(Command: j p)
Used to select the afterimage preventing function.
Transmission
Data 1H : Inversion
2H : Orbiter
4H : White Wash
8H : Normal
Acknowledgement
?OA?^A?A?7IX-(A?A?(EXEA?'VA
?^A?A?7IX-(A?A?3/A?(EXEA?\A
?NA?TA?A?7IX-(A?A?(EXEA?'VA
?TA?A?7IX-(A?A?3/A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A13
18. Auto Configure(Command: j u)
To adjust picture position and minimize image shaking
automatically. it works only in RGB(PC) mode.
Transmission
Data 1 : To set
Acknowledgement
Transmission / Receiving Protocol
19. Key(Command : m c)
To send IR remote key code.
Transmission
Data Key code : Refer to page A 32.
Acknowledgement
?NA?YA?A?7IX-(A?A?(EXEA?'VA
?YA?A?7IX-(A?A?3/A?(EXEA?\A
?QA?GA?A?7IX-(A?A?(EXEA?'VA
?GA?A?7IX-(A?A?3/A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A14
20. Tile Mode(Command : d d)
Change a Tile Mode.
Transmission
* The data can not be set to 0X or X0 except 00.
Acknowledgement
Transmission / Receiving Protocol
Data Description
00 or 11 Tile mode is off.
12 1 x 2 mode(column x row)
13 1 x 3 mode
14 1 x 4 mode
... ...
55 5 x 5 mode
?HA?HA?A?7IX-(A?A?(EXEA?\A
?HA?A?A?A?3/2+A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A15
21. Tile H Position(Command : d e)
To set the Horizontal position.
Transmission
Data Min : 00H to Max : 14H
,7XIT0IJX
,7XIT6MKLX
Acknowledgement
22. Tile V Position(Command : d f)
To set the Vertical position.
Transmission
Data Min : 00H to Max : 14H
,7XIT0IJX
,7XIT6MKLX
Acknowledgement
Transmission / Receiving Protocol
?HA?IA?A?7IX-(A?A?(EXEA?\A
?IA?A?7IX-(A?A?3/2+A?(EXEA?\A
?HA?JA?A?7IX-(A?A?(EXEA?\A
?JA?A?7IX-(A?A?3/2+A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A16
23. Tile H Size(Command : d g)
To set the Horizontal size.
Transmission
Data Min : 00H to Max : 64H
*
Refer to 'Real data mapping' page A7.
Acknowledgement
24. Tile V Size(Command : d h)
To set the Vertical size.
Transmission
Data Min : 00H to Max : 64H
*
Refer to 'Real data mapping' page A7
Acknowledgement
Transmission / Receiving Protocol
?HA?KA?A?7IX-(A?A?(EXEA?\A
?KA?A?7IX-(A?A?3/2+A?(EXEA?\A
?HA?LA?A?7IX-(A?A?(EXEA?\A
?LA?A?7IX-(A?A?3/2+A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A17
A17
25. Tile ID Set(Command : d i)
To assign the Tile ID for Tiling function .
Transmission
Data Min : 00H to Max : 19H
(Hexadecimal code)
Acknowledgement
26
Natural Mode (In Tile mode) (
Command : d j)
To assign the Tile Natural mode for Tiling function .
Transmission
Data 0 : Natural Off
1 : Natural On
ff : Read Status
Acknowledgement
Transmission / Receiving Protocol
27. Picture Mode (Command : d x)
To adjust the picture mode.
Transmission
Data Structure
Acknowledgement
?HA?MA?A?7IX-(A?A?(EXEA?\A
?MA?A?7IX-(A?A?3/2+A?(EXEA?\A
?HA?NA?A?7IX-(A?A?(EXEA?\A
?NA?A?7IX-(A?A?3/2+A?(EXEA?\A
?HA?\A?A?7IX-(A?A?(EXEA?\A
?\A?A?7IX-(A?A?3/2+A?(EXEA?\A
(EXE,I\
13()
:MZMH
7XERHEVH
'MRIQE
7TSVX
+EQI
)\TSVX
)\TSVX
Controlling the Multiple Product
RS-232C
A18
A18
Transmission / Receiving Protocol
28. Sound Mode (Command : d y )
To adjust the Sound mode.
Transmission
Data Structure
Acknowledgement
Data(Hex)
01
02
03
04
05
Mode
Standard
Music
Cinema
sport
Game
29. Fan Fault check (Command : d w )
To check the Fan fault of the TV.
Transmission
* The data is always FF(in Hex).
Data ff: Read Status
Acknowledgement
* Data is the status value of the Fan fault.
Data 0: Fan fault
1: Fan OK
2: N/A(Not Avaliable)
?HA?]A?A?7IX-(A?A?(EXEA?<A
?]A?A?7IX-(A?A?3/2+A?(EXEA?\A
?HA?[A?A?7IX-(A?A?(EXEA?\A
?[A?A?7IX-(A?A?3/2+A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A19
Controlling the Multiple Product
RS-232C
A19
31. Temperature value (Command : d n)
To read the inside temperature value.
Transmission
* The data is always FF(in Hex).
Acknowledgement
* The data is 1 byte long in Hexadecimal.
32. Lamp fault Check(Command : d p)
To check lamp fault.
Transmission
* The data is always FF(in Hex).
Acknowledgement
Data 0 : Lamp Fault
1 : Lamp OK
2 : N/A(DPM/Power Off)
Transmission / Receiving Protocol
30. Elapsed time return(Command : d l)
To read the elapsed time.
Transmission
* The data is always FF(in Hex).
Acknowledgement
* The data means used hours.
(Hexadecimal code)
?HA?PA?A?7IX-(A?A?(EXEA?\A
?PA?A?7IX-(A?A?3/2+A?(EXEA?\A
?HA?RA?A?7IX-(A?A?(EXEA?\A
?RA?A?7IX-(A?A?3/2+A?(EXEA?\A
?HA?TA?A?7IX-(A?A?(EXEA?\A
?TA?A?7IX-(A?A?3/2+A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A20
Controlling the Multiple Product
RS-232C
A20
33. Auto volume (Command : d u)
Automatically adjust the volume level.
Transmission
Data 0 : Off
1 : On
Acknowledgement
34. Speaker (Command : d v)
Turn the speaker on or off.
Transmission
Data 0 : Off
1 : On
Acknowledgement
Transmission / Receiving Protocol
?HA?YA?A?7IX-(A?A?(EXEA?\A
?YA?A?7IX-(A?A?3/2+A?(EXEA?\A
?HA?ZA?A?7IX-(A?A?(EXEA?\A
?ZA?A?7IX-(A?A?3/2+A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A21
35. Time (Command : f a)
Set the current time.
Transmission
[Data1]
0 : Monday
1 : Tuesday
2 : Wednesday
3 : Thursday
4 : Friday
5 : Saturday
6 : Sunday
[Data2]
0H to 17H (Hours)
[Data3]
00H to 3BH (Minutes)
Acknowledgement
*When reading data, FFH is inputted for [Data1], [Data2] and [Data3].
In other cases, all are treated as NG.
Transmission / Receiving Protocol
?JA?EA?A?7IX-(A?A?(EXEA?A?(EXEA?A?(EXEA?'VA
?EA?A?7IX-(A?A?3/2+A?(EXEA?(EXEA?(EXEA?\A
Controlling the Multiple Product
RS-232C
A22
Transmission / Receiving Protocol
Transmission
[Data1]
1. f1h to f4h(read one index)
f1: read 1st index of On Time List,
f2: read 2nd index of On Time List
f3: read 3rd index of On Time List
f4: read 4th index of On Time List
ILbILHIPIXISRIMRHI\ILHIPIXIEPPMRHI\IW
IHIPIXIEPPMRHI\IWSJ3R8MQI0MWX
IHIPIXIWXMRHI\SJ3R8MQI0MWX
IHIPIXIRHMRHI\SJ3R8MQI0MWX
IHIPIXIVHMRHI\SJ3R8MQI0MWX
IHIPIXIXLMRHI\SJ3R8MQI0MWX
3. 01h to 80h (write) (Day of Week)
bit0 (01h) : Monday
bit1 (02h) : Tuesday
bit2 (04h) : Wednesday
bit3 (08h) : Thursday
bit4 (10h) : Friday
bit5 (20h) : Saturday
bit6 (40h) : Sunday
bit7 (80h) : Everyday
(1fh) : Monday to Friday
(3fh) : Monday to Saturday
(60h) : Saturday to Sunday
[Data 2]
00h to 17h (Hours)
[Data 3]
00h to 3bh (Minutes)
*When you read/delete the current on time list, all of [Data2][Data3] are have to be FFH.
(ex1: fd 01 f1 ff ff - when you read 1st index of On Time List
ex2: fd 01 e1 ff ff - when you delete 1st index of On Time List
ex3: fd 01 3f 02 03 - when you write one On Time Data, "Monday to Saturday, 02:03"
Acknowledgement
36. On Timer (On/Off Timer) Time (Command : f d)
Set On Timer.
?HA?A?7IX-(A?A?3/A?(EXEA?(EXEA?(EXEA?\A
?JA?HA?A?7IX-(A?A?(EXEA?A?(EXEA?A?(EXEA?'VA
Controlling the Multiple Product
RS-232C
A23
Transmission
[Data 1]
1. f1h to f4h(read one index)
f1: read 1st index of Off Time List,
f2: read 2nd index of Off Time List
f3: read 3rd index of Off Time List
f4: read 4th index of Off Time List
2. e1h to e4h(delete one index), e0h(delete all indexes)
e0: delete all indexes of Off Time List
e1: delete 1st index of Off Time List
e2: delete 2nd index of Off Time List
e3: delete 3rd index of Off Time List
e4: delete 4th index of Off Time List
3. 01h to 80h (write) (Day of Week)
bit0 (01h) : Monday
bit1 (02h) : Tuesday
bit2 (04h) : Wednesday
bit3 (08h) : Thursday
bit4 (10h) : Friday
bit5 (20h) : Saturday
bit6 (40h) : Sunday
bit7 (80h) : Everyday
(1fh) : Monday to Friday
(3fh) : Monday to Saturday
(60h) : Saturday to Sunday
[Data 2]
00h to 17h (Hours)
[Data 3]
00h to 3bh (Minutes)
*When you read/delete the current on time list, all of [Data2][Data3] are have to be FFH.
(ex1: fd 01 f1 ff ff - when you read 1st index of Off Time List
ex2: fd 01 e1 ff ff - when you delete 1st index of Off Time List
ex3: fd 01 3f 02 03 - when you write one Off Time Data, "Monday to Saturday, 02:03")
Acknowledgement
37. Off Timer (On/Off Timer) Time (Command : f e)
Set Off Timer.
Transmission / Receiving Protocol
?JA?IA?A?7IX-(A?A?(EXEA?A?(EXEA?A?(EXEA?'VA
?IA?A?7IX-(A?A?3/A?(EXEA?(EXEA?(EXEA?\A
Controlling the Multiple Product
RS-232C
A24
Transmission / Receiving Protocol
38. Scheduling Input select (Command : f u) (Main Picture Input)
To select input source for TV depending on day.
Transmission
[Data 1]
1. f1h to f4h(write/read one index)
f1: read 1st index of On Time Input
f2: read 2nd index of On Time Input
f3: read 3rd index of On Time Input
f4: read 4th index of On Time Input
[Data 2]
Input
*When you read/delete the current On Time Input, [Data2] needs to be FFH.
(ex1: fu 01 f1 ff - when you read 1st index of On Time Input
ex2: fu 01 f3 02 - when you write one On Time Input Data in to 3rd index, "AV")
Acknowledgement
(EXE,I\
-2498
%:
'SQTSRIRX
6+&4'
,(1-(:-,((:(
,(1-(:-4'
?JA?YA?A?7IX-(A?A?(EXEA?A?(EXEA?'VA
?YA?A?7IX-(A?A?3/A?(EXEA?(EXEA?\A
Controlling the Multiple Product
RS-232C
A25
39. Sleep Time (Command : f f)
Set Sleep Time.
Transmission
Data
0 : Off
1 : 10
2 : 20
3 : 30
4 : 60
5 : 90
6 : 120
7 : 180
8 : 240
Acknowledgement
Transmission / Receiving Protocol
40. Auto Sleep (Command : f g)
Set Auto Sleep.
Transmission
Data 0 : Off
1: On
Acknowledgement
?JA?JA?A?7IX-(A?A?(EXEA?'VA
?KA?A?7IX-(A?A?3/2+A?(EXEA?\A
?JA?KA?A?7IX-(A?A?(EXEA?'VA
?JA?A?7IX-(A?A?3/2+A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A26
41. Power On Delay (Command : f h)
Set the schedule delay when the power is turned on (Unit:
second).
Transmission
Data : 00H to 64H (Data value)
*
Refer to 'Real data mapping' page A7
Acknowledgement
Transmission / Receiving Protocol
42. Language (Command : f i)
Set the OSD language.
Transmission
Data
0 : English
1 : French
2 : German
3 : Spanish
4 : Italian
5 : Portuguese
6 : Chinese
7 : Japanese
8 : Korean
9 : Russian
Acknowledgemen
?JA?LA?A?7IX-(A?A?(EXEA?'VA
?MA?A?7IX-(A?A?3/2+A?(EXEA?\A
?JA?MA?A?7IX-(A?A?(EXEA?'VA
?LA?A?7IX-(A?A?3/2+A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A27
43. DPM Select (Command : f j)
Set the DPM (Display Power Management) function.
Transmission
Data 0 : Off
1: On
Acknowledgement
Transmission / Receiving Protocol
44. Reset (Command : f k)
Execute the Picture, Screen and Factory Reset functions.
Transmission
Data
0 : Picture Reset
1 : Screen Reset
2 : Factory Reset
Acknowledgement
?JA?NA?A?7IX-(A?A?(EXEA?'VA
?OA?A?7IX-(A?A?3/2+A?(EXEA?\A
?JA?OA?A?7IX-(A?A?(EXEA?'VA
?NA?A?7IX-(A?A?3/2+A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A28
45. Power saving(Command : f I)
To set the Power saving mode.
Transmission
Data 0 : Off
1: (static level 1)
2: (static level 2)
3: (static level 3)
Acknowledgement
Transmission / Receiving Protocol
46. Power Indicator (Command : f o)
To set the LED for Power Indicator
Transmission
Data 0 : Off
1: On
Acknowledgement
?JA?-A?A?7IX-(A?A?(EXEA?'VA
?JA?SA?A?7IX-(A?A?(EXEA?'VA
?SA?A?7IX-(A?A?3/2+A?(EXEA?\A
?-A?A?7IX-(A?A?3/2+A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A29
47. Serial no.Check (Command : f y)
To read the serial numbers
Transmission
Data FF (to read the serial numbers)
Acknowledgement
* The data format is ASCII Code.
?]A?A?7IX-(A?A?3/2+A?(EXEAb?(EXEA?\A
?JA?]A?A?7IX-(A?A?(EXEA?'VA
Transmission / Receiving Protocol
Controlling the Multiple Product
RS-232C
A30
48. S/W Version (Command : f z)
Check the software version.
Transmission
Data FFH : Read
Acknowledgement
Transmission / Receiving Protocol
49. Input Select (Command : x b)
To select input source for the Set.
Transmission
Data 20H : AV
40H : Component
60H : RGB (PC)
90H : HDMI/DVI (DTV)
A0H : HDMI/DVI (PC)
Acknowledgement
Data 20H : AV
40H : Component
60H : RGB (PC)
90H : HDMI/DVI (DTV)
A0H : HDMI/DVI (PC)
?JA?^A?A?7IX-(A?A?(EXEA?'VA
?\A?FA?A?7IX-(A?A?(EXEA?'VA
?FA?A?7IX-(A?A?3/A?(EXEA?\A
?^A?A?7IX-(A?A?3/2+A?(EXEA?\A
Controlling the Multiple Product
RS-232C
A31
IR Codes
RS-232C
A31

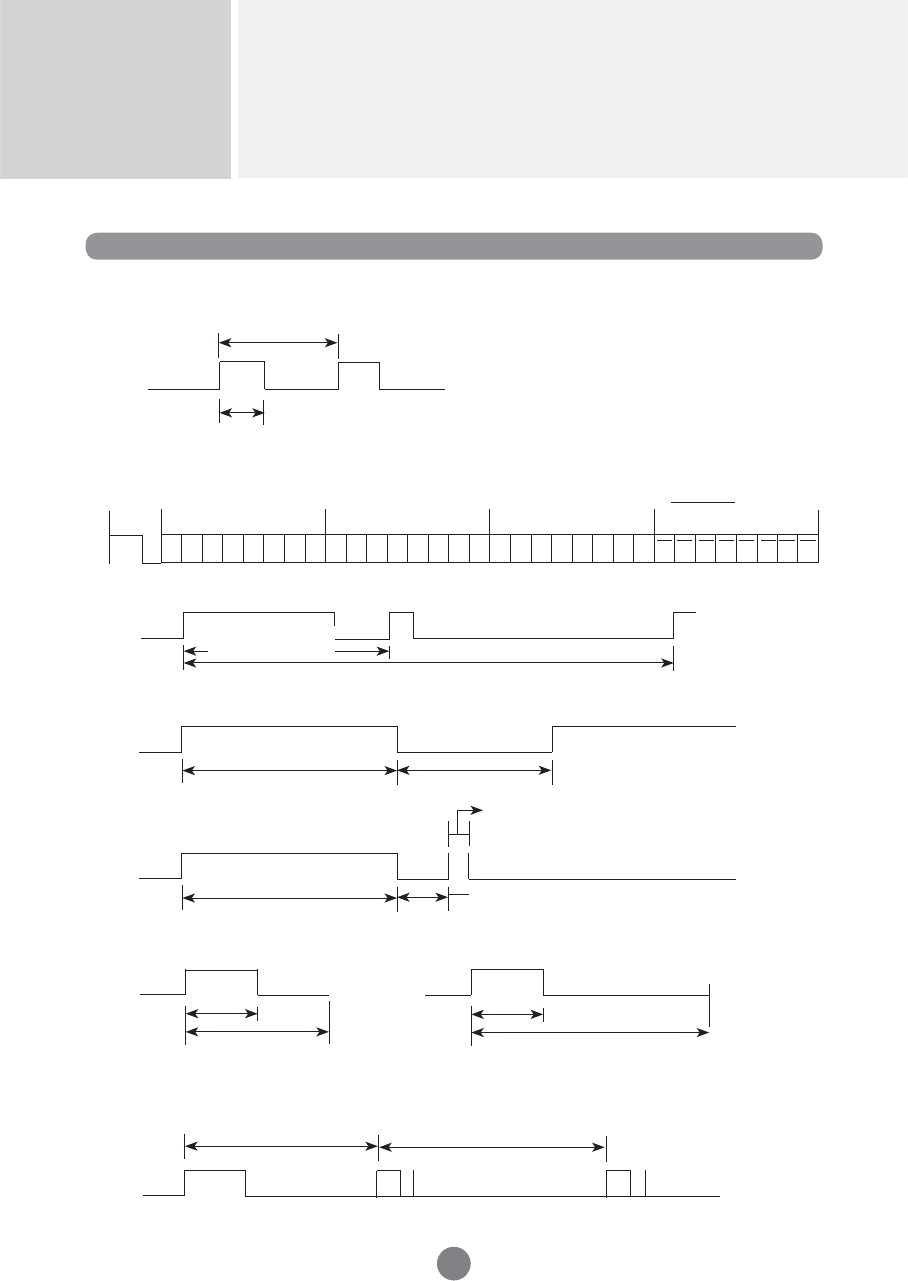

Remote Control IR Code
Output waveform
single pulse, modulated with 37.917kHz signal at 455kHz
Configuration of frame
T1
Tc
Repeat frame
Tf
Repeat code
Lead code
Repeat code
Bit description
2.25 ms
9 ms
0.55ms
Frame interval : Tf
Tf Tf
Tf = 108 ms @ 455 kHz
Lead
code
Low
custom code High
custom code Data code Data code
C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
9 ms 4.5 ms
Carrier frequency
FCAR = 1 / Tc = fosc / 12
Duty ratio = T1 / Tc = 1 / 3
1st frame
0.56 ms
1.12 ms
0.56 ms
2.24 ms
Bit "0"
Bit "1"
The waveform is transmitted as long as a key is depressed.
Controlling the Multiple Product
RS-232C
A32
IR Codes
RS-232C
A32
'SHI,I\*YRGXMSR2SXI
94Ț
(3;2Ȟ
6-+,8Ȝ
0)*8Ƞ
43;)6323**
132-83632
132-8363**
198)
)RIVK]7EZMRK
-2498
1)29
)<-8
471
3/
2YQFIV/I]
2YQFIV/I]
2YQFIV/I]
2YQFIV/I]
2YQFIV/I]
2YQFIV/I]
2YQFIV/I]
2YQFIV/I]
2YQFIV/I]
2YQFIV/I]
%6'1%6/
:SP
:SP
'
'
&
&
(
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
(MWGVIXI-6'SHI
6'&YXXSR
(MWGVIXI-6'SHI
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
(MWGVIXI-6'SHI
6'&YXXSR
6'&YXXSR
Controlling the Multiple Product
RS-232C
A33
IR Codes
RS-232C
A33
)
)
&
&
&
&%
*
)
%
&*
(
'
%*
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
(MWGVIXI-6'SHI
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
6'&YXXSR
(MWGVIXI-6'SHI
-RTYX%:7IPIGXMSR
(MWGVIXI-6'SHI-RTYX
'31432)287IPIGXMSR
(MWGVIXI-6'SHI
-RTYX6+&4'7IPIGXMSR
(MWGVIXI-6'SHI
-RTYX,(1-(:-7IPIGXMSR
(MWGVIXI-6'SHI
3RP]QSHI
(MWGVIXI-6'SHI
3RP]QSHI
(MWGVIXI-6'SHI
3RP]>331
Cinena
>331QSHI
&VMKLXŢ4EKI94
&VMKLXţ4EKI(S[R
&%'/
%983'32*-'
-(326IH'SPSV
-(3**+VIIR'SPSV
=IPPS['SPSV
&PYI'SPSV
8-0)
--
%:
'31432)28
6+&4'
,(1-(:-
%6'
%6'
%6'ZOOM
'SHI,I\*YRGXMSR2SXI
Make sure to read the Safety Precautions
before using the product.
Keep the Owner's Manual(CD) in an
accessible place for future reference.
The model and serial number of the SET
is located on the back and one side of the
SET. Record it below should you ever need
service.
MODEL
SERIAL
Temporary noise is normal when powering
ON or OFF this device.
As an ENERGY STAR Partner LGE U. S. A.,Inc. has
determined that this product meets the ENERGY
STAR guidelines for energy efficiency.
ENERGY STAR is a set of power-
saving guidelines issued by the U.S.
Environmental Protection Agency(EPA).
Regulatory Information cont.
FCC Compliance Statement
This equipment has been tested and found to comply
within the limits of a Class B digital device pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio
frequency energy and if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio
or television reception (which can be determined by
turning the equipment on and off), the user is encouraged
to try to correct the interference by using one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
the receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Caution: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user's (or your) authority to operate the equipment. Only
peripherals (digital input/output devices, terminals, printers,
etc.) certified to comply with the Class B limits may be
attached to this monitor. Operation with non-certified
peripherals is likely to result in interference to radio and TV
reception. Only shielded signal cables may be used with
this System.
Canadian DOC Notice
This Class B digital apparatus meets all requirements of
the Canadian Interference-Causing Equipment
Regulations. Cet appareil numérique de la classe B
respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
CE Conformity Notice
(for Europe)
Products with the “CE” Marking comply with the EMC
Directive(89/336/EEC) and LOW VOLTAGE Directive
(73/23/EEC) issued by the Commission of the European
Community.
Compiance with these directives implies conformity to the
following European Norms :
• EN 55022 ; Radio Frequency Interference
• EN 55024 ; Electromagnetic Immunity
• EN 61000-3-2 ; Power Line Harmonics
• EN 61000-3-3 ; Voltage Fluctuations
• EN 60950-1 ; Product Safety
Low Radiation Compliance (MPR II)
This monitor meets one of the strictest guidelines available
today for low radiation emissions, offering the user extra
shielding and an antistatic screen coating. These
guidelines, set forth by a government agency in Sweden,
limit the amount of emission allowed in the Extremely Low
Frequency (ELF) and Very Low Frequency (VLF)
electromagnetic range.
01
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
TCO'99
(TCO'99 applied model only)
Congratulations!
You have just purchased a TCO’99 approved and labelled
product! Your choice has provided you with a product
developed for professional use. Your purchase has also
contributed to reducing the burden on the environment and
also to the further development of environmentally
adapted electronics products.
Regulatory Information cont.
02
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an
established method for encouraging the adaptation of
goods and services to the environment. With the growing
manufacture and usage of electronic equipment
throughout the world, there is a recognized concern for the
materials and substances used by electronic products
with regards to their eventual recycling and disposal. By
proper selection of these materials and substances, the
impact on the environment can be minimized.
There are also other characteristics of a computer, such as
energy consumption levels, that are important from the
viewpoints of both the work (internal) and natural (external)
environments. Electronic equipment in offices is often left
running continuously, resulting in unnecessary
consumption of large amounts of energy and additional
power generation. From the standpoint of carbon dioxide
emissions alone, it is vital to save energy.
What does labelling involve?
The product meets the requirements for the TCO’99
scheme which provides for international and environmental
labelling of personal computers and/or displays.
The labelling scheme was developed as a joint effort by the
TCO (The Swedish Confederation of Professional
Employees), Svenska Naturskyddsforeningen
(The Swedish Society for Nature Conservation) and
Statens Energimyndighet (The Swedish National
Energy Administration).
Approval requirements cover a wide range of issues:
ecology, ergonomics, emission of electrical and magnetical
fields, energy consumption and electrical safety.
Ecological criteria impose restrictions on the presence and
use of heavy metals, brominated and chlorinated flame
retardants, and other substances. The product must be
prepared for recycling and the manufacturing site(s) shall
be certified according to ISO14001 or EMAS registered.
Energy requirements include a demand that the system
unit and/or display, after a certain period of inactivity,
shall reduce its power consumption to a lower level in one
or more stages. The length of time to reactivate the system
unit shall be reasonable for the user.
Labelled products must meet strict environmental
demands, for example, in respect of the reduction of
electrical and magnetical fields as well as work load and
visual ergonomics.
Below you will find a brief summary of the ecological
requirements met by this product. The complete
ecological criteria document can be found at TCO
Development’s website http://www.tcodevelopment.com
or may be ordered from:
TCO Development
SE-114 94 STOCKHOLM, Sweden
Fax: +46 8 782 92 07
Email : development@tco.se
Information regarding TCO’99 approved and labelled
products may also be obtained at
http://www.tcodevelopment.com
Ecological requirements
Flame retardants
Flame retardants may be present in printed wiring board
laminates, cables, and housings. Their purpose is to
prevent, or at least to delay the spread of fire. Up to 30%
by weight of the plastic in a computer casing can consist of
flame retardant substances. Many flame retardants
contain bromine or chlorine, and these flame retardants
are chemically related to PCBs (polychlorinated
biphenyls). Both the flame retardants containing bromine
or chlorine and the PCBs are suspected of giving rise to
health effects, including reproductive damage in fish-
eating birds and mammals, due to the bio-accumulative*
processes when not disposed of in accordance with strict
standards for disposal.
TCO’99 requires that plastic components weighing more
than 25 grams shall not contain flame retardants with
organically bound bromine or chlorine. Flame retardants
are allowed in the printed wiring board laminates due to
the lack of commercially available alternatives.
Cadmium**
Cadmium is present in rechargeable batteries and in the
colour-generating layers of certain computer displays.
TCO’99 requires that batteries, the colour-generating
layers of display screens, and the electrical or electronics
components shall not contain any cadmium.
Mercury**
Mercury is sometimes found in batteries, relays and
switches. TCO’99 requires that batteries shall not contain
any mercury. It also demands that mercury is not present
in any of the electrical or electronics components
associated with the labelled unit. There is however one
Regulatory Information cont.
03
exception. Mercury is, for the time being, permitted in the
back light system of flat panel monitors as there today is
no commercially available alternative. TCO aims on
removing this exception when a mercury free alternative is
available.
Lead**
Lead can be found in picture tubes, display screens,
solders and capacitors. TCO’99 permits the use of lead
due to the lack of commercially available alternatives, but
in future requirements TCO Development aims at
restricting the use of lead.
_____________________________________________
* Bio-accumulative is defined as substances which
accumulate in living organisms.
**Lead, Cadmium and Mercury are heavy metals
which are bio-accumulative.
TCO’03
(TCO’03 applied model only)
Congratulations!
The display you have just purchased carries the TCO’03
Displays label.
This means that your display is designed,manufactured
and tested according to some of the strictest quality and
environmental requirements in the world. This makes for a
high performance product, designed with the user in focus
that also minimizes the impact on our natural environment.
Some of the features of the TCO’03 Display requirements:
Ergonomics
• Good visual ergonomics and image quality in order to
improve the working environment for the user and to
reduce sight and strain problems. Important
parameters are luminance, contrast, resolution,
reflectance, colour rendition and image stability.
Energy
• Energy-saving mode after a certain time – beneficial
both for the user and the environment
• Electrical safety
Emissions
• Electromagnetic fields
• Noise emissions
Ecology
• The product must be prepared for recycling and the
manufacturer must have a certified environmental
management system such as EMAS or ISO 14 001
• Restrictions on
chlorinated and brominated flame retardants and
polymers
heavy metals such as cadmium, mercury and lead.
The requirements included in this label have been
developed by TCO Development in co-operation with
scientists, experts, users as well as manufacturers all over
the world. Since the end of the 1980s TCO has been
involved in influencing the development of IT equipment in
a more user-friendly direction. Our labelling system started
with displays in 1992 and is now requested by users and
IT-manufacturers all over the world.
For more information, please visit
www.tcodevelopment.com
Information for Environmental Preservation
LGE. announced the 'LG Declaration for a Cleaner
Environment' in 1994, and this ideal has served as a
guiding managerial principle ever since. The Declaration is
a foundation that has allowed us to undertake
environmentally friendly activities in careful consideration
of economic, environmental, and social aspects.
We promote activities for environmental preservation, and
we specifically develop our products to embrace the
concept of environment-friendly.
We minimize the hazardous materials contained in our
products. For example, there is no cadmium to be found in
our monitors.
Information for recycling
This monitor may contain parts which could be hazardous
to the environment. It is important that this monitor be
recycled after use.
LGE. handles all waste monitors through an
environmentally acceptable recycling method. There are
several take-back and recycling systems currently in
English
Regulatory Information cont.
04
operation worldwide. Many parts will be reused and
recycled, while harmful substances and heavy metals are
treated by an environmentally friendly method.
If you want to find out more information about our
recycling program, please contact your local LG vendor or
a corporate representative of LG.
We set our vision and policies on a cleaner world by
selecting the issue of the global environment as a task for
corporate improvement. Please visit our website for more
information about our ‘green’ policies.
http://www.lge.com/about/environment/html/Recycling.jsp
Informationen zur Erhaltung der Umwelt
Im Jahr 1994 verkündete LGE die 'LG Declaration for a
Cleaner Environment' (LG Erklärung für eine sauberere
Umwelt). Seitdem dient dieses Ideal als führendes Prinzip
des Unternehmens. Diese Erklärung war die Basis für die
Durchführung von
umweltfreundlichen Aktivitäten, wobei wirtschaftliche,
umweltbezogene und soziale Aspekte in die
Überlegungen mit einbezogen wurden.
Wir fördern Aktivitäten zum Schutz der Umwelt und die
Entwicklung unserer Produkte ist darauf ausgerichtet,
unserem Konzept bezüglich Umweltfreundlichkeit gerecht
zu werden.
Wir sind darauf bedacht, den Anteil der in unseren
Produkten enthaltenen schädlichen Materialien zu
minimieren. So ist in unseren Monitoren beispielsweise
kein Kadmium zu finden.
Informationen zum Thema Recycling
Dieser Monitor enthält Teile, die umweltschädlich sein
können. Es ist unbedingt erforderlich, dass der Monitor
recycelt wird, nachdem er außer Dienst gestellt wurde.
Bei LGE. werden alle ausrangierten Monitore in einem
unter umweltbezogenen Aspekten geeigneten Verfahren
recycelt. Augenblicklich sind weltweit mehrere
Rücknahme- und Recyclingsysteme im Einsatz. Viele
Teile werden wieder verwendet und recycelt. Schädliche
Substanzen und Schwermetalle werden durch
umweltverträgliche Verfahren behandelt.
Falls Sie mehr über unser Recyclingprogramm erfahren
möchten, wenden Sie sich bitte an Ihren lokalen LG-
Händler oder einen Unternehmensvertreter von LG.
Wir richten unsere Firmenpolitik auf eine sauberere
Umwelt hin aus, indem wir umweltspezifische Aspekte als
wichtigen Punkt in die Weiterentwicklung unseres
Unternehmens einfließen lassen. Zusätzliche
Informationen über unsere ‘grüne’ Firmenpolitik erhalten
Sie auf unserer Website.
http://www.lge.com/about/environment/html/Recycling.jsp
Information sur la protection del’environnement
LGE. a publié sa 'Déclaration en faveur d’un
environnement plus propre' en 1994 et celle-ci est restée,
depuis lors, un principe directeur de notre entreprise.
Cette déclaration a servi de base à notre réflexion et nous
a permis de prendre en compte à la fois les aspects
économiques et sociaux de nos activités, tout en
respectant l’environnement.
Nous encourageons les activités en faveur de la
préservation de l’environnement et c’est dans cet esprit
que nous développons nos produits : nous réduisons au
minimum les matières dangereuses qui entrent dans leur
composition et l’on ne trouve pas de cadmium, par
exemple, dans nos moniteurs.
Information sur le recyclage
Ce moniteur peut contenir des composants qui présentent
un risque pour l’environnement. Il est donc important que
celui-ci soit recyclé après usage.
LGE. traite les moniteurs en fin de cycle conformément à
une méthode de recyclage respectueuse de
l’environnement. Nous reprenons nos produits et les
recyclons dans plusieurs sites répartis dans le monde
entier. De nombreux composants sont réutilisés et
recyclés, et les matières dangereuses, ainsi que les
métaux lourds, sont traités selon un procédé écologique.
Si vous souhaitez plus de renseignements sur notre
programme de recyclage, veuillez contacter votre
revendeur LG ou un l’un de nos représentants.
Nous voulons agir pour un monde plus propre et croyons
au rôle de notre entreprise dans l’amélioration de
l’environnement. Pour plus de renseignements sur notre
politique “verte”, rendez visite à notre site :
http://www.lge.com/about/environment/html/Recycling.jsp
Deutsch
Français
05
Regulatory Information cont.
Informazioni per la tutela dell’ambiente
La LGE. ha annunciato nel 1994 la cosiddetta 'LG
Declaration for a Cleaner Environment' (Dichiarazione di
LG a favore di un ambiente più pulito), un ideale che da
allora funge da principio ispiratore della gestione
aziendale. La dichiarazione rappresenta il fondamento che
consente di intraprendere attività a favore dell'ambiente
tenendo conto degli aspetti economici, ambientali e
sociali.Noi della LG, promuoviamo attività a favore della
tutela dell'ambiente sviluppando appositamente i nostri
prodotti per cogliere il concetto del rispetto dell’ambiente
riducendo i materiali dannosi presenti nei nostri prodotti.
Ad esempio nei nostri monitor non è presente il cadmio.
Informazioni per il riciclaggio
Il monitor può presentare componenti che potrebbero
risultare eventualmente dannosi per l'ambiente. È
importante che il monitor sia riciclato al termine del suo
utilizzo.
La LGE. gestisce tutti i monitor di rifiuto con un metodo di
riciclaggio soddisfacente dal punto di vista ambientale. In
tutto il mondo sono attualmente in funzione numerosi
sistemi di riciclaggio e recupero. I diversi componenti sono
riutilizzati e riciclati, mentre le sostanze dannose e i metalli
pesanti vengono trattati con un metodo rispettoso
dell’ambiente.
Se si desiderano maggiori informazioni in merito al
programma di riciclaggio, è consigliabile rivolgersi al
proprio rivenditore LG o ad un rappresentante aziendale
della LG.
Noi della LG impostiamo la nostra visione e le nostre
politiche a favore di un mondo più pulito ponendo la
questione dell'ambiente dal punto di vista globale come
una mansione rivolta al miglioramento della nostra
azienda. Vi invitiamo a visitare il nostro sito internet per
ulteriori informazioni sulla nostra politica “verde”.
http://www.lge.com/about/environment/html/Recycling.jsp
Información para la conservación
medioambiental
LGE. presentó la 'Declaración para un entorno más limpio
de LG' en 1994 y este ideal ha servido para guiar nuestros
principios empresariales desde entonces. La Declaración
es la base que nos ha permitido llevar a cabo tareas que
respetan el medio ambiente siempre teniendo en cuenta
aspectos sociales,
económicos y medioambientales.
Promocionamos actividades orientadas a la conservación
del medio ambiente y desarrollamos nuestros productos
específicamente para que se ajusten a la filosofía que
protege el entorno.
Reducimos al máximo el uso de materiales de riesgo en
nuestros productos. Un ejemplo de ello es la ausencia
total de cadmio en nuestros monitores.
Información para el reciclaje
Este monitor puede contener piezas que entrañen riesgos
medioambientales. Es importante reciclar este monitor
después de su utilización.
LGE. trata todos los monitores usados siguiendo un
método de reciclaje que no daña al entorno. Contamos
con diversos sistemas de recuperación y reciclaje que
funcionan a nivel mundial en la actualidad. Es posible
reciclar y reutilizar muchas de las piezas, mientras que las
sustancias dañinas y los metales pesados se tratan
siguiendo un método que no perjudique al medio
ambiente. Si desea obtener más información acerca del
programa de reciclaje, póngase en contacto con su
proveedor local de LG o con un representante empresarial
de nuestra marca.
Basamos nuestra visión y nuestras políticas en un mundo
más limpio y para ellos optamos por un entorno global
como tarea principal de nuestra evolución como empresa.
Visite nuestra página Web para obtener más información
sobre nuestras políticas ecológicas.
http://www.lge.com/about/environment/html/Recycling.jsp
Informações relacionadas à preservação
ambiental
A LGE. anunciou a 'LG Declaration for a Cleaner
Environment' (Declaração da LG para um ambiente mais
limpo) em 1994 e esse ideal tem servido desde então
como um princípio administrativo de orientação. A
Declaração é a base que nos tem permitido realizar
atividades favoráveis ao ambiente com consideração
atenta aos aspectos econômicos, ambientais e sociais.
Promovemos atividades de preservação ambiental e
desenvolvemos nossos produtos para englobar
Italiano
Espanõl
Português
06
Regulatory Information cont.
especificamente o conceito de favorável ao ambiente.
Reduzimos os materiais perigosos contidos em nossos
produtos. Por exemplo, não há cádmio em nossos
monitores.
Informações relacionadas à reciclagem
Este monitor pode conter peças que podem representar
riscos ao ambiente. É importante que ele seja reciclado
após o uso.
A LGE. cuida de todos os monitores descartados através
de um método de reciclagem agradável ao ambiente. Há
vários sistemas de devolução e reciclagem atualmente
em operação no mundo. Muitas peças serão reutilizadas
e recicladas e as substâncias nocivas e os metais
pesados passarão por tratamento através de um método
favorável ao ambiente.
Para obter mais informações sobre nosso programa de
reciclagem, entre em contato com seu fornecedor LG
local ou com um representante corporativo da LG.
Definimos nossa visão e nossas políticas relacionadas a
um mundo mais limpo selecionando a questão do
ambiente global como uma tarefa de aprimoramento
corporativo. Visite nosso site para obter mais informações
sobre nossas políticas de meio ambiente.
http://www.lge.com/about/environment/html/Recycling.jsp
Informatie met betrekking tot het behoud van
het milieu
LGE. publiceerde in 1994 de 'LG Declaration for a Cleaner
Environment' (de LG-verklaring met betrekking tot een
schoner milieu). Deze verklaring en het ideaal van een
schoner milieu fungeren sindsdien als een bestuurlijke
leidraad voor onze onderneming. Op basis van deze
verklaring ontplooien wij milieuvriendelijke activiteiten,
waarbij er zowel met sociale en economische aspecten,
als met milieuaspecten zorgvuldig rekening wordt
gehouden.
Wij ondersteunen activiteiten die zijn gericht op het
behoud van het milieu en wij houden bij het ontwikkelen
onze producten specifiek rekening met de
milieuvriendelijkheid van onze producten.
Wij minimaliseren het gebruik van schadelijke stoffen in
onze producten. Er wordt bijvoorbeeld geen cadmium
verwerkt in onze monitors.
Nederlands
Informatie met betrekking tot recycling
Deze monitor bevat materialen die schadelijk zouden
kunnen zijn voor het milieu. Het is belangrijk dat deze
monitor aan het einde van zijn levensduur wordt
gerecycled.
LGE. verwerkt alle afvalmonitors via een milieuvriendelijke
recyclingmethode. Hiervoor worden er momenteel
wereldwijd verscheidene inname- en recyclingsystemen
gehanteerd. Een groot aantal onderdelen wordt opnieuw
gebruikt en gerecycled, waarbij schadelijke stoffen en
zware metalen volgens een milieuvriendelijke methode
worden verwerkt.
Voor meer informatie over ons recyclingprogramma kunt u
contact opnemen met uw plaatselijke LG-
vertegenwoordiger of een LG-vestiging.
Onze visie en ons beleid met betrekking tot een schonere
wereld vloeien voort uit het feit dat wij het milieu hebben
aangemerkt als een onderwerp dat speciale aandacht
verdient binnen onze onderneming. Bezoek onze website
voor meer informatie over ons 'groene' beleid.
http://www.lge.com/about/environment/html/Recycling.jsp
»ÌÙÓχˆËˇ ÔÓ Óı‡Ì ÓÍÛʇ˛˘ÂÈ Ò‰˚
¬ 1994 „Ó‰Û ÍÓÔÓ‡ˆËˇ LGE ÓÔÛ·ÎËÍÓ‚‡Î‡
'ƒÂÍ·‡ˆË˛ LG ÔÓ Óı‡Ì ÓÍÛʇ˛˘ÂÈ Ò‰˚',
ÍÓÚÓ‡ˇ Ò ÚÂı ÔÓ ÒÎÛÊËÚ ÓÒÌÓ‚Ì˚Ï ÔË̈ËÔÓÏ
ÛÔ‡‚ÎÂÌˡ. Õ‡ ÓÒÌÓ‚Â ˝ÚÓÈ ‰ÂÍ·‡ˆËË Ï˚ ÒÏÓ„ÎË
Ô‰ÔËÌˇÚ¸ ‰ÂÈÒڂˡ, Ó·ÂÒÔ˜˂‡˛˘ËÂ
·ÂÁÓÔ‡ÒÌÓÒÚ¸ ÓÍÛʇ˛˘ÂÈ Ò‰˚, Û‰ÂΡˇ ÔË ˝ÚÓÏ
‰ÓÎÊÌÓ ‚ÌËχÌË ˝ÍÓÌÓÏ˘ÂÒÍËÏ, ˝ÍÓÎӄ˘ÂÒÍËÏ Ë
ÒӈˇθÌ˚Ï ‡ÒÔÂÍÚ‡Ï.
Ã˚ ÒÚËÏÛÎËÛÂÏ ‰ÂˇÚÂθÌÓÒÚ¸ ÔÓ Óı‡ÌÂ
ÓÍÛʇ˛˘ÂÈ Ò‰˚, Û‰ÂΡˇ ÓÒÓ·Ó ‚ÌËχÌËÂ
‡Á‡·ÓÚÍ ̇¯ÂÈ ÔÓ‰Û͈ËË ‚ ÒÓÓÚ‚ÂÚÒÚ‚ËË Ò
ÍÓ̈ÂÔˆËÂÈ ˝ÍÓÎӄ˘ÂÒÍÓÈ ·ÂÁÓÔ‡ÒÌÓÒÚË.
Ã˚ Ò‚Ó‰ËÏ Í ÏËÌËÏÛÏÛ ÒÓ‰ÂʇÌË ÓÔ‡ÒÌ˚ı
‚¢ÂÒÚ‚ ‚ ̇¯ÂÈ ÔÓ‰Û͈ËË. Õ‡ÔËÏÂ, ‚ ̇¯Ëı
ÏÓÌËÚÓ‡ı ‚˚ Ì ̇ȉÂÚ ͇‰Ïˡ.
»ÌÙÓχˆËˇ ÔÓ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚
›ÚÓÚ ÏÓÌËÚÓ ÏÓÊÂÚ ÒÓ‰Âʇڸ ÍÓÏÔÓÌÂÌÚ˚,
ÍÓÚÓ˚ ÏÓ„ÛÚ Ì‡ÌÂÒÚË Û˘Â· ÓÍÛʇ˛˘ÂÈ Ò‰Â.
Russian
07
Regulatory Information cont.
EPA
(EPA applied model only)
ENERGY STAR
is a set of power-saving guidelines
issued by the U.S. Environmental Protection
Agency(EPA).
NOM MARK
(Mexico only)
ÕÂÓ·ıÓ‰ËÏÓ ÛÚËÎËÁËÓ‚‡Ú¸ ÏÓÌËÚÓ ÔÓÒÎÂ
ËÒÔÓθÁÓ‚‡Ìˡ.
KÓÔÓ‡ˆËˇ LGE Ô‡·‡Ú˚‚‡ÂÚ ‚Ò ·‡ÍÓ‚‡ÌÌ˚Â
ÏÓÌËÚÓ˚ Ò ÔÓÏÓ˘¸˛ ˝ÍÓÎӄ˘ÂÒÍË ÔËÂÏÎÂÏÓ„Ó
ÏÂÚÓ‰‡ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚. œÓ ‚ÒÂÏÛ ÏËÛ
‰ÂÈÒÚ‚Û˛Ú ÒËÒÚÂÏ˚ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚ Ë ‚ÓÁ‚‡Ú‡
ËÒÔÓθÁÓ‚‡ÌÌÓÈ ÔÓ‰Û͈ËË. ÃÌÓ„Ë ÍÓÏÔÓÌÂÌÚ˚
·Û‰ÛÚ ‚ÚÓ˘ÌÓ ËÒÔÓθÁÓ‚‡Ì˚ Ë ÛÚËÎËÁËÓ‚‡Ì˚, ‚ ÚÓ
‚ÂÏˇ Í‡Í ‚‰Ì˚ ‚¢ÂÒÚ‚‡ Ë ÚˇÊÂÎ˚ ÏÂÚ‡ÎÎ˚
·Û‰ÛÚ Ó·‡·ÓÚ‡Ì˚ Ò ÔÓÏÓ˘¸˛ ˝ÍÓÎӄ˘ÂÒÍË
ÔËÂÏÎÂÏÓ„Ó ÏÂÚÓ‰‡.
«‡ ·ÓΠÔÓ‰Ó·ÌÓÈ ËÌÙÓχˆËÂÈ ÔÓ Ì‡¯ÂÈ
ÔÓ„‡ÏÏ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚ Ó·‡˘‡ÈÚÂÒ¸ Í
ÏÂÒÚÌÓÏÛ ÔÓÒÚ‡‚˘ËÍÛ ËÎË Ô‰ÒÚ‡‚ËÚÂβ
ÍÓÔÓ‡ˆËË LG.
Ã˚ ÓËÂÌÚËÛÂÏÒˇ ̇ Ó·ÂÒÔ˜ÂÌË ˝ÍÓÎӄ˘ÂÒÍÓÈ
·ÂÁÓÔ‡ÒÌÓÒÚË, ÒÚ‡‚ˇ Ò· ˆÂθ˛ „ÎÓ·‡Î¸ÌÛ˛ Á‡˘ËÚÛ
ÓÍÛʇ˛˘ÂÈ Ò‰˚. ƒÓÔÓÎÌËÚÂθÌÛ˛ ËÌÙÓχˆË˛
Ó Ì‡¯ÂÈ ÔÓÎËÚËÍ ÔÓ Óı‡Ì ÓÍÛʇ˛˘ÂÈ Ò‰˚ ‚˚
ÏÓÊÂÚ ̇ÈÚË Ì‡ ̇¯ÂÏ Ò‡ÈÚÂ:
http://www.lge.com/about/environment/html/Recycling.jsp
As an ENERGY STAR Partner LGE U. S.
A.,Inc. has determined that this product
meets the ENERGY STAR guidelines for
energy efficiency.
08
Regulatory Information cont.
1.When this crossed-out wheeled bin symbol is attached
to a product it means the product is covered by the
European Directive 2002/96/EC.
2.All electrical and electronic products should be
disposed of separately from the municipal waste
stream via designated collection facilities appointed by
the government or the local authorities.
3.The correct disposal of your old appliance will help
prevent potential negative consequences for the
environment and human health.
4.For more detailed information about disposal of your
old appliance, please contact your city office, waste
disposal service or the shop where you purchased the
product.
Disposal of your old appliance
1.Quando su un prodotto è riportato il simbolo di
1.När den här symbolen med en överkryssad
soptunna på hjul sitter på en produkt innebär det
att den regleras av European Directive
2002/96/EC.
2.Alla elektriska och elektroniska produkter bör
kasseras via andra vägar än de som finns för
hushållsavfall, helst via för ändamålet avsedda
uppsamlingsanläggningar som myndigheterna
utser.
3.Om du kasserar din gamla apparat på rätt sätt
så bidrar du till att förhindra negativa
konsekvenser för miljön och människors hälsa.
4.Mer detaljerad information om kassering av din
gamla apparat kan får av kommunen,
renhållningsverket eller den butik där du köpte
produkten.
1.Als het symbool met de doorgekruiste verrijdbare
afvalbak op een product staat, betekent dit dat
het product valt onder de Europese Richtlijn
2002/96/EC.
2.Elektrische en elektronische producten mogen
niet worden meegegeven met het huishoudelijk
afval, maar moeten worden ingeleverd bij
speciale inzamelingspunten die door de lokale of
landelijke overheid zijn aangewezen.
3.De correcte verwijdering van uw oude toestel
helpt negatieve gevolgen voor het milieu en de
menselijke gezondheid voorkomen.
Smaltimento delle apparecchiature obsolete
Kassering av din gamla apparat
Uw oude toestel wegdoen
1.Ce symbole, représentant une poubelle sur
roulettes barrée d'une croix, signifie que le
produit est couvert par la directive européenne
2002/96/EC.
2.Les éléments électriques et électroniques
doivent être jetés séparément, dans les vide-
ordures prévus à cet effet par votre municipalité.
3.Une élimination conforme aux instructions aidera
à réduire les conséquences négatives et risques
éventuels pour l'environnement et la santé
humaine.
4.Pour plus d'information concernant l'élimination
de votre ancien appareil, veuillez contacter votre
mairie, le service des ordures ménagères ou
encore la magasin où vous avez acheté ce
produit.
Élimination de votre ancien appareil
un bidone della spazzatura barrato da una croce
significa che il prodotto è coperto dalla direttiva
europea 2002/96/EC.
2.Tutti i prodotti elettrici ed elettronici dovrebbero
essere smaltiti separatamente rispetto alla
raccolta differenziata municipale, mediante
impianti di raccolta specifici designati dal
governo o dalle autorità locali.
3.Il corretto smaltimento delle apparecchiature
obsolete contribuisce a prevenire possibili
conseguenze negative sulla salute umana e
sull'ambiente.
4.Per informazioni più dettagliate sullo smaltimento
delle apparecchiature obsolete, contattare il
comune, il servizio di smaltimento rifiuti o il
negozio in cui è stato acquistato il prodotto.
English
French
Italian
Swedish
Dutch
WEEE
(for Europe )
Regulatory Information cont.
09
1.Wenn dieses Symbol eines durchgestrichenen
Abfalleimers auf einem Produkt angebracht ist,
unterliegt dieses Produkt der europäischen
Richtlinie 2002/96/EC.
2.Alle Elektro- und Elektronik-Altgeräte müssen
getrennt vom Hausmüll über dafür staatlich
vorgesehenen Stellen entsorgt werden.
3.Mit der ordnungsgemäßen Entsorgung des alten
Geräts vermeiden Sie Umweltschäden und eine
Gefährdung der persönlichen Gesundheit.
4.Weitere Informationen zur Entsorgung des alten
Geräts erhalten Sie bei der Stadtverwaltung,
beim Entsorgungsamt oder in dem Geschäft, wo
Sie das Produkt erworben haben.
1.ŸÙ·Ó ¤Ó· ÚÔ˚fiÓ ‰È·ı¤ÙÂÈ ÙÔ ‰‡Ì‚ÔÏÔ ÂÓfi˜
‰È·ÁÚ·Ì̤ÓÔ˘ οϷıÔ˘ ·ÔÚÚÈÌÌ¿ÙˆÓ, ÙfiÙ ÙÔ ÚÔ˚fiÓ
ηχÙÂÙ·È ·fi ÙËÓ E˘Úˆ·˚΋ O‰ËÁ›· 2002/96/EOK.
2.H ·fiÚÚÈ„Ë fiÏˆÓ ÙˆÓ ËÏÂÎÙÚÈÎÒÓ Î·È ËÏÂÎÙÚÔÓÈÎÒÓ
ÚÔ˚fiÓÙˆÓ Ú¤ÂÈ Ó· Á›ÓÂÙ·È ¯ˆÚÈÛÙ¿ ·fi Ù· ÁÂÓÈο
ÔÈÎȷο ·ÔÚÚ›ÌÌ·Ù· ̤ۈ ηıÔÚÈṲ̂ӈÓ
ÂÁηٷÛÙ¿ÛÂˆÓ Û˘ÏÏÔÁ‹˜ ·ÔÚÚÈÌÌ¿ÙˆÓ, ÔÈ Ôԛ˜
¤¯Ô˘Ó ‰ËÌÈÔ˘ÚÁËı› ›Ù ·fi ÙËÓ Î˘‚¤ÚÓËÛË ‹ ·fi ÙȘ
ÙÔÈΤ˜ ·Ú¯¤˜.
3.H ÛˆÛÙ‹ ·fiÚÚÈ„Ë Ù˘ ·ÏÈ¿˜ Û·˜ Û˘Û΢‹˜ ı·
‚ÔËı‹ÛÂÈ ÛÙËÓ ·ÔÙÚÔ‹ Èı·ÓÒÓ ·ÚÓËÙÈÎÒÓ Û˘ÓÂÈÒÓ
ˆ˜ ÚÔ˜ ÙÔ ÂÚÈ‚¿ÏÏÔÓ Î·È ÙËÓ ˘Á›· ÙÔ˘ ·ÓıÚÒÔ˘.
4.°È· ÈÔ ÏÂÙÔÌÂÚ›˜ ÏËÚÔÊÔڛ˜ Û¯ÂÙÈο Ì ÙËÓ
·fiÚÚÈ„Ë Ù˘ ·ÏÈ¿˜ Û·˜ Û˘Û΢‹˜, ÂÈÎÔÈÓˆÓ‹ÛÙ ÌÂ
ÙÔ ·ÚÌfi‰›Ô ÙÔÈÎfi ÁÚ·Ê›Ô, ˘ËÚÂÛ›· ‰È¿ıÂÛ˘ ÔÈÎÈ·ÎÒÓ
·ÔÚÚÈÌÌ¿ÙˆÓ ‹ ÙÔ Ì·Á·Í› ·fi ÙÔ ÔÔ›Ô ·ÁÔÚ¿Û·ÙÂ ÙÔ
ÚÔ˚fiÓ.
1.Tämä merkki tuotteessa tarkoittaa, että tuote
kuuluu sähkö- ja elektroniikkalaiteromusta
annetun EU-direktiivin 2002/96/EY
soveltamisalaan.
2.Kaikki elektroniset laitteet ovat ongelmajätettä,
joten ne on toimitettava paikalliseen
keräyspisteeseen.
3.Vanhan laitteen asianmukainen hävittäminen
ehkäisee mahdollisia ympäristöön ja
terveyteen kohdistuvia haittavaikutuksia.
4.Lisätietoa vanhan laitteen hävittämisestä saat
ottamalla yhteyden paikallisiin viranomaisiin,
kierrätyskeskukseen tai myymälään, josta ostit
laitteen.
1.Når der er et tegn med et kryds over en
skraldespand, betyder det, at produktet er
omfattet af EU-direktiv 2002/96/EC.
2.Alle elektriske og elektroniske produkter skal
smides ud et andet sted end gennem den
kommunale affaldsordning ved hjælp af specielle
indsamlingsfaciliteter, der er organiseret af staten
1.Si en un producto aparece el símbolo de un contenedor
de basura tachado, significa que éste se acoge a la
Directiva 2002/96/CE.
2.Todos los aparatos eléctricos o electrónicos se deben
desechar de forma distinta del servicio municipal de
recogida de basura, a través de puntos de recogida
designados por el gobierno o las autoridades locales.
3.La correcta recogida y tratamiento de los dispositivos
inservibles contribuye a evitar riesgos potenciales para el
medio ambiente y la salud pública.
4.Para obtener más información sobre cómo deshacerse de
sus aparatos eléctricos y electrónicos viejos, póngase en
contacto con su ayuntamiento, el servicio de recogida de
basuras o el establecimiento donde adquirió el producto.
Vanhojen laitteiden hävittäminen
Entsorgung von Altgeräten
Sådan smider du dit gamle apparat ud
∞fiÚÚÈ„Ë Ù˘ ·ÏÈ¿˜ Û·˜ Û˘Û΢‹˜
Cómo deshacerse de aparatos eléctricos y
electrónicos viejos
eller de lokale myndigheder.
3.Korrekt bortskaffelse af dit gamle apparat er med
til at forhindre mulige skadevirkninger på miljøet
og menneskelig sundhed.
4.Mere detaljerede oplysninger om bortskaffelse af
dit gamle apparat kan fås ved at kontakte dit
lokale kommunekontor, renovationsselskab eller
den butik, hvor du købte produktet.
Finnish
German
Danish
Greek
Spanish
4.Wilt u meer informatie over de verwijdering van
uw oude toestel? Neem dan contact op met uw
gemeente, de afvalophaaldienst of de winkel
waar u het product hebt gekocht.
Regulatory Information cont.
10
Portuguese
Slovak
Czech
Croatian
Hungarian
Polish
Regulatory Information cont.
11
Estonian
Latvian
Lithuanian
