Users Manual

ENGLISH

GPRS Phone

USER’S MANUAL

MODEL: FG105

Please read this manual carefully

before operating your mobile phone.

Retain it for future reference.

Introduction

Congratulations on your purchase of the advanced and

compact FG105 cellular phone, designed to operate with

the latest digital mobile communication technology.

This user’s guide contains important information on the use and

operation of this phone. Please read all the information carefully

for optimal performance and to prevent any damage to or misuse

of the phone. Any changes or modifications not expressly

approved in this user’s guide could void your warranty for this

equipment.

Guidelines for safe and efficient use

Read these simple guidelines. Breaking the rules may be

dangerous or illegal. Further detailed information is given in this

manual.

Exposure to radio frequency energy

Radio wave exposure and Specific

Absorption Rate (SAR) information

This mobile phone model FG105 has been designed to comply with

applicable safety requirement for exposure to radio waves. This

requirement is based on scientific guidelines that include safety

margins designed to assure this safety of all persons, regardless of

age and health.

• The radio wave exposure guidelines employ a unit of

measurement known as the Specific Absorption Rate, or SAR.

Tests for SAR are conducted using standardized method with the

phone transmitting at its highest certified power level in all used

frequency bands.

• While there may be differences between the SAR levels of

various LG phone models, they are all designed to meet the

relevant guidelines for exposure to radio waves.

• The SAR limit recommended by the international Commission on

Non-Ionizing Radiation Protection (ICNIRP), which is 2W/kg

averaged over ten (10) gram of tissue.

• The highest SAR value for this model phone tested by DASY4

for use at the ear is 1.120 W/kg (10g).

• SAR data information for residents in countries/regions that have

adopted the SAR limit recommended by the Institute of Electrical

and Electronics Engineers (IEEE), which is 1.6 W/kg averaged

over one (1) gram of tissue.

Guidelines for safe and efficient use

Product care and maintenance

Warning: Use only batteries, charger and accessories

approved for use with this particular phone model. The use of

any other types may invalidate any approval or warranty

applying to the phone, and may be dangerous.

• Do not disassemble this unit. Take it to a qualified service

technician when repair work is required.

• Keep away from electrical appliance such as a TV, radio or

personal computer.

• The unit should be kept away from heat sources such as

radiators or cookers.

• Do not drop.

• Do not subject this unit to mechanical vibration or shock.

• The coating of the phone may be damaged if covered with wrap

or vinyl wrapper.

• Use dry cloth to clean the exterior of the unit.

(Do not use solvent such as benzene, thinner or alcohol.)

• Do not subject this unit to excessive smoke or dust.

• Do not keep the phone next to credit cards or transport tickets;

it can affect the information on the magnetic strips.

• Do not tap the screen with a sharp object; otherwise, it may

damage the phone.

• Do not expose the phone to liquid or moisture.

• Use the accessories like an earphone cautiously.

Do not touch the antenna unnecessarily.

* For use only with power supply model TA-25GR2 made by Best

Technology Co., Ltd.

Fuse Replacement

Always replace a blown fuse with a fuse of the same type and size.

Never use a fuse of a higher rating.

Efficient phone operation

To enjoy optimum performance with minimum power consumption

please:

• Hold the phone as you speak to any other telephone. While

speaking directly into the microphone, angle the antenna in a

direction up and over your shoulder. If the antenna is extendable/

retractable, it should be extended during a call.

• Do not hold the antenna when the phone is in use. If you hold it, it

can affect call quality, it also may cause the phone to operate as

a higher power level that needed and shorten talk and standby

times.

• If your mobile phone supports infrared, never direct the infrared

ray at anyone’s eye.

Electronics devices

All mobile phones may get interference, which could affect

performance.

• Do not use your mobile phone near medical equipment without

requesting permission. Avoid placing the phone over the

pacemaker, i.e. in your breast pocket.

• Some hearing aids might be disturbed by mobile phones.

• Minor interference may affect TVs, radios, PCs, etc.

Road safety

Check the laws and regulations on the use of mobile phones in the

areas when you drive.

• Do not use a hand-held phone while driving.

• Give full attention to driving.

• Use a hands-free kit, if available.

• Pull off the road and park before making or answering a call if

driving conditions so require.

• RF energy may affect some electronic systems in your motor

vehicle such as car stereo, safety equipment.

• When your vehicle is equipped with an air bag, do not obstruct

with installed or portable wireless equipment. It can cause

serious injury due to improper performance.

Blasting area

Do not use the phone where blasting is in progress. Observe

restrictions, and follow any regulations or rules.

Potentially explosive atmospheres

• Do not use the phone at a refueling point. Don’t use near fuel or

chemicals.

• Do not transport or store flammable gas, liquid, or explosives in

the compartment of your vehicle, which contains your mobile

phone and accessories.

In aircraft

Wireless devices can cause interference in aircraft.

• Turn off your mobile phone before boarding any aircraft.

• Do not use it on the ground without crew permission.

Guidelines for safe and efficient use

Children

Keep the phone in a safe place out of children’s reach. It includes

small parts which if detached may cause a choking hazard.

Emergency calls

Emergency calls may not be available under all cellular networks.

Therefore, you should never depend solely on the phone for

emergency calls. Check with your local service provider.

Battery information and care

• You do not need to completely discharge the battery before

recharging. Unlike other battery systems, there is no memory

effect that could compromise the battery’s performance.

• Use only LG batteries and chargers. LG chargers are designed to

maximize the battery life.

• Do not disassemble or short-circuit the battery pack.

• Keep the metal contacts of the battery pack clean.

• Replace the battery when it no longer provides acceptable

performance. The battery pack may be recharged hundreds of

times until it needs replacing.

• Recharge the battery if it has not been used for a long time to

maximize usability.

• Do not expose the battery charger to direct sunlight or use it in

high humidity, such as the bathroom.

• Do not leave the battery in hot or cold places, this may deteriorate

the battery performance.

Overview

Part of the Phone .................................................................... 12

• Main body of the Phone ........................................................ 12

• Outside of the Phone ............................................................ 13

Key Description ....................................................................... 14

• Side of the Key ...................................................................... 15

• Letter Keys ............................................................................ 16

Display Information

Display Information ................................................................ 17

• On-Screen Icons ................................................................... 17

Getting Started

Installation ............................................................................... 18

• Inserting the SIM Card .......................................................... 18

• Removing the SIM Card ........................................................ 18

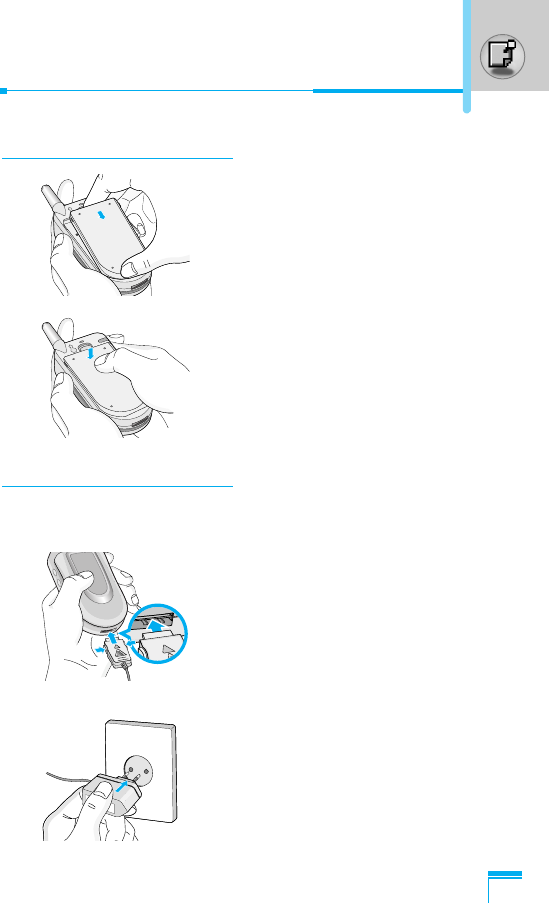

• Installing the Battery .............................................................. 19

• Charging the Battery ............................................................. 19

• Disconnecting the charger .................................................... 20

Making and Answering Calls ................................................. 21

• Making a call ......................................................................... 21

• International Calls ................................................................. 21

• Making a call using the Phonebook ...................................... 21

Additional Functions

In call Menu ............................................................................. 22

• During a call .......................................................................... 22

• Multiparty or Conference Calls .............................................. 24

Contents

Access Codes ......................................................................... 27

• PIN code (4 to 8 digits) .......................................................... 27

• PIN2 code (4 to 8 digits) ........................................................ 27

• PUK code (4 to 8 digits) ........................................................ 27

• PUK2 code (4 to 8 digits) ...................................................... 27

• Security code (4 to 8 digits) ................................................... 27

Accessing the Menu

Menu Tree ................................................................................ 28

Messages [Menu 1] ................................................................. 30

• Write text message [Menu 1-1] ............................................. 30

• Write multimedia message [Menu 1-2] .................................. 32

• Inbox [Menu 1-3] ................................................................... 37

• Outbox [Menu 1-4] ................................................................ 38

• Drafts [Menu 1-5] .................................................................. 40

• Listen to voice mail [Menu 1-6] ............................................. 41

• Info message [Menu 1-7] ...................................................... 41

• Templates [Menu 1-8] ........................................................... 42

• Settings [Menu 1-9] ............................................................... 43

Call register [Menu 2] ..............................................................48

• Missed calls [Menu 2-1] ........................................................ 48

• Received calls [Menu 2-2] ..................................................... 48

• Dialled calls [Menu 2-3] ......................................................... 48

• Delete recent calls [Menu 2-4] ...............................................48

• Call charges [Menu 2-5] ........................................................ 48

• GPRS information [Menu 2-6] ............................................... 51

Profiles [Menu 3] ..................................................................... 52

• Vibrate only [Menu 3-1] ......................................................... 52

• Quiet [Menu 3-2] ................................................................... 52

Contents

• General [Menu 3-3] ............................................................... 52

• Loud [Menu 3-4] .................................................................... 52

• Headset [Menu 3-5] ............................................................... 52

• Car [Menu 3-6] ...................................................................... 52

Settings [Menu 4] .................................................................... 55

• Date & Time [Menu 4-1] ........................................................ 55

• Phone settings [Menu 4-2] .................................................... 55

• Call settings [Menu 4-3] ........................................................ 57

• Security settings [Menu 4-4] .................................................. 60

• Network settings [Menu 4-5] ................................................. 63

• GPRS setting [Menu 4-6] ...................................................... 64

• Reset settings [Menu 4-7] ..................................................... 64

Organiser [Menu 5] ................................................................. 65

• Alarm clock [Menu 5-1] ......................................................... 65

• Scheduler [Menu 5-2] ............................................................ 65

• Phonebook [Menu 5-3] .......................................................... 67

Fun & Tools [Menu 6] ............................................................. 73

• Favorites [Menu 6-1] ............................................................. 73

• Games [Menu 6-2] ................................................................ 73

• Calculator [Menu 6-3] ............................................................ 74

• My folder [Menu 6-4] ............................................................. 74

• Unit converter [Menu 6-5] ...................................................... 75

• World time [Menu 6-6] ........................................................... 75

• Voice recorder [Menu 6-7] ..................................................... 76

• Memory status [Menu 6-8] .................................................... 76

Internet [Menu 7] ..................................................................... 77

• Home [Menu 7-1] .................................................................. 77

• Bookmarks [Menu 7-2] .......................................................... 77

• Profiles [Menu 7-3] ................................................................ 77

• Go to URL [Menu 7-4] ........................................................... 80

• Cache settings [Menu 7-5] .................................................... 80

• Cookies settings [Menu 7-6]................................................... 80

• Security certification [Menu 7-7] ............................................ 80

• Reset profiles [Menu 7-8] ...................................................... 80

• Browser version [Menu 7-9] .................................................. 80

On browsing menu ................................................................. 81

Applications [Menu 8] ............................................................. 82

• Applications [Menu 8-1] ......................................................... 82

• Download [Menu 8-2] ............................................................ 82

• Profiles [Menu 8-3] ................................................................ 83

Accessories ............................................................................. 84

Care and Maintenance ............................................................ 85

Technical Data ......................................................................... 87

Main body of the Phone

Earpiece

Display Screen

Soft Left Key

Send Key

Star Key

Soft Right Key

End/Power Key

Clear/Cancel Key

Numeric Keys

Hash Key

Microphone

Message key

Overview

Part of the Phone

Overview

Outside of the Phone

Battery

SIM Card Socket

Battery Terminals

Battery Lock

Handstrap Hole

Cable Connector/

Battery Charging Connector/

Hands-Free Car kit Connector

Overview

The following shows key components of the phone.

Keypad Description

Key Description

Soft Left Key / Soft Right Key

Each of these keys performs the function indicated

by the text on the display immediately above it.

Message key

You can go to Message menu (Inbox, Voice mail,

Scheduler or Alarm) directly.

Navigation Keys

Used to scroll through name, phone numbers, menus

or setting options. When you press down key, you can

view Favorites menu list.

Send Key

ou can dial a phone number and answer a call. If

you press this key without entering a number, your

phone shows the most recently dialled, received and

missed numbers.

Numeric Keys

These keys are used mainly to dial in standby mode

and enter numbers or characters in editing mode.

When you press these keys for a long time.

• Used to call your voicemail box by 1.

• Used to call for international call by 0.

• Used to call Speed dials by from 2to 9.

END/PWR Key

Used to end or reject a call. This key is also used as

Power Key by pressing this key for a few seconds.

Key Description

Overview

Key Description

Up/Down Side Key

When you open the flip, you can control the volume

of key tone in the standby mode and the volume

during a call.

Key Description

You can delete the characters, go back the menu.

In addition, you can view voice memo list when you

press this key shortly in a standby mode.

Side of the Key

Overview

Letter Keys

Each key can be used for several symbols. There are shown below.

Key Description

1. , / ? ! - : ' " 1

2A B C 2 Ä À Á Â Ã Å Æ Ç a b c ä à á â ã å æ ç

3D E F 3 Ë È É Ê d e f ë è é ê

4G H I 4 Ï Ì Í Î ˝g h i ï ì í î ©

5J K L 5 j k l

6M N O 6 Ñ Ö Ø Ò Ó Ô Õ Œ m n o ñ ö ø ò ó ô õ œ

7P Q R S 7 ß ™p q r s ß ∫

8T U V 8 Ü Ù Ú Û t u v ü ù ú û

9W X Y Z 9 w x y z

0[space] 0

Key Description

Display Information

The screen displays several icons. There are described below.

On-Screen Icons

Icon/Indicator

Description

Tells you the strength of the network signal.

Call is connected.

You can use GPRS service.

Shows that you are using a roaming service.

Line 1/2 is in use for outgoing calls – if you

subscribe to the Two Line Service.

The alarm has been set and is on.

Tells you the status of the battery.

You have received a text message.

You have received a voice message.

You have received an push message.

You can view your schedule.

All audible signals are turned off.

General menu in profile.

Loud menu in profile.

Silent menu in profile.

Headset menu in profile.

Car menu in profile.

You can divert a call.

Getting Started

1. Inserting the SIM Card

Locate the SIM card socket in the back

of the phone. Follow the steps below to

install the SIM card.

1. Remove the battery if attached.

2. Slide the SIM card into the slot,

under the silvery holders, with the

golden connectors facing down.

2. Removing the SIM Card

Follow the steps below to Remove the

SIM card.

1. Remove the battery if attached.

2. Take out the SIM card from the slot.

Notice

• Removing the battery from the phone whilst it is

switched on may cause it to malfunction.

• The metal contact of the SIM card can be easily

damaged by scratches. Pay special attention to the SIM

card when you handle and install. Follow the

instructions supplied with the SIM card.

Installation

Getting Started

3. Installing the Battery

1. Position the lugs on the bottom of

the battery into the retaining holder.

2. Then push to the half of the battery

into position.

4. Charging the Battery

To connect the travel adapter to the phone, you must have installed

the battery.

1. With the arrow facing you as shown

in the diagram push the plug on the

battery adapter into the socket on

the bottom of the phone until it

clicks into place.

2. Connect the other end of the travel

adapter to the mains socket.

Use only the included packing

charger.

Getting Started

5. Disconnecting the charger

Disconnect the travel adapter from the

phone by pressing its side buttons as

shown in the diagram.

Warning

• Do not force the connector as this may damage the

phone and/or the travel adapter.

Note

• Ensure the battery is fully charged before using the

phone.

• Do not remove your battery or the SIM card while

charging.

• The moving bars of battery icon will stop after

charging is complete.

Note

• “Battery Charging”is displayed on the screen after

connecting the travel adapter. Only if the battery is

totally empty, Call indicator Light is on without

displaying “Battery Charging”.

Note

If the battery does not charge,

• switch the phone off.

• ensure the battery is correctly fit.

Installation

Getting Started

Making and Answering Calls

Making a call

1. Key in phone number including the area code. If you want to

delete number, press .

2. Press to call the number.

3. Press to end the call.

International Calls

1. Press and hold the key for the international prefix.

“+” character may replace with the international access code.

2. Enter the country code, area code, and the phone number.

3. Press .

Making a call using the Phonebook

1. In standby mode, press [Names].

2. When the menu is displayed, you select Search by pressing .

3. If you find out the desired item through searching by a name or a

number, press to call.

Additional Functions

The menu displayed on the handset screen during a call is different

to the default main menu reached from the idle screen, and the

options are described here.

1 During a call

1-1 Putting a Call on Hold

When a call is made or answered, press the S[Send] to place it on

hold. When a call is held, press the S[Send] to make it active.

1-2 Making a Second Call

You can get a dial number from phonebook to make a second call.

Press [Names] then select Search. To save the dial number into

phonebook during call, press [Names] then select Add new.

1-3 Swapping Between Two Calls

To switch between two calls, select [Options], then select Swap

or just press [Send] key.

You can make one of two calls focused by pressing up/down arrow

key. If you want to end one of two calls, make the call you want to

end focused, then press [End] key when the call you want to

end is focused.

In call Menu

Additional Functions

1-4 Answering an Incoming Call

To answer an incoming call when the handset is ringing, simply

press the [Send] key.

The handset is also able to warn you of an incoming call while you

are already in a call. A tone sounds in the earpiece, and the display

will show that a second call is waiting. This feature, known as Call

Waiting, is only available if your network supports it. For details of

how to activate and deactivate it see Call waiting [Menu 4-3-4].

If Call Waiting is on, you can put the first call on hold and answer

the second, by pressing [Send] or by selecting [Answer],

then Hold & Answer.

You can end the current call and answer the waiting call by

selecting [Menu], then End & Answer.

1-5 Rejecting an Incoming Call

When not in a call you can reject an incoming call without answering

it by simply pressing the [End] or for a long time when the flip

is closed.

When in a call you can reject an incoming call by pressing the

[Menu] key and selecting Multiparty / Reject or by pressing

[End] key.

1-6 Muting the Microphone

You can mute the microphone during a call by pressing the

[Options] key then selecting Mute. The handset can be unmuted by

pressing the [Unmute].

When the handset is muted, the caller cannot hear you, but you can

still hear them.

Additional Functions

1-7 Switching DTMF Tones on During a Call

To turn DTMF tones on during a call, for example, to allow your

handset to make use of an automated switchboard, select

[Options], then DTMF On. DTMF tones can be turned off the same

way.

1-8 Calling up Messages and SIM Tool kit main menu

The Messages and SIM Tool kit main menu options can be reached

from the in-call menu by selecting [Options]. SIM Tool kit menu

is shown only when SIM in the handset supports SIM Tool kit

service.

2 Multiparty or Conference Calls

The multiparty or conference service provides you with the ability to

have a simultaneous conversation with more than one caller, if your

network service provider supports this feature.

A multiparty call can only be set up when you have one active call

and one call on hold, both calls having been answered. Once a

multiparty call is set up, calls may be added, disconnected or

separated (that is, removed from the multiparty call but still

connected to you) by the person who set up the multiparty call.

The maximum callers in a multiparty call is five. Once started, you

are in control of the multiparty call, and only you can add calls to the

multiparty call.

In call Menu

Additional Functions

2-1 Making a Second Call

You can make a second call while you are already in a call. To do

this, enter the second number and press S [Send]. When you get

second call the first call is automatically put on hold. You can swap

between calls by selecting [Options] then Swap.

2-2 Setting up a Multiparty Call

You can connect a call on hold to the currently active call to form a

multiparty call by selecting [Options] then Multiparty / Join all.

2-3 Putting the Multiparty Call on Hold

To put a multiparty call on hold, select [Options] then

Multiparty / Hold all.

2-4 Activate the Multiparty Call on Hold

To make a multiparty call on hold active, select [Options] then

Multiparty / Join all.

2-5 Adding Calls to the Multiparty Call

To join an active call to the held multiparty call, select [Options]

then Multiparty / Join all.

2-6 Displaying Callers in a Multiparty Call

To scroll though the numbers of the callers who make up a

multiparty call on the handset screen, press and keys.

Additional Functions

2-7 Putting a Member of a Multiparty Call on Hold

To place one selected caller (whose number is currently displayed

on-screen) of a multiparty call on hold, select [Options] then

Multiparty / Exclude.

2-8 A Private Call in a Multiparty Call

To have a private call with one caller of a multiparty call, display the

number of the caller you wish to talk to on the screen, then select

[Options] and Multiparty / Private to put all the other callers on

hold.

2-9 Ending a Multiparty Call

The currently displayed caller of a multiparty call can be

disconnected by pressing the [End] key. To end a multiparty

call, press [Options] then select Multiparty / End multiparty.

Selecting [Options] then Multiparty / End all, will end all the

active and held calls.

In call Menu

Additional Functions

Access Codes

You can use the access codes described in this section to avoid

unauthorized use of your phone. The access codes (except PUK

and PUK2 codes) can be changed by using [Menu 4-4-5].

PIN code (4 to 8 digits)

The PIN (Personal Identification Number) code protects your SIM

card against unauthorized use. The PIN code is usually supplied

with the SIM card. When PIN code is set On, your phone will

request the PIN code every time it is switched on. On the contrary,

when PIN code is set Off, your phone connects to the network

directly without the request PIN code.

PIN2 code (4 to 8 digits)

The PIN2 code, supplied with some SIM cards, is required to

access some functions such as Advice of call charge, Fixed Dial

number. These functions are only available if supported by your SIM

card.

PUK code (4 to 8 digits)

The PUK (PIN Unblocking Key) code is required to change a

blocked PIN code. The PUK code may be supplied with the SIM

card. If not, contact your local service provider for the code. If you

lose the code, also contact your service provider.

PUK2 code (4 to 8 digits)

The PUK2 code, supplied with some SIM cards, is required to

change a blocked PIN2 code. If you lose the code, also contact your

service provider.

Security code (4 to 8 digits)

The security code protects the unauthorized use of your phone. It is

usually supplied with the phone. This code is required to delete all

phone entries and to activate “Reset settings” menu. The default

number is “0000”.

Accessing the Menu

1 Messages

1 Write text message

2 Write multimedia message

3 Inbox

4 Outbox

5 Drafts

6 Listen to voice mail

7 Info message

8 Templates

9 Settings

2 Call register

1 Missed calls

2 Received calls

3 Dialled calls

4 Delete recent calls

5 Call charges

6 GPRS information

3 Profiles

1 Vibrate only

2 Quiet

3 General

4 Loud

5 Headset

6 Car

4 Settings

1 Date & Time

2 Phone settings

3 Call settings

4 Security settings

5 Network settings

6 GPRS setting

7 Reset settings

5 Organiser

1 Alarm clock

2 Scheduler

3 Phonebook

Menu Tree

Accessing the Menu

6 Fun & Tools

1 Favorites

2 Games

3 Calculator

4 My folder

5 Unit converter

6 World time

7 Voice recorder

8 Memory status

7 Internet

1 Home

2 Bookmarks

3 Profiles

4 Go to URL

5 Cache settings

6 Cookies settings

7 Security certification

8 Reset profiles

9 Browser version

8 Applications

1 Applications

2 Download

3 Profles

9 SIM Service

This menu depends on SIM

and the network services.

Accessing the Menu

This menu includes functions related to SMS (Short Message

Service), MMS (Multimedia Message Service), voice mail, as well as

the network’s service messages.

Write text message [Menu 1-1]

You can write and edit text message, checking the number of

message pages.

1. Enter the Messages menu by pressing [Select].

2. If you want to write a new message, select Write text message.

3. To make text input easier, use T9. For details, see How to Use

T9 (Page 35).

4. Press [Insert] to attach the followings.

5. If you want to set option for your text, or to finish your writing,

press [Options].

Options

• Send

Sends text messages.

1. Enter numbers of recipient.

2. Press

key to add more recipients.

3. You can add phone numbers in the phone book.

4. Press <after entering numbers.

Note

• The phone which supports EMS release 5 is available

to send colour pictures, sounds, text styles, etc.. The

other party may not receive pictures, sounds or text

styles you sent properly if the phone does not support

such options.

Messages [Menu 1]

Accessing the Menu

• Save

Stores messages in Outbox.

• Font

You can select Size and Style of fonts.

• Colour

You can select Colour of foreground and background.

• Alignment

You can make the message contents aligned Right, Centre or

Left.

• Add T9 dictionary

You can add your own word. This menu can be shown only when

edit mode is Predictive (T9Abc/T9abc/T9ABC).

• T9 languages

Select a T9 input mode.

• Exit

If you press Exit while writing a message, you can end the writing

message and back to the Message menu. The message you have

written is not saved.

Messages [Menu 1]

Accessing the Menu

Insert

• Symbol

You can add special characters.

• Picture

You can insert the Default pictures or pictures in My folder that

are available for short messages.

• Sound

You can insert sounds that are available for short messages.

• Text templates

You can use Text templates already set in the phone.

• Phonebook

You can add phone numbers or e-mail addresses in Phonebook.

• Signature

You can add your contact information to the message.

Write multimedia message [Menu 1-2]

You can write and edit multimedia messages, checking message

size.

1. Enter the Messages menu by pressing [Select].

2. If you want to write a new message, select Write multimedia

message.

3. You can create a new message or choose one of the multimedia

message templates already made.

4. Press Insert to add Symbol, Picture, Sound, Text templates,

Phonebook or Signature.

Accessing the Menu

Options

• Send

You can send multimedia messages to multiple recipients,

prioritise your message, and make it sent later as well.

• Preview

You can preview multimedia messages you wrote.

• Save

You can save multimedia messages in the drafts or as templates.

• Add slide

You can add a slide before or after current slide.

• Move to slide

You can move to previous or next slide.

• Delete slide

You can delete current slides.

• Set slide format

- Set timer

You can set timer for slide, text, picture and sound.

- Swap text and picture

You can switch the position of picture and text of the message.

• Remove media

You can remove pictures or sounds in the slide. This option can be

shown only when any media exists.

Accessing the Menu

• Add T9 dictionary

You can add your own word. This menu can be shown only when

edit mode is Predictive (T9Abc/T9abc/T9ABC).

• T9 languages

Select a T9 input mode.

• Exit

You can back to the Message menu.

Messages [Menu 1]

Note

• If you select the picture (15K) on writing multimedia

message, loading duration will take around 15

seconds at least. Furthermore, you can't activate any

key during loading time. After 15 seconds, it is

available to write multimedia message.

Accessing the Menu

How to Use T9

T9 allows you to input text quickly.

In T9, you only need to press the key with the corresponding

letter once. This is based on a built-in dictionary to which you

can also add new words.

• Writing words by using T9.

1. Start writing a word by using the keys to .

Press each key only once for one

letter.

To write for instance ‘Girl’, press , , , .

The characters that you enter appear blocked.

The word changes after each keystroke. Therefore you

shouldn’t pay too much attention to how the word appears

on the display until you have pressed all the appropriate

keys.

To delete a character to the left, press .

To insert several numbers, hold down and key in the

numbers.

If you hold down, you can change the type of

language. (You can also use options.)

Also, the phone supports three modes: Predictive (T9Abc,

T9ABC, T9abc), Multitap (ABC, abc), Numeric (123). If

you want to change a mode, press key.

160 1

T9Abc

159 1

T9abc

158 1

T9abc

157 1

T9abc

156 1

T9abc

His Girl

(For G) (For i)

(For r) (For l)

Accessing the Menu

Alternatively : Press *key and select insert symbols. Select

the desired character and press Select.

2. When you have finished writing a word, check whether the

word is correct.

If the word is correct

: Press 0and write the next word.

If the word is not correct

: Search by

U , D

(Previous and

Next word).

Alternatively : If there is no word you want you can add your

own word.

Press < [Options] in the Predictive edit mode.

Select Add T9 dictionary Menu. You can see

the following.

3. To insert a punctuation mark, press 1repeatedly until the

desired mark appears.

ABC

Word

Save Back

ABC

Word

Save Back

LGGSM

T9 languages

• You can select T9 Languages by selecting Menu.

In T9 mode, you can also select T9 Off menu.

(Default is T9 On)

Input

your word

➮

Messages [Menu 1]

Accessing the Menu

Icon directive

[ ] Multimedia message

[ ] Short message

[ ] SIM message

[ ] Read

[ ] Notified multimedia message

Inbox [Menu 1-3]

You will be alerted when you have received messages. They will be

stored in Inbox.

In Inbox, you can identify each message by icons. For detail, see

the icon directive.

If the phone shows ‘No space for SIM message’, you have to delete

only SIM messages from Inbox. If the phone displays ‘No space for

message’, you can make space of each repository as deleting

messages, media and applications.

❇ SIM message

SIM message means the message exceptionally stored in SIM

card.

For notified multimedia message, you have to wait for downloading

and processing of the message. For notification setting, see [Menu

1-9-2] for detail.

To read a message, select one of the messages by pressing <.

You can reply to the sender.

Accessing the Menu

Forward

You can forward the selected message to another party.

Return call

You can call back to the sender.

Delete

You can delete the current message.

Extract

You can extract picture, sound and text. They will be saved in My

folder or Phonebook.

View information

You can view information about received messages; Sender's

address, Subject (only for Multimedia message), Message date &

time, Message type, Message size.

Replay (applicable to Multimedia message only)

You can replay multimedia messages.

❇ Receive (In the case of notification message)

If Multimedia message is set to Auto download off, you can get

only Notification. To receive a message, you need to select

[Receive].

Outbox [Menu 1-4]

You can see sent and unsent messages here. For sent message,

you can see the delivery status.

The browsing is same as that for the inbox message.

Messages [Menu 1]

Accessing the Menu

Icon directive

[ ] Sent

[ ] Failed

[ ] Delivery confirmed

[ ] SMS sent

❇When you already sent the message:

Forward

You can forward the current message to other recipients.

Delete

You can delete the current message.

View information

You can view information about outbox messages; Recipient’s

address, Subject (only for Multimedia message), Message date &

time, Message type, Message size.

❇ When you didn’t send the message:

View

You can view the messaage.

Send

You can send the message.

Delete

You can delete the current message.

Accessing the Menu

View information

You can view information about outbox messages.

Drafts [Menu 1-5]

You can view the messages saved as a draft. The draft messages

are listed with the date and time when they were saved. Scroll

through the list using up/down navigation keys.

Each draft has the following options. Press <[Options].

View

You can view the selected message.

Edit

You can edit the selected message.

Delete

Deletes the selected message from the drafts folder.

View information

You can view the information of selected message: subject (only for

multimedia message), the date and time when saved, message type

and size, the priority (only for multimedia message).

Delete all

Deletes all the messages from drafts folder.

Messages [Menu 1]

Icon directive

[ ] Multimedia message

[ ] Text message

[ ] Delivery confirmed

Accessing the Menu

Listen to voice mail [Menu 1-6]

You can listen to voice mail.

Info message [Menu 1-7]

Info service messages are text messages delivered by the network

to GSM. They provide general information such as weather reports,

traffic news, taxis, pharmacies, and stock prices. Each type of

information has the number; therefore, you can contact service

provider as long as you have input the certain number for the

information. When you have received an info service message, you

can see the popup message to show you that you have received a

message or the info service message is directly displayed. To view

the message again or not in standby mode, follow the sequence

shown below;

Read [Menu 1-7-1]

1. When you have received an info service message and select

Read to view the message,it will be displayed on the screen. You

can read another message by scrolling L , Ror < [Next].

2. The message will be shown until another message is reached.

Topics [Menu 1-7-2]

• Add new

You can add Info service message numbers in the Phone memory

with its nickname.

• View list

You can see Info service message numbers which you added. If

you press < [Options], you can edit and delete info message

category which you added.

• Active list

You can select Info service message numbers in the active list.

If you activate an info service number, you can receive messages

sent from the number.

Accessing the Menu

Templates [Menu 1-8]

Text templates [Menu 1-8-1]

You have 11 text templates. You can change the predefined

templates into your favorite ones or fill the <empty>s.

Multimedia templates [Menu 1-8-2]

You can use the following options.

• Preview

You can preview multimedia messages you wrote.

• Save

You can save multimedia messages in the outbox or as templates.

• Add slide

You can add a slide before or after current slide.

• Move to slide

You can move to previous or next slide.

• Delete slide

You can delete current slides.

• Set slide format

- Set timer

You can set timer for slide, text, picture and sound.

- Swap text and picture

You can switch the position of picture and text of the message.

• Remove media

You can remove pictures or sounds in the slide. This option can be

shown only when any media exists.

Messages [Menu 1]

Accessing the Menu

• Add T9 dictionary

You can add your own word. This menu can be shown only when

edit mode is Predictive (T9Abc/T9abc/T9ABC).

• T9 languages

Select a T9 input mode.

• Exit

You can back to the Message menu.

Signature [Menu 1-8-3]

You can make your Signature. Key in Name, Phone number, Fax

number and Email.

Settings [Menu 1-9]

Text message [Menu 1-9-1]

• Message types

Text, Voice, Fax, Natl. paging, X.400, E-mail, ERMES

Usually, the type of message is set to Text. You can convert your

text into alternative formats. Contact your service provider for the

availability of this function.

• Validity period

This network service allows you to set how long your text

messages will be stored at the message centre.

• Delivery report

If you set to Yes, you can check whether your message is sent

successfully.

• Reply via same service centre

When a message is sent, it allows the recipients to reply and

charge the cost of the reply to your telephone bill.

Accessing the Menu

• SMS centre

If you want to send the text message, you can receive the address

of SMS centre through this menu.

Multimedia message [Menu 1-9-2]

• Priority

You can send the message after setting the level of priority: Low,

Normal and High.

• Validity period

This network service allows you to set how long your text

messages will be stored at the message centre.

• Delivery report

If it is set to Yes in this menu, you can check whether your

message is sent successfully.

• Auto download

On: The messages are downloaded automatically on receipt.

Off: Requires to confirm the message which you want to

download.

Home network only: In home network, you can activate Auto

download “On” menu, Otherwise, you can activate Auto download

in roaming network when you set Off.

• Network settings

In order to download MMS from the server, you need to set up a

CSD or GPRS data connection. If you select multimedia message

server, you can set URL for multimedia message server. You can

set over 5 profiles to connect service.

- Homepage

This menu allows to connect MMS centre (MMSC).

Messages [Menu 1]

- Bearer

• Data

• GPRS

- Data settings

Appears only if you select Data settings as a Bearer\service.

IP address

Dial number : Enter the telephone number to dial to access your

WAP gateway.

User ID

Password

Call type : Select the type of data call, Analogue or Digital

(ISDN).

Call speed : The speed of your data connection 9600 or

14400.

- GPRS settings

The service settings are only available when GPRS is chosen as

a bearer service.

IP address

APN : Insert APN (Access Point Name) of GPRS.

User ID

Password

- Connection type

The options for connection type are Temporary or Continuous.

- Secure settings

Depending on the chosen gateway port, you can select this

option On or Off.

Accessing the Menu

• Permitted types

Personal : Personal message.

Advertisements

: Commercial message.

Information : Necessary information.

Voice mail centre [Menu 1-9-3]

You can receive the voicemail if this feature is supported by your

network service provider. When a new voicemail is arrived, the

symbol will be displayed on the screen. Please check with your

network service provider for details of their service in order to

configure the phone accordingly.

1. Hold down 1key in standby mode.

2. You can check the following submenus.

• Home

You can listen to voice mails by selecting Home.

• Roaming

Even when you are in abroad, you can listen to voice mails if

roaming service is supported.

Info service [Menu 1-9-4]

(Dependent to network and subscription)

• Receive

- Yes

If you select this menu, your phone will receive Info service

messages.

- No

If you select this menu, your phone will not receive Info service

messages any more.

Accessing the Menu

Messages [Menu 1]

Accessing the Menu

• Alert

- Yes

Your phone will beep when you have received Info service

message numbers.

- No

Your phone will not beep even though you have received info

service messages.

• Languages

You can select the language you want by pressing [On/Off]. Then,

the info service message will be shown in the language that you

selected.

Push messages [Menu 1-9-5]

You can set the option whether you will receive the message or not.

Accessing the Menu

Missed calls [Menu 2-1]

This menu shows recently missed numbers. You can call these

numbers, save and view the date and the time.

Received calls [Menu 2-2]

This menu shows recently received numbers. You can call these

numbers, save and view the date and the time.

Dialled calls [Menu 2-3]

This menu shows the latest dialled numbers up to 20.

Delete recent calls [Menu 2-4]

You can delete recent calls of Missed calls, Received calls,

Dialled calls or All calls.

Call charges [Menu 2-5]

Within these submenus, you can view the duration and the call cost

of your calls.

Call register [Menu 2]

Accessing the Menu

Call duration [Menu 2-5-1]

This function allows you to view the duration of your Last Call, All

Calls, Received calls and Dialled calls in hours, minutes and

seconds. You can also reset the call timers.

1. Press < [Menu] in standby mode.

2. Press 2for direct access or use Land Rto enter Call register,

then select Call charges.

3. Scroll to highlight Call duration and Press < [Select].

The following 5 submenus: Last call, All calls, Received calls,

Dialled calls and Reset all.

Call costs [Menu 2-5-2]

This function allows you to check the cost of your last call, all calls,

remaining and reset the cost. To reset the cost, you need the PIN2

code.

1. Press < [Menu] in standby mode.

2. Press 2for direct access or use Land Rto enter Call register,

then select Call charges.

3. Scroll to highlight Call costs and Press < [Select].

The following 4 submenus: Last call, All calls, Remaining and

Reset all.

Note

• The actual cost invoiced for calls by your service

provider may vary, depending upon network features,

rounding-off for billing, tax, and etc.

Accessing the Menu

Settings [Menu 2-5-3] (SIM Dependent)

• Set tariff

You can set the currency type and the unit price. Contact your

service providers to obtain charging unit prices. To select the

currency or unit in this menu, you need the PIN2 code.

If you want to input @, £, $ symbol, clear all currency strings and

then press *key. If you want to change symbol, press *key again.

• Set credit

This network service allows you to limit the cost of your calls by

selected charging units. If you select Read, the number of

remaining unit is shown. If you select Change, you can change

your charge limit.

• Auto display

This network service allows you to see automatically the cost of

your last calls. If set to On, you can see the last cost when the call

is released.

Call register [Menu 2]

Note

• When all units have been used, no calls can be made

except emergency calls. Depending on the SIM card,

you need the PIN2 code to set a call cost limit.

Accessing the Menu

GPRS information [Menu 2-6]

You can check the amount of data transferred over the network

through GPRS. In addition, you can view how much time you are

online.

Call duration [Menu 2-6-1]

You can check the duration of Last call and All calls. You can also

reset the call timers.

Data volumes [Menu 2-6-2]

You can check the Sent, Received or All data volumes and Reset

all.

Accessing the Menu

In this menu, you can adjust and customize the phone tones for

different events and environments.

1. Press < [Menu] in standby mode.

2. Press 3for direct access or use Land R.

3. You can also enter this menu directly by pressing Lkey in

standby mode.

Vibrate only [Menu 3-1]

You can adjust the profile as Vibrate only if you need vibration

mode. In the mode, all kinds of alert are Vibrate or Silent.

Quiet [Menu 3-2]

You can adjust the profile as Quiet if you are in quiet place.

General [Menu 3-3]

You can adjust the profile as General.

Loud [Menu 3-4]

You can adjust the profile as Loud if you are in a noisy

environment.

Headset [Menu 3-5]

You can adjust the profile as Headset when you put on a headset.

Car [Menu 3-6]

You can adjust the profile as Car when you activate Handsfree kit.

Profiles [Menu 3]

Accessing the Menu

Activate [Menu 3-x-1]

Activates the selected Profile.

Personalise [Menu 3-x-2]

Each has the submenus as shown below except for Vibrate only.

Call alert type

Allows to select alert type such as Ring, Vibrate, etc. for the

incoming for adjusting environment.

Ring tone

Allows to set the ring tone for adjusting environment.

Ring volume

Allows to set the ring volume for adjusting environment. The volume

of Power on/off sound and all the alert sounds set according to Ring

volume.

Message alert type

Allows to alert when receiving a message for adjusting environment.

Message tone

Allows to select the alert tone for message reception.

Keypad volume

Allows to set the keypad volume for adjusting environment.

Note

• Headset and Car profiles can be activated only when

Handsfree kit or Ear microphone put on the handset.

However, their properties can be personalised.

Accessing the Menu

Keypad tone

Allows to select the keypad tone for adjusting environment.

Flip tone

Allows to set the flip tone for adjusting environment.

Effect sound volume

Allows to set the effect sound volume for adjusting environment.

Power on/off volume

Allows to set the power on/off volume for adjusting environment

Auto answer

This function will be activated only when your phone is connected to

the headset or handsfree kit.

• Off : The phone will not answer automatically.

• After 5 secs : After 5 seconds, the phone will answer

automatically.

• After 10 secs : After 10 seconds, the phone will answer

automatically.

Rename [Menu 3-x-3]

You can change the default profile name except of Vibrate only,

Headset, and Car menus.

Note

• If you set the Handsfree kit to the phone, you can’t

use the vibrate mode related with Call alert type or

Message alert menu. In car menu, the following

submenus are available;

- Call alert type : Ring, Lamp

- Message alert type : Ring once, Ring periodically,

No alert

Profiles [Menu 3]

Accessing the Menu

Settings [Menu 4]

You can set the following menus for your convenience and

preferences.

1. Press < [Menu] in standby mode.

2. Press 4for direct access to enter Settings.

Date & Time [Menu 4-1]

You can set functions relating to the date and time.

Set date [Menu 4-1-1]

You can enter the current date.

Date format [Menu 4-1-2]

You can set the Date format such as DD/MM/YYYY, MM/DD/YYYY,

YYYY/MM/DD. (D: Day / M: Month / Y: Year)

Set time [Menu 4-1-3]

You can enter the current time.

Time format [Menu 4-1-4]

Your can set the time format between 24-hour and 12-hour.

Phone settings [Menu 4-2]

You can set functions relating to the phone.

Wallpaper [Menu 4-2-1]

You can select the background pictures in standby mode.

• Default

You can select a picture or an animation of wallpaper by pressing

L or R.

• Myfolder

You can select a picture or an animation as wallpaper.

Accessing the Menu

Greeting note [Menu 4-2-2]

If you select On, you can edit the text which is displayed in standby

mode.

Language [Menu 4-2-3]

You can change the language for the display texts in your phone.

This change will also affect the Language Input mode.

Backlight [Menu 4-2-4]

You can set the light-up duration of the internal display.

LCD contrast [Menu 4-2-5]

You can set the brightness of LCD by pressing L , R.

Information window [Menu 4-2-6]

You can preview the current state of the selected menu before open

the menu. The state is shown at bottom of the display.

Menu colour [Menu 4-2-7]

You can select the preferred menu colour among various

combination.

LED indicator [Menu 4-2-8]

When the LED indicator is set to On, it flashes when the service is

available.

Network name [Menu 4-2-9]

If you select on, you can see the network service provider name

which is displayed in standby mode.

Settings [Menu 4]

Accessing the Menu

Call settings [Menu 4-3]

You can set the menu relevant to a call by pressing < [Select] in the

Setting menu.

Call divert [Menu 4-3-1]

The Call divert service allows you to divert incoming voice calls, fax

calls, and data calls to another number. For details, contact your

service provider.

• All voice calls

Diverts voice calls unconditionally.

• If busy

Diverts voice calls when the phone is in use.

• If no reply

Diverts voice calls which you do not answer.

• If out of reach

Diverts voice calls when the phone is switched off or out of

coverage.

• All data calls

Diverts to a number with a PC connection unconditionally.

• All fax calls

Diverts to a number with a fax connection unconditionally.

• Cancel all

Cancels all call divert service.

Accessing the Menu

The submenus

Call divert menus have the submenus shown below.

- Activate

Activate the corresponding service.

To voice mail centre

Forwards to message centre. This function is not shown at All data

calls and All fax calls menus.

To other number

Inputs the number for diverting.

To favourite number

You can check recent 5 diverted numbers.

- Cancel

Deactivate the corresponding service.

- View status

View the status of the corresponding service.

Answer mode [Menu 4-3-2]

• Flip open

If you select this menu, you can receive an incoming call by only

opening the flip.

• Press any key

If you select this menu, you can receive a call by pressing any key

except E[End] key.

• Send only

If you select this menu, you can receive a call by only pressing

S [Send] key.

Settings [Menu 4]

Accessing the Menu

Send my number [Menu 4-3-3]

(network and subscription dependent)

• On

You can send your phone number to another party. Your phone

number will be shown on the receiver’s phone.

• Off

Your phone number will not be shown.

• Set by network

If you select this, you can send your phone number depending on

two line service such as line 1 or line 2.

Call waiting [Menu 4-3-4]

(network dependent)

• Activate

If you select Activate, you can accept a waiting (receiving) call.

• Cancel

If you select Cancel, you cannot recognize the waiting (receiving)

call.

• View status

Shows the status of Call waiting.

Minute minder [Menu 4-3-5]

If you select On, you can check the call duration by deep sound

every minute during a call.

Accessing the Menu

Auto redial [Menu 4-3-6]

• On

When this function is activated, the phone will automatically try to

redial in the case of failure to connect a call.

• Off

Your phone will not make any attempts to redial when the original

call has not connected.

Closed user group [Menu 4-3-7]

(network dependent)

Restricts usage of the phone with numbers that belong to certain

user groups. When this function is used, every outgoing call is

associated with a group index. If a group index is specified, it is

used for all outgoing calls. If no group index is specified, the

network will use the preferential index (a specific index that is stored

in the network).

Default : Activate the default group agreed on with the network

operator.

Set : Setting the selected CUG Index.

Edit : Editing the CUG name and CUG Index.

Delete : Deleting the selected CUG.

Delete all

: Deleting All CUG.

Security settings [Menu 4-4]

PIN code request [Menu 4-4-1]

In this menu, you can set the phone to ask for the PIN code of your

SIM card when the phone is switched on. If this function is

activated, you’ll be requested to enter the PIN code.

1. Select PIN code request in the security settings menu, and then

press < [Select].

Settings [Menu 4]

Accessing the Menu

2. Set On/Off.

3. If you want to change the setting, you need to enter PIN code

when you switch on the phone.

4. If you enter wrong PIN code more than 3 times, the phone will

lock out. If the PIN is blocked, you will need to key in PUK code.

5. You can enter your PUK code up to 10 times. If you put wrong

PUK code more than 10 times, you can not unlock your phone.

You will need to contact your service provider.

Phone lock [Menu 4-4-2]

You can use security code to avoid unauthorized use of the phone.

Whenever you switch on the phone, the phone will request security

code if you set phone lock to On. If you set phone lock to

Automatic, your phone will request security code only when you

change your SIM card.

Call barring [Menu 4-4-3]

The Call barring service prevents your phone from making or

receiving certain category of calls. This function requires the call

barring password. You can view the following submenus.

• All outgoing

The barring service for all outgoing calls.

• Outgoing international

The barring service for all outgoing international calls.

• Outgoing international except home country

The barring service for all international outgoing calls except home

network.

• All incoming

The barring service for all incoming calls

Accessing the Menu

• Incoming when abroad

The barring service for all incoming calls when roaming

• Cancel all

You can cancel all barring services.

• Change password

You can change the password for Call Barring Service.

Each call barring menu has following submenus:

• Activate

Allows to request the network to set call restriction on.

• Cancel

Set the selected call restriction off.

• View status

View the status whether the calls are barred or not.

Fixed dial number [Menu 4-4-4] (SIM dependent)

You can restrict your outgoing calls to selected phone numbers. The

numbers are protected by your PIN2 code.

• Activate

You can restrict your outgoing calls to selected phone numbers.

• Cancel

You can cancel fixed dialling function.

• Number list

You can view the number list saved as Fixed dial number.

Settings [Menu 4]

Accessing the Menu

Change codes [Menu 4-4-5]

PIN is an abbreviation of Personal Identification Number used to

prevent use by only unauthorized person.

You can change the access codes: PIN2 code, Security code.

1. If you want to change the Security code/PIN/PIN2 code input

your original code, and then press < [OK].

2. Input new Security code/PIN/PIN2 code and verify them.

Network settings [Menu 4-5]

You can select a network which will be registered either

automatically or manually. Usually, the network selection is set to

Automatic.

Automatic [Menu 4-5-1]

If you select Automatic mode, the phone will automatically search

for and select a network for you. Once you have selected

“Automatic”, the phone will be set to “Automatic” even though the

power is off and on.

Manual [Menu 4-5-2]

The phone will find the list of available networks and show you

them. Then you can select the network which you want to use if this

network has a roaming agreement with your home network

operator. The phone let you select another network if the phone fails

to access the selected network.

Preferred [Menu 4-5-3]

You can set a list of preferred networks and the phone attempts to

networks. This list is set from the phone’s predefined list of known

networks.

Accessing the Menu

GPRS setting [Menu 4-6]

You can set GPRS service depending on various situation.

Power on [Menu 4-6-1]

If you select this menu, the phone is automatically registered to a

GPRS network when you switch the phone on. Starting a WAP or

PC dial-up application created the connection between phone and

network and data transfer is possible. When you end the

application, GPRS connection is ended but the registration to the

GPRS network remains.

When needed [Menu 4-6-2]

If you select this menu, the GPRS connection is established when

you connect a WAP service and closed when you end the WAP

connection.

Reset settings [Menu 4-7]

You can initialize all factory defaults. You need Security code to

activate this function.

Settings [Menu 4]

Accessing the Menu

Organiser [Menu 5]

Alarm clock [Menu 5-1]

You can set up to 5 alarm clocks to go off at a specified time.

1. Select On and enter the alarm time you want.

2. Select the repeat period : Once, Mon~Fri, Mon~Sat, Everyday.

3. Select the alarm tone you want and press < [OK].

4. Edit the alarm name and press < [OK].

Scheduler [Menu 5-2]

When you enter this menu a Calendar will show up. On top of the

screen there are sections for date. Also on bottom of the screen

there are sections for icons (schedule, memo). Whenever you

change the date, the calendar will be updated according to the date.

And square cursor will be used to locate the certain day. If you see

under bar on the calendar, it means that there is a schedule or

memo that day. This function helps to remind you of your schedule

and memo. The phone will sound an alarm tone if you set this for

the note.

To change the day, month, and year.

Key Description Key Description

Yearly

Monthly

Weekly

Daily

Note

• Your phone should be switched on to use this function.

Add new [Menu 5-2-1]

You can edit maximum 39 characters and take up to 20 notes.

• Schedule

Input the subject, the schedule time, the repeat, the alarm by

pressing allowed keys.

• Memo

1. Select Add new by pressing < [Select].

2. Press Memo.

3. Input the memo and then press < [OK].

View [Menu 5-2-2]

Shows the note for the chosen day. Use

U , D

to browse through the

note lists. If you set alarm for the note, Alarm watch is displayed. At

that time, if you press < [Select], you can see the note in detail.

Press < [Options] to delete, edit the note you selected.

View all [Menu 5-2-3]

Shows the notes that are set for all days. Use

U , D

to browse

through the note lists. You can use the same menu as “View” by

pressing < [Options].

Delete past [Menu 5-2-4]

You can delete the past schedule that has been already notified

you.

Delete all [Menu 5-2-5]

You can delete for the all note(s).

Accessing the Menu

Organiser [Menu 5]

Accessing the Menu

Phonebook [Menu 5-3]

1. To use Phonebook, press > [Names] in standby mode.

2. To use Phonebook, press < [Menu] in standby mode and select

Organiser.

Search [Menu 5-3-1]

(Calling from phonebook)

1. In standby mode, press > [Names].

2. Search by pressing < [Select].

3. Enter the name whose phone numbers or e-mail address you

want to search or Select ‘List’ to view phonebook.

4. Instant searching is available by inputting the initial letter of the

name or number you want to search.

5. If you want to edit, delete, copy an entry, or to add the voice to

one, select < [Options]. The following menu will be displayed.

• Edit : You can edit the name, number, E-mail and fax

by pressing < [OK].

•

Write message

: After you have found the number you want, you

can send a message to the selected number.

• Copy : You can copy an entry from SIM to phone or

from phone to SIM.

• Main number : You can select the one out of mobile, home,

office that you often use. The main number will

be displayed first, if you set this.

• Delete : You can delete an entry.

Accessing the Menu

Add new [Menu 5-3-2]

You can add phonebook entry by using this function.

Phone memory capacity is 200 entries. SIM card memory capacity

depends on the cellular service provider.

You can also save 20 characters of name in The Phone memory,

and save characters in the SIM card. The number of character is

SIM dependent feature.

1. Open the phonebook first by pressing > [Names] in standby

mode.

2. Scroll to highlight Add new, and press < [Select].

3. Select the memory you want to save: SIM or Phone. If set to

Phone, you need to select which number you want as Main

number.

a. Press < [OK] to input a name.

b. Press < [OK], then you can input a number.

c. Press < [OK].

You can set a group for the entry by pressing

L , R

e. You can set a character and a picture for the entry by pressing

U , D

,L , R.

Caller groups [Menu 5-3-3]

You can list up to 20 members per one group. There are 7 groups

you can make lists to.

1. In standby mode, press > [Names].

2. Scroll to Caller groups item then press <[Select], and every

Group list will be displayed.

3. Select Group name you want by pressing <[Select].

• Member list

Shows the group members you have selected.

Organiser [Menu 5]

Accessing the Menu

• Group ring tone

Allows you to specify ring tone for the group members' call.

• Group icon

Allows you to select the icon dependent on Group.

• Add member

You can add group members. Each group member souldn’t be

exceeded 20.

• Remove member

You can remove the member from the Group member list. But

the name and the number still remain in phonebook.

• Rename

You can change a group name.

Speed dial [Menu 5-3-4]

You can assign any of the keys, 2to 9with a Name list entry. You

can call directly by pressing this key for 2-3 seconds.

1. Open the phonebook first by pressing > [Names] in standby

mode.

2. Scroll to Speed dial, then press < [Select].

3. If you want to add Speed dial, select (Empty). Then, you can

search the name in phonebook.

4. Select allocated a name by speed dial, and choose Change or

Delete to edit the name.

• Change

You can allocate a new phone number to the dial key.

• Delete

You can remove the allocated phone number from the dial key.

Settings [Menu 5-3-5]

1. Press > [Names] in standby mode.

2. Scroll to Settings, then press < [Select].

• Set memory

Scroll to highlight Set memory, then press <[Select].

- If you select Variable, when adding entry, the phone will ask

where to store.

- If you select SIM or Phone, the phone will store an entry to

SIM or phone.

• Search by

Scroll to highlight Search by, then press <[Select].

- If you select Variable, the phone will ask how to search.

- If you select Name or Number, the phone will search an

entry by Name or Number.

• View options

Scroll to highlight View options, then press <[Select]

- Name only : Set the phonebook list with displaying only

name.

With pictures

: Set the phonebook list with the information of

character and picture.

Accessing the Menu

Organiser [Menu 5]

Accessing the Menu

Copy all [Menu 5-3-6]

You can copy/move entries from SIM card memory to Phone

memory and vice versa.

1. Open the Phonebook first by pressing > [Names] in standby

mode.

2. Scroll to Copy all, then press < [Select] to enter this menu.

• SIM to Phone : You can copy the entry from SIM Card to

Phone memory.

• Phone to SIM : You can copy the entry from Phone memory

to SIM Card.

3. You can see the following submenus.

• Keep original : When copying, Original Dial Number is kept.

• Delete original : When copying, Original Dial Number will be

erased.

Delete all [Menu 5-3-7]

You can delete all entries in SIM, Phone, and Voice. This function

requires Security code except for voice.

Press

[Names] in standby mode and select Delete all, press

[Select]

2. Then select a memory to erase.

3. Enter security code and Press < [OK] or > [Back].

Accessing the Menu

Information [Menu 5-3-8]

• Service dial number

Use this function to access a particular list of services provided by

your network operator (if supported by the SIM card).

1. Open the phonebook first by pressing > [Names] in standby

mode and select Information.

2. Scroll to Service dial number, then press < [Select] to enter.

3. The names of the available services will be shown.

4. Use

and

to select a service. Press S [Send].

• Memory status

This feature allows you to see how many free and in-use are in

your phonebook.

1. Open the phonebook first by pressing > [Names] in standby

mode. Select Information by pressing < [Select].

2. Scroll to Memory status, then press < [OK].

• Own number (SIM dependent)

You can check your own number in SIM card.

Organiser [Menu 5]

Accessing the Menu

Fun & Tools [Menu 6]

Favorites [Menu 6-1]

You can set up to 9 menus which you have used often in Favorites.

You can connect this menu directly by pressing hot key D.

If you want to register the menu in favorites, select <Empty> on a

list. If the menu is already registered, the options are displayed as

follows:

- Select : Activate the registered menu.

- Change : Change the menu.

- Delete : Delete the registered menu.

- Delete all : Delete all menus which are registered in Favorites.

- Information: View the information of registered menu.

Games [Menu 6-2]

The phone offers you the games to play with.

Note

• The control keys are different depending on a game.

However, each one has an introduction to explain the

main control keys. The rest ones are as follows.

[Common Key Function]

: Game menu

: Back

: Pause or resume a game

Accessing the Menu

Calculator [Menu 6-3]

This contains the standard functions such as +, –, x, ÷: Addition,

Subtraction, Multiplication, and Division.

1. Input the numbers by pressing numeric keys.

2. Use a navigation key to select a sign for calculation.

3. Then input the numbers.

4. Press < [Result] to view the result.

5. Press [Reset] or enter numbers to repeat the procedure above.

6. Use Ckey to erase any numbers or signs.

7. If you press *key, you can input a minus number. In addition,

If you press #key, you can input a decimal number.

8. To end Calculator, press > [Back].

My folder [Menu 6-4]

Enables you to view the downloaded pictures and sounds. They can

be set as Wallpaper or Ring tone. You can view, listen, delete or

rename downloaded data.

Pictures [Menu 6-4-1]

Sound [Menu 6-4-2]

The Submenus for each main one

• Edit title

You can edit the title for each download contents.

• Send message

You can write Short message/Multimedia message (available

depending on type of Media) with attachment pictures or sounds.

Fun & Tools [Menu 6]

Accessing the Menu

• Set as Wallpaper / Set as ring tone

You can set downloaded sounds or pictures as wallpaper or Ring

tone.

• Delete

You can delete each downloaded content.

• Delete all

You can delete all downloaded contents.

Unit converter [Menu 6-5]

This converts any measurement into a unit you want. There are 4

types that can be converted into units: Length, Area, Weight, and

Volume.

1. You can select one of four unit types by pressing < [Unit] key.

2. Select the standard value by using L , R.

3. Select the unit you want to convert by pressing

and

4. You can check the converted value for the unit you want. Also,

you can input a decimal number by pressing #.

World time [Menu 6-6]

You can view clocks of the world’s major cities.

1. Select the city belonged to the time zone by pressing L , Rkey.

2. You can set the current time to the city time you select by

pressing < [Set].

Accessing the Menu

Voice recorder [Menu 6-7]

The voice memo feature you to record up to 10 voice messages and

each memo is up to 20 Seconds.

Record [Menu 6-7-1]

1. You can record voice memo in Voice recorder menu and also

holding down Cin the standby mode.

2. Once recording is started, the message Recording and the

remaining time is displayed.

3. If you want to finish recording, press < [Save].

4. Key in Voice memo title, press < [OK].

View list [Menu 6-7-2]

The phone shows voice memo list. You can Playback and Delete

the recorded voice memo.

Memory status [Menu 6-8]

You can check the size of free memory and each menu of memory

such as text/picture message, inbox, outbox.

PC Sync

PC Sync is a program for data exchange between PC and the

phone by data cable. For more information, you can use the

guide of PC Sync Help file in CD.

Fun & Tools [Menu 6]

Accessing the Menu

Internet [Menu 7]

The phone supports services based on Wireless Application

Protocol (WAP). You can access services supported by your

network. The services menu allows you to get the information such

as news, weather reports, and flight times.

Home [Menu 7-1]

Connect to a homepage. The homepage may be the site which is

defined in the activated profile. It will be defined by Service Provider

if you don’t make in activated profile.

Bookmarks [Menu 7-2]

Press < [Select] to access available options, or press > [Back] to

exit.

• Connect : Connect to the selected bookmark.

• Add new : Add a new bookmark manually.

• Edit : Edit the title and the address of the selected bookmark.

• Delete : Delete the selected bookmark from the bookmark list.

Profiles [Menu 7-3]

You can make up to 10 profiles and activate only one out of them.

Scroll to the desired profile and press <to access available options.

• Activate

You can activate the profile you want.

• Settings

You can edit and change WAP settings of the selected profile.

- Homepage

This setting allows you to enter the address (URL) of a site you

want to use as homepage. You do not need to type “http://” at the

front of each URL as the WAP Browser will automatically add it.

- Bearer

You can set the bearer data service.

• Data

• GPRS

- Data settings

Appeares only if you select Data settings as a Bearer\service.

IP address : Enter the IP address of the WAP gateway you

want.

Dial number : Enter the telephone number to dial to access

your WAP gateway.

User ID : The users identity for your dial-up server (and

NOT the WAP gateway).

Password : The password required by your dial-up server

(and NOT the WAP gateway) to identify you.

Call type : Select the type of data call: Analogue or Digital

(ISDN).

Call speed : The speed of your data connection; 9600 or

14400.

Linger time : You need to enter timeout period. After entering

that, the WAP navigation service will be

unavailable if any data is not input or

transferred.

- GPRS settings

The service settings are only available when GPRS is chosen as

a bearer service.

IP address : Input the IP address of the WAP gateway you

access.

APN : Input the APN of the GPRS.

User ID : The users identify for your APN server.

Password : The password required by your APN server.

Accessing the Menu

Internet [Menu 7]

Accessing the Menu

- Display image

You can select whether images on WAP cards are displayed or

not.

- Connection type

The options for connection type are Temporary or Continuous

and depend on the gateway you are using.

Continuous

A confirmed delivery mechanism but generates more network

traffic.

Temporary

A non-confirmed (connectionless) service.

- Proxy settings

IP address: Input the IP address of the proxy.

Port: Input the port number of the proxy.

- DNS settings

Insert the primary and secondary DNS if required by the network

operator.

- Secure settings

According to the used gateway port, you can choose this option

as On or Off.

• Rename

Edit the Profile Name.

• Delete

Delete the Profile.

• Add new

You can add a new profile manually.

Accessing the Menu

Go to URL [Menu 7-4]

You can directly connect to the site you want. You need to enter a

specific URL.

Cache settings [Menu 7-5]

You can remove the contents of Cache memory or change the

Cache mode.

Clear cache [Menu 7-5-1]

The contents of Cache memory will be removed.

Check cache [Menu 7-5-2]

You can set the option whether you will check the cache memory or

not.

Cookies settings [Menu 7-6]

The information or services you have accessed are saved in the

cache memory of the phone.

Clear cookies [Menu 7-6-1]

Removes all context saved in cookie.

Check cookies [Menu 7-6-2]

Check whether a cookie is used or not.

Security certification [Menu 7-7]

A list of the available certificates is shown.

Reset profiles [Menu 7-8]

You can reset profiles to return to original settings.

Browser version [Menu 7-9]

The WAP Browser version is displayed.

Internet [Menu 7]

If you are on line, you can view the following menus.

■ Home

Refer to [Menu 7-1].

■ Reload

Reloads the current page.

■ Bookmarks

See [Menu 7-2].

■ Save as bookmark

You can save a site as bookmark.

■ Messages

During Wap connection, you can see the Short messages.

■ Go to URL

You can move to the site you want. In this menu, you can also

edit the site address.

■ Go to email server

You can move to the E-mail server that you configured.

■ Set as email server

You can set the address of current site as E-mail server.

■ Clear cache

The contents of cache memory will be removed.

■ Save Images

You can save the image which is provided by the WAP.

Accessing the Menu

On browsing menu

Applications [Menu 8-1]

Java Menu Options

Scroll to an application and select Options.

1. New : You can create new folder.

2. Move : You can select a folder which you want.

3. About : Shows Java MIDP information.

4. Info : Displays information about the selected MIDlet.

5. Remove : Deletes the selected MIDlet.

6. Update : Accesses the server and updates the selected

MIDlet.

7. Options : Some Java applications may require a data

connection to be made. Select this to set the

connecting options.

- Always : The connection is created immediately without a

notification.

- Prompt : You will be asked before the application makes the

connection.

- Never : No connection is allowed.

8. Rename : You can rename the application.

9. Exit : Exits from Applications.

Download [Menu 8-2]

You can edit and set MIDlet server address. Download MIDlets

using WAP Browser and store them in the phone. You can also

view the list of MIDlets stored on the Applicatons screen.

Accessing the Menu

Applications [Menu 8]

Profiles [Menu 8-3]

Some Java applications may require a network connection to

operate, for example, multiplayer games. You can set up to 5

profiles and activate the desired one. This is similar to wap profile

setting. Refer to wap profiles when you set this.

JAVA™is a trademark of Sun Microsystems, Inc.

Accessing the Menu

There are various accessories for your mobile phone. You can

select these options according to your personal communication

requirements.

Standard Battery

Portable Handsfree

This connects to your phone, allowing

handsfree operation.

Travel Adapter

This charger allows you to charge the battery

while away from home or your office.

Data cable/CD

You can connect your phone to PC to

exchange the data between them.

Note

• Always use genuine LG accessories.

• Failure to do this may invalidate your warranty.

• Accessories may be different in different regions;

please check with our regional service company or

agent for further enquires.

Accessories

Accessing the Menu

When using this unit, basic safety precautions as below should

be always followed.

• Do not disassemble this unit. (Take it to a qualified service

technician when repair work is required.)

• Away from electrical appliance such as a TV, radio or personal

computer.

• The unit should be situated from heat sources such as radiators

or cookers.

• Do not drop.

• Do not subject this unit to mechanical vibration or shock.

• The coating of the phone may be damaged if covered with wrap

or vinyl wrapper.

• Use dry cloth to clean the exterior of the unit. (Do not use solvent

such as benzene, thinner or alcohol.)

• Do not subject this unit to excessive smoke or dust.

• Do not keep the phone next to credit cards or transport tickets; it

can affect the information on the magnetic strips.

• Do not tap the screen with a sharp object; otherwise, it may

damage the phone.

• Do not expose the phone to liquid or moisture.

• Use the accessories like an earphone cautiously. Do not touch

the antenna unnecessarily.

Care and Maintenance

❏ Caring for the Battery

• You do not need to completely discharge the battery before

recharging. Unlike other battery systems, there is no memory

effect that could compromise the battery’s performance.

• Use only LG batteries and chargers. LG chargers are designed

to maximize the battery life.

• Do not disassemble or short-circuit the battery pack.

• Keep the metal contacts of the battery pack clean.

• Replace the battery when it no longer provides acceptable

performance. The battery pack may be recharged hundreds of

times until it needs replacing.

• Recharge the battery if it has not been used for a long time to

maximize usability.

• Do not expose the battery charger to direct sunlight or use it in

high humidity, such as the bathroom.

• Do not leave the battery in hot or cold places, this may

deteriorate the battery performance.

Care and Maintenance

Technical Data

General

Product name : FG105

System : GSM 900 / DCS 1800

Ambient Temperatures

Max : +55°C

Min : -10°C

Name

Address

I hereby declare under our sole responsibility

that the product mentioned above to which this

declaration relates complies with the above

mentioned standards and Directives

Signature of representative

Name Issued Date

Product Name

Model Name

Trade Name

LG Electronics Inc

LG Electronics Inc. LG Kang-nam Tower

679, Yoksam-dong, Kangnam-gu, Seoul, Korea

GSM 900 / GSM 1800 Dual Band Terminal Equipment

C1100

Suppliers Details

R&TTE Directive 1999/5/EC

EN 301 489-7 : 2002

EN 60950-1 : 2001

EN 50360 : 2001

3GPP TS 51.010-1, V5.6.0 : 2003

Selection according to GCF-CC. V3.12.0 including requirements of EN 301 511

Jin Seog, Kim / Director March 13, 2004

Product Details

Applicable Standards Details

The conformity to above standards is verified by 7Layers AG GmbH with Certificate No. (04-510077)

and GSM test report (no. 4_LGE_0204_GSM_1), EMC test report (no. 4_LGE-0204_GSM_EMCa),

safety test report (no. S40045) and SAR test report (no. 6620_392a)

Declaration

LG Electronics Inc. Amsterdam Office

Veluwezoom 15, 1327 AE Almere, The Netherlands

Tel : +31 - 36- 547 - 8940, e-mail : seokim @ lge.com

Supplementary Information

Safety Information

1 . SAFETY INFORMATION FOR FIXED WIRELESS TERMINALS

.POTE NTIALLY EXPLOSIVE ATMOSPHERES

Turn your phone OFF when in any area with a potentially explosive atmosphere and

obey all signs and instructions. Sparks in such areas could cauls e an explosion or fire

resulting in bodily injury or even death.

INTERFERENCE TO MEDICAL DIVICES

Certain electronic equipment may be shielded against RF signal from you wireless

phone. (pacemakers, Hearing Aids, and so on) Turn your phone OFF in health c are

facilities when any regulations posted in these areas instruct you to do so. RF signals

may affect improperly installed or inadequately shielded electronic system in motor

vehicles.

.EXPOSURE TO RF ENERGY

Use only the supplied or an approved replacement antenna. Do not touch the antenna

unnecessarily when the phone is in use. Do not move the antenna close to, or

couching any exposed part of the body when making a call.

SAFETY INFORMATION FOR RF EXPOSURE

Body worn operation

This device was tested for typical body-worn operations with the back of the phone

kept 15 mm. from the body. To maintain compliance with FCC RF exposure

requirements, use only belt-clips, holsters or similar accessories that maintain a 15

mm. separation distance between the user’s body and the back of the phone, including

the antenna. The use of belt-clips, holsters and similar accessories should not contain

metallic components in its assembly. The use of accessories that do not satisfy these

requirements may not comply with FCC RF exposure requirements, and should be

avoided.

SAR INFORMATION

THIS MODEL PHONE MEETS THE GOVERNMENT’S

REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.

Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to

exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal

Communications Commission of the U.S. Government. These limits are part of comprehensive

guidelines and establish permitted levels of RF energy for the general population. The guidelines

are based on standards that were developed by independent scientific organizations through

periodic and thorough evaluation of scientific studies. The standards include a substantial safety

margin designed to assure the safety of all persons, regardless of age and health. The exposure

standard for wireless mobile phones employs a unit of measurement known as the Specific

Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. *

Tests for SAR are conducted with the phone transmitting at its highest certified power level in all

tested frequency bands. Although the SAR is determined at the highest certified power level, the

actual SAR level of the phone while operating can be well below the maximum value. This is

because the phone is designed to operate at multiple power levels so as to use only the power

required to reach the network. In general, the closer you are to a wireless base station antenna, the

lower the power output. Before a phone model is available for sale to the public, it must be tested

and certified to the FCC that it does not exceed the limit established by the government adopted

requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear

and worn on the body) as required by the FCC for each model. The highest SAR value for this

model phone when tested for use at the ear is 0.695 W/Kg

and when worn on the body , as

described in this user guide, is 0.444 W/Kg . (Body-worn measurements differ among phone

models, depending upon available accessories and FCC requirements). While there may be

differences between the SAR levels of various phones and at various positions, they all meet the

government requirement for safe exposure. The FCC has granted an Equipment Authorization for

this model phone with all reported SAR levels evaluated as in compliance with the FCC RF

exposure guidelines. SAR information on this model phone is on file with the FCC and can be found

under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on FCC ID:

BEJMG105.

Additional information on Specific Absorption Rates (SAR) can be found on the Cellular

Telecommunications Industry Asso-ciation (CTIA) web-site at http://www.wow-com.com. * In the

United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg

(W/kg) averaged over one gram of tissue. The standard incorporates a sub-stantial margin of safety

to give additional protection for the public and to account for any variations in measurements.

U.S.A.

U.S.FEDERAL COMMUNICATIONS COMMISSION

RADIO FREQUENCY INTERFERENCE STATEMENT

INFORMATION TO THE USER

NOTE : This equipment has been tested and found to comply with the limits for a Class B

digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful Interference in a residential installation This equipment

generates, uses, and can radiate radio frequency energy and, if Not installed and used in

accordance with the instructions, may cause harmful Interference to radio communications.

However, there is no guarantee that interference will not occur in a particular Installation. If this

equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

*- Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.　

*- Connect the equipment into an outlet of a circuit different from that to which the receiver is

connected.

*- Consult the dealer or an experienced radio/TV technician for assistance.

Changes or modification not expressly approved by the party responsible for Compliance

could void the user’s authority to operate the equipment. Connecting of peripherals requires

the use of grounded shielded signal cables.

FCC Compliance Information

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received.

Including interference that may cause undesired operation.

LG Electronics USA MG105 Single-Band GSM Phone User Manual FG105

LG Electronics USA Single-Band GSM Phone FG105

Users Manual

Navigation menu

Namespaces

Views

Navigation
