LG Electronics USA MG300 Tri-Band GSM Camera Phone with Bluetooth User Manual MG300d E
LG Electronics USA Tri-Band GSM Camera Phone with Bluetooth MG300d E
Contents
- 1. Revised Manual
- 2. Revised manual
Revised manual
![](/img.php?id=619637&img=bg1.png)
1
.
3
M
E
G
A
P
I
X
E
L
S
D
I
G
I
T
A
L
C
A
M
E
R
A

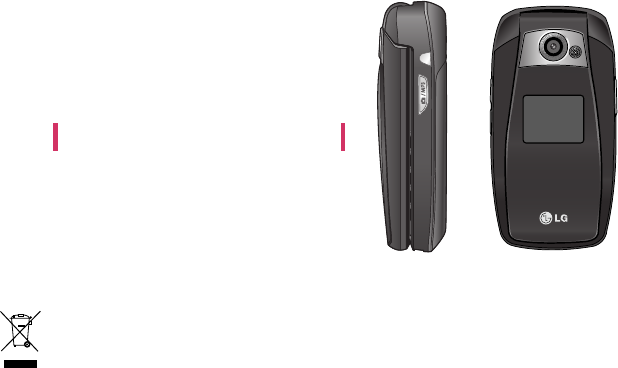

MG300d USER GUIDE
- ENGLISH
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product it means the product is
covered by the European Directive 2002/96/CE.
2. All electrical and electronic products should be disposed of separately from the municipal waste
stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for
the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office,
waste disposal service or the shop where you purchased the product.
![](/img.php?id=619637&img=bg2.png)
TABLE OF CONTENTS
2
INTRODUCTION 5
GUIDELINES FOR SAFE AND
EFFICIENT USE 6
MG300d FEATURES 10
Parts of the phone
Display information 14
GETTING STARTED 16
Installing the SIM card and
battery

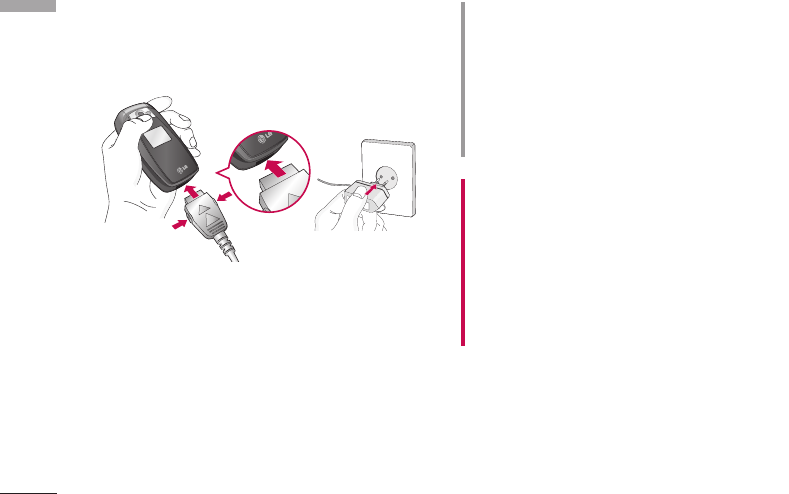

Charging the battery 18
Disconnecting the adapter 19
Turning your phone
on and off 20
Access codes
Barring password 21
GENERAL FUNCTIONS 22
Making and answering calls
Contacts 27
In-call menu
Multiparty or conference calls
28
MENU TREE 30
SELECTING FUNCTIONS
AND OPTIONS 32
PROFILES 33
Activate
Personalise
Rename 34
CALL REGISTER 35
Missed calls
Received calls
Dialled calls
Delete recent calls 36
Call charges
Call duration
Call costs
Settings
GPRS information 37
Call duration
Data volumes
TOOLS 38
Alarm clock
Bluetooth
Paired devices
Handsfree devices 39
Settings
Calculator
Unit converter
World time 40
Modem
TABLE OF CONTENTS
![](/img.php?id=619637&img=bg3.png)
TABLE OF CONTENTS
33
ORGANISER 41
Contacts
Search
Add new
Caller groups 42
Speed dial
Settings 43
Copy all
Delete all 44
Information
Calendar 45
Add new
View daily schedules
Delete past
Delete all
Go to date
Set alarm tone
Memo 46
MESSAGES 47
New message
Write text message
Write multimedia message 48
Inbox 50
Outbox 51
Drafts 52
Listen to voice mail
Info message 53
Read
Topics
Templates
Text templates
Multimedia templates 54
My business card
Settings
Text message
Multimedia message 55
Voice mailbox number
Info message 56
Push messages
MULTIMEDIA 57
Camera
Video camera 60
My photos 62
My Videos
MP3 63
MP3 player 64
Playlist 65
Settings
Voice recorder
Record
View list 66
Settings
Camera
Video camera
![](/img.php?id=619637&img=bg4.png)
![](/img.php?id=619637&img=bg5.png)
Congratulations on your purchase of the advanced
and compact MG300d mobile phone, designed to
operate with the latest digital mobile communication
technology.
INTRODUCTION
INTRODUCTION
5
1
.
3
M
E
G
A
P
I
X
E
L
S
D
I
G
I
T
A
L
C
A
M
E
R
A
This user’s guide contains important information
on the use and operation of this phone. Please
read all the information carefully for optimal
performance and to prevent any damage to or
misuse of the phone. Any changes or
modifications not expressly approved in this
user’s guide could void your warranty for this
equipment.
![](/img.php?id=619637&img=bg6.png)
6
GUIDELINES FOR SAFE AND EFFICIENT USE
Read these simple guidelines. Breaking the rules may
be dangerous or illegal. Further detailed information is
given in this manual.
EXPOSURE TO RADIO
FREQUENCY ENERGY
Radio wave exposure and Specific
Absorption Rate (SAR) information
This mobile phone model MG300d has been designed
to comply with applicable safety requirement for
exposure to radio waves. This requirement is based on
scientific guidelines that include safety margins
designed to assure the safety of all persons, regardless
of age and health.
•The radio wave exposure guidelines employ a unit of
measurement known as the Specific Absorption Rate,
or SAR. Tests for SAR are conducted using
standardized methods with the phone transmitting
at its highest certified power level in all used
frequency bands.
•While there may be differences between the SAR
levels of various LG phone models, they are all
designed to meet the relevant guidelines for
exposure to radio waves.
•The SAR limit recommended by the international
Commission on Non-Ionizing Radiation Protection
(ICNIRP), which is 2W/kg averaged over ten (10)
gram of tissue.
•The highest SAR value for this model phone tested
by DASY4 for use at the ear is 0.174 W/kg (10g).
PRODUCT CARE AND
MAINTENANCE
•Do not disassemble this unit. Take it to a qualified
service technician when repair work is required.
WARNING! Only use batteries, chargers and
accessories approved for use with this particular phone
model. The use of any other types may invalidate any
approval or warranty applying to the phone, and may be
dangerous.
6
GUIDELINES FOR SAFE AND EFFICIENT USE
![](/img.php?id=619637&img=bg7.png)
GUIDELINES FOR SAFE AND EFFICIENT USE
7
•Keep away from electrical appliances such as a TV,
radio or personal computer.
•The unit should be kept away from heat sources such
as radiators or cookers.
•Do not drop.
•Do not subject this unit to mechanical vibration or
shock.
•The coating of the phone may be damaged if
covered with wrap or vinyl wrapper.
•Use dry cloth to clean the exterior of the unit. (Do
not use solvent such as benzene, thinner or alcohol.)
•Do not subject this unit to excessive smoke or dust.
•Do not keep the phone next to credit cards or
transport tickets; it can affect the information on the
magnetic strips.
•Do not tap the screen with a sharp object as it may
damage the phone.
•Do not expose the phone to liquid or moisture.
•Use the accessories like an earphone cautiously. Do
not touch the antenna unnecessarily.
ELECTRONICS DEVICES
All mobile phones may get interference, which could
affect performance.
•Do not use your mobile phone near medical
equipment without requesting permission.
Avoid placing the phone over pacemakers, (i.e. in
your breast pocket).
•Some hearing aids might be disturbed by mobile
phones.
•Minor interference may affect TVs, radios, PCs, etc.
ROAD SAFETY
Check the laws and regulations on the use of mobile
phones in the areas when you drive.
•Do not use a hand-held phone while driving.
•Give full attention to driving.
•Use a hands-free kit, if available.
•Pull off the road and park before making or answering
a call if driving conditions so require.
![](/img.php?id=619637&img=bg8.png)
8
GUIDELINES FOR SAFE AND EFFICIENT USE
•RF energy may affect some electronic systems in
your motor vehicle such as car stereo or safety
equipment.
•When your vehicle is equipped with an air bag, do
not obstruct with installed or portable wireless
equipment. It can cause serious injury due to
improper performance.
BLASTING AREA
Do not use the phone where blasting is in progress.
Observe restrictions, and follow any regulations or
rules.
POTENTIALLY EXPLOSIVE
ATMOSPHERES
•Do not use the phone at a refueling point. Don’t use
near fuel or chemicals.
•Do not transport or store flammable gas, liquid, or
explosives in the compartment of your vehicle, which
contains your mobile phone and accessories.
IN AIRCRAFT
Wireless devices can cause interference in aircraft.
•Turn off your mobile phone before boarding any
aircraft.
•Do not use it on the ground without crew
permission.
CHILDREN
Keep the phone in a safe place out of small children’s
reach. It includes small parts which if detached may
cause a choking hazard.
EMERGENCY CALLS
Emergency calls may not be available under all cellular
networks. Therefore, you should never depend solely
on the phone for emergency calls. Check with your
local service provider.
GUIDELINES FOR SAFE AND EFFICIENT USE
![](/img.php?id=619637&img=bg9.png)
9
BATTERY INFORMATION AND
CARE
•You do not need to completely discharge the
battery before recharging. Unlike other battery
systems, there is no memory effect that could
compromise the battery’s performance.
•Use only LG batteries and chargers. LG chargers are
designed to maximize the battery life.
•Do not disassemble or short-circuit the battery pack.
•Keep the metal contacts of the battery pack clean.
•Replace the battery when it no longer provides
acceptable performance. The battery pack may be
recharged hundreds of times until it needs replacing.
•Recharge the battery if it has not been used for a
long time to maximize usability.
•Do not expose the battery charger to direct sunlight
or use it in high humidity, such as the bathroom.
•Do not leave the battery in hot or cold places, this
may deteriorate the battery performance.
GUIDELINES FOR SAFE AND EFFICIENT USE
![](/img.php?id=619637&img=bga.png)
PARTS OF THE PHONE
Front view
MG300d FEATURES
MG300d FEATURES
10
➌Flash
Note
]
Dirt on the camera lens
could affect the image
quality.
Headset jack➊
• Connect a headset here
Up/down side keys➋
• When the phone is closed, press
this key to display the current
time on the front screen.
• Controls the volume of keypad
tone in standby mode with the
phone open.
• Controls the earpiece volume
during a phone call.
➎Front screen
➍Camera lens
![](/img.php?id=619637&img=bgb.png)
Right side view Rear view
MG300d FEATURES
11
Battery latch
Press this button to remove the
battery cover.
Holes for a
carrying
strap
SIM card
socket
Battery cover
Battery pack
Battery terminals
SIM card terminals
Charger connector/
Cable connector
Camera / MP3 key
You can take pictures with the
phone closed. Press and hold
down this key to activate the
camera mode. Also use this key
to take a shot. Use the front
screen as a viewfinder.
![](/img.php?id=619637&img=bgc.png)
12
MG300d FEATURES
Earpiece
Send key
Dials a phone number and answers
incoming calls. You can also quickly
access the latest incoming,
outgoing and missed calls by
pressing the key in standby mode.
End/Power key
Used to end a call or reject a call and
also to go back to standby mode.
Hold this key down to turn the
phone on/off.
Open view
Alphanumeric keys
Enter numbers, letters and some special
characters. Microphone
Can be muted during a call for privacy.
Special function keys
•: A long press of this key enters
the international call character
“+”.
•: While keying in a phone number,
a long press of this key enters a
pause.
MG300d FEATURES
Main screen
Displays phone status icons,
menu items, Web information,
pictures and more in full colour.
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲✶■❘❨
✶■❘❨
✶■❘❨
✶■❘❨
✶■❘❨
✶■❘❨
✶■❘❨
✶■❘❨
✶■❘❨
✶■❘❨
✶■❘❨
✶■❘❨
![](/img.php?id=619637&img=bgd.png)
13
MG300d FEATURES
MP3 hot key
Activate the MP3 menu directly.
Navigation keys
Use to scroll through menus and move the cursor.
Confirm key
Selects menu options and confirms actions.
Camera hot key
Activates the camera menu directly.
Clear key
Deletes a character with each press.
Hold the key down to clear all input.
Use this key to go back to a previous screen.
,
Left soft key/ Right soft key
Performs the function indicated by the text on
the screen immediately above it.
![](/img.php?id=619637&img=bge.png)
MG300d FEATURES
14
DISPLAY INFORMATION
The table below describes various display indicators or
icons that appear on the phone’s display screen.
On-Screen Icons
Note
]
*The quality of the conversation may change
depending on network coverage. When the
signal strength is below 2 bars, you may
experience muting, call drop and bad audio.
Please take the network bars as indicator for
your calls. When there are no bars, that means
that there is no network coverage: in this case,
you won’t be able to access the network for any
service (call, messages and so on).
Icon Description
Indicates the strength of the network
signal. *
Indicates a call is in progress.
Indicates that you are roaming on another
network.
Indicates that GPRS service is available.
MG300d FEATURES
![](/img.php?id=619637&img=bgf.png)
MG300d FEATURES
15
Icon Description
Agenda event set
Call divert service active
Bluetooth enabled
Icon Description
Indicates the alarm has been set and is on.
Indicates the status of the battery charge.
Indicates the receipt of a message.
Indicates the receipt of a voice message.
Indicates that the vibration ringer has
been set.
Indicates the Loud profile is activated.
Indicates the Silent profile is activated.
Indicates the Headset profile is activated.
Indicates the General profile is activated.
Indicates that you can use the push
message service.
Indicates that the phone is accessing the
WAP.
Indicates that you are using GPRS.
Note
]
When the status of the battery indicates low,
you may not use Camera or Multimedia
function.
]
While using Multimedia function, the status of
the battery is changeable.
![](/img.php?id=619637&img=bg10.png)
GETTING STARTED
16
INSTALLING THE SIM CARD AND
BATTERY
Make sure the power is off before you remove the
battery.
1. Remove the battery cover.
Press the battery release latch and slide the battery
cover toward the bottom of the phone. Remove the
battery cover.
2. Remove the battery.
Hold the top edge of the battery and lift the
battery from the battery compartment.
Note
]
Removing the battery from the phone when the
power is on may cause the phone to
malfunction.
GETTING STARTED
![](/img.php?id=619637&img=bg11.png)
GETTING STARTED
17
3. Install the SIM card
Insert the SIM card into the holder. Slide the SIM
card into the SIM card holder. Make sure that the
SIM card is inserted properly and that the gold
contact area on the card is facing downwards.
To remove the SIM card, press down lightly and pull
it in the reverse direction.
4. Install the battery.
Insert the bottom of the battery first into the
bottom edge of the battery compartment.
Push down the top of the battery until it snaps into
space.
5. Replace the battery cover.
Lay the battery cover in place of the phone and
slide it until the latch clicks.
CAUTION! The metal contact of the SIM card can be
easily damaged by scratches. Pay special attention to the
SIM card while handling. Follow the instructions supplied
with the SIM card.
To insert the SIM card To remove SIM card
![](/img.php?id=619637&img=bg12.png)
GETTING STARTED
18
CHARGING THE BATTERY
To connect the mains adapter to the phone, you must
have installed the battery.
1. With the arrow facing you as shown in the diagram
push the plug on the battery adapter into the
socket on the bottom of the phone until it clicks
into place.
2. Connect the other end of the mains adapter to the
mains socket. Only use the charger included in the
box.
3. The moving bars of battery icon will stop after
charging is complete.
WARNING!
•
Unplug the power cord and charger during lightning
storms to avoid electric shock or fire.
•
Make sure that no sharp-edged items such as animal
teeth or nails come into contact with the battery. There is
a risk of this causing a fire.
•
Do not place or answer calls while charging the phone as
it may short-circuit the phone and/or cause electric shock
or fire.
CAUTION!
•
Do not force the connector as this may damage the
phone and/or the charger.
•
If you use the battery pack charger out of your own
country, use an attachment plug adapter for the proper
configuration.
•
Do not remove your battery or the SIM card while
charging.
GETTING STARTED
![](/img.php?id=619637&img=bg13.png)
GETTING STARTED
19
DISCONNECTING THE ADAPTER
1. When charging is finished, the moving bars of the
battery icon stop and ‘Full’ is displayed on the
screen.
2. Unplug the adapter from the power outlet.
Disconnect the adapter from the phone by pressing
the grey tabs on both sides of the connector and
pull the connector out.
Note
]
Ensure the battery is fully charged before using
the phone for the first time.
]
Do not remove the battery or SIM card while
charging.
]
In the case the battery is not properly charged,
please turn the phone off and on using the
power key. Then detach and reattach the
battery, and recharge the phone.
![](/img.php?id=619637&img=bg14.png)
TURNING YOUR PHONE ON
AND OFF
Turning your phone ON
1. Install a battery to the handset and connect the
phone to an external power source such as the
travel adapter, cigarette lighter adapter or hands-
free car kit. Or install a charged battery pack to the
handset.
2. Press and hold for a few seconds until the
LCD screen is turned on.
3. Depending on the status of the PIN code request
setting you may need to enter your PIN code.
Turning your phone OFF
1. Press and hold for a few seconds until the
LCD screen is turned off.
ACCESS CODES
You can use the access codes described in this section
to avoid unauthorised use of your phone. The access
codes (except PUK1 and PUK2 codes) can be
changed by using the Change codes feature (Menu
7.4.5).
PIN code (4 to 8 digits)
The PIN (Personal Identification Number) code
protects your SIM card against unauthorised use.
The PIN code is usually supplied with the SIM card.
When the PIN code request is set to Enable, your
phone will request the PIN code every time the phone
is switched on. When the PIN code request is set to
Disable, your phone connects to the network directly
without the PIN code.
PIN2 code (4 to 8 digits)
The PIN2 code, supplied with some SIM cards, is
required to access functions such as Advice of Call
Charge and Fixed dial number. These functions are
only available if supported by your SIM card. Check
with your network operator for further information.
20
GETTING STARTED
GETTING STARTED
![](/img.php?id=619637&img=bg15.png)
PUK1 code (4 to 8 digits)
The PUK1 (PIN Unblocking Key) code is required to
unlock a PIN blocked phone. The PUK1 code may be
supplied with the SIM card. If not, contact your
network operator for the code. If you lose the code,
also contact your network operator.
PUK2 code (4 to 8 digits)
The PUK2 code, supplied with some SIM cards, is
required to change a blocked PIN2 code. If you lose
the code, please contact your network operator.
Security code (4 to 8 digits)
The security code protects the unauthorised use of
your phone. The default security code is set to
‘‘0000’’ and the security code is required to delete all
phone entries and to activate the Reset settings
menu. Also, the security code is required to enable or
disable the phone lock function to prevent
unauthorised use of the phone. The security code
default setting can be modified from the Security
settings menu.
BARRING PASSWORD
The barring password is required when you use Call
barring (Menu 7.4.3) function. You obtain the
password from your network operator when you
subscribe to this function.
21
GETTING STARTED
![](/img.php?id=619637&img=bg16.png)
GENERAL FUNCTIONS
22
MAKING AND ANSWERING CALLS
Making a call
1. Make sure your phone is switched on.
2. Enter a phone number, including the area code.
]
Press and hold the clear key ( ) to erase the
entire number.
3. Press the send key ( ) to call the number.
4. To end the call, press the end key ( ) or the
right soft key.
Making a call from the call history list
1. In standby mode, press the send key ( ), and
the latest incoming, outgoing and missed phone
numbers will be displayed.
2. Select the desired number by using the up/down
navigation keys.
3. Press to call the number.
Making an international call
1. Press and hold the key for the international
prefix. The ‘+ ’ character automatically selects the
international access code.
2. Enter the country code, area code, and the phone
number.
3. Press to call the number.
Ending a call
When you have finished your call, press the end
() key.
Making a call from the phonebook
You can save the names and phone numbers dialled
regularly in Contacts. You can save them to the SIM
card and/or phone memory. You can dial a number by
simply looking up the desired name in the phonebook
and pressing the ( ) key.
GENERAL FUNCTIONS
![](/img.php?id=619637&img=bg17.png)
GENERAL FUNCTIONS
23
Adjusting the volume
If you want to adjust the earpiece volume during a call,
use the side keys ( ) . Press the up side key to
increase and down side key to decrease the volume.
Answering a call
When you receive a call, the phone rings and the
flashing phone icon appears on the screen. If the caller
can be identified, the caller’s phone number (or name
if saved in the phonebook) is displayed.
1. To answer an incoming call, open the phone(When
Flip open has been set as the answer mode(Menu
7.3.2).).
]
To reject an incoming call, press and hold one of
the side keys on the left side of the phone without
opening the phone.
]
You can answer a call while using the address
book or other menu features.
2. To end the call, close the phone or press the
key.
Manner mode (Quick)
You can activate the manner mode by pressing and
holding down the key after opening the phone.
Signal strength
You can check the strength of your signal by the signal
indicator ( ) on the LCD screen of your phone.
Signal strength can vary, particularly inside buildings.
Moving near to a window may improve reception.
Note
]
If Press any key has been set as the answer
mode, any key press will answer a call except for
the or the right soft key.
Note
]
In standby mode with the phone open, pressing
the side keys adjusts the key tone volume.
![](/img.php?id=619637&img=bg18.png)
24
Entering text
You can enter alphanumeric characters by using the
phone’s keypad. For example, storing names in the
phonebook, writing a message, creating a personal
greeting.
The following text input methods are available in the
phone.
Changing the text input mode
1. When you are in a field that
allows characters to be
entered, you will notice the
text input mode indicator in
the top right corner of the LCD
screen.
2. Change the text input mode by
pressing . You can check
the current text input mode in the top right corner
of the LCD screen.
GENERAL FUNCTIONS
T9 mode
This mode lets you enter words with only one
keystroke per letter. Each key on the keypad has
more than one letter. The T9 mode automatically
compares your keystrokes with an internal
dictionary to determine the correct word, thus
requiring far fewer keystrokes than the traditional
ABC mode. This is sometimes known as predictive
text.
ABC mode
This mode lets you enter letters by pressing the
key labelled with the required letter once, twice,
three or four times until the letter is displayed.
text input mode
Options Insert
123 mode (Number mode)
Type numbers using one keystroke per number.
To change to 123 mode in a text entry field,
press the key until 123 mode is displayed.
GENERAL FUNCTIONS
![](/img.php?id=619637&img=bg19.png)
25
GENERAL FUNCTIONS
]
Using the T9 mode
The T9 predictive text input mode lets you enter
words easily with a minimum number of key presses.
As you press each key, the phone begins to display the
characters that it thinks you are typing based on the
built-in dictionary. You can also add new words in the
dictionary. As new words are added, the word changes
to reflect the most likely candidate from the
dictionary. You can turn the T9 mode on or off, and
change the T9 language by holding down the ( )
key.
1. When you are in the T9 predictive text input mode,
start entering a word by pressing keys to .
Press one key per letter.
- The word changes as letters are typed. Ignore
what’s on the screen until the word is typed
completely.
- If the word is still incorrect after typing completely,
press the down navigation key once or more to
cycle through the other word options.
Example:
Press to type Good
Press [Down navigation key] to
type Home
- If the desired word is missing from the word choice
list, add it using the ABC mode.
- You can select the language of the T9 mode. Press
the left soft key [Option], then select T9
languages. Select the desired language of T9
mode. You can also turn off the T9 mode by
selecting T9 off. The default setting on the phone
is T9 enabled mode.
2. Enter the whole word before editing or deleting any
keystrokes.
3. Complete each word with a space by pressing
the key. To delete letters, press . Press
and hold down to erase entire words.
Note
]
To exit from the text input mode without saving
your input, press . The phone goes back
to standby mode.
![](/img.php?id=619637&img=bg1a.png)
GENERAL FUNCTIONS
26
]
Using the ABC mode
Use the to keys to enter your text.
1. Press the key labelled with the required letter:
- Once for the first letter
- Twice for the second letter
- And so on
2. To insert a space, press the key once. To
delete letters, press the key. Press and hold
down the key to clear the whole display.
Note
]
Refer to the table below for more information
on the characters available using the
alphanumeric keys.
Key Characters in the order display
Upper Case Lower Case
. , / ? ! - : ‘ ‘’ 1 . , / ? ! - : ‘ ‘’ 1
AB C 2 a b c 2
D E F 3 d e f 3
G H I 4 g h i 4
J K L 5 j k l 5
M N O 6 m n o 6
P Q R S 7 p q r s 7
T U V 8 t u v 8
W X Y Z 9 w x y z 9
Space, 0 Space, 0
GENERAL FUNCTIONS
![](/img.php?id=619637&img=bg1b.png)
GENERAL FUNCTIONS
27
]
Using the 123 (Number) mode
The 123 mode enables you to enter numbers in a text
message (a telephone number, for example).
Press the keys corresponding to the required digits
before manually switching back to the appropriate
text entry mode. You can quickly switch from letters
to numbers by pressing and holding the ( ) key.
CONTACTS
You can store phone numbers and their corresponding
names in the memory of your SIM card.
In addition, you can store up to 1000 numbers and
names in the phone memory.
The SIM card and phone are both used in the same
way in the Contacts menu.
IN-CALL MENU
Your phone provides a number of control functions that
you can use during a call. To access these functions
during a call, press the left soft key [Options].
During a call
The menu displayed on the handset screen during a
call is different to the default main menu displayed
when in standby mode, and the options are described
below.
Making a second call
You can get a number you wish to dial from the
phonebook to make a second call. Press the right soft
key then select Search. To save the dialled number
into the phonebook during a call, press the right soft
key then select Add new.
Switching between two calls
To switch between two calls, press the left soft key
then select Swap.
Answering an incoming call
To answer an incoming call when the handset is
ringing, simply press the key. The handset is also
able to warn you of an incoming call while you are
already on a call. A tone sounds in the earpiece, and
the display will show that a second call is waiting.
![](/img.php?id=619637&img=bg1c.png)
28
This feature, known as Call waiting, is only available if
your network supports it. For details of how to
activate and deactivate it see Call waiting
(Menu 7.3.4) .
If Call waiting is activated, you can put the first call on
hold and answer the second, by pressing or by
selecting the left soft key, then Hold & Answer. You
can end the current call and answer the waiting call by
selecting the left soft key and then End & Answer.
Rejecting an incoming call
You can reject an incoming call without answering by
simply pressing the key.
During a call, you can reject an incoming call by
pressing the left soft key [Menu] key and selecting the
Conference/Reject or by pressing the .
Muting the microphone
You can mute the microphone during a call by pressing
the [Menu] key then selecting Mute on. The handset
can be unmuted by selecting Mute off. When the
handset is muted, the caller cannot hear you, but you
can still hear them.
Switching DTMF tones on during a call
To turn DTMF tones on during a call, press the left
soft key, and then select DTMF on. DTMF tones can
be turned off the same way. DTMF tones allow your
phone to make use of an automated switchboard.
MULTIPARTY OR CONFERENCE
CALLS
The multiparty or conference service provides you
with the ability to have a simultaneous conversation
with more than one caller, if your network operator
supports this feature. A multiparty call can only be set
up when you have one active call and one call on hold,
both calls having been answered. Once a multiparty
call is set up, calls can be added, disconnected or
separated (that is, removed from the multiparty call
but still connected to you) by the person who set up
the multiparty call. These options are all available from
the In-Call menu. The maximum callers in a multiparty
call are five. Once started, you are in control of the
multiparty call, and only you can add callers to the
multiparty call.
GENERAL FUNCTIONS
GENERAL FUNCTIONS
![](/img.php?id=619637&img=bg1d.png)
29
Making a second call
You can make a second call while currently on a call.
Enter the second number and press the key.
When the second call is connected, the
first call is automatically placed on hold. You can swap
between calls by pressing the left soft key then
selecting Swap.
Setting up a conference call
Place one call on hold and while the active call is on,
press the left soft key and then select the
Conference/Join all.
Putting a conference call on hold
Press the left soft key, then select the
Conference/Hold all.
Activate the conference call on hold
Press the left soft key, then select the
Conference/Join all.
Adding calls to the conference call
To add a call to an existing conference call, press the
left soft key, then select the Conference/Join all.
Displaying callers in a conference call
To scroll through the numbers of the callers who make
up a conference call on the handset screen, use the
up/down navigation keys.
Taking a private call during a conference
call
To have a private call with one caller from a conference
call, display the number of the caller you wish to talk
to on the screen, then press the left soft key. Select
the Conference/Private to put all the other callers on
hold.
Ending a conference call
The currently displayed caller from a conference call
can be disconnected by pressing the key. To
end a conference call, press the left soft key, then
select the Conference/End multiparty. After
pressing the left soft key, selecting Conference/End
all will end all the active and on-hold calls.
GENERAL FUNCTIONS
![](/img.php?id=619637&img=bg1e.png)
MENU TREE
30
The following illustration shows the available menu structure and indicates the:
]
Number assigned to each menu option.
MENU TREE
5.1 New message
5.2 Inbox
5.3 Outbox
5.4 Drafts
5.5 Listen to voice mail
5.6 Info message
5.7 Templates
5.8 Settings
3.1 Alarm clock
3.2 Bluetooth
3.3 Calculator
3.4 Unit converter
3.5 World time
3.6 Modem
4.1 Contacts
4.2 Calendar
4.3 Memo
1.x.1 Activate
1.x.2 Personalise
1.x.3 Rename
2.
1 Missed calls
2.
2 Received calls
2.
3 Dialled calls
2.
4 Delete recent calls
2.
5 Call charges
2.
6 GPRS information
1.
Profiles
3. Tools 5. Messages
4. Organiser2. Call register
![](/img.php?id=619637&img=bg1f.png)
MENU TREE
31
7.1 Date & Time
7.2 Phone settings
7.3 Call settings
7.4 Security settings
7.5 Network settings
7.6 GPRS setting
7.7 Reset settings
7.8 Memory status
6.1 Camera
6.2 Video camera
6.3 My photos
6.4 My Videos
6.5 MP3
6.6 Voice recorder
6.7 Settings
6. Multimedia 7. Settings
8.
1 Internet
8.
2 SIM service
This menu depends on
SIM and the network
services.
9.
1 Games & Apps
9.
2 Images
9.
3 Sounds
9.
4 File storage
8. Service
9. Downloads
![](/img.php?id=619637&img=bg20.png)
32
Your phone offers a set of functions that allow you to
customise the phone. These functions are arranged in
menus and sub-menus, accessed via the two soft keys
marked [ ] and [ ]. Each menu and sub-menu
lets you view and alter the settings of a particular
function.
The role of the soft keys vary according to the current
context or the label on the bottom line of the screen
just above each key indicates its current role.
SELECTING FUNCTIONS AND OPTIONS
SELECTING FUNCTIONS AND OPTIONS
Press the right soft
key to access the
available Contacts.
Press the left soft
key to access the
available menu.
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲
✬❙❘❳❊●❳❲✶■❘❨
✶■❘❨
✶■❘❨
✶■❘❨
✶■❘❨
✶■❘❨
✶■❘❨
✶■❘❨
✶■❘❨
✶■❘❨
✶■❘❨
✶■❘❨
![](/img.php?id=619637&img=bg21.png)
33
PROFILES
PROFILES
33
In Profiles, you can adjust and customise the phone
tones for different events, environments, or caller
groups. There are five preset profiles: Vibrate only,
Silent, General, Loud and Headset. Each profile can
be personalised. Press the left soft key [Menu] and
select Profiles using up/down navigation keys.
Activate (Menu 1.x.1)
1. A list of profiles is displayed.
2. In the Profiles list, scroll to the profile you want to
activate and press the left soft key [Select] or
OK key.
3. Then, select Activate.
Personalise (Menu 1.x.2)
Scroll to the desired profile in the Profile list. After
pressing the left soft key or the OK key, select
Personalise. The profile setting option opens. Set the
options as required.
]
Call alert type: Set the alert type for incoming calls.
]
Ring tone: Select the desired ring tone from the list.
]
Ring volume: Set the volume of the ringing tone.
]
Message alert type: Set the alert type for
messages.
]
Message tone: Select the alert tone for messages.
]
Keypad tone: Select the desired keypad tone.
]
Keypad volume: Set the volume of keypad tone.
]
Flip tone: Allows to set the flip tone for adjusting
environment.
]
Effect sound volume: Set the volume of effect
sound.
]
Power on/off volume: Set the volume of the
ringing tone when switching the phone on/off.
]
Auto answer: This function will be activated only
when your phone is connected to the headset.
•Off: The phone will not answer automatically.
•After 5 secs: After 5 seconds, the phone will
answer automatically.
•After 10 secs: After 10 seconds, the phone will
Note
]
To protect the sense of hearing while Folder
open, maximum volume level is 3.
![](/img.php?id=619637&img=bg22.png)
34
answer automatically.
Rename (Menu 1.x.3)
You can rename a profile and give it any name you
want.
1. To change the name of a profile, scroll to the profile
in the profile list and after pressing the left soft key
or the OK key, select Rename.
2. Key in the desired name and press the OK key or
the left soft key [OK].
Note
]
Vibrate only, Silent and Headset profiles
cannot be renamed.
PROFILES
PROFILES
![](/img.php?id=619637&img=bg23.png)
35
CALL REGISTER
You can check the record of missed, received, and
dialled calls only if the network supports the Calling
Line Identification (CLI) within the service area.
The number and name (if available) are displayed
together with the date and time at which the call was
made. You can also view call times.
MISSED CALLS MENU 2.1
This option lets you view the last 10 unanswered calls.
You can also:
•View the number if available and call it, or save it in
the phonebook.
•Enter a new name for the number and save both in
the phonebook.
•Send a message to this number.
•Delete the call from the list.
RECEIVED CALLS MENU 2.2
This option lets you view the last 10 incoming calls.
You can also:
•View the number if available and call it, or save it in
the phonebook.
•Enter a new name for the number and save both in
the phonebook.
•Send a message to this number.
•Delete the call from the list.
DIALLED CALLS MENU 2.3
This option lets you view the last 20 outgoing calls
(called or attempted).
You can also:
•View the number if available and call it or save it in
the phonebook.
•Enter new name for the number and save both in the
phonebook.
•Send a message to this number.
•Delete the call from the list.
CALL REGISTER
![](/img.php?id=619637&img=bg24.png)
CALL REGISTER
CALL REGISTER
36
DELETE RECENT CALLS MENU 2.4
Allows you to delete Missed calls and Received calls
lists. You can delete Dialled calls and All calls lists at
one time.
CALL CHARGES MENU 2.5
Call duration (Menu 2.5.1)
Allows you to view the duration of your incoming and
outgoing calls. You can also reset the call times. The
following timers are available:
]
Last call: Length of the last call.
]
All calls: Total length of all calls made and incoming
calls since the timer was last reset.
]
Received calls: Length of the incoming calls.
]
Dialled calls: Length of the outgoing calls.
]
Reset all: Allows you to reset the timers of all calls
by pressing the left soft key [Yes ].
Call costs (Menu 2.5.2)
Allows you to check the cost of your last call, all calls,
remaining and reset the cost. To reset the cost, you
need to know your PIN2 code.
Settings (SIM Dependent) (Menu 2.5.3)
]
Set tariff: You can set the currency type and the
unit price. Contact your service providers to obtain
charging unit prices. To select the currency or unit in
this menu, you need the PIN2 code.
]
Set credit: This network allows you to limit the cost
of your calls by selected charging units.If you select
Read, the number of remaining unit is shown. If you
select Change, you can change your change limit.
]
Auto display: This network service allows you to
see automatically the cost of your last calls. If set to
On, you can see the last cost when the call is
released.
![](/img.php?id=619637&img=bg25.png)
37
GPRS INFORMATION MENU 2.6
You can check the amount of data transferred over the
network through the GPRS information option. In
addition, you can also view how much time you are
online.
Call duration (Menu 2.6.1)
You can check the duration of Last call and All calls.
You can also reset the call timers.
Data volumes (Menu 2.6.2)
You can check the Sent(Last/All),
Received(Last/All) or All data volumes and Reset all.
CALL REGISTER
![](/img.php?id=619637&img=bg26.png)
TOOLS
38
ALARM CLOCK MENU 3.1
You can set up to 5 alarm clocks to go off at a
specified time.
1. Select On and enter the alarm time you want.
2. Select the repeat period: Once, Mon ∼∼ Fri, Mon ∼∼
Sat, Everyday.
3. Select the alarm tone you want and press [OK].
4. Edit the alarm name and press [OK].
BLUETOOTH MENU 3.2
Bluetooth enables compatible mobile devices,
peripherals and computers that are in close proximity
to communicate directly with each other without
wires. This handset supports built-in Bluetooth
connectivity, which makes it possible to connect them
with compatible Bluetooth headsets, computer
applications and so on.
When you receive data from another Bluetooth
device, the phone requests for a confirmation.
After confirming the transfer, the file will be copied in
your phone.
Depending on the file type, it will be stored in the
following folders:
- MP3: MP3 folder (Menu 6.5.2)
- Video (.3GP): video folder (Menu 6.4)
- Phonebook contacts (.VCF): Phonebook (Menu
4.1.1)
- Other files: File storage folder (Menu 9.4)
Paired devices (Menu 3.2.1)
You can view all devices which are compatible with
your Bluetooth phone.
Note
]
Due to a compatibility problem, some devices
may not support this function.
]
Supported Bluetooth software (Bluetooth
stacks) for DUN : - WIDCOMM Bluetooth for
Windows 1.4 and 3.0
TOOLS
![](/img.php?id=619637&img=bg27.png)
TOOLS
39
Handsfree devices (Menu 3.2.2)
You can view the list of handsfree devices which are
compatible with your Bluetooth phone.
Settings (Menu 3.2.3)
You can register a new device which is compatible with
Bluetooth. If you already have added the device, you
can connect to it after entering a password
(usually 0000).
CALCULATOR MENU 3.3
This contains the standard functions such as +,−,×,÷:
Addition, Subtraction, Multiplication, and Division.
1. Input the numbers by pressing numeric keys.
2. Use a navigation key to select a sign for calculation.
3. Then input the numbers.
4. Press the left soft key [Result] to view the result.
5. Press the left soft key [Reset] or enter numbers
to repeat the procedure above.
6. To end Calculator, press the right soft key
[Back].
UNIT CONVERTER MENU 3.4
This converts any measurement into a unit you want.
There are 7 types that can be converted into units:
Currency, Surface, Length, Weight, Temperature,
Volume and Velocity.
1. You can select one of unit types by pressing
[Unit] key.
2. Select the unit you want to convert by
pressing and .
Note
]
Use key to erase any numbers or signs. If
you press key, you can input a minus
number. In addition, press key, you can
input a decimal number.
![](/img.php?id=619637&img=bg28.png)
3. You can check the converted value for the unit you
want.
WORLD TIME MENU 3.5
You can view clocks of the world’s major cities.
1. Select the city belonged to the time zone by
pressing , key.
2. You can set the current time to the city time you
select by pressing the left soft key [Set].
MODEM MENU 3.6
This function allows you to use the modem.
TOOLS
40
TOOLS
![](/img.php?id=619637&img=bg29.png)
CONTACTS MENU 4.1
Search (Calling from phonebook) (Menu 4.1.1)
1. Select Search by pressing the left soft key
[Select] or [OK].
2. If you want to edit, delete or copy an entry, select
the left soft key [Options]. The following menu
will be displayed.
]
Edit: You can edit the name, number, group,
character and picture by using the navigation key.
]
Write text/multimedia message: After you have
found the number you want, you can send a text/
multimedia message to the selected number.
]
Send via Bluetooth: You can send the data of
phone book to devices which is compatible with
Bluetooth through Bluetooth.
]
Copy: You can copy an entry from SIM to phone or
from phone to SIM.
]
Main number: You can select the one out of mobile,
home, office that you often use. After you set this,
the main number will be displayed first, when you
search.
]
Delete: You can delete an entry.
Add new (Menu 4.1.2)
You can add phonebook entry by using this function.
Phone memory capacity is 1000 entries. SIM card
memory capacity depends on the service provider.
The number of characters you can save in the SIM card
is a SIM dependent feature.
1. Select Add new by pressing the left soft key
[Select] or [OK].
2. Select the memory you want to save: SIM or Phone.
If you set to Phone, you need to select which
number you want as Main number.
Note
]
Instant searching is available by inputting the
initial letter of the name you want to search.
Note
]
In standby mode, press right soft key
[Back] to access directly.
ORGANISER
41
ORGANISER
![](/img.php?id=619637&img=bg2a.png)
42
]
Remove member: You can remove the member
from the Group member list. But the name and the
number will remain in the phonebook.
]
Rename: You can change a group name.
Speed dial (Menu 4.1.4)
Assign contacts to any of the keys to . You
can then call that contact by
pressing the corresponding number key.
1. Open the phonebook first by pressing the Right
soft key [Back] in standby mode.
2. Scroll to Speed dial, then press the left soft key
[Select].
3. If you want to add Speed dial, select (empty). Then,
you can search the name in phonebook.
4. After assigning the number as speed dial, you can
change and delete the entry. You can also make a
call or send a message to this number.
ORGANISER
ORGANISER
a. Press [OK] to input a name.
b. Press [Save], then you can input a number.
c. Press [Save].
d. You can set a group for the entry by pressing
, :
e. You can set a character and a picture for the
entry by pressing , , , .
Caller groups (Menu 4.1.3)
You can add up to 20 members per group, with up to
a maximum of 7 groups on total.
]
Member list: Shows the group members you have
selected.
]
Group ring tone: Allows you to specify ring tone for
the group members’ call.
]
Group icon: Allows you to select the icon
dependent on Group.
]
Add member: You can add group members. Each
group should not exceed 20 members.
![](/img.php?id=619637&img=bg2b.png)
43
Settings (Menu 4.1.5)
1. Press the right soft [Back] in standby mode.
2. Scroll to Settings, then press the left soft key
[Select].
]
Set memory
Scroll to highlight Set memory, and then press the
left soft key [Select].
- If you select Variable, when adding entry, the
phone will ask whether you wish to store on the
sim or phone.
- If you select SIM or Phone, the phone will store an
entry to SIM or phone.
]
View options
Scroll to highlight View options, and then press the
left soft key [Select].
- Name only: Set the phonebook list by displaying
the name only.
- With pictures: Set the phonebook list with the
information of character and picture.
- Name & number: Set the phonebook list by
displaying the name and number.
Copy all (Menu 4.1.6)
You can copy/move entries from SIM card memory to
Phone memory and vice versa.
1. Open the Phonebook first by pressing the right soft
key [Back] in standby mode.
2. Scroll to Copy all, and then press the left soft key
[Select] to enter this menu.
•SIM to Phone: You can copy/move the entries
from SIM Card to Phone memory.
•Phone to SIM: You can copy/move the entries
from Phone memory to SIM Card.
3. You can see the following submenus.
•Keep original: When copying the Original Dial
Number is kept.
•Delete original: When copying the Original Dial
Number is erased.
ORGANISER
![](/img.php?id=619637&img=bg2c.png)
ORGANISER
44
Delete all (Menu 4.1.7)
You can delete all entries in the SIM and Phone. This
function requires the Security code.
1. Press the right soft key [Back] in standby mode
and select Delete all, press [Select].
2. Highlight the memory you wish to erase, and then
press the left soft key ( ) [Select].
3. Enter the security code and press the left soft key
[OK] or the right soft key [Back].
Information (Menu 4.1.8)
]
Service dial number
Use this function to access a particular list of
services provided by your network operator
(if supported by the SIM card).
1. Open the phonebook first by pressing the right
soft key [Back] in standby mode and select
Information.
2. Scroll to Service dial number, then press the left
soft key [Select] to enter.
3. The names of the available services will be shown.
4. Use and to select a service. Press
[Send].
]
Memory status
This feature allows you to see how many entries are
in use, or free in your phonebook.
1. Open the phonebook first by pressing the
right soft key [Back] in standby mode. Select
Information by pressing the left soft key
[Select].
2. Scroll to Memory status, then press the left soft
key [OK].
]
Own number (SIM dependent)
You can check and save your own number in the SIM
card.
ORGANISER
![](/img.php?id=619637&img=bg2d.png)
45
CALENDAR MENU 4.2
When you enter this menu a Calendar will be
displayed.
The month and year are shown at the top of the
screen. Whenever you change the date under the
Settings menu, the calender will update automatically.
The current date will be highlighted in green and any
schedule or memos will be indicated with a red triangle
at the top left hand corner of the corresponding
square. An audible alarm can be set for memo's and
reminders.
To change the day, month, and year.
In the scheduler mode, press left soft key
[Options] as follows;
Add new (Menu 4.2.1)
Allows you to add a new schedule for the chosen day.
Input the subject and then press the left soft key
[OK].
View daily schedules (Menu 4.2.2)
You can refer to a detailed schedule, that is the whole
contents of the schedule configured by you.
Delete past (Menu 4.2.3)
You can delete the past schedule that is no longer
required.
Delete all (Menu 4.2.4)
You can delete all notes.
Go to date (Menu 4.2.5)
You can go to the chosen date directly.
Set alarm tone (Menu 4.2.6)
You can set the alarm tone.
ORGANISER
Key Description Key Description
Yearly Weekly
Monthly Daily
![](/img.php?id=619637&img=bg2e.png)
ORGANISER
46
MEMO MENU 4.3
1. Select the Memo by pressing the left soft key
[Select].
2. If the entry is empty, add new by pressing the left
soft key [Add].
3. Input the memo and then press the left soft key
[OK].
Note
]
If you want to change the text input mode,
press the in order.
ORGANISER
![](/img.php?id=619637&img=bg2f.png)
47
MESSAGES
MESSAGES
Press the Menu key ( ) and select Messages using
navigation keys.
NEW MESSAGE MENU 5.1
Write text message (Menu 5.1.1)
Your phone receives voice mail notification messages
and Short Message Service(SMS) messages. Voice
mail and SMS are network services. Please contact
your network operator for more information.
When the icon appears, you have received voice
mail. When the icon appears, you have received a
new text message. If the message memory is full, a
message is displayed, the icon flashes and you
cannot receive any new messages. Use the Delete
option in the Inbox menu to delete obsolete
messages. Once there is space in the message
memory, any undelivered SMS messages will be
received (provided sufficient space is available).
1. Key in your message. For details on how to enter
text, refer to page 24 through 27 (Entering Text).
2. After you complete the message, to select the
required option, press the left soft key [Options].
The following options are available.
]
Send: Enter the number or select the number from
the phonebook or the recent numbers. You can
send a message up to 5 phone numbers at a time.
Press the left soft key [Options]. The following
options will be displayed.
➀
Contact list (It only shows after a phone number
is entered)
➁
Recent list
➂
Send
]
Save to drafts: Allows you to save the message so
that it can be sent later.
]
Font: Sets the font size and style.
]
Colour: You can set the colour of the text
(foreground) and the background.
]
Alignment: You can set the position of the
message - Right, Centre or Left.
![](/img.php?id=619637&img=bg30.png)
48
MESSAGES
MESSAGES
]
Add T9 dictionary: You can add your own words.
This menu will only be shown when the edit mode
has been set to T9ABC/T9Abc/T9abc.
]
T9 languages: Select the desired language for T9
input mode. You can also deactivate the T9 input
mode by selecting ‘T9 off ’.
]
Exit: If you select this whilst writing a message, you
will be taken back to the message menu. Also the
written message will not have been saved.
3. You can also send attachments with the message by
pressing the right soft key [Insert], while you’re
entering a message.
]
Images: You can send and receive text messages
that contain pictures, known as ‘picture messages’.
Several preset pictures are available in the phone
and they can be replaced with new ones received
from other sources.
]
Sounds: If available, you can attach a sound
available for a short message.
]
Text templates: You can use text templates already
set in the phone.
]
Contacts: You can add phone numbers in the
message.
]
Symbol: You can attach special characters.
]
My business card: You can attach your name card.
Write multimedia message (Menu 5.1.2)
A multimedia message can contain text, images,
and/or sound clips. This feature can be used only if it
is supported by your network operator or service
provider. Only devices that offer compatible
multimedia message or e-mail features can receive and
send multimedia messages.
1. Key in the multimedia message. Using the right soft
key, you can input symbols and numbers, or use T9
input mode. After the multimedia message input,
press the left soft key [OK].
2. Add an image and/or sound. You can move to the
next section using the up/down navigation.
3. You can add a slide by option menu using the left
soft key. If press the left key and select "Add slide"
from the option menu, you can add the new slide.
![](/img.php?id=619637&img=bg31.png)
49
4. Press the left soft key [Options]. The following
options are available.
]
Send: Supports multiple numbers and email
addresses.
]
Preview: Displays the multimedia message you wish
to send.
]
Save: Saves the multimedia message in drafts or as a
template.
]
Add slide: Adds a slide before or after the current
slide.
]
Move to slide: Moves to the next or previous slide.
]
Delete slide: Deletes the selected slide.
]
Set slide format
- Set timer: You can set the timer for slide, text,
picture and sound.
- Swap text and picture: You can switch the
position of picture and text of the message.
]
Remove media: You can remove a picture or sound
in the slide. This option can be shown only when any
media file has been added.
]
Add T9 dictionary: You can add your own word.
This menu will only be shown when the edit mode
has been set to T9ABC/T9Abc/T9abc.
]
T9 languages: Select the language for T9 input
mode. You can also deactivate the T9 input mode
by selecting ‘T9 off ’.
]
Exit: If you select this whilst writing a message, you
will be taken back to the message menu. Also the
written message will not have been saved.
5. Press the right soft key [Insert]. You can insert a
symbol, photos, Images or New photo, sounds,
contacts, New sound, Text templates and My
business card.
MESSAGES
![](/img.php?id=619637&img=bg32.png)
MESSAGES
50
Icon Icon directive
Multimedia message
Short message
SIM message
Read multimedia message
Read text message
Push message
Read push message
Notified multimedia message
INBOX MENU 5.2
You will be alerted when you have received messages.
They will be stored in the Inbox.
In the Inbox, you can identify each message by icons.
For detail, see the icon directive.
If the phone shows ‘No space for SIM message’, you
only have to delete the SIM messages from the Inbox.
If the phone displays ‘No space for message’, you will
then need to delete messages, media or applications
to free up space.
*SIM message
SIM message means that the message is
exceptionally stored in the SIM card. You can move
this message to the phone.
When you are notified that you have received a
multimedia message, you have to wait for the message
to be downloaded before you can view it.
To read a message, select one of the messages by
pressing the left soft key .
]
View: You can view the received messages.
]
Delete: You can delete the current message.
]
Reply: You can reply to the sender.
]
Forward: You can forward the selected message to
another party.
]
Return call: You can call back to the sender.
MESSAGES
![](/img.php?id=619637&img=bg33.png)
51
]
Information: You can view information about
received messages; Sender’s address, Subject
(only for Multimedia message), Message date &
time, Message type, Message size.
]
Delete all: You can delete all messages.
* Specific MMS options
]
Repeat: Allows you to repeat reproduction of the
selected multimedia message.
]
Receive: (for multimedia message notification only).
Multimedia messages, unlike text messages, must be
downloaded from the server automatically or
manually. The network initially sends multimedia
message notification: If the Auto retrieve option is
off or an error has occurred, receipt must be
confirmed by selecting [Receive]. If the Auto
retrieve option is on, the message is automatically
downloaded after receipt of notification.
* Specific download message options
]
Information: Shows the content of the downloaded
messages.
]
Load: Launches the WAP connection to the URL
contained in the download message. The phone
must be configured for WAP services to download
messages.
OUTBOX MENU 5.3
You can see the sent and unsent messages here. For
sent messages, you can see the delivery status. The
browsing is same as that for the inbox message.
MESSAGES
Icon Icon directive
MMS Sent
MMS Unsent
MMS delivery confirmed
SMS sent
SMS unsent
SMS delivery confirmed
![](/img.php?id=619637&img=bg34.png)
MESSAGES
52
When you already sent the message:
]
View: You can view the sent messages.
]
Forward: You can forward the current message to
other recipients.
]
Delete: You can delete the current message.
]
Information: You can view information about
outbox messages; Recipient’s address, Subject (only
for Multimedia message), Message date & time,
Message type, Message size.
]
Delete all: You can delete all messages in the
outbox.
When you didn’t send the message:
]
View: You can view messages you didn't.
]
Delete: You can delete the current message.
]
Send: You can send the message.
]
Information: You can view information about
outbox
]
Delete all: You can delete all messages that have
not been sent.
DRAFTS MENU 5.4
Using this menu, you can preset up to five multimedia
messages that you use most frequently. This menu
shows the preset multimedia message list. The
following options are available.
]
View: You can see the multimedia messages.
]
Edit: Allows you to modify the chosen message.
]
Delete: Deletes the message you choose.
]
Information: To view the information of the
message.
]
Delete all: Deletes all of the messages in the folder.
LISTEN TO VOICE MAIL MENU 5.5
This menu provides you with a quick way of accessing
your voice mailbox (if provided by your network).
Before using this feature, you must enter the voice
server number obtained from your network operator.
When new voice message is received, the symbol
will be displayed on the screen. Please check with your
network provider for details of their service in order to
configure the handset correctly.
MESSAGES
![](/img.php?id=619637&img=bg35.png)
53
INFO MESSAGE MENU 5.6
(DEPENDANT TO NETWORK AND
SUBSCRIPTION)
Info service messages are text messages sent by the
network to mobile phone users. They provide general
information such as weather reports, traffic news, taxis,
pharmacies, and stock prices. When you receive an info
service message, a popup message will indicate a new
message receipt or the info service message will be
displayed directly. In standby mode, the following
options are available when viewing info service messages.
Read (Menu 5.6.1)
When you have received broadcast messages and
select Read to view the message, it will be displayed
on the screen.
Topics (Menu 5.6.2)
To create new topics, press the left soft key [Option]
then select Add new. If you already have topics, you
can deactivate, edit, or delete them by using the left
soft key [Options].
TEMPLATES MENU 5.7
There are pre-defined messages in the list. You can
view and edit the template messages or create new
messages. Two types of templates are available: Text
and Multimedia.
Text templates (Menu 5.7.1)
•Please call me back.
•I’m late. I will be there at
•Where are you now?
•I am on the way.
•Top urgent. Please contact.
•I love you.
The following options are available.
]
View: Views the selected message.
]
Delete: Deletes the template.
]
Add new: Uses this to create new template.
]
Send via: To send via Text message or Multimedia
message.
]
Edit: Use this to edit the selected template.
MESSAGES
![](/img.php?id=619637&img=bg36.png)
MESSAGES
54
]
Delete all: Deletes all templates.
Multimedia templates (Menu 5.7.2)
]
Preview: Displays the draft multimedia message.
]
Save: Saves multimedia messages as templates.
]
Edit subject: You can edit the subject.
]
Add Slide: Adds a slide before or after the current
slide.
]
Move to slide: Moves to the next or previous slide.
]
Delete slide: Deletes the highlighted slide.
]
Set slide format: Sets the timer for slide, text, or to
align the message contents right, left, top and
bottom.
]
Add T9 dictionary: You can add our own word.
This menu can be shown only when the edit mode is
Predictive.
]
T9 languages: Selects T9 input mode.
]
Exit: Exits the menu.
My business card (Menu 5.7.3)
This option helps you to make your own name card.
Key in the name, mobile phone number, office number,
Fax number, and E-mail address.
SETTINGS MENU 5.8
Text message (Menu 5.8.1)
]
Message types:
Text, Voice, Fax, Natl. paging, X.400, Email,
ERMES
Usually, the type of message is set to Text. You can
convert your text into alternative formats. Contact
your service provider for the availability of this
function.
]
Validity period:
1 hour, 12 hours, 1 day, Maximum
This network service allows you to set how long
your text messages will be stored at the message
centre.
MESSAGES
![](/img.php?id=619637&img=bg37.png)
55
]
Delivery report: If you set to Yes, you can check
whether your message is sent successfully.
]
Reply charging: When a message is sent, it allows
the recipients to reply and charge the cost of the
reply to your telephone bill. This feature is not
supported by some network operators.
]
SMS centre: If you want to send the text message,
you can receive the address of SMS centre through
this menu.
Multimedia message (Menu 5.8.2)
]
Priority:
High, Normal, Low
You can set the priority of the message you choose.
]
Validity period:
1 hour, 12 hours, 1 day, Maximum
This network service allows you to set how long
your multimedia messages will be stored at the
message centre.
]
Delivery report: If it is set to Yes in this menu, you
can check whether your message is sent successfully.
]
Auto retrieve: If you select on, you receive
multimedia messages automatically. If you select
Off, you receive only notification message in the
inbox and then you can check this notification. If you
select Home network only, you receive multimedia
messages depends on Homenetwork.
]
Network settings: If you select multimedia message
server, you can set URL for multimedia message
server.
]
Permitted Message types
Personal: Personal message.
Advertisements: Commercial message.
Information: Necessary information.
Voice mailbox number (Menu 5.8.3)
You can receive the voicemail if your network service
provider supports this feature. When a new voicemail
has arrived, the symbol will be displayed on the screen.
Please check with your network service provider for
details of their service in order to configure the phone
accordingly.
]
Home: You can listen to voice mails by selecting
Home.
]
Roaming: Even when you are in abroad, you can
MESSAGES
![](/img.php?id=619637&img=bg38.png)
MESSAGES
56
listen to voice mails if a roaming service is
supported.
Info message (Menu 5.8.4)
]
Receive
Yes: If you select this menu, your phone will receive
Info service messages.
No: If you select this menu, your phone will not
receive Info service messages any more.
]
Alert
Yes: Your phone will beep when you have received
Info service message numbers.
No: Your phone will not beep even though you have
received info service messages.
]
Languages
You can select the language you want by pressing
[On/Off]. Then, the info service message will be
shown in the language that you selected.
Push messages (Menu 5.8.5)
You can set the option whether you will receive the
message or not.
MESSAGES
![](/img.php?id=619637&img=bg39.png)
57
CAMERA MENU 6.1
You can take pictures with the integrated camera and
send them via MMS. You an easily take pictures of
subjects in front of you using the camera on the upper
folder. To take self-portrait pictures, you can simply
close the folder and access the camera menu long
pressing the camera side-key. In this case, the picture
will be displayed on the sub-LCD.
MG300d has a built-in 1.3M pixel digital camera,
which allows to take pictures at 1280x960 pixel (also
known as SXGA). The CMOS sensor allows high
quality pictures and additional functions as 4x digital
zoom (depending on the resolution), brightness and
white balance control, various effects and so on.
Through the integrated flash, you can take also
pictures in low light conditions.
• Taking pictures with open folder
1. Select Camera. To directly access to this menu,
long press the camera side-key from stand-by
mode.
2. Center you subject on the viewfinder and press the
OK key or the camera side-key to take the photo.
3. If you want to save the picture, select the disk icon.
Camera icons description
After taking a picture, the following option window
appears:
]
: Send the picture through MMS. Only pictures
below 100KB can be sent through MMS.
]
: Store the pictures in the Photo album.
]
: Delete the photo.
To change the camera settings, press the left soft-key
. Use the left/right directional keys to scroll the
various options and press OK to change them,
following the indications described below:
MULTIMEDIA
MULTIMEDIA
Resolution
Multi shot
indicator
Flash on/off
Timer
indicator
Zoom level
Settings
menu
![](/img.php?id=619637&img=bg3a.png)
58
]
Brightness: changes the brightness of the
photo among 5 levels (-2, -1, 0, 1 and 2). You can
also change the brightness of the picture using the
left/right directional keys from the viewfinder.
]
Size: Set the size (resolution) of the picture.
You can choose between 320x240, 640x480,
1280x960, 48x48 – for phonebook – e 128x160
– to be used as wallpaper.
]
Timer : Using this function you can delay the
camera shutter time by selecting either None, 3
seconds, 5 seconds or 10 seconds.
]
Quality: You can select the desired quality of
picture by selecting either S-Fine, Fine or Normal.
]
White balance: Using this function you can
adjust the tone of the background picture according
to the weather by selecting either Auto, Cloudy,
Incandescent, Fluorescent and Daylight.
]
Album: Show all the pictures stored in the
album.
]
Exit: Exit from the settings menu.
]
Mode: Set the kind of picture to be taken. You
can choose among the following options:
• Still shot: Takes a standard picture.
• Multi shot: You can take up to 9
consecutive shots, depending on the resolution.
After shooting, you can check each picture, one by
one, pressing the down directional key.
Note
]
A high quality setting will increase the definition
of the photo, but the memory size will be
bigger.
Note
]
You can set the timer pressing the key
from the viewfinder.
Note
]
Bigger size pictures will take more memory to
be saved.
MULTIMEDIA
MULTIMEDIA
![](/img.php?id=619637&img=bg3b.png)
59
After checking the photos, you can either save
them or delete them choosing the relative icons.
• Frame shot: You can apply 10 kinds of
frame effects when taking a picture. To select the
frame, press the up directional key and confirm
your choice pressing OK.
]
Effect: Changes the color of the pictures.
Available options are: Color, night, Sepia, Black &
white and Negative.
]
Flash: Toggles the flash to take pictures in low
light conditions.
]
Zoom: The digital camera integrates a zoom
function up to 4X. There are 4 zoom levels you can
change using the left/right directional keys. You can
also change the zoom level using the up/down
directional keys from the viewfinder.
Note
]
The zoom function is available only in specific
resolutions. Please refer to the following table
for more details:
- 48x48: Zoom 1x
- 128x160: Zoom 1x
- 320x240: Zoom 1x, 2x, 3x, 4x
- 640x480: Zoom 1x, 2x
- 1280x960: Zoom 1x
Note
]
You can toggle the flash also pressing the key
from the viewfinder.
Note
]
Frame shots are only available with the
128x160 pixel resolution.
Note
]
The multi shot function is only available if the
resolution is set as 320x240 or 640x480. You
can take 9 consecutive shots with 320x240,
while only 3 with 640x480. The pictures will be
handled all together (deleted or saved), you can’t
handle them one by one.
MULTIMEDIA
![](/img.php?id=619637&img=bg3c.png)
MULTIMEDIA
60
• Taking pictures with closed folder
Taking a self-portrait, you can see your picture on the
sub-LCD.
1. Long press the camera side key.
2. Select Take picture using the volume side keys
followed by the camera side key to confirm it.
3. Choose the subject to acquire and press the camera
side key. The picture will be automatically saved in
the Photo album.
4. To exit the camera mode, long press the camera side
key.
Long press the camera side key when the folder is
closed to open the following menu (use the volume
side keys to move between the options and confirm
the selections through the camera side key):
•MP3: Plays the music files in the phone. Check (Menu
6.5.1) for further details.
• Take picture: Enter the camera mode.
• Slide show: Display a slide show of all the pictures in
the photo album.
• Torch: Toggle the flash functionality.
• Back: Exits the menu.
VIDEO CAMERA MENU 6.2
MG300d includes a video camera which can take
every kind of video at resolution of 176x144 or
128x96 pixel. Video duration depends on the
available memory. Videos are encoded in 3gp format.
To record a video, follow the instructions below:
1. Turn on the video camera (Menu 6.2)
2. Change the video camera settings according to
your needing, pressing the left softkey . The video
camera settings are mostly the same as camera
settings described in (Menu 6.1).
Note
]
Taking a self-portrait, you can’t change the
camera settings (zoom, brightness, quality and
so on). The phone will automatically use the
latest camera settings. Also, you can’t use the
Flash or use the Multi shot and the Frame shot
functions.
MULTIMEDIA
![](/img.php?id=619637&img=bg3d.png)
61
]
Brightness: Changes the brightness of the
video among 5 levels (-2, -1, 0, 1 and 2). You can
also change the brightness of the video using the
left/right directional keys from the viewfinder.
]
Size: Set the size (resolution) of the video. You
can choose between 176x144 or 128x96 pixel.
]
Timer : Using this function you can delay the
video recording start time by selecting either None,
3 seconds, 5 seconds or 10 seconds.
]
Quality: You can select the desired quality of
the video by selecting either S-Fine, Fine or Normal.
]
White balance: Using this function you can
adjust the tone of the video according to the
weather by selecting either Auto, Cloudy,
Incandescent, Fluorescent and Daylight.
]
Record time:: Set the video duration time
(Unlimited, 1 minute, 5 minutes, 30 minutes or 90
minutes).
]
Album: Show all the videos stored in the
album.
]
Exit: Exit from the settings menu.
]
Effect: Changes the color of the video.
Available options are: Color, night, Sepia, Black &
white and Negative.
]
Flash: Toggles the flash to record videos in
low light conditions.
Note
]
A high quality setting will increase the definition
of the video, but the memory size will be bigger.
Note
]
You can set the timer pressing the key
from the viewfinder.
Note
]
Bigger size videos will take more memory to be
saved.
MULTIMEDIA
![](/img.php?id=619637&img=bg3e.png)
]
Zoom: The video camera integrates a zoom
function up to 4X. There are 4 zoom levels you can
change using the left/right directional keys. You can
also change the zoom level using the up/down
directional keys from the viewfinder.
3. Put the camcorder where you want it and press the
OK key to start recording. A red timer will indicate
the recording time. Press again the OK key to stop
the recording. The recorded video is automatically
saved in the gallery (Menu 6.4).
MY PHOTOS MENU 6.3
You can view and send a picture. In addition, you can
set the window picture as a wallpaper.
Options
]
Multi view: You can view the maximum of 9
thumbnails in a screen.
]
Send via Bluetooth: You can send a pciture via
Bluetooth.
]
Write multimedia messages: You can send a
picture via MMS.
]
Set as wallpaper: You can set a picture as a
wallpaper.
]
Slide show: This menu allows you to view as a slide
show automatically.
]
Delete: You can delete a picture.
]
Edit title: You can edit the title of picture.
]
Information: You can view the information about
Title, Size, Date and Time you’ve taken.
MY VIDEOS MENU 6.4
You can play and send a video.
Options
]
Play : Play the video
]
Send via Bluetooth : You can send the video by
Bluetooth.
]
Rename : You can edit the title of video.
Note
]
You can toggle the flash also pressing the
key from the viewfinder.
MULTIMEDIA
62
MULTIMEDIA
![](/img.php?id=619637&img=bg3f.png)
]
Delete : You can delete the video.
]
Delete all : You can delete all files.
]
Information : You can view the information of the
video.
MP3 MENU 6.5
The MG300d has an integrated MP3 player built-in.
You can enjoy listening to MP3 music files on your
phone memory using a compatible headset or via the
internal loudspeaker.
The music player supports:
• MPEG-1 Layer III,MPEG-2 Layer III,MPEG-2.5 Layer
III Sampling frequency up from 8KHz to 48KHz.
Bit rate up to 320Kbps, stereo.
• AAC: ADIF, ADTS formats (Sampling frequency from
8KHz to 48KHz)
• AAC+: V1 : (Bit rate 16 28Kbps)
V2 : (Bit rate 16 48Kbps)
(Sampling frequency from 8KHz to 48KHz)
• MP4 , M4A : Sampling frequency up from 8KHz to
48KHz, Bit rate up to 320Kbps, stereo.
• WMA : Sampling frequency up from 8KHz to 48KHz,
Bit rate up to 320Kbps, stereo.
You can transfer MP3 files from a compatible PC to
the memory in your phone using the Mass Storage.
when you connect the phone to a PC using the USB
cable(supplied in the same package), you just try to
Note
]
MG300d doesn't support the variable rate of
MP3 and AAC file. Therefore, you can't change
the file from VBR MP3 format to AAC.
Note
]
Because of the small dimension of the speaker,
in some cases the audio could be distorted,
especially at maximum volume and when there
are lots of bass sounds. Therefore, we
recommend you to use the stereo headset in
order to appreciate the high quality of your
music.
63
MULTIMEDIA
![](/img.php?id=619637&img=bg40.png)
connect to PC via USB cable. If you use on win98 SE,
you have to install Mass storage drive for windows 98
on CD-ROM.
MP3 player
(Menu 6.5.1)
1. Press MP3 menu, and then select MP3 player.
2. Press the left soft key [Options] to access the
following menus.
]
View play list: You can view the play list on listening
to the music.
]
Area repeat: The special area part of the current
music is repeated when you select ON of the menu.
]
Set as ring tone: This menu allows to set the MP3
file as a ring tone. You can also set it as a ring tone in
Profile.
]
Settings:
- Equalizer: This menu helps you to adjust a varity
of environment on listening to the music. This
phone supports four preset menus. When you
enter this menu, you can view current value of
equalizer.
- Playmode : This menu allows to set the play
mode.
- Set shuffle: You can listen to MP3 music all
randomly.
- Visual effect : You can select the visual effect
menus:Light, Bounce and Guitarist.
This menu allows to change the backgroud of main
LCD and sub LCD on playing MP3 file.
Note
]
The PC should run Windows 98 SE, Windows
ME, Windows 2000, Windows XP operating
system.
]
Besides downloading the MP3 files to the
phone, you can upload the pictures taken on
the phone to the PC using the USB cable. And
you can also manage the phonebook,
scheduler, and Memo on the PC. Consult with
the authorised dealer for availability of
accessories.
]
To download MP3 file in Windows 2000, you
should set folder option in PC as follow: View
WEB->Use Windows default folder (I).
MULTIMEDIA
64
MULTIMEDIA
![](/img.php?id=619637&img=bg41.png)
- Flip setting
Continue playing: Although you close the flip on
playing, the play mode is continued without a
pause.
Stop playing: When you close the flip, you can
stop the play mode.
Playlist (Menu 6.5.2)
This menu allows to view the whole Playlist. You can
move the track by pressing the navigation key.
In addition, if you select option menu, you can delete
the file or view its information .
Settings (Menu 6.5.3)
This menu allows to set the following items; Equalizer,
Playmode, Set shuffle, Visual effect and Flip setting.
VOICE RECORDER MENU 6.6
The voice memo feature you to record up to 10 voice
messages and each memo is up to 20 Seconds.
Record (Menu 6.6.1)
You can record a voice memo in the Voice recorder
menu.
1. Once recording has started, the message Recording
and the remaining time is displayed.
Note
]
The copyright of music files can be protected
in international treaties and national copyright
laws.
Therefore, it may be necessary to obtain a
permission or a license to reproduce or copy
music. In some countries national law prohibits
private copying of copyrighted material.
Before downloading or copying the file, please
check the national legislation of the applicable
country concerning the use of such material.
65
MULTIMEDIA
![](/img.php?id=619637&img=bg42.png)
2. If you want to finish recording, press the left soft key
[Save].
3. Key in Voice memo title, press the left soft key
[OK].
View list (Menu 6.6.2)
The phone shows voice memo list. You can Playback
and Delete the recorded voice memo.
SETTINGS MENU 6.7
Camera (Menu 6.7.1)
]
Auto save: If you set On, the images will be saved
automatically without displaying menu bar to save.
]
Delete all photos: This menu allows to delete all
photos after asking your confirmation.
Video camera (Menu 6.7.2)
]
Delete all videos: This menu allows you to delete all
the videos.
MULTIMEDIA
66
MULTIMEDIA
![](/img.php?id=619637&img=bg43.png)
You can set the following menus for your convenience
and preferences.
1. Press [Menu] in standby mode.
2. Press for direct access to enter Settings.
DATE & TIME MENU 7.1
You can set functions relating to the date and time.
Date (Menu 7.1.1)
Set Date
You can enter the current date.
Date format
You can set the Date format such as DD/MM/YYYY,
MM/DD/YYYY, YYYY/MM/DD.
(D: Day / M: Month / Y: Year)
Time (Menu 7.1.2)
Set Time
You can enter the current time.
Time format
Your can set the time format between 24-hour and
12-hour.
PHONE SETTINGS MENU 7.2
You can set functions relating to the phone.
Display settings (Menu 7.2.1)
]
Wallpaper: You can select the background pictures
in standby mode.
- Main LCD
- Sub LCD
Default
You can select a picture or an animation of
wallpaper by pressing or .
My folder
You can select a picture or an animation as
wallpaper.
SETTINGS
67
SETTINGS
![](/img.php?id=619637&img=bg44.png)
68
]
Standby text: If you select On, you can edit the text
which is displayed in standby mode.
]
Backlight time: You can set the light-up duration of
the display.
]
Network name: If you set ON, Network name (the
name of service provider) will be appeared in
Internal LCD.
Theme settings (Menu 7.2.2)
Allows you to choose from one of the preset themes.
Language (Menu 7.2.3)
You can change the language for the display texts in
your phone. This change will also affect the Language
Input mode.
CALL SETTINGS MENU 7.3
You can set the menu relevant to a call by pressing
[Select] in the Setting menu.
Call divert (Menu 7.3.1)
The Call divert service allows you to divert incoming
voice calls, fax calls, and data calls to another number.
For details, contact your service provider.
]
All voice calls: Diverts voice calls unconditionally.
]
If busy: Diverts voice calls when the phone is in use.
]
If no reply: Diverts voice calls which you do not
answer.
]
If out of reach: Diverts voice calls when the phone is
switched off or out of coverage.
]
All data calls: Diverts to a number with a PC
connection unconditionally.
]
All fax calls: Diverts to a number with a fax
connection unconditionally.
]
Cancel all: Cancels all call divert service.
The submenus
Call divert menus have the submenus shown below.
•Activate
Activate the corresponding service.
SETTINGS
SETTINGS
![](/img.php?id=619637&img=bg45.png)
69
To voice mail centre
Forwards to message centre. This function is not
shown at All data calls and All fax calls menus.
To other number
Inputs the number for diverting.
To favorite number
You can check recent 5 diverted numbers.
•Cancel
Deactivate the corresponding service.
•View status
View the status of the corresponding service.
Answer mode (Menu 7.3.2)
]
Flip open: If you select this menu, you can receive
an incoming call by simply opening flip.
]
Any key: If you select this menu, you can receive a
call by pressing any key except [End] key.
]
Send key only: If you select this menu, you can
receive a call by only pressing [Send] key.
Send my number (Menu 7.3.3)
(network and subscription dependent)
]
Set by network: If you select this, you can send
your phone number depending on two line service
such as line 1 or line 2.
]
On: You can send your phone number to another
party. Your phone number will be shown on the
receiver’s phone.
]
Off: Your phone number will not be shown.
Call waiting (network dependent) (Menu 7.3.4)
]
Activate: If you select Activate, you can accept a
waiting (receiving) call.
]
Cancel: If you select Cancel, you cannot recognize
the waiting (receiving) call.
]
View status: Shows the status of Call waiting.
Minute minder (Menu 7.3.5)
If you select On, you can check the call duration by
deep sound given every minute during a call.
SETTINGS
![](/img.php?id=619637&img=bg46.png)
SETTINGS
70
Auto redial (Menu 7.3.6)
]
On: When this function is activated, the phone will
automatically try to redial in the case of failure to
connect a call.
]
Off: Your phone will not make any attempts to
redial when the original call has not connected.
SECURITY SETTINGS MENU 7.4
PIN code request (Menu 7.4.1)
In this menu, you can set the phone to ask for the PIN
code of your SIM card when the phone is switched on.
If this function is activated, you’ll be requested to
enter the PIN code.
1. Select PIN code request in the security settings
menu, and then press [Select].
2. Set On/Off.
3. If you want to change the setting, you need to enter
PIN code when you switch on the phone.
4. If you enter wrong PIN code more than 3 times, the
phone will lock out. If the PIN is blocked, you will
need to key in the PUK code.
5. You can enter your PUK code up to 10 times. If you
put wrong PUK code more than 10 times, you can
not unlock your phone. You will need to contact
your service provider.
Handset lock (Menu 7.4.2)
You can use security code to avoid unauthorized use
of the phone. Whenever you switch on the phone, the
phone will request security code if you set phone lock
to On. If you set phone lock to Automatic, your
phone will request security code only when you
change your SIM card.
Call barring (Menu 7.4.3)
The Call barring service prevents your phone from
making or receiving certain category of calls. This
function requires the call barring password. You can
view the following submenus.
]
All outgoing calls: The barring service for all
outgoing calls.
SETTINGS
![](/img.php?id=619637&img=bg47.png)
71
]
Outgoing international: The barring service for all
outgoing international calls.
]
Outgoing international when roaming: The
barring service for all international outgoing calls
except home network.
]
All incoming: The barring service for all incoming
calls.
]
Incoming when roaming: The barring service for all
incoming calls when roaming.
]
Cancel all: You can cancel all barring services.
]
Change password: You can change the password
for Call Barring Service.
The submenus:
•Activate
Allows to request the network to set call restriction
on.
•Cancel
Set the selected call restriction off.
•View status
View the status whether the calls are barred or not.
Fixed dial number (Menu 7.4.4)
(SIM dependent)
You can restrict your outgoing calls to selected phone
numbers.
The numbers are protected by your PIN2 code.
]
Enable: You can restrict your outgoing calls to
selected phone numbers.
]
Disable: You can cancel fixed dialling function.
]
Number list: You can view the number list saved as
Fixed dial number.
Change codes (Menu 7.4.5)
PIN is an abbreviation of Personal Identification
Number to prevent use by unauthorized person.
You can change the access codes: PIN2 code,
Security code.
1. If you want to change the Security code/PIN2 code
input your original code, and then press [OK].
2. Input new Security code/PIN2 code and verify
them.
SETTINGS
![](/img.php?id=619637&img=bg48.png)
SETTINGS
72
NETWORK SETTINGS MENU 7.5
You can select a network which will be registered
either automatically or manually. Usually, the network
selection is set to Automatic.
Network selection (Menu 7.5.1)
Automatic
If you select Automatic mode, the phone will
automatically search for and select a network for you.
Once you have selected “Automatic”, the phone will
be set to “Automatic” even though the power is off
and on.
Manual
The phone will find the list of available networks and
show you them. Then you can select the network
which you want to use if this network has a roaming
agreement with your home network operator. The
phone will let you select another network if the phone
fails to access the selected network.
Preferred
You can set a list of preferred networks phone will
attempt to register with first, before attempting to
register to any other networks. This list is set from the
phone’s predefined list of known networks.
Band selection (Menu 7.5.2)
Use this to set the network band between two
choices, EGSM / DCS (900/1800) or EGSM / PCS
(900/1900).
GPRS SETTING MENU 7.6
You can set GPRS service depending on various
situations.
RESET SETTINGS MENU 7.7
You can initialize all default settings. You need the
Security code to activate this function.
SETTINGS
![](/img.php?id=619637&img=bg49.png)
73
MEMORY STATUS MENU 7.8
Internal memory (Menu 7.8.1)
This function shows the status of the user memory of
the handset.
Multimedia memory (Menu 7.8.2)
This function shows the status of the multimedia
memory of the handset.
SETTINGS
![](/img.php?id=619637&img=bg4a.png)
74
You can access various WAP (Wireless Application
Protocol) services such as banking, news, weather
reports and flight information. These services are
specially designed for mobile phones and they are
maintained by WAP service providers.
Check the availability of WAP services, pricing and
tariffs with your network operator and/or the service
provider whose service you wish to use. Service
providers will also give you instructions on how to use
their services.
Once connected, the homepage is displayed. The
content depends on the service provider. To exit the
browser at any time, press the ( ) key. The
phone will return to the
previous menu.
Navigating with the WAP browser
You can surf the Internet using either the phone keys
or the WAP browser menu.
Using the phone keys
When surfing the Internet, the phone keys function
differently to phone mode.
Using the WAP browser menu
There are various menu options available when surfing
the Mobile Web.
INTERNET MENU 8.1
Home (Menu 8.1.1)
Connects to a homepage. The homepage will be the
site which is defined in the activated profile. It will be
defined by the service provider if you have not defined
it in the activated profile.
Note
]
The WAP browser menus may vary, depending
on your browser version.
Key Description
Scrolls each line of the content area
Returns to the previous page
Selects options and confirms actions
SERVICE
SERVICE
![](/img.php?id=619637&img=bg4b.png)
75
Bookmarks (Menu 8.1.2)
This menu allows you to store the URL of favorite web
pages for easy access at a later time. Your phone has
several pre-installed bookmarks. These pre-installed
bookmarks cannot be deleted.
To create a bookmark
1. Press the left soft key [Options].
2. Select Add new and press the OK key.
3. After entering the desired URL and title, press the
OK key.
*
Tip: Use the “ ” key and key to enter
symbols. To enter “ .”, press “ ” .
After selecting a desired bookmark, the following
options are available.
]
Connect: Connects to the selected bookmark.
]
Add new: Select this to create a new bookmark.
]
Edit: You can edit the URL and/or the title of the
selected bookmark.
]
Delete: Deletes the selected bookmark.
]
Delete all: Deletes all the bookmarks.
Go to URL (Menu 8.1.3)
You can connect directly to the site you want. After
entering a specific URL, press the OK key.
Settings (Menu 8.1.4)
Profiles
A profile is the network information used to connect
to the Internet.
Each profile has submenus as follows:
]
Activate: Activates the selected profile.
]
Settings: Use this to edit and change WAP settings
for the selected profile.
Note
]
In case the SIM card support SAT(i.e. SIM
Application Toolkit) services, this menu will be
the operator specific service name stored on
the SIM card. In case the SIM card does not
support SAT services, this menu will be Profiles.
SERVICE
![](/img.php?id=619637&img=bg4c.png)
SERVICE
76
- Homepage: This setting allows you to enter the
address (URL) of a site you want to use as
homepage. You do not need to type http:// at the
front of each URL as the WAP Browser will
automatically add it.
- Bearer: You can set the bearer data service.
1 Data
2 GPRS
- Data settings: Appears only if you select Data
Settings as a Bearer / service.
Dial number: Enter the telephone number to dial
to access your WAP gateway.
User ID: The users identity for your dial-up server
(and NOT the WAP gateway).
Password: The password required by your dial-up
server (and NOT the WAP gateway) to identify
you.
Call type: Select the type of data call : Analogue
of Digital (ISDN)
Linger time: You need to enter timeout period.
After entering that, the WAP navigation service will
be unavailable if any data is not input or transferred.
Call speed: The speed of your data connection ;
9600 or 14400
- GPRS settings: The service settings are only
available when GPRS is chosen as a bearer service.
APN: Input the APN of the GPRS.
User ID: The users identify for your APN server.
Password: The password required by your APN
server.
Connection Type: The options for connection
type are Temporary or Continuous and depend on
the gateway you are using.
- Proxy settings
Proxy: On/Off
IP address: Input the IP address of the Proxy
server you access.
Port: Input the Proxy Port
DNS settings
Primary server: Input the IP address of the
primary DNS server you access
Secondary server: Input the IP address of the
secondary DNS server you access
SERVICE
![](/img.php?id=619637&img=bg4d.png)
77
]
Rename: You can change the profile name.
]
Delete: Deletes the selected profile from the list.
]
Add new: You can add a new profile.
Cache
Set a value whether a connection attempt is made
through cache or not.
Cookie
Check whether a cookie is used or not.
Clear cache
Removes all context saved in cache.
Clear cookie
Removes all context saved in cookie.
Security
A list of the available certification is shown.
]
Authority: You can see the list of authority
certificates that have been stored in your phone.
]
Personal: You can see the list of personal
certificates that have been stored in your phone.
SIM SERVICE
(SIM DEPENDENT) MENU 8.2
Your service provider can offer special applications
through the SIM card, such as home banking, stock
market, etc. If you are registered for one of these
services, the service name will appear at the end of the
Main Menu. With the SIM Services menu your phone is
future-proof and will support additions to your service
provider’s service.
For more information contact your service provider.
SERVICE
![](/img.php?id=619637&img=bg4e.png)
78
GAMES & APPS MENU 9.1
Games & Apps (Menu 9.1.1)
In this menu, you can manage the Java applications
installed in your phone. You can play or delete
downloaded applications, or set the connect option.
The downloaded applications are organised in folders.
Press the left soft key [Select] to open the selected
folder or launch the selected midlet. Using the left soft
key [Options], the following menus are available.
]
Launch: Start the selected application.
]
Information: Shows the information of the
application.
]
Permissions: Some Java applications may require a
data connection to be made. Select this to set the
connecting options.
- Always: The connection is created immediately
without a notification.
- Prompt: You will be asked before the application
makes the connection.
- Never: No connection is allowed.
Note
]
You cannot remove or rename the preinstalled
folder or a game in the folder.
Note
]
After downloading any Java game, press the
“Ok” Key ( ) to save it in the root folder.
DOWNLOADS
Java
TM
, is a technology developed by Sun
Microsystems. Similar to the way you would
download the Java Applet using the standard MS
Internet Explorer browser, Java MIDlets can be
downloaded using the WAP enabled phone.
Depending on the service provider, all Java based
programs such as Java games can be downloaded
and run on a phone. Once downloaded, the Java
program can be viewed in the Games & Apps
menu where you can select, execute, or delete.
The Java program files saved in the phone are in
.JAD or .JAR format.
DOWNLOADS
![](/img.php?id=619637&img=bg4f.png)
79
Profiles (Menu 9.1.2)
This menu contains the same settings of the Internet
menu. In fact, in order to download new applications, a
WAP connection is needed.
IMAGES MENU 9.2
The left soft key [Options] will bring up the
following options.
]
Set as wallpaper: Currently selected Picture can be
set as a Wallpaper.
]
Write multimedia message: Downloaded Picture
can be sent via MMS.
]
Send via Bluetooth: The picture can be sent via
Bluetooth.
Note
]
The JAR file is a compressed format of the Java
program and the JAD file is a description file
that includes all detailed information. From the
network, prior to download, you can view all
detailed file descriptions from the JAD file.
]
While being based on a standard language
(J2ME), not all Java applications are compatible
with all handsets on sale in so far as specific
libraries may be used for a telephone model.
The software may be blocked or switch itself on
when Java applications not specifically
developed for the phone is downloaded. We
would like to point out that these problems are
caused by incompatible applications and are
not a product fault.
Caution
]
Only J2ME (Java 2 Micro Edition) based
programs will run in a phone environment. The
J2SE (Java 2 Standard Edition) based programs
will only run in a PC environment.
DOWNLOADS
![](/img.php?id=619637&img=bg50.png)
![](/img.php?id=619637&img=bg51.png)
![](/img.php?id=619637&img=bg52.png)
84
TECHNICAL DATA
GENERAL
Product name: MG300d
System : GSM 900 / DCS 1800 / PCS 1900
AMBIENT TEMPERATURES
Max: +55°C (discharging)
:+45°C (charging)
Min: -10°C
TECHNICAL DATA
![](/img.php?id=619637&img=bg53.png)
Appendix 1. RF Exposure Statement
WARNING! Read this information before operating the phone.
In August 1996, the Federal Communications (FCC) of the United States, with its action in Report
and Order FCC 96-326, adopted an updated safety standard for human exposure to radio
frequency(RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines
are consistent with the safety standard previously set by both U.S. and international standards
bodies.
The design of this phone complies with the FCC guidelines and these international standards.
CAUTION
Use only the supplied and approved antenna. Use of unauthorized antennas or modifications could
impair call quality, damage the phone, void your warranty and/or result in violation of FCC
regulations.
Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with skin,
a minor burn may result. Contact your local dealer for a replacement of antenna.
Body Worn Operation
This device was tested for typical body-worn operations with the back of the phone kept 1.5
cm from the body. To comply with FCC RF exposure requirements, a minimum separation
distance of 1.5 cm must be maintained between the user’s body and the back of the phone,
including the antenna, whether extended or retracted. The use of belt-clips, holsters, and
similar accessories should not containing metallic components in its assembly. The use of
accessories that do not satisfy these requirements may not comply with FCC RF exposure
requirements, and should be avoided.
* This GSM phone has Bluetooth function.
For Your Safety FCC Part 15 Class B Compliance
This device and its accessories comply with part 15 of FCC rules. Operation is subject to the
following two conditions: (1) This device and its accessories may not cause harmful
interference, and (2) this device and its accessories must accept any interference received,
including interference that may cause undesired operation.
Appendix 2. Consumer Information on SAR
(Specific Absorption Rate)
This Model Phone Meets the Government’s Requirements for Exposure to Radio Waves. Your
wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed
the emission limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the general population. The guidelines
are based on standards that were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The standards include a substantial safety
margin designed to assure the safety of all persons, regardless of age and health.
The exposure standard for wireless mobile phones employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are
conducted using standard operating positions specified by the FCC with the phone transmitting at
its highest certified power level in all tested frequency bands. Although SAR is determined at the
highest certified power level, the actual SAR level of the phone while operating can be well below
the maximum value. Because the phone is designed to operate at multiple power levels to use only
the power required to reach the network, in general, the closer you are to a wireless base station
antenna, the lower the power output.
Before a phone model is available for sale to the public, it must be tested and certified to the FCC
that it does not exceed the limit established by the government-adopted requirement for safe
exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the
body) as required by the FCC for each model.
The highest SAR value for this model phone when tested for use at the ear is 0.532W/kg(GSM850),
0.514W/kg(PCS1900) and when worn on the body, as described in this user guide, is
0.565W/kg(GSM850), 0.299W/kg(PCS1900) (body-worn measurements differ among phone
models, depending upon available accessories and FCC requirements). While there may be
differences between SAR levels of various phones and at various positions, they all meet the
government requirement for safe exposure.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR
levels evaluated as in compliance with the FCC RF emission guidelines. SAR information on this
model phone is on file with the FCC and can be found under the Display Grant section of
http://www.fcc.gov/oet/fccid after searching on FCC ID BEJMG300.
![](/img.php?id=619637&img=bg55.png)
