User Manual 2 of 2
19
Safety instructions Monitor Overview Connections Basic operation Sleep timer Picture & Sound Special features Others
DTV Setup
- To watch digitally broadcast programs, purchase/connect a digital SET-TOP BOX.
- You can select only the 16:9 picture format in DTV 720p/1080i mode.
How to connect a user-supplied Digital Set-top Box
How to use
BR
(R) AUDIO (L)
Y
(+) ( ) (+)( )
EXTERNAL SPEAKER(8Ω)
R L R
AUDIO VIDEO
(MONO)
L
P P
COMPONENT(480i/480p/720p/1080i)
(DVD/DTV INPUT)
BR
RGB-DTV INPUT
RGB-PC INPUT (VGA/SVGA/XGA)
(480p/720p/1080i)
PY P
(+) ( ) (+)( )
AC INPUT
BR
EXTERNAL SPEAKER (8Ω)
RL
AV INPUT S-VIDEO
AUDIO
(MONO)
R L VIDEO
COMPONENT (480i/480p/720p/1080i)
(DVD/DTV INPUT) RGB-PC INPUT(VGA/SVGA/XGA/SXGA)
RGB-DTV INPUT(480p/720p/1080i)
AUDIO
R L
AUDIO INPUT
AV INPUT
R L
AUDIO INPUT
(R) AUDIO (L) DTV OUTPUT

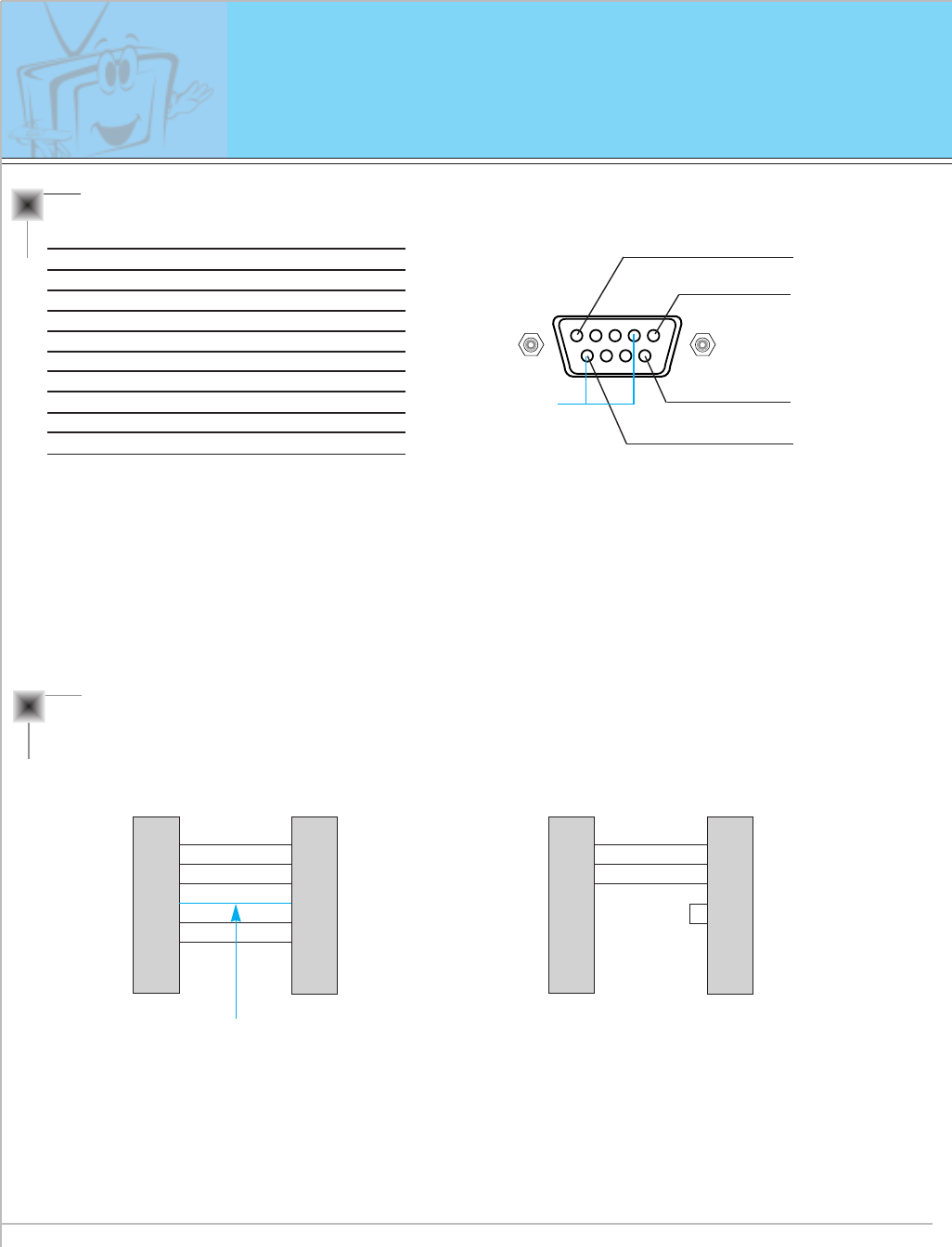

RS-232C
S-VIDEO
RS-232C
• Turn on the digital SET-TOP BOX.
(Refer to the owner’s manual for the digital SET-TOP BOX.)
• Press INPUT SELECT button on the remote control to select COMPONENT or RGB.
< Back panel of a digital SET-TOP BOX>
or
• You can use either the Monitor’s COMPONENT (Y, Pb, Pr) inputs or the single RGB-DTV
INPUT for video connections, depending on your Set Top Box connectors. Then, make the
corresponding Audio connections. See the diagram below for either set up.
<Back panel of the Monitor>
20
PC Setup
-See your computer’s image on the monitor.
•Press POWER button on the PC and press ON/OFF button
on the Monitor. After this press button on the Monitor or
press POWER button on the remote control.
•Press INPUT SELECT button on the remote control to
select RGB.
•Set the resolution of PC to XGA (1024x768) or lower.
(Refer to page 21.)
On the remote control

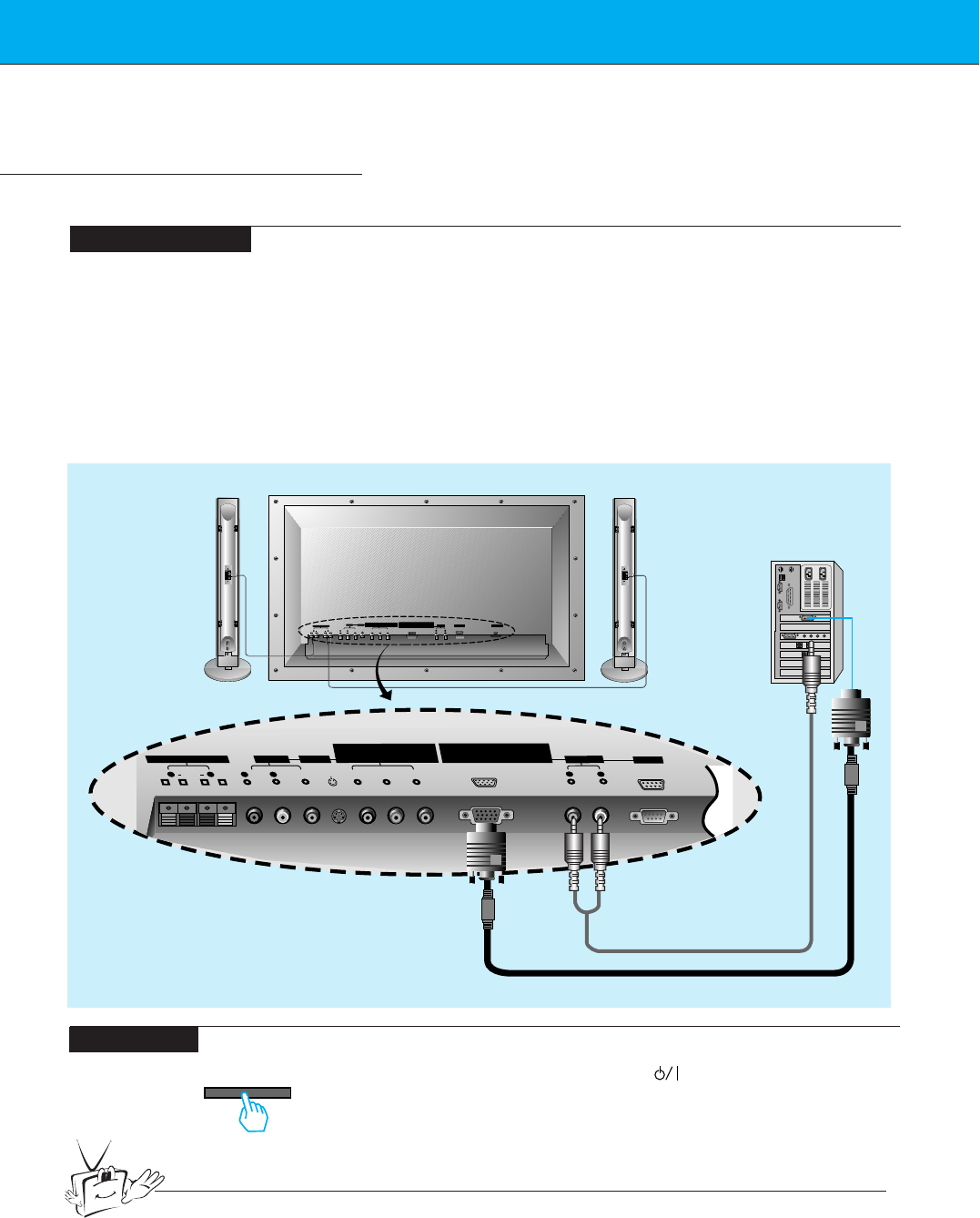

How to connect
How to use
Make the connections shown in the illustration below.
• Set the computer video output to SXGA (1280x1024) or lower resolution. (If the video output of the
PC is not compatible with the Monitor, no picture will appear on the Monitor. See page 21.)
•As shown below, connect the video output of the PC to the Monitor RGB-PC
INPUT(VGA/SVGA/XGA) RGB-DTV INPUT(480p/720p/1080i).
• Connect the audio out from the PC to the Audio jacks on the Monitor. (Audio cables not included
with the Monitor)
•If available, adjust PC sound to your preference.
• To setup this monitor in your PC Windows environment, select Normal, Standard or Default moni-
tor. This monitor does not support Plug and Play function.
Y
(+) ( ) (+)( )
EXTERNAL SPEAKER(8Ω)
R L R
AUDIO VIDEO
(MONO)
L
P P
COMPONENT(480i/480p/720p/1080i)
(DVD/DTV INPUT)
BR
RGB-DTV INPUT
RGB-PC INPUT (VGA/SVGA/XGA)
(480p/720p/1080i)
PY P
(+) ( ) (+)( )
AC INPUT
BR
EXTERNAL SPEAKER (8Ω)
RL
AV INPUT S-VIDEO
AUDIO (MONO)
R L VIDEO
COMPONENT (480i/480p/720p/1080i)
(DVD/DTV INPUT) RGB-PC INPUT(VGA/SVGA/XGA/SXGA)
RGB-DTV INPUT(480p/720p/1080i)
AUDIO
R L
AUDIO INPUT
AV INPUT S-VIDEO
R L
AUDIO INPUT
RS-232C
RS-232C
Tips
• Avoid prolonged display of a still image, as it may cause a permanent image to remain
even after you change the image.
Monitor back panel
INPUT SELECT
21
Safety instructions Monitor Overview Connections Basic operation Sleep timer Picture & Sound Special features Others
Tips
•Synchronization input form : separate
Displayable Monitor Specification
640x350
640x400
31.468 70.09
37.861 85.08
31.469 70.08
37.927 85.03
31.469 59.94
35.000 66.66
37.861 72.80
37.500 75.00
43.269 85.00
45.913 90.03
53.011 100.04
64.062 120.00
35.156 56.25
37.879 60.31
48.077 72.18
46.875
832x624
1024x768
75.00
53.674 85.06
56.000 90.00
64.016 100.00
49.725 74.55
48.363 60.00
56.476 70.06
60.023 75.02
68.677 84.99
Resolution
Horizontal
Frequency (KHz) Vertical
Frequency (Hz)
640x480
800x600
22

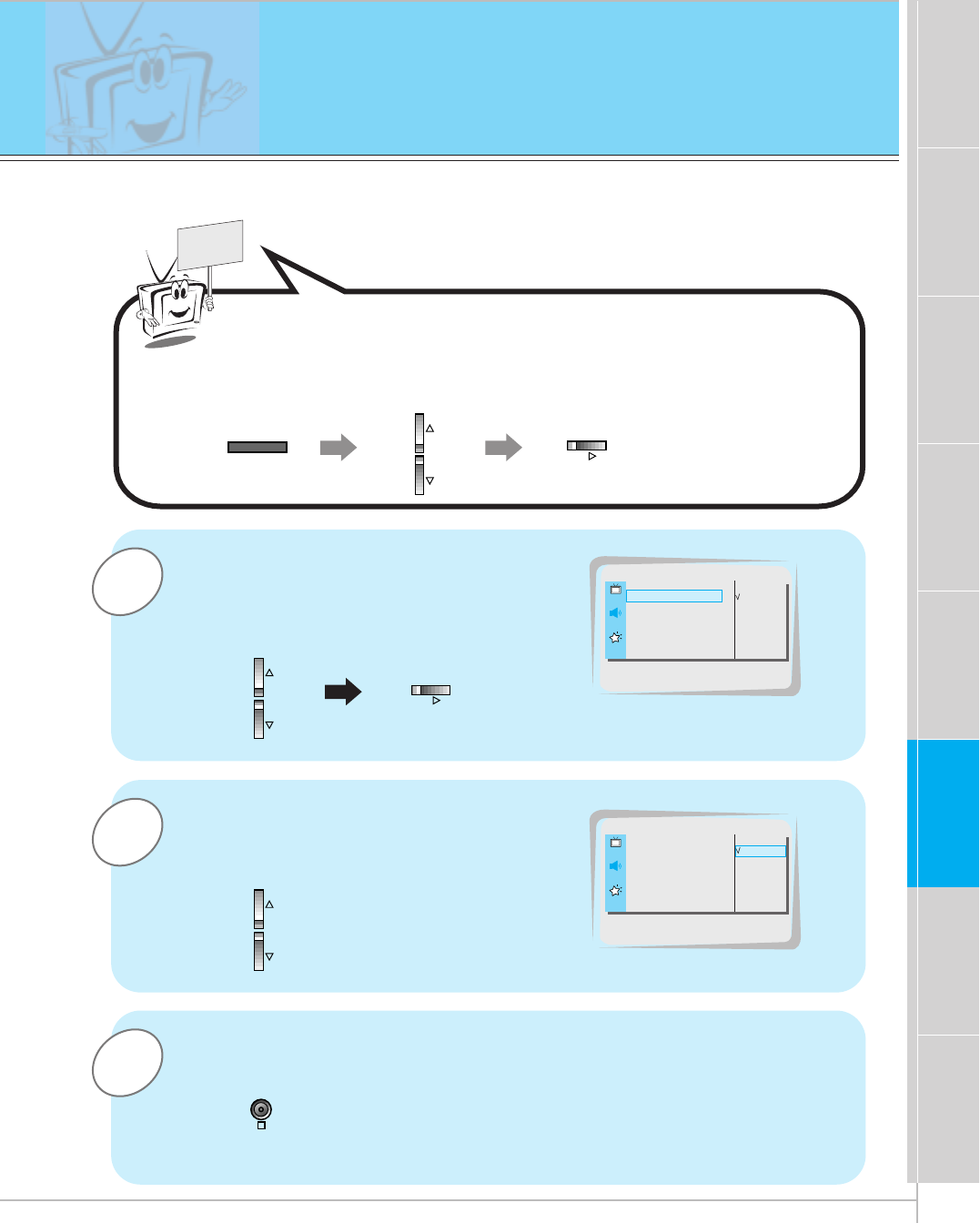

3
2

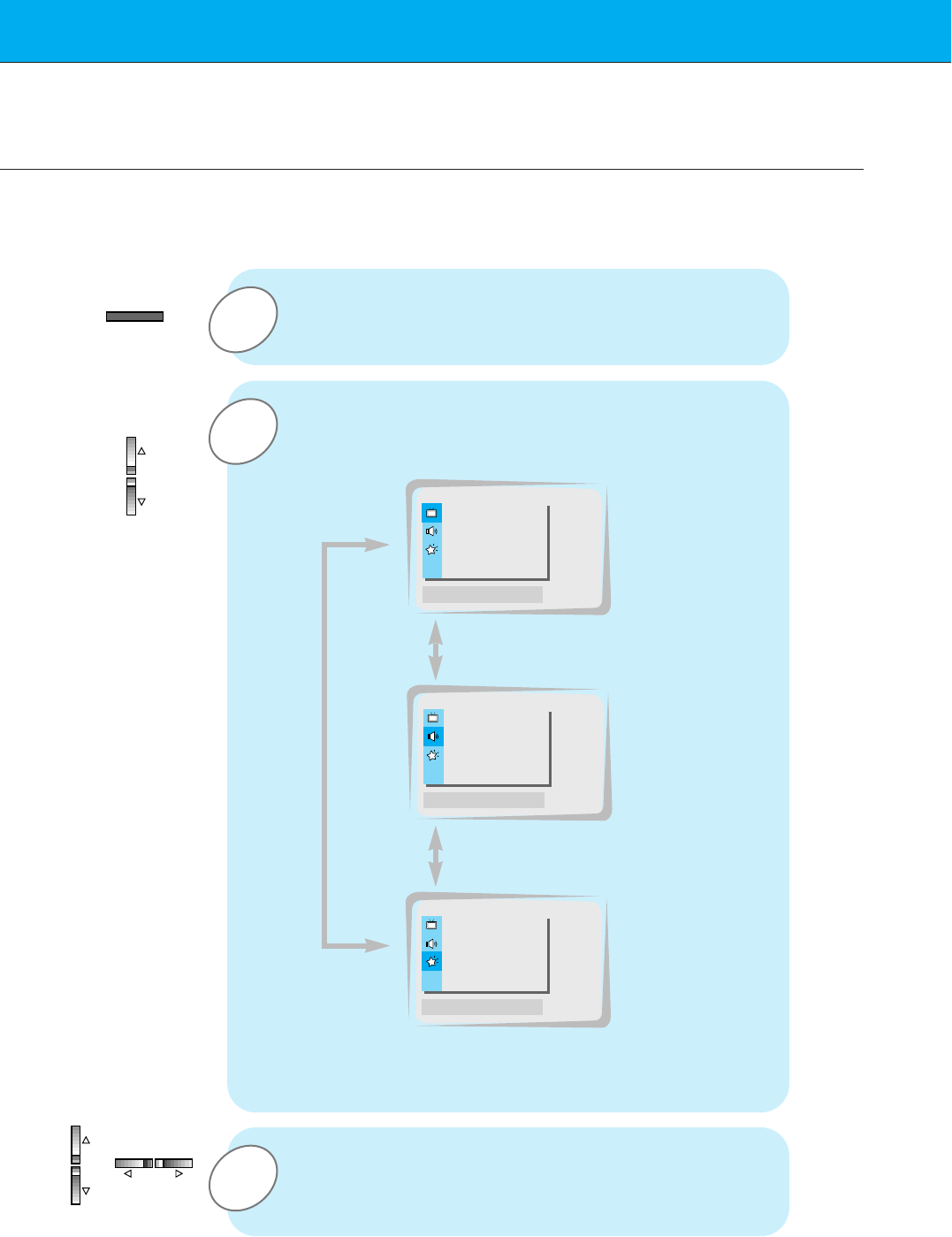

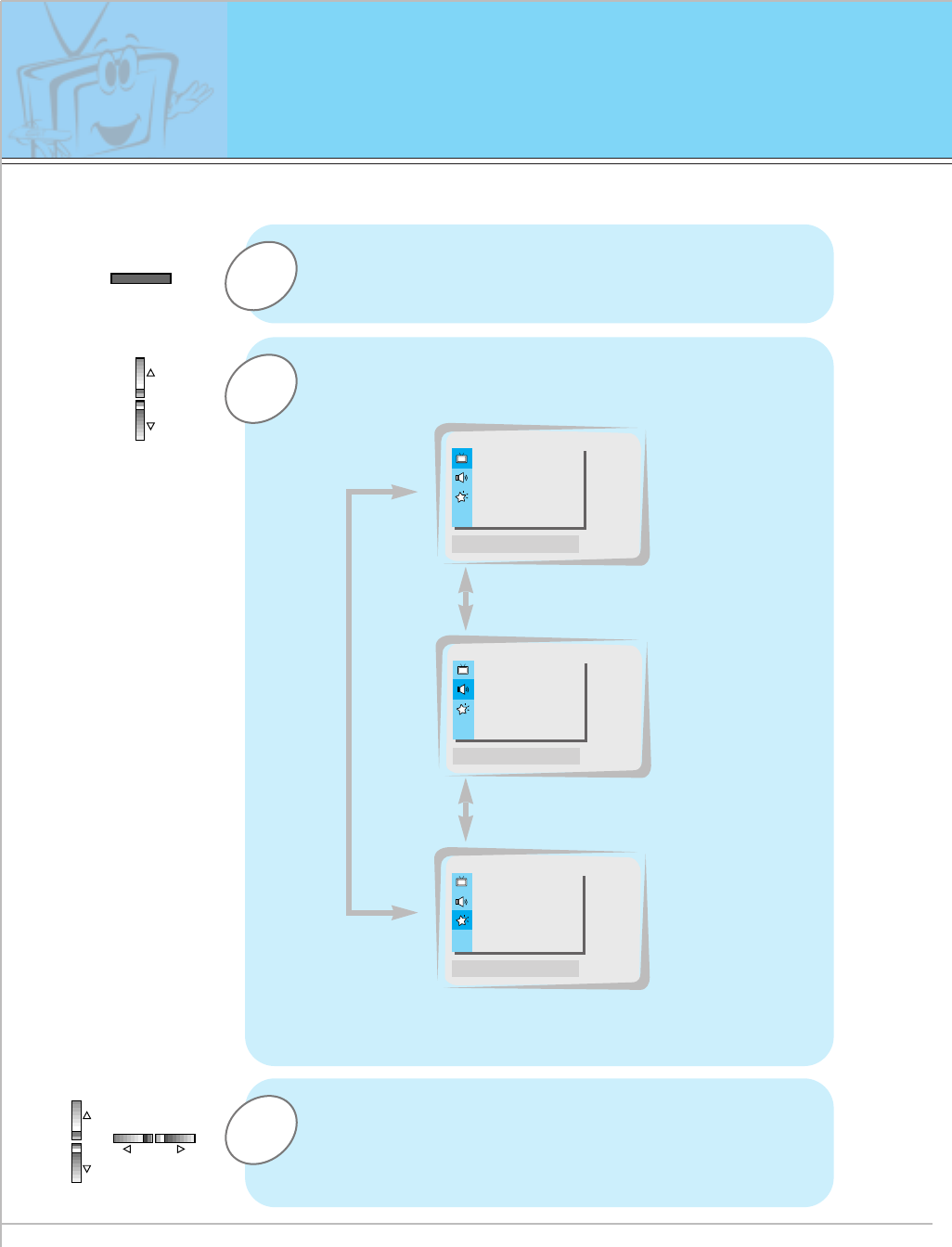

PC Mode Feature Check (Overview)
-Select RGB first, see page 11.
- Make sure the PC and monitor are both turned on.
- Use the monitor’s remote control to make adjustments.
1Press the MENU button to show a menu on screen.
Press the Gbutton and then press the D / Eor F / G
buttons to select a feature you want to use.
•Press the OK button to exit menus.
Press the D / Ebutton to select a menu.
•Each press will cycle through the different menus as shown below.
APC G
DRP G
CONTRAST 85 G
BRIGHTNESS 50 G
COLOR 50 G
TINT 0 G
SHARPNESS 50 G
MOVE GNEXT AEXIT
D
E
DASP G
AVL G
TREBLE 50 G
BASS 50 G
BALANCE 0 G
MOVE GNEXT AEXIT
SOUND
D
E
LANGUAGE G
ARC G
SCREEN G
TRANSPARENCY G
PIP G
SET ID G
COLOR TEMP. G
MOVE GNEXT AEXIT
SPECIAL
D
E
<Picture menu>
<Sound menu>
<Special menu>
MENU
VOL VOL
-Only adjust Color Temperature function in MU-42PZ15
series models.
23
Safety instructions Monitor Overview Basic operation Sleep timer Picture & Sound Special features Others
Connections
1
3

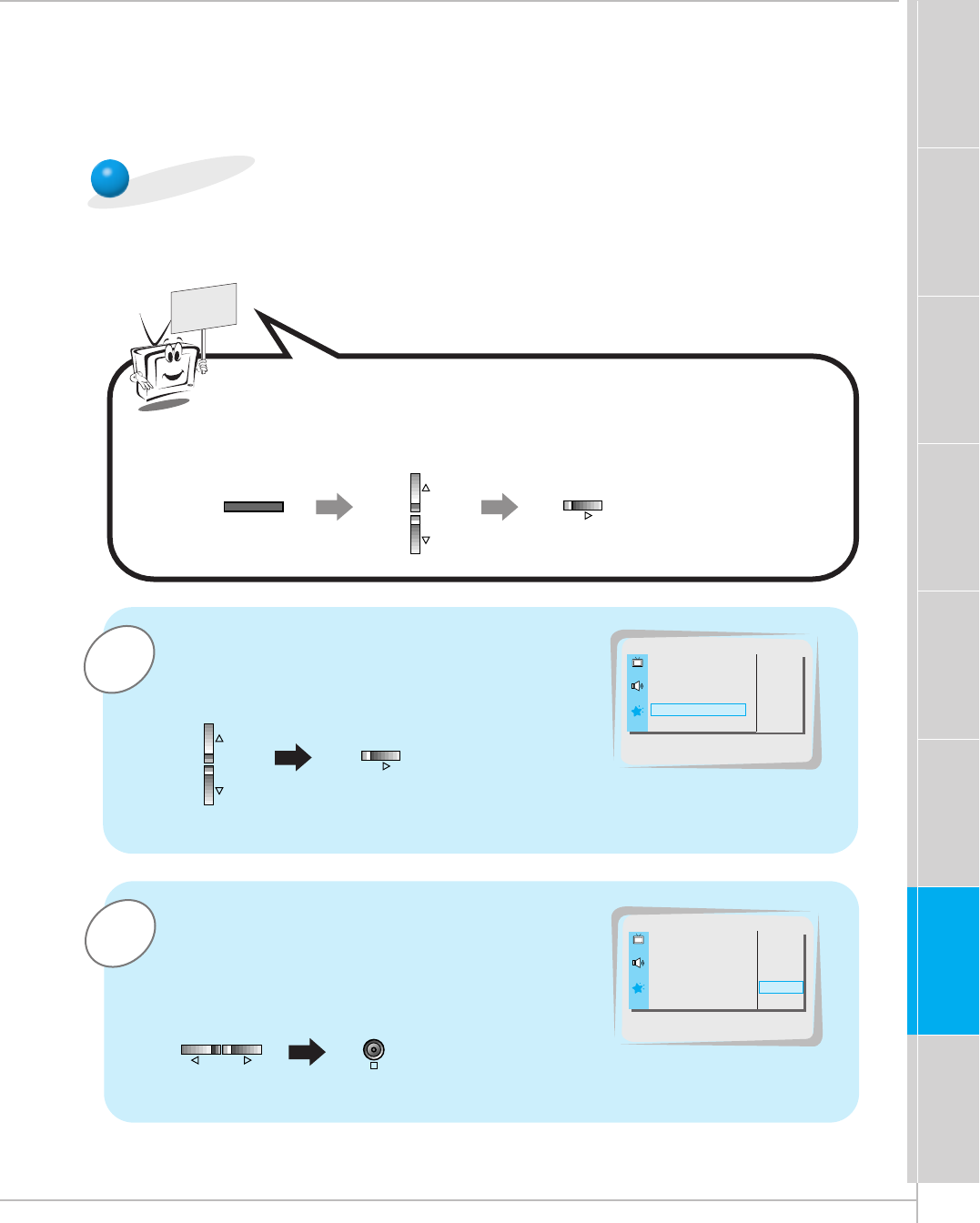

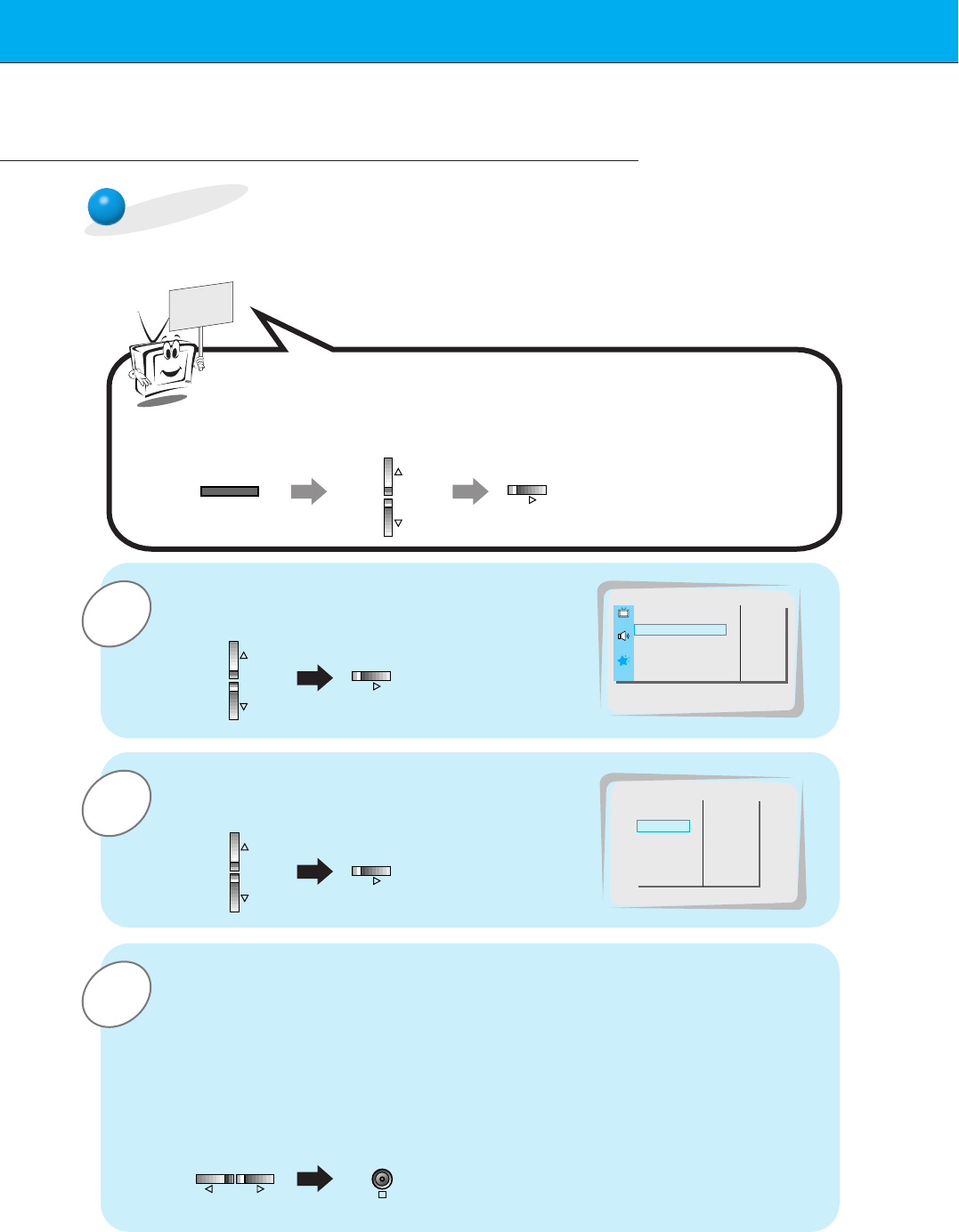

PC Mode Adjustments
Press the D / Ebutton to select SCREEN and
then press the Gbutton.
If picture needs to be adjusted more after Auto adjustment, you can
manually adjust the image position and PHASE.
-Automatically adjusts picture position and eliminates any image shaking.
Auto adjustment
READY
2Press the D / Ebutton to select
AUTO.CONFIG. and then press the G
button.
• When AUTO.CONFIG. has finished, "OK" will be shown on screen.
• If the position of the image is incorrect, try Auto adjustment again.
LANGUAGE
G
CAPTION
G
AUTO OFF
G
SCREEN
G
RGB-OUTPUT
G
AUTO.CONFIG.
G
V-POSITION
G
H-POSITION
G
PHASE
G
RESET
G
G
TO SET
AUTO.CONFIG.
LANGUAGE G
ARC G
SCREEN G
TRANSPARENCY G
PIP G
SET ID G
COLOR TEMP. G
G
TO SET
SPECIAL
SCREEN
Tips
•If the image is still not correct, your Monitor is functioning properly but needs further
adjustment.
Press the MENU button and then press the D / Ebutton to
select SPECIAL menu.
Press the Gbutton.
MENU
VOL
VOL
VOL
24
3
2
1Press the D / Ebutton to select SCREEN and
then press the Gbutton.

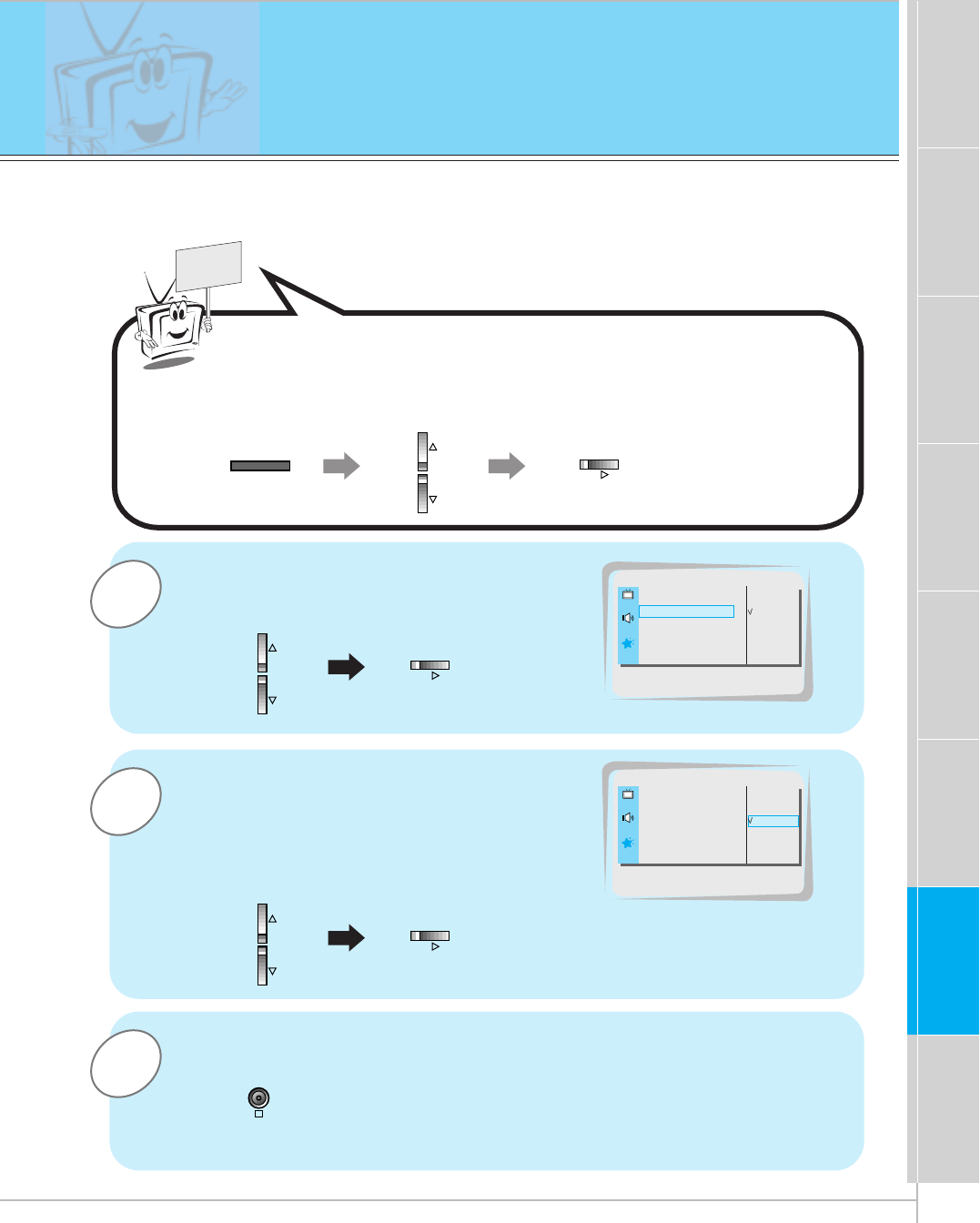

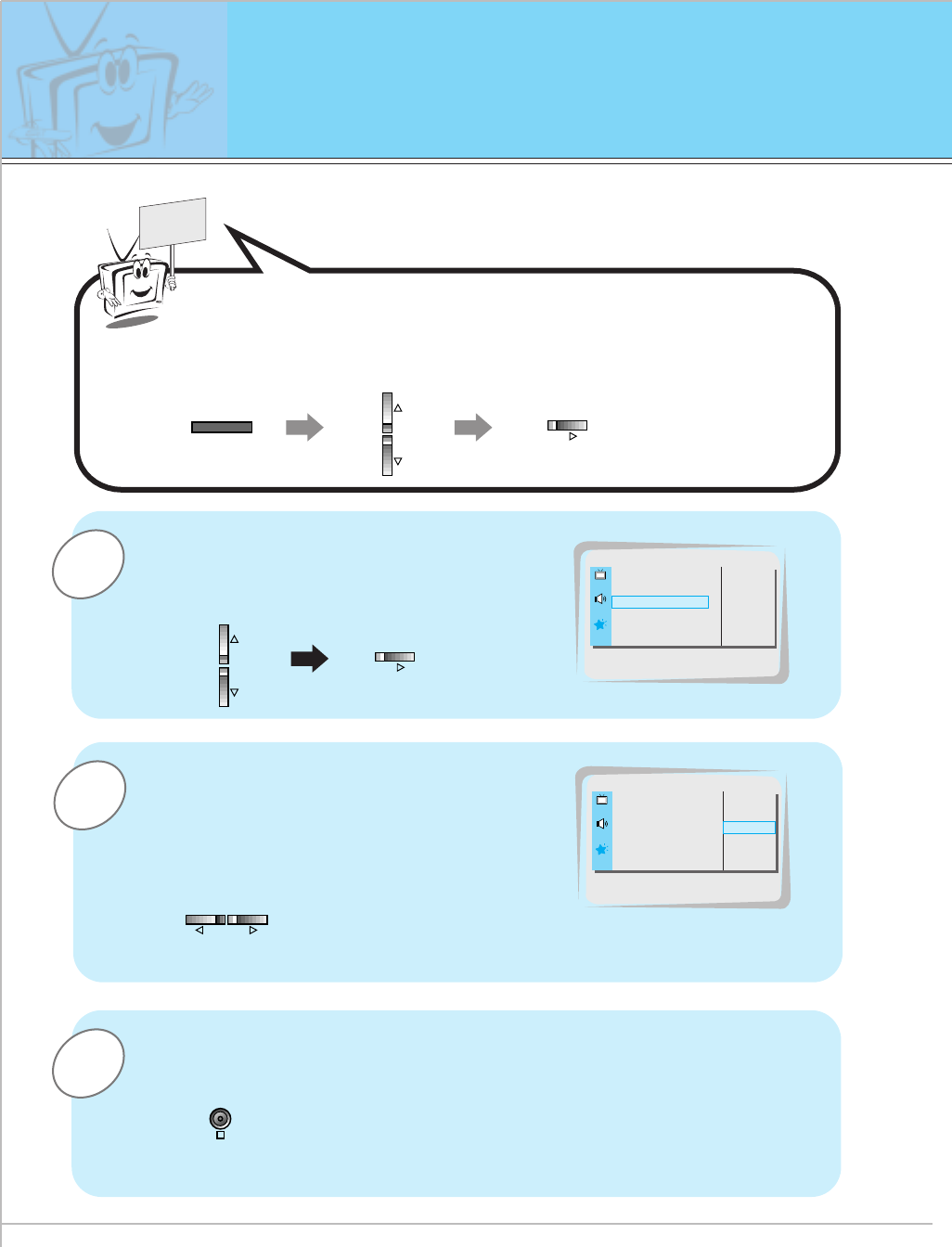

Adjusting horizontal / vertical position manually
READY
Press the D / Ebutton to select V-POSITION
or H-POSITION and then press the Gbutton.
•The adjustment range of V-POSITION is -50 ~ +50.
• The adjustment range of H-POSITION is -100 ~ +100.
•Based on the input mode, the adjustment range of V-POSITION/H-POSITION
may change.
•Based on the VGA card, the adjustment range of V-POSITION/H-POSITION may
be out of -100 ~ +100 after auto configure.
• Based on the input signal, the position of the picture may not change even though
you have adjusted the horizontal or vertical position with this function.
Press the F / Gbuttons to adjust until you get desired horizontal or
vertical position and then press the OK button to remove menus.
Press the MENU button and then press the D / Ebutton to
select SPECIAL menu.
Press the Gbutton.
LANGUAGE
G
CAPTION
G
AUTO OFF
G
SCREEN
G
RGB-OUTPUT
G
AUTO.CONFIG.
G
V-POSITION
G
H-POSITION
G
PHASE
G
RESET
G
0
V-POSITION
LANGUAGE G
ARC G
SCREEN G
TRANSPARENCY G
PIP G
SET ID G
COLOR TEMP. G
G
TO SET
SPECIAL
SCREEN
-Only adjust V-POSITION and H-POSITION in DTV or component 480p/720p/1080i.
PC Mode Adjustments
MENU
VOL
VOL
VOL
VOL VOL
OK
25
Safety instructions Monitor Overview Basic operation Sleep timer Picture & Sound Special features Others
Connections
3
2
1Press the D / Ebutton to select SCREEN and
then press the Gbutton.

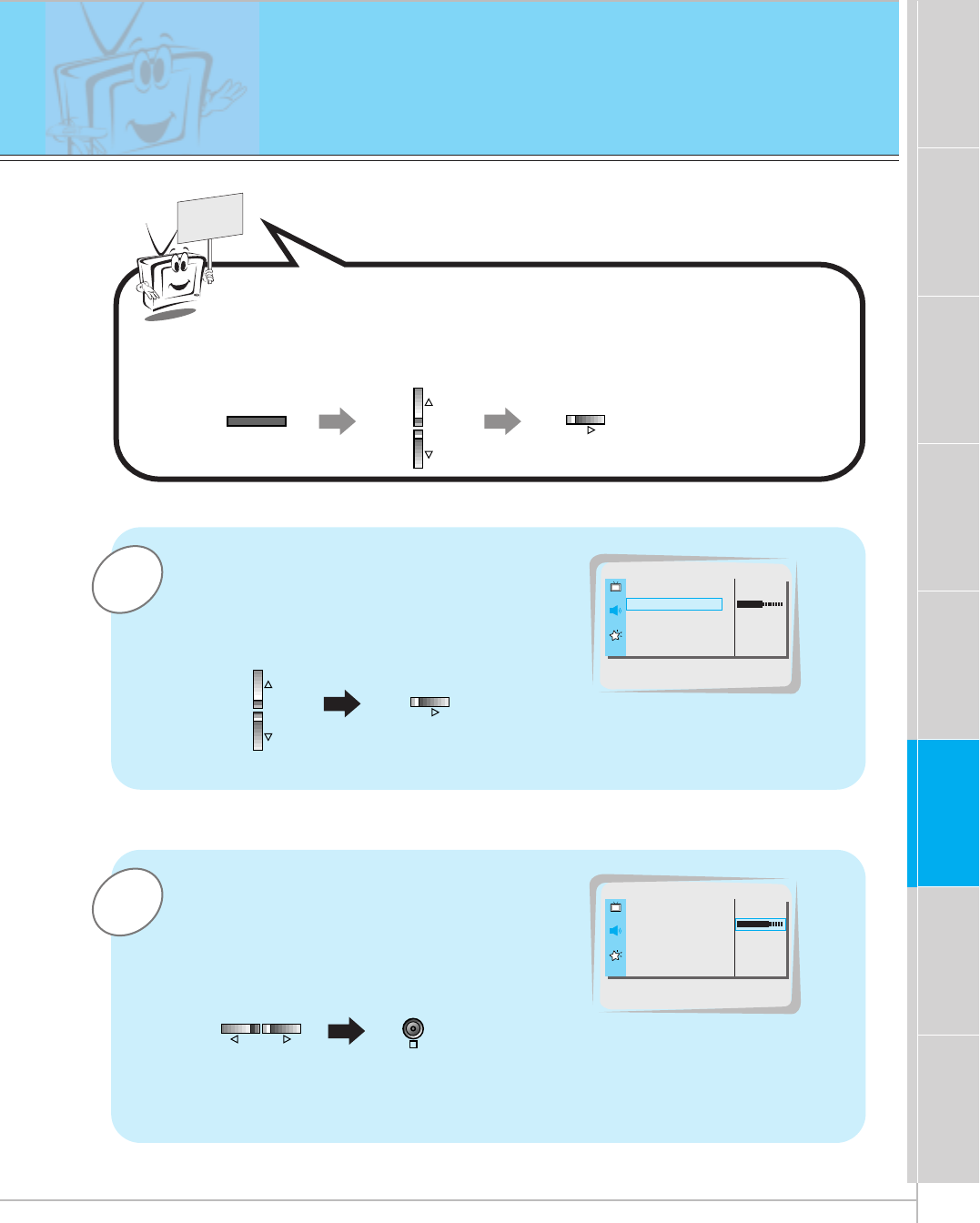

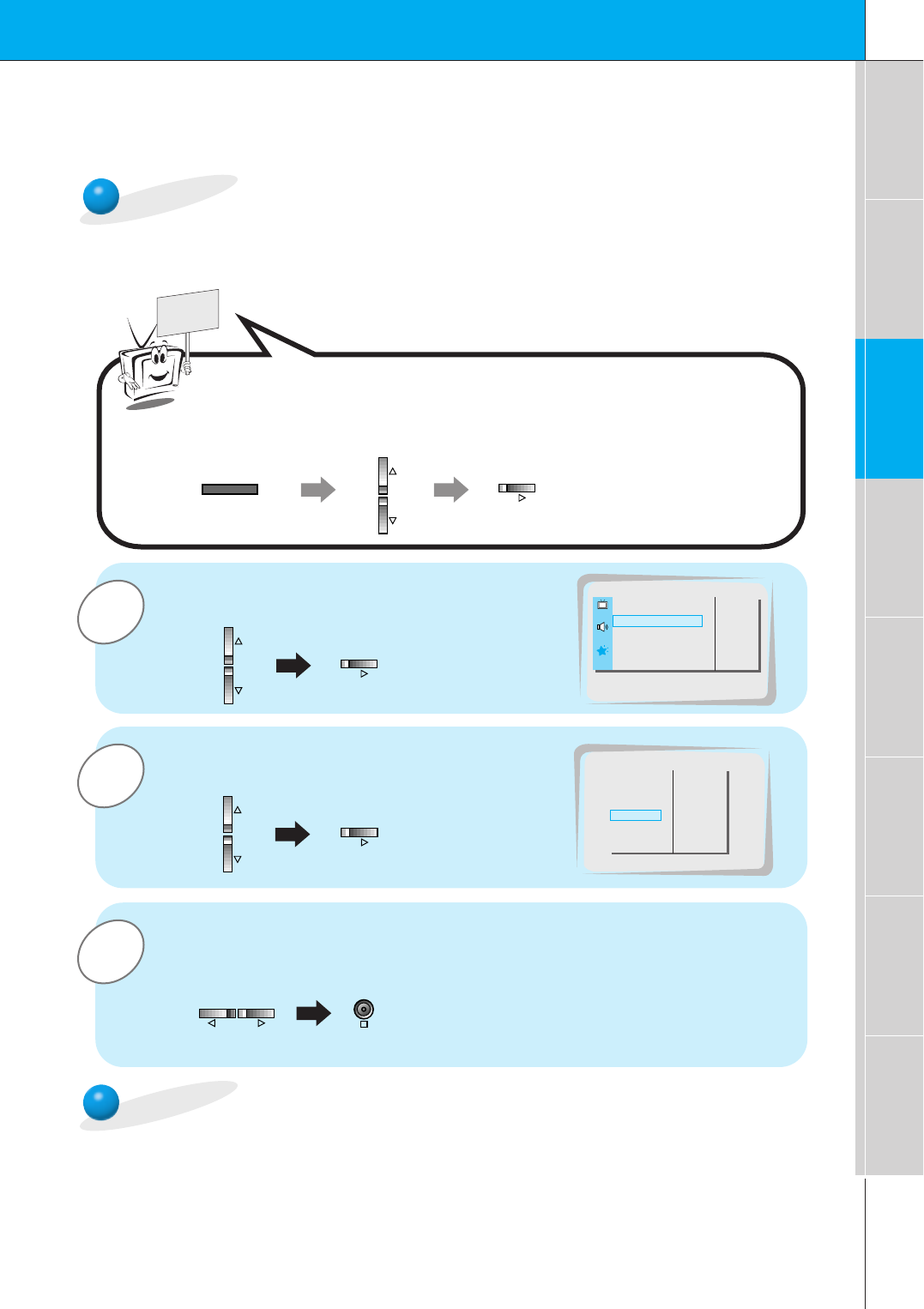

Picture Phase Adjustments
READY
•If the picture isn’t clear after auto adjustment and especially if the characters are still trembling, then
adjust the picture phase manually.
•When watching PIP, the SCREEN menu option is not available.
Initializing (Reset to factory value)
• To initialize the adjusted value, select RESET with the D/Ebutton and then
press the Gbutton.
Press the D / Ebutton to select PHASE and
then press the Gbutton.
•The adjustment range of PHASE is 0 ~ 63.
Press the F / Gbutton to adjust phase and then press the OK button.
LANGUAGE
G
CAPTION
G
AUTO OFF
G
SCREEN
G
RGB-OUTPUT
G
AUTO.CONFIG.
G
V-POSITION
G
H-POSITION
G
PHASE
G
RESET
G
30
Press the MENU button and then press the D / Ebutton to
select SPECIAL menu.
Press the Gbutton.
PHASE
LANGUAGE G
ARC G
SCREEN G
TRANSPARENCY G
PIP G
SET ID G
COLOR TEMP. G
G
TO SET
SPECIAL
SCREEN
MENU VOL
VOL
VOL
VOL VOL
OK
26
Picture In Picture (PIP) function
-PIP lets you view 2 different inputs (sources) on your monitor screen at the same time. One source will
be large, and the other source will show a smaller inset image.
- Select RGB input source before pressing PIP.
- This function works only in the following resolutions;
640x480, 800x600, 1024x768 (only in Vertical frequency 60 Hz)
- When you select RGB or DTV for main picture in PIP, you can watch video, cable TV or DVD for sub
picture.
- Color of main picture may be different from PIP’s in PIP mode.
- If input source for main picture is changed while in PIP mode, sub picture will disappear.
- When watching PIP, SCREEN option is not available in Special menu.
- With PIP active, not all picture formats can be used for the main/sub picture.

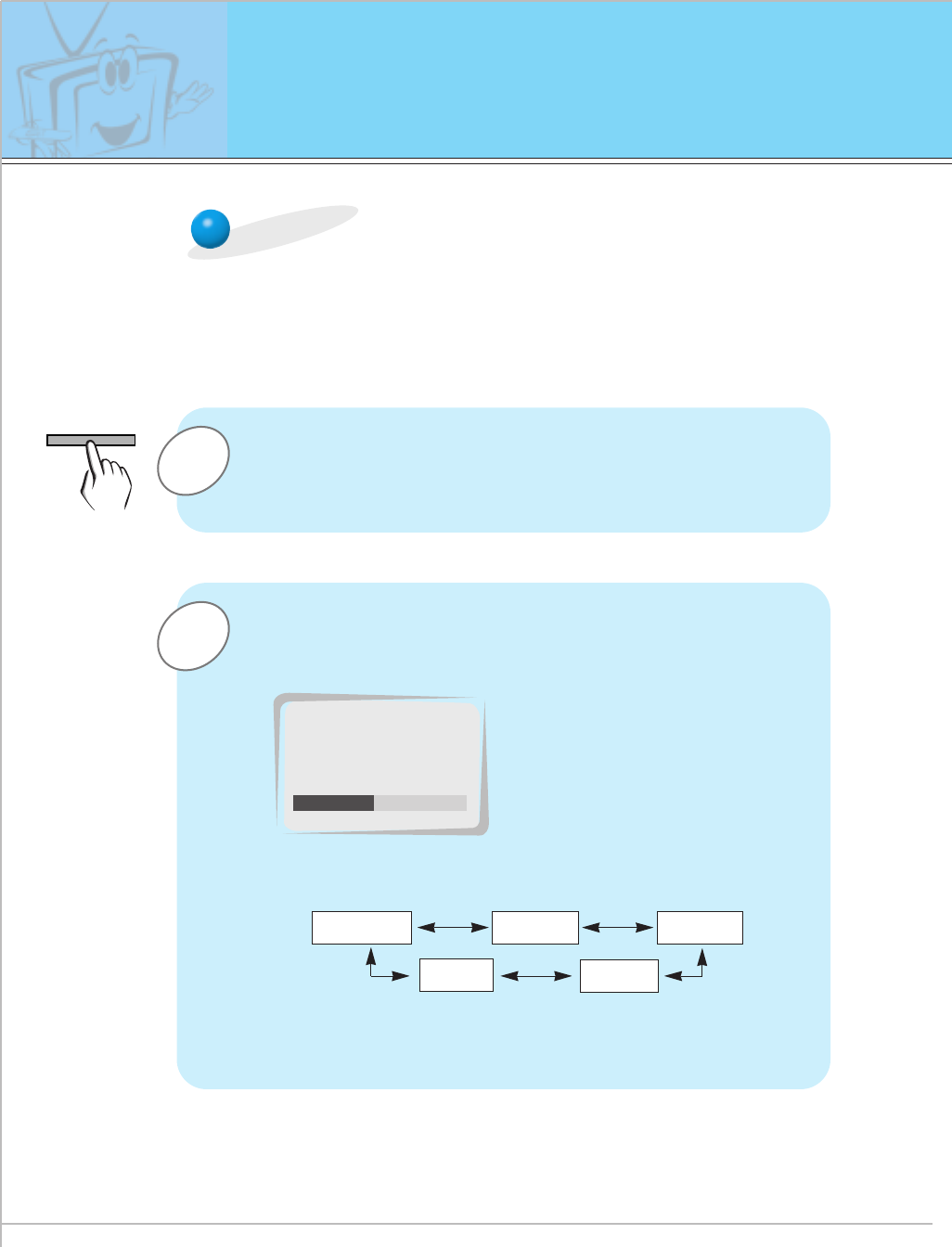

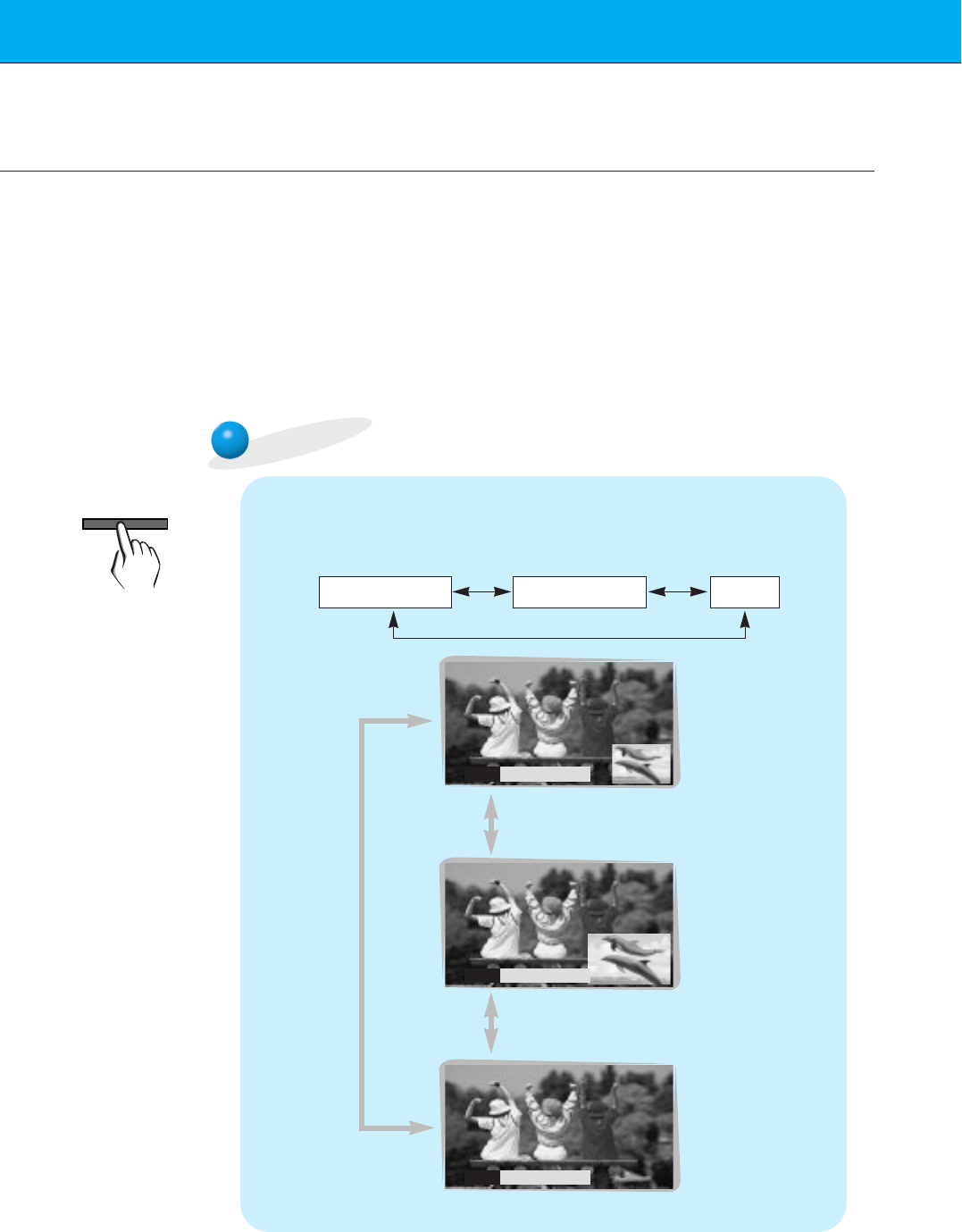

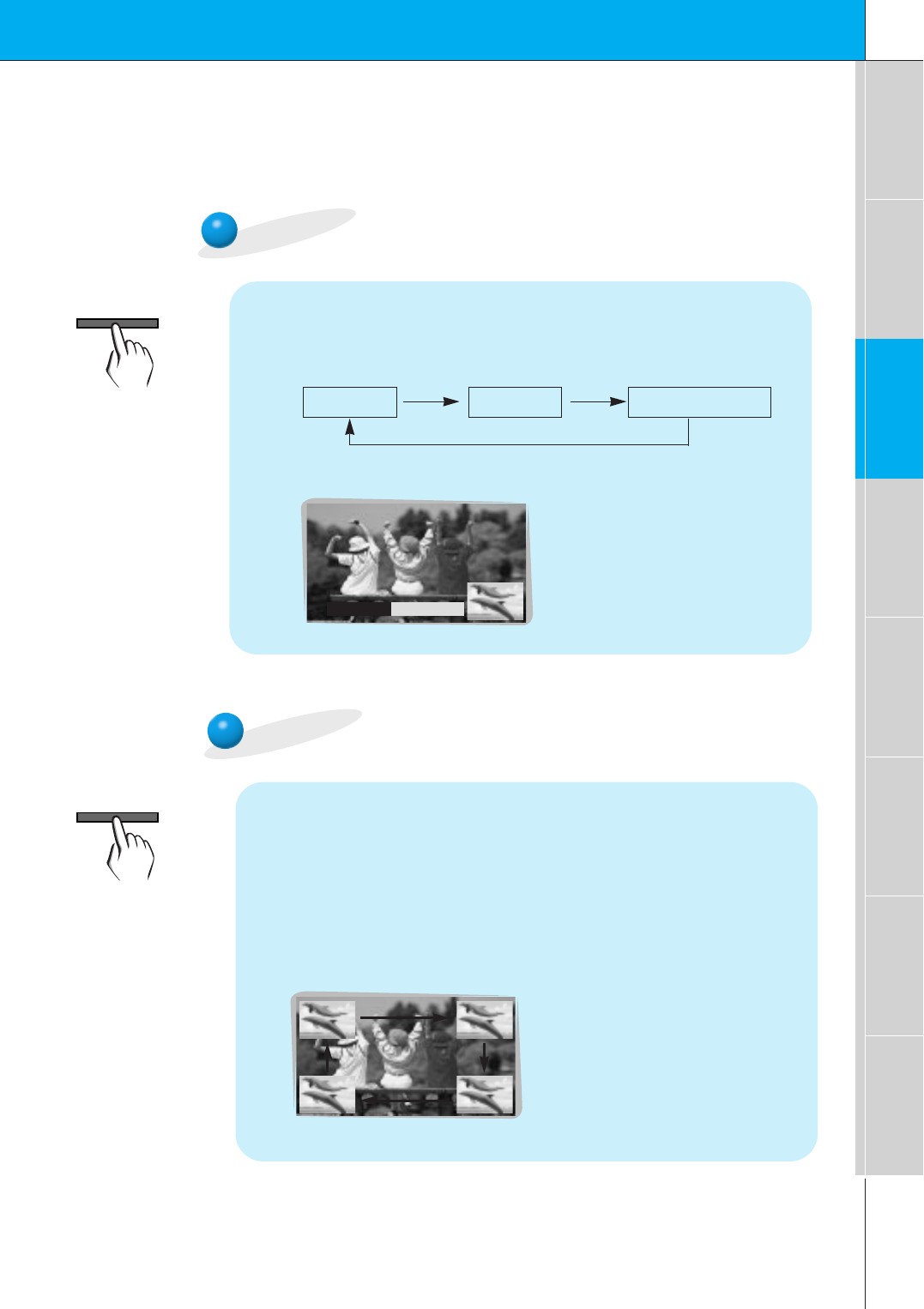

Watching the PIP (Picture in Picture)
Press the PIP button.
•Each time you press PIP or F /Gbutton, you can change the
PIP size as below.
PIP[S] PIP [L] OFF
PIP
F
PIP [S]
G
PIP
F
PIP [L]
G
PIP
F
OFF
G
<Small PIP>
<Large PIP>
<Off>
PIP
27
Safety instructions Monitor Overview Basic operation Sleep timer Picture & Sound Special features Others
Connections

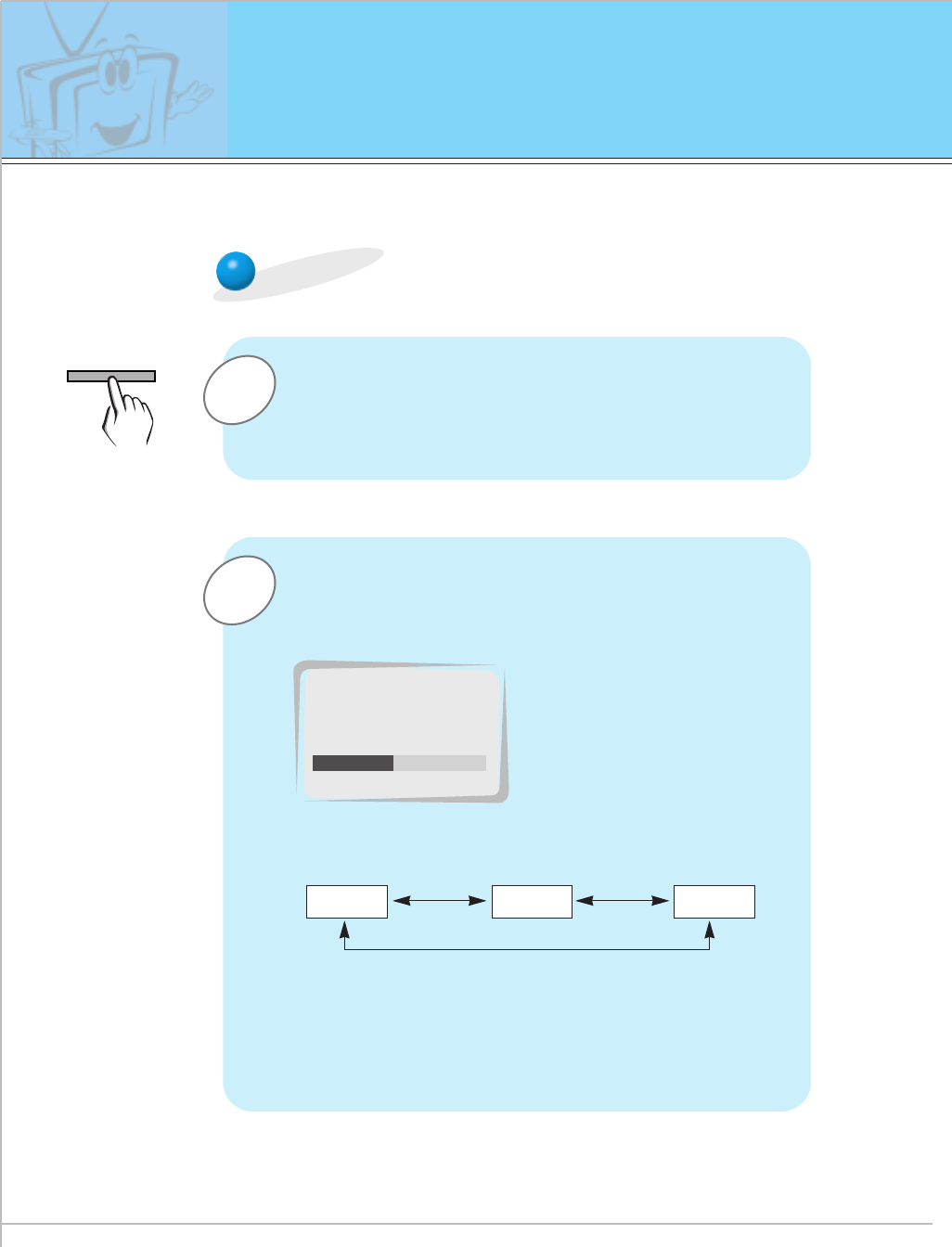

Selecting the source input signal
Press the PIP INPUT button in PIP mode.
•Each time you press PIP INPUT button, you toggle VIDEO,
S-VIDEO and COMPONENT.
COMPONENT source only works in 480i mode.
VIDEO S-VIDEO COMPONENT
PIP INPUT
F
VIDEO
G

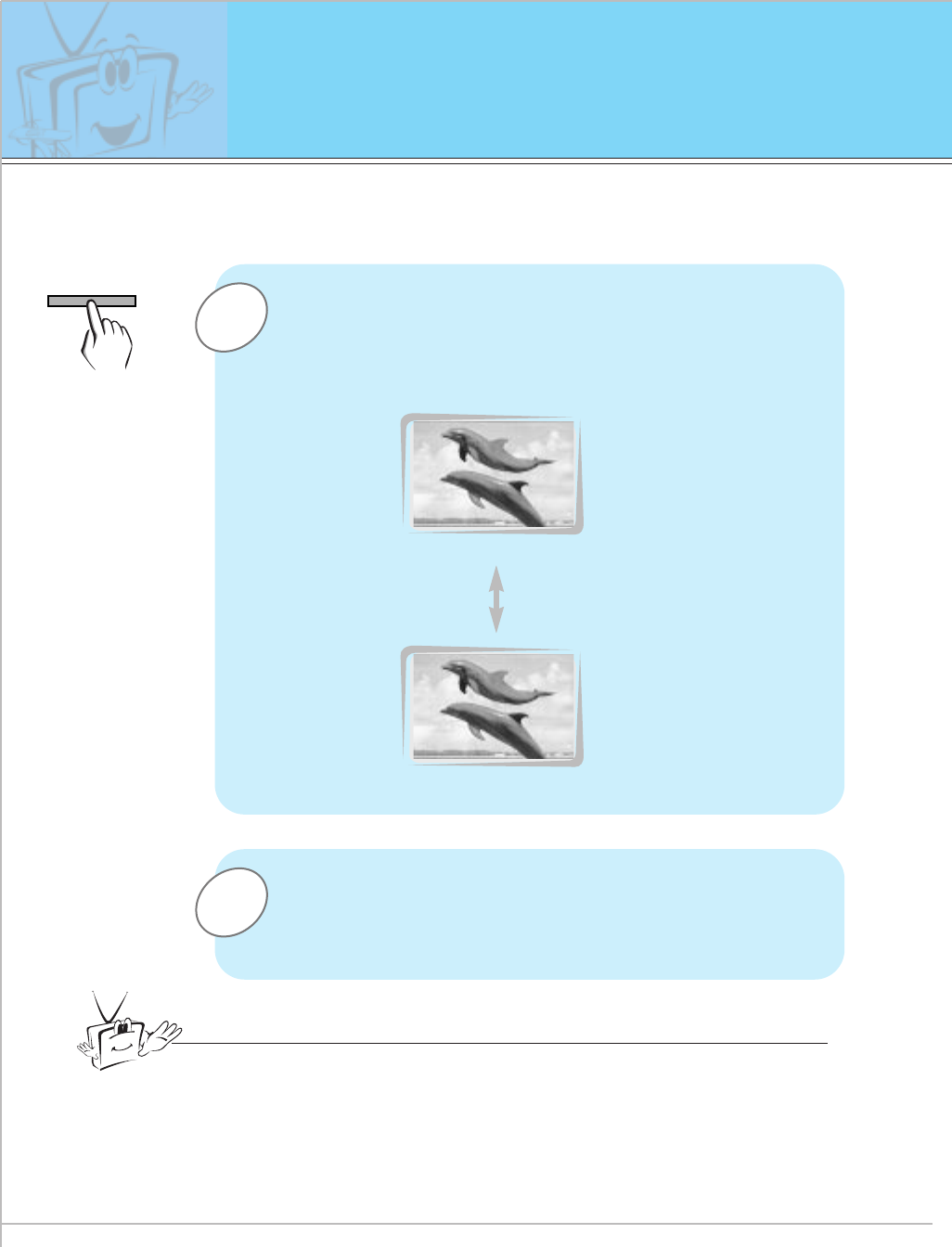

Moving the Sub (inset) picture
Press the POSITION button in PIP mode.
•Each press of the POSITION button will change the position of
the sub picture on the screen as shown below.
PIP INPUT
POSITION
28
3
2

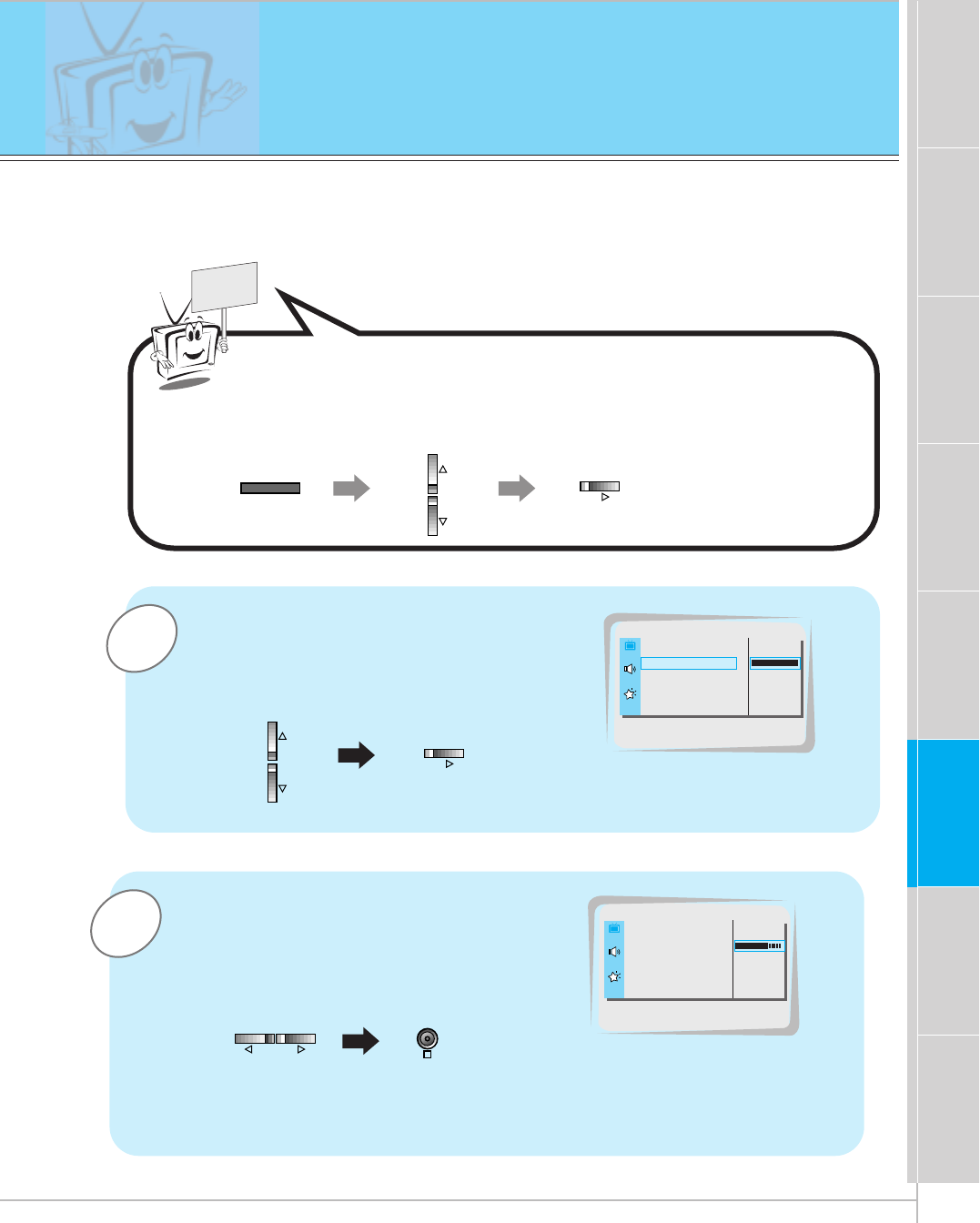

1Use the D / Ebuttons to select PIP and then
press the Gbutton.
READY
Press the D / Ebutton to select SOUND
SELECT and then press the Gbutton.
•Each time you press D / E button, you toggle
between SOUND [M] or SOUND [S].
Press the D / Ebuttons to select main
image sound (SOUND [M]) or PIP (inset
image) sound (SOUND [S]) and then press
the OK button.
LANGUAGE
G
CAPTION
G
AUTO OFF
G
SCREEN
G
RGB-OUTPUT
G
PIP
G
INPUT
G
SOUND SELECT
G
POSITION
G
SOUND [M]
SOUND [S]
Press the MENU button and then press the D / Ebutton to
select SPECIAL menu.
Press the Gbutton.
SOUND SELECT
LANGUAGE
G
CAPTION
G
AUTO OFF
G
SCREEN
G
RGB-OUTPUT
G
PIP
G
INPUT
G
SOUND SELECT
G
POSITION
G
SOUND [M]
SOUND [S]
LANGUAGE G
ARC G
SCREEN G
TRANSPARENCY G
PIP G
SET ID G
COLOR TEMP. G
G
TO SET
SPECIAL
PIP
- To select main or sub (inset) sound
- This function only works with the following resolutions;
640x480, 800x600, 1024x768 (only in Vertical frequency 60 Hz)
- To use this function, connect PC/DTV video output to RGB-PC INPUT/RGB-DTV INPUT and connect PC/DTV
audio outputs to AUDIO INPUT.
-SOUND SELECT is always the main picture sound (SOUND[M]) regardless of prior sound choice.
Selecting PIP sound options
SOUND [S]
Picture In Picture (PIP) function
MENU
VOL
VOL
VOL
OK
29
Safety instructions Monitor Overview Basic operation Sleep timer Picture & Sound Special features Others
Connections

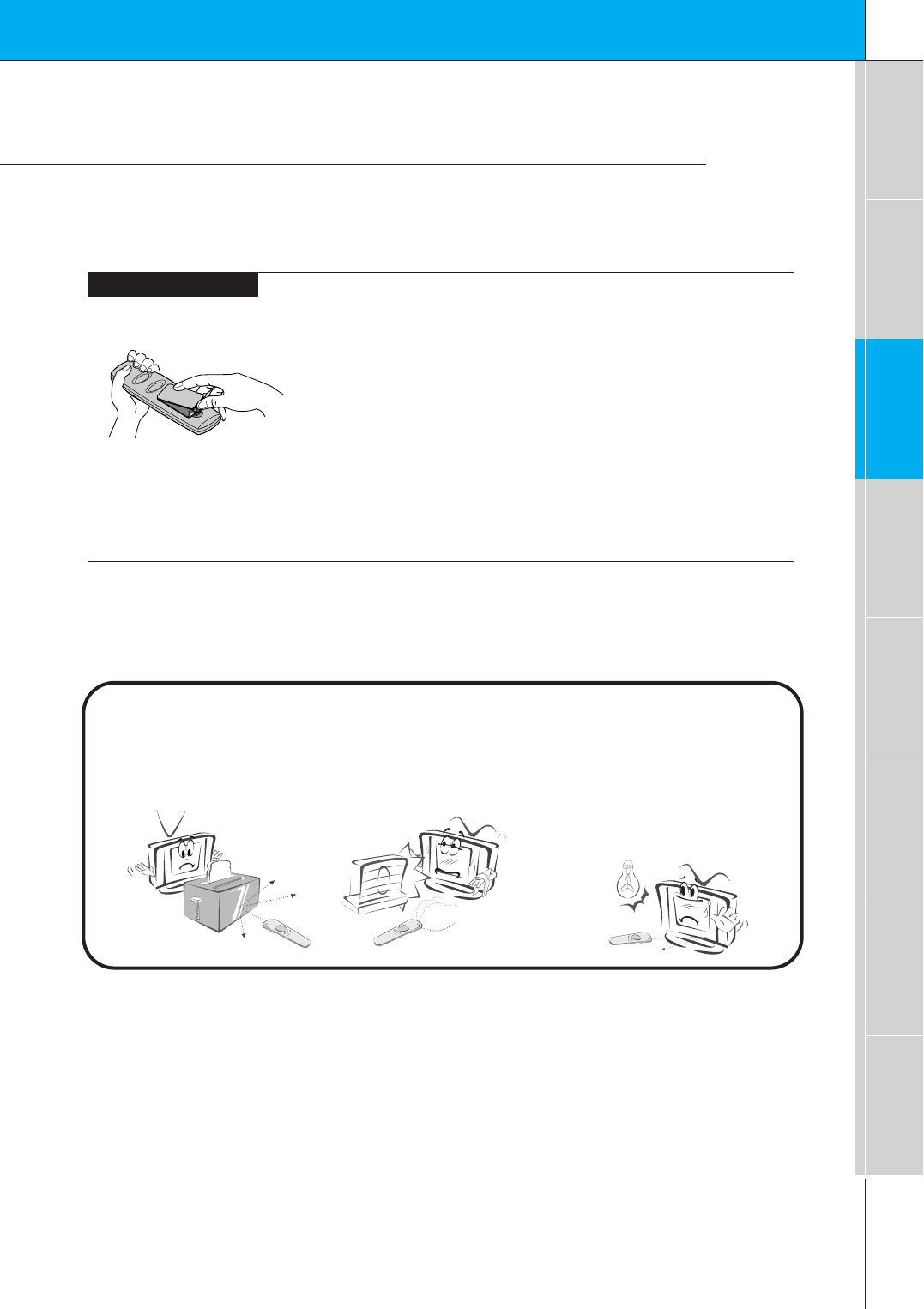

Using the remote control
Installing batteries
• Open the battery compartment cover on the back
of the remote control and insert the batteries with
correct polarity, match “+” with “+”, and match “-”
with “-”.
• Install two 1.5V “AAA” alkaline batteries.
Don’t mix used batteries with new batteries.
Notes for using the remote control
Make sure these are no
objects between the
remote control and its
sensor.
Don’t place the remote control
near a heater or damp place.
Strong impact on the remote con-
trol may cause operation failure.
Signal from the remote control
may be disturbed by sun light or
other strong light. In this case,
turn the set to other direction.
30
Turning on the Monitor
3
2
1
2
1
- When using the remote control, aim it at its sensor on the Monitor.
Turning on the Monitor just after installation
Turning on the Monitor (power cord is still connected)
Connect power cord correctly.
Press the main ON/OFF button on the Monitor. At this moment, the Monitor is
switched to standby mode. Press the or INPUT SELECT button on the
Monitor or press the POWER or INPUT SELECT button on the remote control
and then the Monitor will be turned on.
Press the or INPUT SELECT button on the Monitor or press the POWER
or INPUT SELECT button on the remote control and then the Monitor will be
turned on.
If the Monitor is turned off with the button on the Monitor
• Press the main ON/OFF button on the Monitor to turn on the Monitor.
If the Monitor is turned off with the ON/OFF button on the Monitor
• Press the main ON/OFF button on the Monitor and then press the or
INPUT SELECT button on the Monitor or press the POWER or INPUT
SELECT button on the remote control and then the Monitor will be turned on.
If the Monitor is turned off with the remote control and also the ON/OFF
button on the Monitor
Tips
•Adjusting volume level
The volume(GG) button increases the sound and the volume(FF) button reduces
the level of sound.
31
Safety instructions Monitor Overview Connections Basic operation Sleep timer Picture & Sound Special features Others

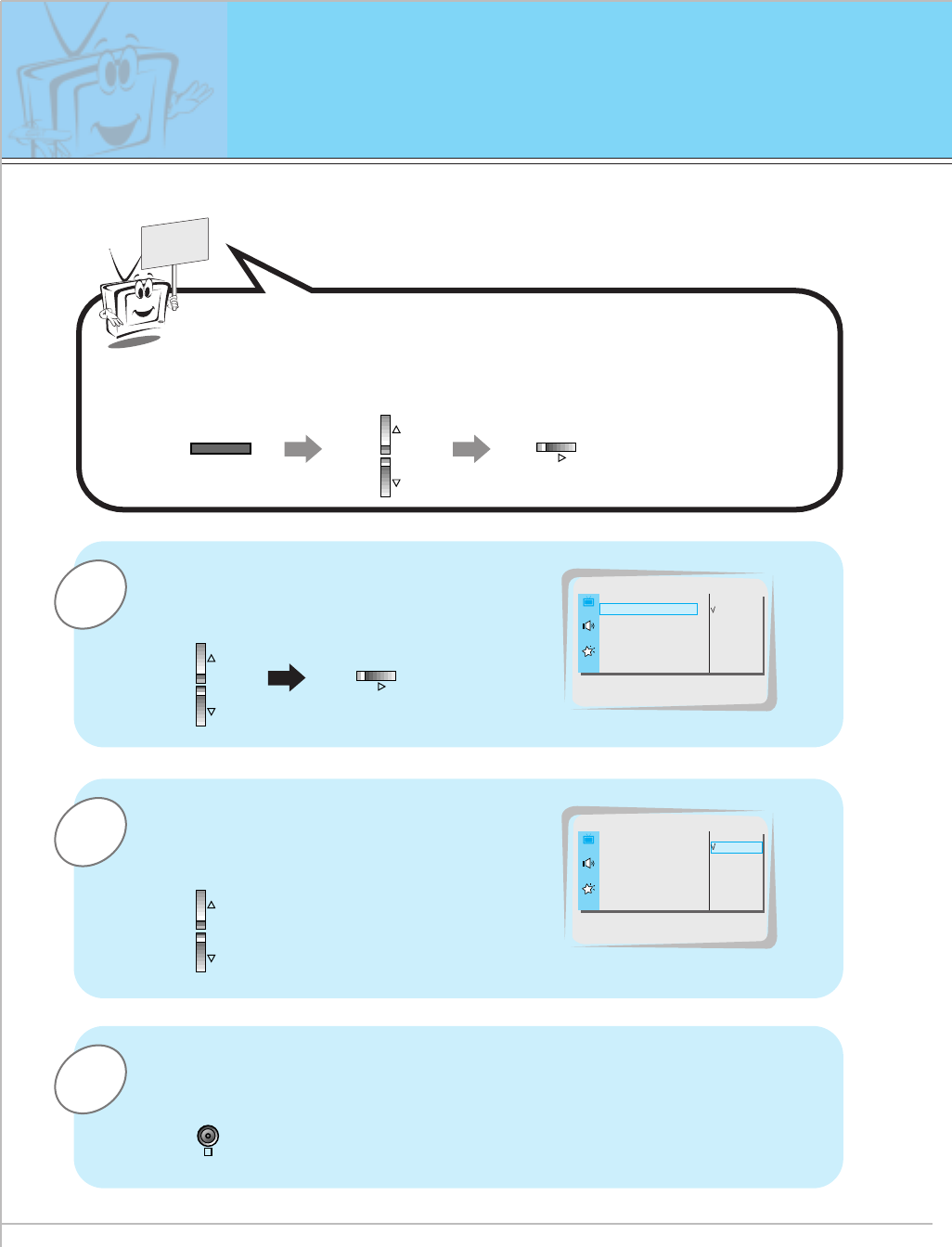

Selecting language for the menus
3
2
1
READY
Press the D / Ebutton to select LAN-
GUAGE and then press the Gbutton.
Press the D / Ebutton to select the
desired language.
Press the OK button to exit.
Press the MENU button and then press the D / Ebutton to
select SPECIAL menu.
Press the Gbutton.
LANGUAGE G
ARC G
SCREEN G
TRANSPARENCY G
PIP G
SET ID G
COLOR TEMP. G
ENGLISH
ESPAÑOL
PORTUGUÊS
FRANÇAIS
SPECIAL
LANGUAGE
˙–„
LANGUAGE G
ARC G
SCREEN G
TRANSPARENCY G
PIP G
SET ID G
COLOR TEMP. G
ENGLISH
ESPAÑOL
PORTUGUÊS
FRANÇAIS
SPECIAL
˙–„
ENGLISH
OK
MENU VOL
VOL
32
1
3
2
Press the MENU button.
Press the D / Ebutton.
•Each press will cycle through the menus shown below.
Checking features
Press the Gbutton to select a feature to adjust,
and then press the D / Eor F / Gbuttons to
adjust the selected item.
•Press the OK button to exit.
APC G
DRP G
CONTRAST 100 G
BRIGHTNESS 50 G
COLOR 50 G
TINT 0 G
SHARPNESS 50 G
MOVE GNEXT AEXIT
D
E
DASP G
AVL G
TREBLE 50 G
BASS 50 G
BALANCE 0 G
MOVE GNEXT AEXIT
SOUND
D
E
LANGUAGE G
ARC G
SCREEN G
TRANSPARENCY G
PIP G
SET ID G
COLOR TEMP. G
MOVE GNEXT AEXIT
SPECIAL
D
E
<Picture menu>
<Sound menu>
<Special menu>
-Use the remote control to make adjustments.
- Select VIDEO input source
MENU
VOL VOL
-Only adjust Color Temperature function in MU-42PZ15
series models.
33
Safety instructions Monitor Overview Connections Basic operation Sleep timer Picture & Sound Special features Others

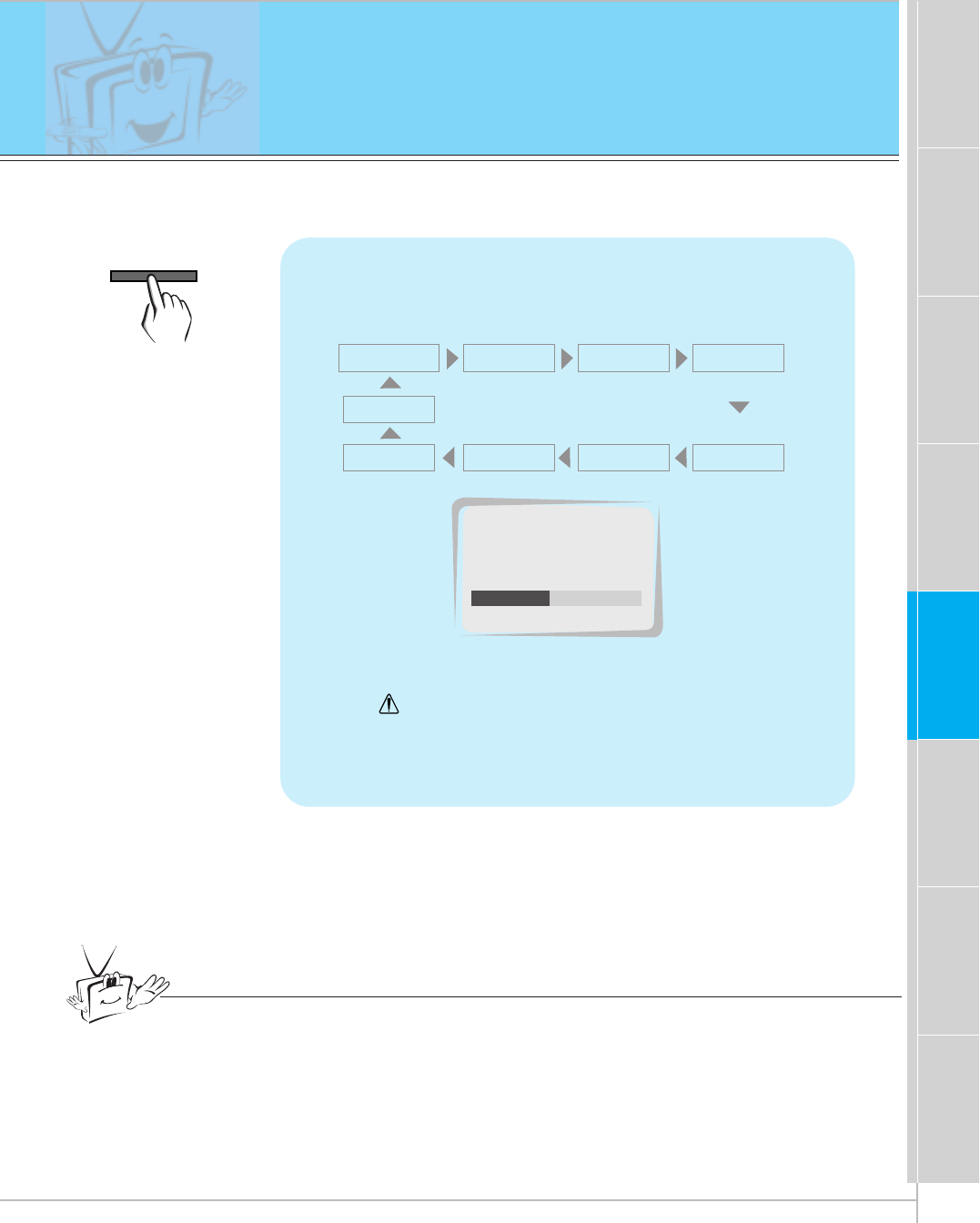

Setting Sleep Timer
Sleep Timer turns the Monitor off after a preset time
Press the SLEEP button to set sleep time.
Each time you press SLEEP button, the next pre-
set setting time is changed as follows:
• To release sleep time setting, press the SLEEP or
F /Gbutton repeatedly to select F--- G.
•‘ SLEEP 1’will be displayed one minute before
the Monitor is due to switch off.
F--- G F 10 GF20 G F 30 G
F120 GF 180 G
F240 G
F90 G F 60 G
Tips
•When the sleep time you want is displayed on the screen, don’t press the
SLEEP button. After 20 seconds, the screen display disappears and sleep
time is set.
• To check remaining sleep time after setting, press the SLEEP or OK button
just once.
• If you turn the Monitor off after setting the sleep timer, the setting is erased.
The sleep timer will then have to be set again.
F 30 G
SLEEP
SLEEP
34
2
1
APC (Auto Picture Control)
Press the APC button.
Press the APC or F / Gbuttons to select your
desired picture condition.
•Each press of F /Gbuttons changes the screen display as
shown below.
• You can also select CLEAR, SOFT or USER in the PIC-
TURE menu. User refers to adjustments you made to the
picture menu items. See next page.
CLEAR SOFT USER
F CLEAR G
APC
Auto picture control
Use APC to set the Monitor for the best picture appearance
-APC is not available in RGB or PIP mode.
APC
35
Safety instructions Monitor Overview Connections Basic operation Sleep timer Picture & Sound Special features Others
2
1
READY
Example : Changing the contrast.
Press the D / Ebutton to select CON-
TRAST and then press the
Gbutton.
•Adjust BRIGHTNESS, COLOR, TINT and
SHARPNESS in the same way.
Use the F / Gbuttons to make appro-
priate adjustments and then press the
OK button.
•Press the D /Ebuttons to select other items.
Press the MENU button and then press the D / Ebutton to
select PICTURE menu.
Press the Gbutton.
Adjusting picture appearance
APC G
DRP G
CONTRAST 100 G
BRIGHTNESS 50 G
COLOR 50 G
TINT 0 G
SHARPNESS 50 G
CONTRAST 100
APC G
DRP G
CONTRAST 70 G
BRIGHTNESS 50 G
COLOR 0 G
TINT 0 G
SHARPNESS 50 G
- PIP inset setting is not adjustable.
OK
VOL VOL
MENU VOL
VOL
36
DRP (Digital Reality Picture)
DRP improves image outlines in dark screens.
3
1
READY
Press the D / Ebutton to select DRP
and then press the Gbutton.
Press the OK button to exit.
APC G
DRP G
CONTRAST 100 G
BRIGHTNESS 50 G
COLOR 50 G
TINT 0 G
SHARPNESS 50 G
CLEAR
SOFT
DRP
2Press the D / Ebutton to select
CLEAR or SOFT.APC G
DRP G
CONTRAST 100 G
BRIGHTNESS 50 G
COLOR 50 G
TINT 0 G
SHARPNESS 50 G
CLEAR
SOFT
CLEAR
-This function works in video, component 480i mode.
Press the MENU button and then press the D / Ebutton to
select PICTURE menu.
Press the Gbutton.
MENU
VOL
OK
VOL
37
Safety instructions Monitor Overview Connections Basic operation Sleep timer Picture & Sound Special features Others
Adjusting sound
Manual setting
2
1
READY
Example : Adjustment treble
Use the D / Ebuttons to select
TREBLE and then press the
Gbutton.
•Adjust BASS and BALANCE in the same way.
Use the F / Gbuttons to make appropri-
ate adjustment and then press the OK
button to exit.
•Press the D /Ebuttons to select other options.
Press the MENU button and then press the D / Ebutton to
select SOUND menu.
Press the Gbutton.
DASP G
AVL G
TREBLE 50 G
BASS 50 G
BALANCE 0 G
SOUND
TREBLE 50
DASP G
AVL G
TREBLE 70 G
BASS 50 G
BALANCE 0 G
SOUND
OK
VOL VOL
MENU VOL
VOL
38
Auto Sound Control
DASP (Digital Auto Sound Processing)
•This function lets you enjoy the best sound without any manual adjustment
because the Monitor automatically selects the appropriate audio tone levels
based on the program content.
1Press the DASP button.
2Press the DASP or F / Gbuttons to select a sound
setup.
•Each press of DASP or F /Gbuttons changes the screen
display as shown below.
• You can also select FLAT, SPORTS, CINEMA, MUSIC or
USER in the SOUND menu.
FLAT SPORTS
USER
CINEMA
MUSIC
F USER G
DASP
DASP
39
Safety instructions Monitor Overview Connections Basic operation Sleep timer Special features Others
Picture & Sound
AVL (Auto Volume Leveler)
This feature maintains an equal volume level; even if you change channels.
3
1
READY
Press the D / Ebutton to select AVL
and then press the Gbutton.
Press the OK button to exit.
Press the MENU button and then press the D / Ebutton to
select SOUND menu.
Press the Gbutton.
DASP G
AVL G
TREBLE 50 G
BASS 50 G
BALANCE 0 G
ON
OFF
SOUND
AVL
2Press the D / Ebutton to select ON or
OFF.
ON
OFF
SOUND
ON
DASP G
AVL G
TREBLE 50 G
BASS 50 G
BALANCE 0 G
OK
MENU VOL
VOL
40
Using Still function
1
2
Press the STILL button.
•The image displayed is frozen(still).
• The sub picture is stilled in PIP mode.
• In PIP mode, the sub (inset) picture is frozen.
<Moving image>
<Still image>
To return to normal viewing, press the STILL button
again.
Tips
•If still picture is on the screen for more than 5 minutes, the image becomes
dark.
If another function is activated, normal brightness of the screen is restored.
• This is a protective feature designed to reduce a ghost image burning into the
monitor.
-This feature isn’t available for RGB input source.
- Use with A/V or COMPONENT video inputs.
STILL
41
Safety instructions Monitor Overview Connections Basic operation Sleep timer Picture & Sound Special features Others
3
2
1
READY
Use the D / Ebutton to select SCREEN
and then press the Gbutton.
Use the D / Ebuttons to select TV or VCR.
•Select the VCR option if watching a VCR.
• Select the TV option for other
equipment.(Except VCR)
• Each time you press the D / Ebutton you toggle
between TV and VCR.
Press the OK button to exit.
Press the MENU button and then press the D / Ebutton to
select SPECIAL menu.
Press the Gbutton.
LANGUAGE G
ARC G
SCREEN G
TRANSPARENCY G
PIP G
SET ID G
COLOR TEMP. G
TV
VCR
SPECIAL
SCREEN
LANGUAGE G
ARC G
SCREEN G
TRANSPARENCY G
PIP G
SET ID G
COLOR TEMP. G
TV
VCR
SPECIAL
VCR

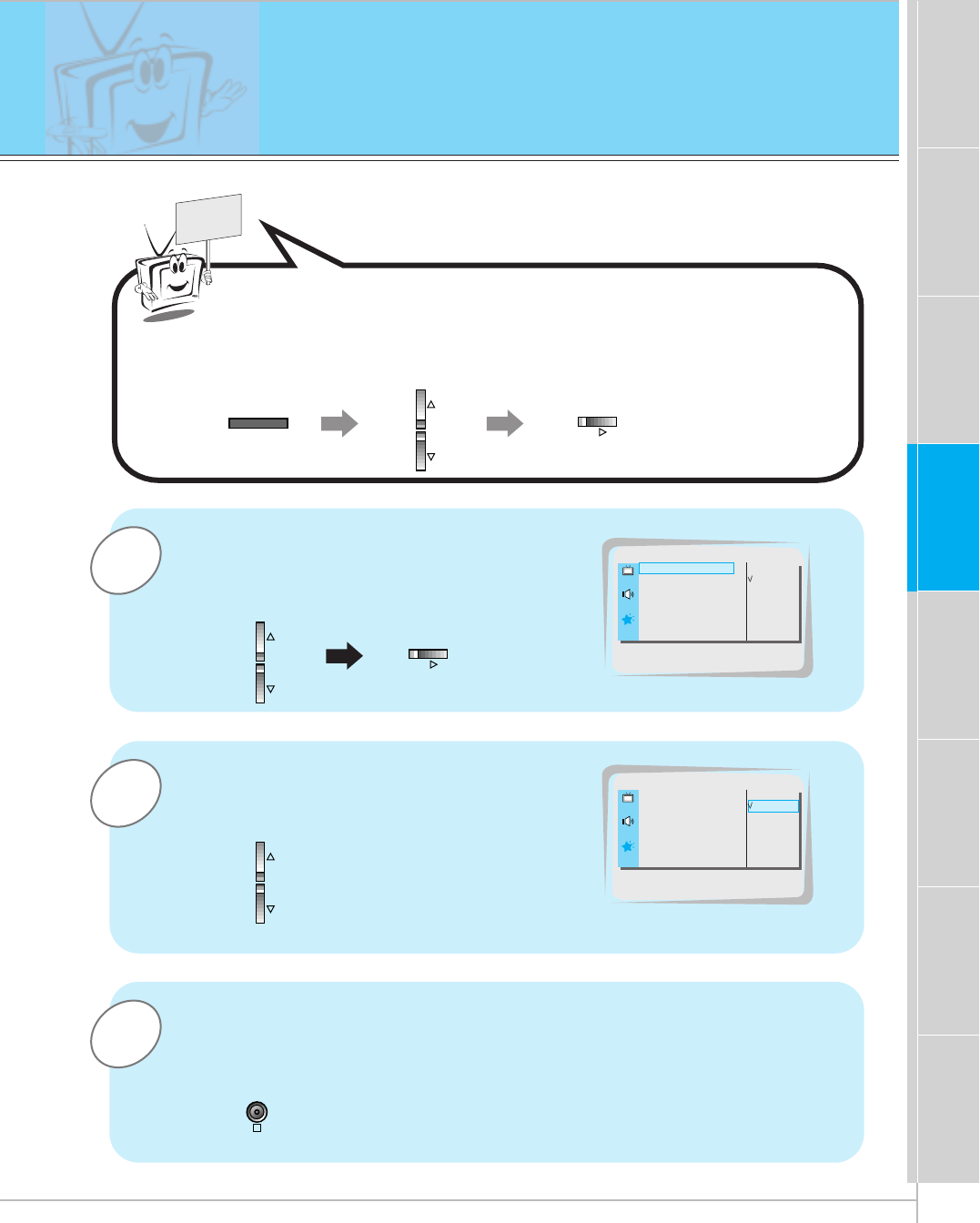

Using the screen options
- This function works only in the video mode.
-
Use this option if there are a trembling or instability of a video tape on screen during viewing
the video.
OK
MENU
VOL
VOL
VOL
42
Adjusting OSD Transparency
To make the menus clear or opaque
3
2
1
READY
Press the D / Ebutton to select
TRANSPARENCY and then press the
Gbutton.
Press the F / Gbuttons to adjust OSD
transparency.
•The adjustment range of TRANSPARENCY
is 1 ~ 4.
Press the OK button to exit.
Press the MENU button and then press the D / Ebutton to
select SPECIAL menu.
Press the Gbutton.
LANGUAGE G
ARC G
SCREEN G
TRANSPARENCY G
PIP G
SET ID G
COLOR TEMP. G
3
SPECIAL
TRANSPARENCY
LANGUAGE G
ARC G
SCREEN G
TRANSPARENCY G
PIP G
SET ID G
COLOR TEMP. G
SPECIAL
3
OK
MENU VOL
VOL
VOL VOL
43
Safety instructions Monitor Overview Connections Basic operation Sleep timer Picture & Sound Special features Others
READY
Press the MENU button and then press the D / Ebutton to
select SPECIAL menu.
Press the Gbutton.
MENU
VOL

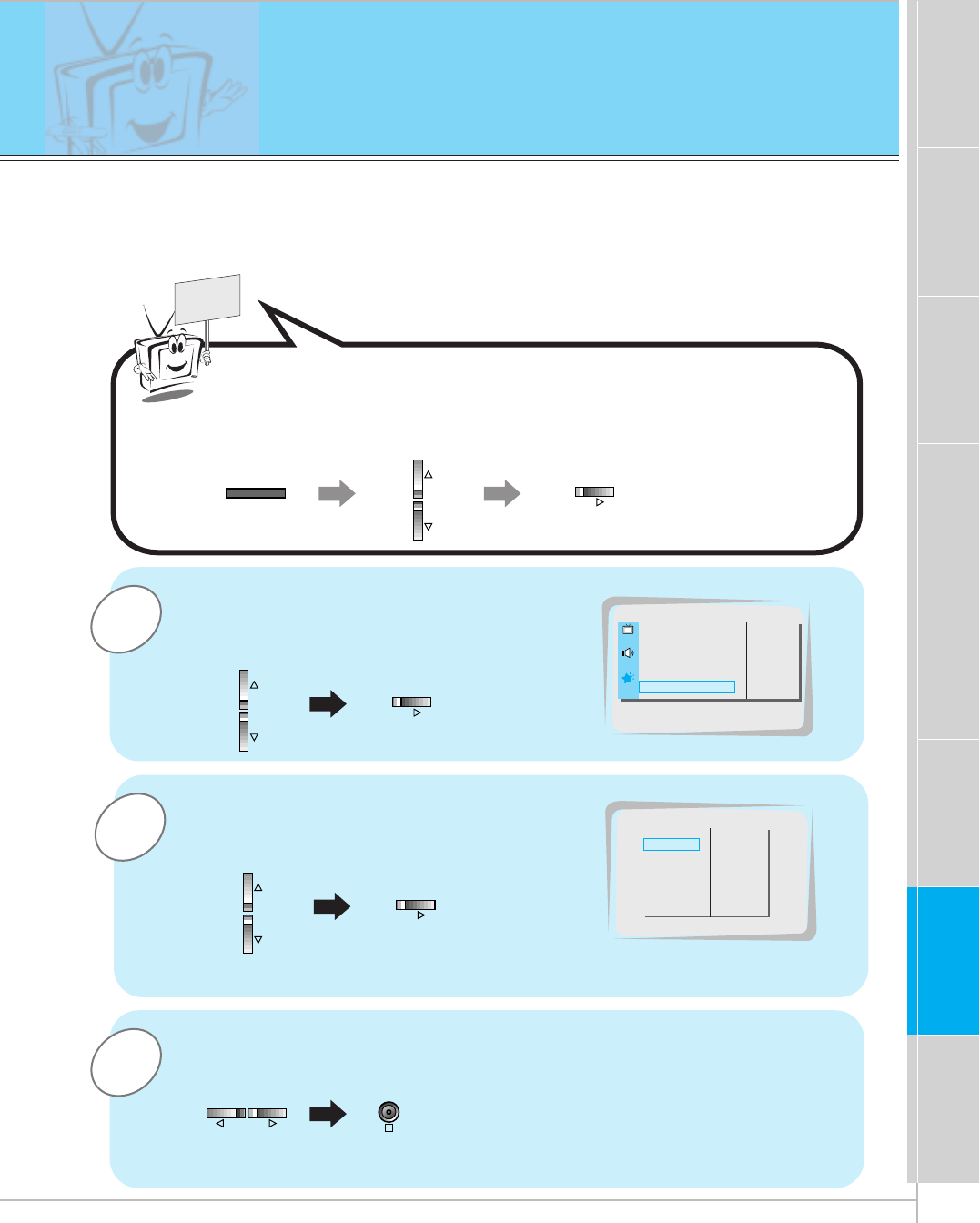

Adjusting color temperature
3
2
1Press the D / Ebutton to select
COLOR TEMP. and then press the G
button.
Press the D / Ebutton to select RED and
then press the Gbutton.
(to adjust RED setting)
Use the F / Gbutton to make appropriate adjustments and then
press the OK button.
•The adjustment range of RED, GREEN and BLUE is -5 ~ +5.
• Adjust GREEN and BLUE in the same way.
OK
VOL
VOL
VOL VOL
LANGUAGE G
ARC G
SCREEN G
TRANSPARENCY G
PIP G
SET ID G
COLOR TEMP. G G TO SET
SPECIAL
COLOR TEMP.
LANGUAGE
G
CAPTION
G
AUTO OFF
G
SCREEN
G
RGB-OUTPUT
G
RED
G
GREEN
G
BLUE
G
0
RED
-Only adjust Color Temperature function in MU-42PZ15 series models.
- You should be adjust color temperature in PC mode again although color temperature is
adjusted in other input source.
- To initialize adjusted value, select ‘0’ in RED, GREEN and BLUE.
44

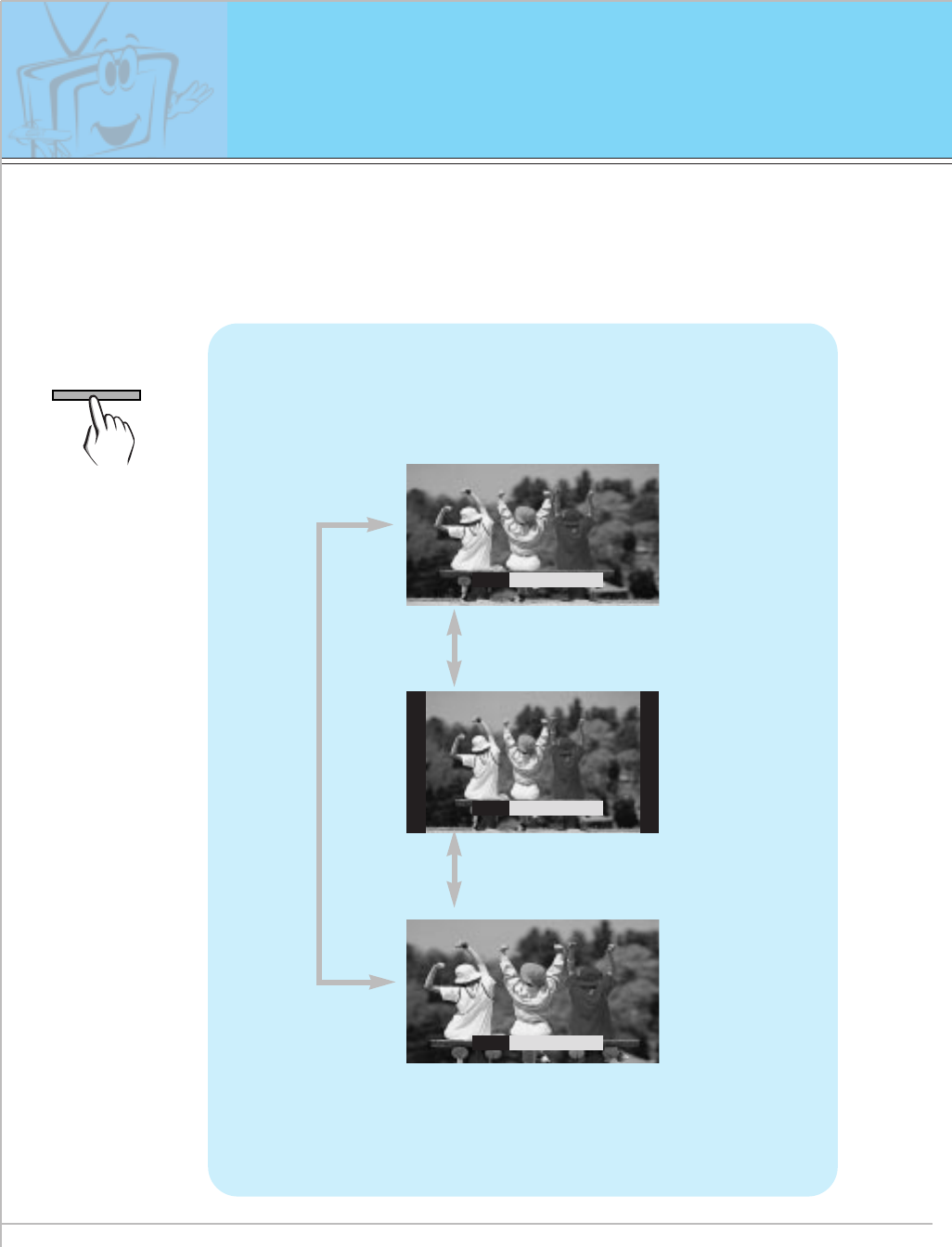

Setting picture format
Press the ARC button to select a desired picture
format.
• You can also select 16:9, 4:3 or ZOOM in the SPECIAL menu.
• Each time you press ARC or F /Gbuttons, you can
select 16:9, 4:3 or ZOOM alternatively.
ARC
F
16 : 9
G
<16:9>
<4:3>
<Zoom>
ARC
F
4 : 3
G
ARC
F
ZOOM
G
- With the RGB-PC input, you can select either 16:9 or 4:3 screen aspect ratios.
- With the RGB-DTV input, you can select 16:9 screen aspect ratios.
- If 4:3 mode is used for a long time, the outline of the image may remain on the screen after
you change to the 16:9 screen.
- Don’t display 4:3 picture format for more than 10 hours continuously.
ARC
45
Safety instructions Monitor Overview Connections Basic operation Sleep timer Picture & Sound Special features Others
-Connect the RS-232C input jack to an external control device (such as a computer or an A/V control
system) and control the Monitor’s functions externally.
PYP
(+) ( ) (+)( )
AC INPUT
BR
Y
(+) ( ) (+)( )
PP
COMPONENT(480i/480p/720p/1080i)
(DVD/DTV INPUT)
RGB-DTV INPUT (480p/720p/1080i)
BR
RGB-PC INPUT (VGA/SVGA/XGA)
EXTERNAL SPEAKER (8Ω)
RL
AV INPUT S-VIDEO
AUDIO
(MONO)
RLVIDEO
COMPONENT (480i/480p/720p/1080i)
(DVD/DTV INPUT) RGB-PC INPUT(VGA/SVGA/XGA/SXGA)
RGB-DTV INPUT(480p/720p/1080i)
AUDIO
RL
AUDIO INPUT
EXTERNAL SPEAKER 8ΩAV INPUT S-VIDEO
RLRAUDIO VIDEO
(MONO)
L
AUDIO INPUT AC INPUT
RL
RS-232C
RS-232C
Monitor Rear Connections Panel
• Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.
• RS-232C connection cables are not supplied with the Monitor.
• The Monitor remote control and front panel controls (except main power) will not be function-
al if the Monitor is controlled by a PC computer or other external device.
How to connect external control equipment
External Control Device Setup
46
RS-232C configurations
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DSR
DTR
CTS
RTS
PC
7-wire configuration
(Standard RS-232C cable)
DB 9
Control line
3
2
5
6
4
8
7
PDP
DB 9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DTR
DSR
RTS
CTS
PC
3-wire configuration
(Not standard)
DB 9
3
2
5
4
6
7
8
PDP
DB 9
7-Wire Cable Configuration
• The Monitor is available to switch between external
adjustment and remote control adjustment using a
control line.
Note: If the control line is high, the monitor is con-
trolled by the external control device. If the control
line is low, the Monitor is controlled by the Monitor's
remote control.
3-Wire Cable Configuration
• When using a 3-Wire cable configuration there is no
control line. The external control device must put the
Monitor into the "change into remote control adjust-
ment mode" (see page 52). The Monitor will then be
able to be controlled by the remote control. If the
Monitor is turned back on, it will revert back to exter-
nal device control.
External Control Device Setup
Type of connector : D-Sub 9-pin male
* Use a null modem cable.
Wire the 7-Wire cable so that each pair of data lines cross between the two devices. These data line pairs
are RXD (Receive data) and TXD (Transmit data), DTR (DTE side ready) and DSR (DCE side ready), and
RTS (Ready to send) and CTS (Clear to send).
When using the 3-Wire cable connected to RXD, TXD and GND; Pin No. 4 (DTR) and Pin No. 6 (DSR) must
be connected to the monitor. (The cable must be disconnected from the Monitor to be able to use the remote
control and Monitor front panel controls.)
* With the RS-232 input connected, the Monitor cannot be controlled by both an external control device and
the remote control at the same time. The Monitor can only be controlled by either the remote control or the
external control device.
No. Pin name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
1
5
6
9
Pin No.4 and Pin
No.6 must be
connected on
monitor side.
47
Safety instructions Monitor Overview Connections Basic operation Sleep timer Picture & Sound Others
Special features

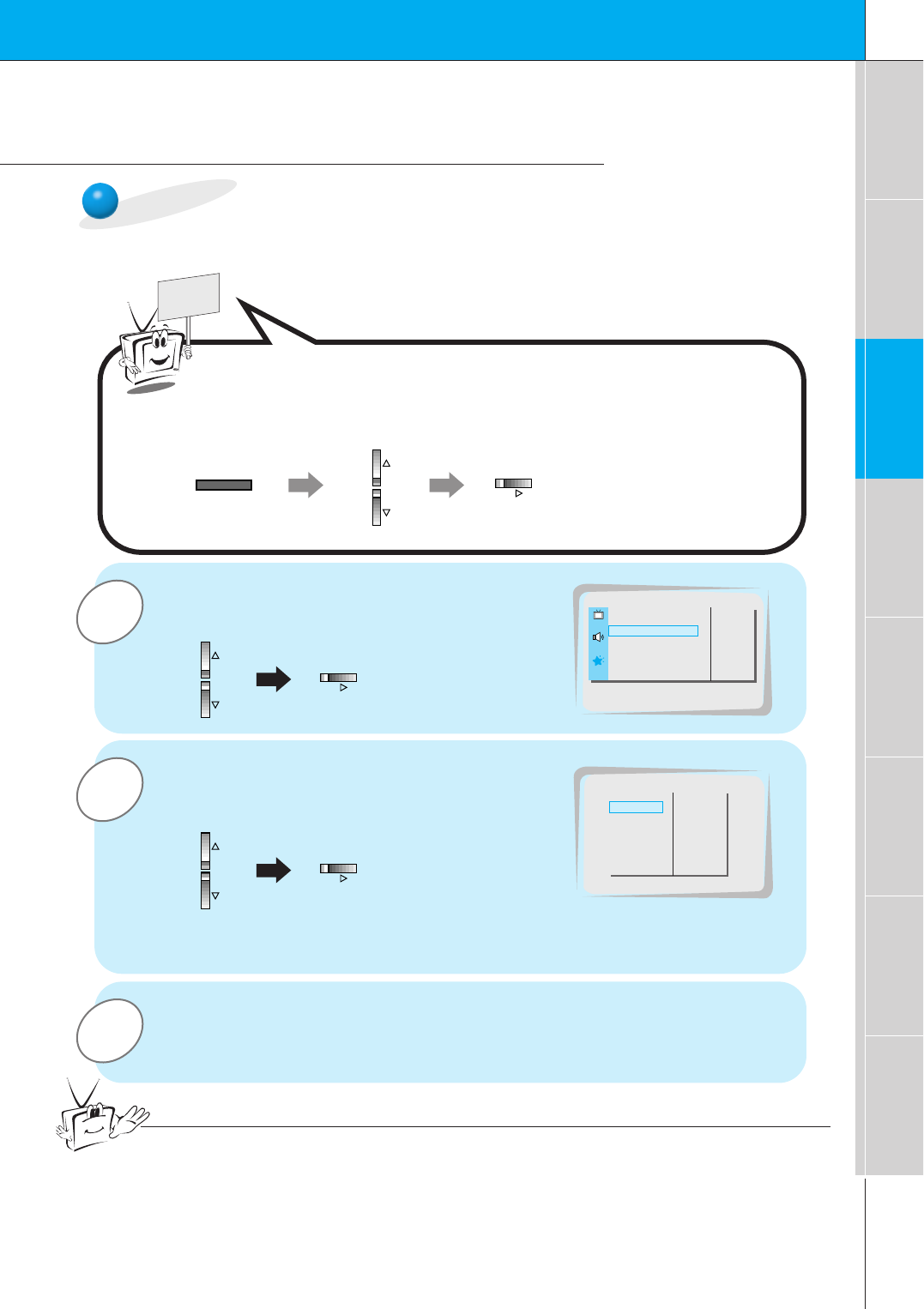

1Use the D / Ebuttons to select SET ID and
then press the Gbutton.
•Use this function to specify a monitor ID number.
SET ID
READY
Press the MENU button and then press the D / Ebutton to
select the SPECIAL menu.
Press the Gbutton.
2Use the F / Gbutton to adjust SET ID to
choose the desired monitor ID number.
•The adjustment range of SET ID is 1 ~ 99.
LANGUAGE G
ARC G
SCREEN G
TRANSPARENCY G
PIP G
SET ID G
COLOR TEMP. G
1
SPECIAL
SET ID
LANGUAGE G
ARC G
SCREEN G
TRANSPARENCY G
PIP G
SET ID G
COLOR TEMP. G
1
SPECIAL
1
MENU VOL
VOL
OK
VOL VOL
48
External Control Device Adjustments
Communication Parameters
Command Reference List
-The RS-232C input jack is used to control the Monitor’s functions using an external control device.
•Baud rate : 2400 bps (UART)
•Data length : 8 bits
•Parity : None
•Stop bit : 1 bit
•Communication code : ASCII code
* If the command interval is interrupted for more than 4
seconds, only Command 1 will be recognized.
Be careful when using the power command.
Transmission
* [Command] : To control PDP set.
* [Set ID] : You can adjust the set ID to choose
desired monitor ID number in special
menu. See page 47. Adjustment range
is 1 ~ 99.
When selecting Set ID ‘0’, every connected
PDP set is controlled.
* [DATA] : To transmit command data.
Transmit ‘FF’ data to read status of
command.
* [Cr] : Carriage Return
ASCII code ‘0x0D’
* [ ] : ASCII code ‘space (0x20)’
[Command][ ][Set ID][ ][Data][Cr]
OK Acknowledgement
* The Monitor transmits ACK (acknowledgement) based
on this format when receiving normal data. At this
time, if the data is data read mode, it indicates present
status data. If the data is data write mode, it returns
the data of the PC computer.
[Set ID][:][OK][x][Data][x]
Error Acknowledgement
* The Monitor transmits ACK (acknowledgement) based
on this format when receiving abnormal data from
non-viable functions or communication errors.
[Set ID][:][NG][x]
Transmission / Receiving Protocol
NAME COMMAND DATA RANGE
01. Power p 0 ~ 1
02. Input Select i 0 ~ 3
03. Aspect Ratio r 0 ~ 2
04. Screen mute m 0 ~ 1
05. Volume mute w 0 ~ 1
06. Volume control v 0 ~ 64
07. Contrast k 0 ~ 64
08. Brightness b 0 ~ 64
09. Color c 0 ~ 64
10. Tint t 0 ~ 64
11. Sharpness s 0 ~ 64
12. OSD select d 0 ~ 1
13. Abnormal state a 0 ~ 1
14. PIP z 0 ~ 3
15. PIP input select e 0 ~ 1
16. PIP sound select u 0 ~ 1
17. PIP position x 0 ~ 3
18. remote control j 0 ~ 1
adjustment mode
49
Safety instructions Monitor Overview Connections Basic operation Sleep timer Picture & Sound Others
Special features
01. Power (Command:p)
GTo control Power On/Off of the Monitor.
Transmission
Data 0 : Power Off
1 : Power On
* Example : Power on for set ID No.3.
Type : P 3 1 ‘0x0D’
[p][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : Power Off
1 : Power On
* In example : Monitor Acknowledges power on for set ID
No.3.
[Set ID][:][OK][x][Data][x]
02. Input select (Command:i)
GTo select input source for the Monitor.
You can also select an input source using the INPUT
SELECT button on the Monitor's remote control.
Transmission
Data 0 : RGB
1 : AV (Video)
2 : Component
3 : S-AV (S-Video)
[i][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : RGB
1 : AV (Video)
2 : Component
3 : S-AV (S-Video)
[Set ID][:][OK][x][Data][x]
GTo show Power On/Off.
Transmission
[p][ ][Set ID][ ][FF][Cr]
Acknowledgement
Data 0 : Power Off
1 : Power On (RGB)
2 : Power On (Video)
3 : Power On (Component)
4 : Power On (S-Video)
* In like manner, if other functions transmit ‘FF’ data
based on this format, Acknowledgement data feed
back presents status about each function.
[Set ID][:][OK][x][Data][x]
03. Aspect Ratio (Command:r)
GTo adjust the screen format.
You can also adjust the screen format using the ARC
(Aspect Ratio Control) button on remote control or in
the Special menu.
Transmission
Data 0 : Wide screen (16:9)
1 : Normal screen (4:3)
2 : Full screen (Zoom)
[r][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : Wide screen (16:9)
1 : Normal screen (4:3)
2 : Full screen (Zoom)
* Using the PC input, you select either 16:9 or 4:3 screen
aspect ratio.
* Using the DTV 720p/1080i input, you can only select
16:9 screen aspect ratio.
[Set ID][:][OK][x][Data][x]
04. Screen mute (Command:m)
GTo select screen mute on/off.
Transmission
Data 0 : Screen mute on (Picture off)
1 : Screen mute off (Picture on)
[m][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : Screen mute on (Picture off)
1 : Screen mute off (Picture on)
[Set ID][:][OK][x][Data][x]
05. Volume mute (Command:w)
GTo control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission
Data 0 : Volume mute on (Volume off)
1 : Volume mute off (Volume on)
[w][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : Volume mute on (Volume off)
1 : Volume mute off (Volume on)
[Set ID][:][OK][x][Data][x]
50
External Control Device Adjustments
* Real data mapping
0 : Step 0
A : Step 10
F : Step 15
10 : Step 16
64 : Step 100
06. Volume control (Command:v)
GTo adjust volume.
You can also adjust volume with the volume buttons
on remote control.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping’ as shown below.
[v][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data Min : 0 ~ Max : 64
[Set ID][:][OK][x][Data][x]
07. Contrast (Command:k)
GTo adjust screen contrast.
You can also adjust contrast in the Picture menu.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping’ as shown below.
[k][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data Min : 0 ~ Max : 64
[Set ID][:][OK][x][Data][x]
08. Brightness (Command:b)
GTo adjust screen brightness.
You can also adjust brightness in the Picture menu.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping’ as shown below.
[b][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data Min : 0 ~ Max : 64
[Set ID][:][OK][x][Data][x]
09. Color (Command:c)
GTo adjust the screen color.
You can also adjust color in the Picture menu.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping’ as shown below.
[c][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data Min : 0 ~ Max : 64
[Set ID][:][OK][x][Data][x]
10. Tint (Command:t)
GTo adjust the screen tint.
You can also adjust tint in the Picture menu
Transmission
Data Red : 0 ~ Green : 64
* Refer to ‘Real data mapping’ as shown below.
[t][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data Red : 0 ~ Green : 64
[Set ID][:][OK][x][Data][x]
11. Sharpness (Command:s)
GTo adjust the screen sharpness.
You can also adjust sharpness in the Picture menu
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping’ as shown below.
[s][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data Min : 0 ~ Max : 64
[Set ID][:][OK][x][Data][x]
51
Safety instructions Monitor Overview Connections Basic operation Sleep timer Picture & Sound Others
Special features
12. OSD select (Command:d)
GTo select OSD (On Screen Display) on/off.
Transmission
* The remote control and Monitor front panel controls
(except main power) are not operable when the Monitor
is set up to be controlled by the PC computer.
* This function is “read only”.
Data 0 : OSD off
1 : OSD on
[d][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : OSD off
1 : OSD on
[Set ID][:][OK][x][Data][x]
13. Abnormal state (Command:a)
GTo recognize an abnormal state.
Transmission
[a][ ][Set ID][ ][FF][Cr]
Acknowledgement
Data 0 : OK
1 : Fan alarm
2 : 5V down
3 : AC down
[Set ID][:][OK][x][Data][x]
14. PIP (Command:z)
GTo control PIP (Picture-in-Picture). You can also control
PIP using the pip button on remote control or in the
Special menu.
Transmission
Data 0 : PIP off
1 : PIP (small)
2 : PIP (large)
[z][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : PIP off
1 : PIP (small)
2 : PIP (large)
* PIP only works in the following resolutions:
RGB PC 640x480 (VGA) / 800x600(SVGA) / 1024x768
(XGA) (only in vertical frequency 60Hz),
Component 480p / 720p / 1080i.
[Set ID][:][OK][x][Data][x]
15. PIP input select (Command:e)
G To select input source for sub picture in PIP mode.
You can also select source using PIP input button on
the remote control or in the Special menu.
Transmission
* COMPONENT source only works with 480i input signal.
Data 0 : AV (VIDEO)
1 : COMPONENT
2 : S-AV (S-VIDEO)
[e][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : AV (VIDEO)
1 : COMPONENT
2 : S-AV (S-VIDEO)
[Set ID][:][OK][x][Data][x]
52
External Control Device Adjustments
* COMPONENT source only works in 480i input signal.
16. PIP sound select (Command:u)
G To select main or sub (inset) sound for PIP.
You can also select sound select in PIP on the
special menu.
Transmission
[u][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : Main picture sound
1 : Sub picture sound
Data 0 : Main picture sound
1 : Sub picture sound
[Set ID][:][OK][x][Data][x]
* If external equipment commands the Monitor to
"change into remote control adjustment mode", the
Monitor can only be adjusted by the remote control.
To revert the Monitor control to external control device
adjustment, turn the Monitor off and then on again.
18. Change into Remote control
adjustment mode (Command:j)
G To control the Monitor with the remote control while
the cable is still connected.
Transmission
[j][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : PC adjustment mode
1 : Remote control adjustment mode
Data 1 : Remote control adjustment mode
[Set ID][:][OK][x][Data][x]
17. PIP position (Command:x)
GTo select sub picture position for PIP.
You can also adjust the sub picture position using the
position button on the remote control or in PIP on the
Special menu.
Transmission
Data 0 : Right down on screen
1 : Left down on screen
2 : Left up on screen
3 : Right up on screen
[x][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : Right down on screen
1 : Left down on screen
2 : Left up on screen
3 : Right up on screen
[Set ID][:][OK][x][Data][x]
53
Safety instructions Monitor Overview Connections Basic operation Sleep timer Picture & Sound Special features Others
Maintenance
Cleaning the screen
1. Here’s a great way to keep the dust off your screen for a while. Wet a
soft cloth in a mixture of lukewarm water and a little fabric softener or
dish washing detergent. Wring the cloth until it’s almost dry, and then
use it to wipe the screen.
2. Make sure the excess water is off the screen, and then let it air-dry
before you turn on your Monitor.
Cleaning the cabinet
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.
Extended absence
If you leave your Monitor dormant for a long time (such as a
vacation), it’s a good idea to unplug the power cord to protect
against possible damage from lightning or power surges.
- Early malfunction can be prevented. Careful and regular cleaning can extend the amount of
time you will have with your new Monitor. Be sure to turn the power off and unplug the
power cord before you begin any cleaning.
54
No output from one
of the speakers • Adjust BALANCE in the SOUND menu. (Refer to p.37)
Troubleshooting check list
No picture &
No sound
•Check whether the Monitor is turned on.
• Power cord inserted into wall outlet?
• Plug another product’s power cord into the wall outlet where
the Monitor’s power cord was plugged in.
No or Poor color
or Poor picture
• Select COLOR in the PICTURE menu and press the VOL-
UME (G) button. (Refer to p.35)
• Increase the distance between the Monitor and the VCR.
• Activate any function to restore the brightness of the picture.
(If still picture is on the screen for more than 5 minutes, the
screen gets dark.)
The remote control
doesn’t work
•Check to see if there is any object between the Plasma
Display and the remote control causing obstruction.
• Check to see if the batteries are installed with the correct
polarities. (Refer to p.29)
• Install new batteries. (Refer to p.29)
Picture OK &
No sound
•Press the VOLUME (G) button.
• Sound muted? Press MUTE button.
55
Safety instructions Monitor Overview Connections Basic operation Sleep timer Picture & Sound Special features Others
Product specifications
MODEL
Width (inches / mm)
Height (inches / mm)
Depth (inches / mm)
Weight (pounds / kg)
Power requirement
Resolution
Color
MU-42PZ11/A/B/G/K/S
MU-42PZ15/A/B/G/K/S
41.6 / 1056
25 / 635
3.2 / 82
72.1 / 32.7
120V, 60Hz
852 x 480 (Dot)
16,770,000 (256 steps of each R, G and B)
• The specifications shown above may be changed without prior notice for
quality improvement.
