LG Electronics USA MU42PZ41V Plasma Monitor User Manual FA91196 LG1214
LG Electronics USA Plasma Monitor FA91196 LG1214
user manual
PLASMA MONITOR
OWNER’S MANUAL
Please read this owner’s manual carefully before operating the
Monitor.
Retain it for future reference.
Record model number and serial number of the Monitor.
See the label attached on the back of the Monitor and quote
this information to your dealer when you require service.
Model number :
Serial number :
MODELS : MU-42PZ41V
MU-42PZ41VA
MU-42PZ41VB
MU-42PZ41VK
MU-42PZ41VR
MU-42PZ41VS
P/NO : 3828VA0361C (RF02RA)
2
WARNING
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the
user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence
of important operating and maintenance (servicing) instructions in the literature accompanying
the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOIS-
TURE.
FCC NOTICE
• A Class B digital device
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular instal-
lation. If this equipment does cause harmful interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
• Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
3
Important safeguards for you and your new product
Your product has been manufactured and tested with your safety in mind. However, improper use can result in potential electrical
shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the
following safety points when installing and using your new product, and save them for future reference.
Observing the simple precautions discussed in this booklet can help you get many years of enjoyment and safe operation that are
built into your new product.
This product complies with all applicable U.S. Federal safety requirements, and those of the Canadian Standards Association.
1. Read Instructions
All the safety and operating instructions should be read before
the product is operated.
2. Follow Instructions
All operating and use instructions should be followed.
3. Retain Instructions
The safety and operating instructions should be retained for
future reference.
4. Heed Warnings
All warnings on the product and in the operating instructions
should be adhered to.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do not
use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
6. Water and Moisture
Do not use this product near water, for example, near a bath tub,
wash bowl, kitchen sink, or laundry tub, in a wet basement, or
near a swimming pool.
7. Accessories Carts and Stands
Do not place this product on a slippery or tilted surface, or on an
unstable cart, stand, tripod, bracket, or table. The product may
slide or fall, causing serious injury to a child or adult, and serious
damage to the product. Use only with a cart, stand, tripod, brack-
et, or table recommended by the manufacturer, or sold with the
product. Any mounting of the product should follow the manu-
facturer’s instructions, and should use a mounting accessory
recommended by the manufacturer.
8. Transporting Product
A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause
the product and cart combination to overturn.
9. Attachments
Do not use attachments not recommended by the product man-
ufacturer as they may cause hazards.
10. Ventilation
Slots and openings in the cabinet are provided for ventilation
and to ensure reliable operation of the product and to protect it
from overheating, and these openings must not be blocked or
covered. The openings should never be blocked by placing the
product on a bed, sofa, rug, or other similar surface. This prod-
uct should not be placed in a built-in installation such as a book-
case or rack unless proper ventilation is provided or the manu-
facturer’s instructions have been adhered to.
11. Power Sources
This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of the
type of power supply to your home, consult your product dealer
or local power company. For products intended to operate from
battery power, or other sources, refer to the operating instruc-
tions.
12. Power-Cord Polarization
This product is equipped with a three-wire grounding type plug,
a plug having a third (grounding) pin. This plug will only fit into
the grounding-type power outlet. This is a safety feature. If you
are unable to insert the plug into the outlet, contact your electri-
cian to replace your obsolete outlet. Do not defeat the safety pur-
pose of the grounding-type plug.
13. Power-Cord Protection
Power-supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against
them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the product.
14. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the prod-
uct, be sure the antenna or cable system is grounded so as to
provide some protection against voltage surges and built-up sta-
tic charges. Article 810 of the National Electrical Code (U.S.A.),
ANSI/ NFPA 70 provides information with regard to proper
grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding con-
ductors, location of antenna-discharge unit, connection to
grounding electrodes, and requirements for the grounding elec-
trode.

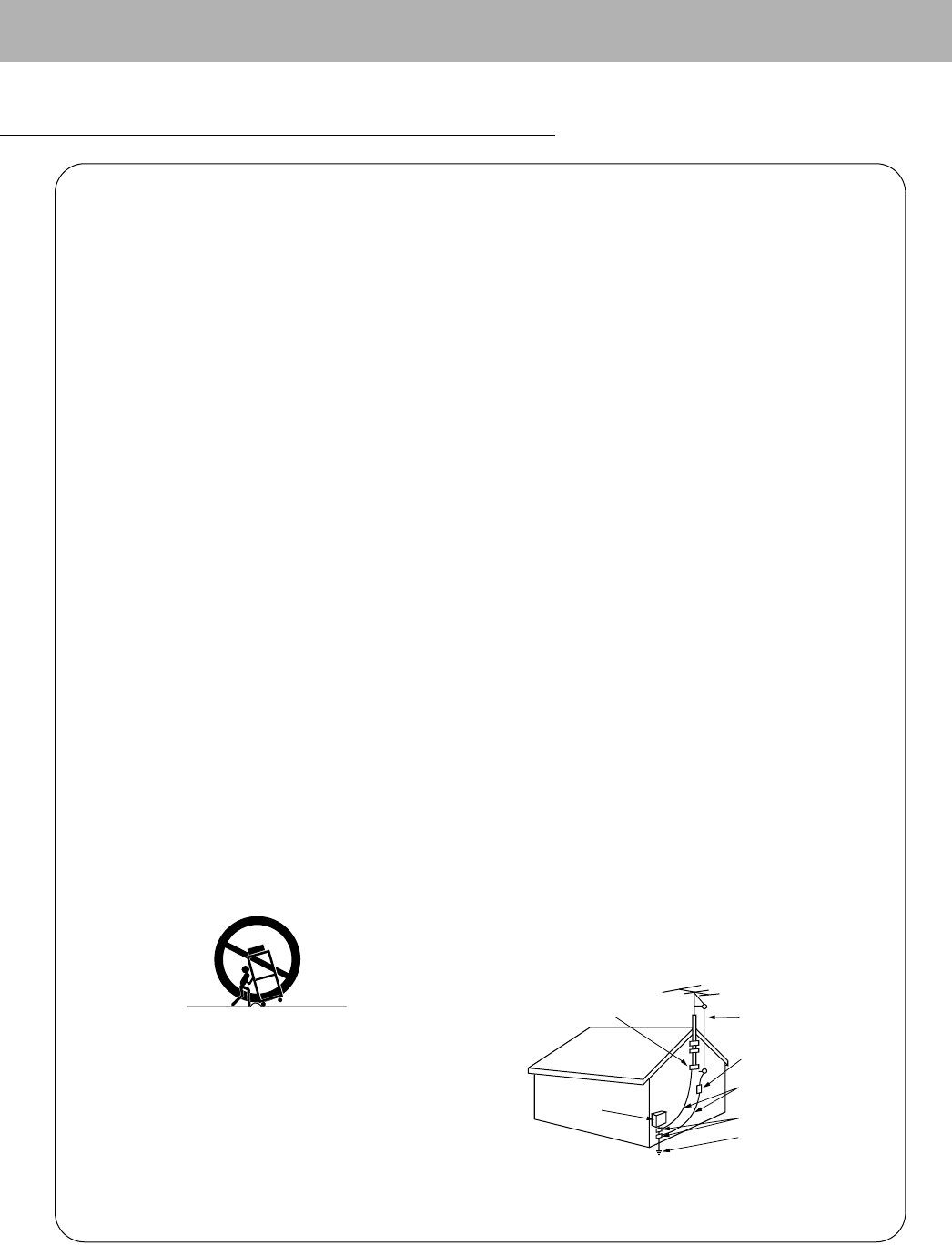

PORTABLE CART WARNING
(Continued on next page)
SAFETY INSTRUCTIONS
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System (NEC
Art 250, Part H)
Ground Clamp
Electric Service
Equipment
Example of Grounding According to National
Electrical Code Instructions
NEC - National Electrical Code
4
SAFETY INSTRUCTIONS
15. Lightning
For added protection for this product (receiver) during a lightning
storm, or when it is left unattended and unused for long periods
of time, unplug it from the wall outlet and disconnect the anten-
na or cable system. This will prevent damage to the product due
to lightning and power-line surges.
16. Power Lines
An outside antenna system should not be located in the vicinity
of overhead power lines or other electric light or power circuits,
or where it can fall into such power lines or circuits. When
installing an outside antenna system, extreme care should be
taken to keep from touching such power lines or circuits as con-
tact with them might be fatal.
17. Overloading
Do not overload wall outlets and extension cords as this can
result in a risk of fire or electric shock.
18. Object and Liquid Entry
Never push objects of any kind into this product through open-
ings as they may touch dangerous voltage points or short-out
parts that could result in a fire or electric shock. Never spill liquid
of any kind on the product.
19. Servicing
Do not attempt to service this product yourself as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
20. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. If the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the prod-
uct.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper adjust-
ment of other controls may result in damage and will often
require extensive work by a qualified technician to restore
the product to its normal operation.
e. If the product has been dropped or the cabinet has been
damaged.
f. If the product exhibits a distinct change in performance.
21. Replacement Parts
When replacement parts are required, be sure the service tech-
nician has used replacement parts specified by the manufactur-
er or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or
other hazards.
22. Safety Check
Upon completion of any service or repairs to this product, ask
the service technician to perform safety checks to determine that
the product is in proper operating condition.
23. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as rec-
ommended by the manufacturer. The product may slide or fall,
causing serious injury to a child or adult, and serious damage to
the product.
24. Heat
The product should be situated away from heat sources such as
radiators, heat registers, stoves, or other products (including
amplifiers) that produce heat.
(Continued from previous page)
The PDP Manufacturing Process: Why colored dots may be present on the PDP screen
The PDP (Plasma Display Panel) which is the display device of this product is composed of 0.9 to 2.2 million cells. A few cell
defects will normally occur in the PDP manufacturing process. Several colored dots visible on the screen should be accept-
able. This also occurs in other PDP manufacturers' products and the dots appearing does not mean that this PDP is defec-
tive. Thus a few cell defects are not sufficient cause for the PDP to be exchanged or returned. Our production technology is
designed to minimize cell defects.
Cooling Fan Noise
In the same way that a fan is used in a PC computer to keep the CPU (Central Processing Unit) cool, the PDP is equipped
with cooling fans to cool the Monitor and improve its reliability. Therefore, a certain level of noise could occur while the fans
are operating and cooling the PDP.
This noise doesn't have any negative effect on the PDP's efficiency or reliability. The noise from these fans is normal during
the operation of this product. We hope you understand that a certain level of noise from the cooling fans is acceptable and is
not sufficient cause for the PDP to be exchanged or returned.
5
After reading this manual, keep it handy for future reference.
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3~4
Step 1. Monitor Installation & Setup
Controls and Connection Options . . . . . . . . . . . .6

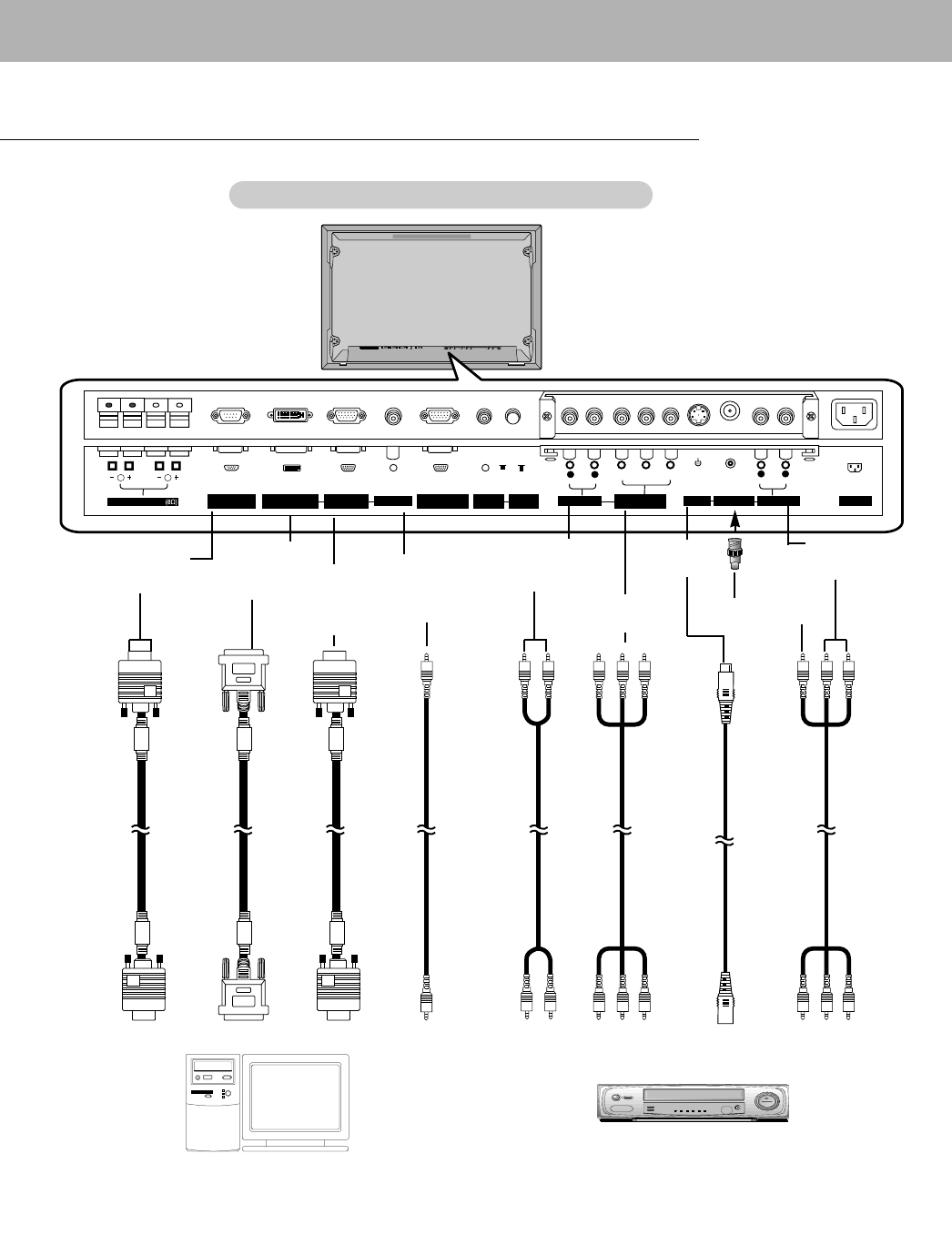

External Equipment Connections . . . . . . . . . . . .7
External Equipment Viewing Setups . . . . . . .8~10

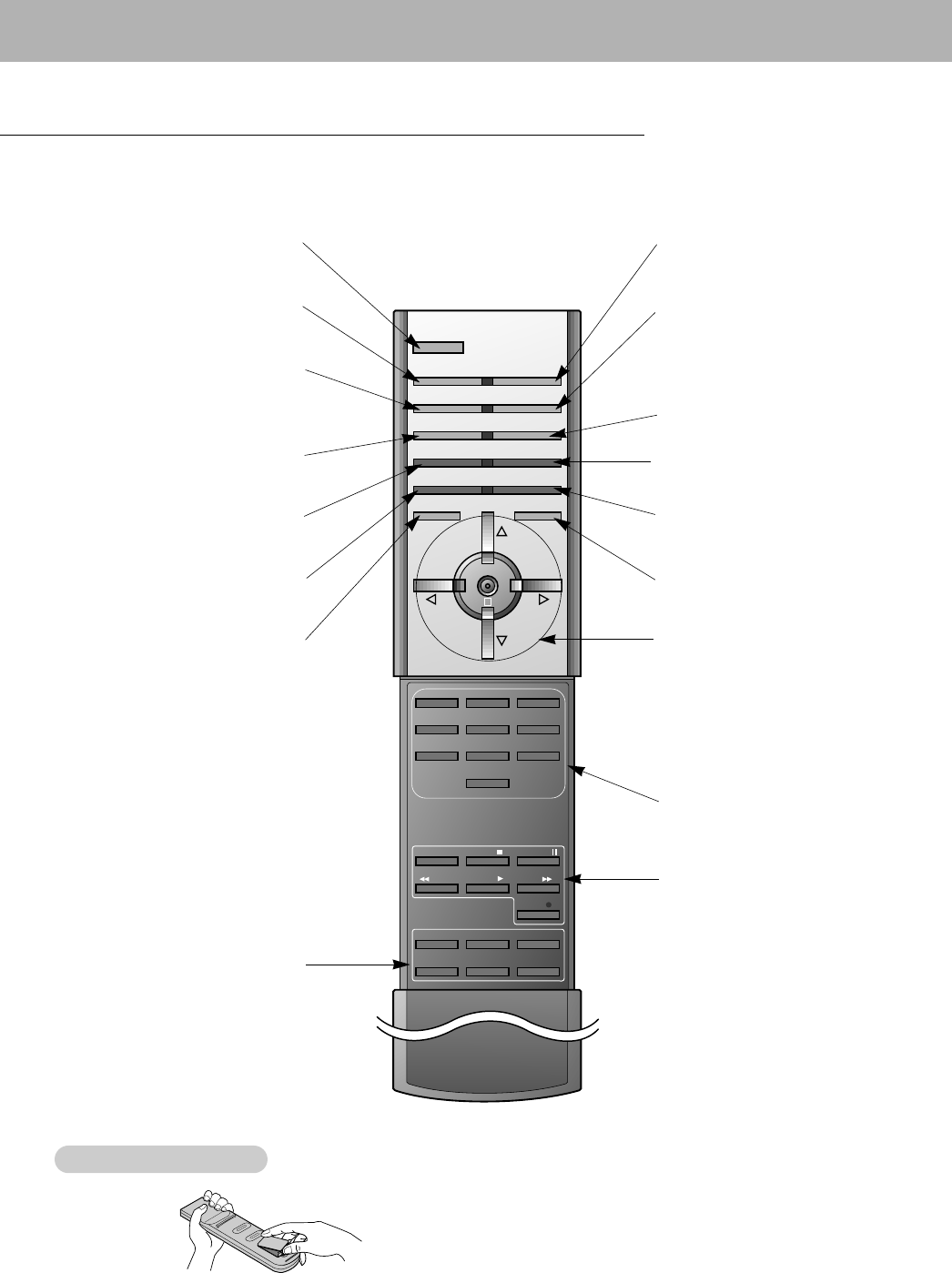

Remote Control Key Functions . . . . . . . . . . . . .11

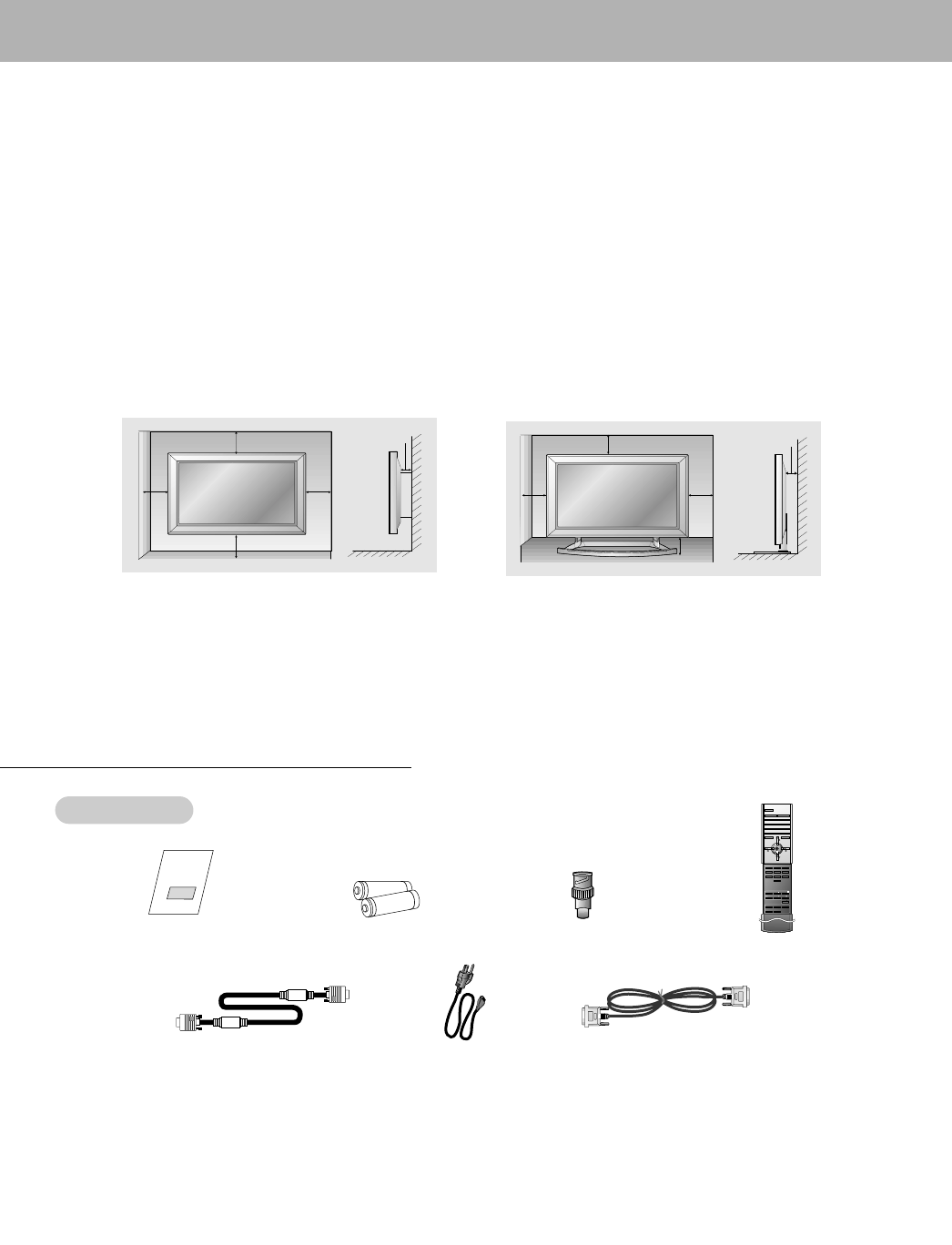

Monitor Accessories . . . . . . . . . . . . . . . . . . . . .12

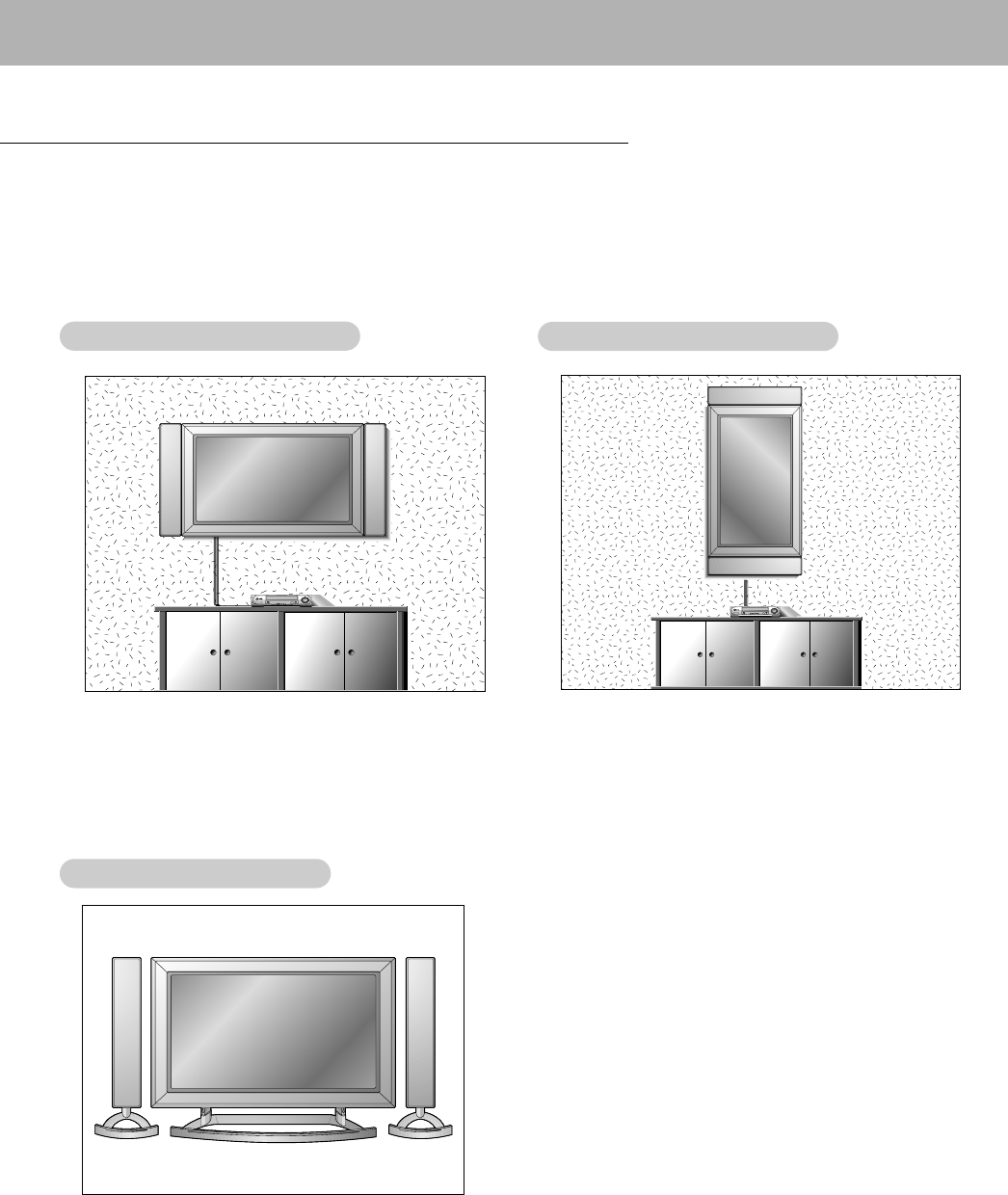

Monitor Installation/Mounting Options . . . . . . . .12
Step 2. Customize your Monitor’s Features
Basic Features Setup and Operation
Turning on the Monitor . . . . . . . . . . . . . . . . . . .14
Menu Language Selection . . . . . . . . . . . . . . . .14
Picture Menu Options
APC (Auto Picture Control) . . . . . . . . . . . . . . . .15
Manual Picture Control . . . . . . . . . . . . . . . . . . .15
Sound Menu Options
DASP (Digital Auto Sound Processing) . . . . . . .16
AVL (Auto Volume Leveler) . . . . . . . . . . . . . . . .16
Adjusting Sound (Manual Settings) . . . . . . . . . .16
Special Menu Options
Menu Rotation for Vertical Viewing . . . . . . . . . .17
Orbiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
White Wash . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Adjusting Auto Color Control . . . . . . . . . . . . . . .18
Manual Color Temperature Control . . . . . . . . . .18
Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Screen Menu Options
Auto Adjustment . . . . . . . . . . . . . . . . . . . . . . . .19
Adjusting Horizontal/Vertical Position . . . . . . . .19
Picture Phase Adjustments . . . . . . . . . . . . . . . .19
Initializing . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Selecting Wide VGA mode . . . . . . . . . . . . . . . .20
Screen Adjustments . . . . . . . . . . . . . . . . . . . . .20
Screen Noise Reduction . . . . . . . . . . . . . . . . . .20

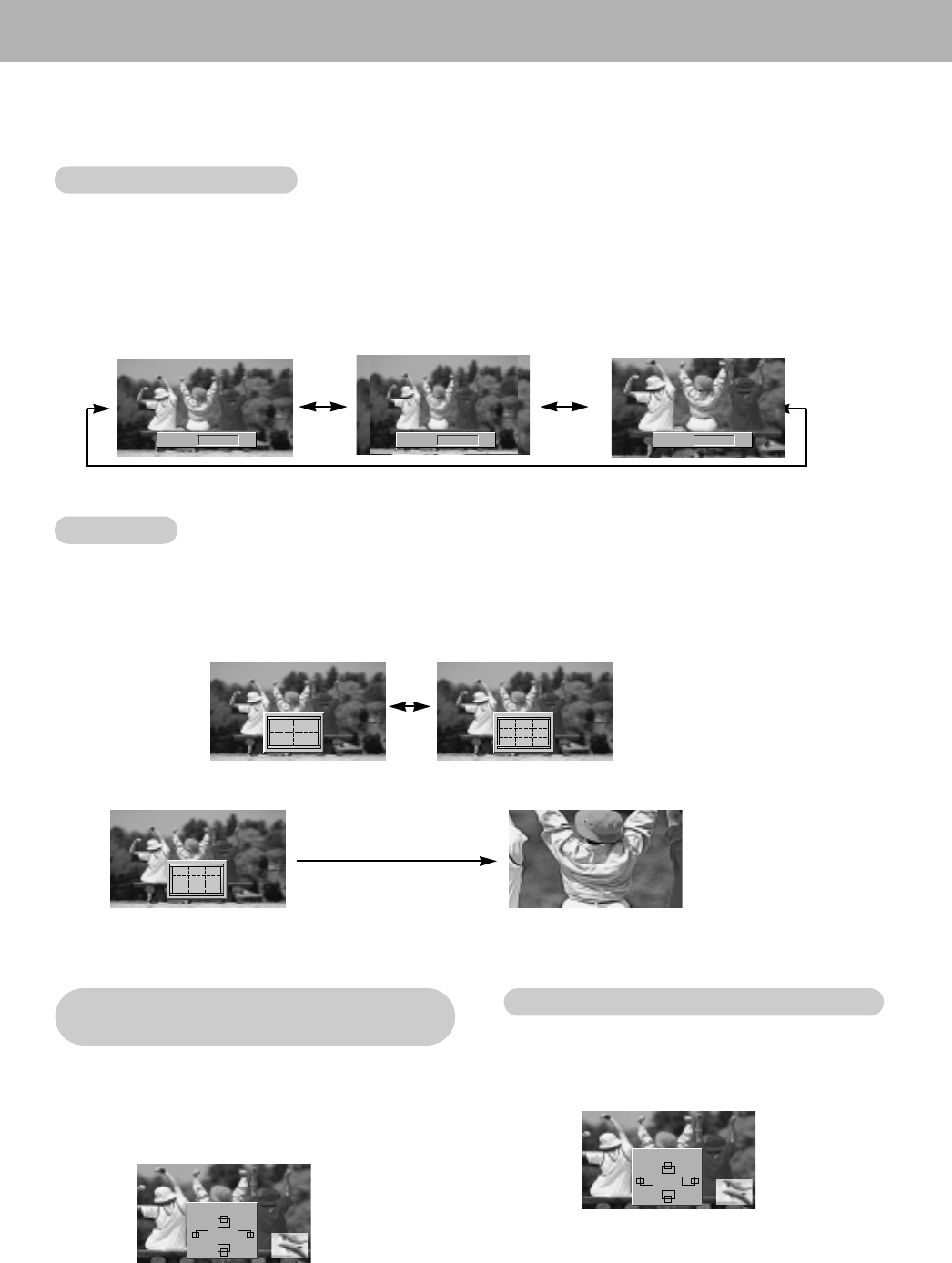

Setting Picture Format . . . . . . . . . . . . . . . . . . .21
Split Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Picture Size Adjustment . . . . . . . . . . . . . . . . . .21
Enlarged Picture Position Adjustment . . . . . . . .21
PIP (Picture In Picture) Feature

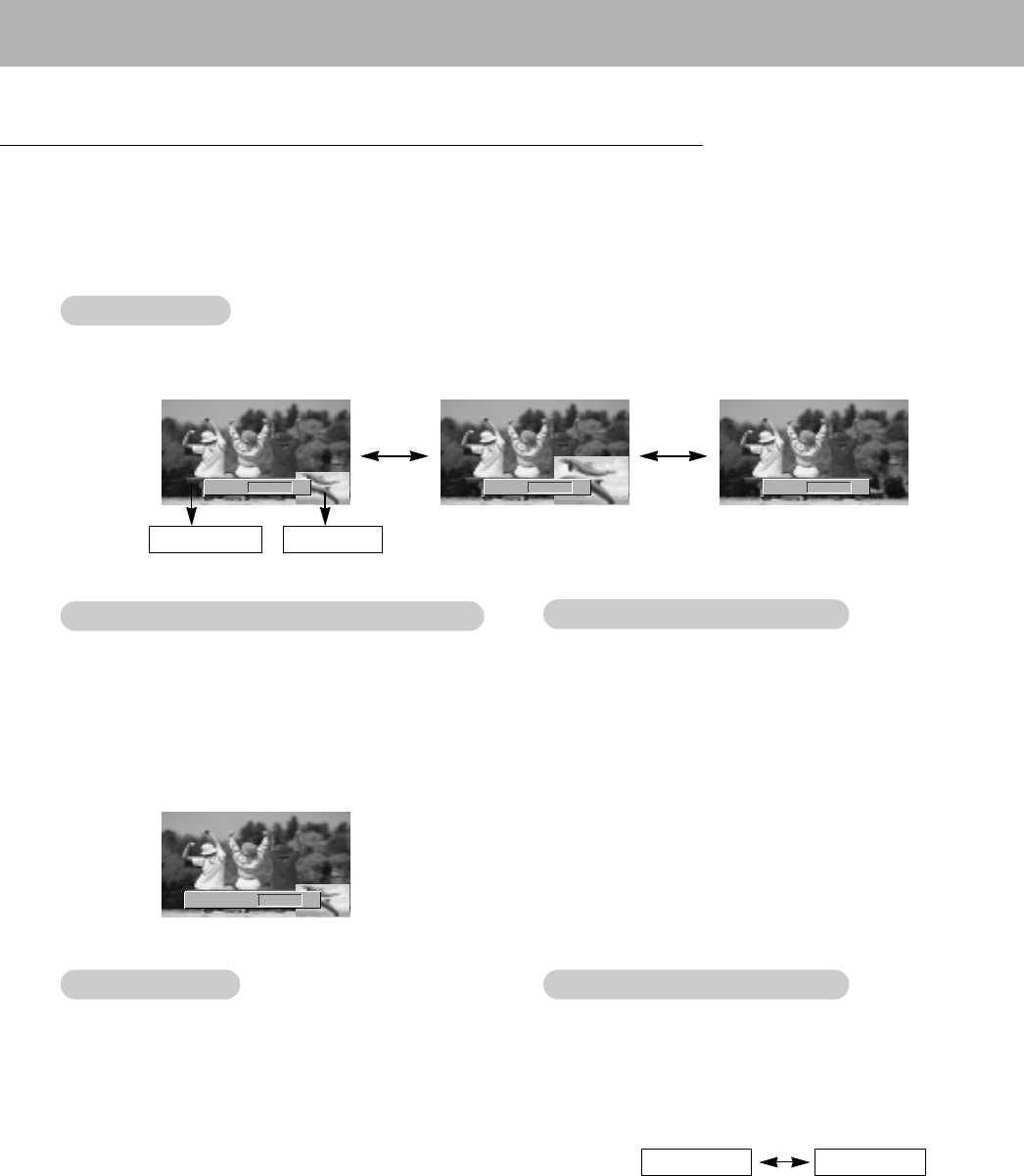

Watching PIP . . . . . . . . . . . . . . . . . . . . . . . . . .22
Selecting a Input Signal Source for PIP . . . . . . .22
Using Sub picture Still Function . . . . . . . . . . . .22
Moving the PIP . . . . . . . . . . . . . . . . . . . . . . . . .22
Selecting PIP Sound Options . . . . . . . . . . . . . .22
Twin Picture Setup Options

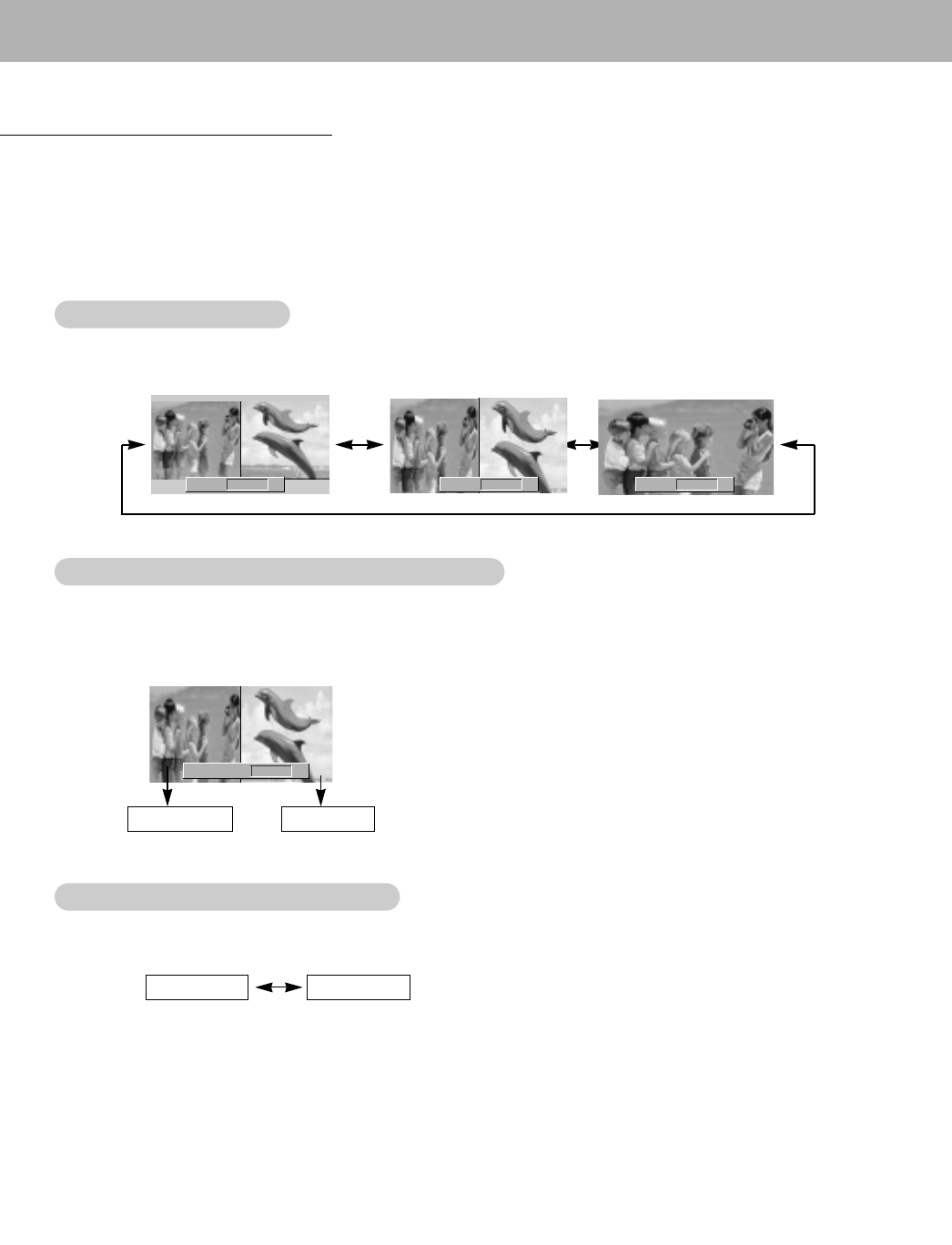

Watching Twin Picture . . . . . . . . . . . . . . . . . . . .23
Selecting a Input Signal Source for Twin Picture . .23
Selecting Twin Picture Sound Options . . . . . . . .23
Step.3 Miscellaneous
External Control Device Setup . . . . . . . . . . . . .24

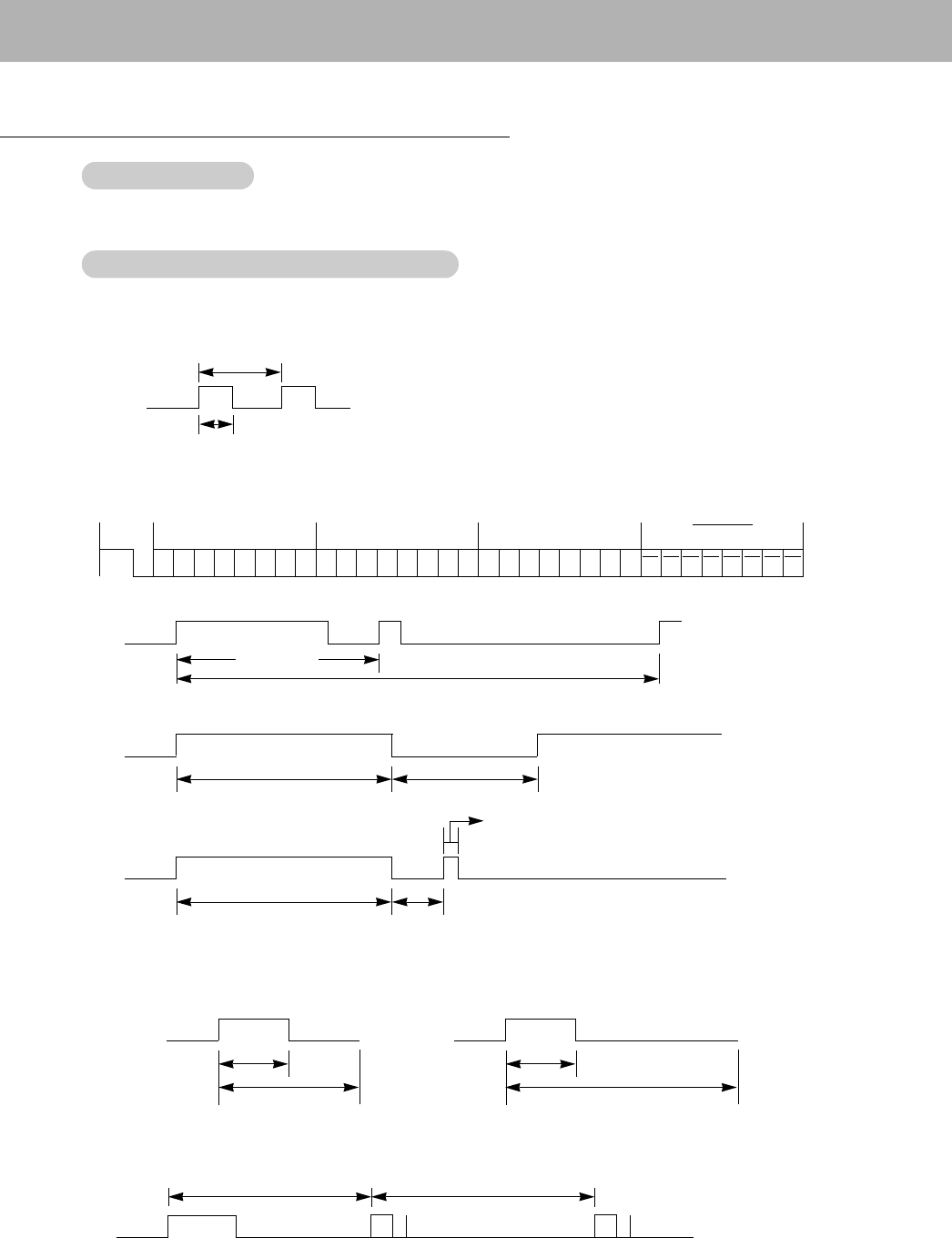

IR Code (NEC format) . . . . . . . . . . . . . . . . . . .30
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Troubleshooting Checklist . . . . . . . . . . . . . . . . .34
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . .35
Contents
6
Monitor Controls
Connection Options
VOL.MENU
INPUT
SELECT
ON/OFF
Main Power Button INPUT SELECT Button VOLUME (F,G) Buttons
Power Standby Indicator
Illuminates red in standby mode,
Illuminates green when the
Monitor is turned on
Remote Control Sensor MENU Button
D,EButtons
( )
( )
R
( )
( )
L
REMOTE
CONTROL
RGB2 INPUT
(DIGITAL RGB INPUT)
RGB1 INPUT
(PC/DTV INPUT)
RGB1 OUTPUT
(PC/DTV OUTPUT)
COMPONENT
(DVD/DTV INPUT)
RS-232C INPUT
(CONTROL/SERVICE)
EXTERNAL SPEAKER
LOCK
CONTROL
ON/ OFF
YP
B
P
R
(MONO)
R
AUDIO
L
R
AUDIO
L
S-VIDEO VIDEO INPUT
AC INPUT
AUDIO INPUT
AUDIO INPUT
AUDIO INPUT
12 3

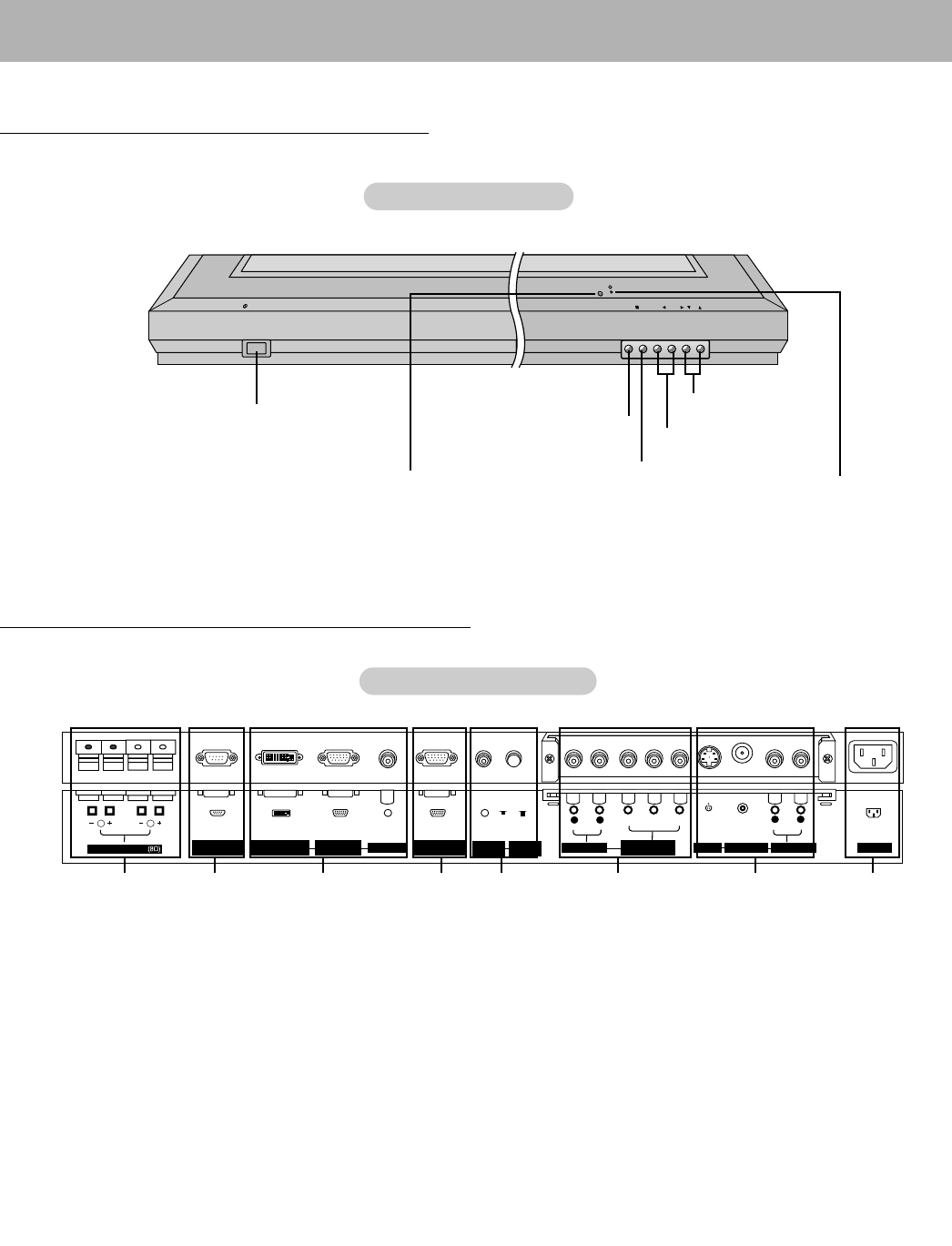

Front Panel Controls
Back Connection Panel
4 5 8
1. EXTERNAL SPEAKER (8 ohm output)
Connect to optional external speaker(s).
*For further information, refer to ‘Speaker & Speaker Stand’
manual.
2. RS-232C INPUT(CONTROL/SERVICE) PORT
Connect to the RS-232C port on a PC.
3. AUDIO INPUT/RGB1 INPUT (PC/DTV INPUT)/
RGB2 INPUT (DIGITAL RGB INPUT) JACKS
Connect the monitor output socket of the PC to this socket.
4. RGB1 OUTPUT (PC/DTV OUTPUT) JACKS
You can watch the RGB1 signal on another monitor, connect
RGB1 OUTPUT (PC/DTV OUTPUT) to another monitor’s
PC input port.
5. CONTROL LOCK Switch
REMOTE CONTROL
When “CONTROL LOCK” is set “ON”, Monitor is operated by
the external control device.
6. COMPONENT (DVD/DTV INPUT)/AUDIO INPUT JACKS
7. AUDIO/VIDEO INPUT JACKS
Connect audio/video out from external equipment to these
jacks.
S-VIDEO INPUTS (S-VIDEO)
Connect video out from an S-VIDEO VCR to the S-VIDEO
input.
8. POWER CORD SOCKET
This Monitor operates on an AC power. The voltage is indi-
cated on the Specifications page. Never attempt to operate
the Monitor on DC power.
6 7
7
External Equipment Connections
Connection to PC
Note: All cables shown are not provided with the Monitor, except:
A D-sub 15 pin cable and DVI cable is supplied to connect the Monitor to a PC.
Connection to AV equipment
( )
( )
R
( )
( )
L
REMOTE
CONTROL
RGB2 INPUT
(DIGITAL RGB INPUT)
RGB1 INPUT
(PC/DTV INPUT)
RGB1 OUTPUT
(PC/DTV OUTPUT)
COMPONENT
(DVD/DTV INPUT)
RS-232C INPUT
(CONTROL/SERVICE)
EXTERNAL SPEAKER
LOCK
CONTROL
ON/ OFF
YP
B
P
R
(MONO)
R
AUDIO
L
R
AUDIO
L
S-VIDEO VIDEO INPUT
AC INPUT
AUDIO INPUT
AUDIO INPUT
AUDIO INPUT
AUDIO
INPUT
VIDEO INPUT
COMPONENT
(DVD/DTV INPUT)
S-VIDEO
INPUT
COMPONENT
AUDIO INPUT
Monitor External Equipment Connection Panel
RS-232C
INPUT
RGB2 INPUT
(DIGITAL
RGB INPUT) RGB1
INPUT
(PC/DTV
INPUT)
RGB
AUDIO
INPUT
8
- When connecting the Monitor to external equipment, match the colors of connecting ports (Video - yellow, Audio (L) - white,
Audio (R) -red).
- Connect the VIDEO INPUT socket (yellow) with the BNC-RCA adapter to the VIDEO INPUT on the Monitor.
- If you have a mono VCR, connect the audio cable from the VCR to the AUDIO (L/MONO) input on the Monitor.
- If you connect an S-VIDEO VCR to the S-VIDEO input, the picture quality is improved; compared to connecting a regular
VCR to the Video input.
- Avoid having a fixed image remain on the screen for a long period of time. Typically a frozen still picture from a VCR.
If a 4:3 picture format is used; the fixed image may remain visible on the screen.
- To avoid picture noise (interference), leave an adequate distance between the VCR and Monitor
1. Use the INPUT SELECT button on the remote control to select VIDEO.
(If connected to S-VIDEO, select the S-VIDEO external input source.)
2. Insert a video tape into the VCR and press the PLAY button on the VCR. (See VCR owner’s manual)
- When connecting the monitor to an external source, match the colors of AUDIO/VIDEO input jacks on the monitor with
the output jacks on the audio/video equipment: Video = yellow, Audio (Left) = white, Audio (Right) = red.
1. Use the INPUT SELECT button on the remote control to select VIDEO.
2. Operate the corresponding external equipment. See external equipment operating guide.
- After subscribing to a cable TV service from a local provider and installing a converter, you can watch cable TV program-
ming. This monitor cannot display TV programming unless a TV tuner device or cable TV converter box is connected to the
Monitor.
- For further information regarding cable TV service, contact your local cable TV service provider(s).
1. Use the INPUT SELECT button on the remote control and select VIDEO.
2. Tune to cable service provided channels using the cable box.
•Component Input ports
You can get better picture quality if you con-
nect DVD player with component input ports
as below.
Component ports of the
Monitor YPBPR
Video output ports
of DVD player
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
How to connect
- Connect DVD video inputs to Y, PB, PRof COMPONENT (DVD/DTV
INPUT) and audio inputs to Audio sockets of AUDIO INPUT.
- If your DVD has only S-video jack, connect s-video of DVD to S-video
jacks on the monitor and audio inputs to Audio sockets of AUDIO
INPUT.
How to use
1. Turn on the DVD player, and insert a DVD.
2. Use INPUT SELECT button on the remote control to select COMPO-
NENT. Refer to the DVD player's manual for operating instructions.
W
Watching VCR Setup
atching VCR Setup
W
Watching External
atching External A/V Source Setup
A/V Source Setup
W
Watching Cable
atching Cable TV Setup
TV Setup
W
Watching DVD Setup
atching DVD Setup
External Equipment Viewing Setups
9
- To watch digitally broadcast programs, purchase/connect a digital SET-TOP BOX.
How to connect a user-supplied Digital Set-Top Box
• Connect DTV set-top box video output to monitor COMPONENT (DVD/DTV INPUT) or to the monitor RGB1 (PC/DTV
INPUT) connector depending on your Set Top Box connectors.
• Connect DTV set-top box audio outputs to monitor AUDIO INPUT jacks.
How to use
1. Turn on the digital SET-TOP BOX. (Refer to the owner’s ,manual for the digital SET-TOP BOX.)
2. Use INPUT SELECT on the remote control to select COMPONENT or RGB 1.
W
Watching DTV Setup
atching DTV Setup
- To enjoy vivid picture and sound, connect a PC to the Monitor.
- Avoid keeping a fixed image on the monitor’s screen for a long period of time. The fixed image may become permanent-
ly imprinted on the screen; use a screen saver when possible.
- Connect PC to the RGB1 INPUT(PC/DTV INPUT) or RGB2 INPUT(DIGITAL RGB INPUT) port of the Monitor; change the
resolution output of PC accordingly.
- Synchronization input form; Separate
Setup Instructions to Connect a PC to your Monitor
- If the resolution of PC is over UXGA, there will be no picture on the Monitor.
- Connect the signal cable from the monitor output port of the PC to the RGB1 INPUT(PC/DTV INPUT) port of the Monitor
or the signal cable from the DVI output port of the PC to the RGB2 INPUT(DIGITAL RGB INPUT) port on the Monitor.
- Connect the audio cable from the PC to the Audio input on the Monitor. (Audio cables are not included with the Monitor).
- If using a sound card, adjust PC sound as required.
- This monitor apply a VESA Plug and Play Solution. The monitor provides EDID data to the PC system with a DDC proto-
col. The PC adjusts automatically to use this monitor.
- DDC protocol is preset for RGB1 (Analog RGB), RGB2 (DVI, Digital RGB) mode.
- If required, adjust the monitor settings for Plug and Play functionally.
- If graphic card on the PC does not output analog and digital RGB simultaneously, connect only one of both RGB1 INPUT
(PC/DTV INPUT) or RGB2 INPUT (DIGITAL RGB INPUT) to display the PC on the monitor.
If graphic card on the PC does output analog and digital RGB simultaneously, set the monitor to either RGB1 or RGB2;
(the other mode is set to Plug and Play automatically by the monitor.)
- The monitor perceives 640x480, 60Hz as DTV 480p based on the PC graphic card. In this case, change the screen scan-
ning rate for the graphic card.
- DOS mode may not work depending on video card if using a DVI-I cable.
- To see a normal picture, match the VGA mode and DVI signal (852x480, 848x480). (See page 20)
PC Setup
1. Turn on the PC and apply power to the Monitor.
2. Turn on the display by pressing the POWER button on the Monitor’s remote control.
3. Use the INPUT SELECT button on the remote control to select the RGB1 or RGB2 input source.
4. Set the resolution output of the PC to SXGA or under (1280 x 1024, 75Hz).
PC Setup
PC Setup
10
RGB1 Mode
Resolution
640x350
640x400
640x480
800x600
Horizontal
Frequency(KHz)
31.468
37.861
31.469
37.927
31.469
35.000
37.861
37.500
43.269
45.913
53.011
64.062
35.156
37.879
48.077
46.875
53.674
56.000
64.016
70.09
85.08
70.08
85.03
59.94
66.66
72.80
75.00
85.00
90.03
100.04
120.00
56.25
60.31
72.18
75.00
85.06
90.00
100.00
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
49.725
31.469
35.000
37.500
48.363
56.476
60.023
68.677
54.348
63.995
67.500
77.487
68.681
60.000
75.000
63.981
74.55
59.94
70.06
75.00
60.00
70.06
75.02
84.99
60.05
70.01
75.00
85.05
75.06
60.000
75.00
60.02
Vertical
Frequency(Hz) DDC DDC
Resolution
832x624
1024x768
848x480
or
852x480
1152x864
1152x870
1280x960
1280x1024
Horizontal
Frequency(KHz) Vertical
Frequency(Hz)
RGB2 Mode
Monitor Display Specifications
Monitor Display Specifications
Resolution
640x350
640x400
640x480
800x600
Horizontal
Frequency(KHz)
31.468
37.861
31.469
37.927
31.469
35.000
37.861
37.500
43.269
45.913
53.011
64.062
35.156
37.879
48.077
46.875
53.674
56.000
64.016
70.09
85.08
70.08
85.03
59.94
66.66
72.80
75.00
85.00
90.03
100.04
120.00
56.25
60.31
72.18
75.00
85.06
90.00
100.00
o
o
o
o
o
o
o
o
o
o
49.725
31.469
35.000
37.500
48.363
56.476
60.023
68.677
54.348
63.995
67.500
77.487
68.681
60.000
75.000
63.981
74.55
59.94
70.06
75.00
60.00
70.06
75.02
84.99
60.05
70.01
75.00
85.05
75.06
60.000
75.00
60.02
Vertical
Frequency(Hz) DDC DDCResolution
832x624
1024x768
848x480
or
852x480
1152x864
1152x870
1280x960
1280x1024
Horizontal
Frequency(KHz) Vertical
Frequency(Hz)
11
Remote Control Key Functions
- When using the remote control aim it at the remote control sensor of the Monitor.
- There's maybe a defect in consecutive operation of remote control in specified brightness according to this monitor
feature.
•Open the battery compartment cover on the back side and
insert the batteries with correct polarity.
•Install two 1.5V alkaline batteries of AAA type. Don’t mix used
batteries with new batteries.
Installing Batteries
Installing Batteries
123
456
78
0
9
POWER
SLEEP INPUT SELECT
APC DASP
ARC
AUTO CONFIG.
ZOOM -
ZOOM +
SPLIT ZOOM
MENU MUTE
OK
VOL
POWER STOP
PLAY FF
REC
REW
P/STILL
PIP
TWIN PICTURE
PIP POSITION
PIP STILL
SOUND SELECT
PIP INPUT
VOL
KEY LOCK
POWER
Switches the Monitor on from
standby or off to standby.
SLEEP
Sets the sleep timer.
(Refer to p.17)
APC
Adjusts the factory preset picture
according to the room.
(Refer to p.15)
ARC
Changes the picture format.
(Refer to p.21)
ZOOM-
Reduces the main picture size.
(Refer to p. 21)
SPLIT ZOOM
Enlarge the screen with regular
ration. (Refer to p. 22)
MENU
Displays on screen menus one by one.
Exits the current menu.
Memorizes menu changes.
NUMBER buttons
PIP
Switches the sub picture
on and off. (Refer to p. 22)
TWIN PICTURE
(Refer to p. 23)
PIP INPUT
Selects the input mode for the
sub picture. (Refer to p. 22, 23)
SOUND SELECT
Select main picture sound or
sub picture sound for
PIP.(Refer to p. 22, 23)
PIP POSITION
Change the sub picture position.
(Refer to p. 22)
PIP STILL
Freeze sub picture motion.
(Refer to p. 22)
VCR BUTTONS
Controls a LG video cassette recorder.
OK
D / E
Selects a menu option.
F / G (Volume button)
Increases/decreases sound level.
Adjusts menu settings.
INPUT SELECT
Selects: VIDEO,S-VIDEO,RGB1/2
or COMPONENT mode.
DASP
To select the sound appropriate to
your viewing program character:
FLAT,SPORTS,CINEMA,MUSIC,
or USER (Refer to p.16)
AUTO CONFIG
(Refer to p.19)
KEY LOCK
To control the monitor with remote
control only. (Refer to p. 18)
MUTE
Switches the sound on or off.
ZOOM+
Enlarges the main picture size.
(Refer to p. 21)
12
Monitor Installation Options
Desktop Pedestal Installation
•The Monitor can be mounted on a desk as shown
above. (For further information, refer to the optional
Desktop Stand Installation and Setup Guide.)
•Speakers and speaker stands shown are optional, and
shown for example only.
•The Monitor can be installed in various ways such such as on a wall, or on a desktop etc.
•Install this monitor only in a location where adequate ventilation is available.
•It is recommended that this product only be used at an altitude of less than 6561 feet (2000m) to get the
best quality picture and sound.
•This monitor is designed to be mounted horizontally or vertically.
Wall Mount: Horizontal installation Wall Mount: Vertical installation
•The monitor can be installed on the wall as shown
above. (For further information, refer to the optional
‘Wall Mounting Bracket Installation and Setup Guide’.)
•Speakers are optional, and shown for illustration only.
•The monitor can be installed vertically on the wall as
shown above.(For further information, refer to the
optional ‘Wall Mounting Bracket Installation and Setup
Guide’.)
Caution: When installing the monitor vertically, the
front panel controls must be in the left-down side posi-
tion as shown above.
•Speakers are optional, and shown for illustration only.
13
Monitor overview
D-sub 15 pin cable
Owner’s Manual
1.5V
1.5V
Alkaline batteries BNC-RCA adapter
Power Cord
123
456
78
0
9
POWER
SLEEP INPUT SELECT
APC DASP
ARC PIP ARC
PIP
TWIN PICTURE
SWAP
MENU MUTE
OK
VOL
POWER STOP
PLAY FF
REC
REW
P/STILL
WIN.SIZE
WIN.POSITION
ZOOM +
ZOOM -
SPLIT ZOOM
VOL
SUB INPUT
Remote Control
DVI Cable
Accessories
•When installing the monitor vertically, you have to change the OSD display mode so that the menus will appear
correctly and also to protect the monitor from overheating (Refer to P. 17).
•Install this monitor only in a location where adequate ventilation is available.
Caution
2 inches
4 inches
2.36 inches
4 inches
4 inches
4 inches
4 inches4 inches
4 inches
2 inches
To Mount on a Wall
Wall mount minimum allowable clearances for
adequate ventilation
To Install on a Desktop
Pedestal mount minimum allowable clearances for
adequate ventilation
14
Turning on the Monitor
- When using the remote control, aim it at its sensor on the Monitor.
Turning on the Monitor just after installation
Turning on the Monitor (power cord is still connected)
1. Connect power cord correctly.
2. Press the ON/OFF button on the Monitor. At this moment, the Monitor is switched to
standby mode. Press the INPUT SELECT button on the Monitor or press the POWER,
INPUT SELECT button on the remote control and then the Monitor will switch on.
•Press the ON/OFF button on the Monitor to turn the Monitor on.
1. If the Monitor was turned off with the ON/OFF button on the Monitor
2. If the Monitor was turned off with the remote control and the ON/OFF button on the Monitor
•Press the ON/OFF button on the Monitor and then press the INPUT SELECT button on the
Monitor or press the POWER, INPUT SELECT button on the remote control to turn the Monitor on.
Menu Language Selection
-The menus can be shown on the screen in the selected language. First select your language.
1. Press the MENU button and then use D/ Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D/ Ebutton to select LANGUAGE.
3. Press the Gbutton and then use D/ Ebutton to select your desired language.
From this point on, the on-screen menus will be shown in the language of your choice.
4. Press the MENU button.
LANGUAGE G
OSD ROTATE
ORBITER
WHITE WASH
COLOR TEMP.
SET ID
SPECIAL
ENGLISH
ESPAÑOL
PORTUGUÊS
FRANÇAIS
15
Picture Menu Options
- You can adjust picture contrast, brightness, color, sharpness and tint to the levels you prefer.
- PIP settings are not adjustable.
1. Press the MENU button and then use D / Ebutton to select the PICTURE menu.
2. Press the Gbutton and then use D / Ebutton to select the desired picture option.
3. Press the Gbutton and then use F / Gbutton to make appropriate adjustments.
4. Press the MENU button.
1. Press the APC button to select the picture appearance setup option.
APC (Auto Picture Control)
APC (Auto Picture Control)
Manual Picture Control (User option)
Manual Picture Control (User option)
•Each press of the APC button changes the screen display as shown below.
•You can also select CLEAR, SOFT or USER in the PICTURE menu.
•Picture options CLEAR and SOFT are preset and programmed for good picture quality at the factory
and cannot be changed.
CLEAR SOFT USER
- This function adjusts the Monitor to the best picture appearance
APC
CONTRAST G
BRIGHTNESS
COLOR
SHARPNESS
TINT
100
16
Sound Menu Options
1.Press the DASP button to select the picture appearance setup.
DASP
DASP (Digital
(Digital Auto Sound Processing)
Auto Sound Processing)
1. Press the MENU button and then use D / Ebutton to select the SOUND menu.
2. Press the Gbutton and then use D / Ebutton to select the desired sound item.
3. Press the Gbutton and then use F / Gbutton to make appropriate adjustments.
4. Press the MENU button.
Adjusting Sound (Manual Setting)
Adjusting Sound (Manual Setting)
•You can also select FLAT, SPORTS, CINEMA, MUSIC, or USER in the SOUND menu.
FLAT SPORTS CINEMA MUSIC USER
- This function lets you enjoy the best sound without any special adjustment because the Monitor automatically
selects the appropriate sound option based on the program content.
- This feature maintains an equal volume level; even if you change channels.
1. Press the MENU button and then use D / Ebutton to select the SOUND menu.
2. Press the Gbutton and then use D / Ebutton to select AV L .
3. Press the Gbutton and then use D / Ebutton to select ON or OFF.
4. Press the MENU button.
A
AVL
VL (Auto V
(Auto Volume Leveler)
olume Leveler)
DASP
AVL G
TREBLE
BASS
BALANCE
SOUND
ON
OFF
DASP
AVL
TREBLE G
BASS
BALANCE
SOUND
50
17
Orbiter
Orbiter
- Avoid allowing a fixed image to remain on the Monitor's screen for a long period of time. A frozen still picture from
a PC/video game displayed on the screen for prolonged periods will result in an ghost image remaining even when
you change the image.
- To avoid a permanent image on the screen, the screen will move every 2 minutes:
Left →Upside → Right →Downside →Right →Downside →Left →Upside
- The Orbiter feature may help prevent ghost images. However, it is best not to allow any fixed image to remain on
the screen.
1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D / Ebutton to select ORBITER.
3. Press the Gbutton and then use D / Ebutton to select ON or OFF.
4. Press the MENU button.
White W
White Wash
ash
- White Wash removes permanent images from the screen.
- Set White Wash ‘ON’until fixed image disappears.
- A excessive permanent image is impossible to clear with using this function perfectly.
1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D / Ebutton to select WHITE WASH.
3. Press the Gbutton and then use D / Ebutton to select ON or OFF.
• When you select ON, the screen changes to white.
4. Press the MENU button.
Special Menu Options
LANGUAGE
OSD ROTATE
ORBITER G
WHITE WASH
COLOR TEMP.
SET ID
SPECIAL
ON
OFF
LANGUAGE
OSD ROTATE
ORBITER
WHITE WASH G
COLOR TEMP.
SET ID
SPECIAL
ON
OFF
a. To check the remaining sleep time, press the SLEEP or OK button once.
b. To cancel the sleep time, repeatedly press the SLEEP button until the display --- min. appears.
c. If you turn the monitor off after setting the sleep timer, the setting will be erased.
Sleep
Sleep T
Timer
imer
- Sleep timer turns the Monitor off at the preset time.
- Press the SLEEP button to select the number of minutes. The display --- min. will appear on the screen, fol-
lowed by 10,20,30,60,90,120,180 and 240. The timer begins to count down from the number of minutes selected.
- When the sleep time you want is displayed on the screen, press the OK button.
zz
zz
1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D / Ebutton to select OSD ROTATE.
3. Press the Gbutton and then use the D / Ebutton to select NORMAL or ROTATE.
• Select NORMAL if the monitor was installed horizontally.
• Select ROTATE, if the monitor was installed vertically.
4. Press the MENU button.
LANGUAGE
OSD ROTATE G
ORBITER
WHITE WASH
COLOR TEMP.
SET ID
SPECIAL
NORMAL
ROTATE
Menu Rotation for V
Menu Rotation for Vertical V
ertical Viewing
iewing
18
- To initialize values (reset to default settings), select the NORMAL option.
1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D / Ebutton to select COLOR TEMP .
3. Press the Gbutton and then use D / Ebutton to select ACC.
4. Press the Gbutton and then use D / Ebutton to select the desired color temperature.
Adjusting
Adjusting Auto Color Control
Auto Color Control
•Each press of D / Ebutton changes the screen display as shown.
NORMAL COOL WARM USER
- You can adjust red, green, or blue to any color temperature you prefer.
1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D / Ebutton to select COLOR TEMP .
3. Press the Gbutton and then use D / Ebutton to select a color.
4. Use the F / Gbutton to make appropriate adjustments.
5. Press the MENU button.
•The adjustment range of RED, GREEN and BLUE is -10 ~ +10.
Manual Color
Manual Color T
Temperature Control (User option)
emperature Control (User option)
LANGUAGE
OSD ROTATE
ORBITER
WHITE WASH
COLOR TEMP. G
SET ID
SPECIAL
TO SET
ACC G
RED
GREEN
BLUE
Key Lock
Key Lock
- The monitor can be set up so that it can only be used with the remote control.
- This feature can be used to prevent unauthorized viewing.
1. Press the KEY LOCK button.
COLOR TEMP
NORMAL
COOL
WARM
USER
LANGUAGE
OSD ROTATE
ORBITER
WHITE WASH
COLOR TEMP. G
SET ID
SPECIAL
TO SET
- This Monitor is programmed to remember which option it was last set to even if you turn the monitor off.
- In KEY LOCK ‘ON’, if the monitor is turned off with the remote control, press the INPUT SELECT button on
the monitor or POWER, INPUT SELECT on the remote control.
- With the KEY LOCK ON, the display ‘ KEY LOCK’appears on the screen if any button on the front panel
is pressed.
•Each press of the KEY LOCK button changes the screen display as shown below.
ON OFF
Special Menu Options
19
- If the picture isn’t clear after auto adjustment and especially if characters are still jittery, adjust the picture phase
manually.
- You can only adjust V-POSITION/H-POSITION in DTV (480p,720p,1080i), COMPONENT (480p,720p,1080i).
Initializing (Reset to original factory value)
Initializing (Reset to original factory value)
- To initialize the adjusted value, select RESET with the D / Ebutton and then press the Gbutton.
Auto
Auto Adjustment (RGB1 (PC) mode only)
Adjustment (RGB1 (PC) mode only)
- Automatically adjusts picture position and minimizes image shaking.
-Although the image is still not correct, your Monitor is functioning properly but needs further adjustment.
1. Press the AUTO CONFIG. button to run Auto configure.
• When AUTO CONFIG.has finished, OK will be shown on screen.
• If the position of the image is still not correct, try Auto adjustment again.
2. If picture needs to be adjusted more after Auto adjustment in RGB1 mode, you can
manually adjust the image position and PHASE.
Screen Menu Options
SCREEN ADJ. G
VGA MODE
ARC
PIP/DW
ZOOM IN/OUT
SCREEN
TO SET
Adjusting Horizontal/ V
Adjusting Horizontal/ Vertical Position
ertical Position
1. Press the MENU button and then use D / Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D / Ebutton to select SCREEN ADJ..
3. Press the Gbutton and then use D / Ebutton to select V-POSITION or H-POSITION.
4. Press the Gbutton and then use the F / Gbutton to adjust until you get desired hori-
zontal or vertical position.
• The adjustment range of V-POSITION is -50~+50.
• The adjustment range of H-POSITION is -100~+100.
• Based on the PC resolution, the adjustment range of V-POSITION/H-POSITION may
change.
• Based on input signal, the position of the picture may not change even though you
have adjusted the horizontal or vertical position with this function.
5. Press the MENU button.
Picture Phase
Picture Phase Adjustments (RGB1 (PC) mode only)
Adjustments (RGB1 (PC) mode only)
1. Press the MENU button and then use D / Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D / Ebutton to select SCREEN ADJ..
3. Press the Gbutton and then use D / Ebutton to select PHASE.
4. Press the Gbutton and then use the F / Gbutton to adjust phase.
• The adjustment range of PHASE is 0 ~ 63.
5. Press the MENU button.
AUTO CONFIG.
V-POSITION G
H-POSITION
PHASE
RESET
SCREEN ADJ.
0
AUTO CONFIG.
V-POSITION
H-POSITION
PHASE G
RESET
SCREEN ADJ.
30
20
Screen Menu Options
Selecting W
Selecting Wide VGA
ide VGA mode (RGB1, RGB2 [PC] mode only)
mode (RGB1, RGB2 [PC] mode only)
- To see a normal picture, match the resolution of RGB mode and selection of VGA mode.
- When selecting 852x480 or 848x480, the screen is changed to 16:9 aspect ratio automatically.
At this time, Twin picture doesn’t work.
1. Press the MENU button and then use D /Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D /Ebutton to select VGA MODE.
3. Press the Gbutton and then use D /Ebutton to select the desired VGA resolution.
4. Press the MENU button.
SCREEN ADJ.
VGA MODE G
ARC
PIP/DW
ZOOM IN/OUT
SCREEN
640x480
848x480
852x480
Screen
Screen Adjustments (VIDEO and S-VIDEO mode only)
Adjustments (VIDEO and S-VIDEO mode only)
- Use this function to correct jittering or picture instability while viewing a video tape.
- To reduce the picture noise which may appear on the screen during watching the TV in a weak signal area.
1. Press the MENU button and then use D /Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D /Ebutton to select SCREEN ADJ..
3. Press the Gbutton and then use D /Ebutton to select TV or VCR.
• Select the VCR option if watching a VCR.
• Select the TV option for other equipment.(Except VCR)
4. Press the MENU button.
SCREEN ADJ. G
YNR
ARC
PIP/DW
ZOOM IN/OUT
SCREEN
TV
VCR
✓
SCREEN ADJ. G
YNR
ARC
PIP/DW
ZOOM IN/OUT
SCREEN
TV
VCR
SCREEN ADJ. G
YNR
ARC
PIP/DW
ZOOM IN/OUT
SCREEN
TV
VCR
✓
SCREEN ADJ.
YNR G
ARC
PIP/DW
ZOOM IN/OUT
SCREEN
ON
OFF
Screen Noise Reduction: Luminance Noise Reduction (VIDEO, S-VIDEO and COMPONENT
Screen Noise Reduction: Luminance Noise Reduction (VIDEO, S-VIDEO and COMPONENT 480i mode only)
480i mode only)
1. Press the MENU button and then use D / Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D / Ebutton to select YNR.
3. Press the Gbutton and then use D / Ebutton to select ON or OFF.
4. Press the MENU button.
21
Press the ZOOM+/ZOOM- button to enlarge or reduce
the picture size.
•The adjustment range of Zoom is 0~20.
Enlarged Picture Position
Enlarged Picture Position Adjustment
Adjustment
Adjust the main picture position with the D / E/ F / G
buttons in enlarged picture mode.
◀▶
▲
▼
100 %
ZOOM : 0
D
FG
E
◀▶
▲
▼
100 %
ZOOM : 0
D
FG
E
Setting Picture Format
Setting Picture Format
- You are available to 4:3 and 16:9 in RGB and RGB2 (PC).
- You are available to 16:9, 4:3 and ZOOM in VIDEO, S-VIDEO, RGB-DTV, and COMPONENT.
- If 4:3 is on the screen for a long time, that fixed image may remain visible.
1. Press the ARC button to select a desired picture format.
•Each press of ARC button or F / Gbutton changes the screen display as shown below.
•You can also select 16:9, 4:3 or ZOOM in the SCREEN menu.
ARC F G
16 : 9 ARC F G
4 : 3 ARC F G
ZOOM
Split Zoom
Split Zoom
- This is the function to enlarge the screen with regular ration.
-It’s available to use this function in every input source.
1. Press the SPLIT ZOOM button.
•Each press of SPLIT ZOOM button changes the screen display as shown below.
•Press the number button to select the section you enlarge. If you choose No.5, the 5 section is enlarged.
In case of choosing the No.5 The 5 section is changed to
a full screen.
12
54
12 3
456
789
12 3
456
789
Picture Size
Picture Size Adjustment (RGB1 [DTV],
Adjustment (RGB1 [DTV],
COMPONENT
COMPONENT, VIDEO, S-VIDEO mode only)
, VIDEO, S-VIDEO mode only)
22
W
Watching PIP
atching PIP
- PIP lets you view 2 different inputs (sources) on your monitor screen at the same time. One source will be large, and the
other source will show a smaller inset image.
- When you select PC (RGB1, RGB2) for main picture in PIP, you can watch DTV (480p, 720p, 1080i), VIDEO, S-VIDEO or
DVD for sub picture.
- If you select PIP during viewing RGB (DTV), COMPONENT, VIDEO and S-VIDEO, these source is changed to sub picture
input source and main picture source is changed to became PC (RGB1, RGB2).
PIP (Picture-in-Picture) Feature
Press the PIP button to show the sub picture.
•Each press of PIP button or F / Gbutton changes the screen display as shown below.
Moving the PIP
Moving the PIP
Press the PIP POSITION button in the PIP mode.
•Each press of the POSITION button will move the sub
picture to a different position on the screen in a clock-
wise direction.
PIP F G
PIP (S) PIP F G
PIP (L) PIP F G
OFF
Selecting a Input Signal Source for the PIP
Selecting a Input Signal Source for the PIP
Press the PIP INPUT button to select the input source for
the sub picture.
•Each press of PIP INPUT button or F / Gbutton
changes the screen display as shown below.
•In RGB1 (PC) and RGB2 (PC) for main picture, you
can select RGB1 (DTV), COMPONENT, VIDEO and
S-VIDEO for sub picture.
PIP INPUT F G
VIDEO
Using Sub picture Still Function
Using Sub picture Still Function
1. Press the PIP STILL button in the PIP mode.
•In PIP or TWIN PICTURE modes, the sub (inset) pic-
ture is frozen.
•Frozen picture is released automatically after about 10
minutes.
•If still picture is on the screen for more than 5 minutes,
the image becomes dark. If another function is activated,
normal screen brightness is restored.
2. To return to normal viewing, press the PIP STILL button
or any button again.
Selecting PIP
Selecting PIP Sound Options
Sound Options
Press the SOUND SELECT button to select main image
sound (SOUND(M)) or PIP (inset image) sound
(SOUND(S)).
•Each press of SOUND SELECT button or F / Gbutton
changes the screen display as shown below.
SOUND(M) SOUND(S)
Main Picture Sub Picture
23
Twin Picture
W
Watching
atching T
Twin Picture
win Picture
- As the name suggests, this mode splits the screen into 2, allowing 2 sources to be shown on the monitor screen at the
same time. Each source is given half the screen.
- When you select PC (RGB1, RGB2) for main picture in PIP, you can watch DTV (480p, 720p, 1080i), VIDEO, S-VIDEO or
DVD for sub picture.
- If you select PIP during viewing RGB (DTV), COMPONENT, VIDEO and S-VIDEO, these source is changed to sub picture
input source and main picture source is changed to became PC (RGB1, RGB2).
Use the TWIN PICTURE button.
•Each press of the TWIN PICTURE button cycles through the screen displays shown below.
Selecting a Input Signal Source for the
Selecting a Input Signal Source for the T
Twin Picture
win Picture
Press the PIP INPUT button to select the input source for the sub picture.
•Each press of PIP INPUT button or F / Gbutton changes the screen display as shown below.
•In RGB1 (PC) and RGB2 (PC) for main picture, you can select RGB1 (DTV), COMPONENT, VIDEO and S-VIDEO for sub
picture.
Selecting
Selecting T
Twin Picture Sound Options
win Picture Sound Options
Press the SOUND SELECT button to select main image sound (SOUND(M)) or sub picture sound (SOUND(S)).
•Each press of SOUND SELECT button or F / Gbutton changes the screen display as shown below.
SOUND(M) SOUND(S)
PIP INPUT F G
VIDEO
DW F G
DW 1 DW F G
DW 2 DW F G
OFF
Main Picture Sub Picture
24

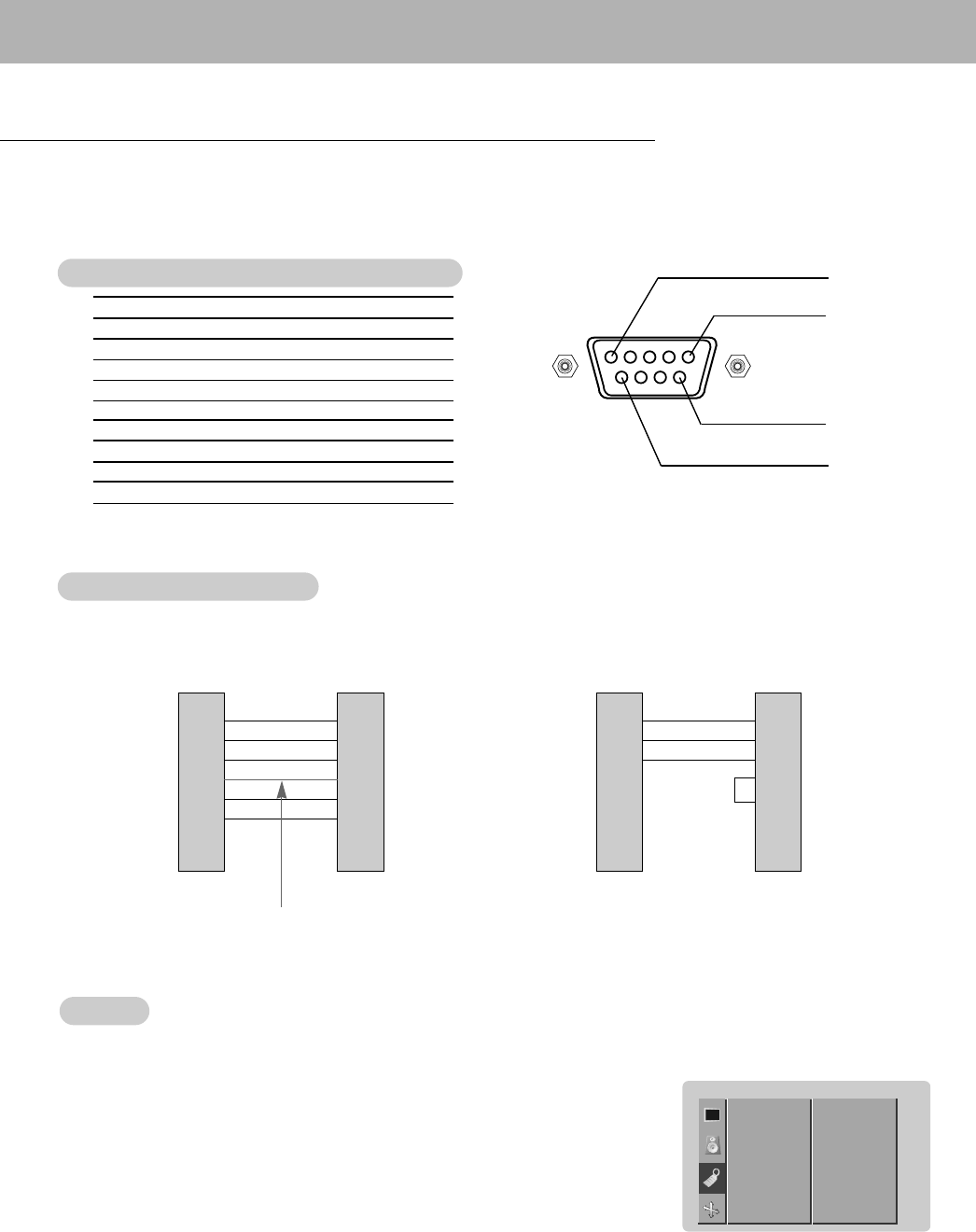

Set ID
Set ID
- Use this function to specify a monitor ID number.
- Refer to ‘Real Data Mapping 1’. See page 29.
1. Press the MENU button and then use the D /Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D /Ebutton to select SET ID.
3. Press the Gbutton and then use F / Gbutton to adjust SET ID to choose the desired
monitor ID number.
• The adjustment range of SET ID is 1 ~ 99.
No. Pin name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
1
5
6
9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DSR
DTR
CTS
RTS
PC
7-wire configuration
(Standard RS-232C cable)
D-Sub 9
Control line
3
2
5
6
4
8
7
PDP
D-Sub 9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DTR
DSR
RTS
CTS
PC
3-wire configuration
(Not standard)
D-Sub 9
3
2
5
4
6
7
8
PDP
D-Sub 9
External Control Device Setup
- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)
and control the Monitor’s functions externally.
- Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.
- RS-232C connection cables are not supplied with the Monitor.
T
Type of connector; D-Sub 9-pin male
ype of connector; D-Sub 9-pin male
RS-232C configurations
RS-232C configurations
LANGUAGE
KEY LOCK
ORBITER
WHITE WASH
COLOR TEMP.
SET ID G
SPECIAL
1
25
Transmission
* [Command 1] : First command to control PDP set.
(j or k)
* [Command 2] : Second command to control PDP set.
* [Set ID] : You can adjust the set ID to choose
desired monitor ID number in special
menu. See previous page.
Adjustment range is 1 ~ 99.
When selecting Set ID ‘0’, every
connected PDP set is controlled.
Set ID is indicated as decimal (1~99) on
menu and as Hexa decimal (0x0~0x63)
on trasmission/receiving protocol.
* [DATA] : To transmit command data.
Transmit ‘FF’data to read status of
command.
* [Cr] : Carriage Return
ASCII code ‘0x0D’
* [ ] : ASCII code ‘space (0x20)’
[Command1][Command2][ ][Set ID][ ][Data][Cr]
OK Acknowledgement
01. Power k a 0 ~ 1
02. Input Select k b 0 ~ 4
03. Aspect Ratio k c 0 ~ 2
04. Screen Mute k d 0 ~ 1
05. Volume Mute k e 0 ~ 1
06. Volume Control k f 0 ~ 64
07. Contrast k g 0 ~ 64
08. Brightness k h 0 ~ 64
09. Color k i 0 ~ 64
10. Tint k j 0 ~ 64
11. Sharpness k k 0 ~ 64
12. OSD select k l 0 ~ 1
13.
Remote control lock mode
k m 0 ~ 1
14. PIP/Twin picture (DW) k n 0 ~ 4
15. PIP sound select k p 0 ~ 1
16. PIP position k q 0 ~ 3
17. Treble k r 0 ~ 64
18. Bass k s 0 ~ 64
19. Balance k t 0 ~ 64
20. Color temperature (ACC) k u 0 ~ 3
21. Red adjustment k v 0 ~ 64
22. Green adjustment k w 0 ~ 64
23. Blue adjustment k $ 0 ~ 64
24. PIP input source k y 0 ~ 3
25. Orbiter j p 0 ~ 1
26. White Wash j q 0 ~ 1
COMMAND 1 COMMAND 2 DATA
(Hexadecimal)
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving normal data. At this time, if the
data is data read mode, it indicates present status data. If
the data is data write mode, it returns the data of the PC
computer.
[Command2][ ][Set ID][ ][OK][Data][x]
Error Acknowledgement
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving abnormal data from
non-viable functions or communication errors.
[Command2][ ][Set ID][ ][NG][Data][x]
T
Transmission / Receiving Protocol
ransmission / Receiving Protocol
Command Reference List
Command Reference List
Data 1: Illegal Code
2: not support function
3: Wait more time
* When setting the 25 and 26, a menu doesn’t display
on screen.
• Baud rate : 115200 bps (UART)
• Data length : 8 bits
• Parity : None
• Stop bit : 1 bit
• Communication code : ASCII code
* Use a crossed (reverse) cable.
Communication Parameters
Communication Parameters
26
05. Volume Mute (Command2:e)
GTo control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission
Data 0 : Volume mute on (Volume off)
1 : Volume mute off (Volume on)
[k][e][ ][Set ID][ ][Data][Cr]
Acknowledgement
[e][ ][Set ID][ ][OK][Data][x]
03. Aspect Ratio (Command2:c) (Main picture format)
GTo adjust the screen format.
You can also adjust the screen format using the ARC
(Aspect Ratio Control) button on remote control or in the
screen menu.
Transmission
Data 0 : Wide screen (16:9)
1 : Normal screen (4:3)
2 : Full screen (Zoom)
[k][c][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : Wide screen (16:9)
1 : Normal screen (4:3)
2 : Full screen (Zoom)
* Using the PC input, you select either 16:9 or 4:3 screen
aspect ratio.
[c][ ][Set ID][ ][OK][Data][x]
04. Screen Mute (Command2:d)
GTo select screen mute on/off.
Transmission
Data 0 : Screen mute off (Picture on)
1 : Screen mute on (Picture off)
[k][d][ ][Set ID][ ][Data][Cr]
Acknowledgement
[d][ ][Set ID][ ][OK][Data][x]
06. Volume Control (Command2:f)
GTo adjust volume.
You can also adjust volume with the volume buttons
on remote control.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping1’. See page 29.
[k][f][ ][Set ID][ ][Data][Cr]
Acknowledgement
[f][ ][Set ID][ ][OK][Data][x]
07. Contrast (Command2:g)
GTo adjust screen contrast.
You can also adjust contrast in the picture menu.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping1’. See page 29.
[k][g][ ][Set ID][ ][Data][Cr]
Acknowledgement
[g][ ][Set ID][ ][OK][Data][x]
02. Input Select (Command2:b) (Main Picture Input)
GTo select input source for the Monitor.
You can also select an input source using the INPUT
SELECT button on the Monitor's remote control.
Transmission
Data 0 : RGB 1
1 : COMPONENT
2 : VIDEO
3 : S-VIDEO
4 : RGB 2
[k][b][ ][Set ID][ ][Data][Cr]
Acknowledgement
[b][ ][Set ID][ ][OK][Data][x]
01. Power (Command2:a)
GTo control Power On/Off of the Monitor.
Transmission
Data 0 : Power Off 1 : Power On
[k][a][ ][Set ID][ ][Data][Cr]
Acknowledgement
[a][ ][Set ID][ ][OK][Data][x]
GTo show Power On/Off.
Transmission
[k][a][ ][Set ID][ ][FF][Cr]
Acknowledgement
Data 0 : Power Off 1 : Power On
* In like manner, if other functions transmit ‘FF’data based
on this format, Acknowledgement data feed back presents
status about each function.
[a][ ][Set ID][ ][OK][Data][x]
27
09. Color (Command2:i)
GTo adjust the screen color.
You can also adjust color in the picture menu.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping1’. See page 29.
[k][i][ ][Set ID][ ][Data][Cr]
Acknowledgement
[i][ ][Set ID][ ][OK][Data][x]
08. Brightness (Command2:h)
GTo adjust screen brightness.
You can also adjust brightness in the picture menu.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping1’. See page 29.
[k][h][ ][Set ID][ ][Data][Cr]
Acknowledgement
[h][ ][Set ID][ ][OK][Data][x]
13. Remote Control Lock Mode (Command2:m)
GTo lock the front panel controls on the monitor and remote
control.
Transmission
[k][m][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : Lock off 1 : Lock on
* If you’re not using the remote control, use this mode.
When main power is on/off, remote control lock is released.
[m][ ][Set ID][ ][OK][Data][x]
GTo adjust the screen sharpness.
You can also adjust sharpness in the picture menu.
Transmission
11. Sharpness (Command2:k)
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping1’. See page 29.
[k][k][ ][Set ID][ ][Data][Cr]
Acknowledgement
[k][ ][Set ID][ ][OK][Data][x]
12. OSD Select (Command2:l)
GTo select OSD (On Screen Display) on/off.
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0 : OSD off 1 : OSD on
[l][ ][Set ID][ ][OK][Data][x]
10. Tint (Command2:j)
GTo adjust the screen tint.
You can also adjust tint in the picture menu.
Transmission
Data Red : 0 ~ Green : 64
* Refer to ‘Real data mapping1’. See page 29.
[k][j][ ][Set ID][ ][Data][Cr]
Acknowledgement
[j][ ][Set ID][ ][OK][Data][x]
14. PIP / Twin (DW) (Command2:n)
GTo control the PIP (Picture In picture).
You can also control the PIP/TWIN using the PIP or Twin
picture button on the remote control or in the screen menu.
Transmission
Data 0: PIP/DW off
1: PIP (S)
2: DW1
3: DW2
4: PIP (L)
[k][n][ ][Set ID][ ][Data][Cr]
Acknowledgement
[n][ ][Set ID][ ][OK][Data][x]
15. PIP Sound Select (Command2:p)
GTo select main or sub sound for PIP.
You can also adjust main or sub sound for PIP using PIP
SOUND button on the remote control or in the screen
menu.
Transmission
[k][p][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0: Main image sound
1: Sub image sound
[p][ ][Set ID][ ][OK][Data][x]
28
21. Red Adjustment (Command2:v)
GTo adjust red in color temperature.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping 2’. See page 29.
[k][v][ ][Set ID][ ][Data][Cr]
Acknowledgement
[v][ ][Set ID][ ][OK][Data][x]
22. Green Adjustment (Command2:w)
GTo adjust green in color temperature.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping 2’. See page 29.
[k][w][ ][Set ID][ ][Data][Cr]
Acknowledgement
[w][ ][Set ID][ ][OK][Data][x]
23. Blue Adjustment (Command2:$)
GTo adjust blue in color temperature.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping 2’. See page 29.
Data Min : 0 ~ Max : 64
[k][$][ ][Set ID][ ][Data][Cr]
Acknowledgement
[$][ ][Set ID][ ][OK][Data][x]
20. Color Temperature (Command2:u)
GTo adjust color temperature.
You can also adjust ACC in the special menu.
Transmission
Data 0: Normal 1: Cool 2: Warm 3: User
[k][u][ ][Set ID][ ][Data][Cr]
Acknowledgement
[u][ ][Set ID][ ][OK][Data][x]
18. Bass (Command:s)
GTo adjust bass.
You can also adjust bass in the sound menu.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping1’. See page 29.
[k][s][ ][Set ID][ ][Data][Cr]
Acknowledgement
[s][ ][Set ID][ ][OK][Data][x]
19. Balance (Command2:t)
GTo adjust balance.
You can also adjust balance in the sound menu.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping1’. See page 29.
[k][t][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data Min : 0 ~ Max : 64
[t][ ][Set ID][ ][OK][Data][x]
17. Treble (Command2:r)
GTo adjust treble.
You can also adjust treble in the sound menu.
Transmission
Data Min : 0 ~ Max : 64
* Refer to ‘Real data mapping1’. See page 29.
[k][r][ ][Set ID][ ][Data][Cr]
Acknowledgement
[r][ ][Set ID][ ][OK][Data][x]
16. PIP Position (Command2:q)
GTo select sub picture position for PIP.
You can also adjust the sub picture position using PIP
POSITION on the remote control or in the screen menu.
Transmission
Data 0 : Right down on screen
1 : Left down on screen
2 : Left up on screen
3 : Right up on screen
[k][q][ ][Set ID][ ][Data][Cr]
Acknowledgement
[q][ ][Set ID][ ][OK][Data][x]
29
25. Orbiter (Command2:p)
GTo control the orbiter function on/off.
Transmission
Data 0 : Orbiter off
1 : Orbiter on
[j][p][ ][Set ID][ ][Data][Cr]
Acknowledgement
[p][ ][Set ID][ ][OK][Data][x]
26. White Wash (Command2:q)
GTo control the white wash function on/off.
Transmission
Data 0 : White Wash off
1 : White Wash on
[j][q][ ][Set ID][ ][Data][Cr]
Acknowledgement
[q][ ][Set ID][ ][OK][Data][x]
24. PIP Input Select (Command2:y)
G To select input source for sub picture in PIP mode.
Transmission
Data 0: RGB1 (DTV)
1: COMPONENT
2: VIDEO
3: S-VIDEO
[k][y][ ][Set ID][ ][Data][Cr]
Acknowledgement
[y][ ][Set ID][ ][OK][Data][x]
* Real data mapping 1
0 : Step 0
A : Step 10 (SET ID 10)
F : Step 15 (SET ID 15)
10 : Step 16 (SET ID 16)
64 : Step 100
* Real data mapping 2
0 : -10
5: -9
A: -8
2D: -1
32: 0
37: +1
5F: +9
64: +10
30
G Connect your wired remote control to the Remote port on the Monitor.
Set the CONTROL LOCK to ‘ON’on the Monitor back panel to operate Monitor with wired remote control.
G Output waveform
Single pulse, modulated with 37.917KHz signal at 455KHz
G Configuration of frame
G Repeat code
G Lead code
• 1st frame
Low
custom code
Lead
code High
custom code Data code Data code
TC
Tf
T1
C0
Carrier frequency
FCAR = 1/TC= fOSC/12
Duty ratio = T1/TC= 1/3
• Repeat frame
C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
Repeat code
9 ms 4.5 ms
0.55 ms
9 ms
2.25 ms
G Bit description
G Frame interval : Tf
The waveform is transmitted as long as a key is depressed.
• Bit “0”
Tf Tf
Tf=108ms @455KHz
0.56 ms 0.56 ms
1.12 ms
• Bit “1”
2.24 ms
IR Code (NEC Format)
How to connect
How to connect
Remote Control IR Code (NEC Format)
Remote Control IR Code (NEC Format)
31
UP (D)
DOWN (E)
VOL+ (G)
VOL- (F)
POWER
POWER ON
POWER OFF
MUTE
Number Key 0
Number Key 1
Number Key 2
Number Key 3
Number Key 4
Number Key 5
Number Key 6
Number Key 7
Number Key 8
Number Key 9
INPUT SELECT
RGB 1
RGB 2 (DVI input)
VIDEO
S-VIDEO
COMPONENT
SLEEP
KEY LOCK
ZOOM +
ZOOM -
MENU
OK (Á)
APC
DASP
PIP
PIP INPUT
SOUND SELECT
PIP STILL
TWIN PICTURE
Split Zoom
ARC
ARC (4:3)
ARC (16:9)
ARC (ZOOM)
AUTO CONFIG.
00H
01H
02H
03H
08H
C4H
C5H
09H
10H
11H
12H
13H
14H
15H
16H
17H
18H
19H
0BH
98H
C6H
5AH
51H
BFH
0EH
3EH
40H
41H
43H
44H
4DH
52H
60H
61H
62H
65H
6BH
7BH
79H
76H
77H
AFH
92H
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button (Power On/Off)
Discrete IR Code (Only Power On)
Discrete IR Code (Only Power Off)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
Discrete IR Code (Input RGB1 Selection)
Discrete (Input RGB2 Selection)
Discrete (Input VIDEO Selection)
Discrete (Input S-VIDEO Selection)
Discrete (Input COMPONENT Selection)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button(4:3/16:9/Zoom Mode Selection)
Discrete IR Code (Only 4:3 mode)
Discrete IR Code (Only 16:9 mode)
Discrete IR Code (Only ZOOM mode)
R/C Button
Code (Hexa) Function Note
32
Maintenance
1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and
a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the
screen.
2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your Monitor.
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.
If you leave your Monitor dormant for a long time (such as a vacation), it’s a good idea to unplug the
power cord to protect against possible damage from lightning or power surges.
- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your
new Monitor. Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Cleaning the Screen
Cleaning the Screen
Cleaning the Cabinet
Cleaning the Cabinet
Extended
Extended Absence
Absence
33
Notes
34
Troubleshooting Checklist
No output from one of the
speakers •Adjust BALANCE in the AUDIO menu. (Refer to p.16)
Strange sound from the
Monitor •Typical sound due to normal Monitor operation, Monitor is not faulty.
No picture &
No sound
•Check whether the Monitor is turned on.
•Power cord inserted into wall outlet?
•Plug another product’s power cord into the wall outlet where the Monitor’s
power cord was plugged in.
No or Poor color
or Poor picture
•Select COLOR in the VIDEO menu and press the VOLUME (G) button.
(Refer to p.15)
•Keep a certain distance between the Monitor and the VCR.
•Activate any function to restore the brightness of the picture.
(If still picture is on the screen for more than 5 minutes, the screen gets dark.)
The remote control
doesn’t work
•Check to see if there is any object between the Plasma Display and the
remote control causing obstruction.
•Check to see if the batteries are installed with the correct polarities.
(Refer to p.11)
•Install new batteries. (Refer to p.11)
Picture OK &
No sound
•Press the VOLUME (G) button.
•Sound muted? Press MUTE button.

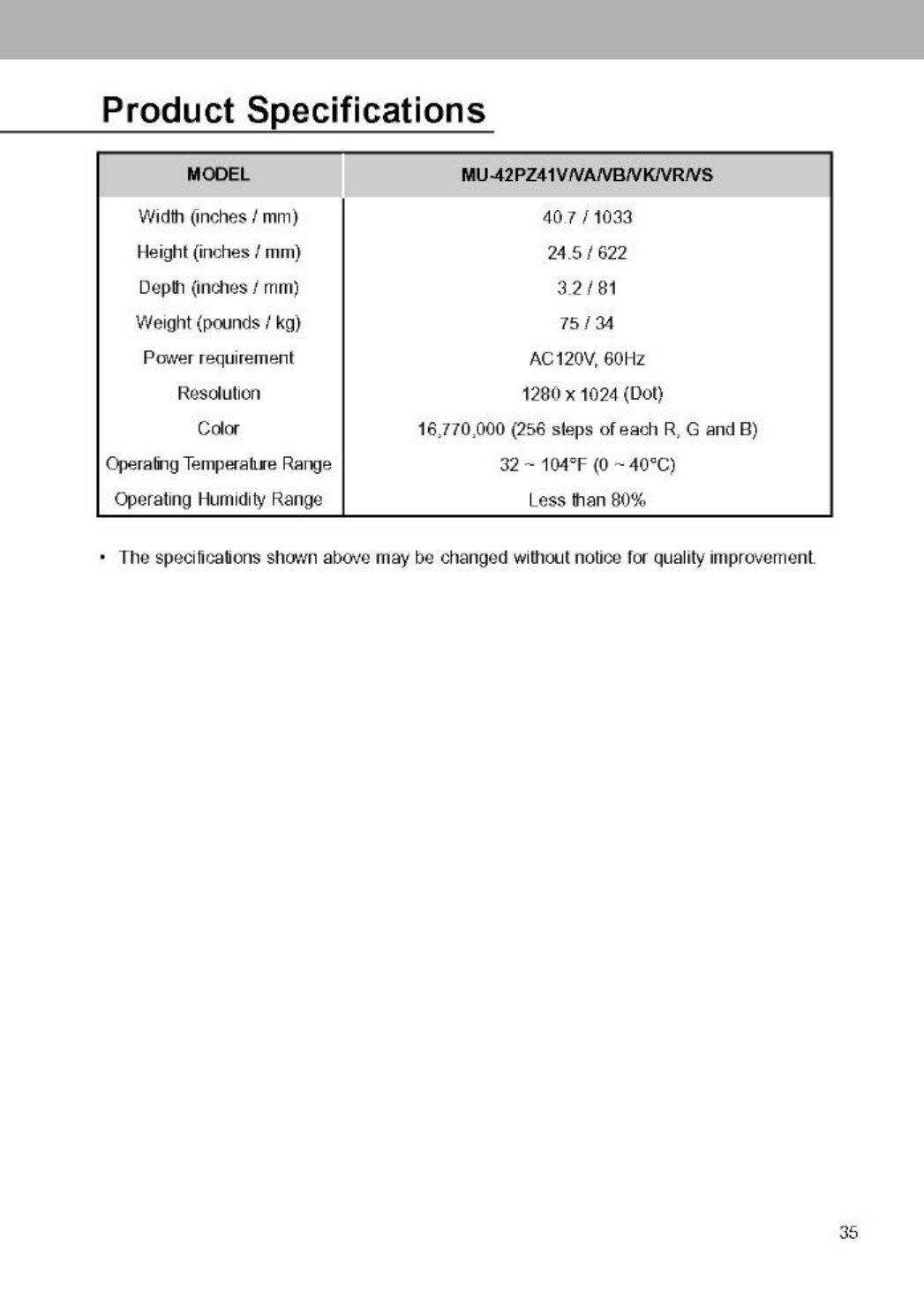

PLASMA MONITOR
OWNER’S MANUAL
Please read this owner’s manual carefully before operating the
Monitor.
Retain it for future reference.
Record model number and serial number of the Monitor.
See the label attached on the back of the Monitor and quote
this information to your dealer when you require service.
Model number :
Serial number :
MODELS : MU-42PZ41V
MU-42PZ41VA
MU-42PZ41VB
MU-42PZ41VK
MU-42PZ41VR
MU-42PZ41VS
P/NO : 3828VA0361C (RF02RA)
