Using the PC 101
Using a Wired/Wireless Router
A wireless / regular router connects several PCs and mobile devices to one internet line and
enables the use of internet and the network.
A wireless / regular router has to be bought separately. Refer to the manual provided
by the manufacturer for instructions.
Connecting a Wireless or Regular Router
If one internet line is used with a wireless / regular router and several devices are
connected, this may result in a slower connection.
In case of a wireless LAN, it is recommended to change the network name and security
settings for a more secure connection.
Network speed can differ according to operation environment and specifications.
1Connect the internet cable of the modem that was provided by your internet provider to
the router's WAN port.
2Connect all devices (PC, IPTV, internet phone, etc.) with a LAN cable to LAN ports 1 to
4 of the router.
The number of LAN ports can vary for each router model.
3Please refer to the manual provided by the router manufacturer for setup of the network
and Internet.
ENGLISH
102 Using the PC
Micro SD Slot
Checking Available Memory Card
This model supports Micro SD memory cards.
Directly applicable
memory cards
Mounting and Using Memory Card
This product supports one Micro SD slot.
Insert the card into the multi-card slot to the fullest in the right direction as shown in the
following figure.
ENGLISH
Using the PC 103
TIP
•When the memory card is formatted, the data stored in the memory card will be
deleted. Check whether there are important data before formatting the memory stick.
•To format a memory card, right-click the memory card drive and select Format.
When Format window appears, press Start to continue.
•Windows The format feature may not be available on versions of Windows that are
earlier than Vista®. Format the card on other digital devices or format it after
installing Memory Stick Formatter.
•If the write protection tab of memory card is locked, the user cannot format the
memory stick nor write or delete the data.
•SD™, MMC™memory cards can be used only as storage devices and do not
support the copyright protection feature.
Removing Memory Card
Push the card with your finger to make the card spring out of the slot. Remove the memory
card.
ENGLISH
104 Using the PC
TIP
To safely remove a memory card:
The figures herein may differ by language selection and is subject to change for
performance improvements without prior notice.
1Click Safely Remove Hardware and other Media icon on the right side of the
taskbar.
2Select Remove Multi-Card USB Device to safely remove hardware.
ENGLISH
Using Software 105
Using Software
LG Control Center
LG Control Center is a software that helps you to change PC Settings, Power Settings,
Windows Security Settings, etc. as well as viewing system information.
TIP
LG Control Center For more details about how to use , refer to the corresponding
help.
The figures herein is subject to change for performance improvements without prior
notice and the functions supported by LG Control Center may vary from models.
Using LG Control Center
1Press the [
] icon on the desktop to run [LG Control Center].
TIP
Select the [ ] button > [All Apps] > [LG Software] and run [LG Control Center].
ENGLISH
106 Using Software
aMinimize/Exit Button: Minimizes the size of the window, or exits the software.
bhelp/info Button: Runs Help or displays information about the software.
cSystem Settings : Sets up the screen brightness / resolution, external display, sound
and other various devices.
dPower Management : Sets up power management option, USB charging, battery
status and battery life extension.
eWindows Security : Sets User Account Control settings and Firewall settings.
fInstant Booting: You can set the system to automatically boot whenever you open
the notebook PC.
gSystem Information : Displays the PC OS in use, processor information and other
system information.
ENGLISH
Using Software 107
LG Update Center
LG Update Center allows you to install various PC drivers, applications and Windows
patches easily.
TIP
The illustrated images are subject to change without prior notice.
It may not work properly depending on user preferences (security tools, etc.) and the
network status.
For more information on LG Update Center, refer to [Help].
Using LG Update Center
1Press the [
] icon on the desktop to run LG Update Center.
TIP
Select the [ ] button > [All Apps] > [LG Software] and run [LG Update Center].
aRequired Update: Installs critical items that must be applied to the system.
bAll List : Displays and installs all required items for the system.
ENGLISH
108 Using Software
cNotification Setting: Sets up notifications for online updates for installed items.
TIP
You can use the LG Update Center to quickly install the latest drivers, or reinstall any
deleted drivers.
Use LG Update Center to keep your system current and optimized.
ENGLISH
Using Software 109
LG Reader Mode
LG Reader Mode prevents the users from eyestrain and helps them to read the PC screen
comfortably by displaying the screen just like a printed paper.
Using LG Reader Mode
TIP
You cannot adjust the screen brightness in reader mode. Deactivate reader mode to
adjust screen brightness.
If you want to use the hot keys you can use reader mode more conveniently.
•Press the [Fn] + [F9] keys to switch the PC screen to reader mode. Press them
again to turn off reader mode.
1Press the [
] icon on the taskbar.
ENGLISH
110 Using Software
2Select the [Reader Mode On] menu to switch to reader mode as shown in the figure.
TIP
Select [Reader Mode Off] to turn off the mode.
ENGLISH
Restoring the System 111
Restoring the System
Restoring the System
If the system has an error, you can use Windows 10's recovery feature to recover or restore
the system to its initial pre-purchase state.
CAUTION
If you have deleted the restoration data in the protected area of the disk, or have
arbitrarily installed another operating system, the restore function may not work.
To recover the system, the AC adapter must be connected.
1Press the [
] button and select the [Settings] menu.
ENGLISH
112 Restoring the System

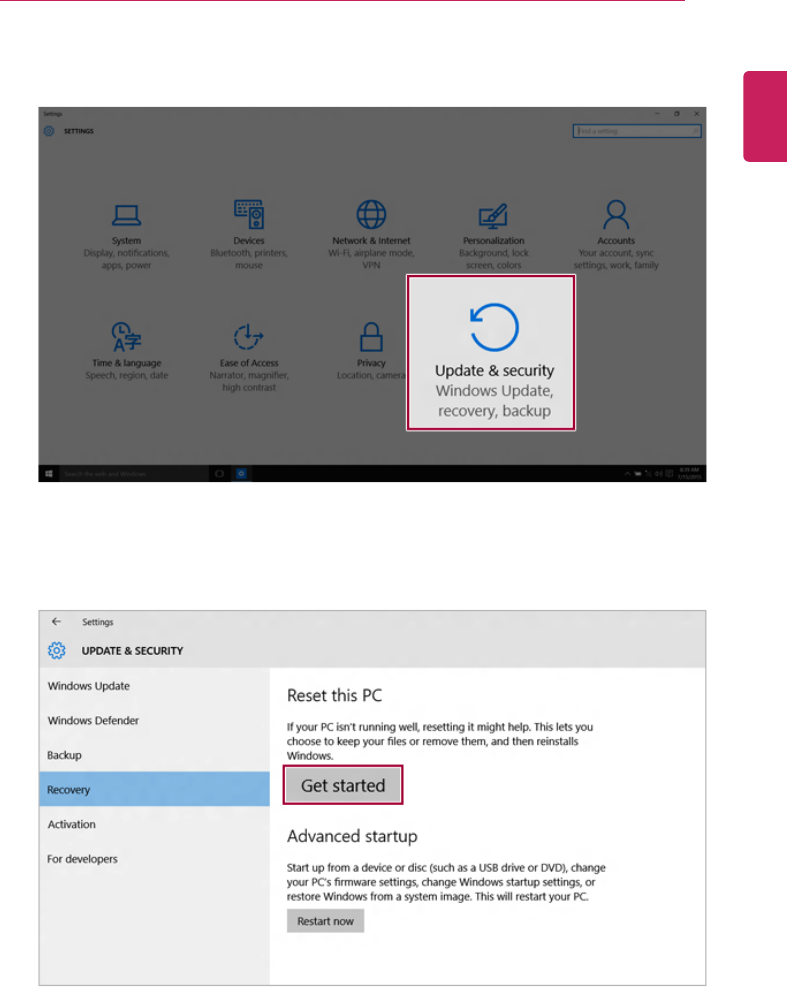

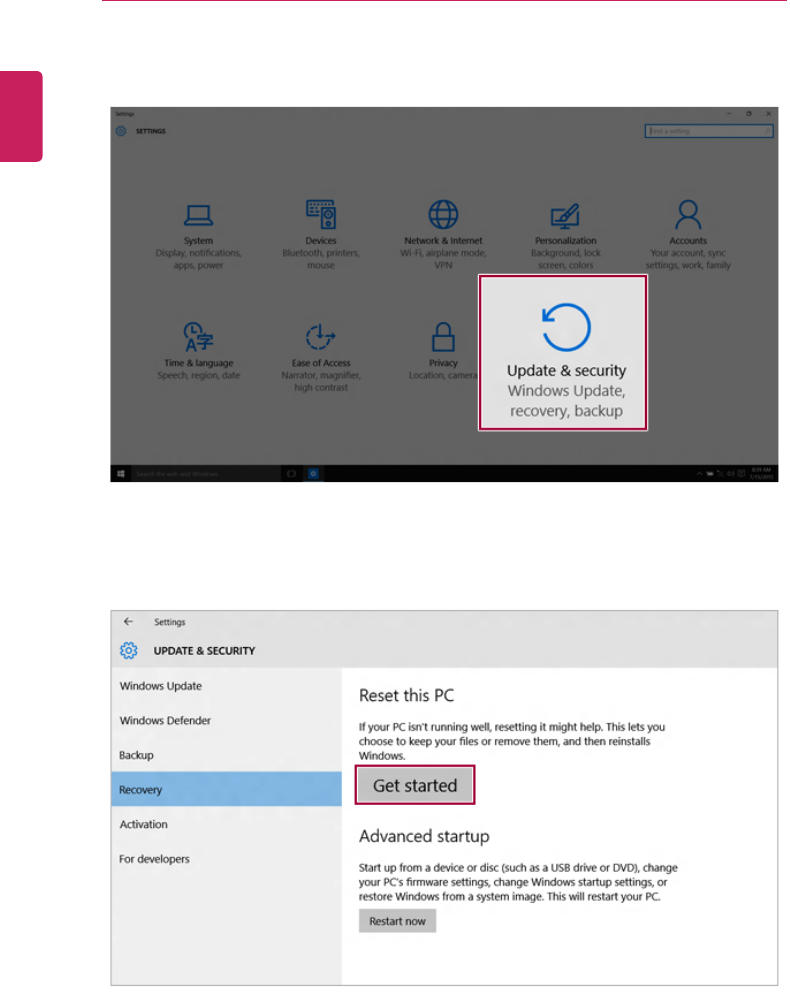

2When the [Settings] screen appears, select [Update & security].
3Select the [Recovery] menu and press [Get started] to reset the PC.

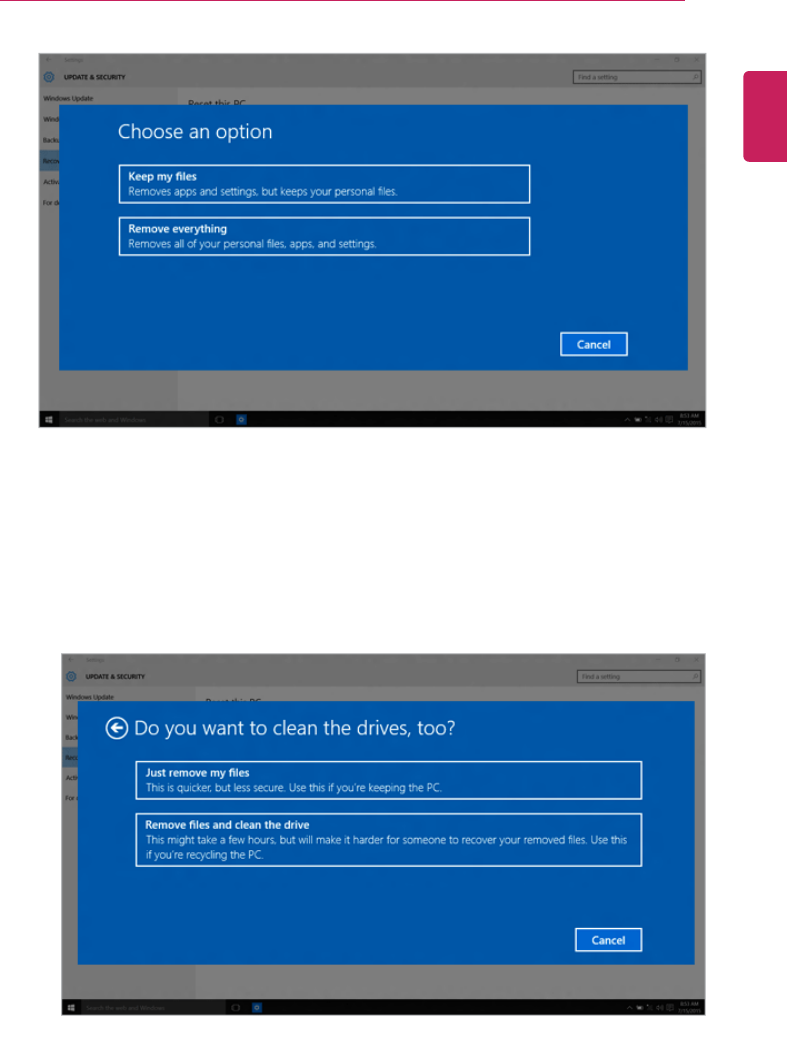

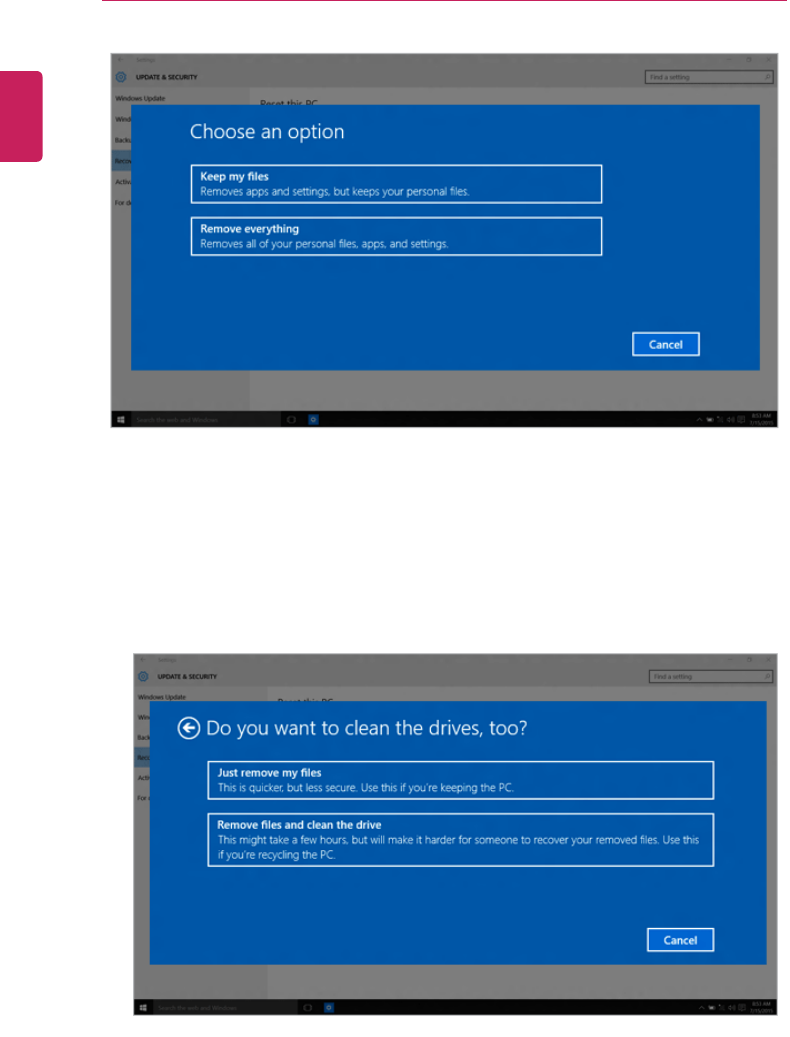

4If the following screen appears, select a desired option to proceed with recovery.
ENGLISH
Restoring the System 113
a Keep my files: Recovers the PC without losing any personal files.
PC settings are reset to the default and any user-installed Desktop app will be
deleted.
b Remove everything: Removes all items from the system and restores the system to
its initial pre-purchase state.
ENGLISH
114 Restoring the System
•Just Remove My Files: Factory-resets the drive where Windows is installed (for
example: Drive C).
•Remove files and clean the drive: Resets all partitions and drives in the system.
CAUTION
All data is lost during the initialization, so you must backup all critical data in advance.
It may take about 5 hours or longer depending on the system conditions.
ENGLISH
Restoring the System 115
LG Recovery Center RE
If booting is impossible due to an error with the system, you can recover the system using
LG Recovery Center RE.
TIP
It is recommended that you create a recovery drive in case a serious error occurs in the
system.
CAUTION
If you have deleted the restoration data in the protected area of the hard disk, the restore
function may not work.
All data is lost during the initialization, so you must backup all critical data in advance.
1Turn on the notebook PC and press [F11].

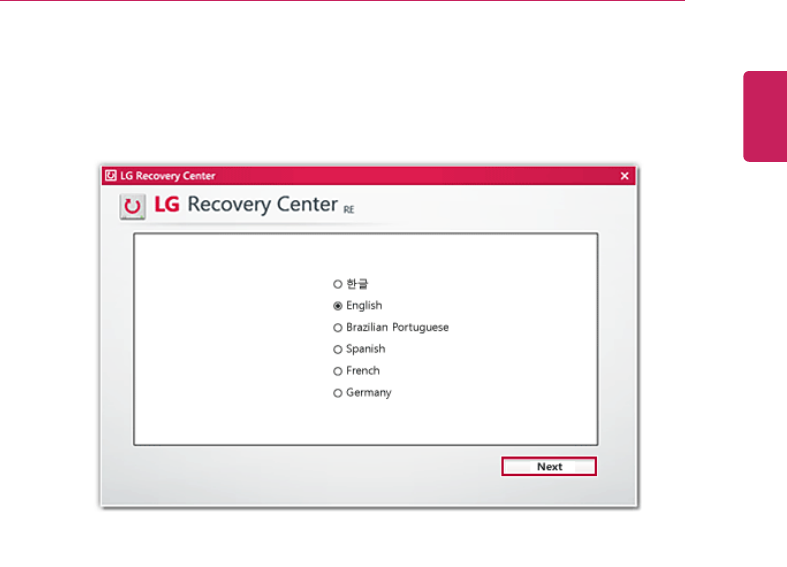

2When the following screen appears, select the language you want to use and then click
[Next].
ENGLISH
116 Restoring the System

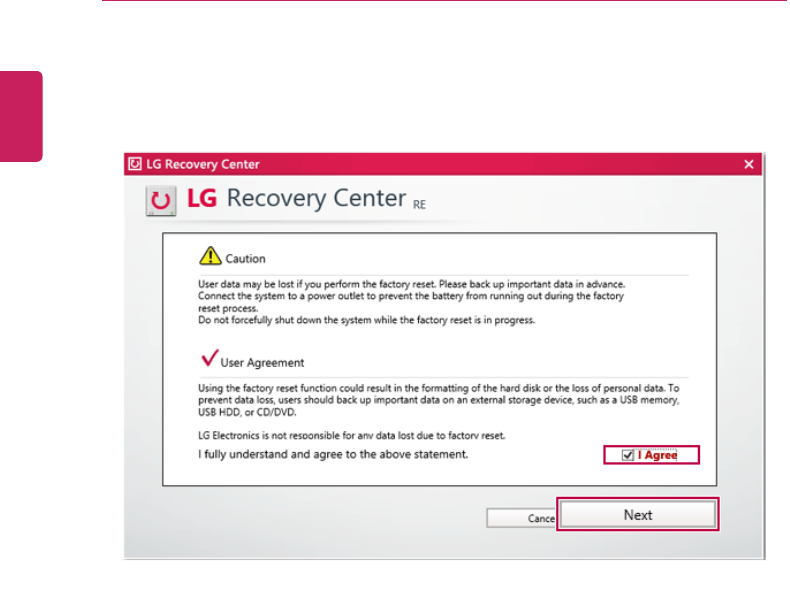

3When the following screen appears, select the [Agree] button and then click [Next].
For recovery, the power adapter must be connected. Connect the system power
and then recover the system.
ENGLISH
Restoring the System 117

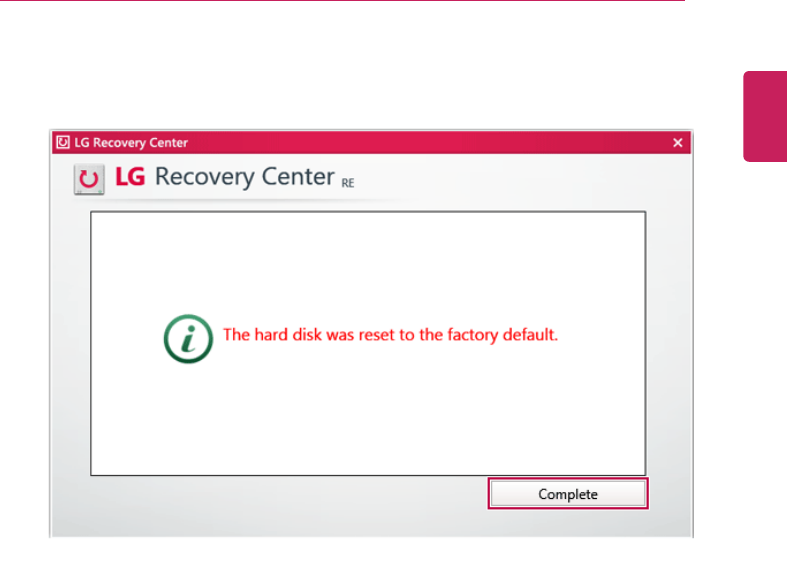

4When the factory reset is completed as shown in the following figure, click [Complete]
and then restart the system.
ENGLISH
118 Restoring the System
Recovery Drive
Creating Recovery Drive
Create a recovery drive in case LG Recovery Center RE is unable to recover the system.
TIP
This process may delete all data on the storage device designated as the recovery drive.
Make sure to back up all important data in advance.
1Right-click the [
] button and select the [Control Panel] menu.
ENGLISH
Restoring the System 119
2Click [Recovery] in the control panel and select [Create Recovery Drive].
3When the following screen appears, select [Back up the system files to the recovery
drive.] and click [Next].
ENGLISH
120 Restoring the System

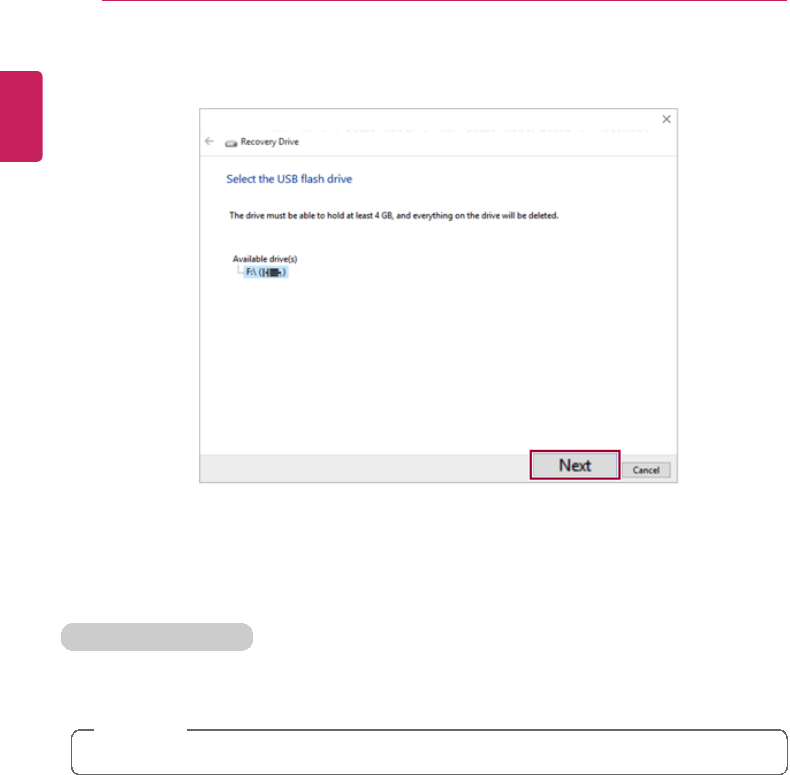

4Select the USB flash drive to use and click [Next] to create a recovery drive.
5Once the storage device is ready, click [Finish] to complete the creation of the recovery
drive.
Using Recovery Drive
In case LG Recovery Center RE is unable to recover the system, you can use the recovery
drive to recover the system.
CAUTION
All data may be lost depending on the user settings during the system recovery.
1Connect the recovery drive to the USB port of the PC.
2Turn on the PC and press [F10] several times.

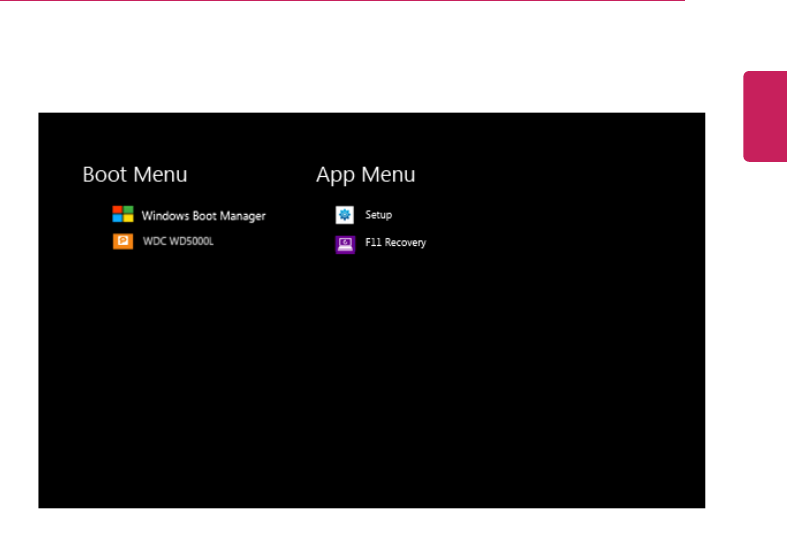

3When the screen for selecting the booting device appears, select the connected
recovery drive and click [Enter].
4Set the language and select the [Troubleshooting] menu.
5Select the item you want to recover the system by following the instructions.
ENGLISH
Setup and Upgrade 121
Setup and Upgrade
Installing the Driver
The figures herein may differ by language selection and is subject to change for
performance improvements without prior notice.
Using LG Update Center to install the Driver
1Press the [
] icon on the desktop to run [LG Update Center].
TIP
Select the [ ] button > [All Apps] > [LG Software] and run [LG Update Center].
2Select [Required Updates] or [All List] to install the driver.
For more information on LG Update Center, refer to [Help].
ENGLISH
122 Setup and Upgrade
TIP
You can use the LG Update Center to quickly install the latest drivers, or reinstall any
deleted drivers.
Use LG Update Center to keep your system current and optimized.
How to Download LG Update Center
You can install LG Update Center by downloading it from the LG Electronics Service
Center (www.lg.com).
ENGLISH
Setup and Upgrade 123
Starting System Setup
System setup means storing the hardware configuration information of the PC in the flash
memory. Through system setup, the PC retrieves various information including current date
and time, memory capacity, and storage device (HDD, SSD, eMMC) capacity and type.

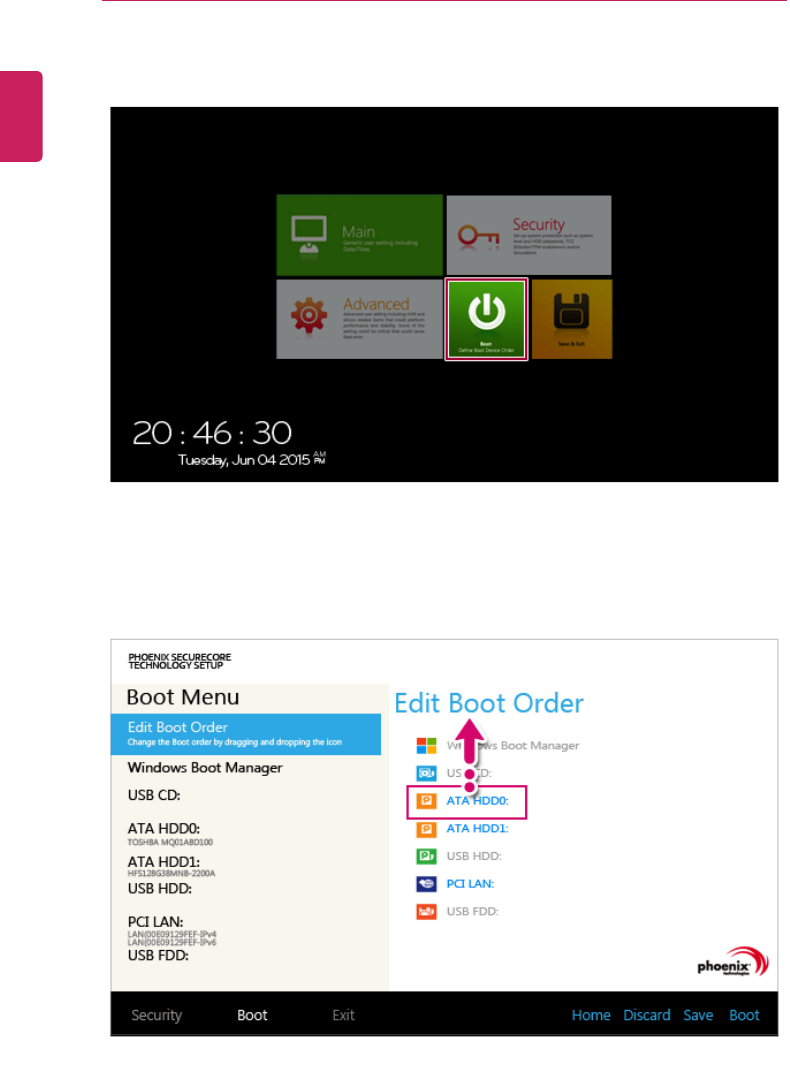

You setup the system when you set passwords, change the boot order, and add new
peripheral devices to the machine.
Items displayed on the Setup screen may differ by model type and specification.
•
•
•
TIP
To use the system setup (F2), booting device selection (F10), or recovery (F11), you need
to restart the system (click [Restart] in the system power menu) and then immediately
press the corresponding function key due to the fast booting speed.
CAUTION
•Do not change the system setup unless necessary. Incorrect system setup may
cause errors during system operation. Use caution when changing the system
setup.
•For performance improvement, the system setup menu configuration and the initial
setup status may be changed and may become different from images included in the
user manual.
ENGLISH
124 Setup and Upgrade

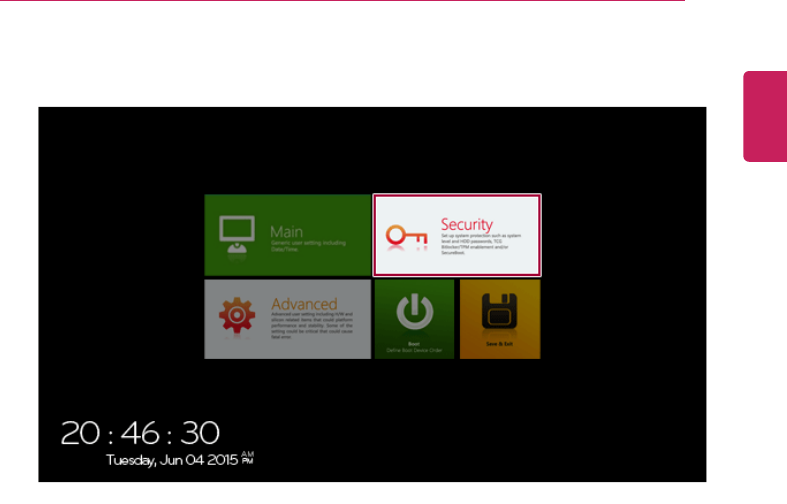

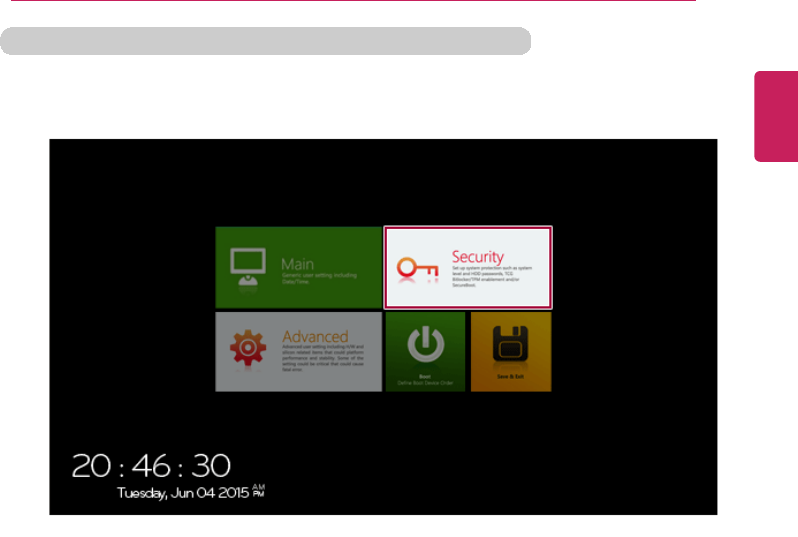

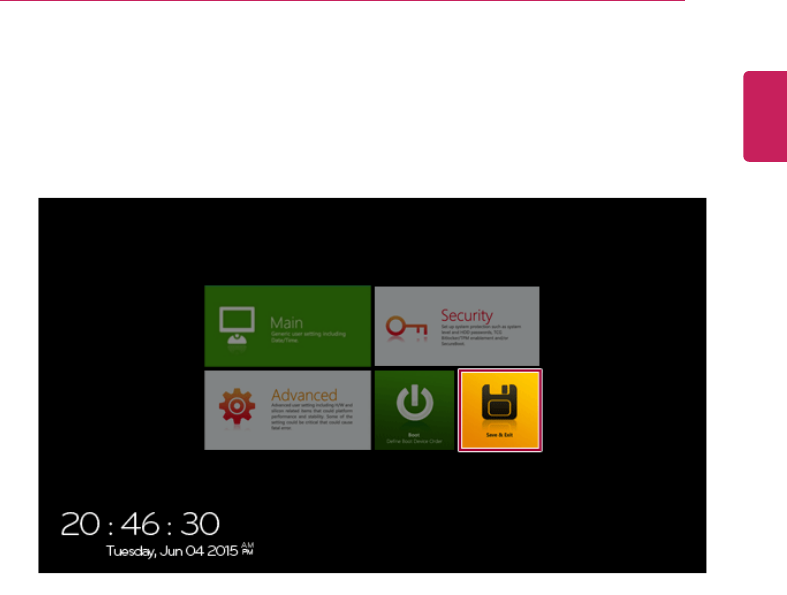

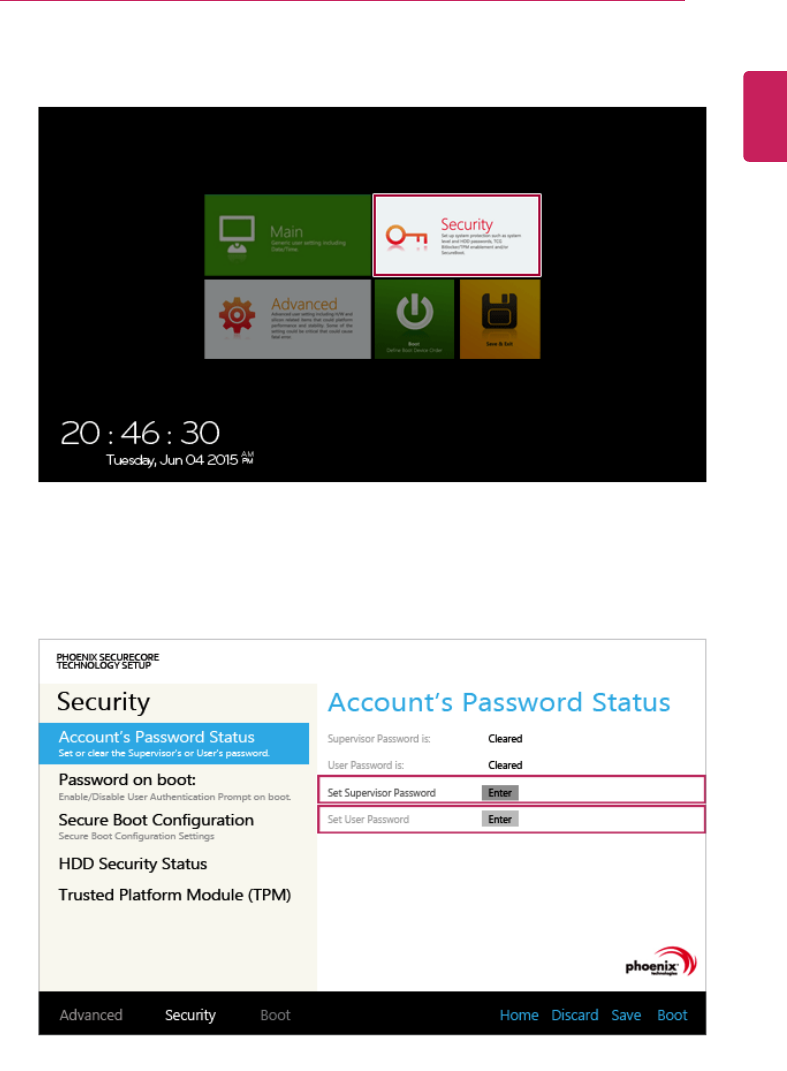

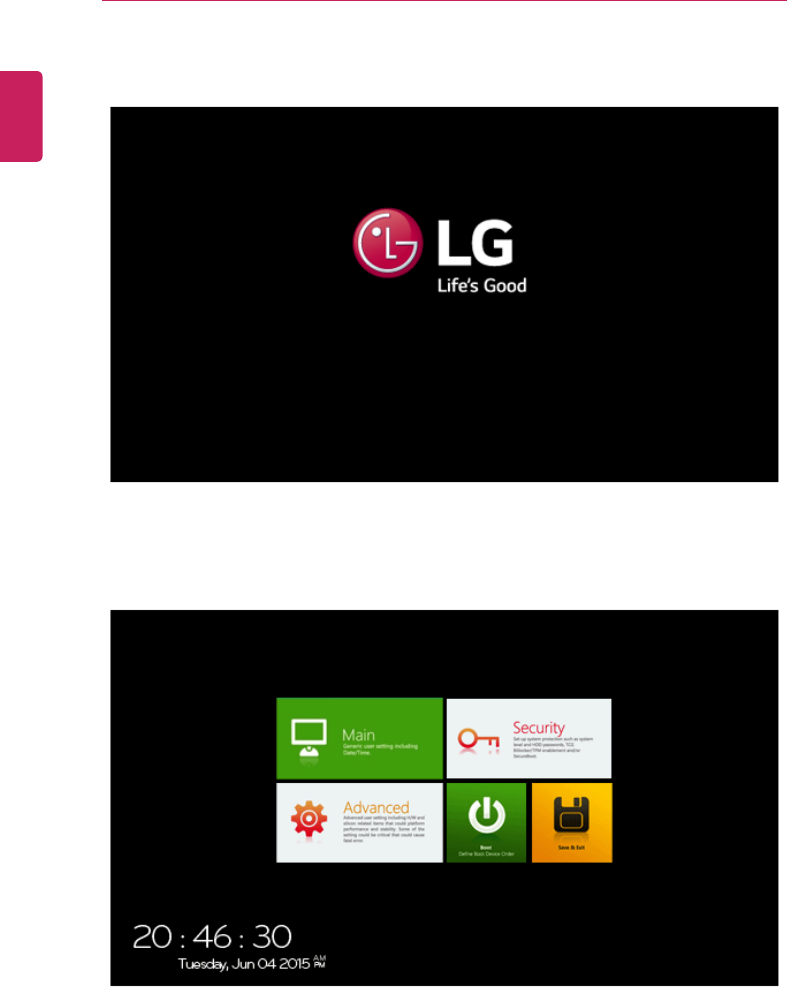

1Reboot the system and press [F2].
2In a few moments, the system setup screen appears.
ENGLISH
Setup and Upgrade 125
Keys Used in System Setup
Keys Function
Enter Selects the current item.
Esc To deselect the current item or to move to the previous screen.
▲,▼,◄,►(Arrow
keys)
Moves the cursor up, down, left, and right.

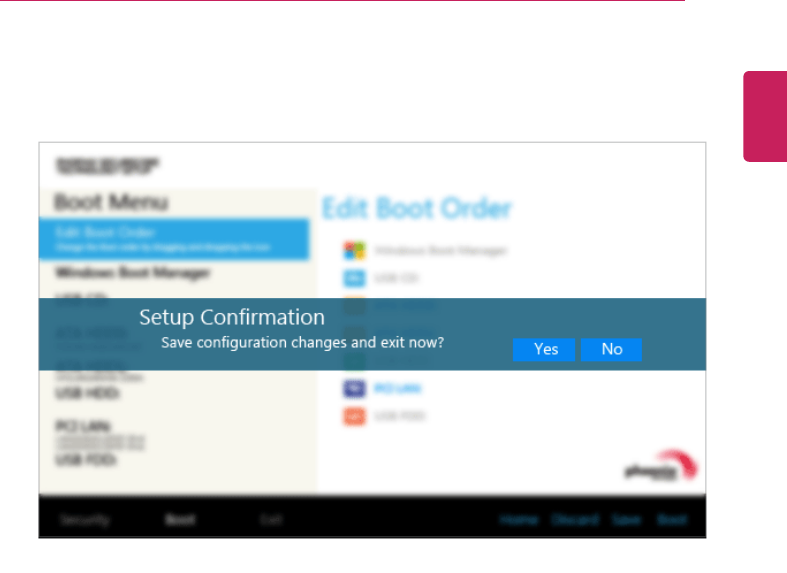

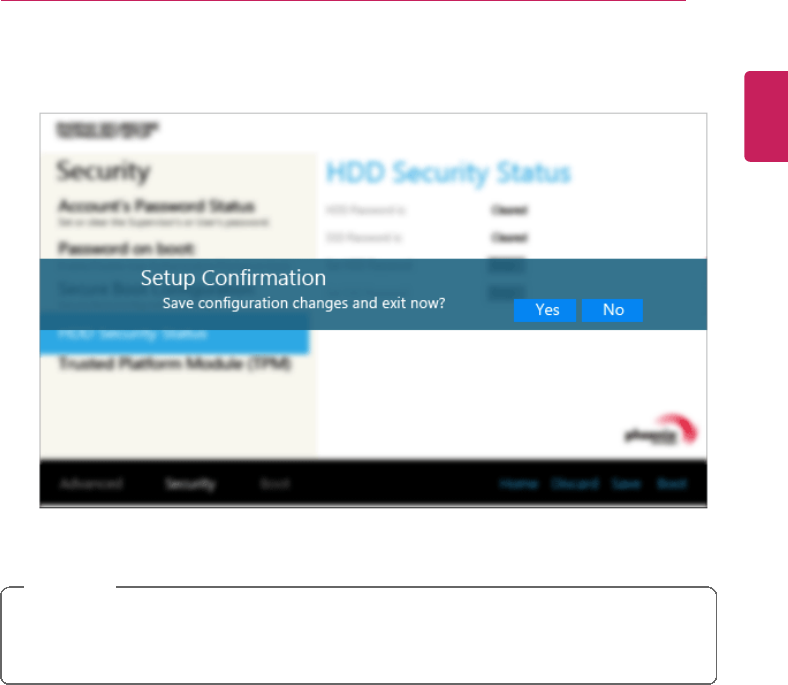

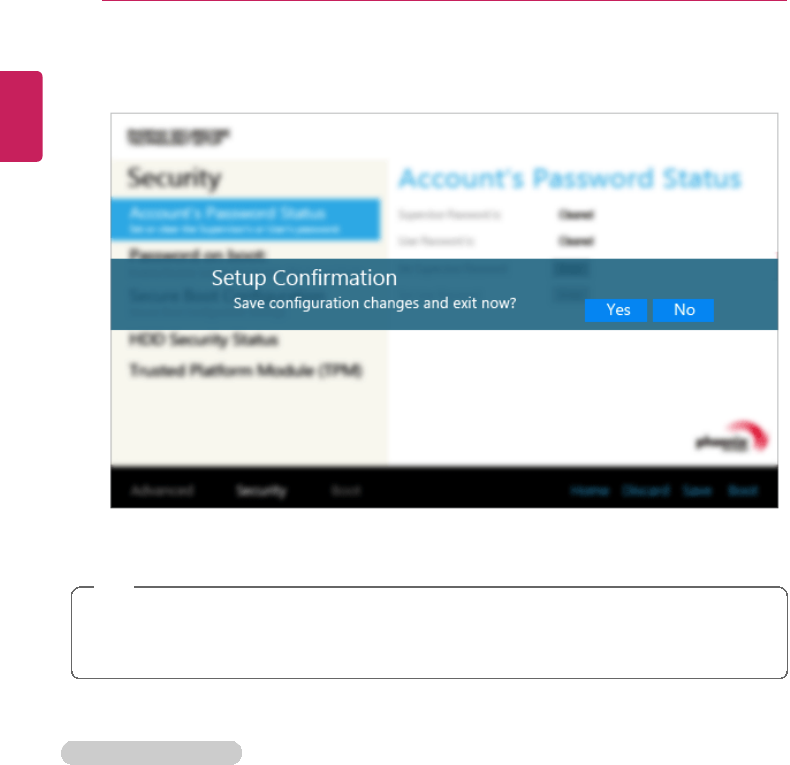

F10 Saves the new settings or exits the system setup.
ENGLISH
126 Setup and Upgrade

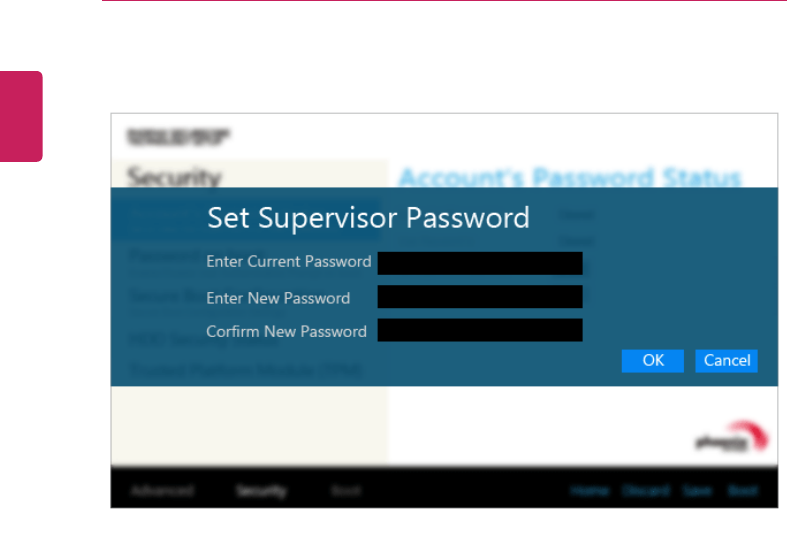

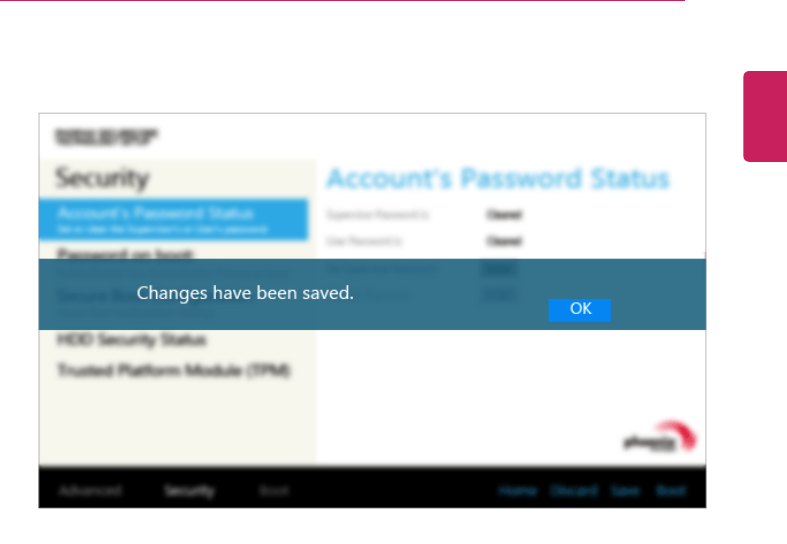

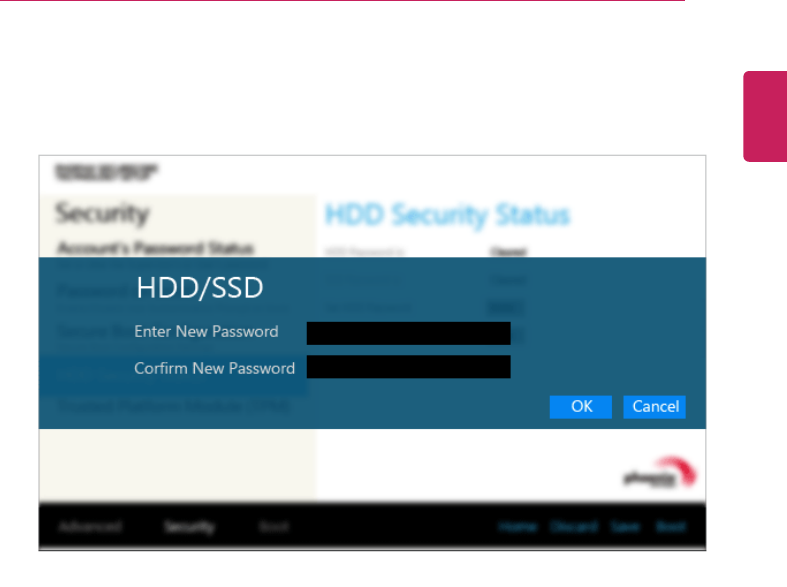

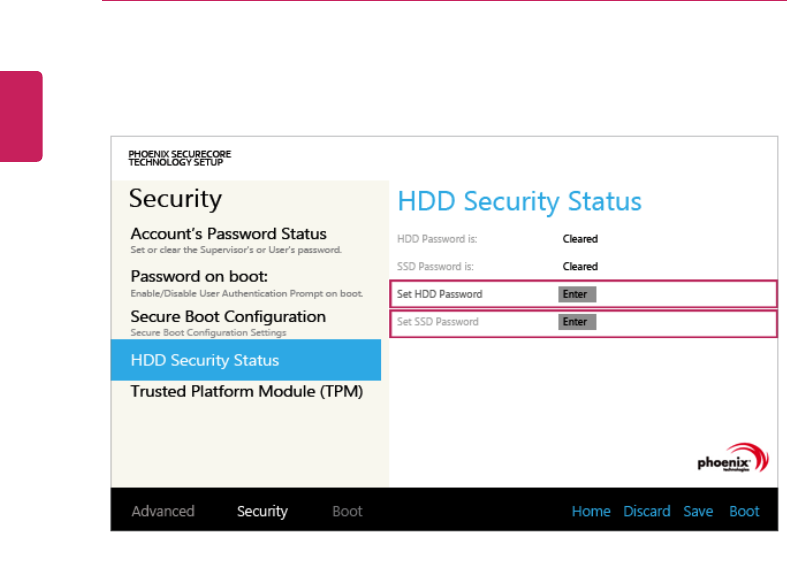

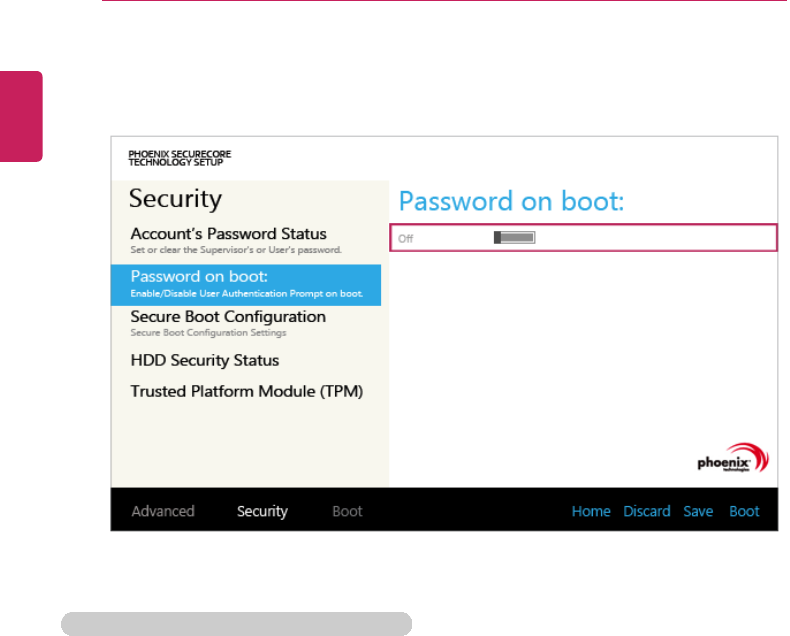

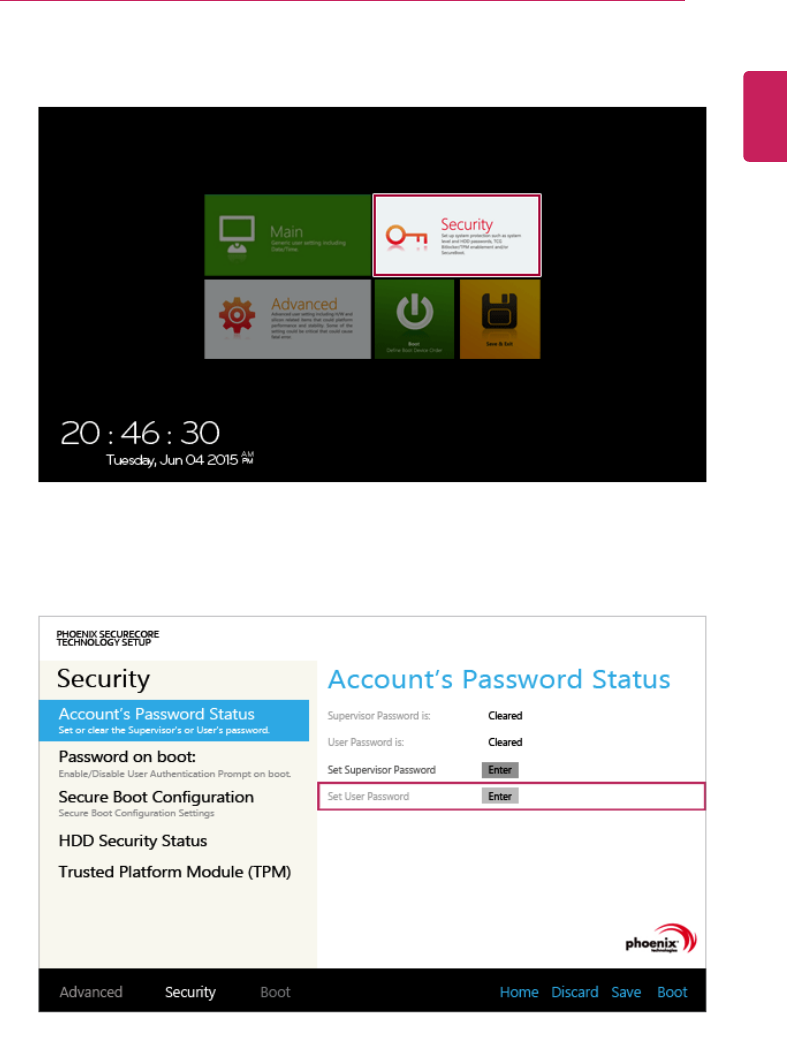

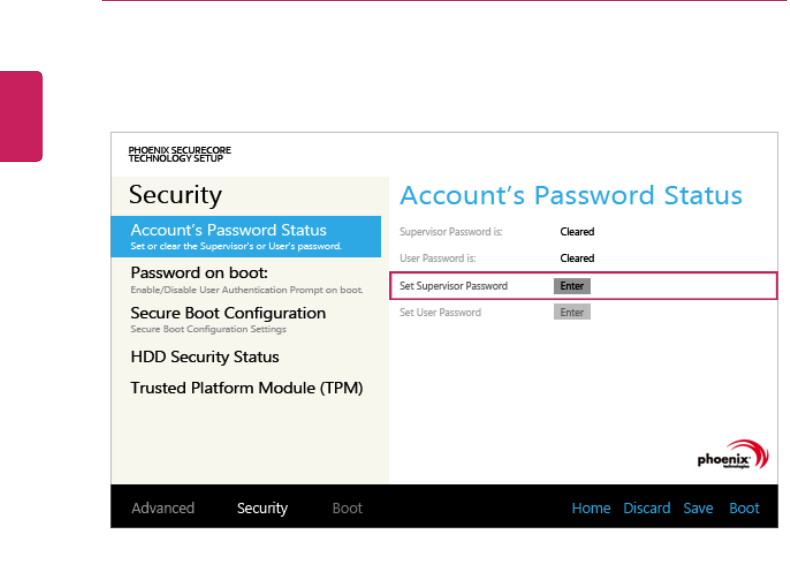

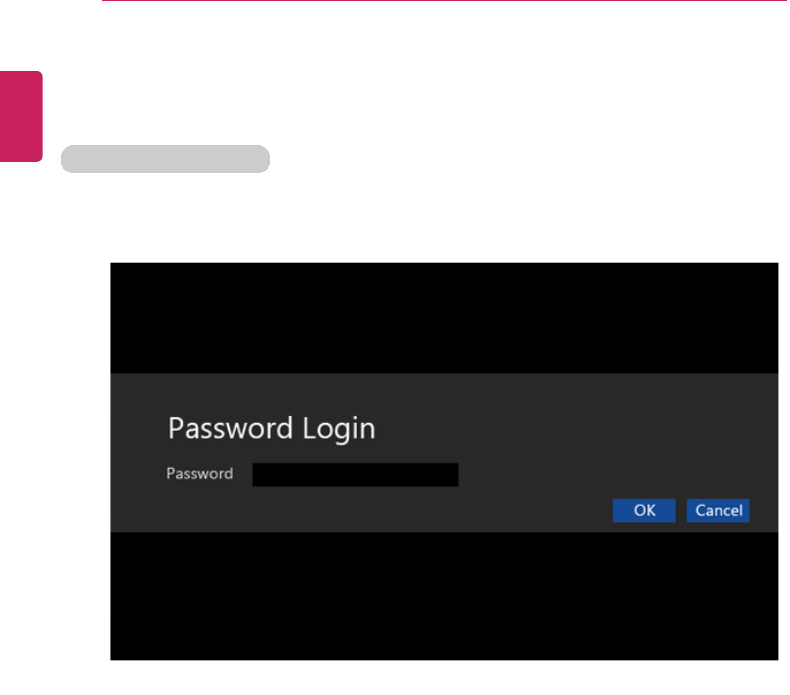

Setting the Password
This process is to set a password so that other people cannot use the PC or change the
settings.
The user can set a password while booting the system or setting up the system.
CAUTION
•Without the registered password, access to the system will be denied. Write down
and keep the password in a safe place.
Set Supervisor Password
The password prevents unauthorized people from accessing the PC. By default, no
password is set for the machine. If an unauthorized person changes the password in the
System Setup, you will be unable to access the system.
1After opening the system setup screen, click the [Security] button.
ENGLISH
Setup and Upgrade 127
2When the following screen appears, click [Enter] in the [Set Supervisor Password]
menu.
ENGLISH
128 Setup and Upgrade
3When the following message appears, enter the password and click [OK]. The
password must not exceed 8 characters consisting of letters (A - Z), numbers (0 - 9), or
a combination of both.
ENGLISH
Setup and Upgrade 129
4When the following message appears, click [OK].
5To save the changes in the system setup, press [F10].
ENGLISH
130 Setup and Upgrade
6When the following message appears, click [YES]. The PC will restart.
TIP
•With Supervisor Password, you are authorized to set all items in the System Setup
and to set Password on boot. In case other people also use the PC, it is
recommended to set the Set User Password.
Set User Password
The password set by the [Set User Password] process is lower in level than that set by the
[Set Supervisor Password] process, and so the user can use the[Set User Password]
only after setting a password in the [Set Supervisor Password] menu.
ENGLISH
Setup and Upgrade 131
1After opening the system setup screen, click the [Security] button.
2When the following screen appears, click [Enter] in the [Set User Password] menu.
ENGLISH
132 Setup and Upgrade
3When the following message appears, enter the password and click [OK]. The
password must not exceed 8 characters consisting of letters (A - Z), numbers (0 - 9), or
a combination of both.
ENGLISH
Setup and Upgrade 133
4When the following message appears, click [OK].
5To save the changes in the system setup, press [F10].
ENGLISH
134 Setup and Upgrade
6When the following message appears, click [YES]. The PC will restart.
TIP
•[User Password] allows limited access to the items in the System Setup compared
to the [Supervisor Password] item.
Password on boot
[Password on boot] menu protects the system by requesting [Set Supervisor Password]
or [Set User Password] during boot up.
ENGLISH
Setup and Upgrade 135
1After opening the system setup screen, click the [Security] button.
2When the following screen appears, set [Set Supervisor Password] only or both [Set
Supervisor Password] and [Set User Password].
ENGLISH
136 Setup and Upgrade
3Click [Off] in the [Password on boot] menu as shown in the following figure. The button
changes to [On] and the [Password on boot] setting is completed.
Set HDD Password / Set SSD Password
HDD / SSD Password is to set a password in the HDD and SSD separately from the
Supervisor Password.
If you set both HDD password and SSD password, the password input window
appears twice during booting.
If you set both the HDD password and SSD password, the password input window
appears in order of [Boot Priority Order] at the top of the [Boot] menu.
ENGLISH
Setup and Upgrade 137
1After opening the system setup screen, click the [Security] button.
2When the [Security] menu appears, click the [HDD Security Status] button.
ENGLISH
138 Setup and Upgrade
3When the following screen appears, click [Enter] in the [Set HDD Password] or [Set
SSD Password] menu.
ENGLISH
Setup and Upgrade 139
4When the following message appears, enter the password and click [OK]. The
password must not exceed 8 characters consisting of letters (A - Z), numbers (0 - 9), or
a combination of both.
ENGLISH
140 Setup and Upgrade
5When the following message appears, click [OK].
6To save the changes in the system setup, press [F10].
ENGLISH
Setup and Upgrade 141
7When the following message appears, click [YES]. The PC will restart.
CAUTION
HDD PasswordWithout the password, it is impossible to recover the HDD.
•The replacement of HDD due to a forgotten HDD Password is not covered by
warranty.
ENGLISH
142 Setup and Upgrade
Changing or Deleting the Password
You can delete or change the password only after entering the current password.
Changing the Password
1Execute System Setup, enter the password, and click [Enter].
2Change the password in the same way as setting one.
ENGLISH
Setup and Upgrade 143
Deleting the Password
1Execute System Setup, enter the password, and click the [Security] button.
ENGLISH
144 Setup and Upgrade
2When the following screen appears, click [Enter] in the [Set Supervisor Password]
menu.
ENGLISH
Setup and Upgrade 145
3When the following message appears, enter the current password in the [Enter Current
Password] field.
ENGLISH
146 Setup and Upgrade
4Click [Enter] in [Enter New Password] and [Confirm New Password].
ENGLISH
Setup and Upgrade 147
5When the following message appears, click [OK].
6To save the changes in the system setup, press [F10].
ENGLISH
148 Setup and Upgrade
7When the following message appears, click [YES]. The PC will restart.
ENGLISH
Setup and Upgrade 149
Deleting the Password (Set HDD Password / Set SSD Password)
1Execute System Setup, enter the password, and click the [Security] button.
2When the [Security] menu appears, click the [HDD Security Status] button.
ENGLISH
150 Setup and Upgrade
3When the following screen appears, click [Enter] in the [Set HDD Password] or [Set
SSD Password] menu.
ENGLISH
Setup and Upgrade 151
4When the following message appears, enter the current password in the [Enter Current
Password] field.
ENGLISH
152 Setup and Upgrade
5Click [Enter] in [Enter New Password] and [Confirm New Password].
ENGLISH
Setup and Upgrade 153
6When the following message appears, click [OK].
7To save the changes in the system setup, press [F10].
ENGLISH
154 Setup and Upgrade
8When the following message appears, click [YES]. The PC will restart.
ENGLISH
Setup and Upgrade 155
Restoring the Factory Default Settings
If you have changed the system setup by mistake, you can restore the default settings.
1After opening the system setup screen, click the [Save & Exit] button.
ENGLISH
156 Setup and Upgrade

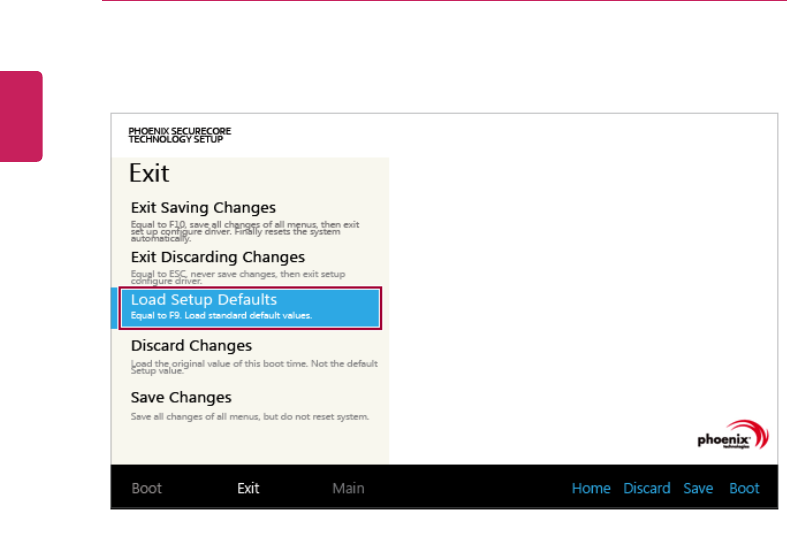

2When the [Exit] menu appears, select [Load Setup defaults].
ENGLISH
Setup and Upgrade 157
3When the following message appears, click [Yes]. The settings will be reset to the
factory default.
4To save the changes in the system setup, press [F10].
ENGLISH
158 Setup and Upgrade
5When the following message appears, click [YES]. The PC will restart.
TIP
•You may press [F9] to use the [Load Setup defaults] menu.
ENGLISH
Setup and Upgrade 159
Changing the Booting Order
The user can change the booting order according to his or her needs, or select a boot
device
The model in the example can differ from actual models and is subject to change for
performance improvements, without prior notice.
TIP
To use the system setup (F2), booting device selection (F10), or recovery (F11), you need
to restart the system (click [Restart] in the system power menu) and then immediately
press the corresponding function key due to the fast booting speed.
Changing the Booting Order
1Reboot the system and press [F2].
ENGLISH
160 Setup and Upgrade
2When the system setup screen appears, click the [Boot] button.
3Drag the icon of the device to change the booting order in the [Edit Boot Order] menu
to change the boot order.
ENGLISH
Setup and Upgrade 161
4To save the changes in the system setup, press [F10].
5When the following message appears, click [YES].
6The changes are saved and the system reboots.
ENGLISH
162 Setup and Upgrade
Selecting a Booting Device to Use
1Reboot the system and press [F10].
ENGLISH
Setup and Upgrade 163
2When the Select Booting Device screen appears, select the device.
3Boots using the selected device.
ENGLISH
164 Setup and Upgrade
Windows 10 Auto Scaling
The Windows 10 Auto Scaling feature for user's convenience may partially blur the screen
or display some icons and texts larger.
Refer to the following information to change the DPI scaling to suit your needs.
1Click the [
] button and select the [Settings] menu.
TIP
Press the [ ] key or [Ctrl] + [Esc] to display the Start menu.
ENGLISH
Setup and Upgrade 165

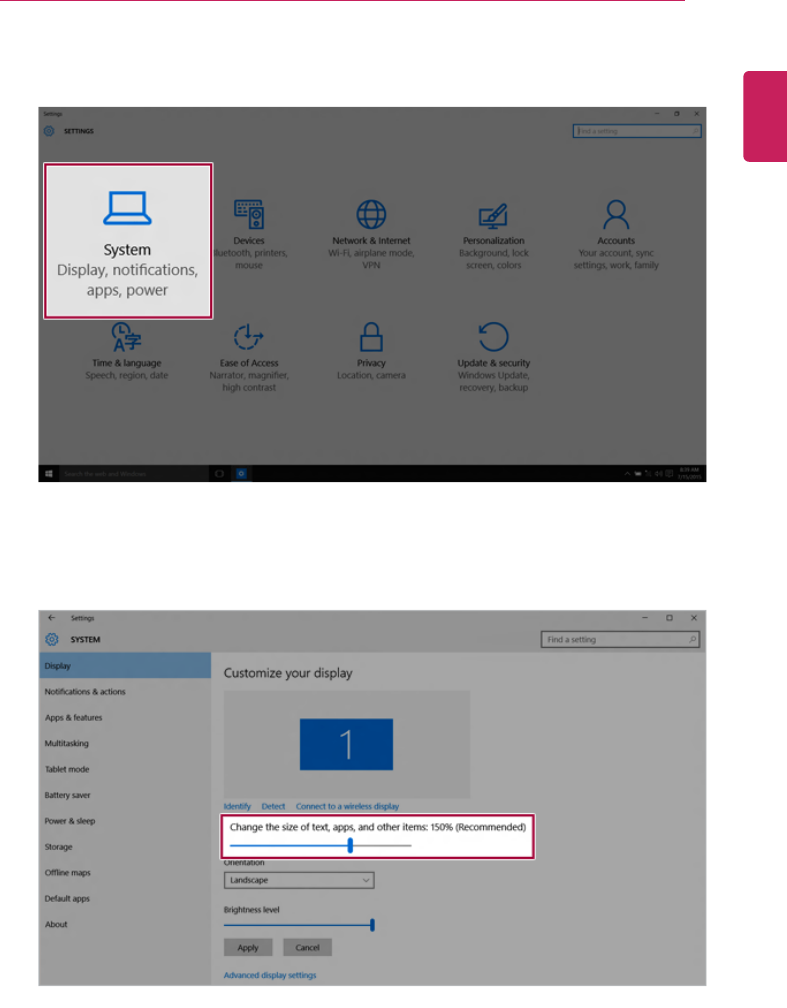

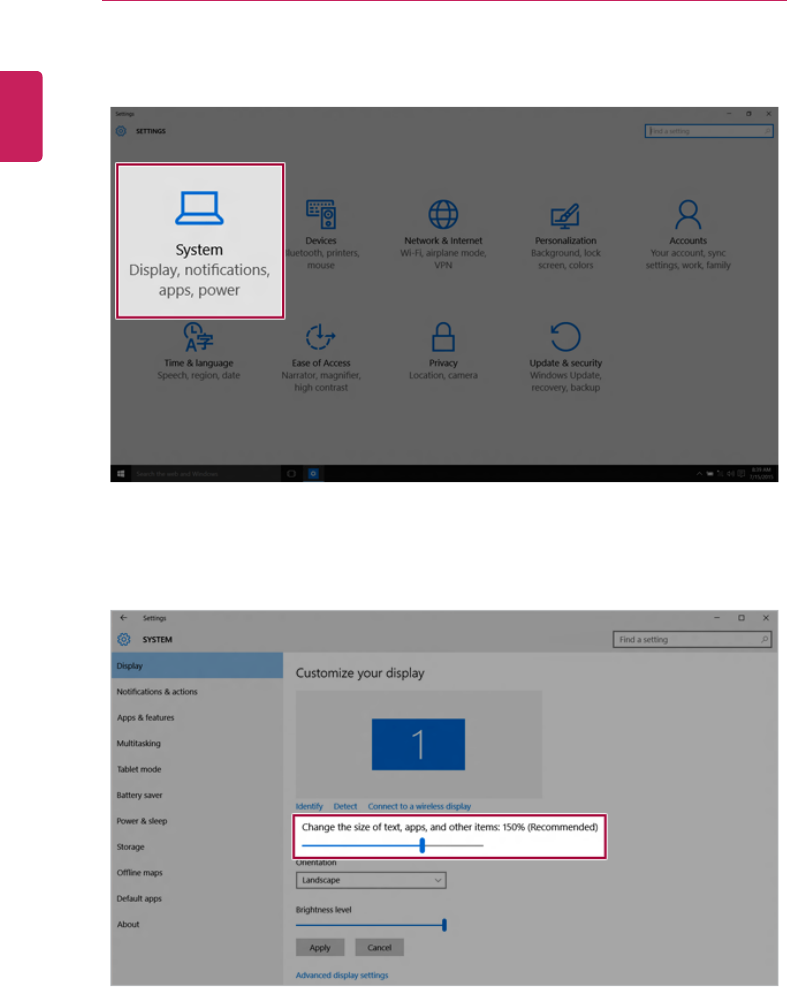

2Select [System] >[Display].
3[Change the size of text, apps and other items.] Adjust the value to change the size.
ENGLISH
166 Setup and Upgrade

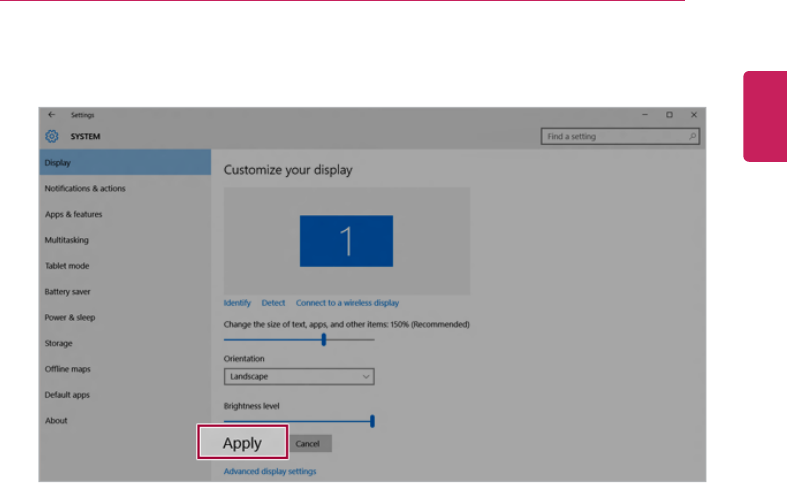

4Click [Apply] to apply the changes.
ENGLISH
Setup and Upgrade 167
Using Instant Booting
Instant Booting allows the system to boot automatically when the notebook PC cover is
opened, so that you can use the system without pressing the power button.
1On the desktop, press the [
] icon to run LG Control Center.
TIP
Select the [ ] button > [All Apps] > [LG Software] and run [LG Control Center].
2On LG Control Center screen, set the [Instant Booting] to [ON].
3Shutdown the system and close the notebook PC cover.
4When the cover is opened, the notebook PC turns on and the system starts to boot
automatically.
ENGLISH
168 FAQ
FAQ
FAQ Content
LG Recovery Center RE
If booting is impossible due to an error with the system, you can recover the system using
LG Recovery Center RE.
TIP
It is recommended that you create a recovery drive in case a serious error occurs in the
system.
CAUTION
If you have deleted the restoration data in the protected area of the hard disk, the restore
function may not work.
All data is lost during the initialization, so you must backup all critical data in advance.
1Turn on the notebook PC and press [F11].
ENGLISH
FAQ 169
2When the following screen appears, select the language you want to use and then click
[Next].
ENGLISH
170 FAQ
3When the following screen appears, select the [Agree] button and then click [Next].
For recovery, the power adapter must be connected. Connect the system power
and then recover the system.
ENGLISH
FAQ 171
4When the factory reset is completed as shown in the following figure, click [Complete]
and then restart the system.
ENGLISH
172 FAQ
Using Instant Booting
Instant Booting allows the system to boot automatically when the notebook PC cover is
opened, so that you can use the system without pressing the power button.
1On the desktop, press the [
] icon to run LG Control Center.
TIP
Select the [ ] button > [All Apps] > [LG Software] and run [LG Control Center].
2On LG Control Center screen, set the [Instant Booting] to [ON].
3Shutdown the system and close the notebook PC cover.
4When the cover is opened, the notebook PC turns on and the system starts to boot
automatically.
ENGLISH
FAQ 173
Windows 10 Auto Scaling
The Windows 10 Auto Scaling feature for user's convenience may partially blur the screen
or display some icons and texts larger.
Refer to the following information to change the DPI scaling to suit your needs.
1Click the [
] button and select the [Settings] menu.
TIP
Press the [ ] key or [Ctrl] + [Esc] to display the Start menu.
ENGLISH
174 FAQ
2Select [System] >[Display].
3[Change the size of text, apps and other items.] Adjust the value to change the size.
ENGLISH
FAQ 175

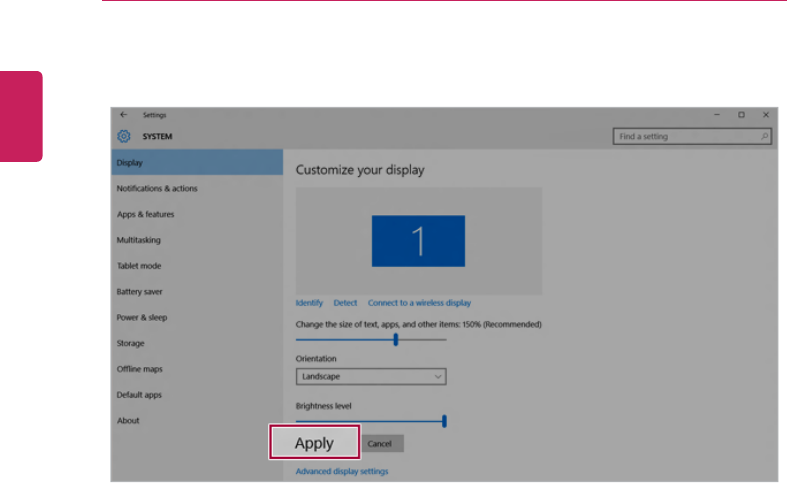

4Click [Apply] to apply the changes.
ENGLISH
176 FAQ
Restoring the System
If the system has an error, you can use Windows 10's recovery feature to recover or restore
the system to its initial pre-purchase state.
CAUTION
If you have deleted the restoration data in the protected area of the disk, or have
arbitrarily installed another operating system, the restore function may not work.
To recover the system, the AC adapter must be connected.
1Press the [
] button and select the [Settings] menu.
ENGLISH
FAQ 177
2When the [Settings] screen appears, select [Update & security].
3Select the [Recovery] menu and press [Get started] to reset the PC.
4If the following screen appears, select a desired option to proceed with recovery.
ENGLISH
178 FAQ
a Keep my files: Recovers the PC without losing any personal files.
PC settings are reset to the default and any user-installed Desktop app will be
deleted.
b Remove everything: Removes all items from the system and restores the system to
its initial pre-purchase state.
ENGLISH
FAQ 179
•Just Remove My Files: Factory-resets the drive where Windows is installed (for
example: Drive C).
•Remove files and clean the drive: Resets all partitions and drives in the system.
CAUTION
All data is lost during the initialization, so you must backup all critical data in advance.
It may take about 5 hours or longer depending on the system conditions.
ENGLISH
180 FAQ
Connecting to External Display
TIP
•Ensure the monitor power is off before connecting the external monitor to the PC.
Connecting to the HDMI Port
HDMI is a high-speed multimedia interface that can transfer uncompressed full digital audio
and video signals.
When LG Notebook PC supports SPDIF, HDMI is not supported.
TIP
Use ‘HDMI to VGA Gender' to connect to VGA port.
HDMI to VGA Gender is available at LG Service Center.
1Connect the HDMI cable to the PC and the external device (TV, monitor) that supports
HDMI.
2HDMI port transfers both video and audio simultaneously. Hence, there is no need for a
separate audio connection.
ENGLISH
FAQ 181
3On the PC, press [Fn] + [F7] to display monitor (projector) toggling screen. Select the
desired screen output.
TIP
•Every time [
] + [P] keys are pressed, the screen output option changes.
Release the keys to display the selected screen output.
CAUTION
•If you do not set Speaker as the default value after disconnecting the HDMI cable,
the system may not produce any sound.
•If a program was running already, you need to exit and restart the program for it to
produce sound.
ENGLISH
182 FAQ
Using a Wired/Wireless Router
A wireless / regular router connects several PCs and mobile devices to one internet line and
enables the use of internet and the network.
A wireless / regular router has to be bought separately. Refer to the manual provided
by the manufacturer for instructions.
Connecting a Wireless or Regular Router
If one internet line is used with a wireless / regular router and several devices are
connected, this may result in a slower connection.
In case of a wireless LAN, it is recommended to change the network name and security
settings for a more secure connection.
Network speed can differ according to operation environment and specifications.
1Connect the internet cable of the modem that was provided by your internet provider to
the router's WAN port.
2Connect all devices (PC, IPTV, internet phone, etc.) with a LAN cable to LAN ports 1 to
4 of the router.
The number of LAN ports can vary for each router model.
3Please refer to the manual provided by the router manufacturer for setup of the network
and Internet.
ENGLISH
FAQ 183
Wireless LAN
The wireless network (Wireless LAN) is the network environment that connects a PC with
the internet provider or company network through an Access Point (wireless or regular
router).
Wireless LAN is optional. Hence, it may not be installed in some models.
Turning On/Off Airplane Mode
Prior to using the wireless LAN, press [Fn] + [F6] to turn off Airplane Mode.
Pressing [Fn] + [F6] will turn the Airplane Mode on or off. It is recommended that you keep
the mode turned on when the machine is not used to reduce the battery power
consumption.
Using the Wireless LAN
If an Access Point (wired or wireless router) is in the vicinity of the PC, the wireless LAN can
easily be accessed.
During the search for a wireless network (Wireless LAN), various Access Point may
be found according to the location where the PC is used.
In case no accessible wireless network (Wireless LAN) is near the PC, no Access
Point might be found.
A password protected Access Point cannot be accessed without the correct
password.
ENGLISH
184 FAQ
1Press the [
] button and select the [Settings] menu.
TIP
Press the [ ] key or [Ctrl] + [Esc] to display the Start menu.
ENGLISH
FAQ 185

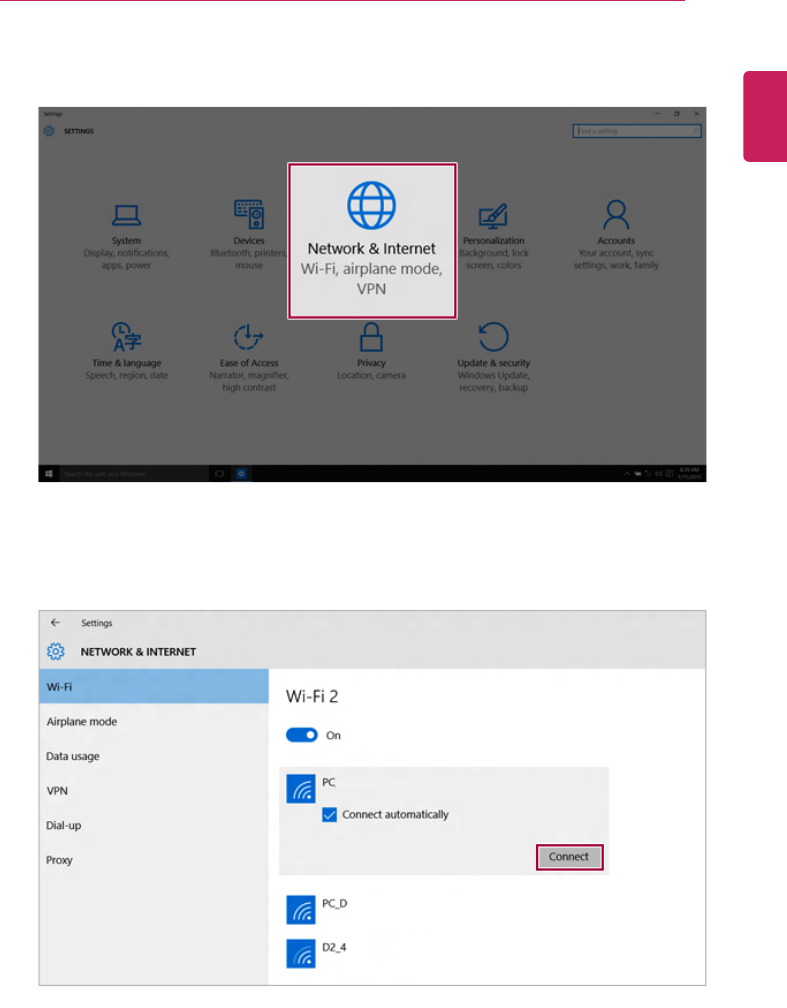

2Select [Network and Internet] > [Wi-Fi] to search for near access points automatically.
3Select an access point to connect to and click the [Connect] button.
ENGLISH
186 FAQ

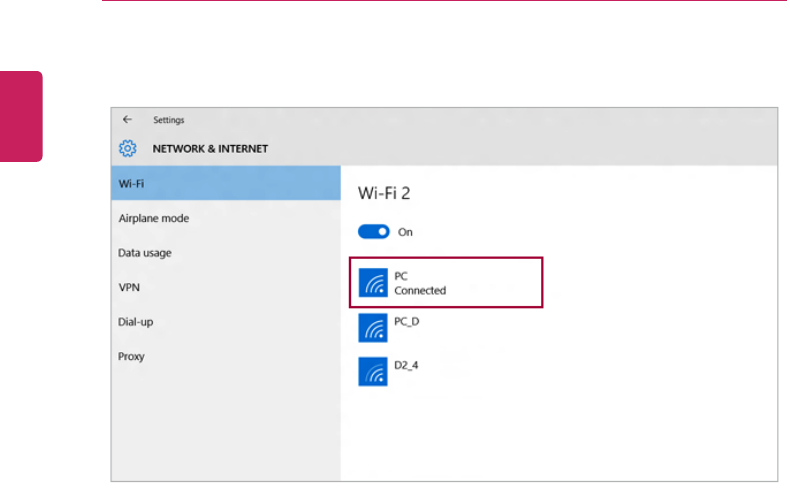

4If a connection is established, [Connected] is displayed below the access point name.
5Click Internet Browser to check if the internet is working properly.
ENGLISH
FAQ 187
Wired LAN
Wired LAN is the network environment that users can connect to by using a cable to
connect to their internet providers or the company's network.
Using Wired LAN
Wired LAN is installed with an automatic IP (DHCP) as default value.
Please refer to the following instructions for details on setting up an automatic IP (DHCP) or
manual IP.
1Connect the LAN adapter to the micro USB port on the PC.
TIP
The recommended network cable for the optimal network environment is CAT5 or
higher.
The network (LAN) cable may be connected when the LAN adapter is used.
The LAN adapter may be separately purchased at LG Service Center.
ENGLISH
188 FAQ
2Connect the wired LAN cable to the LAN port.
ENGLISH
FAQ 189
3Press the [
] button and select the [Settings] menu.
TIP
Press the [ ] key or [Ctrl] + [Esc] to display the Start menu.
ENGLISH
190 FAQ

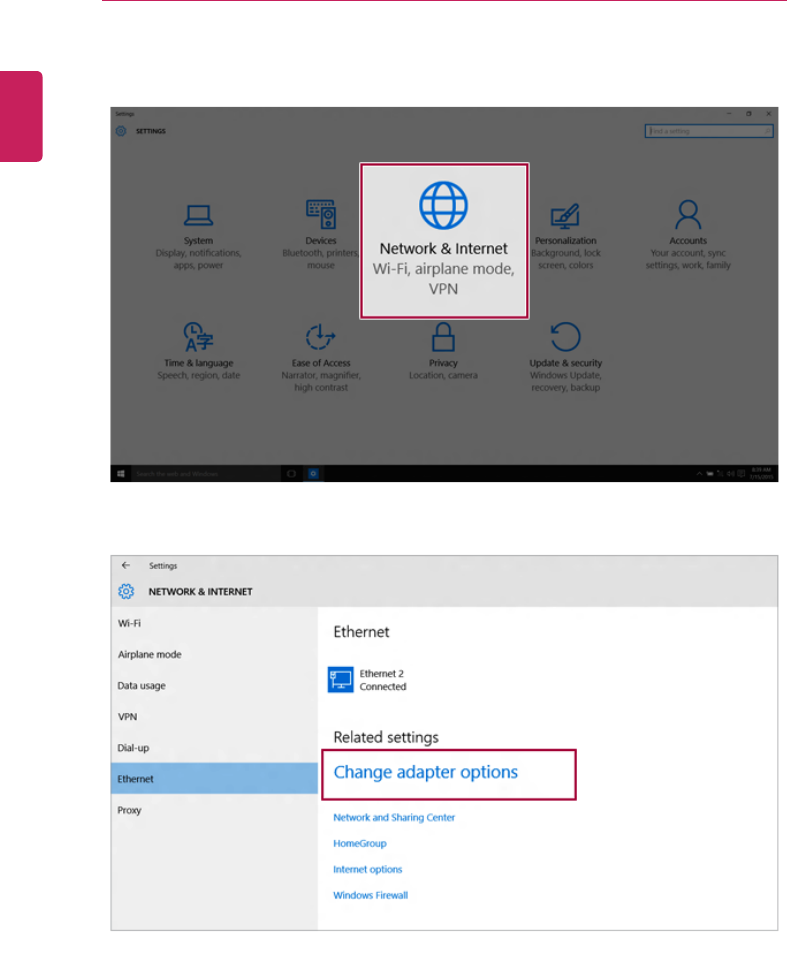

4Select [Network and Internet] >[Ethernet] >[Change Adapter Options].
ENGLISH
FAQ 191
5Right-click [Ethernet] and select the [Properties] menu.
ENGLISH
192 FAQ

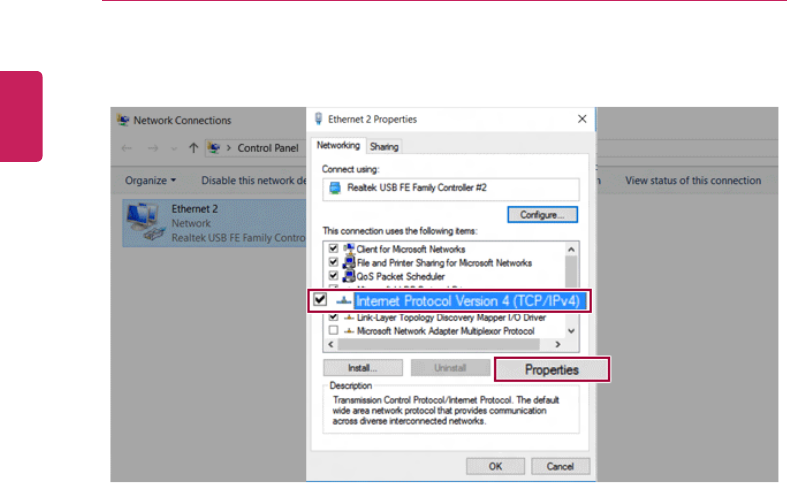

6Select [Internet Protocol Version 4 (TCP/IPv4)] and click the [Properties] button.
ENGLISH
FAQ 193

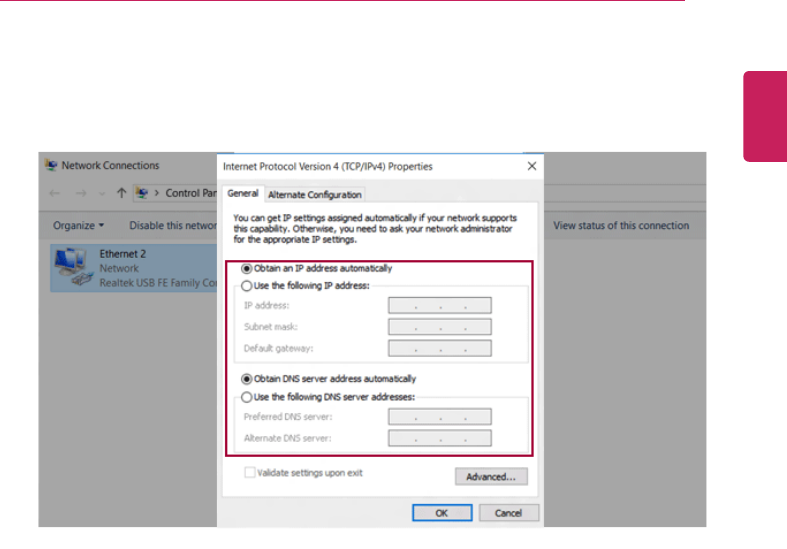

7To use an automatic IP(DHCP), select [Obtain an IP Address Automatically]. If you
wish to use a manual IP, select [Use Following IP Address] to enter the address.
Contact the network service provider or administrator to use a static IP.
8Click [OK] to complete the network setup.
9Click Internet Browser to check if the internet is working properly.
ENGLISH
09
FCC Warning
This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•IIncrease the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the
FCC.
IC Warning
“This device complies with Industry Canada licence-exempt RSS standard(s).”
Operation is subject to the following conditions: (1) this device may not cause interference, and (2) this device must accept any
interfer-ence, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas provoquer de brouillage, et (2) l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
K_UM_G4.0[EN]AVN PART 10.indd 10-18K_UM_G4.0[EN]AVN PART 10.indd 10-18 2014-10-02 오후 1:22:592014-10-02 오후 1:22:5
•This device is restricted to indoor use only within the 5.15 ~ 5.25 GHz Band.

Navigation menu
