LG Innotek REBETZ42B2 Electronic Shelf Label User Manual Users manual
LG Innotek Co., Ltd. Electronic Shelf Label Users manual
Users manual
Copyrightⓒ. 2015. All Rights Reserved.
4.2” 3-Color Graphic type ESL
User manual
Model : REBE-TZ42B
Copyrightⓒ. 2015. All Rights Reserved.
Release : Deleting Purchase Information on Tag
Keep Alive : Waking Tag up from sleep mode
Reset : Returning a Tag to be factory settings
Registration : Updating New Purchase Information on Tag

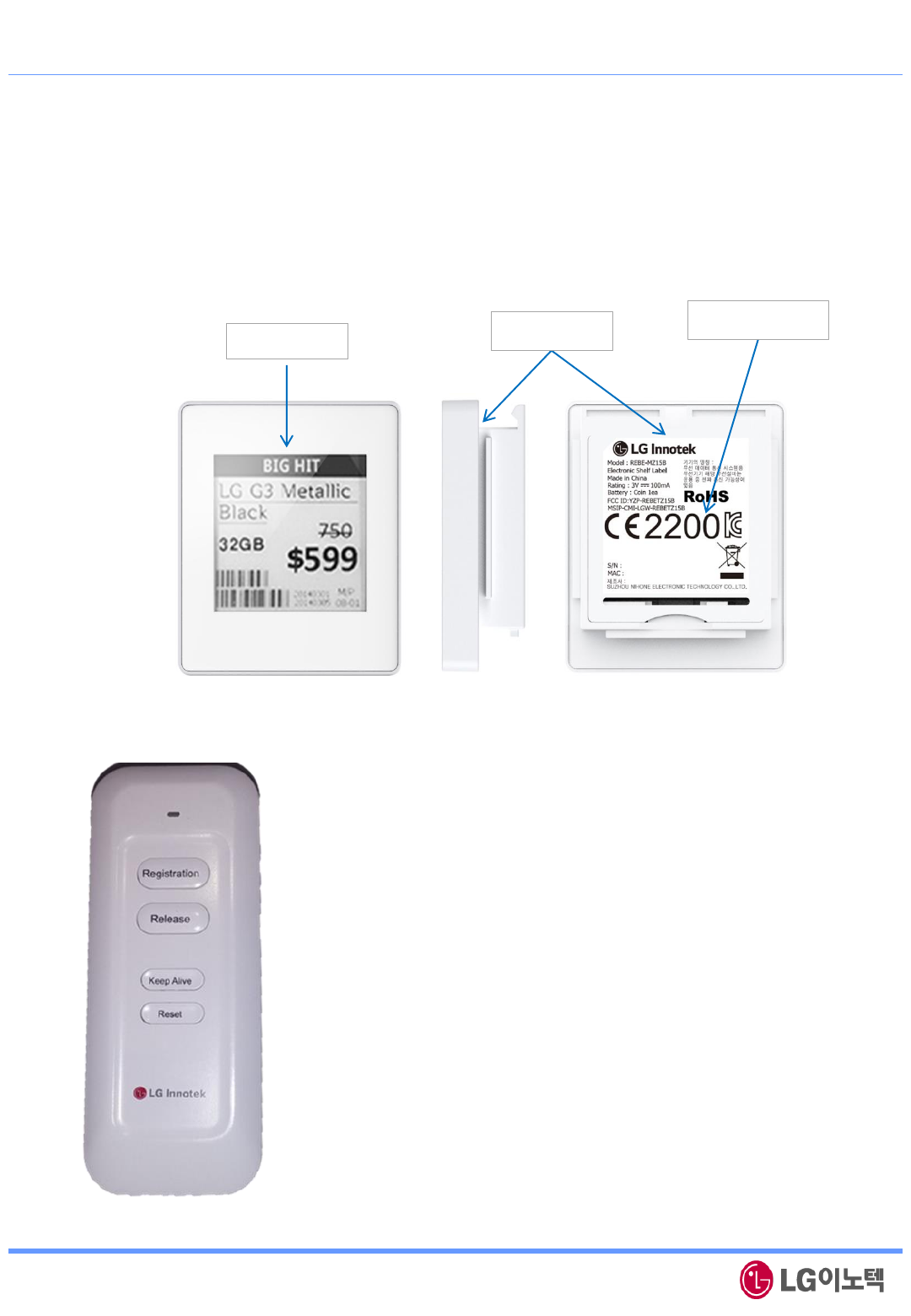

1. Overview
Remo-con description
Remote control device provides customer with several functions as below
Waking Tag up from sleep mode
Updating new purchase image on Tag
Deleting purchase image on Tag
Returning a Tag to be factory settings
LED : One of any buttons is pushed, red led turns on.
After sending some data to a Tag, red led will turn off.
Display Area Profile Hook Battery Cover
Copyrightⓒ. 2015. All Rights Reserved.

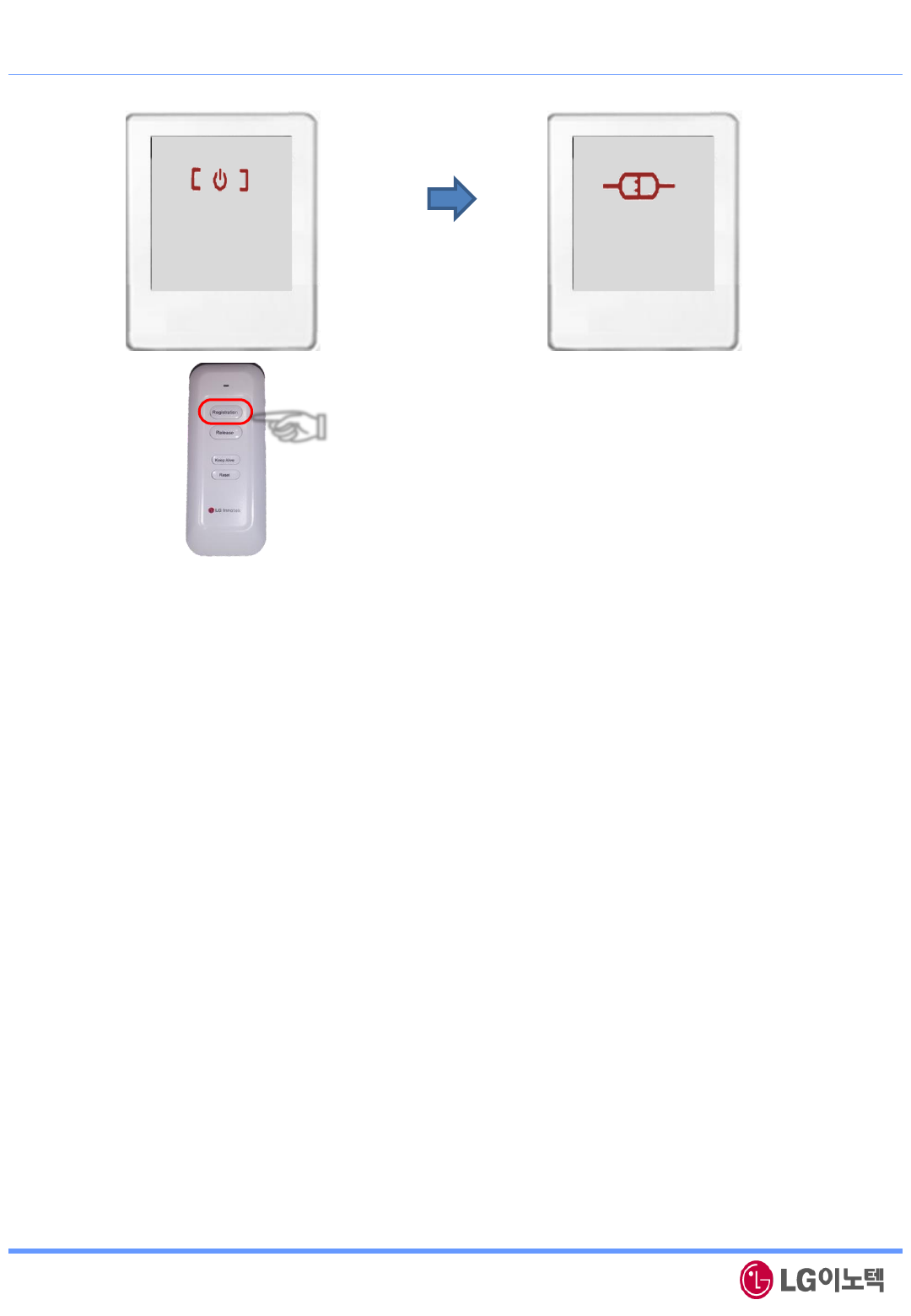

To change purchase information on Tag, perform the following steps :
1. Put remote controller
near center of Tag‟s display
2. Press and hold „Registration‟ button on remote controller until red LED off
(about 0.5 seconds)
3. When Tag is successfully received „Registration‟ data from remote controller, Tag‟s
display will be changed to “Connected” for a few minutes. That means Tag hides
purchase image to read Tag‟s IEEE MAC address through the Barcode scanner.
4. In NMS Client, download new purchase image to the Tag in registration status
5. When image downloading is finished successfully, Tag‟s display will be changed to new
purchase image
Case1) If image downloading is failed, Tag‟s display will be changed to “Busy”.
After “Alive Time”, this Tag will be download new purchase image again
2. Updating new purchase image on Tag
☜
Copyrightⓒ. 2015. All Rights Reserved.

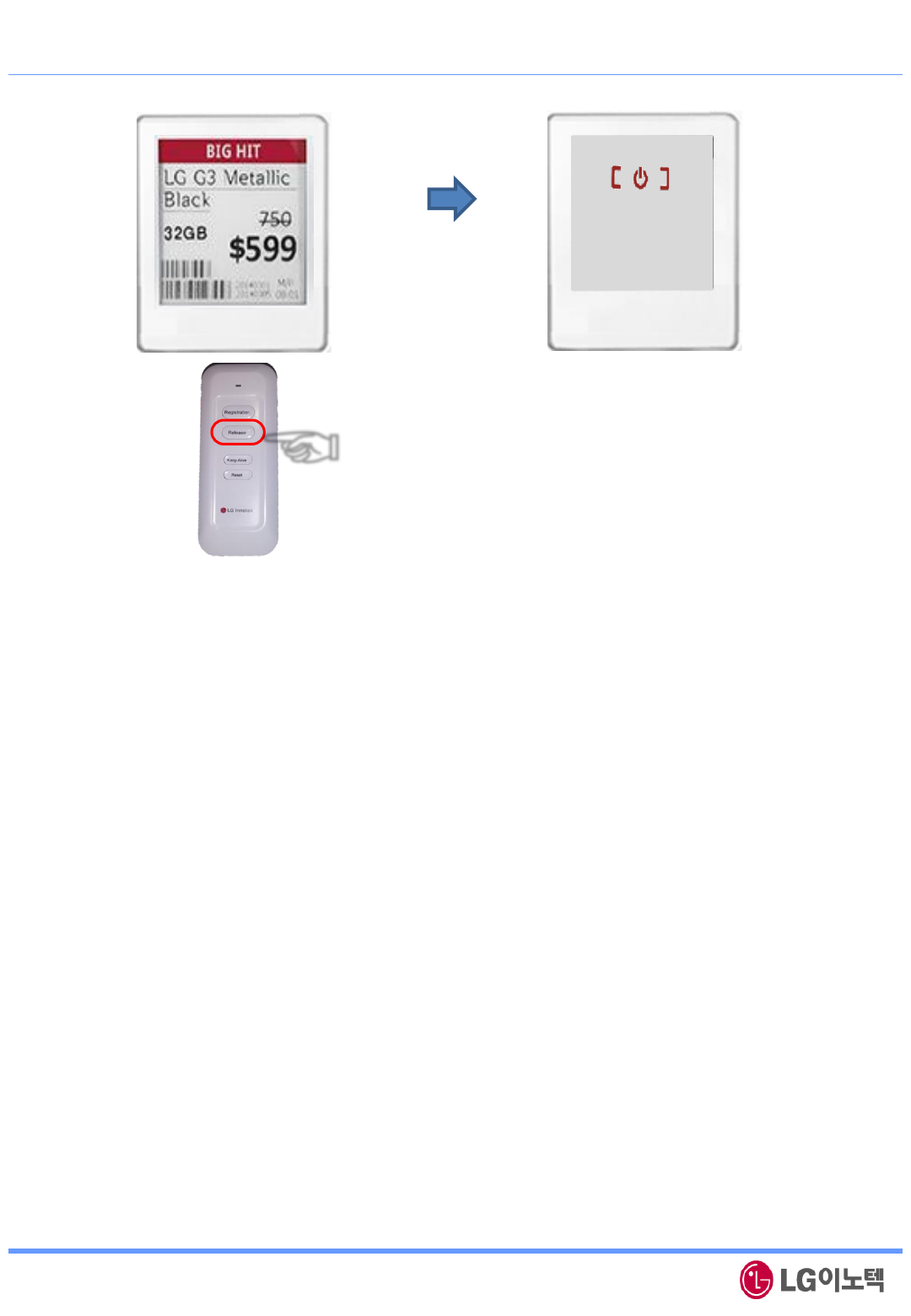

To release(delete) purchase information on Tag, perform the following steps :
1. Put remote controller near center of Tag display
2. Press and hold „Release‟ button until red LED off (about 0.5 seconds)
3. If Tag was received „Reset‟ command from remote controller, Tag will delete
purchase information and Tag‟s display will be changed to “Ready”
4. After step.3, Tag goes to deep sleep mode and doesn‟t communicate with gateway
until receiving „Keep Alive‟ or „Registration‟ data from remote controller
3. Deleting purchase information on Tag
☜
Copyrightⓒ. 2015. All Rights Reserved.

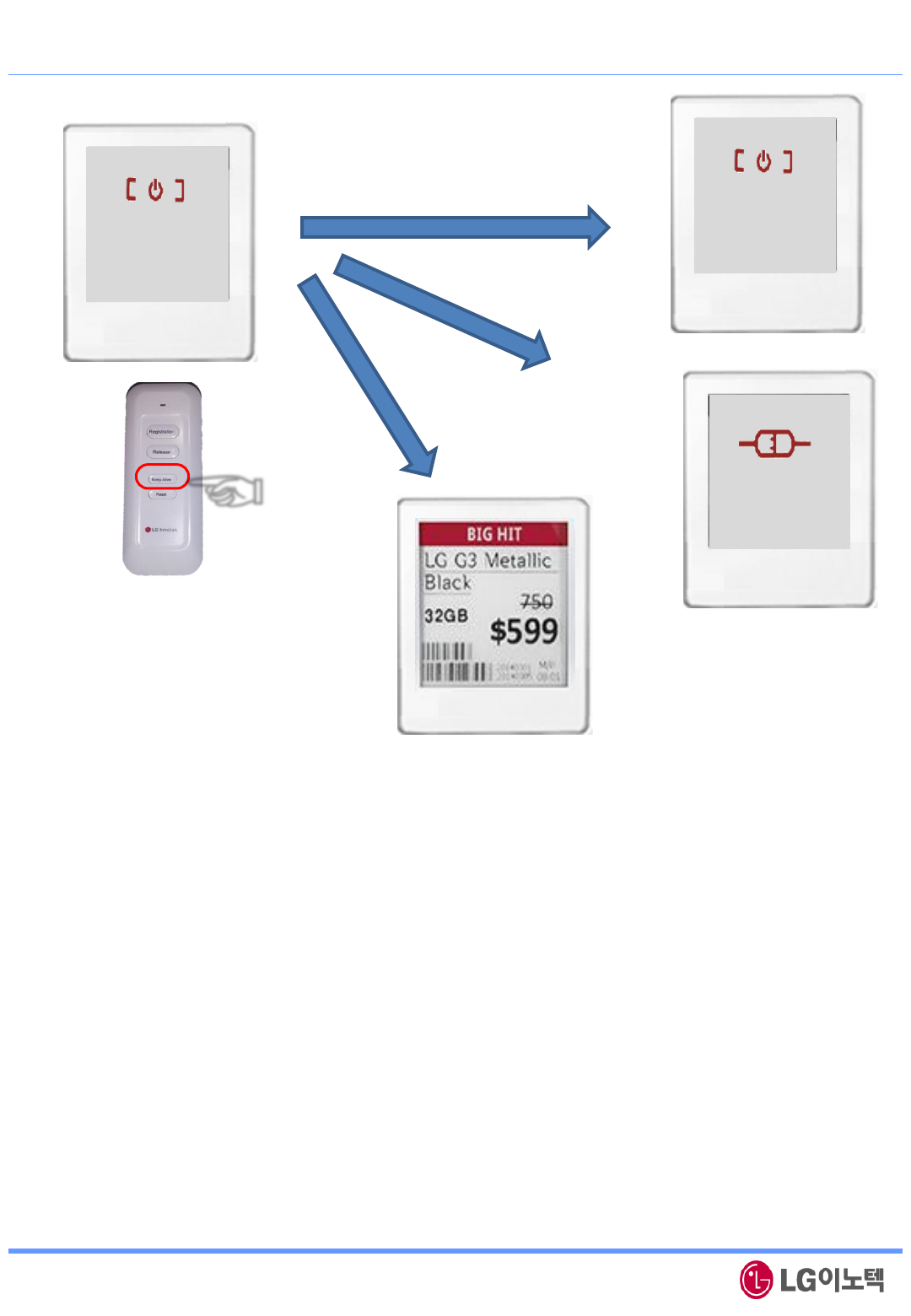

To wake Tag up from sleep mode, perform the following steps :
1. Put remote controller
near center of Tag display
2. Press and hold „Keep Alive‟ button until red LED off (about 0.5 seconds)
3. Tag will wake up and goes to next step. It‟s depends on connection information with gateway
case1) If this Tag wasn‟t connected with a gateway before sleep mode, go to 4-1
case2) If this Tag was connected with a gateway before sleep mode, go to 4-2
4-1. Searching gateway and goes to the next step. it‟s depends on searching results
case1) If Tag was successfully connected, Tag‟s display will be changed to “Ready”
case2) If Tag wasn‟t connected, Tag‟s display(may be “Ready”) will be refreshed
4-2. Sending „Keep Alive‟ packet to gateway and Tag will go to sleep mode again
case1) If Tag was received response from gateway, this Tag will go to “sleep mode” until
the specified time in gateway. After “sleep mode”, this Tag will send “Keep Alive” Packet to
gateway again.
case2) If Tag wasn‟t received response from Gateway, this Tag will retry three times. After that,
Tag‟s display will be changed to “Disconnected”. Also this Tag will perform a whole channel scan
every five minutes.
.
4. Waking Tag up
Case 2
Case 3
☜
Case 1
Copyrightⓒ. 2015. All Rights Reserved.

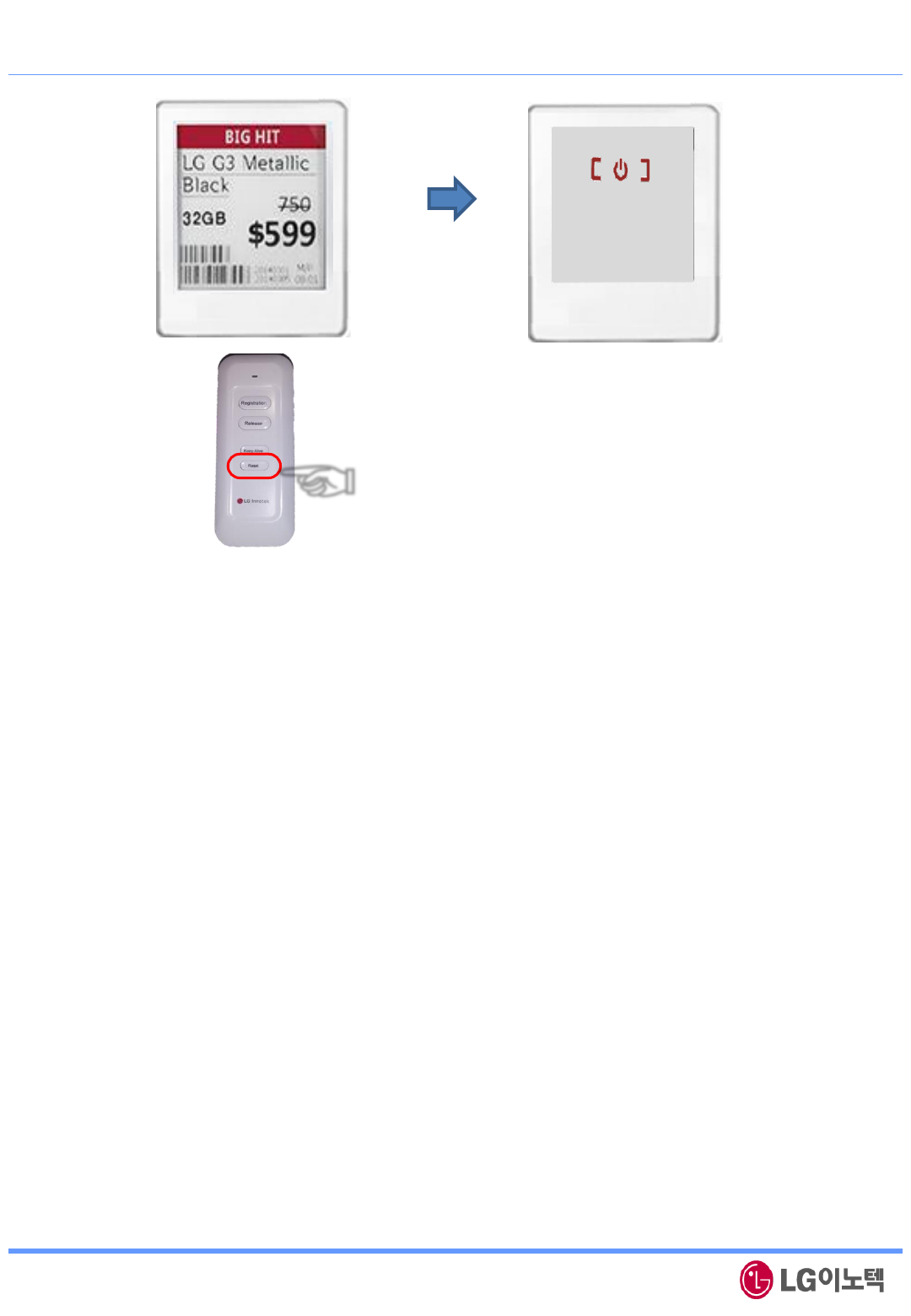

To make a Tag to be factory reset status, perform the following steps :
1. Put remote controller
near center of Tag display
2. Press and hold „Reset‟ button until Red LED off (about 0.5 seconds)
3. If Tag was received „Reset‟ command from remote controller, Tag goes back to factory
settings and Tag‟s display will be changed to “Ready”
4. After step.3, Tag goes to deep sleep mode and doesn‟t communicate with gateway
until receiving „Keep Alive‟ or „Registration‟ data from remote controller
case1) If Tag was received “Keep Alive” or “Registration” command from remote
controller, this Tag will perform a whole channel scan.
case2) If Tag was received “Reset” or “Release” command from remote controller,
Tag‟s display will be changed to “Ready” again
5. Returning a Tag to be factory settings
☜
Copyrightⓒ. 2015. All Rights Reserved.
Deep Sleep Mode

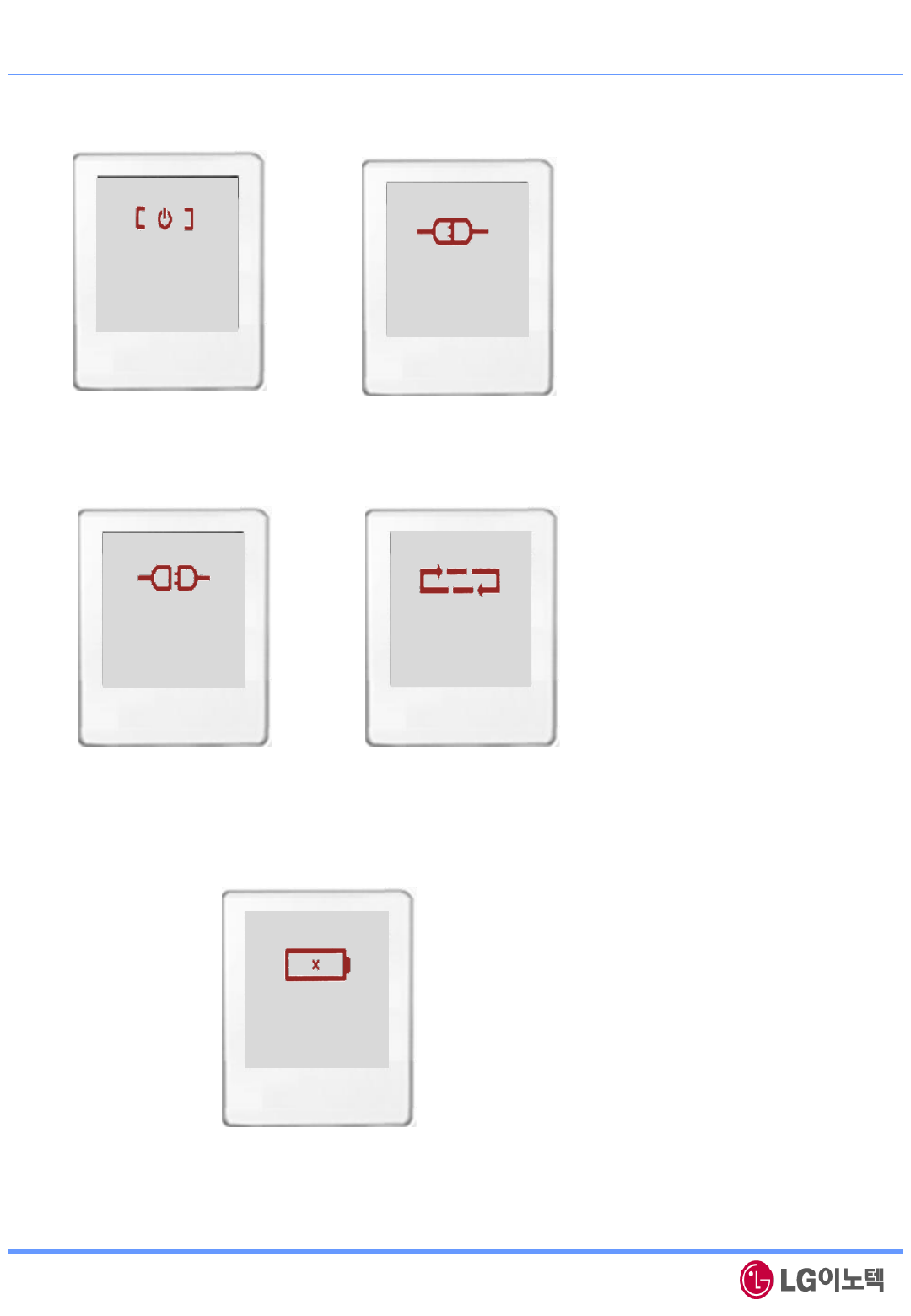

6. Tag status
Connected with Gateway
Disconnected with Gateway Image download Failure(“Busy”)
Battery discharge
(The battery needs to be replaced)
Copyright ⓒ 2015. All Rights Reserved.
LG Innotek
Confidential
LG Innotek
Confidential
7
/
4

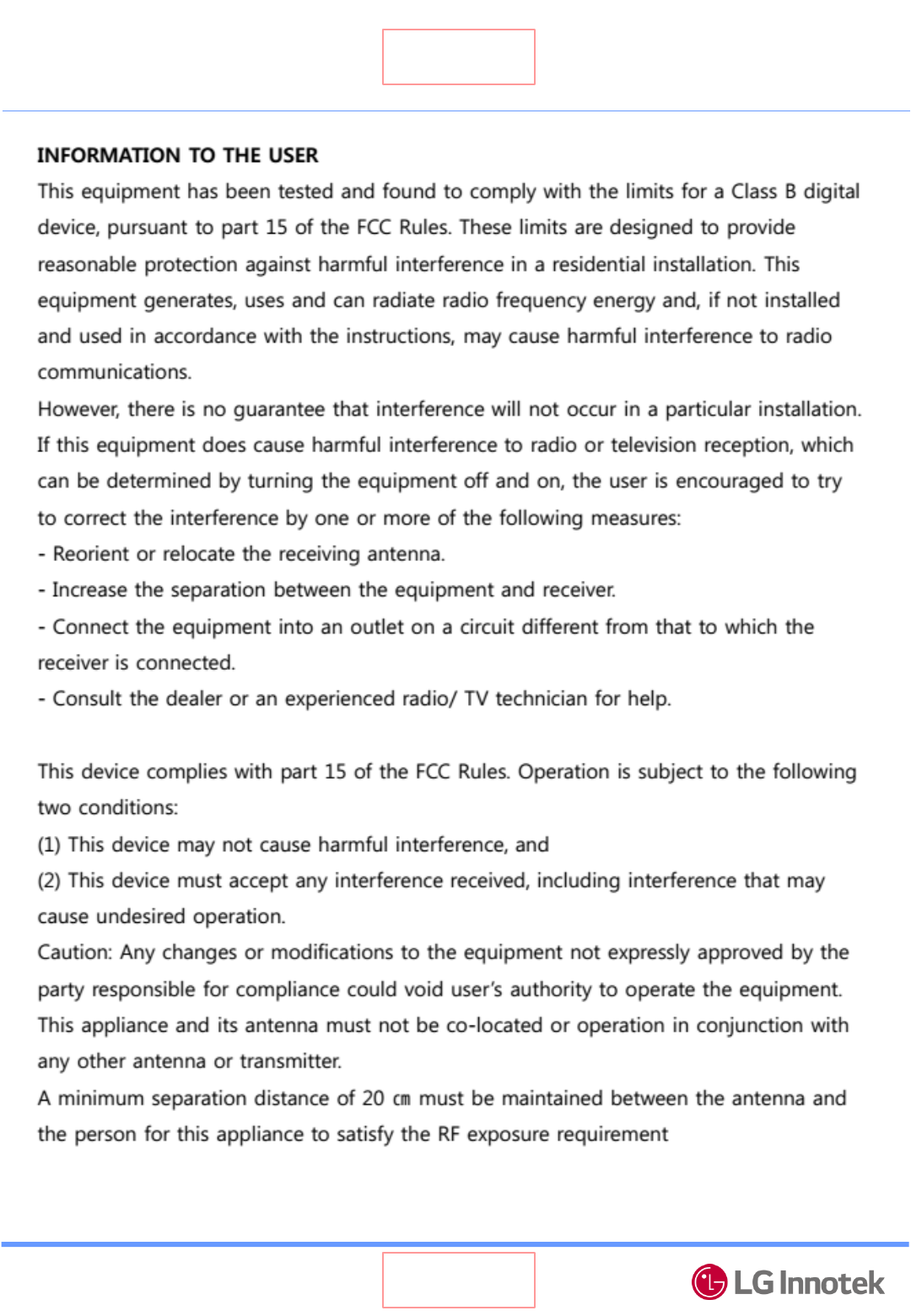

7. Regulation Information
