LG Innotek VL2000 Telematics Modem User Manual 1
LG Innotek Co., Ltd. Telematics Modem 1
User manual
Copyright ⓒ. 2014. All Rights Reserved.
User Guide for LTD-VL2000 (Eagle)
1. Overview
2. Major feature
3. Interface
4. Electrical specification
5. RF specification
6. Mechanical specification
7. General specification
8. Connector
9. RFx information
10. FCC Approval
Table of Contents
Product : LTE/CDMA(EVDO) Wireless Modem
Model name : LTD-VL2000
Copyright ⓒ. 2014. All Rights Reserved.
The LTD-VL2000 is achieved as personal mobile communication devices of
the compact radio equipment, the latest design of the parts becoming smaller,
lighter weight having the LTE(700/1700MHz), CDMA(850/1900MHz) bands. It is
the vehicle’s telematics system that connect with LTE and CDMA(EVDO)
wireless network and the wireless module with voice and data communication. It
can be operated at land, rivers, and other similar areas.
On LTE operating mode, It can be communicated with uplink 50Mbps, downlink
up to 100Mbps data transfer speed such as a movie or a video call. It may be
able to receive large amounts of data.
Standard RS-232 port and USB port communicating with the host system via
AT-command or control commands can be used to send data. Voice calls are
possible.
1. Overview
Copyright ⓒ. 2014. All Rights Reserved.
Mechanical
Dimension
86.2(L)
x 78.1(W) x 7.0(T) mm
Weight
48g(max)
Interface
USB, General Purpose I/O pins
Antenna
FAKRA Connector
Temperature *
Operation : -20℃ ~ +70 ℃
Storage : -40 ℃ ~ +85 ℃
Technology
Main Chipset
MDM 9615
Memory
2048Mb(NAND) / 1024Mb(SDRAM)
Standard
3GPP Rel.9 LTE
- DL Speed : 100 Mbps(20M bandwidth)
- UL Speed : 50 Mbps(20M bandwidth)
3GPP2 CDMA 1X, EVDO Rev.A
- DL Speed : 3.1 Mbps
- UL Speed : 1.8 Mbps
Band
LTE B4, B13
CDMA 850(Cellular), 1900 (PCS)
GPS Not Supported
Power
LTE : Typ. 23dBm(Power Class 3)
CDMA : Typ. 24dBm (Power Class 3)
ETC
DC Power
12V
Functions
Voice, Data, SMS
2. Major feature
Copyright ⓒ. 2014. All Rights Reserved.
3. Interface
Customer P/N is connected with outer device using 40 pin connector
3.1 Pin output

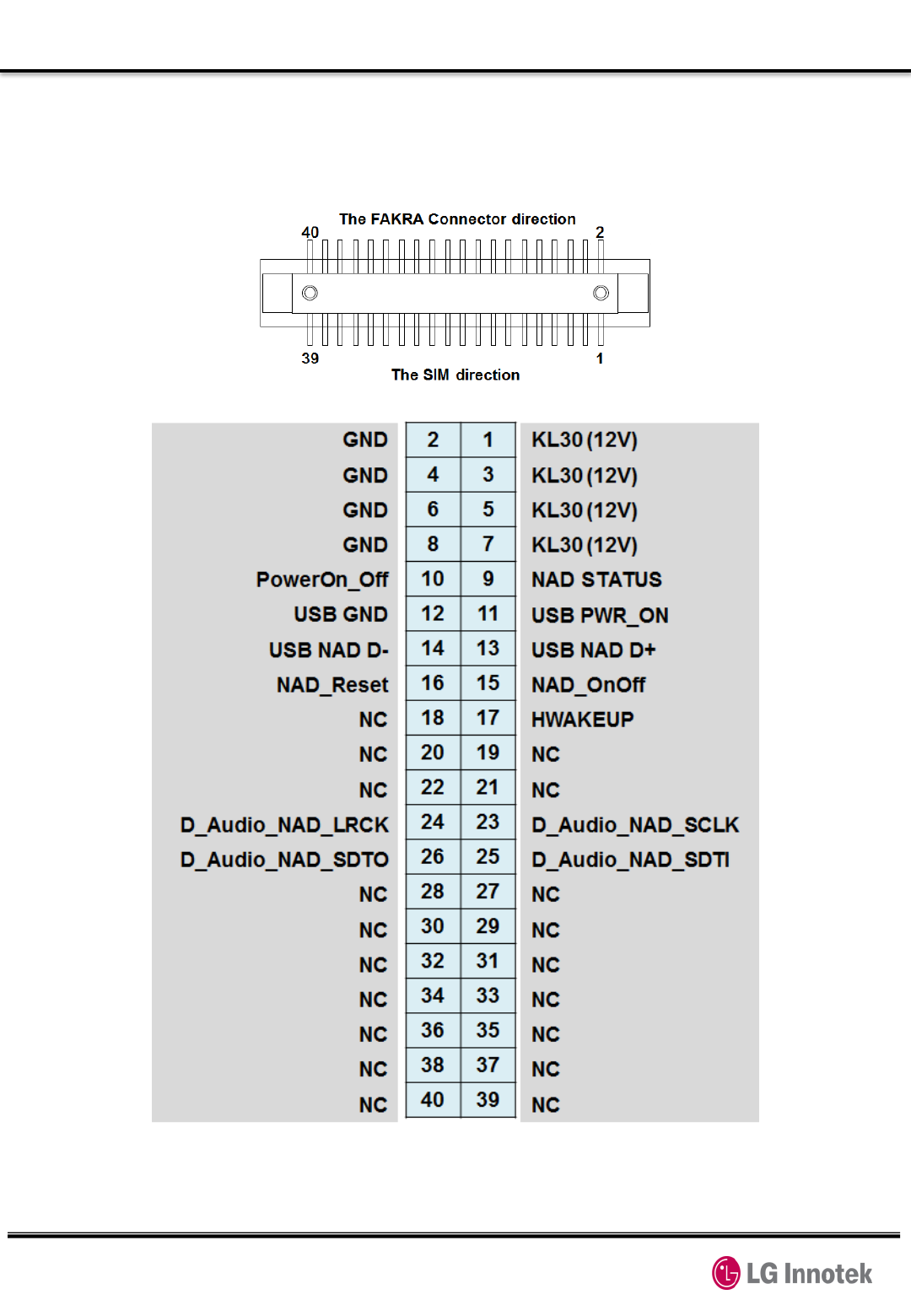

Figure 1. Connector pin arrangement
Copyright ⓒ. 2014. All Rights Reserved.
3. Interface
3.2 Pin description
Table 1. Pin descriptions
Signal Name Type Pin Description
USB
USB
-NAD_D+
USB
-NAD_D-
USB_POW_ON
USB
-GND
IO
IO
I
-
13
14
11
12
USB Differential data line (+)
USB Differential data line (
-)
Control line USB Power Supply
USB
-Ground internal connected to GND
Audio
PCM
D_Audio_NAD_SCLK
D_Audio_NAD_LRCK
D_Audio_NAD_SDTI
D_Audio_NAD_SDTO
O
O
I
O
23
24
25
26
PCM Interface bit clock line
PCM Interface frame clock line
PCM Interface digital audio data in
PCM Interface digital audio data out
User
Interface
NAD_OnOff
NAD_Reset
NAD_Status
PowerOn_Off
HWakeUp
I
I
O
I
O
15
16
9
10
17
Control line to power on or off the module
Control line to unconditionally restart the module
Indicates the power state of the module
Control
line to switch on the power supply of LGIT-M.
Optional Control line to switch on host.
Power
KL30 (12V)
GND
I
-
1,3,5,7
2,4,6,8
Power supply
input (+)
Power supply
input (-)
NC
RESERVED
-
18,27,28,
29,30,31,
32,33,34,
35,36,37,
38,39,40
Reserved pins. Please leave the pins unconnected
Copyright ⓒ. 2014. All Rights Reserved.
3. Interface
3.3 USB
It is supported with universal serial bus for high data communication. And It
is satisfied with USB2.0 specification and supported with max.480Mbps
Table 2. USB Pin descriptions
Pin NO. Signal Name Pin I/O
(Modem host) Function Description
13 USB-NAD_D+ IO USB Differential data line (+)
14 USB-NAD_D- IO USB Differential data line (-)
11 USB_POW_ON I Control line USB Power Supply
12 USB-GND - USB-Ground internal connected to GND
Copyright ⓒ. 2014. All Rights Reserved.
3. Interface
3.4 Audio
This module is provided with PCM interface. The resistor of pulled-up or
pulled-down in this pin must be over 50Kohm.
Table 3. PCM Pin descriptions
3.5 User interface
Pin No. Signal Name Direction Function
15 NAD_OnOff I Turn on and off the module
Active High
9 NAD_Status O Indicate the active status of module
Active High
10 PowerOn_Off O Supply the power of module
Active High
17 HwakeUP O Be used to wake up the host system
Active Low
11 USB_Pow_On I Communicate with USB device
Active High
Table 4. User interface Pin descriptions
Pin NO.
Signal Name Pin I/O
(Modem host) Function Description
23 D_Audio_NAD_SCLK O PCM Interface bit clock line
24 D_Audio_NAD_LRCK O PCM Interface frame clock line
25 D_Audio_NAD_SDTI I PCM Interface digital audio data in
26 D_Audio_NAD_SDTO O PCM Interface digital audio data out
Copyright ⓒ. 2014. All Rights Reserved.
4. Electrical specification
4.1 Power supply specification
A Module Power supply(KL30) is delivered on DC 12V, 1.5A from host
system. In Module internal power supply, it is design for power management
integral circuits to distribute constant voltages, and can control the each
power block to minimize the power consumptions.
In particular, PAM(power amplifier module) has much power consumption so it
is supplied for directly 3.8V converted from KL30. Therefore it should be
careful to input the supply power of PAM when the absolute rating is over. In
addition, all of power input should be design with blocking and protecting high
surge and ESD in NAD module.
Pin No. Signal Name Direction MIN TYP MAX
1, 3, 5,7 KL30(V_BATT)
I 10.8V 12V 13.2V
Table 5. Power supply specification
Copyright ⓒ. 2014. All Rights Reserved.
4. Electrical specification
4.2 Logic level specification
4.2.1 Digital logic level specification

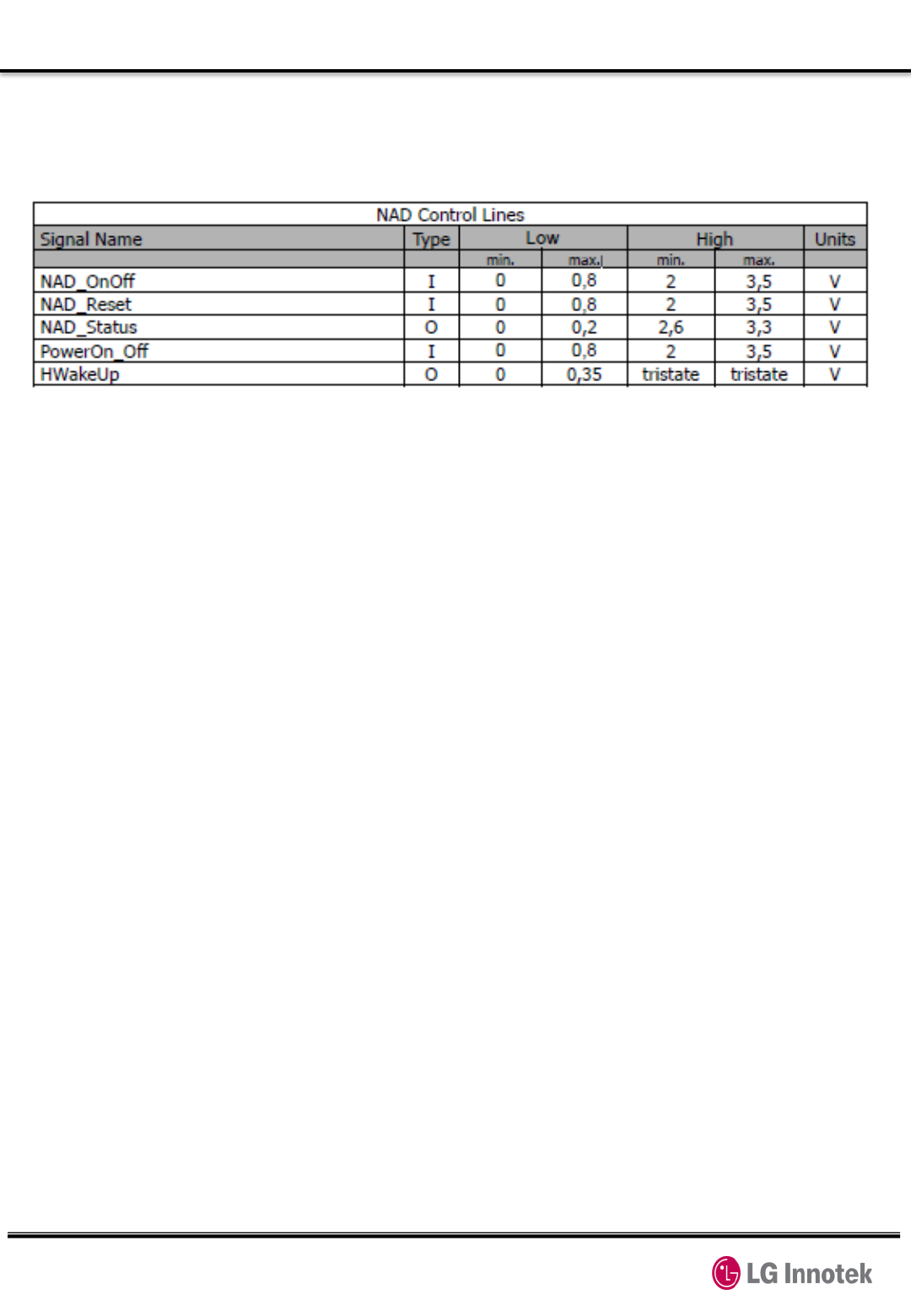

Table 6. Digital logic level specification
Copyright ⓒ. 2014. All Rights Reserved.
5. RF specification
5.1 CDMA
5.1.1 Receiver
.- Bandwidth : 1.25MHz
.- Frequency : 869MHz – 894MHz (BC0), 1930MHz – 1990MHz (BC1)
.- RF to Baseband Direct conversion (Zero IF)
.- Modulation method : QPSK, 8PSK and 16QAM
.- Sensitivity : ≤-104dBm (PER = Under 0.5%)
5.1.2 Transmitter
.- Frequency: 824MHz – 849MHz (BC0), 1850MHz – 1910MHz (BC1)
.- Maximum RF Output : Power class3 (BC0), 23.01dBm ~ 25.5dBm
Power class2 (BC1), 23.01dBm ~ 25.5dBm
.- Modulation method : BPSK, QPSK AND 8PSK
.- Baseband to RF Direct conversion (Zero IF)
5.2 LTE
5.2.1 Receiver
.- Bandwidth : B4(1.4/3/5/10/15/20MHz), B13(5/10MHz)
.- Frequency : 2110MHz – 2155MHz (B4), 746MHz – 756MHz (B13)
.- RF to Baseband Direct conversion (Zero IF)
.- Modulation method : QPSK, 16QAM and 64QAM
.- Sensitivity : Main - B4 (≤-93.3dBm @QPSK), B13(≤-93.3dBm @QPSK)
Diversity - B4 (≤-93.3dBm @QPSK), B13(≤-93.3dBm @QPSK)
5.2.2 Transmitter
.- Frequency : B4 (1710MHz – 1755MHz), B13(777MHz – 787MHz)
.- Maximum RF Output : Power class 3, 21.5dBm ~ 24.5dBm
.- Modulation method : QPSK and 16QAM
.- Baseband to RF Direct conversion (Zero IF)
Copyright ⓒ. 2014. All Rights Reserved.
6. Mechanical specification
6.1 Mechanical dimensions
Dimensions 86.2(L) x 78.1(W) x 7.0(T) mm
Weight 48 grams(max.)

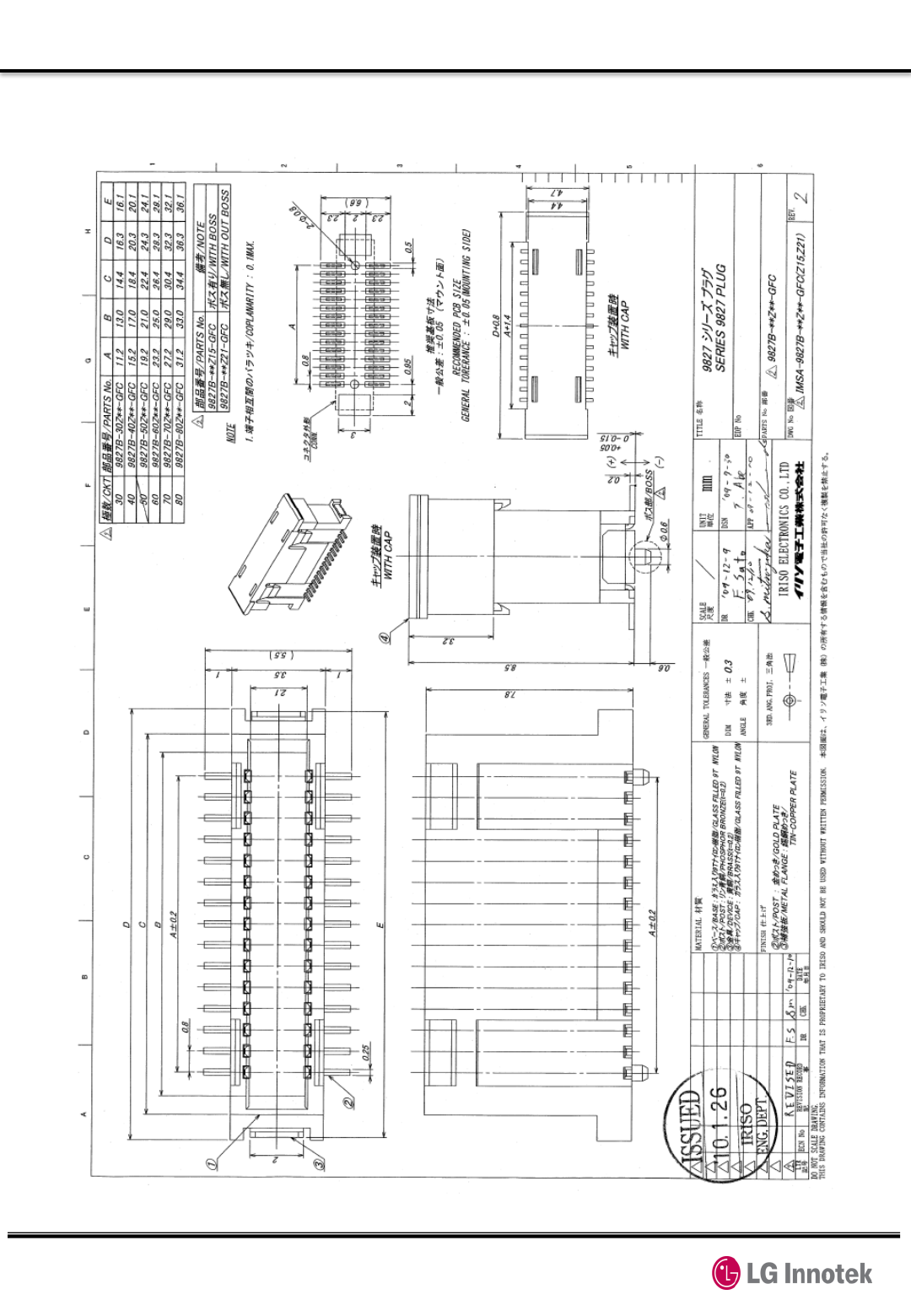

Modem Interface connector
ISMA
-9827B-
40Y955 (Manufacture vendor : IRISO)

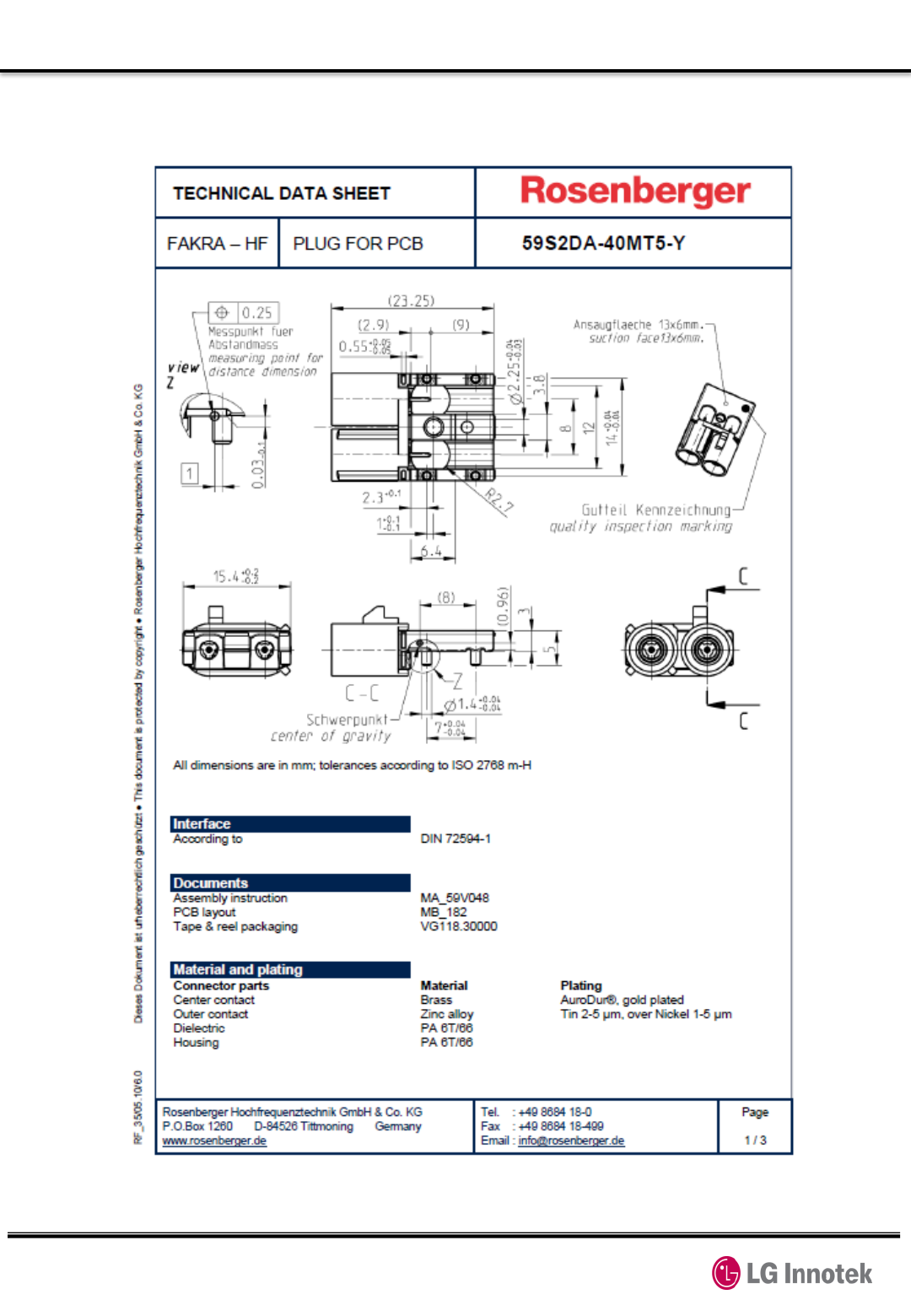

Modem Antenna Connector (Plug) 59S2DA-40MT5_D
(Manufacture vendor : Rosenberger)
Table 7. Mechanical specification

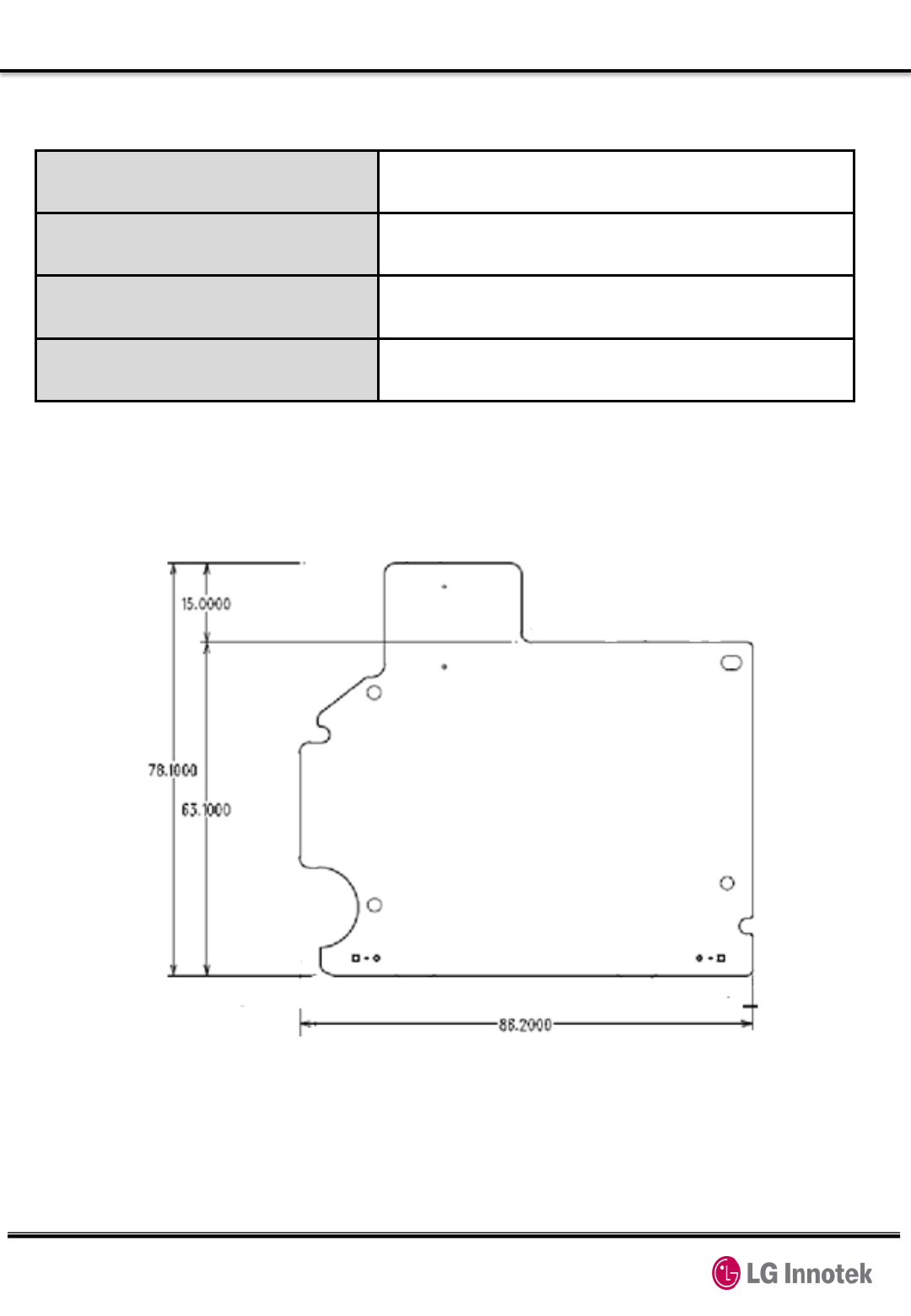

Figure 2. Mechanical dimension
Copyright ⓒ. 2014. All Rights Reserved.
6. Mechanical specification
6.1 Environment specification
.- Storage Temp : -40℃ ~ +85℃
.- Operating Temp : -20℃ ~ +70℃
(-20℃ ~ +70℃ : 3GPP specifications are satisfied
-30℃~-20℃, +70℃~+80℃ : It can be performance degradation)
.- Operating humidity : 80% (60℃) relative humidity
Copyright ⓒ. 2014. All Rights Reserved.
7. General specification
7.1 CDMA electrical specification
Test item Spec.
CHANNEL
1011/25
384/600
779/1175
4.4.5 Maximum Output Power 23.01~25.5dBm PASS PASS PASS
4.5.1 Conducted Spurious
Emissions
885 kHz to
1.98 MHz -42 dBc↓/30 kHz PASS PASS PASS
1.98 MHz to
4.00 MHz
-54 dBc↓/30 kHz (BC0)
-50 dBc↓/30 kHz (BC1) PASS PASS PASS
4.4.6 Minimum Controlled Output Power -50dBm↓ PASS PASS PASS
4.3.4 Waveform Quality
Rho 0.94 ~1.00 PASS PASS PASS
Freq_E +/-300.00Hz(BC0)
+/-150.00Hz(BC1) PASS PASS PASS
Time_E -1.00~1.00 us PASS PASS PASS
4.4.4
Range of Closed Loop
Power Control
up @ Full rate
24↑ PASS PASS PASS
down @ Full
Rate -24↓ PASS PASS PASS
up @ Half
rate 24↑ PASS PASS PASS
down @ Half
Rate -24↓ PASS PASS PASS
up @ Quarter
rate 24↑ PASS PASS PASS
down @
Quarter Rate
-24↓ PASS PASS PASS
up @ Eighth
rate 24↑ PASS PASS PASS
down @
Eighth Rate -24↓ PASS PASS PASS
4.4.2 Time Response of Open Loop Control
PASS PASS PASS PASS
4.4.1
Range of Open Loop
Power
Open Loop
Power Upper
-57.50~-38.50(BC0)
-60.50~-41.50(BC1) PASS PASS PASS
Open Loop
Power Mid
-17.50~1.50(BC0)
-20.50~-1.50(BC1) PASS PASS PASS
Open Loop
Power Sense
10.50~29.50(BC0)
10.50~29.50(BC1) PASS PASS PASS
3.5.1 Reference Sensitivity Level(-104/-25) 0.5%↓ PASS PASS PASS
Table 9. CDMA RF specification
Copyright ⓒ. 2014. All Rights Reserved.
7. General specification
7.2 LTE B4(20M) electrical specification
Table 10. LTE B4(20M) RF specification
시험 항목 Spec. Test Temperature
Channel
2050
2175
2300
6.2.2 Maximum Output Power(class 3) 23±1.5dBm Normal, Temp L,
Temp H PASS PASS PASS
6.3.2 Minimum Output Power -39dBm ↓ Normal, Temp L,
Temp H
PASS
PASS
PASS
6.5.1 Frequency Error ±0.1ppm Normal, Temp L,
Temp H
PASS
PASS
PASS
6.5.2.1
Error Vector Magnitude(EVM)
17.5%↓
(QPSK) Normal
PASS
PASS
PASS
12.5%↓
(16QAM)
PASS
PASS
PASS
6.5.2.2
Relative Carrier
Leakage Power
Carrier Leakage
(3.2dBm ± 3.2dB) -27.2 dBc
Normal, Temp L,
Temp H
PASS
PASS
PASS
Carrier Leakage
(-26.8dBm ± 3.2dB) -19.2 dBc
PASS
PASS
PASS
Carrier Leakage
(-36.8dBm ± 3.2dB) -9.2 dBc
PASS
PASS
PASS
6.5.2.4
EVM equalizer
spectrum flatness
EVM equalizer spectrum
flatness Range1 5.4 dB ↓ Normal, Temp L,
Temp H
PASS
PASS
PASS
EVM equalizer spectrum
flatness Range2 9.4 dB ↓
PASS
PASS
PASS
6.6.1 Occupied Bandwidth (OBW) 20 MHz ↓ Normal
PASS
PASS
PASS
6.6.2.1
Spectrum emission
mask
Spectrum Emission Mask
upper/lower Area 1 -19.5 dBm ↓
Normal
PASS
PASS
PASS
Spectrum Emission Mask
upper/lower Area 2 -8.5 dBm ↓
PASS
PASS
PASS
Spectrum Emission Mask
upper/lower Area 3 -11.5 dBm ↓
PASS
PASS
PASS
Spectrum Emission Mask
upper/lower Area 4 -23.5 dBm ↓
PASS
PASS
PASS
6.6.2.3
Adjacent Channel
Leakage Power Ratio
(ACLR)
ACLR E-UTRA ± -29.2dB ↓
Normal, Temp L,
Temp H
PASS
PASS
PASS
ACLR UTRA Offset 1 ± -32.2dB ↓
PASS
PASS
PASS
ACLR UTRA Offset 2 ± -35.2dB ↓
PASS
PASS
PASS
7.3
Reference Sensitivity
Level @ 20MHz
Main Ref Sense throughput
shall be ≥ 95% -93.3 dBm Normal, Temp L,
Temp H
PASS
PASS
PASS
Div. Ref Sense throughput
shall be ≥ 95% -93.3 dBm
PASS
PASS
PASS
7.4 Maximum Input Level
throughput shall be ≥ 95% -25.7 dBm Normal
PASS
PASS
PASS
Copyright ⓒ. 2014. All Rights Reserved.
7. General specification
7.3 LTE B13(10M) electrical specification
Table 11. LTE B13(10M) RF specification
시험 항목 Spec. Test Temperature
Channel
2050
2175
2300
6.2.2 Maximum Output Power(class 3) 23±1.5dBm Normal, Temp L,
Temp H PASS PASS PASS
6.3.2 Minimum Output Power -39dBm ↓ Normal, Temp L,
Temp H
PASS
PASS
PASS
6.5.1 Frequency Error ±0.1ppm Normal, Temp L,
Temp H
PASS
PASS
PASS
6.5.2.1
Error Vector Magnitude(EVM)
17.5%↓
(QPSK) Normal
PASS
PASS
PASS
12.5%↓
(16QAM)
PASS
PASS
PASS
6.5.2.2
Relative Carrier
Leakage Power
Carrier Leakage
(3.2dBm ± 3.2dB) -27.2 dBc
Normal, Temp L,
Temp H
PASS
PASS
PASS
Carrier Leakage
(-26.8dBm ± 3.2dB) -19.2 dBc
PASS
PASS
PASS
Carrier Leakage
(-36.8dBm ± 3.2dB) -9.2 dBc
PASS
PASS
PASS
6.5.2.4
EVM equalizer
spectrum flatness
EVM equalizer spectrum
flatness Range1 5.4 dB ↓ Normal, Temp L,
Temp H
PASS
PASS
PASS
EVM equalizer spectrum
flatness Range2 9.4 dB ↓
PASS
PASS
PASS
6.6.1 Occupied Bandwidth (OBW) 10 MHz ↓ Normal
PASS
PASS
PASS
6.6.2.1
Spectrum emission
mask
Spectrum Emission Mask
upper/lower Area 1 -16.5 dBm ↓
Normal
PASS
PASS
PASS
Spectrum Emission Mask
upper/lower Area 2 -8.5 dBm ↓
PASS
PASS
PASS
Spectrum Emission Mask
upper/lower Area 3 -11.5 dBm ↓
PASS
PASS
PASS
Spectrum Emission Mask
upper/lower Area 4 -23.5 dBm ↓
PASS
PASS
PASS
6.6.2.3
Adjacent Channel
Leakage Power Ratio
(ACLR)
ACLR E-UTRA ± -29.2dB ↓
Normal, Temp L,
Temp H
PASS
PASS
PASS
ACLR UTRA Offset 1 ± -32.2dB ↓
PASS
PASS
PASS
ACLR UTRA Offset 2 ± -35.2dB ↓
PASS
PASS
PASS
7.3
Reference Sensitivity
Level @ 10MHz
Main Ref Sense throughput
shall be ≥ 95% -93.3 dBm Normal, Temp L,
Temp H
PASS
PASS
PASS
Div. Ref Sense throughput
shall be ≥ 95% -93.3 dBm
PASS
PASS
PASS
7.4 Maximum Input Level
throughput shall be ≥ 95% -25.7 dBm Normal
PASS
PASS
PASS
Copyright ⓒ. 2014. All Rights Reserved.
8. Connector
8.1 Antenna Connector : 59S2DA-40MT5_D (Vendor : Rosenberger)
Copyright ⓒ. 2014. All Rights Reserved.
8. Connector
8.2 40Pin Connector : ISMA-9827B-40Y955 (Vendor : IRISO)
Copyright ⓒ. 2014. All Rights Reserved.
9. RFx Information
The RF field strength of the wireless module or modules that may be
embedded in your TCU is well all international RF exposure limits as known
at this time. Because the wireless modules(which may be embedded into your
TCU) emit less energy than is allowed in radio frequency safety standards and
recommendations, manufacturer believes these modules are safe for use.
Regardless of the power levels, care should be taken to minimize human
contact during normal operation. This module should be used more than 20cm(8
inches) from the body when wireless devices are on and transmitting.
This transmitter must not be collocated or operate in conjunction with any other
antenna or transmitter. Operation is subject to the following two conditions: (1)
this module may not cause interference , (2) this module must accept any
interference that may cause undesired operation.
10.1 Information for integrator
The integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user manual of the end
product. The user manual which is provided by integrators for end users must
include the following information in a prominent location. To comply with FCC RF
exposure compliance requirements, the antenna used for this transmitter must
be installed to provide a separation distance of at least 20cm from all persons
and must not be collocated or operating in conjunction with any other antenna or
transmitter. Label for end product must include contains FCC ID : YZP-VL2000
or A RF transmitter inside, FCC ID : YZP-VL2000
Copyright ⓒ. 2014. All Rights Reserved.
10. FCC Approval
This Module complies with parts 22, 24, 27 of the FCC rules.
This device complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
This module should be installed and operated with minimum distance 20cm
between the radiating element of this device and the user.
This module may not be co-located with any other transmitters or antennas.
To comply with FCC regulations limiting both maximum RF output power and
human exposure to RF radiation, the maximum antenna gain including cable
loss in a mobile-only exposure condition must not exceed the table below.
Band Frequency Range
[MHz] Maximum Antenna
Gain[dBi]
CDMA(Cellular) 824.70~848.31
CDMA(PCS) 1851.25~1908.75
LTE(B13)
LTE(B4) 1710.70~1754.30
The satisfy FCC exterior labeling requirements, the following text must be placed
on the exterior of the end product.
Contains Transmitter module FCC ID: YZP-VL2000
Changes or modifications to this equipment may cause harmful interference
unless the modifications are expressly approved in the instruction manual. The
user could lose the authority to operate this equipment if an unauthorized
change or codification is made.
Note: If this module is intended for use in a portable device, additional testing
will be required to satisfy RF Exposure, including SAR requirements of FCC Part
2.1093.
6.49
777.00 ~784.50
5.49
6.00
7.50
