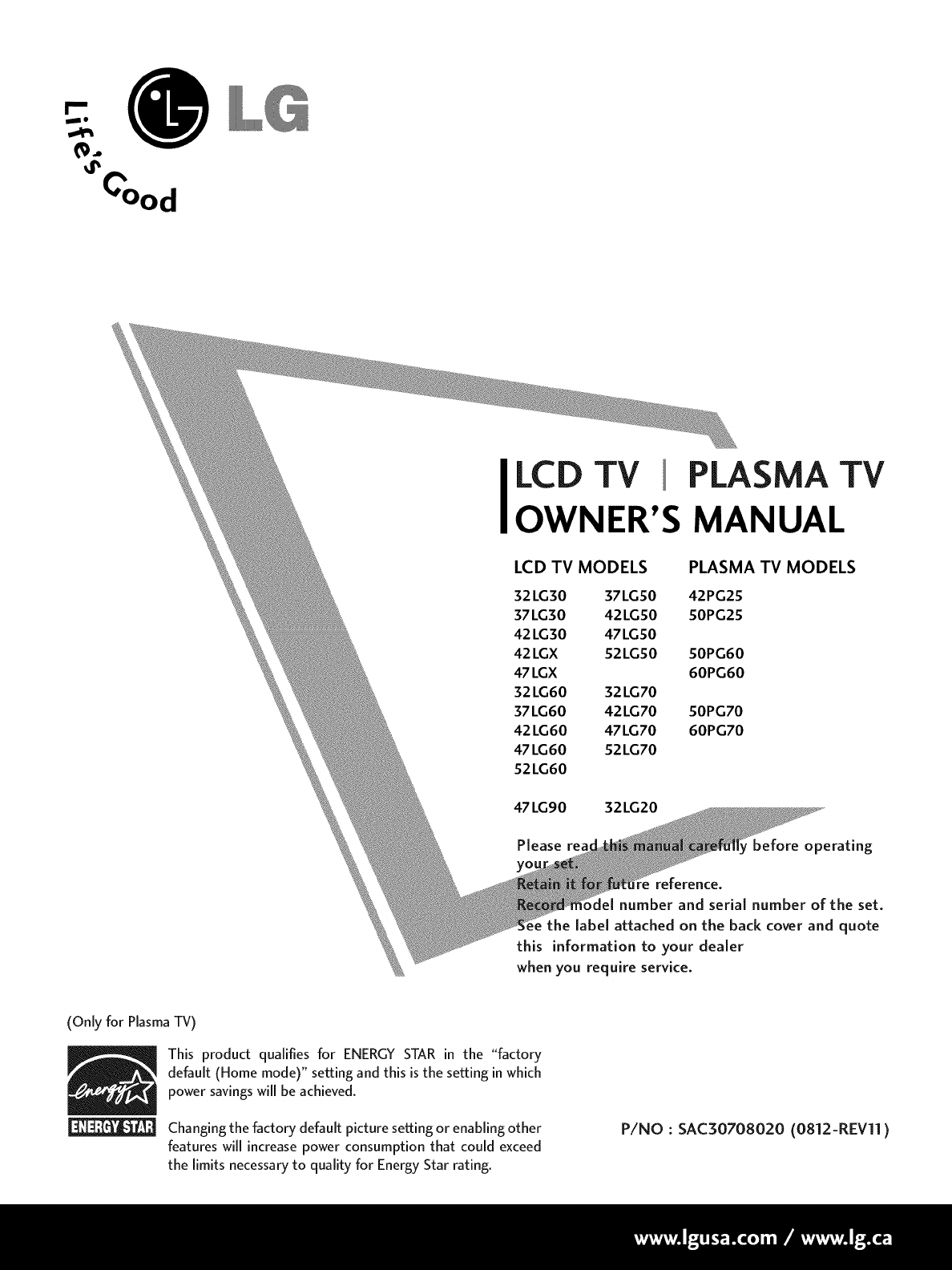

LCD TV PLASMA TV

OWNER'S MANUAL

LCD TV MODELS

32LG30 37LGS0

37LG30 42LGS0

42LG30 47LGS0

42LGX S2LGS0

47 LGX

32LG60 32LG70

37LG60 42LG70

42LG60 47LG70

47LG60 S2LG70

S2LG60

PLASMA TV MODELS

42PG25

50PG25

50PG60

60PG60

SOPG70

60PG70

47LG90 32LG20

Please rea before operating

reference.

:tel number and serial number of the set.

the label attached on the back cover and quote

this information to your dealer

when you require service.

(Only for Plasma TV)

This product qualifies for ENERGY STAR in the "factory

default (Home mode)" setting and this is the setting in which

power savings will be achieved.

Changing the factory default picture setting or enabling other

features will increase power consumption that could exceed

the limits necessary to quality for Energy Star rating.

P/NO :SAC30708020 (0812-REVll)

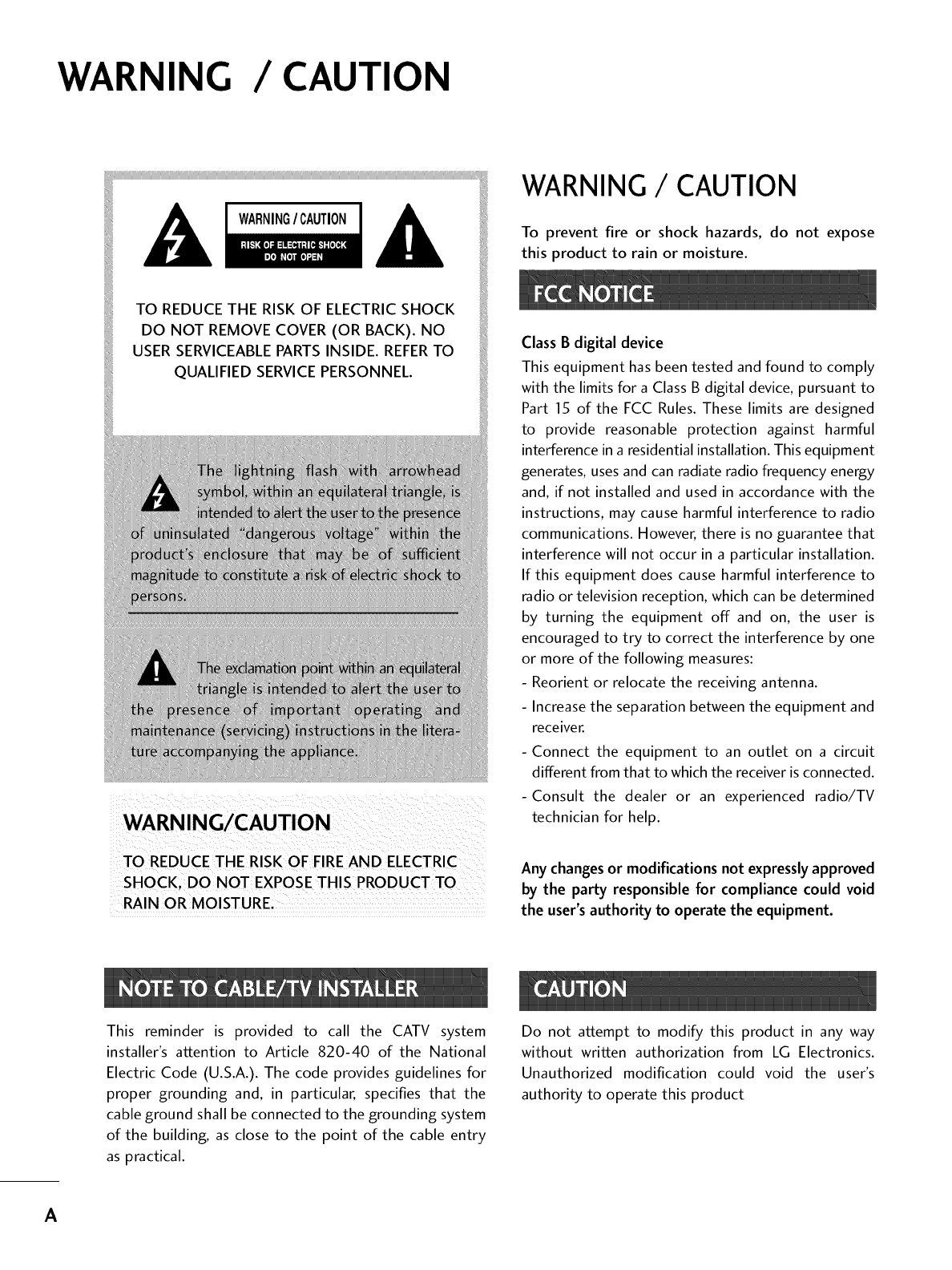

WARNING /CAUTION

WARNING/CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK). NO

USER SERVICEABLEPARTSINSIDE. REFERTO

QUALIFIED SERVICEPERSONNEL.

TO REDUCE THE RISK OF FIRE AND ELECTRIC

RAIN OR MOISTURE,

WARNING /CAUTION

To prevent fire or shock hazards, do not expose

this product to rain or moisture.

Class B digital device

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful

interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that

interference will not occur in a particular installation.

If this equipment does cause harmful interference to

radio or television reception, which can be determined

by turning the equipment off and on, the user is

encouraged to try to correct the interference by one

or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and

receiver.

- Connect the equipment to an outlet on a circuit

different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV

technician for help.

Any changes or modifications not expressly approved

by the party responsible for compliance could void

the user's authority to operate the equipment.

This reminder is provided to call the CATV system

installer's attention to Article 820-40 of the National

Electric Code (U.S.A.). The code provides guidelines for

proper grounding and, in particular, specifies that the

cable ground shall be connected to the grounding system

of the building, as close to the point of the cable entry

as practical.

Do not attempt to modify this product in any way

without written authorization from LG Electronics.

Unauthorized modification could void the user's

authority to operate this product

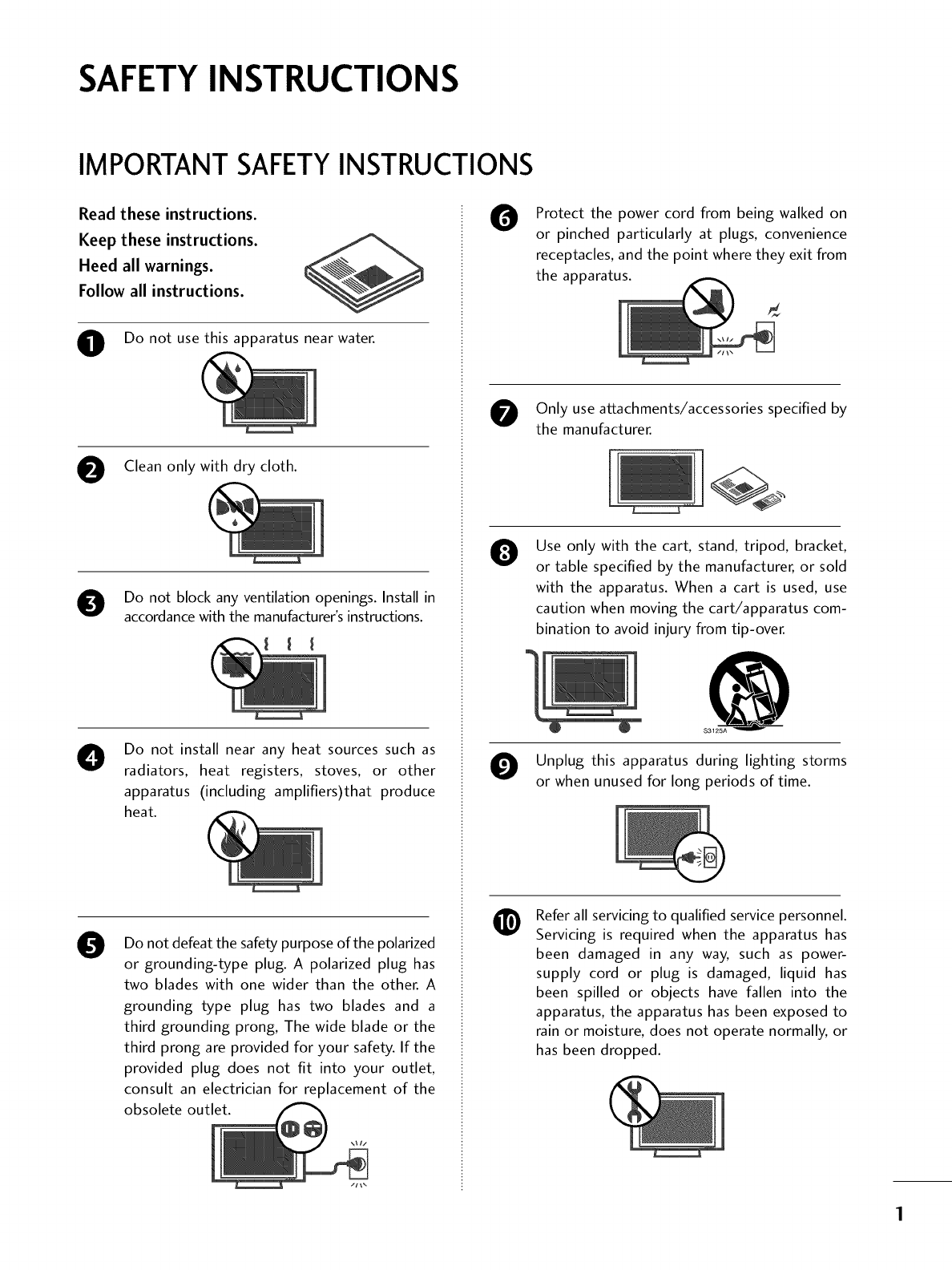

SAFETYINSTRUCTIONS

IMPORTANT SAFETYINSTRUCTIONS

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

O Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in

accordance with the manufacturer's instructions.

ODo not install near any heat sources such as

radiators, heat registers, stoves, or other

apparatus (including amplifiers)that produce

heat.

0Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has

two blades with one wider than the other. A

grounding type plug has two blades and a

third grounding prong, The wide blade or the

third prong are provided for your safety. If the

provided plug does not fit into your outlet,

consult an electrician for replacement of the

obsolete outlet.

0Protect the power cord from being walked on

or pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

Only use attachments/accessories specified by

the manufacturer.

0Use only with the cart, stand, tripod, bracket,

or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use

caution when moving the cart/apparatus com-

bination to avoid injury from tip-over.

S3125A

Unplug this apparatus during lighting storms

or when unused for long periods of time.

@Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has

been damaged in any way, such as power-

supply cord or plug is damaged, liquid has

been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or

has been dropped.

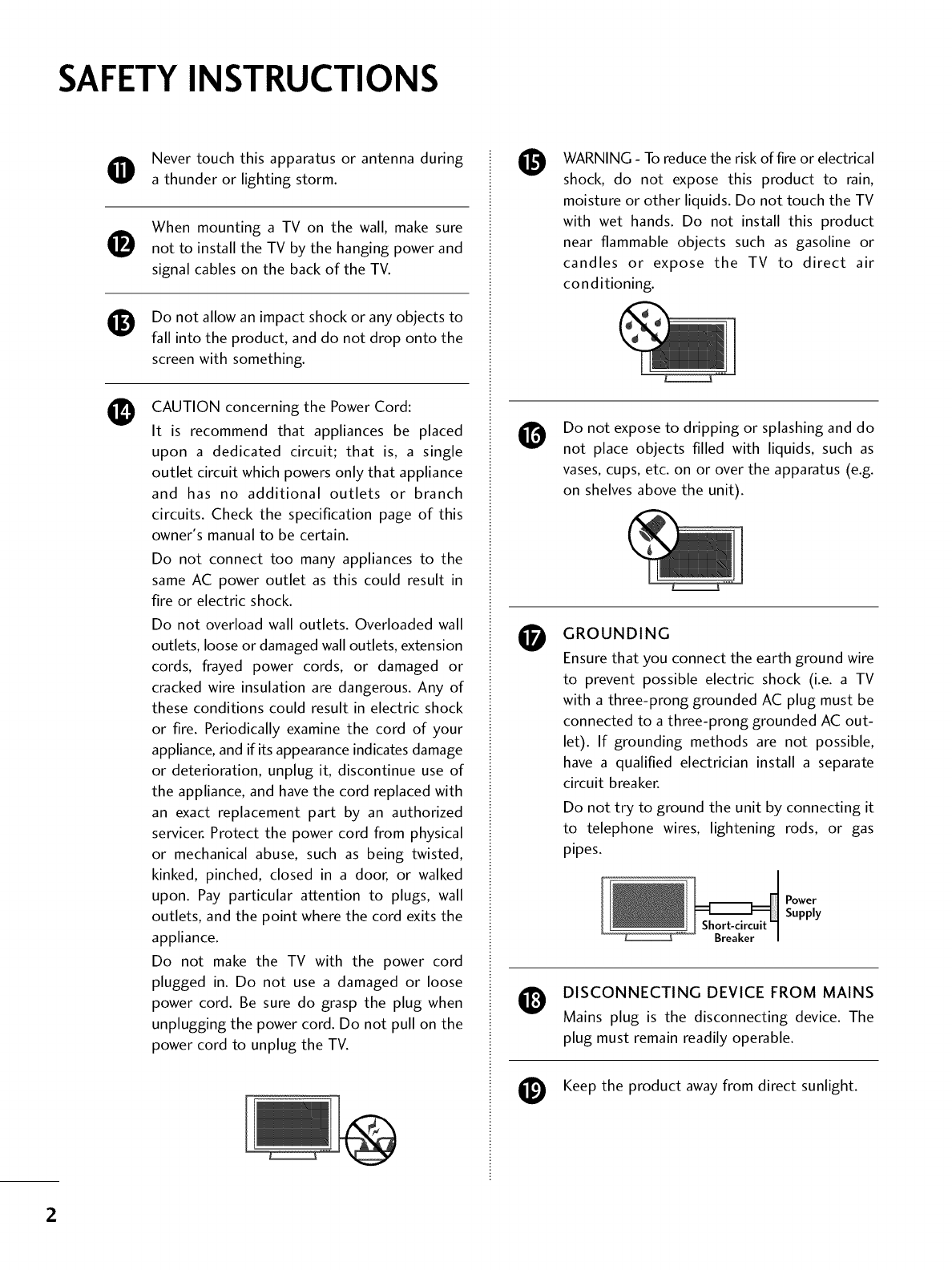

SAFETYINSTRUCTIONS

Never touch this apparatus or antenna during

a thunder or lighting storm.

When mounting a TV on the wall, make sure

not to install the TV by the hanging power and

signal cables on the back of the TV.

Do not allow an impact shock or any objects to

fall into the product, and do not drop onto the

screen with something.

CAUTION concerning the Power Cord:

It is recommend that appliances be placed

upon a dedicated circuit; that is, a single

outlet circuit which powers only that appliance

and has no additional outlets or branch

circuits. Check the specification page of this

owner's manual to be certain.

Do not connect too many appliances to the

same AC power outlet as this could result in

fire or electric shock.

Do not overload wall outlets. Overloaded wall

outlets, loose or damaged wall outlets, extension

cords, frayed power cords, or damaged or

cracked wire insulation are dangerous. Any of

these conditions could result in electric shock

or fire. Periodically examine the cord of your

appliance, and if its appearance indicates damage

or deterioration, unplug it, discontinue use of

the appliance, and have the cord replaced with

an exact replacement part by an authorized

servicer. Protect the power cord from physical

or mechanical abuse, such as being twisted,

kinked, pinched, closed in a door, or walked

upon. Pay particular attention to plugs, wall

outlets, and the point where the cord exits the

appliance.

Do not make the TV with the power cord

plugged in. Do not use a damaged or loose

power cord. Be sure do grasp the plug when

unplugging the power cord. Do not pull on the

power cord to unplug the TV.

WARNING - To reduce the risk of fire or electrical

shock, do not expose this product to rain,

moisture or other liquids. Do not touch the TV

with wet hands. Do not install this product

near flammable objects such as gasoline or

candles or expose the TV to direct air

conditioning.

Do not expose to dripping or splashing and do

not place objects filled with liquids, such as

vases, cups, etc. on or over the apparatus (e.g.

on shelves above the unit).

GROUNDING

Ensure that you connect the earth ground wire

to prevent possible electric shock (i.e. a TV

with a three-prong grounded AC plug must be

connected to a three-prong grounded AC out-

let). If grounding methods are not possible,

have a qualified electrician install a separate

circuit breaker.

Do not try to ground the unit by connecting it

to telephone wires, lightening rods, or gas

pipes.

Power

Supply

DISCONNECTING DEVICE FROM MAINS

Mains plug is the disconnecting device. The

plug must remain readily operable.

Keep the product away from direct sunlight.

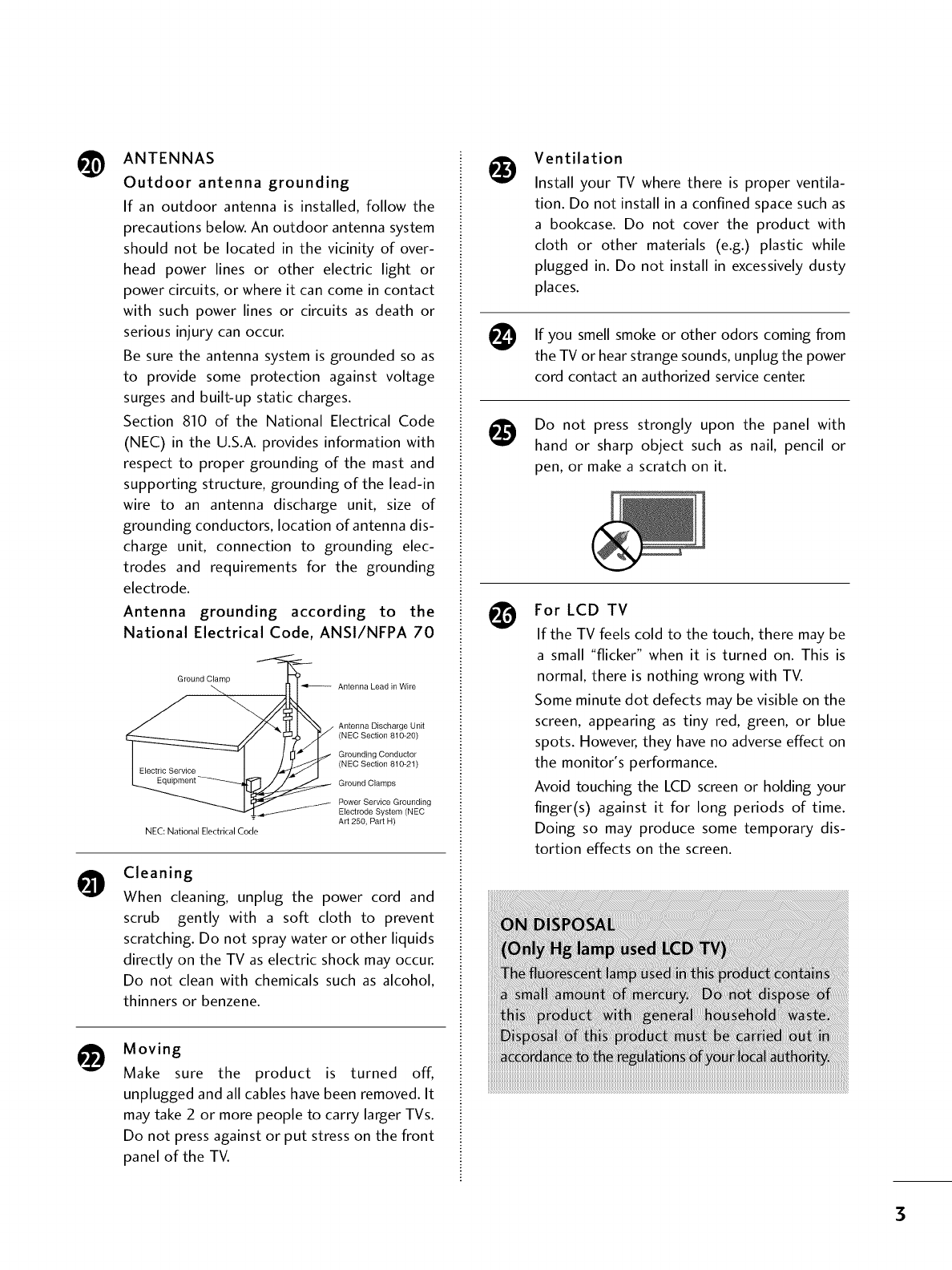

@ANTENNAS

Outdoor antenna grounding

If an outdoor antenna is installed, follow the

precautions below. An outdoor antenna system

should not be located in the vicinity of over-

head power lines or other electric light or

power circuits, or where it can come in contact

with such power lines or circuits as death or

serious injury can occur.

Be sure the antenna system is grounded so as

to provide some protection against voltage

surges and built-up static charges.

Section 810 of the National Electrical Code

(NEC) in the U.S.A. provides information with

respect to proper grounding of the mast and

supporting structure, grounding of the lead-in

wire to an antenna discharge unit, size of

grounding conductors, location of antenna dis-

charge unit, connection to grounding elec-

trodes and requirements for the grounding

electrode.

Antenna grounding according to the

National Electrical Code, ANSl/NFPA 70

Ground Clamp

NEC: National Electrical Code

Antenna Lead in Wire

Antenna Discharge Unit

(NEC Section 810-20)

Grounding Conductor

(NEC Section 810-21)

Ground Clamps

Power Service Grounding

Electrode System (NEC

Art 250, Part H)

OCleaning

When cleaning, unplug the power cord and

scrub gently with a soft cloth to prevent

scratching. Do not spray water or other liquids

directly on the TV as electric shock may occur.

Do not clean with chemicals such as alcohol,

thinners or benzene.

l_ Moving

Make sure the product is turned off,

unplugged and all cables have been removed. It

may take 2 or more people to carry larger TVs.

Do not press against or put stress on the front

panel of the TV.

@Ventilation

Install your TV where there is proper ventila-

tion. Do not install in a confined space such as

a bookcase. Do not cover the product with

cloth or other materials (e.g.) plastic while

plugged in. Do not install in excessively dusty

places.

If smell smoke or other odors coming from

you

the TV or hear strange sounds, unplug the power

cord contact an authorized service center.

@Do not press strongly upon the panel with

hand or sharp object such as nail, pencil or

pen, or make a scratch on it.

For LCD TV

If the TV feels cold to the touch, there may be

a small "flicker" when it is turned on. This is

normal, there is nothing wrong with TV.

Some minute dot defects may be visible on the

screen, appearing as tiny red, green, or blue

spots. However, they have no adverse effect on

the monitor's performance.

Avoid touching the LCD screen or holding your

finger(s) against it for long periods of time.

Doing so may produce some temporary dis-

tortion effects on the screen.

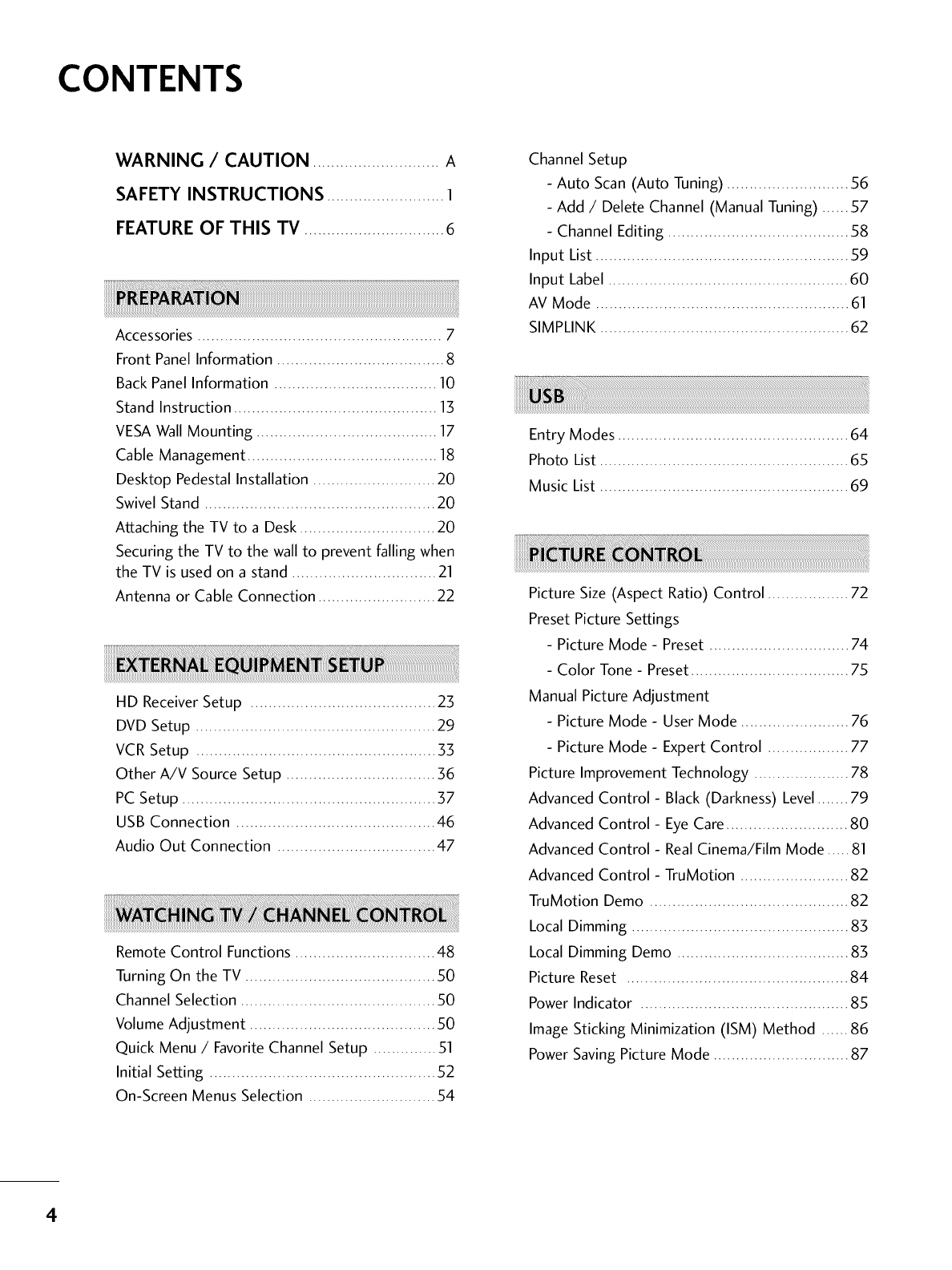

CONTENTS

WARNING /CAUTION ............................ A

SAFETY INSTRUCTIONS .......................... 1

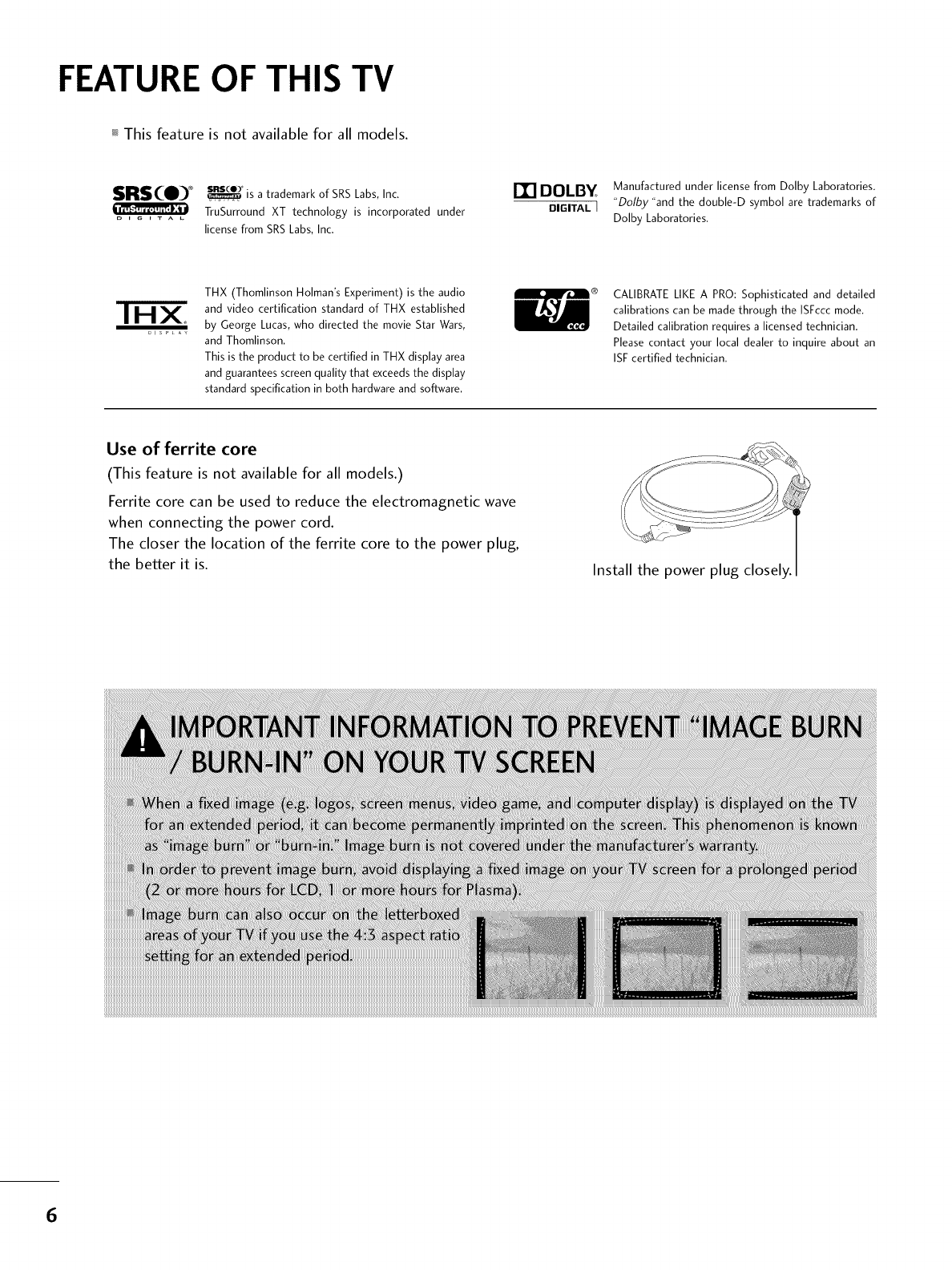

FEATURE OF THIS TV ............................... 6

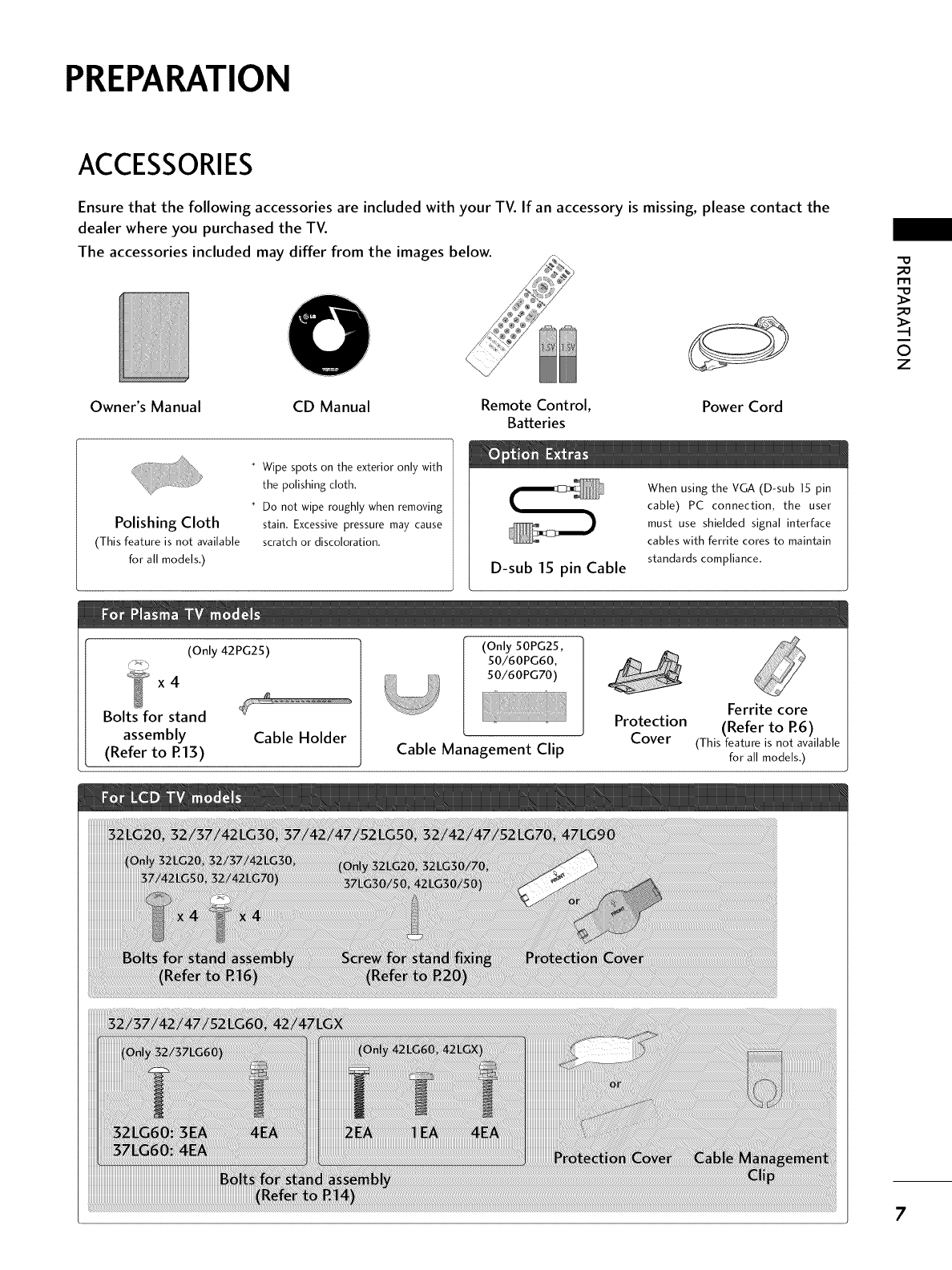

Accessories ...................................................... 7

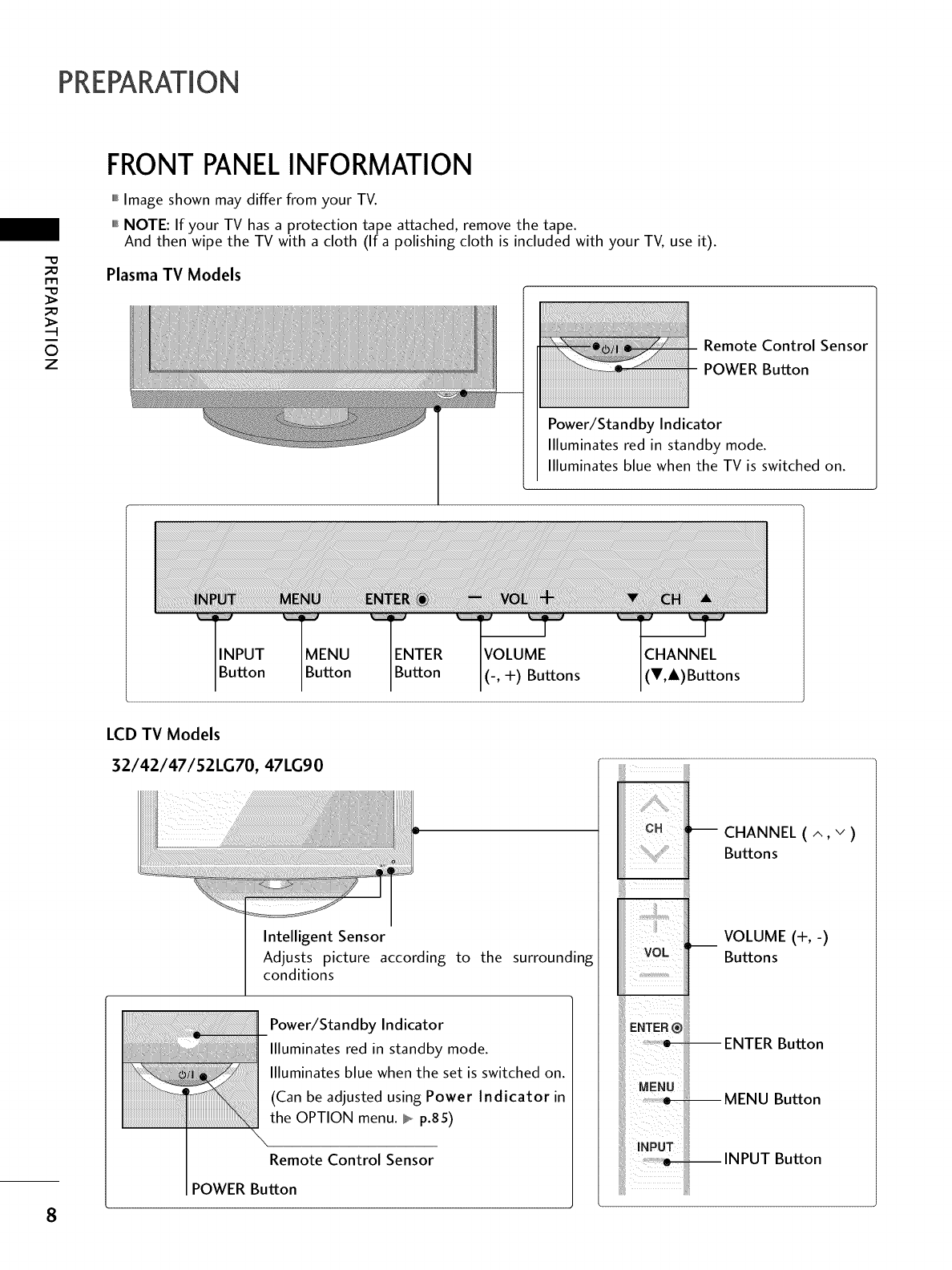

Front Panel Information ..................................... 8

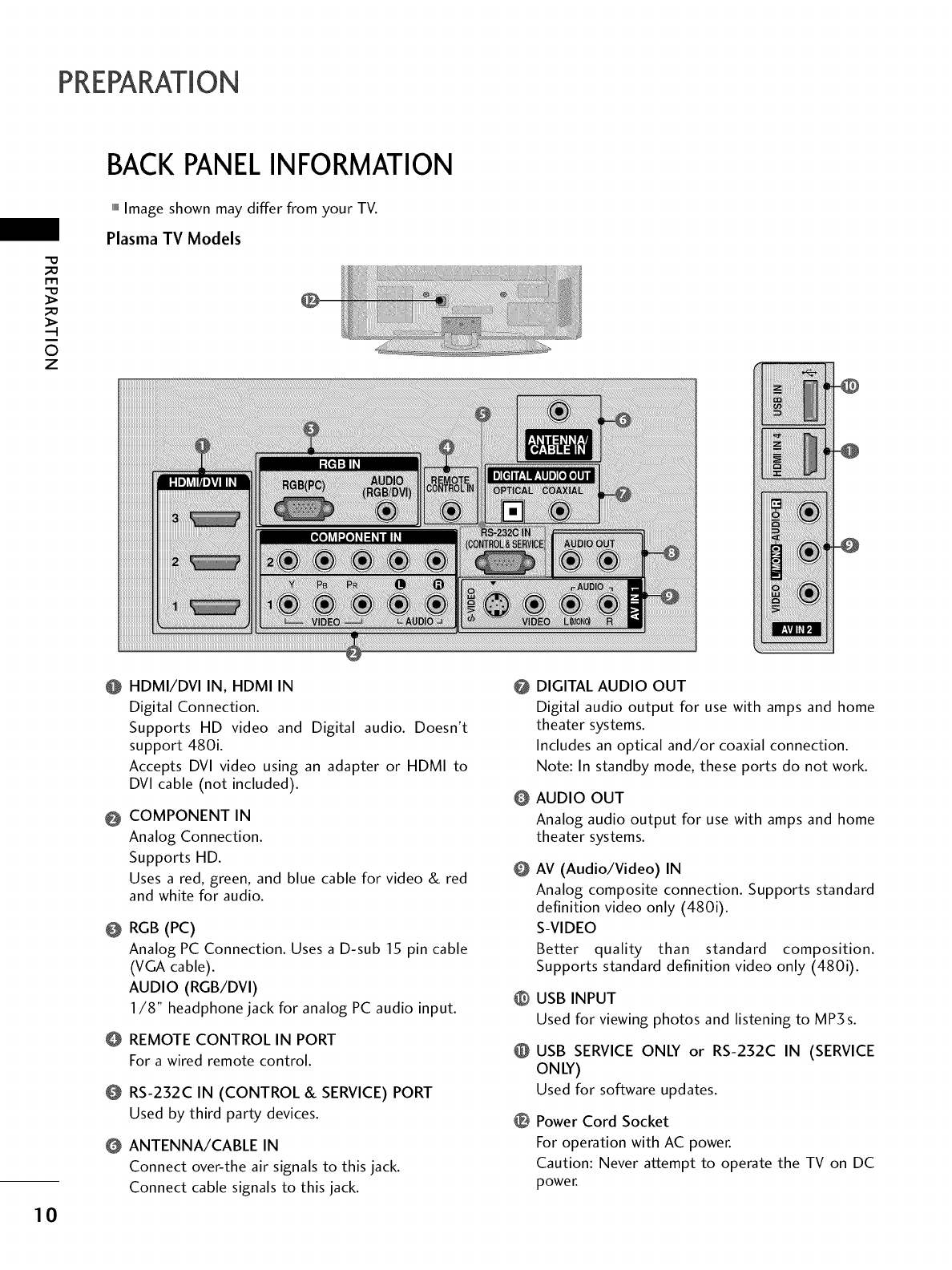

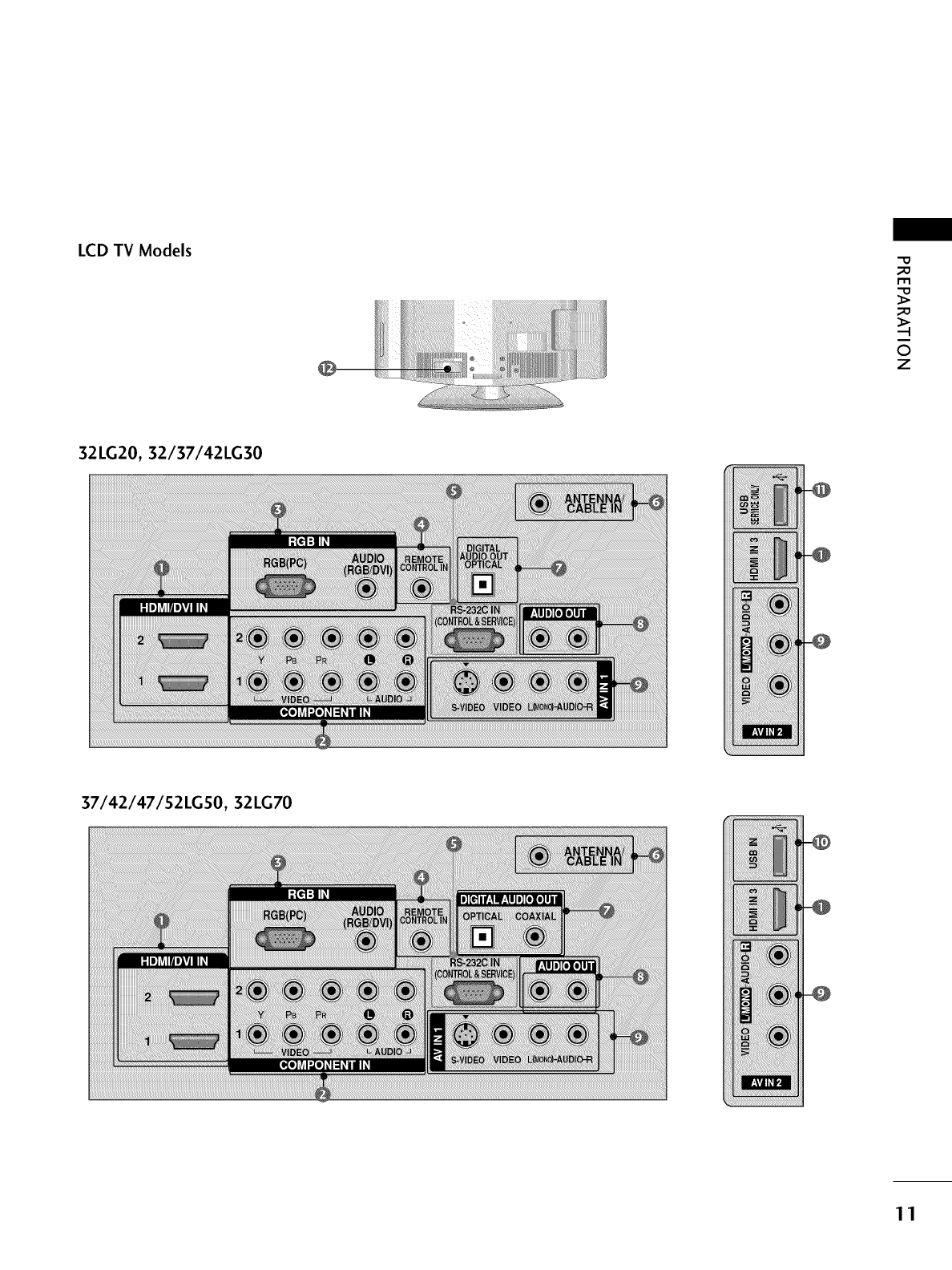

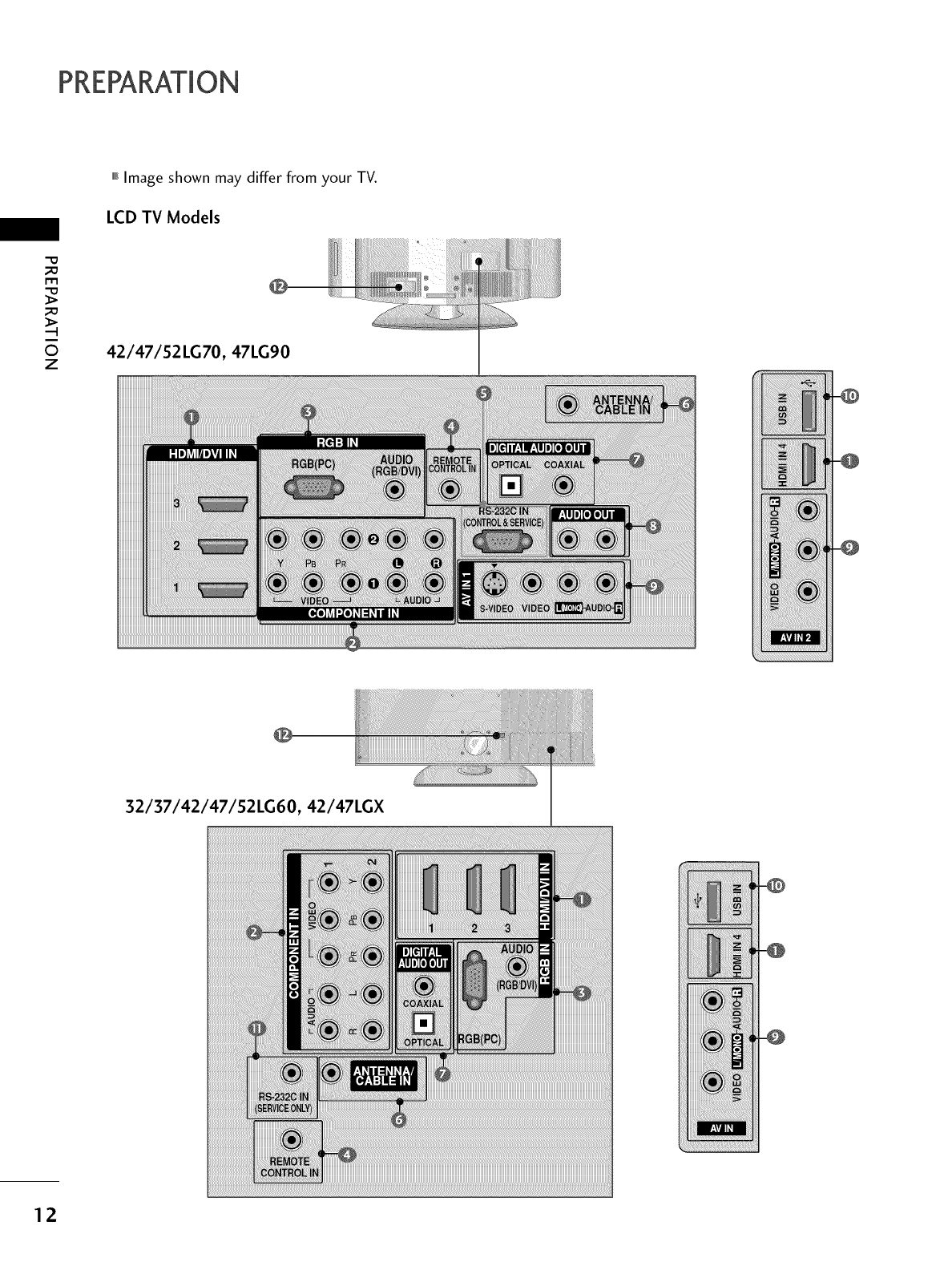

Back Panel Information .................................... 10

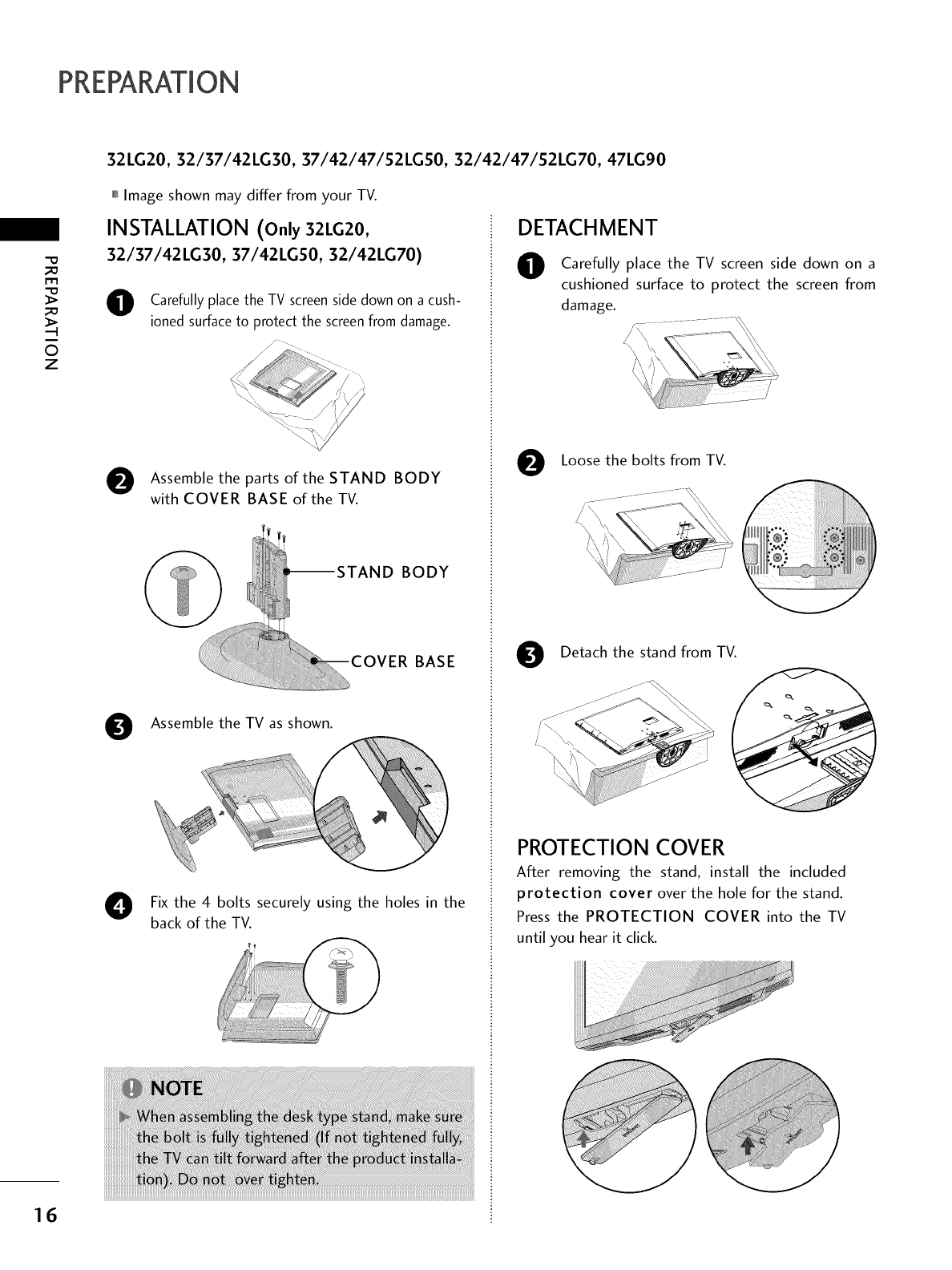

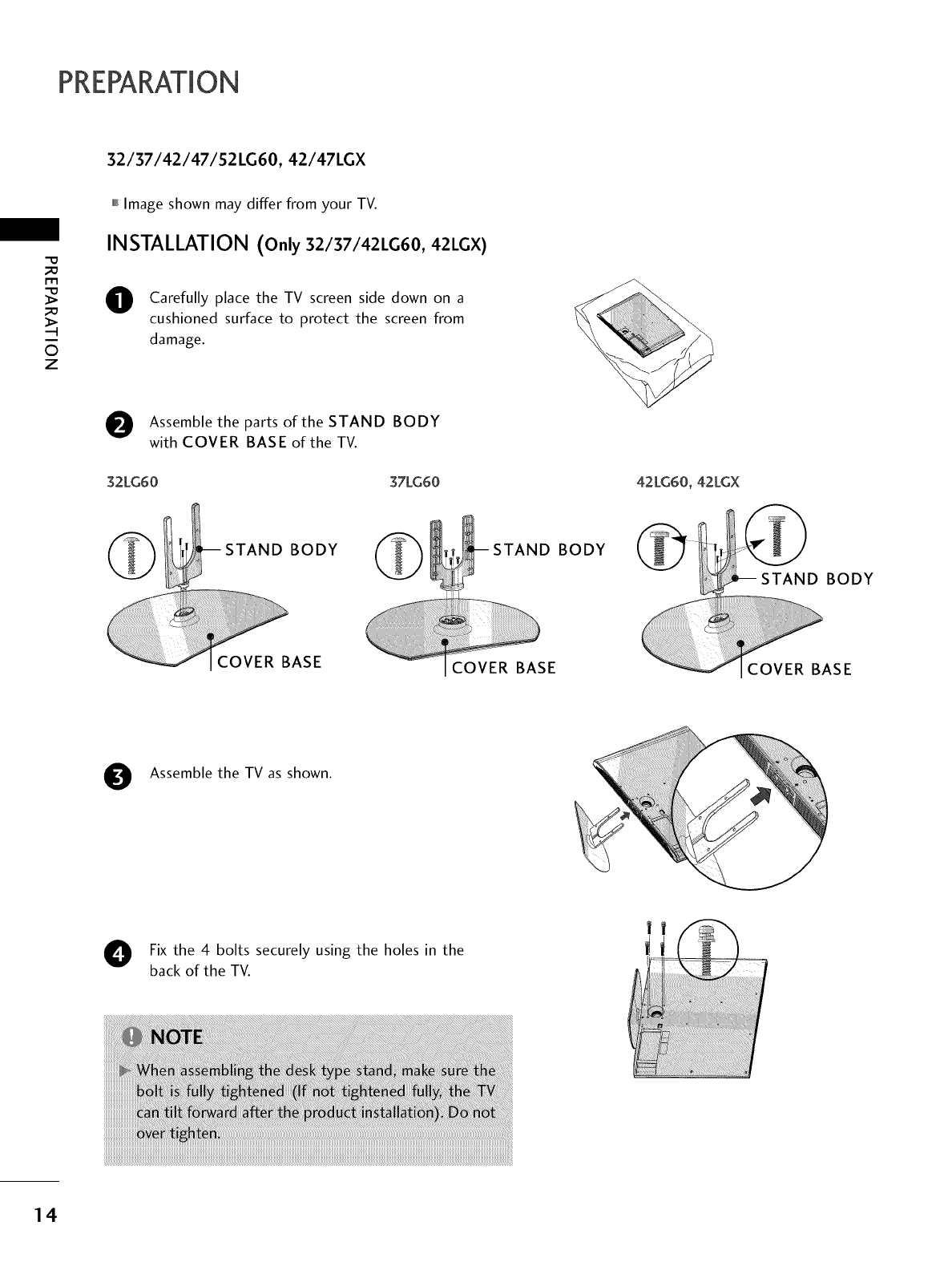

Stand Instruction ............................................. 13

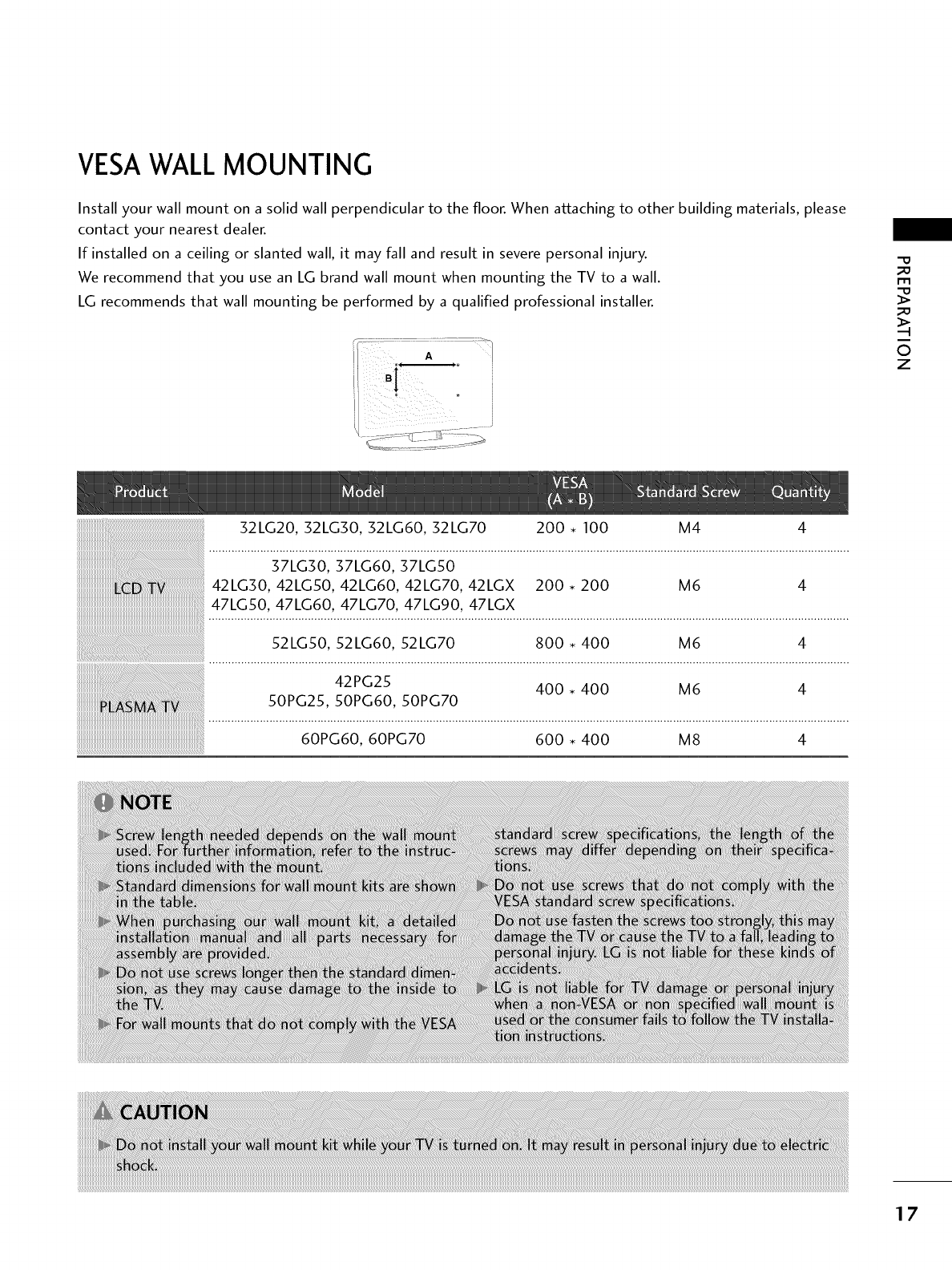

VESA Wall Mounting ........................................ 17

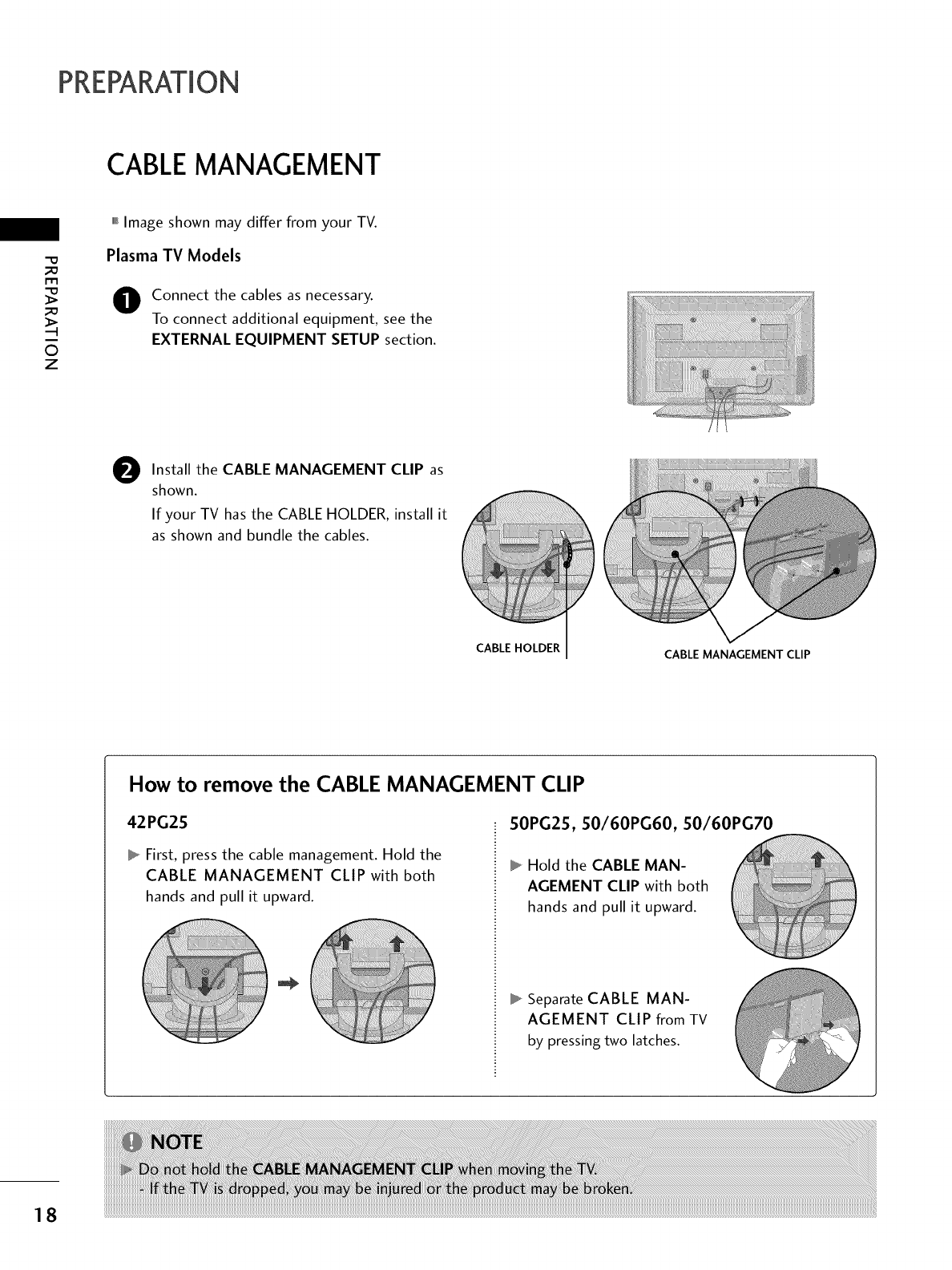

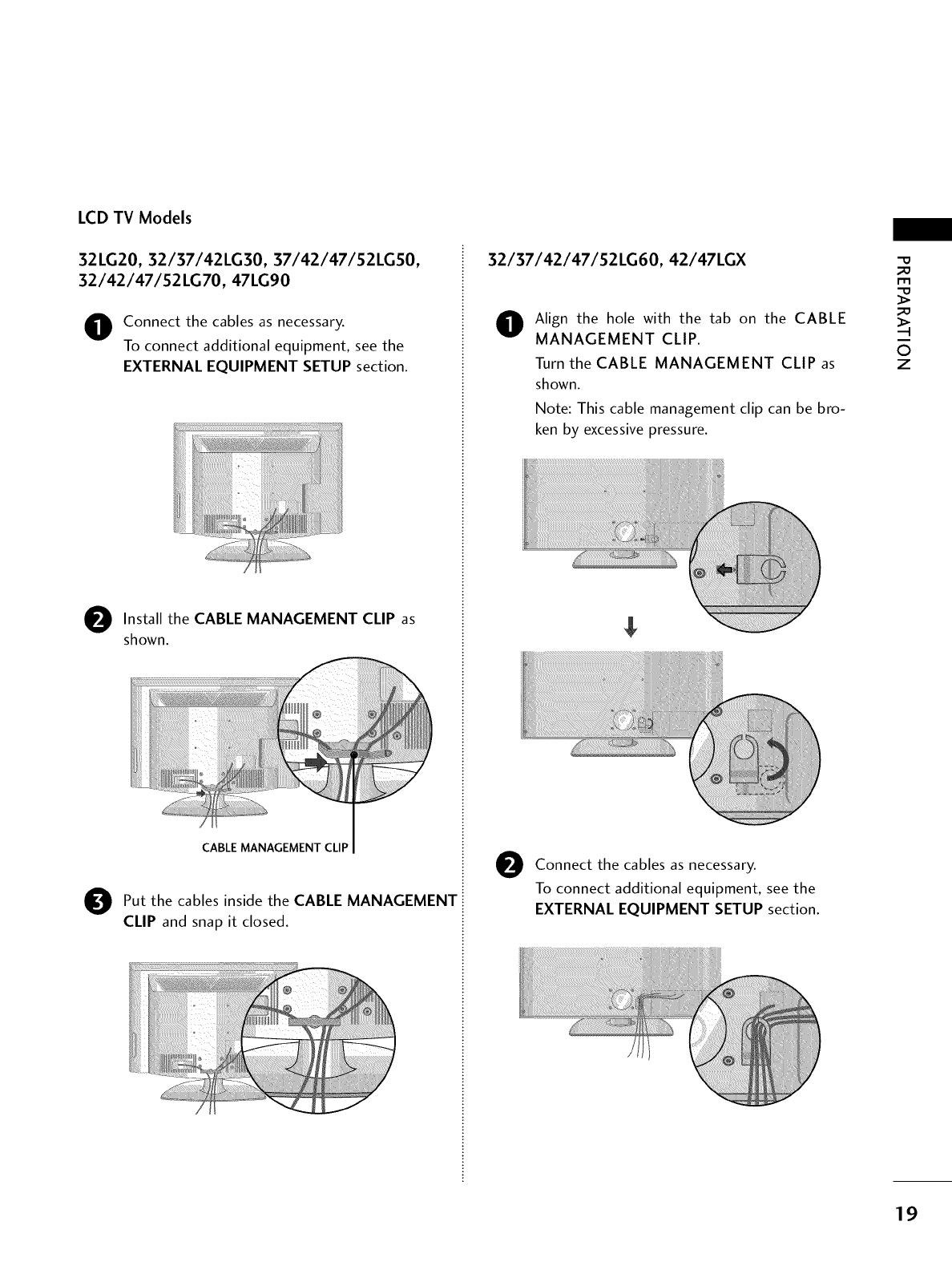

Cable Management .......................................... 18

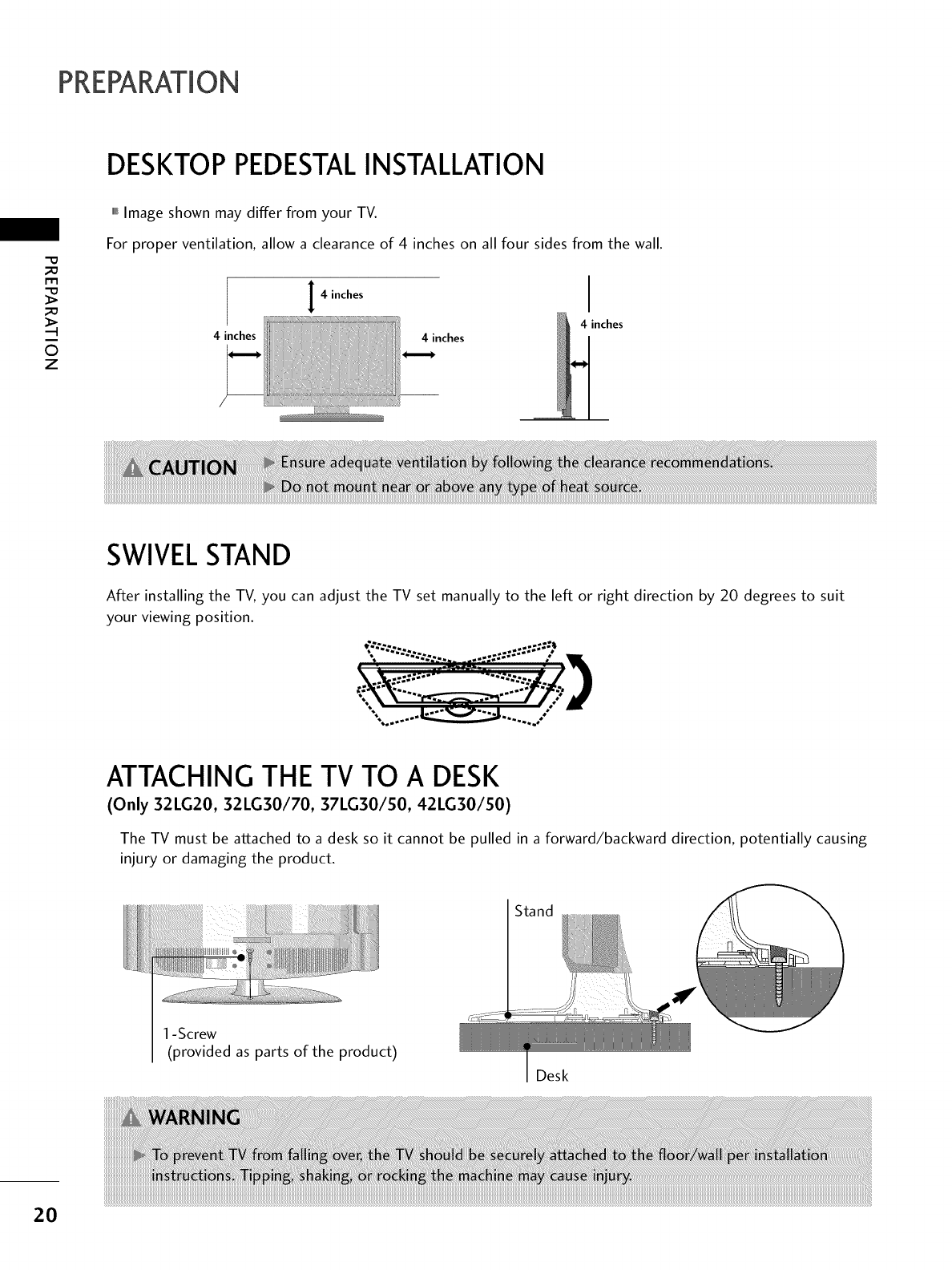

Desktop Pedestal Installation ........................... 20

Swivel Stand ................................................... 20

Attaching the TV to a Desk .............................. 20

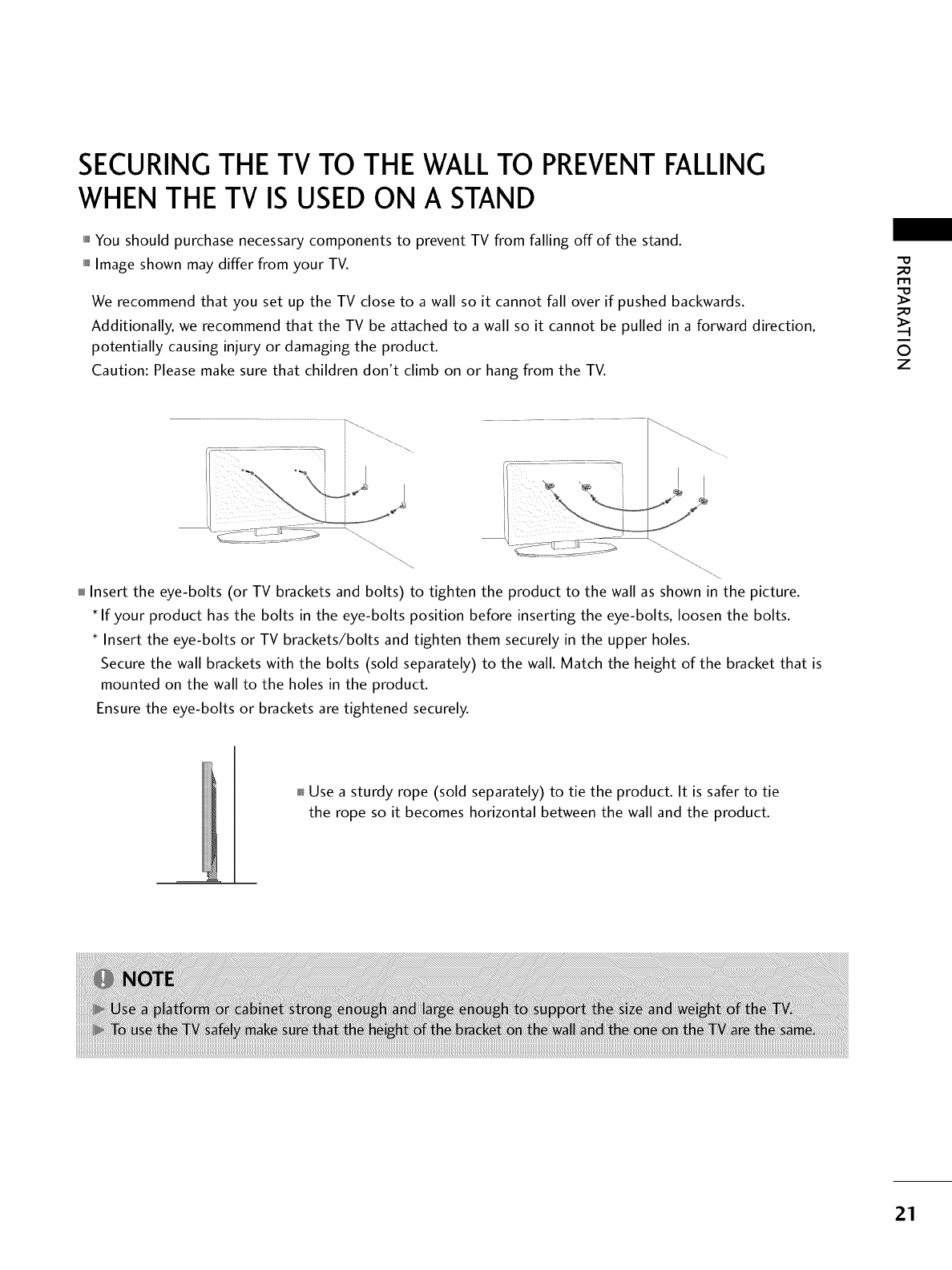

Securing the TV to the wall to prevent falling when

the TV is used on a stand ................................ 21

Antenna or Cable Connection .......................... 22

HD Receiver Setup ......................................... 23

DVD Setup ..................................................... 29

VCR Setup ..................................................... 33

Other A/V Source Setup ................................. 36

PC Setup ........................................................ 37

USB Connection ............................................ 46

Audio Out Connection ................................... 47

Remote Control Functions ............................... 48

Turning On the TV .......................................... 50

Channel Selection ........................................... 50

Volume Adjustment ......................................... 50

Quick Menu /Favorite Channel Setup .............. 51

Initial Setting .................................................. 52

On-Screen Menus Selection ............................ 54

Channel Setup

- Auto Scan (Auto Tuning) ........................... 56

- Add /Delete Channel (Manual Tuning) ...... 57

- Channel Editing ........................................ 58

Input List ........................................................ 59

Input Label ..................................................... 60

AV Mode ........................................................ 61

SIMPLINK ....................................................... 62

Entry Modes ................................................... 64

Photo List ....................................................... 65

Music List ....................................................... 69

Picture Size (Aspect Ratio) Control .................. 72

Preset Picture Settings

- Picture Mode - Preset ............................... 74

- Color Tone - Preset ................................... 75

Manual Picture Adjustment

- Picture Mode - User Mode ........................ 76

- Picture Mode - Expert Control .................. 77

Picture Improvement Technology ..................... 78

Advanced Control- Black (Darkness) Level ....... 79

Advanced Control- Eye Care ........................... 80

Advanced Control - Real Cinema/Film Mode ..... 81

Advanced Control- TruMotion ........................ 82

TruMotion Demo ............................................ 82

Local Dimming ................................................ 83

Local Dimming Demo ...................................... 83

Picture Reset ................................................. 84

Power Indicator .............................................. 85

Image Sticking Minimization (ISM) Method ...... 86

Power Saving Picture Mode .............................. 87

Auto Volume Leveler (Auto Volume) ................. 88

Preset Sound Settings (Sound Mode) .............. 89

Sound Setting Adjustment - User Mode ........... 90

Clear Voice ..................................................... 91

Balance .......................................................... 92

TV SpeakersOn/Off Setup .............................. 93

Audio Reset ................................................... 94

Stereo/SAP Broadcast Setup ........................... 95

Audio Language .............................................. 96

On-Screen Menus Language Selection .............. 97

Caption Mode

- Analog Broadcasting System Captions ....... 98

- Digital Broadcasting System Captions ........ 99

- Caption Option ..................................... 100

Troubleshooting ............................................. 118

Maintenance ................................................. 120

Product Specifications ................................... 121

Programming the Remote Control .................. 124

IR Codes ..................................................... 127

External Control Through RS-232C ................. 129

Open Source License...................................... 136

Clock Setting

- Auto Clock Setup ................................... 101

- Manual Clock Setup ............................... 102

Auto On/Off Time Setting ............................ 103

Sleep Timer Setting ....................................... 104

Auto Shut-off Setting ..................................... 105

Set Password & Lock System .......................... 106

Channel Blocking .......................................... 109

Movie & TV Rating ........................................ 110

Downloadable Rating ..................................... 115

External Input Blocking ................................... 116

Key lock ......................................................... 117

FEATURE OF THIS TV

_ This feature is not available for all models.

SRS(O) is a trademark of SRSLabs, Inc.

TruSurround XT technology is incorporated under

license from SRSLabs, Inc.

I_ DOLBY

DIGITAL I

Manufactured under license from Dolby Laboratories.

"Dolby "and the double-D symbol are trademarks of

Dolby Laboratories.

IHX THX (Thomlinson Holman's Experiment) is the audio

and video certification standard of THX established

by George Lucas, who directed the movie Star Wars,

and Thomlinson.

This is the product to be certified in THX display area

and guarantees screen quality that exceeds the display

standard specification in both hardware and software.

CALIBRATE LIKE A PRO: Sophisticated and detailed

calibrations can be made through the ISFccc mode.

Detailed calibration requires a licensed technician.

Please contact your local dealer to inquire about an

ISF certified technician.

Use of ferrite core

(This feature is not available for all models.)

Ferrite core can be used to reduce the electromagnetic wave

when connecting the power cord.

The closer the location of the ferrite core to the power plug,

the better it is. Install the power plug closely.

PREPARATION

ACCESSORIES

Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the

dealer where you purchased the TV.

The accessories included may differ from the images below.

Owner's Manual CD Manual Remote Control,

Batteries Power Cord

rT1

Polishing Cloth

(This feature is not available

for all models+)

* Wipe spots on the exterior only with

the polishing cloth.

* Do not wipe roughly when removing

stain, Excessive pressure may cause

scratch or discoloration.

D-sub 15 pin Cable

When using the VGA (D-sub 15 pin

cable) PC connection, the user

must use shielded signal interface

cables with ferrite cores to maintain

standards compliance.

(Only 42PG25)

Bolts for stand

assembly

(Refer to R13)

Cable Holder

(Only 50PG25,

50/60PG60,

50/60PG70)

Cable Management Clip

Ferrite core

Protection (Refer to P.6)

Cover (This feature is not available

for all models.)

PREPARATION

-O

FRONTPANELINFORMATION

,,,IImage shown may differ from your TV.

""_NOTE: If your TV has a protection tape attached, remove the tape.

And then wipe the TV with a cloth (If a polishing cloth is included with your TV, use it).

Plasma TV Models

Remote Control Sensor

POWER Button

Power/Standby Indicator

Illuminates red in standby mode.

Illuminates blue when the TV is switched on.

INPUT

Button MENU

Button ENTER

Button VOLUME

(-, +) Buttons

CHANNEL

(V,A)Buttons

LCD TV Models

32/42/47/S2LGTO, 47LG90

Intelligent Sensor

Adjusts picture according to the surrounding

conditions

Power/Standby Indicator

Illuminates red in standby mode.

Illuminates blue when the set is switched on.

(Can be adjusted using Power Indicator in

the OPTION menu. _ p.85)

Remote Control Sensor

POWER Button

-- CHANNEL ( ^, v)

Buttons

__ VOLUME (+,-)

Buttons

-- ENTER Button

-- MENU Button

--INPUT Button

LCDTVModels

32LG20, 32/37/42LG30, 37/42/47/52LG50

Intelligent Sensor (Except 32LG20, 32/37/42LG30)

Adjusts picture according to the surrounding

conditions

Power/Standby Indicator

llluminates red in standby mode.

llluminates blue when the set is switched on.

(Can be adjusted using Power Indicator in

the OPTION menu. _ p.85)

Remote Control Sensor

POWER Button

32/37/42/47/52LG60, 42/47LGX

Intelligent Sensor

Adjusts picture according to the

surrounding conditions.

POWER Button

Remote Control Sensor

Power/Standby Indicator

llluminates red in standby mode.

llluminates white when the set is switched on.

(Can be adjusted using Power Indicator in

the OPTION menu. _ p.85)

CHANNEL ( ^, v)

Buttons

__ VOLUME (+,-)

Buttons

Button

(^ V)

_---VOLUME (+,-)

Buttons

-- ENTER Button

--MENU Button

-- INPUT Button

PREPARATION

BACKPANELINFORMATION

,,,IImage shown may differ from your TV.

Plasma TV Models

HDMI/DVI IN, HDMI IN

Digital Connection.

Supports HD video and Digital audio. Doesn't

support 480i.

Accepts DVI video using an adapter or HDMI to

DVI cable (not included).

COMPONENT IN

Analog Connection.

Supports HD.

Uses a red, green, and blue cable for video & red

and white for audio.

RGB (PC)

Analog PC Connection. Uses a D-sub 15 pin cable

(VGA cable).

AUDIO (RGB/DVI)

I/8" headphone jack for analog PC audio input.

REMOTE CONTROL IN PORT

For a wired remote control.

RS-232C IN (CONTROL & SERVICE) PORT

Used by third party devices.

ANTENNA/CABLE IN

Connect over-the air signals to this jack.

Connect cable signals to this jack.

DIGITAL AUDIO OUT

Digital audio output for use with amps and home

theater systems.

Includes an optical and/or coaxial connection.

Note: In standby mode, these ports do not work.

AUDIO OUT

Analog audio output for use with amps and home

theater systems.

AV (Audio/Video) IN

Analog composite connection. Supports standard

definition video only (480i).

S-VIDEO

Better quality than standard composition.

Supports standard definition video only (480i).

USB INPUT

Used for viewing photos and listening to MP3s.

USB SERVICE ONLY or RS-232C IN (SERVICE

ONLY)

Used for software updates.

Power Cord Socket

For operation with AC power.

Caution: Never attempt to operate the TV on DC

power.

LCD TV Models

32LG20,32/37/42LG30

37/42/47/52LGSO, 32LGTO

_iiiiiiiiiiiiiiiiii_!i!i_!ii!i

l,,'rl

PREPARATION

""_Image shown may differ from your TV.

LCD TV Models

I'11

42/47/52LG70, 47LG90

ilililiiii:i,_!!ii!ii!ii!ii!iiiii!!i!iiiiii!ii!ii!iil!i!ii!!_i

j_j,_,_:;:;_!_,!_i;__, ,_,_% _

32/37/42/47/52LG60, 42/47LGX

iiiiii!i_ii!i_ii

STAND INSTRUCTION

,,,IImage shown may differ from your TV.

Plasma TV models

INSTALLATION (Oniy 42PG25)

Carefully place the TV screen side down on a

cushioned surface to protect the screen from

damage.

O Assemble the TV as shown.

OFix the 4 bolts securely using the holes in the

back of the TV.

DETACHMENT

OCarefully place the TV screen side down on a

cushioned surface to protect the screen from

damage.

OLoose the bolts from TV.

42PG25 50PG25/60/70 60PG60/70

ODetach the stand from TV.

PROTECTION COVER

After removing the stand, install the included

protection cover over the hole for the stand.

Press the PROTECTION COVER into the TV

until you hear it click.

-0

PREPARATION

32/37/42/47/52LG60,42/47LGX

I'I"1

""_Image shown may differ from your TV.

INSTALLATION (Only 32/37/42LG60,42LGX)

0Carefully place the TV screen side down on a

cushioned surface to protect the screen from

damage.

Assemble the parts of the STAND BODY

with COVER BASE of the TV.

32LG60 37LG60 42LC60, 42LCX

STAND BODY (_) STAND BODY

STAND BODY

COVER BASE COVER BASE :OVER BASE

Assemble the TV as shown.

Fix the 4 bolts securely using the holes in the

back of the TV.

DETACHMENT

OCarefully place the TV screen side down on a

cushioned surface to protect the screen from

damage.

Loose the bolts from TV.

Detach the stand from TV.

PROTECTION COVER

After removing the stand, install the included pro-

tection cover over the hole for the stand.

After removing the protection paper from the

protection cover, adhere it to the TV as shown.

PREPARATION

32LG20,32/37/42LG30,37/42/47/S2LGS0, 32/42/47/52LG70,47LGg0

,,,IImage shown may differ from your TV.

INSTALLATION (Only 32LG20,

32/37/42LG30, 37/42LG50, 32/42LG70)

OCarefully place the TV screen side down on a cush-

ioned surface to protect the screen from damage.

s/s

e ssemble the parts of the STAND BODY

with COVER BASE of the TV.

BODY

BASE

0Assemble the TV as shown.

O Fix the 4 bolts securely using the holes in the

back of the TV.

DETACHMENT

OCarefully place the TV screen side down on a

cushioned surface to protect the screen from

damage.

\_\4'\:_'\__--.,Ji.......

e Loose the bolts from TV.

ODetach the stand from TV.

PROTECTION COVER

After removing the stand, install the included

protection cover over the hole for the stand.

Press the PROTECTION COVER into the TV

until you hear it click.

VESAWALLMOUNTING

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please

contact your nearest dealer.

If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

We recommend that you use an LG brand wall mount when mounting the TV to a wall.

LG recommends that wall mounting be performed by a qualified professional installer.

-O

32LG20, 32LG30, 32LG60, 32LG70 200 • 100 M4 4

37LG30, 37LG60, 37LG50

42LG30, 42LG50, 42LG60, 42LG70, 42LGX 200 • 200 M6 4

47LG50, 47LG60, 47LG70, 47LG90, 47LGX

...................._2!_0,_2!_01_2!_70.........................800_400......................M_..............................4.............

42PG25 400 • 400 M6 4

50PG25, 50PG60, 50PG70

60PG60, 60PG70 600 • 400 M8 4

PREPARATION

CABLE MANAGEMENT

,,,IImage shown may differ from your TV.

Plasma TV Models

Connect the cables as necessary.

To connect additional equipment, see the

EXTERNAL EQUIPMENT SETUP section.

0Install the CABLE MANAGEMENT CLIP as

shown.

If your TV has the CABLE HOLDER, install it

as shown and bundle the cables.

CABLE HOLDER CABLE MANAGEMENT CLIP

How to remove the CABLE MANAGEMENT CLIP

42PG25

First, press the cable management. Hold the

CABLE MANAGEMENT CLIP with both

hands and pull it upward.

50PG25, 50/60PG60, 50/60PG70

Hold the CABLE MAN-

AGEMENT CLIP with both

hands and pull it upward.

Separate CABLE MAN-

AGEMENT CLIP from TV

by pressing two latches.

LCD TV Models

32LG20, 32/37/42LG30, 37/42/47/52LG50,

32/42/47/52LG70, 47LG90

O onnect the cables as necessary.

To connect additional equipment, see the

EXTERNAL EQUIPMENT SETUP section.

_: i_ _:-Ti ¸_iiii!iiii_!iiiiiiiiiiii!_i_iiii_

_iiiiil ii ¸¸ _ !iii_iii!!iii_

O Install the CABLE MANAGEMENT CLIP as

shown.

O ut the cables inside the CABLE MANAGEMENT

CLIP and snap it closed.

ifii;i!:!!:!ii!iiii_

ii_iiiiiiiiiii!ii_i!_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_iii!ii!i_i!iijiiiiii_ iii_!!!!!!!!!!!!!!i!iiiiiliiiiii_iiiiii!iiii!ii_ii_iii_i_i!__

32/37/42/47/52LG60, 42/47LGX

OAlign the hole with the tab on the CABLE

MANAGEMENT CLIP.

Turn the CABLE MANAGEMENT CLIP as

shown.

Note: This cable management clip can be bro-

ken by excessive pressure.

OConnect the cables as necessary.

To connect additional equipment, see the

EXTERNAL EQUIPMENT SETUP section.

-O

PREPARATION

DESKTOP PEDESTALINSTALLATION

-0

l'rl

,,,IImage shown may differ from your TV.

For proper ventilation, allow a clearance of 4 inches on all four sides from the wall.

4inches

4inches 4inches

SWIVELSTAND

After installing the TV, you can adjust the TV set manually to the left or right direction by 20 degrees to suit

your viewing position.

•,,......._ ..........

ATTACHING THE TV TO A DESK

(Only 32LG20, 32LG30/70, 37LG30/50, 42LG30/50)

The TV must be attached to a desk so it cannot be pulled in a forward/backward direction, potentially causing

injury or damaging the product.

1-Screw

(provided as parts of the product)

Desk

SECURING THE TV TO THE WALLTO PREVENTFALLING

WHEN THE TV IS USED ON A STAND

""_You should purchase necessary components to prevent TV from falling off of the stand.

""_Image shown may differ from your TV.

We recommend that you set up the TV close to a wall so it cannot fall over if pushed backwards.

Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward direction,

potentially causing injury or damaging the product.

Caution: Please make sure that children don't climb on or hang from the TV.

Insert the eye-bolts (or TV brackets and bolts) to tighten the product to the wall as shown in the picture.

If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the bolts.

* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.

Secure the wall brackets with the bolts (sold separately) to the wall. Match the height of the bracket that is

mounted on the wall to the holes in the product.

Ensure the eye-bolts or brackets are tightened securely.

Use a sturdy rope (sold separately) to tie the product. It is safer to tie

the rope so it becomes horizontal between the wall and the product.

PREPARATION

To prevent damage do not connect to the power outlet until all connections are made between the devices.

ANTENNA OR CABLE CONNECTION

l-rl

1. Antenna (Analog or Digital)

Wall Antenna Socket or Outdoor Antenna without a Cable Box

Connection.

For optimum picture quality, adjust the antenna direction if needed.

Multi-family Dwellings/Apartments

Wall (Connect to wall antenna socket)

Antenna ................................

Socket

Outdoor _ _ ] RF Coaxial Wire (7S ohm) ..................................................................../ ...........................................................................................................................................

Antenna ' _ ...........

VHE UHF Single-family Dwellings/Houses

(Connect to wall jack for outdoor antenna) I H _

IBe careful not to bend the copper wire

Iwhen connecting the antenna.

2. Cable

Cable TV

Wall Jack

01_To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.

01_If the antenna needs to be split for two TV's, install a 2-Way Signal Splitter.

01_If the antenna is not installed properly, contact your dealer for assistance.

EXTERNAL EQUIPMENT SETUP

,l_To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.

""_Image shown may differ from your TV.

HD RECEIVERSETUP

This TV can receive digital over-the-air/digital cable signals without an external digital set-top box. However, if

you do receive digital signals from a digital set-top box or other digital external device.

Component Connection

1. How to connect

0Connect the video outputs (Y, PB, PR) of the digital set-

top box to the COMPONENT IN VIDEO 1 jacks on

the TV. Match the jack colors (Y = green, PB = blue, and

PR = red).

Oonnect the audio output of the digital set-top box to

the COMPONENT IN AUDIO 1 jacks on the TV.

2. How to use

Turn on the digital set-top box.

(Referto the owner'smanualfor the digital set-top box.operation)

Select the Component 1 input source on theTVusing

the INPUT button on the remote control.

If connected to COMPONENT IN2 input, select the

Component 2 input source on the TV.

X:)

Supported Resolutions

Y, CB/PB, CR/PR

Yes

15.73 59.94

15.73 60.00

31.47 59.94

31.50 60.00

44.96 59.94

45.00 60.00

[[[[ ;3.72 59.94

33.75 60.00

26.97 23.976

2Z00 24.00

33.71 29.97

33.75 30.00

6Z432 59.94

6Z50 60.00

EXTERNALEQUIPMENT SETUP

JC)

Plasma TV, 32LG20, 32/37/42LG30,

37/42/47/52LG50, 32/42/47/52LG70, 47LG90

'O1_!

32/37/42/47/52LG60, 42/47LGX

HDMI Connection

1. How to connect

Oonnect the digital set-top box to HDMI/DVI IN1,

2, 3, or 4 jack on the TV.

ONo separate audio connection is necessary.

HDMI supports both audio and video.

2. How to use

01_Turn on the digital set-top box.

(Refer to the owner's manual for the digital set-top box.)

01_Select the HDMI1, HDMI2, HDMIS, or HDMI4 input

source on the TV using the INPUT button on the remote

control.

HDMI-DTV

26.97 23.976

2ZOO 24.00

33.71 29.97

33.75 30.00

6Z432 59.939

6Z50 60.00

EXTERNALEQUIPMENT SETUP

JC)

32LG20, 32/37/42LG30, 37/42/47/52LG50, 32LG70 Plasma TV, 42/47/52LG70, 47LG90

32/37/42/47/52LG60,42/47LGX

DVI to HDMI Connection

1. How to connect

O 2LG20, 32/37/42LG30, 37/42/47/52LG50, 32LG70, Plasma TV

- Connect the DVl output of the digital set-top box to the HDMI/DVl IN 1,2, or 3 jack on the TV.

32/37/42/47/52LG60, 42/47/52LG70, 42/47LGX, 47LG90

- Connect the DVl output of the digital set-top box to the HDMI/DVl IN 1,2, 3, or 4 jack on the TV.

O Connect the PC audio to the AUDIO (RGB/DVl) jack the TV.

output on

2. How to use

Turn on the digital set-top box. (Refer to the owner's manual for the digital set-top box.)

32LG20, 32/37/42LG30, 37/42/47/52LG50, 32LG70, Plasma TV

- Select the HDMI1, HDMI2, or HDMI3 input source on the TV using the INPUT button on the remote control.

32/37/42/47/52LG60, 42/47/52LG70, 42/47LGX, 47LG90

- Select the HDMI 1, HDMI2, HDMI3, or HDMI4 input source on the TV using the IN PUT button on the remote

control.

EXTERNALEQUIPMENT SETUP

32LG20, 32/37/42LG30,

37/42/47/52LG50, 32LG70 Plasma TV, 42/47/52LG70, 47LG90

--t

-0

32/37/42/47/52LG60,42/47LGX

DVD SETUP

Component Connection

1. How to connect

OConnect the video outputs (Y, PB, PR) of the DVD to the

COMPONENT IN VIDE01 jacks on the TV.

Match the jack colors (Y = green, PB = blue, and PR = red).

O Connect the audio outputs of the DVD to the

COMPONENT IN AUDIO1 jacks on the TV.

2. How to use

Turn on the DVD player, insert a DVD.

Select the Component 1 input source on theTVusing

the INPUT button on the remote control.

If connected to COMPONENT IN 2 input, select the

Component 2 input source on the TV.

Refer to the DVD player's manual for operating instructions.

Component Input ports

To get better picture quality, connect a DVD player to the component input ports as shown below.

Component ports on the TV

Video output ports

on DVD player

EXTERNALEQUIPMENT SETUP

Plasma TV, 32LG20, 32/37/42LG30,

37/42/47/52LG50, 32/42/47/52LG70, 47LG90

--t

-O

32/37/42/47/B2LG60,42/47LGX

S-Video Connection (Except 32/37/42/47/52LG60, 42/47LGX)

I. How to connect

O onnect the S-VIDEO output of the DVD to the

S-VIDEO input on the TV.

O onnect the audio outputs of the DVD to the AUDIO

input jacks on the TV.

2. How to use

Turn on the DVD player, insert a DVD.

Select the AVI input source on the TV using the INPUT

button on the remote control.

Refer to the DVD player's manual for operating instructions.

X:)

-O

EXTERNALEQUIPMENT SETUP

HDMI Connection

1. How to connect

32LG20, 32/37/42LG30,

37/42/47/52LG50, 32LG70

X:)

O onnect the HDMI output of the DVD to the

HDMI/DVI IN1,2, 3 or 4 jack on the TV.

e No audio connection is

separate necessary.

HDMI supports both audio and video.

2. How to use

.i. Select the HDMI1. HDMI2. HDMI3. or HDMI4 input

source on the TV using the INPUT button on the remote

control.

,l_Refer to the DVD player's manual for operating instructions.

Plasma TV, 42/47/52LG70, 47LG90 32/37/42/47/52LG60,42/47LGX

VCRSETUP

To avoid picture noise (interference), leave an adequate distance between the VCR and TV.

Use the ISM feature in the Option menu to avoid having a fixed image remain on the screen for a long period

of time (Plasma TV models only). If the 4:3 picture format is used; the fixed images on the sides of the screen

may remain visible on the screen. This phenomenon is common to all TVs and is not covered by warranty.

Antenna Connection

1. How to connect Plasma TV, 32LG20, 32/37/42LG30,

37/42/47/52LG50, 32/42/47/52LG70, 47LG90

O Connect the RF antenna out socket of the

VCR to the ANTENNA/CABLE IN sock-

et on the TV.

e onnect the antenna cable to the RF

antenna in socket of the VCR.

2. How to use

Set VCR output switch to 3 or 4 and then

tune TV to the same channel number.

Insert a video tape into the VCR and press

PLAY on the VCR. (Refer to the VCR owner's

manual.)

Wall Jack

Antenna

r'_

r_3

32/37/42/47/52LG60,42/47LGX

Wall Jack

EXTERNALEQUIPMENT SETUP

-O

Composite (RCA) Connection

1. How to connect

O Connect the AUDIO/VIDEO jacks between TV and

VCR. Match the jack colors (Video = yellow, Audio Left

= white, and Audio Right = red)

2. How to use

Insert a video tape into the VCR and press PLAY on the VCR.

(Refer to the VCR owner's manual.)

Select the AV 1 input source on the TV using the INPUT

button on the remote control.

If connected to AV IN2, select AV2 input source on the TV.

Plasma TV, 32LG20, 32/37/42LG30,

37/42/47/52LGS0,

32/42/47/S2LGTO, 47LG90

32/37/42/47/S2LG60, 42/47LGX

S-Video Connection (Except 32/37/42/47/52LG60, 42/47LGX)

I. How to connect

O onnect the S-VIDEO output of the VCR to the

S-VIDEO input on the TV.

O onnect the audio outputs of the VCR to the AUDIO

input jacks on the TV.

2. How to use

Insert a video tape into the VCR and press PLAY on the VCR.

(Refer to the VCR owner's manual.)

Select the AV 1 input source on the TV using the INPUT

button on the remote control.

EXTERNALEQUIPMENT SETUP

OTHERA/V SOURCESETUP

X:)

1. How to connect

0Connect the AUDIO/VIDEO jacks

between TV and external equipment.

Match the jack colors.

(Video = yellow, Audio Left = white, and

Audio Right = red)

2. How to use

01_Select the AV2 input source on the TV using

the INPUT button on the remote control.

01_If connected to AV IN 1 input, select the AV 1

input source on the TV.

01_Operate the corresponding external equipment.

Camcorder

Video Game Set

PC SETUP

This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

VGA (D-Sub 15 pin) Connection

Plasma TV, 32LG20, 32137142LG30,

37142147152LG50, 32142147152LG70, 47LG90 32137/42/47/52LG60,42/47LGX I'I"I

-I

-0

-I

-0

I. How to connect

O Connect the VGA output of the PC to the RGB (P C) jack on the TV.

O Connect the PC audio output to the AUDIO (RGB/DVI) jack on theTV.

2. How to use

01_Turn on the PC and the TV.

01_Select the RGB-PC input source on the TV using the INPUT button on the remote control.

EXTERNALEQUIPMENT SETUP

DVI to HDMI Connection

1. How to connect

X:)

O 2LG20, 32/37/42LG30, 37/42/47/52LG50, 32LG70, Plasma TV

- Connect the DVI output of the PC to the HDMI/DVI IN 1,2, or 3 jack on the TV.

32/37/42/47/52LG60, 42/47/52LG70, 42/47LGX, 47LG90

- Connect the DVI output of the PC to the HDMI/DVI IN 1,2, 3, or 4 jack on the TV.

O Connect the PC audio output to the AUDIO (RGB/DVl) jack on the TV.

2. How to use

Turn on the PC and the TV.

32LG20, 32/37/42LG30, 37/42/47/52LG50, 32LG70, Plasma TV

- Select the HDMI1, HDMI2, or HDMI3 input source on the TV using the INPUT button on the remote control.

32/37/42/47/52LG60, 42/47/52LG70, 42/47LGX, 47LG90

- Select the HDMI1, HDMI2, HDMI3, or HDMI4 input source on the TV using the IN PUT button on the remote

control.

32LG20, 32/37/42LG30, 37/42/47/52LG50, 32LG70 Plasma TV, 42/47/52LG70, 47LG90

r'rl

32/37/42/47/52LG60,42/47LGX

EXTERNALEQUIPMENT SETUP

Supported Display Specifications (RGB-PC, HDMbPC)

For 32LG20, 32/37/42LG30

31.469 70.08

31.469 59.94

37.879 60.31

48.363 60.00

4Z776 59.87

!!!!!!!

4Z720 59.799

4Z130 59.65

* Only RGB-PC mode

For37/42/47/S2LGSO, 32/37/42/47/S2LG60,

32/42/47/52LG70,42/47LGX, 47LG90

31.468 70.09

31.469 70.08

31.469 59.94

37.500 75.00

3Z861 72.80

35.156 56.25

37.879 60.31

46.875 75.00

48.077 72.18

48.363 60.00

56.476 70.06

60.023 75.02

47.776 59.87

63.981 60.02

79.976 75.025

47.712 60.015

75.00 60.00

,._, _ 66.587 59.934

...............................................60;;.................

D • •

* Only RGB-PC mode

For 42/50PG25, S0/60PG60, S0/60PG70

31.468 70.09

31.469 70.08

31.469 59.94

3Z500 75.00

;7861 72.80

35.156 56.25

37.879 60.31

46.875 75.00

48.077 72.18

48.363 60.00

56.476 70.06

60.023 75.02

4Z776 59.87

...q

I"1"1

1"'-

I"1"1

...q

I"1"1

--q

63.981 60.02

79.976 75.025

4Z712 60.015

75.00 60.00

66.587 59.934

*Only RGB-PC mode

EXTERNALEQUIPMENT SETUP

Screen Setup for PC mode

X:)

Selecting Resolution

You can choose the resolution in RGB-PC mode.

The Position, Phase, and Size can also be adjusted.

Only for 32LG20,

32/37/42LG30

Select PICTURE.

Select Screen (RGB-PC).

Select Resolution.

Select the desired resolution.

Auto Configure

Automatically adjusts picture position and minimizes image instability. After adjustment, if the image is still

not correct, try using the manual settings or a different resolution or refresh rate on the PC.

r'_

Select PICTURE.

Select Screen (RGB-PC).

Select Auto config..

•If the position of the image is still not

correct, try Auto adjustment again.

• If picture needs to be adjusted again

after Auto adjustment in RGB-PC, you

can adjust the Position, Size or

Phase.

Select Yes.

Start Auto Configuration.

EXTERNALEQUIPMENT SETUP

Adjustment for screen Position, Size, and Phase

If the picture is not clear after auto adjustment and especially if characters are still trembling, adjust the picture

phase manually.

This feature operates only in RGB-PC mode.

Select PICTURE.

Select Screen (RGB-PC).

Select Position, Size, or Phase.

Make appropriate adjustments.

_ Position: This function is to adjust pic-

ture to left/right and up/down as you

prefer.

_ Size: This function is to minimize any

vertical bars or stripes visible on the

screen background. And the horizontal

screen size will also change.

_ Phase: This function allows you to

remove any horizontal noise and clear or

sharpen the image of characters.

Screen Reset (Reset to original factory values)

Returns Position, Size, and Phase to the default factory settings.

This feature operates only in RGB-PC mode.

-0

Select PICTURE.

Select Screen (RGB-PC).

Select Reset.

Select Yes.

EXTERNALEQUIPMENT SETUP

USB CONNECTION (Except 32LG20, 32/37/42LG30)

i e)

-O 1. How to connect

or @

Connect the USB device to the USB IN jack on the side

of TV.

2. How to use

After connecting the USB IN jack, you use the USB func-

tion. (_ p.64)

AUDIO OUT CONNECTION

Send the TV's audio to external audio equipment via the Audio Output port.

Analog (Except 32/37/42/47/52LG60, 42/47LGX)

1. How to connect

O Connect audio outputs to the TV's AUDIO OUT jacks.

O Set the "TV Speaker option - Off" in the AUDIO menu.

(_ p.93). See the external audio equipment instruction

manual for operation.

Digital

1. How to connect

r'_

O Connect one end of the optical or coaxial cable to the

TV's OPTICAL or COAXIAL (Except 32LG20,

32/37/42LG30) port of DIGITAL AUDIO OUT.

O Connect the other end of the optical or coaxial cable to

the digital audio input on the audio equipment.

OSet the "TV Speaker option - Off" in the AUDIO menu. (b

p.93). See the external audio equipment instruction manu-

al for operation.

WATCHING TV /CHANNEL CONTROL

REMOTE CONTROL FUNCTIONS

When using the remote control, aim it at the remote control sensor on the TV.

fT1

TV/STB/DVD/VCR

POWER

Q.MENU

INPUT

VOLUME UP

/DOWN

FAV

MUTE

CHANNEL

UP/DOWN

PAGE

UP/DOWN

NUMBER button

-- (DASH)

FLASHBK

VCR/DVD, USB,

SIMPLINK

Control buttons

Select the remote operating mode: TV, STB, DVD, or VCR.

Turns your TV or any other programmed equipment on or __

off, depending on the mode.

Select the desired quick menu source. _ p.51

Displays the main menu.

Clear all on-screen displays and return to TV viewing from

any menu.

External input modes rotate in regular sequence.

Increase/decrease the sound level.

Scroll through the programmed Favorite channels. _ p.51

Switch the sound on or off. _ p.50

Select available channels.

Move from one full set of screen information to the next one.

Used to enter a program number for multiple

program channels such as 2-1,2-2, etc.

Tune to the last channel viewed.

o Control video cassette recorders or DVD players.

Control USB menu (PHOTO LIST and MUSIC LIST.)

Q Control the SIMPLINK compatible devices.

...... MUTE

i iii Z i ICII

_ii! i_ Z_

THUMBSTICK

(Up/Down/Left

Right/ENTER)

RETURN

SIMPLINK

AV MODE

Navigate the on-screen menus and adjust the system settings to your preference.

Allows the user to move return one step in an interactive application or other user interaction

function.

See a list of AV devices connected to TV.

When you toggle this button, the SIMPLINK menu appears at the screen. _ p.62-65

It helps you select and set images and sounds. _ p.61

-r"

-r

fT1

WATCHING TV /CHANNEL CONTROL

TURNING ON THE TV

"-r"

-r

fT1

First, connect power cord correctly.

At this moment, the TV switches to standby mode.

In standby mode to turn TV on, press the (b/l, INPUT, CH (AT or ^ v )

button on the TV or press the POWER, INPUT, CH(^ or v ), Number

(0~9) button on the remote control.

Select the viewing source by using the INPUT button on the remote control.

01_This TV is programmed to remember which power state it was last set to,

even if the power cord is out.

OWhen finished using the TV, press the POWER button on the remote control.

The TV reverts to standby mode.

CHANNEL SELECTION

OPress the CH ( ^ or v ) or NUMBER buttons to select a channel number.

VOLUMEADJUSTMENT

Adjust the volume to suit your personal preference.

OPress the VOL (+ or -) button to adjust the volume.

If you want to switch the sound off, press the MUTE button.

OYou can cancel the Mute function by pressing the MUTE or VOL (+ or -)

button.

QUICK MENU /FAVORITECHANNEL SETUP

Your TV's OSD (On Screen Display) may differ slightly from what is shown in this manual.

Q.Menu (Quick Menu) is a menu of features which users might use frequently.

Aspect Ratio: Selects your desired picture format.

Power Saving (Plasma TV Only): Adjusts screen

brightness to reduce the power consumption of the TV.

Backlight (LCD TV Only): Adjust the brightness

of LCD panel to control the brightness of the screen.

Clear Voice: By differentiating the human sound

range from others, it helps make human voices

sound better.

Picture Mode: Selects the factory preset picture

depend on the viewing environment.

Sound Mode: Selects the factory preset sound for

type of program.

Caption: Select on or off.

Multi Audio: Changes the audio language (Digital

signal).

SAP: Selects MTS sound (Analog signal).

Sleep Timer: Select the amount of time before

your TV turns off automatically.

USB Eject: Select "USB Eject" in order to eject

USB device.

Del/Add/Fav: Select channel you want to add/delete

or add the channel to the Favorite List.

Favorite Channle Setup

or _ ,_, Select your desired channel.

Select Del/Add/Fav.

Select Favorite.

Return to TV viewing.

01_Totune to a favorite channel, press the FAV

(Favorite) button repeatedly.

_- Plasma TV ,_ LCD TV

-r

fT1

Except 32LG20, 32/37/42LG30

Display each menu.

Make appropriate adjustments.

Return to TV viewing.

WATCHING TV /CHANNEL CONTROL

INITIAL SETTING

-r"

-r

fT1

This Function guides the user to easily set the essential items for viewing the TV for the first time when pur-

chasing the TV. If will be displayed on the screen when turning the TV on for the first time. It can also be acti-

vated from the user menus.

0_Default selection is "Home". We recommend setting the TV to "Home" mode for the best picture in your

home environment.

01_"In-store" Mode is only intended for use in retail environments. Customers can adjust the "Picture menu -

Picture mode" manually while inspecting the TV, but the TV will automatically return to preset in-store

mode after 5 minutes.

0_"In-store" Mode is an optimal setting for displaying at stores. "In-Store" mode initializes the TV to set the

image quality and operates "TruMotion Demo (For 37/42/47/52LG60, 42/47/52LG70, 42/47LGX)" or

"Local Dimming Demo (For 47LG90)" after a certain period of time.

Step1. Mode setting

Select Home Mode.

Step2. Time setting

Select Auto or Manual.

Select desired time option.

Step3. Option setting

Select OSD Language Setting or

Audio Language Setting.

Select your desired language.

Step4. Auto Tuning

Start Auto Tuning.

-r"

"1-

r_l

WATCHING TV /CHANNEL CONTROL

-1-

-r

ON-SCREENMENUSSELECTION

Your TV°s OSD (On Screen Display) may differ slightly from that shown in this manual.

All models (Except 32LG20.32/37/42LG30)

CHANNEL

_Auto Tuning

Manual Tuning

Channel Edit

_Move _, Enter

OPTION ,_,M .... Enter

Language : English

i Input Label

C_ SIMPUNK : On

,._ [ Key Lock : Off

Q Caption : Off

ISM Method . Normal

_Z:, i Power Saving :Level O

ISet ID : 1

J V

' • LOCK ,> Move;Enter

I Lock System : Off

,_,_o,PICTURE

iAspect Ratio 16:9

_ Picture Mode : Standard

_) • Backlight

•Contrast

• Brightness

• Sharpness

•Color

• Tint

I i

CHANNEL PICTURE

t ,i

OPTION LOCK

Lock System Off

_Move _ Enter

I,,,©

AUDIO TIME

INPUT

--._ INPUT

Antenna

AUDIO +M.... E.ter

IAuto Volume Off

_Clear Vo,ce On

Balance O _@{_I@ll[_l'_ _

,Z, I Sound Mode Standard

i• SRSTruSurround XT Off

i• Treble 5Oll_l

I• Bass 50_

IReseto

USB

_._ TIM E ,> Move,E.ter

iClock : Feb/21/2008 210AM

---' ; Off T,me :Off

_ I, On Time . Off

_Sleep Timer : Off

Auto Sleep : Off

,, ,,D

,:, M0v0.E_ter _ 9 USB

iPHOTO LIST

_: i MUSIC LIST

Set Password

LJ Block Channel

"_ I Movie Rating

_ "i"V Rating-Children

TV Rating-General

Downloadable Rating

!Input Block

Set Password

Block Channel

TV Ratmg-Enghsh

TV Rating-French

Downloadable Rating

Input Block

-Cable

C_ AV1

,.j AV2

Componentl

Component2

_RGB-PC, HDMI1

_, Move ,, Enter

For USA For Canada

,< >:,Display each menu.

v°'

2\ .... Select a menu item.

_ Enter to the pop up menu.

4MENU

(_ Return to TV viewing.

..........NOTE

IIIlil,,_...ISM Method, Power Saving: Only

Plasma TV.

II;..Backlight, Power Indicator,

TruMotion Demo: Only LCD TV.

(But, TruMotion Demo: Only for

37/42/47/52LG60, 42/47/52LG70,

42/47LGX, 47LG90)

I,m,,,,,.Set ID: Except32/3 7/42/47/52LG60,

42/47LGX.

IIII,_'...Local Dimming, Local Dimming

Demo: Only 47LG90

Only for 32LG20, 32/37/42LG30

"1-

fT1

For USA For Canada

Display each menu.

Select a menu item.

Enter to the pop up menu.

Return to TV viewing.

WATCHING TV /CHANNEL CONTROL

CHANNELSETUP

Auto Scan (Auto Tuning)

Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the

channel list.

Run Auto Tuning again after any Antenna/Cable connection changes.

-r"

r_l

Select CHANNEL.

Select Auto Tuning.

Select Yes.

01_A password is required to gain access to

Auto Tuning menu if the Lock System is

turned on.

Run Auto tuning.

Return to the previous menu.

Return to TV viewing.

Add/Delete Channel (Manual Tuning)

If selecting DTV or CADTV input signal, you can view the on-screen signal strength monitor to see the quality

of the signal being received.

Select CHANNEL.

Select Manual Tuning.

-r"

fT1

Select DTV, TV, CADTV, or CATV.

Select channel you want to add

or delete.

01_A password is required to gain access to

Manual Tuning menu if the Lock System

is turned on.

Select Add or Delete.

Return to the previous menu.

Return to TV viewing.

WATCHING TV /CHANNEL CONTROL

CHANNELSETUP

Channel Editing

A custom list can be created by toggling each channel on or offwith ENTER button. The channels in the Custom

List are displayed in black and the channels deleted from the Custom List are displayed in gray.

Once a channel is highlighted you can add or delete the channel by referring to the small window at the top-

right corner of the screen.

-r"

-r

fT1

(_ Add/Delete _:_ Move CH Move Page Previ.... Exit

Select CHANNEL.

Select Channel Edit.

Select a channel.

Select channel you want to add or

delete.

Return to the previous menu.

Return to TV viewing.

INPUT LIST

Only these input signals which are connected to a TV can be activated and selected.

Select the desired input source.

You can also select the desired input source in the INPUT

(Except 52LG20, 52/57/42LG50).

52LG20, 32/37/42LG50, 37/42/47/52LG50, 32LG70

HDMI3 ]

Plasma TV, 42/47/52LG70, 47LG90

Antenna].[

Antennai'[ Cob,e1"1AVl].[ AV2[.[ Component1[.[Component2j

tHo_,_]. HO_,_] . I_C]

Cob,ei'i AVl].[ AV2[.[ Component1[.[Component2j

HDMI4 _ HDMI3 _1-- HDMI2 _,_ HDMI1 _ RGB-PC

32/37/42/47/52LG60, 42/47LGX

_n_enno. Co_,e]. _V].[ComponentS].[Componen_i

-r

fT1

ie) Disconnected inputs are inactive (grayed out)

Select a desired input source (except

Antenna or Cable). Then, you can select

[ _Q,__U InputLabel [ t_ET[J_Exit your desiredInput Labelwith usingQ. MENU

button. _ p.60

0101_Antenna: Select it to watch over-the-air broadcasts.

0101_Cable: Select it to watch cable and digital cable.

0101_AV: Select them to watch a VCR or other external equipment.

0_0_Component: Select them to watch DVD or a Digital set-top box.

0101_RGB-PC: Select it to view PC input.

f_l_HDMI: Select them to watch high definition devices.

WATCHING TV /CHANNEL CONTROL

INPUT LABEL

You can set a label for each input source when it's not in use.

-r"

fT1

32LG20, 32/37/42LG30,

37/42/47/52LG50, Plasma TV, 42/47/52LG70,

32LG70 47LG90

With using OPTION menu

32/37/42/47/52LG60,

42/47LGX

Select OPTION.

Select Input Label.

Select the source.

Select the label.

Return to the previous menu.

Return to TV viewing.

With using INPUT button

Select the source.

Select the label.

Return to the previous menu.

Return to TV viewing.

When new external device is connected, this popup menu is displayed automatically.

If selecting Yes, you can select input source that you want to appreciate.

But, when selecting "SlMPLINK - On", popup menu for HDMI input will not be displayed.

AV MODE

You can select the optimal images and sounds.

All models (Except 50/60PG60, 50/60PG70)

Only for 50/60PG60, 50/60PG70

Press the AV MODE button repeatedly to select the desired source.

-r"

0_If you select "Cinema /HT_ZCinema"

in AV mode, Cinema will be selected

both for "PICTURE menu - Picture

Mode" and "AUDIO menu Sound

Mode" respectively.

01_If you select "Off" in AV mode, the

"Picture Mode" and "Sound Mode"

return to previous selected value.

WATCHING TV /CHANNEL CONTROL

C,_ImPLInK

This function operates only with devices with the _._ImPLInK logo.

The TV might not function properly when using it with other products with HDMI-CEC function.

This allows you to control and play other AV devices connected with HDMI cable without additional cables and

settings.

To start using SlMPLINK, turn it on in the user menus.

-r"

fT1

Select OPTION.

Select SIMPLINK.

Select On or Off.

Return to the previous menu.

Return to TV viewing.

SIMPLINK Functions

Direct Play: After connecting AV devices to the TV, you can directly control the devices and play media with-

out additional settings.

_Select AV device: Enables you to select one of the AV devices connected to TV.

Disc playback: Control connected AV devices by pressing the ^ v < > , ENTER, I_, II, I L _I_I and I_I_ buttons.

01_Power off all devices: When you power offthe TV, all connected devices are turned off.

_Switch audio-out: Offers an easy way to switch audio-out.

Sync Power on: When you play the connected AV device, TV will automatically turn on.

(A device, which is connected to the TV through a HDMI cable but does not support SIMPLINK, does not provide

this function)

Note: To operate SIMPLINK, an HDMI cable over Version I .2 with _CEC function should be used. '_CEC: Consumer

Electronics Control).

Display SIMPLINK menu.

Select the desired device.

Control connected AV devices.

-r"

fT1

SIMPLINK Menu

@ TV viewing: Switch to the previous TV

channel regardlessof the current mode.

@ DISC playback: Select and play discs.

When multiple discs are available,the titles

of discs are conveniently displayed at the

bottom of the screen.

@ VCR playback: Control the connected

VCR.

@ HDD Recordings playback: Control

recordings stored in HDD.

@ Audio Out to Home Theater speak-

er/Audio Out to TV: Select Home

Theater speaker or TV speaker for Audio

Out.

When no device is connected

(displayed in gray)

Selected Device

When a device is connected

(displayed in bright color)

USB

*Except 32LG20, 32/37/42LG30

ENTRY MODES

When you connect a USB device, this screen is displayed automatically.

In USB device, you can not add a new folder or delete the existing folder.

Connect the USB device to the USB IN

jacks on the side of TV.

Select PHOTO LIST or MUSIC LIST

_ It doesn't support USB HDD

This TV supports JPG and MP3.

When removing the USB device

Select the USB Eject menu before removing the

USB device.

Select USB Eject.

Precautions when using the USB device

Only a USB storage device is recognizable.

If the USB storage device is connected through a

USB hub. the device is not recognizable.

A USB storage device using an automatic recogni-

tion program may not be recognized.

A USB storage device which uses its own driver

may not be recognized.

In case of a card reader, up to four memory cards

are concurrently recognizable.

_ The recognition speed of a USB storage device

may depend on each device.

Please do not turn off the TV or unplug the USB

device when the connected USB storage device is

working, When such device is suddenly separated

Please use only a USB storage device which was

formatted as a FAT or NTFS file system provided

with the Windows operating system. In case of a

storage device formatted as a different utility pro-

gram which is not supported by Windows. it may

not be recognized.

Please connect power to a USB storage device

which requires an external power supply. If not.

the device may not be recognized.

Please connect a USB storage device with cable is

offered by USB maker. If connected with cable is

not offered by USB maker or an excessively long

cable, the device may not be recognized.

Some USB storage devices may not be supported

or operated smoothly.

or unplugged, the stored files or the USB storage _-, File alignment method of USB storage device is

device may be damaged.

_, Please do not connect the USB storage device similar to Window XP and fi ename can recognize

which was artificially maneuvered on the PC. The up to 100 English characters.

device may cause the product to malfunction or Please backup important files because data on

fail to be played. Never forget to use only a USB USB device may be damaged. Data management is

consumer's responsibility and as a result, the man-

storage device which has normal music files or

mage files, ufacturer does not cover data damage.

PHOTOLIST

You can view .JPG files from USB storage devices.

The On Screen Display on your model may be slightly different.

Supported photo file: *.JPG

You can play JPG files only.

Only baseline scan is supported amongJPG.

Screen Components

Select USB.

d_ Moves to upper level file

0' Preview: Display the

thumbnail/folder name of

the photo in the selected

folder

0 Current page/Total pages

0 Total number of marked photos

Q Usable USB memory

0 Corresponding buttons on

the remote control

Select PHOTO LIST.

]..........

ooo , °oMo oo I I

I ':' Navigate _ PopUp Menu CH Move Page Mark ¢R_T _N Exit I

USB

Photo Selection and Popup Menu

Fr_eSpa(_ 150MB

_'* Navigate _ PopUp Menu CH Move Page _AV_ Mark Exit

,:,Navigate _)PopUpMenu CH MovePage FAY Mark Exit

When you select a file (not folder), this PopUp

menu is displayed.

t__Vie_. Display the selected item.

_, Mark All: Mark all photos on the screen.

_ Unmark All: Deselect all marked photos.

_ Delete: Delete the selected photo item.

_ Cancel: Close the pop-up menu.

Select the target folder or drive.

Select the desired photos.

Show the Popup menu.

Select the desired Popup menu.

Use the CH ^ v button to navigation in the

photo page.

Use the FAV button to mark or unmark a

photo. When one or more photos are marked.

you can view individual photos or a slide show

of the marked photos. If no photos are marked.

you can view all photos individually or all pho-

tos in the folder in a slide show.

Full Screen Menu

You can change the Photo List view so that it fills the screen. More operations are available in full

screen mode.

,_ Navigate (_ PopUp Menu CH Move Page Mark Exit

,:_ Navigate (_ PopUp Menu CH Move Page _A_!I Mark Exit The aspect ratio of a photo may change the size of

the photo displayed on the screen in full size.

Select the target folder or drive.

Select the desired photos.

Show the Popup menu.

Select View.

The selected photo is displayed in

full size.

!ii!!iiii,i_i_

_UsetheCH _ _ button to na_igation in the

USB

Select the Sideshow, BGM, (Rotate),

Delete, Option, or Hide.

m Use v < > button to select and control

the menu on the full_sized screenl

_,, Sideshow: Selected photos are displayed during the

slide show. If no photo is selected, all photos in the cur-

rent folder are displayed during slide show.

_ Set the time interval of the slide show in Option.

_ A slide show continues for a maximum of 4 hours.

After 4 hours, the slide show will end and go to TV

mode or external input mode.

_,, BGM: Listen to music while viewing photos in full size.

Set the BGM device and album in Option.

_,, (Rotate): Rotate photos.

_ Rotates the photo 90 °, 180 °, 270 °, 360 ° clockwise.

_*_,,Delete: Delete photos.

_,,Option: Set values for Slide Speed and Music

Folder.

Use < > button and ENTER button to set values.

Then go to _ and press ENTER to save the set-

tings.

_You cannot change Music Folder while BGM is

playing.

_u_Hide : Hide the menu on the full-sized screen.

mTo see the menu again on the full-sized screen, press

ENTER button to display.

iiiiiiii@@

_- @ @ii!i!i

most JPEG images saved using the

Progressive optionl ............................

MUSIC LIST

You can use the Music List menu to play MPS files form a USB storage device.

This TV cannot play back copy-protected files.

The On Screen Display on your model may be slightly different.

Supported music file: *.MPS

Bit rate range 40Kbps - S20Kbps

• Sampling rate (Sampling Frequency)

MPEG1 : 52000, 44100, 48000Hz

MPEG2 : 16000, 24000, 22050Hz

MPEG2.5 : 16 - 48KHz

Screen Components

Select USB. Select MUSIC LIST.

O Moves to upper level file

G Preview: If any album jacket

for the file exists, this jack-

et is displayed.

Q Current page/Total pages

O Total number of marked

musics

0 Usable USB memory

Q Corresponding buttons on

the remote control I'_" Navigate (_) PopUp Menu CH Move Page CFAV; Mark Exit I

USB

Music Selection and Popup Menu

Up to 6 music titles are listed per page.

_::_ Navigate (_ PopUp Menu CH Move Page

_ Navigate _ PopUp Menu CH Move Page

Mark Exit

iiii!_Ni:Exit

_,_,Play (During stop): Play the selected music.

Once a song finishes playing, the next selected

one will be played. When there are no selected

musics to play, the next one in the current fold-

er will be played. If you go to a different folder

and press the ENTER button, the current

music in playback will stop.

_, Play Marked: Play the selected musics. Once

a music finishes playing, the next selected one

will be played automatically.

_,_,Stop Play (During playback): Stop the play-

ing musics.

_,_Play with Photo: Start playing the selected

musics and then move to the Photo List.

t_, Mark All: Mark all musics in the folder.

_,,,Unmark All: Deselect all marked music.

_,_Delete: Delete the selected music.

_,,,Cancel: Close the pop-up menu.

Select the target folder or drive.

Select the desired musics.

Show the Popup menu.

Select the desired Popup menu.

Use the CH ^ v button to navigation in

the music page.

Use FAV button to mark or unmark a music

file. If no music is marked, all the music in the

folder will be played in sequence. When one or

more music files are marked, the marked music

files will be played in sequence. If you want to

listen to only one song repeatedly, just mark

that one file and pav.

Return to TV viewing

The play information box (as shown below) will automatically

move across the screen when there is no user input to pre-

vent a fixed image remaining on the screen for a extended

period of time.

When music is playing, _ is displayed in front of the music play time.

A damaged or corrupted music file that does not play Gisplays 00:00 as the play time.

Music files with copy-protection will not play.

Press ENTER. •. or RETURN button to stop the screen saver.

This TV can not play music files less than 16 Kbytes.

PICTURE CONTROL

PICTURESIZE (ASPECT RATIO) CONTROL

This feature lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV.

RGB-PC input source use 4:3 or 16:9 aspect ratio.

Select PICTURE.

Select Aspect Ratio.

_f_You can also adjust Aspect Ratio in

the Q-Menu.

Select the desired picture format.

Return to the previous menu.

Return to TV viewing.

Set by program

Selects the proper picture proportion to match

the source'simage.

(4:3"* 4:3)

(16:9--_ 16:9)

4:3

Choose 4:3 when you want to view a picture

with an original 4:3 aspect ratio.

16:9

Adjust the picture horizontally, in a linear pro-

portion to fill the entire screen.

Zoom 1

Choose Zoom 1 when you want to view the pic-

ture without any alteration. However, the top and

bottom portions of the picture will be cropped.

m m

v....................... _u

Zoom 2

Choose Zoom 2 when you want the picture to be

altered, both vertically extended and cropped.

The picture taking a halfway trade off between

alteration and screen coverage.

Just Scan

Normally the edges of video signals are cropped

1-2%. Just Scan turns off this cropping and

shows the complete video.

Notes: If there is noise on the edges of the original

signal, it will be visible when Just Scan is activated.

Just Scan operates only in

DTV/CADTV/Com po nent/H DM I-DTV/DVI-DTV

(720p/1080i/1080p) input source.

PICTURECONTROL

PRESETPICTURESETTINGS

Picture Mode - Preset

There are factory presets for picture settings available in the user menus. You can use a preset, change each

setting manually, or use the Intelligent Sensor.

r_l

57/42/47/52LG50, 52LG20, 50/60PG60,

52/57/42/47/52LG60, 52/57/42LG50, 50/60PG70

52/42/47/52LG70, 42/50PG25

42/47LGX, 47LG90

Select PICTURE.

Select Picture Mode.

Select Intelligent Sensor (Except

52LG20, 52/57/42LG50, Plasma TV),

Vivid, Standard, Cinema/

Cinema (Only for 50/60PG60,

50/60PG70), Sport, or Game.

Return to the previous menu.

Return to TV viewing.

0_When selecting Intelligent Sensor

(Except 32LG20, 32/37/42LG30, Plasma

TV), the most suitable picture isautomatically

adjusted according to the surrounding

conditions.

01_Vivid, Standard, Cinema/

Cinema, Sport, and Game Settings are

preset for the optimum picture quality at

the factory and are not adjustable.

01_You can also adjust Picture Mode in

the Q. Menu.

01__ Cinema (Only for 50/60PG60,

50/60PG70): This is cinema quality

mode to provide you the experience of

watching a movie at home. The user will

be able enjoy the best level of satisfac-

tory screen quality in any movie without

any separate adjustments. _ Cinema

expresses the optimal screen quality

when it is darkest.

0101_When selecting _ Cinema, Aspect

ratio changes to Just scan.

HTn-_(Thomlinson Holman's Experiment) is the

audio and video certification standard of THX

established by George Lucas, who directed the

movie Star Wars, and Thomlinson.

This is the product to be certified in THX display

area and guarantees screen quality that exceeds the

display standard specification in both hardware and

softwa re.

Color Tone - Preset

Choose one of three automatic color adjustments. Set to warm to enhance hotter colors such as red, or set to

cool to see less intense colors with more blue.

Select PICTURE.

Select Advanced Control.

Select Color Temperature.

Select Cool, Medium, or Warm.

Return to the previous menu.

Return to TV viewing.

PICTURECONTROL

MANUALPICTUREADJUSTMENT

Picture Mode - User Mode

Adjust the picture appearance to suit your preference and viewing situations.

LCD TV only: This feature is disable in "Picture Mode-Intelligent Sensor".

50/60PG60, 50/60PG70 only: This feature is disabled in "Picture Mode- _ Cinema".

Select PICTURE.

Select Picture Mode.

Select Vivid, Standard, Cinema, Sport, or Game.

Select Backlight (Only LCD TV), Contrast,

Brightness, Sharpness, Color, or Tint.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

Picture Mode - Expert Control

By segmenting categories, Expert1 and Expert2 provide more categories which users can set as they see

fit, offering the optimal picture quality for users.

Select PICTURE.

Select Picture Mode.

Select Expert1 or Expert2.

Select Expert Control.

Select your desired menu option.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

PICTURECONTROL

PICTURE IMPROVEMENTTECHNOLOGY

Fresh Contrast: Optimizes the contrast automatically according to the brightness of the reflection.

Fresh Color: Adjusts the color of the reflection automatically to reproduce as close as possible natural colors.

Noise Reduction: Removes interference up to the point where it does not damage the original picture.

Gamma: High gamma values display whitish images and low gamma values display high contrast images.

Color Gamut (Only for 47LG90): Select the range of colors that can be expressed.This feature is disabled in

"Picture Mode-Vivid, Sport".

Select PICTURE.

Select Advanced Control.

Select Fresh Contrast, Fresh Color, Noise

Reduction, Gamma, or Color Gamut.

Select your desired options.

Return to the previous menu.

Return to TV viewing.

ADVANCED CONTROL- BLACK (DARKNESS) LEVEL

Adjusting the contrast and the brightness of the screen using the black level of the screen.

This feature is disabled in DTV and RGB-PC mode.

Select PICTURE.

Select Advanced Control.

Select Black Level.

Select Low or High.

01_Low: The reflection of the screen gets

darker.

01_High: The reflection of the screen gets

brighter.

01_Auto: Realizing the black level of the

screen and set it to High or Low auto-

matically.

Return to the previous menu.

Return to TV viewing.

PICTURECONTROL

ADVANCED CONTROL- EYECARE-LCDTVOnly

Dims extremely bright pictures.

This feature is disabled in "Picture Mode-Vivid, Cinema".

-O

Select PICTURE.

Select Advanced Control.

Select Eye Care.

Select On or Off.

Return to the previous menu.

Return to TV viewing.

ADVANCED CONTROL - REALCINEMA /FILM MODE

Set up the TV for the best picture appearance for viewing movies.

When you operate Real Cinema/Film Mode (3:2 Pull-Down Mode or Cinema Correction Mode), the TV will

adjust 24 fps video from movies to 30 fps video for display.

Plasma TV, 32LG20, 32/37/42LG30

This feature operates only in TV (Analog TV/CATV, Digital DTV/CADTV), AVl, AV2, Component 480i/1080i,

and HDMI 1080i mode.

37/42/47/52LG50, 32LG60, 32LG70

This feature operates only in TV (Analog TV/CATV, Digital DTV/CADTV), AV1, AV2, Component 480i/1080i,

and HDMI 1080i mode.

This TV ouputs 48Hz in DTV, Component, and HDMI 1080p (24Hz).

37/42/47/52LG60, 42/47/52LG70, 42/47LGX, 47LG90

This function works with all inputs except PC mode.

Off On

On On

For Plasma TV

For LCD TV

Select PICTURE.

Select Advanced Control.

Select Real Cinema or Film

Mode.

Select On or Off.

Return to the _revious menu.

Return to TV viewing.

PICTURECONTROL

ADVANCEDCONTROL-TRUMOTION-On 37/42/47/52LG60,42/47/52LG70,42/47LGX,47LG90

TruMotion provides even better quality for movies than 3:2 Pull-Down conversions.

TruMotion means the panel supports faster frame rates that normal panels which makes for smoother motion

in video. TruMotion LCD models support 120Hz instead of 60Hz. This means twice the information on the

screen in the same amount of time and easier film conversions (120 is equally divisible by 24, so no interpre-

tations or double frames are needed).

TruMotion works with all inputs except PC mode.

Select PICTURE.

Select Advanced Control.

Select TruMotion.

Select Off, Low, or High.

Return to the previous menu.

Return to TV viewing.

ruru_High: Provides smoother picture movement.

rururLow: Provides smo.oth picture movement. Use

this setting for standard use.

rururOff: Use this setting when "High"and "Low" set-

ting result in noise.

0_0_If you enable "TruMotion", noise may appear on

the screen. If this occurs, set "TruMotlon" to "Off'.

TRUMOTION DEMO- Only37/42/47/$2LG60, 42/47/$2LG70, 42/47LGX, 47LG90

Use this feature to see the difference TruMotion makes.

TruMotion works with all inputs except PC mode.

Select PICTURE.

Select TruMotion Demo.

Begin TruMotion Demo.

Stop TruMotion Demo.

Return to TV viewing.

LOCAL DIMMING Only47LG90

After analyzing the signal of the input video by areas of the screen, it adjusts the backlight to improve the

contrast ratio. This feature is disabled in "Picture Mode-Cinema, Game".

Select PICTURE.

Select Local Dimming.

LOCALDIMMING DEMO Only47LG90

Use this feature to see the difference Local Dimming makes.

Select O n or Off.

Return to the previous menu.

Return to TV viewing.

-O

Select PICTURE.

Begin Local Dimming Demo.

Select Local Dimming Demo. Stop Local Dimming Demo.

Return to TV viewing.

PICTURECONTROL

PICTURE RESET

Settings of the selected picture modes return to the default factory settings.

Select PICTURE.

Select Reset.

Initialize the adjusted value.

Return to TV viewing.

POWER INDICATOR- LeDTVOnly

Select OPTION.

Select Power Indicator.

Select Srartup Sound, Standby

Light, Power Light or Demo Mode.

Select your desired options.

Return to the previous menu.

Only for

32/37/42/47/52LG60,

42/47LGX

0_Startup Sound: You can turn off the

starting sound of the TV or set the vol-

ume.

01_Standby Light: You can set the

brightness of the LED on the front side

of the TV during power standby.

01_Power Light: You can set the the LED

on the front side of the TV to be turned

on or off while watching the TV.

0_Demo Mode: You can set the LED on

the front side of the TV to flash.

Return to TV viewing.

PICTURECONTROL

IMAGESTICKING MINIMIZATION (ISM) METHOD- Plasmarv Only

A frozen still picture from a PC/video game displayed on the screen for prolonged periods can result in a ghost

image. You can use Orbiter to help prevent image sticking. The other two functions are for removing a ghost

image.

Select OPTION.

Select ISM Method.

Select Normal, Orbiter,

Inversion or White Wash.

Return to the previous menu.

Return to TV viewing.

Normal: If image sticking is never a

problem, ISM is not necessary - set to

Normal.

Orbiter: Orbiter may help prevent

ghost images. However, it is best not to

allow any fixed image to remain on the

screen. To avoid a ghost image on the

screen, the image will move every 2 min-

utes.

Inversion: Inversion will automatically

invert the plasma display panel color

every 50 minutes.

White Wash: White Wash removes

ghost images from the screen. Use spar-

ingly. Watch the TV normally for a while

before using this feature to see if the

ghost image disappears on its own.

POWERSAVING PICTURE MODE PlasmaTVOnly

It reduces the plasma display's power consumption.

The default factory setting complies with the Energy Star requirements and is adjusted to the comfortable

level to be viewed at home.

You can increase the brightness ofyour screen by adjusting the Power Saving level or by setting the Picture Mode.

Select OPTION.

Select Power Saving.

Select Level 0, Level I,

Level 2, Level 3, or Level 4.

Return to the previous menu.

Return to TV viewing.

010r_Level 0 is the brightest.

01_Level 0 > Level 1 > Level 2 > Level 3 >

Level 4

0101_You can also adjust Power Saving in

the Q. Menu.

SOUND & LANGUAGE CONTROL

AUTO VOLUME LEVELER(AUTO VOLUME)

Auto Volume makes sure that the volume level remains consistent whether you are watching a commercial or a

regular TV program.

1-11

.-I

Select AUDIO.

Select Auto Volume.

Select On or Off.

Return to the previous menu.

Return to TV viewing.

PRESETSOUND SETTINGS (SOUND MODE)

Sound Mode lets you enjoy the best sound without any special adjustment as the TV sets the appropriate

sound options based on the program content.

Standard, Music, Cinema, Sport, and Game are preset for optimum sound quality at the factory and are

not adjustable.

Select AUDIO.

Select Sound Mode.

Select Standard, Music,

Cinema, Sport, or Game.

f_l_You can also adjust Sound Mode in

the Q. Menu.

l'rl

.-I

Return to the previous menu.

Return to TV viewing.

SOUND & LANGUAGE CONTROL

SOUND SETTING ADJUSTMENT- USERMODE

Adjust the sound to suit your taste and room situations.

l'rl

.-I

Select AUDIO.

Select Sound Mode.

Select Standard, Music,

Cinema, Sport, or Game.

Select Treble or Bass.

SRS TRUSURROUND XT

Select AUDIO.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

Select SRS TruSurround XT

Select On or Off.

Return to the previous menu.

Return to TV viewing.

SRS TruSurround XT: Takes advantage of

any multi-channel format without needing to

add extra speakers or equipment. Dialog clarity,

bass enrichment, and the addition of stereo

audio enhancement produces an immersive

sound experience from standard stereo material.

CLEARVOICE

By differentiating the human sound range from others, it improves the sound quality of voices.

Select AUDIO.

Select Clear Voice.

Select 0 n or Off.

Return to the previous menu.

Return to TV viewing.

0_If you select "Clear Voice-On': SRS

TruSurround XT feature will not

work.

0_0_You can also adjust Clear Voice in the

Q-Menu.

l'rl

.-I

SOUND & LANGUAGE CONTROL

BALANCE

Adjust the left/right sound of speaker to suit your taste and room situations.

l'rl

.-I

Select AUDIO.

Select Balance.

Make appropriate adjustments.

Return to the previous menu.

Return to TV viewing.

TV SPEAKERSONIOFF SETUP

Turn the TV speakers off if using external audio equipment.

Select AUDIO.

Select TV Speaker.

Select 0 n or Off.

l'rl

.-I

Return to the previous menu.

Return to TV viewing.

SOUND & LANGUAGE CONTROL

AUDIO RESET

Settings of the selected Sound Mode return to the default factory settings.

l'rl

.-I

Select AUDIO.

Select Reset.

Initialize the adjusted value.

Return to TV viewing.

STEREO/SAPBROADCASTSETUP

For Analog only: This TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accom-

panies the stereo program if the station transmits an additional sound signal. Mono sound is automatically used

if the broadcast is only in Mono.

Plasma TV LCD TV

Analog TV

Select SAP.

Select Mono, Stereo, or SAP.

Return to TV viewing.

Digital TV

Select Multi Audio.

Select other languages.

Return to TV viewing.

l'rl

.-I

SOUND & LANGUAGE CONTROL

AUDIO LANGUAGE

Other languages may be available if a digital signal is provided by the broadcasting station.

This feature operates only in DTV/CADTV mode.

l'rl

.-I

Select OPTION.

Select Language.

Select Audio.

Select your desired language:

English, Spanish, or French

Return to the previous menu.

Return to TV viewing.

ON-SCREEN MENUS LANGUAGE SELECTION

The menus can be shown on the screen in the selected language.

Select OPTION.

Select Language.

Select Menu.

Select your desired language.

From this point on, the on-screen menus

will be shown in the selected language.

l'rl

.-I

Return to the previous menu.

Return to TV viewing.

SOUND & LANGUAGE CONTROL

CAPTION MODE

Analog Broadcasting System Captions

Caption must be provided to help people with hearing loss watch TV. Select a caption mode for displaying cap-

tioning information if provided on a program. Analog caption displays information at any position on the screen

and is usually the program's dialog. Caption/Text, if provided by the broadcaster, would be available for both

digital and analog channels on the Antenna/Cable. This TV is programmed to memorize the caption/text mode

which was last set when you turned the power off. This function is only available when Caption Mode is set On.

l'rl

.-I

Select OPTION.

Select Caption.

Select 0 n.

Select CC1-4 or Text1-4.

Return to the previous menu.

When selecting Off, Sub-menus for

Analog, DTV, and Digital Option

become disabled.

CAPTION

The term for the words that scroll

across the bottom of the TV screen;

usually the audio portion of the pro-

gram provided for the hearing impaired.

TEXT

The term for the words that appear in a

large black frame and almost cover the

entire screen; usually messages provid-

ed by the broadcaster.

Return to TV viewing.

Digital Broadcasting System Captions

Choose the language you want the DTV/CADTV Captions to appear in.

Other Languages can be chosen for digital sources only if they are included on the program.

This function in only available when Caption Mode is set On.

iiiiiMi/i!iiiiiiiiMi!lliii//i!iiiii_i_ii!_iii_iiiiii!iiiiiiiiiiiiiiiiiiiiii_i_i!i!ii_iii_iiiiYii!iii_ii_iiiiii_i:_:i!iiiiiii!!iiiii!_i_iiiiii!i!i!_¸iii!

Select OPTION.

Select Caption.

Select 0 n.

Select CC1-4, Text1-4, or

Service1 - 6.

t:3

l'rl

.-I

Return to the previous menu.

Return to TV viewing.

SOUND & LANGUAGE CONTROL

Caption Option

Customize the DTV/CADTV captions that appear on your screen.

This function in only available when Caption Mode is set On.

l'rl

.-I

Select OPTION.

Select Caption

Select O n.

Select Digital Option.

Select Custom.

Customize the Style, Font, etc., to your

preference. A preview icon is provided at

the bottom of the screen, use it to see the

caption language.

01_Size: Set the word size.

01_Font: Select a typeface for the text.

0_Text Color: Choose a color for the

text.

01_Text Opacity: Specify the opacity

for the text color.

01_Bg (Background) Color: Select a

background color.

01_Bg (Background) Opacity: Select

the opacity for the background color.

0101_Edge Type: Select an edge type.

0101_Edge Color: Select a color for the

edges.

Return to the previous menu.

Return to TV viewing.

100

TIME SETTING

CLOCK SETTING

Auto Clock Setup

The time is set automatically from a digital channel signal.

The digital channel signal includes information for the current time provided by the broadcasting station.

Set the clock manually if the current time is set incorrectly by the auto clock function.

Select TIME.

Select Clock.

Select Auto.

Select your viewing area time zone.

• U.S.A: Eastern, Central, Mountain,

Pacific, Alaska, or Hawaii.

• Canada: Eastern, Central, Mountain,

Pacific, New F.land, or Atlantic.

Select Auto, Off, or On (depending on

whether or not your viewing area observes

Daylight Saving time).

Return to the previous menu.

Return to TV viewing.

101

TIME SETTING

Manual Clock Setup

If the current time setting is wrong, set the clock manually.

Select TIME.

Select Clock.

Select Manual.

Select the Year, Month, Date, Hour, or Minutes

option.

Set the Year, Month, Date, Hour, or Minutes

option.

Return to the previous menu.

Return to TV viewing.

102

AUTO ON/OFF TIME SETTING

This function operates only if the current time has been set.

The Off Time function overrides the On Time function if they are both set to the same time.

The TV must be in standby mode for the On Time to work.

If you do not press any button within 2 hours after the TV turns on with the On Time function, the TV will

automatically revert to standby mode.

Select TIME.

Select Off time or On time.

Select Repeat.

Select Off, Once, Everyday, Mon~Fri,

Mon~Sat, Weekend, or Sunday.

Select and set Hour or Minute.

01_To cancel On/Off Time function, select Off.

i_f_Only for On Time function

Select Input.

Select the desired input source.

When Selecting TV:

set the channel at turn-on.

Adjust to sound level at

turn-on.

Return to the previous menu.

Return to TV viewing.

103

TIME SETTING

SLEEPTIMER SETTING

The Sleep Timer turns the TV off at the preset time.

Note that this setting is cleared when the TV is turned off.

Select TIME.

Select Sleep Timer.

Select Off, 1 O, 2 O, 3 O, 6 O, 9 O,

120, 180, or 240 minutes.

Return to the previous menu.

,I,_You can also adjust Sleep Timer in

the Q-Menu.

Return to TV viewing.

104

AUTO SHUT-OFF SETTING

TV will be automatically turned off, in case of no signal for 10 minutes.

Select TIME.

Select Auto Sleep.

Select 0 n or Off.

Return to the previous menu.

Return to TV viewing.

105

PARENTALCONTROL /RATINGS

Parental Control can be used to block specific channels, ratings and other viewing sources.

The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broad-

casting station. The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the

type of the program and the categories. It is also possible to block all program viewing for a time period. To use

this function, the following must be done :

1. Set ratings and categories to be blocked.

2. Specify a password

3. Enable the lock

V-Chip rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be

blocked by TV Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-

video movies use the Movie Rating System (MPAA) only.

Ratings for Television programs including made-for-TV movies-

0,_TV-G (General audience) 0,_TV-MA (Mature audience only)

0_TV-PG (Parental guidance suggested) 0_TV-Y (All children)

0fu_TV-14 (Parents strongly cautioned) 0fu_TV-Y7 (Children 7years older)

r_l

SETPASSWORD& LOCKSYSTEM

Setting up Your Password

Set up blocking schemes to block specific channels, ratings, and external viewing sources.

A password is required to gain access to this menu.

For USA For Canada

Select LOCK.

Input the password.

01_Enter the password as requested.

01_The TV is set up with the initial pass-

word "0-0-0-0".

106

Lock System

Enables or disables the blocking scheme you set up previously.

Select LOCK.

Input the password.

Select Lock System.

Select 0 n or Off.

Return to the previous menu.

Return to TV viewing.

01_When you select 0 n, the Lock System

is enable.

107

PARENTALCONTROL /RATINGS

Set Password

Change the password by inputting a new password twice.

i¸I¸I¸I¸pli¸Hiii_i_iiiiiiii!iiiHii!iiiiiiii_iiii_i!iii!iiiii!iiiii1iii!ji_iiiIiiiiiiiii_!_iiiiiiiiii!ii_iiiii!ii_i{ii_:_iiiH_iii!iiiii_ii_ii!iiiii_i_iiiiiiiIIIi_:_ii_iiiiiiIiiIiiii_iiii

Select LOCK.

Input the password.

Select Set password.

Choose any 4 digits for your new password.

As soon as the 4 digits are entered, re-enter

the same 4 digits on the Confirm.

Return to the previous menu.

Return to TV viewing.

108

CHANNEL BLOCKING

Blocks any channels that you do not want to watch or that you do not want your children to watch.

(_ Block/Unblock _, Move CH Move Page Previous :_TO_N* Exit

_ Select LOCK.

Input the password.

Select Block Channel.

Select a channel to block or unblock.

Block or unblock a channel.

Return to the previous menu.

Return to TV viewing.

109

PARENTALCONTROL /RATINGS

MOVIE & TV RATING

Movie Rating (MPAA) -For USA only

Blocks movies according to the movie ratings limits specified, so children cannot view certain movies. You can

set the ratings limit by blocking out all the movies with the ratings above a specified level. Keep in mind that

the movie ratings limit only applies to movies shown on TV, not TV programs, such as soap operas.

rrl

Select LOCK.

Input the password.

Select Movie Rating.

Select G, PG, PG-1 3, R, NC-1 7,

X, or Blocking Off.

Return to the previous menu.

Return to TV viewing.

01_G (General audience)

01_PG (Parental guidance suggested)

01_PG-13 (Parents strongly cautioned)

01_R (Restricted)

01_NC-17 (No one 17 and under admitted)

01_X (Adult only)

01_Blocking Off (Permits all programs)

If you set PG-1S: G and PG movies will

be available, PG-1S, R, NC-17 and X will

be blocked.

110

TV Rating Children -For USA only

Prevents children from watching certain children's TV programs, according to the ratings limit set. The children

rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audi-

ences in the TV Rating - sub menu, your children can view those programs.

Se,ectLOC..

Input the password.

Select TV Rating-Children.

Select Age or Fantasy Violence.

Select block options.

Return to the previous menu.

01_Age (applies to TV-Y, TV-Y7)

Fantasy Violence (applies to TV-Y7)

Return to TV viewing.

111

PARENTALCONTROL /RATINGS

TV Rating General - ForUSAonly

Based on the ratings, blocks certain TV programs that you and your family do not want to view.

Select LOCK.

Input the password.

Select TV Rating-General.

Select Age, Dialogue, Language,

Sex or Violence.

Select block options.

Return to the previous menu.

,i_Age (applies to TV-G,TV-PG,TV-14,TV-

MA).

,l_Dialogue-sexual dialogue

TV-PG,TV- 14).

,l_Language-adult language

TV-PG, TV-14, TV-MA).

,l_Sex-sexual situations (applies to TV-PG,

TV-14, TV-MA).

,i,l_Violence (applies to TV-PG, TV-14, TV-

MA).

(applies to

Return to TV viewing.

112

TV Rating English - ForCANADA only

Selecting canadian english language rating system.

!\i,__ _ Select LOCK.

Input the password.

Select TV Rating-English.

Select E, C, C8+, G, PG, 1 4+,

1 8+, or Blocking Off.

Return to the previous menu.

Return to TV viewing.

01_E (Exempt)

01_C (Children)

01_C8+ (Children eight years and older)

01_G (General programming, suitable for

all audiences)

0101_PG (Parental Guidance)

0101_14+ (Viewers 14 years and older)

0101_18+ (Adult programming)

0101_Blocking Off (Permits all programs)

rT1

113

PARENTALCONTROL /RATINGS

TV Rating French - ForCANADA only

Selecting canadian french language rating system.

t"t3

Select LOCK.

Input the password.

Select TV Rating-French.

Select E, G, 8ans+, 1 3ans+,

1 6ans+, 1 8ans+, or Blocking off.

Return to the previous menu.

Return to TV viewing.

0,_E (Exempt)

0,_G (General)

01_8ans+ (General-Not convenient for lit-

tle children)

01_13ans+ (Not convenient for children of

13 years and younger)

01_16ans+ (Not convenient for children of

16 years and younger)

01_18ans+ (This programs is only for

adults)

_f_Blocking off (Permits all programs)

114

DOWNLOADABLE RATING

This function may become available in the future and will be available only for digital channels.

This function operates only when TV has received Regions Rating data.

Based on rating table, your TV's OSD

(On Screen Display) may differ slightly

from what is shown in this manual.

MENU _ Select LOCK.

Input the password.

Select Downloadable Rating.

Select desired Downloadable

Rating option.

Select desired option and block it.

Return to the previous menu.

Return to TV viewing.

11S

PARENTALCONTROL /RATINGS

EXTERNAL INPUT BLOCKING

Enables you to block an input.

32LG20,

32/37/42LG30,

37/42/47/52LG50,

32LG70

Plasma TV, 42/47/52LG70,

47LG90

iii!iii!i_iii_ii_iiiiiiiiiiiiiiiiiiiiiiiiiiililiiii!!!!!j!iii

!_:!_:!_iHi_i_!_i_i_i_i_i_iii_i_i_i_!i!_!i!_!_i_i_i_i_i_i_!!

i_ii_ii_i_,i_ii_!:_iiiiiiiiiiiiiiiiiii!ii!:i!i!i_i_i_!i!ii!ii!iiiii!ii_i_i!

32/37/42/47/52LG60,

42/47LGX

Select LOCK.

Input the password.

Select Input Block.

Select input source.

Select On or Off.

Return to the previous menu.

Return to TV viewing.

116

KEYLOCK

The TV can be set up so that it can only be used with the remote control.

This feature can be used to prevent unauthorized viewing by locking out the front panel controls.

This TV is programmed to remember which option it was last set to even if you turn the TV off.

Select OPTION.

Select Key Lock

Select O n or Off.

Return to the previous menu.

Return to TV viewing.

0_In Key Lock 'On', if the TV is turned

off, press the dD/I, INPUT, CH (AT or

^ v ) button on the TV or POWER,

INPUT, CH ^ v or NUMBER buttons

on the remote control.

01_With the Key Lock On, the display

'_ Key Lock' appears on the screen

if any button on the front panel is

pressed while viewing the TV.

rT1

117

APPENDIX

TROUBLESHOOTING

mmlCheck to see if there is any object between the product and the remote control

causing obstruction. Ensure you are pointing the remote control directly at the TV.

Ensure that the batteries are installed with correct polarity (+ to +, - to -).

Ensure that the correct remote operating mode is set: TV, VCR etc.

Install new batteries.

Is the sleep timer set?

Check the power control settings. Power interrupted.

Check whether the product is turned on.

Try another channel. The problem may be with the broadcast.

Is the power cord inserted into wall power outlet?

Check your antenna direction and/or location.

Test the wall power outlet, plug another product's power cord into the outlet

where the product's power cord was plugged in.

This is normal, the image is muted during the product startup process. Please

contact your service center, if the picture has not appeared after five minutes.

Adjust Color in menu option.

Keep a sufficient distance between the product and the VCR.

Try another channel. The problem may be with the broadcast.

Are the video cables installed properly?

Activate any function to restore the brightness of the picture.

Check for local interference such as an electrical appliance or power tool.

Station or cable product experiencing problems, tune to another station.

Station signal is weak, reorient antenna to receive weaker station.

Check for sources of possible interference.

Check antenna (Change the direction of the antenna).

Check HDMI cable over version 1.3.

The HDMI cables don't support HDMI version 1.3, it cause flickers or no screen

display. In this case use the latest cables that support HDMI version 1.3.

118

mm_Pressthe VOL or VOLUME button.

miniSound muted? Press MUTE button.

miniTry another channel. The problem may be with the broadcast.

miniAre the audio cables installed properly?

miniAdjust Balance in menu option.

mmffA change in ambient humidity or temperature may result in an unusual noise

when the product is turned on or off and does not indicate a fault with the

product.

miniCheck HDMI cable over version 1.3.

miniCheck USB cable over version 2.0.

m_Use normal MP3 file. *This feature is not available for all models.

Adjust resolution, horizontal frequency, or vertical frequency.

Check the input source.

Work the Auto configure or adjust clock, phase, or H/V position. (Option)

119

APPENDIX

MAINTENANCE

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you can

enjoy your new TV.

Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Here's a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm

water and a little fabric softener or dish washing detergent. Wring the cloth until it's almost dry, and then

use it to wipe the screen.

Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

Cleaning the Cabinet

,,,,,To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.

,,,,,Please be sure not to use a wet cloth.

Extended Absence

,',',',',,,,CAUTION

IIII,,_If you expect to leave your TV dormant for a long time (such as a vacation), it's a good idea to unplug

the power cord to protect against possible damage from lightning or power surges.

120

PRODUCT SPECIFICATIONS

Dimensions With stand

(Width x Height

x Depth) Without stand

31.5 x 23.7 x 8.9 inches

801.8 x 604.2 x 22Z3 mm

31.5 x 21.4 x 3.1 inches

801.8 x 544.1 x 79.0 mm

36.2 x 26,8 x l1.5 inches

919.6 x 682,3 x 293.8 mm

36.2 x 24,0 x 3.5 inches

919.6 x 610.3 x 89.0 mm

40.6 x 29.2 x l1.5 inches

1032,8x 742.3 x 293.8 mm

40.6 x 26.3 x 3.6 inches

1032.8x 670.1 x 92.0 mm

Weight With stand

Without stand

29,5 pounds /13,4 kg

26.2 pounds/ l1.9 kg

41.4 pounds /18.8 kg

35.7 pounds /16.2 kg

52.0 pounds ,' 23.6 kg

46.2 pounds /21.0 kg

Dimensions With stand

(Width x Height

x Depth) Without stand

31,5x23.7x8.91nches 36.8x26.9xH.51nches 40.7x28.9xH.51nches

801.8 x 604.2 x 22Z3 mm 936.4 x 685.4 x 293.4 mm 1034.0 x 735.0 x 294.0 mm

31.5 x 21.4 x 3.1 inches 36.8 x 24.1 x 3.4 inches 40.7 x 26.1 x 3.5 inches

801.8x544.1 x79.0mm 936.4x612.8x88.0mm 1034.0x663.0x9].0mm

Weight With stand

Without stand

29,5 pounds /13,4 kg

26.2 pounds/H .9 kg

40.3 pounds ,' 18.3 kg

34.3 pounds /15.6 kg

54.0 pounds ,' 24.5 kg

48.5 pounds /22.0 kg

With stand

Dimensions

(Width x Height Without stand

x Depth)

Weight With stand

Without stand

Power requirement

Television System

Program Coverage

External Antenna Impedance

Environment

condition

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

45.5 x 32.0 x 13.5 inches

1156.2 x 813.1 x 342.9 mm

45.5 x 29.1 x 4.0 inches

1156.2 x 739.2 x 103.0 mm

64.3 pounds /29.2 kg

54.2 pounds /24.6 kg

50.8 x 35.1 x 13.5 inches

1291.7 x 892.2 x 342.9 mm

50.8 x 32.1 x 4.5 inches

1291.7 x 81Z0 x 115.3 mm

8Z0 pounds /39.5 kg

76.9 pounds /34.9 kg

AC100-240V- 50/60Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

75 ohm

32- 104 F(0_40C)

Less than 80%

-4 _ 140 F (-20 _ 60 C)

Less than 85%

,,,,,,The specifications shown above may be changed without prior notice for quality improvement.

121

APPENDIX

Dimensions With stand

(Width x Height

x Depth) Without stand

Weight With stand

Without stand

Dimensions With stand

(Width x Height

x Depth) Without stand

Weight With stand

Without stand

With stand

Dimensions

(Width x Height

x Depth) Without stand

With stand

Weight Without stand

With stand

Dimensions

(Width x Height

x Depth) Without stand

Weight With stand

Without stand

Power requirement

Television System

Program Coverage

External Antenna Impedance

Environment

condition

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

31.7 x 24.6 x 13.l inches

805.6 x 626.0 x 333.0mm

31.7 x 23.1 x 3.7 inches

805,6 x 58Z4 x 96.2 mm

31.7 pounds /14.4 kg

26.8 pounds/ 12.2 kg

36.5 x 2Z8 x 14.7 inches

929.0 x 706.9 x 374.7 mm

36.5 x26.1 x 3.8 inches

929,0 x 665,0 x 98,7 rnrn

46.7 pounds ,' 21.2 kg

39.9 pounds ,' 18.1 kg

40.8 x 31.3 x 14.9 inches

103Z8x 796.4 x 379.5 mm

40.8 x 29.4 x 3.1 inches

103Z8 x 747,0x 80.8 mm

53.1 pounds ,' 24.1 kg

44.9 pounds ,' 20.4 kg

40.8 x 31.4 x 14.8 inches

103Z8 x 798.0 x378.0 mm

40.8 x 29.3 x 1.7 inches

103Z8 x 746,2 x 45.0 mm

46.9 pounds /21.3 kg

39.6 pounds /18.0 kg

45.3 x 34.1 x 1Z1 inches 50.3 x 3Z1 x 16.9 inches

1152.8 x 868.6 x 434.5 mm 1280.1 x 944.7 x 430,0 mm

45.3 x 32,3 x 3,1 inches 50.3 x 35,2 x 3.5 inches

1152,8 x 820,8 x 79.0 mm 1280,1 x 896,0 x 89.0 mm

71.8 pounds /32.6 kg

59.3 pounds /26.9 kg

99.2 pounds /45.0 kg

83.9 pounds /38.1 kg

44.5 x 33,6 x 16.2 inches

1132.0 x 853.8 x 413.5 mm

44.5 x 31,8 x 1,7 inches

1132,0 x 80Z8 x 44.7 mm

61.7 pounds /28.0 kg

52.9 pounds /24.0 kg

31.3 x 23,5 x 8.9 inches 40.4 x 28.8 x 11.5 inches

79Z0 x 59Z0 x 22Z3 mm 1026.2 x 734.0 x 293.4 mm

31.3 x 21.9 x 3,9 inches 40,4 x 2ZO x 4.4 inches

79Z0 x 558.6 x 100.4 mm 1026.2 x 68Z9 x Ill.8 mm

29.1 pounds ,' 13.2 kg

25.7 pounds ,' 11.7 kg

49.5 pounds /22.4 kg

43.4 pounds /19.7 kg

44.8 x 32,2 x 13.5 inches 50.5 x 35,3 x 13.5 inches 44.8 x 32,2 x 13.5 inches

1140,4 x 820,1 x 342,9 mm 1284,4 x 898,6 x 342,9 mm 1140,4 x 820,1 x 342,9 mm

44.8 x 30.1 x 5.0 inches 50,5 x 33,2 x 5,0 inches 44.8 x 30.1 x 5.0 inches

1140,4 x 764,8 x 129,0 mm 1284,4 x 844,6 x 129,5 mm 1140,4 x 764,8 x 129,0 mm

66.3 pounds /30.1 kg

55.9 pounds /25.4 kg

8Z9 pounds /39.9 kg

7Z6 pounds /35.2 kg

66.5 pounds ,' 30.2 kg

56.2 pounds /25.5 kg

AC100-240V- 50/60Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1 -135, DTV 2-69, CADTV 1 -135

75 ohm

32- 104 F(0_40C)

Less than 80%

-4 _ 140 F (-20 _ 60 C)

Less than 85%

The specifications shown above may be changed without prior notice for quality improvement.

122

Dimensions With stand

(Width x Height

x Depth) Without stand

Weight

With stand

Without stand

41.1 x 28.9 x 12.1 inches

1044.4 x 735.4 x 308.0 mm

41.1 x 26.7 x 3.1 inches

1044.4 x 680.6 x 79.6 mm

61.7 pounds /28.0 kg

55.1 pounds /25.0 kg

48.6 x 33.4 x 14.3 inches

1235.6 x 849.3 x 364.1 mm

48.6 x 31.2 x 3.1 inches

1235.6 x 792.8 x 79.6 mm

96.3 pounds /43.7 kg

8Z5 pounds /39.7 kg

With stand

Dimensions

(Width x Height Without stand

x Depth)

With stand

Weight Without stand

Power requirement

Television System

Program Coverage

External Antenna Impedance

Environment

condition

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

48.6 x 33.4 x 14.3 inches

1235.6 x 849.3 x 364.1 mm

48.6 x 31.2 x 3.1 inches

1235.6 x 792.8 x 79.6 mm

5Z3 x 38.8 x 16.3 inches

1455.0 x 985.0 x 414.0 mm

5Z3 x 36.4 x 3.3 inches

1455.0 x 924.8 x 84.1 mm

100.7 pounds /45.7 kg

91.9 pounds /41.7 kg

13Z5 pounds /62.4 kg

121.0 pounds /54.9 kg

AC100-240V- 50/60Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1 -135

75 ohm

32- 104 F(0_40C)

Less than 80%

-4 _ 140 F (-20 _ 60 C)

Less than 85%

,,,,,The specifications shown above may be changed without prior notice for quality improvement.

123

PROGRAMMING THE REMOTE CONTROL

The provided universal remote control can be programmed to operate most remote-controllable devices.

Note that the remote may not control all models of other brands.

Programming a code into a remote mode

II Testing your remote control.

To find out whether your remote control can operate other components without programming, turn on a

component such as a STB and press the corresponding mode button (such as a STB) on the remote con-

trol, while pointing at the component. Test the POWER and CH ^ v buttons to see if the component

responds correctly. If the component does not operate correctly, the remote control requires programming

to operate the device.

Turn on the component to be programmed, then press the corresponding mode button (such as STB) on

the remote control. The remote control button of the desired device is illuminated.

Press the MENU and MUTE buttons simultaneously, and the remote control is ready to be programmed with

the code.

r_l

O Enter a code number using the number buttons on the remote control. Programming code numbers for the

corresponding component can be found on the following pages. If the code is correct, the device will turn

off.

Press the MENU button to store the code.

Test the remote control functions to see if the component responds correctly. If not, repeat from step 2.

124

Remote Control Code

VCR

_IWA 034 031 033 034 041 032 040 102 104

_,!!_:::_r i_'__£__'_i_'_'__'_i_i_!_z_,i__ __:,_,_,__z_'_,',_,__,,i_

AKAI 016 043 046 124 067 068 105 107 109 112

125 146 MARANTZ 012 031 033 067 113 115 120 122

072 .... 069 125

ANAM 031 033 103 101 SANSUI 022 043 048 135

012 023 039 043 MATSUI 027 030 003 007 010 014

BROKSONIC 035 037 129 031 033 102 134

iiiii!i i _i!iii!ill iii iii!i! !iiiiiiii i

065 108 110 111

112 116 117 119 049 051 059 061 SHARP 031 054 149

DAYTRON 108 151 024

i iiiii ii ii_iiiiii_iii!_il _ii! iii!ilili !!!i

012 023 039 043 MTC 034 040 ............. SONY 003 009 031 052

DYNATECH 034 053 024 034 056 057 058 076

059 NEC 012 023 039 043 077 078 149

006 017 025 027 048 034

STS 013

031 033 034 059

066 070 074 083 067

133 140 145 SYMPHONIC 034

010 o34

031 033 063 072 PENTA× 013 020 031 033 TATUNG 039 043

107 109 144 147 063 034 039 043

COWDFO _32_36 031O34O67 031O33O7O

019 031 033 034

101

THOMAS 034

031 033 P_ONFFR 013021048 006

iiiiiiiiiil iiiiiiii ii_ !!!! ii_ !: !ii

CL 031 033 108 TOSHIBA 008 013 042 047

012 013 015 033 PULSAR 072 059 082 112 131

040 066 101 014 TOTEVISION 040 101

_ENSEN 043 QUASAR 033 066 07S _4S 040

01R031033043 013020033034 VFCTORRFS_ARC.012

048 050 055 060 040 041 062 063 048

130 150 152 107 109 140 144 VIDFOCONCFPTS 012 034 046

014 034039 043 145 147 040

047 048 REALISTIC 003 008 010 014 WARDS 003 013 017 024

001 012013020 03i 033034040 03i 033034 040

101 106 114 123 053 054 101 053 054 131

LLOYD 034 058 012 034 039 043

003 009 013 014 RUNCO 148 ZENITH 034 048 056

017 034 101 106 014 058 072 080

040

125

HDSTB

AL,PHASTARDSR 123 HOUSTON TRACKER 033 037 039 051 PROSAT 072

AMPLICA 050 057 104 RCA 066 106

BIRDVlEW 051 126 129 HUGHES 068 REALISTIC 043 074

CHANNEL MASTER 013 014 015 018 JANIEL 060 147 SAMSUNG 123

036 055 061 SATELUTESERVtCECO028 035 047 057

CHAPARRAL. 008 009 012 077 108 085

CITOH 054 LEGEND 057 SCIENTIFICATLANTA 032 138

CURTIS MATHES 050 145 LG 001 SON_ 103

DRAKE 005 006 007 010 LUTRON 132 STARCAST 041

011 052 112 116 L,UXOR 062 144 SUPER GUIDE 020 124 125

141 MACOM 010 059 063 064 TEECOM 023 026 075 087

DXANTENNA 024 046 056 076 065 088 090 107 130

ECHOSTAR 038 040 057 058 MEMORE× 057 137

093 094 095 096 NEXTWAVE 028 124 125 TOSHIBA 002 127

097 098 099 100 NORSAT 069 070 UNIDEN 016 025 042 043

122 PACESKY SATELLITE 143 044 045 048 049

ELECTRO HOME 089 PANASONIC 060 142 078 079 080 086

EUROPLUS 114 PANSAT 121 101 135 136

FUJITSU 017 021 022 027 PERSONAL. CABLE 117 VIEWSTAR 115

133 134 PHILIPS 071 WINEGARD 128 146

GENERALINSTRUMEN_003 004 016 029 PICO 105 ZENITH 081 082 083 084

051 059 101 PRESIDENT 019 102 091 120

HITACH 139 140 PRIMESTAR 030 110 111

DVD

022 l'di _ i 002 005 006

i_!_i_ii!_!!_ii_ili_iiiiiii_i_iilli_!_iii_!iiiilil;ili#_ii_ii!iii!]!i_ili!_iiiiii_i_!_!!i!i!iili_il_ii_i_::::::!_!_i_iii_!iIIIIIIIIiii_i!iii_!_#_ii!!iiiii_i_ilJi_iliiiiii_i iii'ii'i_iii'i_i_iiii!!i_!_iiiii'ii'ii'_!i!iii_i_#ii!#ili_i_ii_i_i_ii_i_ii!ilJii_!i,i_,ii_ii!i_i_iS!_i!!ii_!i_!_!!_!!_#i!iIIi:i_i_!_!!_!i_!i!ill_i_iii_i!i_ii_i!#i_i!!_]_!#ii!i!i!!iiii!

DENON 020 014 NAD 023 SAMSUNG 011 015

005 006 008 017 007

HARMAN KARDON 027 PANASONIC 003 009 THOMPSON 005 006

o12 o13 o19oo8

L'G 001 010 016 025 PIONEER 004 026 YAMAHA 009 018

o13 o21 N 010 016 02S

MARANTZ 024 PROSCAN 005 006

126

IR CODES

1. How to Connect

01_Connect your wired remote control to the Remote Control port on the TV.

2. Remote Control IR Codes

0_Output waveform

Single pulse, modulated with 37917KHz signal at 455KHz

LTc

I-

0_Configuration of frame

1st frame

Low custom code

Carrier frequency

FCAR = 1/TC = fOSC/12

Duty ratio = T1/TC = 1/3

High custom code Data code Data code

Repeat frame

0_Lead code

Repeat code Tf

0_Repeat code

9ms

4.5 ms

0.55 ms

L_J-I

-0

0_Bit description

Bit "0" I I

iO.56ms ]

-I

1.12ms

01_Frame interval: Tf

The waveform is transmitted as long as a key is depressed.

Tf Tf

r-ll

2.24 ms

[-11 T,=,O_ms_.SS..z

127

POWER OFF Discrete IR Code

(Only Power Off)

AV2 Discrete IR Code

(AV2 Input Selection)

COMPONENT2 Discrete IR Code

(Component2 Input Selection)

> Remote control Button HDMI1 Discrete IR Code

ENTE R Remote Cont rol Button (H DMI1 In put Selection )

RETURN Remote control Button CC Discrete IR Code

7E SIMPLINK Remote €ontrol Button (HDMI2 input selection)

Av MODE Remote control Button HDMI5 Discrete IR Code

BO PLAY Remote Control Button (HDMI3 Input Selection)

PAUSE Remote control Button

REC Remote control Button Ratio

8F REW Remote Control Button

FF Remote control Button

4:3 Discrete IR Code

(Only 4:5 Mode)

Ratio Zoom Discrete IR Code

(Only Zoom1 Mode)

* Use this feature depending on your model.

128

EXTERNALCONTROLTHROUGHRS-232C

-Except 32/37/42/47/52LG60, 42/47LGX

The RS-232C port allows you connect the RS-232C input jack to an external control device (such as a computer

or an #u/V control system) to control the TV's functions externally.

01_Note: RS-232C on this unit is intended to be used with third party RS-232C control hardware and software.

The instructions below are provided to help with programming software or to test functionality using telenet

software.

RS-232C Setup

i.e)

Type of Connector; D-Sub 9-Pin Male

No connection

RXD (Receive data)

TXD (Transmit data)

DTR (DTE side ready)

GND

DSR (DCE side ready)

RTS (Ready to send)

CTS (Clear to send)

No Connection

@ @

Communication Parameters

01_Baud rate : 9600 bps (UART)

01_Data length : 8 bits

01_Parity : None

01_Stop bit : 1 bit

01_Communication code : ASCII code

01_Use a crossed (reverse) cable.

129

RS-232C Configurations

Either cable below can be used.

RXD

TXD

GND

DTR

DSR

RTS

CTS

PC TV

D-Sub 9 D-Sub 9

TXD

RXD

GND

DSR

DTR

CTS

RTS

RXD

TXD

GND

DTR

DSR

RTS

CTS

D-Sub 9

TXD

RXD

GND

DTR

DSR

RTS

CTS

Set ID

Use this function to specify a TV ID number.

Refer to 'Real Data Mapping1 '. _ p.133.

-O

xSelect OPTION.

Select Set ID.

Choose the desired TV ID number.

The adjustment range of Set ID is

1 -99.

Return to the previous menu.

Return to TV viewing.

130

Command Reference List

01 Power k

02. Input Select x

04.Screen Mute k

05. Volume Mute k

06. Volume Control k

ntrast k

08. Brightness k

09 _r k

10. Tint k

lq k

12. OSD Select k

a O0 - 01

b (_ p.132)

c (_ p.132)

d O0 ~ 01

e 00 - 01

f O0 ~ 64

g O0 - 64

hO0~64

i O0 - 64

j 00 ~ 64

k O0 - 64

I 00 - 01

mO0-01

14 e

15. Bass

1Z Color Temperature l

18. ISM Method

19. Power Saving

k r O0 -64

k S 00_64

u O0 - 02

p (_ p.134)

q.... 00_oi

u (_ p.134)

22. Channel Add/Del m b O0 - 01

23 Key m c (_ p.135)

Backlight m g O0 ~ 64 [

24.

t Only LCD TV Model

physical major major low minor high minor low attribute

program high program low

Transmission /Receiving Protocol

-0

Command2][ ][Set ID][ ] [OK] [Data] [x]

131

01. Power (Command: k a)

To control Power On/Off of the TV.

Transmission[k][a][ ][SetID][ ][Data][Cr]

Data 00: Power Off Data 01 : Power On

A_knowledgement [a][ ][Set ID][ ][OKiNG] [Data] [x]

* In a like manner, if other functions transmit 'FF' data

based on this format, Acknowledgement data feedback

presents status about each function.

Note: In this model, TV will send the Acknowledge

after power on processing completion.

There might be a time delay between command and

acknowledge.

02. Input Select (Command: x b)

To select input source for TV.

TransmlssiOn[x] [b][ ][set ID][ ] [Data] [cr]

Data 00: DTV (Antenna) Data 01 : DTV (Cable)

Data 10: Analog (Antenna) Data 11: Analog (Cable)

Data 20:AV1 Data 21 : AV2

Data 40: Component 1 Data 41: Component 2

Data 60: RGB-PC Data 90:HDMI1

Data 91:HDMI2 Data 92:HDMI3

Data 95:HDMI4

AcknOWledgement [b][ ][Set ID][ ][OK/NG] [Data] [x]

* Use the feature depending on your model.

0S. Volume Mute (Command: k e)

To control volume mute on/off.

You can also adjust mute using the MUTE button on

remote control.

Transmission[k] [e][ ][set ID][ ][Data] [cr]

Data 00: Volume mute on (Volume off)

Data 01: Volume mute off (Volume on)

Acknowledgement[el[ ][Set ID][ ][OKiNG] [Data] [x]

06. Volume Control (Command: k f)

To adjust volume.

You can also adjust volume with the volume buttons on

remote control.

Transmission[k] [f] [] [Set ID] [ ] [Data] [Cr] ....

Data Min: 00 - Max: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mapping'. See page 13:5.

Acknowledgement[f] [] [Set ID] [] [OKiNG] [Data] [x]

07. Contrast (Command: k g)

To adjust screen contrast.

You can also adjust contrast in the PICTURE menu.

Transmission[k] [g][ ][Set ID][ ][Data] [Cr]

Data Min: O0 - Max: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mapping: See page 13:5.

Acknowledgemen_ [g] [ ] [set ID] [ ] [OK/NG] [Data] [x]

03. Aspect Ratio (Command: k c)

To adjust the screen format.

Transmission [k] [c] [ ] [Set ID] [ ] [Data] [Cr]

Data 01:4:3 05: Zoom 2

02:16:9 06: Set by program

04: Zoom 1 09:Just scan

Reserved

A_knoWledgemeni [C] [ ] [Set ID] [ ] [OK/NG] [Data] [x]

08. Brightness (Command: k h)

To adjust screen brightness.

You can also adjust brightness in the PICTURE menu.

Transmission[k] [h][] [Set ID] [ ] [Data] [cr]

Data Min: 00 _ Max: 64 (*transmit by Hexadecimal code)

_Refer to 'Real data mapping'. See page 133.

ACknowledgement [h][] [Set ID] [] [OK/NG] [Data] [x]

04. Screen Mute (Command: k d)

To select screen mute on/off.

TransmisSiOn [k] [d] [] [set ID] [] [Data] [Cr]

Data 00: Screen mute off (Picture on)

Data 01 : Screen mute on (Picture off)

ACknoWledgemen_ [d] [] [Set ID] [] [OK/NG] [Data] [x]

132

09. Color (Command: k i)

To adjust screen color.

You can also adjust color in the PICTURE menu.

Transmission [k][i][ ][Set ID][ ][Data][cr]

Data Min: 00 - Max: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mapping' as shown below.

ACknowledgemen_ [i] [ ] [set ID][ ] [OK/NG] [Data] [x]

14. Treble (Command: k r)

To adjust treble.

You can also adjust treble in the AUDIO menu.

TransmissiOn [k] [r][ ][set ID][ ][Data] [cr]

Data Min: O0 - Max: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mapping' as shown.

ACknoWledgemenf [r][ ][Set ID][ ][OK/NG] [Data] [x]

10. Tint (Command: k j)

To adjust screen tint.

You can also adjust tint in the PICTURE menu.

Transmission [k] [j][ ] [Set ID][ ] [Data] [Cr]

Data Red: O0 _ Green: 64 (*transmit by Hexadecimal code)

_Refer to 'Real data mapping' as shown below.

Acknowledgement [j ] [] [set ID][] [OKiNG] [Data] [x]

15. Bass (Command: k s)

To adjust bass.

You can also adjust bass in the AUDIO menu.

Transmission[k] [s][ 1[Set ID] [ 1 [Data] [Cr]

Data Min: 00 _ Max: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mapping' as shown below.

ACknowledgement [s][ ] [Set ID][ ] [OK/NG] [Data] [x]

11. Sharpness (Command: k k)

To adjust screen sharpness.

You can also adjust sharpness in the PICTURE menu.

Transmission [k] [k][] [Set ID][] [Data] [Cr]

Data Min: O0 _ Max: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mapping' as shown below.

Acknowledgement[k] [] [Set ID][] [OKiNG] [Data] [x]

16. Balance (Command: k t)

To adjust balance.

You can also adjust balance in the AUDIO menu.

TransmiSsiOn [k] [t] [ ] [Set ID] [ ] [Data] [Cr]

Data Min: O0 _ Max: 64 (*transmit by Hexadecimal code)

*Refer to 'Real data mapping' as shown below.

Acknowledgement[t][ ][Set ID][ ][OKiNG] [Data] [x]

12. OSD Select (Command: k I)

To select OSD (On Screen Display) on/off.

TransmissiOn [k] [I][] [Set !D][ ] [Data] [Cr]

Data 00: OSD off Data 01 : OSD on

Acknowledgemen_ [I] [ ] [Set ID] [ ] [OK/NG] [Data] [x]

13. Remote Control Lock Mode (Command: k m)

To lock the remote control and the front panel controls

on the set.

Transmission [k] [m][ ][Set ID][ ][Data] [Cr] ..................

Data 00: Lock off Data 01 : Lock on

ACknowledgemenf [m][] [Set ID][] [OK/NG] [Data] [x]

If you're not using the remote control and front panel

controls on the TV, use this mode. When main power is

on/off, remote control lock is released.

1 7. Color Temperature (Command: k u)

To adjust color temperature.

You can also adjust color temperature in the PICTURE menu.

TransmissiOn[k] [u][] [Set ID] [] [Data] [Cr]

Data 00: Medium 01: Cool 02: Warm

Acknowledgement[u][] [Set I D] [ ] [OK/NG] [Data] [x]

*Real data mapping

0 : Step 0

A : Step 10 (SET ID 10)

F : Step 15 (SET ID 15)

10 : Step 16 (SET ID 16)

63 : Step 99 (SET ID 99)

64 : Step 100

133

18.

19.

20.

21.

ISM Method (Command: j p)

(Only Plasma TV model)

To avoid having a fixed image remain on screen.

TransmissiOn [j ][p][] [Set iD] [ ] [Data] [Cr]

Data 01: Inversion 02: Orbiter

04: White Wash 08: Normal

Acknowledgement[p][] [Set ID] [ ] [OKiNG] [Data] [x]

Power saving (Command: j q)

(Only Plasma TV model)

To control the power saving function on/off.

Transmission[j ] [q][] [Set ID] [ ] [Data] [Cr]

Data 00: Power saving off (Power Saving Level O)

01 : Power saving on (Power Saving Level 4)

Acknowledgemen_ [q] [ ] [Set ID] [ ] [OK/NG] [Data] [x]

Auto Configuration (Command: j u)

To adjust picture position and minimize image shaking

automatically. Auto configuration only works in RGB-PC

mode.

Transmission[j] [u][] [Set !D][] [Data] [Cr]

Data 1 : To set

Acknowledgement [u] [ ] [Set ID] [ ] [OK/NG] [Data] [x]

Channel Tuning (Command: m a)

To tune channel to following physical/major/minor number.

TransmissiOn [rn] [a][] [Set iD] [ ] [Daiaoo] [ ] [Datao] ]

[] [Data02] [ ] [Data03] [ ] [Data04] [ ] [Data05] [Cr]

Digital channels have a Physical, Major, and Minor channel

number. The Physical number is the actual digital channel

number, the Major is the number that the channel should

be mapped to, and the Minor is the sub-channel. Since

the ATSC tuner automatically maps the channel to the

Major number, the Physical number is not required when

sending a command.

Data 00: Physical Channel Number

NTSC air: 02-45, NTSC cable: 01,0E-7D

ATSC air: 01-45, ATSC cable: 01-87

Data 01 & 02: Major Channel Number

Data 01 : High byte Data 02: Low byte

Two bytes are available for the Major and Minor, nor-

mally only the second byte is used.

Data 03 & 04: Minor Channel Number

Not needed for NTSC.

134

Data 05:

The table above lists the binary code which must be

converted to Hexadecimal before sending. For example:

The binary code to tune the sub source to an NTSC

cable channel is "1000 0001 ", which translates to "81"

in Hex.

* 7th bit : For which source do you want to change the

channel.

*6th bit: Use a two part or one part channel. Most cases

just use 0 since it's ignored when using NTSC.

* 5th bit: Use 0 with NTSC since it can only use the phys-

ical channel number. Normally use 1 for ATSC since most

times it doesn't matter what the physical number is.

* 4th bit: Set to 0.

* 3-0 bits: Choose signal type.

* Tune Command Examples:

1. Tune to the analog (NTSC) cable channel 35.

Data 00 = Physical of 35 = 23

Data 01 & 02 = No Major = 00 00

Data 03 & 04 = No Minor = 00 00

Data 05 = 0000 0001 in binary = 01

Total = ma 00 23 00 00 00 00 01

2. Tune to the digital (ATSC) local channel 30-3.

Data 00 = Don't know Physical = 00

Data 01 & 02 = Major is 30 = 00 1 E

Data 03 & 04 = Minor is 3 = 00 03

Data 05 = 0010 0010 in binary = 22

Total = ma 00 00 00 1E 00 03 22

Ackno_ledg_men![a][] [Set !D][] [O K.] [DataO0] [DataO] ]

[Data02] [Data03] [Data04 ] [x] [a][] [Set !D] ...........

[ ] [NG] [DataO0] [x]

22. Channel Add/Del (Command: m b)

To add and delete the channels

TransmlssiOn [m] [b][] [set ID] [ ] [Data] [Cr]

Data 00: Channel Delete Data 01 : Channel Add

Ackn6WledgemenL [b][ ][Set ID][ ][0K/NG] [Data] [x]

23. Key (Command: m c)

To send IR remote key code.

Transmlssion [m] [c][] [Set ID] [] [Data] [cr]

Data Key code: Refer to page 128.

AcknowledgemenL [c][ ][Set ID][ ][OK/NG] [Data] [x]

24. Backlight (Command: m g)

(Only LCD TV model)

To adjust screen backlight.

Transmission [m] [g][ ][Set iD][] [Data] [cr]

Data Min:00 - Max:64 (*transmit by Hexadecimal code)

*Refer to 'Real data mapping 1' See page 135.

Acknowledgement [g] [ ] [set ID] [ ][OKiNG] [Data] [x]

135

OPEN SOURCE LICENSE- This feature is not available for all models.

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

-O

Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim copies of

this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your

freedom to share and change it. By contrast, the GNU General

Public License is intended to guarantee your freedom to share

and change free software - to make sure the software is free for

all its users. This General Public License applies to most of the

Free Software Foundation's software and to any other program

whose authors commit to using it. (Some other free software

foundation software is covered by the GNU Lesser General Public

License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not

price. Our General Public Licenses are designed to make sure that

you have the freedom to distribute copies of free software (and

charge for this service if you wish), that you receive source code

or can get it if you want it, that you can change the software or

use pieces of it in new free programs; and that you know you can

do these things.

To protect your rights, we need to make restrictions that forbid

anyone to deny you these rights or to ask you to surrender the

rights. These restrictions translate to certain responsibilities for

you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether

gratis or for a fee, you must give the recipients all the rights that

you have. You must make sure that they, too, receive or can get

the source code. And you must show them these terms so they

know their rights.

We protect your rights with two steps: (1) copyright the soft-

ware, and (2) offer you this license which gives you legal permis-

sion to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make cer-

tain that everyone understands that there is no warranty for this

free software. If the software is modified by someone else and

passed on, we want its recipients to know that what they have is

not the original, so that any problems introduced by others will

not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software

patents. We wish to avoid the danger that redistributors of a free

program will individually obtain patent licenses, in effect making

the program proprietary. To prevent this, we have made it clear

that any patent must be licensed for everyone's free use or not

licensed at all.

The precise terms and conditions for copying, distribution and

modification follow.

GNU GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION

AND MODIFICATION

0. This license applies to any program or other work which con-

tains a notice placed by the copyright holder saying it may be

distributed under the terms of this General Public License. The

"Program", below, refers to any such program or work, and a

"work based on the Program" means either the Program orany

derivative work under copyright law: that is to say, a work con-

taining the Program or a portion of it, either verbatim or with

modifications and/or translated into another language.

(Hereinafter, translation is included without limitation in the

term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification

are not covered by this license; they are outside its scope.

The act of running the Program is not restricted, and the out-

put from the program is covered only if its contents constitute

a work based on the program (independent of having been

made by running the program). Whether that is true depends

on what the program does.

1. You may copy and distribute verbatim copies of the program's

source code as you receive it, in any medium, provided that

you conspicuously and appropriately publish on each copy an

appropriate copyright notice and disclaimer of warranty; keep

intact all the notices that refer to this license and to the

absence of any warranty; and give any other recipients of the

program a copy of this license along with the Program.

You may charge a fee for the physical act of transferring a

copy, and you may at your option offer warranty protection in

exchange for a fee.

2. You may modify your copy or copies of the program or any

portion of it, thus forming a work based on the Program, and

copy and distribute such modifications or work under the

terms of section 1 above, provided that you also meet all of

these conditions:

a) You must cause the modified files to carry prominent

notices stating that you changed the files and the date of

any change.

136

b) You must cause any work that you distribute or publish,

that in whole or in part contains or is derived from the

Program or any part there of, to be licensed as a whole at

no charge to all third parties under the terms of this

license.

c) If the modified program normally reads commands interac-

tively when run, you must cause it, when started running

for such interactive use in the most ordinary way, to print

or display an announcement including an appropriate

else, saying that you provide a warranty) and that users

may redistribute the program under these conditions, and

telling the user how to view a copy of this license.

(Exception: if the Program itself is interactive but does not

normally print such an announcement, your work based on

the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If

identifiable sections of that work are not derived from the

Program, and can be reasonably considered independent and

separate works in themselves, then this license, and its terms,

do not apply to those sections when you distribute them as

separate works. But when you distribute the same sections as

part of a whole which is a work based on the Program, the dis-

tribution of the whole must be on the terms of this license,

whose permissions for other licensees extend to the entire

whole, and thus to each and every part regardless of who

wrote it.

Thus, it is not the intent of this section to claim rights or con-

test your rights to work written entirely by you; rather, the

intent is to exercise the right to control the distribution of

derivative or collective works based on the program.

In addition, mere aggregation of another work not based on

the program with the Program (or with a work based on the

program) on a volume of a storage or distribution medium

does not bring the other work under the scope of this license.

3. You may copy and distribute the program (or a work based on

it, under section 2) in object code or executable form under

the terms of sections 1 and 2 above provided that you also

do one of the following:

a) Accompany it with the complete corresponding machine-

readable source code, which must be distributed under the

terms of sections 1 and 2 above on a medium customarily

used for software interchange; or,

b) Accompany it with a written offer, valid for at least three

years, to give any third party, for a charge no more than

your cost of physically performing source distribution, a

complete machine-readable copy of the corresponding

source code, to be distributed under the terms of sections

1 and 2 above on a medium customarily used for software

interchange; or,

c) Accompany it with the information you received as to the

offer to distribute corresponding source code. (This alter-

native is allowed only for noncommercial distribution and

only if you received the program in object code or exe-

cutable form with such an offer, in accord with Subsection

b above.)

The source code for a work means the preferred form of the

work for making modifications to it. For an executable work,

complete source code means all the source code for all mod-

ules it contains, plus any associated interface definition files,

plus the scripts used to control compilation and installation

of the executable. However, as a special exception, the source

code distributed need not include anything that is normally

distributed (in either source or binary form) with the major

components (compiler, kernel, and so on) of the operating

system on which the executable runs, unless that component

itself accompanies the executable.

If distribution of executable or object code is made by offer-

ing access to copy from a designated place, then offering

equivalent access to copy the source code from the same

place counts as distribution of the source code, even though

third parties are not compelled to copy the source along with

the object code.

4. You may not copy, modify, sublicense, or distribute the Program

except as expressly provided under this license. Any attempt

otherwise to copy, modify, sublicense or distribute the

Program is void, and will automatically terminate your rights

under this license. However, parties who have received copies,

or rights, from you under this license will not have their licens-

es terminated so long as such parties remain in full compli-

ance.

5. You are not required to accept this license, since you have not

signed it. However, nothing else grants you permission to

modify or distribute the Program or its derivative works.

These actions are prohibited by law if you do not accept this

license. Therefore, by modifying or distributing the program

(or any work based on the program), you indicate your accep-

tance of this license to do so, and all its terms and conditions

for copying, distributing or modifying the program or works

based on it.

6. Each time you redistribute the program (or any work based on

the Program), the recipient automatically receives a license

from the original licensor to copy, distribute or modify the

Program subject to these terms and conditions. You may not

impose any further restrictions on the recipients' exercise of

the rights granted herein. You are not responsible for enforc-

ing compliance by third parties to this license.

137

If, as a consequence of a court judgment or allegation of

patent infringement or for any other reason (not limited to

patent issues), conditions are imposed on you (whether by

court order, agreement or otherwise) that contradict the con-

ditions of this license, they do not excuse you from the con-

ditions of this license. If you cannot distribute so as to satis-

fy simultaneously your obligations under this license and any

other pertinent obligations, then as a consequence you may

not distribute the program at all. For example, if a patent

license would not permit royalty-free redistribution of the

program by all those who receive copies directly or indirectly

through you, then the only way you could satisfy both it and

this license would be to refrain entirely from distribution of

the program.

If any portion of this section is held invalid or unenforceable

under any particular circumstance, the balance of the section

is intended to apply and the section as a whole is intended to

apply in other circumstances.

It is not the purpose of this section to induce you to infringe

any patents or other property right claims or to contest valid-

ity of any such claims; this section has the sole purpose of

protecting the integrity of the free software distribution sys-

tem, which is implemented by public license practices. Many

people have made generous contributions to the wide range

of software distributed through that system in reliance on

consistent application of that system; it is up to the

author/donor to decide if he or she is willing to distribute

software through any other system and a licensee cannot

impose that choice.

This section is intended to make thoroughly clear what is

believed to be a consequence of the rest of this license.

If the distribution and/or use of the program is restricted in

certain countries either by patents or by copyrighted inter-

faces, the original copyright holder who places the program

under this license may add an explicit geographical distribution

limitation excluding those countries, so that distribution is

permitted only in or among countries not thus excluded. In

such case, this license incorporates the limitation as if written

in the body of this license.

The Free Software Foundation may publish revised and/or

new versions of the General Public License from time to time.

Such new versions will be similar in spirit to the present ver-

sion, but may differ in detail to address new problems or con-

cerns.

Each version is given a distinguishing version number. If the

program specifies a version number of this license which

applies to it and "any later version", you have the option of

following the terms and conditions either of that version or of

any later version published by the Free Software Foundation.

If the program does not specify a version number of this

license, you may choose any version ever published by the

Free Software Foundation.

lO.If you wish to incorporate parts of the program into other free

programs whose distribution conditions are different, write to

the author to ask for permission. For software which is copy-

righted by the Free Software Foundation, write to the Free

Software Foundatiom we sometimes make exceptions for this.

Our decision will be guided by the two goals of preserving the

free status of all derivatives of our free software and of pro-

moting the sharing and reuse of software generally.

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE,

THERE IS NO WARRANTY FOR THE PROGRAM, TO THE

EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN

OTHERWISE STATED IN WRITING THE COPYRIGHT HOLD-

ERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS

IS" WITHOUT WARRANTY OF ANY KIND, EITHER

EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED

TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE

RISK AS TO THE QUALITY AND PERFORMANCE OF THE

PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE

DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY

SERVICING, REPAIR OR CORRECTION.

12.1N NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR

AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER,

OR ANY OTHER PARTY WHO MAY MODIFY AND/OR

REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE

LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL,

SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES

ARISING OUT OF THE USE OR INABILITY TO USE THE PRO-

GRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA

OR DATA BEING RENDERED INACCURATE OR LOSSES SUS-

TAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE

PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS),

EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

138

END OF TERMS AND CONDITIONS

How to apply these terms to your new programs

If you develop a new program, and you want it to be of the great-

est possible use to the public, the best way to achieve this is to

make it free software which everyone can redistribute and change

under these terms.

To do so, attach the following notices to the program. It is safest

to attach them to the start of each source file to most effective-

ly convey the exclusion of warranty; and each file should have at

least the "copyright" line and a pointer to where the full notice is

found.

one line to give the program's name and a brief idea of what it

does.

This program is free software; you can redistribute it and/or

modify it under the terms of the GNU General Public License as

published by the Free Software Foundation: either version 2 of

the license, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but

WITHOUT ANY WARRANTY; without even the implied warranty

of MERCHANTABILITY or FITNESS FOR A PARTICULAR PUR-

POSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public

License along with this program: if not, write to the Free Software

Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA

02110-1301 USA.

Also add information on how to contact you by electronic and

paper mail.

If the program is interactive, make it output a short notice like

this when it starts in an interactive mode:

Gnomovision version 69, Copyright (C) year name of author

Gnomovision comes with ABSOLUTELY NO WARRANTY; for

details type 'show w'. This is free software, and you are welcome

to redistribute it under certain conditions: type 'show c' for

details.

The hypothetical commands 'show w' and 'show c' should show

the appropriate parts of the General Public License. Of course,

the commands you use may be called something other than

'show w' and 'show c'; they could even be mouse-clicks or menu

items-whatever suits your program.

You should also get your employer (if you work as a programmer)

or your school, if any, to sign a "copyright disclaimer" for the pro-

gram, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the pro-

gram 'Gnomovision' (which makes passes at compilers) written by

James Hacker.

signature of Ty Coon, 1 April 1989

Ty Coon, President of Vice

This General Public License does not permit incorporating your

program into proprietary programs. If your program is a subrou-

tine library, you may consider it more useful to permit linking pro-

prietary applications with the library. If this is what you want to

do, use the GNU Lesser General Public License instead of this

license.

139

GNU LESSERGENERAL PUBLIC LICENSE

Version 2.1, February 1999

-O

Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim copies of

this license document, but changing it is not allowed.

[This is the first released version of the Lesser GPL. It also

counts as the successor of the GNU Library Public License, ver-

sion 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your

freedom to share and change it. By contrast, the GNU General

Public Licenses are intended to guarantee your freedom to share

and change free software - to make sure the software is free for

all its users.

This license, the Lesser General Public License, applies to some

specially designated software packages - typically libraries - of

the Free Software Foundation and other authors who decide to

use it. You can use it too, but we suggest you first think careful-

ly about whether this license or the ordinary General Public

License is the better strategy to use in any particular case, based

on the explanations below.

When we speak of free software, we are referring to freedom of

use, not price. Our General Public Licenses are designed to make

sure that you have the freedom to distribute copies of free soft-

ware (and charge for this service if you wish); that you receive

source code or can get it if you want it; that you can change the

software and use pieces of it in new free programs; and that you

are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid

distributors to deny you these rights or to ask you to surrender

these rights. These restrictions translate to certain responsibilities

for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis

or for a fee, you must give the recipients all the rights that we

gave you. You must make sure that they, too, receive or can get

the source code. If you link other code with the library, you must

provide complete object files to the recipients, so that they can

relink them with the library after making changes to the library

and recompiling it. And you must show them these terms so they

know their rights.

We protect your rights with a two-step method: (1) we copyright

the library, and (2) we offer you this license, which gives you legal

permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that

there is no warranty for the free library. Also, if the library is mod-

ified by someone else and passed on, the recipients should know

that what they have is not the original version, so that the origi-

nal author's reputation will not be affected by problems that

might be introduced by others.

Finally, software patents pose a constant threat to the existence

of any free program. We wish to make sure that a company can-

not effectively restrict the users of a free program by obtaining a

restrictive license from a patent holder. Therefore, we insist that

any patent license obtained for a version of the library must be

consistent with the full freedom of use specified in this license.

Most GNU software, including some libraries, is covered by the

ordinary GNU General Public License. This license, the GNU

Lesser General Public License, applies to certain designated

libraries, and is quite different from the ordinary General Public

License. We use this license for certain libraries in order to per-

mit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or

using a shared library, the combination of the two is legally

speaking a combined work, a derivative of the original library. The

ordinary General Public License therefore permits such linking

only if the entire combination fits its criteria of freedom. The

Lesser General Public License permits more lax criteria for linking

other code with the library.

We call this license the "Lesser" General Public License because

it does Less to protect the user's freedom than the ordinary

General Public License. It also provides other free software devel-

opers Less of an advantage over competing non-free programs.

These disadvantages are the reason we use the ordinary General

Public License for many libraries. However, the Lesser license pro-

vides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to

encourage the widest possible use of a certain library, so that it

becomes a de-facto standard. To achieve this, non-free programs

must be allowed to use the library. A more frequent case is that

a free library does the same job as widely used non-free libraries.

In this case, there is little to gain by limiting the free library to free

software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-free

programs enables a greater number of people to use a large body

of free software. For example, permission to use the GNU C

Library in non-free programs enables many more people to use

the whole GNU operating system, as well as its variant, the

GNU/Linux operating system.

140

Although the Lesser General Public License is Less protective of

the users' freedom, it does ensure that the user of a program that

is linked with the Library has the freedom and the wherewithal to

run that program using a modified version of the Library.

The precise terms and conditions for copying, distribution and

modification follow. Pay close attention to the difference between

a "work based on the library" and a "work that uses the library".

The former contains code derived from the library, whereas the

latter must be combined with the library in order to run.

GNU LESSER GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION

AND MODIFICATION

0. This license agreement applies to any software library or other

program which contains a notice placed by the copyright hold-

er or other authorized party saying it may be distributed

under the terms of this Lesser General Public License (also

called "this license"). Each license is addressed as "you".

A "library" means a collection of software functions and/or

data prepared so as to be conveniently linked with application

programs (which use some of those functions and data) to

form executables.

The "Library", below, refers to any such software library or work

which has been distributed under these terms. A "work based

on the Library" means either the Library or any derivative work

under copyright law: that is to say, a work containing the

library or a portion of it, either verbatim or with modifications

and/or translated straightforwardly into another language.

(Hereinafter, translation is included without limitation in the

term "modification".)

"Source code" for a work means the preferred form of the

work for making modifications to it. For a library, complete

source code means all the source code for all modules it con-

tains, plus any associated interface definition files, plus the

scripts used to control compilation and installation of the

library.

Activities other than copying, distribution and modification

are not covered by this license; they are outside its scope.

The act of running a program using the Library is not restrict-

ed, and output from such a program is covered only if its con-

tents constitute a work based on the library (independent of

the use of the Library in a tool for writing it). Whether that is

true depends on what the library does and what the program

that uses the library does.

1. You may copy and distribute verbatim copies of the library's

complete source code as you receive it, in any medium, pro-

vided that you conspicuously and appropriately publish on

each copy an appropriate copyright notice and disclaimer of

warranty; keep intact all the notices that refer to this license

and to the absence of any warranty; and distribute a copy of

this license along with the Library.

You may charge a fee for the physical act of transferring a

copy, and you may at your option offer warranty protection in

exchange for a fee.

2. You may modify your copy or copies of the Library or any

portion of it, thus forming a work based on the Library, and

copy and distribute such modifications or work under the

terms of section 1 above, provided that you also meet all of

these conditions:

a) The modified work must itself be a software library.

b) You must cause the files modified to carry prominent

notices stating that you changed the files and the date of

any change.

c) You must cause the whole of the work to be licensed at no

charge to all third parties under the terms of this license.

d) If a facility in the modified Library refers to a function or a

table of data to be supplied by an application program that

uses the facility, other than as an argument passed when

the facility is invoked, then you must make a good faith

effort to ensure that, in the event an application does not

supply such function or table, the facility still operates, and

performs whatever part of its purpose remains meaningful.

(For example, a function in a library to compute square roots

has a purpose that is entirely well-defined independent of the

application. Therefore, Subsection 2d requires that any appli-

cation-supplied function or table used by this function must be

optional: if the application does not supply it, the square root

function must still compute square roots.)

These requirements apply to the modified work as a whole. If

identifiable sections of that work are not derived from the

library, and can be reasonably considered independent and

separate works in themselves, then this license, and its terms,

do not apply to those sections when you distribute them as

separate works. But when you distribute the same sections as

part of a whole which is a work based on the library, the dis-

tribution of the whole must be on the terms of this license,

whose permissions for other licenses extend to the entire

whole, and thus to each and every part regardless of who

wrote it.

Thus, it is not the intent of this section to claim rights or con-

test your rights to work written entirely by you; rather, the

intent is to exercise the right to control the distribution of

derivative or collective works based on the library.

In addition, mere aggregation of another work not based on

the library with the library (or with a work based on the

library) on a volume of a storage or distribution medium does

not bring the other work under the scope of this license.

141

You may opt to apply the terms of the ordinary GNU General

Public License instead of this License to a given copy of the

Library. To do this, you must alter all the notices that refer to

this License, so that they refer to the ordinary GNU General

Public License, version 2, instead of to this License. (Ifa newer

version than version 2 of the ordinary GNU General Public

License has appeared, then you can specify that version

instead if you wish.) Do not make any other change in these

notices.

Once this change is made in a given copy, it is irreversible for

that copy, so the ordinary GNU General Public License applies

to all subsequent copies and derivative works made from that

copy.

This option is useful when you wish to copy part of the code

of the library into a program that is not a library.

You may copy and distribute the library (or a portion or deriv-

ative of it, under Section 2) in object code or executable form

under the terms of Sections 1 and 2 above provided that you

accompany it with the complete corresponding machine-

readable source code, which must be distributed under the

terms of sections 1 and 2 above on a medium customarily

used for software interchange.

If distribution of object code is made by offering access to

copy from a designated place, then offering equivalent access

to copy the source code from the same place satisfies the

requirement to distribute the source code, even though third

parties are not compelled to copy the source along with the

object code.

A program that contains no derivative of any portion of the

Library, but is designed to work with the Library by being

compiled or linked with it, is called a "work that uses the

Library". Such a work, in isolation, is not a derivative work of

the Library, and therefore falls outside the scope of this

license.

However, linking a "work that uses the library" with the Library

creates an executable that is a derivative of the Library

(because it contains portions of the library), rather than a

"work that uses the library". The executable is therefore cov-

ered by this license. Section 6states terms for distribution of

such executable.

When a "work that uses the library" uses material from a head-

er file that is part of the library, the object code for the work

may be a derivative work of the library even though the source

code is not.

Whether this is true is especially significant if the work can be

linked without the library, or if the work is itself a library. The

threshold for this to be true is not precisely defined by law.

If such an object file uses only numerical parameters, data

structure layouts and accessories, and small macros and small

inline functions (ten lines or less in length), then the use of

the object file is unrestricted, regardless of whether it is legal-

ly a derivative work. (Executable containing this object code

plus portions of the library will still fall under Section 6.)

Otherwise, if the work is a derivative of the library, you may

distribute the object code for the work under the terms of

Section 6. Any executable containing that work also fall under

Section 6, whether or not they are linked directly with the

library itself.

6. As an exception to the sections above, you may also combine

or link a "work that uses the library" with the library to pro-

duce a work containing portions of the library, and distribute

that work under terms of your choice, provided that the terms

permit modification of the work for the customer's own use

and reverse engineering for debugging such modifications.

You must give prominent notice with each copy of the work

that the library is used in it and that the Library and its use

are covered by this license. You must supply a copy of this

license. If the work during execution displays copyright

notices, you must include the copyright notice for the library

among them, as well as a reference directing the user to the

copy of this license. Also, you must do one of these things:

a) Accompany the work with the complete corresponding

machine-readable source code for the library including

whatever changes were used in the work (which must be

distributed under Sections 1 and 2 above); and, if the work

is an executable linked with the Library, with the complete

machine-readable "work that uses the Library", as object

code and/or source code, so that the user can modify the

library and then relink to produce a modified executable

containing the modified library. (It is understood that the

user who changes the contents of definitions files in the

library will not necessarily be able to recompile the appli-

cation to use the modified definitions.)

b) Use a suitable shared library mechanism for linking with the

library. A suitable mechanism is one that (1) uses at run time

a copy of the library already present on the user's computer

system, rather than copying library functions into the exe-

cutable, and (2) will operate properly with a modified version

of the library, if the user installs one, as long as the modified

version is interface-compatible with the version that the

work was made with.

c) Accompany the work with a written offer, valid for at least

three years, to give the same user the materials specified in

Subsection 6, above, fora charge no more than the cost of

performing this distribution.

d) If distribution of the work is made by offering access to

copy from a designated place, offer equivalent access to

copy the above specified materials from the same place.

e) Verify that the user has already received a copy of these

materials or that you have already sent this user a copy.

142

For an executable, the required form of the "work that uses

the library" must include any data and utility programs need-

ed for reproducing the executable from it. However, as a spe-

cial exception, the materials to be distributed need not

include anything that is normally distributed (in either source

or binary form) with the major components (compiler, kernel,

and so on) of the operating system on which the executable

runs, unless that component itself accompanies the exe-

cutable.

It may happen that this requirement contradicts the license

restrictions of other proprietary libraries that do not normal-

ly accompany the operating system. Such a contradiction

means you cannot use both them and the library together in

an executable that you distribute.

You may place library facilities that are a work based on the

library side-by-side in a single library together with other

library facilities not covered by this license, and distribute

such a combined library, provided that the separate distribu-

tion of the work based on the Library and of the other library

facilities is otherwise permitted, and provided that you do

these two things:

a) Accompany the combined library with a copy of the same

work based on the Library, uncombined with any other

library facilities. This must be distributed under the terms

of the sections above.

b) Give prominent notice with the combined library of the

fact that part of it is a work based on the library, and

explaining where to find the accompanying uncombined

form of the same work.

8. You may not copy, modify, sublicense, link with, or distribute

the library except as expressly provided under this license.

Any attempt otherwise to copy, modify, sublicense, link with,

or distribute the library is void, and will automatically termi-

nate your rights under this license. However, parties who have

received copies, or rights, from you under this license will not

have their licenses terminated so long as such parties remain

in full compliance.

9. You are not required to accept this license, since you have not

signed it. However, nothing else grants you permission to mod-

ify or distribute the library or its derivative works. These

actions are prohibited by law if you do not accept this license.

Therefore, by modifying or distributing the library (or any work

based on the library), you indicate your acceptance of this

license to do so, and all its terms and conditions for copying,

distributing or modifying the library or works based on it.

lO.Each time you redistribute the library (or any work based on

the Library), the recipient automatically receives a license

from the original licensor to copy, distribute, link with or mod-

ify the library subject to these terms and conditions. You may

not impose any further restrictions on the recipients' exercise

of the rights granted herein.

You are not responsible for enforcing compliance by third

parties with this license.

11. If, as a consequence of a court judgment or allegation of

patent infringement or for any other reason (not limited to

patent issues), conditions are imposed on you (whether by

court order, agreement or otherwise) that contradict the con-

ditions of this license, they do not excuse you from the con-

ditions of this license. If you cannot distribute so as to satis-

fy simultaneously your obligations under this license and any

other pertinent obligations, then as a consequence you may

not distribute the library at all. For example, ifa patent license

would not permit royalty-free redistribution of the library by

all those who receive copies directly or indirectly through

you, then the only way you could satisfy both it and this

license would be to refrain entirely from distribution of the

library.

If any portion of this section is held invalid or unenforceable

under any particular circumstance, the balance of the section

is intended to apply, and the section as a whole is intended to

apply in other circumstances.

It is not the purpose of this section to induce you to infringe

any patents or other property right claims or to contest valid-

ity of any such claims; this section has the sole purpose of

protecting the integrity of the free software distribution sys-

tem which is implemented by public license practices. Many

people have made generous contributions to the wide range

of software distributed through that system in reliance on

consistent application of that system; it is up to the

author/donor to decide if he or she is willing to distribute

software through any other system and a license cannot

impose that choice.

This section is intended to make thoroughly clear what is

believed to be a consequence of the rest of this license.

12. If the distribution and/or use of the library is restricted in cer-

tain countries either by patents or by copyrighted interfaces,

the original copyright holder who places the library under this

license may add an explicit geographical distribution limitation

excluding those countries, so that distribution is permitted

only in or among countries not thus excluded. In such case,

this license incorporates the limitation as if written in the body

of this license.

13.The Free Software Foundation may publish revised and/or

new versions of the Lesser General Public License from time to

time. Such new versions will be similar in spirit to the present

version, but may differ in detail to address new problems or

concerns.

Each version is given a distinguishing version number. If the

library specifies a version number of this license which applies

to it and "any later version", you have the option of following

the terms and conditions either of that version or of any later

version published by the Free Software Foundation.

143

If the library does not specify a license version number, you

may choose any version ever published by the Free Software

Foundation.

14.1f you wish to incorporate parts of the library into other free

programs whose distribution conditions are incompatible with

these, write to the author to ask for permission. For software

which is copyrighted by the Free Software Foundation, write

to the Free Software Foundation; we sometimes make excep-

tions for this. Our decision will be guided by the two goals of

preserving the free status of all derivatives of our free software

and of promoting the sharing and reuse of software generally.

NO WARRANTY

15.BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE,

THERE IS NO WARRANTY FOR THE LIBRARY, TO THE

EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN

OTHERWISE STATED IN WRITING THE COPYRIGHT HOLD-

ERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS

IS" WITHOUT WARRANTY OF ANY KIND, EITHER

EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED

TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE

RISK AS TO THE QUALITY AND PERFORMANCE OF THE

LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE

DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY

SERVICING, REPAIR OR CORRECTION.

16.1N NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR

AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER,

OR ANY OTHER PARTY WHO MAY MODIFY AND/OR

REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE

LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL,

SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES

ARISING OUT OF THE USE OR INABILITY TO USE THE

LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA

OR DATA BEING RENDERED INACCURATE OR LOSSES SUS-

TAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE

LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE),

EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to apply these terms to your new libraries

If you develop a new library, and you want it to be of the great-

est possible use to the public, we recommend making it free soft-

ware that everyone can redistribute and change. You can do so

by permitting redistribution under these terms (or, alternatively,

under the terms of the ordinary General Public License).

To apply these terms, attach the following notices to the library.

It is safest to attach them to the start of each source file to most

effectively convey the exclusion of warranty; and each file should

have at least the "copyright" line and a pointer to where the full

notice is found.

one line to give the library's name and a brief idea of what it does.

This library is free software; you can redistribute it and/or modify

it under the terms of the GNU Lesser General Public License as

published by the Free Software Foundatiom either version 2.1 of

the license, or (at your option) any later version.

This library is distributed in the hope that it will be useful, but

WITHOUT ANY WARRANTY; without even the implied warranty

of MERCHANTABILITY or FITNESS FOR A PARTICULAR PUR-

POSE. See the GNU Lesser General Public License for more

details.

You should have received a copy of the GNU Lesser General

Public License along with this library; if not, write to the Free

Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston,

MA 02110-1301 USA

Also add information on how to contact you by electronic and

paper mail.

You should also get your employer (if you work as a programmer)

or your school, if any, to sign a "copyright disclaimer" for the

library, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the

library 'Frob' (a library for tweaking knobs) written by James

Random Hacker.

signature of Ty Coon, 1 April 1990

Ty Coon, President of Vice

144

MOZILLA PUBLIC LICENSE

Version 1.1

1 •Definitions•

1.0.1. "Commercial use" means distribution or otherwise making

the covered code available to a third party.

1.1. "Contributor" means each entity that creates or con-

tributes to the creation of modifications•

1.2. "Contributor version" means the combination of the orig-

inal code, prior modifications used by a contributor, and

the modifications made by that particular contributor.

1.3. "Covered code" means the original code or modifications

or the combination of the original code and modifications,

in each case including portions thereof.

1.4. "Electronic distribution mechanism" means a mechanism

generally accepted in the software development communi-

ty for the electronic transfer of data.

1.5. "Executable" means covered code in any form other than

source code.

1.6. "Initial developer" means the individual or entity identified

as the initial Developer in the Source Code notice required

by exhibit A.

1 .Z "Larger work" means a work which combines covered code

or portions thereof with code not governed by the terms

of this License.

1.8. "License" means this document•

1 •8•1 •"Licensable" means having the right to grant, to the maxi-

mum extent possible, whether at the time of the initial

grant or subsequently acquired, any and all of the rights

conveyed herein.

1.9. "Modifications" means any addition to or deletion from

the substance or structure of either the original code or

any previous modifications• When covered code is

released as a series of files, a modification is:

A. Any addition to or deletion from the contents of a file

containing original code or previous modifications•

B. Any new file that contains any part of the original code

or previous modifications.

1.10. "Original code" means source code of computer software

code which is described in the source code notice

required by exhibit as original code, and which, at the time

of its release under this license is not already covered

code governed by this license.

1.lO.l ."Patent claims" means any patent claim(s), now owned or

hereafter acquired, including without limitation, method,

process, and apparatus claims, in any patent licensable by

grantor.

1.11. "Source code" means the preferred form of the covered

code for making modifications to it, including all modules

it contains, plus any associated interface definition files,

scripts used to control compilation and installation of an

executable, or source code differential comparisons

against either the original code or another well known,

available covered code of the contributor's choice. The

source code can be in a compressed or archival form, pro-

vided the appropriate decompression or de-archiving soft-

ware is widely available for no charge.

1.12. "You" (or "Your") means an individual or a legal entity

exercising rights under, and complying with all of the terms

of, this license or a future version of this license issued

under section 6.1.

For legal entities, "You" includes any entity which controls,

is controlled by, or is under common control with You. For

purposes of this definition, "control" means (a) the power,

direct or indirect, to cause the direction or management of

such entity, whether by contract or otherwise, or (b) own-

ership of more than fifty percent (50%) of the outstand-

ing shares or beneficial ownership of such entity.

2. Source Code License.

2.1. The initial developer grant.

The initial developer hereby grants You a world-wide, roy-

alty-free, non-exclusive license, subject to third party intel-

lectual property claims:

a) under intellectual property rights (other than patent or

trademark) licensable by initial developer to use, repro-

duce, modify, display, perform, sublicense and distrib-

ute the original code (or portions thereof) with or with-

out modifications, and/or as part of a larger work; and

(b) under patents claims infringed by the making, using or

selling of original code, to make, have made, use, prac-

tice, sell, and offer for sale, and/or otherwise dispose

of the original code (or portions there of).

145

-O

I"H

effective on the date Initial developer first distributes

original code under the terms of this license.

(d) Notwithstanding section 2.1(b) above, no patent

license is granted: 1 ) for code that You delete from the

original Code; 2) separate from the original code; or

3) for infringements caused by: i) the modification of

the original code or ii) the combination of the original

code with other software or devices.

2.2. Contributor Grant.

Subject to third party intellectual property claims, each

contributor hereby grants You a world-wide, royalty-free,

non-exclusive license

(a) under intellectual property rights (other than patent

or trademark) licensable by contributor, to use,

reproduce, modify, display, perform, sublicense and

distribute the modifications created by such contribu-

tor (or portions thereof) either on an unmodified

basis, with other modifications, as covered code

and/or as part of a larger work_ and

(b) under patent claims infringed by the making, using, or

selling of modifications made by that contributor

either alone and/or in combination with its contributor

version (or portions of such combination), to make,

use, sell, offer for sale, have made, and/or otherwise

dispose off 1) modifications made by that contributor

(or portions thereof)_ and 2) the combination of mod-

ifications made by that contributor with its contributor

version (or portions of such combination).

effective on the date contributor first makes commer-

cial use of the covered code.

(d) Notwithstanding section 2.2(b) above, no patent

license is granted: 1 ) for any code that contributor has

deleted from the contributor version; 2) separate from

the contributor version_ 3) for infringements caused

by: i) third party modifications of contributor version

or ii) the combination of modifications made by that

contributor with other software (except as part of the

contributor version) or other devices_ or 4) under

patent claims infringed by covered code in the

absence of modifications made by that contributor.

3. Distribution Obligations.

3.1. Application of license.

The modifications which You create or to which you con-

tribute are governed by the terms of this license, including

without limitation section 2.2. The source code version of

covered code may be distributed only under the terms of

this license or a future version of this license released

under section 6.1, and you must include a copy of this

license with every copy of the source code you distribute.

You may not offer or impose any terms on any source code

version that alters or restricts the applicable version of

this license or the recipients' rights hereunder. However,

you may include an additional document offering the

additional rights described in section 3.5.

3.2. Availability of source code.

Any modification which you create or to which you con-

tribute must be made available in source code form under

the terms of this license either on the same media as an

executable version or via an accepted electronic distribu-

tion mechanism to anyone to whom you made an exe-

cutable version available_ and if made available via elec-

tronic distribution mechanism, must remain available forat

least twelve (12) months after the date it initially became

available, or at least six (6) months after a subsequent

version of that particular modification has been made

available to such recipients. You are responsible for ensur-

ing that the source code version remains available even if

the electronic distribution mechanism is maintained by a

third party.

3.3. Description of modifications.

You must cause all covered code to which you contribute to

contain a file documenting the changes You made to create

that covered code and the date of any change. You must

include a prominent statement that the modification is

derived, directly or indirectly, from original code provided by

the initial developer and including the name of the initial

developer in (a) the source code, and (b) in any notice in an

executable version or related documentation in which you

describe the origin or ownership of the covered code.

3.4. Intellectual property matters

(a) Third party claims.

If contributor has knowledge that a license under a third

party's intellectual property rights is required to exercise

the rights granted by such contributor under sections 2.1

or 2.2, contributor must include a text file with the source

code distribution titled "LEGAL" which describes the claim

and the party making the claim in sufficient detail that a

recipient will know whom to contact. If contributor obtains

such knowledge after the modification is made available as

described in section 3.2, contributor shall promptly modi-

fy the LEGAL file in all copies contributor makes available

thereafter and shall take other steps (such as notifying

appropriate mailing lists or newsgroups) reasonably calcu-

lated to inform those who received the covered code that

new knowledge has been obtained.

(b) Contributor APIs.

If contributor's modifications include an application

programming interface and contributor has knowledge of

patent licenses which are reasonably necessary to implement

that API, contributor must also include this information in

the LEGAL file.

146

contributor represents that, except as disclosed pursuant

to section 3.4(a) above, contributor believes that contributor's

modifications are contributor's original creation(s)

and/or contributor has sufficient rights to grant the rights

conveyed by this license.

3.Z Larger works.

You may create a larger work by combining covered code

with other code not governed by the terms of this license

and distribute the larger work as a single product. In such

a case, you must make sure the requirements of this

license are fulfilled for the covered code.

3.5.

3.6.

Required notices.

You must duplicate the notice in exhibit A in each file of

the source code. If it is not possible to put such notice in

a particular source code file due to its structure, then You

must include such notice in a location (such as a relevant

directory) where a user would be likely to look for such a

notice. If You created one or more modification(s), you

may add your name as a contributor to the notice

described in exhibit A. you must also duplicate this license

in any documentation for the source code where You

describe recipients' rights or ownership rights relating to

covered code. You may choose to offer, and to charge a

fee for, warranty, support, indemnity or liability obligations

to one or more recipients of covered code. However, you

may do so only on your own behalf, and not on behalf of

the Initial developer or any contributor. You must make it

absolutely clear than any such warranty, support, indemni-

ty or liability obligation is offered by you alone, and You

hereby agree to indemnify the Initial developer and every

contributor for any liability incurred by the Initial develop-

er or such contributor as a result of warranty, support,

indemnity or liability terms you offer.

Distribution of executable versions.

You may distribute covered code in executable form only if

the requirements of section 5.1-5.5 have been met for

that covered code, and if you include a notice stating that

the source code version of the covered code is available

under the terms of this license, including a description of

how and where you have fulfilled the obligations of section

3.2. The notice must be conspicuously included in any

notice in an executable version, related documentation or

collateral in which you describe recipients' rights relating

to the covered code. You may distribute the executable

version of covered code or ownership rights under a

license of your choice, which may contain terms different

from this license, provided that you are in compliance with

the terms of this license and that the license for the exe-

cutable version does not attempt to limit or alter the recip-

ient's rights in the source code version from the rights set

forth in this license. If you distribute the executable ver-

sion under a different license you must make it absolutely

clear that any terms which differ from this license are

offered by you alone, not by the Initial developer or any

contributor. You hereby agree to indemnify the initial

developer and every contributor for any liability incurred

by the initial developer or such contributor as a result of

any such terms You offer.

4. Inability to comply due to statute or regulation.

If it is impossible for you to comply with any of the terms

of this license with respect to some or all of the covered

code due to statute, judicial order, or regulation then you

must: (a) comply with the terms of this license to the max-

imum extent possible; and (b) describe the limitations and

the code they affect. Such description must be included in

the LEGAL file described in section 3.4 and must be

included with all distributions of the source code. Except

to the extent prohibited by statute or regulation, such

description must be sufficiently detailed for a recipient of

ordinary skill to be able to understand it.

5. Application of this license.

This license applies to code to which the initial developer has

attached the notice in exhibit A and to related covered code.

6. Versions of the license.

6.1. New versions.

Netscape communications corporation ("Netscape") may

publish revised and/or new versions of the license from

time to time. Each version will be given a distinguishing

version number.

6.2. Effect of new versions.

Once covered code has been published under a particular

version of the license, you may always continue to use it

under the terms of that version. You may also choose to

use such covered code under the terms of any subsequent

version of the license published by netscape. No one

other than netscape has the right to modify the terms

applicable to covered code created under this license.

6.3. Derivative works.

If You create or use a modified version of this license

(which you may only do in order to apply it to code which

is not already covered code governed by this license), You

must (a) rename Your license so that the phrases

"Mozilla", "MOZILLAPL", "MOZPL", "Netscape", "MPL",

"NPL" or any confusingly similar phrase do not appear in

your license (except to note that your license differs from

this license) and (b) otherwise make it clear that Your

version of the license contains terms which differ from the

Mozilla Public license and netscape Public License. (Filling

in the name of the initial developer, original code or con-

tributor in the notice described in exhibit A shall not of

themselves be deemed to be modifications of this license.)

147

-O

Z DISCLAIMER OF WARRANTY.

COVERED CODE IS PROVIDED UNDER THIS LICENSE

ON AN "AS IS" BASIS, WITHOUT WARRANTY OF ANY

KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING,

WITHOUT LIMITATION, WARRANTIES THAT THE COV-

ERED CODE IS FREE OF DEFECTS, MERCHANTABLE, FIT 8.3.

FOR A PARTICULAR PURPOSE OR NON-INFRINGING.

THE ENTIRE RISK AS TO THE QUALITY AND PERFOR-

MANCE OF THE COVERED CODE IS WITH YOU.

SHOULD ANY COVERED CODE PROVE DEFECTIVE IN

ANY RESPECT, YOU (NOT THE INITIAL DEVELOPER OR

ANY OTHER CONTRIBUTOR) ASSUME THE COST OF

ANY NECESSARY SERVICING, REPAIR OR CORRECTION.

THIS DISCLAIMER OF WARRANTY CONSTITUTES AN

ESSENTIAL PART OF THIS LICENSE. NO USE OF ANY

COVERED CODE IS AUTHORIZED HEREUNDER EXCEPT 8.4.

UNDER THIS DISCLAIMER.

8. TERMINATION.

8.1. This license and the rights granted hereunder will terminate

automatically if you fail to comply with terms herein and

fail to cure such breach within 30 days of becoming aware

of the breach. All sublicenses to the covered code which

are properly granted shall survive any termination of this

license. Provisions which, by their nature, must remain in

effect beyond the termination of this license shall survive.

8.2. If you initiate litigation by asserting a patent infringement

claim (excluding declatory judgment actions) against ini-

tial developer or a contributor (the initial developer or

contributor against whom you file such action is referred

to as "Participant") alleging that:

(a) such participant's contributor version directly or indi-

rectly infringes any patent, then any and all rights

granted by such participant to you under sections 2.1

and/or 2.2 of this license shall, upon 60 days notice

from Participant terminate prospectively, unless if within

60 days after receipt of notice you either: (i) agree in

writingto pay participant a mutually agreeable reasonable

royalty for your past and future use of modifications

made by such participant, or (ii) withdraw your litigation

claim with respect to the contributor version against

such participant. If within 60 days of notice, a reasonable

royalty and payment arrangement are not mutually

agreed upon in writing by the parties or the litigation

claim is not withdrawn, the rights granted by partici-

pant to you under sections 2.1 and/or 2.2 automati-

cally terminate at the expiration of the 60 day notice

period specified above.

(b) any software, hardware, or device, other than such par-

ticipant's contributor Version, directly or indirectly

infringes any patent, then any rights granted to You by

such participant under sections 2.1 (b) and 2.2(b) are

revoked effective as of the date you first made, used,

sold, distributed, or had made, modifications made by

that participant.

If you assert a patent infringement claim against partici-

pant alleging that such participant's contributor version

directly or indirectly infringes any patent where such claim

is resolved (such as by license or settlement) prior to the

initiation of patent infringement litigation, then the rea-

sonable value of the licenses granted by such participant

under sections 2.1 or 2.2 shall be taken into account in

determining the amount or value of any payment or

license.

In the event of termination under sections 8.1 or 8.2

above, all end user license agreements (excluding distributors

and resellers) which have been validly granted by you or

any distributor hereunder prior to termination shall survive

termination.

9. LIMITATION OF LIABILITY.

UNDER NO CIRCUMSTANCES AND UNDER NO LEGAL

THEORY, WHETHER TORT (INCLUDING NEGLIGENCE),

CONTRACT, OR OTHERWISE, SHALL YOU, THE INITIAL

DEVELOPER, ANY OTHER CONTRIBUTOR, OR ANY DIS-

TRIBUTOR OF COVERED CODE,OR ANY SUPPLIER OF

ANY OF SUCH PARTIES,BE LIABLE TO ANY PERSON FOR

ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUEN-

TIAL DAMAGES OF ANY CHARACTER INCLUDING, WITH-

OUT LIMITATION, DAMAGES FOR LOSS OF GOODWILL,

WORK STOPPAGE, COMPUTER FAILURE OR MALFUNC-

TION, OR ANY AND ALL OTHER COMMERCIAL DAM-

AGES OR LOSSES, EVEN IF SUCH PARTY SHALL HAVE

BEEN INFORMED OF THE POSSIBILITY OF SUCH DAM-

AGES. THIS LIMITATION OF LIABILITY SHALL NOT APPLY

TO LIABILITY FOR DEATH OR PERSONAL INJURY RESULT-

ING FROM SUCH PARTY'S NEGLIGENCE TO THE EXTENT

APPLICABLE LAW PROHIBITS SUCH LIMITATION. SOME

JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR

LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAM-

AGES, SO THIS EXCLUSION AND LIMITATION MAY NOT

APPLY TO YOU.

10. U.S. GOVERNMENT END USERS.

The covered code is a "commercial item," as that term is

defined in 48 C.ER. 2.101 (Oct. 1995), consisting of

"commercial computer software" and "commercial computer

software documentation," as such terms are used in 48

C.ER. 12.212 (Sept. 1995). Consistent with 48 C.ER.

12.212 and 48 C.ER. 22Z7202-1 through 22Z7202-4

(June 1995), all U.S. Government end users acquire cov-

ered code with only those rights set forth herein.

148

11. MISCELLANEOUS•

This license represents the complete agreement concerning

subject matter hereof. If any provision of this license is

held to be unenforceable, such provision shall be reformed

only to the extent necessary to make it enforceable• This

License shall be governed by California law provisions

(except to the extent applicable law, if any, provides oth-

erwise), excluding its conflict-of-law provisions• With

respect to disputes in which at least one party is a citizen

of, or an entity chartered or registered to do business in

the united states of america, any litigation relating to this

License shall be subject to the jurisdiction of the federal

courts of the northern district of california, with venue

lying in santa clara county, california, with the losing party

responsible for costs, including without limitation, court

costs and reasonable attorneys' fees and expenses• The

application of the united nations convention on contracts

for the International sale of goods is expressly excluded•

Any law or regulation which provides that the language of

a contract shall be construed against the drafter shall not

apply to this license•

12. RESPONSIBILITY FOR CLAIMS•

As between initial developer and the contributors, each

party is responsible for claims and damages arising, directly

or indirectly, out of its utilization of rights under this

license and you agree to work with initial developer and

contributors to distribute such responsibility on an equitable

basis• Nothing herein is intended or shall be deemed to

constitute any admission of liability•

13. MULTIPLE-LICENSED CODE.

Initial developer may designate portions of the covered

code as "Multiple-Licensed". "Multiple-Licensed" means

that the initial developer permits you to utilize portions of

the covered code under your choice of the NPL or the

alternative licenses, if any, specified by the initial developer

in the file described in exhibit A.

EXHIBIT A -Mozilla Public License•

The contents of this file are subject to the Mozilla Public License

Version 1.1 (the "license"); you may not use this file except in

compliance with the License• You may obtain a copy of the

license at http://www.mozilla.org/MPL/

Software distributed under the license is distributed on an "AS

IS" basis, WITHOUT WARRANTY OF ANY KIND, either express

or implied• See the license for the specific language governing

rights and limitations under the License•

The Original Code is

The Initial Developer of the Original Code

Portions created by are Copyright (C)

Contributor(s):

Alternatively, the contents of this file may be used under the

terms of the ___ license (the "[__] License"), in which case

the provisions of [.... ] license are applicable instead of those

above. If you wish to allow use of your version of this file only

under the terms of the [__] license and not to allow others to

use your version of this file under the MPL, indicate your decision

by deleting the provisions above and replace them with the

notice and other provisions required by the [__] license. If you

do not delete the provisions above, a recipient may use your version

of this file under either the MPL or the [__] license."

NOTE: The text of this exhibit A may differ slightly from the text

of the notices in the source code files of the original code. You

should use the text of this exhibit A rather than the text found in

the original code/source code for Your modifications• Z

149

LG 32LG70 User Manual LCD TELEVISION Manuals And Guides L0912228

LG LCD Television Manual L0912228 LG LCD Television Owner's Manual, LG LCD Television installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
