LG 47LV35A 5B User Manual Owner's ENG
Lgvwtv55 Owners Manual lgvwtv55_owners_manual lgvwtv55_owners_manual ablefiles
2017-02-09
User Manual: LG 47LV35A-5B Owner's Manual Most comprehensive of product setup and usage. (English)
Open the PDF directly: View PDF
.
Page Count: 67
2
ENG
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
3 LICENSES
4 ASSEMBLING AND
PREPARING
4 Accessories
5 Parts
6 To Install in a Portrait Layout
7 STORAGE METHOD FOR PANEL
PROTECTION
7 - Correct Method
7 - Incorrect Method
8 Installing on a Wall
10 IR Receiver Connection
10 - IR RECEIVER
11 Tiling Displays
11 - How to Mount the Set
13 - How to Join Sets
15 REMOTE CONTROL
17 Displaying the Device Name Connected
to an Input Port
18 MAKING CONNECTIONS
18 Connecting to a PC

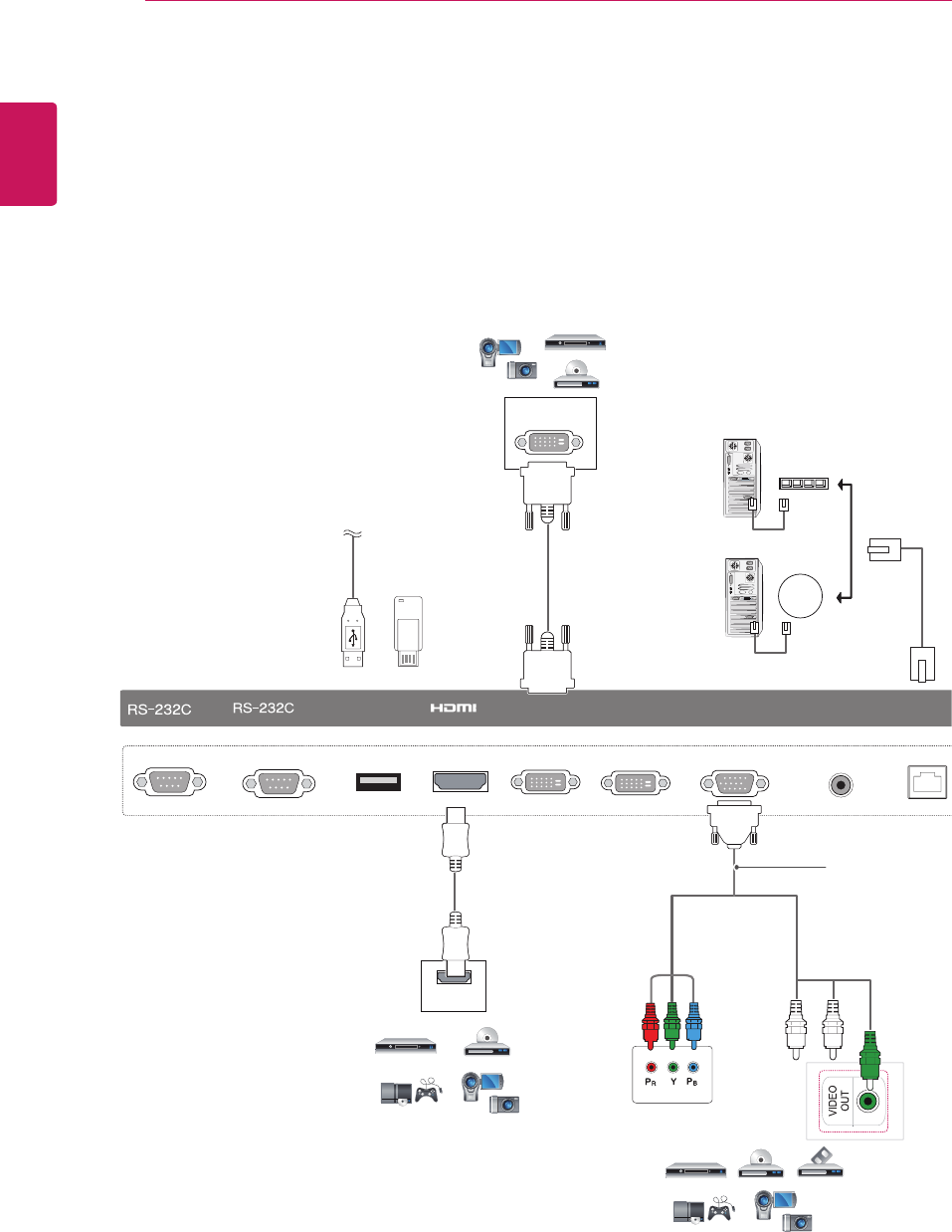

20 External Device Connection
21 Using the Input List

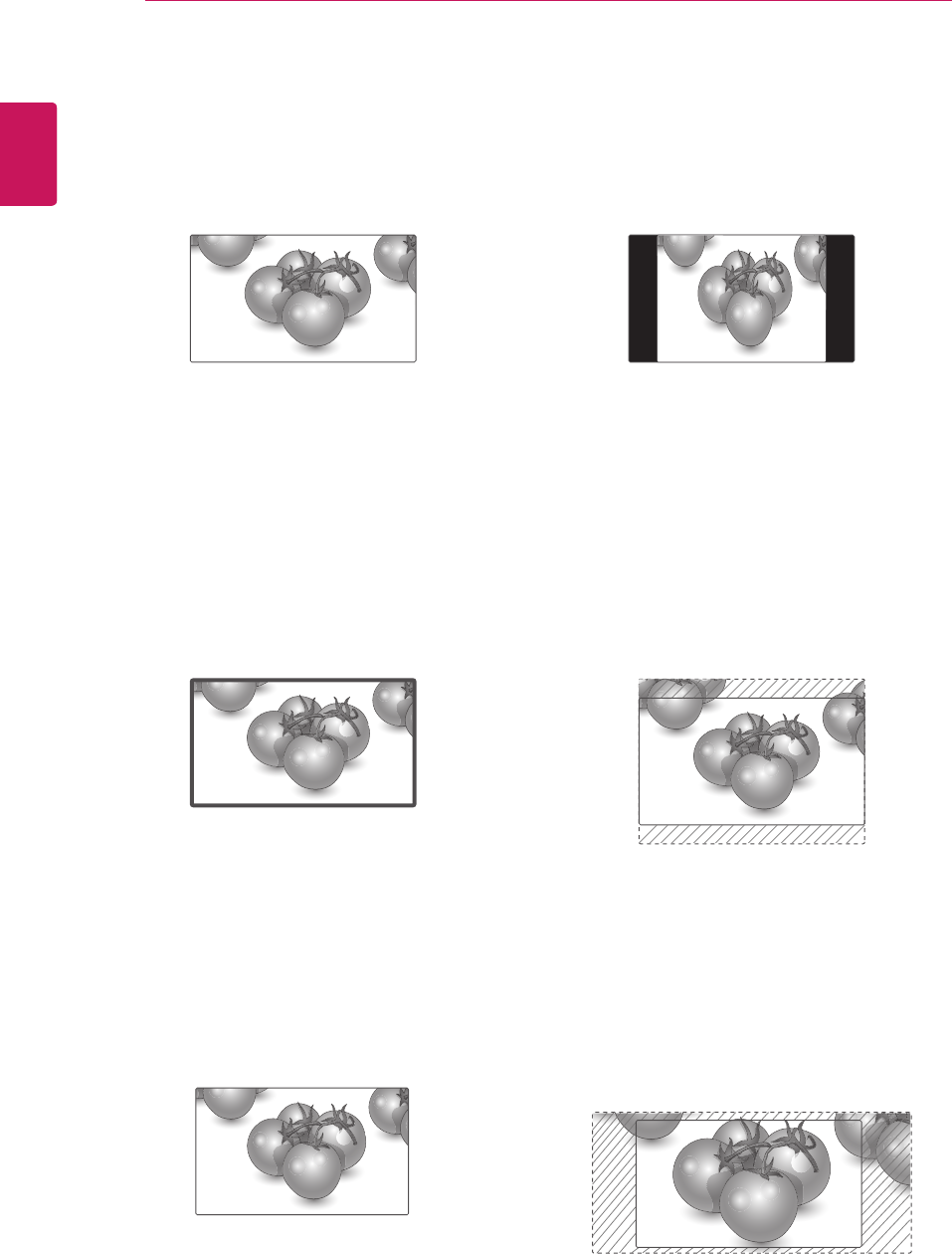

21 Adjusting Aspect Ratio
23 ENTERTAINMENT

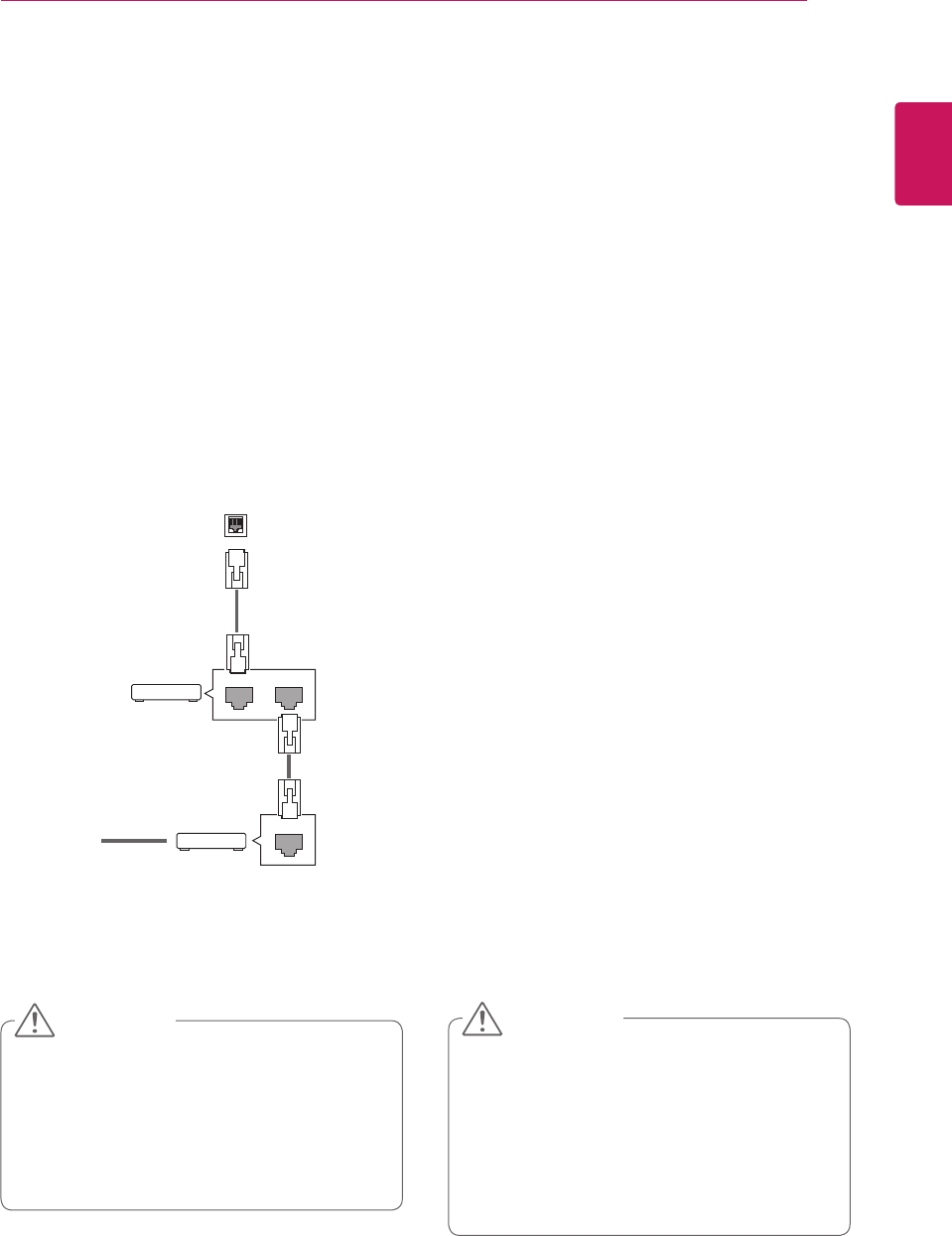

23 - Connecting to a Wired Network
24 - Network Status
25 Using the My Media

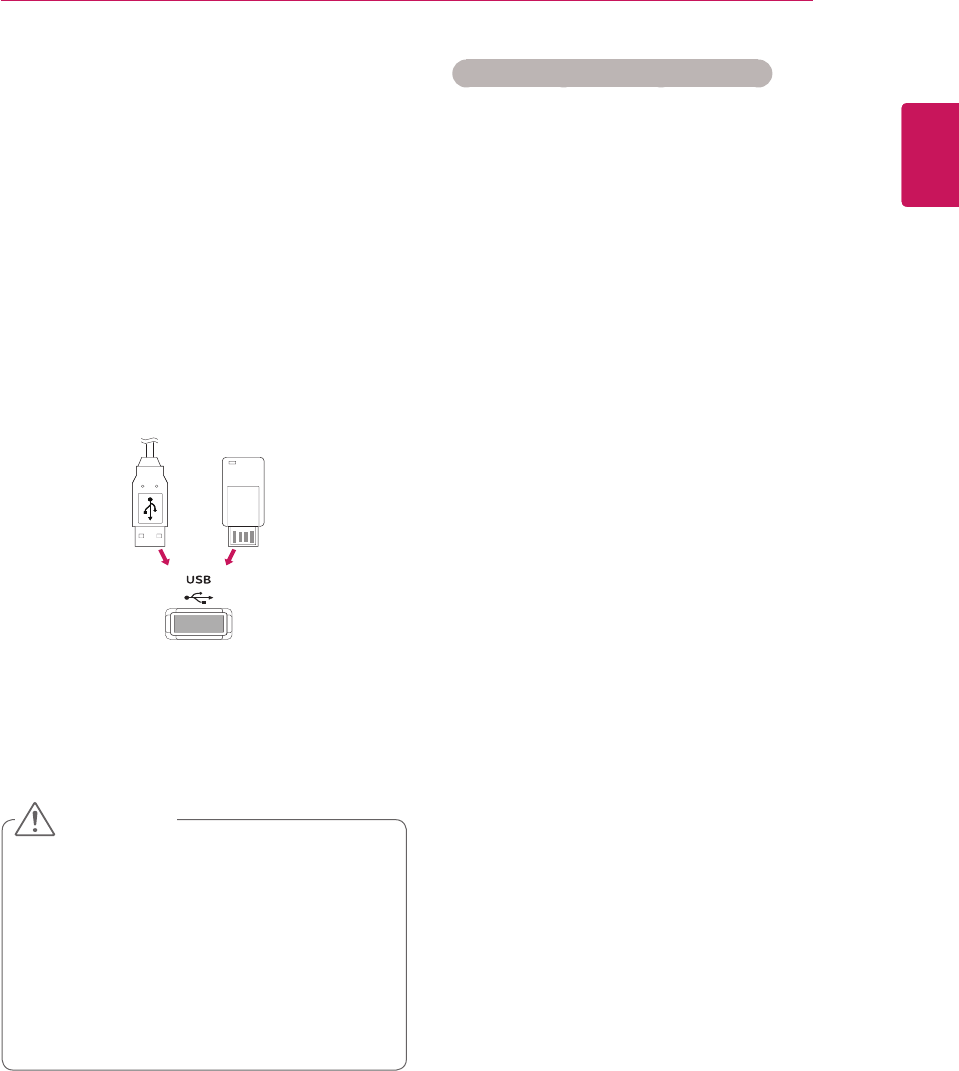

25 - Connecting USB Storage Devices

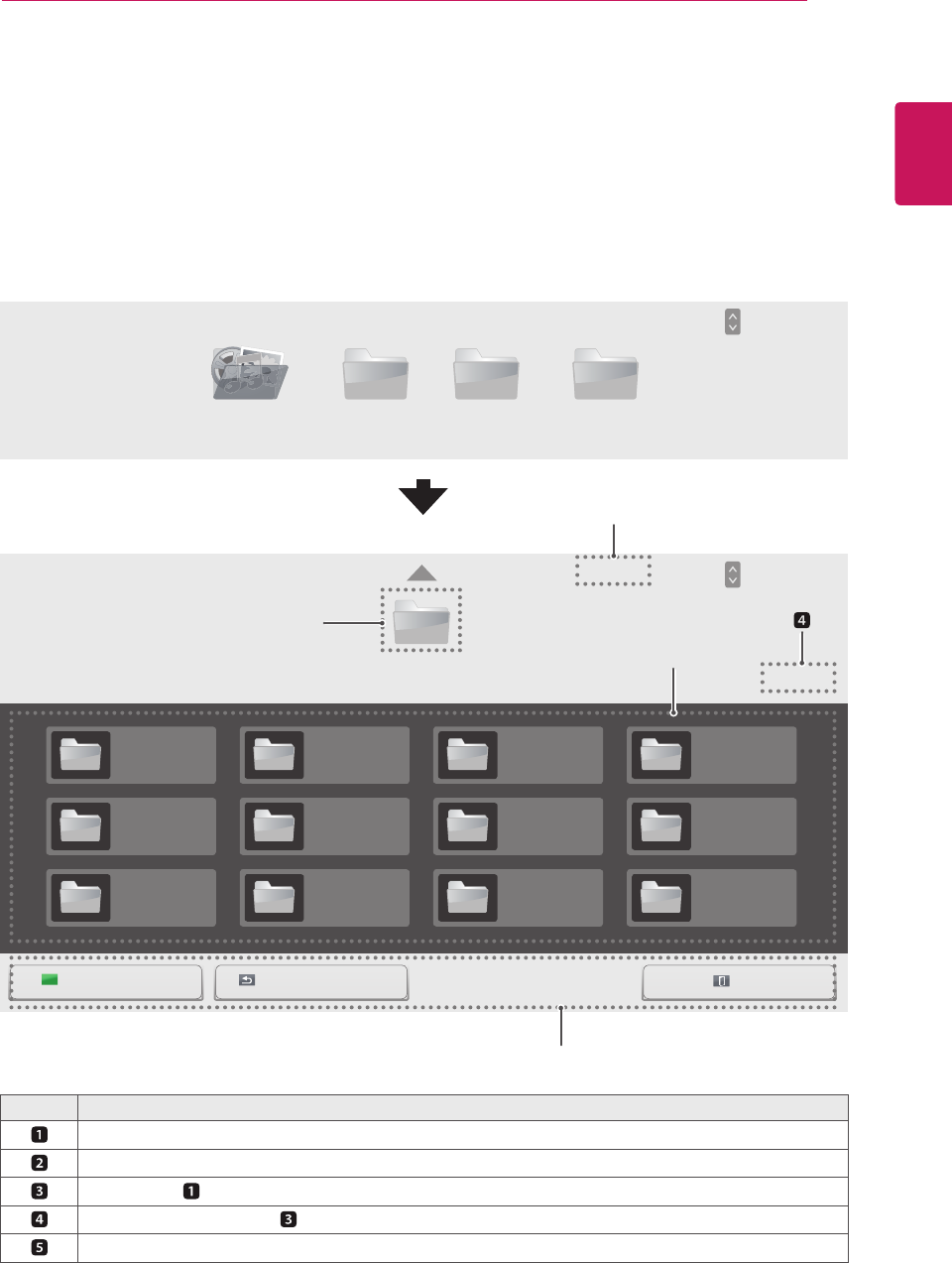

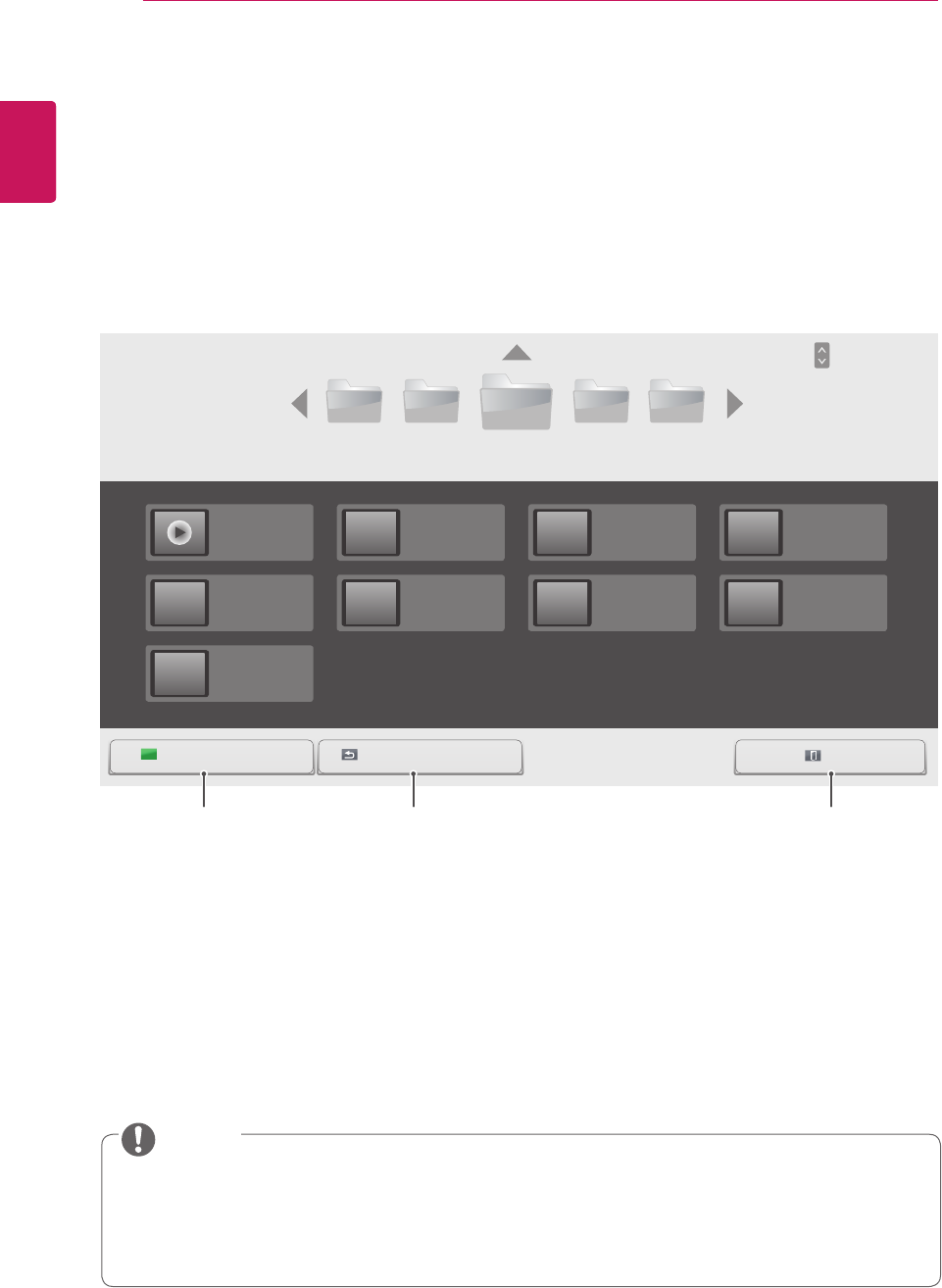

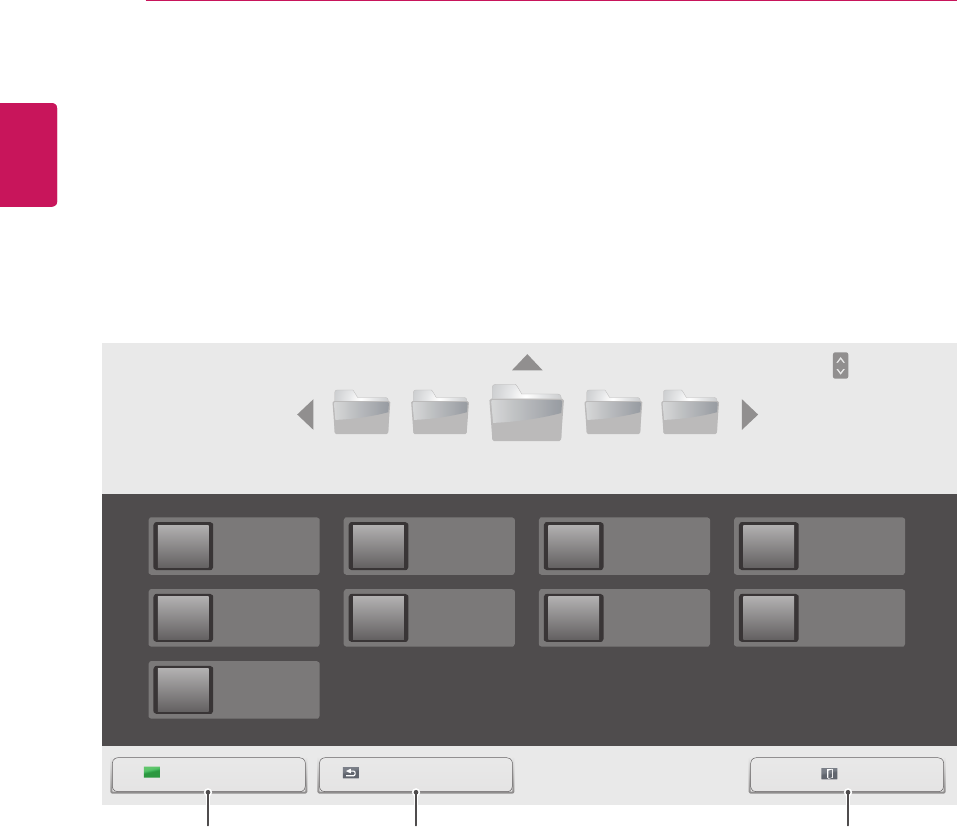

27 - Browsing Files
29 - Viewing Movies
32 - Viewing Photos
34 - Viewing the Contents List
35 - DivX® VOD Guide

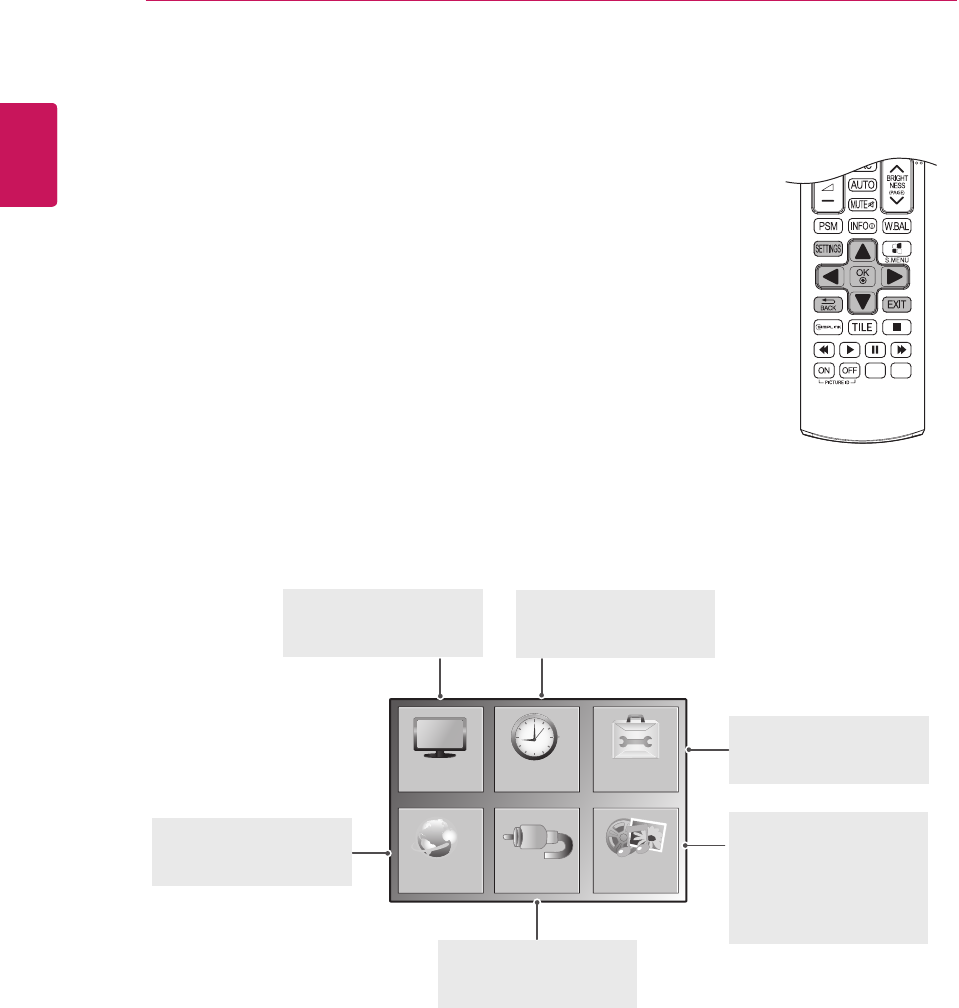

36 CUSTOMIZING SETTINGS
36 Accessing Main Menus
37 - PICTURE Settings

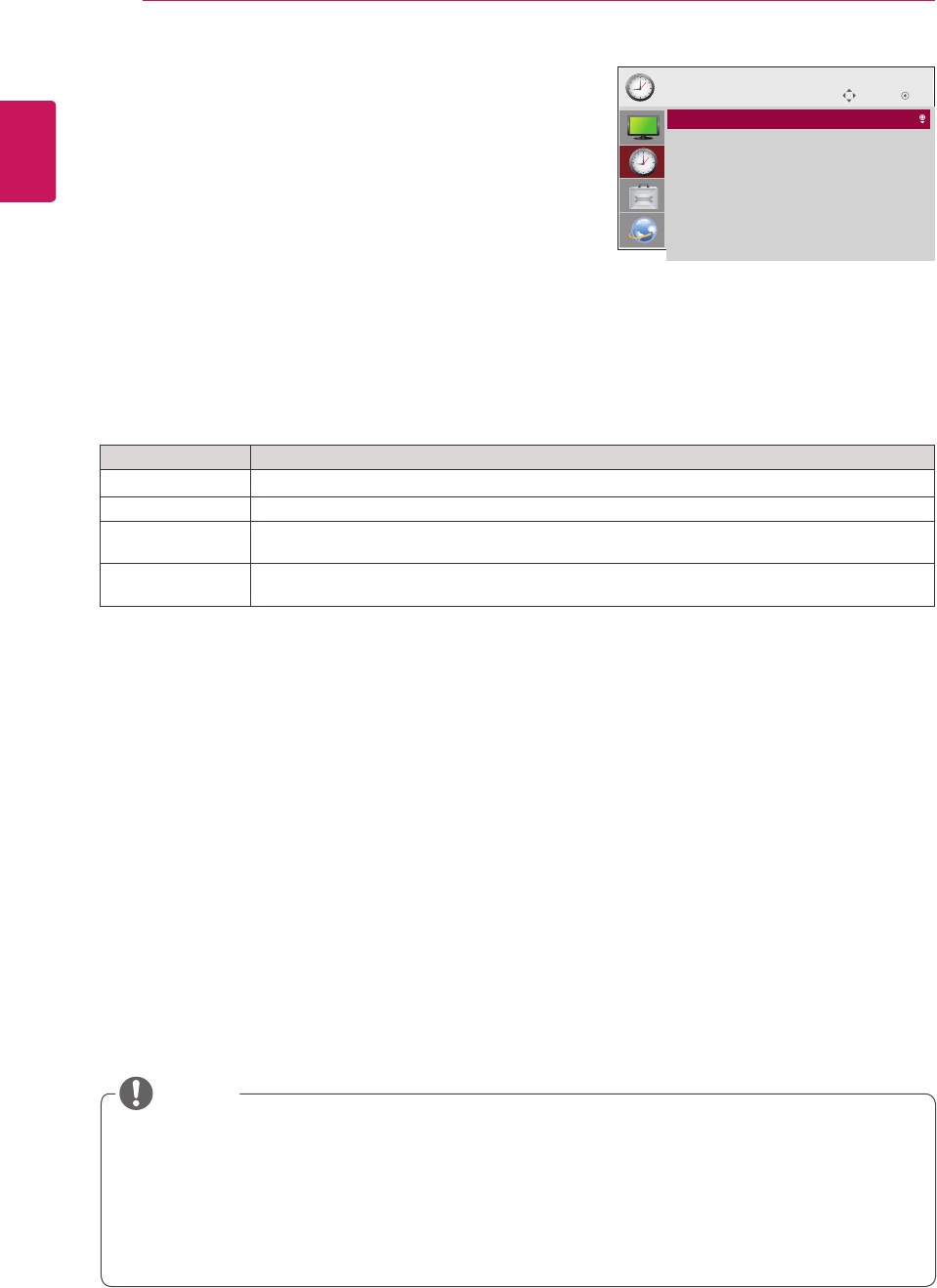

40 - TIME Settings

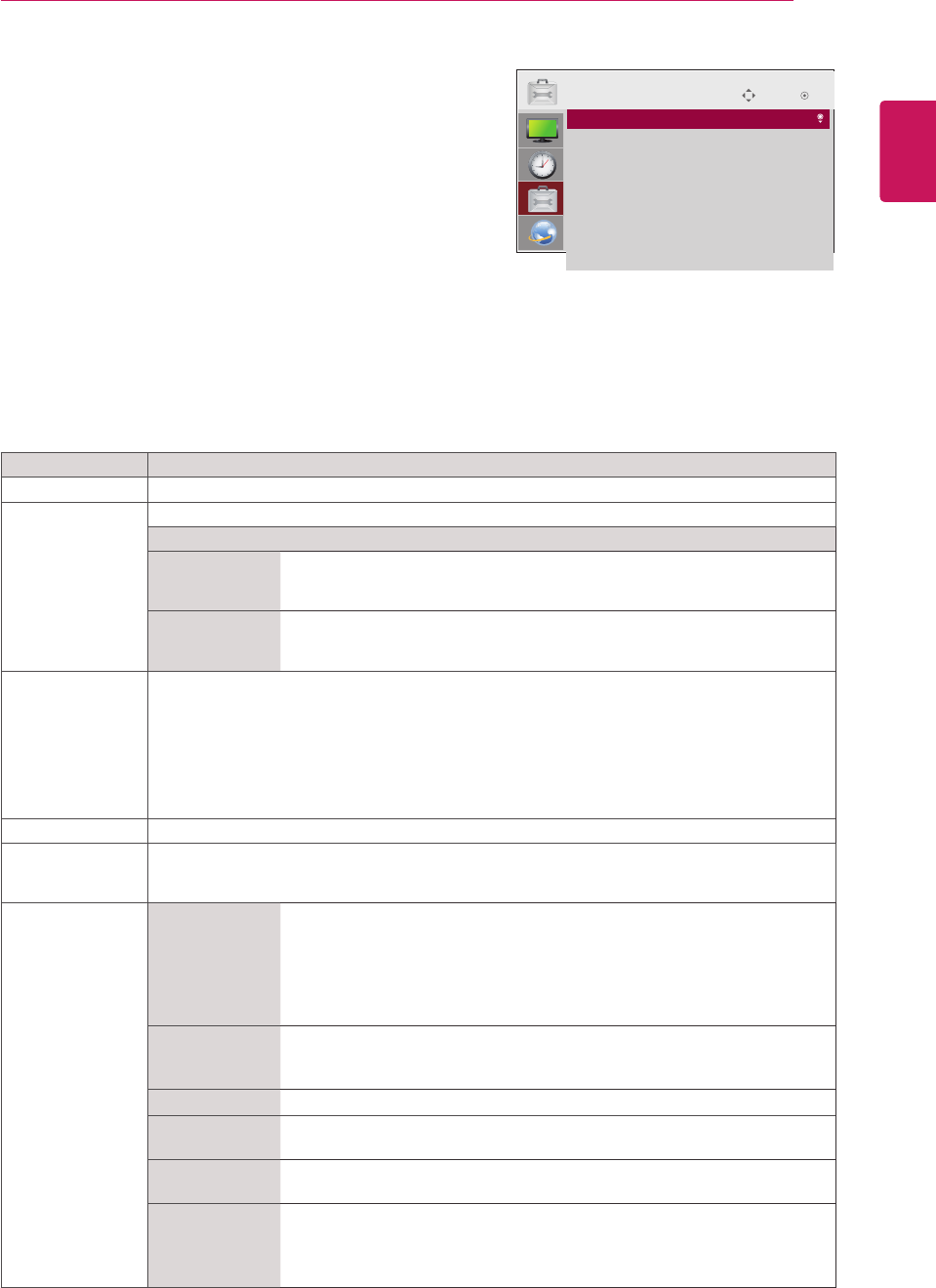

41 - OPTION Settings
42 - NETWORK Settings
44 Picture ID

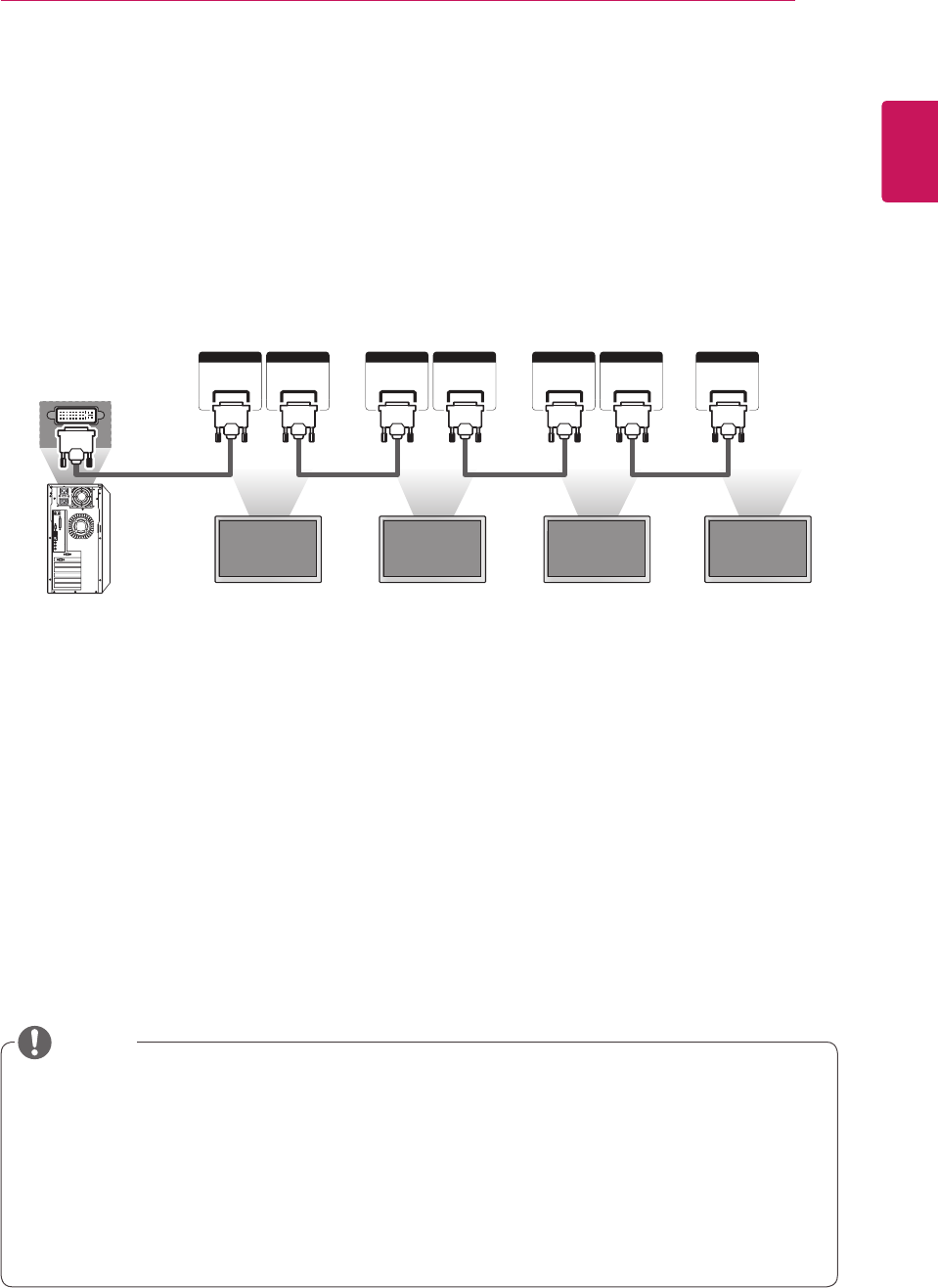

45 Daisy Chain Monitors
45 - DVI Cable
46 TROUBLESHOOTING

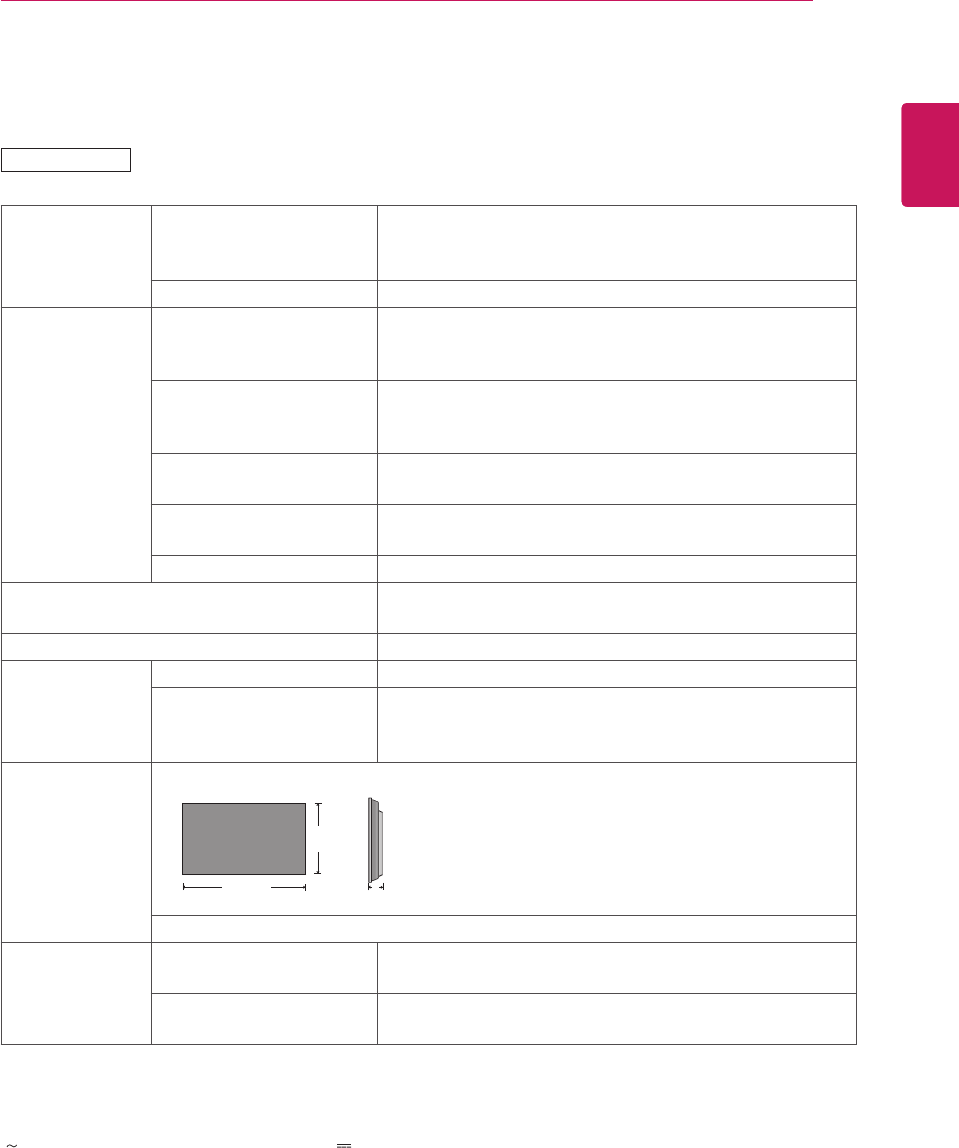

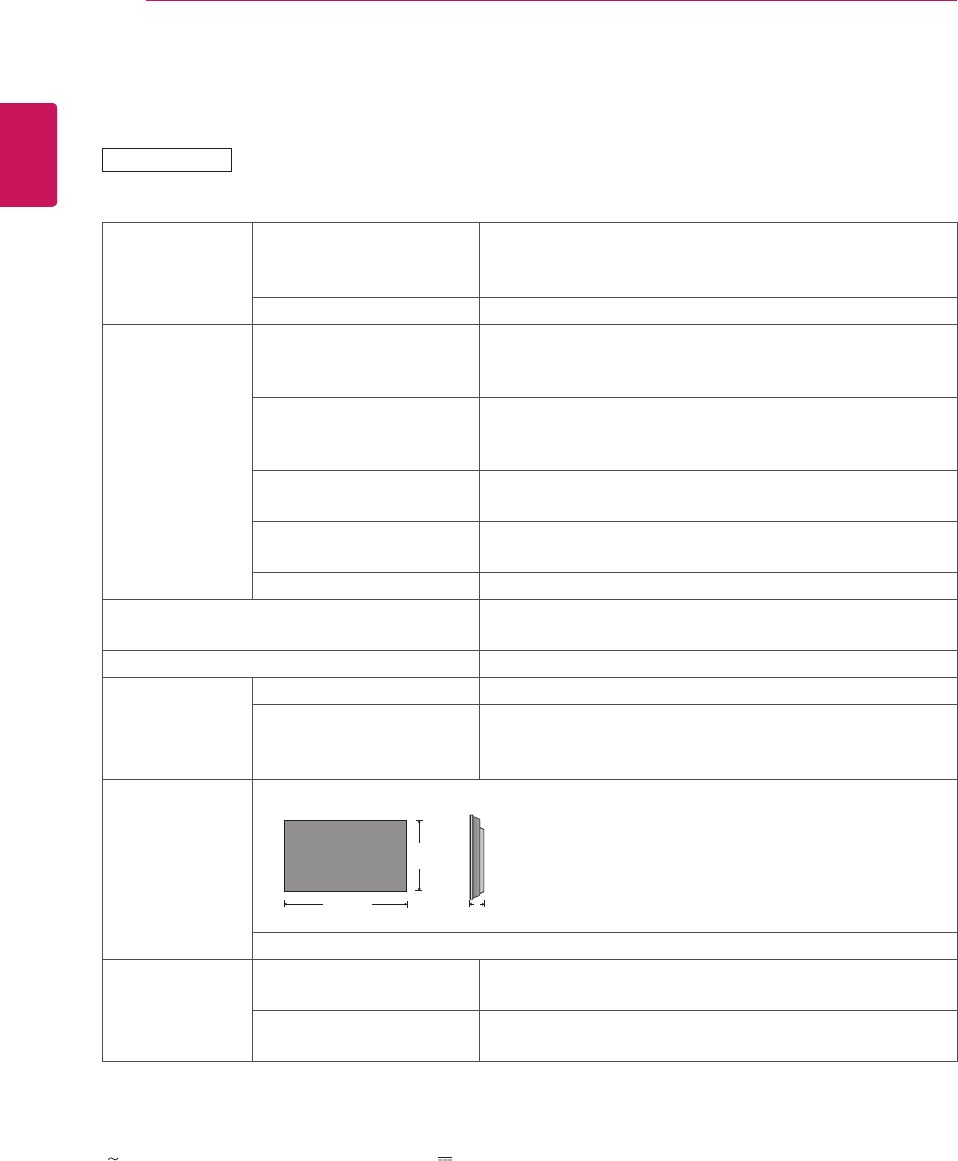

49 SPECIFICATIONS
52 IR CODES
53 CONTROLLING THE MULTIPLE
PRODUCT
53 Connecting the cable
53 RS-232C Configurations
53 Communication Parameter
54 Command Reference List
56 Transmission / Receiving Protocol
ENGLISH
3
LICENSES
Product damage from moving or changing the installation location is not covered by warranty.
The warranty will not cover any damages caused by using the product in an excessively dusty
environment.
NOTE
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit
www.lg.com
.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are trademarks of Dolby Laboratories.
This DivX Certified® device has passed rigorous testing to ensure it plays
DivX® video. To play purchased DivX movies, rst register your device at vod.
divx.com. Find your registration code in the DivX VOD section of your device
setup menu.
DivX Certified® to play DivX® video up to HD 1080p, including premium
content.
DivX®, DivX Certied® and associated logos are trademarks of DivX, LLC and
are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274.
4
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Do not use any unauthorized or aftermarket items to ensure the safety and product life span.
Any damages or injuries by using unauthorized or aftermarket items are not covered by the warranty.
CAUTION
The accessories provided with your product may vary depending on the model or region.
Product specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
SuperSign software and manual.
- Downloading from the LG Electronics website.
- Visit the LG Electronics website (
http://www.lgecommercial.com/supersign
) and download the latest
software for your model.
NOTE

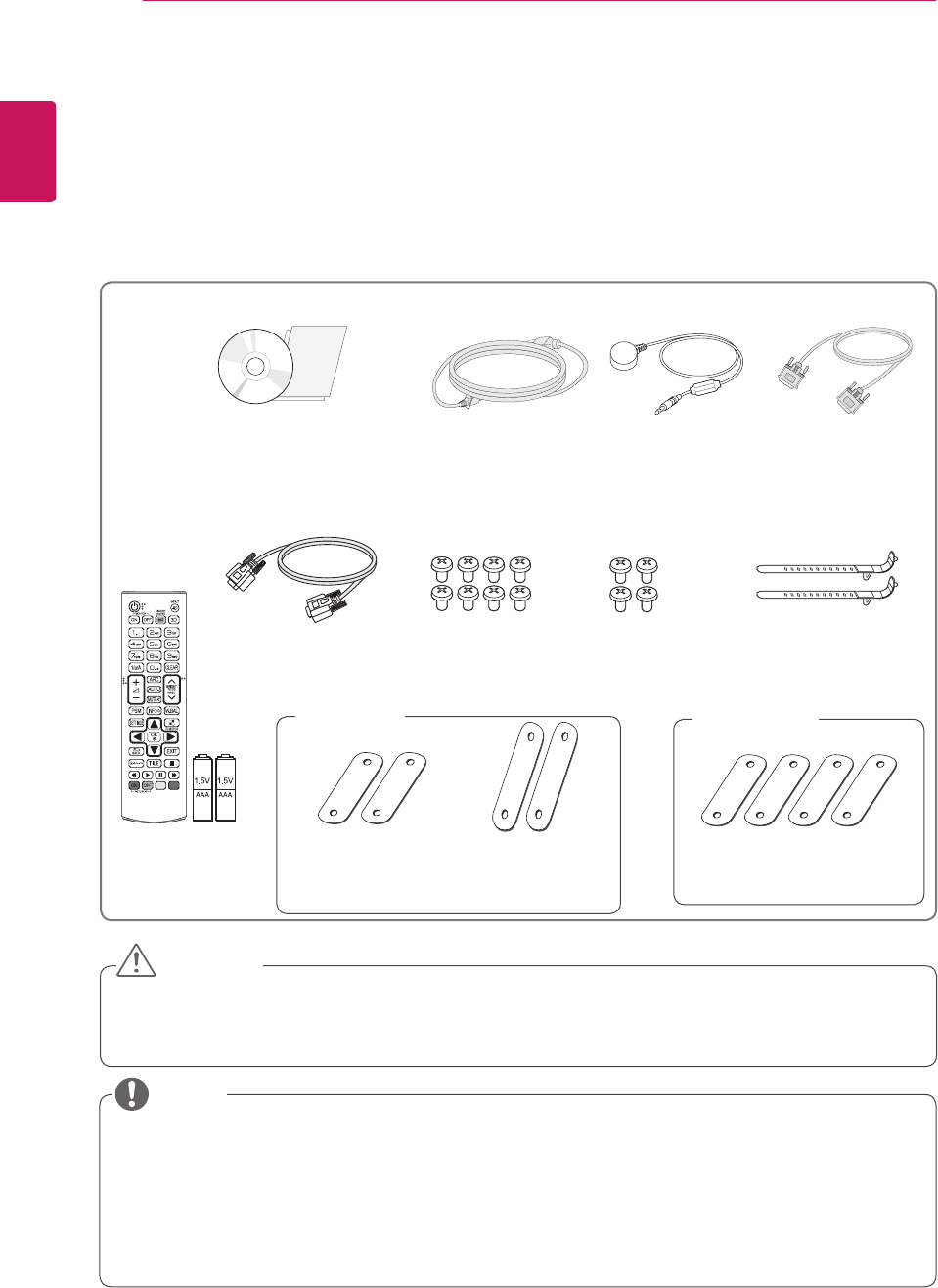

Accessories
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
Power Cord DVI Cable
IR Receiver
CD (Owner's Manual)
/ Cards
RS-232C Cable
Remote Control
and Batteries
Short Vertical
Tiling Guide
(2 ea)
Long Horizontal
Tiling Guide(2 ea)
M6 Screws
(4 ea)
M4 Screws
(8 ea)
Mounting Cable Tie (2 ea)
(For Cable Arrangement)
55LV35A
47LV35A
Tiling Guide(4 ea)
5
ENG
ENGLISH
ASSEMBLING AND PREPARING

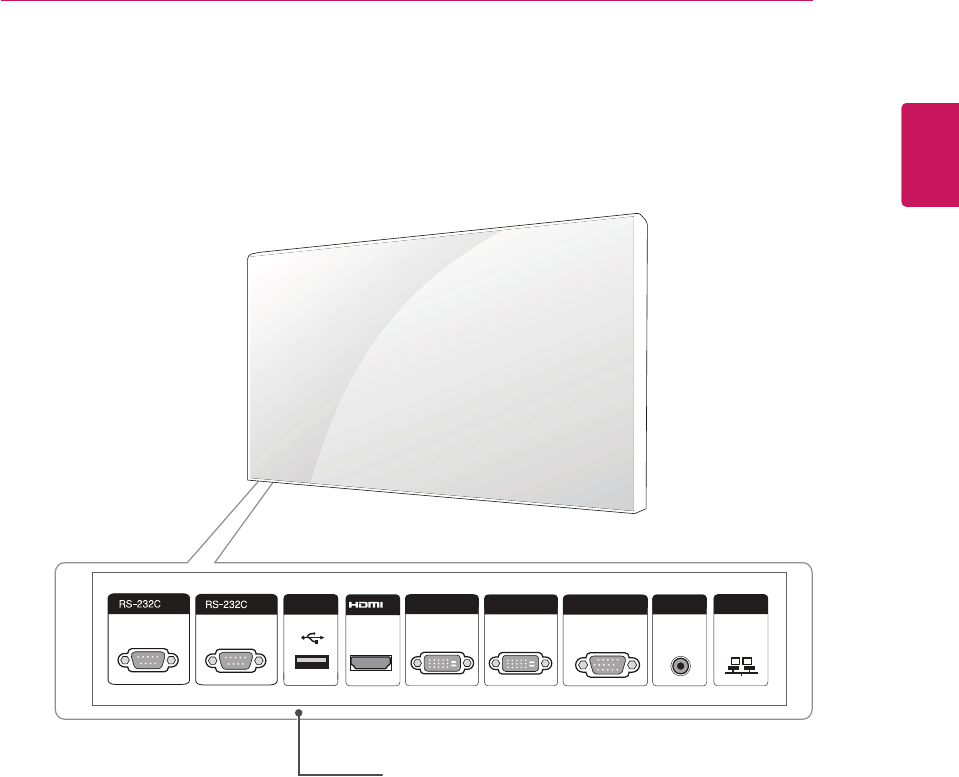

Parts
USB LANDVI IN DVI OUT
IN OUT
IN
RGB/ AV
/COMPONENT IN
IR IN
Connection panel
6
ENG
ENGLISH
ASSEMBLING AND PREPARING

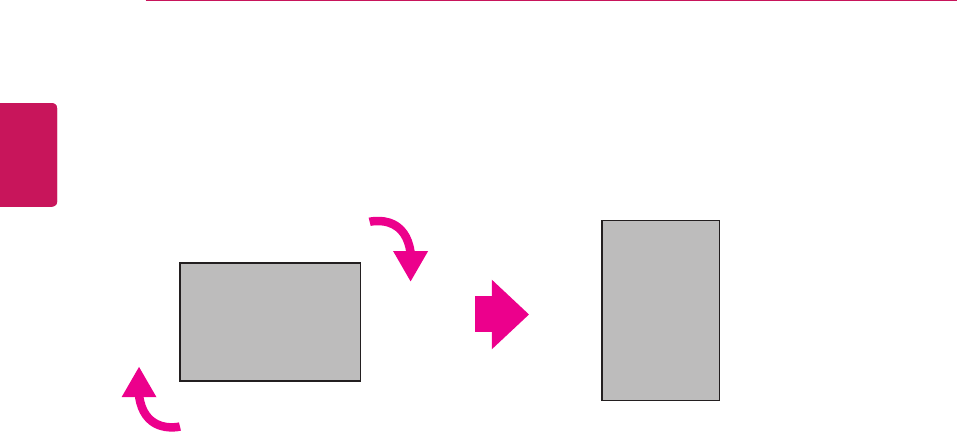

To Install in a Portrait Layout
When installing in a Portrait Layout, rotate the monitor clockwise 90 degrees (when facing the screen).
7
ENG
ENGLISH
ASSEMBLING AND PREPARING

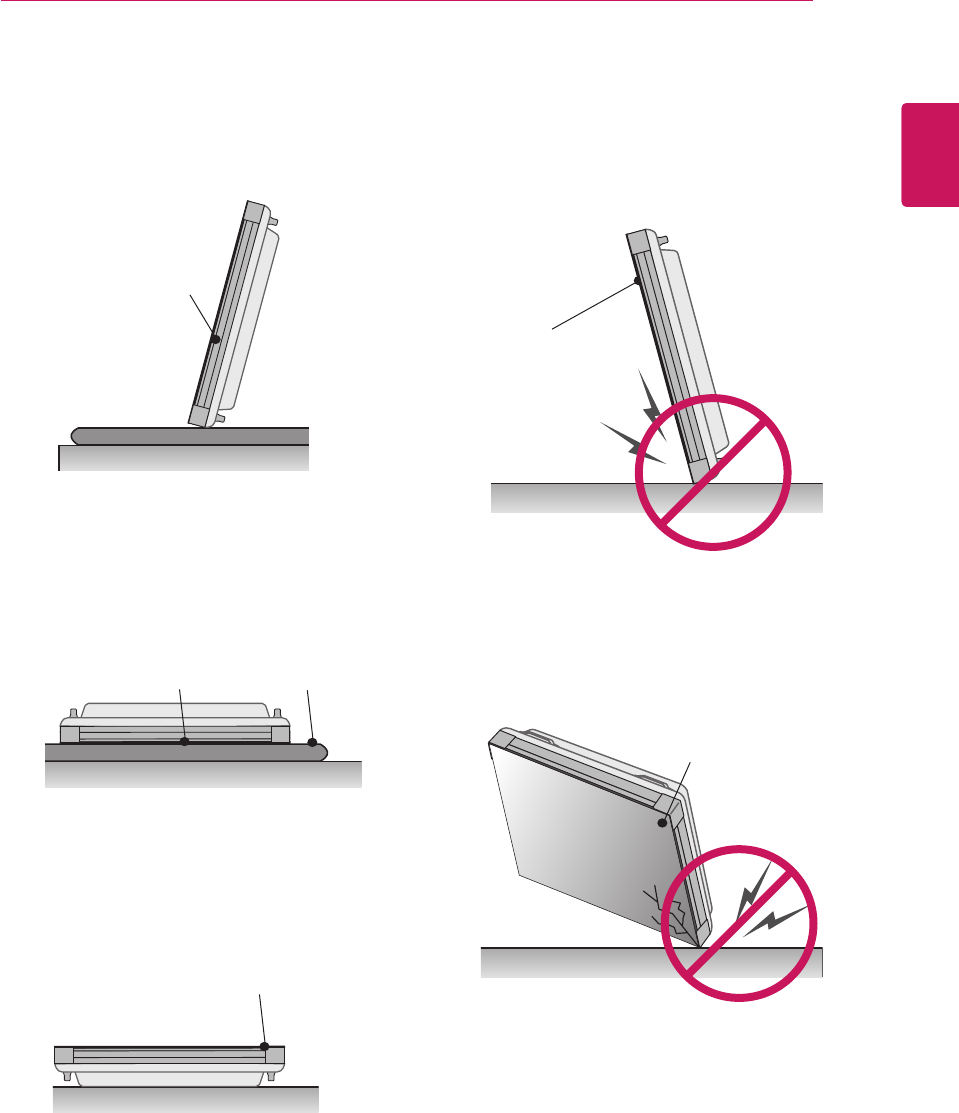

Correct Method Incorrect Method
STORAGE METHOD FOR PANEL PROTECTION
Panel
Panel
If the product needs to be set upright, hold both
sides of the product, and tilt backward carefully
for. Do not let the panel not to touch the floor.
When laying down the product, lay a cushion on a
flat floor. Put the product on it with the panel of
the product facing down.
If there is not a cushion available, ensure the floor
is clean and then lay the product down carefully
with the panel facing either upward or downward.
At this time, be careful for objects not to fall on the
panel.
Cushion
Panel
If the product is tilted onto the bezel, the bottom of
the panel may be damaged.
If the product is tilted onto the edge of the panel,
the panel may be damaged.
Panel
Panel
8
ENG
ENGLISH
ASSEMBLING AND PREPARING
Disconnect the power cord first, and then
move or install the monitor set. Otherwise
electric shock may occur.
If you install the monitor set on a ceiling or
slanted wall, it may fall and result in severe
injury.
Do not over tighten the screws as this may
cause damage to the monitor set and void
your warranty.
Use the screws and wall mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
To prevent injury, this apparatus must be
securely attached to the wall in accordance
with the instrallation instructions. (This
pertains to Australia and New Zealand only.)
CAUTION
NOTE
Do not install the product in a place with
no ventilation (e.g., on a bookshelf or in a
closet) or on a carpet or cushion. If there is
no other option but to mount the product on
the wall, make sure that sufcient ventilation
is provided before installation.
- Failure to do so may result in a re due to
the increase in the internal temperature.

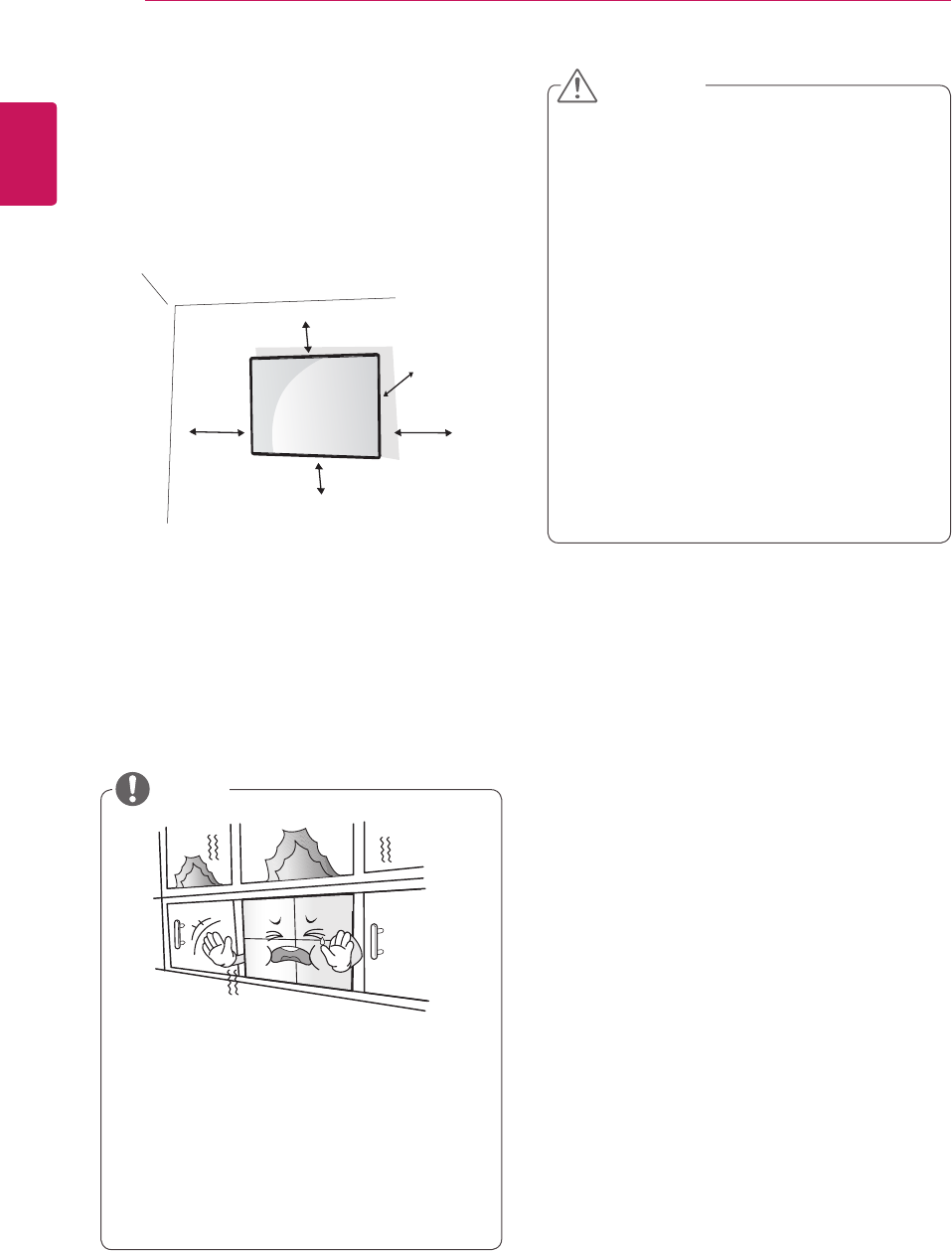

IInstall the monitor at least 10 cm away from the
wall and leave about 20 cm of space at each side
of the monitor to ensure sufficient ventilation.
Use the wall mount plate and screws that comply
with the VESA standard.
Installing on a Wall
To install the Monitor on a wall (optional),
use the VESA screws provided as accessories to
fasten it.
10 cm
10 cm
10 cm 10 cm
20 cm
9
ENG
ENGLISH
ASSEMBLING AND PREPARING
Securing the product to a wall (optional)
(Depending on model)
1 Insert and tighten the eye-bolts, or product
brackets and bolts on the back of the product.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and the
eye-bolts on the rear of the product.
3 Connect the eye-bolts and wall brackets tightly
with a sturdy rope.
Make sure to keep the rope horizontal with the
flat surface.
NOTE
Make sure that children do not climb on or
hang on the product.
Use a platform or cabinet that is strong and
large enough to support the product securely.
Brackets, bolts, and ropes are optional. You
can obtain additional accessories from your
local dealer.
CAUTION
If a product is not positioned in a sufficiently
stable location, it can be potentially
hazardous due to falling. Many injuries,
particularly to children, can be avoided by
taking simple precautions such as:
»Using cabinets or stands recommended
by the manufacturer of the product.
»Only using furniture that can safely
support the product.
»Ensuring the product is not overhanging
the edge of the supporting furniture.
»Not placing the product on tall furniture
(for example, cupboards or bookcases)
without anchoring both the furniture and
the product to a suitable support.
»Not standing the product on cloth or other
materials placed between the product
and supporting furniture.
»Educating children about the dangers of
climbing on furniture to reach the product
or its controls.
WARNING
10
ENG
ENGLISH
ASSEMBLING AND PREPARING

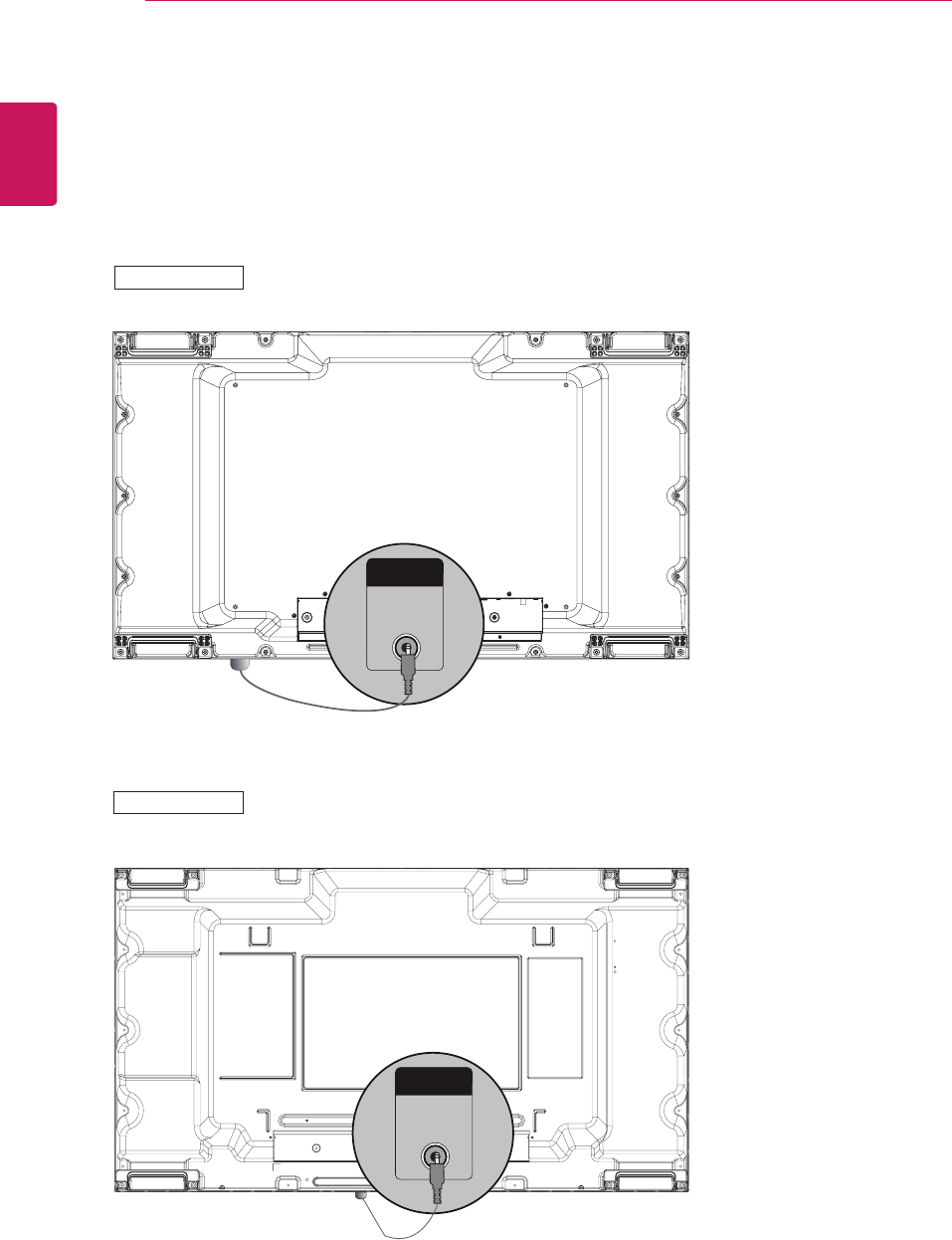

IR RECEIVER CONNECTION
IR RECEIVER
This allows a remote control sensor to be placed in a custom location. Then that display can control other
displays via an RS-232C cable.
IR IN
IR IN
55LV35A
47LV35A
11
ENG
ENGLISH
ASSEMBLING AND PREPARING

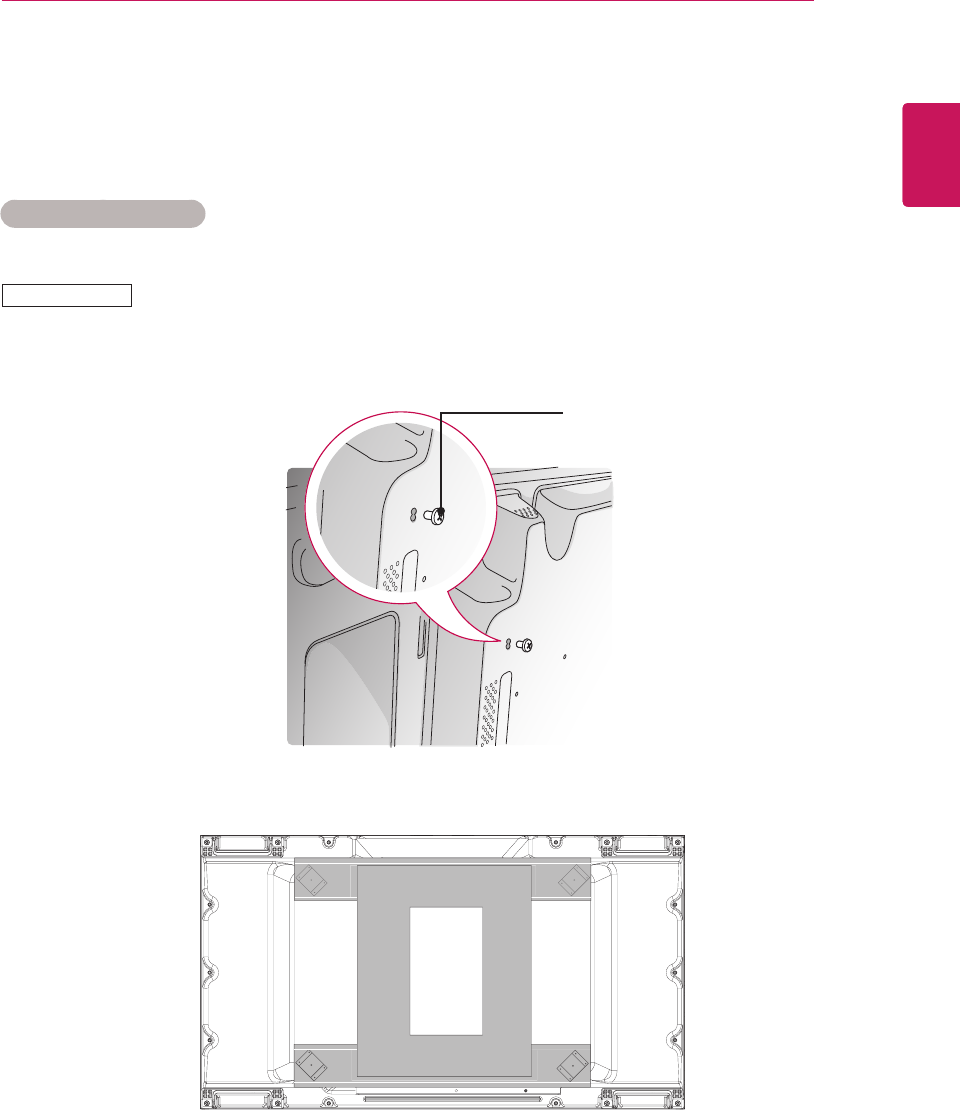

How to Mount the Set
Tiling Displays
Example of 2 x 2 Tiling
Using the screws for attaching the VESA wall mount, mount the set to the wall mount plate or the wall.
<Rear view of the set with the wall mount plate>
Screws for attaching the
VESA wall mount
47LV35A
12
ENG
ENGLISH
ASSEMBLING AND PREPARING

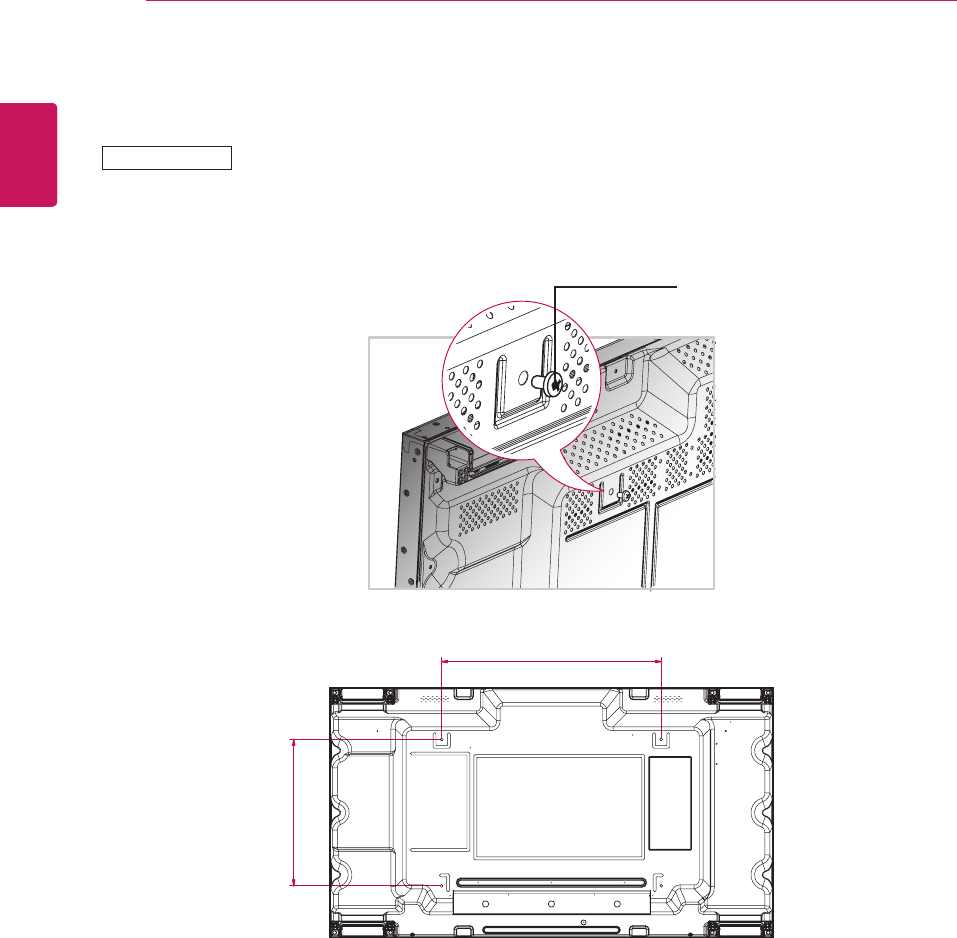

55LV35A
Screws for attaching
the VESA wall mount
600
400
<Rear view of the set with the wall mount plate>
13
ENG
ENGLISH
ASSEMBLING AND PREPARING

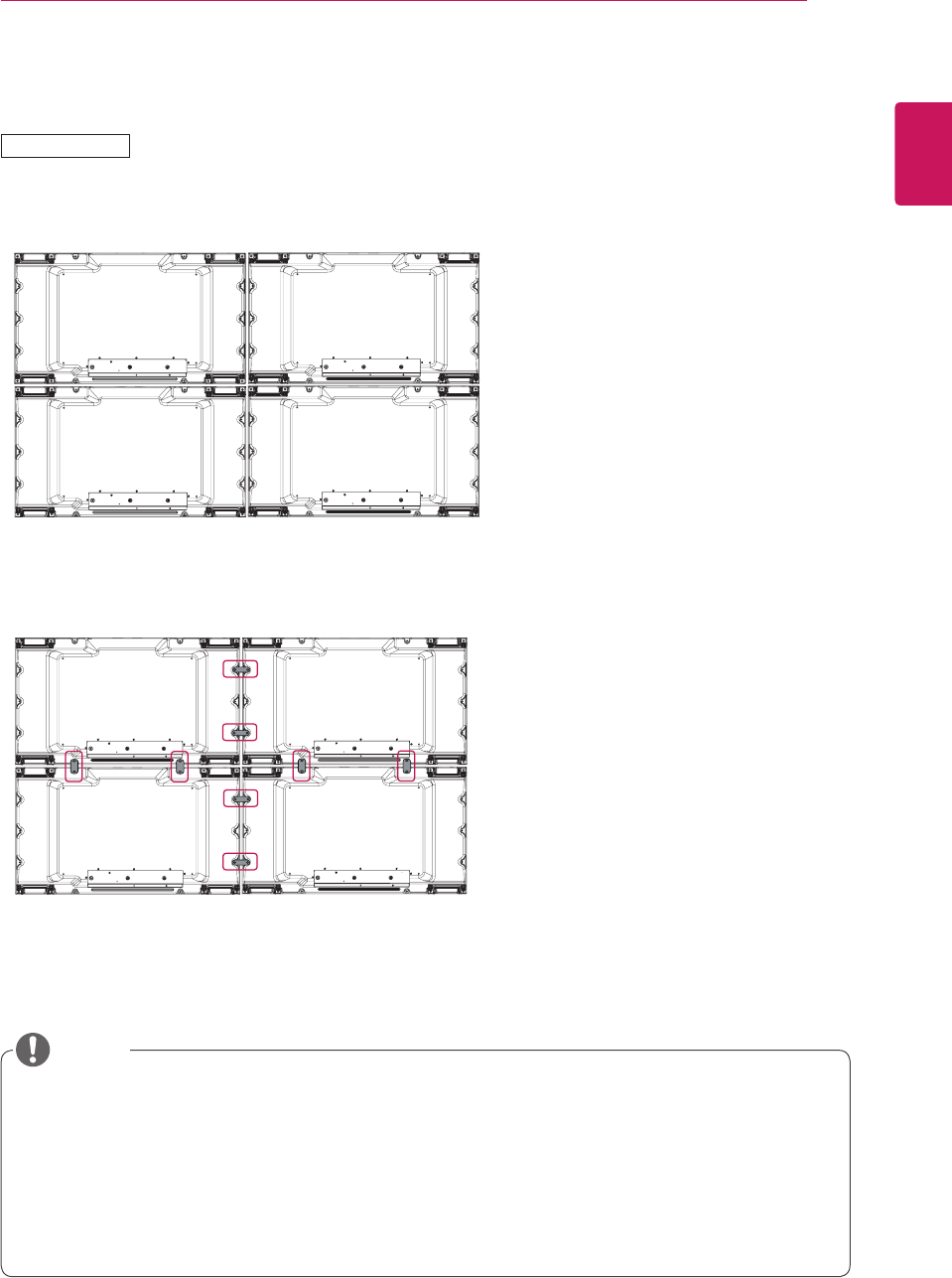

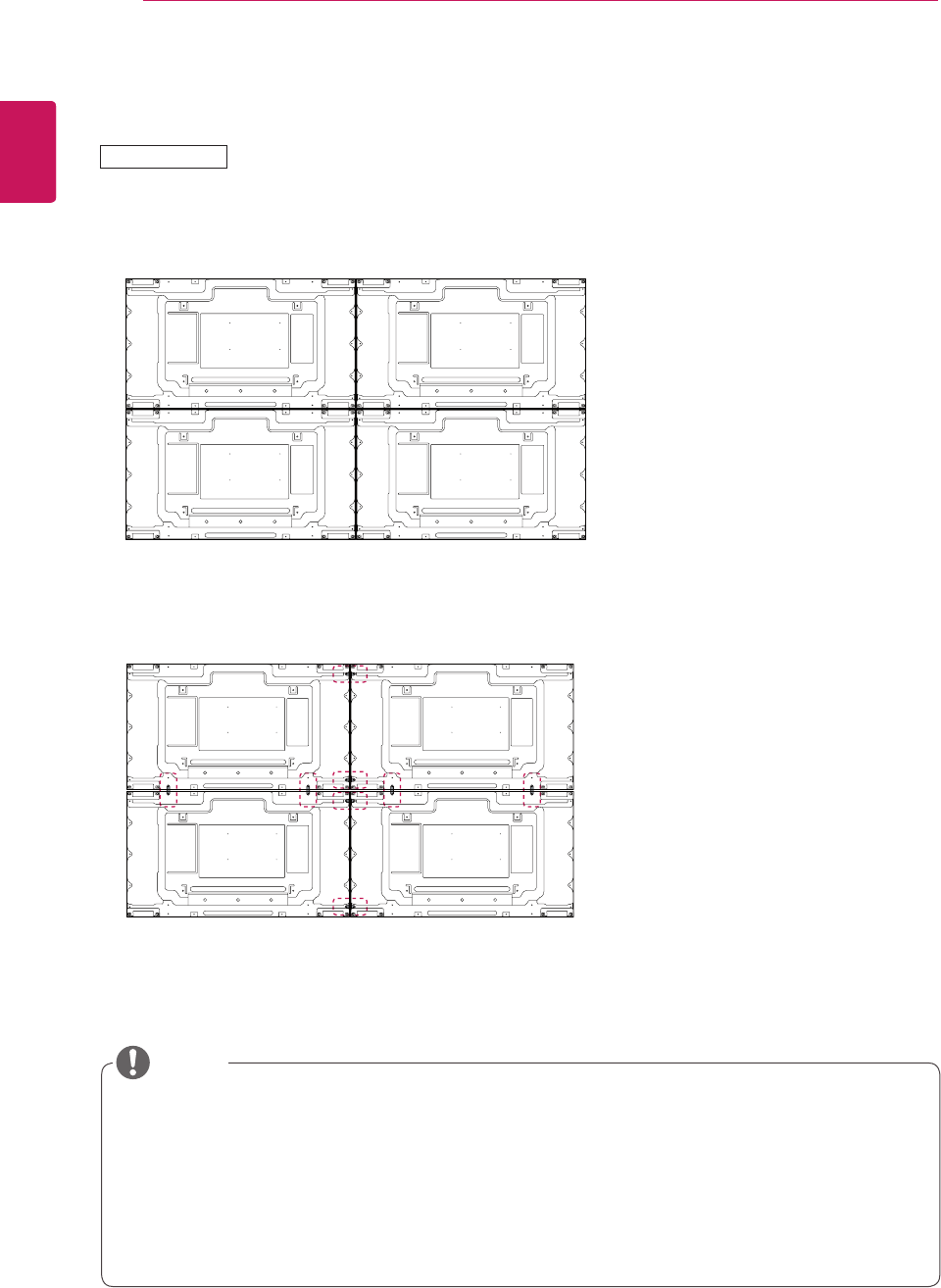

Set 4 joined to the rest of the sets
(2 x 2 tiling)
How to Join Sets
The load applied to each set should be supported by the wall mount plate or the wall using a VESA
wall mount (600 x 400).
The load applied to each set should be supported by the wall mount plate using a VESA wall mount.
(Each set must be firmly mounted to the wall mount plate or the wall.)
You may mount the set without using the tiling guide; this does not affect the performance of the
device.
Loosen the screws on the set to install the tiling guides. (The screws are enclosed with the other
components in the box, including the tiling guides.)
NOTE
1 Join other sets using screws for xing the VESA wall mount in the same way as above.
2 After joining the sets, use the tiling guide to adjust the gap between the sets.
3 Now the 2 x 2 tiling is complete.
You can tile in various combinations, such as 3 x 3.
47LV35A
14
ENG
ENGLISH
ASSEMBLING AND PREPARING
55LV35A
Set 4 joined to the rest of the sets
(2 x 2 tiling)
1 Join other sets using screws for xing the VESA wall mount in the same way as above.
2 After joining the sets, use the tiling guide to adjust the gap between the sets.
3 Now the 2 x 2 tiling is complete.
You can tile in various combinations, such as 3 x 3.
The load applied to each set should be supported by the wall mount plate or the wall using a VESA
wall mount (600 x 400).
The load applied to each set should be supported by the wall mount plate using a VESA wall mount.
(Each set must be firmly mounted to the wall mount plate or the wall.)
You may mount the set without using the tiling guide; this does not affect the performance of the
device.
Loosen the screws on the set to install the tiling guides. (The screws are enclosed with the other
components in the box, including the tiling guides.)
NOTE
15
ENG
ENGLISH

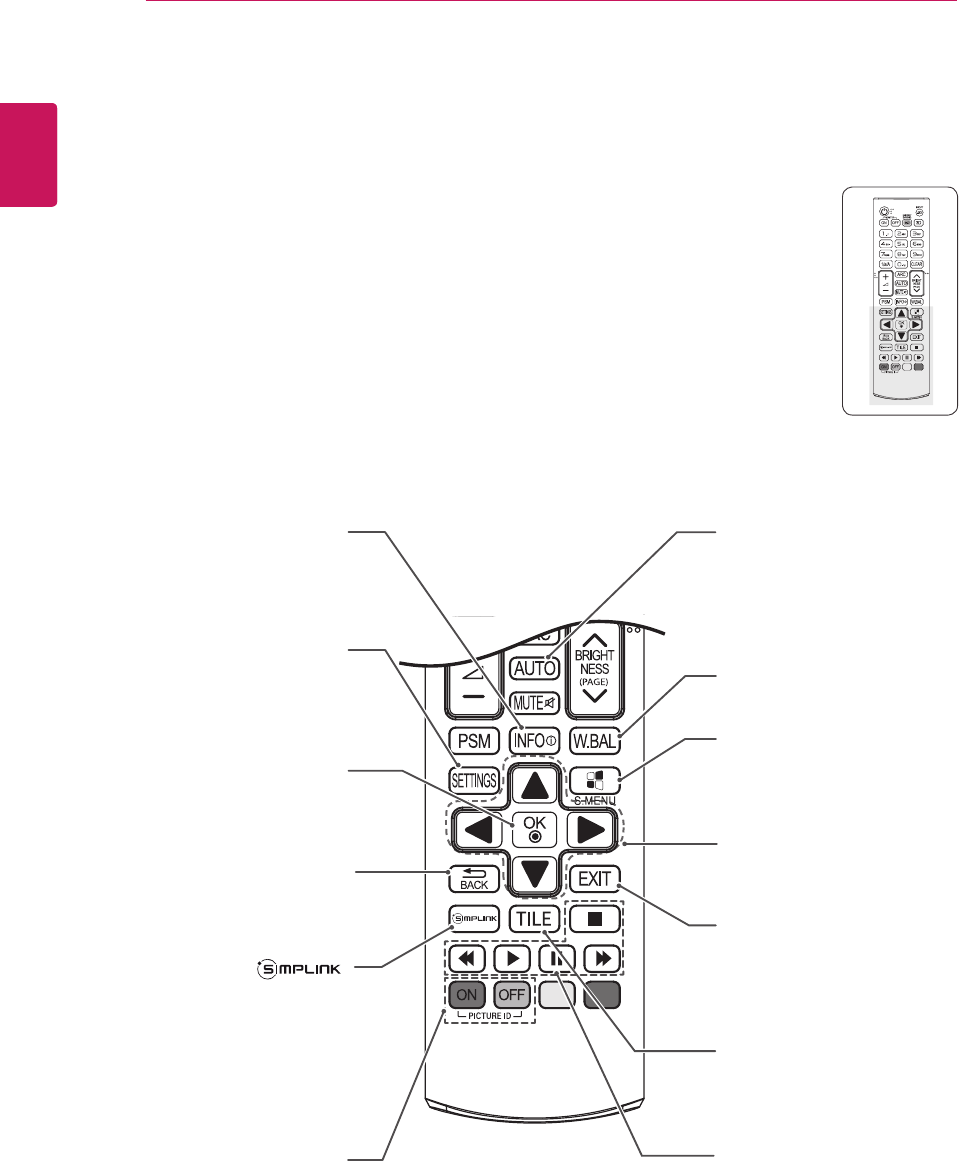

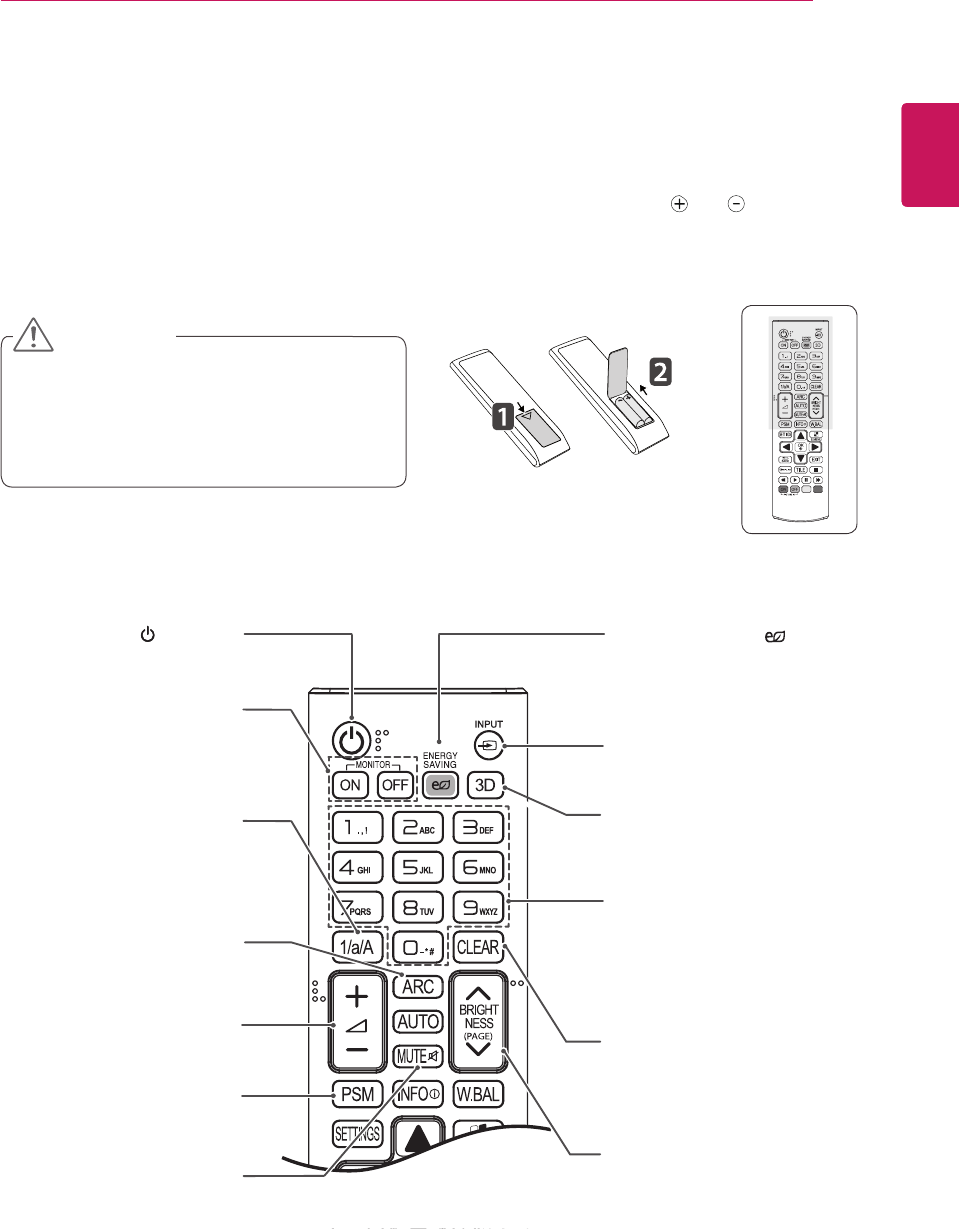

REMOTE CONTROL
REMOTE CONTROL
The descriptions in this manual are based on the buttons of the remote control. Please read this manual
carefully and use the monitor set correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching and ends to the
label inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse.
Do not mix old and new batteries, as this
may damage the remote control.
Make sure to point the remote control to the
remote control sensor on the monitor set.
CAUTION
ID
BACK TILE
ON OFF
EXIT
(POWER)
Turns the monitor set on or off.
MONITOR ON
Turn on the monitor.
MONITOR OFF
Turn off the monitor.
1/a/A Button
Toggles between numerical
and alphabetical.
ENERGY SAVING( )
Reduces power consumption
by adjusting peak screen
brightness.
INPUT
Selects the input mode.
3D
This button does not apply to
this model.
Number and Alphabet Buttons
Enters numerical or alphabetical
characters depending on the
setting.
CLEAR
Deletes the entered numerical
or alphabetical character.
PSM
Selects the Picture Status
Mode.
MUTE
This button does not apply to
this model.
ARC
Selects the Aspect Ratio
Mode.
Volume Up / Down
This button does not apply to
this model.
BRIGHTNESS Key
Adjust the brightness by
pressing the Up and Down
buttons on the remote control.
In USB mode, the OSD menu
has the Page function to move
to the next file list.
16
ENG
ENGLISH
REMOTE CONTROL
W.BAL
Enters the White Balance
menu.
Navigation Buttons
Scrolls through menus or
options.
S.MENU
(SuperSign Menu Key)
This button does not apply to
this model.
EXIT
Clears all on-screen displays
and returns to Monitor set
viewing from any menu.

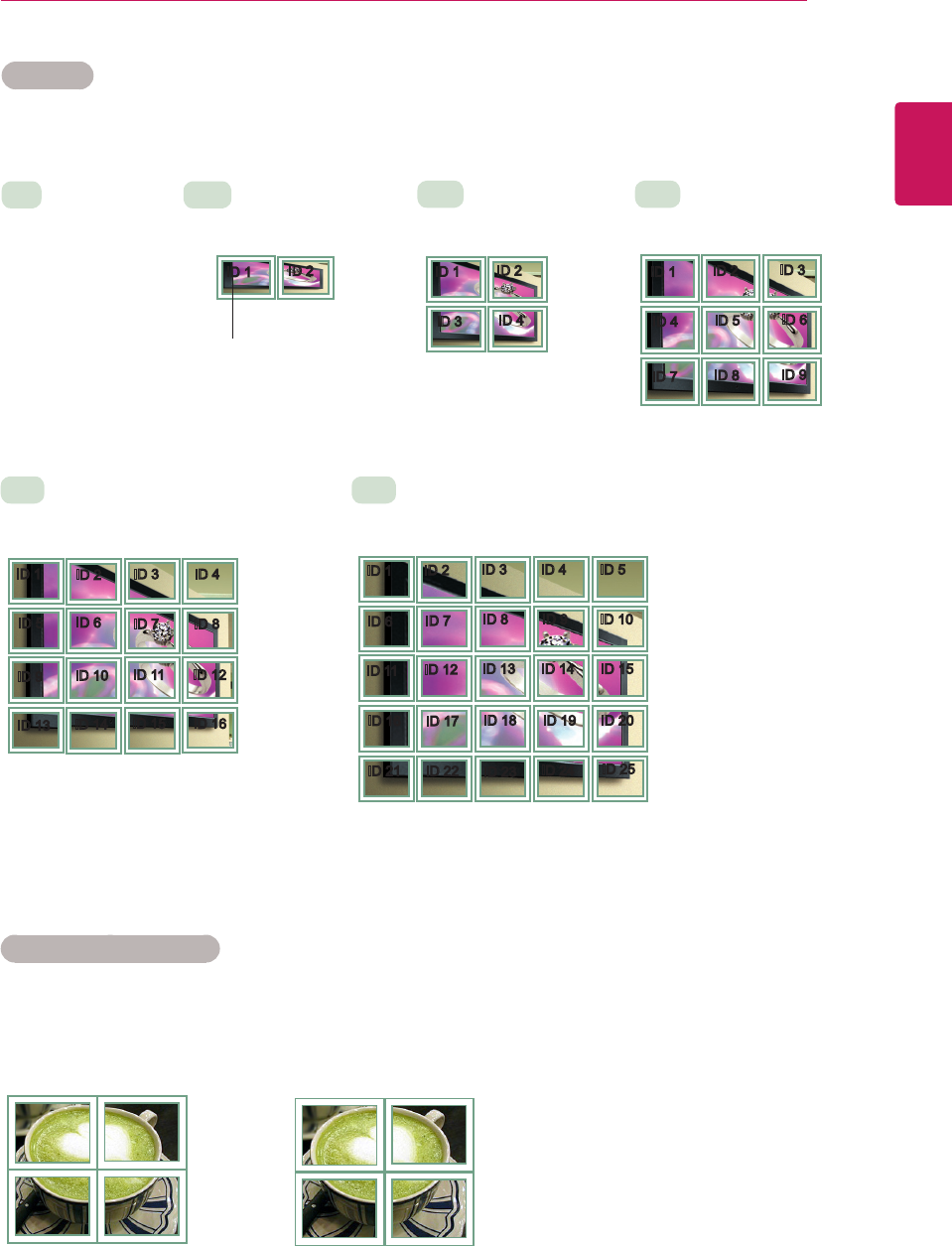

TILE
Selects the TILE Mode.
INFO ⓘ
Displays information about
the program or screen that is
currently used.
SETTINGS
Accesses the main menus
or saves your input and exit
menus.
OK
Selects menus or options and
confirms your input.
BACK
Allows the user to move back
one step in user interaction
function.

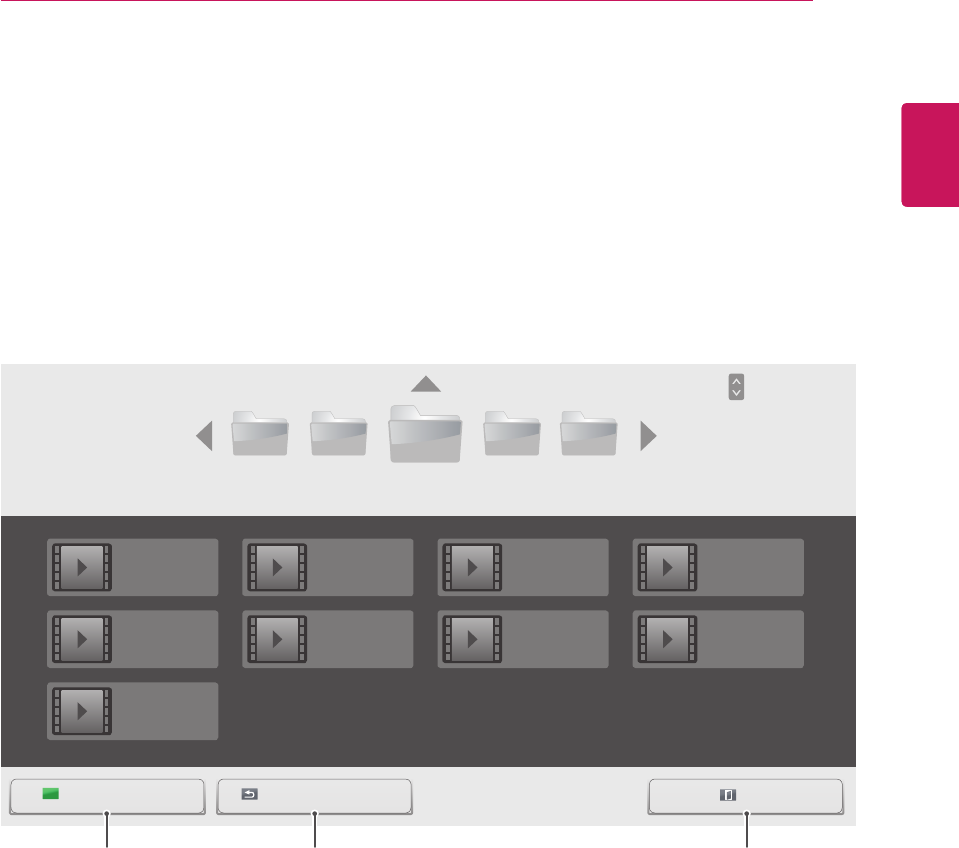

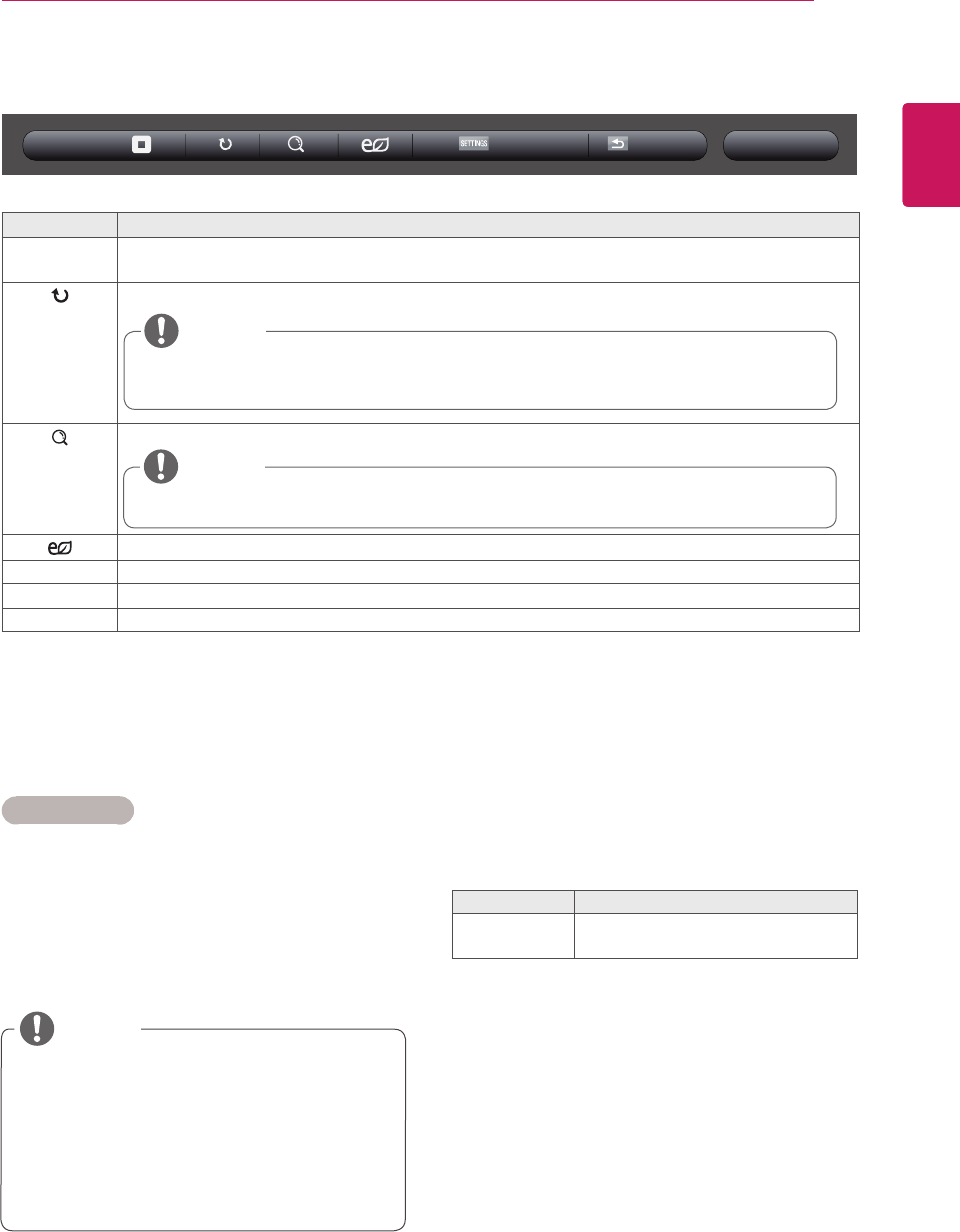

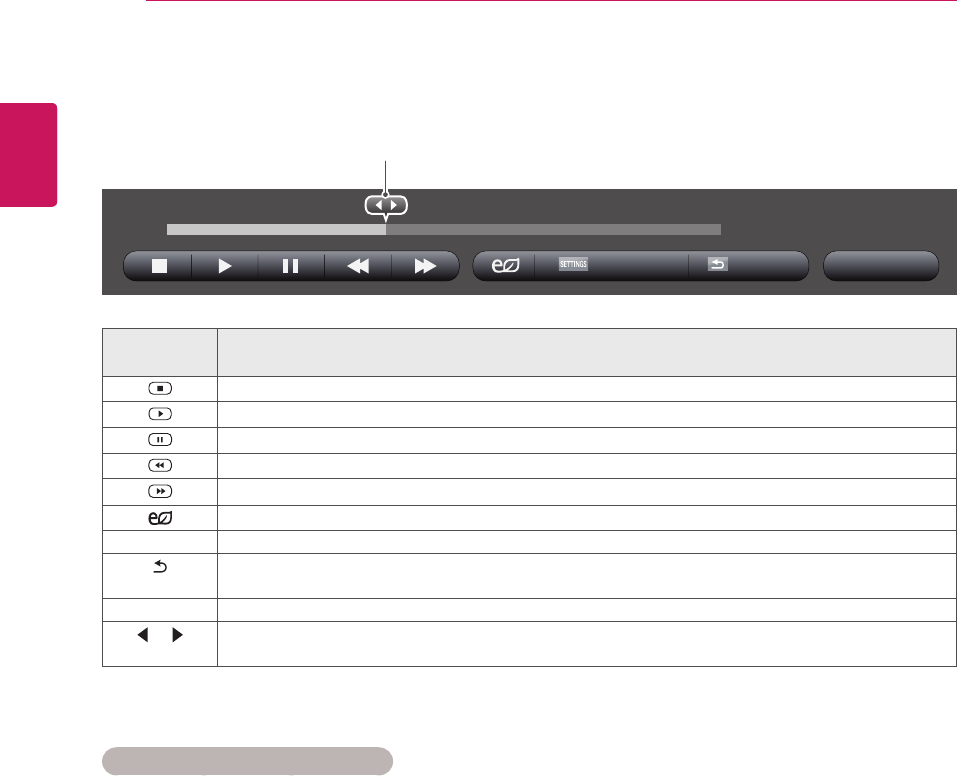

USB Menu control buttons
Controls media playback.
ID ON/OFF
When the number of Picture
ID is equal to Set ID you can
control the monitor which
you want in the multi display
condition.
AUTO
Automatically adjusts picture
position and minimizes image
instability.(RGB input only)
Allows you to control various
multimedia devices simply
by using the remote control
through the SimpLink menu.
(It may not be supported
depending upon the model.)
17
ENG
ENGLISH
REMOTE CONTROL

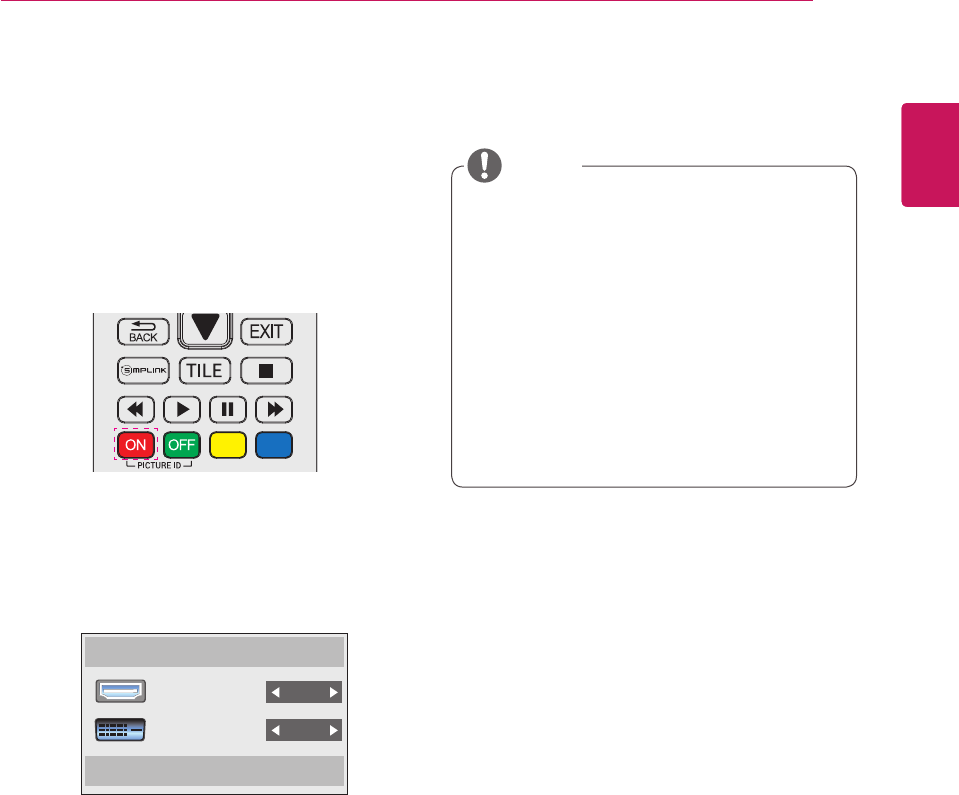

Displaying the Device Name Connected to an Input Port
Display which devices are connected to which
external input ports.
1 Access the Input list screen and press the red
(input label) button on the remote control.
2 You can assign an input label for every input
except USB.
External inputs supported : HDMI, DVI-D
Labels available : PC, DTV
The input labels are displayed on the Input
Label screen or at the top left of the screen
when you change the external input setting.
For DTV/PC-compatible signals, such as
1080p 60 Hz, the screen settings may
change according to the input label. The Just
Scan option is available if a PC is connected
as an external device.
NOTE
Input Label
Close
HDMI
DVI-D
18
ENG
ENGLISH
MAKING CONNECTIONS
Connecting to a PC
The illustrations may differ from the actual accessories. Some of the cables are not provided.
This monitor supports the Plug & Play* feature.
* Plug & Play: a feature that enables a PC to recognize devices attached by the user without device
conguration or user intervention when powering up.
You can connect various external devices to your monitor. Change the input mode and select the external
device you want to connect.
For more information about external device connections, see the user manual provided with each device.
IN OUT
USB
IN
LAN
DVI IN
DVI OUT
RGB/ AV
/COMPONENT IN
RGB OUT
DVI OUT
IR IN
DVI OUTHDMI
15-pin D-Sub
Signal Cable
(Max 3 m)
MAKING CONNECTIONS
19
ENG
ENGLISH
MAKING CONNECTIONS

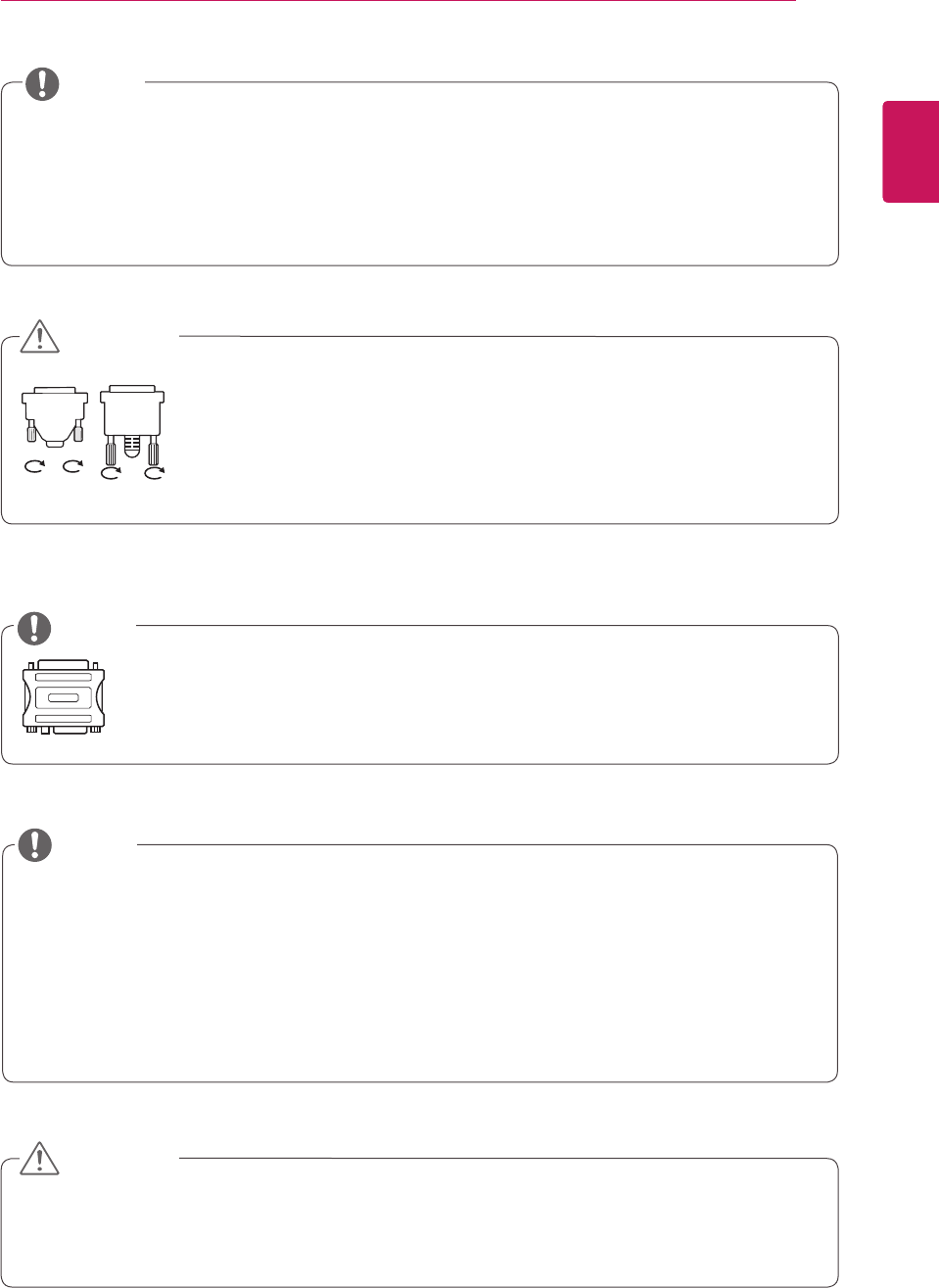

Use a High Speed HDMI®/™ Cable.
If you want to use HDMI-PC mode, you must set the input label to PC mode.
When HDMI PC is used, a compatiblity problem could occur.
Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the
screen may not display or a connection error may occur.
Recommended HDMI cable types
-High-Speed HDMI®/™ Cable
-High-Speed HDMI®/™ Cable with Ethernet
NOTE
Connect the signal input cable and tighten it by turning the screws
clockwise.
Do not press the screen with your finger for a long time as this may result
in temporary distortion on the screen.
Avoid displaying a fixed image on the screen for a long period of time to
prevent image burn. Use a screensaver if possible.
CAUTION
Use the standard Macintosh adapter since an incompatible adapter is available in the
market. (Different signaling system)
Apple computers may require an adapter to connect to this monitor. Call or visit their
web site for more information.
NOTE
The monitor set with the HDMI connection for the best image quality.
To comply with the specifications of the product, use a shielded interface cable with ferrite core,
such as a D-sub 15-pin cable and DVI/HDMI cable.
If you turn the monitor set on when the set becomes cold, the screen may flicker. This is normal.
Some red, green, or blue spots may appear on the screen. This is normal.
To minimize the impact of electromagnetic waves, secure the cables with cable ties.
NOTE
If using a DP to HDMI dongle, make sure to use a dongle certified by the graphics card manufacturer.
When connecting to multi-channel ports of a graphics card, make sure to use DP to HDMI dongles of
the same model.
CAUTION
20
ENG
ENGLISH
MAKING CONNECTIONS
IN
OUT
USB
IN LAN
DVI IN DVI OUT
RGB/ AV
IR IN
DVI OUT
Network
/COMPONENT IN
HDMI
External Device Connection
Connect a HD receiver, DVD, or VCR player to the monitor and select an appropriate input mode.
The illustrations may differ from the actual accessories. Some of the cables are not provided. For the best
picture quality, connecting external devices to your monitor using HDMI cables is recommended. If you
connect a gaming device to the monitor set, use the cable supplied with the gaming device.
USB
HD Receiver/DVD/VCR
Gaming Device/
Camcorder/Camera
HD Receiver/DVD/
Gaming Device/
Camcorder/Camera
Camcorder/Camera/
HD Receiver/DVD
Direct Connection/
Using the Router/
Using the Internet
15-pin D-Sub
Signal Cable
(Max 3 m)
21
ENG
ENGLISH
MAKING CONNECTIONS
Using the Input List
1 Press INPUT to access the input source list.
2 Press the navigation buttons to scroll to one of
the input sources and press OK.
Input source Description
AV Watch video from a VCR or other
external devices.
Component Watch the content from a DVD or
other external devices, or through a
digital set-top box.
RGB View a PC display on the screen.
HDMI Watch contents from a PC, DVD
of digital set-top box other high
definition devices.
USB Plays the multimedia file saved in
the USB.
DVI View a PC display on the screen.
Adjusting Aspect Ratio
Resize the image to view the image at its optimal
size by pressing ARC while you are watching
Monitor set.
You can also change the image size by
accessing the main menus.
The Just Scan mode operates when a video
signal has resolution of 720p or higher.
NOTE
If a fixed image displays on the screen for a
long period of time, it will be imprinted and
become a permanent disfigurement on the
screen. This is image burn or burn-in and not
covered by the warranty.
If you don't use your monitor, turn the power
off or set a screen saver program from the
PC or the system to prevent image retention.
If the aspect ratio is set to 4:3 for a long
period of time, image burn may occur on the
letterboxed area of the screen.
CAUTION
MODE
ARC
AV Component
RGB HDMI DVI
PC DTV PC DTV PC
16:9 o o o o o o o
Just
Scan x o x o x o x
Set By
Program o x x o x o x
4:3 o o o o o o o
Zoom o o x o x o x
Cinema
Zoom o o x o x o x
22
ENG
ENGLISH
MAKING CONNECTIONS
- 4:3 : This selection will allow you to view a
picture with an original 4:3 aspect ratio, black
bars will appear on both the left and right of the
screen.
- Zoom : This selection will allow you to view the
picture without any alteration while filling the
entire screen. However, the top and bottom of
the picture will be cropped.
- Cinema Zoom : Choose Cinema Zoom when
you want to enlarge the picture in correct
proportion. Note: When enlarging or reducing
the picture, the image may become distorted.
- 16:9 : This selection will allow you to adjust the
picture horizontally, in linear proportion, to fill the
entire screen(useful for viewing 4:3 formatted
DVDs).
- Just Scan : This selection will allow you view
the picture of best quality without loss of original
picture in high resolution image. Note: If there is
noise in original Picture, You can see the noise
at the edge.
- Set By Program : Depending on the input
signal, screen aspect ratio changes to 4:3 or
16:9.
Just Scan
Set By Program
23
ENG
ENGLISH
ENTERTAINMENT
ENTERTAINMENT
Connecting to a Wired Network
Connect the display to a local area network (LAN)
via the LAN port as shown on the following illustra-
tion and set up the network settings.
Only supports wired network connection.
After making a physical connection, a small
number of networks may require the display net-
work settings to be adjusted. For most networks,
the display will connect to automatically without
any adjustments.
For detail information, contact your internet pro-
vider or router manual.
To set up the network settings: (Even if your dis-
play has already connected automatically, running
setup again will not harm anything),

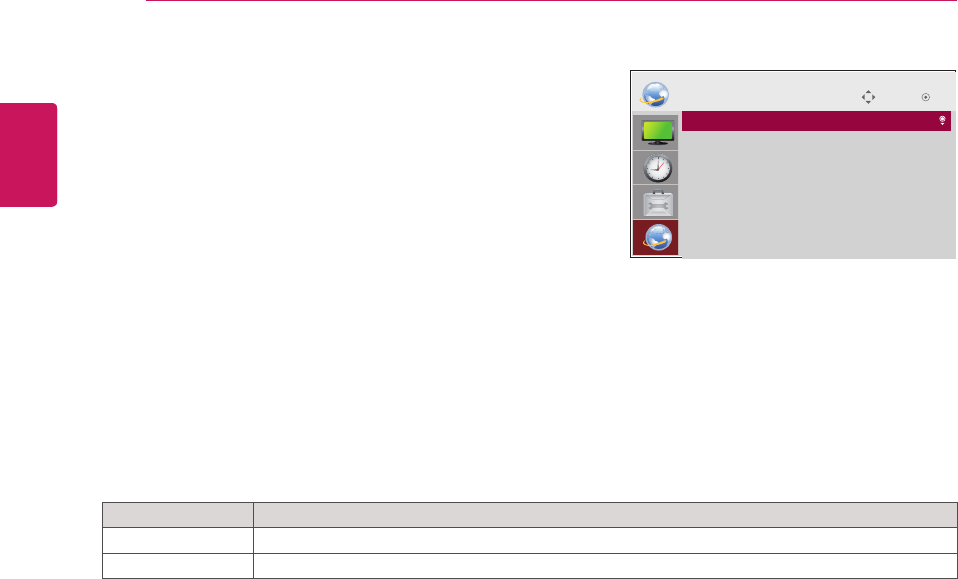

1 Press SETTINGS to access the main menus.
2 Press the navigation buttons to scroll to NET-
WORK and press OK.
3 Press the navigation buttons to select Network
Setting and press OK.
4 If you already set Network Setting, select
Resetting. The new connection settings resets
the current network settings.
5 Select IP Auto Setting or IP Manual Setting.
- IP Manual Setting : press the navigation and
number buttons. IP addresses will need to be
input manually.
- IP Auto Setting : Select this if there is a
DHCP server (Router) on the local area net-
work (LAN) via wired connection, the display
will automatically be allocated an IP address.
If you’re using a broadband router or broad-
band modem that has a DHCP (Dynamic
Host Configuration Protocol) server function.
The IP address will automatically be deter-
mined.
6 When you are finished, press EXIT.
LAN
Router
LANWAN
Cable modem
ETHERNET
@
Internet
Internet
Cable modem
Router
Network setting menu will not be avail-
able until the display connected to physical
network.
Since there are various connection meth-
ods, please follow the specifications of your
telecommunication carrier or internet service
provider.
CAUTION
Do not connect a modular phone cable to
the LAN port.
Since there are various connection meth-
ods, please follow the specifications of your
telecommunication carrier or internet service
provider.
CAUTION
24
ENG
ENGLISH
ENTERTAINMENT
Tips for Network Setting
Use a standard LAN cable with this display.
Cat5 or better with a RJ45 connector.
Many network connection problems during set
up can often be fixed by re-setting the router
or modem. After connecting the display to the
network, quickly power off and/or disconnect
the power cable of the network router or cable
modem. Then power on and/or connect the
power cable again.
Depending on the Internet service provider
(ISP), the number of devices that can receive
Internet service may be limited by the applica-
ble terms of service. For details, contact your
ISP.
LG is not responsible for any malfunction of the
display and/or the Internet connection feature
due to communication errors/malfunctions as-
sociated with your Internet connection, or other
connected equipment.
LG is not responsible for problems within your
internet connection.
You may experience undesired results if the
network connection speed does not meet the
requirements of the content being accessed.
Some internet connection operations may not
be possible due to certain restrictions set by
the Internet service provider (ISP) supplying
your Internet connection.
Any fees charged by an ISP including, without
limitation, connection charges are your respon-
sibility.
A 10 Base-T or 100 Base-TX LAN port is
required when using a wired connection to this
display. If your internet service does not allow
for such a connection, you will not be able to
connect the display.
A DSL modem is required to use DSL service
and a cable modem is required to use cable
modem service. Depending on the access
method of and subscriber agreement with your
ISP, you may not be able to use the internet
connection feature contained in this display or
you may be limited to the number of devices
you can connect at the same time. (If your ISP
limits sub-scription to one device, this display
may not be allowed to connect when a PC is
already connected.)
The use of a Router may not be allowed or its
usage may be limited depending on the poli-
cies and restrictions of your ISP. For details,
contact your ISP directly.
Network Status
1 Press SETTINGS to access the main menus.
2 Press the navigation buttons to scroll to
NETWORK and press OK.
3 Press the navigation buttons to select
Network Status.
4 Press OK to check the network status.
5 When you are finished, press EXIT.
Option Description
Setting Return to the network setting menu.
Test Test the current network status after set-
ting the network.
Close Return to the previous menu.
If you want to access the Internet directly on
your display, the Internet connection should
always be on.
If you cannot access the Internet, check
the network conditions from a PC on your
network.
When you use Network Setting, check the
LAN cable or check if DHCP in the router is
turned on.
If you do not complete the network settings,
the network may not work properly.
NOTE
25
ENG
ENGLISH
ENTERTAINMENT
Tips for Using USB Storage Devices
Only a USB storage device is recognizable.
If the USB storage device is connected
through a USB hub, the device is not recog-
nizable.
A USB storage device using an automatic
recognition programme may not be recog-
nized.
A USB storage device which uses its own
driver may not be recognized.
The recognition speed of a USB storage
device may depend on each device.
Please do not turn off the display or unplug
the USB device when the connected USB
storage device is working. When such device
is suddenly separated or unplugged, the
stored files or the USB storage device may
be damaged.
Please do not connect the USB storage
device which was artificially maneuvered on
the PC. The device may cause the product to
malfunction or fail to be played. Never forget
to use only a USB storage device which has
normal image files or movie files.
Please use only a USB storage device which
was formatted as a FAT32 file system, NTFS
file system provided with the Windows op-
erating system. In case of a storage device
formatted as a different utility program which
is not supported by Windows, it may not be
recognized.
Please connect power to a USB storage de-
vice (over 0.5 A) which requires an external
power supply. If not, the device may not be
recognized.
Please connect a USB storage device with
the cable offered by the device maker.
Some USB storage devices may not be sup-
ported or operated smoothly.
File alignment method of USB storage
device is similar to Window XP and filename
can recognize up to 100 English characters.
Using the My Media
Connecting USB Storage Devices
Connect USB storage devices such as a USB
flash memory, external hard drive to the display
and use multimedia features.
Connect a USB flash memory or USB memory
card reader to the Display as shown on the follow-
ing illustration. The My media screen appears.
or
Do not turn the display off or remove a USB
storage device while EMF (my media) Menu
is activated, as this could result in loss of
files or damage to the USB storage device.
Back up your files saved on a USB storage
device frequently, as you may lose or dam-
age the files and this may be not covered by
the warranty.
CAUTION
26
ENG
ENGLISH
ENTERTAINMENT
Be sure to back up important files since data
stored in a USB memory device may be
damaged. We will not be responsible for any
data loss.
If the USB HDD does not have an external
power source, the USB device may not be
detected. So be sure to connect the external
power source.
- Please use a power adaptor for an external
power source. We do not guarantee an USB
cable for an external power source.
If your USB memory device has multiple
partitions, or if you use a USB multi-card
reader, you can use up to 4 partitions or USB
memory devices.
If a USB memory device is connected to a
USB multi-card reader, its volume data may
not be detected.
If the USB memory device does not work
properly, disconnect and reconnect it.
How fast a USB memory device is detected
differs from device to device.
If the USB is connected in Standby Mode,
specific hard disk will automatically be
loaded when the display is turned on.
The recommended capacity is 1 TB or less
for a USB external hard disk and 32 GB or
less for USB memory.
Any device with more than the recommended
capacity may not work properly.
If a USB external hard disk with a Energy
Saving function does not work, turn the
hard disk off and on again to make it work
properly.
USB storage devices below USB 2.0 are
supported as well. But they may not work
properly in the movie list.
Maximum of 999 folders or files can be rec-
ognized under one folder.
A USB 3.0 storage device may not work.
Data on some USB storage devices may be
damaged in a high temperature environment.
27
ENG
ENGLISH
ENTERTAINMENT
Browsing Files
Browse files saved in a USB storage device.
1 Press SETTINGS to access the main menu.
2 Press the search button to scroll to MY MEDIA and press OK.
3 Press the Search button to go to the Movie List, Photo List or Content List that you want, and press
OK.
No. Description
Returns to the previous level.
Current page/total pages of the folder above
Lower item of
Current page/total pages of
Remote control button
Movie ListAll Media
USB -
USB -
001
005
009
002
006
010
003
007
011
004
008
012
Photo List
Drive1
Contents List
Page 1/1
Page 1/1
All Media
All Media
Page 1/1
Page 1/1
ExitGo to root folder Go to upper folder
Page ChangePAG E
Page ChangePAG E
3
1
2
5
28
ENG
ENGLISH
ENTERTAINMENT
Type Supported file format
Movie Codec Media Container Profile
Video MPEG1 / MPEG2 DAT, MPG, MPEG,
DVD, TS, TP
1080p @ 30 fps
MPEG4
(DivX 3.11, DivX 4,
DivX 5, DivX 6,
Xvid 1.01, Xvid 1.02,
Xvid 1.03, Xvid 1.10-
beta1/2)
AVI, DIVX, MP4, MKV,
TS, TRP
1080p @ 30 fps
H.264 AVI, MP4, MKV, TS,
TRP, TP
1080p @ 60 fps
Bit rate : within 8 kbps to 320 kbps(MP3)
External Subtitle format : *.smi/*.srt/*.sub(MicroDVD, Subviewer1.0/2.0)/*.ass/*.ssa/*.txt(TMPlayer)/
*.psb(PowerDivX)
Internal Subtitle format : only, XSUB (It is the subtitle format used in DivX6 files)
Photo JPEG
Baseline : 64 x 64 to 15360 x 8640
Progressive : 64 x 64 to 1920 x 1440
PNG
Interlace : 1200 x 800
BMP
9600 x 6400
Non-supported files are displayed in the form of predefined icon.
Content
(when
using
SuperSign
Manager)
File Extensions : *.cts/ *.cse
Movie
File Extensions: *.mpg/*.mpeg/*.dat/*.ts/*.trp/*.tp/*.mp4/*.mkv/*.avi/*. avi(motion JPEG)/*.mp4(motion
JPEG)/*.mkv(motion JPEG)
Video format: MPEG1, MPEG2, MPEG4,H.264, DivX 3.11, DivX 4, DivX 5, DivX 6,
Xvid 1.00,Xvid 1.01, Xvid 1.02, Xvid 1.03,Xvid 1.10-beta1/2, JPEG
Supported file format
29
ENG
ENGLISH
ENTERTAINMENT
Viewing Movies
Plays movie files saved in the USB storage device.
1 Press SETTINGS to access the main menu.
2 Press the navigation button to scroll to MY MEDIA and press OK.
3 Press the navigation button to scroll to Movie List and press OK.
4 Press the navigation buttons to scroll to a folder you want and press OK.
5 Press the navigation buttons to scroll to a file you want and press OK.
USB -
003002001 004 005
Page 1/3
Movie List
Page 1/1
ExitGo to root folder Go to upper folder
HR1.mp4
01:00:00
HR5.mp4
01:09:00
HR9.mp4
03:05:00
HR2.mp4
01:03:00
HR6.mp4
03:00:00
HR3.mp4
01:05:00
HR7.mp4
03:01:00
HR4.mp4
01:07:00
HR8.mp4
03:03:00
Returns to the home
screen of My Media.
Returns to the previous screen. Exits My Media.
Page ChangePAG E
30
ENG
ENGLISH
ENTERTAINMENT
Tips for using playing video files
Some user-created subtitles may not work
properly.
Some special characters are not supported
in subtitles.
HTML tags are not supported in subtitles.
Subtitles in languages other than the sup-
ported languages are not available.
A damaged movie file may not be played
correctly, or some player functions may not
be usable.
Movie files produced with some encoders
may not be played correctly.
If the video structure of recorded file is not
interleaved, video is outputted.
HD videos with a maximum of
1920 x 1080 @ 25/30p or
1280 x 720 @ 50/60p are supported, de-
pending on the frame.
Videos with resolutions higher than
1920 X 1080 @ 25/30p or
1280 x 720 @ 50/60p may not work properly
depending on the frame.
Remote
button Description
Stops the playback.
Plays a video.
Pauses or resumes the playback.
Scans backward in a file.
Scans forward in a file.
Adjusts the screen brightness to save energy.
SETTINGS Show the Option menu.
BACK
Hide the menu on the full-sized screen.
EXIT Returns to Movie List.
or Skips to specific points in a file during playback. The time of a specific point will appear on the status
bar. In some files, this function may not work properly.
00:42:03 /01:03:00
6 During movie playback, press OK to access the following settings.
Option Hide Exit
Selects the desired point and plays.
Movie files other than the specified types and
formats may not work properly.
Max bitrate of playable movie file is 20 Mbps.
(only, Motion JPEG 10 Mbps)
We do not guarantee smooth playback of
profiles encoded level 4.1 or higher in H.264/
AVC.
A movie file more than 30 GB in file size is
not supported for playback.
A DivX movie file and its subtitle file must be
located in the same folder.
A video file name and its subtitle file name
must be identical for it to be displayed.
Playing a video via a USB connection that
doesn’t support high speed may not work
properly.
Files encoded with GMC(Global Motion
Compensation) may not be played.
31
ENG
ENGLISH
ENTERTAINMENT
Video options
1 Press SETTINGS to access the Pop-Up
menus.
2 Press the navigation buttons to scroll to Set
Video Play or Set Video. and press OK.
The option values changed in Movie List do
not affect Photo List.Therefore, they are not
affected by option values changed in Photo
List.
The option values changed in Photo List do
affect each other.
When replaying the video file after stopping,
you can play from where it stopped previ-
ously.
NOTE
Only 10,000 of sync blocks can be supported
within the subtitle file.
When playing a video, you can adjust the
picture size by pressing the ARC button.
Subtitles in your language are only sup-
ported when the OSD menu is also in this
language.
The code page options may be disabled de-
pending on the language of the subtitle files.
Select the appropriate code page for the
subtitle files.
Menu Description
Picture Size Selects your desired picture
format during movie play.
Subtitle
Language
Turn on/off the subtitle.
Language Activated for SMI subtitle and
can select the language within the
subtitle.
Code Page Can select the font for subtitle.
When set to default, same font as
general menu will be used.
Sync Adjusts the time synchronisation of
the subtitle from -10 secs to +10 secs
by steps of 0.5 secs during movie
play.
Position Changes the position of the
subtitle either up or down during
movie play.
Size Selects your desired Subtitle size
during movie play.
Repeat Turn on/off repeat function of
movie playback. When turned on, the
file within the folder will be played
back repeatedly. Even when the
repeated playback is turned off, it can
run the playback if the file name is
similar to the previous file.
NOTE
Select Set Video Play. to access the following
menus:
For more details about the Set Video. menu, see
the CUSTOMIZE SETTINGS section. See page.37
32
ENG
ENGLISH
ENTERTAINMENT
Viewing Photos
View image files saved in the USB storage device.
1 Press SETTINGS to access the main menu.
2 Press the navigation button to scroll to MY MEDIA and press OK.
3 Press the navigation button to scroll to Photo List and press OK.
4 Press the navigation buttons to scroll to a folder you want and press OK.
5 Press the navigation buttons to scroll to a file you want and press OK.
USB -
003002001 004 005
Page 1/3
Photo List
Page 1/1
ExitGo to root folder Go to upper folder
01/23/2014
02/21/2014
02/21/2014
01/23/2014
02/21/2014
01/23/2014
02/21/2014
01/23/2014
02/21/2014
Page ChangePAG E
Returns to the home
screen of My Media.
Returns to the previous screen. Exits My Media.
33
ENG
ENGLISH
ENTERTAINMENT
Photo options
1 Press SETTINGS to show the Option menus.
2 Press the navigation buttons to scroll to Set
Photo View, Set Video. and press OK.
The option values changed in Movie List do
not affect Photo List .Therefore, they are not
affected by option values changed in Photo
List.
The option values changed in Photo List do
affect each other.
NOTE
Menu Description
Slideshow Starts or stops a slideshow with selected photos. If there are no selected photos, all photos saved in
the current folder display during a slideshow. To set a slideshow speed, select Option.
Rotates photos clockwise (90 °, 180 °, 270 °, 360 °).
Enlarges the photo by 100 %, 200 % or 400 %.
Photos with a resolution of 100 x 100 or less cannot be enlarged.
NOTE
Adjusts the screen brightness to save energy.
Option To display the options
Hide Hides the option window. To display the options, press OK.
Exit Return to Photo List.
The supported photo size is limited. You cannot rotate a photo if the resolution of the
rotated width is larger than the supported resolution size.
NOTE
6 While viewing photos, you can access the following settings.
Select Setting Photo View. to access the follow-
ing menus:
For more details about the Set Video. menu, see
the CUSTOMIZE SETTINGS section. See page.37
Menu Description
Slide Speed Select a slideshow speed.
(Options: Fast, Medium or Slow.)
Option
Slideshow Hide Exit
34
ENG
ENGLISH
ENTERTAINMENT
Viewing the Contents List
Plays back the stored files using the Export option in SuperSign Manager.
1 Press SETTINGS to access the main menu.
2 Press the navigation button to scroll to MY MEDIA and press OK.
3 Press the navigation button to scroll to Contents List and press OK.
4 Press the navigation buttons to scroll to a folder you want and press OK.
5 Press the navigation buttons to scroll to a file you want and press OK.
USB -
003002001 004 005
Page 1/3
Contents List
Page 1/1
ExitGo to root folder Go to upper folder
HR1.cts
01/01/2014
HR5.cts
01/01/2014
HR9.cts
01/01/2014
HR2.cts
01/01/2014
HR6.cts
01/01/2014
HR3.cts
01/01/2014
HR7.cts
01/01/2014
HR4.cts
01/01/2014
HR8.cts
01/01/2014
While playing media files from Contents List, only the BACK, EXIT, or volume button are available.
Selecting the BACK or EXIT button stops playing media files and returns to the Contents List.
If there is the AutoPlay folder in the USB device and its files are in supported formats, they can be
played back automatically when the USB device is connected to the monitor.
NOTE
Page ChangePAG E
Returns to the home
screen of My Media.
Returns to the previous screen. Exits My Media.
35
ENG
ENGLISH
ENTERTAINMENT

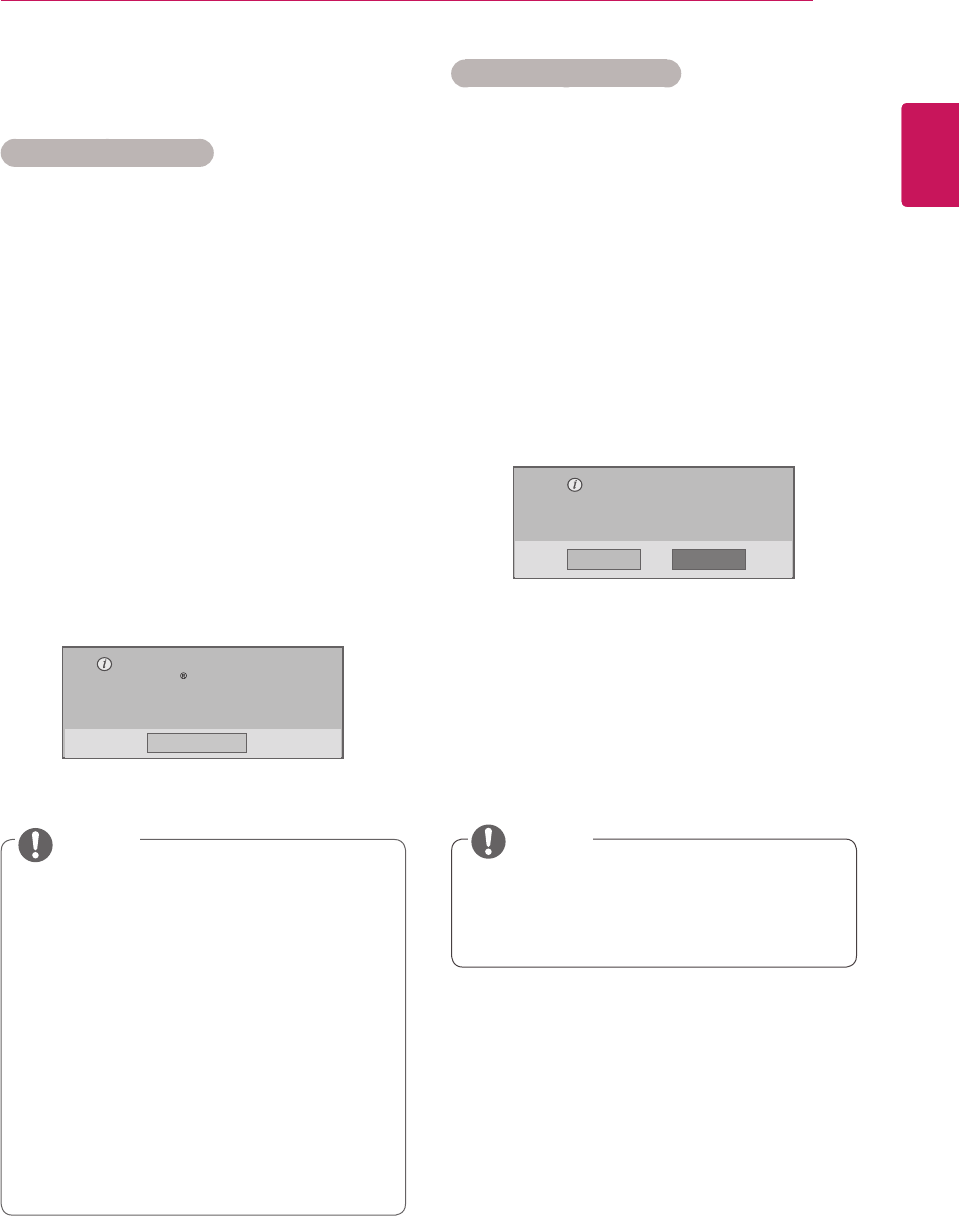

DivX® VOD Guide
DivX® VOD Registration
In order to play purchased or rented DivX® VOD
contents, you should register your device with 10
digit DivX registration code from your device at
www.divx.com/vod.
1 Press SETTINGS to access the main menus.
2 Press the navigation buttons to scroll to MY ME-
DIA and press OK.
3 Press the blue button.
4 Press the navigation buttons to scroll to DivX
Reg. Code and press OK.
5 View the registration code of your display.
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
You must register your device to
play DivX protected videos.
Registration code : **********
Register at http://vod.divx.com
Close
While you are checking the registration
code, some buttons may not work.
If you use the DivX registration code of
another device, you cannot play the rented
or purchased DivX file. Make sure to use
the DivX registration code assigned to your
product.
The video or audio files that are not con-
verted by the standard DivX codec may be
corrupted or not be played.
The DivX VOD code allows you to activate
up to 6 devices under one account.
NOTE
DivX® VOD Deregistration
You should deregister your device with 8 digit DivX
deregistration code from your device at
www.divx.
com/vod.
1 Press SETTINGS to access the main menus.
2 Press the navigation buttons to scroll to MY ME-
DIA and press OK.
3 Press the Blue button.
4 Press the navigation buttons to scroll to Deacti-
vation and press OK.
5 Press the navigation buttons to select Yes to
confirm.
Deregistration code :
********
Deregister at http://vod.divx.com
Continue with registration?
Yes No
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Once the deregistration is executed, you
must register your device again to see DivX®
VOD contents.
NOTE
36
ENG
ENGLISH
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
Accessing Main Menus
1 Press SETTINGS to access the main menus.
2 Press the navigation buttons to scroll to one of the following menus and
press OK.
3 Press the navigation buttons to scroll to the setting or option you want
and press OK.
4 When you are finished, press EXIT.
When you return to the previous menu, press BACK.
NETWORK
INPUT
TIME OPTION
MY MEDIA
Adjusts the image size,
quality, or effect.
TIME
Sets the time, date, or
timer feature.
INPUT
Selects the input mode.
NETWORK
Sets the functions of
NETWORK.
OPTION
Sets the functions of
OPTION.
MY MEDIA
Display and play movie,
photo content stored on
your USB.
37
ENG
ENGLISH
CUSTOMIZING SETTINGS

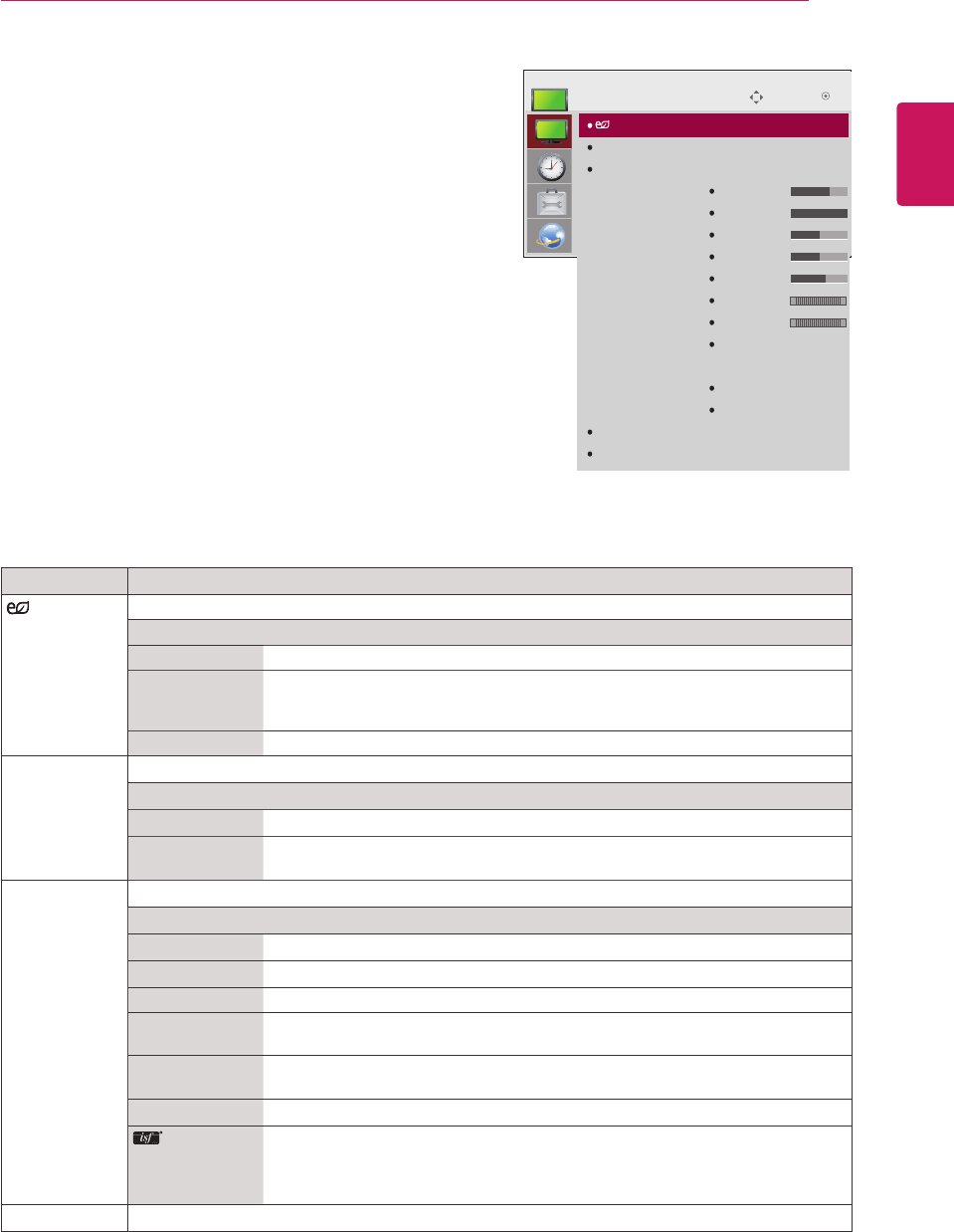

PICTURE Settings
1 Press SETTINGS to access the main menus.
2 Press the navigation buttons to scroll to PICTURE and
press OK.
3 Press the navigation buttons to scroll to the setting or
option you want and press OK.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
The available picture settings are described in the following:
Setting Description
Energy
Saving
Reduces power consumption by adjusting peak screen brightness.
Option
Off Disables Energy Saving function.
Minimum/
Medium/
Maximum
Selects the brightness level of the backlight.
Screen Off The screen turns off in 3 seconds.
Smart Energy
Saving
Adjusts the backlight and contrast depending on the screen brightness.
Option
Off Disables the Smart Energy Saving function.
On Enables the Smart Energy Saving function to save power consumption as much
as the value set in the smart energy saving rate.
Picture Mode Selects the picture mode optimized for the viewing environment or the programme.
Option
Vivid Heightens contrast, brightness and sharpness to display vivid images.
Standard Displays images in standard levels of contrast, brightness and sharpness.
APS APS (Auto power saving ) mode reduces power consumption by dimming control.
Cinema Optimizes the video image for a cinematic look to enjoy movies as if you are in a
movie theater.
Sport Optimizes the video image for high and dynamic actions by emphasizing primary
Colors such as white, grass, or sky blue.
Game Optimizes the video image for a fast gaming screen such as PCs or games.
Expert1·2 Menu for adjusting picture quality that allows experts and amateurs to enjoy the
best Monitor viewing. This menu is ISF-certified and provided for picture tuning
experts. (ISF logo can only be used on ISF-certified Monitor units.)
ISFccc: Imaging Science Foundation Certified Calibration Control
Aspect Ratio Changes the image size to view images at its optimal size.
OK
Move
Energy Saving
Smart Energy Saving
Picture Mode
Aspect Ratio
Screen
: Off (User)
: Off
: Standard
Backlight
Contrast
Brightness
Sharpness
Color
Tint
Color Temp.
Advanced Control /
Expert Control
Picture Option
Picture Reset
: 16:9
70
100
50
50
60
0
0
R G
W C
OK
38
ENG
ENGLISH
CUSTOMIZING SETTINGS
Basic image options
Setting Description
Backlight Adjusts the brightness of the screen by controlling the LCD backlight. If you decrease the
brightness level, the screen becomes darker and the power consumption will be reduced
without any video signal loss.
Contrast Increases or decreases the gradient of the video signal. You may use Contrast when the
bright part of the picture is saturated.
Brightness Adjusts the base level of the signal in the picture. You may use Brightness when the dark part
of the picture is saturated.
Sharpness Adjusts the level of crispness in the edges between the light and dark areas of the picture.
The lower the level, the softer the image.
Color Adjusts intensity of all colors.
Tint Adjusts the balance between red and green levels.
Color Temp. Set to warm to enhance hotter Colors such as red, or set to cool to make picture bluish.
Advanced Control/
Expert Control
You can adjust the picture for each Picture Mode, or adjust the picture settings according to
a specific picture image. First, select a desired Picture Mode.
* This option is unavailable if Picture Mode is set to Vivid.
Picture Option Sets additional picture option.
Picture Reset Restores the options to the default setting.
Setting Description
Screen
(In RGB
Mode Only)
Customizes the PC display options in RGB mode.
Option
Resolution Selects a proper resolution.
Auto Configure Sets to adjust the screen position, clock, and phase automatically.
The displayed image may be unstable for a few seconds while the configuration is
in progress.
Position/Size/
Phase
Adjusts the options when the picture is not clear, especially when characters are
shaky, after the auto configuration.
Reset Restores the options to the default setting.
When you select a picture mode, related menus are set automatically.
When using the Smart Energy Saving function, the screen may look saturated in the white area of a
still image.
If Energy Saving is set to Minimum, Medium, or Maximum, the Smart Energy Saving function is
disabled.
NOTE
39
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Dynamic Contrast Adjusts the contrast to the optimal level according to the brightness of the image.
(Function works in the following mode - HDMI-DTV)
Color Gamut Selects the range of colours that can be expressed.
Edge Enhancer Shows clearer and distinctive yet natural edges of the video.
Color Filter Filters a specific colour spectrum in RGB colours to fine-tune colour saturation and hue
accurately.
Color Temperature Adjusts the overall tone of the screen as desired. In Expert mode, detailed fine-tuning can be set
via Gamma method, etc.
Color Management
System
This is a system that experts use when they adjust colour with a test pattern. They can select
from six colour areas (Red / Green / Blue / Cyan / Magenta / Yellow) without affecting other
colours. For normal images, adjustments may not result in noticeable colour changes.
Advanced Control - Picture Mode (Standard/ APS/ Sport/ Game)
Expert Control - Picture Mode (Cinema/ Expert1/ Expert2)
Setting Description
Dynamic Contrast Adjusts the contrast to the optimal level according to the brightness of the image.
Dynamic Color Adjusts color for more natural-looking colors.
Color Gamut Selects the range of colours that can be expressed.
Skin Color Skin Color spectrum can be separately set to implement the skin color as defined by the user.
Sky Color Sky color is set separately.
Grass Color Natural color spectrum (meadows, hills, etc.) can be separately set.
Gamma Sets the gradation curve according to the output of the picture signal in relation to the input
signal.
Setting Description
Noise Reduction Reduces screen noise in the video.
MPEG Noise
Reduction
Reduces noise caused by compressing digital video.
Black Level Adjusts the brightness or darkness of the screen to suit the black level of the picture input using
the degree of darkness (black level) of the screen.
Real Cinema Optimizes the screen for movie viewing.
Motion Eye Care Adjusts screen brightness to prevent eye glare. (Depending on model)
Picture Option - HDMI(DTV) Mode
40
ENG
ENGLISH
CUSTOMIZING SETTINGS
TIME Settings
1 Press SETTINGS to access the main menus.
2 Press the navigation buttons to scroll to TIME and press OK.
3 Press the navigation buttons to scroll to the setting or option
you want and press OK.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
When you return to the previous menu, press BACK.
The available time settings are described in the following:
Setting Description
Clock Sets the time feature.
On/Off Time Sets the time to turn on or off the monitor set.
Auto Off(15Min.) If Auto-off is active and there is no input signal, the set switches to off mode automatically after 15
minutes.
Automatic
Standby
If the monitor is left unattended for a set period of time, it automatically goes into standby mode.
Off Time/ On Time can be saved for up to seven schedules; the monitor is turned on or off at the preset
time in the schedule list. If multiple preset times are stored in the schedule list, this function works at the
nearest time from the current time.
Once the on or off time is set, these functions operate daily at the preset time.
When the scheduled power-on and power-off times are the same, the power-off time has priority over the
power-on time if the set is turned on, and vice versa if the set is turned off.
NOTE
Move OK
TIME
• Clock
• Off Time : Off
• On Time : Off
• Auto Off(15Min.) : Off
• Automatic Standby : Off
41
ENG
ENGLISH
CUSTOMIZING SETTINGS
OPTION Settings
1 Press SETTINGS to access the main menus.
2 Press the navigation buttons to scroll to OPTION and press
OK.
3 Press the navigation buttons to scroll to the setting or option
you want and press OK.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
When you return to the previous menu, press BACK.
The available option settings are described in the following:
Setting Description
Language Selects a language for the display text.
ISM Method This function removes image sticking which is caused by prolonged display of static images.
Option
Normal Minimizes image sticking by gradually lowering the brightness when
displaying static images and by increasing the brightness when displaying
moving images.
Color Wash Removes image sticking by moving every pixel in a certain pattern on the
screen for a specific period of time. Please use this function to remove
temporary image sticking.
DivX(R) VOD Registers or releases DivX.
Checks DivX Registration Code for playing DivX-protected videos.
Register at
http://vod.divx.com
.
Uses Registration Code to rent or purchase movies at
www.divx.com/vod
.
* Rented/purchased DivX files cannot be played if the DivX Registration Code of a different device
is used. Use only the DivX Registration Code granted to this device.
* Converted files not conforming to the DivX Codec Standard may not play or may produce
abnormal images.
Initial Setting Deletes all optional settings and returns to initial default mode.
Set ID You can assign a unique Set ID NO (name assignment) to each product when several products
are connected for display. Specify the number (1 to 255 or 1 to 1,000) using the button and exit.
Use the assigned Set ID to individually control each product using the Product Control Program.
Tile Mode Tile Mode To use this function
- Must be displayed with various other products.
- Select Tile Mode, set rows and columns, and then enter the tile ID to set the
location.
- Tile Mode: row x column (row = 1-15, column = 1-15).
- 15 x 15 available.
Auto Config. Sets to adjust the screen position, clock, and phase automatically.
The displayed image may be unstable for a few seconds while the
configuration is in progress.
Position Moving the screen position horizontally and vertically.
Size Adjust the horizontal and vertical size of the screen taking into account the size
of the bezel.
Natural The image is omitted by the distance between the screens to be naturally
shown.
Reset Function to initialize and release Tile.
All Tile setting are released when selecting Tile recall and the screen returns to
Full screen.
* Natural is not initialized.
Move OK
OPTION
• Language
• ISM Method : Normal
• DivX(R) VOD
• Initial Setting
• Set ID : 1
• Tile Mode
42
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Network Setting Configure the network settings.
Network Status Display the network status.
NETWORK Settings
1 Press SETTINGS to access the main menus.
2 Press the navigation buttons to scroll to NETWORK and
press OK.
3 Press the navigation buttons to scroll to the setting or option
you want and press OK.
- To return to the previous level, press BACK.
4 When you are finished, press EXIT.
When you return to the previous menu, press BACK.
The available option settings are described in the following:
Move OK
NETWORK
• Network Setting
• Network Status
43
ENG
ENGLISH
CUSTOMIZING SETTINGS
Tile Mode
This monitor can be tiled with additional monitors to create a large tiled display.
Tile Mode - Natural mode
When active, the part of the image that would normally be displayed in the gap between the monitors is
omitted.
ID 1 ID 2
ID 3 ID 4
ID 1 ID 2
ID 4 ID 5
ID 3
ID 6
ID 7 ID 8 ID 9
3X3
When using 9 monitors
ID 1 ID 2
ID 5 ID 6
ID 3
ID 7
ID 9 ID 10 ID 11
ID 4
ID 8
ID 12
ID 13 ID 14 ID 15 ID 16
ID 1 ID 2
ID 6 ID 7
ID 3
ID 8
ID 11 ID 12 ID 13
ID 4 ID 5
ID 9 ID 10
ID 14 ID 15
ID 16
ID 21
ID 17
ID 22
ID 18
ID 23
ID 19
ID 24
ID 20
ID 25
Off
When the Tile Mode
option is disabled
1X2
When using 2 monitors
2X2
When using 4 monitors
5X5
When using 25 monitors
4X4
When using 16 monitors
ID 1 ID 2
Tile ID
Before After
44
ENG
ENGLISH
CUSTOMIZING SETTINGS
Picture ID
Picture ID is used to change the settings of a
specific display using a single IR receiver for
multi-vision. The set receiving the IR signal
communicates with another set via an RS-232C
connection. Each set is identified by a Set ID. If
you assign the Picture ID using the remote control,
only displays with the same Picture ID and Set ID
can be controlled remotely.
1 Press the red ON button on the remote control
to assign the Picture ID.
2 To change the Picture ID, press the ON button,
or the left and right arrow buttons continuously.
Assign the ID you want.
If you assign the Set ID to each set with
multi-vision, and then assign the Picture ID
using the red button on the remote control,
the key command is displayed for the set
with the same Set ID and Picture ID. A set
with different Set IDs and Picture IDs cannot
be controlled by IR signals.
For example, if the Picture ID is assigned to
2, the upper right display (Set ID: 2) can be
controlled by IR signals.
For each set, you can change the settings
for the PICTURE, TIME, NETWORK and MY
MEDIA menus or the hot keys on the remote
control.
If you press the green OFF button for Picture
IDs, the Picture IDs for all sets are turned off.
If you then press any button on the remote
control, all sets will start working again.
Picture ID will be disabled while using the
MY MEDIA menu.
If Picture ID is set to Off, holding buttons
on the remote control will execute only one
action at a time.
NOTE
Picture ID
Close
◀ Off ▶
2X2 Multi-Vision
Set IDs are assigned as shown in the picture.
IR Receiver
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
Picture ID
Close
◄ Off ►
RS-232C
45
ENG
ENGLISH
CUSTOMIZING SETTINGS
Daisy Chain Monitors
Use this function to share the DVI video signal with other monitors without having to use a separate signal
splitter box.
• To use different products connected to each other Connect one end of the signal input cable (DVI Cable)
to the DVI OUT connector of product 1 and connect the other end to the DVI IN connector of other
products.
DVI Cable
DVI IN DVI OUT DVI IN DVI OUT DVI IN DVI OUT DVI IN
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
DVI Cable
(Max 3m)
Monitor Set 1 Monitor Set 2 Monitor Set 3 Monitor Set 4
For DVI, in general, up to 12 monitors can be connected via the DVI Out port (at the recommended
resolution) if the signal is stable and there is no cable loss. If you want to connect more than this
number of monitors, we recommended that you use a distributor.
When the tile mode is configured via DVI cables, only the monitor that receives first signals can play
HDCP-encrypted content. (The DVI Out port does not support HDCP.)
If the signal cable between the product and your PC is too long, make sure to use the DVI booster or
DVI optical cable.
If input signals are received through the HDMI cable, multiple monitors cannot be connected via the
DVI Out port.
NOTE
46
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
No image is displayed
Problem Resolution
Is the product power cord
connected?
See if the power cord is properly connected to the outlet.
Power is on, but the screen
appears extremely dark.
Adjust brightness and contrast again.
Backlight may need repair.
Does the Invalid Format
message appear?
The signal from the PC (video card) is out of the vertical or horizontal
frequency range of the product. Adjust the frequency range by
referring to the Specifications in this manual.
* Maximum resolution
RGB : 1920 x 1080 @ 60 Hz
HDMI/DVI : 1920 x 1080 @ 60 Hz
Does the No signal message
appear?
The signal cable between PC and product is not connected. Check
the signal cable.
Press the INPUT menu in the remote Control to check the input signal.
'Unknown Product' message appears when the product is connected.
Problem Resolution
Did you install the driver?
See if the plug&play function is supported by referring to the video
card user manual.
The screen image looks abnormal.
Problem Resolution
Is the screen position wrong?
D-Sub analog signal - Press the AUTO button in the remote control to
automatically select the optimal screen status that fits into the current
mode. If adjustment is not satisfactory, select [PICTURE] - [Screen] -
[Position] in OSD menu.
See if the video card resolution and frequency are supported by the
product. If the frequency is out of range, set to the recommended
resolution in the Control Panel Display Setting menu.
Do thin lines appear on the
background screen?
D-Sub analog signal - Press the AUTO button in the remote control to
automatically select an optimal screen status that fits into the current
mode. If adjustment is not satisfactory, select [PICTURE] - [Screen] -
[Size] in OSD menu.
Horizontal noise appears or the
characters look blurred.
D-Sub analog signal - Press the AUTO button in the remote control to
automatically select an optimal screen status that fits into the current
mode. If adjustment is not satisfactory, select [PICTURE] - [Screen] -
[Phase] in OSD menu.
The screen is displayed
abnormally.
The proper input signal is not connected to the signal port. Connect
the signal cable that matches with the source input signal.
47
ENG
ENGLISH
TROUBLESHOOTING
After-image appears on the product.
Problem Resolution
After-image appears when the
product is turned off.
If you use a fixed image for a long time, the pixels may be damaged
quickly. Use the screen-saver function.
Screen color is abnormal.
Problem Resolution
Screen has poor color resolution
(16 colors).
Set the number of colors to more than 24 bits (true color) Select
Control Panel - Display - Settings - Color Table menu in Windows.
Screen color is unstable or
mono-colored.
Check the connection status of the signal cable. Or, re-insert the PC
video card.
Do black spots appear on the
screen?
Several pixels (red, green, white, or black color) may appear on the
screen, which can be attributable to the unique characteristics of the
LCD panel. It is not a malfunction of the LCD.
The operation does not work normally.
Problem Resolution
The power suddenly turned off.
Is the sleep timer set?
Check the power control settings. Power interrupted.
48
ENG
ENGLISH
TROUBLESHOOTING

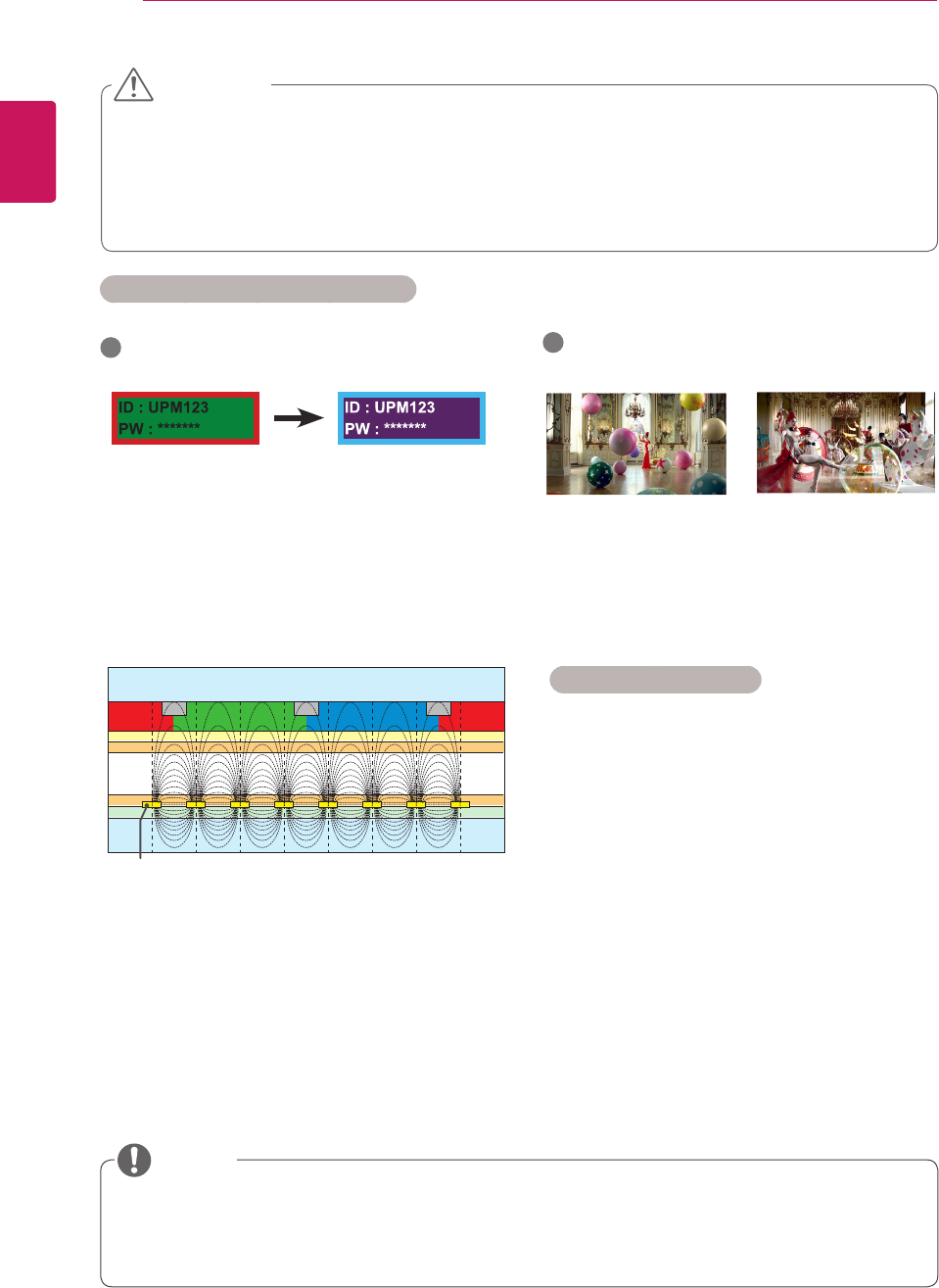

The software version can be updated for improvement in performance. Customer needs to ensure
the compatibility of customer’s equipment with LGE software. If needed, please consult with LGE and
upload revised software version to the product according to the guidance provided by LGE.
NOTE
What is image sticking?
When the LCD panel displays a static image
for an extended period of time, it can cause a
voltage difference between the electrodes that
operate the liquid crystals. When the voltage
difference between the electrodes builds up over
time, liquid crystals have a tendency to remain
aligned in one direction. During this process, a
previously displayed image remains visible. This
phenomenon is referred to as image sticking.
BM BM BM
CFCFCF
OC
PI
PI
TFT Layers
Glass
Glass
LC
CF
I D : UPM123
PW : ******
I D : UPM123
PW : ******
ITO or MoTi Pixel Layer
Recommended operating conditions
1 Change the background and the character
colors using the same time interval.
When changing colors, using complementary
colors helps to prevent image sticking.
2 Change the image using the same time
interval.
Make sure that the characters or images before
changing the image remain in the same location
after changing the image.
Image sticking does not occur when using constantly changing images but may occur when using a
fixed image for an extended period of time. Therefore, it is recommended that you use the instruc-
tions below to decrease the likelihood of image sticking occurring when using a fixed image. It is
recommended that you change the screen at least once every 12 hours at the very minimum; if done
more frequently, the prevention of image sticking is more effective.
CAUTION
49
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
LCD Panel Screen Type 119 cm Wide TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel.
Visible diagonal size 119 cm
Pixel Pitch 0.5415 mm (H) X 0.5415 mm (V)
Video Signal Max. Resolution 1920 x 1080 @ 60 Hz
HDMI/DVI 1920 x 1080 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Recommended Resolution 1920 x 1080 @ 60 Hz
HDMI/DVI 1920 x 1080 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Horizontal Frequency RGB 30 kHz to 83 kHz
HDMI/DVI 30 kHz to 83 kHz
Vertical Frequency RGB 50 Hz to 75 Hz
HDMI/DVI 56 Hz to 60 Hz
Synchronization Type Separate Sync, Digital
Input Connector 15-pin D-Sub(RGB/Component/Composite), HDMI/DVI,
RS-232C, LAN, USB
Embedded battery Applied
Power Rated Voltage AC 100-240 V~ 50/60 Hz 1.7 A
Power Consumption On Mode 130 W Typ. 170 W Max
Smart Energy Saving Mode 85 W Typ.
Sleep Mode/Off Mode ≤ 0.5 W
Dimensions
(Width x Height x
Depth) / Weight
1044.9 mm X 590.0 mm X 89.9 mm / 16.5 Kg
Environmental
conditions
Operating Temperature
Operating Humidity
0 °C to 40 °C
10 % to 80 %
Storage Temperature
Storage Humidity
-20 °C to 60 °C
5 % to 85 %
H
W
D
*Wall Bracket available VESA
600 x 400
47LV35A
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
“ ” refers to alternating current (AC), and “ ” refers to direct current (DC).
50
ENG
ENGLISH
SPECIFICATIONS
LCD Panel Screen Type 139 cm Wide TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel.
Visible diagonal size 139 cm
Pixel Pitch 0.630 mm (H) x 0.630 mm (V)
Video Signal Max. Resolution 1920 x 1080 @ 60 Hz
HDMI/DVI 1920 x 1080 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Recommended Resolution 1920 x 1080 @ 60 Hz
HDMI/DVI 1920 x 1080 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Horizontal Frequency RGB 30 kHz to 83 kHz
HDMI/DVI 30 kHz to 83 kHz
Vertical Frequency RGB 50 Hz to 75 Hz
HDMI/DVI 56 Hz to 60 Hz
Synchronization Type Separate Sync, Digital
Input Connector 15-pin D-Sub(RGB/Component/Composite), HDMI/DVI,
RS-232C, LAN, USB
Embedded battery Applied
Power Rated Voltage AC 100-240 V~ 50/60 Hz 2.1 A
Power Consumption On Mode 160 W Typ. 200 W Max
Smart Energy Saving Mode 90 W Typ.
Sleep Mode/Off Mode ≤ 0.5 W
Dimensions
(Width x Height x
Depth) / Weight
1213.4 mm x 684.2 mm x 88.5 mm / 23 Kg
Environmental
conditions
Operating Temperature
Operating Humidity
0 °C to 40 °C
10 % to 80 %
Storage Temperature
Storage Humidity
-20 °C to 60 °C
5 % to 85 %
H
W
D
55LV35A
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
“ ” refers to alternating current (AC), and “ ” refers to direct current (DC).
*Wall Bracket available VESA
600 x 400
51
ENG
ENGLISH
SPECIFICATIONS
RGB (PC) supported mode
Resolution Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
640 x 480 31.469 59.94
720 x 400 31.468 70.8
800 x 600 37.879 60.317
1024 x 768 48.363 60
1280 x 720 44.772 59.855
1280 X 960 60 60
1152 X 864 57.717 59.934
1280 x 1024 63.981 60.02
1920 x 1080 67.5 60
HDMI/DVI (PC) supported mode
Resolution Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
640 x 480 31.469 59.94
800 x 600 37.879 60.317
1024 x 768 48.363 60
1280 x 720 44.772 59.855
1366 x 768 47.7 60
1280 x 1024 63.981 60.02
1680 x 1050 65.290 59.954
1920 x 1080 67.5 60
When the cable is connected to the DVI,
HDMI, you can select the PC/DTV mode
optionally. It is recommended you to set to
the PC mode when connecting to PC; the
DTV mode when connecting to DTV.
NOTE
Vertical frequency: To enable the user to
watch the product display, screen image
should be changed tens of times every
second like a fluorescent lamp. The vertical
frequency or refresh rate is the times of
image display per second. The unit is Hz.
Horizontal frequency: The horizontal interval
is the time to display one vertical line. When
1 is divided by the horizontal interval, the
number of horizontal lines displayed every
second can be tabulated as the horizontal
frequency. The unit is kHz.
NOTE
HDMI (DTV) supported mode
Resolution Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
480 / 60p 31.5 60
576 / 50p 31.25 50
720 / 50p 37.5 50
720 / 60p 45 60
1080 / 50i 28.1 50
1080 / 50p 56.25 50
1080 / 60i 33.75 60
1080 / 60p 67.5 60
Component supported mode
Resolution Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
720 x 480 15.63 59.94
720 x 483 31.47 59.94
720 x 576 15.625 50.00
720 x 576 31.25 50.00
1280 x 720 45.00 60.00
1280 x 720 37.5 50
1280 x 720 44.96 59.94
1920 x 1080 31.25 50.00
1920 x 1080 56.25 50
1920 x 1080 33.75 60.00
1920 x 1080 33.72 59.94
1920 x 1080 67.5 60
52
ENG
ENGLISH
IR CODES
Code (Hexa) Function Note
08 (Power) R/C BUTTON
0B INPUT R/C BUTTON
C4 MONITOR ON R/C BUTTON
C5 MONITOR OFF R/C BUTTON
95 ENERGY SAVING ( ) R/C BUTTON
DC 3D R/C BUTTON
10 to 19 Number Key 0 to 9 R/C BUTTON
32 1/a/A R/C BUTTON
2F CLEAR R/C BUTTON
02 Volume R/C BUTTON
03 Volume R/C BUTTON
79 ARC R/C BUTTON
99 AUTO R/C BUTTON
09 MUTE R/C BUTTON
E0 BRIGHTNESS (Page UP) R/C BUTTON
E1 BRIGHTNESS (Page Down) R/C BUTTON
4D PSM R/C BUTTON
AA INFO ⓘR/C BUTTON
5F W.BAL R/C BUTTON
43 SETTINGS R/C BUTTON
40 Up ▲ R/C BUTTON
41 Down ▼ R/C BUTTON
07 Left ◄ R/C BUTTON
06 Right ► R/C BUTTON
3F S.MENU R/C BUTTON
44 OK R/C BUTTON
28 BACK R/C BUTTON
5B EXIT R/C BUTTON
7E R/C BUTTON
7B TILE R/C BUTTON
B1 R/C BUTTON
B0 R/C BUTTON
BA R/C BUTTON
8F R/C BUTTON
8E R/C BUTTON
72 Red Key (PICTURE ID ON) R/C BUTTON
71 Green Key (PICTURE ID OFF) R/C BUTTON
63 Yellow Key R/C BUTTON
61 Blue Key R/C BUTTON
IR CODES
All models do not support the HDMI/USB function.
Some key codes are not supported depending on the model.
53
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
CONTROLLING THE MULTIPLE PRODUCT
Use this method to connect several products to a single PC. You can control several products at one
time by connecting them to a single PC.
In the Option menu, Set ID must be between 1 and 255 (or from 1 to 1,000) without being duplicated.
Connecting the cable
Connect the RS-232C cable as shown in the picture.
The RS-232C protocol is used for communication between the PC and product. You can turn the
product on/off, select an input source or adjust the OSD menu from your PC.
Monitor Set 1 Monitor Set 2 Monitor Set 3 Monitor Set 4
PC
RS-232C Cable
Communication Parameter
Baud Rate : 9600 BPS
Data Length : 8 bit
Parity Bit : None
Stop Bit : 1 bit
Flow Control : None
Communication Code : ASCII code
Use a crossed (reverse) cable
When using 3-wire connections (non-
standard), an IR daisy chain cannot be used.
NOTE
RS-232C Configurations
8-Wire Configurations (Cross-over RS-232C cable)
PC Set
D-Sub 9 D-Sub 9
(Female) (Female)
DCD
RXD
TXD
GND
DTR
DSR
RTS
CTS
DCD
TXD
RXD
GND
DSR
DTR
CTS
RTS
1
2
3
5
4
6
7
8
1
3
2
5
6
4
8
7
54
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
Command Reference List
COMMAND
DATA
(Hexadecimal)
1 2
01 Power k a 00 to 01
02 Select input x b See [Select input]
03 Aspect ratio k c See [Aspect ratio]
04 Energy saving j q See [Energy saving]
05 Picture mode d x See [Picture mode]
06 Contrast k g 00 to 64
07 Brightness k h 00 to 64
08 Sharpness k k 00 to 32
09 Color k i 00 to 64
10 Tint k j 00 to 64
11 Color temperature x u 00 to 64
12 H position f q 00 to 64
13 V position f r 00 to 64
14 H size f s 00 to 64
15 Auto Config. j u 01
16 Balance k t 00 to 64
17 Sound Mode d y See [Sound mode]
18 Mute k e 00 to 01
19 Volume k f 00 to 64
20 Clock 1 (year/month/day) f a See [Clock 1]
21 Clock 2 (hour/minute/second) f x See [Clock 2]
22 Off time schedule f c 00 to 01
23 On time schedule f b 00 to 01
24 Off timer (repeat mode/time) f e See [Off timer]
25 On timer (repeat mode/time) f d See [On timer]
26 On timer input f u See [On timer input]
27 Automatic Standby m n 00 to 01
28 Auto off f g 00 to 01
29 Language f i See [Language]
30 ISM method j p See [ISM method]
31 Reset f k 00 to 02
32 Current temperature d n FF
33 Key m c See [Key]
34 Time elapsed d l FF
35 Product serial number f y FF
36 Software version f z FF
37 White balance red gain j m 00 to FE
38 White balance green gain j n 00 to FE
39 White balance blue gain j o 00 to FE
40 Backlight m g 00 to 64
41 Screen off k d 00 to 01
55
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
During USB operations such as Dvix or EMF, all commands except Power (k a) and Key (m c) are not
executed and treated as NG.
Some commands are not supported depending on the model.
The f f command which shows the status of a certain command does not display the OSD as the
result in order to be compatible with SuperSign program.
NOTE
COMMAND
DATA
(Hexadecimal)
1 2
42 Power On Delay f h 00 to 64
43 Tile Mode d d 00 to 01
44 Tile Mode Check d z FF
45 Tile ID d i Refer to ‘Tile ID'.
46 Tile H Position d e 00 to 32
47 Tile V Position d f 00 to 32
48 Tile H Size d g 00 to 32
49 Tile V Size d h 00 to 32
50 Natural Mode (In Tile mode) d j 00 to 01
56
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
Transmission / Receiving Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
* [Command1]: First command to control the set.
* [Command2]: Second command to control the set.
* [Set ID]: Used for selecting a set you want to control. A Set ID can be assigned to each set from 1 to 255 (from
01H to FFH), or from 1 to 1,000 (from 001H to 3e8H) in certain models, under OPTION in the OSD
menu. Selecting '00H' or '000H' for Set ID allows the simultaneous control of all connected monitors. (It
may not be supported depending on the model.)
* [Data]: Transmits command data.
Data count may increase depending on the command.
* [Cr]: Carriage Return. ASCII code ‘0x0D’.
* [ ]: White Space. Corresponds to '0x20' in ASCII code.
Acknowledgement
[Command2][ ][Set ID][ ][OK/NG][Data][x]
* When the product receives data normally, it sends an acknowledgement (ACK) in the format above. If data is
in read mode, it indicates the data that shows the current status. If data is in read mode, it simply indicates the
data that is sent from the PC.
* If a command is sent with Set ID '00' (=0x00) or '000 (=0x000)', the data is reflected to all monitor sets and they
do send any acknowledgement (ACK).
* If the data value 'FF' is sent in control mode via RS-232C, the current setting value of a function can be
checked (only for some functions).
* Some commands are not supported depending on the model.
57
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
01. Power (Command: k a)
Controls the power on/off of the set.
Transmission
[k][a][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data][x]
* Only when the monitor is fully powered on, the
acknowledgement signal is returned properly.
* There may be a delay between the transmission
and acknowledgement signals.
02. Select input (Command: x b)
Selects an input signal.
Transmission
[x][b][ ][Set ID][ ][Data][Cr]
Data 60: RGB
90: HDMI (HDMI1) (DTV)
A0: HDMI (HDMI1) (PC)
Acknowledgement
[b][ ][Set ID][ ][OK/NG][Data][x]
* Some input signals may not be supported on some
models.
03. Aspect ratio (Command: k c)
Adjusts the aspect ratio.
Transmission
[k][c][ ][Set ID][ ][Data][Cr]
Data 01: 4:3
02: 16:9
04: Zoom (HDMI)(DTV)
06: Auto ratio (HDMI)(DTV)
09: Original (≥ 720p) (HDMI) (DTV)
10 to 1F: Cinema zoom 1 to 16 (HDMI) (DTV)
* Available data types differ depending on the input signal.
For more information, see the aspect ratio section of the
owner's manual.
* The aspect ratio may differ depending on the model's
input configuration.
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
04. Energy saving (Command: j q)
Sets the energy saving function.
Transmission
[j][q][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: Minimum
02: Medium
03: Maximum
04: Automatic
05: Screen off
Acknowledgement
[q][ ][Set ID][ ][OK/NG][Data][x]
** This may not be supported on some models.
05. Picture mode (Command: d x)
Selects a picture mode.
Transmission
[d][x][ ][Set ID][ ][Data][Cr]
Data 00: Vivid
01: Standard
02: Cinema
03: Sport
04: Game
05: Expert 1
06: Expert 2
08: APS
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data][x]
06. Contrast (Command: k g)
Adjusts the screen contrast.
Transmission
[k][g][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Contrast 0 to 100
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
58
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
07. Brightness (Command: k h)
Adjusts the screen brightness.
Transmission
[k][h][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Brightness 0 to 100
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
08. Sharpness (Command: k k)
Adjusts the screen sharpness.
Transmission
[k][k][ ][Set ID][ ][Data][Cr]
Data 00 to 32: Sharpness 0 to 50
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
09. Color (Command: k i)
Adjusts the screen color.
Transmission
[k][i][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Color 0 to 100
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
10. Tint (Command: k j)
Adjusts the screen tint.
Transmission
[k][j][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Tint red 50 to green 50
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
11. Color temperature (Command: x u)
Adjusts the screen color temperature.
Transmission
[x][u][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Warm 50 to cool 50
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
12. H position (Command: f q)
Adjusts the horizontal position of the screen.
This function is only available when the Tile Mode is
set to Off.
* The operational range varies depending on the
RGB input resolution.
(Only available in RGB-PC input mode)
Transmission
[f][q][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Min -50 (left) to max 50 (right)
Acknowledgement
[q][ ][Set ID][ ][OK/NG][Data][x]
59
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
13. V position (Command: f r)
Adjusts the vertical position of the screen.
This function is only available when the Tile Mode is
set to Off.
* The operational range varies depending on the
RGB input resolution.
(Only available in RGB-PC input mode)
Transmission
[f][r][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Min -50 (down) to max 50 (up)
Acknowledgement
[r][ ][Set ID][ ][OK/NG][Data][x]
14. H size (Command: f s)
Adjusts the horizontal size of the screen.
This function is only available when the Tile Mode is
set to Off.
* The operational range varies depending on the
RGB input resolution.
(Only available in RGB-PC input mode)
Transmission
[f][s][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Min -50 (small) to max 50 (large)
Acknowledgement
[s][ ][Set ID][ ][OK/NG][Data][x]
15. Auto Config. (Command: j u)
Automatically corrects position and shaking of the
picture.
(Only available in RGB-PC input mode)
Transmission
[j][u][ ][Set ID][ ][Data][Cr]
Data 01: Execution
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
16. Balance (Command: k t)
Adjusts the sound balance.
Transmission
[k][t][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Left 50 to right 50
Acknowledgement
[t][ ][Set ID][ ][OK/NG][Data][x]
** This may not be supported on some models.
17. Sound mode (Command: d y)
Selects a sound mode.
Transmission
[d][y][ ][Set ID][ ][Data][Cr]
Data 01: Standard
02: Music
03: Cinema
04: Sport
05. Game
07. News
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
** This may not be supported on some models.
18. Mute (Command: k e)
Mutes/unmutes the sound.
Transmission
[k][e][ ][Set ID][ ][Data][Cr]
Data 00: Mute
01: Unmute
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data][x]
** This may not be supported on some models.
60
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
19. Volume (Command: k f)
Adjusts the playback volume.
Transmission
[k][f][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Volume 0 to 100
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
** This may not be supported on some models.
20. Clock 1 (year/month/day) (Command: f a)
Adjusts the Clock 1 (year/month/day) value.
Transmission
[f][a][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1 00 to 1E: Year 2010 to 2040
Data2 01 to 0C: January to December
Data3 01 to 1F: 1st to 31st
* Enter "fa [Set ID] ff" to view the Clock 1 (year/
month/day) settings.
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
21. Clock 2 (hour/minute/second) (Command: f x)
Adjusts the Clock 2 (hour/minute/second) value.
Transmission
[f][x][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1 00 to 17: 00 to 23 hours
Data2 00 to 3B: 00 to 59 minutes
Data3 00 to 3B: 00 to 59 seconds
* Enter "fa [Set ID] ff" to view the Clock 2 (hour/min-
ute/second) settings.
** This function is only available when Clock 1 (year/
month/day) is set.
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
22. Off time schedule (Command: f c)
Enables/disables the on time schedule.
Transmission
[f][c][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
23. On time schedule (Command: f b)
Enables/disables the on time schedule.
Transmission
[f][b][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[b][ ][Set ID][ ][OK/NG][Data][x]
61
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
24. Off timer (repeat mode/time) (Command: f e)
Configures the off time (repeat mode/time) settings.
Transmission
[f][e][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
1. F1 to F7 (reading data)
F1: Read the 1st off timer data
F2: Read the 2nd off timer data
F3: Read the 3rd off timer data
F4: Read the 4th off timer data
F5: Read the 5th off timer data
F6: Read the 6th off timer data
F7: Read the 7th off timer data
2. E1 to E7 (deleting one index), E0 (deleting all
indexes)
E0: Erase all off timer setting
E1: Erase the 1st off timer setting
E2: Erase the 2nd off timer setting
E3: Erase the 3rd off timer setting
E4: Erase the 4th off timer setting
E5: Erase the 5th off timer setting
E6: Erase the 6th off timer setting
E7: Erase the 7th off timer setting
3. 01 to 0C (setting the day of the week for off timer)
01: Once
02. Daily
03: Mon - Fri
04: Mon - Sat
05: Sat - Sun
06. Every Sunday
07. Every Monday
08. Every Tuesday
09. Every Wednesday
0A. Every Thursday
0B. Every Friday
0C. Every Saturday
Data2 00 to 17: 00 to 23 hours
Data3 00 to 3B: 00 to 59 minutes
* To read or delete the Off Time list, set FFH for
[Data2] and [Data3].
Example 1: fe 01 f1 ff ff - Read the 1st index data
from off timer.
Example 2: fe 01 e1 ff ff - Delete the 1st index data
from off timer.
Example 3: fe 01 04 02 03 - Sets Off Timer to 02:03
for Monday-Saturday.
* This function is only available when Clock 1 (year/
month/day) and Clock 2 (hour/minute/second) are
set.
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
25. On timer (repeat mode/time) (Command: f d)
Configures the on time (repeat mode/time) settings.
Transmission
[f][d][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1
1. F1 to F7 (reading data)
F1: Read the 1st on timer data
F2: Read the 2nd on timer data
F3: Read the 3rd on timer data
F4: Read the 4th on timer data
F5: Read the 5th on timer data
F6: Read the 6th on timer data
F7: Read the 7th on timer data
2. E1 to E7 (deleting one index), E0 (deleting all
indexes)
E0: Erase all on timer setting
E1: Erase the 1st on timer setting
E2: Erase the 2nd on timer setting
E3: Erase the 3rd on timer setting
E4: Erase the 4th on timer setting
E5: Erase the 5th on timer setting
E6: Erase the 6th on timer setting
E7: Erase the 7th on timer setting
3. 01 to 0C (setting the day of the week for the on
timer)
01: Once
02. Daily
03: Mon - Fri
04: Mon - Sat
05: Sat - Sun
06. Every Sunday
07. Every Monday
08. Every Tuesday
09. Every Wednesday
0A. Every Thursday
0B. Every Friday
0C. Every Saturday
Data2 00 to 17: 00 to 23 hours
Data3 00 to 3B: 00 to 59 minutes
* To read or delete an on timer list you have set,
[Data2][Data3] must be set to FFH.
Example 1: fd 01 f1 ff ff - Read the 1st index data
from on timer.
Example 2: fd 01 e1 ff ff - Delete the 1st index data
from on timer.
Example 3: fd 01 04 02 03 - Set on timer at 02:03 on
Monday to Saturday.
* This function is only available when Clock 1 (year/
month/day) and Clock 2 (hour/minute/second) are
set.
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
62
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
26. On timer input (Command: f u)
Adds a new schedule entry by selecting input for the
current on timer setting.
Transmission
[f][u][ ][Set ID][ ][Data1][Cr]
[f][u][ ][Set ID][ ][Data1][Data2][Cr]
Data (adding schedule)
60: RGB
90: HDMI (HDMI1)
Data1
1. f1h to f7h (reading data)
F1: Select the 1st schedule input source
F2: Select the 2nd schedule input source
F3: Select the 3rd schedule input source
F4: Select the 4th schedule input source
F5: Select the 5th schedule input source
F6: Select the 6th schedule input source
F7: Select the 7th schedule input source
Data2
1. ffh (reading data)
To read the schedule input, enter FFH for [Data2].
If no schedule is available for [Data1] when attempt-
ing to read or change the schedule data, the text NG
will be displayed and the operation will fail.
(Example 1: fu 01 60 - Move existing schedule
entries down one row each and save RGB as input
source for the 1st schedule entry.)
(Example 2: fu 01 f1 ff - Read the 1st schedule input
data.)
* This function is only supported when 1 (year/month/
date), 2 (hour/minute/second) and On Time (repeat
mode/time) are set.
** Input may not be supported on some models.
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
[u][ ][Set ID][ ][OK/NG][Data1][Data2][x]
** This may not be supported on some models.
27. Automatic standby (Command: m n)
Configures the automatic standby settings.
Transmission
[m][n][ ][Set ID][ ][Data][Cr]
Data 00: Off (Will not turn off after 4/6/8 hours)
01: 4 hours (Off after 4 hours)
02: 6 hours (Off after 6 hours)
03: 8 hours (Off after 8 hours)
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
28. Auto off (Command: f g)
Configures the automatic off settings.
Transmission
[f][g][ ][Set ID][ ][Data][Cr]
Data 00: Off (Will not turn off after 15 minutes)
01: On (Off after 15 minutes)
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
29. Language (Command: f i)
Sets the OSD language.
Transmission
[f][i][ ][Set ID][ ][Data][Cr]
Data 00: Czech
01: Danish
02: German
03: English
04: Spanish (Europe)
05: Greek
06: French
07: Italian
08: Dutch
09: Norwegian
0A: Portuguese
0B: Portuguese (Brazil)
0C: Russian
0D: Finnish
0E: Swedish
0F: Korean
10: Chinese (Cantonese)
11: Chinese (Mandarin)
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
30. ISM method (Command: j p)
Selects an ISM Method option.
Transmission
[j][p][ ][Set ID][ ][Data][Cr]
Data 08: Standard
20: Color wash
Acknowledgement
[p][ ][Set ID][ ][OK/NG][Data][x]
63
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
31. Reset (Command: f k)
Resets settings for Picture, Screen and Audio or
restores factory settings.
(Screen reset can only be performed in RGB input
mode.)
Transmission
[f][k][ ][Set ID][ ][Data][Cr]
Data 00: Picture reset
01: Screen reset
02: Initial settings (factory reset)
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
32. Current temperature (Command: d n)
Checks the inside temperature value.
Transmission
[d][n][ ][Set ID][ ][Data][Cr]
Data FF: Check status
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
[n][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
* Temperature is displayed as a hexadecimal value.
33. Key (Command: m c)
Sends a key code for the IR remote control.
Transmission
[m][c][ ][Set ID][ ][Data][Cr]
Data IR_KEY_CODE
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
For key codes, see IR Codes.
* Some key codes may not be supported on some
models.
34. Time elapsed (Command: d l)
Checks the elapsed time.
Transmission
[d][l][ ][Set ID][ ][Data][Cr]
Data FF: Read status
Acknowledgement
[l][ ][Set ID][ ][OK/NG][Data][x]
* The data received is shown as a hexadecimal
value.
35. Product serial number (Command: f y)
Checks the serial number of the product.
Transmission
[f][y][ ][Set ID][ ][Data][Cr]
Data FF: Check product serial number
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
* Data is in ASCII code.
36. Software version (Command: f z)
Checks the software version of the product.
Transmission
[f][z][ ][Set ID][ ][Data][Cr]
Data FF: Check software version
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data][x]
64
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
42. Power On Delay (Command: f h)
To set the schedule delay when the power is turned
on. (Unit: Second)
Transmission
[f][h][ ][Set ID][ ][Data][Cr]
Data 00 to 64: min. 0 to max. 100 (sec.)
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
37. White balance red gain (Command: j m)
Adjusts the white balance red gain value.
Transmission
[j][m][ ][Set ID][ ][Data][Cr]
Data 00 to FE: Red gain 0 to 254
Acknowledgement
[m][ ][Set ID][ ][OK/NG][Data][x]
38. White balance green gain (Command: j n)
Adjusts the white balance green gain value.
Transmission
[j][n][ ][Set ID][ ][Data][Cr]
Data 00 to FE: Green gain 0 to 254
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
39. White balance blue gain (Command: j o)
Adjusts the white balance blue gain value.
Transmission
[j][o][ ][Set ID][ ][Data][Cr]
Data 00 to FE: Blue gain 0 to 254
Acknowledgement
[o][ ][Set ID][ ][OK/NG][Data][x]
40. Backlight (Command: m g)
Adjusts the back light brightness.
Transmission
[m][g][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Back light brightness 0 to 100
Acknowledgement
[g][][set ID][][OK/NG][Data][x]
** This may not be supported on some models.
41. Screen off (Command: k d)
Turns the screen on or off.
Transmission
[k][d][ ][Set ID][ ][Data][Cr]
Data 00: Turns the screen on
01: Turns the screen off
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data][x]
65
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
43. Tile Mode (Command: d d)
To set a Tile Mode and Tile Column/
Row values.
Transmission
[d][d][ ][Set ID][ ][Data][Cr]
Data 00 to FF: 1st byte - Tile Row
2nd byte - Tile
Column
*00, 01, 10, 11 means Tile Mode Off
** It may not be supported depending
on the model.
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data][x]
44. Tile Mode Check (Command: d z)
To check Tile Mode status.
Transmission
[d][z][ ][Set ID][ ][Data][Cr]
Data FF: Check Tile Mode status.
** It may not be supported depending on the model.
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
Data1 00: Tile Mode Off
01: Tile Mode On
Data2 00 to 0F: Tile Row
Data3 00 to 0F: Tile Column
45. Tile ID (Command: d i)
To set Tile ID.
Transmission
[d][i][ ][Set ID][ ][Data][Cr]
Data 01 to E1: Tile ID 01 to 225**
FF: Check Tile ID
** Data could not be set over (Tile Column) x (Tile
Row).
** It may not be supported depending on the model.
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
*NG will be return if data is over (Tile Column) x (Tile
Row), except 0xFF.
46. Tile H Position (Command: d e)
To adjust the Tile Horizontal position.
* This function is available only when the Natural
option of the Tile Mode is set to Off while the Tile
Mode set to On.
Transmission
[d][e][ ][Set ID][ ][Data][Cr]
Data 00 to 32: -50 (Left) to 0 (Right)
*Left/Right values depend on Tile H size.
** It may not be supported depending on the model.
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data][x]
47. Tile V Position (Command: d f)
To adjust the Tile Vertical position.
* This function is available only when the Natural
option of the Tile Mode is set to Off while the Tile
Mode set to On.
Transmission
[d][f][ ][Set ID][ ][Data][Cr]
Data 0 to 32: 0 (Bottom) to 50 (Top)
* Bottom/Top values depend on Tile Vertical size.
** It may not be supported depending on the model.
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
48. Tile H Size (Command: d g)
To adjust the Tile Horizontal Size.
*Set Tile H Position to 0x32 before setting Tile H
Size.
* This function is available only when the Natural
option of the Tile Mode is set to Off while the Tile
Mode set to On.
Transmission
[d][g][ ][Set ID][ ][Data][Cr]
Data 00 to 32: 0 to 50
** It may not be supported depending on the model.
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
66
ENG
ENGLISH
CONTROLLING THE MULTIPLE PRODUCT
49. Tile V Size (Command: d h)
To adjust the Tile Vertical size.
*Set Tile V Position to 0x00 before setting Tile V
Size.
* This function is available only when the Natural
option of the Tile Mode is set to Off while the Tile
Mode set to On.
Transmission
[d][h][ ][Set ID][ ][Data][Cr]
Data 00 to 32: 0 to 50
** It may not be supported depending on the model.
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
50. Natural Mode (In Tile Mode) (Command : d j)
To display the image naturally, the part of the image
that would normally be displayed in the gap between
the monitors is omitted.
Transmission
[d][j][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
Make sure to read the Safety Precautions
before using the product.
Keep the Owner's Manual (CD) in an
accessible place for future reference.
The model and serial numbers of the SET are
located on the back and one side of the SET.
Record it below should you ever need service.
MODEL
SERIAL
Temporary noise is normal when powering ON or
OFF this device.
To obtain the source code under GPL, LGPL,
MPL, and other open source licenses, that is
contained in this product, please visit
http://opensource.lge.com.
In addition to the source code, all referred
license terms, warranty disclaimers and
copyright notices are available for download.
LG Electronics will also provide open source
code to you on CD-ROM for a charge covering
the cost of performing such distribution (such
as the cost of media, shipping, and handling)
upon email request to opensource@lge.com.
This offer is valid for three (3) years from the
date on which you purchased the product.
WARNING -This is a class A product. In a
domestic environment this product may cause
radio interference in which case the user may be
required to take adequate measures. ENERGY STAR® is a set of power-saving
guidelines issued by the U.S.Environmental
Protection Agency (EPA).
As an ENERGY STAR® Partner LGE
U. S. A., Inc. has determined that
this product meets the ENERGY
STAR® guidelines for energy efficiency.
Refer to ENERGYSTAR.gov for more
information on the ENERGY STAR® program.
