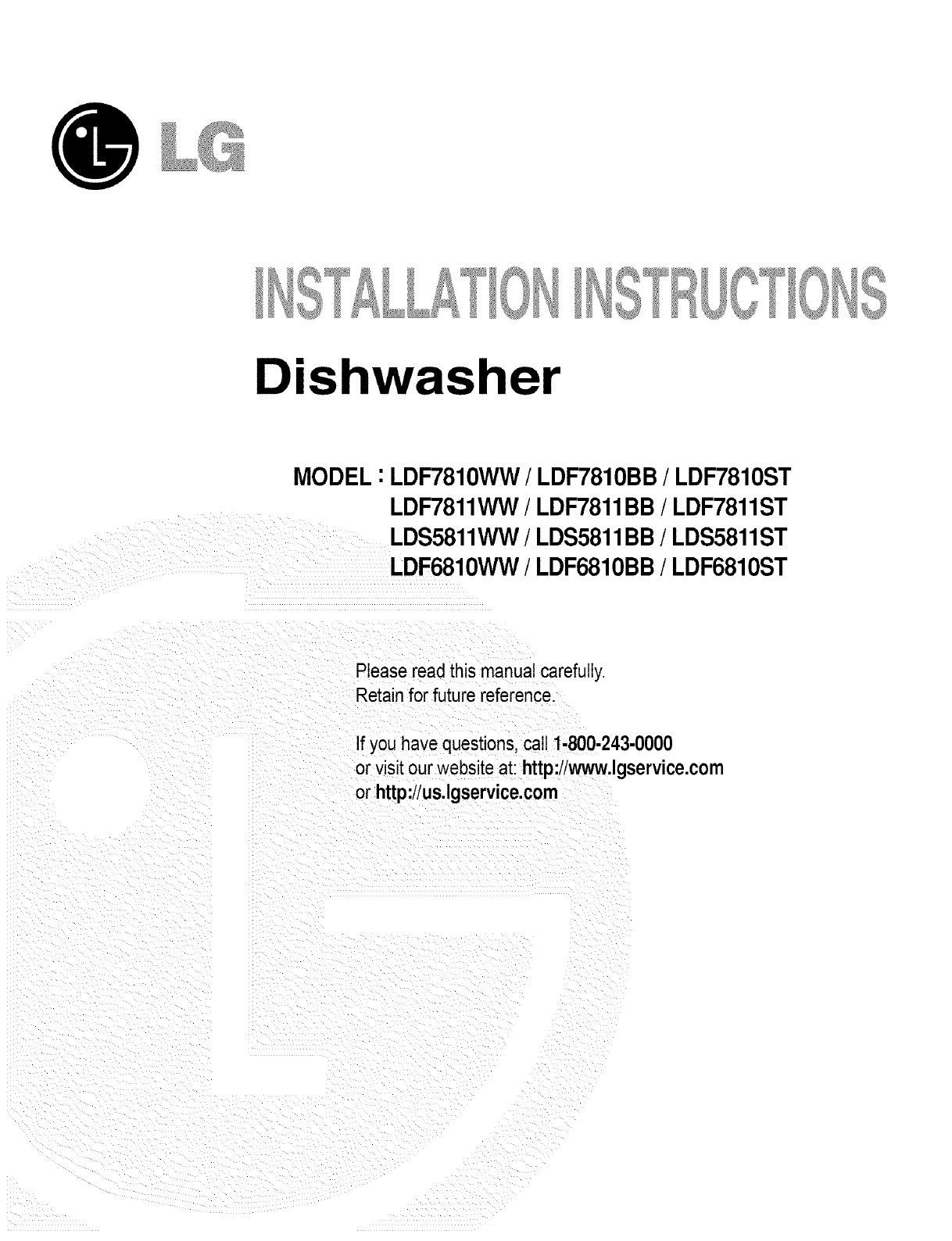

Dishwasher
MODEL : LDF7810WW/LDF7810BB/LDF7810ST
LDF7811WW/LDF7811BB /LDF7811ST
LDS5811WW/LDS5811BB/LDS5811ST
LDF6810WW/LDF6810BB /LDF6810ST
Please read this manual carefully.
Retain for future reference.
If you have questions, call 1-800-243-0000
or visit our website at: http://www.lgservice.com
or http://us.lgservice.com

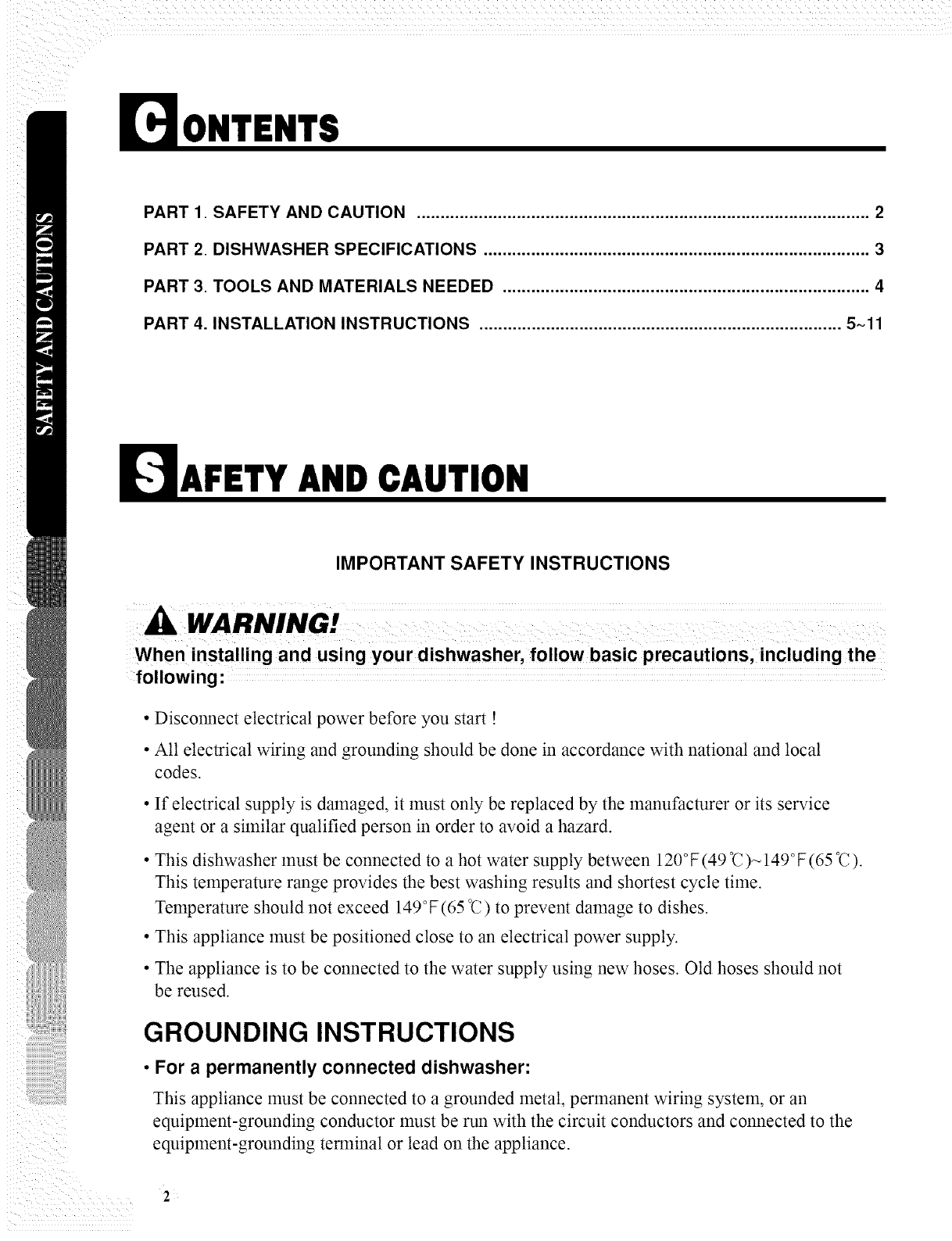

PART 1. SAFETY AND CAUTION ............................................................................................... 2
PART 2. DISHWASHER SPECIFICATIONS ................................................................................. 3
PART 3. TOOLS AND MATERIALS NEEDED ............................................................................. 4
PART 4. INSTALLATION INSTRUCTIONS ............................................................................ 5~11
IMPORTANT SAFETY INSTRUCTIONS
When installing and using your dishwasher, follow basic precautions, including the
following:
•Disconnect electrical power before you start !
• All electrical wiring and grounding should be done in accordance with national and local
codes.
• If electrical supply is damaged, it must only be replaced by the manufacturer or its service
agent or a similar qualified person in order to avoid a hazard.
• This dishwasher must be connected to a hot water supply between 120°F (49 °C)-149°F (65 °C).
This temperature range provides the best washing results and shortest cycle time.
Temperature should not exceed 149°F (65 °C) to prevent damage to dishes.
• This appliance must be positioned close to an electrical power supply.
• The appliance is to be connected to the water supply using new hoses. Old hoses should not
be reused.
GROUNDING INSTRUCTIONS
•For a permanently connected dishwasher:
This appliance must be connected to a grounded metal, permanent wiring system, or an
equipment-grounding conductor must be run with the circuit conductors and connected to the
equipment-grounding terminal or lead on the appliance.
2

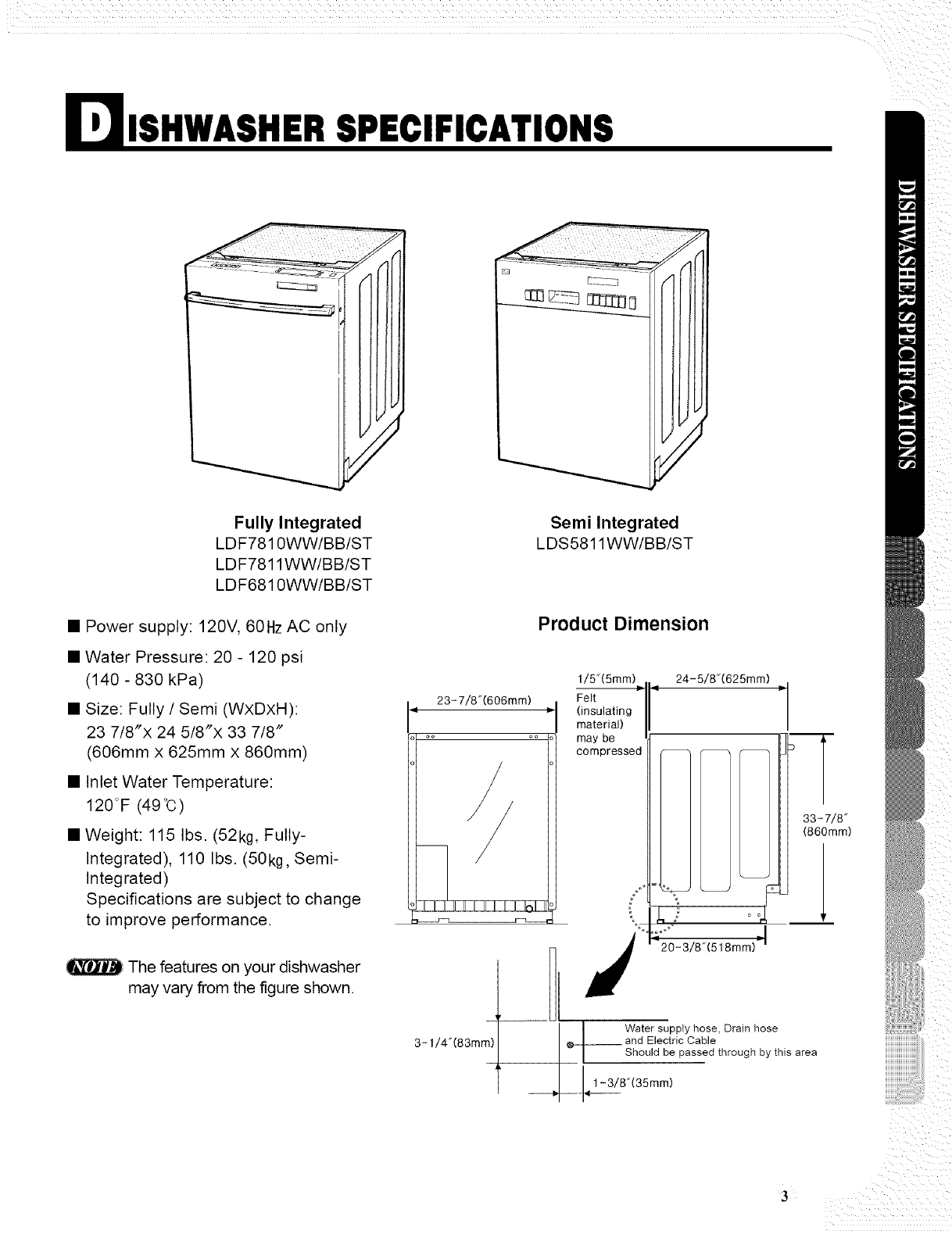

Fully Integrated
LDF7810WW/BB/ST
LDF7811WW/BB/ST
LDF6810WW/BB/ST
• Power supply: 120V, 60Hz AC only
• Water Pressure: 20 - 120 psi
(140 - 830 kPa)
• Size: Fully /Semi (WxDxH):
23 7/8"x 24 5/8"x 33 7/8"
(606mm x 625mm x 860mm)
• Inlet Water Temperature:
120°F (49°C)
• Weight: 115 Ibs. (52kg, Fully-
Integrated), 110 Ibs. (50kg, Semi-
Integrated)
Specifications are subject to change
to improve performance.
The features on your dishwasher
may vary from the figure shown.
Semi Integrated
LDS5811WW/BB/ST
Product Dimension
1/5"(5mm)
Felt
(insulating
material)
may be
compressed
24-5/8"(625mm)
=20-3/8"(518mm) =
, 1
3-1/4"(83mm)
Water supply hose, Drain hose
and Electric Cable
==
33-7/8"
(860mm)
Should be passed through by this area
1-3/8"(35mm)
ii i ii ii ii ii ii ii ii
ii i i
_ _ _, _ _ [i¸__i_i...._
[Seepage8 lor inslallalion delaill

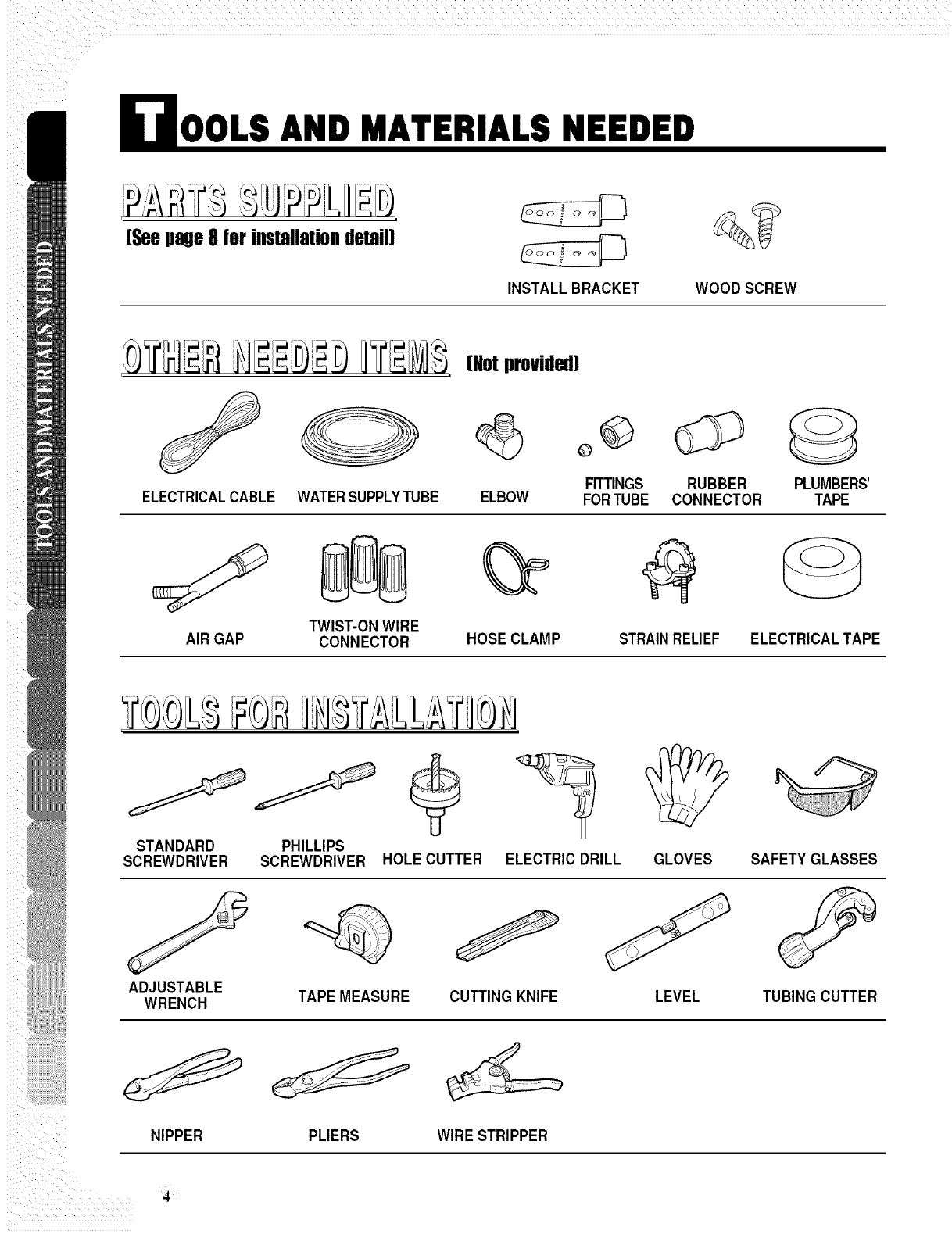

INSTALL BRACKET WOOD SCREW
ELECTRICALCABLE
(Notprovided]
0 o©
FITTINGS
WATERSUPPLYTUBE ELBOW FORTUBE RUBBER
CONNECTOR PLUMBERS'
TAPE
TWIST-ON WIRE
AIR GAP CONNECTOR HOSE CLAMP STRAINRELIEF ELECTRICAL TAPE
yY
STANDARD PHILLIPS
SCREWDRIVER SCREWDRIVER HOLE CUTTER ELECTRIC DRILL GLOVES
ADJUSTABLE
WRENCH TAPE MEASURE CUTTING KNIFE LEVEL
SAFETY GLASSES
TUBING CUTTER
NIPPER PLIERS WIRE STRIPPER
4

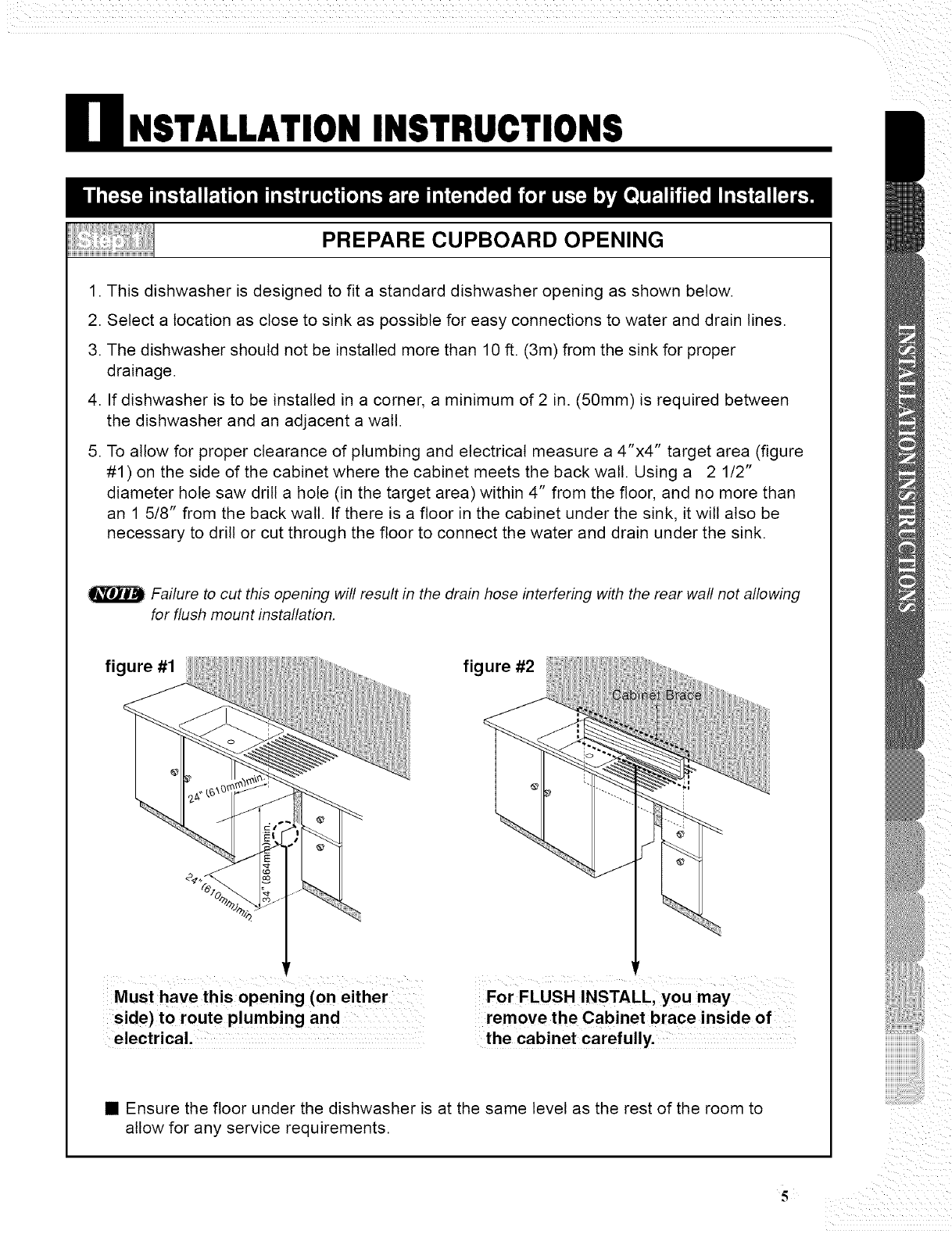

PREPARE CUPBOARD OPENING
.
2.
3.
.
.
This dishwasher is designed to fit a standard dishwasher opening as shown below.
Select a location as close to sink as possible for easy connections to water and drain lines.
The dishwasher should not be installed more than 10 ft. (3m) from the sink for proper
drainage.
If dishwasher is to be installed in a corner, a minimum of 2 in. (50mm) is required between
the dishwasher and an adjacent a wall.
To allow for proper clearance of plumbing and electrical measure a 4"x4" target area (figure
#1 ) on the side of the cabinet where the cabinet meets the back wall. Using a 2 1/2"
diameter hole saw drill a hole (in the target area) within 4" from the floor, and no more than
an 1 5/8" from the back wall. If there is a floor in the cabinet under the sink, it will also be
necessary to drill or cut through the floor to connect the water and drain under the sink.
Failure to cut this opening will result in the drain hose interfering with the rear wall not allowing
for flush mount installation.
figure #1 figure #2
I
Must have this opening (on either
side) to route plumbing and
electrical.
For FLUSH INSTALL, you may
remove the Cabinet brace inside of
• Ensure the floor under the dishwasher is at the same level as the rest of the room to
allow for any service requirements,
ii i ii ii ii ii ii ii ii
i i
ii i ii

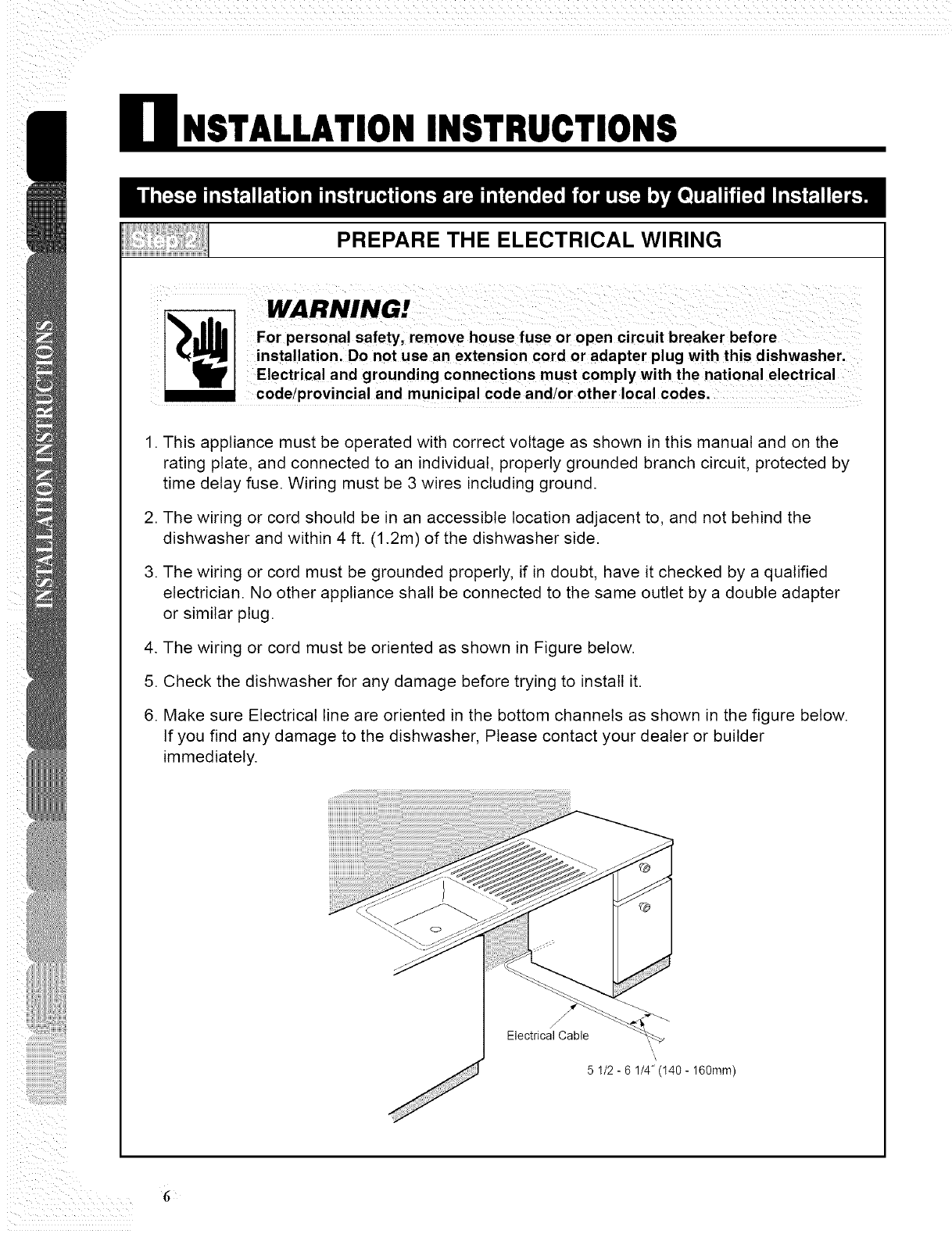

PRE PARE T HE E LECT RIC AL W IRIN G
WARNINGS
For personal safety; remove house fuse or open circuit breaker before
insta!lation. Do not usean extension cord or adapter plug with this dishwasher,
Electrical and grounding connections must comply with the national electrical
code/provincial and municipal code and!or other local codes.
.
.
.
.
5
6
This appliance must be operated with correct voltage as shown in this manual and on the
rating plate, and connected to an individual, properly grounded branch circuit, protected by
time delay fuse. Wiring must be 3 wires including ground.
The wiring or cord should be in an accessible location adjacent to, and not behind the
dishwasher and within 4 ft. (1.2m) of the dishwasher side.
The wiring or cord must be grounded properly, if in doubt, have it checked by a qualified
electrician. No other appliance shall be connected to the same outlet by a double adapter
or similar plug.
The wiring or cord must be oriented as shown in Figure below.
Check the dishwasher for any damage before trying to install it.
Make sure Electrical line are oriented in the bottom channels as shown in the figure below.
If you find any damage to the dishwasher, Please contact your dealer or builder
immediately.
/
/
Electrical Cable
5 1/2- 6 114"(140- 160ram)
6

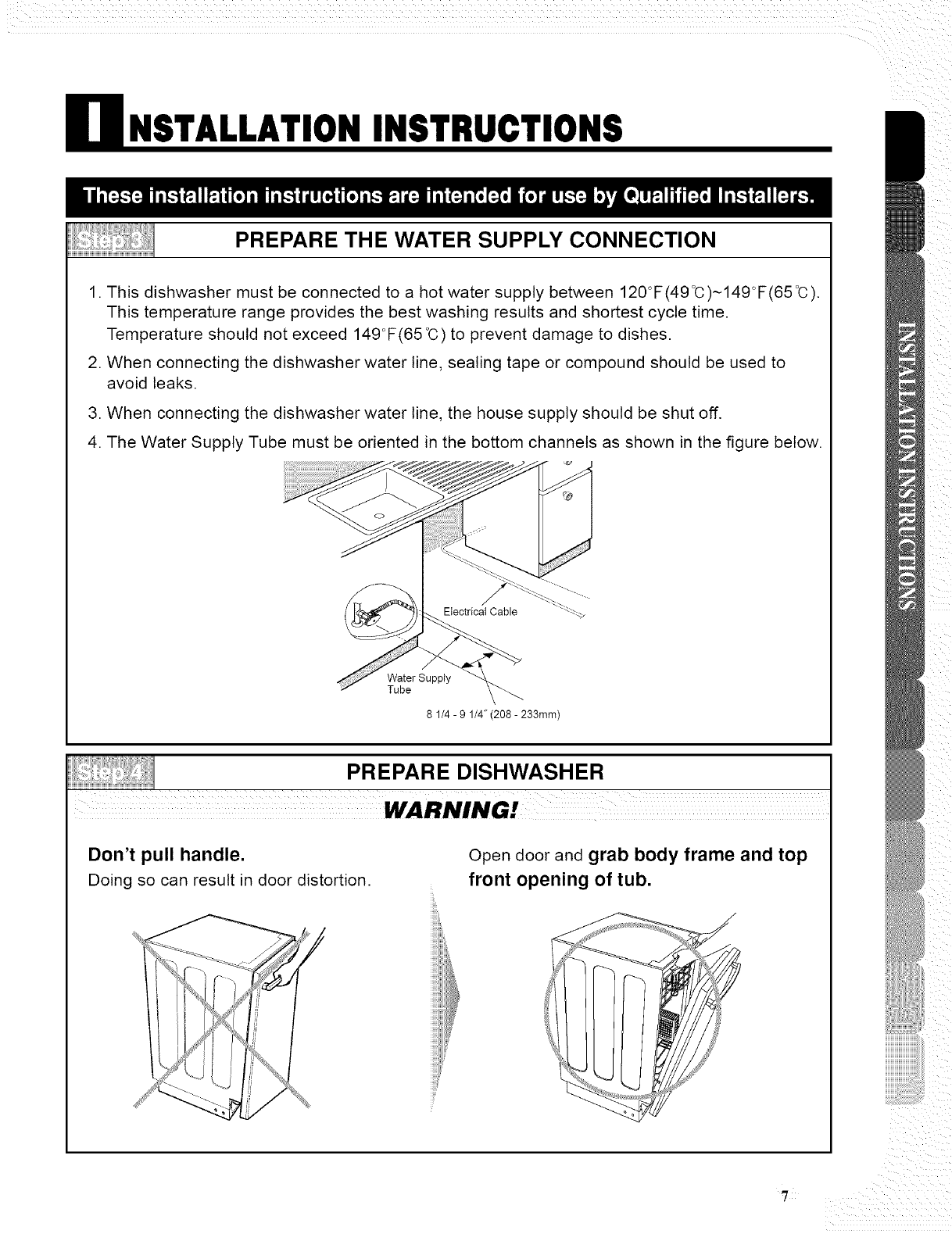

PREPARE THE WATER SUPPLY CONNECTION
1. This dishwasher must be con nected to a hot water supply between 120 °F(49 °C)- 149 °F (65 °C).
This temperature range provides the best washing results and shortest cycle time.
Temperature should not exceed 149°F(65 °C) to prevent damage to dishes.
2. When connecting the dishwasher water line, sealing tape or compound should be used to
avoid leaks.
3. When connecting the dishwasher water line, the house supply should be shut off.
4. The Water Supply Tube must be oriented in the bottom channels as shown in the figure below.
: Electrical Cable
8 1/4 - 9 1/4" (208 - 233mm)
PREPARE DISHWASHER
Don't pull handle.
Doing so can result in door distortion.
Open door and grab body frame and top
front opening of tub.
ii i ii ii ii ii ii ii ii
i i
ii i ii
_xll i

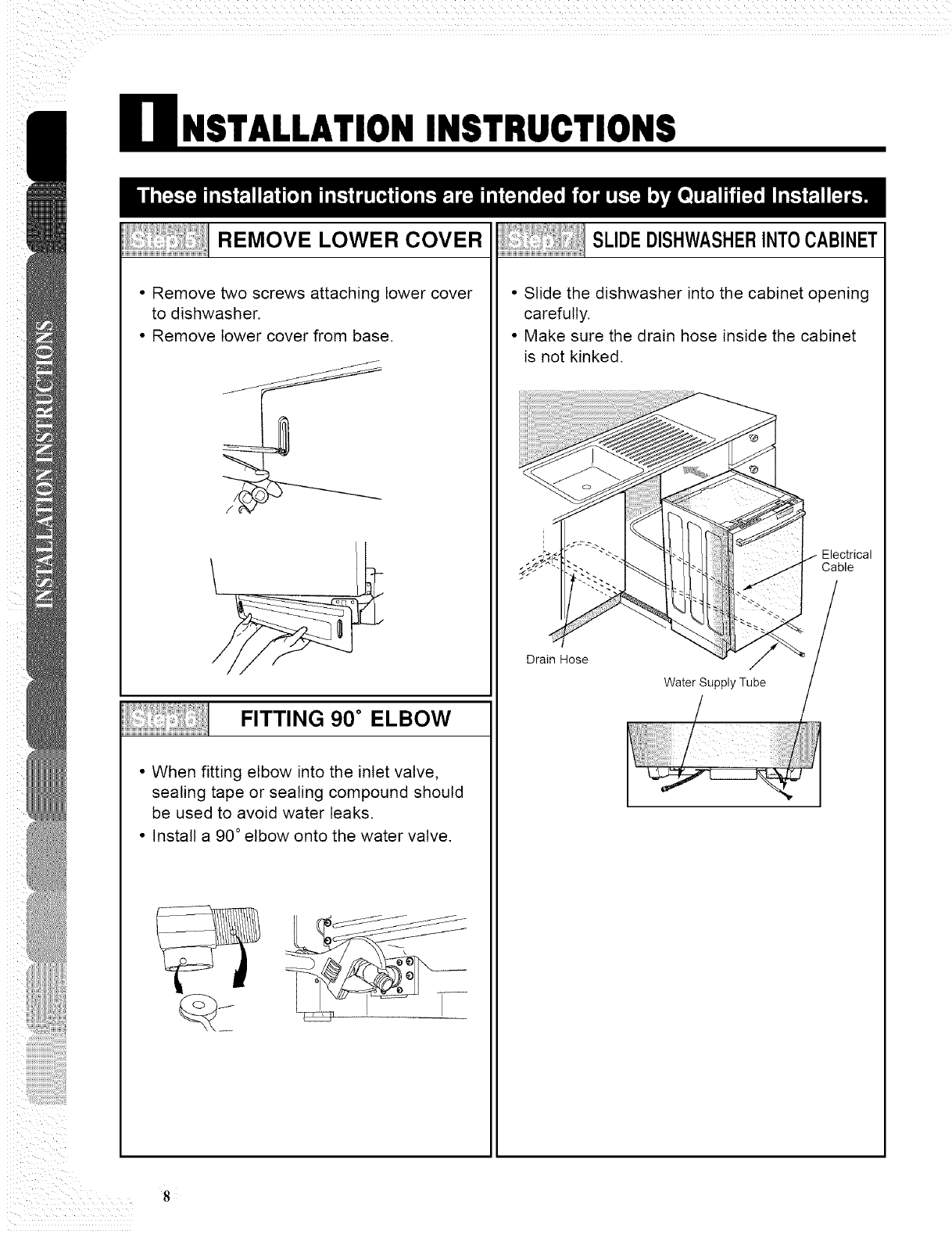

REIVl0 V E L0 W ER C OV E R
•Remove two screws attaching lower cover
to dishwasher.
• Remove lower cover from base.
FITTING 90 ° ELBOW
• When fitting elbow into the inlet valve,
sealing tape or sealing compound should
be used to avoid water leaks.
• Install a 90 ° elbow onto the water valve.
SLIDEDISHWASHERINTOCABINET
• Slide the dishwasher into the cabinet opening
carefully.
• Make sure the drain hose inside the cabinet
is not kinked.
Drain Hose
Electrical
Cable
Water Supply Tube
8

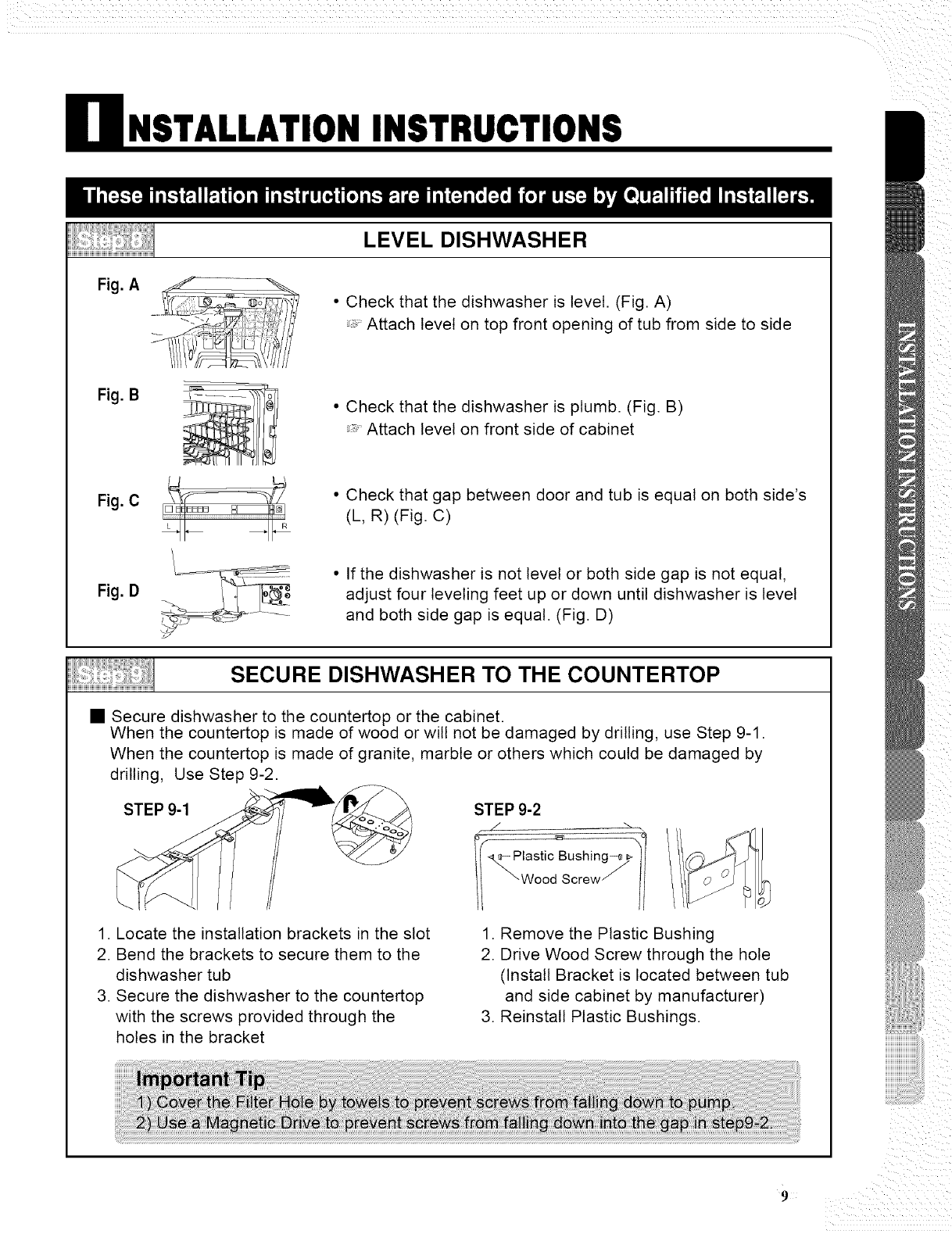

LEVEL DISHWASHER
•Check that the dishwasher is level. (Fig. A)
Attach level on top front opening of tub from side to side
•Check that the dishwasher is plumb. (Fig. B)
Attach level on front side of cabinet
Fig. C
Fig. D
-It
•Check that gap between door and tub is equal on both side's
(L, R) (Fig. C)
• If the dishwasher is not level or both side gap is not equal,
adjust four leveling feet up or down until dishwasher is level
and both side gap is equal. (Fig. D)
SECURE DISHWASHER TO THE COUNTERTOP
• Secure dishwasher to the countertop or the cabinet.
When the countertop is made of wood or will not be damaged by drilling, use Step 9-1.
When the countertop is made of granite, marble or others which could be damaged by
drilling, Use Step 9-2.
STEP 9-1
1. Locate the installation brackets in the slot
2. Bend the brackets to secure them to the
dishwasher tub
3. Secure the dishwasher to the countertop
with the screws provided through the
holes in the bracket
STEP 9-2
1. Remove the Plastic Bushing
2. Drive Wood Screw through the hole
(Install Bracket is located between tub
and side cabinet by manufacturer)
3. Reinstall Plastic Bushings.
9
ii i ii ii ii ii ii ii ii
i i
ii i ii
_xll i

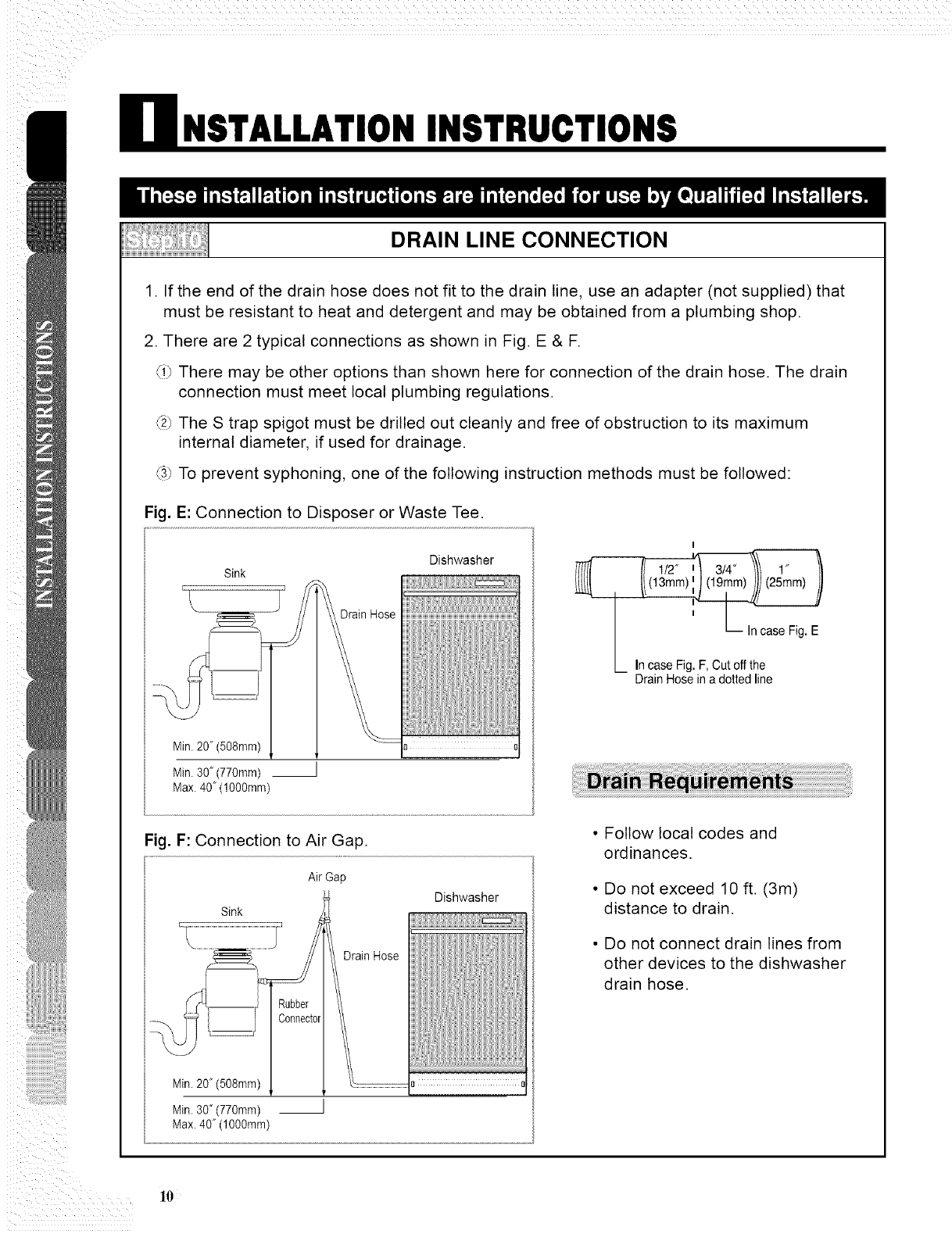

DRAIN LINE CONNECTION
1. If the end of the drain hose does not fit to the drain line, use an adapter (not supplied) that
must be resistant to heat and detergent and may be obtained from a plumbing shop.
2. There are 2 typical connections as shown in Fig. E & F.
(b There may be other options than shown here for connection of the drain hose. The drain
connection must meet local plumbing regulations.
(2) The S trap spigot must be drilled out cleanly and free of obstruction to its maximum
internal diameter, if used for drainage.
(3) To prevent syphoning, one of the following instruction methods must be followed:
Fig. E: Connection to Disposer or Waste Tee.
Sink
Drain Hose
Dishwasher
Min. 20" (508mm)
Min. 30" (770ram) __
Max. 40" (1000mm)
Fig. F: Connection to Air Gap.
Sink
Air Gap
Dishwasher
Drain Hose
I
In case Fig. F, Cut off the
Drain Hose in a dotted line
• Follow local codes and
ordinances.
• Do not exceed 10 ft. (3m)
distance to drain.
• Do not connect drain lines from
other devices to the dishwasher
drain hose.
10

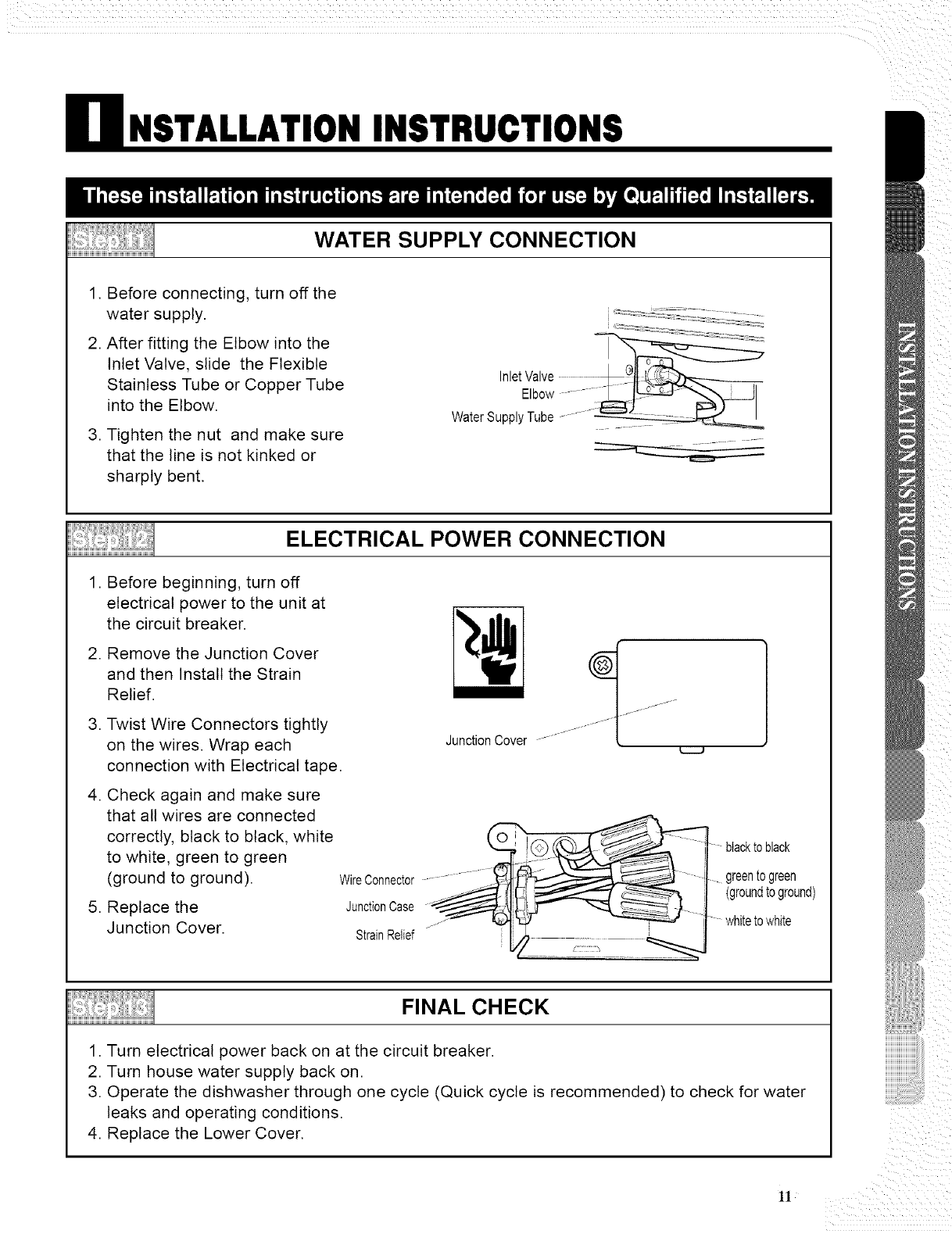

WATER SUPPLY CONNECTION
1. Before connecting, turn off the
water supply.
2. After fitting the Elbow into the
Inlet Valve, slide the Flexible
Stainless Tube or Copper Tube
into the Elbow.
,Tighten the nut and make sure
that the line is not kinked or
sharply bent.
netWve!!!!!Ebow
WaterSupplyTube ...................
ELECTRICAL POWER CONNECTION
,
,
Before beginning, turn off
electrical power to the unit at
the circuit breaker.
Remove the Junction Cover
and then Install the Strain
Relief.
3. Twist Wire Connectors tightly
on the wires. Wrap each
connection with Electrical tape.
4. Check again and make sure
that all wires are connected
correctly, black to black, white
to white, green to green
(ground to ground).
5. Replace the
Junction Cover.
WireConnector
JunctionCase
StrainRelief
I j j
JunctionCover ........-....
- blackto black
_. greento green
(groundto ground)
whiteto white
FINAL CHECK
1. Turn electrical power back on at the circuit breaker.
2. Turn house water supply back on.
3. Operate the dishwasher through one cycle (Quick cycle is recommended) to check for water
leaks and operating conditions.
4. Replace the Lower Cover.
11
ii i ii ii ii ii ii ii ii
LG Electronics Inc.
P/No.: 3828DD3003A
